Panasonic CQDF201U User manual

CQ-DF201U

BAND

APM/SCA

N

VOL

TUNE

TRACK

SEL

SOURCE

REMO

TE

MUTE

•

PWR MONO/LOC

7

1

45W 4 CD RECEIVER

8

2

9

3 bright display with level meters

10

4

11

5

12

6 LOUD

RANDOM

REP

OPEN

LEVEL

CLOCK

DISP

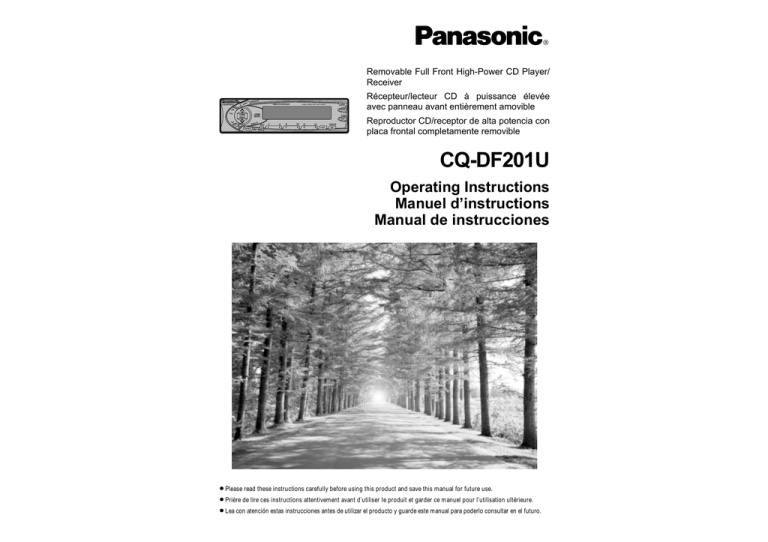

Removable Full Front High-Power CD Player/

Receiver

Récepteur/lecteur CD à puissance élevée avec panneau avant entièrement amovible

Reproductor CD/receptor de alta potencia con placa frontal completamente removible

CQ-DF201U

Operating Instructions

Manuel d’instructions

Manual de instrucciones

≥ Please read these instructions carefully before using this product and save this manual for future use.

≥ Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure.

≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

E

N

G

L

I

S

H

Safety Information

Radio Frequency Interference Statement:

Applies only in U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to

Part 15 of the FCC Rules.

≥

These limits are designed to provide reasonable protection against harmful interference in an automobile installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experience radio technician for help.

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

For Canada:

This Class B digital apparatus complies with Canadian ICES-003.

2

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

CAUTION:

THIS PRODUCT IS A CLASS I LASER PROD-

UCT.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

Laser products:

Wave length: 780 nm

Laser power: No hazardous radiation is emitted with safety protection.

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, AND ANNOYING INTERFERENCE, USE

ONLY THE INCLUDED COMPONENTS.

CQ-DF201U

Label Indication and Location

Model No.

N˚ De Modèle

C Q - D F 2 0 1 U

12V 4~8 15A

Manufactured by Dalian Matsushita

Communication Industrial Co., Ltd.

Dalian China Made in China

FM75

Serial No.

N˚ De Série

This device complies with Part 15 of the

FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.

CQ-DF201U MODEL NUMBER

SERIAL NUMBER

DATE PURCHASED

FROM

Consignes de sécurité

MISE EN GARDE:

POUR RÉDUIRE LES RISQUES D’INCENDIE OU D’ÉLEC-

TROCUTION, N’EXPOSEZ PAS CET APPAREIL À LA

PLUIE OU À L’HUMIDITÉ.

ATTENTION :

CET APPAREIL EST UN PRODUIT LASER DE LA CLASSE

I .

L’UTILISATION DE COMMANDES OU RÉGLAGES OU

L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES

QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT

RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT

DANGEREUX.

N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ PAS

D’EFFECTUER VOUS-MÊME DES RÉPARATIONS.

ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR

TOUTE RÉPARATION.

Produits laser:

Longueur d’onde: 780 nm

Puissance du laser: Aucune radiation dangereuse n’est émise avec la protection de sécurité.

AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE OU

D’INTERFÉRENCES, UTILISER UNIQUEMENT LES

COMPOSANTS FOURNIS.

Información para su seguridad

ADVERTENCIA:

PARA REDUCIR EL RIESGO DE INCENDIOS O

SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE

PRODUCTO A LA LLUVIA NI A LA HUMEDAD.

PRECAUCIÓN:

ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE I .

LA UTILIZACIÓN DE CONTROLES, EL HACER

AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTINTOS

DE LOS ESPECIFICADOS EN ESTE MANUAL PODRÍA

CAUSAR UNA EXPOSICIÓN PELIGROSA A LA RA-

DIACIÓN.

NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES

USTED MISMO. SOLICITE LOS TRABAJOS DE SERVI-

CIO AL PERSONAL CALIFICADO.

F

R

A

N

Ç

A

I

S

E

S

P

A

Ñ

O

L

Productos láser:

Longitud de onda: 780 nm

Potencia láser: Con protección de seguridad no se emite radiación peligrosa.

PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDI-

DAS ELÉCTRICAS, Y PARA EVITAR LAS

INTERFERENCIAS MOLESTAS, UTILICE

SOLAMENTE LOS COMPONENTES INCLUIDOS.

Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits soit

à l’arrière soit sous le fond de l’appareil, et de conserver ce manuel comme mémorandum de l’achat afin de permettre l’identification de l’appareil en cas de vol.

CQ-DF201U NUMÉRO DE MODÈLE

NUMÉRO DE SÉRIE

DATE DE L’ACHAT

VENDEUR

Busque el número del modelo y el número de serie ya sea en la parte trasera o en el fondo de la unidad. Sírvase anotar dichos números en el espacio siguiente, y mantenga este librete como una anotación permanente de su compra para ayudar en la identificación en el caso de robo.

CQ-DF201U NÚMERO DEL MODELO

NÚMERO DE SERIE

FACHA DE COMPRA

NOMBRE DE LA TIENDA

3

CQ-DF201U

E

N

G

L

I

S

H

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

❐ Use this Product Safely

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product, including the speakers and CDs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 volt, negative ground battery system (the normal system in a North American car).

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list including with this product for service assistance.

For Installation

This product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30x.

❐ Components

≥ Operating instructions .................................... 1

≥ Installation hardware................1 set ( ➡ page 18)

≥ Power connector ............................................ 1

≥ Remote control unit ........................................ 1

≥ Lithium battery (CR2025)................................ 1

≥ Warranty card.................................................. 1

Panasonic est heureuse de vous compter parmi les utilisateurs de ses appareils électroniques. Nous pouvons vous assurer que cet appareil vous procurera de longues heures d’agrément. Notre réputation est fondée sur une ingénierie électronique et mécanique de haute précision, laquelle préside à la fabrication d’appareils ne comportant que des composants de choix assemblés par un personnel soucieux de la bonne réputation acquise par la qualité de son travail. Après avoir découvert la qualité, la valeur et la fiabilité de cet appareil, vous aussi serez fier d’être un client Panasonic.

❐ Précautions à prendre

Au volant

Réglez le volume à un niveau qui ne risque pas de masquer les bruits ambiants.

Lavage de la voiture

Afin de prévenir tout risque de court-circuit ou d’incendie, n’exposez pas l’équipement, y compris les hautparleurs et les disques, à l’eau ou à une humidité excessive.

Voiture stationnée

L’habitacle d’une voiture immobile exposée au soleil toutes vitres fermées devient rapidement très chaud.

Laisser rafraîchir l’intérieur du véhicule avant d’utiliser l’appareil.

Source d’alimentation

Cet appareil est conçu pour fonctionner sur un système d’alimentation avec batterie de 12 V à masse négative

(système standard sur les voitures de construction nordaméricaine).

Mécanisme de disque

N’insérez pas de pièces de monnaie ou de petits objets.

Gardez les tournevis et autres objets métalliques à l’écart du mécanisme de disque et du disque.

Réparation

Ne tentez pas de démonter ou d’ajuster l’appareil vousmême. Veuillez vous référer à la liste des centres de service fournie avec cet appareil pour contacter le service d’assistance.

Installation

L’apppareil doit être installé en position horizontale avec son extrémité avant inclinée vers le haut à un angle commode, mais ne dépassant pas 30x.

F

R

A

N

Ç

A

I

S

❐ Éléments constitutifs

≥ Manuel d’instructions.............................................. 1

≥

Quincaillerie pour l’installation

..............................................1 ensemble ( ➡ page 38)

≥

Connecteur d’alimentation ...................................... 1

≥ Télécommande ........................................................ 1

≥

Pile au lithium (CR2025) ........................................ 1

≥ Carte de garantie .................................................... 1

4

CQ-DF201U CQ-DF201U

5

Panasonic le da la bienvenida a la familia constantemente en aumento de poseedores de productos electrónicos. Nos esforzamos en proporcionarle las ventajas de la ingeniería mecánica y electrónica de precisión, de una fabricación con componentes cuidadosamente seleccionados, y de un montaje realizado por personas orgullosas de la reputación que su trabajo ha cimentado para nuestra empresa. Estamos seguros de que este producto le proporcionará muchas horas de distracción y, una vez comprobada la calidad, el valor y la fiabilidad incorporados, usted también se sentirá orgulloso de pertenecer a nuestra familia.

E

S

Ñ

O

❐ Uso de este equipo con seguridad

Cuando conduzca

Mantenga el nivel del volumen suficientemente bajo para estar atento a la carretera y a las condiciones del tráfico.

Cuando lave el automóvil

No exponga el equipo, incluyendo los altavoces y los

CDs, al agua o a una humedad excesiva. Esto puede causar cortocircuitos eléctricos, incendios u otros daños.

Cuando esté estacionado

El estacionamiento a la luz solar directa puede producir temperaturas muy altas en el interior de su vehículo.

Procure enfriar el interior antes de encender la unidad.

Uso de la alimentación apropiada

Este equipo ha sido diseñado para funcionar con un sistema de batería de 12 voltios con negativo a masa (el sistema normal en un vehículo norteamericano).

Mecanismo de disco

No inserte monedas ni ningún objeto pequeño. Mantenga los destornilladores u otros objetos metálicos apartados del mecanismo de disco y del disco.

Uso de los centros de servicio autorizados

No intente desmontar ni ajustar este equipo de precisión.

Consulte la lista de centros de servicio incluidos con este producto para acudir a ellos cuando sea necesario.

Instalación

La unidad deberá instalarse en posición horizontal, con el extremo delantero hacia arriba formando un ángulo conveniente, pero con no más de 30x.

❐ Componentes

≥ Manual de instrucciones.......................................... 1

≥ Accesorios suministrados ........1 juego ( ➡ página 58)

≥

Conector de alimentación ........................................ 1

≥ Unidad del controlador remoto................................ 1

≥

Pila de litio (CR2025) .............................................. 1

≥ Tarjeta de garantía .................................................. 1

6

CQ-DF201U

Contents

Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Part 15 of the FCC Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2

Use this Product Safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4

Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4

❒ Power and Sound Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to adjust the volume, mute, tone and balance

❒ Radio Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Manual and automatic tuning, band selection, preset stations

❒ CD Player Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Disc insert and playback, stop and eject, CD play, track selection, search, repeat, random, scan and direct selection

❒ Clock Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting/resetting the time, selecting the clock display

❒ Remote Control Unit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Battery installation, battery notes, main controls (buttons of the remote control function)

❒ Installation Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Step-by-step procedures

❒ Anti-Theft System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Place the removable face plate into case, install removable face plate, security indicator

❒ Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Cautions and wiring diagram

❒ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Where to get service help, troubleshooting tips, error display messages

❒ Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Care of the unit, notes on CD

❒ Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

FM

CQ-DF201U

7

E

N

G

L

I

S

H

Table des matières

F

R

A

N

Ç

A

I

S

Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1 3

Précautions à prendre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5

Éléments constitutifs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5

❒ Commandes d’alimentation et de son . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Réglage du volume, coupure du son, tonalité et équilibre

❒ Fonctionnement de base de la radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Syntonisation manuelle et automatique, sélection de la bande et stations en mémoire

❒ Fonctionnement de base du lecteur CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Chargement/éjection du disque, lecture de CD, sélection des plages, repérage, lecture en reprise, lecture aléatoire, balayage des plages et sélection directe

❒ Fonctionnement de base de l’horloge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Réglage de l’heure, remise à l’heure, sélection de l’affichage de l’horloge

❒ Préparation de la télécommande . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Installation de la pile, remarques sur la pile, principales commandes (touches de fonction de la télécommande)

❒ Guide d’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Marche à suivre

❒ Système antivol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Mettre la plaque de façade amovible dans l’étui, installer la plaque de façade amovible, voyant du système de sécurité

❒ Branchements électriques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Précautions et schéma

❒ En cas de difficulté . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Service après-vente, guide de dépannage, affichage des messages d’erreur

❒ Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Entretien de l’appareil, remarques relatives aux disques CD

❒ Données techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

FM

8

CQ-DF201U

Índice

Información para su seguridad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Página 1 3

Uso de este equipo con seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6

Componentes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6

❒ Controles de alimentación y sonido . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Cómo ajustar el volumen, silenciamiento, tono y equilibrio

❒ Radio: Conceptos generales. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Sintoniá manual y automática, selección de banda y preajuste de emisoras

❒ Reproductor de CD: Conceptos generales . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Carga/expulsión de un disco, reproducción de CD, selección de pista, búsqueda, repetición, selección aleatoria, exploración y selección directa

❒ Reloj: Conceptos generales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Puesta inicial de la hora, reposición de la hora, selección de la pantalla del reloj

❒ Preparación del controlador remoto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Instalación de la pila, notas sobre la pila, controles principales (botones de funcionamiento del controlador remoto)

❒ Guía de instalación. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Procedimientos paso a paso

❒ Sistema antirrobo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Coloque la placa frontal removible en la caja, instale la placa frontal removible, el indicador de seguridad

❒ Conexiones eléctricas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Medidas de precaución y diagrama

❒ Solución de problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Dónde obtener ayuda técnica, consejos sobre solución de problemas, mensajes de error

❒ Mantenimiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Cuidado del aparato, notas sobre los discos compactos

❒ Especificaciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

FM

CQ-DF201U

9

E

S

P

A

Ñ

O

L

E

N

G

L

I

S

H

1

Power and Sound Controls

Power

Turn the key in the ignition until the accessory indicator lights.

Power on: Press [SOURCE] (PWR).

Power off: Press [SOURCE] (PWR) again and hold.

ACC

ON

Volume

[ " VOL]: Up

[ # VOL]: Down

Press and hold for rapid adjustment.

Volume level

(0 to 40)

Note:

≥ When the power is switched on for the first time, a demonstration message appears on the display.

To cancel this display, press [DISP].

CQ-DF201U BAND

APM/SCA

N

VOL

TUNE

TRACK

SEL

SOURCE

REMO

TE

MUTE

•

PWR MONO/LOC

7

1

45W

X

4 CD RECEIVER

8

2

9

3 bright display with level meters

10

4

11

5

12

6 LOUD

RANDOM

REP

OPEN

LEVEL

CLOCK

DISP

Mute

Press [ • ] (MUTE) to mute the sound completely.

MUTE

Press [ • ] (MUTE) again to cancel.

Anti-volume-blast circuit:

When the power is switched off and on again, the volume slowly rises to the previous level.

The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the display.

Loudness

Press [LOUD] to enhance bass and treble tones at low or medium volume.

MONO

LOUD

Press [LOUD] again to cancel.

Level Meter

When the power is on, the level of sound sources, such as radio and CD, is displayed.

Press [LEVEL] to change the level meter display.

(Default)

Pattern 1 Pattern 2 Pattern 3

Pattern off Pattern 4

10

CQ-DF201U

Audio Mode (Bass/Treble/Balance/Fader)

1 Press [SEL] to select the audio mode.

Regular Mode Volume Bass Treble

Fader Balance

Note:

≥ If no operation takes place for more than 5 seconds in audio mode (2 seconds in volume mode), the display return to the regular mode.

E

N

G

L

I

S

H

2

CQ-DF201U BAND

APM/SCA

N

VOL

TUNE

TRACK

SEL

SOURCE

REMO

TE

MUTE

•

PWR MONO/LOC

7

1

45W

X

4 CD RECEIVER

8

2

9

3 bright display with level meters

10

4

11

5

12

6 LOUD

RANDOM

REP

OPEN

LEVEL

CLOCK

DISP

2 Press [ " VOL] or [# VOL] to change each level.

Bass mode:

Adjustable range: j12 dB to i12 dB

Treble mode:

Adjustable range: j12 dB to i12 dB

Balance mode:

R (right speaker) or L (left speaker)

Adjustable range: 1 to 15 Balance center

Fader mode:

F (front speaker ) or R (rear speaker)

Adjustable range: 1 to 15 Fader center

11

CQ-DF201U

E

N

G

L

I

S

H

3

Radio Basics

1

Mode Selection

Press [SOURCE] to change to the radio mode.

2

Band

Press [BAND] to change the band.

Source

Radio CD player

(When a CD is inserted.)

12

FM stereo indicator

CQ-DF201U

VOL

BAND

APM/SCA

N

TUNE

TRACK

SEL

SOURCE

REMO

TE

MUTE

•

PWR MONO/LOC

7

1

L

45W X 4 CD RECEIVER

ST MONO bright display with level meters

LOCAL TA on AF

ΙΙ

PTY RDS EON TP R

DISC

MUTE LOUD REP RAND

8

2

9

3

10

4

11

5

12

6 LOUD

RANDOM

REP

OPEN

LEVEL

CLOCK

DISP

3

Manual Tuning

[ " TUNE]: Higher frequency

[ # TUNE]: Lower frequency

Seek Tuning

Press and hold ...

[ " TUNE]: Higher frequency

[ # TUNE]: Lower frequency

Tuning will automatically stop when the signals of the next broadcast station are received.

4

Mono/Local Selection

MONO: Noise is significantly decreased when weak signals are received from an FM broadcast station.

LOCAL: Only strong signals of stations are searched in seek tuning, while at the LOCAL OFF setting, relatively weak signals are also searched.

FM broadcasts:

Press and hold [ • ] (MONO/LOC) to change the mode.

Release when at the desired point.

AM broadcasts:

Press and hold [ • ] (MONO/LOC) to switch LOCAL mode on and off.

FM broadcast:

ST MONO LOCAL

ST MONO LOCAL

ST MONO LOCAL

ST MONO LOCAL

AM broadcast:

ST MONO LOCAL

ST

MONO LOCAL

MONO OFF/

LOCAL OFF

MONO ON/

LOCAL OFF

MONO ON/

LOCAL ON

MONO OFF/

LOCAL ON

LOCAL OFF

LOCAL ON

CQ-DF201U

Preset Station Setting

Up to 6 stations each can be saved in the FM1,

FM2, FM3 and AM preset station memories.

1

Band

Press [BAND] to select a desired band.

( ➡ page 12)

Caution:

≥ To ensure safety, never attempt to preset stations while you are driving.

E

N

G

L

I

S

H

4

Preset number

2

CQ-DF201U

VOL

BAND

APM/SCA

N

TUNE

TRACK

SEL

SOURCE

REMO

TE

MUTE

•

PWR MONO/LOC

7

1

L

45W

X

4 CD RECEIVER

ST MONO bright display with level meters

LOCAL TA on

AF

ΙΙ

PTY RDS EON TP R

DISC

MUTE LOUD REP RAND

8

2

9

3

10

4

11

5

12

6 LOUD

RANDOM

REP

OPEN

LEVEL

CLOCK

DISP

Auto Station Preset

Press and hold [BAND] (APM) for more than 2 seconds (auto preset memory).

≥

The 6 strongest available stations will be automatically saved in the memory under preset buttons [1] to [6].

≥

Once set, the preset stations are sequentially scanned for 5 seconds each.

Note:

≥

The stations manually preset on the selected band will be deleted.

Manual Station Preset

1 Use manual or seek tuning to find a station. ( ➡ page 12)

2 Press and hold one of the preset buttons [1] to [6] until the display blinks once.

3

Tuning in a Preset

Station

Press the corresponding preset button

[1] to [6] to tune in a preset station.

Note:

≥ You can change the memory presetting by repeating the above procedure.

CQ-DF201U

13

E

N

G

L

I

S

H

5

CD Player Basics

Lights when the disc is loaded.

bright display with level meters

R

DISC

OPEN

LEVEL

CLOCK

DISP

Disc Insert and Playback

1

Open the front panel

Press [OPEN] to open the front panel.

< (EJECT)

Label side

2

Disc insert

Close the front panel manually.

Playback will start automatically.

Close

Stop and Disc Eject

Press [<] (EJECT) to stop CD play and eject the disc.

When CD is in the player

Press [SOURCE] to change to CD play mode.

Listening to a CD

CQ-DF201U BAND

APM/SCA

N

VOL

TUNE

TRACK

SEL

SOURCE

REMO

TE

PWR

MUTE

•

MONO/LOC

7

1

<CD player display>

Track number

L

45W X 4 CD RECEIVER

Track playing time bright display with level meters

R

DISC

Lights when the disc is loaded.

OPEN

LEVEL

CLOCK

DISP

8

2

9

3

10

4

11

5

12

6 LOUD

RANDOM

REP

Mode Selection

Press [SOURCE] to change to the CD play mode.

Source

Radio CD player

(When a CD is inserted.)

Display Change

Press [DISP] to switch to the clock display.

Track number/

Track playing time

Clock display

14

CQ-DF201U

Cautions:

≥ Only 12 cm CD is available for this unit.

≥ This unit is not designed for any 8 cm CD.

≥ If you insert an 8 cm CD and can not eject it, turn ACC of your car off once and turn it on again, then press [<] (EJECT).

Track Selection

[5TRACK]: Advance to the next track.

[6TRACK]: Back to beginning of the current track.

Back to previous track. (Press twice.)

Track Search

Press and hold ...

[5TRACK]: Fast forward

[6TRACK]: Fast backward

Release to resume the regular CD play.

Direct Track Selection

≥ Press a track number button from [1] to [6].

The corresponding track starts playing.

≥ Press and hold a track number button from [7] to

[12] ([1] to [6]) for more than 1 second.

The corresponding track starts playing.

E

N

G

L

I

S

H

6

CQ-DF201U BAND

APM/SCA

N

VOL

TUNE

TRACK

SEL

SOURCE

REMO

TE

MUTE

•

PWR MONO/LOC

7

1

Scan play

45W X 4 CD RECEIVER

8

2

9

3 bright display with level meters

10

4

11

5

12

6 LOUD

RANDOM

REP

Random play

Repeat play

OPEN

LEVEL

CLOCK

DISP

Track random play

≥ Press and hold [REP] (RANDOM) for more than 2 seconds.

All the tracks are played in random order.

≥ Press and hold [REP] (RANDOM) again to cancel.

Track scan play

≥ Press [BAND] (SCAN).

The first 10 seconds of each track on the disc are played in sequence.

≥ Press [BAND] (SCAN) again to cancel.

RAND

DISC

DISC

Track repeat play

≥

Press [REP].

The current track is repeated.

≥

Press [REP] again to cancel.

REP

DISC

CQ-DF201U

15

E

N

G

L

I

S

H

7

Clock Basics

The 12-hour system is used for the clock.

BAND

APM/SCA

N

CQ-DF201U

VOL

TUNE

TRACK

SEL

SOURCE

REMO

TE

MUTE

•

PWR MONO/LOC

7

1

45W X 4 CD RECEIVER

8

2

9

3

10

4

11

5

16

CQ-DF201U bright display with level meters

12

6 LOUD

RANDOM

REP

OPEN

LEVEL

CLOCK

DISP

Initial Time

1 Press [DISP] (CLOCK).

Hours

2 Press and hold [DISP] (CLOCK).

(Hour blinks.)

3 Press [ # TUNE] or [" TUNE].

(Hour sets.)

Minutes

4 Press [DISP] (CLOCK).

(Minutes blink.)

5 Press [ # TUNE] or [" TUNE].

(Minutes set.)

6 Press [DISP] (CLOCK).

(End.)

Note:

≥

Press and hold [ # TUNE] or [" TUNE] to change numbers rapidly.

Clock Display

Press [DISP] (CLOCK) to switch to the clock display.

In tuner mode:

Broadcast station

In CD player mode:

Clock display

Playing time

When the power is off:

Clock display

Clock display No display

Note:

≥ The [DISP] (CLOCK) button will not work while the CD player is set to the scan play mode.

Cancel the scan play mode before pressing

[DISP] (CLOCK).

Time Reset

Press and hold [DISP] (CLOCK) for more than

2 seconds to activate the time setting mode to reset the time.

Then, repeat steps 3 to 6.

Remote Control Unit Preparation

Battery Installation

1 Remove the battery holder.

Pull the holder by the position B while pushing position A in the direction indicated by the arrow.

2 Install the battery on the battery holder.

Set a new battery properly with its (i) side facing up as shown in the figure.

3 Insert the battery holder.

Push in the battery holder back into its original position.

Battery Notes

Remove and dispose of an old battery immediately.

Battery Information:

≥ Battery type: Panasonic lithium battery (CR2025)

(included)

≥ Battery life: Approximately 6 months with normal use

(at room temperature)

Back side

Lithium battery

(included)

Battery holder Position A

Position B

Caution:

≥ Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.

Battery leakage may damage the unit.

≥

Do not disassemble or short the battery. Do not throw a battery into a fire.

≥

Keep batteries away from children to avoid the risk of accidents.

≥

Be careful to the local disposal rules when you dispose of batteries.

E

N

G

L

I

S

H

8

Main Controls

Buttons of the remote control function in the same way as the controls on the main unit of the reference page.

Power button

( ➡ page 10)

MODE button

( ➡ pages 12, 14)

PWR

(ATT)

MUTE

MODE

VOL

MUTE button

( ➡ page 10)

Volume control buttons

( ➡ page 10)

BAND button

( ➡ page 12)

PRG

BAND/DISC UP

TUNE

TRACK

TUNE/ TRACK buttons

( ➡ pages 12, 15)

Car Audio

17

CQ-DF201U

E

N

G

L

I

S

H

9

Installation Guide

WARNING

This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

❐ Installation Hardware

No.

1

Item

Mounting collar

Diagram Q’ty

1

2 Hex. nut (5 mm·)

3 Rear support strap

4

5

Tapping screw

(5 mm·a16 mm)

Mounting bolt (5 mm·)

6 Power connector

7 Removable face plate case

8 Trim plate

1

1

1

1

1

1

1

If you encounter problems, please consult your nearest professional installer.

Caution: This unit operates with a 12 volt DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage.

Before you begin installation, look for the items which are packed with your unit.

≥ Warranty Card…Fill this out promptly.

≥ Panasonic Servicenter for Service Directory

…Keep for future reference in case the product needs servicing.

≥ Installation Hardware…Needed for in-dash installation.

❐ Required Tools

You’ll need a screwdriver, a 1.5 volt AA battery, and the following:

12 V DC

Test bulb

Electrical tape

Side-cut pliers

❐ Overview

This product should be installed by a professional.

However, if you plan to install this product yourself, your first step is to decide where to install it. The instructions in these pages will guide you through the remaining steps:

(Please refer to the “WARNING” statement above.)

18

≥ Identify and label the car wires.

≥ Connect the car wires to the wires of the power connector.

≥ Install the unit in the dashboard.

≥ Check the operation of the unit.

CQ-DF201U

❐ Dashboard Specifications

Thickness

Min. 3 ⁄

16 z

(4.75 mm)

Max. 7 ⁄

32 z

(5.56 mm)

2 3 ⁄

32 z (53 mm)

7 5 ⁄

32 z (182 mm)

❐ Identify All Leads

The first step in installation is to identify all the car wires you’ll use when hooking up your sound system.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker.

This will help avoid confusion when making connections later.

Note: Do not connect the power connector to the stereo unit until you have made all connections. If there are no plastic caps on the stereo hooking wires, insulate all exposed leads with electrical tape until you are ready to use them. Identify the leads in the following order.

Power Lead

If your car has a radio or is pre-wired for one:

Cut the connector wires one at a time from the plug

(leaving the leads as long as possible) so that you can work with individual leads.

Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug.

Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for radio

(RADIO), accessory (ACC), or ignition (IGN).

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car’s battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)

If your car has a radio or is pre-wired for one:

With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

f your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for the battery, usually marked BAT.

Speakers

Identify the car speaker leads. There are two leads for each speaker which are usually color coded.

A handy way to identify the speaker leads and the speaker they are connected with is to test the leads using a 1.5 volt AA battery as follows.

Hold one lead against one pole of the battery and stroke the other lead across the other pole. You will hear a scraping sound in one of the speakers if you are holding a speaker lead.

If not, keep testing different lead combinations until you have located all the speaker leads. When you label them, include the speaker location for each.

Antenna Motor

If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead and touching the remaining exposed wires from the cut radio connector plug one at a time. You will hear the antenna motor activate when you touch the correct wire.

Antenna

The antenna lead is a thick, black wire with a metal plug at the end.

❐ Connect All Leads

Now that you have identified all the wires in the car, you are ready to begin connecting them to the stereo unit wires. The wiring diagram ( ➡ page 24) shows the proper connections and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

Important: Connect the red power lead last, after you have made and insulated all other connections.

Ground

Connect the black ground lead of the power connector to the metal car chassis.

19

CQ-DF201U

E

N

G

L

I

S

H

10

E

N

G

L

I

S

H

11

Installation Guide

Speakers

Connect the speaker wires. See the connection diagram ( ➡ page 24) for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo unit.

The speakers used must be able to handle more than 45 watts of audio power. If using an optional audio amplifier, the speakers should be able to handle the maximum amplifier output power. Speakers with low input ratings can be damaged. Speaker impedance should measure 4–8 ohms, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.

Motor Antenna

Connect the car motor antenna lead to the dark blue motor antenna relay control lead.

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Antenna

Connect the antenna by plugging the antenna lead into the antenna receptacle.

Equipment

Connect any optional equipment such as an amplifier, according to the instructions furnished with the equipment. Leave about 12 inches (30 cm) of distance between the speaker leads/amplifier unit and the antenna/antenna extension cord. Read the operating and installation instructions of any equipment you will connect to this unit.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the stereo unit functions properly with all these connections made, disconnect the wires and proceed to the final installation.

❐ Final Installation

Lead Connections

Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires and fasten them with tape so they will not fall down later. Now insert the stereo unit into the mounting collar.

Congratulations! After making a few final checks, you’re ready to enjoy your new auto stereo system.

(Continued)

❐ Final Checks

1. Make sure that all wires are properly connected and insulated.

2. Make sure that the stereo unit is securely held in the mounting collar.

3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

❐ Preparation

≥ We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

≥ When bending the mounting tabs of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

≥ Disconnect the cable from the negative - battery terminal (see cautions below).

≥ Unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30o.

Less than 30x

Caution:

≥ Do not disconnect the battery terminals of a car with a trip or navigational computer since all user settings stored in memory will be lost.

Instead take extra care with installing the unit to prevent shorts.

Dashboard Installation

Installation Opening

2 3 /

32 q

(53 mm)

7 5 /

32 q

(182 mm)

This unit can be installed in any dashboard having an opening as shown above. The dashboard should be 3 ⁄

16 z (4.75mm)j 7 ⁄

32 z (5.56 mm) thick in order to be able to support the unit.

20

CQ-DF201U

❐ Installation Procedures

First complete the electrical connections, and then check them for correctness. ( ➡ page 24)

1 Insert mounting collar 1 into the dashboard, and bend the mounting tabs out with a screwdriver.

E

N

G

L

I

S

H

12

Lock lever (§)

6 Power connector

Mounting tabs

5 Mounting bolt

2 Secure the rear of the unit.

After fixing mounting bolt 5 and power connector

6, fix the rear of the unit to the car body by either method (a) or (b) shown below.

3 Insert trim plate 8.

4 After installation, reconnect the negative battery terminal.

Make sure that the lock lever (§) is flush with the mounting collar 1 (not projecting outward).

Lock lever

(a) Using the rear support strap 3

Fire wall of car

4 Tapping screw 3 mm·

2 Hex. nut

3 Rear support strap

5 Mounting bolt

1 Mounting collar

(b) Using the rubber cushion (option)

Rubber cushion (option)

Rear support bracket

(provided on the car)

5 Mounting bolt

1 Mounting collar

CQ-DF201U

21

E

N

G

L

I

S

H

13

Installation Guide

Remove the Unit

Switch off the power of the unit.

1 Remove the removable face plate.

1 Press [OPEN]. The removable face plate will be opened.

(Continued)

Main unit

1 Open vel meters OPEN

LEVEL

CLOCK

2 Push the face plate to either the right or left, then pull it out toward you.

2 Remove the trim plate 8 with a screwdriver.

Contact

2 Push

3 Pull out

8 Trim plate

Screwdriver

1

2

3 Pull out the unit while pushing down the lock lever with a screwdriver.

Lock lever

4 Remove the unit pulling with both hands.

22

CQ-DF201U

Lock lever

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable.

The security indicator will blink.

Place the Removable Face

Plate into Case

1 Switch off the power of the unit.

2 Remove the removable face plate. ( ➡ page 22)

3 Gently press the button of the case and open the cover. Place the face plate into the case and take it with you when you leave the car.

7 Removable face plate case

E

N

G

L

I

S

H

14

Install Removable Face Plate

1 Fit the face plate with its right or left hole on one of the pins provided on the main unit.

2 Fit the other hold on the other pin applying slight pressure.

3 Move the face plate up and down a few times to make sure it is secure. Then close the front panel and press down the right side of the face plate until it clicks into plate.

2

3

1

Contact

Security Indicator

The security indicator blinks when the removable face plate is removed from the unit.

Press and hold [SEL] to turn the security indicator on or off. (“LED ON” or “LED OFF”)

Default

Display Security indicator

Blinks

OFF

Security indicator

Cautions:

≥ This face plate is not water-proof. Do not expose it to water or excessive moisture.

≥ Do not remove the face plate while driving your car.

≥ Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.

≥ Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.

≥ If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.

≥ Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or it might be damaged.

CQ-DF201U

23

E

N

G

L

I

S

H

15

Electrical Connections

Cautions:

≥ This product is designed to operate of a 12 volt, negative ground battery system.

≥ To prevent damage to the unit, be sure to follow the connection diagram below.

≥ Remove approx. 1 ⁄

4 z (5 mm) of protective covering from the ends of the leads before connecting.

≥ Do not insert the power connector into the unit until the wiring is completed.

≥ Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.

≥ Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when the battery terminals are disconnected.

Supplied hardware

No.

Item

6 Power connector

❐ Wiring Diagram

Preamp out connector (front)

Preamp out connector (rear)

Q’ty

1

L (White)

R (Red)

Antenna

6 Power connector

Ground lead

To a clean, bare metallic part of car chassis.

Motor antenna relay control

Moves antenna up and down.

Gray/black stripe

White/black stripe

(s) (r)

White

Black

Dark blue

BATTERY 15A

Yellow

Red

ACC

Fuse (15 A)

Resistor (1 k≠)

FRONT SP

Gray

(s) (r)

Speaker lead

REAR SP

Green/black stripe

(s)

Green

(r)

Battery lead

To the car battery, continuous +12 V DC

Power lead

To ACC power,

+12 V DC

Violet/black stripe

Violet

(s) (r)

Left speaker

(Front)

Right speaker

(Front)

Left speaker

(Rear)

Right speaker

(Rear)

24

CQ-DF201U

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.

Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs.

Never try to repair the unit yourself because it is dangerous to do so.

Troubleshooting Tips

❐ Common

Trouble

No power.

Cautions:

≥ Do not use the unit if it malfunctions or is something wrong.

≥ Do not use the unit in abnormal condition, for example, without sound, or with smoke or foul smell, can cause ignition or electric shock. Immediately stop using it and call the store where you purchased it.

Cause/Step

Car’s engine switch is not on.

➡ Turn your car’s ignition switch to ACC or ON.

Cables are not correctly connected.

➡ Connect cables correctly.

Battery cable is not correctly connected.

➡ Connect the battery cable to the terminal that is always live.

Accessory cable is not correctly connected.

➡ Connect the accessory cable to your car’s ACC source.

Grounding wire is not correctly connected.

➡ Connect the grounding wire to a metal part of the car.

Fuse is burnt.

➡ Call the store where you purchased the unit, or your nearest service station (see the attached sheet) and ask for fuse replacement.

No sound.

Mute is set to ON.

➡ Set it to OFF.

Cables are not correctly connected.

➡ Connect cables correctly.

Condensation (dew)

➡ Wait for a while before use.

❐ Radio

Trouble

Much noise in FM stereo and monaural broadcasts.

Cause/Step

Station is too far, or signals are too weak.

➡ Select other stations of higher signal level.

Preset station is reset.

Battery cable is not correctly connected.

➡ Connect the battery cable to the terminal that is always live.

CQ-DF201U

25

E

N

G

L

I

S

H

16

E

N

G

L

I

S

H

17

Troubleshooting

❐ CD

(Continued)

Trouble

CD is inside but no sound.

CD sound skips, tone quality is low.

Sound skips due to vibration.

CD is not ejected.

Cause/Step

CD is upside down.

➡ Place CD in the correct direction, and the label side up.

CD is dirty.

➡ Clean CD, referring to the section on “Notes on CD”.

CD is dirty.

➡ Clean CD, referring to the section on “Notes on CD”.

Mounting angle is over 30o.

➡ Adjust mounting angle to less than 30o.

Instable mounting.

➡ Mount the unit securely with the mounting parts, referring to the section on installation.

≥

CD is defective.

≥

Mechanical trouble.

➡ Press [OPEN] to open the panel and press [<] (EJECT). If normal operation is not restored yet, call the store where you purchased the unit or the nearest service station to ask for repairs.

❐ Sound Setting

Trouble

No sound from left, right, front or rear speakers.

Left and right sounds are reversed in stereo listening.

Cause/Step

Left and right balance, or front and rear balance is off on one side.

➡ Adjust balance/fader mode as appropriate.

Cables are not correctly connected.

➡ Connect the cables correctly.

The right speaker wire is connected to the left speaker and the left speaker wire to the right speaker.

➡ Connect the speaker wires to the correct ones.

26

CQ-DF201U

❐ Remote Control

Trouble

Buttons are invalid for operation.

Cause/Step

Battery polarities (i) (j) are reversed.

➡ Insert the batteries correctly.

Wrong batteries.

➡ Check the batteries.

Batteries have run down.

➡ Replace the batteries.

Remote control is in the wrong direction.

➡ Direct the remote control at sensor (REMOTE) on the panel.

Error Display Messages

❐ CD

Display Cause/Step

Disc is dirty, or is upside down.

➡ Press [OPEN] to open the front panel, and then press [<] (EJECT) to eject the disc.

Disc has scars.

➡ Press [OPEN] to open the front panel, and then press [<] (EJECT) to eject the disc.

No operation by some cause.

➡ Turn off the car engine (ACC off) and remove the fuse from the battery lead (yellow) for 1 minute. Then reinstall the fuse.

Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician.

Replace the Fuse

Use fuses of the same specified rating (15 amps). Using different substitutes or fuses with higher ratings, or connecting the product directly without a fuse, could cause fire or damage to the stereo unit.

If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

E

N

G

L

I

S

H

18

27

CQ-DF201U

E

N

G

L

I

S

H

19

Maintenance

Care of the Unit

❐ Cleaning this Unit

Use a dry, soft cloth to wipe.

❐ Caution on Cleaning

Never use solvents such as benzine, thinner as they may mar the surface of the unit.

Notes on CD

ONLY USE DISCS CARRYING THE LABEL.

How to hold the CD

≥ Do not touch the underside of the disc.

≥ Do not make scratches on the discs.

≥ Do not bend disc.

≥ When not in use, keep CD in the case.

Do not use irregular shaped CDs.

Do not leave discs on the following places:

≥ Direct sunlight

≥ Near car heaters

≥ Dirty, dusty and damp areas

≥ Seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Caution on new discs

A new disc may have rough edges on its inner and outer perimeter. These may cause malfunction.

Remove the rough edges using a pencil, etc.

Label side

Do not use irregular shaped CDs.

<Right>

Rough edge

<Wrong>

Rough edge

28

CQ-DF201U

Specifications

❐ General

Power supply:

Current consumption:

Maximum power output:

Tone adjustment range:

12 V DC (11 Vj16 V), test voltage 14.4 V, negative ground

Less than 2.2 A (CD play mode; 0.5 Wa4 channels)

45 Wa4 channels at 400 Hz, Volume control maximum

Bass:

Treble: n 12 dB at 100 Hz n 12 dB at 10 kHz

Suitable speaker impedance: 4j8 ≠

Pre-Amp output voltage: 2.0 V (CD play mode; 1 kHz, 0 dB)

Output impedance:

Dimensions (WaHaD):

Weight:

200 ≠

7za1 15 /

16 za 5 7 /

8 z (178a50a150 mm)

3 lbs. 1 oz (1.4 kg)

❐ FM Stereo Radio

Frequency range:

Usable sensitivity:

87.9 MHzj107.9 MHz

11.0 dBf. (1.25 ¨V, 75 ≠)

50 dB quieting sensitivity: 15.2 dBf. (1.6 ¨V, 75 ≠)

Frequency response: 30 Hzj15 kHz (n3 dB)

Alternate channel selectivity: 75 dB

Stereo separation: 42 dB (1 kHz)

Image response ratio:

IF response ratio:

Signal/noise ratio:

75 dB

100 dB

70 dB

❐ AM Radio

Frequency range:

Usable sensitivity:

530 kHzj1710 kHz

28 dB/¨V (25 ¨V, S/N 20 dB)

❐ CD Player

Sampling frequency:

DA converter:

Error correction system:

Pick-up type:

Light source:

Wave length:

Frequency response:

Signal/noise ratio:

32 times oversampling

MASH • 1 bit/4 DAC system

Panasonic super decoding algorithm

Astigma 3-beam

Semiconductor laser

780 nm

20 Hzj20 kHz (n1 dB)

96 dB

Total harmonic distortion: 0.01 % (1 kHz)

Wow and flutter: Below measurable limits

Channel separation: 75 dB

Above specifications comply with EIA standards.

Note:

≥ Specifications and the design are subject to modification without notice due to improvements in technology.

E

N

G

L

I

S

H

20

29

CQ-DF201U

Memorandum

70

CQ-DF201U CQ-DF201U

71

Panasonic Consumer Electronics

Company, Division of Matsushita

Electric Corporation of America

One Panasonic Way, Secaucus,

New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company.

Division of Matsushita Electric of

Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park,

Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario

L4W 2T3 http://www.panasonic.ca

YEFM283646 F1000-1110 Printed in China

Imprimé en Chine

Impreso en China
