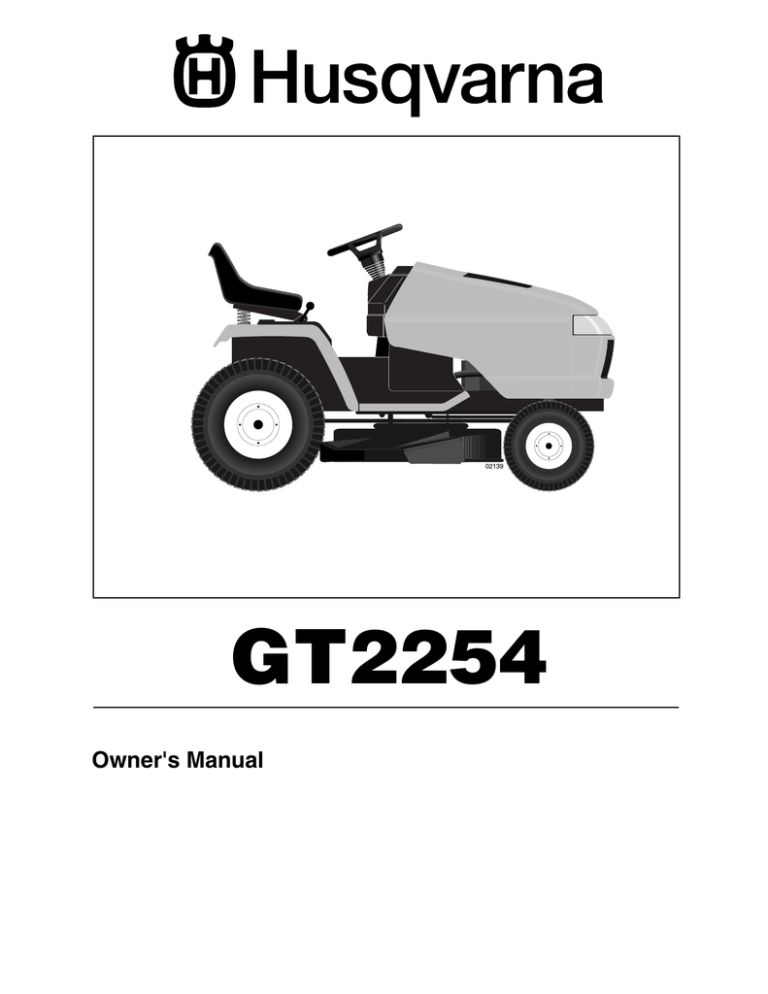

GT2254
Owner's Manual
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
•
WARNING: In order to prevent accidental starting when setting up,
transporting, adjusting or making repairs, always disconnect spark plug
wire and place wire where it cannot
contact spark plug.
•
•
•
WARNING: Do not coast down a hill
in neutral, you may lose control of the
tractor.
•
•
WARNING: Tow only the attachments
that are recommended by and comply with specifications of the manufacturer of your tractor. Use common
sense when towing. Operate only at
the lowest possible speed when on a
slope. Too heavy of a load, while on
a slope, is dangerous. Tires can lose
traction with the ground and cause you
to lose control of your tractor.
•
•
•
•
WARNING
•
Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.
•
WARNING
II. SLOPE OPERATION
Battery posts, terminals and related accessories
contain lead and lead compounds, chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
I. GENERAL OPERATION
•
•
•
•
•
•
•
•
Read, understand, and follow all instructions on the
machine and in the manual before starting.
Do not put hands or feet near rotating parts or under
the machine. Keep clear of the discharge opening at
all times.
Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blades.
Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.
Never carry passengers.
Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
Never direct discharged material toward anyone. Avoid
discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the
blades when crossing gravel surfaces.
Do not operate machine without the entire grass catcher,
discharge guard, or other safety devices in place and
working.
Slow down before turning.
Never leave a running machine unattended. Always
turn off blades, set parking brake, stop engine, and
remove keys before dismounting.
Disengage blades when not mowing. Shut off engine
and wait for all parts to come to a complete stop before
cleaning the machine, removing the grass catcher, or
unclogging the discharge guard.
Operate machine only in daylight or good artificial
light.
Do not operate the machine while under the influence
of alcohol or drugs.
Watch for traffic when operating near or crossing roadways.
Use extra care when loading or unloading the machine
into a trailer or truck.
Always wear eye protection when operating machine.
Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-related injuries. These operators should evaluate their
ability to operate the riding mower safely enough to
protect themselves and others from serious injury.
Follow the manufacturer's recommendation for wheel
weights or counterweights.
Keep machine free of grass , leaves or other debris
build-up which can touch hot exhaust / engine parts
and burn. Do not allow the mower deck to plow leaves
or other debris which can cause build-up to occur.
Clean any oil or fuel spillage before operating or
storing the machine. Allow machine to cool before
storage.
2
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution. If
you cannot back up the slope or if you feel uneasy on it,
do not mow it.
• Mow up and down slopes, not across.
• Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine.
Tall grass can hide obstacles.
• Choose a low ground speed so that you will not have
to stop or shift while on the slope.
• Do not mow on wet grass. Tires may lose traction.
Always keep the machine in gear when going down
slopes. Do not shift to neutral and coast downhill.
• Avoid starting, stopping, or turning on a slope. If the
tires lose traction, disengage the blades and proceed
slowly straight down the slope.
• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction,
which could cause the machine to roll over.
• Use extra care while operating machine with grass
catchers or other attachments; they can affect the
stability of the machine. Do no use on steep slopes.
• Do not try to stabilize the machine by putting your foot
on the ground.
• Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly roll over if a wheel is over
the edge or if the edge caves in.
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
III. CHILDREN
GENERAL SERVICE
• Never operate machine in a closed are.
• Keep all nuts and bolts tight to be sure the equipment
is in safe working condition.
• Never tamper with safety devices. Check their proper
operation regularly.
• Keep machine free of grass, leaves, or other debris
build-up. Clean oil or fuel spillage and remove any fuelsoaked debris. Allow machine to cool before storing.
• If you strike a foreign object, stop and inspect the
machine. Repair, if necessary, before restarting.
• Never make any adjustments or repairs with the engine
running.
• Check grass catcher components and the discharge
guard frequently and replace with manufacturer's recommended parts, when necessary.
• Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing them.
• Check brake operation frequently. Adjust and service
as required.
• Maintain or replace safety and instruction labels, as
necessary.
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume that
children will remain where you last saw them.
• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the
area.
• Before and while backing, look behind and down for
small children.
• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with
safe machine operation. Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over
by the machine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may block your view of a
child.
IV. TOWING
•
•
•
•
•
Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point.
Follow the manufacturer's recommendation for weight
limits for towed equipment and towing on slopes.
Never allow children or others in or on towed equipment.
On slopes, the weight of the towed equipment may
cause loss of traction and loss of control.
Travel slowly and allow extra distance to stop.
•
•
•
V. SERVICE
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
• Use only approved gasoline container.
• Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where there
is an open flame, spark, or pilot light such as on a water
heater or other appliances.
• Never fill containers inside a vehicle or on a truck or
trailer bed with plastic liner. Always place containers
on the ground away from your vehicle when filling.
• Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then
refuel such equipment with a portable container, rather
than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank
or container opening at all times until fueling is complete.
Do not use a nozzle lock-open device.
• If fuel is spilled on clothing, change clothing immediately.
• Never overfill fuel tank. Replace gas cap and tighten
securely.
•
•
•
•
•
•
•
•
•
3
Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.
Never carry passengers.
Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with
safe machine operation. Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over
by the machine.
Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.
Be alert and turn machine off if a child enters the
area.
Before and while backing, look behind and down for
small children.
Mow up and down slopes (15° Max), not across.
Choose a low ground speed so that you will not have
to stop or shift while on the slope.
Avoid starting, stopping, or turning on a slope. If the
tires lose traction, disengage the blades and proceed
slowly straight down the slope.
If machine stops while going uphill, disengage blades,
shift into reverse and back down slowly.
Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.
PRODUCT SPECIFICATIONS
CUSTOMER RESPONSIBILITIES
Gasoline Capacity
and type:
5.0 Gallons
Unleaded Regular
•
•
Oil Type (API-SG-SL):
SAE 30 (above 32°F)
SAE 5W-30 (below 32°F)
•
Oil Capacity:
W/ Filter: 4.0 Pints
W/O Filter: 3.75 Pints
Spark Plug:
(Gap: .040")
Champion
QC12YC
Ground Speed (MPH):
Forward
1st
2nd
3rd
Reverse
LO
0.7
1.4
2.3
0.9
Tire Pressure:
Front:
Rear:
14 PSI
10 PSI
Charging System:
16 AMPS @ 3600 RPM
Battery:
AMP/HR:
MIN. CCA:
CASE SIZE:
Blade Bolt Torque:
45–55 FT. LBS.
Read and observe the safety rules.
Follow a regular schedule in maintaining, caring for
and using your tractor.
Follow the instructions under “Maintenance” and “Storage” sections of this owner’s manual.
WARNING: This tractor is equipped with an internal combustion engine and should not be used on or near any
unimproved forest-covered, brush-covered or grass-covered
land unless the engine’s exhaust system is equipped with
a spark arrester meeting applicable local or state laws (if
any). If a spark arrester is used, it should be maintained
in effective working order by the operator.
A spark arrester for the muffler is available through your
nearest authorized service centre/department (See REPAIR
PARTS section of this manual).
HI
1.7
3.3
5.4
2.1
35
280
U1R
CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give
you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center/
department We have competent, well-trained technicians and the proper tools to service or repair this tractor.
Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor properly. Always observe the “SAFETY RULES”.
TABLE OF CONTENTS
MAINTENANCE ...................................................... 16-19
SERVICE AND ADJUSTMENTS ............................ 20-25
STORAGE .................................................................... 26
TROUBLESHOOTING ............................................ 27-28
REPAIR PARTS - TRACTOR .................................. 30-47
WARRANTY................................................................. 51
SAFETY RULES ......................................................... 2-3
PRODUCT SPECIFICATIONS ....................................... 4
CUSTOMER RESPONSIBILITIES................................. 4
ASSEMBLY ................................................................. 6-9
OPERATION ........................................................... 10-15
MAINTENANCE SCHEDULE ...................................... 16
4
UNASSEMBLED PARTS
Steering Wheel
Gauge Wheel
(4) Adjusting Bar
(4) Clevis Pins
Steering
Wheel Adapter
(4) Wheels
(4) Locknut
3/8-16
(4) Shoulder Bolt
Steering
Wheel Insert
Steering Sleeve
(4) Retainer Springs
(double loop)
Seat
(4) Washers
3/8 x 3/4 x 14 Ga.
(1) Oil Drain Tube
For Future Use
(1) Washer
17/32 x 1-3/16 x 12 Gauge
Slope Sheet
(1) Knob
Keys
Mower
(2) Keys
(2)Flanged
Pins
(2) Retainer Springs
(double loop)
5
ASSEMBLY
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
STEERING WHEEL
INSERT
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) Pliers
(1) Tire pressure gauge
(2) 9/16" wrench
(1) Utility knife
(1) 1/2" wrench
(1) 3/4" socket w/drive ratchet
LOCK NUT
LARGE FLAT WASHER
STEERING
WHEEL
When right or left hand is mentioned in this manual, it means
when you are in the operating position (seated behind the
steering wheel).
STEERING
WHEEL ADAPTOR
TO REMOVE TRACTOR FROM
CARTON
STEERING
SHAFT
UNPACK CARTON
•
•
•
•
Remove all accessible loose parts and parts cartons
from carton .
Cut along dotted lines on all four panels of carton.
Remove end panels and lay side panels flat.
Remove mower and packing materials.
Check for any additional loose parts or cartons and
remove.
STEERING
SLEEVE
1
028
FIG. 1
BEFORE REMOVING TRACTOR FROM
SKID
CHECK BATTERY (See Fig. 2)
•
•
ATTACH STEERING WHEEL (See Fig. 1)
•
•
•
•
•
•
•
8
Remove locknut and large flat washer from steering
shaft.
Position front wheels of the tractor so they are pointing
straight forward.
Slide the steering sleeve over the steering shaft.
Position steering wheel so cross bars are horizontal
(left to right) and slide onto steering wheel adapter.
Secure steering wheel to steering shaft with locknut
and large flat washer previously removed. Tighten
securely.
Snap steering wheel insert into center of steering
wheel.
Remove protective materials from tractor hood and
grill.
Lift hood to raised position.
If this battery is put into service after month and year
indicated on label (label located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in the Maintenance section of this
manual for charging instructions).
LABEL
IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN
SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR IS TO
ROLL OFF SKID.
FIG. 2
INSTALL SEAT (See Fig. 3)
6
Adjust seat before tightening adjustment knob.
• Remove adjustment knob and flat washer securing
seat to cardboard packing and set aside for assembly
of seat to tractor.
• Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.
• Place seat on seat pan so head of shoulder bolt is
positioned over large slotted hole in pan.
ASSEMBLY
•
•
•
•
•
•
Push down on seat to engage shoulder bolt in slot and
pull seat towards rear of tractor.
Pivot seat and pan forward and assemble adjustment
knob and flat washer loosely. Do not tighten.
Lower seat into operating position and sit on seat.
Slide seat until a comfortable position is reached
which allows you to press clutch/brake pedal all the
way down.
Get off seat without moving its adjusted position.
Raise seat and tighten adjustment knob securely.
SEAT
•
•
Place gear shift lever in neutral (N) position.
Press lift lever plunger and raise attachment lift lever
to its highest position.
• Start the engine. After engine has started, move throttle
control to idle position.
• Depress clutch/brake pedal into full "BRAKE" position
and hold. Move gearshift lever to 1st gear.
• Slowly release clutch/brake pedal and slowly drive
tractor off skid.
• Apply brake to stop tractor, set parking brake and place
gearshift lever in neutral position.
• Turn ignition key to "STOP" position.
Continue with the instructions that follow.
SHOULDER
BOLT
ASSEMBLE GAUGE WHEELS TO
MOWER DECK (See Figs. 4 and 5)
SEAT PAN
The gauge wheels are designed to keep the mower deck
in proper position when operating mower.
• Slide gauge wheel bar down into bracket channel, Be
sure that gauge wheel bar aligning holes are on top.
Assemble gauge wheels as shown using shoulder bolts,
3/8 washers and 3/8-16 center locknuts and tighten
securely.
• For ease of mower to tractor assembly, set all the gauge
wheels in the fourth hole from top. Retain with clevis
pins and spring retainers.
66
24
FLAT WASHER
RETAINER SPRING
ADJUSTMENT
KNOB
PIN
02464
SHOULDER
BOLT
FIG. 3
ADJUSTING
BAR
NOTE: You may now roll or drive your tractor off the skid.
Follow the appropriate instruction below to remove the
tractor from the skid.
TO ROLL TRACTOR OFF SKID (See Operation section for location and function of
controls)
•
•
•
•
GAUGE
WHEEL
Press lift lever plunger and raise attachment lift lever
to its highest position.
Release parking brake by depressing clutch/brake
pedal.
Place gearshift lever in neutral (N) position.
Roll tractor forward off skid.
3/8-16 CENTER
LOCKNUT
3/8 WASHER
FIG. 4
TO DRIVE TRACTOR OFF SKID (See Operation section for location and function of
controls)
WARNING: Before starting, read, understand and follow
all instructions in the Operation section of this manual. Be
sure tractor is in a well-ventilated area. Be sure the area in
front of tractor is clear of other people and objects.
• Be sure all the above assembly steps have been completed.
• Check engine oil level and fill fuel tank with gasoline.
• Sit on seat in operating position, depress clutch/brake
pedal and set the parking brake.
SET ALL WHEELS
TO 4TH HOLE
FROM TOP
FIG. 5
7
ASSEMBLY
INSTALL MOWER AND DRIVE BELT
(See Fig. 6)
•
See MOWER AND DRIVE BELT ASSEMBLY Supplement
Sheet for additional guidance on this assembly.
Be sure tractor is on level surface and mower suspension
arms are raised with attachment lift control. Engage parking brake.
• Turn steering wheel to the left as far as it will go and
position mower on right side of tractor with deflector
shield to the right.
• Remove plastic tie strap from mower belt and check
belt for proper routing in all mower pulley grooves.
• Slide mower under tractor until it is centered under tractor. DO NOT connect any pins. When properly centered
the front mower brackets should be aligned so when
the front suspension plate is lowered it should slide
between the mower brackets.
• Lower attachment lift lever to lowest position.
• Cut plastic tie and lower front suspension plate.
• ATTACH FRONT PLATE - From left side of mower, position front plate assembly between front mower brackets,
align holes, position flanged pin notch horizontally and
insert the pin all the way. The notch is in line with the
hole in pin.
• Secure pin with double loop retainer spring between
the plate and mower bracket. If necessary, move mower
side-to-side to give space between plate and mower
bracket.
• Go to right hand side of mower and insert pin and
retainer spring in the same manner.
•
•
•
CONNECT REAR PINS - Connect right hand side first.
Pull out and hold the spring loaded pin, align hole in
suspension arm and release pin. Be sure pin returns to
fully seated position and is attached to the suspension
arm.
Go to left side of mower and connect rear pin in the
same manner.
Disengage belt tension rod.
From right side of tractor, install belt onto engine clutch
pulley.
IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL
MOWER PULLEY GROOVES.
•
Engage belt tension rod on locking bracket.
CAUTION: Belt tension rod is spring
loaded. Have a tight grip on rod and
engage slowly.
•
•
Raise attachment lift lever to highest position.
Adjust gauge wheels before operating mower as shown
in the Operation section of this manual.
LOCKING BRACKET
SUSPENSION
ARMS
ELECTRIC
CLUTCH
PULLEY
BELT TENSION ROD
DISENGAGED POSITION
FRONT PLATE ASSEMBLY
FRONT MOWER
BRACKET
DOUBLE LOOP
RETAINER SPRINGS
GAUGE
WHEEL
FLANGED PIN POSITION NOTCH
HORIZONTALLY
REAR MOWER PINS
027
86
FIG. 6
8
DEFLECTOR
SHIELD
ASSEMBLY
✓CHECKLIST
CHECK TIRE PRESSURE
The tires on your tractor were overinflated at the factory
for shipping purposes. Correct tire pressure is important
for best cutting performance.
• Reduce tire pressure to PSI shown in “PRODUCT
SPECIFICATIONS” section of this manual.
BEFORE YOU OPERATE YOUR NEW TRACTOR, WE
WISH TO ASSURE THAT YOU RECEIVE THE BEST PERFORMANCE AND SATISFACTION FROM THIS QUALITY
PRODUCT.
PLEASE REVIEW THE FOLLOWING CHECKLIST:
✓ All assembly instructions have been completed.
✓ No remaining loose parts in carton.
✓ Battery is properly prepared and charged. (Minimum
1 hour at 6 amps).
✓ Seat is adjusted comfortably and tightened securely.
✓ All tires are properly inflated. (For shipping purposes,
the tires were overinflated at the factory).
✓ Be sure mower deck is properly leveled side-to-side/
front-to-rear for best cutting results. (Tires must be
properly inflated for leveling).
✓ Check mower and drive belts. Be sure they are routed
properly around pulleys and inside all belt keepers.
✓ Check wiring. See that all connections are still secure
and wires are properly clamped.
WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY
EXTRA ATTENTION TO THE FOLLOWING IMPORTANT
ITEMS:
✓ Engine oil is at proper level.
✓ Fuel tank is filled with fresh, clean, regular unleaded
gasoline.
✓ Become familiar with all controls, their location and
function. Operate them before you start the engine.
✓ Be sure brake system is in safe operating condition.
✓ Be sure Operator Presence System and Reverse Operation System (ROS) are working properly (See the
Operation and Maintenance sections in this manual).
CHECK MOWER LEVELNESS
For best cutting results, mower should be properly leveled.
See “TO LEVEL MOWER HOUSING” in the Service and
Adjustments section of this manual.
CHECK FOR PROPER POSITION OF ALL
BELTS
See the figures that are shown for replacing motion, mower
drive, and mower blade drive belts in the Service and Adjustments section of this manual. Verify that the belts are
routed correctly.
CHECK BRAKE SYSTEM
After you learn how to operate your tractor, check to see that
the brake is properly adjusted. See “TO ADJUST BRAKE”
in the Service and Adjustments section of this manual.
9
OPERATION
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.
REVERSE
NEUTRAL
HIGH
LOW
CHOKE
FAST
SLOW
IGNITION SWITCH
P
ENGINE OFF
OVER TEMP
LIGHT
REVERSE
OPERATION
SYSTEM (ROS)
FUEL
ENGINE ON
OIL PRESSURE
ENGINE START
BATTERY
PARKING BRAKE
REVERSE
FORWARD
PARKING BRAKE
LOCKED
MOWER HEIGHT
PARKING BRAKE
UNLOCKED
MOWER LIFT
15
ATTACHMENT
CLUTCH DISENGAGED
ATTACHMENT
CLUTCH ENGAGED
LIGHTS ON
FREE WHEEL
(Automatic Models only)
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety information about hazards which can
result in death, serious injury
and/or property damage.
DANGER, KEEP HANDS
AND FEET AWAY
15
SLOPE HAZARDS
KEEP AREA CLEAR
(SEE SAFETY RULES SECTION)
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.
10
OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.
Compare the illustrations with your tractor to familiarize yourself with the location of various controls and adjustments.
Save this manual for future reference.
ROS "ON" POSITION
IGNITION SWITCH
AMMETER
LIFT LEVER
PLUNGER
ATTACHMENT
CLUTCH
SWITCH
THROTTLE
CONTROL
LIFT LEVER
CLUTCH /BRAKE
PEDAL
CHOKE
CONTROL
LIGHT SWITCH
HEIGHT
ADJUSTMENT
KNOB
02825_LSW
RANGE SHIFT
LEVER
GEAR SHIFT LEVER
PARKING BRAKE LEVER
FIG. 7
Our tractors conform to the safety standards of the American National Standards Institute.
LIFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
LIGHT SWITCH - Turns the headlights on and off.
PARKING BRAKE LEVER - Locks brake pedal into the
brake position.
RANGE SHIFT LEVER - Allows high (H) or low (L) speed
for all forward and reverse gears.
REVERSE OPERATION SYSTEM (ROS) “ON” POSITION - Allows operation of mower deck or other powered
attachment while in reverse.
THROTTLE CONTROL - Used to control engine speed.
AMMETER - Indocates charging (+) or discharging (-) of
battery.
ATTACHMENT CLUTCH SWITCH - Used to engage mower
blades or other attachments mounted to your tractor.
CHOKE CONTROL - Used when starting a cold engine.
CLUTCH/BRAKE PEDAL - Used for declutching and braking the tractor and starting the engine.
GEARSHIFT LEVER - Selects the speed and direction
of tractor.
HEIGHT ADJUSTMENT KNOB - Used to adjust the mower
height.
IGNITION SWITCH - Used to start and stop the engine.
LIFT LEVER - Used to raise and lower mower deck or
other attachments mounted to your tractor.
11
OPERATION
The operation of any tractor can result in foreign objects thrown into the eyes, which
can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide
vision safety mask over spectacles or standard safety glasses.
00155
HOW TO USE YOUR TRACTOR
NOTE: Under certain conditions when tractor is standing
idle with the engine running, hot engine exhaust gases may
cause “browning” of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas.
TO SET PARKING BRAKE (See Fig. 8)
Your tractor is equipped with an operator presence sensing switch. When engine is running, any attempt by the
operator to leave the seat without first setting the parking
brake will shut off the engine.
• Depress clutch/brake pedal into full “BRAKE” position
and hold.
• Place parking brake lever in “ENGAGED” position and
release pressure from clutch/brake pedal. Pedal should
remain in “BRAKE” position. Make sure parking brake
will hold tractor secure.
THROTTLE
CONTROL
LEVER
CLUTCH/
BRAKE PEDAL
“BRAKE”
POSITION
CHOKE
CONTROL
CAUTION: Always stop tractor completely, as described above, before leaving the operator's position; to empty
grass catcher, etc.
TO USE THROTTLE CONTROL (See Fig. 8)
Always operate engine at full throttle.
• Operating engine at less than full throttle reduces
the battery charging rate.
• Full throttle offers the best mower performance.
ATTACHMENT
CLUTCH SWITCH
PUSH IN TO
“DISENGAGE” PULL OUT TO
“ENGAGE”
TO USE CHOKE CONTROL (See Fig. 8)
Use choke control whenever you are starting a cold engine.
Do not use to start a warm engine.
• To engage choke control, pull knob out. Slowly push
knob in to disengage.
TO MOVE FORWARD AND BACKWARD
(See Fig. 8)
IGNITION
KEY
02146
The direction and speed of movement is controlled by the
gearshift lever.
• Start tractor with clutch/brake pedal depressed and
gearshift lever in neutral (N) position.
• Move gearshift and range shift levers to desired position.
• Slowly release clutch/brake pedal to start movement.
PARKING
RANGE BRAKE
“ENGAGED”
SHIFT
LEVER POSITION
HEIGHT ADJUSTMENT
KNOB
“DISENGAGED” GEAR SHIFT LEVER
POSITION
“DRIVE”
POSITION
FIG. 8
STOPPING (See Fig. 8)
IMPORTANT: BRING TRACTOR TO A COMPLETE STOP
BEFORE SHIFTING OR CHANGING GEARS. FAILURE
TO DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR
TRANSAXLE.
MOWER BLADES • To stop mower blades,move attachment clutch switch
to “DISENGAGED” position.
GROUND DRIVE • To stop ground drive, depress clutch/brake pedal into
full “BRAKE” position.
• Move gearshift lever to neutral (N) position.
ENGINE • Move throttle control between half and full speed (fast)
position.
NOTE: Failure to move throttle control between half and
full speed (fast) position, before stopping may cause engine
to “backfire”.
• Turn ignition key to “STOP” position and remove key.
Always remove key when leaving tractor to prevent
unauthorized use.
• Never use choke to stop engine.
TO ADJUST MOWER CUTTING HEIGHT
(See Fig. 8)
IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY
POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY
TO BE DISCHARGED, (DEAD).
12
The cutting height is controlled by turning the height adjustment knob in desired direction.
• Turn knob clockwise (
) to raise cutting height.
• Turn knob counterclockwise (
) to lower cutting
height.
The cutting height range is approximately 1-1/2" to 4-1/2".
The heights are measured from the ground to the blade tip
with the engine not running. These heights are approximate
and may vary depending upon soil conditions, height of
grass and types of grass being mowed.
• The average lawn should be cut to approximately 2-1/2
inches during the cool season and to over 3 inches
during hot months. For healthier and better looking
lawns, mow often and after moderate growth.
• For best cutting performance, grass over 6 inches
in height should be mowed twice. Make the first cut
relatively high; the second to desired height.
OPERATION
TO ADJUST GAUGE WHEELS (See Fig. 9)
ATTACHMENT CLUTCH
SWITCH PULL OUT TO
“ENGAGE”
Gauge wheels are properly adjusted when they are slightly
off the ground when mower is at the desired cutting height
in operating position. Gauge wheels then keep the deck
in proper position to help prevent scalping in most terrain
conditions.
NOTE:Adjust gauge wheels with tractor on a flat level
surface.
• Adjust mower to desired cutting height (See “TO ADJUST MOWER CUTTING HEIGHT” in the Operation
section of this manual).
• Remove retainer spring and clevis pin which secure
each gauge wheel bar.
• Lower gauge wheels to ground. Raise gauge wheels
slightly to align holes in bracket and gauge wheel bar
and insert clevis pin. Gauge wheels should be slightly
off the ground.
• Replace retainer spring into clevis pin.
• Be sure all gauge wheels are in the same setting.
LIFT LEVER
HIGEST POSITION
LOWEST
POSITION
PUSH IN TO
“DISENGAGE”
DEFLECTOR
SHIELD
FIG. 10
IMPORTANT: BE SURE TO READJUST GAUGE WHEELS IFYOU
CHANGE THE CUTTING HEIGHT OF THE MOWER DECK.
REVERSE OPERATION SYSTEM (ROS)
Your tractor is equipped with a Reverse Operation System
(ROS). Any attempt by the operator to travel in the reverse
direction with the attachment clutch engaged will shut off
the engine unless ignition key is placed in the ROS "ON"
position.
RETAINER
SPRING
WARNING: Backing up with the attachment clutch engaged while mowing is strongly discouraged. Turning the
ROS "ON", to allow reverse operation with the attachment
clutch engaged, should only be done when the operator
decides it is necessary to reposition the machine with the
attachment engaged. Do not mow in reverse unless
absolutely necessary.
CLEVIS
PIN
USING THE REVERSE OPERATION SYSTEM • Depress clutch/brake pedal all the way down and
hold.
• With engine running, turn ignition key counterclockwise
to ROS "ON" position.
• Look down and behind before backing.
• Move gear shift lever to reverse (R) position and slowly
release clutch/brake pedal to start movement.
• When use of the ROS is no longer needed, turn the
ignition key clockwise to engine "ON" position.
FIG. 9
TO OPERATE MOWER (See Fig. 10)
Your tractor is equipped with an operator presence sensing
switch. Any attempt by the operator to leave the seat with
the engine running and the attachment clutch engaged
will shut off the engine. You must remain fully and centrally
positioned in the seat to prevent the engine from hesitating
or cutting off when operating your equipment on rough,
rolling terrain or hills.
• Select desired height of cut.
• Lower mower with attachment lift control.
• Start mower blades by engaging attachment clutch
control.
• TO STOP MOWER BLADES - disengage attachment
clutch control.
ROS "ON" POSITION
CAUTION: Do not operate the mower
without either the entire grass catcher,
on mowers so equipped, or the deflector
shield in place.
ENGINE "ON" POSITION
(NORMAL OPERATING)
02828
13
OPERATION
TO OPERATE ON HILLS
ADD GASOLINE
•
CAUTION: Do not drive up or down hills
with slopes greater than 15° and do not
drive across any slope.
•
•
•
•
•
•
•
Choose the slowest speed before starting up or down
hills.
Avoid stopping or changing speed on hills.
If slowing is necessary, move throttle control lever to
slower position.
If stopping is absolutely necessary, push clutch/brake
pedal quickly to brake position and engage parking
brake.
Move gearshift lever to 1st gear and range shift lever
to low (L) position. Be sure you have allowed room for
tractor to roll slightly as you restart movement.
To restart movement, slowly release parking brake and
clutch/brake pedal.
Make all turns slowly.
Fill fuel tank to bottom of filler neck. Do not overfill.
Use fresh, clean, regular unleaded gasoline with a
minimum of 87 octane. (Use of leaded gasoline will
increase carbon and lead oxide deposits and reduce
valve life). Do not mix oil with gasoline. Purchase fuel
in quantities that can be used within 30 days to assure
fuel freshness.
CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
IMPORTANT: WHEN OPERATING IN TEMPERATURES
BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE
GAS O LINE TO HELP INSURE GOOD COLD WEATHER
STARTING.
CAUTION: Alcohol blended fuels (called
gasohol or using ethanol or methanol) can attract moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine while
in storage. To avoid engine problems, the fuel
system should be emptied before storage of
30 days or longer. Drain the gas tank, start
the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next
season. See Storage Instructions for additional
information. Never use engine or carburetor
cleaner products in the fuel tank or permanent
damage may occur.
TO TRANSPORT
•
Raise attachment lift to highest position with attachment
lift control.
• When pushing or towing your tractor, be sure gearshift
lever is in neutral (N) position.
• Do not push or tow tractor at more than five (5) MPH.
NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, be sure hood is closed
and secured to tractor. Use an appropriate means of tying
hood to tractor (rope, cord, etc.).
TO START ENGINE (See Fig. 8)
TOWING CARTS AND OTHER AT TACH MENTS
When starting the engine for the first time or if the engine
has run out of fuel, it will take extra cranking time to move
fuel from the tank to the engine.
• Sit on seat in operating position, depress clutch/brake
pedal and set parking brake.
• Place gear shift lever in neutral (N) position.
• Move attachment clutch to “DISENGAGED” position.
• Move throttle control to fast position
• Pull choke control out for a cold engine start attempt.
For a warm engine start attempt the choke control may
not be needed.
NOTE: Before starting, read the warm and cold starting
procedures below.
• Insert key into ignition and turn key clockwise to
“START” position and release key as soon as engine
starts. Do not run starter continuously for more than
fifteen seconds per minute. If the engine does not start
after several attempts, push choke control in, wait a
few minutes and try again. If engine still does not start,
pull the choke control out and retry.
Tow only the attachments that are recommended by and
comply with specifications of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load,
while on a slope, is dangerous. Tires can lose traction with
the ground and cause you to lose control of your tractor.
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL
The engine in your tractor has been shipped, from the
factory, already filled with summer weight oil.
• Check engine oil with tractor on level ground.
• Remove oil fill cap/dipstick and wipe clean, reinsert the
dipstick and screw cap tight, wait for a few seconds,
remove and read oil level. If necessary, add oil until
“FULL” mark on dipstick is reached. Do not overfill.
• For cold weather operation you should change oil for
easier starting (See “OIL VISCOSITY CHART” in the
Maintenance section of this manual).
• To change engine oil, see the Maintenance section in
this manual.
WARM WEATHER STARTING (50° F and above)
• When engine starts, slowly push choke control in until
the engine begins to run smoothly. If the engine starts
to run roughly, pull the choke control out slightly for a
few seconds and then continue to push the control in
slowly.
14
OPERATION
•
The attachments and ground drive can now be used. If
the engine does not accept the load, restart the engine
and allow it to warm up for one minute using the choke
as described above.
COLD WEATHER STARTING (50° F and below)
• When engine starts, slowly push choke control in until
the engine begins to run smoothly. Continue to push
the choke control in small steps allowing the engine to
accept small changes in speed and load, until the choke
control is fully in. If the engine starts to run roughly, pull
the choke control out slightly for a few seconds and
then continue to push the control in slowly. This may
require an engine warm-up period from several seconds
to several minutes, depending on the temperature.
• The attachments can be used during the engine warmup period and may require the choke control be pulled
out slightly.
NOTE: If at a high altitude (above 3000 feet) or in cold
temperatures (below 32 F) the carburetor fuel mixture may
need to be adjusted for best engine performance. See “TO
ADJUST CARBURETOR” in the Service and Adjustments
section of this manual.
00272
FIG. 11
•
•
•
MOWING TIPS
•
•
•
•
•
Tire chains cannot be used when the mower housing
is attached to tractor.
Mower should be properly leveled for best mowing
performance. See “TO LEVEL MOWER HOUSING” in
the Service and Adjustments section of this manual.
The left hand side of mower should be used for trimming.
Drive so that clippings are discharged onto the area
that has been cut. Have the cut area to the right of
the tractor. This will result in a more even distribution
of clippings and more uniform cutting.
When mowing large areas, start by turning to the right so
that clippings will discharge away from shrubs, fences,
driveways, etc. After one or two rounds, mow in the
opposite direction making left hand turns until finished
(See Fig. 11).
•
15
If grass is extremely tall, it should be mowed twice to
reduce load and possible fire hazard from dried clippings. Make first cut relatively high; the second to the
desired height.
Do not mow grass when it is wet. Wet grass will plug
mower and leave undesirable clumps. Allow grass to
dry before mowing.
Always operate engine at full throttle when mowing to assure better mowing performance and proper
discharge of material. Regulate ground speed by selecting a low enough gear to give the mower cutting
performance as well as the quality of cut desired.
When operating attachments, select a ground speed
that will suit the terrain and give best performance of
the attachment being used.
MAINTENANCE
MAINTENANCE SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
E
E
S
S
RS
AG
US
RS
UR OUR
OU SON OR
U
O
H
O
H
H
A
0
ST
EA
8H
SE RE
25
10
50
Y
Y
Y
Y
Y
RE
O
R
R
R
R
R
O
F
E
E
E
E
E
F
BE
SERVICE
EV
EV
EV
EV
EV
BE
CH
DATES
Check Brake Operation
Check Tire Pressure
T
R
A
C
T
0
R
Check Operator Presence and
ROS Systems
Check for Loose Fasteners
5
Sharpen/Replace Mower Blades
3
Lubrication Chart
Check Battery Level
4
Clean Battery and Terminals
Check Transaxle Cooling
Check V-Belts
Check Engine Oil Level
Change Engine Oil (with oil filter)
Change Engine Oil (without oil filter)
1,2
Clean Air Filter
2
Clean Air Screen
2
Inspect Muffler/Spark Arrester
Replace Oil Filter (If equipped)
1, 2
Clean Engine Cooling Fins
maint_sch-tractore.ROS.e
E
N
G
I
N
E
1,2
2
Replace Spark Plug
Replace Air Filter Paper Cartridge
2
Replace Fuel Filter
3 - Replace blades more often when mowing in sandy soil.
4 - Not required if equipped with maintenance-free battery.
5 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum.
Do not overtighten.
1 - Change more often when operating under a heavy load or
in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
GENERAL RECOMMENDATIONS
LUBRICATION CHART
The warranty on this tractor does not cover items that have
been subjected to operator abuse or negligence. To receive
full value from the warranty, operator must maintain tractor
as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tractor.
At least once a season, check to see if you should make
any of the adjustments described in the Service and
Adjustments section of this manual.
• At least once a year you should replace the spark plug,
clean or replace air filter, and check blades and belts
for wear. A new spark plug and clean air filter assure
proper air-fuel mixture and help your engine run better
and last longer.
➁ FRONT WHEEL
•
➁ FRONT WHEEL
BEARING ZERK
BEARING ZERK
➁ STEERING
➂ ENGINE
SECTOR GEAR
TEETH
➀ CHECK/ADD
TRANSAXLE
FLUID
➁ MANDREL
ZERKS
02502
BEFORE EACH USE
•
•
•
•
➁ SPINDLE ZERK
➁ SPINDLE ZERK
Check engine oil level.
Check brake operation.
Check tire pressure.
Check operator presence and
ROS systems for proper operation.
Check for loose fasteners.
➀
➁
➂
16
SAE 30 Motor Oil
GENERAL PURPOSE GREASE
REFER TO MAINTENANCE“ENGINE” SECTION
IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS
WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS
LUBRICANTS WILL ATTRACT DUST AND DIRT THAT WILL
SHORTEN THE LIFE OF THE SELF-LUBRICATING BEARINGS.
IF YOU FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY,
POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.
MAINTENANCE
TRACTOR
BLADE CARE
For best results mower blades must be kept sharp. Replace
bent or damaged blades.
Always observe safety rules when performing any maintenance.
BRAKE OPERATION
If tractor requires more than five (5) feet to stop at highest
speed in highest gear on a level, dry concrete or paved
surface, then brake must be checked and adjusted. (See
“TO ADJUST BRAKE” in the Ser vice and Adjustments
section of this manual).
CAUTION: Use only a replacement blade
approved by the manufacturer of your
tractor. Using a blade not approved
by the manufacturer of your tractor is
hazardous, could damage your tractor
and void your warranty.
TIRES
• Maintain proper air pressure in all tires (See “PRODUCT
SPECIFICATIONS” section of this manual).
• Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and
corrosion.
BLADE REMOVAL (See Fig. 12)
•
Raise mower to highest position to allow access to
blades.
NOTE: Protect your hands with gloves and/or wrap blade
with heavy cloth.
• Remove blade bolt by turning counterclockwise.
• Install new or resharpened blade with stamped "THIS
SIDE UP" facing deck and mandrel assembly.
IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER
HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL
ASSEMBLY.
OPERATOR PRESENCE SYSTEM AND REVERSE OPERATION SYSTEM (ROS)
Be sure operator presence and reverse operation systems
are working properly. If your tractor does not function as
described, repair the problem immediately.
• The engine should not start unless the brake pedal is
fully depressed, and the attachment clutch control is
in the disengaged position.
•
IMPORTANT: SPECIAL BLADE BOLT HEAT TREATED.
MANDREL
ASSEMBLY
BLADE
CHECK OPERATOR PRESENCE SYSTEM
• When the engine is running, any attempt by the operator
to leave the seat without first setting the parking brake
should shut off the engine.
• When the engine is running and the attachment clutch
is engaged, any attempt by the operator to leave the
seat should shut off the engine.
• The attachment clutch should never operate unless
the operator is in the seat.
CENTER
HOLE
BLADE BOLT
(SPECIAL)
STAR
FIG. 12
CHECK REVERSE OPERATION (ROS) SYSTEM
• When the engine is running with the ignition switch in
the engine "ON" position and the attachment clutch
engaged, any attempt by the operator to shift into
reverse should shut off the engine.
• When the engine is running with the ignition switch in
the ROS "ON" position and the attachment clutch engaged, any attempt by the operator to shift into reverse
should NOT shut off the engine.
ROS "ON" POSITION
Install and tighten blade bolt securely (45-55 Ft. Lbs.
torque).
TO SHARPEN BLADE (See Fig. 13)
ENGINE "ON" POSITION
(NORMAL OPERATING)
828
17
NOTE: We do not recommend sharpening blade - but if
you do, be sure the blade is balanced.
Care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibration and eventual
damage to mower and engine.
• The blade can be sharpened with a file or on a grinding wheel. Do not attempt to sharpen while on the
mower.
• To check blade balance, you will need a 5/8" diameter
steel bolt, pin, or a cone balancer. (When using a
cone balancer, follow the instructions supplied with
balancer.)
NOTE: Do not use a nail for balancing blade. The lobes of
the center hole may appear to be centered, but are not.
• Slide blade on to an unthreaded portion of the steel bolt
or pin and hold the bolt or pin parallel with the ground.
If blade is balanced, it should remain in a horizontal
position. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced.
MAINTENANCE
CENTER HOLE
TRANSAXLE
FILLER PLUG
BLADE
5/8" BOLT
OR PIN
FIG. 13
BATTERY
Your tractor has a battery charging system which is sufficient
for normal use. However, periodic charging of the battery
with an automotive charger will extend its life.
• Keep battery and terminals clean.
• Keep battery bolts tight.
• Keep small vent holes open.
• Recharge at 6-10 amperes for 1 hour.
NOTE: The original equipment battery on your tractor is
maintenance free. Do not attempt to open or remove caps
or covers. Adding or checking level of electrolyte is not
necessary.
FIG. 14
TRANSAXLE PUMP FLUID
The transaxle was sealed at the factory and fluid maintenance is not required for the life of the transaxle. Should
the transaxle ever leak or require servicing, contact your
nearest authorized ser vice center/department.
ENGINE
LUBRICATION
TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause
the battery to “leak” power.
• Remove terminal guard.
• Disconnect BLACK battery cable first then RED battery cable and remove battery from tractor.
• Rinse the battery with plain water and dry.
• Clean terminals and battery cable ends with wire brush
until bright.
• Coat terminals with grease or petroleum jelly.
• Reinstall battery (See “REPLACING BATTERY" in
the SERVICE AND ADJUSTMENTS section of this
manual).
Only use high quality detergent oil rated with API service
classification SG-SL. Select the oil’s SAE viscosity grade
according to your expected operating temperature.
SAE VISCOSITY GRADES
SAE 30
5W-30
C
0
-20
30
-10
32
40
0
60
10
100
80
20
30
40
oil_visc_chart1_e
FIG. 15
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improve starting in cold weather, they will result in increased
oil consumption when used above 32°F. Check your engine
oil level more frequently to avoid possible engine damage
from running low on oil.
Change the oil after every 50 hours of operation or at least
once a year if the tractor is not used for 50 hours in one
year.
Check the crankcase oil level before starting the engine
and after each eight (8) hours of operation. Tighten oil fill
cap/dipstick securely each time you check the oil level.
Check V-belts for deterioration and wear after 100 hours
of operation and replace if necessary. The belts are not
adjustable. Replace belts if they begin to slip from wear.
TRANSAXLE COOLING
Keep transaxle free from build-up of dirt and chaff which
can restrict cooling.
CHECK TRANSAXLE OIL LEVEL
(See Fig. 14)
•
-30
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
V-BELTS
•
•
•
-20
F
Block up rear axle securely.
Remove left rear wheel by removing hub bolts.
Remove filler plug from transaxle. Oil level must be
even with plug threads. If necessary, fill with SAE 30
motor oil, API SF-SJ. Replace filler plug.
Reassemble wheel to hub.
18
TO CHANGE ENGINE OIL (See Figs. 15 and 16)
Determine temperature range expected before oil change.
All oil must meet API service classification SG-SL.
• Be sure tractor is on level surface.
• Oil will drain more freely when warm.
• Catch oil in a suitable container.
• Remove oil fill cap/dipstick. Be careful not to allow dirt
to enter the engine when changing oil.
• Install the drain tube onto the valve.
• Open drain valve by using a 7/16" (11mm) wrench
turning counterclockwise.
MAINTENANCE
MUFFLER
OIL DRAIN VALVE
Inspect and replace corroded muffler and spark arrester
(if equipped) as it could create a fire hazard and/or damage.
TO OPEN
TO CLOSE
SPARK PLUGS
Replace spark plugs at the beginning of each mowing
season or after every 100 hours of operation, whichever
occurs first. Spark plug type and gap setting are shown in
“PRODUCT SPECIFICATIONS” section of this manual.
IN-LINE FUEL FILTER (See Fig. 17)
The fuel filter should be replaced once each season. If fuel
filter becomes clogged, obstructing fuel flow to carburetor,
replacement is required.
• With engine cool, remove filter and plug fuel line sections.
• Place new fuel filter in position in fuel line with arrow
pointing towards carburetor.
• Be sure there are no fuel line leaks and clamps are
properly positioned.
• Immediately wipe up any spilled gasoline.
02791
DRAIN
TUBE
FIG. 16
•
•
•
•
After oil has drained completely, close the drain valve
turning clockwise. Use the 7/16" (11mm) wrench to
apply a small amount of torque to keep it closed. Do
not over tighten.
Remove the drain tube and store in a safe place.
Refill engine with oil through oil fill dipstick tube. Pour
slowly. Do not overfill. For approximate capacity see
“PRODUCT SPECIFICATIONS” section of this manual.
Use gauge on oil fill cap/dipstick for checking level.
Be sure dipstick cap is tightened securely for accurate
reading. Keep oil at “FULL” line on dipstick. Tighten cap
onto the tube securely when finished.
CLAMP
CLAMP
FUEL FILTER
CLEAN AIR INTAKE/COOLING AREAS
To insure proper cooling, make sure the grass screen,
cooling fins, and other external surfaces of the engine are
kept clean at all times.
Every 100 hours of operation (more often under extremely
dusty, dirty conditions), remove the blower housing and
other cooling shrouds. Clean the cooling fins and external
surfaces as necessary. Make sure the cooling shrouds are
reinstalled.
NOTE: Operating the engine with a blocked grass screen,
dirty or plugged cooling fins, and/or cooling shrouds removed
will cause engine damage due to overheating.
FIG. 17
CLEANING
•
Clean engine, battery, seat, finish, etc. of all foreign
matter.
• Keep finished surfaces and wheels free of all gasoline,
oil, etc.
• Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose or pressure
washer to clean your tractor unless the engine and transmission are covered to keep water out. Water in engine or
transmission will shorten the useful life of your tractor. Use
compressed air or a leaf blower to remove grass, leaves
and trash from tractor and mower.
CLEAN AIR SCREEN
Air screen must be kept free of dirt and chaff to prevent
engine damage from overheating. Clean with a wire brush
or compressed air to remove dirt and stubborn dried gum
fibers. See engine manual.
AIR FILTER
Your engine will not run properly using a dirty air filter.
Service air cleaner more often under dusty conditions. See
engine manual.
ENGINE OIL FILTER
Replace the engine oil filter every season or every other oil
change if the tractor is used more than 100 hours in one
year. See engine manual.
19
SERVICE AND ADJUSTMENTS
WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
• Depress clutch/brake pedal fully and set parking brake.
• Place gearshift lever in neutral (N) position.
• Place attachment clutch in “DISENGAGED” position.
• Turn ignition key to “STOP” and remove key.
• Make sure the blades and all moving parts have completely stopped.
• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug.
TRACTOR
•
TO REMOVE MOWER (See Fig. 18)
•
•
•
•
Place attachment clutch in “DISENGAGED” position.
Lower attachment lift lever to its lowest position.
Disengage belt tension rod from lock bracket.
•
•
CAUTION: Belt tension rod is spring
loaded. Have a tight grip on rod and
release slowly.
•
•
•
Go to other side of mower and disconnect rear pin in
the same manner.
Remove the four retainer springs and two flanged pins
from front plate assembly and remove plate.
Raise attachment lift lever to its highest position.
Turn tractor steering wheel to the left as far as it will
go.
Slide mower out from under right side of tractor.
TO INSTALL MOWER
Remove mower belt from electric clutch pulley.
DISCONNECT REAR MOWER PINS - Pull out the
spring loaded pin, disconnect suspension arm from
pin and release pin.
Follow procedure described in “INSTALL MOWER AND
DRIVE BELT” in the Assembly section of this manual.
NOTE: You will need to reattach front plate assembly to
tractor after sliding mower under the tractor.
LOCKING BRACKET
BELT TENSION ROD
DISENGAGED POSITION
SUSPENSION ARMS
ELECTRIC CLUTCH
PULLEY
FRONT PLATE
ASSEMBLY
SINGLE LOOP
RETAINER SPRINGS
DOUBLE LOOP
RETAINER SPRINGS
FLANGED PINS
REAR MOWER PINS
027
86
FIG. 18
20
SERVICE AND ADJUSTMENTS
TO LEVEL MOWER HOUSING
•
To lower front of blade, loosen nut “C” on both front
links an equal number of turns.
NOTE: Each full turn of nut “C” will change distance. “B”
by approximately 3/16".
• When distance “B” is 1/8" to 1/2" lower at front than rear,
tighten nut “D” against trunnion on both front links.
• To raise front of blade, loosen nut “D” from trunnion on
both front links. Tighten nut “C” on both front links an
equal number of turns. The two front links must remain
equal in length.
• When distance “B” is 1/8" to 1/2" lower at front than rear,
tighten nut “D” against trunnion on both front links.
• Recheck side-to-side adjustment.
Adjust the mower while tractor is parked on level ground
or driveway. Make sure tires are properly inflated (See
“PRODUCT SPECIFICATIONS” section of this manual). If
tires are over or underinflated, you will not properly adjust
your mower.
SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)
• Raise mower to its highest position.
• Measure height from bottom edge of mower to ground
level at front corners of mower. Distance “A” on both
sides of mower should be the same.
• If adjustment is necessary, make adjustment on one
side of mower only.
• To raise one side of mower, tighten lift link adjustment
nut on that side.
• To lower one side of mower, loosen lift link adjustment
nut on that side.
NOTE: Each full turn of adjustment nut will change mower
height about 3/16".
• Recheck measurements after adjusting.
BOTTOM EDGE
OF MOWER
TO GROUND
A
BLADE
“B”
BOTTOM
EDGE OF
MOWER
TO GROUND
GROUND LINE
“B”
FIG. 21
BOTH FRONT PLATE LINKS MUST BE
EQUAL IN LENGTH
A
FIG. 19
SUSPENSION ARM
NUT “C”
NUT “D”
LIFT LINK
ADJUSTMENT NUT
TRUNNION
FRONT PLATE
ASSEMBLY
FIG. 20
FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)
FIG. 22
IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF THE
FOLLOWING FRONT-TO-BACK ADJUSTMENT IS NECESSARY,
BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO
MOWER WILL STAY LEVEL SIDE-TO-SIDE.
TO REPLACE MOWER DRIVE BELT
(See Fig. 23)
To obtain the best cutting results, the mower blades should
be adjusted so the front tip is approximately 1/8" to 1/2"
lower than the rear tip when the mower is in its highest
position.
MOWER DRIVE BELT REMOVAL
• Park tractor on a level surface. Engage parking
brake.
• Lower attachment lift lever to its lowest position.
• Disengage belt tension rod from lock bracket.
CAUTION: Blades are sharp. Protect
your hands with gloves and/or wrap
blade with heavy cloth.
Check adjustment on right side of tractor. Position any blade
so the tip is pointing straight forward. Measure distance "B"
at front and rear tip of the blade.
• Before making any necessary adjustments, check that
both front plate links are equal in length.
• If links are not equal in length, adjust one link to same
length as other link.
CAUTION: Belt tension rod is spring
loaded. Have a firm grip on rod and
release slowly.
•
•
21
Remove screws from R.H. and L.H. mandrel covers
and remove covers.
Remove any dirt or grass clippings which may have
accumulated around mandrels and entire upper deck
surface.
SERVICE AND ADJUSTMENTS
•
Remove belt from electric clutch pulley, both mandrel
pulleys and all idler pulleys.
•
MOWER DRIVE BELT INSTALLATION
• Install belt around both mandrel pulleys and around
idler pulleys as shown.
• Install belt onto electric clutch pulley.
•
Reassemble R.H. and L.H. mandrel covers. Securely
tighten all screws.
Engage belt tension rod on locking bracket.
CAUTION: Belt tension rod is spring
loaded. Have a tight grip on rod and
engage slowly.
IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL
MOWER PULLEY GROOVES.
•
Raise attachment lift lever to highest position.
BELT ROUTING
L.H. MANDREL
COVER
LOCKING BRACKET
BELT TENSION
ROD (DISENGAGED
POSITION)
ELECTRIC
CLUTCH
PULLEY
R.H. MANDREL
COVER
R.H.
MANDREL
IDLER
PULLEYS
027
90
FIG. 23
NOTE: After installing a new electric clutch, run tractor at
TO ADJUST ATTACHMENT CLUTCH
full throttle and engage and disengage electric clutch 10
(See Fig. 24)
cycles to wear in clutch plate.
The electric clutch should provide years of service. The
ROTOR
clutch has a built-in brake that stops the pulley within 5
CLUTCH PLATE
seconds. Eventually, the internal brake will wear which
may cause the mower blades to not engage, or, to not stop
.012"
as required. Adjustments should be made by your nearest
authorized service center/department.
• Make sure attachment clutch and ignition switches are
SLOT (3)
NYLON
in “OFF” position.
LOCKNUT (3)
BRAKE PLATE
• Adjust the three nylon locknuts until space between
clutch plate and rotor measures .012" at all three slot
FIG. 24
locations cut in side of brake plate.
00751
22
SERVICE AND ADJUSTMENTS
TO CHECK AND ADJUST BRAKE
(See Fig. 25)
•
•
Roll motion drive belt off transaxle pulley.
Roll belt off clutching idler pulleys, then off engine pulley and front V-idler pulley.
• Pull belt out of all belt keepers.
BELT INSTALLATION • Place V part of belt into grooves on engine pulley and
front V-idler, making sure to route belt inside of belt
keepers.
• Put belt coming from V-idler above midspan belt keeper,
then onto clutching idler pulleys as shown.
• Make sure V part of belt engages V-idler.
• Place belt around transaxle pulley, beginning at top.
V part of belt should engage transaxle pulley.
• Place long lower section of belt through loop in midspan
belt keeper.
• Check to be sure belt is on proper side of all belt keepers.
• Reinstall mower drive belt onto electric clutch pulley.
Your tractor is equipped with an adjustable brake system
which is mounted on the right side of the transaxle.
If tractor requires more than five (5) feet to stop at highest
speed in highest gear on a level, dry concrete or paved
surface, then brake must be checked and adjusted.
TO CHECK BRAKE
• Park tractor on a level, dry concrete or paved surface,
depress clutch/brake pedal all the way down and engage parking brake.
• Place gear shift lever in neutral (N) position.
The rear wheels must lock and skid when you try to manually
push the tractor forward. If the rear wheels rotate, the brake
needs to be adjusted or the pads need to be replaced.
TO ADJUST BRAKE
• Depress clutch/brake pedal all the way down and engage parking brake.
• Measure distance between brake operating arm and
nut “A” on brake rod.
• If distance is other than 1-3/4", loosen jam nut and turn
nut “A” until distance becomes 1-3/4". Retighten jam
nut against nut “A”.
• Road test tractor for proper stopping distance as stated
above. Readjust if necessary. If stopping distance is
still greater than five (5) feet in highest gear, further
maintenance is necessary. Replace brake pads or
contact a qualified service center.
IMPORTANT: CHECK BRAKE ADJUSTMENT.
TRACTOR V-BELT DRIVE SCHEMATIC
VIEWED FROM L.H. SIDE OF TRACTOR
CLUTCHING
IDLER
ENGINE
PULLEY
CLUTCHING
FLAT IDLER
V-IDLER
BELT
KEEPER
ABOVE MIDSPAN
BELT KEEPER
WITH PARKING BRAKE “ENGAGED”
BELT
KEEPER
1-3/4”
NUT “A”
OPERATING
ARM
BELT
TWISTS
ENGINE
PULLEY
V-IDLER
BELT
TRANSAXLE
KEEPER PULLEY
1428
JAM NUT
01
AS VIEWED FROM BOTTOM
FIG. 26
55
5
TO AD JUST STEER ING WHEEL ALIGNMENT
If steering wheel crossbars are not horizontal (left to right)
when wheels are positioned straight forward, remove steering wheel and reassemble per instructions in the Assembly
section of this manual.
FIG. 25
TO REPLACE MOTION DRIVE BELT
(See Fig. 26)
Park the tractor on level surface. Engage parking brake.
For ease of service there is a belt installation guide decal
on bottom of left footrest. It is not necessary to remove
mower.
BELT REMOVAL • Engage parking brake (creates slack in belt).
• Remove mower drive belt from electric clutch pulley
only (See “TO REPLACE MOWER DRIVE BELT” in
this section of this manual).
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe-in and camber are not adjustable on
your tractor. If damage has occurred to affect the front
wheel toe-in or camber, contact your nearest authorized
service center/department.
23
SERVICE AND ADJUSTMENTS
•
TO REMOVE WHEEL FOR REPAIRS
FRONT WHEEL (See Fig. 27)
• Block up axle securely.
• Remove axle cover, retaining ring and washers to allow
wheel removal.
• Repair tire and reassemble.
• Replace washers and snap retaining ring securely in
axle groove.
• Replace axle cover.
Connect the other end of the BLACK cable (D) to good
chassis ground, away from fuel tank and battery.
TO REMOVE CABLES, REVERSE ORDER • BLACK cable first from chassis and then from the fully
charged battery.
• RED cable last from both batteries.
REAR WHEEL • Block rear axle securely.
• Remove five (5) hub bolts to allow wheel removal.
• Repair tire and reassemble. Replace and tighten hub
bolts securely.
NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and
corrosion.
WEAK OR DEAD
BATTERY
FULLY CHARGED
BATTERY
FIG. 28
REPLACING BATTERY (See Fig. 29)
WARNING: Do not short battery
terminals by allowing a wrench or any
other object to contact both terminals
at the same time. Before connecting battery, remove metal bracelets,
wristwatch bands, rings, etc.
Positive terminal must be connected
first to prevent sparking from accidental grounding.
WASHERS
RETAINING RING
AXLE
COVER
•
•
•
00663
FIG. 27
•
TO START ENGINE WITH A WEAK BATTERY
(See Fig. 28)
•
•
WARNING: Lead-acid batteries generate explosive gases. Keep sparks,
flame and smoking materials away from
batteries. Always wear eye protection
when around batteries.
•
If your battery is too weak to start the engine, it should be
recharged. (See "BATTERY" in the Maintenance section
of this manual).
If “jumper cables” are used for emergency starting, follow
this procedure:
•
•
Lift hood to raised position.
Remove terminal guard.
Disconnect BLACK battery cable then RED battery
cable and carefully remove battery from tractor.
Install new battery with terminals in same position as
old battery.
Reinstall terminal guard.
First connect RED battery cable to positive (+) battery
terminal with hex bolt and keps nut as shown. Tighten
securely.
Connect BLACK grounding cable to negative (-) battery
terminal with remaining hex bolt and keps nut. Tighten
securely
Close terminal access doors.
Close hood.
TERMINAL
ACCESS
DOOR
IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12 VOLT
SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT
SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START
OTHER VEHICLES.
TO ATTACH JUMPER CABLES • Connect one end of the RED cable to the POSITIVE
(+) terminal of each battery(A-B), taking care not to
short against tractor chassis.
• Connect one end of the BLACK cable to the NEGATIVE
(-) terminal (C) of fully charged battery.
KEPS NUT
HEX BOLT
POSITIVE
(RED)
CABLE
TERMINAL
GUARD
NEGATIVE
(BLACK)
CABLE
FIG. 29
24
SERVICE AND ADJUSTMENTS
TO REPLACE HEADLIGHT BULB
•
•
•
•
Raise hood.
Pull bulb holder out of the hole in the backside of the
grill.
Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.
Close hood.
HOOD
HEADLIGHT
WIRE
CONNECTOR
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
• Check wiring. See electrical wiring diagram in the
Repair Parts section of this manual.
02141
TO REPLACE FUSE
Replace with 30 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.
TO REMOVE HOOD AND GRILL ASSEMBLY
(See Fig. 30)
•
•
•
•
FIG. 30
Raise hood.
Unsnap headlight wire connector.
Stand in front of tractor. Grasp hood at sides, tilt toward
engine and lift off of tractor.
To replace, reverse above procedure.
ENGINE
TO ADJUST THROTTLE CONTROL CABLE
The throttle control has been preset at the factory and
adjustment should not be necessary. If adjustment is necessary, see engine manual.
TO ADJUST CHOKE CONTROL
The choke control has been preset at the factory and adjustment should not be necessary. If adjustment is necessary, see engne manual.
TO ADJUST CARBURETOR
Your carburetor is not adjustable. If your engine does not
operate properly due to suspected carburetor problems,
take your tractor to an authorized service center for repair
and/or adjustment.
25
STORAGE
Immediately prepare your tractor for storage at the end
of the season or if the tractor will not be used for 30 days
or more.
ENGINE
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS
FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH
AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK
DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT
ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING
ETHANOL OR METHANOL) CAN ATTRACT MOISTURE WHICH
LEADS TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM
OF AN ENGINE WHILE IN STORAGE.
WARNING: Never store the tractor with
gasoline in the tank inside a building
where fumes may reach an open flame
or spark. Allow the engine to cool before
storing in any enclosure.
TRACTOR
•
Empty the fuel tank by starting the engine and let it run
until the fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage.
Add stabilizer to gasoline in fuel tank or storage container.
Always follow the mix ratio found on stabilizer container.
Run engine at least 10 minutes after adding stabilizer to
allow the stabilizer to reach the carburetor. Do not empty
the gas tank and carburetor if using fuel stabilizer.
Remove mower from tractor for winter storage. When mower
is to be stored for a period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a clean, dry area.
• Clean entire tractor (See “CLEANING” in the Maintenance section of this manual).
• Inspect and replace belts, if necessary (See belt replacement instructions in the Service and Adjustments
section of this manual).
• Lubricate as shown in the Maintenance section of this
manual.
• Be sure that all nuts, bolts and screws are securely
fastened. Inspect moving parts for damage, breakage
and wear. Replace if necessary.
• Touch up all rusted or chipped paint surfaces; sand
lightly before painting.
ENGINE OIL
Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of
this manual).
BATTERY
•
•
•
•
•
CYLINDER(S)
Fully charge the battery for storage.
After a period of time in storage, battery may require
recharging.
To help prevent corrosion and power leakage during
long periods of storage, battery cables should be disconnected and battery cleaned thoroughly (see “TO
CLEAN BATTERY AND TERMINALS” in the Maintenance section of this manual).
After cleaning, leave cables disconnected and place
cables where they cannot come in contact with battery
terminals.
If battery is removed from tractor for storage, do not
store battery directly on concrete or damp surfaces.
•
•
•
•
Remove spark plug(s).
Pour one ounce of oil through spark plug hole(s) into
cylinder(s).
Turn ignition key to “START” position for a few seconds
to distribute oil.
Replace with new spark plug(s).
OTHER
•
•
•
•
Do not store gasoline from one season to another.
Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.
If possible, store your tractor indoors and cover it to
give protection from dust and dirt.
Cover your tractor with a suitable protective cover that
does not retain moisture. Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your tractor to rust.
IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE AND
EXHAUST AREAS ARE STILL WARM.
26
TROUBLESHOOTING POINTS
PROBLEM
Will not start
CAUSE
1.
2.
3.
4.
5.
6.
7.
Out of fuel.
Engine not “CHOKED” properly.
Engine flooded.
Bad spark plug.
Dirty air filter.
Dirty fuel filter.
Water in fuel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Loose or damaged wiring.
Carburetor out of adjustment.
8.
9.
10.
Hard to start
CORRECTION
Engine valves out of adjustment.
10.
Fill fuel tank.
See “TO START ENGINE” in Operation section.
Wait several minutes before attempting to start.
Replace spark plug.
Clean/replace air filter.
Replace fuel filter.
Empty fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel filter.
Check all wiring.
See “To Adjust Carburetor” in Service Adjustments
section.
Contact an authorized service center/department.
1.
2.
3.
4.
5.
6.
7.
Dirty air filter.
Bad spark plug.
Weak or dead battery.
Dirty fuel filter.
Stale or dirty fuel.
Loose or damaged wiring.
Carburetor out of adjustment.
1.
2.
3.
4.
5.
6.
7.
8.
Engine valves out of adjustment.
8.
Clean/replace air filter.
Replace spark plug.
Recharge or replace battery.
Replace fuel filter.
Empty fuel tank and refill tank with fresh, clean gasoline.
Check all wiring.
See “To Adjust Carburetor” in Service Adjustments
section.
Contact an authorized service center/department.
Engine will not turn over
1.
2.
3.
4.
5.
6.
7.
8.
9.
Clutch/brake pedal not depressed.
Attachment clutch is engaged.
Weak or dead battery.
Blown fuse.
Corroded battery terminals.
Loose or damaged wiring.
Faulty ignition switch.
Faulty solenoid or starter.
Faulty operator presence switch(es).
1.
2.
3.
4.
5.
6.
7.
8.
9.
Depress clutch/brake pedal.
Disengage attachment clutch.
Recharge or replace battery.
Replace fuse.
Clean battery terminals.
Check all wiring.
Check/replace ignition switch.
Check/replace solenoid or starter.
Contact an authorized service center/department.
Engine clicks but will not
start
1.
2.
3.
4.
Weak or dead battery.
Corroded battery terminals.
Loose or damaged wiring.
Faulty solenoid or starter.
1.
2.
3.
4.
Recharge or replace battery.
Clean battery terminals.
Check all wiring.
Check/replace solenoid or starter.
Loss of power
1.
2.
3.
4.
5.
6.
7.
8.
9.
Cutting too much grass/too fast.
Throttle in “CHOKE” position.
Build-up of grass, leaves and trash under mower.
Dirty air filter.
Low oil level/dirty oil.
Faulty spark plug.
Dirty fuel filter.
Stale or dirty fuel.
Water in fuel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Raise cutting height/reduce speed.
Adjust throttle control.
Clean underside of mower housing.
Clean/replace air filter.
Check oil level/change oil.
Clean and regap or change spark plug.
Replace fuel filter.
Empty fuel tank and refill tank with fresh, clean gasoline.
Empty fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel filter.
Connect and tighten spark plug wire.
Clean engine air screen/fins.
Clean/replace muffler.
Check all wiring.
See “To Adjust Carburetor” in Service Adjustments
section.
Contact an authorized service center/department.
Excessive vibration
10.
11.
12.
13.
14.
Spark plug wire loose.
Dirty engine air screen/fins.
Dirty/clogged muffler.
Loose or damaged wiring.
Carburetor out of adjustment.
10.
11.
12.
13.
14.
15.
Engine valves out of adjustment.
15.
1.
2.
3.
Worn, bent or loose blade.
Bent blade mandrel.
Loose/damaged part(s).
1.
2.
3.
27
Replace blade. Tighten blade bolt.
Replace blade mandrel.
Tighten loose part(s). Replace damaged parts.
TROUBLESHOOTING POINTS
PROBLEM
CAUSE
Engine dies when
tractor is shifted
into reverse
1.
CORRECTION
Reverse operation system
(ROS) is not "ON" while
mower or other attachment
is engaged.
1. Turn ignition key to
ROS "ON" position.
See Operation section.
Engine continues to run
when operator leaves seat
with attachment clutch
engaged
1.
Faulty operator-safety presence control system.
1.
Check wiring, switches and connections. If not
corrected, contact an authorized service center/
department.
Poor cut - uneven
1.
2.
3.
4.
5.
Worn, bent or loose blade.
Mower deck not level.
Buildup of grass, leaves, and trash under mower.
Bent blade mandrel.
Clogged mower deck vent holes from buildup of
grass, leaves, and trash around mandrels.
1.
2.
3.
4.
5.
Replace blade. Tighten blade bolt.
Level mower deck.
Clean underside of mower housing.
Replace blade mandrel.
Clean around mandrels to open vent holes.
Mower blades will not
rotate
1.
2.
3.
4.
Obstruction in clutch mechanism.
Worn/damaged mower drive belt.
Frozen idler pulley.
Frozen blade mandrel.
1.
2.
3.
4.
Remove obstruction.
Replace mower drive belt.
Replace idler pulley.
Replace blade mandrel.
Poor grass discharge
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Engine speed too slow.
Travel speed too fast.
Wet grass.
Mower deck not level.
Low/uneven tire air pressure.
Worn, bent or loose blade.
Buildup of grass, leaves and trash under mower.
Mower drive belt worn.
Blades improperly installed.
Improper blades used.
Clogged mower deck vent holes from buildup of
grass, leaves, and trash around mandrels.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Place throttle control in “FAST” position.
Shift to slower speed.
Allow grass to dry before mowing.
Level mower deck.
Check tires for proper air pressure.
Replace/sharpen blade. Tighten blade bolt.
Clean underside of mower housing.
Replace mower drive belt.
Reinstall blades sharp edge down.
Replace with blades listed in this manual.
Clean around mandrels to open vent holes.
Headlight(s) not working
(if so equipped)
1.
2.
3.
4.
5.
Light switch is “OFF”.
Bulb(s) or lamp(s) burned out.
Faulty light switch.
Loose or damaged wiring.
Blown fuse.
1.
2.
3.
4.
5.
Turn light switch “ON”.
Replace bulb(s) or lamp(s).
Check/replace light switch.
Check wiring and connections.
Replace fuse.
Battery will not charge
1.
2.
3.
4.
Bad battery cell(s).
Poor cable connections.
Faulty regulator (if so equipped).
Faulty alternator.
1.
2.
3.
4.
Replace battery.
Check/clean all connections.
Replace regulator.
Replace alternator.
Engine “backfires” when
turning engine “OFF”
1.
Engine throttle control not set between half and
full speed (fast) position before stopping engine.
1.
Move throttle control between half and full speed
(fast) position before stopping engine.
28
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
SCHEMATIC
BATTERY
SOLENOID
A
RED
RED
AMMETER
(OPTIONAL)
M
RED
FUSE
STARTER
PTO
(DISENGAGED)
WHITE
S
B
M
A1
G
L A2
WHITE
IGNITION SWITCH
BLACK
CLUTCH / BRAKE
(PEDAL UP)
GRAY
BLACK
SEAT SWITCH
(NOT OCCUPIED)
BLACK
GRAY
BLACK
REVERSE SWITCH
SHORTING CONNECTOR
NOT IN REVERSE
BLACK
BLACK
ELECTRIC CLUTCH
BLACK
RED
IGNITION
UNIT
BLACK / WHITE
HOUR
METER
BLUE
FUEL SHUT-OFF
SOLENOID
FUEL
LINE
BLACK
(OPTIONAL)
BLUE
RED
SPARK PLUGS
GAP
(2 PLUGS
ON TWIN CYL. ENGINES)
CHARGING SYSTEM OUTPUT
16 AMP DC @ 3600 RPM
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
(IF SO EQUIPPED)
REGULATOR
ORANGE
ALTERNATOR
LIGHT SW
BLACK
BROWN
BLACK
IGNITION SWITCH
POSITION
CIRCUIT
OFF
RUN/OVERRIDE
M+G+A1
B+A1
RUN
START
B+A1
B + S + A1
“MAKE”
L+A2
02832
NOTE
HEADLIGHTS
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
REMOVABLE
NON-REMOVABLE
BATTERY, BUT HAVE THEIR
CONNECTIONS
CONNECTIONS
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WIRING INSULATED CLIPS
WILL CHANGE WITH ENGINE
NOTE: IF WIRING INSULATED CLIPS
SPEED. AT IDLE THE LIGHTS
WERE REMOVED FOR SERVICING OF
WILL DIM. AS THE ENGINE IS
UNIT, THEY SHOULD BE REPLACED
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST. TO PROPERLY SECURE YOUR WIRING.
29
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
ELECTRICAL
22
79
24
21
41
42
43
40
27
27
33
30
25
D.C
.A
MPE
34
52
RES
45
10
50
11
26
27
12
2
96
97
16
95
1
8
12
29
28
193394
30
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
ELECTRICAL
KEY PART
NO. NO.
DESCRIPTION
1
2
8
10
11
12
16
21
22
24
25
26
27
28
29
30
33
34
40
41
42
43
45
50
52
79
95
96
97
Battery
Bolt Hex Head 1/4-20 x 3/4
Tray, Battery
Bolt, Battery Front 1/4-20 x 7.5 Zinc
Holddown Battery Front Mount
Nut, Push Nylon 1.4" Battery Front
Switch Interlock
Harness Socket Light w/4152J
Bulb Light
Cable Starter
Cable, Battery
Fuse
Nut Keps Hex 1/4-20
Cable, Ground
Switch, Plunger
Switch, Ign
Key
Switch Light/Reset
Harness Ign.
Screw Thd Cut 1/4-20 x 1/2
Cover, Terminal Red
Solenoid
Ammeter
Switch, PTO
Protection Wire Loop
Bulbholder Asm
Bracket ROS
Switch Intek
Screw
532 14 49-27
874 76 04-12
532 12 48-86
532 14 52-11
532 15 01-09
532 14 57-69
532 17 61-38
532 17 56-88
532 00 41-52
532 18 54-64
532 14 61-49
532 10 88-24
873 51 04-00
532 17 06-97
532 19 27-49
532 19 33-50
532 14 04-01
532 11 07-12
532 19 33-94
817 72 04-08
532 13 15-63
532 17 88-61
532 12 28-22
532 19 61-12
532 14 19-40
532 17 52-42
532 19 36-66
532 10 44-45
532 15 29-27
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
CHASSIS AND ENCLOSURES
15
25
14
153
130
148
5
130
161
152
156
158
18
37
156
165
68
35
138
162
130
31
17
8
167
66
122
17
150
7
58
122
17
6
144
156
7
17
7
130
30
139
43
146
172
32
143
34
28
17
21
16
142
139
33
84
36
66
17
36
17
174
2
170
17
106
17 169
174
17
17
17
36 70
86
88
63
173
84
17
60
24
4
85
67
63
86
chassis-stealth II_10-vgt
17
17
45
20
19
44
1
36
91
130
50
45
169
173
17
39
32
17
17
66
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
CHASSIS AND ENCLOSURES
KEY PART
NO. NO.
DESCRIPTION
1
2
4
5
6
7
8
14
15
16
17
18
19
20
21
24
25
28
30
31
32
33
34
35
36
37
39
43
44
45
50
58
60
63
66
67
Rail, Frame RH
Drawbar, Gt
Nut, Crownlock Hex 7/16-14 unc
Dash
Dash, Lower Vgt One Piece
Screw, Thd Cut 1/4-20 x 1/2
Support, Battery
Hood Asm
Lens LH
Cover, Access
Screw 3/8-16 x 3/4 Zc
Grille
Washer 13/32 x 13/16 x 12 Ga.
Bolt Fin Hex 3/8-16 x 1 Gr. 5
Nut Lock 3/8-16 unc
Footrest, RH
Lens RH
Footrest, LH
Saddle, Slkscr Vgt
Bracket Support 1-pc
Bracket, Pivot Chassis Lh
Bracket, Pivot Chassis Rh
Plate Asm Engine Chassis
Washer 11/32 x11/16 x 16 Ga.
Screw 5/16-18 x 3/4
Fender
Bracket, Axle Front
Bracket, Spnsn Front Lh
Bracket, Spnsn Front Rh
Bracket Chassis
Bracket, Chassis Front
Bracket Fender
Screw 3/8-16 x 1-1/4
Washer 13/32 x 1 x 14 Ga.
Screw 3/8-16 x 1/2
Guide, Belt Gear Drive
532 18 03-75
532 17 52-82
873 68 07-00
532 19 61-37
53215 78-82
817 72 04-08
532 18 46-68
532 19 00-55
532 16 18-41
532 12 17-94
817 00 06-12
532 18 28-73
819 13 13-12
874 78 06-16
873 80 06-00
532 18 10-58
532 16 18-42
532 18 10-57
532 14 84-11
532 16 14-19
532 16 13-27
532 16 13-26
532 17 70-18
819 11 11-16
817 06 05-12
532 19 48-68
532 17 52-78
532 13 69-39
532 13 69-40
532 18 72-70
532 17 54-76
532 18 35-69
817 06 06-20
819 13 16-14
817 49 06-08
532 15 69-73
KEY PART
NO. NO.
DESCRIPTION
68
70
84
85
86
88
91
106
122
130
137
138
139
142
143
144
146
148
150
152
153
156
158
161
162
165
169
170
171
172
173
174
Screw Thdrol. 5/16-18 x 1/2
Guide, Belt
Up Stop
Bracket, Support Transaxle
Bolt Fin Hex 7/16-14 unc x 1
Washer, Lock Hvy Hlcl Spr 7/16
Rail, Frame Lh
Screw Thdrol 5/16-18 x 1.25
Screw Wshd Hex 10-32 x 5/8
Screw 10 x 3/4 Single Lead-Hex
Bolt Fin Hex 7/16-14 x1 Gr. 5
Cupholder YTGT
Bolt Shoulder 5/16-18 TT
Bracket Dash Rh
Skirt Grille RH
Bracket Dash Lh
Skirt Grille LH
Extrusion Bumper
Duct Heat Hood
Shield Browning
Light Box Asm w/Lens
Screw 5/16-18 x 3/4. Blk
Screw Thdrol. 3/8-16 x 1/2
Console Fuel Window
Screw Hex Wsh Hi-Lo 1/4-1/2
Bracket Support Tank
Bracket Chassis Sway
Rod Bracket Sway Brace
Bushing Snap
Screw 3/8-16 x .875
Bolt Fin Hex 5/16-18 unc x 3/4
Washer Lock Hvy Hlcl Spr. 5/16
817 49 05-08
532 18 85-78
532 18 81-64
532 19 39-23
874 78 07-16
810 04 07-00
532 18 03-74
817 58 05-20
532 19 25-12
532 19 16-11
874 78 07-16
532 19 48-69
532 17 18-73
532 16 18-97
532 17 75-86
532 16 19-00
532 17 75-87
532 16 46-55
532 19 03-09
532 17 79-56
532 18 82-12
817 00 05-12
817 67 06-08
532 18 17-87
532 14 24-32
532 18 35-54
532 18 85-98
532 19 46-67
532 18 46-72
817 12 06-14
874 78 05-12
810 04 05-00
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
GROUND DRIVE
39
42
40
41
38
36
37
6
6
30
46
68
29
64
37
35
38
117
50
34
6
15
52
28
51
30
17
48
26
11
48
9
55
19
21
8
47
65
18
14
54
16
57
23
13
66
22
27
24
10
23
25
67
59
60
7
157
3
155
62
63
drive_9-vgt
4
61
69
62
34
56
5
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
GROUND DRIVE
KEY PART
NO. NO.
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
21
22
23
24
25
26
27
532 00 75-63
817 49 05-08
873 68 06-00
876 02 04-12
532 14 91-76
812 00 00-34
532 14 00-80
532 14 25-09
532 13 69-27
532 13 94-19
532 13 89-01
819 13 13-16
532 14 30-12
532 12 69-09
532 13 71-04
532 13 69-26
823 26 04-12
532 19 41-21
532 10 69-32
532 13 69-25
532 13 69-23
532 13 75-52
532 19 31-35
28
29
30
34
35
36
37
873 35 06-00
532 13 72-13
819 13 16-16
532 07 16-73
532 13 76-48
532 14 94-12
532 12 17-49
DESCRIPTION
Washer, Thrust, Axle
Screw Thdrol 5/16-18 x 3/4
Nut, Crownlock 3/8-16
Pin, Cotter
Wheel, Hub Assembly
Klip, Ring
Bolt, Hub
Disc, Brake
Yoke, Brake Disc
Washer, Special
Bushing
Washer 13/32x13/16 x 16 Ga.
Set, Screw 1/4-28 x 3/4
Spring
Lever, Brake
Cam, Brake Disc
Screw, Flat Head 1/4-28 x 3/4
Gearshift, Lever Assembly
Knob
Support, Puck Brake
Puck, Brake Top
Spring, Return
Screw, Hexwsh Thd. 5/16-18 x
1-3/4
Nut, Hex Jam 3/8-16
Brake, Rod
Washer 13/32 x 1 x 16 Ga.
Cap, Plunger
Rod, Parking Brake
Spring, Drive Ground
Washer 25/32 x 1-1/4 x 16 Ga.
KEY PART
NO. NO.
DESCRIPTION
38
39
40
41
42
46
47
48
50
51
52
54
55
56
57
59
60
61
62
63
64
65
66
67
68
69
117
155
157
Nyliner
Screw, Fin. #10-24 x 1
Actuator, Interlock Switch
Nut, Centerlock #10-24
Cover, Pedal
Retainer, Spring
Clutch Rod
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5
Pulley, Idler, Flat
Nut, Crownlock 3/8-16 unc
Pulley, Idler, Grooved
Clutch, Arm Assembly
Bearing, Idler
V-Belt
Bracket, Shift Rod, Hi-Lo
Shift Rod, Hi-Lo
Spring Clip, Connecting Link
Pulley, Transaxle
Washer, Lock 7/16
Bolt, Fin Hex 7/16-14 x 1-1/4
Shaft, Clutch/Brake Pedal
Bolt, Shoulder
Washer, Hardened
Washer, Flat
Pin, Roll
Hub, Cover
Nut, Lock Flg. 3/8-16 unc
Ring Retainer
Washer Thrust 5/8 x 1.10 x 1/32
532 15 00-35
874 32 10-16
532 17 85-75
873 93 10-00
532 12 48-72
532 14 51-70
532 13 82-28
872 11 06-12
532 13 14-94
873 80 06-00
532 13 91-23
532 16 15-90
532 10 57-06
532 13 71-53
532 14 17-56
532 12 22-53
532 12 22-68
532 18 47-87
810 04 07-00
874 78 07-20
532 15 47-52
532 17 96-13
532 14 02-96
819 13 13-12
532 00 51-42
532 13 63-27
873 90 06-00
812 00 00-28
532 00 13-70
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
35
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
STEERING ASSEMBLY
9
8
7
26
51
3
2
45
1
6
9 8
12
3
7
4
11
15
14
10
21
6
14
15
20
23
5
22
14
15
13
34
36
33
32
13
31
13
41
29
6
27
53
42
19
28
27
6
16
52
15
14
35
18
steering_15-vgt
36
8
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
STEERING ASSEMBLY
KEY PART
NO. NO.
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
26
27
28
29
31
32
33
34
35
36
41
42
44
45
51
52
53
Wheel, Steering
Axle Asm., Front
Fitting, Grease
Spindle Asm, LH
Spindle Asm., RH
Bearing, Race Thrust Harden
Washer 25/32 x 1-5/8 x 16 Ga.
Ring, Klip #T5304-75
Cap, Spindle
Bolt, Fin Hex 5/8-11 x 2-3/4
Spacer Brg Axle Front 1.570
Nut, Lock Flange 5/8-11 unc
Washer 25/32 x 1-1/4 x 16 Ga.
Washer, Lock Hvy Hlcl Spr 3/8
Nut Crownlock 3/8-24
Shaft Asm., Steering
Draglink
Support Asm., Steering Vgt
Boot Steering
Adapter, Wheel Steering
Bushing, Strg.
Screw
Cap , Wheel Steering
Bearing, Col. Strg.
Screw 3/8-16 x 3/4
Bearing, Flange
Bushing, Nyliner Snap
Washer 11/32 x 1 x 10 Ga.
Washer, Lock Hvy Hlcl Spr 5/16
Bolt, Hex Hd 5/16-18 x 3/4
Gear, Sector Steering
Tie Rod
Bracket Switch Inerlock VGT97
Screw 5/16-18 x 1/2
Extension Steering Premium
Washer 9/16 ID x 2-3/8 OD 12 Ga.
Nut Hex Jam Toplock 1/2-20 unf
Clip Steering
Washer Hardened
532 19 39-43
532 17 85-57
532 18 32-26
532 16 18-49
532 16 18-48
532 12 49-31
532 12 17-48
812 00 00-29
532 12 12-32
874 78 10-44
532 13 65-18
873 90 10-00
532 12 17-49
810 04 06-00
873 54 06-00
532 18 68-14
532 18 77-99
532 15 60-11
532 17 75-92
532 18 67-37
532 15 51-05
532 15 29-27
532 19 36-52
532 12 49-37
817 00 06-12
532 10 42-39
532 13 81-36
819 11 16-10
810 04 05-00
874 78 05-12
532 18 70-39
532 18 67-99
532 15 52-46
817 49 05-08
532 17 75-93
819 18 38-12
873 94 08-00
532 17 55-53
532 18 89-67
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
ENGINE
1
83
22
62
69
21
20
45
71
82
70
84
79
84
81
12
2
11
18
41
42
15
85
47
37
10
9
28
26
engine-intek-ELS_10-vgt
27
37
31
39
29
8
SPARK ARRESTER KIT
40
38
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
KEY PART
NO. NO.
1
--- -- --
2
8
9
10
11
12
15
18
20
21
22
26
27
28
29
31
37
39
40
41
42
45
47
62
69
70
71
79
81
82
83
84
85
532 14 97-23
532 12 13-61
532 17 77-48
532 17 52-87
532 17 93-35
532 14 39-96
532 17 91-15
532 18 18-03
532 17 83-85
532 19 16-11
532 19 15-96
532 12 49-52
532 13 92-77
532 18 86-69
532 13 71-80
532 14 50-06
532 12 34-87
817 49 06-36
817 49 06-64
532 12 61-97
810 04 07-00
873 51 04-00
532 17 52-88
532 14 66-29
532 16 53-91
532 17 60-69
532 17 60-70
532 18 39-06
532 18 88-00
532 18 87-99
532 17 18-77
817 06 06-24
532 17 99-53
DESCRIPTION
Engine Briggs, Model No. 40H777(Order parts from engine
manufacturer)
Muffler Side
Pulley V-Idler
Keeper Asm. Belt Engine VGT
Bushing
Clutch Electric
Pulley Engine VGT Elect Clutch
Tank Fuel
Cap Fuel
Control Throttle
Screw 10 x 3/4 Single Lead Hex
Control Choke
Bushing
Stem Tank Fuel
Fuel Line
Spark Arrester Kit
Clip Push-In Hinged
Clamp Hose
Screw TT 3/8-16 x 2-1/4 unc
Screw TT 3/8-16 x 4 unc
Washer 1-1/2 OD x 15/32 ID x .250
Washer Lock 7/16
Nut Keps Hex 1/4-20 unc
Bushing
Shield Heat Muffler
Gasket
Tube Exhaust LH
Tube Exhaust RH
Screw Socket Head 5/16-18 x 1
Tube Drain
Valve Oil Drain
Bolt 5/16-18 unc x 1-3/4 W/Sems
Screw 3/8-16 x 1-1/2
Bolt Hex 7/16-20 X 3.75 Gr. 5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton
1-800-233-3723
Kohler Co.
1-800-544-2444
Tecumseh Products
1-800-558-5402
Honda Engines
1-800-426-7701
Kawasaki
1-800-460-5688
39
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
SEAT ASSEMBLY
1
20
14
20
8
8
10
7
7
16
4
15
5
18
5
6
13
17
19
37
12
21
2
3
seat_1-vgt
KEY PART
NO. NO.
DESCRIPTION
1
2
3
4
5
6
7
8
10
12
13
14
Seat
Bracket, Pivot Seat
Strap Asm Fender
Bolt Shoulder 5/16-18 x .62
Clip, Push In Hinged
Nut, Crownlock 3/8-16
Spring, Seat Cprsn
Bolt 5/16-18 Unc x 3/4
Pan, Seat
Bracket, Mounting Switch
Bushing, Snap
Bolt, Carriage 1/4-20 x 1-1/2
532 19 01-20
532 14 05-51
532 14 06-75
532 12 70-18
532 14 50-06
873 80 06-00
532 12 41-81
532 17 18-77
532 18 24-93
532 17 46-48
532 12 12-48
872 05 04-12
KEY PART
NO. NO.
DESCRIPTION
15
16
17
18
19
20
21
22
37
Spacer, Split
Spring, Cprsn
Nut, Lock 1/4 Lge Flg Gr. 5
Washer 17/32 x 1-3/16 x 12 Ga.
Knob Seat
Cap, Spring Seat
Bolt, Shoulder 5/16-18
Nut Crownlock 5/16-18
Nut, Crownlock 5/16-18
532 13 43-00
532 12 12-50
532 12 39-76
819 17 19-12
532 16 63-69
532 12 42-38
532 17 18-52
873 68 05-00
873 80 05-00
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
40
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
DECALS
7 12
3
4
5
5
15
10
24
8
17
2
9
14
17
16 11
13
1
KEY PART
NO. NO.
DESCRIPTION
1
2
3
4
5
7
8
9
10
Decal, Deck heavy Duty
Decal, Engine
Decal, Hood, RH
Decal, Hood, LH
Decal, Side Panel
Decal, Customer Resp.
Decal, Dash
Decal, Fender
Decal, Danger
532 17 84-82
532 19 16-51
532 18 89-47
532 18 89-48
532 19 42-81
532 18 09-41
532 19 60-44
532 19 15-54
532 15 70-02
DESCRIPTION
11
12
13
14
15
16
17
24
----
Decal, Clutch/Brake
Decal, Replacement
Decal, V-Belt Sch
Decal, Caution
Decal, Ins. Strg Whl
Decal, Mower Upstop
Reflector
Decal, Btry Dngr/Psn
Pad, Footrest, RH
Pad, Footrest, LH
Manual, Owner’s (English)
532 18 12-49
532 19 43-63
532 18 82-98
532 17 84-55
532 18 89-25
532 19 30-63
532 10 62-02
532 14 50-05
532 18 19-17
532 18 19-16
532 19 65-04
KEY PART
NO. NO.
WHEELS & TIRES
1
2
KEY PART
NO. NO.
11 3
4
7
10
5
6
9
8
12
wheel_art_1-vgt
1
2
3
4
5
6
7
532 05 91-92
532 06 51-39
532 14 45-09
532 00 81-34
532 10 62-30
532 12 49-57
532 12 49-59
8
9
10
11
12
--
532 17 50-39
532 10 55-88
532 00 71-54
532 14 45-10
532 12 48-60
532 14 43-34
DESCRIPTION
Cap, Valve, Tire
Stem, Valve
Rim Assembly, Front
Tube, Front (Service Item Only)
Tire, Front
Fitting, Grease
Bearing, Flange (Front Wheel
Only)
Cap, Hub
Tire, Rear
Tube, Rear (Service Item Only)
Rim Assembly, Rear
Fitting, Grease
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
LIFT ASSEMBLY
40
43
35 73
38
34
32
39
8
9
10
31
30
7
42
1
70
3
29
4
5
23
5
72
33
4
11
2
11
86
70
6
79
23
77
85
41
86
74
85
70
41
12
76
24 78
26
75
23
76
42
lift_rh_16
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
LIFT ASSEMBLY
KEY PART
NO. NO.
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
23
24
26
29
30
31
32
33
34
35
38
39
40
41
42
43
70
72
73
74
75
76
77
78
79
85
86
Rod Asm., Lever
Shaft Asm., Lift Vgt
Lever Asm., Lift Rh
E-Ring Truarc #5133-87
Washer 29/32 x 1-1/4 x 16 Ga.
Bolt, Fin Hex 3/8-16 x 1-1/2
Grip, Handle
Button, Plunger
Plunger, Lever Lift
Spring 0.620D x 2.125
Link Lift
Retainer, Spring
Retainer, Spring
Nut, Jam Hex 1/2-13 unc
Nut, Lock W/Wsh 1/2-13 unc
Trunnion Infin Height
Nut, Special
Washer 13/32 x 5/8 x 16 Ga.
Spring, Compression Inf Hgt
Pin, Cotter 3/32 x 1/2
Rod, Adj Lift
Knob, Inf 3/8-16 unc
Pointer Height Indicator
Plug, Hole Blk. 1.485/1.515 Dia.
Screw 5/16-18 x 1
Nut, Lift Link 7/16-20
Washer 11/32 x 1-1/2 x 10 Ga.
Scale, Indicator Height
Nut Hex Flange Lock
Nut Push Phos & Oil
Nut, Hex Jam 3/8-16 unc
Arm Suspension Rear RH
Plate, Asm, Susp, Front
Pin Flange
Trunion Susp Arm
Trunnion, Front, Susp
Arm, Suspension LH
Insert Wear
Bolt Shoulder
532 12 10-06
532 18 00-45
532 15 91-89
812 00 00-22
819 29 20-16
871 11 06-24
532 12 56-31
532 12 45-26
532 12 23-64
532 18 38-94
532 17 53-75
532 16 35-52
532 12 46-70
873 35 08-00
873 80 08-00
532 15 02-33
532 11 08-07
819 13 10-16
532 13 71-50
876 02 03-08
532 13 71-67
532 13 80-57
532 15 50-97
532 12 39-35
817 06 05-16
532 17 59-94
819 11 24-10
532 12 39-34
532 14 52-12
532 11 04-52
873 35 06-00
532 18 72-77
532 17 58-05
532 17 55-60
532 17 62-05
532 17 56-89
532 18 72-76
532 18 90-13
532 18 85-28
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
MOWER DECK
47
46
34
36
42
46
49
114
52
6
46
21
122
43
7
98
97
50
53
33
40
51
33
1
57
30
33
39
32
31
41
32
5
31
116
117
25
35
119
56
118
26
38
5
113
27
59
21
49
21
29
18
60
18
15
14
58
21
13
11
18
8
mower_deck-54_2
44
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201), PRODUCT NO. 960 25 00-02
MOWER DECK
KEY PART
NO. NO.
DESCRIPTION
1
5
6
7
8
11
13
14
15
18
21
25
26
27
29
30
31
32
33
34
35
36
38
39
40
41
42
Deck Weldment Mower
Retainer Spring
Cover Mandrel LH
Cover Mandrel RH
Bolt 7/16 Asm. Blade
Blade Standard
Shaft Asm. w/Lower Bearing
Mandrel Housing
Bearing, Ball, Mandrel
Bolt Rdhd Sqnk 5/16-18 x 5/8
Nut, Crownlock 5/16-18 unc
Spring Torsion
Nut, Push
Deflector Shield
Rod, Hinge
Screw Thd Roll
Washer, Spacer Mower Vented
Pulley, Mandrel
Nut, Flg. Top Lock Cntr. 9/16
Nut
Pin Suspension Rear
Washer 13/32 x 13/16 x 16 Ga.
Spring Compression
Pulley, Idler, Stationary
Washer 13/32 x 1-3/8 x 3 Ga.
Washer 13/32 x 13/16 x 12 Ga.
Spacer, Retainer
532 19 68-38
532 12 46-70
532 18 72-97
532 18 81-87
532 17 43-65
532 18 72-54
532 18 72-91
532 18 72-81
532 11 04-85
872 14 05-05
873 68 05-00
532 17 81-02
532 11 04-52
532 18 89-38
532 13 14-91
532 17 39-84
532 18 76-90
532 17 34-36
532 17 83-42
873 68 06-00
532 18 86-35
819 13 13-16
532 18 86-57
532 18 72-84
819 13 22-03
819 13 13-12
532 12 20-52
KEY PART
NO. NO.
43
46
47
49
50
51
52
53
56
57
58
59
60
97
98
113
114
116
117
118
119
122
--
532 19 62-16
532 13 77-29
532 19 12-73
873 90 06-00
872 11 06-16
872 11 06-10
532 18 84-60
874 78 06-36
532 15 59-86
532 15 69-41
532 18 73-42
532 18 73-44
532 18 76-07
819 13 32-10
532 18 72-82
872 11 05-08
532 18 75-56
532 19 34-06
532 17 48-73
873 93 06-00
819 12 14-14
532 18 75-57
532 18 72-92
--
532 19 60-99
DESCRIPTION
Arm, Idler
Screw, Thdroll. 1/4-20 x 5/8
V-Belt, Mower, Secondary
Nut, Lock Flg. 3/8-16 unc
Bolt, Carr. 3/8-16 x 2
Bolt 3/8-16 x 1-1/4 Gr. 5
Pulley Idler clutching
Bolt Fin Hex 3/8-16 unc x 2-1/4
Bar Pnt Adj.
Pin Head Rivet
Baffle Right
Baffle Left
Baffle Center
Washer Hardened
Spring Clutch Drive
Bolt Rdhd Sqnk 5/16-18 unc x 3/4
Rod Tension Relief
Bolt, Shoulder
Gauge Wheel
Nut, Centerlock 3/8-16 unc
Washer 3/8 x 7/8 x 14 Ga.
Bushing Tension Relief
Mandrel Asm. Service
(Includes Key Nos. 13-15 and 33)
Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201) PRODUCT NO. 960 25 00-02
GEAR DRIVE TRANSAXLE
46
REPAIR PARTS
TRACTOR - - MODEL NO. GT2254 (96025000201) PRODUCT NO. 960 25 00-02
GEAR DRIVE TRANSAXLE
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
532 12 46-62
812 00 00-34
532 00 41-99
532 00 42-16
532 00 42-15
532 00 42-17
532 17 47-28
874 02 06-52
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
532 12 46-97
532 13 72-61
532 00 49-85
532 12 49-31
532 12 46-67
532 13 71-25
532 12 46-77
532 12 46-79
532 00 81-18
532 12 47-05
532 12 22-38
532 00 42-18
532 12 46-73
532 12 47-01
532 00 62-62
532 12 46-98
532 12 47-09
532 13 91-11
532 00 49-86
532 12 22-54
532 00 62-69
532 00 58-55
532 17 47-31
32
33
34
35
36
37
38
39
532 00 62-77
532 00 42-25
532 00 73-96
532 00 41-98
532 12 46-63
532 00 73-95
532 16 07-89
532 17 47-29
40
41
45
46
49
50
51
813 32 04-00
817 58 05-20
532 00 62-71
813 06 02-00
532 12 47-92
532 00 42-22
532 00 15-29
KEY PART
NO. NO.
DESCRIPTION
Axle Shaft
Retaining Ring
Final Drive Gear
Differential Gear
Differential Pinion
Differential Carrier
Axle Thrust Washer
Bolt, Hex Head 3/8-24 x 3-1/4
(1” Thread Length)
Steel Ball
Spring Shift Fork Detent
Shift Fork, High-Low Range
Thrust Bearing Race
4th Reduction Pinion
3rd Reduction Gear Shaft
Snap Ring, Crescent Type
High-Low Range Gears
Needle Bearing
Sintered Iron Bearing
Shift Fork Shaft, High-Low Range
Differential Pinion Spacer
Differential Pinion Bushing
Gripco Centerlock Nut 3/8-24
Shift Fork, R.H.
Oil Seal
Sintered Iron Bearing
Shift Fork Shaft
Shift Fork, L.H.
Shift Shaft, High-Low Range
Oil Seal
Pressure Relief Valve
Gearcase, Reverse Idler Shaft
and Bearings, R.H. (Includes Key
No.’s 17,18, 25, 33, 50, 63, 77
and 82)
Dowel Pin
Needle Bearing
Thrust Bearing Race
4th Reduction Gear Shaft
4th Reduction Gear Spacer
Thrust Bearing Race
Gate, Lower, Shift
Gearcase and Bearings, L.H. (Includes key Numbers 18, 25, 49,
50 (2), 51and 52)
Pipe Plug 1/2-14 N.P.T.
Bolt, Hex 5/16-18 UNC x 1-1/4
Oil Seal
Pipe Plug 1/4-18 N.P.T.
Needle Bearlng
Needle Bearing
Needle Bearing
52
53
54
55
56
57
58
59
60
61
62
63
64
532 00 81-19
532 00 42-20
532 00 42-09
532 12 46-68
532 00 44-42
532 00 41-95
532 00 42-14
532 00 41-94
532 00 75-28
532 12 46-66
532 12 46-65
532 00 73-98
532 12 46-64
65
66
67
68
69
70
71
532 00 42-04
532 00 28-98
812 00 00-33
532 00 42-05
532 12 50-99
532 00 13-70
532 12 46-81
72
73
74
75
77
79
80
81
82
84
85
86
87
88
89
532 13 91-20
532 00 42-01
812 00 00-08
532 00 11-53
532 00 68-03
532 00 11-67
873 36 07-00
532 12 46-75
532 13 69-84
532 00 53-84
532 00 29-78
532 12 46-82
532 12 47-04
532 00 49-24
819 15 15-16
90
91
92
532 11 05-42
819 18 15-11
532 00 00-75
93
94
96
97
98
532 00 62-74
876 02 04-12
532 19 40-36
532 19 41-21
532 18 49-56
99
532 19 38-33
DESCRIPTION
Needle Bearing
Thrust Bearing Race
3rd Reduction Pinion, Low
4th Reduction Gear
3rd Reduction Pinion Spacer
2nd Reduction Gear Shaft
Final Drive Pinion
1st Reduction Gear Shaft
1st Reduction Shaft Spacer
3rd Reduction Plnion Hlgh
2nd Reduction Gear
Needle Bearlng
Low Speed Gear and 2nd Reduction Pinion Cluster
Reverse Gear
Key, Hi-Pro 1/8 x 17/32
Snap Ring, Crescent Type
Intermediate Speed Gear
High Speed Gear
Thrust Bearing Race
Intermediate and High Speed
Cluster Pinions
Input Shaft
Low Speed Pinion
E-Ring
Reverse Idler Gear
Needle Bearing
Sealing Washer
Nut, Hex, Jam 7/16-20
Oil Seal
Reverse Idler Shaft
Gearshift Lever, Bent
Gearshift Cap
Gearshift Ball Cover and Pin
Shift Lever Guide Ball, Keyed
Spring
Washer 15/32 x 15/16 x 16
Gauge
Shift Mechanism Seal
Washer 9/16 x 15/16 x 12 Gauge
Gearshift Gate and Reinforcement
Shift Ball Cover Gasket
Cotter Pin 1/8 x 3/4
Bolt, Hex, 5/16-18X1 Epoxy Patch
Lever Assembly ROS Gear Shift
Transaxle, 6 Speed,
Complete Assembly
Actuator, Shift Lever
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
47
SERVICE NOTES
48
SERVICE NOTES
49
SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION
FOL
D AL
ONG
THIS
DOT
IS A
TED
15 D
LINE
EGR
EE S
LOP
E
50
ONLY RIDE UP AND DOWN HILL,
NOT ACROSS HILL
15 DEGREES MAX.
WARNING: To avoid serious injury, operate your tractor up and
down the face of slopes, never across the face. Do not mow
slopes greater than 15 degrees. Make turns gradually to prevent
tipping or loss of control. Exercise extreme caution when
changing direction on slopes.
1. Fold this page along dotted line indicated above.
2. Hold page before you so that its left edge is vertically parallel to a tree
trunk or other upright structure.
3. Sight across the fold in the direction of hill slope you want to measure.
4. Compare the angle of the fold with the slope of the hill.
WARRANTY STATEMENT
SECTION 1: LIMITED WARRANTY
Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original purchaser to be free from defects in material and workmanship from the date of purchase for the “Warranty
Period” of the product as set forth below:
Lifetime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand
held product.
3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)
2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment—zero turn riders, wide area
walks, and ground engaging commercial equipment.
2 Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors,
walk behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld
blowers, backpack blowers, hedge trimmers, electrical products and power-assist collection systems for
noncommercial, nonprofessional, noninstitutional or nonincome producing use, except as herein stated.
Emission control system components necessary to comply with CARB-TIER-II and EPA regulations,
except for those components which are part of engine systems manufactured by third party engine manufacturers for which the purchaser has received a separate warranty with product information supplied at
time of purchase.
1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-professional, non-institutional or non-income producing use. All trimmers, brushcutters, clearing saws, hovering trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection
systems used for commercial, institutional, professional or income producing purposes or use.
Batteries have a one-year prorated limited warranty with 100% replacement during the first 6 months.
51
90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole pruners, snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any
Husqvarna product used for commercial, institutional, professional, or income producing purposes or use
except as otherwise provided herein.
Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer’s original purchase
for defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must be returned to Charlotte with a warranty claim form. All care and maintenance instructions must
be followed as stated by the manufacturer on the care label. The fit of the protective apparel/boot is not
covered under warranty.
30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items.
SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY
Husqvarna will repair or replace defective components without charge for parts or labor if a component
fails because of a defect in material or workmanship during the warranty period.
SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY
The following items are not covered by this warranty:
(1)Normal customer maintenance items which become worn through normal regular use, including, but not
limited to, belts, blades, blade adapters, bulbs, filters, guide bars, lubricants, rewind springs, saw
chain, spark plugs, starter ropes and tines;
(2)Natural discoloration of material due to ultraviolet light;
(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective
manufacturer’s warranty as provided in writing with the product information supplied at the time of purchase; all claims must be sent to the appropriate manufacturer;
(4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for warranty should be sent to the manufacturer; and
(5)Emission Control System components necessary to comply with CARB-TIER-II and EPA regulations
which are manufactured by third party engine manufacturer.
SECTION 4: EXCEPTIONS AND LIMITATIONS
This warranty shall be inapplicable to defects resulting from the following:
(1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,
corrosion, or any adverse reaction due to incorrect storage or use habits;
(2)Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction sheet furnished by Husqvarna;
(3)Alterations or modifications that change the intended use of the product or affects the product’s performance, operation, safety, or durability, or causes the product to fail to comply with any applicable
laws; or:
(4)Additional damage to parts or components due to continued use occurring after any of the above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY
OF THE PURCHASER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN
DURATION TO THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT.
HUSQVARNA RESERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT
WITHOUT NOTICE, AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY M A N U F A CTURED PRODUCTS.
Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.
SECTION 5: CUSTOMER RESPONSIBILITIES
The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written
in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure occur,
the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation. Proof
of purchase, as explained in section 6, rests solely with the customer.
SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION
It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly
filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10)
days from the date of purchase in order to confirm the warranty and to facilitate post-sale service.
Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty
service. This proof must include date purchased, model number, serial number, and complete name and
address of the selling dealer.
To obtain the benefit of this warranty, the product believed to be defective must be delivered to an authorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational
problem or failure. The product must be delivered at the owner’s expense. Pick-up and delivery charges are
not covered by this warranty. An authorized Husqvarna dealer can be normally located through the “Yellow
Pages” of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.
HUSQVARNA
7349 Statesville Road
Charlotte, NC 28269
531 83 81-23
2002
532 19 65-04 Rev. 6 06.10.05 TR
Printed in U.S.A.
