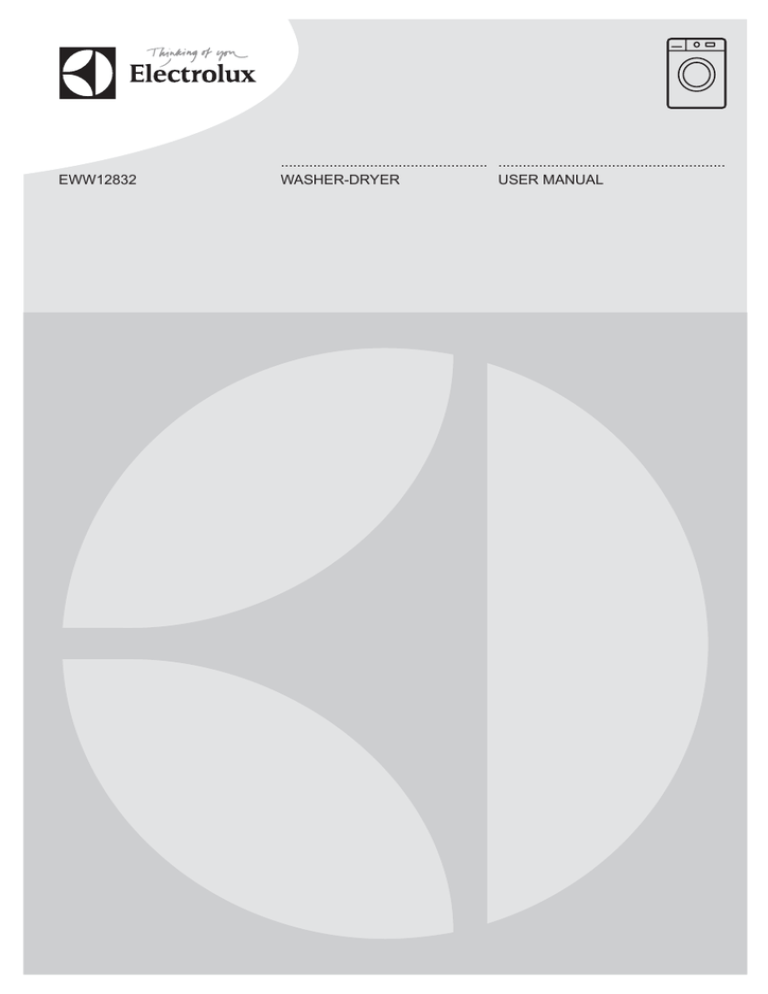

EWW12832
................................................... ........................................................
WASHER-DRYER
USER MANUAL
2
www.electrolux.com
CONTENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
SAFETY INFORMATION .............................................................................................. 3
PRODUCT DESCRIPTION ........................................................................................... 7
CONTROL PANEL ...................................................................................................... 8
BEFORE FIRST USE ................................................................................................. 16
DAILY USE - WASHING ............................................................................................ 16
DAILY USE - WASHING & DRYING .......................................................................... 21
DAILY USE - DRYING ............................................................................................... 22
WASHING HINTS ...................................................................................................... 23
INTERNATIONAL WASH CODE SYMBOLS ............................................................... 26
CARE AND CLEANING ............................................................................................. 27
TROUBLESHOOTING ............................................................................................... 33
TECHNICAL DATA .................................................................................................... 36
INSTALLATION.......................................................................................................... 37
ENVIRONMENT CONCERNS .................................................................................... 42
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with
it decades of professional experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be safe in the knowledge that
you’ll get great results every time. Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Caution, risk of fire.
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Conditions of use
This appliance is intended to be used in
household and similar applications
such as:
- Farm houses
- By clients in serviced apartments,
holiday apartments and residential
type environments.
In the interest of your safety and to
ensure the correct use, before installing
and first using the appliance, read this
user manual carefully, including its hints
and warnings.
To avoid unnecessary mistakes and
accidents, it is important to ensure that
all people using the appliance are
thoroughly familiar with its operation and
safety features.
Save these instructions and make sure
that they remain with the appliance if it
is moved or sold, so that everyone
using it through its life will be properly
informed on appliance use and safety.
1.1 GENERAL SAFETY
It is dangerous to alter the
specifications or attempt to modify this
product in anyway.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check into the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Wash small items such as socks,
laces, washable belts etc. in a washing
bag or pillow case as it is possible for
such items to slip down between the
tub and the inner drum.
Only use the advised quantities of
fabric softener and detergent. Damage
to the fabric or appliance can occur if
you overfill. Refer to the manufacturer’s
recommendations of quantities.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Do not use your washer-dryer to wash
articles with whalebones, material
without hems or torn material.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local
Service Centre. Always insist on
genuine spare parts.
1.2 INSTALLATION
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
4
www.electrolux.com
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the machine is situated on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out by
a qualified plumber.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
1.3 USE
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which it
was designed.
Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing. Underwired bras
must NOT be machine washed.
Garments which have been in contact
with volatile petroleum products
should not be machine washed. If
volatile cleaning fluids are used, care
should be taken to ensure that the
fluid is removed from the garment
before placing in the machine.
As some duvets and eiderdowns
should be washed/dried in large
commercial machine because of their
bulk, please check with the
manufacturer of the item before
washing/drying in a domestic
machine.
The users should always check that
they have not left their gas lighters
(disposable or otherwise) in their
clothing.
Never tumble dry items which have
had contact with chemicals such as
dry cleaning fluid. These are of volatile
nature and could cause an explosion.
Only tumble dry items which have
been washed in water or require
airring.
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to with stand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to with stand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
Never use the washer-dryer if the
power supply cable, the control panel,
the working surface or the base are
damaged so that the inside of the
washer-dryer is accessible.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
ENGLISH
CAUTION!
- Never stop a washer-dryer
before the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is
dissipated.
- Do not dry cloths in washerdryer with dry clean solvents.
Also do not use laundry
enhancement products during
the drying cycle.
To minimize the risk of fire in a
washer-dryer, following should be
observed:
Items that have been spotted or
soaked with vegetable or cooking oil
constitute a fire hazard and should not
placed in a washer-dryer. Oil-affected
items can ignite spontaneously,
especially when exposed to heat
sources such as in washer-dryer. The
items become warm, causing an
oxidation creates heat. If the heat
cannot escape, the items can become
hot enough to catch fire. Piling,
stacking or storing oil-affected items
can prevent heat from escaping and
so create a fire hazard.
If it is unavoidable that fabrics that
contain vegetable or cooking oil or
have been contaminated by hair care
products be placed in washer-dryer
they should first be washed in hot
water with extra detergent - this will
reduce, but not eliminate the hazard.
The ‘cool down’ cycle of washer-dryer
is used to reduce the temperature of
the items. They should not be
removed from the washer-dryer or
piled or stacked while hot.
5
Items that have been previously cleaned
in, washed in, soaked in or spotted with
petrol/gasoline, dry- cleaning solvents
or other flammable or explosive
substances should not be placed in
washer-dryer.
Highly flammable substances commonly
used in domestic environments include
acetone, denatured alcohol,
petrol/gasoline, kerosine, spot removers
(some brands), turpentine, waxes and
wax removers.
Items containing foam rubber (also
known as latex foam) or similarly
textured rubber, like materials should
not be dried in a washer-dryer on a
heat setting.
Foam rubber materials can, when
heated, produce fire by spontaneous
combustion.
Fabric softeners or similar products
should not be used in a washer-dryer to
eliminate the effects of static electricity
unless this practice is specifically
recommended by the manufacturer of
the fabric softener or product.
Undergarments that contain metal
reinforcements should not be placed
in a washer-dryer.
Damage to the washer-dryer can
result if metal reinforcements come
loose during drying. When available a
drying rack could be used for such
itmes.
Plastic articles such as shower caps
or babies’ waterproof napkin covers
should not be placed in washer-dryer.
6
www.electrolux.com
1.4 CHILD SAFETY
This washer-dryer is not intended for
use by young children or infirm
persons without supervision.
Young children should be supervised
to ensure that they do not play with
the appliance.
The packaging components (e.g.
plastic film, polystyrene) can be
dangerous to children - danger of
suffocation! Keep them out of
children’s reach.
1.5 CHILD SAFETY DEVICE
When you activate this device, you
cannot close the door. This prevents
children or pets to be locked in the
drum.
To activate this device, rotate the
button (WITHOUT pressing it) inside
the door clockwise until the groove is
horizontal. If necessary use a coin.
Keep all detergents in a safe place out
of children’s reach.
Make sure that children or pets do not
climb into the drum.
To disable this device and restore the
possibility of closing the door, rotate
the button anti-clockwise until the
groove is vertical.
ENGLISH
7
2. PRODUCT DESCRIPTION
1
7
3
2
9
11
4
5
8
10
12
6
7 Mains Cable
1 Worktop
2 Detergent/Softener Dispenser
8 Water Inlet Hose
9 Water Drain Hose
3 Control Panel
4 Door Handle
10 Hose Support
5 Door
6 Level Adjustment Feet (Front)
11 Transit Bolts
12 Level Adjustment Feet (Back)
ACCESSORIES
Plastic caps
14
13
13 Door Blocking button
14 Rating Plate
15
15 Drain Pump Filter
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
Plastic hose guide
To connect the drain hose on the edge
of a sink.
Spanner
- To remove the transit bolts.
- To adjust levelling legs.
8
www.electrolux.com
3. CONTROL PANEL
2
3
7
13
9
10
14
11
12
1
4
5
6
8
1 On/Off Button
2 Program Knob
8 Dryness Touchpad
9 Dry Time Touchpad
3 Temperature Touchpad
4 Spin Selection Touchpad
10 Prewash Touchpad
11 Rinse Plus Touchpad
5 Adjust Time Touchpad
6 Delay Start Touchpad
12 Start/Pause Touchpad
13 Child Lock Option (See page 21)
7 Display
14 Vapour Option (See page 11)
3.1 On/off Button
On/Off button is used to turn on
and turn off your washer-dryer.
3.2 Program Knob
Turn this knob to set a program.
The related program indicator
comes on. The buzzer sounds.
(See page 12)
3.3 Temperature Touchpad
Press this touchpad repeatedly to
increase or decrease the wash
temperature if you want your laundry
to be washed at a temperature
different from the one proposed by
the washer-dryer (symbol “ ”
corresponds to cold wash).
3.4 Spin Selection Touchpad
Press this touchpad repeatedly to
increase or decrease the spin
speed, if you want your laundry to
be spun at a speed different from
the one proposed by the
washer-dryer.
No Spin
No spin option eliminates all the
spin phases and increase the
number of rinses.
Rinse Hold
By selecting this option the water of
the last rinse is not emptied out and
the drum turns regularly to prevent
the laundry creases.
ENGLISH
The door stays locked with
the water in the drum. To
continue the cycle you must
press
(Start/Pause).
Night Cycle
By selecting this option, the
machine will not drain the water of
the last rinse to avoid wrinkling the
laundry. All spinning phases are
suppressed. This washing cycle is
very quiet, and can be selected at
night or other appropriate times.
The door stays locked with
the water in the drum. To
continue the cycle you must
press
(Start/Pause).
9
3.5 Adjust Time Touchpad
This option allows you to reduce
washing time.
Press this touchpad repeatedly to
decrease or return to default
washing time.
This option will adjust the number
of rinse according to selected
washing time.
3.6 Delay Start Touchpad
This option makes it possible to
delay the start of the program by
30 min, 60 min or 90 min and then
by every hour from 2 to 20 hours.
The delay you have selected is
indicated on the display. The end
time will increase in order to show
you the selected delay.
You must select this option after
you have set the program and
before you press the Start/Pause
button.
If you wish to add laundry in the
machine during the delay time,
press Start/Pause touchpad to put
the machine in pause mode. Add
laundry, close the door and press
Start/Pause touchpad again.
You can cancel the delay time at
any moment, by pressing ‘Delay
Start’ touchpad repeatedly till the
display shows delay time ‘ ’, then
press the Start/Pause touchpad.
10
www.electrolux.com
3.7 Display
B
C
I
A
H
D
A Digital Number;
will tell you:
- Working cycle time.
- Delay start time.
- The alarm codes. Refer to the
chapter “Troubleshooting” for
their description.
B The level of the Time Manager
E
F
G
C Washing Status Icon
D Drying Status Icon
E Vapour Option Icon
F Drying Level Icons
G Door Lock Icon
- It is on, you cannot open the door.
- It is off, you can open the door.
H Child Lock Icon
I Delay Start Icon
3.8 Dryness
Press this touchpad to set the
level of dryness of your laundry.
The display shows the name of
the set level.
: Extra dry
: Cupboard dry
: Iron dry
(Dryness option guides, see
page 14)
- Dryness levels settings are based
on wash program selected.
- During the last minutes of the
drying cycle the appliance
performs the anti-crease and the
cooling phases.
- The time value on the display is
the duration of the washing +
drying cycles, calculated on a
default load size.
3.9 Dry Time
If you wish to carry out a timed
drying program, press this touchpad
untill the drying time you want
appears on the display according to
the fabrics you have to dry.
Each time you press this button the
time value increases by 5 minutes.
- Maximum allowable timed
drying changes based on
wash program selected.
- During the last minutes of the
drying cycle the appliance
performs the anti-creases.
The display will show “ ”.
- The final time value is the total
duration of the washing and
drying cycles (washing +
drying + anti-crease).
ENGLISH
3.10 Prewash Touchpad
Select this option if you wish your
laundry to be pre-washed before the
main wash. Use this option for heavy
soil.
The indicator of this option comes on.
When you set this function, put the
detergent into the “
”
compartment. (Refer page 18-19)
This function increases the program
duration.
3.11 Rinse Plus Touchpad
This option is recommended for
people who are allergic to detergents,
and in areas where the water is very
soft.
Press it to add rinsing phases to a
program.
The indicator of this option comes on.
3.12 Start/Pause Touchpad
To start the selected program, press
the ‘Start/Pause’.
To interrupt a program which is
running, press the ‘Start/Pause’ to
pause the machine.
To restart the program from the point
at which it was interrupted, press the
‘Start/Pause’ again.
If you have chosen a delayed start,
after pressing ‘Start/Pause’ the
machine will begin the countdown.
11
3.13 Vapour Option
Select this option* to add approximately 15-40 minutes of tumbling in
vapour during the wash cycle.
Vapour helps open fabric fibers up
to allow laundry additives to release
tough stains.
* Vapour option cannot be
selected, if drying option
has been combined with
the program.
Setting Vapour option:
To activate, press ‘Prewash’ and
‘Rinse +’ touchpads at the same
time until the display shows the
symbol ‘ ’.
To deactivate, press ‘Prewash’
and ‘Rinse +’ touchpads at the
same time until the symbol ‘ ’
goes off.
The indicator of this option comes on.
NOTE:
Vapour may not necessarily be
visible inside the drum during a
vapour wash cycle. Vapour is
created below the drum and
allowed to naturally rise into the
clothes.
Vapour may not be present during
the entire vapour wash cycle.
Vapour function is more effective
with half load.
At the end of the Vapour cycle the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected,
rinse temperatures will be
elevated.
During a vapour cycle you may
notice vapour exiting from the
drain hose of the washer-dryer,
this is normal and there is no
cause for alarm.
12
www.electrolux.com
3.14 Programs + Options
Program;
Temperature
Type of load;
Max. weight of load
Cycle
Options can be
description combined
Cottons;
90 °C to
White and coloured cotton
with heavy level of soil;
max. load 8 Kg (if drying
- Wash
- Rinses
- Long spin
- Dry (If drying
Mixed;
60 °C to
option combined, please
reduce to 5 Kg)
Synthetic or mixed fabric
items with normal level of
soil;
max. load 4 kg (if drying
option
combined)
- Wash
- Rinses
- Short spin
- Dry (If drying
option
combined)
option combined, please
reduce to 3 Kg)
Spin Reduction
(1200 to 400 rpm, No Spin,
Rinse Hold, Night Cycle) /
2)
/
2)
(Extra dry, Cupboard dry,
Iron dry)
/
/
1)
/
/
Spin Reduction
(1200 to 400 rpm, No Spin,
Rinse Hold, Night Cycle) /
2)
2)
/
/
/
1)
/
/
Delicates;
40 °C to
Spin Reduction
(1200 to 400 rpm, No Spin,
Rinse Hold, Night Cycle) /
Quick 18;
30 °C
- Wash
Synthetic and mixed fabric
items. Light soil and items to - Rinses
freshen up; max. load 1.5 kg - Short spin
Spin Reduction
(800 to 400 rpm, No Spin,
Rinse Hold) /
To rinse and spin the
laundry;
max. load 8 kg (if drying
option combined, please
reduce to 5 Kg).
Energy
Saver
60, 40 °C
/
1)
/
/
To spin the laundry and drain - Drain
Spin Reduction
the water in the drum;
- Spin phase (1200 to 400 rpm, No Spin) /
2)
- Dry (If drying
max. load 8 kg (if drying
/ /
option
combined)
option combined, please
reduce to 5 kg).
Rinse
/
/
(Cupboard dry)
- Wash
Delicate fabrics as acrylics,
viscose, polyester items with - Rinses
- Short spin
normal soil;
max. load 4 kg
Spin
/
White and colourfast, cotton
with normal soil. Set this
program to have a good
washing results and
decrease the energy
consumption. The time of
the washing program is
extended;
max. load 8 kg (if drying
option combined, please
reduce to 5 kg).
2)
(Extra dry, Cupboard dry,
Iron dry)
- Three rinses Spin Reduction
with softener (1200 to 400 rpm, No Spin,
- Spin phase
2)
/ /
- Dry (If drying Rinse Hold) /
option
combined)
-
2)
(Extra dry, Cupboard dry,
Iron dry)
Wash
Spin Reduction
Rinses
(1200 to 400 rpm, No Spin,
Long spin Rinse Hold) /
Dry (If drying
2)
1)
/
/
/
/
/ /
option
combined)
2)
(Extra dry, Cupboard dry,
Iron dry)
ENGLISH
Type of load;
Program;
Temperature Max. weight of load
Heavy Duty;
90 °C to
40 °C
Drying
Cottons
Drying
Mixed
Refresh
Wool;
40 °C to 
13
Cycle
description
Options can be
combined
Clothes that are heavily
soiled;
max. load 8 kg (if drying
option combined, please
reduce to 5 kg).
- Wash
- Rinses
- Short spin
Spin Reduction
(1200 to 400 rpm, No Spin,
Rinse Hold, Night Cycle) /
Drying program for
cotton items;
max. load 5 Kg
- Dry
Drying program for
synthetic or mixed fabric
items;
max. load 3 Kg.
- Dry
Vapour program for White
and coloured cotton. This
cycle removes odours and
helps to dewrinkle the
laundry; max. load 1.5 Kg.
- Clothes
tumble in
vapour.
Specially tested program
for wool garments bearing
the ‘Pure new wool,
non-shrink, machine
washable’ label;
max. load 2 kg (if drying
-
2)
/
2)
/
2)
1)
/
/
/
(Extra dry, Cupboard dry,
Iron dry)
/
2)
1)
(Extra dry, Cupboard dry,
Iron dry)
2)
2)
/
/
(Cupboard dry)
/
Wash
Spin Reduction
Rinses
(1200 to 400 rpm, No Spin,
Short spin Rinse Hold, Night Cycle) /
Dry (If drying
2)
/
option
combined)
option combined, please
reduce to 1 kg).
1)
- Vapour option can be combined with temperature 90 to 40 °C only.
- Vapour option cannot select, if drying option has been combined with the program.
2)
Do not select a spin speed lower than that proposed by the appliance to avoid a too long drying time so
saving energy. In any case the reduction of the spin speed is only possible after selecting drying.
3)
Energy Saver program with 60 °C option selected is recommended for a full load of normally soiled cottons,
and is the water and energy rating label program.
WOOLMARK CERTIFICATE
The wool wash cycle of this machine has been approved by The
Woolmark Company for the washing of machine washable wool
products provided that the products are washed according to
the instructions on the garment label and those issued by the
manufacturer of this washing machine. M1310
14
www.electrolux.com
3.15 Dryness Option Guides
Level of dryness
Extra Dry
Ideal for towelling
materials
Cupboard Dry
Suitable for items
to put away
without ironing
Type of fabric
Load
Cotton and linen
(bathrobes, bath towels, etc)
up to 5 kg.
Cotton and linen
(bathrobes, bath towels, etc)
up to 5 kg.
Synthetics and mixed fabrics
(jumpers, blouses, underwear, household
linen)
up to 3 kg.
Iron Dry
Cotton and linen
Suitable for ironing (sheets, tablecloths, shirts, etc.)
up to 5 kg.
3.16 Dry Time Option Guides
Load
(Kg)
Spin Speed
(RPM)
Suggested
Times (Mins)
5
1200
240 - 250
4
1200
140 - 160
2
1200
85 - 95
Synthetic or mixed fabric items
( jumpers, blouses, underwear,
household linen, etc.).
3
1200
135 - 145
1
1200
40 - 50
Wool and hand washable wool.
1
1200
110 - 130
Type of fabric
Cotton and linen
(bathrobes, bath towels, etc.).
3.17 Duration of the drying cycle
The drying time can vary
according to
the final spin speed;
the required degree of drying
(Extra Dry or Cupboard Dry or
Iron Dry);
the type of laundry;
the size of load
3.18 Fibre residue
After drying fluffy fabrics, such
as new towels, it is advisable
to perform a Rinse program to
be sure that any residue that
may remain in the tub is
completely removed and does
not stick to garments dried
afterwards. After each
drying cycle, clean the
drain pump filter. Please
refer to care and cleaning
in section 10.
ENGLISH
3.19 Additional drying
Should the laundry still be too
wet at the end of the program,
set another short drying cycle.
The final part of a washerdryer cycle occurs without
heat (cool down cycle).
This ensures the laundry
will be left at a low
temperature.
WARNING!
To prevent the formation of
creases or shrinking of
fabrics, avoid excessive
drying.
15
3.20 Buzzer Sounds
The buzzer sounds operate when:
The program is completed.
The appliance has a malfunction.
If you want to disable the buzzer
sound (except for event of
appliance malfunction), press
“Dryness” and “Rinse+” touchpads
at the same time for 6 seconds,
and listen for ‘BEEP, BEEP’.
To return to default configuration
press these 2 touchpads at the
same time for 6 seconds, and listen
for ‘BEEP’.
16
www.electrolux.com
4. BEFORE FIRST USE
1. Ensure that the electrical and water
connections comply with the
installation instructions.
2. Put 2 litres of water in the detergent
compartment for washing phase.
This activates the drain system.
3. Select a Cottons cycle at 90 °C,
without any laundry in the machine, to
remove any manufacturing residue from
the drum and tub. Pour 1/2 a measure
of detergent into the dispenser drawer
and start the machine.
5. DAILY USE - WASHING
Connect the mains plug to the mains socket.
Turn the water tap on.
5.1 Four Steps Start Up Guide
Step 1 - Setting A Program
2
1
4
3
5
1. Press the On/Off button to turn on
the machine.
2. Turn the program selector dial
to the required program.
- The relevant light will light up.
- The buzzer will sound.
- The selector dial can be
turned either clockwise or
anticlockwise.
- Once you selected a program, the
program selected will stay at that
position for the whole of the cycle.
- The display shows the level of the
“Time Manager”, the program
duration and the indicators of the
phases of the program.
3. If you want your laundry to be spun
or use temperature different from
the one proposed by the machine,
ENGLISH
pess the Spin ‘ ’ and the temperature ‘ ’ touchpads repeatedly to
change the spin speed and
temperature.
4. Press the option touchpads, if you
want your laundry to be washed or
dryed with special functions.
Different functions can be
combined which is dependent
on the program selected.
17
5. If you want to reduce washing time,
press the ‘Adjust Time ’ touchpad
repeatedly to reduce washing time.
If you want to delay the start of the
program, press the ‘Delay Start ’
touchpad repeatedly to choose your
machine delay time.
When these touchpads are pressed,
the corresponding pilot lights come
on. When they are pressed again,
the pilot lights go out.
Step 2 - Loading The Laundry
1.
Before loading the laundry,
please make sure:
Close zippers.
Empty pockets.
Underwired bras must NOT be
machine washed.
Tie the cords.
2. Open the door by carefully pulling
the door handle outwards.
Fasten buttons.
Check and remove objects (if
there are any) that could be
trapped in the fold.
18
www.electrolux.com
3. Place the laundry in the drum,
one item at a time, shaking them
out as much as possible.
4. Make sure that no laundry
remains between the seal and
the door.
5. Close the door.
Step 3 - Using Detergent And Additives
1. Detergent Dispenser Drawer
Powder or liquid detergent.
1
2
The detergent dispenser is divided
into three compartments.
-
Detergent flap
Flap for powder or liquid
detergent.
-
Compartment ‘MAIN WASH’
This compartment is used for
detergent on all programs.
-
Compartment ‘PREWASH’
This compartment is only used
for detergent when a Prewash
is selected.
-
Compartment ‘SOFTENER’
This compartment is used for
fabric conditioner and starching
agent.
Position down :
for liquid
detergent.
Position up :
for powder
detergent
(factory setting).
3
PO
PO
SI
WDE TION
R DE US
TE ING
RG
EN
T
ENGLISH
When you use the liquid
detergent:
- Do not use gelatinous or thick
liquid detergents.
- Do not put more liquid than
the maximum level.
- Do not set the PREWASH
phase.
19
- If you wish to carry out the
“Prewash” phase, pour it into
the compartment marked
.
- If required, pour fabric softener
into the compartment marked
(the amount used must not
exceed the “MAX” mark in the
drawer).
- Do not set the DELAY START.
2. Measure out the detergent and
the fabric softener;
- Pull out the dispenser drawer
until it stops.
- Measure out the amount of
detergent required, pour it into
the main wash compartment
(
).
- Close the drawer gently.
Step 4 - Starting A Program
To start a program, press the
Start/Pause (
) touchpad, the
corresponding pilot light will stop
flashing and a default program
duration will be displayed on the
screen.
After approx. 15 minutes
from the start of a program:
- The appliance will automatically
adjust the selected program
duration according to the type
and size of the load.
- The display will show adjusted
program duration.
ATTENTION!
If you turn the program selector
dial to another program when
the machine is working, the red
Start/Pause pilot light will flash 3
times and the message ‘
’
will appear on the display to
indicate a wrong selection. The
machine will not perform the new
selected program.
20
www.electrolux.com
5.2 Interruption Of A Program
- To pause press Start/ Pause.
The indicator will start flashing.
- Press the Start/Pause again.
The program will continue.
If you can not open the door but you
need to open it you have to switch
the machine off by pressing the
‘On/Off’ button to deactivate the
appliance. After about 5 minutes the
door can be opened.
CAUTION!
Pay attention to the water
level and water temperature.
5.3 Changing A Program
Changing a running program is possible
only by switching off the appliance.
- Press the ‘On/Off’ button to cancel
the program and to turn off the
appliance.
- Press the ‘On/Off’ button again to start
the appliance. Now, you can set a new
program.
The appliance will not drain the
water.
5.4 Changing The Options
It is possible to change only some options
after the program has started.
1. Press the touchpad Start/Pause. The
indicator will start flashing.
2. Change the options.
3. Press Start/Pause again. The program
will continue.
5.5 Opening The Door
While a program or the Delay Start is
operating, the appliance door is locked
and the display shows the indicator ‘
’.
First set the machine to PAUSE by pressing
the “Start/Pause” touchpad. Wait until the
door lock indicator ‘
’ goes off, then the
door can be opened.
If the door lock indicator ‘
’ does not
disappear, this means that the machine is
already heating and the water level is above
the bottom edge of the door or the drum is
turning. In this case the door CAN NOT be
opened.
5.6 At The End Of The Program
-
The appliance stops automatically.
The acoustic signal will operate.
The display will show ‘ ’.
The indicator of the touchpad
Start/Pause goes off.
- The door lock indicator ‘
’
goes off.
- Remove the laundry from the
appliance. Make sure that the
drum is empty.
- Keep the door ajar, to prevent the
mildew and odours.
- Turn off the water tap.
5.7 When The Washing Program
Is Completed, But There Is
Water In The Drum
- The drum turns regularly to
prevent the creases in the laundry.
- The door lock indicator ‘
The door stays locked.
’ is on.
You must drain the water to open
the door.
To drain the water:
1. Set the “Spin” program.
2. If necessary, decrease the spin
speed.
3. Press the touchpad Start/Pause.
The appliance will drain the
water and spin.
ENGLISH
4. When the program is completed
and the door lock indicator ‘
’
goes off, you can open the door.
21
5.9 Child Lock Option
Your appliance is provided with
CHILD SAFETY LOCK which
permits you to leave the appliance
unsupervised with the door closed
without having to worry that
children might be injured by or
cause damage to the appliance.
5. Press the ‘On/Off’ button to
deactivate the appliance.
5.8 AUTO Stand-by Option
The AUTO Stand-by option automatically deactivates the appliance to
decrease the energy consumption
when:
Set this option before pressing the
Start/Pause and after having
selected the required wash program.
You do not press any buttons for
5 minutes before you press
“Start/Pause”.
This function remains enabled even
after the appliance is switched off.
Setting Child Lock option:
Press the “On/Off” button to
activate the appliance again.
To activate the function, press
‘Dry Time’ and ‘Dryness’
touchpads at the same time until
the display shows the symbol ‘ ’.
After 5 minutes from the end of
the washing program.
Press the “On/Off” button to
activate the appliance again.
To deactivate the function, press
‘Dry Time’ and ‘Dryness’
touchpads at the same time until
the symbol
‘ ’ goes off.
Turn the program knob to set a new
cycle.
6. DAILY USE - WASHING & DRYING
6.1 NON-STOP Wash & Dry
Program
Press the On/Off button to turn
on the machine.
Load the laundry, one item at a
time.
Put the detergent and the
additives in the appropriate
compartment.
Select a wash program + Drying
Option
Change available options if
needed.
6.2 Washing & Automatic Drying
Press
until the display shows
one of the dryness level indicator.
(See section 3.15)
The display shows the indicator
.
The time value on the display is the
duration of the washing + drying
cycles, calculated on a default load
size.
To achieve the best drying
results the appliance will not
allow you to set spin speed
lower than minimum
required.
Press
to start the program.
22
www.electrolux.com
In the display the indicator of the
selected dryness level stays on.
The door locked indicator goes on.
During the last minutes of the
drying cycle the appliance
performs the anti-crease and
the cooling phases.
After a few seconds the
display shows the final time
value eg:
, that is the
total duration of the washing
and drying cycles (washing +
drying + anti-crease).
Press
To achieve the best drying
results the appliance will
not allow you to set spin
speed lower than minimum
required.
6.3 Washing & Timed Drying
Press
to set the drying time
value. Keep pressing
to add
drying time.
The indicator ‘
the display.
’ comes on in
to start the program.
In the display the indicator ‘
’
comes on. The door is locked.
The display shows the set drying
value time, eg:
value.
7. DAILY USE - DRYING
WARNING!
Make sure water tap is
opened and drain hose is in
the sink or connect to the
drain pipe.
Press the On/Off button to turn on the
machine.
Load the laundry, one item at a time.
Select a drying program.
The display shows the default drying
level.
Automatic Dryness Levels:
Press
until the display shows the
desired dryness level. (See section
3.15)
Some drying level options are
not available for some drying
programs.
If you set only 13 minutes of
drying, the appliance performs
only a cooling phase.
The display shows a time value
based on the default load size. If the
amount of your laundry is more or
less than the default size, the
appliance will adjust the time value
automatically during the cycle.
Press
to start the program.
The display shows the door locked
indicator ‘
’. The drying indicator
‘
’ starts to flash.
Dry Time:
Press
repeatedly to set the
time value. (See section 3.16)
Each time you press this touchpad
the time value increases by 5 minutes.
Press
to start the program.
The drying indicator ‘
’ starts to
flash. The display shows the door
locked indicator ‘
’.
ENGLISH
23
8. WASHING HINTS
8.1 Sorting The Laundry
Follow the wash code symbols on
each garment label and the
manufacturer’s washing instructions.
Sort the laundry as follows: whites,
coloureds, synthetics, delicates,
woollens.
8.2 Temperatures
For normally soiled white
cottons and linen
90°C
(e.g. teacloths, towels,
tablecloths, sheets...).
For normally soiled,
colourfast garments (e.g.
60°C shirts, night dresses,
50°C pyjamas....) in linen, cotton
40°C or synthetic fibres and for
lightly soiled white cotton
(e.g.underwear).
For delicate items (e.g. net
curtains), mixed laundry
30°C including synthetic fibres
Cold and woollens bearing the
label pure new wool,
machine washable,
non-shrink.
8.3 Before Loading The Laundry
Never wash whites and coloureds
together. Whites may lose their
“whiteness” in the wash.
New coloured items may run in the
first wash; they should therefore be
washed separately the first time.
Make sure that no metal objects are
left in the laundry (e.g. hair clips,
safety pins, pins).
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie
any belts or long tapes.
Remove persistent stains before
washing.
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care.
Remove hooks or tie them up in a
bag or a net.
8.4 Maximum Loads
Recommended loads are indicated
in the program charts. General
rules:
Cotton, linen:
drum full but not
too tightly packed;
Synthetics:
drum no more
than half full;
Delicate
fabrics and
woollens:
drum no more
than one third full.
Washing a maximum load makes
the most efficient use of water and
energy. For heavily soiled laundry,
reduce the load size.
24
www.electrolux.com
8.5 Removing Stains
Stubborn stains may not be
removed by just water and
detergent. It is therefore advisable
to treat them prior to washing.
Blood: treat fresh stains with cold
water. For dried stains, soak
overnight in water with a special
detergent then rub in the soap and
water.
Oil based paint: moisten with
benzine stain remover, lay the
garment on a soft cloth and dab
the stain; treat several times.
Dried grease stains: moisten with
turpentine, lay the garment on a
soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot
water or a rust removing product
used in cold water. Be careful with
rust stains which are not recent
since the cellulose structure will
already have been damaged and
the fabric tends to hole.
Mould stains: treat with bleach,
rinse well (whites and fast
coloureds only).
Grass: soap lightly and treat with
bleach (whites and fast coloureds
only).
Ball point pen and glue: moisten
with acetone (*), lay the garment on
a soft cloth and dab the stain.
Lipstick: moisten with acetone (*)
as above, then treat stains with
methylated spirits. Remove any
residual marks from white fabrics
with bleach.
Red wine: soak in water and
detergent, rinse and treat with
acetic or citric acid, then rinse.
Treat any residual marks with
bleach.
Ink: depending on the type of ink,
moisten the fabric first with
acetone (*), then with acetic acid;
treat any residual marks on white
fabrics with bleach and then rinse
thoroughly.
Tar stains: first treat with stain
remover, methylated spirits or
benzine, then rub with detergent
paste.
(*) do not use acetone on artificial
silk.
8.6 Detergents and Additives
Good washing results also depend
on the choice of detergent and use
of the correct quantities to avoid
waste and protect the
environment.
Although biodegradable, detergents
contain substances which, in large
quantities, can upset the delicate
balance of nature.
The choice of detergent will depend
on the type of fabric (delicates,
woollens, cottons, etc.), the colour,
washing temperature and degree of
soiling.
Only low suds Front load washer
detergents should be used in
this appliance:
powder detergents for all types
of fabric,
powder detergents for delicate
fabrics (60 °C max) and woollens,
liquid detergents, preferably for
low temperature wash program
(60 °C max) for all types of fabric,
or special for woollens only.
The detergent and any additives
must be placed in the appropriate
compartments of the dispenser
drawer before starting the wash
program.
ENGLISH
Pour liquid detergent into the
dispenser drawer compartment
marked ‘
’ just before starting
the program.
If using concentrated powder
or liquid detergents, a program
without PREWASH must be
selected.
Any fabric softener or starching
additives must be poured into the
compartment marked ‘ ’ before
starting the wash program.
Follow the product manufacturer’s
recommendations on quantities to
use and do not exceed the MAX
mark in the detergent dispenser
drawer.
Do not spray stain pre-treatment
products (e.g. Preen) on or near
the machine, as it can attack
plastic materials reducing its
life.
8.7 Quantity Of Detergent To Be
Used
The type and quantity of detergent
will depend on the type of fabric,
load size, degree of soiling and
hardness of the water used.
Water hardness is classified in
so-called “degrees” of hardness.
Information on hardness of the
water in your area can be obtained
from the relevant water supply
company, or from your local
authority.
Follow the product manufacturers’
instructions on quantities to use.
25
Not enough washing powder
causes:
the washload to turn grey,
greasy clothes.
Too much washing powder causes:
sudsing,
reduced washing effect,
inadequate rinsing.
Use less detergent if:
you are washing a small load,
the laundry is lightly soiled,
large amounts of foam form
during washing.
26
www.electrolux.com
9. INTERNATIONAL WASH CODE SYMBOLS
These symbols appear on fabric labels, in order to help you choose the best
way to treat your laundry.
Energetic wash
Max. wash Max. wash
temperature temperature
95 °C
60 °C
Max. wash
temperature
40 °C
Max. wash
temperature
30 °C
DO NOT
wash at all
Hand wash
Delicate wash
Bleaching
Bleach in cold water
Ironing
Hot iron
max. 200 °C
Dry cleaning
Dry cleaning in
all solvents
DO NOT bleach
Warm iron
max. 150 °C
Lukewarm iron
max. 110 °C
Dry cleaning in
Dry cleaning in
perchlorethylene, petrol, pure alcohol
petrol, pure alcohol,
and R 113
R 111 & R 113
DO NOT iron
DO NOT
dry clean
High
temperature
Low
temperature
Drying
Flat
On the line
On clothes
hanger
Tumble dry
DO NOT
tumble dry
ENGLISH
27
10. CARE AND CLEANING
WARNING!
You must DISCONNECT the
appliance from the electricity
supply, before you can carry out
any cleaning or maintenance
work.
10.1 External Cleaning
Clean the appliance only with soap
and warm water. Fully dry all the
surfaces.
CAUTION!
Do not use alcohol, solvents or
chemical products.
10.2 Descaling
The water we use normally
contains lime. It is a good idea to
periodically use a water softening
powder in the machine.
To run a maintenance wash:
The drum should be empty of
laundry.
Select the hottest cotton wash
program.
Use a normal measure of
detergent, must be a powder
with biological properties.
10.5 Cleaning The Dispenser
Drawer
The washing powder and additive
dispenser drawer should be
cleaned regularly.
Remove the drawer by pressing
the catch downwards and by
pulling it out. Flush it out under a
tap, to remove any traces of
accumulated powder.
Do this separately from any laundry
washing, and according to the
softening powder manufacturer's
instructions.
1
This will help to prevent the
formation of lime deposits.
10.3 After Each Wash
Leave the door open for a while.
This helps to prevent mould and
stagnant smells forming inside the
appliance. Keeping the door open
after a wash will also help to
preserve the door seal.
10.4 Maintenance Wash
With the use of low temperature
washes it is possible to get a build
up of residues inside the drum.
We recommend that a
maintenance wash be performed
on a regular basis.
2
3
28
www.electrolux.com
To aid cleaning, the top part of the
additive compartment should be
removed.
10.6 Cleaning The Drawer Recess
Having removed the drawer, use a
small brush to clean the recess,
ensuring that all washing powder
residue is removed from the upper
and lower part of the recess.
Replace the drawer and run the
rinse program without any clothes
in the drum.
10.7 Cleaning The Pump
Regularly examine the drain pump
and make sure that it is clean.
Clean the pump if:
The appliance does not drain the
water.
The drum cannot turn.
The appliance makes an unusual
noise because of the blockage of
the drain pump.
The display shows an alarm code
because of the problem with
water drain.
WARNING!
1. Disconnect the mains plug
from the mains socket.
2. Do not remove the filter while
the appliance operates. Do
not clean the drain pump if
the water in the appliance is
hot. The water must be cold
before you clean the drain
pump.
ENGLISH
29
To clean the drain pump:
1. Open the drain pump door.
2. Pull the flap down.
3. Put a container below the recess
of the drain pump to collect the
water that flows out.
4. Press the two levers and pull
forward the drainage duct to let
the water flow out.
5. When the container is full of water,
put the drainage duct back again
and empty the container. Do steps
4 and 5 again and again until no
more water flows out from the
drain pump.
30
www.electrolux.com
6. Pull back the drainage duct and
turn the filter to remove it.
1
2
7. Remove fluff and objects from the
pump (if there are any).
8. Make sure that the impeller of the
pump can turn. If this does not
occur, contact the service centre.
9. Clean the filter under the water
tap.
ENGLISH
31
10. Put the filter back in the pump into
the special guides. Make sure that
you tighten correctly the filter to
prevent leakages.
11. Put the flap back and close the
drain pump door.
10.8 Cleaning The Water Inlet Filter
If your water is very hard or
contains traces of lime deposit, the
water inlet filter may become
clogged.
It is therefore a good idea to clean
it from time to time.
To clean the water inlet filters:
1. Close the water tap.
2. Remove the water inlet hose from
the water tap.
3. Clean the filter in the inlet hose
with a stiff brush.
4.
Remove the inlet hose behind
the appliance.
5.
Clean the filter in the valve with
a stiff brush or a towel.
32
www.electrolux.com
45°
10.9 The Dangers Of Freezing
If the machine is exposed to
temperatures below 0°C, certain
precautions should be taken.
Disconnect the mains plug
from the mains socket.
1. Turn off the water tap.
2. Unscrew the inlet hose.
3. Put a bowl below the recess of
the drain pump to collect the
water that flows out.
6.
Install again the inlet hose.
Make sure that the couplings are
tight to prevent leakages.
7.
Open the water tap.
4. Pull forward the drainage duct
and that of the inlet hose in a
bowl placed on the floor and let
water drain out.
5. Screw the water inlet hose back
on and reposition the drainage
duct.
When you intend to start the
machine up again, make sure that
the room temperature is above 0°C.
ENGLISH
33
11. TROUBLESHOOTING
Certain problems are due to lack of simple maintenance or oversights, which can be
solved easily without calling out an engineer. Before contacting your local Service
Centre, please carry out the checks listed below.
During machine operation it is possible that the red Start/Pause pilot light flashes to
indicate that the machine is not working.
Once the problem has been eliminated, press the Start/Pause button to restart the
program. If after all checks, the problem persists, contact your local Service Centre.
Malfunction
Possible cause
The door has not been
closed. (Error code:
The machine
does not start:
The machine
does not fill the
water:
The machine fills
then empties
immediately:
The machine
does not empty
and/or does not
spin:
Solution
Close the door firmly.
)
The plug is not properly
inserted in the power socket.
Insert the plug into the
power socket.
There is no power at the
socket.
Please check your
domestic electrical
installation.
The Start/Pause button has
not been pressed.
Press the Start/Pause
button.
The delay start has been
selected.
If the laundry are to be
washed immediately,
cancel the delay start.
The water tap is closed.
(Error code:
)
Open the water tap.
The inlet hose is squashed or
kinked. (Error code:
)
Check the inlet hose
connection.
The filter in the inlet hose is
blocked. (Error code:
)
Clean the water inlet hose
filter.
The door is not properly
closed. (Error code:
)
Close the door firmly.
The end of the drain hose is
too low. (Error code:
)
Refer to relevant paragraph
in “water drainage” section.
The drain hose is squashed
or kinked. (Error code:
)
Check the drain hose
connection.
The drain pump is clogged.
(Error code:
)
Clean the drain filter.
The option ‘Rinse Hold’ or
‘No Spin’ has been selected.
Disable the option
‘Rinse Hold’ or ‘No Spin’
Slelect spin program.
The laundry is not evenly
distributed in the drum.
Pause the machine and
redistribute laundry
manually.
34
www.electrolux.com
Malfunction
There is water
on the floor:
Unsatisfactory
washing
results:
The door will
not open:
The machine
vibrates or is
noisy:
Cycle time
longer than
displayed:
Possible cause
Solution
Too much detergent or
unsuitable detergent (creates too
much foam) has been used.
Reduce the detergent
quantity or use another one.
Check whether there are any
leaks from one of the inlet hose
fittings. It is not always easy to
see this as the water runs down
the hose; check to see if it is
damp.
Check the water inlet hose
connection.
The drain hose is damaged.
Change it with a new one.
Too little detergent or unsuitable
detergent has been used.
Increase the detergent
quantity or use another one.
Stubborn stains have not been
treated prior to washing.
Use commercial products
to treat the stubborn stains.
The correct temperature was not
selected.
Check if you have selected
the correct temperature.
Excessive laundry load.
Reduce load.
The program is still running.
Wait until the end of
washing cycle.
The door lock has not been
released.
Wait about 5 minutes.
There is water in the drum.
Select ‘Spin’ program to
empty out the water.
The transit bolts and packing
have not been removed.
Check the correct
installation of the appliance.
The support feet have not
been adjusted.
Check the correct levelling
of the appliance.
The laundry is not evenly
distributed in the drum.
Pause the machine and
redistribute laundry manually.
There is very little laundry in the
drum.
Load more laundry.
Unstable floors eg. wooden
floors.
Refer to relevant paragraph
in “Positioning” section.
Detergent over dose.
Reduce the detergent
quantity or use another one.
Machine unbalance.
Redistribute laundry manually
in the drum and start the spin
phase again. Refer to relevant
paragraph in “Positioning”
section.
ENGLISH
Malfunction
Possible cause
The electronic unbalance
detection device has cut in
because the laundry is not
evenly distributed in the drum.
Spinning starts
late or the
machine does
not spin:
The machine
makes an
unusual noise:
No water is
visible in the
drum:
35
Solution
Pause the machine and
redistribute laundry manually.
The laundry is redistributed by
reverse rotation of the drum.
This may happen several times
before the unbalance
disappears and normal
spinning can resume. If, after
10 minutes, the laundry is still
not evenly distributed in the
drum, the machine will not
spin. In this case, redistribute
the load manually and select
the spin program.
Machine not installed properly.
Make sure the levelling of
the appliance is correct.
Refer to ‘Installation’.
Transit bolts or packaging
not removed.
Make sure that the packaging
and/or the transit bolts are
removed. Refer to
‘Installation’.
The load may be too small.
Add more laundry in the
drum.
Machines based on modern
technology operate very
economically using very little
water without affecting
performance.
If you are unable to identify or solve the
problem, contact our service centre.
Before telephoning, make a note of the
model, serial number and purchase date
of your machine: the Service Centre will
require this information.
36
www.electrolux.com
12. TECHNICAL DATA
Dimensions
(Width / Height / Depth)
Power supply
(Voltage / Frequency)
59.6 X 84.8 X 66.5 cm
220-240 V / 50 Hz
Total power absorbed
2200 W
Minimum fuse protection
Water supply pressure
(Maximum / Minimum)
10 A
0.8 MPa / 0.05 MPa
Washing
Maximum load
Cottons
Mixed
Delicates
Quick 18
Rinse
Spin
Energy Saver
Heavy Duty
Refresh
Wool
Washing + Drying Option
Cottons
Mixed
Spin
Rinse
Energy Saver
Heavy Duty
Wool
Drying Cottons
Drying Mixed
Spin speed
(Maximum / Minimum)
8 Kg
4 Kg
4 Kg
1.5 Kg
8 Kg
8 Kg
8 Kg
8 Kg
1.5 Kg
2 Kg
5 Kg
3 Kg
5 Kg
5 Kg
5 Kg
5 Kg
1 Kg
Drying
5 Kg
3 Kg
1200 rpm / 400 rpm
ENGLISH
13. INSTALLATION
13.1 Unpacking
CAUTION!
All transit bolts and packing
must be removed before
using the appliance.
You are advised to keep all transit
devices so that they can be
refitted if the machine ever has to
be transported again.
1. Use gloves. Remove the
external film. If necessary, use a
cutter.
2. Remove the cardboard top.
3. Remove the polystyrene
packaging materials.
4. Remove the plastic bag which
cover the machine.
5. Open the door. Remove the
polystyrene piece from the door
seal and all the items from the
drum.
37
38
www.electrolux.com
6. Put one of the polystyrene
packaging elements on the floor
behind the appliance. Carefully
put down the appliance with the
rear side on it. Make sure not to
damage the hoses.
7. Remove the polystyrene base.
8. Pull up the appliance in vertical
position.
1
2
9. Remove the power supply cable
and the drain and inlet hoses
from the hose holders (A) on the
rear of the appliance.
A
10. Remove the three bolts. Use the
key supplied with the appliance.
11. Pull out the plastic spacers.
ENGLISH
1
39
12. Put the plastic caps in the holes.
You can find these caps in the
user manual bag.
2
3
13.2 Positioning
It is important that your
machine stands firm and level
on the floor to ensure correct
operation.
Loosen or tighten the feet to adjust
the level. A correct adjustment of
the appliance level prevents the
vibration, noise and the movement
of the appliance when in operation.
That the appliance must not be
installed behind a lockable door, a
sliding door or a door with a hinge
on the opposite side to that of the
machine door is restricted.
Use a spirit level on the top and
side of the machine to check the
levels.
If you do not have a spirit level, as a
guide use the edge of a door frame,
cupboard or bench to check that
the machine is level.
When the machine is levelled, try
to rock it from corner to corner. If it
does rock, adjust the legs again
until it is levelled and does not
rock.
Never place cardboard, wood or
similar materials under the machine
to compensate for any unevenness
in the floor.
40
www.electrolux.com
Install the machine on a flat hard
floor. Make sure that air circulation
around the machine is not
impeded by carpets, rugs etc.
Check that the machine does not
touch the wall or cupboard units.
13.3 Water Inlet
Connect the water inlet hose to a
tap with 3/4” BSP thread.
Use the hose supplied with the
machine. DO NOT USE OLD
HOSES.
The other end of the inlet hose
which connects to the machine
can be turned in any direction.
Simply loosen the fitting, rotate
the hose and retighten the fitting,
making sure there are no water
leaks.
In this case, make sure the end
cannot come unhooked when the
machine is emptying.
This could be done by tying it to
the tap with a piece of string or
attaching it to the wall.
In a sink drain pipe branch. This
branch must be above the trap so
that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a
height of not less than 60 cm and
not more than 90 cm.
The end of the drain hose must
always be ventilated, i.e. the
inside diameter of the drain pipe
must be larger than the outside
diameter of the drain hose.
The end of the drain hose can be
positioned in three ways:
Hooked over the edge of a sink
using the plastic hose guide
supplied with the machine.
60 cm
13.4 Water Drainage
The drain hose must not be
kinked. Run it along the floor; only
the part near the drainage point
must be raised.
90 cm
The inlet hose must not be
lengthened. If it is too short and
you do not wish to move the tap,
you will have to purchase a new,
longer hose specially designed for
this type of use.
For the correct functioning of the
machine the drain hose must
remain hooked on the proper
support piece situated on the top
part of back side of the appliance.
ENGLISH
13.5 Electrical Connection
This machine is designed to
operate on a 220-240 V,
single-phase, 50 Hz supply.
“An incorrect power supply
may void your warranty.”
Check that your domestic
electrical installation can take the
maximum load required (2.2 kW),
also taking into account any other
appliances in use.
CAUTION!
Connect the machine to
an earthed socket outlet.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
Should the appliance power
supply cable need to be replaced,
this shall be carried out by our
Service Centre.
When the appliance is installed
the power supply cable must be
easily accessible.
If this appliance is supplied from a
cord extension set or electrical
portable outlet device, the cord
extension set or electrical portable
device must be positioned so that
it is not subject to splashing or
ingress of moisture.
41
42
www.electrolux.com
14. ENVIRONMENT CONCERNS
14.1 Packaging Materials
The materials marked with
the symbol
are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be
recycled by disposing of them
properly in appropriate collection
containers.
14.2 Old Machine
Use authorised disposal sites for
your old appliance. Help to keep
your country tidy!
The symbol
on the product
or on its packaging indicates that
this product may not be treated
as household waste.
Instead it shall be handed over to
the applicable collection point for
the recycling of electrical and
electronic equipment.
By ensuring this product is
disposed of correctly, you will
help prevent potential negative
consequences for the
environment and human health,
which could otherwise be caused
by inappropriate waste handling
of this product.
For more detailed information
about recycling of this product,
please contact your local city
office, your household waste
disposal service or the shop
where you purchased the
product.
14.3 Ecological Hints
To save water, energy and to help
protect the environment, we
recommend that you follow these
tips:
Normally soiled laundry may be
washed without prewashing in
order to save detergent, water
and time (the environment is
protected too!).
The machine works more
economically if it is fully loaded.
With adequate pre-treatment,
stains and limited soiling can
be removed; the laundry can
then be washed at a lower
temperature.
Measure out detergent
according to the water
hardness, the degree of soiling
and the quantity of laundry
being washed.
147758900-C-122013
www.electrolux.com/shop
