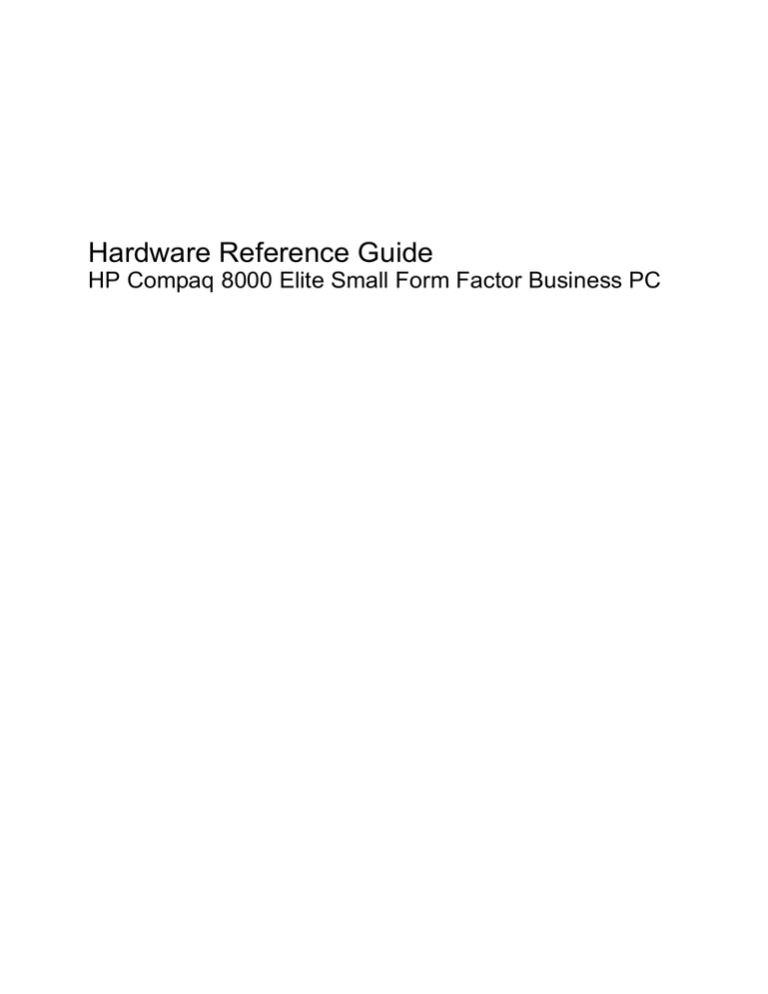

Hardware Reference Guide
HP Compaq 8000 Elite Small Form Factor Business PC
© Copyright 2009 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United States
and/or other countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Hardware Reference Guide
HP Compaq 8000 Elite Small Form Factor
Business PC
First Edition (November 2009)
Document Part Number: 588912-001
About This Book
This guide provides basic information for upgrading this computer model.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage
to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
ENWW
iii
iv
About This Book
ENWW
Table of contents
1 Product Features
Standard Configuration Features ......................................................................................................... 1
Front Panel Components ..................................................................................................................... 2
Media Card Reader Components ......................................................................................................... 3
Rear Panel Components ...................................................................................................................... 4
Keyboard .............................................................................................................................................. 5
Using the Windows Logo Key .............................................................................................. 5
Serial Number Location ........................................................................................................................ 7
2 Hardware Upgrades
Serviceability Features ......................................................................................................................... 8
Warnings and Cautions ........................................................................................................................ 8
Unlocking the Smart Cover Lock .......................................................................................................... 9
Smart Cover FailSafe Key ................................................................................................... 9
Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock ............................. 9
Removing the Computer Access Panel .............................................................................................. 11
Replacing the Computer Access Panel .............................................................................................. 12
Removing the Front Bezel .................................................................................................................. 13
Removing Bezel Blanks ..................................................................................................................... 14
Replacing the Front Bezel .................................................................................................................. 15
Using the Small Form Factor Computer in a Tower Orientation ........................................................ 16
Installing Additional Memory .............................................................................................................. 17
DIMMs ............................................................................................................................... 17
DDR3-SDRAM DIMMs ...................................................................................................... 17
Populating DIMM Sockets ................................................................................................. 18
Installing DIMMs ................................................................................................................ 19
Removing or Installing an Expansion Card ........................................................................................ 22
Drive Positions ................................................................................................................................... 28
Installing and Removing Drives .......................................................................................................... 29
System Board Drive Connections ...................................................................................... 30
Removing an External 5.25-inch Drive .............................................................................. 31
Installing an Optical Drive into the 5.25-inch Drive Bay ..................................................... 33
Removing an External 3.5-inch Drive ................................................................................ 36
Installing a Drive into the 3.5-inch External Drive Bay ....................................................... 38
ENWW
v
Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive ........................ 39
Removing and Replacing a Removable 3.5-inch SATA Hard Drive .................................. 42
Appendix A Specifications
Appendix B Battery Replacement
Appendix C External Security Devices
Installing a Security Lock .................................................................................................................... 52
HP/Kensington MicroSaver Security Cable Lock ............................................................... 52
Padlock .............................................................................................................................. 53
HP Business PC Security Lock .......................................................................................... 53
Front Bezel Security .......................................................................................................... 55
Appendix D Electrostatic Discharge
Preventing Electrostatic Damage ....................................................................................................... 57
Grounding Methods ............................................................................................................................ 57
Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care ............................................................................ 58
Optical Drive Precautions ................................................................................................................... 59
Operation ........................................................................................................................... 59
Cleaning ............................................................................................................................. 59
Safety ................................................................................................................................. 59
Shipping Preparation .......................................................................................................................... 59
Index ................................................................................................................................................................... 60
vi
ENWW
1
Product Features
Standard Configuration Features
The HP Compaq Small Form Factor features may vary depending on the model. For a complete listing
of the hardware and software installed in the computer, run the diagnostic utility (included on some
computer models only).
NOTE: The Small Form Factor computer can also be used in a tower orientation. For more information,
see Using the Small Form Factor Computer in a Tower Orientation on page 16 in this guide.
Figure 1-1 Small Form Factor Configuration
ENWW
Standard Configuration Features
1
Front Panel Components
Drive configuration may vary by model. Some models have a bezel blank covering one or more drive
bays.
Figure 1-2 Front Panel Components
Table 1-1 Front Panel Components
1
5.25-inch Optical Drive
6
USB (Universal Serial Bus) Ports
2
Optical Drive Activity Light
7
Microphone/Headphone Connector
3
Optical Drive Eject Button
8
3.5-inch Media Card Reader (optional)
4
Dual-State Power Button
9
Hard Drive Activity Light
5
Power On Light
10
Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you
want to use the connector for a microphone line Line-In device or a headphone. You can reconfigure the connector
at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.
NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the
computer and it is displaying a diagnostic code.
2
Chapter 1 Product Features
ENWW
Media Card Reader Components
The media card reader is an optional device available on some models only. Refer to the following
illustration and table to identify the media card reader components.
Figure 1-3 Media Card Reader Components
Table 1-2 Media Card Reader Components
No.
Slot
Media
1
xD
●
xD-Picture Card (xD)
2
MicroSD
●
MicroSD (T-Flash)
●
MicroSDHC
3
Media Card Reader
Activity Light
4
SD/MMC+/miniSD
●
Secure Digital (SD)
●
MiniSDHC
●
●
Secure Digital High
Capacity (SDHC)
●
MultiMediaCard 4.0
(MMC Plus)
MultiMediaCard
(MMC)
●
MiniSD
●
Reduced Size
MultiMediaCard (RS
MMC)
Reduced Size
MultiMediaCard 4.0
(MMC Mobile)
●
MMC Micro (adapter
required)
●
5
USB
●
USB (Universal Serial
Bus) Port
6
CompactFlash I/II
●
CompactFlash Card
Type 1
●
CompactFlash Card
Type 2
●
MicroDrive
7
MS PRO/MS PRO DUO
●
Memory Stick (MS)
●
Memory Stick Select
●
●
MagicGate Memory
Stick (MG)
●
Memory Stick PRO
Duo (MS PRO Duo)
Memory Stick Duo
(MS Duo)
●
MagicGate Memory
Duo
●
Memory Stick PROHG Duo
Memory Stick PRO
(MS PRO)
●
Memory Stick Micro
(M2) (adapter
required)
●
8
ENWW
1394
●
1394 Port (available
on select models only)
Media Card Reader Components
3
Rear Panel Components
Figure 1-4 Rear Panel Components
Table 1-3 Rear Panel Components
1
RJ-45 Network Connector
6
DisplayPort Monitor Connector
2
Serial Connector
7
VGA Monitor Connector
3
PS/2 Mouse Connector (green)
8
PS/2 Keyboard Connector (purple)
4
Power Cord Connector
9
Line-Out Connector for powered audio
devices (green)
5
Universal Serial Bus (USB)
10
Line-In Audio Connector (blue)
NOTE:
Arrangement and number of connectors may vary by model.
An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking
the Realtek HD Audio Manager icon in the Windows taskbar.
The monitor connectors on the system board are inactive when a graphics card is installed in the computer.
If a graphics card is installed into the PCI or PCI Express x1 slot, the connectors on the graphics card and the system
board may be used at the same time. Some settings may need to be changed in Computer Setup to use both
connectors.
4
Chapter 1 Product Features
ENWW
Keyboard
Figure 1-5 Keyboard Components
Table 1-4 Keyboard Components
1
1
Function Keys
Perform special functions depending on the software application being used.
2
Editing Keys
Includes the following: Insert, Home, Page Up, Delete, End, and Page Down.
3
Status Lights
Indicate the status of the computer and keyboard settings (Num Lock, Caps Lock,
and Scroll Lock).
4
Numeric Keys
Work like a calculator keypad.
5
Arrow Keys
Used to navigate through a document or Web site. These keys allow you to move
left, right, up, and down, using the keyboard instead of the mouse.
6
Ctrl Keys
Used in combination with another key; their effect depends on the application
software you are using.
7
Application Key1
Used (like the right mouse button) to open pop-up menus in a Microsoft Office
application. May perform other functions in other software applications.
8
Windows Logo Keys1
Used to open the Start menu in Microsoft Windows. Used in combination with other
keys to perform other functions.
9
Alt Keys
Used in combination with another key; their effect depends on the application
software you are using.
Keys available in select geographic regions.
Using the Windows Logo Key
Use the Windows Logo key in combination with other keys to perform certain functions available in the
Windows operating system. Refer to Keyboard on page 5 to identify the Windows Logo key.
Table 1-5 Windows Logo Key Functions
The following Windows Logo Key functions are available in Microsoft Windows XP, Microsoft Windows Vista, and
Micorosft Windows 7.
ENWW
Keyboard
5
Table 1-5 Windows Logo Key Functions (continued)
Windows Logo Key
Displays or hides the Start menu
Windows Logo Key + d
Displays the Desktop
Windows Logo Key + m
Minimizes all open applications
Shift + Windows Logo Key + m
Undoes Minimize All
Windows Logo Key + e
Launches My Computer
Windows Logo Key + f
Launches Find Document
Windows Logo Key + Ctrl + f
Launches Find Computer
Windows Logo Key + F1
Launches Windows Help
Windows Logo Key + l
Locks the computer if you are connected to a network domain, or
allows you to switch users if you are not connected to a network
domain
Windows Logo Key + r
Launches the Run dialog box
Windows Logo Key + u
Launches the Utility Manager
Windows Logo Key + Tab
Windows XP - Cycles through the Taskbar buttons
Windows Vista and Windows 7 - Cycles through programs on the
Taskbar using the Windows Flip 3-D
In addition to the Windows Logo Key functions described above, the following functions are also available in Microsoft
Windows Vista and Windows 7.
Ctrl + Windows Logo Key + Tab
Use the arrow keys to cycle through programs on the Taskbar by
using Windows Flip 3-D
Windows Logo Key + Spacebar
Brings all gadgets to the front and select Windows Sidebar
Windows Logo Key + g
Cycles through Sidebar gadgets
Windows Logo Key + t
Cycles through programs on the taskbar
Windows Logo Key + u
Launches Ease of Access Center
Windows Logo Key + any number key
Launches the Quick Launch shortcut that is in the position that
corresponds to the number (for example, Windows Logo Key + 1
launches the first shortcut in the Quick Launch menu)
In addition to the Windows Logo Key functions described above, the following functions are also available in Microsoft
Windows 7.
6
Windows Logo Key + Ctrl + b
Switches to the program that displayed a message in the
notification area
Windows Logo Key + p
Choose a presentation display mode
Windows Logo Key + up arrow
Maximizes the window
Windows Logo Key + left arrow
Snaps the window to the left side of the screen
Windows Logo Key + right arrow
Snaps the window to the right side of the screen
Windows Logo Key + down arrow
Minimizes the window
Windows Logo Key + Shift + up arrow
Stretches the window to the top and bottom of the screen
Windows Logo Key + Shift + left arrow or right
arrow
Moves a window from one monitor to another
Chapter 1 Product Features
ENWW
Table 1-5 Windows Logo Key Functions (continued)
Windows Logo Key + + (on numpad)
Zooms in
Windows Logo Key + - (on numpad)
Zooms out
Serial Number Location
Each computer has a unique serial number and product ID number in the location shown below. Keep
these numbers available for use when contacting customer service for assistance.
Figure 1-6 Serial Number and Product ID Location
ENWW
Serial Number Location
7
2
Hardware Upgrades
Serviceability Features
The computer includes features that make it easy to upgrade and service. No tools are needed for most
of the installation procedures described in this chapter.
Warnings and Cautions
Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and
warnings in this guide.
WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire:
Disconnect the power cord from the wall outlet and allow the internal system components to cool before
touching.
Do not plug telecommunications or telephone connectors into the network interface controller (NIC)
receptacles.
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation,
setup, posture, and health and work habits for computer users, and provides important electrical and
mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo.
WARNING! Energized and moving parts inside.
Disconnect power to the equipment before removing the enclosure.
Replace and secure the enclosure before re-energizing the equipment.
CAUTION: Static electricity can damage the electrical components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object. See Appendix D, Electrostatic Discharge on page 57 for
more information.
When the computer is plugged into an AC power source, voltage is always applied to the system board.
You must disconnect the power cord from the power source before opening the computer to prevent
damage to internal components.
8
Chapter 2 Hardware Upgrades
ENWW
Unlocking the Smart Cover Lock
NOTE: The Smart Cover Lock is an optional feature included on some models only.
The Smart Cover Lock is a software-controllable cover lock, controlled by the setup password. This lock
prevents unauthorized access to the internal components. The computer ships with the Smart Cover
Lock in the unlocked position. For more information about locking the Smart Cover Lock, refer to the
Desktop Management Guide.
Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter your password to disable the lock, you will need
a Smart Cover FailSafe Key to open the computer cover. You will need the key to access the internal
computer components in any of the following circumstances:
●
Power outage
●
Startup failure
●
PC component (for example, processor or power supply) failure
●
Forgotten password
NOTE: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared; order this
key before you need it.
To obtain a FailSafe Key:
●
Contact an authorized HP reseller or service provider. Order PN 166527-001 for the wrench-style
key or PN 166527-002 for the screwdriver bit key.
●
Refer to the HP Web site (http://www.hp.com) for ordering information.
●
Call the appropriate number listed in the warranty or in the Support Telephone Numbers guide.
Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock
To open the access panel with the Smart Cover Lock engaged:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
ENWW
If the computer is on a stand, remove the computer from the stand.
Unlocking the Smart Cover Lock
9
6.
Use the Smart Cover FailSafe Key to remove the tamper-proof screw that secures the Smart Cover
Lock to the chassis.
Figure 2-1 Removing the Smart Cover Lock Screw
You can now remove the access panel. See Removing the Computer Access Panel on page 11.
To reattach the Smart Cover Lock, secure the lock in place with the tamper-proof screw.
10
Chapter 2 Hardware Upgrades
ENWW
Removing the Computer Access Panel
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Lift up on the access panel handle (1) then lift the access panel off the computer (2).
Figure 2-2 Removing the Access Panel
ENWW
Removing the Computer Access Panel
11
Replacing the Computer Access Panel
Slide the lip on the front end of the access panel under the lip on the front of the chassis (1) then press
the back end of the access panel onto the unit so that it locks into place (2).
Figure 2-3 Replacing the Access Panel
12
Chapter 2 Hardware Upgrades
ENWW
Removing the Front Bezel
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
Remove the access panel.
6.
Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
Figure 2-4 Removing the Front Bezel
ENWW
Removing the Front Bezel
13
Removing Bezel Blanks
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1.
Remove the access panel and front bezel.
2.
To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards
the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it (2).
Figure 2-5 Removing a Bezel Blank
14
Chapter 2 Hardware Upgrades
ENWW
Replacing the Front Bezel
Insert the three hooks on the bottom side of the bezel into the rectangular holes on the chassis (1) then
rotate the top side of the bezel onto the chassis (2) and snap it into place.
Figure 2-6 Replacing the Front Bezel
ENWW
Replacing the Front Bezel
15
Using the Small Form Factor Computer in a Tower
Orientation
The Small Form Factor computer can be used in a tower orientation with an optional tower stand that
can be purchased from HP.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
Orient the computer so that its right side is facing down and place the computer in the optional
stand.
Figure 2-7 Changing from Desktop to Tower Orientation
NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the optional
tower stand.
6.
Reconnect the power cord and any external devices, then turn on the computer.
NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer remains
clear and free of obstructions.
16
Chapter 2 Hardware Upgrades
ENWW
Installing Additional Memory
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 16-GB of memory configured in a highperforming dual channel mode.
DDR3-SDRAM DIMMs
For proper system operation, the DDR3-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered non-ECC PC3-8500 DDR3-1066 MHz-compliant or PC3-10600 DDR3-1333 MHzcompliant
●
1.5 volt DDR3-SDRAM DIMMs
The DDR3-SDRAM DIMMs must also:
●
support CAS latency 7 DDR3 1066 MHz (7-7-7 timing) and CAS latency 9 DDR3 1333 MHz (9-9-9
timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE: The system will not operate properly if you install unsupported DIMMs.
ENWW
Installing Additional Memory
17
Populating DIMM Sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel
A. Sockets DIMM3 and DIMM4 operate in memory channel B.
Figure 2-8 DIMM Socket Locations
Table 2-1 DIMM Socket Locations
Item
Description
Socket Color
1
DIMM1 socket, Channel A (populate first)
Black
2
DIMM2 socket, Channel A (populate third)
White
3
DIMM3 socket, Channel B (populate second)
White
4
DIMM4 socket, Channel B (populate fourth)
White
NOTE: A DIMM must occupy the black DIMM1 socket. Otherwise, the system will
display a POST error message indicating that a memory module must be installed in the
wrong socket.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
18
●
The system will operate in single channel mode if the DIMM sockets are populated in one channel
only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity of
the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The
technology and device width can vary between the channels. For example, if Channel A is
populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system will
operate in dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not
equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated
with the least amount of memory describes the total amount of memory assigned to dual channel
Chapter 2 Hardware Upgrades
ENWW
and the remainder is assigned to single channel. For optimal speed, the channels should be
balanced so that the largest amount of memory is spread between the two channels. If one channel
will have more memory than the other, the larger amount should be assigned to Channel A. For
example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB DIMMs, Channel
A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel B should be
populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as dual channel
and 1-GB will run as single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to
drain before adding or removing memory modules. Regardless of the power-on state, voltage is always
supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding
or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board. If you see an LED light on the system board, voltage is still present.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation
resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. For more information, refer to Appendix D, Electrostatic Discharge
on page 57.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the
power to drain before adding or removing memory modules. Regardless of the power-on state,
voltage is always supplied to the memory modules as long as the computer is plugged into an
active AC outlet. Adding or removing memory modules while voltage is present may cause
irreparable damage to the memory modules or system board. If you see an LED light on the system
board, voltage is still present.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
ENWW
Installing Additional Memory
19
7.
Rotate up the external drive bay housing to access the memory module sockets on the system
board.
Figure 2-9 Rotating the Drive Cage Up
20
Chapter 2 Hardware Upgrades
ENWW
8.
Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
Figure 2-10 Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket.
A DIMM must occupy the black DIMM1 socket.
Populate the DIMM sockets in the following order: DIMM1, DIMM3, DIMM2, then DIMM4.
For maximum performance, populate the sockets so that the memory capacity is spread as equally
as possible between Channel A and Channel B. Refer to Populating DIMM Sockets on page 18
for more information.
9.
Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
10. Repeat steps 8 and 9 to install any additional modules.
11. Replace the access panel.
12. If the computer was on a stand, replace the stand.
13. Reconnect the power cord and turn on the computer.
14. Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
ENWW
Installing Additional Memory
21
Removing or Installing an Expansion Card
The computer has one PCI expansion slot, two PCI Express x1 expansion slots, and one PCI Express
x16 expansion slot.
NOTE: The PCI and PCI Express slots support only low profile cards.
Figure 2-11 Expansion Slot Locations
Table 2-2 Expansion Slot Locations
Item
Description
1
PCI expansion slot
2
PCI Express x16 expansion slot
3
PCI Express x1 expansion slot
4
PCI Express x1 expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 slot.
To install an expansion card:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
22
If the computer is on a stand, remove the computer from the stand.
Chapter 2 Hardware Upgrades
ENWW
6.
Remove the access panel.
7.
Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
8.
Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on
the latch and rotating the latch to the open position.
Figure 2-12 Opening the Expansion Slot Retainer
ENWW
Removing or Installing an Expansion Card
23
9.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
a.
If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside
of the chassis.
Figure 2-13 Removing an Expansion Slot Cover
24
Chapter 2 Hardware Upgrades
ENWW
b.
If you are removing a standard PCI card or PCI Express x1 card, hold the card at each end,
and carefully rock it back and forth until the connectors pull free from the socket. Pull the
expansion card straight up from the socket (1) then away from the inside of the chassis to
release it from the chassis frame (2). Be sure not to scrape the card against the other
components.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
Figure 2-14 Removing a Standard PCI Expansion Card
ENWW
Removing or Installing an Expansion Card
25
c.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then away from the
inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against
the other components.
Figure 2-15 Removing a PCI Express x16 Expansion Card
10. Store the removed card in anti-static packaging.
11. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or expansion
slot cover for proper cooling of internal components during operation.
26
Chapter 2 Hardware Upgrades
ENWW
12. To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis (1) so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion
socket on the system board (2).
Figure 2-16 Installing an Expansion Card
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
13. Rotate the slot cover retention latch back in place to secure the expansion card.
Figure 2-17 Closing the Expansion Slot Retainer
14. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
15. Replace the access panel.
ENWW
Removing or Installing an Expansion Card
27
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
19. Reconfigure the computer, if necessary.
Drive Positions
Figure 2-18 Drive Positions
Table 2-3 Drive Positions
1
3.5-inch internal hard drive bay
2
3.5-inch external drive bay for optional drives (media card reader shown)
3
5.25-inch external drive bay for optional drives (optical drive shown)
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup.
28
Chapter 2 Hardware Upgrades
ENWW
Installing and Removing Drives
When installing additional drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect a SATA optical drive to the white SATA connector on the system board labeled SATA1.
●
Connect devices in order of SATA0, SATA1, then SATA2
●
Connect an optional eSATA adapter cable to the black ESATA connector on the system board.
●
Connect a media card reader USB cable to the USB connector on the system board labeled MEDIA.
If the media card reader has a 1394 port, connect the 1394 cable to the 1394 PCI card.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
in place. HP has provided extra guide screws for the external drive bays (five 6-32 standard screws
and four M3 metric screws), installed in the front of the chassis, under the front bezel. The 6-32
standard screws are required for a secondary hard drive. All other drives (except the primary hard
drive) use M3 metric screws. The HP-supplied metric screws are black and the HP-supplied
standard screws are silver. If you are replacing the primary hard drive, you must remove the four
silver and blue 6-32 isolation mounting guide screws from the old hard drive and install them in the
new hard drive.
Figure 2-19 Extra Guide Screw Locations
No.
Guide Screw
Device
1
Black M3 Metric Screws
All Drives (except hard drives)
2
Silver 6-32 Standard Screws
Secondary Hard Drive
There are at total of five extra silver 6-32 standard screws. Four are used as guide screws for a secondary
hard drive. The fifth is used for bezel security (see Front Bezel Security on page 55 for more information).
ENWW
Installing and Removing Drives
29
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the computer,
and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector. For more information about preventing electrostatic damage, refer to Appendix
D, Electrostatic Discharge on page 57.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label
the package “Fragile: Handle With Care.”
System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.
Figure 2-20 System Board Drive Connections
Table 2-4 System Board Drive Connections
30
No.
System Board Connector
System Board Label
Color
1
Media Card Reader
MEDIA
black
2
SATA0
SATA0
dark blue
3
SATA1
SATA1
white
4
SATA2
SATA2
light blue
5
eSATA
ESATA
black
Chapter 2 Hardware Upgrades
ENWW
Removing an External 5.25-inch Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
To remove a 5.25-inch external drive:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Rotate the drive cage to its upright position.
Figure 2-21 Rotating the Drive Cage Up
ENWW
Installing and Removing Drives
31
8.
If removing an optical drive, disconnect the power cable (1) and data cable (2) from the rear of the
optical drive.
Figure 2-22 Disconnecting the Power and Data Cables
9.
Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
Figure 2-23 Rotating the Drive Cage Down
32
Chapter 2 Hardware Upgrades
ENWW
10. Press down on the green drive retainer button located on the left side of the drive to disengage the
drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it
stops, then lift it up and out of the drive cage (2).
Figure 2-24 Removing the 5.25-inch Drive
NOTE: To replace the drive, reverse the removal procedure. When replacing a drive, transfer the four
guide screws from the old drive to the new one.
Installing an Optical Drive into the 5.25-inch Drive Bay
To install an optional 5.25-inch optical drive:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
ENWW
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then remove
the bezel blank. See Removing Bezel Blanks on page 14 for more information.
Installing and Removing Drives
33
8.
Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided
four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric
guide screws are black. Refer to Installing and Removing Drives on page 29 for an illustration of
the extra M3 metric guide screws location.
CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the internal
components of the drive.
NOTE: When replacing the drive, transfer the four M3 metric guide screws from the old drive to
the new one.
Figure 2-25 Installing Guide Screws in the Optical Drive
9.
Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
Figure 2-26 Installing the Optical Drive
34
Chapter 2 Hardware Upgrades
ENWW
10. Rotate the drive cage to its upright position.
Figure 2-27 Rotating the Drive Cage Up
11. Connect the SATA data cable to the white system board connector labeled SATA1.
12. Route the data cable through the cable guides.
CAUTION: There are two cable guides that keep the data cable from being pinched by the drive
cage when raising or lowering it. One is located on the bottom side of the drive cage. The other is
located on the chassis frame under the drive cage. Ensure that the data cable is routed through
these guides before connecting it to the optical drive.
13. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 2-28 Connecting the Power and Data Cables
ENWW
Installing and Removing Drives
35
14. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
Figure 2-29 Rotating the Drive Cage Down
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
The system automatically recognizes the drive and reconfigures the computer.
Removing an External 3.5-inch Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
The 3.5-inch drive is located underneath the 5.25-inch drive. You must remove the external 5.25-inch
drive before removing the external 3.5-inch drive.
1.
Follow the procedure in Removing an External 5.25-inch Drive on page 31 to remove the 5.25-inch
drive and access the 3.5-inch drive.
CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from
the electrical outlet before proceeding.
36
Chapter 2 Hardware Upgrades
ENWW
2.
Disconnect the drive cables from the rear of the drive, or, if you are removing a media card reader,
disconnect the USB and 1394 cables from the system board as indicated in the following
illustrations.
NOTE: On some models, the media card reader does not include a 1394 port or cable.
Figure 2-30 Disconnecting the Media Card Reader USB Cable
Figure 2-31 Disconnecting the Media Card Reader 1394 Cable
ENWW
Installing and Removing Drives
37
3.
Press down on the green drive retainer button located on the left side of the drive to disengage the
drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it
stops, then lift it up and out of the drive cage (2).
Figure 2-32 Removing a 3.5-inch Drive (Media Card Reader Shown)
NOTE: To replace the 3.5-inch drive, reverse the removal procedure.
When replacing a 3.5-inch drive, transfer the four guide screws from the old drive to the new one.
Installing a Drive into the 3.5-inch External Drive Bay
The 3.5-inch bay is located underneath the 5.25-inch drive. To install a drive into the 3.5-inch bay:
NOTE: Install guide screws to ensure the drive will line up correctly in the drive cage and lock in place.
HP has provided extra guide screws for the external drive bays (four 6-32 standard screws and four M3
metric screws), installed in the front of the chassis, under the front bezel. A secondary hard drive uses
6-32 standard screws. All other drives (except the primary hard drive) use M3 metric screws. The HPsupplied M3 metric screws are black and the HP-supplied 6-32 standard screws are silver. Refer to
Installing and Removing Drives on page 29 for illustrations of the guide screw locations.
1.
Follow the procedure in Removing an External 5.25-inch Drive on page 31 to remove the 5.25-inch
drive and access the 3.5-inch drive bay.
CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from
the electrical outlet before proceeding.
2.
38
If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then remove
the bezel blank. See Removing Bezel Blanks on page 14 for more information.
Chapter 2 Hardware Upgrades
ENWW
3.
Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
Figure 2-33 Installing a Drive into the 3.5-inch Drive Bay (Media Card Reader Shown)
4.
Connect the appropriate drive cables:
a.
If installing a second hard drive, connect the power and data cables to the rear of the drive
and connect the other end of the data cable to the next available (unpopulated) SATA
connector on the system board by following the numbered sequence of the connectors.
b.
If installing a media card reader, connect the USB cable from the media card reader to the
USB connector on the system board labeled MEDIA. If the media card reader includes a 1394
port, connect the 1394 cable to the 1394 PCI card.
NOTE: Refer to System Board Drive Connections on page 30 for an illustration of the system
board drive connectors.
5.
Replace the 5.25-inch drive.
6.
Replace the front bezel and access panel.
7.
If the computer was on a stand, replace the stand.
8.
Reconnect the power cord and turn on the computer.
9.
Lock any security devices that were disengaged when the access panel was removed.
Removing and Replacing the Primary 3.5-inch Internal SATA Hard Drive
NOTE: The system does not support Parallel ATA (PATA) hard drives.
Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you
can transfer the data to the new hard drive.
The preinstalled 3.5-inch hard drive is located under the power supply. To remove and replace the hard
drive:
ENWW
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
Installing and Removing Drives
39
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Rotate the drive cage for external drives to its upright position.
Figure 2-34 Rotating the Drive Cage Up
8.
Rotate the power supply to its upright position. The hard drive is located beneath the power supply.
Figure 2-35 Raising the Power Supply
40
Chapter 2 Hardware Upgrades
ENWW
9.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 2-36 Disconnecting the Hard Drive Power Cable and Data Cable
10. Press down on the green release latch next to the hard drive (1). While holding the latch down,
slide the drive forward until it stops, then lift the drive up and out of the bay (2).
Figure 2-37 Removing the Hard Drive
11. To install a hard drive, you must transfer the silver and blue isolation mounting guide screws from
the old hard drive to the new hard drive.
Figure 2-38 Installing Hard Drive Guide Screws
ENWW
Installing and Removing Drives
41
12. Align the guide screws with the slots on the chassis drive cage, press the hard drive down into the
bay, then slide it back until it stops and locks in place.
Figure 2-39 Installing the Hard Drive
13. Connect the power and data cables to the back of the hard drive.
NOTE: When replacing the primary hard drive, be sure to route the SATA and power cables
through the cable guide on the bottom of the chassis frame behind the hard drive.
If the system has only one SATA hard drive, the data cable must be connected to the dark blue
connector labeled SATA0 on the system board to avoid any hard drive performance problems.
14. Rotate the drive cage for external drives and the power supply down to their normal positions.
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
Removing and Replacing a Removable 3.5-inch SATA Hard Drive
Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch external
drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive
bay. To remove and replace a drive in the carrier:
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
1.
42
Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.
Chapter 2 Hardware Upgrades
ENWW
2.
Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).
Figure 2-40 Removing the Carrier Cover
3.
Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
Figure 2-41 Removing the Thermal Sensor
ENWW
Installing and Removing Drives
43
4.
Remove the four screws from the bottom of the hard drive carrier.
Figure 2-42 Removing the Security Screws
5.
Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Figure 2-43 Removing the Hard Drive
44
Chapter 2 Hardware Upgrades
ENWW
6.
Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA
connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the
way into the connector on the carrier's circuit board.
Figure 2-44 Replacing the Hard Drive
7.
Replace the four screws in the bottom of the carrier to hold the drive securely in place.
Figure 2-45 Replacing the Security Screws
ENWW
Installing and Removing Drives
45
8.
Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and
attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
Figure 2-46 Replacing the Thermal Sensor
9.
Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover
in place (2).
Figure 2-47 Replacing the Carrier Cover
10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.
NOTE: The carrier must be locked for power to be supplied to the hard drive.
46
Chapter 2 Hardware Upgrades
ENWW
A
Specifications
Table A-1 Specifications
Desktop Dimensions (in the desktop position)
Height
3.95 in
10.0 cm
Width
13.3 in
33.8 cm
Depth
14.9 in
37.8 cm
Approximate Weight
16.72 lb
7.6 kg
Weight Supported (maximum distributed load in desktop position)
77 lb
35 kg
Operating
50° to 95°F
10° to 35°C
Nonoperating
-22° to 140°F
-30° to 60°C
Temperature Range
NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct sustained
sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.
Relative Humidity (noncondensing)
Operating
10-90%
10-90%
Nonoperating (38.7°C max wet bulb)
5-95%
5-95%
Operating
10,000 ft
3048 m
Nonoperating
30,000 ft
9144 m
Max STD PS
1063 BTU/hr
268 kg-cal/hr
Typical STD PS idle
198 BTU/hr
50 kg-cal/hr
Max EPA 87/89/85% @ 20/50/100% load PS
941 BTU/hr
237 kg-cal/hr
Typical EPA 87/89/85% @ 20/50/100% load PS idle
150 BTU/hr
38 kg-cal/hr
Power Supply
115V
230V
Operating Voltage Range (STD PS)
90-264 VAC
90-264 VAC
Operating Voltage Range (EPA 87/89/85% @ 20/50/100% load PS)
90-264 VAC
90-264 VAC
Rated Voltage Range (STD PS)
100-240 VAC
100-240 VAC
Rated Voltage Range (EPA 87/89/85% @ 20/50/100% load PS)
100-240 VAC
100-240 VAC
Maximum Altitude (unpressurized)
Heat Dissipation
ENWW
47
Table A-1 Specifications (continued)
Rated Line Frequency
50-60 Hz
50-60 Hz
Power Output
240W
240W
STD PS
4A @ 100 VAC
2A @ 230 VAC
EPA 87/89/85% @ 20/50/100% load PS
4A @ 100 VAC
2A @ 230 VAC
Rated Input Current (maximum)1
1
This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark requirements
for use in the countries of the European Union. The active power factor corrected power supply also has the added benefit of
not requiring an input voltage range select switch.
48
Appendix A Specifications
ENWW
B
Battery Replacement
The battery that comes with the computer provides power to the real-time clock. When replacing the
battery, use a battery equivalent to the battery originally installed in the computer. The computer comes
with a 3-volt lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When
the battery is removed or replaced, the CMOS settings will be cleared.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall
socket. The lithium battery is only used when the computer is NOT connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
ENWW
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Locate the battery and battery holder on the system board.
49
NOTE: On some computer models, it may be necessary to remove an internal component to gain
access to the battery.
8.
Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.
Type 1
a.
Lift the battery out of its holder.
Figure B-1 Removing a Coin Cell Battery (Type 1)
b.
Slide the replacement battery into position, positive side up. The battery holder automatically
secures the battery in the proper position.
Type 2
a.
To release the battery from its holder, squeeze the metal clamp that extends above one edge
of the battery. When the battery pops up, lift it out (1).
b.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of
the battery (2).
Figure B-2 Removing and Replacing a Coin Cell Battery (Type 2)
Type 3
a.
50
Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
Appendix B Battery Replacement
ENWW
b.
Insert the new battery and position the clip back into place.
Figure B-3 Removing a Coin Cell Battery (Type 3)
NOTE: After the battery has been replaced, use the following steps to complete this procedure.
9.
Replace the access panel.
10. If the computer was on a stand, replace the stand.
11. Plug in the computer and turn on power to the computer.
12. Reset the date and time, your passwords, and any special system setups using Computer Setup.
13. Lock any security devices that were disengaged when the access panel was removed.
ENWW
51
C
External Security Devices
NOTE: For information on data security features, refer to the Desktop Management Guide and the
HP ProtectTools Security Manager Guide (some models) at http://www.hp.com.
Installing a Security Lock
The security locks displayed below and on the following pages can be used to secure the computer.
HP/Kensington MicroSaver Security Cable Lock
Figure C-1 Installing a Cable Lock
52
Appendix C External Security Devices
ENWW
Padlock
Figure C-2 Installing a Padlock
HP Business PC Security Lock
1.
Fasten the security cable by looping it around a stationary object.
Figure C-3 Securing the Cable to a Fixed Object
ENWW
Installing a Security Lock
53
2.
Thread the keyboard and mouse cables through the lock.
Figure C-4 Threading the Keyboard and Mouse Cables
3.
Screw the lock to the chassis using the screw provided.
Figure C-5 Attaching the Lock to the Chassis
54
Appendix C External Security Devices
ENWW
4.
Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Figure C-6 Engaging the Lock
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
ENWW
5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel and front bezel.
Installing a Security Lock
55
7.
Remove one of the five silver 6-32 standard screws located on the front of the chassis behind the
bezel.
Figure C-7 Retrieving the Front Bezel Security Screw
8.
Replace the front bezel.
9.
Install the security screw next to the middle front bezel release tab to secure the front bezel in
place.
Figure C-8 Installing the Front Bezel Security Screw
10. Replace the access panel.
11. If the computer was on a stand, replace the stand.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the access panel was removed.
56
Appendix C External Security Devices
ENWW
D
Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other
static-sensitive devices. This type of damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
●
Avoid hand contact by transporting and storing products in static-safe containers.
●
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
●
Place parts on a grounded surface before removing them from their containers.
●
Avoid touching pins, leads, or circuitry.
●
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
●
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm +/- 10 percent resistance in the ground
cords. To provide proper ground, wear the strap snug against the skin.
●
Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
●
Use conductive field service tools.
●
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, contact an HP authorized
dealer, reseller, or service provider.
NOTE: For more information on static electricity, contact an HP authorized dealer, reseller, or service
provider.
ENWW
Preventing Electrostatic Damage
57
E
Computer Operating Guidelines,
Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care
Follow these guidelines to properly set up and care for the computer and monitor:
58
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented
sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Never operate the computer with the access panel or any of the expansion card slot covers
removed.
●
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software, including
sleep states.
●
Turn off the computer before you do either of the following:
◦
Wipe the exterior of the computer with a soft, damp cloth as needed. Using cleaning products
may discolor or damage the finish.
◦
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other
foreign matter can block the vents and limit the airflow.
Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation
ENWW
Optical Drive Precautions
Be sure to observe the following guidelines while operating or cleaning the optical drive.
Operation
●
Do not move the drive during operation. This may cause it to malfunction during reading.
●
Avoid exposing the drive to sudden changes in temperature, as condensation may form inside the
unit. If the temperature suddenly changes while the drive is on, wait at least one hour before you
turn off the power. If you operate the unit immediately, it may malfunction while reading.
●
Avoid placing the drive in a location that is subject to high humidity, extreme temperatures,
mechanical vibration, or direct sunlight.
Cleaning
●
Clean the panel and controls with a soft, dry cloth or a soft cloth lightly moistened with a mild
detergent solution. Never spray cleaning fluids directly on the unit.
●
Avoid using any type of solvent, such as alcohol or benzene, which may damage the finish.
Safety
If any object or liquid falls into the drive, immediately unplug the computer and have it checked by an
authorized HP service provider.
Shipping Preparation
Follow these suggestions when preparing to ship the computer:
1.
Back up the hard drive files on PD discs, tape cartridges, CDs, or USB flash drives. Be sure that
the backup media is not exposed to electrical or magnetic impulses while stored or in transit.
NOTE: The hard drive locks automatically when the system power is turned off.
2.
Remove and store all removable media.
3.
Turn off the computer and external devices.
4.
Disconnect the power cord from the electrical outlet, then from the computer.
5.
Disconnect the system components and external devices from their power sources, then from the
computer.
NOTE: Ensure that all boards are seated properly and secured in the board slots before shipping
the computer.
6.
ENWW
Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
Optical Drive Precautions
59
Index
A
access panel
locking and unlocking
audio connectors 2, 4
B
battery replacement
9, 52
G
guide screws 29
49
C
computer
specifications 47
computer access panel
removing 11
replacing 12
computer operating guidelines 58
connecting drive cables 29
D
DIMMs. See memory
drives
connecting cables 29
installing 29
locations 28
E
electrostatic discharge, preventing
damage 57
expansion card
installing 22
removing 22
slot locations 22
expansion slot cover
removing 24
replacing 26
F
FailSafe Key 9
front bezel
removing 13
removing blanks 14
60
Index
replacing 15
security 55
front panel components 2
H
hard drive
installing 39
installing secondary 38
removing 39
headphone connector 2
I
installation guidelines 8
installing
battery 49
drive cables 29
expansion card 22
guide screws 29
hard drive 39
media card reader 38
memory 17
optical drive 33
removable hard drive 42
security locks 52
K
keyboard
components 5
connector 4
L
line-in connector 4
line-out connector 4
locks
cable lock 52
front bezel 55
HP Business PC Security
Lock 53
padlock 53
Smart Cover Lock 9
M
media card reader
features 3
installing 38
removing 36
memory
installing 17
populating sockets 18
specifications 17
microphone connector 2
monitor connector
DisplayPort 4
VGA 4
mouse connector 4
N
network connector 4
O
optical drive
cleaning 59
installing 33
precautions 59
removing 31
P
PCI card 22, 25
PCI Express card 22, 26
power supply 47
product ID location 7
R
rear panel components 4
removable hard drive
replacing 42
ENWW
removing
battery 49
bezel blanks 14
computer access panel 11
expansion card 22
expansion slot cover 24
front bezel 13
hard drive 39
media card reader 36
optical drive 31
PCI card 25
PCI Express card 26
Smart Cover Lock 9
S
security
cable lock 52
front bezel 55
HP Business PC Security
Lock 53
padlock 53
Smart Cover Lock 9
serial connector 4
serial number location 7
shipping preparation 59
Smart Cover Lock 9
specifications
computer 47
memory 17
system board drive
connections 30
T
tower orientation 16
U
unlocking access panel
USB ports
front panel 2
rear panel 4
9, 52
V
ventilation guidelines 58
W
Windows Logo key 5
ENWW
Index
61
