Outgoing call

· Suppose that the SIM card has been inserted, the PIN entered or not required, and EasyGate is registered to GSM network – the GSM Network LED is permanently on.

· Hook off the telephone, you can hear the dial tone and the Line LED starts flashing.

· Dial the GSM subscriber number.

EasyGate receives tone dialing (DTMF) by default. If your telephone transmits pulse dialing only, program EasyGate to receive pulse dialing. When you make a delay in your dialing longer than 5s

(programmable), the connection is established.

· If the called subscriber is available, you can hear the ringing tone. If not, you can hear the busy tone or any of the GSM provider’s messages.

· When the called subscriber answers the call, the call is established. The Line LED is permanently on during the call.

· Hang up to terminate the call. The Line

LED goes off. If the called subscriber is the first to hang up, you can hear the busy tone and hang up. modem connected to telephone line. The fax or data service must be registered with your GSM operator.

· Outgoing FAX call or Data connection

Before destination number dial code

*01* for fax call or *02* for data call.

When connected device generates calling tone, this preset is not necessary.

· Incoming FAX call or data connection

It is recommended to activate separate fax number on your SIM card – multinumbering scheme. Fax messages and data connection should be routed to appropriate number.

If the fax or data number is not activated, the call from analogue network is not detected as fax or data call and is routed via the analogue channel of GSM network, the connection can´t be established. In this case it is possible to set fax engine in the gateway to receive the next call as fax or data call. This setting can be done permanent - see the manual on CD-ROM. This function is not guaranteed by all operators.

Incoming call

· An incoming call is signaled by ringing.

The Line LED flashes during ringing.

· Hook off the phone to establish the call.

The Line LED is permanently on during the call.

Configuration over USB

· For PC configuration of EasyGate is necessary to install PCManager UNI.

Connect EasyGate to PC using USB cable.

· Virtual serial port(USB serial port FTDI) is created immediately after linking PC and

EasyGate. This port is used by

· For call termination see the Outgoing call section.

Fax and data connection

(only fax models)

PCManager to communicate with

EasyGate. When the port isn’t activated automatically use driver on CD

· The COM port number of virtual serial port has to be set in PCManager.

EasyGate with fax converter has ability to manage fax messages using analogue fax

Group 3 and data connection using analog

· Detailed description is in the product manual on CD-ROM.

In the GSM network, GPRS data transfer is suspended during voice calls and do not continue until the voice call is finished.

EC Declaration of Conformity

Hereby, 2N TELEKOMUNIKACE a.s., declares that the 2N® EasyGate PRO product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Refer to the CD-ROM or our website www.2n.cz for the Declaration of conformity.

© 2011, 2N TELEKOMUNIKACE a.s. – Prague, LH 1711, v.1.01

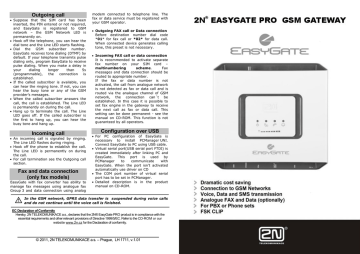

2N® EasyGate Pro Quick Start

Basic Functions

· The primary purpose of 2N® EasyGate Pro

(from now only ‘Easy Gate’) is to transmit voice between a GSM network and an attached FXO-interface terminal.

· You can establish data connections (GPRS,

CSD) and send/receive SMS in combination with a PC.

· Models of EasyGate with fax converter can transmit fax messages using analog fax

Group 3 or data using analog modem on telephone line

Read the CD-ROM User Manual carefully to get familiar with all system functions.

EasyGate supports GSM GPRS technology for data connection. The connection speed and quality depend on the GSM provider, accessible services, signal coverage and network status.

· You can send an SMS to a preprogrammed number using the SMS sending input.

· The battery backed-up EasyGate version allows you to maintain your traffic even in the event of power outage.

· Firmware for EasyGate can be updated from www.2n.cz

2N® EasyGate Pro Installation and Connection

· Proper Location

- Install EasyGate with respect to a good

GSM signal strength.

- Place EasyGate out of range of sensitive devices and human bodies for electromagnetic interference reasons.

- EasyGate is designed for indoor use. Do not place it near heat sources and on direct solar radiation. It may not be exposed to rain, flowing water and moisture, aggressive gas, solvents etc.

· External Antenna Connection

Screw the antenna cord into the SMA antenna connector. Tighten the antenna connector gently with your hand, never use a wrench!

· SIM Card Installation

Slot for SIM card is placed on the connector panel. Insert the SIM card to the slot according to the picture and make sure that the card is locked

· Needed Accessories

INCLUDED IN THE BOX

· 1x 2N® EasyGate PRO device

· 1x power adapter (12V/0,5A DC)

· 1x magnetic antenna with cable (SMA)

· 1x antenna for direct connection (SMA)

· 1x PC-connection USB A/B cable

· 1x telephone cable

· 1x SMS sending input connector

· 2x screws with dowels

· 1x CD with manual and SW

· 1x Quick Start manual

NOT INCLUDED IN THE BOX

· SIM card

· Information on Internet connection from your provider (APN etc.)

· Rechargeable batteries properly. Select the required GSM provider and SIM card services, such as call forwarding, call barring, preferred networks, SMS centre, etc. using your mobile phone before inserting your SIM card into EasyGate.

· Telephone Line Connection

EasyGate can be connected to any

FXO-interface equipment (standard telephone set, answering machine, PBX

CO line...). EasyGate is equipped with identification of calling party (CLIP) via

FSK and so it is advantageous to connect a terminal that is able to display the CLI.

· Battery installation backup type)

(battery

Insert four pieces of rechargeable battery NiMh size AA into the covered compartment on the back side of the gateway. Refer to the compartment label for proper battery placement and polarity. Use mentioned type of batteries only!

· Mains Supply

Switch On

Connection

Connect the attached power adapter

(12V/0,5A DC) to the power supply connector. After connection, switch on

EasyGate with the power switch on the right-hand side of connector panel. and

EasyGate is 12V DC voltage powered.

Do not activate the power supply until the antenna is connected to

EasyGate to avoid the GSM module damage.

2N® EasyGate Pro Connection Layout

SMS input

Switch ON/OFF

(Backed-up version only)

PC (USB) Power adapter

IN: 110V/240V AC

OUT: 12V/0.5A DC

Analog phone

(FXO interface device)

SIM

Power supply

Indication LEDs

Blue light – mains supply

Yellow light – battery supply

PIN Secured SIM Card

1. Hook off the telephone and hear the

PIN tone:

GSM

Network

Phone line

Data

Blue flashes – logged out

Blue light – logged in

No light – standby

Yellow flashes quickly – ringing

– line off-hook

Yellow light – call

Flashes 2-3 times – fax or data connection over FXS (fax version)

Green light – PC connected

Flashes quickly – incoming data

1x in 3s – data transmission

Signal, battery indicator

Signal strength indicator

After hook off before start of dialing

– battery state

Detailed description is in manual on CD-ROM

2. Enter the PIN using DTMF and press for confirmation. Hang up the line to cancel a wrong PIN.

3. If you hear the busy tone after a while

(a few seconds), the PIN has been entered correctly. This PIN will be entered automatically upon every power up.

4. If you hear the PIN tone again after a while, the PIN has not been entered correctly. Re-enter the PIN.

By entering three wrong PINs you block the SIM card. Enter the PUK code into your mobile phone to unblock the SIM card.
