HP Elite 7300 Specifications

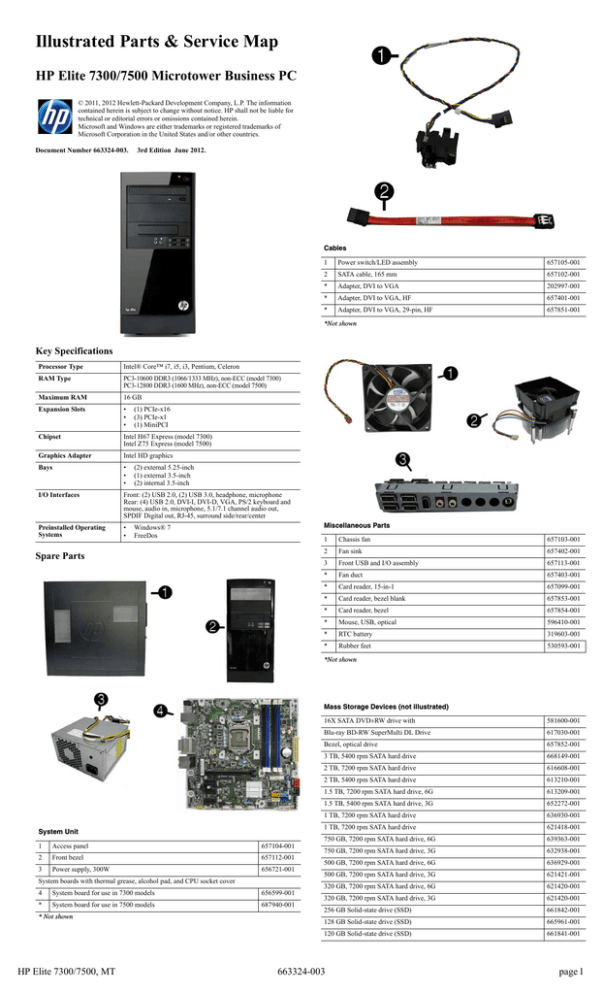

Illustrated Parts & Service Map
HP Elite 7300/7500 Microtower Business PC
© 2011, 2012 Hewlett-Packard Development Company, L.P. The information
contained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Microsoft and Windows are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Document Number 663324-003.
3rd Edition June 2012.
Cables
1
Power switch/LED assembly
657105-001
2
SATA cable, 165 mm
657102-001
*
Adapter, DVI to VGA
202997-001
*
Adapter, DVI to VGA, HF
657401-001
*
Adapter, DVI to VGA, 29-pin, HF
657851-001
*Not shown
Key Specifications
Processor Type
Intel® Core™ i7, i5, i3, Pentium, Celeron
RAM Type
PC3-10600 DDR3 (1066/1333 MHz), non-ECC (model 7300)
PC3-12800 DDR3 (1600 MHz), non-ECC (model 7500)
Maximum RAM
16 GB
Expansion Slots
•
•
•
Chipset
Intel H67 Express (model 7300)
Intel Z75 Express (model 7500)
Graphics Adapter
Intel HD graphics
Bays
•
•
•
I/O Interfaces
Front: (2) USB 2.0, (2) USB 3.0, headphone, microphone
Rear: (4) USB 2.0, DVI-I, DVI-D, VGA, PS/2 keyboard and
mouse, audio in, microphone, 5.1/7.1 channel audio out,
SPDIF Digital out, RJ-45, surround side/rear/center
Preinstalled Operating
Systems
•
•
(1) PCIe-x16
(3) PCIe-x1
(1) MiniPCI
(2) external 5.25-inch
(1) external 3.5-inch
(2) internal 3.5-inch
Windows® 7
FreeDos
Miscellaneous Parts
Spare Parts
1
Chassis fan
657103-001
2
Fan sink
657402-001
3
Front USB and I/O assembly
657113-001
*
Fan duct
657403-001
*
Card reader, 15-in-1
657099-001
*
Card reader, bezel blank
657853-001
*
Card reader, bezel
657854-001
*
Mouse, USB, optical
596410-001
*
RTC battery
319603-001
*
Rubber feet
530593-001
*Not shown
Mass Storage Devices (not illustrated)
System Unit
1
Access panel
657104-001
2
Front bezel
657112-001
3
Power supply, 300W
656721-001
System boards with thermal grease, alcohol pad, and CPU socket cover
4
System board for use in 7300 models
656599-001
*
System board for use in 7500 models
687940-001
* Not shown
HP Elite 7300/7500, MT
16X SATA DVD±RW drive with
581600-001
Blu-ray BD-RW SuperMulti DL Drive
617030-001
Bezel, optical drive
657852-001
3 TB, 5400 rpm SATA hard drive
668149-001
2 TB, 7200 rpm SATA hard drive
616608-001
2 TB, 5400 rpm SATA hard drive
613210-001
1.5 TB, 7200 rpm SATA hard drive, 6G
613209-001
1.5 TB, 5400 rpm SATA hard drive, 3G
652272-001
1 TB, 7200 rpm SATA hard drive
636930-001
1 TB, 7200 rpm SATA hard drive
621418-001
750 GB, 7200 rpm SATA hard drive, 6G
639363-001
750 GB, 7200 rpm SATA hard drive, 3G
632938-001
500 GB, 7200 rpm SATA hard drive, 6G
636929-001
500 GB, 7200 rpm SATA hard drive, 3G
621421-001
320 GB, 7200 rpm SATA hard drive, 6G
621420-001
320 GB, 7200 rpm SATA hard drive, 3G
621420-001
256 GB Solid-state drive (SSD)
661842-001
128 GB Solid-state drive (SSD)
665961-001
120 GB Solid-state drive (SSD)
661841-001
663324-003
page 1
System Setup and Boot
Standard and Optional Boards (not illustrated)
Memory modules (PC3-10600, CL9) for use in 7300 models
*
1 GB
635802-001
*
2 GB
635803-001
*
4 GB
585157-001
Memory modules (PC3-12800, CL11) for use in 7500 models
Access the Setup Utility during the computer boot sequence by pressing the Esc key while
“Press the ESC key for Startup Menu” message is displayed at the bottom of the screen, and
then pressing the F10 key. If you do not press Esc at the appropriate time, you must restart the
computer and again press Esc when the monitor light turns green to access the utility.
Computer Setup Menu
Heading
*
2 GB
671612-001
*
4 GB
671613-001
File
*
ATI Radeon HD 7570 2-GB graphics adapter for use only on 7500 models
ATI Radeon HD 7450 1-GB graphics adapter for use only on 7500 models
679218-001
*
ATI Radeon HD 6570 2-GB graphics adapter, full height
638406-001
*
ATI Radeon HD 6570 1-GB graphics adapter, full height
638405-001
*
ATI Radeon HD 6450 1-GB graphics adapter
638132-001
*
ATI Radeon HD 6450 512-MB graphics adapter
647449-001
*
nVidia GeForce GT640 3-GB graphics adapter for use only on 7500 models 687226-001
*
nVidia GeForce GT630 2-GB graphics adapter for use only on 7500 models 687580-001
System Information - Lists the following main system specifications:
•
•
•
•
•
Other boards
*
Option/Description
679219-001
Product name
SKU number (some models)
Processor type/speed/stepping
Cache size (L1/L2/L3)
Installed memory size/speed/chan
•
•
•
•
Integrated MAC Address
System BIOS
Chassis serial number
Asset tracking number
About - Displays copyright notice.
Set Time and Date - Allows you to set system time and date.
Apply Defaults and Exit - Applies the selected default settings and clears
any established passwords.
Ignore Changes and Exit - Exits Computer setup without saving changes.
Save Changes and Exit - Saves changes to system configuration or default
settings and exits Computer Setup.
*
nVidia GeForce GT440 1.5-GB graphics adapter, full height
638408-001
Device Configuration - Lists all installed BIOS-controlled storage devices.
The following options are available:
• CD-ROM - Let you view model, firmware version, serial number
• Hard Disk - Let you view drive size, model, firmware version, serial
number, connector color, SMART. Also lets you set Translation Mode
(Automatic, Bit-Shift, LBA Assisted, User, and Off).
• Diskette - model and firmware version.
• SATA Defaults - lets you set Translation Mode (Automatic, Bit-Shift,
LBA Assisted, User, and Off).
*
nVidia GeForce GT440 3-GB graphics adapter, full height
638409-001
Storage Options - Allows you to set SATA Emulation, IDE or AHCI.
*
nVidia GeForce GT420 2-GB graphics adapter, includes bracket
632920-001
DPS Self-Test - Allows you to execute self-tests on ATA hard drives.
*
nVidia GeForce GT405 1-GB graphics adapter, includes bracket
638407-001
*
nVidia GeForce GT405 512-MB graphics adapter
657108-001
Boot Order - Allows you to specify boot order.
• Shortcut to Temporarily Override Boot Order
*
nVidia GeForce GT620 1-GB graphics adapter for use only on 7500 models 687579-001
*
nVidia GeForce GT545 3-GB graphics adapter, full height
657107-001
*
nVidia GeForce GT530 2-GB graphics adapter, full height
657106-001
*
nVidia GeForce GT520 1-GB graphics adapter, full height
657399-001
*
nVidia GeForce GT520 1-GB graphics adapter, low profile
657400-001
Intel Core i7 processors (include thermal material)
*
3770K, 3.5 GHz, 8-MB L3 cache for use in only 7500 models
688165-001
*
3770,3.4 GHz, 8-MB L3 cache for use in only 7500 models
688164-001
*
2600S, 2.8 GHz, 8-MB L3 cache
638419-001
Storage
Security
Setup Password - Allows you to set and enable the setup (Admin) password.
Power-On Password - Allows you to set and enable power-on password.
Password Options - When any password exists allows you to lock legacy
resources, enable/disable Setup Browse Mode, set password prompt, enable/
disable network server mode, specify password requirement for warm boot,
and set stringent passwords.
Intel Core i5 processors (include thermal material)
Device Security - Allows you to set Device Available/Device Hidden for:
embedded security devices, serial and parallel ports, system audio, network
controller, and SATA ports.
*
3570K, 3.4 GHz, 6-MB L3 cache for use in only 7500 models
688163-001
*
3570, 3.4 GHz, 6-MB L3 cache for use in only 7500 models
688162-001
*
3550, 3.3 GHz, 6-MB L3 cache for use in only 7500 models
687944-001
USB Security - Allows you to set Device Available/Device Hidden for front
USB ports 1-4, rear USB ports 8-11, internal USB ports 0 and 5.
*
3470, 3.2 GHz, 6-MB L3 cache for use in only 7500 models
687943-001
Slot Security - Allows you to disable any PCI or PCI Express slot.
*
3450, 3.1 GHz, 6-MB L3 cache for use in only 7500 models
687942-001
Network Boot - Enables/disables boot from OS (NIC models only).
*
3330, 3.0 GHz, 6-MB L3 cache for use in only 7500 models
687941-001
*
2500S, 2.7 GHz, 6-MB L3 cache
638420-001
*
2500, 3.3 GHz, 6-MB L3 cache
638631-001
System IDs - Allows you to set Product name, serial number, UUID, SKU
number, family name, asset tag, feature byte, build ID, keyboard locale setting for system ID entry.
*
2405S, 2.5 GHz, 6-MB L3 cache
656790-001
*
2400S, 2.5 GHz, 6-MB L3 cache
640953-001
*
2400, 3.1 GHz, 6-MB L3 cache
638630-001
*
2320, 3.0 GHz, 6-MB L3 cache for use in only 7500 models
665121-001
*
2310, 2.9 GHz, 6-MB L3 cache
657111-001
*
2300, 2.8 GHz, 6-MB L3 cache
654601-001
Intel Core i3 processors (include thermal material)
*
2120, 3.3 GHz, 3-MB L3 cache
638629-001
*
2105, 3.1 GHz, 3-MB L3 cache
655970-001
*
2100, 3.1 GHz, 3-MB L3 cache
638628-001
System Security (some models) - Allows you to enable/disable:
• Data Execution Prevention (enable/disable)
• Virtualization Technology (VTx/VTd) (enable/disable)
• Intel TXT (LT) (enable/disable)
• Embedded Security Device Support (enable/disable)
• OS management of Embedded Security Device (enable/disable)
• Reset of Embedded Security Device through OS (enable/disable)
DriveLock Security - Allows you to assign or modify a master or user password for hard drives.
Power
OS Power Management - Allows you to enable/disable Runtime Power
Management, Idle Power Savings, Unique Sleep State Blink Rates.
Hardware Power Management - Allows you to enable/disable SATA bus
power management, S5 maximum power savings, and S5 Wake On LAN.
Thermal - Allows you to view CPU and system fan speeds.
Advanced
*
G860, 3.0 GHz, 3-MB L3 cache
665122-001
*
G850, 2.9 GHz, 3-MB L3 cache
655973-001
Power-On Options - Allows you to set:
• POST messages - Enable/disable
• After Power Loss - Off/on/previous state
• POST Delay - None, 5, 10, 15, or 20 seconds
*
G840, 2.8 GHz, 3-MB L3 cache
655972-001
BIOS Power-On - Allows you to set the computer to turn on at a preset time.
*
G630, 2.7 GHz, 3-MB L3 cache
665123-001
*
G620, 2.6 GHz, 3-MB L3 cache
655971-001
Bus Options (some models) - Allows you to enable/disable PCI SERR#
Generation and PCI VGA palette snooping.
Intel Pentium Dual-Core processors (include thermal material)
Device Options - Allows you to set:
• Num Lock State at Power-on - off/on
• Integrated Video - enable/disable
• Multi-Processor - enable/disable
• Hyper-threading - enable/disable
• NIC Option ROM Download - enable/disable
VGA Configuration - Displayed only if there are multiple PCI video adapters in the system. Allows you to specify which VGA controller will be the
“boot” or primary VGA controller.
AMT Configuration - Allows you to set:
• AMT-enable/disable functions of the embedded Management Engine
(ME) such as Active Management Technology (AMT).
• Unconfigure AMT/ME-unconfigure any provisioned management settings for AMT.
• Watchdog Timer-set amount of time for a operating system and BIOS
watchdog alert to be sent if the timers are not deactivated.
HP Elite 7300/7500, MT
663324-003
page 2
Password Security
Common POST Error Messages
Screen Message
Probable Cause
Recommended Action
Establishing a Setup or Power-On password:
101-Option ROM Error
1. System ROM checksum
error.
1. Verify ROM, reflash if required
2. Remove suspected card, reboot
3. Clear CMOS memory, reboot
4. Replace system board
1. Turn on or restart the computer.
4. To establish Setup password, select Security > Setup Password and follow the instructions.
- or To establish a Power-On password, select Security > Power-On Password and follow the
instructions on the screen
2. Expansion board option
ROM checksum
103-System Board
Failure
DMA, timers
1. Clear CMOS memory.
2. Remove expansion boards.
3. Replace system board.
164-Memory Size Error
and
201-Memory Error
Incorrect memory configuration
1. Run Setup (F10).
2. Check DIMMs for proper
seating, type, and HP
compatibility.
3. Remove DIMMs singularly and
reboot to isolate faulty DIMM.
4. Replace system board.
214-DIMM Configuration Warning
Populated DIMM configura- Rearrange the DIMMs so that
tion is not optimized
each channel has the same amount
of memory.
301-, 304-Keyboard error
Keyboard failure.
Check keyboard connection or
keys. Check connector for bent of
missing pins. Replace keyboard.
If 304, possible system board
problem.
501-Display Adapter
Failure
Graphics display controller.
1. Reseat graphics card.
2. Clear CMOS.
3. Check monitor connection.
4. Replace graphics card.
1720-SMART Hard Drive
Detects Imminent Failure
Hard drive is about to fail.
1. Determine if hard drive is giving
correct error message. Enter
Computer Setup and run the
Drive Protection System test
under Storage > DPS Self-test.
2. Apply hard drive firmware
patch if applicable.
3. Back up contents and replace
hard drive.
2. As soon as the computer turns on, press the Esc key while “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
3. Press the F10 key to enter Computer Setup.
5. Before exiting, click File > Save Changes and Exit.
Changing a Setup or Power-On password:
1. Turn on or restart the computer.
To change the Setup password, go to step 2.
To change the Power-on password, go to step 3.
2. To change the Setup password, as soon as the computer turns on:
- Press the Esc key while “Press the ESC key for Startup Menu” message is displayed.
- Press the F10 key to enter Computer Setup.
3. When the key icon appears, type your current password, a slash (/) or alternate delimiter
character, your new password, another slash (/) or alternate delimiter character, and your new
password again as shown:
current password/new password/new password.
NOTE: Type the new password carefully since the characters do not appear on the screen.
4. Press Enter.
The new password will take effect the next time the computer is restarted.
Deleting a Power-On or Setup password
1. Turn on or restart the computer.
To delete the Setup password, go to step 2.
To delete the Power-On password, go to step 3.
2. To change the Setup password, as soon as the computer turns on:
- Press the Esc key while “Press the ESC key for Startup Menu” message is displayed.
- Press the F10 key to enter Computer Setup.
3. When the key icon appears, type your current password followed by a slash (/) or alternate
delimiter character as shown. Example: currentpassword/
4. Press Enter.
Clearing CMOS
Diagnostic LEDs
1. Turn off the computer and disconnect the power cord from the power outlet.
LED
Color
LED Activity
State/Message
Power
Green
On
Computer on
Power
Green
1 blink every 2 seconds
Normal Suspend Mode
Power
Red
1 blink every second followed
by a 2 second pause
CPU thermal shutdown
Power
Red
3 blinks, 1 blink every second
followed by a 2 second pause
Processor not installed
Power
Red
4 blinks, 1 blink every second
followed by a 2 second pause
Power failure (power supply overload)
Power
Red
5 blinks, 1 blink every second
followed by a 2 second pause
Pre-video memory error
Power
Red
6 blinks, 1 blink every second
followed by a 2 second pause
Pre-video graphics error
7. Replace the chassis access panel and reconnect the power cord.
Power
Red
7 blinks, 1 blink every second
followed by a 2 second pause
System board failure (ROM
9. Use F10 setup to verify or configure new settings.
Power
Red
8 blinks, 1 blink every second
followed by a 2 second pause
Invalid ROM based on Checksum
Clearing Passwords
Power
Red
9 blinks, 1 blink every second
followed by a 2 second pause
System powers on but is unable to boot
Power
Red
10 blinks, 1 blink every second
followed by a 2 second pause
Bad option card
Power
Red
11 blinks, 1 blink every second
followed by a 2 second pause
Current processor does not support a
feature previously enabled.
none
none
System does not power on and
LEDs are not flashing
System unable to power on
2. Remove the access panel.
3. On the system board, locate the CMOS/password header.
4. Remove the jumper from pins 4 and 6.
5. Place the jumper on pins 4 and 2 for 10-15 seconds.
6. Replace the jumper on pins 4 and 6.
8. Turn on the computer and allow it to start.
1. Turn off the computer and disconnect the power cord from the power outlet.
2. Remove the access panel.
3. On the system board, locate the CMOS/password header.
4. Remove the jumper from pins 5 and 3.
5. Place the jumper on pins 3 and 1 for 10-15 seconds.
6. Replace the jumper on pins 5 and 3.
7. Replace the chassis access panel and reconnect the power cord.
8. Turn on the computer and allow it to start.
9. Use F10 setup to verify or configure new settings.
HP Elite 7300/7500, MT
663324-003
page 3
System Board for use in HP Pro 7300 models
System Board for use in HP Pro 7500 models
System Board Connectors and Jumpers (component location may vary)
System Board Connectors and Jumpers (component location may vary)
CPU_FAN1
Heat sink fan connector
F_USB1
1st USB connector
SPDIF_OUT1
Internal SPDIF connector
SATA2
XMM1
Memory socket - channel A
F_USB2
2nd USB connector
PUMP_FAN
CPU cooler connector
SATA3
2nd optical drive
XMM2
Memory socket - channel B
F_USB3
3rd USB connector
ATX_CPU
CPU power connector
F_USB1
1st USB connector
XMM3
Memory socket - channel A
F_USB4
4th USB connector
CPU_FAN1
Heat sink fan connector
F_USB2
2nd USB connector
XMM4
Memory socket - channel B
F_AUDIO
Front audio connector
XMM1
Memory socket - channel A
BATTERY
RTC battery socket
ATXPOWER
Main power connector
PCIEX1_3
PCIe X1 slot
XMM2
Memory socket - channel B
F_USB3
3rd USB connector
BATTERY
RTC battery socket
PCIEX1_2
PCIe X1 slot
XMM3
Memory socket - channel A
F_AUDIO
Front audio connector
MINI_CARD1
Mini PCIe connector
SPDIF_OUT2
Internal SPDIF connector
XMM4
Memory socket - channel B
PCIEX1_3
PCIe X1 slot
CMOS/PSWD
CMOS/password header
PCIEX1_1
PCIe X1 slot
ATXPOWER
Main power connector
PCIEX1_2
PCIe X1 slot
SATA4
SATA drive
PCIEX16
PCIe X16 slot
MINI_CARD1
Mini PCIe connector
PCIEX1_1
PCIe X1 slot
SATA5
SATA drive
AUDIO
Audio connectors
CMOS/PW
CMOS/password header
PCIEX16
PCIe X16 slot
SATA2
1st optical drive
SYS_FAN1
Fan connector
SATA4
SATA drive
AUDIO
Audio connectors
HOOD_SENSOR
Hood sensor connector
ATX_CPU
CPU power connector
SATA5
SATA drive
SYS_FAN1
Fan connector
F_PANEL
Front panel connector
HDMI/DVI
Combo HDMI/DVI connector
HOOD_SENSE
Hood sensor connector
DVI-D//DVI-I
Combo HDMI/DVI connector
SATA0
1st hard drive
LAN+USB
LAN + USB connector
F_PANEL
Front panel connector
SS_USB1
USB 3.0 connectors
SATA1
2nd hard drive
USB
USB connectors
F_SSUSB1
Internal USB 3.0 connector
LAN+USB
LAN + USB connector
SATA3
2nd optical drive
SPDIF_OUT21
External SPDIF connector
SATA0
1st hard drive
USB1
USB 2.0 connectors
SATA1
2nd hard drive
HP Elite 7300/7500, MT
663324-003
1st optical drive
page 4
