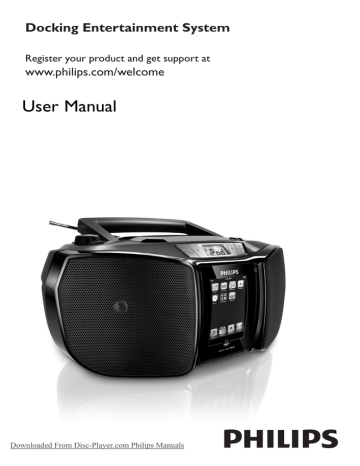

Docking Entertainment System
Register your product and get support at
www.philips.com/welcome
User Manual
Downloaded From Disc-Player.com Philips Manuals
1
5
1
6
7
2
3
4
8
9
0
!
^
@
%
#
$
6xR14•UM-2•C-CELLS
Downloaded From Disc-Player.com Philips Manuals
2
6
3
4
5
Downloaded From Disc-Player.com Philips Manuals
X
English
Congratulations on your purchase and
welcome to Philips!
To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Supplied accessories
– AC power cord
– iPod dock
– line-in cord
Top and front panels (See 1)
1 BAND – selects FM or MW waveband
2 TUNING – tunes to radio stations
3 LIFT•OPEN – opens the CD door
4 2; – starts or pauses CD playback.
9 – stop playback;
– erases a CD program
5, 6 – skips or searches a passage/track
backwards
5 Source selector: Tuner/AUX, CD, iPod,
OFF
– selects tuner AUX, CD, or iPod, tuner source
of sound
– switches off the set
6 VOLUME – adjusts volume level
7 DBB
– enhance bass effect
8 PROG – programs and reviews programmed
track numbers
9 REPEAT – repeats a track/CD
program/entire CD
0 Display – shows the CD/iPod functions
Downloaded From Disc-Player.com Philips Manuals
Controls/Power Supply
Back panel (See 1)
! DOCK for iPod
– cradle for docking adaptors used to dock your
iPod player for playback or recharging through
this system.
@ Telescopic antenna – improves FM
reception
# Battery door – open to insert 6 x 1.5V
R-14/ UM2/ C-cells
$ AC MAINS – inlet for power cord
% p – 3.5 mm stereo headphone socket
Helpful hints: The speakers will be muted
when headphones are connected to the set.
^ AUX – 3.5 mm audio input jack
Power Supply
CAUTION
- Visible and invisible laser radiation.
If the cover is open, do not look at
the beam.
- High voltage! Do not open.You run
the risk of getting an electric shock.
The machine does not contain any
user-serviceable parts.
- Modification of the product could
result in hazardous radiation of
EMC or other unsafe operation.
- Do not put the unit into cupboard
for use.
•
Incorrect use of batteries can cause
electrolyte leakage and will corrode the
compartment or cause the batteries to burst:
•
Do not mix battery types: e.g. alkaline with
carbon zinc. Only use batteries of the same
type for the set.
•
When inserting new batteries, do not try to
mix old batteries with the new ones.
•
Remove the batteries if the set is not to be
used for a long time.
1
This set complies with the radio
interference requirements of the
European Community.
1
2
Using AC Mains
Check if the power/mains voltage, as shown
on the type plate located on the
bottom of the set, corresponds to your
local power supply. If it does not, consult your
dealer or service center.
Power Supply
2
Whenever convenient, use the mains supply
cord if you want to conserve battery life.
Make sure you remove the plug from the set
and wall outlet before inserting batteries.
Connect the power cord to the AC MAINS
inlet and the wall socket.The mains lead is
now connected and ready for use.
3
To switch the set off completely, withdraw the
power cord from the wall socket.
4
Install the unit near the AC outlet and where
the AC power plug can be easily reached.
•
Disconnect the mains lead from the wall
socket to protect your set during heavy
thunderstorms. Children could seriously injure
themselves as the free end of the cable may
still be live if only the connector is removed
from the MAINS socket at the back of the
unit.
Batteries (not included)
Open the battery compartment and insert
six batteries, type R-14, UM-2 or C-cells,
(preferably alkaline) with the correct polarity
as indicated by the "+" and "–" symbols inside
the compartment. (See 1)
Replace the compartment door, making sure
the batteries are firmly and correctly in place.
The set is now ready to operate.
The type plate is located on the bottom
of the set.
– Remove battery if it is exhausted or
will not be used for a long time.
– Batteries contain chemical substances,
so they should be disposed of properly.
– Perchlorate Material-special handling
may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Downloaded From Disc-Player.com Philips Manuals
–
Helpful hints:
To avoid unnecessary energy consumption,
always adjust the source selector to OFF
after using the set.
Basic Operation/Radio
CD Player
Basic operation
Playing a CD
1
To select your sound source, adjust the
source selector to: TUNER, AUX, CD,
iPod, or OFF.
This CD player plays Audio Discs including
CD-Recordables and CD-Rewritable.
2
To switch off the set, adjust the source
selector to OFF position and check the
cassette keys are released.
Helpful hints:
In tuner mode, if you connect a 3.5 mm aux-in
cable, the source changes to AUX automatically.
Adjusting volume
Adjust the volume with the VOLUME
control.
Radio reception
1
Adjust the source selector to TUNER.
2
Adjust BAND to FM or MW as your
desired band.
3
Turn TUNING to tune to a station.
•
For FM, extend and turn the telescopic
antenna for best reception. Reduce its length
if the signal is too strong.
•
For MW, the set uses a built-in antenna.
Direct this antenna for best reception by
turning the whole set.
4
To switch off the radio, adjust the source
selector to OFF position.
•
MP3 CD-ROMs, CD-I, CDV,VCD, DVD or
computer CDs are not possible for playback
on this set.
IMPORTANT!
• CDs encoded with copyright protection
technologies by some record companies may
be unplayable by this product.
1
Adjust the source selector to CD.
2
Open the disc door.
3
Insert a CD with the printed side facing up
and press the CD door gently to close.
➜ Display shows -- and later, the total
number of tracks. (See 2, 3)
Press 2; on the set to start playback.
➜Display: 2 and the current track number.
(See 4)
4
5
To pause playback press 2;. To resume
playback, press 2; again.
6
To stop CD play, press 9.
–
–
Helpful hints:
CD play will also stop when:
you open the CD compartment;
you select TUNER, AUX, or OFF sound
source;
the CD has reached the end of playback.
–
Selecting a different track
• Press 5 or 6 once or repeatedly until the
desired track number appears in the display.
• In the stop/pause position, press 2; to start
playback.
Downloaded From Disc-Player.com Philips Manuals
CD Player
Finding a passage within a
track
1
2
–
During playback, press and hold down
5/ 6.
➜ The CD is played at high speed and low
volume.
–
•
When you recognize the passage you want
release 5/ 6.
➜ Normal playback resumes.
You may store up to 20 tracks in the desired
sequence. If you like, store any track more
than once.
2
3
Different play mode
In the stop position, press PROG to activate
programming.
➜ Display: PROG and 00 flash (see 5).
REPEAT
You can play the current track or the whole
disc repeatedly, and combine REPEAT modes
with PROGRAM.
Press 5 or 6 to select your desired track
number.
➜ Display: PROG and your desired track
number flash.
Press PROG to store the desired track
number.
➜ Display: PROG and 00 flash for you to
program the next track.
4
Repeat steps 2 to 3 to select and store all
desired tracks in this way.
5
To play your program, press 2;.
➜ Display: PROG flashes during program
playback.
Downloaded From Disc-Player.com Philips Manuals
To review a program
In the stop position, press and hold PROG
for two seconds to see your stored track
numbers.
Erasing a program
You can erase the contents of the memory
by:
– in the stop position, press PROG to enter
program mode, and then press 9;
– Selecting TUNER, AUX, or OFF sound
source;
– opening the CD door.
➜Display: PROG disappears.
Helpful hints:
When your searching reaches the end of the
last track, the CD goes to stop mode.
Programming track
numbers
1
Helpful hints :
If you try to store more than 20 tracks, no
track can be selected and the display will show
flashing --.
REPEAT – plays the current track
continuously.
REPEAT ALL– repeats the entire
CD/program.
1
To select play mode, press REPEAT once or
more.
➜ The display shows selected mode.
2
Press 2; to start playback if in the stop/pause
position.
3
To return to normal playback, press REPEAT
repeatedly until the modes are no longer
displayed.
– You can also press 9 to cancel your play
mode.
iPod Dock
Compatible iPod players
•
The docking entertainment system is compatible with all the existing Apple iPod models
with 30-pin connector: iPod touch (8GB,
16GB), iPod classic (80GB, 160GB), iPod video
(30GB, 60GB, 80GB), and iPod nano generation 1 to 3.
Playing an iPod portable
player
1
•
2
3
Correctly dock your iPod portable player in
the cradle. Make sure the dock adapter is
compatible.
Make sure that you have powered on your
iPod player before selecting iPod source.
Switch the source selector to iPod.
➜ The iPod dock icon appears.
Playback starts automatically. Playback functions play, skip, fast search and, pause are possible using the controls on this system and its
remote control.
Charging iPod battery using
the dock
•
In iPod/Tuner/AUX mode, directly dock your
iPod portable player on the cradle for charging.
Connecting an external device
You can listen to the sound of the connected
external device through your DC1010’s
speakers.
1
Adjust the source selector to AUX.
2
Use a line-in cable (not supplied) to connect
DC1010’s AUX jack (3.5 mm, located on the
back panel) to an AUDIO OUT or headphone jack on an external equipment (such
as CD player, or VCR).
Downloaded From Disc-Player.com Philips Manuals
AUX
Maintenance & Safety
(See 6)
CD player and CD handling
•
If the CD player cannot read CDs correctly,
use a cleaning CD to clean the lens before
taking the set to repair.
•
The lens of the CD player should never be
touched!
•
Safety information
•
Place the set on a hard, flat and stable surface
so that the system does not tilt.
•
Do not expose the set, batteries, CDs to
humidity, rain, sand or excessive heat caused
by heating equipment or direct sunlight.
Sudden changes in the surrounding
temperature can cause condensation on the
lens of your CD player. Playing a CD is then
not possible. Do not attempt to clean the
lens but leave the set in a warm environment
until the moisture evaporates.
•
Do not expose the apparatus to dripping or
splashing.
•
Adequate ventilation with a minimum gap of
6 inches between the ventilation holes and
surrounding surfaces is necessary to prevent
heat build-up.
•
Always close the CD door to avoid dust on
the lens.
•
•
To clean the CD, wipe in a straight line from
the center towards the edge using a soft,
lint-free cloth. Do not use cleaning agents as
they may damage the disc.
The ventilation should be impeded by covering the ventilation openings with items, such
as newspapers, table-cloths, curtains, etc..
•
No objects filled with liquids, such as vases,
shall be placed on the apparatus.
•
No naked flame sources, such as lighted candles, should be placed on the apparatus.
•
The mechanical parts of the set contain
self-lubricating bearings and must not be oiled
or lubricated.
•
To clean the set, use a dry cloth. Do not use
any cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may
harm the housing.
•
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
•
Never write on a CD or attach any stickers
to it.
Notes for battery disposal
Specifications
Power
Consumption.............................3.1W
Downloaded From Disc-Player.com Philips Manuals
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste. Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Troubleshooting
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
WARNING: Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this will
invalidate the guarantee.
Problem
- - indication
– Possible cause
• Remedy
–
•
–
•
–
•
–
•
No sound /power
–
•
–
•
–
•
–
•
Volume not adjusted
Adjust the VOLUME
Power cord not securely connected
Connect the AC power cord properly
Batteries dead/ incorrectly inserted
Insert (fresh) batteries correctly
CD contains non-audio files
Press 5 , 6 once or more to skip to a CD audio
track, instead of the data file.
No CD inserted
Insert a CD
CD badly scratched or dirty
Replace/ clean CD, see Maintenance
Laser lens steamed up
Wait until lens has cleared
CD-R(W) is blank or not finalized
Use a finalized CD-R(W) or suitable CD Audio
disc only
Note:
Make sure the CD is not encoded with
Copyright protection technologies, as some
do not conform to the Compact
Disc standard.
Display does not function properly/ No
reaction to operation of any of the controls
The CD skips tracks
– Electrostatic discharge
• Switch off and unplug the set. Reconnect after a
few seconds
–
•
–
•
Severe radio hum or noise
Note:
– Electrical interference: set too close to TV, VCR or
computer
• Increase the distance
A CD badly scratch or dirty may result in
improper operation.
Downloaded From Disc-Player.com Philips Manuals
CD damaged or dirty
Replace or clean CD
Program is active
Quit program mode
Environmental information
All unnecessary packaging material has been omitted.The packaging can be easily separated into three materials: cardboard, polystyrene and plastic.
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packaging, dead batteries and old equipment.
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to
a product it means the product is covered by the
European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with
your normal household waste.The correct disposal of your old product will help prevent
potential negative consequences for the environment and human health.
Hearing Safety
Listen at a moderate volume:
● Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already experienced some hearing loss.
● Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So
after prolonged listening, what sounds “normal” can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally “safe” levels, can also cause hearing loss.
● Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones:
● Listen at reasonable volumes for reasonable periods of time.
● Be careful not to adjust the volume as your hearing adapts.
● Do not turn up the volume so high that you can't hear what's around you.
● You should use caution or temporarily discontinue use in potentially hazardous situations.
● Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may
create a traffic hazard and is illegal in many areas.
Downloaded From Disc-Player.com Philips Manuals
Meet Philips at the Internet
http://www.philips.com
W
CLASS 1
LASER PRODUCT
DC1010
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
Downloaded From Disc-Player.com PhilipsDC1010_UM_05_V2.0
Manuals
