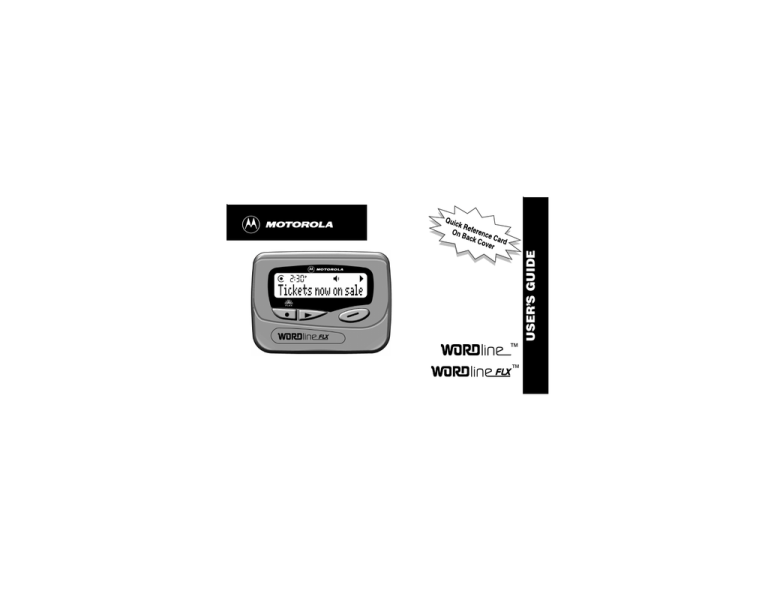

Motorola WORDline FLX WORDlineTM or WORDline FLXTM pager User`s guide

USER’S GUIDE
A
™
™
Contents
INTRODUCTION
Effective Use of Your Pager .............. 1
GETTING STARTED
Battery Information ............................ 2
Controls ............................................. 4
Turning Your Pager On ..................... 5
Menu Icons ........................................ 5
Turning Your Pager Off ..................... 6
Sending a Test Page to Yourself....... 6
Backlight ........................................... 7
MESSAGES
Types of Messages .......................... 8
Setting the Scroll Speed ................... 8
Receiving/Reading Messages ........ 10
Scanning Your Messages............... 11
Duplicate Messages ........................ 12
TIME/DATE
Setting the Time and Date............... 12
ALERTS
Setting the Incoming Alert ............... 13
Choosing an Audio (Audible) Alert .. 15
ALARMS
Setting the Alarm ............................. 16
MESSAGE FEATURES
Locking Personal Messages............ 18
Unlocking Personal Messages ........ 19
Private Time .................................... 19
Deleting Messages .......................... 21
Storing Messages............................ 22
Automatic Message Deletion ........... 23
INFORMATION SERVICES
Information Services........................ 23
Information Services History............ 23
Reading Information Services ......... 24
Turning the Information Service
Alert On and Off............................. 25
Turning the Information Service
Bookmark On................................. 26
OTHER FEATURES
Out of Range ................................... 27
Message Error Icons ....................... 27
USE AND CARE ................................. 27
This compact pager combines messaging and time keeping functions in a package
that is convenient to carry. Full understanding of what this product offers begins with
reading this user’s guide.
This user’s guide includes a detachable Quick Reference Card on the back
cover.
Effective Use of Your Pager
Your pager can help you keep in contact with everyone important to you. By giving
your pager number to your business associates, family, and friends, you can be
contacted when necessary.
If you have a cellular phone, give your pager number instead of your cellular number.
Then you can decide who to call back on your cellular phone without paying for
incoming calls.
1
INTRODUCTION
Congratulations on purchasing the Motorolaâ WORDline™ or WORDline FLXTM
pager. The WORDline FLX pager incorporates the latest in paging technology. The
Motorola FLEX protocol-based pagers offer extended battery life and improved
paging reliability.
GETTING STARTED
Battery Information
Your WORDline or WORDline FLX pager operates with one AAA-size alkaline battery.
When the battery is low, the low-battery icon ™ is displayed between the time and
date on the standby screen. Change your battery after receiving a low-battery
indicator.
Messages are retained when replacing the battery. To retain pager alert settings, turn
the pager off before removing the old battery.
Installing / Replacing the Battery
Turn your pager off. Refer to “Turning
Your Pager Off” on page 6.
To remove the old battery, slide the
battery door lock towards the top of
the pager to unlock the battery door.
While pressing on the battery door,
slide the door until the rib on the
battery door aligns with the rib on the
back cover.
Battery
Door Lock
2
Ribs
Slide to open
Lift the battery door to free it from the housing.
Remove the battery.
Align the new battery so the positive (+) and negative (-) markings match the
polarity diagram in the battery compartment.
Insert the battery.
To replace the battery door, align the grooves on the battery door with the grooves
on the back cover and slide the battery door closed.
Slide the battery door lock toward the bottom of the pager to lock the battery door.
3
GETTING STARTED
GETTING STARTED
Controls
Mode Button
Read/Power On
Button
Select Button
Ä
Mode
¡
Select
Used to scroll through available choices, or to increment a
value.
Used to select and confirm a choice.
º
Read/
Power On
Used to read a message, to save a setting, to turn on the
pager, to turn on the backlighting, and to exit from a menu.
4
s00:00afwiuqyto
MOTOROLA
s00:00afwiuqyto
12:35P
4/23
Press º to turn your pager on.
A start-up message is displayed momentarily
and your pager activates the currently selected
alert.
Note: The start-up alert can be stopped by
pressing any button.
When the pager is on and no activity is taking
place, the standby screen is displayed. The
standby screen displays the power indicator, the
time and date, the alert mode, and may display
other pager indicators such as alarm status.
Menu Icons
The four menu icons on the top row (wie =) correspond to the four menus: CONTROLS ,
DELETE ALL , ALERTS , and ALARMS respectively.
Press and release Ä to display the CONTROLS? , DELETE ALL? , ALERTS ? , and ALAR MS?
menu prompts. Press ¡ to enter the corresponding menus, or press º to return to
the standby screen.
5
GETTING STARTED
Turning Your Pager On
GETTING STARTED
Note: The first time you press Ä these menu icons are displayed. The controls
menu icon w flashes, indicating that pressing ¡ will enter the controls menu.
Turning Your Pager Off
s00:00afwie=yto
CONTROLS?
s00:00afwiuqyto
OFF?
s00:00afwiuqyto
12:35P
4/23
From the standby screen, press Ä to display
CONTROLS? . The controls menu icon w flashes.
Press ¡ to display OFF? .
Press ¡ to turn the pager off. The off screen is
displayed without any icons.
Sending a Test Page to Yourself
It’s a good idea to test your pager and service by sending a page to yourself. Start by
using the phone number, web site or email address (and a PIN, if required) your
service provider gave you, then enter a short message.
6
While you are waiting for the message to reach your pager, refer to page 10 for more
information about how to read a message.
If your pager does not receive the message within a few minutes, contact your service
provider. After you have tested the pager, read the rest of this guide to learn about the
many useful features of your new pager.
Backlight
Press and hold º for one second or more to activate the LCD message screen
backlight. The backlight turns off automatically after the pager returns to the standby
screen.
7
GETTING STARTED
If you are sending a word message from a phone, an operator will assist you;
otherwise, press the phone buttons to enter a numeric message or type a message
and send it.
Types of Messages
The message indicators define the type of message received and flash until the
message is read.
MESSAGES
Personal messages:
¥ unselected
å selected
¨ unselected
´ selected
® unselected
Ü selected (FLEX)
Ö unselected
Å selected
Information services
when received:
when chirp is on:
when bookmark is on: • unselected
à selected (not available on all models)
Setting the Scroll Speed
You can choose the speed at which your messages scroll, or read them line by line.
s00:00cfwiu=yto
CONTROLS?
8
From the standby screen, press Ä to display
CONTROLS? . The controls menu icon w flashes.
Press ¡ to enter the CONTROLS menu.
SCROLL?
s00:00cfwiuqyto
LINE-BY-LINE
Press and release Ä until SCROLL? is displayed.
Press ¡ to enter the SCROL L menu.
Press and release Ä to choose the scroll
speed.
Press ¡ to select the scroll speed.
There are four scroll speeds to choose from:
LINE-BY-LINE , SCROL L 1, SC ROLL 2 , and SCROLL 3
(fastest).
MESSAGES
s00:00cfwiuqyto
9
Receiving/Reading Messages
MESSAGES
When a message is received, your pager either alerts audibly (audio, chirp, and
Escalert™ modes) or vibrates. A message indicator (for example1, 2, etc.) lets you
know how many messages you have received. On some models, this message
indicator displays on the standby screen.
†å¥¥
s00:02cfwiqyto
s00:01cfwiqyto
†¥å¥
10
Press any button to stop the alert.
Press º to display the message status
screen. The message indicators for unread
messages ¥ flash until any part of the message
is read.
Press º to read the selected message or
press ¡ to select another message, then
press º .
s10:35afwiuqyto
2:Call Bill 279-1234
If your pager is set to scroll the message
automatically (SCRO LL 1 , SCROLL 2 , or SCROLL 3 ), the
remainder of the message is automatically
displayed at that speed.
Hint: To pause or restart a scrolling
message, press º .
Allow the pager to automatically return to the
standby screen, or press Ä then º .
message number
Note: If the reminder alert has been set and there are any unread messages, your
pager may give a periodic alert until they have all been read. This will continue for
up to 30 minutes. A message is considered read if any part of the message is
displayed.
Scanning Your Messages
When the first line of a message is displayed, press ¡ to scan all messages of the
same type. The message number and the first line of the message are displayed for
each message.
11
MESSAGES
time the message
was received message
continuation
indicator
Duplicate Messages
s10:35afwiuqyto
TIME/DATE
1:
DUPLICATE
When a duplicate message is received,
DUPLICATE is displayed after the message number
and before the message. The time the duplicate
message was received is displayed.
Setting the Time and Date
s00:00afwie=yto
CONTROLS?
s00:00afwiuqyto
OFF?
s00:00afwiuqyto
TIME/DATE?
12
From the standby screen, press Ä to display
CONTROLS? . The controls menu icon w flashes.
Press ¡ to enter the CONTROLS menu.
Press and release Ä until TI ME/DATE ? is
displayed.
Press ¡ to enter the TIME/DATE menu. The
hour field flashes.
12:00
1/01
s00:00afwieqyto
12:35P
4/23
Press and release Ä to adjust the hour.
Press ¡ to move to the next field.
Repeat steps 5 and 6 for the minutes, AM/PM,
month, and day fields.
Press º from any field to save.
Hint: Pressing and holding Ä scrolls through selections quickly.
Setting the Incoming Message Alert
You can set your pager to alert with a vibrating alert (vibration with no alert tone), a
chirp alert (short beep alert), an alert of increasing volume (Escalert), or no alert
(completely silent). You can also choose from one of the audio alerts (called audible
alerts in some models).
s00:00afwie=yto
ALERTS?
From the standby screen, press and release Ä
until ALERTS? is displayed. The alert icon e
flashes.
13
ALERTS
s00:00afwiuqyto
s00:00afwiu=yto
VIBRATE?
s00:00afwi-=yto
ALERTS
AUDIO?
s00:00cfwie=yto
CHIRP?
Press ¡ to enter the ALE RTS menu. VIBRATE? is
displayed.
Press and release Ä until your choice of
VIBRATE? , A UDIO? (or A UDIBLE? , depending on
the model), CHIRP? , ESCALERT? , or NO ALERT is
displayed.
Press ¡ to select the desired alert. The
standby screen is displayed with the
corresponding alert icon.
Note: If you choose no alert or vibrate, your pager emits an audio (or audible)
alert only if a priority message is received, or an alarm sounds.
Note: If either audio (or audible) alert mode is selected, your pager automatically
displays the alert options screen.
14
Choosing an Audio (or Audible) Alert
s00:00afwie=yto
ALERTS?
s00:00cfwi-qyto
AUDIO?
s00:00cfwi-qyto
ALERT 1
s00:00cfwi-qyto
12:35P
4/23
From the standby screen, press and release Ä
until ALERTS? is displayed.
Press ¡ to enter the ALERTS menu. VIBR ATE? is
displayed.
Press and release Ä until AUD IO? (or AUDIBLE? ,
depending on the model) is displayed.
Press ¡ to enter the AUDIO (or AUD IBLE) menu.
Press Ä until your choice of audio (or audible)
alert is displayed. The pager emits a sample of
each alert.
Press ¡ to select your choice of audio (or
audible) alert. The standby screen is displayed
with the audio (or audible) alert icon -.
15
ALERTS
If you select the audio (or audible) alert mode, you can set your pager to alert with one
of the audio (or audible) alerts.
Setting the Alarm
Your pager has three alarms. Each alarm can be set for either a specific time and
date, or for a specific time on a daily basis.
s00:00cfwiu=yto
ALARMS
ALARMS?
s01:00cfwiuqyto
12:35P
4/23
s01:00cfwiu=yto
12:35P
16
4/23
From the standby screen, press and release Ä
until ALARMS? is displayed. The alarm icon =
flashes.
Press ¡ to enter the ALARMS menu. The alarm
number 01 flashes.
Press Ä to scroll through alarm choices 01, 02,
or 03.
Press ¡ to move to the next field. The turn on
= or turn off q icon flashes.
Press Ä to turn on = or turn off q the alarm.
Press ¡ to move to the hour field. The hour
flashes.
12:00P
4/23
s01:00cfwiu=yto
14:30P
--/--
s01:00cfwiu=yto
ALARM 1
Press and release Ä to adjust the hour.
Hint: Press and hold Ä to adjust the setting
quickly.
Press ¡ to move to the next field.
Repeat steps 7 and 8 to set the minutes,
AM/PM, month, and day fields.
Press º in any field to save and exit.
When an alarm is turned on, the alarm icon = is
displayed on the standby screen.
To alert on a daily basis, set the month and day
to --/-- .
When an alarm expires, the alarm icon =
flashes, ALA RM is displayed with the alarm
number, and your pager alerts.
Press any button once to stop the alarm, and
again to clear the message.
17
ALARMS
s0101:00cfwiu=yo
MESSAGE FEATURES
Locking Personal Messages
By locking messages, you can save personal messages to prevent them from being
replaced when the memory is full. Messages can be locked only while reading them.
s10:35afwiuqyto
LOCK?
s10:34afwiuqyto
†
¥¥¥Ø
Press Ä while reading a personal message to
display LOCK? .
Hint: Refer to “Receiving/Reading
Messages” on page 10 for information on
how to access messages.
Press ¡ to lock the message. The message
indicator Ø is displayed.
When a locked message is selected or read, the
lock icon y is displayed.
Note: You may lock up to half of your personal messages. The number of
messages that can be locked varies by model. To lock another message once your
pager’s limit is reached, you must first unlock at least one message.
18
s10:35afwiuqyto
UNLOCK?
s10:34afwiuqyto
†
¥¥¥å
Press Ä while reading a locked personal
message to display UNLOCK? .
Hint: Refer to “Receiving/Reading
Messages” on page 10 for information on
how to access messages.
Press ¡ to unlock the message. The message
indicator å is displayed.
Private Time
This feature allows you to turn off all pager alerts during a preselected time period.
When the private time period expires, alerts are turned on again. Messages received
during this time period are stored. When turned on, private time works on a daily
basis.
s10:35afwie=yto
CONTROLS?
From the standby screen, press Ä to display
CONTROLS? . The controls menu icon w flashes.
19
MESSAGE FEATURES
Unlocking Personal Messages
MESSAGE FEATURES
s00:00afwiuqyto
Press ¡ to enter the CONTROLS menu.
OFF?
s10:34afwiuqyto
PRIVATE TIME?
s10:34afwiuqyto
1:52P/ 1:52P
r10:34afwiuqyto
1:52P/ 1:52P
r10:34afwiuqyto
9:00A/11:30A
20
Press and release Ä until PRIVATE TIME? is
displayed.
Press ¡ to enter the PRIVATE TIME menu. The
private time turn on r or turn off s icon
flashes.
Press Ä to turn on r or turn off s private time.
Press ¡ to move to the next field. The hour
field of the start time flashes.
Press Ä to adjust the start time hour.
Repeat steps 6 and 7 to adjust the start time
minutes, AM/PM, stop time hour, minutes, and
AM/PM.
10:35A
4/23
Press º from any field to save and exit. While
private time is active, e is not displayed, and the
pager does not alert.
Deleting Messages
Messages may be deleted one at a time or all at once.
Deleting a Single Message
s10:35afwiuqyto
DELETE?
While reading a message, press and release
Ä until DELETE? is displayed.
Hint: Refer to “Receiving/Reading
Messages” on page 10 for information on
how to access messages.
Press ¡ to delete the message.
21
MESSAGE FEATURES
r01:00cfwiu=yto
MESSAGE FEATURES
Deleting All Messages
The DELETE ALL command deletes all read and unlocked personal messages and
information services. Locked or unread messages are not deleted.
s10:35afwie=yto
DELETE ALL?
s10:35afwie=yto
DELETE?
From the standby screen, press and release Ä
until DELETE ALL? is displayed. The delete icon
i flashes.
Press ¡ to enter the DELETE menu. The delete
confirmation DELETE? is displayed.
Press ¡ to delete all read and unlocked
personal messages and information services.
Storing Messages
Your pager can store up to 16 personal messages, depending on the model. (Some
models can store up to 20 messages.) Each stored message is assigned a number,
which is displayed when the message is saved. The first message received is 1, the
second is 2, and so on.
22
If all message slots are full and a new message is received, the oldest unlocked read
message is automatically deleted. When the message memory is full, MEMO RY FUL L is
displayed. Press any button to return to the standby screen. If all messages are
unread, the oldest message is deleted and OVERFL OW is displayed.
Information Services
Information services are typically news updates sent by your service provider. Your
WORDline pager may be equipped with these services. If your pager has this
capability, you will receive regular updates throughout the day in up to 3 different
information categories. Updates include sports scores and sports news, top stories,
and entertainment news.
Note: Content providers and content are subject to change without notice. Update
schedules may vary depending upon your service provider. Contact your service
provider if you are interested in receiving information services.
Information Services History
Your pager may be equipped with up to three history slots for information service
messages. These slots contain the most recent information service messages your
pager received. Multiple messages are displayed in reverse chronological order
(newest first) and each is preceded by ---x-->, where x is the message number.
23
INFORMATION SERVICES
Automatic Message Deletion
INFORMATION SERVICES
Reading Information Services
When an information service message is received, † flashes for 12 seconds and
the number of unread information services is displayed. After 12 seconds, the
standby screen is displayed.
Press º to display the message status
s00:01cfwiu=yto
screen.
Hint: Press ¡ to select the information
†
service menu, if necessary.
Press º to enter the information service
s00:01cfwiuyto
menu.
The information service message icons
´¨
display ´ or Ü when selected and ¨ or ® when
unselected.
Press ¡ to move to the message you want to
s00:02cfwiuyto
read. The corresponding message slot number
is displayed.
¨´
24
TOP SINGLES 1.
Press º to read the message. The time the
information service was received is displayed
with the first screen of the message.
Note: To return to the standby or message status screen while reading a message,
press Ä and then º .
Note: o indicates the message is continued on an additional screen.
Note: Information messages cannot be locked.
Turning the Information Service Alert On and Off
You can set an information service alert for each message slot.
s0fwiuqyt
CHIRP ON?
While reading an information service message,
press Ä until CHIRP ON? or C HIRP OFF? is
displayed.
Press ¡ to turn chirp on or off for that
information service message slot.
Note: Next time you view your information
service messages, Ö is displayed.
25
INFORMATION SERVICES
s05:08pfwiuqyto
INFORMATION SERVICES
Turning the Information Service Bookmark On
You can set a bookmark to hold your place in a lengthy information service while
reading it. This feature is only available on certain models.
s05:08pfwiuqyto
BOOKMARK?
s00:01cfwiuyto
†
s00:01cfwiuyto
è¨
26
While reading an information service message,
press Ä to display BOOKMARK? .
Press ¡ to activate the bookmark. The
message menu screen is displayed.
• is displayed in the information service menu.
The next time you read that information service
message, the message begins at the point where
the bookmark was placed.
à indicates a selected book marked message.
Out of Range
Message Error Icons
If there is an error in the message received, the error icon ƒ is displayed over each
errored character in the message.
If this option is turned on, and if the truncated message icon » is displayed at the end
of the message, either the message was too long, or there was not enough memory to
store the message.
Cleaning Your Pager
To clean smudges and grime from the exterior of your pager, use a soft, non-abrasive
cloth moistened in a mild soap and water solution. Use a second cloth moistened in
clean water to wipe the surface clean. Do not immerse in water. Do not use alcohol or
other cleaning solutions.
Care and Maintenance
WORDline and WORDline FLX pagers are durable, reliable, and can provide years of
dependable service; however, they are precision electronic products.
27
USE AND CARE
If your pager is equipped with this feature, and if you are outside your paging coverage
area, t is displayed. As long as t is displayed, your pager cannot receive
messages.
USE AND CARE
Water and moisture, excessive heat, and extreme shock may damage the pager. Do
not expose your pager to these conditions. If repair is required, the Motorola Service
Organization, staffed with specially trained technicians, offers repair and maintenance
facilities throughout the world.
You can protect your pager purchase with an optional extended warranty covering
parts and labor. For more information about warranties, please contact either your
paging service provider, retailer, or Motorola, Inc. at 1-800-548-9954. For repairs, call
Motorola, Inc. at 1-800-548-9954 in the U.S. or 1-800-323-9685 in Canada. In the
U.S., to contact Motorola, Inc. on your TTY, call 1-800-793-7834.
Questions?
For questions about the use of your Motorola pager call 1-800-548-9954 or
1-800-793-7834 (TTY) in the U.S. If you have questions about your paging service,
contact your paging service provider. For information about other Motorola products,
please visit our web site at www.motorola.com.
Patent Information
This Motorola product is manufactured under one or more Motorola U.S. patents.
These patent numbers are listed inside the housing of this product. Other U.S. patents
for this product are pending.
28
This device complies with part 15 of the FCC Rules Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
29
FCC / WARRANTY
Regulatory Agency Compliance
FCC / WARRANTY
ONE (1) YEAR STANDARD LIMITED WARRANTY AND PROVISIONS (U.S.A. ONLY)
Motorola warrants the pager against defects in material and workmanship under normal use and
service for the period of time specified below. This express warranty is extended by Motorola, 1500
Gateway Blvd., Boynton Beach, Florida 33426 to the original end user purchaser only and is not
assignable or transferable to any other party.
This warranty sets forth the full extent of MOTOROLA's responsibilities regarding the pager. Repair,
replacement, or refund of the purchase price, at MOTOROLA's option, is the exclusive remedy. THIS
WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY IS LIMITED TO THE DURATION
CHOSEN. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE MOTOROLA PAGER, FOR ANY LOSS OF USE, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY
LAW.
Motorola pagers are shipped from the factory with a standard limited warranty of one (1) year on
parts and labor from date of purchase by the original end user purchaser, based on proof of
purchase. In the event of a defect, malfunction, or failure to conform to specifications during the
warranty period, Motorola, at its option, will either repair, replace or refund the purchase price of the
pager. Repair, at Motorola's option, may include the replacement of parts or boards with functionally
equivalent reconditioned or new parts or boards. Replaced parts and boards are warranted for the
balance of the original warranty period. All parts and boards removed in the replacement process
shall become the property of Motorola. (continued)
30
31
FCC / WARRANTY
LIMITED WARRANTY AND PROVISIONS (U.S.A. ONLY) continued
This warranty does not cover defects, malfunctions, performance failures or damages to the unit
resulting from use in other than its normal and customary manner, misuse, accident or neglect, the
use of non-conforming parts, or improper alterations or repairs. This warranty does not cover wear
and tear on covers or housings, nor the coverage or range over which the pager will receive signals.
For information on how to receive service on Motorola pagers or covered accessories, call 1800-548-9954 or 1-800-793-7834 (TTY).
Pager warranty will be VOID if any of the following conditions occur:
• Pagers that are incomplete such as those in which boards or components are missing and/or
incompatible.
• Pagers whose serial numbers do not match on the boards, or pagers in which the board serial
numbers don’t match the housing.
• Pagers that have been opened by, or had work performed by, anyone other than a Motorola
authorized pager service center.
• Pagers received with non-conforming or non-Motorola housings or parts.
• Flat rate repair fees apply to pagers and accessories not covered under warranty.
STATE LAWS
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS, THEREFORE THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY.This
warranty gives you specific legal rights and you may also have other rights which vary from state to
state.
NOTES
Use the spaces provided below to write down your pager and personal
identification number (PIN), and the number of your service provider. Additional
spaces have been provided to write down the pager and PIN of your family and
friends.
Service Provider
Pager Number and PIN
Family and Friends
Pager Number and PIN
PERSONAL NUMBERS
Personal Numbers
Wordline
A04 Models
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
MESSAGE FEATURES
6881028B95-C
Personal Communications Sector
1500 Gateway Blvd., Boynton Beach, FL 33426-8292
Printed in U.S.A. 3/00
@6881028B95@
t, Motorola, WORDline, WORDline FLX, Escalert, and F
are trademarks or registered trademarks of Motorola, Inc.
© 1997, 1999, 2000 by Motorola, Inc. All Rights Reserved.
WORDline™ and WORDline™ FLX Quick Reference Card
Indicators and Icons
s On
r On, Private Time turned on
å Message, selected
¥ Message, unselected
w Controls menu
i Delete All menu
- Audio alert (or Audible alert)
e Alerts menu/Chirp alert
u Vibrate (silent) icon
= Alarm menu/Alarm turned on
q Alarm turned off
y Locked message
t Out of range
Ä
¡
o
Message continuation
Low-battery
† Information service menu, selected
À Information service menu, unselected
´ Information service message, selected
¨ Information service message, unselected
Ü Information service message, selected (FLEX)
® Information service message, unselected (FLEX)
Å Information service, Chirp on, selected
Ö Information service, Chirp on, unselected
à Information service, Bookmark, selected
• Information service, Bookmark, unselected
Ø Locked message, selected
¢ Locked message, unselected
™
º
Control Buttons: Mode Select Read/Power On
Setting the Alarm
Press Ä until ALARMS? is displayed.
Press ¡ .
Press Ä to choose alarm 01, 02, or 03.
Press ¡ to move to the next field.
Press Ä to turn on = or turn off q the
alarm.
Press ¡ to move to the hour field.
Press and release Ä to adjust the hour.
Press ¡ to move to the next field.
Repeat steps 7 and 8 to set the minutes,
AM/PM, month, and day fields.
Press º from any field to save and exit.
To alert on a daily basis, set the month and
day to --/-- .
Locking and Unlocking Messages
While reading a personal message, press Ä
to display LOCK? or U NLOCK? . Press ¡ .
Deleting a Single Message
Press Ä while reading a message until
DELETE? is displayed. Press ¡ .
WORDline and WORDline FLX Menu Map
Controls
Delete All
Alerts
Alarms
DELETE
OFF
VIBRATE
ALARM 01
TIME-DATE
AUDIO
ALARM 02
SCROLL
CHIRP
ALARM 03
PRIVATE TIME
ESCALERT
NO ALERT
