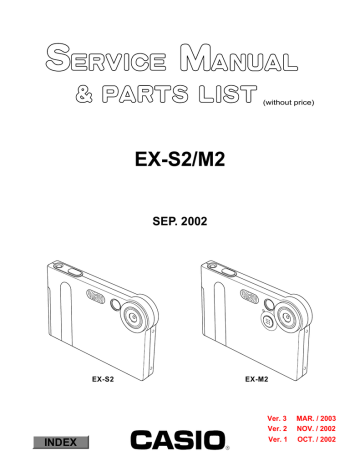

Casio EX-S2/EX-M2 Specifications

(without price)
EX-S2/M2
SEP. 2002
EX-S2
INDEX
EX-M2
R
Ver. 3
Ver. 2
MAR. / 2003
NOV. / 2002
Ver. 1
OCT. / 2002
CONTENTS
SPECIFICATIONS ....................................................................................................................................... 1
BLOCK DIAGRAM ...................................................................................................................................... 4
TEST MODE ................................................................................................................................................ 5
PROGRAM VERSION UPGRADING .......................................................................................................... 6
1. How to confirm the program version ............................................................................................. 6
2. How to upgrade the program .......................................................................................................... 6
3. How to recover the program in case of the failure ....................................................................... 7
COLOR ADJUSTMENT .............................................................................................................................. 8
1. How to use USB ADJ Tool .............................................................................................................. 8
2. Lens Replacement ......................................................................................................................... 10
3. MAIN PCB Replacement ............................................................................................................... 10
4. Operation and Current consumption ........................................................................................... 11
DISASSEMBLY ......................................................................................................................................... 12
EXPLODED VIEW ..................................................................................................................................... 16
PARTS LIST .............................................................................................................................................. 17
PRINTED CIRCUIT BOARDS ................................................................................................................... 18
SCHEMATIC DIAGRAMS ......................................................................................................................... 21
SPECIFICATIONS
Image Files Format
Snapshots: JPEG (Exif Version 2.2); DCF (Design Rule for Camera File System)1.0 standard;
DPOF compliant
Movies: AVI (Motion JPEG)
Audio:
Recording Media
WAV (EX-M2 only)
12 MB built-in flash memory
SD Memory Card
MultiMedia Card
Image Size
Snapshots:
1600 x 1200 pixels
1280 x 960 pixels
640 x 480 pixels
Movies:
320 x 240 pixels
Approximate Memory Capacity and File sizes
• Snapshots
File Size
Quality
Approximate Image
Built-in flash memory
SD Memory Card*
(pixels)
1600 x 1200
Fine
File Size
900 KB
12MB
11 shots
64MB
60 shots
(UXGA)
Normal
630 KB
16 shots
85 shots
1280 x 960
Economy
Fine
370 KB
680 KB
29 shots
15 shots
154 shots
82 shots
(SXGA)
Normal
460 KB
24 shots
126 shots
640 x 480
Economy
Fine
250 KB
190 KB
42 shots
56 shots
220 shots
294 shots
Normal
140 KB
75 shots
386 shots
Economy
90 KB
118 shots
618 shots
(VGA)
• Movies (320 x 240 pixels)
Data Size
Recording Time
150 KB/second max.
One Movie: 30 seconds maximum
Total Movie Time:
80 seconds maximum (built-in memory)
410 seconds maximum (SD 64 MB memory card)*
* Based on Matsushita Electric Industrial Co., Ltd. products. Capacity depends on card manufacturer.
* To determine the number of images that can be stored on a memory card of a different capacity, multiply the capacities in
the table by the appropriate value.
Delete
Single-file, all files (with protection)
Effective Pixels
2.0 million
Imaging Element
1/1.8-inch square pixel color CCD
(Total pixels: 2.11 million)
Lens/Focal Distance
F3.2/f = 7.5 mm
(Equivalent to 36 mm on a 35 mm film camera.)
Zoom
4X digital zoom
Focusing
Fixed focal point
Approximate Focus Range
(from lens surface)
1m to ∞
—1—
Exposure Control
Shutter
Metering:
Multi-pattern by imaging element
Exposure:
Program AE
Exposure Compensation:
–2EV to +2EV (in 1/3EV steps)
CCD shutter, mechanical shutter
1/4 to 1/6400 second
Aperture
F3.2 fixed
White Balance
Automatic/fixed (4 modes) /Manual
Self-timer
10 seconds
Built-in Flash
Flash Modes:
Auto, Off, On, Red-eye reduction
Approximate Flash Range:
1 meter to 2 meters
Recording Functions
Snapshot (with audio for EX-M2 only); self-timer; Best Shot; Movie (with audio for EX-M2 only);
voice recording (EX-M2 only)
* Audio is monaural
Audio Recording Time
Audio Snapshot:
Approximately 30 seconds maximum per image
(EX-M2 only)
Voice Recording:
Approximately 50 minutes with built-in memory
After Recording:
Approximately 30 seconds maximum per image
Monitor Screen
1.6-inch TFT color LCD
84,960 pixels (354 x 240)
Viewfinder
Monitor screen and optical viewfinder
Timekeeping Functions
Built-in quartz digital clock
Date and Time: Recorded with image data
Auto Calendar: To 2049
Input/Output Terminals
Cradle connector
(EX-M2 connector is also used for connection of remote controller.)
Speaker (EX-M2 only)
20mm round, monaural
Audio Player Function
Data Compression/Decompression:
(EX-M2 Only)
Sampling Frequencies:
32 kHz, 44.1 kHz, 48 kHz
Bit Rates:
32 to 320 kbps, VBR-compatible
Play Mode:
Normal, all track repeat, 1-track repeat
Practical Maximum Headphone Output:
9 mW + 9 mW (16 Ω)
Power Supply
Power Requirements:
MP3 (MPEG-1 Audio Layer-3)
Rechargeable lithium ion battery (NP-20) x 1
Approximate Battery Life:
Continuous Recording
65 minutes (390 shots)
Continuous Playback (Continuous Snapshot Recording)
110 minutes
Continuous Voice Recording*
Continuous Audio Playback*
80 minutes
330 minutes
The values noted above are approximate values until power fails, based on continuous recording with flash off, at normal
temperature (25°C). The above does not guarantee that you will be able to achieve this level of operation. Low temperatures
shorten battery life. Voice recording times are based on continuous recording, while audio playback times are based on
continuous output (through headphones).
* Voice recording and audio playback times apply to the EX-M2 only.
Power Consumption
DC 3.7 V Approximately 3.1 W
—2—
Dimensions
EX-S2:
88(W) x 55(H) x 11.3(D) mm
(3.5˝(W) x 2.2˝(H) x 0.4˝(D))
(excluding projections)
EX-M2: 88(W) x 55(H) x 12.4(D) mm
(3.5˝(W) x 2.2˝(H) x 0.5˝(D))
(excluding projections)
Weight
EX-S2:
Approximately 88 g (3.1 oz)
(excluding battery and accessories)
EX-M2: Approximately 90 g (3.2 oz)
(excluding battery and accessories)
Bundled Accessories
Rechargeable lithium ion battery (NP-20); USB Cradle; Special AC Adaptor; AC power cord;
Strap; Special USB cable; Dummy Card; Connector Cover; LCD Remote Controller (bundled
with EX-M2 only); Stereo Headphones (bundled with EX-M2 only); CD-ROM; Basic Reference;
Rechargeable Lithium Ion Battery User’s Guide
USB Cradle
Input/Output Terminals Camera connector; USB port; AC adaptor terminal (DC IN 5.3 V)
Power Consumption:
DC 5.3V Approximately 3.4W
Dimensions:
95(W) x 55.5(H) x 39.5(D) mm
(3.7˝(W) x 2.2˝(H) x 1.6˝(D))
(excluding projections)
Weight:
Approximately 56 g (2.0 oz)
LCD Remote Controller
Input/Output Terminals: Camera connector; headphones jack (ø3.5mm stereo mini jack)
(Bundled with EX-M2 Only)
Cord Length:
Approximately 0.8m (31.5˝)
Dimensions:
74.5(W) x 16(H) x 11(D) mm
(2.9˝(W) x 0.6˝(H) x 0.4˝(D))
(excluding projections, excluding cradle)
Weight:
Approximately 28 g (1.0 oz)
Power Supply
• Use only the special NP-20 rechargeable lithium ion battery to power this camera. Use of any other type of battery is not
supported.
• This camera does not require a battery for the clock. The date and time settings of the camera are cleared whenever power
supplied by both the battery and USB cradle is interrupted. Be sure to reconfigure these settings after power is interrupted.
LCD Panel
• The LCD panel is a product of the latest LCD manufacturing technology that provides a pixel yield of 99.99%. This means that
less than 0.01% of the total pixels are defective (they do not turn on or always remain turned on).
—3—
BLOCK DIAGRAM
CCD-Lenz
module
Mechanical shutter
Main-PCB
CDS
HD4933
V-Driver
CXD3440
Strobe Unit
8bit micom
M37516
16M Flash
Memory
SH-micom
1.6 inch TFT
COD16T1048
MCM (Multi chip module)
64M
SDRAM
HG76C
back up
battery
Board to Board connecter
SUB-PCB
Storobe Vcc
SD/MMC
Card
LED Back Light
Unit
Sound Amp +
MP3 decode IC
SD Card
Connecter
AK4534
(use only EX-M2)
Buzzer
(use onlyEX-S2)
NP-20
Li-ion
Battery
Battery
spring
SP-PCB (use only EX-M2)
SP-Amp
Credle and
Rimocon
Connecter
Speaker
(use only EX-M2)
Power + Shutter
Key
USB Credle
Rimocon (use only
EX-M2)
Ear Phone
(use only EX-M2)
—4—
Microphone
(use only EX-M2)
TEST MODE
Note: Do not perform the menu item unless explained here. (It may damage the internal data and
camera becomes unusable.)
Booting
To boot the test mode
While firmly pressing down both "MENU" and "SET" buttons, Turn the power on.
Continue pressing "MENU" and "SET" until the MAIN MENU is displayed.
2 "POWER" button
1 "MENU" + "SET" buttons
While holding the camera in a horizontal position, press the set button twice towards your "RIGHT" and then
press "MENU" .
EX-S2 (as of August 06, 2002)
EX-M2 (as of August 06, 2002)
++ KX853 ++
PR : 02.08.02.10.14
LD : 1.06
MI : 41
++ KX854 ++
PR : 02.08.02.10.01
LD : 1.06
MI : 41
"Right" button, "Right" button, "MENU" button
1
2
3
4
5
6
7
8
9
10
11
:VERSION INFO
:VIDEO OUT
:USB TCC TEST
:TEST MENU
:BEEP TEST
: TA S K - 2 T E S T
: R O M U P D AT E
:ADJ TEST
:REC-INFO
:TEST SCRIPT
:LAST MEMORY
SET button
MENU button
—5—
1
2
3
4
5
6
7
8
9
:KEY CHECK
:VOCM CHECK
:MEMORY CHECK
:COLOR CHECK
:UGAIN CHECK
:VGAIN CHECK
:MESSAGE CHECK
:LED CHECK
:SW&JACK CHECK
PROGRAM VERSION UPGRADING
■ Introduction
Update the program using an SD card.
Note:
Make sure to use a fully charged battery.
MAIN PCB becomes unusable if power down or an error occurs during program transmission.
1. How to confirm the program version
■ The program version can be confirmed in the test menu (refer to the previous page).
■ Turn the power on while pressing MENU button.
The following program version also can be found.
Check the LCD display.
(Example)
VER 1.00
(As of August 06. 2002)
2. How to update the firmware
1. Prepare the memory card which contains the software for upgrading EX-S2/EX-M2 firmware in the root
directory.
EX-S2
ex-s2.bin
EX-M2 ex-m2.bin
2. Insert the above memory card in the camera and then set a fully charged battery in the camera.
3. While pressing MENU, press power switch. Keep pressing MENU until “PROGRAM UPDATE” appears
in the camera LCD.
• The following appears.
• The version for the firmware update software in the memory card appears at the bottom.
PROGRAM UPDATE
YES
NO
NEW VERSION IS
VER 1.00
4. Align the white cursor to “YES” by the cross key of 왖 and 왔, and press SET of the center of the cross
key.
• “NOW LOADING” appears in the LCD and the update starts.
5. “COMPLETE” appears after the update finishes.
—6—
6. Remove the memory card after turning the power off once. Turn the power back on again while pressing
MENU, and check the version.
VER 1.00
• “VER 1.00” appears this time.
7. If the version is correct, turn the power off.
8. Finally, check the operation by recording, playing back and deleting an image.
3. How to restore the firmware
1. Prepare the following firmware restoration program and change its name as follows;
EX-S2
kx853r0802.hbn 앶앸 mercury.bin
EX-M2 kx854r0802.hbn 앶앸 mercury.bin
2. Copy the above file to the root directory in the memory card.
3. Insert the memory card into the camera.
4. Set a fully charged battery in the camera.
5. Turn the power on while pressing the shutter release button.
The LED next to the optical finder changes from orange blinks 앶앸 green blinks 앶앸 green lights.
6. When the green LED lights, the firmware restoration is finished.
Remove the battery.
7. Turn the power on again while pressing MENU and SET buttons.
The firmware is successfully restored if the corresponding version appears next to “PR” in the opening
screen of the test menu.
EX-S2
PR: 02.08.02.10.14
EX-M2 PR: 02.08.02.10.01
8. Finally, start the camera normally to check the operation by recording, playing back and deleting an
image.
—7—
COLOR ADJUSTMENT
■ Introduction
Make sure to perform the adjustment when replacing the lens unit or the MAIN PCB.
The necessary software, driver and setting are explained in using USB ADJ Tool "adj331e.exe (Ver.1.1).
Note that the tool, drivers etc. are available only for Windows.
1. How to use USB ADJ Tool
1-1. Prepare the necessary software, driver and DLL file.
(1) Prepare the following three files.
• Commom test driver for CASIO/PENTAX
[testmode_pentax_casio] folder
uusbd.dll
uusbd.inf
uusbd.sys
• ADJ data read/write tool "adj331e.exe"
• Commom DLL for USB test "uusbd.dll"
(2) Place the commom test driver for CASIO/PENTAX in an appropriate place.
(3) After downloading the common DLL for USB test, copy it to the same directory as that of the ADJ data
read/write tool or under "c:windows/system.
1-2. Set the camera so that it recognizes the USB test mode.
(1) Enter the test mode and then the initial test selection screen.
Turn the power on while pressing both "MENU" and "SET".
Press "RIGHT", "RIGHT" and "MENU.
(2) Move the cursor to "3:USB TCC TEST" and press "SET".
(3) Move the cursor to "1:USB TCC ON" and press "SET".
(4) Press "MENU" button and leave the test mode.
(5) This enables the camera to recognise the USB test mode flag.
(6) When the USB test mode flag is ON, the test menu appears first when the camera power is turned on.
* If the USB test mode flag should be OFF, set "2: USB TCC OFF" in the test menu.
1-3. Install the USB driver for the USB test mode in the computer.
(The following is an example using the Windows Me.)
(1) Prepare the USB driver for the USB test mode.
(2) Turn the camera power on which is set in the USB test mode and let it enter the USB test mode as
shown in 2.(the test menu appears right after the power is turned on).
(3) Connect the camera in the above status to the computer by the USB cable.
(4) "A wizard for the new hardware" appears.
(5) Check "Designate the place for the driver (for users with sufficient knowledge)" and press "Next".
(6) Check "Search for the optimum driver for the device (recommended)".
(7) Check "Designate the place to search" , designate the place which contains "inf" file in the driver by
pressing "Reference" button, and then press "Next" button.
(8) When "Universal USB Driver (VMEM manufacturer's name)" appears upon message "Searching for
the driver file for the following devices" , press "Next" button.
(9) The file copy starts.
(If a message "uusbd.Inf cannot be found" appears during the file copy, designate the same place as in
the step 7).
(10) Press "Complete" button.
(11) Right-click "My computer", select "Property" and open "Device manager". If "Universal USB Driver
(VMEM manufactur's name)" can be found in "USB device for UUSBD", the computer has successfully
recognised the driver.
(12) The test driver can be used for both CASIO/PENTAX. Installing the test driver into either one enables
the other one to recognise it.
—8—
NOTE: How to uninstall the USB driver for the USB test mode
• Connect the camera while in the USB test mode to the computer so that the computer recognises the
camera.
• Right-click "My computer", select "Property" and open "Device manager".
• Select "USB device for UUSBD" , and then "Universal USB Driver (VMEM manufacturer's name)".
• Press "Delete" button and delete the driver.
• When using Windows98/98SE/Me, delete the following three files;
(NOTE! Do NOT delete "usbd. inf" and "usbd.sys", whose names are much alike the following.)
C:windows / inf / uusbd.inf
C:windows / inf / other / KashiwanoUUSBD.inf
C:windows / system32 / drivers / uusbd.sys
• The driver has been successfully deleted.
1-4. Use the USB ADJ Tool
(1) Prepare ADJ data read/write tool "adj331e.exe".
(2) Copy the common DLL for USB test to the same directory as that of the ADJ data read/write tool
"adj331e.exe" or under "c:windows / system".
(3) Turn the camera power on which is set in the USB test mode and let it enter the USB test mode (the test
menu appears right after the power is turned on).
Connect the camera to the computer by the USB cable.
(4) Boot "adj331e.exe." and use it as follows;
• Read ADJ data from the camera. Press "read from the camera".
• Write ADJ data into the camera. Press "write into the camera".
• Save ADJ data which is read.
Press "File" and "Save", and save it with an appropriate name.
• Open ADJ data which is saved. Press "File" and "Open", and open the necessary file.
—9—
2. Lens Replacement
Make sure to perform the following procedure after replacing the lens.
A foppy disk with the lens data is bundled in the spare parts of the lens unit.
1 Enter the TEST mode.
1.Turn the power on while pressing both "MENU" and "SET" buttons.
2.Press "RIGHT" button, "RIGHT" button and "MENU" button while
the program version is displayed.
3.Select "3.USB TCC TEST".
4.Select "1. USB TCC ON".
5.Turn the power OFF.
2 Set the QV to the cradle and turn the power on and connect it to the
computer by the USB cable.
3 Boot "adj331e.exe" .
4 Click "ADJ ALL READ", and display the data on the "adj331e.exe".
5 Find the No.321, "V-COM DC".
6
7
8
9
0
A
B
C
5
Write down this value(data).
Replace the Lens unit.
Perform the above 1 to 3
From "File/Open", open the bundled floppy disk, and transfer the data to 9
the "adj331e.exe".
Find the No.321,"V-COM DC"
Change the data to the former value.(Refer to 6).
Click "WRITE" button of "ADJ ALL".
After adjustment, change "1. USB TCC ON" to "2. USB TCC OFF".
B
3. MAIN PCB Replacement
Make sure to backup ADJ DATA before replacing the MAIN PCB.
IMPORTANT NOTICE:
The MAIN PCB is a common part for EX-S1, EX-M1, EX-S2 and EX-M2 as a spare part.
After replacing MAIN PCB, firm up and system initialization should be required.
Refer to the service bulletin QV-068.
1 Enter the TEST mode.
1. Turn the power on while pressing both "MENU" and "SET" buttons.
2. Press "RIGHT" button, "RIGHT" button and "MENU" button while the program version is displayed.
3. Select "3.USB TCC TEST".
4. Select "1. USB TCC ON".
5. Turn the power OFF.
2 Set the QV to the cradle and turn the power on and connect it to the PC by the USB cable.
3 Boot "adj331e.exe" .
— 10 —
4
5
6
7
Click "ADJ ALL READ", and display the data on the "adj331e.exe".
Save the data.
Replace the MAIN PCB.
Perform the above 1 to 3.
5
4
8 Open the file which is saved above, and display the data on the
"adj331e.exe".
9 Click "WRITE" button of "ADJ ALL".
0 After adjustment, change "1. USB TCC ON" to "2. USB TCC OFF".
8
9
4. Operation and Current consumption
1. Operation check
1 Unti-shock, Battery operations
2 Switch, buttons operations
3 SD CARD insersion/eject operation, battery cover open/close operation
4 Resolution and color repeatability check
5 AE operation
6 Charging and cradle connection (USB function etc.) check
7 Appearance check
8 Buzzer check (EX-S2 only)
9 Recording with a microphone, speaker and earphone sound production, and remote controller operation
check (EX-M2 only)
2. Current consumption test
Current consumption (Vcc1 = 3.60 ± 0.05 [V])
• Make sure that current consumption is less than 450 mA in PLAY mode.
• Make sure that current consumption is less than 530 mA in REC mode.
• Make sure that current consumption is less than 2mA when power is turned OFF.
— 11 —
DISASSEMBLY
NOTE : Here EX-M2 is used.
1. Remove the CARD, BATTERY and the JACK COVER.
2. Remove five screws.
Screws
Screws
Screw
3. Remove the REAR CASE ASSY.
— 12 —
4. Removing the LCD ASSY
1 Remove the hook from the MAIN PCB and slide the LCD ASSY.
2 Remove the CONNECTOR.
3 Remove the LCD ASSY.
1
2
3
Connector
NOTE:
Fix the FPC to the CONNECTOR tightly when assembling.
5. Remove the FPC from the CONNECTOR and then remove the SW UNIT.
Connector
— 13 —
6. Removing the SUB PCB ASSY
1 Unsolder the five lead wires.
2 Remove the hook and then the SUB PCB ASSY.
The SUB PCB is connected to the MAIN PCB by the CONNECTOR.
Note in assembling
*1 Position these four lead wires in the space between the MAIN PCB and the SUB PCB.
*2 Make sure that this lead wire does not touch the battery spring.
× 2 *1
× 2 *1
1
× 1 *2
2
7. Removing the STROBE UNIT (NOTE: The STROBE UNIT does not need be discharged.)
1 Remove the STROBE PLATE.
2 Remove the CONNECTOR and then the STROBE UNIT.
1
Remove the CONNECTOR by twisting
it toward the right by a pliers.
NOTE:
Pinch the reinforced part so that the
CONNECTOR is not hurt.
Use a pliers when assembling also.
2
— 14 —
8. Removing the LENS UNIT
1 Remove the CONNECTOR.
2 Remove the LENS UNIT while taking care of the hook.
Hook
9. Remove the MAIN PCB.
10. Remove the microphone (EX-M2 only).
— 15 —
22
14
13
7
S1
19
4
2
10
20
11
S1
21
— 16 —
1
12
18
8
S1
15
5
6
17
16
Dumy Card/ SD Card
EXPLODED VIEW
3
9
PARTS PRICE LIST
EX-S2 / EX-M2
N
Item
N
N
N
1
2
2
2
2
3
3
3
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
19
20
20
21
21
S1
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
-
Parts Code
Parts Name
1009 2320 LENS UNIT
1009 2324 ASSY / FRONT CASE K853
1009 2331 ASSY / FRONT CASE K854
1009 2322 ASSY / FRONT CASE K853
1009 2330 ASSY / FRONT CASE K854
1009 2327 ASSY / REAR CASE K853
1009 2333 ASSY / REAR CASE K854
1009 2325 ASSY / REAR CASE K853
1009 2332 ASSY / REAR CASE K854
1009 2329 ASSY / BATTERY COVER
1008 5223 ASSY / BATTERY COVER
1008 5225 LCD ASSY
1008 5226 PCB ASSY / S
1008 4969 PCB ASSY / S
1008 7571 PCB ASSY / MAIN
1008 3508 CAP / CONNECTOR A-K851
1009 0055 GRIP A-K853
1009 0073 ADHESIVE TAPE / GRIP
1008 4818 CONDENSER MIKE
1009 0045 SHUTTER UNIT
1008 4761 STROBE UNIT
1008 1391 PLATE / STROBE A-K851
1008 4763 SW UNIT
1008 1380 KEY / CURSOR A-K851
1008 1395 KEY / CURSOR A-K852
1008 1358 SPRING / BATTERY
1008 1379 BUTTON / MENU A-K851
1008 1397 BUTTON / MENU A-K852
1008 1373 KNOB / SW A-K851
1008 1375 KNOB / SW A-K852
1008 1374 SW BASE A-K851
1008 1396 SW BASE A-K852
1008 1356 PLATE / SW A-K851
1008 1371 PLATE / SW A-K852
1008 1372 SCREW A-K851
PCB ASSY / MAIN
C139
1008 5385 CONDENSER / BACKUP
PCB S-UNIT
FU800
1005 7715 FUSE
SW801
1008 5453 SWITCH
SW803
1008 5455 SWITCH
ACCESSORY
22
1008 5901 BATTERY / LITHIUM-ION
1009 2851 CD-ROM
1008 5906 ADAPTOR / AC
1008 5887 ADAPTOR / AC
1000 6299 CORD / AC
1000 6300 CORD / AC
1009 0406 CORD / AC
1008 5898 USB CABLE
1008 5899 CRADLE
1008 5911 HEADPHONE
1008 5912 REMOTE CONTROLLER
1008 5897 STRAP
1009 1600 DUMY CARD
Specification
RJK503591*001V01TK
RJK503592*003V01TK
RJK503609*002V01TK
RJK503592*001V01TK
RJK503609*001V01TK
RJK503594*003V01TK
RJK503605*002V01TK
RJK503594*001V01TK
RJK503605*001V01TK
RJK502891*004V01TK
RJK502891*001V01TK
RJK502889*001V01TK
RJK502890*001V01TK
RJK502954*001V01TK
RJK503309*001V01TK
RJK503051-001V01
RJK503493-001V01
RJK503569-001V01
EML6253X3200G
AKE-1347
EFN-CAQ33
RJK502815-001V01
UBF013M02A
RJK502714-001V01
RJK502832-001V01
RJK502706-001V01
RJK502713-001V01
RJK502835-001V01
RJK502697-001V01
RJK502701-001V01
RJK502699-001V01
RJK502834-001V01
RJK502700-001V01
RJK502819-001V01
RJK502836-001V01
QTY
Price
EX-S2 EX-M2 Code
1
1 DV
1
0 CY
0
1 DA
1
0 CW
0
1 CY
1
0 CV
0
1 CV
1
0 CQ
0
1 CP
1
1 AZ
1
1 AN
1
1 DB
1
0 CH
0
1 CY
1
1 DY
1
1 AB
1
1 AG
1
1 AA
0
1 AP
1
1 BH
1
1 CC
1
1 AA
1
1 BD
1
0 AE
0
1 AE
3
3 AB
1
0 AE
0
1 AE
1
0 AF
0
1 AF
1
0 AF
0
1 AF
1
0 AA
0
1 AA
5
5 AA
R
B
B
B
B
B
B
B
B
B
B
B
A
B
B
A
X
X
X
C
A
A
X
A
C
C
X
C
C
X
X
X
X
X
X
X
EECENOF204R
1
1
AL
C
KMD13
SKRKAAE010
SSSS810301
1
1
1
1
1
1
AB
AD
AC
C
C
C
MK11-2443
1
1 BX
CK853DCA01R
1
1 AJ
AD-C50G-WW
1
1 BT
AD-C50J-WW
1
1 BR
CBL-K799-AC-JU
1
1 AO
CBL-K799-AC-EU
1
1 AR
CBL-K851-AC-UK
1
1 BE
UC-K851-CL10
1
1 AO
WAU0990-000AL
1
1 CN
HP-K852-SR
0
1 AW
R66-5819
0
1 CO
ST-K851-A
1
1 AE
RJK503523-001V01
1
1 AB
*1 : AC PLUG is built-in. *2 : Blade type
C
C
C
C
X
X
X
C
C
C
C
X
C
- 17 -
Remarks
EU,UK
EU,UK
Except EU, UK
Except EU, UK
EU,UK
EU,UK
Except EU, UK
Except EU, UK
EU,UK
Except EU, UK
EXCEPT USA
USA *1
For USA type *2
For EURO type
For UK type
PRINTED CIRCUIT BOARDS
MAIN PCB
TOP VIEW
— 18 —
MAIN PCB
BOTTOM VIEW
— 19 —
SUB PCB
TOP VIEW
BOTTOM VIEW
— 20 —
SCHEMATIC DIAGRAMS
MAIN PCB
— 21 —
SUB PCB (EX-S2 only)
— 22 —
SUB PCB (EX-M2 only)
— 23 —
Ver. 1 :
Correction of page 5, 6, 7, 8, 9, 10, 11 and 17.
Ver. 2 :
Correction of page 15.
Ver. 3 :
Correction of page 17.
CASIO TECHNO CO.,LTD.
Overseas Service Division
Nishi-Shinjuku Kimuraya Bldg. 1F
5-25, Nishi-Shinjuku 7-Chome
Shinjuku-ku, Tokyo 160-0023, Japan
