Canon RE-450X Instruction manual

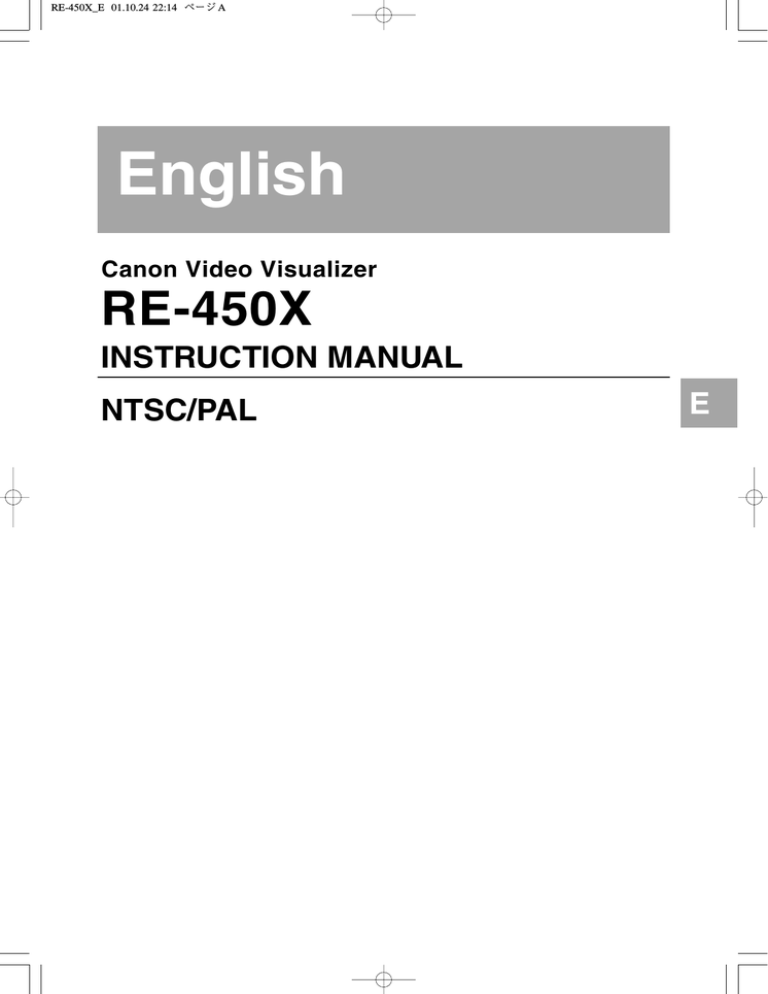

RE-450X_E 01.10.24 22:14 ページ A
English
Canon Video Visualizer
RE-450X
INSTRUCTION MANUAL
NTSC/PAL
E
RE-450X_E 01.10.24 22:14 ページ 1
INTRODUCTION
Thank you for purchasing the Canon Video Visualizer RE-450X.
The RE-450X is a user-friendly portable image input device with a built-in video camera and a 12
× zoom lens. It projects images of flat documents, three-dimensional objects, film, etc., onto a
video monitor. Here are the main features:
• Quality images can be immediately projected by the auto focus, auto white balance, and auto
iris (automatic exposure) functions.
• This device has many terminals, including RGB OUT for high-definition XGA liquid-crystal
projectors and other devices, RGB IN, VIDEO OUT, and S-VIDEO OUT.
• This device has a backlight that allows it to project film and other transparent media.
• Functions of the RE-450X can be controlled via the RS-232C connection.
To use this product correctly, please read this Instruction Manual carefully before operation.
This Instruction Manual applies to both the NTSC model and the PAL model.
Confirm that the package contains the following items:
1. Canon Video Visualizer RE-450X.
2. Power cord (2 m/6.6 ft) × 1
3. RGB cable (one)
4. 3P to 2P adapter
* The ground wire has a cap.
5. Unit cover
6. Instruction Manual
IMPORTANT WARNINGS
Following signs are shown on the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point, within an equilateral
triangle, is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
• This Instruction Manual may not be copied, in whole or part, without prior consent of Canon.
• The content of this manual is subject to change without notice.
• Canon is not responsible for any damage, direct or indirect, arising from or related to this
manual’s use.
© Copyright 2001 CANON INC.
ALL RIGHTS RESERVED
1
RE-450X_E 01.10.24 22:15 ページ 2
IMPORTANT USAGE INSTRUCTIONS
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK
AND TO REDUCE ANNOYING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES ONLY.
FCC NOTICE
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Do not make any changes or modifications to the equipment unless otherwise specified in the
manual. If such changes or modifications are made, you could be required to stop operation of the
equipment.
E
This digital apparatus does not exceed the Class B limits for radio noise emissions from a
digital apparatus as set out in the interference-causing equipment standard entitled “Digital
Apparatus”, ICES-003 of the Bureau of Industry and Science Canada.
The serial number of this product can be found on the back of the unit.
No other unit has the same serial number. You should record the number and other vital information
here and retain this book as a permanent record of your purchase to aid identification in case of
theft.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No. RE-450X
Serial No.
2
RE-450X_E 01.10.24 22:15 ページ 3
IMPORTANT SAFETY INSTRUCTIONS
In these safety instructions the word “product” refers to the Canon Video Visualizer RE-450X and
all its accessories.
1. Read Instructions—All the safety and operating
instructions should be read before the product is
operated.
2. Retain Instructions—The safety and operating
instructions should be retained for future reference.
product may fall, causing serious injury to a child or
adult and serious damage to the product. A product
and cart combination should be
moved with care. Quick stops,
excessive force, and uneven
surfaces may cause the product
and cart combination to overturn.
3. Heed Warnings—All warnings on the product and in
the operating instructions should be adhered to.
4. Follow Instructions—All operating and maintenance
instructions should be followed.
5. Cleaning—Unplug this product from the wall outlet
before cleaning.
Wipe the product with a clean soft cloth. If
necessary, put the cloth in diluted neutral detergent
and wring it out well, before wiping the product.
Finally, clean the product with a clean dry cloth. Do
not use benzene, thinner or other volatile liquids or
pesticides as they may damage the product’s finish.
When using chemically-treated cleaning cloths,
observe their precautions accordingly.
BENZEN
6. Accessories—Do not use non Canon approved
accessories as they may be hazardous. Always use
the specified connection cables and be sure to
connect devices correctly.
7. Water and Moisture—Hazard of electric shock—Do
not use this product near water or in rainy/moist
situations. Do not put a heater near this product.
8. Placing or Moving—Do not place this product on an
unstable cart, stand, tripod, bracket or table. The
3
9. Power Sources—This product should be operated
only from the type of power source indicated on the
marking label. If you are not sure of the type of
power supply in your home, consult your product
dealer or local power company.
10.Grounding—This product is equipped with a 3pronged grounding plug (the plug has a third
grounding pin).
The 3-pronged grounding plug will fit into a
grounding type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
grounding-type plug.
11.Power-Cord Protection—Power cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Pay
particular attention to plugs, and the point from
which the cords exit the product.
12.Outdoor Antenna Grounding—If an outside antenna
is connected to the product, be sure the antenna is
grounded so as to provide some protection against
voltage surges and built-up static charges. Section
810 of the National Electrical Code, ANSI/NFPA No.
70—1984, provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an
antenna dischage unit, size of grounding
conductors, location of antenna dischage unit,
connection to grounding electrodes, and
requirements for the gounding electrode. See
figure 1.
RE-450X_E 01.10.24 22:15 ページ 4
Fig. 1
Example of antenna grounding
as per National Electrical Code
Antenna lead-in wire
Ground clamp
Antenna discharge unit
(NEC section 810-20)
Electric Service
Equipment
NEC—National Electric Code
Grounding conductors
(NEC section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC art 250, part H)
13.Lightning—For added protection of this product
during a lightning storm, or when it is left unattended
and unused for long periods of time, disconnect it
from the wall outlet. This will prevent damage to the
product due to lightning and power-line surges.
18.Damage Requiring Service—Disconnect the product
from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If any liquid has been spilled onto, or objects
have fallen into the product.
E
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally even if
you follow the operating instructions, adjust
only those controls that are covered by the
operation instructions. Improper adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the product to its normal
operation.
e. If the product has been dropped or the cabinet
has been damaged.
14.Power Lines—An outside antenna system should
not be located in the vicinity of overhead power lines
or other electric light or power circuits, or where it
can fall into such power lines or circuits. When
installing an outside antenna system, extreme care
should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.
15.Overloading—Do not overload wall outlets and
extension cords as this can result in a risk of fire or
electric shock.
16.Objects and Liquid Entry—Never push objects of
any kind into this product through openings as they
may touch dangerous voltage points or short out
parts that could result in a fire or electric shock. Be
careful not to spill liquid of any kind onto the
product.
f. When the product exhibits a distinct change in
performance. This indicates a need for service.
19.Replacement Parts—When replacement parts are
required, be sure the service technician has used
replacement parts that are specified by Canon or
that have the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
20.Safety Check—Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to determine that the product
is in safe operating order.
17.Servicing—Do not attempt to service this product
yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
4
RE-450X_E 01.10.24 22:15 ページ 5
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ………3
1.
NOMENCLATURE AND FUNCTIONS …………6
2.
ASSEMBLING, STORING AND CONNECTION …8
3.
OPERATION ………………………………………11
Manual Focusing …………………………………………12
Film Projection ……………………………………………12
Readjusting the White Balance …………………………13
Changing the angle to Letter/A4 size …………………13
Freezing an output image ………………………………13
Projecting white documents ……………………………14
Adjusting Brightness and Picture Contrast …………14
4.
SYSTEM CONNECTION …………………………15
Outputting to a video monitor ……………………………15
To Control by a Computer ………………………………15
Changing to Pictures via External Input Equipment …16
Recording by VCR …………………………………………17
Functions Controlled by a Computer …………………18
5
5.
TROUBLESHOOTING ……………………………19
6.
SPECIFICATIONS ………………………………20
RE-450X_E 01.10.24 22:15 ページ 6
1 NOMENCLATURE AND FUNCTIONS
Camera head
Arm
Illumination lamp
Lens cap
Illumination lamp for reflection copies.
Pressing the LIGHTS button on the
operation panel turns the lamp on. The
angle of the lamp is adjustable.
Rear panel
Document table and Backlight
RE-350 UALIZER
VIDEO VIS
Arm lock release
lever
Press to fold/unfold
the arm
Operation panel
Carrying handle
Power switch (see page 11)
Pull out to carry the unit.
NOTICE
E
After turning the power OFF, wait at least 5 seconds before turning the power
ON again. Turning the power ON too soon may cause a malfunction.
The illumination lamps do not light up immediately after the LIGHTS button is
pressed. To protect the lamps, the system preheats for 3 seconds, then turns
the lamps on.
Rear Panel
See page 15 for system construction.
S-VIDEO OUT terminal
RS-232C terminal
VIDEO OUT terminal
Use this terminal when controling the RE-450X
by a computer (see page 15, 18).
RGB OUT terminals
RGB IN
RGB OUT
VIDEO
OUT
S VIDEO
OUT
RS-232C
AC INLET
AC inlet
RGB IN terminal
6
RE-450X_E 01.10.24 22:15 ページ 7
Operation Panel
LIGHTS button/indicator
DETAIL control
Use this control to adjust picture quality (see page 14).
Turn the control to the HARD side to emphasize the
outline, turn to the SOFT side for softer outline.
Use this button to turn ON the
illumination lamps for reflection
copies. The indicator flashes
during preheating, and stays lit
after preheating.
BACK LIGHT button/indicator
Use this button to turn ON the backlight
for transparencies (see page 12). The
indicator lights up when the backlight is
used.
INPUT SELECT button/indicator
FOCUS buttons/indicator
Use this button to select input source to switch between pictures
via internal input (the unit’s camera head) and pictures via
external input (such as a computer) (see page 16). The indicator
lights up when external input equipment is selected.
Use this button to focus (see page 12). To
focus manually, press the FOCUS button and
then the NEAR button or the FAR button.
WHITE BALANCE
button/indicator/control
ZOOM buttons
Press the WIDE button to change
the picture to wide-angle. Press the
TELE button to change the picture
to telephoto.
Use this button/knob to adjust color tone (see
page 13). To adjust manually, press the WHITE
BLANACE button and turn the WHITE BALANCE
knob. Turn the knob to the RED side to increase
red tone, or turn the knob to the BLUE side to
increase blue tone.
POWER
LIGHT
BACK
LIGHT
INPUT
SELECT
WHITE BALANCE
AUTO
MANUAL
RED
EXPOSURE
AUTO
BLUE
HIGH
STILL
MANUAL
WIDE
LOW
ZOOM
PRESET
ZOOM
FOCUS
DETAIL
WHITE
PAPER
NEAR
TELE
FAR
SOFT HARD
POWER indicator
Lights up when the power
is ON (see page 11).
WHITE PAPER button/indicator
Use this button to make a paper
document on the table appear whiter.
The indicator lights up when this function
is on.
EXPOSURE control
Use this knob to adjust image brightness (see
page 14). To increase brightness, turn the knob
to the HIGH side. To decrease brightness, turn
the knob to the LOW side. Brightness may not
be adjusted effectively using the EXPOSURE
knob if the image is too dark.
7
ZOOM PRESET button/indicator
Press the ZOOM PRESET button to set
the angle for letter/A4 size paper (see page
13). The indicator lights up when the button
is pressed.
STILL PICTURE button/indicator
Press the STILL PICTURE button to freeze
a moving output image. When the button is
pressed again, the moving picture will start
running again (see page 13). The indicator
lights up when the picture is frozen.
The illumination lamps and the backlight cannot be used at
the same time.
RE-450X_E 01.10.24 22:15 ページ 8
2 ASSEMBLING, STORING AND CONNECTION
Assembling
1
2
Unfold and raise the pair of illumination lamps.
4
Raise the right-hand illumination lamp first (), then the lefthand illumination lamp ().
Press the arm lock release lever, and raise the
arm until it stops.
NOTICE
3
Make sure to hold the arm when pressing the arm lock
release lever. If the lever is pressed without holding the arm,
the arm jumps up and may result in injury or malfunction.
Please raise the arm slowly.
Arm lock release lever
E
Direct the camera head towards the document
table.
Remove the lens cap.
Keep the lens cap in a safe place.
8
RE-450X_E 01.10.24 22:15 ページ 9
Storing
1
Put the lens cap to the lens.
NOTICE
2
3
Direct the camera head sideways until it stops.
Hold the arm with your right hand and press
the arm lock release lever, then pull the arm
down to the document table very carefully.
NOTICE
4
Be sure to turn the power OFF before storing the unit.
Arm lock release lever
Make sure to hold the arm when stowing it. If the arm is
stowed without being held, the arm jumps up and may result
in injury or malfunction. Please stow it slowly.
Fold the pair of illumination lamps very carefully.
Fold the left-hand illumination lamp first (), then the righthand illumination lamp ().
Do not touch the fluorescent lamps after the
illumination lamps are turned off, as they may still
be hot.
CAUTION
Put the supplied unit cover on the RE-450X when the unit is not in use. The unit
cover has a pocket to store cords.
CAUTION
9
Place the unit horizontally when storing it. If the unit is stored
vertically, it may fall down and cause injury or malfunction. When
carrying the unit, turn the power OFF, disconnect the cords, fold the
arm and the illumination lamps, and pull out the carrying handle.
RE-450X_E 01.10.24 22:15 ページ 10
Connection
To connect the RE-450X to a liquid-crystal projector, use the RGB cable included in the package. Use the
power cable included in the package.
To RGB input terminal
RGB cable
Liquid-crystal projector
To RGB OUT
Rear panel
RGB IN
RGB OUT
VIDEO
OUT
S VIDEO
OUT
E
RS-232C
AC INLET
To AC
power outlet
Power cord
NOTICE
To protect the RE-450X as well as other equipment in use, make sure all the
equipment (if any) is OFF before connecting cables. Always hold onto the plug
section whenever connecting/disconnecting the cables.
See page 15 for connecting various equipment. For details of operation, refer to
the instruction manual of the equipment to be used.
NTSC
■ Installation Site and Environment
PAL
■ Installation Site and Environment
1. Connect the RE-450X to a correct
electronic source.
Source voltage: 120VAC ± 10%
Source frequency: 60 Hz
2. Install the RE-450X in a proper
environment.
Temperature: 41°F – 95° F (5°C –35°C)
Humidity: 85% max (without condensation)
1. Connect the RE-450X to a correct
electronic source.
Source voltage: 220 – 240VAC ± 10%
Source frequency: 50 Hz
2. Install the RE-450X in a proper
environment.
Temperature: 5°C –35°C (41°F – 95° F)
Humidity: 85% max (without condensation)
10
RE-450X_E 01.10.24 22:15 ページ 11
3 OPERATION
1
Turn the power ON.
POWER
When the power of the RE-450X is turned ON, the POWER
indicator on the operation panel lights up.
• When the power is turned on, it takes about 20 seconds to
show an image.
• When the power is turned on, white balance and focus are
automatically adjusted.
Power switch
2
3
Operation Panel
Turn ON the power source of the other equipment to be used.
Either the power of the RE-450X or other equipment may be turned on first.
Put the document at the center of the document
table.
Document table
If no image is displayed, check to see that the lens cap has been
removed.
4
When operation is completed, turn the power
OFF.
POWER
The POWER indicator goes off. The illumination lamps or
backlight will go off (if they are on). Also turn OFF the power of
other equipment.
NOTICE
After turning the power OFF, wait at least 5 seconds before
turning the power ON again. Turning the power ON too soon
may cause a malfunction.
The power of the RE-450X should be turned OFF when the unit is not used.
Disconnect the power cord if the unit will not be used for extended periods.
11
RE-450X_E 01.10.24 22:16 ページ 12
Manual Focusing
When trying to focus correctly or focusing on a particular point of three-dimensional objects, you can
achieve focusing by pressing the manual focusing buttons. The manual focusing is valid up to approx.
65mm above the document table.
When focusing the lens
manually, press the FOCUS
button first and then the
NEAR button or the FAR
button. During manual focus
mode, the AUTO FOCUS
indicator turns off.
To return to auto focus
mode, press the FOCUS
button.
Operation panel
AUTO
ZOOM
PRESET
ZOOM
FOCUS
DETAIL
STILL
MANUAL
WIDE
NEAR
TELE
FAR
SOFT HARD
FOCUS button
■ Undesirable objects for focusing
Although the auto focus function of the RE-450X is capable of focusing on most objects, objects such as
those listed below may present some difficulty. If this happens, focus the lens manually by pressing the
FOCUS button first and then the NEAR button or the FAR button.
1.
2.
3.
4.
5.
E
Objects with a low reflection factor (such as a dark cloth, hair, etc.)
Intangible objects (such as candle light, smoke, etc.)
Objects having a glossy surface (telephone receiver, glassware, etc.)
Objects viewed through glass.
Objects with low contrast.
Film Projection
Use the backlight to project transparencies, such as OHP film and slides.
Press the BACK LIGHT
button to project transparencies. The BACK
LIGHT indicator lights up
and the document table
glows. If the illumination
lamps have been lighted,
they will go off.
Operation panel
POWER
LIGHT
BACK
LIGHT
INPUT
SELECT
WHITE BALANCE
AUTO
MANUAL
RED
BLUE
EXPOSURE
WHITE
PAPER
LOW
HIGH
Pressing the BACK LIGHT
button again, turns the
backlight off.
• Project the film to full monitor size by using the zoom button. If light from the
backlight appears in the monitor, the picture itself will not appear very sharp.
• If the color tone seems unnatural, adjust the white balance manually (see
page 13). If the auto focus function doesn’t operate accurately, focus the lens
manually.
• The illumination lamps and the backlight cannot be used at the same time.
12
RE-450X_E 01.10.24 22:16 ページ 13
Readjusting the White Balance
Readjust the white balance manually when the color tone seems unnatural or if you want to change it to
your desired tone.
To readjust the white balance, complete the following steps:
Press the WHITE BALANCE button (to turn on manual mode).
Turn the WHITE BALANCE knob to adjust to the desired color
tones. Turning the knob toward the RED side increases the red
tones. Turning the knob toward the BLUE side increases the
blue tones.
Operation panel
POWER
BACK
LIGHT
LIGHT
INPUT
SELECT
WHITE BALANCE
AUTO
MANUAL
RED
EXPOSURE
WHITE
PAPER
BLUE
LOW
HIGH
Changing the angle to Letter/A4 size
To make the angle Letter/A4 size, press the ZOOM PRESET button. An indicator lights up and output image
size will become Letter/A4 size. When changing the angle, use the ZOOM buttons.
Press the ZOOM PRESET button to make the angle Letter/A4 size.
Operation panel
The ZOOM PRESET indicator flashes when the ZOOM PRESET
button is pressed.
AUTO
ZOOM
PRESET
ZOOM
FOCUS
STILL
MANUAL
WIDE
NEAR
TELE
FAR
D
Use the ZOOM buttons to change the angle.
The set angle may be slightly different from Letter/A4 size.
Freezing an output image
To pause a moving output image, press the STILL PICTURE button. An indicator lights up and the output
image freezes.
If you press the button again, the frozen image will start moving again.
When an output image is a moving picture, if you press the STILL
PICTURE button, the output image will be frozen.
Operation panel
AUTO
MANUAL
WIDE
NEAR
D
If you press the STILL PICTURE button again, the frozen picture
will start moving again.
• You cannot make adjustments such as zoom, focus, or white balance while
an image is frozen.
• You cannot save frozen pictures.
13
ZOOM
PRESET
ZOOM
FOCUS
The STILL PICTURE indicator lights up while the image is frozen.
FAR
TELE
STILL
RE-450X_E 01.10.24 22:16 ページ 14
Projecting white documents
To project white parts of white documents much whiter, press the WHITE PAPER button. If the button is
pressed, the WHITE PAPER indicator lights up. If the button is pressed again, the indicator turns off and
returns to regular mode.
To project white documents much whiter, press the WHITE PAPER
button.
Operation panel
POWER
LIGHT
BACK
LIGHT
INPUT
SELECT
If the button is pressed, the WHITE PAPER indicator lights up.
WHITE BALANCE
AUTO
MANUAL
RED
BLUE
EXPOSURE
WHITE
PAPER
LOW
HIGH
If the button is pressed again, the indicator turns off and returns to
regular mode.
The effectiveness may vary depending on the document, including how dark it
is.
E
Adjusting Brightness and Picture Contrast
The brightness of the picture can be controlled by the EXPOSURE control. When the document is dark, has
low cotrast, or is small and dim against a brighter background, use the EXPOSURE control to make the
image clearer.
To adjust brightness, turn the EXPOSURE knob. Turn the knob
toward the HIGH side to brighten the image. Turn the knob toward
the LOW side to darken the image.
Operation panel
EXPOSURE
Use the DETAIL control to adjust picture quality. Turn the control
toward the HARD side to emphasize the outline of an object. Turn
the control towards the SOFT side for a softer outline.
FO
DETAIL
AUTO
WHITE
PAPER
E
LOW
HIGH
NE
SOFT HARD
Brightness may not be adjusted effectively using the EXPOSURE
knob if the image is too dark.
14
RE-450X_E 01.10.24 22:16 ページ 15
4 SYSTEM CONNECTION
The following equipment can be connected to the input and output terminals. Use the included power cord.
For cables other than the power cord and the RGB cable, use commercially available cables. For details of
operation, refer to the instruction manual of the equipment to be used.
Output Equipment
Liquid-crystal
projector
Outputting to a video
monitor
Video monitor
VCR
Video camera,
speakers with an
amplifier, etc.
RGB monitor
RGB projector
To RGB input terminal
To S-video input terminal or video input terminal
To output to a video monitor,
connect the RE-450X to a
monitor’s video input terminal
using a commercially available
video cable. The video monitor
projects images from the camera
head, regardless of the selected
input equipment.
When using video
output and S-video
output, dark areas
may appear on the
periphery of the
screen.
Video
cable
RGB cable
S-video cable
Rear panel
RGB IN
RGB OUT
VIDEO
OUT
S VIDEO
OUT
To AC
power outlet
RS-232C
AC INLET
Power cord
Computer
NOTICE
15
When connecting to equipment such as a video monitor or a
VCR, check if your RE-450X model uses NTSC or PAL
format, and use equipment compatible with the appropriate
format.
To control by a computer
To control certain functions of the RE-450X by a computer,
complete the following steps:
Connect the RE-450X to the computer using a RS-232C
cable.
Turn ON the power to the equipment.
Operate the computer.
For details, please consult your dealer.
RE-450X_E 01.10.24 22:16 ページ 16
Changing to Pictures via External Input Equipment
If you connect a computer or other equipment to the RGB input terminal, you can project images from that
equipment simply by pressing a button.
Camera of the RE-450X
Liquid-crystal projector
RGB OUT
IZER
RE-350
VIDEO VISUAL
RGB IN
External
input
INPUT SELECT button
Computer
To switch to pictures from external input equipment, press the
INPUT SELECT button.
POWER
The INPUT SELECT indicator lights up, and pictures are output
from the equipment connected to the RGB input terminal. To return
to pictures from the camera head, press the INPUT SELECT button
again.
E
Operation panel
LIGHT
BACK
LIGHT
INPUT
SELECT
WHITE BALANCE
AUTO
MANUAL
RED
BLUE
EXPOSURE
WHITE
PAPER
LOW
HIGH
Regardless of the selected input equipment, pictures from the camera head will
be output to the video output terminal and S-video output terminal.
16
RE-450X_E 01.10.24 22:16 ページ 17
Recording by VCR
If you want to record using a VCR, connect the RE-450X to the VCR using a commercially available video
cable. For details of operation, refer to the instruction manual for the equipment to be used.
VCR
To VIDEO IN
terminal
Video cable
Rear panel
RGB OUT
VIDEO
OUT
S VIDEO
OUT
RS-232C
NOTICE
Check if your RE-450X model is uses
NTSC or PAL format, and use a VCR
compatible with the appropriate format.
When you use a VCR with an S-video outlet, use S-video cables to connect to
the S-video outlet. This will enable you to project a high quality image.
17
RE-450X_E 01.10.24 22:16 ページ 18
Functions Controlled by a Computer
The following functions can be controlled by a computer. For more information, please contact your dealer.
Category
Camera
control
Abbreviation
Meaning
Zoom lens control
Zoom STOP
Zoom TELE
Zoom WIDE
Zoom positioning default position
Zoom positioning A4 landscape
Zoom positioning
Zoom speed
The zoom lens stops.
Moves the zoom lens toward telephoto.
Moves the zoom lens toward wide-angle.
Moves the zoom lens to default position.
Moves the zoom lens to A4 landscape position.
Moves the zoom lens to specified position.
Sets lens zooming speed.
Focus control
Focus AF
Focus MANUAL
Focus STOP
Focus NEAR
Focus FAR
Switches to auto focus mode.
Switches to manual focus mode.
Stops lens focus movement.
Moves lens focus closer.
Moves lens focus farther.
White balance setting
White balance AUTO
White balance MANUAL
White balance value designation
Adjusts white balance automatically.
Adjusts white balance manually.
Specifies white balance target value.
Exposure compensation
Exposure value designation
Exposure mode NORMAL
Exposure mode WHITE PAPER
Specifies exposure value.
Switches exposure to NORMAL mode.
Switches exposure to WHITE PAPER mode.
Still picture
Still picture ON
Still picture OFF
Turns STILL PICTURE mode ON.
Turns STILL PICTURE mode OFF.
Outline adjustment
DETAIL setting
Sets picture quality adjustment values.
Input signal selection
Input selection CAMERA
Input selection EXTERNAL
Selects the internal camera head as the input signal.
Selects external signal as the input signal.
Illumination control
Lights ON
Lights OFF
Backlight ON
Backlight OFF
Turns the illumination lamps on.
Turns the illumination lamps off.
Turns the backlight on.
Turns the backlight off.
Control mode selection
Host control mode
Local control mode
Switches the RE-450X to be controlled by a computer.
Cancels the Host Control Mode.
Information output
Model name request
ROM version request
Reads the RE-450X model information.
Reads ROM version information.
System
control
E
18
RE-450X_E 01.10.24 22:16 ページ 19
5 TROUBLESHOOTING
If the RE-450X does not function properly, check the following points before contacting your dealer.
Problem
Possible cause
Reference
page
• The lens cap has not been removed.
• The power of the RE-450X or other equipment has not been
turned ON.
• Connection may be incorrect.
• The input source is not selected correctly.
15
16
The picture cannot be
focused correctly
•
•
•
•
•
12
12
12
12
13
The zoom function
doesn’t work
• The image is frozen.
13
Pictures appear
reddish/bluish
• The white balance has been adjusted manually.
• The color tone of the video monitor is not correct.
13
—
Pictures are too
bright/dark
• The WHITE PAPER button is on.
• Exposure of the RE-450X or monitor has not been adjusted
correctly.
• The object is not illuminated properly.
14
14
• The power of the RE-450X or other equipment has not been
turned ON.
• Connection may be incorrect.
11
The screen doesn’t
change
• The image is frozen.
13
The illumination lamps
do not light up
immediately when the
LIGHTS button is
pressed
• To protect the lamps, the system preheats for 3 seconds,
then the lamps light up. During preheating, the LIGHT
indicator flashes. This is not a malfunction.
—
The RE-450X cannot be
controlled by a
computer
• The power of the RE-450X or other equipment has not been
turned ON.
• Connection may be incorrect.
• Incorrect operation may be the cause.
No image appears on
the monitor
The input source
cannot be changed
The document may be too dark or glowing.
Strong light may be reflected on the screen.
The object has low contrast.
Focusing has been set in manual mode.
The image is frozen.
8
11
—
15
11
15
—
If the problem cannot be solved after checking the above points, please contact your dealer.
The fluorescent illumination lamps and backlight are consumables.
Replace with a new lamp if a lamp starts flickering or becomes dark.
For details of replacement, please consult your dealer.
19
RE-450X_E 01.10.24 22:16 ページ 20
6 SPECIFICATIONS
Signal output method
Image device
Effective pixels
Synchronization
Resolution
XGA output (VESA compliant)
Imaging speed
Projection lens
Projection range
Zoom
Focusing
Iris adjustment
(exposure)
White balance
Illumination lamps
Backlight
Input sources
Input/output terminals
XGA output 15 frames/sec.
Power source
Power consumption
Dimensions
Weight
Operating environment
•
•
•
•
1/3" CCD
Horizontal 1,024 pixels × Vertical 768 pixels
Internal synchronization only (XGA output and NTSC output are asynchronous)
XGA output 520 horizontal TV lines or more, 450 vertical TV lines or more
NTSC/PAL output 420 horizontal TV lines or more, 300 vertical TV lines or more
F=5.4mm–64.8mm F1.8-F2.8 10 element, 8 group design
(Maximum) 306 × 230mm – 31.5 × 23.7mm
12× power zoom with PRESET ZOOM button for A4 size
Power auto/manual
Power auto/manual (± about 2EV) with WHITE PAPER button for white documents
Auto/manual
6W fluorescent lamp × 2, high-frequency lighting, angle-adjustable
4.8W cold cathode lamp × 2, high-frequency lighting
E
Can be switched between internal camera head/external input equipment for XGA only
RGB input (XGA) D-SUB 15-pin × 1, input impedance: 75Ω
RGB output (XGA) D-SUB 15-pin × 1, output impedance: 75Ω
Video output RCA pin jack × 1, output impedance: 75Ω
S-video output 4-pin mini-DIN × 1, output impedance: 75Ω
RS-232C serial interface × 1
AC input AC200-240V, 50Hz
AC200-240V, 50Hz
Approx. 30W
Operating position: 782 (W) × 524.8 (D) × 556 (H)mm
Folded position: 486 (W) × 524.8 (D) × 556 (H)mm
Approx. 10kg
Temperature: +5°C – +35°C (4°F - 95°F)
Relative humidity: 20% – 85% (no condensation)
Weight and dimensions are approximate.
Errors and omissions excepted.
Specifications and design of the product are subject to change without notice.
Canon is a registered trademark of Canon Inc.
20
