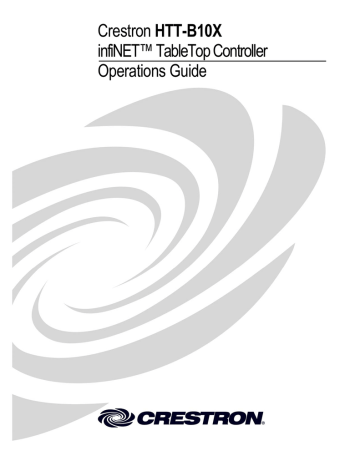

Crestron HTT-B10X infiNET™ TableTop Controller
Operations Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2008 Crestron Electronics, Inc.
Crestron HTT-B10X infiNET™ TableTop Controller
Contents
InfiNET™ TableTop Controller: HTT-B10X 1
Contents • i Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
InfiNET™ TableTop Controller:
HTT-B10X
Introduction
The HTT-B10X provides a simple, convenient wireless controller for lighting, home automation and entertainment in the home or office. Two-way infiNET™ wireless operation supports true feedback, allowing lighting and security settings to be checked and changed with confidence from any room. A clean array of 10 backlit pushbuttons with individual feedback LEDs affords easy, tactile control of any custom function. The HTT-B10X is a fully programmable controller designed to operate as part of a complete Crestron ® automation system, communicating via the infiNET wireless control network.
The HTT-B10X (120 Volts AC) and HTTI-B10X (230 Volts AC) are functionally identical. For simplicity within this guide, HTT-B10X is used except where noted.
Features and Functions
• Stylish wireless pushbutton controller
• 10 engravable backlit buttons
• Configurable for up to three functions per button
• White LED light pipe feedback indicators
• True feedback and dual bar graph capability
• InfiNET two way RF wireless communications
• Powered by batteries or external power pack
• Wakes instantly when touched or picked up
• Auto-dimmable backlight and LED intensity
• Available in black or white
Operations Guide – DOC. 6583B
Multifunction Pushbuttons
Ten simple pushbuttons provide just the right amount of control without clutter or complication – perfect for most applications. For situations requiring a little more, each button can be configured to enable up to three separate functions simply by tapping, double-tapping or holding the button. “Shift key” functionality is even possible, allowing any button to be held while pressing another. infiNET™ TableTop Controller: HTT-B10X • 1
InfiNET™ TableTop Controller Crestron HTT-B10X
Auto Dimming Backlight
High quality backlit laser engraving provides customizable button text that is easy to read under any lighting condition. A built-in light sensor controls the backlight intensity automatically to achieve a crisp, legible appearance in both darkened and fully lit rooms.
True Feedback
Elegant white LED light pipes beside each button provide reliable status feedback for everything from lighting presets to motorized windows and door locks. Ten different blink patterns are built in, enabling all kinds of blinking LED feedback while simplifying programming and minimizing traffic on the infiNET network.
Additional bar graph capability uses the same LEDs to display actual level settings in the form of two vertical five segment bar graphs. True feedback for every status and level setting is achieved via infiNET’s fully bidirectional wireless protocol. The overall LED intensity is auto-dimmable, adjusting automatically for optimal visibility under varying lighting conditions.
Battery or AC Powered
The HTT-B10X can be powered by its external power pack or two AA batteries, permitting use as a stationary controller on a desk or table or as a portable wireless remote. Its auto-sleep function affords battery operation for up to eight months on a single set of alkaline batteries. Simply moving or pressing a button on the
HTT-B10X instantly wakes it from sleep mode. Connecting the power pack overrides the sleep/wake function completely for “always on” operation.
InfiNET™
Crestron’s groundbreaking infiNET wireless technology affords reliable two way communications throughout a home or office structure without the need for physical control wiring. Numerous infiNET controllers, dimmers, thermostats and other devices can be linked to a central control system via a single RF gateway. Employing a 2.4 GHz mesh network topology, each infiNET device functions as an RF repeater, increasing effective range and reinforcing the complete network by providing multiple redundant signal paths within the mesh network.
NOTE: The HTT-B10X itself does not function as a repeater.
Easy Installation
Setting up a complete network of infiNET devices including the HTT-B10X is simple. The C2N-MNETGW gateway (sold separately) utilizes discovery (self install) to locate and acquire each infiNET device automatically. Setting the RF ID of each device employs the same convention as Crestron’s familiar TSID method and each device is programmable using Crestron SIMPL™ Windows
SystemBuilder™ or D3Pro™ software just like any wired Cresnet ®
® ,
device. Even firmware updates are performed over the wireless network.
No further action is required to configure the infiNET network. Each device assigned to a common gateway automatically behaves as a repeater for any other devices within range, approximately 150 feet (46 meters) indoors and additional repeaters may be added if necessary. At all times, the infiNET gateway monitors each device on the network, ignoring any other 2.4 GHz signals and reconfiguring the entire network automatically in response to new sources of interference and other changes in RF conditions.
2 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
NOTE: The HTT-B10X itself does not function as a repeater.
Color and Engraving Options
The HTT-B10X is available in either black or white, with an attractive brushed aluminum inlay. Custom backlit engraving is available for each individual column of five buttons.
Specifications
Specifications for the HTT-B10X are listed in the following table.
HTT-B10X Specifications
SPECIFICATION DETAILS
Backlight
Movement Sensor
Low Battery Warning
Wireless
1
RF Output Power
White LED light pipe backlight for button engraving; software adjustable intensity, auto-dimmable
Vibration sensor wakes unit from sleep mode if operating on battery
Beep sound indicates low battery condition
2-way RF, 2.4 GHz ISM Channels 11-26
(2400 to 2483.6 MHz), IEEE 802.15.4 compliant
100 mW
150 feet (46 meters) indoor,
250 feet (76 meters outdoor;
Subject to site specific conditions; range is increased by adding additional devices or
C2N-MNETRPT repeater (sold separately)
Power Requirements
Batteries
12 VDC
(2) AA alkaline batteries required, estimated eight months usage under normal operation
6 Watts (0.5 Amps) @ 12 Volts DC
HTT-B10X:
120 Volts AC, 60 Hz
(PW-1205 included)
HTTI-B10X:
230 Volts AC, 50 Hz
(PW-1205RU included)
01
Version 3.155.1240 or later
Default MNET ID 2
Minimum 2-Series Control
System Update File 3, 4
Minimum infiNET Gateway
Version
Firmware version 2.001.0003 or later
Environmental
Temperature 32º to 104º F (0º to 40º C)
Humidity
Heat Dissipation
10% to 90% RH (non-condensing)
3.4 BTU/Hr
(Continued on following page)
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 3
InfiNET™ TableTop Controller Crestron HTT-B10X
HTT-B10X Specifications (Continued)
SPECIFICATION DETAILS
Enclosure
Dimensions
Height
Width
Depth
Injection molded plastic, painted, textured, brushed aluminum inlay
1.46 in (3.71 cm)
3.60 in (9.14 cm)
4.69 in (11.91 cm)
Weight
Without batteries 5.0 oz (143 g)
With batteries
Available Models (120 VAC)
HTT-B10X-B-T
HTT-B10X-W-T
6.8 oz (192 g) infiNET TableTop Controller,
Black Textured infiNET TableTop Controller,
White Textured
International Version (230 VAC)
HTTI-B10X-B-T
HTTI-B10X-W-T infiNET TableTop Controller,
Black Textured infiNET TableTop Controller,
White Textured
12 Volt Power Pack (US)
Included Accessories
HTT-B10X:
PW-1205
HTTI-B10X:
PW-1205RU
Available Accessories
C2N-MNETGW
12 Volt Power Pack (International) infiNET Gateway (firmware version
2.001.0003 or later required)
C2N-MNETRPT
B10-BTN(B,W)-T Strip of five engravable button caps, backlit
(black or white, textured)
1. C2N-MNETGW gateway/transceiver required (sold separately).
2. Requires setup with Crestron Toolbox™.
3. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes.
4. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems.
NOTE: Crestron software and any files on the website are for authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the
FTP site).
4 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
Physical Description
This section provides information on the connections, controls and indicators available on your HTT-B10X.
HTT-B10X Physical View
HTT-B10X Overall Dimensions (Top View)
1
4.69 in
(11.91 cm)
Operations Guide – DOC. 6583B
2 3 2 infiNET™ TableTop Controller: HTT-B10X • 5
InfiNET™ TableTop Controller
HTT-B10X Overall Dimensions (Side View)
Crestron HTT-B10X
1.46 in
(3.71 cm)
HTT-B10X Overall Dimensions (Rear View)
4
3.60 in
(9.14 cm)
Connectors, Controls & Indicators
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
2 LED INDICATORS function.
FEEDBACK - (10) White LED light pipes, one per button; Programmable, autodimmable, adjustable intensity, 10 blinking patterns.
BAR GRAPH – (2) Five step bar graphs utilizing the 10 feedback indicators.
3 BUTTONS KEYPAD BUTTONS – (10) pushbuttons
BUTTON EVENTS – Programmable for normal, tap, double-tap and hold.
ENGRAVING – Custom backlit engraved button caps available separately.
4 POWER (1) 2.5 mm barrel DC power jack;
12 Volt DC power input (PW-1205 or
PW-1205RU power supply included).
NOTE: The HTT-B10X comes from the factory with a protective plastic overlay installed to prevent scratches in the metal face. Remember to remove this overlay prior to handing the product over to your customer.
6 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
Industry Compliance
As of the date of manufacture, the HTT-B10X has been tested and found to comply with specifications for CE marking and standards per EMC and
Radiocommunications Compliance Labelling.
FCC ID: EROCWD1016
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF Exposure (OET Bulletin 65)
To comply with FCC’s RF exposure limits for general population / uncontrolled exposure, this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement
The term “IC” before the certification/registration number only signifies that the
Industry Canada technical specifications were met
IC: 5683A-CWD1016
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 7
InfiNET™ TableTop Controller
Setup
Crestron HTT-B10X
Identity Code
The MNET ID of the HTT-B10X has been factory set to 01. After an infiNET device is added to an infiNET network, its MNET ID must be changed to a value that can be addressed by the control system program (03 to 20). The MNET IDs of multiple
HTT-B10X devices on the same gateway must be unique. MNET IDs are changed
from a personal computer (PC) via Crestron Toolbox™ (refer to “Establishing
When setting the MNET ID, consider the following:
• The MNET ID of each unit must match an ID code specified in the SIMPL
Windows or D3 Pro/SystemBuilder program.
• Each network device on the same gateway must have a unique MNET ID.
For more details, refer to the Crestron Toolbox help file.
Button Installation
The HTT-B10X is shipped with 10 blank buttons (two columns of five buttons each).
To replace one or both button columns, follow this procedure:
1. Disconnect the 12 Volt power pack (if connected) and remove the batteries.
2. Remove the four Phillips screws from the four corners on the bottom of the unit.
3. Remove the faceplate from the front of the unit.
4. Remove the old button column(s) and replace with the new one(s), making sure the column is seated in the two small holes on the side. No screws are required.
5. Replace the faceplate on the front of the unit.
6. Replace the four Phillips screws on the bottom of the unit.
7. Reinstall batteries and reconnect 12 Volt power pack.
8 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X
HTT-B10X Button Installation infiNET™ TableTop Controller
Hardware Hookup
The only connection to the HTT-B10X is for the included 12 Volt power pack.
When connecting the HTT-B10X, consider the following:
• Use Crestron power supplies for Crestron equipment.
• The included cable cannot be extended.
Hardware Connections for the HTT-B10X
12V 0.5A:
AC POWER PACK
Operations Guide – DOC. 6583B
NOTE: The HTT-B10X will not charge rechargeable AA batteries. infiNET™ TableTop Controller: HTT-B10X • 9
InfiNET™ TableTop Controller Crestron HTT-B10X
Setup Mode
Prior to using the HTT-B10X as part of a Crestron system, it must be configured for use on an infiNET network. This is done via the Setup mode.
NOTE: Setup mode is only enabled when the unit is being powered from its 12 Volt power pack.
HTT-B10X Setup Reference
Button #1:
Enables/Disables
Manner Mode
Button #3:
Enables/Disables
Local Button
Feedback
5
7
9
1
3
8
10
2
4
6
Button #2:
Press and hold to start Acquire Mode
LED #8:
Indicates infiNET link status
Buttons #9 and #10:
Press and hold together to Enter/Exit
Setup Mode
To enter Setup mode, press and hold buttons #9 and #10 while connecting the included 12 Volt DC power supply to the jack on the rear of the HTT-B10X.
Continue to hold buttons #9 and #10 for five seconds. The LEDs next to buttons #9 and #10 will blink every half second to indicate the unit is in Setup mode.
To exit Setup mode, press buttons #9 and #10. The LEDs next to buttons #9 and #10 will turn off.
Setup mode also incorporates a time-out. If there is no activity for one minute, the
HTT-B10X will exit Setup mode automatically.
The HTT-B10X will also exit Setup mode if the 12 Volt power pack is disconnected.
Basic infiNET™ Setup
Acquire Gateway Connection
Before an infiNET device can be used on an infiNET network, it must first be acquired by a C2N-MNETGW gateway that is connected to a Cresnet network.
NOTE: An infiNET device can be acquired by only one gateway.
To acquire an HTT-B10X, perform the following procedure: the unit itself by pressing ACQUIRE or from Toolbox, as described in the
10 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller latest revision of the C2N-MNETGW infiNET Gateway/Transceiver
Operations Guide (Doc. 6317), which is available from the Crestron website
( www.crestron.com/manuals ). The gateway ACQUIRE LED will light.
NOTE: C2N-MNETGW firmware version 2.001.0003 or later is required.
NOTE: Use a fixed communications channel for any gateway that will communicate with a battery operated HTT-B10X. Failure to do so could result in a loss of communications, should the gateway change channels. Auto channel operation is acceptable for units intended to be powered via the 12 Volt power pack at all times.
NOTE: In environments where multiple gateways are installed, only one gateway should be in Acquire mode at a time.
3. Put the HTT-B10X in the Acquire mode by pressing button #2 and holding it for five seconds (refer to illustration at the top of page 10). The LED next to button #2 will light when the button is pressed and will blink off briefly at the five second threshold when the button is held. When the LED blinks off, release the button. During the acquire process, the LED will blink every half second to indicate the acquire is in progress. When LED #2 stops blinking, the acquire process is complete. This can take up to five minutes.
NOTE: To cancel the acquire process before it has completed, press button #2 again.
LED #8 will indicate the infiNET link status as follows:
• Solid: communication with gateway and SIMPL program
• Blinking every half second: communication with gateway but not being “polled” by control system
• Off: no communication with gateway
4. After the process is complete, take the C2N-MNETGW out of the Acquire mode by pressing ACQUIRE on the gateway. Refer to the latest revision of the C2N-MNETGW infiNET Gateway/Transceiver Operations Guide (Doc.
6317).
5. To communicate with the control system program, an MNET ID value
between 03 and 20 must be assigned to the HTT-B10X. Refer to “Identity
Code” on page 8. Use Creston Toolbox to set the MNET ID as follows:
• Display the network device tree (Tools | Network Device Tree).
• Right-click on the HTT-B10X and select Change Network ID….
• Enter the desired MNET ID and press the Enter key.
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 11
InfiNET™ TableTop Controller
Change Network ID
Crestron HTT-B10X
Release Gateway Connection
At times, it may be desirable to unacquire an HTT-B10X from a previously acquired gateway. To unacquire the HTT-B10X from the C2N-MNETGW gateway, while in
Setup mode, press and hold button #2 for 10 seconds. The LED next to button #2 will blink twice at the 10 second threshold when the button is held.
Manner Mode
When operating from the 12 Volt power pack, the HTT-B10X has a feature called
Manner mode, which causes the unit to shut off its backlight and LED feedback indicators after some period of inactivity. This mode may be desirable in applications such as a bedroom or darkened home theater, where the constant light could become distracting.
To configure Manner mode, perform the following procedure:
2. Use button #1 (refer to illustration on page 10) to enable/disable Manner mode. The LED feedback indicator next to button #1 will light when
Manner mode is enabled.
NOTE: The LED feedback indicator next to button #1 will indicate Manner mode status only while the HTT-B10X is in Setup mode.
Local Button Feedback
Use button #3 (refer to illustration on page 10) to enable/disable local button feedback. Local button feedback provides positive confirmation for any button press.
When enabled, the LED next to the button being pressed will light for as long as the button is pressed.
When the button is released, feedback is governed by the program. When local button feedback is disabled (the default), button feedback is always governed by the program.
12 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
Programming Software
Have a question or comment about Crestron software?
Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com
.
First-time users will need to establish a user account.
Earliest Version Software Requirements for the PC
NOTE: Crestron recommends that you use the latest software to take advantage of the most recently released features. The latest software is available from the Crestron website.
Crestron has developed an assortment of Windows
-based software tools to develop an infiNET system. For the minimum recommended software versions, visit the
Version Tracker page of the Crestron website ( www.crestron.com/versiontracker ).
Programming with Crestron SystemBuilder
Crestron SystemBuilder is the easiest method of programming but does not offer as much flexibility as SIMPL Windows. For additional details, download
SystemBuilder from the Crestron website and examine the extensive help file.
Programming with D3 Pro
Crestron’s D3 Pro lighting software provides all the tools necessary to create a complete Crestron lighting system for residential applications. The lighting system includes the control system logic program, touchpanel projects and keypad programming, documentation and real-time lighting adjustment capabilities.
As with all Crestron software, D3 Pro provides extensive right-click and drag-anddrop functionality in addition to convenient keyboard shortcuts for frequently used functions and commands.
Programming is organized into six system Views of the lighting system, each providing a moveable toolbox of devices such as interfaces, fixtures and control modules. You can add a device to your system simply by selecting it from one of the toolboxes and dragging it to a room. The available toolboxes differ depending on the
View but all Views include a "General" toolbox that allows you to add areas and rooms at any time.
Operations Guide – DOC. 6583B
Programming with SIMPL Windows
NOTE: While SIMPL Windows can be used to program the HTT-B10X, it is recommended to use D3 Pro or SystemBuilder for configuring a system.
SIMPL Windows is Crestron’s premier software for programming Crestron control systems. It is organized into two separate but equally important “Managers”. infiNET™ TableTop Controller: HTT-B10X • 13
InfiNET™ TableTop Controller
Configuration Manager
Crestron HTT-B10X
Configuration Manager is the view where programmers “build” a Crestron control system by selecting hardware from the Device Library.
• To incorporate the HTT-B10X into the system, first drag the
C2N-MNETGW (Gateway) from the Wireless Receivers | Wireless
Receivers (RF) folder of the Device Library and drop it in the System
Views. Then drag the HTT-B10X from the infiNET Control Modules | infiNET Button Panels folder of the Device Library and drop it on the
C2N-MNETGW.
Locating the C2N-MNETGW in the Device Library
Locating the HTT-B10X in the Device Library
• The system tree of the control system displays the device in the appropriate slot with a default MNET ID as shown in the following illustration.
14 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X
C2Net Device, Slot 9 infiNET™ TableTop Controller
• Additional HTT-B10X devices are assigned different MNET ID numbers as they are added.
• If necessary, double click a device to open the “Device Settings” window and change the MNET ID, as shown in the figure below.
“HTT-B10X Device Settings” Window
Program Manager
• The ID code specified in the SIMPL Windows program must match the
MNET ID of each unit. Refer to “Identity Code” on page 8.
Program Manager is the view where programmers “program” a Crestron control system by assigning signals to symbols.
The symbol can be viewed by double clicking on the icon or dragging it into Detail
View. Each signal in the symbol is described in the SIMPL Windows help file (F1).
Standard Button Arrangement
Refer to the illustration on page 10 for the standard arrangement of buttons and feedback LEDs on the keypad.
Example Program
An example program for the HTT-B10X is available from the Crestron website
( www.crestron.com/exampleprograms ).
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 15
InfiNET™ TableTop Controller Crestron HTT-B10X
Uploading and Upgrading
Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features.
However, before attempting to upload or upgrade it is necessary to establish communication. Once communication has been established, files (for example, programs or firmware) can be transferred to the control system (and/or device).
Finally, program checks can be performed (such as changing the device ID or creating an IP table) to ensure proper functioning.
NOTE: For communication with Crestron Toolbox, the HTT-B10X should be powered from its 12 Volt power pack.
Establishing Communication
Use Crestron Toolbox for communicating with the HTT-B10X; refer to the Crestron
Toolbox help file for details. There is a single method of communication: indirect communication.
Indirect Communication
C2N-MNETGW infiNET HTT-B10X
SIMPL Windows
CONTROL SYSTEM
SERIAL,
ETHERNET
OR USB
PC RUNNING
CRESTRON TOOLBOX
• HTT-B10X connects to the C2N-MNETGW (Gateway), which connects to control system via Cresnet.
• Establish communication between the PC and the control system as described in the latest version of the 2-Series Control Systems Reference
Guide (Doc. 6256).
Programs and Firmware
Program or firmware files may be distributed from programmers to installers or from
Crestron to dealers. Firmware upgrades are available from the Crestron website as new features are developed after product releases. One has the option to upload programs via the programming software or to upload and upgrade via the Crestron
Toolbox. For details on uploading and upgrading, refer to the SIMPL Windows help file or the Crestron Toolbox help file.
If a SIMPL Windows program is provided, it can be uploaded to the control system using SIMPL Windows or Crestron Toolbox.
16 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
Check the Crestron website to find the latest firmware. (New users may be required to register to obtain access to certain areas of the site, including the FTP site.)
Upgrade HTT-B10X firmware via Crestron Toolbox.
• Establish communication with the HTT-B10X and display the “System
Info” window.
• Select Functions | Firmware… to upgrade the HTT-B10X firmware.
All LEDs will blink while the transfer is in progress. If the transfer fails, the unit will
enter the bootloader. Refer to “Bootloader” on page 21 for details.
NOTE: C2N-MNETGW firmware version 2.001.0003 or later is required.
Program Checks
In Crestron Toolbox, display the network device tree (Tools | Network Device Tree) to show all network devices connected to the control system and all infiNET devices that have been acquired by the HTT-B10X (C2N-MNETGW). Right-click on the
HTT-B10X (C2N-MNETGW) to display actions that can be performed on the
HTT-B10X (C2N-MNETGW).
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 17
InfiNET™ TableTop Controller Crestron HTT-B10X
Operation
The behavior of the HTT-B10X will differ depending upon whether it is powered via the included 12 Volt power pack or via two AA batteries. When powered from the
12 Volt power pack, the unit will behave much like a wired keypad, constantly communicating with the control system via the C2N-MNETGW gateway. When powered from batteries, the unit will shut itself down to conserve power when not in use and will “wake up” when a button is pressed or the unit detects motion (e.g. because it was picked up).
12 Volt Operation
When powered by its 12 Volt power pack, the HTT-B10X will behave much like a typical wired keypad, with the exception of Manner mode, described previously
(refer to “Manner Mode” on page 12).
Battery Powered Operation
NOTE: Use a fixed communications channel for any gateway that will communicate with a battery operated HTT-B10X. Failure to do so could result in a loss of communications, should the gateway change channels. Auto channel operation is acceptable for units intended to be powered via the 12 Volt power pack at all times.
Access Gateway via Crestron Toolbox
18 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X
Set Gateway to Fixed Channel infiNET™ TableTop Controller
When powered by AA batteries, the HTT-B10X will automatically shut itself off after some period of inactivity. This is done to conserve battery life and works as follows:
• When no button has been pressed and the unit has not been moved for five seconds, the unit will slow down infiNET communications with the gateway, communicating every three seconds instead of continuously.
• After an additional 10 seconds of inactivity, the unit will go to “sleep”, turning off its radio, the backlight and the LED feedback indicators.
• The unit will “wake up” as soon as a button is pressed or the unit is moved.
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 19
InfiNET™ TableTop Controller Crestron HTT-B10X
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.
HTT-B10X Troubleshooting
TROUBLE POSSIBLE CAUSE(S)
Device does not function.
Device is not receiving power from a Crestron power source.
Device is not receiving sufficient power.
Device is not communicating with the
C2N-MNETGW.
Device performs erratically.
All LEDs blink four times after waking or button press.
MNET ID of device (or the gateway ID) is not set to match the MNET
ID of the SIMPL Window program.
Communication between controller and
C2N-MNETGW unreliable.
HTT-B10X is not acquired by gateway.
CORRECTIVE ACTION
Use the provided Crestron power source. Verify connections.
Check batteries (if running on battery power).
Open Crestron Toolbox and select the Network Device
Tree. Expand the tree until the gateway to be managed is selected.
Right-click the NET ID of the selected gateway to open the sub-menu and select
Functions | MNET
Gateway…. If device is not listed, acquire the device to the infiNET network (refer to
Connection” which starts on page 10).
Use the Network Device Tree infiNET network in Crestron
Toolbox to poll the infiNET network. Verify the MNET ID for the infiNET device is set to match the MNET ID specified in the SIMPL Windows program.
NOTE: For communication with Crestron Toolbox, the
HTT-B10X should be powered from its 12 Volt power pack.
C2N-MNETGW firmware version 2.001.0003 or later is required.
Acquire the device to the infiNET network (refer to
Connection” which starts on page 10).
(Continued on following page)
20 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
HTT-B10X Troubleshooting (Continued)
TROUBLE
All LEDs blink four times after waking or button press.
(Continued)
POSSIBLE CAUSE(S)
HTT-B10X is out of range of gateway.
Gateway is off.
Gateway changed channels (battery operation only).
LEDs # 8 and #10 are on and device does not function.
Unit is in bootloader.
CORRECTIVE ACTION
Move unit back into range.
Turn gateway on.
Set the gateway to a fixed
Powered Operation” which starts on page 18). Reacquire
the HTT-B10X (refer to
Connection” which starts on page 10).
Cycle power by disconnecting the 12 Volt power pack (and batteries, if installed), then reconnecting. If this does not restore functionality, reload
firmware (refer to “Programs and Firmware” which starts on page 16 for details).
Bootloader
In rare cases, it may be necessary to bypass the HTT-B10X’s standard firmware and enter into the “bootloader”. This might be necessary if the unit was loaded with a faulty version of firmware that might prevent future firmware upgrades. In addition, in the event of a failed or aborted firmware upgrade, the unit will enter into the bootloader on its own.
To enter the bootloader, press and hold buttons #9 and #10 while connecting the included 12 Volt DC power supply to the jack on the rear of the HTT-B10X.
Continue to hold buttons #9 and #10. After five seconds, the LEDs next to buttons #9 and #10 will flash for a half second. Hold buttons #9 and #10 for another five seconds to enter the bootloader. When the unit is in the bootloader (but not in Setup mode), the LEDs next to buttons #8 and #10 will be on.
If you need to acquire the unit, press and hold button #2 for five seconds. The LED next to button # 2 will blink every half second to indicate the unit is being acquired by the gateway and the LED next to button #8 will indicate the link status (refer to
“Acquire Gateway Connection” which starts on page 10 for LED #8 behavior).
When the unit is running the bootloader, new firmware can be uploaded from the
Crestron Toolbox. During firmware upload, all LEDs will blink.
To exit the bootloader and restore the firmware that is currently installed, cycle power by disconnecting the 12 Volt power pack (and batteries, if installed), then reconnecting. If a previous attempt to upload firmware has failed, there is no way to restore. Firmware must uploaded again.
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 21
InfiNET™ TableTop Controller Crestron HTT-B10X
Reference Documents
The latest version of all documents mentioned within the guide can be obtained from the Crestron website ( www.crestron.com/manuals ). This link will provide a list of product manuals arranged in alphabetical order by model number.
List of Related Reference Documents
DOCUMENT TITLE
2-Series Control Systems Reference Guide
C2N-MNETGW infiNET Gateway/Transceiver
Further Inquiries
If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876].
You can also log onto the online help section of the Crestron website
( www.crestron.com/onlinehelp ) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of the HTT-B10X, additional information may be made available as manual updates.
These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.
Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.
22 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation.
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 23
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576 www.crestron.com
Operations Guide – DOC. 6583B
(2018330)
05.08
Specifications subject to change without notice.
advertisement
Related manuals
advertisement
Table of contents
- 5 Introduction
- 5 Features and Functions
- 7 Specifications
- 9 Physical Description
- 11 Industry Compliance
- 12 Setup
- 12 Identity Code
- 12 Button Installation
- 13 Hardware Hookup
- 14 Setup Mode
- 14 Basic infiNET™ Setup
- 16 Manner Mode
- 16 Local Button Feedback
- 17 Programming Software
- 17 Earliest Version Software Requirements for the PC
- 17 Programming with Crestron SystemBuilder
- 17 Programming with D3 Pro
- 17 Programming with SIMPL Windows
- 19 Standard Button Arrangement
- 19 Example Program
- 20 Uploading and Upgrading
- 20 Establishing Communication
- 20 Programs and Firmware
- 21 Program Checks
- 22 Operation
- 22 12 Volt Operation
- 22 Battery Powered Operation
- 24 Problem Solving
- 24 Troubleshooting
- 25 Bootloader
- 26 Reference Documents
- 26 Further Inquiries
- 26 Future Updates
- 27 Return and Warranty Policies
- 27 Merchandise Returns / Repair Service
- 27 CRESTRON Limited Warranty
