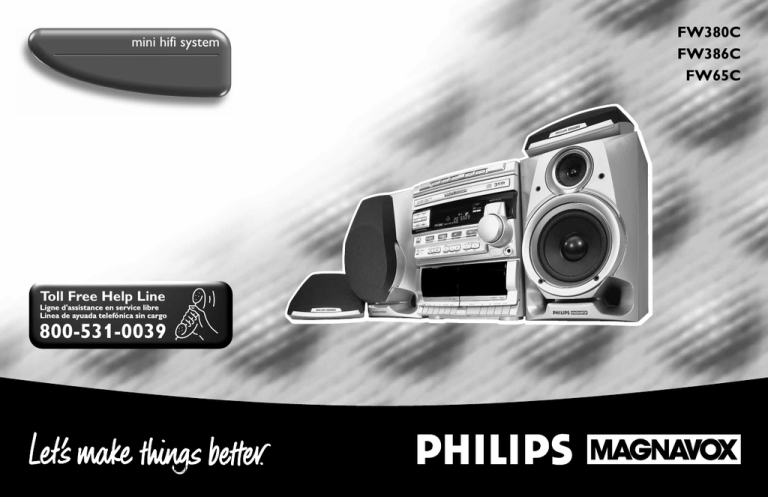

Philips FW380C/21 Operating instructions

mini hifi system
FW380C
FW386C
FW65C
Toll Free Help Line
Ligne d'assistance en service libre
Linea de ayuada telefónica sin cargo
800-531-0039
Downloaded From Disc-Player.com Philips Manuals
1
R e t u r n yo u r Wa rr a n t y R e g i s t r a t i o n c a rd t o d ay t o
e n s u re yo u re c e i ve a l l t h e b e n e f i t s yo u ’re e n t i t l e d t o.
• Once your Philips Magnavox purchase is registered, you’re eligible
to receive all the privileges of owning a Philips Magnavox product.
• So complete and return the Warranty Registration Card enclosed
with your purchase at once. And take advantage of these important benefits.
Warranty
Verification
Owner
Confirmation
Model
Registration
Registering your product within 10 days
confirms your right to maximum protection
under the terms and conditions of your
Philips Magnavox warranty.
Your completed Warranty Registration
Card serves as verification of ownership in
the event of product theft or loss.
Returning your Warranty Registration Card
right away guarantees you’ll receive all
the information and special offers which you
qualify for as the owner of your model.
Know these
safety symbols
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
For Customer Use
Enter below the Serial No. which is located on the
rear of the cabinet. Retain this information for
future reference.
Model No. _______________________________
Serial No. ________________________________
t
s
This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety
of everyone in your household, please do not remove
product covering.
The “exclamation point” calls attention to features for
which you should read the enclosed literature closely to
Downloaded
From Disc-Player.com
Philips
prevent operating
andManuals
maintenance problems.
2
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE.
CAUTION: To prevent electric shock, match wide
blade of plug to wide slot, and fully insert.
MAC5097
S• REG
AY
D
HIN 10
As a member of the Philips Magnavox “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all
the information and special offers for which you qualify,
plus easy access to accessories from our convenient home
shopping network.
ry!
r
u
H
IT
Dear Philips Magnavox product owner:
Thank you for your confidence in Philips Magnavox.You’ve
selected one of the best-built, best-backed products available
today.And we’ll do everything in our power to keep you
happy with your purchase for many years to come.
RATION
EEDED W
Congratulations on your purchase,
and welcome to the “family!”
ST
N
I
Visit our World Wide Web Site at http://www.philipsmagnavox.com
And most importantly you can count
on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome–and thanks for
investing in a Philips Magnavox product.
Sincerely,
Robert Minkhorst
President and Chief Executive Officer
P.S. Remember, to get the most from your Philips
Magnavox product, you must return your
Warranty Registration Card within 10 days. So
please mail it to us right now!
Downloaded From Disc-Player.com Philips Manuals
3
English
CAUTION
AVIS
AVISO
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOCS ÉLECTRIQUES
NE PAS OUVRIR
RIESGO DE CHOQUE ELÉCTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Attention: Afin de prévenir le risque de chocs électriques,
ne pas retirer les vis.
Toute réparation devrait être confiée à un personnel qualifié.
Atención: Para reducir el riesgo de choque elécrico,
no quite la tapa (o el panel posterior).
En su interior no hay piezas que el usuario pueda reparar.
Para servicio dirijase a personal calificado.
Ce symbole indique la présence d’une tension
suffisamment élevée pour engendrer un risque de
chocs électriques.
This symbol warns the user that uninsulated voltage
within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make
any kind of contact with any inside part of this unit.
Ce symbole indique que le manuel d’installation
fourni avec l’appareil contient d’importantes
recommandations quant au fonctionnement et
à l’entretien de ce dernier.
This symbol alerts the user that important literature
concerning the operation and maintenance of this
unit has been included. Therefore, it should be read
carefully in order to avoid any problems.
WARNING
To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION
Use of controls or adjustments or performance of
procedures other than herein may result in
hazardous radiation exposure.
The set complies with the FCC-Rules, Part 15 and with 21
CFR 1040.10.
Canada
This digital apparatus does not exceed the Class B limits
for radio noise emissions from digital apparatus as set out
in the Radio Interference Regulations of the Canadian
Department of Communications.
Downloaded
From Disc-Player.com Philips Manuals
4
AVIS
Este símbolo tiene por finalidad advertir al usuario de
la presencia de tensión peligrosa no aislada dentro de
la caja del aparato, que puede ser lo suficientemente
fuerte para constituir un peligro de choque eléctrico.
Este símbolo sirve para advertir al usuario de la
presencia de instrucciones de manejo y
mantenimiento (servicio) importantes en el manual
que acompaña al aparato.
AVISO
Afin de réduire tout risque d’incendie ou de choc
électrique, il ne faut pas exposer cet appareil à la
pluie ou à l’humidité.
Para reducir el riesgo de fuego o choque eléctrico,
no exponga el aparato a la lluvia o humedad.
ATTENTION
El uso de mando o ajustes o la ejecucción de
métodos que no sean los aquí descritos puede
ocasionar peligro de exposición a radiación.
L'utilisation des commandes ou réglages ou le nonrespect des procédures ci-incluses peuvent se
traduire par une exposition dangereuse à
l'irradiation.
L'appareil répond aux normes FCC, Part 15 et 21 CFR 1040.10.
Canada
Cet appareil numérique n'emet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques
de Class B prescrites dans le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère des Communications
du Canada.
ATENCIÓN
El aparato cumple las normas FCC, Parte 15 y 21 CFR 1040.10.
Français .................................28
Français
English .....................................4
Español ..................................54
Español
FW380C
English
INDEX
FW386C/FW65C
CLASS 1
LASER PRODUCT
Downloaded From Disc-Player.com Philips Manuals
5
SAFETY INSTRUCTIONS – Read before operating equipment
English
This product was designed and manufactured to meet strict quality and safety standards.
There are, however, some installation and operation precautions which you should be
particularly aware of.
12.
1.
13.
Read Instructions - All the safety and operating instructions should be read before
the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water - for example,
near a bathtub, washbowl, kitchen sink, laundry tub or swimming pool, or in a wet
basement.
6. Carts and Stands - The appliance should be used only with a cart or stand that is
recommended by the manufacturer.
6A.
An appliance and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or position does
not interfere with its proper ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may block the ventilation
openings; or, placed in a built-in installation, such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliances (including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
11. Grounding or Polarization - Precautions should be taken so that the grounding or
polarization means of an appliance is not defeated.
CAUTION: To prevent electric shock, match the
wide blade of this plug to the wide slot and fully insert.
Do not use this (polarized) plug with an extension cord,
AC Polarized
receptacle or other outlet unless the blades can be fully
Plug
inserted to prevent blade exposure.
Downloaded
From Disc-Player.com Philips Manuals
6
14.
15.
16.
17.
18.
19.
Power Cord Protection - Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords and plugs, convenience receptacles, and the point
where they exit from the appliance.
Cleaning - The appliance should be cleaned only as recommended by the
manufacturer.
Power Lines - An outdoor antenna should be located away from power lines.
Outdoor Antenna Grounding - If an outside antenna is connected to the receiver,
be sure the antenna system is grounded so as to provide some protection against
voltage surges and built up static charges.
Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides
information with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of grounding
connectors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See figure on page 7.
Nonuse Periods - The power cord of the appliance should be unplugged from the
outlet when left unused for a long period of time.
Object and Liquid Entry - Care should be taken so that objects do not fall and
liquids are not spilled into the enclosure through openings.
Damage Requiring Service - The appliance should be serviced by qualified
service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change
in performance; or
E. The appliance has been dropped, or the enclosure damaged.
Servicing - The user should not attempt to service the appliance beyond that
described in the operating instructions. All other servicing should be referred to
qualified service personnel.
English
SAFETY INSTRUCTIONS
Note to the Cable TV system installer
This reminder is provided to call the Cable TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Example of Antenna Grounding as
per NEC - National Electrical Code
Ground Clamp
Antenna Lead-in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Electric Service Equipment
92/11 From Disc-Player.com Philips Manuals
Downloaded
Power Service Grounding Electrode System
(NEC Art. 250, Part H)
EL 4562-1
7
LIMITED WARRANTY
AUDIO SYSTEM
One Year Free Labor
One Year Free Service on Parts
This product must be carried in for repair.
WHO IS COVERED?
You must have proof of purchase to receive warranty
service. A sales receipt or other document showing that
you purchased the product is considered proof of purchase.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product.
For one year thereafter, all parts will be repaired or replaced,
and labor is free. After one year from the day of purchase,
you pay for the replacement or repair of all parts, and for
all labor charges.
All parts, including repaired and replaced parts, are covered
only for the original warranty period.When the warranty
on the product expires, the warranty on all replaced and
repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product,
adjustment of customer controls on the product, and
installation or repair of antenna systems outside of the
product.
• product repair and/or part replacement because of misuse,
accident, unauthorized repair or other cause not within
the control of Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable
or antenna systems outside the unit.
• a product that requires modification or adaptation to
enable it to operate in any country other than the
country for which it was designed, manufactured,
approved and/or authorized, or repair of products
damaged by these modifications.
• incidental or consequential damages resulting from the
product. (Some states do not allow the exclusion of
incidental or consequential damages, so the above
exclusion may not apply to you.This includes, but is not
Downloaded
Disc-Player.com
limitedFrom
to, prerecorded
material, Philips
whetherManuals
copyrighted or
8
not copyrighted.)
• a product that is used for commercial or institutional
purposes.
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the
product is officially distributed by Philips Consumer
Electronics Company. In countries where Philips Consumer
Electronics Company does not distribute the product, the
local Philips service organization will attempt to provide
service (although there may be a delay if the appropriate
spare parts and technical manual(s) are not readily
available).
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing
proof of purchase. Attach it to this owner’s manual and
keep both nearby. Also keep the original box and packing
material in case you need to return your product.
BEFORE REQUESTING SERVICE...
Please check your owner’s manual before requesting
service. Adjustments of the controls discussed there may
save you a service call.
TO GET WARRANTY SERVICE IN
CANADA...
Please contact Philips at:
1-800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)
(In Canada, this warranty is given in lieu of all other
warranties. No other warranties are expressed or implied,
including any implied warranties of merchantability or
fitness for a particular purpose. Philips is not liable under
any circumstances for any direct, indirect, special, incidental
or consequential damages, howsoever incurred, even if
notified of the possibility of such damages.)
REMEMBER...
Please record the model and serial numbers found on the
product below. Also, please fill out and mail your warranty
registration card promptly. It will be easier for us to notify
you if necessary.
MODEL #
____________________________________
SERIAL #
____________________________________
TO GET WARRANTY SERVICE IN
U.S.A., PUERTO RICO OR U.S. VIRGIN
ISLANDS...
Take the product to a Philips factory service center (see
enclosed list) or authorized service center for repair.When
the product has been repaired, you must pick up the unit at
the center. Centers may keep defective parts.
(In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied
warranties, including implied warranties of merchantability
and fitness for a particular purpose, are limited in duration
to the duration of this express warranty. But, because some
states do not allow limitations on how long an implied
warranty may last, this limitation may not apply to you.)
This warranty gives you specific legal rights.You may have other
rights which vary from state/province to state/province.
Philips Service Solutions Group, P.O. Box 2976,
Longview,Texas 75606, USA, (903) 242-4800
EL4965E006 / MAC 4110 / 12-98
General Information ................................................... 9
Safety Information ...................................................... 9
Preparation ......................................................... 10 - 11
Controls ............................................................... 12 - 13
Remote Control ......................................................... 14
Operating The System ...................................... 14 - 15
CD ......................................................................... 16 - 18
Tuner .................................................................... 18 - 20
Tape ...................................................................... 20 - 21
GENERAL INFORMATION
General Information
Safety Information
• The typeplate (which contains the serial number)
is located at the rear of the system.
• Recording is permissible if copyright or other
rights of third parties are not infringed.
• This device complies with the Federal
Communications Commission (FCC) rules, part 15
and with 21 CFR 1040.10. Operation is subject to
the following two conditions:
– This device may not cause harmful
interference, and
– This device must accept any interference
received, including interference that may
cause undesired operation.
• Before operating the system, check that the operating
voltage indicated on the typeplate (or the voltage
indication beside the voltage selector) of your system is
identical with the voltage of your local power supply. If
not, please consult your dealer. The type plate is located
at the rear of your system.
• When the system is switched on, do not move it around.
• Place the system on a solid base (e.g. a cabinet).
• Place the system in a location with adequate ventilation
to prevent internal heat build-up in your system.
• Do not expose the system to excessive moisture, rain,
sand or heat sources.
• Under no circumstances should you repair the system
yourself, as this will invalidate the warranty!
• If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture may
condense on the lens of the CD unit inside the system.
Should this occur, the CD player will not operate
normally. Leave the power on for about one hour with no
disc in the system until normal playback is possible.
• Electrostatic discharge may cause unexpected problems.
See whether these problems disappear if you unplug the
AC power cord and plug it in again after a few seconds.
• To disconnect the system from the power supply
completely, remove the AC power plug from the
wall socket.
Aux .............................................................................. 21
Environmental Information
Recording ............................................................ 22 - 23
All unnecessary packaging has been omitted. We have
tried to make the packaging easy to separate into three
materials: cardboard (box), polystyrene foam (buffer) and
polyethylene (bags, protective foam sheet).
Clock ........................................................................... 24
Timer .................................................................... 24 - 25
Maintenance ............................................................. 25
Specifications ........................................................... 26
Troubleshooting ........................................................ 27
SAFETY INFORMATION
Your system consists of materials which can be recycled
and reused if disassembled by a specialized company.
Please observe the local regulations regarding the disposal
of packaging materials, exhausted batteries and old
equipment.
English
CONTENTS
Accessories (Supplied)
Downloaded From Disc-Player.com Philips Manuals
–
–
–
–
–
–
Remote control
Batteries (two x AA size) for remote control
AM loop antenna
FM antenna wire
AC power cord
One pair of Surround Speakers (FW386C and FW65C
only)
9
PREPARATION
English
Rear Connections
B
A
D
L
R
FM AERIAL
300Ω
FRONT
REAR
+
R
–
–
L
R
+
R
–
–
L
+
L
+
SUBWOOFER
OUT
AM AERIAL
VOLTAGE
SELECTOR
110V127V
G
220V240V
AC
MAINS
~
AUX IN
F
STANDBY ON
SU
BW O
OFER LEVEL CONT
RO
L
MIN
MAX
CUT OFF FREQUENCY
FB301
HIGH POWER SUBWOOFER
60Hz
C
Downloaded
From Disc-Player.com Philips Manuals
10
E
AUDIO OUT
150Hz
A AM Antenna Connection
Connect the supplied loop antenna to the AM AERIAL
terminal. Place the AM loop antenna far away from the
system and adjust its position for the best reception.
B FM Wire Antenna Connection
Connect the supplied FM wire antenna to the FM AERIAL
300 Ω terminal. Adjust the position of the FM antenna
for the best reception.
Outdoor Antenna
For better FM stereo reception connect an outdoor FM
antenna to the FM AERIAL 300 Ω terminal using a 300 Ω
dipole wire.
• Rear (surround) speakers : Connect the black or nonmarked wires to the black REAR terminals and the white
or marked wires to the grey REAR terminals.
Positioning the Speakers
To get the best surround sound effect, place the speakers
as follow.
FRONT
RIGHT
TV
SURROUND
LEFT
SURROUND
RIGHT
C Speaker Connections
• Connect the right speaker to Front terminal R, with the
red wire to + and the black wire to -.
• Connect the left speaker to Front terminal L, with the
red wire to + and the
black wire to -.
12 mm
• Clip the stripped portion
of the speaker wire as
shown.
unlock
lock
D Surround Speakers Connection
(for FW386C and FW65C only)
4-Speakers Connection
• Front speakers : Connect the black wires to the black
FRONT terminals and the red wires to the red FRONT
terminals.
Downloaded From Disc-Player.com Philips Manuals
You can connect the audio left and right OUT terminals of a
TV, VCR, Laser Disc or DVD player to the AUX IN terminals
at the rear of the system.
F Subwoofer Out Connection
MINI HIFI
SYSTEM
FRONT
LEFT
E Connecting other equipment to your
system
English
PREPARATION
Front Left and Right Speakers
For best listening effect, it is recommended to have the
Left and Right speakers to form an angle of approximately
45 degrees to the listener. Should the magnetic field from
the speakers affect the picture of the television, you should
increase the separation distance.
Rear (surround) Speakers
The surround speaker should be placed at normal listening
ear level. It can also be mounted on the wall at the back of
the room. Most important , sometimes you need to
experiment creatively when placing the surround speakers
in order to obtain the most ideal sound projection.
You can connect either an optional active subwoofer or an
optional wireless active subwoofer to the SUBWOOFER
OUT terminal. The wireless system uses a radio frequency
transmitter. The subwoofer reproduces just the low bass
effect (e.g. explosions, the rumble of the spaceships, etc.).
Be sure to follow the instructions supplied with the
subwoofer unit.
Note:
– Availability of wireless transmitter and its peripherals
are subjected to the approval of local authorities. Please
check with respective local safety or approving
authority.
G AC Power Supply
After all other connections have been made, connect the
AC power cord to the system and to the wall outlet.
11
CONTROLS
1
DISC
9
8
7
6
5
6
DISC
2
DISC
3
DISC CHANGE
!
@
OPEN • CLOSE
CHANGER
RDS
OPTIMAL
STEREO
NEWS
REPLAY
JAZZ
DSC
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
TECHNO
#
$
NEWS!
CLOCK
TIMER PROGRAM
MAX
DBB
2
CD
TAPE 1/2
TUNER
BRIGHTNESS
AUX
MUTE
∞
≤
¡
REPEAT SHUFFLE
PROGRAM TIMER
ROCK
CD DIRECT
FW 318C
DIGITAL SOUND CONTROL
2
1
0
MASTER VOLUME
1
2
DBB
CD
TUNER
CD 1 • 2 • 3
STANDBY. ON
▲
▲
TAPE
BAND
TUNING
▲
▲
DUBBING
TAPE 1 • 2
DEMO
%
AUX
VIDEO
PRESET
RECORD
PAUSE
3
DSC
MIC
REPLAY
3
%
VOLUME
SEARCH
STOP•CLEAR
PLAY
PAUSE
PREV
É
NEXT
^
3
ë
í
LEVEL
•MAX
3
5
Å
n
• FAST
• NORMAL
NORMA•HIGH
7
%
▲
DUBBING
4
2
3CD
▲
English
0
à
Ç
á
3
3
£
™
&
)
(
Downloaded
From Disc-Player.com Philips Manuals
12
PLAY
▲
▲
PAUSE
▲
▲
STOP.OPEN
▲
▲
▲
PLAY
▲
R EC ORD
TAPE 2
▲
▲
TAPE 1
STOP.OPEN
PAUSE
*
SHUFFLE
REPEAT
PROGRAM
$
Controls on the system and remote control
1 STANDBY-ON
– to switch the system on or to standby mode.
– to store radio stations automatically by pressing and
holding for 5 seconds.
2 SOURCE : to select the following.
CD / (CD 1•2•3)
– to select CD mode. When CD in stop mode; to select
the disc tray 1, 2 or 3.
TUNER / (BAND)
– to select Tuner mode. When in tuner mode; to select
the waveband: FM or AM.
TAPE / (TAPE 1• 2)
– to select Tape mode.
AUX / (VIDEO)
– to select sound from an external source (e.g. TV, Laser
Disc, DVD or VCR player).
3 MODE SELECTION
SEARCH à á (TUNING à á)
for CD ............ to search backward/forward.
for TUNER ..... to tune to a lower or higher radio
frequency.
STOP•CLEAR Ç (DEMO)
for CD ............ to stop CD playback or clear a program.
for TUNER ..... to stop programming.
DEMO ........... to stop demonstration.
PLAY É / PAUSEÅ
for CD ............ to start or interrupt playback.
PREV í / NEXT ë (PRESET 4 3 )
for CD ............ to skip to the beginning of the current
or previous/next track.
for TUNER ..... to select a preset station in memory.
4 DUBBING
– to dub a tape in normal or fast speed.
Downloaded From Disc-Player.com Philips Manuals
5 DIGITAL SOUND CONTROL (DSC)
– to select the desired sound effect : OPTIMAL, JAZZ,
ROCK or TECHNO.
6 DIGITAL SOUND CONTROL DISPLAY PANEL
– to view the selected DSC display.
7 DYNAMIC BASS BOOST (DBB)
– to switch on bass boost to enhance bass response or
to switch off bass boost.
8 DISPLAY
– to view the current setting of the system.
9 CD CAROUSEL TRAY
0 CD DIRECT PLAY (DISC 1 / DISC 2 / DISC 3)
– to select a CD tray for playback.
! OPEN•CLOSE
– to open or close the CD carousel tray.
@ DISC CHANGE
– to change CD(s).
# CLOCK•TIMER
– to view clock, set clock or timer.
$ PROGRAM
– to program CD tracks in CD mode or preset radio
stations in tuner mode.
% VOLUME
– to adjust the volume level.
^ n
– to connect headphones.
& TAPE DECK 2
* TAPE DECK 2 OPERATION
PLAY É .............. to start playback.
à ......................... to rewind the tape.
á ......................... to fast forward the tape.
STOP•OPEN ........ to stop playback or to open the
tape door.
PAUSE ................. to interrupt playback.
( TAPE DECK 1 OPERATION
RECORD ............... to start recording.
PLAY É .............. to start playback.
à ........................ to rewind the tape.
á ........................ to fast forward the tape.
STOP•OPEN ........ to stop playback/recording or to
open the tape door.
PAUSE ................. to interrupt playback or recording.
) TAPE DECK 1
¡ BRIGHTNESS (available in model FW620 only)
– to adjust the intensity of the display illumination.
™ REPEAT
– to repeat a CD track.
£ SHUFFLE
– to play all the available discs and their tracks in
random order.
≤ MUTE
– to switch off the sound temporarily.
∞ B
– to switch the system to standby mode.
Notes for remote control:
– First select the source you wish to control by
pressing one of the source select keys on the
remote control (e.g. CD, TUNER, TAPE 1/2 or AUX).
– Then select the desired function (PLAY, NEXT,
etc.).
English
CONTROLS
13
REMOTE CONTROL
OPERATING THE SYSTEM
RDS
• Insert the batteries (Type R06 or AA) into the remote
control as shown in the battery compartment.
OPTIMAL
DSC
TECHNO
STEREO
NEWS
REPLAY
JAZZ
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
NEWS!
CLOCK
TIMER PROGRAM
MAX
DBB
REPEAT SHUFFLE
PROGRAM TIMER
ROCK
FW 318C
DIGITAL SOUND CONTROL
MASTER VOLUME
+
-
+
-
CD
TUNER
CD 1 • 2 • 3
STANDBY. ON
▲
▲
TUNING
▲
▲
DUBBING
TAPE
BAND
AUX
TAPE 1 • 2
VIDEO
▲
English
Inserting batteries into the Remote Control
DEMO
PRESET
▲
DUBBING
• To avoid damage from possible battery leakage, remove
dead batteries or batteries that will not be used for a
long time. For replacement, use type R06 or AA
batteries.
n
• FAST
• NORMAL
NORMA• HIGH
RECORD
MIC
REPLAY
SEARCH
STOP•CLEAR
PLAY
PREV
LEVEL
NEXT
• MAX
Important:
Before you begin operating the system, complete the
preparation procedures.
Demonstration mode
The system has a demonstration mode that shows the
various features offered by the system. Whenever the
system is switched on from the wall socket, the
demonstration mode will start automatically.
Note:
– During demonstration mode, if you press any source (or
standby-on) button, the system will switch to the
respective (or standby) mode.
– When the system is switched to standby mode, 5
seconds later, the demonstration mode will resume.
Downloaded
From Disc-Player.com Philips Manuals
14
PAUSE
To cancel demonstration mode
• Press and hold STOP•CLEAR Ç (DEMO) (on the
system only) for 5 seconds to stop the demonstration.
™ The demonstration mode will be switched off.
™ The system will switch to standby mode.
Easy Set
EASY SET allows you to store all available radio stations in
a particular band (FM or AM) automatically.
• Press and hold STANDBY•ON (on the system only) for
5 seconds; when the system is in standby or
demonstration mode.
™ "EASY SET" will be displayed and followed by
"TUNER".
™ EASY SET will start with the last active band.
™ All available radio stations with sufficient signal
strength will be stored or until 40 presets are filled.
Notes :
– When EASY SET is used, all previously stored stations
will be erased.
– The last preset station will appear on the display when
EASY SET is completed.
Switching the system ON
• Press STANDBY•ON (on the system only), CD,
TUNER, TAPE or AUX.
You can also switch on the system by pressing any one of
the CD DIRECT PLAY buttons.
Switching the system to standby mode
• Press STANDBY•ON again.
™ The system will switch to standby mode.
Selecting the Source
• Press the respective source selection button: CD,
TUNER, TAPE or AUX.
™ The display indicates the selected source.
Note:
– For an external source, make sure that you have
connected the audio left and right OUT terminals of the
external equipment (TV, VCR, Laser Disc or DVD player)
to the AUX IN terminals.
Sound Control
Volume Adjustment
Adjust VOLUME to increase or decrease the sound level.
For Personal Listening
Connect the headphones plug to the n socket at the front
Downloaded
From The
Disc-Player.com
of the system.
speakers will bePhilips
muted.Manuals
Digital Sound Control (DSC)
The DSC feature enables you to enjoy special sound effects
that have preset equalizer settings, providing the best
music reproduction.
• Press DIGITAL SOUND CONTROL (DSC) to select
OPTIMAL, JAZZ, ROCK or TECHNO.
™ The Digital Sound Control display panel will light up
respectively.
™ “OPTIMAL, JAZZ, ROCK or TECHNO” will be
displayed.
Automatic DSC-DBB selection
The best setting for the DBB is automatically generated for
the respective DSC selection. You can manually select the
DBB setting that best suits your listening environment.
DSC Selection
Optimal
Jazz
Rock
Techno
Note:
– Some CDs or tapes might be recorded in high
modulation. It may cause a distortion at high volume. If
this occurs, switch off DBB or reduce the volume.
English
OPERATING THE SYSTEM
Mute (only on remote control)
This feature allows you to temporarily switch off the sound
of the system without switching off the system when you
require a moment of silence.
• Press MUTE on the remote control to switch off the
sound.
™ “MUTE” will be displayed.
• Press MUTE again on the remote control or increase the
VOLUME level to switch on the sound.
DBB On/Off
On
Off
Off
On
Dynamic Bass Boost (DBB)
The DBB mode enhances the bass response.
• Press DBB to switch on bass response.
™ The DBB button lights up.
™ “DBB ON” will be displayed.
DBB
DBB
DBB
OFF
DBB
ON
To switch off DBB
• Press DBB again.
™ The DBB button light is switched off.
™ “DBB OFF” will be displayed.
15
CD
English
Loading the CD Changer
DISC
1
DISC
2
DISC
3
DISC CHANGE
OPEN • CLOSE
1 Press CD to select CD mode.
2 Press OPEN•CLOSE.
™ The CD compartment slides out.
3 Load a CD with the printed side up in the right tray.
• You can load another disc in the left tray.
• To load the third disc, press the DISC CHANGE button.
™ The CD changer carousel will rotate until the empty
tray is at the right hand side and is ready for loading.
™ Playback will always start with the disc in the outer
right disc tray.
4 Press OPEN•CLOSE to close the CD compartment.
™ The total number of tracks and playing time of the
last selected disc appear on the display.
3CD
CHANGER
RDS
OPTIMAL
DSC
TECHNO
STEREO
NEWS
REPLAY
JAZZ
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
NEWS!
CLOCK
TIMER PROGRAM
MAX
DBB
REPEAT SHUFFLE
PROGRAM TIMER
ROCK
DIGITAL SOUND CONTROL
MASTER VOLUME
CD Direct Play
CD
TUNER
CD 1 • 2 • 3
▲
▲
TUNING
▲
▲
DUBBING
BAND
AUX
TAPE 1 • 2
DEMO
You can play a CD directly by pressing the DISC 1, DISC 2
or DISC 3 button. The CD player will stop at the end of
playback of the selected disc.
VIDEO
▲
STANDBY. ON
TAPE
PRESET
▲
DUBBING
n
• FAST
• NORMAL
NORMA• HIGH
RECORD
MIC
REPLAY
SEARCH
STOP•CLEAR
PLAY
PAUSE
PREV
LEVEL
NEXT
• MAX
Warning!
1) This system is designed for conventional CDs. Do not use any accessories like disc stabilizer rings or CD
treatment sheets, etc., which may damage the CD mechanism.
2) Do not load more than one disc into each tray.
3) When the CD changer is loaded with CD(s), do not turn over or shake the system. This may jam the changer.
You can load up to three discs in the CD changer for continuous playback without interruption.
Downloaded
From Disc-Player.com Philips Manuals
16
– When the button is lighted, it indicates that there is a
disc loaded in the disc tray.
Playing a CD
1 Press PLAY É to start playback.
™ The disc tray, track number and elapsed playing time
of the current track appear on the display.
• To interrupt playback, press PAUSE Å.
™ The playing time flashes.
• To resume playback, press PLAY É again.
2 To stop playback, press STOP•CLEAR Ç.
Note:
– All the available discs will play once, then stop. When
the CD has stopped playing, the system will switch to
the standby mode after 15 minutes if no button is
pressed.
Disc Change
You can change the outer 2 discs while the third inner disc
is at the stop or playing mode.
1 Press DISC CHANGE.
™ The CD compartment slides out.
2 Replaced the discs in the left and right disc trays.
• If you press DISC CHANGE again during playback, the
CD will stop playing.
™ The CD carousel tray will rotate until the inner tray is
at the right hand side and is ready for changing.
3 Press OPEN•CLOSE to close the CD compartment.
Selecting a desired track
Selecting a desired track at the stop mode
1 Press PREV í or NEXT ë until the desired track
appears on the display.
2 Press PLAY É to start playback.
™ The selected track number and elapsed playing time
appear on the display.
Selecting a desired track during playback
1 Press PREV í or NEXT ë until the desired track
appears on the display.
™ The selected track number and elapsed playing time
appear on the display.
• If you press PREV í once it will skip to the beginning
of the current track and play the track again.
Downloaded From Disc-Player.com Philips Manuals
Searching for a particular passage during
playback
• Press and hold à or á until the desired passage is
located.
™ The volume will be reduced.
• Play returns to normal when à or á is released.
Programming Tracks
Programming tracks of a loaded CD is possible in the stop
mode. The display will indicate the total tracks stored in
the program. Up to 40 tracks can be stored in the memory
in any order. When 40 tracks are stored and you attempt to
store another track, the display will show “PROGRAM
FULL”.
1 Load the desired discs in the disc trays.
2 Press PROGRAM to start programming.
™ The PROGRAM flag starts flashing.
3 Press the CD (CD 1•2•3) button to select the disc.
4 Press PREV í or NEXT ë to select the desired track.
5 Press PROGRAM to store the track.
• Repeat steps 3 to 5 to store other discs and tracks.
6 Press STOP•CLEAR Ç once to end programming
mode.
™ The total number of tracks programmed and total
playing time appear on the display.
Notes:
– If the total playing time is more than “99:59” or if
one of the programmed tracks has a number greater
than 30, then “--:--” appears in the display instead
of the total playing time.
– During programming, if no button is pressed within 20
seconds, the system will exit program mode
automatically.
Playing the program
1 Press PLAY É to start program playback.
™ “PLAY PROGRAM” appears on the display.
™ The track number and elapsed playing time of the
current track will appear on the display.
• If you press REPEAT during program playback, the
current track will be played repeatedly.
™ The REPEAT and PROGRAM flags will be displayed.
2 Press STOP•CLEAR Ç to stop program playback.
English
CD
Note:
– If you press any of the CD DIRECT PLAY buttons, the
system will play the selected disc or track and the
stored program will be ignored temporarily. The
PROGRAM flag will also temporarily disappear from the
display and then reappear when the playback for the
selected disc ends.
Reviewing the program
Reviewing of the program is only possible in the stop
mode.
• Press PREV í or NEXT ë repeatedly to review the
programmed tracks.
• Press STOP•CLEAR Ç to exit review mode.
Erasing the program (in the stop mode)
• Press STOP•CLEAR Ç on the system.
™ “PROGRAM CLEARED” will be displayed.
Note:
– The program will be erased when the system is
disconnected from the power supply. If the CD carousel
is opened, the tracks belonging to the outer two trays
will be erased and the display will show “CLEARED” .
17
CD
TUNER
RDS
It will play all the available discs and their tracks in random
order. Shuffle may also be used when tracks are
programmed.
OPTIMAL
DSC
TECHNO
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
REPEAT SHUFFLE
PROGRAM TIMER
ROCK
DIGITAL SOUND CONTROL
MASTER VOLUME
CD
TUNER
CD 1 • 2 • 3
STANDBY. ON
▲
▲
DUBBING
NEWS!
CLOCK
TIMER PROGRAM
MAX
DBB
TUNING
TAPE
BAND
▲
▲
To shuffle all the discs and tracks
1 Press SHUFFLE.
™ “SHUFFLE” will be displayed.
™ The SHUFFLE flag, the disc and the track selected at
random appear on the display.
• The discs and the tracks will now be played in random
order until you press STOP•CLEAR Ç.
• If you press REPEAT during shuffling, the current track
will be played repeatedly.
™ The REPEAT and SHUFFLE flags will be displayed.
2 Press SHUFFLE again to resume normal playback.
™ The SHUFFLE flag disappears from the display.
STEREO
NEWS
REPLAY
JAZZ
AUX
TAPE 1 • 2
VIDEO
▲
English
Shuffle (only on remote control)
DEMO
PRESET
▲
DUBBING
n
• FAST
• NORMAL
NORMA•HIGH
RECORD
MIC
REPLAY
SEARCH
STOP•CLEAR
PLAY
PAUSE
PREV
LEVEL
NEXT
•MAX
Repeat (only on remote control)
It will play the current track repeatedly.
Easy Set
1 Press REPEAT during CD playback.
™ “REPEAT TRACK” will be displayed.
™ The REPEAT flag appears on the display.
• The track will now be played repeatedly until you press
STOP•CLEAR Ç.
2 Press REPEAT again to resume normal playback.
™ The REPEAT flag disappears from the display.
EASY SET allows you to store all available radio stations in
a particular band (FM or AM) automatically.
Downloaded
From Disc-Player.com Philips Manuals
18
• Press and hold STANDBY•ON (on the system only) for
5 seconds; when the system is in standby or
demonstration mode.
™ "EASY SET" will be displayed and followed by
"TUNER".
™ EASY SET will start with the last active band.
™ All available radio stations with sufficient signal
strength will be stored or until 40 presets are filled.
Notes :
– When EASY SET is used, all previously stored radio
stations will be erased.
– The last preset radio station will appear on the display
when EASY SET is completed.
Tuning to radio stations
1 Press TUNER to select TUNER mode.
™ "TUNER" will be displayed.
A few seconds later, the current frequency or the
radio station name if available will be displayed.
2 Press TUNER (BAND) again to select the desired
waveband : FM or AM.
3 Press TUNING à or á for more than one second,
then release.
™ The display will show ‘SEARCH’ until a radio station
with sufficient signal strength is found.
• Repeat this procedure until the desired station is
reached.
• To tune to a weak station, briefly press TUNING à or
á until the display shows the desired frequency and/or
when the best reception has been obtained.
Storing Preset Stations
You can store up to 40 radio stations in the memory. When
a preset radio station is selected, the preset number
appears next to the frequency on the display.
Automatic programming
1 Press TUNER.
2 Press TUNER (BAND) again to select the desired
waveband : FM or AM.
3 Press PROGRAM for more than one second.
™ PROGRAM flag starts flashing and ‘AUTO’ will be
displayed.
™ Every available station for the selected waveband
will be stored automatically. The frequency and
preset number will be displayed briefly.
Downloaded From Disc-Player.com Philips Manuals
™ The system will stop searching when all the
available radio stations are stored or when the
memory for 40 preset radio stations is used.
™ The system will remain tuned to the last stored
preset radio station.
• Repeat the above procedure to store other preset radio
stations for the other waveband. Remember to select
the next available preset number before proceeding. If
not, some of the preset radio stations may be erased.
Notes:
– You can cancel the automatic programming by pressing
PROGRAM or STOP•CLEAR Ç on the system only.
– If you want to reserve a section of preset numbers, for
example preset numbers 1 to 9, select preset 10 before
starting automatic programming: now only the preset
numbers 10 to 40 will be programmed.
Manual programming
1 Press TUNER.
2 Press TUNER (BAND) to select the desired waveband :
FM or AM.
3 Press PROGRAM for less than one second.
™ PROGRAM flag, the frequency and preset number
start flashing.
™ The next available preset number will be displayed
for selection.
4 Press TUNING à or á to tune to the desired
frequency.
• If you wish to store the radio station to another preset
number, press PRESET 4 or 3 to select the desired
preset number.
5 Press PROGRAM again.
™ PROGRAM flag will stop flashing, and the radio
station will be stored.
• Repeat the above procedure to store other preset radio
stations.
English
TUNER
Notes:
– When 40 radio stations are stored and you attempt to
store another radio station, the display will show
" PROGRAM FULL”. If you want to change an
existing preset number; repeat steps 4 and 5.
– You can cancel manual programming by pressing
STOP•CLEAR Ç on the system only.
– During programming, if no button is pressed within 20
seconds, the system will exit program mode
automatically.
Tuning to Preset Radio Stations
• Press PRESET 4 or 3 to select the desired preset
number.
™ The preset number, frequency and waveband appear
on the display
19
TAPE
English
Loading a tape
RDS
OPTIMAL
STEREO
NEWS
REPLAY
JAZZ
DSC
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
CLOCK
TIMER PROGRAM
MAX
DBB
TECHNO
REPEAT SHUFFLE
PROGRAM TIMER
ROCK
DIGITAL SOUND CONTROL
MASTER VOLUME
CD
TUNER
CD 1 • 2 • 3
▲
▲
TUNING
▲
▲
DUBBING
TAPE
BAND
DEMO
Tape Playback
AUX
TAPE 1 • 2
VIDEO
▲
STANDBY. ON
• Press STOP•OPEN.
• The tape deck door opens.
• Load the tape with the open side
downward and the full spool to
the left.
• Close the tape deck door.
NEWS!
PRESET
▲
DUBBING
n
• FAST
• NORMAL
NORMA• HIGH
RECORD
MIC
REPLAY
SEARCH
STOP•CLEAR
PLAY
PAUSE
PREV
LEVEL
NEXT
• MAX
1 Press TAPE to select TAPE mode.
™ "TAPE" will be displayed.
2 Load the tape into the selected tape deck.
3 Press PLAY É to start playback.
• To interrupt playback, press PAUSE.
• To resume playback, press PAUSE again.
4 Press STOP•OPEN to end playback.
Rewind/Fast Forward
Downloaded
From Disc-Player.com Philips Manuals
20
PLAY
▲
▲
PAUSE
▲
▲
STOP.OPEN
▲
▲
▲
PLAY
▲
R EC ORD
TAPE 2
▲
▲
TAPE 1
At the stop mode
1 You can rewind or fast forward a tape by pressing à or
á respectively.
™ The tape will stop automatically at the end of
rewinding or fast forwarding.
2 Press STOP•OPEN to stop rewinding or fast
forwarding.
STOP.OPEN
PAUSE
AUX
Continuous Playback From Tape Deck 2 to
Tape Deck 1
1
2
3
4
5
Press TAPE to select TAPE mode.
Load the tapes in tape deck 1 and 2.
Press PLAY 2␣ on tape deck 2.
Press PAUSE on tape deck 1.
Press PLAY 2 on tape deck 1.
™ Playback will begin with tape deck 2 and will
continue with tape deck 1 when playback on tape
deck 2 ends.
6 Press STOP•OPEN if you want to stop playback before
the end of the tape in tape deck 1 or tape deck 2.
Notes:
– During rewinding or fast forwarding of a tape, it is also
possible to select another source mode (e.g. CD, TUNER
or AUX mode).
– Check and tighten slack tape before use with a pencil.
Slack tape may get jammed or may burst in the
mechanism.
– C-120 tape is extremely thin and is easily deformed or
damaged. It is not recommended for use in this system.
– Store the tapes at room temperature and do not put
them too close to a magnetic field (for example, a
transformer, TV or loudspeaker boxes).
Downloaded From Disc-Player.com Philips Manuals
RDS
STEREO
NEWS
REPLAY
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
MAX
NEWS
CLOCK
TIMER PROGRA
English
TAPE
REPEAT SHUFFLE
PROGRAM TIMER
MASTER VOLU
TUNER
BAND
TAPE
TAPE 1 • 2
AUX
VIDEO
Selecting External Equipment
If you have connected the audio out terminals of the
external equipment (TV, VCR, Laser Disc or DVD player) to
the AUX IN terminals, you can hear the enhanced sound
from the system.
• Press AUX to select the external mode.
™ "AUX" will be displayed.
Note:
– All the sound control features (e.g. DSC, DBB, etc.) are
available for selection.
21
RECORDING
English
RDS
OPTIMAL
TECHNO
STEREO
NEWS
REPLAY
JAZZ
DSC
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
CLOCK
TIMER PROGRAM
MAX
DBB
REPEAT SHUFFLE
PROGRAM TIMER
ROCK
DIGITAL SOUND CONTROL
MASTER VOLUME
CD
TUNER
CD 1 • 2 • 3
▲
▲
TUNING
▲
▲
DUBBING
TAPE
BAND
AUX
TAPE 1 • 2
DEMO
One Touch Recording
VIDEO
▲
STANDBY. ON
Notes:
– For recording, use only tape of IEC type I (normal tape).
– The tape is secured at both ends with leader tape. At
the beginning and end of tape, nothing will be recorded
for six to seven seconds.
– The recording level is set automatically, regardless of
the position of Volume or DBB.
– To prevent accidental recording, break out the tab on the
left shoulder of the tape side you want to protect.
NEWS!
PRESET
▲
DUBBING
n
• FAST
• NORMAL
NORMA• HIGH
RECORD
MIC
REPLAY
SEARCH
STOP•CLEAR
PLAY
PAUSE
PREV
LEVEL
NEXT
• MAX
Downloaded
From Disc-Player.com Philips Manuals
22
PLAY
▲
▲
PAUSE
▲
▲
STOP.OPEN
▲
▲
▲
▲
R EC ORD
TAPE 2
▲
▲
TAPE 1
STOP.OPEN
PAUSE
• For One Touch Recording, as soon as you press RECORD,
the current source will be recorded on tape deck 1.
1 Load a blank tape in tape deck 1.
2 Press RECORD on tape deck 1 to start recording.
™ The REC flag starts flashing.
3 Press PAUSE to interrupt recording.
4 Press STOP•OPEN on tape deck 1 to stop recording.
Dubbing tapes (from tape deck 2 to tape deck 1)
CD Synchro Start Recording
1 Load the prerecorded tape into tape deck 2 and a blank
tape into tape deck 1.
™ Make sure that both tapes have their full spool to the
left.
2 Press DUBBING to switch between normal and high
speed dubbing.
™ "NORMAL" (normal speed) or "FAST" (high speed)
will be displayed.
™ HSD flag appears on the display for high speed
dubbing.
3 Press PAUSE on tape deck 1.
4 Press RECORD on tape deck 1.
5 Press PLAY on tape deck 2.
™ Recording will start automatically.
™ The REC flag starts flashing.
6 Press STOP•OPEN on tape deck 1 and tape deck 2 to
stop dubbing.
During CD synchro start recording,
• It is not advisable to fast forward/rewind your tape in
tape deck 2.
• It is not possible to listen to another source.
Notes:
– At the end of side A, flip the tapes to side B and repeat
the procedure.
– Dubbing of tapes is only possible from tape deck 2 to
tape deck 1.
– To ensure good dubbing, use tapes of the same length.
– During high speed dubbing in Tape mode, the sound is
reduced to a low volume.
Downloaded From Disc-Player.com Philips Manuals
English
RECORDING
1 Load a blank tape into tape deck 1 and a disc into the
disc tray.
2 Press CD.
• You can program the tracks in the order you want them
to be recorded (see Programming Tracks). If not, the
tracks are recorded according to the selected disc.
3 Press RECORD on tape deck 1 to start recording.
4 Press STOP•OPEN on tape deck 1 to stop recording
and STOP•CLEAR Ç to stop CD playback.
Recording from other sources (only on tape
deck 1)
1 Load a blank tape into tape deck 1.
2 Press CD, TUNER, TAPE or AUX.
• Start playback of the selected source.
3 Press RECORD on tape deck 1 to start recording.
™ The REC flag is flashing.
4 Press PAUSE to interrupt recording.
5 Press STOP•OPEN on tape deck 1 to stop recording.
Note:
– During recording, it is not possible to listen to another
sound source.
23
CLOCK
TIMER
English
RDS
OPTIMAL
TECHNO
STEREO
NEWS
REPLAY
JAZZ
DSC
FM
REC
HSD
MW
DBB
IS
LW
AM
PM
Notes:
– During clock setting, if no button is pressed within 90
seconds, the system will exit clock setting mode
automatically.
– When a power interruption occurs, the clock setting is
erased.
NEWS!
CLOCK
TIMER PROGRAM
MAX
DBB
REPEAT SHUFFLE
PROGRAM TIMER
ROCK
DIGITAL SOUND CONTROL
MASTER VOLUME
Timer Setting
CD
TUNER
CD 1 • 2 • 3
▲
▲
▲
▲
TUNING
AUX
TAPE 1 • 2
VIDEO
▲
STANDBY. ON
DUBBING
TAPE
BAND
DEMO
PRESET
▲
DUBBING
n
• FAST
• NORMAL
NORMA• HIGH
RECORD
MIC
REPLAY
SEARCH
STOP•CLEAR
PLAY
PAUSE
PREV
LEVEL
NEXT
• MAX
View Clock
Clock Setting
You can view the clock (if it is set) at standby or any source
mode. It will be displayed for about 7 seconds.
The clock is set in 12-hour mode, e.g. “12:00 AM“ or
“12:00 PM“. Before setting the clock, you must be in
the View Clock mode.
• Press CLOCK•TIMER briefly.
™ “10:25 PM” (the current time) will be displayed.
™ “--:--” will be displayed if the clock is not set.
1 Press CLOCK•TIMER to select clock mode.
™ “12:00 AM” or the current time starts flashing.
™ “à , á , í , ë, Ç” light up.
2 Set the hour with␣ à or á.
3 Set the minute with␣ í or ë.
4 Press CLOCK•TIMER again to store the setting.
™ The clock starts running.
• To exit without storing the setting, press Ç.
• The system can switch on to CD or TUNER mode
automatically at a preset time. It can serve as an alarm
to wake you up. After half an hour from the preset time,
the system will return to the standby mode if no button
is pressed.
• Before setting the timer, make sure the clock is set
correctly.
• The timer has to be reset or start again for each
subsequent preset time.
• The volume of the timer will be at the last setting
before the set is switched to standby mode.
1 Press and hold CLOCK•TIMER for more than 2 seconds
to select timer mode.
™ “ON 12:00 AM” or the last set timer starts
flashing. The TIMER flag flashes.
™ The last selected source is lighted while other
available sources are flashing.
™ “à , á , í , ë, Ç” light up.
2 Press CD or TUNER to select the desired source.
3 Press␣ à or á to set the hour for the timer to start.
4 Press␣ í or ë to set the minute for the timer to start.
5 Press CLOCK•TIMER to store the start time.
™ The TIMER is now set.
™ The TIMER flag remains on the display.
• To exit without storing the setting, press Ç.
Downloaded
From Disc-Player.com Philips Manuals
24
• At the preset time, the TIMER will be activated.
™ The selected source will be played.
™ The TIMER flag disappears from the display.
Notes:
– During timer setting, if no button is pressed within 90
seconds, the system will exit timer setting mode
automatically.
– If the source selected is TUNER, the last tuned
frequency will be switched on.
– If the source selected is CD, playback will begin with
the first track of the last selected disc. If the CD trays
are empty, the TUNER will be selected instead.
To cancel the TIMER
1 Press CLOCK•TIMER for more than 2 seconds.
2 Press Å to cancel the timer.
™ “CANCEL” will be displayed.
™ The TIMER flag disappears from the display.
To start the TIMER again (for the same time)
1 Press CLOCK•TIMER for more than 2 seconds.
2 Press CLOCK•TIMER again to store the start time and
the selected source.
MAINTENANCE
Maintenance
Cleaning the Cabinet
• Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution containing
alcohol, spirits, ammonia or abrasives.
English
TIMER
Cleaning Discs
• When a disc becomes dirty, clean it
with a cleaning cloth. Wipe the disc
from the center out.
• Do not use solvents such as benzine,
thinner, commercially available
cleaners, or antistatic spray intended
for analog records.
Cleaning the CD lens
• After prolonged usage, dirt or dust may accumulate at
the CD lens. To ensure good playback quality, clean the
CD lens with Philips Magnavox CD Lens Cleaner or any
commercially available. Follow the instructions supplied
with the Lens Cleaner.
Cleaning the Heads and the Tape Paths
• To ensure good recording and playback quality, clean the
heads, the capstan(s), and pressure roller(s) after every
50 hours of tape operation.
• Use a cotton swab slightly moistened with cleaning
fluid or alcohol.
• You can also clean the heads by playing a cleaning tape
through once.
Demagnetizing the heads
• Use a demagnetizing tape available at your dealer.
Downloaded From Disc-Player.com Philips Manuals
25
SPECIFICATIONS
English
Specifications
AMPLIFIER
Output power
FW380C (6 Ω, 1 kHz, 10% THD) ............. 2 x 25 W RMS(1)
FW386C (6 Ω, 1 kHz, 10% THD) ... 2 x 25, 2 x 5 W RMS(1)
FW65C (6 Ω, 1 kHz, 10% THD) ..... 2 x 25, 2 x 5 W RMS(1)
Signal-to-noise ratio ..................................... ≥ 67 dBA (IEC)
Frequency response ..................................... 50 – 15,000 Hz
Input sensitivity
Aux In .................................................................... 700 mV
Output
Speakers (Left/Right) .............................................. ≥ 6 Ω
Speakers (Surround) (FW386C and FW65C only) .... ≥ 6 Ω
Headphones .............................................. 32 Ω – 1000 Ω
Subwoofer ................................................................ 1.5 V
(1) ± 1 dB
CD PLAYER
Number of programmable tracks ..................................... 40
Frequency response ..................................... 20 – 20,000 Hz
Signal-to-noise ratio .............................................. ≥ 80 dBA
Channel separation ..................................... ≥ 60 dB (1 kHz)
Total harmonic distortion ..................................... < 0.003%
TUNER
FM wave range ........................................... 87.5 – 108 MHz
AM wave range ........................................... 530 – 1700 kHz
Number of presets ............................................................ 40
Antenna
FM ....................................................... 300 Ω dipole wire
AM .............................................................. Loop antenna
TAPE DECK
Frequency response
Normal tape (type I) ....................... 80 – 12,500 Hz (8 dB)
Signal-to-noise ratio
Normal tape (type I) ........................................... ≥ 48 dBA
Wow and flutter ................................................. ≤ 0.4% JIS
SPEAKERS (Front Left/Right)
System ................................ 2-way; double port bass reflex
Impedance ..................................................................... 6 Ω
Woofer ...................................................................... 1 x 5.5"
Tweeter ..................................................................... 1 x 2.5"
Dimensions (w x h x d) ...................... 210 x 310 x 240 (mm)
Weight ............................................................... 2.3 kg each
SURROUND SPEAKERS (for FW386C and FW65C only)
System ......................................................... closed satellite
Impedance ..................................................................... 6 Ω
Speaker Driver ............................................ 1 x 3” full range
Dimensions (w x h x d) ........................... 178x 90 x 178 mm
Weight ............................................................. 0.85 kg each
GENERAL INFORMATION
Material/finish .................................................. Polystyrene
AC Power ........................................................ 120 V / 60 Hz
Power Consumption
Active ..................................................................... 45W
Standby ............................................................. ≤ 15 W
Dimensions (w x h x d) ...................... 265 x 310 x 330 (mm)
Weight (without speakers) ......................................... 5.2 kg
Subject to modification
Downloaded
From Disc-Player.com Philips Manuals
26
Warning! Under no circumstances should you try to
repair the system yourself, as this will invalidate the
warranty.
• If a fault occurs, check the points listed below before
taking the system for repair.
• Should any problems persist after you have made these
checks, consult your nearest dealer or service center.
Tape Deck Operation
CD Player Operation
Recording or playback cannot be made or there is a
decrease in audio level.
• Dirty tape heads, capstans or pressure rollers.
™ See section on tape deck maintenance.
• Magnetic build-up in the record/playback head.
™ Use demagnetizing tape.
“NO DISC” is displayed.
• The disc is inserted upside down.
™ Place CD with printed side up.
• Moisture condensation at the lens.
™ Wait until lens has adjusted to normal room
temperature.
• There is no disc in the CD tray.
™ Insert a CD.
• The CD is dirty, badly scratched or warped.
™ Clean or replace the CD.
• The CD lens is dirty or dusty
™ See section under Maintenance.
Radio Reception
Poor radio reception
• The signal strength is too weak.
™ Adjust the antenna.
• The TV or VCR is too close to the stereo system.
™ Separate the stereo system from the TV or VCR.
™ Connect an external antenna for better reception.
Downloaded From Disc-Player.com Philips Manuals
“RECORDING ACTIVE” is displayed.
• A recording is in progress.
™ Stop the recording or wait until it is finished.
“TAPE DUBBING ONLY” is displayed.
• Tape dubbing is only possible in tape mode.
™ Switch source to tape mode.
General
System does not react when any button is pressed.
• Electrostatic discharge.
™ Press STANDBY-ON to switch the system off. Remove
the AC power plug from the wall outlet, then reconnect
and switch on the system again.
No or poor sound.
• Volume is not turned up.
™ Adjust VOLUME.
• The system is muted.
™ Press MUTE to switch on the sound.
• The headphones are connected.
™ Disconnect the headphones.
• Speakers are not connected or are connected wrongly.
™ Check that the speakers are connected correctly.
™ Make sure that the stripped speaker wire is clamped.
Reversed left and right sound.
• Speakers are connected wrongly.
™ Check the speaker connections and location.
Lack of bass sound or apparently imprecise physical
location of musical instruments.
• Speakers are connected wrongly.
™ Check the speaker connection for proper phasing, red/
black wires to red/black terminals.
English
TROUBLESHOOTING
Remote control has no effect on the system.
• The distance to the system is too large.
™ Reduce the distance.
• Batteries are inserted incorrectly.
™ Insert the batteries with their polarities (+/– signs) as
indicated..
• Batteries are exhausted.
™ Replace the batteries.
• Wrong source is selected.
™ Select the source (CD, TUNER, etc.) before pressing the
function button, (PLAY, PREV/NEXT, etc.).
Timer not working.
• Timer is not switched on.
™ Press CLOCK•TIMER to switch on the timer.
• Dubbing/recording is in progress.
™ Stop dubbing/recording.
System displays features automatically; buttons
flash continuously.
• Demonstration mode is switched on.
™ Press and hold Ç for 5 seconds to switch off the
demonstration.
27
