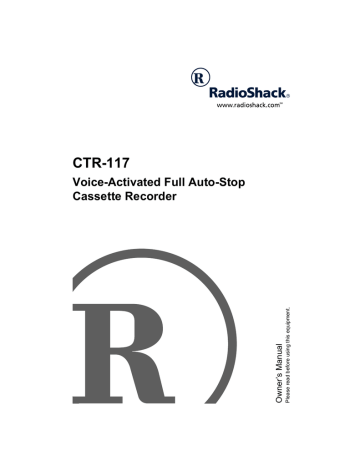

CTR-117
Please read before using this equipment.
Owner’s Manual
Voice-Activated Full Auto-Stop
Cassette Recorder
! Features
Your RadioShack Voice-Activated Full
Auto-Stop Cassette Recorder is a portable cassette recording system that delivers quality sound from its speaker, or
through an earphone or external speaker. You can use the recorder to play and
record cassette tapes while you are
working or playing. Because the recorder is portable, you can use it in any room
or outdoors. Its features include:
Microphone Jack — lets you connect
an external microphone
Remote Jack — lets you connect an external microphone with a remote switch.
WARNING: To reduce the risk of fire or shock
hazard, do not expose this product to rain or
moisture.
CAUTION
Voice-Activated (VOX) Recording —
records only when there is sound so you
can save power and prevent blank sections of tape.
Full Auto Stop — stops the cassette
tape when it reaches its end.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.
One-Touch Recording — lets you begin recording at the touch of a button.
This symbol is intended to alert
you to the presence of uninsulated dangerous voltage within
the product’s enclosure that might
be of sufficient magnitude to constitute a risk of electric shock. Do
not open the product’s case.
Pause Control — lets you temporarily
stop a cassette tape during play and recording.
Cue/Review Function — advances or
rewinds the tape during play to help you
find a section on the tape.
!
Built-in Microphone — lets you record
without connecting an external microphone.
This symbol is intended to inform
you that important operating and
maintenance instructions are
included in the literature accompanying this product.
Tone Control — lets you customize the
sound of your recorder by controlling low
and high tones.
© 2000 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks used by RadioShack Corporation.
2
Features
!
! Preparation
CONNECTING POWER
Using Battery Power
You can power your recorder from any
of these power sources:
You can power the recorder with four C
batteries (not supplied). For the longest
life, we recommend RadioShack alkaline batteries.
• standard AC power (using the supplied AC power cord)
Cautions:
• four C batteries (not supplied)
• vehicle battery power (with an
optional DC adapter)
Note: Connecting the supplied AC power cord or an adapter automatically disconnects internal batteries.
Using AC Power
To power the recorder from an AC outlet, connect the supplied AC power cord
to the recorder’s AC POWER jack. Then
plug the other end into a standard AC
outlet.
• Use only fresh batteries of the
required size and recommended
type.
• Do not mix old and new batteries,
different types of batteries (standard, alkaline, or rechargeable), or
rechargeable batteries of different
capacities.
Follow these steps to install batteries.
1. Open the battery compartment by
pushing on the compartment cover’s
tabs and lifting the cover.
Caution: Plug the supplied power cord
into the recorder before you plug it into
the AC outlet, and unplug the power
cord from the AC outlet before you unplug it from the recorder.
2. Install the batteries according to the
polarity symbols (+ and –) marked on
the battery compartment door.
3. Replace the cover.
Preparation
3
When the RECORD/BATTERY indicator
lights during play or the sound becomes
weak or distorted, or when the playing
speed slows, replace the batteries.
Warning: Always dispose of old batteries promptly and properly. Do not burn
or bury them.
Follow these steps to power the recorder from your vehicle’s battery.
1. Set the adapter’s 6V/9V switch to
6V and plug the adapter into the
recorder’s DC 6V jack.
Note: If you do not plan to use the recorder for a week or more, or if you plan
to power it using only the supplied power cord or an adapter, remove the batteries. Batteries can leak chemicals that
corrode or damage electronic circuits.
Using DC Power
You can power the recorder from your
vehicle’s cigarette-lighter socket using a
fused DC adapter, available at your local
RadioShack store.
2. Insert the adapter’s other end into
your
vehicle’s
cigarette-lighter
socket.
Cautions:
You must use a power
source that supplies 6 volts
DC and delivers at least
400 mA. Its center tip must be set to
negative and its plug must fit the
recorder's DC 6V jack. The recommended adapter meets these specifications. Using an adapter that
does not meet these specifications
could damage the recorder or the
adapter.
!
• Plug the adapter into the recorder
before you plug it into the cigarettelighter and unplug the adapter from
the cigarette-lighter socket before
you unplug it from the recorder.
4
CONNECTING AN
EARPHONE
You can use the supplied earphone to
listen privately to a prerecorded tape or
to monitor a recording. You can also
connect an external or pillow-type
speaker (not supplied) to this jack.
Note: Your local RadioShack store carries a wide variety of speakers.
Preparation
Insert the earphone or speaker’s 1/8-inch
(3.5-mm) plug into the recorder’s EAR
jack. This automatically disconnects the
internal speaker.
mm) plug to the recorder’s MIC jack.
Connecting an external microphone automatically disconnects the built-in microphone.
Listening Safely
To protect your hearing, follow these
guidelines when you use an earphone.
• Do not listen at extremely high volume levels. Extended high-volume
listening can lead to permanent
hearing loss
• Set the volume to the lowest setting
before you begin listening. After you
begin listening, adjust the volume to
a comfortable level.
• Once you set the volume, do not
increase it. Over time, your ears
adapt to the volume level, so a volume level that does not cause discomfort might still damage your
hearing.
Traffic Safety
Do not wear an earphone while operating a motor vehicle or riding a bicycle.
This can create a traffic hazard and
could be illegal in some areas.
Note: Your local RadioShack store carries a variety of microphones.
If you are using a microphone with a remote switch, insert the microphone’s
sub-mini plug into the cassette deck’s
REMOTE jack. You can use the microphone’s remote switch to start and stop
the cassette deck during play and recording.
CONNECTING AN
EXTERNAL AUDIO
SOURCE
You can use your recorder to record
from an external audio source, such as
a radio, cassette deck, or CD player.
Even though some earphones let you
hear some outside sounds when listening at normal volume levels, they still
can present a traffic hazard.
CONNECTING AN
EXTERNAL MICROPHONE
You can connect an external microphone (not supplied) with a 1/8-inch (3.5-
Disconnect any external microphone
from the recorder (an external microphone disables input to the AUX jack).
Preparation
5
Use an 1/8-inch (3.5 mm) patch cord to
connect the recorder’s AUX jack to the
audio source’s audio output jack.
! Operation
You can use your recorder to make recordings or to play your favorite cassette
tapes.
3. Insert a cassette into the door’s tape
guides with the side you want to
play facing up and the exposed tape
edge facing you.
LOADING A CASSETTE
TAPE
1. Take up any slack in the tape by
turning the hub with a pencil. If you
do not remove excess slack, the
tape might become tangled in the
record/playback mechanism. Avoid
touching the tape.
4. Close the cassette compartment
door.
PLAYING A CASSETTE
TAPE
1. Load a cassette tape.
2. Press PLAY. The tape begins to play,
moving from the left reel to the right
reel.
2. Press STOP/EJECT to open the cassette compartment door.
6
Operation
3. Rotate VOLUME and TONE to the
desired settings.
on the tape. When you release CUE/
FAST-F or REVIEW/REWIND, the recorder
resumes normal play.
Using the Tape Counter
4. When the cassette tape reaches its
end, the cassette deck automatically
releases PLAY and stops the tape.
To stop it sooner, press STOP/
EJECT.
You can use the tape counter to note different locations on your tape during recording or playback. Before playing or
recording a cassette tape, rewind the
cassette tape and press TAPE COUNTER
to set the counter to 000. As the cassette tape moves, the counter advances.
Using Fast Forward and
Rewind
To advance or rewind the tape, press
CUE/FAST-F or REVIEW/REWIND when
the cassette deck is stopped. The cassette tape winds forward or backward
until it reaches the end or until you press
STOP/EJECT.
REVIEW
REWIND
Using Pause
You can temporarily stop the tape by
pressing PAUSE while you are recording
or playing a cassette tape. Press PAUSE
again to resume playing or recording.
RECORDING
Note: When the tape is fully wound to
either reel, the cassette deck automatically releases CUE/FAST-F or REVIEW/
REWIND.
Using Cue and Review
To rapidly advance or rewind the tape
during play, hold down CUE/FAST-F or
REVIEW/REWIND. This feature allows
you to quickly locate any desired section
You can record to a cassette tape on the
recorder from the built-in microphone,
an external microphone, or an external
audio source.
For the best performance, use regular
length (60-minute or 90-minute) cassette tapes. We do not recommend 120minute cassette tapes because they are
thin and can tangle easily. For lownoise, wide-range recordings, use only
normal-bias tapes.
Operation
7
Note: Be sure the erase-protection tabs
are in place on the cassette tape. See
“Preventing Accidental Erasure” on
Page 9.
If you set ALC to OUT, adjust VOLUME so the LEVEL METER lights to 0
dB during the loudest portions of the
sound signal.
Follow these steps to record.
1. Load a cassette tape into the cassette deck.
2. Set VOX to OUT if you want to manually start and stop recording. Or, set
VOX to HIGH or LOW, depending on
the sound source you want to
record.
4. If you are recording from an external
audio source’s line level output jack,
set ALC to IN. The recorder will
automatically adjust the recording
level.
If you are recording from an external
audio source’s phones jack, turn on
the external audio source and set its
volume to a comfortable listening
level before you connect it to the
recorder (see “Connecting an External Audio Source” on Page 5). Then
use the recorder’s VOLUME control
to set the recording level according
to the LEVEL METER.
HIGH is the most sensitive setting
and requires only a soft sound to
begin recording.
LOW is the least sensitive setting
and requires a louder sound to
begin recording.
3. Set the recorder’s automatic level
control (ALC) to IN to have the
recorder automatically adjust its
recording level or to OUT so you can
manually adjust the recording level
for unusually loud or soft sounds.
8
5. Press RECORD to begin recording.
RECORD and PLAY both lock down.
The RECORD/BATTERY indicator
lights.
Operation
Notes:
• To monitor what the recorder is
recording from an external audio
source, insert the supplied earphone’s plug into the EAR jack on
the recorder.
• To temporarily stop recording,
press PAUSE. To resume recording, press PAUSE again.
Caution: Be careful not to damage the
cassette when tapping it. Do not touch
the exposed tape or allow any sharp objects near the cassette.
Erasing Tapes
To record over a cassette tape, insert
the supplied dummy plug into the recorder’s MIC jack and record as usual.
The cassette deck records over the previous recording. To record over the entire cassette tape, let the tape record to
the end on both sides. When you finish,
remove the plug.
You can quickly erase both sides of a
cassette tape using a bulk tape eraser
(available at your local RadioShack
store).
6. If the cassette tape reaches its end,
the cassette deck automatically
releases RECORD and PLAY and
stops. To stop recording sooner,
press STOP/EJECT.
TAPE TIPS
Note: If you use metal or high-bias type
tape, the recorded sound might not be
erased properly.
Preventing Accidental Erasure
Cassette tapes have two erase-protection tabs — one for each side. When a
tab is in place, you can record on that
side.
Restoring Tape Tension and
Sound Quality
After you play a cassette tape several
times, the tape might become tightly
wound on the reels. This can cause
playback sound quality to deteriorate.
To restore the sound quality, fast-forward the tape from the beginning to the
end of one side, then completely rewind
it. Then loosen the tape reels by gently
tapping each side of the cassette’s outer
shell on a flat surface.
Operation
9
To prevent accidental erasure of a tape
recording, use a screwdriver to remove
one or both of the cassette tape’s eraseprotection tabs. This prevents RECORD
from being pressed.
If you later decide to record on a tape
side after you have removed the eraseprotection tab, place a piece of strong
plastic tape over that side’s erase-protection hole. Be sure you cover only the
hole originally covered by the erase-protection tab.
Caution: Removing the erase-protection tabs does not prevent a bulk eraser
from erasing a cassette tape.
! Care
Keep the recorder dry; if it gets wet,
wipe it dry immediately. Use and store
the recorder only in normal temperature
environments. Handle the recorder carefully; do not drop it. Keep the recorder
away from dust and dirt, and wipe it with
a damp cloth occasionally to keep it
looking new.
parts or use a cassette deck cleaning kit
(available at your local RadioShack
store).
Modifying or tampering with the recorder’s internal components can cause a
malfunction and might invalidate its warranty. If your recorder is not performing
as it should, take it to your local RadioShack store for assistance.
CLEANING THE TAPEHANDLING PARTS
Dirt, dust or particles of the tape's coating can accumulate on the tape heads
and other parts that the tape touches.
This can greatly reduce the performance
of the cassette player. After every 20
hours of tape player operation, follow
these steps to clean the tape-handling
10
Care
1. Remove the batteries and disconnect any other power source.
2. Open the cassette compartment
door and press PLAY to expose the
tape-handling parts.
3. Use a cotton swab dipped in denatured alcohol or tape head cleaning solution to
clean the tape guides, record/play head, erase head, pinch roller, and capstan.
Tape Guides
Capstan
Erase Head
Record/Playback Head
Pinch Roller
4. When you finish cleaning, press STOP/EJECT and close the cassette compartment door. Then reconnect power.
Care
11
! Specifications
Cassette Deck
Tape Speed ................................................................................................ 17/8 ips (4.8 cm/sec)
Tape System ............................................................................................. Two Track, Monaural
Recording System ......................................................................................................... AC Bias
Erasing System .......................................................................................................... DC Erase
General
Output Power at 10% THD ........................................................... 500 mW (AC), 600 mW (DC)
Speakers ........................................................................................ Dynamic, 3 Inches (76 mm)
Power Supply ..................................................................................................... AC 120V/60Hz
DC 6V, C Batteries × 4
External DC 6V Adapter
Dimensions (WHD) ........................................ 97/8 × 62/3 × 23/8 Inches (251.6 × 169 × 59.8 mm)
Weight (without batteries) .................................................................................... 23/16 lbs (1 kg)
Specifications are typical; individual units might vary. Specifications are subject to change and
improvement without notice.
Limited Ninety-Day Warranty
This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90)
days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING
THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION
OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO
LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY,
LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF
ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE,
LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase
date to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a) correct the defect by product repair
without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase price. All
replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts
and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the
warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses
or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation, set-up
service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
We Service What We Sell
RadioShack Corporation
Fort Worth, Texas 76102
12/99
14-1123 B
811081560C
11A00
Printed in China
