HP Compaq 8000 Elite Series
Overview

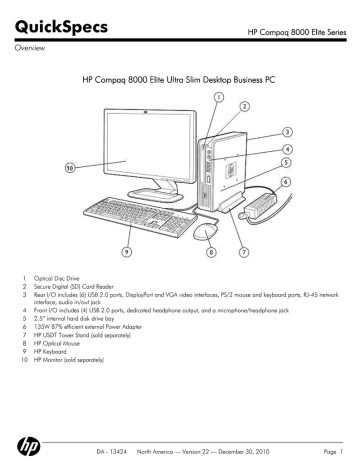

HP Compaq 8000 Elite Ultra Slim Desktop Business PC
1
2
3
4
5
6
7
8
9
10
Optical Disc Drive
Secure Digital (SD) Card Reader
Rear I/O includes (6) USB 2.0 ports, DisplayPort and VGA video interfaces, PS/2 mouse and keyboard ports, RJ-45 network
interface, audio in/out jack
Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
2.5” internal hard disk drive bay
135W 87% efficient external Power Adapter
HP USDT Tower Stand (sold separately)
HP Optical Mouse
HP Keyboard
HP Monitor (sold separately)
DA - 13424
North America — Version 22 — December 30, 2010
Page 1
QuickSpecs
HP Compaq 8000 Elite Series
Overview
HP Compaq 8000 Elite Small Form Factor Business PC
1
2
3
4
5
6
7
8
9
10
Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort and
VGA video interfaces, and audio in/out jacks
Low profile expansion slots include (1) PCI slot, (2) PCI Express x1 slots and (1) PCI Express x16 graphics slot
Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
HP Optical Mouse
HP Keyboard
3.5” external drive bay supporting a media card reader or a secondary hard disk drive
5.25” external drive bay supporting an optical disk drive
3.5” internal drive bay supporting primary hard disk drive
240W standard or 89% high efficiency Power Supply
HP Monitor (sold separately)
DA - 13424
North America — Version 22 — December 30, 2010
Page 2
QuickSpecs
HP Compaq 8000 Elite Series
Overview
HP Compaq 8000 Elite Convertible Minitower Business PC
1
2
3
4
5
6
7
8
9
(3) 5.25” external drive bays supporting optical disk drives, removable hard disk drives, or the HP Media Card Reader
320W standard or 89% high efficiency Power Supply
Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort and
VGA video interfaces, and audio in/out jacks
Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
(3) 3.5" internal drive bays supporting multiple hard disk drives
Full height expansion slots include (3) full-length PCI slots, (1) PCI Express x1 slot, and (2) full-length PCI Express x16
graphics slots
NOTE: Second PCIe x16 slot has x4 connectivity.
HP Optical Mouse
HP Keyboard
HP Monitor (sold separately)
DA - 13424
North America — Version 22 — December 30, 2010
Page 3
QuickSpecs
HP Compaq 8000 Elite Series
Overview
At A Glance
Designed for long-term deployment within corporate, enterprise, public sector and mid-market commercial organizations
Choice of three professional chassis form factors to accommodate any desired mix between expandability and size
BIOS developed and engineered by HP for better security, manageability and software image stability
Intel® Q45 Express chipset featuring integrated GMA 4500 integrated graphics
DDR3 Synchronous Dynamic Random Access Memory (SDRAM)
Intel® Core™ 2 Processor with vPro™ Technology (requires select processors)
Supports industry standard management protocols including Intel Standard Manageability and DASH 1.1 (via optional
Broadcom NIC card)
Integrated dual independent monitor support via both a VGA and DisplayPort video interface
Standard efficiency or 89% high efficiency energy saving power supplies available on the CMT and SFF models
87% efficient energy saving external power adapter standard with USDT models
ENERGY STAR qualified models available (dependent upon the desired configuration)
CMT and SFF models can be configured with multiple hard disk drives in a RAID array
Guaranteed lengthy purchase lifecycles and image stability
Software image fully compatible across all models and form factors
Created using industry leading Design for Environment standards
Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals
(http://h10019.www1.hp.com/business-site/index.html)
Tailored HP Factory Express deployment and lifecycle services available
(http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx)
Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions
and exclusions apply)
Tool-less serviceability features for easier upgrades and repairs
DA - 13424
North America — Version 22 — December 30, 2010
Page 4
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
Operating Systems
Preinstalled
Genuine Windows Vista Business (32-bit)1
Genuine Windows Vista Home Basic1
Genuine Windows 7 Home Basic Edition (32-bit)2
Genuine Windows 7 Home Premium Edition (32-bit or 64-bit)2
Genuine Windows 7 Professional Edition (32-bit or 64-bit)2
FreeDOS
Supported
Genuine Windows Vista Enterprise Edition1
Genuine Windows 7 Enterprise Edition2
Genuine Windows 7 Ultimate Edition2
Certified
Novell SUSE Linux Enterprise Desktop 11†
Red Hat Enterprise Linux 64††
1
Certain Windows Vista product features require advanced or additional hardware. See
www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and www.microsoft.com/windowsvista/getready/capable.mspx for
details. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: www.windowsvista.com/upgradeadvisor
2
System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and
take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
†
The following features are not supported by Novell SUSE Linux Enterprise Desktop:
HP 22-in-1 Media Card Reader with PCI Card
DisplayPort
HP ProtectTools
SATA Blu-ray Writer playback of commercial movies
Intel Gigabit CT Desktop NIC
Broadcom NetXtreme Gigabit Ethernet PCIe NIC Plus Card
HP ADD2 SDVO PCIe DVI-D adapter
2nd serial port adapter (including low profile)
Power Management features (US ENERGY STAR)
††
The following features are not supported by Red Hat Enterprise Linux 64:
HP 22-in-1 Media Card Reader with PCI Card
Integrated 1.2 TPM Embedded Security Chip
Intel Gigabit CT Desktop NIC
Broadcom NetXtreme Gigabit Ethernet PCIe NIC Plus Card (DASH functionality)
LSI PCEe x1 Hi-Speed 56K International SoftModem
HP ADD2 SDVO PCIe DVI-D adapter
HP FireWire / IEEE 1394 PCI Card (full height and low profile)
2nd serial port adapter (including low profile)
HP Wireless 802.11b/g/n PCIe x1 Card
HP USB Smartcard Keyboard
Power Management features (US ENERGY STAR)
DA - 13424
North America — Version 22 — December 30, 2010
Page 5
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
SATA Blu-ray Writer
Broadcom NetXtreme Gigabit Ethernet Plus (DASH 1.1) PCIe NIC Card
ATI Radeon HD 4550 Dual Head PCIe x16 Graphics Card
ATI Radeon HD 4650 (1 GB DH) PCIe x16 Graphics Card
NVIDIA GeForce 310 DP PCIe x16 Graphics Card
Nvidia Quadro NVS 290 Graphics Card
NVIDIA Quadro NVS 295 (256MB DH) PCIe x16 Graphics Card
Value Added Software (included with all models; not included when configured with FreeDOS)
HP ProtectTools Security Suite
HP Software Management Agent
Computrace for Desktops agent (optional)
HP Insight Diagnostics
PDF Complete
Value Added Software (included with select models; not included when configured with FreeDOS)
Computer Setup Utility
Antivirus software*
Roxio Creator Business
HP Power Manager
HP Total Care Advisor
Microsoft Office 2010 preloaded (purchase of a Product
Key required to activate a full Office 2010 suite)**
Firefox HP Virtual Browser
Corel WinDVD
* May be Norton or McAfee antivirus software. First 60 days included. Subscription required for live updates thereafter. Internet
access required.
** Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase of Product Key required to
activate full Office 2010 suite available at participating resellers/retailers and http://www.office.com.
HP Client Management Solutions (available for free download from the Internet)
http://www.hp.com/go/easydeploy)
HP Client Automation Starter*
HP SoftPaq Download Manager
* Available from your HP Sales Representative or HP Channel Partner
HP Client Catalog for Microsoft SMS
HP Systems Software Manager
Value Added Services and Features
HP Stable Platform Program
Intel Stable Platform Program
Business-to-Business Portals
HP Global Series Services
* TPM module disabled where restricted by law, i.e. Russia.
Factory Express Deployment and Lifecycle Services
Intel Standard Manageability
Intel Core 2 Processor with vPro Technology
Trusted Platform Module (TPM) v1.2*
Service and Support
On-site warranty and service¹: This limited warranty and service offering delivers parts, labor and on-site repair for terms up to 5
years. Response time is next business day² and includes free telephone support³ 24 x 7. Global coverage² ensures any product
purchased in one country and transferred to another non-restricted country will remain fully covered under the original warranty and
service offering. Some countries/regions do not offer one year onsite and labor.
1 Terms and conditions may vary by country. Certain restrictions and exclusions apply.
DA - 13424
North America — Version 22 — December 30, 2010
Page 6
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
2
On-site services may be provided pursuant to a service contract between HP and an authorized HP third party provider, and is not
available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by
country.
3
Technical telephone support applies only to HP configured, HP and HP qualified third party hardware and software. Toll-free
calling and 24 x 7 support may not be available in some countries.
Chipset
Intel Q45 Express with Intel GMA 4500 Graphics
Processor
Intel Celeron Processors
Intel Celeron E3200 Processor
2.40 GHz, 1M L2 cache, 800 MHz FSB
Intel Celeron E3300 Processor
2.50 GHz, 1M L2 cache, 800 MHz FSB
Intel Celeron E3500 Processor
2.70 GHz, 1M L2 cache, 800 MHz FSB
Intel Pentium Processors:
Intel Pentium E5300 Processor
2.60 GHz, 2M L2 cache, 800 MHz FSB
Intel Pentium E5400 Processor
2.70 GHz, 2M L2 cache, 800 MHz FSB
Intel Pentium E5700 Processor
3.00 GHz, 2M L2 cache, 800 MHz FSB
Intel Pentium E6300 Processor
2.80 GHz, 2M L2 cache, 1066 MHz FSB
Intel Pentium E6500 Processor
2.93 GHz, 2M L2 cache, 1066 MHz FSB
Intel Pentium E6800 Processor
3.33 GHz, 2M L2 cache, 1066 MHz FSB
Intel Core 2 Duo Processors:
Intel Core 2 Duo E7500 Processor
2.93 GHz, 3M L2 cache, 1066 MHz FSB
Intel Core 2 Duo E7600 Processor
3.06 GHz, 3M L2 cache, 1066 MHz FSB
Intel Core 2 Duo E8400 Processor
3.0 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Duo E8500 Processor
3.16 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Duo E8600 Processor
3.33 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Processors:
DA - 13424
North America — Version 22 — December 30, 2010
USDT
SFF
CMT
X
X
X
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Page 7
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
Intel Core 2 Quad Q8400 Processor
2.66 GHz, 4M L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q8400s Processor (low power)
2.66 GHz, 4M L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q9500 Processor
2.83 GHz, 6M L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q9505 Processor
2.83 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Q9505s Processor (low power)
2.83 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Q9550 Processor
2.83 GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Q9550s Processor (low power)
2.83 GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Q9650 Processor
3.0 GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology
X
X
X
X
X
X
X
X
X
X
X
X
X
Intel Core 2 Processor with vPro Technology
All HP Compaq 8000 Elite Series models featuring this technology include processors which are part of the Intel 2010 Stable Image
Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP Compaq 8000 Elite
Series Business PC, thus making these models the most stable, secure, and manageable platforms available to enterprises today
The 2010 SIPP processors are:
Core 2 Duo E8400, E8500, E8600
Core 2 Quad Q9505, Q9505s, Q9550, Q9550s, Q9650
Intel's Core 2 Processor with vPro Technology suite of features includes:
Intel Advanced Management Technology (AMT) v5.0 – An advanced set of remote management features and functionality which
provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems
regardless of the system's health or power state. AMT 5.0 includes all features described as part of Intel Standard Manageability plus
the following advanced management functions:
Fast Call for Help – a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or
alert triggered connection
Remote Scheduled Maintenance – pre-schedule when the PC connects to the IT or service provider console for maintenance.
Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider when it's
convenient
Remote Alerts – automatically alert IT or service provider if issues arise
Access Monitor – Provides oversight into Intel® AMT actions to support security requirements
Microsoft NAP Support – Allows AMT 5.0 to gain access to a Microsoft NAP enabled 802.1x network OOB to enable OOB SW
updates, inventories, remote diagnostics, etc. NAP is a new platform and solution that controls access to network resources based
on a client computer's identity and compliance with corporate governance policy. NAP allows network administrators to define
granular levels of network access based on who a client is, the groups to which the client belongs, and the degree to which that
client is compliant with corporate governance policy. If a client is not compliant, NAP provides a mechanism to automatically bring
the client back into compliance and then dynamically increase its level of network access.
DA - 13424
North America — Version 22 — December 30, 2010
Page 8
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
When a client attempts to access the network or communicate on the network, it must present its system health state or proof of
health compliance. If a client cannot prove it is compliant with system health requirements (for example, that it has the latest
operating system and antivirus updates installed), its access to the network or communication on the network can be limited to a
restricted network containing server resources so that health compliance issues can be remedied. After the updates are installed, the
client requests access to the network or attempts the communication again. If compliant, the client is granted unlimited access to the
network or the communication is allowed.
Redundant Array of Independent Drives (RAID)
Flexible implementation:
implementation
DriveLock is supported while in RAID mode. Users can manage the DriveLock password from within F10 Setup. Locked drives
will be displayed as such in the RAID option ROM interface.
Hard drive information can be viewed within F10 Setup while in RAID mode. Previously, the hard drives will not appear in
Drive Configuration when switching to RAID mode.
DPS Self Test can be executed on physical hard drives while in RAID mode.
The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password.
NOTE:
RAID 1 is the only RAID configuration offered via factory configurations. The pre-configured systems:
Are only available on the CMT and SFF form factors. The USDT does not support RAID as it does not allow for more than one
hard disk drive.
Are complete RAID systems and have both drives installed. If the CMT is configured with three hard disk drives, the third drive
is would be unpartitioned and not part of the RAID array
Have the necessary Option ROM configuration.
Are pre-loaded and pre-installed with all required Intel software.
Include a preinstalled operating system that is mirrored mode out of the box.
Please refer to the HP White Paper titled “Advanced Host Controller Interface (AHCI) and Redundant Array of Independent Disks
(RAID) on HP Compaq 8000 Elite Series PCs” at: http://www.hp.com for more information and instructions.
DDR3 Synchronous DRAM NON-ECC System Memory
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent
all possible memory configurations. The HP Compaq 8000 Elite Series PC supports non-ECC DDR3 PC3-10600 (1333 MHz) and
PC3-8500 (1066 MHz) memory.
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules.
Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an
active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board.
Memory Configurations: Ultra Slim Desktop
Maximum Memory*
Supports up to 8 GB of DDR3 SDRAM using SO-DIMM modules. Slot 1 is black and must always be
populated. Not all memory configurations possible are represented below.
NOTE:
For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may
not be available due to system resource requirements.
DA - 13424
North America — Version 22 — December 30, 2010
Page 9
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
Total Memory
Slot
Channel A (black)
1 GB
1 GB
Channel B (white)
1 GB
2 GB
1 GB
(dual channel symmetric)
4 GB
2 GB
2 GB
(dual channel symmetric)
8 GB
4 GB
4 GB
(dual channel symmetric)
* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions.
Management Engine memory is shared with system memory. If the PC contains a single SO-DIMM, 16 MB of memory is preallocated for it at system startup. If the PC contains two SO-DIMMs, 32 MB of memory is pre-allocated. This memory is not made
available to the operating system, just as pre-allocated video memory is not available.
Memory Configurations: Small Form Factor and Convertible Minitower
Maximum Memory*
Supports up to 16 GB of DDR3 SDRAM using DIMM modules. Slot 1 is black and must always be
populated. Not all memory configurations possible are represented below.
NOTE:
For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory
may not be available due to system resource requirements. Addressing memory above 4 GB
requires a 64-bit operating system.
NOTE:
The Q45 chipset Graphics Memory Controller Hub (GMCH) supports DDR3 memory technology up
to a maximum of 1066 MHz. Therefore, systems configured with PC3-10600 (1333 MHz) memory
DIMMs will operate at 1066 MHz.
Total Memory
Slot
Channel A
1 (black)
1 GB
1 GB
Channel B
4 (white)
1 GB
2 GB
1 GB
(dual channel symmetric)
4 GB
1 GB
1 GB
1 GB
1 GB
(dual channel symmetric)
8 GB
2 GB
2 GB
2 GB
2 GB
(dual channel symmetric)
16 GB
4 GB
4 GB
4 GB
4 GB
(dual channel symmetric)
NOTE: The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability
functions. Management Engine memory is shared with system memory. If the PC contains a single SO-DIMM, 16 MB of memory is
pre-allocated for it at system startup. If the PC contains two SO-DIMMs, 32 MB of memory is pre-allocated. This memory is not made
available to the operating system, just as pre-allocated video memory is not available.
DA - 13424
2 (white)
3 (white)
North America — Version 22 — December 30, 2010
Page 10
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
Ultra-slim Desktop
Small Form Factor
Convertible Minitower
Storage - Drive Support
Quantity Supported
Position
Ultra Slim Desktop
SDR
ODD
HDD
1
1
1
1
2
3
MCR
1
1
Small Form Factor
ODD
HDD
1
2
3
2,1
Convertible Minitower
MCR
ODD
HDD
1
2
3
3
1,2
4,5,6
Data Storage Drives
USDT
160-GB Hard Disk Drives
160GB 2.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
160GB 3.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
160GB 2.5” Hard Disk Drive
10,000 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart III
160GB Removable Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
250-GB Hard Disk Drives
250GB 2.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
250GB 3.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
250GB Removable Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
DA - 13424
North America — Version 22 — December 30, 2010
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
Page 11
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
320-GB Hard Disk Drives
320GB 3.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
320-GB 2.5” Self Encrypting Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
320GB Removable Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
X
500-GB Hard Disk Drives
500GB 3.5” Hard Disk Drive
7,200 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart IV
500GB Removable Hard Disk Drive
7,200 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart IV
1-TB Hard Disk Drives
1 TB 3.5” Hard Disk Drive
7,200 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart IV
Solid State Drives
64GB 2.5” Solid State Drive
80-GB 2.5” Solid State Drive
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Optical Disc Drives
DVD-ROM Drive1
X
X
Slimline DVD-ROM Drive1
X
SuperMulti LightScribe DVD Writer Drive1,2,3
X
X
1,2,3
Slimline SuperMulti LightScribe DVD Writer Drive
X
Blu-Ray Writer Drive
X
X
1For playing DVDs, Corel WinDVD 8
2For writing CDs, choice of Sonic/Roxio Easy Media Creator 9 orRoxio Business Creator 10
3For writing CDs and DVDs, video editing and authoring DVDs, choice of Sonic/Roxio Easy Media Creator 9 or Roxio Business
Creator 10
Media Card Readers
Media Card Reader (22-in-1)
Media Card Reader (22-in-1) with 1394 port
Secure Digital (SD) HC Reader
DA - 13424
North America — Version 22 — December 30, 2010
X
X
X
X
X
Page 12
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
Security Solutions and Capabilities
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Power-On Password (via BIOS)
X
X
Setup Password (via BIOS)
X
X
Solenoid Hood Lock / Sensor
X
Hood Sensor
X
Support for chassis padlocks and cable lock devices
X
X
1TPM module disabled where use is restricted by law; for example, Russia.
2This setting is defaulted to disable, but when enabled, the PW jumper will not clear the BIOS pre-boot authentication
passwords.
X
X
X
Trusted Platform Module (TPM) 1.21
Stringent Security (via BIOS)2
SATA Port Disablement (via BIOS)
Drive Lock
RAID Configurations
HP ProtectTools Embedded Security Software
Serial, Parallel, USB enable/disable (via BIOS)
Optional USB Port Disable at factory (user configurable via BIOS)
Removable Media Write/Boot Control
Network Interface Connection
Intel 82567LM GbE Network Connection (integrated)
Intel Gigabit CT Desktop NIC Card
Broadcom NetXtreme GbE Ethernet Plus NIC (PCIe x1)
HP 802.11 b/g/n Wireless NIC (PCIe x1)
Intel Wi-Fi Link 5100 a/b/g/n Wireless NIC (mini PCI)
NOTE: These wireless network interface solutions will disable the vPro Technology features.
Modem
X
X
X
X
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
SFF
CMT
X
X
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
USDT
LSI Hi-Speed 56K International Soft Modem (PCIe x1)
Graphics
Intel Graphics Media Accelerator 4500 (integrated)
Nvidia GeForce 310 DP PCIe x16 Graphics Card
Nvidia Quadro NVS 290 Graphics Card
Nvidia Quadro NVS 295 Graphics Card
ATI Radeon HD 4550 Graphics Card*
ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card
HP ADD2 SDVO + DVI-D Video Adapter
DA - 13424
North America — Version 22 — December 30, 2010
X
Page 13
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
HP DisplayPort to DVI-D Adapter
HP DisplayPort to VGA Adapter
HP DisplayPort to HDMI Adapter
HP DisplayPort Cable
* When ordered with an Nvidia Quadro NVS 295 card, the PC is shipped with two DisplayPort to VGA
Adapters. When an Nvidia Quadro NVS 295 card is purchased as an after-market option, it comes with
two DisplayPort to DVI-D Adapters.
Multi-Media
High Definition Audio with Realtek ALC261 codec (all ports are stereo)
X
X
X
X
X
X
X
X
X
X
X
X
USDT
SFF
CMT
X
X
X
Microphone/Headphone* and dedicated headphone front ports
X
X
X
Line-out and Line-In rear Ports*
X
X
X
Multi-streaming capable*
X
X
X
Internal Speaker (standard)
X
X
X
HP Thin USB Powered Speakers(optional)
X
X
X
HP TV Tuner Mini PCIe Card
X
HP TV Tuner PCIe x1 Card
X
X
* The front microphone port is re-taskable as a Line-in, Microphone-in or Headphone . Rear audio input ports are re-taskable
as Line-in or Microphone-in. External speakers must be powered externally. Multistreaming can be enabled in the Realtek
control panel to allow independent audio streams to be sent to/from the front and rear jacks. This allows for different audio
applications to use separate audio ports on the system. For example, the front jacks could be used with a headset for a
communications application while the rear jacks are being used with external speakers and a multimedia application.
Input Devices
USDT
SFF
CMT
PS/2 Standard Keyboard
USB Standard Keyboard
USB CCID SmartCard Keyboard
USB Mini Keyboard
USB and PS/2 Washable Keyboard
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
PS/2 Optical Scroll Mouse
USB Optical Scroll Mouse
USB Laser Scroll Mouse
USB and PS/2 Washable Mouse
X
X
X
X
X
X
X
X
X
X
X
X
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
Miscellaneous
FireWire (IEEE 1394) Card
Serial Port Adapter (RS-232 compatible)
Parallel Port Adapter
eSATA Port Adapter
PC Tower Stand
DA - 13424
North America — Version 22 — December 30, 2010
Page 14
QuickSpecs
HP Compaq 8000 Elite Series
Standard Features and Configurable Components (availability may vary by country)
Configure CMT in desktop orientation
Rear Port/Cable Control Cover
DA - 13424
X
X
North America — Version 22 — December 30, 2010
Page 15
QuickSpecs
HP Compaq 8000 Elite Series
After-Market Options (availability may vary by region)
Communications Devices
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
X
X
X
FH971AA
FS215AA
FH969AA
FH970AA
DC131C
SFF
CMT
Part Number
ATI Radeon HD 4550 Graphics Card
ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card
Nvidia Quadro NVS 290 PCIe x16 Graphics Card
Nvidia Quadro NVS 290 PCIe x1 Graphics Card
Nvidia Quadro NVS 295 Graphics Card
Nvidia GeForce 310 DP PCIe x16 Graphics Card
HP ADD2 SDVO + DVI-D Video Adapter
X
X
X
X
X
X
X
AT042AA
VN566AA
KG748AA
KN586AA
FY943AA
VG885AA
DY674A
DMS59 DVI Dual-head Connector Cable
HP DVI to DVI cable
HP DisplayPort To DVI-D adapter
HP DisplayPort To DL DVI-D adapter
HP DisplayPort to VGA Adapter
HP DisplayPort Cable Kit
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DL139A
DC198A
FH973AA
NR078AA
AS615AA
VN567AA
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
X
PY277AT
PY278AA
FH963AA
KW347AA
X
X
X
X
VG679AA
BM848AA
X
X
X
X
X
X
FH966AA
RY102AA
RY103AA
HP Wireless 802.11 b/g/n NIC Card
Broadcom NetXtreme GbE Ethernet Plus NIC Card
Intel Gigabit CT Desktop NIC Card
LSI Hi-Speed 56K Int'l Soft Modem Card
RJ11 Modem Adapter Kit
Note:
The use of a NIC Card (wired or wireless) will disable the vPro Technology features.
Graphics Solutions
USDT
Hard Disk Storage Drives
X
X
X
X
X
HP 160GB SATA NCQ SMART IV Hard Disk Drive
HP 250GB SATA NCQ SMART IV Hard Disk Drive
HP 320GB SATA NCQ SMART IV Hard Disk Drive
HP 500GB SATA NCQ SMART IV Hard Disk Drive
HP 64-GB Solid State Drive
HP 80-GB Solid State Drive
X
X
HP eSATA Adapter
HP Removable SATA Hard Drive Enclosure (frame & carrier)
HP Removable SATA Hard Drive Enclosure (Carrier Only)
DA - 13424
North America — Version 22 — December 30, 2010
Page 16
QuickSpecs
HP Compaq 8000 Elite Series
After-Market Options (availability may vary by region)
Input Devices
USDT
SFF
CMT
Part Number
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Mini Keyboard
HP USB Gray Keyboard
HP USB SmartCard Keyboard
HP USB Keyboard and Mouse Kit
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DT527A
DT528A
AS601AA
DT529A
ED707AA
RC465AA
HP USB Washable Keyboard
HP USB and PS/2 Washable Mouse
X
X
X
X
X
X
VF097AA
BM866AA
HP USB and PS/2 Washable Keyboard and Mouse Kit
X
X
X
BU207AA
HP PS/2 Optical Scroll Mouse
HP USB Optical Scroll Mouse
HP USB Laser Mouse
HP USB Travel Mouse
X
X
X
X
X
X
X
X
X
X
X
X
EY703AA
DC172AT
GW405AT
RH304AA
HP 2.4GHz Wireless Keyboard and Mouse
X
X
X
NB896AA
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
AT023AA
AT024AA
VH638AA
VH639AA
VH640AT
VH641AT
USDT
SFF
CMT
Part Number
X
X
X
KK912AA
X
X
X
X
X
X
AR629AA
AR630AA
AR482AA
VP033AA
VP034AA
System Memory
1 GB DIMM
2 GB DIMM
4 GB DIMM
1 GB SO-DIMM
2 GB SO-DIMM
4 GB SO-DIMM
X
X
X
Multimedia Devices
HP Thin USB Powered Speakers
DVD-ROM Drive
SuperMulti LightScribe Drive
Blu-Ray Writer Drive
DVD-ROM Drive (Slimline
SuperMulti LightScribe Drive (Slimline)
DA - 13424
X
X
North America — Version 22 — December 30, 2010
Page 17
QuickSpecs
HP Compaq 8000 Elite Series
After-Market Options (availability may vary by region)
Removable Media Storage
HP USB External Diskette Drive
HP Media Card Reader (22-in-1)
HP Media Card Reader (22-in-1) with FireWire (IEEE 1394)
Security Devices
HP/Kensington MicroSaver Cable Lock
HP Business PC Security Lock
HP USDT Rear Port Controller Cover
HP SFF Solenoid Lock and Hood Sensor
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
DC141B
AR941AA
AR942AA
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
PC766A
PV606AA
VN571AA
BP428AA
X
DE618A
VN570AA
X
HP CMT Solenoid Lock and Hood Sensor
HP SFF Wall Mount/Security Sleeve
X
HP Client Automation Software
HP Client Automation – Standard Edition (single seat)
HP Client Automation – Standard Edition (10 seats)
HP Client Automation – Standard Edition (100 seats)
HP Client Automation – Standard Edition (500 seats)
HP Client Automation – Standard Edition (1,000 seats)
Stands and Accessories
HP Integrated Work Center Stand
HP USDT Tower Stand
HP SFF Tower Stand
HP Integrated Work Center – Small Form Factor
HP Serial Port Adapter (RS-232 compatible)
HP Parallel Port Adapter
HP 5.25” Blank Bezel Kit (50 pack)
HP FireWire (IEEE 1394) Card
DA - 13424
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
T3488AA
TA599AA
TA600AA
TA601AA
T3489AA
USDT
SFF
CMT
Part Number
X
X
X
X
GN783AA
VN568AA
VN569AA
QK549AA
PA716A
KD061AA
DC177B
PA997A
X
X
North America — Version 22 — December 30, 2010
X
X
X
X
X
X
Page 18
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications
Weights and
Dimensions
Ultra-slim Desktop
(configured with 1 HDD
and 1 ODD)
Chassis
(H x W x D)
System Volume
2.6 x 9.9 x 10 in
66 x 251.5 x 254 mm
257.5 cu in
4.22 L
Tower Stand
1.07 x 4.92 x 6.69 in
(H x W x D)
27.2 x 124.9 x 169.9 mm
Packaging
8.60 x 15.68 x 19.68 in
(H x W x D)
218.4 x 398.3 x 499.9 mm
System Weight
6.75 lb
3.07 kg
Shipping Weight
14.42 lb
6.54 kg
Max Supported Weight
77 lb
(desktop orientation)
35 kg
I/O Ports
USB 2.0
Serial
Parallel
eSATA
PS/2
Video
DVI output
Audio
NIC
Slots
Type and quantity
Ultra-slim Desktop
Front – four (4) ports
Rear – six (6) ports
N/A
Small Form Factor
Convertible Minitower
3.95 x 13.30 x 14.9 in
100 x 338 x 378.5 mm
790.26 cu in
12.95 L
1.12 x 7.01 x 7.87 in
28.5 x 178 x 200 mm
9.00 x 19.68 x 23.38 in
228.6 x 499.9 x 593.85 mm
16.72 lb
7.6 kg
17.86 lb
8.1 kg
77 lb
35 kg
17.63 x 7.00 x 17.5 in
447.8 x 177.8 x 444.5 mm
2160 cu in
35.4 L
N/A
22.64 x 12.72 x 24.41 in
575.0 x 323 x 620 mm
24.54 lb
11.15 kg
34.0 lb
15.42 kg
77 lb
35 kg
Small Form Factor
Convertible Minitower
one RS-232 compatible port standard
second port available optionally
N/A
one port available as an option
N/A
one port available as an option
color coded support for keyboard (purple) and mouse (green)
VGA and DisplayPort provide integrated dual independent monitor support
available via optional DisplayPort to DVI Adapter
Front – microphone & headphone
Rear – line input (supports microphone or line input), line out
Note:
See Audio/Visual section for information on re-taskable audio ports
Industry standard RJ-45 port accesses the integrated network interface controller
Ultra-slim Desktop
(1) mini PCI Express
Slot specifications
Small Form Factor
(1) PCI
(2) PCI Express x1
(1) PCI Express x16
Low profile – 2.5”
Length: 6.6”
25W maximum
Convertible Minitower
(3) PCI
(1) PCI Express x1 (half-length)
(2) PCI Express x16
Full height – 4.2”
Primary x16 slot supports
75W or 35W card
Secondary x16 slot supports
35W card
DA - 13424
North America — Version 22 — December 30, 2010
Page 19
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications
PCI
N/A
(1)
PCI Express x16
N/A
(1)
PCI Express x1
N/A
(2)
10W max. power
Bays
3.5” external
N/A
5.25” external
N/A
Small Form Factor
1 bay available for Media
Card Reader unless used for
a secondary hard drive
1 bay – 8.19” depth
Slimline
Secure Digital (SD)
Reader
Internal Drive Bays
1 bay for ODD
SD Reader or blank
N/A
N/A
Controller
Hard Drive Controller
SATA Interfaces
Host SATA Controller
Ultra-slim Desktop
Secondary slot functions
electrically as a x4 slot
(3)
25W max. power
(2)
75W max. power (primary)
35W max. power (secondary)
(1)
10W max. power
Convertible Minitower
N/A
3 bays
Top two bays accept drives
up to 8.19” depth
Bottom bay accepts drives
up to 5.7” depth
N/A
N/A
1 bay for 2.5” drive
1 bay for 3.5” drive
3 bays for 3.5” drives
Small Form Factor
Convertible Minitower
Ultra-slim Desktop
Serial ATA
Supports SATA 1.5-GB/s and 3.0-GB/s
(1) Total
(4) Total:
(5) Total:
(3) common SATA
(4) common SATA
(1) eSATA
(1) eSATA
Advanced Host Controller Interface (AHCI) Revision 1.2. The specification includes a description
of the hardware/software interface between system software and the host controller hardware.
DA - 13424
North America — Version 22 — December 30, 2010
Page 20
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications
Unit Environment and Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's recirculated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 50° to 95° F (10° to 35° C)*
Non-operating: –22° to 140° F(–30° to 60° C)
Relative Humidity
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum Altitude
Operating: 10,000 ft (3048 m)
( unpressurized)
Non-operating: 30,000 ft (9144 m)
*Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained
sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Power Supply
Standard Efficiency
High Efficiency*
Ultra Slim Desktop
N/A
135W active PFC
87% efficient
Small Form Factor
240W active PFC
240W active PFC
87/89/85% efficient at
20/50/100% load
90 – 264 VAC
100 – 240 VAC
50/60 Hz
47 – 63 Hz
Convertible Minitower
320W active PFC
320W active PFC
87/89/85% efficient at
20/50/100% load
90 – 264 VAC
100 – 240 VAC
50/60 Hz
47 – 63 Hz
Operating Voltage Range
90 – 264 VAC
Rated Voltage Range
100 – 240 VAC
Rated Line Frequency
50/60 Hz
Operating Line Frequency
47 – 63 Hz
Range
Rated Input Current
N/A
4A
5.5A
Rated Input Current with
2.4A
4A
5.5A
Energy Efficient* Power Supply
Current Leakage
< 250 µA
< 275 µA
< 450 µA
(NFPA 99)
Power Supply Fan
N/A
92mm variable speed
92mm variable speed
Power Cord Length
N/A
6 ft (1.83 m)
6 ft (1.83 m)
External Power Adapter
Dimensions
6.7 x 2.6 x 1.5 in
N/A
N/A
Total Cord Length
12 ft 8 in
N/A
N/A
*High efficiency power supply is a requirement for ENERGY STAR qualification in conjunction with a select range of processors and
modules
DA - 13424
North America — Version 22 — December 30, 2010
Page 21
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications
ROM BIOS Information
Key features of the HP BIOS include:
Deployment and manageability – HP BIOS provides several technologies that help integrate the HP Elite PC into the
enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
Select models feature either Intel Standard Manageability or Core 2 processor with vPro Technology.
Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and
advanced change notification.
Computrace agent – For tracking and tracing services, available in select countries, separate software and purchase of a
subscription is required.
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies so
component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any
enterprise environment.
Acoustic performance – Industry leading acoustic emissions across the range of operating conditions.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS
updates from within DOS (Flashbin), BIOS updates from within Windows (HPQFlash), HP Client Manager, and fail-safe
recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is
available from within the BIOS software and from the support website.
Additional HP BIOS Features
Power-On password – Helps prevent an unauthorized user from powering on the system.
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made
to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. HP Elite models
use ACPI to provide power conservation features.
S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below 1W is S5 (when
turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with WOL functionality.
Other Features
Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or poweredoff state without affecting other elements of the system.
System Management BIOS v2.6
Intel Wired for Management support; industry wide initiative to make Intel architecture based PCs, servers and mobile
computers more inherently manageable out-of-the-box and over the network
Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button
DA - 13424
North America — Version 22 — December 30, 2010
Page 22
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications
Serviceability Features
Dual colored power LED on front of computer to indicate either normal or fault condition
Diagnostic LED Explanation Table:
Number of 1-second red LED blinks followed by a 2-second pause, then repeats:
2 – processor thermal protection activated
3 – processor not installed
4 – power supply failure
5 – memory error
6 – video error
7 – PCA failure (ROM detected failure prior to video)
8 – invalid ROM, bootblock recovery mode
9 – system not fetching code
10 – system hang while loading an option ROM
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy replacement
Flash Recovery with Video Configuration Record Software
5 Aux Power LED on System PCA
Processor ZIF Socket for easy Upgrade
Over-Temp Warning on Screen (Requires IM Agents)
Clear Password Jumper
DIMM Connectors for easy Upgrade
Clear CMOS Button
NIC LEDs (integrated) (Green & Amber)
Dual Color Power and HD LED – To Indicate Normal Operations and Fault Conditions
Color coordinated cables and connectors
Tool-less Hood Removal
Front power switch
System memory can be upgraded without removing the system board or any internal components
Tool-less Hard Drive, CD & Diskette Removal
Green Pull Tabs, and Quick Release Latches for easy Identification
Note:
thumb screw release mechanism is used with the Ultra-slim Desktop chassis cover.
Additional Features
Description
Intel® Standard Manageability*
Requires the utilization of the integrated network connection
Available with selected processors not part of the Intel Stable Intel Platform
Program (SIPP)
Intel Advanced Management Technology (AMT) v3.2
Basic PC management capabilities such as asset inventory, HW alerting,
SOL/IDE-R, remote configuration, agent presence and system defense.
DASH 1.1 compliance. Support for profile updates.
Host VPN support for local management VPN tunneling
* PCs with Intel Standard Manageability include features of Intel Active Management Technology (Intel AMT). Intel AMT requires the
computer system to have an Intel AMT-enabled chipset, network hardware and software, as well as connection with a power source
and a corporate network connection. Setup requires configuration by the purchaser and may require scripting with the management
console or further integration into existing security frameworks to enable certain functionality. For more information, see
http://www.intel.com/technology/platform-technology/intel-amt/.
Intel Core 2 Processor with vPro
Requires the utilization of the integrated network connection
Technology
Available with selected processors which are part of the Intel Stable Intel Platform
DA - 13424
North America — Version 22 — December 30, 2010
Page 23
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications
DASH 1.1 support (Desktop and Mobile
Architecture for System Hardware)
ASF 2.0 support (Alert Standard Format)
TXT (Trusted Execution Technology) and VTd (Virtualized devices)
Program (SIPP)
Intel Advanced Management Technology (AMT) v5.0
Intel Standard Manageability technologies (see above for a list of features)
Fast Call for Help – client outside the firewall may initiate a call for help via BIOS
screen, periodic connections, or alert triggered connection
Audit Logs – policy based log of AMT actions to deter rogue administrator actions
Microsoft NAP Support – allows AMT to gain access to a Microsoft NAP enabled
802.1x network OOB to enable OOB SW updates, inventories, remote
diagnostics, etc.
Remote Scheduled Maintenance – Pre-schedule when the PC connects to the IT or
service provider console for maintenance
Remote Alerts – automatically alert IT or service provider if issues arise
Access Monitor – Provides oversight to support security requirements
A standards initiative for representing out-of-band management capability for
computer systems. It is a secure, web-services based successor to ASF.
Industry-standard specification for network alerting in operating system-absent
environments
TXT allows for secure management (via TPM) and measured launch of VMM,
as well as teardown of secrets in unexpected reset case. TXT support provided
in select Intel processors
VT-d is a chipset technology that virtualizes directed I/O
Computrace
Towerable Orientation
Drive Lock
Drive Protection System
SMART Technology (Self-Monitoring,
Analysis and Reporting Technology)
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning with
Defect Reallocation
DA - 13424
Together, TXT and VT-d may be used to support verified launch of a known
trusted VMM that also may protect VMs from accessing each other's memory.
Computrace agent support standard
Product can be oriented as either a desktop or a tower
Implementation of the industry standard ATA Security feature set. When enabled,
it prevents software access to user data on the drive until one or two userdefined passwords are provided.
DPS Access through F10 Setup during Boot
A diagnostic hard drive self test. It scans critical physical components and every
sector of the hard drive for physical faults and then reports any faults to the user
Running independently of the operating system, it can be accessed through a
Windows-based diagnostics utility or through the computer's setup procedure.
It produces an evaluation on whether the hard drive is the source of the
problem and needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain
types of failures.
Allows hard drives to monitor their own health and to raise flags if imminent failures
were predicted
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration
retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance"
against unplanned user downtime and potential data loss from hard drive failure
IOEDC: I/O Error Detection Circuitry
North America — Version 22 — December 30, 2010
Page 24
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications
SMART IV – End-to-End CRC for hard
drives
DA - 13424
Detects errors in Read/Write buffers on HDD cache RAM
Interface in F10 setup provides confirmation of SMART IV support.
North America — Version 22 — December 30, 2010
Page 25
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Audio
High Definition Audio
Type
HD Stereo Codec
Integrated
Realtek 4-channel ALC261 codec
Front microphone-In (150-K ohm Input Impedance
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is configurable by audio
driver)
Rear Line-Out* (190 ohms Output Impedance, expects at least a 10-K ohm load)
Audio I/O Ports
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a 32 ohm load)
Front Microphone/Headphone jack is re-task able to provide Microphone input, line-in or
Headphone output to support connecting two headphones to the front of the system. When
configured as a second front headphone output, both front headphone outputs are always driven
with the same signal.
For the internal speaker only. External speakers must be powered externally. Rear Line-in audio
Internal Speaker Amplifier
port is re-taskable as either Line-in or Microphone-In.
Multi-streaming can be enabled in the Realtek control panel to allow independent audio streams to
Multistreaming Capable
be sent to/from the front and rear jacks.
Sampling
8 kHz – 192 kHz
Wavetable Syntheses (software) Yes – Uses OS soft wavetable
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left & Right channels)
(mono/stereo)
Internal Audio Speaker Power
1.5 W
Rating
Yes
Internal Speaker
External Speaker Jack
Yes
(Line-Out)
Note:
The audio ports/jacks provided by all of our systems are 3.5mm in diameter. This would include both the front jacks and rear jacks,
for audio in/out, mic in and headphone out.
DA - 13424
North America — Version 22 — December 30, 2010
Page 26
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Audio
HP Thin USB Powered Speakers
On/Off/Volume Controls
Power LED
Frequency Response
Watts
Dimensions/Speaker
(H x W x D)
Right side of right speaker
Front of right speaker (green)
FO to 20kHz
2/3 watt (normal/maximum)
5.72 x 3.74 x 0.96 in
14.52 x 9.50 x 2.45 cm
0.68 lbs
Net Weight
0.31 kg
Color
Black
14° to 104° F
Operating Temperature:
Environmental
–10° to 40° C
(all conditions non-condensing)
Relative Humidity 40% to 90%
5.91 ft
Input Cord:
1800mm
3.28 ft
Speaker Cable Length
L-channel Cord:
1000mm
5.91 ft
USB Cord:
1800mm
DA - 13424
North America — Version 22 — December 30, 2010
Page 27
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
Intel 82578 GbE Network Connection (integrated)
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data transfer mode
Data rates supported
Compliance
Data transfer mode
Hardware certifications
Power requirement
ACBS
Boot ROM support
Network transfer mode
Network transfer rate
Operating temperature
Management
Alerting
RJ-45
Intel 82578 Gigabit platform LAN Connect Networking Controller
24 KB FIFO packet buffer memory
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3 ab and 802.3u compliant
GLCI, LCI interface. Intel specific MAC to PHY interface
PCIe-like interface for 1000 speed, SMBus interface for lower 10/100 speeds.
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3 ab and 802.3u compliant
At gigabit GLCI (Intel proprietary 802.3 series-based interface) is for Data, LCI (parallel bus) for
MDIO, at 10/100 LCI for both data and MDIO, GLCI is idle.
FCC B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European Union
Requires 3.3V & 1.2V.
Power consumption 761 Milliwatts
Intel Auto Connect Battery Saving feature
Yes
Full-duplex
Half-duplex (not supported for the 1000BASE-T transceiver)
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
0° to 85° C
WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable diagnostic.
ASF 2.0 support, AMT 3.0 support
DA - 13424
North America — Version 22 — December 30, 2010
Page 28
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
Broadcom NetXtreme GbE Ethernet Plus Network Interface Controller
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
Power requirement
Boot ROM support
Network transfer mode
Network transfer rate
Environmental
Dimensions
Operating system driver
support
Management capabilities
RJ-45
Broadcom 5761 PCI-Express LAN Controller
8 MB NVRAM serial Flash
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB, 802.3u, and 802.3x
PCI-Express
Single Channel PCI-Express
Bus Master DMA
FCC class B, Canada and US NRTL Mark, C-Tick for Australia, BSMI for Taiwan, VCCI for Japan,
MIC for Korea, GOST for Russia, UL listed (E212044), European Union Notice (CE 0682)
1.8W @ 3.3V
Yes
Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Operating temperature 32° to 131°F (0° to 55° C)
Operating humidity 131° F (55° C) with 5% to 95% non-condensing humidity
2.75 in x 4.13 in (7 cm x 10.5 cm), low profile compatible
Windows Vista 32-bit SP1, Windows Vista x64 SP1, Windows XP 32 bit professional
ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility, ASF2.0, DASH 1.0 and
DASH 1.1 profiles
DA - 13424
North America — Version 22 — December 30, 2010
Page 29
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
Intel GbE CT Desktop Network Interface Connection
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
RJ-45
Intel 82574L Gigabit Ethernet Controller
Integrated Dual 48K configurable transmit receive FIFO Buffers
10/100/1000 Mbps
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x flow control
PCI-E 1.0a
X1, 250 MB/s, Bi-directional interface
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European Union
Power requirement
Boot ROM support
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Yes
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Operating temperature 32° to 131°F (0° to 55° C)
Operating humidity 85% at 131° F (55° C)
4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)
WOL, PXE, DMI, WFM 2.0
Network transfer rate
Environmental
Dimensions
Management
HP Wireless Network Connection 802.11 b/g/n
Dimensions (L x H)
Weight
Controller
System interface
Network standard
Frequency band
Operating temperature
Storage temperature
Humidity
Operating voltage
3.3 x 4.7 in
8.5 x 12 cm
0.08 lbs
40 g
Ralink RT2790
PCIExpress x1
802.11 b/g/n
2.400 - 2.497 GHz
14° to 149°F, operating (-10° to 65°C, operating)
-40° to 176°F, non-operating (-40° to 80°C, non-operating)
10-90% operating
5-95% non-operating
3.3V +/- 9%
12V +/- 8%
Platform/WLAN Mode
Power Consumption
Maximum Power Consumption 10 Watts
Transmit Only
4 Watts maximum averaged power over 1 second
Transmit Packet or Active
1000 mA peak current for 100 microseconds or longer
Scanning
DA - 13424
North America — Version 22 — December 30, 2010
Page 30
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
Power consumption
Output power (approximately)
Receive Only Mode or Idle
without IEEE PSP mode enabled
Idle, with IEEE PSP mode
enabled
Transmit Disabled
(turned off in software)
Platform in S3 or S4
(power removed from Low
Profile PCI Express Card)
802.11b mode
802.11g mode
Data transfer rate
Mode
802.11b
802.11b
802.11g
802.11g
802.11g
802.11g
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
Data Rate (MCS)
1 Mbps (802.11 b)
2 Mbps (802.11 b)
5.5 Mbps (802.11 b)
11 Mbps (802.11 b)
12 Mbps (802.11 g)
18 Mbps (802.11 g)
24 Mbps (802.11 g)
36 Mbps (802.11 g)
48 Mbps (802.11 g)
54 Mbps (802.11 g)
6.5 Mbps (20 MHz EWC)
13 Mbps (20 MHz EWC)
19.5 Mbps (20 MHz EWC)
26 Mbps (20 MHz EWC)
39 Mbps (20 MHz EWC)
DA - 13424
1.0 Watts maximum averaged over 1 second
50 mW maximum, averaged over 1 second
5 mW maximum, averaged over 1 second
+19 dBm +/- 1.0 dB maximum
+17 dBm +/- 1.0 dB maximum
+17 dBm +/- 1.0 dB maximum (total power in all transmit
chains)
EWC mode
Receive sensitivity
3 Watts maximum averaged over 1 second
Data rate
1 Mbps
11 Mbps
6 Mbps
18 Mbps
48 Mbps
54 Mbps
6.5 Mbps
54 Mbps
81 Mbps
162 Mbps
270 Mbps
300 Mbps
Sensitivity
-94 dBm
-85 dBm
-91 dBm
-85 dBm
-75 dBm
-72 dBm
-87 dBm
-82 dBm
-78 dBm
-74 dBm
-68 dBm
-64 dBm
Minimum Throughput
700 kbps
1.4 Mbps
3.5 Mbps
5.9 Mbps
6 Mbps
9 Mbps
12 Mbps
18 Mbps
21 Mbps
22.5 Mbps
4.5 Mbps
9 Mbps
13.5 Mbps
18 Mbps
27 Mbps
North America — Version 22 — December 30, 2010
Page 31
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
52 Mbps (20 MHz EWC)
58.5 Mbps (20 MHz EWC)
65 Mbps (20 MHz EWC)
78 Mbps (20 MHz EWC)
104 Mbps (20 MHz EWC)
117 Mbps (20 MHz EWC)
130 Mbps (20 MHz EWC)
13.5 Mbps (40 MHz EWC)
27 Mbps (40 MHz EWC)
40.5 Mbps (40 MHz EWC)
54 Mbps (40 MHz EWC)
81 Mbps (40 MHz EWC)
108 Mbps (40 MHz EWC)
121.5 Mbps (40 MHz EWC)
135 Mbps (40 MHz EWC)
IEEE and WiFi compliant 64 / 128 bit WEP encryption
AES: CCM
802.1x authentication
Security
WPA: 802.1x. WPA-PSK and TKIP
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5
Antenna
HP part number 497792-001
Certifications
Wi-Fi certified
Certifications for use by country United States, Canada, Peru, Taiwan
36 Mbps
40 Mbps
45 Mbps
54 Mbps
72 Mbps
81 Mbps
91 Mbps
8 Mbps
16 Mbps
24 Mbps
32 Mbps
48 Mbps
64 Mbps
72 Mbps
81 Mbps
Intel WiFi Link 5100 a/b/g/n Wireless Network Interface Connection (USDT)
Wireless LAN Standards
Interoperability
Frequency Band
Antenna Structure
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Note:
The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final
specifications differ from the draft specifications, it may affect the ability of the notebook to
communicate with other 802.11n WLAN devices. In countries where n draft 2.0 is not allowed, this
capability is not enabled.
Wi-Fi certified (802.11a/b/g only)
Cisco Compatible Extensions Program compliant (802.11a/b/g only) with Microsoft Windows Vista
and XP
Tested with wireless access points from several major manufacturers
2.4 GHz and 5 GHz
1 transmit; 2 receive (1x2)
DA - 13424
North America — Version 22 — December 30, 2010
Page 32
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
Data Rates
Modulation
Security
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power (for CCK)
Output Power (for OFDM;
power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity4
Antenna Connections
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the
combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in
IEEE 802.11n (draft) specification
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of
128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products
through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows Vista and XP
only.
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Transmit: 2.3 Watts (average, with one spatial streams)
Receive: 1.9 Watts (average with two receive chains
Idle mode: 30 mW (average)
Radio off: 20 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm
3 U.FL type connectors, 50 ohm nominal impedance
600 feet - Outdoor Open Area
802.11 a - Typical (@6 Mbps)
150 feet - Indoor, Office environment
1200 feet - Outdoor Open Area
802.11 b - Typical (@1 Mbps)
300 feet - Indoor, Office environment
1200 feet - Outdoor Open Area
802.11 g - Typical (@1 Mbps)
300 feet - Indoor, Office environment
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3V +/- 9%, 1.5V +/- 5%
Operating: 32° to 176° F (0° to 80° C)
Non-operating: -40° to 176° F (-40° to 80° C)
Operating: 10% to 90% (non-condensing)
Non-operating: 5% to 90% (non-condensing)
DA - 13424
North America — Version 22 — December 30, 2010
Page 33
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
Operating: 0 to 10,000 ft (3,048 m)
Non-operating: 0 to 50,000 ft (15,240 m)
Altitude
Microsoft Windows XP
Microsoft Windows Vista
Microsoft Windows XP Wireless Network
Microsoft Windows Vista Wireless Network
Connection Manager
Connection Manager.
Configuration Utility5
Intel PROSet for Microsoft Windows XP
Intel IHV extensions for Windows Vista
(required for Cisco Compatible Extensions
available to support Cisco Compatible
support)
Extensions.
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode and on battery power.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10%
for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft Windows XP. WLAN may also
be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible
Extensions support for Microsoft Windows Vista.
LSI 56K International SoftModem PCI Express x1 Card
Data Transmission
Data Speeds
Data Standards
Fax Speeds
Fax Mode Capabilities
Error Correction and Data
Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Power
Chipset
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
Note:
56 Kbps technology refers to download speeds only and requires compatible modems at server
sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps
during download transmissions.
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A, and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2, Appendix A. D0,
D3hot, and D3cold. Wake on Ring state when in D3cold. If the power management event (PME)
feature is enabled in D3cold, a modem can wake the system via WAKE# (WAKEN) or beacon.
Meets PCI Express 1.1 standard.
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a UART-compatible
interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Requires a 3.3-V auxiliary power rail on PCI express bus
Uses only one PCI express load (i.e., one grant/request pair), one shared IRQ, one electrical load
LSI SV92EX - Integrated PCI interface with 3.3-V tolerant buffers and CardBus support
DA - 13424
North America — Version 22 — December 30, 2010
Page 34
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Communications
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Telecom
Other
Complies with PCI express low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and supports
high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device, support for high profile
and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV, NEMKO, DEMKO,
SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-4-6, EN 610004-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
The SV92EX device is packaged in a 32-pin micro leadless chip carrier (MLCC). The SV92EX is
fully compliant with the PCI Express revision 1.1 specification. WHQL approved; ASPM compliant.
DA - 13424
North America — Version 22 — December 30, 2010
Page 35
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
Intel Graphics Media Accelerator (GMA) 4500
3D/2D Controller
VGA Controller
DisplayPort
Bus Type
RAMDAC
Memory
Microsoft DirectX® 10 based with support for Pixel Shader 3.0
Integrated
Integrated, Multimode capable; supports HDCP
PCI Express™ x16
Integrated, 350 MHz
Graphics memory is shared with system memory. Graphics memory usage varies depending on the
amount of system memory installed, BIOS settings, operating system, and system load. 32 MB is preallocated for graphics use at system boot time. Additional memory can be allocated at boot time by the
BIOS for PAVP (Protected Audio Video Playback) support for playback of protected video content. For
Vista, use of PAVP heavy mode preallocates an additional 96MB.
Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology
(DVMT), to provide an optimal balance between graphics and system memory use.
Windows XP Memory
Usage
Total System Memory
.5GB
1.0GB
1.5GB
2.0GB & more
Pre-Allocated (MB)
32
32
32
32
DVMT (MB)
128
512
768
1024
Assumes Management Engine, VT-d enabled and other memory allocated for other BIOS usage
System
Memory
1 GB
Windows Vista Memory
Usage
2 GB
4 GB
6 GB
8 GB
HW Video Decode
Maximum Color Depth
Maximum Vertical
Refresh Rate
PVAP
Lite
Heavy
Lite
Heavy
Lite
Heavy
Lite
Heavy
Lite
Heavy
Total Avail
Dedicated
Avail System
System Video Shared System
GFX Memory Video Memory
Memory (MB)
Memory (MB) Memory (MB)
(MB)
(MB)
952
252
32
96
124
856
294
122
6
166
1976
764
32
96
636
1880
806
122
6
678
4024
1759
32
96
1631
3928
1759
122
6
1631
6072
1759
32
96
1631
5976
1759
122
6
1631
8120
1759
32
96
1631
8024
1759
122
6
1631
Hardware Accelerated decode for MPEG2 encrypted video; support for PAVP Lite (default) and Heavy ( or
Paranoid) modes
32 bits/pixel
85 Hz at up to 1920x1440, 75 Hz at 2048x1536. Varies with mode and configuration. See table below.
Multi-display Support
Integrated dual independent monitor support facilitated via one VGA port and one DisplayPort integrated
on the back plane of the system board and presented as part of the rear I/O set of interfaces. DVI
supported via optional HP DisplayPort to DVI-D adapter.
Graphics/Video API
Support
Microsoft DirectX® 10, OpenGL® 1.5 (OpenGL® 2.0 available in a driver update)
Maximum Refresh Rate (Hz)
DA - 13424
North America — Version 22 — December 30, 2010
Page 36
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
Resolutions Supported
Resolution
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
60*
* Only supported when using a DisplayPort connection
Note:
Other resolutions may be available but are not recommended as they may not have been tested and
qualified by HP
Note:
60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with
other digital connections
NVIDIA Quadro NVS 290 Graphics Card
Bus Type
Memory
Connector
Dimensions
Multi-Monitor support
RAMDAC
Maximum Pixel Clock
Overlay planes
PCI Express x16; low profile
PCI Express x1, low profile
256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
Single high-density DMS-59 Flex Connector
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
Dual monitor support
Integrated dual 400MHz
350-MHz
One 16-bit video overlay plane
One 1-bit video overlay plan
Full screen, full frame video playback of HDTV and DVD content
DVD ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
High Definition Video Processor
Hardware color space conversion (YUV 4:2:2 and 4:2:0)
(HDVP)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Specification
Description
Description
G86-825
Core Clock
460-MHz
Board Configuration
Memory Clock
400-MHz
Frame Buffer
256-MB DDR2, 64-bit wide
DA - 13424
North America — Version 22 — December 30, 2010
Page 37
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
Dual integrated analog display controllers supporting up to two analog displays at 2048x1536 @
85Hz on both displays or dual digital displays at 1920x1200 (single-link).
Display resolution support
Color planes
DVI support
Supported graphics APIs
NVIEW advanced multi-display desktop and application management seamlessly integrated into
Microsoft Windows
32-bit color buffer
DMS-59 (to dual DVI-SL)
OGL 2.1 & DX10 Support; Shader Model 4.0
Resolution
640x480
Resolutions Supported
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
2560x1600
Maximum Refresh Rate
Analog Connection
Digital Connection
85
60
85
85
85
85
75
85
75
85
85
85
75
N/A
60
60
60
60
60
60
60
60-R
60-R
N/A
N/A
N/A
Note:
Other resolutions may be available but are not recommended as the may not have been tested
and qualified by HP
Note:
60-R denotes reduced blanking timings are used on single-link DVI connections and may be used
with other digital connections
DA - 13424
North America — Version 22 — December 30, 2010
Page 38
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
NVIDIA Quadro NVS 295 Graphics Card
Form Factor
Graphics Controller
Bus Type
Memory
Connectors
Maximum Resolution
Display Output
Supported Graphics APIs
2.731 inches (H) × 6.600 inches (L), Half-Height
NVIDIA Quadro NVS 295 Graphics Board
PCI Express x16, Generation 2.0
256 MB GDDR3 SDRAM unified graphics memory
2 DisplayPort
Comes with 2 DisplayPort to VGA Adapters
Note:
When purchased as an after-market option, this comes instead with 2 DisplayPort to DVI-D
adapters.
Two DisplayPort outputs drive two digital displays up to 2560 x 1600
Drives DisplayPort enabled digital displays at resolutions up to 2560 × 1600 at 60 Hz with
reduced blanking
Drives DVI enabled digital displays at resolutions up to 1920 × 1200 at 60 Hz with reduced
blanking (through DisplayPort to DVI-D (single link) cable)
OpenGL 3.0
DirectX 10.0
NVIDIA GeForce 310 Graphics Card
Bus type
Board
display
options
PCI Express (x16 lanes)
Supports two displays via the DisplayPort and DVI connectors
Specification
Description
Graphics Chip
RV620
Board
Core clock
750 MHz
configuration
Memory clock
500 MHz
Frame buffer
512 MB DDR3, 64 bit wide
Audio
Support
Integrated HD Audio codec supports linear PCM and Dolby® Digital (7.1) audio formats for HDMI output
(through
HDMI only)
Core power 22 W (max)
Dimensions 2.71 in x 6.60 in
(H x D)
68.90 mm x 167.65 mm
0.30 lb (134.3 g)
Weight
Maximum
vertical
85 Hz
refresh rate
Display
Integrated 400 MHz RAMDAC
support
Display max
2560 x 1600 digital, 2048 x 1536 analog
resolution
DA - 13424
North America — Version 22 — December 30, 2010
Page 39
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
Resolution
Supported
Resolutions
Option Kit
Contents
Compliance
Standards
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
85
60
85
60
85
60
85
60
85
60
75
60
85
60
75
60
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
85
1920x1200
85
1920x1440
85
2048x1536
75
2560x1600
N/A
* Only supported when using a dual-link DVI or DP connection.
Note:
Other resolutions may be available but are not recommended as the may not have been tested and
qualified by HP
Note:
60-R denotes reduced blanking timings are used on single-link DVI connections and may be used
with other digital connections
60-R
60-R
N/A
N/A
60*
NVIDIA GeForce 310 DP PCIe x16 Graphics Cardwith full height bracket attached
DVI to VGA Adapter
Software CD with graphics drivers
Low profile bracket to convert the card for use in a low profile chassis
Warranty documentation
EMC Emissions
EMC Immunity
FCC Part 15, Subpart B - Unintentional Radiators, Class B
CISPR 24:1997/EN 55024:1998 - Information Technolog
Computing Devices for Home & Office Use
Equipment - Immunity Characteristics - Limits and Methods
CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods Measurement
of measurement of radio disturbance characteristics of
Information Technology Equipment
Canadian Standard ICES-003 is equivalent to CISPR22
Taiwanese Standard BSMI
Japanese VCCI
Australian C-Tick
Korean (MIC)
DA - 13424
North America — Version 22 — December 30, 2010
Page 40
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
ATI Radeon HD 4550 Graphics Card
Bus type
PCI Express x16
Maximum vertical refresh rate
85 Hz
Display support
Integrated 400 MHz RAMDAC
Display max resolution
1900 x 1200 digital, 2048 x 1536 analog
Board display options
Supports two displays via included DMS-59 to dual VGA cable or 2 DVI monitors via optional
DMS-59 to dual DVI cable kit part number: DL139A. 4-pin mini-DIN S-video connector for TV
output
Specification
Description
Graphics Chip RV710
Board configuration
Core clock 600 MHz
Memory clock 800 MHz
Frame buffer 512 MB DDR3, 64 bit wide
Languages supported
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional, Czechoslovakian,
Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean,
Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish
EMC Emissions
FCC Part 15, Subpart B – Unintentional
Radiators, Class B Computing Devices for
Home & Office Use
Compliance standards
CISPR22: 1997/EN 55022:1998 – Class B –
Limits and methods of measurement of radio
disturbance characteristics of Information
Technology Equipment
EMC Immunity
CISPR 24:1997/EN 55024:1998 – Information
Technology Equipment – Immunity
Characteristics – Limits and Methods of
Measurement
Canadian Standard ICES-003 is equivalent to
CISPR22
Taiwanese Standard BSMI
Japanese VCCI
Australian C-Tick
Korean (MIC)
DA - 13424
North America — Version 22 — December 30, 2010
Page 41
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
Maximum Refresh Rate (Hz)
Resolutions Supported
Resolution
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
N/A
Note:
Other resolutions may be available but are not recommended as they may not have been tested and
qualified by HP
Note:
60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with
other digital connections
ATI Radeon HD 4650 Graphics Card
Bus type
PCI Express x16
Maximum vertical refresh rate
85 Hz
Display support
Integrated 400 MHz RAMDAC
Display max resolution
2560 x 1600 digital, 2048 x 1536 analog
DA - 13424
North America — Version 22 — December 30, 2010
Page 42
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
Maximum Refresh Rate (Hz)
Resolutions Supported
Resolution
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
60*
* Only supported when using a dual-link DVI or DP connection
Note:
Other resolutions may be available but are not recommended as they may not have been tested and
qualified by HP
Note:
60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with
other digital connections
Board display options
Supports two displays via included two DisplayPort and one Dual Link DVI-I connectors.
Specification
Description
Graphics Chip RV635
Board configuration
Core clock 725 MHz
Memory clock 500 MHz
Frame buffer 1 GB DDR3, 128 bit wide
Core power
56 W
DA - 13424
North America — Version 22 — December 30, 2010
Page 43
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
Board display options
Supports two displays via included two DisplayPort and one Dual Link DVI-I connectors.
EMC Emissions
Board configuration
EMC Immunity
FCC Part 15, Subpart B - Unintentional
Radiators, Class B Computing Devices for
Home & Office Use
CISPR22: 1997/EN 55022:1998 - Class B Limits and methods of measurement of radio
disturbance characteristics of Information
Technology Equipment
Canadian Standard ICES-003 is equivalent to
CISPR22
Taiwanese Standard BSMI
Japanese VCCI
Australian C-Tick
Korean (MIC)
CISPR 24:1997/EN 55024:1998 - Information
Technology Equipment - Immunity
Characteristics - Limits and Methods of
Measurement
HP ADD2 SDVO DVI-D Out PCI Express x1 Adapter Card
Form Factor
DVI-D Connector
Dual Head Support
Display Devices Supported
Color Depth
Host Interface Connector
Dot Clock
Display Modes
Resolutions Supported
Low-profile card
Digital connection only
Yes, when used with the integrated VGA connector
HP L1740
HP L1940T
HP L2045W
HP LP1965
Note:
These graphics adapters offer optimal performance with any display that meets applicable VESA
standards
All modes support 8-bpp, 16-bpp, and 24-bpp color depths
Mechanically compliant with PCI-E standard
Complies with the Intel ADD2 and Intel Serial Digital Video Output (SDVO) specifications
165 MHz maximum
Supports display modes that require up to 165-MHz bandwidth on the link, as shown in the
following table.
Resolution
Blanking
640 x 480
VGA
800 x 600
SVGA
1024 x 768
XGA
1280 x 1024
SXGA
1600 x 1200
UXGA
DA - 13424
60-Hz LCD
5% reduced
Yes
Yes
Yes
Yes
Yes
60-Hz
GTF
Yes
Yes
Yes
Yes
Yes
North America — Version 22 — December 30, 2010
75-Hz
GTF
Yes
Yes
Yes
No
No
85-Hz
GTF
Yes
Yes
Yes
No
No
Page 44
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Graphics
HP DisplayPort to DVI-D Adapter
Connectors
Adapter length
Adapter weight
DisplayPort and DVI-D single link connector
7.5 in (19.0 cm)
.10 lbs (.05 kg)
HP DisplayPort to VGA Adapter
Connectors
Adapter
length
Adapter
weight
Maximum
vertical
refresh rate
Display
support
Display
max
resolution
Resolutions
Supported
DisplayPort and VGA connector
8 in (20 cm)
.1 lbs (.06 kg)
85 Hz
162 MHz RAMDAC
1600x1200
Resolution
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
Max refresh rate
85
85
85
85
85
75
60
60
60-R
60-R
Note:
Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Using the
DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the most up-to-dat
graphics driver go to: www.hp.com.
Note:
60-R denotes reduced blanking timings are used. Not all monitors support reduced blanking timing.
DA - 13424
North America — Version 22 — December 30, 2010
Page 45
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Hard Drives
160-GB 2.5” Hard Disk Drive
Capacity
Rotational Speed
Interface
Synchronous Transfer Rate
(Maximum)
Buffer Size
Logical Blocks
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
160,041,885,696 bytes
7,200 rpm
Serial ATA (SATA)
Up to 3 GB/s
8 MB
312,581,808
Single Track: 2.0 ms
Average: 12 ms
Full-Stroke: 22 ms
0.374 in/9.5 mm
Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm
41° to 131° F
5° to 55° C
250-GB
250-GB 2.5” Hard Disk Drive
Capacity
Rotational Speed
Interface
Synchronous Transfer Rate
(Maximum)
Buffer Size
Logical Blocks
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
250,059,350,016 bytes
7,200 rpm
Serial ATA (SATA)
Up to 3 GB/s
8 MB
488,397,168
Single Track: 2.0 ms
Average: 12 ms
Full-Stroke: 22 ms
0.374 in/9.5 mm
Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm
41° to 131° F
5° to 55° C
DA - 13424
North America — Version 22 — December 30, 2010
Page 46
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Hard Drives
160-GB 3.5” Hard Disk Drive
Capacity
Rotational Speed
Interface
Synchronous Transfer Rate
(Maximum)
Buffer Size
Logical Blocks
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
160,041,885,696 bytes
7,200 rpm
Serial ATA (SATA)
Up to 3 GB/s
8 MB
312,581,808
Single Track: 0.9 ms
Average: 9.3 ms
Full-Stroke: 18 ms
1 in/2.54 cm
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F
5° to 55° C
250-GB 3.5” Hard Disk Drive
Capacity
Rotational Speed
Interface
Synchronous Transfer Rate
(Maximum)
Buffer Size
Logical Blocks
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
250,059,350,016 bytes
7,200 rpm
Serial ATA (SATA)
Up to 3 GB/s (limited by the system SATA controller)
8 MB
488,397,168
Single Track: 1.0 ms
Average: 8.5 ms
Full-Stroke: 18 ms
1 in/2.54 cm
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F (5° to 55° C)
DA - 13424
North America — Version 22 — December 30, 2010
Page 47
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Hard Drives
320-GB 3.5” Hard Disk Drive
Capacity
Rotational Speed
Interface
Synchronous Transfer Rate
(Maximum)
Buffer Size
Logical Blocks
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
320,069,031,690 bytes
7,200 rpm
Serial ATA (SATA)
Up to 3 GB/s
8 MB
625,142,448
Single Track: 1.0 ms
Average: 8.5 ms
Full-Stroke: 18 ms
1 in/2.54 cm
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F (5° to 55° C)
500-GB 3.5” Hard Disk Drive
Capacity
Rotational Speed
Interface
Synchronous Transfer Rate
(Maximum)
Buffer Size
Logical Blocks
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
500,107,862,016 bytes
7,200 rpm
Serial ATA (SATA)
Up to 3 GB/s (limited by the system SATA controller)
16 MB
976,773,168
Single Track: 2.0 ms
Average: 11 ms
Full-Stroke: 21 ms
1 in/2.54 cm
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F (5° to 55° C)
DA - 13424
North America — Version 22 — December 30, 2010
Page 48
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Hard Drives
160-GB 10,000 rpm Hard Disk Drive
Capacity
Rotational Speed
Interface
Synchronous Transfer Rate
(Maximum)
Buffer Size
Logical Blocks
Seek Time (typical reads,
includes controller overhead,
including settling)
Height (nominal)
Width (nominal)
Operating Temperature
160,041,885,696 bytes
10,000 rpm
Serial ATA (SATA)
Up to 3 GB/s (limited by the system SATA controller)
16 MB
312,581,808
Single Track: 0.3 ms
Average: 4.6 ms
Full-Stroke: 10.2 ms
1 in/2.54 cm
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
41° to 131° F
5° to 55° C
64-GB 2.5” Solid State Drive
Capacity
Interface
Architecture
64 GB
Serial ATA (SATA)
Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller
Write speed Up to 220 MB/s
Internal transfer rate
Read speed Up to 120 MB/s
Host transfer rate
Ultra DMA mode Up to 150 MB/s
DC power requirement 5 VDC 5%-100 mV ripple p-p
Power
Total power consumption <1.12Watt
Dimensions (W x H x D)
2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm
Weight
0.14 lb/65 g
Temperature: 32° to 158° F (0° to 70° C)
Operating Temperature
Environmental
Relative Humidity: 5% to 95%
(all conditions, non-condensing)
Maximum Wet Bulb
84° F (29° C)
Temperature (operating)
Note:
For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity varies by content and will be less than 15.8GB.
DA - 13424
North America — Version 22 — December 30, 2010
Page 49
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Hard Drives
80-GB 2.5” Solid State Drive
Capacity
Interface
Architecture
Dimensions (W x H x D)
Weight
80-GB
Serial ATA (SATA)
Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller
2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm
0.18 lb/80 g
Sustained Sequential Read: Up to 250 MB/s
Sustained Sequential Write: Up to 70 MB/s
Bandwidth Performance
Random Read: Up to 35K IOPs
Random Write: Up to 6.6K IOPs
Latency
Read: 65-ms
Write: 85-ms
DC power requirement 5 VDC 5%-100 mV ripple p-p
Power
Total power consumption 0.15W (active); 0.075W (idle)
Useful Drive Life
35TB written, up to 20GB/day for 5 years
Temperature: 32° to 158° F (0° to 70° C)
Operating Temperature
Relative Humidity: 5% to 95%
Environmental
Maximum Wet Bulb
(all conditions, non-condensing)
84° F (29° C)
Temperature (operating)
Shock: 1,500 G/0.5-ms
Note:
For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity varies by content and will be less than 15.8GB.
DA - 13424
North America — Version 22 — December 30, 2010
Page 50
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
HP USB Standard Keyboard
Physical
characteristics
Electrical
Mechanical
Environmental
Keys
104, 105, 106, 107, 109 layout
(depending upon country)
Dimensions (L x W x H)
18.0 x 6.4 x 0.98 in
45.8 x 16.3 x 2.5 cm
Weight
2 lb
0.9 kg
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI – RFI
Conforms to FCC rules for a Class B computing device
Microsoft® PC 99 – 2001
Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 –2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
DA - 13424
North America — Version 22 — December 30, 2010
Page 51
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard
Installation Guide
Warranty Card
Safety and Comfort Guide
HP PS/2 Standard Keyboard
Physical
characteristics
Electrical
Mechanical
Keys
104, 105, 106, 107, 109 layout
(depending upon country)
Dimensions (L x W x H)
18.0 x 6.4 x 0.98 in
45.8 x 16.3 x 2.5 cm
Weight
2 lb
0.9 kg minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
PS/2 6-pin mini din connector
ESD
CE level 4, 15-kV air discharge
EMI – RFI
Conforms to FCC rules for a Class B computing device
Microsoft® PC 99 – 2001
Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft
1.8 m
Microsoft PC 99 –2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
DA - 13424
North America — Version 22 — December 30, 2010
Page 52
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Environmental
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard
Installation Guide
Warranty Card
Safety and Comfort Guide
HP USB SmartCard Keyboard
Keys
Physical
characteristics
Form factor
Colors
Dimensions (H x W x D)
Electrical
Mechanical
Weight
Operating voltage
Power consumption
System interface
ESD
EMI - RFI
Microsoft PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Switch type
Key-leveling mechanisms
Cable length
Microsoft PC 99 - 2001
Acoustics
Operating temperature
Non-operating temperature
Operating humidity
Non-operating humidity
DA - 13424
104, 105, 106, 107, 109 layout
(depending upon country)
USB basic Smart Card keyboard
Carbonite/Silver
18.2 x 6.3 x 1.3 in
46.3 x 16.1 x 3.3 cm
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
100-mA maximum (with four LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing device
Functionally compliant
30+ available
Low-profile design
55 g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified tester)
Contamination-resistant membrane
For all double-wide and greater-length keys
6 ft (1.8 m)
Mechanically compliant
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
North America — Version 22 — December 30, 2010
Page 53
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Environmental
Operating shock
Non-operating shock
Operating vibration
Non-operating vibration
Drop (out of box)
Drop (in box)
Support
Interface
Chipset
Standard APIs supported
Power
Power consumption
SMARTCARD function
Communication
Landing mechanism
Interface modes
Reader performance interface
Electro-magnetic standards
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
42 in (107 cm) on concrete, 16-drop sequence
All ISO 7816 smart cards
Reads from and writes to all ISO7816-1, 2, 3, 4 memory and
microprocessor smart cards (T=0, T=1)
SCM STCII
PC/SC, EMV2000, SET
USB Port
Short circuit detection (protects smart card and reader)
Power supply compliant with ISO7816 and EMV (5V, 60 mA)
Supports 3-V and 5-V cards
250-mA maximum draw (50 mA for the keyboard with three LEDs
ON and 200-mA maximum startup current using a high-current,
60-mA smart card)
Programmable from 9,600
From card
baud to 115,200 baud
Up to 38,400 baud
From computer
Friction contact
Contact device
Up to 100,000 insertion cycles
Card insertions rating
USB communications through USB port
SCM protocol
Automatic card insertion/removal detection
USB connection
89/336/CEE guideline
Europe
USAFCC part 15
USA
HP USB & PS2 Washable Keyboard
Physical Characteristics
Electrical
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions
(L x W x H)
18.0 x 6.4 x 0.98 in
45.8 x 16.3 x 2.5 cm
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ±5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
DA - 13424
North America — Version 22 — December 30, 2010
Page 54
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Mechanical
Environmental
Microsoft® PC 99 - 2001
Functionally compliant
Keycaps
Stepped -profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
7 ft
2.2 m
Microsoft PC 99 - 2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F
10° to 50° C
Non-operating temperature
-4° to 149° F
-20° to 65° C
Operating humidity
10% to 95% (non-condensing at ambient)
Non-operating humidity
0% to 95% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
Approvals
UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1,
IP66/NEMA4X
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
HP Smart Card CCID Keyboard
Keys
Physical Characteristics
Form factor
Colors
Dimensions
(H x W x D)
Weight
Operating voltage
DA - 13424
104, 105, 106, 107, 109 layout
(depending upon country
USB basic smart card keyboard
Carbonite/Silver
18.2 x 6.3 x 1.3 in
46.3 x 16.1 x 3.3 cm
2 lb
0.9 kg minimum
+ 5VDC ± 5%
North America — Version 22 — December 30, 2010
Page 55
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Electrical
Power consumption
System interface
ESD
EMI - RFI
Microsoft PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Mechanical
Switch type
Key-leveling mechanisms
Cable length
Microsoft PC 99 - 2001
Acoustics
Operating temperature
Non-operating temperature
Environmental
Operating humidity
Non-operating humidity
Operating shock
Non-operating shock
Operating vibration
Non-operating vibration
Drop
(out of box)
Drop
(in box)
Support
Interface
Chipset
Standard APIs supported
Power
SmartCard Function
Power consumption
Communication
DA - 13424
100-mA maximum (with four LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing device
Functionally compliant
30+ available
Standard design
55 g nominal peak force with tactile feedback
20 million keystrokes
(using Hasco modified tester)
Contamination-resistant membrane
For all double-wide and greater-length keys
6 ft
1.8 m
Mechanically compliant
43-dBA maximum sound pressure level
50° to 122° F
10° to 50° C
-22° to 140° F
-30° to 60° C
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
42 in (107 cm) on concrete, 16-drop sequence
All ISO 7816 smart cards
Reads from and writes to all ISO7816-1, 2, 3, 4 memory and
microprocessor smart cards (T=0, T=1)
SCM STCIII
PC/SC, EMV2000, CT-API
USB Port
Short circuit detection (protects smart card and reader)
Power supply compliant with ISO7816 and EMV (5V, 60 mA)
Supports 3-V and 5-V cards
100-mA maximum draw
From card
9600 bps to 330,000 bps
From computer
12 Mbps (USB transfer speed)
North America — Version 22 — December 30, 2010
Page 56
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Contact device
Friction contact
Card insertions rating
Up to 100,000 insertion cycles
Interface modes
CCID protocol
Reader performance interface USB connection
Europe
2004/108/EC
Electro-magnetic standards
USA
USAFCC part 15
CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, EMV2000, USB-IF
ISO 9241-4, TUVGS
HP ProtectTools Smart Card
HP
Amex Blue
American Express
Landing mechanism
Approvals
Ergonomic Compliance
Axalto (Schlumberger)
Cardlogix
Safenet, Inc.
De-La Rue
Gemplus
Smart Card Compatibility
Infineon
DA - 13424
Cryptoflex 8K
Cryptoflex 16K
Cryptoflex 32K
Cryptoflex 32K e-gate
Cyberflex Access 64K
Cyberflex Access 32K
Cyberflex 32K e-gate
Cyberflex 64K
Cyberflex Palmera
Payflex-S
Payflex 1K
Payflex 2K
Payflex 4K
Payflex 8K
Prismera
US DoD CAC
PrimeFlex Store 8K
PrimeFlex Store 2K
CLXSU004KK4
CLXSU008KK5
Model 300
Model 330
VisaCash
Gem Expresso
GKK32K
Gemclub Memo
GemClub Micro
GemXplore
GemSafe
SLE66C322P
SLE4406
SLE4406E
SLE4406E SE
SLE4418
SLE4428
SLE4432
SLE4436E
SLE4442
North America — Version 22 — December 30, 2010
Page 57
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
SafLink (Litronic)
Shart
Oberthur
SLE5536
Forte
Java Card
CosmopollIC v4
CosmopollIC v4.1
Cosmo ID-One
GalatIIC v2.1
US DoD CAC
Memory Cards
AT24C01ASC
AT24C02SC
AT24C04SC
AT24C08SC
AT24C16SC
AT24C32SC
AT24C64SC
AT24C128SC
AT24C256SC
AT24C512SC
AT88SC153
AT88SC1608
IS23SC4418
IS23SC4428
14C02
SLE4406
SLE4436
SLE5536
X24026
Atmel
ISSI
ST
Telefonkarte
XICOR
HP PS/2 Optical Mouse
Dimensions
(H x L x W)
1.56 x 2.44 x 4.61 in
3.95 x 6.21 x 11.7 cm
Weight
4.44 oz
126 g
Environmental
Operating temperature
-32° to 104°F
0° to 40° C
Non-operating temperature
-4° to 140°F
-20° to 60° C
Operating humidity
10% to 90%
(non condensing at ambient)
Non-operating humidity
10% to 90%
(non condensing at ambient)
Operating shock
40 g, 6 surfaces
DA - 13424
North America — Version 22 — December 30, 2010
Page 58
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Electrical
Mechanical
Scroll wheel
Regulatory approvals
Non-operating shock
80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating vibration
4 g peak acceleration
Drop (out of box)
80 cm height onto asphalt tile over concrete or equivalent, 5-drop
in 5 direction except the cable face
Operating voltage
5 VDC ± 10%
Power consumption
100mA
System consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC99 - 2001
Functionally compliant
Resolution
400 ± 20% DPI
Tracking speed
10 in/s (25.4 cm/s) maximum
Acceleration
100 in/s/s (2.54 m/s/s)
Switch actuation
61 g nominal peak force
Switch life
3,000,000 operations (using Hasco modified tester)
Switch type
Low force micro-switches
Tracking mechanism life
155 mi (250 km) at average speed of 10 in/s
Cable length
6 ft (1.8 m)
Microsoft PC99 - 2001
Mechanically compliant
Width
8 mm
Diameter
1.01 in (25.6 mm)
Maximum rotation speed
48 rats/sec
Switch type
Light force micro-switch
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
DA - 13424
North America — Version 22 — December 30, 2010
Page 59
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
HP USB Optical Mouse
Dimensions
(H x L x W)
1.5 x 4.5 x 2.5 in
3.8 x 11.6 x 6.3 cm
Weight
0.27 lb
0.12 kg
Cable length
72.8 in
185 cm
System requirements
Microsoft Windows 95, 98, 2000, Me, XP and Vista
Available USB port
HP USB Laser Mouse
Scroll Wheel
24
Maximum Rotation Speed
48 rats/sec
Switch Type
wheel
Switch Life
Button – 3,000,000
Wheel – 1,000,000 times
Tilt switch – 500,000 times
Environmental
Operating Temperature
32° to 104° F
0° to 40° C
Non-operating Temperature
-4° to 140° F
-20° to 60° C
Operating Humidity
10% to 90%
(non-condensing at ambient)
Non-operating Humidity
20% to 80%
(non-condensing at ambient)
Operating Shock
40 g, six surfaces
Non-operating Shock
80 g, six surfaces
Operating Vibration
2-g peak acceleration
Non-operating Vibration
4-g peak acceleration
Operating Voltage
+ 5VDC ± 5%
Electrical
Power Consumption
MTBF
> 150,000 hrs
ESD
IEC-61000-4-2 criteria B, Contact discharge: +/- 4kV, Air
discharge: +/- 8kV
EMI-RFI
FCC Class B
DA - 13424
North America — Version 22 — December 30, 2010
Page 60
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Input Devices
Mechanical
Regulatory Approvals
PC98
PC 99 Compliant
Resolution
800dpi
Tracking Speed
25 cm/sec
Acceleration
0.5mm
Switch Actuation
0.6N (60gf)
Switch Life
Button – 3,000,000
Wheel – 1,000,000 times
Tilt switch – 500,000 times
Cable Length
1850mm
PC98-99
PC99 compliant
UL60950-1, UL 94, UL 746 (A-E), UL 796
TUV/GS: EN 60950-1, EN 60825-1
FCC Class B, UL 1950, cUL, TUV GS, CE, C-tick, VCCI, BSMI, RRL
DA - 13424
North America — Version 22 — December 30, 2010
Page 61
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
HP Blu-ray Writer Drive
AMO Part Number
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
AR482AA
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA
50 GB DL or 25 GB standard
5.9 x 1.7 x 7.5 in
15.0 x 4.4 x 19.0 cm
2.0 lb
907g
DVD-ROM
Blu-ray
Full Stroke DVD
Full Stroke CD
Blu-ray
Disc Capacity
Startup Time
CD-ROM Read
DVD-ROM Read
Maximum Data Transfer Rates
8.5GB DL or 4.7GB standard
50GB DL or 25GB standard
< 250 ms (seek)
< 210 ms (seek)
< 275 ms (seek)
(Time to drive ready from tray loading)
BD-ROM (SL/DL)
25S / 28S
BD-R (SL/DL)
25S / 28S
BD-RE (SL/DL)
25S / 28S
DVD-ROM (SL/DL)
18S / 18S
DVD-R (SL/DL)
25S / 25S
DVD-RW
25S
DVD+R (SL/DL)
25S / 25S
DVD+RW
25S
DVD-RAM
45S
CD-ROM
15S
CD-ROM up to 40X
CD-RW up to 40X
8x CAV
DVD-RAM up to 5X
DVD+RW up to 10X
DVD-RW up to 10X
DVD+R DL up to 8X
DVD-R DL up to 8X
DVD-ROM up to 16X
DVD-ROM DL up to 8X
DVD+R up to 12X
DVD-R up to 12X
BD-ROM up to 6X
BD-ROM DL up to 4.8X
DA - 13424
North America — Version 22 — December 30, 2010
Page 62
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
Blu-ray
Source
Power
DC Power Requirement
DC Current
Environmental
(all conditions
non-condensing)
Temperature (operating)
Relative Humidity (operating)
Maximum Wet Bulb
Temperature (operating)
BD-R up to 6X
BD-R DL up to 4.8X
BD-R up to 6X
BD-RE SL/DL up to 4.8X
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC -1000 mA typical, 1600 mA maximum
12 VDC -600 mA typical, 1400 mA maximum
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
HP SuperMulti LightScribe Drive
AMO Part Number
Height
Orientation
Interface type
Dimensions (W x H x D)
Weight (max)
AR630AT
5.25-inch, half-height, tray-load
Either horizontal or vertical
Serial ATA
5.9 x 1.7 x 8.0 in
(15.0 x 4.4 x 20.3 cm)
2.6 lb
(1.2 kg)
CD Media Read Access
DVD Media Read Access
CD Media Read Transfer
DVD Media Read Transfer
DA - 13424
Random
Full Stroke
Random
Full Stroke
CD-ROM, CD-R Read
CD-RW Read
Digital/Analog
Audio Playback
Digital Audio Extraction
(CD-ROM, CD-R)
Digital Audio Extraction
(CD-RW)
Video CD Playback
DVD-ROM SL Read
DVD-ROM DL Read
DVD Video Playback
DVD Video SL
(other than playback)
DVD Video DL
(other than playback)
< 120 ms typical
< 200 ms typical
< 130 ms typical
< 240 ms typical
Up to 6000 KB/s (40X)
Up to 4800 KB/s (32X)
Up to 2400 KB/s (16X)
Up to 6000 KB/s (40X)
Up to 4800 KB/s (32X)
Up to 2400 KB/s (16X)
Up to 21600 KB/s (16X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
Up to 21600 KB/s (16X)
Up to 10800 KB/s (8X)
North America — Version 22 — December 30, 2010
Page 63
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
Performance
CD Media Write Transfer
DVD Media Write Transfer
Supported Media Types
DVD-R
DVD+R
DVD-RW
DVD-R DL
DVD+RW
CD-R Write
CD-RW
CD-RW (High speed)
CD-RW (Ultra speed)
CD-RW (Ultra speed+)
Up to 21600 KB/s (16X)
Up to 21600 KB/s (16X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
Up to 6000 KB/s (40X)
600 KB/s (4X)
1500 KB/s (10X)
Up to 3600 KB/s (24X)
Up to 4800 KB/s (32X)
DVD+R
DVD+R DL (v1.2)
DVD+R DL (v1.1)
DVD+RW (Volume 2 v1.0)
DVD+RW (Volume 1 v1.3)
DVD-R (v2.1 rev. 6.0)
DVD-R (v2.1 rev. 4.0)
DVD-R DL (v3.0 rev. 5.0)
DVD-R DL (v3.0 rev. 3.0)
DVD-RW (v1.2 rev. 3.0)
DVD-RW (v1.2 rev. 2.0)
DVD-RAM (v2.2 rev. 5.0)
DVD-RAM (v2.2 rev. 2.0)
LightScribe CD-R Version 1.2
LightScribe DVD-R Version 1.2
LightScribe DVD+R Version 1.2
Up to 21600 KB/s (16X)
Up to 16200 KB/s (12X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
Up to 5400 KB/s (4X)
Up to 16200 KB/s (12X)
Up to 21600 KB/s (16X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
8100 KB/s (6X)
Up to 5400 KB/s (4X)
Up to 16200 KB/s (12X)
Up to 6750 KB/s (5X)
Best
LightScribe Direct Disc Labeling
Print Levels and Print Time
(12cm Media – Full Label)
Normal
Draft
Media Compatibility
Media
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DA - 13424
Read
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
CD < 28 minutes
DVD < 30 minutes
CD < 24 minutes
DVD < 26 mintutes
CD < 20 minutes
DVD < 22 minutes
Write
No
No
No
No
No
No
No
No
No
North America — Version 22 — December 30, 2010
Page 64
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
DVD-R
DVD-RW
DVD-R DL
Source
DC Power Requirement
Yes
Yes
Yes
SATA DC power receptacle
5 VDC ± 5%
12 VDC ± 5%
5 VDC
Power Supply
DC Current
12 VDC
Total Drive Power
(Standby Mode)
Rear Panel
Environmental conditions (all
conditions
non-condensing)
No
No
No
100 mV ripple p-p
200 mV ripple p-p
<1000 mA (typical)
1600 mA (max.)
1200 mA (typical)
2000 mA (max.)
< 2.5W
SATA Power Connector, 15-pin
SATA Data Connector, 7-pin
Markings to identify each connector
Temperature
41° to 122° F
(operating)
(5° to 50° C)
Temperature
–22° F to 140° F
(storage)
(–30° C to 60° C)
Relative Humidity
10% to 90%
Maximum Wet Bulb
86° F (30° C)
Temperature
0 to 10,171 ft.
Altitude
(0 to 3,100 meters)
HP DVD-ROM Drive
AMO Part Number
Height
Orientation
Interface type
Dimensions (W x H x D)
Weight (max)
AR629AA
5.25-inch, half-height, tray-load
Either horizontal or vertical
Serial ATA
5.9 x 1.7 x 8.0 in
(15.0 x 4.4 x 20.3 cm)
2.6 lb
(1.2 kg)
CD Media Read Access
DVD Media Read Access
Random
Full Stroke
Random
Full Stroke
CD-ROM, CD-R Read
CD-RW Read
Digital/Analog
Audio Playback
< 120 ms typical
< 200 ms typical
< 130 ms typical
< 240 ms typical
Up to 6000 KB/s (40X)
Up to 4800 KB/s (32X)
Up to 2400 KB/s (16X)
CD Media Read Transfer
DA - 13424
North America — Version 22 — December 30, 2010
Page 65
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
CD Media Read Transfer
Performance
DVD Media Read Transfer
Media
Media Compatibility
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DVD-R
DVD-RW
DVD-R DL
Source
DC Power Requirement
Digital Audio Extraction
(CD-ROM, CD-R)
Digital Audio Extraction
(CD-RW)
Video CD Playback
DVD-ROM SL Read
DVD-ROM DL Read
DVD Video Playback
DVD Video SL
(other than playback)
DVD Video DL
(other than playback)
DVD-R
DVD+R
DVD-RW
DVD-R DL
DVD+RW
Read
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
SATA DC power receptacle
5 VDC ± 5%
12 VDC ± 5%
5 VDC
Power Supply
DC Current
12 VDC
Total Drive Power
(Standby Mode)
Rear Panel
Up to 6000 KB/s (40X)
Up to 4800 KB/s (32X)
Up to 2400 KB/s (16X)
Up to 21600 KB/s (16X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
Up to 21600 KB/s (16X)
Up to 10800 KB/s (8X)
Up to 21600 KB/s (16X)
Up to 21600 KB/s (16X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
Up to 10800 KB/s (8X)
Write
No
No
No
No
No
No
No
No
No
No
No
No
100 mV ripple p-p
200 mV ripple p-p
<1000 mA (typical)
1600 mA (max.)
1200 mA (typical)
2000 mA (max.)
< 2.5W
SATA Power Connector, 15-pin
SATA Data Connector, 7-pin
Markings to identify each connector
Temperature
41° to 122° F
DA - 13424
North America — Version 22 — December 30, 2010
Page 66
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
Environmental conditions (all
conditions
non-condensing)
(operating)
Temperature
(storage)
Relative Humidity
Maximum Wet Bulb
Temperature
(5° to 50° C)
–22° F to 140° F
(–30° C to 60° C)
10% to 90%
86° F (30° C)
0 to 10,171 ft.
(0 to 3,100 meters)
Altitude
HP Slim SuperMulti LightScribe Drive
AMO Part Number
VP034AA
Height
12.7mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc recording capacity
Up to 8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D)
5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
Weight (max)
0.42 lb (190 g)
Write speeds
DVD-RAM
Up to 5X
DVD-R DL
Up to 4X
DVD+R
Up to 8X
DVD+RW
Up to 4X
DVD+R DL
Up to 4X
DVD-R
Up to 8X
DVD-RW
Up to 6X
CD-R
Up to 24X
CD-RW
Up to 16X
DVD-RAM
Up to 5X
DVD-RW, DVD+RW
Up to 8X
DVD-R DL, DVD+R DL
Up to 6X
DVD+R, DVD-R
Up to 8X
DVD-ROM DL, DVD-ROM
Up to 8X
CD-ROM, CD-R
Up to 24X
CD-RW
Up to 24X
Random
DVD: < 140 ms (typical), CD: < 125 ms (typical)
Read speeds
Access time
DA - 13424
North America — Version 22 — December 30, 2010
Page 67
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
(typical reads, including
settling)
Power
Full Stroke
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Stop Time
< 4 seconds
Cache Buffer
2 MB (minimum)
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2
(16.7 MB/s); ATA UltraDMA Mode 3 (44.4 MB/s - default)
Source
Four-pin, DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
5 VDC (< 1000 mA typical, 1600 mA maximum)
12 VDC (< 600 mA typical, 1400 mA maximum)
Audio output
Environmental conditions
(operating - non-condensing)
Total Drive Power
(standby mode)
< 2.5 Watt
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 90%
Maximum Wet Bulb
Temperature
86° F (30° C)
HP Slim DVD-ROM Drive
AMO Part Number
VP033AA
Height
12.7mm
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Dimensions (W x H x D)
5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
Weight (max)
0.42 lb (190 g)
Read speeds
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 4X
DVD-ROM
Up to 8X
CD-ROM, CD-R
Up to 24X
CD-RW
Up to 24X
DA - 13424
North America — Version 22 — December 30, 2010
Page 68
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Optical Storage
Access time
(typical reads, including
settling)
Power
Audio output
Environmental (all conditions
non-condensing)
Random DVD
DVD: < 140 ms (typical), CD: < 125 ms (typical)
Random CD
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2
(16.7 MB/s)
Source
Four-pin, DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC - <1000 mA typical, < 1600 mA maximum
Total Drive Power
(standby mode)
< 2.5 Watt
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
5% to 85%
Maximum Wet Bulb
Temperature (operating)
86° F (30° C)
DA - 13424
North America — Version 22 — December 30, 2010
Page 69
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Removable Storage
HP 22-n-1 Media Card Reader plus 1394 Media Card Reader
USB 2.0 High-speed interface
USB Interface
1394 Interface
Note:
Requires the USB cable to be connected to the internal USB 2.0 port or a USB 2.0 PCI card.
Two IEEE-1394a external ports; 1 IEEE-1394a internal port
(connects to the pass through cable on the media card reader)
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Advance protocol support
Supports MS PRO-HG Duo 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50Mhz SD 4-bit card (version 2.0)
Supports high-speed 52Mhz MMC 8-bit card (version 4.2)
Supports CF v4.0 with PIO mode 6 and Ultra DMA mode
CompactFlash Type I
CompactFlash Type II
Microdrive
MultiMediaCard (MMC)
Reduced Size MultiMediaCard (RS MMC)
MultiMediaCard 4.2 (MMC Plus, including MMC Plus HC)
Reduced Size MultiMediaCard 4.2 (MMC Mobile, including MMC Mobile HC)
Secure Digital Card (SD)
Secure Digital High Capacity (SDHC)
miniSD
Supported media type
miniSD High Capacity
Micro SD (T-Flash)
Micro SD HC
Memory Stick
Memory Stick Select
Memory Stick Duo (MS Duo)
Memory Stick PRO (MS PRO)
DA - 13424
North America — Version 22 — December 30, 2010
Page 70
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Removable Storage
Memory Stick PRO Duo (MS PRO Duo)
Memory Stick PRO-HG Duo
MagicGate Memory Stick (MG)
MagicGate Memory Stick Duo
xD-Picture Card
Supported media type with
card adapter
Memory Stick Micro (M2)
MMC Micro
Operational Environmental
Extremes
Test Parameters/Conditions - Power applied, unit operating on
system ±5%
nominal supply voltage.
10°C 10% R.H. = 24 hours
10°C 90% R.H. = 24 hours
20°C 90% R.H. = 24 hours
30°C 90% R.H. = 24 hours
40°C 90% R.H. = 24 hours
50°C 90% R.H. = 24 hours
50°C 10% R.H. = 24 hours
Storage Environmental
Extremes
Test Parameters/Conditions
140°F (60°C) @ 80% R.H. for 96 hours
-22°F (-30°C) @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
Environmental
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport Specification Rev.
1.0
Approvals
Compliant Intel Front Panel I/O Connectivity Design Guide V. 1.3
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
DA - 13424
North America — Version 22 — December 30, 2010
Page 71
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Environmental Data
Eco-Label Certifications & This product has received or is in the process of being certified to the following approvals and may be
declarations
labeled with one or more of these marks:
US ENERGY STAR ®
IT ECO declaration
EPEAT Gold where HP registers commercial desktop products. See http://www.epeat.net for
registration status in your country
Ultra-Slim Desktop
Energy Consumption
(typically configured)
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
115 VAC
230 VAC
100 VAC
26.96 W
27.61 W
27.12 W
3.585 W
3.63 W
3.582 W
1.361 W
1.411 W
1.359 W
115 VAC
230 VAC
100 VAC
92 BTU/hr
94 BTU/hr
93 BTU/hr
12 BTU/hr
12 BTU/hr
12 BTU/hr
5 BTU/hr
5 BTU/hr
5 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
Declared Noise Emissions
(in accordance with ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
3.8
3.8
System Fan Off
Idle
Fixed Disk
(random writes)
Batteries
Sound Pressure
(LpAm, decibels)
28
28
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see:
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
DA - 13424
North America — Version 22 — December 30, 2010
Page 72
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Environmental Data
ISO1043.
This product contains 0.40% post consumer recycled plastic (by wt.)
This product is 92.3% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated –3637.5 g
Internal:
Polyethylene low density – 7.6 g
The corrugated packaging material contains at least 80% recycled content.
The corrugated packaging material contains at least 0% recycled content.
Small Form Factor
Energy Consumption
(typically configured)
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
115 VAC
230 VAC
100 VAC
41.4254 W
2.7652 W
40.8627 W
2.9789 W
41.5632 W
2.7294 W
1.3332 W
1.4949 W
1.3320 W
115 VAC
230 VAC
100 VAC
142 BTU/hr
140 BTU/hr
142 BTU/hr
9 BTU/hr
10 BTU/hr
9 BTU/hr
5 BTU/hr
5 BTU/hr
5 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
Declared Noise Emissions
(in accordance with ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
3.7
3.7
System Fan Off
Idle
Fixed Disk
(random writes)
DA - 13424
Sound Pressure
(LpAm, decibels)
27
27
North America — Version 22 — December 30, 2010
Page 73
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Environmental Data
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers
commercial desktop products. See http://www.epeat.net for registration status in your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 86.2% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated Carton – 1362 g
Corrugated – 343 g
Internal:
EPE – Expanded Polyethylene – 198 g
Polyethylene low density foam – 39 g
The Corrugated Carton packaging material is made from 75% recycled content.
The EPE – Expanded Polyethylene packaging material is made from 100% recycled content.
The Polyethylene low density foam packaging material is made from 100% recycled content.
Convertible Minitower
Energy Consumption
(typically configured)
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
115 VAC
230 VAC
100 VAC
42.224 W
2.962 W
42.076 W
2.886 W
42.366 W
2.894 W
0.646 W
0.802 W
0.652 W
115 VAC
230 VAC
100 VAC
144 BTU/hr
144 BTU/hr
145 BTU/hr
10 BTU/hr
10 BTU/hr
10 BTU/hr
2 BTU/hr
3 BTU/hr
2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
DA - 13424
North America — Version 22 — December 30, 2010
Page 74
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Environmental Data
Declared Noise Emissions
(in accordance with ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
3.8
3.8
System Fan Off
Idle
Fixed Disk
(random writes)
Batteries
Sound Pressure
(LpAm, decibels)
28
28
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers
commercial desktop products. See http://www.epeat.net for registration status in your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 91.7% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated – 2550g
Internal:
Polyethylene high density – 160g
The Corrugated packaging material is made from 38% recycled content.
The Polyethylene high density packaging material is made from 100% recycled content.
All Models
RoHS Compliance
Material Usage
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,
including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to
exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.
By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for
all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is
no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
DA - 13424
North America — Version 22 — December 30, 2010
Page 75
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Environmental Data
Packaging
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 micro-grams/cm2/week, measured according to EN
1811:1998, are not used on any product surface designed to be frequently handled or touched
by users.
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
and Recycling
To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by
recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
DA - 13424
North America — Version 22 — December 30, 2010
Page 76
QuickSpecs
HP Compaq 8000 Elite Series
Technical Specifications - Environmental Data
Copyright © 2010 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, and Windows Vista are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Intel, Core 2 Quad, Core 2 Duo, Pentium and Celeron are registered trademarks or
trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the
U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 13424
North America — Version 22 — December 30, 2010
Page 77
