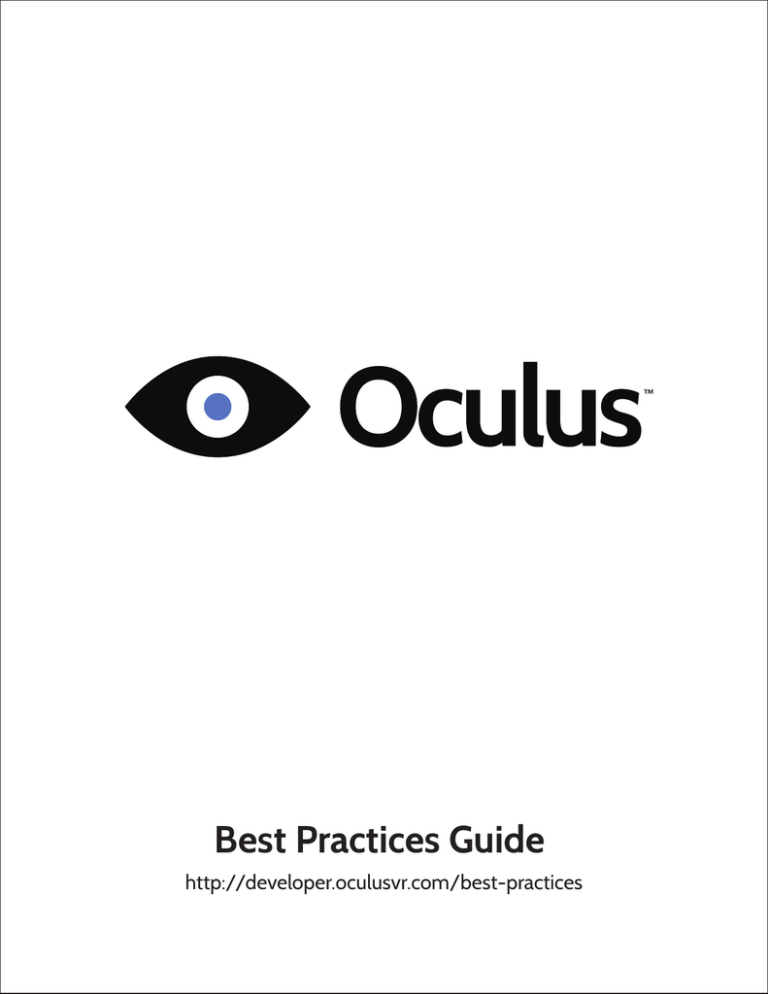

Samsung Gear VR Operating instructions

Best Practices Guide
http://developer.oculusvr.com/best-practices
January 9, 2015 version
A note on Gear VR:
Welcome to the Oculus Best Practices Guide! This guide describes guidelines for developing
content for the Oculus Rift Development Kit 2.
At this time, the guide does not explicitly address the Samsung Gear VR. Although many of the
same best practices apply across the entire medium of VR, please keep in mind the following
key differences between the two products:
•
•
•
•
•
1
The DK2 has six-degree-of-freedom position tracking, but the Gear VR does not.
Position tracking guidelines do not apply to the Gear VR.
The optics of the DK2 are fixed, but the Gear VR optics can be adjusted with the focus
wheel. This primarily impacts the recommended distance at which objects should be
rendered for best comfort.
The Gear VR uses a different SDK than the Oculus Rift. Descriptions of Oculus Rift SDK
functionality may not apply to the Gear VR SDK and vice-versa.
The Gear VR is equipped with a touchpad and physical “back” button not present on the
DK2. Oculus recommends reviewing the tutorial that ships with the Gear VR for basic
information about how to use these input methods.
Because GearVR does not have an app rendering option, there is no scenario where
GearVR developers need to concern themselves with implementing a “health and safety
warning” flash screen.
©January 2015, Oculus VR, LLC
January 9, 2015 version
The goal of this guide is to help developers create VR content that promotes:
! Oculomotor Comfort - avoiding eye strain.
! Bodily Comfort - preventing feelings of disorientation and nausea.
! Positive User Experience - providing fun, immersive and engaging interactions.
! Minimal VR Aftereffects - avoiding impacts on visual-motor functioning after use
Note: As with any medium, excessive use without breaks is not recommended for you as the developer,
for the end-user, or for the device.
Executive Summary of Best Practices
●
●
●
●
●
●
●
●
●
●
●
●
Rendering
Use the Oculus VR distortion shaders. Approximating your own distortion solution, even when
it “looks about right,” is most often discomforting for users.
Get the projection matrix exactly right and use of the default Oculus head model. Any deviation
from the optical flow that accompanies real world head movement creates oculomotor and
bodily discomfort.
Maintain VR immersion from start to finish – don’t affix an image in front of the user (such as a
full-field splash screen that does not respond to head movements), as this can be disorienting.
The images presented to each eye should differ only in terms of viewpoint; post-processing
effects (e.g., light distortion, bloom) must be applied to both eyes consistently as well as
rendered in z-depth correctly to create a properly fused image.
Consider supersampling and/or anti-aliasing to remedy low apparent resolution, which will
appear worst at the center of each eye’s screen.
Minimizing Latency
Your code should run at a frame rate equal to or greater than the Rift display refresh rate, vsynced and unbuffered. Lag and dropped frames produce judder which is discomforting in VR.
Ideally, target 20ms or less motion-to-photon latency (measurable with the Rift’s built-in latency
tester). Organise your code to minimize the time from sensor fusion (reading the Rift sensors) to
rendering.
Game loop latency is not a single constant and varies over time. The SDK uses some tricks
(e.g., predictive tracking, TimeWarp) to shield the user from the effects of latency, but do
everything you can to minimize variability in latency across an experience.
Use the SDK’s predictive tracking, making sure you feed in an accurate time parameter into the
function call. The predictive tracking value varies based on application latency and must be
tuned per application.
Consult the OculusRoomTiny source code as an example for minimizing latency and applying
proper rendering techniques in your code.
Optimization
Decrease eye-render buffer resolution to save video memory and increase frame rate.
Although dropping display resolution can seem like a good method for improving performance,
the resulting benefit comes primarily from its effect on eye-render buffer resolution. Dropping
2
©January 2015, Oculus VR, LLC
January 9, 2015 version
the eye-render buffer resolution while maintaining display resolution can improve performance
with less of an effect on visual quality than doing both.
●
●
●
●
●
●
●
●
●
●
●
Head-tracking and Viewpoint
Avoid visuals that upset the user’s sense of stability in their environment. Rotating or moving
the horizon line or other large components of the user’s environment in conflict with the user’s
real-world self-motion (or lack thereof) can be discomforting.
The display should respond to the user’s movements at all times, without exception. Even in
menus, when the game is paused, or during cutscenes, users should be able to look around.
Use the SDK’s position tracking and head model to ensure the virtual cameras rotate and move
in a manner consistent with head and body movements; discrepancies are discomforting.
Positional Tracking
The rendered image must correspond directly with the user's physical movements; do not
manipulate the gain of the virtual camera’s movements. A single global scale on the entire
head model is fine (e.g. to convert feet to meters, or to shrink or grow the player), but do not
scale head motion independent of inter-pupillary distance (IPD).
With positional tracking, users can now move their viewpoint to look places you might have not
expected them to, such as under objects, over ledges, and around corners. Consider your
approach to culling and backface rendering, etc..
Under certain circumstances, users might be able to use positional tracking to clip through the
virtual environment (e.g., put their head through a wall or inside objects). Our observation is
that users tend to avoid putting their heads through objects once they realize it is possible,
unless they realize an opportunity to exploit game design by doing so. Regardless, developers
should plan for how to handle the cameras clipping through geometry. One approach to the
problem is to trigger a message telling them they have left the camera’s tracking volume
(though they technically may still be in the camera frustum).
Provide the user with warnings as they approach (but well before they reach) the edges of the
position camera’s tracking volume as well as feedback for how they can re-position themselves
to avoid losing tracking.
We recommend you do not leave the virtual environment displayed on the Rift screen if the user
leaves the camera’s tracking volume, where positional tracking is disabled. It is far less
discomforting to have the scene fade to black or otherwise attenuate the image (such as
dropping brightness and/or contrast) before tracking is lost. Be sure to provide the user with
feedback that indicates what has happened and how to fix it.
Augmenting or disabling position tracking is discomforting. Avoid doing so whenever possible,
and darken the screen or at least retain orientation tracking using the SDK head model when
position tracking is lost.
Accelerations
Acceleration creates a mismatch among your visual, vestibular, and proprioceptive senses;
minimize the duration and frequency of such conflicts. Make accelerations as short (preferably
instantaneous) and infrequent as you can.
Remember that “acceleration” does not just mean speeding up while going forward; it refers to
3
©January 2015, Oculus VR, LLC
January 9, 2015 version
●
●
●
●
●
●
●
●
●
●
●
any change in the motion of the user. Slowing down or stopping, turning while moving or
standing still, and stepping or getting pushed sideways are all forms of acceleration.
Have accelerations initiated and controlled by the user whenever possible. Shaking, jerking, or
bobbing the camera will be uncomfortable for the player.
Movement Speed
Viewing the environment from a stationary position is most comfortable in VR; however, when
movement through the environment is required, users are most comfortable moving through
virtual environments at a constant velocity. Real-world speeds will be comfortable for longer—
for reference, humans walk at an average rate of 1.4 m/s.
Teleporting between two points instead of walking between them is worth experimenting with in
some cases, but can also be disorienting. If using teleportation, provide adequate visual cues
so users can maintain their bearings, and preserve their original orientation if possible.
Movement in one direction while looking in another direction can be disorienting. Minimize the
necessity for the user to look away from the direction of travel, particularly when moving faster
than a walking pace.
Avoid vertical linear oscillations, which are most discomforting at 0.2 Hz, and off-vertical-axis
rotation, which are most discomforting at 0.3 Hz.
Cameras
Zooming in or out with the camera can induce or exacerbate simulator sickness, particularly if
they cause head and camera movements to fall out of 1-to-1 correspondence with each other.
We advise against using “zoom” effects until further research and development finds a
comfortable and user-friendly implementation..
For third-person content, be aware that the guidelines for accelerations and movements still
apply to the camera regardless of what the avatar is doing. Furthermore, users must always
have the freedom to look all around the environment, which can add new requirements to the
design of your content.
Avoid using Euler angles whenever possible; quaternions are preferable. Try looking straight
up and straight down to test your camera; it should always be stable and consistent with your
head orientation.
Do not use “head bobbing” camera effects; they create a series of small but uncomfortable
accelerations.
Managing and Testing Simulator Sickness
Test your content with a variety of un-biased users to ensure it is comfortable to a broader
audience. As a developer, you are the worst test subject. Repeated exposure to and familiarity
with the Rift and your content makes you less susceptible to simulator sickness or content
distaste than a new user.
People’s responses and tolerance to sickness vary, and visually induced motion sickness
occurs more readily in virtual reality headsets than with computer or TV screens. Your
audience will not “muscle through” an overly intense experience, nor should they be expected
to do so.
4
©January 2015, Oculus VR, LLC
January 9, 2015 version
●
●
●
●
●
●
●
●
●
●
●
●
Consider implementing mechanisms that allow users to adjust the intensity of the visual
experience. This will be content-specific, but adjustments might include movement speed, the
size of accelerations, or the breadth of the displayed FOV. Any such settings should default to
the lowest-intensity experience.
For all user-adjustable settings related to simulator sickness management, users may want to
change them on-the-fly (for example, as they become accustomed to VR or become fatigued).
Whenever possible, allow users to change these settings in-game without restarting.
An independent visual background that matches the player’s real-world inertial reference frame
(such as a skybox that does not move in response to controller input but can be scanned with
head movements) can reduce visual conflict with the vestibular system and increase comfort
(see Appendix G for details).
High spatial frequency imagery (e.g., stripes, fine textures) can enhance the perception of
motion in the virtual environment, leading to discomfort. Use—or offer the option of—flatter
textures in the environment (such as solid-colored rather than patterned surfaces) to provide a
more comfortable experience to sensitive users.
Degree of Stereoscopic Depth (“3D-ness”)
For individualized realism and a correctly scaled world, use the middle-to-eye separation
vectors supplied by the SDK from the user’s profile.
Be aware that depth perception from stereopsis is sensitive up close, but quickly diminishes
with distance. Two mountains miles apart in the distance will provide the same sense of depth
as two pens inches apart on your desk.
Although increasing the distance between the virtual cameras can enhance the sense of depth
from stereopsis, beware of unintended side effects. First, this will force users to converge their
eyes more than usual, which could lead to eye strain if you do not move objects farther away
from the cameras accordingly. Second, it can give rise to perceptual anomalies and discomfort
if you fail to scale head motion equally with eye separation.
User Interface
UIs should be a 3D part of the virtual world and sit approximately 2-3 meters away from the
viewer—even if it’s simply drawn onto a floating flat polygon, cylinder or sphere that floats in
front of the user.
Don’t require the user to swivel their eyes in their sockets to see the UI. Ideally, your UI should
fit inside the middle 1/3rd of the user’s viewing area; otherwise, they should be able to examine
it with head movements.
Use caution for UI elements that move or scale with head movements (e.g., a long menu that
scrolls or moves as you move your head to read it). Ensure they respond accurately to the
user’s movements and are easily readable without creating distracting motion or discomfort.
Strive to integrate your interface elements as intuitive and immersive parts of the 3D world. For
example, ammo count might be visible on the user’s weapon rather than in a floating HUD.
Draw any crosshair, reticle, or cursor at the same depth as the object it is targeting; otherwise, it
can appear as a doubled image when it is not at the plane of depth on which the eyes are
converged.
5
©January 2015, Oculus VR, LLC
January 9, 2015 version
●
●
●
●
●
●
●
●
●
●
●
●
●
Controlling the Avatar
User input devices can't be seen while wearing the Rift. Allow the use of familiar controllers as
the default input method. If a keyboard is absolutely required, keep in mind that users will have
to rely on tactile feedback (or trying keys) to find controls.
Consider using head movement itself as a direct control or as a way of introducing context
sensitivity into your control scheme.
Sound
When designing audio, keep in mind that the output source follows the user’s head movements
when they wear headphones, but not when they use speakers. Allow users to choose their
output device in game settings, and make sure in-game sounds appear to emanate from the
correct locations by accounting for head position relative to the output device.
Presenting NPC (non-player character) speech over a central audio channel or left and right
channels equally is a common practice, but can break immersion in VR. Spatializing audio,
even roughly, can enhance the user’s experience.
Keep positional tracking in mind with audio design; for example, sounds should get louder as
the user leans towards their source, even if the avatar is otherwise stationary.
Content
For recommendations related to distance, one meter in the real world corresponds roughly to
one unit of distance in Unity.
The optics of the DK2 Rift make it most comfortable to view objects that fall within a range of
0.75 to 3.5 meters from the user’s eyes. Although your full environment may occupy any range
of depths, objects at which users will look for extended periods of time (such as menus and
avatars) should fall in that range.
Converging the eyes on objects closer than the comfortable distance range above can cause
the lenses of the eyes to misfocus, making clearly rendered objects appear blurry as well as
lead to eyestrain.
Bright images, particularly in the periphery, can create noticeable display flicker for sensitive
users; if possible, use darker colors to prevent discomfort.
A virtual avatar representing the user’s body in VR can have pros and cons. On the one hand,
it can increase immersion and help ground the user in the VR experience, when contrasted to
representing the player as a disembodied entity. On the other hand, discrepancies between
what the user’s real-world and virtual bodies are doing can lead to unusual sensations (for
example, looking down and seeing a walking avatar body while the user is sitting still in a chair).
Consider these factors in designing your content.
Consider the size and texture of your artwork as you would with any system where visual
resolution and texture aliasing is an issue (e.g. avoid very thin objects).
Unexpected vertical accelerations, like those that accompany traveling over uneven or
undulating terrain, can create discomfort. Consider flattening these surfaces or steadying the
user’s viewpoint when traversing such terrain.
Be aware that your user has an unprecedented level of immersion, and frightening or shocking
content can have a profound effect on users (particularly sensitive ones) in a way past media
could not. Make sure players receive warning of such content in advance so they can decide
6
©January 2015, Oculus VR, LLC
January 9, 2015 version
●
●
●
●
●
●
●
●
whether or not they wish to experience it.
Don’t rely entirely on the stereoscopic 3D effect to provide depth to your content; lighting,
texture, parallax (the way objects appear to move in relation to each other when the user
moves), and other visual features are equally (if not more) important to conveying depth and
space to the user. These depth cues should be consistent with the direction and magnitude of
the stereoscopic effect.
Design environments and interactions to minimize the need for strafing, back-stepping, or
spinning, which can be uncomfortable in VR.
People will typically move their heads/bodies if they have to shift their gaze and hold it on a
point farther than 15-20° of visual angle away from where they are currently looking. Avoid
forcing the user to make such large shifts to prevent muscle fatigue and discomfort.
Don’t forget that the user is likely to look in any direction at any time; make sure they will not
see anything that breaks their sense of immersion (such as technical cheats in rendering the
environment).
Health and Safety
Carefully read and implement the warnings that accompany the Rift (Appendix L) to ensure the
health and safety of both you, the developer, and your users.
Refrain from using any high-contrast flashing or alternating colors that change with a frequency
in the 1-30 hz range. This can trigger seizures in individuals with photosensitive epilepsy.
Avoid high-contrast, high-spatial-frequency gratings (e.g., fine, black-and-white stripes), as they
can also trigger epileptic seizures.
SDK rendered applications will automatically implement a “Health and Safety Warning” flash
screen that appears on startup of your content. If using app rendering, you must implement the
flash screen yourself.
7
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendices for further reading and detail
Appendix A - Introduction to Best Practices
Appendix B - Binocular Vision, Stereoscopic Imaging and Depth Cues
Basics
Monocular depth cues
Comfortable viewing distances inside the Rift
Effects of Inter-Camera Distance
Potential Issues with Fusing Two Images
Appendix C - Field of View and Scale (0.4 SDK)
Appendix D - Rendering Techniques
Display resolution
Understanding and Avoiding Display Flicker
Rendering resolution
Dynamically-rendered impostors/billboards
Normal mapping vs. Parallax Mapping
Appendix E - Motion
Speed of Movement and Acceleration
Degree of Control
Head Bobbing
Forward and lateral movement
Appendix F - Tracking
Orientation Tracking
Position Tracking
Latency
Appendix G - Simulator Sickness
Description
Factors Contributing to Simulator Sickness
Speed of Movement and Acceleration
Degree of Control
Duration
Altitude
Binocular Display
Field of View
Latency and Lag
Distortion Correction
Flicker
Experience
Combating Simulator Sickness
Player-Locked Backgrounds (a.k.a. Independent Visual Backgrounds)
Novel Approaches
Measurement and testing
8
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix H - User Interface
Heads-Up Display (HUD)
Avatars
Weapons and Tools
Appendix I - User Input and Navigation
Mouse, Keyboard, Gamepad
Alternative input methods
Navigation
Appendix J - Content Creation
Novel Demands
Art Assets
Audio Design
User and Environment Scale
Appendix K - Closing thoughts on effective VR (for now)
Appendix L - Health and Safety Warnings
9
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix A - Introduction to Best Practices
●
This
guide
will
help
you
make
comfortable, usable VR content.
Visit
http://developer.oculusvr.com/best-practices for the most up-to-date information.
These appendices serve to elaborate on the best practices summarized above for producing
Virtual Reality (VR) experiences for the Oculus Rift. Best practices are methods that help
provide high quality results, and are especially important when working with an emerging
medium like VR. Overviews and documentation for the Oculus SDK and integrated game
engine libraries (such as Unity, Unreal Engine, and UDK) can be found at
http://developer.oculusvr.com.
VR is an immersive medium. It creates the sensation of being entirely transported into a virtual
(or real, but digitally reproduced) three-dimensional world, and it can provide a far more
visceral experience than screen-based media. Enabling the mind’s continual suspension of
disbelief requires particular attention to detail. It can be compared to the difference between
looking through a framed window into a room, versus walking through the door into the room
and freely moving around.
The Oculus Rift is the first VR system of its kind: an affordable, high-quality device with a wide
field of view and minimal lag. Until now, access to VR has been limited primarily to research
labs, governments, and corporations with deep pockets. With the Oculus Rift, developers,
designers, and artists are now leading the way toward delivering imaginative realms to a global
audience.
If VR experiences ignore fundamental best practices, they can lead to simulator sickness—a
combination of symptoms clustered around eyestrain, disorientation, and nausea. Historically,
many of these problems have been attributed to sub-optimal VR hardware variables, such as
system latency. The Oculus Rift represents a new generation of VR devices, one that resolves
many issues of earlier systems. But even with a flawless hardware implementation, improperly
designed content can still lead to an uncomfortable experience.
Because VR has been a fairly esoteric and specialized discipline, there are still aspects of it
that haven’t been studied enough for us to make authoritative statements. In these cases, we
put forward informed theories and observations and indicate them as such. User testing is
absolutely crucial for designing engaging, comfortable experiences; VR as a popular medium
is still too young to have established conventions on which we can rely. Although our
researchers have testing underway, there is only so much they can study at a time. We count
on you, the community of Oculus Rift developers, to provide feedback and help us mature
these evolving VR best practices and principles.
Please feel free to send questions and comments to bestpractices@oculusvr.com.
10
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix B - Binocular Vision, Stereoscopic Imaging and
Depth Cues
●
●
●
●
●
The brain uses differences between your eyes’ viewpoints to perceive depth.
Don’t neglect monocular depth cues, such as texture and lighting.
The most comfortable range of depths for a user to look at in the Rift is between 0.75
and 3.5 meters (1 unit in Unity = 1 meter).
Set the distance between the virtual cameras to the distance between the user’s pupils
from the OVR config tool.
Make sure the images in each eye correspond and fuse properly; effects that appear in
only one eye or differ significantly between the eyes look bad.
Basics
Binocular vision describes the way in which we see two views of the world simultaneously—the
view from each eye is slightly different and our brain combines them into a single threedimensional stereoscopic image, an experience known as stereopsis. The difference between
what we see from our left eye and what we see from our right eye generates binocular disparity.
Stereopsis occurs whether we are seeing our eye’s different viewpoints of the physical world, or
two flat pictures with appropriate differences (disparity) between them.
The Oculus Rift presents two images, one to each eye, generated by two virtual cameras
separated by a short distance. Defining some terminology is in order. The distance between our
two eyes is called the inter-pupillary distance (IPD), and we refer to the distance between the
two rendering cameras that capture the virtual environment as the inter-camera distance (ICD).
Although the IPD can vary from about 52mm to 78mm, average IPD (based on data from a
survey of approximately 4000 U.S. Army soldiers) is about 63.5 mm—the same as the Rift’s
interaxial distance (IAD), the distance between the centers of the Rift’s lenses (as of this
revision of this guide).
Monocular depth cues
Stereopsis is just one of many depth cues our brains process. Most of the other depth cues are
monocular; that is, they convey depth even when they are viewed by only one eye or appear in
a flat image viewed by both eyes. For VR, motion parallax due to head movement does not
require stereopsis to see, but is extremely important for conveying depth and providing a
comfortable experience to the user.
Other important depth cues include: curvilinear perspective (straight lines converge as they
extend into the distance), relative scale (objects get smaller when they are farther away),
occlusion (closer objects block our view of more distant objects), aerial perspective (distant
objects appear fainter than close objects due to the refractive properties of the atmosphere),
texture gradients (repeating patterns get more densely packed as they recede) and lighting
(highlights and shadows help us perceive the shape and position of objects). Currentgeneration computer-generated content already leverages a lot of these depth cues, but we
mention them because it can be easy to neglect their importance in light of the novelty of
11
©January 2015, Oculus VR, LLC
January 9, 2015 version
stereoscopic 3D.
Comfortable viewing distances inside the Rift
Two issues are of primary importance to understanding eye comfort when the eyes are fixating
on (i.e., looking at) an object: accommodative demand and vergence demand. Accommodative
demand refers to how your eyes have to adjust the shape of their lenses to bring a depth plane
into focus (a process known as accommodation). Vergence demand refers to the degree to
which the eyes have to rotate inwards so their lines of sight intersect at a particular depth plane.
In the real world, these two are strongly correlated with one another; so much so that we have
what is known as the accommodation-convergence reflex: the degree of convergence of your
eyes influences the accommodation of your lenses, and vice-versa.
The Rift, like any other stereoscopic 3D technology (e.g., 3D movies), creates an unusual
situation that decouples accommodative and vergence demands—accommodative demand is
fixed, but vergence demand can change. This is because the actual images for creating
stereoscopic 3D are always presented on a screen that remains at the same distance optically,
but the different images presented to each eye still require the eyes to rotate so their lines of
sight converge on objects at a variety of different depth planes.
Research has looked into the degree to which the accommodative and vergence demands can
differ from each other before the situation becomes uncomfortable to the viewer.1 The current
optics of the DK2 Rift are equivalent to looking at a screen approximately 1.3 meters away.
(Manufacturing tolerances and the power of the Rift’s lenses means this number is only a rough
approximation.) In order to prevent eyestrain, objects that you know the user will be fixating
their eyes on for an extended period of time (e.g., a menu, an object of interest in the
environment) should be rendered between approximately 0.75 and 3.5 meters away.
Obviously, a complete virtual environment requires rendering some objects outside this
optimally comfortable range. As long as users are not required to fixate on those objects for
extended periods, they are of little concern. When programming in Unity, 1 unit will correspond
to approximately 1 meter in the real world, so objects of focus should be placed 0.75 to 3.5
distance units away.
As part of our ongoing research and development, future incarnations of the Rift will inevitably
improve their optics to widen the range of comfortable viewing distances. No matter how this
range changes, however, 2.5 meters should be a comfortable distance, making it a safe, futureproof distance for fixed items on which users will have to focus for an extended time, like menus
or GUIs.
Anecdotally, some Rift users have remarked on the unusualness of seeing all objects in the
1
Shibata, T., Kim, J., Hoffman, D.M., Banks, M.S. (2011). The zone of comfort: Predicting visual discomfort with
stereo displays. Journal of Vision, 11(8), 1-29.
12
©January 2015, Oculus VR, LLC
January 9, 2015 version
world in focus when the lenses of their eyes are accommodated to the depth plane of the virtual
screen. This can potentially lead to frustration or eye strain in a minority of users, as their eyes
may have difficulty focusing appropriately.
Some developers have found that depth-of-field effects can be both immersive and comfortable
for situations in which you know where the user is looking. For example, you might artificially
blur the background behind a menu the user brings up, or blur objects that fall outside the depth
plane of an object being held up for examination. This not only simulates the natural
functioning of your vision in the real world, it can prevent distracting the eyes with salient
objects outside the user’s focus.
Unfortunately, we have no control over a user who chooses to behave in an unreasonable,
abnormal, or unforeseeable manner; someone in VR might choose to stand with their eyes
inches away from an object and stare at it all day. Although we know this can lead to eye
strain, drastic measures to prevent this anomalous case, such as setting collision detection to
prevent users from walking that close to objects, would only hurt overall user experience. Your
responsibility as a developer, however, is to avoid requiring the user to put themselves into
circumstances we know are sub-optimal.
Effects of Inter-Camera Distance
Changing inter-camera distance, the distance between the two rendering cameras, can impact
users in important ways. If the inter-camera distance is increased, it creates an experience
known as hyperstereo in which depth is exaggerated; if it is decreased, depth will flatten, a state
known as hypostereo. Changing inter-camera distance has two further effects on the user:
First, it changes the degree to which the eyes must converge to look at a given object. As you
increase inter-camera distance, users have to converge their eyes more to look at the same
object, and that can lead to eyestrain. Second, it can alter the user’s sense of their own size
inside the virtual environment. The latter is discussed further in Appendix J - Content Creation
under User and Environment Scale.
Set the inter-camera distance to the user’s actual IPD to achieve veridical scale and depth in
the virtual environment. If applying a scaling effect, make sure it is applied to the entire head
model to accurately reflect the user’s real-world perceptual experience during head movements,
as well as any of our guidelines related to distance.
13
©January 2015, Oculus VR, LLC
January 9, 2015 version
Figure 1: The inter-camera distance (ICD) between the left and right scene cameras (left) must
be proportional to the user’s inter-pupillary distance (IPD; right). Any scaling factor applied to
ICD must be applied to the entire head model and distance-related guidelines provided
throughout this guide.
Potential Issues with Fusing Two Images
We often face situations in the real world where each eye gets a very different viewpoint, and
we generally have little problem with it. Peeking around a corner with one eye works in VR just
as well as it does in real life. In fact, the eyes’ different viewpoints can be beneficial: say you’re
a special agent (in real life or VR) trying to stay hidden in some tall grass. Your eyes’ different
viewpoints allow you to look “through” the grass to monitor your surroundings as if the grass
weren’t even there in front of you. Doing the same in a video game on a 2D screen, however,
leaves the world behind each blade of grass obscured from view.
Still, VR (like any other stereoscopic imagery) can give rise to some potentially unusual
situations that can be annoying to the user. For instance, rendering effects (such as light
distortion, particle effects, or light bloom) should appear in both eyes and with correct disparity.
Failing to do so can give the effects the appearance of flickering/shimmering (when something
appears only in one eye) or floating at the wrong depth (if disparity is off, or if the post
processing effect is not rendered to contextual depth of the object it should be effecting - for
example, a specular shading pass). It is important to ensure that the images between the two
eyes do not differ aside from the slightly different viewing positions inherent to binocular
disparity.
Although less likely to be a problem in a complex 3D environment, it can be important to ensure
the user’s eyes receive enough information for the brain to know how to fuse and interpret the
image properly. The lines and edges that make up a 3D scene are generally sufficient;
however, be wary of wide swaths of repeating patterns, which could cause people to fuse the
eyes’ images differently than intended. Be aware also that optical illusions of depth (such as the
“hollow mask illusion,” where concave surfaces appear convex) can sometimes lead to
misperceptions, particularly in situations where monocular depth cues are sparse.
14
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix C - Field of View and Scale (0.4 SDK)
●
The FOV of the virtual cameras must match the visible display area (abbreviated cFOV
and dFOV here). In general, don’t mess with the default FOV.
Field of view can refer to different things that we will first disambiguate. If we use the term
display field of view (dFOV), we are referring to the part of the user’s physical visual field
occupied by VR content. It is a physical characteristic of the hardware and optics. The other
type of FOV is camera field of view (cFOV), which refers to the range of the virtual world that is
seen by the rendering cameras at any given moment. All FOVs are defined by an angular
measurement of vertical, horizontal, and/or diagonal dimensions.
In ordinary screen-based computer graphics, you usually have the freedom to set the camera’s
cFOV to anything you want: from fisheye (wide angle) all the way to telephoto (narrow angle).
Although people can experience some visually-induced motion sickness from a game on a
screen,2 this typically has little effect on many users because the image is limited to an object
inside the observer’s total view of the environment. A computer user’s peripheral vision can
see the room that their display sits in, and the monitor typically does not respond to the user’s
head movements. While the image may be immersive, the brain is not usually fooled into
thinking it is actually real, and differences between cFOV and dFOV do not cause problems for
the majority of people.
In virtual reality, there is no view of the external room, and the virtual world fills much of your
peripheral vision. It is therefore very important that the cFOV and the dFOV match exactly. The
ratio between these two values is referred to as the scale, and in virtual reality the scale should
always be exactly 1.0.
In the Rift, the maximum dFOV is determined by the screen, the lenses, and how close the
user puts the lenses to their eyes (in general, the closer the eyes are to the lens, the wider the
dFOV). The configuration utility measures the maximum dFOV that users can see, and this
information is stored inside their profile. The SDK will recommend a cFOV that matches the
dFOV based on this information. Note that because some people have one eye closer to the
screen than the other, each eye can have a different dFOV—this is normal!
Deviations between dFOV and cFOV have been found to be discomforting3 (though some
research on this topic has been mixed4). If scale deviates from 1.0, the distortion correction
values will cause the rendered scene to warp. Manipulating the camera FOV can also induce
simulator sickness and can even lead to a maladaptation in the vestibular-ocular reflex, which
allows the eyes to maintain stable fixation on an object during head movements. The
maladaptation can make the user feel uncomfortable during the VR experience, as well as
2
Stoffregen, T.A., Faugloire, E., Yoshida, K., Flanagan, M.B., & Merhi, O. (2008). Motion sickness and postural
sway in console video games. Human Factors, 50, 322-331.
3
Draper, M.H., Viire, E.S., Furness, T.A., Gawron, V.J. (2001). Effects of image scale and system time delay on
simulator sickness with head-coupled virtual environments. Human Factors, 43(1), 129-146.
4
Moss, J. D., & Muth, E. R. (2011). Characteristics of Head-Mounted Displays and Their Effects on Simulator
Sickness. Human Factors: The Journal of the Human Factors and Ergonomics Society, 53(3), 308–319.
15
©January 2015, Oculus VR, LLC
January 9, 2015 version
impact visual-motor functioning after removing the Rift.
The SDK will allow manipulation of the cFOV and dFOV without changing the scale, and it
does so by adding black borders around the visible image. Using a smaller visible image can
help increase rendering performance or serve special effects; just be aware that if you select a
40° visible image, most of the screen will be black—that is entirely intentional and not a bug.
Also note that reducing the size of the visible image will require users to look around using
head movements more than they would if the visible image were larger; this can lead to
muscle fatigue and simulator sickness.
Some games require a “zoom” mode for binoculars or sniper scopes. This is extremely tricky in
VR, and must be done with a lot of caution, as a naive implementation of zoom causes
disparity between head motion and apparent optical motion of the world, and can cause a lot
of discomfort. Look for future blog posts and demos on this.
16
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix D - Rendering Techniques
● Be mindful of the Rift screen’s resolution, particularly with fine detail. Make sure
text is large and clear enough to read and avoid thin objects and ornate textures
in places where users will focus their attention.
Display resolution
The DK2 Rift has a 1920 x 1080 low-persistence OLED display with a 75-hz refresh rate. This
represents a leap forward from DK1 in many respects, which featured a 1280 x 720, fullpersistence 60-hz LCD display. The higher resolution means images are clearer and sharper,
while the low persistence and high refresh rate eliminate much of the motion blur (i.e., blurring
when moving your head) found in DK1.
The DK1 panel, which uses a grid pixel structure, gives rise to a “screen door effect” (named for
its resemblance to looking through a screen door) due to the space between pixels. The DK2,
on the other hand, has a pentile structure that produces more of a honeycomb-shaped effect.
Red colors tend to magnify the effect due to the unique geometry of the display’s sub-pixel
separation.
Combined with the effects of lens distortion, some detailed images (such as text or detailed
textures) may look different inside the Rift than on your computer monitor. Be sure to view your
artwork and assets inside the Rift during the development process and make any adjustments
necessary to ensure their visual quality.
Figure 2: The “screen door” effect seen in DK1.
17
©January 2015, Oculus VR, LLC
January 9, 2015 version
Understanding and Avoiding Display Flicker
The low-persistence OLED display of the DK2 has pros and cons. The same mechanisms that
lead to reduced motion blur—millisecond-scale cycles of lighting up and turning off illumination
across the screen—are also associated with display flicker for more sensitive users. People
who endured CRT monitors in the ‘90s (and, in fact, some OLED display panel users today) are
already familiar with display flicker and its potentially eye-straining effects.
Display flicker is generally perceived as a rapid “pulsing” of lightness and darkness on all or
parts of a screen. Some people are extremely sensitive to flicker and experience eyestrain,
fatigue, or headaches as a result. Others will never even notice it or have any adverse
symptoms. Still, there are certain factors that can increase or decrease the likelihood any given
person will perceive display flicker.
The degree to which a user will perceive flicker is a function of several factors, including: the
rate at which the display is cycling between “on” and “off” modes, the amount of light emitted
during the “on” phase, how much of which parts of the retina are being stimulated, and even the
time of day and fatigue level of the individual.
Two pieces of information are important to developers. First, people are more sensitive to
flicker in the periphery than in the center of vision. Second, brighter screen images produce
more flicker. Bright imagery, particularly in the periphery (e.g., standing in a bright, white room)
can potentially create noticeable display flicker. Try to use darker colors whenever possible,
particularly for areas outside the center of the player’s viewpoint.
The higher the refresh rate, the less perceptible flicker is. This is one of the reasons it is so
critical to run at 75fps v-synced, unbuffered. As VR hardware matures over time, refresh rate
and frame rate will very likely exceed 75fps.
Rendering resolution
The DK2 Rift has a display resolution of 1920 x 1080, but the distortion of the lenses means the
rendered image on the screen must be transformed to appear normal to the viewer. In order to
provide adequate pixel density for the transformation, each eye requires a rendered image that
is actually larger than the resolution of its half of the display.
Such large render targets can be a performance problem for some graphics cards, and
dropping framerate produces a poor VR experience. Dropping display resolution has little
effect, and can introduce visual artifacts. Dropping the resolution of the eye buffers, however,
can improve performance while maintaining perceived visual quality.
This process is covered in more detail in the SDK.
Dynamically-rendered impostors/billboards
Depth perception becomes less sensitive at greater distances from the eyes.
18
Up close,
©January 2015, Oculus VR, LLC
January 9, 2015 version
stereopsis might allow you to tell which of two objects on your desk is closer on the scale of
millimeters. This becomes more difficult further out; if you look at two trees on the opposite side
of a park, they might have to be meters apart before you can confidently tell which is closer or
farther away. At even larger scales, you might have trouble telling which of two mountains in a
mountain range is closer to you until the difference reaches kilometers.
You can exploit this relative insensitivity to depth perception in the distance for the sake of
freeing up computational power by using “imposter” or “billboard” textures in place of fully 3D
scenery. For instance, rather than rendering a distant hill in 3D, you might simply render a flat
image of the hill onto a single polygon that appears in the left and right eye images. This can
fool the eyes in VR the same way they do in traditional 3D games.
Note that the effectiveness of these imposters will vary depending on the size of the objects
involved, the depth cues inside of and around those objects, and the context in which they
appear.5 You will need to engage in individual testing with your assets to ensure the imposters
look and feel right. Be wary that the impostors are sufficiently distant from the camera to blend
in inconspicuously, and that interfaces between real and impostor scene elements do not break
immersion.
Normal mapping vs. Parallax Mapping
The technique known as “normal mapping” provides realistic lighting cues to convey depth and
texture without adding to the vertex detail of a given 3D model. Although widely used widely in
modern games, it is much less compelling when viewed in stereoscopic 3D. Because normal
mapping does not account for binocular disparity or motion parallax, it produces an image akin
to a flat texture painted onto the object model.
“Parallax mapping” builds on the idea of normal mapping, but accounts for depth cues normal
mapping does not. Parallax mapping shifts the texture coordinates of the sampled surface
texture by using an additional height map provided by the content creator. The texture
coordinate shift is applied using the per-pixel or per-vertex view direction calculated at the
shader level. Parallax mapping is best utilized on surfaces with fine detail that would not affect
the collision surface, such as brick walls or cobblestone pathways.
5
Allison, R. S., Gillam, B. J., & Vecellio, E. (2009). Binocular depth discrimination and estimation beyond interaction
space. Journal of Vision, 9, 1–14.
19
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix E - Motion
●
●
●
●
●
●
●
The most comfortable VR experiences involve no self-motion for the user besides head
and body movements to look around the environment.
When self-motion is required, slower movement speeds (walking/jogging pace) are most
comfortable for new users.
Keep any form of acceleration as short and infrequent as possible.
User and camera movements should never be decoupled.
Don’t use head bobbing in first-person games.
Experiences designed to minimize the need for moving backwards or sideways are most
comfortable.
Beware situations that visually induce strong feelings of motion, such as stairs or
repeating patterns that move across large sections of the screen.
Speed of Movement and Acceleration
“Movement” here refers specifically to any motion through the virtual environment that is not the
result of mapping the user’s real world movements into VR. Movement and acceleration most
commonly come from the user’s avatar moving through the virtual environment (by locomotion
or riding a vehicle) while the user’s real-world body is stationary. These situations can be
discomforting because the user’s vision tells them they are moving through space, but their
bodily senses (vestibular sense and proprioception) say the opposite. This illusory perception
of self-motion from vision alone has been termed vection, and is a major underlying cause of
simulator sickness.6
Speed of movement through a virtual environment has been found to be proportional to the
speed of onset for simulator sickness, but not necessarily the subsequent intensity or rate of
increase.7 Whenever possible, we recommend implementing movement speeds near typical
human locomotion speeds (about 1.4 m/s walking, 3 m/s for a continuous jogging pace) as a
user-configurable—if not default—option.
For VR content, the visual perception of acceleration is a primary culprit for discomfort. This is
because the human vestibular system responds to acceleration but not constant velocity.
Perceiving acceleration visually without actually applying acceleration to your head or body can
lead to discomfort. (See our section on simulator sickness for a more detailed discussion.)
Keep in mind that “acceleration” can refer to any change over time in the velocity of the user in
the virtual world in any direction. Although we normally think of acceleration as “increasing the
6
Hettinger, L.J., Berbaum, K.S., Kennedy, R.S., Dunlap, W.P., & Nolan, M.D. (1990).
sickness. Military Psychology, 2(3), 171-181.
Vection and simulator
7
So, R.H.Y., Lo, W.T., & Ho, A.T.K. (2001). Effects of navigation speed on motion sickness caused by an immersive
virtual environment. Human Factors, 43 (3), 452-461
20
©January 2015, Oculus VR, LLC
January 9, 2015 version
speed of forward movement,” acceleration can also refer to decreasing the speed of movement
or stopping; rotating, turning, or tilting while stationary or moving; and moving (or ceasing to
move) sideways or vertically.
Instantaneous accelerations are more comfortable than gradual accelerations. Because any
period of acceleration constitutes a period of conflict between the senses, discomfort will
increase as a function of the frequency, size, and duration of acceleration. We generally
recommend you minimize the duration and frequency of accelerations as much as possible.
Degree of Control
Similar to how drivers are much less likely to experience motion sickness in a car than their
passengers, giving the user control over the motion they see can prevent simulator sickness.
Let users move themselves around instead of taking them for a ride, and avoid jerking the
camera around, such as when the user is hit or shot. This can be very effective on a monitor but
is sickening in VR. Similarly, do not freeze the display so that it does not respond to the user’s
head movements, as this can create discomforting misperceptions of illusory motion. In
general, avoid decoupling the user’s and camera’s movements for any reason.
Research suggests that providing users with an avatar that anticipates and foreshadows the
visual motion they are about to experience allows them to prepare for it in a way that reduces
discomfort.8 This can be a serendipitous benefit in 3rd-person games; if the player avatar’s
actions (e.g., a car begins turning, a character starts running in a certain direction) reliably
predict what the camera is about to do, this may prepare the user for the impending movement
through the virtual environment and make for a more comfortable experience.
Head Bobbing
Some first-person games apply a mild up-and-down movement to the camera to simulate the
effects of walking. This can be effective to portray humanoid movement on a computer or
television screen, but it can be a problem for many people in immersive head-mounted VR.
Every bob up and down is another bit of acceleration applied to the user’s view, which—as we
already said above—can lead to discomfort. Do not use any head-bob or changes in
orientation or position of the camera that were not initiated by the real-world motion of the
user’s head.
Forward and lateral movement
In the real world, we most often stand still or move forward. We rarely back up, and we almost
never strafe (move side to side). Therefore, when movement is a must, forward user movement
is most comfortable. Left or right lateral movement is more problematic because we don’t
normally walk sideways and it presents an unusual optic flow pattern to the user.
8
Lin, J. J., Abi-Rached, H., & Lahav, M. (2004, April). Virtual guiding avatar: An effective procedure to reduce
simulator sickness in virtual environments. InProceedings of the SIGCHI conference on Human factors in computing
systems (pp. 719-726). ACM.
21
©January 2015, Oculus VR, LLC
January 9, 2015 version
In general, you should respect the dynamics of human motion. There are limits to how people
can move in the real world, and you should take this into account in your designs.
Moving up or down stairs (or steep slopes) can be discomforting for people. In addition to the
unusual sensation of vertical acceleration, the pronounced horizontal edges of the steps fill the
visual field of the display while all moving in the same direction. This creates an intense visual
that drives a strong sense of vection. Users do not typically see imagery like this except for
rare situations like looking directly at a textured wall or floor while walking alongside it. We
recommend that developers use slopes and stairs sparingly. This warning applies to other
images that strongly induce vection, as well, such as moving up an elevator shaft where stripes
(of light or texture) are streaming downwards around the user.
Developers are strongly advised to consider how these guidelines can impact one another in
implementation. For example, eliminating lateral and backwards movement from your control
scheme might seem like a reasonable idea in theory, but doing so forces users to engage in
relatively more motions (i.e., turning, moving forward, and turning again) to accomplish the
same changes in position.
This exposes the user to more visual self-motion—and
consequently more vection—than they would have seen if they simply stepped backwards or to
the side. Environments and experiences should be designed to minimize the impact of these
issues.
Consider also simplifying complex actions to minimize the amount of vection the user will
experience, such as automating or streamlining a complex maneuver for navigating obstacles.
One study had players navigate a virtual obstacle course with one of two control schemes: one
that gave them control over 3 degrees of freedom in motion, or another that gave them control
over 6. Although the 3-degrees-of-freedom control scheme initially seems to give the user less
control (and therefore lead to more simulator sickness), it actually led to less simulator sickness
because it saved them from having to experience extraneous visual motion.9
This is one of those cases where a sweeping recommendation cannot be made across different
types of content and situations. Careful consideration, user testing, and iterative design are
critical to optimizing user experience and comfort.
9
Stanney, K.M. & Hash, P. (1998). Locus of user-initiated control in virtual environments: Influences on
cybersickness. Presence, 7(5), 447-459.
22
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix F - Tracking
●
●
●
●
●
●
The Rift sensors collect information about user yaw, pitch, and roll.
DK2 brings 6-D.O.F. position tracking to the Rift.
○ Allow users to set the origin point based on a comfortable position for them with
guidance for initially positioning themselves.
○ Do not disable or modify position tracking, especially while the user is moving in
the real world.
○ Warn the user if they are about to leave the camera tracking volume; fade the
screen to black before tracking is lost.
○ The user can position the virtual camera virtually anywhere with position
tracking; make sure they cannot see technical shortcuts or clip through the
environment.
Implement the “head model” code available in our SDK demos whenever position
tracking is unavailable.
Optimize your entire engine pipeline to minimize lag and latency.
Implement Oculus VR’s predictive tracking code (available in the SDK demos) to further
reduce latency.
If latency is truly unavoidable, variable lags are worse than a consistent one.
Orientation Tracking
The Oculus Rift headset contains a gyroscope, accelerometer, and magnetometer. We
combine the information from these sensors through a process known as sensor fusion to
determine the orientation of the user’s head in the real world, and to synchronize the user’s
virtual perspective in real-time. These sensors provide data to accurately track and portray yaw,
pitch, and roll movements.
We have found a very simple model of the user’s head and neck to be useful in accurately
translating sensor information from head movements into camera movements. We refer to this
in short as the head model, and it reflects the fact that movement of the head in any of the three
directions actually pivots around a point roughly at the base of your neck—near your voice-box.
This means that rotation of the head also produces a translation at your eyes, creating motion
parallax, a powerful cue for both depth perception and comfort.
Position Tracking
Development Kit 2 introduces 6-degree-of-freedom position tracking to the Rift. Underneath the
DK2’s IR-translucent outer casing is an array of infrared micro-LEDs, which are tracked in real
space by the included infrared camera. Positional tracking should always correspond 1:1 with
the user’s movements as long as they are inside the tracking camera’s volume. Augmenting
the response of position tracking to the player’s movements can be discomforting.
The SDK reports a rough model of the user’s head in space based on a set of points and
vectors. The model is defined around an origin point, which should be centered approximately
23
©January 2015, Oculus VR, LLC
January 9, 2015 version
at the pivot point of the user’s head and neck when they are sitting up in a comfortable position
in front of the camera.
You should give users the ability to reset the head model’s origin point based on where they are
sitting and how their Rift is set up. Users may also shift or move during gameplay, and
therefore should have the ability to reset the origin at any time. However, your content should
also provide users with some means of guidance to help them best position themselves in front
of the camera to allow free movement during your experience without leaving the tracking
volume. Otherwise, a user might unknowingly set the origin to a point on the edge of the
camera’s tracking range, causing them to lose position tracking when they move. This can take
the form of a set-up or calibration utility separate from gameplay.
The head model is primarily composed of three vectors. One vector roughly maps onto the
user’s neck, which begins at the origin of the position tracking space and points to the “center
eye,” a point roughly at the user’s nose bridge. Two vectors originate from the center eye, one
pointing to the pupil of the left eye, the other to the right. More detailed documentation on user
position data can be found in the SDK.
Position tracking opens new possibilities for more comfortable, immersive experiences and
gameplay elements. Players can lean in to examine a cockpit console, peer around corners
with a subtle shift of the body, dodge projectiles by ducking out of their way, and much more.
Although position tracking holds a great deal of potential, it also introduces new challenges.
First, users can leave the viewing area of the tracking camera and lose position tracking, which
can be a very jarring experience. (Orientation tracking functions inside and outside the
camera’s tracking range, based on the proprietary IMU technology which has carried over from
DK1 to complement new camera-based orientation and positional tracking.) To maintain a
consistent, uninterrupted experience, you should provide users with warnings as they begin to
approach the edges of the camera’s tracking volume before position tracking is lost. They
should also receive some form of feedback that will help them better position themselves in
front of the camera for tracking.
We recommend fading the scene to black before tracking is lost, which is a much less
disorienting and discomforting sight than seeing the environment without position tracking while
moving. The SDK defaults to using orientation tracking and the head model when position
tracking is lost. While this does merely simulate the experience of using the DK1, moving with
the expectation of position tracking and not having the rendered scene respond accordingly can
be discomforting.
The second challenge introduced by position tracking is that users can now move the virtual
camera into unusual positions that might have been previously impossible. For instance, users
can move the camera to look under objects or around barriers to see parts of the environment
that would be hidden from them in a conventional video game. On the one hand, this opens up
new methods of interaction, like physically moving to peer around cover or examine objects in
24
©January 2015, Oculus VR, LLC
January 9, 2015 version
the environment. On the other hand, users may be able to uncover technical shortcuts you
might have taken in designing the environment that would normally be hidden without position
tracking. Take care to ensure that art and assets do not break the user’s sense of immersion in
the virtual environment.
A related issue is that the user can potentially use position tracking to clip through the virtual
environment by leaning through a wall or object. One approach is to design your environment
so that it is impossible for the user to clip through an object while still inside the camera’s
tracking volume. Following the recommendations above, the scene would fade to black before
the user could clip through anything. Similar to preventing users from approaching objects
closer than the optical comfort zone of 0.75-3.5 meters, however, this can make the viewer feel
distanced from everything, as if surrounded by an invisible barrier. Experimentation and testing
will be necessary to find an ideal solution that balances usability and comfort.
Although we encourage developers to explore innovative new solutions to these challenges of
position tracking, we discourage any method that takes away position tracking from the user or
otherwise changes its behavior while the virtual environment is in view. Seeing the virtual
environment stop responding (or responding differently) to position tracking, particularly while
moving in the real world, can be discomforting to the user. Any method for combating these
issues should provide the user with adequate feedback for what is happening and how to
resume normal interaction.
Latency
We define latency as the total time between movement of the user’s head and the updated
image being displayed on the screen (“motion-to-photon”), and it includes the times for sensor
response, fusion, rendering, image transmission, and display response.
Minimizing latency is crucial to immersive and comfortable VR, and low latency head tracking is
part of what sets the Rift apart from other technologies. The more you can minimize motion-tophoton latency in your game, the more immersive and comfortable the experience will be for the
user.
One approach to combating the effects of latency is our predictive tracking technology.
Although it does not serve to actually reduce the length of the motion-to-photon pipeline, it uses
information currently in the pipeline to predict where the user will be looking in the future. This
compensates for the delay associated with the process of reading the sensors and then
rendering to the screen by anticipating where the user will be looking at the time of rendering
and drawing that part of the environment to the screen instead of where the user was looking at
the time of sensor reading. We encourage developers to implement the predictive tracking
code provided in the SDK. For details on how this works, see Steve LaValle’s blog post at
http://www.oculusvr.com/blog/the-latent-power-of-prediction/ as well as the relevant SDK
documentation.
25
©January 2015, Oculus VR, LLC
January 9, 2015 version
At Oculus we believe the threshold for compelling VR to be at or below 20ms of latency. Above
this range, users tend to feel less immersed and comfortable in the environment. When latency
exceeds 60ms, the disjunction between one’s head motions and the motions of the virtual world
start to feel out of sync, causing discomfort and disorientation; large latencies are believed to be
one of the primary causes of simulator sickness.10 Independent of comfort issues, latency can
be disruptive to user interactions and presence. Obviously, in an ideal world, the closer we are
to 0ms, the better. If latency is unavoidable, it will be more uncomfortable the more variable it
is. You should therefore shoot for the lowest and least variable latency possible.
10
Kolasinski, E.M. (1995). Simulator sickness in virtual environments (ARTI-TR-1027).
Research Institute for the Behavioral and Social Sciences.
Retrieved from
bin/GetTRDoc?AD=ADA295861
26
Alexandria, VA: Army
http://www.dtic.mil/cgi-
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix G - Simulator Sickness
●
●
●
●
●
●
“Simulator sickness” refers to symptoms of discomfort that arise from using simulated
environments.
Conflicts between the visual and bodily senses are to blame.
Numerous factors contribute to simulator sickness, including but not limited to…
○ Acceleration: minimize the size and frequency of accelerations
○ Degree of control: don’t take control away from the user
○ Duration of simulator use: allow and encourage users to take breaks
○ Altitude: avoid filling the field of view with the ground
○ Binocular disparity: Some find viewing stereoscopic images uncomfortable
○ Field-of-View: reducing the amount of visual field covered by the virtual
environment may also reduce comfort
○ Latency: minimize it—lags/dropped frames are uncomfortable in VR
○ Distortion correction: use Oculus VR’s distortion shaders
○ Flicker: do not display flashing images or fine repeating textures
○ Experience: experience with VR makes you resistant to simulator sickness
(which makes developers the worst test subjects)
Locking the background to the player’s inertial reference frame has been found to be
effective at reducing simulator sickness.
Various methods are currently being explored for greater comfort in VR.
The SSQ can be used as a means of gathering data on how comfortable your
experience is.
Description
Simulator sickness is a form of visually induced motion sickness, which differs crucially from
your everyday motion sickness. Whereas the motion sickness with which people are most
familiar results from actual motion (such as the bobbing of a boat that causes seasickness), the
primary feelings of discomfort associated with simulator sickness occur when visual information
from a simulated environment signals self-motion in the absence of any actual movement. In
either case, there are conflicts among the visual, vestibular (balance), and proprioceptive
(bodily position) senses that give rise to discomfort. Furthermore, simulator sickness includes
symptoms that are unique to using a virtual environment, such as eye strain/fatigue (though not
necessarily for the same reason as bodily discomfort). Some users will experience some
degree of simulator sickness after a short period of time in a headset, while others may never
experience it.
Simulator sickness poses a serious problem to users and developers alike; no matter how
fundamentally appealing your content is or how badly a user wants to enjoy it, almost no one
wants to endure the discomfort of simulator sickness. Therefore, it is extremely important to
understand its causes and implement strategies to minimize its occurrence. Unfortunately, the
exact causes of simulator sickness (and in fact all forms of motion sickness) are still being
researched. Simulator sickness has a complex etiology of factors that are sufficient but not
necessary for inducing discomfort, and truly “curing” it requires addressing them all.
27
©January 2015, Oculus VR, LLC
January 9, 2015 version
Simulator sickness is comprised of a constellation of symptoms, but is primarily characterized
by disorientation (including ataxia, a sense of disrupted balance), nausea (believed to stem
from vection, the illusory perception of self-motion) and oculomotor discomfort (e.g., eyestrain).
These are reflected in the subscales of the simulator sickness questionnaire (SSQ),11 which
researchers have used to assess symptomatology in users of virtual environments.
Factors Contributing to Simulator Sickness
It can be difficult to track down a particular cause for simulator sickness; different users will
have different experiences, sensitivity to different types of stimuli can vary, and the symptoms
can take a while (anywhere from minutes to hours) to manifest. As a VR designer, you will be
spending long periods of time immersed in VR, and long exposure to virtual environments can
train the brain to be less sensitive to their effects.12 As such, dedicated VR developers will be
less susceptible to simulator sickness than most users. Objectively predicting whether a user
will experience discomfort from your content without obtaining feedback from inexperienced
users can be difficult.
Motion sickness susceptibility is widely variable in the population and correlates with the
intensity of subsequent simulator sickness experiences.13 This means users who know they
tend to experience motion sickness in vehicles, rides, and other contexts should approach
using the Rift carefully. Applying the recommendations throughout this manual can help.
The following section lists factors that have been studied as potential contributors to simulator
sickness. Some factors are less under the designer’s control than others, but understanding
them can help you minimize user discomfort. Also note that some of this information overlaps
with other sections, but this section offers more elaborated explanations for their role in
simulator sickness.
Speed of Movement and Acceleration
Speed of movement is directly proportional to the speed of onset for simulator sickness, but not
necessarily the subsequent intensity or rate of increase.14 Although slower movement speeds
will generally feel more comfortable, the real enemy to beware is acceleration, the stimulus to
which the vestibular organs inside the inner ear respond. Acceleration (linear or angular, in any
direction) conveyed visually but not to the vestibular organs constitutes a sensory conflict that
can cause discomfort. An instantaneous burst of acceleration is more comfortable than an
11
Kennedy, R. S., Lane, N. E., Berbaum, K. S., & Lilienthal, M. G. (1993). Simulator sickness questionnaire: An
enhanced method for quantifying simulator sickness. The International Journal of Aviation Psychology, 3(3), 203-220.
12
Kennedy, R., Stanney, K., & Dunlap, W. (2000). Duration and exposure to virtual environments: Sickness curves
during and across sessions. Presence, 9(5), 463-472.
13
Stanney, K. M., Hale, K. S., Nahmens, I., & Kennedy, R. S. (2003). What to expect from immersive virtual
environment exposure: influences of gender, body mass index, and past experience. Human factors, 45(3), 504–20.
14
So, R.H.Y., Lo, W.T., & Ho, A.T.K. (2001). Effects of navigation speed on motion sickness caused by an
immersive virtual environment. Human Factors, 43(3), 452-461.
28
©January 2015, Oculus VR, LLC
January 9, 2015 version
extended, gradual acceleration to the same movement velocity.
Discomfort will increase as a function of the frequency, size, and duration of acceleration.
Because any period of visually-presented acceleration represents a period of conflict between
the senses, it is best to avoid them as much as possible. (Note that the vestibular organs do
not respond to constant velocity, so constant visual motion represents a smaller conflict for the
senses.)
Degree of Control
Taking control of the camera away from the user or causing it to move in ways not initiated by
the user can lead to simulator sickness. Some theories suggest the ability to anticipate and
control the motion experienced play a role in staving off motion sickness,15 and this principle
appears to hold true for simulator sickness, as well. Therefore, unexpected camera movement
(or cessation of movement) outside the user’s control can be uncomfortable. Having an avatar
that foreshadows impending camera movement can help users anticipate and prepare for the
visual motion, potentially improving the comfort of the experience.16
If you have a significant event for the user to watch (such as a cutscene or critical
environmental event), avoid moving their gaze for them; instead, try to provide suggestions that
urge them to move gaze themselves, for example by having non-player characters (NPCs)
looking towards it, cuing them to events with sound effects, or by placing some task-relevant
target (such as enemies or pick-ups) near it.
As stated previously, do not decouple the user’s movements from the camera’s movements in
the virtual environment.
Duration
The longer you remain in a virtual environment, the more likely you are to experience simulator
sickness. Users should always have the freedom to suspend their game, then return to the
exact point where they left off at their leisure. Well-timed suggestions to take a break, such as
at save points or breaks in the action, are also a good reminder for users who might otherwise
lose track of time.
Altitude
The altitude of the user — that is, the height of the user’s point of view (POV) — can be an
indirect factor in simulator sickness. The lower the user’s POV, the more rapidly the ground
plane changes and fills the user’s FOV, creating a more intense display of visual flow. This can
create an uncomfortable sensation for the same reason moving up staircases, which also
creates an intense visual flow across the visual field, is so discomforting.
15
Rolnick, a, & Lubow, R. E. (1991). Why is the driver rarely motion sick? The role of controllability in motion
sickness. Ergonomics, 34(7), 867–79.
16
Lin, J. J., Abi-Rached, H., & Lahav, M. (2004, April). Virtual guiding avatar: An effective procedure to reduce
simulator sickness in virtual environments. InProceedings of the SIGCHI conference on Human factors in computing
systems (pp. 719-726). ACM.
29
©January 2015, Oculus VR, LLC
January 9, 2015 version
Binocular Display
Although binocular disparity is one of the Rift’s key and compelling depth cues, it is not without
its costs. As described in Appendix C, stereoscopic images can force the eyes to converge on
one point in depth while the lens of the eye accommodates (focuses itself) to another. Although
you will necessarily make use of the full range of depth in VR, it is important to place content on
which you know users will be focusing for extended periods of time (such as menus or a 3rdperson avatar) in a range of 0.75 to 3.5 Unity units (meters) away.
Some people find viewing stereoscopic images uncomfortable, and research has suggested
that reducing the degree of disparity between the images (i.e., reducing the inter-camera
distance) to create a monoscopic17 (i.e., zero-inter-camera distance) or microstereoscopic18
(i.e., reduced inter-camera distance) display can make the experience more comfortable. In the
Rift, it is important that any scaling of the IPD is applied to the entire head model.
As stated elsewhere, you should set the inter-camera distance in the Rift to the user’s IPD from
the config tool to achieve a veridical perception of depth and scale. Any scaling factors applied
to eye separation (camera distance) must be also applied to the entire head model so that head
movements correspond to the appropriate movements of the virtual rendering cameras.
Field of View
Field of view can refer to two kinds of field of view: the area of the visual field subtended by the
display (which we call “display FOV” or dFOV in this guide), and the area of the virtual
environment that the graphics engine draws to the display (which we call “camera FOV” or
cFOV).
A wide dFOV is more likely to cause simulator sickness primarily for two reasons related to the
perception of motion. First, motion perception is more sensitive in the periphery, making users
particularly susceptible to effects from both optic flow and subtle flicker in peripheral regions.
Second, a larger display FOV, when used in its entirety, provides the visual system with more
input than a smaller display FOV. When that much visual input suggests to the user that they
are moving, it represents an intense conflict with bodily (i.e., vestibular and proprioceptive)
senses, leading to discomfort.
Reducing display FOV can reduce the experience of simulator sickness,19 but also reduces the
level of immersion and situational awareness with the Rift. To best accommodate more
sensitive users who might prefer that compromise, you should allow for user-adjustable display
FOV. Visibility of on-screen content should not be adversely affected by changing display FOV.
Having a cockpit or vehicle obscuring much of the vection-inducing motion in the periphery may
17
Ehrlich, J.A. & Singer, M.J. (1996). Simulator sickness in stereoscopic vs. monoscopic helmet mounted displays.
In: Proceedings of the Human Factors and Ergonomics Society 40th Annual Meeting.
18
Siegel, M., & Nagata, S. (2000). Just Enough Reality: Comfortable 3-D Viewing. IEEE Transactions on Circuits and
Systems for Video Technology, 10(3), 387–396.
19
Draper, M.H., Viire, E.S., Furness, T.A., & Gawron, V.J. (2001). Effects of image scale and system time delay on
simulator sickness within head-coupled virtual environments. Human Factors, 43 (1), 129-146.
30
©January 2015, Oculus VR, LLC
January 9, 2015 version
also confer a similar benefit for the same reasons. Note also that the smaller the user’s view of
their environment, the more they will have to move their head or virtual cameras to maintain
situational awareness, which can also increase discomfort.
Manipulating camera FOV can lead to unnatural movement of the virtual environment in
response to head movements (for example, if a 10° rotation of the head creates a rotation of the
virtual world that would normally require a 15° rotation in reality). In addition to being
discomforting, this can also cause a temporary but maladaptive condition known as vestibularocular reflex (VOR) gain adaptation.20 Your eyes and vestibular system normally work together
to determine how much the eyes must move during a head movement in order to maintain
stable fixation on an object. If the virtual environment causes this reflex to fail to maintain
stable fixation, it can lead to an uncomfortable re-calibration process both inside the Rift and
after terminating use.
Latency and Lag
Although developers have no control over many aspects of system latency (such as display
updating rate and hardware latencies), it is important to make sure your VR experience does
not lag or drop frames on a system that meets minimum technical specification requirements.
Many games can slow down as a result of numerous or more complex elements being
processed and rendered to the screen; while this is a minor annoyance in traditional video
games, it can have an uncomfortable effect on users in VR.
Past research findings on the effects of latency are somewhat mixed. Many experts
recommend minimizing latency to reduce simulator sickness because lag between head
movements and corresponding updates on the display can lead to sensory conflicts and errors
in the vestibular-ocular reflex. We therefore encourage minimizing latency as much as
possible.
It is worth noting that some research with head-mounted displays suggests a fixed latency
creates about the same degree of simulator sickness whether it’s as short as 48 ms or as long
as 300 ms;21 however, variable and unpredictable latencies in cockpit and driving simulators
create more discomfort the longer they become on average.22 This suggests that people can
eventually get used to a consistent and predictable bit of lag, but fluctuating, unpredictable lags
are increasingly discomforting the longer they become on average.
Still, adjusting to latency (and other discrepancies between the real world and VR) can be an
20
Stoffregen, T.A., Draper, M.H., Kennedy, R.S., & Compton, D. (2002). Vestibular adaptation and aftereffects. In
Stanney, K.M. (ed.), Handbook of virtual environments: Design, implementation, and applications (pp.773-790).
Mahwah, New Jersey: Lawrence Erlbaum Associates, Publishers.
21
Draper, M.H., Viire, E.S., Furness, T.A., Gawron, V.J. (2001). Effects of image scale and system time delay on
simulator sickness with head-coupled virtual environments. Human Factors, 43(1), 129-146.
22
Kolasinski, E.M. (1995). Simulator sickness in virtual environments (ARTI-TR-1027). Alexandria, VA: Army
Research Institute for the Behavioral and Social Sciences.
Retrieved from http://www.dtic.mil/cgibin/GetTRDoc?AD=ADA295861
31
©January 2015, Oculus VR, LLC
January 9, 2015 version
uncomfortable process that leads to further discomfort when the user adjusts back to the real
world outside of the Rift. The experience is similar to getting on and off a cruise ship. After a
period feeling seasick from the rocking of the boat, many people become used to the regular,
oscillatory motion and the seasickness subsides; however, upon returning to solid land, many of
those same people will actually experience a “disembarkment sickness” as the body has to
readjust once again to its new environment.23
The less you have to make the body adjust to entering and exiting VR, the better. Developers
are urged to use the built-in latency tester of the DK2 to measure motion-to-photon latency to
ensure it is as short and consistent as possible. Further documentation on its use is available
in the SDK.
Distortion Correction
The lenses in the Rift distort the image shown on the display, and this is corrected by the postprocessing steps given in the SDK. It is extremely important that this distortion is done correctly
and according to the SDK’s guidelines and the example demos provided. Incorrect distortion
can “look” fairly correct, but still feel disorienting and uncomfortable, so attention to the details is
paramount. All of the distortion correction values need to match the physical device—none of
them may be user-adjustable (the SDK demos allow you to play with them just to show what is
happening behind the scenes, but not because this is a particularly sensible thing to do).
We carefully tune our distortion settings to the optics of the Rift lenses and are continually
working on ways of improving distortion tuning even further. All developers must use the official
Oculus VR distortion settings to correctly display content on the Rift.
Flicker
Flicker plays a significant role in the oculomotor component of simulator sickness. It can be
worsened by high luminance levels, and is perceived most strongly in the periphery of your field
of view. Although flicker can become less consciously noticeable over time, it can still lead to
headaches and eyestrain.
Although they provide many advantages for VR, OLED displays carry with them some degree
of flicker, similar to CRT displays. Different people can have different levels of sensitivity, but
the 75-hz display panels of the DK2 are fast enough that the majority of users will not perceive
any noticeable flicker. Future iterations will have even faster refresh rates and therefore even
less perceptible flicker still. This is more or less out of your hands as a developer, but it is
included here for completeness.
Your responsibility is to refrain from creating purposely flickering content. High-contrast,
flashing (or rapidly alternating) stimuli, particularly in the 1-30 Hz range, can trigger seizures in
people with photosensitive epilepsy. Related to this point, high-spatial-frequency textures (such
as fine black-and-white stripes) can also trigger seizures in people with epilepsy.
23
Reason, J.T. & Brand, J.J. (1975). Motion Sickness. Academic Press, Inc.
32
©January 2015, Oculus VR, LLC
January 9, 2015 version
Experience
The more experience a user has had with a virtual environment, the less likely they are to
experience simulator sickness.24
Theories for this effect involve learned—sometimes
unconscious—mechanisms that allow the user to better handle the novel experience of VR.
For example, the brain learns to reinterpret visual anomalies that previously induced discomfort,
and user movements become more stable and efficient to reduce vection. The good news is
that developers should not be afraid to design intense virtual experiences for more experienced
users; the bad news is that most users will need time to acclimate to the Rift and the game
before they can be expected to handle those experiences.
This has a few important ramifications. First, developers who test their own games repeatedly
will be much more resistant to simulator sickness than a new user, and therefore need to test
the experience with a novice population with a variety of susceptibility levels to simulator
sickness to assess how comfortable the experience actually is. Second, new users should not
be thrown immediately into intense game experiences; you should begin them with more
sedate, slower-paced interactions that ease them into the game. Even better, you should
implement the recommendations in this guide for user-controlled options to adjust the intensity
of the experience. Third, games that do contain intense virtual experiences should provide
users with warning of the content in the game so they may approach it as they feel most
comfortable.
Combating Simulator Sickness
Player-Locked Backgrounds (a.k.a. Independent Visual Backgrounds)
The simulator sickness research literature has provided at least one purely visual method of
reducing simulator sickness that can be implemented in VR content. Experimenters put people
in a virtual environment that either did or did not contain what they called an independent visual
background.25 This constituted a simple visual backdrop, such as a grid or skybox, that was
visible through the simulator’s primary content and matched the behavior of the stable realworld environment of the user. For example, a driving simulator might indicate movement
through the environment via the ground plane, trees, and buildings passing by; however, the
skybox, containing a few a clouds, would remain stationary in front of the user, even when the
car would turn.26 Using a virtual environment with an independent visual background has been
found to significantly reduce the experience of simulator sickness compared to a virtual
environment with a typically behaving background.
This combats the sensory conflict that normally leads to discomfort by allowing the viewer’s
24
Welch, R.B. (2002). Adapting to virtual environments. In Stanney, K.M. (ed.). Handbook of Virtual Environments:
Design, Implementation, and Application. Lawrence Erlbaum Associates, Publishers: Mahwah, NJ.
25
Prothero, J.D., Draper, M.H., Furness, T.A., Parker, D.E., and Wells, M.J. (1999). The use of an independent
visual background to reduce simulator side-effects. Aviation, Space, and Environmental Medicine, 70(3), 135-187.
26
Lin, J. J.-W., Abi-Rached, H., Kim, D.-H., Parker, D.E., and Furness, T.A. (2002). A “natural” independent visual
background reduced simulator sickness. Proceedings of the Human Factors and Ergonomics Society Annual
Meeting, 46, 2124-2128.
33
©January 2015, Oculus VR, LLC
January 9, 2015 version
brain to form an interpretation in which the visual and vestibular senses are consistent: the user
is indeed stationary with the background environment, but the foreground environment is
moving around the user.
Our particular implementation has used a player-locked skybox that is rendered at a distance
farther away than the main environment which the player navigates. A variety of backdrops
appear to be effective in our preliminary testing, ranging from realistic (a sea, horizon line, and
clouded sky above) to artificial (a black, grid-lined box). As soon as the player begins any
locomotion or rotation in the foreground environment with a controller or keyboard, they will
notice that the distant backdrop remains stationary, locked to their real-world body’s position.
However, they can still look around the backdrop with head movements at any time. The
overall effect is that the player feels like they are in a gigantic “room” created by the backdrop,
and the main foreground environment is simply moving around them.
This method has been found to be effective in reducing simulator sickness in a variety of
technologies, and the Rift is no exception. However, this method is not without its limitations.
The sickness-reducing effect is contingent upon two factors: the visibility of the background,
and the degree to which it is perceived as further out from the player than the foreground
environment. Not all virtual environments will be outdoors or otherwise somewhere that a
player-locked background will be readily visible and intuitively make sense.
These practical limitations motivated us to attempt applying our grid-lined room pattern to all
virtual environments as a translucent overlay, using binocular disparity and aerial perspective
(i.e., fog) as depth cues that the grid is far off in the distance. Although this generally felt
effective, this can potentially reduce the user’s suspension of disbelief. In addition, we found
that any cues that cause the player to perceive the grid as positioned between their eyes and
the foreground environment (such as making the grid opaque) completely abolish any benefits.
Still, employed properly, this method holds promise for allowing developers to provide a wider
variety of experiences to players with less impact on comfort. Furthermore, it can also serve as
a means of helping users get acclimated to the virtual environment; players might turn the
locked background on when first engaging your content, then have the option to disable or
attenuate the effect with time. Even the most compelling VR experience is useless if almost no
one can enjoy it comfortably; player-locked backgrounds can broaden your audience to include
more sensitive users who might otherwise be unable to use your content. If an effective form of
independent visual background can be implemented in your content, consider including it as a
player-configurable option.
Novel Approaches
Developers have already begun exploring methods for making conventional video game
experiences as comfortable in VR as they are on a computer screen. What follows are
descriptions of a few of the methods we have seen to date. Although they may not be
compatible or effective with your particular content, we include them for your consideration.
Because locomotion leads to vection and, in turn, discomfort, some developers have
experimented with using various means of teleporting the player between different locations to
34
©January 2015, Oculus VR, LLC
January 9, 2015 version
move them through a space. Although this method can be effective at reducing simulator
sickness, users can lose their bearings and become disoriented.27
Some variants attempt to reduce the amount of vection the user experiences through
manipulations of the camera. An alternative take on the “teleportation” model pulls the user out
of first-person view into a “god mode” view of the environment with the player’s avatar inside it.
The player moves the avatar to a new position, then returns to first-person view from the new
perspective.
Yet another approach modifies the way users turn in the virtual environment. Rather than
smoothly rotating, pressing left or right on a controller causes the camera to immediately jump
by a fixed angle (e.g., 30°) in the desired direction. The idea is to minimize the amount of
vection to which the user is exposed during rotation, while also generating a regular, predictable
movement to prevent disorientation.
Note that all the methods described in this section have the potential of reducing discomfort at
the cost of producing a veridical, “realistic” experience of the virtual environment. It is at your
discretion to implement any of these methods, but keep in mind that more comfortable content
will be accessible to more users and may be worth the price. A compromise between an
optimally realistic and optimally comfortable experience is including these methods as userconfigurable options that can be enabled or disabled. Users who experience less discomfort
can opt into the more veridical experience, while sensitive users can enable methods that help
them to enjoy your content.
Measurement and testing
A wide variety of techniques have been used in the measurement and evaluation of simulator
sickness. On the more technical side, indirect measurements have included galvanic skin
response, electroencephalogram (EEG), electrogastrogram (EGG), and postural stability.
Perhaps the most frequently used method in the research literature, however, is a simple
survey: the simulator sickness questionnaire (SSQ).
Like any other questionnaire, the SSQ carries some inherent limitations surrounding the validity
of people’s self-reported insights into their own minds and bodies. However, the SSQ also has
numerous advantages. Unlike indirect, physiological measures, the SSQ requires no special
equipment or training - just a pen-and-paper and some arithmetic. Anyone can deliver the
questionnaire, compute scores, and interpret those scores based on past data.
For
respondents, the questionnaire is short and simple, taking only a minute of time out of a
playtest. The SSQ therefore provides a lot of informational value for very little cost to the tester,
and is one potential option for assessing comfort in playtesting.
27
Bowman, D. Koller, D., & Hodges, L.F. (1997). Travel in immersive virtual environments: an evaluation of
viewpoint motion control techniques,” Proceedings of the Virtual Reality Annual International Symposium, pp. 45-52.
35
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix(H(*(User(Interface
●
●
Heads-Up Display (HUD)
○ Foregoing the HUD and integrating information into the environment would be
ideal.
○ Paint reticles directly onto targets rather than a fixed depth plane.
○ Close-up weapons and tools can lead to eyestrain; make them a part of the
avatar that drops out of view when not in use.
Avatars have their pros and cons; they can ground the user in the virtual environment,
but also feel unusual when discrepant from what your real world body is doing.
Heads-Up Display (HUD)
In general, Oculus discourages the use of traditional HUDs. Instead, we encourage developers
to embed that information into the environment itself. Although certain old conventions can
work with thoughtful re-design that is mindful of the demands of stereoscopic vision (see: reticle
example below), simply porting over the HUD from a non-VR game into VR content introduces
new issues that make them impractical or even discomforting.
First, HUDs occlude (appear in front of) everything in the 3D scene. This isn’t a problem in nonstereoscopic games, because the user can easily assume that the HUD actually is in front of
everything else. Unfortunately, adding binocular disparity (the slight differences between the
images projected to each eye) as a depth cue can create a contradiction if a scene element
comes closer to the user than the depth plane of the HUD: based on occlusion, the HUD is
perceived as closer than the scene element because it covers everything behind it, yet
binocular disparity indicates that the HUD is farther away than the scene element it occludes.
This can lead to difficulty and/or discomfort when trying to fuse the images for either the HUD or
the environment.
Although moving the HUD closer to the user might prevent visual contradictions of occlusion
and disparity, the proximity necessary to prevent problems will most likely bring the interface
closer than the recommended minimum comfortable distance, 75 cm. Setting the player’s
clipping boundary at the depth of the HUD similarly introduces issues, as users will feel
artificially distanced from objects in the environment. Although they might work within particular
contexts that can circumvent these issues, HUDs can quickly feel like a clunky relic in VR and
generally should be deprecated in favor of more user-friendly options.
36
©January 2015, Oculus VR, LLC
January 9, 2015 version
Figure 3: Example of a very busy HUD rendered as though it appears on the inside of a helmet
visor.
Instead, consider building informational devices into into the environment itself. Remember that
users can move their heads to glean information in a natural and intuitive way that might not
work in traditional video games. For instance, rather than a mini map and compass in a HUD,
the player might get their bearings by glancing down at an actual map and compass in their
avatar’s hands or cockpit. This is not to say realism is necessary; enemy health gauges might
float magically over their heads. What’s important is presenting information in a clear and
comfortable way that does not interfere with the player’s ability to perceive a clear, single image
of the environment or the information they are trying to gather.
Targeting reticles are an excellent illustration of adapting old paradigms to VR. While a reticle
is critical for accurate aiming, simply pasting it over the scene at a fixed depth plane will not
yield the reticle behavior players expect in a game. If the reticle appears at a depth plane
different from where the eyes are converged, it is perceived as a double image. In order for the
targeting reticle to work the same way it does in traditional video games, it must be drawn
directly onto the object it is targeting on screen, presumably where the user’s eyes are
converged when aiming. The reticle itself can be a fixed size that appears bigger or smaller
with distance, or you can program it to maintain an absolute size to the user; this is largely an
aesthetic decision for the designer. This simply goes to show that some old paradigms can be
ported over to VR, but not without careful modification and design for the demands of the new
medium.
Avatars
An avatar is a visible representation of a user’s body in a virtual world that typically corresponds
to the user’s position, movement and gestures. The user can see their own virtual body and
observe how other users see and interact with them. Since VR is often a first person
experience, many VR applications dispense with any representation of the user whatsoever,
and therefore the user is simply disembodied in virtual space.
37
©January 2015, Oculus VR, LLC
January 9, 2015 version
Figure 4: A user avatar, seen at the bottom of the screen.
An avatar can have its pros and cons. On the one hand, an avatar can give the user a strong
sense of scale and of their body’s volume in the virtual world. On the other hand, presenting a
realistic avatar body that contradicts the user’s proprioception (e.g., a walking body while they
are seated) can feel peculiar. At public demonstrations with the Rift, users generally react
positively to being able to see their virtual bodies, and so can at least serve as a means of
eliciting an aesthetic response. Like anything else in this young medium, user testing and
evaluation are necessary to see what works best for your experience.
Note that since we can only bend our neck so far, the avatar’s body only appears at the very
edge of the image (figure 4). Any weapons or tools should be integrated with the avatar, so the
user sees the avatar actually holding them. Developers that use input devices for body tracking
should track the user’s hands or other body parts and update the avatar to match with as little
latency as possible.
Weapons and Tools
In first person shooters, weapons typically appear towards the bottom of the screen, positioned
as though the user is holding and aiming them. Spatially, this means that the weapon is much
closer than anything else in the scene. In a typical non-stereoscopic game, this doesn’t create
any special problems, and we accept that we are seeing a big, close-up object superimposed
over a scene at a normal distance.
However, when this is translated into a stereoscopic implementation, things get a little more
complicated. Rendering weapons and tools so close to the camera requires the user to make
large changes in eye convergence when looking between the weapon to the rest of the scene.
Also, because the weapon is so close to the viewer, the left and right views can be significantly
different and difficult to resolve into a single three-dimensional view.
The approach we find most comfortable is to position the cameras just above the neck of a
headless, full-body avatar, as described above. Weapons and tools are rendered as part of the
user avatar, which can hold them up during use, but otherwise drop them out of view.
38
©January 2015, Oculus VR, LLC
January 9, 2015 version
There are some possible “cheats” to rendering weapons and tools in the player’s view, and
although we do not endorse them, your content might require or be suited to some variation on
them. One possibility is to render weapons in 2D, behind your HUD if you have one. This takes
care of some of the convergence and fusion problems at the expense of making the weapon
look flat and artificial.
Another possible approach is to employ multi-rigging, so that close-up objects (e.g., cockpit,
helmet, gun) are separate from the main world and independently employ a different camera
separation from the environment. This method runs the risk of creating visual flaws, such as
foreground objects appearing stereoscopically further away than the background behind them,
and are discouraged.
Iterative experimentation and user testing might reveal an optimal solution for your content that
differs from anything here, but our current recommendation is to implement weapons and tools
as a component of the user’s avatar.
(
(
39
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix(I(*(User(Input(and(Navigation
●
●
●
●
●
No traditional input method is ideal for VR, but gamepads are currently our best option;
innovation and research are necessary (and ongoing at Oculus).
Users can’t see their input devices while in the Rift; let them use a familiar controller that
they can operate without sight.
Leverage the Rift’s sensors for control input (e.g., aiming with your head), but be careful
of nauseating interactions between head movements and virtual motion.
Locomotion can create novel problems in VR.
Consider offering a “tank mode” style of movement that users can toggle. Include a
means of resetting heading to the current direction of gaze.
Mouse, Keyboard, Gamepad
It’s important to realize that once users put on the Oculus Rift, they can’t see their keyboard,
their mouse, their gamepad, or their monitor. Once they’re inside, interacting with these devices
will be done by touch alone. Of course, this isn’t so unusual; we’re used to operating our input
devices by touch, but we use sight to perform our initial orientation and corrections (such as
changing hand position on a keyboard). This has important ramifications for interaction design.
For instance, any use of the keyboard as a means of input is bound to be awkward, since the
user will be unable to find individual keys or home position except by touch. A mouse will be a
bit easier to use, as long as the user has a clear idea of where their mouse is before they put on
the headset.
Although still perhaps not the ultimate solution, gamepads are the most popular traditional
controller at this time. The user can grip the gamepad with both hands and isn’t bound to
ergonomic factors of using a more complicated control device on a desktop. The more familiar
the controller, the more comfortable a user will be when using it without visual reference.
We believe gamepads are preferable over keyboard and mouse input. However, we must
emphasize that neither input method is ideal for VR, and research is underway at Oculus to find
innovative and intuitive ways of interacting with a wide breadth of VR content.
Alternative input methods
As an alternative to aiming with a mouse or controller, some VR content lets users aim with
their head; for example, the user aims a reticle or cursor that is centered in whatever direction
they’re currently facing. Internally, we currently refer to this method as “ray-casting.” User
testing at Oculus suggests ray-casting can be an intuitive and user-friendly interaction method,
as long as the user has a clear targeting cursor (rendered at the depth of the object it is
targeting) and adequate visual feedback indicating the effects of their gaze direction. For
example, if using this method for selecting items in a menu, elements should react to contact
with the targeting reticle/cursor in a salient, visible way (e.g., animation, highlighting). Also
keep in mind that targeting with head movements has limits on precision. In the case of menus,
items should be large and well-spaced enough for users to accurately target them.
Furthermore, users might move their heads without intending to change their target—for
40
©January 2015, Oculus VR, LLC
January 9, 2015 version
instance, if a tooltip appears peripherally outside a menu that is navigated by raycasting. User
testing is ultimately necessary to see if ray-casting fits your content.
The Rift sensors use information on orientation, acceleration, and position primarily to orient
and control the virtual camera, but these readings can all be leveraged for unique control
schemes, such as gaze- and head-/torso-controlled movement. For example, users might look
in the direction they want to move, and lean forward to move in that direction. Although some
content has implemented such control methods, their comfort and usability in comparison to
traditional input methods are still unknown.
As a result, developers must assess any novel control scheme to ensure they do not
unintentionally frustrate or discomfort novice users. For example, head tilt can seem like a
reasonable control scheme in theory, but if a user is rotating in VR and tilts their head off the
axis of rotation, this action creates a “pseudo coriolis effect.” Researchers have found the
pseudo coriolis effect to consistently induce motion sickness in test subjects,28 and therefore
should be avoided in any head-tilt-based control scheme. Similar unintended effects may exist
unknowingly inside your novel input method, highlighting the need to test it with users.
Navigation
For most users, locomotion will be carried out through some form of input rather than actually
standing up and walking around. Common approaches simply carry over methods of
navigation from current gen first-person games, either with a gamepad or keyboard and mouse.
Unfortunately, traditional controls—while effective for navigating a video game environment—
can sometimes cause discomfort in immersive VR. For example, the simulator sickness section
above described issues with strafing and backwards walking that do not affect console and PC
games. We are currently engaged in research into new control schemes for navigation in VR.
Alternative control schemes have been considered for improving user comfort during
locomotion. Typically, pressing “forward” in traditional control schemes leads to moving in
whatever direction the camera is pointed. However, developers might also use a “tank mode” or
“tank view” for navigation, where input methods control the direction of locomotion, and the user
controls the camera independently with head movements. For example, a user would keep
walking along the same straight path as long as they are only pressing forward, and moving
their head would allow them to look around the environment without affecting heading. One
might liken this to browsing an aisle in a store—your legs follow a straight path down the aisle,
but your head turns side to side to look around independently of where you are walking.
This alternative control scheme has its pros and cons. Some users in the Oculus office (and
presumably the developers who have implemented them in extant content) find this method of
control to be more comfortable than traditional navigation models. However, this can also
introduce new issues with discomfort and user experience, particularly as the direction of the
28
Dichgans, J. & Brandt, T. (1973). Optokinetic motion sickness and pseudo-coriolis effects induced by moving
visual stimuli. Acta Oto-laryngologica, 76, 339-348.
41
©January 2015, Oculus VR, LLC
January 9, 2015 version
user’s head and the direction of locomotion can become misaligned—a user who wants to
move straight forward in the direction they are looking may actually be moving at a diagonal
heading just because their head and body are turned in their chair. Anyone using this method
for navigation should therefore include an easy way for users to reset the heading of the “tank”
to match the user’s direction of gaze, such as clicking in an analog stick or pressing a button.
Further research is necessary to fully determine the comfort and effectiveness of “tank mode”
under different use cases, but it represents an alternative to traditional control schemes that
developers might consider as a user-selectable option.
For now, traditional input methods are a safe and accessible option for most users, as long as
developers are mindful of avoiding known issues we have described in this guide.
Some content also lends itself to alternative means of moving the player around in a virtual
space. For instance, a user might progress through different levels, each of which starts in a
new location. Some games fade to black to convey the player falling asleep or losing
consciousness, and then have them awake somewhere else as part of the narrative. These
conventions can be carried over to VR with little issue; however, it is important to note that
applying changes to the user’s location in the virtual space outside their control (e.g., a jump in
perspective 90° to the right, moving them to another location in the same map) can be
disorienting and, depending on the accompanying visuals, potentially uncomfortable.
42
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix((J(*(Content(Creation
●
●
●
●
●
●
Keep in mind that users can and should be able to look in any direction at any time;
doing so should not break immersion.
Beware of limitations in pixel density when creating detailed art assets.
Low-polygon “cheats” (like bump mapping or flat objects) can become glaringly obvious
in stereoscopic 3D, particularly up close.
Sound is critical to immersion; design soundscapes carefully and consider the output
devices users will use.
Oculus tools operate in meters; treat 1 unit in Unity as 1 meter.
For an ideal experience, use the Oculus config tool settings for setting the user’s size in
the virtual environment (optional).
Novel Demands
Designing virtual worlds can be demanding. The designer has much less direct control over
where a user is going to look, since the user can turn and look anywhere at any time. Position
tracking exacerbates this issue, as users have even more freedom to examine your
environments from angles they previously could not. As stated elsewhere, limiting the camera’s
response to head movement can be very uncomfortable in VR. Constraining the camera’s
range of movement for narrative or technical purposes is therefore impossible. Be sure that
looking around at any time does not break the user’s sense of immersion—for example, by
revealing any technical cheats in rendering the environment. The virtual world should always
be complete and continuous around the user.
Try to engage as many dynamic systems as possible, including physics, lighting, weather, and
decay. Our sensitivity to depth from binocular disparity reduces the farther away from our eyes
a given object is; the net effect is that depth from stereopsis will feel very compelling in the near
plane (e.g., arm’s length) but relatively flat in the distance (e.g., a mountain range).
Art Assets
Although Oculus continually works to improve the resolution of the Rift, pixel density still lags
behind conventional displays. Your content can still provide an immersive experience as long
as it is mindful of this limitation. As the scale of objects approaches the size of a single row of
pixels, detailed rendering will become problematic. The thinner an object is, the worse the
clarity when viewed on the Rift. Fine detail—such as text or small, thin objects—will have a
tendency to get lost between the pixels. Similarly, objects made up of thin repeating elements,
such as fences and patterns, can be problematic to display.
When creating your worlds, make sure to view them on the Rift at all stages of the design
process. Be on the lookout for objects that seem to flicker in and out of existence. Avoid
extremely small objects; if possible, avoid making thin objects. These recommendations apply
to textures just as much as they do to geometry. Be sure that text is large and clear enough for
a variety of people to easily read it.
43
©January 2015, Oculus VR, LLC
January 9, 2015 version
Most real-time 3D applications, like games, use a number of techniques that allow them to
render complex scenes at acceptable frame rates. Some effects that effectively accomplish
that goal look obviously fake in stereoscopic 3D. Billboard sprites can look very obviously flat,
particularly when viewed up close, particularly if they have sharp detail on them (e.g. lightning,
fire). Try to only use billboards for hazy objects, such as smoke or mist, or distant background
elements. Bumpmapping is not very effective in VR unless combined with parallax mapping or
real geometry (in this case, make sure to do the parallax mapping correctly for each virtual
eye).
At the current limited resolution of the Oculus Rift, you can still get away with many of the same
tricks used in non-VR games, but as resolution improves, these tricks will become more
obvious to the user.
Audio Design
Audio is one of the principal modalities used in virtual worlds. High-quality audio can make up
for lower-quality visual experiences, and since audio resources are usually less processorintensive than visual resources, putting emphasis on audio can be a useful strategy. Sound is
arguably as important to immersion as vision. Hearing sounds from your surroundings can
serve as perceptual cues for building your mental representation of the environment.
A natural complement to the Oculus Rift is a pair of headphones, and many users will likely
wear them during gameplay. Keep in mind that in VR, headphones and speakers have different
demands for spatializing audio. Virtual microphones need to act as the user’s ears in the virtual
environment the same way virtual cameras act as the user’s eyes. Audio design should take
into account the fact that when wearing headphones, the audio output sources follow the user’s
ears with any head movement. The same is not true of speaker systems, which (like static
objects in the virtual environment) maintain the same absolute location in space regardless of
head movements.
The virtual “microphones” that capture environmental audio should always follow the user’s
position. When the user is wearing headphones, the microphones need to move in orientation
and position based on position tracking and the headset sensors. When using speakers, head
movement should not affect microphone orientation (but may need to adjust to position, based
on the location of the speakers). Your content should support both modes, with an option for
the user to select either speakers or headphones.
To take audio design further, true 3D spatialization can be created using head-related transfer
functions (HRTF). Many sound libraries already support HRTFs (including Miles, DirectSound
and OpenAL), and developers should use them.
User and Environment Scale
Scale is a critical aspect of VR. Just as in the physical world, users have a visceral sense of the
44
©January 2015, Oculus VR, LLC
January 9, 2015 version
size of objects in relation to their own body, and it’s easy to tell when any object (or the entire
world) is set to the wrong scale. For most games, you’ll want to make sure to get everything
scaled correctly. The Oculus Rift software, which handles inter-camera distance and field of
view, expects everything to be measured in meters, so you’ll want to use the meter as your
reference unit. As mentioned elsewhere, 1 unit of distance in Unity is roughly equal to 1 meter.
There are three degrees of freedom to the user’s physical size in VR: the height of the user’s
eyes from the ground, the size of camera movements in response to head motions, and the
distance between the user’s pupils (the IPD). All of these are supplied by the SDK or the user’s
profile, but the application may wish to manipulate them in various ways. By default, we advise
not altering them—using the user’s real-world dimensions will maximize comfort and immersion
while preventing disorientation.
In many games, the avatar the user inhabits may need to be a specific height, either for the
purposes of narrative or gameplay. For example, you may wish for certain parts of the
environment to reliably block users’ view, or they might need to be a certain height to properly
interact with elements in the environment. (Keep in mind, however, that with position tracking,
users can shift around their in-game origin point to peer around obstacles. Take the camera’s
tracking volume in addition to the player’s possible avatar locations into account when
designing your environments.) Fixing the user at a height in the virtual world that does not
match their own should not create problems, as long as it does not cause a moving ground
plane to fill their field of view (which intensifies the experience of vection). However, you must
continue to preserve the user’s IPD and head motions for their comfort.
It is possible to achieve some Alice-in-Wonderland-style effects by scaling the whole world up
or down. Since scale is relative, there are actually two ways to make your user feel enormous
or tiny: you could scale the world, or you could scale the user (via height and ICD). For
example, increasing the inter-camera distance to large values outside human proportions (e.g.,
1 meter) can make the virtual world appear “miniaturized,” as it creates a degree of binocular
disparity that humans would only encounter when looking at small objects up close. Reducing
the inter-camera distance can have an inverse effect on some users, making the world feel
larger in scale (though the degree of the effect is much more limited, as you quickly reach zero
inter-camera distance).
Changing the scale of the world via inter-camera distance is quite easy to do in VR, but you
must take care to do it correctly to ensure a comfortable result. When asked about the user’s
head position and orientation, the SDK returns three pieces of information that form a rough
model of the user’s head. The first is a single point called the “center eye,” which corresponds
approximately to the nose bridge of the Rift user. The vector between the origin and the center
eye can be likened to the user’s “neck” in our model. The SDK also returns two vectors that
originate at the center eye: one pointing to the left pupil, the other to the right pupil.
To change the player’s perceived size without modifying your environment, simply multiply the
three vectors (neck, left eye, and right eye) by the same scale. The net effect is that you will
45
©January 2015, Oculus VR, LLC
January 9, 2015 version
scale up the user’s head inside the virtual environment. Just be aware that recommendations
about object distance above must then be scaled accordingly; if you double the size of the
user’s head, you must ensure that objects on which the user will focus are 1.5 to 7 meters
away.
It is important to make sure you have properly scaled all three vectors in the user’s head model.
Scaling up any subset of these vectors can result in abnormal perception of the world in
response to head movements. For example, multiplying only the neck vector might make the
user’s eyes swing around unnaturally when nodding (as if they were atop a giraffe’s neck).
Multiplying only the eye vectors would create unnatural motion when shaking the head, as if the
eyes were sitting at the ends of long eyestalks (like a hammerhead shark). We have found
these effects to be uncomfortable and prohibit exposing users to them.
If you are working in Unity, treat a single unit as a meter to most closely approximate real-world
dimensions. If you are creating a real-world VR experience, you’ll be set. If you are creating a
fantasy or alternate reality VR experience, you may consider a different sense of scale.
Whether or not you are aiming for realism, we recommend testing out your art assets inside the
Rift early and throughout the design process. Make sure your world scale balances a
comfortable experience while achieving your intended artistic effect.
As a caveat, we should note that the research literature has found that people’s perception
tends to underestimate distance in virtual environments,2930 so even perfectly measured worlds
can still seem a little off at times. Familiar objects can serve as visual landmarks for better or
for worse. If the scale of either your objects or head model deviate from reality, it will be most
apparent for highly familiar objects, such as doorways, handheld objects, and furniture. This is
not necessarily bad; familiar objects can highlight your manipulation of scale to give the user a
strong sense of how much larger or smaller they are relative to the virtual world than to reality.
The fact that the Oculus Rift is a seated VR experience also introduces puzzling issues of scale.
For instance, looking at a standing person eye-to-eye in VR while seated can create the visceral
sensation that the person is a dwarf. Your mind does not easily forget what your body is doing
in the real world just because you put on the Rift, and takes your seated posture into
consideration when interpreting the virtual environment. Interestingly, informal experiments with
this scale effect have found that sitting on a tall barstool (which does not significantly decrease
your height while seated) seems to have less of an effect on one’s natural sense of scale in VR
than sitting on a low chair. Reports from outside developers found similar effects in normal
chairs by simply keeping the user’s feet from touching the ground (e.g., by holding up the legs
with slings or pads so the feet dangle from the seat), which normally provides your body with a
29
Messing, R. & Durgin, F.H. (2005). Distance perception and the visual horizon in head-mounted displays. ACM
Transcriptions on Applied Perception, 2(3), 234-250.
30
Willemsen, P., Colton, M. B., Creem-Regehr, S. H., & Thompson, W. B. (2004, August). The effects of headmounted display mechanics on distance judgments in virtual environments. In Proceedings of the 1st Symposium on
Applied Perception in Graphics and Visualization (pp. 35-38). ACM.
46
©January 2015, Oculus VR, LLC
January 9, 2015 version
distinct cue of how high your eyes are off the ground. For further discussion of this and related
issues, we refer you to Tom Forsyth’s GDC 2014 talk available online.31
31
http://www.gdcvault.com/play/1020714
47
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix(K(*(Closing(thoughts(on(effective(VR((for(now)
●
With the Rift, you are taking unprecedented control over the user’s visual reality; this
presents an unprecedented challenge to developers.
The question of “What makes for effective virtual reality?” is a broad and contextual one, and
we could fill tomes with its many answers. Virtual reality is still a largely uncharted medium,
waiting for creative artists and developers to unlock its full potential.
As a start, VR requires new ways of thinking about space, dimension, immersion, interaction
and navigation. For instance, screen-based media tends to emphasize right angles and forward
motion, and the edges of the screen are always present. This leads to what cinematographers
call “framing” of shots. But in VR, there is no screen, no hard physical boundaries, and there’s
nothing special about right angles. And there’s nothing to frame, unless you use real-world
elements like doorways and windows for the user to look through.
Of all forms of media, VR probably comes the closest to real world experience. Just like the
physical world, it surrounds you in a completely immersive environment. You can use this to
create experiences that would be impossible in any other medium. We’ve been sitting in front of
flat screens facing forward for too long. It is more exciting and desirable than ever to leverage
the space above, below, and behind the user.
Because virtual reality is a medium that attempts to replicate one’s experience in the physical
world, users are likely to have an expectation that they will be able to interact with that virtual
world in the same ways they do outside of it. This can be a blessing and a curse: developers
can use familiar real-world scenarios to guide users, but user expectations of the virtual
interactions sometimes over-reach the best practices for the medium. Balancing immersion,
usability, and experience is just one of many challenges ahead of us in VR design.
This guide was written to provide you with the most basic foundations, critical for proper design
of an engaging and comfortable VR experience. It’s up to you to create the worlds and
experiences that are going to make VR sing - and we can’t wait for that to happen!
Be sure to visit http://developer.oculusvr.com/best-practices for the latest information and
discussions on designing VR content for the Rift.
48
©January 2015, Oculus VR, LLC
January 9, 2015 version
Appendix L - Health and Safety Warnings
* These health & safety warnings are periodically updated for accuracy and
completeness. Check oculus.com/warnings for the latest version.
HEALTH & SAFETY WARNINGS: Please ensure that all
users of the headset read the warnings below carefully
before using the headset to reduce the risk of personal
injury, discomfort or property damage.
Before Using the Headset:
●
●
●
Read and follow all setup and operating instructions provided with the
headset.
The headset should be configured for each individual user by using the
configuration software before starting a virtual reality experience.
Failure to follow this instruction may increase the risk of discomfort.
We recommend seeing a doctor before using the headset if you are
pregnant, elderly, have pre-existing binocular vision abnormalities or
psychiatric disorders, or suffer from a heart condition or other serious
medical condition.
Seizures: Some people (about 1 in 4000) may have severe
dizziness, seizures, epileptic seizures or blackouts triggered
by light flashes or patterns, and this may occur while they are watching
TV, playing video games or experiencing virtual reality, even if they have
never had a seizure or blackout before or have no history of seizures or
epilepsy. Such seizures are more common in children and young people
under the age of 20. Anyone who has had a seizure, loss of awareness,
or other symptom linked to an epileptic condition should see a doctor
before using the headset.
Children: This product should not be used by children
under the age of 13. Adults should monitor children (age 13
and older) who are using or have used the Headset for any of the
49
©January 2015, Oculus VR, LLC
January 9, 2015 version
symptoms described below, and should limit the time children spend
using the Headset and ensure they take breaks during use. Prolonged
use should be avoided, as this could negatively impact hand-eye
coordination, balance, and multi-tasking ability. Adults should monitor
children closely during and after use of the headset for any decrease in
these abilities.
General Instructions & Precautions: You should always
follow these instructions and observe these precautions while
using the headset to reduce the risk of injury or discomfort:
●
Use Only In A Safe Environment: The headset produces an
immersive virtual reality experience that distracts you from and
completely blocks your view of your actual surroundings. Always be
aware of your surroundings when using the headset and remain
seated at all times. Take special care to ensure that you are not near
other people, objects, stairs, balconies, windows, furniture, or other
items that you can
bump into or knock down when using—or
immediately after using—the headset. Do not handle sharp or otherwise
dangerous objects while using the headset. Never wear the headset in
situations that require attention, such as walking, bicycling, or driving.
●
Make sure the headset is level and secured comfortably on your head,
and that you see a single, clear image.
●
Ease into the use of the headset to allow your body to adjust; use for
only a few minutes at a time at first, and only increase the amount of
time using the headset gradually as you grow accustomed to virtual
reality. Looking around when first entering virtual reality can help you
adjust to any small differences between your real-world movements and
the resulting virtual reality experience.
●
A comfortable virtual reality experience requires an unimpaired sense of
motion and balance. Do not use the headset when you are tired, need
sleep, are under the influence of alcohol or drugs, are hung-over, have
digestive problems, are under emotional stress or anxiety, or when
suffering from cold, flu, headaches, migraines, or earaches, as this can
50
©January 2015, Oculus VR, LLC
January 9, 2015 version
increase your susceptibility to adverse symptoms.
●
Do not use the headset while in a moving vehicle such as a car, bus, or
train, as this can increase your susceptibility to adverse symptoms.
●
Take at least a 10 to 15 minute break every 30 minutes, even if you
don’t think you need it. Each person is different, so take more frequent
and longer breaks if you feel discomfort. You should decide what works
best.
●
The headset may be equipped with a “passthrough” feature which
permits you to temporarily see your surroundings for brief real world
interaction. You should always remove the headset for any situation
that requires attention or coordination. Do not use this feature for more
than a few minutes at a time.
●
Listening to sound at high volumes can cause irreparable damage to
your hearing. Background noise, as well as continued exposure to high
volume levels, can make sounds seem quieter than they actually are.
Due to the immersive nature of the virtual reality experience, do not use
the headset with the sound at a high volume so that you can maintain
awareness of your surroundings and reduce the risk of hearing damage.
Discomfort
● Immediately discontinue use if anyone using the headset
experiences any of the following symptoms: seizures; loss of
awareness; eye strain; eye or muscle twitching; involuntary
movements; altered, blurred, or double vision or other visual
abnormalities; dizziness; disorientation; impaired balance;
impaired hand-eye coordination; excessive sweating; increased
salivation; nausea; lightheadedness; discomfort or pain in the head
or eyes; drowsiness; fatigue; or any symptoms similar to motion
sickness.
●
Just as with the symptoms people can experience after they
disembark a cruise ship, symptoms of virtual reality exposure can
persist and become more apparent hours after use. These post-
51
©January 2015, Oculus VR, LLC
January 9, 2015 version
use symptoms can include the symptoms above, as well as
excessive drowsiness and decreased ability to multi-task. These
symptoms may put you at an increased risk of injury when
engaging in normal activities in the real world.
●
Do not drive, operate machinery, or engage in other visually or
physically demanding activities that have potentially serious
consequences (i.e., activities in which experiencing any symptoms could
lead to death, personal injury, or damage to property), or other activities
that require unimpaired balance and hand-eye coordination (such as
playing sports or riding a bicycle, etc.) until you have fully recovered
from any symptoms.
●
Do not use the headset until all symptoms have completely subsided for
several hours. Make sure you have properly configured the headset
before resuming use.
●
Be mindful of the type of content that you were using prior to the onset
of any symptoms because you may be more prone to symptoms based
upon the content being used.
●
See a doctor if you have serious and/or persistent symptoms.
Repetitive Stress Injury: Playing video games can make
your muscles, joints or skin hurt. If any part of your body
becomes tired or sore while playing, or if you feel symptoms such as
tingling, numbness, burning or stiffness, stop and rest for several hours
before playing again. If you continue to have any of the above
symptoms or other discomfort during or after play, stop playing and see
a doctor.
Radio Frequency Interference: The headset can emit radio
waves that can affect the operation of nearby electronics,
including cardiac pacemakers. If you have a pacemaker or other
52
©January 2015, Oculus VR, LLC
January 9, 2015 version
implanted medical device, do not use the headset without first consulting
your doctor or the manufacturer of your medical device.
Electrical Shock: To reduce risk of electric shock:
●
●
Do not modify or disassemble any of the components provided.
Do not use the product if any cable is damaged or any wires are
exposed.
If a power adapter is provided:
●
●
●
●
Do not expose the power adapter to water or moisture.
Unplug the power adapter before cleaning, and clean only with a dry
cloth.
Keep the power adapter away from open flames and other heat sources.
Use only the power adapter provided with the headset.
Sunlight Damage: Do not leave the headset in direct
sunlight. Exposure to direct sunlight can damage the headset.
53
©January 2015, Oculus VR, LLC
