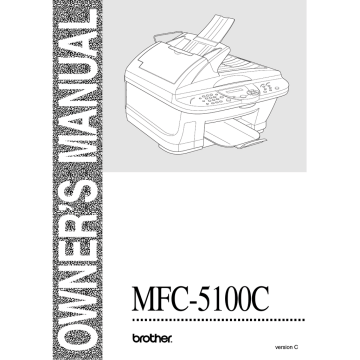

MFC-5100C
® version C
If You Need to Call Customer Service
Please complete the following information for future reference:
Model Number: MFC-5100C
Serial Number:*
Date of Purchase:
Place of Purchase:
* The serial number is on the back of the unit. Retain this Owner’s Manual with your sales receipt as a permanent record of your purchase, in the event of a theft, fire or warranty service.
©1996-2001 Brother Industries, Ltd.
Brother Numbers
IMPORTANT
For technical and operational assistance, you must call the country where you purchased the MFC. Calls must be made from within that country.
Brother fax-back system (USA Only)
Brother Customer Service has installed an easy-to-use fax-back system, so you can get instant answers to common technical questions and product information for all Brother products. This system is available 24 hours a day, 7 days a week. You can use the system to send faxes to any fax machine, not just the one from which you are calling.
If you can’t resolve a difficulty with your MFC using this manual, call our faxback system and follow the voice prompts to receive faxed instructions about using the system and an index of fax-back subjects.
In USA: 1-800-521-2846
The Brother fax-back system number has been preprogrammed on Speed Dial
# 01 .
Frequently Asked Questions (FAQs)
The Brother Solutions Center is our one-stop resource for all your Fax Machine/
Multi-Function Center needs. You can download the latest software and utilities, read FAQs and troubleshooting tips, and go to the “Solutions” section to learn how to get the most from your Brother product.
http://solutions.brother.com
You can check here for Brother driver updates.
For Customer Service
In USA: 1-800-284-4329 (voice)
1-908-575-8790 (fax)
1-800-284-3238 (TTY service for the hearing-impaired)
In Canada: 1-877-BROTHER (voice)
1-514-685-4898 (fax)
1-514-685-6464 (voice) In Montreal
Dealers/Service Centers (For USA Only)
For the name of a Brother authorized dealer or service center, call 1-800-284-4357.
Service Centers (For Canada Only)
For service center addresses in Canada, call 1-877-BROTHER.
B R O T H E R N U M B E R S i
BHL-FB-MFC-5100C-FM5.5
Ordering Accessories and Supplies
IMPORTANT
For technical and operational assistance, you must call the country where you purchased the MFC. Calls must be made from within that country.
For best quality results use only genuine Brother accessories, available at most
Brother retailers. If you cannot find the accessory you need and you have a Visa,
MasterCard, Discover, or American Express credit card, you can order accessories directly from Brother. (In the USA, you can visit us online for a complete selection of Brother accessories and supplies available for purchase.)
In USA: 1-888-879-3232 (voice)
1-800-947-1445 (fax) http://www.brothermall.com
In Canada: 1-877-BROTHER (voice)
Description
Ink Cartridge <black>
Ink Cartridge <cyan>(blue)
Ink Cartridge <magenta>(red)
Ink Cartridge <yellow>
Power Protector
Telephone Line Cord
Paper Wire Extension
Paper Tray
Card Stock Support
Owner’s Manual
Item
LC21BK
LC21C
LC21M
LC21Y
QPD120
LG3077001
LE6522001
LE6398001
LE6519001
LE6310001 (English for USA and Canada)
LE6437001 (French For Canada)
Note
Multi-Function Link ® Pro Suite is NOT available on floppy disks.
ii O R D E R I N G A C C E S S O R I E S A N D S U P P L I E S
BHL-FB-MFC-5100C-FM5.5
Notice – Disclaimer of Warranties
(For USA and Canada)
BROTHER’S LICENSOR(S), AND THEIR DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS (COLLECTIVELY BROTHER’S LICENSOR)
MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
REGARDING THE SOFTWARE. BROTHER’S LICENSOR(S) DOES NOT
WARRANT, GUARANTEE OR MAKE ANY REPRESENTATIONS
REGARDING THE USE OR THE RESULTS OF THE USE OF THE
SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY,
RELIABILITY, CURRENTNESS OR OTHERWISE. THE ENTIRE RISK AS
TO THE RESULTS AND PERFORMANCE OF THE SOFTWARE IS
ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS
NOT PERMITTED BY SOME STATES IN THE USA AND SOME
PROVINCES IN CANADA. THE ABOVE EXCLUSION MAY NOT APPLY
TO YOU.
IN NO EVENT WILL BROTHER’S LICENSOR(S) BE LIABLE TO YOU
FOR ANY CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMAGES
(INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE)
ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE
EVEN IF BROTHER’S LICENSOR HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES IN THE
USA AND SOME PROVINCES IN CANADA DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT
APPLY TO YOU. IN ANY EVENT BROTHER’S LICENSOR’S LIABILITY
TO YOU FOR ACTUAL DAMAGES FROM ANY CAUSE WHATSOEVER,
AND REGARDLESS OF THE FORM OF THE ACTION (WHETHER IN
CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY
OR OTHERWISE), WILL BE LIMITED TO $50.
Compilation and Publication Notice
Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.
The contents of this manual and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages
(including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
N O T I C E - D I S C L A I M E R O F W A R R A N T I E S iii
BHL-FB-MFC-5100C-FM5.5
BROTHER ONE YEAR LIMITED WARRANTY and EXCHANGE SERVICE
(USA Only)
This warranty gives you certain rights and you may also have other rights that may vary from state to state.
This warranty is given only to the first enduse purchaser of the accompanying product (referred to in this warranty as “this
Product”).
What is covered: Brother warrants to you for the Warranty Period that there are no defects in the materials, workmanship or
Year 2000 compliance of this Product. The
“Warranty Period” is 1 year from the date you purchased this product. The “Warranty
Period” for consumable items, such as Print
Heads, Toner, Drums, Ink Cartridges, Print
Cartridges, Refill Ribbons, Therma PLUS
Paper and Thermal Paper, etc. is 90 days from the date of purchase, or the rated life of the Consumable item, whichever is shorter.
What is NOT covered: Warranty WILL BE
VOID by Brother for repairs or replacements made necessary due to the following: (1) If the
Product was not purchased from an authorized
Brother reseller within the United States, (2)
The Product has been serviced or modified by anyone other than an Authorized Service
Representative of Brother, (3) The serial number has been modified, defaced or removed from this Product, (4) Non-Brother ® brand or non-Brother approved parts, supplies, power supplies or other accessories have been used with this Product, (5) Any damage caused by accident, neglect, abuse or misuse or, the recommended monthly volume has been exceeded, (6) Damages caused as a result of modification, alteration or repairs performed by anyone other than a Brother
Authorized Service Representative. (7) NOT
COVERED UNDER WARRANTY ARE:
Consumable items, for example (including, but not limited to): ribbons, ink or toner cartridges, toner drum units, print heads, cleaning and/or instances where no defects in material or workmanship are found in the Product, etc. (8)
Damage caused by improper connection and/ or disconnection of the Product; failure of the operator to follow operational instructions, improper set up of the Product.
What to do if you think your Product is defective:
Call our Customer Service Hotline at
1-800-284-4329, or if you suspect a defect in materials or workmanship in this Product, you can report it to a Brother Authorized
Service Center. During the Warranty Period, supply Brother’s representative with a copy of your dated bill of sale showing that this
Product was purchased within the United
States. For the name of your Brother
Authorized Service Center, call 1-800-521-
2846. After contacting the Brother
Authorized Service Center, you may be required to deliver or send the Product properly packaged, freight prepaid, to the
Authorized Service Center together with a photocopy of your bill of sale.
What Brother will do: Brother (or its
Authorized Service Center) will evaluate your report of a possible defect to determine whether a defect exists, and if it does exist,
Brother (or its Authorized Service Center) will repair or (at Brother’s option) replace the
Product with a product that performs the same functions and performs as well as the original Product. Brother reserves the right to supply refurbished or remanufactured replacement parts provided that the replacement parts conform to the manufacturer’s specifications for new products. The repaired or replacement product will be returned to you at no cost.
Exchange Service:
When an exchange is authorized, Brother will exchange your non-working product with a refurbished or remanufactured product that conforms to the manufacturer’s specifications for new products. The refurbished or remanufactured Product you receive will be covered by the balance of the limited warranty period remaining on the original Product, plus an additional thirty (30) days. You will keep the replacement Product that is sent to you and must return (or be billed up to the cost of a new product) your original non- working product, which shall become the property of
Brother. You must call Brother Customer
Service and if the representative cannot correct the product’s malfunction over the telephone and you elect the exchange service, you must provide information pertaining to this Product and you must also provide a valid major credit card number.
Your credit card will be charged up to the cost of a new Product if: (i) you do not return your original Product to Brother within five (5) business days; (ii) the malfunctions of your original Product are not covered by the limited warranty; (iii) the proper packaging instructions are not followed and has caused damage to the product; iv M F C L I M I T E D W A R R A N T Y ( U S A )
BHL-FB-MFC-5100C-FM5.5
BROTHER ONE YEAR LIMITED WARRANTY and EXCHANGE SERVICE
(For USA Only)
or (iv) the warranty period on your original Product has expired or has not been sufficiently validated with a copy of the proof of purchase (bill of sale).
The Brother Customer Service
Representative will ship the exchange
Product via next business day delivery courier service, with return instructions and prepaid return air bill. Follow the return instructions. You must return the original Product in the same shipping carton in which the exchanged Product was received and include a copy of proof of purchase (bill of sale). Retain your original accessory items and a copy of the return air bill, signed by the courier.
Limitations:
Repair or replacement as described above is your sole and exclusive (that is, your only) remedy if this Product is defective. Brother is not responsible for damage to or loss of any equipment, media, programs or data related to the use of this Product. Except for that repair or replacement, Brother shall not be liable for any direct, indirect, incidental or consequential damages or specific relief. Because some states do not allow the exclusion or limitation of consequential or incidental damages, the above limitation may not apply to you.
THIS WARRANTY IS GIVEN IN LIEU
OF ALL OTHER WARRANTIES,
WRITTEN OR ORAL, WHETHER
EXPRESSED BY AFFIRMATION,
PROMISE, DESCRIPTION,
DRAWING, MODEL OR SAMPLE.
ANY AND ALL WARRANTIES OTHER
THAN THIS ONE, WHETHER
EXPRESS OR IMPLIED, INCLUDING
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE
HEREBY DISCLAIMED.
This Limited Warranty is the only warranty that Brother is giving for this Product. It is the final expression and the exclusive and only statement of Brother’s obligations to you. It replaces all other agreements and understandings that you may have with Brother or its representatives.
This Limited Warranty (and Brother’s obligation to you) may not be changed in any way unless you and Brother sign the same piece of paper in which we (1) refer to this Product and your bill of sale date, (2) describe the change to this warranty and (3) agree to make that change.
Product Support:
Toll-free Customer Service and technical support is available for hardware operational assistance at
1-800-284-4329. At any time, free technical support in the form of
Frequently Asked Questions, troubleshooting tips and service center locator is available through our fax-back system at 1-800-521-2846 or Brother’s
Internet Web Site (www.brother.com).
Now you can visit us on-line
(www.brothermall.com), your complete source for genuine Brother Accessories and Supplies.
B ROTHER I NTERNATIONAL C ORPORATION
100 S
OMERSET
C
ORPORATE
B
LVD.
B RIDGEWATER, N EW J ERSEY 08807-0911
Please record your model and serial numbers and your date and location of
Purchase below for your records. Keep this information with your proof of purchase (bill of sale) in case your
Product is lost, stolen or requires service.
Model # _______________________
Serial #________________________
Date of purchase: _______________
Store where purchased:___________
Location of store: ________________
Important: We recommend that you keep all original packing materials, in the event that you ship this product.
M F C L I M I T E D W A R R A N T Y ( U S A ) v
BHL-FB-MFC-5100C-FM5.5
BROTHER MULTIFUNCTION CENTER/FACSIMILE MACHINE
LIMITED WARRANTY
(For Canada Only)
Pursuant to this limited warranty of 1 year from the date of purchase for labour and parts,
Brother International Corporation (Canada) Ltd. (“Brother”), or its Authorized Service
Centers, will repair this MFC/Facsimile machine free of charge if defective in material or workmanship. This Limited Warranty does not include cleaning, consumables
(including, without limitation, print cartridges, print head, toner and drum) or damage caused by accident, neglect, misuse or improper installation or operation, any damage caused from service, maintenance, modifications, or tampering by anyone other than a
Brother Authorized Service Representative, or from the use of supplies or consumable items that are non-Brother products. Operation of the MFC/Facsimile machine in excess of the specifications or with the Serial Number or Rating Label removed shall be deemed abuse and all repairs thereafter shall be the sole liability of the end-user/purchaser. In order to obtain warranty service, the MFC/Facsimile machine must be delivered or shipped freight prepaid by the end user/purchaser to a “Brother” Authorized Service
Center, together with your Proof of Purchase in the form of a Sales Receipt.
For laser products: Failure to remove the Toner Cartridge (and Toner Drum Unit on applicable models) during shipping will cause severe damage to the MFC/Facsimile and will VOID the Warranty. (Refer to your Operation Manual for proper packaging.)
For ink-jet products: Do not remove the ink cartridges during shipping. Damage to your print head resulting from packing without the ink cartridges will VOID your warranty.
(Refer to your Operation Manual for proper packaging.)
BROTHER DISCLAIMS ALL OTHER WARRANTIES EXPRESSED OR IMPLIED
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EXCEPT TO
THE EXTENT THAT ANY WARRANTIES IMPLIED BY LAW CANNOT BE VALIDLY
WAIVED.
No oral or written information, advice or representation provided by Brother, its
Authorized Service Centers, Distributors, Dealers, Agents or employees, shall create another warranty or modify this warranty. This warranty states Brother’s entire liability and your exclusive remedy against Brother for any failure of the MFC/Facsimile machine to operate properly.
Neither Brother nor anyone else involved in the development, production, or delivery of this MFC/Facsimile machine shall be liable for any indirect, incidental, special, consequential, exemplary, or punitive damages, including lost profits, arising from the use of or inability to use the product, even if advised by the end user/purchaser of the possibility of such damages. Since some Provinces do not allow the above limitation of liability, such limitation may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights which vary from Providence to Providence.
Warranty Service is available at Brother Authorized Service Centers throughout
Canada. For Technical Support or for the name and location of your nearest
Authorized Service Center call 1-877-BROTHER. Within Montreal, please call 685-6464.
Internet support: [email protected] or browse
Brother’s Web Site: www.brother.com
Brother International Corporation (Canada) Ltd.
1 Rue Hôtel de Ville
Dollard-Des-Ormeaux, QC H9B 3H6 vi L I M I T E D W A R R A N T Y ( C A N A D A )
BHL-FB-MFC-5100C-FM5.5
Quick Reference Guide
Sending Black & White
Faxes
1
2
3
Automatic Transmission
Place the original face up in the
ADF, or face down on the scanner glass.
Enter the fax number using Speed
Dial, Search or the dial pad.
Press Black Fax Start .
1
2
Real Time Transmission
You can send faxes in real time.
Place the original face up in the
ADF, or face down on the scanner glass.
Press Menu/Set , 2 , 2 , 5 .
3 Press or to select ON (or OFF ) and press Menu/Set — OR —For the next transmission only, press or to select NEXT FAX ONLY , and then press Menu/Set .
4
5
6
7
For the next fax only, press or
to select ON , and then press Menu/
Set .
Press 1 to select additional settings
— OR —Press 2 to fax.
Enter the fax number.
Press Black Fax Start .
Receiving Faxes
Select Receive Mode
Press Receive Mode to select
FAX ONLY , EXT.TEL/TAD or
MANUAL .
Storing Numbers
1
2
3
4
5
Storing Speed Dial Numbers
Press Menu/Set , 2 , 3 , 1 .
Enter a two-digit Speed Dial number and press Menu/Set .
Enter a number (up to 20 digits) and press Menu/Set .
Enter a name (or leave it blank) and press Menu/Set .
Press Stop/Exit .
Dialing Operations
1
2
3
Speed Dialing
Place the original face up in the
ADF, or face down on the scanner glass.
Press Search/Speed Dial , press
# , then press the two-digit Speed
Dial number.
Press Black Fax Start .
vii
BHL-FB-MFC-5100C-FM5.5
1
2
Search/Speed Dial
Place the original face up in the
ADF, or face down on the scanner glass.
Press Search/Speed Dial , and then enter the first letter of the name you’re looking for.
3
4
Press or to search the memory.
Press Black Fax Start , when the
LCD shows the name you want to call.
Making Copies
1
2
Making a Single Copy
Place the original face up in the
ADF, or face down on the scanner glass.
Press Black Copy or Color
Copy .
1
2
3
Sorting Multiple Copies
(Using the ADF)
Place the original face up in the
ADF.
Use the dial pad to enter the number of copies you want (up to 99).
Press Options .
4 Press or
to select OPT:STACK/
SORT , and then press Menu/Set .
5 Press or to select SORT , and then press Menu/Set .
Press Black Copy or Color Copy .
Brother fax-back system :
In USA: 1-800-521-2846
Brother Global Web Site : http://www.brother.com
Frequently Asked Questions
(FAQs) and Product Support http://solutions. brother.com
Brother Accessories & Supplies:
In USA: 1-888-879-3232 (voice)
1-800-947-1445 (fax) http://www.brothermall.com
In Canada: 1-877-BROTHER (voice) viii
BHL-FB-MFC-5100C-FM5.5
Table of Contents
Introduction ..................................................................................... 1-1
Using This Manual ..................................................................... 1-1
Finding Information............................................................. 1-1
Conventions Used in this Manual........................................ 1-1
Test Sheet Procedure and Product Registration (For USA Only) .1-2
To Complete Your MFC-5100C Registration On-Line ...... 1-2
MFC-5100C Control Panel Overview........................................ 1-3
About Fax Machines .................................................................. 1-5
Custom Features .................................................................. 1-5
Do You Have Voice Mail on the Phone Line? ............... 1-5
Why Should There Be Trouble? ..................................... 1-5
How Can You Avoid Possible Problems? ...................... 1-5
Fax Tones and Handshake................................................... 1-5
ECM (Error Correction Mode) ............................................ 1-6
Assembly and Connections............................................................. 2-1
Packing List................................................................................ 2-1
Choosing a Location................................................................... 2-2
Important Safety Instructions.......................................... 2-3
Paper........................................................................................... 2-3
Handling and Using Special Paper ...................................... 2-3
Recommended Paper for the MFC-5100C ..................... 2-3
Paper Capacity of Multi-Purpose Sheet Feeder................... 2-4
Paper Specifications for Multi-Purpose Sheet Feeder......... 2-4
Print Area............................................................................. 2-5
Assembly .................................................................................... 2-6
Removing the Protective Yellow Bar.................................. 2-6
Setting up the MFC ............................................................. 2-7
Loading Paper in the Multi-Purpose Sheet Feeder
(Paper Cassette) .............................................................. 2-9
Installing the Ink Cartridges ..................................................... 2-10
Important....................................................................... 2-11
Connecting the MFC ................................................................ 2-13
Connecting an External Telephone ................................... 2-13
Connecting an External Telephone Answering
Device (TAD) ............................................................... 2-13
Sequence ....................................................................... 2-13
Connections................................................................... 2-14
ix
BHL-FB-MFC-5100C-FM5.5
x
Recording Outgoing Message (OGM).......................... 2-14
Special Line Considerations .............................................. 2-15
Roll Over Phone Lines.................................................. 2-15
Two-Line Phone System............................................... 2-15
Converting Telephone Wall Outlets ............................. 2-16
Installing MFC, External Two-Line TAD and
Two-Line Telephone ................................................ 2-16
Multi-Line Connections (PBX) ......................................... 2-17
If You are Installing the MFC to Work with a PBX..... 2-17
Custom Features on Your Phone Line............................... 2-18
On-Screen Programming................................................................ 3-1
User-Friendly Programming....................................................... 3-1
Menu Selection Table.......................................................... 3-1
Alternating Displays ............................................................ 3-1
Navigation Keys ......................................................................... 3-2
Initial Setup...................................................................................... 4-1
Getting Started............................................................................ 4-1
Setting Paper Type .............................................................. 4-1
Setting Paper Size................................................................ 4-1
Setting Date and Time ......................................................... 4-2
Setting Station ID ................................................................ 4-2
Entering Text................................................................... 4-3
Inserting Spaces .............................................................. 4-3
Making Corrections......................................................... 4-3
Repeating Letters ............................................................ 4-3
Special Characters and Symbols ..................................... 4-3
Setting the Ring Volume ..................................................... 4-4
Setting the Beeper Volume.................................................. 4-5
Turning On Automatic Daylight Savings Time .................. 4-5
Setting Tone/Pulse Dialing Mode (For Canada Only) ........ 4-5
Memory Storage .................................................................. 4-5
Setup Receive ................................................................................... 5-1
Basic Receiving Operations ....................................................... 5-1
Choosing the Receive Mode................................................ 5-1
To Select or Change Your Receive Mode ...................... 5-2
Setting Ring Delay .............................................................. 5-2
Easy Receive ....................................................................... 5-3
Printing a Reduced Incoming Fax (Auto Reduction) .......... 5-3
BHL-FB-MFC-5100C-FM5.5
Advanced Receiving Operations ................................................ 5-4
Operation from Extension Telephone ................................. 5-4
Changing the Fax Receive Code..................................... 5-4
Printing a Fax in Memory.................................................... 5-4
Polling.................................................................................. 5-5
Setting Up Polling Receive ............................................. 5-5
Setting Up Sequential Polling Receive ........................... 5-5
Canceling a Scheduled Job.................................................. 5-6
Telephone Services .................................................................... 5-7
Distinctive Ring................................................................... 5-7
What Does Your Telephone Company’s
“Distinctive Ring” Do? .............................................. 5-7
What Does Brother’s “Distinctive Ring” Do? ................ 5-7
Do You Have Voice Mail? ............................................. 5-8
Before You Choose the Ring Pattern to Register ........... 5-8
Very Important .................................................................... 5-9
Registering the Distinctive Ring Pattern......................... 5-9
Setup Send ....................................................................................... 6-1
Before You Begin....................................................................... 6-1
Sending Faxes Using Multiple Settings .............................. 6-1
Faxing from the ADF (Automatic Document Feeder) ........ 6-1
Recommended Environment........................................... 6-1
Setting the Special Media Lever.......................................... 6-2
Faxing from the Scanner Glass............................................ 6-3
Basic Sending Operations .......................................................... 6-4
Contrast................................................................................ 6-4
Fax Resolution..................................................................... 6-4
Manual Transmission (With an External Telephone) ......... 6-5
Automatic Transmission...................................................... 6-5
Color Fax Transmission ...................................................... 6-5
Manual and Automatic Fax Redial...................................... 6-5
Dual Access (Not Available for Color Fax) ........................ 6-5
Real Time Transmission...................................................... 6-6
Checking Job Status ............................................................ 6-7
Canceling a Job in Memory................................................. 6-7
Advanced Sending Operations ................................................... 6-7
Overseas Mode .................................................................... 6-7
Delayed FAX (Not Available for Color Fax)...................... 6-8
Delayed Batch Transmission (Not Available for Color Fax) ...6-8
xi
BHL-FB-MFC-5100C-FM5.5
(Not Available for Color Fax)......................................... 6-9
Auto Dial Numbers and Dialing Options ...................................... 7-1
Storing Numbers for Easy Dialing ............................................. 7-1
Storing Speed Dial Numbers ............................................... 7-1
Changing Speed Dial Numbers ........................................... 7-2
Setting Up Groups for Broadcasting ................................... 7-3
Dialing Options .......................................................................... 7-4
Search .................................................................................. 7-4
Speed Dialing ...................................................................... 7-4
Access Codes and Credit Card Numbers............................. 7-4
Broadcasting (Not Available for Color Fax) ....................... 7-5
Pause.................................................................................... 7-6
Fax Redial............................................................................ 7-6
Tone/Pulse (For Canada Only) ............................................ 7-6
Remote Fax Options (Not Available for Color Fax) .................... 8-1
Fax Forwarding/Paging .............................................................. 8-1
Programming a Fax Forwarding Number............................ 8-1
Programming Your Pager Number...................................... 8-1
Setting Fax Storage .................................................................... 8-2
Backup Print ........................................................................ 8-2
Changing Remote Retrieval Access Code.................................. 8-3
Remote Retrieval........................................................................ 8-3
Using Remote Retrieval Access Code................................. 8-3
Remote Commands ............................................................. 8-4
Retrieving Fax Messages..................................................... 8-5
Changing Fax Forwarding Number..................................... 8-5
Printing Reports .............................................................................. 9-1
MFC Settings and Activity......................................................... 9-1
Customizing the Transmission Verification Report ............ 9-1
Setting the Fax Activity Report Interval ............................. 9-1
Using the Reports Key......................................................... 9-2
To Print a Report............................................................. 9-2
Making Copies ............................................................................... 10-1
Basic Copy Operations............................................................. 10-1
Making a Single Copy ....................................................... 10-1
xii
BHL-FB-MFC-5100C-FM5.5
Making Multiple Copies (Using the ADF)........................ 10-1
Out of Memory Message ................................................... 10-2
Single or Multiple Copies (Using the Scanner Glass)....... 10-2
Temporary Copy Settings......................................................... 10-3
Copying Using Multiple Settings ...................................... 10-3
Using the Enlarge/Reduce Key ......................................... 10-3
Selecting a Fixed Reduction Ratio................................ 10-4
Using the Quality Key ....................................................... 10-4
Using the Options Key ...................................................... 10-5
Paper Type .................................................................... 10-6
Paper Size...................................................................... 10-6
Copy Brightness............................................................ 10-6
Sorting Multiple Copies (Using the ADF) ........................ 10-7
Special Copy Options (Using the ADF)............................ 10-7
Special Copy Options (Using the Scanner Glass) ............. 10-7
2 in 1 ............................................................................. 10-8
4 in 1 ............................................................................ 10-8
Poster............................................................................. 10-8
Changing Default Copy Settings.............................................. 10-9
Copy Quality ..................................................................... 10-9
Color Adjustment ............................................................ 10-10
Copy Contrast.................................................................. 10-10
Legal Limitations ................................................................... 10-11
Using the MFC as a Printer ......................................................... 11-1
Features .................................................................................... 11-1
Printer Driver............................................................................ 11-1
Choosing the Right Kind of Paper ........................................... 11-2
Multi-purpose Sheet Feeder ..................................................... 11-2
Simultaneous Printing and Faxing ........................................... 11-3
Printer Operation Key .............................................................. 11-3
Ink Key .............................................................................. 11-3
Stop/Exit Key .................................................................... 11-3
Checking the Print Quality ....................................................... 11-3
Printer Driver Settings (For Windows
Only) ........................... 12-1
Using the Brother MFC-5100C Printer Driver ........................ 12-1
Features in the Printer Driver (For Windows
2000 Professional and Windows NT ® 4.0)........................... 12-1
Paper Tab.................................................................................. 12-2
Paper Size .......................................................................... 12-2
xiii
BHL-FB-MFC-5100C-FM5.5
Orientation ......................................................................... 12-3
Copy/Page Order ............................................................... 12-3
Copies ........................................................................... 12-3
Collate ........................................................................... 12-3
Reverse Order ............................................................... 12-3
Paper Thickness................................................................. 12-4
Scaling ............................................................................... 12-4
Paper Source ...................................................................... 12-4
Quality/Color Tab..................................................................... 12-5
Quality ............................................................................... 12-5
Media ................................................................................. 12-6
Document .......................................................................... 12-6
Color Matching.................................................................. 12-7
Custom Setting .................................................................. 12-7
Halftone Pattern ............................................................ 12-7
Color Enhance............................................................... 12-8
Color/Mono ....................................................................... 12-9
Bi-Directional Printing ...................................................... 12-9
Fast Draft Mode................................................................. 12-9
Advanced Tab........................................................................... 12-9
Watermark ....................................................................... 12-10
Print Watermark.......................................................... 12-10
In background ............................................................. 12-10
Watermark Style .............................................................. 12-10
Watermark Text .......................................................... 12-10
Watermark Bitmap...................................................... 12-10
Position ....................................................................... 12-11
Device Options ................................................................ 12-11
Print Date & Time ........................................................... 12-11
Support ................................................................................... 12-12
Web Update................................................................. 12-12
Brother Solutions Center............................................. 12-12
Features in the Printer Driver (For Windows
Layout Tab ............................................................................. 12-13
*1 Orientation .................................................................. 12-13
*2 Pages Per Sheet........................................................... 12-14
Paper/Quality Tab................................................................... 12-14
*1 Tray Selection............................................................. 12-15
*2 Quality Settings .......................................................... 12-15
*3 Color ........................................................................... 12-15
Advanced Options .................................................................. 12-16
xiv
BHL-FB-MFC-5100C-FM5.5
*1 Paper /Output.............................................................. 12-16
*2 Graphic ....................................................................... 12-17
*3 Document Options...................................................... 12-17
Photo ........................................................................... 12-17
Cluster ......................................................................... 12-17
Auto............................................................................. 12-17
*4 Printer Features........................................................... 12-18
Using the Windows
-Based Brother MFL-Pro Control Center ... 13-1
Brother MFL-Pro Control Center............................................. 13-1
AutoLoad the Brother Control Center ............................... 13-1
How to Turn Off AutoLoad............................................... 13-2
Using the Color Scan Key ........................................................ 13-2
Scan to E-mail ................................................................... 13-3
Scan Image ........................................................................ 13-3
Scan/OCR .......................................................................... 13-3
Brother Control Center Features .............................................. 13-4
Auto Configuration............................................................ 13-4
Scanning Operations.......................................................... 13-4
Copy Operations................................................................ 13-5
PC Fax Operation .............................................................. 13-5
Scanner Settings for Scan, Copy and PC Fax Buttons ...... 13-5
Global Settings .................................................................. 13-5
Setting Up the Scanner Configurations ............................. 13-6
To Access the Scanner Configurations Screen.................. 13-6
Perform an Operation from the Control Center Screen..... 13-6
Scan to File............................................................................... 13-7
Scanner Settings ................................................................ 13-7
Destination Folder ............................................................. 13-8
Scan to E-mail .......................................................................... 13-8
Scanner Settings ................................................................ 13-9
E-mail Application ............................................................ 13-9
File Attachments................................................................ 13-9
Conversion Options ......................................................... 13-10
Format ......................................................................... 13-10
Show QuickSend Menu .............................................. 13-10
QuickSend List............................................................ 13-10
Scan to Word Processor ......................................................... 13-11
Scanner Settings .............................................................. 13-11
Word Processor ............................................................... 13-12
User Defined Button............................................................... 13-13
xv
BHL-FB-MFC-5100C-FM5.5
Scanner Settings .............................................................. 13-13
Target Application........................................................... 13-13
Copy ....................................................................................... 13-13
Scanner Settings .............................................................. 13-14
Copy Settings................................................................... 13-14
Send a Fax .............................................................................. 13-14
Scanner Settings .............................................................. 13-14
FAX Settings ................................................................... 13-15
Scanner and Using ScanSoft
PaperPort
and TextBridge
OCR (For Windows
Only) ......................................................... 14-1
Using ScanSoft™ PaperPort ® and TextBridge ® ...................... 14-1
Viewing Items ................................................................... 14-2
Organizing Your Items in Folders ..................................... 14-2
Links to Many Other Applications .................................... 14-3
Using ScanSoft™ TextBridge ® OCR
(Converting Image Text to Text You Can Edit) ........... 14-3
Importing Items from Other Applications ......................... 14-4
Exporting Items in Other Formats ..................................... 14-4
Exporting an Image File................................................ 14-4
Scanning a Document............................................................... 14-4
TWAIN Compliant ............................................................ 14-4
Accessing the Scanner ....................................................... 14-5
Scanning a Document into the PC..................................... 14-5
Settings in the Scanner Window........................................ 14-6
Resolution: .................................................................... 14-6
Scan Type:..................................................................... 14-6
Brightness: .................................................................... 14-6
Contrast: ........................................................................ 14-7
Size:............................................................................... 14-7
Custom: ......................................................................... 14-7
PreScanning an Image ....................................................... 14-8
How to Use PreScan to Adjust an Image:..................... 14-8
Setting Up and Using PC FAX (For Windows
Only) .............. 15-1
Introduction .............................................................................. 15-1
Brother Resource Manager................................................ 15-1
MFC Remote Setup .................................................................. 15-2
Only) ................................. 15-3
Setting Up User Information ............................................. 15-3
Setting Up Sending............................................................ 15-4
xvi
BHL-FB-MFC-5100C-FM5.5
Outside Line Access .......................................................... 15-4
Include Header................................................................... 15-4
Address Book File ............................................................. 15-4
User Interface .................................................................... 15-5
Simple Style .................................................................. 15-5
Facsimile Style.............................................................. 15-5
Setting Up Speed Dial .............................................................. 15-6
The Address Book ............................................................. 15-7
Setting Up a Member in the Address Book....................... 15-8
Setting Up a Group for Broadcasting ................................ 15-9
Editing Member Information............................................. 15-9
Deleting a Member or Group .......................................... 15-10
Exporting the Address Book ........................................... 15-10
Importing to the Address Book ....................................... 15-11
Setting Up a Cover Page.................................................. 15-13
To ................................................................................ 15-13
From ............................................................................ 15-13
Comment..................................................................... 15-13
Select Cover Page Form.............................................. 15-13
Import BMP file .......................................................... 15-14
Count Cover Page ....................................................... 15-14
Sending a File as a PC-FAX Using the Facsimile Style.... 15-14
Redial .......................................................................... 15-15
Sending a File as a PC-FAX Using the Simple Style...... 15-16
Using Automatic E-Mail Printing................................................ 16-1
For Windows ® 95, 98, 98SE, Me Only .................................... 16-1
Main Features .................................................................... 16-1
To Access the On-Line Documentation........................ 16-1
To Install Automatic E-mail Printing
(Optional Application) ............................................. 16-1
Using the Brother MFC with a New Power Macintosh
G3, G4 or iMac™/iBook™ ........................................................... 17-1
Set Up Your USB-Equipped Apple
G3, G4 or iMac™ or iBook™ with
Mac OS 8.5-9.2 ..................................................................... 17-1
Using Brother Printer Driver with Your Apple
® Macintosh ® .....17-1
Sending a Fax from Your Macintosh
Application ................. 17-3
Setting Up Your Address Book......................................... 17-5
Adding a New Member................................................. 17-5
xvii
BHL-FB-MFC-5100C-FM5.5
Adding a New Group .................................................... 17-6
Using Brother TWAIN Scanner Driver with Your Apple
Macintosh ® ............................................................................ 17-7
Accessing the Scanner ....................................................... 17-8
Scanning an Image into Your Macintosh G3, G4 or iMac .. 17-8
Settings in the Scanner Window........................................ 17-9
Image............................................................................. 17-9
Scanning Area ............................................................. 17-10
Business Card Size...................................................... 17-10
Adjust Image ............................................................... 17-11
Color Sync Dialog....................................................... 17-11
Scanner Profile............................................................ 17-12
PreScanning an Image ..................................................... 17-13
Important Information ................................................................. 18-1
Standard Telephone and FCC Notices ..................................... 18-1
Federal Communications Commission (FCC)
Declaration of Conformity (For USA Only)................. 18-2
Important....................................................................... 18-3
Industry Canada Compliance Statement
(For Canada Only).................................................... 18-3
International ENERGY STAR ® Compliance
Statement .................................................................. 18-3
Important Safety Instructions ................................................... 18-4
Trademarks............................................................................... 18-5
Troubleshooting and Routine Maintenance ............................... 19-1
Troubleshooting........................................................................ 19-1
Error Messages .................................................................. 19-1
Original Jams and Paper Jams ........................................... 19-3
Printer Jam or Paper Jam ................................................... 19-4
If You Are Having Difficulty with Your MFC ................. 19-7
How to Improve Print Quality.................................................. 19-9
Cleaning the Print Heads ................................................... 19-9
Print Quality Check ......................................................... 19-10
STEP A: Color Block Quality Check ......................... 19-10
STEP B: Alignment Check ......................................... 19-11
Packing and Shipping the MFC.............................................. 19-12
Routine Maintenance.............................................................. 19-15
Cleaning the Scanner ....................................................... 19-15
Cleaning the MFC Printer Platen .................................... 19-16
xviii
BHL-FB-MFC-5100C-FM5.5
Replacing the Ink Cartridges ........................................... 19-16
Specifications ................................................................................... S-1
Product Description.................................................................... S-1
Printing ................................................................................ S-2
Controller............................................................................. S-3
Computer Requirements...................................................... S-3
Print Media .......................................................................... S-4
Consumable Items ............................................................... S-4
Glossary........................................................................................... G-1
Index ..................................................................................................I-1
23
Remote Retrieval Access Card...................................................... R-1
BHL-FB-MFC-5100C-FM5.5
xix
1
1
Introduction
Using This Manual
Thank you for purchasing a Brother multi-function center (MFC). This MFC has been designed to be simple to use, with LCD screen prompts to guide you through programming your MFC. However, you can use your MFC to its fullest potential by taking a few minutes to read this manual.
Additionally, your MFC has a Reports key. Press Reports and 1 to print a list of basic operational steps.
Finding Information
All chapter headings and subheadings are listed in the Table of Contents. You will be able to find information about a specific feature or operation by checking the Index in the back of this manual.
Conventions Used in this Manual
Throughout this manual you’ll see special symbols alerting you to important information, warnings, and actions to perform. For clarification, and to help you choose the correct key presses, we’ve added illustrations showing some of the
LCD messages. boldface italics
Bold typeface identifies a specific key on the MFC control panel.
Italics typeface emphasize an important point, or refer you to related topic.
bubble dot Bubble Dot typeface identifies the messages on the LCD of the
MFC.
Note
Warnings detail precautions you must take to avoid possible personal injury.
Cautions specify procedures you must follow or avoid to prevent possible damage to the MFC.
Notes tell you the proper response for a situation that may occur.
FYI tips provide details about how the current operation interacts with other features.
Improper Setup alerts you to devices and procedures that are not compatible with the MFC.
I N T R O D U C T I O N 1 - 1
BHL-FB-MFC-5100C-FM5.5
Test Sheet Procedure and Product Registration
(For USA Only)
After programming your Station ID, please fill out the TEST SHEET included with your MFC, and then fax it to Brother’s Automated Fax Response System as your first transmission. This will verify that your MFC is properly installed.
To get a response, you must have set up your Station ID. (See Setting Station ID , page 4-2.)
In USA: 1-877-268-9575
When your TEST SHEET is received, a Confirmation Sheet and Product
Registration form will be sent back to your MFC. Please fill out the form and return it to complete your registration.
To Complete Your MFC-5100C Registration On-Line
1 Insert the MFL Pro Suite CD-ROM into your CD-ROM drive.
2 Click On-Line Registration to register your product from the main menu.
1 - 2 I N T R O D U C T I O N
BHL-FB-MFC-5100C-FM5.5
MFC-5100C Control Panel Overview
1 2 6 7 8
3 4 5 9
1
Fax Keys:
Fax Resolution
Sets the resolution when you send a fax.
Receive Mode
Use to select how the MFC will handle incoming calls.
Redial/Pause
Redials the last number called. Also inserts a pause in auto dial numbers.
Dial Pad
Use to dial phone and fax numbers and as a keyboard for entering information into the MFC.
(For Canada Only): The # key lets you switch the dialing type during a telephone call from PULSE to TONE .
Search/Speed Dial
Lets you look up numbers stored in the dialing memory. Also lets you dial stored phone numbers by pressing # and a two-digit number.
Color Fax Start
Starts sending a color fax.
Black Fax Start
Starts sending a black and white fax.
2
Liquid Crystal Display (LCD)
The LCD displays messages to help you set up and operate your MFC.
3
Reports
Accesses the Reports menu so you can select a report to print: Help List,
Auto Dial, Fax Activity,
Transmission Verification and User Settings.
4
Stop/Exit
Stops a fax, cancels an operation, or exits from Menu mode.
I N T R O D U C T I O N 1 - 3
BHL-FB-MFC-5100C-FM5.5
5
Navigation Keys:
Menu/Set
Lets you access the Menu and
Programming mode and stores your settings in the MFC. or
Press to scroll forward or backward to set a menu selection.
Also, you can use these keys to do an alphabetical search for the names of stored numbers.
or
Volume
Press to scroll through the menus and options.
When the machine is idle, you can press these keys to adjust the ring volume.
6
Copy Quality Indicator Lights
These lights show the copy quality you selected.
7
Scan Key:
Scan to
Lets you scan the next original into your computer and select the type of destination: word processing, graphics or E-mail application.
8
Print Key:
Ink
Cleans the ink print heads and replace an ink cartridge.
9
Copy Keys
(Temporary Settings):
Enlarge/Reduce
Lets you reduce or enlarge copies depending upon the ratio you select.
Quality
Use this key to temporarily change the quality for Copy.
Options
You can quickly and easily select temporary settings.
Color Copy
Makes a full-color copy.
Black Copy
Makes a black-and-white copy.
1 - 4 I N T R O D U C T I O N
BHL-FB-MFC-5100C-FM5.5
About Fax Machines
If you’re a first-time MFC user, fax operation might seem a little mysterious.
Soon, you’ll recognize the unusual fax tones on your phone line, and be able to send and receive faxes easily.
Custom Features
Do You Have Voice Mail on the Phone Line?
If you have Voice Mail on the phone line on which you will install your new
MFC, there is a strong possibility that Voice Mail and the MFC will conflict with each other while receiving incoming calls.
Why Should There Be Trouble?
Since both MFCs and Voice Mail will pick up the line at the number of rings you have set, each of them has the ability to keep the other from receiving calls.
For example, if your Voice Mail is set to answer after two rings and your MFC is set to answer after four, your Voice Mail will keep your MFC from receiving faxes. If you set Voice Mail and the Brother MFC to answer at the same number of rings, there is no way of knowing which one will answer first. It is important to remember that neither Voice Mail nor the MFC can pass the call back to the other after the call has been answered.
How Can You Avoid Possible Problems?
A very good way to avoid problems like the one mentioned previously is to get
a second phone number on your present phone line. Many people with Voice
Mail opt for this choice, which is called “Distinctive Ring”, and they are very
satisfied with it. For details about this type of custom service, please see
Another way to avoid possible problem is to replace your Voice Mail with an answering machine. Your Brother MFC is designed to work in tandem with an
answering machine or TAD (telephone answering device). (See Connecting an
External Telephone Answering Device (TAD) , page 2-13.)
Fax Tones and Handshake
When someone is sending a fax, the MFC sends fax calling tones (CNG tones)
— soft, intermittent beeps at 4-second intervals. You’ll hear them after you dial and press Black Fax Start; they continue for about 60 seconds after dialing.
During that time, the sending machine must begin the “handshake” with the receiving machine. Each time you use automatic procedures to send a fax, you are sending CNG tones over the phone line. You’ll soon learn to listen for these soft beeps each time you answer a phone on your fax line, so you can know if you are receiving a fax message.
I N T R O D U C T I O N 1 - 5
BHL-FB-MFC-5100C-FM5.5
The receiving fax responds with fax receiving tones—loud, chirping sounds. A receiving fax chirps for about 40 seconds over the phone line, and the LCD shows RECEIVING . If your MFC is set to the FAX mode, it will answer every call automatically with fax receiving tones. Even if the other party hangs up, your MFC continues to send the “chirps” for about 40 seconds, and the LCD continues to show RECEIVING . To cancel the receiving mode, press
Stop/Exit.
The fax “handshake” is the time in which the sending machine’s CNG tones and the receiving machines “chirps” overlap. This must be for at least 2 to 4 seconds, so the machines can understand how each is sending and receiving the fax. The handshake cannot begin until the call is answered, and the CNG tones only last for about 60 seconds after the number is dialed. Therefore, it’s important for the receiving machine to answer the call in as few rings as possible.
Note
When you have an external telephone answering device (TAD) on your fax line, your TAD will determine the number of rings before the call is answered.
Pay special attention to the directions chapter for connecting a TAD to your
MFC in Chapter 2, Assembly and Connections .
ECM (Error Correction Mode)
The Error Correction Mode (ECM) is a way for the MFC to check the integrity of a fax transmission while it is in progress. ECM transmissions are possible only between machines that both have the ECM feature. If they do, you may send and receive fax messages that are continuously checked for their integrity.
Sufficient memory must be available in your MFC for this feature to work.
1 - 6 I N T R O D U C T I O N
BHL-FB-MFC-5100C-FM5.5
2
2
Assembly and Connections
Packing List
Make sure you have the following items:
Document Tray with Extension
Paper
Wire Extension
Filter Core for
Bi-directional
IEEE 1284
Cable Tie
Ink Cartridges
Telephone
Line Cord
Paper Tray
Owner’s Manual Brother Color
Suite CD-ROM
Test Sheet
(For USA Only)
Card Stock
Support
Document
Cover
Scanner
Cover
Software
License
Agreement
Accessory
Order Form
Quick Setup Guide
Caution
Do NOT throw away the filter core and cable tie by accident. You will need them to meet FCC Emission Requirements when you connect the MFC to your computer using a bi-directional IEEE-1284 compliant parallel cable.
Note
If an item is missing, call Brother Customer Service at 1-800-284-4329 (in USA),
1-877-BROTHER (in Canada) or 1-514-685-6464 (in Montreal). See Ordering
Accessories and Supplies on page ii for the correct item numbers.
Caution
Whenever you transport the MFC, use the packing materials that came with your
MFC. If you do not pack the MFC correctly, you may void your warranty.
A S S E M B L Y A N D C O N N E C T I O N S 2 - 1
BHL-FB-MFC-5100C-FM5.5
Choosing a Location
Place your MFC on a flat, stable surface, such as a desk. Select a place that is free of vibration and shocks. Locate the MFC near a telephone jack and a standard, grounded power outlet. Choose a location where the temperature remains between 50°F and 95°F (10°–35°C).
Avoid placing your MFC in a high-traffic area. Do not place near heaters, air conditioners, water, chemicals, or refrigerators. Do not expose the MFC to direct sunlight, excessive heat, moisture, or dust. Do not connect your MFC to electrical outlets controlled by wall switches or automatic timers. Disruption of power can wipe out information in the MFC’s memory. Do not connect your
MFC to electrical outlets on the same circuit as large appliances or other equipment that might disrupt the power supply. Avoid interference sources, such as speakers or the base units of cordless phones.
NO !
NO !
NO !
WARNING
■
Use caution when installing or modifying telephone lines. Never touch telephone wires or terminals that are not insulated unless the telephone line has been disconnected at the wall jack. Never install telephone wiring during a lightning storm.
Never install a telephone jack in a wet location unless the jack is specifically designed for a wet location.
■
Lightning and power surges can damage this product! We recommend that you use a quality surge protection device on the AC power line and on the telephone line, or unplug the lines during a lightning storm.
■
For PLUG CABLE EQUIPMENT, the socket-outlet should be installed near the equipment and should be easily accessible.
■ To reduce the risk of shock or fire, use only a No. 26 AWG or larger telecommunication line cord.
2 - 2 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
Important Safety Instructions
1 Do not use this product near appliances that use water, in a wet basement or near a swimming pool.
2 Avoid using a telephone other than a cordless type during an electrical storm.
There may be a remote risk of electric shock from lightning.
Paper
The quality of your document can be affected by the kind of paper you use in the MFC. To ensure the best print quality for the settings you’ve chosen, always set the Paper Type to match the type of paper you load. You can use plain paper, inkjet paper (coated paper), glossy paper, transparencies and envelopes. We recommend testing various paper types before purchasing large quantities. For best results, use the recommended paper.
Note
When you print on inkjet paper (coated paper), transparencies and glossy paper, be sure to select the correct media in the “Quality/Color” tab in the printer driver. When using inkjet paper, transparencies or glossy paper, avoid stacking by removing each page after it exits the machine.
Handling and Using Special Paper
■
Store paper in the original bag, and keep it sealed. Keep the paper flat and away from moisture, direct sunlight and heat.
■
The coated side of glossy paper is shiny. Do not touch the shiny (coated) side.
Load glossy paper with the shiny side facing up toward you.
■
Do not touch either side of transparencies, because they absorb water and perspiration easily, and may cause decreased output quality. Transparencies designed for laser printers/copiers may stain your next document. Use only recommended transparencies.
Recommended Paper for the MFC-5100C
Plain Paper:
Inkjet Paper:
Xerox 4200
KODAK ® Premium Inkjet Paper (Matte)
Glossy Paper: JETPRINT PHOTO ®
Graphic image paper — Gloss Finish
Transparencies: 3M Transparency Film (CG3410)
Note
The output quality depends on the paper type and paper brand.
Visit us at http://solutions.brother.com and check the latest recommendations for paper that can be used with the MFC-5100C.
A S S E M B L Y A N D C O N N E C T I O N S 2 - 3
BHL-FB-MFC-5100C-FM5.5
Paper Capacity of Multi-Purpose Sheet Feeder
Paper Type Paper Size
Plain Paper
(Cut Sheet)
Letter, Executive
Legal
Inkjet Paper Letter
Glossy Paper* Letter
Transparencies Letter
Envelopes* DL, COM-10, C5,
Monarch
Postcard* 4" × 6"
Index Card* 5"
× 8"
Capacity
100 Sheets of 20 lb
(75 g/m 2 )
100 Sheets of 20 lb
(75 g/m 2 )
20 Sheets
20
10
10
30
30
*If you want to load thick paper such as postcards, index cards, envelopes and glossy paper in the multi-purpose sheet feeder, you must first install the Card
Stock Support in the feeder.
Paper Specifications for Multi-Purpose Sheet Feeder
Cut Sheet Paper Weight Plain Paper: 17 to 32 lb (64 to 120 g/m 2 )
Inkjet Paper: Up to 32 lb (120 g/m 2 )
Glossy Paper: Up to 40 lb (150 g/m 2 )
Postcard: Up to 45 lb (170 g/m 2 )
Index card: Up to 32 lb (120 g/m 2 )
Thickness Plain Paper: 0.003 to 0.006 inches (0.08 to 0.15 mm)
Inkjet Paper: Up to 0.006 inches (0.15 mm)
Glossy Paper: Up to 0.007 inches (0.18 mm)
Envelopes: Up to 0.02 inches (0.52 mm)
Postcard: Up to 0.009 inches (0.23 mm)
Index card: Up to 0.006 inches (0.15 mm)
Sheet Feeder
Output Stacker
Up to 0.39 inches (10 mm)
Approximately 100 sheets of 20 lb (75 g/m 2 )
Approximately 50 sheets of 20 lb (75 g/m 2 )
(Transparencies and glossy paper must be picked up from the paper tray one page at a time.)
2 - 4 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
Print Area
The print area depends on the settings in the application you are using. The figures below show the unprintable areas on cut sheet and envelopes.
3
Cut Sheet
4
Envelopes
3 4
1 1
2 2 unprintable area
Paper Type
Cut Sheet
Envelopes
Paper Size
Letter, Legal
A4
Executive
DL, C5, CM10,
Monarch
Fax
Mono Copy
Color Copy
Printer
Fax
Mono Copy
Color Copy
Printer
Printer
Printer
1 2 3
(inch)
4
0.12
0.43
0.25
0.25
0.12
0.43
0.13
0.13
0.12
0.43
0.13
0.13
0.39
0.79
0.13
0.13
Note
Printer depends on the Printer driver.
The above figures are approximate and the print area may vary depending on the kind of paper you are using.
Do not use the following types of paper and envelopes:
■ Damaged, curled, wrinkled, or irregularly shaped paper and envelopes
■ Extremely shiny or highly textured paper and envelopes
■ Envelopes with clasps
■ Envelopes of baggy construction
■ Envelopes not sharply creased
■ Embossed envelopes
■ Paper and envelopes already printed with a laser printer
■ Envelopes preprinted on the inside
■ Paper and envelopes that cannot be arranged uniformly when stacked
A S S E M B L Y A N D C O N N E C T I O N S 2 - 5
BHL-FB-MFC-5100C-FM5.5
Assembly
Removing the Protective Yellow Bar
1 Lift the cover toward the back.
Scanner Cover
Protective
Yellow Bar
2 Pull the protective yellow bar out of the machine.
Protective
Yellow Bar
Caution
Do not throw away the protective yellow bar. You will need it for future transportation.
3 Close the top cover, and then close the control panel cover.
2 - 6 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
Setting up the MFC
1 Connect the power cord.
There is no ON/OFF switch. When you plug in the power cord, the power goes on and the LCD shows:
C H E C K C A R T R I D G E
WARNING
■
The MFC must be grounded using a 3-prong plug.
■
Since the MFC is grounded through the power outlet, you can protect yourself from potentially hazardous electrical conditions on the telephone network by keeping the power to your MFC on when you connect it to a telephone line. Similarly, you can protect yourself when you want to move your MFC by disconnecting first the telephone line and then the power cord.
■
Lightning and power surges can damage this product! We recommend that you use a quality surge protection device on the AC power line as well as on the telephone line, or unplug the lines during a lightning storm.
2 Connect the telephone line cord.
Connect one end of the telephone line cord to the jack on the MFC and the other end to a modular wall jack.
Caution
Operating the MFC before you install the ink cartridges will permanently damage the print head.
1
2
Power Cord
Telephone
Line Cord
A S S E M B L Y A N D C O N N E C T I O N S 2 - 7
BHL-FB-MFC-5100C-FM5.5
3 Attach the paper wire extension to the multi-purpose sheet feeder.
2
Paper Wire Extension
1
4 Attach the plastic paper tray to the paper output slot, and then pull out the extension.
Caution
Please attach the paper tray to prevent paper jams and maintain print quality.
Plastic Paper Tray
Extension
2 - 8 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
Loading Paper in the Multi-Purpose Sheet Feeder
(Paper Cassette)
You can load up to 100 sheets of 20 lb (75 g/m 2 ) paper if you use the cut sheet.
(See Paper Capacity of Multi-Purpose Sheet Feeder , page 2-4.)
1 Fan the paper well. Gently insert the paper. Make sure the print side is toward you and the paper level is stacked below the paper guide line.
Paper Guide Line
2 Press and slide the guide to fit the paper width.
Paper Width Guides
A S S E M B L Y A N D C O N N E C T I O N S 2 - 9
BHL-FB-MFC-5100C-FM5.5
Installing the Ink Cartridges
1 Check that you turned on the power (by plugging in the power cord). The LCD shows:
C H E C K C A R T R I D G E
2 Open the Scanner cover of the MFC by pulling the scanner cover release lever toward you and lifting the scanner cover.
3 After a few seconds, the print head will move left to its replacement position.
Scanner Cover
Scanner Cover
Release Lever
4 Remove the protective blue tape over the colored ink cartridge covers.
5 Push the four colored ink cartridge covers one at a time so they pop up.
Then remove the white shipping cover by pulling it toward you and lifting it up and out.
PUSH PUSH PUSH PUSH
Colored Ink
Cartridge
Covers
White Shipping Cover
White Shipping Cover
WARNING
If ink gets in your eyes irrigate them with water immediately, and if irritation occurs consult a doctor.
Caution
■
The bottom of the white shipping cover is wet with ink that will cause stains, so wipe it clean before you place it down.
2 - 10 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
■
Do not throw way the white shipping cover. You will need it for future transportation.
We recommend that you install the ink cartridges from left to right in this order:
Black, Cyan, Yellow, Magenta.
6 Open the Black ink cartridge bag and take out the ink cartridge.
7 Carefully remove the sealing tape from the bottom of the ink cartridge. Be sure to peel the tape in the direction away from you.
Important
To prevent spilling ink and staining your hands and clothing, peel the sealing tape gently and slowly. Do not touch the ink opening on the cartridge or the removed tape.
Don't touch this part
8 Each color has its own correct position. Match the colors of the ink cartridge covers. First, gently insert the Black ink cartridge, and then press the cover down until it clicks.
Peel in the direction away from you!
Opening
A S S E M B L Y A N D C O N N E C T I O N S 2 - 11
BHL-FB-MFC-5100C-FM5.5
9 Repeat Steps 6 to 8 to install each color ink cartridge.
10 After installing all ink cartridges, close the Scanner cover until it clicks into place. Your MFC will enter a “head cleaning” cycle for approximately four minutes.
Caution
Make sure the paper is loaded in the multi-purpose sheet feeder. The LCD shows CLEANING . After the cleaning cycle is finished, the LCD shows
PRESS FAX START .
11 Press Black Fax Start. The MFC starts printing the Print Quality Check Sheet
(only during initial ink cartridge installation).
The LCD shows:
12 Follow the instructions printed on the sheet.
I S S T E P “ A ” O K ?
1 . Y E S 2 . N O
Caution
■
DO NOT remove ink cartridges if you do not need to replace them. If you do so, it may reduce the ink quantity and the MFC will not know the quantity of ink left in the cartridge.
■
DO NOT shake the ink cartridges. If you do so, the ink may spill when you take off the sealing tape. If ink stains your body or clothing, wash with soap or detergent immediately.
■
If you mix the colors by installing an ink cartridge in the wrong color position, you must clean the print head several times after correcting the cartridge installation and before you start printing.
■
Once you open an ink cartridge, install it in the MFC and use it up within six months of installation. Use unopened ink cartridges by the expiration date written on the cartridge package.
■
DO NOT refill the ink cartridges. Attempting to use refilled cartridges and using incompatible inks may cause damage to the print head in this machine and such damage will not be covered by warranty. Warranty coverage does not apply to problems caused by the use of 3rd party ink or 3rd party ink cartridges. Use only genuine Brother ink cartridges.
2 - 12 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
Note
If INK EMPTY shows on the LCD after you install the ink cartridges, check to make sure the ink cartridges are installed correctly.
Connecting the MFC
Connecting an External Telephone
Although your MFC does not have a handset, you can connect a separate telephone (or telephone answering device) directly to your MFC.
Connect the modular plug on the telephone’s line cord to the jack labeled EXT. on the left side of the MFC.
Whenever this phone (or TAD) is in use, the LCD shows TELEPHONE .
Connecting an External Telephone Answering
Device (TAD)
Sequence
You may choose to connect an answering system. However, when you have an
external TAD on the same telephone line as the MFC, the TAD answers all calls and the MFC “listens” for fax calling (CNG) tones. If it hears them, the MFC takes over the call and receives the fax. If it doesn’t hear CNG tones, the MFC lets the TAD continue playing your outgoing message so your caller can leave you a voice message.
The TAD must answer within five rings (the recommended setting is two rings). The
MFC cannot hear CNG tones until the TAD has answered the call, and with five rings there are only 8 to 10 seconds of CNG tones left for the fax “handshake.” Make sure you carefully follow the instructions in this manual for recording your outgoing message. We do not recommend using the toll saver feature on your external answering machine if it exceeds five rings.
Note
If you do not receive all your faxes, you must reset the setting on your external TAD to four rings.
If You Subscribe to your Telephone Company’s Distinctive Ring Service:
You may connect an external TAD to a separate wall jack only if you subscribe to your telephone company’s Distinctive Ring service, have registered the distinctive ring pattern on your MFC, use that number as a fax number and set your machine’s Receive mode to MANUAL . The recommended setting is three or four rings on the external TAD when you have the telephone company’s Distinctive Ring Service.
If You Do Not Subscribe to Distinctive Ring Service:
You must plug your TAD into the EXT. jack of your MFC. If your TAD is plugged into a wall jack, both your machine and the TAD will try to control the
phone line. (See illustration, page 2-14.)
A S S E M B L Y A N D C O N N E C T I O N S 2 - 13
BHL-FB-MFC-5100C-FM5.5
Do not connect a TAD elsewhere on the same phone line (unless you have the Distinctive Ring service).
Connections
The external TAD must be plugged into the back side of the MFC, into the jack labeled EXT. Your MFC cannot work properly if you plug the TAD into a wall jack (unless you are using Distinctive Ring).
1 Plug the telephone line cord from the wall jack into the back side of the MFC, in the jack labeled LINE.
2 Plug the telephone line cord from your external TAD into the back side of the
MFC, in the jack labeled EXT. (Make sure this cord is connected to the TAD at the TAD’s telephone line jack, and not its telephone set jack.)
3 Set your external TAD to four rings or less. (The MFC’s Ring Delay setting does not apply.)
4 Record the outgoing message on your external TAD.
5 Set the TAD to answer calls.
6 Set the Receive Mode to EXT. TEL/TAD .
(See Choosing the Receive Mode , page 5-1)
Recording Outgoing Message (OGM)
Timing is important in recording this message. The message sets up the ways to handle both manual and automatic fax reception.
1 Record 5 seconds of silence at the beginning of your message. (This allows your
MFC time to listen for the fax CNG tones of automatic transmissions before they stop.)
2 Limit your speaking to 20 seconds.
2 - 14 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
3 End your 20-second message by giving your Fax Receive Code for people sending manual faxes. For example:
“After the beep, leave a message or send a fax by pressing 51 and Start.”
Note
We recommend beginning your OGM with an initial 5-second silence because the MFC cannot hear fax tones over a resonant or loud voice. You may try omitting this pause, but if your MFC has trouble receiving, then you must rerecord the OGM to include it.
Special Line Considerations
Roll Over Phone Lines
A roll over phone system is a group of two or more separate telephone lines that pass incoming calls to each other if they are busy. The calls are usually passed down or “rolled over” to the next available phone line in a preset order.
Your MFC can work in a roll over system as long as it is the last number in the sequence, so the call cannot roll away. Do not put the MFC on any of the other numbers; when the other lines are busy and a second fax call is received, the fax call would be transferred to a line that does not have a fax machine. Your MFC will work best on a dedicated line.
Two-Line Phone System
A two-line phone system is nothing more than two separate phone numbers on the same wall outlet. The two phone numbers can be on separate jacks (RJ11) or combined into one jack (RJ14). Your MFC must be plugged into an RJ11 jack. RJ11 and RJ14 jacks may be equal in size and appearance and both may contain four wires (black, red, green, yellow). To test the type of jack, plug in a two-line phone and see if it can access both lines. If it can, you must separate the
line for your MFC. (See Easy Receive , page 5-3.)
A S S E M B L Y A N D C O N N E C T I O N S 2 - 15
BHL-FB-MFC-5100C-FM5.5
Converting Telephone Wall Outlets
There are three ways to convert to an RJ11 jack. The first two ways may require assistance from the telephone company. You can change the wall outlets from one RJ14 jack to two RJ11 jacks. Or, you can have an RJ11 wall outlet installed and slave or jump one of the phone numbers to it.
The third way is the easiest: Buy a triplex adapter. You can plug a triplex adapter into an RJ14 outlet. It separates the wires into two separate RJ11 jacks (Line 1,
Line 2) and a third RJ14 jack (Lines 1 and 2). If your MFC is on Line 1, plug the MFC into L1 of the triplex adapter. If your MFC is on Line 2, plug it into L2 of the triple adapter.
Triplex Adapter
RJ14
RJ11
RJ14
Installing MFC, External Two-Line TAD and Two-Line Telephone
When you are installing an external two-line telephone answering device
(TAD) and a two-line telephone, your MFC must be isolated on one line at both the wall jack and at the TAD. The most common connection is to put the MFC
on Line 2, which is explained in the following steps. The back of the two-line
TAD must have two telephone jacks: one labeled L1 or L1/L2, and the other labeled L2. You will need at least three telephone line cords, the one that came with your MFC and two for your external two-line TAD. You will need a fourth line cord if you add a two-line telephone.
1 Place the two-line TAD and the two-line telephone next to your MFC.
2 Plug one end of the telephone line cord for your MFC into the L2 jack of the triplex adapter. Plug the other end into the LINE jack on the left side of the
MFC.
3 Plug one end of the first telephone line cord for your TAD into the L1 jack of the triplex adapter. Plug the other end into the L1 or L1/L2 jack of the two-line
TAD.
2 - 16 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
4 Plug one end of the second telephone line cord for your TAD into the L2 jack of the two-line TAD. Plug the other end into the EXT. jack on the left side of the MFC.
Triplex Adapter
Two Line Phone
External Two Line TAD Fax Machine
You can keep two-line telephones on other wall outlets as always. There are two ways to add a two-line telephone to the MFC’s wall outlet. You can plug the telephone line cord from the two-line telephone into the L1+L2 jack of the triplex adapter. Or, you can plug the two-line telephone into the TEL jack of the two-line TAD.
Multi-Line Connections (PBX)
Most offices use a central telephone system. While it is often relatively simple to connect the machine to a key system or a PBX (Private Branch Exchange), we suggest that you contact the company that installed your telephone system and ask them to connect the MFC for you. It is advisable to have a separate line for the MFC. You can then leave the MFC in FAX mode to receive faxes any time of day or night.
If the MFC is to be connected to a multi-line system, ask your installer to connect the unit to the last line on the system. This prevents the unit from being activated each time a telephone call is received.
As with all fax units, this machine must be connected to a two wire system. If your line has more than two wires, proper connection of the MFC cannot be made.
If You are Installing the MFC to Work with a PBX
1 It is not guaranteed that the unit will operate correctly under all circumstances with a PBX. Any cases of difficulty should be reported first to the company that handles your PBX.
2 If all incoming calls will be answered by a switchboard operator, it is recommended that the Receive Mode be set to MANUAL. All incoming calls should initially be regarded as telephone calls.
3 The MFC may be used with either pulse or tone dialing telephone service
(For Canada only).
A S S E M B L Y A N D C O N N E C T I O N S 2 - 17
BHL-FB-MFC-5100C-FM5.5
Custom Features on Your Phone Line
If you have Voice Mail, Call Waiting, Caller ID, Caller Waiting/Caller ID,
RingMaster, an answering service, an alarm system or other custom feature on
one phone line it may create a problem with the operation of your MFC. (See
Custom Features on a Single Line , page 19-8.)
2 - 18 A S S E M B L Y A N D C O N N E C T I O N S
BHL-FB-MFC-5100C-FM5.5
3
3
On-Screen Programming
User-Friendly Programming
We have designed your MFC with on-screen programming using navigation keys. User-friendly programming helps you take full advantage of all the menu selections your MFC has to offer.
Since your programming is done on the LCD, we created step-by-step on-screen prompts to help you program your MFC. All you need to do is follow the prompts as they guide you through the menu selections and programming options. Additionally, you can program settings more quickly by pressing
Menu/Set and the menu number using the dial pad.
Menu Selection Table
You can probably perform most of these programming operations without the
Owner’s Manual. To help you understand the menu selections, and options that
are found in the MFC programs, use the Menu Selection Table on page 3-3.
Note
You can program your MFC by pressing Menu/Set followed by the menu numbers. For example: to set FAX RESOLUTION to FINE , press Menu/Set, 2, 2, 2 and or
to select FINE , and then press Menu/Set.
Alternating Displays
Sometimes, the LCD alternates between the active setting, and a help message giving brief instructions about how to proceed. The display you’ll probably see most often is shown below. When you place an original in the ADF (Automatic
Document Feeder), it appears to tell you that you can dial a number and send a fax, or you can make a copy.
F A X : N O . & S T A R T
C O P Y : N O . & C O P Y
BHL-FB-MFC-5100C-FM5.5
O N - S C R E E N P R O G R A M M I N G 3 - 1
Navigation Keys
* Access the Menu
* Go to next menu level
* Accept an option
* Scroll through the current menu level
* Back to previous menu level
* Forward to next menu level
* Exit the Menu
You can access the menu mode by pressing Menu/Set. When you enter the
Menu, the LCD scrolls;
Then press 1 for General Setup Menu
—OR—
Press 2 for Fax Menu—OR—
Press 3 for Copy Menu—OR—
Press 4 for Test Print
S E L E C T & S E T
1 . G E N E R A L S E T U P
2 . F A X
3 . C O P Y
4 . T E S T P R I N T
—OR—
You can scroll more quickly through the each menu level by pressing or , and then set an option by pressing Menu/Set when that option appears on the LCD.
Then the LCD shows next menu level. Press or to scroll to your next menu selection, and then press Menu/Set.
When you finish setting an option, the LCD shows ACCEPTED .
Note
Use to scroll backward if you passed your choices or to save keystrokes.
3 - 2 O N - S C R E E N P R O G R A M M I N G
BHL-FB-MFC-5100C-FM5.5
To access the menu, press Menu/Set.
to accept
Main Menu Submenu
1. GENERAL
SETUP
1. PAPER
TYPE
2. PAPER SIZE
3. DATE/TIME
4. STATION ID
5. VOLUME
6. AUTO
DAYLIGHT
7. TONE/
PULSE
(Canada Only)
8. LOCAL
LANGUAGE
(Canada Only)
Stop to Exit
Menu
Selections
—
—
Options
PLAIN
INKJET
GLOSSY
(4-COLOR/
3-COLOR)
TRANSPARENCY
LETTER
LEGAL
A4
Descriptions Page
Identifies the type of paper in the cassette.
Selects size of paper.
—
—
—
—
Enter date and time for the LCD display and heading on fax transmissions.
Program your name, fax number to appear on each transmitted page.
Adjusts ring volume.
1. RING OFF
HIGH
2. BEEPER
LOW
OFF
HIGH
LOW
ON
Adjusts volume level of beeper.
—
Changes for
Daylight Savings
Time automatically.
OFF
TONE Selects dialing mode
—
—
PULSE
ENGLISH Allows you to change the LCD
Language to
French.
See French
Manual
FRENCH
Note
The factory setting (option) is shown in bold.
O N - S C R E E N P R O G R A M M I N G 3 - 3
BHL-FB-MFC-5100C-FM5.5
To access the menu, press Menu/Set.
to accept
Main Menu
2. FAX
Submenu
1. SETUP
RECEIVE
2. SETUP
SEND
Stop to Exit
Menu
Selections
1. RING
DELAY
05
04
03
02
01
00
ON
Options Descriptions Page
Number of rings before MFC answers in FAX
ONLY mode.
2. EASY
RECEIVE
Receive fax messages without pressing the Start key.
3. REMOTE
CODE
4. AUTO
REDUCTION
OFF
ON
( 51)
OFF
ON
Activate the fax machine from a remote location. You can also personalize these codes.
Reduces size of image.
5. POLLING
RX
OFF
ON Sets up your
MFC to poll another fax machine.
1. CONTRAST
OFF
AUTO
S.LIGHT
Changes lightness or darkness of a fax you are sending.
2. FAX
RESOLUTION
S.DARK
STANDARD
FINE
S. FINE
Changes the default setting of fax resolution.
3. DELAYED
FAX
4. BATCH
TX
ON
OFF
—
Sends documents later.
Sends all delayed faxes that are to the same fax number and at the same time as one transmission.
Note
The factory setting (option) is shown in bold.
3 - 4 O N - S C R E E N P R O G R A M M I N G
BHL-FB-MFC-5100C-FM5.5
To access the menu, press Menu/Set.
to accept
Main Menu Submenu
2. FAX
(Continued)
2. SETUP SEND
(continued)
3. SET
AUTO DIAL
4. SETUP
REPORTS
5. REMOTE
FAX OPT
Stop to Exit
Menu
Selections
5. REAL
TIME TX
Options
OFF
ON
NEXT FAX ONLY
Descriptions Page
You can send a fax without using memory.
6. POLLED
TX
7. OVERSEAS
MODE
1. SPEED-
DIAL
2. SETUP
GROUPS
ON
OFF
ON
OFF
—
—
Sets up your MFC with a document to be retrieved by another fax machine.
Ajusts for sometimes difficult overseas transmissions.
Store Speed Dial numbers, so you can dial by pressing only five keys.
Sets up a Group number for broadcasting.
Initial setup for
Transmission
Verification
Report and
Activity Report.
1. TRANS-
MISSION
ON
ON+IMAGE
OFF
OFF+IMAGE
OFF
2. ACT.
INTERVAL
7/4/2 Days
1. FAX FWD/
PAGING
2. FAX
STORAGE
24/12/6 Hours
OFF
FAX FORWARD
PAGING
ON
Sets MFC to forward fax messages–OR– to call your pager.
Stores incoming faxes in memory for remote retrieval.
OFF
3. REMOTE
ACCESS 159
Personalizes code for retrieving faxes.
Note
The factory setting (option) is shown in bold.
O N - S C R E E N P R O G R A M M I N G 3 - 5
BHL-FB-MFC-5100C-FM5.5
To access the menu, press Menu/Set.
to accept
Main Menu Submenu
2. FAX
(Continued)
5. REMOTE
FAX OPT
(continued)
6. REMAINING
JOBS
3. COPY
4. TEST
0. TEL SERVICE
1. QUALITY
2. COLOR
ADJUST
3. CONTRAST
—
Menu
Selections
4. PRINT
FAX
—
1. DISTINCTIVE ON
OFF
—
SET
NORMAL
BEST
FAST
1. RED
Options
—
—
Stop to Exit
Descriptions Page
Prints incoming faxes stored in the memory.
Checks which jobs are in memory or cancel a delayed fax or polling job.
Uses the phone company
Distinctive Ring subscriber service to register the ring pattern with the
MFC.
Select copy quality.
2. GREEN
3. BLUE
—
Adjust the amount of Red in copies.
Adjust the amount of Green in copies.
Adjust the amount of Blue in copies.
Adjust the contrast.
— —
You can print a test sample page to check print quality and adjust the
Vertical
Alignment.
Note
The factory setting (option) is shown in bold.
3 - 6 O N - S C R E E N P R O G R A M M I N G
BHL-FB-MFC-5100C-FM5.5
4
4
Initial Setup
Getting Started
Setting Paper Type
You can choose the Paper Type you use.
1 Press Menu/Set, 1, 1.
1 . P A P E R T Y P E
2 Press or select PLAIN , INK JET ,
GLOSSY or TRNSPRNCY (TRANSPARENCY), and then press Menu/Set.
3 If you selected GLOSSY , press or to select GLOSSY:4-COLOR or
GLOSSY:3-COLOR , and then press Menu/Set.
Note
The print quality of black ink varies depending on the kind of glossy paper you are using. Black ink is used when you select GLOSSY:4-COLOR.
If the glossy paper you are using repels the black ink, select GLOSSY:3-COLOR , which simulates black ink by combining the three ink colors.
4 Press Stop/Exit.
Note
The MFC ejects paper with printed surfaces face up onto the paper tray in the front of the MFC. When you use transparencies, remove each sheet immediately to prevent a paper jam or curled.
Setting Paper Size
You can use three sizes of paper for printing your faxes and copies — letter, legal and A4. When you change the kind of paper you have loaded in the MFC, you will need to change the setting for Paper Size so your MFC can fit the incoming fax on the page.
1 Press Menu/Set, 1, 2.
2 . P A P E R S I Z E
2 Press or to select LETTER , LEGAL or A4 , and then press Menu/Set.
3 Press Stop/Exit.
I N I T I A L S E T U P 4 - 1
BHL-FB-MFC-5100C-FM5.5
Setting Date and Time
Your MFC displays the date and time, and prints it on every fax you send.
In the event of a power failure, you may have to reset the date and time. All other settings remain unaffected.
1 Press Menu/Set, 1, 3.
3 . D A T E / T I M E
2 Enter the last two digits of the year, and then press Menu/Set.
3 Enter two digits for the month (for example, enter 09 for September, or 10 for October), and then press Menu/Set.
4 Enter two digits for the day (for example,
06), and then press Menu/Set.
Y E A R : X X
M O N T H : X X
D A Y : X X
5 Enter the time in 24-hour format (for example, enter 15:25 for 3:25 P.M.), and then press Menu/Set.
T I M E : X X : X X
6 Press Stop/Exit.
The LCD now displays the date and time you set whenever the MFC is in
Standby mode.
Setting Station ID
You should store your name and fax number to be printed on all fax pages that you send.
1 Press Menu/Set, 1, 4.
4 . S T A T I O N I D
2 Enter your fax number (up to 20 digits), and then press Menu/Set.
You must enter a fax number to proceed.
3 Use the dial pad to enter your name (up to
20 characters), and then press
Menu/Set. (See Entering Text , page 4-3.)
4 Press Stop/Exit.
The LCD returns to the date and time.
F A X :
N A M E :
If your Station ID has already been programmed, the LCD prompts 1 to make a change or 2 to exit without changing.
4 - 2 I N I T I A L S E T U P
BHL-FB-MFC-5100C-FM5.5
Entering Text
When you are setting certain functions, such as the Station ID, you may need to type text into the MFC. Most number keys have three or four letters printed above them. The keys for 0, #, and do not have printed letters because they are used for special characters.
By pressing the appropriate number key repeatedly, you can access the character you want.
Press Key one time two times three times four times
2 A B C 2
3
4
5
6
7
8
D
G
J
M
P
T
E
H
K
N
Q
U
F
I
L
O
R
V
3
4
5
6
S
8
9 W X Y Z
Inserting Spaces
To enter a space, press once between numbers and twice between characters.
Making Corrections
If you entered a letter incorrectly and want to change it, press to move the cursor after the last correct letter. Then press Stop/Exit; all letters above and to the right of the cursor will be deleted. Re-enter the correct characters. You can also back up and type over incorrect letters.
Repeating Letters
If you need to enter a character that is assigned to the same key as the previous character, press to move the cursor to the right.
Special Characters and Symbols
Press , or to move the cursor under the special character or symbol you want. Then press Menu/Set to select it.
Press for
Press # for
Press 0 for
: ; < = > ? @ [ ] ^ _
É À È Ê Î Ç Ë Ö 0
I N I T I A L S E T U P 4 - 3
BHL-FB-MFC-5100C-FM5.5
N OT I C E
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or electronic device to send any message via a telephone fax machine unless such messages clearly contain, in a margin at the top or bottom of each transmitted page, or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity or other individual sending the message and the telephone number of the sending machines or such business, other entity or individual.
In order to program this information into your fax machine,
complete the steps described on page 4-2.
If you do not enter a fax number, no additional information can be entered.
Setting the Ring Volume
1 Press Menu/Set, 1, 5, 1.
1 . R I N G
2 Press or select ( OFF , LOW , or
HIGH ), and then press Menu/Set.
3 Press Stop/Exit.
—OR—
You can adjust the ring volume when your MFC is idle. You can turn the ring
OFF or you can select a ring volume level.
Press or to adjust the volume level. With each key press, the MFC rings so you can hear the active setting as the LCD shows it. Each key press changes the volume. The new setting will remain until you change it again.
4 - 4 I N I T I A L S E T U P
BHL-FB-MFC-5100C-FM5.5
Setting the Beeper Volume
You can set the beeper to LOW , HIGH or OFF . The default setting is LOW .
When the beeper is set to LOW or HIGH , the MFC beeps every time you press a key or make an error and when fax sending or receiving is finished.
1 Press Menu/Set, 1, 5, 2.
2 . B E E P E R
2 Press or to select your option.
3 When the LCD shows the option you want, press Menu/Set.
Press Stop/Exit.
Turning On Automatic Daylight Savings Time
You can set the machine to change automatically for Daylight Savings Time. It will reset itself forward one hour in the Spring and backward one hour in the
Fall.
1 Press Menu/Set, 1, 6.
6 . A U T O D A Y L I G H T
2 Press or to select ON (or OFF ), and then press Menu/Set.
3 Press Stop/Exit.
Setting Tone/Pulse Dialing Mode (For Canada Only)
Your MFC comes set to accommodate tone dialing service
(multi-frequency). If you have pulse dialing service (rotary), you need to change the dialing mode.
1 Press Menu/Set, 1, 7.
7 . T O N E / P U L S E
2 Press or to select PULSE (or TONE ), and then press Menu/Set.
3 Press Stop/Exit.
Memory Storage
In the event of a power failure, all settings in the GENERAL SETUP , SETUP
RECEIVE , SET AUTO DIAL and REMOTE FAX OPT are stored permanently. You may have to reset the date and time.
I N I T I A L S E T U P 4 - 5
BHL-FB-MFC-5100C-FM5.5
5
5
Setup Receive
Basic Receiving Operations
Choosing the Receive Mode
There are three different receive modes for your MFC. You may choose the mode that best suits your needs by pressing Receive Mode repeatedly until the
LCD shows the setting you want to use.
LCD
FAX ONLY
(automatic receive)
EXT.TEL/TAD
(External telephone/
External Telephone
Answering Device)
How it works
The MFC automatically answers every call as a fax.
If an external telephone is connected to the EXT. jack, you control the phone line and must answer every call yourself.
When to use it
For dedicated fax lines.
Use this mode if you receive very few faxes.
MANUAL
(manual receive)
If an external TAD
(telephone answering device) is connected to the
EXT. jack, the TAD automatically answers every call. Voice messages are stored in the external
TAD. Fax messages are printed.
Use this mode if you have an external answering machine on your phone line.
You control the phone line and must answer every call yourself.
Use this mode when you are using a computer modem on the same line or if you receive very few fax messages.
5 - 1 S E T U P R E C E I V E
BHL-FB-MFC-5100C-FM5.5
To Select or Change Your Receive Mode
1 Press Receive Mode. The LCD shows your current selection.
F A X O N L Y
E X T . T E L / T A D
M A N U A L
2 Continue to press Receive Mode until your new selection appears. After two seconds the LCD returns to the date and time display, along with your new
Receive Mode setting.
If you are changing the Receive Mode while in another operation, the LCD returns to that operation.
0 9 / 0 6 1 5 : 2 5 F A X
Current Receive Mode
FAX : FAX ONLY
EXT : EXTERNAL TEL / TAD
MNL : MANUAL
Setting Ring Delay
The Ring Delay setting determines the number of times the MFC rings before it answers. If you have extension phones on the same line as the MFC or subscribe to the telephone company’s Distinctive Ring service, keep the Ring Delay default setting of 4 . You can try setting the Ring Delay to 5 rings; however, if you do not receive all your faxes, you must reset it to 4 rings.
, page 5-3 and Operation from Extension Telephone , page 5-4.)
1 Press Menu/Set, 2, 1, 1.
1 . R I N G D E L A Y
2 Press or to select how many times the line rings before the MFC answers
(00–05), and then press Menu/Set. If you select 00, the line doesn’t ring at all.
3 Press Stop/Exit.
S E T U P R E C E I V E 5 - 2
BHL-FB-MFC-5100C-FM5.5
Easy Receive
When you use this feature, you don’t have to press Black Fax Start when you answer a fax call. Selecting ON allows the MFC to receive fax calls automatically, even if you lift the handset of an extension or external phone.
When you see RECEIVING on the LCD or when you hear “chirps” through the handset of an extension phone connected to another wall jack, just replace the handset, and your MFC does the rest. Selecting OFF means you’ll have to activate the MFC yourself, by lifting the handset of an external or extension phone, and then pressing Black Fax Start on the MFC—OR—by pressing
5 1 if you are not at your MFC. (See Operation from Extension Telephone , page
Note
If this feature is set to ON, but your MFC doesn’t automatically connect a fax call when you lift a phone handset, press the Fax Receive code 5 1.
Note
If you send faxes from a computer on the same phone line and the MFC intercepts them, set Easy Receive to OFF.
1 Press Menu/Set, 2, 1, 2.
2 . E A S Y R E C E I V E
2 Use or to select ON (or OFF ), and then press Menu/Set.
3 Press Stop/Exit.
Printing a Reduced Incoming Fax
(Auto Reduction)
You can always reduce the size of an incoming fax to a fixed percentage, regardless of the size of the paper in your MFC. ON lets your MFC choose the level of reduction for you.
1 Press Menu/Set, 2, 1, 4.
4 . A U T O R E D U C T I O N
2 Use or to select ON (or OFF ), and then press Menu/Set.
3 Press Stop/Exit.
Note
If incoming faxes show that information in the left and right margins has been cut off, make sure this Auto Reduction feature is turned on.
5 - 3 S E T U P R E C E I V E
BHL-FB-MFC-5100C-FM5.5
Advanced Receiving Operations
Operation from Extension Telephone
If you answer a fax call on an extension phone or on an external phone in the
EXT. jack, you can make your MFC take over by using the Fax Receive Code.
When you press the Fax Receive Code 5 1, the MFC starts to receive a fax.
(See Easy Receive , page 5-3.)
If you answer a call at an extension or external phone, and no one is on the line, assume you’re receiving a fax. At an extension phone, press 5 1, wait for fax receiving tones (chirps), then hang up. At an external phone, press 5 1 and wait for the phone to be disconnected (the LCD shows RECEIVING ) before you hang up. (Your caller will have to press Black Fax Start to send the fax.)
Changing the Fax Receive Code
The preset Fax Receive Code ( 5 1) might not work with some telephone systems.
Note
If you are always disconnected when accessing your external TAD remotely, try changing the Fax Receive Code from 5 1 to # # #.
1 Press Menu/Set, 2, 1, 3.
3 . R E M O T E C O D E
2 Press or to select ON (or OFF ),
R E M O T E A C T . : O N ?
and then press Menu/Set.
3 If you want to, enter a new Fax Receive
Code, and then press Menu/Set.
4 Press Stop/Exit.
F A X R E C E I V E : * 5 1
Printing a Fax in Memory
If you set Fax Storage to ON for remote retrieval, you can still print a fax from
the memory when you are at your MFC. (See Setting Fax Storage , page 8-2.)
1 Press Menu/Set, 2, 5, 4.
2 Press Black Fax Start.
3 After printing is finished, press Stop/Exit.
4 . P R I N T F A X
S E T U P R E C E I V E 5 - 4
BHL-FB-MFC-5100C-FM5.5
Polling
Polling is the process of retrieving faxes from another fax machine. You can use your MFC to “poll” other machines, or you can have someone poll your
MFC.
All parties involved in polling need to set up their fax machines to accommodate polling. When someone polls your MFC to receive a fax, they pay for the call; if you poll someone’s fax machine to receive a fax, you pay for the call.
Some fax machines do not respond to the polling function.
Setting Up Polling Receive
Polling Receive is when you call another fax machine to receive a fax from it.
1 Press Menu/Set, 2, 1, 5.
5 . P O L L I N G R X
2 Press or to select POLLING RX: ON ,
(or POLLING RX: OFF ), and then press Menu/Set.
3 Enter the fax number you are polling.
4 Press Black Fax Start.
The LCD shows DIALING .
Setting Up Sequential Polling Receive
Your MFC can request documents from several fax units in a single operation.
Afterward, a Sequential Polling Report will be printed.
1 Press Menu/Set, 2, 1, 5.
5 . P O L L I N G R X
2 Press or to select POLLING RX: ON , and then press Menu/Set.
3 Specify the destination fax machines you wish to poll using, Speed Dial, a
Group or the dial pad. You must press Menu/Set between each location.
4 Press Black Fax Start.
Your MFC will poll each number or group number in turn for a document.
5 - 5 S E T U P R E C E I V E
BHL-FB-MFC-5100C-FM5.5
Canceling a Scheduled Job
You can cancel tasks you’ve scheduled, such as Delayed Fax or Polling
Transmit. (See Canceling a Job in Memory , page 6-7.)
1 Press Menu/Set, 2, 6. Any waiting jobs appear on the LCD. If no job is waiting, the LCD shows NO JOB WAITING .
6 . R E M A I N I N G J O B S
2 If you have more than two jobs waiting, press or to select the job you want to cancel, and then press Menu/Set.
—OR—
If you have only one job waiting, go to Step 3.
3 Press 1 to cancel—OR—Press 2 to exit without canceling.
To cancel another job, return to Step 2.
4 Press Stop/Exit.
BHL-FB-MFC-5100C-FM5.5
S E T U P R E C E I V E 5 - 6
Telephone Services
Your MFC supports the Distinctive Ring telephone service offered by some telephone companies.
If you have Voice Mail, Call Waiting, Caller ID, Call Waiting/Caller ID, RingMaster, an answering service, or an alarm system custom feature on your telephone line, it
may create a problem in the operation of your MFC. (See Custom Features on a
If you have Voice Mail on your phone line, please read the following carefully.
Distinctive Ring
The term “Distinctive Ring” is used by Brother to identify a phone company service that is given many names, depending on the Telephone Company you are
using. For example, this service may be called SmartRing, RingMaster, Teen-
Ring, Indent-a-Call or Indent-a-Ring.
What Does Your Telephone Company’s “Distinctive Ring” Do?
Your telephone company’s Distinctive Ring service allows more than one number on same phone line. If you need more than one phone number, it is
an inexpensive alternative to paying for an additional line. Each phone number has its own distinctive ring pattern, so you will know which phone number is ringing. This is one way you can have a separate phone number for your MFC.
Note
Please consult your telephone company for availability and rates.
What Does Brother’s “Distinctive Ring” Do?
The Brother machine has a Distinctive Ring feature that allows you to use your
MFC machine to take full advantage of the telephone company’s Distinctive
Ring service. You can dedicate the new phone number on your line to receiving only faxes.
Note
You must purchase your telephone company’s Distinctive Ring service before you program the MFC to work with it.
5 - 7 S E T U P R E C E I V E
BHL-FB-MFC-5100C-FM5.5
Do You Have Voice Mail?
If you have Voice Mail on the phone line on which you will install your new
MFC, there is a strong possibility that Voice Mail and the MFC will conflict
with each other while receiving incoming calls. However, this Distinctive Ring feature allows the use of more than one number on your line, so both Voice
Mail and the MFC can coexist peacefully. If each one has a separate phone number, neither will interfere with the other’s work.
If you decide to get the Distinctive Ring Service from the telephone company, you will need to follow the directions below to “register” the new Distinctive
Ring pattern they provided, so your fax machine can recognize its incoming calls.
Note
You can change or cancel the Distinctive Ring pattern at any time. You can switch it off temporarily, and later turn it back on. When you get a new fax number, make sure you reset this feature.
Before You Choose the Ring Pattern to Register
You can register only one Distinctive Ring pattern with the MFC. Some ring patterns cannot be registered. Please refer to some popular ring pattern examples that will be provided from the phone company in the USA and Canada that are shown in the Brother compatibility table below.
Ring
Pattern
1
2
3
4
Rings long - long short - long - short short - short - long very long (normal pattern)
Note
If the ring pattern the phone company provided cannot be registered by the fax, please check for other available ring pattern choices from the phone
company.
■ The MFC will answer only calls to its registered number.
■ The first two rings are silent on the fax machine. This is because the fax must
«listen» to the ring pattern (compare it to the pattern that was “registered”).
■
If you program the MFC correctly, it will recognize the registered ring pattern of the “fax number” within 2 ring patterns and then automatically answer with a fax tone. When the “voice number” is called, the fax machine will not interrupt the call.
S E T U P R E C E I V E 5 - 8
BHL-FB-MFC-5100C-FM5.5
Very Important
If you have Voice Mail or a TAD (Telephone Answering Device) and want to keep one of your phone numbers dedicated only to fax calls, you must leave the
MFC in MANUAL mode at all times while using the Distinctive Ring Feature.
Here’s why: MANUAL mode will never pick up a call by itself, since it is
«Neutral». When the MFC is in this «neutral» mode, the Distinctive Ring
Feature can be activated. The Distinctive Ring feature is actually an answering mode. So, do not activate FAX ONLY mode while using Distinctive Ring; otherwise, the fax machine will answer calls for all the numbers.
Registering the Distinctive Ring Pattern
1 Set the MFC to MANUAL mode.
2 Press Menu/Set, 2, 0, 1.
3 Press or to select DISTINCTIVE:SET?
, and then press Menu/Set.
4 Press or to select the prestored ring pattern you want to assign, and then press
Menu/Set. (You will hear each pattern as you scoll through the four patterns.)
Be sure to choose the pattern assigned by the telephone company.
5 Press Stop/Exit.
5 - 9 S E T U P R E C E I V E
BHL-FB-MFC-5100C-FM5.5
6
6
Setup Send
Before You Begin
You can send a fax from the ADF (Automatic Document Feeder) or from the scanner glass.
Sending Faxes Using Multiple Settings
When you send a fax you can choose any combination of these settings: set the
A C C E P T E D contrast or resolution; send using overseas mode, delayed fax timer,
O T H E R S E T T I N G S ?
1 . Y E S 2 . N O polling transmission or real time transmission. After each menu selection is accepted, the LCD will ask if you want to enter other settings:
Press 1 if you want to select additional settings. The LCD returns to the SETUP
SEND menu—OR—Press 2 if you are finished choosing settings, and then go to the next step.
Faxing from the ADF (Automatic Document Feeder)
The ADF can hold up to 30 pages, feeding each one individually through the
MFC. Use standard (20 lb/75g/m 2 ) paper when using the ADF and always fan the pages well first.
Recommended Environment
Temperature:
Humidity:
Paper:
68°F – 86°F (20°C – 30°C)
50% – 70%
Xerox 4200 (20LB/LTR)
DO NOT use curled, wrinkled, folded, ripped paper, or paper with staples, paper clips, paste or tape attached. DO NOT use cardboard, newspaper or fabric. (To
fax this kind of original, see Faxing from the Scanner Glass , page 6-3.)
■ Make sure documents written with ink are completely dry.
■ Originals to be faxed must be from 5.8 to 8.5 inches wide and 5.8 to 14 inches long.
S E T U P S E N D 6 - 1
BHL-FB-MFC-5100C-FM5.5
1 Unfold the document tray extension.
2 Unfold the document stopper.
3 Fan the pages and stagger them at a 30 degree angle.
Insert the pages face up, top
edge first in the ADF until you feel them touch the feed roller.
4 Adjust the paper guides to fit the width of your original.
Originals are
Face Up in the ADF
Document tray extension
Document
Stopper
30
°
Document
Stopper
Setting the Special Media Lever
You can use the special media lever to select the Regular position ( ) or
Special position. ( )
To feed special types of originals (such as thin paper, thick paper, coated paper or glossy paper), move the special media lever to the Special position ( ). It will allow the original to feed through the ADF without slipping or jamming.
Regular Position
Special Position
Special Media Lever
If the original “double-feeds,” try again by inserting a single sheet of original in the ADF or use Scanner glass.
6 - 2 S E T U P S E N D
BHL-FB-MFC-5100C-FM5.5
Faxing from the Scanner Glass
You can use the scanner glass to fax one page at a time or pages of a book.
Originals can be letter or A4 size (8.5 inches to 11.7 inches).
To use the scanner glass, the ADF must be empty.
1 Lift the document cover.
2 Using the document guidelines on the left, center the original face
down on the scanner glass.
3 Close the document cover.
Originals are
Face Down on the Scanner
Glass
If the original is a book or is thick, do not slam the cover or press on it.
4 Dial the fax number, and then press Black Fax Start. The MFC starts scanning the first page.
5 To send a single page, go to Step 7
—OR—
M E M O R Y # 0 0 1 9 9 %
N E X T : P R E S S S E T
To send multiple pages, go to Step 6.
D I A L : P R E S S S T A R T
6 Place the next page on the scanner glass, and then press Menu/Set. The MFC starts scanning. (Repeat this step for each additional page.)
7 Press Black Fax Start to begin dialing.
Press Stop/Exit to cancel.
If memory is full and you are faxing a single page, it will be sent in real time.
You can fax a single color page from the scanner glass.
S E T U P S E N D 6 - 3
BHL-FB-MFC-5100C-FM5.5
Basic Sending Operations
Contrast
If your document is very light or very dark, you might want to set the contrast.
Use S.LIGHT
to send a very light document. Use S.DARK
to send a very dark document.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Menu/Set, 2, 2, 1.
1 . C O N T R A S T
3 Press or to select AUTO , S.LIGHT
or S.DARK
, and then press Menu/Set.
4 Press 1 if you want to select additional settings. The LCD returns to the SETUP
SEND menu—OR—Press 2 if you are finished choosing settings, and then go to Step 5.
5 Enter a fax number.
6 Press Black Fax Start to send a fax.
Fax Resolution
When you have a document in the ADF, or on the scanner glass you can use the
Fax Resolution key to change the setting temporarily (for this fax only) Press
Fax Resolution repeatedly until the LCD shows the setting you want.
—OR—
You can change the default setting.
1 Press Menu/Set, 2, 2, 2.
2 . F A X R E S O L U T I O N
2 Press or to select the resolution you want, and then press Menu/Set.
3 Press Stop/Exit.
STANDARD —Suitable for most typed documents.
FINE —Good for small print; transmits a little slower than Standard resolution.
S. FINE —Good for small print or artwork; transmits slower than Fine resolution (black and white only).
PHOTO —Use when original has varying shades of gray; this is the slowest transmission time (black and white only).
6 - 4 S E T U P S E N D
BHL-FB-MFC-5100C-FM5.5
Manual Transmission (With an External Telephone)
Manual transmission lets you hear the dial tone, ringing and fax receiving tones while sending the fax.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Pick up the handset of the external phone and listen for a dial tone.
3 Dial the fax number you want to call on the external phone.
4 When you hear the fax tone, press Black Fax Start.
5 Replace the handset of the external phone.
Automatic Transmission
This is the easiest way to send a fax.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Enter the fax number using the dial pad, Speed Dial or Search.
(See Speed Dialing , page 7-4.)
3 Press Black Fax Start.
Color Fax Transmission
Your MFC allows you to transmit a color fax.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Enter the fax number using the dial pad, Speed Dial or Search.
3 Press Color Fax Start.
When you send a color fax, the MFC sends the fax without scanning the original into memory.
Manual and Automatic Fax Redial
If you’re sending a fax manually and the line is busy, press Redial/Pause to try again. Anytime you want to make a second call to the last number dialed, press Redial/Pause to save time.
If you’re sending a fax automatically and the line is busy, the MFC will automatically redial (up to three times at five minute intervals).
Dual Access (Not Available for Color Fax)
You can place an original in the ADF and set temporary settings, dial a number, and begin scanning the fax into memory—even when the MFC is receiving a fax, sending a fax, or printing a fax from memory. The LCD shows the new job number and available memory.
S E T U P S E N D 6 - 5
BHL-FB-MFC-5100C-FM5.5
Note
If you get a OUT OF MEMORY message while scanning the first page of a fax, press Stop/Exit to cancel scanning. If you get a OUT OF MEMORY message while scanning a subsequent page, you can press Black Fax Start to transmit the pages scanned so far, or press Stop/Exit to cancel the operation.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Enter the fax number.
3 Press Black Fax Start. The MFC scans the original and the LCD shows the job number (#XXX) of the fax and how much memory is available. Then the
MFC starts dialing. You can immediately repeat Steps 1 to 3 for the next fax.
Note
Your machine normally operates in Dual Access mode. However, to send a color fax, you must override Dual Access and use Real Time Transmission.
The number of pages you can scan into memory varies with the data they contain.
Real Time Transmission
When you are sending a fax, the MFC will scan originals into memory before sending. Then, as soon as the phone line is free, the MFC will start dialing and sending the fax. If memory becomes full, the MFC will send the document in real time (even if REAL TIME TX is set to OFF ).
Sometimes you may want to send an important document immediately, without waiting for memory transmission. You can set REAL TIME TX to ON .
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Menu/Set, 2, 2, 5.
5 . R E A L T I M E T X
3 To change the default setting, press or to select ON (or OFF ), and then press Menu/Set.
Go to Step 5—OR—For the next fax transmission only, press or to select
NEXT FAX ONLY , and then press Menu/Set.
4 For the next fax only, press or to select ON (or OFF ), and then press Menu/Set.
5 Press 1 if you want to select additional settings. The LCD returns to the
SETUP SEND menu—OR—Press 2 if you are finished choosing settings, and then go to Step 6.
6 Enter fax number, and then press Black Fax Start.
If you are sending a color Fax, the MFC will send it in real time even if
REAL TIME TX is set to OFF .
6 - 6 S E T U P S E N D
BHL-FB-MFC-5100C-FM5.5
Checking Job Status
Check which jobs are still waiting in memory to be sent. (If no jobs are waiting, the LCD shows NO JOB WAITING .)
(See Canceling a Job in Memory below.)
1 Press Menu/Set, 2, 6.
2 If you have multiple jobs waiting, press or to scroll through the list.
3 Press Stop/Exit.
Canceling a Job in Memory
You can cancel tasks you’ve scheduled, such as Polling Transmit, or faxes
waiting in Memory to be sent. (See Checking Job Status above.)
1 Press Menu/Set, 2, 6.
Any waiting jobs appear on the LCD.
If no jobs are waiting, the LCD shows
NO JOB WAITING .
6 . R E M A I N I N G J O B S
2 If you have more than two jobs waiting, press or to select the job you want to cancel, and then press Menu/Set.
—OR—
If you have only one job waiting, go to Step 3.
3 Press 1 to cancel—OR—Press 2 to exit without canceling.
To cancel another job, return to Step 2.
4 Press Stop/Exit.
Advanced Sending Operations
Overseas Mode
After you send a fax using this feature, the feature turns itself off.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Menu/Set, 2, 2, 7.
7 . O V E R S E A S M O D E
3 Press or to select ON (or OFF ), and then press Menu/Set.
4 Press 1 if you want to select additional settings. The LCD returns to the
SETUP SEND menu—OR—Press 2 if you are finished choosing settings, and then go to Step 5.
5 Enter the fax number you’re calling.
6 Press Black Fax Start.
S E T U P S E N D 6 - 7
BHL-FB-MFC-5100C-FM5.5
Delayed FAX (Not Available for Color Fax)
During the day you can store up to 50 documents in memory for delayed sending. Transmission of these documents will begin at the time of day you enter in Step 3, which shows the time you entered last. Press Menu/Set to accept it, or enter another time for this fax.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Menu/Set, 2, 2, 3.
3 Enter the time you want the fax to be sent
(in 24-hour format), and then press Menu/Set. (For example, enter 19:45 for
7:45 PM.)
3 . D E L A Y E D F A X
4 Press 1 if you want to select additional settings. The LCD returns to the
SETUP SEND menu—OR—Press 2 if you are finished choosing settings, and then go to Step 5.
5 Enter the fax number.
6 Press Black Fax Start. The MFC will wait to send the fax at the time you set.
The number of documents you can scan into memory varies with the data they contain.
Delayed Batch Transmission
(Not Available for Color Fax)
Before sending the delayed faxes, your Brother machine will economize by sorting all the documents in memory by destination and scheduled time. All delayed faxes scheduled at the same time to the same fax number will be sent as one transmission.
1 Press Menu/Set, 2, 2, 4.
4 . B A T C H T X
2 Press or to select ON (or OFF ), and then press Menu/Set.
3 Press Stop/Exit.
6 - 8 S E T U P S E N D
BHL-FB-MFC-5100C-FM5.5
Setting Up Polled Transmit
(Not Available for Color Fax)
Polled Transmit is when you set up your MFC to wait with a document so another fax machine can retrieve it.
1 Place the original to be retrieved face up in the ADF, or face down on the scanner glass.
2 Press Menu/Set, 2, 2, 6.
6 . P O L L E D T X
3 Press or
to choose
POLLED TX: ON?
(or POLLED TX: OFF ), and then press Menu/Set.
4 Press 1 if you want to select additional settings. The LCD returns to the
SETUP SEND menu—OR—Press 2 if you are finished choosing settings, and then go to step 5.
5 Press Black Fax Start.
BHL-FB-MFC-5100C-FM5.5
S E T U P S E N D 6 - 9
7
7
Auto Dial Numbers and
Dialing Options
Storing Numbers for Easy Dialing
You can set up your MFC to do two types of easy dialing: Speed Dial and
Groups for Broadcasting faxes.
If you loose electrical power, auto dial numbers in memory will NOT be lost.
Storing Speed Dial Numbers
You can store Speed Dial numbers, so when you dial you will have to press only five keys (Search/Speed Dial, #, the two-digit location, and Black Fax Start).
The MFC has 40 Speed Dial locations.
(For USA Only) Speed Dial location 01 has been pre-programmed for the
Brother fax-back system. You can override it if you wish.
1 Press Menu/Set, 2, 3, 1.
1 . S P E E D - D I A L
2 Use the dial pad to enter a two-digit location (01-40), and then press
Menu/Set.
3 Enter the number (up to 20 digits), and then press Menu/Set.
S P E E D - D I A L ? #
# 0 5 :
4 Use the dial pad to enter the name (up to
15 characters), and then press
N A M E :
Menu/Set. You can use the chart on
page 4-3 to help you enter letters—OR—
Press Menu/Set, and then go to Step 5 to store the number without a name.
5 Return to Step 2 to store another Speed Dial number—OR—Press Stop/Exit .
7 - 1 A U T O D I A L N U M B E R S A N D D I A L I N G O P T I O N S
BHL-FB-MFC-5100C-FM5.5
Changing Speed Dial Numbers
If you try to store a Speed Dial number in a location where a number is already stored, the LCD shows the current name stored there and prompts you to either:
1 . C H A N G E 2 . E X I T
1 Press 1 to change the stored number—OR— Press 2 to exit without making a change.
2 Enter a new number, and then press Menu/Set.
• If you want to erase the whole number, press Stop/Exit when the cursor is to the left of the digits. The letters above and to the right of the cursor will be deleted.
• If you want to change a digit, use or to position the cursor under the digit you want to change, and then type over it.
3 Follow the directions beginning at Step 4 in Storing Speed Dial Numbers.
A U T O D I A L N U M B E R S A N D D I A L I N G O P T I O N S 7 - 2
BHL-FB-MFC-5100C-FM5.5
Setting Up Groups for Broadcasting
Groups allow you to send the same fax message to many fax numbers by pressing only five keys (Search/Speed Dial, #, the two-digit location, and
Black Fax Start). First, you’ll need to store each fax number as a Speed Dial number. Then, you can combine them into a Group. Each Group uses up a
Speed Dial number. You can have up to six Groups, or you can assign up to 39 numbers to one large Group.
(See Storing Speed Dial Numbers
, page 7-1 and Broadcasting, page 7-5.)
1 Press Menu/Set, 2, 3, 2.
2 . S E T U P G R O U P S
2 Press Search/Speed Dial, enter the two-digit location where you wish to store the Group number, and then press Menu/Set.
P R E S S S P E E D D I A L
S P E E D - D I A L ? #
(For example, press
Search/Speed Dial, 07.)
3 Use the dial pad to enter the Group number, and then press Menu/Set.
(For example, press 1 for Group 1.)
S E T U P G R O U P : G 0
4 To include Speed Dial numbers in the
Group, enter them as if you were dialing.
For example, for Speed Dial locations 05 and 09, press the Search/Speed Dial press 05, Seach/Speed Dial, and then
09. The LCD shows: #05#09 .
G 0 1 :
E N T E R & S E T K E Y
G 0 1 : # O 5 # O 9
5 Press Menu/Set to accept the numbers for this Group.
6 Use the dial pad and the chart on
page 4-3 to enter a name for the Group,
and then press Menu/Set.
(For example, NEW CLIENTS).
N A M E :
7 Press Stop/Exit.
You can print a list of all Speed Dial numbers. (See Chapter 9, Printing Reports .)
7 - 3 A U T O D I A L N U M B E R S A N D D I A L I N G O P T I O N S
BHL-FB-MFC-5100C-FM5.5
Dialing Options
When you dial using an auto dial number, the LCD shows the name you’ve stored, or if you haven’t stored a name, the fax number you’ve stored.
Search
You can search for names you have stored in Speed Dial memory. (See Storing
Speed Dial Numbers , page 7-1.)
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Search/Speed Dial.
3 To search for numbers alphabetically by name, enter the first letter of the name, and then press or .
—OR—
To search for numbers numerically by Speed-Dial number, press or .
4 When the LCD shows the name you want to call, press Black Fax Start.
Speed Dialing
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Search/Speed Dial, press #, then press the two-digit Speed Dial
location. (See Storing Speed Dial Numbers , page 7-1.)
3 Press Black Fax Start.
Access Codes and Credit Card Numbers
Sometimes you may want to choose from among several long distance carriers when you make a call. Rates may vary depending upon the time and destination.
To take advantage of low rates, you can store the access codes or long-distance carriers as Speed-Dial numbers. You can store these long dialing sequences by dividing them and setting them up on separate keys in any combination. You can even include manual dialing using the dial pad. The combined number will be dialed in the order you entered it, as soon as you press Black Fax Start.
(See Storing Speed Dial Numbers , page 7-1.)
You can store “555” on Speed Dial #03 and “7000” on Speed Dial #02. If you press Search/Speed Dial, #, 0, 3, Search/Speed Dial, #, 0, 2, and Black
Fax Start, you can dial “555-7000”. To temporarily change a number, you can substitute part of the number with manual dialing using the dial pad. For example, to change the number to 555-7001 you could press Search/Speed
Dial, #, 03 and then press 7, 0, 0, 1 using the dialing pad.
Note
If you must wait for another dial tone at any point in the dialing sequence, store a pause at that point in the number by pressing Redial/Pause. Each key press adds a 3.5 second delay.
A U T O D I A L N U M B E R S A N D D I A L I N G O P T I O N S 7 - 4
BHL-FB-MFC-5100C-FM5.5
Broadcasting (Not Available for Color Fax)
Broadcasting is automatically sending the same fax message to multiple fax numbers. Using the Menu/Set key, you can include Groups, Speed Dial locations plus up to 50 manually dialed numbers. If you did not use up any locations for Groups, access codes or credit card numbers, you can "broadcast" faxes automatically to up to 90 different locations from the MFC. However, available memory will vary with all types of jobs in memory and numbers of locations used for broadcasting. If you broadcast to more than the maximum locations available, you will not be able to set up transmissions using Dual
Access and the Timer.
Although the easiest way to broadcast is to press Group keys, you can include
Speed Dial and manually dialed numbers in the same broadcast. You must press
Menu/Set between each of these locations. Use Search/Speed Dial to help you choose the numbers easily.
(See Setting Up Groups for Broadcasting , page 7-3.)
After the broadcast is finished, a Broadcast Report will be printed automatically to let you know the results.
■ To stop the broadcast in progress, press Stop/Exit. The LCD asks if you want to cancel the location that is being sent.
■
Enter the long dialing sequence numbers as you normally would, but keep in mind that each key counts as one location, so the number of locations you can call becomes limited.
■
If the line is busy or for other reasons a connection could not be made while broadcasting, the MFC will redial the number automatically.
■ If the memory is full, press Stop/Exit to abort the job or if more than one page has been scanned, press Black Fax Start to send the portion that is in the memory.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Enter a number using Speed Dial, a Group number, Search or the dial pad.
Example: Group number
3 Press Menu/Set. You will be prompted to press the next number.
4 Enter the next number.
Example: Speed Dial
5 Press Menu/Set.
6 Enter the fax number.
Example: Manual dialing using the dial pad.
7 Press Black Fax Start.
Your MFC will read the original into memory and then start sending faxes to the numbers you entered.
7 - 5 A U T O D I A L N U M B E R S A N D D I A L I N G O P T I O N S
BHL-FB-MFC-5100C-FM5.5
Pause
Press Redial/Pause to insert a 3.5 second pause between numbers. If you are dialing overseas, you can press Redial/Pause as many times as needed to increase the length of the pause.
Fax Redial
If you’re sending a fax manually and the line is busy, press Redial/Pause to try again. Anytime you want to make a second call to the last number dialed, press Redial/Pause to save time.
If you’re sending a fax automatically and the line is busy, the MFC will redial automatically up to three times at five minute intervals.
Tone/Pulse (For Canada Only)
If you have Pulse dialing service, but need to send tone signals (for example, for telephone banking), follow the directions below. If you have Touch Tone service, you will not need this feature to send tone signals.
1 Lift the handset of an external phone.
2 Press #. Any digits dialed after this send tone signals.
3 When you hang up, the MFC returns to pulse dialing service.
A U T O D I A L N U M B E R S A N D D I A L I N G O P T I O N S 7 - 6
BHL-FB-MFC-5100C-FM5.5
8
8
Remote Fax Options
(Not Available for Color Fax)
Fax Forwarding/Paging
You cannot use Paging and Fax Forwarding at the same time.
You cannot use Paging and Fax Forwarding when Fax Storage is set to OFF .
Programming a Fax Forwarding Number
When Fax Forwarding is set to ON , your MFC stores the received fax in memory. Then it dials the fax number you’ve programmed and forwards the fax message.
1 Press Menu/Set, 2, 5, 1.
1 . F A X F W D / P A G I N G
2 Press or until the LCD shows
FAX FORWARD?
, and then press
Menu/Set.
3 The LCD prompts you to enter the fax number where faxes will be forwarded.
Enter the forwarding number (up to 20 digits), and then press Menu/Set.
4 Press Stop/Exit.
F W D # :
Programming Your Pager Number
When Paging is selected, your MFC dials the pager number you’ve programmed, and then dials your Personal Identification Number (PIN); this activates your pager so you will know that you have a fax message in the memory.
1 Press Menu/Set, 2, 5, 1.
1 . F A X F W D / P A G I N G
2 Press or until the LCD shows
PAGING?
, and then press Menu/Set.
3 Enter your pager phone number (up to 20 digits) followed by # #, and then press
Menu/Set. Do not include the area code if it is the same as that of your MFC.
For example, 1 8 0 0 5 5 5 1 2 3 4 # #.
P A G # :
8 - 1 R E M O T E F A X O P T I O N S ( N O T A V A I L A B L E F O R C O L O R F A X )
BHL-FB-MFC-5100C-FM5.5
4 If your pager requires a PIN, enter the PIN, press #, press Redial/Pause, enter your MFC telephone number followed by # #, and then press Menu/Set.
For example, 1 2 3 4 5 # Redial/Pause 1 8 0 0 5 2 1 2 8 4 6 # #
—OR—
If you do not need a PIN, press Redial/Pause, enter the fax number of your
MFC followed by # #, and then press Menu/Set.
For example, Redial/Pause 1 8 0 0 5 2 1 2 8 4 6 # #
5 Press Stop/Exit.
You cannot change a Paging number or PIN remotely.
Setting Fax Storage
If you set Fax Storage to ON , you will be able to retrieve fax messages from another location using Fax Forwarding, Paging, or Remote Retrieval functions.
The LCD will indicate when you have a fax stored in memory.
1 Press Menu/Set, 2, 5, 2. The LCD prompts you to choose a fax setting.
2 . F A X S T O R A G E
2 Press or to select ON (or OFF ), and then press Menu/Set.
3 Press Stop/Exit.
If there are faxes in memory when you turn the Fax Storage OFF , the LCD prompts you to erase any faxes in memory.
E R A S E A L L F A X ?
1 . Y E S 2 . N O
If you press 1, all fax data is erased and Fax Storage is turned off. If you press
2, data is not erased and Fax Storage remains on.
(See Printing a Fax in Memory , page 5-4.)
Backup Print
If you’ve set FAX STORAGE to ON , your MFC automatically prints faxes as they are received into memory. This is a safety feature in case the power goes out so you won’t lose your messages.
R E M O T E F A X O P T I O N S ( N O T A V A I L A B L E F O R C O L O R F A X ) 8 - 2
BHL-FB-MFC-5100C-FM5.5
Changing Remote Retrieval Access Code
Enter your Remote Access Code when the MFC picks up your call, so you can access features remotely. The access code is preset to 1 5 9 , but you can
change this. (See Operation from Extension Telephone , page 5-4.)
1 Press Menu/Set, 2, 5, 3.
3 . R E M O T E A C C E S S
2 Enter a three-digit number from 000 to
999, and then press Menu/Set. The “ ” cannot be changed. (Do not use the same digits that appear in your Fax Receive Code or Telephone Answer Code.)
3 Press Stop/Exit.
Remote Retrieval
You can call your MFC from any fax machine using touch tone, then use the
Remote Retrieval Access Code and other button presses to retrieve fax messages. Cut out the Remote Retrieval Access Card on the last page and keep it in your wallet as an aid.
Using Remote Retrieval Access Code
1 Dial your fax number from a fax machine using touch tone.
2 When your MFC answers, immediately enter your Remote Retrieval Access
Code (1 5 9 ).
3 The MFC signals the kinds of messages received:
1 long beep — Fax message(s)
No long beeps — No messages
4 The MFC prompts you with two short beeps to enter a command. If you wait longer than 30 seconds to enter a command, the MFC hangs up. If you enter an invalid command, the MFC beeps three times.
5 Press 9 0 to reset the MFC when you’re finished.
6 Hang up.
Note
If your MFC is set to MANUAL mode, you can access it by waiting about 2 minutes, and then entering the Remote Retrieval Access Code within 30 seconds.
8 - 3 R E M O T E F A X O P T I O N S ( N O T A V A I L A B L E F O R C O L O R F A X )
BHL-FB-MFC-5100C-FM5.5
Remote Commands
Follow the commands below to access features remotely. When you call the
MFC and enter your Remote Retrieval Access Code (1 5 9 ), the system will signal you with two short beeps to enter a remote command.
Remote Commands Operation Details
95 Change Fax Forwarding
/Paging setting
1 OFF
2 Fax Forwarding
3 Paging
4 FAX FWD No.
If you hear one long beep, the change is accepted. If you hear three short beeps, you cannot change it because the conditions have not been met (Example: registering paging number). You can register your fax forwarding number by using 4. FAX FWD NO. (see page
8-5). Once you have registered the number, the MFC will change
automatically to FAX FWD:ON mode.
You can turn FAX STORAGE to ON or OFF.
6 Fax Storage ON
7 Fax Storage OFF
96 Retrieve a fax
2 Retrieve all faxes Enter the number of a remote fax machine to receive stored fax
3 Erase faxes from the memory If you hear one long beep, you can erase fax messages from the memory.
97 Check the Receiving Status
1 FAX You can check whether your MFC has received any faxes. If yes, you will hear one long beep. If no, you will hear three short beeps.
98 Change the Receive Mode
1 EXT.TEL/TAD
2 FAX ONLY
90 Exit
If you hear one long beep, you can change the Receive Mode.
If you hear three short beeps, you cannot change it.
After a long beep, you can exit Remote Retrieval.
R E M O T E F A X O P T I O N S ( N O T A V A I L A B L E F O R C O L O R F A X ) 8 - 4
BHL-FB-MFC-5100C-FM5.5
Retrieving Fax Messages
1 Dial your fax number.
2 When you hear the beep, immediately enter your Remote Retrieval Access Code
(1 5 9 ).
3 As soon as you hear two short beeps, use the dial pad to press 9 6 2.
4 Using the dial pad, enter the number of the remote fax machine where you want your fax messages forwarded (up to 20 digits) followed by # #.
Note
You cannot use and # as dial numbers. However, if you want to store a pause, press #.
5 After you hear your MFC beep, hang up and wait.
Your MFC calls the remote fax machine. The remote fax machine prints your fax messages.
Changing Fax Forwarding Number
You can change the default setting of your fax forwarding number from a remote fax machine.
1 Dial your fax number.
2 When you hear the beep, immediately enter your Remote Retrieval Access Code
(1 5 9 ).
3 When you hear two short beeps, use the dial pad to press 9 5 4.
4 Enter the new number of the remote fax machine where you want your fax messages forwarded (up to 20 digits) followed by # #.
Note
You cannot use and # as dial numbers. However, if you want to store a pause, press #.
5 After you hear your MFC beep, hang up.
8 - 5 R E M O T E F A X O P T I O N S ( N O T A V A I L A B L E F O R C O L O R F A X )
BHL-FB-MFC-5100C-FM5.5
9
9
Printing Reports
MFC Settings and Activity
Two reports require initial setup in the Menu table: Transmission Verification
Report and Activity Report Interval. For initial setup:
Press Menu/Set, 2, 4, 1.
—OR—
Press Menu/Set, 2, 4, 2.
1 . T R A N S M I S S I O N
2 . A C T . I N T E R V A L
Customizing the Transmission Verification Report
You can use the Transmission Report as proof that you sent a fax. This report lists the time and date of transmission and whether the transmission was successful (OK). If you select ON or ON + IMAGE , the report will print for every fax you send.
Note
When the feature is OFF , the report prints only if a transmission error prevented delivery (NG).
If you typically send multiple faxes to the same destinations, you may need more than the job numbers to know which faxes you must send again. Selecting
OFF + IMAGE will print a portion of the fax’s first page on the report to help you remember.
1 Press Menu/Set, 2, 4, 1.
1 . T R A N S M I S S I O N
2 Press or to select OFF ,
OFF + IMAGE , ON or ON + IMAGE , and then press Menu/Set.
3 Press Stop/Exit.
Setting the Fax Activity Report Interval
You can set the machine to print activity reports at specific intervals (6, 12, 24 hours, 2, 4, or 7 days). If you set the interval to OFF , you can print the report by following the Steps in the previous section.
1 Press Menu/Set, 2, 4, 2.
2 . A C T . I N T E R V A L
P R I N T I N G R E P O R T S 9 - 1
BHL-FB-MFC-5100C-FM5.5
2 Press or to choose an interval, I N T E R V A L : O F F and then press Menu/Set.
(If you choose 7 days, the LCD prompts you to choose a day at which to begin the 7-day countdown.)
3 Enter the time to begin printing in 24-hour format, and then press Menu/Set.
(For example: enter 19:45 for 7:45 PM.)
4 Press Stop/Exit.
Using the Reports Key
Five reports are available:
1 . H E L P L I S T
2 . A U T O D I A L
3 . F A X A C T I V I T Y
4 . T R A N S M I S S I O N
5 . U S E R S E T T I N G S
Prints the Help List so you can see at-a-glance how to quickly program every menu selection and key operations.
Lists names and numbers stored in Speed Dial memory, in numerical order.
Lists information about the last 200 incoming and outgoing faxes. TX means Transmit; RX means Receive.
Prints a Transmission Verification Report for your last transmission.
Lists settings for GENERAL SETUP ,
SETUP RECEIVE , SETUP SEND , SETUP
REPORTS , and TEL SERVICE . The settings for REMOTE FAX OPT are included.
To Print a Report
1 Press Reports.
2 Press or to select the report you want, and then press Menu/Set.
—OR—
Enter the number of the report you want to print. For example, press 1 to print the Help List.
9 - 2 P R I N T I N G R E P O R T S
BHL-FB-MFC-5100C-FM5.5
10
10
Making Copies
Basic Copy Operations
Your MFC allows you to make high-quality photocopies and transparencies.
Copies can be in black and white, or full color. Always make sure you have paper in the cassette before making copies. Do not pull on the paper while copying is in progress.
Copy Keys
Incoming faxes cannot be received on paper or into memory while the MFC is copying.
If the original is a post card, place it on the scanner glass. Post cards can NOT be fed through the ADF.
Making a Single Copy
1 Place the original face up in the ADF, or face down on the scanner glass.
2 As needed, use Options and Reduce/Enlarge to change the settings.
3
Note
Press Black Copy or Color Copy.
C O P Y I N G P . 0 1
To stop the copy process and release the original, press Stop/Exit.
Making Multiple Copies (Using the ADF)
You can make multiple copies using the ADF. Multiple copies will be stacked or sort. Use the Options key to select SORT
(See Using the Options Key , page 10-5 .)
1 Place the original face up in the ADF.
2 Using the dial pad, enter the number of copies you want (up to 99).
For example, press 3 8 for 38 copies.
To sort the copies, use the Options key. (See Using the Options Key, page 10-5.)
3 Press Black Copy or Color Copy .
Sorting color copies uses more memory and depends upon the data.
If you selected GLOSSY in the Paper Type Setting, Multiple Copies (Using the
ADF) are not available.
M A K I N G C O P I E S 10 - 1
BHL-FB-MFC-5100C-FM5.5
Out of Memory Message
If the memory becomes full while you are making copies, the screen shows a message:
O U T O F M E M O R Y
If the OUT OF MEMORY message appears while you are scanning the first page of your original, press Stop/Exit to cancel. You will need to clear some jobs from memory before you can continue. If you were scanning subsequent page(s), press
Black Copy or Color Copy to print the scanned pages or press Stop/Exit to cancel.
To gain extra memory, you can turn off Fax Storage (see page 8-2).
—OR—Print the faxes in memory (see page 5-4).
Single or Multiple Copies (Using the Scanner Glass)
You can make multiple copies using the Scanner Glass. Multiple copies will be stacked (all copies of page 1, then all copies of page etc.). Use the Options key to choose additional settings. For details about using the Options key, please
see Using the Options Key , page 10-5.
1 Lift the Document Cover.
White Film Document Guidelines
Document
Cover
Scanner
Glass
1 2
2 Using the document guidelines on the left, center the original face down on the scanner glass and close the document cover.
3 Using the dial pad, enter the number of copies you want (up to 99), and then press Black Copy or Color Copy. For example, press 3 8 for 38 copies. The
MFC starts scanning the original.
If you get an OUT OF MEMORY message, you may be able to make multiple copies if you first print incoming faxes in memory and restore the memory to
100%.
4 Place the next page to be copied on the scanner glass, and then press
Black Copy or Color Copy.
5 Press Stop/Exit when you are finished copying.
N E X T : P R E S S C O P Y
E N D : P R E S S S T O P
10 - 2 M A K I N G C O P I E S
BHL-FB-MFC-5100C-FM5.5
Temporary Copy Settings
You can improve your copies by using the Copy keys: Enlarge/Reduce,
Quality and Options. These settings are temporary, and the MFC returns to its default settings 30 seconds after it finishes copying. If you want to use these temporary settings again, place the next original in the ADF or scanner glass before 30 seconds expire.
Copy Keys
Copying Using Multiple Settings
You can try different combinations of settings for the best results. After you finish your settings using the
Enlarge/Reduce, Quality and
Options keys, the LCD shows: P R E S S C O P Y O R
F O R N E X T O P T .
■ Press or if you want to select additional settings.
—OR—
Press Black Copy or Color Copy if you are finished choosing settings.
Using the Enlarge/Reduce Key
ZOOM allows you to enter a ratio from 25% to 400% in 1% increments.
Press
Enlarge/Reduce and or
25%
50%
78% LGL>LTR
94% A4>LTR
100%
104% EXE>LTR
150%
200%
400%
ZOOM
M A K I N G C O P I E S 10 - 3
BHL-FB-MFC-5100C-FM5.5
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Use the dial pad to enter the number of copies you want (up to 99).
3 Press Enlarge/Reduce. (Enlargement or reduction ratios appear.)
4 Press or to select 25% , 50% , 78% LGL>LTR, 94% A4>LTR , 100% ,
104% EXE>LTR , 150% , 200% , 400% , and then press Menu/Set.
—OR—
You can select ZOOM and press Menu/Set. Use the dial pad to enter an enlargement or reduction ratio between 25% and 400%, and then press Menu/
Set. For example, press 5 3 to enter 53%.
5 Press Black Copy or Color Copy—OR—Press or for additional settings.
Special Copy Options (2 in 1, 4 in 1 or Poster) are not available with
Enlarge/Reduce.
Selecting a Fixed Reduction Ratio
When selecting a reduction ratio, you will need to know the size of the paper you registered in Menu/Set, 1, 2.
Note
If you want to make a copy the same size as the original, you should choose a reduction of 94%. (For example, if you copy from letter to letter, you should choose a reduction of 94%.)
Original the size of…
LETTER DOCUMENT
A4 DOCUMENT
LEGAL DOCUMENT
Paper size is…
LETTER
LEGAL
LETTER
LETTER
LEGAL
Recommended reduction ratio is…
94%
100%
94%
78%
94%
You can copy on Letter, Legal, A4 and Post Card size paper only.
Using the Quality Key
The Quality key temporarily changes the copy quality setting ( NORMAL ,
BEST or FAST ).
10 - 4 M A K I N G C O P I E S
BHL-FB-MFC-5100C-FM5.5
Press Quality repeatedly until the LED is lit for the quality you want.
Press
Quality and or
FAST : Fast copy speed and lowest ink consumption. Use FAST to save time
(documents to be proof-read, large documents or many copies).
NORMAL : Recommended mode for ordinary printouts. Good copy quality with adequate copy speed.
BEST : Use this mode to copy precise images such as photographs. BEST uses the highest resolution and slowest speed.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Quality.
N O R M A L
3 Press or
to select the copy quality resolution, and then press Menu/Set.
4 To start copying now, press Black Copy or Color Copy. If you would like to
choose additional copy options, press Options and then select each setting.
Using the Options Key
Use the Options key to set number of copies, paper type, paper size, brightness, sort and special copy options for the next copy only.
Press
Options
Menu Selections Options
01
Factory
Setting
OPT:#OF
COPIES01
NO. OF COPIES:XX
OPT:PAPER TYPE PLAIN / INK JET / GLOSSY
( 4-COLOR or 3-COLOR )/
TRANSPARENCY
OPT:PAPER SIZE LETTER / LEGAL / A4 /
POST CARD: 4"
×
6"
OPT:BRIGHTNESS +
STACK/SORT OPT:STACK/
SORT
OPT:SPECIAL 2 IN 1/4 IN 1/POSTER/
OFF
PLAIN
LETTER
-
STACK
+
OFF
M A K I N G C O P I E S 10 - 5
BHL-FB-MFC-5100C-FM5.5
Paper Type
You can change the paper type setting for the next copy only.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Use the dial pad to enter the number of copies you want (up to 99).
3 Press Options and press or
to select OPT:PAPER TYPE , and then press
Menu/Set.
4 Press or to select the type of paper you are using ( PLAIN , INKJET ,
GLOSSY or TRANSPARENCY ), and then press Menu/Set.
5 If you selected GLOSSY , press or to select 4-COLOR or 3-COLOR , and then press Menu/Set.
Note
The print quality of black ink varies depending on the kind of glossy paper you are using. Black ink is used when you select 4-COLOR . If the glossy paper you are using repels the black ink, select 3-COLOR , which simulates black ink by combining the three ink colors.
6 Press Black Copy or Color Copy—OR—Press or
for additional settings.
Paper Size
You can change the paper size setting for the next copy only.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Use the dial pad to enter the number of copies you want (up to 99).
3 Press Options and select OPT:PAPER SIZE , and then press Menu/Set.
4 Press or to select the size of paper you are using ( LETTER , LEGAL , A4 or
POST CARD : 4"
×
6" ), and then press Menu/Set.
5 Press Black Copy or Color Copy—OR—Press or for additional settings.
Copy Brightness
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Use the dial pad to enter the number of copies you want (up to 99).
3 Press Options and press or
to select
OPT:BRIGHTNESS , and then press Menu/Set.
10 - 6 M A K I N G C O P I E S
BHL-FB-MFC-5100C-FM5.5
4 Press to make a lighter copy—OR—press to make a darker copy, and then press Menu/Set.
5 Press Black Copy or Color Copy—OR—Press or for additional settings.
Sorting Multiple Copies (Using the ADF)
If you want to sort multiple copies, use the ADF.
1 Place the original face up in the ADF.
2 Use the dial pad to enter the number of copies you want (up to 99).
3 Press Options and or to select OPT:STACK/SORT , and then press Menu/
Set.
4 Press or to select SORT (or STACK ), and then press Menu/Set.
5 Press Black Copy or Color Copy—OR— Press
Special Copy Options (Using the ADF)
You can save paper by copying either two or four pages onto one page.
1 Place the originals face up in the ADF.
2 Use the dial pad to enter the number of copies you want.
3
Press Options and or to select OPT:SPECIAL , and then press Menu/Set.
4 Press or to select 2 IN 1 , 4 IN 1 (or OFF ), and then press Menu/Set.
5 Press Black Copy or Color Copy—OR— Press
Special Copy Options (Using the Scanner Glass)
You can save paper by copying either two or four pages onto one page, or you can create poster size copy.
1 Place the original face down on the scanner glass.
2 Use the dial pad to enter the number of copies you want.
3
Press Options and or to select OPT:SPECIAL , and then press Menu/Set.
4 Press or to select 2 IN 1 , 4 IN 1 , POSTER (or OFF ), and then press
Menu/Set.
M A K I N G C O P I E S 10 - 7
BHL-FB-MFC-5100C-FM5.5
If you selected 2 IN 1 or 4 IN 1 in Step 4, place the next original on the scanner glass, and then press Menu/Set. After all originals have been scanned, go to Step 5.
5 Press Black Copy or Color Copy.
2 in 1
N E X T : P R E S S S E T
E N D : P R E S S C O P Y
4 in 1
Poster
You can create a poster size copy of a photograph.
If 2 in 1 or 4 in 1 copies are in color, you must use letter or A4 paper. For the other Special Copies, you must use letter, legal or A4 paper.
Special Copy Options (2 in 1, 4 in 1 or Poster) are not available with
Enlarge/Reduce.
Poster is not available for multiple copies and requires using the scanner glass.
If you selected GLOSSY in the Paper Type setting, 2 in 1 and 4 in 1 copies are not available.
2 in 1 or 4 in 1 copies in color are not available with Multiple Copies.
10 - 8 M A K I N G C O P I E S
BHL-FB-MFC-5100C-FM5.5
Changing Default Copy Settings
Press Menu/Set and 3 to change default Copy mode settings. They will remain until you change them again by pressing Menu/Set.
By pressing a number, you can adjust the Quality, Color and Contrast copy settings as shown in the following chart. Press or to scroll through the options for each setting, and then press Menu/Set to save your selection.
Press Stop/Exit—OR—Press
Press Menu/Set and 3.
to select the next setting you want to change.
1.QUALITY
2.COLOR ADJUST
3.CONTRAST
QUALITY:NORMAL
QUALITY:BEST
QUALITY:FAST
1.RED
2.GREEN
3.BLUE
- +
R: - +
G: - +
B: - + is default
Copy Quality
1 Press Menu/Set, 3, 1.
2 Press or
to select the copy quality, and press Menu/Set.
1 . Q U A L I T Y
Q U A L I T Y : N O R M A L
Q U A L I T Y : B E S T
Q U A L I T Y : F A S T
3 Press Stop/Exit.
M A K I N G C O P I E S 10 - 9
BHL-FB-MFC-5100C-FM5.5
Color Adjustment
1 Press Menu/Set, 3, 2.
2 Press or to select RED , GREEN or
BLUE , and then press Menu/Set.
3 Press to make a darker copy, or press to make a lighter copy, and then press Menu/Set.
2 . C O L O R A D J U S T
Light Dark
R:– +
G:– +
B:– +
4 Return to Step 2 to select the next color
—OR—
Press Stop/Exit.
Copy Contrast
You can change the contrast to help an image look sharper and more vivid.
1 Press Menu/Set, 3, 3.
2 Press to increase the contrast, or press to decrease the contrast, and then press Menu/Set.
3 Press Stop/Exit.
10 - 10 M A K I N G C O P I E S
BHL-FB-MFC-5100C-FM5.5
Legal Limitations
Color reproductions of certain documents are illegal and may result in either criminal or civil liability. This memorandum is intended to be a guide rather than a complete listing of every possible prohibition. In case of doubt, we suggest that you check with counsel as to any particular questionable documents.
The following documents issued by the United States/Canadian Government or any of its Agencies may not be copied:
• Paper money
• Bonds or other certificates of indebtedness
• Certificates of Deposit
• Internal Revenue Stamps (canceled or uncanceled)
• Selective Service or draft papers
• Passports
• United States/Canadian Postage Stamps (canceled or uncanceled)
• Food Stamps
• Immigration Papers
• Checks or drafts drawn by Governmental agencies
• Identifying badges or insignias
Copyrighted works cannot be copied; however, sections of a copyrighted work can be copied for “fair use.” Multiple copies would indicate improper use.
Works of art should be considered the equivalent of copyrighted works.
Licenses and Certificates of Title to motor vehicles may not be copied under certain state/provincial laws.
BHL-FB-MFC-5100C-FM5.5
M A K I N G C O P I E S 10 - 11
11
11
Using the MFC as a Printer
Features
The Multi-Function Center offers you many features you’ll find in a high quality ink jet printer.
Fast Printing Speed—Using Draft mode, you can print up to 8 pages per minute in full color, and up to 10 pages per minute in black.
Brilliant High Quality Output—Printing at 2400
× 1200 dpi resolution on glossy paper gives you highest resolution output.
Beautiful Elaborate Output—You can utilize 2 in 1, watermark printing,
True2Life technology and other features for making beautiful outputs.
Low Running Cost—Whenever you run out of a particular color ink, you’ll replace only the cartridge that’s empty.
Bi-directional Parallel Interface—The parallel interface allows bi-directional
(IEEE 1284 compliant) communication with your computer.
USB—Universal Serial Bus Interface allows for fast comunication with your computer.
Straight Paper Path—The MFC can use various types of paper: plain paper,
Ink Jet Paper, glossy paper, transparencies, and envelopes. Using the appropriate paper reduces the occurrence of paper jams. For complete information about what kinds of paper to use with the MFC, please read
Printer Driver
You can change the following printer settings when you print from your computer:
■ Quality (Speed) /Media
■ Color Matching
■ Halftone
■ Color Enhance/True2Life
■ Fast Draft Mode
■ Watermark
■ Print Date & Time
11 - 1 U S I N G T H E M F C A S A P R I N T E R
BHL-FB-MFC-5100C-FM5.5
Choosing the Right Kind of Paper
To achieve high quality printing using your MFC, it’s very important to select
the right kind of paper. Be sure to read “ Paper
” page 2-3 of Chapter 2 in this
manual before selecting and purchasing paper for the MFC.
Multi-purpose Sheet Feeder
The multi-purpose sheet feeder can feed plain paper, inkjet paper, glossy paper, transparencies and envelopes. When the MFC receives data from your computer, it begins the print process by loading paper from the multi-purpose sheet feeder.
1 Select the print command from your PC.
2 Your PC sends a print command and data to the MFC. The LCD shows
RECEIVING DATA .
3 If there are more pages, the MFC begins to print the next page automatically.
4 When the MFC finishes printing all data, it returns to display the date and time.
Note
You can select paper source, paper size, and orientation in your application software. If your application software does not support your custom paper size, select the next larger paper size. Then adjust the print area by changing the right and left margins in your application software.
U S I N G T H E M F C A S A P R I N T E R 11 - 2
BHL-FB-MFC-5100C-FM5.5
Simultaneous Printing and Faxing
Your MFC can print data from your computer while sending or receiving a fax, or while scanning information into the computer. However, when the MFC is copying or receiving a fax on paper, it pauses the PC printing operation, and resumes when copying or fax receiving is complete. Fax sending will continue during PC printing.
Printer Operation Key
Ink Key
When you press Ink , the LCD shows:
If you are having trouble with one of the ink colors, you may need to clean the
1 . C L E A N I N G
2 . R E P L A C E I N K
If you got an error message NEAR EMPTY or INK EMPTY , you will need to replace the ink cartridge for the appropriate color.
(See Error Messages , page 19-1.)
Stop/Exit Key
If the LCD shows REMAINED DATA , you can clear data remaining in the printer memory by pressing Stop/Exit.
Checking the Print Quality
11 - 3 U S I N G T H E M F C A S A P R I N T E R
BHL-FB-MFC-5100C-FM5.5
12
12
Printer Driver Settings
(For Windows
®
Only)
Using the Brother MFC-5100C Printer Driver
A Printer Driver is software that translates data from the format used by a computer into the format required by a particular printer, using a printer command language or page description language.
The printer drivers are on the supplied CD-ROM. The latest printer driver can also be downloaded from the Brother Solutions Center at http://solutions.brother.com.
Features in the Printer Driver
(For Windows
®
95/98/98SE/Me/2000
Professional and Windows NT
®
4.0)
Note
The screens shown in this section are from Windows ® 98. The screens on your
PC may vary depending on your Windows Operating System.
For more detailed information, please see the on-line Help in the printer driver.
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 1
BHL-FB-MFC-5100C-FM5.5
Paper Tab
The paper tab screen allows you to set up the Paper Size, Paper Source, Paper
Thickness, Orientation, Scaling, and Copy/Page Order.
To access the Brother printer driver, select Print from the File menu. In the Print dialog box, select Brother MFC-5100C from the Name drop down list. Click the Properties button. The Brother MFC-5100C on BRMFC: Properties dialog box will appear:
3
1
2
Select the Apply button to apply your selected settings.
To return to the default settings, click the Default button, then click the Apply button.
1 Select the Paper Size and Orientation.
2 Select number of Copies and Page Order.
3 Select Paper Thickness, Scaling and Paper Source.
Paper Size
The paper size selection provides a large selection of standard paper sizes or you can even create custom sizes ranging form 3.5
× 5” to 8.5 × 14”. To select the paper size you want to use click the icon.
12 - 2 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Orientation
Orientation selects the position of how your document will be printed (Portrait or Landscape).
Copy/Page Order
Copies
The copies selection sets the number of copies that will be printed (1 to 50).
Collate
With the collate check box selected, one complete copy of your document will be printed and then repeated for the number of copies you selected. If the collate check box is not selected, then each page will be printed for all the copies selected before the next page in the document is printed.
Reverse Order
Reverse Order prints the pages of your document in the opposite order.
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 3
BHL-FB-MFC-5100C-FM5.5
Paper Thickness
Depending on the thickness of the paper you are using, you can improve the quality of your output by selecting the correct thickness. This setting provides the best positioning of the paper for printing. For example if you were printing on thin paper, you would select Thin in the Paper Thickness selection to achieve the best paper handling and improved output for that paper type.
Regular
Thin
Thick
Thicker
Scaling
The Scaling feature reduces or enlarges your document from 50% to 200%.
From the pull-down box you can select from the preset settings or a free setting.
You can also select 2 in 1 printing for printing two pages on one sheet of paper.
For Windows NT ® Workstation 4.0 and Windows ® 2000 Professional, you can also select 4 in 1 printing.
Paper Source
The Paper Source pull-down allows you to choose the source of the media you are using.
Feeder
Manual Feed
12 - 4 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Quality/Color Tab
The Quality/Color tab screen provides Quality, Media type, Document type,
Color/Mono settings, Bi-directional Printing settings and Fast Draft Mode. All of these selections are designed to offer the best quality output for your document needs.
Select the Apply button to apply your selected settings.
To return to the default settings, click the Default button, then click the Apply button.
Quality
The quality selection allows you to choose the print resolution you want your document. Print quality and speed are related. The higher the quality the longer it will take to print the document. The quality selections available vary depending on the media selection.
■
Draft: The fastest print mode and the lowest ink consumption. Use this mode to print large volume documents or a document for proofing.
■ Normal: Recommended for ordinary printouts.
■ Fine: Better print quality than normal mode and faster print speed than Super
Fine.
■
Super Fine: Use this mode to print precise images such as photographs. Since the print data is much larger than normal mode, the processing time, data transfer time and print time will be longer.
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 5
BHL-FB-MFC-5100C-FM5.5
Media
To achieve the best print results, the media being printed on should be selected in the driver. The MFC changes the way it places dots, depending on the selected media type.
Paper Type
Plain Paper
Inkjet Paper
Glossy Paper (4 color)
Glossy Paper (3 color)
Transparencies
Transparencies (mirror)
Recommended Print Quality Selection
Normal
Fine
Super Fine
Super Fine
Fine
Fine
Note
The print quality of black ink varies depending on the kind of glossy paper you are using. Black ink is used when you select Glossy Paper (4 color) . If the glossy paper you are using repels the black ink, select Glossy Paper (3 color) , which simulates black ink by combining the three ink colors.
Document
The printer driver will select the most suitable color matching method, depending on your document type. Generally, text and business graphics are printed vividly and photographic images are printed softly.
■ Auto: The printer driver automatically selects the document type.
■ Photo: Select this mode for photographic images.
■ Graphics: Select this mode for documents that contain text or business graphics
(charts or clip art).
■
Custom: If you want to select the color matching method and halftone method, manually select this mode.
12 - 6 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Color Matching
You can select the color matching method manually. Select the best one for your document.
■ Match Monitor
Suitable for photographic images. Color is adjusted to get the closest color match to the PC monitor.
■ Vivid Color
Suitable for business graphics such as charts, graphs, and text. The color is adjusted to give more vivid color.
(For Windows
®
95/98/98SE/Me user’s) (For Windows
®
2000 Professional/
Windows NT
®
4.0 user’s)
Custom Setting
You can customize your settings by selecting the type of Halftone or Color
Enhance/True2Life.
Halftone Pattern
The MFC can use several methods to arrange where to place dots to express halftones. There are some predefined patterns used to place dots and you can select which one is used for your document. Select the appropriate method.
■
This method creates smooth halftones so that this is suitable for photographic images. It takes more time to process data, but this can express more levels of halftones and creates more natural images.
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 7
BHL-FB-MFC-5100C-FM5.5
■
Cluster
This is suitable for business graphics such as charts, graphs and drawings, since this creates more sharp printouts. Moreover, the processing time is shorter.
Color Enhance
Selecting Color Enhance/True2Life ON enables the True2Life feature. This feature analyzes your image to improve quality sharpness, white balance and color density. This process may take several minutes depending on the size of the image, the speed and RAM memory of your computer.
■
Color Enhance/True2Life ON
Adjusts the color in the image for better print quality. Print time will be longer with True2Life set to ON.
■
Sharpness
This setting enhances the detail of an image. This is similar to adjusting the fine focus on a camera. If the focus is off a little you will not be able to clearly see the fine details of an image.
■ Color Density
This adjusts the total amount of color in the image. You can increase or decrease the amount of color in an image to improve a picture which may appear washed out or weak.
■
White Balance
This adjusts the hue of the white sections of an image. Lighting, camera settings and other influences will effect the appearance of white. The white parts of a picture may appear to be slightly pink, yellow or some other color. By using this adjustment you can correct this effect and bring the white sections back to pure white.
■ Brightness
Change the brightness of the whole image lighter or darker. Moving the scroll bar to the left makes your image darker and moving the scroll bar to the right makes your image lighter.
■
Contrast
Change the contrast of an image. Darker sections will be more dark and lighter sections will be more light as you increase the contrast. Increase the contrast when you want an image to be clearer. Decrease the contrast when you want an image to be more subdued.
■
Red
Increase the intensity of the Red color to add red to the whole image.
■ Green
Increase the intensity of the Green color to add green to the whole image.
■
Blue
Increase the intensity of the Blue color to add blue to the whole image.
12 - 8 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Color/Mono
This selection allows a color document to be printed in mono only.
Bi-Directional Printing
When Bi-Directional Printing is selected, the print head prints in both directions and offers faster print speeds. When not selected the print head prints in one direction only and provides higher print quality.
Fast Draft Mode
You can print much more quickly than mono draft mode, by using both black and cyan ink.
Advanced Tab
Select the Apply button to apply your selected settings.
To return to the default settings, click the Default button, then click the Apply button.
Change the tab settings by selecting one of the following icons:
• Watermark
• Device Options
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 9
BHL-FB-MFC-5100C-FM5.5
Watermark
To place a logo or text into your document as a Watermark, use a bitmap file or text you created as your source file or select one of the preset Watermarks.
Print Watermark
The Print Watermark feature offers the following print choices:
■
On all pages
■
On first page only
■
From second page
■
Custom
In background
With the In background feature checked the Watermark will print on the page behind your document. If this feature is not checked then the Watermark will print on top of your document.
Watermark Style
You can change the Watermark’s size and the position on the page by selecting the Watermark, and then clicking the Edit button. If you want to add a new
Watermark, click the New button, and then select Text or Bitmap in the
Watermark Style.
Watermark Text
Enter your Watermark text into the Text Box, and then select the Font, Size,
Color and Style.
Watermark Bitmap
Enter the file name and location of your bitmap image in the File box or Browse for the file location. You can also set the scaling size of the image.
12 - 10 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Position
The position settings offer controls for where the Watermark is positioned on the page.
Device Options
Set Print Date & Time as the Printer Function:
Print Date & Time
When enabled the Print Date and Time feature will automatically print the date and time from your computer’s system clock on your document.
Click the Setting button to change the Date and Time Format, Position and Font. To include a background with the Date and Time, select Opaque. When Opaque is selected, you can click on the Color button to change the color of the Date and Time background.
Note
The Date and Time indicated in the selection box shows the format that will be printed. The actual Date and Time printed on your document is automatically retrieved from the settings of your computer.
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 11
BHL-FB-MFC-5100C-FM5.5
Support
The Support Tab provides driver version information and setting information. In addition there are links to the Brother Solutions Center and Driver Update Web sites.
Click the Support tab to display the following screen:
Select the Apply button to apply your selected settings.
To return to the default settings, click the Default button, then click the Apply button.
Web Update
Web Update checks the Brother web site for updated drivers, and then it automatically downloads and updates the printer driver on your computer.
Brother Solutions Center
The Brother Solutions Center is a Web site offering information about your
Brother product including FAQs, User Guides, Driver updates and Tips for using your machine.
12 - 12 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Features in the Printer Driver (For Windows
®
XP)
The Windows ® XP printer driver utilizes Microsoft’s uni-driver architecture.
The following section describes the driver features and selections available for
Windows ® XP.
You can also install a Brother Native Driver as per the instructions of the
Windows ® XP Quick Setup Guide. For descriptions on the Printer Driver features refer to the “Features in the Printer Driver (For Windows ® 95/98/
98SE/Me/2000 Professional and Windows NT ® 4.0 user)” section.
Layout Tab
*1 *2
*1 Orientation
Select the Orientation, which is how your document will be positioned on the paper (Portrait or Landscape).
Portrait Landscape
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S
®
O N L Y ) 12 - 13
*2 Pages Per Sheet
You can select 1, 2, 4, 6, 9 or 16 pages to be printed on one sheet of paper. The image of each page will be reduced as needed to fit on the paper.
2 in 1
Paper/Quality Tab
4 in 1
*1
*2
*3
12 - 14 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
*1 Tray Selection
■
Paper Source
The machine feeds subsequent pages automatically even if you select either
Automatically Select or Feeder.
■ Media
To achieve the best print results, the media being printed on should be selected in the driver. The MFC changes the way it places dots, depending on the selected media type.
Paper Type
Plain Paper
Inkjet Paper
Glossy Paper (4 color)
Glossy Paper (3 color)
Transparencies
Transparencies (mirror)
Recommended Print Quality Selection
Normal
Fine
Super Fine
Super Fine
Fine
Fine
Note
The print quality of black ink varies depending on the kind of glossy paper you are using. Black ink is used when you select Glossy Paper (4 color) . If the glossy paper you are using repels the black ink, select Glossy Paper (3 color) , which simulates black ink by combining the three ink colors.
*2 Quality Settings
You can select from the predefined quality settings for your document. If you want to check or access additional selections for the print quality, refer to the
Print Quality in the Advanced Options.
*3 Color
This selection allows a color document to be printed in Black & White only.
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 15
BHL-FB-MFC-5100C-FM5.5
Advanced Options
Click the Advanced... button in the Layout tab or Paper/Quality tab to access the screen below:
*1
*2
*3
*4
*1 Paper /Output
Paper Size - Select the paper size of the document you are printing. This size should be the same as the paper size that is set in your application software.
Copy Count - Type the number of copies you want.
12 - 16 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
*2 Graphic
Print Quality - The quality selection allows you to choose the print resolution you want for your document. Print quality and speed are related. The higher the quality the longer it will take to print the document. The quality selections available vary depending on the media selection.
Draft: The fastest print mode and the lowest ink consumption. Use this mode to print large volume documents or a document for proofing.
Normal: Recommended for ordinary printouts.
Fine: Better print quality than normal mode and faster print speed than Super
Fine.
Super Fine: Use this mode to print precise images such as photographs. Since the print data is much larger than normal mode, the processing time, data transfer time and print time will be longer.
Note
The print quality that can be selected depends on the media you selected.
You can select the following quality settings for each media.
Plain Paper: Draft, Normal, Fine, Super Fine
Inkjet Paper: Normal, Fine, Super Fine
Glossy Paper (4 color): Fine, Super Fine
Glossy Paper (3 color): Fine, Super Fine
Transparency: Fine, Super Fine
Transparency (mirror): Fine, Super Fine
*3 Document Options
Halftone Pattern - The MFC can use several methods of arranging where dots are placed on the paper to express halftones. You can select what predefined pattern is used for your document.
This method creates smooth halftones suitable for photographic images. It takes more time to process the data, but this selection can express more levels of halftones and creates more natural images.
Cluster
This is suitable for business graphics such as charts, graphs and drawings. This selection creates sharper printouts and has a shorter processing time.
Auto
If you selected Plain Paper and the print resolution is less than Fine Quality,
Auto works as Cluster. If you select another media type or a higher resolution,
Auto works as Photo.
P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y ) 12 - 17
BHL-FB-MFC-5100C-FM5.5
*4 Printer Features
Fast Draft Mode - This mode prints using both black and cyan ink offering a faster print speed then mono draft mode.
Bi-directional Print - When Bi-Directional Print is set to ON, the print head prints in both directions and offers faster print speeds. When OFF is selected, the print head prints in one direction only and provides higher print quality.
If you selected Plain Paper, Auto works in Bi-Directional Print mode.
Paper Thickness - Depending on the thickness of the paper you are using, you can improve the quality of your output by selecting the correct thickness. This setting provides the best positioning of the paper for printing. For example if you were printing on thin paper, you would select Thin in the Paper Thickness selection to achieve the best paper handling and improved output for that paper type.
Regular
Thin
Thick
Thicker
Auto
If you selected Envelops in the Print Size, Auto works as Thicker. If you select any other print size, Auto works as Regular.
12 - 18 P R I N T E R D R I V E R S E T T I N G S ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
13
13
Using the Windows
®
-Based
Brother MFL-Pro Control
Center
Brother MFL-Pro Control Center
The Brother Control Center is a software utility that pops up on the PC screen whenever paper is placed in the automatic document feeder. This allows you to quite easily, with very few mouse clicks, access the most frequently used scanning applications. Using the Control Center eliminates the need to manually launch the specific applications.
The Brother Control Center provides three categories of functions:
1 Scan directly to a file, E-mail, word processor or graphic application of choice
2 Copy operations
3 PC Faxing using the Brother MFL Pro PC Fax software
MFC-5100C
AutoLoad the Brother Control Center
The Control Center is initially configured to automatically load each time
Windows ® is started. When the Control Center is loaded, the Control
Center icon will appear in the task bar. If you don’t want the Control Center to load automatically, you can turn off AutoLoad.
If the Control Center icon does not appear in your task bar, you will have to launch this software.
From the Start menu, select Programs, PaperPort, and then double-click Brother
SmartUI POPUP.
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 1
BHL-FB-MFC-5100C-FM5.5
How to Turn Off AutoLoad
1 Left click the Control Center icon and click Show.
2 When the Control Center icon appears, left click on the Smart Click
Control Center button. A dialogue box with a check box labeled “AutoLoad
Pop-up” will appear:
3 Uncheck the AutoLoad Pop-Up option.
Using the Color Scan Key
You can use the Scan to key on the control panel to scan originals into your word processing, graphics or E-mail applications.
The advantage of using the Scan to key is that you avoid the mouse clicks required to scan from your PC.
If you have connected a Macintosh, the Scan to key will not work with your computer.
Before you can use the Scan to key on the control panel, you must have connected the MFC to your Windows ® based PC and loaded the appropriate
Brother Drivers for your version of Windows ® . When you are ready to use the
Scan to key, make sure the Brother Control Center application is running on your PC. (For details about how to configure the Brother Control Center buttons
to launch the application of your choice using the Scan to key, see Brother
13 - 2 U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R
BHL-FB-MFC-5100C-FM5.5
Scan to E-mail
You can scan either a black and white or a color original into your E-mail application as a file attachment. Although the Brother Control Center can be configured to send only black and white or color file attachments at one time, you can easily change this setting. (For details
see Scan to E-mail, pages 13-8 to
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Scan to.
3 Press or
to select SCAN TO E-MAIL , and then press Menu/Set.
The MFC will scan the original, create a file attachment, and launch your E-mail application, displaying the new message waiting to be addressed.
Scan Image
You can scan a color picture into your graphics application for viewing and editing.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Scan to.
3 Press or
to select SCAN IMAGE , and then press Menu/Set.
Scan/OCR
If your original is text, you can have it automatically converted by ScanSoft ™
TextBridge ® to an editable text file and then displayed in your word processing application for further editing.
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Press Scan to.
3 Press or to select SCAN/OCR , and then press Menu/Set.
The MFC will scan the original perform OCR in ScanSoft ™ TextBridge ® , and then display the result in your word processing application for viewing and editing.
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 3
BHL-FB-MFC-5100C-FM5.5
Brother Control Center Features
Auto Configuration
During the installation process the Control Center checks your system to determine the default applications for E-mail, word processing and graphics viewer/editor. For example, if you are using Outlook as your default E-mail application, the Control Center automatically will create a link and a scanning application button for Outlook.
You can change a default application by right clicking on any of the scan buttons in the Control Center and selecting a different application. For example,
you can change a scan button from MS Word to MS Word Pad
by changing the application that is listed for the Word Processor.
Scanning Operations
Scan to File—allows you to scan directly to a disk file with two mouse clicks.
You can change the file type, destination directory and file name, as needed.
Scan to E-mail—enables you, with just two mouse clicks, to scan a picture or text document directly into an E-mail application as a standard attachment. You have the option of selecting the file type and resolution for the attachment.
Scan to Word Processor—enables you to scan a text document, run ScanSoft
TextBridge OCR and insert the text original (not graphic image) into a word processing file with just two mouse clicks. You have the option of selecting the destination word processing program, such as Word Pad, MS Word, Word
Perfect, etc.
Scan to Graphic Application—allows you to scan an image directly into any graphic viewer/editor application. You can select the destination application, such as MS Paint or Corel PhotoPaint.
13 - 4 U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R
BHL-FB-MFC-5100C-FM5.5
Copy Operations
Copy—allows you to use the PC and any Windows ® printer driver for enhanced copy functions. You can scan the page on the Brother MFC and print the copies using any of the features of the Brother MFC printer driver—OR—you can direct the copy output to any standard Windows ® printer driver installed on the
PC.
PC Fax Operation
Send a Fax—allows you to scan a picture or text original and automatically send the image as a fax from the PC using the Brother MFL Pro fax software.
Scanner Settings for Scan, Copy and PC Fax Buttons
When the Pop-Up screen window appears, you can access the Scanner Settings window.
Click the Smart Click icon at the top right of the Brother Control
Center screen—OR—Click the Modify Settings… button on any of the
Configuration screens.
Global Settings
AutoLoad Pop-Up—Click this checkbox if you want Brother MFL Control
Center to load when you boot your computer.
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 5
BHL-FB-MFC-5100C-FM5.5
Setting Up the Scanner Configurations
The Pop-Up application stores eight different scanning modes. Each time you scan an original, you will choose the most appropriate scanning mode from the following:
Faxing, Filing and Copying
Text for OCR
Photos
Photos (High Quality)
Photos (Quick Scan)
Custom
Draft Copy
Fine Copy
Each mode has its own set of stored settings. You can keep the factory default settings or change them at any time:
Resolution—Select the scanning resolution you most frequently use.
Color Mode—From the pull-down list, select
Scan Size—From the pull-down list, select
Brightness—Slide the adjuster from 0% to 100%
Contrast—Slide the adjuster from 0% to 100%
Click OK to save your changes. If you make a mistake or later decide to return to the original default setting, just click the Restore Defaults button when the scanning mode is displayed.
To Access the Scanner Configurations Screen
1 Place the original face up in the ADF. Then the Brother Control Center screen pops up.
2 Right-click the appropriate Control Center button to display Configurations…, then click it. The configuration screen for that Control Center button will appear.
3 To save your settings, press the OK button—OR—To return to the factory default settings, press the Restore Defaults button.
Perform an Operation from the Control Center Screen
If you see this screen it means you left-clicked a button in the Control Center window without first placing an original in the ADF.
Place the original in the Brother machine’s ADF, then click OK to return to the
Control Center screen.
If you want to scan the original from the scanner glass, please use Scan to key on the Control Center screen.
13 - 6 U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R
BHL-FB-MFC-5100C-FM5.5
Scan to File
Scanner Settings
From the pull-down list, select the scanning mode that is appropriate for the type of file: Faxing, Filing and Copying; Text for OCR; Photos; Photos (High
Quality); Photos (Quick Scan); Custom; Draft Copy or Fine Copy.
To change any of the settings for that mode, click the Modify Settings… button.
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 7
BHL-FB-MFC-5100C-FM5.5
Destination Folder
PaperPort Folder—Select this checkbox to scan the original into your
PaperPort folder.
Other Folder—Select this checkbox, to scan the original as another file type and/or into another directory/folder.
File—If you selected Other Folder, from the pull-down list select the type of file:
PaperPort Files (*.MAX)
Self Viewing Files (*.EXE)
PaperPort 5.0 Files (*.MAX)
PaperPort 4.0 Files (*.MAX)
PaperPort 3.0 Files (*.MAX)
Windows Bitmap (*.BMP)
PC Paintbrush (*.PCX)
Multi-page PCX (*.DCX)
JPEG Image Files (*.JPG)
TIFF-Uncompressed (*.TIF)
TIFF Group 4 (*.TIF)
TIFF Class F (*.TIF)
Multi-Page TIFF-Uncompressed (*.TIF)
Multi-Page TIFF Group 4 (*.TIF)
Multi-Page TIFF Class F (*.TIF)
PDF Files (*.PDF)
Portable Network Graphics (*.PNG)
FlashPix (*.FPX)
HFX Fax Files (*.HFX)
To Search your system for the directory and folder you want, click the
Browse… button. Click OK to save your settings.
Scan to E-mail
13 - 8 U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R
BHL-FB-MFC-5100C-FM5.5
Scanner Settings
From the pull-down list, select the scanning mode that is appropriate for the type of file: Faxing, Filing and Copying; Text for OCR; Photos; Photos (High
Quality); Photos (Quick Scan); Custom; Draft Copy or Fine Copy.
To change any of the settings for that mode, click the Modify Settings… button.
E-mail Application
E-mail Application—From the pull-down list, select your E-mail application.
E-mail Settings—Click the EMail Settings… button to set up links.
The Links Preferences window will appear:
File Attachments
Do not convert files—Click this checkbox if you do not want to change the file type of attachments. The Conversion Options will not be available (grayed).
Convert MAX files only—Click this checkbox if you want to convert only attachments that are PaperPort files.
Convert all files when possible—Click this checkbox if you want to change the file type of all attachments.
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 9
BHL-FB-MFC-5100C-FM5.5
Conversion Options
Format
Combine all files into one file when possible—Click this checkbox to combine all files of the same type into one file.
Convert non-image files to color—Click this checkbox to convert all files that have been processed through OCR to color.
Show QuickSend Menu
Click this checkbox if you want the Select QuickSend Recipient window to be displayed when you choose Scan to E-mail. This feature works only with MAPI type E-mail applications, such as Microsoft Exchange, Microsoft Outlook and
Eudora.
QuickSend List
You can create a list of Email names and addresses for quick selection.
Click the New button to add a name(s) to your QuickSend list. Your Email phone book listing is displayed, so you can select stored names or create new ones:
Highlight the name(s) you want to add to your list, click the User button, then click OK to return to the Link Preference window.
From the Link Preference window, you can remove a name from the QuickSend list, highlight the name and clicking the Delete button.
13 - 10 U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R
BHL-FB-MFC-5100C-FM5.5
Scan to Word Processor
Scanner Settings
From the pull-down list, select the scanning mode that is appropriate for the type of file: Faxing, Filing and Copying; Text for OCR; Photos; Photos (High
Quality); Photos (Quick Scan); Custom; Draft Copy or Fine Copy.
To change any of the settings for that mode, click the Modify Settings… button.
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 11
BHL-FB-MFC-5100C-FM5.5
Word Processor
Word Processor—From the pull-down list, select the word processor you want to use.
Click the Link Settings… button to display a screen to set up a link to the version of OCR and document format that you want to use:
OCR Package—From the pull-down list, select TextBridge Classic OCR if you want to use the OCR package that was installed with the Brother software.
Click the OCR Settings… button to choose how the OCR application will read the pages you scan into your word processor application.
The Preferences window will appear:
Select your setting and click OK.
• Auto Orientation—Check this checkbox if you want your word processor application to read the page as it is set up.
• Decolumnized Output—Check this checkbox if you want your word processor application to read across the entire page from left to right.
Document Format—From the pull-down list, select the file format you want to use for your word processor or text documents.
13 - 12 U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R
BHL-FB-MFC-5100C-FM5.5
User Defined Button
Scanner Settings
From the pull-down list, select the scanning mode that is appropriate for the type of file: Faxing, Filing and Copying; Text for OCR; Photos; Photos (High
Quality); Photos (Quick Scan); Custom; Draft Copy or Fine Copy.
To change any of the settings for that mode, click the Modify Settings… button.
Target Application
Application—From the pull-down list, select the application you want to add to this Pop-Up screen.
Click the Custom Link Settings… button to set up links for your user-defined application.
Copy
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 13
BHL-FB-MFC-5100C-FM5.5
Scanner Settings
From the pull-down list, select the scanning mode that is appropriate for the type of file: Faxing, Filing and Copying; Text for OCR; Photos; Photos (High
Quality); Photos (Quick Scan); Custom; Draft Copy or Fine Copy.
To change any of the settings for that mode, click the Modify Settings… button.
Copy Settings
Brother MFC-5100C
Copies—Enter the number of copies you want to print.
To change the copy options, click the Copy Options... button.
Click the OK button to save your Copy settings.
Send a Fax
Scanner Settings
From the pull-down list, select the scanning mode that is appropriate for the type of file: Faxing, Filing and Copying; Text for OCR; Photos; Photos (High
Quality); Photos (Quick Scan); Custom; Draft Copy or Fine Copy.
To change any of the settings for that mode, click the Modify Settings… button.
13 - 14 U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R
BHL-FB-MFC-5100C-FM5.5
FAX Settings
Brother PC-Fax
FAX Resolution—Fine (200
× 200)
1 To change the fax options, click the FAX Options… button.
The Brother PC-FAX Properties screen appears:
2 Select the Paper Size and Orientation (Portrait or Landscape) and click OK.
To return to the factory default settings, click the Restore Defaults button.
U S I N G T H E W I N D O W S ® - B A S E D B R O T H E R M F L - P R O C O N T R O L C E N T E R 13 - 15
BHL-FB-MFC-5100C-FM5.5
14
14
Scanner and Using ScanSoft
™
PaperPort
®
and TextBridge
®
OCR
(For Windows
®
Only)
Using ScanSoft™ PaperPort
®
and TextBridge
®
ScanSoft™ PaperPort ® for Brother is a document management application. You will use PaperPort ® to view scanned documents. PaperPort ® has a sophisticated, yet easy-to-use, filing system that will help you organize your graphics and text documents. It allows you to combine or “stack” documents of different formats for printing, faxing or filing. ScanSoft™ PaperPort ® can be accessed through the ScanSoft™ PaperPort ® program group. See On-Line Documentation for
Multi-Function Link ® Pro on the CD-ROM.
The complete ScanSoft™ PaperPort ® Owner’s Manual, including ScanSoft™
TextBridge ® OCR, is in the On-Line Documentation on the CD-ROM. This chapter is only an introduction to the basic operations.
When you install Multi-Function Link ® Pro, ScanSoft™ PaperPort ® for Brother and ScanSoft™ TextBridge ® OCR are installed with it automatically.
To Uninstall PaperPort ® and ScanSoft™ TextBridge
For Windows ® 95/98/98SE, and Windows NT ® Workstation 4.0, Windows ® ME and Windows ® 2000 Professional:
Select Start, Settings, Control Panel, Add/Remove Programs and the Install/
Uninstall tab. Select PaperPort ® from the list and click the Add/Remove button.
14 - 1 U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T -
BHL-FB-MFC-5100C-FM5.5
Viewing Items
ScanSoft™ PaperPort ® provides several ways to view items:
Desktop View displays a
thumbnail, a small graphic that represents each item in a Desktop or folder. Items in the selected folder appear on the PaperPort ®
Desktop. You can see PaperPort ® items (MAX files) and non-
PaperPort ® items (files created using other applications). Non-
PaperPort ® items include an icon that indicates the application that was used to create the item; a non-
PaperPort ® item is represented by a small rectangular thumbnail and not an actual image.
Page View displays a close-up of a single page and you can open a
PaperPort ® item by doubleclicking on it. As long as you have the appropriate application on your computer to display it, you can also double-click a non-
PaperPort ® item to open it.
Destop View displays items as thumbnails
Page View displays each item as a full page
Organizing Your Items in Folders
PaperPort ® has an easy-to-use filing system for organizing your items. The filing system consists of folders and items that you select to view in Desktop
View. An item can be a PaperPort ® item or a non-PaperPort ® item:
■
Folders are arranged in a “tree” structure in the Folder View. You use this pane to select folders and view their items in Desktop View.
■
You can simply drag and drop an item onto a folder. When the folder is highlighted, release the mouse button and the item is stored in that folder.
■
Folders can be “nested”—that is, stored in other folders.
■
When you double-click a folder, its items (both PaperPort ® MAX files and other files) appear on the Desktop.
■
You can also use Windows ® Explorer to manage the folders and items shown in
Desktop View.
U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T B R I D G E ® 14 - 2
BHL-FB-MFC-5100C-FM5.5
Links to Many Other Applications
ScanSoft™ PaperPort ® automatically recognizes many other applications on your computer and creates a “working link” to them. The Link Bar at the bottom of Desktop view shows icons of those linked applications. To use a link, drag an item onto one of the icons to start the application represented by the icon. A typical use of the Link Bar is to select an item and then fax it.
This sample Link Bar shows several applications with links to PaperPort ® .
If PaperPort ® does not automatically recognize one of the applications on your computer, you can manually create a link using the Create New Link command. (See PaperPort ® in the On-Line-Documentation on the CD-ROM for more information about creating new links.)
Using ScanSoft™ TextBridge
®
OCR
(Converting Image Text to Text You Can Edit)
Software by:
ScanSoft™ TextBridge ® OCR is installed automatically with PaperPort ® when you install Multi-Function Link ® Pro on your computer.
ScanSoft™ PaperPort ® can quickly convert the text on a ScanSoft™ PaperPort ® item (which is really just a picture of the text) into text that you can edit with a word processing application. PaperPort ® uses the optical character recognition application ScanSoft™ TextBridge ® , which comes with PaperPort ® —OR—
PaperPort ® uses your application if it is already on your computer. You can convert the entire item, or by using the Copy As Text command, you can select only a portion of the text to convert.
Dragging an item onto a word-processing link icon starts PaperPort ® ’s built-in
OCR application, or you can use your own OCR application.
14 - 3 U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T B R I D G E ®
BHL-FB-MFC-5100C-FM5.5
Importing Items from Other Applications
In addition to scanning items, you can bring items into PaperPort ® in a variety of ways and convert them to PaperPort ® (MAX) files in several different ways:
■ Print to the Desktop View from another application, such as Microsoft Excel.
■ Import files saved in other file formats, such as Windows ® Bitmap (BMP) or
Tag Image File Format (TIFF).
Exporting Items in Other Formats
You can export or save PaperPort ® items in several popular file formats, such as
BMP, JPEG, TIFF, or self-viewing. For example, to create a file for an Internet
Web site, export it as a JPEG file. Web pages often use JPEG files for displaying images.
Exporting an Image File
1 Select the Export command from the File pull-down menu in the PaperPort ® window. The Export ‘XXXXX’ As dialog box will be displayed.
2 Select the drive and directory where you want to store the file.
3 Enter the new file name and choose the file type or select a name from the File
Name text box. (You can scroll through the Directories and File Name listing for prompting.)
4 Select the OK button to save your file, or Cancel to return to the PaperPort ® without saving it.
Scanning a Document
TWAIN Compliant
The Brother Multi-Function Link ® Pro software includes a TWAIN compliant scanner driver. TWAIN drivers meet the standard universal protocol for communicating between scanners and software applications. This means that not only can you scan images directly into the PaperPort ® viewer that Brother included with your MFC, but you can also scan images directly into hundreds of other software applications that support TWAIN scanning. These applications include popular programs like Adobe Photoshop ® , Adobe
PageMaker ® , CorelDraw and many more.
U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T B R I D G E ® 14 - 4
BHL-FB-MFC-5100C-FM5.5
Accessing the Scanner
To choose TWAIN-32 Brother MFL Pro Color as your scanner driver, select it under the Select scanner—OR—Select source option in your software.
From the PaperPort ® window, select Acquire from the File drop-down menu or select the TWAIN or Scan button. The TWAIN-32 Brother MFL-Pro Color
Setup dialog box will appear:
Scanning a Document into the PC
1 Place the original face up in the ADF, or face down on the scanner glass.
2 Adjust the following settings, if needed, in the Scanner window:
• Resolution
• Scan Type (Black & White, Gray [Error Diffusion], True Gray, 256 Color or 24-bit color)
• Brightness
• Contrast
• Size
3 Select the Start button from the scanner window.
When scanning is completed, press Cancel to return to the PaperPort ® window.
14 - 5 U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T B R I D G E ®
BHL-FB-MFC-5100C-FM5.5
Settings in the Scanner Window
Resolution:
Select the scanning resolution from the Resolution drop down list. Higher resolutions take more memory and transfer time, but can achieve a finer scanned image. You can choose:
• 100
× 100 dpi
• 150
× 150 dpi
• 200
× 200 dpi
• 300
× 300 dpi
• 400
× 400 dpi
• 600
× 600 dpi
• 1200
× 1200 dpi (Black & white, Gray [Error Diffusion], True Gray and
24-bit color only)
• 2400
× 2400 dpi (Black & white, Gray [Error Diffusion], True Gray and
24-bit color only)
• 4800
× 4800 dpi (Black & white, Gray [Error Diffusion], True Gray and
24-bit color only)
• 9600
× 9600 dpi (Black & white, Gray [Error Diffusion], True Gray and
24-bit color only)
Scan Type:
Black & White: Set the Scan Type to Black & White for text or line art.
Gray Scale: For photographic images, set the Scan Type to Gray (Error
Diffusion) or True Gray.
Colors: Choose either 256 Color, which scans up to 256 colors, 24-bit color which scans up to 16.8 million colors. Although using 24-bit color creates an image with the most accurate colors, the image file will be approximately three times larger than a file created with 256 Color.
Brightness:
Brightness: Adjusting the brightness settings to obtain the best image. The
Brother Multi-Function Link ® Pro offers 100 brightness settings (-50 to 50).
The default value is 0, representing an “average” setting.
You can set the brightness level by dragging the slidebar to the right to lighten the image or to the left to darken the image. You can also type a value in the box to set the settings.
If the scanned image is too light, set a lower brightness value and scan the document again.
If the image is too dark, set a higher brightness value and scan the document again.
U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T B R I D G E ® 14 - 6
BHL-FB-MFC-5100C-FM5.5
Contrast:
The contrast setting is adjustable only when you have selected one of the gray scale settings, but it is not available when Black & White is selected as the gray
Scale.
Increasing the contrast level (by dragging the slidebar to the right) emphasizes dark and light areas of the Image, while decreasing the contrast level (by dragging the slidebar to the left) ravels more detail in gray areas. Instead of using the slidebar, you can type a value in the box to set the contrast.
Size:
Set the Size to one of the following:
• Letter (8 1/2
× 11 in.)
• A4 (210
× 297 mm.)
• Legal (8 1/2
× 14 in.)
• A5 (148
× 210 mm.)
• B5 (182
× 257 mm.)
• Executive (7 1/4
× 10 1/2 in.)
• Business Card (90
× 60 mm.)
• Custom (User adjustable from 0.35
× 0.35 in. to 8.5 × 14 in.)
After you select a custom size, you can adjust the scanning area further by using the left mouse button to drag the dotted outline of the scanning area. This is required when you want to crop an image when scanning.
To scan business cards, select the Business Card size setting (90
× 60 mm), and then place the business card face down at the center of scanner glass.
Carrier sheets are available from your Dealer.
When scanning photographs or other images for use in a word processor or other graphics application, you should try different settings for the contrast, mode and resolution to see which settings best suit your needs.
Custom:
If you selected Custom as the size, type the Width and Length.
Or, you can check the Business Card Size box to adjust the scanning area to business card or a custom size automatically.
14 - 7 U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T B R I D G E ®
BHL-FB-MFC-5100C-FM5.5
PreScanning an Image
PreScanning allows you to scan an image quickly at a low resolution. A thumbnail version of the image will appear in the Scanning Area. This is only a preview of the image so you can see how it will look. The PreScan button is used to preview an image for cropping any unwanted portions from the image.
When you are satisfied with the preview, select the Start button from the scanner window to scan the image.
How to Use PreScan to Adjust an Image:
1 Place the original face up in the ADF, or face down on the scanner glass.
2 In the Twain-32 Brother MFL Pro Color Setup dialog box, click the PreScan button.
The entire original will be scanned into the PC and will appear in the Scanning
Area.
PreScanned Image Cropped Image
3 To crop a portion of the original to be scanned, drag any side or corner of the dotted outline in the Scanning Area with the left mouse button. Adjust the dotted outline until it surrounds only the portion of the original you wish to scan.
4 Place the original face up in the ADF again, if you used the ADF in step 1.
5 Adjust the settings for Resolution, Scan Type and Size in the Scanner window, as needed.
6 Click Start.
This time only the selected area of the original will appear in the PaperPort ® window.
7 In the PaperPort ® window, use the options available to refine the image. (See
PaperPort ® for Brother Online Documentation on the CD-ROM for details.)
U S I N G S C A N S O F T ™ P A P E R P O R T ® F O R B R O T H E R / T E X T B R I D G E ® 14 - 8
BHL-FB-MFC-5100C-FM5.5
15
15
Setting Up and Using PC FAX
(For Windows
®
Only)
Introduction
This chapter outlines the basics of the Brother software, so you can get started using the Multi-Function Link ® Pro Suite software. Detailed installation and setup instructions are in the On-Line Documentation section of the Brother CD-
ROM that is included with your MFC.
Check the online README.WRI file in the root directory of the
CD-ROM for last-minute important information and troubleshooting tips that were not included in the On-Line
Documentation.
Multi-Function Link ® Pro Suite software for your MFC includes ScanSoft™
PaperPort ® for Brother and ScanSoft™ TextBridge ®
. (See Chapter 14 Scanner and Using ScanSoft™ PaperPort® and TextBridge® OCR (For Windows® Only)
.)
Brother Resource Manager
The Brother Resource Manager application must be running for you to use your
MFC with your Windows
®
computer. Multi-Function Link
®
Pro Suite software and the MFL Pro Suite Printer Driver automatically load the Resource Manager, as needed. The Resource Manager allows the single bi-directional Parallel port on the MFC to simulate a Communications port for faxing and scanning and to simulate a Parallel port for Windows
®
GDI printing.
15 - 1 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
MFC Remote Setup
The MFC Remote Setup application allows you to quickly set up your MFC by taking advantage of the ease and speed of programming on your PC. When you access this application, the settings on your MFC will be downloaded automatically to your PC and displayed on your computer screen. If you change the settings, you can upload them directly to the MFC.
OK
This starts the process of uploading the data to the MFC and exiting the remote setup program. If an error message is displayed enter the correct data again, then click OK.
Cancel
This exits the remote setup application without uploading the data to the MFC.
Apply
This uploads the data to the MFC, but does not exit the remote setup application.
This command prints the selected items on the MFC. You can not print the data until it is uploaded to the MFC. Click Apply to upload the new data to the MFC and click Print.
Export
This command saves the current configuration settings to a file.
Import
This command reads the settings from a file.
You can check the Ink Status in the Maintenance menu.
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 2
BHL-FB-MFC-5100C-FM5.5
PC FAX Sending (For Windows
®
Only)
The Brother PC FAX feature allows you to use your PC to send a file. You can create a file in any application on your PC, and then send it as a PC FAX. You can even attach a cover page note. All you have to do is set up the receiving parties as Members or Groups in your PC FAX Address Book. Then you can use the Address Book Search feature to quickly find them to address your fax.
PC FAX is available in Black & White only.
Setting Up User Information
1 From the Start menu, select Programs, Brother, Brother MFL Pro Suite, and then select PC-FAX Setting.
Note
You can access the User Information from the FAX Sending dialog box by clicking . (
See Sending a File as a PC-FAX Using the Facsimile Style , page
The Brother PC Fax Setup dialog box will appear:
2 Enter the required User information. This information is required to create the
Fax Header and Cover Page.
3 To save the User Information, click OK.
15 - 3 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Setting Up Sending
To access the Sending tab from the Brother PC-FAX Setup dialog box, click the
Sending tab.
Outside Line Access
Enter the number needed to access an outside line. This is sometimes required by the local PBX telephone system.
Include Header
To add header information to the top of the fax pages being sent, check the
Header box.
Address Book File
You can select different database files for use with the Address Book. You must enter the path and file name of the database file or use the Browse button to view the file system to select the file.
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 4
BHL-FB-MFC-5100C-FM5.5
User Interface
Select the User Interface in the Sending tab. You have a choice of the Simple
Style or the Facsimile Style.
Simple Style
Facsimile Style
15 - 5 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Setting Up Speed Dial
Access the Speed Dial tab from the Brother PC-FAX Setup dialog box by clicking the Speed Dial tab. (To use this feature you must select the Facsimile
Style user interface.)
You can register any address or group on one of the ten Speed Dial buttons.
To register an address in a Speed Dial location:
1 Click the Speed Dial location you want to program.
2 Click the address or group you wish to assign to the Speed Dial location.
3 Click Add >> to program the Speed Dial location.
To clear a Speed Dial location:
1 Click the Speed Dial location you want to clear.
2 Click Clear.
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 6
BHL-FB-MFC-5100C-FM5.5
The Address Book
From the Start menu, select Programs, Brother, Brother MFL Pro Suite, and then click Address Book.
The Brother Address Book dialog box will appear:
15 - 7 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Setting Up a Member in the Address Book
In the Brother Address Book dialog box you can add, edit and delete stored information for members and groups.
1 In the Address Book dialog box, click the icon to add a member.
The Brother Address Book Member Setup dialog box will appear:
2 In the Brother Address Book Member Setup dialog box, type the member’s information. Name and Fax are required fields. Click OK to save the member’s information.
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 8
BHL-FB-MFC-5100C-FM5.5
Setting Up a Group for Broadcasting
If you repeatedly send the same PC-FAX to multiple recipients, you can combine members into a Group.
1 In the Brother Address Book dialog box, click the icon to create a group.
The Brother Address Book Group Setup dialog box appears:
2 Type the name of the new group in the Group Name field.
3 In the Available Names box, select each member to be included in the Group, and then click Add >>.
Members you add to the group will be listed in the Group Members box.
4 After all the members have been added, click OK.
Editing Member Information
1 Select the Member or Group you want to edit.
2 Click the edit icon.
3 Edit the Member or Group information.
4 Click OK to save your changes.
15 - 9 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Deleting a Member or Group
1 Select the Member of Group you want to delete.
2 Click the delete icon.
3 Click OK when the Delete OK? Dialog box appears.
Exporting the Address Book
You can export the Address Book to an ASCII text file (*.csv). If you wish, you can create a Vcard for selected members that will be attached to all the sender’s outgoing e-mail; a Vcard is an electronic business card that contains the sender’s contact information.
To export the current telephone book:
Note
If you are creating a Vcard, you must first select the member.
1 From the Address Book select File, point to Export, and then click Text
—OR—Click Vcard and go to Step 5.
2 Select the data fields you wish to Export from the Available Items column, and then click Add >>.
Note
Select items in the order you want them listed.
3 If you are exporting to an ASCII file, select Divide Character - Tab or
Comma. This selection inserts a Tab or Comma between each data field when it is Exported.
4 Select OK to save the data.
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 10
BHL-FB-MFC-5100C-FM5.5
5 Type the name of the file, and then select Save.
Note
If you selected Vcard in Step 1, the Save as type: will be Vcard (*.vcf).
Importing to the Address Book
You can import ASCII text files (*.csv) or Vcards (electronic business cards) into your Address Book.
To import an ASCII text file:
1 From the Address Book select File, point to Import, and then click Text
—OR—Click Vcard and go to Step 5.
2 Select the data fields you wish to Import from the Available Items column, and then click Add >>.
Note
Select the fields from the Available Items list in the same order they are listed in the Import text file.
15 - 11 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
3 Select Divide Character - Tab or Comma based on what file format you are importing.
4 Select OK to import the data.
5 Type the name of the file, and then select Open.
Note
If you selected a text file in Step 1, the Files of type: will be Text file (*.csv).
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 12
BHL-FB-MFC-5100C-FM5.5
Setting Up a Cover Page
Access the Brother PC-FAX Cover Page Setup from the PC-FAX dialog box by
Sending a File as a PC-FAX Using the Facsimile Style , page
The Brother PC-FAX Cover Page Setup dialog box will appear:
To
You can enter information in each field.
Note
If you are sending a fax to multiple recipients, the recipient information will not be printed on the Cover Page.
From
You can enter information in each field.
Comment
Type the comment you want to add to the cover page.
Select Cover Page Form
Select the cover page form you want.
15 - 13 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Import BMP file
You can insert a bitmap file, such as your company logo, in the cover page.
Select the BMP file by using the browse button, and then select the alignment style.
Count Cover Page
When the Count Cover Page box is checked, the Cover Page will be included in the page numbering. When this box is not checked, the Cover Page will not be included.
Sending a File as a PC-FAX Using the Facsimile Style
1 Create a file in Word, Excel, Paint, Draw or any other application on your PC.
2 From the File menu, select Print.
The Print dialog box will appear:
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 14
BHL-FB-MFC-5100C-FM5.5
3 Select Brother PC-FAX as your printer, and then click OK.
The FAX Sending dialog box will appear:
4 Enter the fax number by using any of the following methods: a. Enter the number using the dial pad.
b. Click any of the 10 Speed Dial buttons.
c. Click the Address Book button, and then select a Member or Group from the Address Book.
Note
If you make a mistake you can click Clear to clear all the entries.
5 To include a cover page, click Cover Page On, and then click the Cover
Page icon to enter or edit the cover page information.
6 Click Start to send the fax.
If you wish to cancel the fax, click Stop.
Redial
If you want to redial a number, click Redial to scroll through the last five fax numbers, and then click Start.
15 - 15 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
Sending a File as a PC-FAX Using the Simple Style
1 Create a file in Word, Excel, Paint, Draw or any other application on your PC.
2 From the File menu, select Print.
The Print dialog box will appear:
3 Select Brother PC-FAX as your printer, and then click OK.
The FAX Sending dialog box will appear:
4 In the To: field, type the fax number of the receiving party. You can also use the
Address Book to select destination fax numbers by clicking To: button. If you made a mistake entering a number, click the Clear button to clear all entries.
5 To send a Cover Page and note, check Cover Page On.
Note
You can also click the to enter or edit the cover page information.
S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y ) 15 - 16
BHL-FB-MFC-5100C-FM5.5
6 When you are ready to send your fax, click the Send
7 If you wish to cancel the fax, click the Cancel icon.
icon.
15 - 17 S E T T I N G U P A N D U S I N G P C F A X ( F O R W I N D O W S ® O N L Y )
BHL-FB-MFC-5100C-FM5.5
16
16
Using Automatic E-Mail
Printing
For Windows
®
95, 98, 98SE, Me Only
Main Features
■ You can use Automatic E-Mail Printing with other E-mail software:
Brother Automatic E-Mail Printing has some extra functions that other E-mail software, such as Netscape Navigator™ or MS Internet Mail, do not support.
■ Automatic E-Mail Printing can be configured for a multiple user account:
In Brother Automatic E-Mail Printing you can set up more than one e-mail account on a single PC so you can print e-mail in each account automatically.
■ Automatic access to your specifed POP3 server at the specifed time:
You can specify the time when the Brother Automatic E-Mail Printing automatically accesses the server to check for new mail.
■ Provides an “In Memory” printer driver:
You can receive and print e-mail data at the same time, by searching for a specified character string in the mail header. It allows you to see the sender, subject and relevant part of the mail content.
Before You Use this Software
Please read in the On-Line
Documentation on the CD-ROM. Check the online
README.WRI file in the root directory of the CD-ROM for lastminute important information and troubleshooting tips not included in the On-Line Documentation.
To Access the On-Line Documentation
Note
After you have installed the Brother driver(s) for your model and operating system, click View On-Line Documentation for operating instructions.
To Install Automatic E-mail Printing (Optional Application)
1 Insert MFL Pro CD-ROM into your CD-ROM drive.
2 Click on Install Software from the main CD-ROM screen.
3 Click Automatic E-mail Printing.
This is optional software and will not be required for printing, faxing and scanning operations.
The Automatic E-mail Print option is NOT available for Windows NT ® 4.0 and Windows ® 2000 Professional.
U S I N G A U T O M A T I C E - M A I L P R I N T I N G 16 - 1
BHL-FB-MFC-5100C-FM5.5
17
17
Using the Brother MFC with a New Power Macintosh
®
G3, G4 or iMac
™
/iBook
™
Set Up Your USB-Equipped Apple
®
Macintosh
®
G3, G4 or iMac™ or iBook™ with
Mac OS 8.5-9.2
Note
Before you can connect the MFC to your Machintosh ® , you must purchase a
USB cable that is no longer than 6 feet (1.8 meters).
To work with your MFC, your USB-Equipped Apple ® Macintosh ® must be set up with Mac OS 8.5-9.2. (The Brother Scanner Driver works only with Mac OS
8.6-9.2)
Using Brother Printer Driver with Your Apple
®
Macintosh
®
To select the Printer:
1 From the Apple menu, open the Chooser.
2 Click the MFL Pro Color icon. On the right side of the Chooser, click the printer to which you want to print. Close the Chooser.
17 - 1 U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™
BHL-FB-MFC-5100C-FM5.5
3
To print the document:
From application software such as PaperPort ® , click File menu and select Page
Setup . You can change the settings for Paper Size , Paper Thickness , Paper
Source , Orientation , and Scaling , then click OK .
4 From application software such as PaperPort, click File menu and select Print .
Click Print to start printing.
Note
If you want to change Copies , Pages , Quality , Media Type and Color/Mono , select your settings before clicking Print .
Option Setup allows you to change Document and Printing Options .
U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H
®
G 3 , G 4 O R I M A C ™ / I B O O K ™ 17 - 2
Sending a Fax from Your Macintosh
®
Application
1
2
You can send a fax directly from your Macintosh ® application using the following steps:
Create a document in a Macintosh application.
To begin the fax transmission, select Print from the File menu.
The Printer dialog box appears:
3
When Printer is selected, the top button shows Print and the Address button is grayed.
From the Output pull-down menu, select Facsimile .
When Facsimile is selected, the top button shows Send Fax and the Address button is available.
17 - 3 U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H
®
G 3 , G 4 O R I M A C ™ / I B O O K ™
4 Click Send Fax.
The Send Fax dialog box appears:
The Send Fax dialog box has two list boxes. The left box shows all the previously Stored Fax Numbers; the right box will show the Destination Fax
Numbers as you select them.
5 To address the fax, type a fax number in the Input Fax Number box.
—OR—
Select a name/number from the Stored Fax Numbers box, and then click
. Your recipient will appear in the Destination Fax Numbers box.
Note
You can select several stored numbers at once by using the Shift and Ctrl keys.
6 If you want to, you can add your new recipients to the Stored Fax Number at this
time by clicking New. (See Adding a New Member , page 17-5.)
—OR—
You can add a new group by clicking Group. (See Adding a New Group , page
7 If you are finished addressing your fax, click Send Fax.
Note
To select and send only certain pages of the document, click OK to return to the Print dialog box.
Note
If you click Send Fax without addressing your fax, the following error message appears:
Click OK to return to the Send Fax dialog box.
U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™ 17 - 4
BHL-FB-MFC-5100C-FM5.5
Setting Up Your Address Book
You can add new members and groups to your Address Book, even while you are addressing a fax.
Adding a New Member
1 To add a new member to the Address Book, in the Facsimile dialog box click
Address.
The Address Book dialog box appears:
2 Click New. The following dialog box appears:
3 Type the name and fax number.
4 If you want to, you can store a comment in the Memo field if you wish (up to 15 characters).
5 Click OK to return to the Address Book dialog box.
17 - 5 U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™
BHL-FB-MFC-5100C-FM5.5
1
Adding a New Group
You can set up a group of multiple recipients.
Click Group .
The Group Setting dialog box appears.
2
3
4
In the Group Name field, type a name for your Group.
From the Stored Fax Numbers box select the recipients for your Group, and then click .
Your selection will appear in the box under the Group Name field.
Click OK .
The Address Book dialog box reappears:
5 Click OK .
The Print/Facsimile dialog box reappears:
6 If you are ready to send your fax, click Send Fax .
(Follow the steps on page 17-3 for sending a fax.)
U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H
®
G 3 , G 4 O R I M A C ™ / I B O O K ™ 17 - 6
Using Brother TWAIN Scanner Driver with
Your Apple
®
Macintosh
®
The Brother MFC software includes a TWAIN Scanner driver for Macintosh ® .
This Macintosh ® TWAIN Scanner driver can be used with application that supports the TWAIN specification. You can use PaperPort ® for scanning.
17 - 7 U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™
BHL-FB-MFC-5100C-FM5.5
Accessing the Scanner
Run your PaperPort ® software. You will see the PaperPort ® icon in the upper right hand corner of your screen. The first time you use the Brother TWAIN driver, set it as the default by choosing the Select Source, then click the
PaperPort ® icon. Afterward, for each original you scan choose Acquire Image by clicking the PaperPort ® icon. The Scanner setup dialog box will appear.
Scanning an Image into Your Macintosh G3, G4 or iMac
1 Place the original in the ADF.
2 Adjust the following settings, if needed, in the scanner setup dialog box:
Resolution
Color Type
Brightness
Contrast
Scanning Area
3 Click Start.
When scanning is finished, the image will appear in your graphics application.
U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™ 17 - 8
BHL-FB-MFC-5100C-FM5.5
Settings in the Scanner Window
Resolution
Choose the scanning resolution from the Resolution pop-up menu. Higher resolutions take more memory and transfer time, but can achieve a finer scanned image. (Each model has different resolutions. See Specification.)
Color Type
Black & White—Set the image Type to Black&White for text or line art. For photographic images, set the image type to Gray (Error diffusion) or True Gray.
Gray (Error Diffusion)—is used for documents that contain photographic images or graphics. (Error Diffusion is a method for creating simulated gray images by placing black dots in a specific matrix instead of true gray dots.)
True Gray—also is used for documents containing photographic images or graphics. This mode is more exact because it uses up to 256 shades of gray. It requires the most memory and longest transfer time.
Colors—Choose either 256 Color, which scans up to 256 colors, 24-bit color which scans up to 16.8 million colors. Although using 24-bit color creates an image with the most accurate colors, the image file will be approximately three times larger than a file created with 256 Color.
17 - 9 U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™
BHL-FB-MFC-5100C-FM5.5
Scanning Area
Set the Size to one of the following:
• Letter (8.5
× 11 inches)
• A4 (210
× 297 mm)
• Legal (8.5
× 14 inches)
• A5 (148
× 210 mm)
• B5 (182
× 257 mm)
• Executive (7.25
× 10.5 inches)
• Business Card (90
× 60 mm)
• Custom (User adjustable from 0.35
× 0.35 inches to 8.5 × 14 inches)
After you choose a custom size, you can adjust the scanning area. Click and hold the mouse button as you drag the mouse to crop the image.
Width: Enter the width of the custom size.
Length: Enter the length of the custom size.
Business Card Size
To scan business cards, select the Business Card size setting (90
× 60 mm) and place the business card at the top center of a carrier sheet.
Carrier sheets are available from your Dealer.
When scanning photographs or other images for use in a word processor or other graphics application, it is a good idea to try different settings for the contrast, mode and resolution to determine which settings look best.
U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™ 17 - 10
BHL-FB-MFC-5100C-FM5.5
Adjust Image
Brightness
Adjust the brightness settings to obtain the best image. The Brother TWAIN
Scanner driver offers 100 brightness settings (-50 to 50). The default value is 0, representing an “average” setting.
You can set the Brightness level by dragging the slidebar to the right to lighten the image or to the left to darken the image. You can also type a value in the box to set the setting. Click OK.
If the scanned image is too light, set a lower Brightness value and scan the document again.
If the image is too dark, set a higher Brightness value and scan the document again.
Contrast
The Contrast setting is adjustable only when you have selected one of the gray scale settings, but it is not available when Black & White is selected as the Gray
Scale.
Increasing the Contrast level (by dragging the slidebar to the right) emphasizes dark and light areas of the image, while decreasing the Contrast level (by dragging the slidebar to the left) reveals more detail in gray areas. Instead of using the slidebar, you can type a value in the box to set the Contrast. Click OK.
Color Sync Dialog
17 - 11 U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™
BHL-FB-MFC-5100C-FM5.5
Perceptual Matching—All the colors of a given gamut are scaled proportionally to fit within another gamut. This intent pretty much maintain the balance between the colors in the image. This intent is the best choice for realistic images, such as scanned photographs.
Saturation Matching—The relative saturation of colors is maintained from gamut to gamut. So basically the colors are shifted to the edge of the gamut to get the most saturated color possible. Rendering the image using this intent gives the strongest colors and is the best choice for bar graphs and pie charts, in which the actual color displayed is less important than its vividness.
Relative Colorimetric Matching—The colors that fall within the gamuts of both devices are left unchanged. Some colors in both images will be exactly the same, a useful outcome when colors must match quantitatively. What that means is that if the color is inside the gamut, it will stay the same color. However, if the color is outside the gamut, it will be mapped to the edge of the gamut. This intent is best suited for logos or “spot colors” where color must match.
Absolute Colorimetric Matching—A close appearance match may be achieved over most of the tonal range, but if the minimum density of the idealized image is different from that of the output image, the areas of the image that are left blank will be different. Colors that fall within the gamuts of both devices are left unchanged.
Scanner Profile
Select your Brother MFC.
U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™ 17 - 12
BHL-FB-MFC-5100C-FM5.5
PreScanning an Image
PreScanning allows you to scan an image quickly at a low resolution. A thumbnail version will appear in the Scanning Area. This is only a preview of the image, so you can see how it will look. The PreScan button is used to preview an image for any unwanted portions. When you are satisfied with the preview, click Start to scan the image.
1 Insert the original face up in the ADF, or face down on the scanner glass.
2 Click PreScan.
The entire original will be scanned into your Macintosh G3 or iMac and will appear in the Scanning Area of the Scanner dialog box:
3 To scan a portion of the prescanned image, click and drag the mouse to crop it.
4 Insert the original face up in the ADF, or face down on the scanner glass again.
5 Adjust the settings for Resolution, Color Type (Gray Scale), Brightness,
Contrast, and Size in the Scanner Setup dialog box, as needed.
6 Click Start.
This time only the selected area of the original will appear in the Scanning Area.
7 In your editing software application, refine the image as usual.
17 - 13 U S I N G T H E B R O T H E R M F C W I T H A N E W P O W E R M A C I N T O S H ® G 3 , G 4 O R I M A C ™ / I B O O K ™
BHL-FB-MFC-5100C-FM5.5
18
18
Important Information
Standard Telephone and FCC Notices
These notices are in effect on models sold and used in the United States only.
When programming emergency numbers and/or making test calls to emergency numbers:
■
Remain on the line and briefly explain to the dispatcher the reason for the call before hanging up.
■
Perform these activities in the off-peak hours, such as early morning or late evening.
This equipment complies with Part 68 of FCC Rules. On the rear panel of this equipment is a label that contains, among other information, the FCC
Registration Number and Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.
You may safely connect this equipment to the telephone line by means of a standard modular jack, USOC RJ11C.
An FCC compliant telephone cord with a modular plug is provided with this equipment. This equipment is designed to be connected to the telephone line or premises wiring using a compatible modular jack that is Part 68 compliant. See the Installation section of this manual for details.
The REN is useful to determine the quantity of devices you may connect to your telephone line and still have those devices ring when your telephone number is called. In most, but not all areas, the sum of the RENs of all devices connected to one line should not exceed five (5). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area. If your MFC-5100C damages the telephone line, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advanced notice is not practical, you will be notified as soon as possible. You will be informed of your right to file a complaint with the FCC.
Your telephone company may make changes to its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.
BHL-FB-MFC-5100C-FM5.5
I M P O R T A N T I N F O R M A T I O N 18 - 1
If you experience trouble with your MFC-5100C, please contact a Brother
Authorized Service Center for information on obtaining service or repair. The telephone company may ask that you disconnect this equipment from the line until the problem has been corrected or until you are sure that the equipment is not malfunctioning.
If you are not able to solve a problem with your MFC, contact Brother Customer
Service. (See Brother Numbers , page i.)
WARNING
For protection against the risk of electrical shock, always disconnect all cables from the wall outlet before servicing, modifying or installing the equipment.
This equipment may not be used on coin service lines provided by the telephone company or connected to party lines.
Brother cannot accept any financial or other responsibilities that may be the result of your use of this information, including direct, special or consequential damages. There are no warranties extended or granted by this document.
WARNING
Important—About the Interface Cable
This machine has been certified to comply with FCC standards, which are applied to the USA only. The filter core supplied with your MFC should be attached to the shielded interface cable according to FCC 15,27 (a). In addition, a grounded plug should be plugged into a grounded AC outlet after checking the rating of the local power supply for the printer to operate properly and safely.
Federal Communications Commission (FCC)
Declaration of Conformity (For USA Only)
Responsible
Party:
Brother International Corporation
100 Somerset Corporate Boulevard
Bridgewater, NJ 08807-0911 USA
TEL: (908) 704-1700 declares, that the products
Product Name: MFC-5100C comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
18 - 2 I M P O R T A N T I N F O R M A T I O N
BHL-FB-MFC-5100C-FM5.5
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■
Consult the dealer or an experienced radio/TV technician for help.
Important
Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user’s authority to operate the equipment.
Industry Canada Compliance Statement
(For Canada Only)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
International E
NERGY
S
TAR
®
Compliance
Statement
As an E
NERGY
S
TAR
® Partner, Brother Industries,
Ltd. has determined that product meets the
E
NERGY
S
TAR
® guidelines for energy efficiency.
BHL-FB-MFC-5100C-FM5.5
I M P O R T A N T I N F O R M A T I O N 18 - 3
Important Safety Instructions
1 Read all of these instructions.
2 Save them for later reference.
3 Follow all warnings and instructions marked on the product.
4 Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
5 Do not use this product near water.
6 Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
7 Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heater. This product should never be placed in a built-in installation unless proper ventilation is provided.
8 This product should be operated from the type of power source indicated on the label. If you are not sure of the type of power available, consult your dealer or local power company.
9 This product is equipped with a 3-wire grounding type plug, a plug having a third
(grounding) pin. This plug will fit into only a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.
10 Do not allow anything to rest on the power cord. Do not place this product where people can walk on the cord.
11 If an extension cord is used with this product, make sure that the total ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampere rating.
Also, make sure that the total of all products plugged into the wall outlet does not exceed
15 amperes (USA only).
12 Do not place anything in front of the machine that will block received faxes. Do not place anything in the path of received faxes.
13 Wait until pages have exited the machine before picking them up.
14 Never push objects of any kind into this product through cabinet slots, since they may touch dangerous voltage points or short out parts resulting in the risk of fire or electric shock.
Never spill liquid of any kind on the product.
15 Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points and/or other risks, and may void your warranty. Refer all servicing to Authorized Service Personnel. A list of Authorized Service Centers has been included for your convenience, or you may contact Customer Service for your nearest
Brother Authorized Service Center. (See Brother Numbers , page i. )
16 This product does not have an ON/OFF switch. Therefore, it is very important that you have easy access to the main plug and the main socket to which the plug is connected, in case the main power to the MFC must be disconnected quickly.
17 Unplug this product from the wall outlet and refer servicing to Authorized Service
Personnel under the following conditions:
A When the power cord is damaged or frayed.
B If liquid has been spilled into the product.
C If the product has been exposed to rain or water.
D If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions.
Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
E If the product has been dropped or the cabinet has been damaged.
F If the product exhibits a distinct change in performance, indicating a need for service.
18 To protect your product against power surges, we recommend the use of a power protection device (Surge Protector).
18 - 4 I M P O R T A N T I N F O R M A T I O N
BHL-FB-MFC-5100C-FM5.5
Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd.
Brother is a registered trademark of Brother Industries, Ltd.
Multi-Function Link is a registered trademark of Brother Industries, Ltd.
© Copyright 2000 Brother Industries, Ltd. All rights reserved.
Windows and Windows NT, Microsoft, MS-DOS, Excel and Word are registered trademarks of Microsoft in the U.S. and other countries.
Macintosh and QuickDraw are a registered trademarks and iMac and iBook are trademarks of Apple Computer, Inc.
PaperPort and TextBridge are registered trademarks of ScanSoft, Inc.
IBM, IBM PC and Proprinter are registered trademarks of International
Business Machines Corporation.
Hammermill and JetPrint PHOTO are a registered trademark of International
Paper.
Each company whose software title is mentioned in this manual has a Software
License Agreement specific to its proprietary programs.
All other brand and product names mentioned in this manual are registered trademarks of their respective companies.
BHL-FB-MFC-5100C-FM5.5
I M P O R T A N T I N F O R M A T I O N 18 - 5
19
19
Troubleshooting and
Routine Maintenance
Troubleshooting
IMPORTANT
For technical and operational assistance, you must call the country where you purchased the MFC. Calls must be made from within that country.
Error Messages
As with any sophisticated office product, errors may sometimes occur. If this happens, your MFC often identifies the problem and displays an error message.
The table below explains the most common error messages.
You can correct most problems by yourself. If you need additional help, call the
Brother fax-back system.
In USA:
Or, visit us at:
1-800-521-2846 http://solutions.brother.com
ERROR MESSAGES
ERROR MESSAGE CAUSE ACTION
CHECK
CARTRIDGE
CONNECTION
FAIL
COVER OPEN
An ink cartridge is not installed properly.
Re-install the ink, seating it properly. See
CHECK ORIGINAL Original was not inserted or fed properly, or document scanned from ADF was longer than about 40 inches (90cm).
CHECK PAPER
SIZE
CHECK PAPER
COMM. ERROR
DISCONNECTED
HIGH
TEMPERATURE
You paper is not correct size.
MFC is out of paper.
Poor phone line quality caused communication error.
Reload the correct paper, and then press
Black Fax Start.
Add paper, and then press Black Fax Start.
Try the call again. If problem continues, call the telephone company to check your phone line.
You tried to poll a fax machine that is not in
Polled Waiting mode.
Verify the other party’s polling setup.
The scanner cover is not closed completely.
Pull the Scanner Cover Release Button and lift the top cover, then close it.
Try to transmit or receive again.
The other party or other party’s fax machine terminated the call.
The print head detects high temperature.
Use the MFC at the cool room or cool your room.
19 - 1 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
ERROR MESSAGE
INK EMPTY
LOW
TEMPERATURE
MACHINE ERROR
XX
ERROR MESSAGES
CAUSE
One or more of the ink cartridges are empty. The MFC will stop all print operations (such as printing copies, faxes and jobs from the PC). While memory is available, black and white faxes will be received into memory. If a sending machine has a color fax, the MFC’s
“handshake” will request that the fax be sent as black and white; if the sending machine has the feature to convert it, the color fax will be received into memory as a black and white fax. MFCs connected with a USB cable will be able to perform scan operations; MFCs connected with a parallel cable, will not scan.
To preserve good quality, the MFC periodically cleans the print head. Also, you can press Ink to start the cleaning when needed. This cleaning process uses up ink and can cause the ink to run out.
The print head detects low temperature.
ACTION
Replace the ink cartridges. See page. 19-16.
MFC has a mechanical problem.
Use the MFC at the warm room or warm your room.
Call Brother Customer Service.
In USA: 1-800-284-4329
In Canada:
In Montreal:
1-877-BROTHER
1-514-685-6464
Order a new ink cartridge. See page. ii.
NEAR EMPTY
NO RESPONSE/
BUSY
One or more of the ink cartridges are running out of ink. The MFC will stop receiving color faxes. The MFC’s
“handshake” will request that it be sent in black and white; if the sending machine has the feature to convert it, the color fax will be received into memory as a black and white fax.
The number you dialed does not answer or is busy.
NOT REGISTERED You tried to access a Speed Dial number that is not programmed.
OUT OF MEMORY The data is too large for the MFC’s memory.
PAPER JAM
DOC. COVER
OPEN
The paper is jammed in the MFC.
The document cover is open.
Verify the number and try again.
Set up the Speed Dial number.
Remove any paper from the ADF and close the document cover.
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 2
BHL-FB-MFC-5100C-FM5.5
Original Jams and Paper Jams
Based upon where the original or printed sheet is jammed, follow the appropriate set of instructions to remove it.
Original is Jammed in the top of the ADF Unit
1 Remove any paper from the ADF that is not jammed.
2 Lift the ADF cover
3 Pull the jammed original out to the right.
4 Close the ADF cover.
5 Press Stop/Exit.
Original is Jammed inside the ADF Unit
1 Remove any paper from the
ADF that is not jammed.
2 Lift the document cover.
3 Pull the jammed original out to the right.
4 Close the document cover.
5 Press Stop/Exit.
19 - 3 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
Printer Jam or Paper Jam
Remove the jammed paper depending on where it is jammed in the MFC.
Paper is jammed in the multi-purpose sheet feeder.
1 Remove any paper from the multipurpose sheet feeder that is not jammed.
2 Pull up the jammed paper to remove it.
Note
If you have difficulty removing the jammed paper, press and hold the Paper
Release Lever as you pull out the page.
Paper
Release
Lever
Note
To improve the reliability of paper feeding, turn on Secure Feed mode by pressing the Ink and Scan to keys simultaneously. The MFC will then feed paper more securely, but paper feeding will take a longer time. To turn off the Secure Feed mode, simultaneously press Ink and Scan to again.
Note
If PAPER JAM occurs frequently, install the Card Stock Support in the feeder and reload the paper.
Or, try reloading the paper upsidedown.
Card Stock Support
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 4
BHL-FB-MFC-5100C-FM5.5
Paper is jammed inside the MFC.
1 Open the Scanner Cover by releasing the Scanner Cover release lever and lifting the
Scanner Cover.
2 Remove the jammed paper.
Note p
If the jammed paper is under the Print Head, unplug the
MFC, and then you can move the Print Head to remove the paper.
3 Close the Scanner Cover.
Paper is jammed inside the front of the MFC.
Pull the paper toward you.
Scanner Cover
19 - 5 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
Paper is jammed inside the back of the MFC.
If the paper rips, the pieces of paper may get stuck inside the back of the machine.
1 Remove any paper from the multi-purpose sheet feeder that is not jammed.
2 Open the paper jam cover.
3 To loosen the paper, slide the paper width guide to the widest position.
Paper Width Guides
4 Use tweezers to pull out the ripped pieces of paper.
5 Close the paper jam cover.
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 6
BHL-FB-MFC-5100C-FM5.5
If You Are Having Difficulty with Your MFC
If you think there is a problem with your MFC, make a copy first. If the copy looks good, the problem is probably not your MFC. Check the chart below and follow the troubleshooting tips.
If you have any other problems, visit us at: http://solutions.brother.com
DIFFICULTY
Printing or Receiving Faxes
SUGGESTIONS
Condensed Print and Horizontal
Streaks / Top and Bottom of
Sentences Are Cut Off
Poor Quality Print
Smudged stain on the top center of the printer page
Printing Too Dark or Too Light
Printing Appears Dirty or Ink Seems to Run
If your copy looks good, you probably had a bad connection, with static or interference on the phone line. If the copy looks bad, call Brother Customer
Service at 1-800-284-4329 (in USA), 1-877-BROTHER (in Canada) or
1-514-685-6464 (in Montreal).
Make sure the Printer Driver matches the type of paper you are using (see
page 12-2). If you are using plain paper, try using recommended special
paper (see Chapter 2). Don’t handle the paper until the ink is dry. Adjust
the Vertical Alignment ( See Print Quality Check, page 19-10).
Change Paper Thickness to Thick in the Paper tab of the Print dialog box, in the Printer Driver setting.
Make sure your ink cartridges are fresh. Cartridges are good up to two years, after that the ink may become clogged. Cartridge expiration dates are printed on the package. Make sure the Printer Driver matches the type of
paper you are using (see page 12-2). Try using recommended special paper
(see Chapter 2). The recommended environment for your MFC is between
68°F to 91°F.
Make sure you are using the recommended paper (see Chapter 2). Don’t
handle the paper until the ink is dry.
The recommended environment for your MFC is between 68°F to 91°F.
Clean the print head (See Cleaning the Print Heads, page 19-9).
White Lines in Text or Graphics
Stains Appear on the Reverse Side or at the Bottom of the Page
Make sure the Printer Platen and Pick Up Roller are not dirty with ink mist.
Vertical Black Lines When Receiving The sender’s scanner may be dirty. Ask the sender to make a copy to see if the problem is with the sending machine. Try receiving from another fax machine.
If the problem continues, call Brother Customer Service at 1-800-284-4329
(in USA), 1-877-BROTHER (in Canada) or 1-514-685-6464 (in
Montreal).
Received color fax prints only in
B & W.
Left and Right margins are cut off
Replace the color ink cartridges that are empty or nearly empty, and then
ask the other party to send the color fax again. (See Replacing the Ink
Turn on Auto Reduction. (See Printing a Reduced Incoming Fax (Auto
Phone Line or Connections
MFC Does Not Answer When Called Make sure the MFC is in the correct receiving mode for your setup (either
MANUAL , FAX ONLY , or EXT. TEL/TAD ). Check for dial tone. If possible, call your MFC to hear it answer. If there is still no answer, check the telephone line cord connection. If there is no ringing when you call your
MFC, call your telephone company to check the line.
Sending Faxes
Poor Transmitting Quality Try changing your resolution to FINE or S.FINE
. Make a copy to verify your MFC’s scanner operation.
19 - 7 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
DIFFICULTY
Transmission Verification Report says “Result:NG”
Vertical Black Lines When Sending
SUGGESTIONS
There is probably temporary noise or static on the line. Try sending the fax again. If you send a PC FAX message and get “Result:NG” on the
Transmission Verification Report, your MFC may be out of memory. To
gain extra memory, you can turn off Fax Storage (See page 8-2), print fax
message in memory (See page 5-4) or cancel a delayed fax or polling job
(See page 5-6). If the problem continues, call the telephone company to
check your phone line.
If the copy you made shows the same problem, your scanner is dirty
(See Cleaning the Scanner, page 19-15).
Handling Incoming Calls
MFC “Hears” Voice as CNG Tone
Transferring a Fax Call to the MFC
Custom Features on a Single Line
If your MFC is set to Easy Receive ON, it is more sensitive to sounds. Your
MFC may mistakenly interpret certain voices or music on the line as a calling fax machine and respond with fax receiving tones. Deactivate the fax by pressing Stop/Exit. Try avoiding this problem by turning Easy
Receive to OFF. (See Easy Receive, page 5-3.)
If you answered at the MFC, press Black Fax Start and hang up immediately. If you answered at an extension phone, press your Fax
Receive Code (default setting is 51). When your MFC answers, hang up.
If you have Call Waiting, Caller ID, Call Waiting/Caller ID, Ring Master,
Voice Mail, an alarm system or any other custom feature on a single phone line with your MFC, it may create a problem sending or receiving fax data.
For example: If you are sending or receiving a fax message while a custom feature signal comes through on the line, the signal can temporarily interrupt or disrupt the fax data. Brother’s ECM feature should help overcome this problem. This condition is related to the telephone system industry and is common to all devices that send and receive information on a single, shared line with custom features. If avoiding a slight interruption is crucial to your business, a separate line with no custom features is recommended.
Printer Difficulties
Horizontal lines appear in Text or
Graphics.
Clean the print head (See Cleaning the Print Heads, page 19-9). If you
clean the print heads five times and the print has not improved, call Brother
Customer Service at 1-800-284-4329 (in USA), 1-877-BROTHER ( in
Canada) or 1-514-685-6464 (in Montreal).
Scanning Difficulties
TWAIN Errors appear while scanning Make sure the Brother TWAIN Driver is selected as the primary source. In
PaperPort ® , click File Select Source, highlight the Brother TWAIN Driver and click Select.
Software Difficulties
Cannot perform ‘2 in 1’ printing.
Check that the paper size setting in the application and in the printer driver are the same.
Cannot print when using Paint Brush.
Try setting the Display setting to ‘256 colors.’
Try to reduce the printing resolution.
Cannot print when using Adobe
Illustrator.
Thick line and thin line appear alternately. (banding)
There are some dense lines.
When using ATM fonts, some characters are missing or some characters are printed in the same place.
Turn OFF ‘Bi-Directional Printing’ from the ‘Quality/Color’ tab in the printer driver.
Turn ON ‘Reverse Order’ from the ‘Paper’ tab in the printer driver.
If you are using Windows ® 95 or 98, select ‘Printer Settings’ from the
‘Start’ menu. Open ‘Brother XXXX’ properties. Click ‘Spool Setting’ on the ‘Details’ tab. Select ‘RAW’ from ‘Spool Data Format.’
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 8
BHL-FB-MFC-5100C-FM5.5
DIFFICULTY
Printing is slow.
True2Life is not working correctly.
“Unable to write to LPT1” or “LPT1 already in use” Error Message appears.
“MFC is Busy” or “MFC Connect
Failure” Error Message appears.
“MFC Connect Failure”
SUGGESTIONS
In the Quality/Color tab of the Print dialog box, select Auto in the
Document section.
If the image data is not full color (such as 256 color) in your application,
True2Life does not function. Please use at least 24 bit color data with the
True2Life feature.
1.Make sure the MFC is on (plugged into the AC outlet) and that it is connected directly to the computer using the IEEE-1284 bi-directional parallel cable. The cable must not go through another peripheral device
(such as a Zip Drive, External CD-ROM Drive, or Switch box).
2.Make sure the MFC is not displaying an error message on the LCD.
3.Make sure no other device drivers, which also communicate through the parallel port, are running automatically when you boot up the computer
(such as, drivers for Zip Drivers, External CD-ROM Drive, etc.).
Suggested areas to check: (Load=, Run=command lines in the win.ini file or the Startup Group).
4.Check with you computer manufacturer to confirm that the computer’s parallel port settings in the BIOS are set to support a bi-directional machine, i.e., Parallel Port Mode-ECP
If the MFC is not connected to your PC and you have loaded the Brother software, the PC will show “MFC Connect Failure” each time you restart
Windows
®
. You can ignore this message or you can turn it off by deselect the AutoLoad PopUp check box in the Brother Control Center chapter.
(See How to Turn Off AutoLoad, page 13-2.)
How to Improve Print Quality
Cleaning the Print Heads
Clean the print head if you get a horizontal line in the text or graphics on your printed pages. There are two print heads; each contains two print cartridges. You can clean either black and cyan, yellow and magenta or all four colors by pressing Ink.
Caution
Do NOT clean the print head by touching it with your hand or a cloth.
1 Press Ink.
2 Press 1 to choose 1.CLEANING
.
3 Press or
to choose the color you want to clean, and then press Menu/Set.
The MFC will clean the print head automatically. When cleaning is finished, the
MFC will go back online automatically.
Note
If you clean the print head at least five times and the print has not improved, call
Brother Customer Service for assistance at 1-800-284-4329 (in USA),
1-800-853-6660 (in Canada), or 1-514-685-6464 (in Montreal).
19 - 9 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
1
2
Print Quality Check
If the print quality is not satisfactory, you can print a Print Quality Check Sheet to help you identify settings you may need to change.
Press Menu/Set , 4 .
4.TEST PRINT
Press Black Fax Start .
The MFC begins printing the Print Quality Check Sheet.
The LCD shows:
IS STEP “A” OK?
1.YES 2.NO
3 Check the sheet to see if the quality and alignment are OK by following STEPs
A and B.
STEP A: Color Block Quality Check
The LCD shows:
IS STEP “A” OK?
1.YES 2.NO
Check the quality of the four color blocks in the sheet. (BLACK/CYAN/
YELLOW/MAGENTA).
If the quality is OK for all colors, press 1 ( YES ) to go to STEP B –– OR ––
If white horizontal lines appear in some color blocks below, press 2 ( NO ).
OK Poor
The LCD will ask you if the print quality is OK for each color.
BLACK OK?
1.YES 2.NO
Press 2 ( NO ) for any color with a problem.
The LCD shows: START CLEANING?
1.YES 2.NO
Press 1 ( YES ). the MFC will start cleaning the colors.
After cleaning is finished, press Black Fax Start . The MFC will start printing the Print Quality Check Sheet again and then return to STEP A . If STEP A is
OK, press 1 to proceed to STEP B .
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 10
STEP B: Alignment Check
The LCD shows:
I S S T E P “ B ” O K ?
1 . Y E S 2 . N O
Check the 600 DPI and 1200 DPI test prints to see if number 5 most closely matches number 0. If the number 5 sample of both the 600 DPI and 1200 DPI are the best matches, press 1 ( YES ) to finish STEP B––OR––
If another test print number is a better match for either 600 DPI or 1200 DPI, press 2 ( NO ) to select it.
Do NOT select
}
600 DPI
}
1200 DPI
For 600 DPI, press the number of the test print that most closely matches the number 0 sample (1-8).
6 0 0 D P I A D J U S T
S E L E C T B E S T #
For 1200 DPI, press the number of the test print that most closly matches the number 0 sample (1-8).
1 2 0 0 D P I A D J U S T
S E L E C T B E S T #
4 Repeat Steps 1 and 2 (in Print Quality Check) to print another sample Print
Quality Check Sheet and then check it.
5 Press Stop/Exit.
When an ink head nozzle is clogged the printed sample looks like this.
After the ink head nozzle is cleaned, the horizontal lines are gone.
19 - 11 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
If you still see missing ink in this Print Quality Check Sheet, repeat the cleaning and test print procedures at least five times. If ink is still missing after the fifth cleaning and test print, replace the ink cartridge for the clogged color. (Perhaps the ink cartridge was in your MFC over six months or the expiration date written on the cartridge package has passed. Or, the ink may not have been stored properly before use.)
After replacing the ink cartridge, check it by printing another Print Quality
Check Sheet. If the problem still exists, repeat the cleaning and test print procedures at least five times for the new ink cartridge. If ink is still missing, call Customer Service at 1-800-284-4329 (in USA), 1-877-BROTHER (in
Canada ) or 1-514-685-6464 (in Montreal).
Caution
Do NOT touch the print head. Touching the print head may cause permanent damage and may void the print head’s warranty.
Packing and Shipping the MFC
Whenever you transport the MFC, use the packing materials that came with your
MFC. If you do not pack the MFC correctly, you could void your warranty.
Caution
■ Do NOT unplug the MFC after a print job until you hear the final click.
1 Remove all the ink cartridges and attach the white shipping cover.
To attach the white shipping cover
2 Attach the protective yellow bar.
Protective
Yellow Bar
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 12
BHL-FB-MFC-5100C-FM5.5
3 Unplug the MFC from the telephone wall socket.
4 Unplug the MFC from the AC outlet.
5 Unplug the Parallel cable or USB cable from the MFC.
6 Remove the telephone line cord, and place them in original packing materials or protective wrapping.
7 Wrap the MFC in the plastic bag.
8 Place the MFC in the original carton with the original packing material.
19 - 13 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
9 Pack additional parts
(cord and printed materials) in the carton.
DO NOT pack the used ink cartridges.
Note
If you are returning the MFC to Brother as part of the Brother Exchange
Service, pack only the MFC. Keep all separate parts to use with your
“Exchange” machine.
10 Close the carton.
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 14
BHL-FB-MFC-5100C-FM5.5
Routine Maintenance
Cleaning the Scanner
Unplug the MFC and lift the document cover. Clean the scanner glass and the white film with isopropyl alcohol on a lint-free cloth.
White Film
Document
Cover
Open the ADF cover. Clean the white bar and the glass strip under the bar with isopropyl alcohol on a lint-free cloth.
White Bar
Glass Strip
19 - 15 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
Cleaning the MFC Printer Platen
WARNING
■ Be careful not to touch the paper feed star wheels and flat cable, and encode film.
■ Be sure to unplug the MFC from the AC power outlet before cleaning the printer platen.
To clean your MFC printer platen, wipe it with a lint free cloth that is dry.
Paper Feed Star Wheel
Do NOT Touch!
Encode Film
Do NOT Touch!
Clean Here
Flat Cable
Do NOT Touch!
Replacing the Ink Cartridges
Your MFC is equipped with an ink dot counter that automatically monitors the ink level in each color cartridge. When the counter detects an ink cartridge is running out of ink, the MFC will notify you with a message on the LCD.
The LCD shows you which color cartridges are low or empty. Be sure to follow the LCD prompts so you replace the color cartridges in the appropriate order.
When the ink cartridges are running low, you must use Ink to begin the cartridge replacement (Steps 1 to 3). If the ink is empty, skip to Step 4.
1 Press Ink.
2 Press 2 to choose 2. REPLACE INK .
If one or more ink cartridges are empty, for example Black, the LCD shows INK
EMPTY BLACK and PLS OPEN COVER .
3 Pull the Scanner cover release lever and lift the Scanner cover.
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 16
BHL-FB-MFC-5100C-FM5.5
4 Press the appropriate colored ink cartridge cover to open it, and then remove the ink cartridge.
PUSH PUSH PUSH PUSH
5 Open the new ink cartridge bag for the color shown on the LCD, and then take out the ink cartridge.
6 Hold the new ink cartridge as shown in the illustration, and then peel the sealing tape from the side of the ink cartridge.
Carefully peel the tape in the direction away from you.
Peel in the direction away from you!
Opening
Note
To prevent spilling ink and staining your hands and clothing, remove the sealing tape gently.
7 Each color has its own correct position. Insert the new ink cartridge into its carriage, and then close the ink cartridge cover by pressing until it clicks.
8 After installing the ink cartridges, close the Scanner cover. Your MFC prepares for a “head cleaning” and goes online. The LCD prompts you to verify a new ink cartridge was inserted for each color you removed. Example: DID YOU
CHANGE BLCK? 1. YES 2. NO .
If the ink cartridge you installed is not a brand new one, please make sure to select 2.
9 For each new cartridge, press 1 on the dial pad to reset the ink dot counter for that color automatically.
19 - 17 T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
BHL-FB-MFC-5100C-FM5.5
The MFC will enter a cleaning cycle for approximately 3 minutes for each replaced cartridge. The LCD alternately shows CLEANING and PLEASE
WAIT .
When the MFC completes the cleaning cycle, the LCD returns to Standby mode
(date and time).
WARNING
If ink gets in your eyes, irrigate them with water immediately and consult a doctor if you are concerned.
Caution
■
DO NOT remove ink cartridges if you do not need to replace them. If you do so, it may reduce the ink quantity and the printer will not know the quantity of ink left in the cartridge.
■
DO NOT shake the ink cartridges, because the ink may spill when you take off the sealing tape.
■ If ink stains your body or clothing, wash with soap or detergent immediately.
■ If you install an ink cartridge in the wrong color position, you must clean the print head several times before you start printing (after correcting the cartridge installation) because the colors were mixed.
■
Once you open an ink cartridge, install it in the MFC and use it up within six months of installation. Use unopened ink cartridges by the expiration date written on the cartridge package.
■
DO NOT refill the ink cartridges. Attempting to use refilled cartridges and using incompatible inks may cause damage to the print head in this machine and such damage will not be covered by warranty. Warranty coverage does not apply to problems caused by the use of 3rd party ink or 3rd party ink cartridges. Use only genuine Brother ink cartridges.
Note
If the INK EMPTY message is on the display after you have installed ink cartridges, check that the ink cartridges are installed correctly.
If you still cannot solve a problem with your MFC, call Brother Customer
Service (See Brother Numbers , page i).
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E 19 - 18
BHL-FB-MFC-5100C-FM5.5
S
S
Specifications
Product Description
Fax
The MFC-5100C is a 5in1 Multi-Function Center: Color Printer, Color Copier
(multiple copies), Color Scanner, Plain Paper Fax and Color PC Fax (via your PC).
Compatibility
Coding System
Modem Speed
Document Size
Scanning Width
Printing Width
Automatic Document
Feeder (ADF)
Multi-purpose Sheet
Feeder
Printer Type
Gray Scale
Display
Polling Types
Contrast Control
Resolution
ITU-T Group 3
MH/MR/MMR/JPEG
14400/12000/9600/7200/4800/2400
Automatic Fallback
ADF Width: 5.8" to 8.5" (148 mm to 216 mm)
ADF Length: 5.7" to 14.0" (145 mm to 356 mm)
Scanner Width: Max. 8.5" (216 mm)
Scanner Length: Max. 11.7" (297 mm)
8.2 inches (208 mm)
8 inches (203.2 mm) up to 30 sheets (20 lb.)
100 Sheets (20 lbs.)
Ink Jet
256 levels (Error Diffusion)
LCD, 16 characters
Standard, Sequential
Automatic/Super Light/Super Dark
(manual setting)
• Horizontal 203 dot/inch (8 dot/mm)
• Vertical Standard — 98 line/inch (Black)
(3.85 line/mm)
— 196 line/inch (Color)
Fine
(7.7 line/mm)
— 196 line/inch (Black/Color)
(7.7 line/mm)
Photo — 196 line/inch (Black)
(7.7 line/mm)
Superfine — 392 line/inch (Black)
(15.4 line/mm)
S - 1 S P E C I F I C A T I O N S
BHL-FB-MFC-5100C-FM5.5
Fax (Continued)
Memory Capacity
Speed Dial
Automatic Redial
4 MB (up to 200 pages*)
40 stations
3 times at 5 minute intervals
Auto Answer 0, 1, 2, 3, 4 or 5 rings
Communication Source Public switched telephone network
Operating Environment 50–95° F (10–35° C)
Best Print Quality 68–91° F (20–33° C)
Power Source
Power Consumption
Dimensions
Weight
120V AC 50/60Hz
(USA, Canadian Version Only)
Standby: under 13.5 watts
Operating: under 40.0 watts
18.4
× 18.4 × 14.5 (inches)
468 × 467 × 368 (mm)
24.3 1b/11 kg
* “Pages” refers to the “Brother Standard Chart No. 1” (a typical business letter, Standard resolution, MMR code). Specifications and printed materials are subject to change without prior notice.
Printer
Printing
Print Method
Resolution
Print Speed
Print Width
Disk-Based Fonts
Piezo with 75 × 4 nozzles
2400
× 1200 dots per inch (DPI)
1200 × 1200 dots per inch (DPI)
600
× 600 dots per inch (DPI)
600 × 300 dots per inch (DPI)
600
× 150 dots per inch (DPI) up to 10 pages/minute (Mono) up to 8 pages/minute (Color)
8 inches (203.2 mm)
35
S P E C I F I C A T I O N S S - 2
BHL-FB-MFC-5100C-FM5.5
Controller
Parallel Interface
USB Interface
A bi-directional shielded parallel that is
IEEE 1284 compliant and no longer than 6 feet
(1.8m). You must attach the bundled filter core and filter tie.
A Standard Universal Serial Bus cable that is no longer than 6 feet (1.8m).
Note
To meet FCC emission requirements for the MFC, you must attach the bundled filter core and cable tie to the Parallel cable.
Computer Requirements
Windows
®
Operating
Systems
Computer Platform
& Operating System Version
95, 98, 98SE
Me
NT
®
Workstation 4.0
2000 Professional
XP
Minimum System Requirements
Processor
Minimum Speed
Minimum Recommended
RAM RAM
Available Hard
Disk Space
Pentium 75MHz
Pentium 150MHz
24MB 32MB
Pentium 75MHz
Pentium 133MHz
Pentium 233MHz
32MB
64MB
64MB
128MB
50MB
OS 8.5 – 8.51 (Printing Only)
Apple iMac TM /iBook TM /
G3/G4 Operating
Systems
OS 8.6 – 9.2
(Printing and Scanning)
All base models meet minimun requirements
Mac OS X v.10/10.1 (Printing Only)
NOTE: USB is not supported under Windows
®
95 or Windows NT
®
4.0
All registered trademarks referenced herein are the property of their respective companies.
Printer Driver can be downloaded from http://solutions.brother.com
50MB
S - 3 S P E C I F I C A T I O N S
BHL-FB-MFC-5100C-FM5.5
Print Media
Paper Input
Paper Output
Automatic loading from the Multi-Purpose
Sheet Feeder
■
Paper type:
Plain paper, inkjet paper (coated paper), glossy paper, transparencies and envelopes
■
Paper size:
Letter, Legal, A4, A5, B5, Executive, envelopes (commercial No. 10, DL, C5),
Postcard, Index card.
Width 3.5–8.5" (89–216 mm)
Length 5.0–14" (127–356 mm)
Weight 17–32 lb (64–120 g/m 2 )
Thickness 0.003–0.006" (0.08–0.15 mm) envelopes: up to 0.02" (0.52 mm) postcard: up to 0.009" (0.23 mm) index card: up to 0.006" (0.15 mm)
■
Maximum feeder capacity: Approx. 100 sheets of 20 lb (75 g/m 2 ) plain paper.
Approximately 50 sheets of plain paper
(Face up print delivery to the paper output tray)
To prevent smearing the ink, we recommend removing printed pages from the paper output tray immediately after they exit the machine.
Consumable Items
Ink
Service Life of Ink
Cartridge
Black and 3 individual color ink cartridges separate from the two print heads.
Approximately 950 page/Black cartridge at 5% coverage with 600 × 150dpi resolution (Draft).
Note
Approximately 450 page/Color cartridge at 5% coverage with 600
× 150dpi resolution (Draft).
These numbers are based on consecutive printing; the numbers will vary based on print frequency and number of pages.
The MFC periodically cleans the print head to maintain print quality. This process consumes a small amount of ink.
S P E C I F I C A T I O N S S - 4
BHL-FB-MFC-5100C-FM5.5
G
Glossary
ADF (Automatic Document Feeder) Refers to the number of pages that can be placed in the document feeder and fed one at a time automatically.
Auto Dial List A listing of names and numbers stored in Speed Dial memory, in numerical order.
Automatic E-Mail Printing Software application that automatically prints incoming e-mail messages on the MFC (on the CD-ROM).
automatic fax transmission Sending a fax without picking up the handset of an external or extention phone.
Automatic Redial A feature that enables your MFC to redial the last fax number if the original fax did not go through because the line was busy.
Backup Print Sets your MFC to print a copy of every fax that is received and stored in memory.
This is a safety feature so you will not lose messaage during a power failure.
beeper The sound the keys make when they are pressed, an error occurs or a document has been received or transmitted.
beeper volume Volume setting for the beep when you press a key or make an error.
Brightness Changing the Brightness makes the whole image lighter or darker.
Broadcasting The ability to send the same fax message to more than one location.
Cancel Job Cancels a programmed job, like Delayed Fax or Polling.
CNG tones The special tones (beeps) sent by fax machines during automatic transmission to tell the receiving machine that they are a from fax machine.
communication error (or Comm. Error) An error during fax sending or receiving, usually caused by line noise or static.
Coding Method Method of coding the information contained in a document. All fax machines must use a minimum standard of Modified Huffman (MH). Your fax machine is capable of greater compression methods, Modified Read (MR) and Modified Modified Read (MMR), if the receiving machine has the same capability.
Compatibility Group The ability of one fax unit to communicate with another. Compatibility is assured between ITU-T Groups.
Contrast Setting to compensate for dark or light documents, by lightening dark documents or darkening light documents.
Delayed Fax Sends your fax at a later time that day.
Distinctive Ring A service purchased from the Telephone Company that provides another phone number on an existing phone line. The Brother MFC uses the new number to simulate a dedicated fax line.
Dual Access Your MFC can scan outgoing faxes or scheduled jobs into memory at the same time it is sending a fax or receiving or printing an incoming fax.
G - 1 G L O S S A R Y
BHL-FB-MFC-5100C-FM5.5
Easy Receive Enables your MFC to respond to CNG tones if you interrupt a fax call by answering it.
ECM (Error Correction Mode) Detects errors during fax transmission and resends the page(s) of the document that had an error.
E-Mail Printing Software application that automatically retrieves your e-mail messages from your POP3 server and prints them on your MFC.
extension phone A telephone on the fax number that is plugged into a separate wall jack.
external phone A TAD (telephone answering device) or telephone that is plugged into the
EXT jack of your MFC.
Fax Activity Report Lists information about the last 200 incoming and outgoing faxes. TX means Transmit. RX means Receive.
Fax Forwarding Sends a fax received in memory to another preprogrammed fax number.
Fax Storage You can print stored faxes later, or retrieve them from another location using Fax
Forwarding, Paging, or Remote Retrieval functions.
fax tones The signals sent by sending and receiving fax machines while communicating information.
Fine Mode Resolution is 196
×
203 dpi. It is used for small print and graphs.
gray scale The shades of gray available for copying and faxing photographs.
group number A combination of Speed Dial numbers that are stored on a Speed Dial for
Broadcasting.
Ink button Cleans the print head and/or resets the ink dot counter after replacing an ink cartridge.
interval The preprogrammed time period between automatically printed Activity Reports. You can print Activity Reports on demand without interrupting this cycle.
LCD (liquid crystal display) The display screen on the MFC that shows interactive messages during On-Screen Programming and defaults to the date and time when the machine is idle.
manual fax When you lift the handset of your external telephone so you can hear the receiving fax machine answer before you press Start to begin transmission.
Multi-Function Link Pro ® Suite Turns your MFC into a printer and a scanner and enables PC faxing using the MFC.
Next Fax Reservation Dual Access accepts the next original in the ADF for transmission while the Memory is full.
OCR (optical character recognition) The bundled ScanSoft™ TextBridge ® software application converts an image of text to text you can edit.
Out of Paper Reception Receives faxes into the MFC’s memory when the machine is out of paper.
Overseas Mode Makes temporary changes to the fax tones to accommodate noise and static on overseas phone lines.
Paging Feature enables your fax unit to call your pager when a fax is received into its memory.
Pause Allows you to place a 3.5 second delay in the dialing sequence stored on Speed Dial numbers.
G L O S S A R Y G - 2
BHL-FB-MFC-5100C-FM5.5
Photo mode A resolution setting that uses varying shades of gray for the best representation of photographs.
Polling The process of a fax machine calling another fax machine to retrieve waiting fax messages.
printer alarm Audible alarm when the printer is not able to print.
Pulse (For Canada Only) A form of rotary dialing on a telephone line.
Real Time Transmission When memory is full, you can send documents in real time.
Reduction Reduces the size of incoming faxes.
remaining jobs You can check which jobs are waiting in memory and cancel jobs individually.
Remote Activation Allows you to transfer a fax call, answered at an external or extension phone, to the MFC.
Remote Retrieval Access The ability to access your MFC remotely from a touch tone phone.
Remote Retrieval Access Code The four-digit code (159 ) that allows you to call and access your MFC from a remote location.
Resolution The number of vertical and horizontal lines per inch. See: Standard, Super Fine and
Photo.
Ring Delay The number of rings before the MFC answers in FAX mode.
Ring Volume Volume setting for the MFC’s ring.
scanning The process of sending an electronic image of an original paper document into your computer.
ScanSoft™ PaperPort ® for Brother Document management application where you can view received faxes and scanned image.
speed dial A preprogrammed number for easy dialing. You must press the
Search/Speed Dial button and then # , two digit code to start the dialing process.
Standard resolution 98
×
203 dpi. It is used for regular size text and quickest transmission.
Station ID The stored information that appears on the top of faxed pages. It includes the sender’s name and fax number.
Super fine resolution 392
×
203 dpi. Best for very small print and line art.
TAD (telephone answering device) You can connect an external TAD to the EXT. jack of the MFC for EXT. TEL/TAD mode.
Temporary Settings You can select certain options for each fax transmission without changing the default settings.
transmission The process of sending documents over the phone lines from your MFC to the receiving fax machine.
Transmission Verification Report A listing of each transmission, that shows its date, time and number.
True 2 Life Adjusts the color in the image for better print quality by improving sharpness, white balance and color density.
User Settings A printed report that shows the current settings of your MFC.
G - 3 G L O S S A R Y
BHL-FB-MFC-5100C-FM5.5
Index
A
access codes, storing and dialing 7-4
ADF (Automatic Document Feeder) 6-1
ink cartridges, installing 2-10
paper tray 2-8 paper wire extension 2-8
automatic
fax redial 6-5 transmission 6-5
B
Brother
Customer Service i fax-back system i
Frequently Asked Questions (FAQs) i product support i
Brother Control Center
using and configurating 13-1 to 13-15
C canceling
cleaning
external TAD 2-13 external telephone 2-13
copy
color adjustment 10-10 contrast 10-10
custom telephone features 2-18, 19-8
I N D E X I - 1
BHL-FB-MFC-5100C-FM5.5
D
Delayed Batch Transmission 6-8
dialing
access codes and credit card numbers
drivers
E
ECM (Error Correction Mode) 1-6
OUT OF MEMORY
while scanning a document 6-6, 10-2
extension telephone, using 5-4
F fax codes
Remote Retrieval Access Code 8-3
Telephone Answer Code 5-4 troubleshooting 5-4
fax, stand-alone
retrieving from a remote site 8-5
sending
from memory (dual access) 6-5 manual transmission 6-5
G
H
I - 2 I N D E X
BHL-FB-MFC-5100C-FM5.5
I
ink cartridges 2-1, 2-11, 2-12
J
EXT. jack
jams
L
LCD (Liquid Crystal Display) 1-3, 3-1
M
Macintosh ®
manual
Menu mode 3-1 programming at-a-glance 3-1
multi-line connections (PBX) 2-17
multi-purpose sheet feeder 2-8
O
P
Paging 8-1, 8-2 programming your pager number 8-1
PaperPort
PC FAX (For Windows
sending
phone line
roll-over lines 2-15 two-line phone system 2-15
Polling
cord 2-7 electrical outlet 2-7
I N D E X I - 3
BHL-FB-MFC-5100C-FM5.5
Q
Quality key (copying) 10-3, 10-4
R
Receive mode
reducing
resolution
fax (standard, Fine, SuperFine, Photo)
S
Scanner Cover Release Lever 2-10
Scansoft™ TextBridge® OCR 14-3
Search, for stored numbers 7-4
Setup
software
T
TAD (Telephone Answering Device) 1-6,
TAD (Telephone Answering Device), external
Tone Signals on Pulse Line 7-6
troubleshooting 19-1 error messages on LCD 19-1
if you are having difficulty 19-7
printing or receiving faxes 19-7 sending faxes 19-7
two-line phone system 2-15, 2-16, 2-17
I - 4 I N D E X
BHL-FB-MFC-5100C-FM5.5
V
Volume, setting
W
BHL-FB-MFC-5100C-FM5.5
I N D E X I - 5
I - 6 I N D E X
BHL-FB-MFC-5100C-FM5.5
Remote Retrieval Access Card
If you plan to receive fax messages while away from your machine, carrying the
Remote Retrieval Access Card printed below will serve as a convenient reminder of the retrieval procedures. Simply cut out the card and fold it to fit your wallet or organizer. Keeping it handy will help you derive the full benefit of your machine’s forwarding, paging and remote retrieval features.
Fold Fold
R E M O T E R E T R I E V A L A C C E S S C A R D R - 1
BHL-FB-MFC-5100C-FM5.5
Fold Fold
R - 2 R E M O T E R E T R I E V A L A C C E S S C A R D
BHL-FB-MFC-5100C-FM5.5
EQUIPMENT ATTACHMENT LIMITATIONS
(For Canada Only)
NOTICE:
The industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together.
This precaution may be particularly important in rural areas.
Caution:
Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.
NOTICE:
The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5 REN=0.3
®
Brother International Corporation
100 Somerset Corporate Boulevard
P.O. Box 6911
Bridgewater, NJ 08807–0911 USA
Brother International Corporation (Canada) Ltd.
1 rue Hôtel de Ville,
Dollard-des-Ormeaux, QC, CANADA H9B 3H6
Visit us on the World Wide Web http://www.brother.com
These machines are made for use in the USA and CANADA only. We cannot recommend using them overseas because it may violate the Telecommunications Regulations of that country and the power requirements of your multi-function center may not be compatible with the power available in foreign countries. Using USA or CANADA models overseas is at your own risk and will void your warranty.
