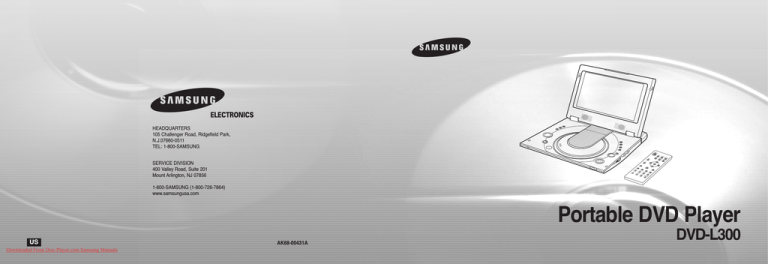

Samsung DVDL300 Operating instructions

HEADQUARTERS
105 Challenger Road, Ridgefield Park,
N.J.07660-0511
TEL: 1-800-SAMSUNG
SERVICE DIVISION
400 Valley Road, Suite 201
Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
www.samsungusa.com
Portable DVD Player
US
Downloaded From Disc-Player.com Samsung Manuals
AK68-00431A
DVD-L300
ENGLISH
ENGLISH
Notices and Safety Instructions
Notices and Safety Instructions
Safety Instructions
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER(OR BACK). NO USER SERVICEABLE
PARTS INSIDE, REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of fire or electric shock.
This symbol is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying this product.
To prevent electric shock, match wide blade of plug
to wide slot and fully insert.
1. READ INSTRUCTIONS:
All the safety and operating instructions should be read
before the DVD is operated.
2. RETAIN INSTRUCTIONS:
The safety and operating instructions should be retained for
future reference.
3. HEED WARNINGS:
All warnings on the DVD and in the operating instructions
should be adhered to.
4. FOLLOW INSTRUCTIONS:
All operating and maintenance instructions should be followed.
5. CLEANING:
Unplug this DVD from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners.
Use a dry cloth used for dusting cabinets.
6. ATTACHMENTS:
Do not use attachments not recommended by the DVD
product manufacturer as they may be hazardous.
Downloaded
From Disc-Player.com Samsung Manuals
2
7. WATER AND MOISTURE:
Do not use this DVD near water;
for example, near a bathtub, wash bowl, kitchen sink, laundry
tub, in a wet basement, near a swimming pool or lake.
9. VENTILATION:
Slots and openings in the cabinet are provided for ventilation to
ensure reliable operation of the DVD and to protect it from
overheating. These openings must not be blocked or covered.
Never place your DVD on a bed, sofa, rug, or other similar
surface: on or near a radiator or heat register.
This DVD should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
10. POWER SOURCES:
The DVD should be operated only from the type of power
source indicated on the label.
If you are not sure of the type of power supply at your home, consult
your appliance dealer or local power company.
A DVD is intended to be operated from battery power, or
other sources, refer to the operating instructions.
8. ACCESSORIES:
Do not place this DVD on an unstable cart, stand, tripod,
bracket or table. The DVD may fall, causing serious injury to a child or
adult, and serious damage to the unit.
Use only with a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with the DVD. Any mounting of the
unit should follow the manufacturer’s instructions and should use
a mounting accessory recommended by the manufacturer.
11. GROUNDING OR POLARIZATION:
This DVD may be equipped with either a polarized 2-wire
AC line plug (a plug having one blade wider than the other) or a 3-wire
grounding type plug, a plug having a third (grounding) pin.
If you are unable to insert the plug fully into the outlet, try reversing the
plug. If the plug still fails to fit, contact your electrician to replace your
outlet. Do not defeat the safety purpose of the polarized plug.
A. An appliance and cart combination should be moved with care.
Quick stops, excessive force and uneven surfaces may cause the
appliance and cart combination to overturn.
PORTABLE CART WARNING
(Symbol provided by RETAC)
12. POWER-CORD PROTECTION:
Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying
particular attention to cords or plugs, convenient receptacles, and the
point where they exit from the unit.
13. OUTDOOR ANTENNA GROUNDING:
If an outside antenna or cable system is connected to the
DVD, be sure the antenna or cable system is grounded to
provide some protection against voltage surges and built-up static
charges, Section 810 of the National Electrical Code, ANSI/NFPA
No. 70-1984, provides information with respect to proper grounding
of the mast and supporting structure, grounding of the lead-in wire
and supporting structure, grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit,
size of grounding to conductors, location of antenna-discharge unit,
connection to grounding electrodes and requirements for the
grounding electrode.
See figure below.
14. LIGHTNING:
For added protection of this DVD during a lightning storm or
when it is left unattended and unused for long periods of time, unplug
it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the DVD due to lightning and
power-line surges.
15. POWER LINES:
An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits where it
can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be fatal.
16. OVERLOADING:
Do not overload wall outlets and extension cords as this can result in
a risk of fire or electric shock.
3
ENGLISH
ENGLISH
Safety Information
Notices and Safety Instructions
Assuring the Finest Performance
17. OBJECTS AND LIQUIDS:
Never push objects of any kind into this DVD through
openings as they may touch dangerous voltage points or short out a
part that could result in a fire or electric shock.
Never spill liquids of any kind onto the DVD. Should spillage
occur, unplug unit and have it checked by a technician before use.
20. REPLACEMENT PARTS:
When replacement parts are required, be sure the service technician
has used replacement parts specified by the manufacturer and having
the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other
hazards.
This product is designed with the latest technology to provide trouble-free operation.
If the pick-up lens or disk drive gets dirty, the video quality will decrease.
18. SERVICING:
Do not attempt to service this DVD yourself. Opening or
removing covers may expose you to dangerous voltage or other
hazards.
Refer all servicing to qualified service personnel.
21. SAFETY CHECK:
Upon completion of any service or repairs to this DVD, ask
the service technician to perform safety checks to determine that the
DVD is in safe operating order.
Condensation may form inside this player under following conditions:
• If warm air comes in contact with any cold parts inside the player;
• If the player is located in a room with high humidity; and
• If the player is exposed to sudden temperature changes from cold to hot.
When condensation forms inside the player, the player may not operate correctly.
If this occurs, leave the player at room temperature until the inside of the player becomes dry
and operational.
19. DAMAGE REQUIRING SERVICE:
Unplug this DVD from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto, or objects have fallen into the
DVD.
c. If the DVD has been exposed to rain or water.
d. If the DVD does not operate normally by following the
operating instructions, adjust only those controls that are covered by
the operating instructions. Improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the DVD to its normal operation.
e. If the DVD has been dropped or the cabinet has been
damaged.
f. When the DVD exhibits a distinct change in performance,
this indicates a need for service.
Downloaded
From Disc-Player.com Samsung Manuals
4
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR
PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of
this, you should only connect your DVD player directly to your TV,
not to a VCR. Connecting to a VCR results in a distorted picture
from copy-protected DVD discs.
• This product incorporates copyright protection technology that is
protected by methods claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
Moisture Condensation
Laser Safety
Caution
This product utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified herein may
result in hazardous radiation exposure. Do not open covers and do
not look inside the product if interlock mechanism is damaged.
Warning
Be careful not to damage the interlock mechanism.
5
ENGLISH
ENGLISH
Table of Contents
Table of Contents
Setup
Advanced Functions
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disc Type and Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description-Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tour of the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Remote Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
9
10
12
15
16
Connections
Connecting Headphones to the DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to an External Component (Input Select) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing a Video from an External Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to a Stereo Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
18
19
20
21
Adapter directions
Using the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Battery level display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Basic Functions
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Search & Skip Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Display Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Disc and Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Function Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Downloaded From Disc-Player.com Samsung Manuals
6
Slow Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Aspect Ratio (EZ View) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Camera Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Bookmark Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Zoom & 3D Sound Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clips Menu for MP3/WMA/JPEG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Folder Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3/WMA Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Picture CD Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
36
38
39
40
41
42
43
44
45
47
Changing Setup menu
Using the Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Up the Language Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Up the Audio Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Up the Display Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Up the Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
50
52
53
54
Reference
28
30
31
32
33
34
Cautionary Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
60
63
64
7
ENGLISH
ENGLISH
Features
Plays DVD discs and audio CDs
• CD-R/RW discs containing MP3/WMA files can be played.
10 inch LCD display and built-in stereo speakers
• With the built-in 10 inch LCD display and stereo speakers, you
can enjoy a DVD movie without requiring a separate TV.
Convenient 2-Way power supply
• You can use your DVD player virtually anywhere by using the
supplied AC adapter indoors and the battery pack
outdoors.
Compact size/light-weight design
• Compact and lightweight design makes the player easy to carry.
High-resolution image
• High-resolution LCD screen with 384,000 pixels provides a clear
picture.
AV input/output, optical digital output jack
1
2
• * Dolby Digital 5.1-CH audio and * DTS digital audio can be
output through the optical digital output jack. You can enjoy
unsurpassed surround sound when a Dolby Digital/DTS digital
surround processor or amplifier is connect to this jack.
Downloaded From Disc-Player.com Samsung Manuals
8
Accessories
• You can connect a VCR or camcorder to your DVD player
using the AV input/output jacks or you can connect to a TV for a
larger screen.
1
* Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic”, and the double-D symbol ( ) are trademarks of
Dolby Laboratories. Confidential unpublished works © 1992-1997.
Dolby Laboratories. Inc. All rights reserved.
2
* “DTS” and “DTS Digital Out” are trademarks of Digital
Theater Systems, Inc.
EZ VIEW
• Easy View can convert Letter Box images to full screen viewing
on your conventional TV.
Remocon (AH59-01053F)
AC Cord (AD39-00076A)
AC power Adapter
(AK44-00004A)
Video cable
(AK39-00028A)
Audio cable
(AK39-00027A)
Battery pack (AH97-01017A)
Lithium battery
(AC43-12002G)
User’s Manual
(AK68-00431A)
INPUT : For viewing a video from an external component such as a
VCR, Camcorder etc.
If disc features differ from the explanation in the manual
• Some functions or operations are disc-dependent and may not work in all cases.
Follow the instructions shown on the screen. This manual only covers basic disc operations.
•
may appear during some operations. This mark indicates that the disc in use does not currently support operations
explained in this manual.
9
ENGLISH
ENGLISH
Disc Type and Characteristics
Disc Type and Characteristics
This DVD player is capable of playing the following types of discs with the corresponding logos:
* Caution 2
• Some playback functions of a DVD vary by manufacturer.
This DVD player reproduces the disc data according to guidelines provided by the disc manufacturer. If
during disc operations, the disc manufacturer has placed a limit on that function.
Disc Types
(Logos)
Recording
Types
Disc
Size
Max.
Playing Time
5"
Single-sided
240 min.
Double-sided
480 min.
31/2"
Single-sided
80 min.
Double-sided
160 min.
DVD
Audio
+
Video
AUDIO-CD
5"
74 min.
31/2"
20 min.
Audio
Characteristics
• DVD contains excellent
sound and video due to
Dolby Digital and
MPEG-2 system.
• Various screen and audio
functions can be easily
selected through the
on-screen menu.
• CD is recorded as a Digital
Signal with better audio
quality, less distortion and
less deterioration of audio
quality over time.
Play Region Number
Both the DVD player and the discs are coded by region. These regional codes must match
in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the bottom housing of the player.
Downloaded From Disc-Player.com Samsung Manuals
10
* Caution 1
~
• Play
Region
Number
STEREO
• Stereo
disc
NTSC
• NTSC broadcast
system in U.S.A,
Canada, Korea,
Japan, etc.
* Caution 3
• Dolby
Digital
disc
DIGITAL
SOUND
• Digital
Audio
disc
appears
• DTS disc • MP3
disc
NOTE:
* Discs which cannot be played with this player:
• DVD-ROM
• DVD-RAM
• CD-ROM
• CDV
• CDI
• HD layer of super Audio CD
• CDGs play audio only, not graphics.
* Ability to play back may depend on recording
conditions:
• DVD-R
• CD-RW
• DVD+RW, -RW
• Picture CD
* It may not play CD-R, CD-RW and DVD-R in
all cases due to the type of disc or condition
of the recording.
• The LCD display does not support Closed Captions.
However, you can view captions by connecting this unit to a TV with the caption function.
Discs that cannot be played
1. Illegally manufactured discs
2. Discs with scratches; and
3. Discs with fingerprints, dirt, and debris.
• If the disc surface has dirt or scratches, No Disc will be displayed and the disc will not
be played correctly. (Refer to page 5 and clean the surface of the disc.)
If the player encounters dirt or scratches while playing, video playback may be interrupted.
(Some block-like patterns appear. When this occurs, your player will restore the image in 2~3 seconds.)
About Copyrights
• Any kind of unauthorized and commercial duplication, public performance, broadcasting, renting, copying and
making transmittable of the content of discs is strictly prohibited by law.
• This product is equipped with anti-copy protection device and connecting to a VCR for recording purposes
results in a distorted picture.
• This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
• Manufactured under license from Dolby Laboratories.
“Dolby”, “Dolby Digital”, “Dolby Pro Logic”, and the double-D symbol (
) are trademarks of Dolby
Laboratories.
• “DTS” is a trademark of Digital Theater System, Inc.
11
ENGLISH
ENGLISH
Description-Front Panel
Description-Front Panel
Front View
Right View
1. REVERSE DISPLAY
2. EZ VIEW
1
2
3
8
9
4
5
3. INPUT
1. HEADPHONES A, B
4. AIC (Adaptive Image Control)
2. VOLUME
• Standard : The basic mode for ordinary viewing.
• Indoor : The best mode for partial lighting environment.
Displays a more vivid, detailed picture under artificial lighting
conditions, with enhancement of signal components.
• Outdoor : The perfect mode for sunny outdoor conditions.
Increases the contrast and sharpness level to compensate
for outdoor lighting conditions.
• Low light : The optimum mode for low light viewing situations.
If the viewing environment is very dark, use this mode to
decrease brightness, and increase contrast and edge
sharpness.
4. REMOTE SENSOR
1
2
3
4
5
6
5. OPEN
6. STANDBY INDICATOR
5. POWER
10
11
• Press the POWER button for 1 second to power off.
7. DISC COVER
12
8. LCD
7
13
9. SPEAKER
14
15
Left View
6. OPEN
6
1. AUDIO IN/OUT / DIGITAL OUT
2. VIDEO IN/OUT / S-VIDEO OUT
10. INFO
11. MENU
3. DC IN 8.4V
12. RETURN
13. CLEAR
14. ENTER (
), DIRECTION (UP/DOWN/LEFT/RIGHT)
15. PLAY etc.
), STOP( ■ ), REV-SKIP(
PLAY/PAUSE (
Downloaded From Disc-Player.com Samsung Manuals
12
3. CHARGING INDICATOR
FWD-SKIP(
)
1
2
3
4. BATTERY PACK
4
),
13
ENGLISH
ENGLISH
Description-Front Panel
Tour of the Remote Control
Bottom View
1
1. BATTERY PACK
2
2. RELEASE (Battery pack separation switch)
3. OPEN
13
1
2
3
14
15
16
3
4
5
6
7
Battery pack separation method
2
1
1
Press in the direction of the arrow.
2
Slide battery pack to the left, then out.
8
9
10
11
12
17
18
19
20
21
22
23
1. DVD POWER OFF Button
• If you power off the unit with the remote,
it remains in low power consumption
mode. To turn the unit on, you must press
the main POWER button on the unit.
12. ZOOM Button
2. MENU Button
• Brings up the DVD player’s setup menu.
15. EZ VIEW Button
• Easy View can convert Letter Box
images to full screen viewing on your
screen.
3. RETURN Button
• Returns to the previous menu.
4. INPUT Button
• Use to select signals from external
sources.
5. ENTER/DIRECTION Buttons
(UP/DOWN or LEFT/RIGHT buttons)
• This button functions as a toggle switch.
6. INFO Button
• Displays the current disc mode.
7. STOP Button
• Stops disc play
8. SKIP Buttons
• Use to skip the title, chapter, or track.
9. CLEAR Button
• Use to remove menus or status displays
from the screen.
10. ANGLE Button
• Use to access various camera angles on a
DVD.
11. 3D Button
Downloaded From Disc-Player.com Samsung Manuals
14
13. BOOKMARK Button
14. LCD CON. Button
• Changes the LCD On/Off display status.
16. DISC MENU Button
• Brings up the Disc menu.
17. PLAY Button
• Starts disc play.
18. PAUSE/STEP Button
• Pauses disc play.
19. SEARCH Buttons
• Allow you to search forward/backward
through a disc.
20. AUDIO Button
• Use this button to access various audio
functions on a disc.
21. SUBTITLE Button
22. REPEAT A-B Button
• Use to mark a segment to repeat
between A and B.
23. REPEAT Button
• Allows you to repeat play a title,
chapter, track, or disc.
15
ENGLISH
ENGLISH
Using the Remote Control Unit
Connecting Headphones to the DVD
You can attach headphones with a stereo mini-jack plug (not supplied) to the
PHONES jack for private listening. There are two jacks available.
Installing the Battery in the Remote
1. Remove the battery compartment in the direction of the arrow.
(Back of the remote control)
Hole
2. Place the lithium battery in the battery compartment and put
the battery compartment cover back on the remote.
• Match the polarities (+ and -) on the battery with the marks
in the battery compartment. If the battery is inserted in the
wrong direction, your remote control may not work correctly.
How to use headphones
1. Insert headphones into the A or B PHONES jack.
• This jack is a stereo mini-jack.
1
2
Operating Range of Remote Control Unit
Not supplied
Important!
Do not subject the remote control unit to strong vibration or shock.
Keep the remote control unit free from moisture and water.
Caution
• After battery replacement, your remote control unit may not work.
If this occurs, remove the battery and re-insert in about 5 minutes.
• It may be difficult to operate the remote control unit if the remote control sensor on
the DVD player is exposed to direct sunlight or strong artificial light.
Try operating the remote away from such light sources.
• Remove the battery when not planning to use the remote control unit for a long
period of time.
Downloaded From Disc-Player.com Samsung Manuals
16
Important!
• Turn the headphone volume down to the minimum setting before connecting.
30
2m
(6 30
.5
6f
t)
Caution
• Once you connect headphones to the DVD, your DVD Player’s speakers will be disconnected.
(Remote Control Sensor)
2. Adjust the volume level by using the VOLUME control dial.
17
ENGLISH
ENGLISH
Connecting to an External Component (Input Select)
You can enjoy video from your VCR or Camcorder on your DVD player.
Viewing a Video from an External Component
Use the procedure below to view a video from a VCR or Camcorder on your DVD player.
To view video from an external component
When connecting to an external component
1. Connect the external component according to the procedure outlined on page 18.
2. Turn on the external component.
Jack/Plug Color
Video: Yellow
Audio (left): White
Audio (right): Red
3. Turn on the DVD player.
Video Cable
Audio Cable
To AUDIO OUT
INPUT
To VIDEO OUT
4. Press the INPUT button to set the INPUT mode.
5. Press the PLAY button on the external component.
Caution
• Power is not supplied from this device to the connected DVD player.
• When not using your DVD player, always remove all connecting cables from the video or
audio input/output jacks.
• If no signal is input for more than 5 minutes while in the input mode, this unit enters
the standby mode.
VCR or other component equipped with external output connectors
Important!
• Always turn off the DVD Player and other components before you connect any cables.
• Refer to owner’s manual of the components you are connecting for more information on those particular components.
NOTE:
• In the INPUT mode, the video input must be the standard NTSC.
Downloaded From Disc-Player.com Samsung Manuals
18
19
ENGLISH
ENGLISH
Connecting to a TV
Connecting to a Stereo Component
You can enjoy high-resolution video using an S-VIDEO cable when connecting your DVD player
to a TV equipped with an S-VIDEO input jack.
• Always turn off the DVD Player and TV before you connect any cables.
When you connect the DVD player to an audio system, you can listen to higher quality sound.
To view video with a TV
2-CH Audio Playback
1. Turn on the TV.
2. Press the TV/VIDEO button on your TV to select the input from the DVD player.
3. Turn on the DVD player, and start playback.
■ Analog Connection
Jack/Plug Color
Audio (left): White
Audio (right): Red
Jack/Plug Color
Video: Yellow
Audio (left): White
Audio (right): Red
Audio Amplifier
Connect to input jacks
S-Video/VIDEO Cable
Audio Cable
To AUDIO INPUT
Audio Cable
To VIDEO INPUT
ANALOG INPUT
(White)
To S-VIDEO INPUT
L
R
(Red)
Connect to a TV equipped with external connection jacks
Caution
• If you wish to view video on your TV only, close the display panel of your DVD player.
Playback will continue and audio to the speakers will be cut off,
but you still will be able to use the remote to control the DVD player.
• For power saving, press the LCD CON. button to power off the LCD display.
Downloaded From Disc-Player.com Samsung Manuals
20
21
ENGLISH
ENGLISH
Connecting to a Stereo Component
Connecting to a Stereo Component
Digital Audio Output (optical)
Playing Dolby Digital (5.1-CH) and DTS Audio
• You can enjoy full and dynamic surround sound by connecting a Dolby Digital/DTS
digital surround processor or amplifier to the optical digital jack on the DVD player.
• When using DTS digital surround, select the DTS audio by using the disc menu screen
or function adjustment screen.
Optical Digital Cable
(Sold Separately)
DIGITAL OUT
Audio component
equipped with optical
digital input jack
DIGITAL
Connect to optical digital input jack
COAXIAL
Connect to an Optical Digital Input Jack
OPTICAL
DIGITAL OUT
Optical Digital Cable
(Sold Separately)
After the completion of above connections;
Set the “Digital Output” to “PCM” (see page 52) in “Audio Setup”.
■ Digital connection to an audio component without a Dolby Digital decoder
• Audio CD
Play the disc.
When connecting digitally, DTS-encoded audio tracks will produce distorted sound.
DTS in 2 channel will produce distortion but 5.1 channel will not.
• DVD Disc
When playing a Linear PCM Audio encoded disc, you must use the digital connection
method shown above.
NOTE:
DIGITAL
COAXIAL
OPTICAL
Dolby Digital (5.1-Channel)/DTS
processor or amplifier
After making the connections shown above;
Set the “Digital Output” to “Bitstream” (see page 52) in “Audio Setup”.
Caution
• To play a DTS disc, you need a DTS processor or amplifier.
• If the DTS processor or amplifier you want to use does not have an optical digital input jack,
digital connection is not possible.
• Refer to owner’s manual of the processor or amplifier for details on connections.
Only use an optical Digital Cable which has been designed for use with portable DVD.
Downloaded From Disc-Player.com Samsung Manuals
22
23
ENGLISH
ENGLISH
Using the AC adapter
Using the AC adapter
Important!
• Always turn off the DVD player when inserting or removing the AC adapter.
• Before storing the battery pack, make sure it is completely drained.
Be sure to recharge the battery at least once every six months to ensure proper battery life.
AC adapter (included)
DC output cable
Caution
• When charging or using the battery pack, it heats up.
This is normal and is not a cause for concern.
Power outlet
NOTE:
Connecting the battery pack to the AC Adapter;
• You can recharge the battery pack in the DVD player by turning off the player and connecting the AC
adapter to the player.
DC output plug
To home power outlet
Important!
• Always turn off the DVD player before connecting or disconnecting the AC cord.
• Be sure to use the supplied AC adapter. Using a different type of adapter may cause
malfunction or damage to the product.
• When the AC adapter is used for prolonged periods of time, the adapter may heat up.
This is normal and is not a cause for concern.
• When not using the adapter, unplug it from the wall outlet.
• Keep the AC adapter free from moisture, cold, and dust. Otherwise, this can result in
a risk of fire or electric shock.
Charge Time: Approx. 2.5 hours
• Charge time may be longer when using the battery pack in a cold environment.
DVD Continuous Playing Time with a Fully charged Battery pack (with speaker): Approx. 2.5 hours
• DVD continuous playing time is a reference indicating the maximum playing time at average speaker
volume.
• The playback time may be shortened depending on the disc, surrounding
temperature, battery pack conditions, and speaker volume.
Warning
• Only use the AC adapter supplied with this player.
• Be sure to unwind the AC adapter cable (DC output cable) before using, as
electromagnetic interference may cause problems with other devices.
• If this power supply is used at 240V ac, a suitable plug adapter should be used.
Downloaded From Disc-Player.com Samsung Manuals
24
25
ENGLISH
ENGLISH
Using the battery pack
Battery level display
Important!
• When inserting the battery pack, make sure that it is inserted correctly.
Otherwise, your DVD player may malfunction.
• The battery level display indicates the amount of power remaining in the battery pack.
a. Fully charged
b. 20~40% used
c. 40~80% used
d. Completely used (flickers)
(If the battery mark flickers the DVD will turn off soon. Change the battery as soon as possible)
Charging the battery pack
Use the AC adapter (included) to charge the battery pack.
• Before charging, make sure that the battery pack is correctly seated.
2. Connect the DC cord to the DC IN jack on the left side of the DVD player ( 2 ).
✽
3. Plug the other end of the AC cord into an AC outlet ( 3 ).
Blinking time
Charging rate
Less than 50%
50%~75%
75%~90%
90%~100%
Error-Reset the battery pack and
the DC cable
Power Charge Lamp
-Green light will flash while charging.
-When the battery pack is fully charged, the light will stop blinking and remain green.
Downloaded From Disc-Player.com Samsung Manuals
26
...........................b
...........................c
...........................d
1. Connect the AC cord to the jack on the AC adapter ( 1 ).
Once per second
Twice per second
Three times per second
Blinking stops and stays on
On for a second and
off for a second
...........................a
2
1
The playing time is affected by environmental temperature and conditions.
The playing time becomes very short in a cold environment. The continuous playing times in the operating instructions are
measured using a fully charged battery pack at 77°F(25°C). As the environmental temperature and conditions may differ
when you actually use the DVD, the remaining battery time may not be the same as the approximate continuous
playing time given in these instructions.
3
NOTE:
• When the operation time is noticeably shorter than normal, it is time to buy a new battery.
The battery level display time changes depending on the battery operating time.
• As the battery is completely used, the noise screen intermittently can be displayed.
27
ENGLISH
ENGLISH
Playing a Disc
Before Play
After plugging in the player, the first time you press the POWER button, this screen comes up:
Press the UP/DOWN buttons to select the language, and then press the ENTER button.
(This screen will only appear when you plug in the player for the first time.)
Playing a Disc
6. Step Motion Play (DVD only)
Press the PAUSE ( )/STEP button on the remote during play.
- Each time the button is pressed, a new frame will appear.
- No sound is heard during STEP mode.
- Press PLAY ( ) to resume normal play.
(You can only perform step motion play in the forward direction.)
Play
1. Press the OPEN button to open the disc cover.
• The disc cover opens up to around a 60-degree angle.
Do not attempt to open the cover to an angle beyond this range. The cover may become damaged.
2. Place a disc gently into the tray.
• You should hear and feel the disc snap firmly into place.
Caution
• Place a disc into the tray with the disc’s label facing up.
3. Close the disc cover and then press the part marked “PUSH” until it clicks shut.
7. Slow Motion Play (DVD only)
Press the
button on the remote during PAUSE or STEP mode. By pressing the
button, you can select slow motion play for 1/8,
1/4 or 1/2 of normal speed.
Press and hold the
button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.
- No sound is heard during slow mode.
- Press PLAY ( ) to resume normal play.
NOTE: Reverse slow motion play will not work.
RESUME function
When you stop disc play, the player remembers where you stopped, so when you press PLAY ( ) again,
it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you pressed the STOP (
) button twice.)
Important!
• Make sure that the disc is correctly placed. Otherwise, the disc and/or the DVD player may be damaged.
• If the disc is placed upside down in the disc tray or the region number of the DVD is not supported, No Disc will appear on the screen.
NOTE:
4. Stopping Play
• Press the STOP (
) button during play.
5. Pausing Play
Press the PAUSE ( ) button on the remote during play.
- Screen stops, no sound.
- To resume, press PLAY ( ) button once again.
Downloaded From Disc-Player.com Samsung Manuals
28
• If the player is left for 5 minutes in pause mode, it will stop.
• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated.
Screen saver will be activated only with a TV. Press the PLAY ( ) button to resume normal play.
• If the player is left in the stop mode for more than 5 minutes, the power will automatically shut off. (Automatic Power-Off Function)
• This
icon indicates an invalid button press.
• Do not remove the disc until it has completely stopped.
• Press the POWER button for 1 second to power off.
29
ENGLISH
ENGLISH
Using the Search & Skip Functions
During play, you can search quickly through a chapter or track or use the skip function to jump
to the next selection.
Using the Display Function
When Playing a DVD/CD
1. Press the INFO button during playback.
Searching through a Chapter or Track
DVD
2. Use the UP/DOWN buttons to select the desired item.
During play, press the SEARCH (
or
) button on the remote.
• Press the SEARCH (
or
) button on the remote for more than 1 second and press
again or press continuously to search at a faster speed on a DVD or CD.
• Press the SKIP (
or
) button for more than 2 seconds to use the SEARCH feature.
DVD
Title
Time
Audio
4. To make the screen disappear, press the INFO button again.
Subtitle
3D Sound
DVD
CD
2X, 8X, 32X, 128X
2X, 4X, 8X
Title
Chapter
Skipping Tracks
During play, press the NEXT SKIP (
01
Chapter 02
3. Use the LEFT/RIGHT buttons to make the desired setup, then press ENTER.
0:00:13
ENG 5.1CH
Off
Off
ENTER
To access the desired title when there is more than one in the disc.
For example, if there is more than one movie on a DVD, each movie will be identified
Most of DVD discs are recorded in chapters so that you can quickly find a specific passage.
(similar to tracks on an audio CD).
CD
CD
) or BACK SKIP (
) button.
• When playing a DVD, if you press the NEXT SKIP button, it moves to the next chapter.
If you press the BACK SKIP button, it moves to the beginning of the chapter.
One more press makes it move to the beginning of the previous chapter.
• When playing a CD, if you press the NEXT SKIP button, it moves to the next track.
If you press the BACK SKIP button, it moves to the beginning of the track.
One more press makes it move to the beginning of the previous track.
Time
Allows playback of the film from a desired time.
You must enter the starting time as a reference.
Audio
Refers to the language of the film soundtrack. In the example, the soundtrack is played in
English 5.1CH. A DVD disc can have up to eight different soundtracks.
Subtitle
Track 01
Time 0 : 0 0 : 4 8
ENTER
Refers to the subtitle languages available in the disc.
You will be able to choose the subtitle languages or, if you prefer, turn them off from the
screen. A DVD disc can have up to 32 different subtitles.
A surround sound effect is generated using only two front speakers.
3D Sound
NOTE:
• If you want to see the battery level display, press the INFO button.
Downloaded From Disc-Player.com Samsung Manuals
30
31
ENGLISH
Using the Disc and Title Menu
Using the Disc Menu
ENGLISH
Using the Function Menu
Using the Function Menu
1. Press the MENU button during playback.
1. Press the MENU button during playback.
2. Select Disc Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button.
2. Use the UP/DOWN buttons to highlight Function, then press the RIGHT or ENTER button.
3. Function selection screen appears, Info, Zoom, Bookmark, Repeat and EZ View.
-
Using the Title Menu
1. Press the MENU button during playback.
Info (See Page 31)
Zoom (See Page 42)
Bookmark (See Page 41)
Repeat (See Page 34)
EZ View (See Page 36~37)
4. Use the UP/DOWN button to highlight one of the 5 functions.
Then press the RIGHT or ENTER button to access the function.
2. Select Title Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button.
NOTE:
• Depending on the disc, the Title and Disc Menus may not work.
• Title Menu will only be displayed if there are at least two titles in the disc.
• You can also use the Disc Menu, using the DISC MENU button on the remote.
Downloaded From Disc-Player.com Samsung Manuals
32
NOTE:
• You can also directly select these functions using their respective buttons on the remote.
33
ENGLISH
ENGLISH
Repeat Play
Slow Repeat play
Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.
This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments
being played etc. so you can study them more closely.
When playing a DVD/CD
When playing a DVD
1. Press the REPEAT button on the remote. Repeat screen appears.
DVD
1. During play, press the PAUSE (
2. Select Chapter, Title or A-B using the LEFT/RIGHT buttons.
Off
01
T
01 A - B
REPEAT
2. By pressing the
• Chapter ( ) : repeats the chapter that is playing.
• Title ( ) : repeats the title that is playing.
• A-B : repeats a segment of the disc that you select.
T
* REPEAT A-B button
• Press the REPEAT A-B button to select the point where the function starts. (A)
• Press the REPEAT A-B button to select the point where the function ends. (B)
• To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again.
• A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after
point (A) has been set.
button, you can select slow motion play for 1/8, 1/4 or 1/2 of normal speed.
3. Press the REPEAT A-B button to select the point where the function starts. (A)
4. Press the REPEAT A-B button to select the point where the function ends. (B)
3. Press ENTER.
4. To return to normal play, press REPEAT again, then press the LEFT/RIGHT buttons to select
Off and Press ENTER.
)/STEP button on the remote.
ENTER
CD
Off
T
01
D
01 A - B
REPEAT
ENTER
NOTE:
NOTE:
• DVD repeats play by chapter or title, CD repeats play by disc or track.
• Depending on the disc, the Repeat function may not work.
Downloaded From Disc-Player.com Samsung Manuals
34
• The disc will play from A to B repeatedly at the speed you chose.
• To terminate the function, press the 'CLEAR' button or the 'REPEAT A-B' button again.
• A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point
(A) has been set.
35
ENGLISH
Adjusting the Aspect Ratio (EZ View)
To play back using aspect ratio (DVD)
Press the EZ VIEW button.
• The screen size changes when the button is pressed repeatedly.
• The screen zoom mode operates differently depending on the screen setting in the initial setup menu.
• To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the initial setup (See page 53).
If you are using a 16:9 TV
For 16:9 aspect ratio discs
• Wide Screen
Displays the content of the DVD title in 16:9 aspect ratio.
• Screen Fit
The top and bottom of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the
screen will disappear. The picture will look vertically stretched. (Depending on the type of disc, the black bars may not disappear
completely.)
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.
For 4:3 aspect ratio discs
• Normal Wide
Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.
• Screen Fit
The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.
• Vertical Fit
When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture
from looking horizontally stretched.
Downloaded From Disc-Player.com Samsung Manuals
36
ENGLISH
Adjusting the Aspect Ratio (EZ View)
If you are using a 4:3 TV
For 16:9 aspect ratio discs
• 4:3 Letter Box
Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.
• 4:3 Pan Scan
The left and right of the screen are cut off and displays the central portion of the 16:9 screen.
• Screen Fit
The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.
For 4:3 aspect ratio discs
• Normal Screen
Displays the content of the DVD title in 4:3 aspect ratio.
• Screen Fit
The top and bottom of the screen are cut off and the full screen appears. The picture would look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.
NOTE:
• This function may behave differently depending on the type of disc.
37
ENGLISH
ENGLISH
Selecting the Audio Language
Selecting the Subtitle Language
You can select a desired language quickly and easily with the AUDIO button.
You can select a desired subtitle quickly and easily with the SUBTITLE button.
Using the SUBTITLE button
Using the AUDIO button
1. Press the AUDIO button.
1. Press the SUBTITLE button.
DVD
2. The Audio changes when the button is pressed repeatedly.
- The audio languages are represented by abbreviations.
ENG DOLBY DIGITAL 5.1CH
AUDIO
ENG
SUBTITLE
Off
SUBTITLE
2. The subtitle changes when the button is pressed repeatedly.
3. To turn off the display, press the CLEAR or RETURN button.
- Initially, the subtitle will not appear on screen.
- The subtitle languages are represented by abbreviations.
3. Press the AUDIO button to select Stereo, Left or Right. (On CD)
CD
Stereo
AUDIO
NOTE:
NOTE:
• This function depends on what languages are encoded on the disc and may not work with all
DVDs.
• A DVD disc can contain up to 8 audio languages.
• How to have the same audio language come up whenever you play a DVD;
Refer to “Setting Up the Language Features” on page 51.
• This function depends on what languages are encoded on the disc and may not work with all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• How to have the same subtitle language come up whenever you play a DVD;
Refer to “Setting Up the Language Features” on page 51.
Downloaded From Disc-Player.com Samsung Manuals
38
39
ENGLISH
ENGLISH
Changing the Camera Angle
Using the Bookmark Function
When a DVD contains multiple angles of a particular scene, you can select the Angle function.
The Bookmark function lets you select parts of a DVD so that you can quickly find the
section at a later time.
Using the Bookmark Function (DVD)
Using the ANGLE button
Press the ANGLE button to see if an ANGLE (
corner of the screen.
1. During play, press the BOOKMARK button on the remote.
The Bookmark icons will be displayed.
) mark is present at the upper left hand
4/6
ANGLE
2. Use the LEFT/RIGHT buttons to move to the desired bookmark icon.
1. When an ANGLE mark is shown, press the ANGLE button, then an ANGLE select icon
will appear at the upper hand corner of the screen.
3. When you reach the scene you want to mark, press the ENTER button.
The icon will change to a number (1, 2, or 3).
2. Press the ANGLE button to select the desired screen angle.
4. Press the BOOKMARK button to turn off the display.
3. To turn off the display, press the CLEAR or RETURN button.
Recalling a Marked Scene
1. During play, press the BOOKMARK button on the remote.
2. Use the LEFT/RIGHT buttons to select a marked scene.
3. Press the PLAY (
) button to skip to the marked scene.
Clearing a Bookmark
1. During play, press the BOOKMARK button on the remote.
NOTE:
2. Use the LEFT/RIGHT buttons to select the bookmark number you want to delete.
• If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature.
3. Press the CLEAR button to delete a bookmark number.
Press the BOOKMARK button to turn off display.
NOTE:
• Up to three scenes may be marked at a time.
• Depending on the disc, the Bookmark function may not work.
Downloaded From Disc-Player.com Samsung Manuals
40
41
ENGLISH
Using the Zoom & 3D Sound Functions
Using the Zoom Function (DVD)
ENGLISH
Clips Menu for MP3/WMA/JPEG
1. Open the disc cover.
1. During play or pause mode, press the ZOOM button on the remote. A square will be
displayed on screen.
2. Place the disc in the player.
- Place the disc with the labeled side up.
2. Use the UP/DOWN or LEFT/RIGHT button to select the part of the screen you want to
zoom in on.
3. Close the cover.
- The cover is closed and you should get a screen that looks like the one below.
3. Press the ENTER button.
- Press ENTER to zoom in 2X/4X/2X/Normal in order. (DVD)
•
: Name of currently playing file.
•
: Current Playback Time.
•
: Current Playback Mode : There are 4 modes, toggle by the REPEAT button.
- Off : Normal Playback
- Track : Repeat the current track.
- Folder : Repeat the current folder.
- Random : Files in the disc will be played in random order.
Off
Using the 3D Sound Function (DVD)
The simulated surround effect depends on the disc contents. If you connect the unit to your
stereo system, you can enhance sound quality and produce a greater surround effect.
This feature is useful when you are using the DVD player with a two channel stereo through
the analog outputs.
(Discs which are recorded with LPCM, MPEG or DTS will not work.)
•
: MP3 file icon.
•
: JPEG file icon.
NOTE:
•
: WMA file icon.
• 3D Sound is possible only on discs recorded using DOLBY SURROUND or DOLBY
DIGITAL. However, some of these discs do not contain rear channel sound signals.
• Depending on the disc, the Zoom and 3D Sound function may not work.
•
: Folder icon.
•
: Current Folder icon.
00:00:23
1_mp3
B e c a u s e Yo u
Cactus
Sad Day
1. During play, press the 3D button. The 3D SOUND mark will be displayed on screen.
2. Press the UP/DOWN buttons to turn the 3D Sound feature on or off.
Downloaded From Disc-Player.com Samsung Manuals
42
Parent Folder, Current Folder
and Peer Folders
Folders and Files
in Current Folder
43
ENGLISH
ENGLISH
Folder Selection
MP3/WMA Play
The folder can only be selected in the Stop mode.
1. Open the disc cover.
• To select the Parent Folder
Press the RETURN button to go to Parent folder, or use
the UP/DOWN buttons to select “..” and press ENTER to
go to the parent folder.
Root
2. Place the disc in the player.
- Place the disc with the labeled side up.
WMA
3. Close the cover.
- The cover is closed and you should get a screen that looks like the one below.
JPEG
• To select the Peer Folder
Use the LEFT/RIGHT buttons to highlight left window.
Use the UP/DOWN buttons to select the desired folder,
then press ENTER.
Parent Folder
MP3
MUSIC
• To select the Sub-Folder
Use the LEFT/RIGHT buttons to highlight right window.
Use the UP/DOWN buttons to select the desired folder,
then press ENTER.
MP3/WMA Play Function
Current Folder
1. Select the desired folder. (See page 44 to change folder.)
2. Use the UP/DOWN or LEFT/RIGHT buttons to select a song file.
Off
00:00:23
1_mp3
1st
Sub-Folders
3. Press ENTER to begin playback of the song file.
2nd
B e c a u s e Yo u
Cactus
Sad Day
SONG FILE 1
Peer Folders
Repeat/Random playback
SONG FILE 2
SONG FILE 3
Press the REPEAT button to change playback mode.
There are 4 modes, Off, Track, Folder and Random.
- Off : Normal Playback
- Track : Repeats the current song file.
- Folder : Repeats the song files which have the same extension in the current folder.
- Random : Song files which have the same extension will be played in random order.
* To resume normal play, press the CLEAR button.
Downloaded From Disc-Player.com Samsung Manuals
44
45
ENGLISH
MP3/WMA Play
CD-R MP3/WMA discs
When you record MP3/WMA files on the CD-R, please refer to the following.
• Your MP3 or WMA files should be ISO 9660 or JOLIET format.
ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac.
This format is the most widely used.
• When naming your MP3 or WMA files, do not exceed 8 characters, and enter ".mp3, .wma" as the file extension.
General name format of: Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces
in the name, and avoid the use of special characters including: (.,/,\,=,+).
• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound
requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing
higher rates, like 192 Kbps or more, only rarely give better sound quality.
Conversely, files with decompression rates below 128 Kbps will not be played properly.
• Use a decompression transfer rate of at least 64Kbps when recording WMA files.
Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound
requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps.
Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.
• Do not try recording copyright protected MP3 files.
Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows MediaTM
(registered trade mark of Microsoft Inc) and SDMITM (registered trade mark of The SDMI Foundation). You cannot copy such files.
• Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent
optimal playback of these files on your DVD player (degraded sound quality and in some cases,
inability of the player to read the files).
• This unit can play a maximum of 3000 files and 300 folders per disc.
Downloaded From Disc-Player.com Samsung Manuals
46
ENGLISH
Picture CD Playback
1. Select the desired folder. (See page 44 to select the folder)
2. Use the UP/DOWN buttons to select a Picture file in clip menu and then press ENTER.
• Select JPEG in the menu to view a Photo CD.
• Use the UP/DOWN or LEFT/RIGHT buttons on the remote control to select the picture you want to view and then
press the ENTER button. (Press the PLAY ( ) button if you want to play it in the Slide Show mode.)
ENTER RETURN
• Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again.
•
: Return to the Album Screen.
• To see the next 6 pictures, press the
button.
• To see the previous 6 pictures, press the
button.
ALBUM
PHOTO: 1 /215
•
: Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.
•
: Each time the ENTER button is pressed, the picture is enlarged up to 4X. (Normal ➝ 2X ➝ 4X➝ 2X ➝ Normal)
•
: The unit enters slide show mode.
*Before the Slide Show begin, the picture interval must be set.
ENTER
•
: When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second
interval.
•
: The pictures change automatically with about a 12 second interval.
•
: The pictures change automatically with about a 18 second interval.
TIMER:
RETURN
ENTER RETURN
*Depending on the file size, each interval between images may take longer or shorter than the manual suggests.
*If no button on the remote control is pressed for 60 seconds, the menu will disappear and the selected item will be played.
NOTE:
• If no buttons on the remote control are pressed for 10 seconds, the menu will disappear.
Press the UP/DOWN or LEFT/RIGHT buttons on the remote control to display the menu again.
• Press the STOP button to return to the Clips menu.
• When playing a Kodak Picture CD, the unit displays the Photo directly, not the clip menu.
47
ENGLISH
Picture CD Playback
CD-R JPEG Discs
ENGLISH
Using the Setup Menu
The Setup menu lets you customize your DVD player by allowing you to select various language
preferences, set up a parental level, even adjust the player to the type of television screen you have.
Disc Menu
• Only files with the ".jpg" and ".JPG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
1. With the unit in Stop mode, press the MENU button.
Select Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).
Language Setup : Setup of the Language.
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played
Audio Setup : Setup of the Audio Options
Title Menu
Function
Setup
only up to the blank segment.
• A maximum of 500 images can be stored on a single CD.
Display Setup : Setup of the Display Options
Use to select which type of screen you want to watch and several display options.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Kodak Picture CD : The JPEG files in the pictures folder can be played automatically.
• Konica Picture CD : If you want to see the Picture, select the JPEG files in the clips menu.
• Fuji Picture CD : If you want to see the Picture, select the JPEG files in the clips menu.
Parental Setup : Setup of the Parental Level
Allows users to set the level necessary to prevent children from viewing unsuitable movies such
as those with violence, adult subject matter, etc.
2. Use the UP/DOWN buttons on the remote to access the different features.
• QSS Picture CD : The unit cannot play QSS Picture CD.
3. Press the ENTER button to access the sub features.
• If a number of files in 1 Disc are over 3000, only 3000 JPEG file can be played.
To make the setup screen disappear after setting up, press the MENU button again.
• If a number of folders in 1 Disc are over 300, only JPEG files in 300 folders can be played.
NOTE:
• How to make the Setup menu disappear or return to menu screen during set up;
Press RETURN or LEFT button.
• Depending on the disc, some Setup Menu selections may not work.
Downloaded From Disc-Player.com Samsung Manuals
48
49
ENGLISH
Setting Up the Language Features
If you set the player menu, disc menu, audio and subtitle language in advance, they will come up
automatically every time you watch a movie.
Using the Player Menu Language
1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Select Player Menu using UP/DOWN buttons, then press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired language.
6. Press the ENTER button.
- The language is selected and the screen returns to Setup menu.
- To make the Setup menu disappear, press the RETURN or LEFT button.
Using the Disc Menu Language
This function changes the text language only on the disc menu screens.
1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Select Disc Menu using UP/DOWN buttons, then press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired language.
- Select “Others” if the language you want is not listed.
6. Press the ENTER button.
- The language is selected and the screen returns to Setup menu.
Downloaded From Disc-Player.com Samsung Manuals
50
ENGLISH
Setting Up the Language Features
Using the Audio Language
1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Select Audio using UP/DOWN buttons, then press the RIGHT or ENTER button.
5. Press the UP/DOWN buttons to select the desired language.
- Select “Original” if you want the default soundtrack language to be the original language the
disc is recorded in.
- Select “Others” if the language you want is not listed.
6. Press the ENTER button.
- The language is selected and the screen returns to Setup menu.
Using the Subtitle Language
1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Select Subtitle using UP/DOWN buttons, then press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired language.
- Select “Automatic” if you want the subtitle language to be the same as the language selected as
the audio preference.
- Select “Others” if the language you want is not listed. Some discs may not contain the language
you select as your initial language; in that case the disc will use its original language setting.
6. Press the ENTER button.
- The language is selected and the screen returns to Setup menu.
NOTE:
• If the selected language is not recorded on the disc, the original pre-recorded language is selected.
• How to make the Setup menu disappear or return to menu screen during set up;
Press RETURN or LEFT button.
51
ENGLISH
ENGLISH
Setting Up the Audio Options
Setting Up the Display Options
1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button.
3. Select Audio Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Use the UP/DOWN buttons to select the desired item. Then press the RIGHT or ENTER button.
1. With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button.
3. Select Display Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
4. Use the UP/DOWN buttons to select the desired item. Then press the RIGHT or ENTER button.
Digital Output
1. PCM : Converts to PCM(2CH) audio. Select PCM when using the Analog Audio Outputs.
2. Bitstream : Converts to Dolby Digital Bitstream (5.1CH).
Select Bitstream when using the Digital Audio Output.
NOTE: Be sure to select the correct Digital Output or no audio will be heard.
DTS
1. Off : Doesn’t output digital signal.
2. On : Outputs DTS Bitstream via digital output only.
Select DTS when connecting to a DTS Decoder.
Dynamic Compression
1. On : To select dynamic compression.
2. Off : To select the standard range.
TV Aspect
Depending on the type of television you have, you may want to adjust the screen setting (aspect ratio).
1. 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though
you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
2. 4:3 Pan Scan : Select this for conventional size TVs when you want to see the central portion of the
16:9 screen. (Extreme left and right side of movie picture will be cut off.)
3. 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.
Still Mode
These options will help prevent picture shake in still mode and display small text clearer.
1. Auto : When selecting Auto, Field/Frame mode will be automatically converted.
2. Field : Select this feature when the screen shakes in the Auto mode.
3. Frame : Select this feature when you want to see small letters more clearly in the Auto mode.
Screen Messages
Use to turn on-screen messages On or Off.
NOTE:
• How to make the Setup menu disappear or return to menu screen during set up;
Press RETURN or LEFT button.
• Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
Downloaded From Disc-Player.com Samsung Manuals
52
53
ENGLISH
ENGLISH
Cautionary Notes
Setting Up the Parental Control
The Parental Control function works in conjunction with DVDs that have been assigned a rating
level which helps you control the types of DVDs that your family watches.
There are up to 8 rating levels on a disc.
Cautions on Using the Player
• Avoid magnetic environments.
Using the player under strong fluorescent lighting, in a car, near a TV or magnetic object may deteriorate recorded images.
1. With the unit in Stop mode, press MENU button. The Setup Menu screen appears.
• Be sure to remove the disc, turn off the player, and remove the battery pack after use.
2. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button.
• If used near a broadcast station or power transmission tower, the video may become distorted due to interference.
3. Select Parental Setup using UP/DOWN buttons, then press the RIGHT or ENTER button.
• Do not drop the player or subject it to strong vibration or shock.
4. Use RIGHT or ENTER to select Yes if you want to use a password.
The Enter Password screen appears.
• Do not place the player near a lamp.
Heat from the incandescent light bulbs may cause deformation or malfunction.
5. Select your password with the UP/DOWN/LEFT/RIGHT buttons and press the ENTER button.
The Re-enter Password screen appears to confirm the password. Select your password
again. The Parental Control screen appears ( ).
• Always observe the rules regulating the use of electrical devices on airplanes.
• Do not expose this product to high temperature and humidity.
This product can be operated within a temperature range of 50°F~86°F and humidity range of 30%~80%.
Do not expose this product to direct sunlight or in a car with its windows closed.
Doing so may result in deformation of casing and circuitry as well as cause fire or bodily injury.
About the Rating Level ;
The Rating Level will work only when Use Password is set to Yes. (To unlock the player,
use RIGHT or ENTER to select No.) Use UP/DOWN to select Rating Level. Press ENTER.
- Use UP/DOWN to select the level(e.g. Level 6) and press ENTER.
Discs that contain Level 7 will now not play.
- To cancel the rating level, use RIGHT or ENTER to select No in Use Password.
About the Change Password ;
- Use UP/DOWN to select Change Password.
Press ENTER. The Change Password screen appears.
- Select your new password. Select the new password again.
• Do not let water, sand, dust, or other foreign objects in the player. Avoid using or storing the player in a place where there
is smoke, steam, or moisture.
Doing so may cause malfunction or mold on the pick-up lens. Keep the player in a well-ventilated area.
• When using the player in cold environments, the color LCD screen may not be visible immediately after the power
is turned on.
This is not a malfunction. Do not operate the player in temperatures below 50°F.
PARENTAL SETUP
• Be especially careful not to scratch the pick-up lens during loading/unloading of the disc, or cleaning.
Doing so may result in malfunction.
NOTE:
• How to make the Setup menu disappear or return to menu screen during set up;
Press RETURN or LEFT button.
• If you have forgotten your password, see Forgot Password in the Troubleshooting Guide.
Downloaded From Disc-Player.com Samsung Manuals
54
55
ENGLISH
Cautionary Notes
When Moving the Player
• Be sure to remove the disc from the player before packing for moving.
It is recommended that you also remove the disc from the player and turn off the power when not using the player.
Saving Power
• It is recommended that you turn off the power to the DVD player when not in use.
If you are not going to use it for prolonged period of time, unplug the power cord from the wall outlet.
Maintenance of LCD Screen
• To keep the screen clean, turn off the power and then wipe with a soft cloth.
About LCD Screen
• This LCD panel is designed with the latest technology, ensuring 99.99% of active pixels.
ENGLISH
Cautionary Notes
Cautions on Using Battery pack
Danger!
Always follow the safety information below when using the battery pack. Otherwise, a short circuit, overheating, smoke, fire, or
damage to the product may result.
1. Never disassemble or modify the battery pack in any way. Do not touch the terminal of the battery pack with a metal object.
2. Do not let any metal object inside the battery pack.
3. Do not place the battery pack in direct sunlight, dashboard of a vehicle, or high temperature.
4. Do not expose the battery pack to water, fire, or heat.
5. Always use the included AC adapter when charging the battery pack.
6. This battery pack is designed exclusively for your portable DVD player. Do not use it with other devices.
Warning!
1. Do not drop or subject to strong vibration.
2. Keep out of reach of children.
3. The battery pack may leak fluid that is harmful to your eyes.
If this fluid gets in your eyes, wash eyes immediately with large amounts of running water and get medical attention immediately.
If the fluid gets on your skin or clothing, wash immediately with water.
Caution!
1. When not using the battery pack, remove it and store in a cool place.
2. Do not use the AC adapter or battery pack for a prolonged period of time during recharging. You might get a low temperature burn.
3. Keep the battery pack free from smoke, steam, moisture, and dust.
• Do not place the battery pack near a kitchen, heater, or any other place where there is smoke or steam.
Doing so may result in fire or electric shock.
• Avoid direct sunlight, heater, or high temperature place. etc, inside of a car. It can cause explosion or fire.
Doing so may cause a short circuit, overheating, smoke, fire, or damage to the product.
4. Using the battery pack under 50°F or over 86°F can cause reduced battery life.
Downloaded From Disc-Player.com Samsung Manuals
56
57
ENGLISH
ENGLISH
Cautionary Notes
Cautionary Notes
After a Recharge, store the Battery pack separately.
• This battery pack is a lithium ion battery. Even when not in use, power will drain slowly. So use a fully charged
battery pack.
• Recharge until the charge lamp stays on green. A partial charging of the battery pack decreases the overall lifetime of the battery.
Cautions on Storing Battery pack
• Even when not in use, power is consumed continuously. To reduce the power consumption, follow the procedure below.
1. Remove the battery pack from the DVD player after every use.
2. When not using the DVD player, turn off the power. If the player is left in the standby mode, power will be slowly drained
from the battery pack and the charging capacity will decrease.
3. Before storing the battery pack, completely drain the power by operating the player and store in a cool, dry place.
If stored in a hot place, the capacity of the battery pack will decrease.
4. The battery pack must be recharged and then used on the DVD player at least once every 6 months.
This helps to prevent the loss of capacity.
Cautions on Charging Battery pack
• Charge within the surrounding temperature range of 50°F~86°F. Charging at a low surrounding temperature slows down the
charging time and decreases the battery pack. You cannot fully charge the battery pack at high temperature.
• If the DVD player is overheated and the battery pack’s internal temperature goes up to a certain level, you will not be able to
charge the battery pack. (The lamp flashes quickly and the light does not come on.)
In this case, remove the battery pack. After the internal temperature reaches a safe level, charging will begin automatically.
• The battery pack becomes warm during recharge or use. This is normal and is not a cause for concern.
A hot battery pack may take longer to charge or may not be charged at all. Wait until the battery pack cools down before charging.
Battery pack Life and Use (Low Temperature)
• The lifetime of the battery pack is limited.
Power is slowly drained even when not using. Though it varies for differing storage conditions, the battery pack stored unused for a
year has a much shorter lifetime.
If the battery pack does not last long even after a full charge, you might have to replace it with a newo one.
• Total operating time of the battery pack becomes much shorter when used at temperatures below 50 F.
Electrical energy is discharged due to internal chemical action of the battery pack.
A very low temperature may impede this chemical action and shortens the total operating time.
Caution
• Be sure to use only the battery pack exclusively designed for your DVD player.
AC Adapter
The supplied AC adapter is compatible with 50/60Hz electrical system (110V~240V range).
Use of the AC adapter depends on the specific voltage requirements and electrical outlet design.
• Using the AC adapter near a radio may cause poor reception.
• Do not let any type of flammables, liquid, or metal objects in the adapter.
• The adapter is covered with an outer plastic sheath. Do not peel open the sheath.
• Do not drop, jar, or shake the adapter.
• Do not place in direct sunlight.
• Do not use in high temperature or cold and humid environments.
Cleaning and Maintenance
• Many plastic parts are used in this DVD player casing. Do not use volatile chemicals such as benzene or thinner.
This might damage the finish.
• Wipe the casing with a soft, dry cloth. For excessive dirt, use a cloth dampened in a diluted neutral detergent. and wipe again with a
soft, dry cloth.
• Wipe off fingerprints or dirt on the LCD screen using a soft, dry cloth.
NOTE:
• When not using the DVD player, always turn off the power to conserve the battery pack.
If the AC adapter is connected to the player, charge the battery pack with the power to the player turned off.
Downloaded From Disc-Player.com Samsung Manuals
58
59
ENGLISH
ENGLISH
Troubleshooting
Troubleshooting
If your DVD player does not seem to be functioning properly, check the items below before you contact a Samsung authorized service center.
Symptom
Check
Power does not turn on or
suddenly turns off.
• Make sure the AC power cord is securely plugged into an AC outlet.
Battery pack is in place but
the power does not turn on
or suddenly turns off
• Check that the battery pack is charged. If not, recharge it.
Remote control won’t work
• Check that the battery is inserted in the “+” and “-” direction properly.
• Turn the power off and then back on.
• The batteries may be dead. Replace them with new batteries.
• Check that the signal transmission is directed at the remote control sensor on the DVD player.
• Remove the obstacle between the remote control unit and remote control sensor.
No picture or sound
• Check that the video and audio cables are securely connected.
Symptom
No picture
No sound
No picture and sound
Distorted video or sound
While in the input mode,
no picture is output from
the external component
to the DVD player
Check
• Check that the LCD display is turned on.
• Check that the display panel is open. If it is closed, audio will not be output to the speakers.
• Check the volume setting. If set to zero, turn up volume level.
• Check that the headphones are plugged into the PHONES jack.
Speakers cannot be used with the headphones.
• Check that the DVD player is in the DVD mode and not in the INPUT mode.
• Use a disc without scratches or dents.
• Check that the video or audio cable is securely connected.
• Make sure the S-Video cable is used for output only.
• Check that the DVD player is in the INPUT mode and not in the DVD mode.
• Check that the disc is a DVD (region number 1 or all), DVD-RW, AUDIO CD.
• Do not use a disc that has scratches or dirt.
• Check that the label-side of the disc is facing up.
• The pick-up lens of the DVD player may be dirty. Contact the service center for lens cleaning.
• Check that the TV channel is set to VIDEO or AV if viewing with a TV.
Forgot password
• Press power on from a cold start with no disc in the unit. Press the STOP and PLAY buttons
simultaneously on the unit for three seconds. The Select Menu Language display will appear.
Select the desired language by using UP or DOWN button. Press the MENU button on the remote
control to select the Parental Mode. The Parental Mode is now unlocked as indicated on the display.
Press the DOWN button to select Parental. Press ENTER and the Create Password display will
appear. You can now set your rating level and change your password to a new number.
The built-in micro controller can be influenced by external electrical noise. If you believe this may be the cause of the
problem, turn off the DVD player and then back on.
Downloaded From Disc-Player.com Samsung Manuals
60
61
ENGLISH
ENGLISH
Specifications
Troubleshooting
Symptom
DVD
Video does not appear with a
external component connected to
the DVD player
Dolby Digital audio volume is
too low
Battery pack Battery pack won’t charge
operation
Check
• Check that the TV is set to VIDEO or AV.
• Check that the video or audio cable is securely connected.
General
Disc
• Replace with a fully charged battery pack or use the AC adapter.
Power charge lamp does
not light (Battery pack won’t
charge)
• Replace with a fully charged battery pack or use the AC adapter.
If the DVD player is overheated and the battery pack’s internal temperature goes up
to a certain level, you will not be able to charge the battery pack.
In this occurs, remove the battery pack. After the battery pack has sufficiently
cooled down, charging will begin automatically.
Video
Output
• Check that the temperature is within the range of 50°F~86°F.
Audio
Output
• Remove the DC cord from the battery pack and then re-plug.
If the battery pack is installed, remove the DC cord from the battery pack before
performing above procedure.
• Recharge a different power pack. If the same symptom occurs, your
AC adapter may be defective. If the second battery pack charges without any
problem, your first battery pack may be defective or needs battery replacement.
Downloaded From Disc-Player.com Samsung Manuals
62
Dimensions
DVD
(DIGITAL VERSATILE DISC)
Power does not turn on
Battery pack Power charge lamp quickly
flashes Green
operation
16 W
Weight
Operating Humidity Range
• Check that the DVD player is turned off.
You cannot charge the battery pack with the player turned on.
• Check that the DC cord of the AC adapter is plugged in correctly.
AC 120V, 60 Hz
Power Consumption
Operating Temperature Range
• Change the “Dynamic Compression” setting to “On”. This will turn up the comparatively
low volume level of Dolby Digital, which provides the most wide, dynamic sound range.
• A hot battery pack may take longer to charge.
Wait until the battery pack is sufficiently cooled down.
Power Requirements
3.3 lbs (without battery pack)
(W) 14.1 in x (H) 5.2 in x (D) 10.4 in
+50°F to +86°F
30 % to 80 %
Reading Speed : 11.45 ~ 15.09 ft/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
CD : 5"
(COMPACT DISC)
Reading Speed : 15.75 to 18.37 ft/sec.
Maximum Play Time : 74 min.
CD : 31/2"
(COMPACT DISC)
Reading Speed : 15.75 to 18.37 ft/sec.
Maximum Play Time : 20 min.
Composite Video
1 channel : 1.0 Vp-p (75 Ω load)
S-VIDEO
Luminance Signal : 1.0 Vp-p (75 Ω load)
Chrominance Signal : 0.286 Vp-p (75 Ω load)
2 channel
L(1/L), R(2/R)
*Frequency Response
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
*S/N Ratio
110 dB
*Dynamic Range
100 dB
*Total Harmonic Distortion
0.004 %
* : Nominal specification
• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
63
ENGLISH
Warranty
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by
SAMSUNG against manufacturing defects in materials and workmanship for the following limited warranty period:
One (1) Year Parts and Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used
in the United States, and does not include transportation, installation, removal or reinstallation. Warranty repairs
must be performed by SAMSUNG’s authorized service center. To receive warranty service, the original dated
bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized
service center. Transportation to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts,
if found to be defective during the limited warranty period specified above. The product must be returned during
the warranty period with transportation charges prepaid to SAMSUNG’s designated service center. Prior to
returning any product for warranty service, the purchaser must contact SAMSUNG for problem determination
and service procedures. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is
longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,
noncommercial use of this product and shall not apply to the following, including, but not limited to: damage
which occurs in shipment; applications and uses for which this product was not intended; failures or problems
which are caused by products or equipment not supplied by SAMSUNG; accidents, misuse, abuse, neglect,
misapplication, fire, water, lightning or other acts of nature; incorrect electrical line voltage, fluctuations or
surges; damage caused by improper or faulty installation; improper connection with any peripheral; product
alteration or modification; improper or unauthorized repair; cosmetic damage or exterior finish; product with
altered serial numbers; failure to follow operating instructions, customer adjustments, maintenance and
environmental instructions that are covered and prescribed in the instruction book; use of non-SAMSUNG or
unauthorized parts, supplies, accessories or equipment which damage this product or result in service problems;
failures or problems due to incompatibility with other equipment.
Downloaded From Disc-Player.com Samsung Manuals
64
