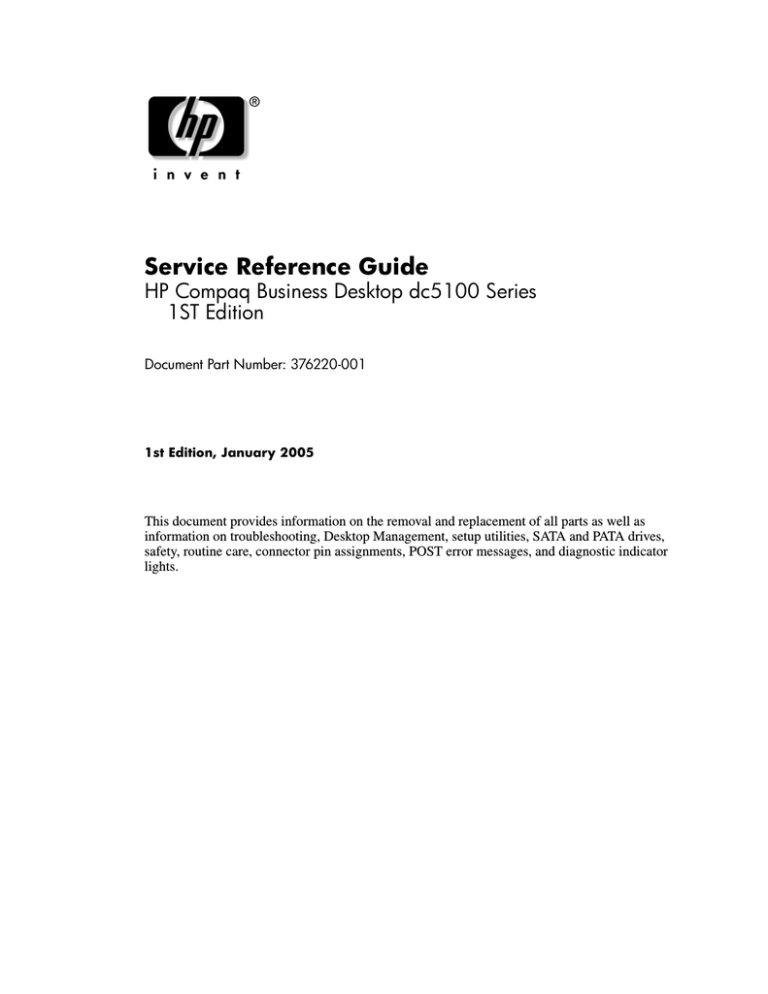

Service Reference Guide

HP Compaq Business Desktop dc5100 Series

1ST Edition

Document Part Number: 376220-001

1st Edition, January 2005

This document provides information on the removal and replacement of all parts as well as information on troubleshooting, Desktop Management, setup utilities, SATA and PATA drives, safety, routine care, connector pin assignments, POST error messages, and diagnostic indicator lights.

© 2004 Hewlett-Packard Development Company, L.P.

HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of Hewlett-Packard Company in the U.S. and other countries.

Compaq and the Compaq logo are trademarks of Hewlett-Packard Development Company, L.P. in the U.S. and other countries.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft Corporation in the U.S. and other countries.

Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel Corporation in the U.S. and other countries.

Adobe, Acrobat, and Acrobat Reader are trademarks or registered trademarks of Adobe Systems Incorporated.

All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice.

The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard

Company.

Å WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

Ä CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

Service Reference Guide

HP Compaq Business Desktop dc5100 Series

First Edition (January 2005)

Document Part Number: 376220-001

Contents

+

Contents

1 Installing the Operating System

1.1 Installing or Upgrading Device Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.2 Transferring Files and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.3 Backing Up and Restoring Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.3.1 Creating a Backup File—Windows XP Professional. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.3.2 Restoring from the Backup File—Windows XP Professional . . . . . . . . . . . . . . . . . . . . . . 1–2

1.4 Converting to NTFS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5 HP Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

2 Setup Utilities and Diagnostics Features

2.1 Power-On Self-Test (POST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2 Computer Setup Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

2.2.1 Using Computer Setup (F10) Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

2.2.2 Computer Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

2.3 Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

2.3.1 Detecting Diagnostics for Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

2.3.2 Installing Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

2.3.3 Using Categories in Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16

2.3.4 Running Diagnostic Tests in Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

2.4 Configuration Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

2.4.1 Installing Configuration Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

2.4.2 Running Configuration Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

3 Desktop Management

3.1 Initial Configuration and Deployment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 Remote System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.3 Software Updating and Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.3.1 HP Client Manager Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.3.2 Altiris Client Management Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

3.3.3 System Software Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

3.3.4 Proactive Change Notification (PCN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.3.5 Subscriber’s Choice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.3.6 ROM Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.3.7 Remote ROM Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.3.8 HPQFlash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

3.3.9 FailSafe Boot Block ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

3.3.10Replicating the Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6

3.3.11Dual-State Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12

3.3.12World Wide Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12

3.3.13Building Blocks and Partners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12

Service Reference Guide, dc5100 376220-001 iii

Contents

3.4 Asset Tracking and Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13

3.4.1 Password Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–17

3.4.2 Establishing a Setup Password Using Computer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 3–17

3.4.3 Establishing a Power-On Password Using Computer Setup . . . . . . . . . . . . . . . . . . . . . . 3–17

3.4.4 DriveLock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–20

3.4.5 Smart Cover Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–22

3.4.6 Master Boot Record Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–24

3.4.7 Before You Partition or Format the Current Bootable Disk . . . . . . . . . . . . . . . . . . . . . . 3–25

3.4.8 Cable Lock Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–25

3.4.9 Fingerprint Identification Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–25

3.5 Fault Notification and Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–26

3.5.1 Drive Protection System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–26

3.5.2 Surge-Tolerant Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–26

3.5.3 Thermal Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–26

4 Serial and Parallel ATA Drive Guidelines and Features

4.1 SATA and PATA Device Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2 ATA Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.2.1 SATA Data Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.2.2 SATA Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.2.3 PATA Data Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.4 PATA Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.5 PATA Cable Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

4.3 PATA Drive Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

4.3.1 PATA Device Classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

4.3.2 PATA Attach Sequence Rules by Class Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

4.3.3 PATA Attach Sequence Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

4.3.4 PATA Additional Drive Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

4.4 ATA SMART Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

4.5 Drive Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

4.6 SATA BIOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

4.6.1 Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

4.6.2 Native Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

4.7 Mixed Devices Boot and Drive Letter Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12

5 Identifying the Chassis, Routine Care, and Disassembly Preparation

5.1 Chassis Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.1.1 Microtower (MT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.1.2 Small Form Factor (SFF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2 Electrostatic Discharge Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.2.1 Generating Static . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.2.2 Preventing Electrostatic Damage to Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.2.3 Personal Grounding Methods and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

5.2.4 Grounding the Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

5.2.5 Recommended Materials and Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

5.3 Operating Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4 Routine Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4.1 General Cleaning Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

iv 376220-001 Service Reference Guide, dc5100

Contents

5.4.2 Cleaning the Computer Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.4.3 Cleaning the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.4.4 Cleaning the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.4.5 Cleaning the Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.1 Power Supply Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.2 Tools and Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.3 Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

5.5.4 Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

5.5.5 Hard Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

5.5.6 Lithium Coin Cell Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

6 Removal and Replacement Procedures— Microtower (MT) Chassis

6.1 Preparation for Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

6.2 External Security Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.2.1 Installing a Cable Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.2.2 Installing a Padlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.3 Access Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3

6.4 Front Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4

6.5 Front Drive Bezels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

6.5.1 5.25" Drive Bezel Blank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

6.5.2 Diskette Drive Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

6.5.3 3.5" Drive Bezel Blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

6.6 Memory Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8

6.7 Expansion Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9

6.7.1 Expansion Slot Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9

6.7.2 PCI Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10

6.8 Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–12

6.8.1 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–13

6.9 Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14

6.9.1 Drive Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14

6.9.2 Removing a Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–15

6.9.3 Installing a Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–17

6.10Chassis Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–20

6.11Front I/O Panel Housing Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–21

6.12Front I/O Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–22

6.13Power Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–23

6.14Heatsink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–24

6.15Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–25

6.16System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–27

6.17Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–28

6.17.1Type 1 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–29

6.17.2Type 2 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–30

6.17.3Type 3 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–31

6.18Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–32

6.19Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–33

Service Reference Guide, dc5100 376220-001 v

Contents

7 Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.1 Preparation for Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

7.2 Unlocking the Smart Cover Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2

7.3 External Security Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3.1 Security Clip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3.2 Cable Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3.3 Padlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

7.3.4 Universal Chassis Clamp Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

7.4 Computer Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–10

7.5 Front Drive Bezels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–11

7.6 Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–13

7.6.1 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–15

7.7 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–16

7.8 Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–18

7.8.1 Expansion Card Retainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–18

7.8.2 PCI Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–19

7.9 Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–21

7.9.1 Drive Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–21

7.9.2 Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–22

7.9.3 External 3.5-inch Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–24

7.9.4 Primary Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–25

7.10Fan Shroud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–29

7.11Front I/O Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–30

7.12Power Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–34

7.13Heatsink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–35

7.14Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–36

7.15Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–38

7.16Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–39

7.17System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–41

7.18Chassis Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–46

7.19Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–47

7.19.1Type 1 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–48

7.19.2Type 2 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–49

7.19.3Type 3 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–50

A Connector Pin Assignments

B Power Cord Set Requirements

C POST Error Messages

D Troubleshooting Without Diagnostics

E System Board and Riser Card Reference Designators

F Memory

Index

vi 376220-001 Service Reference Guide, dc5100

1

Installing the Operating System

Ä CAUTION: Do not add optional hardware or third-party devices to your computer until the operating system is successfully installed. Doing so may cause errors and may prevent the operating system from installing properly.

Ä CAUTION: Once the automatic installation has begun, DO NOT TURN OFF THE COMPUTER UNTIL

THE PROCESS IS COMPLETE. Turning off the computer during the installation process might damage the software that runs the computer or prevent its proper installation.

The first time the computer is turned on, the operating system is automatically installed. This takes approximately 10 minutes, depending on the system hardware configuration. At the beginning of the installation process, you are prompted to select the appropriate language for the operating system. Read and follow the instructions that appear on the screen to complete the installation.

During this process, do not turn off your computer unless you are directed to do so.

If the computer shipped with more than one operating system language on the hard drive, the installation process could take up to 60 minutes.

1.1 Installing or Upgrading Device Drivers

To install hardware devices such as a printer, a display adapter, or network adapter after the operating system installation is completed, the operating system needs access to the appropriate software drivers for the devices.

If prompted for the I386 directory, replace the path specification with C:\i386, or use the Browse button in the dialog box to locate the i386 folder. This action points the operating system to the appropriate drivers.

Obtain the latest support software, including support software for the operating system from www.hp.com

. Click Support & Drivers, select Download drivers and software, enter the model number of the computer, and press Enter .

You can also obtain the latest support software on CDs. The following Web site provides information on how to purchase a support software CD subscription: http://h18000.www1.hp.com/support/files/desktops/us/purchase.html

If the computer has an optical CD-RW drive, install the appropriate application to be able to write to the drive. To install the application, double-click the Setup Software icon on the desktop or the application launcher and select the Easy CD Creator and Direct CD option when prompted.

1–1 Service Reference Guide, dc5100 376220-001

Installing the Operating System

1.2 Transferring Files and Settings

Use the Microsoft Windows XP Files and Settings Transfer Wizard to move files and settings from an old computer to a new one. Click Start > All Programs > Accessories > System Tools

> Files and Settings Transfer Wizard.

1.3 Backing Up and Restoring Files

1.3.1 Creating a Backup File—Windows XP Professional

1. Click Start > All Programs > Accessories > System Tools > Backup.

2. Use the Backup or Restore Wizard to create a backup file or tape.

A backup file can be saved to a hard disk, a floppy disk, CD, USB flash media device, tape drive, or to any other removable or nonremovable media.

1.3.2 Restoring from the Backup File—Windows XP Professional

1. Click Start > All Programs > Accessories > System Tools > Backup.

2. Use the Backup or Restore Wizard to restore files from a backup file.

A backup file can be on a hard disk, a floppy disk, CD, USB flash media device, tape drive, or any other removable or nonremovable media.

1.4 Converting to NTFS

Windows XP Professional

To convert a FAT or FAT32 volume to NTFS,

1. Click Start > All Programs > Accessories > Command Prompt.

2. Type convert drive_letter: /fs:ntfs (where drive_letter is the volume to be converted) and press Enter .

1–2

The Microsoft Windows XP Professional operating system is preinstalled on the computer and will be configured automatically the first time the computer is turned on. The following HP software may also be installed at that time on selected models:

Computer Setup Utilities

HP Support Software including device drivers

Configuration Record

Online Safety & Comfort Guide

Power Management with energy saver features

Security Management tools

376220-001 Service Reference Guide, dc5100

Installing the Operating System

■ Software Support Management tools

Certain drivers and utilities are available only in selected languages. You can obtain the latest version of these files, in English and selected other languages, in one of three ways:

Support Software CD

HP Web site at www.hp.com

Restore Plus! CD, which is supplied with many HP models

Additional HP software may be required in certain situations.

Service Reference Guide, dc5100 376220-001 1–3

Installing the Operating System

1–4 376220-001 Service Reference Guide, dc5100

2

Setup Utilities and Diagnostics Features

Setup Utilities (F10) and diagnostic features provide information needed about the computer system when contacting Customer Support. These tools can also be used to:

■ Change factory default settings and to set or change the system configuration, which may be necessary when you add or remove hardware.

■ Determine if all of the devices installed on the computer are recognized by the system and functioning properly.

Determine information about the operating environment of the computer.

Solve system configuration errors detected but not automatically fixed during the Power-On

Self-Test (POST).

Establish and manage passwords and other security features.

Establish and manage energy-saving timeouts.

All features identified in this chapter may not be available on all HP products.

POST is a series of diagnostic tests that runs automatically when the system is turned on. POST checks the following items to ensure that the computer system is functioning properly:

Keyboard

Memory modules

All mass storage devices

Processors

Controllers

If the Power-On Password is set, a key icon appears on the screen while POST is running. You will need to enter the password before continuing. Refer to Chapter 3, Section

3.1

for information on setting, deleting, or bypassing the password.

If POST finds an error in the system, an audible and/or visual message occurs. For POST error

messages and their solutions refer to Appendix C, “POST Error Messages.”

2–1 Service Reference Guide, dc5100 376220-001

Setup Utilities and Diagnostics Features

2.2 Computer Setup Utilities

Use Computer Setup Utilities (F10) to:

Change factory default settings.

Set the system date and time.

Set, view, change, or verify the system configuration, including settings for processor, graphics, memory, audio, storage, communications, and input devices.

■ Modify the boot order of bootable devices such as hard drives, diskette drives, optical drives, or USB flash media devices.

■ Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run during a Full Boot. You can set the system to:

❏ always Quick Boot (default); periodically Full Boot (from every 1 to 30 days); or always Full Boot.

■ Select Post Messages Enabled or Disabled to change the display status of Power-On

Self-Test (POST) messages. Post Messages Disabled suppresses most POST messages, such as memory count, product name, and other non-error text messages. If a POST error occurs, the error is displayed regardless of the mode selected. To manually switch to Post Messages

Enabled during POST, press any key (except F1 through F12 ).

■ Establish an Ownership Tag, the text of which is displayed each time the system is turned on or restarted.

■ Enter the Asset Tag or property identification number assigned by the company to this computer.

■ Enable the power-on password prompt during system restarts (warm boots) as well as during power-on.

■ Establish a setup password that controls access to Computer Setup (F10) Utility and the settings described in this section.

■ To secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or embedded NIC, so that they cannot be used until they are unsecured.

Enable or disable Master Boot Record (MBR) Security.

Enable or disable removable media boot ability.

Enable or disable legacy diskette write ability (when supported by hardware).

Solve system configuration errors detected but not automatically fixed during the Power-On

Self-Test (POST).

■ Replicate the system setup by saving system configuration information on diskette and restoring it on one or more computers.

Execute self-tests on a specified ATA hard drive (when supported by drive).

Enable or disable DriveLock security (when supported by MultiBay drive).

2–2 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

2.2.1 Using Computer Setup (F10) Utilities

Computer Setup can be accessed only by turning on the computer or restarting the system. To access the Computer Setup Utilities menu, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start >Shut Down >Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select your language from the list and press Enter .

4. A choice of five headings appears in the Computer Setup Utilities menu: File, Storage,

Security, Power, and Advanced.

5. Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down) keys to select the option you want, then press Enter . To return to the Computer Setup

Utilities menu, press Esc .

6. To apply and save changes, select File > Save Changes and Exit.

❏ If you have made changes that you do not want applied, select Ignore Changes and

Exit.

❏ To reset to factory settings, select Set Defaults and Exit. This option will restore the original factory system defaults.

Ä CAUTION: Do NOT turn the computer power OFF while the ROM is saving your F10 Computer Setup changes because the CMOS could become corrupted. It is safe to turn off all power to the computer after you exit the F10 Setup screen.

Service Reference Guide, dc5100 376220-001 2–3

Setup Utilities and Diagnostics Features

2.2.2 Computer Setup Menu

.

Heading Option Description

File System Lists:

• Product name

• Processor type/speed/stepping

• Cache size (L1/L2)

• Installed memory size/speed, number of channels (single or dual) (if applicable)

• Integrated MAC address for embedded, enabled NIC (if applicable)

• System ROM (includes family name and version)

• Chassis serial number

• Asset tracking number

About Displays copyright information.

Set Time and Date Allows you to set system time and date.

Replicated Setup

Default Setup

Save to Removable Media

Saves system configuration, including CMOS, to a formatted

1.44-MB diskette, a USB flash media device, or a diskette-like device (a storage device set to emulate a diskette drive).

Restore from Removable Media

Restores system configuration from a diskette, a USB flash media device, or a diskette-like device.

Save Current Settings as Default

Saves the current system configuration settings as the default.

Restore Factory Settings as Default

Restores the factory system configuration settings as the default.

Apply Defaults and Exit

Ignore Changes and Exit

Save Changes and

Exit

Applies the currently selected default settings and clears any established passwords.

Exits Computer Setup without applying or saving any changes.

Saves changes to system configuration or default settings and exits

Computer Setup.

Support for specific Computer Setup options may vary depending on the hardware configuration.

2–4 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

Heading Option

Storage Device

Configuration

Description

Lists all installed BIOS-controlled storage devices.

When a device is selected, detailed information and options are displayed. The following options may be presented.

Diskette Type

Identifies the highest capacity media type accepted by the diskette drive.

Legacy Diskette Drives

Options are 3.5" 1.44 MB, and 5.25" 1.2 MB.

Drive Emulation

Allows you to select a drive emulation type for a certain storage device. (For example, a Zip drive can be made bootable by selecting diskette emulation.)

Drive Type

ATAPI Zip drive

ATA Hard disk

Emulation Options

None (treated as Other)

Diskette (treated as diskette drive)

None (treated as Other)

Legacy diskette

CD-ROM drive

ATAPI LS-120

Hard disk (treated as hard drive)

No emulation options available

No emulation options available

None (treated as Other).

Diskette (treated as diskette drive).

Default Values IDE/SATA

Multisector Transfers (ATA disks only)

Specifies how many sectors are transferred per multi-sector PIO operation. Options (subject to device capabilities) are Disabled, 8, and 16.

Transfer Mode (ATA devices only)

Specifies the active data transfer mode. Options (subject to device capabilities) are PIO 0, Max PIO, Enhanced DMA, Ultra DMA 0, and Max UDMA.

Translation Mode (ATA disks only)

Lets you select the translation mode to be used for the device. This enables the BIOS to access disks partitioned and formatted on other systems and may be necessary for users of older versions of UNIX

(e.g., SCO UNIX version 3.2). Options are Automatic, Bit-Shift,

LBA Assisted, User, and None

Ä CAUTION: Ordinarily, the translation mode selected automatically by the BIOS should not be changed. If the selected translation mode is not compatible with the translation mode that was active when the disk was partitioned and formatted, the data on the disk will be inaccessible.

Support for specific Computer Setup options may vary depending on the hardware configuration.

Service Reference Guide, dc5100 376220-001 2–5

Setup Utilities and Diagnostics Features

Heading

Storage

(continued)

Option

Device

Configuration

(continued)

Storage Options

Description

Translation Parameters (ATA disks only)

This feature appears only when User translation mode is selected.

Allows you to specify the parameters (logical cylinders, heads, and sectors per track) used by the BIOS to translate disk I/O requests

(from the operating system or an application) into terms the hard drive can accept. Logical cylinders may not exceed 1024. The number of heads may not exceed 256. The number of sectors per track may not exceed 63. These fields are only visible and changeable when the drive translation mode is set to User.

Removable Media Boot

Enables/disables ability to boot the system from removable media.

Legacy Diskette Write

Enables/disables ability to write data to legacy diskettes.

After saving changes to Removable Media Write, the computer will restart. Turn the computer off, then on, manually.

BIOS DMA Data Transfers

Allows you to control how BIOS device I/O requests are serviced.

When “Enable” is selected, the BIOS will service ATA device read and write requests with DMA data transfers. When “Disable” is selected, the BIOS will service ATA device read and write requests with PIO data transfers.

SATA Emulation

Allows you to choose how the SATA controller and devices are accessed by the operating system.

“Separate IDE Controller” is the default option. Up to 4 SATA and 2

PATA devices may be accessed in this mode. The SATA and PATA controllers appear as two separate IDE controllers. Use this option with Microsoft Windows 2000 and Windows XP.

• SATA 0 is seen as SATA Primary Device 0

• SATA 1 (if present) is seen as SATA Secondary Device 0

“Combined IDE Controller” is the other option. Up to 2 PATA and 2

SATA devices may be accessed in this mode. The SATA and PATA controllers appear as one combined IDE controller. Use this option with Microsoft Windows 98 and earlier operating systems.

• PATA Primary Device 0 replaces SATA 1

• PATA Primary Device 1 replaces SATA 3

IDE Controller

Allows you to enable or disable the primary IDE controller. This feature is supported on some models.

Primary SATA Controller

Allows you to enable or disable the Primary SATA controller.

Support for specific Computer Setup options may vary depending on the hardware configuration.

2–6 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

Heading

Storage

(continued)

Option

Storage Options

(continued)

DPS Self-Test

Boot Order

Description

Secondary SATA Controller

Allows you to enable or disable the Secondary SATA controller. This feature is supported on some models.

Allows you to execute self-tests on ATA hard drives capable of performing the Drive Protection System (DPS) self-tests.

This selection will only appear when at least one drive capable of performing the DPS self-tests is attached to the system.

Allows you to:

• Specify the order in which attached devices (such as a USB flash media device, diskette drive, hard drive, optical drive, or network interface card) are checked for a bootable operating system image. Each device on the list may be individually excluded from or included for consideration as a bootable operating system source.

• Specify the order of attached hard drives. The first hard drive in the order will have priority in the boot sequence and will be recognized as drive C (if any devices are attached).

MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating system has started.

Shortcut to Temporarily Override Boot Order

To boot one time from a device other than the default device specified in Boot Order, restart the computer and press F9 when the monitor light turns green. After POST is completed, a list of bootable devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter. The computer then boots from the selected non-default device for this one time.

Security Setup Password

Power-On

Password

Allows you to set and enables setup (administrator) password.

If the setup password is set, it is required to change Computer

Setup options, flash the ROM, and make changes to certain plug and play settings under Windows.

See the Troubleshooting Guide on the Documentation CD for more information.

Allows you to set and enable power-on password.

See the Troubleshooting Guide for more information.

Password Options

(This selection will appear only if a power-on password is set.)

Allows you to specify whether the password is required for warm boot (CTRL+ALT+DEL).

See the Desktop Management Guide for more information.

Support for specific Computer Setup options may vary depending on the hardware configuration.

Service Reference Guide, dc5100 376220-001 2–7

Setup Utilities and Diagnostics Features

Heading

Security

(continued)

Option

Smart Cover

Description

Allows you to:

• Lock/unlock the Cover Lock.

• Set the Cover Removal Sensor to Disable/Notify User/Setup

Password.

Notify User alerts the user that the sensor has detected that the cover has been removed. Setup Password requires that the setup password be entered to boot the computer if the sensor detects that the cover has been removed.

This feature is supported on select models only. See the Desktop

Management Guide on the Documentation CD for more information.

Embedded

Security

Device Security

Network Service

Boot

Allows you to:

• Enable/disable the Embedded Security device.

• Reset the device to Factory Settings.

This feature is supported on select models only. See the Desktop

Management Guide on the Documentation CD for more information.

Enables/disables serial ports, parallel port, front USB ports, system audio, network controllers (some models), MultiBay devices (some models), SMBus controller (some models), and SCSI controllers

(some models).

Enables/disables the computer’s ability to boot from an operating system installed on a network server. (Feature available on NIC models only; the network controller must reside on the PCI bus or be embedded on the system board.)

System IDs Allows you to set:

• Asset tag (18-byte identifier) and ownership Tag (80-byte identifier displayed during POST).

See the Desktop Management Guide on the Documentation CD for more information.

• Chassis serial number or Universal Unique Identifier (UUID) number. The UUID can only be updated if the current chassis serial number is invalid. (These ID numbers are normally set in the factory and are used to uniquely identify the system.)

• Keyboard locale setting (for example, English or German) for

System ID entry.

Support for specific Computer Setup options may vary depending on the hardware configuration.

2–8 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

Heading

Security

(continued)

Option Description

DriveLock Security Allows you to assign or modify a master or user password for

MultiBay hard drives. When this feature is enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither is successfully entered, the hard drive will remain inaccessible until one of the passwords is successfully provided during a subsequent cold-boot sequence.

This selection will only appear when at least one MultiBay drive that supports the DriveLock feature is attached to the system.

See the Desktop Management Guide on the Documentation CD for more information.

Data Execution

Prevention

Enable/Disable.

Data Execution Prevention Mode help prevent OS security breaches.

This selection is in effect only if the processor and operating system being used comprehend and utilize the function.

Master Boot

Record Security*

Save Master Boot

Record*

Restore Master

Boot Record*

Allows you to enable or disable Master Boot Record (MBR) Security.

When enabled, the BIOS rejects all requests to write to the MBR on the current bootable disk. Each time the computer is powered on or rebooted, the BIOS compares the MBR of the bootable disk to the previously saved MBR. If changes are detected, you are given the option of saving the MBR of the current bootable disk, restoring the previously-saved MBR, or disabling MBR security. You must know the setup password if one is set.

Disable MBR Security before intentionally changing the formatting or partitioning of the current bootable disk. Several disk utilities

(such as FDISK and FORMAT) attempt to update the MBR.

If MBR Security is enabled and disk accesses are being serviced by the BIOS, write requests to the MBR are rejected, causing the utilities to report errors.

If MBR Security is enabled and disk accesses are being serviced by the operating system, any MBR change will be detected by the

BIOS during the next reboot, and an MBR Security warning message will be displayed.

Saves a backup copy of the Master Boot Record of the current bootable disk.

Only appears if MBR Security is enabled.

Restores the backup Master Boot Record to the current bootable disk.

Only appears if all of the following conditions are true:

• MBR Security is enabled.

• A backup copy of the MBR has been previously saved.

• The current bootable disk is the same disk from which the backup copy of the MBR was saved.

Ä CAUTION: Restoring a previously saved MBR after a disk utility or operating system has modified the MBR may cause the data on the disk to become inaccessible. Only restore a previously saved

MBR ifyou are confident that the current bootable disk’s MBR has been corrupted or infected with a virus.

Support for specific Computer Setup options may vary depending on the hardware configuration.

Service Reference Guide, dc5100 376220-001 2–9

Setup Utilities and Diagnostics Features

Heading

Power

Option

OS Power

Management

Description

• Runtime Power Management - Enable/Disable. Allows certain operating systems to reduce processor voltage and frequency when the current software load does not require the full capabilities of the processor.

• Idle Power Savings - Extended/Normal. Allows certain operating systems to decrease the processors power consumption when the processor is idle.

• ACPI S3 Support - Enables or disables ACPI S3 support.

• ACPI S3 Hard Disk Reset - Enabling this causes the BIOS to ensure hard disks are ready to accept commands after resuming from S3 before returning control to the operating system.

• ACPI S3 PS2 Mouse Wakeup - Enables or disables waking from

S3 due to PS2 mouse activity.

SATA power management enables or disables SATA bus and/or device power management.

Hardware Power

Management

Thermal Fan idle mode - This bar graph controls the minimum permitted fan speed.

Support for specific Computer Setup options may vary depending on the hardware configuration.

2–10 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

Heading Option Description

Advanced*

*For advanced users only

Power-On Options Allows you to set:

• POST mode (QuickBoot, FullBoot, or FullBoot every 1-30 days).

• POST messages (enable/disable).

F9 prompt (enable/disable). Enabling this feature will display the text F9=Boot Menu during POST. Disabling this feature prevents the text from being displayed but pressing F9 will still access the Shortcut Boot (Order) Menu screen. See Storage >

Boot Order for more information.

F10 prompt (enable/disable). Enabling this feature will display the text F10=Setup during POST. Disabling this feature prevents the text from being displayed but pressing F10 will still access the Setup screen.

F12 prompt (enable/disable). Enabling this feature will display the text F12=Network Service Boot during POST.

Disabling this feature prevents the text from being displayed but pressing F12 will still force the system to attempt booting from the network.

• Option ROM* prompt (enable/disable). Enabling this feature will cause the system to display a message before loading options ROMs. (This feature is supported on select models only.)

• Remote wakeup boot source (remote server/local hard drive).

• After Power Loss (off/on/previous state): After power loss, if you connect your computer to an electric power strip and would like to turn on power to the computer using the switch on the power strip, set this option to ON.

If you turn off power to your computer using the switch on a power strip, you will not be able to use the suspend/sleep feature or the Remote Management features.

• POST Delay (in seconds) (5, 10, 15, or 20 seconds). Enabling this feature will add a user-specified delay to the POST process.

This delay is sometimes needed for hard disks on some PCI cards that spin up very slowly; so slowly that they are not ready to boot by the time POST is finished. The POST delay also gives you more time to press F10 to enter Computer (F10) Setup.

• I/O APIC Mode (enable/disable). Enabling this feature will allow Microsoft Windows Operating Systems to run optimally.

This feature must be disabled for certain non-Microsoft

Operating Systems to work properly.

Support for specific Computer Setup options may vary depending on the hardware configuration.

Service Reference Guide, dc5100 376220-001 2–11

Setup Utilities and Diagnostics Features

Heading

Advanced*

(continued)

*For advanced users only

Option

Power-On Options

(continued)

BIOS Power-On

Onboard Devices

PCI Devices

Description

Allows you to set: (continued)

• ACPI/USB Buffers @ Top of Memory (enable/disable).

Enabling this feature places USB memory buffers at the top of memory. The advantage is that some amount of memory below 1 MB is freed up for use by option ROMs. The disadvantage is that a popular memory manager, HIMEM.SYS, does not work properly when USB buffers are at top of memory

AND the system has 64 MB or less of RAM.

• Hyper-threading (enable/disable).

• Limit CPUID Maximum Value to 3 - Restricts the number of

CPUID functions reported by the microprocessor. Enable this feature if booting to WinNT.

Allows you to set the computer to turn on automatically at a time you specify.

Allows you to set resources for or disable onboard system devices

(diskette controller, serial port, or parallel port).

• Lists currently installed PCI devices and their IRQ settings.

• Allows you to reconfigure IRQ settings for these devices or to disable them entirely. These settings have no effect under an

APIC-based operating system.

Bus Options* On some models, allows you to enable or disable:

• PCI SERR# Generation.

• PCI VGA palette snooping, which sets the VGA palette snooping bit in PCI configuration space; only needed when more than one graphics controller is installed.

Support for specific Computer Setup options may vary depending on the hardware configuration.

2–12 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

Heading

Advanced*

(continued)

*For advanced users only

Option

Device options

Description

Allows you to set:

• Printer mode (bi-directional, EPP & ECP, output only).

Num Lock state at power-on (off/on).

• S5 Wake on LAN (enable/disable).

• To disable Wake on LAN during the off state (S5), use the arrow

(left and right) keys to select the Advanced > Device Options menu and set the S5 Wake on Lan feature to “Disable.” This obtains the lowest power consumption available on the computer during S5. It does not affect the ability of the computer to Wake on

LAN from suspend or hibernation, but will prevent it from waking from S5 via the network. It does not affect operation of the network connection while the computer is on.

• If a network connection is not required, completely disable the network controller (NIC) by using the arrow (left and right) keys to select the Security > Device Security menu. Set the Network

Controller option to “Device Hidden.” This prevents the network controller from being used by the operating system and reduces the power used by the computer in S5.

• Processor cache (enable/disable).

• Unique Sleep State Blink Patterns. Allows you to choose an LED blink pattern that uniquely identifies each sleep state.

• Integrated Video (enable/disable) Allows you to use integrated video and PCI Up Solution video at the same time (available on select models only).

Inserting a PCI or PCI Express video card automatically disables

Integrated Video. When PCI Express video is on, Integrated

Video must remain disabled.

• Monitor Tracking (enable/disable). Allows ROM to save monitor asset information.

• NIC PXE Option ROM Download (enable/disable). The BIOS contains an embedded NIC option ROM to allow the unit to boot through the network to a PXE server. This is typically used to download a corporate image to a hard drive. The NIC option ROM takes up memory space below 1MB commonly referred to as DOS Compatibility Hole (DCH) space. This space is limited. This F10 option will allow users to disable the downloading of this embedded NIC option ROM thus giving more DCH space for additional PCI cards which may need option ROM space. The default will be to have the NIC option

ROM enabled.

PCI VGA

Configuration

Displayed only if there are multiple PCI video adapters in the system. Allows you to specify which VGA controller will be the

“boot” or primary VGA controller.

Support for specific Computer Setup options may vary depending on the hardware configuration.

Service Reference Guide, dc5100 376220-001 2–13

Setup Utilities and Diagnostics Features

The Diagnostics for Windows (DFW) utility is a component of HP Client Management Solutions that allows you to view information about the hardware and software configuration of the computer while running Microsoft Windows (Microsoft Windows 2000 and Microsoft Windows

XP). It also allows you to perform hardware and software tests on the subsystems of the computer.

When you invoke Diagnostics for Windows, the current configuration of the computer is shown on the Overview screen. There is access from this screen to several categories of information about the computer and the Test tab. The information in every screen of the utility can be saved to a file or printed.

To test all subsystems, you must log in as the administrator. If you do not log in as the administrator, you will be unable to test some subsystems. The inability to test a subsystem will be indicated by an error message under the subsystem name in the Test window or by shaded check boxes that cannot be selected.

Use Diagnostics for Windows in to determine if all the devices installed on the computer are recognized by the system and functioning properly. Running tests is optional but recommended after installing or connecting a new device.

Third party devices not supported by HP may not be detected by Diagnostics for Windows. Save, print, or display the information generated by the utility.

2–14 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

2.3.1 Detecting Diagnostics for Windows

Some computers ship with the Diagnostics for Windows preloaded, but not preinstalled.

To determine whether Diagnostics for Windows is installed:

1. Access the location of the Diagnostics icons:

In Windows 2000 Professional, select Start > Settings > Control Panel.

In Windows XP Home or Windows XP Professional, select Start > Control Panel >

Performance and Maintenance.

2. If icons for Configuration Record and Diagnostics for Windows are present, the Diagnostics for Windows utility is installed. If the icons are not present, the utility is either not preloaded or not installed.

2.3.2 Installing Diagnostics for Windows

If Diagnostics for Windows is not preloaded, you can download the Diagnostics for Windows

SoftPaq from the following Web site: http://www.hp.com/support/files

Once the software has been downloaded onto the hard drive it may be installed by performing these steps:

1. Close all Windows applications.

2. Install the Diagnostics for Windows utility:

❏ In Windows XP, select Start > Software Setup icon. Select Diagnostics for Windows >

Next button, then follow the instructions on the screen.

❏ In Windows 2000, select the Setup Software icon on the Desktop > Diagnostics for

Windows > Next button, then follow the instructions on the screen.

❏ In either Windows XP or Windows 2000, if the Setup Software/Software Setup icon is not on the Desktop or in the Start menu, run the Setup program from the

C:\CPQAPPS\DIAGS directory or select Start > Run and type the following in the command line: C:\CPQAPPS\DIAGS\SETUP.

3. Click Next to install Diagnostics for Windows.

4. After the program has finished installing, you may be prompted to restart the computer, or it may automatically restart. If prompted, click Finish to restart the computer or Cancel to exit the program. You must restart the computer to complete the installation of Diagnostics for

Windows.

If you want to upgrade an existing version of Diagnostics for Windows installed on the computer, visit http://www.hp.com/support/files and click on an applicable product. Locate the desired software and download the latest version. Execute the downloaded file and select Repair to update the installed version. This will cause the new version to overwrite the old version.

Service Reference Guide, dc5100 376220-001 2–15

Setup Utilities and Diagnostics Features

2.3.3 Using Categories in Diagnostics for Windows

To use categories:

1. Click Start > HP Information Center > Diagnostics for Windows. You can also select the

Diagnostics for Windows icon, located in the Control Panel.

The screen displays the overview of the computer hardware and software.

❏ In Windows 2000 Professional, select Start > Settings > Control Panel, then select

Diagnostics for Windows.

❏ In Windows XP Home and Windows XP Professional, select Start > Control Panel >

Performance and Maintenance, then select Diagnostics for Windows.

2. For specific hardware and software information, select a category from the Categories pull-down menu or the appropriate icon on the toolbar.

As the cursor moves over the toolbar icons, the corresponding category name is displayed.

3. To display more detailed information in a selected category, click More in the Information

Level box in the lower left corner of the window or click Level at the top of the screen and select More.

4. Review, print, and/or save this information as desired.

❏ To print the information, click File > Print. Select one of the following options:

Detailed Report (All Categories), Summary Report (All Categories), or Current

Category. Click OK to print the report you selected.

❏ To save the information, click File > Save As. Select one of the following options:

Detailed Report (All Categories), Summary Report (All Categories), or Current

Category. Click OK to save the report you selected.

5. To exit Diagnostics for Windows, click File, and then click Exit.

Menu Bar—File, Categories, Navigation, Level, Tab, Help

At the top of the Diagnostics for Windows screen is the Menu Bar consisting of six pull-down menus. Selecting an item will provide the following information on the system:

File—Save As, Print, Printer Setup, Exit

Categories

System—System board, ROM, date, and time

Asset Control—Asset tag, system serial number, and processor

Input Devices—Keyboard, mouse, and joystick(s)

Communication—Ports

Storage—Storage drives

Graphics—Graphics

Memory—System board and Windows memory

Multimedia—Optical storage (CD, DVD, and so on) and audio

Windows—Windows

Architecture—PCI Device

2–16 376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

Resources—IRQ, I/O, and Memory Map

Health—Status of system temperature and hard drives

Miscellaneous—CMOS, DMI, BIOS, System, Product Name, and Serial Number

Navigation—Previous Category ( F5 ), Next Category ( F6 )

Level—Less ( F7 ), More ( F8 ) <information on the screen>

Tab

❏ Overview—Displays general information about the computer. This window is displayed when first starting the utility. The left side of the window shows hardware information, while the right side shows software information.

❏ Test—Allows you to choose various parts of the system to test. You can also choose the type of test and testing mode.

❏ Status—Displays the status of each test in progress. You can cancel testing by clicking the Cancel Testing button.

Log—Displays a log of tests for each device.

Error—Displays any errors that occurred during device testing. The window lists the device being tested, the type and number of errors, and the error code.

Help—Contents, How to use Help, About

2.3.4 Running Diagnostic Tests in Diagnostics for Windows

To run diagnostic tests:

1. Click Start > HP Information Center > Diagnostics for Windows.

Alternately, you can access Diagnostics for Windows via the control panel.

The screen displays the overview of the computer hardware and software. Five tabs are displayed below the row of icons: Overview, Test, Status, Log, and Error.

2. Click the Test tab, or click Tab at the top of the screen and select Test.

3. Select one of the following options:

❏ Quick Test—Runs a quick, general test on each device. Requires no user intervention if

Unattended Mode is selected.

❏ Complete Test—Runs maximum testing of each device. The user can select Interactive

Mode or Unattended Mode.

❏ Custom Test—Runs only the tests you select. To select specific devices or tests, find the device in the list, then select the check box beside each test. When selected, a red check mark is displayed in the box. Some tests selected may require user intervention.

To test all subsystems, you must log in as the administrator. If you do not log in as the administrator, you will be unable to test some subsystems. The inability to test a subsystem will be indicated by an error message under the subsystem name in the Test window or by shaded boxes that cannot be checked.

Service Reference Guide, dc5100 376220-001 2–17

Setup Utilities and Diagnostics Features

4. Select Interactive Mode or Unattended Mode. In Interactive Mode, the diagnostic software will prompt you for input during tests that require it. Some tests require interaction and will display errors or halt testing if selected in conjunction with Unattended Mode.

❏ Interactive Mode provides maximum control over the testing process. You determine whether the test passed or failed and may be prompted to insert or remove devices.

❏ Unattended Mode does not display prompts. If errors are found, they are displayed when testing is complete.

5. Click the Begin Testing button at the bottom of the window. Test Status is displayed, showing the progress and result of each test. For more details on the tests run, click the Log tab or click Tab at the top of the screen and select Log.

6. To view a test report, select one of three tabs:

Status—Summarizes the tests run, passed, and failed during the current testing session.

Log—Lists tests run on the system, the numbers of times each test has run, the number of errors found on each test, and the total run time of each test.

Error—Lists all errors found on the computer with their error codes.

7. To save a test report:

Select the Log tab Save button to save a Log tab report.

Select the Error tab Save button to save an Error tab report.

8. To print a test report:

❏ If the report is on the Log tab, select File > Save As, then print the file from the selected folder.

❏ If the report is on the Error tab, select the Error tab Print button.

9. If errors are found, click the Error tab to display more detailed information and recommended actions.

10. Click Print or save the error information for future reference.

11. To exit Diagnostics for Windows, click File > Exit.

2–18

The Configuration Record utility is a windows-based information-gathering tool that gathers critical hardware and software information from various computer subsystems. The information includes such things as the ROM, asset tag, processor, physical drives, PCI devices, memory, graphics, operating system version number, operating system parameters, and the operating system startup files to give a complete view of the computer. Configuration Record provides a means for automatically identifying and comparing configuration changes, and has the ability to maintain a configuration history. The information can be saved as a history of multiple sessions.

This utility allows the resolution of problems without taking the computer offline and assists in maximizing the computer availability. The information obtained by the utility is useful in troubleshooting system problems, and streamlines the service process by enabling quick and easy identification of system configurations.

The utility displays it findings in a Now.log file. If the original Base.log file is present in the

cpqdiags directory, the Base.log file is displayed next to the Now.log file in a split window with the differences between the two highlighted in the color red.

376220-001 Service Reference Guide, dc5100

Setup Utilities and Diagnostics Features

2.4.1 Installing Configuration Record

The Configuration Record is part of Diagnostics for Windows and is automatically installed at the same time as Diagnostics for Windows.

2.4.2 Running Configuration Record

To run this program:

1. Click Start > HP Information Center > Configuration Record.

Alternately, you can access Diagnostics for Windows via the control panel.

The Configuration Record utility has two view options: Show Changed Items Only and Show

All. The default view is Show Changed Items Only, therefore all the text is displayed in the color red since it shows only the differences. Switching to Show All displays the complete, comprehensive view of the system.

2. The default view is Show Changed Items Only. To view all the information gathered by

Configuration Record, click View at the top of the window and select Show All, or click the

Show All Items icon.

3. To save the information in the left or right window, select File > Save Window File and then select Left Window File or Right Window File.

Saving the configuration of the computer periodically allows the user to keep a history of the configuration. This history may be useful to you in the future if the system ever encounters a problem that needs debugging.

4. To exit Configuration Record, click File, then click Exit.

Service Reference Guide, dc5100 376220-001 2–19

Setup Utilities and Diagnostics Features

2–20 376220-001 Service Reference Guide, dc5100

3

Desktop Management

HP Client Management Solutions provides standards-based solutions for managing and controlling desktops, workstations, and notebook PCs in a networked environment.

The key capabilities and features of desktop management are:

Initial configuration and deployment

Remote system installation

Software updating and management

ROM flash

Asset tracking and security

Fault notification and recovery

Support for specific features described in this guide may vary by model or software version.

3.1 Initial Configuration and Deployment

HP computers come with a preinstalled system software image. After a brief software

“unbundling” process, the computer is ready to be used.

A customized software image may be deployed by:

Installing additional software applications after unbundling the preinstalled software image.

Using software deployment tools, such as Altiris Deployment Solution, to replace the preinstalled software with a customized software image.

■ Using a disk cloning process to copy the contents from one hard drive to another.

The best deployment method depends on your information technology environment and processes. The PC Deployment section of the Solutions and Services Web site

(http://whp-sp-orig.extweb.hp.com/country/us/en/solutions.html provides information to help you select the best deployment method.

The Restore Plus! CD, ROM-based setup, and ACPI hardware provide further assistance with recovery of system software, configuration management and troubleshooting, and power management.

3–1 Service Reference Guide, dc5100 376220-001

Desktop Management

Remote System Installation allows you to start and set up your system using the software and configuration information located on a network server by initiating the Preboot Execution

Environment (PXE). The Remote System Installation feature is usually used as a system setup and configuration tool, and can be used for the following tasks:

Formatting a hard drive.

Deploying a software image on one or more new PCs.

Remotely updating the system BIOS in flash ROM. See Section

Flash.”

3.3.7

, “Remote ROM

■ Configuring the system BIOS settings.

To initiate Remote System Installation, press F12 when the F12 = Network Service Boot message appears in the lower-right corner of the HP logo screen. Follow the instructions on the screen to continue the process. The default boot order is a BIOS configuration setting that can be changed to always attempt to PXE boot.

HP and Altiris have partnered to provide tools designed to make the task of corporate PC deployment and management easier and less time-consuming, ultimately lowering the total cost of ownership and making HP PCs the most manageable client PCs in the enterprise environment.

3.3 Software Updating and Management

HP provides several tools for managing and updating software on desktops and workstations—HP Client Manager Software, Altiris Client Management Solutions, System

Software Manager; Proactive Change Notification; and Subscriber's Choice.

3.3.1 HP Client Manager Software

HP Client Manager Software (HP CMS) assists HP customers in managing the hardware aspects of their client computers with features that include:

Detailed views of hardware inventory for asset management

PC health check monitoring and diagnostics

Proactive notification of changes in the hardware environment

Web-accessible reporting of business critical details such as machines with thermal warnings, memory alerts, and more

Remote updating of system software such as device drivers and ROM BIOS

Remote changing of boot order

For more information on the HP Client Manager, visit http://h18000.www1.hp.com/im/client_mgr.html

.

3–2 376220-001 Service Reference Guide, dc5100

Desktop Management

3.3.2 Altiris Client Management Solutions

HP and Altiris have partnered to provide comprehensive, tightly integrated systems management solutions to reduce the cost of owning HP client PCs. HP Client Manager Software is the foundation for additional Altiris Client Management Solutions that address:

■ Inventory and Asset Management

SW license compliance

PC tracking and reporting

Lease contract, fixing asset tracking

■ Deployment and Migration

Windows XP Professional migration

System deployment

Personality migrations

■ Help Desk and Problem Resolution

Managing help desk tickets

Remote troubleshooting

Remote problem resolution

Client disaster recovery

■ Software and Operations Management

Ongoing desktop management

HP system SW deployment

Application self-healing

For more information and details on how to download a fully-functional 30-day evaluation version of the Altiris solutions, visit http://h18000.www1.hp.com/im/prodinfo.html#deploy .

On selected desktop and notebook models, an Altiris management agent is included as part of the factory loaded image. This agent enables communication with the Altiris development Solution which can be used to complete new hardware deployment or personality migration to a new OS using easy-to-follow wizards. Altiris solutions provide easy-to-use software distribution

capabilities. When used in conjunction with System Software Manager (Section 3.3.3

), or HP

Client Manager Software, administrators can also update ROM BIOS and device driver software from a central console.

For more information, visit http://h18000.www1.hp.com/im/index.html

.

3.3.3 System Software Manager

System Software Manager (SSM) is a utility that lets you update system-level software on multiple systems simultaneously. When executed on a PC client system, SSM detects both hardware and software versions, then updates the appropriate software from a central repository, also known as a file store. Driver versions that are supported by SSM are denoted with a special icon on the driver download Web site and on the Support Software CD. To download the utility or to obtain more information on SSM, visit http://www.hp.com/go/ssm .

Service Reference Guide, dc5100 376220-001 3–3

Desktop Management

3.3.4 Proactive Change Notification (PCN)

The Proactive Change Notification program uses the Subscriber's Choice Web site in order to proactively and automatically:

■ Send you Proactive Change Notification (PCN) e-mails informing you of hardware and software changes to most commercial computers and servers, up to 60 days in advance.

■ Send you e-mail containing Customer Bulletins, Customer Advisories, Customer Notes,

Security Bulletins, and Driver alerts for most commercial computers and servers.

You create your own profile to ensure that you only receive the information relevant to a specific

IT environment. To learn more about the Proactive Change Notification program and create a custom profile, visit http://h30046.www3.hp.com/subhub.php?jumpid=go/pcn.

3.3.5 Subscriber’s Choice

Subscriber’s Choice is a client-based service from HP.

Based on your profile, HP will supply you with personalized product tips, feature articles, and/or driver and support alerts/notifications.

Subscriber’s Choice Driver and Support Alerts/Notifications will deliver e-mails notifying you that the information you subscribed to in your profile is available for review and retrieval. To learn more about Subscriber’s Choice and create a custom profile, visit http://h30046.www3.hp.com/subhub.php

.

3.3.6 ROM Flash

The computer comes with a reprogrammable flash ROM (read only memory). By establishing a setup password in Computer Setup (F10) Utility, you can protect the ROM from being unintentionally updated or overwritten. This is important to ensure the operating integrity of the computer. Should you need or want to upgrade your ROM, you may:

Order an upgraded ROMPaq™ diskette from HP.

Download the latest ROMPaq images the HP driver and support page, http://www.hp.com/support/files .

CAUTION: For maximum ROM protection, be sure to establish a setup password. The setup password prevents unauthorized ROM upgrades. System Software Manager allows the system administrator to set the setup password on one or more PCs simultaneously. For more information, visit http://www.hp.com/go/ssm .

3.3.7 Remote ROM Flash

Remote ROM Flash allows the system administrator to safely upgrade the ROM on remote HP computers directly from the centralized network management console. Enabling the system administrator to perform this task remotely, on multiple computers and personal computers, results in a consistent deployment of and greater control over HP PC ROM images over the network. It also results in greater productivity and lower total cost of ownership.

The computer must be powered on, or turned on through Remote Wakeup, to take advantage of

Remote ROM Flash.

For more information on Remote ROM Flash, refer to the HP Client Manager Software or

System Software Manager at http://h18000.www1.hp.com/im/prodinfo.html

.

3–4 376220-001 Service Reference Guide, dc5100

Desktop Management

3.3.8 HPQFlash

The HPQFlash utility is used to locally update or restore the system ROM on individual PCs through a Windows operating system.

For more information on HPQFlash, visit http://www.hp.com/support/files and enter the name of the computer when prompted.

3.3.9 FailSafe Boot Block ROM

The FailSafe Boot Block ROM allows for system recovery in the unlikely event of a ROM flash failure, for example, if a power failure were to occur during a ROM upgrade. The Boot Block is a flash-protected section of the ROM that checks for a valid system ROM flash when power to the system is turned on.

If the system ROM is valid, the system starts normally.

If the system ROM fails the validation check, the FailSafe Boot Block ROM provides enough support to start the system from a ROMPaq diskette, which will program the system

ROM with a valid image.

Some models also support recovery from a ROMPaq CD. ISO ROMPaq images are included with selected models in the downloadable ROM softpaqs.

When the boot block detects an invalid system ROM, the System Power LED blinks RED 8 times, one every second, followed by a 2-second pause. Also 8 simultaneous beeps will be heard.

A Boot Block recovery mode message is displayed on the screen (some models).

To recover the system after it enters Boot Block recovery mode, complete the following steps:

1. If there is a diskette in the diskette drive or a CD in the CD drive, remove the diskette and CD and turn off the power.

2. Insert a ROMPaq diskette into the diskette drive or, if permitted on this computer, a ROMPaq

CD into the CD drive.

3. Turn on the computer.

If no ROMPaq diskette or ROMPaq CD is found, you will be prompted to insert one and restart the computer.

If a setup password has been established, the Caps Lock light will turn on and you will be prompted to enter the password.

4. Enter the setup password.

If the system successfully starts from the diskette and successfully reprograms the ROM, then the three keyboard lights will turn on. A rising tone series of beeps also signals successful completion.

5. Remove the diskette or CD and turn the power off.

6. Turn the power on again to restart the computer.

Service Reference Guide, dc5100 376220-001 3–5

Desktop Management

The following table lists the various keyboard light combinations used by the Boot Block ROM

(when a PS/2 keyboard is attached to the computer), and explains the meaning and action associated with each combination.

Keyboard Light Combinations Used by Boot Block ROM

Failsafe Boot

Block Mode

Num Lock

Caps Lock

Num, Caps,

Scroll Lock

Keyboard

LED Color

Green

Green

Green

Keyboard

LED Activity

On

On

Blink on in sequence, one-at-a-time—

N, C, SL

State/Message

ROMPaq diskette or ROMPaq CD not present, is bad, or drive not ready.

Enter password.

Keyboard locked in network mode.

Num, Caps,

Scroll Lock

Green On

Diagnostic lights do not flash on USB keyboards.

Boot Block ROM Flash successful. Turn power off, then on to reboot.

3.3.10 Replicating the Setup

The following procedures give an administrator the ability to easily copy one setup configuration to other computers of the same model. This allows for faster, more consistent configuration of multiple computers.

Both procedures require a diskette drive or a supported USB flash media device, such as an HP

Drive Key.

Copying to Single Computer

Ä CAUTION: A setup configuration is model-specific. File system corruption may result if source and target computers are not the same model. For example, do not copy the setup configuration from a dc7100

Ultra-Slim Desktop to a dx6100 Slim Tower.

1. Select a setup configuration to copy. Turn off the computer. If you are in Windows, click

Start > Shut Down > Shut Down.

2. If you are using a USB flash media device, insert it now.

3. Turn on the computer.

4. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

5. If you are using a a diskette, insert it now.

3–6 376220-001 Service Reference Guide, dc5100

Desktop Management

6. Select File > Replicated Setup > Save to Removable Media. Follow the instructions on the screen to create the configuration diskette or USB flash media device.

7. Turn off the computer to be configured and insert the configuration diskette or USB flash media device.

8. Turn on the computer to be configured.

9. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

10. Select File > Replicated Setup > Restore from Removable Media, and follow the instructions on the screen.

11. Restart the computer when the configuration is complete.

Copying to Multiple Computers

Ä CAUTION: A setup configuration is model-specific. File system corruption may result if source and target computers are not the same model. For example, do not copy the setup configuration from a dc7100

Ultra-Slim Desktop to a dx6100 Slim Tower.

This method takes a little longer to prepare the configuration diskette or USB flash media device, but copying the configuration to target computers is significantly faster.

A bootable diskette is required for this procedure or to create a bootable USB flash media device.

If Windows XP is not available to use to create a bootable diskette, use the method for copying to

a single computer instead (see “Copying to Single Computer” on page 6

).

1. Create a bootable diskette or USB flash media device. See

“Supported USB Flash Media

Device” on page 8

or

“Unsupported USB Flash Media Device” on page 10.

Ä CAUTION: Not all computers can be booted from a USB flash media device. If the default boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the computer can be booted from a USB flash media device. Otherwise, a bootable diskette must be used.

2. Select a setup configuration to copy. Turn off the computer. If you are in Windows, click

Start > Shut Down > Shut Down.

3. If you are using a USB flash media device, insert it now.

4. Turn on the computer.

5. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

6. If you are using a a diskette, insert it now.

7. Select File > Replicated Setup > Save to Removable Media. Follow the instructions on the screen to create the configuration diskette or USB flash media device.

Service Reference Guide, dc5100 376220-001 3–7

Desktop Management

3–8

8. Download a BIOS utility for replicating setup (repset.exe) and copy it onto the configuration diskette or USB flash media device. To obtain this utility, go to http://welcome.hp.com/support/files and enter the model number of the computer.

9. On the configuration diskette or USB flash media device, create an autoexec.bat file containing the following command: repset.exe

10. Turn off the computer to be configured. Insert the configuration diskette or USB flash media device and turn the computer on. The configuration utility will run automatically.

11. Restart the computer when the configuration is complete.

Creating a Bootable Device

Supported USB Flash Media Device

Supported devices, such as an HP Drive Key or a DiskOnKey, have a preinstalled image to simplify the process of making them bootable. If the USB flash media device being used does not have this image, use the procedure later in this section (see

“Unsupported USB Flash Media

Device” on page 10 ).

Ä CAUTION: Not all computers can be booted from a USB flash media device. If the default boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the computer can be booted from a USB flash media device. Otherwise, a bootable diskette must be used.

To create a bootable USB flash media device, you must have:

■ One of the following systems:

HP Compaq Business Desktop dc7100 series

HP Compaq Business Desktop dx6100 series

HP Compaq Business Desktop d530 Series - Ultra-Slim Desktop, Small Form Factor, or

Convertible Minitower

Compaq Evo D510 Ultra-slim Desktop

Compaq Evo D510 Convertible Minitower/Small Form Factor

Depending on the individual BIOS, future systems may also support booting to a USB flash media device.

Ä CAUTION: If you are using a computer other than one named above, make sure the default boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive.

■ One of the following storage modules:

16MB HP Drive Key

32MB HP Drive Key

32MB DiskOnKey

64MB HP Drive Key

64MB DiskOnKey

128MB HP Drive Key

128MB DiskOnKey

376220-001 Service Reference Guide, dc5100

Desktop Management

256MB HP Drive Key

256MB DiskOnKey

A bootable DOS diskette with the FDISK and SYS programs. If SYS is not available,

FORMAT may be used, but all existing files on the USB flash media device will be lost.

1. Turn off the computer.

2. Insert the USB flash media device into one of the computer's USB ports and remove all other

USB storage devices except USB diskette drives.

3. Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a diskette drive and turn on the computer to boot to the DOS diskette.

4. Run FDISK from the A:\ prompt by typing FDISK and pressing Enter. If prompted, click Yes

(Y) to enable large disk support.

5. Enter Choice [ 5 ] to display the drives in the system. The USB flash media device will be the drive that closely matches the size of one of the drives listed. It will usually be the last drive in the list. Note the letter of the drive.

USB flash media device drive: __________

Ä CAUTION: If a drive does not match the USB flash media device, do not proceed. Data loss can occur.

Check all USB ports for additional storage devices. If any are found, remove them, reboot the computer, and proceed from step 4. If none are found, either the system does not support the USB flash media device or the USB flash media device is defective. DO NOT proceed in attempting to make the USB flash media device bootable.

6. Exit FDISK by pressing the Esc key to return to the A:\ prompt.

7. If your bootable DOS diskette contains SYS.COM, go to step 8. Otherwise, go to step 9.

8. At the A:\ prompt, enter SYS x: where x represents the drive letter noted above.

Ä CAUTION: Be sure that you have entered the correct drive letter for the USB flash media device.

After the system files have been transferred, SYS will return to the A:\ prompt. Go to step 13.

9. Copy any files you want to keep from your USB flash media device to a temporary directory on another drive (for example, the system's internal hard drive).

10. At the A:\ prompt, enter FORMAT /S X: where X represents the drive letter noted before.

Ä CAUTION: Be sure that you have entered the correct drive letter for the USB flash media device.

FORMAT will display one or more warnings and ask you each time whether you want to proceed. Enter Y each time. FORMAT will format the USB flash media device, add the system files, and ask for a Volume Label.

11. Press Enter for no label or enter one if desired.

12. Copy any files you saved in step 9 back to your USB flash media device.

13. Remove the diskette and reboot the computer. The computer will boot to the USB flash media device as drive C.

Service Reference Guide, dc5100 376220-001 3–9

Desktop Management

The default boot order varies from computer to computer, and it can be changed in the Computer

Setup (F10) Utility.

If you have used a DOS version from Windows 9x, you may see a brief Windows logo screen. If you do not want this screen, add a zero-length file named LOGO.SYS to the root directory of the

USB flash media device.

Return to

“Copying to Multiple Computers” on page 7.

Unsupported USB Flash Media Device

Ä CAUTION: Not all computers can be booted from a USB flash media device. If the default boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive, the computer can be booted from a USB flash media device. Otherwise, a bootable diskette must be used.

To create a bootable USB flash media device, you must have:

■ One of the following systems:

HP Compaq Business Desktop dc7100 series

HP Compaq Business Desktop dx6100 series

HP Compaq Business Desktop d530 Series—Ultra-Slim Desktop, Small Form Factor, or

Convertible Minitower

Compaq Evo D510 Ultra-Slim Desktop

Compaq Evo D510 Convertible Minitower/Small Form Factor

Depending on the individual BIOS, future systems may also support booting to a USB flash media device.

Ä CAUTION: If you are using a computer other than one named above, make sure the default boot order in the Computer Setup (F10) Utility lists the USB device before the hard drive.

■ A bootable DOS diskette with the FDISK and SYS programs. If SYS is not available,

FORMAT may be used, but all existing files on the USB flash media device will be lost.

1. If there are any PCI cards in the system that have SCSI, ATA RAID or SATA drives attached, turn off the computer and unplug the power cord.

Ä CAUTION: The power cord MUST be unplugged.

2. Open the computer and remove the PCI cards.

3. Insert the USB flash media device into one of the computer's USB ports and remove all other

USB storage devices except USB diskette drives. Close the computer cover.

4. Plug in the power cord and turn on the computer.

3–10 376220-001 Service Reference Guide, dc5100

Desktop Management

5. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

6. Go to Advanced > PCI Devices to disable both the PATA and SATA controllers. When disabling the SATA controller, note the IRQ to which the controller is assigned. You will need to reassign the IRQ later. Exit setup, confirming the changes.

SATA IRQ: __________

7. Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a diskette drive and turn on the computer to boot to the DOS diskette.

8. Run FDISK and delete any existing partitions on the USB flash media device. Create a new partition and mark it active. Exit FDISK by pressing the Esc key.

9. If the system did not automatically restart when exiting FDISK, press Ctrl + Alt + Del to reboot to the DOS diskette.

10. At the A:\ prompt, type FORMAT C: /S and press Enter . Format will format the USB flash media device, add the system files, and ask for a Volume Label.

11. Press Enter for no label or enter one if desired.

12. Turn off the computer and unplug the power cord. Open the computer and re-install any PCI cards that were previously removed. Close the computer cover.

13. Plug in the power cord, remove the diskette, and turn on the computer.

14. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

15. Go to Advanced > PCI Devices and re-enable the PATA and SATA controllers that were disabled in step 6. Put the SATA controller on its original IRQ.

16. Save the changes and exit. The computer will boot to the USB flash media device as drive C.

The default boot order varies from computer to computer, and it can be changed in the Computer

Setup (F10) Utility. Refer to the Computer Setup Guide on the Documentation CD for instructions.

If you have used a DOS version from Windows 9x, you may see a brief Windows logo screen. If you do not want this screen, add a zero-length file named LOGO.SYS to the root directory of the

USB flash media device.

Return to

“Copying to Multiple Computers” on page 7.

Service Reference Guide, dc5100 376220-001 3–11

Desktop Management

3.3.11 Dual-State Power Button

With Advanced Configuration and Power Interface (ACPI) enabled, the power button can function either as an on/off switch or as a suspend button. The suspend feature does not completely turn off power, but instead causes the computer to enter a low-power standby. This allows you to power down quickly without closing applications and to return quickly to the same operational state without any data loss.

To change the power button’s configuration, complete the following steps:

1. Left click on the Start Button, then select Control Panel > Power Options.

2. In the Power Options Properties, select the Advanced tab.

3. In the Power Button section, select Stand by.

After configuring the power button to function as a suspend button, press the power button to put the system in a very low power state (standby). Press the button again to bring the system out of suspend to full power status quickly. To completely turn off all power to the system, press and hold the power button for four seconds.

Ä CAUTION: Do not use the power button to turn off the computer unless the system is not responding; turning off the power without operating system interaction could cause damage to or loss of data on the hard drive.

3.3.12 World Wide Web Site

When making the transition to new or revised operating systems, it is important to implement the support software designed for that operating system. If you plan to run a version of Microsoft

Windows that is different from the version included with the computer, you must install corresponding device drivers and utilities to ensure that all features are supported and functioning properly.

HP has made the task of locating, accessing, evaluating, and installing the latest support software easier. You can download the software from http://www.hp.com/support . The Web site contains the latest device drivers, utilities, and flashable ROM images needed to run the latest Microsoft

Windows operating system on the HP computer.

3.3.13 Building Blocks and Partners

HP management solutions integrate with other systems management applications, and are based on industry standards, such as:

Web-Based Enterprise Management (WBEM)

Windows Management Interface (WMI)

Wake on LAN Technology

ACPI

SMBIOS

Pre-boot Execution (PXE) support

3–12 376220-001 Service Reference Guide, dc5100

Desktop Management

3.4 Asset Tracking and Security

Asset tracking features incorporated into the computer provide key asset tracking data that can be managed using HP Insight Manager, HP Client Manager or other system management applications. Seamless, automatic integration between asset tracking features and these products enables you to choose the management tool that is best suited to your environment and to leverage your investment in existing tools.

HP also offers several solutions for controlling access to valuable components and information.

ProtectTools Embedded Security, if installed, p revents unauthorized access to data and checks system integrity and authenticates third-party users attempting system access. (Refer to HP

ProtectTools Embedded Security Guide, on the Documentation CD for more information.)

Security features such as ProtectTools, the Smart Cover Sensor and the Smart Cover Lock, available on select models, help to prevent unauthorized access to the internal components of the personal computer. By disabling parallel, serial, or USB ports, or by disabling removable media boot capability, you can protect valuable data assets. Memory Change and Smart Cover Sensor alerts can be automatically forwarded to system management applications to deliver proactive notification of tampering with a computer’s internal components.

ProtectTools, the Smart Cover Sensor, and the Smart Cover Lock are available as options on select systems.

Use the following utilities to manage security settings on your HP computer:

■ Locally, using the Computer Setup Utilities. See the Computer Setup (F10) Utility Guide included with the computer for additional information and instructions on using the

Computer Setup Utilities.

■ Remotely, using HP Client Manager Software or System Software Manager. This software enables the secure, consistent deployment and control of security settings from a simple command-line utility.

Computer Setup Utilities (F10) Security Features

Feature Description

Setup Password Allows you to set and enable setup (administrator) password.

If the setup password is set, it is required to change

Computer Setup options, flash the ROM, and make changes to certain plug and play settings under Windows.

See the Troubleshooting Guide on the Documentation CD for more information.

Power-On Password Allows you to set and enable power-on password.

See the Troubleshooting Guide on the Documentation CD for more information.

Password Options

(This selection will appear only if a power-on password is set.)

Allows you to specify whether the password is required for warm boot (CTRL+ALT+DEL).

See the Desktop Management Guide on the Documentation

CD for more information.

For more information about Computer Setup, see the Computer Setup (F10) Utility Guide.

Support for security features may vary depending on your specific computer configuration.

Service Reference Guide, dc5100 376220-001 3–13

Desktop Management

Computer Setup Utilities (F10) Security Features (Continued)

Feature

Pre-Boot Authorization

Description

Allows you to enable/disable the Smart Card to be used in place of the Power-On Password.

Smart Cover Allows you to:

• Enable/disable the Cover Lock.

• Enable/disable the Cover Removal Sensor.

Notify User alerts the user that the sensor has detected that the cover has been removed. Setup Password requires that the setup password be entered to boot the computer if the sensor detects that the cover has been removed.

This feature is supported on select models only. See the

Desktop Management Guide on the Documentation CD for more information.

Embedded Security

Device Security

Network Service Boot

Allows you to:

• Enable/disable the Embedded Security device.

• Reset the device to Factory Settings.

This feature is supported on select models only.

See HP ProtectTools Embedded Security Guide, on the

Documentation CD for more information.

Enables/disables serial ports, parallel port, front USB ports, system audio, network controllers (some models), MultiBay devices (some models), and SCSI controllers (some models).

Enables/disables the computer’s ability to boot from an operating system installed on a network server. (Feature available on NIC models only; the network controller must reside on the PCI bus or be embedded on the system board.)

System IDs Allows you to set:

• Asset tag (18-byte identifier) and ownership Tag (80-byte identifier displayed during POST).

See the Desktop Management Guide on the

Documentation CD for more information.

• Chassis serial number or Universal Unique Identifier

(UUID) number. The UUID can only be updated if the current chassis serial number is invalid. (These ID numbers are normally set in the factory and are used to uniquely identify the system.)

Keyboard locale setting (for example, English or German) for

System ID entry.

For more information about Computer Setup, see the Computer Setup (F10) Utility Guide.

Support for security features may vary depending on your specific computer configuration.

3–14 376220-001 Service Reference Guide, dc5100

Desktop Management

Computer Setup Utilities (F10) Security Features (Continued)

Feature Description

DriveLock Allows you to assign or modify a master or user password for

MultiBay hard drives (not supported on SCSI hard drives).

When this feature is enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither is successfully entered, the hard drive will remain inaccessible until one of the passwords is successfully provided during a subsequent cold-boot sequence.

This selection will only appear when at least one MultiBay drive that supports the DriveLock feature is attached to the system.

See the Desktop Management Guide on the Documentation

CD for more information.

Master Boot Record Security Allows you to enable or disable Master Boot Record (MBR)

Security.

When enabled, the BIOS rejects all requests to write to the

MBR on the current bootable disk. Each time the computer is powered on or rebooted, the BIOS compares the MBR of the current bootable disk to the previously-saved MBR. If changes are detected, you are given the option of saving the MBR on the current bootable disk, restoring the previously-saved MBR, or disabling MBR Security. You must know the setup password, if one is set.

Disable MBR Security before intentionally changing the formatting or partitioning of the current bootable disk.

Several disk utilities (such as FDISK and FORMAT) attempt to update the MBR.

If MBR Security is enabled and disk accesses are being serviced by the BIOS, write requests to the MBR are rejected, causing the utilities to report errors.

If MBR Security is enabled and disk accesses are being serviced by the operating system, any MBR change will be detected by the BIOS during the next reboot, and an MBR

Security warning message will be displayed.

For more information about Computer Setup, see the Computer Setup (F10) Utility Guide.

Support for security features may vary depending on your specific computer configuration.

Service Reference Guide, dc5100 376220-001 3–15

Desktop Management

Computer Setup Utilities (F10) Security Features (Continued)

Feature

Save Master Boot Record

Description

Saves a backup copy of the Master Boot Record of the current bootable disk.

Only appears if MBR Security is enabled.

Restore Master Boot Record Restores the backup Master Boot Record to the current bootable disk.

Only appears if all of the following conditions are true:

• MBR Security is enabled.

• A backup copy of the MBR has been previously saved.

• The current bootable disk is the same disk from which the backup copy of the MBR was saved.

Ä CAUTION: Restoring a previously saved MBR after a disk utility or the operating system has modified the MBR may cause the data on the disk to become inaccessible. Only restore a previously saved MBR if you are confident that the current bootable disk’s MBR has been corrupted or infected with a virus.

For more information about Computer Setup, see the Computer Setup (F10) Utility Guide.

Support for security features may vary depending on your specific computer configuration.

Mechanical Security Features

Feature

Memory Change Alerts

Cable Lock Provision

Security Loop Provision

Purpose

Detects when memory modules have been added, moved, or removed; notifies user and system administrator.

How It Is Established

For information on enabling

Memory Change Alerts, refer to the online Desktop

Management Guide on the

Documentation CD.

Install a cable lock to secure the computer to a fixed object.

Inhibits access to the interior of the computer to prevent unwanted configuration changes or component removal. Can also be used to secure the computer to a fixed object to prevent theft.

Inhibits access to the interior of the computer to prevent unwanted configuration changes or component removal.

Install a lock in the security loop to prevent unwanted configuration changes or component removal.

3–16 376220-001 Service Reference Guide, dc5100

Desktop Management

3.4.1 Password Security

The power-on password prevents unauthorized use of the computer by requiring entry of a password to access applications or data each time the computer is turned on or restarted. The setup password specifically prevents unauthorized access to Computer Setup, and can also be used as an override to the power-on password. That is, when prompted for the power-on password, entering the setup password instead will allow access to the computer.

A network-wide setup password can be established to enable the system administrator to log in to all network systems to perform maintenance without having to know the power-on password, even if one has been established.

3.4.2 Establishing a Setup Password Using Computer Setup

If the system is equipped with an embedded security device, refer to HP ProtectTools Embedded

Security Guide, on the Documentation CD. Establishing a setup password through Computer

Setup prevents reconfiguration of the computer (use of the Computer Setup (F10) utility) until the password is entered.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Security, then select Setup Password and follow the instructions on the screen.

4. Before exiting, select File > Save Changes and Exit.

3.4.3 Establishing a Power-On Password Using Computer Setup

Establishing a power-on password through Computer Setup prevents access to the computer when power is turned on, unless the password is entered. When a power-on password is set,

Computer Setup presents Password Options under the Security menu. Password options include

Password Prompt on Warm Boot. When Password Prompt on Warm Boot is enabled, the password must also be entered each time the computer is rebooted.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Security, then Power-On Password and follow the instructions on the screen.

4. Before exiting, select File > Save Changes and Exit.

Service Reference Guide, dc5100 376220-001 3–17

Desktop Management

Entering a Power-On Password

To enter a power-on password, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. When the key icon appears on the monitor, type your current password, then press Enter.

Type carefully; for security reasons, the characters you type do not appear on the screen.

If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful tries, you must turn off the computer, then turn it on again before you can continue.

Entering a Setup Password

If the system is equipped with an embedded security device, refer to HP ProtectTools Embedded

Security Guide, on the Documentation CD.

If a setup password has been established on the computer, you will be prompted to enter it each time you run Computer Setup.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. When the key icon appears on the monitor, type the setup password, then press Enter .

Type carefully; for security reasons, the characters you type do not appear on the screen.

If you enter the password incorrectly, a broken key icon appears. Try again. After three unsuccessful tries, you must turn off the computer, then turn it on again before you can continue.

Changing a Power-On or Setup Password

If the system is equipped with an embedded security device, refer to HP ProtectTools Embedded

Security Guide, on the Documentation CD.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart

the Computer.

2. To change the Power-On password, go to step 3.

To change the Setup password, as soon as the computer is turned on, press and hold the F10 key until you enter Computer Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3–18 376220-001 Service Reference Guide, dc5100

Desktop Management

3. When the key icon appears, type the current password, a slash (/) or alternate delimiter character, the new password, another slash (/) or alternate delimiter character, and the new password again as shown: current password/new password/new password

Type carefully; for security reasons, the characters you type do not appear on the screen.

4. Press Enter .

5. The new password takes effect the next time you turn on the computer.

Refer to “National Keyboard Delimiter Characters” for information about the alternate delimiter characters. The power-on password and setup password may also be changed using the Security options in Computer Setup.

Deleting a Power-On or Setup Password

If the system is equipped with an embedded security device, refer to HP ProtectTools Embedded

Security Guide, on the Documentation CD.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart

the Computer.

2. To delete the Power-On password, go to step 3.

To delete the Setup password, as soon as the computer is turned on, press and hold the F10 key until you enter Computer Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. When the key icon appears, type the current password followed by a slash (/) or alternate delimiter character as shown: current password/

4. Press Enter .

Refer to

“National Keyboard Delimiter Characters” on page 20

for information about the alternate delimiter characters. The power-on password and setup password may also be changed using the Security options in Computer Setup.

Service Reference Guide, dc5100 376220-001 3–19

Desktop Management

National Keyboard Delimiter Characters

Each keyboard is designed to meet country-specific requirements. The syntax and keys that you use for changing or deleting your password depend on the keyboard that came with your computer.

National Keyboard Delimiter Characters

Arabic

Belgian

BHCSY*

Brazilian

Chinese

Czech

Danish

French

-

-

-

/

=

/

/

!

Greek

Hebrew

Hungarian

Italian

Japanese

Korean

Latin American

Norwegian

-

-

-

-

-

.

/

/

Russian

Slovakian

Spanish

Swedish/Finnish

Swiss

Taiwanese

Thai

Turkish

French Canadian

German -

é Polish

Portuguese

-

-

U.K. English

U.S. English

* For Bosnia-Herzegovina, Croatia, Slovenia, and Yugoslavia

/

.

-

/

/

/

-

/

-

/

Clearing Passwords

If you forget the password, you cannot access the computer. Refer to the Troubleshooting Guide on the Documentation CD for instructions on clearing passwords.

If the system is equiped with an embedded security device, refer to HP ProtectTools Embedded

Security Guide, on the Documentation CD.

3.4.4 DriveLock

DriveLock is an industry-standard security feature that prevents unauthorized access to the data on specific hard drives. DriveLock has been implemented as an extension to Computer Setup. It is only available on certain systems and only when DriveLock-capable hard drives are detected.

DriveLock is intended for HP customers for whom data security is the paramount concern. For such customers, the cost of the hard drive and the loss of the data stored on it is inconsequential when compared with the damage that could result from unauthorized access to its contents. In order to balance this level of security with the practical need to accommodate a forgotten password, the HP implementation of DriveLock employs a two-password security scheme. One password is intended to be set and used by a system administrator while the other is typically set and used by the end-user. There is no “back-door” that can be used to unlock the drive if both passwords are lost. Therefore, DriveLock is most safely used when the data contained on the hard drive is replicated on a corporate information system or is regularly backed up.

In the event that both DriveLock passwords are lost, the hard drive is rendered unusable. For users who do not fit the previously defined customer profile, this may be an unacceptable risk.

For users who do fit the customer profile, it may be a tolerable risk given the nature of the data stored on the hard drive.

3–20 376220-001 Service Reference Guide, dc5100

Desktop Management

Using DriveLock

The DriveLock option appears under the Security menu in Computer Setup. The user is presented with options to set the master password or to enable DriveLock. A user password must be provided in order to enable DriveLock. Since the initial configuration of DriveLock is typically performed by a system administrator, a master password should be set first. HP encourages system administrators to set a master password whether they plan to enable

DriveLock or keep it disabled. This will give the administrator the ability to modify DriveLock settings if the drive is locked in the future. Once the master password is set, the system administrator may enable DriveLock or choose to keep it disabled.

If a locked hard drive is present, POST will require a password to unlock the device. If a power-on password is set and it matches the device’s user password, POST will not prompt the user to re-enter the password. Otherwise, the user will be prompted to enter a DriveLock password. Either the master or the user password may be used. Users will have two attempts to enter a correct password. If neither attempt succeeds, POST will continue but the drive will remain inaccessible.

DriveLock Applications

The most practical use of the DriveLock security feature is in a corporate environment where a system administrator provides users with multibay hard drives for use in some computers. The system administrator would be responsible for configuring the multibay hard drive which would involve, among other things, setting the DriveLock master password. In the event that the user forgets the user password or the equipment is passed on to another employee, the master password can always be used to reset the user password and regain access to the hard drive.

HP recommends that corporate system administrators who choose to enable DriveLock also establish a corporate policy for setting and maintaining master passwords. This should be done to prevent a situation where an employee intentionally or unintentionally sets both DriveLock passwords before leaving the company. In such a scenario, the hard drive would be rendered unusable and require replacement. Likewise, by not setting a master password, system administrators may find themselves locked out of a hard drive and unable to perform routine checks for unauthorized software, other asset control functions, and support.

For users with less stringent security requirements, HP does not recommend enabling DriveLock.

Users in this category include personal users or users who do not maintain sensitive data on their hard drives as a common practice. For these users, the potential loss of a hard drive resulting from forgetting both passwords is much greater than the value of the data DriveLock has been designed to protect. Access to Computer Setup and DriveLock can be restricted through the

Setup password. By specifying a Setup password and not giving it to end users, system administrators are able to restrict users from enabling DriveLock.

Service Reference Guide, dc5100 376220-001 3–21

Desktop Management

3.4.5 Smart Cover Sensor

Cover Removal Sensor, available on select models, is a combination of hardware and software technology that can alert you when the computer cover or side panel has been removed. There are three levels of protection, as described in the following table.

Smart Cover Sensor Protection Levels

Level Setting

Level 0

Level 1

Disabled

Notify User

Description

Smart Cover Sensor is disabled (default).

When the computer is restarted, the screen displays a message indicating that the computer cover or side panel has been removed.

Level 2 Setup Password When the computer is restarted, the screen displays a message indicating that the computer cover or side panel has been removed. You must enter the setup password to continue.

These settings can be changed using Computer Setup. For more information about Computer

Setup, see the Computer Setup (F10) Utility Guide.

3–22

Setting the Smart Cover Sensor Protection Level

To set the Smart Cover Sensor protection level, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Security > Smart Cover > Cover Removal Sensor, and select the desired security level.

4. Before exiting, select File > Save Changes and Exit.

Smart Cover Lock

The Smart Cover Lock is a software-controllable cover lock featured on select HP computers.

This lock prevents unauthorized access to the internal components. Computers ship with the

Smart Cover Lock in the unlocked position.

Ä CAUTION: For maximum cover lock security, be sure to establish a setup password. The setup password prevents unauthorized access to the Computer Setup utility.

The Smart Cover Lock is available as an option on select systems.

376220-001 Service Reference Guide, dc5100

Desktop Management

Locking the Smart Cover Lock

To activate and lock the Smart Cover Lock, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Security > Smart Cover > Cover Lock > Lock option.

4. Before exiting, select File > Save Changes and Exit.

Unlocking the Smart Cover Lock

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Security > Smart Cover > Cover Lock > Unlock.

4. Before exiting, select File > Save Changes and Exit.

Using the Smart Cover FailSafe Key

If you enable the Smart Cover Lock and cannot enter your password to disable the lock, you will need a Smart Cover FailSafe Key to open the computer cover. You will need the key in any of the following circumstances:

Power outage

Startup failure

PC component failure (such as processor or power supply)

Forgotten password

Ä CAUTION: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared; order this key before you need one (Tamper-resistant wrench PN 166527-001 or tamper-resistant bits PN

166527-002).

To obtain the FailSafe Key, do any one of the following:

Contact an authorized HP reseller or service provider.

Call the appropriate number listed in the warranty.

For more information about using the Smart Cover FailSafe Key, consult the Hardware

Reference Guide.

Service Reference Guide, dc5100 376220-001 3–23

Desktop Management

3.4.6 Master Boot Record Security

The Master Boot Record (MBR) contains information needed to successfully boot from a disk and to access the data stored on the disk. Master Boot Record Security may prevent unintentional or malicious changes to the MBR, such as those caused by some computer viruses or by the incorrect use of certain disk utilities. It also allows you to recover the “last known good” MBR, should changes to the MBR be detected when the system is restarted.

To enable MBR Security, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Security > Master Boot Record Security > Enabled.

4. Select Security > Save Master Boot Record.

5. Before exiting, select File > Save Changes and Exit.

When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the current bootable disk while in MS-DOS or Windows Safe Mode.

Most operating systems control access to the MBR of the current bootable disk; the BIOS cannot prevent changes that may occur while the operating system is running.

Each time the computer is turned on or restarted, the BIOS compares the MBR of the current bootable disk to the previously saved MBR. If changes are detected and if the current bootable disk is the same disk from which the MBR was previously saved, the following message is displayed:

1999—Master Boot Record has changed.

Press any key to enter Setup to configure MBR Security.

Upon entering Computer Setup, you must

Save the MBR of the current bootable disk;

Restore the previously saved MBR; or

Disable the MBR Security feature.

You must know the setup password, if one exists.

If changes are detected and if the current bootable disk is not the same disk from which the MBR was previously saved, the following message is displayed:

2000—Master Boot Record Hard Drive has changed.

Press any key to enter Setup to configure MBR Security.

Upon entering Computer Setup, you must

Save the MBR of the current bootable disk; or

Disable the MBR Security feature.

3–24 376220-001 Service Reference Guide, dc5100

Desktop Management

You must know the setup password, if one exists.

In the unlikely event that the previously saved MBR has been corrupted, the following message is displayed:

1998—Master Boot Record has been lost.

Press any key to enter Setup to configure MBR Security.

Upon entering Computer Setup, you must

Save the MBR of the current bootable disk; or

Disable the MBR Security feature.

You must know the setup password, if one exists.

3.4.7 Before You Partition or Format the Current Bootable Disk

Ensure that MBR Security is disabled before you change partitioning or formatting of the current bootable disk. Some disk utilities, such as FDISK and FORMAT, attempt to update the MBR. If

MBR Security is enabled when you change partitioning or formatting of the disk, you may receive error messages from the disk utility or a warning from MBR Security the next time the computer is turned on or restarted. To disable MBR Security, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press and hold the F10 key again to access the utility.

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Security > Master Boot Record Security > Disabled.

4. Before exiting, select File > Save Changes and Exit.

3.4.8 Cable Lock Provision

The rear panel of the computer accommodates a cable lock so that the computer can be physically secured to a work area.

For illustrated instructions, please see the Removal and Replacement Chapter for the specific chassis.

3.4.9 Fingerprint Identification Technology

Eliminating the need to enter user passwords, HP Fingerprint Identification Technology tightens network security, simplifies the login process, and reduces the costs associated with managing corporate networks. Affordably priced, it is not just for high-tech, high-security organizations anymore.

Support for Fingerprint Identification Technology varies by model.

For more information, visit http://h18004.www1.hp.com/products/security.

Service Reference Guide, dc5100 376220-001 3–25

Desktop Management

3.5 Fault Notification and Recovery

Fault Notification and Recovery features combine innovative hardware and software technology to prevent the loss of critical data and minimize unplanned downtime.

If the computer is connected to a network managed by HP Client Manager, the computer sends a fault notice to the network management application. With HP Client Manager Software, you can also remotely schedule diagnostics to automatically run on all managed PCs and create a summary report of failed tests.

3.5.1 Drive Protection System

The Drive Protection System (DPS) is a diagnostic tool built into the hard drives installed in select HP computers. DPS is designed to help diagnose problems that might result in unwarranted hard drive replacement.

When HP computers are built, each installed hard drive is tested using DPS, and a permanent record of key information is written onto the drive. Each time DPS is run, test results are written to the hard drive. Your service provider can use this information to help diagnose conditions that caused you to run the DPS software. Refer to the Troubleshooting Guide for instructions on using

DPS.

3.5.2 Surge-Tolerant Power Supply

An integrated surge-tolerant power supply provides greater reliability when the computer is hit with an unpredictable power surge. This power supply is rated to withstand a power surge of up to 2000 volts without incurring any system downtime or data loss.

3.5.3 Thermal Sensor

The thermal sensor is a hardware and software feature that tracks the internal temperature of the computer. This feature displays a warning message when the normal range is exceeded, which gives you time to take action before internal components are damaged or data is lost.

3–26 376220-001 Service Reference Guide, dc5100

Serial and Parallel ATA Drive Guidelines and Features

4

Serial and Parallel ATA Drive Guidelines and

Features

Serial ATA = SATA

Parallel ATA = PATA

HP does not support the use of PATA (IDE) hard drives when SATA hard drives are installed on the computer.

4.1 SATA and PATA Device Information

Characteristic

Number of pins/conductors in data cable

Number of pins in power cable

Maximum data cable length

Data interface voltage differential

Drive motor voltages

Jumpers for configuring drive

Data transfer rate

SATA

7/7

15

39.37 in (100 cm)

600 mV

3.3 V, 12 V

N/A

150 MB/s

SATA connectors on the system board are color coded to make identification easier.

PATA

40/80

4

18 in (45.7 cm)

5 V

5 V, 12 V

Required up to 100 MB/s

SATA Identification

Primary channel, device 0

Primary channel, device 1

Secondary channel, device 0

Secondary channel, device 1

Color

Dark blue

Light Blue

White

Orange

4–1 Service Reference Guide, dc5100 376220-001

Serial and Parallel ATA Drive Guidelines and Features

4.2.1 SATA Data Cable

The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive. As shown in the table, each cable has 3 grounds, and 4 transmit/receive pins.

SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and never bend it tighter than a 30 mm (1.18 in) radius.

Pin Number

P1

P2*

P3*

Usage

Ground

A+

A-

Ground P4

P5** B-

P6**

P7

B+

Ground

*P2 and P3 differential signal pair

**P5 and P6 differential signal pair

4.2.2 SATA Power Cable

Device Plug

Ground

Transmit data

Transmit data

Ground

Receive data

Receive data

Ground

Host Plug

Ground

Receive data

Receive data

Ground

Transmit data

Transmit data

Ground

P4

P5

P6

P7

P8

Pin

P1

P2

P3

Usage

V3.3

V3.3

V3.3

Ground

Ground

Ground

V5

V5

Notes

3.3 V power

3.3 V power

3.3 V power

5 V power

5 V power

Pin

P9

P10

P11

P12

P13

P14

P15

Usage

V5

Ground

Reserved

Ground

V 12

V12

V12

Notes

5 V power

12 V power

12 V power

12 V power

4–2 376220-001 Service Reference Guide, dc5100

Serial and Parallel ATA Drive Guidelines and Features

4.2.3 PATA Data Cable

6

7

8

9

10

11

12

13

14

Pin

1

2

3

4

5

Signal

Reset

Ground

DD7

DD8

DD6

DD9

DD5

DD10

DD4

DD11

DD3

DD12

DD2

DD13

4.2.4 PATA Power Cable

20

21

22

23

24

25

26

27

28

Pin

15

16

17

18

19

Pin

1

2

3

4

Usage

+12 V

Ground

Ground

+5 V

Signal

DD1

DD14

DD0

DD15

Ground

(Key)

DMARQ

Ground

DIOW

Ground

DIOR

Ground

IORDY

CSEL

34

35

36

37

38

39

40

Pin

29

30

31

32

33

Signal

DMAK

Ground

INTRQ

IOCS16

DA1

PDIAG (cable detect)

DA0

DA2

CS1FX

CS3FX

DASP

Ground

Service Reference Guide, dc5100 376220-001 4–3

Serial and Parallel ATA Drive Guidelines and Features

4.2.5 PATA Cable Layout

The faces of industry-standard cable connectors are color-coded for easy recognition:

System board connector = blue face

Device 0 connector = black face

Device 1 connector = gray face

The color code of an industry-standard cable is applicable only if the drive’s jumper is in the cable-select position.

Single-Drive Cable

System

Board

Device 0

Black

Face

Blue

Face

Two-Drive Cable

System

Board

Device 1 Device 0

Blue

Face

Gray

Face

Black

Face

On a two-drive cable, the Drive/Device 0 connector is always the farthest one from the system board connector and the Drive/Device 1 connector is always the closest to the system board connector.

Some cables may be labeled “Drive 0” instead of “Device 0” and “Drive 1” instead of

“Device 1”.

4–4 376220-001 Service Reference Guide, dc5100

Serial and Parallel ATA Drive Guidelines and Features

4.3 PATA Drive Installation Guidelines

Most computer system boards have two or fewer Parallel ATA (PATA) channels with a dedicated connector for each channel. When two channels are present, one is designated as the Primary and the other as the Secondary Channel.

Each of the two channels can have up to two devices attached to it. All drives are connected to a channel using an industry-standard 80-conductor cable.

The industry standard 1.44 MB diskette drive has its own separate channel and is not included as a part of the maximum four drives.

HP does not support the use of PATA (IDE) hard drives when SATA hard drives are installed on the computer.

Each drive attached to a channel must have a drive designation. If a drive is attached to the

Device 0 cable position and its cable-select jumper is present, the drive is designated as Device 0.

Similarly, if a drive is attached to the Device 1 cable position and its cable-select jumper is present, the drive is designated as Device 1.

For optimal performance of a computer system, all drives need to be attached to the PATA channel(s) in a specified sequence. This sequence is determined by the device class of the drives and by specific attach sequence rules.

4.3.1 PATA Device Classes

In order to determine the best drive attach sequence, ATA/ATAPI drives are segregated into four different classes based upon the bandwidth demands they place on an ATA channel. The most demanding devices are in Class 1 and the least demanding are in Class 4.

Class 1

Hard

Drives

ATA-100

ATA-66

ATA-33

Class 2

High Speed

Optical Drives

DVD

DVD-CD R/W

Class 3

Optical Storage

Drives

R/W CD-ROM

CD-ROM

Class 4

Magnetic

Storage Drives

LS-120

Tape

Zip

General Attach Guidelines

The lower the device class number, the faster the device and the more bandwidth required.

Drives installed in the Device 0 positions on both the primary and secondary channels receive the greatest possible bandwidth.

■ The bootable ATA hard drive should always be installed on the primary channel in the

Device 0 position.

Service Reference Guide, dc5100 376220-001 4–5

Serial and Parallel ATA Drive Guidelines and Features

4.3.2 PATA Attach Sequence Rules by Class Priority

Drives should be attached in the sequence shown for optimum performance starting at position 1.

4 1

3 2

4 Primary

Channel*

1

Secondary

Channel

3 2

Device 1 Device 0

*If there are three or more devices, two or more of which are hard drives, two hard drives should be attached to the primary channel first before following the General Attach Sequence Rule.

The attach sequence rule may also be stated in table format:

1

2

Sequence

General Attach Sequence Rule*

Description

3

4

The lowest class drive—bootable hard drive recommended.

If only two drives, the last drive goes here; otherwise the lowest class of the remaining drives.

If only three drives, attach the final drive here. If a fourth drive exists, attach the lowest class drive here.

If there is a fourth drive, attach the final drive here—the drive with the highest class number of all devices.

*If there are three or more devices, two or more of which are hard drives, two hard drives should be attached to the primary controller first before following the General Attach Sequence Rule.

Cable lengths may restrict drive usage.

The rules allow for:

■ Keeping the hard drive on a separate channel to maximize drive performance until a fourth device is added.

■ Keeping the hard drives and removable media drives on separate channels to maximize compatibility.

■ Keeping the hard drive and the writable optical drive on separate channels to maximize optical drive reliability.

4–6 376220-001 Service Reference Guide, dc5100

Serial and Parallel ATA Drive Guidelines and Features

4.3.3 PATA Attach Sequence Worksheet

Use the worksheet below for obtaining optimum system performance when setting up a computer with multiple drives. Use the General Attach Sequence Rule to determine the best drive installation sequence.

Device Name

Attach Sequence Worksheet

Device Class

Position

Number

Channel

Name

Device

Number

Two examples of how to use the worksheet are:

Three-device installation

Four-device installation

Service Reference Guide, dc5100 376220-001 4–7

Serial and Parallel ATA Drive Guidelines and Features

Example 1: Three-Device Installation Sample

A system has three devices: Ultra ATA-100 hard drive, CD-ROM drive, and a DVD drive. Using the Device Class Table in Section

4.3.1

, the devices may be identified as:

Ultra ATA-100 hard drive = Class 1

DVD drive = Class 2

CD-ROM drive = Class 3

Attach Sequence Worksheet—Three-Device Installation (Sample)

Device Name

Ultra ATA-100 hard drive

DVD drive

CD-ROM drive

Device

Class

1

2

3

Position

Number

1

2

3

Channel

Name

Primary

Secondary

Secondary

Device

Number

0

0

1

Cable lengths may restrict drive usage.

4

3

1

2

4 Primary

Channel*

Secondary

Channel

3

1

2

Device 1 Device 0

4–8 376220-001 Service Reference Guide, dc5100

Serial and Parallel ATA Drive Guidelines and Features

Example 2: Four-Device Installation Sample

A system has four devices: two Ultra ATA-100 hard drives, one DVD-CDR/W drive, and a

ZIP-250 drive. Using the Device Class Table in Section 4.3.1, the devices may be reidentified as:

Ultra ATA-100 hard drive = Class 1

Ultra ATA-100 hard drive = Class 1

DVD-CDR/W drive = Class 2

ZIP-250 drive = Class 4

Attach Sequence Worksheet—Four-Device Installation (Sample)

Device Name

Ultra ATA-100 hard drive

DVD-CDR/W drive

ZIP-250 drive

Ultra ATA-100 hard drive*

Device

Class

1

2

4

1

Position

Number

1

2

3

4

Channel

Name

Primary

Secondary

Secondary

Primary

Device

Number

0

0

1

1

*If there are three or more devices, two or more of which are hard drives, two hard drives should be attached to the primary channel first before following the General Attach Sequence Rule.

4 1

3 2

4 1 Primary

Channel*

Secondary

Channel

3 2

Device 1 Device 0

Cable lengths may restrict drive usage.

4.3.4 PATA Additional Drive Application Notes

When replacing a hard drive, the replacement should be of the same type (Ultra ATA -33,

-66, or -100) as that being removed to retain the same level of performance.

When Ultra ATA and SCSI hard drives are mixed in the same system, the Ultra ATA drive will become the boot drive unless the boot order is changed in Computer (F10) Setup.

Service Reference Guide, dc5100 376220-001 4–9

Serial and Parallel ATA Drive Guidelines and Features

4.4 ATA SMART Drives

The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP

Personal Computers have built-in drive failure prediction that warns the user or network administrator of an impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If the drive determines that a failure is imminent, it generates a fault alert.

The combination of the file system and the operating system used in the computer determines the maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may be properly accessed by the operating system. A single hard drive may therefore be subdivided into a number of unique drive partitions in order to make use of all of its space.

Because of the differences in the way that drive sizes are calculated, the size reported by the operating system may differ from that marked on the hard drive or listed in the computer specification. Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by Microsoft are bytes to the base 2.

Drive/Partition Capacity Limits

File

System

FAT 32

FAT 32

NTFS

NTFS

Controller

Type

ATA

SCSI

ATA

SCSI

Operating System

Windows 2000/ XP

Windows 2000/ XP

Windows NT/2000/XP

Windows NT/2000/XP

Maximum Size

Partition Drive

32 GB

32 GB

2 TB

2 TB

128 PB

2 TB

128 PB

2 TB

4–10 376220-001 Service Reference Guide, dc5100

Serial and Parallel ATA Drive Guidelines and Features

Windows 2000 and XP

Enhanced Mode (default BIOS Setting)

—Separate IDE controller

• PATA Controller in Legacy Mode

- Device 0 is accessible as Device 0 of

PATA controller’s Primary Channel

- Device 1 is accessible as Device 1of

PATA controller’s Primary Channel

• SATA Controller in Native Mode

- SATA 0 is accessible as Device 0 of

SATA controller’s Primary Channel

- SATA 1 is accessible as Device 0 of

SATA controller’s Secondary Channel

SATA 2 is accessible as Device 1of

SATA controller’s Primary Channel

- SATA 3 is accessible as Device 1 of

SATA controller’s Secondary Channel

Windows 9x, NT, and Linux

Compatibility Mode (non-default BIOS Setting)

—Combined IDE controller

• PATA Controller in Legacy Mode

- Device 0 is accessible as Device 0 of the combined controller’s Secondary

Channel

- Device 1 is accessible as Device 1of the combined controller’s Secondary

Channel

• SATA Controller in Legacy Mode

- SATA 0 is accessible as Device 0 of the combined controller’s Primary Channel

- SATA 1 is inaccessible

- SATA 2 is accessible as device 1 of the combined controller’s Primary Channel

- SATA 3 is inaccessible

4.6.1 Legacy Mode

The Legacy mode is used to access devices attached to the embedded IDE controllers. Each channel requires two fixed I/O address ranges and an IRQ for each.

■ Primary Channel

Command block: 1F0h - 1F7h

Control block: 3F6h

IRQ: 14

■ Secondary Channel

Command block: 170h - 177h

Control block: 376h

IRQ: 15

4.6.2 Native Mode

The native mode is used to access devices attached to add-in cards and is not supported by many legacy operating systems. Addresses are assigned by PCI Plug-n-Play BIOS and the IRQ is shared with multiple controllers. Base Address Registers for the Command and Control Block are found in the PCI Configuration Space.

Offset 10h—Primary Command base address

Offset 14h—Primary Control base address

Offset 18h—Secondary Command base address

Offset 1Ch—Secondary Control base address

Service Reference Guide, dc5100 376220-001 4–11

Serial and Parallel ATA Drive Guidelines and Features

4.7 Mixed Devices Boot and Drive Letter Ordering

SATA Emulation*

Separate IDE Controller

(default). Used with Windows

2000 and XP.

Hard Drive Order

A. Integrated SATA

B. Integrated IDE

Separate IDE Controller. Used with Windows 2000 and XP.

A. Integrated IDE

B. Integrated SATA

Combined with IDE

Controller. Used with

Windows 9x, NT, and Linux.

A. Integrated SATA

B. Integrated IDE

Combined with IDE

Controller. Used with

Windows 9x, NT, and Linux.

A. Integrated IDE

B. Integrated SATA

HDD Boot and Drive

Letter Ordering

A1. SATA 0

A2. SATA 2

A3. SATA 1

A4. SATA 3

B1. IDE Device 0

B2. IDE Device 1

A1. IDE Device 0

A2. IDE Device 1

B1. SATA 0

B2. SATA 2

B3. SATA 1

B4. SATA 3

A1. SATA 0

A2. SATA 2

B1. IDE Device 0

B2. IDE Device 1

A1. IDE Device 0

A2. IDE Device 1

B1. SATA 0

B2. SATA 2

*Refer to section

4.3.2

for PATA attach sequence rules.

4–12 376220-001 Service Reference Guide, dc5100

Identifying the Chassis, Routine Care, and Disassembly Preparation

5

Identifying the Chassis, Routine Care, and

Disassembly Preparation

This chapter provides general service information for the computer. Adherence to the procedures and precautions described in this chapter is essential for proper service.

Ä CAUTION: When the computer is plugged into an AC power source voltage is always applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

5.1.1 Microtower (MT)

Service Reference Guide, dc5100 376220-001 5–1

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.1.2 Small Form Factor (SFF)

5–2 376220-001 Service Reference Guide, dc5100

Identifying the Chassis, Routine Care, and Disassembly Preparation

A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work perfectly throughout a normal cycle. The device may function normally for a while, but it has been degraded in the internal layers, reducing its life expectancy.

Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.

5.2.1 Generating Static

The following table shows that:

Different activities generate different amounts of static electricity.

Static electricity increases as humidity decreases.

Event

Walking across carpet

Walking across vinyl floor

Motions of bench worker

Removing DIPs* from plastic tube

Removing DIPs* from vinyl tray

Removing DIPs* from Styrofoam

Removing bubble pack from PCB

Packing PCBs in foam-lined box

55%

Relative Humidity

7,500 V

3,000 V

400 V

400 V

2,000 V

3,500 V

7,000 V

5,000 V

40%

15,000 V

5,000 V

800 V

700 V

4,000 V

5,000 V

20,000 V

11,000 V

*These are then multi-packaged inside plastic tubes, trays, or Styrofoam.

10%

35,000 V

12,000 V

6,000 V

2,000 V

11,500 V

14,500 V

26,500 V

21,000 V

700 volts can degrade a product.

5.2.2 Preventing Electrostatic Damage to Equipment

Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of sensitivity. The following packaging and grounding precautions are necessary to prevent damage to electric components and accessories.

■ To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.

■ Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.

Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.

Place items on a grounded surface before removing them from their container.

Always be properly grounded when touching a sensitive component or assembly.

Avoid contact with pins, leads, or circuitry.

Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive foam.

Service Reference Guide, dc5100 376220-001 5–3

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.2.3 Personal Grounding Methods and Equipment

Use the following equipment to prevent static electricity damage to equipment:

Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord must be connected and fit snugly into the banana plug connector on the grounding mat or workstation.

Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.

Static Shielding Protection Levels

Method

Antistatic plastic

Carbon-loaded plastic

Metallized laminate

Voltage

1,500

7,500

15,000

5.2.4 Grounding the Work Area

To prevent static damage at the work area, use the following precautions:

■ Cover the work surface with approved static-dissipative material. Provide a wrist strap connected to the work surface and properly grounded tools and equipment.

Use static-dissipative mats, foot straps, or air ionizers to give added protection.

Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate. Handle them only at static-free work areas.

■ Turn off power and input signals before inserting and removing connectors or test equipment.

■ Use fixtures made of static-safe materials when fixtures must directly contact dissipative surfaces.

■ Keep work area free of nonconductive materials such as ordinary plastic assembly aids and

Styrofoam.

■ Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.

5.2.5 Recommended Materials and Equipment

Materials and equipment that are recommended for use in preventing static electricity include:

Antistatic tape

Antistatic smocks, aprons, or sleeve protectors

Conductive bins and other assembly or soldering aids

Conductive foam

Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance

Static-dissipative table or floor mats with hard tie to ground

Field service kits

5–4 376220-001 Service Reference Guide, dc5100

Identifying the Chassis, Routine Care, and Disassembly Preparation

Static awareness labels

Wrist straps and footwear straps providing one-megohm +/- 10% resistance

Material handling packages

Conductive plastic bags

Conductive plastic tubes

Conductive tote boxes

Opaque shielding bags

Transparent metallized shielding bags

Transparent shielding tubes

To prevent overheating and to help prolong the life of the computer:

■ Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.

■ Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented sides of the computer and above the monitor to permit the required airflow.

■ Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also restricts airflow.

■ Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign matter can block the vents and limit the airflow.

Never operate the computer with the cover or side panel removed.

Do not stack computers on top of each other or place computers so near each other that they are subject to each other’s re-circulated or preheated air.

■ If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.

■ The computer is designed to operate continuously (24x7), provided that the operating guidelines listed above are met.

■ Install or enable power management functions of the operating system or other software, including sleep states.

5.4.1 General Cleaning Safety Precautions

1. Never use solvents or flammable solutions to clean the computer.

2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then use the cloth on the component.

3. Always unplug the computer when cleaning with liquids or damp cloths.

4. Always unplug the computer before cleaning the keyboard, mouse, or air vents.

Service Reference Guide, dc5100 376220-001 5–5

Identifying the Chassis, Routine Care, and Disassembly Preparation

5. Disconnect the keyboard before cleaning it.

6. Wear safety glasses equipped with side shields when cleaning the keyboard.

5.4.2 Cleaning the Computer Case

Follow all safety precautions in Section

5.4.1

before cleaning the computer.

To clean the computer case, follow the procedures described below:

To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.

For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with a cloth or swab dampened with clear water.

■ For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will evaporate quickly and not leave a residue.

After cleaning, always wipe the unit with a clean, lint-free cloth.

Occasionally clean the air vents on the computer. Lint and other foreign matter can block the vents and limit the airflow.

5.4.3 Cleaning the Keyboard

Follow all safety precautions in Section

5.4.1

before cleaning the keyboard.

To clean the tops of the keys or the keyboard body, follow the procedures described in Section

5.4.2

.

When cleaning debris from under the keys, review all rules in Section 5.4.1

before following these procedures:

Ä CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from under the keys.

Visible debris underneath or between the keys may be removed by vacuuming or shaking.

Canned, pressurized air may be used to clean debris from under the keys. Caution should be used as too much air pressure can dislodge lubricants applied under the wide keys.

If you remove a key, use a specially designed key puller to prevent damage to the keys. This tool is available through many electronic supply outlets.

Ä CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these keys are improperly removed or installed, the keyboard may not function properly.

■ Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.

5–6 376220-001 Service Reference Guide, dc5100

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.4.4 Cleaning the Monitor

■ Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into the housing and damage a component. Never use solvents or flammable liquids on the monitor.

■ To clean the monitor body follow the procedures in Section

5.4.2

.

5.4.5 Cleaning the Mouse

Before cleaning the mouse, ensure that the power to the computer is turned off.

■ Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.

■ To clean the mouse body, follow the procedures in Section

5.4.2

.

Listed below are some of the considerations that you should keep in mind during the disassembly and assembly of the computer.

5.5.1 Power Supply Fan

The power supply fan is a variable-speed fan based on the temperature in the power supply.

Ä CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is off when the computer is in “Standby,” “Suspend,” or “Off” modes.

You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

5.5.2 Tools and Software Requirements

To service the computer, you need the following:

Torx T-15 screwdriver (Compaq screwdriver with bits, PN 161946-001)

Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)

Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)

Phillips #0 screwdriver

Phillips #2 screwdriver

Diagnostics software

Compaq tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or

Compaq tamper-resistant bits (Smart Cover FailSafe Key, PN 166527-002)

Service Reference Guide, dc5100 376220-001 5–7

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.5.3 Screws

The screws used in the computer are not interchangeable. They may have standard or metric threads and may be of different lengths. If an incorrect screw is used during the reassembly process, it can damage the unit. HP strongly recommends that all screws removed during disassembly be kept with the part that was removed, then returned to their proper locations.

Metric screws have a black finish.

U.S. screws have a silver finish.

As each subassembly is removed from the computer, it should be placed away from the work area to prevent damage.

5.5.4 Cables and Connectors

Most cables used throughout the unit are flat, flexible cables. These cables must be handled with care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced.

Ä CAUTION: When servicing this computer, ensure that cables are placed in their proper location during the reassembly process. Improper cable placement can damage the computer.

5.5.5 Hard Drives

Handle hard drives as delicate, precision components, avoiding all physical shock and vibration.

This applies to failed drives as well as replacement spares.

■ If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging and label the package “Fragile: Handle With Care.”

■ Do not remove hard drives from the shipping package for storage. Keep hard drives in their protective packaging until they are actually mounted in the CPU.

Avoid dropping drives from any height onto any surface.

If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive while the computer is on or in standby mode.

■ Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector. For more information about preventing electrostatic

damage, refer to Section 5.2

, “Electrostatic Discharge Information.”

Do not use excessive force when inserting a drive.

Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers.

5–8 376220-001 Service Reference Guide, dc5100

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.5.6 Lithium Coin Cell Battery

The battery that comes with the computer provides power to the real-time clock and has a lifetime of about three years.

See the appropriate removal and replacement chapter for the chassis you are working on in this guide for instructions on the replacement procedures.

Å WARNING: This computer contains a lithium battery. There is a risk of fire and chemical burn if the battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or fire, or expose it to temperatures higher than 140ºF (60ºC).

Ä CAUTION: Batteries, battery packs, and accumulators should not be disposed of together with the general household waste.

Service Reference Guide, dc5100 376220-001 5–9

Identifying the Chassis, Routine Care, and Disassembly Preparation

5–10 376220-001 Service Reference Guide, dc5100

6

Removal and Replacement Procedures—

Microtower (MT) Chassis

Adherence to the procedures and precautions described in this chapter is essential for proper service. After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.

Not all features listed in this guide are available on all computers.

See Chapter 5, “Identifying the Chassis, Routine Care, and Disassembly Preparation,” for initial

procedures.

1. Remove/disengage any security devices that prohibit opening the computer (

Section 6.2,

“External Security Devices,” Section 6.2.1, “Installing a Cable Lock,” and Section 6.2.2,

“Installing a Padlock”

).

2. Close any open software applications.

3. Exit the operating system.

4. Remove any diskette or compact disc from the computer.

5. Turn off the computer and any peripheral devices that are connected to it.

Ä

Ä

CAUTION: Turn off the computer before disconnecting any cables.

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a unit.

6. Disconnect the power cord from the electrical outlet and then from the computer.

7. Disconnect all peripheral device cables from the computer.

During disassembly, label each cable as you remove it, noting its position and routing. Keep all screws with the units removed.

Ä CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong screw in an application may damage the unit.

6–1 Service Reference Guide, dc5100 376220-001

Removal and Replacement Procedures— Microtower (MT) Chassis

6.2.1 Installing a Cable Lock

The cable lock may be used to secure the computer access panel to the chassis and, at the same time, secure the computer to a fixed object.

6.2.2 Installing a Padlock

I

A padlock may be used by itself to secure the access panel to the computer chassis. A padlock may also be used with a security cable to secure the computer to a fixed object.

6–2 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

1. Prepare the computer for disassembly (

Chapter 6, “Removal and Replacement Procedures—

Microtower (MT) Chassis” ).

Ä CAUTION: Before removing the computer access panel, ensure that the computer is turned off and that the power cord is disconnected from the electrical outlet.

2. Loosen the captive thumbscrew 1 that secures the access panel to the computer chassis.

3. Slide the access panel 2 back about 1 inch (2.5 cm), then lift it off the unit.

You may want to lay the computer on its side to install internal parts. Be sure the side with the access panel and pull grip is facing up.

To install the access panel, reverse the removal procedure.

Service Reference Guide, dc5100 376220-001 6–3

Removal and Replacement Procedures— Microtower (MT) Chassis

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel ( Section 6.3, “Access Panel”

).

3. To remove the front bezel, press in on the two bottom tabs on the left side of the bezel 1 so that they release from the chassis. Then press in on the upper tab on the left side of the bezel

2 so that it releases from the chassis. The bezel will rotate out slightly from left to right.

Ä CAUTION: Do not over-rotate or try to pull the bezel off at this point, otherwise you may break the remaining hooks on the inside of the bezel.

4. Press down on the upper right corner of the bezel to release the hook that secures the top of the bezel to the chassis. Continue to rotate the bezel, then push the bezel to the left to release the right side latches and rotate the bezel off the chassis from left to right.

6–4 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

To reinstall the front bezel,

1. Position the chassis in the upright position.

2. Insert the two hooks on the right side of the bezel 1 into the rectangular holes on the chassis then rotate the bezel into place 2 so that the three tabs on the left side of the bezel and the single tab on the upper right corner of the bezel snap into the slots on the chassis.

Service Reference Guide, dc5100 376220-001 6–5

Removal and Replacement Procedures— Microtower (MT) Chassis

6.5 Front Drive Bezels

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel ( Section 6.3, “Access Panel”

).

3. Remove the front bezel ( Section 6.4, “Front Bezel”

).

6.5.1 5.25" Drive Bezel Blank

Press the two retaining tabs on the inside of the large bezel 1 towards the outside of the bezel to release the bezel blank. At the same time, pull the bezel blank in 2 to remove it from the front bezel.

To install a bezel blank, reverse the removal procedure.

6–6 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.5.2 Diskette Drive Bezel

Press the two upper 1 or the two lower 2 tabs for the diskette drive bezel towards the center of the drive bezel and push the bezel out to remove it from the front bezel.

To install a bezel or a bezel blank, reverse the removal procedure.

6.5.3 3.5" Drive Bezel Blank

Press the two upper 1 or the two lower 2 tabs for the 3.5" drive bezel towards the center of the

3.5" drive bezel and push the bezel blank out to remove it from the front bezel.

To install a bezel blank, reverse the removal procedure.

Service Reference Guide, dc5100 376220-001 6–7

Removal and Replacement Procedures— Microtower (MT) Chassis

Ä CAUTION: The memory module sockets have gold metal contacts. When upgrading the memory, it is important to use memory modules with gold metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.

Static electricity can damage the electronic components of the computer or optional cards. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a

grounded metal object. Refer to Chapter 5

for more information.

When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

Å WARNING: To reduce risk of personal injury from hot surfaces, allow the internal system components to cool before touching.

3. Open both latches of the memory module socket 1, and insert the memory module into the socket 2. Begin by installing a module into the socket nearest the preinstalled module, and install the modules following the numerical order of the sockets.

6–8

A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket.

It may be easier to install a memory module in some cases if the main power cable from the power supply to the system board is temporarily disconnected.

4. Push the module down into the socket, ensuring that the module is fully inserted and properly seated. Make sure the latches are in the closed position 3.

5. Repeat steps 3 and 4 for any additional modules that you want to install.

To reassemble the computer, reverse the removal procedure.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.7.1 Expansion Slot Cover

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. On the rear of the computer, remove the retaining screw 1 then, slide the slot cover lock up

2 to access the expansion slot covers.

For instructions on standard PCI expansion cards, see

Section 6.7.2, “PCI Expansion Card.” or

6.7.3, “PCI Express Expansion Card.”

Service Reference Guide, dc5100 376220-001 6–9

Removal and Replacement Procedures— Microtower (MT) Chassis

6.7.2 PCI Expansion Card

For preliminary steps, see

Section 6.7.1, “Expansion Slot Cover.”

If replacing a standard PCI expansion card, go to step 1.

If installing any PCI expansion card for the first time in a computer, skip to step 4.

1. IWhen removing an expansion card from a standard expansion socket, hold the card at each end, and carefully rock it back and forth until the connectors pull free from the socket.

2. Pull the expansion card straight up from the socket 1 then away from the inside of the chassis 2 to maneuver the card out of the computer.

Ä CAUTION: Be sure not to scrape the card against the other components.

6–10

Ä CAUTION: After removing an expansion card, you must replace it with a new card or cover the open slot (for example, with a metal slot cover or a piece of cardboard taped in place) for proper cooling of internal components during operation.

3. Store the old card in anti-static packaging that contained the new card.

4. If you are installing a PCI expansion card for the first time in this computer you will need to remove the correct expansion slot cover at this time.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

5. When installing an expansion card, hold the card just above the expansion slot on the system board then move the card toward the rear of the chassis so that the bracket on the card is aligned with the open slot on the rear of the chassis 1.

6. Press the card straight down into the expansion slot on the system board 2.

Press firmly on the card so that the whole connector seats properly in the expansion card slot.

7. Slide the slot cover lock down toward the expansion card brackets and slot covers to secure them in place 1 and install the retaining screw 2.

Service Reference Guide, dc5100 376220-001 6–11

Removal and Replacement Procedures— Microtower (MT) Chassis

Always follow good cable management practices when working inside the computer.

Keep cables away from major heat sources like the heatsink.

Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these are not designed to take excessive pressure on them.

■ When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the wires.

Some flat ribbon cables come prefolded. Never change the folds on these cables.

Do not bend any cable sharply. A sharp bend can break the internal wires.

Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.

Never crease a SATA data cable.

Do not rely on components like the drive cage, power supply, or computer cover to push cables down into the chassis. Always position the cables to lay properly by themselves.

When removing the power supply power cables from the P1 or P3 connectors on the system board, always follow these steps:

1. Squeeze on the top of the retaining latch attached to the cable end of the connector 1.

2. Grasp the cable end of the connector and pull it straight up 2.

Ä CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could damage the cable and result in a failed power supply.

6–12 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.8.1 Cable Connections

Cable

Power Supply

Power Supply

Power Supply

Power Supply

Power Supply

Power Supply

Power Supply

Cable

Diskette drive

1st SATA Hard drive

2nd SATA Hard drive

ODD Data

ODD Audio

2nd ODD Audio

Heatsink fan

Secondary system fan

Front power on button

Front I/O USB

Front I/O Audio

Speaker

Serial port connector

System board

To

1st SATA Hard drive

System board

1st Optical drive

2nd Optical drive

2nd SATA Hard drive

DIskette drive

System board

To

System board

System board

System board

System board

System board

System board

System board

System board

System board

System board

System board

System board

Cable Designator

P3

P9

P8

P1

P10

P7

P2

PCA Designator

P10 (Black)

P60 (SATA 0 Dark blue)

P61 (SATA 1 White)

P20 (Blue)

P7 (CD )

P11 (AUX)

P70

P3 (Red)

P5

P24 (Yellow)

P23 (Black)

P6 (White)

P52

Service Reference Guide, dc5100 376220-001 6–13

Removal and Replacement Procedures— Microtower (MT) Chassis

6.9 Drives

The computer supports up to six drives that may be installed in various configurations.

This Section describes the procedure for replacing or upgrading the storage drives. A Torx T-15 screwdriver is needed to remove and install the guide screws on a drive.

Ä CAUTION: Make sure personal files on the hard drive are backed up to an external storage device before removing the hard drive. Failure to do so will result in data loss. After replacing the primary hard drive, you will need to run the Restore CD to load the Compaq factory-installed files.

6.9.1 Drive Positions

6–14

Item

1

Drive Positions

Description

Two 5.25-inch, half-height bays for optional drives

2

3

Two standard 3.5-inch, one-third height bays (1.44-MB diskette drive shown)*

Two internal 3.5-inch, one-third height bays for hard drives

*A 3.5-inch diskette drive or zip drive may be installed in this bay but the correct bezel must be installed to ensure proper air flow.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.9.2 Removing a Drive

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Remove the front bezel ( Section 6.4, “Front Bezel”

).

4. Disconnect the power and data cables from the back of the drive, as shown in the following illustrations.

Disconnecting Optical Drive Cables

Disconnecting Diskette Drive Cables

Service Reference Guide, dc5100 376220-001 6–15

Removal and Replacement Procedures— Microtower (MT) Chassis

Disconnecting Hard Drive Cables

Some products use straight cable connectors while others use right angle connectors.

Releasing the Drives

5. A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on the latch drive bracket 1 for the drive you want to remove, then slide the drive from its drive bay 2.

6–16

6. Remove the four guide screws (two on each side) from the old drive. You will need these screws to install a new drive.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.9.3 Installing a Drive

Ä CAUTION: To prevent loss of work and damage to the computer or drive:

■ If you are inserting or removing a hard drive, shut down the operating system properly, then turn off the computer. Do not remove a hard drive while the computer is on or in standby mode.

■ Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector. For more information about preventing electrostatic damage, refer to

Chapter 5 for more information

■ Handle a drive carefully; do not drop it.

■ Do not use excessive force when inserting a drive.

■ Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers.

1. Install four guide screws (two on each side) into the new drive. The screws help guide the drive into its proper position in the bay.

❏ If this is a new installation, guide screws are provided on the front of the chassis under the front bezel.

❏ If this is a replacement drive, use the screws taken from the old drive.

There are a total of eight extra guide screws on the front of the chassis. Four have U.S. threads and four have metric threads. Metric screws have a black finish. U.S. threaded screws have a silver finishnd are only used for hard drives. Make sure to install the appropriate guide screws into the drive.

2. Align the guide screws with the guide slots, then slide the drive into the drive bay, making sure it is fully seated.

Service Reference Guide, dc5100 376220-001 6–17

Removal and Replacement Procedures— Microtower (MT) Chassis

3. Reconnect the power and data cables to the drive as shown in the following illustrations.

Refer to

Section 4.1, “SATA and PATA Device Information”

cabling to get optimum performance.

for information on attaching the

Connecting Optical Drive Cables

Connecting Diskette Drive Cables

6–18 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

Connecting Hard Drive Cables

Some products use straight cable connectors while others use right angle connectors.

4. Install the front bezel (

Section 6.4, “Front Bezel” ).

5. Install the access panel (

Section 6.3, “Access Panel” ).

6. Turn on the computer.

If you replaced the primary hard drive, the restore CD may be used to restore the operating system, software drivers, and/or any software applications that were preinstalled on the computer. Follow the instructions in the guide included with the restore CD. When the restore process has completed, reinstall any personal files that were backed up before replacing the hard drive.

Service Reference Guide, dc5100 376220-001 6–19

Removal and Replacement Procedures— Microtower (MT) Chassis

6.10 Chassis Fan

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Disconnect the power cable that connects the chassis fan to the system board 1.

4. Remove the four screws from the rear of the chassis 2 that secure the fan.

5. Remove the fan from the chassis 3.

To install the chassis fan, reverse the removal procedure.

6–20 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.11 Front I/O Panel Housing Assembly

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Disconnect three attaching cables from the system board: the power switch/LED cable, the front USB cable, and the front audio cable.

4. Remove the two screws 1 that secure the housing to the chassis and then pull the housing 2 away from the chassis.

To install the housing assembly, reverse the removal procedures.

Service Reference Guide, dc5100 376220-001 6–21

Removal and Replacement Procedures— Microtower (MT) Chassis

6.12 Front I/O Devices

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Remove the front I/O panel assembly (

Section 6.11, “Front I/O Panel Housing Assembly” ).

4. Remove the two screws 1 that hold the USB and audio port assembly in place.

5. Remove the I/O device assembly from the I/O panel 2 by pushing it out of the housing.

To install the I/O devices, reverse the removal procedures and then reinstall the housing assembly.

6–22 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.13 Power Switch Assembly

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Remove the front I/O panel assembly (

Section 6.11, “Front I/O Panel Housing Assembly” ).

4. Squeeze the switch holder retaining clips together and push the switch assembly out of the front I/O panel housing.

5. Place the switch holder with switch installed into the inside of the front I/O panel housing and position the legs of the retaining clip into the clip slots. Press firmly so that the clips will penetrate the slot openings and latch into place. If one clip will not easily engage, it may be necessary to use the end of a ball point pen (or another thin, stiff object) to compress the clip leg while inserting it into the clip slot.

6. Reconnect the housing assembly to the front of the chassis and reconnect the cables to the system board.

Service Reference Guide, dc5100 376220-001 6–23

Removal and Replacement Procedures— Microtower (MT) Chassis

6.14 Heatsink

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Disconnect the heatsink fan cable from the system board.

4. Disconnect the four-pin power cable from the system board to make it easier to access the heatsink.

5. Loosen the four captive screws 1 that secure the heatsink to the system board tray.

6. Lift the heatsink from atop the processor 2 and set is on its side to keep from contaminating the work area with thermal grease.

6–24

When reinstalling an existing heatsink, make sure that its bottom has been cleaned with an alcohol wipe and fresh thermal grease has been applied to the top of the processor. New heatsinks come from the factory with fresh thermal grease already applied.

Position the heatsink so that fan wiring is closest to the memory module and the power supply.

Check to ensure that the hetasink mounting lugs do not rest on any electrical components before tightening the retaining screws.

Ä CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heatsink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.15 Processor

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 6.3, “Access Panel” ).

3. Disconnect the heatsink control cable from the system board and remove the heatsink.

Section 6.14, “Heatsink”

4. Rotate the locking lever to its full open position 1.

5. Raise and rotate the microprocessor retainer to its fully open position 2.

6. Carefully lift the processor from the socket 3.

Ä CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board.

Ä CAUTION: The heatsink must be installed within 24 hours of installing the processor to prevent damage to the processor’s solder connections.

To install a new processor:

1. Place the processor in its socket and close the retainer.

2. Secure the locking lever.

If reusing the existing heatsink, go to step 3.

If using a new heatsink, go to step 6.

3. If reusing the existing heatsink, clean the bottom of the heatsink with the alcohol pad provided in the spares kit.

4. Apply the thermal grease provided in the spares kit to the top of the processor and install the heatsink atop the processor.

Service Reference Guide, dc5100 376220-001 6–25

Removal and Replacement Procedures— Microtower (MT) Chassis

5. Go to step 7.

6. If using a new heatsink, remove the protective covering from the bottom of the heatsink and place it in position atop the processor.

7. Secure the heatsink to the system board and system board tray with the 4 captive screws and attach the heatsink control cable to the system board.

Ä CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heatsink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

After installing a new processor onto the system board, always update the system ROM to ensure that the latest version of the BIOS is being used on the computer. The latest system ROMPaq can be found on the Web at: http:\\h18000.www1.hp.com/support/files.

6–26 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.16 System Board

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Remove all PCI expansion boards (

Section 6.7.2, “PCI Expansion Card” ).

4. Disconnect all cables connected to the system board, noting their location for reinstallation.

5. Remove the 3-1/4” drives from the drive cage to make it easier to handle the system board.

6. Remove the eight screws that secure the system board to the chassis 1 then, slide the system board towards the front of the chassis 2 to remove it.

To install the system board, reverse the removal procedures.

Service Reference Guide, dc5100 376220-001 6–27

Removal and Replacement Procedures— Microtower (MT) Chassis

6.17 Battery

The battery that comes with your computer provides power to the real-time clock and has a lifetime of about three years. When replacing the battery, use a battery equivalent to the battery originally installed on the computer. The computer comes with a 3-volt lithium coin cell battery.

The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall socket. The lithium battery is only used when the computer is NOT connected to AC power.

Å WARNING: This computer contains an internal lithium manganese dioxide battery. There is a risk of fire and burns if the battery is not handled properly. To reduce the risk of personal injury:

Do not attempt to recharge the battery.

Do not expose to temperatures higher than 140°F (60°C)

Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

Replace the battery only with the HP/Compaq spare designated for this product.

Ä CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the Troubleshooting

Guide for information on backing up the CMOS settings.

N Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP/Compaq, their authorized partners, or their agents.

Ä CAUTION: Static electricity can damage the electronic components of the computer or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object.

1.

Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly” ).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

It may be necessary to remove an expansion card to gain access to the battery.

3. Locate the battery and battery holder on the system board.

4. Depending on the type of battery holder on your system board, complete the following instructions to replace the battery:

6–28 376220-001 Service Reference Guide, dc5100

6.17.1 Type 1 Battery Holder

1. Lift the battery out of its holder.

Removal and Replacement Procedures— Microtower (MT) Chassis

2. Slide the replacement battery into position, positive side up.

3. The battery holder automatically secures the battery in the proper position.

4. Replace the computer cover or access panel (

Section 6.3, “Access Panel”

).

5. Plug in the computer and turn on power to the computer.

6. Reset the date and time, your passwords, and any special system setups, using Computer

Setup. Refer to the Computer Setup (F10) Utility Guide.

Service Reference Guide, dc5100 376220-001 6–29

Removal and Replacement Procedures— Microtower (MT) Chassis

6.17.2 Type 2 Battery Holder

1. To release the battery from its holder, squeeze the metal clamp that extends above one edge of the battery 1. When the battery pops up, lift it out.

2. To insert the new battery, slide one edge of the replacement battery under the holder’s lip 2 with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery.

After the battery has been replaced, use the following steps to complete this procedure.

3. Replace the computer cover or access panel (

Section 6.3, “Access Panel”

).

4. Plug in the computer and turn on power to the computer.

Reset the date and time, your passwords, and any special system setups, using Computer Setup.

Refer to the Computer Setup (F10) Utility Guide.

6–30 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.17.3 Type 3 Battery Holder

1. To release the battery from its holder, press back lever 1 that extends above one edge of the battery.

2. When the battery pops up, lift it out 2.

3. To insert the new battery, push it down into the holder with the positive side to the left as shown in the drawing above.

4. Replace the computer access panel (

Section 6.3, “Access Panel” ).

5. Plug in the computer and turn on power.

6. Reset the date and time, your passwords, and any special system setups, using Computer

Setup. Refer to the Computer Setup (F10) Utility Guide.

Service Reference Guide, dc5100 376220-001 6–31

Removal and Replacement Procedures— Microtower (MT) Chassis

6.18 Speaker

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Move/remove any components necessary to gain access to the speaker.

4. Disconnect the speaker wire from the system board connector.

5. Remove the two plastic push pins 1 that secure the speaker to the chassis.

6. Remove the speaker by lifting it 2 out of the retaining clips.

To install the speaker, reverse the removal procedures.

6–32 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Microtower (MT) Chassis

6.19 Power Supply

Å WARNING: Voltage is always present on the system board when the computer is plugged into an active AC outlet. To avoid possible personal injury and damage to the equipment the power cord should be disconnected from the computer and/or the AC outlet before opening the computer.

1. Prepare the computer for disassembly (

Section 6.1, “Preparation for Disassembly”

).

2. Remove the access panel and rotate the computer so the system board is parallel to the table

to make it easier to work on ( Section 6.3, “Access Panel” ).

3. Disconnect all power cables from the mass storage devices and from the system board.

4. Remove the screws that connect the power supply to the chassis 1.

Service Reference Guide, dc5100 376220-001 6–33

Removal and Replacement Procedures— Microtower (MT) Chassis

5. Pull the power supply towards the front of the chassis while depressing the two sets of retaining clips 1 to allow the power supply to move far enough to lift it from the chassis 2.

To install the power supply, reverse the removal procedure.

6–34 376220-001 Service Reference Guide, dc5100

7

Removal and Replacement Procedures—

Small Form Factor (SFF) Chassis

Adherence to the procedures and precautions described in this chapter is essential for proper service. After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.

Not all features listed in this guide are available on all computers.

See

Chapter 5, “Identifying the Chassis, Routine Care, and Disassembly Preparation” for initial

safety procedures.

1. Remove/disengage any security devices that prohibit opening the computer (

Section 7.2,

“Unlocking the Smart Cover Lock,” and

Section 7.3, “External Security Devices” ).

2. Close any open software applications.

3. Exit the operating system.

4. Remove any diskette, compact disc, or MultiBay device from the computer.

5. Turn off the computer and any peripheral devices that are connected to it.

Ä

Ä

CAUTION: Turn off the computer before disconnecting any cables.

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a unit.

6. Disconnect the power cord from the electrical outlet and then from the computer.

7. Disconnect all peripheral device cables from the computer.

During disassembly, label each cable as you remove it, noting its position and routing. Keep all screws with the units removed.

Ä CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong screw in an application may damage the unit.

Service Reference Guide, dc5100 376220-001 7–1

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.2 Unlocking the Smart Cover Lock

If you have locked the Smart Cover Lock use Computer Setup to unlock the lock. Refer to the

Desktop Management Guide on the Documentation Library CD for more information about the

Smart Cover Lock.

If you cannot access Computer Setup to unlock the cover you will need to remove the locking solenoid by using the Smart Cover FailSafe Key (Spare part number 166527-001 or

166527-002). Once the solenoid has been deactivated or removed the access panel can be removed.

The Smart Cover FailSafe Key will be needed in any of the following circumstances:

Power outage

Startup failure

Processor or power supply failure

Lost password

1. Using the Smart Cover FailSafe Key, remove the tamper-proof screw that secures the Smart Cover

Lock to the inside of the chassis.

7–2

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

To reattach the Smart Cover Lock, position the lock with the tamper-proof screw.

Service Reference Guide, dc5100 376220-001 7–3

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.3.1 Security Clip

A special clip is required to secure the computer from intrusion. This clip must be installed before installing the computer cover.

7.3.2 Cable Lock

The cable lock may be used to secure the computer cover to the chassis and, at the same time, secure the computer to a fixed object.

Insert the cable lock in the location shown below.

7–4 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.3.3 Padlock

I

A padlock may be used by itself to secure the computer cover to the computer chassis. A padlock may also be used with a security cable to secure the computer to a fixed object.

7.3.4 Universal Chassis Clamp Lock

Without Security Cable

1. Thread the keyboard and mouse cables through the lock.

Service Reference Guide, dc5100 376220-001 7–5

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

2. Screw the lock to the chassis using the screw provided.

3. Insert the plug into the lock 1 and push the button in 2 to engage the lock. Use the key provided to disengage the lock.

7–6 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

With Security Cable

1. Fasten the cable by looping it around a stationary object.

Service Reference Guide, dc5100 376220-001 7–7

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

2. Thread the keyboard and mouse cables through the lock.

3. Screw the lock to the chassis using the screw provided.

7–8 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

4. Insert the plug end of the security cable into the lock 1 and push the button in 2 to engage the lock. Use the key provided to disengage the lock.

Service Reference Guide, dc5100 376220-001 7–9

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

Ä CAUTION: Before removing the computer cover, ensure that the computer is turned off and that the power cord is disconnected from the electrical outlet.

1. Press the buttons on the left and right sides of the computer 1.

2. Slide the computer cover towards the front of the computer until it stops 2 then, lift it up and off the chassis.

To install the computer cover, reverse the removal procedure.

7–10 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.5 Front Drive Bezels

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Remove the drive bezel by pushing the top tab on the right side of the larger front bezel as shown 1 and rotating the drive bezel away from the larger front bezel 2.

The drive bezel will vary depending on the computer configuration.

4. Install a bezel or a bezel blank by pushing the bezel into place.

Service Reference Guide, dc5100 376220-001 7–11

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

There are three drive bezel inserts that are available.

Item

1

2

3

Description

Diskette drive bezel

Hard drive bezel

3.5” drive bezel

7–12 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

The Slim Tower chassis is a very compact computer and proper routing of the internal cables is critical to the operation of the computer. Follow good cable management practices when working inside the computer.

Keep cables away from major heat sources like the heatsink.

Do not jam cables on top of expansion cards or memory modules.Printed circuit cards like these are not designed to take excessive pressure on them.

■ Keep cables clear of sliding parts like the drive cage to prevent their being cut when the drive cage is being seated.

■ Keep cables clear of rotating parts like the power supply to prevent their being cut or crimped when the power supply is lowered.

When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the wires.

Some flat ribbon cables come prefolded. Never change the folds on these cables.

Do not bend any cable sharply. A sharp bend can break the internal wires.

Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.

Never crease a SATA data cable.

Do not rely on components like the drive cage, power supply, or computer cover to push cables down into the chassis. Always position the cables to lay properly by themselves.

Service Reference Guide, dc5100 376220-001 7–13

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

When removing the power supply power cables from the P1 or P3 connectors on the system board, always follow these steps:

1. Squeeze on the top of the retaining latch attached to the cable end of the connector 1.

2. Grasp the cable end of the connector and pull it straight up 2.

Ä CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could damage the cable and result in a failed power supply.

7–14 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.6.1 Cable Connections

Cable

Power Supply

Power Supply

Power Supply

Power Supply

Power Supply

Power Supply

Cable

Diskette drive

1st SATA Hard drive

ODD Data

Heatsink fan

Front LED/power button

Front I/O USB

Serial port connector

Front I/O Audio

System fan

Speaker

System board

To

1st SATA Hard drive

System board (12V)

Optical drive

Diskette drive

2nd SATA Hard drive

To

System board

System board

System board

System board

System board

System board

System board

System board

System board

System board

Cable Designator

P1

P4

P3

P6

P2

P5

PCA Designator

P10 (Floppy)

P60 (SATA 0)

P20 (Secondary)

P8 (CPU fan)

P5 (F_PNL)

P24 (Front USB)

P54 (Serial A)

P23 (Black)

P9 (CH FAN)

P6 (Speaker)

Service Reference Guide, dc5100 376220-001 7–15

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.7 Memory

Ä CAUTION: The memory module sockets have gold metal contacts. When upgrading the memory, it is important to use memory modules with gold metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.

Ä CAUTION: Static electricity can damage the electronic components of the computer or optional cards.

Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching

a grounded metal object. Refer to Chapter 5, “Identifying the Chassis, Routine Care, and Disassembly

Preparation,”

for more information.

Ä CAUTION: When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.

1. If you have locked the Smart Cover Lock, use Computer Setup to unlock the lock ( Section

7.2, “Unlocking the Smart Cover Lock”

).

2. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

3. Remove the computer cover (

Section 7.4, “Computer Cover” ).

Å WARNING: To reduce risk of personal injury from hot surfaces, allow the internal system components to cool before touching.

4. Open both latches of the memory module socket 1, and insert the memory module into the socket 2. Refer to Appendix F for the correct sequence for installing memory modules to get optimal performance.

7–16

A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket.

5. Push the module down into the socket, ensuring that the module is fully inserted and properly seated. Make sure the latches are in the closed position 3.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

6. Repeat steps 4 and 5 for any additional modules that you want to install.

The computer automatically recognizes the additional memory when the computer is turned on.

To reassemble the computer, reverse the removal procedure.

If you normally lock the Smart Cover Lock, use Computer Setup to relock the lock and enable the Smart Cover Sensor.

Service Reference Guide, dc5100 376220-001 7–17

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.8.1 Expansion Card Retainer

1. If you have locked the Smart Cover Lock, restart the computer and enter Computer Setup to unlock the lock.

2. Turn off the computer properly through the operating system, then turn off any external devices.

3. Disconnect the power cord from the power outlet and disconnect any external devices.

4. Remove the computer from the stand and lay the computer on its side.

5. Remove the computer cover. Refer to

Section 7.4, “Computer Cover”

6. Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on the latch and rotating the latch to the full open position 1.

7. Remove the single screw that keeps the card retainer in place 2 and slide the retainer to the left to remove it from the chassis 3.

7–18

To install the card retainer, reverse the removal procedure.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.8.2 PCI Expansion Card

1. If you have locked the Smart Cover Lock, restart the computer and enter Computer Setup to unlock the lock.

2. Turn off the computer properly through the operating system, then turn off any external devices.

3. Disconnect the power cord from the power outlet and disconnect any external devices.

4. Remove the computer from the stand and lay the computer on its side.

5. Remove the computer cover. Refer to

Section 7.4, “Computer Cover”.

6. Identify the slot into which you want to insert the expansion card.

7. Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on the latch and rotating the latch to the full open position 1.

8. Remove the slot cover by sliding it up and out 2 of the computer.

Service Reference Guide, dc5100 376220-001 7–19

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

9. Install the expansion card by sliding the card under the slot cover retention latch then pressing the card down into the slot on the system board.

Be sure not to scrape other components in the chassis when installing an expansion card.

10. Rotate the slot cover retention latch back in place to secure the expansion card.

When you install an expansion card, make sure the metal bracket on the card slides into the slot on the back of the computer then press down firmly on the card so that the whole connector seats properly in the expansion card slot.

Ä CAUTION: All expansion card slots on the rear of the computer must contain either an expansion card or slot cover for proper cooling of internal components during operation.

7–20 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.9 Drives

A Torx T-15 screwdriver is needed to remove and install the guide screws on a drive.

Ä CAUTION: Make sure personal files on the hard drive are backed up to an external storage device before removing the hard drive. Failure to do so will result in data loss. After replacing the primary hard drive, you will need to run the Restore Plus! CD to load the Compaq factory-installed files.

7.9.1 Drive Positions

Item

1

Drive Positions

Description

3.5-inch, internal, standard hard drive bay

Item

3

Description

3.5-inch drive bay (1.44-MB diskette drive shown)*

2 5.25-inch drive bay for optional drives

*A 3.5-inch diskette drive, hard drive, or Zip drive may be installed in this bay but the correct bezel must be installed to ensure proper air flow.

To verify the type and size of the storage device installed in the computer, run Computer Setup.

Service Reference Guide, dc5100 376220-001 7–21

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.9.2 Optical Drive

Ä CAUTION: All removable media should be taken out of the drives before removing the drive from the computer.

An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or CD-RW/DVD Combo drive.

1. If you have locked the Smart Cover Lock, use Computer Setup to unlock the lock ( Section

7.2, “Unlocking the Smart Cover Lock”

).

2. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

3. Remove the computer cover (

Section 7.4, “Computer Cover” ).

4. Press down on the green latch located on the front of the chassis next to the drives 1. This disengages the drive cage.

5. Slide the drive cage forward until it stops 2.

The unlock icon on the drive tray should align with the arrow on the chassis when the tray is fully extended.

7–22 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

6. Disconnect the power and data cables from the rear of the optical drive.

7. Slide the optical drive forward and lift it up and out of the drive cage.

If the drive will not slide out of the cage, the cage is not fully extended. Pull on the cage until the internal drive lock mechanism has been released.

Ä CAUTION: Use only 3/16-inch or 5-mm long screws as guide screws. Longer screws can damage the internal components of the drive.

When replacing the drive, transfer the four screws from the old drive to the new one. The screws take the place of drive rails.

Service Reference Guide, dc5100 376220-001 7–23

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.9.3 External 3.5-inch Drive

1. If you have locked the Smart Cover Lock, use Computer Setup to unlock the lock. Refer to

Section 7.2, “Unlocking the Smart Cover Lock”

.

2. Prepare the computer for disassembly. Refer to Section 7.1, “Preparation for Disassembly”

.

3. Remove the computer cover. Refer to

Section 7.4, “Computer Cover” .

4. Remove the optical drive. Refer to

Section 7.9.2, “Optical Drive”.

5. Disconnect the signal and power cables from the drive. The other end of the cables should remain connected to the system board.

Diskette drive shown.

6. Slide the drive forward and lift it up and out of the drive cage.

7–24

To replace the drive, transfer the four screws from the old drive to the new one and reverse the removal procedure.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.9.4 Primary Hard Drive

1. If you have locked the Smart Cover Lock, use Computer Setup to unlock the lock ( Section

7.2, “Unlocking the Smart Cover Lock”

).

2. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

3. Remove the computer cover (

Section 7.4, “Computer Cover” ).

4. Press down on the green latch located on the front of the chassis next to the optical drive 1 and slide the drive cage forward 2 to its fully extended position. This will give you access to the cable connectors on the primary hard drive.

It is not necessary to remove the optical drive.

Service Reference Guide, dc5100 376220-001 7–25

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

5. Remove the security clip that secures the backwall to the power supply.

6. Rotate the power supply to its full upright position.

7–26 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7. Disconnect the power cable 1 and data cable 2 from the back of the hard drive.

8. Pull the tab that locks the drive in place away from the drive 1, slide the hard drive toward the front of the computer, then lift it up and out of the bay 2.

To install a hard drive, reverse the above procedure.

The replacement hard drive kit includes several data cables. Make sure to use the cable that is exactly the same as the factory-installed cable.

If the system has only one SATA hard drive, the data cable must be connected to the blue connector labeled P60 SATA 0 first to avoid any hard drive performance problems.

Service Reference Guide, dc5100 376220-001 7–27

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

When replacing the hard drive, transfer the four screws from the old drive to the new one. The screws take the place of drive rails. You will need a Torx T-15 screwdriver to remove and re-install the guide screws. HP has provided four extra 6-32 standard guide screws on the front of the chassis, under the computer cover. The 6-32 standard guide screws are silver and are only used on the hard drive.

If you replaced the primary hard drive, insert the Restore Plus! CD to restore the operating system, software drivers, and any software applications that were preinstalled on the computer.

Follow the instructions in the guide included with the Restore Plus! CD. When the restore process has completed, reinstall any personal files that you backed up before replacing the hard drive.

7–28 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.10 Fan Shroud

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Lift up on the fan shroud to remove it from the computer.

When replacing the shroud, make sure that it does not get caught on the wires from either the fan or the speaker.

Service Reference Guide, dc5100 376220-001 7–29

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.11 Front I/O Devices

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Disconnect the two I/O device cables from the system board: the front USB cable pair and the front audio cable.

4. Remove the drives from the drive tray. Refer to

Section 7.9, “Drives”.

5. Remove the power supply cable that is routed under the drive cage from the side 1 and front 2 cable retaining clips.

It may be necessary to flatten the cable in the cable retaining clip areas to make the cable more flexible.

6. Remove the power supply cable that is routed under the green leg of the drive cage 3.

It may be necessary to flatten the cable to make the cable more flexible.

7–30 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7. Remove the SATA cable from the front and side retaining clips.

8. Push the empty drive cage back into its locked position.

Ä CAUTION: Make sure the flat ribbon cables are folded down and the SATA and power cables are pushed out of the way to prevent their being damaged when the drive cage is pushed into the locked position.

Service Reference Guide, dc5100 376220-001 7–31

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

9. Remove the two screws that secure the front I/O device 1 then, push the I/O device towards the back of the chassis 2.

10. Pull the drive cage forward, grasp the I/O device and carefully pull it from under the drive cage 3. Guide the cable ends through the slots in the drive cage support device to keep them from snagging.

7–32 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

Follow these procedures for reinstalling the front I/O device.

1. Begin with the drive cage in its fully extended position. Guide the I/O device cables under the drive cage and through the legs of the drive cage support 1. It may be necessary to use a wooden pencil to help in this task.

2. Push the I/O device beneath the drive cage as far as possible 2 then, push the drive cage into the closed position to access the front of the chassis. Make sure the USB ports in the I/O device are oriented properly on the right side.

3. Install the two retaining screws 3 while holding the I/O device in position.

4. Reinstall the balance of the cabling and drives.

Service Reference Guide, dc5100 376220-001 7–33

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.12 Power Switch Assembly

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Disconnect the power switch/LED cable from the system board.

4. Squeeze the switch holder retaining clips together at the front of the chassis 1 and push the switch assembly out of the chassis 2. Push the two LEDs out of the chassis 3.

5. If necessary, the LED holders may also be removed by squeezing the clips and pushing them out of the front of the chassis 4.

To install the power switch and LEDs, reverse the removal procedure.

7–34 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.13 Heatsink

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Remove the fan shroud. Refer to

Section 7.10, “Fan Shroud” .

4. Disconnect the fan control cable from the system board.

5. Loosen the four captive screws 1 that secure the heatsink to the system board tray.

Ä CAUTION: Heatsink retaining screws should be removed in diagonally opposite pairs (as in an X) to even the downward forces on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

6. Lift the heatsink from atop the processor 2 and set is on its side to keep from contaminating the work area with thermal grease.

When reinstalling an existing heatsink, make sure that its bottom has been cleaned with an alcohol wipe and fresh thermal grease has been applied to the top of the processor. New heatsinks come from the factory with fresh thermal grease already applied.

Ä CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heatsink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

Service Reference Guide, dc5100 376220-001 7–35

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.14 Processor

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Remove the fan shroud. Section 7.10, “Fan Shroud”.

4. Disconnect the heatsink control cable from the system board and remove the heatsink

(

Section 7.13, “Heatsink”

).

5. Rotate the locking lever to its full open position 1.

6. Raise and rotate the microprocessor retainer to its fully open position 2.

7. Carefully lift the processor from the socket 3.

Ä CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board.

Ä CAUTION: The heatsink must be installed within 24 hours of installing the processor to prevent damage to the processor’s solder connections.

7–36

To install a new processor:

1. Place the processor in its socket and close the retainer.

2. Secure the locking lever.

If reusing the existing heatsink, go to step 3.

If using a new heatsink, go to step 6.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

3. If reusing the existing heatsink, clean the bottom of the heatsink with the alcohol pad provided in the spares kit.

Ä CAUTION: Before reinstalling the heatsink you must clean the top of the processor and the bottom of the heatsink with an alcohol pad supplied in the speaker spares kit. After the alcohol has evaporated, apply thermal grease to the top of the processor from the syringe supplied in the speaker spares kit.

4. Apply the thermal grease provided in the spares kit to the top of the processor and install the heatsink atop the processor.

5. Go to step 7.

6. If using a new heatsink, remove the protective covering from the bottom of the heatsink and place it in position atop the processor.

7. Secure the heatsink to the system board and system board tray with the 4 captive screws and attach the heatsink control cable to the system board.

Ä CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heatsink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

After installing a new processor onto the system board, always update the system ROM to ensure that the latest version of the BIOS is being used on the computer. The latest system ROMPaq can be found on the Web at: http:\\h18000.www1.hp.com/support/files.

Service Reference Guide, dc5100 376220-001 7–37

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.15 Speaker

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Remove the fan shroud. Section 7.10, “Fan Shroud”

4. Remove the heatsink control cable and the heatsink from the system board (

Section 7.13,

“Heatsink”).

5. Remove any memory modules that might interfere with the screwdriver used for removing the speaker.

6. Disconnect the speaker wire from the system board.

7. Remove the two screws that secure the speaker to the chassis.

8. Remove the speaker from the chassis.

7–38

To install the speaker, reverse the removal procedures.

Ä CAUTION: Before reinstalling the heatsink you must clean the top of the processor and the bottom of the heatsink with an alcohol pad supplied in the speaker spares kit. After the alcohol has evaporated, apply thermal grease to the top of the processor from the syringe supplied in the speaker spares kit.

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.16 Power Supply

Å WARNING: Voltage is always present on the system board when the computer is plugged into an active AC outlet. To avoid possible personal injury and damage to the equipment the power cord should be disconnected from the computer and/or the AC outlet before opening the computer.

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Remove the security clip.

4. Rotate the power supply to its upright position.

5. Pull the drive cage forward and disconnect the power cables from all of the drives.

6. Disconnect the power cables from the system board.

7. Release the power supply cable from the cable retaining clip at the front of the chassis below the drive cage and from the clip on the side of the chassis in front of the hard drive (

Section

7.10, “Fan Shroud”).

Service Reference Guide, dc5100 376220-001 7–39

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

8. Lift the power supply up and out of the chassis.

To install the power supply, reverse the removal procedure.

Ä CAUTION: When installing the power supply cables, make sure they are properly positioned so they are not cut by the drive cage and are not pinched by the rotating power supply.

7–40 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.17 System Board

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Remove all PCI and PCI Express expansion boards (

Section 7.8, “Expansion Card” ).

4. Remove the fan shroud from the chassis

(Section 7.9, “Drives”).

5. Slide the drive tray forward and disconnect the drive and power cables from the system board.

6. Remove the security clip.

Service Reference Guide, dc5100 376220-001 7–41

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7. Rotate the power supply to its upright position.

8. Disconnect the serial port from the system board

7–42

9. Disconnect the balance of the cables from the system board. .

376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

10. Remove the long mounting screw that secures the system board tray to the chassis.

The heatsink has been removed from the drawing below for clarity. The heatsink should not be removed until the system board has been removed from the chassis.

Service Reference Guide, dc5100 376220-001 7–43

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

11. Slide the system board tray assembly towards the front of the chassis, about 1/4 inch and lift the system board up and out of the chassis.

12. Remove the heatsink from the system board and the system board tray ( Section 7.13,

“Heatsink”).

The standoff tray may be separated from the bottom of the system board at this time.

To reinstall the system board:

1. Align the standoff tray below the system board so that the four anthills penetrate the system board and the green handle is at the front of the board.

7–44 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

2. Install the processor.

Ä CAUTION: Before reinstalling a previously used heatsink you must clean the top of the processor and the bottom of the heatsink with the alcohol pad supplied in the spares kit. After the alcohol has evaporated, apply thermal grease to the top of the processor using the syringe supplied in the spares kit.

3. Attach the heatsink to the system board-standoff assembly with the four captive screws.

Ä CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heatsink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

4. Reinstall the system board assembly into the chassis and secure it with the long mounting screw.

Ä CAUTION: When reconnecting the cables it is important that they be positioned so they do not interfere with the sliding of the drive cage or the rotation of the power supply.

Service Reference Guide, dc5100 376220-001 7–45

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.18 Chassis Fan

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer cover (

Section 7.4, “Computer Cover” ).

3. Remove the fan shroud

(Section 7.10, “Fan Shroud”).

4. Disconnect the chassis fan cable from the system board.

5. Remove the four screws that secure the fan and fan guard to the chassis then, remove the fan from the chassis.

.

To install the chassis fan, reverse the removal procedure.

7–46 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.19 Battery

The battery that comes with this computer provides power to the real-time clock and has a lifetime of about three years. When replacing the battery, use a battery equivalent to the battery originally installed on the computer. The computer comes with a 3-volt lithium coin cell battery.

The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall socket. The lithium battery is only used when the computer is NOT connected to AC power.

Å WARNING: This computer contains an internal lithium manganese dioxide battery. There is a risk of fire and burns if the battery is not handled properly. To reduce the risk of personal injury:

Do not attempt to recharge the battery.

Do not expose to temperatures higher than 140°F (60°C)

Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

Replace the battery only with the HP/Compaq spare designated for this product.

Ä CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the Troubleshooting

Guide for information on backing up the CMOS settings.

N Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP/Compaq, their authorized partners, or their agents.

Ä CAUTION: Static electricity can damage the electronic components of the computer or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object.

1. Prepare the computer for disassembly (

Section 7.1, “Preparation for Disassembly”

).

2. Remove the computer access panel (

Section 7.4, “Computer Cover” ).

It may be necessary to remove an expansion card to gain access to the battery.

3. Locate the battery and battery holder on the system board.

4. Carefully pull the cable bundle out of the way to access the battery.

5. Depending on the type of battery holder on your system board, complete the following instructions to replace the battery:

Service Reference Guide, dc5100 376220-001 7–47

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.19.1 Type 1 Battery Holder

1. Lift the battery out of its holder.

2. Slide the replacement battery into position, positive side up.

3. The battery holder automatically secures the battery in the proper position.

4. Replace the computer cover or access panel.

5. Plug in the computer and turn on power to the computer.

6. Reset the date and time, your passwords, and any special system setups, using Computer

Setup. Refer to the Computer Setup (F10) Utility Guide.

7–48 376220-001 Service Reference Guide, dc5100

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.19.2 Type 2 Battery Holder

1. To release the battery from its holder, squeeze the metal clamp that extends above one edge of the battery. When the battery pops up, lift it out 1.

2. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the positive side up 2. Push the other edge down until the clamp snaps over the other edge of the battery.

After the battery has been replaced, use the following steps to complete this procedure.

3. Replace the computer cover or access panel.

4. Plug in the computer and turn on power to the computer.

Reset the date and time, your passwords, and any special system setups, using Computer Setup.

Refer to the Computer Setup (F10) Utility Guide.

Service Reference Guide, dc5100 376220-001 7–49

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.19.3 Type 3 Battery Holder

1. Pull back on the clip 1 that holds the battery in place, then remove the battery 2.

2. Insert the new battery and position the clip back in place.

After the battery has been replaced, use the following steps to complete this procedure.

3. Replace the computer cover or access panel.

4. Plug in the computer and turn on power to the computer.

Reset the date and time, your passwords, and any special system setups, using Computer Setup.

Refer to the Computer Setup (F10) Utility Guide.

7–50 376220-001 Service Reference Guide, dc5100

Connector Pin Assignments

A

Connector Pin Assignments

This appendix contains the pin assignments for many computer and workstation connectors.

Some of these connectors may not be used on the product being serviced.

Keyboard

Connector and Icon

4

5

6

Pin

1

2

3

Signal

Data

Unused

Ground

+5 VDC

Clock

Unused

Mouse

Connector and Icon

4

5

6

Pin

1

2

3

Signal

Data

Unused

Ground

+5 VDC

Clock

Unused

Ethernet BNC

Connector and Icon Pin

1 (Center)

2 (Shield)

Signal

Data

Ground

Service Reference Guide, dc5100 376220-001 A–1

Connector Pin Assignments

Ethernet RJ-45

Connector and Icon

Ethernet AUI

5

6

7

8

Pin

1

2

3

4

Signal

(+) Transmit Data

(-) Transmit Data

(+) Receive Data

Unused

Unused

(-) Receive Data

Unused

Unused

Connector and Icon

5

6

7

8

Pin Signal

1

2

3

4

Ground

Negative AUI Differential Collision

Positive AUI Differential Collision

Negative AUI Differential Transmit

Positive AUI Differential Transmit

Ground

Ground

Negative AUI Differential Receive

Pin Signal

9

10

11

12

Positive AUI Differential Receive

+12V

Ground

Ground

13

14

15

16

Unused

Unused

Unused

Unused

A–2 376220-001 Service Reference Guide, dc5100

Connector Pin Assignments

Parallel Interface

Connector and Icon

4

5

6

Pin

1

2

3

Signal

Strobe

Data Bit 0

Data Bit 1

Data Bit 2

Data Bit 3

Data Bit 4

Pin

7

8

9

10

11

12

Connector and Icon

Signal

Data Bit 5

Data Bit 6

Data Bit 7

Acknowledge

Busy

Paper End

Serial Interface, Powered and Non-Powered

Connector and Icon Pin

4

5

6

1

2

3

7

8

9

USB

Pin

1

2

3

4

Signal

+5 VDC

- Data

+ Data

Ground

Microphone

Connector and Icon (1/8” miniphone) Pin

1 (Tip)

2 (Ring)

Signal

Audio

Power

3 (Shield) Ground

Pin

13

14

15

16

17

18-25

Signal

Select

Auto Linefeed

Error

Initialize Printer

Select IN

Signal Ground

Signal

Carrier Detect (12V if powered)

Receive Data

Transmit Data

Data Terminal Ready

Signal Ground

Data Set Ready

Request to Send

Clear to Send

Ring Indicator (5V if powered)

Service Reference Guide, dc5100 376220-001 A–3

Connector Pin Assignments

Headphone

Connector and Icon (1/8” miniphone) Pin

1 2 3

1 (Tip)

2 (Ring)

Signal

Audio_Left

Audio_Right

3 (Shield) Ground

Line-In Audio

Connector and Icon (1/8” miniphone) Pin

1 2 3

1 (Tip)

2 (Ring)

Signal

Audio_In_Left

Audio_In_Right

3 (Shield) Ground

Line-Out Audio

Connector and Icon (1/8” miniphone) Pin

1 2 3

1 (Tip)

2 (Ring)

Signal

Audio_Out_Left

Audio_Out_Right

3 (Shield) Ground

SCSI Low Voltage Differential/Single Ended (LVD/SE)

Connector and Icon

Pin

1-16

17-18

19

20-34

35

36

37

38

39

Signal

Ground

TERMPWR

Reserved

Ground

-D12

-D13

-D14

-D15

-DP1

43

44

45

46

47

48

Pin Signal

40

41

42

-D0

-D1

-D1

-D3

-D4

-D5

-D6

-D7

-DP0

54

55

56

57

58

59

Pin

49-50

51-52

53

Signal

Ground

TERMPW

Reserved

Ground

-ATN

Ground

-BSY

-ACK

-RST

63

64

65

66

67

68

Pin

60

61

62

Signal

-MSG

-SEL

-C/D

-REQ

-I/O

-D

-D

-D

-D

A–4 376220-001 Service Reference Guide, dc5100

Connector Pin Assignments

Ultra SCSI

Connector and Icon

Pin

1-11

12

13

14

15-25

26

27

28

Signal

Ground

Reserved

Open

Reserved

Ground

DB0

DB1

DB2

Pin

29

30

31

32

33

34

35

36

Signal

DB3

DB4

DB5

DB6

DB7

DBP

Ground

Ground

Pin

37

38

39

40

41

42

43

44

External Infrared Transceiver

Connector and Icon

Signal

Reserved

TERMPWR

Reserved

Ground

ATN #

Ground

BSY #

ACK #

Pin Signal

45

46

47

48

49

50

RST #

MSG #

SEL #

C/D

REQ #

Input/Output

Pin

1

2

3

Monitor

Signal

Transmit

Receive

Ground

Pin

4

5

6

Signal

5V

Mode

Not Used

Connector and Icon

Pin

7

8

Signal

Not Used

Not Used

Pin

1

2

3

4

5

Signal

Red Analog

Green Analog

Blue Analog

Not used

Ground

Pin

6

7

8

9

10

Signal

Ground

Ground

Ground

+5V (fused)

Ground

Pin

11

12

13

14

15

Signal

Not used

DDC Serial Data

Horizontal Sync

Vertical Sync

DDC Serial Clock

Service Reference Guide, dc5100 376220-001 A–5

Connector Pin Assignments

ATA/ATAPI (IDE) Standard Drive Cable

Connector

6

7

8

9

10

11

12

13

14

Pin

1

2

3

4

5

Signal

Reset

Ground

DD7

DD8

DD6

DD9

DD5

DD10

DD4

DD11

DD3

DD12

DD2

DD13

MultiBay CD-ROM Adapter

20

21

22

23

24

25

26

27

28

Pin

15

16

17

18

19

Signal

DD1

DD14

DD0

DD15

Ground

(Key)

DMARQ

Ground

DIOW

Ground

DIOR

Ground

IORDY

CSEL

Connector

34

35

36

37

38

39

40

Pin

29

30

31

32

33

Signal

DMAK

Ground

INTRQ

IOCS16

DA1

PDIAG (cable detect)

DA0

DA2

CS1FX

CS3FX

DASP

Ground

11

12

13

14

15

6

7

8

9

10

16

17

Pin

1

2

3

4

5

D09

D05

D10

D04

D11

D03

D12

D02

D13

D01

D14

D00

Signal

RESDRV_

GROUND

D07

D08

D06

28

29

30

31

32

23

24

25

26

27

33

34

Pin Signal

18

19

20

21

22

D15

GROUND

(key)

DRQ

GROUND

IOW

GROUND

IOR

GROUND

IOCHDRY

CABLE SELECT

DAK

GROUND

IRQ

IO16

A1

PDIAG

45

46

47

48

49

40

41

42

43

44

50

51

Pin Signal

35

36

37

38

39

A0

A2

CS1FX

CS3FX

DASP

GROUND

+5VMLOG

-5VMOT

GROUND

AUDIO_L

A_GROUND_R

A_GROUND_I audio_r

FP01

FP02

FP03

FP04

62

63

64

65

66

57

58

59

60

61

67

68

Pin

52

53

54

55

56

Signal

FP05

FP06

FP07

FP08

FP09

FP10

FP11

FP12

FP13

FP14

FP15

FP16

FP17

FP18

FP19

FP20

FP21

A–6 376220-001 Service Reference Guide, dc5100

Connector Pin Assignments

24-Pin Power

Pin Signal

1

2

3

4

5

6

+3.3 V

+3.3 V

GND

+5 V

GND

+5 V

24

12

Pin Signal

7

8

9

10

11

12

GND

POK

+5 Vaux

+12 V

+12 V

+3.3 V

Connector

13

Pin Signal

13

14

15

16

17

18

+3.3 V

-12 V

GND

PSON

GND

GND

1

Pin Signal

19

20

21

22

23

24

GND open

+5 V

+5 V

+5 V

GND

24-Pin MicroFit Power

Connector

24 13

Pin Signal

1

2

3

4

5

6

+5 Vaux

GND

+5 V

+5 V

PS_ON

GND

12

Pin Signal

7

8

9

10

11

12

PWRGD

+3.3 V

+3.3 V

Tach

GND

Fan-CMD

4-Pin Power (for CPU)

Connector and Icon

2

3

Pin

1

4

1

Pin Signal

13

14

15

16

17

18

+12 V

+5 V Sense

GND

+5 V

+5 V

+3.3 V

Signal

GND

GND

+12 V CPU

-12 V CPU

Pin Signal

19

20

21

22

23

24

GND

+3.3 Sense

+3.3 V

+3.3 V

GND

-12 V

Service Reference Guide, dc5100 376220-001 A–7

Connector Pin Assignments

6-Pin Power

Connector and Icon

4 6

SATA Data and Power

4

5

6

2

3

Pin

1

Signal

GND

GND

GND

12 V CPU

12 V CPU

+12 V

Drive Connector

Pin

S1

S5

Signal

Ground

B-

P1

P5

P9

P13

V 3.3

Ground

V 5

V 12

*S = Data, P = Power

Pin

S2

S6

P2

P6

P10

P14

Signal

A+

B+

V 3.3

Ground

Ground

V 12

Pin

S3

S7

P3

P7

P11

P15

Signal

A-

Ground

V 3.3

V 5

Reserved

V 12

Pin

S4

Signal

Ground

P4

P8

P12

Ground

V 5

Ground

A–8 376220-001 Service Reference Guide, dc5100

PCI Express x1, x4, x8, and x16 PCI Express Connector

Connector Pin Assignments

Pin A

Pin Signal

26

27

28

29

30

1

2

3

4

5

PRSNT1#

+12V

+12V

GND

JTAG2

PERn(2)

GND

GND

PERp3

PERn3

31

32

33

34

35

Pin Signal

6

7

8

9

10

JTAG3

JTAG4

JTAG5

+3.3v

+3.3v

GND

RSVD

RSVD

GND

PERp4

36

37

38

39

40

Pin Signal

11

12

13

14

15

PERST#

GND

REFCLK+

REFCLK-

GND

PERn4

GND

GND

PERp5

PERn5

51

52

53

54

55

GND

PERp8

PERn8

GND

GND

56

57

58

59

60

PERp9

PERn9

GND

GND

PERp10

61

62

63

64

65

76

77

78

79

80

PERp14

PERn14

GND

GND

PERp15

81

82

PERn15

GND

Pin B information is on the next page

Notes: x1 PCI Express uses pins 1-18 x4 PCI Express uses pins 1-32 x8 PCI Express uses pins 1-49 x16 PCI Express uses pins 1-82

PERn10

GND

GND

PERp11

PERn11

66

67

68

69

70

41

42

43

44

45

Pin Signal

16

17

18

19

20

PERp0

PERn0

GND

RSVD

GND

GND

GND

PERp6

PERn6

GND

GND

GND

PERp12

PERn12

GND

71

72

73

74

75

46

47

48

49

50

Pin Signal

21

22

23

24

25

PERp1

PERn1

GND

GND

PERp2

GND

PERp7

PERn7

GND

RSVD

GND

PERp13

PERn13

GND

GND

Service Reference Guide, dc5100 376220-001 A–9

Connector Pin Assignments

PCI Express x1, x4, x8, and x16 PCI Express Connector

Pin B

76

77

78

79

80

51

52

53

54

55

26

27

28

29

30

Pin Signal

1

2

3

4

5

+12V

+12V

RSVD

GND

SMCLK

GND

PETp3

PETn3

GND

RSVD

PETn8

GND

GND

PETp9

PETn9

GND

GND

PETp15

PETn15

GND

56

57

58

59

60

81

82

Notes: x1 PCI Express uses pins 1-18 x4 PCI Express uses pins 1-32 x8 PCI Express uses pins 1-49 x16 PCI Express uses pins 1-82

31

32

33

34

35

Pin Signal

6

7

8

9

10

SMDAT

GND

+3.3v

JTAG1

3.3vAux

PRSNT2#

GND

PETp4

PETn4

GND

GND

GND

PETp10

PETn10

GND

PRSNT2#

RSVD

61

62

63

64

65

36

37

38

39

40

Pin Signal

11

12

13

14

15

WAKE#

RSVD

GND

PETp0

PETn0

GND

PETp5

PETn5

GND

GND

GND

PETp11

PETn11

GND

GND

66

67

68

69

70

41

42

43

44

45

Pin Signal

16

17

18

19

20

GND

PRSNT2#

GND

PETp1

PETn1

PETp6

PRTn6

GND

GND

PETp7

PETp12

PETn12

GND

GND

PETp13

71

72

73

74

75

46

47

48

49

50

Pin Signal

21

22

23

24

25

GND

GND

PETp2

PETn2

GND

PETn7

GND

PRSNT2#

GND

PETp8

PETn13

GND

GND

PETp14

PETn14

A–10 376220-001 Service Reference Guide, dc5100

B

Power Cord Set Requirements

The voltage select switch feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC.

The power cord set received with the computer meets the requirements for use in the country where you purchased the equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized

HP dealer, reseller, or service provider.

General Requirements

The requirements listed below are applicable to all countries:

1. The length of the power cord set must be at least 1.8 m (6.00 feet) and a maximum of 3.0 m

(9.75 feet).

2. All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.

3. The power cord set must have a minimum current capacity of 10A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.

4. The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320

Standard Sheet C13 connector, for mating with appliance inlet on the Switch Box.

Service Reference Guide, dc5100 376220-001 B–1

Country-Specific Requirements

Additional requirements specific to a country are shown in parentheses and explained below.

Country

Australia (1)

Austria (1)

Belgium (1)

Canada (2)

Denmark (1)

Finland (1)

France (1)

Germany (1)

Accrediting

Agency

EANSW

OVE

CEBC

CSA

DEMKO

SETI

UTE

VDE

Country

Italy (1)

Japan (3)

Norway (1)

Sweden (1)

Switzerland (1)

United Kingdom (1)

United States (2)

Accrediting

IMQ

METI

NEMKO

SEMKO

SEV

BSI

UL

Agency

1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm 2 conductor size.

Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.

2. The flexible cord must be Type SJT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P

(15A 250V) configuration.

3. Appliance coupler, flexible cord, and wall plug must bear a "T" mark and registration number in accordance with the Japanese Dentori Law. Flexible cord must be Type VCT or

VCTF, 3-conductor, 1.0 mm 2 conductor size. Wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.

B–2 376220-001 Service Reference Guide, dc5100

C

POST Error Messages

POST Error Messages

An error message results if the Power-On Self-Test (POST) encounters a problem. This test runs when the system is turned on, checking assemblies within the computer and reporting any errors found.

Not all computers use all of the codes listed.

POST Error Messages

Screen Message

101-Option ROM

Checksum Error

110-Out of Memory

Space for Option

ROMs

162-System Options

Not Set

Probable Cause

System ROM or expansion board option

ROM checksum.

Recently added PCI expansion card contains an option ROM too large to download during

POST.

Configuration incorrect.

RTC (real-time clock) battery may need to be replaced.

Recommended Action

Verify the correct ROM.

Flash the ROM if needed.

If an expansion card was recently added, remove it and see if the problem remains.

Clear CMOS.

If the message disappears, there may be a problem with the expansion card.

Replace the system board.

If a PCI expansion card was recently added, remove it to see if the problem remains.

In Computer Setup, disable the NIC PXE

Option ROM Download to prevent PXE option ROM for the internal NIC from being downloaded during POST to free more memory for an expansion card’s option ROM. Internal PXE option ROM is used for booting from the NIC to a PXE server.

Enable the ACPI/USB Buffers @ Top of

Memory setting in Computer Setup.

Run Computer Setup (F10 Setup) and check configuration of Onboard

Devices.

Set the date and time under Control

Panel or in F10 Setup depending on the operating system.

If the problem persists, replace the RTC battery.

Service Reference Guide, dc5100 376220-001 C–1

C–2

POST Error Messages

Screen Message

163-Time & Date Not

Set

Probable Cause

Invalid time or date in configuration memory.

RTC (real-time clock) battery may need to be replaced.

CMOS jumper may not be properly installed.

164-Memory Size Error Memory amount has changed since the last boot (memory added or removed).

Memory configuration is incorrect.

201-Memory Error

213-Incompatible memory Module in memory Socket(s)

X,X, X

214-DIMM

Configuration Warning

219-ECC Memory

Module Detected ECC

Modules not supported on this platform

Recommended Action

Set the date and time under Control

Panel or in F10 Setup depending on the operating system.

If the problem persists, replace the RTC battery.

Check for proper placement of the

CMOS jumper, if applicable.

Press the F1 key to save the memory changes.

RAM failure.

A memory module in memory socket identified in the error message is missing critical SPD information, or is incompatible with the chipset.

Populated DIMM configuration is not optimized.

Recently added memory module(s) support ECC memory error correction.

Run Computer Setup (F10 Setup).

Make sure memory module(s) (if any) are installed properly.

If third party memory has been added, test using HP-only memory.

Verify proper memory module type.

Run Computer Setup (F10 Setup) or

Windows utilities.

Ensure memory and continuity modules are installed correctly.

Verify proper memory module type.

Remove and replace memory module(s) one at a time to isolate faulty module.

Replace the faulty memory module(s).

If error persists after replacing memory modules, replace the system board.

Verify proper memory module type.

Try another memory socket.

Replace memory with a module conforming to the SPD standard.

Rearrange the DIMMS so that each channel has the same amount of memory.

If additional memory was recently added, remove it to see if the problem remains.

Check product documentation for memory support information.

376220-001 Service Reference Guide, dc5100

POST Error Messages

Screen Message

301-Keyboard Error

303-Keyboard

Controller Error

304-Keyboard or

System Unit Error

501-Display Adapter

Failure

510-Splash Screen image corrupted

511-CPU, CPUA, or

CPUB Fan not detected

512-Chassis, rear chassis, or front chassis fan not detected

514-CPU or Chassis

Fan not detected.

601-Diskette Controller

Error

Probable Cause

Keyboard failure.

I/O board keyboard controller.

Keyboard failure.

Graphics display controller.

Splash Screen image has errors.

Fan is not connected or may have malfunctioned.

Fan is not connected, may have malfunctioned.

CPU fan is not connected or may have malfunctioned.

Diskette controller circuitry or floppy drive circuitry incorrect.

Recommended Action

Reconnect keyboard with computer turned off.

Check connector for bent or missing pins.

Ensure that none of the keys are depressed.

Replace keyboard.

Reconnect keyboard with computer turned off.

Replace the system board.

Reconnect the keyboard with computer turned off.

Ensure that none of the keys are depressed.

Replace keyboard.

Replace system board.

Reseat the graphics card (if applicable).

Clear CMOS.

Verify that the monitor is attached and turned on.

Replace the graphics controller (if applicable).

Install latest version of ROMPaq to restore image.

Reseat fan cable.

Reseat the fan.

Replace the fan.

Reseat chassis, rear chassis, or front chassis fan cable.

Reseat chassis, rear chassis, or front chassis fan.

Replace chassis, rear chassis, or front chassis fan.

Reseat CPU or chassis fan.

Reseat fan cable.

Replace CPU or chassis fan.

Run Computer Setup (F10 Setup).

Check and/or replace cables.

Clear CMOS.

Replace diskette drive.

Replace the system board.

Service Reference Guide, dc5100 376220-001 C–3

C–4

POST Error Messages

Screen Message

605-Diskette Drive Type

Error

Probable Cause

Mismatch in drive type.

Recommended Action

Run Computer Setup (F10 Setup).

Disconnect any other diskette controller devices (tape drives).

Clear CMOS.

No action required.

912-Computer Cover

Has Been Removed

Since Last System Start

Up

917-Front Audio not

Detected

919-Front Panel,

MultiPort, and/or

MultiBay Risers not

Detected.

Front audio harness has been detached or unseated from the system board.

Riser card has been removed or has not been reinstalled properly in the system.

Reconnect or replace front audio harness.

Unplug computer and install/reinstall riser cord.

921-Device in PCI

Express slot failed to initialize.

There is an incompatibility/problem with this device and the system or PCI Express Link could not be retrained to an X1.

Try rebooting the system. If the error reoccurs, the device may not work with this system.

This error message applies to the PCI Express Graphics slot using Intel 9X1 Express chipsets. This slot supports x1 and x16 (PCI Express Link Width cards) only. If a x4 or x8 card is used, system

BIOS will attempt to retrain to a x1. If this fails, the 921 error message will be displayed.

1720-SMART Hard

Drive Detect Imminent

Failure

Hard drive is about to fail. (Some hard drives have a firmware patch that will fix an erroneous error message.)

1785-MultiBay incorrectly installed

(for MultiBay option on non-USDT systems)

Multibay option ribbon cables not seated or improperly attached.

or

MultiBay device not properly seated.

or

MultiBay diskette present.

Determine if hard drive is giving correct error message. Run the Drive Protection

System test if applicable.

Apply firmware patch if applicable. (see www.hp.com/support)

Back up contents and replace hard drive.

Ensure the MultiBay option is attached as device 0 on the IDE cable.

Ensure no other device is attached to the same IDE cable.

Ensure both ends of the IDE and

MultiBay ribbon cables are properly seated.

Ensure the MultiBay device is fully inserted.

Ensure a MultiBay diskette is not present

(MultiBay diskette drives are not supported by the MultiBay option).

376220-001 Service Reference Guide, dc5100

POST Error Messages

Screen Message

1785-MultiBay incorrectly installed

(continued)

1794-Inaccessible devices attached to

SATA 1 and/or SATA 3

1796-SATA Cabling

Error

1801-Microcode Patch

Error

Probable Cause

(for integrated MultiBay/

USDT systems)

MultiBay device not properly seated.

or

MultiBay riser not properly seated.

A device is attached to

SATA 1 and/or SATA 3.

Devices attached to these connectors will be inaccessible while “SATA

Emulation” is set to

“Combined IDE

Controller” in Computer

Setup.

One or more SATA devices are improperly attached. For optimal performance, the SATA 0 and SATA 1 connectors must be used before

SATA 2 and SATA 3.

Processor not supported by ROM BIOS.

1998-Master Boot

Record has been lost.

1999-Master Boot

Record has been changed.

The previously saved copy of the MBR has been corrupted.

The current MBR does not match the previously saved copy of the MBR.

Recommended Action

Ensure the MultiBay device is fully inserted.

Ensure the MultiBay riser is properly seated.

If using Windows 2000 or Windows XP, change “SATA Emulation” to “Separate

IDE Controller” in Computer Setup.

If not using Windows 2000 or Windows

XP, relocate the affected devices to SATA

0 or SATA 2 (if available).

Remove the affected devices from SATA

1 and SATA 3.

Ensure SATA connectors are used in ascending order. For one device, use

SATA 0. For two devices, use SATA 0 and SATA 1. For three devices, use SATA

0, SATA1, and SATA 2.

Upgrade BIOS to proper version.

Change the processor.

Run Computer Setup and save the MBR of the current bootable disk.

Use extreme caution, The MBR may have been updated due to normal disk maintenance activities (disk manager, fdisk, or format).

Ä Replacing the previously saved MBR in such situations can cause data loss.

If certain that the MBR change is unintentional and undesired (e.g. due to a virus), run Computer Setup and restore the previously saved MBR copy.

Otherwise, run Computer Setup and either disable MBR security or save the

MBR of the current bootable disk.

Service Reference Guide, dc5100 376220-001 C–5

POST Error Messages

Screen Message

2000-Master Boot

Record Hard Drive has

Changed.

Invalid Electronic Serial

Number.

Probable Cause

The current bootable hard drive is not the same as the one that was present when MBR security was enabled.

Electronic serial number has become corrupted.

Network Server Mode

Active and No

Keyboard Attached

Parity Check 2.

Keyboard failure while

Network Server Mode enabled.

Parity RAM failure.

Recommended Action

Run Computer Setup and either disable

MBR security or save the MBR of the current bootable disk.

Run Computer Setup. If Setup already has data in the field or will not allow the serial number to be entered, download from http://www.hp.com and run

SP5572.EXE (SNZERO.EXE).

Run Computer Setup and try to enter serial number under Security, System ID, then save changes.

Reconnect keyboard with computer turned off.

Check connector for bent or missing pins.

Ensure that none of the keys are depressed.

Replace keyboard.

Run Computer Setup and Diagnostic utilities.

C–6 376220-001 Service Reference Guide, dc5100

POST Diagnostic Front Panel LEDs and Audible Codes

This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them.

If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel of the computer and refer to the following table to determine the front panel LED codes.

Recommended actions in the following table are listed in the order in which they should be performed.

Beeps will occur only for 5 iterations and then stop. LEDs will continue to blink until corrective action is taken.

POST Diagnostic Front Panel LEDs and Audible Codes

Activity

Green Power LED

On.

Green Power LED flashes every two seconds.

Red Power LED flashes two times, once every second, followed by a two second pause. Beeps stop after the fifth iteration but the

LED continues to flash until the issue has been resolved.

Beeps

None

None

2

Possible

Cause

Computer on.

Computer in

Suspend to RAM mode (select models only) or normal Suspend mode.

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heatsink/fan assembly is not properly attached to the processor.

None

Recommended Action

None required. Press any key or move the mouse to wake the computer.

Ensure that the computer air vents are not blocked and the processor cooling fan is running.

Open hood, press power button, and see if the processor fan spins. If the processor fan is not spinning, make sure the fan's cable is plugged onto the system board header. Ensure the fan is fully/properly seated or installed.

If fan is plugged in and seated properly, but is not spinning, then replace processor fan.

Reseat processor heatsink and verify that the fan assembly is properly attached.

Contact an authorized reseller or service provider.

Service Reference Guide, dc5100 376220-001 C–7

C–8

Activity

Red Power LED flashes three times, once every second, followed by a two second pause. Beeps stop after the fifth iteration but the

LED continues to flash until the issue has been resolved.

Red Power LED flashes four times, once every second, followed by a two second pause. Beeps stop after the fifth iteration but the

LED continues to flash until the issue has been resolved.

3

Beeps

4

Red Power LED flashes five times, once every second, followed by a two second pause. Beeps stop after the fifth iteration but the

LED continues to flash until the issue has been resolved.

5

Possible

Cause

Processor not installed (not an indicator of bad processor).

Recommended Action

Check to see that the processor is present.

Reseat the processor.

Power failure

(power supply is overloaded).

Pre-video memory error.

Open the hood and ensure the power supply cable is seated into the connector on the system board.

Check if a device is causing the problem by removing ALL attached devices (such as hard, diskette, or optical drives, and expansion cards). Power on the system. If the system enters the POST, then power off and replace one device at a time and repeat this procedure until failure occurs.

Replace the device that is causing the failure. Continue adding devices one at a time to ensure all devices are functioning properly.

Replace the power supply.

Replace the system board.

Reseat DIMMs. Power on the system.

Replace DIMMs one at a time to isolate the faulty module.

Replace third-party memory with HP memory.

Replace the system board.

376220-001 Service Reference Guide, dc5100

Activity

Red Power LED flashes six times, once every second, followed by a two second pause. Beeps stop after the fifth iteration but the

LED continues to flash until the issue has been resolved.

Red Power LED flashes seven times, once every second, followed by a two second pause. Beeps stop after the fifth iteration but the

LED continues to flash until the issue has been resolved.

Red Power LED flashes eight times, once every second, followed by a two second pause. Beeps stop after the fifth iteration but the

LED continues to flash until the issue has been resolved.

6

Beeps

7

8

Possible

Cause

Pre-video graphics error.

System board failure (ROM detected failure prior to video).

Invalid ROM based on bad checksum.

Recommended Action

For systems with a graphics card:

Reseat the graphics card. Power on the system.

Replace the graphics card.

Replace the system board.

For systems with integrated graphics, replace the system board.

Replace the system board.

Reflash the ROM using a ROMPaq diskette. See the “ROM Flash” section of the Desktop Management Guide on the

Documentation CD.

Replace the system board.

Service Reference Guide, dc5100 376220-001 C–9

C–10

Activity

Red Power LED flashes nine times, once every second, followed by a two second pause.

9

Beeps

Red Power LED flashes ten times, once every second, followed by a two second pause.

System does not power on and

LEDs are not flashing.

10

None

Possible

Cause

System powers on but is unable to boot.

Recommended Action

Check that the voltage selector, located on the rear of the power supply (some models), is set to the appropriate voltage.

Proper voltage setting depends on your region.

Replace the system board.

Replace the processor.

Bad option card.

Check each graphics card by removing the card (one at a time if multiple cards), then power on the system to see if fault goes away.

Once a bad card is identified, remove and replace the bad option card.

Replace the system board.

System unable to power on.

Press and hold the power button for less than 4 seconds. If the hard drive LED turns green, then:

Check that the voltage selector, located on the rear of the power supply, is set to the appropriate voltage. Proper voltage setting depends on your region.

Remove the expansion cards one at a time until the 3V_aux light on the system board turns on.

Replace the system board.

OR

Press and hold the power button for less than 4 seconds. If the hard drive LED does not turn on green then:

Check that the unit is plugged into a working AC outlet.

Open hood and check that the power button harness is properly connected to the system board.

Check that both power supply cables are properly connected to the system board.

Check to see if the 3V_aux light on the system board is turned on. If it is turned on, then replace the power button harness.

If the 3V_aux light on the system board is not turned on, then replace the power supply.

Replace the system board.

376220-001 Service Reference Guide, dc5100

D

Troubleshooting Without Diagnostics

Preliminary Checklist

This section describes some simple, preliminary tests and guidelines for troubleshooting the computer without using the diagnostics.

Are the computer and monitor connected to a working electrical outlet?

Is the voltage select switch is set to the appropriate voltage for your region (115V or 230V)?

Is the computer turned on?

Is the green power light illuminated?

Is the monitor turned on?

Is the green monitor light illuminated?

Turn up the monitor brightness and contrast controls if the monitor is dim.

If the system has multiple video sources (embedded or PCI adapters) installed (embedded video on select models only) and a single monitor, the monitor must be plugged into the monitor connector on the source selected as the primary VGA adapter. During boot, the other monitor connectors are disabled and if the monitor is connected into these ports, the monitor will not function. You can select which source will be the default VGA source in Computer

(F10) Setup.

Press and hold any key. If the system beeps, then the keyboard is operating correctly.

Check all cables for loose or incorrect connections.

Reconfigure the computer after installing a non–Plug and Play expansion board or other option, such as a diskette drive.

Are all of the necessary device drivers installed?

Have all printer drivers been installed for each application?

Remove all bootable media (diskette, CD, or USB device) from the system before turning on the system.

Are all switches set correctly?

Is the NIC Remote Wakeup cable (featured on some models) connected between the NIC and the riser/system board?

D–1 Service Reference Guide, dc5100 376220-001

Solving Minor Problems

Solving Minor Problems

Problem

Computer appears locked up and will not turn off when the power button is pressed.

Cursor will not move using the arrow keys on the keypad.

Cannot remove computer cover or access panel.

Poor performance is experienced.

Cause

Software control of the power switch is not functional.

The Num Lock key may be on.

Smart Cover Lock, featured on some computers, is locked.

Processor is hot.

Hard drive is full.

Low on memory.

Hard drive fragmented.

Possible Solution

1. Press and hold the power button for at least four seconds until the computer turns off.

2. Disconnect electrical plug from outlet.

Press the power button to resume from

standby mode.

Computer will not respond to USB keyboard or mouse.

Computer is in

standby mode.

System has locked up.

Restart computer.

Ä CAUTION: When attempting to resume from standby mode, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Computer date and time display is incorrect.

RTC (real-time clock) battery may need to be replaced.

1. Reset the date and time under

Control Panel.

2. Replace the RTC battery.

Computer appears to pause periodically.

Network driver is loaded and no network connection is established.

Establish a network connection, or use Computer Setup or Microsoft

Windows Device Manager to disable the network controller.

Press the Num Lock key. The Num

Lock key can be disabled (or enabled) in Computer Setup.

1. Unlock the Smart Cover Lock using Computer Setup.

2. Use the Smart Cover FailSafe Key in case of forgotten password, power loss, or computer malfunction.

1. Ensure airflow to the computer is not blocked.

2. Ensure the fans are connected and working properly (some fans only operate when needed).

3. Ensure the processor heatsink is installed properly.

Transfer data from the hard drive to create more space on the hard drive.

Add more memory.

Defragment hard drive.

D–2 376220-001 Service Reference Guide, dc5100

Solving Minor Problems (Continued)

Problem

Poor performance is experienced.

(continued)

Cause

Program previously accessed did not release reserved memory back to the system

Virus resident of the hard drive.

Too many applications running.

Computer powered off automatically and the

Power LED flashes Red two times, once every second, followed by a two second pause, and the computer beeps two times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Cause unknown.

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heatsink is not properly attached to the processor.

Possible Solution

Restart the computer.

Run virus protection program.

Close unnecessary applications.

Add more memory.

Restart the computer.

1. Ensure computer air vents are not blocked and the cooling fan is running.

2. Open hood, press power button, and see if the processor fan spins. If not spinning, make sure the fan's cable is plugged onto the system board header. Ensure the fan is fully/properly seated or installed.

3. Replace the processor fan.

4. Reseat processor heatsink and verify that the fan assembly is properly attached.

Service Reference Guide, dc5100 376220-001 D–3

Solving Minor Problems (Continued)

Problem

System does not power on and the LEDs on the front of the computer are not flashing.

Cause

System unable to power on.

Possible Solution

Press and hold the power button for less than 4 seconds. If the hard drive

LED turns green, then:

1. Check that the voltage selector is set to the appropriate voltage.

2. Remove the expansion cards one at a time until the 5 V_aux light on the system board turns on.

3. Replace the system board.

OR

Press and hold the power button for less than 4 seconds. If the hard drive

LED does not turn on green then:

1. Check that the unit is plugged into a working AC outlet.

2. Open hood and check that the power button harness is properly connected to the system board.

3. Check that both power supply cables are properly connected to the system board.

4. If the 5 V_aux light on the system board is on, then replace the power button harness.

5. If the 5 V_aux light on the system board is off, then replace the power supply.

6. Replace the system board.

D–4 376220-001 Service Reference Guide, dc5100

Solving Power Supply Problems

Solving Power Supply Problems

Problem

Power supply shuts down intermittently.

Computer powered off automatically and the

Power LED flashes Red two times, once every second, followed by a two second pause, and the computer beeps two times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Cause

Voltage selector switch on rear of computer chassis not switched to correct line voltage.

Power supply fault.

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heatsink/fan assembly is not properly attached to the processor.

Power LED flashes Red, four times, once every second, followed by a two second pause, and the computer beeps four times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Power failure (power supply is overloaded).

Solution

Select the proper AC voltage.

Replace the power supply.

1. Ensure that the computer air vents are not blocked and the cooling fan is running.

2. Open hood, press the power button, and see if the processor fan spins. If the processor fan is not spinning, make sure the fan's cable is plugged onto the system board header. Ensure the fan is fully/properly seated or installed.

3. Replace the processor fan.

4. Reseat processor heatsink and verify that the fan assembly is properly attached.

1. Check that the voltage selector, is set to the appropriate voltage.

2. Open the hood and ensure the

4- or 6-wire power supply cable is seated into the connector on the system board.

3. Check if a device is causing the problem by removing ALL attached devices). Power on the system. If the system enters the

POST, then power off and replace one device at a time and repeat this procedure until failure occurs. Replace the device causing the failure.

Continue adding devices one at a time to ensure all devices are functioning properly.

4. Replace the power supply.

5. Replace the system board.

Service Reference Guide, dc5100 376220-001 D–5

Solving Diskette Problems

Solving Diskette Problems

Problem

Diskette drive light stays on.

Drive not found.

Diskette drive cannot write to a diskette.

Cannot format diskette.

Cause

Diskette is damaged.

Solution

In Microsoft Windows XP, right-click

Start, click Explore, and select a drive. Select File > Properties >

Tools. Under Error-checking, click Check Now.

Remove diskette and reinsert.

Diskette is incorrectly inserted.

Drive button is not pushed in.

Files on diskette are damaged.

Drive cable is not properly connected.

Cable is loose.

Removable drive is not seated properly.

You attempted to hot plug a removable hard drive that has

DriveLock security enabled. (This feature supported on select models only.)

Diskette is not formatted.

Diskette is write-protected.

Writing to the wrong drive.

Not enough space is left on the diskette.

Push in drive button.

Check the program diskettes.

Reconnect power cable. Ensure that all four pins are connected.

Reseat diskette drive data and power cables.

Reseat the drive.

Shut down the computer. Insert the drive into the MultiBay, if it is not already inserted. Turn on the computer.

Format the diskette.

Use another diskette or remove the write protection.

Check the drive letter in the path statement.

Use another diskette.

Diskette write control is enabled.

Use Computer Setup to check the storage security feature disabled settings.

Replace the damaged disk.

Diskette is damaged.

Invalid media reported.

When formatting a disk in MS-DOS, you may need to specify diskette capacity. For example, to format a

1.44-MB diskette, type the following command at the MS-DOS prompt:

FORMAT A: /F:1440

D–6 376220-001 Service Reference Guide, dc5100

Solving Diskette Problems (Continued)

Problem

Cannot format diskette.

(continued)

A problem has occurred with a disk transaction.

Diskette drive cannot read a diskette.

“Invalid system disk” message is displayed.

Cannot Boot to Diskette.

Cause

Diskette is write-protected.

Diskette write control is enabled.

The directory structure is bad, or there is a problem with a file.

Solution

Use another diskette or remove the write protection.

Use Computer Setup to check the storage security feature disabled settings.

In Windows XP, right-click Start, click Explore, and select a drive.

Select File > Properties >

Tools. Under Error-checking, click Check Now.

Format the diskette.

Diskette is not formatted.

You are using the wrong diskette type for the drive type.

You are reading the wrong drive.

Diskette is damaged.

A diskette that does not contain the system files needed to start the computer has been inserted in the drive.

Diskette error has occurred.

Check the type of drive that you are using and use the correct diskette type.

Check the drive letter in the path statement.

Replace the diskette with a new one.

When drive activity stops, remove the diskette and press the

Spacebar. The computer should start up.

Restart the computer by pressing the power button.

Diskette is not bootable.

Replace with a bootable diskette.

Diskette boot has been disabled in Computer

Setup.

Run Computer Setup and enable diskette boot in Storage > Boot

Order.

Run Computer Setup and enable

Removable Media Boot in

Storage > Storage Options >

Removable Media Boot.

Both steps should be used as the Removable Media

Boot function overrides the

Boot Order enable command.

Removable media boot has been disabled in

Computer Setup.

Run Computer Setup and enable

Removable Media Boot in

Storage > Storage Options>

Removable Media Boot.

Network server mode is enabled in Computer

Setup.

Run Computer Setup and disable

Network Server Mode in

Security > Password Options.

Service Reference Guide, dc5100 376220-001 D–7

Solving Hard Drive Problems

Solving Hard Drive Problems

Problem

Hard drive error occurs.

Disk transaction problem.

Drive not found (identified).

Nonsystem disk/NTLDR missing message.

Cause

Hard disk has bad sectors or has failed.

Either the directory structure is bad or there is a problem with a file.

Loose cable.

The system may not have automatically recognized a newly installed device.

Drive jumper settings may be incorrect.

Drive’s IDE (ATA) controller is disabled in

Computer Setup.

Drive responds slowly immediately after power-up.

System is trying to start from a non bootable diskette or USB device.

Solution

Use a utility to locate and block usage of bad sectors. If necessary, reformat the hard disk.

In Windows XP, right-click Start, click Explore, and select a drive.

Select File > Properties > Tools.

Under Error-checking, click

Check Now.

In Windows XP, right-click Start, click Explore, and select a drive.

Select File > Properties > Tools.

Under Error-checking, click

Check Now.

Check cable connections.

1. Run Computer Setup.

2. If the system still does not recognize the new device, check to see if the device is listed within Computer Setup. If it is listed, the probable cause is a driver problem. If it is not listed, the probable cause is a hardware problem.

3. If this is a newly installed drive, enter Setup and try adding a

POST delay under Advanced

> Power-On.

If the drive is a secondary drive that has just been installed on the same cable as the primary drive, verify that the jumpers for both drives are set correctly.

Run Computer Setup and enable the

Primary and Secondary IDE (ATA) controllers in Storage > Storage

Options.

Run Computer Setup and increase the POST Delay in Advanced >

Power-On Options.

Remove the media from the drive.

D–8 376220-001 Service Reference Guide, dc5100

Solving Hard Drive Problems (Continued)

Problem

Nonsystem disk/NTLDR missing message.

(continued)

Cause

System is trying to start from a damaged hard drive.

System files missing or not properly installed.

Hard drive boot disabled in Computer

Setup.

Bootable hard drive is not attached as first in a multi-hard drive configuration.

Bootable hard drive's controller is not listed first in the Boot Order.

Solution

1. Insert a bootable diskette into the diskette drive and restart the computer.

2. Check hard drive format using fdisk:

If NTFS formatting, use a third party reader to evaluate the drive.

If FAT32 formatting, the hard drive cannot be accessed.

Replace the MBR image.

3. If the hard drive is still inaccessible and MBR Security is enabled, try restoring the previously saved MBR image by entering Setup and selecting

Security > Restore Master

Boot Record.

1. Insert a bootable system diskette and restart.

2. Check hard drive format using fdisk:

If NTFS formatting, use a third party reader to evaluate the drive.

If FAT32 formatting, the hard drive cannot be accessed.

Replace the MBR image.

3. Install system files for the appropriate operating system if necessary.

Run Computer Setup and enable the hard drive entry in the Storage >

Boot Order list.

If attempting to boot from an IDE hard drive, ensure it is attached as

Primary Device 0. If attempting to boot from a SATA hard drive, ensure it is attached to SATA 0.

Enter Computer Setup and select

Storage > Boot Order and ensure the bootable hard drive's controller is listed immediately under the Hard Drive entry.

Service Reference Guide, dc5100 376220-001 D–9

Solving Hard Drive Problems (Continued)

Problem

Parallel ATA (PATA) hard drive does not perform optimally.

Computer will not start.

Computer seems to be locked up.

Cause

Using the wrong cable for the drive type.

Solution

Reinstall the second Ultra ATA hard drive using an 80-conductor cable

(standard on select models.)

Both slow and fast

UATA devices are on the same data cable.

Connect slower UATA devices to a separate data cable connected to the secondary IDE (ATA) controller.

Hard drive is damaged.

Observe the beeps and LED lights on the front of the computer. See

Appendix C “POST Error

Messages”.

Program in use has stopped responding to commands.

1. Attempt the normal Windows

“Shut Down” procedure.

2. Press the power button for four or more seconds to turn off the power.

3. Restart the computer using the power button.

Solving MultiBay Problems

Solving MultiBay Problems

Problem

Drive not found.

Cause

You attempted to hot plug a removable hard drive that has

DriveLock security enabled. (This feature supported on select models only.)

MultiBay is hidden in

Computer Setup.

Solution

Shut down Windows and turn off the computer. Insert the drive into the MultiBay, if it is not already inserted. Turn on the computer.

Enter Computer Setup and set

MultiBay to Device Available in

Security > Device Security.

D–10 376220-001 Service Reference Guide, dc5100

Solving Display Problems

Problem

Blank screen (no video).

Cause

The cable connections are not correct.

Screen blanking utility installed or energy saver features enabled.

System ROM is bad; system is running in

FailSafe Boot Block mode (indicated by eight red blinks from the power LED and eight simultaneous beeps).

Fixed-sync monitor will not sync at the resolution chosen.

Solution

Check the cable connections from the monitor to the computer and to the electrical outlet.

Press any key or click the mouse button and, if set, type your password.

1. Reflash the ROM using a

ROMPaq diskette.

2. Replace the system board.

Ensure that the monitor can accept the same horizontal scan rate as the resolution chosen.

Computer is in

standby mode.

Press the power button to resume from standby mode.

Ä CAUTION: When attempting to resume from standby mode, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Monitor cable plugged into the wrong connector.

If the computer system has both an integrated graphics connector and a graphics expansion card connector, plug the monitor cable into the expansion card connector.

Monitor settings in the computer are not compatible with the monitor.

1. Restart the computer and press

F8 during startup when you see

“Press F8” in the bottom right corner of the screen.

2. Using the keyboard arrow keys, select Enable VGA Mode and press Enter.

3. In Windows Control Panel, double-click the Display icon and select the Settings tab.

4. Use the sliding control to reset the resolution.

Service Reference Guide, dc5100 376220-001 D–11

Problem

Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Blank screen and the power LED flashes Red eight times, once every second, followed by a two second pause, and the computer beeps eight times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Monitor does not function properly when used with energy saver features.

Cause

Pre-video memory error.

Pre-video graphics error.

Invalid ROM based on checksum.

Dim characters.

Solution

1. Reseat DIMMs. Power on the system.

2. Replace DIMMs one at a time to isolate the faulty module.

3. Replace third-party memory with HP memory.

4. Replace the system board.

For systems with a graphics card:

1. Reseat the graphics card.

2. Replace the graphics card.

3. Replace the system board.

For systems with integrated graphics, replace the system board.

1. Reflash the ROM using a

ROMPaq diskette.

2. Replace the system board.

Monitor without energy saver capabilities is being used with energy saver features enabled.

The brightness and contrast controls are not set properly.

Cables are not properly connected.

Disable monitor energy saver feature.

Adjust the monitor brightness and contrast controls.

Check that the graphics cable is securely connected to the graphics card and the monitor.

D–12

Blurry video or requested resolution cannot be set.

If the graphics controller was upgraded, the correct video drivers may not be loaded.

Install the video drivers included in the upgrade kit.

376220-001 Service Reference Guide, dc5100

Problem

The picture is broken up, rolls, jitters, or flashes.

Cause

Monitor is not capable of displaying requested resolution.

Graphics card is bad.

The monitor connections may be incomplete or the monitor may be incorrectly adjusted.

Solution

Change requested resolution.

Replace the graphics card.

1. Be sure the monitor cable is securely connected to the computer.

2. In a two-monitor system or if another monitor is in close proximity, be sure the monitors are not interfering with each other’s electromagnetic field by moving them apart.

3. Fluorescent lights or fans may be too close to the monitor.

Degauss the monitor.

Vibrating or rattling noise coming from inside a CRT monitor when powered on.

Clicking noise coming from inside a CRT monitor.

Monitor needs to be degaussed.

Monitor degaussing coil has been activated.

Electronic relays have been activated inside the monitor.

High pitched noise coming from inside a flat panel monitor.

Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to center the picture on the screen.

(flat panel monitors using an analog VGA input connection only)

Brightness and/or contrast settings are too high.

Flat panel monitor’s internal digital conversion circuits may be unable to correctly interpret the output synchronization of the graphics card.

Graphics card is not seated properly or is bad.

None. It is normal for the degaussing coil to be activated when the monitor is powered on.

None. It is normal for some monitors to make a clicking noise when turned on and off, when going in and out of standby mode, and when changing resolutions.

Lower brightness and/or contrast settings.

1. Select the monitor’s

Auto-Adjustment option in the monitor’s on-screen display menu.

2. Manually synchronize the Clock and Clock Phase on-screen display functions. Download

SoftPaq SP20930 or SP22333, depending on the monitor, to assist with the synchronization.

1. Reseat the graphics card.

2. Replace the graphics card.

Service Reference Guide, dc5100 376220-001 D–13

Problem

Certain typed symbols do not appear correct.

Cause

The font you are using does not support that particular symbol.

Solution

Use the Character Map to locate the and select the appropriate symbol.

Click Start > All Programs >

Accessories > System Tools >

Character Map. You can copy the symbol from the Character Map into a document.

D–14 376220-001 Service Reference Guide, dc5100

Solving Audio Problems

Solving Audio Problems

Problem

Sound does not come out of the speaker or headphones.

Cause

Software volume control is turned down.

The external speakers are not turned on.

Audio is hidden in

Computer Setup.

Solution

Double-click the Speaker icon on the taskbar and use the volume slider to adjust the volume.

Turn on the external speakers.

External speakers plugged into the wrong audio jack.

Audio cable not connected.

Enable the audio in Computer

Setup: Security > Device

Security >Audio.

See the sound card documentation for proper speaker connection.

Digital CD audio is not enabled.

Headphones or devices connected to the line-out connector mute the internal speaker.

Volume is muted.

Computer is in

standby mode.

Connect audio cable between CD or DVD-ROM drive and the system board.

Enable digital CD audio:

1. From the Control Panel, select

System.

2. On the Hardware tab, click the Device Manager button.

3. Right-click on the CD/DVD device and select Properties.

4. On the Properties tab, make sure “Enable digital CD audio for this CD-ROM

device” is checked.

Turn on and use headphones or external speakers, if connected, or disconnect headphones or external speakers.

1. From the Control Panel program, click Sound,

Speech and Audio

Devices, then click Sounds

and Audio Devices.

2. Click the Mute check box to remove the check mark from the box.

Press the power button to resume from standby mode.

Service Reference Guide, dc5100 376220-001 D–15

Solving Audio Problems (Continued)

Problem Cause Solution

Ä CAUTION: When attempting to resume from standby mode, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and any unsaved data will be lost.

Noise or no sound comes out of the speakers or headphones.

1. The audio output jack supports both digital and analog output functions. When using digital speakers, switch the PC’s output jack to digital mode. Go to the

Volume Control Panel, select the

Advanced button, and check the

Enable Digital Audio checkbox.

When using conventional analog speakers, ensure this checkbox is not enabled.

2. If the headphones have a mono jack, use the multimedia device properties to switch the system to analog out.

✎ If you set digital as the Output Mode, the internal speaker and external analog speakers will no longer output audio until you switch back to an auto-sense or analog mode.

If you set analog as the Output Mode, external digital speakers will not function until you change the output mode back to an auto-sense or digital mode.

Sound cuts in and out.

Computer appears to be locked up while recording audio.

Processor resources are being used by other open applications.

The hard disk may be full.

Shut down all open processor-intensive applications.

1. Before recording, make sure there is enough free space on the hard disk.

2. Try recording the audio file in a compressed format.

D–16 376220-001 Service Reference Guide, dc5100

Solving Printer Problems

Solving Printer Problems

Problem

Printer will not print.

Printer will not turn on.

Printer prints garbled information.

Printer is offline.

Cause

Printer is not turned on and online.

The correct printer driver for the application are not installed.

Solution

Turn the printer on and make sure it is online.

1. Install the correct printer driver for the application.

2. Try printing using the

MS-DOS command:

DIR C:\ > [printer port] where [printer port] is the address of the printer being used. If the printer works, reload the printer driver.

If you are on a network, you may not have made the connection to the printer.

Make the proper network connections to the printer.

Printer may have failed.

Run printer self-test.

Reconnect all cables.

The cables may not be connected properly.

The correct printer driver is not installed.

The cables may not be connected properly.

Printer memory may be overloaded.

The printer may be out of paper.

Install the correct printer driver for the application.

Reconnect all cables.

Reset the printer by turning it off for one minute, then turn it back on.

1. Check the paper tray and refill it if it is empty.

2. Select online.

Service Reference Guide, dc5100 376220-001 D–17

Solving Keyboard and Mouse Problems

D–18

Solving Keyboard and Mouse Problems

Problem

Keyboard commands and typing are not recognized by the computer.

Cause

Keyboard connector is not properly connected.

Program in use has stopped responding to commands.

Keyboard needs repairs.

Computer is in

standby mode.

Solution

1. Turn off the computer.

2. Reconnect the keyboard to the back of the computer and restart the computer.

Shut down the computer using the mouse and then restart the computer.

Replace the keyboard.

Press the power button to resume from standby mode.

Input is coming from a nearby wireless keyboard.

1. Ensure that the keyboard batteries are fresh.

2. Place the receiver over 30 cm

(12 in) from a telephone, power supply, transformer, computer, other electrical device, or power cords or cables.

3. The receiver should not be placed on or inside of a metal surface.

Ä CAUTION: When attempting to resume from standby mode, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and any unsaved data will be lost.

Cursor will not move using the arrow keys on the keypad.

The Num Lock key may be on.

Press the Num Lock key. The

Num Lock light should not be on if you want to use the arrow keys. The

Num Lock key can be disabled

(or enabled) in Computer Setup.

Mouse does not respond to movement or is too slow.

Mouse connector is not properly plugged into the back of the computer.

Program in use has stopped responding to commands.

Mouse may need cleaning.

Mouse needs repairs.

1. Shut down the computer using the keyboard.

2. Plug the mouse connector into the back of the computer (or the keyboard) and restart the computer.

Shut down the computer using the keyboard and then restart the computer.

Remove the roller ball cover on the mouse and clean it.

Replace the mouse.

376220-001 Service Reference Guide, dc5100

Solving Keyboard and Mouse Problems

Problem

Mouse does not respond to movement or is too slow.

(continued)

Cause

Computer is in

standby mode.

Solution

Press the power button to resume from standby mode.

Input is coming from a nearby wireless mouse.

1. Ensure that the mouse batteries are fresh.

2. Place the receiver over 30 cm

(12 in) from a telephone, power supply, transformer, computer, other electrical device, or power cords or cables.

3. The receiver should not be placed on or inside of a metal surface.

Ä CAUTION: When attempting to resume from standby mode, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Mouse will only move vertically or horizontally, or movement is jerky.

Mouse roller ball is dirty.

Remove roller ball cover from the bottom of the mouse and clean it.

Service Reference Guide, dc5100 376220-001 D–19

Solving Hardware Installation Problems

You may need to reconfigure the computer when you add or remove hardware, such as an additional diskette drive. If you install a plug and play device, Windows 2000 and Windows XP automatically recognize the device and configure the computer. If you install a non–plug and play device, you must reconfigure the computer after completing installation of the new hardware. In Windows 2000, select the Add New Hardware icon in the Control Panel (for

Windows XP, use the Add Hardware Wizard) and follow the instructions that appear on the screen.

Solving Hardware Installation Problems

Problem

A new device is not recognized as part of the system.

Cause

Device is not seated or connected properly.

Cable(s) of new external device are loose or power cables are unplugged.

Power switch of new external device is not turned on.

Solution

Ensure that the device is properly and securely connected and that pins in the connector are not bent down.

Ensure that all cables are properly and securely connected and that pins in the cable or connector are not bent down.

Turn off the computer, turn on the external device, then turn on the computer to integrate the device with the computer system.

Reboot the computer and follow the instructions for accepting the changes.

Computer will not start.

When the system advised you of changes to the configuration, you did not accept them.

A plug and play board may not automatically configure when added if the default configuration conflicts with other devices.

Wrong memory modules were used in the upgrade or memory modules were installed in the wrong location.

Use Windows 2000 or Windows XP

Device Manager to deselect the automatic settings for the board and choose a basic configuration that does not cause a resource conflict.

You can also use Computer Setup to reconfigure or disable devices to resolve the resource conflict.

1. Review the documentation that came with the system to determine if you are using the correct memory modules and to verify the proper installation.

2. Observe the beeps and LED lights on the front of the computer. See Appendix C

“POST Error Messages” to determine possible causes.

D–20 376220-001 Service Reference Guide, dc5100

Solving Hardware Installation Problems (Continued)

Problem

Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Cause

Memory is installed incorrectly or is bad.

Solution

1. Reseat DIMMs.

2. Replace DIMMs one at a time to isolate the faulty module.

3. Replace third-party memory with HP memory.

4. Replace the system board.

Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Power LED flashes Red ten times, once every second, followed by a two second pause, and the computer beeps ten times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved

Video card is not seated properly or is bad, or system board is bad.

Bad option card.

For systems with a graphics card:

1. Reseat the graphics card. Power on the system.

2. Replace the graphics card.

3. Replace the system board.

For systems with integrated graphics, replace the system board.

1. Check each option card by removing the cards one at time

(if multiple cards), then power on the system to see if fault goes away.

2. Once bad card is identified, remove and replace bad option card.

3. Replace the system board.

Service Reference Guide, dc5100 376220-001 D–21

Solving Network Problems

These guidelines do not discuss the process of debugging the network cabling.

Solving Network Problems

Problem

Wake-on-LAN feature is not functioning.

Network driver does not detect network controller.

Cause

Wake-on-LAN is not enabled.

Network controller is disabled.

Network status link light does not turn on or it never flashes.

The network status light should flash when there is network activity.

Incorrect network driver.

No active network is detected.

Network controller is not set up properly.

Solution

Use the Network control application to enable Wake-on-LAN.

Run Computer Setup and enable network controller.

Enable the network controller in the operating system via the Device

Manager.

Check the network controller documentation for the correct driver or obtain the latest driver from the manufacturer’s Web site.

Check cabling and network equipment for proper connection.

Use the Network control application to verify that the device is working properly.

Network driver is not properly loaded.

System cannot autosense the network.

Reinstall network drivers.

Diagnostics reports a failure.

The cable is not securely connected.

The cable is attached to the incorrect connector.

There is a problem with the cable or a device at the other end of the cable.

Network controller interrupt is shared with an expansion board.

The network controller is defective.

Disable auto-sensing capabilities and force the system into the correct operating mode.

Ensure that both ends of the data cable are securely connected.

Ensure that the cable is attached to the correct connector.

Ensure that the cable and device at the other end are operating correctly.

Under the Computer Setup

Advanced menu, change the resource settings for the board.

Replace the NIC.

D–22 376220-001 Service Reference Guide, dc5100

Solving Network Problems (Continued)

Problem

Diagnostics passes, but the computer does not communicate with the network.

Cause

Network drivers are not loaded, or driver parameters do not match current configuration.

Solution

1. Make sure the network drivers are loaded and that the driver parameters match the configuration of the network controller.

2. Make sure the correct network client and protocol is installed.

Select the Network icon in the

Control Panel and configure the network controller.

Diagnostics passes, but the computer does not communicate with the network. (continued)

Network controller stopped working when an expansion board was added to the computer.

The network controller is not configured for this computer.

Network controller interrupt is shared with an expansion board.

Network controller stops working without apparent cause.

New network card will not boot.

Cannot connect to network server when attempting Remote

System Installation.

System setup utility reports unprogrammed

EEPROM.

Under the Computer Setup

Advanced menu, change the resource settings for the board.

The network controller requires drivers.

The expansion board installed is a network card

(NIC) and conflicts with the embedded NIC.

The files containing the network drivers are corrupted.

The cable is not securely connected.

Verify that the drivers were not accidentally deleted when the drivers for a new expansion board were installed.

Under the Computer Setup

Advanced menu, change the resource settings for the board.

Reinstall the network drivers, using the Restore Plus! CD.

Ensure that both ends of the cable are securely attached to the correct devices.

Replace the NIC.

The network controller is defective.

New network card may be defective or may not meet industry-standard specifications.

Install a working, industry-standard

NIC, or change the boot sequence to boot from another source.

The network controller is not configured properly.

Verify Network Connectivity, that a

DHCP Server is present, and that the Remote System Installation

Server contains the NIC drivers for your NIC.

Unprogrammed EEPROM.

Flash the ROM.

Service Reference Guide, dc5100 376220-001 D–23

Solving Memory Problems

Ä CAUTION: For those systems that support ECC memory, HP does not support mixing ECC and non-ECC memory. Otherwise, the system will not boot the operating system.

Solving Memory Problems

Problem

System will not boot or does not function properly after installing additional memory modules.

Cause

Memory module is not the correct type or speed or the new memory module is not seated properly.

Solution

Replace module with the correct industry-standard device for the computer.

Out of memory error.

Memory count during POST is wrong.

Insufficient memory error during operation.

Memory configuration may not be set up correctly.

You have run out of memory to run the application.

The memory modules may not be installed correctly.

Integrated graphics may use system memory.

Too many Terminate and Stay Resident programs (TSRs) are installed.

You have run out of memory for the application.

Memory is installed incorrectly or is bad.

Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

On some models, ECC and non-ECC memory modules cannot be mixed.

Use the Device Manager to check memory configuration.

Check the application documentation to determine the memory requirements.

Check that the memory modules have been installed correctly and that proper modules are used.

No action required.

Delete any TSRs that you do not need.

Check the memory requirements for the application or add more memory to the computer.

1. Reseat DIMMs.

2. Replace DIMMs one at a time to isolate the faulty module.

3. Replace third-party memory with HP memory.

4. Replace the system board.

D–24 376220-001 Service Reference Guide, dc5100

Solving Processor Problems

.

Solving Processor Problems

Problem

Poor performance is experienced.

Cause

Processor is hot.

Power LED flashes Red three times, once every second, followed by a two second pause, and the computer beeps three times. Beeps continue for five iterations after which the LED flashes will continue until the problem is resolved.

Processor is not seated properly or not installed.

Solution

1. Make sure the airflow to the computer is not blocked.

2. Make sure the fans are connected and working properly (some fans only operate when needed).

3. Make sure the processor heatsink is installed properly.

1. Check to see that the processor is present.

2. Reseat the processor.

Service Reference Guide, dc5100 376220-001 D–25

Solving CD-ROM and DVD Problems

Solving CD-ROM and DVD Problems

Problem

System will not boot from

CD-ROM or DVD drive.

CD-ROM or DVD devices are not detected or driver is not loaded.

Movie will not play in the

DVD drive.

Cannot eject compact disc

(tray-load unit).

CD-ROM, CD-RW,

DVD-ROM, or DVD-R/RW drive cannot read a disc or takes too long to start.

Cause

Removable Media Boot is not enabled through the Computer Setup utility.

Non-bootable CD in drive.

Network Server Mode is enabled in Computer

Setup.

Boot order not correct.

Drive is not connected properly or not properly configured.

Movie may be regionalized for a different country.

Decoder software is not installed.

Damaged media.

Movie rating locked out by parental lock.

Media installed upside down.

Disc not properly seated in the drive.

Media has been inserted upside down.

The DVD-ROM drive takes longer to start because it has to determine the type of media played, such as audio or video.

Solution

Run the Computer Setup utility and enable booting to removable media and verify boot order settings.

Try a bootable CD in the drive.

Run Computer Setup and disable

Network Server Mode in Security

> Password Options.

Run Computer Setup and change boot sequence in Storage > Boot

Order.

1. Reconnect power and data cables to the drive.

2. Install correct device driver.

See the documentation that came with the DVD drive.

Install decoder software.

Replace media.

Use DVD software to remove parental lock.

Reinstall media.

1. Turn off the computer and insert a thin metal rod into the emergency eject hole and push firmly.

2. Slowly pull the tray out from the drive until the tray is fully extended, then remove the disc.

Re-insert the Media with the label facing up.

Wait at least 30 seconds to let the

DVD-ROM drive determine the type of media being played. If the disc still does not start, read the other solutions listed for this topic.

D–26 376220-001 Service Reference Guide, dc5100

Solving CD-ROM and DVD Problems (Continued)

Problem

Recording audio CDs is difficult or impossible.

Cause Solution

CD or DVD disc is dirty.

Clean CD or DVD with a CD cleaning kit.

Windows does not detect the CD-ROM or

DVD-ROM drive.

Wrong or poor quality media type.

1. Use Device Manager to remove or uninstall the device in question.

2. Restart the computer and let

Windows detect the device.

1. Try using a slower recording speed.

2. Verify that you are using the correct media for the drive.

3. Try a different brand of media.

Quality varies widely between manufacturers.

Solving Drive Key Problems

Solving Drive Key Problems

Problem

Drive key is not seen as a drive letter in Windows XP.

The computer boots to DOS after making a bootable

Drive key.

Cause

The drive letter after the last physical drive is not available.

Drive key is bootable.

Solution

Change the default drive letter for the Drive key in Windows XP.

Install the Drive key after the operating system boots.

Solving Front Panel Component Problems

Solving Front Panel Component Problems

Problem

A USB device, headphone, or microphone is not recognized by the workstation.

Cause

It is not properly connected.

The device does not have power.

Solution

1. Turn off the computer.

2. Reconnect the device to the front of the workstation and restart the computer.

If the USB device requires AC power, be sure one end is connected to the device and one end is connected to a live outlet.

Service Reference Guide, dc5100 376220-001 D–27

Solving Front Panel Component Problems

Problem

A USB device, headphone, or microphone is not recognized by the workstation. (continued)

Cause

The correct device driver is not installed.

The cable from the device to the computer does not work.

The device is not working.

Solution

1. Install the correct driver for the device.

2. You might need to reboot the computer.

1. If possible, replace the cable.

2. Restart the workstation.

1. Replace the device.

2. Restart the computer.

Solving Internet Access Problems

Solving Internet Access Problems

Problem

Unable to connect to the

Internet.

Cause

Internet Service Provider

(ISP) account is not set up properly.

Modem is not set up properly.

Solution

Verify Internet settings or contact the

ISP for assistance.

Web browser is not set up properly.

Cable/ DSL modem is not plugged in.

Cable/DSL service is not available or has been interrupted due to bad weather.

The CAT5 10/100 cable is disconnected.

IP address is not configured properly.

Reconnect the modem. Verify the connections are correct using the quick setup documentation.

Verify that the Web browser is installed and set up to work with your ISP.

Plug in cable/DSL modem. You should see a “power” LED light on the front of the cable/DSL modem.

Try connecting to the Internet at a later time or contact your ISP. (If the cable/DSL service is connected, the

“cable” LED light on the front of the cable/DSL modem will be on.)

Connect the CAT5 10/100 cable between the cable modem and the computers’s RJ-45 connector. (If the connection is good, the “PC” LED light on the front of the cable/DSL modem will be on.)

Contact the ISP for the correct IP address.

D–28 376220-001 Service Reference Guide, dc5100

Solving Internet Access Problems (Continued)

Problem

Unable to connect to the

Internet. (continued)

Cannot automatically launch Internet programs.

Internet takes too long to download Web sites.

Cause Solution

Cookies are corrupted.

Windows XP

1. Select Start > Control

Panel.

2. Double-click Internet

Options.

3. On the General tab, click the

Delete Cookies button.

You must log on to the

ISP before some programs will start.

Modem is not set up properly.s

Log on to the ISP and launch the desired program.

Verify that the correct modem speed and COM port are selected.

For Windows XP

1. Select Start > Control

Panel.

Continue with step #2

2. Double-click System.

3. Click the Hardware tab.

4. In the Device Manager area, click the Device Manager button.

5. Double-click Ports (COM &

LPT).

6. Right-click the COM port your modem uses, then click

Properties.

7. Under Device status, verify that the modem is working properly.

8. Under Device usage, verify the modem is enabled.

9. If there are further problems, click the Troubleshoot button and follow the on-screen instructions.

Service Reference Guide, dc5100 376220-001 D–29

POST Diagnostic Front Panel LEDs and Audible Codes

This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them.

If you see flashing LEDs on a PS/2 keyboard look for flashing LEDs on the front panel of the computer and refer to the following table to determine the front panel LED codes.

Recommended actions in the following table are listed in the order in which they should be performed.

Diagnostic Front Panel LEDs and Audible Codes

Activity

Green Power LED

On.

Green Power LED flashes every two seconds.

Red Power LED flashes two times, once every second, followed by a two second pause and the computer beeps two times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Beeps Possible Cause Recommended Action

None Computer on.

None

None

2

Computer in

Suspend to RAM mode (select models only) or normal Suspend mode.

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heatsink/fan assembly is not properly attached to the processor.

None required. Press any key or move the mouse to wake the computer.

1. Ensure that the computer air vents are not blocked and the processor cooling fan is running.

2. Open hood, press power button, and see if the processor fan spins. If the processor fan is not spinning, make sure the fan's cable is plugged onto the system board header. Ensure the fan is fully/properly seated or installed.

3. If fan is plugged in and seated properly, but is not spinning, then replace processor fan.

4. Reseat processor heatsink and verify that the fan assembly is properly attached.

5. Contact an authorized reseller or service provider.

D–30 376220-001 Service Reference Guide, dc5100

Diagnostic Front Panel LEDs and Audible Codes (Continued)

Activity

Red Power LED flashes three times, once every second, followed by a two second pause and the computer beeps three times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Red Power LED flashes four times, once every second, followed by a two second pause and the computer beeps four times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Red Power LED flashes five times, once every second, followed by a two second pause and the computer beeps five times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Beeps Possible Cause Recommended Action

3 Processor not installed (not an indicator of bad processor).

1. Check to see that the processor is present.

2. Reseat the processor.

4

5

Power failure

(power supply is overloaded).

Pre-video memory error.

1. Open the hood and ensure the 4-wire power supply cable is seated into the connector on the system board.

2. Check if a device is causing the problem by removing ALL attached devices (such as hard, diskette, or optical drives, and expansion cards).

Power on the system. If the system enters the POST, then power off and replace one device at a time and repeat this procedure until failure occurs. Replace the device that is causing the failure. Continue adding devices one at a time to ensure all devices are functioning properly.

3. Replace the power supply.

4. Replace the system board.

1. Reseat DIMMs. Power on the system.

2. Replace DIMMs one at a time to isolate the faulty module.

3. Replace third-party memory with HP memory.

4. Replace the system board.

Service Reference Guide, dc5100 376220-001 D–31

D–32

Diagnostic Front Panel LEDs and Audible Codes (Continued)

Activity

Red Power LED flashes six times, once every second, followed by a two second pause and the computer beeps six times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Red Power LED flashes seven times, once every second, followed by a two second pause and the computer beeps seven times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Red Power LED flashes eight times, once every second, followed by a two second pause and the computer beeps eight times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Red Power LED flashes nine times, once every second, followed by a two second pause and the computer beeps nine times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

Beeps Possible Cause Recommended Action

6 Pre-video graphics error.

For systems with a graphics card:

1. Reseat the graphics card. Power on the system.

2. Replace the graphics card.

3. Replace the system board.

For systems with integrated graphics, replace the system board.

7

8

9

System board failure (ROM detected failure prior to video).

Invalid ROM based on bad checksum.

System powers on but is unable to boot.

Replace the system board.

1. Reflash the ROM using a ROMPaq diskette. See the “ROM Flash” section of the Desktop Management Guide on the Documentation CD.

2. Replace the system board.

1. Check that the voltage selector, located on the rear of the power supply (some models), is set to the appropriate voltage. Proper voltage setting depends on your region.

2. Replace the system board.

3. Replace the processor.

376220-001 Service Reference Guide, dc5100

Diagnostic Front Panel LEDs and Audible Codes (Continued)

Activity

Red Power LED flashes ten times, once every second, followed by a two second pause and the computer beeps ten times. Beeps stop after fifth iteration but LEDs continue until problem is resolved.

System does not power on and LEDs are not flashing.

Beeps Possible Cause Recommended Action

10 Bad option card.

1. Check each option card (PCI or PCI

Express) by removing the card (one at a time if multiple cards), then power on the system to see if fault goes away.

2. Once a bad card is identified, remove and replace the bad option card.

3. Replace the system board.

None System unable to power on.

Press and hold the power button for less than 4 seconds. If the hard drive LED turns green, then:

1. Check that the voltage selector, located on the rear of the power supply, is set to the appropriate voltage. Proper voltage setting depends on your region.

2. Remove the expansion cards one at a time until the LED light on the system board turns on.

3. Replace the system board.

OR

Press and hold the power button for less than 4 seconds. If the hard drive LED does not turn on green then:

1. Check that the unit is plugged into a working AC outlet.

2. Open hood and check that the power button harness is properly connected to the system board.

3. Check that both power supply cables are properly connected to the system board.

4. Check to see if the LED light on the system board is turned on. If it is turned on, then replace the power button harness.

5. If the LED light on the system board is not turned on, then replace the power supply.

6. Replace the system board.

Service Reference Guide, dc5100 376220-001 D–33

D–34 376220-001 Service Reference Guide, dc5100

E

System Board and Riser Card Reference

Designators

These reference designators are used on most, but not all, HP system and riser boards.

Designator

BAT

CR1

CR2

CR3

CR4

CR35

E14

E15

E25

E49/JP49

E50

J7

J9

J10

J11

J12

J20 - 29

J30

J31 - J35

J37

J51

J52

J53

J54

J55

J38

J39

J40

J41

J50

J65

J66

J67

J68

Component

Battery socket/Battery

LED - 5V_Aux(on)/PS_ON(off)

Health-LED

UID LED

Power LED

Hard drive activity LED

Boot block header/jumper

Boot block recovery header

CPLD programming header

Clear Password header/jumper

Clear CMOS header

RJ45 jack

Stacked RJ45/Dual USB

Quad stacked USB

First IEEE 1394 connector

Second IEEE 1394 connector

PCI slots

PCI extender slot (male)

PCI Express slots

Primary SCSI connector

Secondary SCSI connector

Stacked parallel/SCSI connector

AGP slot x16 PCI Express slot for graphics

First parallel port

Second parallel port

Double-stacked parallel port, Top = Port B, Bottom = Port A

Parallel port over single Serial Port

Parallel port over Serial Port and Video Port

Parallel port over dual VGA ports

DVI connector

Keyboard connector, PS/2(Closest to power supply)

Mouse connector, PS/2

Double-stacked mouse/keyboard connector, PS/2

Top = Mouse, Bottom = Keyboard

Service Reference Guide, dc5100 376220-001 E–1

E–2

Designator

P8

P9

P10

P11

P12

P13

P15

P16

P20

P21

P3

P4

P5

P6

P7

L3

L4

L5

P1

P2

P22

P23

P24

P25

P26

J74

J75

J76

J77

J78

J69

J70

J71

J72

J73

J80

J81

J82

J83

J101

J9020-J9029

J9030-J9034

JP49/E49

L1

L2

Component (Continued)

Video connector, VGA

Primary single USB connector

Secondary single USB port

Microphone jack

Line-in jack

Line-out jack

Headphone jack

Volume control

Double-stacked headphone, Top = microphone, Bottom = headphone

Double-stacked line-in, Top = line-in, Bottom = line-out

Stacked serial/audio connector

Primary double-stack USB, Top = Port 2, Bottom = Port 1

Secondary double-stack USB, Top = Port 4, Bottom = Port 3

Triple-stacked audio jack (line in, line out/headphone, microphone)

Security board connector for daughter card

PCI slots on riser card

PCI express slots on riser card

Clear password header/jumper

USB front port choke (1st)

USB rear port choke (1st)

USB rear port choke (2nd)

USB rear port choke (3rd)

USB front port choke (2nd)

P/S connector (20 or 24 pin)

Second P/S connector (as required)

Processor 12V header

Secondary Processor 12V header

Main Power/HDD LED connector

Speaker connector

Analog audio connector (from CD-ROM)

Primary chassis fan connector

Secondary chassis fan connector

Diskette drive connector

Auxiliary Audio connector

Alert on LAN NIC connector

VRM module footprint

AUI connector

Fan command/fan sink header (may be 2 or 4 pin)

Primary IDE connector

Secondary IDE/MultiBay connector

Header for NEWCARD

Header for front panel audio

Header for front panel USB

Internal USB connector 1

Internal USB connector 2

376220-001 Service Reference Guide, dc51000

Designator

U6

U7

U10

U11

U12

U13

U14

U16

U17

U18

P124

P125

P126

P216

SW2

SW50

U2

U3

U4

U5

U20

U29

U30

U31

U32

P60

P61

P62

P63

P64

P65

P70

P71

P101

P106

P27

P29

P30

P40

P41

P52

P53

P54

P55

P58

Component (Continued)

MultiBay header

SCSI LED connector

PCI extender slot (female)

Blade PC graphics connector (outboard)

Blade PC graphics connector (inboard)

Serial port header

First serial port

Flying serial port

Double stack serial port, Top = Serial B, Bottom = Serial A

Riser edge connector (male-mates with J30)

Primary Serial ATA (SATA) connector

Second Serial ATA (SATA) connector

Third Serial ATA (SATA) connector

Fourth Serial ATA (SATA) connector

VSFF expansion connector

Graphics option connector

Primary (CPU) fan header for fansink

Secondary CPU fan header for fansink

Security board connector, system board

Secondary speaker header

Hood lock header

Hood sensor header

Flying parallel port header

White box chassis fan header

Security hood switch on riser card

Clear CMOS switch/push button

Single chip solution (combined north bridge/south bridge)

North bridge

South bridge

Super I/O

Clock chip

64 bit Bridge

LOM1

LOM1 EEPROM

LOM1 PHY

Audio Codec

Audio amplifier

LOM2

LOM2 EEPROM

LOM2 PHY

Fan controller

TMDS controller

Parallel port diode array

First serial port transceiver

Second serial port transceiver

Service Reference Guide, dc5100 376220-001 E–3

Designator

U46

U50

U51

U52

U53

XBT

XMM1

XMM2 - XMM5

XU1

XU2

XU15/U15

Y1

Y2

Y3

Y4

Y5/H5

Component (Continued)

VRM controller

USB front port power switch

First USB rear port power switch

Second USB rear port power switch

Third USB rear port power switch

Battery retainer

Memory slot. DIMM1 or RIMM1 populated and tested

Following memory slots

Primary processor socket

Secondary processor socket

ROM socket (XU15)

Primary (TH) system clock crystal

Secondary (SMT) system clock crystal

Primary NIC clock crystal

Secondary NIC clock crystal

RTC clock crystal/tie-down

E–4 376220-001 Service Reference Guide, dc51000

F

Memory

Intel-Based Systems

Computers equipped with Intel-based processors come with double data rate 2 synchronous dynamic random access memory (DDR2-SDRAM) dual inline memory modules (DIMMs).

The memory sockets on the system board can be populated with up to four industry-standard

DIMMs. These memory module slots are populated with at least one preinstalled memory module. To achieve the maximum memory support, you can populate the system board with up to 4GB of memory configured in a high-performing dual channel mode.

For proper system operation, the DDR2-SDRAM DIMMs must be industry-standard 240-pin, unbuffered PC3200 400 MHz-compliant or PC4300 533 MHz-compliant, 1.8 volts.

The DDR2-SDRAM DIMMs must also: support CAS latency 3, 4, or 5(CL = 3, CL = 4, or CL = 5) for DDR2/400 MHz; support CAS latency 4 or 5(CL = 4, or CL = 5) for DDR2/533 MHz contain the mandatory JEDEC SPD information

In addition, the computer supports:

256Mbit, 512Mbit, and 1 Gbit non-ECC memory technologies single-sided and double-sided DIMMS

DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not supported

The following processor bus frequencies are required for the system to run at the supported memory frequencies.

The system will not start if you install unsupported DIMMs.

DIMM Sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled XMM1, XMM2, XMM3, and XMM4. Sockets XMM1 and XMM2 operate in memory channel A. Sockets XMM3 and XMM4 operate in memory channel B.

The system board shown may differ from the one in your product.

Item

1

2

DIMM Socket Socket Color Item

3

4

DIMM Socket Socket Color

The system will automatically operate in single channel mode, dual channel Asymmetric mode, or a a higher-performing dual channel Interleaved mode, depending on how the DIMMs are installed.

The system will operate in single channel mode if the DIMM sockets are populated in one channel only.

The system will operate in dual channel Asymmetric mode if the total memory capacity of the DIMMs in Channel A is not equal to the total memory capacity of the DIMMs in

Channel B.

The system will operate in a higher-performing dual channel Interleaved mode if the total memory capacity of the DIMMs in Channel A is equal to the total memory capacity of the

DIMMs in Channel B. However, the technology and device width can vary between the channels, For example, if Channel A is populated with two 256 MB DIMMS and Channel B is populated with one 512 MB DIMM, the system will operate in Interleaved mode.

In any mode, the maximum operational speed is determined by the slowest DIMM in the system. For example, if the system is populated with a DIMM that is 400 MHz and a second

DIMM that is 533 MHz, the system will run at the slower of the two speeds.

Index

Index

4-pin power pin assignments

A–7

24-pin MicroFit power pin assignments

A–7

24-pin power pin assignments

A–7

6-pin power pin assignments

A–8

A

access panel, MT removal and replacement

6–3

advanced, Computer Setup heading

2–11

ATA/ATAPI (IDE) drive cable pin assignments

A–6

B

battery disposal

5–9

MT removal and replacement

6–28

real-time clock

D–2

SFF removal and replacement

7–47

bezel insert

SFF removal and replacement

7–11

blank screen

D–12

C

cable

MT removal and replacement

6–15

proper handling

5–8

cable layout, PATA

4–4

cable lock

MT

6–2

SFF removal and replacement

7–4

cable management

SFF

6–12

,

7–13

cable pinouts

PATA data

4–3

PATA power

4–3

SATA data

4–2

SATA power

4–2

categories, Diagnostics for Windows

2–16

cautions

AC power

5–1

adding devices

1–1

batteries

5–9

cables

5–8

cooling fan

5–7

keyboard cleaning

5–6

keyboard keys

5–6

operating system installation

1–1

protecting ROM

3–4

chassis

CMT illustrated

5–1

SFF illustrated

5–2

chassis fan

MT removal and replacement

6–20

SFF removal and replacement

7–46

chassis types, illustrated

5–1

cleaning computer

5–6

keyboard

5–6

monitor

5–7

mouse

5–7

clearing password

3–20

CMT chassis, illustrated

5–1

computer cleaning

5–6

computer cover

SFF removal and replacement

7–10

computer pauses

D–2

Computer Setup heading advanced

2–11

file

2–4

security

2–7

storage

2–5

utilities

2–3

Configuration Record Utility

2–18

connector pin assignments

A–1

to

A–7

convertible minitower. See CMT

country-specific power cord set requirements

B–2

D

date and time display

D–2

device drivers installing/upgrading

1–1

Diagnostics for Windows categories

2–16

detecting

2–15

Index–1

installing

2–15

Menu Bar

2–16

overview

2–14

running tests

2–17

disassembly preparation

MT

6–1

SFF

7–1

disconnecting

MT hard drive cable

6–16

MT optical drive cable

6–15

MTdiskette drive cable

6–15

diskette drive bezel

MT removal and replacement

6–7

diskette drive cable

MT connecting

6–18

MT disconnecting

6–15

drive capacities

4–10

MT removal and replacement

6–15

partition size

4–10

replacement type

4–9

SFF external removal and replacement

7–24

SFF hard drive removal and replacement

7–25

SFF optical drive removal and replacement

7–22

drive bezel

MT 3.5" removal and replacement

6–7

MT 5.25" removal and replacement

6–6

drive bezel inserts

SFF

7–12

drive positions

MT

6–14

SFF

7–21

E

electrostatic discharge. See ESD

error messages, POST

C–1

to

C–6

ESD (electrostatic discharge) information

5–3

materials and equipment

5–4

preventing damage

5–3

Ethernet

AUI pin assignments

A–2

BNC pin assignments

A–1

RJ-45 pin assignments

A–2

expansion card

SFF removal and replacement

7–19

expansion card retainer

SFF removal and replacement

7–18

expansion slot cover

MT removal and replacement

6–9

external 3.5-inch drive

SFF removal and replacement

7–24

external security

MT

6–2

F

FailSafe key

SFF

7–2

fan shroud

SFF removal and replacement

7–29

fan, chassis

MT replacement

6–20

fan, power supply

5–7

FAT or FAT32 to NTFS conversion

1–2

file, Computer Setup heading

2–4

flashing LEDs

C–7

front bezel

MT removal and replacement

6–4

front drive bezel

SFF removal and replacement

7–11

front I/O device

SFF removal and replacement

7–30

front I/O devices

MT removal and replacement

6–22

front I/O panel

MT removal and replacement

6–21

G

grounding methods

5–4

H

hard drive

MT removal and replacement

6–15

proper handling

5–8

SFF removal and relacement

7–25

hard drive cable

MT connecting

6–19

MT disconnecting

6–16

headphone pin assignments

A–4

heatsink

MT removal and replacement

6–24

SFF removal and replacement

7–35

HP software. See software

I

infrared (IR) transceiver, external, pin assignments

A–5

installing Diagnostics for Windows

2–15

IR transceiver. See infrared (IR) transceiver

J

jumper settings

D–9

K

keyboard cleaning

5–6

pin assignments

A–1

L

LEDs blinking power

C–7

blinking PS/2 keyboard

C–7

line-in audio pin assignments

A–4

line-out audio pin assignments

A–4

M

memory

MT removal and replacement

6–8

SFF removal and replacement

7–16

menu bar, Diagnostics for Windows

2–16

microphone pin assignments

A–3

monitor blank screen

D–12

blurry video

D–14

checking connections

D–1

cleaning

5–7

dim characters

D–13

pin assignments

A–5

mouse cleaning

5–7

pin assignments

A–1

MT

3.5" drive bezel removal and replacement

6–7

5.25" drive bezel removal and replacement

6–6

access panel removal and replacement

6–3

battery removal and replacement

6–28

cable lock

6–2

chassis fan removal and replacement

6–20

disassembly preparation

6–1

diskette drive bezel removal and replacement

6–7

diskette drive cable connecting

6–18

diskette drive cable disconnecting

6–15

drive positions

6–14

drive removal and replacement

6–15

expansion card removal and replacement

6–10

expansion slot cover

6–9

external security

6–2

front bezel removal and replacement

6–4

front I/O devices removal and replacement

6–22

front I/O panel removal and replacement

6–21

hard drive cable connecting

6–19

hard drive cable disconnecting

6–16

heatsink removal and replacement

6–24

memory removal and replacement

6–8

optical drive cable connecting

6–18

optical drive cable disconnecting

6–15

padlock

6–2

PCI expansion card removal and replacement

6–10

power supply removal and replacement

6–33

power switch assembly removal and replacement

6–23

preparation for disassembly

6–1

processor removal and replacement

6–25

speaker removal and replacement

6–32

system board removal and replacement

6–27

MultiBay CD-ROM adapter pin assignments

A–6

O

optical drive

MT removal and replacement

6–15

SFF removal and replacement

7–22

optical drive cable

MT connecting

6–18

MT disconnecting

6–15

overheating, prevention

5–5

P

padlock

MT removal and replacement

6–2

SFF removal and replacement

7–5

parallel interface pin assignments

A–3

password clearing

3–20

power-on

2–1

PATA cable layout

4–4

data cable pinouts

4–3

power cable pinouts

4–3

PCI expansion card

MT removal and replacement

6–10

PCI Express pin assignments

A–9

POST (Power-On Self-Test)

2–1

POST error messages

C–1

to

C–6

power cord set requirements country specific

B–2

general

B–1

power supply fan

5–7

MT removal and replacement

6–33

SFF removal and replacement

7–39

power switch assembly

MT removal and replacement

6–23

SFF removal and replacement

7–34

power-on password

2–1

Power-On Self-Test (POST)

2–1

problems, solving audio

D–16

CD-ROM and DVD

D–27

diskette

D–6

display

D–12

drive key

D–28

front panel components

D–28

hard drive

D–8

hardware installation

D–21

Internet access

D–29

keyboard

D–19

memory

D–25

mouse

D–19

MultiBay

D–11

network

D–23

optical drives

D–27

power supply

D–5

printer

D–18

processor

D–26

processor

SFF removal and replacement

7–36

protecting ROM, caution

3–4

R

reference designators riser card

E–1

system board

E–1

removal and replacement

MT 3.5" drive bezel

6–7

MT 5.25" drive bezel

6–6

MT access panel

6–3

MT battery

6–28

MT cable lock

6–2

MT chassis fan

6–20

MT diskette drive bezel

6–7

MT drive

6–15

MT expansion card

6–10

MT front bezel

6–4

MT front I/O devices

6–22

MT front I/O panel

6–21

MT heatsink

6–24

MT memory

6–8

MT padlock

6–2

MT PCI expansion card

6–10

MT power supply

6–33

MT power switch assembly

6–23

MT processor

6–25

MT speaker

6–32

MT system board

6–27

SFF battery

7–47

SFF cable lock

7–4

SFF chassis fan

7–46

SFF computer cover

7–10

SFF expansion card

7–19

SFF expansion card retainer

7–18

SFF external 3.5-inch drive

7–24

SFF fan shroud

7–29

SFF front drive bezel

7–11

SFF front I/O devices

7–30

SFF hard drive

7–25

SFF heatsink

7–35

SFF memory

7–16

SFF optical drive

7–22

SFF padlock

7–5

SFF power supply

7–39

SFF power switch assembly

7–34

SFF processor

7–36

SFF Smart Cover Lock

7–2

SFF speaker

7–38

SFF system board

7–41

SFF universal chassis clamp lock

7–5

required tools and software

5–7

riser card reference designators

E–1

running tests,Diagnostics for Windows

2–17

S

safety precautions, cleaning

5–5

SATA data cable pinouts

4–2

power cable pinouts

4–2

SATA pin assignments

A–8

screws, correct size

5–8

SCSI pin assignments

A–4

SDRAM (synchronous dynamic random access memory)

F–1

security

Computer Setup heading

2–7

MT

6–2

SFF

7–4

security features mechanical

3–16

Setup (F10)

3–13

serial interface pin assignments

A–3

service considerations

5–7

setup software

1–2

windows

1–1

SFF battery removal and replacement

7–47

cable lock removal and replacement

7–4

cable management

6–12

,

7–13

chassis fan removal and replacement

7–46

chassis, illustrated

5–2

computer cover removal and replacement

7–10

disassembly preparation

7–1

drive bezel inserts

7–12

drive positions

7–21

expansion card removal and replacement

7–19

expansion card retainer removal and replacement

7–18

external 3.5-inch drive removal and replacement

7–24

external security

7–4

FailSafe key

7–2

fan shroud removal and replacement

7–29

front drive bezel removal and replacement

7–11

front I/O devices removal and replacement

7–30

hard drive removal and replacement

7–25

heatsink removal and replacement

7–35

memory removal and replacement

7–16

optical drive removal and replacement

7–22

padlock removal and replacement

7–5

power supply removal and replacement

7–39

power switch assembly removal and replacement

7–34

preparation for disassembly

7–1

processor removal and replacement

7–36

Smart Cover Lock removal and replacement

7–2

speaker removal and replacement

7–38

system board removal and replacement

7–41

tamper-proof screws

7–2

universal chassis clamp lock removal and replacement

7–5

Small Form Factor. See SFF

Smart Cover Lock

SFF removal and replacement

7–2

software

Computer Setup Utilities

2–1

required

5–7

setup

1–2

spare part number wrench, tamper resistant

5–7

speaker

MT removal and replacement

6–32

SFF removal and replacement

7–38

static electricity

5–3

storage, Computer Setup heading

2–5

Subscriber’s Choice

3–4

system board

MT removal and replacement

6–27

reference designators

E–1

SFF removal and replacement

7–41

T

tamper-proof screws

SFF

7–2

tool

5–7

temperature control

5–5

tools, required

5–7

U

Ultra SCSI pin assignments

A–5

universal chassis clamp lock

SFF removal and replacement

7–5

USB pin assignments

A–3

V

ventilation, proper

5–5

W

Wake-on-LAN feature

D–23

warnings battery

5–9

Web sites

Altiris solutions

3–3

Diagnostics for Windows SoftPaq

2–15

Fingerprint Identification technology

3–25

HP

1–1

,

1–3

HPQFlash

3–5

PC Deployment

3–1

Remote ROM Flash

3–4

replicating setup, BIOS utility

3–8

ROM Flash

3–4

software downloads

2–15

support software

3–12

support software CD subscription

1–1

wrench, tamper-resistant

5–7

SFF

7–2
