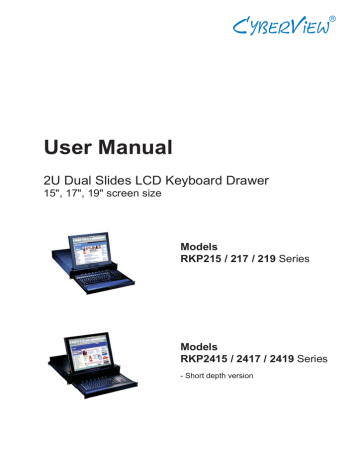

User Manual
2U Dual Slides LCD Keyboard Drawer
15", 17", 19" screen size
Models
RKP215 / 217 / 219
Series
Models
RKP2415 / 2417 / 2419
Series
- Short depth version
Blank page
Contents
Chapter 1 Getting Started
1.1
Important Safeguards..........................................................1
1.2
Regulatory Notice................................................................2
1.3
Package Contents...............................................................3
1.4
Before Installation...............................................................4
1.5
Unpacking...........................................................................4
1.6
Optional Accessories...........................................................4
1.7
Peripheral Products.............................................................5
1.8
Structure Diagram...............................................................5
1.9
Installation..........................................................................6
1.10
How to Use Dual Slide.........................................................7
1.11
Connect to Server via USB Interface..................................8
1.12
Connect to KVM via USB Interface.....................................8
1.13
Connect to Server via PS/2 Interface..................................9
1.14
Connect to KVM via PS/2 Interface....................................9
Chapter 2 Operation
2.1
On-screen Display Operation............................................10
2.2
On-screen Menu...............................................................11
Chapter 3 Standard Specifi cation
3.1
Specifi cations...................................................................12
3.2
Keyboard & Mouse...........................................................13
Chapter 4 Optional Specifi cation
4.1
KVM Options.....................................................................14
4.2
DVI-D Input Option............................................................14
4.3
S-Video + RCA Input Option.............................................14
4.4
S-Video + BNC Input Option.............................................15
4.5
On-screen Menu for DVI, BNC, S-Video & RCA Input......16
4.6
DC power Options.............................................................17
4.7
Touchscreen Options........................................................17
Chapter 5 Troubleshooting
..........................................................18
Chapter 6 Dimensions
......................................................................19
1.1 Important Safeguards
Chapter 1
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
■
Any product, on which the serial number has been defaced, modifi ed or removed.
■
Damage, deterioration or malfunction resulting from:
□
Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi -
cation, or failure to follow instructions supplied with the product.
□
Repair or attempted repair by anyone not authorized by us.
□
Any damage of the product due to shipment.
□
Removal or installation of the product.
□
Causes external to the product, such as electric power fl uctuation or failure.
□
Use of supplies or parts not meeting our specifi cations.
□
Normal wear and tear.
□
Any other causes which does not relate to a product defect.
■
Removal, installation, and set-up service charges.
P.1
1.2 Regulatory Notice
Chapter 1
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions
■
Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■
Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-
ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■
When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■
When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■
Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■
If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■
Observe all precautions and warnings attached to the equipment.
■
If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■
Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fi re or electrical shock.
■
Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equip
ment and invalidate its warranty.
■
If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■
Re-position or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
P.2
1.3 Package Contents
Chapter 1
1 5
User
6
2 3 7 8
4
or
1
7
LCD keyboard drawer x 1 pc
2
3
4
5
Fasteners for rear L-bracket x 4 pcs
330mm rear mounting L-bracket x 1 pair
* RKP215 / 217 / 219 series mounting depth-adjustable from 270 to 870mm
* RKP2415 / 2417 series mounting depth-adjustable from 110 to 710mm
* RKP2419 series mounting depth-adjustable from 150 to 750mm
CB-6 2-in-1 USB KVM cable x 1 pc
User manual x 1 pc
6
Power cord x 1 pc
or
CD-6 3-in-1 PS/2 KVM cable x 1 pc
Auto switch power adapter ( for external power version) x 1pc
8 Key x 2 pcs
P.3
1.4 Before Installation
Chapter 1
■
It is very important to locate the LCD Keyboard Drawer in a suitable environment.
■
The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable
cabinet.
■
Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,
water, moisture and vibration.
■
Position LCD keyboard drawer with respect to related facilities.
1.5 Unpacking
The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.6 Optional Accessories
1. PS/2 3-in-1 KVM cable
1.1 CD-6 6 feet
1.2 CD-10 10 feet
1.3 CD-15 15 feet
1.4 CD-33 33 feet
2. USB 2-in-1 KVM cable
2.1 CB-6 6 feet
2.2 CB-10 10 feet
2.3 CB-15 15 feet
3. SUN / iMAC USB to PS/2 adapter
3.1 SUN-31
4. Extended rear mounting L-bracket
4.1 430mm (16.9") extended rear L-bracket for :
RKP215/217/219 series up to 970mm
RKP2415/2417 series up to 810mm
RKP2419 series up to 850mm
*Extended rear L-bracket in tailor-made length on request
5. Power Cord
5.1 IEC power cord
5.2 NEMA 5-15 power cord (US)
5.3 BS 1363 power cord (UK)
5.4 CEE 7/4 power cord (German)
5.5 AS 3112 power cord (Australia)
P.4
1.7 Peripheral Products
Chapter 1
Item
DB-15 KVM
Model No.
IP-802 / IP-1602
CV-802 / CV-1602
CV-401 / CV-801 / CV-1601
CV-S801 / CV-S1601
Description
8 / 16-port IP PS/2 KVM
8 / 16-port two console PS/2 KVM
4 / 8 / 16-port PS/2 KVM
8 / 16-port USB KVM
Cat5 KVM
KVM Extender
UIP-1602 / UIP-3202
U-1602 / U-3202
U1601 / U3201
IP-101
CV-101
CV-S101
16/ 32-port IP Cat5 KVM
16 / 32-port two console Cat5 KVM
16 / 32-port high density Cat5 KVM
IP KVM extender
Cat5 PS/2 KVM Extender
Cat5 USB KVM Extender
1.8 Structure Diagram
For 15" LCD
1
2
3
1
2
3
SAMSUNG Class A TFT LCD panel
LCD membrane button
Adjustable rear mounting L-bracket
4
5
6
Membrane switch ( KVM option)
Keyboard & mouse
Lock with keys
P.5
4
5
6
1.9 Installation
Chapter 1
Figure 1 . Installing the rear L-bracket to the LCD keyboard drawer.
■
Install each rear L-bracket using two fasteners shown
in Figure 1.
■
Leaving the fasteners slightly loose
Figure 2 . Aligning the rear L-brackets to a suitable length for the rack.
■
Measure the front and rear mounting depth of the
rack.
■
Align each rear L-bracket to a suitable length and
tighten the fasteners shown in Figure 2.
Figure 3 . Fixing the LCD keyboard drawer into the rack.
P.6
■
Fixed the the LCD keyboard drawer into the rack.
* Hardware (screws and cage nuts) for fi xing the
mounting bracket to the rack is not provided.
1.10 How to Use The Dual slide
Chapter 1
Figure 4 . Pulling the handle toward the front of keyboard drawer.
■
Gently pull the handle toward the front of the lower
keyboard drawer (shown in Figure 4).
■
Push the handle toward the front of the upper LCD
drawer (shown in Figure 5).
Figure 5 . Pulling the handle toward the front of LCD drawer.
■
Flip up the LCD to a suitable angle shown in Figure 6.
Figure 6 . Flipping up the LCD to a suitable angle.
Figure 7 . Operating the LCD keyboard drawer.
P.7
■
Operate the LCD keyboard drawer shown in Figure 7.
1.11 Connect to Server via USB Interface
Chapter 1
Figure 8.
Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface
1.12 Connect to KVM via USB Interface
Figure 9.
Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface
Remarks
■
The above connection is only for the LCD keyboard without KVM switch built-in.
■
For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch
user manual.
P.8
1.13 Connect to Server via PS/2 Interface
Chapter 1
Figure 10.
Example of connecting CD-6 3-in-1 PS/2 KVM cable to server via PS/2 interface
1.14 Connect to KVM via PS/2 Interface
Figure 11.
Example of connecting CD-6 3-in-1 PS/2 KVM cable to KVM via PS/2 interface
Remarks
■
The above connection is only for the LCD keyboard without KVM switch built-in.
■
For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.
Caution : The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD keyboard drawer. Before attempting to connect anything to the
LCD keyboard drawer, we suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard is receiving power. The company is not responsible for damage caused in this way.
P.9
2.1 On-screen Display Operation
Chapter 2
15" LCD membrane
17" & 19" LCD membrane
Membrane Switch Function
Power light
Green = On
Orange = Power saving
Power on / off LCD
Display the OSD menu
Scrolls through menu options and adjusts the displayed control
Exit the OSD screen
Shortcut key to auto adjustment by pressing the button for 5 seconds or
Toggle analog, digital & video connection (DVI-D and video options only)
P.10
2.2 On-screen Menu
Chapter 2
MAIN MENU
BRIGHTNESS/CONTRAST
AUTO ADJUST
PHASE/CLOCK
H/V POSITION
MISC
RESET
BRIGHTNESS / CONTRAST
and the foreground (white level).
AUTO ADJUST
Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion. A "Adjusting" message is displayed
during the process.
Auto Tune: Optimize phase, clock, position and size. An "Adjusting" message is displayed during the process.
PHASE/CLOCK
Phase / Clock: To enter into the phase & clock sub menu
H/V POSITION
H/V Position: Align the screen image left or right and up or down.
MISC
OSD Timer: Set the time duration in seconds that the OSD is visible after the last button is pressed. The factory
default is 10 seconds.
Color: Select the screen color - 5500K, 6500K & 9500K. The factory default is 9500 K.
RESET
English, Chinese (中文), Japanese (日本語), German, French, Spanish, Italian
Restore the settings to factory defaults.
P.11
3.1 Specifi cations
Chapter 3
Form Factor
Item Description
1U rack mounting on slide-out rails
LCD Manufacturer
Diagonal Size
Max. Resolution
Brightness (cd/m²)
Color Support
Contrast Ratio (typ.)
Viewing Angle (H/V)
Display Area (mm)
Tr Response Time (ms)
VGA Signal Input
Sync. Type
Resolution
Plug & Play DDC
Console Port (Combo)
Power Input
Power Consumption
Compatilibity
Regulation Approval
15" TFT
1024 x 768
Min. 250
16.2 Mil.
450:1
130˚ x 100˚
304 x 228
3
640 x 350, 70 Hz
720 x 400, 70 Hz
640 x 480, 60/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
1024 x 768, 60/ 70/ 72/ 75 Hz
--
--
17" TFT
1280 x 1024
300
19" TFT
1280 x 1024
300
16.2 Mil.
700:1
150˚ x 135˚
337 x 270
2
Analog RGB, 0.7Vp-p
Separate H/V, Composite, SOG
640 x 350, 70 Hz
16.7 Mil.
1000:1
150˚ x 135˚
376 x 301
1.3
1152 x 864, 60/ 70/ 75 Hz
1280 x 1024, 60/ 70/ 75 Hz
EDID 1.3
720 x 400, 70 Hz
640 x 480, 60/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
1024 x 768, 60/ 70/ 72/ 75 Hz
3-in-1 DB-15 connector for VGA / keyboard /mouse
Support USB & PS/2 servers or KVM Switches
Auto-sensing 100 to 240VAC, 50 / 60Hz
Max. 40 Watt, Standby 5 Watt
Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
FCC, CE
Options
KVM Integration
Keyboard & mouse
Graphic Input
DC Power
Touchscreen
Cat5 & DB-15 KVM with IP console and 2-console selection
Full size keyboard built-in touch-pad / trackball
DVI-D, BNC, S-Video & RCA video input
DC power input with 12V, 24V, 48V selection
Resistive and capacitive type touchscreen selection
Environmental
Operation 0˚ to 50˚C Degree
Storage
Relative Humidity
Shock
Vibration
-5˚ to 65˚C Degree
5~90%, non-condensing
10G acceleration (11ms duration)
5~500Hz 1G RMS random vibration
P.12
3.2 Keyboard & Mouse
Chapter 3
Supporting layouts e Notebook type keyboard with touch-pad mouse
Supporting layouts b Notebook type keyboard with trackball
Supporting layouts only c Cherry keyboard with trackball
Supporting layouts t
Compact keyboard with touch-pad mouse d
Compact keyboard with touch-pad mouse
Remarks
■
All keyboards are applicable to RKP215 / 217 / 219 series
■
Only “e”, “b” & ”c” keyboards are applicable to RKP2415 / 2417 / 2419 series
P.13
4.1 KVM Options
Chapter 4
Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions:
■
For KVM operation, pls refer to "Integrated LCD KVM Switch" user manual
■
Option with high desnsity Cat5 KVM with either 16 or 32 ports
■
Option with cost effi cient DB-15 KVM integration with either 8 or 16 ports
■
Please ask your supplier for full KVM details
4.2 DVI-D Option
Internal power version
External power version
Remarks
■
Package includes a 6' DVI-D cable
DVI-D
3-in-1
VGA KB mouse console port
4.3 S-Video + RCA Input Option
Internal power version
S-Video RCA
3-in-1
VGA KB mouse console port
External power version
Remarks:
■
Package includes an extra 6ft S-Video and 6ft RCA cables
P.14
4.4 S-Video + BNC Input Option
Chapter 4
Internal power version S-Video BNC
3-in-1
VGA KB mouse console port
External power version
Remarks:
■
Package includes an extra 6ft S-Video cable
P.15
4.5 On-screen Menu for DVI, BNC, S-Video & RCA Input
Chapter 4
1. Image
Brightness:
Contrast:
Sharpness:
Saturation:
Hue:
Adjust background black level of the screen image
Adjust the difference between the image background
(black level) and the foreground (white level)
Adjust the image from weak to sharp
Adjust the saturation of the image color
Adjust the screen hue value
2. Geometry
Auto Confi g:
H. Position:
Clock :
Phase:
Adjust automatically sizes, centers, and fi ne tunes the video signal to eliminate waviness and distortion.An “ Adjusting” message is displayed during the process.
Align the screen image left or right
Adjust the clock value
Adjust the phase value
3. Function
OSD Position: Adjust OSD menu horizontal and vertical position
OSD Zoom: Adjust the difference between the image background
(black level) and the foreground (white level).
Color Temp: Select the screen color - 5500K, 6500K & 9500K.
The factory default is 6500 K.
4. System
Language: Select the language in which the OSD menu is displayed -
English, (中文), Japanese (日本語), German,
Time:
Power OFF:
Reset:
French, Spanish, Italian.
Function is not supported
Function is not supported
Recall returns the adjustments back to factory settings.
Note : The current resolution and refresh rate information show on the top right hand side of the screen when the LCD is powered on.
P.16
4.6 DC Power Options
Chapter 4
Model
Input rating
Input voltage:
Input range:
Input current
- No load
- Full load
Output rating
Output voltage:
Output current:
Effi ciency
12V
12-Volt
9 ~ 18V
50 mA
4950 mA
12-Volt
4.16A
84%
24V 48V
24-Volt
18 ~ 36V
50mA
2450 mA
12-Volt
4.16A
85%
48-Volt
36 ~ 75V
50 mA
1220 mA
12-Volt
4.16A
85%
Remarks
■
Package does not include power cord and AC power adapter
■
In RKP2415-1601 / 2417-1601 series, the depth will be extended for 440mm (17.3") to 480mm (18.8")
■
In RKP2419-1601 series, the depth will be extended for 480mm (18.8") to 520mm (20.5")
4.7 Touchscreen Options e-Resistive
Model
Screen size
Interface
Optical transmittance
Surface hardness
Operating system
-15TRB / -15TRS
15"
-17TRB / -17TRS
17"
USB or Serial
-19TRB / -19TRS
82%±5%
≥3H (JIS K5400)
Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
19"
3M Capacitive
Model
Screen size
Interface
Optical transmittance
Surface hardness
Operating system
-15TCB_3M / -15TCS_3M -17TCB_3M / -17TCS_3M -19TCB_3M / -19TCS_3M
15" 17"
USB or Serial
19"
88%
Mohs’ hardness rating: 6
Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
Remarks
■
USB touchscreen package includes an extra 6ft USB cable, quick reference guideline and CD disc
■
Serial touchscreen package includes an extra 6ft serial cable, quick reference guideline and CD disc
■
For detailed information, please refer to the attached CD disc
■
As the touchscreen unit is not made of toughened glass, please handle it carefully.
P.17
5.1 Troubleshooting
Chapter 5
1. How do I adjust the resolution?
To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in
Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are determined by the display card in your computer.
2. Is interference signal appeared on LCD normal when shutting down the computer ?
In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually.
3. The membrane button power light is not ON
Press the power On /Off on LCD membrane button to check if the monitor is in the ON mode.
Check the power cord is properly connected to the LCD keyboard drawer and power outlet.
4. Screen image is not centered or sized properly
Press the button for two seconds to automatically adjust the image.
Adjust the H-position and V-position settings via On-screen menu.
5. Is the LCD keyboard drawer hot-pluggable ?
The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVMs, may not be hot-pluggable. We suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard receives power.
P.18
6.1 Dimensions
Chapter 6
Model
RKP215 series
RKP217 series
RKP219 series
RKP2415 series
RKP2417 series
RKP2419 series
Product Dimension
(W x D x H)
442 x 600 x 88 mm
17.4 x 23.6 x 3.5"
442 x 600 x 88 mm
17.4 x 23.6 x 3.5"
442 x 600 x 88 mm
17.4 x 23.6 x 3.5"
442 x 440 x 88 mm
17.4 x 17.3 x 3.5"
442 x 440 x 88 mm
17.4 x 17.3 x 3.5"
442 x 480 x 88 mm
17.4 x 18.9 x 3.5"
Packing Dimension
(W x D x H)
581 x 753 x 216 mm
22.9 x 29.6 x 8.5"
581 x 753 x 216 mm
22.9 x 29.6 x 8.5"
581 x 753 x 216 mm
22.9 x 29.6 x 8.5"
584 x 601 x 216 mm
23 x 23.7 x 8.5"
584 x 601 x 216 mm
23 x 23.7 x 8.5"
584 x 616 x 216 mm
23 x 24.3 x 8.5"
Net
Weight
17 kg
37 lb
18 kg
40 lb
19 kg
42 lb
17 kg
37 lb
18 kg
40 lb
19 kg
42 lb
Gross
Weight
23 kg
51 lb
24 kg
53 lb
25 kg
55 lb
23 kg
51 lb
24 kg
53 lb
25 kg
55 lb
P.19
Blank page
The company reserves the right to modify product specifi cations without prior notice and assumes no reponsibility for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved.
CV-RKP2-0807V1
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 4 Important Safeguards
- 5 Regulatory Notice
- 6 Package Contents
- 7 Before Installation
- 7 Unpacking
- 7 Optional Accessories
- 8 Peripheral Products
- 8 Structure Diagram
- 10 How to Use Dual Slide
- 11 Connect to Server via USB Interface
- 11 Connect to KVM via USB Interface
- 12 Connect to Server via PS/2 Interface
- 12 Connect to KVM via PS/2 Interface
- 13 On-screen Display Operation
- 14 On-screen Menu
- 15 Specifi cations
- 16 Keyboard & Mouse
- 17 KVM Options
- 17 DVI-D Input Option
- 17 S-Video + RCA Input Option
- 18 S-Video + BNC Input Option
- 19 On-screen Menu for DVI, BNC, S-Video & RCA Input
- 20 DC power Options
- 20 Touchscreen Options
