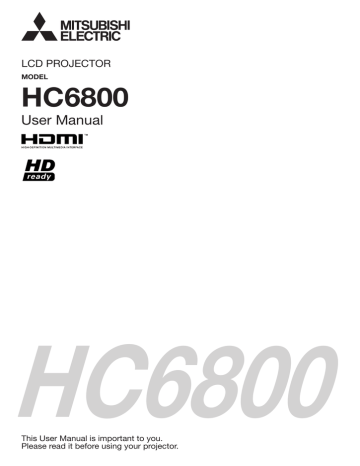

Mitsubishi HC6800 User manual

LCD PROJECTOR
MODEL
HC6800
User Manual
HC6800
This User Manual is important to you.
Please read it before using your projector.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR
THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If
you use another power supply cord, it may cause
interference with radio and television reception.
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN
THE PROJECTOR IS IN THE POWER ON MODE.
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.
EN-2
Contents
Important safeguards ........................................................................................................................4
Preparing your projector....................................................................................................................6
Using the remote control ...................................................................................................................9
Setting up your projector.................................................................................................................10
Viewing video images ......................................................................................................................14
Viewing computer images ...............................................................................................................22
Menu operation ...............................................................................................................................25
Adjusting projected images .............................................................................................................31
Advanced features ..........................................................................................................................35
Replacing the lamp .........................................................................................................................36
Maintenance ....................................................................................................................................39
Troubleshooting ...............................................................................................................................40
Indicators.........................................................................................................................................43
Specifications ..................................................................................................................................44
Trademark, Registered trademark
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
The “HD ready” logo is a trademark of EICTA.
Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3
Important safeguards
10.Power sources
This projector should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power,
please consult your appliance dealer or local power
company.
11.Power-cord protection
Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by items placed upon or against them. Pay
particular attention to cords at plugs, convenience
receptacles, and points where they exit from the
appliance. Do not put the power cord under a
carpet.
12.Overloading
Do not overload wall outlets and extension cords
as this can result in a fire or electric shock.
13.Objects and liquids
Never push objects of any kind through openings of
this projector as they may touch dangerous voltage
points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
projector.
14.Servicing
Do not attempt to service this projector by yourself.
Refer all servicing to qualified service personnel.
15.Damage requiring service
Unplug this projector from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
(a) If the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen
into the projector.
(c) If the projector does not operate normally after
you follow the operating instructions. Adjust
only those controls that are covered by the
operating instructions. An improper adjustment
of other controls may result in damage and
may often require extensive work by a qualified
technician to restore the projector to its normal
operation.
(d) If the projector has been exposed to rain or
water.
(e) If the projector has been dropped or the cabinet
has been damaged.
(f) If the projector exhibits a distinct change in
performance - this indicates a need for service.
16.Replacement parts
When replacement parts are required, be sure
that the service technician has used replacement
parts specified by the manufacturer or parts
having the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
17.Safety check
Upon completion of any service or repair to this
projector, ask the service technician to perform
safety checks determining that the projector is in a
safe operating condition.
Please read all these instructions regarding your
projector and retain them for future reference. Follow
all warnings and instructions marked on the projector.
1. Read instructions
All the safety and operating instructions should be
read before the appliance is operated.
2. Retain instructions
The safety and operating instructions should be
retained for future reference.
3. Warnings
All warnings on the appliance and in the operating
instructions should be adhered to.
4. Instructions
All operating instructions must be followed.
5. Cleaning
Unplug this projector from the wall outlet before
cleaning it. Do not use liquid aerosol cleaners. Use
a damp soft cloth for cleaning.
6. Attachments and equipment
Never add any attachments and/or equipment
without the approval of the manufacturer as such
additions may result in the risk of fire, electric
shock or other personal injury.
7. Water and moisture
Do not use this projector near water or in contact
with water.
8. Accessories
Do not place this projector on an unstable cart,
stand, tripod, bracket or table. Use only with a
cart, stand, tripod, bracket, or table recommended
by the manufacturer or sold with the projector.
Any mounting of the appliance should follow
the manufacturer’s instructions and should use
a mounting accessory recommended by the
manufacturer.
An appliance and cart combination should be
moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and cart
combination to overturn.
9. Ventilation
Slots and openings in the cabinet are provided
for ventilation, ensuring reliable operation of the
projector and to protect it from overheating. Do not
block these openings or allow them to be blocked
by placing the projector on a bed, sofa, rug, or
bookcase. Ensure that there is adequate ventilation
and that the manufacturer’s instructions have been
adhered to.
EN-4
Important safeguards (continued)
WARNING:
other equipment. Also, do not set the projector on the
desk which is easily affected by heat.
Unplug immediately if there is something wrong
with your projector.
Do not operate if smoke, strange noise or odor comes
out of your projector. It might cause fire or electric
shock. In this case, unplug immediately and contact
your dealer.
Do not look into the air outlet grille when projector
is operating.
Heat, dust, etc. may blow out of it and hurt your eyes.
Do not block the air inlet and outlet grilles.
If they are blocked, heat may be generated inside the
projector, causing deterioration in the projector quality
and fire.
Never remove the cabinet.
This projector contains high voltage circuitry. An
inadvertent contact may result in an electric shock.
Except as specifically explained in the User Manual do
not attempt to service this product by yourself. Please
contact your dealer when you want to fix, adjust or
inspect the projector.
Do not use flammable solvents (benzene, thinner,
etc.) and flammable aerosols near the projector.
Flammable substances may ignite causing fire or
breakdown because the temperature inside the
projector rises very high while the lamp is illuminating.
Do not modify this equipment.
It can lead to fire or electric shock.
Do not use the projector with condensation on it.
It can lead to breakdown or other failure.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is
damaged, unplug the projector and contact your
dealer for inspection. It may lead to fire if you keep
using the damaged projector.
Place of installation
For safety’s sake, refrain from setting the projector
at any place subjected to high temperature and high
humidity. Please maintain an operating temperature,
humidity, and altitude as specified below.
• Operating temperature: between +41°F (+5°C) and
+95°F (+35°C)
• Operating humidity: between 30% and 90%
• Never put any heat-producing device under the
projector so that the projector does not overheat.
• Do not attach the projector to a place that is
unstable or subjected to vibration.
• Do not install the projector near any equipment that
produces a strong magnetic field. Also refrain from
installing near the projector any cable carrying a
large current.
• Place the projector on a solid, vibration free surface;
otherwise it may fall, causing serious injury to a
child or adult, and serious damage to the product.
• Do not stand the projector; it may fall, causing
serious injury and damage to the projector.
• Slanting the projector more than ±10°(right and
left) or ±15°(front and rear) may cause trouble or
explosion of the lamp.
• Do not place the projector near air-conditioning
unit, heater, or humidifier to avoid hot or moist air to
the exhaust and ventilation hole of the projector.
Do not face the projector lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven surface.
Place the projection on a leveled and stable surface only.
Please do not place equipment on unstable surfaces.
Do not look into the lens when it is operating.
It may hurt your eyes. Never let children look into the
lens when it is on.
Do not unplug the power cord during operation.
It can lead to lamp breakage, fire, electric shock or
other trouble. It is best to wait for the fan to turn off
before turning the main power off.
Do not touch the air outlet grille and bottom plate,
which become hot.
Do not touch them or put other equipment in front
of the air outlet grille. The air outlet grille and bottom
plate, when heated, may cause injury or damage to
EN-5
Preparing your projector
Checking accessories
The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in
the package.
„ Cables
„ Power supply parts
Mini D-SUB
15-pin
D-SUB
9-pin
Mini D-SUB
15-pin
D-SUB
9-pin
Power cord (two)
(246C483-10, 246C383-20)
RS-232C cable
(246C598-10)
RGB cable for PC
(246C597-10)
• Used for projector control
by computer.
„ Remote control parts
„ Others
•
•
•
•
Lens cap
Clamper
Lamp replacement tray
User Manual/Quick Start up (English
only)
• CD-ROM (with User Manual)
• Safety Manual/Quick Start up
Remote control
(290P158-20)
R6 (Size-AA)
battery (two)
Important:
• The attached power cords are to be used exclusively for this product. Never use them for other products.
Inserting the batteries into the remote control
1
3
2
1. Remove the back lid of the remote control.
2. Check the polarity (+), (-) of the batteries, and set them
correctly, inserting their (-) side first.
• If the battery is inserted from the (+) side first, inserting
the (-) side is difficult because the coil spring end hits
on the battery side. If the battery is forced in this way,
the outer label of the battery may get ripped and it may
cause a short-circuit and heating.
3. Attach the back lid.
Important:
• Use two size-AA batteries (R6).
• Replace the two batteries with new ones when the remote
control is slow to respond.
Removing the batteries from the remote control
Remove the back lid of the remote control and take out the
batteries.
Caution:
• Use of a battery of wrong type may cause explosion.
• Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.
• Dispose of used batteries according to your local regulations.
• Batteries may explode if misused. Do not recharge, disassemble, or throw them in fire.
• Be sure to handle the batteries according to the instructions.
• Load the batteries with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.
• Keep batteries out of reach of children and pets.
• Remove the batteries, if the remote control is not used for a long time.
• Do not combine a new battery with an old one.
• If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in
contact with your eyes, rinse them with water and then consult your doctor.
EN-6
Preparing your projector (continued)
Overview
1
2
3
4
5
6
7
8
9
3
1
2
Remote control sensor (front)
Lens
Right side panel (air inlet grille/filter)
Indicator area
Control panel
Terminal panel
Kensington Security Lock Standard connector
Remote control sensor (rear)
Left side panel (air outlet grille/lamp cover)
5
Attaching the lens cap
4
�
�
6
7
8
To attach the supplied lens
cap, push it into the lens
section of the projector ()
and then turn it clockwise ().
(For removal, turn it
counterclockwise.)
9
Indicator area
1 STATUS indicator
2 POWER indicator
1
2
Control panel
1
2
3
1
2
3
4
5
6
7
8
9
4
5 6 7
POWER button
HDMI/COMPUTER/t button
AUTO POSITION/p button
LENS SHIFT button
MENU button
ENTER button
q button
ZOOM/FOCUS button
VIDEO/u button
8 9
Terminal panel
1
2
3
4
5
6
8
7
9
1 VIDEO IN and S-VIDEO IN terminals
2 COMPONENT VIDEO IN terminals
3 COMPUTER IN/COMPONENT VIDEO IN terminal (mini
D-SUB 15-pin)
4 HDMI IN-1 terminal (HDMI 19-pin)
5 HDMI IN-2 terminal (HDMI 19-pin)
6 SERIAL terminal (D-SUB 9-pin)
• Used for projector control by computer. Contact your
dealer for details.
7 TRIGGER terminal
• Used for the optional electric screen.
8 Main power switch
O: OFF
I: ON
9 Power jack
EN-7
Preparing your projector (continued)
Bottom side
1
Remote control
24
1
2
3
4
23
22
21
20
5
6
19
7
8
9
10
11
18
17
16
15
14
13
12
1 Adjustment feet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
ON ( I ) button
HDMI2 button
HDMI1 button
COMPONENT button
AV MEMORY buttons
ENTER button
MENU button
CONTRAST button*
BRIGHTNESS button*
GAMMA button*
ZOOM/FOCUS button
LENS SHIFT button
NOISE REDUCTION button*
COLOR button*
SHARPNESS button*
COLOR TEMP. button*
ASPECT button
AUTO IRIS button
p, q, t, u buttons
VIDEO button
S-VIDEO button
COMPUTER button
AUTO POSITION button
OFF ( ) button
* : See below for the picture quality adjusting buttons.
Important:
When you press any button on the remote control, the buttons on the remote control are lit. Wait approx. 6 seconds
after releasing the button to turn them off.
Using the picture quality adjusting buttons
When you press any of the picture quality adjusting buttons, the screen for adjusting the picture quality appears.
Adjust the picture quality by pressing the t and u buttons. The picture quality adjustment can be made alternatively
in the IMAGE menu. (See page 26.) Items in the menus are shown in parentheses below.
CONTRAST (CONTRAST) ................ Adjusts the contrast of the projected image.
BRIGHTNESS (BRIGHTNESS) ......... Adjusts the brightness of the projected image.
COLOR TEMP. (COLOR TEMP.) ....... Selects one of the preset color temperatures. Adjustment of USER mode is also
available. (See page 32.)
GAMMA (GAMMA MODE) ................ Selects one of the preset gamma mode. Adjustment of USER mode is also
available. (See page 33.)
SHARPNESS (SHARPNESS) ............ Adjusts the sharpness of the projected image.
COLOR (COLOR).............................. Adjusts the color thickness of the projected image.
NOISE REDUCTION (TRNR, MNR, BAR) ... Adjusts the TRNR, MNR and BAR of the projected image. (See page 33.)
EN-8
Using the remote control
Operational range of the remote control
Front of projector
30°
Rear of projector
30°
30°
30°
Operate the remote control
within a distance of 10 m
(30 feet) from the projector,
pointing the IR beam at the
remote control photo-sensor
(front or rear) of the projector.
• Keep the remote control photo-sensor out of direct
sunlight or fluorescent lamp light.
• Keep the remote control photo-sensor at least 2 m
(6 feet) away from fluorescent lamps. Otherwise,
the remote control may malfunction.
• If there is an inverter-operated fluorescent lamp
near the remote control, the remote control
operation may become unstable.
• When you use the remote control too close to the
remote control sensor, the remote control may not
work correctly.
When operating the remote control, keep the distance
from the remote control to the projector via the screen
within about 5 m (15 feet). The operable range of the
remote control, however, depends on the characteristics
of the screen.
Reception angle
Vertical directions
20°
10˚
20°
10°
Vertical directions (ceiling mount)
20°
20°
EN-9
Setting up your projector
Setting up the screen
Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the
projection angle of the projector. (See page 12.)
• Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of
the screen center.
• Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen
makes the projected images washed-out and hard to view.
SCREEN SIZE
You can keep the image display area within the screen by setting SCREEN SIZE in the ADVANCED MENU of IMAGE
menu according to the aspect ratio of the actual screen. Select 16:9 when the aspect ratio of the screen is 16:9 or
4:3, and select CINEMA SCOPE (2.35:1) when the aspect ratio is 2.35:1 (CinemaScope).
When setting SCREEN SIZE to CINEMA SCOPE (2.35:1):
• CinemaScope size movies are projected in the full screen.
• Set ASPECT in the FEATURE menu to 16:9 when displaying Vista-size images. In this case, they are squeezed
horizontally.
• When ASPECT in the FEATURE menu is set to AUTO and 480i/p, 576i/p, 720p, or 1080i/p signal is input, the part
for displaying subtitles is not projected. To display subtitles, reset SCREEN SIZE to 16:9 and adjust the image
position using VERTICAL LOCATION in the ADVANCED MENU of the IMAGE menu. (To display the menu on the
screen, adjust SHUTTER(U) in the SIGNAL - USER menu to position the menu.)
Screen size and projection distance
Refer to the following tables to determine the screen size and projection distance.
• The figures in the tables are approximate and may be slightly different from the actual measurements.
Screen width (SW)
Screen
H1
50%
50%
H1
Screen height (SH)
Down side
Up side
L
Left side
Right side
W1 W1
When the aspect ratio of the screen is 16:9
Screen size
Diagonal size Height (SH)
inch
50
60
70
80
90
100
110
120
150
200
250
300
cm
127
152
178
203
229
254
279
305
381
508
635
762
inch
25
29
34
39
44
49
54
59
74
98
123
147
cm
62
75
87
100
112
125
137
149
187
249
311
374
Projection distance (L)
Lens movable range
Width (SW) Shortest (Wide) Longest (Tele)
inch
44
52
61
70
78
87
96
105
131
174
218
261
cm
111
133
155
177
199
221
244
266
332
443
553
664
inch
60
73
85
98
110
123
135
148
185
248
311
373
m
1.5
1.8
2.2
2.5
2.8
3.1
3.4
3.8
4.7
6.3
7.9
9.5
inch
98
118
138
157
177
197
217
237
297
397
497
597
m
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7.6
10.1
12.6
15.2
H1
inch
18
22
26
29
33
37
40
44
55
74
92
110
W1
cm
47
56
65
75
84
93
103
112
140
187
233
280
inch
2
3
3
3
4
4
5
5
7
9
11
13
cm
6
7
8
9
10
11
12
13
17
22
28
33
• Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the
case of “16:9.”
• Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake
vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.
EN-10
Setting up your projector (continued)
Screen size and projection distance (continued)
Screen width (SW)
Screen
H1
50%
50%
H1
Screen height (SH)
Down side
Up side
L
Left side
Right side
W1 W1
When the aspect ratio of the screen is 4:3
Screen size (4:3)
Diagonal size Height (SH)
inch
50
60
70
80
90
100
110
120
150
200
250
300
cm
127
152
178
203
229
254
279
305
381
508
635
762
inch
30
36
42
48
54
60
66
72
90
120
150
180
cm
76
91
107
122
137
152
168
183
229
305
381
457
Size of the projected image (16:9)
Width (SW)
inch
40
48
56
64
72
80
88
96
120
160
200
240
B
When the aspect ratio of the image is 16:9
cm
102
122
142
163
183
203
224
244
305
406
508
610
Height (H)
inch
23
27
32
36
41
45
50
54
68
90
113
135
cm
57
69
80
91
103
114
126
137
171
229
286
343
Width (W)
inch
40
48
56
64
72
80
88
96
120
160
200
240
H
SH
When the aspect ratio of the screen is 4:3, the positional relation between the
projected image and the screen is as shown on the right. Refer to the following
table for installation.
B
SW (=W)
cm
102
122
142
163
183
203
224
244
305
406
508
610
Black
Projection distance (L)
space (B) Shortest (Wide) Longest (Tele)
inch
4
5
5
6
7
8
8
9
11
15
19
23
cm
10
11
13
15
17
19
21
23
29
38
48
57
inch
55
66
78
89
101
112
124
135
170
227
285
342
m
1.4
1.7
2.0
2.3
2.6
2.9
3.1
3.4
4.3
5.8
7.2
8.7
inch
89
108
126
144
163
181
199
218
273
365
456
548
m
2.3
2.7
3.2
3.7
4.1
4.6
5.1
5.5
6.9
9.3
11.6
13.9
Lens movable range
H1
inch
17
20
24
27
30
34
37
41
51
68
84
101
W1
cm
43
51
60
69
77
86
94
103
129
171
214
257
inch
2
2
3
3
4
4
4
5
6
8
10
12
cm
5
6
7
8
9
10
11
12
15
20
25
30
• Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the
case of “16:9.”
When the aspect ratio of the screen is 2.35:1 (CinemaScope)
Screen size (2.35:1)
Diagonal size Height (SH)
inch
100
110
120
130
140
150
160
170
180
190
200
cm
254
279
305
330
356
381
406
432
457
483
508
inch
39
43
47
51
55
59
63
66
70
74
78
cm
99
109
119
129
139
149
159
169
179
189
199
Projection distance (L)
Lens movable range
Width (SW) Shortest (Wide) Longest (Tele)
inch
92
101
110
120
129
138
147
156
166
175
184
cm
234
257
281
304
327
351
374
397
421
444
468
inch
130
143
156
169
183
196
209
222
236
249
262
m
3.3
3.6
4.0
4.3
4.6
5.0
5.3
5.6
6.0
6.3
6.7
inch
209
230
251
272
293
314
335
356
377
399
420
m
5.3
5.8
6.4
6.9
7.4
8.0
8.5
9.1
9.6
10.1
10.7
H1
inch
39
43
47
50
54
58
62
66
70
74
78
W1
cm
99
108
118
128
138
148
158
168
178
187
197
inch
5
5
6
6
6
7
7
8
8
9
9
cm
12
13
14
15
16
18
19
20
21
22
23
• Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the
case of “CINEMA SCOPE (2.35:1).”
EN-11
Setting up your projector (continued)
Adjusting the position of the projected image
To adjust the position of the projected image on the screen, use the LENS SHIFT button.
1. Press the LENS SHIFT button.
• The LENS SHIFT menu appears at the center of the screen.
2. Press the p, q, t or u button to move the image position.
LENS SHIFT
• When the q button is pressed, the image moves down.
FAST
• When the p button is pressed, the image moves up.
SELECT : ENTER
• When the u button is pressed, the image moves to the right.
• When the t button is pressed, the image moves to the left.
• When the ENTER button is pressed while the LENS SHIFT menu is displayed, the shift mode can be switched
between FAST and STEP. When FAST is selected, the lens shifts in a large amount with the p, q, t or u button,
and it shifts in a small amount when STEP is selected.
• When the LENS SHIFT menu is displayed while no video signal is input to the projector, a crosshatch appears on
the entire screen.
• Be careful not to be caught in the opening in the lens while the lens is moving.
• When the lens is vertically shifted by a large amount, color separation may occur.
• While the lens shift is working, the screen may flicker.
Correcting skewed or distorted image
For the best projection, project images on a flat screen installed at 90 degrees
to the floor. If necessary, tilt the projector using the two adjustment feet on the
bottom of the projector.
1. Tilt up the projector to the appropriate angle.
2. Rotate the adjustment feet for fine adjustment.
Screen
Adjustment feet
Important:
Don’t transport the projector with its adjustment feet extended. Otherwise the adjustment feet may be damaged.
When fine streaks are seen on projected images
This is due to interference with the screen surface and is not a malfunction. Replace the screen or displace the focus
a little. (See page 18 or 23 for focus adjustment.)
When projected images are distorted to a trapezoid
When the screen and the projector are not placed perpendicularly to each other, projected images become
trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments,
adjust keystone.
With the INSTALLATION menu:
(See page 26 for menu setting.)
1. Display the INSTALLATION menu.
2. Select KEYSTONE by pressing the p or q button.
3. Equalize the widths at the top and bottom of the screen by pressing the t or
u button, viewing the screen.
To cancel the menu:
4. Press the MENU button several times.
opt.
INSTALLATION
KEYSTONE
LAMP MODE
ON
AUTO POWER
ON
AUTO POWER
OFF
SPLASH
SCREEN
BACK COLOR
Press
the t
button.
REVERSE
AV MEMORY 1
0
STANDARD
OFF
OFF
ON
PressBLUE
the
button.
u
OFF
OFF at the
• The best adjustment result can be obtained when the lens is positioned at the center TRIGGER
of theOUT
lateral direction
PATTERN
top in the longitudinal direction. Before performing the keystone adjustment, reset theTEST
lens
position toCROSS
the HATCH
default
LOCK SHIFT (see page
OK
position by using LENS SHIFT RESET (see page 27) and then move it to the top usingLENS
LENS
10).
• When the keystone adjustment is carried out, the adjustment value is indicated. Note that this value doesn’t mean
a projection angle.
• When the keystone adjustment takes effect, the resolution decreases. In addition, stripes may appear or straight
lines may bend in images with complicated patterns. They are not due to product malfunctions.
• When the keystone adjustment is carried out, the image may not be displayed correctly because of the type of
input signal.
• When the keystone adjustment is performed, the displayed image may be distorted.
• Depending on the installation conditions of the projector and the screen, a perfect rectangular image and the
proper aspect ratio may not be obtained.
EN-12
Setting up your projector (continued)
Front projection, ceiling mounting
Important:
• We don’t recommend using the projector at an
altitude of 1500 meters or higher. Use at an altitude of
1500 meters or higher may affect the projector’s life.
For ceiling mounting,
you need the ceiling
mount kit designed
for this projector.
Ask a specialist for
installation. For details,
consult your dealer.
• The warranty on this projector does not cover any
damage caused by use of any non-recommended
ceiling mount kit or installation of the ceiling mount
kit in an improper location.
• When using the projector mounted on the ceiling,
set IMAGE REVERSE in the INSTALLATION menu
to MIRROR INVERT. See page 27.
• When the projector is mounted on the ceiling,
images may appear darker than those projected in
the case of tabletop mounting. This isn’t a product
malfunction.
• Ask your installation specialist to provide an A/C
power switch. When you do not use the projector,
be sure to shut down the main power by the
switch.
• Do not install the projector where the exhaust vents
are exposed to air emitted by an air conditioning.
Such installation may cause a breakdown.
• Do not install the projector near a fire alarm
because it emits hot air from its exhaust vents.
TRIGGER terminal
The TRIGGER terminal on the rear of the projector
is a terminal that outputs a 12 V signal to control an
externally connected device (electric screen) when
images are projected.
TRIGGER
To externally
connected device
Ring (NC)
Tip (12 V)
(Ground 0 V)
To use the TRIGGER terminal, set TRIGGER OUT to
SCREEN or ANAMORPHIC in the INSTALLATION
menu. (The factory default is OFF. See page 27 for
details.) Use the following steps to change the setting.
Rear projection
With the INSTALLATION menu:
(See page 26 for menu setting.)
1. Display the INSTALLATION menu.
2. Select TRIGGER OUT by pressing the p or q
button.
3. Select SCREEN or ANAMORPHIC by pressing the
t or u button.
Ask a specialist for
installation. For details,
consult your dealer.
• For rear projection,
set IMAGE
REVERSE in the
INSTALLATION menu to MIRROR. See page 27.
To cancel the menu:
4. Press the MENU button.
Caution:
• Placing the projector directly on a carpet impairs
ventilation by the fans, causing damage or
failure. Put a hard board under the projector to
facilitate ventilation.
• Place the projector at least 50 cm (or 20 inch)
away from the wall to prevent the air inlet grille
and the air outlet grilles that emit hot air from
being blocked.
• Do not use the projector in the following
locations and manners, which may cause fire or
electric shock.
• In a dusty or humid place.
• In a sideways position, or with the lens facing
down.
• Near a heater.
• In an oily, smoky, or damp place such as a kitchen.
• In direct sunlight.
• Where the temperature rises high, such as in
a closed car.
• Where the temperature is lower than +41ºF
(or +5ºC) or higher than +95ºF (or +35ºC ).
Caution:
• Do not use the signal output from the TRIGGER
terminal as a power for other devices.
• Do not link the TRIGGER terminal with an audio
terminal of other device because that device may
be damaged.
• The rated current for the TRIGGER terminal is
200 mA. If you use a current exceeding this rating,
a failure may occur.
• For information about electric screens, please
contact screen manufacturers.
EN-13
Viewing video images
A. Connecting the projector to video equipment
• When the projector and the connected devices are located too close to each other, the projected image may be
affected by their interference.
• See the owner’s guide of each device for details about its connections.
Preparation:
• Make sure that the power of the projector and that of the video equipment are turned off.
Basic home theater system connection
Video player
DVD player
Set-top box or digital tuner
EN-14
Viewing video images (continued)
Connecting to a video player, etc.
Video player, or the like
Video cable (option)
1 To VIDEO
2
IN terminal
To video output
terminal
Video player, or the like
S-video cable (option)
1
1. Connect one end of the optional video cable to the
VIDEO IN terminal of the projector.
2. Connect the other end of the video cable to the video
output terminal of the video equipment.
2
To S-VIDEO
IN terminal
When the video equipment is equipped with the
S-video output terminal, make the connection as
follows:
1. Connect one end of the optional S-video cable to the
S-VIDEO IN terminal of the projector.
2. Connect the other end of the S-video cable to the Svideo output terminal of the video equipment.
To S-video
output terminal
• Also read the instruction manual of the equipment to be connected.
• Contact your dealer for details of connection.
When a TV tuner or VCR is connected:
When you use this projector with a TV tuner or VCR connected, no image may appear or a message of NO SIGNAL
may appear on the screen when you change the channel via any channel that is not being received. In such a case,
set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip
function (that is a function not to display channels that are not being received) enabled.
Connecting to a DVD player or HDTV decoder
To connect this projector to video equipment that has component video output terminals, such as a DVD player, use
the COMPONENT VIDEO IN terminals.
Y
Component cable (option)
Y
PR/CR
PB/CB
PR/CR
PB/CB
Y
DVD player or HDTV decoder
The terminal’s names Y, PB, and PR are given as examples of when a HDTV decoder is connected.
The terminal’s names vary depending on the connected devices.
Images may not be projected correctly depending on the type of the DVD player you use.
Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
• When connecting a HDTV decoder having RGB output terminals, set COMPUTER INPUT to RGB in the SIGNAL
menu.
•
•
•
•
EN-15
Viewing video images (continued)
Connecting to video equipment having a HDMI terminal
You can project high-quality images by connecting the HDMI IN terminal of this projector to video equipment having
a HDMI output terminal. In addition, this projector supports HDCP and is able to receive encrypted digital video data
that are output from DVD players.
• Select HDMI as the input source.
• HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital
video data for the purpose of copy protection.
• HDMI (High-Definition Multimedia Interface) is fully backward compatible with computers, displays and consumer
electronics devices incorporating the DVI standards.
• This projector can be linked with video devices equipped with HDMI output terminal. However, with some of them,
this projector may not display any image or not operate correctly.
• If this projector doesn’t display any image or not operate correctly, see the operation manual of the video device
for its connection.
• When you use the video equipment other than HDMI conformity product, the image may not be projected
properly.
• Use of a long cable may decrease the quality of projected images.
Connection (for video equipment having an HDMI terminal)
• Use a commercially available HDMI (with HDMI logo) cable.
• Some cables may not be connected correctly depending on the size and shape of their connectors.
Equipment having an
HDMI terminal
Audio cable (option)
To audio output
To audio input
terminals
terminals
To HDMI terminal
To HDMI IN-1 or HDMI IN-2 terminal
HDMI (with HDMI logo) cable (option)
• When using the supplied clamper to secure the cable, attach it as shown below.
Affix the clamper to
the projector.
When you connect this projector and a Digital device (such as a DVD player) via the HDMI terminal, black
color may appear dark and deep, depending on the type of the connected device.
• This depends on the black level setting of the connected device. There are two kinds of methods to digitally
transfer image data, in which different black level settings are employed respectively. Therefore, the specifications
of the signals output from DVD players differ, depending on the type of the digital data transfer method they use.
• Some DVD players are provided with a function to switch the methods to output digital signals. When your DVD
player is provided with such function, set it as follows.
EXPAND or ENHANCED  NORMAL
• See the users guide of your DVD player for details.
• Set INPUT LEVEL of ADVANCED MENU in the IMAGE menu depending on the device to be used.
EN-16
Viewing video images (continued)
B. Plugging in the power cord
• In order to ensure the safety in case of trouble with the projector, use an electrical outlet having an earth leakage
breaker to supply the power to the projector. If you do not have such outlet, ask your dealer to install it.
1. Plug the attached power cord into the power cord
inlet of this projector.
2. Plug the other end of the power cord into a power
outlet.
Earthing
terminal
2
1
Power cord (example)
• The power cords for use in the U.S. and Europe are included with this projector. Use the appropriate one for your
country.
• This projector uses the power plug of three-pin grounding type. Do not take away the grounding pin from the
power plug. If the power plug doesn’t fit your wall outlet, ask an electrician to change the wall outlet.
• The provided power cord for the U.S. is rated at 120 V. Never connect this cord to any outlet or power supply
using other voltages or frequencies than rated. If you use a power supply using other voltage than rated, prepare
an appropriate power cord separately.
• Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.
• Do not place any objects on the power cord or do not place the projector near heat sources to prevent damage to
the power cord. If the power cord should be damaged, contact your dealer for replacement because it may cause
fire or electric shock.
• Do not modify or alter the power cord. If the power cord is modified or altered, it may cause fire or electric shock.
Caution:
• Plug in the power cord firmly. When unplugging, hold and pull the power plug, not the power cord.
• Do not plug in or out the power cord with your hand wet. It may cause electric shock.
EN-17
Viewing video images (continued)
C. Projecting images
Preparation:
• Remove the lens cap.
p, q, t, u buttons
ENTER button
HDMI/COMPUTER button
LENS SHIFT button
VIDEO button
ZOOM/FOCUS button
ON ( I ) button
HDMI1 button
COMPONENT button
HDMI2 button
S-VIDEO button
VIDEO button
ENTER button
p, q, t, u buttons
POWER button
ZOOM/FOCUS button
LENS SHIFT button
POWER indicator
STATUS indicator
1. Put the projector into standby mode by pressing the main power switch. The POWER indicator lights up red.
• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating
and the POWER button may not work after the main power switch is turned ON. (The STATUS indicator blinks
green.) After the fan stops rotating, press the POWER button to turn back on the POWER indicator.
2. Turn on the power of the connected video equipment.
3. Press the POWER button on the projector or ON ( I ) button on the remote control.
• It may take about one minute for the lamp to light up.
• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
• Do not cover the lens with the lens cap while the lamp is on.
• After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a
product malfunction.
• The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW LAMP
MODE has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.
• The projector starts warming up when the POWER button is pressed. During the warm-up process, images
may appear dark and no commands are accepted.
• By blinking red, the STATUS indicator indicates that the lamp should be replaced soon. Replace the lamp when
the STATUS indicator blinks red. (See page 42.)
4. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS”.
5. Adjust with the t or u button to get a fine picture.
• When the ENTER button is pressed while “FOCUS” is displayed, the adjustment mode is switched between
FAST and STEP. When FAST is selected, the speed of focus controlled by the t or u button becomes fast,
and it becomes slow when STEP is selected.
6. Select an input source.
• Press the VIDEO or HDMI/COMPUTER button on the projector or the VIDEO, S-VIDEO, COMPONENT, HDMI1
or HDMI2 button on the remote control that is corresponding to the terminal in use.
• The input source is switched between VIDEO, S-VIDEO and COMPONENT every time you press the VIDEO
button on the projector.
• The input source is switched between COMPUTER, HDMI1 and HDMI2 every time you press the HDMI/
COMPUTER button on the projector.
• The projector automatically selects the appropriate signal format. (The selected signal format is displayed on
the INFORMATION menu.)
• You cannot change the input source while the menu is being displayed.
• Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
• Some images become easier to view when the setting of aspect ratio is changed. (See page 20.)
• When this projector is connected with an HDMI device supporting HDCP, such as a DVD player, image is not
displayed correctly at the time of switching the input source on rare occasions. In such cases, switch to other
input source and then switch back to the HDMI input source.
• When COMPONENT is chosen as the source, images supplied from the computer may flicker. Press the t or
u button on the remote control to reduce flicker, if it occurs. (Fine adjustment)
7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in
their specified sizes.
8. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page 10.)
9. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS” and then press the
button again to display “ZOOM.”
EN-18
Viewing video images (continued)
10.Adjust with the t or u button to get an approximate size.
• When the ENTER button is pressed while “ZOOM” is displayed, the adjustment mode is switched between
FAST and STEP. When FAST is selected, the speed of zoom controlled by the t or u button becomes fast,
and it becomes slow when STEP is selected.
11.Press the LENS SHIFT button. The LENS SHIFT menu appears at the center of the screen.
12.Press the p or q button to adjust the vertical position and t or u button to adjust the horizontal position of the
displayed image.
• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page 10.)
Repeat steps 4 to 5 and 9 to 12, if necessary.
To stop projecting:
OFF ( ) button
POWER button
POWER indicator
STATUS indicator
13.Press the POWER button on the projector or the OFF ( ) button on the remote control.
• A confirmation message is displayed.
• To cancel the procedure, leave the projector for a while or press the MENU button.
14.Press the POWER button on the projector or the OFF ( ) button on the remote control again.
• The lamp goes out and the projector goes into a standby mode. In this standby mode, the STATUS indicator
blinks green.
15.Wait about 2 minutes.
• During this period of 2 minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.
• The lamp can’t be lit again for 1 minute after turning off the projector for safety purpose. It will take another 1
minute for the STATUS indicator to go out. If you want to turn on the projector again, wait until the indicator
goes out, and then press the POWER button.
• The air outlet fans rotate faster as the temperature around the projector rises.
• Do not turn off the main power switch or unplug the power cord while the STATUS indicator is blinking. Turning
off the main power switch or unplugging the power cord immediately after use may cause a breakdown.
• Though the fan makes loud sound during cooling, such symptom is not a malfunction.
16.Turn off the main power switch.
• The POWER indicator will go out.
• If the main power switch should be turned off or the power cord should be unplugged accidentally while either
the air inlet fan or the air outlet fans are operating or the lamp is on, allow the projector to cool down for 10
minutes with the power off. To light the lamp again, press the POWER button. If the lamp doesn’t light up
immediately, repeat pressing the POWER button 2 or 3 times. If it should still fail to light up, replace the lamp.
• Cover the lens with the lens cap to protect it from dust.
• For safety’s sake, unplug the power cord from the outlet.
EN-19
Viewing video images (continued)
Setting the aspect ratio
You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the
setting according to the type of the input video signal.
: Signal size
: Image area
Setting
4:3
Aspect ratio
changes
depending on the
input signal.
Original image size
16:9
ZOOM1
ZOOM2
STRETCH
Squeezed image is
expanded to 16:9.
CinemaScope image
is enlarged and
displayed together
with subtitles.
Vista image is
enlarged and
displayed together
with subtitles.
Image is enlarged
to 16:9 while the
center aspect ratio
remains unchanged.
ANAMORPHIC1 ANAMORPHIC2
This mode is suitable
for viewing 2.35:1size images using the
anamorphic lens.
This mode is suitable for
viewing 16:9- or 4:3-size
images or images input
from personal computers
using the anamorphic lens.
480i, 576i,
480p, 576p
4:3 image
(480i, 576i,
480p, 576p,
and PC)
PC signal
Squeezed 4:3
(480i, 576i,
480p, 576p)
4:3
CinemaScope
(480i, 576i,
480p, 576p)
Sub Title
Sub Title
Sub Title
Sub Title
Sub Title
Sub Title
Sub Title
Sub Title
4:3 Vista
(480i, 576i,
480p, 576p)
16:9 image
(720p, 1080i,
1080p)
2.35:1 image
• Bold frames are recommended modes.
• When ASPECT is set to AUTO, an optimum aspect ratio is automatically selected depending on the input signal.
• When ASPECT is set to ZOOM1, ZOOM2 or ANAMORPHIC1, display position can be changed with p or q
button on the remote control.
• OVER SCAN in the SIGNAL menu is not available in the STRETCH mode.
• Display pattern changes according to the setting of SCREEN SIZE in the IMAGE menu. The table above is in the
case of “16:9.”
• This projector is equipped with a function to change the aspect ratio. If you select an aspect ratio that is
inconsistent with that of the input signal, images around the screen edges may be hidden or deformed. When
viewing original video works reflecting the authors’ intentions, you are recommended to keep their aspect ratios
unchanged.
• It may be an infringement of the rights protected by the copyright law to project images compressed or enlarged
by changing the aspect ratio in public areas, such as inside and outside shops and hotels, for commercial or
public viewing purposes.
• When SCREEN SIZE of ADVANCED MENU is set to CINEMA SCOPE(2.35:1) in the IMAGE menu, STRETCH,
ANAMORPHIC1 and ANAMORPHIC2 cannot be selected for ASPECT.
EN-20
Viewing video images (continued)
How to change the settings:
With the remote control:
1. Press the ASPECT button.
• The screen for selecting the aspect ratio appears.
2. Select your desired aspect ratio by pressing the t or u button.
• The aspect mode is switched between AUTO, 4:3, 16:9, ZOOM1, ZOOM2, STRETCH, ANAMORPHIC1 and
ANAMORPHIC2.
• Some modes are not available with certain signals.
With the FEATURE menu:
(See page 26 for menu setting.)
1. Display the FEATURE menu.
2. Select ASPECT by pressing the p or q button.
3. Select your desired aspect ratio by pressing the t or u button.
opt.
FEATURE
AV MEMORY 1
ASPECT
PASSWORD
FUNCTION
To cancel the menu:
4. Press the MENU button.
MENU POSITION
MENU DIMMER
AUTO
DISPLAY
INPUT
1.
OFF
Important:
CINEMA MODE
AUTO
?
• When a 4:3 or 2.35:1 (CinemaScope) image is kept displayed for a long time before
displaying
16:9
image,
AUTOthe
VIDEO SIGNAL
afterimages of the black bars may appear on the 16:9 image screen. (See page 41.)
SETUP
AUTO
SCART INPUT
AË
LANGUAGE
RESET ALL
EN-21
OFF
English
OK
Viewing computer images
A. Connecting the projector to a computer
Preparation:
• Make sure that the power of the projector and that of the computer are turned off.
• When connecting the projector to a desktop computer, disconnect the RGB cables that are connected to the
monitor.
1. Connect one end of the supplied RGB cable to the
COMPUTER IN/COMPONENT VIDEO IN terminal of the
projector.
COMPUTER IN/
2. Connect the other end of the RGB cable to the monitor
COMPONENT VIDEO IN
port of the computer.
To monitor port
2
• Additional devices, such as a conversion connector and an
analog RGB output adapter, are required depending on the
1
type of the computer to be connected.
• When viewing images supplied from an analog-connected
RGB cable
computer, press the COMPUTER button on the remote
control.
• Turn on the power of the projector before that of the computer.
• Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending
on the type of the computer to be connected.
• Use of a long cable may decrease the quality of projected images.
• Also read the instruction manual of the equipment to be connected.
• Images may not be projected correctly, depending on the type of the computer connected.
• Contact your dealer for details of connection.
About DDC
The COMPUTER IN/COMPONENT VIDEO IN terminal of this projector complies with the DDC1/2B standard and the
HDMI IN-1 and HDMI IN-2 terminals comply with the DDC2B standard. When a computer supporting this standard
is connected to this terminal, the computer will automatically load the information from this projector and prepare for
output of appropriate images.
• When connecting a DDC-supporting computer to the projector, turn on the main power switch of the projector
before starting the computer.
B. Plugging the power cord
Plug the power cord in the same way as described in “Viewing video images.” (See page 17.)
EN-22
Viewing computer images (continued)
C. Projecting images
Preparation:
• Remove the lens cap.
p, q, t, u buttons
ENTER button
HDMI/COMPUTER button
LENS SHIFT button
ON ( I ) button
ZOOM/FOCUS button
COMPUTER button
ENTER button
p, q, t, u buttons
POWER button
ZOOM/FOCUS button
LENS SHIFT button
POWER indicator
STATUS indicator
1. Put the projector into standby mode by pressing the main power switch. The POWER indicator lights up red.
• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating
and the POWER button may not work after the main power switch is turned ON. (The STATUS indicator blinks
green.) After the fan stops rotating, press the POWER button to turn back on the POWER indicator.
2. Turn on the power of the connected computer.
3. Press the POWER button on the projector or ON ( I ) button on the remote control.
• It may take about one minute for the lamp to light up.
• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
• Do not cover the lens with the lens cap while the lamp is on.
• After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a
product malfunction.
• The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW LAMP
MODE has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.
• The projector starts warming up when the POWER button is pressed. During the warm-up process, images
may appear dark and no commands are accepted.
• By blinking red, the STATUS indicator indicates that the lamp should be replaced soon. Replace the lamp when
the STATUS indicator blinks red. (See page 43.)
4. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS”.
5. Adjust with the t or u button to get a fine picture.
• When the ENTER button is pressed while “FOCUS” is displayed, the adjustment mode is switched between
FAST and STEP. When FAST is selected, the speed of focus controlled by the t or u button becomes fast,
and it becomes slow when STEP is selected.
6. Select an input source.
• Press the HDMI/COMPUTER button on the projector or the COMPUTER button on the remote control to select
COMPUTER.
• The input source is switched between COMPUTER, HDMI1 and HDMI2 every time you press the HDMI/
COMPUTER button on the projector.
• Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
• Images may not be projected in the correct position, depending on the type of the input signal. In such a case,
press the AUTO POSITION button. (See page 24.)
• The projector automatically selects the appropriate signal format. (The selected signal format is displayed on
the INFORMATION menu.)
• You cannot change the input source while the menu is being displayed.
• When COMPUTER is chosen as the source, images supplied from the computer may flicker. Press the t or u
button on the remote control to reduce flicker, if it occurs. (Fine adjustment)
7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in
their specified sizes.
8. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page
10.)
9. Press the ZOOM/FOCUS button on the projector or on the remote control to display “FOCUS” and then press the
button again to display “ZOOM.”
10.Adjust with the t or u button to get an approximate size.
• When the ENTER button is pressed while “ZOOM” is displayed, the adjustment mode is switched between
FAST and STEP. When FAST is selected, the speed of zoom controlled by the t or u button becomes fast,
and it becomes slow when STEP is selected.
EN-23
Viewing computer images (continued)
11.Press the LENS SHIFT button. The LENS SHIFT menu appears at the center of the screen.
12.Press the p or q button to adjust the vertical position and t or u button to adjust the horizontal position of the
displayed image.
• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page 10.)
Repeat steps 4 to 5 and 9 to 12, if necessary.
To stop projecting:
13.Press the POWER button on the projector or the OFF ( ) button on the remote control.
• A confirmation message is displayed.
• To cancel the procedure, leave the projector for a while or press the MENU button.
14.Press the POWER button on the projector or the OFF ( ) button on the remote control again.
• The lamp goes out and the projector goes into a standby mode. In this standby mode, the STATUS indicator
blinks green.
15.Wait about 2 minutes.
• During this period of 2 minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.
• The lamp can’t be lit again for 1 minute after turning off the projector for safety purpose. It will take another 1
minute for the STATUS indicator to go out. If you want to turn on the projector again, wait until the indicator
goes out, and then press the POWER button.
• The air outlet fans rotate faster as the temperature around the projector rises.
• Do not turn off the main power switch or unplug the power cord while the STATUS indicator is blinking. Turning
off the main power switch or unplugging the power cord immediately after use may cause a breakdown.
• Though the fan makes loud sounds during cooling, such symptom is not a malfunction.
16.Turn off the main power switch.
• The POWER indicator will go out.
• If the main power switch should be turned off or the power cord should be unplugged accidentally while either
the air inlet fan or the air outlet fans are operating or the lamp is on, allow the projector to cool down for 10
minutes with the power off. To light the lamp again, press the POWER button. If the lamp doesn’t light up
immediately, repeat pressing the POWER button 2 or 3 times. If it should still fail to light up, replace the lamp.
• Cover the lens with the lens cap to protect it from dust.
• For safety’s sake, unplug the power cord from the outlet.
AUTO POSITION button
When the image supplied from the computer is displaced, carry out the following procedure.
1. Display a bright image (such as a full-screen display of the Recycle Bin window).
2. When the screen saver has been enabled, disable it.
3. Press the AUTO POSITION button.
The projector automatically makes optimum positional settings for the input signal.
• If the image is not projected in the correct position even after you press the AUTO POSITION button several
times, change the settings in the SIGNAL menu to put the image in the correct position. (See page 34.)
• When you carry out this procedure with a dark image, the image may be displaced.
When connecting to a notebook computer:
When the projector is connected to a notebook computer, images may not be projected in some cases. In such
cases, set the computer so that it can output signals externally. The setting procedure varies depending on the type
of the computer. See the instruction manual of your computer.
Example of the setting procedure for external output
Press the [Fn] key and any of the keys [F1] to [F12] at the same time. (The key to be pressed depends on the type of
the computer you use.)
Setting of the resolution
If the resolution of the computer doesn’t match with that of the projector, projected images may be obscured. Ensure
that their resolutions are the same (see page 45). For the method to change the output resolution of the computer,
contact the manufacturer of the computer.
EN-24
Menu operation
• Menus are not displayed when no signal is supplied to the projector.
GAMMA MODE
CONTRAST
BRIGHTNESS
COLOR TEMP.
COLOR
TINT
SHARPNESS
*1
ADVANCED MENU
AV MEMORY SAVE
AUTO, SPORTS, VIDEO, CINEMA
USER1
REFERENCE
SPORTS, VIDEO, CINEMA
USER2
ADJUST MODE
ALL, RED, GREEN, BLUE
±30
HIGH
±10(R) ±10(G) ±10(B)
±30
MID
±10(R) ±10(G) ±10(B)
HIGH BRIGHTNESS
LOW
±10(R) ±10(G) ±10(B)
COOL
COOL, MEDIUM, WARM
REFERENCE
MEDIUM
CONTRAST R
±60
WARM
CONTRAST G
±60
USER
CONTRAST B
±60
BRIGHTNESS R
±60
±10
BRIGHTNESS G
±60
±10
BRIGHTNESS B
±60
±10
OK
SCREEN SIZE
16:9, CINEMA SCOPE (2.35:1)
AV MEMORY1
VERTICAL LOCATION
±26
AV MEMORY2
AUTO IRIS
AUTO
1-5
AV MEMORY3
OFF
TRNR
*9
0 - 15
MNR
*9
0 - 15
BAR
*9
ON , OFF
CTI
*1
0-5
INPUT LEVEL
±5
(for analog signal input)
AUTO, ENHANCED, NORMAL
(for digital signal input)
INSTALLATION
KEYSTONE
LAMP MODE
AUTO POWER ON
AUTO POWER OFF
SPLASH SCREEN
BACK COLOR
IMAGE REVERSE
TRIGGER OUT
TEST PATTERN
LENS LOCK
ZOOM/FOCUS LOCK
LENS SHIFT LOCK
LENS SHIFT RESET
ON, OFF
ON, OFF
OK
FEATURE
ASPECT
PASSWORD FUNCTION
MENU POSITION
MENU DIMMER
CINEMA MODE *2
VIDEO SIGNAL *3
SETUP
*1
SCART INPUT *8
LANGUAGE
RESET ALL
AUTO, 4:3, 16:9, ZOOM1, ZOOM2, STRETCH, ANAMORPHIC1, ANAMORPHIC2
*4
DISPLAY INPUT , MENU ACCESS
OK
LOCK
OK
1 (Upper left), 2(Lower right)
UNLOCK
ON, OFF
AUTO, VIDEO, FILM
AUTO, NTSC , PAL , SECAM, 4.43NTSC, PAL-M, PAL-N, PAL-60
AUTO, OFF, 3.75%, 7.5%
ON, OFF
, English, Español, Deutsch, Français, Italiano,
,
,
, PORTUGUÊS
OK
SIGNAL
HORIZ.POSITION *6
VERT.POSITION *6
FINE SYNC. *5, *6
TRACKING *1, *5, *6
COMPUTER INPUT *5
OVER SCAN
HOLD
*5, *6
0 - 999
*4
0 - 999
*4
0 - 31
0 - 9999
*4
AUTO, RGB, YCBCR / YPBPR
100 - 90%
*4
OFF
BEGIN
ON
END
OK
CLAMP POSITION *5, *6
CLAMP WIDTH *5, *6
VERT.SYNC
LPF
*5, *6, *7
SHUTTER(U)
SHUTTER(L)
SHUTTER(LS)
SHUTTER(RS)
USER
INFORMATION
* 1:
* 2:
* 3:
* 4:
* 5:
* 6:
* 7:
* 8:
* 9:
* 10:
±15
STANDARD, LOW
ON , OFF
OFF, 5, 10, 15, 30, 60min
ON, OFF
BLUE, BLACK
OFF, MIRROR, INVERT, MIRROR INVERT
SCREEN, ANAMORPHIC, OFF
CROSS HATCH , WHITE , BLACK
OK
LAMP TIME(LOW)
INPUT
RESOLUTION
VERTICAL FREQUENCY
HORIZONTAL FREQUENCY
SYNC. TYPE *5, *6
0 - 99
0 - 99
1- 255
1- 63
AUTO, OFF
ON, OFF
0 - 32
0 - 32
0 - 95
0 - 95
Not available with certain signals.
Available only when the input signal is TV50, TV60, 480i, 576i or 1080i.
Available only when the input signal is from the VIDEO IN or S-VIDEO IN terminal.
Setting range differs depending on the input signals.
Not available when the input signal is from the VIDEO IN or S-VIDEO IN terminal.
Not available when the input signal is from the HDMI IN terminal.
Available only when the input signal is 480i, 480p, 576i, or 576p.
Available only when the input signal is from the COMPUTER IN/COMPONENT VIDEO IN terminal.
Available only when the input signal is 480i, 480p, 576i, 576p, TV60 or TV50.
Available only when RGB output is selected on the output device side.
EN-25
*4
*4
*10
opt.
Menu operation (continued)
INSTALLATION
How to set the menus:
opt.
GAMMA MODE
WXGA (FULL)
opt.
AUTO POWER
ON
AUTO POWER
INSTALL
OFF ATION
SPLASH
SCREEN
SCREEN SIZE
SVGA60
OFF
ON
REVERSE
AUTO
2. PressCONTRAST
the t or u button 0to select a menu to use.
0
COLOR TEMP.
MIDIUM
INSTALLATION
COLOR
SCREEN SIZE
TINT
VERTICAL LOCATION
SHARPNESS
LAMP MODE
opt.
ADVANCED MENU
AUTO POWER
ON
AV MENU SAVE
INSTALLATION
AUTO POWER
OFF
KEYSTONE
SPLASH
SCREEN
LAMP MODE
BACK COLOR
AUTO POWER
ON
REVERSE
AUTO POWER
OFF PATTERN
TEST
SPLASH
ON
SCREEN
ON
CROSS
HATCH
OFF
30 min
ON
REVERSE
TEST PATTERN
CROSS HATCH
Important:
• When the MENU button doesn’t function, unplug
the power cord from the wall outlet. Wait about 10
minutes, plug the power cord in, and try again.
• After selecting the items marked with , press the
ENTER button.
3. Press the ENTER button (or q button).
ON
AUTO
POWER
TEST PATTERN
ON
AUTO POWER
OFF
SPLASH
SCREEN
To cancel the menu:
BACK COLOR
BLUE
6. PressIMAGE
the MENU button OFF
several times.
AV MEMORY 1
0
WXGA (FULL)
0
0
0
STANDARD
OK
OFF
AV MEMORY1
AV MEMORY
OFF
AVOFF
MEMORY 1
ON
WXGA
(FULL)
5. Set the
selected
item byBLUE
pressing
the t or u
BACK COLOR
VERTICAL
LOCATION
0
button.
OFF
LAMP MODE
STANDARD
AV MEMORY 1
opt.
BRIGHTNESS
AV MEMORY 1
SCREEN SIZE
4. PressVERTICAL
the p
or q button 0to select an item to
LOCATION
adjust.
LAMP MODE
STANDARD
The following describes how to set AUTO POWER
OFF time as an example.
1. Press the MENU button.
SVGA60
1
0
ON
STANDARD
BLUE
OFF
OFF
Available settings in
the
OFF menus
CROSS HATCH
Set the following items on their
relevant menus.
ON
BACK COLOR
1. IMAGE
menu
ITEM REVERSE
BLUE
OFF
SETTING
TRIGGER OUT
AUTO
TEST PATTERN
CROSS HATCH
GAMMA MODE
LENS LOCK
OFF
OK
SPORTS
VIDEO
CINEMA
CONTRAST
BRIGHTNESS
COLOR TEMP.
COLOR
TINT
SHARPNESS
ADVANCED MENU
SCREEN SIZE
VERTICAL LOCATION
AUTO IRIS
TRNR
MNR
BAR
CTI
INPUT LEVEL
USER1
USER2
±30
/
±30
5 options
±10
±10
±10
1. IMAGE menu
FUNCTION
opt.
The proper gamma mode is
automatically selected depending on
AV MEMORY 1
the input signal. Default is AUTO.
GAMMA MODE
AUTO
This is a bright mode suitable for
CONTRAST
0
watching sports images.
BRIGHTNESS
0
This is a standard mode suitable for
MEDIUM
COLOR TEMP.
watching video images, etc.
COLOR
0
This is a mode for watching movies in
TINT
0
dim lighting as in a theater.
SHARPNESS
0
Select to adjust the gamma curve. (See
page 33.)
ADVANCED MENU
OK
AV MEMORY
Use to adjust the contrast of the
AV MEMORY1
SAVE
projected image. (See page 31.)
Use to adjust the brightness of the projected image. (See page 31.)
Use to adjust the color temperature. (See page 32.)
Use to adjust the color thickness of the projected image. (See page 31.)
Use to adjust the color tint of the projected image. (See page 31.)
Use to adjust the sharpness of the projected image. (See page 31.)
2 options
±26
AUTO / OFF
0 - 15
0 - 15
ON / OFF
0-5
±5
Select according to the screen size.
Use to adjust the position (height) of the projected image.
Select the operation mode of the auto iris. (See page 32.)
Use to reduce random noise. (See page 33.)
Use to reduce mosquito noise. (See page 33.)
Use to reduce block noise. (See page 33.)
Use to correct smeared color boundaries.
For analog signal input: The input level of video signal differs among devices to be
connected. High input level causes solid white in displayed image and low input
level causes displayed image to get dark. Use this menu to adjust the input level of
analog video signal.
AUTO /
For digital signal input:
ENHANCED /
AUTO:
The proper setting is automatically selected.
NORMAL
ENHANCED: Select when solid black occurs.
NORMAL:
Select when grayish black occurs.
(See page 16.)
AV MEMORY SAVE 3 options
Select the AV MEMORY to which you save the current setting. (See page 30.)
• By using the AV memory function, you can save up to 3 setting patterns of IMAGE menu for each input terminal. (See
page 30.)
• INPUT LEVEL is unavailable when the digital signal is supplied from the YCBCR/YPBPR terminal of the connected device.
EN-26
Menu operation (continued)
2. INSTALLATION menu
opt.
INSTALLATION
KEYSTONE
LAMP MODE
ON
AUTO POWER
ON
AUTO POWER
OFF
SPLASH
SCREEN
BACK COLOR
REVERSE
TRIGGER OUT
TEST PATTERN
LENS LOCK
AV MEMORY 1
0
STANDARD
OFF
OFF
ON
BLUE
OFF
OFF
CROSS HATCH
OK
2. INSTALLATION menu
ITEM
KEYSTONE
LAMP MODE
AUTO POWER ON
SETTING
±15
STANDARD
LOW
ON / OFF
AUTO POWER OFF OFF / 5 - 60min
SPLASH SCREEN
ON / OFF
BACK COLOR BLUE / BLACK
IMAGE REVERSE
OFF
MIRROR
INVERT
MIRROR INVERT
TRIGGER OUT
SCREEN
ANAMORPHIC
OFF
TEST PATTERN CROSS HATCH
WHITE
BLACK
LENS LOCK
ZOOM/FOCUS LOCK
LENS SHIFT LOCK
LENS SHIFT RESET
FUNCTION
Use to correct vertical keystone distortion.
Select this option when you want to view images in a well-lit room.
Select to moderate the intensity of the lamp. The fan operating sound is
reduced and the lamp lifetime becomes longer.
When ON is chosen, the lamp is automatically lit when the power cord is
plugged in the wall outlet. Choose ON when using the projector mounted on
the ceiling.
• The projector is in the stand-by mode when the lamp is off. Use the remote
control to turn on the lamp.
Use to set the time elapsed before the projector enters the stand-by mode
when there is no signal input from the source.
Choose ON to display the splash screen when the power is turned on.
Use to change the color of the screen that appears when no signal is supplied.
Select when viewing images from the front with the projector installed on the
floor.
Select when viewing images projected from the behind of the screen with the
projector installed on the floor.
Select when viewing images projected from the behind of the screen with the
projector installed on the ceiling.
Select when viewing images from the front with the projector installed on the
ceiling.
The trigger output signal (12 V) is output from the TRIGGER terminal when the
lamp illuminates.
The trigger output signal (12 V) is output from the TRIGGER terminal when the
aspect ratio is set to ANAMORPHIC 1 or ANAMORPHIC 2.
The trigger output signal (12V) isn’t output.
Select to show the test cross hatch pattern.
Select to show the maximum brightness image.
Select to show the minimum brightness image.
Use to enable or cancel the FOCUS LOCK and ZOOM LOCK.
Use to enable or cancel the LENS SHIFT LOCK.
Use to reset the position of the lens to the factory setting.
• When LAMP MODE has been set to LOW, the lamp mode changes from STANDARD to LOW about one minute
after turn-on.
• When the lamp mode is switched, the projected image may flicker. This is not a product malfunction.
• Do not change the setting of LAMP MODE frequently.
• To cancel the test pattern, press any button.
EN-27
Menu operation (continued)
3. FEATURE menu
opt.
FEATURE
AV MEMORY 1
ASPECT
AUTO
DISPLAY
INPUT
PASSWORD
FUNCTION
MENU POSITION
?
1.
MENU DIMMER
OFF
CINEMA MODE
AUTO
VIDEO SIGNAL
AUTO
SETUP
AUTO
SCART INPUT
AË
OFF
English
LANGUAGE
OK
RESET ALL
3. FEATURE menu
ITEM
ASPECT
SETTING
AUTO
4:3
16:9
ZOOM1
ZOOM2
STRETCH
ANAMORPHIC1
ANAMORPHIC2
PASSWORD FUNCTION
MENU POSITION
MENU DIMMER
CINEMA MODE
2 options
ON / OFF
AUTO
VIDEO SIGNAL
VIDEO
FILM
8 options
SETUP
AUTO
OFF
3.75% / 7.5%
SCART INPUT
LANGUAGE
RESET ALL
ON / OFF
10 languages
OK
FUNCTION
Select to change the aspect ratio automatically depending on the input signal.
Select to project images with an aspect ratio of 4:3.
Select to project images with an aspect ratio of 16:9. (Linearly stretched.)
Select to enlarge and project images of CinemaScope size.
Select to enlarge and project images of Vista size.
Select to enlarge to 16:9 and project of the images with an aspect ratio of 4:3.
(Non-linearly stretched.)
This mode is suitable for viewing 2.35:1-size images using the anamorphic lens.
Use the p or q key to adjust the vertical display position.
This mode doesn’t support input signals from personal computers.
This mode is suitable for viewing 16:9- or 4:3-size images or images input from
personal computers using the anamorphic lens.
Use to enable or cancel the password lock. See page 35 for details.
Use to change the position of the menu.
Use to reduce the brightness of the menu.
The film mode will be automatically activated when a film source signal is input.
Select AUTO for normal use.
When flicker occurs on the screen or jaggies on slanting lines are remarkable,
select FILM when a film source signal is input or select VIDEO for other signals.
The film mode will not be activated.
Fixed to the film mode.
When AUTO is selected, the appropriate video format is automatically selected
depending on the input signal. If the image isn’t displayed correctly, select the
desired video format manually.
and 480i,
Select AUTO for normal use. When LANGUAGE is not set to
480p or TV60 signal is input, the SETUP changes to 7.5% automatically.
Select to make black lighter.
Select to make black intense.
• When 7.5% is chosen, the brightness is decreased by the set-up cancel
function for the U.S. Choose OFF when the image is dark.
Choose ON when connecting the projector with a device equipped with the
SCART terminal that can output RGB signal. SCART terminal is used mainly
in Europe. Choose OFF normally. (Available only for the input signal from the
COMPUTER IN/COMPONENT VIDEO IN terminal.)
Use to select the language used in the menus.
Use to reset the settings of the menu (excluding PASSWORD FUNCTION and
LANGUAGE) to the factory setting values.
• When SCREEN SIZE of ADVANCED MENU is set to CINEMA SCOPE (2.35:1) in the IMAGE menu, STRETCH
cannot be selected for ASPECT.
• When SCART INPUT is set to ON, normal computer signals aren’t projected.
• Use a SCART-BNC (or SCART-Mini D-SUB 15-pin) cable (option) when connecting this projector with an AV device
equipped with the SCART terminal.
• Some AV devices equipped with the SCART terminal aren’t compatible with this projector.
• It may take a little while to carry out RESET ALL in the FEATURE menu.
EN-28
Menu operation (continued)
4. SIGNAL menu
5. USER menu
opt.
SIGNAL
R
RG
GB
B
USER
AV MEMORY 1
CLAMP
POSITION
1
CLAMP WIDTH
1
HORIZ. POSITION
0
VERT. POSITION
0
FINE SYNC.
0
LPF
TRACKING
0
SHUTTER(U)
0
COMPUTER
INPUT
AUTO
OVER SCAN
100%
HOLD
ON
USER
OK
?
VERT. SYNC
AUTO
OFF
SHUTTER(L)
0
SHUTTER(LS)
0
SHUTTER(RS)
0
4. SIGNAL menu
ITEM
HORIZ. POSITION
VERT. POSITION
FINE SYNC.
SETTING
0 - 999
0 - 999
0 - 31
TRACKING
0 - 9999
COMPUTER INPUT
AUTO
RGB
YCBCR / YPBPR
OVER SCAN
HOLD
100 - 90%
OFF / ON
FUNCTION
Use to adjust the horizontal position of the projected image.
Use to adjust the vertical position of the projected image.
Use to eliminate flickering or blur, if it appears, while viewing the projected
image.
Use to eliminate vertical wide stripes, if it appears, while viewing the projected
image.
The proper setting is automatically selected.
Select this option when connecting the projector to high definition video
equipment having R, G, and B output terminals.
Select this option when connecting the projector to a DVD player or other
device having Y, CB, and CR (or Y, PB, and PR) component video output
terminals.
Use to adjust the display area of the projected image when playing LD and
DVD discs.
Use to adjust the image when flagging occurs near the top of the screen.
• Though horizontal strips may appear on the enlarged projected image, such symptom is not a malfunction.
• When you change the horizontal or vertical position to a large extent, noise may appear.
• The adjustable range of the vertical position varies depending on the type of the input signal. Though the image
may stay in the same position even when the setting value is changed, such symptom is not a malfunction.
• If you increase the OVER SCAN setting when viewing video signals, noise may appear on the screen. In this case,
decrease the OVER SCAN setting.
5. USER menu
ITEM
CLAMP POSITION
CLAMP WIDTH
VERT. SYNC
SETTING
1 - 255
1 - 63
AUTO / OFF
LPF
SHUTTER(U)
SHUTTER(L)
SHUTTER(LS)
SHUTTER(RS)
ON / OFF
0 - 32
0 - 32
0 - 95
0 - 95
FUNCTION
Use to correct solid white or solid black in the projected image.
Use to correct solid black in the projected image.
Use to adjust the image when its motion doesn’t run smoothly. Select AUTO for
normal use.
Use to select whether or not to enable the LPF.
Use to display the black bar on the top part of the image.
Use to display the black bar on the bottom part of the image.
Use to display the black bar on the left half of the image.
Use to display the black bar on the right half of the image.
EN-29
Menu operation (continued)
6. INFORMATION menu
opt.
INFORMATION
LAMP TIME(LOW)
INPUT
0H
COMPUTER
RESOLUTION
1024X768
VERTICAL
FREQUENCY
75.04 Hz
HORIZONTAL
FREQUENCY
60.02 KHz
SYNC. TYPE
5wire
R G B
H
V
6. INFORMATION menu
ITEM
LAMP TIME(LOW)
INPUT
RESOLUTION
VERTICAL FREQUENCY
HORIZONTAL FREQUENCY
SYNC. TYPE
DESCRIPTION
This item shows a lamp operating time (hour) calculated based on that LAMP MODE
is LOW.
• When the LAMP MODE is STANDARD, this item shows a longer lamp operating
time than the actual time. (See page 36 for the interval of lamp replacement. )
• When the lamp operating time is 0 to 10 hours, “0H” is displayed. The lamp
operating time exceeding 10 hours is indicated by the actual hours.
• When the lamp operating time reaches 3000 hours, the bar turns to yellow. When
it reaches 3800 hours, the bar turns to red.
Indicates the name of the terminal to which the currently projected video signal is
being input.
Indicates the resolution of the currently projected video signal.
Indicates the vertical frequency of the currently projected video signal.
Indicates the horizontal frequency of the currently projected video signal.
Indicates the type of the sync signal for the currently projected video signal.
AV memory
You can store up to 3 patterns of the image quality setting for each input source.
To store the settings
1. Set the items of the IMAGE menu.
• Setting the items by using the picture quality adjusting buttons on the remote control is also available.
2. Press the p or q button to select AV MEMORY SAVE.
3. Press the t or u button to select AV MEMORY (1, 2 or 3) to store the settings.
4. Press the ENTER button.
To enable the stored image quality settings
1. Press the AV MEMORY button to call up the stored setting.
• When you make change to the stored setting you call up, the changed setting remains effective but is not saved to
the AV MEMORY unless AV MEMORY SAVE is executed.
• When the input source is changed, the AV memory setting selected just before is automatically selected.
• When RESET ALL in the FEATURE menu is selected, all the settings of the AV memory are cleared.
EN-30
Adjusting projected images
To adjust the brightness (CONTRAST and BRIGHTNESS):
You can make adjustments for the brightness of the projected image using the menu.
(See page 26 for menu setting.)
1. Display the IMAGE menu.
2. Select CONTRAST or BRIGHTNESS by pressing the p or q button.
3. Adjust the selected item by pressing the t or u button.
To cancel the menu:
4. Press the MENU button.
CONTRAST
Select to adjust the contrast of the image. Every time the u button is pressed, the image becomes brighter and more
defined. Every time the t button is pressed, the image becomes darker and less defined.
BRIGHTNESS
Every time the u button is pressed, the image becomes brighter. Every time the t button is pressed, the image
becomes darker.
To adjust the color (COLOR and TINT):
You can adjust the color of the projected image using the menu.
(See page 26 for menu setting.)
1. Display the IMAGE menu.
2. Select COLOR or TINT by pressing the p or q button.
3. Adjust the selected item by pressing the t or u button.
To cancel the menu:
4. Press the MENU button.
COLOR
Use to adjust the color intensity of the projected image. Every time the u button is pressed, the color intensity
increases. Every time the t button is pressed, the color intensity decreases.
TINT
Use to adjust the tint of the projected image. Every time the u button is pressed, the image appears more greenish.
Every time the t button is pressed, the image appears more reddish.
To sharpen or soften the projected image (SHARPNESS):
You can adjust the sharpness of the projected image using the menu.
(See page 26 for menu setting.)
1. Display the IMAGE menu.
2. Select SHARPNESS by pressing the p or q button.
3. Adjust the selected item by pressing the t or u button.
To cancel the menu:
4. Press the MENU button.
EN-31
Adjusting projected images (continued)
To adjust the tone of white (COLOR TEMP.):
You can select a preset color temperature (white tone) using the menu.
(See page 26 for menu setting.)
1. Display the IMAGE menu.
2. Select COLOR TEMP. by pressing the p or q button.
3. Select your desired color temperature by pressing the t or u button.
The color temperature of each option is as follows:
COOL: Approx. 9300K, MEDIUM: Approx. 6500K (D65), WARM: Approx. 5800K.
To cancel the menu:
4. Press the MENU button.
To adjust the tone of white (To customize the color temperature):
To customize (and store) the color temperature to your preference, carry out the following procedure.
(See page 26 for menu setting.)
1. Select COLOR TEMP. in the IMAGE menu.
COLOR TEMP. - USER
2. Press the t or u button to select USER .
REFERENCE
3. Press the ENTER button.
CONTRAST R
4. Press the p or q button to select REFERENCE.
CONTRAST G
5. Press the t or u button to select basic color temperature.
CONTRAST B
• Generally, select the most preferable color temperature from the preset
BRIGHTNESS R
color temperature.
BRIGHTNESS G
6. Press the p or q button to select the desired item.
BRIGHTNESS B
7. Press the t or u button to adjust the selected item.
8. Repeat steps 6 and 7 for optimum adjustment results.
To cancel the menu:
9. Press the MENU button.
To enable the stored color temperature:
1. Select USER by pressing the COLOR TEMP. button on the remote control.
MEDIUM
0
0
0
0
0
0
About color temperature
There are different kinds of white color. Color temperature is a way to show the differences in white. White of which
temperature is low appears reddish. When the color temperature rises, white appears bluish. For example, you can
change the color temperature using the following procedures.
To rise the color temperature: Increase the CONTRAST B (blue) and decrease the CONTRAST R (red).
To reduce the color temperature: Decrease the CONTRAST B (blue) and increase the CONTRAST R (red).
• If you set all of CONTRAST R, G, and B to negative values, the original brightness of the image can’t be
obtained even when you maximize CONTRAST in the IMAGE menu.
To optically brighten or darken projected images (AUTO IRIS):
Iris is a function to optically adjust the contrast by opening or closing the aperture of the lamp. This projector is
equipped with the following 2 modes to adjust the iris.
AUTO
The iris is automatically adjusted depending on the image being displayed. AUTO mode has 5 types as follows.
Mode 1: When white objects are displayed in an overall dark scene, rich black details can be obtained. (This mode is
suitable for displaying live images.)
Mode 2: White appears more brilliant than that in Mode 1.
Mode 3: Images appear brighter than those in Mode 2.
Mode 4: This mode is recommended when you have been using a standard lamp and its operating time exceeds
2000 hours based on that LAMP MODE is LOW. (See page 30.)
Mode 5: This mode provides deeper blacks than the other modes.
OFF
The iris is kept fully opened.
EN-32
Adjusting projected images (continued)
To adjust the ratio of change in brightness (GAMMA MODE):
You can select a preset gamma mode using the menu.
(See page 26 for menu setting.)
1. Display the IMAGE menu.
2. Select GAMMA MODE by pressing the p or q button.
3. Select your desired gamma mode by pressing the t or u button.
To cancel the menu:
4. Press the MENU button.
To adjust the original ratio of change in brightness (To customize the gamma mode):
To customize (and store) the gamma mode to your preference, carry out the following procedure.
(See page 26 for menu setting.)
1. Select GAMMA MODE in the IMAGE menu.
GAMMA MODE - USER1
2. Press the t or u button to select USER1 or USER2 .
REFERENCE
VIDEO
3. Press the ENTER button.
ALL
ADJUST MODE
4. Press the p or q button to select REFERENCE.
HIGH
0
0
0
5. Press the t or u button to select basic gamma curve.
MID
0
0
0
• Generally, select the most preferable gamma curve from the preset gamma
LOW
0
0
0
curve.
6. Press the p or q button to select ADJUST MODE.
7. Press the t or u button to adjust mode of gamma curve (ALL, RED, GREEN, or BLUE).
• Select whether to adjust RED, GREEN, and BLUE collectively or separately.
8. Press the p or q button to select the desired item.
HIGH
: Use to adjust the gradation of the bright scenes. (The values displayed correspond to RED,
GREEN, and BLUE from the left respectively.)
MID
: Use to adjust the gradation of the medium brightness scenes. (The values displayed correspond
to RED, GREEN, and BLUE from the left respectively.)
LOW
: Use to adjust the gradation of the dark scenes. (The values displayed correspond to RED,
GREEN, and BLUE from the left respectively.)
9. Press the t or u button to adjust the selected item.
10.Repeat steps 6 - 9 for optimum adjustment results.
To cancel the menu:
11.Press the MENU button.
To enable the stored gamma mode:
1. Select USER1 or USER2 by pressing the GAMMA button on the remote control.
• Change in the brightness may be hard to recognize in some images.
Noise reduction
This projector has the following noise reduction functions. However, these functions don’t work with 720p, 1080i, and
1080p signals and signals supplied from computer.
TRNR (temporal recursive noise reduction)
Reduces random noise appearing in projected images. Adjust the reduction level using the t or u button.
MNR (mosquito noise reduction)
Reduces mosquito noise appearing around sharp edges in DVD images. Adjust the reduction level using the t or u
button.
BAR (block artifact removal)
Reduces block noise or mosaic-like patterns appearing in DVD images. Turn on this function using the t or u
button.
EN-33
Adjusting projected images (continued)
This projector automatically and properly projects video signals supplied from the computer. However, some video
signals may not be projected, depending on the type of the computer. In such a case, press the AUTO POSITION
button. (See page 24.) When the signal is still not projected properly, adjust the projected image using the SIGNAL
menu.
How to adjust the image supplied from the computer using the menu:
Carry out the following procedures according to the symptoms.
Wide strips appear..........................................................Adjust TRACKING in the SIGNAL menu.
The projected image flickers.
The projected image is blurred.......................................Adjust FINE SYNC. in the SIGNAL menu.
The projected image is displaced horizontally. .............Adjust HORIZ.POSITION in the SIGNAL menu. Every time the
t button is pressed, the image moves to the right. Every time
the u button is pressed, the image moves to the left.
The projected image is displaced vertically. ..................Adjust VERT.POSITION in the SIGNAL menu. Every time the t
button is pressed, the image moves down. Every time the u
button is pressed, the image moves up.
The top part of the image flags. .....................................Change the setting of HOLD in the SIGNAL menu. Select ON ,
press the ENTER button, and adjust BEGIN or END to minimize
the flagging.
A solid black or solid white appears in the image. ........Adjust CLAMP POSITION or CLAMP WIDTH in the SIGNAL USER menu.
The motion doesn’t run smoothly. ..................................Adjust VERT. SYNC. in the SIGNAL - USER menu. Select
AUTO for normal use.
Noise appears on the right or left half of the image. ......Adjust SHUTTER(LS) or SHUTTER(RS) in the SIGNAL - USER
menu.
Noise appears on the top or bottom part of the image..Adjust SHUTTER(U) or SHUTTER(L) in the SIGNAL - USER
menu.
1. Display the SIGNAL menu.
2. Press the p or q button to select an item to adjust.
3. Adjust the selected item by pressing the t or u button.
To cancel the menu:
4. Press the MENU button.
• Do not change the settings of the SIGNAL menu in normal use.
Simple method to adjust the image position
To adjust the horizontal position:
1. Align the left edge of the image with the left side of the screen by adjusting HORIZ.POSITION. Then, align the
right edge of the image with the right side of the screen by adjusting TRACKING.
2. Repeat step 1 above to complete the adjustment of the horizontal position.
To adjust the vertical position:
3. Align the upper edge of the image with the upper side of the screen by adjusting VERT.POSITION.
LPF (Progressive filter)
You can select whether or not to enable the LPF.
Vertical or horizontal streak noise may appear on the projected image, depending on the type of the DVD player you
use. In such a case, you can reduce such streak noise by enabling the LPF. However, projected images become
softened slightly.
EN-34
Advanced features
Password function
To cancel the password function:
1. Display the FEATURE menu.
2. Press the p or q button to select PASSWORD
FUNCTION.
3. Press the ENTER button.
• The screen for canceling the password function
will appear.
This projector is equipped with the password function
that is designed for prevention of theft and wrong
operation by children and restriction on operation by
other than specified users. The password function has
two modes as follows.
DISPLAY INPUT .......... When the projector is turned
on, the startup screen (or splash screen) will appear
and stay on the screen until the password is
entered. When the password is entered, the startup
screen will switch to the regular operation screen.
MENU ACCESS........... All the buttons except for the
POWER button on the projector are disabled. (The
buttons on the remote control are enabled.) You
can use this mode as a measure of prevention
of wrong operation by children and restriction on
operation by other than specified users.
DISPLAY INPUT
PASSWORD
1
4
OK
OK
Kensington Lock
This projector has a Kensington Security Standard
connector for use with Kensington MicroSaver
Security System. Refer to the information that came
with the Kensington System for instructions on how
to use it to secure the projector. Please contact
Kensington Technology Group below.
CONFIRM
1
O K : ENTER
CANCEL : MENU
Important:
• Disable the password by pressing the MENU and
ENTER buttons on the control panel at the same
time about three seconds.
PASSWORD
2
O K : ENTER
5. Enter a 4 - 8 digit password using the p, u, q or
t buttons on the remote control as shown below.
(p=1, u=2, q=3, t =4)
6. Press the ENTER button.
• If you enter a wrong password, an error
message will appear.
• To cancel the procedure, press the MENU
button.
5. Press the ENTER button.
• The screen for entering a password will appear.
4
2
3
DISPLAY INPUT
LOCK
OK
OK
4. Press the ENTER button.
• The screen for entering the password will
appear.
To enable the password function:
1. Display the FEATURE menu.
2. Press the p or q button to select PASSWORD
FUNCTION.
3. Press the u button to change the mode among
DISPLAY INPUT and MENU ACCESS .
• When the password has already been set, the
mode won’t be changed. In such cases, press
the ENTER button to cancel the password
function and try again.
4. Press the ENTER button.
• The screen for setting the password function will
appear.
UNLOCK
LOCK
UNLOCK
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700
Fax: +1- (650)572-9675
CANCEL : MENU
3
6. Enter a 4 - 8 digit password using the p, u, q or
t buttons on the remote control as shown below.
(p=1, u=2, q=3, t =4)
7. Press the ENTER button.
• To cancel the procedure, press the MENU
button.
8. Enter the password again for confirmation using the
same steps.
9. Press the ENTER button.
• If the entered passwords don’t match, an error
message will appear.
• To cancel the procedure, press the MENU
button.
EN-35
Replacing the lamp
This projector is equipped with a lamp to project images. This lamp is a consumable. It may burn out or its brightness
may decrease during use. In such cases, replace the lamp with a new one as soon as possible. Be sure to replace the
lamp with a new lamp sold separately that is exclusive to this projector. Contact your dealer for purchase of the lamp.
Spare lamp
VLT-HC6800LP
Warning:
• Be careful not to drop the lamp fixing screws inside of the projector. Don’t put a metal piece or flammable object
into the projector. Using the projector with any foreign object present inside may result in electric shock or fire.
When you can’t remove the foreign object from the inside, contact your dealer for removal.
• Be sure to install the lamp securely. When the lamp isn’t installed properly, it won’t illuminate. Improper installation
may also result in fire.
• Don’t shake the removed lamp or don’t lift it above your face. Your eyes may be injured by flying or falling glass
fragments.
• Don’t replace the lamp immediately after use because the lamp cover will be very hot. You may get burned. Turn
off the power using the POWER button. After the lamp goes out, wait about two minutes until the intake and
exhaust fans for cooling the lamp stop rotating. Then turn off the main power switch, unplug the power cord, and
wait at least 1 hour to allow the lamp to cool down enough to the touch.
• Do not touch the lamp directly. It may break and cause injury or burn.
Interval of lamp replacement
The recommended interval of lamp replacement is about 4000 hours*1*2 of consecutive use. Such interval differs
depending on the operating environment and may be shorter than 4000 hours*1*2. Decrease in luminescence and/or
color brightness indicates that the lamp needs to be replaced. When the lamp operation time exceeds 3000 hours*1,
the indicator will blink alternately between green and red (while the lamp is lit; when the lamp is not lit, the indicator
will be lit red only) and the lamp replacement message will appear on the screen for one minute everytime the lamp
is turned on. When the lamp has been used for about 3800 hours*1, the replacement message (LAMP EXCHANGE)
will appear on the screen for one minute every 20 hours*1 thereafter. When the lamp operation time exceeds 4000
hours*1*2, the projector automatically shuts off and can’t be used until the lamp is replaced and the lamp
operation time is reset.
*1: Duration when LAMP MODE of the INSTALLATION menu is set to LOW. When it is set to STANDARD, this duration will be
shorted.
*2: When LAMP MODE is set to STANDARD, this duration will be shorted to 2000 hours.
Caution:
• Don’t remove the lamp for any purpose other than replacement. Unnecessary removal of the lamp may result in a
breakdown.
• This projector uses a high-pressure mercury lamp as the light source. The high-pressure mercury lamp may
explode or fail to illuminate permanently because of an impact, scratch, or deterioration through use. The period
of time until explosion or permanent failure to illuminate varies considerably from lamp to lamp, depending on
operation conditions. Therefore, the lamp may explode soon after the start of use.
• The possibility of explosion of the lamp increases if you use it beyond its replacement period. When the instruction
of lamp replacement appears, replace it with a new one immediately even if the lamp is still lighting normally.
• When the high-pressure mercury lamp explodes, glass fragments will scatter inside or outside the lamp box and
the gas charged inside the lamp will diffuse inside or outside the projector. The gas inside the lamp contains
mercury. Be careful not to breathe it or avoid it from entering your eye or mouth. If you should breathe it or if it
should enter your eye or mouth, see a doctor immediately.
• In the event that the high-pressure mercury lamp exploded, glass fragments may have been scattered inside the
projector. Ask your dealer to replace the lamp and to inspect the inside of the projector. When you clean or replace
the lamp by yourself, be sure to hold the handle of the lamp. You may get injured by glass fragments.
• When removing the lamp from the ceiling-mounted projector, use the lamp replacement tray packed with the
projector or option lamp to prevent glass fragments from scattering.
• Be sure to use the lamp exclusive to this projector, VLT-HC6800LP. Use of other lamps may cause a failure of the
projector.
EN-36
Replacing the lamp (continued)
To replace the lamp:
9. Tighten up the screws (d) using a Phillips
screwdriver (+).
1. Turn off the main power switch and unplug the
power cord.
2. Loosen two screws (a) using a Phillips screwdriver
(+) and remove the left side panel from the
projector.
(d)
10.Tighten up the screw (b) using a Phillips
screwdriver (+) to secure the lamp cover (c).
(a)
(b)
3. Loosen the screw (b) using a Phillips screwdriver
(+), and remove the lamp cover (c).
(b)
(c)
11.Attach the left side panel to the projector and fix it
with two screws (a).
(c)
(a)
4. Loosen the screws (d) using a Phillips screwdriver
(+).
Reset of the lamp operation time
12.Plug the power cord into the wall outlet and turn on
the main power switch.
13.Hold down the t, u, and POWER buttons on the
control panel at the same time about 3 seconds.
(d)
Important:
• Unless these 3 buttons are held down at the same
time, the lamp operation time isn’t reset.
• Make sure that the STATUS indicator blinks twice
and the lamp operation time is reset successfully.
• The projector doesn’t turn on if the lamp cover isn’t
attached securely.
• Be sure to reset the lamp operation time whenever
you replace the lamp.
• Do not reset the lamp operation time unless you
replace the lamp.
• The lamp is fragile. If it is broken, be careful not to
cut yourself with glass fragments.
5. Pull the handle.
6. Pull out the lamp box by the handle while holding
the projector.
• Pull the lamp box out of the projector slowly.
If it is pulled out quickly, the lamp may break
scattering glass fragments.
• Do not spill liquid on the removed lamp box or
do not place it near any flammable object or
where children can reach to prevent injury or
fire.
7. Load a new lamp box securely into the projector in
the right orientation.
Caution:
• This projector uses a lamp that
contains mercury. Disposal of the lamp
or the projector with the lamp may
be regulated due to environmental
considerations. For disposal or
recycling information, please contact
your local authorities or the Electronic
Industries Alliance: www.eiae.org. (For
the U.S. only.)
8. Put the handle back to the original position.
• Make sure that the handle is locked.
EN-37
Replacing the lamp (continued)
When removing the lamp from the ceiling-mounted projector
When removing the lamp from the ceiling-mounted projector, use the lamp replacement tray packed with the
projector or option lamp to prevent glass fragments from scattering.
• Assemble the lamp replacement tray according to the procedure shown on it.
1. Follow steps 1 to 5 on page 37.
2. Attach the lamp replacement tray to the projector as shown in the
figure.
3. Secure the lamp replacement tray on the projector using the tape
packed with the tray.
4. Pull out the lamp box by the handle while holding the projector.
• Hold the lamp replacement tray to prevent glass fragments
from scattering.
• Don’t put the lamp directly on the lamp replacement tray
because it may fall.
5. Detach the lamp replacement tray together with the removed
lamp.
6. Follow steps 7 to 13 on page 37.
EN-38
Tape
Maintenance
Warning:
• Never use flammable air duster or other materials when cleaning the air-filter. Flammable substances may ignite
causing fire or breakdown when the lamp is illuminated.
• Do not use flammable solvents (benzene, thinner, etc.) and flammable aerosols when cleaning the projector body
and lens. Flammable substances may ignite causing fire or breakdown while the lamp is illuminating.
Caution:
Be sure to turn off the lamp and unplug the power cord from the wall outlet before you perform any maintenance on
the projector.
Cleaning of the air-filter
Clean the air-filter frequently (about once a month). If the air-filter or ventilation grilles become clogged with dirt or
dust, the temperature inside the projector may rise and cause troubles, such as damage to the inside parts and
shortening the life of the panels.
• When the temperature inside the projector rises, the STATUS
Right side
indicator will blink orange and the lamp will be turned off.
panel
1. Loosen two screws that are fixing the right side panel using a
Phillips screwdriver (+) and remove the panel from the projector.
Fixing screws
2. Remove the filter from the right side panel.
(1) Remove the holder by pushing the tab of the holder on the airfilter in the direction of the arrow.
(2) Remove the air-filter (white), spacer, and air-filter (gray).
3. Clean dirt and dust adhering to the air-filter using a vacuum.
• For the air-filter (white)
If stubborn stains persist, wash the air-filter with water
and dry well in the shade.
• For the air-filter (gray)
If stubborn stains persist, wash the air-filter with diluted
detergent, rinse with water, and dry well.
4. Attach the filter to the right side panel.
(1) Attach the air-filter (gray), spacer, and air-filter (white) to the
side panel, aligning their notches with that of the side panel.
(2) Insert the right tab of the holder to the side panel and push the
left tab in the direction of the arrow to attach the side panel.
5. Attach the right side panel to the projector and fix it with two
screws.
Important:
• If the air-filter is damaged or becomes extremely dirty, change it
with a new air-filter. Contact your dealer for a new air-filter.
• Use the dedicated air-filter only.
Back of the right
side panel
Holder
Air-filter (gray)
Spacer
Air-filter (white)
Holder
Fixing screws
Caution:
Be sure to use the projector with an air-filter. If not, dust may get inside the projector causing fire and failure.
Cleaning of the projector and the ventilation slots
Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft
cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.
To protect the surface of the projector from fading or deteriorating:
• Do not spray insecticide on or inside the projector.
• Do not use benzine or thinner to clean it.
• Do not let rubber or plastic materials contact with projector.
Cleaning of the lens
Use a standard lens-cleaning brush or a piece of lens tissue dampened with lens cleaning fluid. The lens surface is
fragile. Use only recommended, nonabrasive lens-cleaning materials. Do not touch the lens with your fingers.
EN-39
Troubleshooting
Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be
sure to unplug the power plug, and then contact your dealer.
No image appears on the screen.
Problem
Solution
Power can not be
turned on.
• Check whether the indicators are on or off and how they are lightning.
POWER STATUS Solution
• Connect the power cord to the projector.
• Plug the power cord into a wall outlet.
Off
Off
• Turn on the main power switch.
• If any objects are blocking the air inlet or outlet grill, re move them and carry out the
following.
Off
Steady red
Blinking
orange
Blinking
green
Steady red
Off
Blinking
red/green
Steady
or
1.
2.
3.
4.
Turn off the main power switch.
Make sure that the projector has cooled off.
Turn on the main power switch.
Press the POWER button.
• If any objects are blocking the air inlet or outlet grille, remove them.
• Don’t expose the air outlet grilles to hot air emitted from a heating appliance.
• Check whether the filter is clogged with dirt or dust.
 Clean the filter, if clogged. (See page 39.)
• After the STATUS indicator stops blinking, press the POWER button.
• If the main power switch is turned off while the fan is rotating, the lamp may not turn on about 1
minute when the main power switch is turned on next time.
• The lamp can’t turn on again for one minute after it goes out.
• Press the POWER button several times.
• Replace the lamp. (The lamp is at the end of its life.)
• Attach the lamp cover.
• Unplug the power cord from the wall outlet and contact your dealer .
Blinking
No image appears on
the screen.
• Check that the lens cap is removed.
• It may take about one minute for the lamp to light up.
• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes
and then try again.
• If the projector was turned off before the lamp was cooled down sufficiently last time,
the fan may start rotating and the POWER button may not work after the main power
switch is turned on. After the fan stops rotating, press the POWER button to turn back
on the POWER indicator.
• Check that the intake vent is clean.
• Set SCART INPUT in the FEATURE menu to OFF. (See page 28.)
• Check that the lamp cover is closed. (See page 37.)
• Check that the cables connected to the external devices are not broken.
• When an extension cable is being used, replace it with the supplied cable for check.
When images are displayed correctly, add an RGB signal amplifier to the extension
cable.
• Check the operation manual of the video device for its connection.
Power turns off.
• This problem may occur when the intake vent and/or exhaust vents are blocked. (In
such a case, the STATUS indicator brinks orange.)
 Remove the objects blocking the intake vent and/or exhaust vents and then carry
out the following procedure.
1. Wait for the intake fan and/or exhaust fan to stop. (Wait until the STATUS indicator
goes out.)
2. Turn off the main power switch.
3. Wait at least 10 minutes.
4. Turn on the main power switch.
5. Press the POWER button.
• When the STATUS indicator is steady red, it is indicating that the lamp should be
replaced. Replace the lamp in this case.
• Check that AUTO POWER OFF has been set to OFF.
• If the lamp has deteriorated, it may go out after a while it illuminates.
EN-40
Troubleshooting (continued)
No image appears on the screen. (continued)
Problem
The screen for
entering the password
appears.
“NO SIGNAL” is
displayed.
Solution
• PASSWORD FUNCTION in the FEATURE menu has been set to DISPLAY INPUT to
enable the password lock.
 Enter the password or contact the person in charge of management of the
projector. (See page 35.)
• Turn on the power of the connected device, or check whether there is something
wrong with the connected device.
• Check whether the external device output signals. (Check this especially when the
external device is a notebook computer.)
• Check that the cable connected to the external device isn’t defective.
• Check that the projector is connected to the external device using the correct
terminals.
• Check that the connected device is correctly selected as the input source.
• When an extension cord is being used, replace it with the supplied cable and check
whether images are projected correctly. If images are projected correctly, use an RGB
signal amplifier along with the extension cord.
Images are not displayed correctly.
Problem
Solution
Projected images are
shaking.
Projected images are
displaced.
•
•
•
•
Projected images are
distorted.
• Adjust the projector and the screen so that they are perpendicular to each other. (See
page 10.)
Projected images are
dark.
• Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 31.)
• Replace the lamp. (See page 36.)
Projected images are
blurred.
•
•
•
•
•
•
Afterimages persist on
the screen.
• This phenomenon is improved by keeping projecting an evenly bright image. (Such
“image burn-in” phenomenon where afterimages persist on the screen may occur if a
stationary image is kept displayed on the screen for a long time.)
Red, blue, and
green dots appear in
projected images.
Black dots appear in
projected images.
• This phenomenon is unique to LCD projector and isn’t a product malfunction.
(A small number of pixels always stay on or off, which are not malfunctions. More than
99.99% of the pixels are effective.)
Fine streaks are seen
on projected images.
• This is due to interference with the screen surface and is not a malfunction. Replace
the screen or displace the focus a little.
• Vertical or horizontal streak noise may appear on the projected image, depending on
the type of the DVD player or game console you use. In such a case, you can reduce
such streak noise by enabling the LPF. (See page 29.)
Projected images
become wavy.
• Connect the plugs of the cables to external devices securely.
• Keep the projector away from devices that emit interfering radio waves.
Hue is not appropriate.
• Check that the cables connected to the external devices are not broken.
Tint in projected
images is incorrect.
• Check that COMPUTER INPUT in the SIGNAL menu is correctly set. (See page 29.)
• Check that the cable connected to the external device isn’t broken.
Check that the cable connected to the external device isn’t intermittent.
Connect the cable’s plug with the external device’s connector firmly.
Press the AUTO POSITION button.
Some computers output out-of-spec signals on rare occasion. Adjust the SIGNAL
menu. (See page 34.)
Adjust the focus. (See pages 18 and 23.)
Clean the lens.
Press the t or u button on the remote control to eliminate flicker.
Adjust TRACKING and FINE SYNC. in the SIGNAL menu. (See page 34.)
Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 31.)
Adjust the projector and the screen so that they are perpendicular to each other. (See
page 10.)
EN-41
Troubleshooting (continued)
Images are not displayed correctly. (continued)
Problem
Solution
Different color tint.
• When comparing images projected by two projectors, tints in the displayed images
may be different because of variation between their optical components. This is not a
malfunction.
• When comparing the image projected by this projector with those displayed on the
television or PC monitor, tints in the displayed images may be different because of
difference in the range of color reproducibility. This is not a malfunction.
• This is caused by the computer being used. Contact the manufacturer of your
computer.
Only the motion areas
in the images supplied
from the computer
aren’t displayed.
Projected images are
obscured.
Image remains
freezing.
Noise appears around
the image.
• Match the output resolution of your computer with the resolution of the projector.
For the method to change the output resolution of the computer, contact the
manufacturer of your computer. (See page 45.)
• When image from VCR is projected, it may remain freezing during speed search. This
is not a malfunction.
• In some images such as DVD, noise may appear around the recorded image. In this
case, decrease the setting value of OVER SCAN of the SIGNAL menu. (See page 29.)
Others
Problem
Solution
The exhaust vents
emit warm air.
The menu can’t be
used.
“TEMPERATURE!!” is
displayed.
• This air comes out after cooling the inside of the projector. You may feel hot, but this
is not a malfunction.
• The microcomputers inside the projector may be wrongly operating because of noise.
 Turn off the main power, wait about 10 minutes, and turn on the main power again.
• This indication appears when the ambient temperature rises high. When the ambient
temperature stays high, the lamp goes out.
 Eliminate any causes of the rise in the ambient temperature.
• This indication appears when the air inlet or outlet grille is blocked. When they are
kept blocked, the lamp goes out.
 Remove the objects blocking the air inlet or outlet grille. Clean the filter, if clogged.
(See page 39.)
• This mark appears when ineffective operation is carried out. This isn’t a product
malfunction.
• Check that the batteries are loaded in the remote control or the batteries are not
weak. (See page 6.)
• Check that the remote control sensor isn’t exposed to direct sunlight or fluorescent
light. (See page 9.)
• Use the remote control within its operation range. (See page 9.)
• Use the remote control at least 10 cm away from the projector.
• PASSWORD FUNCTION in the FEATURE menu has been set to MENU ACCESS to
enable the password lock.
 Cancel the password lock or contact the person in charge of management of the
projector. (See page 35.)
• The iris produces sound while operating. This is not a malfunction.
The
mark appears.
The remote control
doesn’t function easily
or at all.
The buttons on the
control panel (except
for the POWER
button) don’t function.
Mechanical operating
noise (clicking sound)
is heard.
If the following problem occurs after the lamp is replaced, check the following first.
Problem
Solution
The projector does not
turn on.
The STATUS indicator
blinks.
• Fit the lamp cover securely. (See pages 36 and 37.)
• Reset the lamp operating time. (See page 37.)
• Reset the lamp operating time. (See page 37.)
EN-42
Indicators
This projector has two indicators, each of which shows the operation condition of the projector.
The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your
dealer.
POWER indicator
STATUS indicator
Normal condition
POWER
STATUS
Off
Steady
red
Blinking
green
Blinking
green
Steady
green
Steady
green
CONDITION
NOTE
Stand-by
Lamp stand-by for power-off
The power cannot be turned on by pressing
the POWER button.
Lamp stand-by for power-on
The power cannot be turned off by pressing
the POWER button.
The power is on. (Normal condition)
Abnormal condition
POWER
Steady
green
or
STATUS
Blinking orange
CONDITION
POSSIBLE SOLUTION
Abnormal temperature
• The ventilation grilles are clogged with dust or dirt.
• The room temperature is high.
• Clean the ventilation grilles.
• Relocate the projector to a cooler place.
Steady
red
The protection circuit is working or the lamp is in an
abnormal condition.
• Wait until the STATUS indicator goes out,
then press the POWER button.
• If the above solution is not effective,
replace the lamp.
Replace the lamp.
Change with a new lamp if this problem
recurs.
Steady
red
Blinking green
Steady
green
Blinking green/red
Lamp operation time warning. (Total lamp operation
time reached 3000 hours*1 while the power was on.)
Blinking red
Lamp operation time warning. (Total lamp operation
time reached 3000 hours*1 while the power was off.)
Steady red
Lamp operation time warning. (Total lamp operation
time reached 4000 hours*1*2 while the power was off.)
Steady
red
Off
Blinking
green/red
Steady
or
The lamp cover isn’t closed.
Close the cover correctly.
Abnormal.
Contact your dealer.
Blinking
*1: Duration when LAMP MODE of the INSTALLATION menu is set to LOW. When it is set to STANDARD, this duration will be
shorted.
*2: When LAMP MODE is set to STANDARD, this duration will be shorted up to 2000 hours.
EN-43
Specifications
The specifications and outside appearance of the projector are subject to change without prior notice.
Type
LCD projector
Model
HC6800
Display technology
0.74-inch LCD panel: 3 pieces (for R, G, B) (aspect ratio 16:9)
Pixel: 1920 x 1080 = 2073600 pixels
Total 6220800 pixels
Projection lens
F 1.8 - 2.3 f= 23.5 - 37.6 mm
Light-source lamp
170 W
Image size (projection distance)
50” min. to 300” max. (projection distance 1.5 to 9.5 m (max. Zoom))
Maximum
resolution
Computer signal
Maximum resolution: 1600 x 1200 dots
Panel resolution: 1920 x 1080 dots
Video signal
NTSC/PAL/SECAM/4.43NTSC/PAL-M/PAL-N/PAL-60
Component signal
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Panel resolution: 1920 x 1080 dots
Computer input
[Signal type]
Analog RGB
[Terminal type]
Mini D-SUB 15-pin
[Line]
1
Video input
[Signal type]
HDMI
Video input
S-video input
Component video input
[Terminal type]
HDMI
RCA
S
RCA x3 (YCBCR/YPBPR)
[Line]
2
1
1
1
Control terminal/
others
SERIAL
RS-232C (D-SUB 9-pin)
TRIGGER
DC 12 V, max. 200 mA (stereo mini jack)
Operating temperatures
+41°F (+5°C) to +95°F (+35°C)
Rated voltage
AC100 - 240 V, 50/60 Hz
Power consumption
2.5 A
Dimensions
427 mm (W) x 159 mm (H) x 440 mm (D)
Weight
7.5 kg
Others
* Not including protrusion.
S-video input
Luminance signal: Vp-p=1.0 V 75 Ω (negative sync)
Chrominance signals: Vp-p=0.286 V 75 Ω (burst signal)
Video input
Vp-p=1.0 V 75 Ω (negative sync)
Component video
input
YCBCR: Vp-p=1.0 V 75Ω (Y) (negative sync)
Vp-p=0.7 V 75 Ω (CB, CR)
Analog input
RGB: Vp-p=0.7 V 75 Ω (negative sync)
YCBCR: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (CB, CR)
HD/CS: TTL-level (negative or positive polarity)
VD: TTL-level (negative or positive polarity)
Digital input (HDMI)
HDMI interface (TMDS single link)
440
Dimension drawings (unit: mm)
159
16
58.7
427
84.5
EN-44
Specifications (continued)
Specification of RGB signals in each computer mode of the projector
Signal mode
TV60, 480i (525i)
TV50, 576i (625i)
1080i 60 (1125i 60)
1080i 50 (1125i 50)
480p (525p)
576p (625p)
720p 60 (750p 60)
720p 50 (750p 50)
1080p 60 (1125p 60)
1080p 50 (1125p 50)
1080p 24 (1125p 24)
PC98
CGA70
VGA60
VGA72
VGA75
VGA85
SVGA56
SVGA60
SVGA72
SVGA75
SVGA85
XGA60
XGA70
XGA75
XGA85
MAC13
MAC16
MAC19
HP75
SXGA60
UXGA60
Resolution
(H x V)
–
–
–
–
–
–
–
–
–
–
–
640 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1024 x 768
640 x 480
832 x 624
1024 x 768
1024 x 768
1280 x 1024
1600 x 1200
Horizontal frequency
(kHz)
15.73
15.63
33.75
28.13
31.47
31.25
45.00
37.50
67.50
56.25
27.00
24.82
31.47
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
48.36
56.48
60.02
68.68
35.00
49.72
60.24
62.94
63.98
75.00
*1: When ASPECT in the FEATURE menu is set to AUTO.
*2: Available for the signal from the HDMI IN terminal.
Important:
• Some computers aren’t compatible with the projector.
• The projector’s maximum resolution is 1920 x 1080
pixels. It may not display images of higher resolutions
than 1920 x 1080 correctly.
• If the resolution and frequency of your computer
aren’t shown on the table, find the compatible
resolution and frequency by changing the resolution
of your computer.
Vertical frequency
(Hz)
59.94
50.00
60.00
50.00
59.94
50.00
60.00
50.00
60.00
50.00
24.00
56.42
70.09
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
60.00
70.07
75.03
85.00
66.67
74.55
75.02
74.92
60.02
60.00
Normal mode
(H x V)*1
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1728 x 1080
1728 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1440 x 1080
1350 x 1080
1440 x 1080
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
• Thisprojectordoesn’tsupport480psignalsfromvideo
devices having 4 lines (R, G, B, CS*) or having 5 lines (R, G,
B, H, V).
* : Composite Sync
EN-45
Specifications (continued)
Connectors
COMPUTER IN/COMPONENT VIDEO IN
(Mini D-SUB 15-pin)
SERIAL (D-SUB 9-pin)
5
5
1
9
6
10
6
15
Pin No.
Name
I/O
1
–
–
2
TXD
IN
3
RXD
OUT
4
–
–
5
GND
–
6
–
–
7
–
–
8
–
–
9
–
–
1
11
Pin No.
Spec.
1
R(RED)/PR/CR
2
G(GREEN)/Y
1 19
2 18
3
B(BLUE)/PB/CB
PIN No.
4
GND
1
TMDS Data2+
11
TMDS Clock Shield
5
GND
2
TMDS Data2 Shield
12
TMDS Clock-
6
GND
3
TMDS Data2-
13
CEC
7
GND
4
TMDS Data1+
14
–
8
GND
5
TMDS Data1 Shield
15
SCL
9
DDC 5V
6
TMDS Data1-
16
SDA
10
GND
7
TMDS Data0+
17
DDC Ground
11
GND
8
TMDS Data0 Shield
18
+5 V Power
12
DDC Data
9
TMDS Data0-
19
Hot Plug Detect
13
HD/CS
10
TMDS Clock+
14
VD
15
DDC Clock
Replacement part (option/not included in the box)
Spare lamp
HDMI IN
(HDMI 19-pin)
VLT-HC6800LP
EN-46
Spec.
PIN No.
Spec.
