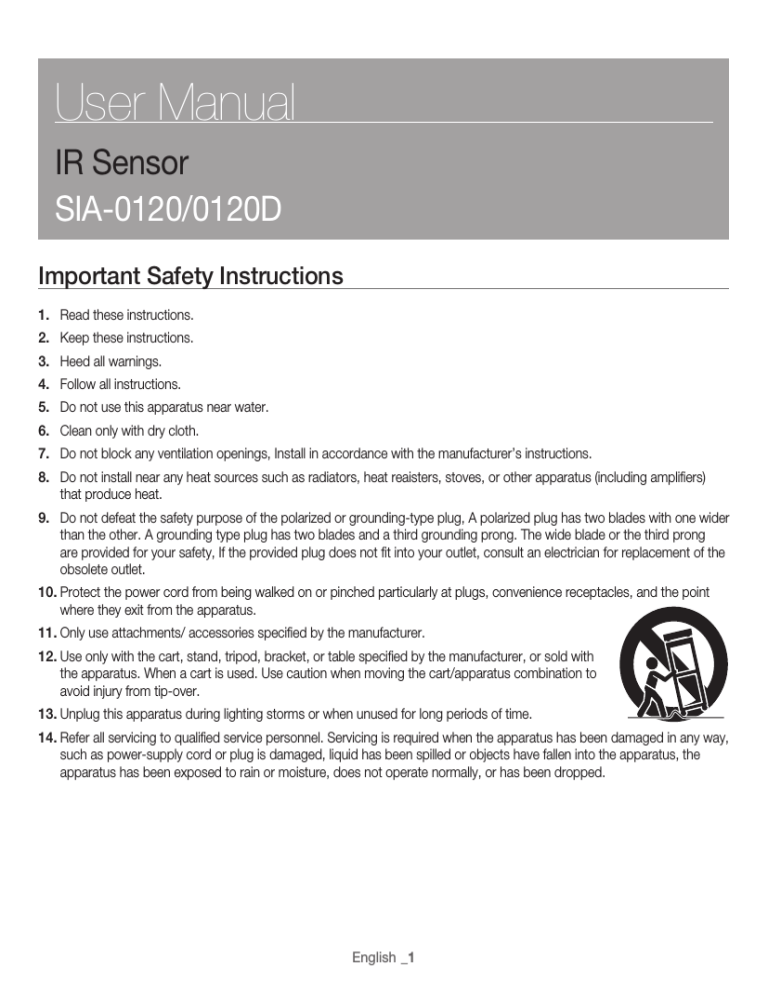

User Manual
IR Sensor
SIA-0120/0120D
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat reaisters, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug, A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong
are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used. Use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
English _1
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN
OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR
OTHER OPENNINGS ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
Class construction
An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective
earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire
or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your
location.
English _2
When used outside of the U.S., it may be used HAR code with fittings of an approved agency is
employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.
Please read the following recommend safety precautions carefully.
y Do not Place this apparatus on an uneven surface.
y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy
cold area.
y Do not place this apparatus near.
y Do not attempt to service this apparatus yourself.
y Do not place a glass of water on the product.
y Do not install near any magnetic sources.
y Do not block any ventilation openings.
y Do not place heavy items on the product.
User’s Manual is a guidance book how to use the products
The meaning of the using sign in the book is following
y Reference: in case of providing information for helping of product’s usages
y Notice: If there’s any possibility to occur any damages for the goods and human caused by not
following the instruction
Ú Please read this manual for the safety before using of goods and keep it in the safe place.
English _3
IR Sensor at a Glance
Cover
Receiver
Transmitter
Bracket
Temper
Terminal
Monitor Jack
Good LED
Response Time
Control Wheel
Channel Switch
Power LED
Alarm LED
Sight Window
Lens
Vertical Angle
Adjustable Screw
What’s Included
Steel Bracket (x2)
Screw (x4)
+
User Manual/Warranty Card
U-shaped Bracket x2 (optional)
English _4
Film
Installation Instructions
For best performance, you should consider the followings when placing, installing and keeping the product at a distance from
the object.
• Do not expose it to a place where its light projector or light receiver is affected by a direct strong light such as sunlight or
headlight. (below ±2 is not allowed in the optical axis)
• Do not install it in an unstable, not properly secured place. (wire fence or unsecured pole is not allowed)
• Do not install it in a place where the infrared light is blocked due to a seasonal reason such as thick wood or bushes.
• Keep it away from the muddy water or sea water keeping splashing. (the infrared light is likely to be blocked by the muddy
water or sea water)
Installation
To mount on the wall
1. Loosen the screw to remove the cover of the sensor as shown.
2. Attach the plate to the wall and mark the hole position, then drill a hole and
use the screws (4mm) to fix the plate.
3. Remove the slot-shaped filling on the rubber hole of the sensor and
pull out the cables through the hole.
English _5
Rubber Hole
4. When done, adjust the optical axis and insert the cover.
To attach to the pole
1. Pull out the cables from the wiring hole of the pole; insert the
U-shaped pole bracket to the pole
Cable-In Hole
2. Attach the sensor to the bracket and arrange the cables as
necessary.
Pole Bracket
(optional)
 same as in wall-mounting
3. Put the cover as original.
 Pole external diameter: Φ38~Φ46
Channel Setting (SIA-0120D)
To prevent misalarming due to possible frequency interference between two or more sensors in one place, set the channel
respectively.
<1 CH>
<2 CH>
<3 CH>
English _6
<4 CH>
Adjusting the response speed
You can adjust the response time by turning the response time control wheel left or right.
Turning it left will speed up the response time; turn it right to slow down the time.
 The factory default is set to 250 msec.
•
•
•
•
•
Full-speed run – 50 msec
Fast walk – 100 msec
Normal walk – 250 msec
Slow walk – 350 msec
Jump over a fence or obstacle – 500 msec
50 msec
500 msec
Extending the radiation width according to the scanning range
For extension of the radiation (IR beam) according to the scanning range of the transmitter or receiver, please refer to the
following table:
L
A
120m
3.6m
A
Protection Distance
Transmitter
L
Receiver
Adjusting the optical axis
1. Connect both transmitter and receiver and turn them on.
2. Look through the mirror of the sight and adjust the
sensor so that the other sensor can be positioned in
the center of the mirror.
±10˚
 You can use the left/right adjustable screw and
the vertical adjustable screw of the reflector to
refine your adjustment.
(vertically ±10˚ & horizontally ±90˚)
±90˚
English _7
3. Check the level of the light received from the monitor output signal.
You can use the tester to measure the DC voltage and refine your adjustment.
4. Check the output voltage of the tester and close the cover.
Output Voltage
Optical Axis Status
SIA-0120
SIA-0120D
3.0V or higher
2.2V or higher
Good
2.9V or lower
2.1V or lower
To be adjusted
Using the attenuation film for optimal adjustment of the optical axis
1. Attach the attenuation film to the reflection part of the receiver in order for finetuning after the initial optical axis adjustment.
2. Make adjustment until the “Good LED” turns green.
3. Remove the attenuation film and close the cover.
 The attenuation film is a special film designed especially for blocking the
external light from the transmitter by 90% and allowing inflow of only 10%.
English _8
Troubleshooting
Problem
Reason
Action
The power indicator of the
transmitter does not turn
on.
1. Power is not supplied.
2. Loose connection or short-circuited
1. Apply the power.
2. Check if the cables are properly connected.
Even if I block the infrared
light, the alarm indicator of
the receiver does not turn
on.
1. Power is not supplied.
2. Loose connection or short-circuited
3. The infrared light is incoming to the receiver
after reflected by an object.
4. Two light sources are not properly blocked
simultaneously.
1. Turn on the sensor.
2. Check if the cables are properly connected.
3. Remove the interruption object, or change
the installation site or the orientation of the
optical axis.
4. Block two light sources simultaneously.
The alarm indicator of the
receiver will not turn off.
1. The optical axis is dislocated.
2. There exists an obstacle between
transmitter and receiver.
3. The cover of the transmitter or receiver has
impurities on it.
1. Adjust the optical axis as necessary.
2. Remove the obstacle.
3. Wipe out the impurities with a soft cloth.
The alarm sounds
intermittently.
1. Disconnected cables
2. Fluctuation of the power voltage
3. There exists an obstacle between
transmitter and receiver.
4. There exists a different strong power source
around the transmitter or receiver.
5. The transmitter or receiver gets loose and
unstable at its position.
6. The optical axis is dislocated.
7. The cover of the transmitter or receiver has
impurities on it.
8. Sometimes a big bird or cat can block the
light temporarily.
1.
2.
3.
4.
5.
6.
7.
8.
Check the connection status again.
Regulate the power voltage.
Remove the obstacle.
Change the wiring path.
Secure the pole or support.
Adjust the optical axis as necessary again.
Wipe out the impurities with a soft cloth.
Set the response time longer.
Wiring Diagram
Receiver
Transmitter
1. VCC : DC12V
2. GND
3. Normal Close
4. Common
5. Normal Open
6. Tamper
7. Tamper
1. VCC : DC12V
2. GND
English _9
Specifications & Appearance
Specifications
Item
Model
Work Range
Detection System
IR Light
Response Time
Power Voltage
AGC Voltage
Current Consumption
Alarm Out
Temperature
Temper Output
Adjustment of Optical Axis
Installation
Weight
Dustproof/Waterproof Rating
Description
SIA-0120
SIA-0120D
Outdoor 120m
NIR Blocking System (Twin Beams)
IR LED
50 ~ 500 ms
DC 12V(±15%)
Alarm: 1.8V or lower
Alarm: 1.0V or lower
Ready: 2.1 ~ 2.9V
Ready: 2.0 ~ 2.2V
Good: 3.0V or higher
Good: 2.2V or higher
Receiver: 19mA, Transmitter: 23mA
Receiver: 31mA, Transmitter: 26mA
Dry contact relay output 1C (COM, N.C/N.O)
Reset: Interruption time + off-relay (approx. 1 sec)
-25˚C ~ 60˚C
Dry contact, Micro SW (COM, N.C)
Horizontal: 180˚(±90˚), Vertical: 20˚(±10˚)
Outdoor / Indoor, Optional: Pole-mount bracket
622g
IP65
Appearance
Unit: mm
English _10
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of
their working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
P/No. : Z6806119601A-00
