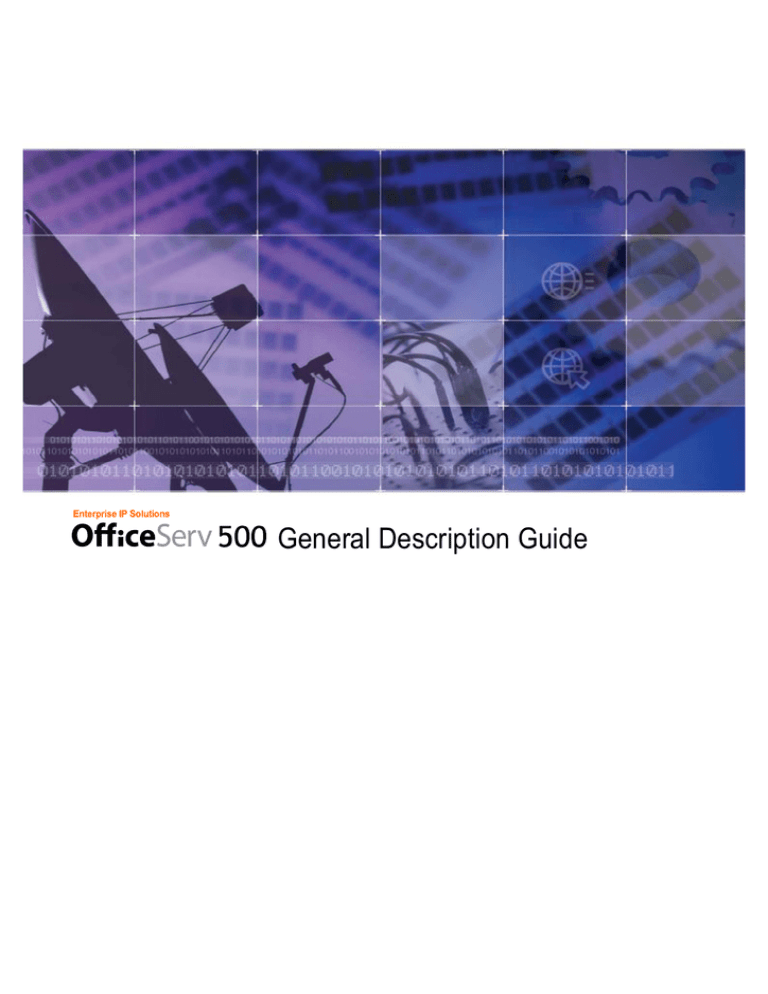

General Description Guide
COPYRIGHT
This manual is proprietary to SAMSUNG Electronics Co., Ltd. and is protected by copyright.
No information contained herein may be copied, translated, transcribed or duplicated for any
commercial purposes or disclosed to third parties in any form without the prior written consent of
SAMSUNG Electronics Co., Ltd.
TRADEMARKS
OfficeServ 500 is the trademark of SAMSUNG Electronics Co., Ltd.
Product names mentioned in this document may be trademarks and/or registered trademarks of
their respective companies.
Please read this guide before using the OfficeServ 500, and follow the instructions to use the OfficeServ 500
safely and correctly.
This manual may be changed for the product improvement, standardization and other technical reasons without prior
notice.
For further information on the updated manual or the content contained in the manual, contact your Authorised Samsung
Reseller.
©2003 SAMSUNG Electronics Co., Ltd. All rights reserved.
INTRODUCTION
Purpose
OfficeServ 500, Enterprise IP Solutions system, is a digital telephone system
designed for small to medium-sized businesses.
This manual provides an overview of the Samsung OfficeServ 500 including system
structure and hardware, features and facilities and specifications.
Document Content and Organization
This guide consists of following 4 chapters. Find and read necessary chapters.
Introduction to System
Hardware Descriptions
Specifications
Business Feature Package
Conventions
The following special paragraphs are used in this document to point out information
that must be read. This information may be set-off from the surrounding text, but is
always preceded by a bold title in capital letters. The three categories of these special
paragraphs are :
WARNING
Indicate a potentially hazardous situation which if not avoided, could result in death or
serious injury.
CAUTION
Indicate a potentially hazardous situation which if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
© SAMSUNG Electronics Co., Ltd.
Page I
Introduction
OfficeServ 500 General Description Guide/Ed.00
NOTE
Indicates additional information as a reference
Reference
OfficeServ 500 Installation Guide
Introduces the installation related information for OfficeServ 500 system.
OfficeServ 500 Programming Guide
This guide is a programming(MMC) description for OfficeServ 500 system users.
OfficeServ 500 Service Manual
Introduces circuit configuration of each section in OfficeServ 500 system, main
functions, parts list, troubleshooting, and disassembly diagram of main device.
DS-5012L Digital Phone User’s Manual
This is a user’s manual for the Large LCD Digital Phone(DS-5012L) that can be used
by connecting to the OfficeServ 500 system.
ITP-5012L IP Phone User’s Manual
This is a user’s manual for the Large LCD IP Phone that can be used by connecting to
the OfficeServ 500 system.
DS-5021D/5014D Digital Phone User Guide
This is a user’s manual for the 2 Line LCD Digital Phone(DS-5012D, DS-5014D)
that can be used by connecting to the OfficeServ 500 system.
ITP-5021D/5014D IP Phone User Guide
This is a user’s manual for the 2 Line LCD IP Phone(ITP-5021D, ITP-5014D) that
can be used by connecting to the OfficeServ 500 system.
OfficeServ 500 Wireless LAN Service Manual
Introduces information needed to install the wireless device of the OfficeServ 500
system or for its maintenance.
Page II
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
Introduction
WIP-5000M Phone User Guide
This is a user’s manual for WIP-5000M that is designed to use wireless LAN
provided from the OfficeServ 500 system.
The manuals for OfficeServ 500 Wireless LAN and WIP-5000M Phone will be
provided at the time of product release in later time.
Revision History
EDITION
DATE OF ISSUE
REMARKS
00
7. 2003.
First Version
© SAMSUNG Electronics Co., Ltd.
Page III
Introduction
OfficeServ 500 General Description Guide/Ed.00
This page is intentionally left blank.
Page IV
© SAMSUNG Electronics Co., Ltd.
SAFETY CONCERNS
For product safety and correct operation, the following information must be given to
the operator/user and shall be read before the installation and operation.
Symbols
Caution
Indication of a general caution
Restriction
Indication for prohibiting an action for a product
Instruction
Indication for commanding a specifically required action
CAUTION
CAUTION
Barge-In without tone may violate laws concerning the right to privacy.
SAMSUNG Electronics CO. is in no way responsible for the possible misuse of this
feature.
© SAMSUNG Electronics Co., Ltd.
Page V
Safety Concerns
OfficeServ 500 General Description Guide/Ed.00
This page is intentionally left blank.
Page VI
© SAMSUNG Electronics Co., Ltd.
TABLE OF CONTENTS
INTRODUCTION
Purpose ...................................................................................................................................I
Document Content and Organization ......................................................................................I
Conventions.............................................................................................................................I
Reference ...............................................................................................................................II
Revision History.....................................................................................................................III
SAFETY CONCERNS
Symbols ................................................................................................................................. V
CAUTION ............................................................................................................................. V
CHAPTER 1. Introduction To System
1
GENERAL DESCRIPTION ................................................................................................ 1-1
2
SIZE AND CONFIGURATION............................................................................................ 1-2
2
SIZE AND CONFIGURATION............................................................................................ 1-3
2.1 Single Cabinet System .............................................................................................. 1-3
2.2 Two Cabinet System.................................................................................................. 1-4
2.3 Three Cabinet System ............................................................................................... 1-6
3
TYPES OF OFFICESERV 500 AND SYSTEM SPECIFICATIONS ................................... 1-7
3.1 OfficeServ 500 Classification by Capacity................................................................. 1-7
3.2 OfficeServ 500 Classification by Performance/Function ........................................... 1-8
3.3 System Specifications................................................................................................ 1-8
3.4 Syetem Configuration ................................................................................................ 1-9
4
TECHNOLOGY ................................................................................................................ 1-13
4.1 MCP Card ................................................................................................................ 1-13
4.2 MCP2 Card .............................................................................................................. 1-13
5
PROGRAMMING ............................................................................................................. 1-14
© SAMSUNG Electronics Co., Ltd.
Page VII
CHAPTER 1. Introduction To System
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
1
SYSTEM CABINETS.......................................................................................................... 2-1
2
COMMON CONTROL CARDS .......................................................................................... 2-2
2.1 Processor Cards ........................................................................................................ 2-2
2.2 Processor Card Daughter Boards.............................................................................. 2-5
2.3 SmartMedia Cards ..................................................................................................... 2-7
2.4 Input-Output Module(IOM) Board .............................................................................. 2-7
2.5 Modem Daughter Board ............................................................................................ 2-7
3
INTERFACE CARDS.......................................................................................................... 2-8
3.1 Trunk Cards ............................................................................................................... 2-8
3.2 Station Cards ........................................................................................................... 2-10
3.3 Other Cards ............................................................................................................. 2-11
4
STATION EQUIPMENT .................................................................................................... 2-13
4.1 iDCS Series Equipment ........................................................................................... 2-13
4.2 DCS Series Equipment............................................................................................ 2-19
CHAPTER 3. Specifications
1
ELECTRICAL SPECIFICATIONS (PSU-B) ....................................................................... 3-1
2
ELECTRICAL SPECIFICATIONS (PSU 60) ...................................................................... 3-1
3
DIMENSIONS AND WEIGHTS .......................................................................................... 3-2
4
ENVIRONMENTAL LIMITS................................................................................................ 3-2
5
CABLE REQUIREMENTS ................................................................................................. 3-2
6
SYSTEM TONES................................................................................................................ 3-3
7
PHONE LED INDICATIONS............................................................................................... 3-4
8
RESERVE POWER DURATION ESTIMATES (in
minutes)* ....................................... 3-5
CHAPTER 4. Business Feature Package
1
SYSTEM FEATURES ......................................................................................................... 4-2
1.1 System Feature Descriptions..................................................................................... 4-4
2
STATION FEATURES ...................................................................................................... 4-36
2.1 Station Feature Descriptions.................................................................................... 4-37
3
DISPLAY FEATURES ...................................................................................................... 4-46
3.1 Display Feature Descriptions................................................................................... 4-46
4
SAMPLE DISPLAYS ........................................................................................................ 4-51
5
SAMPLE CALLER ID DISPLAYS .................................................................................... 4-52
6
SAMPLE UCD DISPLAYS ............................................................................................... 4-53
Page VIII
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
Table of Contents
7
SAMPLE SMDR PRINTOUT (WITHOUT CALLER ID) ................................................... 4-54
8
SAMPLE SMDR PRINTOUT (WITH CALLER ID NUMBER).......................................... 4-55
9
SAMPLE UCD REPORT.................................................................................................. 4-56
10
UCD CALL STATISTICS.................................................................................................. 4-57
11
UCD AGENT STATISTICS ............................................................................................... 4-59
12
SAMPLE TRAFFIC REPORT .......................................................................................... 4-60
13
TRAFFIC REPORT OVERVIEW...................................................................................... 4-62
14
SAMPLE ALARM REPORT............................................................................................. 4-68
LIST OF FIGURES
Figure 1.1
Figure 1.2
Figure 1.3
Figure 1.4
OfficeServ 500 General System Diagram..................................................... 1-2
OfficeServ 500 Single Cabinet System......................................................... 1-3
OfficeServ 500 Two Cabinet System ............................................................ 1-5
OfficeServ 500 Three Cabinet System ......................................................... 1-6
Figure 2.1
Figure 2.2
Figure 2.3
Figure 2.4
Figure 2.5
28 Button iDCS phone ................................................................................ 2-13
18 Button iDCS phone ................................................................................ 2-13
8 Button iDCS phone .................................................................................. 2-14
DS-5012L.................................................................................................... 2-14
DS-5014D ................................................................................................... 2-15
Figure 2.6
Figure 2.7
Figure 2.8
DS-5021D ................................................................................................... 2-16
ITP-5012L ................................................................................................... 2-16
ITP- 5014D.................................................................................................. 2-17
Figure 2.9
ITP- 5021D.................................................................................................. 2-17
Figure 2.10 64 Button iDCS AOM.................................................................................. 2-17
Figure 2.11 14 Button iDCS AOM .................................................................................. 2-18
Figure 2.12 DS-5064B ................................................................................................... 2-18
Figure 2.13 LCD 24B Euro phone ................................................................................. 2-19
Figure 2.14 STD 24B phone .......................................................................................... 2-19
Figure 2.15 STD 12B phone .......................................................................................... 2-20
Figure 2.16 6B LCD Model phone ................................................................................. 2-20
Figure 2.17 48 Button AOM ........................................................................................... 2-21
Figure 2.18 DS 24S phone ............................................................................................ 2-21
Figure 2.19 DS 24D phone ............................................................................................ 2-22
Figure 2.20 Economic phone ......................................................................................... 2-23
Figure 2.21 Door phone Interface Module ..................................................................... 2-23
Figure 2.22 Door phone ................................................................................................. 2-23
Figure 2.23 Single Line Telephone ................................................................................ 2-24
© SAMSUNG Electronics Co., Ltd.
Page IX
CHAPTER 1. Introduction To System
OfficeServ 500 General Description Guide/Ed.00
LIST OF TABLES
Page X
Table 1.1
OfficeServ 500 Configuration Type .................................................................. 1-7
Table 1.2
OfficeServ 500 Specifications........................................................................... 1-8
Table 1.3
OfficeServ 500 System Configuration .............................................................. 1-9
Table 2.1
Differences between MCP Card and MCP2 Card ............................................ 2-3
© SAMSUNG Electronics Co., Ltd.
CHAPTER 1
Introduction To System
This chapter describes the introduction to the OfficeServ 500 system as follows :
General Description
Size and Configuration
Types of OfficeServ 500 and System Specifications
Technology
Programming
1
GENERAL DESCRIPTION
The SAMSUNG OfficeServ 500(Enterprise IP Solutions System) is a digital
telephone system designed for small to medium-sized businesses. It can operate with
the functionality of a square button system, PABX or a combination of both(hybrid).
The Enterprise IP Solutions System employs DSP(Digital Signal Processors) digital
technology.
The OfficeServ 500 offers a variety of interface cards that allow connection to the
public telephone network or to private networks. These are generally referred to as
trunk cards. Two types of telephones can be connected to the system. Proprietary
digital phones called ‘phones’ connect to Digital Line Interface cards(DLI). Standard
telephones generally called ‘single line sets’ connect to Single Line Interface
cards(SLI). In addition, DLI station ports are used to connect peripheral devices such
as door phones, serial interface devices and add-on modules. Miscellaneous circuits
are provided to allow such optional features as external paging, music on hold,
background music, and common audible devices. All interface cards are encased in
an anti-static plastic enclosure and most can be inserted or removed with power on to
eliminate unnecessary service interruptions while performing maintenance.
All phones utilize a single PCB with surface-mounted components assuring the highest
product quality and long life. Samsung’s customary large, easy-to-read displays and
LEDs in the button design make them much easier to use. In many instances,
sophisticated features are made simple through the use of friendly display prompts or
push-on/push-off feature buttons.
Expanding the OfficeServ 500 system is both economical and easy. Begin with a single
cabinet configured as a basic Button Service Unit and then add up to two more cabinets as
your business grows. Its low and medium density card design allows greater flexibility
when configuring a system for the right combination of lines and stations. A removable
software cartridge(SmartMedia card) makes it convenient to upgrade to future feature
packages.
© SAMSUNG Electronics Co., Ltd.
Page 1-1
CHAPTER 1. Introduction To System
iDCS 28B phone
iDCS 8B phone
Economic phone
OfficeServ 500 General Description Guide/Ed.00
iDCS 18B phone
iDCS 14B AOM
6B LCD Model phone
iDCS 64B AOM
Single Line Telephone
12B Large LCD phone
12B 2Line LCD
21B 2Line LCD phone
14B 2Line LCD phone
12B Large LCD IP phone
21B 2Line LCD IP phone
14B 2Line LCD IP phone
LCD 24B phone
For future
48 Button AOM
64B AOM
WIP-5000M
Computer
48VDC Battery
Backup
Telephone Lines
Loopground start
DID
The Iine
T1
ISDN PRVPRI
110/220V AC
SMDR
Cadence
integrated
voice mail&auto
attendant
Printer or call accounting system
Loud Bells
External music sources
Door phones
Voice mail/auto
attendant systems
WBS-24
(For future)
Figure 1.1 OfficeServ 500 General System Diagram
Page 1-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
2
CHAPTER 1. Introduction To System
SIZE AND CONFIGURATION
The OfficeServ 500 is a fully modular system comprised of a single cabinet configured
as a Button Service Unit, up to two additional cabinets, interface cards and electronic
phones. A fully expanded system using the TEPRI cards can have a maximum of 352
lines or 360 stations. Without the TEPRI cards, the maximum number of lines is 208
and the maximum number of stations is 360. The maximum number of ports
supported by the system is 488. Each cabinet of the system supports two power
supply units, the first of which must be a PSU-B and can support up to 56 stations.
When assisted by a second power supply unit(either PSU60 or PSU-B) the cabinet
can support up to 120 station devices. Both power supply units are connected to the
DC bus for external battery backup. Each cabinet also has four(4) Digital Signal
Processor(DSP) channels for use as DTMF receivers or tone detectors.
2.1
Single Cabinet System
A single cabinet system has nine universal card slots, a processor slot and two power
supply slots, the first of which must be occupied by a PSU-B. Station or trunk(line)
cards can be installed in any of the nine universal slots. The TEPRI cards must be
installed in slots 1, 2 or 3. This allows a maximum of 120 stations of any kind or 120
lines in a single cabinet system. Without using TEPRI cards, the maximum number of
CO lines in the basic KSU is 72.
Figure 1.2 OfficeServ 500 Single Cabinet System
The first power supply slot must be occupied by a PSU-B to supply sufficient power to
all 10 slots(9 universal and a processor slot) and support up to 56 stations. The second
power supply slot can be occupied by either a PSU60 or PSU-B. Do not use a PSU40
in either PSU slot.
© SAMSUNG Electronics Co., Ltd.
Page 1-3
CHAPTER 1. Introduction To System
2.2
OfficeServ 500 General Description Guide/Ed.00
Two Cabinet System
When it is required that the basic system be expanded to provide a capacity greater
than that described above, the Signal Control Processor(SCP/SCP2) card must be
installed in slot nine of the first cabinet. This card provides an intermediate level of
processing to control the first cabinet therefore freeing resources on the Main Control
Processor(MCP/MCP2) to control the entire system. Adding the SCP/SCP2 card
therefore reduces the number of universal card slots in the first cabinet to eight.
In addition, the MCP card must be equipped with a ESM daughter board and a IPM
daughter board. In case of MCP2 card, only ESM daughter board is required and
IPM/LAN is not needed. Only a LAN daughter board may optionally occupy the
remaining daughter board position on the MCP card. All other types of daughter
boards must be installed on the SCP/SCP2 card or LCP/LCP2 card.
Adding one expansion cabinet makes the system a two cabinet system with 17
universal card slots(see Figure 1.2). This allows a maximum of 240 stations or 232
lines when using TEPRI cards. Without the TEPRI cards, the maximum number of
lines is 136 while the maximum number of stations remains at 240. This second
cabinet is controlled by a Local Control Processor(LCP/LCP2) in a similar manner to
the SCP/SCP2 in the first cabinet and connects to the MCP/MCP2 via a 25 pair cable.
The LCP/LCP2 processor card resides in a dedicated slot 10 of the second cabinet
and therefore does not deplete the number of universal card slots.
The first power supply slot in each cabinet must be occupied by a PSU-B to supply
sufficient power to all 10 slots(9 universal and a processor slot) and support up to 56
stations. The second power supply slot can be occupied by either a PSU60 or PSU-B.
Do not use a PSU40 in either PSU slot.
Page 1-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 1. Introduction To System
Figure 1.3 OfficeServ 500 Two Cabinet System
© SAMSUNG Electronics Co., Ltd.
Page 1-5
CHAPTER 1. Introduction To System
2.3
OfficeServ 500 General Description Guide/Ed.00
Three Cabinet System
In a fully expanded three cabinet system, there are 26 universal card slots(see Figure 1.3).
This allows a maximum of 360 stations or 352 lines when using TEPRI cards.
Without TEPRI cards, the maximum number of lines is 208 and the maximum number
of stations is 360. The third cabinet is also controlled by a Local Control Processor
(LCP/LCP2) in a similar manner to the LCP/LCP2 in the second cabinet and connects
to the second cabinets’ LCP/LCP2 via a 25 pair cable. This processor resides in a
dedicated slot 10 and therefore does not deplete the number of universal card slots.
In addition, the MCP card must be equipped with an ESM daughter board and an
IPM daughter board. Only a LAN daughter board may optionally occupy the
remaining daughter board position on the MCP card. All other types of daughter
board must be installed on the SCP/SCP2 card or LCP/LCP2 card.
Figure 1.4 OfficeServ 500 Three Cabinet System
Page 1-6
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 1. Introduction To System
The first power supply slot in each cabinet must be occupied by a PSU-B to supply
sufficient power to all 10 slots(9 universal and a processor slot) and support up to 56
stations. The second power supply slot can be occupied by either a PSU60 or PSUB. Do not use a PSU40 in either PSU slot.
3
TYPES OF OFFICESERV 500 AND SYSTEM
SPECIFICATIONS
The OfficeServ 500 system is classified into OfficeServ 500-M and OfficeServ 500-L
by capacity, and the feature and performance are classified by the mounted main
control card MCP and MCP2.
3.1
OfficeServ 500 Classification by Capacity
The OfficeServ 500 system is classified into OfficeServ 500-M for small capacity
and OfficeServ 500-L for large capacity depending on configuration. The table below
shows the difference between OfficeServ 500-M and OfficeServ 500-L.
Table 1.1 OfficeServ 500 Configuration Type
Item
Construct
OfficeServ 500-M
- SIngle cabinet
OfficeServ 500-L
- Single cabinet
- Two cabinet
- Three cabinet
Universal Slot
Basic Cards Mounted
- 16 channel : 6
- 16 channel : Max. 17
- 32 channel : 3
- 32 channel : Max. 9
- MCP/MCP2 card
- MCP/MCP2, SCP/SCP2,
- PSU-B card
LCP/LCP2 card
- ESM, IPM board(used with MCP)
- PSU-B card
Daughter Board
- SCM : Max. 1
- SCM : Max. 1
- RCM : Max. 1
- MFM : Max. 3
- MISC : Max. 1
- RCM : Max. 3
- LAN : Max. 1(for MCP)
- MISC : Max. 3
- TOTAL : Max. 3
- LAN : Max. 1(for MCP)
- TOTAL : Max. 10
Input/Output Port
- Basic : 2 port(basic 19.2Kbps, Max. 38.4Kbps)
(IOM board)
- Option : 2 port(basic 19.2Kbps, Max. 38.4Kbps)
(available only for MCP+LAN)
© SAMSUNG Electronics Co., Ltd.
Page 1-7
CHAPTER 1. Introduction To System
3.2
OfficeServ 500 General Description Guide/Ed.00
OfficeServ 500 Classification by Performance/Function
The OfficeServ 500 system is classified into MCP based system and MCP2 based
system by performance and function.
IP phone, Large LCD phone service, and services related to wireless LAN are only
available in the MCP2 based OfficeServ 500 system. Refer to Table 2.1(Differences
between the MCP Card and the MCP2 Card) for the button differences between MCP
and MCP2.
The function and performance of the OfficeServ 500 system is classified by the
mounted main control card MCP and MCP2. IP phone, Large LCD phone service, and
wireless LAN related services are only available on configurations using the MCP2
card. Refer to Table 2.12(Differences between MCP and MCP2 cards) for button
differences between the main control parts MCP and MCP2.
3.3
System Specifications
Table 1.2 OfficeServ 500 Specifications
Item
Supported
Trunk Line
Cards
card
Specifications
8TRK, DID, E/M, TEPRI, BRI
Station Card
SLI, 8SLI, 16SLI, 8MWSLI, 16MWSLI, DLI, 16DLI
Service Card
AA, SVMi-8, SVMi-16, VDIAL, 8WLI, ITM3, MGI1, MGI2, MGI3
Daughter
ESM, IPM(MCP only), LAN(MCP only), MISC, SCM, MFM, RCM,
Board
ITM3D, MODEM
Service Board
IOM, MDF, PFT
Additional Equipment
Hold/Background sound source
External broadcasting device
Common bells
PC for programming(PCMMC)
SMDR computer, CTI computer
Connectable Terminal
General phone(SLT-A, SLT-C)
Digital phone
- DS-4000 phone(DS-4028E, DS-4018E, DS-4008E,
DS-4014 AOM, DS-4064 AOM, DS-4000 KDB-D, DS-4000 KDB-S,
DS-4000 KDB-F, DS-4000 EXTMIC)
- DS-24SE phone(DS-24SE, DS-24SE AOM, DS-24SE KDB-D,
DS-24E KDB-S)
- DS-2024E phone(DS-2024E, DS-2012E, DS-2024 AOM,
DS-2024 KDB-D, DS-2024 KDB-S)
- DS-3020S phone(DS-3020S, DS-3020S AOM)
- DS-24D phone(S phone)
- DPIM
Page 1-8
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 1. Introduction To System
Item
Specifications
Connectable Terminal
- Large LCD phone(available when using MCP2)
(DS-5012L)
- 2 Line phone(available when using MCP2)
(DS-5021D/14D)
IP phone(available when using MCP2)
- ITP-5012L(Large LCD)
- ITP-5021D/14D(2 Line LCD)
Wireless LAN phone(available when using MCP2 : For Future)
- WIP-5000M
3.4
Syetem Configuration
The OfficeServ 500 system is classified into small capacity OfficeServ 500-M and
medium, large capacity OfficeServ 500-L by line capacity, and the
function/performance is classified upon the mounted MCP and MCP2 control cards.
The system configuration there of are shown below.
Table 1.3 OfficeServ 500 System Configuration
MCP
Classification
SYSTEM
Component
MCP2
OfficeServ
OfficeServ
OfficeServ
OfficeServ
500-M
500-L
500-M
500-L
Remarks
CABINET
MCP
MCP2
SCP
LCP
SCP2
LCP2
IOM
Not mounted on
expansion
cabinets.
© SAMSUNG Electronics Co., Ltd.
Page 1-9
CHAPTER 1. Introduction To System
OfficeServ 500 General Description Guide/Ed.00
MCP
Classification
System
Component
MCP2
OfficeServ
OfficeServ
OfficeServ
OfficeServ
500-M
500-L
500-M
500-L
Remarks
SCM
Common
MFM
resource daughter
RCM
boards are
mounted in
MCP/MCP2 for
OfficeServ 500-M
configuration, and
in SCP/SCP2/
LCP/LCP2 for
OFFICESERV
500-L
Configuration.
MISC
ESM
Used for line
expansion
IPM
Not used when
LAN
configuration the
system as MCP2
card.
VoIP
MODEM
Mounted in IOM
ITM3
8 channels
ITM3D
8 channels,
shared in
MGI3/ITM3
MGI1
Supports G.711
MGI2
Supports G.711,
G.729
MGI3
Supports
G.711, G.729,
G.723, T.38
WLAN
8WLI
1card per system
(For Future
supported.
Application)
Accommodates
eight WBS24
WBS24
Wireless LAN
BTS
Page 1-10
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 1. Introduction To System
MCP
Classification
WLAN
Component
WIP5000M
(For Future
MCP2
OfficeServ
OfficeServ
OfficeServ
OfficeServ
500-M
500-L
500-M
500-L
Remarks
Wireless LAN
MS
Application)
DECT
8BSI
Accommodates
eight DBS Max.
1 card for M
system
Max. 3 card for
L system
supported
Phone
DBS
DECT BTS
0D8000
DECT MS
DPIM
DS-5012L
Large LCD
DS-5021D/
2 Line LCD
14D
ITP-5012L
ITP-5021D/
14D
Large LCD
2 Line LCD
DS-4000
Series
DS-24E
Series
Phone
DS-3020
Series
DS-24D
Series
D TRK
TEPRI
BRI
A TRK
TRK_B
8TRK
DID
E&M
B&W
R&D
© SAMSUNG Electronics Co., Ltd.
Page 1-11
CHAPTER 1. Introduction To System
OfficeServ 500 General Description Guide/Ed.00
MCP
Classification
Component
MCP2
OfficeServ
OfficeServ
OfficeServ
OfficeServ
500-M
500-L
500-M
500-L
Remarks
A TRK
4WE & M
Subscriber
16SLI
16 Channels
16MWSLI
Message
Waiting function
8SLI
8 Channels
8MWSLI
Message
Waiting function
16DLI
DLI
Service
AA
SVMi-8
SVMi-16
VDIAL
Smart Media
OfficeServ
Separate
Card
500
management
MP S/W
for M/L and
MCP/MCP2
Page 1-12
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
4
TECHNOLOGY
4.1
MCP Card
CHAPTER 1. Introduction To System
4.1.1 Memory
The system operates using stored program control. This program is stored on a
SmartMedia card inserted into the Main Control Processor card(MCP) and contains a
minimum of eight Megabytes of NAND-Flash memory. Optional, larger capacity,
SmartMedia cards are also available to provide a backup customer database and a
backup operating program. The system boots from a 256 Kbytes boot ROM and
downloads the operating program into four megabytes of DRAM on the Main
Control Processor(MCP) card. The four megabytes of DRAM are increased to 8
megabytes with the addition of the Inter Processor communications Module(IPM) in
an expanded system. The customer database is stored in 1.0 Mbytes of non-volatile
SRAM for a single cabinet system. This expands to 2.5 Mbytes with the IPM
installed and to 3.0 Mbytes with the addition of the optional LAN interface
module(LAN).
4.1.2 Microprocessors
The OfficeServ 500 uses distributed processing. Its primary processor is a 16 bit
(32 bit core) Motorola MC68302 operating at a clock speed of 25 MHz on the MCP
card. This provides all the processing necessary for a single cabinet system. In a multi
cabinet system the secondary level of processing is on the SCP card for the first
cabinet and on the LCP cards for the expansion cabinets. These secondary processors
are MC68302 processors running at 16 MHz and provide local control of each
cabinet. Messaging between the primary and secondary processors is handled by a
MC68302 processor running at 25 MHz located on the Inter Processor
communications Module(IPM) PCB. The tertiary level of processing is done in the
phones. The digital phones use a Hitachi H8 processor for data communication
within the system.
4.2
MCP2 Card
4.2.1 Memory
The system operates using stored program control. This program is stored on a
SmartMedia card inserted into the Main Control Processor card(MCP2) and contains
a minimum of 16Megabytes of NAND-Flash memory. Optional, larger capacity,
SmartMedia cards are also available to provide a backup customer database and a
backup operating program. The system boots from a 512 Kbytes boot ROM and
downloads the operating program into 64 megabytes of DRAM on the Main Control
Processor(MCP2) card. The customer database is stored in 4 Mbytes of non-volatile
SRAM for a single cabinet system.
© SAMSUNG Electronics Co., Ltd.
Page 1-13
CHAPTER 1. Introduction To System
OfficeServ 500 General Description Guide/Ed.00
4.2.2 Microprocessors
The OfficeServ 500 uses distributed processing. Its primary processor is a 32 bit
Motorola MPC860 operating at a clock speed of 80 MHz on the MCP2 card.
This provides all the processing necessary for a single cabinet system. In a multi
cabinet system the secondary level of processing is on the SCP2 card for the first
cabinet and on the LCP2 cards for the expansion cabinets. These secondary processors
are MC68302 processors running at 16 MHz and provide local control of each cabinet.
The Inter Processor communications Module(IPM) PCB is not supported.
The tertiary level of processing is done in the phones. The digital phones use a
Hitachi H8 processor for data communication within the system.
5
PROGRAMMING
The OfficeServ 500 is a self-configuring system. This means that immediately after
applying power, the OfficeServ 500 reads the types and locations of all installed
interface cards and phones and assigns default data to them. This data provides for
system operation within a few minutes after applying power. All trunks and stations
are assigned three or four digit numbers according to the settings of the switches on
the MCP card and the default numbering LAN. This numbering LAN is flexible and
may be changed to suit customer requirements. The installing technician customizes
this default data to meet the end user’s requirements.
The system can be programmed from any LCD display phone without interrupting
system operation. There are three levels of programming: technician, customer and
station. The technician level has access to all programs and can allow the customer
access to system programs as needed. Technician and customer access levels are
controlled by a different security passcodes and access procedure.
The OfficeServ 500 also allows the use of a proprietary computer program called
DPAP-PCMMC. This permits a technician to program the system using a personal
computer. DPAP-PCMMC can be used on-site to modify the customer database or to
download(save) the entire customer database to a file. This file can then be saved as a
backup and be uploaded when required to restore the database.
Through the use of modems, DPAP-PCMMC can access the OfficeServ 500 system
remotely(off-site) to make database changes or perform uploads or downloads of the
customer database as if the technician were on-site.
Page 1-14
© SAMSUNG Electronics Co., Ltd.
CHAPTER 2
Hardware Descriptions
This chapter describes the hardware of the OfficeServ 500 system as follows:
System Cabinets
Common Control Cards
Interface Cards
Station Equipment
1
SYSTEM CABINETS
The cabinets that make up the OfficeServ 500 system are of metal construction and
may be utilized as either as an expansion cabinet or as a main cabinet/button service
unit(KSU). The cabinets may be used singly or may be stacked up to three(3) high to
achieve maximum capacity. A single cabinet may be wall mounted for smaller
applications or alternatively the system may be mounted in a standard nineteen
inch(19 ) equipment rack after removal of the side panels and their supporting
brackets. Each cabinet is comprised of the following :
Eight interface card slots
One dual purpose interface card/signal processor slot
(see ‘Size and Configuration’ section.)
One processor card slot
Two power supply slots
One IOM board slot for use when the cabinet is the main cabinet/KSU
(see ‘IOM Board’ section)
AC power connector
DC power(Battery Backup) connector
The first power supply slot must be occupied by a PSU-B power supply to supply
sufficient power to all 10 slots(8 interface, one dual purpose and one processor slot).
The second power supply slot can be occupied by either a PSU 60 or a PSU-B.
Do not install a PSU 40 in any PSU slot.
© SAMSUNG Electronics Co., Ltd.
Page 2-1
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
2
COMMON CONTROL CARDS
2.1
Processor Cards
The OfficeServ 500 requires a processor card or cards in order to operate. In a single
cabinet OfficeServ 500 system, only one processor card, the Main Control Processor
(MCP or MCP2), is required. When the system is expanded to two or three cabinets a
second, Signal Control Processor(SCP or SCP2), is required for the main cabinet to
assist the MCP and each expansion cabinet requires its own Local Control
Processor(LCP or LCP2). These processor cards are described below.
2.1.1 Main Control Processor (MCP/MCP2)
MCP CARD
The Main Control Processor(MCP) is installed in a dedicated processor slot, slot 10,
of the first cabinet and has positions for three daughter boards. The first daughter
board(LOC1) can support one of four types of daughter board, a Multi-Frequency
Module(MFM), a Switch/Conference Module(SCM), an R2/CID Module(RCM),
in a single cabinet system and is required to support the Expanded Switching
Module(ESM) in a multiple cabinet system. The second daughter board
position(LOC2) can support the MFM, the SCM, the RCM or the Local Area
Network(LAN) board in a single cabinet system. This position is also required to
support the Inter Processor communications and Memory(IPM) daughter board in a
multiple cabinet system or a system running the L version software. The third
daughter board(LOC3) can support a Miscellaneous(MISC) daughter board or a
Local Area Network(LAN) daughter board in a single cabinet system or a LAN
daughter board in a multiple cabinet system.
MAIN CONTROL PROCESSOR(MCP) DAUGHTER BOARD CAPABILITIES
Position
*
**
Type of Daughter Boards allowed per position
LOC1
MFM, SCM, RCM , ESM*
LOC2
MFM, SCM, RCM, LAN , IPM**
LOC3
MFM, SCM, RCM, LAN , MISC
The ESM must be installed in this position in a Multiple Cabinet System.
The IPM must be installed in this position in a Multiple Cabinet System or a Single Cabinet System running L
version software.
Only one of any type of daughter board may be installed on any processor card.
Page 2-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
MCP2 Card
The Main Control Processor2(MCP2) card is the main processor card with a 32 bit
processor, and controls the overall operation of the OfficeServ 500 system.
MCP2 card is mounted on the MCP/LCP slot of the OfficeServ 500-M or OfficeServ
500-L basic cabinet.
When consisting the OfficeServ 500-L system, daughter boards such as IPM board
and LAN board is not mounted since the MCP2 card is supported by LAN and
HDLC communication with SCP2 and LCP2 unlike the MCP card.
MAIN CONTROL PROCESSOR(MCP2) DAUGHTER BOARD CAPABILITIES
Position
Type of Daughter Boards allowed per position
LOC1
MFM, SCM, RCM, ESM*
LOC2
MFM, SCM, RCM
LOC3
MFM, SCM, RCM , MISC
* The ESM must be installed in this position in a Multiple Cabinet System .
The differences in hardware between the MCP card and the MCP2 card are shown below.
Table 2.1 Differences between MCP Card and MCP2 Card
Item
MCP
MCP2
Processor
16 bit, 25 MHz
32 bit, 80 MHz
SIO
Basic : 2 port(SIO1, SIO2)
Basic 2 port(SIO2, SIO3)
Port(Asynchronous)
Expansion : 2 port(SIO3, SIO4)
SmartMedia Card
16 MB
32 MB
Capacity expandable if needed
Capacity expandable if needed
Basic : 1 MB
Basic : 4 MB
SRAM
Expansion : 2MB(IPM, LAN)
SDRAM
Basic : 4 MB
Basic : 64 MB
Expansion : 4MB(IPM)
LAN
Basic : N/A
Basic : 10/100 Mbps
With LAN board : 10 Mbps
HDLC Port for IPC
Basic : N/A
Basically mounted
Supported by IPM board
Time switch
Daughter Board
Basic : 512x512 Ch.
Basic : 512x512 Ch.
Expansion : 1024x1024 Ch.
Expansion : 1024x1024 Ch.
LOC1, LOC2, LOC3
LOC1, LOC2, LOC3
Mounting
© SAMSUNG Electronics Co., Ltd.
Page 2-3
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
2.1.2 Switch Control Processor (SCP/SCP2)
The Switch Control Processor(SCP/SCP2) is installed in slot 9 of the KSU and
reduces the available universal card slots to eight. The SCP/SCP2 card is required
when the system is to be expanded beyond a single cabinet. The SCP/SCP2 card has
positions for three optional daughter boards.
The first daughter board position(LOC1) can support one of three types of daughter
board, a Multi-Frequency Module(MFM), a Switch/Conference Module(SCM) or an
R2/CID Module(RCM).
The second daughter board position(LOC2) can support the MFM, the SCM,
the RCM or the MISC. The third daughter board position(LOC3) can support one of
the three types of daughter board, a Multi-Frequency Module(MFM), a
Switch/Conference Module(SCM) or an R2/CID Module(RCM).
Only the internal memory differs in hardware between the SCP and SCP2.
The internal DRAM memory of SCP is 2 MB, while the internal DRAM memory of
SCP2 is 4 MB.
SWITCH CONTROL PROCESSOR(SCP/SCP2) DAUGHTER BOARD CAPABILITIES
Position
Type of Daughter Boards allowed per position
LOC1
MFM, SCM, RCM
LOC2
MFM, SCM, RCM, MISC
LOC3
MFM, SCM, RCM
Only one of any type of daughter board may be installed on any processor card.
2.1.3 Local Control Processor (LCP/LCP2)
The Local Control Processor(LCP/LCP2) card is installed in a dedicated processor
slot, slot 10, of each Expansion KSU and does not reduce the available universal card
slots of that cabinet.
The LCP/LCP2 card has positions for three daughter boards. The first daughter board
position(LOC1) can support one of two types of daughter board, a Multi-Frequency
Module(MFM), or an R2/CID Module(RCM). The second daughter board
position(LOC2) can support the MFM, the RCM or the MISC. The third daughter
board position(LOC3) can support one of two types of daughter board, a MultiFrequency Module(MFM), or an R2/CID Module(RCM).
The internal DRAM memory of the LCP card is 2 MB, while the internal DRAM
memory of the LCP2 card is 4 MB.(Only the internal memory differs between the
LCP and LCP2 card.)
Page 2-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
LOCAL CONTROL PROCESSOR(LCP/LCP2) DAUGHTER BOARD CAPABILITIES
Position
Type of Daughter Boards allowed per position
LOC1
MFM, RCM
LOC2
MFM, RCM, MISC
LOC3
MFM, RCM
Only one of any type of daughter board may be installed on any processor card.
2.2
Processor Card Daughter Boards
There are seven types of daughter board that fit on the various processor cards. Some
daughter boards will only work on the Main Control Processor(MCP/MCP2) and the
rest will work on any processor card. The various daughter boards and their uses are
described below.
2.2.1 Inter Processor Communications And Memory Module(IPM)
This daughter board installs in position LOC2 of the MCP and is required to provide
the inter processor messaging channels in a multiple cabinet system. The IPM
daughter board also carries the expanded SRAM and DRAM needed for multiple
cabinet systems and single cabinet systems running L version software.
The IPM daughter board consists of the following :
1 MC68302 25 MHz Processor(for message handling)
1.5 megabyte SRAM(for customer database)
4 megabytes DRAM(for the operating system and scratch pad)
3 synchronous communications ports(to communicate with the SCP and the LCP’s)
2.2.2 Local Area Network (LAN)
This daughter board installs in either position LOC2 or LOC3 of the MCP and provides
a 10BASE-T Ethernet LAN connection. In addition to the LAN connection, the LAN
board provides 0.5 megabytes of SRAM to support the increased I/O functions of this
card. The LAN board also provides the hardware to drive the third and fourth Serial I/O
ports in the main cabinet and support for the V90 internal modem.
The LAN daughter board consists of the following :
10BASE-T Ethernet Interface
0.5 Mbytes SRAM(for expanded database functions)
2 Serial I/O ports(maximum asynchronous speed 38.4 Kbps)
© SAMSUNG Electronics Co., Ltd.
Page 2-5
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
2.2.3 Switch And Conference Module (SCM)
The Switch and Conference Module installs on the MCP/MCP2 or the SCP/SCP2
processor cards. In a single cabinet system the SCM can be installed in LOC1,
however in a multiple cabinet system the SCM must be installed on the SCP/SCP2 as
the MCP must have the ESM and IPM daughter boards.
The system, regardless of size can only support one SCM daughter board. Adding a
SCM daughter board to the system increases the number of conference paths in the
system from six to twenty four. In addition, the SCM also adds twelve channels for
DTMF and tone detection.
Twelve(12) channels for DTMF Receiver and tone detection
Eighteen(18) conference paths(for a system total of 24)
2.2.4 Multi-Frequency Module (MFM)
The MFM Module installs in any position of any of the processor cards. The main
purpose of the RCM daughter board is to provide DSPs for DTMF and tone detection.
The receivers are also used for DID trunks, E & M trunks, DISA, DNIS and ANI.
Twelve(12) channels for DTMF Receiver and tone detection.
2.2.5 Expanded Switch Module (ESM)
The Expanded Switch Module is used to expand the time switch matrix from 512
channels in a single cabinet to the 1024 channels required for a multiple cabinet
system.
The ESM daughter board installs in position LOC1 and consists of the following :
1024 x 1024 time switch
2.2.6 R2/CID Module (RCM)
The R2/CID Module installs in any position on any of the processor cards. The main
purpose of the RCM daughter board is to provide Caller ID decoders for use with that
telephone company provided service over analog trunks. A secondary use of the
RCM is to provide R2 MFC senders and receivers to the system although these are
not used in the US. The system can support up to three of these cards for a total of 42
CID receivers.
The RCM consists of fourteen(14) CID receivers(for use with Caller ID on analog
trunks)
Page 2-6
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
2.2.7 Miscellaneous Function Module (MISC)
The Miscellaneous Function Module(MISC) daughter board installs in position
LOC3 on the MCP/MCP2 card in a single cabinet system or in position LOC2 on the
SCP/SCP2 or position LOC2 on the LCP/LCP2 card(s) in a multiple cabinet system.
The MISC daughter board is used to provide external music on hold/audio
inputs(radios, digital announcers, etc.), external paging auto output, loud bell,
common bell and assignable dry contact closures. The system can support up to three
of these daughter boards, one on the MCP/MCP2 or SCPs/SCP2s and one on each of
the LCPs/LCP2s.
The MISC consists of the following :
Two(2) external music/audio inputs
One(1) external paging audio output
One(1) loud bell relay contact closure
One(1) common bell relay contact closure
Two(2) software assignable relay contact closures
2.3
SmartMedia Cards
An OfficeServ 500 system must have a SmartMedia card installed in the main control
processor(MCP/MCP2) as the SmartMedia card contains the system operating
software. The SmartMedia card can also be used to store a backup customer database
to supplement the database stored on the MCP/MCP2 card. In addition the SmartMedia
card can store backup copies of the operating software for the SCP/SCP2, LCP/LCP2,
TEPRI, and LAN cards.
2.4
Input-Output Module(IOM) Board
The Input Output Module board installs in the first cabinet and provides access to the
two serial I/O ports on the Main Control Processor(MCP/MCP2) card. The IOM
board also has provision to have an internal 56K/V.90 installed on it(see ‘Modem
Daughter Board’ section). When the MCP card is equipped with a LAN daughter
board, the IOM board provides access to the LAN interface in addition to the two
serial I/O ports carried on the LAN daughter board.
2.5
Modem Daughter Board
The Modem daughter board installs on the Input Output Module card. The modem
provides a 56K/V90 connection to the system for use for remote administration
and/or programming. The card has a default extension number of 3999 and eliminates
the need for an external modem, serial cable, single line telephone port and serial I/O
port on the system.
© SAMSUNG Electronics Co., Ltd.
Page 2-7
CHAPTER 2. Hardware Descriptions
3
OfficeServ 500 General Description Guide/Ed.00
INTERFACE CARDS
These cards provide the interface connections for telephone lines and stations to the
KSU and expansion cabinets. These cards fit into the universal card slots to configure
the system as required. OfficeServ 500 interface cards are encased in a static
dissipative ABS plastic shell to protect the PCB during handling.
3.1
Trunk Cards
3.1.1 Trunk B
This card contains four loop start Trunk line interface circuits with Trunk line
disconnect detection. It also contains the circuitry needed for MPD or PRS. It can be
inserted in any universal card slot in all cabinets.
3.1.2 6 TRK
This card contains six loop start Trunk line interface circuits with Trunk line
disconnect detection. It also contains the circuitry needed for MPD or PRS. It can be
installed in any universal card slot in all cabinets.
3.1.3 8 TRK
This card contains eight loop start Trunk line interface circuits with Trunk line
disconnect detection. It can be inserted in any universal card slot in all cabinets.
3.1.4 E & M
This card contains four 2 wire E & M tie lines, type five interface configuration.
It can be inserted in any universal card slot in all cabinets. This card can be used for
two way DID calling.
3.1.5 TEPRI
When programmed as a E1 this card provides up to 30 trunk circuits in any
combination of the following :
Loop start lines
DID(Direct Inward Dialling)
E & M tie lines or two way DID calling
When the card is programmed as a PRI it will provide 30 bearer channels and 1 data
channel(30B+D). This card can be installed in any of the first three slots of any
cabinet.
Page 2-8
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
3.1.6 4 BRI (Basic Rate Interface-4BRI)
The 4 BRI card supports 4 trunk or station level ISDN Basic Rate Interface(e.g., 2B
plus D) circuits. The 4BRI can be inserted in any universal slot.
3.1.7 ITM3 (IP Telephony Module)
The ITM3 card supports 8 VOIP channels with provision for a daughter board
hosting a further 8 channels for a maximum of 16 channels per ITM3 card.
These channels are H.323 compliant and are used in conjunction with either the
G.723 or G.729 voice compression protocols. The ITM3 card may be installed in any
universal card slot.
MGI3 Card
The MGI3 card supports the VoIP Gateway, which enables telephone calls through
the Internet.
When mounted with the ITM3D board, the MGI3 card can support up to 16 Internet
telephone(VoIP) ports by adding 8 channels of Internet telephone ports.
The main features and characteristics of the MGI3 card are summarized below.
Flash memory and data memory basically mounted for program
Echo cancellation function supported preventing echo sounds
Silence suppression function supported preventing data transfer on the network
for the brief silent intervals between words during calls.
Supports G.711, G.723.1(6.3 k) and G.729A for Audio CODEC
Supports T.38 regarding Fax
MGI1/MGI2 Card
The MGI card supports the VoIP Gateway, which enables telephone calls through the
Internet. The MGI1 card serves as a gateway, which connects calls between the
legacy terminal(SLI/DLI) and the IP terminal(IP phone), and provides the Internet
telephone(VoIP) port with 16 channels.
The MGI2 card supports calls connecting to a Remote System station, IP phones for
telecommuting, or to the central office, and provides the Internet telephone(VoIP)
port with 16 channels.
There are two types of MGI card, the MGI1 card and the MGI2 card, which were
classified by their serviceable ranges.
The main features and characteristics of the MGI card are summarized below.
Flash memory and data memory basically mounted for program
Echo cancellation function supported preventing echo sounds
Silence suppression function supported preventing data transfer on the network
for the brief silent intervals between words during calls.
MGI1 : Supports G.711
MGI2 : Supports G.711 and G.729
Echo Cancellation : 64ms(ITU-T G.165, G.168)
© SAMSUNG Electronics Co., Ltd.
Page 2-9
CHAPTER 2. Hardware Descriptions
3.2
OfficeServ 500 General Description Guide/Ed.00
Station Cards
3.2.1 DLI
This card is an eight circuit digital station interface card that provides 2B+D service
when installed in any universal card slot in all cabinets.
3.2.2 16DLI
This card is a sixteen circuit digital station interface card that provides 1B+D service
when installed in any universal card slot in all cabinets. Phone daughter boards will
not work when connected to this card.
The circuit on a FKDBS does not provide a disconnect signal or have the over-voltage
protection necessary for OPX operation.
3.2.3 SLI
This card is a four circuit analog station interface for industry standard single line
telephones or other analog peripheral devices(voice mail, etc.). Each circuit is equipped
with an analog DTMF receiver and provides the over-voltage protection required for
connection to telephone company off premises extension circuits(OPX). It can be inserted
in any universal card slot in all cabinets. Each port on this card is intended for connection
to one telephone. Connecting multiple telephones to a port may result in incorrect
operation or damage to the card. See the installation manual ‘Chapter 3 for details.
3.2.4 8SLI
This card is an eight circuit analog station interface for industry standard single line
telephones or other analog peripheral devices. The 8SLI does not contain any overvoltage protection and is not qualified as OPX. It also does not contain DTMF
receivers, but shares system DSP resources. It can be inserted in any universal card
slot in all cabinets. Each port on this card is intended for connection to one telephone.
Connecting multiple telephones to a port may result in incorrect operation or damage
to the card. See the installation manual ‘Chapter 3 for details.
3.2.5 16SLI
This card is a sixteen circuits analog station interface for industry standard single line
telephones or other analog peripheral devices. The 16SLI does not contain any overvoltage protection and is not qualified as OPX. It also does not contain DTMF
receivers, but shares system DSP resources. It can be inserted in any universal card
slot in all cabinets. Each port on this card is intended for connection to one telephone.
Connecting multiple telephones to a port may result in incorrect operation or damage
to the card. See the installation manual ‘Chapter 3 for details.
Page 2-10
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
3.2.6 8MWSLI
This card is an eight circuit analog station interface for industry standard single line
telephones that require operation of an industry standard message waiting lamp with
a voltage range of 85~96 VDC. The lamp can be programmed to be on continuously
or flash at a programmable rate of 100ms to 2000ms ON/OFF times. The 8MWSLI
does not contain any over-voltage protection and is not qualified as OPX. It also does
not contain DTMF receivers, but instead shares the system DSP resources. It can be
inserted in any universal card slot in all cabinets. Each port on this card is intended
for connection to one telephone. Connecting multiple telephones to a port may result
in incorrect operation or damage to the card. See the installation manual ‘Chapter 3
for details.
3.2.7 16MWSLI
This card is a sixteen circuit analog station interface for industry standard single line
telephones that require operation of an industry standard message waiting lamp with
a voltage range of 85~96 VDC. The lamp can be programmed to be on continuously
or flash at a programmable rate of 100ms to 2000ms ON/OFF times. The 16MWSLI
does not contain any over-voltage protection and is not qualified as OPX. It also does
not contain DTMF receivers, but instead shares the system DSP resources. It can be
inserted in any universal card slot in all cabinets. Each port on this card is intended
for connection to one telephone. Connecting multiple telephones to a port may result
in incorrect operation or damage to the card. See the installation manual ‘Chapter
3 for details.
3.3
Other Cards
3.3.1 Auto Attendant
This optional card can be used for either the Automated Attendant, Uniform Call
Distribution or a combination of both. For more information about the Automated
Attendant and UCD, see ‘Chapter 4 , ‘System Features’ section.
3.3.2 SVMi-8
The SVMi-8 Voice Mail system is a fully integrated Auto Attendant/Voice Mail/Fax
System on a single DCS circuit card. This optional card is designated the SVMi-8
and provides 4 or 8 channels of communication. Only one card is permitted per
system and it can be installed in any universal card slot.
This fully featured self contained system is connected directly to the DCS data bus
and communicates with the DCS processor. This design means that installation time
is minimized, operation is streamlined and many features can be implemented that
are not normally possible with older conventional stand alone Voice Mail/Auto
Attendant systems.
© SAMSUNG Electronics Co., Ltd.
Page 2-11
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
All power to run this self contained system comes from the DCS telephone system
power supply. Each of the DCS power supply is rated according to the number of
stations it will support. When SVMi-8 is installed it counts as(8) eight stations of the
PSU rating regardless of the number of Voice Processing Modules installed.
3.3.3 SVMi-16
Unlike the previous voice mails and automatic relay systems based on PC, SVMi-16
is installed inside the telephone equipment and is operated as a part of the telephone
system. One card shall be used per system, and the mounting location is not limited.
3.3.4 8WLI (For future application)
The 8WLI card provides wireless solution to the OfficeServ 500 system, and
provides cable interface between the system and WLAN Base Station(WBS24),
which is the access point for WLAN.
A single 8WLI board supports up to 32 voice channels.
The main features of the 8WLI card are summarized below.
Provides cable interface(voice and signaling data) between the access point and
system
Supports 32 voice channels per 8WLI card
Supplies or disconnects DC -48V power supplied to WBS24
Performs initialization to service VoIP over WLAN
Manages information on all voice terminals and provides service only for the
authorized terminals
Initial registration service for the wireless IP phone(WIP-5000M)
Call service for voice terminals
Supports mobility and handover between WBS for voice terminals
Provides interface with the system’s main CPU board through IPC
3.3.5 VDIAL
VDIAL is mounted on the universal slot of the OfficeServ 500 system, and is the
module used for making calls by voice rather than pressing the phone buttons.
The module consists of the RAM where the parameter of multiple words is saved,
the DSP device that calculates the similarity between each word and the speaker’s
voice, the ROM where the program for transmitting/receiving messages between the
calculation algorithm program and the main device program is saved, and other
devices.
Page 2-12
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
4
STATION EQUIPMENT
4.1
iDCS Series Equipment
CHAPTER 2. Hardware Descriptions
4.1.1 28 Button iDCS phone
32 character display(2 x 16) with three associated soft buttons and a scroll button
28 programmable buttons with tri-colored lights
Four fixed function buttons
Terminal Status Indicator
Built-in speakerphone
Eight selectable ring tones
UP/DOWN buttons for digital control of speaker, handset and ringer volumes
Desk- or wall-mounted
Available in dark gray or light gray
Figure 2.1 28 Button iDCS phone
4.1.2 18 Button iDCS phone
32 character display(2 x 16) with three associated soft buttons and a scroll button
18 programmable buttons with tri-colored lights
Four fixed function buttons
Terminal Status Indicator
Built-in speakerphone
Eight selectable ring tones
UP/DOWN buttons for digital control of speaker, handset and ringer volumes
Desk or wall-mounted Available in dark gray or light gray
Figure 2.2 18 Button iDCS phone
© SAMSUNG Electronics Co., Ltd.
Page 2-13
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
4.1.3 8 Button iDCS phone
32 character display(2 x 16) with three associated soft buttons and a scroll button
8 programmable buttons with tri-colored lights
Four fixed function buttons
Terminal Status Indicator
Built-in speakerphone
Eight selectable ring tones
UP/DOWN buttons for digital control of speaker, handset and ringer volumes
Desk-or wall-mounted
Available in dark gray or light gray
Figure 2.3 8 Button iDCS phone
4.1.4 12 Button Large LCD phone (DS-5012L)
The DS-5012L phone is Large LCD phone
It supports data transfer, handset call and Full-Duplex speakerphone.
The USB Interface(shared with mobile phones) is also supported, and various
features are provided through the LCD.
The Navigation Buttons are provided along with the common buttons for
convenient button control, and the phone book and recording calls features are
also provided.
Figure 2.4 DS-5012L
Page 2-14
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
4.1.6 14 Button 2 Line LCD phone
The DS-5014D phone is 2 line LCD digital phone
It has 14 programmable buttons for the subscriber to register the features preferred.
This phone supports handset calls and speakerphone calls
It is equipped with the navigation button that enables you to use the phone
functions(such as recently called numbers, recently received numbers, searching
numbers by name, setting forwarding calls, inquiring speed buttons, and setting
alarm) easily.
KDB-D/S/F connection is also supported.
Figure 2.5 DS-5014D
© SAMSUNG Electronics Co., Ltd.
Page 2-15
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
4.1.7 21 Button 2 Line LCD phone
The DS-5021D phone is 2 line LCD digital phone
It has 21 programmable buttons for the subscriber to register the features preferred.
This phone supports handset calls and speakerphone calls
It is equipped with the navigation button that enables you to use the phone
functions(such as recently called numbers, recently received numbers, searching
numbers by name, setting forwarding calls, inquiring speed buttons, and setting
alarm) easily.
KDB-D/S/F connection is also supported.
Figure 2.6 DS-5021D
4.1.8 12 Button Large LCD IP phone
The ITP-5012L phone is a Large LCD IP phone, which displays various
information on the LCD screen and is equipped with 12 selectable buttons.
The ITP-5012L phone provides voice communication through the previously
installed data network line, making installation of additional telephone lines
unnecessary.
This phone is equipped with the Dial button, Volume button, Conference button.
The Transfer button used for transferring a busy call to another subscriber, the
Hold button, the Speaker button for speaker calls, and the navigation button that
allows you to use the phone functions easily.
The Screen button for additional expansion function and the Scroll button for
easily searching long contexts displayed on the LCD screen are also provided.
The status indicator lets you know when a message or a call arrives, and each
LED displays if the Transfer/Hold /Speaker button is pressed, and the LCD
screen displays the call status and various information.
Figure 2.7 ITP-5012L
Page 2-16
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
4.1.9 14 Button/21 Button 2 Line LCD IP phone
The ITP-5000D series phone has 14/21 programmable buttons for the subscriber
to register the features preferred. Screen and is equipped with 12 selectable
buttons.
This phone is equipped with the Dial button, Volume button, Conference button.
The Transfer button used for transferring a busy call to another subscriber, the
Hold button, the Speaker button for speaker calls, and the navigation button that
allows you to use the phone functions easily.
The LCD screen displays the call status and various information, and the status
indicator notifies the status of the phone in the three colors of red, green, and
yellow.
Figure 2.8 ITP- 5014D
Figure 2.9 ITP- 5021D
4.1.10 64 Button iDCS AOM
64 programmable buttons with red lights
A maximum of 2 can be assigned to any phone to provide additional
programmable buttons
A maximum of 4 per DCS System
Available in dark gray or light gray
Figure 2.10 64 Button iDCS AOM
© SAMSUNG Electronics Co., Ltd.
Page 2-17
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
4.1.11 14 Button iDCS AOM
14 programmable buttons with red lights
A maximum of one can be assigned to any phone to provide additional
programmable buttons
Available in dark gray or light gray
Figure 2.11 14 Button iDCS AOM
4.1.12 DS-5064B (64B AOM)
AOM is an accessory type digital station that extended the button and LED of a
digital phone.
DS-5064B is the improved model of the OfficeServ 500 system 64B. Various
functions preferred by you can be set on each button of DS-5064B AOM.
Figure 2.12 DS-5064B
4.1.13 WIP-5000M (Mobile phone)
The WIP-5000M(Wireless IP phone Mobile type) mobile phone is an in-plant
wireless mobile phone,
It allows voice calls through the IEEE802.11b wireless LAN. The WIP-5000M
mobile phone serves as a wireless IP phone that transmits/receives in a packet
form satisfying the wireless LAN standard(Voice over WLAN) by voice
compression.
Handover is supported when moving between APs(WBS24), and data terminals
such as laptop PC can also be used in the same area.
The message service, which is supported in the iDCS system, is also supported.
Page 2-18
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
4.2
CHAPTER 2. Hardware Descriptions
DCS Series Equipment
4.2.1 LCD 24B phone
Built-in speakerphone
24 programmable buttons(16 with tri-colored LEDs)
Four fixed function buttons
32 character display(2 x 16) with three associated soft buttons and a scroll button
UP/DOWN buttons for digital control of speaker, handset and ringer volumes
Eight selectable ring tones
Desk-or wall-mounted
Available in almond or charcoal
Figure 2.13 LCD 24B Euro phone
4.2.2 STD 24B phone
Built-in speakerphone
24 programmable soft buttons(16 with tri-colored LEDs)
Four fixed function buttons
UP/DOWN buttons for digital control of speaker, handset and ringer volumes
Eight selectable ring tones per phone
Desk-or wall-mounted
Available in almond or charcoal
Figure 2.14 STD 24B phone
© SAMSUNG Electronics Co., Ltd.
Page 2-19
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
4.2.3 STD 12B phone
Built-in speakerphone
12 programmable soft buttons(16 with tri-colored LEDs)
Four fixed function buttons
UP/DOWN buttons for digital control of speaker, handset and ringer volumes
Eight selectable ring tones per phone
Desk-or wall-mounted
Available in almond or charcoal
Figure 2.15 STD 12B phone
4.2.4 6B LCD Model phone
Built-in speakerphone
6 programmable buttons
Four fixed function buttons
UP/DOWN buttons for digital control of speaker, handset and ringer volumes
Eight selectable ring tones per phone
Desk-or wall-mounted Available in almond or charcoal
Figure 2.16 6B LCD Model phone
Page 2-20
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
4.2.5 48 Button AOM
48 programmable buttons
Available in almond or charcoal
One or two can be assigned to any DCS phone to provide additional
programmable buttons
Figure 2.17 48 Button AOM
4.2.6 S-phone
DS 24S phone
8 programmable buttons with tri-coloured lights : Used to call stations directly,
to indicate busy conditions of other stations, for One Touch dialling and many
other system features.
Volume control buttons : Used to set independent levels for handset, speaker,
background music, ring and page volumes.
Transfer button
Redial button
Microphone : For hands-free operation.
Hold button
Speaker button
16 programmable buttons with red lights : Used to call stations directly, to
indicate busy conditions of other stations, for One Touch dialling and many other
system features.
Speaker : For hands-free operation and ringing.
Figure 2.18 DS 24S phone
© SAMSUNG Electronics Co., Ltd.
Page 2-21
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
DS 24D phone
8 programmable buttons with tri-coloured lights : Used to call stations directly,
to indicate busy conditions of other stations, for One Touch dialling and many
other system features.
Volume control buttons : Used to set independent levels for handset, speaker,
background music, ring and page volumes.
Transfer button
Redial button
Microphone : For hands-free operation.
Hold buttons
Speaker button
16 programmable buttons with red lights : Used to call stations directly, to
indicate busy conditions of other stations, for One Touch dialling and many other
system features.
Speaker : For hands-free operation and ringing.
Scroll button : Used to scroll through displays.
Figure 2.19 DS 24D phone
Page 2-22
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
4.2.7 Economic phone
Volume control buttons : Used to set independent levels for handset, speaker,
background music, ring and page volumes.
Transfer button
Redial button
Microphone : For hands-free operation.
Hold buttons
Speaker button
Speaker : For hands-free operation and ringing.
Figure 2.20 Economic phone
4.2.8 Door phone Interface Module(DPIM) & Door phone
The DPIM adapts any DLI circuit for use with the door phone unit
Commonly used to request entry through locked doors(interior or exterior) or as
a room monitoring box
Provides contact control to be used with customer-provided electric door lock
Door phone is wall-mounted
Door phone is weather resistant
Figure 2.21 Door phone Interface Module
© SAMSUNG Electronics Co., Ltd.
Figure 2.22 Door phone
Page 2-23
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
4.2.9 Single Line Telephone
Data port : selectable to share station extension or utilize a separate extension
On hook dialling
Message Waiting/Ring Indicator
Desk or wall mounted
Ring volume control,
Four available ring tones.
Available in almond and black
Figure 2.23 Single Line Telephone
This single line telephone set is FCC approved for direct connection to the public
telephone network.
FCC # A3LKOR-24627-TE-T REN 0.9B UL LISTED 19X9 FILE # ETI 8093
4.2.10 Serial Interface Module (SIM)
Provides an RS232 connection required for SMDR and PC programming features
Connects to any DLI circuit
4.2.11 CTM (Computer Telephony Interface Module)
Provides an Serial Interface(DB-9) required for CTI facility(TAPI application)
Supports DLI interface for pair operation with PC
4.1.12 KDB-DLI
This is a small daughter board that can be installed only in the 12 or 24 button phone.
The KDB-DLI will provide one additional DLI circuit for the connection of any
digital station device such as a phone, add-on module or DPIM. This KDB-DLI will
only operate when the phone is connected to an 8 port DLI card so it can use the
second B channel. Each port on this card is intended for connection to one telephone.
Connecting multiple telephones to a port may result in incorrect operation or damage
to the card. See the installation manual ‘Chapter 3 for details.
Page 2-24
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 2. Hardware Descriptions
4.1.13 KDB-SLI
This is a daughter board that can be installed only in the 12 or 24 button phone.
The KDB-SLI will provide one additional SLI circuit for the connection of any
standard telephone device. This KDB-SLI will only operate when the phone is
connected to an 8 port DLI card it can use the second B channel. Each port on this
card is intended for connection to one telephone. Connecting multiple telephones to a
port may result in incorrect operation or damage to the card. See the installation
manual ‘Chapter 3 for details.
The circuitry on a KDB-SLI does not provide a loop open disconnect signal or have
the over-voltage protection necessary for OPX operation.
© SAMSUNG Electronics Co., Ltd.
Page 2-25
CHAPTER 2. Hardware Descriptions
OfficeServ 500 General Description Guide/Ed.00
This page is intentionally left blank.
Page 2-26
© SAMSUNG Electronics Co., Ltd.
CHAPTER 3
Specifications
This chapter describes the technical data for the OfficeServ 500 hybrid/button
telephone system as follows :
Electrical Specifications(PSU-B)
Electrical Specifications(PSU 60)
Dimensions and Weights
Environmental Limits
Cable Requirements
System Tones
Phone LED Indications
Reserve Power Duration Estimates
1
ELECTRICAL SPECIFICATIONS (PSU-B)
AC INPUT
100-120(88-132) VAC(48-63 Hz)*
220-240(180-260) VAC(48-63 Hz)
POWER CONSUMPTION(MAX)
150 WATTS MAX. PER PSU FUSE RATING 5 AMP
BTU RATING(MAX)
XX BTU/MINUTE
DC OUTPUT
+5 VOLTS 7.0 AMPS MAX
-5 VOLTS 1.5 AMPS MAX
-48 VOLTS 1.4 AMPS MAXIMUM
-54 VOLTS Charger 0.45 AMPS MAX
* Normal factory setting
2
ELECTRICAL SPECIFICATIONS (PSU 60)
AC INPUT
120(88-132) VAC(48-63 Hz)*
220(180-260) VAC(48-63 Hz)
POWER CONSUMPTION(MAX)
120 WATTS MAX. PER PSU FUSE RATING 3 AMP
BTU RATING(MAX)
6.8 BTU/MINUTE
DC OUTPUT
+5 VOLTS 5.0 AMPS MAX
-5 VOLTS 0.5 AMPS MAX
-48 VOLTS 1.4 AMPS MAXIMUM
-56 VOLTS Charger 0.45 AMPS MAX
* Normal factory setting
© SAMSUNG Electronics Co., Ltd.
Page 3-1
CHAPTER 3. Specifications
3
OfficeServ 500 General Description Guide/Ed.00
DIMENSIONS AND WEIGHTS
OfficeServ 500 BASIC
SYSTEM
HEIGHT
WIDTH
DEPTH
WEIGHT
SINGLE CABINET
17.5"
22.5"
12"
35 lb.
EXPANDED SYSTEM :
35"
22.5"
12"
70 lb.
52.5"
22.5"
12"
105 lb.
4.25"
8.50"
9"
2.563 lb.
ADD-ON MODULE
4.25"
4.25"
9"
1.188 lb.
DOOR PHONE
5"
3.88"
1.25"
6.8 oz.
TWO CABINETS
EXPANDED SYSTEM :
THREE CABINETS
DIGITAL PHONE
(ALL MODELS)
4
5
ENVIRONMENTAL LIMITS
OPERATING TEMPERATURE
32 - 104 °F/0 - 40 °C
STORAGE TEMPERATURE
-13 - 158 °F/-25 - 70 °C
HUMIDITY
10 - 90 % non-condensing
CABLE REQUIREMENTS
EQUIPMENT
CABLE
DIGITAL PHONE
1 PR.
ADD-ON MODULE
1 PR.
SINGLE LINE STATION
1 PR.
AWG
MAX FEET
MAX
METERS
24
1300
400
24
1300
400
24
3000
1 KM
24
330*
100
-
-
TWISTED
TWISTED
TWISTED
DOOR PHONE
2 PR.
TWISTED
WBS24(For future)
2 PR.
TWISTED
600(0.64)
400(0.40)
* This is the maximum distance a door phone can be from the DPIM. The DPIM can be up to 900 cable feet from
the KSU. The total distance must not exceed 1230 feet.
Page 3-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
6
CHAPTER 3. Specifications
SYSTEM TONES
TONE
FREQUENCIES
CADENCE
DIAL TONE
350+440 Hz
CONTINUOUS
RINGBACK TONE
440+480 Hz
1 sec on+3 sec off
DID RINGBACK TONE
440+480 Hz
2 sec on+4 sec off
BUSY TONE
480+620 Hz
0.5 sec on+0.5 sec off
DND/NO MORE CALLS
480+620 Hz
0.25 sec on+0.25 sec off
TRANSFER/CONF
350+440 Hz
0.1 sec on+0.1 sec off
CONFIRMATION TONE
350+440 Hz
0.05 sec on+0.05 sec off
ERROR TONE
480+620 Hz
0.05 sec of tone 1/0.05 sec of tone 2
Intercom Dial Tone-A steady tone that indicates you can begin dialling
DIAL TONE
CONTINUS
Ringback Tone-Indicates the station you dialled is ringing.
RINGBACK TONE-1000ms ON/3000ms OFF
CONTINUS
Busy Signal-Indicates the station you dialled is busy.
BUSY TONE-500ms ON/500ms OFF
CONTINUS
DND/No More Calls Tone-Fast busy tone advises you the station you dialled is
in the Do Not Disturb mode or cannot receive any more calls.
DND/NO MORE CALL TONE-250ms ON/250ms OFF
FOR TEN SECONDS
Transfer/Conference Tone-Indicates your call is being held and you can dial
another party.
TRANSFER/CONF TONE-100ms ON/100ms OFF
CONTINUS
© SAMSUNG Electronics Co., Ltd.
Page 3-3
CHAPTER 3. Specifications
OfficeServ 500 General Description Guide/Ed.00
Confirmation Tone-Very short beeps followed by dial tone indicate you have
correctly set or cancelled a system feature.
CONFIRMATION TONE-50ms ON/50 ms OFF
FOR TWO SECONDS
ERROR TONE-Adistinctive two level beeping tone indicates you have done
something incorrectly. Try again.
ERROR TONE-50ms of tone 1/50ms of tone 2
7
FOR TWO SECONDS
PHONE LED INDICATIONS
CONDITION
LED COLOR
LED ON
LED OFF
LINE IDLE
OFF
–
OFF
LINE IN USE
RED/GREEN
STEADY
–
RECALL
AMBER
500 ms
500 ms
CALL ON HOLD
RED/GREEN
500 ms
500 ms
RINGING Trunk line CALL
GREEN
100 ms
100 ms
RINGING INTERNAL CALL
GREEN
100 ms
100 ms
DND INDICATION
RED
112 IPM for 500 ms
500 ms
OPERATOR CALLS
RED
100 ms
100 ms
ANS/RLS(DND)*
RED
112 IPM for 500 ms
500 ms
ANS/RLS(HDSET MODE)
RED
STEADY
–
TRSF(FORWARD ALL)
RED
STEADY
–
* Overrides headset mode
Page 3-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
8
CHAPTER 3. Specifications
RESERVE POWER DURATION ESTIMATES (in minutes)*
NO. OF PSUs
UPS CAPACITY IN VOLT AMPS(VA)
250
450
600
900
1250
2000
5
20
30
47
75
180
2
8
10
24
40
70
3
5
7
20
36
64
4
13
22
35
5
10
13
25
6
5
10
20
1
* These are approximate values. Specific UPS devices, due to their internal construction, can have greater or lesser
values.
NO. OF PSUs
BATTERY CAPACITY IN AH
40
80
120
160
200
240
1
20
X
X
X
X
X
2
10
20
X
X
X
X
3
7
13
20
X
X
X
4
5
10
15
20
X
X
5
4
8
12
16
20
X
6
3
7
10
13
16
20
* These are approximate values. Specific UPS devices, due to their internal construction, can have greater or lesser
values.
X denotes that this system configuration cannot charge batteries of this capacity.
© SAMSUNG Electronics Co., Ltd.
Page 3-5
CHAPTER 3. Specifications
OfficeServ 500 General Description Guide/Ed.00
This page is intentionally left blank.
Page 3-6
© SAMSUNG Electronics Co., Ltd.
CHAPTER 4
Business Feature Package
This chapter describes various features of the OfficeServ 500 system as follows:
SYSTEM FEATURES
STATION FEATURES
DISPLAY FEATURES
SAMPLE SMDR PRINTOUT(WITHOUT CALLER ID)
SAMPLE SMDR PRINTOUT(WITH CALLER ID NUMBER)
SAMPLE UCD REPORT
UCD CALL STATISTICS
UCD AGENT STATISTICS
SAMPLE TRAFFIC REPORT
TRAFFIC REPORT OVERVIEW
SAMPLE ALARM REPORT
© SAMSUNG Electronics Co., Ltd.
Page 4-1
CHAPTER 4. Business Feature Package
1
OfficeServ 500 General Description Guide/Ed.00
SYSTEM FEATURES
Account Code Entry
Forced-Verified
Call Forwarding
All Calls
Busy
Forced-Not Verified
Voluntary
No Answer
Account Code Button(MCP-M)
Busy/No Answer
Account Code Button-One Touch(Except MCP-M)
Forward DND
All Call Voice Page
Follow Me
Attention Tone
External(MCP Only)
To Voice Mail
Authorization Codes
Forced
Voluntary
Auto Attendant†
Preset Destination
Call Forward Busy(CFB-MCP Networking Enabled Only)
Call Forward No Response(CFNR-MCP Networking
Automatic Hold
Background Music
Boss/Secretary Service
Executive Answer Mode(MCP2)
Executive Status(MCP2)
Divert(MCP2)
Cadence - Integrated Voice Mail*
Call Activity Display†
Call Costing†
Caller Identification†
Caller ID
Calling Line Identification(CLI)
Caller ID Features
Name/Number Display
Enabled Only
Call Forward Unconditional
(CFU-MCP Networking Enabled Only)
Call Hold
Exclusive
System
Remote
Call Park and Page
Call Pickup
Directed
Groups
Established(Except MCP-M Version)
Call Waiting/Camp-On
Next Call
Caller Emergency Service ID(CESID)
Save Caller ID Number
Centrex/PBX Use
Store Caller ID Number
Chain Dialling
Inquire Park/Hold
Caller ID Review List(L Version)
Caller ID Review List(M Version)
Investigate
Abandon Call List
Caller ID on SMDR
Number to Name Translation
Class of Service
Page All
Common Bell Control
Park Orbits
Primeline Selection
Conference
Add On(5 Party)
Programmable Line Privacy
Split(Except MCP-M Version)
Programmable Timers
Computer Telephony Integration(CTI)
TAPI 2.1
Customer Set Relocation
Page 4-2
Private Lines
Unsupervised
Programmed Message Service
Recalls
Remote Programming-PC
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
Data Security
Database Printout
DECT Service
Dialled Number Identification Service(DNIS)
Direct In Lines
Direct Inward Dialling(DID)
Time-based Routing
Busy or Camp-On Option
Direct Inward System Access(DISA)
Direct Trunk Selection
Directory Names
DISA Security
Distinctive Ringing
Door Lock Release(Programmable)
Door phones
Easyset Interface
E & M Tie Lines
Executive Barge-In(Override)
With Warning Tone
Without Warning Tone
Trunk Monitor or Service Observing
External Music Interfaces
External Page Interfaces
Flash Button Operation
Flexible Numbering
Hot Line
Group Conference(MCP2)
In Group/Out of Group
Incoming Call Distribution
Incoming/Outgoing Service
Individual Line Control
IP phone Interface(MCP2)
ISDN Service
Primary Rate Interface(PRI)
Basic Rate Interface(BRI)
Large LCD phone Interface(MCP2)
Least Cost Routing
Live System Programming
From any Display phone
With a Personal Computer
Meet Me Page and Answer
CHAPTER 4. Business Feature Package
Ring Modes
Time Based Routing
Automatic/Manual
Holiday Schedule
Temporary Override
Ring Over Page
Secretary Pooling
Single Line Connections
Speed Dial Numbers
Station List(50 Max)
System List(500 Max)
Speed Dial by Directory
Spot View Interface
Spot Call Plus
Spot News
Spot Choice
Station Hunt Groups
Distributed
Sequential
Unconditional
Station Message Detail Recording(SMDR)
System Alarms
System Maintenance Alarms
System Directory
Tenant Services
Text Message Service
Toll Restriction
Time of Day
By Line or Station
Eight Dialling Classes
Special Code Table
Toll Restriction Override
Tone or Pulse Dialling
Traffic Reporting
Transfer
Screened/Unscreened
Voice Mail Transfer Button
With Camp-On
Trunk Groups
Uniform Call Distribution(UCD)†
UCD Groups
Memory Protection
Message Waiting Indications
Call Statistics
Agent Statistics
Microphone On/Off per Station
Music on Hold-Flexible
Printed Reports
Music on Hold-Sources
Networking(PRI/Q-SIG)
© SAMSUNG Electronics Co., Ltd.
Group Supervisors
Universal Answer
Virtual Port
Page 4-3
CHAPTER 4. Business Feature Package
Off Premises Extensions(OPX)
Operator Group
Overflow
Operator
Station Group
Override Code
OfficeServ 500 General Description Guide/Ed.00
Voice Dialling
Voice Mail-Inband Integration
VoIP Networking(MCP2)
VoIP Trunk Interface(H.323/SIP)
Walking Class of Service
Wireless LAN Service(MCP2)
Paging
Internal Zones(4)
External Zones(4)
All Internal
All External
* Requires optional hardware and/or software. Ask your dealer for details.
1.1
System Feature Descriptions
1.1.1 Account Code Entry
Station users may enter an account code(maximum 12 digits) before hanging up from
a call. This account code will appear in the SMDR printout for that call record. Phone
users may enter this code using an account code button without interrupting a
conversation. Single line telephone users must temporarily interrupt the call by hookflashing and dialling the feature access code. Manually entered account codes can be
up to 12 digits long. In some cases users can be forced to enter an account code and
this account code may or may not be verified as described below.
Forced-Verified
When set for this option you must enter an account code for all outgoing calls.
The account code entered will be verified from a system list of 500 entries for MCP-M
and from a list of 999 entries for MCP2 and MCP-L version software. Forced Verified
codes can contain the digits 0~9.
Forced-Not Verified
When set for this option you must enter an account code for all outgoing calls, but the
account code is not verified against the system list. Non verified account codes can
contain the digits 0~9 and #.
Voluntary
In this case account codes are not required to make outgoing calls but may be used if
desired. This is also the method used to assign an account code to incoming calls.
These account codes can contain the digits 0~9 and #.
Page 4-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.2 Account Code Button (MCP-M Version)
The account code(ACCT) button can be programmed on any phone and will appear
as a soft button on display phones. This button allows you to enter account codes
without interrupting a call.
1.1.3 Account Code Button-One Touch (Except MCP-M Version)
The account code(ACC) button can be programmed on any phone. This button can be
programmed with an extender and operates in three different ways depending on the
extender as follows:
When programmed with an extender of 000 the ACC button will
operate in the same manner as the ACCT button in the MCP-M version. That is to say
you will be prompted to enter an account code when the button is pressed.
Extender = 000
Extender = 001~999 When programmed with an extender ranging from 001 to 999 the
button will, when pressed, automatically insert the account code contained in that bin
of the system account code list. This is known as One Touch account codes. This
option can be denied in system programming to prevent you from bypassing the
security of system account codes.
No Extender When programmed without an extender the button will, when pressed,
prompt you to enter the bin number the system account code table where the account
codes are stored.
1.1.4 All Call Voice Page
You can page all internal and all external paging zones at the same time by dialling
the All Page code. Phones may be restricted from making or receiving pages in
system programming. A maximum of 99 phones can be programmed in each internal
page zone to receive page announcements.
1.1.5 Attention Tone
To get your attention, a brief tone precedes all page announcements and intercom
voice calls.
There are separate programmable duration timers for page and voice announce tones.
1.1.6 Authorization Codes
Authorization codes are used to give permission to make a call. A maximum of 250
four digit authorization codes can be either forced or voluntary for MCP-M and 500
four to ten-digit authorization codes can be either forced or voluntary for MCP2 and
MCP-L version software. When used, authorization codes will automatically change
the dialling station’s class of service to the level assigned to the authorization code.
Authorization codes may be programmed to print or not print on SMDR.
© SAMSUNG Electronics Co., Ltd.
Page 4-5
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
FORCED
When a station is programmed for forced authorization, you must always enter this
code before dialling is allowed. The dialled authorization code is verified from the
system list of 250 authorization codes on an MCP-M system or 500 on an MCP2 and
MCP-L system.
VOLUNTARY
Any station user can always enter an authorization code before they begin dialling.
The dialled authorization code is verified from a system list of 250 authorization
codes for MCP-M version software or 500 for MCP2 and MCP-L version software.
1.1.7 Auto Attendant
The integrated digital automated attendant feature(AA) provides eight ports per card
for simultaneous answering and call processing. A maximum of five cards can be
installed in one system. Each sixteen professionally recorded announcements inform
callers of the progress of their calls. Several examples are the following : ‘I’m sorry.
There is no answer’, ‘That station is busy’, and ‘Invalid Number. Please try again’.
A maximum of four minutes of super capacitor backed(100 hours) random access
memory(RAM) provide up to 48 customer recordings for announcements or greetings.
Twelve individual announcements(boxes), each with its own dialling options, allow
you to build call routing branches as needed. Callers are routed through the branches
by dialling extension numbers or single digits. This system is compatible with Cadence.
Announcements recorded on one AA card cannot be played to callers on another AA
card.
1.1.8 Automatic Hold
While a phone user is engaged on an outside(Trunk line) call, pressing another trunk
button, route button or CALL button automatically places the call on hold when
Automatic Hold is enabled. Pressing TRSF, CONFERENCE, PAGE or a DSS button
always automatically places a Trunk line call on hold. Intercom calls can be
automatically held only by pressing TRSF or CONFERENCE. Each phone user can
enable or disable Automatic Hold.
1.1.9 Background Music
Phone users may choose to hear music through their phone speakers when optional
external sources are installed. Each user may adjust this level by the use of a volume
control program at the selected phone.
Page 4-6
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.10 Boss/Secretary Service
Up to four secretaries can be assigned to an executive. The line designated as the
executive may not be assigned as a secretary of another executive. When the
executive is busy or in DND status, the call is automatically connected to the
secretary.
Executive Answer Mode
In MCP2, the secretary can set the response mode for each executive. In MCP, the
secretary can set the response mode for each Tenant. The response modes include
Ring Mode, Automatic Answer, and Voice Announce.
Executive Status (MCP2)
The status of an executive can be set by the executive or the secretary. Other persons
can verify the set status through Easyset Application.
Divert (MCP2)
Divert may only be set from the line designated as an executive. Press the [Divert]
button in idle mode to automatically transfer all incoming calls to the secretary.
Press the [Divert] button while ringing to transfer the incoming call to the secretary.
The Divert function is operated by a toggle button.
1.1.11 Call Activity Display
The OfficeServ 500 will record and buffer all calling activity within the system. With
a Call Activity Display(CAD) button, the OfficeServ 500 will display a ‘snapshot’ of
the following information :
The maximum number of ports that have been used
The maximum number of trunks that have been used
The maximum number of stations that have been used
The current number of ports in use
The current number of trunks in use
The current number of stations in use
This feature is only available on MCP2 card and MCP card with a LAN module.
© SAMSUNG Electronics Co., Ltd.
Page 4-7
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.12 Call Costing
The OfficeServ 500 provides programmable call costing tables to calculate the cost of
incoming and outgoing calls. Rates are calculated by the number dialled, and may
include surcharges. Display phones can be set to show the call duration timer or the
call cost.
The SMDR report will show either the call duration or the call cost depending on the
station selection. One call handled by multiple callers will cost each call segment
separately.
1.1.13 Caller Identification
The OfficeServ 500 supports three methods of identifying an incoming caller
depending on the circuit type as described below.
Caller ID
On an analog, loop start CO line, calling party information is called Caller ID and is
available from the telephone company in two formats, Number only and Name and
Number, sometimes called Deluxe. The OfficeServ 500 is compatible with both
formats. Even if the telephone company only offers the number only, a name can be
attached to the telephone number of frequent callers via the CID translation table.
Calling Line Identification (CLI)
On ISDN circuits, calling party information is called CLI and is supported on both
BRI and PRI type circuits as described below.
On ISDN circuits the OfficeServ 500 only supports Number delivery and a name can
be attached to the telephone number of frequent callers via the CID translation table.
Caller ID Features
The following features apply to all forms of Caller Identification, however, to make
them easier to read caller identification is referred to as Caller ID.
Name/Number Display
Each LCD phone user can decide if he/she wants to see the name or number in the
display. Regardless of which one is selected to be seen first, the NND button is
pressed to view the other pieces of information.
Next Call
In the event that you have a call waiting or a camped-on call at your phone, you can
press the NEXT button to display the Caller ID information associated with this next
call in queue at your station.
Page 4-8
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
Either the Caller ID name or number will show in the display depending on your
selection.
Save Caller ID Number
At any time during an incoming call that provides Caller ID information, you may
press the SAVE button. This saves the Caller ID number in the Save Number feature.
Pressing the SAVE number redial button will dial the Caller ID number. The system
must be using Least Cost Routing(LCR) to dial the saved number.
Store Caller ID Number
At any time during an incoming call that provides Caller ID information, you may
press the STORE button. This saves the Caller ID number as a speed dial number in
your personal speed dial list.
The system must be using LCR to dial the stored number.
Inquire Park/Hold
Having been informed that an incoming call is on hold or has been parked, you may
view the Caller ID information before you retrieve the call. This will influence how
you choose to handle the call.
Caller ID Review List (MCP-M Version)
This feature allows display phone users to review Caller ID information for calls sent
to their stations. This list can be from ten to fifty calls in a first in, first out basis.
The list includes calls that you answered and calls that rang your station but that you
did not answer. When reviewing this list, you can press one button to dial the person
back. The system must be using LCR to dial the stored number.
Caller ID Review List (Except MCP-M Version)
The operation of this feature on an MCP2 and MCP-L version system is similar to the
MCP-M version described above, however there is an added option called CID
REVW ALL in the User ON/OFF options. When set to ON the feature will operate
the same as described above. However, when set to OFF only calls that are not
answered(missed calls) at the station will be recorded in the Review list.
Investigate
This feature allows selected stations with a special class of service to investigate any
call in progress. If Caller ID information is available for an incoming call, you will
know to whom this station user is speaking. On outgoing calls, you can see who was
called. After investigating, you may barge-in on the conversation, disconnect the call
or hang up.
© SAMSUNG Electronics Co., Ltd.
Page 4-9
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
Abandon Call List
The system has a system-wide abandon call list that stores Caller ID information for
calls that rang but were not answered. The list is accessed using the administrator’s
passcode. When reviewing this list, you are provided options to CLEAR the entry or
DIAL the number. You can see the NND button to toggle between the Caller ID name,
number and the date and time the call came in. The system must be using LCR to dial
numbers from the abandon call list. The abandoned call list will store up to 100
unanswered calls.
Caller ID on SMDR
The Station Message Detail Records report can be set to include Caller ID name and
Caller ID number for incoming calls. This format expands the printout to 113
characters. Use a wide carriage printer or an 80 column printer set for condensed print.
Number to Name Translation
The system provides a translation table for 400 entries on MCP-M, 1500 entries on
MCP-L, 1000 entries on MCP2-M and 2000 entries on MCP2-L version software.
When the Caller ID number is received, the table is searched. When a match is found,
the system will display the corresponding name.
1.1.14 Call Forwarding
This feature allows you to redirect(forward) incoming calls. The calls can be
redirected to the attendant, a hunt group, voice mail, external number or another
station user. If the destination station is in Do Not Disturb(DND), the calling party
will receive DND/Reorder tone. Calls cannot be forwarded to a door phone. In MCP2
version, the external number can be set to the forward destination for all kinds of
forwarding. So External, CFB, CFNR and CFU option is removed. When the
destination is external number, the ICM EXT FWD option must be set to ON. If not,
the call forwarding does not accomplished.
ALL CALLS
This type of forwarding is not affected by the condition of the station. All calls are
immediately redirected to the designated destination. If desired, the destination
station may redirect the call back to the forwarded station by using the transfer
feature. The forwarded station user can continue to originate calls as usual. If no
button is programmed as Forward All, the TRSF button lights steady when a Forward
All condition is set.
BUSY
This feature forwards all calls only when the station set is busy. The station user can
originate calls as usual.
Page 4-10
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
NO ANSWER
This feature forwards calls that are not answered within a preprogrammed time.
You can originate calls as usual and receive call if present. The timer is
programmable on a per-station basis to allow for differences in individual work
habits.
BUSY/NO ANSWER
This feature allows the station user to use both types of forwarding simultaneously,
provided the destinations have already been entered in the usual manner.
FORWARD DND
This feature works with the Do Not Disturb feature. This allows calls directed to a
station in Do Not Disturb or One Time Do Not Disturb to forward immediately to
another destination.
FOLLOW ME
This feature allows you to forward all calls from another station to your station or
change the forward destination to your current location.
EXTERNAL (MCP Only)
This feature forwards Trunk line calls to an external number via a central office trunk
if allowed by class of service. Intercom calls may also be programmed to forward to
an external number via a central office trunk. These calls will forward only after the
programmable external call forward delay timer expires.
TO VOICE MAIL
Each station may be programmed to allow or deny the ability to forward intercom calls to
voice mail. When denied, valuable message time in the voice mail system can be saved.
PRESET DESTINATION
If desired this feature provides for a permanent(preset) forward no answer destination
for each extension. It can only be programmed by the system technician or system
administrator. When any station does not have FWD/NO-ANSWER set, the call will
ring this preset destination if one is programmed.
Call Forward Busy (CFB) (MCP-networking enabled only)
This is a different feature from the normal call forward busy and is only used when
the forward destination is in a different node of the network. The operation of the
feature is the same as the normal forward busy where when the forwarded station is
busy a calling station will be forwarded to the forward destination.
© SAMSUNG Electronics Co., Ltd.
Page 4-11
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
Call Forward No Response (CFNR) (MCP-networking enabled only)
This is a different feature from the normal call forward no answer and is only used
when the forward destination is in a different node of the network. The operation of
the feature is the same as the normal forward no answer where when the forwarded
station does not answer after a programmed amount of time a calling station will be
forwarded to the forward destination.
Call Forward Unconditional (CFU) (MCP-networking enabled only)
This is a different feature from the normal call forward all and is only used when the
forward destination is in a different node of the network. The operation of the feature
is the same as the normal forward all where all calls to the forwarded station will be
forwarded to the forward destination.
1.1.15 Call Hold (Exclusive)
Outside calls can be placed on exclusive hold at any phone by pressing HOLD twice
during a call. Calls placed on exclusive hold can only be retrieved at the phone that
placed the call on hold. Intercom calls are always placed on exclusive hold.
1.1.16 Call Hold (System)
Outside calls can be placed on system hold at any station. You may dial the access
code or press the HOLD button. Calls on system hold may be retrieved at any station.
1.1.17 Call Hold (Remote)
Outside calls can be placed on hold at a remote station. This feature allows calls to be
answered at one phone and placed on hold at another station. This allows time for
you to proceed to that station or allows the party that the call was intended for to have
that call placed at their station. The call or trunk button will flash at the remote hold
station.
Intercom calls cannot be remote held.
1.1.18 Call Park and Page
Each Trunk line has its own park zone. This simple method eliminates confusion and
ensures that a park zone is always available. Pressing the PAGE button parks the call
automatically. There are no extra buttons to press and there is no lost time looking for
a free zone.
Page 4-12
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.19 Call Pickup
DIRECTED
With directed call pickup, you can answer calls ringing at any station by dialling a
code plus that station’s extension number or by pressing the feature button and then
dialling the extension.
GROUPS
In addition, calls can be picked up from a station group in a similar manner.
The group pickup feature allows you to answer any call ringing within any pickup
group. There are 99 pickup groups available. A station cannot be in more than one
pickup group. To use this feature, station users either dial the access code or press the
assigned feature button followed by the pickup group number.
ESTABLISHED (Except MCP-M version software only)
This feature enables a phone user to pick-up an establish call in progress at a single
line extension connected to a modem on a PC. An EP button with this extension
number must be programmed on the phone. Established call pickup is useful with PC
dialling programs that out-dial from a large list of telephone numbers. Let the
computer dial for you, then press the EP button to speak with the called party.
1.1.20 Call Waiting/Camp-on
Busy stations are notified that a call is waiting(camped-on) when they receive a tone.
The tone is repeated at a programmable interval. Phones receive an off-hook ring
signal through the speaker and single line stations receive a tone in the handset.
The volume of the camp-on tone can be set by the station user. Camped-on calls
follow Forward No Answer if a Forward No Answer destination has been set.
Optionally any station can be programmed to automatically camp-on to a busy station
instead of having to press the camp-on button or dial a camp-on code.
1.1.21 CENTREX/PBX Use
CENTREX and PBX lines can be installed in lieu of central office trunks.
CENTREX and PBX feature access codes including the command for hook-flash
(FLASH) can be stored under one touch buttons. Toll restriction programming can
ignore PBX or CENTREX access codes so that toll calls can be controlled when
using these services.
1.1.22 Chain Dialling
Phone users may manually dial additional digits following a speed dial call or chain
together as many speed dial numbers as are required.
© SAMSUNG Electronics Co., Ltd.
Page 4-13
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.23 Class of Service
The system allows a maximum of 30 station classes of service. Each class of service
can be customized in memory to allow or deny access to features and to define a
station’s dialling class. Each station can be assigned different classes of service for
day and night operation.
1.1.24 Common Bell Control
The MISC daughter board provides relays that may be programmed to control a
customer-provided common bell or common audible device. These contacts must be
programmed as members of a station group and may provide steady or interrupted
closure.
1.1.25 Conference
The system allows six simultaneous conferences up to 5 parties each. If a SCM
daughter board is installed, then the system allows a total of 24 simultaneous
conferences up to 5 parties each.
ADD-ON (5 PARTY)
Any combination of up to five parties(stations or outside lines) can be joined together
in an add-on conference. Parties may be eliminated or added after a conference has
been established.
UNSUPERVISE
A station user may set up a conference with two or more outside lines and then exit
the conference leaving the outside lines connected in an unsupervised(trunk to trunk)
conference.
SPLIT (Except MCP-M version software only)
A phone user can ‘split’ a conference into separate outside calls, then speak with each
caller privately. Then the individual calls can be conferenced again in any
combination.
This feature requires individual trunk buttons and auto-hold must be enabled.
Page 4-14
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.26 Computer Telephony Integration (CTI)
Computer Telephone Integration(CTI) allows integration between the OfficeServ 500
and a personal computer system(PC) or a local area network(LAN). Caller ID service
is required for TAPI inbound call applications that use the CID information to display
computer records in conjunction with the presentation of the call to the station on the
OfficeServ 500.
TAPI 2.1
TAPI 2.1 is the method of integrating the DCS 500 system to a computer. TAPI 2.1 is
a LAN based solution allowing computers to communicate directly to the telephone
system over the network system. This establishes a logical connection rather than a
physical connection between telephone and computer. It eliminates the cost and
administrative overhead of connecting every PC to a desktop phone. It emphasizes
third-party call control.
E.g.,) Calls can be tracked as they are transferred, making it more suited to large
office applications.
TAPI 2.1 can emulate first-party type call control for the OfficeServ 500 system,
rather than from the telephone as TAPI 2.0 does. For example, to make a call the
OfficeServ 500, rather than the telephone would dial the phone number, and the call
would be then transferred to the telephone.
1.1.27 Customer Set Relocation
Customer Set Relocation allows the customer to exchange or swap similar stations in
the OfficeServ 500 without wiring changes. All individual station assignments such
as trunk ring, station group, station COS, station speed dial, button appearances, call
forwarding, etc. will follow the Customer Set Relocation program.
1.1.28 Data Security
Single line extensions used with modems and facsimile machines can be
programmed so that they will not receive any system-generated tones that would
disrupt data transmissions. In addition, these devices receive DCS Trunk line ringing
pattern instead of intercom ring pattern. Devices connected to an SLI card receive a
disconnect signal upon termination.
1.1.29 Database Printout
A copy of the customer database can be obtained by using PCMMC.
This information can be directed to a printer or the PC screen and may be done either
on-site or remotely. A complete database or specific data blocks may be obtained.
© SAMSUNG Electronics Co., Ltd.
Page 4-15
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.30 DECT Service
OfficeServ 500 system provides DECT cordless communications in a single office or
throughout a large commercial or industrial complex. To implement this service, you
need 8BSI card, DBS card and DECT handsets. Users of this service meet improved
overall efficiency, since staff can be reached or make calls wherever they are.
OfficeServ 500-M system support only an 8BSI card and OfficeServ 500-L system
support maximum three 8BSI card. In case of OfficeServ 500-L, the 8BSI cards must
be installed in same cabinet.
1.1.31 Dialled Number Identification Service (DNIS)
When DNIS service is provided on an incoming trunk the OfficeServ 500 can route
calls based on the numbers received.
1.1.32 Direct in Lines
Outside lines may be programmed to bypass the operator(s) and ring directly at any
station or group of stations.
1.1.33 Direct Inward Dialling (DID)
The term Direct Inward Dialling or DID refers to four types of digit steered inbound
call handling. These are DID, Both Way DID, Dialled Number Identification
service(DNIS and Direct Dial In(DDI). The OfficeServ 500 supports all four types as
described below.
DID is an inbound only service where multiple telephone numbers are assigned,
usually in blocks of twenty, to a single circuit or small group of circuits.
These circuits can be single pair analog circuits that will terminate on a DID card.
The OfficeServ 500 DID card supports up to four circuits. In addition the DID circuit
can be a channel on a digital E1 service terminating on a TEPRI card.
Both way DID is a service that combines DID service with normal outbound local
telephone service. This service is provided over E & M tie line circuits. These E & M
tie line circuits can terminate on either the E&M card or on a channel of a digital E1
circuit on a TEPRI card.
Dialled Number Identification Service(DNIS) is a feature of 800 or 900 type numbers
that allows the number dialled by the caller to be identified in the telephone system
by means of a sequence of DTMF digits(usually four). This service terminates on
E&M tie lines. These E & M tie line circuits can terminate on either the E & M card
or on a channel of a digital E1 circuit on a TEPRI card.
Direct Dial In(DDI). This is the name given to the above three services when they are
provided over an ISDN PRI circuit.
Page 4-16
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.34 Direct Inward System Access (DISA)
You can call in on specific DISA lines at any time, input a security code and receive
system dial tone. You can now place internal calls or if permitted, calls using Trunk
lines. The caller must have a tone dial phone and know his/her DISA security code.
DISA lines can be used as both way lines or incoming only and may be active in day
mode, night mode or both. The Trunk lines used for DISA must have disconnect
supervision. The requirement to put in a DISA security code can be disabled if
desired.
1.1.35 Direct Trunk Selection
Each station can be allowed access to or denied access from a trunk or trunk group by
access code when LCR is activated. When restricted, the station user must use a trunk
button or a route button.
1.1.36 Directory Names
Each station, station group and Trunk line may be assigned a directory name
(maximum 11 characters). In addition, each personal speed dial number, system
speed dial number and entry in the DID translation table may be assigned a name
(maximum 11 characters). These names are displayed during calls with these ports
and in the case of station and speed dial names, can be used to originate calls. See the
Dial by Name feature(Station Features).
1.1.37 DISA Security
Telephone fraud and long distance theft are a serious concern. The OfficeServ 500
provides a strong DISA security system. If an incorrect DISA passcode is entered
repeatedly(as is the case with ‘hackers’), the DISA system can be automatically
disabled temporarily. Both the number of incorrect passcode attempts and the time
that DISA is disabled are programmable. In addition, all failed attempts to access
DISA print on SMDR(if provided) with a ‘DE’ DISA error flag.
1.1.38 Distinctive Ringing
You know the type of call received by the type of ring heard. Outside calls have a
single ring repeated while internal calls have a double ring repeated.
In addition any trunk or station can be programmed to ring a phone with a predefined
ring tone(1-8) or a single line port with a predefined cadence(1-5) selection.
This provides for easy identification of special lines or extensions that ring your phone.
© SAMSUNG Electronics Co., Ltd.
Page 4-17
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.39 Door Lock Release (Programmable)
After answering a call from the door phone, you can dial a code to activate a contact
closure.
This can be used to operate a customer-provided electric door lock release mechanism.
The contact closure timer is programmable from 100-2500 ms.
1.1.40 Door phones
The door phone interface module(DPIM) provides for connection of a door phone to
a DLI port. Pressing the button on the door phone produces a distinctive ring(three
short rings repeated) at the assigned station or station group. If not answered within a
programmable time, the system releases the door phone and stops the ringing.
Stations may call the door phone directly and monitor the surrounding areas. Door
phones follow the system ring mode plan.
1.1.41 Easyset Interface
Easyset Interface supports the interlocking of Easyset Application.
Easyset Application is used for easily setting the buttons and functions of the
digital/IP phone through the PC. Various convenient features such as the Short
Message Service(SMS) and diary are added to the Easyset Application.
1.1.42 E & M Tie Lines
Your office can be connected to another office with a tie line. Use it to make calls to
stations in the other system. If programming allows, you can access lines in the other
system to make outside calls. Tie line calls can be put on hold, transferred and
conferenced in the same way as are other outside calls. You accessing the tie line
from the other system can get a line in your system and make outgoing calls.
These calls can be controlled by assigning a dialling class to the tie line. Your local
telephone company may use E & M tie lines to provide DID service. In this case
these tie lines can be programmed to follow the DID translation table. See DID.
Translated E & M tie line calls have Time-based routing capabilities.
1.1.43 Executive Barge-in (Override)
The feature allows specially programmed stations with a barge-in button to override
the automatic privacy of another station or outside trunk. Programming allows bargein with or without a warning tone. Stations may also be programmed as ‘secure’ so
that they cannot be barged-in on.
WITH WARNING TONE
When the barge-in with tone option is set, the barging-in phone has its microphone
on and the barged-in on station receives an override display. A double burst of
warning tone sounds and repeats every ten seconds. This feature does not work from
single line sets.
Page 4-18
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
WITHOUT WARNING TONE
When the barge-in without tone option is set, the barging-in phone has its
microphone muted and the barged-in on station does not receive an override display.
This feature does not work from single line sets.
TRUNK MONITOR or SERVICE OBSERVING
This feature allows the user who barged-in to retain the trunk call after the original
station has hung up.
Barge-In without tone may violate laws concerning the right to privacy. SAMSUNG
Electronics co. is in no way responsible for the possible misuse of this feature.
1.1.44 Executive/Secretary Pooling
Each phone may be defined as an executive(BOSS in programming) or a
secretary(SECR in programming) in system programming. Each executive can have
up to four secretaries and each secretary can have up to four executives.
These arrangements are known as executive/secretary pools. There can be multiple
pools in a system. When an executive is in DND, all calls to the executive ring the
first secretary assigned to that executive; if that secretary is busy, the call hunt to the
next available secretary assigned to that executive. If the secretary must communicate
with the executive while he/she is in DND, pressing the corresponding executive
button on the secretary’s phone results in an Auto Answer intercom call being made
to the executive(providing the executive is free). The OfficeServ 500 software has a
system wide option to allow the stations to ring rather than auto announce the
executive secretary calls. A station can only be the executive of one secretary pool.
In addition, a station cannot be in more than one pool.
1.1.45 External Music Interfaces
The MISC card provides two inputs for connecting to customer provided external
music sources. Each cabinet of the OfficeServ 500 can support one MISC card for a
total of three cards or six sources in a maximum sized system. These sources can be
used to provide background music, or any of the varied Music On Hold(MOH) uses.
1.1.46 External Page Interfaces
The OfficeServ 500 main control card(MCP) with a MISC module installed provides
one external page output and three zone control relays. Resources from added
miscellaneous applications modules(MISC) can be combined to provide four external
zones. Multiple relays may be assigned to each zone.
© SAMSUNG Electronics Co., Ltd.
Page 4-19
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.47 Flash Button Operation
While you are on an outside line, pressing the FLASH button will flash the central
office or PBX. This is used for custom calling features on Trunk lines or in
conjunction with CENTREX/PBX operation. System programming allows individual
flash times for Trunk line and PBX lines. When Trunk line or PBX flash is not
required, setting the timers for two seconds releases the existing call and returns dial
tone to make a new call.
1.1.48 Flexible Numbering
System programming allows stations to have two, three or four digit extension
numbers beginning with the digit 2 or 3. Three digit default extension numbers begin
with 201 and four digit defaults begin with 2001. Station group numbers can be three
or four digits beginning with the digit 5.
Using digits other than 2, 3 or 5 will require the technician to change other feature
access codes in the system default numbering plan. User guides will need to be
modified as these are all written using the OfficeServ 500 default numbering plan.
1.1.49 Hot Line
Stations can be programmed to call a pre-defined station or station group whenever
that station goes off-hook. A hot line delay timer of 0-250 seconds can be
programmed to allow sufficient time to make a different call.
1.1.50 Group Conference (MCP2)
The GCONF button is used to automatically call the preset number and include the
person into the conference when he or she answers the call. This function may only
be used for preset extensions, and up to five conference groups can be assigned to an
extension. Up to five persons, including you may be assigned to a conference group.
The Trunk line, which can identify if the other party answers the call, shall be used to
ensure normal service when calling external numbers.
1.1.51 In Group/Out of Group
Individuals assigned to a station hunt group may temporarily remove their telephones
from the group by pressing the In/Out of Group button providing that there is
someone still in the group. The OfficeServ 500 has a system wide option to allow all
members to log out of a station group. Stations out of a group will not receive calls to
that group but will continue to receive calls to their individual extension numbers.
When desired, you may put him/herself back into the group by pressing the button
again. Users who do not have this button may dial the access code and the group
desired. A station user is allowed to be in several groups, providing a button and the
extender of that group are assigned for each group on the user’s phone.
Page 4-20
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.52 Incoming Call Distribution
Incoming calls can be assigned to ring a distributed station hunt group. This allows
all members of the group to share the call load.
1.1.53 Incoming/Outgoing Service
Outside lines are available for incoming or outgoing service. Programming allows
any outside line to be used for incoming calls only, outgoing calls only or both way
service.
1.1.54 Individual Line Control
Each station in the system can be individually programmed to allow or deny dialling
out as well as allow or deny answering for each outside line.
1.1.55 IP phone Interface (MCP2)
In MCP2 version, the IP phone Interface supports IP phone interlocking.
An additional Media Gateway Interface(MGI) port is not required for calls between
Local IP phones, but a separate MGI card must be installed for calling an existing
station. There are three types of MGI cards, MGI1, MGI2 and MGI3. Up to five
cards can be mounted per cabinet. Up to 2 cards can be mounted per cabinet for the
MGI3 card. The MGI1 card only supports the G.711 CODEC, and the MGI3 card is
required for Internet FAX.
1.1.56 ISDN Service
Primary Rate Interface (PRI)
The OfficeServ 500 supports Primary Rate Interface ISDN. PRI allows simultaneous
data calls, calling party and calling line identification, high speed call setup and
disconnect are among the benefits of ISDN calling. The 30+D configuration of ISDN
allows call information to be delivered via the data channel(the ‘D’ of 30B+D) thus
leaving the bearer channels(the ‘B’ of 30B+D) available for single use or combined
use to provide a wider bandwidth for data and video.
Basic Rate Interface (BRI)
The BRI card supports trunk or station level Basic Rate Interface services(BRI).
Trunk or station BRI use is software programmable. BRI allows simultaneous data
calls, called party and calling number identification, high speed call setup and
disconnect are among the benefits of ISDN calling. The 2B+D configuration of ISDN
allows call information to be delivered via the data channel(the ‘D’ of 2B+D) thus
leaving the bearer channels(the ‘B’ of 2B+D) available for single use or combined
use to provide a wider bandwidth for data and video.
© SAMSUNG Electronics Co., Ltd.
Page 4-21
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.57 Large LCD phone Interface (MCP2)
In MCP2 version, the Large LCD phone Interface supports the Large LCD phone.
The wide LCD screen of the Large LCD phone provides various features such as
Virtual AOM, phone Book, LCD Navigation similar to that of a mobile phone, and
Enblock Dialling.
1.1.58 Least Cost Routing
Least Cost Routing(LCR) is the ability to automatically select the most cost effective
central office route for the outside number dialled by any station. The OfficeServ 500
LCR program includes the following features :
Option to use or not use LCR or a tenant basis
Programmable LCR access code
Digit analysis table 1000 entries each with ten digits for an MCP-M and 2000
entries each with ten digits for an MCP2 and MCP-L system.
Routing by time of day and day of week(4 time bands per day)
Routing according to individual station class
Modify digits table 100 entries for an MCP-M and 200 entries for an MCP2 and
MCP-L system
Flexible trunk group advance timer
Option to use or not use trunk group advance warning tones
1.1.59 Live System Programming
The system can be programmed from any display phone or personal computer
without interrupting normal system operation. There are three levels of
programming : technician, customer and station. The technician level has access to all
programs and can allow the customer access to system programs as needed.
Technician and customer access are controlled by different security passcodes.
Programming from a PC requires the PCMMC program.
1.1.60 Meet Me Page and Answer
After you make a Meet Me Page, you may remain off-hook to allow the paged party
to meet you for a private conversation.
1.1.61 Memory Protection
In the event that power is lost to the system, all customer data contained in memory is
retained by the use of a ‘super capacitor’ for approximately 7 days. In addition, the
PCMMC computer program may be used to produce a backup copy of the customer
data. Additionally, the Smart Media card may be used to store the system database.
Page 4-22
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.62 Message Waiting Indications
When calling a station and receiving a busy signal or the no answer condition, the
caller can leave an indication that a message is waiting. The message button will
flash red at the messaged phone.
A single line phone will receive a distinctive message waiting dial tone. Five message
waiting indications can be left at any station.
1.1.63 Microphone on/Off Per Station
The microphone can be disabled at any phone. When the microphone is disabled, the
phone cannot use the speakerphone, although on-hook dialling and group listening
are still possible.
1.1.64 Music on Hold-Flexible
The OfficeServ 500 allows its music sources to be used in a very flexible manner as
follows :
Each phone can have a designated music source for playing as Background
Music(BGM) through the phone speaker.
Each Station can have a designated music source for playing to callers placed on
Exclusive hold at that station.
Each Trunk can have a designated music source for playing to callers placed on hold.
This setting is overridden by some of the other settings such as station music on hold,
DID MOH and UCD MOH.
Each UCD group can have a designated music source to be played while a caller is in
queue.
On an MCP2 and MCP-L version system each entry in the DID translation table can
have a designated music source to be played when a caller to that DID number is
placed on hold.
1.1.65 Music on Hold-Sources
The OfficeServ 500 provides for up to six different types of Music on Hold source
including silence or ‘NONE’ as listed below :
None : No audio is played to the listener
Tone
: A tone or ‘beep’ is repeated at a programmable interval
© SAMSUNG Electronics Co., Ltd.
Page 4-23
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
: A music chime source(Old Folks At Home) located on the MCP card is
played to the listener.
Chime
: An external source connected to a MISC card, such as a digital
announcer or radio, is played to the listener.
External source
: If the system is equipped with an AA card the last
port of this card can be flagged as a MOH source and used to repeatedly play a
message recorded on the AA card to the listener.
Digital Announcement on AA card
Voicemail Sound File : If the OfficeServ 500 system has an optional CADENCE card
installed, up to 100 custom recorded sound files from the Voice Mail card can be used
for MOH sources.
For information on creating the sound files see CADENCE System Administrator
Manual-Recording greeting by number. If you select this option be advised that each
VMMOH source requires a dedicated CADENCE port/channel.
1.1.66 Networking (PRI/Q-SIG)
The OfficeServ 500 networking feature allows up to 4 OfficeServ 500 systems to be
connected together with some basic feature transparency. The physical connection
between the systems is via a proprietary PRI connection and is based on the Q-SIG
specification. The following features are supported between two networked systems.
Call Completion, Busy Station(CCBS). Also known as Callback or Busy Station
Callback. When a station in one system calls a station in another system across the
network link and the destination station is busy the calling station can set a Callback
to the busy station. When the busy station becomes idle the system will notify the
callback originating station by ringing that station and when the originating station
answers, the system will call the destination station.
Call Completion, No Response(CCNR). Also known as
Callback or No Answer
Callback. When a station in one system calls a station in another system across the
network link and the destination station does not answer the calling station can set a
Callback to the called station. When that station indicates you are present by
becoming busy then idle the system will notify the callback originating station by
ringing that station and when the originating station answers, the system will call the
destination station.
Call Forward Busy(CFB). This is a different feature from the normal call forward busy
and is only used when the forward destination is in a different node of the network.
The operation of the feature is the same as the normal forward busy where when the
forwarded station is busy a calling station will be forwarded to the forward
destination.
Page 4-24
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
Call Forward No Response(CFNR). This
is a different feature from the normal call
forward no answer and is only used when the forward destination is in a different
node of the network.
The operation of the feature is the same as the normal forward no answer where when
the forwarded station does not answer after a programmed amount of time a calling
station will be forwarded to the forward destination.
Call Forward Unconditional(CFU). This
is a different feature from the normal call
forward all and is only used when the forward destination is in a different node of the
network. The operation of the feature is the same as the normal forward all where all
calls to the forwarded station will be forwarded to the forward destination.
Forward External. This
feature operates in the same manner as a non networked
system with the exception that, because calls across a network link are trunk calls,
network calls do not follow the ICM FWD EXT ON/OFF setting in MMC 210.
It is therefore suggested that this setting be set to ON in a networked switch to avoid
confusion in operation between networked and non networked calls.
Call Intrusion(Barge In). This feature operates in the same manner as
networked switch.
in a non
Call Offer/Call Waiting(Camp On). This feature operates in the same manner as in a
non networked switch. When a called station is busy the caller can press a camp on
button and appear as a ringing call on the second call button. The Auto camp on
feature will not work on calls across a network link if set to ON in MMC 110.
Call Transfer. Calls
answered in one network node can be transferred to a station or
station group in another network node.
Transfer Retrieve. Calls on Transfer Hold during a screened transfer can be retrieved by
pressing the call button for that call.
Transfer Recall. Calls
transferred across a network link will recall to the transferring
station after the originating systems transfer recall timer expires. After recalling, if
not answered prior to that systems attendant recall timer expiring, the call will recall
to that systems designated operator group. Attendant recalls will not recall to a
‘Centralized Attendant’.
DID with Pass Through. Incoming DID, DNIS or DDI calls can be routed through one
switch across a network link to be processed by the DID table of the destination
switch.
© SAMSUNG Electronics Co., Ltd.
Page 4-25
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
Do Not Disturb(DND). This feature operates in the same manner as in a non networked
switch. There is an option in MMC 823 to determine the type of DND tone sent
across the network link.
Caller ID. Caller ID in its
various forms that are currently available(Analog CID
Name and Number, ANI Number, PRI Name and Number and BRI number) will be
transported across the network link with the original call.
Centralized Attendant. This feature basically allows you in any switch to dial ‘0 and
ring at the designated Central attendant group. Each system on the network requires
its own designated attendant group for local usage, recalls and the like.
Intercom Calling/Uniform dialling plan . Station to station and station to group calls
can
be made across the network link without having to dial an access code for a call
within the network. LCR can also be programmed to route calls across a network link
to access local trunks in another networked system.
Centralized Voice Mail with Message Waiting Lights . This feature will
only operate
with Cadence and/or SVMi voicemail systems only. Users in one node can call
forward(CFNR, CFB & CFU) to the Cadence group in a different switch and
messages left in that switch will be indicated on the VMSG button in the origination
switch. Messages can be returned to the CVMAA by pressing the VMSG button.
1.1.67 Off Premises Extensions (OPX)
A single line(tip and ring) extension from an 4SLI card may be connected to
telephone company-provided OPX circuits to remote locations. 8SLI cards and KDBSLIs do not support off premises extensions.
1.1.68 Operator Group
The operator group can contain 32 stations to answer incoming calls. Calls to this
group can be set for distributed, sequential or unconditional ringing. Operators can
use the In/Out of Group feature to meet flexible operator requirements.
Operator groups are selectable per ring plan.
1.1.69 Overflow
OPERATOR
When calls ringing a operator group go unanswered, they can overflow to another
destination after a programmed period of time. The operator group has its own timer.
The overflow destination can be a station or station group.
Page 4-26
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
STATION GROUP
When calls ringing a station group go unanswered, they can overflow to another
destination after a programmed period of time. Each station group has its own timer.
The overflow destination can be a station or station group.
1.1.70 Override Code
This feature allows you to make emergency outside calls from a station that has a
forced code such as Account code or authorization code enabled but without
requiring them to enter a forced code. The basis of this feature is an override code
table containing 8 entries of up to 14 digits each. The OfficeServ 500 will examine
digits that are dialled from a station to see if they match any entry in the Emergency
Number table. If the digits match the table, the system will process the call without
requiring a forced code.
1.1.71 Paging
System software allows the use of four internal and four external paging zones.
Stations can page any individual zone, all internal zones, all external zones or all
zones simultaneously. Using system programming, each station may be allowed or
denied the abilities to make and/or receive page announcements to any zone or
combination of zones.
1.1.72 Park Orbits
The system has 10 park orbits(0-9). These orbits can be used to park calls prior to
paging and allows the call to be retrieved by dialling a park code plus the orbit
number. Calls parked in this manner can also be retrieved by dialling the park pickup
code plus the station or trunk number. This feature is in addition to Call Park and
Page.
1.1.73 Prime Line Selection
Any station can be programmed to select a specific line, trunk group, telephone
number, station or station group when the handset is lifted or the speaker button is
pressed(same as Hot Line feature).
1.1.74 Private Lines
For private line use, stations can be prevented from dialling and/or answering any
line.
© SAMSUNG Electronics Co., Ltd.
Page 4-27
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.75 Programmable Line Privacy
Each outside line can be programmed to ignore the automatic line privacy.
This allows up to four other parties to join your conversation by simply pressing the
line button. This is similar to 1A2 button telephone operation.
1.1.76 Programmable Timers
There are over 50 programmable system timers to allow each installation to be
customized to best fit the end user’s application.
1.1.77 Programmed Message Service
Programmed Messages can be set on each extension. The Programmed Messages are
displayed on the LCD screen when call arrives from another extension. In MCP
version, the Programmed Messages can only be set at the system level. In MCP2
version, 15 messages are set at the system level and 5 messages are set separately for
each extension.
1.1.78 Recalls
Calls put on hold, transferred or camped-on to any station will recall to the
originating station if not answered within a programmable time. A recall that goes
unanswered for the duration of the attendant recall timer will recall to the system
operator group. Hold, transfer, camp-on and attendant recalls have individual
programmable timers. Calls recalling to buttons with tri-colored LEDs will flash
amber.
1.1.79 Remote Programming-PC
Remote programming allows the technician to access the system database from a
remote location for the purpose of making changes to the customer data. Customerprovided modems and a PC using an optional software package will be needed to
implement this feature.
1.1.80 Ring Modes
Time Based Routing-plans
Each Trunk line can be programmed to ring at any station or station group. Each line
can be assigned a ring destination based on six(6) different ring plans based on time
of day and the day of the week.
Automatic/Manual
Ring destinations will automatically change based on time of day and day of week.
At any time the system can be manually forced into a specific ring plan. It will
remain in this ring plan until manually taken out.
Page 4-28
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
Holiday Schedule
The system has a table of 60 dates that are used to define holidays. On a date
designed as a holiday the system will remain in a ring plan for that calendar day
providing the system was already in night service. This feature will override the ring
plan time table.
Temporary Override
At any time the system can be forced into a specific ring plan for a temporary period
of time until the next scheduled ring plan automatically takes effect.
1.1.81 Ring Over Page
Any outside line can be programmed to ring over a customer-provided paging system.
Outside lines, door phones and station groups may ring over page in the system ring
plan mode.
1.1.82 Single Line Connections
Single line ports allow connection of a variety of single line telephones plus facsimile
machines, answering machines, loud bells, computer modems, cordless phones and
credit card machines. When connecting customer-provided equipment to these
extensions, compatibility should be checked out before purchase to ensure correct
operation. Central office ring cadence can be selected for SLT stations. This is helpful
when optional devices cannot detect OfficeServ 500 intercom ring cadence.
1.1.83 Speed Dial Numbers
A library of 1500 speed dial numbers may be allocated as needed for MCP-M version
software, 2000 speed dial numbers for MCP2-M version software and 2500 speed
dial numbers for MCP-L and MCP2-L version software. The system list can have up
to 500 numbers and each station can have up to 50 numbers. Speed dial numbers are
assigned in blocks of ten. Each speed dial number may contain up to 24 digits.
1.1.84 Speed Dial by Directory
The OfficeServ 500 system provides you with the ability to look up a speed dial
number and place the call. There are three speed dial selections: personal, system and
station. This feature requires a display phone.
1.1.85 Spot View Interface
Spot Call Plus
The caller information is displayed on the LCD screen of the phone and your PC
screen.
© SAMSUNG Electronics Co., Ltd.
Page 4-29
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
Spot News
Information from the Internet and internal information are displayed on the LCD
screen in text.
Spot Choice
Information services on stock, fortune, bio-rhythm, etc are displayed upon your
choice.
1.1.86 Station Hunt Groups
System programming allows up to 30 station hunt groups on an MCP-M, 50 station
hunt groups on an MCP-L, 40 station hunt groups on an MCP2-M and 80 station
hunt groups on an MCP2-L system. One of three ring patterns-sequential, distributed
and unconditional-is available for each group. Each unconditional group may contain
a maximum of 32 stations and each sequential and distributed group may contain a
maximum of 48 stations. A station may be assigned to more than one group.
Each station group has its own recall timer for calls transferred to that group.
1.1.87 Station Message Detail Recording (SMDR)
The system provides records of calls made, received and transferred. Connecting a
customer-provided printer or call accounting system will allow collection of these
records. Each call record provides the following details : station number, outside line
number, start date, start time, duration of call, digits dialled(maximum 18) and an
account code if entered. The system may print a header followed by 50 call records
per page or send continuous records with no header for use with a call accounting
machine. See the sample printouts.
The SMDR format contains many options that allow it to be customized for a
company’s individual needs. Options to print include incoming calls, outgoing calls,
in and out of group status, change in DND status and authorization codes.
1.1.88 System Alarms
A DISA alarm will warn the customer if the DISA security system has been triggered
by too many incorrect password attempts. The alarm can ring any station or group of
stations and show an appropriate display at the assigned stations.
1.1.89 System Maintenance Alarms
The OfficeServ 500 continuously performs internal system diagnostics. When either
a major or minor fault is detected the system can ring stations with an ALARM
BUTTON assigned. The phone display shows information that includes the
description, location and date and time stamp for each alarm.
Page 4-30
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
A log of 100 alarms are stored in a buffer and can be reviewed at a display phone or
sent to a printer(see ‘Sample Alarm Report’ section of this guide).
System Maintenance Alarms are only available in MCP2 card and MCP card with a
LAN module.
1.1.90 System Directory
Each station, station group and outside line can have an 11 character directory name.
This name will appear on phone displays to provide additional information about
lines and stations.
1.1.91 Tenant Service (2)
There are several programs that allow the OfficeServ 500 to be installed in tenant
applications. These features allow a technician to split the system in two with each
tenant having individual control over operator groups, page zones, speed dial
numbers, night service(manual or automatic), DISA and customer level programming.
Each tenant is separate. No intercom calling between tenants is permitted.
1.1.92 Text Message Service
When a caller presses the CAMP-ON button on a busy line, the receiving party can
press the TMSG button to send a preset text message to the caller. The Text Message
function shall be enabled on both extensions. The MCP-M version does not support
this function. In MCP-L version, the Programmed Messages can be sent as the Text
Message, while the Text Messages can be set respectively for each extension in
MCP2 version.
1.1.93 Toll Restriction
There are 500 allow and 500 deny entries on MCP2 and MCP-L version software,
250 allow and 250 deny entries on MCP-M version software of 11 digits each. Each
of these entries can apply to dialling classes B, C, D, E, F and G. Expensive calls, as
well as specific area and office codes, can be allowed or denied on a per-class basis.
Class A stations have no dialling restrictions and Class H stations cannot make
outside calls.
Any outside line may be programmed to follow station toll restriction or follow the
toll restriction class assigned to it. Each station and trunk can have a day dialling
class and a night dialling class.
© SAMSUNG Electronics Co., Ltd.
Page 4-31
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
SPECIAL CODE TABLE
A Special Code Table of ten entries(four digits each) allows use of telephone
company features such as CID blocking or call waiting disable without interference
to toll restriction or LCR. The Special Code table allows use of these custom calling
features on a per call basis.
1.1.94 Toll Restriction Override
Program options allow system speed dial numbers to follow or bypass a station’s toll
restriction class. In addition, you may make calls from a toll restricted station by
using the walking class of service or authorization code feature.
1.1.95 Tone or Pulse Dialling
Outside lines can be programmed for either tone or pulse dialling to meet local
telephone company requirements.
1.1.96 Traffic Reporting
The OfficeServ 500 system can store peg counts for various types of calls. These peg
counts can be printed on-demand, daily, hourly, or up to three separate programmable
shifts. The report includes statistics for each trunk, trunk group, station, station
groups and page announcements.
Traffic Reporting is only available on MCP2 card and MCP card with a LAN module.
1.1.97 Transfer
System operation permits station users to transfer calls to other stations in the system.
Transfers can be screened, unscreened or camped-on to a busy station.
1.1.98 Trunk Groups
Outside lines can be grouped for easy access by dialling a code or pressing a button.
There are 11 trunk groups available for MCP-M, 50 trunk groups available for MCP-L,
30 trunk groups available for MCP2 version software.
1.1.99 Uniform Call Distribution (UCD)
UCD is used whenever you expect to have more ringing calls than people to answer them.
It prevents callers from receiving busy signals or lengthy delays before answering.
Callers reaching a busy station group are held in queue for an available agent. First
Page 4-32
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
and second announcements reassure the caller until an agent becomes free.
Programmable automatic logout removes a station from the group if a call is placed
to an unattended station, thus preventing unanswered calls. A wrap-up timer prevents
calls to a station for a programmable period of time to allow the agent to finish up
work associated with the call.
Requires optional hardware. Ask your dealer for details.
UCD GROUPS
The UCD group option allows callers in queue at a UCD group to be temporarily
diverted to an announcement device and then placed back in the queue. A wrap-up
timer will allow agents to complete paperwork before receiving the next UCD call.
Call Statistics
UCD supervisor positions using a display phone can monitor the number of calls in
queue, the time that the oldest caller has been waiting, the total number of calls
received for the current day and the average time a caller waits to be answered.
AGENT STATISTICS
UCD supervisor positions using a display phone can monitor the number of agents in a
group and how many agents are currently logged in. Each station’s status can be
reviewed for the number of calls answered and the average call length of the current day.
GROUP SUPERVISORS
Multiple supervisors can be assigned to each group or one station can be given
supervisor status for multiple groups. The group supervisor(using a display phone)
can add and delete agents in real time from the group to handle the workload.
PRINTED REPORTS
Agent supervisors may run printed reports to a customer-provided printer, showing
the data available on the supervisor displays.
1.1.100 Universal Answer
Station users may dial the Universal Answer code or press the UA button to answer
any outside lines programmed to ring the UA device. The UA device can be a station,
group of stations, common bell or ring over page.
© SAMSUNG Electronics Co., Ltd.
Page 4-33
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
1.1.101 Virtual Port
The OfficeServ 500 provides a Virtual Port. This Virtual Port is not connected to a
physical cable, but has its own phone numbers and functional settings. There are two
types of Virtual Ports, the SLT Line Type and the Digital Line Type. Virtual Port can
be used as the parameter port for call transfer in CTI Applications such as the Internet
Call Center(ICC), and can exchange saved information with real phones using the Set
Relocation feature to implement a Mobile Office. Only the SLT Line Type Virtual
Port is provided in MCP version, while the Digital Line Type Virtual Port is also
provided in MCP2 version.
1.1.102 Voice Dialling
Calls can be made by pressing VDIAL button and verbally addressing the recipient’s
name. The name and number shall be registered in advance, and the Voice Dial Card
shall be installed in the system.
1.1.103 Voice Mail-Inband Integration
The OfficeServ 500 system uses DTMF tones(inband signaling) to communicate with
any compatible voice mail system. Stations can call forward to a voice mail system.
When answered, the system will send DTMF tones routing the caller directly to the
called station user’s mailbox. Phone users can press one button to retrieve messages
from the voice mail system. A Voice Mail Transfer button permits phone users to
easily transfer a caller directly to an individual voicemail box without navigating
through menus.
1.1.104 VoIP Networking (MCP2)
MCP2 provides networking through the VoIP Network. The MGI card is required for
calling another system through VoIP Networking. The features provided by VoIP
Networking conform to that of PRI/Q-SIG Networking.
1.1.105 VoIP Trunk Interface (H.323/SIP)
The OfficeServ 500 provides VoIP Trunk Interface. In MCP version, the ITM3 card is
provided as a separate card. In MCP2 version, the system controls the calls, and a
separate MGI card is required for connection to the speech path.
1.1.106 Walking Class of Service
This feature allows you to make calls or use features from a station that is restricted.
You may either use the WCOS feature code or the authorization code feature. Both
methods change the class of service to correspond with the station passcode or
authorization code that is dialled. After the call is completed, the station returns to its
programmed class of service.
Page 4-34
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
1.1.107 Wireless LAN Service (MCP2)
The OfficeServ 500 System, the primary device of SAMSUNG button phone, is
mounted with the 8WLI card that has the wireless LAN function. One 8WLI card can
support up to 8 WBS24s, the equipment for AP(Access Point). In the office where the
WBS24 is installed, you can receive the wireless LAN service using mobile
phone(WIP5000M), PC and PDA loaded with the wireless LAN card, or using
wireless IP phone.
© SAMSUNG Electronics Co., Ltd.
Page 4-35
CHAPTER 4. Business Feature Package
2
OfficeServ 500 General Description Guide/Ed.00
STATION FEATURES
ADD-ON MODULE
ON-HOOK DIALLING
APPOINTMENT REMINDER
PRIVACY RELEASE(Except MCP-M)
AUTOMATIC HOLD
PROGRAMMABLE BUTTONS
AUTOMATIC PRIVACY
PROGRAMMED STATION MESSAGES
BACKGROUND MUSIC
PROTECTION FROM BARGE-IN
BUSY STATION CALLBACK
PULLOUT DIRECTORY TRAY
BUSY STATION INDICATIONS(BLF)
PULSE TO TONE SWITCH OVER
CALL FORWARDING
REDIAL
CALL LOGS
AUTO RETRY
CALL PICKUP
LAST NUMBER
DIRECT STATION SELECTION(DSS)
Manual Retry with LNR
DO NOT DISTURB(OVERRIDE)
MEMO REDIAL
DO NOT DISTURB(PROGRAMMABLE)
SAVE NUMBER
DOOR LOCK RELEASE
REMOTE HOLD
EXCLUSIVE HOLD
RING MODES
GROUP LISTENING
AUTO ANSWER
HEADSET OPERATION
RING-EIGHT TONE CHOICES
HEARING AID COMPATIBLE
VOICE ANNOUNCE
LINE QUEUING WITH CALLBACK
RINGING PREFERENCE
LINE SKIPPING
SPEAKERPHONE
LOUD RINGING INTERFACE
STATION LOCK
MANUAL SIGNALLING(Except MCP-M)
TRI-COLORED LIGHTS
MESSAGE WAITING LIGHT/INDICATION
VOLUME SETTINGS
MUTE MICROPHONE/HANDSET
HANDSET
OFF-HOOK RINGING
BGM
OFF-HOOK VOICE ANNOUNCE(STANDARD)
RINGING
ONE TIME DO NOT DISTURB
PAGING
* Requires optional hardware and/or software. Ask your dealer for details.
Page 4-36
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
2.1
CHAPTER 4. Business Feature Package
Station Feature Descriptions
2.1.1 Add-On Module
48 BUTTON AOM
The 48-button Add-On Module(AOM) adds to the capability of any phone.
The 48 programmable buttons with red buttons can be used for feature buttons,
DSS/BLF buttons or one touch speed dial buttons.
64 BUTTON MODULE
The 64-button module adds to the capability of any phone. Up to four 64-button
modules can be added to each phone. The 64 programmable red LED buttons with
red LED can be used for feature buttons, DSS/BLF buttons or one touch speed dial
buttons. A maximum of 8 can be installed on an OfficeServ 500 system running
OfficeServ 500-M version software, or a maximum of 32 can be installed on an
OfficeServ 500 system running OfficeServ 500-L version software.
2.1.2 Appointment Reminder
Phones with an alarm button can be used like an alarm clock. When programmed for
a specific time, the phone will sound a distinctive ring to remind you of meetings or
appointments. Alarms can be set for ‘today only’ or for every day at the same time.
Up to three alarms may be set at each phone. Display phones can also show a
programmed message when the alarm rings.
2.1.3 Automatic Hold
Station users can enable or disable automatic hold at their phones. While you are
engaged on an outside(Trunk line) call, pressing another trunk button, route button or
CALL button automatically puts the call on hold when this feature is enabled.
Pressing TRSF, CONFERENCE, PAGE or a DSS button will always automatically
place the call on hold. This type of automatic hold is not a user-selectable option.
2.1.4 Automatic Privacy
All conversations on outside lines and intercom calls are automatically private.
The privacy feature can be turned off on a per-line basis.
Intercom calls cannot be automatically held.
© SAMSUNG Electronics Co., Ltd.
Page 4-37
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
2.1.5 Background Music
Phone users may choose to hear music through their phone speakers when optional
external sources are installed. Each user may adjust this level by the use of a volume
control program at the selected phone.
2.1.6 Busy Station Callback
When reaching a busy station, callers may request a callback by pressing one button
or dialling a code. The system rings the caller back when that station becomes idle
(a system-wide maximum of 100 callbacks for OfficeServ 500-M, 300 for MCP-L
and 500 for MCP2-L are allowed at one time including busy station and busy trunk).
2.1.7 Busy Station Indications (BLF)
DSS/BLF buttons may be assigned to any phone or add-on module. These buttons
will be off when the station is idle, light red when that station is in use and flash
distinctively when that station is in the DND mode.
2.1.8 Call Forwarding
Station users can forward internal and outside calls to other destinations immediately
(Forward All), when busy(Forward Busy) or if not answered in a programmable
number of seconds(Forward No Answer). These forward destinations can all be
different. Once a destination has been programmed, it can be turned on and off with a
programmable button. Forward All takes priority over Busy and No Answer
conditions.
In addition to the three usual methods of forwarding described above, a fourth option
called Follow Me is available. This option allows a station user to set a Forward All
condition from his/her station to another station while at the remote station.
To display the Follow Me condition, the TRSF button lights steady red at the station
that is forwarded. The TRSF button also lights if Forward All is set and no button is
programmed for Forward All.
In MCP, phone users can be given an external call forward button to forward their
calls to an external phone number. In MCP2, phone users can set the external
destination for all kinds of forwarding. Each outside line may be programmed to
either follow or ignore station call forwarding.
A per-station option controls whether internal calls forward to voice mail or not.
Single line telephones must have the system administrator program this feature for them.
Page 4-38
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
2.1.9 Call Logs
With the call log feature, a display phone user can review up to 50 of the last
incoming calls from the Caller ID review list or up to 50 of the last external telephone
numbers that were dialled. The numbers can be viewed, stored and/or dialled using
the associated soft buttons. LCR must be enabled for dialling and storing numbers
from the CID review list. Optional hardware and/or software may be needed for
Caller ID.
Call Logs are only available on MCP2 card and MCP card with a LAN module.
2.1.10 Call Pickup
With directed call pickup, you can answer calls ringing at any station by dialling a
code plus that extension number. The group pickup feature allows you to answer any
call ringing within a pickup group. Pickup buttons may be customized with extenders
to allow pickup from a specific station or pickup group. The OfficeServ 500 has 99
programmable pickup groups.
2.1.11 Direct Station Selection (DSS)
Programmable buttons can be assigned as DSS buttons and associated with extension
numbers. You press these buttons to call or transfer calls to the assigned stations.
2.1.12 Do not Disturb (Override)
The DND Override feature allows a phone with a DND Override button(DNDO) and
the appropriate class of service to override the DND setting at a called phone.
This will allow you to go into DND while waiting for an important call and have that
call transferred to them via a screened transfer from a station(for example your
secretary) with a DNDO button.
2.1.13 Do not Disturb (Programmable)
The Do Not Disturb(DND) feature is used to stop all calls to a station.
System programming can allow or deny use of the DND feature for each station.
Parties calling a station in DND will receive reorder tone. When in DND mode, calls
may be forwarded to another destination. See Forward DND option. A phone without a
DND button can activate DND via the feature access code. The ANS/RLS button will
flash at 112 ipm(rapidly) when DND is set. There is a programmable option to allow a
Trunk line to override DND at its ring destination if that destination is a single station.
© SAMSUNG Electronics Co., Ltd.
Page 4-39
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
2.1.14 Door Lock Release
Stations programmed to receive calls from a door phone can dial a code to activate a
contact closure for control of a customer-provided electronic door lock.
2.1.15 Exclusive Hold
Pressing HOLD twice will hold a call exclusively at a station so no other station can
pick up that call. Intercom calls are automatically placed on exclusive hold.
2.1.16 Group Listening
This feature allows you to turn on the speaker while using the handset. It allows a
group of people to listen to the distant party over the speaker without the microphone
turned on.
2.1.17 Headset Operation
Every phone can be programmed to allow the use of a headset. In the headset mode,
the hook switch is disabled and the ANS/RLS button is used to answer and release
calls. Phone users may turn headset operation ON/OFF by phone programming or
more easily by pressing the headset ON/OFF button. The headset button lights steady
red when the phone is in headset mode. The ANS/RLS button lights if headset mode
is activated by phone programming only.
2.1.18 Line Queuing with Callback
When the desired outside line is busy, you can press the CALLBACK button or dial
the access code to place his/her station in a queue. You will be called back when the
line is available(a maximum of 100 callbacks for OfficeServ 500-M, 300 callbacks
for MCP-L and 500 callbacks for MCP2-L are allowed system-wide at one time
including busy station and busy trunk).
2.1.19 Line Skipping
When you are talking on an outside line and the automatic hold feature is turned off,
he/she may press an idle line button and skip to that line without causing the previous
call to go on hold.
2.1.20 Loud Ringing Interface
The MISC daughter board has 1 relay for control of a customer provided loud ringing
device.
This relay can be programmed to operate with a specific station or station group.
Page 4-40
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
2.1.21 Manual Signalling (Except MCP-M version software)
Phones can signal each other via a programmable button. This allows one station to
alert another without establishing a voice conversation. Each press of the button
results in a 500 milliseconds of ring tone being set to the intended station. An
individual manual signaling button must be programmed for each station to be
signaled.
2.1.22 Message Waiting Light/Indication
When a message indication is left at a phone, the MESSAGE button will slowly flash
red. Single line telephones will receive a distinctive dial tone to notify them that a
message is waiting. Message waiting indications can be left for any station or group
of stations.
2.1.23 Mute Microphone/Handset
Any phone user can mute the phone’s handset transmitter by pressing the MUTE
button. In addition, phone users can also mute the phone microphone while the phone
is in speakerphone mode.
2.1.24 Off-Hook Ringing
When a phone is in use, the system will provide an off-hook ring signal to indicate
that another call is waiting. The ring signal is a single ring repeated. The interval is
controlled by a system-wide timer. Single line stations will receive a tone burst
through the handset receiver instead of a ring.
2.1.25 Off-Hook Voice Announce (Standard)
Phones may receive a voice announcement while on another call. The calling station
must have an OHVA button. When transferring a call to a busy phone or while
listening to busy signal, the station user can press the OHVA button to make an
OHVA call to the busy phone. If the called phone is in the DND mode, it cannot
receive OHVA calls.
2.1.26 One Time Do Not Disturb
The Do Not Disturb(One Time) feature is used to stop all calls to a station when you
are on an outside line and does not want to be disturbed for the duration of the call.
Upon completion of the call, DND is cancelled and the station is returned to normal
service. This feature requires a programmed button.
2.1.27 One Touch Dialling Buttons
Frequently used speed numbers can be assigned to one touch dialling buttons for fast
accurate dialling.
© SAMSUNG Electronics Co., Ltd.
Page 4-41
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
2.1.28 On-Hook Dialling
Any phone user can originate calls without lifting the handset. When the called party
answers, you may speak into the microphone or lift the handset for more privacy.
2.1.29 Privacy Release (Except MCP-M version software)
This feature will allow another station to join in on your conversation by temporarily
releasing privacy on the Trunk line from your phone.
Requires a Privacy Release button to be programmed on your phone. A maximum of
three(3) other people can join in. This uses one of the conference circuits in the system.
2.1.30 Programmable Buttons
LCD 24B and STD 24B phones have 24 programmable buttons, LCD 12B and Basic
12B phones have 12, and 6B phones have 6. Each button can be programmed for
more than 25 different uses to personalize each phone. Examples of buttons include
individual outside line, individual station, group of lines, group of stations and one
touch speed dial buttons. Using these buttons eliminates dialling access codes.
The following feature buttons have extenders that make them more specific : SPEED
DIAL, SUPERVISOR, PAGE, DSS, DIRECTED PICKUP, GROUP PICKUP,
DOOR PHONE, BOSS, PROGRAMMED MESSAGE, IN AND OUT OF GROUP,
FORWARD and VOICE MAIL TRANSFER. The extender can be a station, a group
or another identifying number.
2.1.31 Programmed Station Messages
Any station may select one of 20 or 30 messages to be displayed at a calling party’s
phone(20 for MCP-M version software, 30 for MCP-L version software and 20 for
MCP2 version software). Ten messages are factory-programmed but may be
reprogrammed. On MCP-L version software last five can be individually customized,
e.g., RETURN ON : MAR/22 and RETURN AT 3:30p the remaining messages can
be customized by the system administrator(16 characters maximum). On MCP-M
version software last two messages can be used to similar to last five messages of the
MCP-L version software but the message contents are programmable per tenant bases
and can have only one date or time value per station. On MCP2 version software last
five messages can be programmable per station basis.
The calling party must have a display phone to view these messages.
Page 4-42
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
2.1.32 Protection from Barge-In
Each station can be programmed as secure or not secure. Secure stations cannot be
barged-in on.
A station that is not secure cannot be barged-in on when talking to a secure station.
2.1.33 Pullout Directory Tray
A pullout directory tray is conveniently located beneath all phones. It is used to
record station directory names and speed dial numbers.
2.1.34 Pulse to Tone Switchover
When dialling a number on a dial pulse network, a station user can dial # and the
iDCS system will begin to send DTMF.
2.1.35 Redial
There are three types of external redial available to all station users. Each type can
redial up to a maximum of 18 digits.
AUTO RETRY-When an outside number is dialled and a busy signal is received,
the auto retry feature can be used to reserve the outside line and automatically
redial the number for a programmable number of attempts(available to phone
users only).
LAST NUMBER-The most recently dialled number on a Trunk line is saved and
may be redialled by pressing the redial button or dialling the LNR access code.
MANUAL RETRY with LNR-When you make an outside call and receive a
busy signal you can press the LNR button to redial the same number again.
This operation can be manually repeated for a limited number of attempts as
defined by system programming(available to phone users only).
MEMO REDIAL(Except MCP-M version software)-When you are calling
directory assistance you can store the number you are given using the dial pad
and SAVE number feature. There is no need for a pencil and paper(available to
phone users only).
SAVE NUMBER-Any number dialled on a Trunk line may be saved for redial at
a later time.
2.1.36 Remote Hold
When you wish to place a call on hold at another station, press TRSF and dial the
station number(or press the appropriate DSS button). Press the HOLD button. This
will place the call on system hold on an available CALL button or Line Button at the
remote station.
© SAMSUNG Electronics Co., Ltd.
Page 4-43
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
2.1.37 Ring Modes
Each phone user can select one of three distinct ways to receive intercom calls.
The phone can automatically answer on the speakerphone, voice announce through
the speaker or receive ringing. When the ring mode is selected, phone users can
choose one of eight distinct ring tones. Forced Auto Answer is invoked by the calling
station and is controlled by the calling station’s class of service.
2.1.38 Ringing Preference
Lifting the handset or pressing the speaker button automatically answers a call ringing at
the phone. Using this method, you are assured of answering the oldest call first.
When ringing preference is turned off, you must press the flashing button to answer.
You may answer ringing lines in any order by pressing the flashing button.
2.1.39 Speakerphone
DCS LCD 24B and DCS LCD 12B phones have built-in speakerphone.
The speakerphone enables calls to be made and received without the use of the handset.
All iDCS phones are speakerphones.
The iDCS 28 Button and the iDCS 18 Button can have a Full Duplex Speakerphone
Module added.
Station Lock
With a programmable personal station passcode, any phone or single line station can
be locked and unlocked to control use of each telephone. There are two lock options :
1=LOCKED OUTGOING and 2=LOCKED ALL CALLS.
0(UNLOCKED)
1(LOCKED OUTGOING)
2(LOCKED ALL CALLS)
Make outside calls
YES
NO
NO
Receive outside calls
YES
YES
NO
Make intercom calls
YES
YES
NO
Receive intercom calls
YES
YES
NO
2.1.40 Tri-Colored Lights
LCD 24B and STD 24B phones have 16 buttons equipped for tri-colored LED
indications(green, red and amber). LCD 12B and Basic 12B models have six of these
buttons. To avoid confusion, your calls always light green, other calls show red and
recalls light amber.
Page 4-44
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
2.1.41 Volume Settings
Each phone user may separately adjust the volume of the ringer, speaker, handset
receiver, background music, page announcement and off-hook ring tone.
2.1.42 Wall-Mountable phones
Each phone, add on module and 64 button module can be wall mounted by reversing
the base wedge. The newest base wedge may not fit all wall mounting scenarios so in
these cases the original wall mount/base wedge unit should be used.
© SAMSUNG Electronics Co., Ltd.
Page 4-45
CHAPTER 4. Business Feature Package
3
3.1
OfficeServ 500 General Description Guide/Ed.00
DISPLAY FEATURES
ACCOUNT CODE DISPLAY
ENHANCED STATION PROGRAMMING
CALL DURATION TIMER
IDENTIFICATION OF RECALLS
CALL FOR GROUP IDENTIFICATION
IDENTIFICATION OF TRANSFERS
CALL PROCESSING INFORMATION
MESSAGE WAITING CALLER NUMBER
CALLER ID INFORMATION
OUTSIDE LINE IDENTIFICATION
CALLING PARTY NAME
OVERRIDE IDENTIFICATION
CALLING PARTY NUMBER
PROGRAMMED MESSAGE DISPLAY
CONFERENCE INFORMATION
SOFT BUTTONS
DATE AND TIME DISPLAY
STOPWATCH TIMER
DIALLED BY NAME
TEXT MESSAGING(Except MCP-M Version)
DIALLED NUMBER
UCD SUPERVISOR DISPLAYS
Display Feature Descriptions
3.1.1 Account Code Display
Account codes are conveniently displayed for easy confirmation. If entered incorrectly,
users may press the ACCOUNT button again and reenter the account code.
3.1.2 Call Duration Timer
The system can automatically time outside calls and show the duration in minutes
and seconds. Station users may manually time calls by pressing the TIMER button.
3.1.3 Call for Group Identification
When a call is made to a station group, the display shows [CALL FOR GROUP] and
your group number. These calls can be answered with a different greeting than calls
to your extension number.
3.1.4 Call Processing Information
During everyday call handling, the phone display will provide information that is
helpful and in some cases invaluable. Displays such as [CALL FROM 203],
[TRANSFER TO 202], [701 : RINGING], [TRANSFER FM 203], [708 busy],
[Camp on to 204], [Recall from 204], [Call for 501], [message from 204] and [FWD
ALL to 204] keep users informed of what is happening and where they are. In some
conditions, you are prompted to take action and in other cases you receive directory
information.
3.1.5 Caller ID Information
Caller ID information is dependent on the use of display phones. The following list
explains the displays that are used with Caller ID.
Page 4-46
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
Name/Number Display
Each display phone user can decide if he/she wants to see the Caller ID name or
Caller ID number in the display. Regardless of which one is selected to be seen first,
the NND button is pressed to view the other piece of CID information.
Next Call
In the event that there is a call waiting or a camped-on call at your phone, you can
press the NEXT button to display the Caller ID information associated with the next
call in queue at the station. Either the Caller ID name or number will show in the
display depending on the NND selection.
Save Caller ID Number
At any time during an incoming call that provides Caller ID information, you may
press the SAVE button. This saves the Caller ID number in the Save Number feature.
Pressing the SAVE number redial button will dial the Caller ID number.
The system must be using LCR to dial the saved number.
Store Caller ID Number
At any time during an incoming call that provides Caller ID information, you may
press the STORE button. This saves the Caller ID number as a speed dial number in
the personal speed dial list. The system must be using LCR to dial the stored number.
Inquire Park/Hold
When you are informed that an incoming call is on hold or has been parked, you may
view the Caller ID information before you retrieve the call. This will influence how
you choose to handle the call.
Caller ID Review List
This feature allows display phone users to review Caller ID information for calls sent
to their stations. This list can be from ten to fifty calls in a first in, first out basis.
The list includes calls that were answered and calls that rang the user’s station but
that were not answered. When reviewing this list, the user can press one button to
dial the person back. The system must be using LCR to dial the stored number.
Investigate
This feature allows selected stations with a special class of service to investigate any
call in progress. If Caller ID information is available for an incoming call, the
selected stations can know to whom the OfficeServ 500 user is speaking.
On outgoing calls, the selected stations can see who was called. After investigating,
the selected stations may barge-in on the conversation, disconnect the call or hang up.
© SAMSUNG Electronics Co., Ltd.
Page 4-47
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
Abandon Call List
The system has a system-wide abandon call list that stores Caller ID information for
calls that rang but were not answered. The list is accessed using the operator’s
passcode. When reviewing this list, you are provided options to CLEAR the entry or
DIAL the number. You can use the NND button to toggle between the Caller ID name,
Caller ID number and the date and time the call came in. The system must be using
LCR to dial numbers from the abandon call list. The abandoned call list will store up
to 100 unanswered calls.
3.1.6 Calling Party Name
For intercom calls, LCD 24B and LCD 12B phones show the calling party’s name
before answering. The names must be stored in the system directory list and can be
up to 11 characters long.
3.1.7 Calling Party Number
When an intercom call is received, all display stations show the calling party’s
extension number before the call is answered.
3.1.8 Conference Information
When a conference is set up, each extension and outside line number is displayed at
the controlling station when it is added. When a station is added, its display shows
[Conf with xxx] alerting the user that other parties are on the line.
3.1.9 2nd Time Display
In the idle condition, the current date and time are conveniently displayed. Display
phones can have a 12 or 24 hour clock in either the WESTERN or ORIENTAL
display format with information shown in upper case or lower case letters.
3.1.10 Dial by Name
Each station and speed dial number can have an associated directory name.
Any station or speed dial number can be selected by scrolling alphabetically through
a directory list. There are three directories :
1) System wide speed dial list
2) Personal speed dial list
3) Station directory list
This online ‘phone book’ allows display phone users to look up and dial any speed
dial number or station in seconds.
Page 4-48
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
3.1.11 Dialled Number
When an outside call is made, digits are displayed as you dial them.
If the display indicates an incorrect number was dialled, you can quickly hang up
before billing begins.
3.1.12 Enhanced Station Programming
Personal programming options are easier to select and confirm with the help of the
display.
3.1.13 Identification of Recalls
Hold recalls and transfer recalls are identified differently than other ringing calls.
Hold recalls indicate the recalling line or station number and the associated name.
Transfer recalls indicate the recalling line or station and where it is coming from.
3.1.14 Identification of Transfers
The display will identify who transferred a call to you.
3.1.15 Message Waiting Caller Number
When the message indication is on, pressing the MESSAGE button displays the
station number(s) of the person(s) who have messages for the user. Display phone
users can scroll up and down to view message indications.
3.1.16 Outside Line Identification
Each line can be identified with an 11 character name. Incoming calls display this
name before the call is answered. This feature is helpful when individual lines must
be answered with different greetings.
3.1.17 Override Identification
If another station barges-in on your conversation, the display will alert you with a
[Barge from 2xx] display if the system is set for barge-in with tone.
3.1.18 Programmed Message Display
Preprogrammed station messages set by other stations are displayed at the calling
station’s phone.
3.1.19 Soft buttons
Below the display, there are three soft buttons and a SCROLL button. These buttons
allow you to access features in your class of service without requiring the phone to
have designated feature buttons.
© SAMSUNG Electronics Co., Ltd.
Page 4-49
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
3.1.20 Stopwatch Timer
Display phone users find this feature very convenient to time meetings, calls and other
functions. Users simply press once to start the timer and press again to stop the timer.
3.1.21 Text Messaging (Except MCP-M version software)
This feature allows two display phone users to respond to each other with
preprogrammed messages. After receiving an Off Hook Voice Announcement or
Station Camp-On, you may respond with a text message while continuing to talk and
listen to your outside party. The other station can view this message and take the
appropriate action or respond back with another text message.
In MCP-L version, there can be 30 messages stored in the system memory that can be
sent to another display phone. These messages are Programmed Messages. In MCP2
version, there are additional Text Messages per station basis. Only the display phones
that are allowed in system programming will receive the TMSG soft button in the
display and can use this feature.
3.1.22 UCD Supervisor Displays
With the optional AA card, when UCD is used, multiple supervisors can view
information about the UCD groups calls or agents.
Call Screen
This allows the supervisor to view how many calls are in queue, the longest wait time,
how many calls have been received today, what the average time in queue is and how
many calls were abandoned.
Agent Screen
This allows the supervisor to monitor how many agents are logged in, check each
agents status(IN GROUP, OUT OF GROUP, or DND), view each agents total
number of calls, average call length or average ring time.
Accessing this screen will also allow a Supervisor to change the status of each agent
(IN GROUP, OUT OF GROUP, or DND).
Page 4-50
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
4
CHAPTER 4. Business Feature Package
SAMPLE DISPLAYS
LCD 12B and LCD 24B display model phones have a large, easy-to-read, 32
character liquid crystal display. Helpful call processing information is provided so
everyday call handling is quick and easy. Here are just some of the displays you
may see.
209: Tim Kelly
RRI 23 Sep
Idle display shows extension, name, day,
date and time.
Call for 501
202 Mr. Smith
Camp on to 203
Wait for answer
This station is camped-on to extension 203
and is waiting for 203 to answer.
Call for 501
706 Local #6
This station in the sales department is
This display tells you this is a new incoming
receiving a group call from Mr. Smith.
call to the sales department.
203: Busy
CBK MSG CAMP
OHVA from 203
REJECT
This station is calling station 203 which is
This station is receiving an off-hook voice
currently busy.
announcement from station 203.
Conf with 203
John
CONF: 202 702
CONF
This station is on a conference call with
This station is on a conference call with
John, extension 203. Assume other parties
will hear your conversation.
extension 202 and trunk 702 and has the
Transfer to 203
John
option to add two more parties.
Call from 201
Operator
This station is transferring a call to John at
This station is receiving a call from
extension 203.
extension 201.
DO NOT DISTURB
ON
OFF
This station is setting the Do Not
Disturb feature.
© SAMSUNG Electronics Co., Ltd.
703 Local 3
CONF PAGE MUTE
This station is receiving a call from
extension 201.
Page 4-51
CHAPTER 4. Business Feature Package
5
OfficeServ 500 General Description Guide/Ed.00
SAMPLE CALLER ID DISPLAYS
13054264100
702: RINGING
05/25, 09: 41, 702
CLEAR NND
This display shows an incoming call
This display shows the information on the
from 1-305-426-4100 on Line 702
abandoned call list. This call came in on May
ringing directly at your station.
25 at 9:41 A.M on line 702. You can CLEAR
the entry. DIAL the caller back or examine
further NND information.
13054264100
TRANSFER FM 201
SAMSUNG TELECOM
CLEAR NND
This display shows an incoming call
This display shows an entry in a station review
from 1-305-426-4100 on Line 702
ringing directly at your station.
list showing the three initial options. The arrow
SAMSUNG TELECOM
BARGE NND DROP
indicates other options available to you by
pressing the Scroll button
13054264100
NEXT NND ANS
This display shows an investigation of a
This display is seen while examining calls
station that is talking to Samsung
in oueue at your phone.
Telecom. Investigator can BARGE-in to
the conversation, DROP the call from
the system of examine further NND
information
SAMSUNG TELECOM
CALL FOR: 500
TALKING TO: 203
BARGE
DROP
This display shows an incoming call
This display can be seen when
from Samsung Telecom ringing at
group 500.
investigating an intercom call.
The investigator can BARGE-in or
DROP the connection.
SAMSUNG TELECOM
ANS NND IGNORE
This display is seen while using the
INQUIRE feature. It shows the three
options available while you are checking
on a held or parked call.
Page 4-52
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
6
CHAPTER 4. Business Feature Package
SAMPLE UCD DISPLAYS
005 calls in
queue now
06 available
04 logged in
There are five calls currently waiting to be
There are six members in the group. Four of
answered by the UCD group.
the members are currently logged in.
longest wait
time is 02:24
201: answered
065 calls today
The longest call on hold(waiting to be
The agent at station 201 has answered 65
answered) was for two minutes, 24
calls today.
seconds. This data applies to all calls
since the supervisor data was last
cleared. It does not necessarily represent
calls currently in queue.
124 calls
received today
201: average
call time 04:43
The UCD group has received 124 calls
The average call length for station 201 is
today.
four minutes and 43 seconds.
average time in
queue is 03:51
202: Sondra
STATUS: OUT
The average time on hold(waiting to be
Station 202 is currently out of the
answered) is three minutes and 51
group.(The display can also show IN
seconds.
GROUP and DND.)
© SAMSUNG Electronics Co., Ltd.
Page 4-53
CHAPTER 4. Business Feature Package
7
OfficeServ 500 General Description Guide/Ed.00
SAMPLE SMDR PRINTOUT (WITHOUT CALLER ID)
Page 4-54
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
8
CHAPTER 4. Business Feature Package
SAMPLE SMDR PRINTOUT
(WITH CALLER ID NUMBER)
219
296
© SAMSUNG Electronics Co., Ltd.
Page 4-55
CHAPTER 4. Business Feature Package
9
OfficeServ 500 General Description Guide/Ed.00
SAMPLE UCD REPORT
UCD GROUP 529 : SALES
FROM : SUN 02 Feb 00:00
TO
: SUN 02 Feb 02:54
CALL STATISTICS
===============
AVERAGE RING TIME(TIME TO ANSWER)......00:40
NUMBER OF TIMES ALL AGENTS BUSY........00002
AVERAGE TIME IN QUEUE..................00:51
TOTAL CALLS RECEIVED...................00011
LONGEST QUEUE TIME(TODAY)..............02:14
TOTAL CALLS ABANDONED..................00004
AGENT STATISTICS
================
MEMBER
AGENT
NAME
CALLS
AVERAGE
RING
ANSWERED
CALL TIME
TIME
-------------------------------------------------------01
210
JOHN
0002
01:55
00:05
02
211
SAM
0001
02:18
00:06
03
208
MIKE
0003
01:22
00:04
04
207
PETER
0001
03:16
00:05
UCD GROUP 515 : SUPPORT
FROM : MON 03 Jan 08:30
TO
: SUN 02 Jan 02:54
CALL STATISTICS
===============
AVERAGE RING TIME(TIME TO ANSWER)......00:07
NUMBER OF TIMES ALL AGENTS BUSY........00005
AVERAGE TIME IN QUEUE..................01:06
TOTAL CALLS RECEIVED...................00023
LONGEST QUEUE TIME(TODAY)..............01:02
TOTAL CALLS ABANDONED..................00001
AGENT STATISTICS
================
MEMBER
AGENT
CALLS
AVERAGE
RING
ANSWERED
CALL TIME
TIME
-------------------------------------------------------01
223
FRED
0012
02:33
00:08
02
213
JANE
0010
01:04
00:04
Page 4-56
NAME
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
10 UCD CALL STATISTICS
Calls in Queue Now
How many calls are currently in queue.
This statistic is a real time statistic and so will not print on a report.
Abandoned Calls
This shows the number of callers that reached the UCD group, but hung up before
being answered. A high number probably means that there are not enough agents
available and the wait time is too long.
Average Ring Time
This is calculated from the time an agent begins to ring until the time an agent
answers the call, this does not include ringing at an agent station that does not answer
or is logged out because of the ring next option.
Number of Times All Agents Busy
This is the number of times that a call is placed to an UCD group and all agents are
busy or out of group. This check is made when the call is first placed to the group.
E.g.,) If there are 5 members in a group, 3 are Out of Group one is busy and one is
idle, and a call is placed to the group, because there is an idle station the all
agents busy counter is not incremented.
If the idle station rings, does not answer and is logged out, although the condition of
the group is now all agents busy, the check has been made and the agent busy statistic
does not increment.
Also if a call comes into a group with all agents busy and then one becomes idle, the
busy counter will increment because the check has been made.
Average Time in Queue
This is calculated as an average of all the calls that were in queue.
Note that this is ONLY an average of the calls that were in queue. The caller must have
overflowed to the UCD recording to be considered in queue.
A call is considered in queue until it is answered or until it goes to the final destination.
© SAMSUNG Electronics Co., Ltd.
Page 4-57
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
Total Calls Received
The total number of times that calls were sent to a group. This includes calls that
were answered by the group, calls that went to a group with all agents busy or out of
group, calls that are abandoned and calls that go to UCD final destination.
This includes intercom calls to the UCD group.
If this number is less than the total calls received by all the agents it is possible that
calls were transferred from one agent to another.
If this number is more than the total calls received by all the agents it is possible that
calls were unanswered by an agent and went to final destination or callers hung up
while in queue.
This statistic includes :
a) Calls answered by agent.
b) Calls that are not answered by an agent and go to final destination.
c) Calls that are sent to the UCD group but callers hang up before being answered.
Longest Queue Time Today
This shows the longest call in queue today. The queue time is calculated as follows :
a) Queue time begins when a call is queuing.
b) Queue time ends when a caller is either
Answered by an agent
System gets disconnected from Trunk line or
Caller is transferred to final destination
Longest Queue Time Now
This shows the longest call currently in queue. The queue time is calculated as follows :
a) Queue time begins when a caller starts to hear the first UCD message.
b) Queue time ends when a caller is either
Answered by an agent
System gets disconnected from trunk line or
Caller is transferred to final destination
Page 4-58
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
11 UCD AGENT STATISTICS
Logged in
The number of stations programmed in the UCD group and the number of stations
that are currently logged in.
This statistic is a real time statistic and so will not print on a report.
Status
This screen shows the agents name, extension number and status. The status can be
In Group, Out of group or in DND.
This statistic is a real time statistic and so will not print on a report.
Calls Answered
The total number of calls answered by the agent. This does not include ring no
answer to an agent station.
If this total number is less than the calls received by the group it is possible that calls
were unanswered by an agent and went to final destination or that callers hung up
while in queue.
If this total number is more than the calls received by the group it is possible that
calls were transferred from one agent to another.
Average Call Time
This is an average of all the call durations for the agent.
Average Ring Time
This is an average of all the ring times for the agent. Ring times are previously
explained.
© SAMSUNG Electronics Co., Ltd.
Page 4-59
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
12 SAMPLE TRAFFIC REPORT
TRAFFIC REPORT FOR [ SAMSUNG ] Mar/21/2003 13:35
************************* SYSTEM STATISTICS *************************
BEGINNING:
Mar/15/2003
00:42
ENDING: Mar/21/2003 13:32
ACTIVITY
SYSTEM TOTAL
INCOMING TRUNK CALLS
INCOMING TRUNK CALLS
OUTGOING TRUNK CALLS
A SELECTED TRUNK WAS
- ANSWERED..................
- NOT ANSWERED..............
............................
BUSY........................
3041
26
2168
44
INTERCOM CALLS - COMPLETED .......................
INTERCOM CALLS - NOT ANSWERED ....................
7178
1540
TRUNK RECALLS TO STATION .........................
TRUNK RECALLS TO OPERATOR GROUP ..................
145
32
INTERNAL PAGE USED ...............................
EXTERNAL PAGE USED ...............................
ALL PAGE USED ....................................
35
79
231
************************** TRUNK GROUPS **************************
GROUP
OUTGOING
BUSY
9
1245
18
800
521
3
801
20
3
802
0
0
************************* INDIVIDUAL TRUNKS *************************
TRUNK
701
702
703
TRUNK-NAME
LOCAL 1
LOCAL 2
LOCAL 3
ATTA
0
0
0
ANSD
737
541
290
NOT-ANSD
0
4
1
OUTGOING
19
26
37
BUSY
12
11
21
************************ STATION HUNT GROUPS ************************
<———————— OUTSIDE CALL ————————>
GROUP ANSD
NOT-ANSD
500
439
19
501
261
37
502
40
2
503
87
5
504
19
1
Page 4-60
<-INTERCOM->
ANSD
61
38
77
162
44
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
************************* INDIVIDUAL STATIONS ***********************
<—————— OUTSIDE CALL ——————————————————————————>
EXT STATION-NAME ATTA ANSD NOT-ANSD DIALLED ICM–TRSF TRK-TRK
201
Operator
9
360
11
15
341
0
202
Barbara
12
60
2
80
20
0
203
Ivania
4
25
1
36
3
0
© SAMSUNG Electronics Co., Ltd.
<-INTERCOM —>
PICKUP ANSD DIALLED
0
39
72
12
49
66
18
86
29
Page 4-61
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
13 TRAFFIC REPORT OVERVIEW
A *********************** SYSTEM STATISTICS ***********************
1
BEGINNING: Mar/15/2003 08:00
2
ACTIVITY SYSTEM TOTAL
3
4
5
6
INCOMING TRUNK CALLS
INCOMING TRUNK CALLS
OUTGOING TRUNK CALLS
A SELECTED TRUNK WAS
7
8
INTERCOM CALLS - COMPLETED....................... 0000
INTERCOM CALLS - NOT ANSWERED.................... 0000
ENDING: Mar/15/2003 17:30
- ANSWERED.................. 0000
- NOT ANSWERED.............. 0000
............................ 0000
BUSY........................ 0000
9 TRUNK RECALLS TO STATION......................... 0000
10 TRUNK RECALLS TO OPERATOR GROUP.................. 0000
11 INTERNAL PAGE USED............................... 0000
12 EXTERNAL PAGE USED............................... 0000
13 ALL PAGE USED.................................... 0000
1) BEGINNING & ENDING
This identifies when the statistics were collected. It includes dates and time.
2) ACTIVITY
Overall summary of traffic in the system for activities 3 to 13.
3) INCOMING TRUNK CALLS-ANSWERED
These are any incoming trunk calls to the system. These calls are pegged when
answered by any device and/or station in the system whether it is a new call or a
recall.
4) INCOMING TRUNK CALLS-NOT ANSWERED
These are any incoming trunk calls that were not answered by any station or
device in the systems. These are the same calls that would be flagged as
abandoned in SMDR.
5) OUTGOING TRUNK CALLS
These are all outgoing trunk calls that were originated by any station or through
the DISA feature. Outgoing trunk calls are valid calls as defined by the SMDR
START TIME in MMC 501.
6) A SELECTED TRUNK WAS BUSY
Pegged every time a trunk or trunk group was busy regardless of the manner in
which it was selected(e.g., DTS button, LCR,‘9 , 7XX, TRK GROUP SELECT,
SPD, External call forward, DISA).
Page 4-62
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
7) INTERCOM CALLS COMPLETED
These are all intercom calls that were completed to any station, station group or
device.
8) INTERCOM CALLS NOT COMPLETED
These are all intercom calls that were not answered and resulted in the calling
party hanging up. A call to a station group that overflows to another station is
considered not answered whether the overflow destination did or did not answer.
9) TRUNK RECALLS TO STATION
These are trunk calls that were placed on any kind of hold and recalled a station.
These are also trunk calls that were transferred and were not answered and
recalled the transferring station. This includes members of the operator group
that put calls on hold and then recall the operators station.
10) TRUNK RECALLS TO OPERATOR GROUP
These are any trunk calls that recalled to the operator group.
11) INTERNAL PAGE USED
Peg count of every time internal page was accessed.
12) EXTERNAL PAGE USED
Peg count for every time external page was accessed.
13) ALL PAGE USED
Peg count of every time the all page feature was accessed. This does not include
internal or external page, only 55+ * or PAGE *.
B **************************** TRUNK GROUPS **************************
1 GROUP
9
800
801
2 OUTGOING
0000
0000
0000
3 BUSY
0000
0000
0000
1) GROUP
A listing of all trunk groups assigned in the system.
2) OUTGOING
These are the number of outgoing trunk calls made using each trunk group. Pegged
every time a member of this trunk group was used to make a valid outgoing call.
A valid outgoing call is defined by the SMDR Start Time programmed in MMC 501.
3) BUSY
This is the number of times each trunk group was busy when someone attempts
to access it.
© SAMSUNG Electronics Co., Ltd.
Page 4-63
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
C *********************** INDIVIDUAL TRUNKS **************************
1TRUNK
701
702
703
704
705
706
707
708
709
710
2TRUNK-NAME
3ATTA
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
4ANSD
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
5NOT-ANSD
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
6OUTGOING
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
7BUSY
0000
0000
0000
0000
0000
0000
0000
0000
0000
0000
1) TRUNK
A listing of each trunk in the system.
2) TRUNK NAME
The names of each trunk as programmed in MMC 404.
3) ATTA
Average Time To Answer for trunks is counted in the number of seconds that
ringing voltage is detected at the trunk interface and the timer stops when trunk
is answered by station or device in the system. The ATTA is the sum of all
answered times divided by the answered call count.
4) ANSD
This is the number of times this specific trunk was answered by any station or
device whether it is a new call or a recall.
5) NOT-ANSD
This is the number of times this specific trunk rang the system but was not
answered. These are the same calls that would be flagged as abandoned in
SMDR.
6) OUTGOING
This is the number of times this trunk was used to make an outgoing call. A valid
outgoing call is defined by the SMDR START TIME programmed in MMC 501.
7) BUSY
This is the number of times this trunk was busy when accessed by a button or
dial code.
Page 4-64
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
D *********************** STATION HUNT GROUPS ***********************
<———————— 1 OUTSIDE CALL —————————————————————>
2GROUP
3ANSD
4NOT-ANSD
6ANSD
500
0000
0000
501
0000
0000
502
0000
0000
503
0000
0000
504
0000
0000
5 <-INTERCOM->
0000
0000
0000
0000
0000
1) OUTSIDE CALLS
These statistics are for outside calls that reach these station groups regardless
how they arrive there.
2) GROUP
Listing of all station groups in the system.
3) ANSD
This column is a peg count of all answered trunk calls that rang to the specific
group directory number regardless of how these arrived.
4) NOT-ANSD
The number of times any trunk call directed to the specific group number was
not answered by any member of the group.
5) INTERCOM
An intercom call made from a station or device within the system to the specific
group number.
6) ANSD
This is a count of how many times an intercom call was answered by any group
member of that specific group.
© SAMSUNG Electronics Co., Ltd.
Page 4-65
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
E ************************** INDIVIDUAL STATIONS *************************
1
11
<—————————————————— OUTSIDE CALL ——————————————---------———> <-INTERCOM->
2
3
4
5
6
7
8
9
10
12
13
EXT STATION-NAME ATTA ANSD NOT-ANSD DIALLED ICM-TRSF TRK–TRK PICKUP ANSD DIALLED
201
0000 0000 0000
0000
0000
0000
0000 0000 0000
202
0000 0000 0000
0000
0000
0000
0000 0000 0000
203
0000 0000 0000
0000
0000
0000
0000 0000 0000
204
0000 0000 0000
0000
0000
0000
0000 0000 0000
205
0000 0000 0000
0000
0000
0000
0000 0000 0000
1) OUTSIDE CALLS
These statistics are for outside calls that in any way reach individual stations or
devices.
2) EXT
Listing of all extension numbers in the system. This also includes AA, VM, and
CADENCE ports.
3) STATION NAME
The name for each particular station as programmed in MMC 104.
4) ATTA
Average Time To Answer for stations is counted in the number of seconds that
ringing signal is applied to a station for trunk calls and recalls. The ATTA is the
sum of all answered times divided by the answered call count. Use the same
calculation method as used for individual trunk ATTA.
5) ANSD
This is a count of how many times an outside call was answered by the specific
station. Outside callers recalling a station are not counted again when they are
answered.
6) NOT-ANSD
This is a count of how many times a trunk call was directed to the station but was
not answered by this station.
7) DIALLED
Peg count of how many times the station made a valid outside call. An outside
call is defined by the SMDR start time in MMC 501.
8) ICM-TRSF
This is the number of times a trunk call was successfully transferred to another
station using the intercom. It includes both screened and unscreened transfer.
Page 4-66
© SAMSUNG Electronics Co., Ltd.
OfficeServ 500 General Description Guide/Ed.00
CHAPTER 4. Business Feature Package
9) TRK-TRK
This is the number of times a trunk call was transferred to another trunk(tie line)
This is called a trunk-to-trunk transfer. This field gets pegged every time the
station completes a trunk to trunk transfer.
10) PICKUP
This is a count of the outside calls that were picked up by the specific station.
Picked-up calls are calls that are not ringing at your station but were answered by
you. This peg count is separate from the number of answered call in #5 of
Individual Stations section E.
11) INTERCOM
Statistics for intercom calls. An intercom call made from a station or a station
device within the system to another station.
12) ANSD
This is the number of times an intercom call was answered by this specific
station. Screened transfers count as an answered intercom call.
13) DIALLED
The number of times the specific station dialled another station or station group.
Screened transfers count as a dialled intercom call.
© SAMSUNG Electronics Co., Ltd.
Page 4-67
CHAPTER 4. Business Feature Package
OfficeServ 500 General Description Guide/Ed.00
14 SAMPLE ALARM REPORT
ALARM REPORT FOR [OfficeServ 500 SAMPLE ] MAR/24/2003 19:45
======================================================================
MM/DD/YYYY ERR.TIME ERR.CODE ERROR DISPLAY
POSITION
======================================================================
03/14/2003 16:45:00 [MNF22] phone Disconnect
C1-S7-P02
03/14/2003 16:45:00 [MNF23] phone Connect
C1-S7-P02
03/14/2003 16:45:00 [MNF03] IPC Error
C1-S01
03/14/2003 16:45:00 [MNF03] IPC Error
C1-S04
03/14/2003 16:45:00 [MNF22] phone Disconnect
C1-S7-P03
03/14/2003 16:45:00 [MNF03] IPC Error
C1-S01
03/14/2003 16:45:00 [MNF03] IPC Error
C1-S04
03/14/2003 16:45:00 [MNF22] phone Disconnect
C1-S7-P04
03/14/2003 16:45:00 [MNF03] IPC Error
C1-S01
03/14/2003 16:45:00 [MNF03] IPC Error
C1-S04
03/14/2003 16:46:00 [MNF01] Card Out
C1-S07
03/14/2003 16:46:00 [MNF02] Card In
C1-S07
03/14/2003 16:47:00 [MJD01] SYNC Failure
C2-S02
03/14/2003 16:47:00 [MJD02] SYNC Recovery
C2-S02
03/16/2003 16:47:00 [MNF04] Trunk Fault
C1-S08-P03
03/16/2003 16:48:00 [MNF05] Trunk Recovery
C1-S08-P01
03/16/2003 16:48:00 [MNF05] Trunk Recovery
C1-S08-P02
03/16/2003 16:48:00 [MNF05] Trunk Recovery
C1-S08-P03
03/18/2003 16:51:00 [MNF01] Card Out
C1-S02
03/18/2003 16:51:00 [MNF02] Card In
C1-S02
03/18/2003 17:04:00 [MJD05] Yellow Alarm
C1-S02
03/19/2003 17:22:00 [MJD06] Yellow Alarm Rec
C1-S02
03/19/2003 17:23:00 [MNF01] Card Out
C1-S06
03/20/2003 17:24:00 [MJC01] DTMF Fault
MCP OPT:2
03/20/2003 17:24:00 [MJC01] DTMF Fault
C#2 OPT:2
03/20/2003 17:24:00 [MJC01] DTMF Fault
C#3 OPT:3
03/20/2003 17:24:00 [MJC01] DTMF Fault
C#3 OPT:3
03/20/2003 17:24:00 [MNF03] IPC Error
C1-S01
03/20/2003 17:24:00 [MNF03] IPC Error
C1-S04
03/24/2003 17:24:00 [MJD19] PRI Restart
C2-S02
03/24/2003 17:25:00 [MNF23] phone Connect
C1-S7-P08
