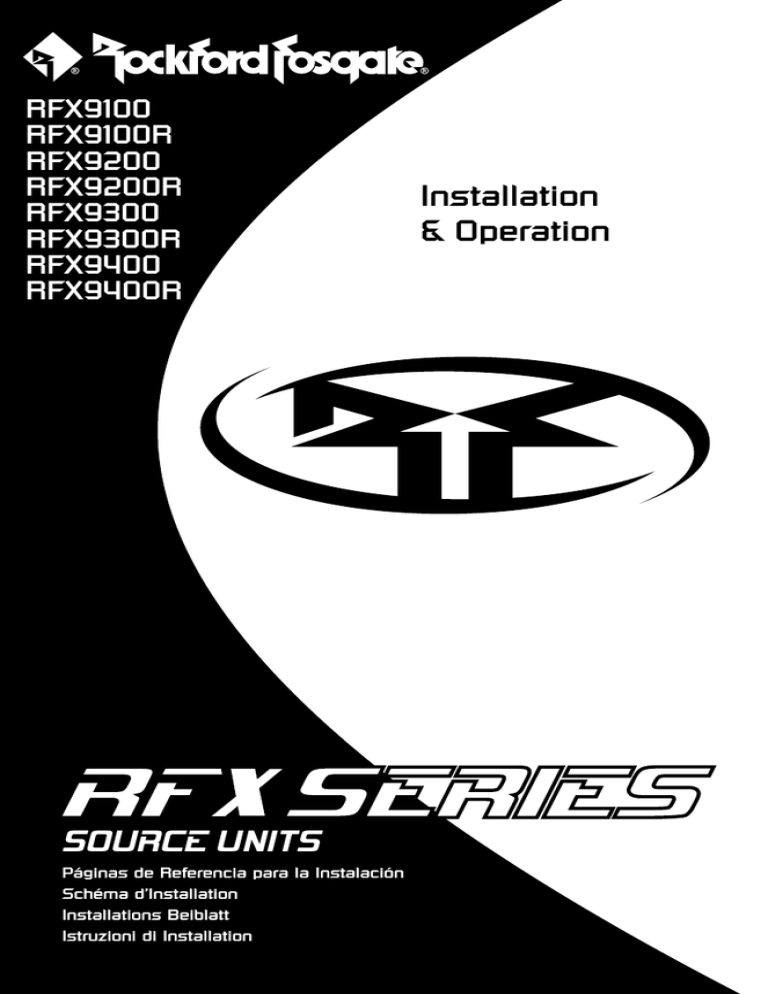

RFX9100
RFX9100R
RFX9200
RFX9200R
RFX9300
RFX9300R
RFX9400
RFX9400R
SOURCE UNITS
Páginas de Referencia para la Instalación
Schéma d’Installation
Installations Beiblatt
Istruzioni di Installation
Installation
& Operation
Dear Customer,
Congratulations on your purchase of the world’s finest brand of car audio
source units. At Rockford Fosgate we are committed to musical reproduction at its best, and we are pleased you chose our product. Through years
of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with
all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford
Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we
provide specialized training through Rockford Technical Training Institute
(RTTI). Please read your warranty and retain your receipt and original carton for possible future use.
To add the finishing touch to your new Rockford Fosgate image order your
Rockford accessories, which include everything from T-shirts and jackets to
hats and sunglasses.
To get a free brochure on Rockford Fosgate products and Rockford accessories, in the U.S. call 480-967-3565 or FAX 480-967-8132. For all other
countries, call +001-480-967-3565 or FAX +001-480-967-8132.
PRACTICE SAFE SOUND™
Continuous exposure to sound pressure levels
over 100dB may cause permanent hearing loss. High
powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and
practice safe sound.
If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need
further assistance, you can call us direct at 1-800-669-9899. Be sure to
have your serial number, model number and date of purchase available
when you call.
The serial number can be found on the outside of the box. Please record
it in the space provided below as your permanent record. This will serve
as verification of your factory warranty and may become useful in recovering your source unit if it is ever stolen.
Serial Number: ______________________________
Model Number: _____________________________
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Accessory Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
“Quick Look” Features Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Source Unit Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
IR Remote Design Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Source Unit Mounting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wiring the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Source Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CD Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Multiple CD Changer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MP3 Player Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
International Unit Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Auxiliary Audio Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
IR Remote Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CD Changer Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
IR Remote Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
International Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
GETTING STARTED
Welcome to Rockford Fosgate! This manual is designed to provide
information for the owner, salesperson and installer. For those of you who want
quick information on how to install this product, please turn to the Installation
Section of this manual. Other information can be located by using the Table of
Contents. We, at Rockford Fosgate, have worked very hard to make sure all the
information in this manual is current. But, as we are constantly finding new ways
to improve our product, this information is subject to change without notice.
NOTE: This manual uses abbreviations for the following terms:
TUNER = AM/FM Radio Tuner
CDP = In-Dash CD Player
CDX = CD Changer (optional)
AUX = External Auxiliary Input (RFX9200/9300/9400)
Visit our web site for the latest information on all Rockford products.
– iii –
INTRODUCTION
Rockford Fosgate optimizes vicious features in the RFX source units for use
in high performance car audio systems. A great tuner, a high performance
CD player, and controls pioneered by Rockford Fosgate give you total control of your audio system!
The following sections contain information on the features, installation,
and operation for the 9100, 9200, 9300, and 9400 source units. For comparisons within the RFX line, refer to the “Quick Look” feature chart in this
manual. For long term reliability of your new Rockford Fosgate source unit,
please read the Precautions section on the next page.
ACCESSORY PACK
RFX9100
RFX9300
Installation & Operation Manual
(1) Mounting Sleeve
(1) Back strap
(2) Chassis Release Keys
(1) Hardware Package
(1) 16-pin Power Harness
(1) Faceplate Case
(1) IR Remote Control
Installation & Operation Manual
(1) Mounting Sleeve
(1) Back strap
(2) Chassis Release Keys
(1) Hardware Package
(1) 16-pin Power/Aux-In Harness
(1) Faceplate Case
(1) IR Remote Control
RFX9200
RFX9400
Installation & Operation Manual
(1) Mounting Sleeve
(1) Back strap
(2) Chassis Release Keys
(1) Hardware Package
(1) 16-pin Power/Aux-In Harness
(1) Faceplate Case
(1) IR Remote Control
Installation & Operation Manual
(1) Mounting Sleeve
(1) Back strap
(2) Chassis Release Keys
(1) Hardware Package
(1) 16-pin Power/Aux-In Harness
(1) Faceplate Case
(1) IR Remote Control
–1–
SPECIFICATIONS
General
Operating Voltage
Standby Current
Operating Temperature
Dynamic Power Rating (IHF-202 Standard)
per channel into a 4Ω load
RMS continuous power per channel, all channels
driven into a 4Ω load from 20-20,000Hz with less
than 0.1% Total Harmonic Distortion (THD)
Speaker Impedance
Preamp Output Voltage
Sum Preamp Output Voltage*
Preamp Output Impedance
Equalization
IR Receiver Eye Range
Overall Dimensions (with trim-ring)
Nosepiece Dimensions (without trim-ring)
Weight (9100, 9200, 9300, 9400)
9100/9200
+10.8V – +16.0V DC
5mA Max
Receiver: -30˚C to +70˚C
CD Player: -10˚C to +65˚C
40 watts x 4
9300/9400
+10.8V – +16.0V DC
5mA Max
Receiver: -30˚C to +70˚C
CD Player: -10˚C to +65˚C
40 watts x 4
25 watts x 4
25 watts x 4
2Ω – 8Ω
>2.0V RMS @ 0.5% THD
>2.0V RMS @ 0.5% THD
<100Ω
Bass: ±10dB @ 60Hz
Treble: ±8dB @ 15kHz
±45˚ off axis
Height: 2-9/32" (58mm)
Width: 7-13/32" (188mm)
Depth: 7-1/4" (183.7mm)
Height: 1-27/32" (46.5mm)
Width: 6-3/4" (171.5mm)
Depth: 13/16" (20.2mm)
3.13lbs (1.42kg)
2Ω – 8Ω
5V RMS @ 0.5% THD
5V RMS @ 0.5% THD
<50Ω
Bass: ±10dB @ 60Hz
Treble: ±8dB @ 15kHz
±45˚ off axis
Height: 2-9/32" (58mm)
Width: 7-13/32" (188mm)
Depth: 7-1/4" (183.7mm)
Height: 1-27/32” (46.5mm)
Width: 6-3/4" (171.5mm)
Depth: 13/16" (20.2mm)
3.13lbs (1.42kg)
FM Tuner
Tuning Range
Americas
Eur/Aus
Frequency Response
Usable Sensitivity
IF Rejection
Image Rejection
Signal-to-Noise Ratio
Distortion
Channel Separation
Suppression
87.5 ~ 107.9MHz (200kHz spacing)
87.5 ~ 108MHz (50kHz spacing)
30Hz – 12kHz
10dB (S/N 30dB)
90dB
50dB
60dB
< 0.5%
≥ 25dB @ 1kHz
35dB
AM Tuner
Tuning Range
Americas
Eur/Aus
Sensitivity
-6dB Bandwidth
530 ~ 1710kHz (10kHz spacing)
522 ~ 1620kHz (9kHz spacing)
20dBf max @ 10dB sensitivity
5kHz min – 12kHz max
CD Player
Compatible Discs
Frequency Response
Signal-to-Noise Ratio
Distortion
Channel Separation
Dynamic Range
5" or 3"
20Hz – 20kHz (±3dB)
>90dB (preamp output w/ 22kHz LP filter)
<0.5%
86dB (preamp output w/ 22kHz LP filter)
100dB
IR Remote
Operation Voltage
Transmitting Range
Battery Replacement
Dimensions
+3V DC
20 ft (variable in sunlight)
(1) CR2025 +3V Lithium
3-3/8"(H) x 2-1/8"(W) x 9/32"(D)
(85.6mm x 54mm x 7mm)
–2–
PRECAUTIONS
SOURCE UNIT & OPTIONAL CD CHANGER
Operating Temperature
+65°C
–10°C
Be sure the temperature inside the vehicle is between –10°
C and +65° C (+14° F and +149°F). DO NOT play a disc if
the temperature is higher or lower than the operating range.
Moisture Condensation
The CD playback may waver due to condensation. If this
occurs, remove the disc from the source unit and wait
approximately an hour for the moisture to evaporate.
Environment Exposure
DO NOT expose the Source Unit or optional CD Changer
to any of the following: direct sun and heat, high humidity,
excessive dust, excessive vibration and rain or water.
Handling the Detachable Faceplate
DO NOT drop or cause shock to the faceplate as serious
damage may occur. Protect the faceplate by storing it in the
supplied carrying case.
Avoid Mechanical Malfunction
DO NOT grab a disc while it is being automatically loaded
into the source unit. Doing this may cause serious damage
to the playback mechanism.
IR REMOTE
Environment Exposure
DO NOT expose the IR Remote to any of the following:
direct sun and heat, high humidity and rain or water.
Handling the IR Remote
DO NOT drop or cause shock to the IR Remote as serious
damage may occur.
–3–
COMPACT DISCS
• vi
ngle
e
us s
h
ci o
ju
t
of
io us s o u n ds
of
ound
s
t
h
e
ju
ngle
• vic
ngl
e
• vi
of
us sou
h
ci o
ju
t
nds
of
io us s o u n ds
Disc Handling and Care
DO NOT touch the playing side (opposite of label side) of
the disc. When handling the disc, only the outer edges or
center hole of the disc should be touched. DO NOT affix
any sticker or label to the disc. DO NOT apply vinyl record
spray, anti-static agent, acetone, or any other volatile chemicals to the disc.
Damaged Disc
DO NOT play a cracked, warped, or damaged disc. Doing
this may cause serious damage to the playback mechanism.
t
h
e
ju
• vic
ngl
New Discs
ID
O
io us s o u n ds
SW
R
IN
of
D
h
C
t
.
e
ju
of
us sounds
e
U
h
ci o
ju
Q
LI
t
• vi
ngle
The CD player will eject discs that have either been inserted incorrectly or have irregular surfaces. If a new disc is
ejected after loading, feel around the outer edge of the CD
and its center hole. Any small burrs or irregularities could
inhibit proper loading of the disc. To remove the burrs, rub
the inside edge of the hole and outside edge of the disc with
an object such as a ball point pen.
–4–
ngle
• vic
QUICK LOOK FEATURES
FEATURES
RFX9100
RFX9200
RFX9300
RFX9400
Detachable Faceplate
X
X
X
X
ISO Din Mounting
w/ Removable Trim Panel
X
X
X
X
Control/Lighting/Appearance
Multi Function Volume Knob
X
X
X
X
Any Button Wake-Up
X
X
X
X
Time of Day Clock
X
X
X
X
Programmable Default Display
X
X
X
X
Negative Image LCD Display
X
X
X
X
Rear Seat Audio Controls
-
-
-
X
X
X
X
X
Illumination “ON” w/ Ignition
Display Back Lighting
IR Remote Included
Multicolored Multicolored Multicolored Multicolored
X
X
X
X
Tuner
World Wide Tuning
X
X
X
X
AM mono/FM stereo
X
X
X
X
FM Noise Blanker
X
X
X
X
Auto Blend / Roll Off
X
X
X
X
Multi-Path Interference Rejection
X
X
X
X
20 FM / 10 AM Presets
X
X
X
X
FM1/FM2/AM
X
X
X
X
Auto Store Non-Volatile Presets
X
X
X
X
AM/FM Seek
X
X
X
X
AM/FM Manual Tuning
X
X
X
X
Pause (MUTE)
X
X
X
X
Programmable Station Titles
-
X
X
X
Dual 1-bit D/A Converters
w/ 8 x oversampling
X
X
X
X
Ignition Off Disc Load/Eject
X
X
X
X
Repeat Mode
X
X
X
X
Random Play (CD)
X
X
X
X
Track Scan
X
X
X
X
Fast Forward/Reverse
X
X
X
X
CD Player
–5–
FEATURES (Cont’d.)
RFX9100
RFX9200
RFX9300
RFX9400
Next/Previous Track
X
X
X
X
Programmable Eject Mute Off
X
X
X
X
Insert Disc Power Up/Play
X
X
X
X
Pause/Resume Play
X
X
X
X
Programmable Disc Titles
-
X
X
X
MP3 PLayback via CDR/RW
-
-
X
X
Preamp/Power
Source Tone Memory
X
X
X
X
Switchable Loudness
X
X
X
X
X
X
X
X
Electronic Volume, Tone, Balance
Internal Audio Amplifier
Number of Pre-outs
Front/Rear Sum Pre-out
Pre-out Voltage
Low Source Impedance
External Audio Inputs (AUX-IN)
25 watts RMS 25 watts RMS 25 watts RMS 25 watts RMS
(40 max) x 4 (40 max) x 4 (40 max) x 4 (40 max) x 4
4 RCA
6 RCA
6 RCA
8RCA
-
X
X
X
>2.0 VRMS
>2.0 VRMS
5 VRMS
5 VRMS
< 100Ω
< 100Ω
< 50Ω
<50Ω
-
X
2
2
X
X
X
X
Remote Functions
Tuner, CD and Changer Mode
Volume Up/Down
X
X
X
X
Seek (Track) Up/Down
X
X
X
X
Fast Forward/Reverse
X
X
X
X
Tune (Disc) Up/Down
X
X
X
X
Pause/Resume Play
X
X
X
X
Direct Preset Access
X
X
X
X
Direct Track Access
X
X
X
X
CD Changer Controller
X
X
X
X
Rear Seat Audio Controls
-
-
-
X
Changer Repeat Mode
X
X
X
X
Changer Random Play
X
X
X
X
CD Changer Control
Pause/Resume Play
X
X
X
X
Changer Track Scan
X
X
X
X
Changer Disc Scan
X
X
X
X
–6–
SOURCE UNIT FEATURES
21
22
20
1
SCAN RPT RDM
ST
2
3
VOLUME
4
5
6
7
8
9
10
1.
OPEN – Opens the faceplate and ejects CDs from the in-dash CD player.
2.
DOWN – Selects the previous radio station in TUNER mode and selects the previous track in CDP/CDX mode.
3.
ENTER – Enables tracks in MP3 mode (9300 and 9400 models only).
4.
MUTE – Mutes the audio in TUNER and AUX* modes, and pauses the disc in
CDP/CDX mode.
5.
VOLUME – When pressed, selects between VOLUME, BASS, TREBLE, BALANCE,
FADER, and SUM* modes.
6.
AS – Press to store the strongest radio stations in each tuner bank in AUTO STORE
mode.
7.
DISP – Toggles between different display features in main display; when pressed and
held for 1 second, toggles clock between hours and minutes.
8.
R – Infrared eye for remote operation.
9.
PRESET 1/SCAN – Selects radio preset #1 in TUNER mode and scans each track on
the disc in CDP/CDX mode.
10. PRESET 2/RPT – Selects radio preset #2 in TUNER mode and repeats the current
track in CDP/CDX mode.
11. PRESET 3/RDM – Selects radio preset #3 in TUNER mode and selects tracks at random in CDP/CDX mode.
12. PRESET 4/DOWN – Selects radio preset #4 in TUNER mode and the previous track
in CDP Mode. Selects previous disk in CDX Mode.
–7–
11
LOC
19
®
EON
REG
TP
AF
PTY
CDX
CH
18
17
16
MP3
ROOT
DISC-IN
V12
DIR
SONG
PUNCH R.SEAT
15
14
12
13
13. PRESET 5/UP – Selects radio preset #5 in TUNER mode and the next track in CDP
Mode. Selects previous disk in CDX Mode.
14. PRESET 0/ROOT – Selects radio preset #0 in TUNER mode and returns unit to root
directory in MP3 mode (9300 and 9400 models only).
15. T-ACC – Allows you to enter the track number you want manually .
16. D-ACC – Allows you to enter the disc number you want up to 8 discs (available only
for 8 disc player).
17. R.SEAT – Enables passengers in rear seat to disable rear speakers and listen to secondary audio source (tuner, CD player, Nintendo, etc.) via headphones (9400 model
only).
18. PUNCH – Enables bass and treble response to be boosted at all volume levels.
19. OFF – Turns the source unit on and off.
20. BAND – Selects which bank of tuner presets (FM1/FM2/AM) should be active.
21. MODE – Selects between TUNER/CDP/CDX/AUX* modes.
22. UP – Selects the next radio station in TUNER mode and selects the next track in
CDP/CDX mode.
IMPORTANT: The communication BUS used in Rockford Fosgate models RFX9100/9200/9300/9400 is used
only for CD changer model RFX8810 and is not backward compatible with older RFX models. Rockford Fosgate
recommends connecting only the appropriate RFX models together. Rockford Fosgate does not assume responsibility when using other manufacturers’ source units with Rockford Fosgate CD changers (or vice versa).
*Features available only on RFX9200/9300/9400
–8–
IR REMOTE DESIGN FEATURES
1.
POWER – Turns the source unit on and off.
2.
MODE – Selects between TUNER, CDP, CDX,
and AUX* modes.
3.
SEL – Selects between VOLUME, BASS, TREBLE,
BALANCE, FADER, and SUM* modes.
4.
MUTE/PAUSE – Mutes the audio in TUNER and
AUX* modes, and pauses the disc in CDP/CDX
mode.
22 21
20
19
18
17
16
15
14
13
12
11
1
2
3
4
5
6
7
5.
RPT – Repeats the track in CD/CDX mode.
6.
SCAN – Scans each track on the disc in
CDP/CDX mode.
7.
DISC (+/–) – Manually tunes the radio station in
TUNER mode and the previous/next disc in CDX mode.
8.
ROOT – Returns unit to root directory in MP3 mode (9300 and 9400 models only).
9.
DIR – Cycles up and down through the directory in MP3 mode (9300 and 9400
models only).
8
9
10
10. ENTER – Enables tracks in MP3 mode (9300 and 9400 models only).
11. TRACK ACC – Directly accesses the desired track in the in-dash CD player.
12. AS – Press to store the strongest radio stations in each tuner bank in AUTO STORE
mode.
13. DISC ACC – Directly accesses the desired CD in the optional CD changer.
14. PTY – Allows priority broadcasts to interrupt all other functions in international
units only.
15. RDM – Selects tracks at random in CDP/CDX mode.
16. AF/TP – Allows genre music selection on international units only.
17. BAND – Selects which bank of tuner presets (FM1, FM2, or AM) should be active.
18. DISP – Toggles between different display features in main display; when pressed and
held for 1 second, toggles clock between hours and minutes.
19. R.SEAT – Enables passengers in rear seat to disable rear speakers and listen to secondary audio source (tuner, CD player, Nintendo, etc.) via headphones.
20. PUNCH – Enables bass response to be boosted at low and high levels.
21. SEEK/TRACK
/
– Selects the previous/next radio station in TUNER mode
and selects the previous/next track in CDP/CDX mode.
22. VOL
/
– Controls VOLUME, BASS, TREBLE, BALANCE, FADER, and SUM*.
NOTE: 0-9 BUTTONS select presets 1-10 in TUNER mode, selects tracks in CDP/CDX
mode, and selects discs in CDX mode.
*Features available only on RFX9200/9300/9400
–9–
INSTALLATION CONSIDERATIONS
The following is a list of tools needed for installing the Source Unit:
Volt/Ohm Meter
#2 Phillips screwdriver
Wire strippers
Battery post wrench
Wire crimpers
Soldering iron
Wire cutters
Solder
1/8" diameter heatshrink tubing
Heat gun
This section focuses on some of the vehicle considerations for installing
your new Source Unit. Pre-planning your system layout and best wiring
routes will save installation time. When deciding on the layout of your new
system, be sure that each component will be easily accessible for making
adjustments.
Before beginning any installation, be sure to follow these simple rules:
1. Be sure to carefully read and understand the instructions before
attempting to install the Source Unit.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting
your Source Unit in place.
4. Route all of the RCA cables close together and away from any high current wires.
5. Use high quality connectors for a reliable installation and to minimize
signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel
lines, brake or hydraulic lines, vacuum lines or electrical wiring when
working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the
vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the
firewall.
9. ALWAYS protect the battery and electrical system from damage with
proper fusing. Install the appropriate fuse holder and fuse on the +12V
power wire within 18” (45.7 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the
metal to ensure a good, clean ground connection. Grounding connections should be as short as possible and always be connected to metal
that is welded to the main body, or chassis, of the vehicle.
– 10 –
SOURCE UNIT MOUNTING LOCATIONS
The mounting position of your source unit will have a great effect on the performance of your in-dash CD Player. The source unit can be installed in a
wide range of operating locations. However, care should be taken to ensure
optimum performance.
Engine Compartment
Mounting the source unit in the engine compartment will void your warranty. Doing so will not only cause severe damage to your new source
unit...but will immediately promote you to “customer of the month” in
our technical support department.
Instrument Panel
Mounting the source unit in the instrument panel provides optimum
access. The source unit should be securely mounted using the “Standard
Mount” or “ISO Mount” method to ensure optimum CD Player performance.
Center Console
Mounting the source unit in the center console provides optimum access.
Be sure the installation does not interfere with the operation of the gear
shift or parking brake. The source unit should have a mounting angle within ±20° from horizontal.
Glove Box
Mounting the source unit in the glove box is adequate, but does not provide easy access. Glove box mounting should only be done if “Instrument
Panel” or ”Center Console,” mounting is not acceptable (i.e., maintaining
integrity of older vehicles with metal dashboards.) The source unit should
be mounted within ±20° from horizontal.
Under Dash
Mounting the source unit under the dash is adequate, but does not provide easy access. Under dash mounting should only be done if
“Instrument Panel,” ”Center Console” or ”Glove Box” mounting is not
acceptable. Mount the source unit off to the side of the driver's area to
reduce interference with the parking brake, gear shift, or operating pedals. The source unit should be mounted within ±20° from horizontal.
– 11 –
WIRING THE SYSTEM
NOTICE: If you do not feel comfortable with wiring your new source unit,
please see your local Authorized Rockford Fosgate Dealer for installation.
• For safety, disconnect the negative lead from the battery prior to beginning the installation.
1. Install the 16-Pin Power Harness by connecting the corresponding wires to the electrical and audio
system. Solder and heat shrink all connections for a reliable installation. For each connection, cut
a 1" piece of heat shrink tubing and slide over one of the wires. Strip each wire 3/8" then twist
together and solder. Slide the tubing over the connection and shrink the tubing with a hot air gun
until no bare wire is exposed.
2. Connect the BLACK wire to chassis ground. Prepare the chassis ground by scraping any paint from
the metal surface and thoroughly clean the area of all dirt and grease. Strip the end of the wire and
attach a ring connector. Fasten the wire to the chassis using a non-anodized screw and star washer.
3. Connect the YELLOW wire to a source of constant +12V (for retaining memory on user-programmed functions). Connect the Yellow wire to a constant +12 volt positive source. The source
should always have +12V, even when the ignition is off and the car is not running.
4. Connect the RED wire (Ignition) to a source of switched +12V (is on only when ignition key is in
“accessory” or “run” position). Connect the RED wire to a switched +12 volt positive source. The
switched signal is usually taken from the ACC (accessory) position of the ignition. If the vehicle does
not have an ACC position, connect the wire to the switched ON position of the ignition. The current consumption through this wire is negligible.
5. Connect the ORANGE wire to the lighting switch terminal. This will dim the main display by 30%
when the headlights are turned on.
6. Connect the LT. BLUE wire to the “Remote Turn-On” leads of the amplifier(s). This will turn-on
the external amplifiers when the source unit is powered on.
7. Connect the BLUE/RED wire to the “Power Antenna” lead. This will raise a fully automatic antenna when the source unit is powered on, but only when the unit is in Tuner Mode.
8. Connect the pink wire for cell phone mute to the wire on the cell phone harness that provides
ground when the phone rings.
9. Connect the B+, GND and Remote Turn on Wires on the 16 pin harness according to the
Installation Reference Sheet.
10. Connect the AUX* to the external audio source (this inserts the audio before the volume control
on the source unit). The input voltage this circuit can accept is 1–3V RMS.
Connect the Speaker Wires (if external amplifiers are not used) to the corresponding speaker leads
by soldering and heat shrinking all connections for a reliable installation. If only one pair of speakers is utilized in the system, use only the FRONT speaker leads and heat shrink the unused REAR
leads to prevent from shorting out. Be sure to maintain speaker polarity. DO NOT chassis ground
any speaker leads as unstable operation may result.
11. Install the Preamp Output Harness (if external amplifiers will be used) by plugging the RCA cables
into the corresponding extension RCAs that feed the input of the amplifiers. Be sure to route the signal cables away from any high current wires to prevent coupling noise from radiated electrical fields
into the audio signal. The FRONT RCAs connect to the Front speaker's amplifier. The REAR RCAs
connect to the Rear speaker's amplifier. The SUM* RCAs connect to the Subwoofer amplifier.
12. Connect the CD Changer (optional) by plugging the 8-pin DIN cable into the connector located at
the rear of the source unit.
13. Connect the Antenna by plugging the antenna cable into the connector located at the rear of the
source unit. Be sure the antenna is securely grounded to the vehicle for proper radio reception.
– 12 –
SOURCE UNIT INSTALLATION
USING
THE INSTALLATION
SLEEVE – STANDARD MOUNT
• Mount the Installation Sleeve into a secure instrument panel.
NOTE: Make sure to mount the Source Unit as close to horizontal as possible for optimum CD Player performance. Mounting Angles of up to ±20˚ from horizontal
can be accommodated.
• Bend Tabs on the installation sleeve which correspond to the chart above.
• Bend Appropriate Tabs on all sides of the mounting sleeve.
INSTALLING
THE
SOURCE UNIT – STANDARD MOUNT
• Install Source Unit by sliding unit into installation sleeve until it clicks
into place.
• Mount Back strap securely behind the instrument panel to prevent
source unit vibration.
• Back strap Screw should be 6mm max (use supplied screw).
• Connect Antenna to antenna jack on rear of source unit.
– 13 –
INSTALLING
THE
SOURCE UNIT – ISO-DIN MOUNT
• Remove Trim Piece and Installation Sleeve from source unit.
• Factory Bracket should align with two mounting holes on each side of
source unit.
• ISO Screws should be 6mm max (use supplied screws).
• Connect Antenna to antenna jack on rear of source unit.
• Install Source Unit into instrument panel.
UNINSTALLING
THE
SOURCE UNIT – STANDARD MOUNT
• Disconnect Back strap from rear of radio (if used).
• Insert Release Keys into left and right sides of source unit to disengage locks.
• Remove Source Unit from installation sleeve with release keys.
– 14 –
INITIAL SETUP
DETACHABLE FACEPLATE
The faceplate is detachable as a theft deterrent.
®
SCAN RPT RDM
ST
LOC
EON
REG
TP
AF
PTY
CDX
CH
MP3
ROOT
DISC-IN
VOLUME
V12
DIR
SONG
PUNCH R.SEAT
To Detach the Faceplate
1. Press the Open Button to cause the faceplate
to slide down and forward.
2. Press the release button on the bottom front
edge of the faceplate and slide the faceplate
away from the unit.
3. The faceplate bracket will automatically close
after 5 seconds.
To Attach the Faceplate
1. Make sure that the faceplate bracket is in the
closed position.
2. Press the faceplate against the front of the unit until it clicks into place.
CAUTION: Do not attempt to attach the faceplate to the faceplate bracket when the bracket is in
the open position when operating in manual mode. You may cause damage to the mechanism that
may void your warranty
3. If desired, the faceplate can be permanently attached by affixing it to the
bracket with the screw provided.
RESET BUTTON
1. Follow the instructions above to detach the faceplate.
2. Insert a paper clip or other slender object into the Reset Button hole in the
lower left corner of the unit and gently press it in until the button clicks.
CAUTION: Do press the Reset Button too hard or you may cause damage that may void your
warranty. If you need assistance, please consult an Authorized Rockford Fosgate Dealer.
– 15 –
BUTTON DESCRIPTIONS
The list below shows the default settings for Setup Options. The bracketed options
are the alternate options contained within each Setup Option. To select these alternates, see Selecting Tuner Options on page 30.
• VOLUME — adjusts volume for all.
• UP/DOWN — is the auto search feature: press the Up or Down Button once and
the Tuner will rapidly proceed to the next station. Press and hold either the Up
or Down button and you can manually search up or down at a rate of one digit
per click (pressing and holding the Up or Down button will allow rapid searching).
• MODE — Cycles through CDP PLAY > CDX (if connected) > AUX1 > AUX2 >
[BAND]*.
• BAND — Cycles through FM1 > FM2 > AM.
• DISP — Toggles between different display features in main display; when pressed and
held for 1 second, (1) toggles clock between hours and minutes, or (2) immediately
pressing MODE button allows selection of the default Display by toggling between
Tuner frequency (or track time in CD Mode) and disc or station name, if titled (see
pages 24 or 32 for Titling information).
• AS — Allows you to automatically store the 10 strongest local signals available.
• MUTE — Pauses the CD Player and mutes the Tuner.
• ENTER — Enables tracks in MP3 mode (9300 and 9400 models only).
• 1–10 — Self-programmable radio presets.
• SCAN — Scans each track on the disc in CDP/CDX mode.
• RPT — Continuously repeats the current CD track until pressed a second time.
• RDM — Randomly selects CD tracks.
• DOWN — Lowers the frequency of the Tuner; acts as backward on CD tracks.
• UP — Raises the frequency of the Tuner; acts as forward on CD tracks.
• PUNCH — Loudness boost.
• D-ACC — Turns on Direct Disc Access and allows direct disc selection in 8-disc
changer. No function if 8-disc changer is not connected.
• T-ACC — Turns on Track Access and allows direct track selection on a CD or
MP3 disc.
• ROOT — Operates only in MP3 mode.
– 16 –
BASIC OPERATION
POWER ON/OFF
Operation
1. Press the OFF button to turn the radio on.
2. Press the OFF button again to turn the radio off.
Any Button Wake-Up
Press any button on the faceplate (except EJECT, DISP) to “wake-up”
the radio from sleep mode.
LCD Display
When the radio is off (in sleep mode) the clock will be displayed.
VOLUME KNOB / TONE CONTROLS
The Volume knob is a multifunction controller and
handles the Volume, Tone Controls., and Setup
Options (see next page).
To Control Volume
1. Turn the VOLUME knob clockwise to raise volume.
2. Turn the VOLUME knob counter-clockwise to
lower volume.
To Adjust Tone Controls
1. Press the VOLUME knob repeatedly to cycle
through BASS > TREBLE > BALANCE > FADER > SUM* > VOLUME.
2. Turn the VOLUME knob clockwise to increase the selected function.
3. Turn the VOLUME knob counter-clockwise to decrease the selected function.
Source Tone Memory
Individual Bass & Treble settings are memorized for TUNER / CD / PLAYER / CD
CHANGER / AUX.
NOTE: If no adjustment is made after 5 seconds, the MENU knob will revert to VOLUME mode.
Function
Volume
Bass
Treble
Balance
Fader
Sum Out
Display
VOL
BAS
TRE
BAL
FAD
SUM**
Range
0 to 30
-8 to +8
-8 to +8
L15 to R15
R15 to F15
0 to 30
*Features available only on RFX9200/9300/9400
– 17 –
Default
15
0
0
0
0
15
SETUP OPTIONS
The list below shows the default Setup Options. The bracketed items are the alternate options contained within each Setup Option. To select these alternates, see
Selecting Tuner Options on page 30.
• DX [LOCAL] — Adjusts the sensitivity of the tuner for rural conditions where there are
weak radio stations while Local adjusts the sensitivity for city conditions where there are
several strong radio stations.
• AMERICAS [EUR/AUST] — Allows tuning of frequencies available in different
parts of the world.
• P. PLAY [EJ MUTE] — Plays the Tuner after you eject a CD while Eject Mute
mutes the Tuner after you eject a CD.
• VIDEO OFF [VIDEO 1, VIDEO 2] — Disables the Video RCA Inputs. VIDEO 1
and 2 allow you to plug in two external video sources (TV, Nintendo, etc.) and
run their outputs through your auto A/V system.
• V/BAR ON [V/BAR OFF] — Displays the Volume Bar at the bottom of the Front
Panel while Volume Bar Off turns it off.
• INI VOL 15 — Sets the maximum Initial Volume when the unit turns on. Initial
Volume sets point of maximum volume when the unit is turned on. If the volume
setting was lower than the initial volume setting when the unit is turned off, then
the lower volume will be used at turn on. If the volume setting was higher than the
initial volume setting, then the initial volume setting is used at turn on. This feature
prevents accidental high volume turn on as well as allows high volume settings to
be retained in case another preamplifier is the system’s main volume control.
• CONTRAST [VIEW 6] — Controls the view angle of the display.
• FLAT [80HZ] — Means third pair of RCA pre-outs is full-range while 80Hz
means that the pre-outs are crossed-over for subwoofer use.
• PANEL AUTO [PANEL MANU] — Automatically opens and closes Panel when
loading or ejecting discs while PANEL MANU allows the front panel to remain
open and CDs to be manually loaded or ejected.
• AUX1 IN 0 [+6, –6] — Allows you to boost the input volume of a weak external audio source or diminish a powerful one. Useful for external sources: MP3
players, video games, VCPs, etc.
• AUX2 IN 0 [+6, –6] — Same as AUX1 IN above.
Selecting Setup Options
1. Press and hold the VOLUME knob for about 1 second until DX appears (this is
the first Tuner Option).
2. Press the VOLUME knob repeatedly to cycle through the Tuner Options listed above.
3. To change a specific Tuner Option, press the Up or Down Button to select an
alternate Tuner Option.
4. Once you have selected the Tuner Options of your choice, wait five (5) seconds
and the Tuner Options will automatically save and return you to the last Mode
Panel you selected.
– 18 –
CLOCK OPERATION
Setting the Clock Hours
1. Press and hold the DISP button for 1 second until
the hour flashes.
2. Press UP or DOWN button to set the hour.
Setting the Clock Minutes
1. Press and the DISP button a second time and the
minutes will flash.
2. Press UP or DOWN button to set the minutes.
Saving the Clock Settings
After the clock has flashed for 5 seconds, your settings will be saved.
Considerations
The clock will remain displayed when the radio power button is turned off.
PUNCH BUTTON (LOUDNESS)
The Punch button enables the bass and treble response of the audio output to be boosted for all listening levels.
Operation
1. Press the PUNCH button to enable the Loudness feature.
2. Press the PUNCH button again to disable the Loudness feature.
Display
The LCD will display "Punch" when the Loudness feature is on.
MUTE BUTTON
Operation
1. Press the MUTE button to dampen the volume.
2. Press the MUTE button a second time to revert
the audio to the previous level.
LCD Display
The LCD will display MUTE until the function is canceled.
– 19 –
MODE SELECTION
Press the MODE button repeatedly to cycle through the following modes:
• CDP PLAY — Enables CD Player if a CD is inserted.
• AUX1 — Allows for an external audio source to attach to the sound system.
• AUX2 — Allows for a second external audio source to attach to the sound system.
• FM1 — Enables the Tuner.
CD PLAYER OPERATION — BASIC
®
SCAN RPT RDM
ST
LOC
EON
REG
TP
AF
PTY
CDX
CH
MP3
ROOT
VOLUME
DISC-IN
V12
DIR
SONG
PUNCH R.SEAT
NOTE: RFX PLAYERS WILL PLAY AUDIO CDS CREATED ON A MACINTOSH
To Play a CD
1. Press OPEN button and the Front Panel will slide open.
2. Insert a CD and the Front Panel will slide closed after 5 seconds (PANEL AUTO).
3. CDP PLAY will auto-select and the CD will begin playing track 1 immediately.
4. Use UP and DOWN buttons to change tracks.
To Play Tracks at Random
After track begins playing, press RDM button and player will play
tracks randomly.
To Repeat a Track
While the CD is playing the track you want to repeat, press the RPT button and the CD will repeat that track until you press the RPT button again.
To Eject a Disc
1. Press the OPEN button for 1 second, and the
Front Panel will slide open and eject the disc.
2. Press the OPEN button while Front Panel is
open, or wait 5 seconds and the Front Panel will
auto-close (in PANEL AUTO Mode).
NOTE: If OPEN is pressed for less than 1 second while in Panel
Auto mode, the Front Panel will open and Eject will not be
engaged.
– 20 –
CD PLAYER OPERATION — ADVANCED
CD PLAYER MODE
CD Player Mode
1. Press the MODE button until CDP PLAY is displayed.
2. The disc will start playing (if no disc is in the
player, the source unit will go to AUX1 Mode).
LCD Display
1. The track number and elapsed time will be displayed.
2. After 5 seconds, the LCD will revert either to the
default display or the last programmed display.
3. DISK IN will be displayed on the LCD.
Insert CD and Play
1. Insert a disc and CDP PLAY will appear.
2. The disc will begin playing track 1 on the disc.
Wake-Up Feature (when powered-off)
1. Insert a disc while the unit is off.
2. The disc will begin playing track 1 on the disc.
DISC EJECT*
Disc Eject
1. Press the OPEN button and hold for 1 second to
eject the disc.
2. The source unit will revert to P.PLAY or EJ MUTE
mode (see TUNER OPTIONS in this manual for further information on programming the default mode).
3. After car ignition is turned off, you can still press
OPEN to eject a disc.
LCD Display
1. The LCD will display EJECT for 5 seconds.
2. After 5 seconds, the LCD will revert to the previous display.
Auto Reload
1. If the CD is left in the ejected position for more than 10 seconds the disc will
automatically reload into the CD player.
2. The auto reload operation will not restart playing the disc or affect any other
current mode (Except EJ MUTE Mode).
*NOTE: This function works identically in both CD Player and CD Changer modes.
– 21 –
CDP/CDX TRACK SELECTION*
Track Selection
1. Press the UP button to select the next track on the disc.
2. Press the DOWN button to select the previous track.
LCD Display
1. The track number and elapsed time remain displayed.
2. After 5 seconds, the LCD will revert either to the default
display or the last programmed display.
Considerations
CDP MODE: The disc will start over at track 1 again after the last track plays.
CDX MODE: When the last track number on the current disc is reached, the next
disc will load in the CD changer and begin playing track 1.
CDP/CDX TRACK & DISC RANDOM*
Random
1. Press the RDM button to randomize the tracks on a disk. If
you have a multi-disc changer, press and hold the RDM button for 1 second to randomize the discs and tracks.
2. Random will continue until the mode is cancelled.
Random Cancel
Press the RDM button a second time to cancel Random mode.
LCD Display
The LCD will display RDM until the function is cancelled.
CDP/CDX TRACK FORWARD/REVERSE*
Forward/Reverse
Press the DOWN button and the player will take you to the
start of the same track as long as that track is more than 10
seconds in. If the track is less than 10 seconds in, pressing
the DOWN button will take the player to the beginning of
the previous track. Pressing UP takes you to the next track.
Fast Forward/Reverse
1. Press and hold the UP button to fast forward the track.
2. Press and hold DOWN to fast rewind the track.
LCD Display
The LCD will display the elapsed time as long as the UP or DOWN buttons are pressed.
*NOTE: This function works identically in both CD Player and CD Changer modes.
– 22 –
CDP/CDX TRACK REPEAT*
Track repeat plays the currently playing track over again.
Track Repeat
1. Press the RPT button to begin Track Repeat mode.
2. Press the RPT button a second time to cancel Track Repeat
mode. Pressing and holding the UP or DOWN buttons also
cancels Track Repeat.
LCD Display
The LCD will display RPT until the function is cancelled.
CDP/CDX TRACK SCAN*
Track Scan plays the intro to each track for 10 seconds before moving to the next track
on the currently playing disc.
Track Scan
1. Press the SCAN button to begin track scan mode.
2. Track scan will continue to scan until the mode is cancelled.
Track Scan Cancel
1. Press the SCAN button a second time to cancel track scan mode.
LCD Display
1. The LCD will display SCAN until the function is cancelled.
2. The LCD will display the track number and elapsed time for 10 seconds each
time a new track begins its intro scan.
3. After 5 seconds the LCD will revert to the default display.
CDP/CDX PAUSE*
Pause CD
1. Press the MUTE button to pause the CD.
2. Press the MUTE button a second time to resume
playing the disc.
LCD Display
1. The LCD will display PAUSE and the track # until
the function is canceled.
*NOTE: This function works identically in both CD Player and CD Changer modes
– 23 –
PROGRAMMABLE DISC TITLE MEMORY
The name of a CD can be stored in memory using up
to 10 characters as a title. A maximum of 100 titles can
be stored into memory.
Disc Title Memory
1. Press and hold the BAND button for 1 second
and the first digit of the 10-digit front panel will
begin to blink.
2. Press the DISP button to cycle through the following character types:
Type 1: (space)ABCDEFGHIJKLMNOPQRST
UVWXYZ
Type 2: abcdefghijklmnopqrstuvwxyz
Type 3: 0123456789
Type 4: /\\.+?!*’")
3. Turn the VOLUME knob to select the proper
character.
4. Press the VOLUME knob to move to the next
space.
5. Press and hold the VOLUME knob for 1 second
to store the title into memory.
Disc Title Erasing
1. Press and hold the MUTE button for 1 second.
2. Turn the VOLUME knob to select the title for erasing.
3. Press and hold the VOLUME knob for 1 second to
erase the title.
– 24 –
RFX8810 CD CHANGER OPERATION
(Optional Accessory)
LOADING
THE
CD CHANGER
Loading Disc to the Magazine
LABEL SIDE UP
1. Pull out the desired disc tray number from the magazine.
2. Place the disc into the magazine label side up.
3. Push the disc tray back into the magazine.
NOTE: Discs numbers are arranged from the bottom up.
Loading the Magazine to the CD Changer
The INSERT IN THIS DIRECTION arrow indicates the proper direction that the magazine should be loaded into the CD changer.
R75
INSERT IN THIS DIRECTION
CAUTION: Avoid installing or leaving the magazine where it would be subject to
high temperatures such as from direct sunlight or from hot air from the
heater. Doing so will damage the unit.
PLACE COMPACT DISC INTO MAGAZINE WITH
LABEL SIDE UP.
PLACER LE DISQUE COMPACT DANS LE
CHARGEUR, FACE ETIQUETEE VERS LE HAUT.
.
COMPACT
DIGITAL AUDIO
CDX DISC SELECTION
Disc Selection
1. Press the UP button to select the next disc in the magazine.
2. Press the DOWN button to select the previous disc in the magazine.
3. Press D-ACC and numbers 1-8 for direct disc access.
LCD Display
1. The LCD will continuously flash the number of the currently playing disc.
2. When a disc begins playing, it will show the disc number, the track number,
and elapsed time.
3. After 5 seconds, the LCD will revert either to the default display or the last programmed display.
Considerations
CDX MODE: When the last track # on the current disc is reached, the next disc will
load and begin playing track #1.
– 25 –
CD CHANGER MODE
CD Changer Mode
1. Press the MODE button until CDX PLAY is displayed.
2. The CD changer will immediately begin playing
track #1 of the first available disc.
3. If the changer was previously initialized, the changer will resume playing the last track initialized.
LCD Display
1. The LCD will continuously flash the number of
the currently playing disc.
2. When a disc begins playing, the disc number, the track number, and elapsed
time will be displayed.
3. After 5 seconds, the LCD will revert either to the default display or the last programmed display.
NOTE: If no disc is loaded into the CD changer NO CD will be displayed and the source unit will revert
back to AUX1 mode.
8
7
6
5
4
3
2
1
RESET
EJECT
CDX EJECT/RESET
Magazine Eject
1. Press the OPEN button to release the magazine disc from the CD changer.
2. The source unit will revert to AUX1 mode.
LCD Display
1. The LCD will display NO CD.
CD Changer Reset
Press the RESET button if the changer gets jammed during operation.
– 26 –
MP3 PLAYER OPERATION — BASIC PLAYING
NOTE: RFX PLAYERS DO NOT RECOGNIZE MP3 CDS CREATED ON A MACINTOSH
TO PLAY AN MP3 DISC
1. Press OPEN button and the Front Panel will slide open.
2. Insert an MP3 disc and the Front Panel will slide closed
after 5 seconds, or press OPEN to close immediately.
3. CDP PLAY will auto-select and the MP3 disc will
begin playing track 1 immediately.
4. Press the curved UP and DOWN buttons to go forward and backward when changing tracks.
To Play Tracks at Random
After inserting an MP3 disc, press RDM button and player will play tracks randomly.
To Repeat a Track
While the disc is playing the track you want to repeat, press the RPT button and
the CD will repeat that track until you press the RPT button again.
To Pause a Track
Press the MUTE button to pause a track. Press MUTE again to continue playing the track.
To Eject a Disc
1. Press and hold the OPEN button for 1 second, the Front Panel will open, and the disc will eject.
2. After removing the disc, press the OPEN button again to close the Front Panel.
DIRECTORY STRUCTURE
The MP3 directory is set up in
three levels and is comprised of
three components: (1) the Root,
(2) Folders, and (3) Songs. Songs
are played in the order and level
in which they are located. As
shown in the diagram to the
right, all songs in Level 2 are
played before the songs contained in Level 3 or lower. These
levels are descriptive of the function of having songs in folders
and subfolders. Any song in a
level below Level 3 is treated as
though it were in Level 3, but
will play in the level order as
shown. The songs in the diagram
at the right are numbered in the
order they will play.
ROOT
LEVEL 1
LEVEL 2
Song01
Directory01
Song02
LEVEL 3
Directory02
Directory04
Directory03
Song05
Directory05
Song03
Song06
Song04
Song07
Any level
deeper than
LEVEL 3
will be
treated as
LEVEL 3
Song10
Song09
Song11
"My MP3s"
LEVEL 1
LEVEL 2
Song08
Song01
Soft Rock
Song02
LEVEL 3
Hard Rock
Speed Metal
Top 40
Song05
Classics
Song03
Song06
Song04
Any level
deeper than
LEVEL 3
will be
treated as
LEVEL 3
– 27 –
Song07
Song08
Song10
Song09
Song11
MP3 PLAYER OPERATION — FILE MANAGEMENT
NEGOTIATING
THE
MP3 DIRECTORY*
The ROOT Level
The ROOT Level contains the name of the disc, but no folder or
song information. The first song on the disc will automatically
begin playing when a disc is inserted and will continue playing
until you select another song.
Directly Selecting a Song by Title
The MP3 file management system is a folder-based system similar to the Windows™
File Manager. Because of this, the UP and DOWN keys function differently than they
do in CD or Tuner Mode. Instead of going forward or backward through your disc
respectively, they go up and down through the file list.
1. Press the ROOT button and the display will show
the disc name. The display will then immediately switch to show the name of the first folder on
the disc and display it for 5 seconds. If no action
is taken during this 5 second period, the display
will default back to the song currently playing.
2. While the name of the first folder is showing,
press the DOWN button to scroll alphabetically
(A to Z) through the list of folders. Press the UP
button to scroll in reverse.
3. Press the ENTER button and the name of the first song in the selected folder will
be displayed.
4. Press the DOWN button to scroll numerically (1 to 10 or higher) through the
songs contained in the selected folder. Press the UP button to scroll through
the songs from 10+ to 1.
NOTE: If The song name will remain displayed for 5 seconds in steps 1 through 4 above. If no action
is taken during this 5 second period, the display will default back to the song currently playing.
5. Press ENTER to select the song and the song will begin playing.
NOTE: If no disc is loaded into the CD player, NO CD will be displayed and the source unit will
revert back to AUX1 mode.
* Available on RFX9300 and 9400 only.
– 28 –
NEGOTIATING
THE
MP3 DIRECTORY (CONT’D)
DOWN Button
When playing an MP3 track on the RFX9300 or 9400,
pressing the DOWN button will take you to the beginning of the previous track. For example, if listening to
track 3, pressing the DOWN button goes to the beginning of track 2, not the beginning of track 3.
However, if playing a regular audio CD track and the
DOWN button is pressed, the player will take you to
the beginning of the same track as long as the playing
track has been playing for more than 10 seconds. If the
track is within 10 seconds of its beginning, pressing the DOWN button will take the
player to the beginning of the previous track.
Fast Forward/Fast Reverse
This function is possible in MP3 Mode, but the time will not display and there will be
no sound.
Maximum Writing Speed and Bit Depth
The maximum speed of the CD ROM burner accepted by the RFX units is 12X. The
maximum bit rate range possible is 32kb/sec–320kb/sec. For best performance of
scrolling display, before creating a file system in your CDR burning program, select
the CD layout properties menu and file system tabs. Use ISO9660 file format and
select the Long File Names option on your PC. This allows a maximum of 16 uppercase scrolling characters to be displayed.
NOTE: Depending on the type of CD-R, CD surface condition and the CD writer performance and condition, the CD-R may not operate normally.
NOTE: Make sure that when a MP3 CD is burned that it is formatted as a data disc and NOT as an audio disc.
Programmable Titling
Programmable Titling is not available in MP3 mode. However, default is selectable
to track/time or song title on disc.
– 29 –
RADIO TUNER OPERATION
SELECTING
A
BAND
Press the BAND button repeatedly to cycle through
FM1, FM2, and AM. The act of selecting the band automatically enables that band.
TUNER OPTIONS
DX and AMERICAS are the default Tuner Options settings. The bracketed options are alternate options.
• DX [LOCAL]
• AMERICAS [EUR/AUST]
Selecting Tuner Options
1. Press and hold the VOLUME knob for 1 second
2. Press the VOLUME Knob repeatedly to cycle
through all Setup Options (the other Setup
Options do not affect Tuner Mode).
3. To change an Option, press the UP or DOWN Button.
4. Once you have made your selections, wait 5 seconds and the Front Panel will
return you to the last Mode Panel shown.
PRESET BUTTONS 1–10
Each Tuner mode—FM1, FM2, and AM—has 10 presets for a total of 30 presets.
To Set a Preset Button
1. Tune the Tuner to the station you wish to program.
2. Press and hold any preset button for five seconds and it will program that setting.
Original Preset Memory Content (Tracking Point)
Function
America
Eur/Aust
Japan
Band
1
2
3
4
5
6
7
8
9
10
FM1
87.5
90.1
98.1
106.1
107.9
87.5
90.1
98.1
106.1
107.9
FM2
87.5
90.1
98.1
106.1
107.9
87.5
90.1
98.1
106.1
107.9
AM
530
610
1000
1400
1710
530
610
1000
1400
1710
FM1
87.5
90.0
98.0
106.0
108.0
87.5
90.0
98.0
106.0
108.0
FM2
87.5
90.0
98.0
106.0
108.0
87.5
90.0
98.0
106.0
108.0
AM
522
612
999
1404
1620
522
612
999
1404
1620
FM
76.0
80.0
83.0
87.0
90.0
76.0
80.0
83.0
87.0
90.0
AM
522
603
999
1404
1629
522
603
999
1404
1629
– 30 –
AUTO STORE
If you want the Tuner to select the 10 most powerful
stations in order of their signal strength and assign
them to Preset buttons 1–10, you can use Auto Store.
Auto Store
1. Press the AS button once and the Tuner will scan the
entire dial.
2. Auto Store will store radio stations independently
in the selected tuner bank (FM1/FM2/AM).
BUTTON FUNCTION
Operation
1. Press and hold the VOLUME knob for 1 second to enter Tuner Options mode.
2. Continue to press the VOLUME knob to cycle through TUNER OPTIONS DX >
AMERICAS > P.PLAY > V/BAR > INI/VOL > CONTRAST > FLAT > PANEL
AUTO > AUX1 IN > AUX2 IN.
3. Press the UP or DOWN button to select MODE 1 or MODE 2.
Tuner Option
Mode
Function
#1
P.PLAY
Reverts the unit back to tuner mode
when ejecting
a CD
EJ MUTE
Mutes the audio when ejecting a CD
LOCAL
Adjusts the sensitivity for city conditions
where there are several strong radio stations
#2
#3
DX
Adjusts the sensitivity of the tuner for
rural conditions where there are weak
radio stations
AMERICAS
Adjusts the tuner’s frequency band for
American country codes
EUR/AUST
Adjusts the tuner’s frequency band for
European/Australian country codes
Country
Bandwidth
Frequency Spacing
Americas
AM = 530 – 1710kHz
FM = 87.5 – 107.9MHz
10kHz
200kHz
Eur/Aus
AM = 522 – 1620kHz
FM = 87.5 – 108.0MHz
9kHz
50kHz
– 31 –
PROGRAMMABLE STATION TITLE MEMORY
The name of a Station can be stored in memory using
up to 10 characters as a title. A maximum of 100 titles
can be stored into memory.
Station Title Memory
1. Press and hold the BAND button for 1 second
and the first digit of the 10-digit front panel will
begin to blink.
2. Press the DISP button to cycle through the following character types:
Type #1: (space)ABCDEFGHIJKLMNOPQRST
UVWXYZ
Type #2: abcdefghijklmnopqrstuvwxyz
Type #3: 0123456789
Type #4: /\\.+?!*’")
3. Turn the VOLUME knob to select the proper
character.
4. Press the VOLUME knob to move to the next
space.
5. Press and hold the VOLUME knob for 1 second
to store the title into memory.
Station Title Erasing
1. Press and hold the MUTE button for 1 second.
2. Turn the VOLUME knob to select the title for erasing.
3. Press and hold the VOLUME knob for 1 second to
erase the title.
– 32 –
AVAILABLE ON INTERNATIONAL MODELS ONLY
AF/TP MODE
TP (Traffic Program) Mode will automatically switch to receive a Traffic Announcement
regardless of the current operating mode of the unit. EON TA are stations that do not have
a TRAFFIC PROGRAM but can provide information on other radio stations that do.
AF (Alternative Frequencies) Mode compares the signal level of the current station with
the signal level of other alternative frequencies on the same radio network (see PTY
Mode). If the AF provides a stronger signal than the current frequency, the radio will
switch to the stronger AF.
Traffic Program Mode (TP)
1. Press the AF/TP button to engage TP Mode, and again to disengage TP Mode.
2. When TP is blinking, TP Mode is on and there is no TP DATA to receive.
3. The SEEK or AS function will stop only at radio stations providing TP or EON TA.
Alternative Frequencies Mode (AF)
1. Press and hold the AF/TP button for 1 second to engage AF Mode.
2. Press and hold AF/TP again for 1 second to disengage AF Mode.
PTY MODE
PTY (Program Type) can search for radio stations via MUSIC MODE or SPEECH MODE networks.
Music Mode categorizes radio stations into Pop, Rock, Modern Music, Light, Classics, and others.
Speech Mode categorizes music into News, Affairs, Info, Sports, Education, Drama, Culture,
and Science. REG (Region Mode) will switch the station to another that has the same PI
CODE (station that provides exactly the same program) but in a different REGION.
Program Type Mode
1. Press the PTY button to cycle through MUSIC, SPEECH, and PTY OFF.
2. Press the PRESET button that corresponds to the mode type (refer to chart below).
Region Mode
1. Press and hold the PTY button for 1 second to turn on Region Mode.
2. Press and hold the PTY button again for 1 second to turn off Region Mode.
NOTE: The LCD will display “REG” when AF and REG modes are on.
KEY
M1
M2
M3
M4
M5
M6
M7
M8
M9
Music Mode
POP M
ROCK M
M.O.R.M.
LIGHT M
CLASSICS
OTHER M
–
–
–
– 33 –
Speech Mode
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIDE
AUXILIARY OPERATION
AUX MODE*
AUX Mode
1. Press the MODE button until AUX1 or AUX2 is
displayed.
2. The AUX inputs will immediately "see" the auxiliary audio input being fed into the AUX RCA jacks.
LCD Display
1. AUX1 and AUX2 will be displayed for 5 seconds
if Titling is used and selected as the default display.
2. After 5 seconds the LCD will revert to the default
display. If no title for AUX is used, AUX will be displayed continuously.
AUX Mode Titling
See Disc Titling on page 24.
NOTE: The input signal connected to the AUX RCA jacks is fed into the source unit prior to the volume
control. If the AUX input source has a constant (non-adjustable) output level, the volume control
on the faceplate can properly adjust the amplitude. To more closely match the volume of the
AUX signal to CD or radio volume, use the AUX IN sensitivity adjustment (see page 18).
*Features available only on RFX9200/9300/9400
POWER UP DEFAULTS
The chart below shows the default settings upon startup. These are also the settings
that the unit is reset to when you push the RESET button (see Reset Button on page 15).
Mode
Default
AS/PS
Off
Preset memory
Original memory band
Scan
Off
Repeat
Off
Random
Off
Loudness
On
Button Illumination color
Red
Default Display
Track/Time
CDP Loading
STBY
CDX Loading
Disc Start
Volume Level
15
Sum
15
Bass/Treble
0
Balance/Fader
0
Local/DX
DX
Station + Disc Titling
Clear Memory
– 34 –
IR REMOTE OPERATION
POWER ON/OFF
Power Button Operation
1. Press the PWR button to turn on the radio.
2. Press the PWR button a second time to turn off the radio.
LCD Display
When the radio is off (in sleep mode) the clock will be displayed.
OPERATING MODE
Selecting Modes
1. Consecutively press the MODE button to cycle through:
TUNER > CDP > CDX > AUX* modes.
2. Release the MODE button to select the appropriate operating mode.
*Features available only on RFX9200/9300/9400
VOLUME UP/DOWN
Volume Button Operation
1. Press the VOL (
) button to increase the volume.
2. Press the VOL (
) button to decrease the volume.
NOTE: The VOL button is also used to increase or decrease the Bass, Treble,
Balance, Fader & Sum*. See Tone Controls in this section for further
information.
*Features available only on RFX9200/9300/9400
– 35 –
TUNER BAND
Selecting the Tuner Band
1. Press the BAND button repeatedly to cycle through the
tuner bank: FM1 > FM2 > AM.
2. Stop pressing the BAND button when the display reads the
desired tuner bank.
SEEK (TRACK)
Seek (TUNER Mode)
1. Press the SEEK (
) button to automatically jump the
tuner to the next strongest radio station.
2. Press the SEEK (
) button to automatically jump the
tuner to the last strongest radio station.
3. Press the SEEK (
) or (
the current radio station.
) again to stop the tuner on
Track Selection (CDP/CDX Mode)
1. Press the SEEK (
disc.
) button to select the next track on the
2. Press the SEEK (
) button to select the previous track on
the disc (see “Down Button” on page 29).
Direct Track Selection (CDP/CDX Mode)
Press any of the numbered buttons to select tracks 1 through 10.
TUNE (DISC)
Disc Selection (for Multi-Disc Changer only)
1. Press the 5 button to select the next disc in the multi-disc
changer’s magazine.
2. Press the 4 button to select the previous disc in the magazine.
– 36 –
MUTE/PAUSE*
Tuner Mute
1. Press the MUTE button to reduce the volume to minimum.
2. Press the MUTE button a second time to revert the audio to
the previous level.
LCD Display
The LCD will display MUTE until the function is canceled.
Pause CD (CDP/CDX Mode)
1. Press the MUTE/PAUSE button to pause the CD and reduce
the volume to minimum.
2. Press the MUTE/PAUSE button a second time to resume playing the disc.
LCD Display
The LCD will display PAUSE and the track # until the function is canceled.
* This function works identically in both CD Player and CD Changer modes.
TONE CONTROLS
Selecting Tone Controls
1. Press the SEL button to cycle through VOLUME > BASS >
TREBLE > BALANCE > FADER > SUM*.
2. Press the VOL + button to increase function.
3. Press the VOL + button to decrease function.
Source Tone Memory
Individual Bass and Treble settings are programmable for
TUNER / CDP / CDX / AUX* modes.
NOTE: If no adjustment is made after 5 seconds, the MENU knob will revert to VOLUME mode.
Function
Display
Range
Default
Volume
VOL
0 to 30
15
Bass
BAS
-8 to +8
0
Treble
TRE
-8 to +8
0
Balance
BAL
L15 to R15
0
Fader
FAD
R15 to F15
0
Sum Out
SUM*
0 to 30
15
*Features available only on RFX9200/9300/9400
– 37 –
TRACK SCAN*
Track scan plays the intro to each track for 10 seconds before moving to
the next track on the currently playing disc.
Track Scan
1. Press the SCAN (Preset #1) button to begin track scan mode.
2. Track scan will continue to scan until the mode is cancelled.
Track Scan Cancel
Press the SCAN (Preset #1) button a second time to cancel track scan
mode.
LCD Display
1. The LCD will display SCAN until the function is cancelled.
2. The LCD will display the track # and elapsed time for 5 seconds each time a new track
begins its intro scan.
3. After 5 seconds the LCD will revert to the default display.
* This function works identically in both CD Player and CD Changer modes.
DISPLAY RECALL
Display Recall temporarily displays the clock, radio station, station
title*, CD track/time, disc title*, or AUX* on the LCD for 5 seconds.
Display Recall (TUNER)
1. While in TUNER mode, press the DISP button to cycle
through RADIO STATION > STATION TITLE* (if there are
no stations titled, the display will remain on the station).
2. After 5 seconds, the display will revert to the default display.
Display Recall (CDP/CDX)
1. While in CDP/CDX mode, press the DISP button to cycle through CLOCK >
TRACK/TIME > DISC TITLE*.
2. After 5 seconds, the display will revert to the default display.
Display Recall (AUX)*
1. While in AUX mode, press the DISP button to switch between CLOCK >
AUX*.
2. After 5 seconds, the display will revert to the default display.
NOTE: See DEFAULT/RECALL DISPLAY in the Basic Operation section of this manual for more information on programming the default display.
*Features available only on RFX9200/9300/9400
– 38 –
DIRECT PRESET ACCESS
Direct Preset Access
1. Press numbers 1 through 0 to access the desired tuner preset.
2. The CD player or CD changer will immediately load the
selected track and begin playing.
LCD Display
1. The LCD will display the tuner bank and the tuner frequency being accessed for 5 seconds.
2. After 5 seconds the LCD will revert to the default display.
TRACK REPEAT*
Track Repeat plays the currently playing track over again from the beginning.
Track Repeat
1. Press the RPT (Preset #2) button to begin track repeat mode
2. Track repeat will continue to repeat the current track until
the mode is cancelled
Track Repeat Cancel
Press the RPT (Preset #2) button a second time to cancel
track repeat mode
LCD Display
The LCD will display RPT until the function is cancelled
TRACK RANDOM*
Track random selects and plays tracks at random from the currently playing disc.
Track Random
1. Press the RDM (Preset #3) button to begin track random
mode.
2. Track random will continue to select and play tracks at
random until the mode is cancelled.
Track Random Cancel
Press the RDM (Preset #3) button a second time to cancel
track random mode.
LCD Display
The LCD will display RDM until the function is cancelled.
*NOTE: This function works identically in both CD Player and CD Changer modes.
– 39 –
DIRECT DISC ACCESS
Direct Disc Access allows any disc in the magazine to be immediately selected and
played. This method is faster than manually cycling through each disc in the magazine.
Direct Disc Access
1. While in CDX mode, press the DISC ACC button to select
Direct Disc Access mode.
2. Press the number (1-2-3-4-5-6-7-8-9-0) to access the
desired disc in the magazine.
3. The CD changer will immediately load the selected disc
and begin playing track #1.
NOTE: If there is no disc in the slot, the player will remain on the current disc.
LCD Display
1. The LCD will display DISC and the disc # being accessed for 5 seconds.
2. After 5 seconds the LCD will revert to the default display.
DIRECT TRACK ACCESS*
Direct Track Access allows any track to be immediately selected and played. This
method is faster than manually cycling through each track on the disc.
Direct Track Access
1. While in CDP/CDX mode, press the TRACK ACC button to
select Direct Track Access mode.
2. Press the number (1-2-3-4-5-6-7-8-9-0) to access the
desired track on the disc.
3. The CD player or CD changer will immediately load the
selected track and begin playing.
LCD Display
1. The LCD will display TRACK and the track # being accessed
for 5 seconds.
2. After 5 seconds the LCD will revert to the default display.
*NOTE: This function works identically in both CD Player and CD Changer modes.
– 40 –
AUTO STORE
Auto Store
1. Press the AS button once to automatically select
the strongest radio stations and store them in the
tuner banks.
2. Auto Store will store radio stations individually in
the desired tuner bank (FM1/FM2/AM).
– 41 –
GENERAL TROUBLESHOOTING
SYMPTOM
DIAGNOSIS
REMEDY
Source Unit does
not turn on
Voltage applied to Red and
Yellow wires is not
between 10.8 and 16 volts
or there is no voltage present
Check battery, connections and fuses
and repair or replace as necessary. If
voltage is above +16 volts, have the
electrical system inspected by an authorized car service center.
Source unit is not properly grounded
Check wiring and repair
as necessary
No backlight
illumination
Detachable faceplate not
properly connected
Detach faceplate and reinstall
into chassis
Speakers pop
when turning
Source Unit
On/Off
Auto antenna and remote
B+ are not configured
properly
Check wiring and repair as
necessary. Refer to “Wiring the
System” section of this manual
for further information
Bad component in the
signal chain
Check connections and bypass all components between the source unit and
the amplifier. Connect one component
at a time to determine the culprit.
Connect this component to the Blue
wire and check for pops. If pops persist,
repair or replace component as necessary
Tuner fails to tune
any radio stations
Antenna is
disconnected
Check connections and repair as necessary
Tuner has poor
reception
Antenna is disconnected
or not properly grounded
to vehicle
Check connections and installation of
antenna and repair or replace as necessary
Antenna cable is intermittent or damaged
Disconnect antenna and test with
known working antenna. If tuner
works, check installation and repair
antenna wiring as necessary
Antenna is wrong type for
AM/FM frequencies
Consult your local Authorized
Rockford Fosgate Dealer for
proper antenna selection
Voltage applied to Red
and Yellow wires is not
between 10.8 and 16
volts or there is no voltage present
Check battery, connections and fuses,
and repair or replace as necessary. If
voltage is above +16 volts, have the
electrical system inspected by an
authorized car service center
Disc will not load
into Source Unit
(also see error codes)
– 42 –
SYMPTOM
DIAGNOSIS
REMEDY
Disc will not eject
Voltage applied to Yellow
wire is not between 10.8
and 16 volts or there is
no voltage present
Check battery, connections and fuses,
and repair or replace as necessary. If
voltage is above +16 volts, have the
electrical system inspected by an
authorized car service center
No initialization
Press the reset button
Mechanism is jammed
and loading motor (or
driving circuit) is defective
Repair the mechanism and
loading motor (or driving circuit)
Foreign objects are preventing the disc from
loading
Check CDP mechanism load area by
removing faceplate and repair as necessary
Loading area in mechanism
and loading motor (or driving circuit) is defective
Repair the mechanism and loading
motor (or driving circuit)
Foreign objects are preventing disc from ejecting
Check CDP mechanism eject area by
removing faceplate and repair as necessary
Eject area in mechanism
and ejecting motor (or driving circuit) is defective
Repair the mechanism and loading
motor (or driving circuit)
Transverse motor or
switch is defective.
Traverse area damaged
Check CD mechanism motor, switch
and transverse area.
Excessive dirt or dust on
disc
Clean disc to remove dirt or dust as
necessary
Disc is warped cracked or
severely damaged
Put in a different disc!
Excessive scratches on
disk
Put in a different disc!
Disc is cracked, warped or
severely damaged
Put in a different disc!
Laser pickup is defective
Have service center repair laser pickup
Servo unit in CDP mechanism is not operating
properly
Check the servo circuit area and
repair as necessary
(also see error codes)
ERROR 1
(Initialize Error)
ERROR 3
(Loading Error)
ERROR 4
(Eject Error)
ERROR 6
(Transverse Error)
ERROR 7
(Servo Error)
ERROR 9
(TOC Error)
– 43 –
SYMPTOM
Radiated Noises
CD skips
excessively
Engine Noise
DIAGNOSIS
REMEDY
No RF suppression
of blower motors
Connect filter cap (Radio Shack #2721085) in-line on B+ as close to blower
motor as possible
No RF suppression
of switches
Connect a .1µf – .01µf non-polarized
capacitor across switch contacts
Source unit mounted at
an incorrect angle
Check mounting angle of source unit
(mount within ±20˚ from horizontal)
and repair as necessary
Source unit not secured
properly (Standard
Mount)
Check tightness of installation sleeve
and back strap; repair or replace as
necessary
Source unit not secured
properly (ISO Mount)
Check tightness of mounting screws
and repair or replace as necessary
Source unit is not grounded properly
Check connections and repair wiring
as necessary
Noise is radiating into
RCA signal cable
Check connections, run the RCA
cables on a different route away from
sources of high current
Bad component in the
signal chain
Check connections. Bypass all components between the Source unit and the
amplifier. Connect one component at a
time to determine the culprit. Repair or
replace components as necessary
Noise is radiating into the
speaker cables
Disconnect speakers and connect a
test speaker to the output terminals or
the source unit. If noise is gone,
reroute the speaker cables away from
sources of high current
Multiple grounds in the
audio system
Check ground connections and
connect amplifiers, signal processors, and other components to a
central location or try a different
grounding point on the chassis
– 44 –
CD CHANGER TROUBLESHOOTING
SYMPTOM
ERROR 1
(Initialize Error)
ERROR 2
DIAGNOSIS
REMEDY
Disc unit can’t detect
magazine
Press the eject button and pull out the
magazine. Press the reset button
Magazine tray
load/unload problem
Check tray load/unload area
Magazine sensor is defective
Have a service center check the magazine sensing switch
Can’t eject magazine
Press the reset button
Magazine emitting spring
is damaged
Have a service center inspect and
repair as necessary
Magazine tray is jammed
Inspect and repair as necessary
Tray loading has not completed after 5 secs
Press Eject, pull out the magazine, and
try again. Press Reset
Loading mechanism and
motor (or driving circuit)
is defective
Repair mechanism and loading motor
(or driving circuit)
Tray unloading has not
completed after 5 secs
Press Eject, pullout the magazine, and
try again. Press Reset
Unloading mechanism
and motor (or driving circuit) is defective
Have a service center repair mechanism and loading motor (or driving
circuit)
Magazine tray is jammed
Repair CD changer mechanism; then
press Reset
The laser pick-up is
defective
Repair the laser pick-up
Disc is warped, cracked,
or damaged
Put in a new disc
Disc is warped, cracked,
or severely damaged.
Eject damaged disc from source unit
and play only non-damaged discs
The laser pick-up is
defective
Have a service center repair the
laser pick-up
Magazine is empty or not
installed in the unit
Check the magazine and insert discs
(Magazine Eject Error)
ERROR 3
(Loading Error)
ERROR 4
(Unloading Error)
ERROR 5
(Elevator Error)
ERROR 7
(Focus Error)
ERROR 9
(TOC Error)
NO CD
(No Disc Error)
– 45 –
SYMPTOM
NO CONN
(Communication Error)
CD Changer does
not operate
Disc is jammed in
the CD Changer
DIAGNOSIS
REMEDY
8-pin DIN cable is
disconnected from the
CDX mechanism or
source unit
Check the connection of 8-pin DIN
cable between the CDX and unit
CDX cable is intermittent
or severely damaged
Check connections and repair or
replace CDX cable as necessary
CDX cable is disconnected from the Source Unit
or CD Changer
Check connections at the Source unit
and CD Changer and repair wiring as
necessary
Communication issue
Press Reset on CD Changer
Disc load/unload problem
Press Reset on CD Changer. If CD
Changer still does not operate, see
your Local Authorized Rockford
Fosgate Dealer
IR REMOTE TROUBLESHOOTING
SYMPTOM
IR Remote has
poor range
IR Remote does
not work
DIAGNOSIS
REMEDY
Batteries are weak
Check battery condition and replace
as necessary with (1) CR2025 (+3 volt)
battery
Excessive dirt or dust on
IR Remote transmitter
lens
Clean transmitter lens with Plexiglas
solution and a non-abrasive cloth as
necessary
Excessive dirt or dust on
source unit receiver lens
Clean receiver lens (compact disc
logo) with Plexiglas solution and a
non-abrasive cloth as necessary
IR remote is outside of
optimum transmitting
range
Operate IR remote within about 15 ft
and ±45˚ from horizontal of the
Source unit’s faceplate
High sunlight conditions
Operate IR remote closer to Source
Unit
Batteries are dead
Check battery condition and replace
as necessary with (1) CR2025 (+3 volt)
battery
Battery is installed incorrectly
Check battery installation and repair
as necessary (polarity is indicated on
pc board)
(LED does not
illuminate)
– 46 –
LIMITED WARRANTY INFORMATION
Rockford Corporation offers a limited warranty on Rockford Fosgate products on
the following terms:
Length of Warranty
1 year on source units
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by
Authorized Rockford Fosgate Dealers in the United States of America or its
possessions. Product purchased by consumers from an Authorized Rockford
Fosgate Dealer in another country are covered only by that country’s Distributor
and not by Rockford Corporation.
Who is Covered
This warranty covers only the original purchaser of Rockford product purchased
from an Authorized Rockford Fosgate Dealer in the United States. In order to
receive service, the purchaser must provide Rockford with a copy of the receipt
stating the customer name, dealer name, product purchased and date of purchase.
Products found to be defective during the warranty period will be repaired or
replaced (with a product deemed to be equivalent) at Rockford's discretion.
What is Not Covered
1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford
Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer
Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and
merchantability are limited in duration to the period of the express warranty
set forth above. Some states do not allow limitations on the length of an implied
warranty, so this limitation may not apply. No person is authorized
to assume for Rockford Fosgate any other liability in connection with the sale of
the product.
How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an
RA# (Return Authorization number) to return any product to Rockford Fosgate.
You are responsible for shipment of product to Rockford.
Ship to: Electronics
Rockford Corporation
Warranty Repair Department
2055 E. 5th Street
Tempe, AZ 85281
RA#: ________________________
– 47 –
Ship to: Speakers
Rockford Acoustic Design
Speaker Returns
2356 Turner Ave NW
Walker, Michigan 49544
RA#: ____________________
International Instructions
ESPAÑOL
FUNCIONAMIENTO BASICO
ENCENDIDO
Funcionamiento
1. Pulse el botón OFF para activar la unidad.
2. Pulse el botón OFF de nuevo para apagar la unidad.
Activación por cualquier tecla
Pulse cualquier botón del frontal (excepto EJECT, DISP) para activar la
unidad.
Display LCD
Cuando la unidad está apagada (en modo sleep) se muestra el reloj en display.
CONTROL DE VOLUMEN / CONTROLES DE TONO
El botón de volumen es un controlador multifunción que
permite ajustar el Volumen, el Control de Tonos y
Opciones de Ajuste (ver siguiente página).
Para Controlar el Volumen
1. Gire el botón VOLUME en el sentido de las agujas del
reloj para aumentar el volumen.
2. Gire el botón VOLUME en el sentido contrario a las
agujas del reloj para disminuir el volumen.
Para ajustar les Controles de Tono
1. Pulse el botón VOLUME repetidamente para acceder cíclicamente a BASS > TREBLE > BALANCE > FADER > SUM** > VOLUME.
2. Gire el botón VOLUME en el sentido de las agujas del reloj para aumentar la función seleccionada.
3. Gire el botón VOLUME en el sentido contrario a las agujas del reloj para disminuir
la función seleccionada.
Memoria de Tono de Fuente
Pueden memorizarse ajustes indedientes de Graves y Agudos para las fuentes TUNER
/ CD / PLAYER / CD CHANGER / AUX.
NOTA: Si no se hace ningún ajuste durante 5 segundos, el botón MENU pasará a
modo VOLUME.
– 48 –
OPCIONES DE AJUSTE
La lista inferior muestra las Opciones de Ajuste por defecto. Los términos entre paréntesis son las opciones alternativas de cada Opción de Ajuste. Para seleccionar estas alternativas vea la sección Selección de Opciones de Sintonizador en la página 30.
• DX [LOCAL] — Ajusta la sensibilidad del sintonizador para condiciones rurales donde
las señales son débiles . En la posición Local se ajusta para condiciones de ciudad,
donde las señales de radio son más potentes.
• AMERICAS [EUR/AUST] — Permite la sintonización de frecuencias en diferentes
partes del mundo.
• P. PLAY [EJ MUTE] — Pasa a modo Sintonizador tras pulsar la tecla de expulsión de
CD. En la posición Eject Mute no se sintoniza la radio tras expulsar el CD.
• VIDEO OFF [VIDEO 1, VIDEO 2] — Desactiva las entradas de Video RCA. VIDEO 1
y 2 le permiten conectar fuentes de vídeo externas (TV, Nintendo, etc.) y pasar sus salidas a través del sistema A/V del automóvil.
• V/BAR ON [V/BAR OFF] — Muestra la barra de Volumen en la parte inferior del Panel
Frontal. La opción Volume Bar Off la desactiva.
• INI VOL 15 — Ajusta el Volumen Inicial Máximo al activar la unidad. Si el volumen
al encender el aparato es inferior al ajustado, ese nivel de volumen se mantiene. Por
el contrario, si el volumen es superior al ajustado, la salida se verá decrementada al
Volumen Inicial Máximo. Esta función previene de encendidos eventuales a alto volumen y t permite ajustes de alto nivel cuando utilizamos otro preamplificador como sistema principal de volumen del sistema.
• CONTRAST [VIEW 6] — Controla el ángulo de visión del display.
• FLAT [80HZ] — Permite que el tercer par de cables de salida de previo RCA sea de
toda banda, mientras que la posición 80Hz filtra esta salida para subwoofer.
• PANEL AUTO [PANEL MANU] — Abre y cierra automáticamente el panel frontal para
cargar o descargar CDs, mientras que la posición PANEL MANU le permite dejar abierto el panel y expulsar o introducir los CDs manualmente.
• AUX1 IN 0 [+6, –6] — Le permite realzar o atenuar el volumen de entrada de una
fuente de audio externa. Es de gran utilidad con fuentes auxiliares como:
Reproductores MP3, video juegos, etc.
• AUX2 IN 0 [+6, –6] — Igual que AUX1 IN.
Selección de Opciones de Ajuste
1. Pulse y mantenga el botón VOLUME durante 1 segundo hasta que aparezca DX en
el display (esta es la primera opción de Sintonizador).
2. Pulse el botón VOLUME repetidamente para pasar por las Opciones de Sintonizador
listadas anteriormente.
3. Para cambiar une Opción de Sintonizador específica, pulse los botones Up o Down
para seleccionar una Opción Alternativa.
4. Una vez seleccionada la Opción de Sintonizador deseada espere 5 segundos y la
opción se memorizará automáticamente y la unidad volverá al último Panel de
Modo seleccionado.
– 49 –
FUNCIONAMIENTO DEL RELOJ
Ajuste de las horas
1. Pulse y mantenga el botón DISP durante 1 segundo hasta
que parpadeen las horas.
2. Pulse los botones UP o DOWN para ajustar las horas.
Ajuste de los minutos
1. Pulse y mantenga el botón DISP durante 1 segundo hasta
que parpadeen los minutos.
2. Pulse los botones UP o DOWN para ajustar los minutos.
SPara guardar los ajustes de Reloj
Una vez que el reloj ha parpadeadod durante 5 segundos, los ajustes son salvados.
Consideraione
1. El reloj se visualiza aunque se desactive la unidad con el botón off.
2. Si pulsa el botón DISP el reloj se visualizará durante 5 segundos cuando está seleccionado otro display or defecto (consulte DISPLAY POR DEFECTO/RECALL en esta
sección para más información sobre programación del display por defecto).
BOTÓN PUNCH
El botón Punch permite realzar la respuesta de audio de graves y agudos a
todos los niveles de escucha.
Funcionamiento
1. Pulse el botón PUNCH para activar el Loudness.
2. Pulse de nuevo el botón PUNCH para desactivar el Loudness.
Display
El LCD muestra "Punch" cuando el Loudness está activo.
BOTÓN MUTE
Funcionamiento
1. Pulse el botón MUTE para silenciar el volumen.
2. Pulse el botón MUTE una segunda vez para que el audio
vuelva al nivel anterior.
Display LCD
El LCD mostrará MUTE hasta que se cancele la función.
SELECCIÓN DE MODO
Pulse el botón MODE repetidamente para pasar por los siguientes modos:
• CDP PLAY — Activa el reproductor de CD cuando un CD es insertado.
• AUX1 — Permite el paso al sistema de sonido de una fuente de audio externa.
• AUX2 — Permite el paso al sistema de sonido de una segunda fuente de audio externa.
• FM1 — Activa el Sintonizador.
– 50 –
FUNCIONAMIENTO BASICO DEL REPRODUCTOR DE CD
NOTA: Los RFX NO REPRODUCEN CDs DE AUDIO creados en un Macintosh
Para reproducir un CD
1. Pulse el botón OPEN y el Panel Frontal se deslizará para abrirse.
2. Inserte un CD y el Panel Frontal se deslizará para cerrarse tras 5 segundos.
3. Se autoseleccionará CDP PLAY y comenzará la reproducción del CD desde la pista 1.
4. Utilice los botones UP y DOWN para cambiar la pista.
Reproducción Aleatoria de Pistas
Una vez comenzada la reproducción, pulse el botón RDM y comenzará la reproducción en modo aleatorio.
Repetición de una Pista
Mientras el CD está reproduciendo la pista que usted desea repetir, pulse
el botón RPT y está pista se repetirá hasta que pulse de nuevo el botón RPT.
Expulsión del Disco
1. Pulse el botón OPEN durante 1 segundo y el Panel
Frontal se desñizará para abrirse y expulsar el disco.
2. Pulse el botón OPEN mientras el Panel Frontal está abierto para cerrarlo, o bien espere 5 segundos y se cerrará
automáticamente (en Modo AUTO).
NOTA: Si se pulsa OPEN por menos de 1 segundo en modo Panel Auto, el
Panel frontal se abre y no se activa la expulsión.
FUNCIONAMIENTO AVANZADO DEL REPRODUCTOR DE CD
MODO CD PLAYER
Modo CD Player
1. Pulse el botón MODE hasta que se muestre en el display CDP
PLAY.
2. Comenzará a reproducirse el disco (si no hubiera disco, la fuente
pasaría al Modo AUX1).
Display LCD
1. El número de pista y el tiempo transcurrido se muestra durante 5 segundos.
2. Tras 5 segundos, el LCD pasará a su display por defecto.
Inserción de CD y Reproducción
1. Inserte un disco y aparecerá CDP PLAY.
2. Comenzará a reproducirse el disco desde la pista 1.
Función Wake - Up (con la unidad apagada
1. Inserte un disco con la unidad apagada.
2. Comenzará a reproducirse el disco desde la pista 1.
– 51 –
EXPULSIÓN DEL DISCO*
Expulsión del Disco
1. Pulse el botón OPEN y mantengalo durante 1 segundo para expulsar el disco.
2. La unidad pasará a modo P.PLAY o EJ MUTE (vea OPCIONES DE SINTONIZADOR
en este manual para más información sobre programación del modo por defecto).
3. Aunque esté apagado el encendido del coche aún puede expulsar el disco pulsando
OPEN.
Display LCD
1. El LCD mostrará EJECT durante 5 segundos.
2. Tras 5 segundos, el LCD volverá a su estado anterior.
Auto Recarga
1. Si se deja el CD en la posición de expulsión durante más de 10 segundos el disco
se vuelve a introducir automáticamente en el reproductor.
2. El funcionamiento de auto recarga no vuelve a comenzar la reproducción ni afectará a otros modos (Excepto el Modo EJ MUTE).
SELECCIÓN DE PISTA CDP/CDX*
Selección de Pista
1. Pulse el botón UP para seleccionar la siguiente pista del disco.
2. Pulse el botón DOWN para seleccionar la anterior pista del disc.
Display LCD
1. El número de pista y el tiempo transcurrido se muestra durante 5 segundos.
2. Tras 5 segundos, el LCD volverá a su estado anterior.
Consideracione
MODO CDP: el reproductor volverá a reproducir la canción 1 tras reproducir la última canción.
MODO CDX: Cuando se reproduce la última canción del CD actual, se reproducirá la
primera canción del disco siguiente.
REPRODUCCIÓN ALEATORIA DE PISTA Y DISCO CDP/CDX*
Reproducción Aleatoria
1. Pulse el botón RDM para comenzar la reproducción aleatoria.
2. La unidad escogerá y reproducirá las pistas de todos los discos
disponibles de modo aleatorio hasta que se cancela el modo.
Cancelación de Modo Aleatorio
Pulse el botón RDM una segunda vez para cancelar el modo de reproducción aleatoria.
Display LCD
El LCD mostrará RDM hasta que se cancele la función.
*NOTA: Esta función trabaja idénticamente en los modos CD Player y CD Changer.
– 52 –
AVANCE / RETROCESO DE PISTA CDP/CDX*
Avance / Retroceso
Pulse el botón DOWN y el reproductor se situará al inicio de la pista actual, siempre que esta
haya estado reproduciéndose durante al menos 10 segundos. Si la pista está en sus primeros 109
segundos, pulsando el botón DOWN pasaremos al inicio de la pista anterior.
Avance / Retroceso Rápido
1. Pulse y mantenga el botón UP para avanzar dentro de la pista.
2. Pulse y mantenga el botón DOWN para retroceder dentro de la pista.
Display LCD
El LCD mostrará el tiempo transcurrido al pulsarse los botones UP o DOWN.
REPETICIÓN DE PISTA CDP/CDX*
La repetición de pista reproduce de forma repetida la pista actual.
Repetición de Pista
1. Pulse el botón RPT para empezar el modo Repetición de Canción.
2. Pulse el botón RPT por segunda vez para cancelar el modo de repetición de pista.
Presionando los botones UP o DOWN también cancelará este modo.
Display LCD
La pantalla LCD visualizará RPT hasta que la función es cancelada.
TRACK SCAN CDP/CDX *
La función Track Scan reproduce los 10 segundos iniciales de cada canción del disco
seleccionado saltando automáticamente de canción a canción.
Track Scan
1. Pulse el botón SCAN para empezar el modo track scan.
2. Track scan continuará hasta que sea cancelado.
Cancelación de Track Scan
1. Pulse el botón SCAN por segunda vez para cancelar el modo.
Display LCD
1.
La pantalla LCD visualizará SCAN mientras la función no sea cancelada.
2.
La pantalla LCD visualizará el número de canción y el tiempo de la misma
durante 5 segundos cada vez que empiece una nueva pista.
3.
Tras 5 segundos la pantalla LCD volverá a su estado por defecto.
*NOTA: Esta función es idéntica en la reproducción en modo CD Player y cargador de CD
– 53 –
PAUSA CDP/CDX *
Pausa CD
1. Pulse el botón MUTE para hacer pausa en la reproducción del CD.
2. Pulse el botón MUTE por segunda vez para reanudar la reproducción.
Display LCD
La pantalla LCD visualizará PAUSE y el número de canción mientras la función no es
cancelada.
MEMORIA DE TÍTULO DE DISCO PROGRAMABLE
El título de un CD puede ser memorizado con un máximo de 10
caracteres. Un máximo de 100 títulos pueden ser memorizados.
Memoria del Título de Disco
1. Pulse y mantenga el botón BAND durante 1 segundo y el
primer dígito de los 10 empezará a parpadear.
2. Pulse el botón DISP para circular de forma cíclica por los
siguientes caracteres:
Type 1: (espacio)ABCDEFGHIJKLMNOPQRSTUVWXYZ
Type 2:
abcdefghijklmnopqrstuvwxyz
Type 3:
0123456789
Type 4:
/\\.+?!*’")
3. Gire el control de VOLUMEN para seleccionar el siguiente
carácter.
4. Pulse el botón VOLUMEN para moverse al siguiente espacio.
5. Pulse y mantenga durante 1 segunto el control de VOLUMEN para memorizar el título en la memoria.
Borrado del Título de Disco
1. Pulse y mantenga durante 1 segundo el botón de MUTE.
2. Gire el control de VOLUMEN para seleccionar el título a ser
borrado.
3. Pulse y mantenga durante 1 segundo el control VOLUMEN para borrar el título.
*NOTA: Esta función es idéntica en la reproducción en modo CD Player y cargador de CD
– 54 –
FUNCIONAMIENTO BASICO DEL REPRODUCTOR MP3
NOTA: los reproductores RFX NO reconocen CD’s de MP3 creados en un ordenador
Macintosh
REPRODUCCIÓN DE UN DISCO MP3
1. Pulse OPEN para abrir el panal frontal.
2. Inserte un disco MP3 y el panel se cerrará tras 5 segundos, o pulse OPEN para cerrarlo
de forma inmediata.
3. CDP PLAY se auto activará y empezará la reproducción de la pista 1 del disco MP3.
4. Pulse el botón UP o DOWN para adelantar o retroceder canciones.
Reproducción de canciones de forma aleatoria (Random
Tras insertar un disco MP3 pulse RDM para que el reproductor empiece a reproducir
canciones de forma aleatoria.
Repetición de canción
Mientras el disco está reproduciendo la canción que quiere repetir, pulse el botón RPT y el CD
repetirá la canción hasta que presione RPT otra vez.
Pausa en una canción
Pulse el botón MUTE para detener momentáneamente la canción. Pulse de nuevo
MUTE para continuar la reproducción.
Expulsar un Disco
1. Pulse y mantenga el botón OPEN durante 1 segundo. El panel frontal se abrirá y
el disco será expulsado.
2. Tras retirar el disco pulse el botón OPEN para cerrar el panel frontal.
ESTRUCTURA DE DIRECTORIOS
Los directorios MP3 pueden componerse de tres niveles y comprenden tres aspectos:
(1) la raíz o Root, (2) carpetas o Folders, y (3) canciones o Songs. Las canciones son
reproducidas en el orden y nivel en que son localizadas. Todas las canciones contenidas en el nivel 2 son reproducidas antes de llegar al nivel 3. Estos niveles hacen
referencia a tener canciones en carpetas y subcarpetas. Cualquier canción en un
nivel inferior al nivel 3 es tratada como si estuviera contenida en el nivel 3, pero se
reproducirá en el orden que su nivel le marque.
– 55 –
GESTION DE FICHEROS MP3
GESTION DEL DIRECTORIO MP3
EL NIVEL RAÍZ
El nivel Raíz contiene el nombre del disco, pero ninguna información
sobre canciones o carpetas. La primera canción del disco se reproducirá automáticamente cuando el disco es insertado y continuará con
ella hasta que se seleccione otra canción.
Selección Directa de canción por Títul
El sistema de gestión de ficheros MP3 está basado en carpetas, de manera similar al sistema de gestión de ficheros de Windows™. Debido a ello, las teclas UP y DOWN funcionan aquí de manera diferente a como lo hacen en los modos CD o Tuner. En vez de
avnazar o retroceder en el disco, lo que hacen es avanzar o retroceder en la lista de
ficheros.
1. Pulse el botón ROOT y el display mostrará el nombre del
disco. El display pasará a continuación a mostrar el nomber
de la primera carpeta del disco durante 5 segundos. Si
durante este tiempo no se realiza ninguna acción el display
pasará a mostrar la canción en reproducción.
2. Mientras se muestra el nombre de la primera carpeta, pulse
el botón DOWN para avanzar alfabéticamente (A a Z) a
través de la lista de carpetas. Pulse el botón UP para avanzar en sentido opuesto.
3. Pulse el botón ENTER y se visualizará el nombre de la primera canción de la carpeta seleccionada.
4. Pulse el botón DOWN para avanzar numéricamente (1 a 10 o mayor) a través de las
canciones contenidas en la carpeta seleccionada. Pulse el botón UP para avanzar en
sentido opuesto 10+ a 1.
NOTA: Dependiendo del tipo de CD-R, condición superficial CD y el funcionamiento y la condición
CD del programa de escritura, los CD-R pueden no funcionar normalmente.
NOTA: El nombre de la canción permanece en pantalla durante 5 segundos en los pasos 1 a 4. Si no se
realiza ninguna acción durante este periodo, el display volverá a mostrar la canción actual.
5. Pulse ENTER para seleccionar la canción y esta empezará a reproducirse.
NOTA: Si no hay un disco cargado, se mostrará NO CD en el display y la fuente pasará a modo TUNER.
Botón DOWN
Cuando reproduzca una pista MP3 en el RFX9300 o 9400, pulsando el botón DOWN
accederá al principio de la pista anterior. Si por ejemplo está escuchando la pista 3, pulsando el botón DOWN accederá al inicio de la pista 2, no al principio de la pista 3.
De todas maneras, si reproduce una pista de un CD de audio convencional y pulsa el
botón DOWN, accederá al comienzo de la pista en curso, siempre que esta haya estado
sonando al menos 10 segundos. Si la pista está sus primeros 10 segundos del inicio, pulsando el botón DOWN accederemos al inicio de la pista anterior.
Avance / Retroceso Rápido
Esta función es posible en modo MP3 pero no se visualiza el tiempo en el display y no
hay sonido durante la búsqueda.
– 56 –
ESTION DEL DIRECTORIO MP3 (CONT’D)
Máxima Velocidad de Escritura y Profundidad de Bit
La máxima velocidad de copia a la que se ha grabado el CD ROM aceptable por las
unidades RFX es de 12X. La gama de transferencia de bits posible es de
32kb/seg–320kb/seg. Para que el display funcione de manera óptima, antes de crear un
fichero con el programa de copia del CDR, seleccione el menú de propiedades y ficheros.
Utilice el formato de fichero ISO9660 y seleccione en su PC la opción de Nombres Largos
de Ficheros. Asi tendrá un máximo de 16 carácteres en pantalla.
NOTA: Asegúrese que el CD MP3 se crea como un disco de datos y NO de audio. .
Titulación Programada
No está disponible la titulaci ón en modo MP3. Por defecto se puede mostrar la pista /
tiempo ó el título del disco.
FUNCIONAMIENTO DE LA RADIO
SELECCION DE BANDA
Pulse el botón BAND repetidamente para pasar por FM1, FM2, y AM. Al seleccionar
un banda se activa la misma.
OPCIONES DE SINTONIZADOR
El ajuste por defecto es DX y AMERICAS. Las opciones entre corchetes son alternativas.
• DX [LOCAL]
• AMERICAS [EUR/AUST]
Selección de las Opciones de Sintonizador
1. Pulse y mantenga el control VOLUME durante 1 segundo.
2. Pulse el botón VOLUME repetidamente para pasar por las Opciones Setup (las otras
opciones Setup no afectan al modo Tuner).
3. Para cambiar una Opción, pulse el botón UP o DOWN.
4. Una vez hechas las selecciones, espere 5 segundos y el Panel Frontal volverá al último modo mostrado.
BOTONES PRESET 1–10
Cada modo Tuner — FM1, FM2, and AM — tiene 10 presintonías hasta un total de 30.
Para guardar un Preset
1. Sintonice la emisora que desee grabar.
2. Pulse y mantenga cualquier botón de preset durante 5 segundos y quedará grabada
la emisora en ese número de preset.
– 57 –
FUNCIONAMIENTO DE LOS BOTONES
Funcionamiento
1. Pulse y mantenga el control VOLUME durante 1 segundo para entrar en el modo de
Opciones de Sintonizador.
2. Continue pulsando el botón VOLUME para pasar a través de TUNER OPTIONS DX >
AMERICAS > P.PLAY > V/BAR > INI/VOL > CONTRAST > FLAT > PANEL AUTO > AUX1
IN > AUX2 IN.
3. Pulse el botón SEEK para seleccionar MODE 1 o MODE 2.
AUTO STORE
Si desea que el sintonizador seleccione las 10 emisoras más potentes y las asigne a los botones
de Preset 1–10, puede usar la función Auto Store.
Auto Store
1. Pulse el botón AS una vez y el sintonizador realizará una búsqueda por todo el dial.
2. Auto Store almacena las emisoras con independencia de la banda (FM1/FM2/AM).
TITULO DE EMISORA PROGRAMABLE
Puede memorizarce el nombre de emisora con 10 carácteres. El número máximo de titulos memorizados es de 100.
Memoria de Título de Emisora
1. Pulse y mantenga el botón BAND durante 1 segundo y el primer dígito de los 10
empezará a parpadear.
2. Pulse el botón DISP para circular de forma cíclica por los siguientes caracteres:
Type 1:
(espacio)ABCDEFGHIJKLMNOPQRSTUVWXYZ
Type 2:
abcdefghijklmnopqrstuvwxyz
Type 3:
0123456789
Type 4:
/\\.+?!*’")
3. Gire el control de VOLUMEN para seleccionar el siguiente carácter.
4. Pulse el botón VOLUMEN para moverse al siguiente espacio.
5. Pulse y mantenga durante 1 segunto el control de VOLUMEN para memorizar el título en la memoria.
Borrado de un Título de Emisora
1. Pulse y mantenga el botón MUTE durante 1 segundo.
2. Gire el control VOLUME para seleccionar el título a borrar.
3. Pulse y mantenga el control VOLUME durante 1 segundo para borrar el título.
– 58 –
MODO AF / TP
El modo TP (Traffic Program) conmuta automáticamente para recibir Partes de Tráfico
independientemente del modo en que esté la unidad. EON TA son emisoras que no tienen
TRAFFIC PROGRAM pero pueden suministrar información de otras emisoras que lo
tienen. El modo AF (Frecuencias Alternativas) compara el nivel de señal de la emisora
actual con el de otras frecuencias alternativas de la misma emisora (ver Modo PTY). Si la
AF proporciona mejor señal que la frecuencia actual, la unidad conmuta a la frecuencia
más fuerte.
Modo Programa de Tráfico (TP)
1. Pulse el botón AF/TP para activar el Modo TP, y de nuevo para desactivarlo.
2. Cuando parpadea TP, el modo TP está activo y no se reciben datos TP.
3. Las funciones SEEK o AS solo pararán en emisoras con TP o EON TA.
Modo de Frecuencias Alternativas (AF)
1. Pulse y mnatenga el botón AF/TP duramnte 1 segundo para activar el Modo AF.
2. Pulse y mantenga AF/TP de nuevo durante 1 segundo para desactivar el modo AF.
MODO PTY
PTY (Tipo de Programa) permite la búsqueda de emisoras por MUSIC MODE o SPEECH MODE.
Music Mode clasifica las emisoras en Pop, Rock, Música Moderna, Ligera, Clasica, y otras. Speech
Mode clasifica las emisoras en Noticias, Casos, Información, Deportes, Educación, Drama,
Cultura, y Ciencia. REG (Modo Región) conmuta la emisora a otra con el mismo PI CODE (emisora que proporciona exactamente el mismo programa) pero en una REGION diferente.
Modo Tipo de Programa
1. Pulse el botón PTY para pasar por MUSIC, SPEECH, y PTY OFF.
2. Pulse el botón PRESET que corresponda al tipo de modo (ver tabla inferior).
Modo Region
1. Pulse y mantenga el botón PTY durante 1 segundo para activar el Modo Region.
2. Pulse y mantenga el botón PTY de nuevo para desactivar el Modo Region.
NOTA: El display LCD mostrará “REG” cuando los modos AF y REG están activos.
– 59 –
FRANÇAIS
OPERATION DE BASE
INTER MARCHE ARRET
Opération
1. Appuyer sur le bouton OFF pour mettre la radio en fonction.
2. Appuyer à nouveau sur le bouton OFF pour mettre la radio hors service.
N’importe quels bouton allume
Appuyez sur n’importe lequel des boutons de la façade (excepté EJECT,
DISP) pour mettre en service la radio quand elle est en mode veille.
Ecran LCD (cristaux liquides)
Quand la radio est hors service (ou en mode veille), l’horloge reste en fonction.
BOUTON DE VOLUME / REGLAGE DE LA TONALITE
Le bouton de Volume est multifonctions, il permet d’ajuster le Volume, la Tonalité et de Choisir des Options
(voir page suivante).
Contrôle du Volume
1. Tourner le bouton de VOLUME dans le sens des
aiguilles d’une montre pour incrémenter le niveau
sonore.
2. Tourner le bouton de VOLUME dans le sens inverse
des aiguilles d’une montre pour décrémenter le
niveau sonore.
Réglage de la Tonalité
1. Appuyer sur le bouton de VOLUME de façon répétée pour faire apparaître les
indications BASS > TREBLE > BALANCE > FADER > SUM** > VOLUME.
2. Tourner le bouton de VOLUME dans le sens des aiguilles d’une montre pour
incrémenter le réglage de la fonction sélectionnée.
3. Tourner le bouton de VOLUME dans le sens inverse des aiguilles d’une montre pour décrémenter le réglage de la fonction sélectionnée.
Mémoire de la Tonalité de la Source
Des réglages individuels des Basses & Aigus peuvent être mémorisés pour TUNER
/ CD / PLAYER / CHARGEUR CD / AUX.
NOTE: Si aucun réglage n’est fait pendant un laps de 5 secondes, le bouton de MENU revient en mode
réglage de VOLUME.
– 60 –
OPTIONS DE REGLAGE
La liste ci-dessous montre les différentes options de réglages par défaut. Les différents
choix d’options de réglage sont entre crochets. Pour les sélectionner, voir sélection des
Options du Tuner en page 30.
• DX [LOCAL] — Ajuste la sensibilité du tuner des conditions rurales où l’émission
des radios est faible ou bien pour des conditions citadines où il y a plusieurs radios
à forte émission.
• AMERICAS [EUR/AUST] — Permet de changer le mode de réception dans les différentes parties du monde.
• P. PLAY [EJ MUTE] — Active le tuner après éjection d’un CD tandis que Eject Mute
désactive le tuner après l’éjection d’un CD.
• VIDEO OFF [VIDEO 1, VIDEO 2] — Désactive les entrées RCA. VIDEO 1 et 2 permettent de connecter deux sources vidéo externes (TV, Nintendo, etc.) et de diriger
leurs sorties vers le système A/V de votre voiture.
• V/BAR ON [V/BAR OFF] — fait Apparaître la barre de volume au bas de la façade
de façon permanente tandis que le Volume Bar Off la masque.
• INI VOL 15 — Réglage du volume initial maximum lors de la mise sous tension de
l’appareil. Si le volume sélectionné lors de la mise hors tension de l’appareille est
moins élevé que le volume initial maximum alors le volume initial maximum ne sera
pas utilisé à l’allumage de l’appareil. Si le volume sélectionné est plus élevé que le
volume initial maximum alors le volume initial maximum sera utilisé à l’allumage de
l’appareil. Cette option évite les accidents due à un volume trop élevé à l’allumage
mais permet de conserver la sélection de volume important dans le cas ou un autre
préamplificateur contrôle le volume de façon principal.
• CONTRAST [VIEW 6] — Contrôle de l’angle de vue de l’afficheur.
• FLAT [80HZ] — Permet de connecter une troisième paire de sorties RCA large
bande ou passe-bas 80Hz en vue de l’utilisation d’un subwoofer.
• PANEL AUTO [PANEL MANU] — Ouvre et ferme automatiquement le panneau
lors de la mise ou de l’éjection d’un CD tandis que PANEL MANU permet de laisser le panneau ouvert et de charger ou décharger un CD manuellement.
• AUX1 IN 0 [+6, –6] — Permet d’augmenter le volume d’entrée d’une source audio
extern faible ou d’en diminuer le niveau. Utile pour des sources externes: MP3
players, video games, VCPs, etc.
• AUX2 IN 0 [+6, –6] — De même que AUX1 IN.
Sélection du Menu d’Option
1. Appuyer sur le bouton de VOLUME et le laisser enfoncé pendant 1 seconde
jusqu'à l’apparition de DX (c’est la première option de tuner).
2. Appuyer sur le bouton de VOLUME de façon répété pour faire apparaître la liste des
option du tuner.
3. Pour changer d’options du tuner appuyer sur les boutons Up ou Down.
4. Dès que vous avez sélectionné l’Option du Tuner de votre choix, attender 5 secondes, l’Option du Tuner sera automatiquement sauveguardé et vous retournerez
dans le dernier Mode sélectionné.
– 61 –
REGLAGE DE L’HEURE
Reglage des heures
1. Appuyer sur le bouton DISP et le maintenir enfoncé pendant 1
seconde jusqu'à ce que l’affichage des heures clignote.
2. Appuyer sur le bouton UP ou DOWN pour régler l’heure désirée.
Reglage des minutes
1. Appuyer sur le bouton DISP une seconde foi pour que l’affichage
des minutes clignote.
2. Appuyer sur le bouton UP ou DOWN pour régler les minutes.
Mémoriser l’Heure Réglée
Apres que l’horloges est clignotée pendant 5 secondes, l’heure réglée est mémorisée.
Remarques
1. L’affichage de l’horloge reste actif même quand la radio est éteinte.
2. Appuyer sur le bouton DISP pendant 5 secondes quand un autre affichage par défaut est
sélectionné (voir DEFAULT/RECALL DISPLAY dans cette section pour plus d’information sur
les affichages par défaut).
BOUTON PUNCH
Le bouton Punch permet de corriger le réglage des basses et des aigus d’une
sortie audio pour écouter à n’importe quel niveau.
Opération
1. Appuyer sur le bouton Punch pour activer la correction physiologique
(Loudness).
2. Appuyer sur le bouton PUNCH pour désactiver la correction physiologique (Loudness).
Afficheur
L’écran affichera “Punch” quand la correction physiologique (Loudness) sera active.
BOUTON MUTE
Opération
1. Appuyer sur le bouton MUTE pour baisser le volume
2. Appuyer sur le bouton MUTE une seconde foi pour revenir au
niveau sonore initial.
Ecran LCD (cristaux liquides)
L’écran affichera MUTE jusqu'à ce que la fonction soit désactivée.
SELECTION DES MODES
Appuyer sur le bouton MODE de façon répérté pour faire apparaître les modes suivants:
• CDP PLAY — Permet la lecture d’un CD si il y en a un d’inséré
• AUX1 — Permet la connexion d’une source audio externe au système.
• AUX2 — Permet la connexion d’une seconde source audio externe au système.
• FM1 — Active le Tuner.
– 62 –
OPERATION DU LECTEUR CD — BASIC
NOTE: Le lecteur RFX LIRA LES CD crée sur un Macintosh
Pour Lire un CD
1. Appuyer sur le bouton OPEN et la Façade Avant s’ouvrira.
2. Insérer un CD et la Façade Avant se fermera après 5 secondes.
3. CDP PLAY sera sélectionné automatiquement et le CD commencera la lecture
immédiatement sur la piste 1.
4. Utiliser les boutons UP et DOWN pour changer de piste.
Lecture de piste Aléatoire
Lorsqu’un CD est en lecture, appuyer sur le bouton RDM et le lecteur
lira des pistes de façon aléatoire.
Pour Répéter une Piste
Pendant la lecture d’un morceau, appuyer sur le bouton RPT, la piste sera
répété jusqu'à ce que vous appuyez une nouvelle foi sur le bouton RPT.
Pour Ejecter un CD
1. Appuyer sur le bouton OPEN pendant 1 seconde, la façade
avant s’ouvrira et le CD sera éjecté.
2. Appuyer sur le bouton OPEN pendant que la façade est
ouverte pour la fermer, ou attendre 5 secondes et la façade
se fermera automatiquement (en Mode AUTO).
NOTE: Si le bouton OPEN est actionné moins d’une seconde alors que la façade
est en mode Auto, la façade s’ouvrira mais le il n’y aura pas d’éjection.
OPERATION DU LECTEUR CD — ADVANCED
MODES DU LECTEUR CD
Mode du Lecteur CD
1. Appuyer sur le bouton MODE jusqu'à ce que CDP PLAY apparaisse.
2. La lecture du CD commencera (si il n’y a pas de CD dans le
lecteur, le mode AUX1 sera sélectionné).
Ecran LCD (cristaux liquides)
1. Le numéro du morceau et sa durée seront affichés pendant 5 secondes.
2. Après 5 secondes, l’écran reviendra à l’affichage par défaut.
Insertion et Lecture d’un CD
1. Insérer un CD et CDP PLAY apparaîtra.
2. La lecture du CD commencera au piste 1.
Caractéristique de mise sous tention (quand l’appareille est éteint)
1. Insérer un disque quand l’appareil est éteint.
2. La lecture du disque commencera au piste 1.
– 63 –
EJECTION DU DISQUE*
Ejection du Disque
1. Appuyer sur le bouton OPEN attendre 1 seconde l’éjection du CD.
2. L’appareil reviendra en mode P.PLAY ou EJ MUTE (voir OPTIONS TUNER dans ce
manuel pour plus d’information sur les modes par défaut).
3. Après avoir coupeé le contact de votre voiture, vous pourrez encore éjecter le
disque en appuyant sur OPEN.
Ecran LCD (cristaux liquides
1. EJECT sera affiché pendant 5 secondes.
2. Apres 5 secondes, l’affichage précédent réapparaîtra.
Recharge Automatique
1. Si le CD reste en position éjecté plus de 10 secondes le disque sera automatiquement rechargé dans le lecteur.
2. L’opération de recharge automatique ne fera pas redémarrer la lecture du CD ni
n’affectera aucun modes courants (excepté le Mode EJ MUTE).
CDP/CDX SELECTION DE PISTE*
Sélection de Piste
1. Appuyer sur le bouton UP pour sélectionner la piste suivante sur le disque.
2. Appuyer sur le bouton DOWN pour sélectionner la piste précédente sur le disque.
Ecran LCD (cristaux liquides)
1. Le numéro de la piste et le décompte du temps sont affichés pour 5 secondes.
2. Apres 5 secondes l’écran revient en affichage par défaut.
Remarques
CDP MODE: La lecture reprendra à la piste 1 à la fin de CD.
CDX MODE: Apres la dernière piste d’un CD, le disque suivant du chargeur démarrera
en lecture sur la piste 1.
CDP/CDX CHOIX ALEATOIRE DE DISQUE ET DE PISTES*
Aléatoire
1. Appuyer sur le bouton RDM pour activer le mode Aléatoire.
2. Le mode Aléatoire restera actif tant que vous ne le désactiverez
pas.
Désactiver le Mode Aléatoire
Appuyer sur le bouton RDM une seconde foi pour désactiver le mode Aléatoire.
Ecran LCD (cristaux liquides
RDM sera affiché tant que la fonction ne sera pas désactivée.
*NOTE: Cette fonction est identique pour les lecteurs de CD ainsi que pour les chargeurs de CD.
– 64 –
CDP/CDX SELECTION RAPIDE DE PISTE*
Avance/Retou
Appuyer sur le bouton DOWN et le lecteur reprendra au début de la même piste a condition que
celle-ci est été lu plus de 10 secondes. Appuyer sur le bouton DOWN avant que la piste est atteint
10 secondes de lecture et le lecteur reprendra au début de la piste précédente.
Avance/Retour rapide
1. Appuyer sur le bouton UP et le maintenir enfoncé pour obtenir l’avance rapide de la piste.
2. Appuyer sur le bouton DOWN et le maintenir enfoncé pour obtenir le retour rapide
de la piste.
Ecran LCD (cristaux liquides
Le décompte du temps sera affiché aussi longtemps que les boutons UP et DOWN resteront
enfoncés.
CDP/CDPX REPETITION DE PISTE*
La fonction repeat reprendra la lecture de la piste.
Répétition de Piste
1. Appuyer sur le bouton RPT pour activer le mode Repeat.
2. Appuyer sur le bouton RPT une seconde fois pour désactiver le mode Repeat.
Appuyer sur les boutons UP et DOWN désactivera aussi le mode Reapeat.
Ecran LCD (cristaux liquides)
RTP restera affiché tans que la fonction est activée.
CDP/CDX SCAN PISTE*
Track Scan permet de lire les 10 première secondes de chaque piste du disque.
Scan Piste
1. Appuyer sur le bouton SCAN pour activer le mode scan.
2. Le mode scan sera actif tant que vous ne le désactiverez pas.
Désactiver Scan Piste
1. Appuyer sur le bouton SCAN une seconde foi pour désactiver le mode scan.
Ecran LCD (cristaux liquides)
1. SCAN restera affiché tant que la fonction est activée.
2.Le numéro des pistes et le décompte du temps sera affiché pendant 5 secondes
à chaque introduction de chaque piste.
3. Après 5 secondes l’écran reviendra en affichage par défaut.
*NOTE: Cette fonction est identique pour les lecteurs de CD ainsi que pour les chargeurs de CD.
– 65 –
CDP/CDX PAUSE*
Pause CD
1. Appuyer sur le bouton MUTE pour mettre en pause le CD
2. Appuyer sur le bouton MUTE une seconde fois pour remettre en lecture le disque.
Ecran LCD (cristaux liquides)
1. PAUSE et la piste# resteront affichés tant que la fonction est activée.
MEMORISATION DES TITRES DE DISQUE
10 caractères du titre des CD peuvent être mémorisés. Un maximum de 100 titres peuvent
être mémorisés.
Mémorisation du Titre des Disque
1. Appuyer sur le bouton BAND et le maintenir enfoncé
durant 1 seconde, la première lettre des 10 caractères clignotera.
2. Appuyer sur le bouton DISP pour faire apparaître les types
de caractères suivant:
Type
Type
Type
Type
1:
2:
3:
4:
(space)ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
/\\.+?!*’")
3. Tourner le bouton de volume pour sélectionner les caractères.
4. Appuyer sur le bouton volume pour aller à la place du caractère suivant.
5. Appuyer sur le bouton de volume et le maintenir enfoncé
pendant 1 seconde pour sauvegarder le titre.
Effacer le Titre d’un Disque
1. Appuyer sur le bouton MUTE et le maintenir enfoncé pendant 1 seconde.
2. Tourner le bouton de volume pour sélectionner le titre à effacer.
3. Appuyer sur le bouton de volume et le maintenir enfoncé pendant 1 seconde pour effacer le titre.
*NOTE: Cette fonction est identique pour les lecteurs de CD ainsi que pour les chargeurs de CD.
– 66 –
OPERATION SUR LECTEUR MP3 — OPERATION DE BASIC
NOTE: Le lecteur RFX NE reconnaît PAS les CD MP3 créé sur un Macintosh
POUR LIRE UN DISQUE EN MP3
1. Appuyer sur le bouton OPEN et la façade s’ouvrira.
2. Insérer un disque MP3 et la façade se fermera après 5 secondes, ou appuyer sur OPEN
pour fermer immédiatement.
3. CDP PLAY sera automatiquement sélectionné et la lecture du disque MP3 commencera en piste 1.
4. Appuyer sur les boutons UP et DOWN incurvé pour sélectionner les pistes
désirées.
Lire le Piste de façon Aléatoire
Apres avoir inséré un disque MP3, appuyer sur le bouton RDM et le lecteur sélectionnera les pistes de façon aléatoire.
Répéter une piste
Dès que le disque est sur la piste que vous voulez répéter, appuyer sur le bouton RPT et le lecteur
répétera cette piste tans que vous n’aurez pas re-appuyer sur le bouton RPT une seconde fois.
Mettre sur Pause une piste
Appuyer sur le bouton MUTE pour mettre en pause une piste. Appuyer de nouveau sur
MUTE pour redémarrer la lecture.
Ejecter un disque
1. Appuyer sur le bouton OPEN et le laisser enfoncé pendant 1 seconde, la façade s’ouvrira et le
disque sera éjecté.
2. Apres avoir enlevé le disque, appuyer sur OPEN une nouvel fois pour fermer la
façade.
STRUCTURE DU REPERTOIRE
Le répertoire de MP3 est en trois partie composés de trois sous parties: (1) Principal,
(2) Répertoire et (3) Chansons. Les chansons sont lu dans l’ordre du niveau ou elles
sont rangées. Toutes les titres du niveau 2 sont lues avant celles du niveau 3. Ces
niveaux sont décris par des répertoire et des sous répertoires. Les chansons du niveau
3 sont traitées dans ce même niveau mais peuvent être lu dans un autre.
– 67 –
OPERATION SUR LE LECTEUR DE MP3 — ORDRE D’UTILISATION
UITILISER LE REPERTOIRE MP3
Niveau Principal
Le niveau principal contient le nom du disque mais pas le répertoire ou
des information sur les chansons. La première chansons du disque sera
automatiquement lu dès l’insertion du disque et sera lu tant que vous
n’en aurez pas sélectionner une autre.
Selection directe d’une chanson par son titre
Le système d’utilisation MP3 à un système de répertoire similaire à celui de Windows™. Il en
résulte que les fonctions UP et DOWN sont différentes que celles dans les modes CD ou
Tuner. Au lieu de sélectionner la piste d’avant ou d’après sur le disque, ils sélectionnent la
piste de dessus ou de dessous sur la liste.
1. Appuyer sur le bouton ROOT et le non du disque apparaîtra.
Le nom du premier répertoire sera affiché immédiatement et
ce pendant 5 secondes.
2. Simultanément que le nom du premier répertoire est affiché,
appuyer sur le bouton DOWN pour faire apparaître le menu
déroulant dans l’ordre alphabétique (A à Z) des répertoires.
Appuyer sur le bouton UP pour avoir le menu déroulant dans
le sens inverse.
3. Appuyer sur le bouton ENTER et le nom de la première piste du répertoire sélectionné
s’affichera.
4. Appuyer sur le bouton DOWN pour obtenir l’affichage déroulant dans l’ordre croissant
(1 à 10 ou plus) de toutes les pistes contenues dans le répertoire sélectionné. Appuyer
sur le bouton UP pour obtenir l’affichage déroulant dans l’ordre décroissant.
NOTE: Selon le type de CD-R, état extérieur CD et l'exécution et l'état CD d'auteur, les CD-R peuvent
ne pas opérer normalement.
NOTE: Si le nom d’une piste reste affiché pendant 5 secondes. Si aucune action n’est effectuée pendant
ce laps de temps, l’afficheur reviendra en mode courant.
5. Appuyer sur ENTER pour sélectionner la piste que vous voulez lire.
NOTE: Si aucun disque n’est présent dans le lecteur CD, NO CD sera affiché et l’appareil reviendra en
mode TUNER.
Bouton DOWN
Quand une piste MP3 est en lecture sur le RFX 9300 ou 9400, Appuyer sur le bouton
DOWN sélectionnera le début de la piste suivante.
A l’inverse d’un CD régulier, appuyer sur le bouton DOWN et le lecteur reprendra au
début de la même piste a condition que celle-ci est été lu plus de 10 secondes. Appuyer
sur le bouton DOWN avant que la piste est atteinte 10 secondes de lecture et le lecteur
reprendra au début de la piste précédente.
Avance et Retour Rapide
Cette fonction est possible dans le mode MP3, mais d’une part, l’affichage du décompte
du temps ne sera activé et d’autre part, il n’y aura pas d’émission de sons.
– 68 –
UITILISER LE REPERTOIRE MP3 (CONT’D)
Vitesse Maximum d’Ecriture
La vitesse maximum du lecteur CD ROM de l’appareil RFX est 12X. Le maximum de bits
géré est 32kb/sec–320kb/sec. Pour obtenir de meilleures performances de gravure, avant
de créer un CD, selectionner le format ISO9660 en option sur votre ordinateur.
NOTE: Attention, pour graver un CD en MP3, il vous faut un CD vierge informatique et non pas un CD
vierge audio. .
Programmation de Titre
La programmation des titre n’est pas valide en mode MP3.
OPERATION SUR LE TUNER
SELECTION D’UNE BANDE
Appuyer sur le bouton BAND de façon répété, pour voir apparaître FM1, FM2, et AM.
Il est possible aussi de choisir automatiquement la bande.
OPTIONS DU TUNER
DX et AMERICAS sont les options sélectionnées par défaut. Les anciennes options sont
alternés.
• DX [LOCAL]
• AMERICAS [EUR/AUST]
Sélection des Options du Tuner
1. Appuyer sur le bouton VOLUME et le laisser enfoncé pendant une seconde.
2. Appuyer sur le bouton VOLUME de façon répétée pour faire apparaître le menu
d’options (l’ordre du menu d’option n’intervient pas sur le Mode Tuner).
3. Pour changer d’option, appuyer sur les boutons UP et DOWN.
4. Dès que vous avez votre sélection, attendre 5 secondes et l’afficheur retournera dans
le dernier mode.
BOUTONS DE PRESSELECTION 1–10
Chaque mode du Tuner — FM1, FM2, and AM— a 10 présélections soit un total de
30 présélections.
Pour sélectionner un bouton de préselection
1. Régler le Tuner sur la station que vous voullez programmer.
2. Appuyer sur un bouton de présélection et le laisser enfoncé pendant 5 secondes,
la sélection sera programmée.
– 69 –
BOUTON DE FONCTION
Opération
1. Appuyer sur le bouton de VOLUME et le laisser enfoncé pendant 1 seconde
pour rentrer dans le mode d’Option du Tuner.
2. Continué à enfoncer le bouton VOLUME pour faire apparaître les indications
TUNER OPTIONS DX > AMERICAS > P.PLAY > V/BAR > INI/VOL > CONTRAST > FLAT > PANEL AUTO > AUX1 IN > AUX2 IN.
3. Appuyer sur le bouton SEEK pour sélectionner MODE 1 ou MODE 2.
AUTO STORE DE RADIO
Si vous voulez que le Tuner sélectionne les 10 plus puissantes radios dans l’ordre ou leurs
signal arrive, appuyer sur le bouton de présélection 1-10, vous pouvez utiliser Auto Store.
Auto Store
1. Appuyer sur le bouton AS une fois et le Tuner scannera l’ensemble de la bande.
2. Auto Store sélectionnera les stations indépendamment du mode sélectionné sur le
tuner (FM1/FM2/AM).
MISE EN MEMOIRE DES TITRES DES STATIONS
Le nom des stations peuvent être mémorisées sur 10 caractères. Un maximum de 100 titres
peu être mémorisées.
Mémorisation du Titre des Stations
1. Appuyer sur le bouton BAND et le maintenir enfoncé durant 1 seconde, la première
lettre des 10 caractères clignotera.
2. Appuyer sur le bouton DISP pour faire apparaître les types de caractères suivant:
Type
Type
Type
Type
1:
2:
3:
4:
(space)ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
/\\.+?!*’")
3. Tourner le bouton de volume pour sélectionner les caractères.
4. Appuyer sur le bouton volume pour aller à la place du caractère suivant.
5. Appuyer sur le bouton de volume et le maintenir enfoncé pendant 1 seconde pour
sauvegarder le titre.
Effacer le Titre d’une Station
1. Appuyer sur le bouton MUTE et le maintenir enfoncé pendant 1 seconde.
2. Tourner le bouton de volume pour sélectionner le titre à effacer.
3. Appuyer sur le bouton de volume et le maintenir enfoncé pendant 1 seconde pour
effacer le titre.
– 70 –
MODE AF / TP
Le Mode TP (Traffic Program) vous permettra de recevoir des informations sur le trafic
routier sans tenir compte du mode d’opération de l’appareil en cour. EON TA sont des stations qui n’ont pas d’informations sur le TRAFIC mais qui peuvent en fournir à l’aide
d’autres stations. Le mode AF (Alternative Fréquencies) compare le niveau du signal de la
station avec une autre fréquence de la même station (voir le Mode PTY). Si le mode AF
détecte la station sur une fréquence d’un niveau de signal plus élevé, la station sera sélectionnée.
Mode Traffic Program (TP)
1. Appuyer sur le bouton AF/TP pour activer le Mode TP, ré appuyer pour le désactiver.
2. Quand l’affichage TP clignote, le mode est activé et il n’y a pas de réception TP DATA.
3. Les fonctions SEEK ou AS sélectionnerons uniquement les stations provenant des
modes TP ou EON TA.
Mode Alternative Frequencies (AF)
1. Appuyer sur le bouton AF/TP et le laisser enfoncé pendant 1 seconde pour activer
le mode AF.
2. Appuyer sur le bouton AF/TP une seconde foi pour désactiver le Mode AF.
MODE PTY
Le mode PTY (Program Type) permet de chercher des stations via MUSIC MODE ou SPEECH
MODE. Le Mode Musique range les différentes stations par catégories: Pop, Rock, Modern Music,
Light, Classique… Le Mode Speech range les différentes stations par catégories: Informations,
Affaires, Sports, Education, Culture, Sciences. Le mode REG (Mode Région) sélectionnera les différentes stations qui ont le même CODE PI (les station qui émettent exactement le même programme) mais dans des régions différentes.
Mode Program Type
1. Appuyer sur le bouton PTY pour faire apparaître les indications MUSIC, SPEECH et
PTY OFF.
2. Appuyer sur le bouton PRESET pour sélectionner le mode.
Mode Région
1. Appuyer sur le bouton PTY et le laisser enfoncé pendant 1 seconde pour activer le mode Région.
2. Appuyer sur le bouton PTY une seconde fois pour désactiver le Mode Région.
NOTE: “REG” est affiché quand les modes AF et REG sont activés.
– 71 –
DEUTSCH
ALLGEMEINE BEDIENUNG
EIN-
UND
AUSSCHALTEN
Bedienung
1. Drücken Sie die OFF Taste, um das Radio einzuschalten.
2. Drücken Sie die OFF Taste, um das Radio auszuschalten.
Einschalten über jede Taste
Drücken Sie eine beliebige Taste (ausgenommen EJECT und DISP) um
das Radio aus dem Schlafmodus in den Operationsmodus zu bringen.
LCD Display
Wenn das Radio ausgeschaltet ist (Schlafmodus) wird die Uhrzeit angezeigt.
VOLUMEN-REGLER / TON-EINSTELLUNGEN
Der Volumenregler ist ein Multifunktionsregler der Volumen, Baesse, Hoehen und
Setup- Optionen beeinflussen kann.
Lautstaerke einstellen
1. Drehen Sie den Volumenregler im Uhrzeigersinn, um
die Lautstaerke zu erhoehen.
2. Drehen Sie den Volumenregler gegen den
Uhrzeigersinn, um die Lautstaerke zu reduzieren.
Ton-Einstellungen veraendern
1. Druecken Sie wiederholt auf den Volumenregler, um
die verschiedenen Funktionen aufzurufen: BASS >
TREBLE > BALANCE > FADER > SUM** > VOLUME.
2. Drehen Sie den Volumenregler im Uhrzeigersinn, um die eingestellte Funktion zu
erhoehen.
3. Drehen Sie den Volumenregler gegen den Uhrzeigersinn, um die eingestellte
Funktion zu reduzieren.
Quellenabhaengiger Speicher
Individuelle Bass & Treble Einstellungen werden jeweils für TUNER / CD / CDCHANGER und AUX gespeichert.
Werden innerhalb von 5 Sekunden keine Einstellungen vorgenommen springt das Menue zurueck in die
Volumenkontrolle.
– 72 –
EINSTELL-MOEGLICHKEITEN
Die nachfolgend aufgefuehrte Liste zeigt die moeglichen Setup-Einstellungen.
Angaben die in Klammern stehen sind die zu waehlenden Alternativen in den
entsprechenden Bereichen. Wie diese Alternativen ausgewaehlt werden, steht unter
“Selecting Tuner Options” auf Seite 30.
• DX [LOCAL] – Veraendert die Empfindlichkeit des Tuners, bei schlechten
Empfangsbedingungen (DX). Befinden Sie sich in starken Sendegebieten (Staedten)
schalten Sie den Tuner auf (LOCAL), um die Sendertrennung zu verbessern.
• AMERICAS [EUR / AUST] – Veraendert die Frequenzschritte des Tuners (Weltweiter
Tuner).
• P.PLAY [EJ MUTE] – Schaltet auf Tuner, nachdem die CD ausgeworfen wurde. Eject
Mute: keine Wiedergabe, nachdem die CD ausgeworfen wird.
• VIDEO OFF [VIDEO 1, VIDEO 2] – Schaltet die Videoeingaenge aus. VIDEO 1 und 2
erlaubt es zwei externe Bildquellen anzuschliessen (TV, Nintendo etc.) und deren
Ausgaenge ueber Ihr Audio/Video System laufen zu lassen.
• V/BAR ON [V/BAR OFF] – Schaltet die Volumenanzeige (Balkengrafik) auf dem
Bedienteil ein oder aus.
• INI VOL 15 – Bestimmt die maximale Lautstaerke beim Einschalten des Systems. War
die Lautstaerke unterhalb der Maximalen INI VOL beim Ausschalten des Systems, so
wird diese geringere Lautstaerke beim Einschalten wiedergegeben. Dieses feature
schuetzt vor zu hohen Lautstaerken beim Einschalten des Systems.
• CONTRAST [VIEW 6] – Beeinflusst den Kontrast unter verschiedenen Blickwinkeln.
• FLAT [80 HZ] – Beeinflusst das dritte Paar der Vorverstaerkerausgaenge. Bei der
Einstellung FLAT werden keine Frequenzen gefiltert. Bei 80 HZ handelt es sich um
einen Tiefpass mit einer Trennfrequenz von 80 Hz.
• PANEL AUTO [PANEL MANU] – Das Bedienteil wird automatisch auf und zugeklappt
beim Einlegen oder Entfernen von CD`s. PANEL MANU laesst das Bedienteil
aufgeklappt, wenn eine CD eingelegt oder entfernt wird.
• AUX1 IN 0 [+6, -6] – Verändert die Empfindlichkeit des AUX1 Einganges, um diese
Quellen der Radiolautstaerke anzupassen.
• AUX2 IN 0 [+6, -6] – Verändert die Empfindlichkeit des AUX2 Einganges, um diese
Quellen der Radiolautstaerke anzupassen.
Waehlen der Setup-Einstellungen
1. Druecken und halten Sie den Volumenregler fuer eine Sekunde, bis DX auf dem
Display erscheint (Dies ist die erste Option).
2. Druecken Sie den Volumenregler wiederholt, um auf die oben gelisteten Punkte zu
wechseln.
3. Um eine Tuner Option zu wechseln drücken Sie bitte die UP oder DOWN Taste.
4. Wenn Sie die entsprechende Tuner Option gewaehlt haben warten Sie bitte 5
Sekunden und das Radio wird die Einstellung automatisch speichern.
– 73 –
EINSTELLUNGEN
DER
UHR
Einstellen der Stunden
1. Druecken und halten Sie die DISP Taste für eine Sekunde, bis die
Stundenanzeige anfaengt zu blinken.
2. Druecken Sie die UP- und DOWN-Tasten, um die Stunden zu verstellen.
Einstellen der Minuten
1. Druecken Sie die DISP Taste ein weiteres Mal, bis die Minutenanzeige
anfaengt zu blinken
2. Druecken Sie die UP- und DOWN-Tasten, um die Minuten zu verstellen.
Sichern der eingestellten Zeit
Nachdem die Zeit fuer 5 Sekunden geblinkt hat, werden die Einstellungen automatisch gespeichert.
Allgemeines
1. Die Uhrzeit wird angezeigt, auch wenn das Radio ausgeschaltet ist (Vorausgesetzt die Zuendung
ist eingeschaltet).
2. Wenn Sie die DISP Taste druecken erscheint die Uhrzeit fuer 5 Sekunden, wenn Sie zuvor eine
andere Display Anzeige ausgewaehlt und gespeichert haben (siehe auch DEFAULT / RECALL DISPLAY, fuer weitere Instruktionen).
PUNCH TASTE
Die Punch Taste beeinflusst die Frequenzwiedergabe bei allen Lautstaerken. Baesse
und Hoehen werden angehoben (aehnlich einer Loudness-Schaltung).
Einstellung
1. Drücken Sie die PUNCH Taste, um die Loudness-Schaltung zu aktivieren.
2. Drücken Sie die PUNCH Taste erneut, um die Loudness-Schaltung zu deaktivieren.
Display
Auf der LCD-Anzeige erscheint PUNCH, wenn die Schaltung aktiviert ist.
MUTE TASTE
Einstellung
1. Drücken Sie die MUTE Taste, um die Lautstärke auf “0” zu schalten.
2. Drücken Sie die MUTE Taste erneut, um die Lautstärke auf den
vorigen Level zu schalten.
LCD Display
Das LCD Display wird MUTE anzeigen, bis die Funktion deaktiviert ist.
EINGANGS-WAHL
Drücken Sie wiederholt die MODE Taste, um durch die folgenden Eingänge zu schalten:
• CDP PLAY – Schaltet den CD player ein, sofern sich eine CD eingelegt ist.
• AUX1 – Schaltet auf den externen Eingang AUX1.
• AUX2 – Schaltet auf den externen Eingang AUX2
• FM1 – Schaltet den Tuner ein.
– 74 –
CD PLAYER EINSTELLUNGEN - ALLGEMEIN
Alle RFX Player spielen auch CD`s, die auf einem Mac hergestellt wurden.
Eine CD abspielen
1. Drücken Sie die OPEN Taste und das Bedienteil wird herunterschwenken.
2. Legen Sie eine CD ein. Das Bedienteil wird automatisch nach 5 Sekunden hochschwenken.
3. CDP PLAY wird automatisch starten und der erste Titel der CD wird gespielt.
4. Drücken Sie die UP und DOWN Tasten, um Titel zu wechslen.
Zufallsgenerator
Nachdem die CD anfaengt zu spielen druecken Sie die RDM Taste um den
Zufallsgenerator zu starten.
Wiederholen eines Titels
Wenn die CD den Titel spielt, den Sie wiederholen moechten, druecken Sie die
RPT Taste. Der Titel wird so lange wiederholt, bis Sie die RPT Taste noch einmal
druecken.
Eine CD auswerfen
1. Druecken Sie die OPEN Taste fuer eine Sekunde und das Bedienteil
wird herunterschwenken und die CD wird ausgeworfen.
2. Druecken Sie die OPEN Taste, wenn das Bedienteil heruntergeschwenkt ist, schliesst sich die Abdeckung wieder oder
warten Sie 5 Sekunden und das Bedienteil schliesst automatisch
(im AUTO-MODE).
Achtung: Wenn Sie OPEN weniger als eine Sekunde druecken (im Panel Auto Mode)
schwenkt das Bedienteil herunter und die CD wird nicht ausgeworfen.
CD PLAYER EINSTELLUNGEN - SPEZIFISCH
CD PLAYER EINGANGSWAHL
CD Player Eingangswahl
1. Drücken Sie die MODE Taste bis CDP PLAY erscheint.
2. Die CD faengt automatisch an zu spielen (wenn keine CD eingelegt ist schaltet das Radio auf den AUX1 Eingang).
LCD Display
1. Die Titelnummer und die verstrichene Spielzeit wird im Display fuer 5 Sekunden
angezeigt.
2. Nach 5 Sekunden wird das Display die vorige Anzeige wiedergeben.
Einlegen und abspielen der CD
1. Legen Sie eine CD ein (CDP PLAY erscheint im Display)
2. Die CD Wiedergabe beginnt mit Titel 1 der CD.
Einschaltmechanismuss (wenn Radio ausgeschaltet ist)
1. Legen Sie eine CD ein, wenn das Radio ausgeschaltet ist.
2. Die CD Wiedergabe beginnt mit Titel 1 der CD.
– 75 –
CD AUSWURF*
CD Auswurf
1. Druecken Sie die OPEN Taste und halten Sie diese fuer eine Sekunde, um die CD
auszuwerfen.
2. Das Steuergeraet wird auf Tuner umschalten oder die Wiedergabe unterbrechen (je
nach Einstellung P.PLAY oder EJ MUTE).
3. Nachdem Sie die Zuendung ausgeschaltet haben, koennen Sie die OPEN Taste
druecken, um eine CD auszuwerfen.
LCD Display
1. Auf dem Display erscheint EJECT fuer 5 Sekunden.
2. Nach 5 Sekunden wird das Display die vorige Anzeige wiedergeben.
Automatischer Einzug
1. Lassen Sie die CD laenger als 10 Sekunden im Einschub wird diese automatisch
wieder zurueck in das Geraet gezogen.
2. Die CD wird nach diesem Einzug nicht automatisch wiedergegeben.
CDP/CDX TITELANWAHL*
Titelwahl
1. Druecken Sie die UP Taste um den nachfolgenden Titel auf der CD zu spielen.
2. Druecken Sie die DOWN Taste um den vorigen Titel auf der CD zu spielen.
LCD Display
1. Die Titelnummer und die verstrichene Spielzeit wird fuer 5 Sekunden wiedergegeben.
2. Nach 5 Sekunden wird das Display die vorige Anzeige wiedergeben.
Allgemein
CDP MODE: Die CD Wiedergabe beginnt bei Titel 1, sobald der letzte Titel der CD
gespielt wurde.
CDX MODE: Wenn der letzte Titel der angewaehlten CD gespielt wurde, startet die
Wiedergabe der nachfolgenden CD bei Titel 1.
CDP/CDX TITEL-
UND
CD-ZUFALLSGENERATOR*
Zufallsgenerator
1. Druecken Sie die RDM Taste um den Zufallsgenerator zu starten.
2. Der Zufallsgenerator wird alle Titel und CD`s zufaellig spielen, bis
die Funktion wieder ausgeschaltet wird.
Zufallsgenerator ausschalten
Druecken Sie die RDM Taste ein weiteres Mal, um diese Funktion auszuschalten.
LCD Display
Das Display wir RDM solange anzeigen, bis die Funktion ausgeschaltet wird.
*Diese Funktion ist im CD Player- und CD Changer Mode gegeben.
– 76 –
CDP/CDX TITELSPRUNG*
Titelsprung vorwaerts/rueckwaerts
Druecken Sie die DOWN Taste und der Player wird zum Anfang des Titels springen der gerade
gespielt wird, solange dieser laenger als 10 Sekunden laeuft. Ist die verstrichene Spielzeit des
Titels unter 10 Sekunden springt die Wiedergabe zum Start des vorigen Titels.
Vor- und Rueckspulen
1. Drücken und halten Sie die UP Taste zum schnellen Vorspulen.
2. Drücken und halten Sie die DOWN Taste zum schnellen Rueckspulen.
LCD Display
Das LCD Display zeigt die verstrichene Spielzeit, solange die UP oder DOWN Taste
gedrueckt wird.
CDP/CDX TITEL-WIEDERHOLUNG*
Diese Funktion wiederholt den gerade gespielten Titel.
Titel-Wiederholung
1. Druecken Sie die RPT Taste um die Funktion einzuschalten.
2. Druecken Sie die RPT Taste ein weiteres mal, um die Funktion wieder
auszuschalten. Die UP und DOWN Tasten schalten die Funktion ebenfalls aus.
LCD Display
Das Display wird RPT anzeigen, solange die Funktion aktiv ist.
CDP/CDX ANSPIELMODUS*
Der Anspielmodus spielt jeden Titel der CD fuer 10 Sekunden an und springt dann
automatisch zum naechsten Titel.
Anspielmodus
1. Druecken Sie die SCAN Taste um den Anspielmodus einzuschalten.
2. Der Anspielmodus bleibt solange aktiv bis er ausgeschaltet wird.
Anspielmodus ausschalten
Druecken Sie die SCAN Taste erneut, um den Anspielmodus auszuschalten.
LCD Display
1. Das Display zeigt SCAN an, solange die Funktion aktiviert ist.
2. Das Display zeigt die Titelnummer und die verstrichene Spielzeit fuer 5 Sekunden,
jedesmal wenn ein neuer Titel angespielt wird.
3. Nach 5 Sekunden wird das Display die vorige Anzeige wiedergeben.
*Diese Funktion ist im CD Player- und CD Changer Mode gegeben.
– 77 –
CDP/CDX PAUSE*
Unterbrechen der CD Wiedergabe
1. Druecken Sie die MUTE Taste, um die CD Wiedergabe zu unterbrechen.
2. Druecken Sie die MUTE Taste erneut, um mit der Wiedergabe fortzufahren.
LCD Display
Das Display zeigt PAUSE und die Titelnummer an, solange die Funktion aktiviert ist.
PROGRAMMIEREN
DES
CD-TITELSPEICHERS
Der Name einer CD kann im Speicher abgelegt werden (max. 10
Buchstaben). Es können maximal 100 Titel abgespeichert werden.
Titelspeicher
1. Druecken und halten Sie die BAND Taste fuer 1 Sekunde und die erste
Anzeige beginnt zu blinken.
2. Druecken Sie die DSP Taste um die Zeichendarstellung zu wechseln:
Typ 1:
(Leertaste)ABCDEFGHIJKLMNOPQRSTUVWXYZ
Typ 2:
abcdefghijklmnopqrstuvwxyz
Typ 3:
0123456789
Typ 4:
/\\.+?!*’")
3. Drehen Sie den Volumenregler, um das richtige Zeichen
auszuwaehlen.
4. Druecken Sie auf den Volumenregler um zur naechsten Anzeige zu
springen.
5. Druecken und halten Sie den Volumenregler fuer eine Sekunde, um
den Titel zu speichern.
Titelspeicher loeschen
1. Druecken und halten Sie die MUTE Taste fuer eine Sekunde.
2. Drehen Sie den Volumenregler soweit, bis der Titel erscheint, der
geloescht werden soll.
3. Druecken und halten Sie den Volumenregler fuer eine Sekunde um
den Titel zu loeschen.
*Diese Funktion ist im CD Player- und CD Changer Mode gegeben.
– 78 –
ALLGEMEINE EINSTELLUNGEN ZUM BETRIEB DER MP3-FUNKTION
Achtung: Die RFX Steuergeraete spielen keine MP3 CD`s, die auf Mac Rechnern erstellt wurden.
WIEDERGABE EINER MP3 CD
1. Drücken Sie die OPEN Taste und das Bedienteil wird herunterschwenken.
2. Legen Sie eine MP3 CD ein. Das Bedienteil wird automatisch nach 5 Sekunden
hochschwenken. Wenn Sie die OPEN Taste druecken schliesst das Bedienteil sofort.
3. CDP PLAY wird automatisch starten und der erste Titel der MP3 CD wird gespielt.
4. Drücken Sie die UP und DOWN Tasten, um Titel zu wechslen.
Zufallsgenerator
Nachdem die CD anfaengt zu spielen druecken Sie die RDM Taste um den
Zufallsgenerator zu starten.
Wiederholen eines Titels
Wenn die CD den Titel spielt, den Sie wiederholen moechten, druecken Sie die RPT Taste. Der
Titel wird so lange wiederholt, bis Sie die RPT Taste noch einmal druecken.
Unterbrechen eines Titels
Druecken Sie die MUTE Taste, um einen Titel zu unterbrechen. Druecken Sie die Taste
erneut, um mit der Wiedergabe fortzufahren.
Eine CD auswerfen
1. Druecken Sie die OPEN Taste und halten Sie diese fuer eine Sekunde, um die CD
auszuwerfen.
2. Nachdem Sie die CD entnommen haben druecken Sie die Taste OPEN erneut, um das
Bedienteil zu schliessen.
VERZEICHNIS-STRUKTUR
Die Dateistruktur ist in 3 Level eingeteilt. (1) Das Hauptverzeichnis, (2) die
Unterverzeichnisse und (3) die Titel. Die Titel werden in der Reihenfolge
wiedergegeben, wie Sie in dem Level gespeichert sind. Alle Titel in Level (2) werden
vor den Titeln in Level (3) gespielt oder tiefer. Die Level sind aehnlich Verzeichnissen
und Unterverzeichnissen. Alle Titel, die tiefer als Level (3) gespeichert sind, werden
von der Software so behandelt, als wenn sie in Level (3) waeren.
– 79 –
MP3 PLAYER BEDIENUNG – DATEI MANAGEMENT
ERSTELLEN
EINES
MP3 VERZEICHNISSES
Das Hauptverzeichnis
Im Hauptverzeichnis steht der Name der CD, aber keine
Unterverzeichnisse oder Titelinformationen. Der erste Titel auf der CD
wird automatisch abgespielt, sobald eine CD eingelegt wird.
Direkte Auswahl eines Titels nach Namen
Das MP3 Datei Management System ist ein Verzeichnissystem aehnlich dem bei
WindowsTM. Aus diesem Grund funktionieren die UP und DOWN Tasten anders als im
CD oder Tuner Modus. Anstatt vorwaerts oder rueckwaerts zu springen, wandert man die
Dateiliste hoch oder runter.
1. Druecken Sie die ROOT Taste und das Display wird den
Namen der CD anzeigen. Danach zeigt das Display fuer 5
Sekunden den Namen des ersten Verzeichnisses auf der CD.
Falls keine anderen Tasten gedrueckt werden springt die
Anzeige wieder zu dem Titel der in dem Moment gespielt
wird.
2. Waehrend der Name des ersten Verzeichnisses angezeigt
wird, koennen Sie die DOWN Taste druecken, um durch die
Liste der Unterverzeichnisse zu springen. Druecken Sie die
UP Taste, um in die andere Richtung zu springen.
3. Druecken Sie die ENTER Taste und der erste Titel in dem Verzeichnis wird angezeigt.
4. Druecken Sie die DOWN Taste um die Titel numerisch anzuwaehlen (1 bis 10 oder
hoeher), die in dem Verzeichnis stehen. Druecken Sie die UP Taste, um die Titel
rueckwaerts zu durchlaufen (10+ bis 1).
Abhängig von der Art von CD-R, CD Oberflächenzustand und die CD Verfasserleistung und -zustand, können die CD-R möglicherweise nicht normalerweisefunktionieren.
Der Titelname wird fuer 5 Sekunden im Display erscheinen, waehrend Sie die Schritte 1-4 durchlaufen. Wenn keine weitere Funktion ausgefuehrt wird springt das Display wieder zu der Anzeige
des gerade gespielten Titels.
5. Druecken Sie ENTER waehrend der Name des neuen Titels im Display erscheint
wird dieser wiedergegeben.
Wenn sich keine CD im Player befindet zeigt das Display NO CD an , und das Steuergeraet springt
zurueck zum Tuner Modus.
DOWN Taste
Wenn Sie die DOWN Taste druecken, waehrend Sie einen MP3 Titel wiedergeben
(RFX9000, RFX9400) springen Sie zum Anfang des vorigen Titels. Beispiel: Wenn Sie den
dritten Titel hoeren und die DOWN Taste druecken springen Sie zum Anfang des zweiten
Titels, nicht zum Anfang des dritten Titels, wie im CD Modus.
Schnelles Vor- / Rueckspulen
Diese Funktion laesst sich im MP3 Modus ausfuehren, allerdings wird die verstrichene
Spielzeit nicht angezeigt und die Wiedergabe des Titels verstummt.
– 80 –
ERSTELLEN
EINES
MP3 VERZEICHNISSES (CONT’D)
Maximale Schreibgeschwindigkeit und Bit-Tiefe
Die maximale Schreibgeschwindigkeit Ihres CD-Brenners darf 12x nicht ueberschreiten,
da das Steuergeraet schnellere Geschwindigkeiten nicht lesen kann. Die Maximale BitRate betraegt 32kb/sec – 320kb/sec. Fuer beste Displayeigenschaften benutzen Sie bitte
das ISO 9660 Dateiformat, was eine Titellaenge von 16 Buchstaben ermoeglicht.
Stellen Sie sicher, das Ihre selbstgebrannte CD als Daten CD formatiert ist und nicht als
Audio CD.
Programmierbare Titel
Diese Funktion steht im MP3 Modus nicht zur Verfuegung. Sie koennen aber auswaehlen,
ob der Name des Titels oder die verstrichene Spielzeit angezeigt werden soll.
RADIO BEDIENUNG
WAEHLEN
EINES
BANDES
Druecken Sie die BAND Taste, um von FM1 auf FM2 oder AM zu wechseln.
RADIO EINSTELLUNGEN
DX und AMERICAS sind die Werkseinstellungen. Die alternativen Moeglichkeiten stehen in
Klammern.
• DX [LOCAL]
• AMERICAS [EUR/AUST]
Auswaehlen der Radio Einstellungen
1. Druecken und halten Sie den Volumenregler fuer eine Sekunde, bis DX auf dem
Display erscheint (Dies ist die erste Option).
2. Druecken Sie den Volumenregler wiederholt, um auf die oben gelisteten Punkte zu
wechseln.
3. Um eine Tuner Option zu wechseln druecken Sie bitte die UP oder DOWN Taste.
4. Wenn Sie die entsprechende Tuner Option gewaehlt haben warten Sie bitte 5
Sekunden und das Radio wird die Einstellung automatisch speichern.
FESTSTATIONEN 1-10
Jedes Radio Band – FM1, FM2 und AM kann 10 Feststationen speichern.
Um eine Station zu speichern.
1. Wechseln Sie zu der Frequenz der Station, die Sie abspeichern moechten.
2. Druecken und halten Sie die Stationstaste fuer 5 Sekunden, auf der Sie den Sender
abspeichern moechten.
– 81 –
VOLUMENREGLER
Einstellung
1. Druecken und halten Sie den Volumenregler fuer eine Sekunde, bis DX auf dem
Display erscheint.
2. Druecken Sie den Volumenregler wiederholt, um weitere Einstellmoeglichkeiten
vorzunehmen: DX > AMERICAS > P.PLAY > V/BAR > INI/VOL > CONTRAST > FLAT
> PANEL AUTO > AUX 1 IN > AUX2 IN
3. Druecken Sie die SEEK Taste um MODE 1 oder MODE 2 auszuwaehlen .
AUTOMATISCHE ABSPEICHERUNG
Wenn Sie die 10 staerksten Sender automatisch abspeichern wollen ( in der Reihenfolge
ihrer Signalstaerke), benutzen Sie Auto Store.
Auto Store
1. Druecken Sie die AS Taste einmal und der Radio wird die komplette Frequenzweite
nach Sendern absuchen.
2. Auto Store wird die Sender automatisch auf den Stationstasten abspeichern.
PROGRAMMIEREN
UND ABSPEICHERN DER
SENDERNAMEN
Der Name eines Senders kann im Speicher abgelegt werden (max. 10 Buchstaben). Es können
maximal 100 Sendernamen abgespeichert werden.
Stationsnamenspeicher
1. Druecken und halten Sie die BAND Taste fuer 1 Sekunde und die erste Anzeige beginnt
zu blinken.
2. Druecken Sie die DSP Taste um die Zeichendarstellung zu wechseln:
Typ 1: (Leertaste)ABCDEFGHIJKLMNOPQRSTUVWXYZ
Typ 2: abcdefghijklmnopqrstuvwxyz
Typ 3: 0123456789
Typ 4: /\\.+?!*’")
3. Drehen Sie den Volumenregler, um das richtige Zeichen auszuwaehlen.
4. Druecken Sie auf den Volumenregler um zur naechsten Anzeige zu springen.
5. Druecken und halten Sie den Volumenregler fuer eine Sekunde, um den Titel zu speichern.
Namensspeicher loeschen
1. Druecken und halten Sie die MUTE Taste fuer eine Sekunde.
2. Drehen Sie den Volumenregler soweit, bis der Titel erscheint, der geloescht werden soll.
3. Druecken und halten Sie den Volumenregler fuer eine Sekunde um den Titel zu loeschen.
– 82 –
AF / TP MODUS
Der TP Modus (Verkehrsfunk) wechselt automatisch zur ausgesendeten
Verkehrsnachricht, gleichgueltig welche Quelle Sie gerade hoeren. EON TA sind Sender,
die keinen eigenen Verkehrsfunk produzieren, diesen aber von anderen Sendern bereitstellen. Der AF Modus (Alternative Frequenzen) durchsucht das Frequenzband nach
staerkeren alternativen Frequenzen des gleichen Radiosenders und schaltet automatisch
dorthin, sobald das Signal auf der Alternativfrequenz staerker ist (siehe auch PTY Modus).
Verkehrsfunk (TP)
1. Druecken Sie die AF/TP Taste, um den Verkehrsfunk einzuschalten. Druecken Sie die
Taste noch einmal, um diesen wieder auszuschalten.
2. Falls TP im Display blinkt ist der Verkehrsfunk eingeschaltet, allerdings empfaengt das
Radio auf dieser Frequenz kein Verkehrsfunksignal.
3. Die SEEK oder AS Funktion stoppt nur bei Frequenzen auf denen ein
Verkehrsfunksignal empfangen oder EON TA bereitgestellt wird.
Alternativ-Frequenzen Modus (AF)
1. Druecken und halten Sie die AF/TP Taste fuer 1 Sekunde, um den AF Modus
einzuschalten.
2. Druecken und halten Sie die AF/TP Taste noch einmal fuer 1 Sekunde, um den AF
Modus wieder auszuschalten.
PTY MODUS
Der PTY Modus (Programm Typ) sucht nach Sendern eines bestimmten Genres, wie z.B. Musik,
Sprache etc. Bei Musik wird unterschieden zwischen Pop, Rock, Moderne Musik, Light, Klassik
und anderen. Bei Sprache wird zwischen Nachrichten, Informationen, Sport, Erziehung, Dramen
und Kultur unterschieden. Der REG Modus (Region Typ) schaltet automatisch von einer Station zur
naechsten, die den gleichen PI CODE unterstuetzt (Station, die das gleiche Programm sendet,
allerdings in einer anderen Region).
Programm-Typ Modus
1. Druecken Sie die PTY Taste um zwischen MUSIC, SPEECH und PTY OFF zu wechseln.
2. Druecken Sie die PRESET Taste um die verschiedenen Typen anzuwaehlen.
Region Modus
1. Druecken und halten Sie die PTY Taste fuer 1 Sekunde um den Region Modus
einzuschalten.
2. Druecken und halten Sie die PTY Taste noch einmal fuer 1 Sekunde um den Region
Modus auszuschalten.
Das Display zeigt REG an, wenn AF und REG eingeschaltet sind.
– 83 –
ITALIANO
FUNZIONAMENTO DI BASE
ACCENSIONE/SPEGNIMENTO
Funzionamento
1. Premere il pulsante OFF per accendere la radio.
2. Premere dinuovo il pulsante OFF per spegnere la radio.
Risveglio con qualsiasi pulsante
Premere qualsiasi pulsante sul quadrante (ad eccezione dei pulsanti
EJECT e DISP) per “risvegliare” la radio dal modo di riposo.
Display LCD
Quando la radio è spenta (modo di riposo) il display dell’orologio verrà visualizzato
MANOPOLA DEL VOLUME/COMANDI PER IL TONO
La manopola del volume è un comando a funzioni
multiple e regola il volume, i comandi per il tono, e le
opzioni programmabili (consultare la pagina seguente).
Per controllare il volume
1. Girare la manopola del VOLUME in senso orario per
alzare il volume.
2. Girare la manopola del VOLUME in senso antiorario
per abbassare il volume.
Per regolare i comandi per il tono
1. Premere la manopola del VOLUME ripetutamente per percorrere il ciclo BASS > TREBLE > BALANCE > FADER > SUM** > VOLUME.
2. Girare la manopola del VOLUME in senso orario per aumentare la funzione scelta.
3. Girare la manopola del VOLUME in senso antiorario per diminuire la funzione scelta.
Memoria del tono di origine
Le programmazioni individuali per i suoni gravi e i suoni acuti vengono memorizzati per TUNER / CD PLAYER / CD CHANGER / AUX.
NOTA: Se nessuna regolazione venisse effettuata dopo 5 secondi, la manopola del MENU ritornerà al
modo VOLUME.
– 84 –
OPZIONI PROGRAMMABILI
L’elenco qui di seguito riporta le opzioni standard programmabili. Le voci in parentesi quadre rappresentano le opzioni alternative contenute entro ciascuna
opzione programmabile. Per selezionare queste alternative, vedere Come
selezionare le opzioni del sintonizzaztore a pagina 30.
• DX [LOCAL] – Regola la sensibilità del sintonizzatore per le condizioni rurali
dove le stazioni radio sono deboli mentre LOCAL regola la sensibilità per le condizioni urbane dove le stazioni radio sono più forti.
• AMERICAS [EUR/AUST] – Permette la sintonizzazione delle frequenze disponibili in varie parti del mondo.
• P. PLAY [EJ MUTE] – Permette di suonare il sintonizzatore dopo aver estratto un
CD mentre Eject Mute silenzia il sintonizzatore dopo l’estrazione di un CD.
• VIDEO OFF [VIDEO 1, VIDEO 2] – Disabilita gli ingressi Video RCA. VIDEO 1 e
2 vi permettono di collegare due fonti video esterne (TV, Nintendo, ecc.) e di far
percorrere le loro uscite attraverso il sistema audiovisivo della vostra automobile.
• V/BAR ON [V/BAR OFF] – Visualizza la barra del volume ubicata in fondo al pannello anteriore mentre Volume Bar Off la spegne.
• INI VOL 15 – Programma il volume iniziale massimo quando l’unità viene accesa. Il volume iniziale programma il punto massimo del volume quando l’unità
viene accesa. Se il volume programmato fosse più basso del volume iniziale al
momento di spegnere l’unità, verrà utilizzato il volume più basso al momento
dell’accensione. Se il volume programmato fosse più alto del volume inziale,
verrà utilizzato il volume iniziale al momento dell’accensione. Questa caratteristica evita un volume troppo alto quando siaccende l’unità e permette di serbare
le programmazioni di alto volume se un secondo amplificatore dovessere essere
scelto come comando principale del volume.
• CONTRAST [VIEW 6] – Comanda l’angolo di visualizzazione del display.
• FLAT [80HZ] – Significa che il terzo paio delle pre-uscite RCA è a piena gamma
mentre 80HZ significa che le pre-uscite sono ad incrocio per uso autoparlante a
basse frequenze.
• PANEL AUTO [PANEL MENU] – Apre e chiude automaticamente il pannello
quando carica o estrarre dischi mentre PANEL MENU permette al pannello anteriore di rimanere aperto in modo da caricare manualmente i CD oppure estrarli.
• AUX1 IN 0 [+6, -6] – Vi permette di elevare il volume d’entrata di una fonte audio
esterna debole oppure diminuire il volume di una fonte più potente. Utile per le
fonti esterne: MP3, giochi video, VCP, ecc.
• AUX2 IN 0 [+6, -6] – Lo stesso di AUX1 IN di sopra.
Come selezionare le opzioni programmabili
1. Premere e tenere premuta la manopola del volume per circa 1 secondo finchè non
appaia DX (questa è la prima opzione del sintonizzatore).
2. Premere la manopola del volume ripetutamente per percorrere sul sintonizzatore
tutte le opzioni elencate di sopra.
3. Per cambiare una specifica opzione sul sintonizzatore, premere il pulsante UP
oppure DOWN per selezionare un’opzione alternativa.
4. Una volta selezionate le opzioni desiderate sul sintonizzatore, aspettare cinque (5)
secondi. Le opzioni verranno automaticamente memorizzate e potrete ritornare
all’ultimo pannello di modo che avete scelto.
– 85 –
FUNZIONAMENTO DELL’OROLOGIO
Come programmare le ore sull’orologio
1. Premere e tenere premuto il pulsante DISP per 1 secondo finchè
non si veda lampeggiare l’ora.
2. Premere il pulsante UP oppure DOWN per programmare l’ora.
Come programmare i minuti sull’orologio
1. Premere il pulsante DISP una seconda volta e si metteranno a
lampeggiare i minuti.
2. Premere il pulsante UP oppure DOWN per programmare i minuti.
Memorizzazione delle programmazioni sull’orologio
Dopo un lampeggiamento di 5 secondi sull’orologio, le vostre programmazioni verranno
memorizzate.
Considerazioni
1. Il display dell’orologio rimarrà visualizzato quando il pulsante di accensione della radio
viene spento.
2. Premendo il pulsante DISP si potrà visualizzare il display dell’orologio per 5 secondi
quando si seleziona un display standard alternativo (vedere DEFAULT/RECALL DISPLAY
in questa sezione per ulteriori ragguagli sulla programmazione del display standard).
PULSANTE PUNCH
Il pulsante PUNCH permette di elevare i suoni bassi e acuti dell’uscita audio
a tutti i livelli di ascolto.
Funzionamento
1. Premere il pulsante PUNCH per abilitare l’intensità sonora.
2. Premere dinuovo il pulsante PUNCH per disabilitare l’intensità sonora.
Display
L’LCD visualizzerà la parola “Punch” quando l’intensità sonora è accesa.
PULSANTE DI SILENZIAMENTO
Funzionamento
1. Premere il pulsante MUTE per smorzare il volume.
2. Premere dinuovo il pulsante MUTE per riportare l’audio al livello
precedente.
Display LCD
L’LCD visualizzerà la parola “MUTE” finchè la funzione non venga annullata.
SELEZIONE DEL MODO
Premere il pulsante MUTE ripetutamente per percorrere i seguenti modi:
• CDP PLAY – Abilita il suonatore di CD se viene inserito un CD.
• AUX1 – Permette di collegare una fonte audio esterna al sistema sonoro.
• AUX2 – Permette di collegare una seconda fonte audio esterna al sistema sonoro.
• FM1 – Abilita il sintonizzatore.
– 86 –
FUNZIONAMENTO BASE DEL SUONATORE DI CD
NOTA: I RFX player POSSONO SUONARE CD AUDIO creati su Macintosh
Per far suonare un CD
1. Premere il pulsante OPEN e il pannello anteriore si aprirà.
2. Inserire un CD e il pannello anteriore si chiuderà dopo 5 secondi.
3. CD PLAY farà una scelta automatica e il CD inizierà subito a suonare la prima pista
sonora.
4. Usare i pulsanti UP e DOWN per cambiare piste sonore.
Come far suonare piste sonore in modo casuale
Quando la pista sonora inizia a suonare, premere il pulsante RDM e le
piste sonore verranno fatte suonare in modo casuale.
Come ripetere una pista sonora
Mentre il CD sta suonando la pista sonora che si desidera ripetere, premere il
pulsante RPT e il CD inizierà a ripetere quella pista sonora particolare finchè
non venga premuto dinuovo il pulsante RPT.
Come estrarre un disco
1. Premere il pulsante OPEN per 1 secondo e il pannello anteriore si aprirà, estraendo il disco.
2. Premere il pulsante OPEN mentre il pannello anteriore è
aperto per chiudere il pannello anteriore, oppure aspettare 5
secondi e il pannello anteriore si chiuderàautomaticamente
(in modo AUTO).
NOTA: Se il pulsante OPEN viene premuto per meno di 1 secondo mentre si è
in modo AUTO, il pannello anteriore si aprirà e non verrà abilitata l’estrazione.
FUNZIONAMENTO AVANZATO DEL CD PLAYER
MODO CD PLAYER
Modo CD Player
1. Premere il pulsante MODE finchè non vengano visualizzate
le parole “CDP PLAY.”
2. Il disco inizierà a suonare (se non fosse inserito un disco, l’unità di fonte passerà al modo AUX1).
Display LCD
1. Il numero della pista sonora e il tempo trascorso verranno visualizzati sul display per
5 secondi.
2. Dopo 5 secondi, l’LCD ritornerà al display standard.
Come inserire e far suonare un CD
1. Inserire un disco e le parole “CDP PLAY” appariranno.
2. Il disco inizierà a suonare la prima pista sonora sul disco.
Risveglio (a potenza spenta)
1. Inserire un disco mentre l’unità è spenta.
2. Il disco inizierà a suonare la prima pista sonora sul disco.
– 87 –
ESTRAZIONE DISCHI*
Come estrarre un disco
1. Premere il pulsante OPEN e tenerlo premuto per 1 secondo per estrarre il disco.
2. L’unità di fonte ritornerà al modo P.PLAY oppure EJ MUTE (vedere OPZIONI PER IL
SINTONIZZATORE in questo manuale per ulteriori ragguagli in merito alla programmazione del modo standard).
3. Dopo aver spento l’accensione della vostra automobile, potrete sempre premere
OPEN per estrarre un disco.
Display LCD
1. Il display LCD visualizzerà la parola “EJECT” per 5 secondi.
2. Dopo 5 secondi, il display LCD ritornerà al display precedente.
Ricaricamento automatico
1. Se il CD viene lasciato nella posizione di estrazione per più di 10 secondi, il disco
verrà ricaricato automaticamente nel CD player.
2. Con l’operazione di ricaricamento automatico il disco non si rimetterà a suonare e
non si avrà alcun effetto su nessun altro modo (ad eccezione del modo EJ MUTE).
SELEZIONE PISTE SONORE PER CDP/CDX*
Come selezione le piste sonore
1. Premere il pulsante UP per selezionare la pista sonora seguente sul disco.
2. Premere il pulsante DOWN per selezione la pista sonora precedente sul disco.
Display LCD
1. Il numero della pista sonora e il tempo trascorso verranno visualizzati sul display per
5 secondi.
2. Dopo 5 secondi il display LCD ritornerà al display standard.
Considerazioni
Modo CDP: Alla fine dell’ultima pista sonora, il disco riprenderà a suonare la prima pista
sonora.
Modo CDX: Quando viene raggiunto il numero dell’ultima pista sonora sul disco, il disco
seguente verrà caricato nel CD changer e inizierà a suonare la prima pista sonora.
PISTE SONORE E DISCHI CASUALI PER CDP/CDX*
Modo casuale
1. Premere il pulsante RDM per dar l’avvío al modo casuale.
2. Il modo casuale continuerà a selezionare e suonare piste sonore a
caso su tutti i dischi disponibili finchè non venga annullato il
modo casuale.
Come annullare il modo casuale
Premere il pulsante RDM una seconda volta per annullare il modo casuale.
Display LCD
Il display LCD visualizzerà la parola “RDM” finchè la funzione non venga annullata.
*NOTA: Questa funzione opera in modo identico in entrambi i modi CD Player e CD Changer.
– 88 –
AVANZAMENTO/RETROMARCIA DELLE PISTE SONORE PER CDP/CDX*
Marcia avanti/retromarcia
Premere il pulsante DOWN per ritornare all’inizio della medesima pista sonora se la pista
sta già suonando da oltre 10 secondi. Se la pista stesse suonando per meno di 10 secondi, premere il pulsante DOWN per ritornare all’inizio della pista sonora precedente.
Avanzamento rapido/retromarcia
1. Premere e tenere premuto il pulsante UP per far avanzare rapidamente la pista sonora.
2. Premere e tenere premuto il pulsante DOWN per effettuare il retromarcia rapido
della pista sonora.
Display LCD
Il display LCD visualizzerà il tempo trascorso finchè vengano premuti i pulsanti UP
oppure DOWN.
RIPETIZIONE PISTA SONORA PER CDP/CDX*
La ripetizione della pista sonora fa suonare dinuovo la pista che sta suonando attualmente.
Come ripetere una pista sonora
1. Premere il pulsante RPT per dare l’avvío al modo Ripetizione pista sonora.
2. Premere il pulsante RPT una seconda volta per annullare il modo Ripetizione pista
sonora. Si potrà pure annullare il modo Ripetizione pista sonora premendo sia il pulsante UP che il pulsante DOWN.
Display LCD
Il display LCD visualizzerà la parola “RPT” finchè la funzione non venga annullata.
SCANSIONE PISTA SONORA PER CDP/CDX*
Il modo Scansione pista sonora fa suonare l’introduzione di ciascuna pista
sonora per 10 secondi prima di passare alla pista sonora seguente sul
disco che sta suonando attualmente.
Come effettuare la scansione della pista sonora
1. Premere il pulsante SCAN per dare l’avvío al modo Scansione pista sonora.
2. Il modo Scansione pista sonora continuerà ad operare finchè non venga annullato.
Come annullare la scansione della pista sonora
Premere il pulsante SCAN una seconda volta per annullare il modo Scansione pista sonora.
Display LCD
1. Il display LCD visualizzerà la parola “SCAN” finchè non venga annullata la funzione.
2. Il display LCD visualizzerà il numero della pista sonora e il tempo trascorso per 5
secondi ogniqualvolta una nuova pista sonora inizia la scansione dell’introduzione.
3. Dopo 5 secondi l’LCD ritornerà al display standard.
*NOTA: Questa funzione opera in modo identico in entrambi i modi CD Player e CD Changer.
– 89 –
SOSTA PER CDP/CDX*
Sosta per CD
1. Premere il pulsante MUTE per far sostare il CD.
2. Premere il pulsante MUTE una seconda volta per riprendere a suonare il disco.
Display LCD
Il display LCD visualizzerà la parola “PAUSE” e il numero della pista sonora finchè non
venga annullata la funzione.
MEMORIA TITOLO DISCO PROGRAMMABILE
Il nome di un CD può essere memorizzato, utilizzando fino a 10 caratteri
nel titolo. È possibile memorizzare fino a 100 titoli.
Come memorizzare il titolo di un disco
1. Premere e tenere premuto il pulsante BAND per 1 secondo e la prima
cifra del pannello anteriore a 10 cifre inizierà a lampeggiare.
2. Premere il pulsante DISP per percorrere i seguenti tipi di caratteri:
Tipo 1: (spazio)ABCDEFGHIJKLMNOPQRSTUVWXYZ
Tipo 2: abcdefghijklmnopqrstuvwxyz
Tipo 3: 0123456789
Tipo 4: ^\.+?!*’")
3. Girare la manopola del VOLUME per selezionare il carattere che si
desidera.
4. Premere la manopola del VOLUME per passare allo spazio seguente.
5. Premere e tenere premuta la manopola del VOLUME per 1 secondo
per memorizzare il titolo.
Come cancellare il titolo di un disco
1. Premere e tenere premuto il pulsante MUTE per 1 secondo.
2. Girare la manopola del VOLUME per selezionare il titolo che si
desidera cancellare.
3. Premere e tenere premuta la manopola del VOLUME per 1 secondo
per cancellare il titolo.
*NOTA: Questa funzione opera in modo identico in entrambi i modi CD Player e CD Changer.
– 90 –
FUNZIONAMENTO BASE DEL MP3 PLAYER
NOTA: I RFX player NON riconoscono i CD MP3 creati su Macintosh
PER FAR SUONARE UN DISCO MP3
1. Premere il pulsante OPEN e il pannello anteriore si aprirà.
2. Inserire un disco MP3 e il pannello anteriore si chiuderà dopo 5 secondi, oppure premere il pulsante OPEN per chiuderlo immediatamente.
3. Il modo CDP PLAY verrà selezionato automaticamente e il disco MP3 inizierà subito a
suonare la prima pista sonora.
4. Premere i pulsanti ricurvi UP e DOWN per avanzare o per fare retromarcia quandosi
desidera cambiare pista sonora.
Per far suonare le piste sonore in modo casuale
Dopo aver inserito un disco MP3, premere il pulsante RDM per far suonare le piste sonore in
modo casuale.
Per far ripetere una pista sonora
Mentre il disco sta suonando la pista sonora desiderata, premere il pulsante RPT e il CD ripeterà la
medesima pista finchè non venga dinuovo premuto il pulsante RPT.
Per far sostare una pista sonora
Premere il pulsante MUTE per far sostare una pista sonora. Premere dinuovo il pulsante MUTE
per far riprendere la pista sonora.
Per estrarre un disco
1. Premere e tenere premuto il pulsante OPEN per 1 secondo, il pannello anteriore si
aprirà, e il disco verrà estratto.
2. Dopo aver estratto il disco, premere dinuovo il pulsante OPEN per chiudere il pannello anteriore.
STRUTTURA DELLA DIRECTORY
La directory MP3 è sistemata in tre livelli e consiste di tre componenti: (1) la radice,
(2) le cartelle, e (3) le canzoni. Le canzoni vengono fatte suonare a secondo dell’ordine e del livello in cui si trovano. Tutte le canzoni nel livello 2 vengono fatte suonare
prima delle canzoni contenute nel livello 3 o più in basso. Tali livelli sono descrittivi
della funzione di canzoni ubicate in cartelle o sottocartelle. Qualsiasi canzone in un
livello al di sotto del livello 3 viene trattata come se fosse nel livello 3, ma verrà fatta
suonare nell’ordine livello della sua ubicazione.
– 91 –
FUNZIONAMENTO DEL MP3 PLAYER – GESTIONE DEI FILE
COME NEGOZIARE LA DIRECTORY MP3
Il livello ROOT
Il livello ROOT contiene il nome del disco, ma nessun dato inerente
alla cartella o alla canzone. La prima canzone sul disco inizierà a
suonare automaticamente quando viene inserito un disco e continuerà
a suonare finchè non verrà scelta un’altra canzone.
Come scegliere direttamente una canzone secondo il titolo
Il sistema di gestione dei file MP3 è un sistema a base di cartelle simile al File Manager di
Windows™. Per questo motivo, i tasti UP e DOWN hanno un funzionamento diverso da
quello che dimostrano nel modo CD o nel modo Sintonizzatore. Invece di far avanzare il
vostro disco o fargli fare retromarcia, vanno su e giù, rispettivamente, attraverso l’elenco
dei file.
1. Premere il pulsante ROOT e il display visualizzerà il nome
del disco. Poi, il display cambierà per illustrare il nome della
prima cartella sul disco e lo visualizzerà per 5 secondi. Se
non venisse fatta alcuna scelta durante questo periodo di 5
secondi, il display ritornerà alla canzone che sta suonando
attualmente.
2. Mentre viene illustrato il nome della prima cartella, premere
il pulsante DOWN perpercorrere l’elenco delle cartelle in
ordine alfabetico (dall’A alla Z). Premere il pulsante UP per percorrere l’elenco in
senso contrario.
3. Premere il pulsante ENTER e verrà visualizzato il nome della prima canzone nella
cartella selezionata.
4. Premere il pulsante DOWN per percorrere, in senso numerico (dall’1 al 10 o di più),
le canzoni contenute nella cartella selezionata. Premere il pulsante UP per percorrere le canzoni dal 10+ fino all’1.
NOTA: Secondo il tipo di CD-R, stato di superficie CD e le prestazioni e lo stato CD del produttore,
i CD-R non possono funzionare normalmente.
NOTA: Il nome della canzone rimane visualizzato per 5 secondi durante le operazioni dall’1 al 4, di
sopra. Se non venisse effettuata alcuna scelta durante questo periodo di 5 secondi, il display ritornerà
alla canzone che sta suonando attualmente.
5. Premere ENTER per selezionare la canzone desiderata e quest’ultima inizierà a
suonare.
NOTA: Se non viene inserito un disco nel CD player, le parole “NO CD” verranno visualizzate e l’unità di fonte ritornerà al modo TUNER.
Pulsante DOWN
Quando si vuol far suonare una pista sonora MP3 sul RFX9300 oppure sul 9400, premere
il pulsante DOWN per ritornare all’inizio della pista sonora precedente. Ad esempio, se si
stesse ascoltando la pista sonora 3, il pulsante DOWN permetterebbe di ritornare all’inizio
della pista sonora 2, e non all’inizio della pista 3.
Ciononostante, se stesse suonando una pista sonora CD normale e venisse premuto il pulsante DOWN, si ritornerebbe all’inizio della medesima pista se quest’ultima stesse già
suonando da oltre 10 secondi. Se la pista stesse suonando per meno di 10 secondi, premere il pulsante DOWN per ritornare all’inizio della pista sonora precedente.
– 92 –
COME NEGOZIARE LA DIRECTORY MP3 (CONT’D)
Avanzamento rapido/retromarcia rapida
Questa funzione è possibile nel modo MP3, ma il tempo non verrà visualizzato e non ci sarà alcun
suono.
Velocità massima di scrittura e profondità dei bit
La velocità massima del bruciatore del CD ROM che sia accettabile dalle unità RFX è di 12X. La
gamma massima possibile per il tasso dei bit è di 32kb/sec-320kb/sec. Per ottenere le migliori
prestazioni mentre si sta percorrando il display, selezionare il menù delle proprietà di layout dei CD
nonchè le tabulazioni del complesso dei file, prima di creare un sistema di file nel vostro programma
di bruciatura del CDR. Usare il formato per file ISO9660 e selezionare l’opzione Nomi di file lunghi
sul vostro PC. Ciò consente la visualizzazione di un massimo di 16 caratteri maiuscoli da percorrere.
NOTA: Al momento di bruciare un CD MP3, assicurarsi che quest’ultimo sia formattato come disco da dati e NON come
disco audio.
Titolazione programmabile
La titolazione programmabile non è disponibile nel modo MP3. Ciononostante, si potrà scegliere il valore standard per rintracciare/cronometrare il titolo di una canzone su disco.
FUNZIONAMENTO DEL SINTONIZZATORE RADIO
COME SELEZIONARE UNA BANDA
Premere il pulsante BAND ripetutamente per percorrere l’FM1, l’FM2, e l’AM. La
banda viene automaticamente abilitata al momento della sua selezione.
OPZIONI DEL SINTONIZZATORE
DX e AMERICAS sono le programmazioni standard per le opzioni del sintonizzatore. Le opzioni
in parentesi quadre sono opzioni alternative.
• DX [LOCAL]
• AMERICAS [EUR/AUST]
Come selezionare le opzioni del sintonizzatore
1. Premere e tenere premuta la manopola del VOLUME per 1 secondo.
2. Premere la manopola del VOLUME ripetutamente per percorrere tutte le opzioni programmabili (le altre opzioni programmabili non influiscono sul modo di sintonizzazione).
3. Per cambiare un opzione, premere il pulsante UP oppure il pulsante DOWN.
4. Una volta effettuate le selezioni desiderate, aspettare 5 secondi e il pannello anteriore vi
riporterà all’ultimo pannello dei modi illustrato.
PULSANTI PREIMPOSTATI 1-10
Ciascun modo del sintonizzatore—FM1, FM2, e AM—ha 10 valori preimpostati per un
totale di 30.
Per programmare un pulsante preimpostato
1. Sintonizzare il sintonizzatore sulla stazione che si desidera programmare.
2. Premere e tenere premuto qualsiasi pulsante preimpostato per 5 secondi per effettuare quella particolare programmazione.
– 93 –
FUNZIONE DEI PULSANTI
Funzionamento
1. Premere e tenere premuta la manopola del VOLUME per 1 secondo per entrare nel
modo delle opzioni del sintonizzatore.
2. Continuare a premere la manopola del VOLUME per percorrere le TUNER OPTIONS
DX > AMERICAS > P.PLAY > V/BAR > INI/VOL > CONTRAST > FLAT > PANEL
AUTO > AUX1 UB > AUX2 IN.
3. Premere il pulsante SEEK per selezionare MODE 1 oppure MODE 2.
MEMORIZZAZIONE AUTOMATICA
Se si desidera far scegliere al sintonizzatore le 10 stazioni più potenti secondo la potenza
del loro segnale e poi assegnarle ai pulsanti preimpostati dall’1 al 10, si potrà utilizzare la
Memorizzazione automatica.
Memorizzazione automatica
1. Premere la manopola del AS tasto ed il sintonizzatore effettuerà la scansione dell’intero
quadrante.
2. La Memorizzazione automatica memorizzerà le stazioni radio in modo indipendente
nella banca del sintonizzatore selezionata (FM1/FM2/AM).
MEMORIA TITOLO STAZIONE PROGRAMMABILE
Il nome di un stazione può essere memorizzato, utilizzando fino a 10 caratteri nel titolo. È possibile
memorizzare fino ad un massimo di 100 titoli.
Come memorizzare il titolo di una stazione
1. Premere e tenere premuto il pulsante BAND per 1 secondo e la prima cifra del pannello anteriore a 10 cifre inizierà a lampeggiare.
2. Premere il pulsante DISP per percorrere i seguenti tipi di caratteri:
Tipo 1: (spazio)ABCDEFGHIJKLMNOPQRSTUVWXYZ
Tipo 2: abcdefghijklmnopqrstuvwxyz
Tipo 3: 0123456789
Tipo 4: ^\.+?!*’")
3. Girare la manopola del VOLUME per selezionare il carattere che si desidera.
4. Premere la manopola del VOLUME per passare allo spazio seguente.
5. Premere e tenere premuta la manopola del VOLUME per 1 secondo per memorizzare il titolo.
Come cancellare il titolo di una stazione
1. Premere e tenere premuto il pulsante MUTE per 1 secondo.
2. Girare la manopola del VOLUME per selezionare il titolo che si desidera cancellare.
3. Premere e tenere premuta la manopola del VOLUME per 1 secondo per cancellare il titolo.
– 94 –
MODO AF / TP
Il Modo TP (Programma del traffico) commuterà automaticamente per ricevere un annuncio sul traffico nonostante in quale modo operativo si trovi l’unità. Le stazioni EON TA
sono quelle che non hanno un TRAFFIC PROGRAM ma che potranno fornire ragguagli
su altre stazioni radio che lo hanno. Il Modo AF (Frequenze alternative) paragona il livello del segnale della stazione attualmente in onda con quello di altre frequenze alternative
sulla stessa rete radio (vedere il Modo PTY). Se l’AF fornisce un segnale più forte rispetto
alla frequenza attualmente in onda, la radio comuterà all’AF più forte.
Modo del programma del traffico (TP)
1. Premere il pulsante AF/TP per abilitare il Modo TP, e premerlo dinuovo per disabilitare il Modo TP.
2. Quando il TP lampeggia, il Modo TP è acceso e non ci sono TP DATA da ricevere.
3. La funzione SEEK oppure AS si fermerà solamente a quelle stazioni radio che forniscono TP oppure EON TA.
Modo delle frequenze alternative (AF)
1. Premere e tenere premuto il pulsante AF/TP per 1 secondo per abilitare il Modo AF.
2. Premere dinuovo e tenere premuto il pulsante AF/TP per 1 secondo per disabilitare
il Modo AF.
MODO PTY
Il PTY (Programma tipo) può cercare stazioni radio via le reti MUSIC MODE oppure SPEECH
MODE. Il Modo musica classifica la musica secondo i tipi Pop, Rock, Musica moderna, Musica
leggera, Classica, ed altri. Il Modo linguaggio classifica la musica secondo i tipi Notizie, Affari,
Informazioni, Sport, Istruzione, Dramma, Cultura, e Scienza. Il REG (Modo regione) commuterà la
stazione in un’altra che ha lo stesso PI CODE (una stazione che fornisce esattamente lo stesso programma), ma in una REGION diversa.
Modo del tipo programma
1. Premere il pulsante PTY per percorrere MUSIC, SPEECH, e PTY OFF.
2. Premere il pulsante PRESET che corrisponde al tipo di modo (fare riferimento alla
tabella di sotto).
Modo regione
1. Premere e tenere premuto il pulsante PTY per 1 secondo per accendere il Modo
regione.
2. Premere dinuovo e tenere premuto il pulsante PTY per 1 secondo per spegnere il
Modo regione.
NOTA: Il display LCD visualizzerà la parola “REG” quando i modi AF e REG sono accesi.
– 95 –
– 96 –
PRINTED IN KOREA
Rockford Fosgate
Rockford Corporation
546 South Rockford Drive
Tempe, Arizona 85281 U.S.A.
In U.S.A., (480) 967-3565
In Europe, Fax (49) 8503-934014
In Japan, Fax (81) 559-79-1265
www.rockfordfosgate.com
B.M.
03/01
MAN-3550-B
