Samsung SSC-2000 User manual

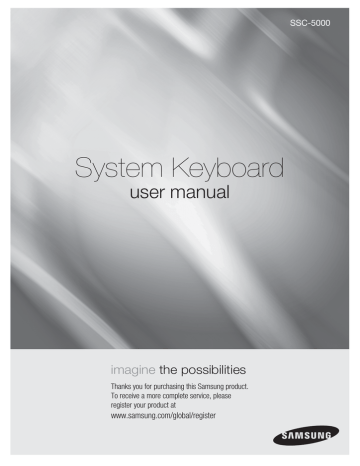

SSC-5000
System Keyboard
user manual
imagine the possibilities
Thanks you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/global/register
general facts
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
This symbol indicates that dangerous
voltage consisting a risk of electric shock
is present within this unit.
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• If this power supply is used at 240V ac, a suitable plug adapter should be used.
1.
Be sure to use only the standard adapter that is specified in the specification sheet.Using any other adapter
could cause fire, electrical shock, or damage to the product.
2.
Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or
damage to the product.
3.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat
generation or fire.
4.
Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5.
When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
6.
Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water on
top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8.
If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately
disconnect the power source and contact the service center. Continued use in such a condition may cause fire
or electric shock.
9.
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this
product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted
repair.)
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric
shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive
vibration or magnetic interference.
2.
Do not install in a location subject to high temperature (over 122°F), low temperature (below 14°F), or high
humidity. Doing so may cause fire or electric shock.
3.
If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
4.
Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fire or
damage to the product.
5.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
6.
Install it in a place with good ventilation.
7.
Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD
image sensor.
8.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
9.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
2_ general facts
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that may cause undesired operation.
 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
J
 FCC regulations state that any unauthorized changes or modifications to this equipment may void the
of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
user’s authority to operate it.
 IC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian interference-Causing Equipment Regulations
of ICES-003.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.
Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers)
that produce heat.
9.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or been
dropped.
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or
distributed ONLY in California USA. “Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
English _3
M GENERAL FACTS
M
general facts
CONTENTS
GENERAL FACTS
2
INSTALLATION
8
CONNECTING WITH OTHER
EQUIPMENT
10
INSTRUCTIONS
14
MENU SETUP
22
OTHERS
29
4_ general facts
4
5
5
6
Contents
Introduction
Checking Contents & Accessories
Name and function of each part
8
8
9
9
Installation Environment Setup
Cautions for Installation
Adjusting System Keyboard Angle
Fixing Power Cord
10
12
12
13
Connecting RS-485 Device
Connecting to PC using USB port
Connecting Other System Keyboard
Basic System Diagram of SSC-5000
14
15
19
Log-in
Camera control
DVR control
22
22
22
23
24
24
25
26
27
28
Main Menu
Keyboard Setup
RS-485 Communication Setup
Change Password
Check Password
Register New Operator
Camera Data Download
Camera Data Upload
System Information and Setup
Operator Level
29
30
Product Specification
Troubleshooting (FAQ)
INTRODUCTION
SSC-5000 system keyboard is a controller that controls Cameras, DVR, and other devices by using RS-485.
An user-friendly on-screen menu, touch screen, and joystick applied, it is easy to operate.
Features
W Controllable products List
• Camera
• DVR
SHR-4081, SHR-4160,
SHR-504Xseries, 508Xseries, 516Xseries, SHR-2XXXseries,
PC Based DVR
(SPR-7XXXseries, SPR-9XXXseries)
CHECKING CONTENTS & ACCESSORIES
On buying a product, unwrap it first and put it down on a plane or where you want to use it.
Then, you shall check if the followings are contained in the box.
rd
boa
tem
Key
Sys
Main Body
User’s Manual
English _5
M GENERAL FACTS
• Long-distance remote control
Through RS-485 communication, remote control is possible up to 1.2 kilometers. (Based on the one
System Keyboard)
• Integrated System Control
A System Keyboard can control Camera (Receiver Unit) and DVR.
• You can connect 2 or more System Keyboards together.
Maximum 32 keyboards can be connected simultaneously and the system can be controlled from different
places.
• Easy to operate
There is an LCD showing the operating status of the System Keyboard, Touch Screen that helps users to
choose the menu easily, and a Joystick.
general facts
NAME AND FUNCTION OF EACH PART
Front side
Name
Function
LCD Display
It shows the operating status of the system keyboard..
Camera movement button
PRESET, PATTERN, SCAN, AUTO PAN
ALARM RESET button
Use this to set on or off the alarm.
Camera lens button
- IRIS control (IRIS CLOSE/OPEN)
- FOCUS control (FOCUS NEAR/FAR)
- ZOOM control (ZOOM TELE/WIDE)
Joystick controller (UP/
DOWN/LEFT/DOWN/ZOOM)
The Pan/Tilt connected with Samsung Dome Camera or Receiver Unit is moved to UP/
DOWN/LEFT/RIGHT. Press the button on the top of Joystick to control the Auto Focus. And
use for the zoom control by turning to the clockwise or counterclockwise. The function of
UP/DOWN/LEFT/RIGHT keys is controlled in the menu screen of the connected controller.
Press the button of the top to execute ENTER motion.
Device select button
(MON/CAM/VMS/DVR)
This key is to select Camera, Monitor, DVR or others.
DVR control button
(SEQUENCE, MODE)
- SEQUENCE : Executes the SEQUENCE function of DVR.
- MODE : Executes the partition screen selection function of DVR.
Number (0~9),
ENTER, CLEAR button
This key is to select Camera, Monitor, DVR, Preset, Pattern Number, or others.
MENU button
This key is to go into the menu mode for the setup of various devices.
Jog shuttle
- JOG : Is in use for Forward / Reverse Frame search in the playback mode of DVR.
- Shuttle : Executes the Play / Reverse Play / FF / REW functions in the playback mode of
DVR.
DVR Play button
PLAY/PAUSE, STOP, FAST FORWARD, REWIND, RECORD
AUX 1, 2, 3, 4 button
Controls the AUX output of the receiver unit.
6_ general facts
Back side
M GENERAL FACTS
Name
Function
USB Port
This is a software uploading port of the System Keyboard.
Composite Video IN/OUT
This is an AV In / Out port.
RS-485 (Port1, 2)
For RS-485 communication, it will be connected to the RS-485 terminals of other System
Keyboards or controlling devices such as cameras, and DVR.
MYou can specify different protocols for Port 1 and Port 2.
DC12V IN
DC 12V power input terminal
English _7
installation
INSTALLATION ENVIRONMENT SETUP
The following information is prepared for safe installation of the unit.
• This unit can be placed on a flat table or installed in the rack.
It should not be used vertically or skew, but horizontally.
• The location of the unit and the composition of wiring are very important in properly operating the system.
When equipment is placed too close or if ventilation is not properly done, system may not work properly, and
maintenance of the system may be difficult.
• In order to prevent system failure and to reduce system shut-down by outside environmental factors, air
circulation in the system operating room, and the cover of the unit must be fixed.
• Do not open the cover voluntarily because high voltage within the unit may cause electric shock.
PHYSICAL & ENVIRONMENTAL
-
Operating Temperature : 0°C ~ 40°C
Maintenance Temperature : -20°C~60°C
Operating Humidity : 20%~85% RH
Maintenance Humidity : 20%~90%RH
Power Supply : DC 12V, 1A (
)
Power Consumption : 4W
J
 When system is operated, input voltage range must be within 10% of nominal voltage, and power consent should be
grounded. Heating devices such as hair dryer, iron, refrigerator should not be used together.
For safe power supply, AVR (Automatic Voltage Regulator) is recommended. The connector linked to this equipment
can affect EMI, so it is recommended to coil the CORE-FERRITE for use.
CAUTIONS FOR INSTALLATION
-
Be sure to turn the unit off before installing.
Avoid shock or vibration since they may cause unit malfunction.
Keep away from magnets, radio or TV to avoid magnetic damage.
During or after installing the unit, be sure to maintain the area around the unit clean.
Place the unit on a flat surface and maintain temperature properly.
Allow 15 cm of clearance between the rear panel and the wall.
Be careful not to drop any conductive materials into the hole for ventilation.
When replacing built-in fuse, be sure to turn the power off, and unplug the unit.
Avoid locating the unit where direct sunlight will fall, and maintain it cool.
Keep tools and equipment away from people so that they would not be hurt.
If ignoring smoke or smell while using the unit, fire or electric shock may occur. In this case, turn the power switch off
immediately, and consult professionals in the closest service center.
Be sure to check dangers, which may occur due to damped floor, ungrounded power extension cable, worn
power cord or lack of safety grounding.
J
 When cleaning this unit, be sure to wipe with a dried cloth. If the unit is heavily contaminated, wipe it with a soft
cloth dampened with a mild detergent solution, then wipe dry with a soft clean cloth.
Do not use chemicals such as alcohol, benzene, or thinner because a chemical reaction could result permanent
damaging of the cabinet surface.
8_ installation
ADJUSTING SYSTEM KEYBOARD ANGLE
You may adjust the angle of the product as shown below.
M INSTALLATION
FIXING POWER CORD
Hang the power cord as shown in the following figure to prevent it from being deviated when you connect it with the
main body.
English _9
connecting with other equipment
You can use the SSC-5000 System Keyboard with a camera, DVR, and the other equipments.
This chapter describes how to connect each equipment.
CONNECTING RS-485 DEVICE
- Connect RS-485 Device through the port in the back of SSC-5000.
- You are able to install and control the camera and DVR supporting RS-485 communication.
- Either Half Duplex or Full Duplex method is applicable for connection.
M For the Half Duplex method, use TX +,-.
M To connect RS-485, be careful not to be confused between + and -.
Also, you shall check if the RS-485 device can support SSC-5000.
M Please refer to “RS-485 Communication Setup” of “Menu Setup” for RS-485 communication setup. (see page 22)
Connecting the SAMSUNG Dome Camera
Connect with SSC-5000 by using the RS-485 port on the back of Dome Camera
W In case of connecting with Half Duplex
- Connect the RX (+) of Dome Camera RS-485 port with the
TX(+) of SSC-5000.
- Connect the RX (-) of Dome Camera RS-485 port with the
TX(-) of SSC-5000.
W In case of connecting with Full Duplex
- Connect the RX (+) of Dome Camera RS-485 port with the
TX (+) of SSC-5000.
- Connect the RX(-) of Dome Camera RS-485 port with the
TX (-) of SSC-5000.
- Connect the TX (+) of Dome Camera RS-485 port with the RX (+)
of SSC-5000.
- Connect the TX (-) of Dome Camera RS-485 port with the RX (-)
of SSC-5000.
10_ Connecting with Other Equipment
TXD+
TXDRXD+
RXD-
Connecting SHR-4081, SHR-4160, SHR-508X Series, SHR-516X Series,
SHR-208X and SHR-216X Series DVRs
Connect to SSC-5000 through the RS-485 port on the rear of the DVR.
W Connecting as Half Duplex
- Connect TX (+) of the RS-485 port of the DVR to TX (+) of
SSC-5000.
- Connect TX (-) of the RS-485 port of the DVR to TX (-) of SSC-5000.
M CONNECTING WITH OTHER EQUIPMENT
W Connecting as Full Duplex
- Connect RX (+) of RS-485 port of the DVR to RX (+) of SSC-5000.
- Connect RX (-) of RS-485 port of the DVR to RX (-) of SSC-5000.
- Connect TX (+) of RS-485 port of the DVR to TX (+) of SSC-5000.
- Connect TX (-) of RS-485 port of the DVR to TX (-) of SSC-5000.
Connecting SHR-5040 & SHR-5042 DVR
Connect to SSC-5000 through the RS-485 port on the rear of SHR-5040 /
SHR-5042DVR.
W Connecting as Half Duplex
- Connect TX (+) of RS-485 port of SHR-5040 / SHR-5042 DVR to TX (+) of
SSC-5000.
- Connect TX (-) of RS-485 port of SHR-5040 / SHR-5042 DVR to TX (-) of
SSC-5000.
Connecting SHR-204X Series DVR
Connect to SSC-5000 through the RS-485 port on the rear of SHR-204X DVR.
W Connecting as Half Duplex
- Connect TX (+) of RS-485 port of SHR-204X Series DVR to TX (+)
of SSC-5000.
- Connect TX (-) of RS-485 port of SHR-204X Series DVR to TX (-)
of SSC-5000.
W Connecting as Full Duplex
- Connect RX (+) of RS-485 port of SHR-204X Series DVR to RX (+)
of SSC-5000.
- Connect RX (-) of RS-485 port of SHR-204X Series DVR to RX (-)
of SSC-5000.
- Connect TX (+) of RS-485 port of SHR-204X Series DVR to TX (+) of SSC-5000.
- Connect TX (-) of RS-485 port of SHR-204X Series DVR to TX (-) of SSC-5000.
English _11
connecting with other equipment
Connecting PC Based DVR
- Connect SSC-5000 through the RS-485 port in the back
of PC Based DVR.
- Connect SIGNAL (+) in the RS-485 port of PC Based DVR
with TX (+) of SSC-5000.
- Connect SIGNAL (-) in the RS-485 port of PC Based DVR
with TX (-) of SSC-5000.
<SPR-9XXX Series>
<SPR-7XXX Series>
CONNECTING TO PC USING USB PORT
You can use the provided USB cable to connect to the PC with uploading software for updating software of the
System Keyboard.
CONNECTING OTHER SYSTEM KEYBOARD
※ It is possible to connect and use max. 32 keyboards simultaneously.
※ Refer to the “ADDRESS SET” part in “RS-485 Communication Setup” of “Menu Setup” for the setting of keyboard
communication. (see page 22)
※ Do not use together with the SSC-2000/SSC-1000 because it is different with the SSC-2000/SSC-1000 in
communication method.
W In case of connecting with Half Duplex
- Connect the TX (+) of SSC-5000 port with the
TX(+) of another SSC-5000.
- Connect the TX (-) of SSC-5000 port with the TX(-)
of another SSC-5000.
W In case of connecting with Full Duplex
- Connect the TX (+) of SSC-5000 with the TX (+) of
another SSC-5000.
- Connect the TX (-) of SSC-5000 with the TX (-) of
another SSC-5000.
- Connect the RX (+) of SSC-5000 with the RX (+) of
another SSC-5000.
- Connect the RX (-) of SSC-5000 with the RX (-) of
another SSC-5000.
12_ Connecting with Other Equipment
BASIC SYSTEM DIAGRAM OF SSC-5000
1. One Keyboard to One Device
Digital Video
Recorder
Digital Video
Recorder
Digital Video
Recorder
3. Multiple Keyboards to Multiple Devices
(“Daisy-Chain”Type Wiring)
Digital Video
Recorder
Digital Video
Recorder
M Do not use together with the SSC-2000/SSC-1000 because it is different with the SSC-2000/SSC-1000 in communication method.
In case of using the keyboard connected SSC-931T Version 1.4, make sure the address of connected keyboards differ from each other.
English _13
M CONNECTING WITH OTHER EQUIPMENT
2. One Keyboard to Multiple Devices
(“Daisy-Chain” Type Wiring)
instructions
LOG-IN
1. Turn on the power of all the components of the system.
2. When the power is applied by connecting the power adapter at the
back of system keyboard, the following indication is displayed on the
LCD screen.
Login
Operator No.
Password
Clear
Enter
3. Using the keypad of the touch screen or the number key of the
keyboard, enter the registered Operator number (1~32) and press
<Enter>.
Login
Error
No.
The default Operator No. is 1.
Invalid Operator!
Clear
Refer to “MENU setup”, “REGISTER NEW OPERATOR” for the
registration of the operator number. (see page 24)
M If an unregistered operator number is entered, a message of “Invalid Operator!” will
appear on the screen and the log-in process will return to the starting point
automatically.
Enter
Login
Error
No.
4. Using the number keys, enter the registered Password (6-digit figure)
and press <Enter>.
Invalid Password!
Clear
M The default Password is 4321. Refer to “MENU setup”, “REGISTER NEW
OPERATOR” for the registration of the password. (see page 24)
M If an unregistered password is entered, a message of “Invalid Password!” will appear
on the screen and the log-in process will return to the starting point automatically.
Enter
CAM
002
MON
5. When you have logged in successfully, the System Keyboard will enter
the following camera control mode and display “Normal Mode” or
“Video Mode” as in the right figure.
To change the display mode, see “Display Mode” in “System
Information & Setup”. (see page 27)
M Simply tap the screen if you want to switch from the current mode to other mode.
M If the key board is not operated for three minutes, the graphic panel is changed to
the sleep mode and the screen is not displayed. (Samsung Logo display)
Press the touch panel/key or move the joystick/jog shuttle, and then the screen
before the sleep mode is displayed again.
002
CAM
002
MON
002
6. If you want to log out, press and hold both [PRESET] and [ALARM
RESET] buttons simultaneously for more than 2 seconds to display the Login dialog.
14_ instructions
CAMERA CONTROL
W Selecting a camera
1. Press “CAM” (
be as follows.
) key. The camera display part of the screen will
2. Enter the camera number (0~255) you want by using the number key
and press [ENTER] button.
CAM
002
MON
002
W Selecting a monitor
1. Press the [MON] button.
2. Enter the monitor number(0~255) that shows the image of the chosen camera and press <Enter>.
W PAN/TILT control
Move the joystick of the keyboard to regulate PAN/TILT of the camera.
The speed of the camera movement gets faster when the joystick moves farther from the center.
W ZOOM movement
Turn the joystick of the keyboard in a clockwise direction or press the [ZOOM TELE] button to regulate the
ZOOM IN movement.
Turn the joystick of the keyboard in a counterclockwise direction or press the [ZOOM WIDE] button to
regulate the ZOOM OUT movement.
W FOCUS movement
Press the [FOCUS FAR] or [FOCUS NEAR] button.
W IRIS movement
Press the [IRIS OPEN] or [IRIS CLOSE] button.
W AUTO PAN movement
Press the [AUTO PAN] button to move between two points in the camera menu repeatedly.
“AUTO PAN” will appear on the screen. Press the [AUTO PAN] button again to release the auto pan mode.
M On models released later than the SCC-C6405, press the [AUTO PAN] button and enter the AUTO PAN number (1~4), then press
the [ENTER] button to execute the AUTO PAN feature.
W SCAN movement
This function is to move between the preset positions that were set by the camera's scan mode.
Press [SCAN] button to execute the scan movement and you will see “SCAN” message during the scan
movement. Press the [SCAN] button again to release the scan mode.
M On models released later than the SCC-C6405, press the [SCAN] button, and enter the SCAN number (1~4), then press the
[ENTER] button to execute the SCAN feature.
W PATTERN movement
This function is to view the camera movement for 30 seconds designated by the user on the pattern mode of
the camera menu.
Press the [PATTERN] button on the keyboard, enter the pattern number(1~3) you want, and press [ENTER]
button to execute PATTERN movement.
“PATTERN 1” will appear on the screen.
M On models later than the ALARM VER 1.100, SCC-C6405, movements caught by the camera for 2 minutes will be stored in the
PATTERN feature (1~3). If you are transferring data from and to the camera with SSC-5000, please reset before use since the
PATTERN may differ from the settings.
M If there is any of MANUAL (PAN, TILT, ZOOM, FOCUS) input during auto execution (SCAN, AUTO PAN, PATTERN), the system will stop
the AUTO movement and execute the MANUAL movement.
English _15
M INSTRUCTIONS
This function is to choose a monitor displaying the image of the camera.
instructions
W PRESET movement
Press the [PRESET] button on the keyboard to start PRESET POSITION
movement.
The screen will appear as shown in the right figure.
Preset
CAM
000
MON
Save
001
Delete
PRESET position movement
1. Enter the preset number you want to operate.
2. Press [ENTER] button.
PRESET programming
This function is to set the camera screen the user wants to call and
monitor whenever he/she wants to. Maximum 128 screens can be preset.
(0~127)
Preset
CAM
000
MON
Save
001
1. Move the camera to the position you want by using a joystick and camera
lens key.
Delete
2. Press <Save>.
3. When a window appears as shown in the right figure, enter the preset
number you want to save and press <Enter>.
CAM
Input Preset No. (0~127)
000
MON
001
Clear
PRESET DELETE
This function is to delete the preset position.
1. Press <Delete>.
2. When a window appears as shown in the right figure,
enter the preset number you want to delete and press <Enter>.
3. The camera will move to the preset position you want to delete.
The system keyboard will show a message to confirm the deletion.
Press <OK> to delete or <Cancel> to cancel the order.
Enter
Preset
CAM
000
MON
Save
001
Delete
CAM
Input Preset No. (0~127)
000
MON
001
Clear
CAM
Enter
Input Preset No. (0~127)
000
MON
001
Are you sure you want to
delete preset 005?
Cancel
16_ instructions
OK
Clear PRESET mode
Press <EXIT> icon on the right below to go out of the PRESET mode.
It will return to the camera control mode.
Preset
CAM
000
MON
Save
001
Delete
1. You can title the selected camera.
Press the camera title line to call the title input page on the screen.
M INSTRUCTIONS
W CAMERA TITLE input
CAM
000
MON
001
2. English small letter input page will appear.
CAM
000
MON
001
3. Press <TEXT> if you want to enter large letters.
TEXT
text
Number
Symbol
Back
Space
Clear
OK
TEXT
text
Number
Symbol
Back
Space
Clear
OK
TEXT
text
Number
Symbol
Back
Space
Clear
OK
TEXT
text
Number
Symbol
Back
Space
Clear
OK
CAM
000
MON
001
4. Press <Number> if you want to enter numbers.
CAM
000
MON
001
5. Press <Symbol> if you want to enter symbols.
CAM
M Press a word at a time until you complete the title you want.
Maximum 14 characters can be entered.
000
-
MON
001
Press <Back> to delete the last word.
Press <Space> to leave a column vacant.
Press <Clear> to delete all the characters entered.
Press <OK> to save the title you entered.
Press the <EXIT> icon to cancel the title and return to the camera control mode.
English _17
instructions
W CAMERA connection information
Press the part marked as shown in the right figure to know the number
of DVR that are connected to the selected camera.
CAM
000
MON
001
A window will appear as shown in the right figure when you press the
camera number display part.
Connecting Info.
CAM
000
MON
001
CAM
DVR
000
001
Move to the connected device
When you press <DVR 001> on the connection information screen, DVR 001 will be selected and the screen
will be changed into the DVR control mode.
Enter the number of the connected DVR
1. Press the [DVR] button of the keyboard on the connection information screen.
2. While the number is highlighted, enter the number of the connected DVR by using the number keys and
press the [ENTER] button.
W CAMERA MENU
Press the <SETUP> icon on left below to control the menu of the selected
camera.
CAM
000
MON
001
Using the direction key and the <Enter> key, control the CAMERA
MENU.
Press the <EXIT> icon to clear the camera menu.
M When you control the menu of SAMSUNG DOME CAMERA, you can use the joystick
as a direction or enter key by moving it or after pressing the AF button of it.
18_ instructions
CAM
Camera Setup
000
Enter
DVR CONTROL
Please refer to the manual of each DVR since DVR’s functions are varied depending on the model.
Press the [MENU] button on the DVR set, then go to “System € Remote Control Device” in the Settings menu to
ensure that "Samsung System Keyboard" is properly set. The DVR will be controllable after the appropriate settings
(ID, baud rate, etc.) are set.
DVR selection
CAM
2. Enter the DVR number (0~255) you want by using the number keys
and press [ENTER] button.
MON
3. Varied window will appear depending on the DVR model.
DVR
000
001
000
M If you press the [DVR] button in the Camera Control mode, the DVR Input Box will be displayed in the screen as follows.
Then, select DVR in the same manner as above.
Examples of DVR selecting
1. SHR-4081, SHR-4160
DVR
Record
Mode
DVR
013
Panic
Freeze
013
REC Lock
Zoom
SHR-4081
MON
000
Select Channel
SHR-4081
MON
001
Search
Alarm
2. PC DVR
DVR
011
SPR7416
MON
000
4 div.
Search
DVR
9 div.
Emergency Rec
011
16 div.
Alarm Off
Select Channel
SPR7416
MON
000
Rotate
3. SHR-5040, 5042
DVR
Search
Zoom
DVR
002
Record
Audio
002
Alarm
Eject
SHR-5042
MON
000
Mode
Select Channel
SHR-5042
MON
002
Freeze
English _19
M INSTRUCTIONS
1. Press the [DVR] button.
instructions
4. SHR-2XXX Series, SHR-508X, 516X Series
DVR
Record
Mode
DVR
012
Search
Freeze
012
Alarm
Zoom
Audio
Eject
SHR-5082
MON
000
DVR
Select Channel
Select Channel
SHR-5162
MON
000
DVR
002
002
SHR-5082
SHR-2042
MON
MON
002
002
Select Channel
Controlling the PTZ device connected to the DVR
PTZ devices connected to some DVRs may not be controllable, depending on the DVR model.
In this case, press the <EXIT> icon in DVR Control mode and move to Camera Control mode to control the
corresponding camera.
Setting the PTZ device from the DVR
1. Select DVR MENU.
2. Go to “Camera € PTZ Device Settings” in the Settings menu.
3. A screen to set the camera available will be displayed in the DVR Control mode.
Enter each item and then press the [ENTER] button. (For more information, please refer to the DVR user
manual.)
4. After completing setup of the camera, exit from the DVR MENU and then reselect the DVR using the
keyboard (DVR + DVR number + ENTER).
M The PTZ Device Settings feature from the Settings menu and Camera may be enabled, depending on the DVD model. In this
case, set “Device” from the “Settings menu € System € Remote Control Device” as “None” and then try resetting the PTZ
device.
Selecting and operating the camera using the System Keyboard in DVR
Control mode
1. Press the [CAM] button on the keyboard in DVR Control mode.
2. The <PTZ> icon will appear at the left side of the screen as in the
following image.
3. Using the number keys on the keypad, enter the Channel number of
the camera you wish to operate and press the [ENTER] button.
4. The camera can be operated after the following screen is displayed.
M Press the <Camera Setup> icon at the bottom center of the DVR Control mode
screen to control the currently selected Camera MENU.
M PRESET feature and SCAN, AUTO PAN, PATTERN and other features of the selected
camera can be operated.
20_ instructions
DVR
Record
Mode
002
Search
Freeze
SHR2042
Alarm
Zoom
000
Audio
Eject
DVR
Record
Mode
002
Search
Freeze
Alarm
Zoom
Audio
Eject
MON
SHR2042
MON
000
01
DVR channel selection
1. Press the <CH> icon below
on the DVR screen.
2. A channel selection screen
will appear as shown in the
right figure.
DVR
011
SPR7416
MON
000
4 div.
Search
DVR
9 div.
Record
011
16 div.
Alarm Off
Rotate
Select Channel
SPR7416
MON
000
3. Select the channel you want.
M INSTRUCTIONS
4. Press the <EXIT> icon on the lower right to finish selecting and return to the DVR control screen.
M DVR channel can be selected by using the number keys (0~9) of the keyboard.
DVR MENU control
Press the <SETUP> icon on the lower left to control the menu of the
selected DVR.
DVR
DVR Setup
000
SPR7416
Enter
Using the Direction key and the <Enter> key, control the DVR MENU.
You can use the joystick as a direction or enter key by moving it or using
the AF button.
Press the <EXIT> icon to finish controlling the DVR MENU.
English _21
MENU setup
MAIN MENU
1. Press the [MENU] button of the keyboard and a log-in window will appear
as follows.
Login
Operator No.
2. Using the number keys, enter the correct Operator No. and Password.
Password
3. MAIN MENU will be displayed on the screen when you complete the log-in
process.
4. Press the item you want to control on the main menu.
Press the <EXIT> icon in the main menu to return to the camera control
mode.
Clear
Enter
MENU
MAIN
Keyboard Setup
Camera 000 Setup
DVR 001 Setup
M If the CHECK PASSWORD item is set “Off” in the keyboard setup, press the [MENU] button. MAIN
MENU screen will directly appear without the log-in process.
M If you press the [MEMU] button while the OPERATOR’s LEVEL is the MANAGER’s or
OPERATOR’s level, you cannot go into the menu.
KEYBOARD SETUP
On MAIN MENU, press <Keyboard Setup> to call the Keyboard Setup screen.
The KEYBOARD SETUP menu are constituted by 7 main items as follows.
Keyboard
Setup
RS-485 Communication Setup
Change Password
Check Password
On
Register New Operation
Camera Data Download
Camera Data Upload
System Information and Setup
RS-485 COMMUNICATION SETUP
On the Keyboard Setup menu, press <RS-485 Communication Setup>
and the RS-485 Communication Setup menu will appear on the screen.
Keyboard
Setup
M The default address of the keyboard is 0.
M The default Baud Rate of the keyboard is 9600BPS.
RS-485 Communication Setup
¨Address Set
0
¨Protocol (Port 1)
SAMSUNG
¨Protocol (Port 2)
SAMSUNG
¨Baud Rate
9600
¨Duplex
Half Duplex
M The factory default setting of Duplex of keyboard is Half Duplex.
ADDRESS SET
The address of the system keyboard can be set.
1. Press <Address Set> and the keyboard address input window will
appear as shown in the right figure.
2. Enter the address by using the number keys and press the [ENTER]
button.
Press the <EXIT> icon on lower left if you want to clear the window
without entering the address.
Keyboard
Setup
Input Keyboard Address (0~32)
Clear
Enter
M ADDRESS "0": For only one unit
ADDRESS "1~32": For multiple units connected together
M When using multiple units that are connected together, you must select a number between 1 and 32 before use.
If the value is set to "0", this may cause communication to fail and malfunction.
M When using multiple units connected together and operating two separate keyboards at the same time, the first keyboard to start
communication takes precedence.
22_ MENU setup
Protocol Port1/Port2
The protocol of the RS-485 communication can be set.
RS-485 communication of the system keyboard supports Camera
Protocol as follows.
Keyboard
Setup
Choose one protocol among SAMSUNG / Pelco-D / Pelco-P / Vicon /
Panasonic / Kalatel / Diamond / AD / Philips / Erna / VCL TP / Techwin /
Honeywell.
M The multimedia protocol provided by us may not be supported depending on the
installation conditions. Please contact us or the store of your purchase if you have a
problem or question about installing the protocol.
Kalatel
Diamond
Keyboard
Setup
Honeywell
RS-485 Communication Setup
¨Address Set
0 AD
SAMSUNG
¨Protocol Pelco-D
1(Port 1)
SAMSUNG
Philips
¨Protocol Pelco-p
1(Port 2)
SAMSUNG
Erna
¨Baud Rate
9600
Vicon
VCL TP
¨Duplex Panasonic
Half
Duplex
Techwin
Kalatel
Diamond
Honeywell
Baud Rate
The Baud Rate of the RS-485 communication can be set.
Keyboard
Setup
1. Press <Baud Rate> and a pop-up window will appear as shown in
the right figure.
RS-485 communication of the system keyboard supports Baud Rate
as follows.
RS-485 Communication Setup
¨Address Set
0
1200
¨Protocol (Port 1)
SAMSUNG
2400
¨Protocol (Port 2)
SAMSUNG
¨Baud Rate
9600 4800
9600
¨Duplex
Half Duplex
19200
38400
2. 1200/ 2400/ 4800/ 9600/ 19200/ 38400.
Among these 6 kinds of Baud Rate, select one Baud Rate.
Duplex
1. You can set the duplex mode of system keyboard.
Press <Duplex>, and then the following window pops up.
Keyboard
Setup
2. Full Duplex / Half Duplex.
Select one of the two duplex.
RS-485 Communication Setup
¨Address Set
0
¨Protocol (Port 1)
SAMSUNG
¨Protocol (Port 2)
SAMSUNG
¨Baud Rate
9600
¨Duplex
Half
Duplex
Full Duplex
Half Duplex
M Press the <EXIT> icon on the lower left to finish RS-485 COMMUNICATION SETUP
control and return to the KEYBOARD SETUP screen.
CHANGE PASSWORD
This function is to change the operator's password of the system keyboard.
Keyboard
Setup
Change Password
Enter Operator No.
Enter Password
Clear
Enter
1. At first, enter the current Operator No. and Password.
2. Correctly entered, the screen will change into a window as follows.
Keyboard
Setup
Change Password
Enter New Password
¾¾¾¾¾¾
Confirm New Password
¾¾¾¾¾¾
Clear
Enter
English _23
M MENU SETUP
M You can control two protocols simultaneously by specifying different protocols
for Port 1 and Port 2.
RS-485 Communication Setup
¨Address Set
0 AD
SAMSUNG
¨Protocol Pelco-D
1(Port 1)
SAMSUNG
Philips
¨Protocol Pelco-p
1(Port 2)
SAMSUNG
Erna
¨Baud Rate
9600
Vicon
VCL TP
¨Duplex Panasonic
Half
Duplex
Techwin
MENU setup
New Password
1. Enter the new password.
2. Enter the password by using the number keys (0~9) and press the [ENTER] button.
M Maximum 6-digit figure can be entered.
Confirm New Password
This is to confirm the new password.
Enter the password by using the number keys (0~9) and press the [ENTER] button.
M If the entered number is not same as the New Password, an error message “Invalid Password!!” will be displayed on the screen.
You have to start again from entering the operator no.
CHECK PASSWORD
If it is set <On>, a window will appear to ask the operator no. and password
when you entering the “MENU” screen.
Keyboard
Setup
If it is set <Off>, you can directly enter the “MENU” mode.
RS-485 Communication Setup
Change Password
Check Password
On
Register New Operater
Off
Camera Data Download
Camera Data Upload
System Information and Setup
M The system has been set <On> on shipment.
REGISTER NEW OPERATOR
This function is to add a new user of the keyboard.
New Operator No.
1. Enter a new operator no..
Keyboard
Setup
Register New Operator
Enter Operator No.
2. Using the number keys 0~9, enter the operator no. and press the
[ENTER] button.
M The number can be one between 1 and 99.
Clear
Enter
New Password
1. Enter a new password.
2. Using the number keys 0~9, enter the password and press the
[ENTER] button.
M Maximum 6-digit figure can be entered.
Keyboard
Setup
Register New Operator
New Password
¾¾¾¾¾¾
Confirm New Password
¾¾¾¾¾¾
Clear
Enter
24_ MENU setup
Confirm New Password
This is to confirm the new password.
Enter the password by using the number keys (0~9) and press the [ENTER] button.
M If the entered number is not same as the New Password, an error message “Invalid Password!!” will be displayed on the screen. You
have to start again from entering the operator's number.
A window will appear as in the right figure when the confirm process is
completed.
Keyboard
Setup
RS-485 Communication Setup
¨Operator No.
2
¨Password
¾¾¾¾¾¾
¨Operator Level
Operator
- Password : New password is displayed. (******)
- Operator Level : The level of the new user can be set.
Operator Level
Press <Operator Level> to set the level.
You can choose one level among Admin. / Manager / Operator.
Keyboard
Setup
M DEFAULT OPERATOR LEVEL is Operator level.
Please refer to the ”OPERATOR LEVEL” for the details. (see page 28)
RS-485 Communication Setup
¨Operator No.
2
¨Password
¾¾¾¾¾¾
Admin.
¨Operator Level
Operator
Manager
Operator
CAMERA DATA DOWNLOAD
This function is to download the setup data of SAMSUNG DOME.
DOWNLOAD check screen
If you want to download the data for the first time
1. Download the setup data of the currently selected camera.
Keyboard
Setup
2. Press <OK> to start downloading.
Camera Data Download
Now, Starting download
Camera 000 data.
3. Press <Cancel> or the <EXIT> icon to return to the Keyboard Setup
screen.
Cancel
OK
If you want to download the data on the system
1. An informing message will appear if there is already data stored in the
system keyboard.
Keyboard
Setup
2. Press <OK> to start downloading.
Camera Data Download
Camera 000 data is already
On your System.
Now Overwriting this data with
Camera 001 data.
3. Press <Cancel> or the <EXIT> icon to return to the Keyboard Setup
screen.
Cancel
OK
DOWNLOAD process screen
A download process screen will appear as shown in the right figure when
you press <OK> on the down load check screen.
Keyboard
Setup
Camera Data Download
Camera 000
Downloading......
English _25
M MENU SETUP
- Operator No. : Newly registered use's number
MENU setup
A message will appear when downloading is completed.
Keyboard
Setup
Camera Data Download
Camera 000
Download Complete !!
CAMERA DATA UPLOAD
This function is to download the data set in SAMSUNG DOME CAMERA and upload them to a new camera.
UPLOAD check screen
If there is no camera data stored in the system keyboard
Camera DATA uploading is not possible.
Press <OK>, <Cancel>, <EXIT> icon to return to the Keyboard Setup
screen.
Keyboard
Setup
Camera Data Upload
No Camera Data On your System.
Cancel
OK
If camera DATA are stored
A message will appear to inform that the camera data, which are now
stored, will be uploaded to the selected camera.
Press <OK> to start uploading.
Press <Cancel> or <EXIT> icon to return to the Keyboard Setup screen.
Keyboard
Setup
Camera Data Upload
Now, Starting upload
Camera 000 data to Camera 001.
Cancel
OK
UPLOAD progress screen
1. When you press <OK> on the UPLOAD check screen, UPLOAD
progress screen will appear as in the right figure.
Keyboard
Setup
Camera Data Upload
Camera 000
Uploading......
2. Complete message will appear when uploading is completed.
Keyboard
Setup
Camera Data Upload
Camera 000
Upload Complete !!
26_ MENU setup
SYSTEM INFORMATION AND SETUP
S/W Version
Displays the present version.
It is not available to set.
Keyboard
Setup
System Information and Setup
S/W version
v1.00_080531
¨Language
English
¨Load Factory Default
¨Display Mode
Normal
Displays the present Set language.
1. Press the <Language> to change the language.
Keyboard
Setup
2. System keyboard supports English / Français / Deutsch / Español /
Italiano/ ĬŏōōņńŅ / Polski/ 中國語 / 한국어 / Ă&4,:5Ã3,±& / 日本語 /
PORTUGUÊS / DUTCH / DANSK / HRVATSKI.
Select a language among these languages.
System
Information and
Setup
English
한국어
S/W version
5000-02L
Français
ČESKY
¨Language
English
Deutsch
TÜRKÇE
¨Load Factory
Default
Español
日本語
Italiano
PORTUGUÊS
¨Display Mode
Normal
Русский
Polski
中國語
DUTCH
DANSK
HRVATSKI
Factory Default Setup
Resets all of the menu values to the default value.
Press <OK> to start the default setting.
Keyboard
Setup
Load Factory Default
Do you want to
Load Factory Default?
M The system will start again when the Factory Default Setup is completed.
Cancel
OK
Display Mode
1. Press the <Display Mode> to change the display mode.
2. Set the default display mode to <Video> or <Normal>.
M Your setting will be applied when you restart the system.
Keyboard
Setup
System Information and Setup
S/W version
v1.00_080531
¨Language
English
¨Load Factory Default
¨Display Mode
Normal
Video
Normal
M To change the display mode, simply tap the screen if you want to switch from the
current mode.
English _27
M MENU SETUP
Language
MENU setup
OPERATOR LEVEL
There are 3 levels of user, who can be registered as a user, including Admin. / Manager / Operator.
Admin is the highest level. The range and limit to the usage of various setup menu and system function depends on the
user's level.
Admin.
Manager
Operator
Camera Setup
O
X
X
DVR Setup
O
X
X
PTZ Control in DVR Mode
O
O
X
Preset Save
O
X
X
Preset Delete
O
O
X
Save Camera Title
O
O
X
MENU Button
O
X
X
Save Connect Information
O
X
X
Save Connected Monitor
O
O
X
Move Jog/Shuttle
O
O
X
Move Joystick
O
O
X
DVR Search
O
O
X
DVR Search (including PLAY Button)
O
O
X
Record On/Off
O
O
X
Select Camera/DVR
O
O
O
Camera Setup in DVR Mode
O
X
X
28_ MENU setup
others
PRODUCT SPECIFICATION
Item
Description
CONNECTOR TYPE : 8P TERMINAL TYPE
M OTHERS
INTERFACE(RS-485)
PORT : 2 PORT
BAUD RATE : 1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps
4.3" TFT LCD PANEL + TOUCH PANEL
EFFECTIVE DISPLAY AREA : 95.040mm[H] x 53.856mm[V]
TFT LCD PANEL
NUMBER OF DOTS : 1440[H] x 272[V]
DOT PITCH : 66.0㎛[H] x 198.0㎛[V]
USB PORT (USB 2.0)
S/W Upgrade
VIDEO INPUT/OUTPUT
Composite Video 1.0Vp-p, 75ohm, BNC Type, Loop Through out
OSD
16 Language (Eng/Fre/Ger/Spa/Ita/Rus/Pol/Kor/Cze/Tur/Chi/Jpa/Bra(Port)/Neth/Denma/Croatia)
Pelco-D, Pelco-P, Vicon, Panasonic, GE-Khalatel, Diamond,
MULTI PROTOCOL(CAMERA)
American Dynamic,Philips,Erna,VCLTP,Samsung Electronics ,Techwin, Honeywell
JOY STICK
LED
3D JOY STICK (PAN/TILT/ZOOM)
MONITOR, CAMERA, DVR
PAN : LEFT / RIGHT
TILT : UP / DOWN
IRIS : CLOSE / OPEN
PAN/TILT & LENS CONTROL
FOCUS : FAR / NEAR
ZOOM : TELE / WIDE
PRESET, PATTERN, AUTO PAN, SCAN
AUX1, AUX2, AUX3, AUX4
Target : SAMSUNG DVR
DVR CONTROL
SW : RW, STOP, PLAY, FF, REC
JOG/SHUTTLE : FORWARD/REVERSE, PLAY/REVERSE PLAY/FF/RW
POWER
POWER CONSUMPTION
DC 12V
4W
OPERATION TERPERATURE
0˚C ~ 40˚C
OPERATION HUMIDITY RANGE
20 ~ 85%
DIMENSIONS(WxHxD)
WEIGHT
428mm x 137mm x 199mm
1.415Kg (NET)
English _29
others
TROUBLESHOOTING (FAQ)
PROBLEM
SOLUTION
• Check the RS-485 communication line.
The system keyboard communication is
not worked.
• Check the address setup of system keyboard.
• Refer to “RS-485 Communication Setup” of “Menu Setup” for the method of address
setup. (see page 22)
• Supply power to the system keyboard while you are pressing the [MENU] and [ENTER]
buttons on the keyboard simultaneously.
The password in the screen of system log
in is lost.
• Press buttons until the “Beep” sounds.
• System is reset to the factory default with a “Beep” sound.
• Log in after the completion of reset. Refer to “Log-in” of “ Instructions” for the method
of login. (see page 14)
M Replace the LCD panel when its expected life is over.
30_ others
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the
end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for
details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should
not be mixed with other commercial wastes for disposal.
Code No. AB82-01969A-01
