Samsung AV-R601 Instruction manual

Contents
AV Receiver
Before using
2
Facilities and connections
8
Setup and operation
31
Remote controller
63
Appendix
75

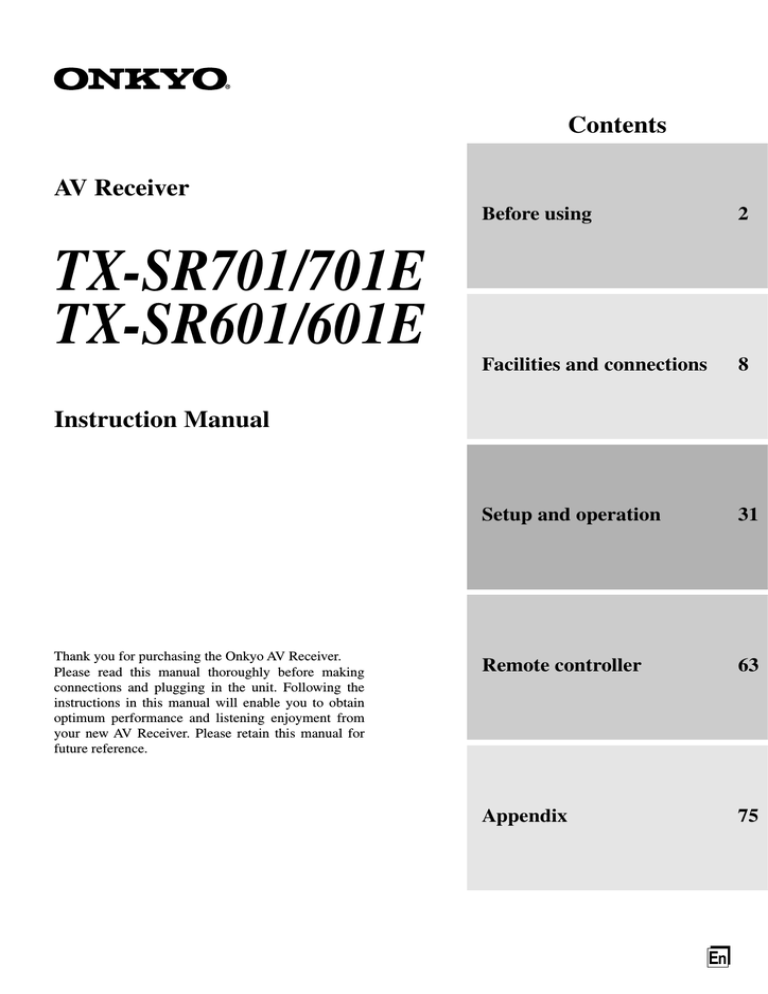

TX-SR701/701E
TX-SR601/601E
Instruction Manual
Thank you for purchasing the Onkyo AV Receiver.
Please read this manual thoroughly before making
connections and plugging in the unit. Following the
instructions in this manual will enable you to obtain
optimum performance and listening enjoyment from
your new AV Receiver. Please retain this manual for
future reference.
En
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING
AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Important Safety Instructions
1. Read Instructions – All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions – The safety and operating instructions
should be retained for future reference.
3. Heed Warnings – All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions – All operating and use instructions should
be followed.
5. Water and Moisture – Do not use the appliance near water –
for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool; and
the like.
6. Cleaning – Unplug the appliance from the wall outlet before
cleaning. The appliance should be cleaned with a dry cloth or
only as recommended by the manufacturer.
7. Ventilation – Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the appliance and
to protect it from overheating, and these openings must not be
blocked or covered. Do not use the appliance on a bed, sofa,
rug, or other such surface. Newspapers, table clothes, curtains,
and other items can inadvertently block ventilation slots. Do not
place the unit near curtains that could obstruct the ventilation. If
you install the appliance in a built-in installation, such as a
bookcase or rack, ensure that there is adequate ventilation.
Leave 20 cm (8") of free space at the top and sides and 10 cm
(4") at the rear. The rear edge of the shelf or board above the
appliance should be set 10 cm (4") away from the rear panel or
wall, creating a flue-like gap for warm air to escape.
8. Heat – The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifier) that produce heat.
9. Grounding or Polarization – The appliance may be equipped
with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the
polarized or grounding-type plug.
A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Power-Cord Protection – Power-supply cords should be
routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point where
they exit from the appliance.
2
11. Attachments – Do not use attachments not recommended by
the appliance manufacturer as they may cause hazards.
Accessories – Do not place the appliance on an unstable cart,
stand, tripod, bracket, or table. The appliance may fall, causing
serious injury to a child or adult, and serious damage to the
appliance. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the appliance.
Any mounting of the appliance should PORTABLE CART WARNING
follow the manufacturer’s instructions,
and should use a mounting accessory
recommended by the manufacturer.
12. An appliance and cart combination
should be moved with care to avoid
injury from tip-over.
Quick stops, excessive force, and uneven
surfaces may cause the appliance and
S3125A
cart combination to overturn.
13. Lightning – For added protection for the appliance during a
lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the appliance due to lightning and power-line surges.
14. Servicing – Do not attempt to service the appliance yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring Service – Unplug the appliance form the
wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen into the
appliance,
C. If the appliance has been exposed to rain or water,
D. If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the appliance to its normal operation,
E. If the appliance has been dropped or damaged in any way,
and
F. When the appliance exhibits a distinct change in performance
– this indicates a need for service.
15. Object and Liquid Entry – Never push objects of any kind
into the appliance through openings as they may touch
dangerous voltage points or short-out parts that could result in a
fire or electric shock.
The appliance should not be exposed to dripping or splashing
and no objects filled with liquids, such as vases should be
placed on the appliance.
Don’t put candles or other burning objects on top of this unit.
16. Batteries – Always consider the environmental issues and
follow local regulations when disposing of batteries.
Precautions
1. Recording Copyright
Recording of copyrighted material for other than personal use is
illegal without permission of the copyright holder.
2. AC Fuse
The fuse is located inside the chassis and is not user-serviceable. If power
does not come on, contact your Onkyo authorized service station.
3. Care
From time to time you should wipe the front and rear panels and the
cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a
weak solution of mild detergent and water, wring it out dry, and
wipe off the dirt. Following this, dry immediately with a clean
cloth. Do not use rough material, thinners, alcohol or other
chemical solvents or cloths since these could damage the finish or
remove the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWING SECTION CAREFULLY.
The voltage of the available power supply differs according to
country or region. Be sure that the power supply voltage of the area
where this unit will be used meets the required voltage (e.g., AC
230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel.
Worldwide models are equipped with a voltage selector to conform
to local power supplies. Be sure to set this switch to match the
voltage of the power supply in your area before plugging in the unit.
For British models
Replacement and mounting of an AC plug on the power supply cord
of this unit should be performed only by qualified service personnel.
IMPORTANT
The wires in the mains lead are colored in accordance with the
following code:
Blue : Neutral
Brown : Live
As the colors of the wires in the mains lead of this apparatus may
not correspond with the colored markings identifying the terminals
in your plug, proceed as follows:
The wire which is colored blue must be connected to the terminal
which is marked with the letter N or colored black.
The wire which is colored brown must be connected to the terminal
which is marked with the letter L or colored red.
IMPORTANT
A 5 ampere fuse is fitted in this plug. Should the fuse need to be
replaced, please ensure that the replacement fuse has a rating of 5
amperes and that it is approved by ASTA or BSI to BS1362. Check
for the ASTA mark or the BSI mark on the body of the fuse.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE
ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13 AMPERE SOCKET.
If in any doubt, consult a qualified electrician.
For U.S. models
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Section 820-40 of the NEC which provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
FCC INFORMATION FOR USER
CAUTION:
The user changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
For Canadian models
NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES
WITH CANADIAN ICES-003.
For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Modèle pour les Canadien
REMARQUE: CET APPAREIL NUMÉRIQUE DE LA
CLASSE B EST CON-FORME À LA NORME NMB-003 DU
CANADA.
Sur les modèles dont la fiche est polarisée:
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
3
Contents
Before using
Important Safety Instructions ........................... 2
Precautions ......................................................... 3
Contents .............................................................. 4
Features .............................................................. 6
Supplied accessories ........................................ 7
Before using this unit ........................................ 7
Setting the voltage selector (Worldwide models only) ...... 7
Installing the remote controller batteries .......................... 7
Using the remote controller .............................................. 7
Connecting antennas ....................................... 29
Assembling the AM loop antenna ...................................29
Connecting the AM antenna cable ..................................29
Connecting the included antennas ...................................29
Connecting an FM outdoor antenna ................................30
Connecting an AM outdoor antenna ................................30
Directional linkage ..........................................................30
Connecting the antenna cable to the 75/300 Ω antenna
adapter (For all models other than USA & Canadian
models and European models) .................................30
Setup and operation
Configuring the speakers ................................ 31
Facilities and connections
Front panel facilities .......................................... 8
Front panel ...................................................................... 8
Front panel display ....................................................... 11
Remote controller ............................................ 12
Connections ..................................................... 14
TX-SR701/701E ............................................................ 15
TX-SR601/601E ............................................................ 15
Connecting your audio components ............................... 16
Connecting your video components ............................... 17
12V TRIGGER ZONE 2 terminal .................................. 21
PRE OUT (TX-SR701/701E only) ................................. 21
Operating components not reached by the
remote controller signals (IR IN) ................ 22
If the remote controller signal does not reach
the TX-SR701/701E/601/601E remote sensor ........ 22
Connecting the remote zone (Zone 2) speakers ...23
When using the ZONE 2 SPEAKERS terminals ............ 23
When using the ZONE 2 LINE OUT terminals ............. 23
When using the ZONE 2 PRE OUT terminals
(TX-SR701/701E only)............................................ 23
Connections ..................................................... 24
AC OUTLETS ................................................................ 24
REMOTE CONTROL .............................................. 24
Connecting speakers ....................................... 25
Standard speaker setup for surround sound .................... 25
Minimum speaker configuration for surround sound
playback .................................................................. 25
Speaker placement .......................................................... 25
Using the speaker cable labels ........................................ 26
Connecting a subwoofer ................................................. 26
Connecting the surround back speakers
(TX-SR701/701E only) ........................................... 26
Connecting speakers ....................................................... 27
Connecting the speaker cable ......................................... 27
Connecting the power .................................... 28
Connecting a subwoofer ................................................. 28
Turning on the power ...................................................... 28
Turning on the power from the remote controller .......... 28
4
Displaying the Main Menu ..............................................31
Speaker Configuration .....................................................31
Setting the speaker distance from your normal listening
position ....................................................................33
Calibrating the speaker levels ..........................................34
Buttons used for navigating through the menus ..............36
Listening to Radio Broadcasts ....................... 37
Tuning into a radio station ...............................................37
Listening to a stereo radio station (FM mode) ................37
Presetting a radio station .................................................38
Selecting a preset radio station ........................................38
Erasing a preset radio station ..........................................38
Listening to RDS broadcasts
(European models only) ............................. 39
Listening to RDS broadcasts ...........................................39
PTY program types in Europe .........................................39
Displaying Radio Text (RT) ............................................40
Performing a PTY scan ...................................................40
Performing a TP scan ......................................................40
Selecting an Audio Component ...................... 41
Basic operation ................................................................41
Selecting the type of audio input signal ..........................42
Temporarily changing the speaker output levels .............43
To change the display of the input source
from TAPE to MD ...................................................43
Using the sleep time (remote controller only) .................44
Listening with headphones ..............................................44
Enjoying DVD multichannel audio playback ..................44
Switching the display ......................................................45
Temporarily turning off the sound ...................................45
Listening Modes ............................................... 46
Selecting a listening mode (TX-SR701/701E) ................48
Re-EQ function for movies (TX-SR701/701E only) ......49
Selecting a listening mode (TX-SR601/601E) ................50
Original filter (CinemaFILTER) loading for movies
(TX-SR601/601E only) ...........................................51
Input Setup ........................................................ 52
Hardware Setup ................................................ 55
Hardware Config .............................................................55
Contents
Preference .........................................................56
Preference ........................................................................56
Appendix
Audio Adjust ......................................................57
Troubleshooting guide ......................................75
Enjoying music in the remote zone .................60
POWER .......................................................................... 75
SPEAKERS .................................................................... 75
FM/AM TUNER ............................................................. 75
VIDEO and AUDIO ........................................................ 76
REMOTE CONTROLLER ............................................. 76
OTHER ........................................................................... 76
If one of the messages shown below appears ................. 77
Using the buttons .............................................................60
Using the remote controller .............................................60
Adjusting the volume for the remote zone ......................60
Recording ..........................................................61
Recording the input source (REC OUT selector) ...........61
Recording both the audio and video ...............................62
Specifications (TX-SR701/701E) ......................78
Specifications (TX-SR601/601E) ......................79
Remote controller
Using remote controller ...................................63
Overview ........................................................................ 63
Calling up a preset radio station ......................................63
Controlling an Onkyo cassette tape deck ........................63
Controlling an Onkyo DVD player .................................64
Controlling an Onkyo CD player ....................................65
Controlling an Onkyo MD recorder ................................66
Entering a pre-programming code ..................67
Learning a pre-programming code ..................................67
Pre-programming codes ..................................................68
Operating your programmed
remote controller .........................................69
DVD MODE (DVD Player Mode) ..................................69
SAT MODE (Satellite Tuner Mode) ...............................69
CABLE MODE (Cable Mode) .......................................69
VCR MODE (VCR Mode) .............................................70
TV MODE (TV Mode) ...................................................70
Programming the commands of remote
controllers for other devices into the
remote controller .........................................71
Programming procedure ..................................................71
Erasing the programmed command from one button ......72
Erasing all the commands programmed under a MODE
button .......................................................................72
Using the macro function .................................73
What is the macro function? ........................................ 73
Programming the macro ..................................................73
Executing the macro ........................................................73
Erasing a macro from the MACRO 1 (or 2) button .........74
Erasing all commands and macros that have been
programmed .............................................................74
Declaration of Conformity
We, ONKYO EUROPE
ELECTRONICS GmbH
INDUSTRIESTRASSE 20
82110 GERMERING,
GERMANY
declare in own responsibility, that the ONKYO product described
in this instruction manual is in compliance with the corresponding
technical standards such as EN60065, EN55013, EN55020 and
EN61000-3-2, -3-3.
GERMERING, GERMANY
I. MORI
ONKYO EUROPE ELECTRONICS GmbH
5
Features
TX-SR701/701E
TX-SR601/601E
Amplifier Features
Amplifier Features
■ 100 W × 2 (Front)/ 100 W (Center)/ 100 W × 2 (Surround)/
100 W (Surround Back) at 8 ohms, 20 Hz - 20 kHz, 0.08 %
THD (FTC rated)
■ 130 W × 2 (Front)/ 130 W (Center)/ 130 W × 2 (Surround)/
130 W (Surround Back) at 6 ohms, 1 kHz (DIN)
■ 160 W × 2 (Front)/ 160 W (Center)/ 160W × 2 (Surround)/
160 W (Surround Back) at 6 ohms, 1 kHz (JEITA)
■ Wide Range Amplifier Technology (WRAT)
■ Powered Zone 2 Capability
■ State-of-the-art linear PCM 192 kHz/24-bit DACs for
All channels
■ Optimum gain volume circuitry
■ VLSC (Vector Linear Shaping Circuitry) for L/C/R
Channels
■ 85 W × 2 (Front)/ 85 W (Center)/ 85 W × 2 (Surround)/ 85 W
Audio/Video Features
Audio/Video Features
THX®
■
■
■
■
■
■
■
(Surround Back) at 8 ohms, 20 Hz - 20 kHz, 0.08 %
THD (FTC rated)
120 W × 2 (Front)/ 120 W (Center)/ 120 W × 2 (Surround)/
120 W (Surround Back) at 6 ohms, 1 kHz (DIN)
150 W × 2 (Front)/ 150 W (Center)/ 150 W × 2 (Surround)/ 150
W (Surround Back) at 6 ohms, 1 kHz (JEITA)
Wide Range Amplifier Technology (WRAT)
Powered Zone 2 Capability
State-of-the-art linear PCM 192 kHz/24-bit DACs for
All channels
Optimum gain volume circuitry
VLSC (Vector Linear Shaping Circuitry) (except for
USA & Canadian models, Australian models)
■
Select certified
■ THX surround EX®
■ Dolby®* Digital, Dolby Digital EX, Dolby Pro Logic II
■ DTS, DTS 96/24, DTS-ES Extended Surround, DTS
Neo:6
■ Non-Scaling Configuration
■ Re-EQ
■ Pure Audio Mode
■ Crossover Adjustment (40/60/80/100/120/150 Hz)
■ Onscreen graphical displays
■ Digital Outputs (1 coaxial, 1 optical)
■ 2 component video inputs and 1 output
■ 3 Assignable digital inputs (1 coaxial, 2 optical)
■ 5 S-Video inputs and 3 outputs
■ Front panel A/V, S-Video, Optical inputs
■ Multi channel input for DVD-Audio and Super Audio
CD
■ Rec out selector and Zone 2 selector
■ Pre-out terminals for Front L/R, Center, Surround L/
R, Surround Back L/R, Subwoofer and Zone 2 L/R
■ Color-coded speaker terminals
■ Dolby Digital, Dolby Digital EX, Dolby Pro Logic II
■ DTS, DTS 96/24, DTS-ES Extended Surround, DTS
FM/AM Tuner Features
Other Performance Features
■ 40 FM/AM random presets
■ FM auto tuning
■ RDS (European models) with PS/RT/PTY/TP
■ IntelliVolume
■ Preprogrammed learning remote with macro and
Other Performance Features
■ Zone 2 Lineout
■ 12V Trigger output for Zone 2
■ IR input terminal
■ IntelliVolume
■ Powerful backlit/preprogrammed learning remote
with macro and mode-key LEDs
■ 12V Trigger output for Zone 2
■ IR input terminal
■ Zone 2 Lineout
■
■
■
■
■
■
■
■
■
■
■
■
■
Neo:6
Non-Scaling Configuration
CinemaFILTER
Crossover Adjustment (60/80/100/120/150 Hz)
Onscreen graphical displays
Optical Digital Output
2 component video inputs and 1 output
3 Assignable digital inputs (1 coaxial, 2 optical)
5 S-Video inputs and 3 outputs
Front panel A/V, S-Video, Optical inputs
Multi channel input for DVD-Audio and Super Audio CD
Rec out selector and Zone 2 selector
Pre-out terminal for Subwoofer
Color-coded speaker terminals
FM/AM Tuner Features
■ 40 FM/AM random presets
■ FM auto tuning
■ RDS (European models) with PS/RT/PTY/TP
mode-key LEDs
• *Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic,” “Surround EX” and the double-D symbol are
trademarks of Dolby Laboratories.
• “Theater-Dimensional” is a trademark of Onkyo Corporation.
• Lucasfilm THX and THX are trademarks or registered trademarks of THX
Ltd. All rights reserved. Used under authorization.
• “DTS,” “DTS-ES Extended Surround,” and “Neo:6” are trademarks of
Digital Theater Systems, Inc.
• Xantech is a registered trademark of Xantech Corporation.
• Niles is a registered trademark of Niles Audio Corporation.
• Re-Equalization and the “Re-EQ” logo are trademarks of THX Ltd.
Manufactured under license of THX Ltd.
The alphabet displayed at the end of the product name found in
catalogs and on the packages represents the color of this receiver.
Though the color varies, the specifications and operations are the same.
6
Supplied accessories
Check that the following accessories are supplied with the TX-SR701/701E/
601/601E.
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Center
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Center
Surround
Right
Surround
Right
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
Center
Surround
Left
Surround
Left
Surround
Right
Surround
Right
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
Front
Right
Front
Right
SP-B / Zone 2
Right
SP-B / Zone 2
Right
Surround
Left
Surround
Left
1
Center
Front
Left
Front
Left
SP-B / Zone 2
Left
SP-B / Zone 2
Left
Front
Right
Front
Right
SP-B / Zone 2
Right
SP-B / Zone 2
Right
FM indoor antenna × 1
Front
Left
Front
Left
SP-B / Zone 2
Left
SP-B / Zone 2
Left
AM loop antenna × 1
The following accessories may be available depending
on the area which it was purchased.
Conversion plug × 1
(Use this plug if the power cord plug of the TXSR701/701E/601/601E does not fit your AC outlet.
Shape may vary depending on the area which it was
purchased.)
2
3
Speaker Cable
Remote controller × 1
TX-SR701/701E: RC-533M
TX-SR601/601E: RC-515M
Batteries (AA, R6) × 2
Speaker cable label × 1
75/300 Ω antenna adapter × 1
Before using this unit
Setting the voltage selector
(Worldwide models only)
Worldwide models are equipped with a voltage selector so that you
can set your TX-SR701/701E/601/601E to conform with local
power supplies. Be sure to set this switch to match the voltage of the
power supply in your area before plugging in the unit.
Determine the proper voltage for your area: 220-230 V or 120 V. If
the preset voltage is not correct for your area, insert a screwdriver
into the groove in the switch and slide the switch all the way to the
top (120 V) or bottom (220-230 V), whichever is appropriate.
ANTENNA
AM
Y
DIGITAL
IN
2
OUT
OPTICAL
1
ZONE 2
LINE OUT
PB
L
PR
R
COAXIAL
VIDEO 3
IN
VIDEO 2
OUT
IN
VIDEO 1
OUT
IN
MONITOR
OUT
IN
OPTICAL
R
R
12 V
TRIGGER
OUT
V
IN
OUT
ZONE 2
OUT
IN
OUT
IN
SURR
FRONT
AV RECEIVER
MODEL NO. TX-SR 701
120 V
L
R
TAPE
CENTER SURR BACK
(SB)
L
VIDEO 3
VIDEO 2
R
SUB
WOOFER
SWITCHED
TOTAL 100W MAX.
120 V
VOLTAGE
SELECTOR
220-230 V
STANDBY indicator
VOLTAGE
SELECTOR
R
CD
SURR
SURROUND
BACK
SPEAKER
PRE OUT
CENTER
L
PHONO
FRONT
L
IR IN
R
IN
VIDEO 1
DVD
TX-SR701/701E/601/601E
ZONE 2
S
IN
GND
CENTER
SPEAKER
AC OUTLETS
L
Remote control sensor
REMOTE
CONTROL
DVD
SURROUND
SPEAKERS
FRONT
SPEAKERS
L
IN
COAXIAL
IN
Point the remote controller toward the remote control sensor. The
STANDBY indicator lights up when the unit receives a signal from
the remote controller.
6 OHMS MIN. /SPEAKER
ZONE 2
SPEAKERS
OUTPUT
INPUT 1
Using the remote controller
CAUTION: SPEAKER IMPEDANCE
FM 75
COMPONENT VIDEO
INPUT 2
Notes:
• Do not mix new batteries with old batteries or different kinds of
batteries.
• To avoid corrosion, remove the batteries if the remote controller
will not be used for a long time.
• Remove dead batteries immediately to avoid damage from corrosion.
If the remote controller does not operate smoothly, remove the old
batteries and replace them both with two new AA batteries.
SUB
WOOFER
220-230 V
30˚
30˚
Approx. 16 feet
(5 meters)
Installing the remote controller batteries
1. Remove the battery compartment cover by pressing it
and sliding it in the direction shown by the arrow below.
SEND/LEARN indicator
2. Insert two AA (R6) batteries into the battery
compartment. Carefully follow the polarity diagram
(positive (+) and negative (–) symbols) inside the
battery compartment.
3. After the batteries are installed and seated correctly,
replace the compartment cover.
1
2
3
Notes:
• Make sure that the remote control sensor is not subject to strong
light such as direct sunlight or inverted fluorescent light for it
may prevent proper operation of the remote controller.
• Using another remote controller in the same room or using the
TX-SR701/701E/601/601E near equipment that uses infrared
rays may cause operational interference.
• Do not put objects on the remote controller. Its buttons may be
pressed by mistake and drain the batteries.
• Make sure the audio rack doors do not have colored glass.
Placing the TX-SR701/701E/601/601E behind such doors may
prevent proper remote controller operation.
• If there is any obstacle between the remote controller and the
remote control sensor, the remote controller will not operate.
7
Front panel facilities
Here is an explanation of the controls and displays on the front panel of the TX-SR701/701E/601/601E.
Front panel
<TX-SR701E>
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
ENTER
FM MODE
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
<TX-SR601E>
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
DIRECT
LISTENING MODE
STEREO
SURROUND
MEMORY
DSP
ENTER
FM MODE
CLEAR
PHONES
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
VIDEO 4 INPUT
CD
DIGITAL
8
S VIDEO
VIDEO
L
AUDIO
R
Front panel facilities
For further operational instructions, see the pages indicated in
brackets [ ].
POWER switch (for all models other than USA and
Canadian models, and Australian models) [28]
Press to turn on and off the main power supply for the TX-SR701/
701E/601/601E. When the TX-SR701/701E/601/601E is turned on
with the POWER switch, the STANDBY indicator lights.
• Before turning on the power, check to make sure that all cords
are properly connected.
• When the power is turned on, a sudden surge of current will
occur that may adversely affect the operation of other devices.
To prevent this, do not plug the TX-SR701/701E/601/601E into
the same circuit used by sensitive equipment, e.g., computers.
STANDBY/ON button [28]
If pressed with the POWER switch turned on (with the receiver
plugged in for US models and Australian models), the TX-SR701/
701E/601/601E turns on and the display lights up. If pressed again,
the TX-SR701/701E/601/601E returns to the standby state. In the
standby state, the display is turned off and the TX-SR701/701E/
601/601E cannot be operated.
MEMORY button [38]
Press to assign the radio station that you are currently tuned into to a
preset channel or press to delete a previously preset station.
FM MODE button [37]
Press to change the stereo mode from AUTO to MONO and vice
versa. Each time this button is pressed, the AUTO indication turns
on and off indicating the current mode. If you are listening to an FM
radio station in stereo and the sound cuts out or there is a great deal
of noise, switch from AUTO to MONO.
Remote control sensor [7]
AUDIO ADJUST button [57]
Press to adjust the sound quality and the listening mode.
SETUP button [31]
Press to enter the Setup Menu. The OSD Menu will appear on the
TV monitor as well as the front display on the TX-SR701/701E/
601/601E.
STANDBY indicator [7, 28]
Lights when the TX-SR701/701E/601/601E is in the standby state
and when a signal is received from the remote controller.
RETURN button [32]
When in the Setup Menu, press to go back one level. If pressed
while at the Main Menu, you will exit the Setup Menu.
DISPLAY button [45]
Press to display information about the current input source signal.
Each time you press the display button, the screen changes to show
you different information concerning the input signal.
TUNING / , PRESET / , cursor ( / / / ) buttons
[31, 37, 38]
To tune into a radio station, press the TUNING / buttons. The
tuner frequency is displayed in the front display and it can be
changed in 100-kHz (or 50-kHz) increments for FM and 10-kHz (or
9-kHz) increments for AM.
When FM is selected as the input source, you can hold down either
the TUNING or button and then release it to activate the autosearch feature. It will search for a station in the direction of the
button you pressed and stop when it tunes into one. When
navigating through the menu settings, these buttons move the cursor
up or down (or change the highlighted item).
To select a radio station that was stored using the MEMORY button,
press the PRESET / buttons.
When navigating through the menu settings, these buttons select the
value or item that you selected with the TUNING / buttons.
When you press the SETUP button, the TUNING and PRESET
buttons become cursor buttons to be used for Setup Menu
operations.
RT/PTY/TP (European models only) button [40]
This button is only available on European models. Press this button
to tune into the Radio Data System (RDS) for FM broadcasting.
RDS was developed within the European Broadcasting Union
(EBU) and is available in most European countries. Each time the
button is pressed, the display changes from RT (radio text) to PTY
(program type) to TP (traffic program) and then back to RT again.
DIMMER button
(other than European models)
Press to set the brightness of the front display.
There are three settings available: normal, dark,
and very dark.
• The brightness of the front display can also
be adjusted using the remote controller.
STANDBY
DISPLAY
DIMMER
LISTENING MODE buttons [46-51]
Press these buttons to select a listening mode for the current input
source. Press the DIRECT (TX-SR601/601E), THX (TX-SR701/
701E), STEREO, and SURROUND buttons to select a listening
mode directly. Press the DSP button to select any of the possible
listening modes for the input source currently selected.
Note:
During playback of a multichannel source, press the DIRECT
button to turn off the tone control and the SURROUND button to
turn on the tone control. [45]
ENTER button [31]
Press to display the screen for the item that is selected in the Setup
Menu.
MASTER VOLUME dial [41]
Use to control the volume in the main zone. The volume for the
remote zone (Zone 2) is independent.
VIDEO 4 INPUT terminals [21]
For connecting a video camera or game device.
Front display [11]
9
Front panel facilities
Input source buttons (DVD, VIDEO 1–4, TAPE,
TUNER, CD, and PHONO (TX-SR701/701E only))
[41]
These buttons are used to select the input source.
Press these buttons to select the input source for the main zone.
To select the input source for the remote zone (Zone 2) or recording
out (Rec Out), first press the ZONE 2 or REC OUT button, and then
press the desired input source button. The input channel with its
indicator lit red is output to REC OUT and the one with its indicator
lit green is output to ZONE 2.
AUDIO SELECTOR button [42]
Press to select the type of audio input signal.
DIRECT/PURE AUDIO button and indicator
(TX-SR701/701E only) [46, 48]
PHONES jack [44]
This is a standard stereo jack for connecting stereo headphones.
REC OUT, ZONE 2, OFF, LEVEL / buttons, and
ZONE 2 indicator [60, 61]
The REC OUT and ZONE 2 buttons allow you to use the TXSR701/701E/601/601E to output to a remote zone (Zone 2) or to
another component for recording (Rec Out).
To turn off the output, press the OFF button. The ZONE 2 indicator
lights when a signal is output to the remote zone (Zone 2). When the
ZONE 2 indicator is off, then either output to the remote zone is
turned off or Rec Out is selected. Press the LEVEL / buttons to
enter the mode for adjusting the volume in the remote zone (Zone
2).
Note:
The Rec Out and Zone 2 buttons use the same circuit and therefore
cannot be used at the same time. When REC OUT is selected,
nothing is output to Zone 2. When ZONE 2 is selected, REC OUT
is automatically fixed to SOURCE.
10
Front panel facilities
Front panel display
MUTING indicator
Flashes when the mute function is turned on.
Listening mode or digital input format indicators
One of these indicators lights to show the format of the current
input source. In addition, one of the listening mode indicators lights
to indicate the current listening mode.
Tuning indicators
TUNED indicator
Lights when a radio station is received.
AUTO indicator
Lights when receiving FM broadcasts in the stereo mode. Turns
off when placed into the monaural mode.
RDS indicator (European models only)
Lights when an RDS station is received.
MEMORY indicator
Lights when the MEMORY button is pressed to preset a radio
station.
FM STEREO indicator
Lights when an FM broadcast station is received in stereo.
Multi function display
During normal operation, shows the current input source and
volume. When the FM or AM input is selected, shows the frequency
and preset number. When the DISPLAY button is pressed, shows
the listening mode and input source format. However, does not
show the source format when the FM or AM source is selected.
SLEEP indicator
Lights when the sleep timer is turned on.
ZONE 2 indicator
Lights when using the remote zone (Zone 2).
REC OUT indicator
Lights when recording the input source from one component to
another (Rec Out)
11
Remote controller
RC-533M
SEND/LEARN indicator
Lights red when signals are sent by the remote controller. It also
flashes when a button is pressed when the battery power is low.
ON/STANDBY button [28]
ON: Press to turn on the TX-SR701/701E/601/601E.
STANDBY: Press to place the TX-SR701/701E/601/601E in the
standby state.
Be aware that pressing the STANDBY button only places the TXSR701/701E/601/601E in standby and does not turn the power
completely off.
SLEEP button [44]
Press to set the sleep function.
The SLEEP button enables you to set the TX-SR701/701E/601/
601E to turn off automatically after a specified time period.
MACRO 1, 2 button [73]
Press to program or execute the macro function.
MODE buttons and indicators [28, 63-74]
Press to select the component to be operated by the remote
controller. When a MODE button is pressed, it will light for 8
seconds. The selected MODE button will also light whenever any
other operation button is pressed.
RETURN button [32]
Press to enter the selected setting and return to the previous menu.
CH
, DISC button
Press to select a preset channel for the tuner (CH). [38]
When the CD mode is selected, also press to select a disc when
operating components with disc changers (DISC). [65]
CH SEL/TOP MENU button
Press to select a speaker channel when adjusting the speaker level
(CH SEL). [43]
When the DVD mode is selected, press to display the menu screens
of the DVD player (TOP MENU). [64]
RC-515M
AUDIO SEL/TV/VCR button [47]
Press to select the audio input signal. The setting changes from
“Auto” to “Multich” (only if DVD is selected as the input source) to
“Analog” and back each time this button is pressed.
LEVEL /ANGLE and LEVEL /SUBTITLE buttons
Press to adjust the volume of the speaker selected using the CH SEL
button (LEVEL / ). [43]
Press the ANGLE button to select a camera angle when playing a
DVD-Video with multiple angle playback.
Press the SUBTITLE button to select a subtitle language when
playing a DVD-Video. [64]
CD/TAPE/DVD/MD operation buttons [63-66]
Press to operate other Onkyo components connected to the TXSR701/701E/601/601E using the
terminals.
12
Remote controller
INPUT SELECTOR buttons [41]
Press to select an input source.
Same as the input selector buttons on the front panel of the TXSR701/701E/601/601E. The input source for each button is given
here.
DVD:DVD,
CD:CD,
V1:VIDEO1,
V2:VIDEO2,
V3:VIDEO3, V4:VIDEO4, V5:VIDEO5 (not used with the TXSR701/701E/601/601E), TAP:TAPE, TUN:FM/AM, PH:PHONO
(not used with the TX-SR601/601E).
Numeric key/Listening mode, SP A, SP B, CINE
FLTR, DISPLAY, DIMMER buttons
1 to 9, +10, --/---, 0: For entering the number of a track. [64-66]
PURE A:
TX-SR601/601E: Not used with the TX-SR601/601E.
TX-SR701/701E: Press to select the Pure Audio mode. [46, 48]
DIRECT, STEREO, SURR, ALL ST, DSP (TX-SR601/601E),
DSP / (TX-SR701/701E), THX (TX-SR701/701E): You can
select a listening mode. [48-51]
Note:
During playback of a multichannel source, press the DIRECT
button to turn off the tone control and the SURR button to turn on
the tone control.
SP A, SP B: Not used with the TX-SR601/601E.
CINE FLTR (TX-SR601/601E): Depending on the listening
mode, you can turn the CinemaFILTER function on or off. [51]
Re-EQ (TX-SR701/701E): Depending on the listening mode, you
can turn the Re-EQ function on or off. [49]
DISPLAY: For changing the display in the front display. [45]
DIMMER: Adjusts the display brightness.
There are three settings available: normal, dark, and very dark.
MUTING button [45]
AUDIO ADJUST button [57]
ZONE 2/SEARCH/ENTER button
When the DVD mode is selected, press to find the specific section
on a DVD where you want to start playback (SEARCH). [64]
When in the RCVR mode, press to perform operations on the
remote zone (ZONE 2). [60]
When in the MD mode, press to enter the selected song (ENTER).
[66]
LIGHT button (RC-533M only)
Press to turn on and off the lights in the buttons of the remote
controller.
SETUP button [31]
Press to display the Setup Menu on the TV screen and in the
display. Press again to exit the menu.
/ / / , ENTER button [31]
When in the Setup Menu, press the upper and lower arrow buttons
to select an item, press the right and left arrow buttons to select
parameter values or modes, and press the ENTER button to advance
to the next item.
VOL
button [41]
Press to adjust the volume.
TEST/MENU button
This button is used to set the speaker output levels. Use this button
in conjunction with the LEVEL / and CH SEL buttons to
calibrate the speakers levels without entering the Setup Menu. [43]
When the DVD mode is selected, press to display the DVD menu
(MENU). [64]
13
Connections
• Be sure to always refer to the instructions that came with
the component that you are connecting.
• Do not plug in the power cord until all connections have
been properly made.
• For input jacks, red connectors (marked R) are used for the
right channel, white connectors (marked L) are used for the
left channel, and yellow connectors (marked V) are used for
video connection.
• Insert all plugs and connectors securely. Improper
connections can result in noise, poor performance, or
damage to the equipment.
Improper connection
Inserted completely
• Do not bind audio/video connection cables with power cords
and speaker cables. Doing so may adversely affect the
picture and sound quality.
Cables are depicted in the connection diagrams as shown below.
Left (white)
L
Audio connection cable
Right (red)
R
PR
PR
PB
PB
Y
Y
Component video
connection cable
Video connection cable
S video connection cable
Coaxial cable
Optical cable
14
Connections
TX-SR701/701E
REMOTE
When using
CONTROL [24]
the Zone 2
12V TRIGGER ZONE 2
LINE OUT
terminal [21]
terminals
[23]
Connecting antennas [29]
COMPONENT VIDEO
INPUT/OUTPUT [18-20]
ANTENNA
AM
CAUTION: SPEAKER IMPEDANCE
FM 75
6 OHMS MIN. /SPEAKER
COMPONENT VIDEO
INPUT 2
ZONE 2
SPEAKERS
OUTPUT
INPUT 1
Y
ZONE 2
LINE OUT
R
PR
IN
OUT
OPTICAL
2
1
VIDEO 3
COAXIAL
IN
VIDEO 2
IN
OUT
REMOTE
CONTROL
VIDEO 1
DVD
IN
IN
OUT
MONITOR
OUT
OPTICAL
L
R
R
12 V
TRIGGER
OUT
ZONE 2
SURR
CENTER SURR BACK
(SB)
IR IN
IN
OUT
SURR
FRONT
IN
OUT
PRE OUT
R
AC 230-240 V
50 Hz
SWITCHED
TOTAL 100W MAX.
AV RECEIVER
MODEL NO. TX-SR 701E
SUB
WOOFER
CENTER
L
GND
SURROUND
BACK
SPEAKER
L
R
IN
IN
OUT
FRONT
L
IN
COAXIAL
IN
CENTER
SPEAKER
AC OUTLETS
L
ZONE 2
V
S
IN
SURROUND
SPEAKERS
FRONT
SPEAKERS
L
PB
DIGITAL
Connecting speakers [26] AC OUTLETS [24]
L
R
R
TAPE
CD
PHONO
VIDEO 3
Connecting your
audio components
[16]
VIDEO 1
VIDEO 2
DVD
SUB
WOOFER
Connecting your video IR IN [22]
components [17]
When using the ZONE 2
SPEAKERS terminals [23]
PRE OUT [21]
When using the ZONE 2 PRE OUT
terminals [23]
TX-SR601/601E
When using
REMOTE
the Zone 2 CONTROL [24]
LINE OUT
12V TRIGGER ZONE 2
terminals
terminal [21]
[23]
Connecting antennas [29]
COMPONENT VIDEO
INPUT/OUTPUT [18-20]
ANTENNA
AM
CAUTION: SPEAKER IMPEDANCE
FM 75
6 OHMS MIN. /SPEAKER
COMPONENT VIDEO
INPUT 2
ZONE 2
SPEAKERS
OUTPUT
INPUT 1
Y
ZONE 2
LINE OUT
2
DIGITAL
OPTICAL
1
SURROUND
SPEAKERS
FRONT
SPEAKERS
L
L
R
R
R
OUT
IN
OPTICAL
COAXIAL
VIDEO 3
IN
VIDEO 2
OUT
IN
VIDEO 1
OUT
IN
REMOTE
CONTROL
DVD
MONITOR
OUT
IN
AC OUTLETS
ZONE 2
V
12 V
TRIGGER
OUT
PRE OUT
S
IR IN
SURROUND BACK
SPEAKER
SUBWOOFER
TAPE
CD
IN
CENTER
SPEAKER
L
PB
PR
IN
Connecting speakers [26] AC OUTLETS [24]
AV RECEIVER
IN
OUT
AC 230-240 V
50 Hz
SWITCHED
TOTAL 100W MAX.
IN
OUT
IN
OUT
IN
SURR
FRONT
MODEL NO. TX-SR 601E
CENTER
L
L
R
R
CD
TAPE
Connecting your
audio components
[16]
VIDEO 3
VIDEO 2
VIDEO 1
DVD
SUB
WOOFER
Connecting your video IR IN [22]
components [17]
When using the ZONE 2
SPEAKERS terminals [23]
PRE OUT [21]
15
Connections
Here is an explanation of typical ways to connect various components to the TX-SR701/701E/601/601E. There are many ways that any one
component can be connected, and it is up to you to decide which method best fits your situation. The directions given here are only one option
and should only be thought of as such. It is best to fully understand the nature of each connector and terminal as well as those of your
components and their features to ascertain which method of connection is best.
Digital audio output (coaxial)
ANTENNA
1. CD player (CD)
AM
COMPONENT VIDEO
INPUT 2
OUTPUT
INPUT 1
L (white)
Y
3. Cassette tape deck,
MD recorder, DAT deck,
or CD recorder (TAPE)
PB
Analog audio output
PR
R (red)
DIGITAL
IN
2. Turntable (PHONO)
(701/701E only)
2
OUT
OPTICAL
1
Ground wire
(earth)
L (white)
COAXIAL
VIDEO 3
IN
VIDEO 2
OUT
IN
OPTICAL
IN
COAXIAL
IN
IN
IN
OUT
L (white)
IN
OUT
IN
GND
L
Analog audio output
R (red)
R
Analog audio output
Digital audio
input (optical)
PHONO
CD
TAPE
VIDEO 3
L (white)
VIDEO 2
R (red)
Analog audio input
R (red)
: Signal flow
Connecting your audio components
Below is an example of how you can connect your audio
components to the TX-SR701/701E/601/601E. Refer to the diagram
above for the following connection examples.
IN/OUT (analog audio)
These are the analog audio inputs and outputs. There are seven
audio inputs and three audio outputs on the rear panel. The audio
inputs and outputs require RCA-type connectors.
DIGITAL INPUT/OUTPUT
On the rear panel of the TX-SR701/701E/601/601E, there are one
coaxial digital input, two optical digital inputs, one coaxial digital
output (TX-SR701/701E only), and one digital output. To the
digital inputs, connect CD players, LD players, DVD players, or
other digital source component. To the digital outputs, connect MD
recorders, CD recorders, DAT decks, or other similar components.
• Since an analog connection must be made when using REC
OUT or ZONE 2, make sure that the connection to the input
source is not digital only, but analog as well.
• When using an optical input or output jack, always use an
optical fiber cable.
1. Connecting a compact disc player (CD)
Using an RCA audio cable, connect the output jacks of the compact
disc player to the CD audio jacks of the TX-SR701/701E/601/601E.
Make sure that you properly connect the left channel to the L jack
and the right channel to the R jack.
If the compact disc player has a digital output, connect it to either
the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT
OPTICAL jack of the TX-SR701/701E/601/601E depending on the
type of connector on the compact disc player.
With the initial settings of the TX-SR701/701E/601/601E, the
CD input source is set for digital input at the COAXIAL jack
(COAX).
If the digital connection is made to a different jack, this must be
changed at “Input Setup” → “Digital Input” (see page 52).
16
2. Connecting a turntable (PHONO) (TX-SR701/701E only)
Using an RCA audio cable, connect the output jacks of the turntable
to the PHONO audio jacks of the TX-SR701/701E. Make sure that
you properly connect the left channel to the L jack and the right
channel to the R jack.
Note:
The TX-SR701/701E is designed for use with moving magnet
cartridges. For proper operation, connect a ground (or earth) wire to
the GND terminal. For some turntables, however, connecting the
ground wire may cause increased noise, and in such a case, a
ground wire is not necessary and should not be connected.
3. Connecting a cassette tape deck, MD recorder, DAT deck, or
CD recorder (TAPE)
Using RCA audio cables, connect the output jacks (PLAY) of the
device to the TAPE IN audio jacks of the TX-SR701/701E/601/
601E and connect the input jacks (REC) of the device to the TAPE
OUT audio jacks of the TX-SR701/701E/601/601E. Make sure that
you properly connect the left channels to the L jacks and the right
channels to the R jacks.
If the device has a digital output, connect it to either the DIGITAL IN
COAXIAL jack or the DIGITAL IN OPTICAL jack of the TX-SR701/
701E/601/601E depending on the type of connector on the device.
With the initial settings of the TX-SR701/701E/601/601E,
nothing is allocated as the digital input source for TAPE (----).
If you connect the digital audio output, be sure to make the
appropriate changes at “Input Setup” → “Digital Input” (see page
52).
If the device has a digital input, connect it to the DIGITAL
OUTPUT jack of the TX-SR701/701E/601/601E for digital
recording of the signal from the digital input of the TX-SR701/
701E/601/601E.
Note:
The output from the DIGITAL OUT jack of the TX-SR701/701E/
601/601E is only the digital signal input to the DIGITAL IN jack.
Connections
Connecting a DVD Player with 5.1-Channel Output
ANTENNA
AM
FM 75
COMPONENT VIDEO
INPUT 2
OUTPUT
INPUT 1
Y
ZONE 2
LINE OUT
R
PR
DIGITAL
IN
2
OUT
OPTICAL
1
Component video output
L
PB
COAXIAL
VIDEO 3
IN
VIDEO 2
OUT
IN
VIDEO 1
OUT
IN
REMOTE
CONTROL
DVD
MONITOR
OUT
IN
OPTICAL
ZONE 2
V
S
12 V
TRIGG
OUT
Video output
S video output
IR IN
IN
COAXIAL
IN
IN
IN
OUT
IN
OUT
IN
OUT
IN
SURR
FRONT
CENTER
L
GND
L
4. DVD player (DVD)
R
R
PHONO
CD
TAPE
VIDEO 3
VIDEO 2
VIDEO 1
DVD
SUB
WOOFER
Analog audio
output (center)
Analog audio output
(subwoofer)
L (white) Analog audio output
(surround L/R)
R (red)
L (white) Analog audio output
(front L/R)
: Signal flow
Connecting your video components
Below is an example of how you can connect your video
components to the TX-SR701/701E/601/601E. Refer to the diagram
above for the following connection examples.
Video signal will be output if you use any one of COMPONENT, S,
or composit terminals. However, you are recommended to match the
type of video terminals for connection between video devices (ex.
DVD player and VCR), TX-SR701/701E/601/601E and TV/monitor.
COMPONENT VIDEO INPUT/OUTPUT
For DVD players or other devices that have component video
connectors, the TX-SR701/701E/601/601E has two banks of
component video input connectors (Y, PB, PR) for direct
component video input. TX-SR701/701E/601/601E also has one
bank of component video output connectors for direct component
video output to the matrix decoder of a television, projector, or
other display device. By sending the pure component video signal
directly, the signal forgoes the extra processing that normally would
degrade the image. The result is vastly increased image quality, with
incredibly lifelike colors and crisp detail.
• The signal that comes in from COMPONENT VIDEO INPUT
is only sent to COMPONENT VIDEO OUTPUT. When
connecting a video player to the COMPONENT VIDEO
INPUT jacks, be sure to connect your television to the
COMPONENT VIDEO OUTPUT jacks.
VIDEO IN/OUT, S VIDEO IN/OUT
These are the video inputs and outputs. On the rear panel, there are
four video inputs and two video outputs and each one includes both
composite video and S video configurations.
Connect VCRs, VTRs, LD players, DVD players, and other video
components to the video inputs. Connect VCRs, VTRs, and other
recording components to the video outputs to make video
recordings.
R (red)
Digital audio output
(optical)
• When connecting a VCR or other video component, make sure
you connect its audio and video leads to the same bank (e.g.,
both to VIDEO 3).
• The VIDEO 4 inputs are located on the front panel.
The flow of the video signals is as follows:
The signal that comes in from a VIDEO IN jack is sent to both the
VIDEO OUT and S VIDEO OUT jacks. The signal that comes in
from a S VIDEO IN jack is sent to both the S VIDEO OUT and
VIDEO OUT jacks. It is not necessary to make both video and S
video connections.
Notes:
• If your video output device (e.g., television or projector) is
connected only to the MONITOR OUT VIDEO jack,
MONITOR OUT S VIDEO jack, or both, and the video signal
from the source component is input through the component
video connectors, no picture will appear. Video sources input
from the component video connectors can only be output from
the component video connectors.
• For more information about the DIGITAL INPUT/OUTPUT
jacks, see page 16.
17
Connections
Connecting a DVD Player with 2-Channel (L/R) Audio Output
ANTENNA
AM
FM 75
COMPONENT VIDEO
INPUT 2
OUTPUT
INPUT 1
Y
ZONE 2
LINE OUT
R
PR
DIGITAL
IN
2
OUT
OPTICAL
1
Component video output
L
PB
COAXIAL
VIDEO 3
IN
VIDEO 2
OUT
IN
VIDEO 1
OUT
IN
REMOTE
CONTROL
DVD
MONITOR
OUT
IN
OPTICAL
ZONE 2
V
S
12 V
TRIGG
OUT
Video output
S video output
IR IN
IN
COAXIAL
IN
IN
IN
OUT
IN
OUT
IN
OUT
IN
SURR
FRONT
CENTER
L
GND
L
4. DVD player (DVD)
R
R
PHONO
CD
TAPE
VIDEO 3
VIDEO 2
VIDEO 1
DVD
SUB
WOOFER
L (white)
Analog audio output
R (red)
: Signal flow
4. Connecting a DVD player (DVD)
Using an RCA video cable, connect the video output jack
(composite) of the DVD player to the DVD V IN jack of the TXSR701/701E/601/601E. Or if the DVD player has an S video output
jack, connect it to the DVD S IN jack with an S video cable. Or if
the device has component video outputs, connect them to the
COMPONENT VIDEO INPUT 1 or 2 jacks on the TX-SR701/
701E/601/601E.
With the initial settings of the TX-SR701/701E/601/601E, the
DVD input source is set for the COMPONENT VIDEO INPUT
1 jacks.
If you connect the DVD player to the COMPONENT VIDEO
INPUT 2 jacks, this must be changed at “Input Setup” →
“Component Video” (see page 53).
Using an RCA audio connection cable, connect the audio output
jacks of the DVD player to the DVD FRONT L/R jacks of the TXSR701/701E/601/601E. Make sure that you properly connect the
left channel to the L jack and the right channel to the R jack.
If the device has a 5.1-channel output, connect the DVD FRONT L/
R, SURR L/R, CENTER, and SUBWOOFER (5.1-channel input)
jacks of the TX-SR701/701E/601/601E to the 5.1-channel output
jacks of the DVD player. Make sure that you properly connect the
left channels to the L jacks and the right channels to the R jacks.
If the device has a digital output, connect it to either the DIGITAL
IN COAXIAL jack or the DIGITAL IN OPTICAL jack of the TXSR701/701E/601/601E depending on the type of connector on the
DVD player.
With the initial settings of the TX-SR701/701E/601/601E, the
DVD input source is set for digital input at the OPTICAL 1 jack
(OPT 1).
If the digital connection is made at a different jack, this must be
changed at “Input Setup” → “Digital Input” (see page 52).
Note:
If the DVD player has both 5.1-channel audio outputs and 2channel audio outputs, and you want to connect the DVD player
only using the FRONT L/R jacks on the TX-SR701/701E/601/
601E, use the 2-channel audio output jacks on the DVD player.
18
Digital audio output
(optical)
Connections
: Signal flow
Component video output
Video output
ANTENNA
6. Satellite tuner or
television (VIDEO 3)
AM
FM 75
S Video output
COMPONENT VIDEO
INPUT 2
OUTPUT
INPUT 1
Y
ZONE 2
LINE OUT
PB
L
PR
R
5. VCR (VIDEO 1)
DIGITAL
Digital audio output
(optical)
IN
2
OUT
OPTICAL
1
COAXIAL
VIDEO 3
IN
VIDEO 2
OUT
IN
VIDEO 1
OUT
IN
REMOTE
CONTROL
DVD
MONITOR
OUT
IN
OPTICAL
ZONE 2
V
S
12 V
TRIGG
OUT
IR IN
IN
COAXIAL
IN
IN
IN
OUT
Video input
IN
OUT
IN
OUT
IN
SURR
FRONT
CENTER
L
GND
L
Video output
S Video input
R
R
PHONO
CD
TAPE
VIDEO 3
VIDEO 2
VIDEO 1
DVD
SUB
WOOFER
L (white)
S Video output
Analog audio output
L (white)
R (red)
L (white)
Analog audio output
R (red)
Analog audio input
R (red)
5. Connecting a video cassette recorder (VIDEO 1)
Using RCA video cables, connect the video output jack (composite)
of the video cassette recorder to the VIDEO 1 V IN jack of the TXSR701/701E/601/601E and connect the video input jack of the video
cassette recorder to the VIDEO 1 V OUT jack of the TX-SR701/
701E/601/601E. Or if the video cassette recorder has S video input
and output jacks, using S video cables, connect the S video output
jack of the video cassette recorder to the VIDEO 1 S IN jack of the
TX-SR701/701E/601/601E and connect the video input jack of the
video cassette recorder to the VIDEO 1 S OUT jack of the TXSR701/701E/601/601E. Or if the video cassette recorder has
component video outputs, connect them to the COMPONENT
VIDEO INPUT 1 or 2 jacks on the TX-SR701/701E/601/601E.
With the initial settings of the TX-SR701/701E/601/601E, the
VIDEO 1 input source is set for the COMPONENT VIDEO
INPUT 2 jacks.
If you connect the video cassette recorder to the COMPONENT
VIDEO INPUT 1 jacks, this must be changed at “Input Setup” →
“Component Video” (see page 53).
Using RCA audio cables, connect the audio output jacks of the
video cassette recorder to the VIDEO 1 IN audio jacks of the TXSR701/701E/601/601E and connect the audio input jacks of the
video cassette recorder to the VIDEO 1 OUT audio jacks of the TXSR701/701E/601/601E. Make sure that you properly connect the
left channels to the L jacks and the right channels to the R jacks.
If you are connecting a digital output device to the VIDEO 1 jack
instead of a VCR, connect it to either the DIGITAL IN COAX jack
or DIGITAL IN OPT jack depending on the type of connector on
the device.
With the initial settings of the TX-SR701/701E/601/601E,
nothing is allocated as the digital input source for VIDEO 1 (----).
If you connect the digital audio output, be sure to make the
appropriate changes at “Input Setup” → “Digital Input” (see page
52).
6. Connecting a satellite tuner, television, or settop box
(VIDEO 3)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 3 V IN jack of the TXSR701/701E/601/601E. Or if the device has an S video output jack,
connect it to the VIDEO 3 S IN jack of the TX-SR701/701E/601/
601E using an S video cable. Or if the device has component video
outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2
jacks on the TX-SR701/701E/601/601E.
With the initial settings of the TX-SR701/701E/601/601E, the
VIDEO 3 input source is set for the COMPONENT VIDEO
INPUT 2 jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at “Input Setup” → “Component
Video” (see page 53).
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 3 IN audio jacks of the TX-SR701/701E/601/
601E. Make sure that you properly connect the left channel to the L
jack and the right channel to the R jack.
If the device has a digital output, connect it to either the DIGITAL
IN COAXIAL jack or the DIGITAL IN OPTICAL jack of the TXSR701/701E/601/601E depending on the type of connector on the
device.
With the initial settings of the TX-SR701/701E/601/601E, the
VIDEO 3 input source is set for digital input at the OPTICAL 2
jack (OPT 2).
If the digital connection is made at a different jack, this must be
changed at “Input Setup” → “Digital Input” (see page 52).
19
Connections
8. TV monitor or projector
(MONITOR OUT)
ANTENNA
AM
FM 75
COMPONENT VIDEO
INPUT 2
7. DVD recorder, other
digital video recording
device (VIDEO 2)
OUTPUT
INPUT 1
Y
ZONE 2
LINE OUT
L
PB
R
PR
Digital audio
input (coaxial)
DIGITAL
IN
2
OUT
OPTICAL
1
COAXIAL
VIDEO 3
IN
VIDEO 2
OUT
IN
VIDEO 1
OUT
IN
REMOTE
CONTRO
DVD
MONITOR
OUT
IN
OPTICAL
Component
video input
ZON
V
TX-SR701/701E only
S
Video input
IN
COAXIAL
Video input
IN
IN
IN
OUT
IN
OUT
IN
OUT
IN
SURR
FRONT
CENTER
L
GND
S Video input
L
S Video input
L (white)
R
R
PHONO
Analog audio
input
Analog audio
output
CD
TAPE
VIDEO 3
VIDEO 2
VIDEO 1
DVD
SUB
WOOFER
R (red)
L (white)
R (red)
S Video output
: Signal flow
Video output
7. Connecting a DVD recorder or other digital video recording
device (VIDEO 2)
Using RCA video cables, connect the video output jack (composite)
of the device to the VIDEO 2 V IN jack of the TX-SR701/701E/
601/601E and connect the video input jack of the device to the
VIDEO 2 V OUT jack of the TX-SR701/701E/601/601E. Or if the
device has S video input and output jacks, using S video cables,
connect the S video output jack of the device to the VIDEO 2 S IN
jack of the TX-SR701/701E/601/601E and connect the video input
jack of the device to the VIDEO 2 S OUT jack of the TX-SR701/
701E/601/601E. Or if the device has component video outputs,
connect them to the COMPONENT VIDEO INPUT 1 or 2 jacks on
the TX-SR701/701E/601/601E.
With the initial settings of the TX-SR701/701E/601/601E, the
VIDEO 2 input source is set for the COMPONENT VIDEO
INPUT 2 jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at “Input Setup” → “Component
Video” (see page 53).
Using RCA audio cables, connect the audio output jacks of the
device to the VIDEO 2 IN audio jacks of the TX-SR701/701E/601/
601E and connect the audio input jacks of the device to the VIDEO
2 OUT audio jacks of the TX-SR701/701E/601/601E. Make sure
that you properly connect the left channels to the L jacks and the
right channels to the R jacks.
If the device has a digital output, connect it to either the DIGITAL
IN COAXIAL jack or the DIGITAL IN OPTICAL jack of the TXSR701/701E/601/601E depending on the type of connector on the
device.
With the initial settings of the TX-SR701/701E/601/601E,
nothing is allocated as the digital input source for VIDEO 2 (----).
If you connect the digital audio output, be sure to make the
appropriate changes at “Input Setup” → “Digital Input” (see page
52).
If the device has a digital input, connect it to the DIGITAL
OUTPUT jack of the TX-SR701/701E/601/601E for digital
recording of the signal from the digital input of the TX-SR701/
701E/601/601E.
20
Note:
The output from the DIGITAL OUT jack of the TX-SR701/701E/
601/601E is only the digital signal input to the DIGITAL IN jack.
8. Connecting a television monitor or projector (MONITOR
OUT)
The TX-SR701/701E/601/601E is equipped with a simple Y/C
separate circuit and simple Y/C mixed circuit. Since both the signal
from the S and V inputs are output to the MONITOR OUT S output,
if the television or projector is equipped with an S video input, it is
unnecessary to connect the video connectors. If it is equipped with
only a video input, connect it to the MONITOR OUT V output.
Using an RCA video cable, connect the video input jack
(composite) of the device to the MONITOR OUT V jack of the TXSR701/701E/601/601E. Or if the device has an S video input jack,
connect it to the MONITOR OUT S jack of the TX-SR701/701E/
601/601E using an S video cable. Or if the device has component
video inputs, connect them to the bank of COMPONENT VIDEO
OUTPUT jacks on the TX-SR701/701E/601/601E.
Note:
Note that the Setup Menu will only be displayed on the monitor
connected to MONITOR OUT (S or V) and not those connected to
the COMPONENT VIDEO OUTPUT jacks.
Connections
9. Connecting video camera, etc. (VIDEO 4 INPUT)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 4 VIDEO jack of the TXSR701/701E/601/601E. Or if the device has an S video output jack,
connect it to the VIDEO 4 S VIDEO jack of the TX-SR701/701E/
601/601E using an S video cable.
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 4 AUDIO jacks of the TX-SR701/701E/601/
601E. Make sure that you properly connect the left channel to the L
jack and the right channel to the R jack.
If the device has an optical digital output, connect it to the VIDEO 4
DIGITAL jack of the TX-SR701/701E/601/601E.
The VIDEO 4 digital input is fixed to the OPTICAL input on
the front panel.
PRE OUT (TX-SR701/701E only)
These jacks are for connecting an auxiliary power amplifier.
You can use an auxiliary power amplifiers to listen at louder
volumes than you can with the TX-SR701/701E alone. When using
a power amplifier, connect each speaker to the power amplifier.
ZONE 2
FRONT
SURR
CENTER SURR BACK
(SB)
L
SUR
BAC
SPE
L
PRE OUT
R
R
SUB
WOOFER
Analog output
Center
Surround
Front
Video output
L (white)
Subwoofer
9. Video camera/ Video game
(VIDEO 4 INPUT)
L (white)
Surround back
R (red)
L (white)
R (red)
R (red)
Digital output
(optical)
L (white)
S Video output
Power amplifier
R (red)
1
2
3
4
5
6
7
8
12V TRIGGER ZONE 2 terminal
When the TX-SR701/701E/601/601E is in the ZONE 2 mode, this
terminal outputs at 12 V/100 mA.
1. Front right speaker
2. Front left speaker
3. Surround right
speaker
4. Surround left speaker
5. Subwoofer
6. Center speaker
7. Surround back right
speaker
8. Surround back left speaker
Note:
If you use a power amplifier connected to the SURR BACK PRE
OUT terminal and connect two surround back speakers to the
amplifier, set the “Hardware Config” → “b. Surr Back” setting to
“2ch (PRE OUT)” (see page 55).
21
Operating components not reached by the remote
controller signals (IR IN)
In order to use the remote controller to control the TX-SR701/
701E/601/601E from a remote location, you will need to prepare a
multi-room kit (sold separately) such as one of those given below:
• Onkyo’s Multi-Room System kit (IR Remote Controller
Extension System)
• Multiroom A/V distribution and control system such as those
from Niles® and Xantech®
Make the connections as shown below. Do not plug in any
equipment to the power outlet until all the connections are complete.
From connecting block
Mini plug cable
REMOTE
CONTROL
If the remote controller signal does not reach the
TX-SR701/701E/601/601E remote sensor
If the TX-SR701/701E/601/601E is located inside a cabinet or other
enclosure where the infrared rays from the remote controller cannot
enter, then operation with the remote controller will not be possible.
In such a case, it will be necessary to install a remote sensor at a
location outside of the cabinet where the infrared rays from the
controller can reach.
With this connection, select “Main” at “Hardware Config” → “IR
IN Position” (see page 55).
IR Receiver
Connecting
block
IR IN
TX-SR701/
701E/601/
601E
Remote Controller
In the
cabinet
: Signal flow
The IR IN input allows you to control the TX-SR701/701E/601/
601E from the remote zone (Zone 2) with the remote controller
even though the remote zone may be on the other side of the
building from the main zone. The diagram below shows how to
make the proper connections for the remote zone.
With this connection, select “Zone 2” at “Hardware Config” → “IR
IN Position” (see page 55).
IR IN
IR Receiver
TX-SR701/701E/
601/601E
Connecting
block
Remote Controller
Main room
Zone 2 room
: Signal flow
22
MONITOR
OUT
ZONE 2
V
S
12 V
TRIGGER
OUT
IR IN
TX-SR701/701E/601/601E
Connecting the remote zone (Zone 2) speakers
The TX-SR701/701E/601/601E allows you to listen to two separate
input sources at the same time. This allows you to, for example,
place speakers in two different rooms so that two or more people
can enjoy two different kinds of music at the same time. The room
where the TX-SR701/701E/601/601E is actually located is referred
to as the main room while the separate room is referred to as the
remote zone (Zone 2). In addition, the IR IN terminal of the TXSR701/701E/601/601E allows you to control the TX-SR701/701E/
601/601E from the remote zone (Zone 2) with the remote controller
even though the remote zone is physically separated. The diagrams
below show how to make the proper connections for the remote
zone.
Remote Zone (Zone 2)
Zone 2
Left speaker
Zone 2
Right speaker
Zone 2 amplifier
When using the ZONE 2 SPEAKERS terminals
You can connect the speakers for the remote zone (Zone 2) to the
ZONE 2 SPEAKERS terminals.
When you connect the speakers to the ZONE 2 SPEAKERS
terminals, set the “Hardware Config” setting to “Zone 2.” In this
setting, while you use the remote zone (Zone 2), surround playback
will not be available for the main room (2ch stereo playback only).
When you are not using the Zone 2, 6.1-channel playback will be
available for the main room.
Main Room
Main Room
ZONE 2
LINE OUT
Left (white)
L
R
REMOTE
CONTROL
Right (red)
TX-SR701/701E/601/601E
Note:
The ZONE 2 out terminals of the TX-SR701/701E/601/601E are of
a fixed output level.
Remote Zone (Zone 2)
Zone 2
Left
speaker
Zone 2
Right
speaker
ZONE 2
SPEAKERS
L
R
When using the ZONE 2 PRE OUT terminals
(TX-SR701/701E only)
You can connect the amplifier for the remote zone (Zone 2) to the
ZONE 2 PRE OUT terminals and connect the remote zone
speakers.
When you connect the speakers to the ZONE 2 SPEAKERS
terminals, set the “Hardware Config” setting to “Zone 2.” In this
setting, while you use the remote zone (Zone 2), surround playback
will not be available for the main room (2ch stereo playback only).
When you are not using the Zone 2, 6.1-channel playback will be
available for the main room.
Main Room
TX-SR701/701E/601/601E
Note:
It is important to be aware of the speaker impedance (see page 31).
Remote Zone (Zone 2)
Zone 2
Left
speaker
TX-SR701/701E
ZONE 2
FRONT
SURR
Zone 2
Right
speaker
CENTER SURR BACK
(SB)
L
L
PRE OUT
When using the ZONE 2 LINE OUT terminals
The ZONE 2 LINE OUT terminal is a constant output. Connect to
the LINE input of the amplifier (CD, tape, etc.). Adjust the volume
with the amplifier connected to the ZONE 2 LINE OUT terminal.
In this connection, whatever the “Hardware Config” setting is set to,
6.1 channel playback is always available for main room.
1. Connect the TX-SR701/701E/601/601E to the amplifier
for the remote zone.
R
R
SUB
WOOFER
Left (white)
Power amplifier
Right (red)
2. Connect the remote zone speaker cables to the
speaker terminals on the amplifier.
23
Connections
AC OUTLETS
The TX-SR701/701E/601/601E is equipped with AC mains outlets
for connecting the power cords from other devices so that their
power is supplied through the TX-SR701/701E/601/601E. By doing
this, you can leave the connected device turned on and have the
STANDBY/ON button on the TX-SR701/701E/601/601E turn on
and off the device together with the TX-SR701/701E/601/601E.
The shape, number, and total capacity of the AC outlets may
differ depending on the area of purchase.
Caution:
Make sure that the total capacity of the components connected to
the TX-SR701/701E/601/601E does not exceed the capacity that is
printed on the rear panel (e.g., TOTAL 120W).
Dimmer function
The Dimmer function (display brightness adjustment) of the TXSR701/701E/601/601E can be used to synchronize the display
brightness on the connected device using the
connection.
Caution:
If an MD recorder is connected to the TAPE jack on the TX-SR701/
701E/601/601E, switch the Input Selector from TAPE to MD (see
page 43).
TX-SR701/701E/601/601E
connector
Ex: Onkyo CD player
connector
Ex: Onkyo cassette tape
deck
AC OUTLETS
AC OUTLETS
AC 120 V
60 Hz
SWITCHED
TOTAL 120W 1A MAX.
AC 230-240 V
50 Hz
SWITCHED
TOTAL 100W MAX.
European and
some Asian models
USA and Canadian
models
REMOTE CONTROL
The
terminal on the TX-SR701/701E/601/601E is for
connecting other Onkyo components equipped with the
same
terminal. When a component is connected to the terminal, it can be
operated by the remote controller supplied with the TX-SR701/
701E/601/601E. In addition, when you connect a component to the
terminal, you can also perform the system operations given
below.
Power on/ready function
When the TX-SR701/701E/601/601E is in the standby state, if an
-connected component is turned on, the TX-SR701/701E/601/
601E also turns on and the input source selected at the TX-SR701/
701E/601/601E automatically switches to that component.
Be aware that this function will not work if the power cord for the connected component is connected to the AC OUTLET on the TXSR701/701E/601/601E, or if the TX-SR701/701E/601/601E has
already been turned on.
Direct change function
When the play button is pressed at an
-connected component,
the input source selected at the TX-SR701/701E/601/601E
automatically changes to that component.
Power off function
When the TX-SR701/701E/601/601E is placed in the standby state,
all
-connected components are also automatically put into the
standby state.
Also, if you press the ON button on the TX-SR701/701E/601/601E
remote controller while the TX-SR701/701E/601/601E is turned on,
all
-connected components (DVD players, CD players, MD
recorders, tuners, etc.) are also turned on.
24
To connect components using the
terminal, simply connect a
remote control cable from this
terminal to the
terminal of
the other component. An
remote control cable with a 1/8-inch
(3.5-mm) miniature two-conductor plug comes with every cassette
tape deck, compact disc player, MD recorder, and DVD player that
has an
terminal.
• When performing operations with
-connected components
using the
system, do not use the remote zone (Zone 2) .
• For remote control operation, the audio connection cables must
also be connected.
• If a component has two
terminals, you can use either one to
connect to the TX-SR701/701E/601/601E. The other one can be
used to daisy chain with another component.
• With Onkyo DVD players, you can enter the pre-program code
so that you can operate the DVD player directly with the remote
controller without connecting the
terminals (see page 67).
Connecting speakers
Before connecting the speakers, it is very important to place them
properly for the optimum sound space for your listening pleasure.
Be sure to refer to the instruction manuals that came with the
speakers during placement and connection. Furthermore, be aware
that for surround playback, the configuration and placement of your
speakers are both very important.
Subwoofer
When bass sound is reproduced, its volume and quality greatly depend
on subwoofer placement. Those characteristics also depends on the
shape of your listening room as well as your listening point. Generally
speaking, good bass sound is obtained when the subwoofer is placed
in the corner of the room or at one-third the length of the room.
Standard speaker setup for surround sound
• Front right and left speakers
Produces a basic sound image.
• Center speaker
Produces a rich sound image by serving as a sound source for the
front right and left speakers and enhancing the sonic movement.
• Surround right and left speakers
Adds three-dimensional sonic movement and produces
environmental sound associated with the background and effect
sound for each scene.
• Surround back speaker
Required for enjoying Dolby Digital EX, THX Surround EX
(TX-SR701/701E only), or DTS-ES audio.
Improves the quality of sound effects and the realistic acoustics.
Center
1/3 room length
(Only one surround back speaker)
2
1
5
4
3
• Subwoofer
Produces powerful and heavy bass.
6
Minimum speaker configuration for surround
sound playback
7
10
• Front right and left speakers
• Surround right and left speakers
The sound recorded for the center speaker and the subwoofer will
be properly distributed to the front right and left speakers for
optimized surround playback.
8
(Two surround back speakers (TX-SR701/701E only))
Layout with dipolar
speakers
Speaker placement
Layout with monopolar
speakers
2
1
3
Ideal speaker placement varies depending on the size of your room
and the wall coverings. Here, only typical examples of speaker
placement and recommendations are shown.
5
4
3
5
4
2
1
Important points regarding speaker placement
Front left and right speakers and center speaker
• Place these three speakers all at the same height.
• Place each speaker so that it is aimed at the location of the
listener’s ears when at the listening position.
• Place front left and right speakers at the same distance from the
listening position.
Surround left and right speakers
Place these speakers so that their height is 3 feet (1 meter) higher
than that of the listener’s ears.
Surround back speakers
• Place these speakers so that their
height is 3 feet (1 meter) higher than
that of the listener’s ears.
10
• (TX-SR701/701E only) When using
surround back left and right
speakers, place them behind the
listener so that the angles between
the lines from each speaker to the
listener and a line straight back from
8
9
the listener are less than 30 degrees.
6
7
6
7
10
10
8
1.
2.
3.
4.
5.
6.
9
TV or screen
Subwoofer
Front left speaker
Center speaker
Front right speaker
Surround left speaker
8
9
7. Surround right speaker
8. Surround back speaker
(or Surround back left
speaker)
9. Surround back right
speaker
10. Listening position
Most dipoles have an arrow on them to indicate their orientation in
which that should be placed. For the correct acoustical phasing in
the room, dipolar surround speakers should be placed so that their
arrows point forward toward the screen and dipolar surround back
speakers should be placed so that their arrows point to each other.
25
Connecting speakers
Using the speaker cable labels
The positive speaker terminals on the TX-SR701/701E/601/601E
are color coded for easy identification. Attach the supplied speaker
labels to the speaker cables, and then match the colors on the
speaker cables to the corresponding terminals.
Speaker cable label
TX-SR701/701E/
601/601E
Speaker
Speaker cable label
The speaker channels are colored as follows:
Front left speaker (+): White
Front right speaker (+): Red
Center speaker (+): Green
Surround left speaker (+): Blue
Surround right speaker (+):Grey
Surround back speaker (+):Brown
Zone 2 left speaker (+): White
Zone 2 right speaker (+): Red
Note:
If you select “2ch (PRE OUT)” at the “1. Hardware Config” menu
→ “ b. Surr Back” and use the PRE OUT terminals for 7.1ch
sound, connect the speakers to the power amplifier connected to
the PRE OUT terminals without connecting any speakers to the
Surround Back Speaker terminals on the TX-SR701/701E. Using
the surround back terminals on both the TX-SR701/701E and
power amplifier will not produce correct surround sound effect (see
page 55).
Connecting a subwoofer
Use the SUBWOOFER PRE OUT jack to connect a subwoofer with
a built-in power amplifier. If your subwoofer does not have a builtin amplifier, connect an amplifier to the SUBWOOFER PRE OUT
jack and the subwoofer to the amplifier.
Connecting the surround back speakers
(TX-SR701/701E only)
If you connect the surround back speakers to the power amplifier
connected to the SURR BACK PRE OUT terminals on the TXSR701/701E for 7.1ch sound playback, do not connect the surround
back speakers to the SURROUND BACK SPEAKER terminals on
the TX-SR701/701E. Connecting the surround back speakers to
both the TX-SR701/701E and power amplifier will not produce
correct surround sound effect.
26
Connecting speakers
Center
speaker
Front right
speaker
ANTENNA
AM
CAUTION: SPEAKER IMPEDANCE
FM 75
6 OHMS MIN. /SPEAKER
COMPONENT VIDEO
INPUT 2
ZONE 2
SPEAKERS
OUTPUT
INPUT 1
Y
ZONE 2
LINE OUT
R
PR
DIGITAL
2
OUT
OPTICAL
1
COAXIAL
VIDEO 2
VIDEO 3
IN
OUT
IN
VIDEO 1
OUT
IN
REMOTE
CONTROL
DVD
MONITOR
OUT
IN
L
R
R
OPTICAL
12 V
TRIGGER
OUT
V
ZONE 2
SURR
CENTER SURR BACK
(SB)
IR IN
OUT
IN
OUT
IN
PRE OUT
SURR
FRONT
R
AC 230-240 V
50 Hz
SWITCHED
TOTAL 100W MAX.
AV RECEIVER
MODEL NO. TX-SR 701E
SUB
WOOFER
CENTER
L
GND
SURROUND
BACK
SPEAKER
L
R
IN
IN
OUT
FRONT
L
IN
COAXIAL
IN
CENTER
SPEAKER
AC OUTLETS
L
ZONE 2
S
IN
SURROUND
SPEAKERS
FRONT
SPEAKERS
L
PB
IN
Front left
speaker
L
R
R
PHONO
CD
TAPE
VIDEO 3
VIDEO 2
VIDEO 1
DVD
SUB
WOOFER
Surround
right
speaker
Subwoofer
Surround
back
speaker
Surround
left
speaker
• To prevent damage to circuitry, never short-circuit the positive
(+) and negative (–) speaker wires.
Connecting speakers
After determining the layout of your speaker system, it is now
necessary to connect the speakers correctly to your TX-SR701/
701E/601/601E.
Caution:
• Be sure to connect the positive (+) and negative (–) cables for
the speakers properly. If they are mixed up, the left and right
signals will be reversed and the audio will sound unnatural.
• Do not connect more than one speaker cable to one speaker
terminal. Doing so may damage the TX-SR701/701E/601/
601E.
• Connect only speakers with an impedance between 6 and 16
Ω to the TX-SR701/701E/601/601E. Connecting speakers
with an impedance lower than 6 Ω may damage the
amplifier.
• Even if you are using only one speaker or listening to monaural
(mono) sound, never connect a single speaker in parallel to both
the right and left-channel terminals.
NO!
Connecting the speaker cable
1. Strip away approx. 5/8 inch (15 mm)
of the wire insulation.
5/8"
(15mm)
2. Twist the wire ends tightly together.
3. Unscrew the speaker terminal cap.
4. Insert the exposed wire end.
SPEAKERS
SPEAKERS
–
R
–
–
+
L
+
L
L
R
R
+
L
R
–
+
5. Screw down the speaker terminal
cap.
27
Connecting the power
Diagram for RC-533M
Diagram for TX-SR701/701E
(USA and Canadian models and Australian models)
(All models other than USA and Canadian models and
Australian models)
STANDBY/ON
ON
STANDBY
RCVR
MODE
STANDBY/ON
STANDBY indicator
STANDBY indicator
MASTER VOLUME
AUDIO
ADJUST
SETUP
AUDIO
ADJUST
RETURN
STANDBY/ON
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
TUNING
PRESET
PRESET
POWER
STANDBY
STANDBY
ON
REC OUT
ZONE 2
OFF
LEVEL
DISPLAY
DIMMER
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
REC OUT
ENTER
FM MODE
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
FM MODE
ENTER
CLEAR
PHONES
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
To wall outlet
DIGITAL
POWER
• Turning on the power may cause a momentary power surge,
which might interfere with other electrical equipment on the
same circuit, such as computers. If this happens, use a wall
outlet on a different circuit.
(All models other than USA and Canadian models and
Australian models)
• The TX-SR701/701E/601/601E is shipped with the main power
ON ). When the power
(POWER) switch in the on position (
cord is plugged in for the first time, the TX-SR701/701E/601/
601E will automatically enter the standby state and the
STANDBY indicator will light (same condition after step 2
below).
S VIDEO
VIDEO
L
AUDIO
R
To wall outlet
Turning on the power from the remote controller
Before you can use the remote controller, you must perform step 1
above and place the TX-SR701/701E/601/601E in the standby state.
1. Press the RCVR MODE button.
The RCVR MODE button lights.
2. Press the ON button to turn on the
TX-SR701/701E/601/601E (take it out
of the standby state).
To return the TX-SR701/701E/601/601E to
the standby state, press the STANDBY
button.
Turning on the power
1. Plug the power cord into an AC wall outlet.
(USA and Canadian models and Australian models)
The STANDBY indicator will light up.
(All models other than USA and Canadian models and
Australian models)
Press the POWER switch to set the TX-SR701/701E/
601/601E to standby state.
The STANDBY indicator will light up.
2. Press the STANDBY/ON button to turn on the TXSR701/701E/601/601E.
The display will light up and the STANDBY indicator will turn off.
If you press the STANDBY/ON button again, the receiver
returns to standby state.
Turn off
28
Memory preservation (Other than USA and Canadian
models and Australian models)
The TX-SR701/701E/601/601E does not require memory
preservation batteries. A built-in memory backup system
preserves the contents of memory (e.g., speaker settings and
surround settings) during power failures and even when the
power is turned off with the POWER switch. The backup system
is charged when the POWER switch is turned on.
The length of time that the memory will be preserved will vary
depending on the ambient climate. On the average, memory
contents are protected over a period of a few weeks after the last
time the unit has been turned off. This period may be shorter
when the unit is exposed to a highly humid climate.
Memory preservation (USA and Canadian models and
Australian models)
The TX-SR701/701E/601/601E does not require memory
preservation batteries. A built-in memory backup system
preserves the contents of memory (e.g., speaker settings and
surround settings) during power failures and even when the unit
is unplugged. The unit must be plugged in order to charged the
back-up system.
The length of time that the memory will be preserved will vary
depending on the ambient climate. On the average, memory
contents are protected over a period of a few weeks after the last
time the unit has been unplugged. This period may be shorter
when the unit is exposed to a highly humid climate.
Connecting antennas
To use the tuner of the TX-SR701/701E/601/601E, it is necessary to
prepare the supplied FM and AM antennas.
• Adjustment and placement of the FM and AM antennas for
better reception must be done while listening to a station
broadcast.
• If better reception cannot be obtained, then placement of an
outside antenna is recommended.
Assembling the AM loop antenna
Assemble the loop antenna as shown in the illustration.
• Refer to “Connecting the AM loop antenna” below for details
on how to connect the loop antenna.
Connecting the included antennas
Connecting the FM indoor antenna:
The FM indoor antenna is for indoor use only. During use, extend
the antenna and adjust its orientation until the clearest signal is
received. Fix it with push pins or similar items in the position that
will cause the least amount of distortion.
If the reception is not very clear with the attached FM indoor
antenna, the use of an outdoor antenna is recommended.
Connecting the AM loop antenna:
The AM loop antenna is for indoor use only. Set it in the direction
and position where you receive the clearest sound. Put it as far away
as possible from the TX-SR701/701E/601/601E, televisions,
speaker cables, and power cords.
If the reception is not very clear with the attached AM indoor
antenna, the use of an outdoor antenna is recommended.
FM antenna
(Indoor)
AM loop antenna
Other models
Insert into the hole
Connecting the AM antenna cable
1. Press down the lever at the antenna terminal.
2. Insert the wire into the terminal hole.
ANTENNA
AM
FM 75
3. Release the lever.
ZONE 2
LINE OUT
1
2
3
USA and
Canadian
models
L
Hint:
Either of the split ends of the AM antenna can be connected to
either terminal. Unlike speaker cabling, there is no polarity for AM
broadcast signals.
29
Connecting antennas
Connecting an FM outdoor antenna
Directional linkage
Make sure to follow the general rules given below:
• Keep the antenna away from noise sources (neon signs, busy
roads, etc.).
• It is dangerous to put the antenna close to power lines. Keep it
well away from power lines, transformers, etc.
ANTENNA
AM
Do not use the same antenna for both FM and TV (or VCR)
reception since the FM and TV (or VCR) signals can interfere with
each other. If you must use a common FM/TV (or VCR) antenna,
use a directional linkage type splitter.
FM 75
To receiver
ZONE 2
LINE OUT
To TV (or VCR)
L
R
AL
VIDEO 3
IN
VIDEO 1
VIDEO 2
IN
OUT
DVD
Connecting the antenna cable to the 75/300 Ω
antenna adapter (For all models other than USA
& Canadian models and European models)
MO
OU
IN
IN
OUT
Connecting the 300 Ω ribbon wire:
Loosen the screws on the adapter and wrap the wires of the ribbon
wire around these screws. Then tighten the screws down with a
screwdriver.
Connecting an AM outdoor antenna
If reception is poor with the indoor AM antenna, stretch out the
outdoor antenna (16 feet (5 meters) or more) above a window or
outside.
Outdoor
antenna
• Keep the indoor AM loop antenna connected. Do not remove it.
300 Ω
ribbon wire
Outdoor antenna
Connecting the coaxial cable:
1. With your fingernail, or a small screwdriver, press the
stoppers of the 75/300 Ω antenna adapter outward
and remove the cover.
(Indoor)
AM loop antenna
ANTENNA
AM
2. Remove the transformer wire A from slit B and insert
it into slit C.
FM 75
ZONE 2
LINE OUT
3. Prepare the coaxial cable as shown in the diagram.
L
R
L
VIDEO 3
IN
VIDEO 2
OUT
IN
VIDEO 1
OUT
IN
DVD
IN
M
O
4. Connect the 75/300 Ω antenna adapter to the coaxial
cable.
1. Insert the end of the cable.
2. Clamp it in place with pliers.
3. Reinstall the cover.
Note:
If you are using the TX-SR701/701E/601/601E worldwide model in
a region where AM frequencies are delineated by 10-kHz steps, be
sure to set the “AM Frequency Step” Setup setting accordingly (see
page 55).
1
2
3, 4
✦
✦ ✦ ✦ ✦
✦
✦✦ ✦ ✦
✦
Slit B
Wire A
Slit C
30
6 3 6
mm mm mm
5/8"
(15mm)
Configuring the speakers
/ / /
SETUP RETURN
RETURN
AUDIO
ADJUST
SETUP
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
/ / /
ENTER
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
FM MODE
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
ENTER
To create the optimum sound space for both visual and audio
pleasure, it is necessary to set the size of the speakers and their
distance from your normal listening position. Once made, you will
not need to change these settings unless you change the speaker
configuration or positions. Once you have connected the speakers,
complete the following settings using the OSD Setup menu* before
using the speakers.
*OSD Setup Menu
The OSD (On Screen Display) Setup Menu is displayed on the TV
or projector monitor connected to the TX-SR701/701E/601/601E. It
is used to configure the various settings of the TX-SR701/701E/
601/601E for optimum performance.
Speaker Configuration
For your reference to speaker size settings, if the diameter of your
speaker unit is larger than 6-1/2" (16 cm), use the “Large” setting;
otherwise use the “Small” setting.
1. Display the main menu.
2. Use the
Config.”
and
cursor buttons to select “1. Speaker
TX-SR701/701E/601/601E
Remote controller
TUNING
PRESET
Displaying the Main Menu
1. Display the main menu.
* Menu *****************
Press the SETUP button on the front panel or on the remote
controller to display the main menu (Menu) on the monitor and
front display.
TX-SR701/701E/
601/601E
Remote
controller
1.Hardware Config
2.Speaker Config
3.Speaker Distance
4.Level Calibration
5.Input Setup
6.Preference
* Menu *****************
1.Hardware Config
2.Speaker Config
3.Speaker Distance
4.Level Calibration
5.Input Setup
6.Preference
|ENTER|Quit:|SETUP|
3. Press the ENTER button.
|ENTER|Quit:|SETUP|
TX-SR701/701E/601/601E
Remote controller
The speaker configuration menu appears.
TX-SR701/701E
TX-SR601/601E
* Menu *****************
* Menu *****************
1.Speaker
2.Speaker Config
Config
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
Setup
a.Subwoofer
:Yes
5.OSD
Setup
b.Front
L/R
:Small
6.Preference
c.Center
:Small
d.Surround L/R :Small
e.Surround Back:Small
f.Crossover:80Hz(THX)
Quit:|SETUP|
1.Speaker
2.Speaker Config
Config
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
Setup
a.Subwoofer
:Yes
5.OSD
Setup
b.Front
L/R
:Small
6.Preference
c.Center
:Small
d.Surround L/R :Small
e.Surround Back:Small
f.Crossover:100Hz
Quit:|SETUP|
31
Configuring the speakers
4. Use the
and cursor buttons to select “Subwoofer”
and then use the and cursor buttons to select the
subwoofer setting.
Yes: Select when a subwoofer is connected.
No: Select when a subwoofer is not connected.
9. Use the
and cursor buttons to select “Crossover”
and then use the and cursor buttons to select the
crossover frequency mode setting.
Adjustable Crossover for Bass Management
TX-SR701/701E
TX-SR701/701E/601/601E
Remote controller
TUNING
PRESET
TUNING
PRESET
5. Use the
and cursor buttons to select “Front L/R”
and then use the and cursor buttons to select the
front speaker setting.
Large: Select if the front speakers are large sized.
Small: Select if the front speakers are small sized.
• If “No” is selected for the Subwoofer setting, this setting is
fixed to “Large.”
6. Use the
and
cursor buttons to select “Center”
and then use the and cursor buttons to select the
center speaker setting.
None: Select if no center speaker is connected.
Large: Select if the center speaker is large sized.
Small: Select if the center speaker is small sized.
• If “Small” is selected for the Front setting, “Large” cannot
be selected for this setting.
7. Use the and cursor buttons to select “Surround L/
R” and then use the and cursor buttons to select
the surround speaker setting.
None: Select if no surround left and right speakers are
connected.
Large: Select if the surround left and right speakers are large
sized.
Small: Select if the surround left and right speakers are small
sized.
• If “Small” is selected for the Front setting, “Large” cannot
be selected for this setting.
8. Use the
and
cursor buttons to select “Surround
back” and then use the
and
cursor buttons to
select the surround back speaker setting.
None: Select if no surround back speaker is connected.
Large: Select if the surround back speaker is large sized.
Small: Select if the surround back speaker is small sized.
• If “None” is selected for the Surround setting, this setting
will be disabled.
• If “Small” is selected for the Surround setting, “Large”
cannot be selected for this setting.
32
f. Crossover
This setting allows you to set the crossover frequency for your
speaker system. The crossover frequency is the minimum
frequency delivered to a speaker and can be set to 40 Hz, 60 Hz,
80 Hz (THX), 100 Hz, 120 Hz, or 150Hz. Select “80Hz (THX)”
if you are using a THX-certified speaker system. This setting is
valid when “Subwoofer” is set to “Yes,” or for speakers that are
set to “Small,” at the “Speaker Config” menu. Frequencies
below this are cut from speakers set to “Small” and sent to the
subwoofer (or to speakers set to “Large”).
Note:
When “Large” is set, the complete frequency range for that
speaker channel will be output. When “Small” is set, the
frequencies below 80 Hz for that speaker channel are output to
the subwoofer. If Subwoofer is set to “No” in the Speaker
Config menu, then they will be output to the left and right front
speakers. (Set all speakers for THX speaker systems to “small.”)
TX-SR601/601E
f. Crossover
This setting allows you to set the crossover frequency for your
speaker system. The crossover frequency is the minimum
frequency delivered to a speaker and can be set to 60 Hz, 80 Hz,
100 Hz, 120 Hz, or 150Hz. This setting is valid when
“Subwoofer” is set to “Yes,” or for speakers that are set to
“Small,” at the “Speaker Config” menu. Frequencies below this
are cut from speakers set to “Small” and sent to the subwoofer
(or to speakers set to “Large”).
The following table lists the crossover frequency you should
choose depending on the diameter of your front spekers.
Front speaker diameter
crosscover frequency
Larger than 12" (30cm)
40
8"~12" (20-30 cm)
60
6-1/2"~8" (16-20 cm)
80
5-1/4"~6-1/2" (13-16cm)
100
3-1/2"~5-1/4" (9-13 cm)
120
Less than 3-1/2" (9 cm)
150
Note:
When “Large” is set, the complete frequency range for that
speaker channel will be output. When “Small” is set, the
frequencies below 80 Hz for that speaker channel are output to
the subwoofer. If Subwoofer is set to “No” in the 1-1. Speaker
Config Sub-menu, then they will be output to the left and right
front speakers.
Press the RETURN button to return to the main menu.
Press the SETUP button on the front panel or on the remote
controller to exit the Setup menu.
Configuring the speakers
Setting the speaker distance from your normal
listening position
Each speaker can be set between 1 and 30 feet (0.3 and 9 meters) in
1-foot (0.3 meter) increments. Select the setting closest to the actual
distance from the speaker to your normal listening position.
Note:
Speakers that you selected “No” or “None” for in the “Speaker
Config” menu will be disabled.
TX-SR701/701E
Notes:
• For the front L/R, center and subwoofer speakers, the speaker
distance values you can set will be between the current
maximum value(s) among all speakers and the values 10 feet (3
meters) lower than the current maximum value(s). For example,
if the current maximum value is 30 feet (9 meters), the speaker
distance values you can set will be between 20 feet (6 meters)
and 30 feet (9 meters).
• For the surround and surround back speakers, the speaker
distance values you can set will be between the current
maximum value(s) among all speakers and the values 20 feet (6
meters) lower than the current maximum value(s).
• Whenever you set the speaker distance value for any one of the
speakers, if you enter any values higher than the current
maximum value, the value you enter will be the new maximum
value and any other speaker distance values you already set will
automatically be adjusted to the values so that they keep the
same value difference to the new maximum value as the one to
the last maximum value.
1. Use the
and cursor buttons to
select “3. Speaker Distance” on the
main menu and then press the
ENTER button.
The “Speaker Distance” menu appears.
4. Use the
and cursor buttons to select “Center” and
then use the and cursor buttons to set the distance
from the center speaker to your normal listening position.
5. Use the
and cursor buttons to select “Right” and
then use the
and
cursor buttons to set the
distance from the front right speaker to your normal
listening position.
6. Use the
and cursor buttons to select “Surr Right”
and then use the
and
cursor buttons to set the
distance from the surround right speaker to your
normal listening position.
7. Do the following when you use two surround back
speakers. If you use one surround back speaker, go to
step 8.
Use the
and cursor buttons to select “Surround
Back R” and then use the and cursor buttons to
set the distance from the surround back right speaker
to your normal listening position.
8. When you use one surround back speaker:
Use the
and cursor buttons to select “Surround
Back” and then use the and cursor buttons to set
the distance from the surround back speaker to your
normal listening position.
When you use two surround back speakers:
Use the
and cursor buttons to select “Surround
Back L” and then use the
and
cursor buttons to
set the distance from the surround back left speaker
to your normal listening position.
9. Use the
and cursor buttons to select “Surr Left”
and then use the
and
cursor buttons to set the
distance from the surround left speaker to your
normal listening position.
10. Use the and cursor buttons to select “Subwoofer”
and then use the
and
cursor buttons to set the
distance from the subwoofer speaker to your normal
listening position.
* Menu *****************
1.Hardware Config
2.Speaker Config
3.Speaker Distance
4.Level Calibration
5.Input Setup
6.Preference
|ENTER|Quit:|SETUP|
* Menu *****************
1.Speaker
3.Speaker Config
Distance
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
a.Unit Setup :feet
5.OSD
Setup
b.Left
:12ft
6.Preference
c.Center
:12ft
d.Right
:12ft
e.Surr Right
: 7ft
f.Surround Back : 7ft
g.Surr Left
: 7ft
h.Subwoofer
: 7ft
Quit:|SETUP|
Press the RETURN button to return to the main menu.
Press the SETUP button on the front panel or SETUP button on the
remote controller button to exit the Setup menu.
2. Use the
and cursor buttons to select “Unit” and
then use the
and
cursor buttons to select the
desired unit of measure.
feet: Select if you will enter the distances in feet.
meters: Select if you will enter the distances in meters.
3. Use the
and cursor buttons to select “Left” and
then use the
and
cursor buttons to set the
distance from the front left speaker to your normal
listening position.
33
Configuring the speakers
TX-SR601/601E
8. Use the and cursor buttons to select “Subwoofer”
and then use the
and
cursor buttons to set the
distance from the subwoofer speaker to your normal
listening position.
1. Use the
and cursor buttons to
select “3. Speaker Distance” on the
main menu and then press the
ENTER button.
The “Speaker Distance” menu appears.
* Menu *****************
1.Hardware Config
2.Speaker Config
3.Speaker Distance
4.Level Calibration
5.Input Setup
6.Preference
|ENTER|Quit:|SETUP|
* Menu *****************
1.Speaker
3.Speaker Config
Distance
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
a.Unit Setup :feet
5.OSD
Setup
b.Front
L/R
:12ft
6.Preference
c.Center
:12ft
d.Surr Right
: 7ft
e.Surround Back : 7ft
f.Surr Left
: 7ft
g.Subwoofer
: 7ft
Quit:|SETUP|
2. Use the
and cursor buttons to select “Unit” and
then use the
and
cursor buttons to select the
desired unit of measure.
feet: Select if you will enter the distances in feet.
meters: Select if you will enter the distances in meters.
3. Use the
and
cursor buttons to select “Front L/R”
and then use the
and
cursor buttons to set the
distance from the front speakers to your normal
listening position.
4. Use the
and
cursor buttons to select “Center”
and then use the
and
cursor buttons to set the
distance from the center speaker to your normal
listening position.
Note:
The speaker distance value for center speaker cannot be 5 feet (1.5
meters) higher and 5 feet (1.5 meters) lower than the one set to front
speaker. For example, if 20 feet (6 meters) is set for the front
speakers, then the center speaker distance can only be set between
15 and 25 feet (4.5 and 7.5 meters).
5. Use the
and cursor buttons to select “Surr Right”
and then use the
and
cursor buttons to set the
distance from the surround right speaker to your
normal listening position.
6. Use the
and cursor buttons to select “Surround
Back” and then use the and cursor buttons to set
the distance from the surround back speaker to your
normal listening position.
Note:
The speaker distance value for surround back speaker cannot be 5
feet (1.5 meters) higher and 15 feet (4.5 meters) lower than the one
set to front speaker. For example, if 20 feet (6 meters) is set for the
front speakers, then the surround back speaker distance can only be
set between 5 and 25 feet (1.5 and 7.5 meters).
7. Use the
and cursor buttons to select “Surr Left”
and then use the
and
cursor buttons to set the
distance from the surround left speaker to your
normal listening position.
34
Note:
The speaker distance value for subwoofer speaker cannot be 5 feet
(1.5 meters) higher and 5 feet (1.5 meters) lower than the one set to
front speaker. For example, if 20 feet (6 meters) is set for the front
speakers, then the subwoofer speaker distance can only be set
between 15 and 25 feet (4.5 and 7.5 meters).
Press the RETURN button to return to the main menu.
Press the SETUP button on the front panel or SETUP button on the
remote controller button to exit the Setup menu.
Calibrating the speaker levels
Use this menu to set the volume for each speaker so that each
volume is heard by the listener at the same level. This is especially
important for speaker layouts where the left and right speakers are
at different distances or in asymmetrical positions due to room
designs and configurations. These settings and the distance settings
performed in the Speaker Distance menu are vital to create the
proper sound space and dynamics.
Note:
The speaker level settings here are not effective for multi-channel
input sources. To adjust the speaker levels for multi-channel input
sources, you will need to use the CH SEL, LEVEL , and LEVEL
buttons on the remote controller. See page 44.
TX-SR701/701E
1. Use the
and cursor buttons to
select “4. Level Calibration” on the
main menu and then press the
ENTER button.
The “Level Calibration” menu appears.
You will hear a pink noise from the front
left speaker. At this time, the volume of
the pink noise will automatically increase
to a predetermined reference level (82).
* Menu *****************
1.Hardware Config
2.Speaker Config
3.Speaker Distance
4.Level Calibration
5.Input Setup
6.Preference
|ENTER|Quit:|SETUP|
* Menu *****************
1.Speaker
Config
4.Level Calibration
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
a.Left Setup
: OdB
5.OSD
Setup
b.Center
: OdB
6.Preference
c.Right
: OdB
d.Surr Right
: OdB
e.Surr Back
: OdB
f.Surr Left
: OdB
g.Subwoofer
: OdB
Quit:|SETUP|
Note:
Speakers that you selected “No” or “None” for in the “Speaker
Config” menu will be disabled.
Configuring the speakers
2. Use the
and
select “Left.”
cursor buttons to
(1) Remember the volume level of this noise
and then press the cursor button. (Note
that this can be adjusted to any level
between –12 and +12 decibels in 1-decibel
increments. For subwoofer, values
between –15 and +12 dB can be set.) The
TX-SR701/701E will now emit the pink
noise from the center speaker.
(2) Using the and cursor buttons, adjust the volume level of
the noise from the center speaker so that it is at the same level as
that was emitted from the front left speaker. You can jog back
and forth between the speakers to help you compare the volume
levels.
(3) Press the cursor button again. The TX-SR701/701E will now
emit the pink noise from the front right speaker.
(4) Repeat steps (2) and (3) above for the front right and other
speakers until all speakers are adjusted to the same volume
level.
TX-SR601/601E
1. Use the
and cursor buttons to
select “4. Level Calibration” on the
main menu and then press the
ENTER button.
The “Level Calibration” menu appears.
* Menu *****************
1.Hardware Config
2.Speaker Config
3.Speaker Distance
4.Level Calibration
5.Input Setup
6.Preference
|ENTER|Quit:|SETUP|
* Menu *****************
1.Speaker
Config
4.Level Calibration
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
a.Left Setup
: OdB
5.OSD
Setup
b.Center
: OdB
6.Preference
c.Right
: OdB
d.Surr Right
: OdB
e.Surr Back
: OdB
f.Surr Left
: OdB
g.Subwoofer
: OdB
Quit:|SETUP|
Notes:
• Speakers that you selected “No” or “None” for in the “Speaker
Config” menu will be disabled.
• To accurately set the output levels, it is recommended to use a
handheld sound pressure level (SPL) meter. Set the meter to Cweighting and slow averaging. A Radio Shack® SPL meter or
equivalent is recommended. Using the internal channel noise
generators, set each channel so that you read a 75 decibel sound
pressure level.
Using the remote controller
1. Press the TEST button.
You will hear a pink noise which will be
emitted from the front left speaker. At this
time, the volume of the pink noise will
automatically increase to a predetermined
reference level (82).
(1) Remember the volume level of this noise and then press the CH
SEL button. The TX-SR701/701E will now emit the pink noise
from the center speaker.
(2) Using the LEVEL / buttons, adjust the volume level of the
noise from the center speaker so that it is at the same level as
that was emitted from the front left speaker.
(3) Press the CH SEL button again. The TX-SR701/701E will now
emit the pink noise from the front right speaker.
Use the LEVEL / buttons to adjust the volume of the noise
from the front right speaker so that it is the same level as that
was emitted from the center speaker.
(4) Use the CH SEL button to select other speakers and adjust the
volumes until all speakers are adjusted to the same level.
The pink noise level can be adjusted to anywhere between –12 and
+12 decibels for all speakers in 1-decibel increments. For
subwoofer, values between –15 and +12 dB can be set.
Note:
Speakers that you selected “No” or “None” for in the “Speaker
Config” menu will be disabled.
2. Use the
and
select “Left.”
cursor buttons to
You will hear a pink noise from the front
left speaker.
(1) Remember the volume level of this noise and then press the
cursor button. The TX-SR601/601E will now emit the pink
noise from the center speaker.
(2) Using the
and
cursor buttons, adjust the volume level of
the noise from the center speaker so that it is at the same level as
that was emitted from the front left speaker.
(3) Press the cursor button again. The TX-SR601/601E will now
emit the pink noise from the front right speaker.
Use the
and
cursor buttons to adjust the volume of the
noise from the front right speaker so that it is the same level as
that was emitted from the center speaker.
(4) Use the cursor button to select other speakers and adjust the
volumes until all speakers are adjusted to the same level.
The pink noise level can be adjusted to anywhere between –12 and
+12 decibels for all speakers in 1-decibel increments. For
subwoofer, values between –15 and +12 dB can be set.
Press the RETURN button to return to the main menu.
Press the SETUP button on the front panel or on the remote
controller button to exit the Setup menu.
2. Press the TEST button to complete
the procedure.
35
Configuring the speakers
Using the remote controller
1. Press the TEST button.
You will hear a pink noise which will be
emitted from the front left speaker.
(1) Remember the volume level of this noise and then press the CH
SEL button. The TX-SR601/601E will now emit the pink noise
from the center speaker.
(2) Using the LEVEL / buttons, adjust the volume level of the
noise from the center speaker so that it is at the same level as
that was emitted from the front left speaker.
(3) Press the CH SEL button again. The TX-SR601/601E will now
emit the pink noise from the front right speaker.
Use the LEVEL / buttons to adjust the volume of the noise
from the front right speaker so that it is the same level as that
was emitted from the center speaker.
(4) Use the CH SEL button to select other speakers and adjust the
volumes until all speakers are adjusted to the same level.
The pink noise level can be adjusted to anywhere between –12 and
+12 decibels for all speakers in 1-decibel increments. For
subwoofer, values between –15 and +12 dB can be set.
Buttons used for navigating through the menus
You can change settings in the Setup Menu using the buttons on the
front panel and on the remote controller.
The buttons on the remote controller correspond to those on the TXSR701/701E/601/601E as shown below.
Buttons on remote controller
Buttons on TX-SR701/701E/
601/601E
Displaying the Main Menu and exiting the menu
SETUP
SETUP
Selecting a menu or menu item
(upper edge of
ENTER button)
UP
(lower edge of
ENTER button)
DOWN
2. Press the TEST button to complete
the procedure.
Setting the value
(left edge of
ENTER button)
LEFT
(right edge of
ENTER button)
RIGHT
Selecting the menu
ENTER
ENTER
Returning to the previous screen
RETURN
36
RETURN
Listening to Radio Broadcasts
FM MODE
AUDIO
ADJUST
TUNING
/
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
FM MODE
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
TUNER
One of the features of the TX-SR701/701E/601/601E that is most
frequently used is its ability to play FM and AM broadcast radio
stations. The TX-SR701/701E/601/601E provides a number of
listening modes perfect for listening to the radio and getting the
most out of your audio system. Also, by presetting radio stations
that you listen to frequently, you can select them easily by pressing
the CH
button on the remote controller.
Tuning into a radio station
1. Press the TUNER input source button.
TUNER
Each time you press the TUNER button, the
input source changes between AM and FM.
2. Using the TUNING and buttons
on the front panel, tune into the
station you desire.
Band
Listening to a stereo radio station (FM mode)
When you tune into a radio station, TUNED
indicator appears in the display. If you tune
into an FM station in stereo, then “FM
STEREO” appears. If the signal is weak, it
may be impossible to tune into the station in
stereo. In such a case, press the FM MODE
button on the front panel. The AUTO
indication disappears and the radio station is
output in the monaural mode. To return to
stereo, press the FM MODE button again.
“AUTO” appears. Some inter-station noise
may be heard, but the sound will not cut in and
out as it would if stereo was selected.
TUNING
PRESET
Tuned in stereo
Auto mode
Frequency
“FM STEREO”
(Lights red)
• The tuner frequency changes in 100-kHz (or 50-kHz)
increments for FM and 10-kHz (or 9-kHz) increments for
AM.
• You can press the TUNING or button continuously for
more than 0.5 seconds to scan for an FM station in the
direction of the button you pressed (FM auto tuning mode).
After you release the button and a station is received in
stereo, the scanning stops.
• The European model allows you to receive RDS broadcasts.
See page 39 for more information regarding tuning into
RDS broadcasts.
37
Listening to Radio Broadcasts
FM MODE
PRESET
MEMORY
AUDIO
ADJUST
/
RCVR
MODE
MASTER VOLUME
SETUP
RETURN
CH
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
FM MODE
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
TUN
ENTER
TUNER
Presetting a radio station
Selecting a preset radio station
1. Tune into the radio station you desire (see “Tuning
into a radio station”).
1. Press the TUNER input source
button.
2. Press the MEMORY button on the
front panel.
2. Press the PRESET / buttons and
select the number of the desired
preset station.
TUNER
TUNING
PRESET
The MEMORY indicator lights red.
"MEMORY"
(Lights red)
When using the remote controller:
Flashes
1. Press the RCVR MODE button.
The RCVR MODE button lights.
3. Using the PRESET / buttons,
select a preset number (from 1 to
40) to assign the station.
TUNING
2. Press the TUN button.
PRESET
3. Press the CH
button and select
the number of the desired preset
station.
4. Press the ENTER button to finalize
the procedure.
The memory indicator turns off and the
assigned number lights.
Lights
Erasing a preset radio station
This can only be performed at the TX-SR701/701E/601/601E.
This programs the radio station as a preset radio station.
• Up to 40 stations can be stored in memory as preset radio
stations.
1. Press the TUNER button and press
the PRESET / buttons to select
the preset radio station that you
want to erase (see above).
TUNER
TUNING
PRESET
ch
2. Press and hold the MEMORY button
and then press the FM MODE
button.
The selected preset station is erased.
38
Listening to RDS broadcasts (European models only)
Listening to RDS broadcasts
PTY program types in Europe
RDS reception is available only on the European model and only in
areas where RDS broadcasts are available.
The text given below in parenthesis is what is actually displayed on
the TX-SR701E/601E.
What is RDS?
RDS stands for Radio Data System and is a type of FM
broadcasting. RDS was developed within the European
Broadcasting Union (EBU) and is available in most European
countries. Many FM broadcasting stations now transmit the RDS
signals, which provide the additional information required. RDS
provides you with various services so that you can choose a station
that broadcasts your favorite categories of music, news, or other
information.
None (NONE):
No program type.
There are three main classifications of RDS broadcasts. Though
they can be tuned into by using the TUNING buttons as normal
stations, RDS broadcasts allow you to scan for stations of the type
and classification for which you are looking. This makes it much
easier for you to find the station you want (see “Performing a PTY
scan” and “Performing a TP scan” on page 40). The three main
classifications are explained below.
Information (INFO):
General information such as weather forecasts, consumer affairs,
medical help, etc.
RT: Radio Text
When an RDS station broadcasting RT information is selected, the
text information received from the station is displayed.
PTY: Program Type
When an RDS station broadcasting PTY information is selected, the
station type (classification) is displayed.
TP: Traffic Program
When an RDS station broadcasting TP information is selected,
traffic information will be broadcasted periodically.
Notes:
• In some cases, the characters displayed on the display of the
TX-SR701E/601E may not be exactly the same as the ones
broadcast by the radio station. Also, unusual characters may
appear on the display if the TX-SR701E/601E receives
characters that cannot be displayed correctly. This is not a
malfunction.
• When an RDS station broadcasting PS information is selected,
the name of the station is displayed instead of the frequency.
News reports (NEWS):
Reports on current events and happenings.
Current affairs (AFFAIRS):
Topical reporting of current affairs, often with a wider range of
topics than news reports.
Sport (SPORT):
Live sports action, sports news, and interviews.
Education (EDUCATE):
Formal educational programs.
Drama (DRAMA):
Radio plays and serials.
Culture (CULTURE):
Cultural programs (including religious affairs).
Science and technology (SCIENCE):
Programs about the natural sciences and technology.
Varied (VARIED):
Speech-based programs not covered by the above categories (e.g.,
quizzes, panel games, and comedy).
Pop music (POP M):
Popular commercial music, usually from past or present sales charts
(e.g., Top 40).
Rock music (ROCK M):
Popular music with an alternative appeal, often not appearing on
sales charts.
Middle of the road music (M.O.R.M):
Easy listening music (as opposed to Pop, Rock, or Classical).
Light classics (LIGHT M):
Classical music for general rather than specialist appreciation.
Serious classics (CLASSICS):
Performances of major orchestral works, symphonies, chamber
music, etc. (including the Grand Opera).
Other music (OTHER M):
Music styles not covered by the above categories (e.g., Jazz,
Rhythm & Blues, Folk, Country, and Reggae).
• Alarm (ALARM):
When an RDS station is making an emergency broadcast,
ALARM will flash on the display.
39
Listening to RDS broadcasts (European models only)
PRESET
/
RT/PTY/TP
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
FM MODE
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
ENTER
TUNER
4. Press the ENTER button.
Displaying Radio Text (RT)
If the station you are currently tuned into is broadcasting RT
signals, they will be displayed in the front display of the TXSR701E/601E. If the station does not, this function will be ignored.
1. To display the radio text, press the
RT/PTY/TP button once.
• If the station you are currently listening to is not an RDS
station, only the frequency of the station will appear.
• If “Waiting” appears on the display, more time is required to
receive the RT information. When the information is received,
the characters will scroll across the front display.
• If “No Text Data” appears on the display, RT information is not
available.
• The display shows the frequency for 3 seconds and returns to
program service name.
The TX-SR701E/601E will scan until it
reaches a station of the program type you
selected. It will then stop briefly at that
station before continuing on until it
reaches the next station. Pressing the
ENTER button stops the PTY scan at that
point. If you press the RT/PTY/TP while
“NONE” is displayed, “PTY ?” will
appear. In this case, return to step 3.
5. Press the ENTER button when it
reaches the station to which you
want to listen.
“Not Found” will appear when no RDS
signal is being received from the station.
Performing a TP scan
1. Press the TUNER input source
button and select the FM input
source.
Performing a PTY scan
1. Press the TUNER input source
button and select the FM input
source.
TUNER
TUNER
2. Press the RT/PTY/TP button three
times.
2. Press the RT/PTY/TP button twice.
The current program type appears on the
display.
3. Using the / buttons, select the
PTY program type you desire.
TUNING
PRESET
“[TP]” will appear if the current station is broadcasting TP
signals. This station will periodically broadcast traffic
information. To find a different station, proceed to the next step.
Also, if “TP” is displayed, proceed to the next step.
3. Press the ENTER button.
The TX-SR701E/601E will scan until it
reaches a station broadcasting traffic
information. If “Not Found” appears on
the display, a TP station cannot be located.
40
Selecting an Audio Component
TX-SR701/701E
RCVR
MODE
AUDIO
ADJUST
MASTER VOLUME
SETUP
VOL
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
ENTER
FM MODE
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
INPUT SELECTOR
buttons
MASTER VOLUME
Input source buttons
Basic operation
If you want to perform these operations using the remote controller,
first press the RCVR MODE button.
1. Press the desired input source.
• For information about selecting the listening mode, see pages
46-51.
• You can set the sound quality using the Audio Adjust menu.
(See page 57 for more information.)
If no audio output is heard from the digital source (DVD, CD,
etc.) you have selected, see “Digital Input” on page 52.
TX-SR701/701E
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
PHONO
TX-SR601/601E
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
TAPE
TUNER
CD
Remote controller
The selected source name appears on the display. See “Enjoying
DVD multichannel audio playback” (see page 44) when a DVD
player with a 5.1-channel input port is connected to the TXSR701/701E/601/601E.
2. Start playing the selected input source.
Follow the operating instructions for the source device.
3. Adjust the volume to an appropriate level.
TX-SR701/701E/601/601E
Remote controller
MASTER VOLUME
Adjusting the main volume adjusts the volume level of all the
speakers connected to the TX-SR701/701E/601/601E together. If
headphones are connected, this also adjusts the volume heard from
the headphone speakers. To adjust the volume, either press the
VOL
buttons on the remote controller or turn the MASTER
VOLUME dial. To increase the volume, turn the dial clockwise; to
decrease the volume, turn the dial counterclockwise. The volume
can be set to Min, 1 to 99, and Max.
41
Selecting an Audio Component
RCVR MODE
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
CH SEL
AUDIO SEL
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
ENTER
FM MODE
LEVEL /
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
TAP
TAPE
AUDIO SELECTOR
Selecting the type of audio input signal
Press the AUDIO SELECTOR button on the front panel (or AUDIO
SEL button on the remote controller) to change the audio mode.
Each time the button is pressed, the mode changes from “Auto” →
“Multich” (only if DVD is selected as the input source) → “Analog”
and back to “Auto.”
TX-SR701/701E/601/601E
Remote controller
AUDIO
SELECTOR
Auto (automatic detection): With this setting, the TX-SR701/
701E/601/601E automatically detects whether the input signal is
digital or analog. When a digital signal is not input, then the analog
signal is played. This setting only appears if a digital input is
selected for the Digital Input setting at “Input Setup” → “Digital
Input” (see page 52).
Multich (Multichannel): Select this setting to play back the multichannel input from a DVD player with a 5.1-channel input port.
Analog: Select this setting to play back the input from a source
component connected to analog audio input jacks. With this setting,
even if a digital signal is input from the same component, only the
analog signal will be output.
Selecting the setting mode with the Cursor
while “Auto” appears
/
button
Auto: The digital signal suitable for the input signal will be
preceded for playback. When there is no digital signal input, analog
signal will be played.
DTS: Select this if you play DTS-formatted CD in “Auto” mode
and hear noise during fast-forward or rewind operation. Non-DTS
sound input will not be output.
PCM: Select this if you hear sound gap between PCM tracks such
as ones on CD in “Auto” mode. Non-PCM sound input will not be
output.
Notes:
• When you play DTS-formatted CD or LD, be sure to select
“Auto” or “DTS.” If you select “PCM,” noise will be heard.
• If a DTS signal is not input when “DTS” is selected, the TXSR701/701E/601/601E will not automatically switch to analog
output even though “Auto” is selected with the AUDIO
SELECTOR button.
42
Notes on DTS:
• If you play a DTS-formatted CD or LD when the “PCM”
setting is selected on the TX-SR701/701E/601/601E, the DTS
encoded signal will not be decoded and noise will be output.
This noise could damage the amplifier and speakers. Therefore,
be sure to select “Auto” or “DTS” and use the digital input jacks
(OPT or COAX) to connect the DTS source.
• If you play a DTS-formatted CD or LD when “Auto” is
selected, you may hear a noise for a short while until the DTS
decoder recognizes the DTS-encoded signal and starts
operating. This is not a malfunction.
• If you press the pause or skip button on the player while playing
a DTS source, a short noise may be heard. This is not a
malfunction. In such cases, try playing the source in the “DTS”
selected.
• The DTS indicator on the TX-SR701/701E/601/601E lights
while a DTS source is played. When playback finishes and the
DTS signal transmission stops, the TX-SR701/701E/601/601E
remains in DTS mode and the DTS indicator remains lit. This
prevents noise when you operate the pause or skip button on the
player. Therefore, if the source is immediately switched from
DTS to PCM, the PCM signal may not be played. In this case,
stop the playback of the source on the player for about three
seconds and then resume playback.
• You may not be able to play some DTS source signals from
certain CD players and LD players even when you connect the
player to the TX-SR701/701E/601/601E digitally. This is
because the digital signal has been processed (such as the
output level, sampling frequency, or frequency response) and
the TX-SR701/701E/601/601E cannot recognize the signal as
DTS data. Therefore you may hear noise when you play a DTS
source while processing the signal.
• The outputs for the VIDEO 1 OUT, VIDEO 2 OUT, and TAPE
OUT output analog audio signals. Do not record from CDs or
LDs that support DTS using these outputs. If you do, the DTSencoded signal will be recorded as noise.
• If a CD or LD encoded in the DTS format is played back with
“PCM” selected, only noise will be produced. Always select
“Auto” or “DTS” when playing back DTS-encoded sources.
Selecting an Audio Component
Temporarily changing the speaker output levels
To change the individual speaker volumes temporarily, follow the
procedure given below. Each channel can be set between –12 and
+12 decibels. For subwoofer, values between –15 and +12 decibels
can be set. Note that the calibration settings will return to the
original settings when the TX-SR701/701E/601/601E is put in
standby.
Using the remote controller:
1. Press the RCVR MODE button.
2. Press the CH SEL button and select
the desired speaker.
3. Press the LEVEL or button to
adjust the volume level.
Notes:
• You cannot select a speaker if the configuration value of the
speaker is set to “No” or “None.”
• If the speaker level is set to +1 dB or higher, the maximum level
indicated on the display will change if you raise the volume
level.
• When you press the TEST button after you set the level, the
current level will be used as the value set via the test tone.
To change the display of the input source from
TAPE to MD
If you connected an MD recorder to the TAPE jacks of the TXSR701/701E/601/601E, you can have “MD” appear when the TAPE
source button is pressed. By changing the display, when an Onkyo
MD recorder is
-connected, the
system functions will
become enabled.
Changing the display:
Press and hold down the TAPE source button until the display
changes from TAPE to MD (approx. 3 seconds).
TAPE
To return the display to its original setting, perform the same
procedure. This setting is necessary to allow
system functions
for a connected Onkyo cassette tape or MD recorder.
43
Selecting an Audio Component
SLEEP
AUDIO ADJUST
AUDIO
ADJUST
MASTER VOLUME
SETUP
VOL
RETURN
STANDBY/ON
TUNING
PRESET
AUDIO SEL
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
FM MODE
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
AUDIO ADJUST
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
MASTER VOLUME
PHONES
AUDIO SELECTOR
Using the sleep time (remote controller only)
The SLEEP button enables you to set the TX-SR701/701E/601/
601E to turn off automatically after a specified time period. If you
press it once, the TX-SR701/701E/601/601E will turn off after 90
minutes. Each time it is pressed thereafter, this remaining time until
the TX-SR701/701E/601/601E turns off decreases by 10 minutes
(i.e., from 90 to 80 minutes). While the sleep function is enabled,
you can press the SLEEP button to see how much time is left. If the
SLEEP button is pressed when the time displayed is less than 10
minutes, the sleep function is cancelled.
Enjoying DVD multichannel audio playback
1. Press the DVD input source button.
2. Select “Multich” using the AUDIO SELECTOR button
on the front panel (or AUDIO SEL button on the
remote controller).
TX-SR701/701E/601/601E
Remote controller
AUDIO
SELECTOR
Remote controller
3. Turn on the connected DVD player and start playing
the desired media.
If you are using the remote zone (Zone 2), it will turn off at the
same time as the main zone. If you want to set the sleep function for
Zone 2 only, set the sleep function with the main zone turned on and
then put the main zone into the standby state.
Listening with headphones
To listen with headphones, plug a pair of headphones with a
standard stereo plug into the PHONES jack on the TX-SR701/
701E/601/601E front panel.
When you connect the headphones, the TX-SR701/701E/601/601E
will enter the STEREO mode automatically and no sound will be
heard from the speakers. When the headphones are unplugged, the
TX-SR701/701E/601/601E returns to its original listening mode.
When using the headphones, you can only use the Direct, Stereo,
and Pure Audio (TX-SR701/701E only) listening modes. If you
have selected multichannel audio, you will only hear the sound
output to the front right and left channels.
The headphone volume level can be adjusted at the Setup Menu (see
page 56).
PHONES
DIRECT
PURE AUD
Note:
The signal to the remote zone (Zone 2) will not be affected by
whether or not headphones are connected.
44
4. If necessary, adjust the output level of each speaker
as desired (see page 43).
Adjust the volume at each speaker so that all the volumes sound
at the same level at the listening position. For the front right,
front left, center, surround right, and surround left speakers, the
output levels can be adjusted between –12 and +12 decibels.
The subwoofer can be adjusted between –30 and +12 decibels.
5. Adjust the volume with the MASTER VOLUME dial or
the VOL
buttons on the remote controller.
Selecting an Audio Component
Using the tone control:
To make bass and treble adjustment work for multichannel sources,
you must first set the tone control to “On.”
To turn on the tone control:
1. Press the SURROUND button (or SURR button on the
remote controller).
TX-SR701/701E/601/601E
Switching the display
While listening to or watching an input source, you can display the
information regarding the type of source and signal being input by
pressing the DISPLAY button on the TX-SR701/701E/601/601E or
the remote controller.
You can set separate video displays for when the input source is set
to AM or FM broadcasts and for when it is set to anything else.
Remote controller
TX-SR701/701E/601601/601E
SURROUND
Remote controller
DISPLAY
“Tone On” appears on the display and the tone control is turned
on.
2. Press the AUDIO ADJUST button and then the
cursor buttons to select Bass (or Treble).
TX-SR701/701E/601/601E
and
Remote controller
When an input source other than FM or AM is selected:
Input + volume
Program format or
sampling
frequency*
Input + Listening
mode or Multich
TUNING
PRESET
3. Press the
level.
and
cursor buttons to set the desired
TX-SR701/701E/601/601E
Remote controller
TUNING
PRESET
When the input signal is linear PCM
The sampling frequency is displayed. For example, the display
“PCM fs: 44.1k” shows that the signal is PCM and that the
sampling frequency is 44.1 kHz.
To turn off the tone control:
Press the DIRECT button.
TX-SR701/701E
TX-SR601/601E
DIRECT/
PURE AUDIO
* When the input signal is digital audio
The program format is displayed. For example, the display
“Dolby D: 3/2.1” shows that the format is Dolby Digital with
5.1 discrete channels consisting of three front channels (front
left, front right, and center), two surround channels (surround
left and surround right), and the low frequency effect (LFE)
channel.
When the front channel number is 2, they are the front left and
front right; when it is 1, it is monaural. When the surround
channel number is 1, it is monaural; when it is 0, there is no
surround channel. When the LFE number is 0, there is no LFE
channel. Also, if there is no program format for the input signal,
nothing will be displayed.
Remote
controller
DIRECT
“Direct” appears on the display and the tone control is turned
off.
Notes:
• (TX-SR701/701E only) When you turn on the tone control, the
settings in “Speaker Config” and “Speaker Distance” will be
used for multichannel playback.
• (TX-SR701/701E only) When you play back multichannel
sources, you can select the Pure Audio mode by pressing the
PURE AUDIO button.
To exit the Pure Audio mode, press the DIRECT or
SURROUND button.
• If you change the speaker levels in step 4 above, these new
levels for multichannel sources will have no effect on the
settings at “Level Calibration.”
When FM or AM is selected as the input source:
FM/AM frequency +
Preset no.
FM/AM + Listening
mode
Temporarily turning off the sound
To turn off the sound momentarily, press the
MUTING button on the remote controller. The
MUTING indicator will flash and the sound from
the speakers or headphones will be switched off
by the receiver’s audio muting circuit. Press the
MUTING button again to turn the sound back on.
Remote
controller
Flashes
45
Listening Modes
The TX-SR701/701E/601/601E’s surround sound enables you to
enjoy the presence of a movie theater or concert hall in your room.
The configuration of the speakers is very important for the surround
sound. Refer to “Connecting speakers” on page 25.
Before using a listening mode, make sure the Speaker Config,
Speaker Distance, and Level Calibration parameters have been set
(see pages 31 to 36). Once the parameters have been set, it is not
necessary to set them again. See pages 48, 50 for information
regarding how to select the listening mode.
Listening Modes
Mono
This mode is for playing old movies where the sound is recorded in
monaural or for playing the left and right channels of movies
separately that contain different language signals. This mode also
allows you to listen to the multiplexed soundtracks on DVDs, and
other media that have them.
Direct
This mode delivers pure sound with minimum sound quality
adjustment and filtration. The sound recorded for the right and left
front channels is output to the right and left front speakers only and
not output to the subwoofer.
Pure Audio (TX-SR701/701E only)
Same as the direct mode except that the pure audio mode also turns
off the display window, turns off the power supply to the video
circuitry, and minimizes the sources of noise. The result is highfidelity music playback true to the original source.
Stereo
All input sound is output from the left and right front speakers.
The subwoofer is also used for playback.
T-D (Theater-Dimensional)
For the best enjoyment of your home theater, it is recommended
that you have front left and right speakers, a center speaker, and
surround left and right speakers. However, if you only have front
left and right speakers, you can enjoy multichannel audio by using
this mode.
This mode controls the characteristics of the sound that reaches
each ear to reproduce a multi-speaker setup. To receive the full
effect, there is an optimum listening position (sweet spot). Refer to
the explanation of the listening angle. In addition, if the reflective
sound components are large, it may be difficult to achieve the
desired result, so be sure to set up your system and listening
position to minimize reflective sound.
Dolby Pro Logic II
Opposed to Dolby Pro Logic, which had four channels (front, left,
center, and surround) recorded into two channels with matrix
processing and then played back in four channels, Dolby Pro Logic
II uses a feedback logic circuit to have 5.1-channel surround audio
(Dolby Surround, etc.) matrix-encoded into two channels and then
played back in its original 5.1-channel form.
Dolby Pro Logic II provides a Movie mode designed for playing
movies and a Music mode designed for listening to music. In the
Movie mode, the surround channels, which used to provide
monaural output over only a narrow frequency range, now provide
complete stereo output over the full frequency range. The result is
movie viewing with a realistic feel of movement. The Music mode
uses the surround channels to provide a natural soundfield that
cannot be provided with normal stereo output.
This mode can be used with VHS and DVD videos with the
mark and certain television programs. The
Music mode can be used with music compact discs and other stereo
sources.
46
Dolby D (Dolby Digital)
This mode is used for playing Dolby Digital sources.
Dolby Digital is compressed digital data with a maximum of 5.1channel surround sound. This source signal comes from DVDs and
LDs that have the
mark and therefore recorded for 5.1channel output.
• Dolby Digital EX
Enabled when playing back sources with surround tracks that
were encoded using the Surround EX technology.
• Dialog norm
Dialogue Normalization (Dialog Norm) is a feature of Dolby
Digital. When playing back software that has been encoded in
Dolby Digital, sometimes you may see a brief message in the
front panel display that reads Dialog Norm xdB (“x” being a
numeric value). Dialogue Normalization serves to let you know
if the source material has been recorded at a higher or lower
level than usual. This data is automatically used by the Dolby
Digital decoder to adjust the output volume of the source
material without affecting the volume of your amplifier.
Therefore, even if source material volume changes, you will
not have to adjust the volume on your amplifier.
DTS Neo:6
This mode is for 6.1-channel playback of sources such as PCM or
analog sources that have only two channels. The outputs of all six
channels are a wide frequency range with a great separation
between the different channels.
This mode can be set to the Cinema mode designed for playing
movies and the Music mode designed for listening to music.
The Cinema mode is good for movies. The reproduced surround
sound provide the same realistic feel of movement as 6.1-channel
sources. This mode can be used with VHS and television programs
with stereo sound.
The Music mode uses the surround channels to provide a natural
sound space that cannot be provided with normal stereo output. This
mode can be used with music CDs and other stereo sources.
DTS
This mode is used for playing DTS source.
DTS (Digital Theater System) is compressed digital data with a
maximum 5.1-channel surround output (6.1-channel with DTS-ES
Discrete sources) that allows for an extremely high-quality sound.
This source signal requires a DVD player that supports DTS output
and comes from DVDs, compact discs, and LDs that have the
mark.
DTS-ES Discrete 6.1
With the addition of the surround back channel, this new format has
all 6.1 channels recorded independently for a completely discrete
digital format. Since all channels are recorded independently, highfidelity surround playback with the increased feeling of a separated
sound space is achieved.
DTS-ES Matrix 6.1
This format has the surround back channel matrix encoded and
inserted into the left and right surround channels so that at playback
the output for the left, right, and back surround channels are
decoded using a high-precision matrix decoder.
DTS 96/24
Automatically changes to this mode when playing back sources
with surround tracks that were encoded using the DTS 96/24
technology.
THX (TX-SR701/701E only)
This mode is for playing back sources recorded in the THX format.
For the utmost in fidelity when playing back THX sources, it is also
recommended to use a THX-certified speaker system.
Listening Modes
• THX Cinema
This is the conventional 5.1-channel THX format. This mode
should be used only when playing back sources that were mixed
for playback in large movie theater environments.
• THX Surround EX
“THX Surround EX - Dolby Digital Surround EX” is a joint
development of Dolby Laboratories and the THX division of
THX Ltd.
In a movie theater, film soundtracks that have been encoded
with Dolby Digital Surround EX technology are able to
reproduce an extra channel which has been added during the
mixing of the program. This channel, called Surround Back,
places sounds behind the listener in addition to the currently
available front left, front center, front right, surround right,
surround left, and subwoofer channels.
This additional channel provides the opportunity for more
detailed imaging behind the listener and brings more depth,
spacious ambience, and sound localization than ever before.
When released to the home consumer market, movies that were
created using the Dolby Digital Surround EX technology, may
have a note to that effect on the packaging. A list of movies
created using this technology can be found on the Dolby web
site at http://www.dolby.com.
All Ch Stereo
This mode is designed for playing background music. The front,
surround, and surround back channels create a stereo image that
encompasses the entire area.
The TX-SR701/701E can play the 5.1-channel sources in THX
surround EX mode, even if the source is not encoded in Dolby
Digital Surround EX format. In this case, the sound actually
output from the surround back channels depends on the source
and may not fit your tastes.
Mono Movie
This mode is suitable for playing back monaural recording such as
old movie soundtracks. The center channel delivers the unprocessed
original sound, whereas the other channels deliver the centerchannel sound processed with the appropriate reverberation. This
allows you to enjoy monaural sound with the atmosphere of a movie
theater.
Enhance
With multi channel speakers, you will get more active surround
effect. When using the surround back speaker, the sound effect
moves naturally through the surround back speaker position. This
mode is good for music and TV sports programs.
Orchestra
This mode is appropriate for classical and opera music. The center
channel is cut and the surround channels are emphasized to widen
the stereo image. It will simulate the natural reverberation that is
created in large halls.
Unplugged
This mode is suitable for acoustical instrumental sounds, vocals,
and jazz music. By emphasizing the front stereo image, it will
simulate the acoustics that you would experience in front of the
stage.
Studio-Mix
This mode is for rock and popular music. The lively sounds are
enhanced for a powerful acoustic image that simulates the feeling of
being in a club or rock concert.
TV Logic
This mode gives realistic acoustics to TV programs that are aired
from TV studios. It enhances the entire surround sound and clarity
of the conversation.
47
Listening Modes
TX-SR701/701E
Listening mode buttons
RCVR
MODE
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
FM MODE
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
Listening mode
buttons
Re-EQ
Selecting a listening mode (TX-SR701/701E)
• Refer to pages 46, 47 for more details of listening modes.
• Refer to page 54 for sources and listening modes.
• When playing Dolby Digital or DTS software, the listening
mode will automatically change to Dolby Digital or DTS.
Tip:
You can set in advance a different listening mode for each input
source. For more details, see page 54.
When using the remote controller, first press the RCVR
MODE button before preceding to the step below.
Press one of the listening mode buttons to select the listening mode.
TX-SR701/701E
STEREO
LISTENING MODE
SURROUND
THX
DSP
DIRECT/
PURE AUDIO
Remote controller
DIRECT/PURE AUDIO (DIRECT, PURE A): Changes the
listening mode for the signal type that is currently being input from
the selected input source to the Direct listening mode. If pressed,
the corresponding settings in the “Input Setup” menu for the
selected input source is also changed. When the listening mode is
set to Direct, you can switch between Direct and Pure Audio. When
you select Pure Audio, the video signal is interrupted (resulting in a
blacked-out screen), and the PURE AUDIO indicator lights up.
Note:
In the Pure Audio mode, if any component video signal is presented
on the COMPONENT VIDEO INPUT2 jack, it will be output to the
COMPONENT OUTPUT jack.
STEREO: Changes the listening mode for the signal type that is
currently being input from the selected input source to the Stereo
listening mode. If pressed, the corresponding settings in the “Input
Setup” menu for the selected input source is also changed (see page
54).
48
SURROUND (SURR): Changes the listening mode for the signal
type that is currently being input from the selected input source to
the surround mode that matches the signal type (e.g., Dolby Pro
Logic II, Dolby Digital, DTS, or DTS Neo:6). If pressed, the
corresponding settings in the “Input Setup” menu for the selected
input source is also changed (see page 54).
If the SURROUND button is pressed
• While playing back DTS sources
Each time you press the button, the DTS-ES setting switches
from: Auto → On → Off.
Auto: When a DTS source with a DTS-ES flag (ID signal for
DTS-ES) is input, the listening mode changes automatically to
DTS-ES Discrete 6.1 or DTS-ES Matrix 6.1. If the DTS source
has no DTS-ES flag, the source is played in DTS mode.
On: When a DTS source with a DTS-ES flag is input, the
listening mode changes automatically to DTS-ES Discrete 6.1
or DTS-ES Matrix 6.1. If the DTS source has no DTS-ES flag,
the source is played in DTS-ES Matrix 6.1.
Off: DTS sources are always played in the DTS mode. The
DTS-ES modes are not used even when the DTS source has the
DTS-ES flag.
• While playing back Dolby Digital (Multichannel) sources
Select whether or not to play back Dolby Digital sources using
the matrix 6.1-channel decoder when using surround back
speakers.
Each time you press the button, the Dolby Digital EX setting
switches from: Auto → On → Off.
Auto: Sources with an EX flag (ID signal for Dolby Digital) are
automatically played back in Dolby Digital EX. If the source
has no EX flag, the source is played back in Dolby Digital.
On: When a Dolby Digital source with an EX flag is input, the
listening mode changes automatically to Dolby Digital EX. If
the Dolby Digital source has no EX flag, the source is played in
the Dolby Digital EX.
Off: Dolby Digital EX playback is not performed even if an EX
flag exists. (Playback is the normal Dolby Digital playback.)
Be aware that if the surround channel is monaural or there is no
surround channel, the source is played back in Dolby Digital
regardless of this setting.
• While playing back Analog/PCM sources or Dolby Digital 2channel sources
Each time you press the button, the Dolby Digital setting
switches from: Pro Logic II Movie → Pro Logic II Music →
DTS Neo6:Cinema → DTS Neo6:Music.
If “None” is selected for the surround speaker setting in the
“Speaker Config” menu, DTS Neo:6 Music will not appear.
Listening Modes
THX: Changes the listening mode to the THX listening mode.
If the THX listening mode is selected
• While playing back Dolby Digital sources
Switches the THX Surround EX mode (Auto → On → Off) if
the source is a THX Surround EX-compatible source.
• While playing back Analog/PCM sources
Switches the decoding mode (Pro Logic II Movie → DTS
Neo6:Cinema) for THX processing.
• While playing back DTS sources
Switches the DTS-ES mode from Auto → On → Off. Changing
the DTS-ES mode allows you to enjoy the DTS THX Cinema,
DTS-ES Discrete 6.1 THX Cinema, and DTS-ES Matrix 6.1
THX Cinema surround systems.
Be aware that if surround back speakers are not connected, or if the
Surr Back/Zone 2 setting of the Surr Back/Zone 2 Sub-menu is set
to “Zone 2,” the THX Surround EX, DTS-ES Discrete 6.1, or DTSES Matrix 6.1 listening modes cannot be selected.
ALL ST (remote controller only): Changes the listening mode for
the signal type that is currently being input from the selected input
source to the All Ch Stereo listening mode. If pressed, the
corresponding settings in the “Input Setup” menu for the selected
input source is also changed (see page 54).
DSP: Changes the listening mode for the signal type that is
currently being input from the selected input source as shown
below.
Orchestra → Unplugged → Studio-Mix → TV Logic → All Ch
Stereo → Mono → T-D → Mono Movie → Enhance → Orchestra.
If pressed, the corresponding settings in the “Input Setup” menu for
the selected input source is also changed (see page 54).
Each press of the DSP
button on the remote controller switches
the listening modes just like the DSP button on the TX-SR701/
701E.
On the other hand, each press of the
DSP button switches the
listening modes in reverse order.
Re-EQ function for movies (TX-SR701/701E only)
Re-EQ (re-equalization) takes the edginess or “brightness” out of
your home cinema sound to compensate for the fact that sound
mixed for theaters may sound too bright when played back through
speakers in the home environment.
This can be set to either “On” or “Off.”
This function only works in the THX, Dolby Digital, Dolby Digital
EX, Dolby Pro Logic II Movie, DTS, DTS-ES Discrete 6.1, DTSES Matrix 6.1, DTS Neo:6 Cinema, All Ch Stereo, Mono listening
modes.
Note:
Dolby Pro Logic II Movie, DTS Neo:6 Cinema, Dolby Digital, and
DTS are only enabled for multichannel playback.
49
Listening Modes
TX-SR601/601E
Listening mode buttons
RCVR
MODE
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
DIRECT
LISTENING MODE
STEREO
SURROUND
MEMORY
DSP
ENTER
FM MODE
CLEAR
PHONES
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
VIDEO 4 INPUT
CD
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
Listening mode
buttons
CINE FLTR
Selecting a listening mode (TX-SR601/601E)
• Refer to pages 46, 47 for more details of listening modes.
• Refer to page 54 for sources and listening modes.
• When playing Dolby Digital or DTS software, the listening
mode will automatically change to Dolby Digital or DTS.
Tip:
You can set in advance a different listening mode for each input
source. For more details, see page 54 .
When using the remote controller, first press the RCVR
MODE button before preceding to the step below.
Press one of the listening mode buttons to select the listening mode.
TX-SR601/601E
DIRECT
LISTENING MODE
STEREO
SURROUND
DSP
Remote controller
DIRECT: Changes the listening mode for the signal type that is
currently being input from the selected input source to the Direct
listening mode. If pressed, the corresponding settings in the “Input
Setup” menu for the selected input source is also changed (see page
54).
STEREO: Changes the listening mode for the signal type that is
currently being input from the selected input source to the Stereo
listening mode. If pressed, the corresponding settings in the “Input
Setup” menu for the selected input source is also changed (see page
54).
SURROUND (SURR): Changes the listening mode for the signal
type that is currently being input from the selected input source to
the surround mode that matches the signal type (e.g., Dolby Pro
Logic II, Dolby Digital, DTS, or DTS Neo:6). If pressed, the
corresponding settings in the “Input Setup” menu for the selected
input source is also changed (see page 54).
50
If the SURROUND button is pressed
• While playing back DTS sources
Each time you press the button, the DTS-ES setting switches
from: Auto → On → Off.
Auto: When a DTS source with a DTS-ES flag (ID signal for
DTS-ES) is input, the listening mode changes automatically to
DTS-ES Discrete 6.1 or DTS-ES Matrix 6.1. If the DTS source
has no DTS-ES flag, the source is played in DTS mode.
On: When a DTS source with a DTS-ES flag is input, the
listening mode changes automatically to DTS-ES Discrete 6.1
or DTS-ES Matrix 6.1. If the DTS source has no DTS-ES flag,
the source is played in DTS-ES Matrix 6.1.
Off: DTS sources are always played in the DTS mode. The
DTS-ES modes are not used even when the DTS source has the
DTS-ES flag.
• While playing back Dolby Digital (Multichannel) sources
Select whether or not to play back Dolby Digital sources using
the matrix 6.1-channel decoder when using surround back
speakers.
Each time you press the button, the Dolby Digital EX setting
switches from: Auto → On → Off.
Auto: Sources with an EX flag (ID signal for Dolby Digital) are
automatically played back in Dolby Digital EX. If the source
has no EX flag, the source is played back in Dolby Digital.
On: When a Dolby Digital source with an EX flag is input, the
listening mode changes automatically to Dolby Digital EX. If
the Dolby Digital source has no EX flag, the source is played in
the Dolby Digital EX.
Off: Dolby Digital EX playback is not performed even if an EX
flag exists. (Playback is the normal Dolby Digital playback.)
Be aware that if the surround channel is monaural or there is no
surround channel, the source is played back in Dolby Digital
regardless of this setting.
• While playing back Analog/PCM sources or Dolby Digital 2channel sources
Each time you press the button, the Dolby Digital setting
switches from: Pro Logic II Movie → Pro Logic II Music →
DTS Neo6:Cinema → DTS Neo6:Music.
If “None” is selected for the surround speaker setting in the
“Speaker Config” menu, DTS Neo:6 Music will not appear.
ALL ST (remote controller only): Changes the listening mode for
the signal type that is currently being input from the selected input
source to the All Ch Stereo listening mode. If pressed, the
corresponding settings in the “Input Setup” menu for the selected
input source is also changed (see page 54).
Listening Modes
DSP: Changes the listening mode for the signal type that is
currently being input from the selected input source as shown
below.
Orchestra → Unplugged → Studio-Mix → TV Logic → All Ch
Stereo → Mono → T-D → Mono Movie → Enhance → Orchestra.
If pressed, the corresponding settings in the “Input Setup” menu for
the selected input source is also changed (see page 54).
Original filter (CinemaFILTER) loading for movies
(TX-SR601/601E only)
The CinemaFILTER function gently decreases the level of the
extreme high frequencies, compensating for overly-bright sounding
motion picture soundtracks. Select this function if the sound from
the front speakers is too bright.
This function only works in the Dolby Digital, Dolby Digital EX,
Dolby Pro Logic II Movie, DTS, DTS-ES Discrete 6.1, DTS-ES
Matrix 6.1, DTS Neo:6 Cinema, All Ch Stereo, Mono listening
modes.
Press the CINE FLTR button on the remote controller.
The current setting is displayed. Press the button again to change
the setting.
On: The CinemaFILTER function is used during playback.
Off: The CinemaFILTER function is not used during playback.
Note:
Dolby Pro Logic II Movie, DTS Neo:6 Cinema, Dolby Digital, and
DTS are only enabled for multichannel playback.
51
Input Setup
RETURN
SETUP
RETURN
AUDIO
ADJUST
SETUP
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
/ / /
ENTER
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
ENTER
FM MODE
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
INPUT SELECTOR
buttons
/ / /
Input source buttons
This menu allows you to make the various settings concerning the
signals input from the various input sources that you use with the
TX-SR701/701E/601/601E. The settings made in this menu are
valid for the input source that is currently selected with the input
source buttons at the front panel and, therefore, these settings are
made separately for each input source.
Setup Procedure
1. Select the desired input source.
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
PHONO
2. Press the SETUP button on the front panel or SETUP
button on the remote controller.
The main menu appears.
* Menu *****************
1.Hardware Config
2.Speaker Config
3.Speaker Distance
4.Level Calibration
5.Input Setup
6.Preference
|ENTER|Quit:|SETUP|
3. Use the and cursor buttons to select “5. Input
Setup” and then press the ENTER button.
The “Input Setup” menu appears.
* Menu *****************
1.Speaker
Config
5.Input Setup
2.Speaker
Distance*******
*** Input:DVD
3.Level Calibration
4.Input
Setup
a.Digital Input :OPT1
5.OSD Setup
6.Preference
b.Component Video
:Input1
c.IntelliVolume
: 0dB
52
Press the RETURN button to return to the main menu.
Press the SETUP button on the front panel or SETUP button on the
remote controller to exit the Setup menu.
a. Digital Input
This setting tells the TX-SR701/701E/601/601E which input source
button on the front panel is connected with which digital input jack
on the rear panel.
For example, if the input source selected at the front panel is CD
and the compact disc player is connected to DIGITAL INPUT
OPTICAL 2, then select “OPT2” here. If the input source selected
is not connected to a digital input, then select “----.”
OPT1, 2: Select if the input source is connected to either of the
DIGITAL INPUT OPTICAL 1 or 2 jack.
COAX: Select if the input source is connected to the DIGITAL
INPUT COAXIAL jack.
– – – –: Select if the input source is not from a digital input jack.
The default settings are given below.
Input source
Digital input
CD
COAX
PHONO*
----
TAPE
----
DVD
OPT 1
VIDEO 1
----
VIDEO 2
----
VIDEO 3
OPT 2
----: Available for digital input but not set in initial settings.
* TX-SR701/701E only
* Menu *****************
1.Speaker
Config
5.Input Setup
2.Speaker
Distance*******
*** Input:DVD
3.Level Calibration
4.Input
Setup
d.Analog/PCM/D.F.2ch
5.OSD Setup :Last Valid
6.Preference
e.PCM fs=96k
:Last Valid
f.D.F.
:Last Valid
g.D.F.Mono:Last Valid
Quit:|SETUP|
4. Use the and cursor buttons to select an item and
then use the and cursor buttons to set the
desired value.
Quit:|SETUP|
Notes:
• When you select “TUNER” for input, you cannot assign digital
input to “TUNER.”
• Since VIDEO 4 is fixed to the optical digital terminal on the
front panel, this item will be disabled if VIDEO 4 is selected.
Input Setup
b. Component Video
The video signal from the input jacks set at the “b. Component
Video” setting is output to the COMPONENT VIDEO OUT jacks.
Use this setting if you connect monitors like TV to the COMPONENT
VIDEO OUT jacks on the TX-SR701/701E/601/601E.
For example, when you connect the DVD player to the
COMPONENT VIDEO INPUT 1 jacks, select “DVD” as input
source and set “b. Component Video” to “INPUT 1.”
The default settings are given below.
Input source selected
Component video input
CD
Last
PHONO*
Last
TUNER
Last
TAPE
Last
DVD
INPUT 1
VIDEO1
INPUT 2
VIDEO 2
INPUT 2
VIDEO 3
INPUT 2
VIDEO 4
INPUT 2
* TX-SR701/701E only
INPUT 1: Selects when the video device is connected to the
COMPONENT VIDEO INPUT 1 jacks.
INPUT 2: Selects when the video device is connected to the
COMPONENT VIDEO INPUT 2 jacks.
Last: Select to have the video of the previous input source
continued.
c. IntelliVolume
This setting allows you to adjust for the volume differences between
your various input source components.
When switching input sources, you may find that the output level
for different components or input sources connected to the TXSR701/701E/601/601E is different even though the main volume
setting is the same. Under normal circumstances, you would then
have to change the volume setting each time you change the input
source. This Intelli Volume setting allows you to preset a volume
level for each input source separately so that when you do switch
from one input source to another, the TX-SR701/701E/601/601E
adjusts the volume accordingly and the volume stays the same. If
the volume is quieter than that of other sources, increase it with the
cursor button, and if it is louder than that of other sources,
decrease it with the cursor button.
The IntelliVolume can be adjusted between –12 and +12 decibels.
53
Input Setup
The listening mode will be reset to the mode you set here after
turning on the TX-SR701/701E/601/601E even if you change the
listening mode using the LISTENING MODE buttons.
When you set this setting to “Last Valid”, the listening mode will be
the one you used before.
Notes:
• For “e. PCM fs 96kHz source” “f. Digital Format source” “g.
D. F. Mono source”
These settings will be disabled if “----” is selected at the
“Digital Input” setting.
• For “e. PCM fs 96kHz source” “g. D. F. Mono source”
The selected listening mode will be applied to all the input
source signals of the same type.
e. PCM fs 96kHz source
This sets the listening mode for Digital PCM sources recorded with
a sampling rate of 96 kHz.
f. Digital Format source
This sets the listening mode for Dolby Digital or DTS sources.
g. D. F. Mono source
This setting allows you to select the listening mode for digital mono
source.
Digital format mono is monaural digital source, such as DVD or LD
which is recorded in Dolby Digital mono format.
d. Analog/PCM/D. F. 2ch source
This sets the listening mode for analog, PCM, or Digital Format 2ch
sources.
Analog sources consist of LP records, FM and AM broadcasts,
cassette tapes, and the such. PCM (Pulse Code Modulation) is one
form of digital audio signals and is recorded directly onto compact
discs and DVDs without compression.
Digital format 2ch is a 2-channel digital source, such as DVD or LD
which is recorded in 2-channel Dolby Digital format (but for PCM).
Relationship between input source and listening mode
Input source signal
Type of software
Listening Mode
Pure Audio *1
d. Analog/PCM/
D.F. 2ch source
e. PCM
fs 96kHz
source
Tape, Video tape,
DVD
Vinyl, Tuner, CD, (96kHz/
MD, DVD (Stereo),
24bit)
LD, Digital Satellite
● *2
*2
f. Digital Format source
Dolby Digital
g. D.F. Mono source
DTS
5.1 ch
5.1 ch
6.1 ch
96/24
DVD
Digital Satellite
CD, LD,
DVD
DVD
DVD
●
●
●
●
● *6
●
Stereo
●
Mono
● *2
T-D
●
●
●
●
PL II Movie
PL II Music
DTS Neo:6 Cinema
DTS Neo:6 Music
PL II (T-D)
Dolby Digital
Dolby Digital EX *3
DTS
DTS
DTS-ES
Matrix 6.1 *4
DTS-ES
Discrete 6.1 *4
PL II (THX)
DTS Neo:6 (THX)
THX Cinema
THX Surr EX
THX Cinema
THX Cinema
THX Cinema*6
DTS-ES
Matrix 6.1
(THX)
DTS-ES
Discrete 6.1
(THX)
DTS-ES
(THX) *6
THX *1
●
●
●
DTS 96/24 *5
DTS-ES *6
Orchestra
●
●
●
●
● *6
Unplugged
●
●
●
●
● *6
Studio-Mix
●
●
●
●
● *6
TV Logic
●
●
●
●
● *6
Enhance
●
●
●
●
● *6
Mono Movie
●
All Ch St
●
*1
*2
*3
*4
*5
*6
DVD
●
Direct
Surround
Dolby Digital/DTS
Monaural
●
TX-SR701/701E only
Not Available when the input source is the D.F. 2ch source.
Available when the Dolby Digital EX setting is set to “Auto” with the software having an EX flag or set to “On” (see pages 48, 50).
Available when the DTS-ES setting is set to “Auto” with the software having a DTS-ES flag or set to “On” (see pages 48, 50).
If the source cannot be mixed down, the listening mode will change to the DTS 96/24.
Plays back in ordinary DTS (48 kHz) format.
Note:
You may not be able to select all the listening modes shown here depending on your speaker configuration or the selected input source.
54
Hardware Setup
Hardware Config
To display the Hardware Config menu:
1. Display the main menu.
2. Use the
and
cursor buttons to select “1. Hardware
Config” and then press the ENTER button. The “Hardware
Config” menu appears.
TX-SR701/701E
TX-SR601/601E
* Menu *****************
* Menu *****************
1.Speaker
1.HardwareConfig
Config
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
Setup 2:Surr
a.Surr/Zone
5.OSD
Setup
b.Surr
Back : 1ch
6.Preference
c.IR IN Position
:Main
d.TV Format
:Auto
e.AM Frequency Step
:9kHz
Quit:|SETUP|
1.Speaker
1.HardwareConfig
Config
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
Setup 2 :Surr
a.Surr/Zone
5.OSD
b.IR Setup
IN Position
6.Preference
:Main
c.TV Format
:Auto
d.AM Frequency Step
:9kHz
d. TV Format (TX-SR701/701E)
c. TV Format (TX-SR601/601E)
(For all models other than USA and Canadian models)
The default setting is “Auto,” which means that the television
format is detected and automatically set by the TX-SR701/701E/
601/601E. However, if you know the correct format, you can use
this setting to choose either PAL or NTSC so that no time is wasted
on detection.
e. AM Frequency Step (TX-SR701/701E)
d. AM Frequency Step (TX-SR601/601E)
This setting only appears on the worldwide model. It determines the
increment amount or decrement amount when adjusting the AM
tuner frequency. The initial setting is 9 kHz, and this needs only to
be changed if you are using the TX-SR701/701E/601/601E in a 10kHz region.
Quit:|SETUP|
a. Surr/Zone 2
If you connect the Zone 2 speakers to the ZONE 2 SPEAKERS
terminals or the amplifier connected to the ZONE 2 PRE OUT (TXSR701/701E only) terminals, set the Surr/Zone 2 setting to “Zone
2.”
Surr: In this setting, sound will not be output from the Zone 2
speakers which is connected to the ZONE 2 SPEAKERS
terminals or the amplifier connected to the ZONE 2 PRE OUT
(TX-SR701/701E only) terminals. In the main room, 6.1channel playback will always be available.
Zone 2: In this setting, when you are not using the Zone 2, 6.1channel playback will be available for the main room. However,
while you use the Zone 2, 6.1-channel playback will not be
available for the main room (2ch stereo playback only).
b. Surr Back (TX-SR701/701E only)
Specify whether you use one surround back speaker or two.
1ch: Selects when you connect one surround back speaker to
the SURROUND BACK SPEAKER terminals on the TXSR701/701E.
2ch (PRE OUT): Selects when you connect two surround back
speakers to the power amplifier connected to the SURR BACK
PRE OUT terminals on the TX-SR701/701E.
Note:
Be sure to use either one or two surround back speakers.
Connecting surround back speakers to both the SURROUND
BACK SPEAKER terminals on the TX-SR701/701E and the power
amplifier will not produce correct surround sound effect.
c. IR IN Position (TX-SR701/701E)
b. IR IN Position (TX-SR601/601E)
Use this setting when you have a remote control sensor connected
to the IR IN terminal. The setting in this menu tells the TX-SR701/
701E/601/601E whether the remote control sensor is being used for
operation of the TX-SR701/701E/601/601E in the main zone or the
remote zone (Zone 2).
Main: Select when you are using the remote control sensor for
operation with the remote controller in the main zone.
Zone 2: Select when you are using the remote control sensor
for operation with the remote controller in the remote zone
(Zone 2).
55
Preference
Preference
To display the Preference menu:
1. Display the main menu.
2. Use the
and
cursor buttons to select “6. Preference”
and then press the ENTER button.
The “Preference” menu appears.
TX-SR701/701E
TX-SR601/601E
* Menu *****************
1.Speaker
Config
6.Preference
2.Speaker
Distance
***********************
3.Level Calibration
4.Input
Setup Level
a.Headphone
5.OSD Setup
: 0dB
6.Preference
b.Background Color
:Blue
c.Immediate Display
:Normal
d.Volume Display
:Absolute
Quit:|SETUP|
a. Headphone Level
You can adjust the volume output from the headphones so that it
matches the level output from the speakers. The headphone volume
can be adjusted between –12 and +12 decibels.
b. Background Color
Select either Blue, Green, Magenta, or Red as the background color
when the OSD Setup Menu is displayed.
c. Immediate Display
Off: Select to turn off the immediate display of operations.
Normal: Select to display operations in the bottom right corner
of a TV screen with a 4:3 aspect ratio.
Wide: Select to display operations in the bottom right corner of
a TV screen with a 16:9 aspect ratio.
VIDEO 1
Hint:
If this is set to “Off,” the background color will not be displayed
even when there is no video signal input.
d. Volume Display
You can choose from two ways of displaying the volume setting on
screen.
Absolute: This displays the volume with a minimum of 0 for no
sound and a maximum of 100. As a reference, the volume
setting of Ref (82) is equivalent to 0 decibels for the relative
display method.
Relative: This displays the volume as a decibel value on a scale
with a designated reference point that is displayed as 0, which
equals the volume setting of 82 of the absolute display method.
With this display method, the minimum value is –∞, the next
highest is –81, and the maximum value is +18.
56
Audio Adjust
AUDIO ADJUST
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
/ / /
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
RT/PTY/TP
DISPLAY
LISTENING MODE
SURROUND
THX
STEREO
DSP
MEMORY
FM MODE
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
AUDIO ADJUST
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
/ / /
These settings are enabled depending on the listening mode or input
signal.
Setting
Values
Initial value
Dialog Enhance
On/Off
Off
Setup Procedure
Virtual Surround
Level
–3 to +3
0
1. Press the AUDIO ADJUST button.
The Audio Adjust settings appear in the front display and on the
monitor.
Bass
Treble
:
:
0dB
0dB
Note:
The items that appear in the menu depend on the currently selected
listening mode or the input signal.
2. Use the and cursor buttons to select the item that
you want to set.
3. Use the
and
cursor buttons to set the value.
Setting
Values
Initial value
Bass
–12 to +12
0
Treble
–12 to +12
0
LFE Level*
–∞, –10 to 0 dB
0 dB
Double Bass
On, Off
On
Late Night
Off, Low, High
Off
Center Image
0, 1, 2, 3, 4, 5
3
Panorama
On, Off
Off
Dimension
0, 1, 2, 3, 4, 5, 6
3
Center Width
0, 1, 2, 3, 4, 5, 6, 7
3
Front Effect
On/Off
On
Reverb Level
Low/Middle/High
Middle
Reverb Time
Short/Middle/Long
Middle
Input Channel
L+R/Left/Right
L+R
Academy*
On/Off
Off
Listening Angle
20°/40°
40°
Center
On/Off
Off
Front Expand
On/Off
Off
* TX-SR701/701E only
Bass, Treble
Separately adjust the bass and treble settings in 2-step increments.
The Bass and Treble adjustments are only enabled for the front left
and right speakers.
Note:
If Direct, Pure Audio (TX-SR701/701E only), or THX (TX-SR701/
701E only) is selected as the listening mode, these settings cannot
be made. To make these settings, first select another listening mode.
Double Bass
The Double Bass function boosts the bass sound by letting the bass
sound of “Front L/R” speakers output also from the subwoofer. To
enable this function, in the “Speaker Config” menu, set the
“Subwoofer” to “Yes” and “FrontL/R” to “Large.”
The Double Bass function is effective especially when the input is
monaural, 2-channel or PCM 96kHz signal.
On: Select to turn on the Double Bass function.
Off: Select to turn off the Double Bass function.
Late Night
The audio for movies made for the cinema have a large dynamic
range; thus, the difference between loud noises and soft noises is
great. To hear the quieter sounds such as background noises or
human conversations, the movie must be played back at larger
volumes. When this setting is set to “High” or “Low,” the dynamic
range of the sound is narrowed down to allow you to easily hear
minute sounds at low volumes. This function is especially useful if
you wish to play a movie at low volumes during the nighttime.
This can be set to either “Off” or “Low,” or “High.” When this
setting is set to “High” or “Low,” the dynamic range of the sound is
narrowed down to allow you to easily hear minute sounds at low
volume.
Off: Select to turn off the Late Night function.
Low: Select to narrow down the dynamic range.
High: Select to further narrow down the dynamic range.
Notes:
• The Late Night function is effective only on Dolby Digital
encoded software.
• The depth of the Late Night effect is determined by Dolby
Digital software. With some sources, it may produce little or no
effect.
57
Audio Adjust
Center Image
DTS Neo:6 derives a center channel from two-channel PCM and
analog sources.
In cinema mode, for Lt/Rt film soundtracks, sounds steered to the
center are subtracted from the left and right channels.
In music mode, the intent in the front channels is less one of
steering and more one of stabilizing the front image by augmenting
it with a center channel, while preserving the original perspective of
the stereo mix. Therefore the derived center is never fully subtracted
from the left and right channels.
Center Image is the factor controlling the amount of subtraction. It
varies between 0 and 5 in steps of 1 and the default value is 3.
When Center Image=5, the factor is zero and nothing is subtracted
from the left and right channels. When Center Image=0, the center
channel is subtracted from the left and right channels at half level
(–6 dB) for each channel. The signal level sent to the center channel
output is not affected by Center Image.
This control should be set based on room layout and personal
preferences. A setting of 5 allows the left and right channels to pass
through unaltered from the stereo mix. A setting of 0 gives more
center channel dominance, which is particularly desirable if
listeners are located well off-center. At any setting, the center
speaker anchors the image.
Center Image is only enabled when the listening mode is DTS
Neo:6 Music.
Pro Logic II Music Panorama (Panorama)
Use this setting to extend the front stereo image to include the
surround speakers for an exciting wraparound effect with side wall
imaging.
On: Select to turn on the PL II Music Panorama mode.
Off: Select to turn off the PL II Music Panorama mode.
Panorama is only enabled when the listening mode is Dolby Pro
Logic II Music.
Pro Logic II Music Dimension (Dimension)
Use this setting to gradually adjust the soundfield forward or
backward. The setting of “3” is the normal position. Change the
setting to “2” or lower to move the sound space forward setting to
“4” or higher to move the sound space backward.
If the stereo recording has excessive broadness or too strong
surroundness, move the sound space forward to get the appropriate
sound balance. In contrast, if the stereo recording is somewhat felt
like monaural or has narrowness, move the sound space backward
to get more surroundness.
Dimension is only enabled when the listening mode is Dolby Pro
Logic II Music.
Pro Logic II Music Center Width (Center Width)
In Pro Logic II decoding, center signals are output from the center
speaker. When the center speaker is not used, the decoder will
divide the center signal equally to both the front left and right
speakers to create a “phantom” center sound image.
The Pro Logic II Music Center Width mode allows you to adjust from
where the center sound image is heard. Using this, you can have the
soundfield be heard from the center speaker only, from the front left
and right speakers only (as a phantom center sound image), or from
all three speakers (center, front left and right) in various level
combinations. For home use, applying some width to the center
signal will improve the level balance for the center and main
speakers, and effect the width of the center sound image, or “weight”
of the sound. Many sound recordings processed for stereo playback
will be reproduced better by proper control of this setting. The
recommended setting for Pro Logic II Music mode is “3.” This allows
you to easily distinguish the Pro Logic II Music mode from the Pro
Logic II Movie mode whose setting is automatically set to “0.”
58
Center Width is only enabled when the listening mode is Dolby Pro
Logic II Music.
LFE Level (TX-SR701/701E only)
The level can be adjusted to either –∞ or between –10 and 0
decibels in 1-decibel increments. For Dolby Digital and DTS input
source signals, the LFE level set here is used. A setting of 0 decibels
is recommended for optimum performance; however, if the source
is recorded with the low frequency range too strong, lower this
setting as necessary.
Academy Filter (TX-SR701/701E only)
Older monaural film mixes relied on high-frequency rolloff in
presentation to sound properly balanced, so that excessive hiss from
the grain structure of the film would not be heard. The highfrequency loss was typically due to a combination of optical slit
loss, electrical filters, loudspeaker response, and screen loss. Some
films have been transferred to video without such a high-frequency
rolloff, and thus sound overly bright and hissy.
The TX-SR701/701E/601/601E includes this “Academy filter,”
which is based on contemporary playback practices for such films
over wide-range systems.
This can be set to either “On” or “Off.”
Input Channel
This allows you to set which input channel to use for monaural sound.
Auto L+R: Select this under normal circumstances. When the
input source is center channel, this center channel is used as the
monaural sound input channel. Otherwise, the left and right
channels are mixed and the mixed signal is used as the
monaural sound input channel.
Left/Right: You will need to select either left or right when
playing a video source that contains bilingual data. In such a case,
the left and right channels will contain the audio for different
languages. Select the channel with the language you desire.
Listening angle
The listening angle is the angle subtended by the front left and right
speakers as seen from the listener. The processing for the virtual
surround will be based on this angle. In the Theater-Dimensional
mode, the setting of 20 and 40 degrees are only for nominal
purposes, so select the setting that is closest to your actual listening
angle.
Front left speaker
Front right speaker
Listening angle
Center
In the Theater-Dimensional mode, if the speaker system has a
center speaker, the center channel signal can be output from the
center speaker. For instance, in systems where the front left and
right speakers are small, use of the center speaker may provide a
better sound space and reduce the load on the front speaker. (For the
proper soundfield, it is important that the speaker levels and speaker
distances among the front right, front left, and center speakers are
matched. In order to ensure this, make sure that the settings in the
Speaker Distance Sub-menu and Level Calibration sub-menu are set
correctly.)
On: Select to have the center channel signal output to the center
speaker.
Off: Select to have the center channel signal output to the front
left and right speakers (Phantom Center).
Audio Adjust
Front Expander
In the Theater-Dimensional mode, the front expander function
spreads out the stereo image in front of the listener. The created
stereo image is as if the front speakers have been farther apart for
the feeling of a wide sound space. This is especially useful for
narrow listening angles of 20 degrees or less.
On: Select to turn on the front expander function to simulate a
wider sound space.
Off: Select to turn off the front expander function for a normal
sound space.
Virtual Surr Level
In the Theater-Dimensional mode, this setting adjusts the level of
the virtual surround signal. This can be set from –3 to +3 decibels.
Lowering this setting can improve the sound when the definition is
unclear or when the sound feels unnatural.
Dialog Enhance
If the dialog from the center channel is difficult to hear in the
Theater-Dimensional mode, use this setting to improve the clarity.
On: Select to enhance the vocal ranges of the center channel
signal.
Off: Select to output the center channel signal at the regular
level and frequency characteristics.
Front Effect (Orchestra, Unplugged, Studio-Mix, TV Logic,
Enhance, Mono Movie)
Some live recordings contain acoustic reverberation. When you
play these sources, more reverberation will be applied by the DSP,
creating too much reverb effects and the sound loses frame or
presence. In this case, set this setting to “Off” so that no
reverberation from the DSP will be applied to the sound output
from the three front channels. With this setting, the sound source is
played as it is without any further reverberation.
Reverb Level (Orchestra, Unplugged, Studio-Mix, TV Logic,
Enhance, Mono Movie)
This setting allows you to adjust the depth of acoustic reverberation
to match the playback source material, the acoustics of your room,
and such other factors.
Select from the three settings “Low,” “Middle,” and “High.”
Reverb Time (Orchestra, Unplugged, Studio-Mix, TV Logic,
Enhance, Mono Movie)
Adjust the reverb time to match the source being played back and
the acoustics of the room. Select from the three settings “Short,”
“Middle,” and “Long.”
59
Enjoying music in the remote zone
ZONE 2 indicator
ON/STANDBY
OFF
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
FM MODE
LEVEL /
ENTER
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
ZONE 2
S VIDEO
VIDEO
L
AUDIO
R
INPUT SELECTOR
buttons
Input source buttons
Using the buttons
1. Press the ZONE 2 button.
2. Select an input source.
After pressing the ZONE 2 button, you must press an input
source button within 5 seconds. The ZONE 2 indicator lights.
ZONE 2
Using the remote controller
With the TX-SR701/701E/601/601E in the standby state,
turn on the output to the remote zone (Zone 2):
After pressing the ZONE 2 button, press the ON button within 5
seconds. The ZONE 2 indicator lights.
Ex.: When the CD button is pressed.
To select the same source for the remote zone that is selected
for the main zone, press the ZONE 2 button again until
“Zone2Sel:SOURCE” appears in the display.
To turn off output to the remote zone (Zone 2), press the ZONE 2
button and then the STANDBY button within 5 seconds.
Select an input source:
After pressing the ZONE 2 button, press an input source button
within 5 seconds.
If tuner is selected with the TUN button, you can use the CH button
to select a preset radio station.
• When “Zone2Sel:Off” is displayed, the output to the remote
zone is turned off.
• When you are not using the remote zone (Zone 2), press the
OFF button to turn off the ZONE 2 indicator.
Notes:
• If a sleep time is set with the SLEEP button, the output to the
remote zone will also turn off when the sleep time elapses.
• If the source for the main zone is selected as the source for the
remote zone and the source for the main zone is changed, then
the source for the remote zone will change as well.
• The ZONE 2 terminal is an analog output. Digital signals are
not output. If no sound is heard from the selected input source,
check if the component is connected to the analog inputs.
• If the REC OUT button is pressed in the main room while
someone is using the system in the remote zone, the Zone 2
function will be deactivated and the source will turn off in the
remote zone.
• If you select FM (or AM) with the TUNER input source button
when the source for the remote zone (Zone 2) is set to AM (or
FM), the output for the remote zone also changes to FM (or
AM).
• When you are using the remote zone (Zone 2),
system
operation will not work.
• In the remote zone, you can only play the source in the 2channel mode. You cannot play the source in the remote zone in
the surround mode.
60
Note:
After you press the ZONE 2 button on the remote controller, the
ZONE 2 indicator on the TX-SR701/701E/601/601E flashes for five
seconds. During this time, you will not be able to perform
operations in the main zone using the remote controller.
Adjusting the volume for the remote zone
When the remote zone (Zone 2) speakers are connected to the
ZONE 2 SPEAKERS terminals, or to an amplifier connected to the
ZONE 2 PRE OUT terminals, adjust the volume as shown below.
Press the LEVEL / buttons on the front
panel.
Adjusting the volume (using the remote controller):
After pressing the ZONE 2 button, the ZONE 2 indicator on the
TX-SR701/701E/601/601E will flash for 5 seconds. During this
time press the LEVEL / button.
Recording
REC OUT
OFF
AUDIO
ADJUST
MASTER VOLUME
SETUP
RETURN
STANDBY/ON
TUNING
PRESET
POWER
STANDBY
ON
REC OUT
OFF
ZONE 2
OFF
LEVEL
DISPLAY
RT/PTY/TP
STEREO
LISTENING MODE
SURROUND
THX
DSP
MEMORY
ENTER
FM MODE
CLEAR
PHONES
DIRECT/
PURE AUDIO
AUDIO
SELECTOR
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
VIDEO 4 INPUT
PHONO
PURE AUDIO
DIGITAL
S VIDEO
VIDEO
L
AUDIO
R
Input source buttons
Notes:
• You cannot record the surround effects.
• Digital signals input to the DIGITAL INPUT (COAXIAL) and
DIGITAL INPUT (OPTICAL) inputs will be output to the
DIGITAL OUTPUT (COAXIAL) and DIGITAL OUTPUT
(OPTICAL) output.
• There are some restrictions on recording digital signals. When
making digital recordings, consult the instruction manual that
came with your digital recording equipment (e.g., MD recorder
or DAT deck) to know what restrictions are imposed.
• You cannot record the source connected to the 5.1-channel input
jacks.
• If you change the input source during recording, you will record
the signals from the newly selected input source.
• Digital input signals are only output to the digital outputs and
analog input signals are only output to the analog outputs. There
is no conversion from digital to analog or vice versa. When
connecting CD players and other digital components, do not
connect only the digital terminals, but the analog ones as well.
Note:
Be aware that if you change the input source that you are watching
(or listening to), the selected source will be recorded.
Recording a source different from that you are listening
to:
The TX-SR701/701E/601/601E allows you to listen to one
source while recording the signal from another source. The
procedure below uses the example of recording the audio from a
CD player while watching the input from a DVD player.
1. While playing the DVD, press the
REC OUT button.
2. Within 5 seconds, press the input source button of
the source that you wish to record.
In this example you would press the CD source button. The
signal from the CD player is now output to the TAPE OUT
jacks.
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
PHONO
Recording the input source (REC OUT selector)
When using the TX-SR701/701E/601/601E to record a source, you
must select that source to be output from the TAPE OUT jacks.
Recording the same source that you are listening to:
1. Press the input source button for the source that you
want to record.
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
PHONO
2. Press the REC OUT button repeatedly
until “Rec Sel : SOURCE” appears in
the front display.
3. Start recording at the recording device connected to
the TAPE OUT jacks.
3. Start recording at the recording device connected to
the TAPE OUT jacks.
You can press the REC OUT button to display which input
source is selected for recording. When “Rec Sel: Off” is
displayed, no signal is output for recording.
To confirm the settings, press the REC OUT button. The current
settings will appear for 5 seconds in the front display.
To turn off the Rec Out, press the REC OUT button and then
press the OFF button within five seconds.
Notes:
• You cannot use the REC OUT selector to record video signals.
• Be aware that the ZONE 2 and REC OUT selectors use the
same circuit and therefore cannot be used at the same time.
• Even if you change the input source that you are listening to, the
input source that is selected for recording will not change.
However, if you have selected FM (or AM) as the source to be
recorded and the AM (or FM) source button is pressed, the
source being recorded will be changed to the AM (or FM) input
signal.
61
Recording
Recording both the audio and video
The TX-SR701/701E/601/601E also allows you to record the audio
and video signals output from the VIDEO OUT 1 and 2 jacks.
1. Press the input source button for the source you want
to record.
DVD
VIDEO 1
VIDEO 2
VCR 1
VCR 2
VIDEO 3
VIDEO 4
TAPE
TUNER
CD
PHONO
2. Start recording at the recording device connected to
the VIDEO OUT 1 and 2 jacks.
Note:
Be aware that if you change the input source that you are watching
(or listening to), the selected source will be recorded.
Hint
You can also record the video from one source and the audio from
another source together to make your own home movies and the
like. For example, if you want to record the video from a video
camera connected to VIDEO 4 and the audio from a CD player
connected to CD IN, at step 1 above, press the VIDEO 4 source
button and then the CD source button.
62
Using remote controller
Overview
The RC-533M/515M remote controller is a useful tool that can not
only operate the TX-SR701/701E/601/601E, but also all the other
components of your home theater as well. To operate any
component, first press the Mode button on the remote controller that
corresponds to the component that you wish to control. Then simply
press the desired operation button and the component will operate
accordingly. For example, if you wish to select the CD input source
at the TX-SR701/701E/601/601E with the remote controller, first
press the RCVR MODE button to select the TX-SR701/701E/601/
601E and then press the CD (INPUT SELECTOR) button.
* Diagram for RC-533M
Calling up a preset radio station
1. Press the RCVR MODE button.
The RCVR MODE button lights.
RCVR MODE
2. Press the TUN input selector button.
3. Press the desired operation button.
CH
VOL
MUTING
Operation buttons:
CH
: Selects the desired preset station number
You may also use the following buttons:
VOL
: Adjusts volume at TX-SR701/701E/601/601E
MUTING: Activates muting function at TX-SR701/701E/601/601E
TUN
Controlling an Onkyo cassette tape deck
The
connector of the Onkyo cassette tape deck must be
connected to the TX-SR701/701E/601/601E (see page 24).
1. Press the RCVR MODE button.
The RCVR MODE button lights.
2. Press the desired operation button.
RCVR MODE
The buttons shaded in the figure to the left are the operation
buttons that can be used to control an Onkyo cassette tape deck.
Operation buttons:
VOL
MUTING
TAPE
operation
buttons
: Play
: Stop
: Rewind
: Fast forward
: Skips to beginning of next track during playback
: Skips to beginning of current track during playback
REC ●: Record/Pause
: Reverse playback
You may also use the following buttons:
VOL
: Adjusts volume at TX-SR701/701E/601/601E
MUTING: Activates muting function at TX-SR701/701E/601/
601E
Note:
Even for devices with the
and
buttons, signal discrepancies
may cause them not to work properly.
63
Using remote controller
Controlling an Onkyo DVD player
The
connector of the Onkyo DVD player must be connected to
the TX-SR701/701E/601/601E (see page 24).
1. Press the DVD MODE button.
The DVD MODE button lights.
2. Press the desired operation button.
The buttons shaded in the figure to the left are the operation
buttons that can be used to control an Onkyo DVD player.
Operation buttons:
ON
STANDBY
DVD MODE
RETURN
ENTER,
SETUP
DISC
VOL
TOP MENU
AUDIO SEL
ANGLE
MENU
MUTING
SUBTITLE
DVD
operation
buttons
Numeric keys
SEARCH
ON: Turns DVD player on and off
STANDBY: Turns DVD player off (Some sets may not respond to
this button. In this case, use the ON button to put the DVD player in
the standby state.)
SETUP: Displays the OSD of the DVD player
: Moves cursor in the OSD Menu of the DVD player
ENTER: Enter button for the OSD Menu of the DVD player
RETURN: Return button for the OSD Menu of the DVD player
TOP MENU or MENU: Displays menu screens recorded on DVD
media
DISC
: Selects disc in DVD changer
AUDIO SEL: Selects audio or language track (if recorded on the
DVD)
ANGLE: Selects a camera angle (if recorded on the DVD)
SUBTITLE: Selects subtitle language (if recorded on the DVD)
SEARCH: Searches for location on disc to start playback
RANDOM: Random playback
: Chapter/Track down
: Chapter/Track up
: Play
: Stop
: Fast reverse
: Fast forward
: Pause
: Opens/closes the disc tray
0, 1 to 9, +10: Numeric keys
You may also use the following buttons:
VOL
: Adjusts volume at TX-SR701/701E/601/601E
MUTING: Activates muting function at TX-SR701/701E/601/601E
Note:
When operating an Onkyo DVD player directly with the remote
controller without connecting the
terminals, pre-programming
is necessary (see page 67).
64
Using remote controller
Controlling an Onkyo CD player
The
connector of the Onkyo compact disc player must be
connected to the TX-SR701/701E/601/601E (see page 24).
1. Press the CD MODE button.
ON
STANDBY
The CD MODE button lights.
2. Press the desired operation button.
CD MODE
The buttons shaded in the figure to the left are the operation
buttons that can be used to control an Onkyo compact disc
player.
Operation buttons:
VOL
ON: Turns on and off the compact disc player (same as STANDBY
button on the remote controller)
DISC : Selects a disc in the CD changer
: Track down
: Track up
: Play
: Stop
: Skip backward
: Skip forward
: Pause
: Opens/closes the disc tray
0, 1 to 9, +10: Numeric keys
RANDOM: Random playback
DISC
MUTING
CD
operation
buttons
Numeric keys
You may also use the following buttons:
VOL
: Adjusts volume at TX-SR701/701E/601/601E
MUTING: Activates muting function at TX-SR701/701E/601/601E
65
Using remote controller
Controlling an Onkyo MD recorder
The
connector of the Onkyo MD recorder must be connected to
the TX-SR701/701E/601/601E (see page 24).
1. Press the SAT/MD MODE button.
The SAT/MD MODE button lights.
2. Press the desired operation button.
ON
STANDBY
SAT/MD MODE
VOL
MUTING
MD
operation
buttons
Numeric keys
ENTER
The buttons shaded in the figure to the left are the operation
buttons that can be used to control an Onkyo MD recorder.
Operation buttons:
ON: Turns on and off MD player (same as STANDBY button on
the remote controller)
: Track down
: Track up
: Play
: Stop
: Skip backward
: Skip forward
REC ●: Record
: Pause
: Eject
1 to 9, 0, --/---: Numeric keys
ENTER: Enters the settings
You may also use the following buttons:
VOL
: Adjusts volume at TX-SR701/701E/601/601E
MUTING: Activates muting function at TX-SR701/701E/601/601E
Note:
The SAT/MD button is used for operating satellite tuners and
Onkyo MD recorders. Be aware that if you enter the preset code for
a satellite tuner as shown on page 65, then this button cannot be
used to operate Onkyo MD recorders.
If this is the case, to operate an Onkyo MD recorder, you must first
erase the satellite tuner code by following the directions given in
“Erasing all the commands programmed under a MODE button” on
page 72.
66
Entering a pre-programming code
The remote controller has three learning functions. One is entering
the pre-programmed code for a remote controller of another
manufacturer. Another is the normal learning function that enables
the remote controller to learn the codes directly from other remote
controllers (see page 71). And the last is a macro learning function
that enables you to program a series of operations into the remote
controller so that the operations can all be performed at once by
pressing one button.
Learning a pre-programming code
By entering a pre-programming code, you can have the RC-533M/
515M remote controller operate a component made by another
manufacturer. The buttons that are used for operation are given on
the next page.
1. Find the 3-digit number listed for the manufacturer
name of the component that you want to operate in
the table on the next page.
2. Turn on the component that you want to operate (i.e.
DVD, satellite tuner, or television).
SEND/LEARN
indicator
Buttons that can
be preprogrammed
3. While holding down the MODE button on the RC533M/515M that you want to program, press the
DISPLAY button, and then release both buttons.
The SEND/LEARN indicator lights when the MODE button is
pressed and turns off when the DISPLAY button is pressed.
When the indicator turns off, release both buttons. The SEND/
LEARN indicator lights again.
4. Within 30 seconds, enter the 3-digit code number.
VOL
The SEND/LEARN indicator slowly flashes twice. If the
SEND/LEARN indicator quickly flashes three times, then either
a mistaken 3-digit code was entered or an incorrect operation
was performed. If this occurs, return to step 3.
5. Press the button that you programmed and check if
the system operates correctly.
Numeric keys
DISPLAY
Caution
With some brand’s components, some buttons may not work
correctly. In this case, program the command directly from the other
remote controller normally (see page 71).
• If the component does not operate properly, return to step 3
and repeat the steps above.
• If it still does not operate properly, program the command
directly from the other remote controller normally (see page
71).
When entering the code of Onkyo DVD players:
There are three SETTING numbers. Choose the SETTING number
according to how you will be using the DVD player.
No. 601/613: These codes are for operating the Onkyo DVD player
by pointing the remote controller directly at it, either because it
does not have an
terminal, or it does but you are not connecting
it with an
cable. First enter 601 and if it does not operate
properly, enter 613.
No. 600: This code is for Onkyo DVD players that have an
terminal that you are connecting to the TX-SR701/701E/601/601E
with an
cable. You will then operate the DVD player by
pointing the remote controller at the remote control sensor on the
TX-SR701/701E/601/601E. You do not need to enter this code
because it is factory preset. However, if the code has been changed
to 601 or 613, then you will need to change it back to 600.
67
Entering a pre-programming code
VCR
Pre-programming codes
Note:
If more than one code is given in the table,
try each code one by one until you reach
the code that works (i.e. if the first code
does not work, then try the next).
DVD
BRAND
DENON
HITACHI
JVC
KENWOOD
MAGNAVOX
MARANTZ
MITSUBISHI
ONKYO
PANASONIC
PIONEER
PROSCAN
RCA
SONY
TOSHIBA
YAMAHA
ZENITH
SETTING No.
602, 609
603
604
605
606, 613
607
608, 613
600, 601, 613
609
610
611
611
612
613
609, 614
613, 615
SAT
BRAND
ECHOSTAR
GENERAL
INSTRUMENTS
HITACHI
HUGHES
NETWORK
SYSTEMS
PANASONIC
PRIMESTAR
PROSCAN
RCA
SONY
TOSHIBA
SETTING No.
700
701
702
703
704
705
706, 707
706, 707
708
709
CABLE
BRAND
GENERAL
INSTRUMENTS
GEMINI
HAMLIN
JERROLD
MACOM
MAGNAVOX
OAK
PANASONIC
PHILIPS
PIONEER
SCIENTIFIC
ATLANTA
SAMSUNG
TOCOM
ZENITH
SETTING No.
500
501
502, 503, 504, 505
500, 506, 507, 508,
509, 510, 511, 512,
513, 514
515, 516, 517
518
519, 520, 521
522, 523
524, 525, 526, 527,
528, 529
530, 531
532, 533, 534
535
536
537, 538
BRAND
AIWA
AKAI
BAIRD
BELL & HOWELL
BLAUPUNKT
CGM
COLTINA
DAEWOO
DIGITAL
EMERSON
FENNER
FISHER
FUJITSU
GENERAL
FUNAI
GE
GO VIDEO
GOLDSTAR
GOODMANS
GRUNDIG
HITACHI
JVC
LOEWE
MAGNAVOX
MITSUBISHI
NEC
NOKIA
NORDMENDE
OKANO
ORION
PANASONIC
PHILIPS
PHONOLA
PIONEER
RCA
SABA
SAMSUNG
SANYO
SCOTT
SELECO
SHARP
SHINTOM
SIEMENS
SONY
SYMPHONIC
TEKNIKA
TELEFUNKEN
TOSHIBA
WHITE
WESTINGHOUSE
WATSON
ZENITH
TV
SETTING No.
300, 301, 302
303, 304, 305, 306,
307
308
309
310
311, 312, 313
314
315, 316
317
318, 319, 320, 321,
322
323
324, 325, 326, 327
328
329
330, 331
332, 336, 337
333, 334
335
338
339, 340, 341
342, 343, 344, 345,
346, 347, 348, 349,
350
351, 352
353, 354, 355
356, 357, 358, 359,
360, 361, 362, 363,
364
365, 366, 367
313
368, 369, 370
371, 372
319, 373
374, 375, 376, 377,
378
353, 379, 380
311
381
382
383
384, 385, 386, 387,
388, 389, 390
391, 392, 393
394
395
396, 397, 398, 399
400
401
402, 403, 404, 405,
406, 407, 408, 409,
410, 411, 412, 413
414
414, 415
416, 417
418, 419, 420
333
421
422
BRAND
AIWA
AKAI
AUDIOSONIC
BELL & HOWELL
BLAUPUNKT
BRIONVEGA
CENTURION
COLTINA
CORONAD
CROWN
DAEWOO
DUAL
EMERSON
FENNER
FERGUSON
FISHER
FUNAI
FUJITSU GENERAL
GE
GOLDSTAR
GOODMANS
GRUNDIG
HITACHI
HYPER
INNO HIT
IRRADIO
JVC
KENDO
KTV
LUXOR
MAGNAVOX
MARANTZ
MARK
MATSUI
MITSUBISHI
MIVAR
NEC
NOKIA
OCEANIC
NORDMENDE
OKANO
ORION
PANASONIC
PHILIPS
PIONEER
PROSCAN
QUASAR
RADIO SHACK
RCA
SABA
SAMSUNG
SANYO
SCHNEIDER
SEARS
SELECO
SHARP
SONY
SYMPHONIC
TELEFUNKEN
THOMSON
TOSHIBA
UNIVERSUM
ZENITH
68
SETTING No.
100, 101
102, 103, 104
105
106
107
108, 109
110
111, 112, 113
114
115, 116
117, 118, 119, 120,
121
122
123, 124, 125, 126,
127
128, 129
130, 131
132
133, 134, 135
136, 137, 138
139, 140, 141
142, 143
144
145, 146
147, 148, 149, 150
151
152
103
153, 154, 155, 156,
157
158
159, 160
161
162, 163
164
165
166, 167, 168, 169
170, 171, 172, 173
174, 175
176, 177
178, 179, 180, 181
181
182, 183
152
184, 185, 186
187, 188, 189, 190
152, 162, 191
192, 193
194
195
196
110, 141, 197, 198,
199, 200
182, 183, 201
202, 203, 204, 205,
206, 207, 208
209, 210, 211, 212
103
213
214, 215
216, 217
218, 219, 220, 221,
222, 223
224, 225
201, 226, 227
228
213, 229
230
231, 232
Operating your programmed remote controller
After entering a pre-programming by following the procedure
given above, the following modes become enabled for use.
DVD MODE (DVD Player Mode)
Operations are the same as explained on page 64.
SAT MODE (Satellite Tuner Mode)
1. Press the SAT/MD MODE button.
The SAT/MD MODE button lights.
ON
STANDBY
2. Press the desired operation button.
SAT/MD MODE
The buttons shaded in the figure to the left are the operation
buttons that can be used to control your satellite tuner unit.
The buttons given below have operations programmed
into them.
ENTER,
CH
VOL
MENU
MUTING
Numeric keys
ON: Turns on and off satellite tuner unit (same as STANDBY
button on the remote controller)
CH
: Changes selected preset channel
: Moves cursor
ENTER: Confirms selection
MENU: Displays menu
0,1 to 9: Numeric keys
ENTER: Confirm
You may also use the following buttons:
VOL
: Adjusts the volume at the TX-SR701/701E/601/601E
MUTING: Activates the muting function at the TX-SR701/701E/
601/601E
ENTER
CABLE MODE (Cable Mode)
1. Press the CABLE MODE button.
The CABLE MODE button lights.
ON
STANDBY
CABLE MODE
CH
VOL
MUTING
2. Press the desired operation button.
The buttons shaded in the figure to the left are the operation
buttons that can be used to control your cable TV unit.
The buttons given below have operations programmed
into them.
ON: Turns on and off cable TV unit (same as STANDBY button on
the remote controller)
CH
: Changes selected preset channel
0,1 to 9: Numeric keys
ENTER: Confirm
You may also use the following buttons:
VOL
: Adjusts the volume at the TX-SR701/701E/601/601E
MUTING: Activates the muting function at the TX-SR701/701E/
601/601E
Numeric keys
ENTER
69
Operating your programmed remote controller
VCR MODE (VCR Mode)
1. Press the VCR MODE button.
The VCR MODE button lights.
2. Press the desired operation button.
ON
STANDBY
VCR MODE
CH
TV/VCR
VOL
MUTING
Video cassette
recorder
operation
buttons
Numeric keys
The buttons shaded in the figure to the left are the operation
buttons that can be used to control your VCR.
The buttons given below have operations programmed
into them.
ON: Turns on and off the VCR (same as STANDBY button on the
remote controller)
CH
: Changes selected preset channel
TV/VCR: Switches VCR input setting
: Play
: Stop
: Rewind
: Fast forward
: Pause
0,1 to 9, +10: Numeric keys
You may also use the following buttons:
VOL
: Adjusts the volume at the TX-SR701/701E/601/601E
MUTING: Activates the muting function at the TX-SR701/701E/
601/601E
TV MODE (TV Mode)
1. Press the TV MODE button.
The TV MODE button lights.
2. Press the desired operation button.
ON
STANDBY
TV MODE
TV
CH
TV/VCR
VOL
MUTING
Numeric keys
ENTER
70
The buttons shaded in the figure to the left are the operation
buttons that can be used to control your television.
The buttons given below have operations programmed
into them.
ON: Turns on and off the television (same as STANDBY button on
the remote controller)
TV : Turns on and off the television (and switches to the TV
mode)
CH
: Changes television channel
TV/VCR: Switches television input setting
0,1 to 9, +10: Numeric keys
ENTER: Confirm
VOL
: Adjusts volume at television
MUTING: Activates muting function at television
Programming the commands of remote controllers
for other devices into the remote controller
E
AP
VD
T
D
P
U
O
D
C
ER
W
PO
D
VD
VID
EO
TA
P
EE
SL
IS
D
C
R
G
-2
EO
VID
P
IN
PE
ER
M
IM
D
-1
D
C
CH
TI- T
UL PU
M IN
RE
SUOD
M
O
N
R O
T
TO H
SE
C P
ER E
LE R
N PR
SE E
TU
T N
U TU
C
H
SE
L
ST E
TEON
T
U
M
TIN
G
VO
LU
E
M
S
85
Programming procedure
2 to 6 inches
(5 to 15 cm)
When programming the commands of another remote controller to
the RC-533M/515M remote controller, you must first decide under
which MODE button you want the commands to be linked. In
general, you will select the MODE button that corresponds to the
component you are programming. For example, if you are
programming the functions from a remote controller for a compact
disc player, you would choose the CD MODE button. Then, by
pressing the CD MODE button, the buttons on the RC-533M/515M
remote controller will change to the commands you program here to
operate the compact disc player.
After programming which MODE button to use, you will then
transfer the separate commands from the other remote controller
over to the RC-533M/515M remote controller one at a time. Each
command is then programmed to a different button on the RC533M/515M remote controller. Any button is programmable for this
step except for the eight MODE buttons (RCVR, CD, DVD, SAT/
MD, TV, VCR, and CABLE), the two MACRO buttons (1 and 2),
and the LIGHT button (RC-533M only).
Even after the commands have been memorized, keep your old
remote controller in a safe place. If for some reason the commands
are lost (e.g., when the batteries run down), it will be necessary to
memorize them once again.
1. Place the remote controller and the remote controller
for the other device facing each other at a distance of
2 to 6 inches (5 to 15 cm) apart.
2. While pressing and holding down the desired MODE
button on the remote controller, press the ENTER
button and then release both buttons.
SEND/LEARN
indicator
The SEND/LEARN indicator lights when the MODE button is
pressed and turns off when the ENTER button is pressed. When
the indicator turns off, release both buttons. The SEND/LEARN
indicator lights again.
3. Press and release the button on the remote controller
to which you want to transfer the next command.
MODE buttons
You may select any button excluding the eleven ones indicated
in the figure below. When you press the button, the SEND/
LEARN indicator turns off. When you release the button, the
indicator lights again.
If you press the wrong button by mistake, press that same button
again. The SEND/LEARN indicator flashes twice, and the
remote controller exits the programming mode.
LIGHT
MACRO 1
MACRO 2
MODE buttons
ENTER
: Buttons that cannot be programmed
71
Programming the commands of remote controllers for other devices into the remote
controller
4. Press and hold down the button (that corresponds to
the command you are programming) on the remote
controller of the other device until the SEND/LEARN
lamp on the remote controller flashes twice.
After flashing twice, the SEND/LEARN indicator will light again.
5. Repeat Steps 3 and 4 to transfer all the commands
you desire from the other remote controller and
program them to buttons on the remote controller
under the same MODE.
Repeat Steps 2 through 4 to program commands to a different
MODE (e.g., when programming from a different remote controller).
6. Press the MODE button that you pressed in step 2 to
complete the programming.
7. Operate the newly programmed buttons to make sure
the learning function was performed properly.
Notes:
• The remote controller codes for Onkyo compact disc players,
cassette tape decks, DVD players, and mini disc recorder have
already been programmed into buttons on the remote controller.
You may, however, use these buttons to program the codes for
other remote controllers. If you wish to restore the Onkyo preset
codes after you program new codes, you must first erase the
new codes.
• The remote controller has 357 memory slots (7 modes × 51
buttons). Some remote controllers may have more commands
that can be remembered by the remote controller. In such cases,
it will be necessary for you to determine which commands are
more important than others.
• If the SEND/LEARN indicator quickly flashes three times and
turns off, then the remote controller has exited the programming
mode because either you have made a mistake during
programming or a time-out has occurred because no button has
been pressed. Resume from Step 2.
• If you try to program beyond the learning capacity of the remote
controller, the SEND/LEARN indicator flashes six times
quickly, and the remote controller exits the programming mode.
Try programming under a different MODE button.
• When you want to program a command to a button to which
you have already programmed a command, simply follow the
same procedure given and the previous programming for that
button will be overwritten.
• The remote controller uses infrared rays to send its commands,
as do most other remote controllers. Though most remote
controller codes can be memorized by the remote controller, be
aware that some remote controllers use systems that are quite
different from the remote controller and therefore may not be
able to be programmed.
• Some remote controllers have a single button that performs
multiple functions (for example, the function may change each
time the button is pressed). If this is the case, each function
must be programmed to a separate button on the remote
controller.
• Once you have transferred the commands from the other remote
controller, refer to the instruction manual that came with that
product for instructions on how to operate that product.
• Make sure both the remote controller and the other remote
controller have new batteries. If either of them has batteries that
are low, you may not be able to program the commands of the
other remote controller properly into the remote controller.
See page 72 for how to erase the memorized commands from all
buttons.
72
Erasing the programmed command from one
button
You can only erase memorized commands and not preset ones.
1. Press and hold down the MODE button for the
command, press the ENTER button, and then release
both buttons.
When you press the MODE button, the SEND/LEARN
indicator lights. When you press the ENTER button, the lamp
turns off. When you release the buttons, the lamp lights again.
2. Press and release the button for the command you
wish to erase.
When you press the button, the SEND/LEARN indicator turns
off. When you release the button, the lamp lights again.
3. Press and release the same button again.
The SEND/LEARN lamp slowly flashes twice. The memorized
command is erased.
Note:
If the SEND/LEARN indicator quickly flashes three times and turns
off, then the remote controller has exited the erasing mode because
either you have made a mistake during erasing or a time-out has
occurred because no button has been pressed. Resume from Step 1.
Erasing all the commands programmed under a
MODE button
1. Press and hold down the desired MODE button, press
the ENTER button twice, and then release both
buttons.
When you press the MODE button, the SEND/LEARN
indicator lights. When you press the ENTER button, the lamp
turns off. When you release the buttons, the lamp slowly flashes
twice and then lights again.
2. Press and release the same MODE button again.
When you release the button, the SEND/LEARN indicator
slowly flashes twice. This erases all the commands memorized
to the MODE button.
Notes:
• If the SEND/LEARN indicator quickly flashes three times and
turns off, then the remote controller has exited the erasing mode
because either you have made a mistake during erasing or a
time-out has occurred because no button has been pressed.
Resume from Step 1.
• If many commands have been programmed to the MODE
button, then the SEND/LEARN indicator may remain lit for up
to 20 seconds during Step 2. This is not a malfunction.
Using the macro function
What is the macro function?
A macro function enables you to program a series of button
operations (up to 16) on the remote controller into a single button.
The series of operations are then called a macro. For example, to
play a compact disc player connected to the TX-SR701/701E/601/
601E normally, you must perform the following steps:
1. Press the RCVR MODE button.
2. Press the ON button.
3. Press the CD (INPUT SELECTOR) button.
4. Press the CD MODE button.
5. Press the playback (
) button.
By using the macro function, you can perform the above five
operations by only pressing one button.
Programming the macro
With the macro function, you can program a series of button
operations as a macro into the MACRO button so the macro can be
executed with just one touch. Note that for the macro function, only
one macro can be programmed. For example, to program the macro
described above on this page for the MACRO button, perform the
steps given below.
1. Press and hold down any one of the seven MODE
buttons, press the MACRO 1 (or 2) button, and then
release both buttons.
When you press the MODE button, it lights and the SEND/
LEARN indicator lights. When you press the MACRO 1 (or 2)
button, the indicator turns off. When you release the buttons, the
indicator flashes briefly and then lights again.
2. Press the operation buttons you wish to program in
order (in this case, press RCVR MODE → ON → CD
(INPUT SELECTOR) → CD MODE → playback ( )
button).
SEND/LEARN
indicator
3. Press the MACRO 1 (or 2) button to complete the
procedure.
ON
MACRO 1
RCVR MODE
When you press each button, the SEND/LEARN indicator turns
off. When you release the button, the indicator lights.
MACRO 2
MODE buttons
CD MODE
(CD playback)
CD
(INPUT
SELECTOR)
The SEND/LEARN indicator slowly flashes twice.
4. Check to see if the macro has been properly
programmed.
Notes:
• You may program up to 16 button operations into the macro
function. If you try to program a 17th operation, it will be
ignored, and programming is stopped.
• If the SEND/LEARN indicator quickly flashes three times and
turns off, then the remote controller has exited the programming
mode because either you have made a mistake during
programming or a time-out has occurred because no button has
been pressed. Resume from Step 1.
Executing the macro
Perform the procedure below to execute the macro that you have
programmed into the remote controller. After programming the
macro, you should always run it at least once to make sure that it
has been programmed properly.
Point the remote controller at the TX-SR701/701E/601/
601E and press the MACRO 1 (or 2) button.
Tips:
• If you erase or change the command of a button programmed in
the macro, that operation of that button will no longer work in
the macro. In this case, it will be necessary for you to reprogram
the macro in order to avoid incorrect operation.
• The codes programmed into the macro will be transmitted at an
interval of 0.5 seconds. However, some devices may not be able
to complete one operation in 0.5 seconds and may miss the next
code. In this case, after pressing one operation button, you can
press the same MODE button again before pressing the next
operation button to add another 0.5 seconds between the two
operations.
It may take a while for the macro to finish transmitting, so be sure to
continue pointing the remote controller at the device until the
SEND/LEARN indicator turns off.
73
Using the macro function
Erasing a macro from the MACRO 1 (or 2) button
SEND/LEARN
indicator
MACRO 1
MACRO 2
MODE buttons
1. Press and hold down any one of the seven MODE
buttons, press the MACRO 1 (or 2) button, and then
release both buttons.
When you press the MODE button, it lights and the SEND/
LEARN indicator lights. When you press the MACRO 1 (or 2)
button, the indicator turns off. When you release the buttons, the
indicator flashes once.
2. Press the MACRO 1 (or 2) button again.
The SEND/LEARN indicator slowly flashes twice. The macro
programmed to the MACRO button is erased.
Notes:
• If the SEND/LEARN indicator quickly flashes three times and
turns off, then the remote controller has exited the erasing mode
because either you have made a mistake during erasing or a
time-out has occurred because no button has been pressed.
Resume from Step 1.
• If you press a button other than MACRO 1 (or 2) button in Step
2, then you will in effect be overwriting the previous macro
with a new macro.
ENTER
Erasing all commands and macros that have
been programmed
SEND/LEARN
indicator
ON
STANDBY
This procedure will erase all the commands and macros that you
have programmed into the remote controller and return it to its
default settings. This operation will not affect the preset settings of
the remote controller.
1. Open the battery cover and remove the batteries from
the remote controller.
2. While pressing and holding down the ON and
STANDBY buttons, re-insert the batteries in their
correct orientation, and then release both buttons.
The SEND/LEARN indicator flashes slowly.
3. Press the ENTER button.
The SEND/LEARN indicator lights up for about ten seconds
and then turns off.
All programmed commands and macros are erased and the remote
controller returns to its factory presets.
ENTER
74
Notes:
• Proceed to Step 3 immediately after Step 2; otherwise, the
batteries will be consumed quickly.
• If you press any button other than the ENTER button in Step 3,
nothing will be erased. In this case, resume from Step 1.
Troubleshooting guide
If a problem occurs while you are using the remote controller, first
try to operate the controls on the front panel of the TX-SR701/
701E/601/601E to make sure that it is not due to a malfunction (or
worn out batteries) in the remote controller.
POWER
No power.
• Power cord is disconnected.
➞ Connect the power cord (see page 28).
• External noise is affecting the internal microcomputer.
➞ Turn off the power, wait five seconds, and then turn back on
the power.
• Internal fuse is blown.
➞ Contact your Onkyo Service Center.
Power turns on but no sound.
• “Muting” is displayed.
➞ Press the MUTING button on the remote controller to turn
off muting (see page 45).
• Bad connections or wiring.
➞ Check connections, speaker cables, and other wiring (see
pages 16-27).
• Amplifier protection circuitry is activated.
➞ Contact your Onkyo Service Center.
Sound of playback source is not heard.
• Input selector is not set properly.
➞ Set to correct input source.
• Headphones are connected.
➞ Lower volume and then disconnect headphones.
Power shuts off immediately after power on.
• Amplifier protection circuitry is activated.
➞ Remove the power cord from the outlet immediately.
Contact your Onkyo service center.
SPEAKERS
No sound from the center speaker, or at very low volume.
• Speaker cable is not connected.
➞ Check the connection between amplifier and speaker (see
page 27).
• Listening mode is set to Stereo, Pure Audio (TX-SR701/701E
only), or Direct.
➞ Set the Listening mode to any mode other than Stereo or
Direct. The output to the center speaker may differ
depending on the listening mode.
• Center speaker volume is set to minimum.
➞ Set the center speaker level to the appropriate volume (see
page 34).
• The Center setting is set to “None.”
➞ Set the Center setting to “Large” or “Small” at “Speaker
Config” (see page 31).
No sound or very low volume from subwoofer.
Low frequency humming is heard.
• Turntable motor is not properly grounded. (TX-SR701/701E
only)
➞ Check for proper ground connection.
• Audio connection cables on the rear panel are connected
incorrectly.
➞ Adjust the placement of the cable to reduce hum.
Howling is heard when the volume is turned up. (TXSR701/701E only)
• Turntable and speakers are located too close together.
➞ Move them farther apart.
Rough or scratchy sound is heard. High range is not
clear.
• Turntable needle is dirty or worn (TX-SR701/701E only), or a
problem exists with a connected component.
➞ Refer to the instruction of the connected components and
check for problem.
• Treble control is too high.
➞ Turn treble setting down at Audio Adjust → Treble (see
page 57).
FM/AM TUNER
AM stations cannot be received.
• AM loop antenna is not connected.
➞ Connect the included AM loop antenna to the AM antenna
terminals (see page 29).
Buzzing noise on AM stations (particularly noticeable at
night or with weak stations).
• Noise from electrical apparatus such as fluorescent lamp.
➞ Move the AM loop antenna to different position.
➞ Set up an outdoor AM antenna (see page 30).
Noise is heard at high-pitched sounds on AM stations.
• Noise caused by TV set.
➞ Place the AM loop antenna as far as possible from the TV.
➞ Move TX-SR701/701E/601/601E away from TV set.
Crackling noise on both AM and FM stations.
• Noise caused by fluorescent lamp being turned on and off.
➞ Move antenna as far as possible from the fluorescent lamp.
• Noise from automobile ignition.
➞ Install an FM outdoor antenna as far as possible from the
road (see page 30).
➞ Change the position or direction of the outdoor antenna.
• Subwoofer setting is set to “No.”
➞ Set the Subwoofer setting to “Yes” at “Speaker Config” (see
page 32).
• Subwoofer volume is set to minimum.
➞ Set the subwoofer level to the appropriate volume (see page
34).
75
Troubleshooting guide
Stereo indicator lights, but sound is distorted and stereo
separation is bad.
• Station is too strong.
➞ Change to FM indoor antenna (see page 29).
• Multiple reflection of the radio waves because of tall buildings
or mountains.
➞ Use antenna that has better directivity and orient it so
distortion is least.
Indicators for stereo reception flicker and hiss is heard
on FM stations.
• Station is too weak.
➞ Install an outdoor FM antenna (see page 30).
• Stereo FM broadcasts cover only about half the distance of an
ordinary broadcast.
➞ Change the position or direction of the outdoor antenna (see
page 30).
No preset station is recalled.
• Memory is lost because power has been turned off for a long
time.
➞ Store all stations again (see page 38).
REMOTE CONTROLLER
Front panel controls function but remote controller
controls do not.
• No batteries in remote controller.
➞ Insert batteries (see page 7).
• Batteries have worn out.
➞ Replace batteries (see page 7).
• Remote controller is not pointed at the remote sensor of the TXSR701/701E/601/601E.
➞ Point the remote controller at the remote sensor of the TXSR701/701E/601/601E (see page 7).
• Remote controller is too far from the TX-SR701/701E/601/
601E.
➞ Operate the remote controller within 16 feet (5 meters) (see
page 7).
• Remote controller is functioning in a different mode
➞ Press the RCVR MODE button.
OTHER
VIDEO and AUDIO
Desired picture does not appear.
• Improper connection.
➞ Check connections. Insert the plugs and connectors
completely (see pages 14 to 30).
No OSD Menu display.
• Improper connection.
➞ Check connections (see pages 14 to 30).
• OSD Menu is displayed when monitor is connected to VIDEO
or S VIDEO of MONITOR OUT.
➞ Check connections (see page 20).
Audio and video do not match.
• Improper connection.
➞ Check connections (see pages 14 to 30).
Audio is not heard or audio from different source is
heard.
• Digital Input settings are incorrect.
➞ Check settings at “Input Setup” → “Digital Input” (see page
52).
No picture appears on the TV screen (or monitor).
• TV (or monitor) is not set to receive the output signals from the
receiver.
➞ Set the TV (or monitor) to the receiver output.
• Video cable is not connected securely.
➞ Check connections (see pages 14 to 30).
• Input source is connected to the COMPONENT VIDEO IN
connectors.
➞ Make sure TV (or monitor) is connected to COMPONENT
VIDEO OUT connectors (see page 20).
76
LATE NIGHT function cannot be used.
• Playback source is not Dolby Digital encoded.
➞ Check that the DOLBY DIGITAL indicator lights up on the
display.
Desired parameter cannot be set.
• Parameter may not be able to be set due to current listening
mode.
➞ Check settings in Audio Adjust (see pages 57 to 59).
Multichannel audio is not output.
• DVD player is not connected to 5.1-channel input jacks.
➞ Check connections (see page 17).
Components in remote zone (Zone 2) do not operate
properly.
• Components are incorrectly connected.
➞ Check connections.
• Objects are interfering with remote controller signals.
➞ Move inferring objects away from path of remote controller
signals.
Sound is sometimes heard and sometimes not heard with
digital sources.
• One digital input format has been specified so other digital
formats are not played.
➞ Use the AUDIO SELECTOR to select “Auto” and set
“Auto” for the Auto mode (see page 42).
Noise during playback or skipping of the beginning
sounds occurs with DTS sources, PCM sources, and
other digital sources.
• When “Auto” is set for the digital format setting, time is
required to change formats when different sources are played.
➞ Switch from the Auto mode to the current source signal (see
page 42).
Troubleshooting guide
If one of the messages shown below appears
“Not available with headphones use”
Operation not allowed because headphones are plugged into the
TX-SR701/701E/601/601E.
“Not available with Multichannel use”
Operation not allowed while the multi-channel output is being used.
“Not available in this Sp Config”
Will not work with the current speaker configuration settings.
“Not available in Zone 2 mode”
Setting not allowed because the Zone 2 mode is turned on.
“Only available with Dolby D”
No setting other than Dolby Digital can be set.
“Not available in this Listening mode”
Will not work with the current listening mode.
“Not available with this signal”
The listening mode cannot be selected with the current input source.
“Not available with Muting”
Operation not allowed because the muting is activated.
“Zone 2 is not On”
Will not work because the Zone 2 has not been turned on.
Also refer to the respective instruction manuals of the CD player,
DVD player, video cassette recorder, TV monitor, etc., that
compose your entertainment system.
The TX-SR701/701E/601/601E contains an internal microcomputer
that performs high-level operations. However, on extremely rare
occasions, noise or interference from an external source or static
electricity may cause faulty operation. If this occurs, unplug the
power cord from the wall outlet, wait five or more seconds, and then
plug it back in. This should correct the situation.
* To reset the surround mode and other settings to the factory
default settings, hold down the VIDEO 1 button with the TXSR701/701E/601/601E turned on and then press the
STANDBY/ON button. “CLEAR” appears in the front display
and the TX-SR701/701E/601/601E enters the standby state.
77
Specifications (TX-SR701/701E)
AMPLIFIER SECTION
Continuous average power output (FTC)
All channels:
100 W per channel min. RMS at 8 Ω,
2 channels driven from 20 Hz to 20
kHz with no more than 0.08% total
harmonic distortion.
125 W min. RMS at 6 Ω, 2 channels
driven from 1 kHz with no more
than 0.1% total harmonic distortion.
Continuous power output (DIN)
130 W at 6 Ω
Maximum power output (EIAJ)
160 W at 6 Ω
Dynamic power output (stereo)
2 × 230 W at 3 Ω
2 × 170 W at 4 Ω
2 × 115 W at 8 Ω
Total harmonic distortion:
0.08% at rated power
0.08% at 1 W output
IM distortion:
0.08% at rated power
0.08% at 1 W output
Damping factor:
60 at 8 Ω
Input sensitivity and impedance
PHONO:
2.5 mV, 47 kΩ
LINE (CD, TAPE, DVD,
VIDEO 1-4):
200 mV, 47 kΩ
MULTICHANNEL INPUT
(FRONT L/C/R, SURROUND
L/R):
200 mV, 47 kΩ
(SUBWOOFER):
36 mV, 47 kΩ
COAXIAL (DIGITAL):
0.5 Vp-p, 75 Ω
DVD, VIDEO 1, 2, 3, 4:
1 Vp-p, 75 Ω
1 Vp-p, 75 Ω (Y)
0.28 Vp-p, 75 Ω (C)
COMPONENT VIDEO 1, 2:
1 Vp-p, 75 Ω (Y)
0.7 Vp-p, 75 Ω (PB, PR)
Output level and impedance
Rec out (TAPE, VIDEO 1, 2):
200 mV, 470 Ω
Line out:
100 mV, 470 Ω (Zone 2)
Pre out:
1 V, 470 Ω
VIDEO (VIDEO 1, 2,
MONITOR OUT):
1 Vp-p, 75 Ω
1 Vp-p, 75 Ω (Y)
0.28 p-p, 75 Ω (C)
COMPONENT VIDEO OUT:
1 Vp-p, 75 Ω (Y)
0.7 Vp-p, 75 Ω (PB, PR)
Phono overload:
70 mV RMS at 1 kHz, 0.5% T.H.D.
Frequency response:
10 Hz to 100 kHz: +1/–3 dB
(CD in Direct mode)
RIAA deviation:
20 Hz to 20 kHz: ±0.8 dB
Tone control
Bass:
±10 dB at 50 Hz
Treble:
±10 dB at 20,000 Hz
Signal-to-noise ratio (stereo)
Phono:
80 dB (IHF A, 5 mV input, Direct mode)
Line:
106 dB (IHF A, 0.5 V input, Direct mode)
Muting:
–50 dB
TUNER SECTION
FM
Tuning range:
USA & Canadian models:
Other area models:
Usable sensitivity
Mono:
Stereo:
50 dB quieting sensitivity
Mono:
Stereo:
Capture ratio:
Image rejection ratio
USA & Canadian models:
Other area models:
IF rejection ratio:
Signal-to-noise ratio
Mono:
Stereo:
Alternate channel attenuation:
Selectivity:
AM suppression ratio:
Total harmonic distortion
Mono:
Stereo:
Frequency response:
Stereo separation:
AM
Tuning range
USA & Canadian models:
European & Australian models:
Worldwide models:
Usable sensitivity:
Image rejection ratio:
IF rejection ratio:
Signal-to-noise ratio:
Total harmonic distortion:
GENERAL
Power supply
USA & Canadian models:
European & Australian models:
Some Asian models:
Worldwide models:
Power consumption
USA & Canadian models:
Other models:
Dimensions (W × H × D):
87.50–108.00 MHz (100-kHz steps)
87.50–108.00 MHz (50-kHz steps)
11.2 dBf, 1.0 µV (75 Ω IHF)
0.9 µV (75 Ω DIN)
17.2 dBf, 2.0 µV (75 Ω IHF)
23 µV (75 Ω DIN)
17.2 dBf, 2.0 µV (75 Ω)
37.2 dBf, 20 µV (75 Ω)
2.0 dB
40 dB
85 dB
90 dB
76 dB
70 dB
55 dB
50 dB (DIN)
50 dB
0.2%
0.3%
30 Hz–15 kHz, ±1.0 dB
45 dB at 1 kHz
30 dB at 100 Hz–10 kHz
530 to 1,710 kHz (10-kHz steps)
522 to 1,611 kHz (9-kHz steps)
522 to 1,611 kHz (9-kHz steps)
530 to 1,710 kHz (10-kHz steps)
30 µV
40 dB
40 dB
40 dB
0.7%
AC 120 V, 60 Hz
AC 230–240 V, 50 Hz
AC 220–230 V, 50/60 Hz
AC 220–230 and 120 V switchable,
50/60 Hz
6.0 A
620 W
435 × 175 × 431.5 mm
17-1/8" × 6-7/8" × 16-15/16"
Weight
USA & Canadian models:
Other models:
26.9 lbs.
13.0 kg
REMOTE CONTROLLER
Transmitter:
Signal range:
Power supply:
Infrared
Approx. 16 ft., 5 meters
Two “AA” batteries (1.5 V × 2)
Specifications and features are subject to change without notice.
78
Specifications (TX-SR601/601E)
AMPLIFIER SECTION
Continuous average power output (FTC)
All channels:
85 W per channel min. RMS at 8 Ω,
2 channels driven from 20 Hz to 20
kHz with no more than 0.08% total
harmonic distortion.
110 W min. RMS at 6 Ω, 2 channels
driven from 1 kHz with no more
than 0.1% total harmonic distortion.
Continuous power output (DIN)
120 W at 6 Ω
Maximum power output (EIAJ)
150 W at 6 Ω
Dynamic power output (stereo)
2 × 220 W at 3 Ω
2 × 165 W at 4 Ω
2 × 100 W at 8 Ω
Total harmonic distortion:
0.08% at rated power
0.08% at 1 W output
IM distortion:
0.08% at rated power
0.08% at 1 W output
Damping factor:
60 at 8 Ω
Input sensitivity and impedance
LINE (CD, TAPE, DVD,
VIDEO 1-4):
200 mV, 47 kΩ
MULTICHANNEL INPUT
(FRONT L/C/R, SURROUND
L/R):
200 mV, 47 kΩ
(SUBWOOFER):
36 mV, 47 kΩ
COAXIAL (DIGITAL):
0.5 Vp-p, 75 Ω
DVD, VIDEO 1, 2, 3, 4:
1 Vp-p, 75 Ω
1 Vp-p, 75 Ω (Y)
0.28 Vp-p, 75 Ω (C)
COMPONENT VIDEO 1, 2:
1 Vp-p, 75 Ω (Y)
0.7 Vp-p, 75 Ω (PB, PR)
Output level and impedance
Rec out (TAPE, VIDEO 1, 2):
200 mV, 470 Ω
Line out:
100 mV, 470 Ω (Zone 2)
Pre out:
1 V, 470 Ω
VIDEO (VIDEO 1, 2,
MONITOR OUT):
1 Vp-p, 75 Ω
1 Vp-p, 75 Ω (Y)
0.28 p-p, 75 Ω (C)
COMPONENT VIDEO OUT:
1 Vp-p, 75 Ω (Y)
0.7 Vp-p, 75 Ω (PB, PR)
Frequency response:
10 Hz to 100 kHz: +1/–3 dB
(CD in Direct mode)
Tone control
Bass:
±10 dB at 50 Hz
Treble:
±10 dB at 20,000 Hz
Signal-to-noise ratio (stereo)
CD/Tape:
106 dB (IHF A, 0.5 V input)
Muting:
–50 dB
TUNER SECTION
FM
Tuning range:
USA & Canadian models:
Other area models:
Usable sensitivity
Mono:
Stereo:
50 dB quieting sensitivity
Mono:
Stereo:
Capture ratio:
Image rejection ratio
USA & Canadian models:
Other area models:
IF rejection ratio:
Signal-to-noise ratio
Mono:
Stereo:
Alternate channel attenuation:
Selectivity:
AM suppression ratio:
Total harmonic distortion
Mono:
Stereo:
Frequency response:
Stereo separation:
AM
Tuning range
USA & Canadian models:
European & Australian models:
Worldwide models:
Usable sensitivity:
Image rejection ratio:
IF rejection ratio:
Signal-to-noise ratio:
Total harmonic distortion:
GENERAL
Power supply
USA & Canadian models:
European & Australian models:
Some Asian models:
Worldwide models:
Power consumption
USA & Canadian models:
Other models:
Dimensions (W × H × D):
87.50–108.00 MHz (100-kHz steps)
87.50–108.00 MHz (50-kHz steps)
11.2 dBf, 1.0 µV (75 Ω IHF)
0.9 µV (75 Ω DIN)
17.2 dBf, 2.0 µV (75 Ω IHF)
23 µV (75 Ω DIN)
17.2 dBf, 2.0 µV (75 Ω)
37.2 dBf, 20 µV (75 Ω)
2.0 dB
40 dB
85 dB
90 dB
76 dB
70 dB
55 dB
50 dB (DIN)
50 dB
0.2%
0.3%
30 Hz–15 kHz, ±1.0 dB
45 dB at 1 kHz
30 dB at 100 Hz–10 kHz
530 to 1,710 kHz (10-kHz steps)
522 to 1,611 kHz (9-kHz steps)
522 to 1,611 kHz (9-kHz steps)
530 to 1,710 kHz (10-kHz steps)
30 µV
40 dB
40 dB
40 dB
0.7%
AC 120 V, 60 Hz
AC 230–240 V, 50 Hz
AC 220–230 V, 50/60 Hz
AC 220–230 and 120 V switchable,
50/60 Hz
5.3 A
550 W
435 × 175 × 431.5 mm
17-1/8" × 6-7/8" × 16-15/16"
Weight
USA & Canadian models:
Other models:
26.7 lbs.
12.9 kg
REMOTE CONTROLLER
Transmitter:
Signal range:
Power supply:
Infrared
Approx. 16 ft., 5 meters
Two “AA” batteries (1.5 V × 2)
Specifications and features are subject to change without notice.
79
