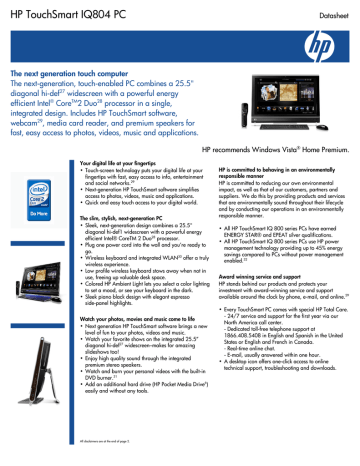

HP TouchSmart IQ804 PC
Datasheet
The next generation touch computer
The next-generation, touch-enabled PC combines a 25.5"
diagonal hi-def27 widescreen with a powerful energy
efficient Intel® CoreTM2 Duo28 processor in a single,
integrated design. Includes HP TouchSmart software,
webcam29, media card reader, and premium speakers for
fast, easy access to photos, videos, music and applications.
HP recommends Windows Vista® Home Premium.
Your digital life at your fingertips
• Touch-screen technology puts your digital life at your
fingertips with fast, easy access to info, entertainment
and social networks.29
• Next-generation HP TouchSmart software simplifies
access to photos, videos, music and applications.
• Quick and easy touch access to your digital world.
The slim, stylish, next-generation PC
• Sleek, next-generation design combines a 25.5"
diagonal hi-def1 widescreen with a powerful energy
efficient Intel® CoreTM 2 Duo28 processor.
• Plug one power cord into the wall and you’re ready to
go.
• Wireless keyboard and integrated WLAN30 offer a truly
wireless experience.
• Low profile wireless keyboard stows away when not in
use, freeing up valuable desk space.
• Colored HP Ambient Light lets you select a color lighting
to set a mood, or see your keyboard in the dark.
• Sleek piano black design with elegant espresso
side-panel highlights.
Watch your photos, movies and music come to life
• Next generation HP TouchSmart software brings a new
level of fun to your photos, videos and music.
• Watch your favorite shows on the integrated 25.5”
diagonal hi-def27 widescreen–makes for amazing
slideshows too!
• Enjoy high quality sound through the integrated
premium stereo speakers.
• Watch and burn your personal videos with the built-in
DVD burner.31
• Add an additional hard drive (HP Pocket Media Drive6)
easily and without any tools.
All disclaimers are at the end of page 2.
HP is committed to behaving in an environmentally
responsible manner
HP is committed to reducing our own environmental
impact, as well as that of our customers, partners and
suppliers. We do this by providing products and services
that are environmentally sound throughout their lifecycle
and by conducting our operations in an environmentally
responsible manner.
• All HP TouchSmart IQ 800 series PCs have earned
ENERGY STAR® and EPEAT silver qualifications.
• All HP TouchSmart IQ 800 series PCs use HP power
management technology providing up to 45% energy
savings compared to PCs without power management
enabled.32
Award winning service and support
HP stands behind our products and protects your
investment with award-winning service and support
available around the clock by phone, e-mail, and online.29
• Every TouchSmart PC comes with special HP Total Care.
- 24/7 service and support for the first year via our
North America call center.
- Dedicated toll-free telephone support at
1866.408.5408 in English and Spanish in the United
States or English and French in Canada.
- Real-time online chat.
- E-mail, usually answered within one hour.
• A desktop icon offers one-click access to online
technical support, troubleshooting and downloads.
HP TouchSmart IQ804 PC
Datasheet
Specifications
Operating System
• Genuine Windows Vista® Home Premium 64-bit edition with Service Pack 1 - delivers premier
performance, reliability, and enhanced security1
Processor
• Intel® Core(TM)2 Duo Processor T58502
Processor Speed
• 2.16GHz2
Chipset
• Intel® GM965 Express Chipset
Cache (L2)
• 2MB L2 Cache
Bus Speed
• 667MHz Front Side Bus
Memory
• 4096MB PC2-5300 DDR2 SDRAM memory3 (2x2048MB) (expandable to 4GB)3
Hard Drive
• 500GB 7200RPM SATA 3Gb/s hard drive4
Expandable Drive
Bay
• HP Pocket Media Drive Bay22
Optical Drive(s)
• Slot-load SuperMulti DVD Burner6
8x DVD±R, 8x DVD+RW, 6x DVD-RW, 6x DVD±R DL, 5x DVD-RAM, 8x DVD-ROM, 24x CDR,
24x CDRW, 24x CD-ROM
Video Graphics
• NVIDIA GeForce 9300 M GS HD graphics module with 256MB dedicated video memory and
support for Blu-ray, and Microsoft® DirectX® 10. Up to 2047MB Total Available Graphics Memory
as allocated by Windows Vista®.
Network Interface
• 10/100BaseT network interface
Wireless Connectivity • Wireless LAN (802.11b/g/n) with built-in WLAN antenna19
• Integrated Bluetooth®
Warranty and
Support
• Service Options:
- Hardware: One year parts and labor from date of purchase
- Software: 90 day technical toll-free phone assistance
- Service Delivery: Customer Replaceable Parts; Return to hp for repair; Authorized Service
Provider. For information, visit www.hp.com/support
• Support Options:
- Desktop icon provides one click access to built-in desktop Help and Support Center
- Easy, online(4) access to questions, answers and troubleshooting information via
www.hp.com/support
- Direct, knowledgeable assistance available 24/7 toll-free by phone.
• Extended Service Plans:
- You can choose from a variety of Extended Service Plans from HP to meet your individual needs
by calling 1-866-234-1377 or by going to www.hp.com/go/totalcare
Accessories
• Cleaning Cloth
• IR emitter cable
• TV audio adapter
Software
TouchSmart Software •
•
•
•
•
•
•
HP TouchSmart Music - Create playlists with your favorite music
HP TouchSmart Video - Watch, record and upload(10) your personal videos using touch
HP TouchSmart Photo - Share your fun and memorable moments in life with family and friends
HP TouchSmart RSS Feeds - Get the latest news right at your fingertips(10)
HP TouchSmart Browser - Browse the web in a whole new way(10)
HP TouchSmart Calendar - Manage your busy schedule and stay in touch with family
HP TouchSmart Notes - Quick and easy text and voice notes right at your fingertips
Audio
• Integrated High Definition Audio with 2.0 sound capabilities
• High-performance 2.0 Speakers
Photo and Video
• muvee autoProducer: Automatically create professional looking home videos and burn to DVD
Personal Video
Recorder
• TV Tuner: Dual-format NTSC or over-the-air ATSC high-definition TV tuner17
Entertainment
• CyberLink DVD Suite Deluxe: Make movies and slideshows and burn to DVD or CD13
• CyberLink YouCam: Chat with video and upload your personal webcam videos to YouTube13
Remote Control
• HP Media Center remote control with IR (infrared) receiver
Productivity
Memory Slots
• 2 SoDIMMs (200-pin) (occupied)
External Ports
• 5-in-1 memory card reader – supports Secure Digital (SD, SDHC), MultiMedia Card, Memory
Stick, Memory Stick Pro and xD
• 1 FireWire® (IEEE 1394) port (front)
• Headphone (front)
• Line-in (back)
• 5 USB 2.0 ports(2 front, 3 rear)( 5 available)
• Line-out (back)
• Digital Audio Out (back)
• Microsoft® Works 9: Includes a word processor, spreadsheet, database and calendar
• Adobe® Reader 8.0: Read and print PDF file
• HP Total Care Advisor: Customizable desktop tool provides support, system health and shopping
information
PC Security
• Norton Internet Security 2008: Protect your PC out of the box (60 days of complimentary live
updates)11
Online Services
• Easy sign-up to major dial-up and broadband Internet Service Providers:15
- High Speed Internet Services Comparison Shopping
Additional information
Mouse and
Keyboard
• HP low-profile wireless keyboard with numeric keypad
• HP wireless optical mouse
Web Camera
• Integrated webcam
Integrated Display
• Touch-enabled 25.5" diagonal widescreen BrightView LCD with tilt adjustment
• Built-in array microphone
Monitor Resolution
• 1920x1200
Dimensions
• Unpackaged: 26.04" (W) x 5.47" (L/D) x 19.63" (H) approx.
• Packaged: 32.56" (W) x 9.72" (L/D) x 23.31" (H) approx.
Weight
• Unpackaged: 35.28 lbs approx.
• Packaged: 58.00 lbs approx.
Lighting
• HP Ambient Light lets you set a mood, or see your keyboard in the dark
Product number
• KT457AA#ABA
Ad embargo date
• 9/21/2008
UPC code
• 884420018438
Country of origin
• China
Tariff number
• 8471500085
Pallet information
•
•
•
•
•
Dimensions: 40.00"(L) x 48.00"(W) x 87.80"(H/D) approx.
Total weight: 1073.75 LBS
Layers: 4
Products per layer: 5
Total products per pallet: 20
HP recommends Windows Vista® Home Premium.
Visit www.hp.com/go/touchsmart for more details!
(1)
Certain Windows Vista product features require advanced or additional hardware.
See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista
Upgrade Advisor can help you determine which features of Windows Vista will run on
your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor.
(2)
Intel's numbering is not a measurement of higher performance. Dual/Quad Core is
a new technology designed to improve performance of certain software products. Not
all customers or software applications will necessarily benefit from use of this
technology. 64-bit computing on Intel architecture requires a computer system with a
processor, chipset, BIOS, operating system, device drivers and applications enabled
for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on
your hardware and software configurations. See www.intel.com/info/em64t for more
information.
(3)
Actual available memory may be less. Up to 1 GB may not be available due to
32-bit operating system resource requirements. (4) For hard drives, GB = 1 billion
bytes. Actual formatted capacity is less. Up to 10GB of storage space is reserved for
the system recovery software. (6) Actual speeds may vary. Does not permit copying of
commercially available DVD movies or other copyright-protected materials. Intended
only for creation and storage of original material and other lawful uses. Double Layer
is a new technology. Double Layer media compatibility will widely vary with some
home DVD players and DVD-ROM drives. Data transfer rates up to 3,600 KB/s (CD
read/write) and 10,816 KB/s (DVD read/write).(10) Internet access required and sold
separately.(11) Internet access required. First 60 days included; subscription required
for live updates afterwards. (13) Intended for your original content and other lawful
uses. Do not copy copyright-protected materials. Internet access required and sold
separately. Instant messaging software required.(15) Internet access requires payment
of additional fees or subscription for use. Offer does not include local telephone
company charges, if any, or applicable taxes. Any long distance charges incurred will
be the responsibility of the customer. Please make sure your access number is local. A
valid credit card is required to initiate the service. This offer valid in the U.S.A. only.
Additional terms and conditions may apply, see AOL offer for details. (16) Part of the
total system memory (RAM) is used for graphics/video performance. System memory
dedicated to graphics/video performance is not available for other use by other
programs. (17) ATSC high-definition (HD) and NTSC source content varies and will
depend on broadcast signal, antenna, geographic location and other factors. An
external over-the-air antenna that receives UHF and VHF signals is required for ATSC
reception. Viewing HD content will require a compatible high-definition display. Ability
to record, edit, or transfer broadcast content such as TV programming may be limited
depending on the type of content. Performance issues may arise, and do not constitute
defects in the product. (19) Wireless access point and Internet service sold separately.
The specifications for the 802.11n WLAN are draft specifications and are not final.
This may affect the ability of the PC to communicate with other 802.11n WLAN
devices. (20) All specifications represent the typical specifications provided by HP's
component manufacturers; actual performance may vary either higher or lower. (22) HP
Pocket Media Drive sold separately. (24) Power supply upgrade may be required for
graphics card upgrade, check with graphics card supplier.(27) High definition (HD)
content is required to view HD images. (28) Dual Core is a new technology designed to
improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. 64-bit computing on
Intel architecture requires a computer system with a processor, chipset, BIOS,
operating system, device drivers and applications enabled for Intel® 64 architecture.
Processors will not operate (including 32-bit operation) without an Intel 64
architecture-enabled BIOS. Performance will vary depending on your hardware and
software configurations. See www.intel.com/info/em64t for more information. (29)
Internet access required. (30) Wireless access point and Internet service sold
separately. (31) Don’t copy copyright-protected materials. (32) According to estimates
made using EPA statistics comparing PCs with and without power management. For
more information see:
http://www.energystar.gov/ia/business/bulk_purchasing/bpsavings_calc/Calc_computers.xls.
(33)
Paper based cushioning materials are used for most standard palletized shipments;
foam cushions are still used for some harsh and parcel shipments. (34) Percent
reduction based on comparison to an HP Pavilion a6000 PC and HP w2207 monitor
bundle.
Actual product may vary from image shown on datasheet.©2008 Hewlett-Packard
Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing shall
be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein. 07_28 r1 nq
Product Number: KT457AA#ABA
