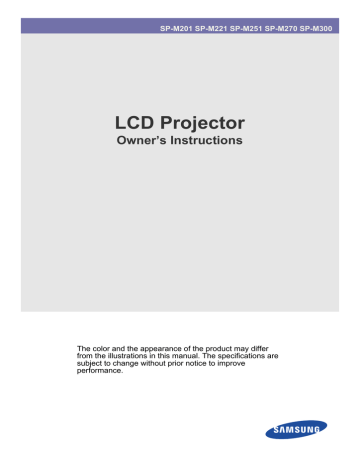

SP-M201 SP-M221 SP-M251 SP-M270 SP-M300
LCD Projector
Owner’s Instructions
The color and the appearance of the product may differ
from the illustrations in this manual. The specifications are
subject to change without prior notice to improve
performance.
Table Of Contents
MAJOR SAFETY PRECAUTIONS
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
INSTALLATION AND CONNECTION
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Leveling with Adjustable Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Zoom and Focus Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Screen Size and Projection Distance
. . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Rear Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Supported Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Connecting with a PC and Setting up the PC . . . . . . . . . . . . . . . . . . 2-10
Connecting a PC using an HDMI/DVI cable . . . . . . . . . . . . . . . . . . . . 2-11
Connecting an HDMI-Compatible Device . . . . . . . . . . . . . . . . . . . . . . 2-12
Connecting an AV device using a D-Sub cable . . . . . . . . . . . . . . . . . 2-13
Connecting an AV device with Component output . . . . . . . . . . . . . . 2-14
Connecting using a Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Connecting an External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Kensington Lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
USING
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Front, Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
LED Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Using the Screen Adjustment Menu (OSD: On Screen Display) . . . . 3-5
TROUBLESHOOTING
Before Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
MORE INFORMATION
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
RS232C Command Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Contact SAMSUNG WORLDWIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Correct Disposal - Europe only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
1
Major Safety Precautions
1-1
Before You Start
Icons used in this manual
ICON
NAME
MEANING
Caution
Indicates cases where the function may not work or the setting may be canceled.
Note
Indicates a hint or tip to operate a function.
Using this Manual
•
Make yourself fully aware of the safety precautions before using this product.
•
The contents of this manual are subject to change without prior notice for performance improvement.
•
If a problem occurs, refer to the 'Troubleshooting' section.
Copyright Notice
Copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved.
The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.
The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written
permission of Samsung Electronics, Co., Ltd.
An administration fee may be charged if either.
(a) An engineer is called out at your request and there is no defect in the product.
(i.e. where you have failed to read this user manual).
(b) You bring the unit to a repair centre and there is no defect in the product.
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is carried out.
1-2
Care and Maintenance
Cleaning the Surface and the Lens
Clean the projector using a soft dry cloth.
•
Avoid cleaning the product with a flammable substance such as
benzene or thinner.
•
Avoid scratching the lens with your fingernails or a sharp object.
This may result in scratches or damage to the product.
•
Avoid cleaning the product with a wet cloth or by directly
spraying water onto the product.
If water enters the product, it may result in fire, electric shock, or
a problem with the product.
•
A white stain may appear on the surface of the projector if water
gets on it.
The appearance and the color may differ depending on
models.
Cleaning Inside the Projector
For cleaning the interior of the projector, contact an authorized
Samsung Service Center.
•
Contact a Service Center if dust or other substances are inside
the projector.
1-3
Safety Precautions
Icons used for safety precautions
ICON
NAME
MEANING
Warning
Failing to follow the precautions marked with this sign may result in a serious injury or even
a fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or
property damage.
Meaning of Signs
Do not perform.
Must be followed.
Do not disassemble.
The power plug must be unplugged from the
wall outlet.
Do not touch.
Must be grounded to prevent electric shock.
Power Related
The following images are for your reference and may differ depending on models and countries.
The appearance and the color may differ depending on models.
Warning
Plug the power plug in firmly.
•
Otherwise, it may result in fire.
Avoid connecting multiple electric appliances to a single wall outlet.
•
Avoid using a damaged power cord or plug
or a loose power outlet.
•
Otherwise, it may result in electric
shock or fire.
Avoid plugging in or unplugging the power
supply with wet hands.
•
Otherwise, it may result in electric
shock.
Major Safety Precautions
Otherwise, it may result in fire due to
overheating of the wall outlet.
Avoid bending or twisting the power cord
excessively and avoid placing heavy
objects on the cord.
•
Otherwise, it may result in electric
shock or fire due to a damaged power
cord.
To move the product, turn the power off
and unplug the power cord and any other
wires connected to the product.
•
Otherwise, it may result in electric
shock or fire due to the damaged
power cord.
1-3
Make sure to connect the power cord to a
grounded wall outlet (for insulation class 1
equipment only).
•
Otherwise, it may result in electric
shock or injury.
Caution
When unplugging the power plug from the
wall outlet, make sure to hold the power
plug by the plug and not by the cord.
•
Failing to do so may result in electric
shock or fire.
Unplug the power plug before cleaning the
product.
•
Do not turn the product on or off by plugging or unplugging the power plug. (Do not
use the power plug as a power switch.)
Keep the power cord away from sources of
heat.
There is a danger of electric shock or
fire.
Connect the power plug to a wall outlet
that can be easily reached.
•
When a problem occurs with the
product, you must unplug the power
plug to cut the power off completely.
You cannot cut the power off
completely using only the power button
on the product.
Installation Related
Warning
Avoid installing the product in a location
exposed to direct sunlight and installing
the product near a heat source such as a
fire or heater.
•
1-3
Avoid installing the product in a badly-ventilated location such as inside a bookshelf
or closet.
•
This may shorten the product life cycle
or cause fire.
Otherwise, it may result in fire due to
internal overheating.
When installing the product in a cabinet or
shelf, take care so that the front end of the
product is completely supported by the
cabinet or shelf.
When installing the product on a console
or shelf, make sure that the front of the
product does not protrude out of the console or shelf.
•
Failing to do so may result in the
product falling and resulting in damage
to the product or injury.
•
•
Make sure to use a cabinet or shelf
suitable to the size of the product.
Otherwise, this may cause the product
to fall off and result in a malfunction or
injury.
Keep the power cord away from heaters.
When thunder or lighting occurs, unplug
•
the power cord.
The coating of the power cord may
melt and cause electric shock or fire.
•
Failing to do so may result in electric
shock or fire.
Major Safety Precautions
Do not install the product in a location
exposed to dust, moisture (sauna), oil,
Do not install the product in areas with
heavy dust.
smoke or water (rain drops) and do not
install it in a vehicle.
•
This may result in electric shock or fire.
Caution
Take care not to block the vent with a table
cloth or curtain.
•
Do not let the product drop while moving it.
•
Otherwise, it may result in fire due to
internal overheating.
This may result in a problem with the
product or injury.
When putting the product down, place it
gently.
Do not install the product at a height where
children may reach it.
•
•
Failing to do so may result in a problem
with the product or injury.
If a child touches the product, the
product may fall and this may result in
injury.
Usage Related
Avoid inserting metal objects such as
chopsticks, coins or hairpins, or inflammable objects into the product (the vents,
ports, etc).
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a service
center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Do not disassemble, or attempt to fix or
modify the product.
•
When the product requires repairs,
contact a Service Center.
Avoid using or placing inflammable spray
or objects near the product.
•
This may result in an explosion or fire.
Do not let children place objects such as
toys or cookies on the product.
•
If a child tries to reach for any of these
objects, the product may fall and cause
harm.
Do not look directly at the light of the lamp
nor project the picture into someone's
eyes.
•
This is dangerous, especially for
children.
When you remove batteries from the
remote, be careful that they are not swallowed by children. Keep batteries out of
the reach of children.
•
If swallowed, see a doctor immediately.
Avoid placing a liquid container such as a
vase, flowerpot, beverage, cosmetics or
drugs, or a metal object over the product.
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a service
center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Major Safety Precautions
1-3
Caution
If the product generates a strange noise, a
burning smell, or smoke, unplug the power
plug immediately and contact a service
center.
•
Failing to do so may result in electric
shock or fire.
If the power plug pin or jack is exposed to
dust, water or alien substances, clean it
thoroughly.
Do not use the product while it indicates a
malfunction, such as no sound or no picture.
•
•
There is a danger of electric shock or
fire.
Turn the product off immediately,
unplug the power cord from a wall
outlet, and contact a Service Center.
When cleaning the product, disconnect the
power cord and clean the product with a
soft dry cloth.
When a gas leak occurs, do not touch the
product or the power plug and ventilate
immediately.
•
•
A spark may result in an explosion or
fire.
•
During a thunder or lighting storm, do
not touch the power cord or antenna
cable
Avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquitorepellent, fragrance, lubrication or
cleansing agent when cleaning the
product.
This may result in the exterior being
deformed or the print being removed.
When not using the product for a long
time, such as leaving your home, unplug
the power cord from the wall outlet.
•
•
This may cause damage to the lens.
Do not touch any outer part of the product
with tools such as a knife or a hammer.
To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.
Failing to do so may result in fire or
electric shock.
Make sure to place your remote control on
a table or desk.
•
•
Places exposed to microscopic dust,
chemicals, too high or low temperature,
high humidity, such as airports or
stations where the product is
continuously used for a long time etc..
If you drop the product or the case is damaged, turn the power off and unplug the
power cord. Contact a service center.
•
Do not touch the lens on the product.
Otherwise, it may cause dust
accumulation and result in fire caused
by overheating or a short circuit or
result in an electric shock.
If the product is installed in a location
where the operating conditions vary considerably, a serious quality problem may
occur due to the surrounding environment.
In this case, install the product only after
consulting our Call Center.
1-3
If water or a foreign substance enters the
product, turn the product off, unplug the
power cord from a wall outlet, and contact
a Service Center.
Ask a Service Center to clean the interior
of the projector at least once per year.
If you step on the remote control, you
may fall and hurt yourself or the
product may be damaged.
Major Safety Precautions
To avoid burning yourself, do not touch the
vents or lamp cover while operating or
right after turning off the product.
Do not clean the product using water spray
or a wet cloth. Avoid using any chemicals
such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such
as projector case, since this may cause
damage.
Do not open any cover on the product.
Do not use any undesignated battery.
•
This would prove hazardous because
of high-voltage current inside the
product.
Be careful not to touch the ventilation hole
while the projector is on as hot air comes
out.
The ventilation hole is hot for some time
though the projector is turned off. Keep
you hands or body off the ventilation hole.
Do not place objects vulnerable to heat
near the projector.
Be careful to keep your body away from
the projector lamp. The lamp is hot.
(Children and those who have sensitive
skin should be more careful.)
Take care not to lose the lens cover of the
product.
•
The lens could get damaged.
The lens cover protects the lens and
should be used when the projector is
turned off.
•
Major Safety Precautions
To hide the screen while the projector is
turned on, use the BLANK feature.
1-3
2
Installation and Connection
2-1
Package Contents
•
Unpack the product and check if all of the contents listed below have been included.
•
Store the packaging box in case you need to move the product at a later date.
Projector
CONTENTS
Quick Setup Guide
Warranty Card / Registration
Card (Not available in all
locations)
User Manual
Power Cord
Remote Control / 1 Battery
(CR2025/3V)
Cleaning Cloth
D-Sub Cable
Lens cover
( Not available in all locations)
4 Screws
Projector case
(For bracket of ceiling
mount.)
A ceiling mount is not included and must be purchased separately. Use the included screws to attach the projector to the
ceiling mount bracket.
2-1
Installation and Connection
2-2
Installing the Projector
Install the projector so that the beam from the projector is perpendicular to the screen.
•
Place the projector so that the lens aims at the center of the screen. If the screen is not vertical, the picture on the
screen may not appear rectangular.
•
Do not install the screen in bright surroundings. If the surroundings are too bright, the picture on the screen will be
washed out and not display clearly.
•
When using the projector in bright surroundings, use curtains to block the light.
•
You can install the projector in the following locations relative to the screen : <Front-Floor> / <Front-Ceiling> / <RearFloor> / <Rear-Ceiling>. To view the installation position settings, see below.
To adjust the picture when you install the projector behind the screen
Installing behind a semi-transparent screen.
When you install the projector behind a semi-transparent screen,
you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, rearfloor (or low) or rear-ceiling.
1. For rear-floor, press :
Menu > Setup > Install > Rear-Floor
2. For rear-ceiling, press :
Menu > Setup > Install > Rear-Ceiling
To adjust the picture when you install the projector in the front of the screen
Installing the projector in front of the screen.
When you install the projector in front of a screen, you can use
the menu to adjust the picture so that it displays correctly,
depending on where you’ve located the projector, front-floor (or
low) or front-ceiling.
1. For front-floor, press :
Menu > Setup > Install > Front-Floor
2. For front-ceiling, press :
Menu > Setup > Install > Front-Ceiling
Installation and Connection
2-2
2-3
Leveling with Adjustable Feet
Press the PUSH buttons, as shown, to adjust the legs and level
the projector.
The projector can be adjusted to a height of up to 30 mm (about 12 °) from the reference point.
If <Auto Keystone> is set to <On>, <V-Keystone> is adjusted automatically.
If fine tuning is required after auto-adjustment, use <V-Keystone>.
2-3
Installation and Connection
2-4
Zoom and Focus Adjustment
Zoom Knob
You can adjust the size of the image within the zoom range
by manipulating the Zoom Knob.
Focus Ring
Focus the picture on the screen using the Focus Ring.
The size of your screen determines the distance you set your projector from the screen.
If you do not install your projector at the projection distance specified in the Screen Size and Projection Distance table in
Section 2-5, you will not be able to adjust the focus correctly.
Installation and Connection
2-4
2-5
Screen Size and Projection Distance
A. Screen / Z. Throw Distance / Y’. Distance from Lens Center to Image Bottom
Install the projector on a flat, even surface and level the projector using the adjustable feet to obtain optimal picture quality. If
images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.
SCREEN SIZE
M (DIAGONAL)
X (HORIZONTAL)
THROW DISTANCE
Y (VERTICAL)
Z (TELE)
OFFSET
Z (WIDE)
Y'
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
30
76.2
24
60.9
18
45.7
42.7
108.4
35.5
90.1
2.6
6.3
40
101.6
32
81.3
24
61.0
57.0
144.7
47.4
120.3
3.3
8.4
50
127.0
40
101.6
30
76.2
71.2
180.8
59.2
150.4
4.1
10.5
60
152.4
48
121.9
36
91.4
85.4
217.0
71.0
180.4
5.0
12.6
70
177.8
56
142.2
42
106.7
99.7
253.1
82.9
210.5
5.8
14.7
80
203.2
64
162.6
48
121.9
113.9
289.4
94.7
240.6
6.6
16.8
90
228.6
72
182.9
54
137.2
128.2
325.6
106.6
270.7
7.4
18.9
100
254.0
80
203.2
60
152.4
142.4
361.7
118.4
300.7
8.3
21.0
110
279.4
88
223.5
66
167.6
156.6
397.8
130.2
330.8
9.1
23.1
120
304.8
96
243.8
72
182.9
170.9
434.0
142.1
360.8
9.9
25.2
130
330.2
104
264.2
78
198.1
185.1
470.3
153.9
391.0
10.8
27.3
140
355.6
112
284.5
84
213.4
199.4
506.4
165.8
421.1
11.6
29.4
150
381.0
120
304.8
90
228.6
213.6
542.5
177.6
451.1
12.4
31.5
160
406.4
128
325.1
96
243.8
227.8
578.7
189.4
481.1
13.2
33.6
170
431.8
136
345.4
102
259.1
242.1
614.8
201.3
511.2
14.1
35.7
180
457.2
144
365.8
108
274.3
256.3
651.1
213.1
541.4
14.9
37.8
190
482.6
152
386.1
114
289.6
270.6
687.3
225.0
571.4
15.7
39.9
200
508.0
160
406.4
120
304.8
284.8
723.4
236.8
601.5
16.5
42.0
210
533.4
168
426.7
126
320.0
299.0
759.5
248.6
631.5
17.4
44.1
220
558.8
176
447.0
132
335.3
313.3
795.7
260.5
661.6
18.2
46.2
230
584.2
184
467.4
138
350.5
327.5
832.0
272.3
691.8
19.0
48.3
240
609.6
192
487.7
144
365.8
341.8
868.1
284.2
721.8
19.9
50.4
250
635.0
200
508.0
150
381.0
356.0
904.2
296.0
751.8
20.7
52.5
2-5
Installation and Connection
SCREEN SIZE
M (DIAGONAL)
X (HORIZONTAL)
THROW DISTANCE
Y (VERTICAL)
Z (TELE)
OFFSET
Z (WIDE)
Y'
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
260
660.4
208
528.3
156
396.2
370.2
940.4
307.8
781.9
21.5
54.6
270
685.8
216
548.6
162
411.5
384.5
976.5
319.7
811.9
22.3
56.7
280
711.2
224
569.0
168
426.7
398.7
1012.8
331.5
842.1
23.2
58.8
290
736.6
232
589.3
174
442.0
413.0
1049.0
343.4
872.2
24.0
60.9
300
762.0
240
609.6
180
457.2
427.2
1085.1
355.2
902.2
24.8
63.0
310
787.4
248
629.9
186
472.4
441.4
1121.2
367.0
932.3
25.6
65.1
320
812.8
256
650.2
192
487.6
455.7
1157.4
378.9
962.3
26.5
67.2
330
838.2
264
670.5
198
502.8
469.9
1193.5
390.7
992.3
27.3
69.3
340
863.6
272
690.8
204
518.0
484.2
1229.6
402.6
1022.4
28.1
71.4
350
889.0
280
711.1
210
533.2
498.4
1265.8
414.4
1052.4
29.0
73.5
360
914.4
288
731.4
216
548.4
512.6
1301.9
426.2
1082.5
29.8
75.6
370
939.8
296
751.7
222
563.6
526.9
1338.0
438.1
1112.5
30.6
77.7
380
965.2
304
772.0
228
578.8
541.1
1374.2
449.9
1142.6
31.4
79.8
390
990.6
312
792.3
234
594.0
555.4
1410.3
461.8
1172.6
32.3
81.9
400
1016.0
320
812.6
240
609.2
569.6
1446.4
473.6
1202.6
33.1
84.0
This projector is designed to show images optimally on a 80 ~ 120 inch sized screen.
Installation and Connection
2-5
2-6
Lamp Replacement
Cautions on Lamp Replacement
•
The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time.
You can view the lamp usage time in the Information Display (INFO button).
•
Replace the lamp with the one specified below only.
Model
SP-M201, SP-M221
SP-M251, SP-M270, SP-M300
Lamp Model Name
DPL3311U
DPL3321U
- For inquiries on lamp purchase, please see 'Contact SAMSUNG WORLDWIDE' in section 5-3.
•
Check that the power cord is unplugged before replacing the lamp.
•
Because the lamp is a high temperature and high voltage product, wait at least one hour from the time you disconnect the
power cord before replacing the lamp.
•
The projector lamp is on the top of the projector.
•
Do not leave the old lamp near flammable items or in reach of children. There is a danger of fire, burns, or injury.
•
Remove dirt or foreign material around or inside the lamp unit using a proper vacuum device.
•
When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, you can
shorten the lamp’s lifetime and affect picture quality.
•
When you change the lamp, put the projector on a flat surface.
•
The projector has been designed so that the projector does not work if the lamp cover is not completely assembled after a
lamp replacement. If the projector does not work properly, please check the operating status of the indicator LED.
Lamp contains Mercury. Dispose According to Local, State or Federal Laws.
Lamp Replacement Procedure
•
Because the lamp is a high temperature and high voltage product, wait at least one hour from the time that the power
cord is disconnected before replacing it.
•
The projector lamp is on the top of the projector.
1. Remove the screw shown in the figure below, and then open the cover.
(SP-M201, SP-M221, SP-M251)
(SP-M270, SP-M300)
2. Wtih the cover open, remove the three (3) screws on the top of the projector as shown in the figure below.
3. To remove the lamp, hold and then pull the lamp handle as shown in the figure below.
2-6
Installation and Connection
Install a new lamp in the reverse order of removal.
Replacing and Cleaning the Filter
Precautions when replacing the projector filter:
•
The filter is on the side of the projector.
•
Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.
Otherwise, its parts may be damaged due to internal heat.
•
When you replace the filter, you may release some dust.
•
For inquiries on replacement filter purchase, please see 'Contact SAMSUNG WORLDWIDE' in Chapter 5.
To replace or clean the filter, follow these steps:
1. Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.
2. Open the filter cover.
3. Replace or clean the filter.
•
When cleaning the filter, use a small vacuum cleaner designed for computers and small electronics products, or wash it under
running water.
•
After washing the filter under running water, make sure to dry it completely. The moisture may cause the filter to corrode.
•
If dust cannot be separated from the filter or the filter is torn, it must be replaced.
•
After cleaning or replacing the filter, run <Reset> -> <Reset Filter Time> in the <Setup> menu.
Ventilation openings
For the location of the ventilation openings, see the picture below:
•
Do not block the ventilation openings. Blocking the ventilation openings can cause your projector to overheat and may cause
it to fail.
Installation and Connection
2-6
Air outtake vent
Air intake vent
2-6
Installation and Connection
2-7
Rear Side
2-7-1. SP-M201 SP-M221 SP-M251
ICON
NAME
Kensington Lock slot
PC IN port
VIDEO IN port
AUDIO IN (L-AUDIO-R) port
HDMI/DVI IN port
Remote Control Signal Receiver
Power Input port
AUDIO OUT/
port
RS232C port
Installation and Connection
2-7
2-7-2. SP-M270 / SP-M300
ICON
NAME
Kensington Lock slot
PC IN port
VIDEO IN port
AUDIO IN (L-AUDIO-R) port
HDMI/DVI IN port
Remote Control Signal Receiver
Power Input port
AUDIO OUT/
port
PC OUT port
RS232C port
2-7
Installation and Connection
2-8
Supported Display Modes
2-8-1. PC Timing (D-Sub/HDMI)
FORMAT
RESOLUTION
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
IBM
640 x 350
70Hz
31.469
70.086
25.175
IBM
640 x 480
60Hz
31.469
59.940
25.175
IBM
720 x 400
70Hz
31.469
70.087
28.322
MAC
640 x 480
67Hz
35.000
66.667
30.240
VESA
640 x 480
70Hz
35.000
70.000
28.560
VESA
640 x 480
72Hz
37.861
72.809
31.500
VESA
640 x 480
75Hz
37.500
75.000
31.500
VESA
720 x 576
60Hz
35.910
59.950
32.750
VESA
800 x 600
56Hz
35.156
56.250
36.000
VESA
800 x 600
60Hz
37.879
60.317
40.000
VESA
800 x 600
70Hz
43.750
70.000
45.500
VESA
800 x 600
72Hz
48.077
72.188
50.000
VESA
800 x 600
75Hz
46.875
75.000
49.500
MAC
832 x 624
75Hz
49.726
74.551
57.284
VESA
1024 x 768
60Hz
48.363
60.004
65.000
VESA
1024 x 768
70Hz
56.476
70.069
75.000
VESA
1024 x 768
72Hz
57.672
72.000
78.434
VESA
1024 x 768
75Hz
60.023
75.029
78.750
VESA
1152 x 864
60Hz
53.783
59.959
81.750
VESA
1152 x 864
70Hz
63.000
70.000
96.768
VESA
1152 x 864
72Hz
64.872
72.000
99.643
VESA
1152 x 864
75Hz
67.500
75.000
108.000
MAC
1152 X 870
75Hz
68.681
75.062
100.000
VESA
1280 x 720
60Hz
44.772
59.855
74.500
VESA
1280 x 720
70Hz
52.500
70.000
89.040
VESA
1280 x 720
72Hz
54.072
72.000
91.706
VESA
1280 x 720
75Hz
56.456
74.777
95.750
VESA
1280 x 768
60Hz
47.776
59.870
79.500
VESA
1280 x 768
75Hz
60.289
74.893
102.250
VESA
1280 x 800
60Hz
49.702
59.810
83.500
VESA
1280 x 800
75Hz
62.795
74.934
106.500
VESA
1280 x 960
60Hz
60.000
60.000
108.000
VESA
1280 x 960
70Hz
69.930
70.000
120.839
Installation and Connection
2-8
FORMAT
RESOLUTION
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
VESA
1280 x 960
72Hz
72.072
72.000
124.540
VESA
1280 x 960
75Hz
75.231
74.857
130.000
VESA
1280 x 1024
60Hz
63.981
60.020
108.000
VESA
1280 x 1024
70Hz
74.620
70.000
128.943
VESA
1280 x 1024
72Hz
76.824
72.000
132.752
VESA
1280 x 1024
75Hz
79.976
75.025
135.000
VESA
1440 x 900
60Hz
55.935
59.887
106.500
VESA
1440 x 900
75Hz
70.635
74.984
136.750
VESA
1600 x 1200
60Hz
75.000
60.000
162.000
VESA
1680 x 1050 RB
60Hz
64.674
59.883
119.000
VESA
1680 x 1050
60Hz
65.290
59.954
146.250
VESA
1920 x 1080 RB
60Hz
66.587
59.934
138.500
VESA
1920 x 1200 RB
60Hz
74.038
59.950
154.000
All resolutions higher or lower than 1024x768 are converted to 1024x768 by the Scaler chip inside the projector. If the
resolution of the signal output by the PC matches the real resolution (1024x768) of the projector, the screen quality is
optimal.
2-8-2. AV Timing (D-Sub)
FORMAT
RESOLUTION
SCAN
BT.601 SMPTE 267M
480i
59.94Hz
Interlaced
BT.1358 SMPTE 293M
480p
59.94Hz
Progressive
BT.601
576i
50Hz
Interlaced
BT.1358
576p
50Hz
Progressive
SMPTE 296M
720p
59.94Hz/60Hz
Progressive
720p
50Hz
Progressive
1080i
59.94Hz/60Hz
Interlaced
1080i
50Hz
Interlaced
BT.709 SMPTE 274M
2-8-3. AV Timing (HDMI)
FORMAT
2-8
RESOLUTION
SCAN
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
EIA-861
Format1
640 x 480
Progressive
31.469
59.940
25.175
EIA-861
Format1
640 x 480
Progressive
31.500
60.000
25.200
Installation and Connection
FORMAT
RESOLUTION
SCAN
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
EIA-861
Format2,3
720 x 480
Progressive
31.469
59.940
27.000
EIA-861
Format2,3
720 x 480
Progressive
31.500
60.000
27.027
EIA-861
Format4
1280 x 720
Progressive
44.955
59.939
74.175
EIA-861
Format4
1280 x 720
Progressive
45.000
60.000
74.250
EIA-861
Format5
1920 x 1080
Interlaced
33.716
59.939
74.175
EIA-861
Format5
1920 x 1080
Interlaced
33.750
60.000
74.250
EIA-861
Format16
1920 x 1080
Progressive
67.500
60.000
148.500
EIA-861
Format17,18
720 x 576
Progressive
31.250
50.000
27.000
EIA-861
Format19
1280 x 720
Progressive
37.500
50.000
74.250
EIA-861
Format20
1920 x 1080
Interlaced
28.125
50.000
74.250
2-8-4. AV Timing (VIDEO)
NTSC, NTSC 4.43, PAL, PAL60, PAL-N, PAL-M, SECAM
Your projector supports the standard video formats listed above through its video inputs. No adjustments are
necessary.
Installation and Connection
2-8
2-9
Connecting the Power
1. Plug the power cord into the power terminal on the rear side of the projector.
2-9
Installation and Connection
2-10 Connecting with a PC and Setting up the PC
2-10-1. Setting up the PC Environment
Check the following items before connecting your PC to your projector.
1. Click the right mouse button on the Windows desktop, and then click [Properties].
The <Display Properties> dialog appears.
2. Click the [Settings] tab, and then set the <Screen resolution>. The optimal resolution for the projector is 1024 x 768. For other
resolutions supported by the projector, see the PC Timing Display Mode table in section 2-8.
You do not have to change the <Color quality> setup.
3. Press the [Advanced] button. Another property window appears.
4. Click the [Monitor] tab and set the <Screen refresh rate>. For the refresh rate that matches the resolution you’ve chosen, see
the refresh rate (60 Hz, 70 Hz, etc.) next to your selected resolution in the PC Timing Display Mode table in section 2-8.
Installation and Connection
2-10
Setting the refresh rate sets both the vertical and horizontal frequencies.
5. Click the [OK] button to close the window, and then click the [OK] button on the <Display Properties> window to close that
window.
6. Shut down the PC and connect it to the projector.
The setup process might vary depending on your type of computer or version of Windows.
(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
This projector supports 32 bit color quality (per pixel) when it is used as a PC monitor.
Projected images may differ from the images on your monitor depending on the monitor manufacturer or Windows version.
When connecting the projector to a PC, make sure that the PC setup complies with the display settings supported by this
projector. If it does not, you may have signal problems.
2-10
Installation and Connection
2-10-2. Connecting with a PC
Make sure that your PC and projector are turned off.
1. Connect the [PC IN] port on the rear side of the projector to the PC video out (D-sub) port of the PC using a PC video cable.
2. Plug in the power cords of the projector and the PC.
This product supports plug and play. If you use Windows XP, you do not need to set up the driver on your PC.
Using the Projector
1. Turn on the projector, and then press the [SOURCE] button to select <PC>.
If the <PC> Mode is not available, make sure the PC video cable is properly connected.
2. Turn on the PC, and then set the PC Environment (screen resolution, etc.) if necessary.
3. Adjust the screen.
Installation and Connection
2-10
2-10-3. Connecting Video Devices (Monitor, TV, etc.) (SP-M270, SP-M300 Models Only)
You can view an image on both your projector and a separate monitor at the same time.
Make sure that your PC and projector are turned off.
1. Connect the [PC IN] terminal at the back of the projector to the D-Sub (PC, VGA) terminal of your PC using a D-Sub cable.
2. Connect the [PC OUT] terminal of the projector to the D-Sub terminal of a monitor using a D-Sub cable.
- When connecting a monitor using the [PC OUT] function, make sure to connect your PC to the [PC IN] terminal.
- The video on the monitor connected to the [PC OUT] terminal will be normal even if your projector displays a blank screen.
- The [PC OUT] function will not operate in standby mode.
2-10
Installation and Connection
2-11 Connecting a PC using an HDMI/DVI cable
2-11-1. Connecting a PC using an HDMI/DVI cable
Make sure that your PC and projector are turned off.
1. Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI
cable (Not supplied).
- If you are connecting to the HDMI terminal of your PC, use an HDMI/HDMI cable (Not supplied).
- For the supported resolutions and refresh rates, see PC Timing (D-Sub/HDMI) in Section 2-8, "Supported Display Modes".
2-11-2. Configuring the Audio Settings for Your PC
When the projector is connected to the PC via an HDMI cable, you can change the audio settings as follows:
1. In Category View of Windows XP : Go to Control Panel - [Sounds, Speech and Audio Devices], and select <Speaker
Settings>.
Installation and Connection
2-11
In Classic View of Windows XP : Go to Control Panel - [Sound and Audio Devices], and select the <Audio> tab.
On Windows 7 : Go to Control Panel - [Sound], and select the <Playback> tab.
2. Specify the default device for sound playback:
You can select the PC speakers or projector speaker.
The aforementioned information may slightly differ from some PCs or versions of Windows.
2-11
Installation and Connection
2-12 Connecting an HDMI-Compatible Device
Make sure that the AV device and your projector are turned off.
1. Connect the [HDMI/DVI IN] terminal at the back of the projector to the HDMI or HDMI/DVI output terminal of the digital output
device using an HDMI/DVI or HDMI/HDMI cable.
- If you are connecting to the HDMI output terminal on the digital output device, use an HDMI/HDMI cable.
- For supported input signal formats, resolutions, and frequencies, see AV Timing (HDMI) in Section 2-8, "Supported Display
Modes".
2. If you connected using a HDMI/DVI cable, connect the [AUDIO IN (L-AUDIO-R)] terminal on the projector to the Audio out
terminal on your digital output device using an audio cable (Not supplied).
- If you connected with a HDMI/HDMI cable, you do not need an audio cable.
Installation and Connection
2-12
2-13 Connecting an AV device using a D-Sub cable
Make sure that the AV device and your projector are turned off.
1. Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.
- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display
Modes".
2. Connect the [AUDIO IN (L-AUDIO-R)] terminal at the back of the projector to the Audio out terminal of your AV device using an
audio cable (Not supplied).
2-13
Installation and Connection
2-14 Connecting an AV device with Component output
Make sure that the AV device and your projector are turned off.
1. Connect the [PC IN] terminal on the back of the projector to the Component terminal on your AV device using a D-Sub to
Component cable (Not supplied). This cable has a D-Sub connector on one end and three RCA jacks on the other.
- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display
Modes".
2. Connect the [AUDIO IN (L-AUDIO-R)] terminal on the back of the projector and the Audio out terminal on your AV device using
an audio cable (Not supplied).
Installation and Connection
2-14
2-15 Connecting using a Video cable
Make sure that the AV device and your projector are turned off.
1. Connect the AV device to the [VIDEO] port using a VIDEO cable (not supplied).
- For supported input signal formats, see AV Timing (VIDEO) in section 2-8, "Supported Display Modes".
2. Connect the [AUDIO IN (L-AUDIO-R)] terminal on the back of the projector and the Audio out terminal on your AV device
using an audio cable (Not supplied).
2-15
Installation and Connection
2-16 Connecting an External Speaker
You can hear sound through an external speaker instead of the internal speakers built into the projector.
1. Obtain an audio cable (Not supplied) suitable for your external speaker.
2. Connect the [AUDIO OUT/ ] terminal of the projector to the external speaker using an audio cable.
- When using an external speaker, the internal speaker does not operate, but you can adjust the volume of the external
speaker using the Volume button or the remote control of the projector.
- The [AUDIO OUT/
] terminal can output all audio signals.
Installation and Connection
2-16
2-17 Kensington Lock slot
The Kensington Lock slot allows you to lock your projector, providing a sense of security when you use it in a public place.
Because the shape and usage of the lock may differ depending on the model and the manufacturer, see the User Manual
supplied with the locking device for more information.
Locking the product
1. Loop the Kensington lock cable around an immovable part of desk or heavy object as directed in the Kensington lock user
manual.
2. Insert the locking part of the locking device into the Kensington lock hole in the projector.
3. Insert the Kensington lock key into the locking mechanism and turn it in the locking direction.
You can purchase a locking device from an electronics store or an online shop.
2-17
Installation and Connection
3
Using
3-1
Product Features
1. An optical engine adopting new LCD technology
•
1024 x 768 resolution.
•
3P-LCD panel.
•
SP-M201 : Provides a bright, 2000 lumen screen.
•
SP-M221 : Provides a bright, 2200 lumen screen.
•
SP-M251 : Provides a bright, 2500 lumen screen.
•
SP-M270 : Provides a bright, 2700 lumen screen.
•
SP-M300 : Provides a bright, 3000 lumen screen.
2. Minimized fan noise
•
Minimizes fan noise through optimized internal air flow and the fan installation structure.
3. Multiple input terminals
•
Increases the connectivity to peripheral devices such as D-Sub 15P (supporting DTV signal), Video, HDMI, PC OUT, etc.
(The PC OUT function is only be supported by the SP-M270 and SP-M300 models.)
4. Audio Output
•
Equipped with an internal 7W (mono) speaker.
5. User adjustments
•
Allows adjustment of each input port.
•
Equipped with an internal Test Pattern that can be used to install and adjust the projector.
•
Compact size, lightweight, and portable.
Using
3-1
3-2
Front, Upper
ICON
NAME
DESCRIPTION
- STAND BY (Blue LED)
Indicators
- LAMP (Blue LED)
- STATUS (Green/Red/Yellow LED)
Refer to the LED Indications.
Move
/ Select
Volume
button
/
/
: Use to move or to select an item within a menu.
: Use to adjust the volume.
MENU button
Use to display the Menu Screen.
SOURCE button
Use to select the external device signal.
POWER button
Use to turn the projector on or off.
Zoom Knob
Use to enlarge or reduce image size.
Focus Ring
Use for Focus Adjustment.
Lens
Remote Control Signal Receiver
Hole for attaching lens cap string
3-2
Using
3-3
Remote Control
Using your projector with another remote control device nearby may result in improper functioning due to
remote control code (frequency) interference.
1. POWER ( ) Button
Use this button for turning the product on and off.
2. AUTO Button
Adjusts the Picture automatically. (Available in <PC> Mode Only)
3. MENU (
) Button
Use to display the Menu Screen.
4. Move (
)/ ( ) Buttons
Use to move to or select each menu item.
5. V. KEYSTONE Button (
)
Use when the screen is displayed in a trapezoid shape.
6. INSTALL Button
Use to adjust the image so that it is appropriate for the projector's
installation location (In front of the screen and hangng from the ceiling,
behind the screen and hanging from the ceiling, etc.)
7. BLANK Button
Use to turn off the screen and sound temporarily. The video and audio will
come back on when you press any button other than the [POWER]
button.
8. P.SIZE Button
Use to adjust the size of picture screen.
9. QUICK Button
Use to return to the last menu used quickly.
10. MUTE ( ) Button
Press to mute the sound temporarily. Press the MUTE button again or the
VOL button (
) when the sound is muted to hear sound again.
11. RETURN ( ) Button
Returns to the previous menu.
12. EXIT ( ) Button
Use to make the Menu Screen disappear.
13. VOL (
) Button
Use to control the volume.
14. INFO Button
Use to check source signals, picture setup, PC screen adjustment, and
lamp lifespan.
15. SOURCE Button
Use to check or select the connection status of external devices.
16. P.MODE Button
Use to select Picture Mode.
17. STILL Button
Use to see still images.
Using
•
Make sure to place your remote control on a table or desk.
If you step on the remote control, you may fall and hurt yourself or
damage the remote.
•
You can use the remote control up to a distance of about 32.8 feet
(10 m) from the product.
3-3
3-4
LED Indications
LED Indications
:Light is On
STATUS
:Light is Blinking
LAMP
:Light is Off
STAND BY
STATUS
If you press the [POWER] button on the remote control or projector, the screen
appears within 30 seconds.
The projector is operating normally.
The projector is preparing an operation after the [POWER] button on the projector or the remote control has been pressed.
The [POWER] button has been pressed to turn off the projector, and the cooling system is in operation to cool off the inside of the projector. (Operates for
about 3 seconds.)
The cooling fan inside the projector is not operating normally. Refer to Action 1
in Clearing Indicator Problems below.
The lamp cover protecting the lamp unit is not closed properly. Refer to Action 2
in Clearing Indicator Problems below.
The projector has changed to Cooling mode because its internal temperature
has increased beyond the maintenance limit.
Refer to Action 4 in Clearing Indicator Problems below.
The projector has turned itself off automatically because its internal temperature has increased beyond the maintenance limit. Refer to Action 5 in Clearing
Indicator Problems below.
A problem has occurred with the operation of the lamp. Refer to Action 6 below.
3-4
Using
Clearing Indicator Problems
CLASSIFICA
TION
STATE
MEASURES
The cooling fan system is not
operating normally.
If the symptom remains even after disconnecting and then reconnecting
the power cord and turning the projector on again, contact your product
provider or our service center.
Action 2
The lamp cover protecting the
lamp unit is not properly closed
or the sensor system is not
operating normally.
Check if the screws on the side of the projector are securely tightened. If
they are and the indicators are still lit, contact your product distributor or a
service center.
Action 3
The lens cover has not opened
completely.
Open the lens cover completely.
The projector has changed to
the Cooling mode because the
internal temperature of the projector has increased beyond
the maintenance limit.
If the internal temperature of the projector has increased beyond the maintenance limit, the projector changes to the Cooling mode before turning off
automatically.
Action 1
Action 4
* In Cooling mode, the fan speed is increased and the projector’s lamp is
changed to <ECO> mode.
Check whether the ventilation hole of the projector is blocked.
Check the air filter and clean if blocked.
Check whether the surrounding temperature of the projector is higher than
the standard temperature range of the projector.
Cool the projector sufficiently and operate it again.
Action 5
The internal temperature of the
projector has risen higher than
the limit, and the projector has
turned off automatically.
Check whether the ventilation hole of the projector is blocked.
Check the air filter and clean if blocked.
Check whether the surrounding temperature of the projector is higher than
the standard temperature range of the projector.
Cool the projector sufficiently and operate it again.
If the same problem occurs continually, contact your product distributor or
service center.
Action 6
The lamp has malfunctioned
after power turns off abnormally
or after the projector is powered
on right after turning off.
Turn the power off, wait for a sufficient amount of cooling time and then
turn the power on to operate. If the same problem occurs continually, contact a Samsung service center.
This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may produce noise,
This does not affect product performance and is part of normal operation.
Using
3-4
3-5
Using the Screen Adjustment Menu (OSD: On Screen Display)
The Screen Adjustment Menu (OSD: On Screen Display) Structure
To access the Menu, press the Menu button on the product or on the remote. To move in the menu, press the arrow buttons.
Menu selections with an arrow on the far right have sub-menus. Press the right arrow button to access the sub-menu. Directions
for navigating and selecting items in a menu are at the bottom of each menu screen.
MENU
SUB-MENU
Input
Source List
Edit Name
Mode
Size
Position
Digital NR
Overscan
Film Mode
PC
Zoom
Install
Lamp Mode
Auto Keystone
V-Keystone
Test Pattern
Video Type
Caption
Reset
Language
Menu Option
Sound
Filter Check Time
Auto Power On
Sleep Timer
Melody
Security
Panel Lock
Information
Setup
Option
Black Level
Background
3-5-1. Input
MENU
Source List
DESCRIPTION
You can select a device connected to the projector to display.
•
Edit Name
<PC>-<AV>-<HDMI>
You can edit the names of devices connected to the projector.
•
<VCR>-<DVD>-<Cable STB>-<Satellite STB>-<PVR STB>-<AV Receiver>-<Game><Camcorder>-<PC>-<DVI Devices>-<TV>-<IPTV>-<Blu-ray>-<HD DVD>-<DMA>
3-5-2. Picture
3-5
Using
MENU
Mode
DESCRIPTION
Select a screen mode to match the environment, the kind of images you are projecting, or select a
customized mode you have created based on your requirements.
•
<Mode>
•
<Dynamic> : Selects the picture for increased definition in a bright room.
•
<Standard> : Selects the picture for the optimum display in a normal environment.
•
<Presentation> : This mode is suitable for presentations.
•
<Text> : This mode is suitable for text work.
•
<Movie> : This mode is suitable for viewing a movie.
•
<Game> : This picture mode is optimized for playing games.
In <Game> mode, the text in still pictures may appear unnatural.
•
<User> : This is a customized mode you create using the <Mode>→<Save> function.
<Presentation> and <Text> modes are only enabled if the input signal is a PC Timing (D-Sub/
HDMI) signal.
•
<Contrast> : Used to adjust the contrast between the object and the background.
•
<Brightness> : Used to adjust the brightness of the entire picture.
•
<Sharpness> : Used to adjust the sharpness of the picture.
When the input signal is a PC Timing (D-Sub/HDMI) signal, the <Sharpness> cannot be
adjusted.
•
<Color> : Used to adjust color lighter or darker.
When the input signal is a PC Timing (D-Sub/HDMI) signal, the <Color> cannot be adjusted.
•
<Tint> : Used to obtain more natural color by enhancing the amount of green or red in images.
When the input signal is a PC Timing (D-Sub/HDMI) signal or PAL and SECAM signal in the
[AV] modes, the <Tint> cannot be adjusted.
•
•
Size
<Color Tone> : The tone of the color can be changed.
•
Factory defaults: <COOL2>, <COOL1>, <WARM1>, <WARM2>
•
You can select the color temperature for the items below according to your preferences.
<R-Gain>, <G-Gain>, <B-Gain> : Adjusts the color temperature of the White level.
<R-Offset>, <G-Offset>, <B-Offset> : Adjusts the color temperature of the Black level.
•
<Color Tone>-<R-Gain>-<G-Gain>-<B-Gain>-<R-Offset>-<G-Offset>-<B-Offset>
<Gamma> : Changes the brightness characteristic for each color tone of an image.
•
The larger (+) the value, the greater the contrast of the bright and dark parts.
The smaller (-) the value, the darker the dark parts.
•
Adjustable range: -3 to +3
•
<Save> : You can save the status of a screen you adjusted according to your preferences using
the <Mode>→<User> OSD.
•
<Reset> : Restores the mode settings to the factory defaults.
Using this function, you select a screen size.
When the input signal is a PC Timing (D-Sub/HDMI) signal, <Zoom1>/<Zoom2> is not
supported.
•
Using
<Normal>-<Zoom1>-<Zoom2>-<16 : 9>
3-5
MENU
Position
DESCRIPTION
Using this function, you can adjust the screen position if it is not aligned.
To adjust, select the direction you want to move the screen, and then press the arrow button pointing
in that direction repeatedly.
Digital NR
If dotted lines appear in an image or the screen shakes, enabling Digital NR (Noise Reduction) can
improve the quality of the picture.
When the input signal is a PC Timing (D-Sub/HDMI) signal, <Digital NR> does not operate.
Black Level
If the black level is unsuitable for the input signal, the dark parts of an image may look unclear or dim.
Using this function, you can select a black level that can improve the visibility of the dark parts.
The <Black level> can only be set for the 480i and 576i RGB signals in the [AV], and AV Timing
(D-Sub) modes.
For [AV], and the 480i and 576i signals of AV Timing (D-Sub).
•
<0 IRE> : Sets the black level to <0 IRE>.
•
<7.5 IRE> : Sets the black level to <7.5 IRE>.
For the RGB signal of <HDMI> mode.
Overscan
Film Mode
•
<Normal> : Used in a normal environment.
•
<Low> : Used when the dark parts of an image are too bright.
Using this function, you can cut off edge of the a picture when unnecessary information or images
appear on the edge of the picture.
•
Overscan is not supported in [AV] modes.
•
Overscan is supported only when the input signal is an AV Timing (D-Sub) or AV Timing
(HDMI) signal.
•
If <Overscan> is turned off, unnecessary extra parts at the edges of an image may be
shown. In this case, turn <Overscan> on.
Using this function, you can set the display mode so that it is optimized for playing movies.
•
<Off>-<Auto>
<Film Mode> is only be supported for the [AV], 480i, and 576i of AV Timing (D-Sub) signals.
PC
Zoom
For PC signals, the four PC functions eliminate or reduce noise that causes unstable screen quality,
such as screen shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to
the maximum and then perform Fine Adjustment again.
•
These functions are only enabled for the PC Timing (D-Sub/HDMI) input of the D-Sub
terminal.
•
Refer to PC Timing (D-Sub/HDMI).
•
<Auto Adjustment> : Used to adjust the frequency and phase of PC screen automatically.
•
<Coarse> : Used to adjust the frequency when vertical lines appear on the PC screen.
•
<Fine> : Used to fine tune the PC screen.
•
<Reset> : Using this function, you can reset the PC menu settings to the factory default settings.
You can magnify the screen to a size you want.
•
<x1> - <x2> - <x4> - <x8>
This function is only enabled when the input signal is a PC Timing (D-Sub/HDMI) signal.
3-5
Using
3-5-3. Setup
MENU
DESCRIPTION
Install
To tailor the picture to the installation location, (for example, behind a semi-transparent screen, hanging from the ceiling), you can invert the projected images vertically / horizontally.
•
Lamp Mode
Auto Keystone
•
<Front-Ceiling> : Horizontal/Vertical Reversed Image
•
<Rear-Floor> : Horizontally Reversed Image
•
<Rear-Ceiling> : Vertically Reversed Image
Using this function, you can set the image brightness by adjusting the amount of light generated by
the lamp.
•
<Eco> : This mode is optimized for screens smaller than 100 inches.
This mode decreases the lamp brightness and power consumption in order to extend the lamp
lifetime and reduce noise and power consumption.
•
<Bright> : This mode maximizes lamp brightness. Use when the ambient lighting is bright. As the
brightness of the lamp increases, the lamp lifetime can be reduced and the noise and power
consumption may increase.
If video scenes are distorted or tilted, you can compensate for this by setting the <Auto Keystone>
function to <On> so that the <V-Keystone> function automatically starts.
•
V-Keystone
Background
Using
<Off>-<On>
If video scenes are distorted or tilted, you can compensate for this using the vertical Keystone function.
•
The sound output of your projector is temporarily stopped while the keystone is being
changed.
•
Keystone does not compensate for distorition in the On Screen Display (OSD) menu.
You can select an image or screen which will appear when there is no signal from the external device
connected to the projector.
•
Test Pattern
<Front-Floor> : Normal Image
<Logo>-<Blue>-<Black>
A default test pattern built into the projector. You can use it as a reference picture to optimize the
installation of the projector and to optimize images.
•
<Crosshatch> : You can check whether the picture is distorted or not.
•
<Screen Size> : You can reference and display picture format sizes such as 1.33 : 1 or 1.78 : 1.
3-5
MENU
DESCRIPTION
Video Type
If the screen quality is abnormal as a result of the projector not identifying the input signal type automatically in <PC> or <HDMI> mode, Video Type lets you manually set the input signal.
•
In <PC> mode, the menu is only enabled for AV Timing (D-Sub) input signals. For separate H/V
sync, it is only enabled for a 1280 x 720p 59.94Hz/60Hz signal.
•
•
<Auto>-<RGB(PC)>-<RGB(AV)>-<YPbPr(AV)>
In <HDMI> mode, <Video Type> is only enabled for the 640x480p 59.94Hz/60 Hz and 1280x720p
59.94Hz/60 Hz signals.
•
Caption
Reset
3-5
<Auto>-<PC>-<AV>
The <Caption> function is supported when the external analog signal from the Video input contains
subtitles.
•
<Caption> : <Off>-<On>
•
<Mode> : <Caption>-<Text>
•
<Channel> : <1>-<2>
•
<Field> : <1>-<2>
•
The <Caption> function will not operate in <PC> (including Component) or <HDMI> mode.
•
Depending on the external signal, a change to the channel or <Field> settings may be
required.
•
Each <Channel> and <Field> contains different information. <Field><2> carries additional
information to supplement information contained in <Field><1>.
(e.g. If English subtitles are provided on <Channel><1>, Spanish subtitles will be provided
on <Channel><2>.)
Using this function, you can reset various settings to the factory default settings.
•
<Factory Default> : Changes the settings to the factory defaults.
•
<Reset Filter Time> : Resets the filter time.
Using
3-5-4. Option
MENU
Language
Menu Option
DESCRIPTION
Using this function, you can select the language used for the menu screen.
•
<Position> : You can move Menu Position up/down/left/right.
•
<Transparency> : You can set the translucency of the menu.
•
<Display Time> : You can set the display time of the menu.
•
•
Sound
<5 sec>-<10 sec>-<30 sec>-<60 sec>-<90 sec>-<120 sec>-<Stay On>
The projector comes with an internal 7W (mono) speaker. Use the settings below to adjust the sound.
•
Filter Check Time
<High>-<Medium>-<Low>-<Opaque>
<100Hz>-<300Hz>-<1kHz>-<3kHz>-<10kHz>
Sets the check period for the filter. (Unit: hours)
•
<Off>-<100>-<200>-<400>-<800>
If the filter usage time is larger than the filter check period, the filter check message is
displayed for 1 minute whenever the projector is turned on.
Filter check message: "<Check the filter, and if necessary, clean or replace it.>".
Auto Power On
With Auto Power On, if power is supplied to the projector, it turns on automatically without your pressing the Power button.
•
Sleep Timer
<Off>-<On>
With Sleep Timer on, if there is no input signal for the specified time, the projector turns off automatically.
(There must be no button input from the remote control or the top of the projector for the specified
time)
•
Melody
Set so that a melody plays when the Projector is turned on or off.
•
Security
<Off>-<10 min>-<20 min>-<30 min>
<Off> - <Low> - <Medium> - <High>
To deter theft, you can set a password that users must enter when the projector powers on. When
you set a password, the projector will not work without it.
•
•
<Power On Protection>
•
<Off> : Enter your current password and set the protection function to off.
•
<On> : Enter a new password and set the protection function to on.
<Change Password> : Change your current password.
Use the displayed number keys to enter or change the password.
Using
3-5
MENU
Panel Lock
DESCRIPTION
You can disable the buttons on the projector body so that the projector can only be operated by the
remote control.
•
Information
3-5
<Off> - <On>
You can check external source signals, picture setup, and PC picture adjustment.
Using
4
Troubleshooting
4-1
Before Requesting Service
Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest
Samsung Electronics Service Center.
Symptoms
Installation and
Connection
Menu and
Remote
Control
Troubleshooting
No Power.
Check the power cable connections.
I want to install my projector on the ceiling.
The ceiling installation bracket is sold separately. Contact your
local product distributor.
External Source can not be selected.
Be sure that the video cable or cables are properly con-nected
to the correct jack or jacks on both ends. If the device is not
connected properly, it can not be selected.
Remote control does not work.
Be sure that the proper external source is selected.
Check the battery in the remote. If there is something wrong
with it, replace it with a new battery of the recommended size.
Be sure to aim the remote at sensor on the back of the unit and
at a distance of no more than approximately 32.8 feet(10 m).
Remove any obstacles between your remote control and the
product.
Direct light from 3-way light bulbs or other lighting devices on
the remote sensor of the projector may affect the sensitivity
and cause the remote control to malfunction.
Check if the remote control battery compartment is empty.
Check whether the LED indicator on the top of the projector is
turned on.
I cannot select a menu.
Troubleshooting
Check if the menu is displayed in gray. Gray-colored menu
items are unavailable.
4-1
Symptoms
Screen and
External
Source
Cannot see picture images.
Troubleshooting
Be sure that the power cord of the projector is connected.
Be sure that the proper input source is selected.
Check that the connectors are properly connected to the ports
at the back of the projector.
Check the Remote Control batteries.
Be sure that the <Color> and<Brightness> settings are not at
their lower limit.
Poor color.
Adjust the <Tint> and <Contrast>.
Images are not clear.
Adjust the focus.
Check if the projector is too far from or too near to the screen.
Strange noise.
If a strange sound continues, contact your Service Center.
An operating LED is lit.
Refer to the LED Indications section.
Lines appear on screen.
On-screen noise may occur when using your PC. Adjust the
frequency (refresh rate) of the screen.
No external device screen is displayed.
Check the operating status for the external device and check
whether the adjustable menu items, such as <Brightness> and
<Contrast> have been changed correctly in the <Mode> command screen of the Projector menu.
Only a blue screen appears.
Be sure to properly connect the external devices. Check the
connection cables again.
Screen appears in black and white or in an
odd color, or the screen is too dark or bright.
As mentioned above, check the adjustable items such as
<Brightness>, <Contrast>, or <Color> in the menu.
If you want to restore various settings to their factory defaults,
run <Factory Default> from the menu.
4-1
Troubleshooting
5
More Information
5-1
Specifications
5-1-1. SP-M201 / SP-M221 / SP-M251
MODEL
Panel
Size
0.63 inches 3P LCD
Resolution
XGA (1024 x 768)
Aspect ratio
Power
Lamp
SP-M201
SP-M221
4:3
Power Consumption
240 W
240 W
Voltage
100 ~ 240 V AC, 50/60 Hz
Power Consumption
180 W
Life Time
3,000 Hours (Eco : 5,000 Hours )
180 W
Dimension
279 x 229 x 79 mm / 10.98 x 9.02 x 3.11 inches
Weight
2.74 Kg / 6.04 lbs
Key Features
Input signal
Brightness
2,000 ANSI
Contrast
2000:1 (Only in Dynamic of picture mode)
Projection Range
1 m ~ 14 m / 39.37 inches ~ 551.18 inches
Keystone
Vertical ( ± 20 ° )
Zoom Adjustment ff
Manual
Focus Adjustment
Manual
Screen Size (Diagonal)
Diagonal 30 inches ~ 400 inches
Lens
F=1.7 ~ 1.87, f=19.2mm ~ 23 mm
Zoom Ratio
1:1.2
D-Sub 15p
Analog RGB, analog YPbPr
HDMI
Digital RGB, digital YPbPr
RCA x 1
Composite video
Speaker
User Environment
SP-M251
2,200 ANSI
260 W
200 W
2,500 ANSI
7 W (Mono)
Temperature and Humidity
Operating : Temperature 41 °F ~ 95 °F (5 °C ~ 35 °C),
Humidity 20 % ~ 80 % (Non-condensing)
Storage : Temperature 14 °F ~ 140 °F (-10 °C ~ 60 °C),
Humidity 10 % ~ 90 % (Non-condensing)
Noise
More Information
Eco : 31dB, Bright : 35dB
5-1
5-1-2. SP-M270 / SP-M300
MODEL
Panel
Size
0.63 inches 3P LCD
Resolution
XGA (1024 x 768)
Aspect ratio
Power
Lamp
SP-M270
SP-M300
4:3
Power Consumption
290 W
Voltage
100 ~ 240 V AC, 50/60 Hz
Power Consumption
220 W
Life Time
3,000 Hours (Eco : 5,000 Hours )
Dimension
279 x 229 x 79 mm / 10.98 x 9.02 x 3.11 inches
Weight
2.74 Kg / 6.04 lbs
Key Features
Input signal
Output signal
Brightness
2,700 ANSI
Contrast
2000:1 (Only in Dynamic of picture mode)
Projection Range
1 m ~ 14 m / 39.37 inches ~ 551.18 inches
Keystone
Vertical ( ± 20 ° )
Zoom Adjustment ff
Manual
Focus Adjustment
Manual
Screen Size (Diagonal)
Diagonal 30 inches ~ 400 inches
Lens
F=1.7 ~ 1.87, f=19.2mm ~ 23 mm
Zoom Ratio
1:1.2
D-Sub 15p
Analog RGB, analog YPbPr
HDMI
Digital RGB, digital YPbPr
RCA x 1
Composite video
D-Sub 15p
Analog RGB, analog YPbPr
Speaker
User Environment
3,000 ANSI
7 W (Mono)
Temperature and Humidity
Operating : Temperature 41 °F ~ 95 °F (5 °C ~ 35 °C),
Humidity 20 % ~ 80 % (Non-condensing)
Storage : Temperature 14 °F ~ 140 °F (-10 °C ~ 60 °C),
Humidity 10 % ~ 90 % (Non-condensing)
Noise
Eco : 31dB, Bright : 35dB
Class B (Information Communication equipment for residential use)
This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment
emits less electromagnetic waves than Class A equipment.)
The LCD panel used in the LCD projector consists of hundreds of thousands of fine pixels. Like other video display devices,
the LCD panel may contain bad pixels which do not operate. When shipping a product, the conditions for identifying bad
pixels and the number of bad pixels that a LCD panel is allowed to contain are strictly managed in accordance with the
relevant specified standards by the LCD panel manufacturer and our company. Though a screen may have some dead
pixels, this does not affect the overall screen quality and the lifetime of the product.
5-1
More Information
5-2
RS232C Command Table
Communication Format (Complies with the RS232C Standard)
•
Baud rate : 9,600 bps
•
parity : None
•
Data bits : 8, stop bit : 1
•
Flow Control : None
Serial Communication Protocol
1. Command Packet Structure [7bytes]
0x08
0x22
cmd1
cmd2
•
A command packet consists of 7 bytes in total.
cmd3
value
•
The two bytes 0x08 and 0x22 signify that the packet is for serial communication.
•
The following 4 bytes represent a pre-defined command that can be defined by the user.
•
The last byte is the checksum which checks the validity of the current packet.
•
Header [2 Byte]: Pre-defined values fixed to 0x08 and 0x22.
•
Cmd1 [1 Byte]: The first value of the code defined in the command list (Hexadecimal)
•
Cmd2 [1 Byte]: The second value of the code defined in the command list (Hexadecimal)
•
Cmd3 [1 Byte]: The third value of the code defined in the command list (Hexadecimal)
•
Value [1 Byte]: Input parameter for the command (Default: 0) (Hexadecimal)
•
CS [1 Byte]: Checksum (the 2’s complement of the sum of all the values except for the CS value.)
CS
2. Response Packet Structure [3 Bytes]
1. Success
0x03
0x0C
0xF1
0x03
0x0C
0xFF
2. Fail
•
When the received packet from an external device has a valid value, a Success packet is sent. Otherwise, a Fail
packet is sent.
•
A Fail packet is sent if:
•
•
The received packet length is not equal to 7 bytes.
•
The 2 byte packet header value is not equal to 0x08, 0x22.
•
The check sum is incorrect.
Failure detection by an external device
•
An external device classifies the packet as Fail if it does not receive a Success packet within 100ms.
More Information
5-2
Command Table
CONTROL ITEM
General
Power
Volume
Power
CMD1
Display OSD
/ Power On
Mute
0x00
CMD3
0x00
Cancel
2
Direct Power
Off
3
0x01
0x00
(0~100)
Up
0x01
0
Down
0x02
0
0x00
0
0x02
0x00
0x00
Off
On
1
0x03
0x00
0x00
Off
Still
On
Input
5-2
Source List
0
1
0x04
0x00
0x00
Off
Power On
Protection
0
1
On
Blank
VALUE
OK
Direct Volume
Continuous
0x00
CMD2
0
1
(0~9)
0x05
0x00
0x00
(0~9)
AV
AV
0x0A
0x00
0x01
0
PC
PC
0x03
0
HDMI
HDMI
0x04
0
More Information
CONTROL ITEM
Mode
Dynamic
0x0B
CMD2
0X00
CMD3
0x00
VALUE
0
Standard
1
Presentation
2
Text
3
Movie
4
Game
5
User
6
Contrast
0~100
0X02
0x00
(0~100)
Brightness
0~100
0X03
0x00
(0~100)
Sharpness
0~100
0X04
0x00
(0~100)
Color
0~100
0X05
0x00
(0~100)
G50 / R50
0x06
0x00
(0~100)
0x0A
0x00
1
Tint (G/R)
Color Tone
WB
More Information
CMD1
Cool2
Cool1
2
Warm1
3
Warm2
4
R offset
0x0B
0x00
(0~100)
G offset
0x01
(0~100)
B offset
0x02
(0~100)
R gain
0x03
(0~100)
G gain
0x04
(0~100)
B gain
0x05
(0~100)
5-2
CONTROL ITEM
Gamma
-3~3
Save
Display OSD
CMD1
0x0B
Digital NR
CMD3
0x0C
0x00
(0~6)
0x0D
0x00
0
1
Cancel
2
Direct Save
3
Normal
0x0E
0x00
0
0x0F
0x00
0
Zoom1
1
Zoom2
2
16:9
3
Off
0x10
0x00
On
Black Level
0 IRE/NORMAL
0x11
0x00
Off
0x12
0x00
Off
0x13
0x00
UP
0x14
0x00
0
0x15
0x00
0
DOWN
fine
Up
1
0x16
0x00
DOWN
Reset
Zoom
x1
Display OSD
0
1
0x17
0x00
0
OK
1
Cancel
2
Direct Reset
3
0x18
0x00
0
x2
1
x4
2
x8
3
LEFT
5-2
0
1
Auto adjustment
Coarse
0
1
Auto
PC
0
1
On
Film Mode
0
1
7.5 IRE/LOW
Overscan
VALUE
OK
Reset
Size
CMD2
0x19
0x00
0
RIGHT
1
Up
2
Down
3
More Information
CONTROL ITEM
More Information
Horizontal
Position
Continuous
Vertical Position
Continuous
CMD1
LEFT
0x0B
CMD2
0x1A
CMD3
0x00
RIGHT
DOWN
Up
VALUE
0
1
0x1B
0x00
0
1
5-2
CONTROL ITEM
Setup
Install
Lamp Mode
CMD1
Front-Floor
0x0C
CMD2
0x00
CMD3
0x00
Background
Test Pattern
Video Type
Reset
1
Rear-Floor
2
Rear-Ceiling
3
ECO
0x01
0x00
-50~50
Auto Keystone
Off
0x02
0x00
(0~100)
0x02
0
On
Logo
1
0x03
0x00
0
Blue
1
Black
2
Crosshatch
0x04
0x00
0
Screen size
1
Pattern Off
2
Auto
0x05
0x00
0
RGB(PC)
1
RGB(AV)
2
YPbPr(AV)
3
PC
4
AV
5
Factory
Default
Caption
Display OSD
0x06
0x00
Mode
1
Cancel
2
Direct Factory Default
3
Display OSD
0x01
1
Cancel
2
Direct Reset
Filter Time
3
Off
0x07
0x00
Caption
1
1
2
0
1
0x01
0
1
0x02
2
Field
0
Ok
Text
Channel
0
Ok
On
5-2
0
2
V-Keystone
Reset Filter
Time
Caption
0
Front-Ceiling
Bright
Keystone
VALUE
0
1
0x03
0
1
More Information
CONTROL ITEM
Option
Language
Menu Option
English
0x0D
CMD2
0x00
CMD3
0x00
VALUE
0
Deutsch
1
Nederlands
2
Español
3
Français
4
Italiano
5
Svenska
6
Português
7
Русский
8
中国语
9
한국어
10
Türkçe
11
ไทย
12
Position
Transparency
Display Time
More Information
CMD1
LEFT
0x01
0x00
0
RIGHT
1
UP
2
DOWN
3
High
0x02
0x00
0
Medium
1
Low
2
Opaque
3
5 sec
0x03
0x00
0
10 sec
1
30 sec
2
60 sec
3
90 sec
4
120 sec
5
Stay On
6
5-2
CONTROL ITEM
Option
Sound
100Hz
CMD1
Up
0x0D
CMD2
0x04
CMD3
0x01
Down
300Hz
Up
0x02
Up
0x03
Up
0x04
Off
Up
0x05
1
0x05
0x00
200
2
400
3
800
4
Sleep Timer
Off
0x06
0x00
On
0
1
0x07
0x00
0
10 min
1
20 min
2
30 min
3
Information
Off
0x08
0x00
0
0x0A
0x00
0
On
5-2
0
1
Off
Melody
0
100
Auto Power
ON
Panel Lock
0
1
Down
Filter Check
Time
0
1
Down
10KHz
0
1
Down
3KHz
0
1
Down
1KHz
VALUE
Off
1
0x0B
0x00
0
Low
1
Medium
2
High
3
More Information
5-3
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
NORTH AMERICA
U.S.A
1-800-SAMSUNG (726-7864)
http://www.samsung.com
CANADA
1-800-SAMSUNG (726-7864)
http://www.samsung.com
MEXICO
01-800-SAMSUNG (726-7864)
http://www.samsung.com
LATIN AMERICA
ARGENTINA
0800-333-3733
http://www.samsung.com
BRAZIL
0800-124-421
http://www.samsung.com
4004-0000
CHILE
800-SAMSUNG (726-7864)
http://www.samsung.com
COLOMBIA
01-8000112112
http://www.samsung.com
COSTA RICA
0-800-507-7267
http://www.samsung.com
ECUADOR
1-800-10-7267
http://www.samsung.com
EL SALVADOR
800-6225
http://www.samsung.com
GUATEMALA
1-800-299-0013
http://www.samsung.com
HONDURAS
800-7919267
http://www.samsung.com
JAMAICA
1-800-234-7267
http://www.samsung.com
NICARAGUA
00-1800-5077267
http://www.samsung.com
PANAMA
800-7267
http://www.samsung.com
PERU
0-800-777-08
http://www.samsung.com
PUERTO RICO
1-800-682-3180
http://www.samsung.com
REP. DOMINICA
1-800-751-2676
http://www.samsung.com
TRINIDAD & TOBAGO
1-800-SAMSUNG (726-7864)
http://www.samsung.com
VENEZUELA
0-800-100-5303
http://www.samsung.com
EUROPE
ALBANIA
42 27 5755
-
AUSTRIA
0810 - SAMSUNG (7267864,€ 0.07/
min)
http://www.samsung.com
BELGIUM
02-201-24-18
http://www.samsung.com/be (Dutch)
http://www.samsung.com/be_fr
(French)
BOSNIA
05 133 1999
-
BULGARIA
07001 33 11
http://www.samsung.com
CROATIA
062 SAMSUNG (062 726 7864)
http://www.samsung.com
More Information
5-3
EUROPE
CZECH
800 - SAMSUNG (800-726786)
http://www.samsung.com
DENMARK
70 70 19 70
http://www.samsung.com
EIRE
0818 717100
http://www.samsung.com
ESTONIA
800-7267
http://www.samsung.com
FINLAND
030 - 6227 515
http://www.samsung.com
FRANCE
01 48 63 00 00
http://www.samsung.com
GERMANY
01805 - SAMSUNG (726-7864,€ 0,14/
Min)
http://www.samsung.com
HUNGARY
06-80-SAMSUNG (726-7864)
http://www.samsung.com
ITALIA
800-SAMSUNG (726-7864)
http://www.samsung.com
KOSOVO
+381 0113216899
-
LATVIA
8000-7267
http://www.samsung.com
LITHUANIA
8-800-77777
http://www.samsung.com
LUXEMBURG
261 03 710
http://www.samsung.com
MACEDONIA
023 207 777
-
MONTENEGRO
020 405 888
-
NETHERLANDS
0900 - SAMSUNG (0900-7267864) (€
0,10/Min)
http://www.samsung.com
NORWAY
815-56 480
http://www.samsung.com
POLAND
0 801 1SAMSUNG (172678)
http://www.samsung.com
022 - 607 - 93 - 33
PORTUGAL
80820 - SAMSUNG (726-7864)
http://www.samsung.com
RUMANIA
1. 08010 SAMSUNG (72678) – doar din
reţeaua Romtelecom, tarif local;
http://www.samsung.com
2. 021.206.01.10 – din orice reţea, tarif
normal
SERBIA
0700 Samsung (0700 726 7864)
http://www.samsung.com
SLOVAKIA
0800-SAMSUNG (726-7864)
http://www.samsung.com
SPAIN
902 - 1 - SAMSUNG (902 172 678)
http://www.samsung.com
SWEDEN
0771 726 7864 (SAMSUNG)
http://www.samsung.com
SWITZERLAND
0848-SAMSUNG (7267864, CHF 0.08/
min)
http://www.samsung.com/ch
0330 SAMSUNG (7267864)
http://www.samsung.com
U.K
http://www.samsung.com/ch_fr (French)
CIS
ARMENIA
0-800-05-555
-
AZERBAIJAN
088-55-55-555
-
BELARUS
810-800-500-55-500
-
GEORGIA
8-800-555-555
-
5-3
More Information
CIS
KAZAKHSTAN
8-10-800-500-55-500 (GSM: 7799)
http://www.samsung.com
KYRGYZSTAN
00-800-500-55-500
http://www.samsung.com
MOLDOVA
00-800-500-55-500
-
RUSSIA
8-800-555-55-55
http://www.samsung.com
TADJIKISTAN
8-10-800-500-55-500
http://www.samsung.com
UKRAINE
0-800-502-000
http://www.samsung.com/ua
http://www.samsung.com/ua_ru
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.com
ASIA PACIFIC
AUSTRALIA
1300 362 603
http://www.samsung.com
NEW ZEALAND
0800 SAMSUNG (0800 726 786)
http://www.samsung.com
CHINA
400-810-5858
http://www.samsung.com
010-6475 1880
HONG KONG
(852) 3698 - 4698
http://www.samsung.com/hk
http://www.samsung.com/hk_en/
INDIA
3030 8282
http://www.samsung.com
1800 110011
1800 3000 8282
1800 266 8282
INDONESIA
0800-112-8888
http://www.samsung.com
021-5699-7777
JAPAN
0120-327-527
http://www.samsung.com
MALAYSIA
1800-88-9999
http://www.samsung.com
PHILIPPINES
1-800-10-SAMSUNG (726-7864)
http://www.samsung.com
1-800-3-SAMSUNG (726-7864)
1-800-8-SAMSUNG (726-7864)
02-5805777
SINGAPORE
1800-SAMSUNG (726-7864)
http://www.samsung.com
TAIWAN
0800-329-999
http://www.samsung.com
THAILAND
1800-29-3232
http://www.samsung.com
02-689-3232
VIETNAM
1 800 588 889
http://www.samsung.com
MIDDLE EAST
BAHRAIN
8000-4726
http://www.samsung.com
Egypt
08000-726786
http://www.samsung.com
JORDAN
800-22273
http://www.samsung.com
Morocco
080 100 2255
http://www.samsung.com
Oman
800-SAMSUNG (726-7864)
http://www.samsung.com
Saudi Arabia
9200-21230
http://www.samsung.com
More Information
5-3
MIDDLE EAST
TURKEY
444 77 11
http://www.samsung.com
U.A.E
800-SAMSUNG (726-7864)
http://www.samsung.com
AFRICA
NIGERIA
0800 - SAMSUNG (726-7864)
http://www.samsung.com
SOUTH AFRICA
0860-SAMSUNG (726-7864)
http://www.samsung.com
5-3
More Information
5-4
Correct Disposal - Europe only
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product - Europe only
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg,
Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the
environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.
5-4
More Information
