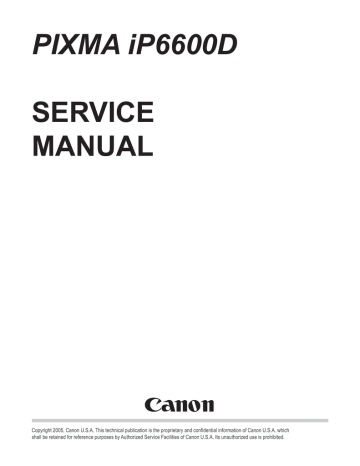

Canon iP6600D - PIXMA Color Inkjet Printer Service manual

PIXMA iP6600D
SERVICE
MANUAL
Canon
Copyright 2005, Canon U.S.A. This technical publication is the proprietary and confidential information of Canon U.S.A. which
shall be retained for reference purposes by Authorized Service Facilities of Canon U.S.A. Its unauthorized use is prohibited.
product. When changes are made to the contents of the manual, Canon will release technical information when
necessary. When substantial changes are made to the contents of the manual, Canon will issue a revised edition.
The following do not apply if they do not conform to the laws and regulations of the region where the manual or product
is used:
Trademarks
Product and brand names appearing in this manual are registered trademarks or trademarks of the respective holders.
Copyright
All rights reserved. No parts of this manual may be reproduced in any form or by any means or translated into another
language without the written permission of Canon Inc., except in the case of internal business use.
Copyright © 2005 by Canon Inc.
CANON INC.
Inkjet Device Quality Assurance Div. 2
451, Tsukagoshi 3-chome, Saiwai-ku, Kawasaki-shi, Kanagawa 212-8530, Japan
I. MANUAL OUTLINE
This manual consists of the following three parts to provide information necessary to service the PIXMA iP6600D:
Part 1: Maintenance
Information on maintenance and troubleshooting of the PIXMA iP6600D
Part 2: Technical Reference
New technology and technical information such as FAQ's (Frequently Asked Questions) of the PIXMA iP6600D
Part 3: Appendix
Block diagrams and pin layouts of the PIXMA iP6600D
Reference:
This manual does not provide sufficient information for disassembly and reassembly procedures. Refer to the graphics in
the separate Parts Catalog.
II. TABLE OF CONTENTS
Part 1: MAINTENANCE
1. MAINTENANCE
1-1. Adjustment, Periodic Maintenance, Periodic Replacement Parts, and Replacement Consumables by
Service Engineer
1-2. Customer Maintenance
1-3. Product Life
1-4. Special Tools
1-5. Serial Number Location
2. LIST OF ERROR DISPLAY / INDICATION
2-1. Operator Call Errors
2-2. Service Call Errors
2-3. Other Error Messages
2-4. Warnings
2-5. Troubleshooting by Symptom
3. REPAIR
3-1. Notes on Service Part Replacement (and Disassembling / Reassembling)
3-2. Special Notes on Repair Servicing
3-3. Adjustment / Settings
(1) Paper feed motor adjustment
(2) Grease application
(3) Waste ink counter setting
(4) User mode
(5) Service mode
Service test print
EEPROM initialization
Waste ink counter reset
Destination settings
Button and LCD test
3-4. Verification Items
(1) Service test print
(2) EEPROM information print
4. PRINTER TRANSPORTATION
Part 2: TECHNICAL REFERENCE
1. NEW TECHNOLOGIES
2. CLEANING MODE AND AMOUNT OF INK PURGED
3. PRINT MODE
3-1. Resolution in Printing via Computer
3-2. Resolution in Borderless Printing
3-3. Resolution in Duplex Printing
3-4. Resolution in Camera Direct Printing
3-5. Resolution in Card Direct Printing
4. FAQ (Problems Specific to the iP6600D and Corrective Actions)
Part 3: APPENDIX
1. BLOCK DIAGRAM
2. CONNECTOR LOCATION AND PIN LAYOUT
2-1. Logic Board Ass'y
2-2. Print Beam Board
2-3. Card Slot Board (Card Slot Unit)
2-4. Operation Panel Board
2-5. Carriage Board (Print Head Connector)
3. PIXMA iP6600D SPECIFICATIONS
4. PRINT MEDIA SPECIFICATIONS
Part 1
MAINTENANCE
1. MAINTENANCE
1-1. Adjustment, Periodic Maintenance, Periodic Replacement Parts, and
Replacement Consumables by Service Engineer
(1) Adjustment
Adjustment
Timing
Purpose
Tool
Approx.
time
EEPROM
initialization
(EEPROM
settings)
At logic board ass'y replacement To initialize settings other than
the following:
- USB serial number
- Destination setting
- Waste ink counter
- CD / DVD correction value
None.
1 min.
Destination
settings
(EEPROM
settings)
At logic board ass'y replacement To set the destination.
None.
Perform in the
service mode.
1 min.
LCD language
settings
At logic board ass'y replacement To set the language to be
displayed on the LCD.
None.
1 min.
Waste ink
counter
resetting
(EEPROM
settings)
- At logic board replacement
- At waste ink absorber
replacement
To reset the waste ink counter.
None.
Perform in the
service mode.
1 min.
CD / DVD
- At logic board replacement
detection sensor - At carriage unit replacement
light volume
correction*1
To correct the light volume for
the CD / DVD detection sensor.
None.
(Automatically
performed in the
service test print)
2 min.
Ink system
function check
- At logic board replacement
- At platen unit replacement
- At carriage unit replacement
To maintain detection
functionality for presence of the
ink tanks and each ink tank
position.
None.
Perform in the
service mode.
1 min.
Paper feed
motor position
adjustment*2
At paper feed motor
replacement
To adjust the belt tension.
(Position the paper feed motor so
that the belt is stretched tight.)
None.
5 min.
Grease
application
- At carriage unit replacement
- At PR shaft ass'y replacement
- At CL base or CL gear
replacement
- To maintain sliding properties
of the carriage shaft and the lift
cam shaft.
- To protect the printer's sliding
portions (gears).
- FLOIL KG107A (QY90057)
1 min.
Note: DO NOT loosen the red screws at both ends of the carriage shaft, securing the print head position, as they are
not re-adjustable.
*1: Only for CD / DVD printing supported regions.
*2: The red screws securing the paper feed motor may be loosened only at replacement of the paper feed motor unit.
(2) Periodic maintenance
No periodic maintenance is necessary.
(3) Periodic replacement parts
There are no parts in this printer that require periodic replacement by a service engineer.
(4) Replacement consumables
1-1
There are no consumables that require replacement by a service engineer.
1-2. Customer Maintenance
Adjustment
Timing
Purpose
Print head
alignment
At print head replacement. To ensure accurate dot
Print head
cleaning
Tool
Approx.
time
- Printer buttons
(automatic /
manual)
- Computer
(automatic settings
via the printer
driver)
3 min.
When print quality is not
satisfying.
To improve nozzle conditions. - Printer buttons
- Computer (settings
via the printer
driver)
1 min.
Print head deep
cleaning
When print quality is not
satisfying, and not improved by
print head cleaning.
To improve nozzle conditions. - Printer buttons
- Computer (settings
via the printer
driver)
2 min.
Ink tank
replacement
When an ink tank becomes
empty. (No ink error)
placement.
-----
-----
2 min.
Paper feed roller When paper does not feed
properly.
cleaning
To clean the paper feed
rollers.
Printer buttons
CD / DVD print At CD / DVD printing, when
position
necessary.
adjustment
To correct CD / DVD print
position.
Computer (application 5 min.
software)
Bottom plate
cleaning
When the back side of the paper
is smeared.
To clean the platen ribs.
- Printer buttons
- Computer (settings
via the printer
driver)
1 min.
LCD contrast
adjustment
When the LCD contrast is not
desirable.
To set the desirable contrast.
- Printer buttons
1 min.
ASF sub- roller
cleaning
When the paper fed from the
ASF is smeared due to ink mist
attached to the ASF sub-rollers.
To clean the ASF sub-rollers.
- Plain paper
- Printer buttons
(paper feed roller
cleaning)
1 min.
1-3. Product Life
(1) Printer
Specified print volume (I) or the years of use (II), whichever comes first.
(I) Print volume: 10,000 pages
Black 1,500 character pattern
2,000 pages
Color A4, 7.5% duty per color pattern
1,500 pages
1,500 pages
A4, photo, borderless printing
4 x 6, photo, borderless printing
4,500 pages
Postcard, photo, borderless printing
(II) Years of use: 5 years of use
1-2
500 pages
2 min.
(2) Print head
Print volume: 10,000 pages
Black 1,500 character pattern
2,000 pages
Color A4, 7.5% duty per color pattern
1,500 pages
A4, photo, borderless printing
1,500 pages
4 x 6, photo, borderless printing
4,500 pages
Postcard, photo, borderless printing
500 pages
(3) Ink tank (target value)
Pattern
Ink tank used
Print yield
Black text
Color chart
CLI-8BK
CLI-8BK
CLI-8Y
CLI-8M
CLI-8C
CLI-8BK
CLI-8Y
CLI-8M
CLI-8C
CLI-8PM
CLI-8PC
Approx. 480 pages
Approx. 970 pages
Approx. 460 pages
Approx. 520 pages
Approx. 760 pages
Approx. 1,500 pages
Approx. 320 pages
Approx. 670 pages
Approx. 1,000 pages
Approx. 140 pages
Approx. 200 pages
Photo chart
Black text: When printing the Canon standard pattern (1,500 characters per page) on A4 size plain paper, with the
default settings in the Windows XP driver, using Word 2003.
Color chart: When printing the ISO/JIS-SCID N5 pattern on A4 size plain paper in bordered printing, with the
default settings in the Windows XP driver, using Photoshop 7.0.
Photo chart: When printing the Canon standard pattern on 4" x 6" Photo Paper Plus Glossy in borderless printing,
with the default settings in the Windows XP driver, using Windows XP Photo Printing Wizard.
The print yield in the table above is an average value measured in continuous printing, using the ink tank
immediately after it is unsealed, until the ink is out. Ink yield may vary depending on texts and photos printed,
application software, print mode, and type of paper used.
When the printer is turned on and while printing, each ink may be used for protecting the print head and
maintaining print quality.
1-4. Special Tools
Name
Tool No.
FLOIL KG107A
QY9-0057000
Application
To be applied to the sliding portions of the
carriage shaft and lift cam shaft.
1-3
Remarks
In
common
with the
S500
and
S520.
1-5. Serial Number Location
On the carriage flexible cable holder (visible on the left of the carriage after the printer is turned on, and the panel
cover is opened).
To the table of contents
To the top
<Part 1: 1. MAINTENANCE>
1-4
2. LIST OF ERROR DISPLAY / INDICATION
Errors and warnings are displayed by the following ways:
1) Operator call errors are indicated by the Alarm LED lit, and the error and its solution are displayed on the LCD in
text and by icon.
2) Warnings are displayed on the printer driver Status Monitor.
3) Error codes are printed in the "operator call/service call error record" area in EEPROM information print.
2-1. Operator Call Errors (by Alarm LED Blinking in Orange)
Error
[Error code]
Solution
Message on the LCD
No paper (ASF). [1000] Auto sheet feeder.
There is no paper. Load paper
and press [OK].
Set the paper in the ASF, and
press the Stop/Reset button.
No CD / DVD tray.
[1001]*1
There is no CD-R tray. Attach
the tray and press [OK].
Set the CD / DVD tray, and press
the Stop/Reset button.
No paper in the front
paper feed cassette.
[1003]
Cassette.
There is no paper. Load paper
and press [OK].
Set the paper in the cassette, and
press the Stop/Reset button.
Remarks
No CD or DVD. [1002] Printable disc is not set. Correctly Set a CD or DVD in the CD /
*1
place a disc in the CD-R tray and DVD tray (which is ejected at
error occurrence), and inset the
press [OK].
CD / DVD tray in the proper
position. Then, press the
Stop/Reset button.
Paper jam. [1300]
The paper is jammed. Clear the
paper and press [OK].
Remove the jammed paper, and
press the Stop/Reset button.
Error in paper feeding
from the ASF.
Paper jam in the rear
guide. [1303]
Error in the duplex
printing unit.
Paper jam in the under
guide. [1304]
Error in paper feeding
from the cassette.
Front door close error.
[1250]
Paper output tray is closed. Open Open the paper output tray.
the paper output tray.
The error is indicated if
the paper output tray is
closed at start of a print
job, or while a print job
is being performed.
No ink. [1600]
Ink has run out. Replace the ink
tank and close the cover.
Ink tank not installed.
[1660]
The following ink tank cannot be Install the applicable ink tank(s)
properly, and confirm that the
recognized.
LED's of all the ink tanks light
red.
The print head is not
installed [1401], or it is
not properly installed
(print head temperature
sensor error [1403] /
faulty EEPROM data of
the print head [1405]
Print head is not installed. Install Install the print head properly.
the print head.
The type of print head is
incorrect. Install the correct print
head.
Inner cover open.
Inner cover is open. Close the
Close the inner cover, and press
Replace the empty ink tank(s), or Pressing the Stop/Reset
press the Stop/Reset button.
button will clear the
error without ink tank
replacement, however,
ink may run out during
printing.
1-5
[1841]*2
inner cover and press [OK].
the Stop/Reset button.
Inner cover open during
printing on paper.
[1846]*2
Close the inner cover, and press
the Stop/Reset button.
Inner cover open during
printing on paper (print
continuable). [1851]*1
Close the inner cover, and press
the Stop/Reset button.
Inner cover open during
printing on paper (print
NOT continuable).
[1856]*1
Close the inner cover, and press
the Stop/Reset button to clear the
error. The paper being printed at
error occurrence will be ejected
without printing the remaining
data for the ejected paper, then
printing will resume from the
next page.
Open the inner cover which
functions as the CD / DVD tray
feeder, set the CD / DVD tray in
the feeder, and press the
Stop/Reset button.
Inner cover closed
during CD / DVD
printing (print NOT
continuable). [1855]*1
Open the inner cover, and press
the Stop/Reset button to clear the
error. The CD or DVD being
printed at error occurrence will
be ejected without printing the
remaining data for the ejected
CD or DVD, then the next print
job will be done.
Multiple ink tanks of
(Applicable ink tank icon)
the same color installed. More than one ink tank of the
[1681]
following color is installed.
Replace the wrong ink tank(s)
with the correct one(s).
Ink tank in a wrong
position. [1680]
Some ink cartridges are not
installed in place.
Install the ink tank(s) in the
correct position.
Warning: The waste
ink absorber becomes
almost full. [1700]
The waste ink absorber is almost Press the Stop/Reset button.
full. Press [OK] to continue but
early replacement recommended.
<See manual>
Inner cover closed
during CD / DVD
printing (print
continuable). [1850]*1
Open the inner cover, place the
CD-R tray and press [OK].
The connected digital
Incompatible device detected.
camera or digital video Remove the device.
camera does not
support Camera Direct
Printing. [2001]
Remove the cable between the
camera and the printer.
The service call error,
indicating the waste ink
absorber is full, is likely
to occur soon.
Automatic duplex
printing cannot be
performed. [1310]
This paper is not compatible with Press the Stop/Reset button to
duplex printing. Remove the
eject the paper being used at error
occurrence. Printing will resume
paper and press [OK].
from on the front side of the next
page.
Data which was to be
printed on the back side
of paper at error
occurrence is skipped
(not printed).
Failed in automatic
print head alignment.
[2500]
Auto head align has failed. Press Press the Stop/Reset button.
[OK] and repeat operation. <See - If paper is being fed at error
occurrence, the error is
manual>
indicated after the paper is
ejected.
- If the error occurs, the print
head alignment values are not
changed.
- After exit from the error by the
Stop/Reset button, the
automatic print head alignment
will not be re-done.
The error is indicated
when the pattern is not
printed due to no ink or
non-ejection of ink, or
when the sensor's AD
value is incorrect.
1-6
The remaining ink
amount unknown.
[1683]
(Applicable ink tank icon)
The remaining level of the
following ink cannot be correctly
detected.
An ink tank which has once been
empty is installed. Replace the
applicable ink tank with a new
one.
Printing with a onceempty or refilled ink
tank can damage the
print head.
If printing is continued
without replacing the
"no-good" ink tank,
press the Stop/Reset
button for 5 sec. or
longer to record the use
of a refilled ink tank.
Note:
After the above
operation, the function
to detect the remaining
ink amount is disabled.
Ink tank not recognized. (Applicable ink tank icon)
A non-supported ink tank is
[1684]
The following ink tank cannot be installed (the ink tank LED is
turned off). Install the supported
recognized.
ink tanks.
Ink tank not recognized. (Applicable ink tank icon)
An error occurred in an ink tank
[1410 to 1419]
The following ink tank cannot be (the ink tank LED is turned off).
Replace the ink tank(s).
recognized.
Access cover open.
[1200]
Cover is open. Close the cover.
Close the access cover.
*1: Only for models supporting CD / DVD printing
*2: Only for models not supporting CD / DVD printing
2-2. Service Call Errors (by Cyclic Blinking in Orange (Alarm LED) and Green
(Power LED), or Alarm LED Lit in Orange)
Service call errors are indicated by the number of cycles the Alarm and Power LEDs blink, and the corresponding
error code is displayed on the LCD.
Cycles of
blinking in
orange
(Alarm
LED) and
green
(Power
LED)
Error [Error code]
Conditions
2 times
Carriage error [5100]
An error occurred in the carriage encoder
signal.
3 times
Line feed error [6000]
An error occurred in the line feed signal.
1-7
Solution
(Replacement of listed parts,
which are likely to be faulty)
- Carriage unit (QM2-2298)
- Timing slit strip film
(QC1-6394)
- Logic board ass'y (QM22745)*1
- Carriage motor (QK11500)
- Timing sensor unit (QM22683)
- Timing slit disk film
(QC1-6229)
- Feed roller ass'y (QL20925)
- Platen unit (QM2-2313)
- Logic board ass'y (QM22745)*1
- Paper feed motor (QK11502)
- Purge unit (QM2-2299)
- Logic board ass'y (QM22745)*1
4 times
Purge cam sensor error
[5C00]
An error occurred in the purge unit.
5 times
ASF (cam) sensor error
[5700]
This error takes place when feeding paper
from the ASF after an error occurred in the
ASF cam sensor.
- Sheet feed unit (QM22312)
6 times
Internal temperature error
[5400]
The internal temperature is not proper.
- Logic board ass'y (QM22745)*1
7 times
Waste ink absorber full
[5B00]
Print head temperature rise
error [5200]
The waste ink absorber is full.
- Ink absorber kit (QY50147)
- Print head (QY6-0063)
- Logic board ass'y (QM22745)*1
9 times
EEPROM error [6800]
A problem occurred in writing to the
EEPROM.
- Logic board ass'y (QM22745)*1
11 times
Carriage lift mechanism
error [5110]
The carriage did not move up or down
properly.
12 times
AP position error [6A00]
An error occurred in the AP motor during
purging operation.
13 times
Paper feed position error
[6B00]
An error occurred in the paper feed motor.
- PR lift shaft ass'y (QL20936)
- Sheet feed unit (QM22312)
- Logic board ass'y (QM22745)*1
- Carriage lift sensor unit
(QM2-2678)
- Sheet feed unit (QM22312)
- Logic board ass'y (QM22745)*1
- Purge unit (QM2-2208)
- Sheet feed unit (QM22312)
- Logic board ass'y (QM22745)*1
14 times
Paper feed cam sensor error An error occurred in the paper feed cam sensor - Sheet feed unit (QM2[6B10]
during paper feeding from the front paper feed
2312)
cassette.
- Logic board ass'y (QM2This error is also indicated when the waste ink
2745)*1
counter is 60% or more, and a paper jam
occurs.
USB Host VBUS
The USB Host VBUS is overloaded.
- Logic board ass'y (QM2overcurrent [9000]
2745)*1
8 times
15 times
The print head temperature exceeded the
specified value.
16 times
Valve sensor error [6C00]
17 times
Motor driver error [6D00]
19 times
Ink tank position sensor
error [6502]
20 times
Other hardware error [6500] The PCI bus error is detected by the ASIC.
Continuous ROM error
An error occurred in the valve sensor during
cleaning.
- Logic board ass'y (QM22745)*1
- Purge unit (QM2-2208)
The AD conversion value indicating the motor - Logic board ass'y (QM2driver temperature is not proper.
2745)*1
None of the ink tank position is detected.
The check sum value is incorrect in the ROM
1-8
- Platen unit (QM2-2313)
- Logic board ass'y (QM22745)*1
- Logic board ass'y (QM22745)*1
- Logic board ass'y (QM2-
alternate
blinking
Alarm
LED lit
check at hard-power-on.
RAM error
2745)*1
The RAM error occurred in the RAM check at - Logic board ass'y (QM2hard-power-on.
2745)*1
*1: Before replacement of the logic board ass'y, check the waste ink amount (by service test print or EEPROM
information print). If the waste ink amount is 7% or more, also replace the ink absorber kit (QY5-0147) when
replacing the logic board ass'y.
[See Section 3-3. Adjustment / Settings, (5) Service mode, for details.]
2-3. Other Error Messages
Message on the LCD
Cannot print via wireless
communication.
- No photo data
- Unsupported photo data
- Photo data too large
The selected paper cannot be fed
from cassette. Change the paper
source.
Cannot specify the followings
together. Change one of the
settings.
Cause
Solution
The received image data was invalid, or The error message is displayed for a
the data size was too large, in infrared
while, then the LCD automatically
communication from a mobile phone.
returns to the display before the error
occurrence.
The paper type being used is not
supported for paper feeding from the
cassette. (Business Card, Credit Card
size paper and Photo Stickers are not
supported.)
Settings made conflict each other.
Change the paper source to the ASF.
There are no photos in memory
card.
Supported image files are not in the
memory card.
The error message is displayed for a
while, then the LCD automatically
returns to the display before the error
occurrence.
The error message is displayed for a
while, then disappears.
The value exceeds the number of
copies you can print.
During selecting images or specifying
the number of copies, the total print
quantity exceeds the prescribed value of
999.
After the error message is displayed for a
while, the last operation before the error
is cancelled, and the total print quantity
returns to the value before the error.
Memory card is not set. Insert the
card after checking the direction.
DPOF information is not saved in
the memory card.
No memory card is inserted in the slot.
Set a memory card.
DPOF print was selected in the menu,
but no DPOF files are contained in the
memory card.
The error message is displayed for a
while, then the LCD automatically
returns to the display before the error
occurrence.
The error message is displayed for a
while, then disappears. Specify the print
quantity.
The error message is displayed for a
while, then the LCD automatically
returns to the display before the error
occurrence.
The error message is displayed for a
while, then the LCD automatically
returns to the display before the error
occurrence.
The error message is displayed for a
while, then the LCD automatically
returns to the display before the error
occurrence.
The error message is displayed for a
while, then the LCD automatically
returns to the display before the error
occurrence.
The number of copies to print is
Multi-photo print was attempted without
not set. Input the number of copies. specifying the print quantity (with the
print quantity left "0" (zero)).
This layout is available only for
In Layout print, "Mixed 1, 2, or 3" which
A4 or 8.5"x11"(LTR).
is available only with A4 or LTR size
paper is selected, but the paper size is not
set to A4 or LTR.
Settings cannot be changed when With Sticker print selected, the Settings
printing stickers.
button was pressed.
Change the setting after removing With a memory card inserted in the slot,
the card.
change of the Read/Write attribute was
attempted.
The card is currently writeenabled. Set to read-only mode
before performing operation.
With the memory card set to the
Read/Write mode, Card Direct printing
operation was attempted from the menu.
1-9
2-4. Warnings
Warning
Low ink
Message on the LCD
The following ink is low. Continue?
(Icon of each ink tank)
Yes No
In Camera Direct Printing, only "Yes" can be
selected.
Print head temperature If the print head temperature does not fall, the
rise
error code "5200" is displayed, indicating the
print head temperature rise error.
Solution
- Select Yes, and press the OK button.
=> Printing starts, and it is indicated on the
LCD.
- Select No, and press the OK button.
=> Printing is cancelled, and the LCD
returns to the display immediately
before printing was attempted.
When the print head temperature falls, the
error is automatically cleared.
Note:
If the print head temperature exceeds the
specified limit when the access cover
(scanning unit) is opened, the carriage does not
move to the ink tank replacement position.
If the print head temperature exceeds the
specified limit, an intermission is inserted
during printing.
Protection of excess
rise of the print head
temperature
If the print head temperature does not fall, the
error code "5200" is displayed, indicating the
print head temperature rise error.
Restrictions on paper
The current paper cannot be set. Change the
size and type.
Recommendation of
the print head
alignment (only on
arrival of the printer)
Head alignment required. Load paper and press - Select Yes, and press the OK button.
[OK].
=> Automatic print head alignment is done.
Yes No
- Select No, and press the OK button.
=> The procedures on arrival of the printer
are finished.
Cancellation of image Reset the selected photo information?
select information
Yes No
Cancellation of
trimming information
When one or more images are selected in
Multi-photo print or Layout print, and if a user
tries to display the menu or sub-menu, the
message is displayed.
- Select Yes, and press the OK button.
=> The image selection is cancelled, and the
menu or sub-menu is displayed.
- Select No, and press the OK button.
=> The LCD returns to the display
immediately before the message was
displayed.
With an image trimmed, if CD / DVD print is
attempted, the message is displayed.
Reset trimming effect?
Yes
Re-select the supported paper type and size.
No
- Select Yes, and press the OK button.
=> The image trimming is cancelled, and
the procedures for CD / DVD print are
continued.
- Select No, and press the OK button.
=> The LCD returns to the display
immediately before the message was
displayed.
1-10
2-5. Troubleshooting by Symptom
Symptom
Faulty operation
Solution
The power does not turn on.
The power turns off immediately
after power-on.
- Confirm the connection of
- the power cord, and
- between the logic board and the power supply
unit.
- Replace the
- AC adapter, or
- logic board ass'y*1.
A strange noise occurs.
- Remove foreign material.
- Attach a removed part if any.
- Check the operation of the moving parts (such as
purge unit, carriage unit, and paper feeding
mechanism)
- Replace a faulty part, if any.
Nothing is displayed on the LCD.
- Confirm the connection between the operation
panel and the logic board.
- Replace the
- LCD, or
- logic board ass'y*1.
A portion of the LCD is not
displayed.
- Perform the button and LCD test in the service
mode, and confirm that the LCD is displayed
without any segments missing.
- Confirm the connection between the operation
panel and the logic board.
- Replace the
- LCD, or
- logic board ass'y*1.
Paper feed problems (multifeeding, skewed feeding, no
feeding)
- Examine the inside to confirm that no parts are
damaged, and the rollers are clean.
- Remove foreign material.
- Adjust the paper guide properly.
- Confirm the connection of each harness and the
logic board.
- Replace the
- sheet feeder unit,
- cassette, or
- logic board ass'y*1.
Carriage movement problems
(contact to other parts, strange
noise)
Unsatisfactory print quality No printing, or no color ejected.
- Confirm that the timing slit strip film is free from
damage or grease.
- Clean the timing slit strip film.
- Replace the
- timing slit strip film, or
- carriage unit.
- Remove foreign material.
- Replace the
- ink tank,
- print head*2, or
- logic board ass'y*1.
- Remove foreign material from the purge unit caps,
1-11
if any.
- Replace the purge unit.
Printing is faint, or white lines
- Remove and re-install the print head.
appear on printouts even after print - Replace the
head cleaning.
- ink tank,
Line(s) not included in the print
- print head*2,
data appears on printouts.
- purge unit, or
- logic board ass'y*1.
Paper gets smeared.
- Feed several sheets of paper.
- Perform bottom plate cleaning.
- Clean the paper path with cotton swab or cloth.
- Clean the ASF sub-rollers.
A part of a line is missing on
printouts.
Replace the
- ink tank, or
- print head*2.
Color hue is incorrect.
- Replace the
- ink tank, or
- print head*2.
- Perform print head alignment.
Printing is incorrect.
Replace the logic board ass'y*1.
No ejection of black ink.
- Replace the
- ink tank, or
- print head*2.
- Remove foreign material from the purge unit caps,
if any.
- Replace the purge unit.
Graphic or text is enlarged on
printouts.
When enlarged in the carriage movement
direction:
- Clean grease or oil off the timing slit strip film
- Replace the
- timing slit strip film,
- carriage unit, or
- logic board ass'y*1.
When enlarged in the paper feed direction:
- Clean grease or oil off the timing slit disk film
- Replace the
- timing slit disk film,
- timing sensor unit, or
- logic board ass'y*1.
*1: Before replacement of the logic board ass'y, check the waste ink amount (by service test print or EEPROM
information print). If the waste ink amount is 7% or more, also replace the ink absorber kit (QY5-0147) when
replacing the logic board ass'y.
[See Section 3-3. Adjustment / Settings, (5) Service mode, for details.]
*2: Replace the print head only after the print head deep cleaning is performed 2 times, and when the problem
persists.
To the table of contents
To the top
<Part 1: 2. LIST OF ERROR DISPLAY / INDICATION>
1-12
3. REPAIR
3-1. Notes on Service Part Replacement (and Disassembling / Reassembling)
Notes on replacement*1
Adjustment / settings
- Before removal of the logic
board ass'y, remove the
power cord, and allow for
approx. 1 minute (for
discharge of capacitor's
accumulated charges), to
prevent damages to the
logic board ass'y.
- Before replacement, check
the waste ink amount (by
service test print or
EEPROM information
print). If the waste ink
amount is 7% or more, also
replace the ink absorber kit
when replacing the logic
board ass'y.
[See 3-3. Adjustment /
Settings, (5) Service mode,
for details.]
After replacement:
1. Initialize the EEPROM.
2. Reset the waste ink
counter.
3. Set the destination in the
EEPROM.
4. Correct the CD / DVD
and automatic print head
alignment sensors.
5. Check the ink system
function.
[See 3-3. Adjustment /
Settings, (5) Service mode,
for details of 1 to 5]
6. Perform the print head
alignment in the user
mode.
- EEPROM information
print
- Service test print
- Printing via USB
connection
- Direct printing from a
digital camera
Ink absorber kit
QY5-0147
After replacement:
1. Reset the waste ink
counter.
[See 3.3. Adjustment /
Settings, (5) Service mode.]
- Service test print
Carriage unit
QM2-2298
- Service test print
At replacement:
(Confirm CD / DVD and
1. Apply grease to the
automatic print head
sliding portions.
alignment sensor
[See 3-3. Adjustment /
correction, and ink
Settings, (2) Grease
system function.)
application.]
After replacement:
1. Correct the CD / DVD
and automatic print head
alignment sensors.
[See 3.3. Adjustment /
Settings, (5) Service
mode.]
2. Check the ink system
function.
[See 3.3. Adjustment /
Settings, (5) Service
mode.]
Service part
Logic board ass'y
QM2-2745
Operation check
- EEPROM information
print
3. Perform the print head
alignment in the user
mode.
Paper feed motor
QK1-1502
Platen unit
- The red screws securing the At replacement:
paper feed motor are
1. Adjust the paper feed
allowed to be loosened.
motor.
(DO NOT loosen any other
[See 3-3. Adjustment /
red screws.)
Settings, (1) Paper feed
motor adjustment.]
At replacement:
1-13
- Service test print
QM2-2313
1. Check the ink system
function.
[See 3.3. Adjustment /
Settings, (5) Service mode.] PR lift shaft ass'y
QL2-0936
At replacement:
1. Apply grease to the
sliding portions.
[See 3.3. Adjustment /
Settings, (2) Grease
application.]
Timing slit strip film
QC1-6394
Timing slit disk film
QC1-6229
- Service test print
- Upon contact with the film, After replacement:
wipe the film with ethanol. 1. Perform the print head
alignment in the user
- Confirm no grease is on the
mode.
film. (Wipe off any grease
thoroughly with ethanol.)
- Do not bend the film
- Service test print
After replacement:
1. Perform the print head
alignment in the user
mode.
- Service test print
Print head
QY6-0063
LCD viewer unit
QM2-2305
Panel board ass'y
QM2-2747
- Button and LCD test (in
the service mode)
*1: General notes:
- Make sure that the flexible cables and wires in the harness are in the proper position and connected correctly.
[See 3-2. Special Notes on Repair Servicing, (2) Flexible cable and harness wiring, connection, for details.]
- Do not drop the ferrite core, which may cause damage.
- Protect electrical parts from damage due to static electricity.
- Before removing a unit, after removing the power cord, allow the printer to sit for approx. 1 minute (for
capacitor discharging to protect the logic board ass'y from damages).
- Do not touch the timing slit strip film and timing slit disk film. No grease or abrasion is allowed.
- Protect the units from soiled with ink.
- Protect the housing from scratches.
- Exercise caution with the red screws, as follows:
i. The red screws of the paper feed motor may be loosened only at replacement of the paper feed motor
unit (DO NOT loosen them in other cases).
ii. DO NOT loosen the red screws on both sides of the main chassis, securing the carriage shaft
positioning (they are not adjustable in servicing).
To the table of contents
To the top
<Part 1: 3. REPAIR, 3-1>
1-14
3-2. Special Notes on Repair Servicing
(1) External cover removal
(I) Open the access cover, and release the hooks on the left and right side of the printer (indicated by the blue
circles) to remove the side covers.
(II) Remove the screws (at 2 locations) and the flexible cable (at 1 location).
3-3. Resolution in Duplex Printing
3-4. Resolution in Camera Direct Printing
3-5. Resolution in Card Direct Printing
To the table of contents
To the top
<Part 2: 3. PRINT MODE>
2-6
4. FAQ (Problems Specific to the iP6600D and Corrective Actions)
No. *
Function
Phenomenon
Skewed paper
feeding
1
2
3
B
Print
results
B Paper feed
C
Print
results
Condition
Cause
- Paper feeding from
the cassette, Photo
Paper Plus Double
Sided, 5 x 7 size
Due to its
mechanism,
contact of the PF
pinch rollers to the
5 x 7 size paper is
uneven, which is
likely to cause
skewed paper
feeding.
Corrective action
Possible call or
complaint
Change the paper - Paper feeds at
feeding method
an angle.
from the cassette to
- A margin
the auto sheet
appears on
feeder.
printouts.
Improper paper - Paper feeding from
feeding:
the ASF
Plain
paper
- Multi-feeding
- Skewed paper - Highest print speed
(Custom setting to
feeding
5)
- Paper jam
- In the high
temperature and
high humidity
environment
In the high
- Reduce the
- Multiple
temperature and
amount of paper
sheets of
high humidity
set in the ASF to
paper feed at
environment, paper half (approx. 5
the same
becomes wavy; in
time.
mm high).
the low
- Paper feeds at
temperature and
an angle.
low humidity
A
paper jam
environment, paper
occurs.
curls significantly.
When the
maximum amount
- In the low
of paper is set in
temperature and
the ASF, and if the
low humidity
paper-return tab
environment
fits in a wave or
- With the maximum curl of the paper,
amount of paper
the tab slips and
set (13 mm)
does not catch
paper properly,
causing paper feed
problems.
Skewed paper
- Paper feeding from Since coaxial
- Align the paper
- Paper feeds at
feeding (at the
the ASF
tolerance between
guide to the paper an angle.
level of +/- 1%) - Credit Card size
the pinch roller and edge tighter than
- A margin
the LF roller,
usual.
appears on
which determines
printouts.
the paper feed
alignment, is
0.2mm, skewed
paper feeding can
occur. However,
according to the
field data of current
models, the
skewness level
caused by the
coaxial tolerance of
0.2mm is within
the criteria of +/1%, thus the
phenomenon is left
as is.
Soiling on the
- After continuous
back side of
borderless printing
paper (lines or
of small sized
streaks parallel
paper (such as 4 x
to the paper feed 6), when a larger
direction)
sized paper (such
In borderless
1. Perform Bottom - Paper gets
printing, printing is
plate cleaning
smeared.
performed to the
(from the
- The back side
size slightly larger
printer driver)
of paper gets
than the paper size,
up to 3 times*1. smeared.
and ink off the
2-7
4
A
as A4) is printed.
- With Photo Paper
Plus Double Sided
or postcards, the
phenomenon is
likely to be
noticeable and to
be complained of
by users, as
printing is
performed on both
sides of such
paper.
Print
results
Soiling on paper - Automatic duplex
in automatic
printing (Photo
duplex printing
Paper Plus Double
(lines or streaks
Sided, postcards,
perpendicular to plain paper)
the paper feed
direction)
5
B
paper is absorbed 2. If soiling on the
by the platen's ink
paper still
absorber. Absorbed
remains after 3
ink may attach to
times of
the platen rib(s)
Bottom plate
after several dozen
cleaning, wipe
sheets are printed,
the platen rib(s)
causing soiling at
and their
the leading edge of
surroundings
paper or on the
with a cotton
back side of paper.
swab.
On the rib(s) inside
the sheet feed unit
used for duplex
printing, ink mist
may accumulate,
smearing paper.
Print
results
- Paper gets
Temporary
smeared.
operational
solution:
- The back side
of paper gets
Cancel automatic
smeared.
duplex printing,
and manually print - Even after
each side of paper.
Bottom plate
cleaning was
Cleaning by user:
performed,
1. Perform Bottom and the platen
ribs were
plate cleaning
cleaned with
(from the
cotton swab,
printer driver)
*1
up to 3 times . paper gets
smeared.
2. If soiling on the
paper still
remains after 3
times of
Bottom plate
cleaning, wipe
the platen rib(s)
and their
surroundings
with a cotton
swab.
If the phenomenon
persists after
conducting 1 and 2,
servicing is
required.
Service:
Wipe any soiling or
dirt off from the
sheet feed unit and
the bottom case
unit ribs*2.
Scratches on
paper
- PP-101D, PP-101,
PR-101, SG-101,
etc.
- Paper feeding from
the cassette
Scratches on the PF - Change the paper - Paper is
return lever due to
feeding method
scratched.
paper feeding from from the cassette - Marks appear
the cassette, and
to the auto sheet
on printed
duplex printing
feeder.
paper.
path.
- If automatic
duplex printing is
performed, cancel it, and, by setting
only a single
sheet of paper in
2-8
the auto sheet
feeder, manually
print each side of
paper.
6
C
Print
results
- PP-101D, PP-101,
PR-101, SG-101,
etc.
- Paper feeding from
the ASF
- Multiple number of
sheets loaded
Soiling on paper The printer has been
used for a long
period of time with
the ASF cover
closed before
printing is
performed using the
ASF.
7
8
C
B
Print
results
Print
results
When multiple
sheets of paper are
set, the back side of
paper being picked
up scratches the
front side of paper
beneath (especially
where the paper
feed rollers contact
when picking up
the paper).
Set only a single
sheet of paper in
the auto sheet
feeder.
Due to ink mist
Clean the ASF subattached to the ASF rollers (see *3 for
sub-pick-up rollers. details.)
If printing is done
from the cassette
with the ASF cover
closed, ink mist is
kept inside the
printer, attaching to
the ASF sub-pickup rollers.
Since the subrollers usually do
not contact the
paper, ink mist can
easily accumulate,
especially during
printing on smallsized paper which
never contacts the
sub-rollers.
- Skewed paper - SG-101
When 10 sheets of - Straighten the
- Paper feeds at
feeding
paper
are
set
in
the
paper.
an angle.
- Paper feeding from
ASF, and if they
Set
5
or
less
the ASF
- A margin
warp significantly,
sheets of paper in appears on
- 10 sheets (max.)
the warping
the ASF.
printouts.
set in the ASF
portions of paper
get over the cover
guide, not being
aligned along the
guide properly.
*1: Change the paper in each Bottom plate cleaning. The cleaning can end when paper does not get any soiling.
*2: Locations to clean in servicing when soiling on paper in automatic duplex printing persists:
2-9
*3: How to prepare and set the ASF sub-roller cleaning sheet:
1) Fold a sheet of plain paper lengthwise in half.
2) Fold the paper at approx. 60 mm from the end, and fold the folded end in half backward, as shown below.
2-10
3) Moisten the folded end portion (indicated by the blue circle in the figure below) using a wipe, and set the
paper in the ASF so that the moistened edge of the paper contacts the 2 sub-rollers. Then, fold the other end
of the paper along the ASF cover edge to hook the paper to the ASF cover, as shown below.
4) Press and hold the Stop/Reset button until the Power LED blinks 3 times, then release the button to perform
the paper feed roller cleaning. See "Standalone printer operation," for details. * Occurrence level:
A: The symptom is likely to occur frequently. (Caution required)
B: The symptom may occur under certain conditions, but likeliness is assumed very low in practical usage.
C: The symptom is unlikely to be recognized by the user, and no practical issues are assumed.
2-11
To the table of contents
To the top
<Part 2: 4. FAQ>
2-12
Part 3
APPENDIX
3. PIXMA iP6600D SPECIFICATIONS
<Printer>
Type
Desktop serial color bubble jet printer
Paper feeding method
Auto sheet feed (ASF, cassette, automatic duplex printing, CD / DVD printing*1)
Resolution
9,600 x 2,400dpi (Max.)
Throughput (target
value)
4 x 6, borderless printing: Approx. 46 sec. (standard mode, PP-101, Full Page SCID No. 2)
For reference:
Fast
Standard
Black (Fine Black)
18ppm
6.5ppm
17ppm
4.9ppm
Color (Fine Color)
Printing direction
Bi-directional, uni-directional
Print width
Max. 203.2mm (215.9mm in borderless printing)
Interface
USB 2.0 Hi-Speed, camera direct print port, IrDA 1.2 (JPEG files only), Bluetooth 1.2
(optional, JPEG files only)
ASF stacking capacity
Plain paper: Max. 13mm (Approx. 150 sheets of 64g/m2 paper)
Paper weight
64 to 105g/m2
Detection functions
Access cover open, Presence of print head, Opening / Closing of front door, Remaining ink
amount (optical / dot count), Printing position, Paper presence, Paper end sensor, Waste ink
amount, Internal temperature, Pick-up roller, Paper feed roller position, Carriage position,
Head-to-paper distance, Supported camera direct printing device, Presence of CD / DVD*1,
Presence of memory card
Acoustic noise (Highest
print quality)
- Highest print quality settings: Approx. 35dB
- Quiet mode: Approx. 34.2dB
During operation
Environmental
requirements
Non operation
Temperature
Humidity
Temperature
Humidity
Power supply voltage, frequency
Power supply
AC 100 to 120V, 50/60Hz
AC 220 to 240V, 50/60Hz
Power
consumption
Approx. 17W
Approx. 17W
5C to 35C (41F to 95F)
10%RH to 90%RH (no condensation)
0C to 40C (32F to 104F)
5%RH to 95%RH (no condensation)
Standby
Power-off
Approx. 2W
Approx. 2W
Approx. 0.8W
Approx. 0.8W
External dimensions
Printer:
With the paper support and output tray retracted: Approx. 429 (W) x 304 (D) x 183 (H)
mm
With the paper support and output tray extended: Approx. 429 (W) x 610 (D) x 308 (H)
mm
Weight
Approx.7.2kg, not including print head and optional units
Related standards
(Printer, Adapter)
Electromagnetic radiance:
VCCI, FCC, IC, CE Mark, Taiwan EMC, C-tick, CCC (EMC), Korea MIC, Gost-R
Electrical safety:
Electrical Appliance and Material Safety Law (DENAN), UL, C-UL, CB Report, CE
Mark, GS, Gost-R, FT, SASO, CCC, SPRING, Korea EK, IRAM (Argentine)
Environmental regulations:
RoHS (EU), WEEE (EU), Korea Package Recycle Law, Green Point (Germany), Energy
Star, Eco Mark, Law on Promoting Green Purchasing
Serial number location
On the carriage flexible cable holder (visible on the left of the carriage after the printer is
turned off and the panel cover is opened).
Remaining ink amount
detection
Available (automatic detection by optical method and dot count, enabled at default)
Paper type detection
Not available
3-16
Print head alignment
Available (automatic or manual alignment via printer driver Maintenance, or via the
operation panel button in Camera Direct Printing, automatic alignment at default)
*1: Only for CD / DVD printing supported regions
<Direct printing>
Supported memory
Memory card drive
card
Storage function
Compact Flash TYPE I/II (3.3V), Microdrive, SmartMedia Card (3.3V
only), Memory Stick, Memory Stick PRO, SD Card, MultiMedia Card, xDPicture Card*, miniSD memory card*, Memory Stick Duo*, Memory Stick
PRO Duo*
Operation
Via the printer buttons.
Condition
Before changing the settings, the memory card must be removed.
Function
Read / Write
Operation panel
3.5 color LCD, 18 buttons, 4 LEDs
File format
JPEG (DCF, CIFF, Exif 2.21 or prior, JFIF), TIFF (Exif compliant), DPOF
compliant
Supported print
paper
[See 4, PRINT MEDIA SPECIFICATIONS]
Print quality
Standard, High
Image correction
function
Red-eye correction, Photo Optimizer PRO, VIVID, noise reduction, face
brightener, image optimizer
Image adjustment
function
Brightness, contrast, hue (skin tones)
Image processing
Card Direct Printing function
Sepia, illustrated touch, no processing
Image retrieval
function
Available (date)
DPOF
Ver. 1.00 compliant
Index printing, printing of an image the specified number of copies,
printing of the specified image(s), printing with the shooting date
Single-photo/multi-photo/all-photo printing:
1 photo per page (borderless/with borders, only with borders for plain
paper) DPOF printing:
1 photo per page (borderless/with borders)
6, 15, 24, 35, 80 photos per page
30 photos per page (panorama)
Print layout
Index printing:
6, 15, 24, 35, 80 photos per page
30 photos per page (panorama)
Layout printing:
2, 4, 8 photos per page (borderless/with borders)
Postcard (borderless/with borders, with/without lines)
Album (4 photos per page, right/left)
Mix 3 types (for A4/LTR)
Sticker printing:
2, 4, 9, 16 stickers
1, 5, 6, 7 stickers (for free-cut)
CD/DVD printing*1
Information print
Date, file name, and photo information printing
Approx. 1 minutes 17 seconds, with the following conditions and settings:
3-17
Throughput
Camera Direct
Printing
Supported digital
camera
Digital cameras and digital video cameras supporting Bubble Jet Direct or
PictBridge
Supported print
paper
[See 4, PRINT MEDIA SPECIFICATIONS]
Print layout
- 1 photo per page (borderless/with borders)
- Index printing (standard / multiple photos per page)
- 2, 4, 9, 16 photos per page
Information print
Date, file name, photo information
Throughput
Approx. 1 minute and 17 seconds, with the following conditions and
settings:
- A photo from a 5 mega-pixel digital camera
- 4 x 6 borderless
- Standard print quality
- Process from pressing the printing start button to ejecting paper
Supported mobile
phone
Mobile phone equipped with IrDA 1.2 port, or with Bluetooth 1.2 port
(when the optional BU-20 is attached to the printer)
Printable data
Image (JPEG only, text printing not possible)
Print Beam printing Supported print
paper
Printing via
Bluetooth
communication
(optional)
- A photo from a 5 mega-pixel digital camera
- 4 x 6 borderless
- Exif print
- Standard print quality
- Process from pressing the printing start button to ejecting paper
[See 4, PRINT MEDIA SPECIFICATIONS]
Supported layout
1, 2, 4, 8 images per page (borderless)
1, 2, 4, 5, 6, 7, 8, 9, 16 images per page (bordered)
Standard
Bluetooth version 1.2
Output
Bluetooth Power Class 2
Communication
range
Good for approx. 10 m in radius (depending on interference between the
communication devices, or radio wave conditions)
Frequency band
2.4GHz
Communication
speed
Approx. 720kbps
Supported profile
BIP, OPP, SPP, HCRP
Supported OS for
HCRP
- Windows XP Service Pack 2 or later
- Windows XP Service Pack 1 or later:
Microsoft "Support for Bluetooth Wireless Devices" or Toshiba
Bluetooth Stack for Windows Ver. 3.00.10 or later has to be installed
- Mac OS X 10.3.3 or later
BU-20 external
dimensions
18.5 (W) x 47.5 (D) x 8.7 (H) mm with a cap
BU-20 weight
Approx. 7g
BU-20 power
supply voltage
4.4 to 5.25V
BU-20 power
consumption
500mW (max.)
BU-20 operating
temperature
5C to 35C (41F to 95F)
BU-20 operating
humidity
10%RHto 90%RH (no condensation)
* Adapter required.
3-18
*1: Only for CD / DVD printing supported regions
<Print head>
Type
Single head with 6 removable ink tanks (each color)
Print head
Dye-based BK / C / M / Y / PC / PM:
512 x 6 nozzles, 1,200 dpi, 1 pl / 5 pl (C / PC / M / PM), 5 pl (BK / Y)
Ink color
Dye-based black, cyan, magenta, yellow, photo cyan, photo magenta
Ink tank
CLI-8BK / C / M / Y / PC / PM (dye-based)
Weight (Net)
Print head, approx. 55g
Supply method
As a service part (not including ink tanks)
Part number
QY6-0063-000
<Supported ink tanks>
Model name and
destination
PIXUS
iP6600
BCI7eBK
BCI7eC
BCI7eM
BCI7eY
BCI7ePC
BCI7ePM
CLI8BK
CLI8C
CLI8M
CLI8Y
CLI8PC
CLI8PM
Dye-based ink
Japan
O
O
O
O
O
O
X
X
X
X
X
X
Other
PIXMA
than
iP6600
Japan
X
X
X
X
X
X
O
O
O
O
O
O
O: Usable
X: Not usable
Note: The ink tanks for the Japanese models are not compatible with those for the non-Japanese models. Be sure
to use the appropriate ink tanks in servicing.
To the table of contents
To the top
<Part 3: 3. PIXMA iP6600D Specifications>
3-19
4. PRINT MEDIA SPECIFICATIONS
<Plain paper / specialty paper>
The following types of paper are recommended:
Size
Paper
feeding
method
(auto)
A4, B5, LTR,
A5, LGL*1
ASF,
Cassette
13 mm
Super White Paper SW101/201
A4, LTR
ASF,
Cassette
13 mm
High Resolution
Paper
HR-101
A4, B5, LTR
ASF,
Cassette
Approx. 80
sheets
Glossy Photo
Paper
GP-401
A4, LTR
ASF,
Cassette
Camera
Direct
Printing
Card
Direct
Printing
Print
Beam
Printing
Yes*2
Yes
Yes
10 sheets
Yes
Yes
Yes
ASF,
Cassette
20 sheets
Yes
Yes
Yes
ASF
20 sheets
Yes
Yes
ASF,
Cassette
10 sheets
Yes
Yes
Yes
GP-501 4x6 101.6 x 152.4
mm
ASF,
Cassette
20 sheets
Yes
Yes
Yes
PR-101
A4, LTR
ASF,
Cassette
10 sheets
Yes
Yes
Yes
PR-101 4x6
101.6 x 152.4
mm
ASF,
Cassette
20 sheets
Yes
Yes
Yes
PR-101 4x8
101.6 x 203.2
mm
ASF,
Cassette
20 sheets
PP-101
A4, LTR
ASF,
Cassette
10 sheets
Yes
PP-101 4x6
101.6 x 152.4
mm
ASF,
Cassette
20 sheets
Yes
PP-101 5x7
127 x 178 mm
ASF,
Cassette
10 sheets
Yes
A4, LTR
ASF,
Cassette
10 sheets
Yes
Yes
MP-101 4x6 101.6 x 152.4
mm
ASF,
Cassette
20 sheets
Yes
Yes
SG-101
ASF,
Cassette
10 sheets
Yes
Yes
SG-101 4x6 101.6 x 152.4
mm
ASF,
Cassette
20 sheets
Yes
Yes
PP-101D
A4, LTR
ASF,
Cassette
10 sheets
PP-101D
5x7
127 x 178 mm
ASF,
Cassette
10 sheets
CF-102
A4, LTR
ASF,
Cassette
30 sheets
Type
Name
Plain paper
64 to 105
g/m2
GP-401 4x6 101.6 x 152.4
mm
Photo Paper Pro
Photo Paper Plus
Glossy
GP-401
Credit Card
54 x 86 mm
GP-501
A4, LTR
Matte Photo Paper MP-101
Photo Paper Plus
Semi-gloss
Photo Paper Plus
Double Sided
Transparency
A4, LTR
3-20
ASF stacking
capacity
(max.)
T-shirt transfer
TR-301
A4
ASF,
Cassette
1 sheet
Envelope
COM #10
241 x 105 mm
ASF /
Cassette
10 / 5
envelopes
DL-size
220 x 110 mm
ASF /
Cassette
10 / 5
envelopes
*1: ASF only for LGL
*2: When A4 or LTR is selected for Paper Size, plain paper is selectable for Paper Type. With plain paper selected
for Paper Type, printing is done with borders even when borderless printing is selected.
To the table of contents
To the top
<Part 3: 4. Print Media Specifications>
3-21
