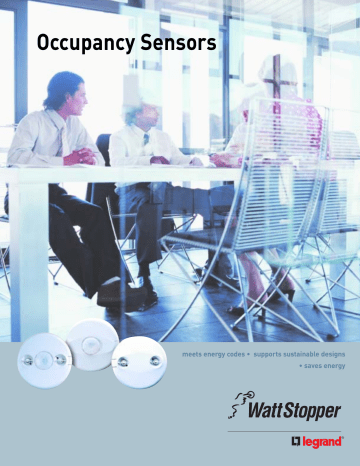

Occupancy Sensors
meets energy codes • supports sustainable designs
• saves energy
The NEW generation of
occupancy sensors:
Watt Stopper/Legrand’s new generation of
occupancy sensors are packed with features
and options that streamline sensor installation
and strengthen performance - yet fit in a small,
clean package.
Low profile
design
Attractive new enclosures offer a flat,
extremely low profile appearance that
leaves the ceiling clean and
uncluttered.
360°
coverage
With a full 360° of coverage, these
sensors are able to control a wide
range of applications, either
individually, or for large areas, in
zones that overlap.
SmartSet™
technology
Watt Stopper SmartSet technology means no
adjustments are needed at installation.
SmartSet monitors the space to identify usage
patterns. With this information, it automatically
adjusts the time delay and sensitivity settings
for both optimal performance and maximum
energy efficiency.
Walkthrough mode
The lights don’t need to stay on for the entire
length of the time delay if someone is just
dropping off mail or other items. With our
smart Walk Through Mode, lights turn off 3
minutes after an area is initially occupied if
no movement is detected within 30 seconds.
Quick
terminal wiring
Terminal wiring and depluggable terminal
wiring are featured throughout our new
generation of occupancy sensors. Quick and
easy installations are now the new standard.
Low & line voltages
Low voltage sensors are well suited in most
applications. The simplicity of low voltage wiring
allows for optimal placement. However, some
applications, because of installer preference, are
better suited to line voltage ceiling mount sensors.
Our new generation of sensors are available in both
line and low voltage models to match each and
every application and installation style.
Diffusers
Both the ultrasonic and dual technology
sensors benefit from the new Ultrasonic
Diffusers. The diffusers are able to evenly
distribute the ultrasound in order to achieve
a more comprehensive coverage of the
controlled area.
One touch
light level
Many occupancy sensors contain a built-in
light level sensor. Our new generation
sensors incorporate this feature PLUS a
unique one-touch set up.
Manual
operation
When the application calls for manual on/off control
in addition to the occupancy based control, the new
generation sensors do the job. They offer the
convenience of a low voltage switch input (on the low
voltage sensor models) so that wiring to a
momentary wall switch is quick and easy.
Occupancy sensor technologies
Passive infrared
ceiling mount sensors
Many Watt Stopper PIR sensors
are enhanced with advanced
technologies to ensure higher
sensitivity to minor motion
without the potential for false
activations. These include
Detection Signature Analysis
and Pulse Count Processing.
WPIR
CX series
CI-200 series
CI-300 series
CB-100
Passive infrared technology (PIR)
PIR technology senses occupancy by detecting the
difference between heat emitted from the human body in
motion and the background space.
Relying on a clear line-of-sight view, passive infrared
sensors make 100% coverage cut off possible. These
sensors utilize a unique Fresnel lens which divides the
coverage area into zones, enhancing detection of small
movement.
Wall switch technologies
Watt Stopper automatic wall
switches incorporate features, such
as Zero Crossing, that increase the switch’s life and enhances
reliability. They also offer features such as terminal style wiring,
which simplifies installation, and SmartSet technology, which
automatically adjusts time delays and sensitivity based on usage
patterns.
3
800.879.8585 • www.wattstopper.com
WS-200
WN-100-120/277
WA-200, WA-300
WD series
WI-200, WI-300
Ultrasonic technology
Using the Doppler principle, ultrasonic sensors work
by bouncing ultrasonic sound waves off objects in an
area and measuring the time it takes for the waves to
return. Movement by a person in the area causes the
sound waves to return at a changed frequency,
resulting in a Doppler shift and occupancy detection.
Ultrasonic technology
These sensors utilize our Advanced Signal Processing Circuitry to
automatically adjust the signal detection threshold in
compensation for changing levels of activity and airflow. This
helps eliminate false ON activations common in other ultrasonic
sensors.
W series
WT series
UT-300 series
Dual technology
While PIR and ultrasonic sensors provide
optimal control for a variety of spaces,
some applications pose difficulty for single
technology sensors.
We created and patented Dual Technology – a
combination that takes advantage of the best
features of both PIR and ultrasonic technologies.
Using the Dual Sensing Verification Principle, both
technologies must detect occupancy to turn
lighting on, while continued detection by only one
technology will hold lighting on.
Dual technology
Dual Technology sensors
ensure the greatest sensitivity
and coverage for tough
applications, without the threat
of false triggers. This leads to
the greatest energy savings.
DT-200 series
DT-300 series
800.879.8585 • www.wattstopper.com
4
Applying occupancy sensors
In offices where the wall
switch has a view of the work
space, replace the switch with
a passive infrared wall switch
sensor. Take advantage of the
built-in light level feature to
keep lights off when ample
sunlight is present.
Control lighting in restrooms with
ultrasonic sensors and eliminate
hours of unneeded on-time.
Ceiling-mounted ultrasonics can
sense motion around restroom
stalls for reliable coverage.
In open or partitioned offices,
use ultrasonic or dual
technology sensors. Placed on
the ceiling, these sensors
cover the area in zones that
overlap.
PIR
Best Applications
• Warehouses
• High ceiling mount locations
• Library bookstack or other aisles
• Common building areas
• Lobbies
• Computer rooms
5
800.879.8585 • www.wattstopper.com
PIR Wall Switch
Best Applications
• Offices
• Copy rooms and other common
building areas
• Storage closets
• Small conference rooms
Common building spaces, such as
copy rooms, are ideal for
occupancy based control. With a
passive infrared sensor placed in
the corner of the ceiling or as a
wall switch replacement, users
can save hours of wasted lighting
each day.
In large conference
rooms, occupants may be
still for long periods of time.
Dual technology sensors will
be able to detect the small motion
and keep lights on as long as the
space is occupied.
Use occupancy sensors
together with other control
methods such as lighting
control panels or daylighting
controls. Integrating control
options can help you meet
energy codes and sustainability
guidelines as well as maximize
energy savings.
In warehouses, a passive
infrared sensor mounted to
a ceiling or fixture will
control the lighting
between shelves – so that
lighting in unoccupied areas
will turn off or turn to a lower
level. Users can achieve this
control with fluorescent as well
as HID lighting.
Ultrasonic
Best Applications
• Restrooms
• Open office spaces
• Offices
• Enclosed hallways
• Stairways
Dual Technology
Best Applications
• Classrooms
• Large conference rooms
• Large offices
• Lunch rooms
800.879.8585 • www.wattstopper.com
6
WS-200 Automatic Wall Switch
Adjustable sensitivity
Attractive, low-profile appearance
Zero Crossing Circuitry increases longevity
Built-in light level sensor
Terminal style wiring for easy installation
ASIC technology
Specifications
Applications
• Dual 120/277 voltage
• 30 sec to 30 min time delay
• Built-in light level sensor 2 to 200
fc (107 to 1,614 lux)
• No minimum load requirement
• Compatible with all electronic
ballasts and PL lamp ballasts
• 2.6” x 1.7” x 2” L x W x D
(66.0mm x 44.2mm x 50.8mm)
• UL and CUL listed, 5 year warranty
Coverage Pattern
Wiring Diagram
The WS-200 can be
wired for single-level
lighting (shown), or
for manual bi-level
control.
• Small offices
• Small conference rooms
• Break rooms
• Utility rooms
• Storage closets
Neutral
Load
Load
Line
35'
(10.7m)
Ground
15'
(4.6m)
Order Information
CATALOG #
VOLTAGE*
LOAD REQUIREMENTS
COVERAGE*
WS-200
120 VAC; 60 Hz or
0-800 Watt Ballast or
up to 900 ft2 (83.6 m2), 180°
277 VAC; 60 Hz
0-1200 Watt Ballast
Add –I to Cat. # for Ivory, -W for White, -A for Light Almond, -G for Grey, -B for Black; Single-gang cover plate
ASP-211 included. Order ASP-422 for blank 2-gang cover plate, ASP-432 for 2-gang cover plate with switch
option, specify color. *Models for 220-240 VAC (WS-230) and 347 VAC (WS-347) are available.
7
800.879.8585 • www.wattstopper.com
Coverage shown is
for half-step, walking
motion, maximum of
900 sq ft. For typical,
desktop activity,
when mounted at 4 ft
(1.2m), coverage is
300 ft2 (27.9 m2).
WA Automatic Wall Switches
Terminal style wiring simplifies installation
SmartSet™ automatically selects optimal
settings for each space
Two relays and dual switch buttons control two
separate lighting loads or circuits (WA-300)
Choice of Auto-ON or Manual-ON operation
Audible and/or visual alerts of impending
shut-off
Built-in light level sensor
Selectable walk-through mode for
increased savings
Vandal resistant hard lens
Specifications
Applications
• Universal 100-300 VAC; 50/60 Hz
operation
• 1.0mm hard poly IR2 lens
• SmartSet (automatic) time delay or
fixed (5-30 minute)
• SmartSet (automatic) or reduced
sensitivity
• Zero Crossing Circuitry
WA-200 Wiring
Red
Coverage Pattern
WA-300 Wiring
Neutral
Load
• Public area offices
• Small offices
• Small conference rooms
• Storage closets
• Built-in light level sensor 8 to 180
fc (86 to 1,937 lux)
• No minimum load requirement
• Compatible with all electronic
ballasts and PL lamp ballasts
• 2.6” x 1.7” x 1.9” (66.0mm x
43.2mm x 48.3mm)
• UL and CUL listed, 5 year warranty
Hot BLK
Neutral
Line
White
Black
Blue
Ground
GRN
Red
Primary
Load
25'
(7.6m)
Brown Secondary
Load
Ground
The WA-200 can be wired for
single-level lighting (shown), or for
manual bi-level control.
Coverage shown is for halfstep, walking motion,
maximum of 300 ft2. Typical
coverage at the desktop
level when mounted at 4 ft
is 150 ft2.
10'
(3.1m)
The WA-300 can be wired for
bi-level (shown) or dual circuit
control.
Order Information
CATALOG #
DESCRIPTION
VOLTAGE
LOAD REQUIREMENTS
COVERAGE
WA-200
Automatic wall switch
100/120 VAC; 50/60 Hz or
0-800 Watt Ballast or
up to 300 ft2
230/277 VAC; 50/60 Hz
0-1200 Watt Ballast
(28 m2)
Automatic wall switch,
100/120 VAC; 50/60 Hz or
0-800 Watt Ballast or
up to 300 ft2
dual relays
230/277 VAC; 50/60 Hz
0-1200 Watt Ballast
(28 m2
WA-300
Add –I to Cat. # for Ivory, -W for White, -A for Light Almond, -G for Grey, -B for Black; Single-gang
cover plate ASP-211 included. Order ASP-422 for blank 2-gang cover plate, ASP-432 for 2-gang
cover plate with switch option, specify color.
800.879.8585 • www.wattstopper.com
8
WI Automatic Wall Switches
Two relays for control of two separate lighting
loads or circuits (WI-300)
Choice of auto-ON or manual-ON operation
4 level lens for superior desktop detection
DIP switch adjustable sensitivity and time delay
Built-in light level sensor
Specifications
Applications
• Dual 120/277 VAC
• Time delay of 15 sec to 30 min (WI200); 30 sec to 30 min (WI-300)
• Built-in light level sensor 10 to 150
fc (107 - 1,614 lux) (on secondary
relay of WI-300)
• LED indicator
WI-200 Wiring
WI-300 Wiring
Neutral
• Offices
• Conference rooms
• No minimum load requirement
• Compatible with all electronic
ballasts and PL lamp ballasts
• 2.8” x 4.8” x 1.5” (72.1mm x
121.9mm x 38.1mm)
• UL and CUL listed, 5 year warranty
Coverage Pattern
Neutral
277V Ground (GRN/YEL)
0°
Load
120V Ground (GRN)
Hot (BLK)
Hot
Black
Load (RED)
5°
Red
Blue
Primary
Load
Red
Secondary
Load
12°
30°
40'
(12.2m)
Ground (GRN)
The WI-200 can be wired for
single-level lighting (shown), or
for manual bi-level control.
The WI-300 can be wired for
bi-level (shown) or dual circuit
control.
15'
(4.6m)
Order Information
CATALOG #
DESCRIPTION
VOLTAGE
LOAD REQUIREMENTS
COVERAGE
WI-200
Automatic wall switch
120 VAC; 60 Hz or
0-800 Watt Ballast or
up to 1000 ft2 (92.9m2) 180°
277 VAC; 60 Hz
0-1200 Watt Ballast
WI-300
Automatic wall switch,
120 VAC; 60 Hz or
0-800 Watt Ballast or
dual relays
277 VAC; 60 HZ
0-1200 Watt Ballast
Add -W to cat # for White, -A for Light Almond; Order ASP-121 for blank switch 2-gang box
plate; Order ASP-122 for 2-gang box plate with switch option (WI-200 only)
9
800.879.8585 • www.wattstopper.com
up to 1000 ft2 (92.9m2) 180°
4-level Fresnel lens
detects horizontal and
vertical motion.
Maximum coverage
under ideal conditions
and for half-step walking
motion is 1000 ft2.
WN Motion Sensor Nightlight Switch
Manual-on or automatic-on operation
Adjustable time delay from 15 minutes to 2 hours
Impact resistant hard lens
Energy efficient, super bright LED
Built in nightlight illuminates whenever
overhead lights are off
Terminal wiring for quick and easy installation
Zero Crossing Circuitry increases product
longevity
Specifications
Applications
• 120 or 277 VAC, 60 Hz
• Time delay of 15 min, 30 min, 1
hour or 2 hours
• 1.0mm hard poly IR2 lens
Coverage Pattern
Wiring Diagram
Neutral
White
Load
Load
Red
TOP
ON
Hot
Black
1
Ground
Green
• Hotel guest bathrooms
• Military housing
• Healthcare facilities
• 2.63” x 1.69” x 1.88” (66.8mm x
42.9mm x 47.8mm)
• UL and CUL listed, 5 year warranty
The WN-100 can be
wired for singlelevel lighting
(shown), or for
manual bi-level
control.
25'
(7.6m)
Neutral
INDOOR USE ONLY
White
10'
(3.1m)
The WN-100 has a
coverage range of 180°
and a maximum
coverage area of 300
ft2. To maintain its
coverage capacity and
optimally detect
motion, the WN-100
must have a clear and
unobstructed view of
occupants.
Order Information
CATALOG #
VOLTAGE
WN-100-120 120 VAC; 60 Hz
LOAD REQUIREMENTS
0-500W incandescent, fluorescent
COVERAGE
up to 300 ft2 (28 m2), 180°
and compact fluorescent
WN-100-277 277 VAC; 60 Hz
0-1200W incandescent, fluorescent
up to 300 ft2 (28 m2), 180°
and compact fluorescent
Add –I to Cat. # for Ivory, -W for White, -A for Light Almond; Single-gang cover plate ASP-211
included. Order ASP-422 for blank 2-gang cover plate, ASP-432 for 2-gang cover plate with switch
option, specify color.
800.879.8585 • www.wattstopper.com
10
WD Dimmable Automatic Switch
Occupancy sensing dimmable wall switch
Works with dimming ballasts
Vandal resistant, hard lens
Slide dimmer adjusts light level
Low profile, flat decorator design
ASIC enhances reliability and helps to
eliminate false triggers
Zero voltage turn on/off increases life
of sensor
Specifications
Applications
• WD-170, WD-270 operate at 120
VAC; WD-180, WD-280 operate at
277 VAC
• WD-170/180 time delay of 30 sec to
30 min
• WD-270/280 fixed initial 15 min
delay for dim; secondary adjustable
delay (5 min to 30 min) for off
• Small offices
• 1.0 mm hard poly IR 2 lens
• LED indicator
• Adjustable sensitivity
• 2.7”x1.8”x2.2” (68.9mm x 45.7mm x
55.9mm)
• UL and CUL listed, 5 year warranty
Wiring Diagram
• Public area offices
• Small conference rooms
Coverage Pattern
Load
Neutral
Ground GRN
Hot BLK
Load RED
25'
(7.6m)
The WD can be wired for
single-level lighting
(shown) or for manual
bi-level control.
10'
(3.1m)
Order Information
CATALOG #
VOLTAGE
LOAD REQUIREMENTS
COVERAGE
OFF MODE
WD-170
120 VAC; 60 Hz
10-500 W Ballast
up to 300 ft2 (28 m2)
Automatic-OFF
WD-180
277 VAC; 60 Hz
10-500 W Ballast
up to 300 ft2 (28 m2)
Automatic-OFF
WD-270
120 VAC; 60 Hz
10-500 W Ballast
up to 300 ft2 (28 m2)
Dim-bef-disconnect
WD-280
277 VAC; 60 Hz
10-500 W Ballast
up to 300 ft2 (28 m2)
Dim-bef-disconnect
Add –I to Cat. # for Ivory, -W for White, -A for Light Almond; Single-gang cover plate ASP-211
included. Order ASP-422 for blank 2-gang cover plate, ASP-432 for 2-gang plate with switch option,
WD-170/180.wiring.single level
specify color.
11
800.879.8585 • www.wattstopper.com
Coverage shown is for halfstep, walking motion,
maximum of 300 ft2. Typical
coverage at the desktop
level when mounted at 4 ft
is 150 ft2.
CN, CW Vacancy Sensors for
Residential Use
Manual-on/automatic-off operation; lights
cannot be overriden ON
Adjustable time delay from 1 to 30 minutes
Impact resistant hard lens
CN contains energy efficient nightlight
that illuminates whenever overhead
lights are off
CEC 2005 Title 24 compliant
Simple pushbutton programming
Applications
Specifications
• 120 VAC, 60 Hz
• Time delay of 1 min to 30 min
• 1.0mm hard poly IR2 lens
• Compatible with 0-500W
incandescent, fluorescent, compact
fluorescent, MLV, and ELV loads
CW
• Hallways
• Laundry rooms
• Garages
• No minimum load requirement
• 2.63” x 1.69” x 1.88” (66.8mm x
42.9mm x 47.8mm)
• UL and CUL listed, 5 year warranty
Wiring Diagram
Coverage Pattern
Neutral
White
Load
TOP
Load
Red
ON
Hot
Black
25'
(7.6m)
1
Ground
Green
CN
• Bathroom
• Bedrooms
Neutral
INDOOR USE ONLY
White
10'
(3.1m)
The sensors have a
coverage range of 180°
and a maximum
coverage area of 300
ft2. To maintain its
coverage capacity and
optimally detect
motion, the sensor
must have a clear and
unobstructed view of
occupants.
Order Information
CATALOG #
DESCRIPTION
VOLTAGE
LOAD REQUIREMENTS
COVERAGE
CN-100
Residential vacancy
120 VAC; 60 Hz
0-500W incandescent, fluorescent
up to 300 ft2 (28 m2), 180°
sensor with nightlight
CW-100
Residential vacancy
sensor
and compact fluorescent
120 VAC; 60 Hz
0-500W incandescent, fluorescent
up to 300 ft2 (28 m2), 180°
and compact fluorescent
Add –I to Cat. # for Ivory, -W for White, -A for Light Almond. Single-gang cover plate ASP-211 included. Order ASP-422 for blank
2-gang cover plate, ASP-432 for 2-gang cover plate with switch option, specify color.
800.879.8585 • www.wattstopper.com
12
WPIR Passive Infrared Sensor
ASIC technology reduces components and
provides greater reliability
PIR occupancy sensor turns lights on and off
based on occupancy
LED indicator
User-adjustable sensitivity
30 segment multi-element Fresnel lens
User-adjustable time delay of 30 sec to 30 min
Specifications
Applications
• Adjustable time delay of 30 sec to
30 min
• Units per power pack: up to 8 (B);
up to 10 (BZ)
• 2.5” x 2.5” x 1.14”
(63.5mm x 63.5mm x 29.0mm)
• UL and CUL listed, 5 year warranty
Product Controls
Wiring Diagram
Sensitivity
Adjustment
LED Indicator
Load
Load
Red
White
Mounting
Holes
Hot
Black
Power
Pack
Red
SE
N
Time Delay
Adjustment
• Computer rooms
• Racquetball courts
• Library book stacks
Coverage Pattern
Neutral
Override
• Small offices
• Copy rooms
• Break rooms
SE
TI
E
Red
Black
Blue
M
Zone 1
Switch
Sensor
Window
WPIR Sensor
Zone 2
Horizontal
coverage
pattern
Zone 3
Zone 4
Zone 5
Vertical coverage pattern
5
Order Information
CATALOG #
WPIR
VOLTAGE
CURRENT
COVERAGE
14 mA
up to 300 ft2 (28 m2)
24 VDC
All units are white and use Watt Stopper power packs
13
800.879.8585 • www.wattstopper.com
4
3
2
1
CX Pa s s i ve I n f ra re d S e n s o r
Choice of four coverage patterns
Swivel mounting bracket for convenient corner
mounting to wall or ceiling
User-adjustable time delay and sensitivity
Built-in light level sensor (CX-100)
ASIC technology reduces components and
provides greater reliability
Isolated relay for use with HVAC or other
control systems (CX-100)
Specifications
Applications
• Time delay of 15 sec to 30 min
• Built-in light level sensor 3 to 200
fc (32 - 2,152 lux) (CX-100)
• Units per power pack: CX-100 up to
6 (B), up to 8 (BZ); CX-105 up to 14
(B), up to 18 (BZ)
• Large offices
• Warehouses
• Computer rooms
• 3.3” x 3.3” x 2.1” (83.8mm x
83.8mm x 53.3mm)
• UL and CUL listed, 5 year warranty
Wiring & Controls
• Open office spaces
• Classrooms
• High bays
Coverage Patterns
16ft
8ft
White (Neutral)
t.
0f
0
5
Red (Line)
Power Pack
Red (Load)
Blue
Black
Black
White
Hot
Red
N
Auxiliary
Pack
Blue
Black
OFF switch
Hot
Red (load)
N
8ft
16ft
Isolated Relay Outputs
Switch
Lighting
Load
55ft.
Standard
CX-100,
CX-105
Wires
Normally Closed Contact
Common
Normally Open Contact
BRN
RED
ORN
Control Output 24VDC
Common
YEL
GRN
SIDE
Light Level Output 24VDC
+24VDC
Common
BLU
VIO
5ft
0
Light
Level
Lighting
Load
10ft
TOP
0
10 15ft
55ft
85 90ft
Long Long
Range
Lens:
CX-100-1, CX-105-1
Range Lens
(-1)
10 ft
3 ft
0
0 7 ft 15 ft 25 ft
55ft
33° using MB-1 with
maximum rotation
30ft
15ft
GRA
30ft
1 2 3 4 5
33.5ft
0
0
Sensitivity
Time Delay DIP
33.5ft
15ft
Light
Level
on
15ft
Dense Wide Angle Lens (Standard)
67ft
38ft
21ft 10ft
0 10ft 21ft
38ft
67ft
Two Sided Aisleway: CX-100-3, CX-105-3
0
10 ft
0
10 ft 20 ft 30 ft 40 ft
50 ft
One Sided Aisleway:
CX-105-4
CX-100-4,
Narrow Aisle Lens (-4)
using MB-1 bracket
with maximum rotation
Aisleway
(-3)
areLensmaximum.
Under ideal conditions, coverage for half-step walking motion
Coverages shown
pointed straight down
(standard lens) can reach up to 2000 ft2 (185.8 m2), for desktop activity up to 1000 ft2 (92.9 m2).
Order Information
CATALOG #
VOLTAGE
CURRENT
COVERAGE
FEATURES
CX-100
24 VDC
19 mA
up to 2000 ft2 (185.8 m2)
light level, isolated relay
CX-100-1
24 VDC
19 mA
up to 90 linear ft (27.4 m)
light level, isolated relay
CX-100-3
24 VDC
19 mA
up to 120 linear ft (36.6 m)
light level, isolated relay
CX-100-4
24 VDC
19 mA
up to 50 linear ft (15.2 m)
light level, isolated relay
CX-105
24 VDC
8 mA
up to 2000 ft2 (185.8 m2)
CX-105-1
24 VDC
8 mA
up to 90 linear ft (27.4 m)
CX-105-3
24 VDC
8 mA
up to 120 linear ft (36.6 m)
CX-105-4
24 VDC
8 mA
up to 50 linear ft (15.2 m)
All units are white and use Watt Stopper power packs. Order the MB-1 Industrial Mounting Bracket
for installing the CX in industrial settings such as warehouses.
800.879.8585 • www.wattstopper.com
14
CI-200 Passive Infrared Sensor
360° coverage
Isolated relay for use with HVAC or other
control systems (CI-200)
User adjustable time delay and sensitivity
Built-in light level sensor (CI-200)
ASIC enhances reliability and helps
eliminate false triggers
Specifications
Applications
• Time delay 15 sec to 30 min
• Built-in light level sensor 4 to 190
fc (43 to 2,045 lux) (CI-200)
• SPDT isolated relay (CI-200)
• Units per power pack: CI-200 up to
5 (B), up to 7 (BZ); CI-205 up to 10
(B), up to 13 (BZ)
• Open or partitioned
office spaces
• Conference rooms
• Computer rooms
• Classrooms
• 3.3” diameter x 2.2” total depth
(83.8mm x 55.9mm) Extends
approx .36” from ceiling
• UL and CUL listed, 5 year warranty
Wiring & Controls
Coverage Patterns
Extended Range Lens : CI-200, CI-205
White / Neutral
Red (Line)
N
White
Hot
Black
Power Pack
8 ft
DIP Switch
for Time Delay
and Sensitivity
Lighting
Load
Red (Load)
Switch
Blue
Black
Red
44 ft
Auxiliary
Pack
Blue
Black
Hot
OFF switch
Red (load)
Cable
Wires
Normally Closed Contact 1-Brn
2-Red
Common
Normally Open Contact 3-Orn
Isolated Relay Outputs
Closure upon Occupancy
Control Output 24VDC
Control Return
4-Yel
Light Level Output 24VDC
+24VDC
6-Blu
7-Vio
8-Gra
Common
5-Grn
Light
Level
Lighting
Load
Typical
desk-top
level
22 ft
13 ft
7 ft 3 ft 0 3 ft 7 ft
13 ft
22 ft
MAX
MIN
High Density Lens: CI-200-1, CI-205-1
8 ft
LED
Light Level
Adjustment
Typical
desk-top
level
N
24 ft
12 ft 9 ft 7 ft 5 ft 3 ft
0
3 ft 5 ft 7 ft 9 ft 12 ft
Coverage shown represents half-step, walking motion.
Typical coverage at the desktop is 500 ft2 (46.5 m2) with
the Extended Range lens and 300 ft2 (111.5 m2) with the
High Density lens.
Order Information
CATALOG #
VOLTAGE
CURRENT
COVERAGE
CI-200
24 VDC
20 mA
up to 1200 ft2 (111.5 m2)
CI-200-1
24 VDC
20 mA
up to 500 ft2 (46.5 m2)
CI-205
24 VDC
11 mA
up to 1200 ft2 (111.5 m2)
CI-205-1
24 VDC
11 mA
up to 500 ft2 (46.5 m2)
All units are white and use Watt Stopper power packs.
15
800.879.8585 • www.wattstopper.com
CI-300, CI-355 360° PIR Sensor
Accepts low voltage switch input for manual-on
operation (CI-300, CI-305)
Architecturally appealing low profile
appearance
Line and low voltage models available
SmartSet automatically selects optimal
time delay and sensitivity
Walk-through mode increases
savings potential
Depluggable terminal wiring for quick and
easy installation
Specifications
Applications
• CI-300, CI-305: 24 VDC/VAC
• CI-355: 120/230/277/347 VAC,
50/60 Hz
• Time delays: SmartSet (automatic),
fixed (5, 10, 15, 20, or 30 minutes),
walk-through, test-mode
• Sensitivity adjustment: SmartSet
(automatic) or reduced sensitivity
• Built-in light level sensor; 10 to
300 fc (107 to 3,229 lux) (CI-300,
CI-355)
• Isolated relay with N/O and N/C
outputs rated for 1 Amp at 30
VDC/VAC (CI-300)
• Mounting options: ceiling tile; 4
square junction box with double
gang mudring (CI-300, CI-305)
• Mounting options: 4 square
junction box with double gang
mudring; 4 inch octagonal
junction box (CI-355)
• Units per power pack: CI-300 up
to 5 (B), up to 7 (BZ); CI-305 up to
12 (B), up to 16 (BZ)
• 4.5” diameter x 1.02” (144.3mm x
25.9mm); (83.8mm x 55.9mm)
extends approx .36” from ceiling
• UL and CUL listed, 5 year
warranty
Wiring Diagrams
• Open offices
• Conference rooms
• Classrooms
• Offices
• Storage rooms
• Computer rooms
Coverage Patterns
White (Neutral)
Red (Line)
Black
Red (Load)
Auxiliary
Relay
Pack
Blue
Hot
Power Pack
Black
White
Red
N
Switch
Extended Range Lens (Standard)
CI-300, CI-305, CI-355
Lighting
load
44 ft
13.4m
Isolated Relay Outputs
Common
Normally Open Contact
Normally Closed Contact
Blue
Relay Common
N.O.
N.C.
8 ft
Typical
desk-top
level
Light Level (24VDC Out)
Control (24VDC) Out
Optional Momentary Switch
*
Black
Man. Switch
+24V (In)
Common
22 ft
13 ft
7 ft 3 ft 0 3 ft 7 ft
13 ft
22 ft
CI-300 Terminals
Hot
N
OFF switch
Light
level
lighting
load
Red (load)
* Connect wire only when
momentary switch is installed
CI-300 Wiring
Neutral
Load
High Density/Reduced Range Lens
CI-300-1, CI-305-1, CI-355-1
Load
Hot
24 ft
7.3m
Ground
Neutral
(Optional)
8 ft
Typical
desk-top
level
12 ft 9 ft 7 ft 5 ft 3 ft
CI-355 Wiring
0
3 ft 5 ft 7 ft 9 ft 12 ft
Order Information
CURRENT/LOAD REQ
COVERAGE
CI-300
CATALOG #
24 VDC
20 mA
up to 1200 ft2 (111.5 m2)
CI-300-1
24 VDC
20 mA
up to 500 ft2 (46.5 m2)
CI-305
24 VDC
9 mA
up to 1200 ft2 (111.5 m2)
CI-305-1
24 VDC
9 mA
up to 500 ft2 (46.5 m2)
CI-355
120 VAC, 50/60 Hz
0-800 W Ballast/Tungsten
up to 1200 ft2 (111.5 m2)
230/277 VAC, 50/60 Hz
0-1200 W Ballast
347 VAC, 50/60 Hz
0-1500 W Ballast
120 VAC, 50/60 Hz
0-800 W Ballast/Tungsten
230/277 VAC, 50/60 Hz
0-1200 W Ballast
347 VAC, 50/60 Hz
0-1500 W Ballast
CI-355-1
VOLTAGE
up to 500 ft2 (46.5 m2)
All units are white and low voltage models use Watt Stopper power packs.
For line voltage installations requiring an adapter plate, order cat # CA-1.
800.879.8585 • www.wattstopper.com
16
CI-12,CI-24 Sensor for HVAC, BAS
Four-level Fresnel lens offers superior desktop
detection
Ceiling mount 360° sensor
Interfaces directly with EMS or HVAC system
through internal isolated relay
Advanced PIR technology
User adjustable time delay and sensitivity via
DIP switch
ASIC technology reduces components and
enhances reliability
Specifications
Applications
• Time delay 30 seconds to 30
minutes
• Isolated relay rated for 1 Amp at 24
VAC/VDC
• 3.3” diam x 2.2” depth (83.8mm x
55.9mm) extends approx .36” from
ceiling
• UL and CUL listed, 5 year warranty
• Open or partitioned
office spaces
• Conference rooms
• Computer rooms
• Classrooms
CB Low Temp Sensor
PIR occupancy sensor for areas of extreme
low temperature
Choice of three coverage patterns
Convenient DIP switch adjustments for time
delay and sensitivity
Watertight enclosure prevents moisture and
dust from affecting detection
Isolated relay contact for use with HVAC or
other control systems
Specifications
Applications
• Time delay 15 sec to 10 min
• Temperature range -40°F to +95°F
• Units per power pack: up to 5 (B);
up to 7 (BZ)
• 3.94”x3.74”x2.36” (100.1mm x
95.0mm x 60.0mm)
• UL and CUL listed, 5 year warranty
• Cold storage and
freezers
• Unconditioned
spaces
Wiring Diagram
White / Neutral
Red (Line)
Hot
Black
CATALOG #
VOLTAGE
LOAD REQUIREMENTS
COVERAGE
CI-12
12 VDC
28 mA
See coverage
CI-24
24 VAC, VDC
37 mA
patterns CI-200
Units are white; Extended Range lens is standard; Add -1 to
Cat# for High Density/Reduced coverage lens.
Red (Load)
Black
CI-12/CI-24 Order Information
Lighting
Load
Power Pack
Blue
White
Red
N
Isolated Relay Outputs
Closure upon Occupancy
Normally Closed Contact
Common
Normally Open Contact
Switch
Cable
Wires
1-Brn
2-Red
3-Orn
Control Output 24VDC
4-Yel
+24VDC
5-n/a
6-n/a
7-Vio
8-Gra
Control Return
CB-100 Order Information
CATALOG #
VOLTAGE
CURRENT
COVERAGE
CB-100
24 VDC
20 mA
See coverage patterns CX-100
Units are beige; Dense Wide Angle lens is standard; Add-1 to Cat# for Long
Range, -3 for Two Sided Aisle way
17
800.879.8585 • www.wattstopper.com
LED
on
off
DIP
Switch
W Ultrasonic Occupancy Sensor
Advanced, omni-directional,
Doppler technology
Ideal for open office areas, conference rooms
and restrooms
Adjustable time delay from 15 seconds
to 15 minutes
Advanced Signal Processing Circuitry
automatically adjusts detection threshold
500, 1000, 2000 sq ft, and hallway
coverages available
Specifications
Applications
• Ultrasonic technology with 25KHz
frequency
• Temperature and humidity resistant
receivers
• Logic key/ON bypass
• LED indicator
• Open and partitioned
spaces
• Restrooms
• Adjustable sensitivity
• Units per power pack: up to 7 (B);
up to 9 (BZ)
• 4.5” x 4.5” x 1.25” (114.3mm x
114.3mm x 31.8mm)
• UL and CUL listed, 5 year warranty
Wiring Diagram
Coverage Patterns
Neutral
W-2000A
Load
Load
20'
W-1000A
29'
Black
12'
Red
White
Hot
• Storage areas
• Conference rooms
• Hallways
Power
Pack
24'
W-500A
**W-2000H
10'
Red
5'
Red
Black
Blue
45'
25'
20'
5'
5'
10'
12'
Switch
15' 20'
25'
45'
Coverage shown
represents half-step,
walking motion.
**W-2000H coverage is
not drawn to scale
20'
sensor
Occupancy Sensor
Order Information
CURRENT
COVERAGE
W-500A
CATALOG #
VOLTAGE
24 VDC
16 mA
360°, 500 ft2 (46.5 m2)
W-1000A
24 VDC
16 mA
360°, 1000 ft2 (92.9 m2)
W-2000A
24 VDC
16 mA
360°, 2000 ft2 (185.8 m2)
W-2000H
24 VDC
16 mA
360°, 90 linear ft (27.4 m)
All units are white and use Watt Stopper power packs.
800.879.8585 • www.wattstopper.com
18
WT Ultrasonic Occupancy Sensor
Ultrasonic technology with 32 KHz frequency
User-adjustable DIP switch time delay and
sensitivity settings
Utilizes advanced, omni-directional,
Doppler technology
600, 1100, 2200 sq ft and hallway
coverages available
Advanced Signal Processing automatically
adjusts detection threshold
Isolated relay allows sensor to interface with
building control systems
Specifications
Applications
• Ultrasonic technology with 32 KHz
frequency
• Time delay 15 sec to 30 min
• Isolated relay with N/O and N/C
outputs; rated for 1 amp @ 30
VDC/VAC
• 4.8” diam x 1.5” depth (121.9mm x
38.1mm)
• Open and partitioned spaces
• Units per power pack:
WT-605 up to 4 (B), 5 (BZ); WT-600
up to 3 (B), 4 (BZ); WT-1105, WT2205, WT-2255 up to 3 (B), 5 (BZ);
WT-1100, WT-2200, WT-2250 up to
2 (B), 3 (BZ)
• UL and CUL listed, 5 year warranty
Wiring & Controls
• Restrooms
• Storage areas
• Conference rooms
• Hallways
Coverage Patterns
White (Neutral)
45'
Red (Line)
N
White
Hot
Black
Power Pack
Red (Load)
Lighting
Load
Switch
0'
26' 22'
21'
Transducers
Blue
Black
45'
14'
WT-1100/1105
Red
22' 26'
WT-2200/2205
Cable
Isolated Relay Outputs
Closure upon Occupancy Wires
Normally Closed Contact 1 Brn
2 Red
Common
Normally Open Contact 3 Orn
WT-600/605
DIP switch
5'
LED
WT-2250/2255
0'
ON
1 2 3 4 5 6
Control Output 24VDC
4 Yel
Control Return
5 Grn
No Connection
+24VDC
Common
6 Blu
5'
7 Vio
8 Gra
Sensitivity
S
14'
21'
Order Information
CATALOG #
VOLTAGE
CURRENT
COVERAGE
WT-605
24 VDC
27 mA
360° one-sided, 600 ft2 (55.7 m2)
WT-600
24 VDC
37 mA
360° one-sided, 600 ft2 (55.7 m2)
WT-1105
24 VDC
30 mA
360° two-sided, 1100 ft2 (102.2 m2)
WT-1100
24 VDC
40 mA
360° two-sided, 1100 ft2 (102.2 m2)
WT-2205
24 VDC
30 mA
360° two-sided, 2200 ft2 (204.4 m2)
WT-2200
24 VDC
40 mA
360° two-sided, 2200 ft2 (204.4 m2)
WT-2255
24 VDC
30 mA
360° two-sided, 90 linear ft (27.4 m)
WT-2250
24 VDC
40 mA
360° two-sided, 90 linear ft (27.7 m)
All units are white and use Watt Stopper power packs.
19
800.879.8585 • www.wattstopper.com
FEATURE
isolated relay
isolated relay
isolated relay
isolated relay
Coverage shown
represents half-step,
walking motion
UT-300, UT-355 360° Ultrasonic Sensor
Architecturally appealing low
profile appearance
Accepts low voltage switch input for manual-on
operation (UT-300, UT-305)
SmartSet automatically selects optimal time
delay and sensitivity
Ultrasonic diffusers give more
comprehensive coverage
Depluggable terminal wiring for quick and
easy installation
Walk-through mode increases
savings potential
Specifications
Applications
• UT-300, UT-305: 24 VDC/VAC
• UT-355: 120/230/277/347 VAC,
50/60 Hz
• Time delays: SmartSet
(automatic), fixed (5, 10, 15, 20,
or 30 minutes), walk-through,
test-mode
• Sensitivity adjustment:
SmartSet (automatic) or
reduced sensitivity
• Ultrasonic frequency of 40 kHz
• Isolated relay with N/O and N/C
outputs rated for 1 Amp at 30
VDC/VAC (UT-300)
• Built-in light level sensor; 10 to
300 fc (107 to 3,229 lux) (UT300, UT-355)
• Mounting options: ceiling tile; 4
square junction box with double
gang mudring (UT-300, UT-305)
• Mounting options: 4 square
junction box with double gang
UT-300 Wiring
Coverage Patterns
UT-355 Wiring
White (Neutral)
• Restrooms
• Large Offices
• Open Offices
mudring; 4 inch octagonal
junction box (UT-355)
• Units per power pack: UT-300
up to 2 (B), up to 3 (BZ); UT-305
up to 3 (B), up to 4 (BZ)
• 4.5” diameter x 1.02” (144.3mm
x 25.9mm) (83.8mm x 55.9mm)
Extends approx .36” from ceiling
• UL and CUL listed, 5 year
warranty
Neutral
Load
25'
20'
15'
10'
5'
0'
5'
10'
15'
20'
25'
Red (Line)
Power Pack
Red (Load)
Blue
Black
Black
White
Hot
Red
N
Switch
20'
Lighting
load
Load
UT-300-3
15'
UT-300-2
10'
Isolated Relay Outputs
Common
Normally Open Contact
Normally Closed Contact
Hot
Ground
Relay Common
N.O.
N.C.
Neutral
(Optional)
UT-300-1
5'
0'
Control (24VDC) Out
OPTIONAL Momentary Switch*
* Connect wire only when
momentary switch is installed
5'
Man. Switch
+24V (In)
Common
10'
UT-300 Terminals
15'
20'
25'
UT-300-1
up to 500 sq ft for walking motion (22.3' x 22.3')
Coverages
represent half-step walking
UT-300-2 up to 1000 sq ft for walking motion (31.6' x 31.6')
motion.
coverages
each
UT-300-3Actual
up to 2000
sq ft for walkingcan
motionvary
(44.7' xfor
44.7')
(walking motion
coverageon
shown)
application
based
room shape, use and
obstacles.
Order Information
CATALOG #
VOLTAGE
CURRENT/LOAD REQ
COVERAGE
UT-300-X
24 VDC
43 mA
see diagram
UT-305-X
24 VDC
37 mA
UT-355-X
120 VAC, 50/60 Hz
0-800 W
230/277 VAC, 50/60 Hz
Ballast/Tungsten
347 VAC, 50/60 Hz
0-1200 W Ballast
0-1500 W Ballast
X = 1 for 500 ft2 of coverage; -2 for 1000 ft2; -3 for 2000 ft2.
All units are white and low voltage models use Watt Stopper power packs.
For line voltage installations requiring an adapter plate, order cat # CA-1.
800.879.8585 • www.wattstopper.com
20
DT-200 Dual Technology Sensor
Combines passive infrared and
ultrasonic technologies
SmartSet automatically selects optimal settings
for each space
Trouble-free lighting control in applications
difficult for single technology sensors
Accepts low voltage switch input for
manual-on operation
Built-in light level sensor
Walk-through mode increases savings
potential
Specifications
Applications
• 24 VDC/VAC
• Ultrasonic frequency of 40 kHz
• Time delays: SmartSet
(automatic), fixed (5, 10, 15, 20,
or 30 minutes), walk-through,
test-mode
• Sensitivity adjustment:
SmartSet (automatic) or
reduced sensitivity
• SPDT isolated relay (DT-200)
• Isolated relay with N/O and N/C
outputs rated for 1 Amp at 24
VDC/VAC (DT-200)
• Built-in light level sensor; 2 to
200 fc (21 to 2,152) lux) (DT-200)
• Units per power pack: DT-200
up to 3 (B), up to 4 (BZ); DT-205
up to 4 (B), up to 5 (BZ)
• Classrooms
• Conference and training
rooms
• Large offices
• 4.4" x 3.4" x 2" (111.8mm x
86.4mm x 50.8mm)
• UL and CUL listed, 5 year
warranty
Wiring Diagram
Coverage Pattern
White (Neutral)
Red (Line)
Power Pack
Switch
Red (Load)
Blue
Black
Black
White
Hot
Red
N
Lighting
load
PIR
coverage
55ft.
Isolated Relay Outputs
RED
Common
Normally Open Contact
ORG
Normally Closed Contact BRN
Auxiliary
Relay
Pack
Blue
YEL
Ultrasonic
coverage
38ft.
GRN
VIO
GRA
DT-200
wires
OFF switch
Red (load)
N
BLU
Control (24VDC) Out
Momentary Switch
+24V (In)
Common
Black
Hot
Light Level (24VDC Out)
Light
level
lighting
load
10 ft
0
25 ft
55ft
Dense Wide Angle Lens (Standard)
Order Information
CATALOG #
VOLTAGE
CURRENT
COVERAGE
FEATURES
DT-200
24 VDC
43 mA
2000 ft2 (185.8 m2)
light level, isolated relay
DT-205
24 VDC
35 mA
2000 ft2 (185.8 m2)
All units are white and use Watt Stopper power packs.
21
7 ft 15 ft
800.879.8585 • www.wattstopper.com
Coverages shown are
maximum. Under ideal
conditions, coverage for
half-step walking
motion (standard lens)
can reach up to 2000 ft2,
for desktop activity up
to 1000 ft2.
DT-300 360° Dual Technology Sensors
Architecturally appealing low profile
appearance
Accepts low voltage switch input for manual-on
operation (DT-300, DT-305)
SmartSet™ automatically selects optimal
settings for each space
Depluggable terminal wiring for quick and easy
installation
Walk-through mode increases savings potential
Ultrasonic diffusers give more
comprehensive coverage
line and low voltage models available
Specifications
Applications
• DT-300, DT-305: 24 VDC/VAC
• DT-355: 120/230/277/347 VAC,
50/60 Hz
• Time delays: SmartSet
(automatic), fixed (5, 10, 15, 20,
or 30 minutes), walk-through,
test-mode
• Sensitivity adjustment: SmartSet
(automatic) or reduced
sensitivity
• Ultrasonic frequency of 40 kHz
• Isolated relay with N/O and N/C
outputs rated for 1 Amp at 30
VDC/VAC (DT-300)
• Built-in light level sensor; 10 to
300 fc (107 to 3,229 lux) (DT-300,
DT-355)
• Mounting options: ceiling tile; 4
square junction box with double
gang mudring (DT-300, DT-305)
• Mounting options: 4 square
junction box with double gang
mudring; 4 inch octagonal
junction box (DT-355)
• Units per power pack: DT-300
up to 2 (B), up to 3 (BZ); DT-305
up to 3 (B), up to 4 (BZ)
• 4.5” diameter x 1.02” (144.3mm
x 25.9mm) Extends approx .36”
from ceiling
• UL and CUL listed, 5 year
warranty
Wiring Diagrams
• Classrooms
• Open office spaces
• Computer rooms
Coverage Pattern
White (Neutral)
Red (Line)
Black
Switch
Red (Load)
Blue
Hot
Power Pack
Black
White
Red
N
Isolated Relay Outputs
Common
Normally Open Contact
Normally Closed Contact
Auxiliary
Relay
Pack
Lighting
load
Blue
Relay Common
N.O.
N.C.
Control (24VDC) Out
Momentary Switch
Man. Switch
+24V (In)
Common
DT-300 Terminals
N
44 ft
(13.4m)
Light Level (24VDC Out)
Black
Hot
Neutral
Load
OFF switch
Light
level
lighting
load
Red (load)
Load
Hot
Ground
Neutral
(Optional)
DT-355 Wiring
DT-300 Wiring
Wiring diagram includes bi-level control and
manual-on option with momentary switch.
40 ft x 40 ft
(12.2m x 12.2m)
Coverage shown is maximum and represents
half-step walking motion. Under ideal conditions,
coverage for half-step walking motion can reach
up to 1000 ft2 (92.9 m2).
Order Information
CATALOG #
VOLTAGE
CURRENT/LOAD REQ
COVERAGE
DT-300
24 VDC
43 mA
up to 1000 ft2 (92.9 m2)
DT-305
24 VDC
35 mA
up to 1000 ft2 (92.9 m2)
DT-355
120 VAC, 50/60 Hz
0-800 W Ballast/Tungsten
up to 1000 ft2 (92.9 m2)
230/277 VAC, 50/60 Hz 0-1200 W Ballast
up to 1000 ft2 (92.9 m2)
347 VAC, 50/60 Hz
up to 1000 ft2 (92.9 m2)
0-1500 W Ballast
All units are white and low voltage models use Watt Stopper power packs.
For line voltage installations requiring an adapter plate, order cat # CA-1.
800.879.8585 • www.wattstopper.com
22
Power Packs
Two-relay output power pack that accepts signals
from multiple control devices (LC-100)
Fully self-continued transformer and relay
Many models of power pack products for
wide range of applications
Daylighting control with photosensor (LC-100)
Plenum rated
2 channel dimming with 0-10V ballasts (LC-100)
Load shed dimming or ON/OFF switching
capability (LC-100)
B Power Pack Specifications
BZ Specifications
LC-100 Specifications
• Secondary voltage of 24VDC
• Secondary output of 150 mA, 114 mA with
relay connected
• Low voltage leads rated for 300 volts
• UL rated 94V-0 plastic enclosure, units
are white
• ABS UL 2043 plenum rated plastic and
wiring
• 1.6" x 2.75" x 1.6" (41mm x 70mm x
41mm) with a 1/2’ snap-in nipple
• UL and CUL listed, 5 year warranty
• 120/277 VAC voltage input, 60 Hz
• Secondary voltage of 24VDC
• Secondary output of 150 mA, 150 mA with
relay connected
• Low voltage leads rated for 300 volts
• UL rated 94V-0 plastic enclosure, units
are grey
• ABS UL 2043 plenum rated plastic and
wiring
• Relay is Zero Crossing
• Hold-ON/hold-OFF inputs
• LED status and overcurrent indicator
• 1.6" x 2.75" x 1.6" (41mm x 70mm x
41mm) with a 1/2’ snap-in nipple
• UL and CUL listed, 5 year warranty
• 120/277 VAC voltage input, 50/60 Hz
• 2 relay outputs rated 20 Amp 120V
tungsten and ballast, 20 Amp 277V ballast
• Secondary output of 150 mA, 150 mA with
relay connected
• Dual switch inputs for on/off or dimming
• 2 isolated NO/NC relays rated 1 Amp @ 24
VDC
• NEMA 1 enclosure, acceptable for use in
plenum spaces
• Output power 150mA @ 24 VDC with
automatic overload protection
• Dual voltage input 120 or 277 VAC @ 14
watts maximum
• Switch wiring distances up to 1000 feet
with 18 gauge wire
• 6.6" x 6.1" x 2.1" (168mm x 156mm x
54mm) with a 1/2’ nipple
• UL and CUL listed, 5 year warranty
Order Information
LOAD RATINGS
CATALOG #
INPUT VOLTAGE
BALLAST(A) INCAN(A) MOTOR(HP)
OUTPUT
Power Packs
B120E-P
120VAC, 60Hz
20
13
1
24VDC; 150mA***
B277E-P
277VAC, 60Hz
20
-
-
24VDC; 150mA***
B230E-P
220-240VAC, 50/60Hz
20
13
1
24VDC; 150mA***
B347D-P
347VAC, 60Hz
15
-
BZ-100
120/277VAC, 60Hz
20
20
1
24VDC; 150mA***
24VDC; 150mA†
LC-100
120/277 VAC; 50/60 Hz
20
20
1
24VDC; 150mA†
120/277/347VAC
20/20/15 13/-/-
1/-/-
-
A120C-P**
120VAC, 60Hz
8NO/5NC 5NO/3NC
1NO/2.5NC
24VDC; 100mA
A277C-P**
277VAC, 60Hz
6NO/3NC 5NO/2.5NC 2NO/.5NC
24VDC; 100mA
C120E-P
120VAC, 60Hz
20*
13*
1*
24VDC; 150mA
C277E-P
277VAC, 60Hz
20*
-
-
24VDC; 150mA
AT-120
120VAC, 60Hz
-
-
-
24VDC; 800mA
AT-277
277VAC, 60Hz
-
-
-
24VDC; 800mA
Auxiliary Packs
S120/277/
347E-P
Form C Power Packs
2 Relay Power Packs
Power Supplies
* Ratings per relay. ** Contain an isolated relay with normally open (NO) and normally closed (NC)
contacts. ***Output is 150mA before relay is connected and 114mA after relay is connected.
†Output is 150mA with relay connected.
23
800.879.8585 • www.wattstopper.com
Outdoor Motion Sensors
Optional model with lampholders
Line and low voltage models available
90 degree or long-range field of view (EN)
Weatherproof and raintight for reliable
performance
Security override-ON option allows lights to be
turned on for length of time delay
Adjustable light level and time delay
settings
Isolated relay enables interface with security
systems or other loads
EW Specifications
EN Specifications
• Operating temperature range: 40°F to +130°F
• UL 773A rated raintight; UL 1571
rated for wet locations
• Adjustable time delay of 12 sec
to 16 min
• Light level adjustment of .5 to
200 fc (5 - 2152 lux)
• Isolated relay with NO/NC
outputs; rated for 1 Amp @ 30
VDC/VAC (EW-200)
• Operating temperature range: 40°F to +130°F
• Zero Crossing Circuitry
• 1/2’ threaded nipple fits
standard NEMA weatherproof
fixture fitting
• Lamp holders us PAR 20 or 38
lamps, up to 150W each lamp
• EW sensor: 6.7” x 3.2” x 2.2”
(170mm x 80mm x 55mm)
• UL and CUL listed, 5 year
warranty
• Manual override-ON allows
lights to be turned on for 4
hours
• UL 773A rated raintight; UL
1571 rated for wet locations
• Adjustable time delay of 12 sec
to 16 min
• 3/4’ threaded nipple fits
standard NEMA weatherproof
fixture fitting
• Light level adjustment of .4 to
42 fc (4.3 - 452 lux)
• 4.3” x 3.0” x 2.3” (110mm x
77mm x 58mm)
• SPDT isolated relay
• UL and CUL listed, 5 year
warranty
• Zero Crossing Circuitry
Applications
Applications
• Walkways and entranceways
• Dock lighting
• Garages and yards
• Driveways
• Walkways and entranceways
• Doorways
• Dock lighting
• Corridors
EW Order Information
CATALOG #
VOLTAGE
LOAD REQ/CURRENT *
EW-200
- 120, - 277 VAC
0-1000 W ballast
COVERAGE
270°
FEATURES
Isolated relay
EWF-205
- 120 VAC
0-1000 W ballast
270°
Lamp holders
EW-205-24
24 VDC
8 mA
270°
Controls outdoor HIDs
EW-105-24
24 VDC
8 mA
180°
Controls outdoor HIDs
Specify voltage by adding -120 or -277 to Cat. #. Add -W to Cat. # for
Arctic White, -G for Architectural Grey
*For 120 VAC applications, tungsten loads are also acceptable.
EN Order Information
LOAD REQUIREMENT*
COVERAGE
FEATURES
EN-100
CATALOG #
- 120, - 277 VAC
VOLTAGE
0-1000 W ballast
90°
Isolated relay
EN-200
- 120, - 277 VAC
0-1000 W ballast
Long range
Isolated relay
Specify voltage by adding -120 or -277 to Cat. #. Add -W to Cat. # for Arctic White, -G for
Architectural Grey
*For 120 VAC applications, tungsten loads are also acceptable.
800.879.8585 • www.wattstopper.com
24
IT-200 InteliTimer Logger
Determines energy savings potential from
occupancy sensor use
IT-ProSoft Software provides single-step data
retrieval, storage, analysis, printing
Adjustable light pipe observes lighting level
Logs when a space is occupied/ vacant and
when lighting is on/off
Logs when a space is occupied/ vacant and
when lighting is on/off
IT-200 Specifications
• PIR technology
• Lithium battery; 10 year average
life
• Test button to activate
occupancy and light level LEDs
for 90 seconds
• Adjustable sensitivity
Small and lightweight for ease of use
and portability
IT-ProSoft Software Specifications
• Recessed reset switch
• Stores up to 4096 entries
• Stores site name to identify area
being monitored
• Connects to PC for data
retrieval
IT-200 Controls
• List entries include number, date,
time of entry, and
lighting/occupancy status
• Users set energy cost per kWh,
size of controlled load, and site
name
• HVAC adder calculates savings
from reduction of cooling
• Reports show graphs of
occupancy/lighting, potential
dollar savings, statistical
information
• Operable in 6 languages
• Windows compatible
• Downloadable at
www.wattstopper.com
Sample Logger Reports
Graphs of Lighting/Occupancy for Office Suite #301
Date of Entries
Occupancy
sensor lens
Light pipe
Monday
January 8
Light level
sensitivity
adjustment
Test button
(activates
LEDs)
Reset button
Midnight
06:00 AM
1
2
3
4
5
6
Ä
Ägraph indicates Monitored Area Occupied
Cost/kWhr: $0.080
HVAC Adder: 15%
Load Size: 180W
Sun, Aug 14, 1995 at12:00:00 PM Lights ON Occupied
Sun, Aug 14, 1995 at 2:25:00 PM
Lights ON Vacant
Mon, Aug 15, 1995 at 7:50:00 AM
Lights ON Occupied
Mon, Aug 15, 1995 at10:15:00 AM Lights ON Vacant
Mon, Aug 15, 1995 at10:50:00 AM Lights ON Occupied
Mon, Aug 15, 1995 at12:15:00 PM Lights OFF Vacant
LIGHTING/OCCUPANCY SUMMARY
ON+Occupied:
59.81 hours
17.8%
ON+Vacant:
80.64 hours
24.0%
OFF+Occupied:
OFF+Vacant:
Red LED
(occupancy)
Green LED
(light)
Data connector
port
Order Information
CATALOG #
DESCRIPTION
IT-200
Occupancy and light logger, PC connector cable included
All units are white
25
800.879.8585 • www.wattstopper.com
06:00 PM
Ä
Ä
graph indicates Monitored Area Lit
Entries: 42
From: Sun, Aug 14, 1995 at12:00:00 PM
To:
Thu, Aug 18, 1995 at 9:32:00 PM
Noon
0 hours
195.55 hours
0.0%
58.2%
TS Digital Time Switches
Automatically turns lights off after
preset time
Terminal style wiring for simplified installation
Digital operation and simple
pushbutton set-up
Bright electroluminescent LCD shows
timer’s countdown
Time scroll features allows time to adjust
up or down
Optional audible or visual alerts before
lights turn off
Specifications
Applications
• TS-400: 100-300 AC; 50/60 Hz
• TS-400-24: 24 VAC/VDC/VAC
half-wave rectified input
• Time out adjustments range
from 5 minutes to 12 hours (5
minute increments to 1 hour,
then 15 minute increments to
12 hours)
• Optional visual warning:
flashes lights at 5 min and 1
min prior to time-out
• Optional audible warning:
beeps every 5 sec at 1 min
prior to time-out
• Compatible with all electronic
ballasts and motor loads
TS-400 Wiring Diagram
• TS-400-24 contains SPDT
isolated relay rated for 1 Amp
@ 30 VDC
• 2.66” x 1.79” x 1.76” (67.5mm x
45.5mm x 44.7mm)
• UL and CUL listed, 5 year
warranty
TS-400-24 Wiring Diagrams
White (Neutral)
Hot
Red (Line)
Neutral
Load
InteliSwitch®
Power
Pack
COMM. (WHT)
COMM.
PULSE OFF (BLK)
N.O.
ON
1
PULSE
ON
PULSE
OFF
PULSE ON (RED)
Local
OFF Switch
Red
COMM
N.O.
+24V IN
RLY
COMM.
Blue
Black
Ground
Load
1
TS-400-24
N.C.
Red
(Load)
RLY COMM
ON
+24V IN (BLU)
Digital Time Switch
Lighting
Load
White
Neut
Black
Hot
ON
• Equipment rooms
• Storage areas
• Closets
1
#20/4
To Panel
1000' MAX.
To circuit
On
Off Comm
24VRect
+24V IN
White Blue
Line
Red Black
TS-400-24 wiring with power pack
TS-400-24 wiring with lighting control panel
Order Information
CATALOG #
VOLTAGE
LOAD REQ/CURRENT
TS-400
100/120 VAC or
0-800 Watt ballasts or
220/277 VAC; 50/60 Hz
0-1200 Watt ballast
TS-400-24
24 VAC/VDC/VAC rect.
Current: 12mA DC/41mA AC
Add –I to Cat. # for Ivory, -W for White, -A for Light Almond; Single-gang cover plate ASP-211
included. Order ASP-422 for blank 2-gang cover plate, ASP-432 for 2-gang plate with switch option,
specify color.
800.879.8585 • www.wattstopper.com
26
Product Line Summary
WS-200
120/277 VAC; 60 Hz
Automatic wall switch
Passive infrared
WA-200
120/277 230/277 VAC, 50/60 Hz
Automatic wall switch
Passive infrared
WA-300
120/277 230/277 VAC, 50/60 Hz
-with dual relays
Passive infrared
WI-200
120/277 VAC; 60 Hz
Automatic wall switch
Passive infrared
WI-300
120/277 VAC; 60 Hz
-with dual relays
Passive infrared
WN-100-120
120 VAC, 60 Hz
Motion sensor nightlight switch
Passive infrared
WN-100-277
277 VAC, 60 Hz
Motion sensor nightlight switch
Passive infrared
WD Series
120 or 277 VAC; 60 Hz
Dimmable wall switch
Passive infrared
CN-100
120 VAC, 60 Hz
Residential vacancy sensor
Passive infrared
CW-100
120 VAC, 60 Hz
Residential vacancy sensor
Passive infrared
WPIR
24 VDC
Ceiling mount sensor
Passive infrared
CX Series
24 VDC
Ceiling/wall mount sensor
Passive infrared
CI-200 Series
24 VDC
Ceiling mount sensor
Passive infrared
CI-300 Series
24 VDC
Ceiling mount sensor
Passive infrared
CI-355 Series
120/230/277/347 VAC; 50/60 Hz
Ceiling mount sensor
Passive infrared
CI-12/24
12/24 VDC
Sensor for HVAC, BAS
Passive infrared
CB-100
24 VDC
Low temperature sensor
Passive infrared
W Series
24 VDC
Ceiling mount sensor
Ultrasonic
WT Series
24 VDC
Ceiling mount sensor
Ultrasonic
UT-300 Series
24 VDC
Ceiling mount sensor
Ultrasonic
UT-355 Series
120/230/277/347 VAC; 50/60 Hz
Ceiling mount sensor
Ultrasonic
DT-200 Series
24 VDC
Ceiling/wall mount sensor
Dual technology
DT-300 Series
24 VDC
Ceiling mount sensor
Dual technology
DT-355 Series
120/230/277/347 VAC; 50/60 Hz
Ceiling mount sensor
Dual technology
WS-05-20050
800.879.8585 • www.wattstopper.com
