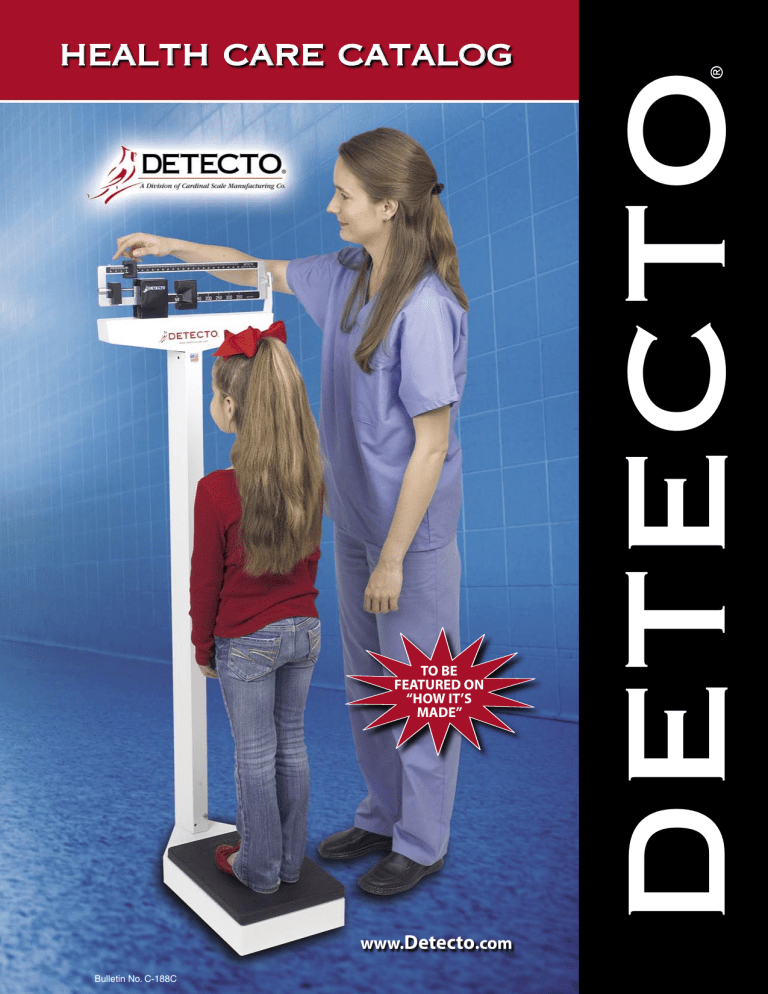

TO BE
FEATURED ON
“HOW IT’S
MADE”
www.Detecto.com
Bulletin No. C-188C
DETECTO
health care catalog
DETECTO
Mechanical Physician Scales
4
ProDoc™ Digital Scales/Height Rod
6
758C Weight Indicator/WinDDE
8
ProMed™ Digital Physician Scales
9
750 Digital Weight Indicator
10
Digital Physician Scales
11
Digital Bariatric Scales
12
Chair Scales
14
Wheelchair Scales
15
In-Floor Scales
19
Digital Baby Scales
20
Mechanical Baby Scales
22
Baby Scales/Lap Sponge Scales
23
Hanging Scales
24
Weighmobile In-Bed Scales
25
Portable Floor Scales
26
Dynamometers/Box Holders
27
Waste Receptacles
28
Step-On Cans
29
Mechanical Dietary Scales
30
Digital Dietary Scales
31
Veterinary Scales
32
Laundry Scales
33
EU-Only Scales
34
Index
35
CORPORATE HEADQUARTER CONTACTS:
203 East Daugherty Street, Webb City, MO 64870 USA
Fax: (417) 673-5001
Web Site: www.Detecto.com
Customer Service
8 am - 5 pm CST Mon. - Fri.
(800) 641-2008 or (417) 673-4631
detecto@cardet.com
Technical Support
(866) 254-8261
tech@cardet.com
8 am - 5 pm CST Mon. - Fri.
Parts Department
(800) 641-2045
parts@cardet.com
8 am - 5 pm CST Mon. - Fri.
Quality Assurance
(417) 673-4631
qa@cardet.com
8 am - 5 pm CST Mon. - Fri.
INTERNATIONAL CONTACTS:
European Warehouse
Unit 17/18 Mercers Road
Chapel Pond Hill
Bury St. Edmunds, Suffolk, IP32 7HX
Phone: 44-1284-703117
Fax: 44-1284-703559
E-mail: sales@detectoscale.co.uk
Canadian Warehouse
1815 Ironstone Manor
Unit 14A
Pickering, Ontario L1W 3W9
Phone: (905) 839-6239
Fax: (905) 839-6522
E-mail: canada@cardet.com
Products bearing this symbol require some
assembly and setup that is not included in
purchase price. Contact your local DETECTO
scale technician for this service.
Products bearing this symbol are manufactured in compliance with recommendations
set forth in Handbook 44, issued by the National Institute of Standards and Technology and
have been issued a Certificate of Conformance
under the National Type Evaluation Program.
This symbol indicates that the device has been
evaluated and found to conform with the
requirements for OIML R76 Class 3 (or Class
4 if specified). Model numbers for EU-Only
Scales and their capacities and increments will
differ from their general referenced product’s
information and may recquire the 758CSV indicator for conformity.
is
the
largest
independent scale manufacturer
in the United States, providing over
108 years of experience in design,
sales, and service support. In 2002,
Detecto adopted the motto,
“Building a Better Weigh.”
These words truly represent
our comprehensive line
of medical products covering all facets of patient and physician
applications. Detecto represents a
product name designed to meet your needs
and one that will be supported for years to come.
Detecto’s model 439 mechanical physician scale
series is the standard of the clinical weighing industry. This
product continues to be the one most requested in the medical
industry. In 2008, Detecto introduced new digital
weighing and height measuring devices with a professional
doctor series of scales, better known as the ProDoc™ series.
A complete product line of physician-grade scales with
enhanced digital height and automatic BMI calculations, the
ProDoc™ was designed for the home as well as for medical
and hospital weighing applications. The ProDoc™ series joins
Detecto’s complete range of digital scales, which include
numerous features today’s medical industry requires.
Whether you require scales for personal use, rehabilitation,
pediatrics, wheelchairs, or special bariatric patient needs,
Detecto has the solution. In addition to personal and
physician scales, Detecto offers a wide range of products,
including step-on waste receptacles, glove dispensers,
veterinary scales, dynamometers, dietary scales, and
laundry scales.
This comprehensive catalog is designed
for you to make the best decision for your
specific needs. Our motto says it all:
Detecto takes great pride in “Building a
Better Weigh” for our customers today.
Model
PD300DHR
ProDoc™
(pictured left to right) Vice-President of Operations Larry Hicks,
President David Perry, and Vice-President of Sales & Marketing Fred Cox
DETECTO
Detecto
4
MECHANICAL PHYSICIAN SCALES
400 LB /
180 KG
Detecto Offers You
More Weighing Ability
For Your Money
CAPACITY
WEIGH BEAM
Dual reading, die-cast
beam.
Choose From
HEIGHT ROD
Reads in both inches
and centimeters.
19 MODELS
With A
HANDPOST
An important aid for the
elderly or weak individual.
VARIETY OF
FEATURES
Model 437
Model 448
WHEELS
For easy transport.
PLATFORM COVER
Easily removed for
cleaning.
www.Detecto.com
MECHANICAL PHYSICIAN SCALES
5
Eye-Level Physician Scales
MODEL
439
CAPACITY
Avoirdupois
Metric
400 lb x 4 oz
2391
437
180 kg x 100 g
SHIPPING
WEIGHT
UPC
•
38 lb/17.2 kg
809161133103
•
37 lb/16.7 kg
809161133202
35 lb/15.8 kg
809161133301
35 lb/15.8 kg
809161133400
WHEELS
HANDPOST
400 lb x 4 oz
2371
438
HEIGHT ROD
30 - 78 in
76 - 198 cm
180 kg x 100 g
400 lb x 4 oz
2381
180 kg x 100 g
448
400 lb x 4 oz
449
400 lb x 4 oz
2491
•
•
39 lb/17.6 kg
809161133509
•
•
39 lb/17.6 kg
809161133608
•
•
•
43 lb/19.5 kg
809161133707
•
•
43 lb/19.5 kg
809161133806
180 kg x 100 g
•
•
43 lb/19.5 kg
809161133905
•
35 lb/15.8 kg
809161134001
35 lb/15.8 kg
809161134100
39 lb/17.6 kg
809161134209
43 lb/19.5 kg
809161134308
339
400 lb x 4 oz
175 kg x 100 g
337
400 lb x 4 oz
175 kg x 100 g
338
400 lb x 4 oz
175 kg x 100 g
•
349
400 lb x 4 oz
175 kg x 100 g
•
•
•
Platform Size: 10.5” W x 14.5” D/27 cm W x 37 cm D
Scale Height: 59”/150 cm
Stainless Steel Mechanical Eye-Level Health Care Scales
Enjoy the classic elegance of beautiful stainless steel in your Detecto mechanical weighbeam scale. A platform
cover that lifts off easily combined with the protective stainless steel casing makes cleanup a breeze. Water
damage from mopping and high humidity areas around swimming pools is a thing of the past.
CAPACITY
MODEL
Avoirdupois
439S
Metric
HEIGHT ROD
30 - 78 in
76 - 198 cm
SHIPPING
WEIGHT
UPC
•
38 lb/17.2 kg
809161132304
•
37 lb/16.7 kg
809161132403
35 lb/15.8 kg
809161132502
35 lb/15.8 kg
809161132601
38 lb/17.2 kg
809161132700
35 lb/15.8 kg
809161132809
400 lb x 4 oz
2391S
180 kg x 100 g
437S
400 lb x 4 oz
2371S
180 kg x 100 g
339S
400 lb x 4 oz
175 kg x 100 g
337S
400 lb x 4 oz
175 kg x 100 g
•
ACCESSORY MODEL
DESCRIPTION
UPC
Height Rods
3PHTROD-1
Physician scales only.
809161134407
4PHTROD-3
For waist-high digital scales models 6029 and 6029KG.
809161134704
3PHTROD-WM
Wall-mount height rod.
809161134803
Wheels
3PWHL
Wheels for scale portability. For use with all eye-level
physician scales and models 8430 and 8437.
809161134902
Handpost
3PHNDPST
For replacement use on physician scales only.
809161135008
Certifier Scale
Cert. No.
91-162
This special purpose eye-level beam scale with dual wheels and non-slip gray mat is “Legal for Trade,” which
makes it ideal for those who require a scale that is certified by weights and measures officials. A must for
weight loss clinics and school wrestling teams! Optional height rod and handpost models are available.
MODEL
CAPACITY
DESCRIPTION
UPC
442
350 lb x 4 oz / 160 kg x 100 kg
Certifier scale with high accuracy
809161135107
Platform Size: 13.75” W x 18.5” D/35 cm W x 47 cm D
Shipping Weight: 68 lb/31 kg
(800) 641-2008
PRODOC™ DIGITAL DOCTOR SCALES
6
These professional doctor scales are designed to meet the
accuracy you depend on. The models PD100 and PD200
provide BMI (Body Mass Index) by conveniently selecting your
height with easy-to-use scroll keys.
The ProDoc™ series heavy-duty scales can weigh up to
480 lb/220 kg while providing you with the accuracy you
require with 0.2 lb/0.1 kg increments. The LCD display provides
easy-to-view 1-inch-high (25 mm) readouts.
Optional
PRODOC-CASE
for PD100
DETECTO
PD100
Low-Profile Physician
Scale with Remote Display
• Wall/desk mounting bracket for offices and exam rooms.
• Portable with optional carrying case for visiting nurses.
• Position weight display up to 87"/220 cm from scale.
PD100
PD100 and
PD200 arrive
fully assembled.
PD200
All ProDocs™ feature adjustable
locking feet and bubble level for
accurate weighing every time!
DETECTO
PD200
Space-Saving Physician Scale
• Exam rooms - offices - medical use.
• Home use: includes four patient/family member
weight memory recalls.
• Raised weight display for convenient viewing
while standing on the scale.
The ProDoc’s™
single-piece, forged-steel
base creates stability and
ensures solid patient support.
SHIPPING
WEIGHT
UPC
480 lb x 0.2 lb / 220 kg x 0.1 kg Low-profile scale with remote display
26 lb / 12 kg
809161146905
PD200
Same
Compact design scale
28 lb / 12.5 kg 809161147001
PD300
Same
Convenience height scale
33 lb / 15 kg
809161147100
PD300DHR
Same
Convenience height scale - digital height rod
40 lb / 18 kg
809161147209
PD300MHR Same
Convenience height scale - manual height rod 40 lb / 18 kg
809161147308
DHR
43”/110 cm - 79”/200 cm
Optional digital height rod for PD300
7 lb / 3 kg
809161147506
MHR
30”/76 cm - 78”/198 cm
Optional manual height rod for PD300
7 lb / 3 kg
809161147605
DHRWM
43”/110 cm - 79”/200 cm
Standalone wall-mount digital height rod
8 lb / 3.7 kg
809161147407
MODEL
CAPACITY / MEASUREMENT
PD100
DESCRIPTION
Platform Size: 3.33” H x 12.5” W x 13” D / 8 cm H x 32 cm W x 33 cm D
Power: 6 “AA” Alkaline batteries (not included) or optional 9V AC/DC power adapter (not included) - DHRWM, battery power only
www.Detecto.com
PRODOC™ SCALES / DIGITAL HEIGHT RODS
PD300
PROFESSIONAL
DOCTOR SCALES
DETECTO
PD300
Comfort-Height Digital
Physician Scale
• 48" high, comfort-height
display for easy viewing
of measurements.
• Adjustable feet for any
floor surface.
• Built-in wheels for fast
transport.
• Heavy-duty scale base
When you require height
measurements fast!
PD300DHR
includes digital
height rod
Multiple Configurations
to Fit Your Application!
Detecto’s ProDoc™ features
selectable Sleep Mode
(up to 9 minutes) and
selectable Auto Shut-off
(up to 9 minutes) plus
Memory Function which
stores and recalls up to 4
patient weights.
Model DHRWM Standalone
Wall-Mount Digital Height Rods
Detecto’s exclusive digital height technology.
Receive height readings quickly, accurately,
and comfortably.
Automatic height viewing on the remote
display, positioned where you need it with
Detecto’s wall-mount or desktop bracket.
DHRWM
Detecto’s model PD300DHR features digital weight and height
measurement for accurate calculation of Body Mass Index. Detecto’s
time-saving digital height rod displays patient height quickly on
the weight display. Simply step on the scale and touch one key to
see your weight and one key to automatically calculate BMI.
(800) 641-2008
• Fast, accurate
1”/25 mm high
digital height LCD
readouts.
• Modern, clean
design.
• Display can easily
be mounted on wall
or desk.
• Measures 43”/110
cm - 79”/200 cm.
• Powered by 6 “AA”
Alkaline batteries
(not included).
• 69”/175 cm cable
length from display
to height rod.
7
758C DIGITAL WEIGHT INDICATOR / WINDDE
SERIAL CONNECTIVITY
PROVIDES:
EMRREADY
OUTPUT TO PRINTER
Print weight, BMI, time, date, and height
SEND DATA TO PC
Excellent for efficient electronic
medical record keeping
Select a P220 Thermal
Printer (above) or P185
Ticket Printer (right) for printing
weight data from the 758C indicator.
LEGAL FOR TRADE
Meets performance specifications and is a
higher grade digital indicator than the competition.
Cert. No. 06-104
The MODEL 758C DISPLAY is the most versatile clinical scale weight display
available, with usage ranging from wheelchair-based applications to electronic medical records updating. A full numeric keypad allows fast entry of wheelchair weight.
For those applications requiring weight, height and BMI percentages simultaneously,
the 758C is the right choice. The legal-for-trade 758C also includes an EMR-ready
RS-232 connection to a PC or printer standard. Detecto offers custom programming
to connect the 758C with your EMR software package (consult factory).
Detecto’s P150 batteryoperated tape printer
mounts to the
back of the
758C for
efficient
record
keeping printouts.
•
•
•
•
•
0.5 inch high graphic display for viewing
weight, height and BMI percentage
calculations simultaneously.
11-digit patient ID entry for BMI tracking.
Lock/Release key for viewing weight after
the patient steps from the scale.
Steel construction for years of service.
Made in USA for factory support.
BATTERY POWER
The 758C is battery powered for use with
portable scales, so you can take the scale
to the patient. An optional AC adapter is
also available.
YOUR WEIGHT IN WINDOWS®
Easily put YOUR WEIGHT IN WINDOWS® with Detecto’s WinDDE
2.0 Server and Detecto’s 758C. Communicate with up to 20 weight
indicators connected to a computer via standard serial port or
optional Ethernet (using TCP/IP). WinDDE allows the weight and
status of the indicators to be transferred directly into databases
and spreadsheets, such as Microsoft Access® and Excel®.
WinDDE
8
MODEL
DESCRIPTION
UPC
WinDDE
Weight capture to PC software
809161135800
WIRED AND WIRELESS CONNECTIVITY SOLUTIONS
DYNAMIC DATA EXCHANGE
With Detecto’s 758C display you can transmit ASCII weight data to
a printer, PC, or Local Area Network via a serial cable connection,
optional TCP/IP module, or by optional wireless transmission.
www.Detecto.com
DIGITAL PHYSICIAN SCALES
9
Eye-Level Digital Physician Scales
This scale features eye-level “at-a-glance” convenience of a battery-powered
0.5”/12.7 mm high-contrast LCD display. With the push of a button, readings
appear in pounds OR kilograms and the weight display also calculates Body
Mass Index. The platform cover is easily removed for cleaning. Handpost and
height rod combinations are also available.
Model
6437
MODEL
CAPACITY
DESCRIPTION
UPC
6437
400 lb x 0.2 lb /
180 kg x 0.1 kg
No Height Rod
809161135909
6439
Same
With Height Rod
809161136005
6449
Same
With Handpost
and Height Rod
809161136104
AC Adapter
809161136203
6800-1045
Platform Size: 10.5” W x 14.5” D/27 cm W x 37 cm D
Scale Height: 59”/150 cm
Model 6439 Height Rod: 30” - 78” and 76 cm - 198 cm
Shipping Weight: 6437 - 35 lb/16 kg 6439 - 38 lb/17 kg
758C
Model
8430
Model
6439
EMRREADY
Please see page 8 for additional weight display features.
Waist-High Digital Physician Scales
MODEL
CAPACITY
DESCRIPTION
UPC
8437
400 lb x 0.2 lb /
180 kg x 0.1 kg
No Height Rod
809161136302
8437S
Same
No Height Rod
Stainless Steel
809161133004
8430
Same
With Height Rod
809161136401
8430S
Same
With Height Rod
Stainless Steel
809161132908
AC Adapter
809161136203
6800-1045
Model
8437S
Platform Size: 10.5” W x 14.5” D/27 cm W x 37 cm D
EMRREADY
Scale Height: 37.5”/95 cm
Model 8430/8430S Height Rod: 30” - 78” and 76 cm - 198 cm
Shipping Weight: 8437/8437S - 31 lb/14 kg 8430/8430S - 34 lb/15.4 kg
758C
Please see page 8 for additional weight display features.
Digital General Purpose Scales
EMRREADY
Uses for these lightweight, portable scales are almost limitless. With detachable
indicators and built-in carrying handles, they go with you anywhere weighing
is needed. Their large, easy-to-clean platforms (2” H x 18” W x 14” D/6 cm H x
46 cm W x 36 cm D) feature a black slip-proof mat, leveling eye, and non-skid
plastic feet for stability.
MODEL
CAPACITY
SHIPPING
WEIGHT
GP-400-758C
400 lb x 0.2 lb /
200 kg x 0.1 kg
31 lb /
14 kg
809161136500
6800-1045
AC Adapter
1 lb / 453 g
809161136203
758C
UPC
Please see page 8 for additional weight display features.
(800) 641-2008
Cert. No.
758C Display: 06-104
GP-400 Base: 94-098
10
750 DIGITAL WEIGHT INDICATOR
The MODEL 750 DISPLAY
features an easy-to-use keypad and
extra-large display perfect for patient self-weighing and viewing by
the attending nurse or physician. A
quick and simple BMI calculator with
a scroll feature to input height allows
you the ease of BMI calculation when
you require it. The durable design and
easy-to-replace “AA” batteries makes
the 750 perfect for all scales in clinics,
hospitals, and physician offices. The
750 even recharges rechargeable “AA”
batteries during usage.
Simply push the Body Mass Index key and
utilize the toggle arrows to adjust patient
height for BMI calculation while weighing.
•
•
•
•
•
•
•
•
Extra-large, 0.75 inch high easyto-read LCD display.
Engineered for freedom of
patient weighing.
Compact design is ergonomic
and easy for the patient to weigh.
Use either 6 “AA” rechargeable
batteries or the optional AC adapter.
Lock/Release key for viewing
weight after the patient steps away
from the scale.
Units conversion for LB or KG.
Heavy steel construction for years
of service.
Made in USA for convenient parts
and service requirements.
The 750 is powered by either 6 “AA” rechargeable
batteries or the optional AC adapter .
It’s easy to remove from the scale column for battery
replacement by pulling the locking pin.
www.Detecto.com
DIGITAL PHYSICIAN SCALES
11
Waist-High Digital Physician Scales
Contemporary styling and light yet rugged construction are key features of
this 400 lb capacity scale. The slip-resistant base has a removable cover.
Model
6027
MODEL
CAPACITY
DESCRIPTION
UPC
6027
400 lb x 0.5 lb /
180 kg x 0.2 kg
No Height Rod
809161136609
6029
Same
With Height Rod
809161136708
6027KG
180 kg x 0.2 kg
No Height Rod
809161136807
6029KG
Same
With Height Rod
809161136906
AC Adapter
809161136203
6800-1045
Model
6029
Platform Size: 11” W x 13” D/28 cm W x 33 cm D
Scale Height: 38”/97 cm
Model 6029 and 6029KG Height Rod: 30” - 78” and 76 cm - 198 cm
Shipping Weight: 6027(KG) - 25 lb/11 kg 6029(KG) - 28 lb/13 kg
750
Please see page 10 for additional weight display features.
Digital General Purpose Scales
Uses for these lightweight, portable scales are almost limitless. With detachable
indicators and built-in carrying handles, they go with you anywhere weighing
is needed. Their large, easy-to-clean platforms (2” H x 18” W x 14” D/6 cm H x
46 cm W x 36 cm D) feature a black slip-proof mat, leveling eye, and non-skid
plastic feet for stability. The digital displays both feature Body Mass Index calculation and may be mounted on a table top or wall. Operation is provided
by battery power which increases the portability of these compact scales. For
legal-for-trade usage, choose the GP-400-758C (page 9).
MODEL
CAPACITY
SHIPPING
WEIGHT
GP-400-750
400 lb x 0.2 lb /
200 kg x 0.1 kg
31 lb /
14 kg
809161137002
6800-1045
AC Adapter
1 lb / 453 g
809161136203
750
The perfect scale for those who
need a lightweight, portable
floor scale.
UPC
Please see page 10 for additional weight display features.
Low-Profile Portable Physician Floor Scale
Lightweight and portable, making it perfect for mobile clinics, home care
nurses, or wherever a portable scale with Body Mass Index is needed. The
DR400-750 is battery powered and features a slip-resistant, textured mat to
ensure patient safety when getting on and off the scale.
Optional black
carrying case with
handle protects
the scale for easy
transport.
MODEL
CAPACITY
SHIPPING
WEIGHT
DR400-750
400 lb x 0.2 lb /
180 kg x 0.1 kg
31 lb /
14 kg
809161137101
DR400C-CASE
Carrying Case
1 lb / 453 g
809161137200
6800-1045
AC Adapter
1 lb / 453 g
809161136203
UPC
Platform Size: 2.25” H x12” W x 12” D/6 cm H 31 cm W x 31 cm D
750
Please see page 10 for additional weight display features.
(800) 641-2008
12
DIGITAL BARIATRIC SCALES
6800 Low-Profile Bariatric Scale
Ideal for any clinical application, this scale is low profile for patient comfort
when stepping on and off the scale. With a built-in carrying handle, the 6800
is easy to transport from office to office when required. Utilizing Detecto’s
model 750 weight display and a universal bracket, the indicator may be
mounted on a wall or desk for easy viewing. Powered by “AA” batteries, this
scale is truly portable when power outlets are not accessible. 10 foot cable.
MODEL
CAPACITY
SHIP
WEIGHT
6800
800 lb x 0.2 lb /
360 kg x 0.1 kg
45 lb /
20 kg
809161137309
6800-1045
AC adapter
1 lb / 453 g
809161136203
UPC
Platform Size: 24” W x 24” D/61 cm x 61 cm
750
Please see page 10 for additional weight display features.
6856 Waist-High Bariatric Scale
The 6856 features a larger platform and higher capacity than the 6855. Its
balanced design is easy to tip back and transport on its 3” diameter, heavyduty rubber wheels. The stainless steel handrails feature padded grips for patient assurance and stability. The 6856 is engineered specifically for weighing
obese and unsteady patients and features a low-profile platform with nonskid surface and highly accurate weight display with Body Mass Index.
MODEL
CAPACITY
SHIP
WEIGHT
6856
800 lb x 0.2 lb /
360 kg x 0.1 kg
85 lb /
39 kg
809161137408
6800-1045
AC adapter
1 lb / 453 g
809161136203
UPC
Platform Size: 24” W x 24” D/61 cm x 61 cm
750
Please see page 10 for additional weight display features.
6855 Waist-High Bariatric Scale
The 6855 features a balanced design that is easy to tip back and transport
on its hard, heavy-duty rubber wheels. It features a slightly smaller platform
and lower capacity than the 6856. The digital indicator’s LOCK/RELEASE key
retains weight so you can attend to the patient first, then record the weight.
Powered by your choice of either batteries or optional AC adapter, the 6855
also has an auto-off function to conserve energy
SHIP
WEIGHT
UPC
600 lb x 0.2 lb /
270 kg x 0.1 kg
70 lb /32 kg
809161137507
6800-1045
AC adapter
1 lb / 453 g
809161136203
3PHTROD-WM
Height Rod
6 lb / 2.7 kg
809161137606
MODEL
CAPACITY
6855
Platform Size: 18” W x 14” D/46 cm x 26 cm
750
Please see page 10 for additional weight display features.
www.Detecto.com
DIGITAL BARIATRIC SCALES
Bariatric Flip Seat Chair Scale
The light and portable 6876 features Body Mass Index, battery or
AC power, concealed wheels for quick mobility, padded retractable armrests, and a 24” x 24” (61cm x 61cm) square non-slip rubber mat platform. This scale is a hybrid standing/sitting scale. The
seat flips up and down easily to allow weighing in a standing
or sitting position depending on the comfort of the patient. It’s
equipped with retractable, padded armrests for ease in transferring patients to the chair scale and to accomodate patients with
casts. The flip-up armrests double as handgrips for stability when
weighing in a standing position. The modern design is streamlined and narrow enough to fit easily through most doorways.
The 6876 features safety stops to prevent accidental tipping.
MODEL
CAPACITY
UPC
6876
600 lb x 0.2 lb /
270 kg x 0.1 kg
809161137705
6800-1045
AC Adapter
809161136203
Seat flips up and down
to allow weighing in
a standing or sitting
position.

Platform Size: 24” W x 24” D/61 cm x 61 cm
Shipping Weight: 146 lb/66 kg
750
Please see page 10 for additional weight display features.
Bariatric Flip Seat Chair Scale
The 6868’s unique design features a flip-up seat for weighing in a
standing or sitting position. The durable steel frame adds assurance to the weighing of obese patients and those requiring special assistance. When finished with the seat, simply raise it up for
those who prefer standing during weighing.
MODEL
CAPACITY
UPC
6868
800 lb x 0.2 lb /
360 kg x 0.1 kg
809161137804
6800-1045
AC Adapter
809161136203
Seat flips up
and down.

Platform Size: 32” W x 34” D/81 cm W x 86 cm D
Shipping Weight: 147 lb/67 kg
750
Please see page 10 for additional weight display features.
Features a unique flip-up seat. When
finished, simply raise it up for those
who prefer standing during weighing.
The 6868 tips back for easy transport.
The large wheels and handrail make it
easy to move from place to place.
The 6868’s sturdy stainless steel handrails with padded foam
hand grips, non-skid rubber mat, and extra-wide platform add
comfort to the weighing of obese and unsteady patients. The
compact design permits the scales to fit through doors and
into patient’s rooms for easy weighing (6868 requires door
opening greater than 32”).
(800) 641-2008
13
CHAIR SCALES
14
Mechanical
Chair Scale
Digital
Chair Scale
Detecto simplifies the
task of weight checks for
frail, handicapped, and
elderly patients with a
selection of innovatively-designed chair scales,
such as the 6475.
Developed to ensure patient safety and comfort as well as
to reduce weighing time, Detecto mechanical chair scales
are conveniently portable and offer easy side or front access
for your frail, handicapped, or elderly patients. The arms raise
easily on both models, so the patient can be conveniently assisted into and out of the chair scale. Die-cast, easy-to-read
beams are readable from the front and back.
These digital chair scales feature waist-high LCD displays allowing weighing with accuracy to 0.2 lb or 0.1 kilogram. Battery power and oversized wheels enhance their portability.
MODEL
CAPACITY
UPC
6475
400 lb x 0.2 lb /
180 kg x 0.1 kg
809161138207
MODEL
CAPACITY
UPC
6475K
180 kg x 0.1 kg
809161138306
475
400 lb x 4 oz
809161137903
6800-1045
AC Adapter
809161136203
4751
400 lb x 4 oz /
175 kg x 100 g
809161138009
Seat Size: 17.5” H x 17.5” W/44 cm H x 44 cm W
Shipping Weight: 78 lb/35 kg
Seat Size: 17.5” H x 17.5” W/44 cm H x 44 cm W
Shipping Weight: 78 lb/35 kg
750
Premier Digital
Chair Scale
Please see page 10 for additional weight
display features.
Rolling
Chair Scale
Concealed wheels and
flip-up footrest and arms.
The display can be
rotated to virtually any
angle for easy viewing by
the attendant.
Zero turning
radius wheels.
Ergonomics dictated this stylish, battery-powered chair
scale’s contemporary design. The footrests fold away to promote patient security when getting into or out of the scale.
MODEL
CAPACITY
UPC
6875
400 lb x 0.2 lb /
180 kg x 0.1 kg
809161138108
AC Adapter
809161136203
6800-1045
Dimensions: 41.75” H x 29.375” W x 24” L/
106 cm H x 75 cm W x 61 cm L
Shipping Weight: 70 lb/32 kg
750
Please see page 10 for additional weight
display features.
This lightweight rolling chair scale features a flip-up footrest
and lift-away armrests. Safety stops on the rear wheels allow
for parking in one place without rolling. The 6880 features
one load cell and 3” diameter oversized wheels.
MODEL
CAPACITY
UPC
6880
440 lb x 0.2 lb /
200 kg x 0.1 kg
809161138405
6800-1045
AC Adapter
809161136203
Seat Size: 17.5” H x 17.5” W/44 cm H x 44 cm W
Shipping Weight: 61 lb/28 kg
750
Please see page 10 for additional weight
display features.
www.Detecto.com
WHEELCHAIR SCALES
15
Mechanical Stationary Wheelchair Scales
This heavy-duty stationary wheelchair scale features a detachable ramp
designed for a smooth approach and exit. The platform is designed to accomodate all sizes of wheelchairs. The 495 features a padded handrail for
ambulatory patients and a non-skid mat. It features Detecto’s famous diecast, dual-sided, eye-level weighbeam graduated in 4 ounce or 100 gram increments. The weigh beam is located at a height above the platform where
the patient or attendant can perform the weighing operation. Customers
specializing in the care of non-ambulatory patients provided information
which was transferred into features and benefits of these scales, evident the
first time you use the scale!
MODEL
CAPACITY
SHIPPING
WEIGHT
UPC
495
400 lb x 4 oz /
194 lb / 88 kg
809161138504
4951
180 kg x 100 g
Same
809161138603
Platform Size: 30” W x 26” D/76 cm W x 66 cm D
Digital Stationary Wheelchair Scale
EMRREADY
With the model 6495 heavy-duty digital wheelchair scale, you get speed
and increased accuracy that only electronic weighing can provide. Weigh in
pounds or kilograms at the press of a button. The EMR-ready weight display
is mounted on a tilt mount which permits the indicator to be angled for easy
viewing. A keypad for entry of known weights of empty wheelchairs is also
provided, thus giving the exact weight of the patient accurately and instantly
in large 0.5”/13 mm digits. The platform is designed to accomodate all sizes
of wheelchairs and the 6495 also features a detachable ramp.
SHIPPING
WEIGHT
UPC
400 lb x 0.2 lb /
180 kg x 0.1 kg
177 lb / 80 kg
809161138702
AC adapter
1 lb / 453 g
809161136203
MODEL
CAPACITY
6495
6800-1045
Platform Size: 30” W x 26” D/76 cm W x 66 cm D
758C
Please see page 8 for additional weight display features.
Mechanical Stationary Wheelchair Scales
Built for use with any standard-size wheelchair, these scales offer the utmost
in comfort for wheelchair-bound patients, convenience for nursing personnel
and accuracy for important medical records. Detecto’s sturdy design incorporates a standard eye-level physician scale with a detachable ramp, allowing
for easy movement on and off the platform. The scale’s beam is easily read
from both sides, facilitating a faster weighing operation. The ramp kit (model
3PRAMP) is detachable, allowing for the scale’s use as a stand-alone physician
scale, or a kit may be attached to existing Detecto physician scales.
MODEL
CAPACITY
SHIPPING
WEIGHT
UPC
485
350 lb x 4 oz
66 lb / 30 kg
809161138801
4851
160 kg x 100 kg
Same
809161138900
3PRAMP
Wheelchair ramp
31 lb / 14 kg
809161139006
Platform Size: 27” W x 30” D/69 cm W x 76 cm D
(800) 641-2008
16
WHEELCHAIR SCALES / ACCESSORIES
DIS-2 Digital Indicator Stand
Detecto’s DIS-2 digital indicator display stand is excellent for physicians’ offices or clinics which require convenient weight display viewing and portability at the same time. This mobile stand is constructed of durable steel and
is excellent for use with wheelchair scales and step-on portable scales. Just
pick it up and move the stand along with your portable scale from location
to location. The universal mounting bracket on the DIS-2 allows you to attach
the Detecto 750 and 758C weight displays in seconds. To detach, simply unlock the indicator and slide it off the mounting bracket. 44" viewing height.
MODEL
DIS-2
DIMENSIONS
(with indicator attached)
SHIPPING
UPC
WEIGHT
23” W x 20” D x 45.5” H /
13 lb /
59 cm W x 51 cm D x 116 cm H 6 kg
809161139105
6500 Portable Bariatric Wheelchair Scale
With built-in ramps for entering and exiting the scale, the 6500 portable scale
is perfect for any wheelchair application. The integral wheels and handles
plus battery power make this scale portable and easy to move to from location to location. With the 6500, you may enter the wheelchair weight, so that
only the patient weight is displayed. With a capacity of 800 lbs, this scale is
excellent for bariatric needs as well.
EMRREADY
MODEL
CAPACITY
SHIPPING
WEIGHT
6500
800 lb x 0.2 lb /
300 kg x 0.1 kg
65 lb /
29 kg
809161139204
6800-1045
AC adapter
1 lb / 453 g
809161136203
UPC
Platform Size: 30” W x 32” D/76 cm W x 81 cm D (flat portion)
758C
The BRW1000’s integral handles
make it easy to lift and lower into
position. Built-in wheels permit
the scale to be rolled anywhere.
EMRREADY
40”
extra-wide
platform
Please see page 8 for additional weight display features.
BRW1000 Portable Bariatric Wheelchair Scale
Accomodating new extra-wide wheelchairs, Detecto’s BRW1000 provides
everything required for weighing bariatric patients. For extended patient
comfort, the BRW1000 can store the weight of the chair, allowing clinical staff
to simply roll the patient on the scale for quick and easy weighing. Detecto’s
BRW1000 provides comfort for the patient and saves valuable time in busy
healthcare facilities. Heavy-duty construction, large rubber deck safety plate
platform with integral ramp, and the 1,000 lb capacity makes this the perfect
scale for weighing patients in manual or power wheelchairs, dialysis patients,
or walk-ons. The BRW100 features EMR-ready serial connectivity and BMI calculation. The BRW1000 is light in weight and heavy in capacity!
MODEL
CAPACITY
SHIPPING
WEIGHT
BRW1000
1,000 lb x 0.5 lb /
450 kg x 0.2 kg
75 lb /
34 kg
809161139303
6800-1045
AC adapter
1 lb / 453 g
809161136203
UPC
Platform Size: 40” W x 30” D/102 cm W x 76 cm D
758C
Please see page 8 for additional weight display features.
www.Detecto.com
WHEELCHAIR SCALES
17
6550 Folding Portable Wheelchair Scale
EMRREADY
This sturdy, but lightweight, scale can be used with wheelchairs, straightlegged chairs or as a stand-on scale, and its sloped ramps offer versatility by
allowing loading from either side. The 6550’s vertical fold-up feature, battery
power, and heavy-duty wheels contribute to its ease of mobility and lack of
needed storage space. With the 6550, tare weight may be either preset or
keyed in directly and the patient’s weight is automatically displayed.
MODEL
CAPACITY
SHIP
WEIGHT
6550
800 lb x 0.2 lb /
360 kg x 0.1 kg
91 lb /
41 kg
809161139402
6800-1045
AC adapter
1 lb / 453 g
809161136203
UPC
Platform Size: 30” W x 32” D/76 cm W x 81 cm D (flat portion)
758C
Please see page 8 for additional weight display features.
Health Care’s
MOST VERSATILE
Multi-Tasking Scale
WEIGHING USE:
wheelchairs
straight-legged chairs
standing
walkers
The 6550 offers a wide range of
versatility and weighing positions.
4-WAY EASY TRANSPORT
With Dual Direction Wheels
The 6550’s vertical fold-up design requires minimal floor space
and allows easy transportation. The column folds down and latches
securely into position, ready for transport in four directions.
(800) 641-2008
The beauty of Detecto’s sturdy but lightweight model 6550 lies in its versatility and
ease of use. It can be utilized in multiple departments and in various ways. The scale’s
digital weight indicator is the industry’s most
advanced, featuring serial output to a printer
or PC, battery or AC power, BMI calculation,
yellow “quick keys” for basic weighing, and a
bright, crisp LCD display.
WHEELCHAIR SCALES
18
“Roll-A-Weigh” Wheelchair Scale
EMRREADY
Featuring built-in handles, wheelstop, and wheels, the “Roll-A-Weigh” can be
moved wherever you need it. Whether it’s multiple weighing locations at a
single facility or a stationary location, the “Roll-A-Weigh” gives you portability
and ease of use. The “Roll-A-Weigh” features a weight display which can be
mounted on the scale, or remotely on a wall or desk for convenient viewing.
Overall dimensions: 32.5” W x 42.5” D x 3.5” H/83 cm W x 108 cm D x 9 cm H.
The perfect scale for
weighing patients
in manual or power
wheelchairs, dialysis
patients, or walk-ons. The
lightweight Roll-A-Weigh
features built-in wheels
for easy portability.
MODEL
CAPACITY
SHIPPING
WEIGHT
CR-500D
500 lb x 0.2 lb /
225 kg x 0.1 kg
113 lb /
51 kg
809161139501
CR-1000D
1,000 lb x 0.5 lb /
450 kg x 0.2 kg
Same
809161139600
6800-1045
AC adapter
1 lb / 453 g
809161136203
UPC
Platform Size: 30” W x 32.5” D/76 cm W x 83 cm D
758C
Please see page 8 for additional weight display features.
Geriatric/Bariatric Wheelchair Scale
EMRREADY
The battery-operated models FHD-133-II and FHD-144-II scales have a black,
nonskid rubber platform and ramp. The large platform accomodates walk-on
patients, wheelchairs, or straight-legged chairs. This large capacity scale can
be mounted flush with the floor if desired (please consult factory for all pit
installations). The remote weight display is suitable for desk or wall mount
and comes with 15’/4.5 m of cable. A 28.5”/72 cm ramp is included.
MODEL
CAPACITY
SHIPPING
WEIGHT
FHD-133-II
1,000 lb x 0.2 lb /
450 kg x 0.1 kg
315 lb /
143 kg
809161139709
FHD-144-II
Same
460 lb / 209 kg
809161139808
6800-1045
AC adapter
1 lb / 453 g
809161136203
Platform Size: 133-II - 36”/91 cm square
758C
UPC
144-II - 48”/122 cm square
Please see page 8 for additional weight display features.
www.Detecto.com
IN-FLOOR SCALES
19
For Wheelchair, Chair, Stretcher, and Stand-on Weighing.
Scale is recessed into the floor for easy-access, multi-purpose
weighing. Detecto model FH-144-II/CH shown with handrail and
model 204FWMP digital weight indicator/printer combo.
DETECTO’S IN-FLOOR SCALES ARE ALSO EXCEPTIONAL FOR
DIALYSIS PATIENT MONITORING. The platform is level with
the floor for easy access, so it also works well for multi-purpose
weighing. The patient simply walks or is wheeled onto the platform and is weighed. Stretchers and beds fit easily onto the 6foot long model with no need for dual scale systems. The weight
is displayed on a recessed or wall-mounted digital readout. The
digital indicator is AC powered for continual use and gives you a
choice of pound or kilogram weight readings. Handrail optional.
FEATURES:
• Pit Frame Provided
• Pushbutton Tare, Pounds or Kilograms
• Flush or Wall-Mounted 1" High LCD Readouts
• Smooth Painted Steel Platform
• Extra-Wide Platform to Accomodate Large Wheelchairs,
Extra-Wide Dialysis Chairs, Beds, and Ambulatory Stretchers
• Model 204FWM Indicator Included (printer optional)
The 204FWMP
digital readout with
built-in, paper-tape printer
MODEL
CAPACITY
PLATFORM SIZE
SHIPPING WEIGHT
UPC
FH-133-II/C
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
36” W x 36” D
165 lb / 75 kg
809161139907
FH-133-II/CH*
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
36” W x 36” D
170 lb / 77 kg
809161140002
FH-143-II/C
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
48” W x 36” D
232 lb / 105 kg
809161140101
FH-143-II/CH*
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
48” W x 36” D
237 lb / 108 kg
809161140200
FH-144-II/C
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
48” W x 48” D
240 lb / 109 kg
809161140309
FH-144-II/CH*
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
48” W x 48” D
245 lb / 111 kg
809161140408
FH-164-II/C
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
72” W x 48” D
385 lb / 175 kg
809161140507
FH-164-II/CH*
1,000 lb x 0.2 lb / 455 kg x 0.1 kg
72” W x 48” D
390 lb / 177 kg
809161140606
* H suffix = Handrail comes with these designated models.
(800) 641-2008
DIGITAL BABY SCALES
20
Digital Baby Scale
Optional label
printer (Model P220 pictured
left) provides documentation
of baby’s weight for transfer
to medical record. The 6745
features serial output for use
with a PC or printer.
Years of experience have gone into creating the latest in accurate, dependable infant scales... Detecto’s 6745. Designed to be used with the utmost
ease, this scale can weigh even the most active baby. With step-by-step
instructions right on the keypad, there’s never any question about
what to do next. The 6745 has a lock-in weight feature which compensates for typical newborn movement. When weight stabilizes, it is “locked
in” and displayed. The infant can be removed and its weight is retained. The
6745 features battery or AC operation and built-in measuring tape. Battery
life is 250 continuous hours Alkaline / 80 continuous hours NiCad.
MODEL
CAPACITY
SHIPPING
WEIGHT
6745
30 lb x 0.1 oz /
15 kg x 0.005 kg
25 lb /
11 kg
809161140705
6800-1006
AC Adapter
1 lb / 453 g
809161148008
UPC
Tray Size: 28” L x 14” W/71 cm L x 36 cm W
Power Source: 6 “C” cell batteries or universal AC adapter
Display: 6-digit, 7-segment 1.0”/25 mm high transflective LCD
Rolling Baby Scale Cart
Detecto’s stainless steel rolling baby scale cart features a lower shelf with three height adjustment levels
allowing clinical staff to store patient records and instruments onboard the cart. It features 2.5” (64mm)
diameter rubolene wheels with two locking wheels to keep the table in place and a recessed top to keep
the scale or other items secure. It easily fits through doorways into patient rooms.
MODEL
DIMENSIONS
SHIPPING WEIGHT
UPC
SPBT-1728
27.75” W x 16.75” D x 33.4” H /
71 cm W x 43 cm D x 85 cm H
43 lb / 20 kg
809161140804
Digital Tot Weigher
Infants readily accept the inclined seating of Detecto’s digital tot weigher
scale. With a fun, plastic, shell-shaped seat that is easy to clean, pound and
kilogram readings, and heavy-duty base and understructure, this batterypowered scale has a lot to offer.
SHIPPING
WEIGHT
UPC
44 lb x 0.05 lb /
20 kg x 0.02 kg
33 lb / 15 kg
809161140903
AC Adapter
1 lb / 453 g
809161136203
MODEL
CAPACITY
8432-CH
6800-1045
Dimensions: 20.25” H x 25” W x 22” D/51 cm H x 64 cm W x 56 cm D
750
Please see page 10 for additional weight display features.
www.Detecto.com
DIGITAL BABY SCALES
21
Digital Baby Scale
All Detecto Baby Scales
are engineered with the
active baby in mind and
built with the uncompromising quality you
expect from Detecto.
An easy-to-clean polystyrene tray cradles babies securely and comfortably on
these dependable scales. A light, attractive scale, the portability is increased
by the use of battery power with 6 “AA” size alkaline batteries. The high-contrast LCD display offers auto zero, auto shutoff and pushbutton tare.
SHIPPING
WEIGHT
UPC
130 lb x 0.1 lb /
59 kg x 0.05 kg
33 lb / 15 kg
809161141009
8435KG
59 kg x 0.05 kg
33 lb / 15 kg
809161141108
6800-1045
AC Adapter
1 lb / 453 g
809161136203
MODEL
CAPACITY
8435
Tray Size: 22” L x 14.75” W x 4.5” D/56 cm L x 37 cm W x 11 cm D
750
Please see page 10 for additional weight display features.
Digital Baby and Toddler Scale
Detecto’s 8440 digital baby and toddler scale provides accurate, safe weighing of infants and features selectable weight units, lb-oz or kilograms, display
hold, time and date clock function, and a memory function. Compact, battery-powered and portable, the 8440 is perfect for visiting nurses, home or
wherever space is limited. Remove the tray for double use as a toddler scale.
Optional black carrying case
MODEL
CAPACITY
SHIPPING
WEIGHT
8440
44 lb x 0.5 oz /
20 kg x 10 g
8 lb /
3.6 kg
809161141207
8440-CASE
Carrying Case
1 lb / 453 g
809161141306
6800-1037
AC Adapter
1 lb / 453 g
809161148107
UPC
Tray Size: 20.5” L x 10.75” W/52 cm L x 27 cm W
Platform Size: 9.5” L x 6.5” W/24 cm L x 17 cm W
Power Source: 6V DC (4 AA batteries or optional AC adapter)
Display: 4 3/4 digits LCD 1.0”/25 mm high
Digital Low-Profile Scale
The platform, base and padded carrying handles of this lightweight scale are
incorporated into one complete unit making it easy to transport from place
to place. Padded side rails and handle covers are slightly contoured ensuring that the baby will be cradled securely while being weighed. Measure the
infant’s length in inches or centimeters with the built-in measuring tape.
Optional black carrying case built to scale size and
with a handle protects the scale for easy transport.
SHIPPING
WEIGHT
MODEL
CAPACITY
8450
44 lb x 0.02 lb /
20 kg x 0.01 kg /
704 oz x 0.5 oz
8 lb /
3.6 kg
809161141405
8450-CASE
Carrying Case
1 lb / 453 g
809161141504
6800-1039
AC Adapter
1 lb / 453 g
809161148206
UPC
Dimensions With Handle: 24.5” L x 13.7” W x 2” H/62 cm L
x 35 cm W x 5 cm H
Power Source: 9V 100mA DC adapter / 9V battery
Display: 1.0”/25 mm high LCD with 4 1/2 active digits
(800) 641-2008
MECHANICAL BABY SCALES
22
Mechanical
Infant Scales
Mechanical Infant Scales
This sturdy, compact scale incorporates springless balance
beam construction. The white metal tray holds infants comfortably, while the beam is easy to read with blue graduations
and numerals on white background. Comes in your choice of
pounds or kilograms.
This low-profile beam style scale features sturdy, compact
construction with an easy-to-read balance beam and a white
epoxy metal tray. Comes in your choice of pounds or kilograms. Perfect for hospitals, pediatrician’s offices, clinics, or
the home nursery.
MODEL
CAPACITY
UPC
MODEL
CAPACITY
UPC
243
20 lb x 2 oz
809161141603
253
41 lb x 0.25 oz
809161142105
2431
10 kg x 50 g
809161141702
2531
20.5 kg x 10 g
809161142204
2441
16 kg x 100 g
809161141801
Overall Size: 10.5” H x 21” W x 19” D/27 cm H x 53 cm W x
48 cm D
Tray Size: 2.5” H x 11” W x 19” D/6 cm H x 28 cm W x 48 cm D
Shipping Weight: 21 lb/10 kg
Overall Size: 6.75” H x 24” W x 13.75” D/17 cm H x 61 cm W
x 35 cm D
Tray Size: 2.75” H x 24” W x 11.5” D/7 cm H x 61 cm W x 29
cm D
Shipping Weight: 30 lb/14 kg
Suspended Baby
Scale
Mechanical Tot
Weigher
Waterproof weighing
trousers are attached
to a heavy-duty zincplated 4”/10 cm S-hook
providing a comfortable
suspended sling seat for
weighing babies.
Features an easyto-read, die cast
beam, heavy-duty
welded steel
construction, and
polystyrene tray.
(Model MCS25KGNT
shown to the right)
Perfect for doctors and nurses
working in remote locations,
this baby scale is lightweight
and portable. It’s designed to
withstand rugged conditions
and remain accurate through
years of continuous service. The 8”/20 cm diameter shatterproof dial features a white face with black graduations and
numerals for high contrast readouts.
MODEL
CAPACITY
UPC
MCS25KGNT
25 kg x 100 g
809161141900
MCS25KGN
No sling seat
809161142006
Shipping Weight: 5 lb/2 kg
Infants readily accept the inclined seating of Detecto’s
mechanical tot weigher scales.With a fun, plastic, shell-shaped
seat that is easy to clean, pound and kilogram readings, and
heavy-duty base and understructure, the 459-CH mechanical
beam scale has a lot to offer. The die-cast beam can also be
read from either side for added convenience.
MODEL
CAPACITY
UPC
459-CH
40 lb x 0.5 oz /
17.5 kg x 0.01 kg
809161142303
Overall Size: 27” H x 22” W x 21” D/69 cm H x 56 cm W x 53
cm D
Shipping Weight: 38 lb/17 kg
www.Detecto.com
BABY SCALES / LAP SPONGE SCALES
Mechanical Pediatric Scales
Easy-to-clean, washable polystyrene trays cradle
babies securely on these dependable, portable
scales. With three models, the 450, 451, and 459
give you a choice of pounds or kilograms or
both. Light and attractive scales, these models
features a heavy-duty, rust-resistant understructure and dual-reading, die-cast beams.
MODEL
CAPACITY
UPC
450
130 lb x 1 oz
809161142402
451
65 kg x 20 g
809161142501
459
40 lb x 0.5 oz /
17.5 kg x 10 g
809161142600
These scales are engineered with the active baby
in mind and are built with the uncompromising
quality you expect from Detecto.
Overall Size: 27” H x 22’’ W x 21” D/69 cm H x
56 cm W x 53 cm D
Tray Size: 4.5” H x 22” W x 14.75” D/11 cm H x
56 cm W x 37 cm D
Shipping Weight: 33 lb/15 kg
DETECTO’S UNBEATABLE REPUTATION
Featuring removable stainless steel
trays for easy cleaning and the
compact size fits in any space.
Digital Lap Sponge / Wet Diaper Scales
Detecto packs a lot of functionality into these compact wet diaper/lap sponge
scales, designed to answer your every need in measuring fluid output. Stainless steel construction makes the removable tray a snap to clean - a major consideration in the nursery where repeated use is the rule. Time is also precious
around newborns, and this scale helps you make the most of it with an instantaneous display of 0.5”/13mm high readouts. Handy pushbutton tare simplifies weight determinations for adult incontinence and infant diapers. An AC
adapter comes with both scales.
MODEL
CAPACITY
AP-4KD
4,000 g x 1 g
SHIPPING
WEIGHT
5 lb /
2.3 kg
UPC
809161142709
Display: 4 digit, 0.5”/13 mm high red LED
Overall Size: 2.75” H x 7.5” W x 7” D/7 cm H x 19 cm W x 18 cm D
Tray Size: 2” H x 9” W x 6” D/5 cm H x 23 cm W x 15 cm D
Construction: Stainless steel scale with stainless steel tray
MODEL
CAPACITY
SHIPPING
WEIGHT
PS5A-2KD
70 oz x 0.1 oz /
1,998 g x 2 g
5 lb /
2.3 kg
UPC
809161142808
Display: 4 digit, 0.5”/13 mm high LCD
Overall Size: 2.75” H x 7.5” W x 7” D/7 cm H x 19 cm W x 18 cm D
Tray Size: 2” H x 9” W x 6” D/5 cm H x 23 cm W x 15 cm D
Construction: Scale is metal with baked enamel finish and stainless steel tray
(800) 641-2008
23
HANGING SCALES
24
Digital Patient Lift Scales
This scale determines the weight of a person suspended from a portable
patient lift and runs on one nine-volt battery. It incorporates a lock weight
feature which stores the last weight reading when the unit is turned off.
SHIPPING
WEIGHT
UPC
400 lb x 0.2 lb /
180 kg x 0.1 kg
4 lb / 2 kg
809161142907
600 lb x 0.2 lb /
270 kg x 0.1 kg
Same
809161143003
MODEL
CAPACITY
PL400
PL600
Display: 0.75”/19 mm high-contrast LCD
Size: 4.125” W x 2.125” D x 4” H/105 mm W x 54 mm D x 102 mm H
(center of eye to center of eye; 5”/127 mm overall)
Model PL400
Model
PL-HLKIT
Model
PL-ICKIT
Patient Lift Kit Adapters
Detecto also provides kit adapters for other manufacturers’ patient lifts.
MODEL
DESCRIPTION
SHIP WEIGHT UPC
PL-HLKIT
Connecting link kit connects the
Hoyer® yoke to Detecto’s PL400 or
PL600 indicator. Includes 2 stainless
steel links, 2 stainless steel spacers,
2 stainless steel shoulder bolts, and
2 elastic stop nuts.
2 lb / 1 kg
809161143102
PL-ICKIT
Connecting link kit connects the Invacare® models RPA600-1, RPL450,
or 9805 patient lifts to Detecto’s
PL400 or PL600 indicator. Includes
2 stainless steel links, 1 stainless
steel PL/lift adapter, 4 stainless steel
shoulder bolts, 4 elastic stop nuts,
and 6 stainless steel spacers.
2 lb / 1 kg
809161143201
The 11S400H
general utility
scale can work for
multiple purposes
and bulk weighings. It will weigh
large or small
quantities with
speed and
accuracy.
Mechanical Patient Lift Scale
Designed to be installed between the boom and sling of a patient lift, this
ruggedly-built general utility scale features an extra large, 7”/18 cm diameter,
single revolution, aluminum dial with black lettering and cast iron housing.
MODEL
CAPACITY
SHIPPING
WEIGHT
UPC
11S400H
400 lb x 1 lb
12 lb / 5 kg
809161109603
Height: 24.75”/63 cm
Stainless Steel Autopsy Scale
The extra-large, recessed 14.5” (37cm) double dial is easily readable from both sides and is
lithographed on metal with chrome-pated sashes and stainess steel bands. Stainless steel
housing and a stainless steel commodity pan enhance the clean, attractive appearance.
MODEL
CAPACITY
SHIPPING WEIGHT
UPC
T3530A
32 lb - 10 lb x 1 oz
33 lb / 15 kg
809161143300
Revolutions: 3.2
Pan: 15” (38cm) round stainless steel
www.Detecto.com
Cert. No.
88-110
WEIGHMOBILE IN-BED SCALES
Digital In-Bed Scale
Designed for fast, accurate weighing, the IB400 scale features a flame-retardant, antibacterial, self-deodorizing
stretcher which is placed under the patient and hydraulically lifted inches from the bed. The tare function lets
you easily subtract the weight of bedding. One nurse can
quickly gather data from an entire floor, without wasted
motion or patient discomfort! Safety features include
locking casters and a lockable base widening stance for
stability. Battery operation increases the portability of
these in-bed scales.
Under Bed Clearance: 4.8”/12 cm high
Dimensions: 53” H x 50” L x 25.25” W/1.3 m H x 1.2 m L
x 64 cm W
Stretcher: 6’/1.8m long, Thermoplastic Sure-Chek®
fabric
Adjustable Weighing Arm: 25.75” to 72.25” / 64 cm to
1.9 m high
750
Please see page 10 for additional weight
display features.
MODEL
CAPACITY / DESCRIPTION
SHIPPING WEIGHT
UPC
IB400
400 lb x 0.1 lb / 180 kg x 0.1 kg
290 lb / 132 kg
809161143409
0046-C065-08
4’ / 1.2 m pediatric stretcher -
4 lb / 1.8 kg
809161143508
0046-C007-08
6’ / 1.8 m adult stretcher - Sure-Chek® 20 fabric
4 lb / 1.8 kg
809161143607
6800-1045
AC Adapter
1 lb / 453 g
809161136203
Sure-Chek®
20 fabric
Heavy-Capacity In-Bed Scale
The IB600 in-bed scale lets you easily weigh patients
who are confined to their bed and is ideal for intensive
care, surgical recovery and geriatric units. Heavy-duty, yet
transportable, these self-contained scales easily maneuver under beds and have a stretcher holder, hydraulic lift
and six foot stretcher made of flame retardant, antibacterial, self-deodorizing Thermoplastic Sure-Chek® fabric.
The sturdy hoop assembly support patients securely and
weight can be taken even if the patient is not perfectly
centered on the stretcher.
Under Bed Clearance: 4.8”/12 cm high
Dimensions: 60” H x 65.9” L x 31.5” W/152 cm H x 167
cm L x 80 cm W
Stretcher: 6’/1.8m long, Thermoplastic Sure-Chek®
fabric
Adjustable Weighing Arm: 25.75” to 72.25” / 64 cm to
1.9 m high
750
Please see page 10 for additional weight
display features.
MODEL
CAPACITY / DESCRIPTION
SHIPPING WEIGHT
UPC
IB600
600 lb x 0.2 lb / 272 kg x 0.1 kg
390 lb / 177 kg
809161143706
4 lb / 1.8 kg
809161143805
1 lb / 453 g
809161136203
0046-C247-08
6’ / 1.8 m adult stretcher -
6800-1045
AC Adapter
Sure-Chek®
44XL fabric
(800) 641-2008
25
PORTABLE FLOOR SCALES
26
Digital Visiting Nurse Scale
Detecto’s economical DR400C, with mild steel platform, and DR550C,
with stainless steel platform, scales are lightweight and portable, making them perfect for mobile clinics and home care nurses. The units
have slip-resistant mats to ensure patient safety when weighing.
Model
DR400C
Model
DR550C
MODEL
CAPACITY
UPC
DR400C
(mild steel)
400 lb x 0.5 lb /
181 kg x 0.2 kg
809161143904
DR550C
(stainless steel)
550 lb x 0.2 lb /
250 kg x 0.1 kg
809161144000
DR400C-CASE
carrying case
809161137200
Display: 4-digit, 7-segment, 1”/25mm high LCD
Power: 6 “AA” alkaline batteries or 115 volt AC adapter (included)
Platform Size: 12.2” W x 11.8” D x 1.97” H/31 cm W x 30 cm D x 5 cm H
Shipping Weight: 13 lb/6 kg
Chiropractor Package - Bilateral Weight Scales
Detecto’s MD250PKG Special Chiropractor Package comes with two
model MD250 250 lb capacity scales and a 40”/1 m lock/release rod,
giving you everything you need for efficient and portable bilateral
weighing. The kit is perfect for chiropractor’s offices to check if a patient’s weight is evenly distributed.
MODEL
CAPACITY
UPC
MD250PKG
250 lb x 1 lb per scale
809161144109
Platform Size: 13” W x 10.5” D/33 cm W x 27 cm D
Shipping Weight: 21 lb/10 kg
Personal Floor Scales
The precision movement of this sturdy low-profile scale with circular display guarantees exact
results and the design with a lot of white and chrome gives the scale a fresh, timeless look. The
powder-coated steel casing is built to last a lifetime. The spacious tread area on the 10.6” W x 10.6”
D (269 mm W x 269 mm D) weighing platform is covered in easy-to-clean, black synthetic material
for fast wipe-downs. The modern, elegant scale design makes a positive impression in any room.
MODEL
CAPACITY
SHIP WEIGHT
UPC
D350
350 lb x 1 lb / 160 kg x 1 kg
17 lb / 8 kg
809161144208
D350K
160 kg x 1 kg
Same
809161144307
Dimensions: 13.25” W x 20.25” D x 4.5” H/34 cm W x 51 cm D x 11 cm H
Personal Floor Scales
A low profile design, heavy-duty construction and a non-skid vinyl mat are just a few features of
the D1130 and D1130K scales - proven performers for budget-minded customers. They feature a
white, baked-enamel finish and personal colorful indicators to mark one person’s or a whole family’s weights. The 7-inch (178 mm) diameter dial allows for easy readability even for tall people.
MODEL
CAPACITY
SHIP WEIGHT
UPC
D1130
300 lb x 1 lb
9 lb / 4 kg
809161144406
D1130K
140 kg x 500 g
Same
809161144505
Dimensions: 12” W x 16.75” D x 2.5” H/31 cm W x 43 cm D x 6 cm H
www.Detecto.com
DYNAMOMETERS / GLOVE BOX HOLDERS
Digital Handgrip Dynamometers
Detecto’s model DHS digital handgrip dynamometers provide rehabilitation
exercise solutions for patients and physicians. The DHS allows medical professionals to evaluate the recovery condition of a patient’s impaired hand.
The data may be used for reference to view rehabilitation progress. The soft,
padded handgrip and poly enclosure provide a comfortable material for
patient usage.
Model
DHS-88
Everything needed for hand evaluation is included in one convenient package: DHS handgrip dynamometer, instruction manual, and battery. Comes
in convenient shockproof carrying/storage case with individual storage
compartments for each item (shown to the right).
MODEL
CAPACITY
UPC
DHS-88
88 lb x 0.2 lb / 40 kg x 0.1 kg
809161147803
DHS-176
176 lb x 0.2 lb / 80 kg x 0.1 kg
809161147902
Dimensions (including handles): 2.165” W x 3.976” D x 8.346” H
55 mm W x 101 mm D x 212 mm H
Battery: CR-2450 (1 included)
Display: 0.5”/13mm high 4-digit LCD
Shipping Weight: 2 lb/1 kg
Mild Steel Glove Box Holders
Detecto’s model GH Glove Box Holders are available in three different sizes.
Fit one glove box in the small GH1, two boxes side by side in the GH2, and
three boxes side by side in the GH3. The all-steel construction with white
powder coat finish carries a Detecto lifetime guarantee. The units install in
seconds via screwholes and the GH1 also features a snap-on clip in back. The
open design allows you to see what size or type of glove is being dispensed.
MODEL
DIMENSIONS
UPC
GH1
Holds 1 Box
10.5” H x 6.5” W x 4.25” D /
27 cm H x 17 cm W x 11 cm D
809161144901
GH2
Holds 2 Boxes
10” H x 12” W x 4” D /
25 cm H x 30 cm W x 10 cm D
809161145007
GH3
Holds 3 Boxes
10” H x 18” W x 4” D /
25 cm H x 46 cm W x 10 cm D
809161145106
MODEL
GH3
MODEL
GH1
MODEL
GH2
Stainless Steel Glove Box Holders
Detecto’s GHSS Stainless Steel Glove Box Holders are designed for holding latex glove boxes or tissues. Fit one glove box in the small GH1, two boxes side
by side in the GH2, and three boxes side by side in the GH3. The all-stainless
steel construction carries a Detecto lifetime guarantee. The units install in
seconds via screwholes and the GH1 also features a snap-on clip in back. The
open design allows you to see what size or type of glove is being dispensed.
MODEL
DIMENSIONS
UPC
GH1SS
Holds 1 Box
10.5” H x 6.5” W x 4.25” D /
27 cm H x 17 cm W x 11 cm D
809161144604
GH2SS
Holds 2 Boxes
10” H x 12” W x 4” D /
25 cm H x 30 cm W x 10 cm D
809161144703
GH3SS
Holds 3 Boxes
10” H x 18” W x 4” D /
25 cm H x 46 cm W x 10 cm D
809161144802
(800) 641-2008
MODEL
GH3SS
MODEL
GH1SS
MODEL
GH2SS
27
WASTE RECEPTACLES
28
Easy to Clean
and Featuring
Unitized
Construction
Featuring a selfclosing lid which
also lifts off easily
to remove the
disposable bag
• FREE Bio-Hazard and Infectious Waste Adhesive Labels
(Meets OSHA Labeling Requirements)
• Bag Securing Mechanism on Wall Mount Hanging Models
CLEAN UP IS EASY
Not only do the stainless steel and epoxy
polyester finishes on Detecto’s waste receptacles allow for quick, wipe-down cleaning,
the H models can be permanently positioned just off the ground for easy sweeping and mopping underneath and keeping
debris from collecting around the base.
Mounting brackets come with all the H
models. To remove them from the wall, simply slide them up and out of their groove.
Lift bail mechanism
and drop in bag.
Fold top of bag over
edges of bail to secure.
Press bail mechanism
back into place.
Self-Closing Lids on Wall Mount
Hanging Models
Wall Mount Hanging Waste Receptacles
MODEL
Model
SWC-64
UPC
H-60S
Stainless Steel
60 quart
33” H x 18.25” W x 7” D /
(15 gallon) 84 cm H x 46 cm W x 17 cm D
H-60
White Epoxy
60 quart
33” H x 18.25” W x 7” D /
(15 gallon) 84 cm H x 46 cm W x 17 cm D
809161145304
H-90S
90 quart
37.25” H x 18” W x 9.25” D /
Stainless Steel (22.5 gallon) 95 cm H x 46 cm W x 23 cm D
809161145403
90 quart
37.25” H x 18” W x 9.25” D /
(22.5 gallon) 95 cm H x 46 cm W x 23 cm D
809161145502
Shipping Weights: H-60/H-60S - 22.5 lb / 10 kg
H-90/H-90S - 29.25 lb / 13 kg
Model
H-90
Standard Stainless Steel Waste Receptacles
Hemmed edges for safety
Model
SWC-48
DIMENSIONS
809161145205
H-90
White Epoxy
Model
H-60S
CAPACITY
Model
SWC-32
MODEL
CAPACITY
DIMENSIONS
UPC
SWC-32
Stainless Steel
32 quart
(8 gallon)
20.75” H x 10” W x 10” D /
53 cm H x 25 cm W x 25 cm D
809161145601
SWC-48
Stainless Steel
48 quart
23.25” H x 11.5” W x 11.5” D /
(12 gallon) 59 cm H x 29 cm W x 29 cm D
809161145700
SWC-64
Stainless Steel
64 quart
24” H x 17” W x 10” D /
(16 gallon) 61 cm H x 43 cm W x 24 cm D
809161145809
Shipping Weights: SWC-32 - 11 lb / 5 kg
SWC-48 - 13 lb / 5.9 kg
SWC-64 - 16 lb / 7.3 kg
www.Detecto.com
STEP-ON CANS
29
Detecto Step-On Can Waste Receptacles
Named for their rugged toughness, Detecto Step-On Cans are perfect for hospitals, doctors’
offices, patients’ rooms, and laboratory settings. They come in a variety of five different sizes
and capacities and two different materials listed below. The cans are flame retardant, have a
self-closing lid for sanitation, epoxy polyester or stainless steel finish for easy cleaning, and
full width hinges and unitized construction for long-term use. Detecto also includes free
bio-hazard and infectious waste adhesive labels to meet OSHA labelling requirements.
Baked Epoxy Steel Step-On Cans
MODEL CAPACITY
UPC
16 quart
(4 gallon)
13” H x 11.33” W x 12.625” D /
33 cm H x 29 cm W x 32 cm D
12 lb /
5 kg
809161117608
P-24
24 quart
(6 gallon)
16” H x 11.33” W x 12.625” D /
41 cm H x 29 cm W x 32 cm D
14 lb /
6 kg
809161117707
P-32
32 quart
(8 gallon)
21” H x 11.33” W x 12.625” D /
53 cm H x 29 cm W x 32 cm D
16 lb /
7 kg
809161117806
P-48
48 quart
(12 gallon)
23.5” H x 13.188” W x 14 “ D /
60 cm H x 33 cm W x 36 cm D
20 lb /
9 kg
809161117905
P-100
100 quart 27.5” H x 16.813” W x 17.625” D /
(25 gallon) 70 cm H x 43 cm W x 45 cm D
31 lb /
14 kg
809161118001
P-16R
16 quart
(4 gallon)
13” H x 11.33” W x 12.625” D /
33 cm H x 29 cm W x 32 cm D
12 lb /
5 kg
809161125900
P-24R
24 quart
(6 gallon)
16” H x 11.33” W x 12.625” D /
41 cm H x 29 cm W x 32 cm D
14 lb /
6 kg
809161126006
P-32R
32 quart
(8 gallon)
21” H x 11.33” W x 12.625” D /
53 cm H x 29 cm W x 32 cm D
16 lb /
7 kg
809161126105
P-48R
48 quart
(12 gallon)
23.5” H x 13.188” W x 14 “ D /
60 cm H x 33 cm W x 36 cm D
20 lb /
9 kg
809161126204
P-100R
100 quart 27.5” H x 16.813” W x 17.625” D /
(25 gallon) 70 cm H x 43 cm W x 45 cm D
31 lb /
14 kg
809161126303
(white)
(white)
(white)
(white)
(red)
(red)
(red)
(red)
Model
P-24R
SHIPPING
WEIGHT
P-16
(white)
Model
P-24
DIMENSIONS
(red)
Stainless Steel Step-On Cans
MODEL CAPACITY
Model
C-24
DIMENSIONS
SHIPPING
WEIGHT
UPC
C-16
16 quart
(4 gallon)
13” H x 11.33” W x 12.625” D /
33 cm H x 29 cm W x 32 cm D
12 lb /
5 kg
809161118209
C-24
24 quart
(6 gallon)
16” H x 11.33” W x 12.625” D /
41 cm H x 29 cm W x 32 cm D
14 lb /
6 kg
809161118308
C-32
32 quart
(8 gallon)
21” H x 11.33” W x 12.625” D /
53 cm H x 29 cm W x 32 cm D
16 lb /
7 kg
809161118407
C-48
48 quart
(12 gallon)
23.5” H x 13.188” W x 14 “ D /
60 cm H x 33 cm W x 36 cm D
20 lb /
9 kg
809161118506
C-100
100 quart 27.5” H x 16.813” W x 17.625” D /
(25 gallon) 70 cm H x 43 cm W x 45 cm D
31 lb /
14 kg
809161118605
Plastic Liners
Easy to clean plastic
liners are ideal for
use where disposable
bags are not desired.
(Model PL-32 Pictured)
MODEL
CAPACITY
SHIPPING
WEIGHT
UPC
PL-16
16 quart (4 gallon)
2.75 lb / 1.2 kg
809161118704
PL-24
24 quart (6 gallon)
3.5 lb / 1.6 kg
809161118803
PL-32
32 quart (8 gallon)
4.5 lb / 2 kg
809161118902
(800) 641-2008
MECHANICAL DIETARY SCALES
30
Petite Top-Loading
Portion Scales
Model PT-5R
Some popular
PT models are
NSF certified.
Model PT-25R
Model PT-500RK
Whatever your need in a top-loading dial scale, Detecto has a model to handle the job. The PT
Series comes in a variety of capacities listed below. Sturdy construction, stability, convenient
viewing angle, temperature compensation for dependable accuracy in environments with
fluctuating temperatures and easy readability make these the petite top loaders of choice.
MODEL
CAPACITY
DIAL
FINISH
UPC
PT-1
16 oz x 0.25 oz
Fixed
Enamel
809161104608
PT-2
32 oz x 0.25 oz
Fixed
Enamel
809161104707
PT-2R (NSF)
32 oz x 0.25 oz
Rotating
Enamel
809161105001
PT-2-SR
32 oz x 0.25 oz
Rotating
Stainless steel
809161105100
PT-500RK
500 g x 2 g
Rotating
Enamel
809161105407
PT-500SRK
500 g x 2 g
Rotating
Stainless steel
509161105506
PT-5R (NSF)
5 lb x 0.5 oz
Rotating
Enamel
809161105209
PT-25R (NSF)
25 lb x 0.125 lb
Rotating
Enamel
809161105308
Overall Size: 6.125” W x 7.25” D x 7.25” H/16 cm W x 18 cm D x 18 cm H
Dial Size: 6” /15 cm diameter
Platform: 5.75” (15 cm) square stainless steel. PT-25R: 7.9” W x 5.9” D/20 cm W x 15 cm D
Shipping Weight: 5 lb/2 kg
Dual-Reading Lbs/Kgs Top Loading Portion Scales
This dual-reading top loader series comes in a variety of capacities listed below which show
simulataneous readings of pounds and kilograms. An easy-to-clean enamel finish, sturdy construction, stability, convenient viewing angle, and easy readability make these attractive top
loaders an ideal choice for your weighing needs.
Model T1KP
MODEL
CAPACITY
DIAL
FINISH
UPC
T1KP
2.2 lb x 0.25 oz / 1 kg x 5 g
Fixed
Enamel
809161121308
T2KP
4.3 lb x 0.5 oz / 2 kg x 10 g
Fixed
Enamel
809161108705
Add letter “D” to model for optional air dashpot
Overall Size: 10.5” H x 8.5” W x 10.25” D/27 cm H x 22 cm W x 26 cm D
Dial: 8” /20 cm diameter fixed
Platform: 9”/23 cm square stainless steel
Shipping Weight: 10 lb/4.5 kg
www.Detecto.com
Additional
Capacities
Available
DIGITAL DIETARY SCALES
31
Digital Portion Control Scales
AC or battery
power
MODEL
CAPACITY
PS-4
4 lb x 0.1 oz /
2,000 g x 1 g
SHIPPING
WEIGHT
UPC
4 lb / 1.8 kg
809161145908
®
Display: 0.8”/20 mm high LCD
Overall Size: 1.5” H x 5.9” W x 6.7” D/4 cm H x 15 cm W x 17 cm D
Platform Size: 5.9” W x 4.75” D/15 cm W x 12 cm D
AC or battery
power
MODEL
CAPACITY
PS-5A
70 oz x 0.1 oz /
1,998 g x 2 g
SHIPPING
WEIGHT
UPC
4 lb / 1.8 kg
809161101102
Display: 0.5”/13 mm high LCD
Overall Size: 2.75” H x 7” W x 7” D/7 cm H x 18 cm W x 18 cm D
Platform Size: 6.75” W x 5.25” D/17 cm W x 13 cm D
AC or battery
power
MODEL
CAPACITY
SHIPPING
WEIGHT
UPC
PS-6A
70 oz x 0.25 oz
4 lb / 1.8 kg
809161101300
Display: 0.5”/13 mm high LCD
Overall Size: 2.75” H x 7” W x 7” D/7 cm H x 18 cm W x 18 cm D
Platform Size: 6.75” W x 5.25” D/17 cm W x 13 cm D
AC or battery
power
MODEL
CAPACITY
PS-7
7 lb x 0.1 oz /
112 oz x 0.1 oz /
112 oz x 1/8 oz /
3000 g x 1 g /
7 lb x 0.005 lb
®
SHIPPING
WEIGHT
UPC
4 lb / 1.8 kg
809161146004
Features the ability
to disable different
units of measure.
Display: 5-digit, 0.8” x 0.3” characters with fractions LCD
Overall Size: 2.44” H x 8.03” W x 7.87” D / 6 cm H x 20 cm W x 20 cm D
Platform Size: 8.02” W x 4.96” D / 20 cm W x 13 cm D
AC power or built-in
rechargeable
battery
MODEL
CAPACITY
PS-11
11 lb x 0.1 oz /
176 oz x 0.1 oz /
176 oz x 1/4 oz /
5000 g x 2 g /
11 lb x 0.005 lb
®
SHIPPING
WEIGHT
UPC
6 lb / 2.7 kg
809161146103
Features the ability
to disable different
units of measure.
Display: 5-digit, 0.8” x 0.3” characters with fractions LCD
Overall Size: 2.3” H x 7.25” W x 9.5” D / 6 cm H x 18 cm W x 24 cm D
Platform Size: 6.89” W x 6.5” D / 18 cm W x 17 cm D
Notice of Approval
AM-4539 Rev. 2
AC power
Cert. No.
95-087A1
Optional Commodity
Scoop - Model 285R31
MODEL
CAPACITY
SHIPPING
WEIGHT
UPC
AP-6
99.95 oz x 0.05 oz
5 lb / 2.3 kg
809161101904
AP-8
7.998 lb x 0.002 lb
5 lb / 2.3 kg
809161102000
AP-10
9.995 lb x 0.005 lb
5 lb / 2.3 kg
809161102109
AP-20
19.99 lb x 0.01 lb
5 lb / 2.3 kg
809161102208
AP-4K
3999 g x 1 g
5 lb / 2.3 kg
809161101805
Display: 0.5”/13 mm high LED
Overall Size: 2.75” H x 7.5” W x 7” D/7 cm H x 19 cm W x 18 cm D
Platform Size: 6.75” W x 5.25” D/17 cm W x 13 cm D
(800) 641-2008
VETERINARY SCALES
32
Scales for
Veterinarians, Pet Stores,
Kennels or Laboratories
Medium Capacity Digital Vet Scale
This portable, compact-sized scale with a remote weight display is the ideal
scale for small animals. Its scale base can be positioned up to 8 feet away from
the display. The scale’s medium base size allows it to be used on the floor or
tabletop and its light weight makes it ultra portable. The VET50 comes with the
rubber mat pictured to the right.
Dimensions: 3” H x 14” W x 12” D / 8 cm H 36 cm W x 30 cm D
750
MODEL
VET50
Please see page 10 for additional weight display features.
MODEL
CAPACITY / DESCRIPTION
SHIPPING WEIGHT
UPC
VET50
50 lb x 0.02 lb / 20 kg x 0.01 kg
15 lb / 7 kg
809161146202
6800-1045
AC Adapter
1 lb / 453 g
809161136203
MODEL
VET330WH
Digital Vet Scale
with Wheels and Handle
This economical, portable scale with a remote weight display is the ideal scale for medium to large size animals. The
VET330WH features rechargeable battery power and comes
with an AC adapter. The scale’s light weight combined with
wheels and carrying handle make it ultra portable to allow
the weighing to come to the patient.
Dimensions: 36” W x 22” D / 91 cm W x 56 cm L
MODEL
CAPACITY
SHIPPING WEIGHT
UPC
VET330WH
330 lb x 0.2 lb / 150 kg x 0.1 kg
50 lb / 23 kg
809161146301
High Capacity Digital Vet Scale
The VET400 is the perfect scale for anyone handling medium to large size animals. The large, low-profile platform makes it easy for animals to step onto the floor scale without any hesitancy,
and an optional rubber mat is also available.The removable stainless steel platform makes cleanup fast and easy. Its scale base can be positioned up
to 8’/2.5m away from the display due to the coiled cable. The
indicator features an adjustable mounting bracket
for either desk or wall mount convenience.
The Lock/Release feature retains the displayed weight after the animal is removed.
Dimensions: 1.75” H x 42” W x 22” D /
44 cm H x 107 cm W x 56 cm D
750
Please see page 10 for additional
weight display features.
MODEL
CAPACITY / DESCRIPTION
SHIPPING WEIGHT
UPC
VET400
400 lb x 0.2 lb / 200 kg x 0.1 kg
76 lb / 34 kg
809161146400
VET-MAT
Rubber Mat
1 lb / 453 g
809161146509
6800-1045
AC Adapter
1 lb / 453 g
809161136203
www.Detecto.com
LAUNDRY SCALES
33
Laundry scales come in all shapes and sizes depending on your specific application. Whether you are weighing small baskets or large carts, Detecto has a scale
to meet your needs. Detecto’s selections of scales are well suited for use in homes,
hospitals, commercial applications or hotels. Whether you are charging for laundry
by weight or just preventing overloading your home or commercial washer/dryer,
Detecto has the weighing solution. Weight printing is also vital for commercial
applications, and Detecto can provide the best scale for your operation.
In commercial applications, a “legal for trade” scale may be required. “Legal for
trade” scales are those that the Department of Weights and Measures has approved to sell a service or product based on the weight displayed by the scale.
Additionally, for laundry cart weighing, Detecto has several scales with ramps that
make it easy to move the cart on and off the scale.
Model FHD-133-II Laundry Cart Scale
Shown with Detecto P220 Label Printer
and Model 204 Digital
Weight Indicator.
Laundry Scales
SMALL BASKET SCALES
Detecto offers a large variety of
industrial-strength laundry scales.
Battery Power
10.5” Dial
DR150 Digital 150 lb Scale
T200 Mechanical 200 lb Scale
LARGE BASKET SCALES
22” x 42” Deck
VET400 Digital 400 lb Scale
Double Lip Pan
48100-36 Mechanical 100 lb Scale
LAUNDRY CART SCALES
36” x 36” Deck
Integral Ramp
6500
Portable 800 lb Scale
(800) 641-2008
FHD-133-II
Stationary 1,000 lb Scale
with Rubberized Mat Ramp
EU-ONLY SCALES
34
Health Care Scales
Around the Globe
Model 6875KGEU
Model 6880KGEU
Model EU522/EU522HR
Model EU544
Model GP400-750KGEU
Model VET400KGEU
Model VET50KGEU
Model 6855KGEU
Model 6550KGEU
Model 6868KGEU
Model 6856KGEU
Detecto is Your
Model 6800KGEU
WORLDWIDE
Model 6876KGEU
SCALE PROVIDER
Model BRW1000KGEU
Model CR1000DKGEU
Model GP400758CKGEU
Waist-High Digital Physician Scale -
European-Only Models
Detecto’s EU522 and EU544 are designed for use in European countries. These high-quality digital physician
scales are light, but durable. The scales feature “at-a-glance” convenience of a digital weight display and a slip-resistant base cover. The waist-high model is also available with a 76 cm to 198 cm height rod - model EU522HR.
MODEL
CAPACITY
EU522
200 kg x 0.1 kg
95 cm
EU522HR
200 kg x 0.1 kg
95 cm
EU544
200 kg x 0.1 kg
9 cm
Model
EU544
SCALE HEIGHT
HEIGHT ROD
76 - 198 cm
UPC
809161146608
•
809161146707
809161146806
Platform Size: 26 cm x 34 cm
Power Source: 6 “AA” size batteries or optional AC adapter
750
Please see page 10 for additional
weight display features.
www.Detecto.com
Model
EU522HR
INDEX
MODEL
0046-C007-08
0046-C065-08
0046-C247-08
11S400H
204
204FWMP
2371
2371S
2381
2391
2391S
243
2431
2441
2491
253
2531
285R31
337
337S
338
339
339S
349
3PHNDPST
3PHTROD-1
3PHTROD-WM
3PRAMP
3PWHL
437
437S
438
439
439S
442
448
449
450
451
459
459-CH
475
4751
48100-36
483
485
4851
495
4951
4PHTROD-3
6027
6027KG
6029
6029KG
6437
6439
6449
6475
6475K
6495
6500
6550
6745
6800
6800-1006
6800-1037
6800-1039
6800-1045
6855
6856
6868
6875
6876
6880
750
758C
8430
Page 25
Page 25
Page 25
Page 24
Page 33
Page 19
Page 5
Page 5
Page 5
Page 5
Page 5
Page 22
Page 22
Page 22
Page 5
Page 22
Page 22
Page 31
Page 5
Page 5
Page 5
Page 5
Page 5
Page 5
Page 5
Page 5
Page 5,12
Page 15
Page 5
Page 5
Page 5
Page 5
Page 5
Page 5
Page5
Page 5
Page 5
Page 23
Page 23
Page 23
Page 22
Page 14
Page 14
Page 33
Page 5
Page 15
Page 15
Page 15
Page 15
Page 5
Page 11
Page 11
Page 11
Page 11
Page 9
Page 9
Page 9
Page 14
Page 14
Page 15
Page 16,33
Page 17
Page 20
Page 12
Page 20
Page 21
Page 21
Page 9
Page 12
Page 12
Page 13
Page 14
Page 13
Page 14
Page 10
Page 8
Page 9
8430S
8432-CH
8435
8435KG
8437
8437S
8440
8440-CASE
8450
8450-CASE
AP-6
AP-8
AP-10
AP-20
AP-4K
AP-4KD
BRW1000
C-16
C-24
C-16
C-32
C-48
C-100
CR-500D
CR-1000D
D1130
D1130KG
D350
D350K
DHR
DHRWM
DHS-88
DHS-176
DIS-2
DR150
DR400-750
DR400C
DR400C-CASE
DR550C
EU522
EU522HR
EU544
FH-133-II/C
FH-133-II/CH
FH-143-II/C
FH-143-II/CH
FH-144-II/C
FH-144-II/CH
FH-164-II/C
FH-164-II/CH
FHD-133-II
FHD-144-II
GH1
GH1SS
GH2
GH2SS
GH3
GH3SS
GP-400-750
GP-400-758C
H-60
H-60S
H-90
H-90S
IB400
IB600
MCS25KGN
MCS25KGNT
MD250PKG
MHR
P-100
P-100R
P150
P-16
P-16R
P185
P220
Page 9
Page 20
Page 21
Page 21
Page 9
Page 9
Page 21
Page 21
Page 21
Page 21
Page 31
Page 31
Page 31
Page 31
Page 31
Page 23
Page 16
Page 29
Page 29
Page 29
Page 29
Page 29
Page 29
Page 18
Page 18
Page 26
Page 26
Page 26
Page 26
Page 6
Page 7
Page 27
Page 27
Page 16
Page 33
Page 11
Page 26
Page 11,26
Page 26
Page 34
Page 34
Page 34
Page 19
Page 19
Page 19
Page 19
Page 19
Page 19
Page 19
Page 19
Page 18,33
Page 18
Page 27
Page 27
Page 27
Page 27
Page 27
Page 27
Page 11
Page 9
Page 28
Page 28
Page 28
Page 28
Page 25
Page 25
Page 22
Page 22
Page 26
Page 6
Page 29
Page 29
Page 8
Page 29
Page 29
Page 8
Page 8,33
35
PRODUCT CATEGORY
P-24
P-24R
P-32
P-32R
P-48
P-48R
PD100
PD200
PD300
PD300DHR
PD300MHR
PL-16
PL-24
PL-32
PL400
PL600
PL-HLKIT
PL-ICKIT
PS-4
PS5A-2KD
PS-5A
PS-6A
PS-7
PS-11
PT-1
PT-2
PT-25R
PT-2R
PT-2-SR
PT-500RK
PT-500SRK
PT-5R
SPBT-1728
SWC-32
SWC-48
SWC-64
T1KP
T200
T2KP
T3530A
VET330WH
VET50
VET400
VET-MAT
WinDDE
Page 29
Page 29
Page 29
Page 29
Page 29
Page 29
Page 6
Page 6
Page 6
Page 6
Page 6
Page 29
Page 29
Page 29
Page 24
Page 24
Page 24
Page 24
Page 31
Page 23
Page 31
Page 31
Page 31
Page 31
Page 30
Page 30
Page 30
Page 30
Page 30
Page 30
Page 30
Page 30
Page 20
Page 28
Page 28
Page 28
Page 30
Page 33
Page 30
Page 24
Page 32
Page 32
Page 32,33
Page 32
Page 8
(800) 641-2008
Acute Care
6439 Eye-Level Physician Scale
6550 Portable Wheelchair Scale
6745 Baby Scale
6856 Bariatric Scale
6880 Rolling Chair Scale
8450 Baby Scale
IB400 In-Bed Scale
IB600 In-Bed Scale
P-32 Step-On Can
Bariatric Care
6500 Portable Wheelchair Scale
6550 Portable Wheelchair Scale
6855 Bariatric Scale
6856 Bariatric Scale
6800 Bariatric Scale
6868 Bariatric Scale
6876 Flip Seat Euro Scale
BRW1000 Bariatric Wheelchair Scale
CR-1000D Wheelchair Scale
FHD-133-II Wheelchair Scale
PD300DHR ProDoc™ Digital Scale
Home Health Care
8440 Baby Scale
D1130 Personal Floor Scale
D350 Personal Floor Scale
DR400C Floor Scale
PD200 ProDoc™ Digital Scale
Long-Term Care
6475 Chair Scale
6550 Portable Wheelchair Scale
6876 Flip Seat Euro Scale
BRW1000 Wheelchair Scale
CR-1000D Wheelchair Scale
IB600 In-Bed Scale
FHD-133-II Wheelchair Scale
PD300DHR ProDoc™ Digital Scale
Physician Care
439 Eye-Level Physician Scale
6439 Eye-Level Physician Scale
CR-500D Wheelchair Scale
DR400-750 Portable Floor Scale
H-90S Wall-Mount Waste Receptacle
P-24 Step-On Can
PD300DHR ProDoc™ Digital Scale
Surgical Care
6855 Bariatric Scale
6856 Bariatric Scale
6868 Bariatric Scale
AP-4KD Lap Sponge Scale
P-24R Step-On Can
PS5-2KD Lap Sponge Scale
PT-2R Dial Type Portion Scale
Veterinary Care
AP-4KD Digital Scale With Tray
C Series Step-On Cans
GH Glove Box Holders
VET330WH Veterinary Scale
VET400 Veterinary Scale
VET50 VeterinaryScale
EU Class 3 Approved
6550KGEU Portable Wheelchair Scale
6855KGEU Bariatric Scale
6856KGEU Bariatric Scale
6868KGEU Bariatric Scale
6875KGEU Premier Chair Scale
6876KGEU Flip Seat Scale
6800KGEU Portable Bariatric Scale
6880KGEU Chair Scale
BRW1000KGEU Wheelchair Scale
CR-1000DKGEU Wheelchair Scale
EU522/EU522HR Waist-High Scale
EU544 Low-Profile Digital Scale
GP-400-750KGEU Low-Profile Scale
GP-400-758CKGEU Low-Profile Scale
VET400KGEU VeterinaryScale
VET50KGEU VeterinaryScale
Page 9
Page 17
Page 20
Page 12
Page 14
Page 21
Page 25
Page 25
Page 29
Page 16
Page 17
Page 12
Page 12
Page 12
Page 13
Page 13
Page 16
Page 18
Page 18
Page 6
Page 21
Page 26
Page 26
Page 26
Page 6
Page 14
Page 17
Page 13
Page 16
Page 18
Page 25
Page 18
Page 6
Page 5
Page 9
Page 18
Page 11
Page 28
Page 29
Page 6
Page 12
Page 12
Page 13
Page 23
Page 29
Page 23
Page 30
Page 23
Page 29
Page 27
Page 32
Page 32
Page 32
Page 17
Page 12
Page 12
Page 13
Page 14
Page 13
Page 12
Page 14
Page 16
Page 18
Page 34
Page 34
Page 11
Page 9
Page 32
Page 32
DETECTO ONLINE
OUR MISSION STATEMENT
Detecto’s entire product line is available for viewing
online on our Web site: www.Detecto.com. Detecto
aims to provide our customers with the most up-todate and comprehensive product information and
resources available anytime on the Web.
Detecto is dedicated to the design and manufacture
of innovative quality products of exceptional value to
a world market. These efforts are monitored and communicated throughout the organization, in order to
bring forth continuous improvement and growth for
the Detecto family and our customers.
Go to www.Detecto.com for extensive Detecto
product information, brochures, specification sheets,
a physician scale model comparison chart, demonstration videos, ISO certification resources, company
history, and “legal-for-trade” certifications; in addition
to this catalog in PDF format, all just a click away.
We will...promote an open environment encouraging
creativity, team work, and total employee involvement.
We
will...maintain
a
positive
commitment
to
continual quality improvement essential for our
customer’s satisfaction.
We will...seek mutually beneficial long term relationships with our customers, distributors, suppliers, and
community.
We will...adhere to sound business and environmental
practices.
We will...strive to attract, develop, fairly reward, and
provide secure employment for capable and committed
employees.
We will...maintain a fair rate of return on investment to
ensure the accomplishment of our mission.
DETECTO
SOLD BY:
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
Detecto Scale reserves the right to improve, enhance or modify features and specifications without prior notice. © Copyright 2008 Cardinal Scale Mfg. Co. • Printed in USA • CPS/5K/0608/C-188C
