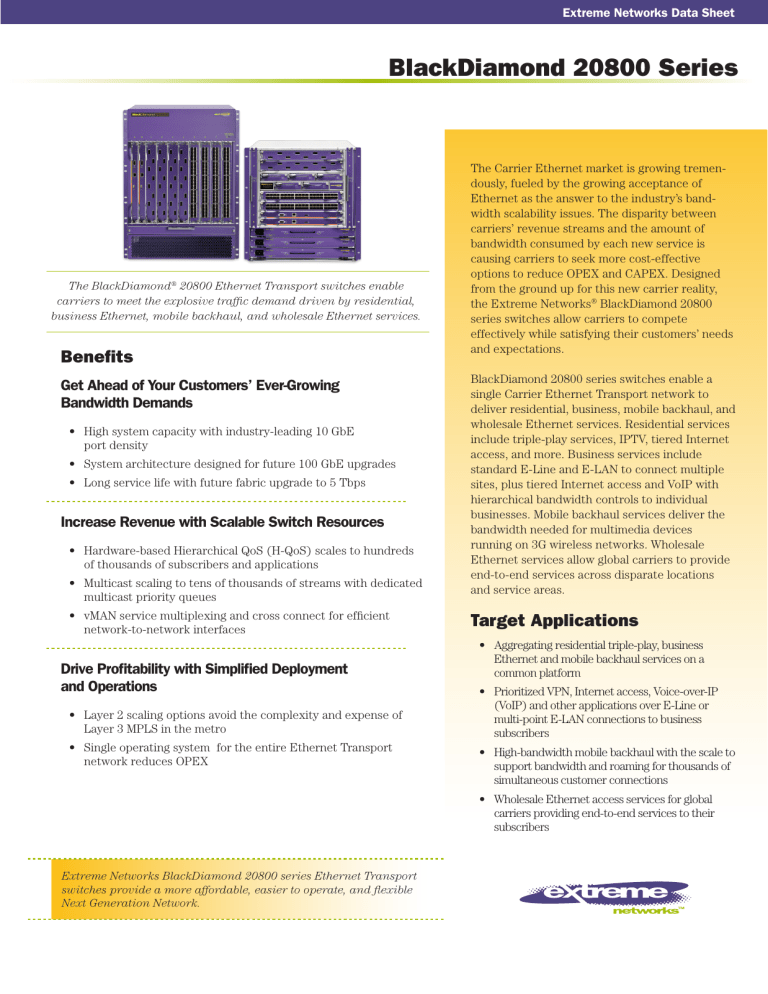

BlackDiamond 20800 Series Data Sheet

Extreme Networks Data Sheet
BlackDiamond 20800 Series
The BlackDiamond® 20800 Ethernet Transport switches enable
carriers to meet the explosive traffic demand driven by residential,
business Ethernet, mobile backhaul, and wholesale Ethernet services.
Benefits
Get Ahead of Your Customers’ Ever-Growing
Bandwidth Demands
• High system capacity with industry-leading 10 GbE
port density
• System architecture designed for future 100 GbE upgrades
• Long service life with future fabric upgrade to 5 Tbps
Increase Revenue with Scalable Switch Resources
• Hardware-based Hierarchical QoS (H-QoS) scales to hundreds
of thousands of subscribers and applications
• Multicast scaling to tens of thousands of streams with dedicated
multicast priority queues
• vMAN service multiplexing and cross connect for efficient
network-to-network interfaces
Drive Profitability with Simplified Deployment
and Operations
• Layer 2 scaling options avoid the complexity and expense of
Layer 3 MPLS in the metro
• Single operating system for the entire Ethernet Transport
network reduces OPEX
The Carrier Ethernet market is growing tremendously, fueled by the growing acceptance of
Ethernet as the answer to the industry’s bandwidth scalability issues. The disparity between
carriers’ revenue streams and the amount of
bandwidth consumed by each new service is
causing carriers to seek more cost-effective
options to reduce OPEX and CAPEX. Designed
from the ground up for this new carrier reality,
the Extreme Networks® BlackDiamond 20800
series switches allow carriers to compete
effectively while satisfying their customers’ needs
and expectations.
BlackDiamond 20800 series switches enable a
single Carrier Ethernet Transport network to
deliver residential, business, mobile backhaul, and
wholesale Ethernet services. Residential services
include triple-play services, IPTV, tiered Internet
access, and more. Business services include
standard E-Line and E-LAN to connect multiple
sites, plus tiered Internet access and VoIP with
hierarchical bandwidth controls to individual
businesses. Mobile backhaul services deliver the
bandwidth needed for multimedia devices
running on 3G wireless networks. Wholesale
Ethernet services allow global carriers to provide
end-to-end services across disparate locations
and service areas.
Target Applications
• Aggregating residential triple-play, business
Ethernet and mobile backhaul services on a
common platform
• Prioritized VPN, Internet access, Voice-over-IP
(VoIP) and other applications over E-Line or
multi-point E-LAN connections to business
subscribers
• High-bandwidth mobile backhaul with the scale to
support bandwidth and roaming for thousands of
simultaneous customer connections
• Wholesale Ethernet access services for global
carriers providing end-to-end services to their
subscribers
Extreme Networks BlackDiamond 20800 series Ethernet Transport
switches provide a more affordable, easier to operate, and flexible
Next Generation Network.
Extreme Networks Data Sheet
Superior Bandwidth Capacity
Carriers can be prepared to stay atop competition and enhance customer satisfaction with high-performance systems designed
to help meet the bandwidth needs of today and tomorrow.
With 64 line-rate 10 GbE ports available in a
single chassis and 192 per rack, the
BlackDiamond 20808 switch offers the
highest system capacity in the market both
in terms of performance and port count.
These high performance switches can
deliver more services to more subscribers,
resulting in a network with fewer elements
that costs less to operate.
Flexible Design to Meet
Growing Bandwidth Needs
Business subscribers are deploying
increasingly complex applications to
maximize business productivity. On the
residential side, the demand for tripleplay services and the growth of telecommuting and home-based businesses spur
the need for even more bandwidth.
Wireless service providers must accommodate growing subscriber bases as well
as a surge in voice and data service
usage. Global carriers increasingly need
the ability to serve their customers with
end-to-end services across disparate
locations and service areas. The
BlackDiamond 20800 switches provide a
future-proof design, with 120 Gbps per
slot capacity that enables future 100
GbE I/O modules, to support today’s
bandwidth and service demands as well
as future needs.
Quantity
The Industry’s Highest
Port Density
Bandwidth
Demand for
packet-based
services
The Goal:
Increase revenue
with additional
services while
reducing costs
Competitive
Revenues pressures
Time
5242_01
Figure 1: Support More Traffic without Impacting Profitability
Long Service Life
To maximize return on investment, the
service lifespan of a Carrier Ethernet
Transport infrastructure is of critical
importance to carriers.
The BlackDiamond 20808 switch has
been designed to ensure a straightforward path to upgrade the switch fabric
up to 5 Tbps to support revenuegenerating services now and in the
future. The BlackDiamond 20804 switch
fabric provides 1 Tbps capacity to
support aggregation applications. In
addition, the BlackDiamond 20800 series
design includes backward compatibility
of existing modules to further ensure
investment protection for carriers.
© 2010 Extreme Networks, Inc. All rights reserved.
BlackDiamond 20800 Series—Page 2
Extreme Networks Data Sheet
Scalable Switch Resources
With rich resources that scale, carriers can achieve revenue growth by delivering compelling new services such as streaming
video, business E-LAN and E-Line, and mobile backhaul services to both consumers and business subscribers across a large
geographical base, as well as wholesale services for global carriers, all on a single platform.
Powerful Hierarchical
QoS Engine
The extraordinary performance
and bandwidth capacity of the
BlackDiamond 20800 switches is also
backed by a powerful hardware-based
H-QoS engine. The H-QoS engine allows
carriers to run hundreds of thousands of
applications with varying service
requirements on the same system.
Bandwidth can be controlled on a
per-service, per-subscriber, and per-port
basis. This superior traffic granularity is
achieved with up to 64,000 ingress rate
limiters and up to 32,000 egress traffic
schedulers on each I/O module, allowing
carriers to deliver triple-play services to
a substantially large base of residential,
business and mobile subscribers.
Services
Required Switch Resources
Triple/Quad Play
Hardware-Based QoS
Streaming Video
Multicast Streams
Business E-Line
EAPS
Business E-LAN
VPLS
Mobile Backhaul
E-NNI & Cross Connect
5243_01
Figure 2: Service and revenue growth requires switch resources that scale
to match the available bandwidth.
Advanced Multicast Scaling
BlackDiamond 20800 series switches
deliver outstanding multicast performance
with dedicated priority queues to
support tens of thousands of multicast
streams delivered to corporate recipients
or residences simultaneously. Multicast
traffic is replicated using multiple
references to a packet’s memory, which
avoids multiple packet copies to provide
efficient delivery of financial data or
video streams, for example.
Efficient Network-to-Network
Interfaces
Economical Expansion
By utilizing vMAN technologies, carriers
can easily scale their networks to
support significant subscriber density
without the need to operate and
maintain complex legacy equipment.
Ethernet Automatic Protection
Switching (EAPS) adds sub-50ms
resiliency, providing seamless failover in
the event of a network link outage. This
ring-based technology fits with the
operational model familiar to most
carrier transport groups.
Reduced Operational and
Management Costs
A single modular operating system,
ExtremeXOS®, across the Carrier
Ethernet Transport network from edge
to core reduces costs and simplifies
maintenance, operations and upgrades.
End-to-end QoS provisioning is important
in providing quality services to business
enterprise customers whose workgroups
are located across multiple carrier
boundaries. Network-to-Network
Interfaces (NNI) and Ethernet
cross-connect capabilities combined
with Hierarchical QoS on the
BlackDiamond 20800 series allow
provider and application peering, so
carriers can extend their Service Level
Agreements outside their geographic
footprint. Traffic to and from each peer
can be controlled on a per-VLAN and
per-class-of-service basis. For wireless
and wholesaling carriers, an Ethernet
NNI also provides a cost-effective
Ethernet solution that can significantly
reduce bandwidth leasing costs.
© 2010 Extreme Networks, Inc. All rights reserved.
BlackDiamond 20800 Series—Page 3
Extreme Networks Data Sheet
Target Applications
Application 1: Mixed Business, Residential and
Wireless Backhaul Service in Suburban or Rural
Geographies
The following configuration highlights the typical
deployment in suburban or rural geographies where
fewer subscribers are aggregated at each node. In this
application multiple 1 GbE or 10 GbE rings are used to
cover large areas. There are typically fewer ports facing
the customer edge, and only moderate bandwidth
demands at the provider edge.
Customer Edge
Provider Edge
Provider Aggregation
Metro Core
68051
2400W AC PSU
AC DC ALM
OK OK
Input: 200-240V~ 13A
50/60Hz
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
AC DC ALM
OK OK
Input: 200-240V~ 13A
50/60Hz
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
Summit® X450a
or Summit X250e
Summit X480
AC DC ALM
OK OK
BlackDiamond 20804
BlackDiamond 20808
5191-02
Application 2: Mixed Business, Residential and
Wireless Backhaul Service in High-Density Urban
Geographies
Customer Edge
Provider Edge/Aggregation
Metro Core
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
The following configuration highlights the typical
deployment in urban areas with a high Point of
Presence (POP) concentration and many subscribers
being aggregated close to the provider edge. There are
typically many ports facing the customer edge, and the
high bandwidth demands at the provider edge make the
most of these redundant 10 GbE hub-and-spoke
deployments rather than Ethernet Automatic Protection
Switching (EAPS) rings. These topologies will likely
migrate to a 100 GbE provider aggregation and metro
core in the future.
© 2010 Extreme Networks, Inc. All rights reserved.
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
Summit X250e,
Summit X450a
and Summit X480
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
68051
2400W AC PSU
Input: 200-240V~ 13A
50/60Hz
AC DC ALM
OK OK
BlackDiamond 20804
BlackDiamond 20808
5192-02
BlackDiamond 20800 Series—Page 4
Extreme Networks Data Sheet
Technical Specifications
ExtremeXOS 12.4
Supported Protocols
Switching
•RFC 3619 Ethernet Automatic Protection
Switching (EAPS) and EAPSv2
• IEEE 802.1D – 1998 Spanning Tree Protocol (STP)
•IEEE 802.1D – 2004 Spanning Tree Protocol
(STP and RSTP)
•IEEE 802.1w – 2001 Rapid Reconfiguration for
STP, RSTP
•IEEE 802.1Q – 2003 (formerly IEEE 802.1s)
Multiple Instances of STP, MSTP
•EMISTP, Extreme Multiple Instances of
Spanning Tree Protocol
•PVST+, Per VLAN STP (802.1Q interoperable)
•Draft-ietf-bridge-rstpmib-03.txt – Definitions of
Managed Objects for Bridges with Rapid
Spanning Tree Protocol
•Extreme Standby Router Protocol™ (ESRP)
•IEEE 802.1Q – 1998 Virtual Bridged Local
Area Networks
•IEEE 802.3ad Static load sharing configuration
and LACP based dynamic configuration
•Software Redundant Ports
•IEEE 802.1AB – LLDP Link Layer
Discovery Protocol
•LLDP Media Endpoint Discovery (LLDP-MED),
ANSI/TIA-1057, draft 08
•Extreme Discovery Protocol (EDP)
•Extreme Loop Recovery Protocol (ELRP)
•Extreme Link State Monitoring (ELSM)
•IEEE 802.1ag L2 Ping and traceroute,
Connectivity Fault Management
•ITU-T Y.1731 Frame delay measurements
Management and Traffic Analysis
•RFC 2030 SNTP, Simple Network Time
Protocol v4
•RFC 854 Telnet client and server
•RFC 783 TFTP Protocol (revision 2)
•RFC 951, 1542 BootP
•RFC 2131 BOOTP/DHCP relay agent and
DHCP server
•RFC 1591 DNS (client operation)
• RFC 1155 Structure of Mgmt Information (SMIv1)
•RFC 1157 SNMPv1
•RFC 1212, RFC 1213, RFC 1215 MIB-II,
Ethernet-Like MIB & TRAPs
•RFC 1573 Evolution of Interface
•RFC 1650 Ethernet-Like MIB (update of
RFC 1213 for SNMPv2)
•RFC 1901, 1905 – 1908 SNMP v2c, SMIv2
and Revised MIB-II
•RFC 2576 Coexistence between SNMP
Version 1, Version 2 and Version 3
•RFC 2578 – 2580 SMIv2 (update to
RFC 1902 – 1903)
•RFC 3410 – 3415 SNMPv3, user based
security, encryption and authentication
•RFC 3826 – The Advanced Encryption
Standard (AES) Cipher Algorithm in the SNMP
User-based Security Model
•RFC 1757 RMON 4 groups: Stats, History,
Alarms and Events
•RFC 2021 RMON2 (probe configuration)
•RFC 2613 SMON MIB
•RFC 2925 Ping/Traceroute MIB
© 2010 Extreme Networks, Inc. All rights reserved.
•RFC 2668 802.3 MAU MIB
•draft-ietf-hubmib-mau-mib-v3-02.txt
•RFC 1643 Ethernet MIB
•RFC 1493 Bridge MIB
•RFC 2096 IPv4 Forwarding Table MIB
•RFC 2737 Entity MIB v2
•RFC 2233 Interface MIB
•RFC 3621 PoE-MIB (PoE switches only)
•IEEE 802.1ag MIB
•Secure Shell (SSH-2) client and server
•Secure Copy (SCP-2) client and server
•Secure FTP (SFTP) server
•sFlow ® version 5
•Configuration logging
•Multiple Images, Multiple Configs
•RFC 3164 BSD Syslog Protocol with Multiple
Syslog Servers
––999 Local Messages (criticals stored
across reboots)
•Extreme Networks vendor MIBs (includes
FDB, PoE, CPU, Memory MIBs)
•XML APIs over Telnet/SSH and HTTP/HTTPS
•Web-based device management interface –
ExtremeXOS ScreenPlay™
•IP Route Compression
Security, Switch and
Network Protection
• Secure Shell (SSH-2), Secure Copy (SCP-2) and
SFTP client/server with encryption/authentication
(requires export controlled encryption module)
•SNMPv3 user based security, with
encryption/authentication (see above)
•RFC 1492 TACACS+
•RFC 2138 RADIUS Authentication
•RFC 2139 RADIUS Accounting
•RFC 3579 RADIUS EAP support for 802.1x
•RADIUS Per-command Authentication
•Access Profiles on All Routing Protocols
•Access Policies for Telnet/SSH-2/SCP-2
•Network Login – 802.1x, Web and
MAC-based mechanisms
•IEEE 802.1x – 2001 Port-Based Network
Access Control for Network Login
•Multiple supplicants with multiple VLANs for
Network Login (all modes)
•Fallback to local authentication database
(MAC and Web-based methods)
•Guest VLAN for 802.1x
•RFC 1866 HTML – used for Web-based
Network Login and ExtremeXOS ScreenPlay
•SSL/TLS transport – used for Web-based
Network Login and ExtremeXOS ScreenPlay
(requires export controlled encryption module)
•MAC Security – Lockdown and Limit
•IP Security – RFC 3046 DHCP Option 82 with
port and VLAN ID
•IP Security – Trusted DHCP Server
•Layer 2/3/4 Access Control Lists (ACLs)
•RFC 2267 Network Ingress Filtering
•RPF (Unicast Reverse Path Forwarding)
Control via ACLs
•Wire-speed ACLs
•Rate Limiting/Shaping by ACLs
•IP Broadcast Forwarding Control
•ICMP and IP-Option Response Control
•SYN attack protection
•CPU DoS Protection with traffic rate-limiting
to management CPU
•Robust against common Network Attacks:
––CERT (http://www.cert.org)
––CA-2003-04: “SQL Slammer”
––CA-2002-36: “SSHredder”
––CA-2002-03: SNMP vulnerabilities
––CA-98-13: tcp-denial-of-service
––CA-98.01: smurf
––CA-97.28:Teardrop_Land -Teardrop and
“LAND“ attack
––CA-96.26: ping
––CA-96.21: tcp_syn_flooding
––CA-96.01: UDP_service_denial
––CA-95.01: IP_Spoofing_Attacks_and_
Hijacked_ Terminal_Connections
––IP Options Attack
•Host Attacks
––Teardrop, boink, opentear, jolt2, newtear,
nestea, syndrop, smurf, fraggle, papasmurf,
synk4, raped, winfreeze, ping –f, ping of
death, pepsi5, Latierra, Winnuke, Simping,
Sping, Ascend, Stream, Land, Octopus
Security, Router Protection
Requires Edge License or above
•IP Security – DHCP enforcement via Disable
ARP Learning
•IP Security – Gratuitous ARP Protection
•IP Security – DHCP Secured ARP/ARP Validation
•Routing protocol MD5 authentication
Security Detection and Protection
In Core and Aggregation Products only
•CLEAR-Flow, threshold-based alerts and actions
IPv4 Host Requirements
•RFC 1122 Host Requirements
•RFC 768 UDP
•RFC 791 IP
•RFC 792 ICMP
•RFC 793 TCP
•RFC 826 ARP
•RFC 894 IP over Ethernet
•RFC 1027 Proxy ARP
•RFC 2068 HTTP server
•IGMP v1/v2/v3 Snooping with Configurable
Router Registration Forwarding
•IGMP Filters
•PIM Snooping
•Static IGMP Membership
•Multicast VLAN Registration (MVR)
IPv4 Router Requirements
Requires Advanced Edge License or above
•RFC 1812 Requirements for IP
Version 4 Routers
•RFC 1519 CIDR
•RFC 1256 IPv4 ICMP Router Discovery (IRDP)
•Static Unicast Routes
•Static Multicast Routes
•RFC 1058 RIP v1
•RFC 2453 RIP v2
•Static ECMP
•RFC 1112 IGMP v1
•RFC 2236 IGMP v2
•RFC 3376 IGMP v3
•RFC 2933 IGMP MIB
•RFC 2096 IPv4 Forwarding Table MIB
•RFC 1724 RIPv2 MIB
BlackDiamond 20800 Series—Page 5
Extreme Networks Data Sheet
Technical Specifications
IPv4 Router Requirements
continued
Requires Advanced Edge License or above
•RFC 2338 VRRP
•RFC 2787 VRRP MIB
•RFC 2328 OSPF v2 (Edge-mode)
•OSPF ECMP
•OSPF MD5 Authentication
•RFC 1587 OSPF NSSA Option
•RFC 1765 OSPF Database Overflow
•RFC 2370 OSPF Opaque LSA Option
•RFC 3623 OSPF Graceful Restart
•RFC 1850 OSPFv2 MIB
•RFC 2362 PIM-SM (Edge-mode)
•RFC 2934 PIM MIB
•RFC 3569, draft-ietf-ssm-arch-06.txt PIM-SSM
PIM Source Specific Multicast
•draft-ietf-pim-mib-v2-o1.txt
•Mtrace, a “traceroute” facility for IP Multicast:
draft-ietf-idmr-traceroute-ipm-07
• Mrinfo, the multicast router information tool
based on Appendix-B of draft-ietf-idmr-dvmrpv3-11
Core Protocols for Layer 2, IPv4
and IPv6
Requires Core License or above
•EAPSv2 Shared Ports – multiple interconnections between rings
•PIM-DM Draft IETF PIM Dense Mode draft-ietfidmr-pim-dm-05.txt, draft-ietf-pim-dm-newv2-04.txt
•RFC 3618 Multicast Source Discovery
Protocol (MSDP)
•RFC 3446 Anycast RP using PIM and MSDP
•RFC 2740 OSPFv3, OSPF for IPv6 – Current
support on Summit series with Core License or
above, BlackDiamond 8800 series,
BlackDiamond 10808 series, and
BlackDiamond 12800 series
•RFC 1771 Border Gateway Protocol 4
•RFC 1965 Autonomous System Confederations
for BGP
•RFC 2796 BGP Route Reflection (supersedes
RFC 1966)
•RFC 1997 BGP Communities Attribute
•RFC 1745 BGP4/IDRP for IP-OSPF Interaction
•RFC 2385 TCP MD5 Authentication for BGPv4
•RFC 2439 BGP Route Flap Damping
•RFC 2918 Route Refresh Capability for BGP-4
•RFC 3392 Capabilities Advertisement
with BGP-4
• RFC 4360 BGP Extended Communities Attribute
•RFC 4486 Subcodes for BGP Cease
Notification message
•draft-ietf-idr-restart-10.txt Graceful Restart
Mechanism for BGP
•RFC 4760 Multiprotocol extensions for BGP-4
•RFC 1657 BGP-4 MIB
•Draft-ietf-idr-bgp4-mibv2-02.txt – Enhanced
BGP-4 MIB
• RFC 1195 Use of OSI IS-IS for Routing in TCP/IP
and Dual Environments (TCP/IP transport only)
•RFC 2763 Dynamic Hostname Exchange
Mechanism for IS-IS
•RFC 2966 Domain-wide Prefix Distribution with
Two-Level IS-IS
•RFC 2973 IS-IS Mesh Groups
© 2010 Extreme Networks, Inc. All rights reserved.
•RFC 3373 Three-way Handshake for IS-IS
Point-to-Point Adjacencies
•RFC 3784 IS-IS Externs for Traffic Engineering
(wide metrics only)
•Draft-ietf-isis-restart-02 Restart Signaling
for IS-IS
•Draft-ietf-isis-ipv6-06 Routing IPv6 with
IS-IS – Current support on Summit series with
Core License or above, BlackDiamond 8800
series, BlackDiamond 10808 series, and
BlackDiamond 12800 series
•Draft-ietf-isis-wg-multi-topology-11 Multi
Topology (MT) Routing in IS-IS
QoS and VLAN Services
Quality of Service and Policies
•IEEE 802.1D – 1998 (802.1p) Packet Priority
•RFC 2474 DiffServ Precedence, including
8 queues/port
•RFC 2598 DiffServ Expedited Forwarding (EF)
•RFC 2597 DiffServ Assured Forwarding (AF)
•RFC 2475 DiffServ Core and Edge
Router Functions
VLAN Services: VLANs, vMANs
•IEEE 802.1Q VLAN Tagging
•IEEE 802.1v: VLAN classification by Protocol
and Port
•Port-based VLANs
•Protocol-based VLANs
•MAC-based VLANs
•Multiple STP domains per VLAN
•Upstream Forwarding Only/Disable Flooding
•RFC 5517 Private VLANs
•VLAN Translation
•IEEE 802.1ad Provider Bridge Network, virtual
MANs (vMANs)
•vMAN Ethertype Translation/Secondary
vMAN Ethertype
•Multicast Support for PVLAN
•Multicast Support for VLAN Aggregation
•VLAN Aggregation (Requires Advanced Edge
License or above)
MAC-in-MAC (PBB)
Requires MPLS-PBB Feature Pack License
•IEEE 802.1ah/D1.2 Provider Backbone
Bridges (PBB)/MAC-in-MAC
MPLS and VPN Services
Multi-Protocol Label Switching (MPLS)
Requires MPLS-PBB Feature Pack License
•RFC 2961 RSVP Refresh Overhead
Reduction Extensions
•RFC 3031 Multiprotocol Label Switching Architecture
•RFC 3032 MPLS Label Stack Encoding
•RFC 3036 Label Distribution Protocol (LDP)
•RFC 3209 RSVP-TE: Extensions to RSVP for
LSP Tunnels
•RFC 3630 Traffic Engineering Extensions
to OSPFv2
•RFC 3811 Definitions of Textual Conventions
(TCs) for Multiprotocol Label Switching
(MPLS) Management
•RFC 3812 Multiprotocol Label Switching
(MPLS) Traffic Engineering (TE) Management
Information Base (MIB)
•RFC 3813 Multiprotocol Label Switching
(MPLS) Label Switching Router (LSR)
Management Information Base (MIB)
•RFC 3815 Definitions of Managed Objects for
the Multiprotocol Label Switching (MPLS),
Label Distribution Protocol (LDP)
•RFC 4090 Fast Re-route Extensions to
RSVP-TE for LSP (Detour Paths)
•RFC 4379 Detecting Multi-Protocol Label
Switched (MPLS) Data Plane Failures (LSP Ping)
Layer 2 VPNs
Requires MPLS-PBB Feature Pack License
•RFC 4447 Pseudowire Setup and Maintenance
Using the Label Distribution Protocol (LDP)
•RFC 4448 Encapsulation Methods for
Transport of Ethernet over MPLS Networks
• RFC 4762 Virtual Private LAN Services (VPLS)
using Label Distribution Protocol (LDP) Signaling
•RFC 5085 Pseudowire Virtual Circuit
Connectivity Verification (VCCV)
•draft-ietf-bfd-base-09.txt Bidirectional
Forwarding Detection
•RFC 5542 Definitions of Textual Conventions
for Pseudowire (PW) Management
•RFC 5601 Pseudowire (PW) Management
Information Base (MIB)
•RFC 5602 Pseudowire (PW) over MPLS PSN
Management Information Base (MIB)
•RFC 5603 Ethernet Pseudowire (PW)
Management Information Base (MIB)
• draft-ietf-l2vpn-vpls-mib-02.txt Virtual Private LAN
Services (VPLS) Management Information Base
General Specifications
BlackDiamond 20808 Chassis
•Total Slots: 10
•I/O Slots: 8
•Management Slots: 2
•Line Card Orientation: Vertical
•Fabric Slots: 5 (N+1), rear of chassis
•Power Supply Slots: 5 (rear)
•Height: 14.5 RU, 3 in a 7-foot (2.134m) rack
•Depth: 28 inches (71.1 cm)
•CPU Redundancy: 1:1
•Fabric Redundancy: N+1
•PSU Redundancy: N+1
•Air Flow: Front to back
•Fabric Capacity: 2 Tbps
•Bandwidth per Slot: 120 Gbps
•Packet Switching Capacity: ~1Bpps
•Maximum 10G Ports: 64
•Maximum 1G Ports: 320
BlackDiamond 20808 Switching
Capacity and Fabric Modules
•2Tbps total switching capacity
•XFM-1: Cross Bar Fabric Module 1
BlackDiamond 20804 Chassis
•Total Slots: 6
•I/O Slots: 4
•Management Slots: 2
•Line Card Orientation: Horizontal
•Fabric Slots: 5 (N+1), front of chassis
•Power Supply Slots: 3 (front)
•Height: 10.9 RU, 4 in a 7-foot (2.134m) rack
•Depth: 22.96 inches (58.3 cm)
•CPU Redundancy: 1:1
BlackDiamond 20800 Series—Page 6
Extreme Networks Data Sheet
Technical Specifications
•Fabric Redundancy: N+1
•PSU Redundancy: N+1
•Air Flow: Right-to-left
•Fabric Capacity: 1 Tbps
•Bandwidth per Slot: 120 Gbps
•Packet Switching Capacity: ~1Bpps
•Maximum 10G Ports: 32
•Maximum 1G Ports: 160
BlackDiamond 20804 Switching
Capacity and Fabric Modules
•1Tbps total switching capacity
•XFM-2: Cross Bar Fabric Module 2
Management and I/O Modules
•MM-Base: Management Module Base
(supports up to 2M MAC/Routes)
•XM-8XB: 8-port 10 Gigabit module Base
(supports up to 400K MAC / 512K Routes).
Requires XFP modules
•GM-40XB: 40-port Gigabit Ethernet module
Base (supports up to 400K MAC / 512K
Routes). Requires SFP modules
Power Supply Options
•Both AC and DC power supplies are available
––AC power supplies can run from 180-264
VAC, and deliver 2400W
––48V DC power supplies can run from 40-72
VDC and deliver 1900W of power
•Power Supply: 7 lb (3.2 kg)
Industry-leading Scalability
•Up
•Up
•Up
•Up
to
to
to
to
20,000 multicast streams
64,000 ingress rate limiters
32,000 egress traffic schedulers
256,000 virtual output queues
Physical Specifications
Dimensions
BlackDiamond 20808 Chassis:
25.33” high x 17.58” wide x 28” deep
(64.34 cm x 44.65 cm x 71.12 cm)
BlackDiamond 20804 Chassis:
19.22” high x 17.55” wide x 22.96” deep (48.82
cm x 44.58 cm x 58.32 cm)
MSM Module Dimensions:
1.22” high x 14.1” wide x 22.3” deep inclusive
of ejectors (3.1 cm x 35.81 cm x 56.64 cm)
I/O Module Dimensions:
1.77” high x 14.1” wide x 22.3” deep inclusive of
ejectors (4.5 cm x 35.81 cm x 56.64 cm)
XFM-1 Dimensions:
1.77” high x 17.23” wide x 7.66” deep inclusive
of ejectors (4.5 cm x 43.76 cm x 19.46 cm)
XFM-2 Dimensions:
1.32” high x 4.38” wide x 22.28” deep inclusive
of ejectors (3.35 cm x 11.13 cm x 56.59 cm)
Weight
BlackDiamond 20808 Empty Chassis
(Shipping Configuration): 165 lb (74.84 kg)
BlackDiamond 20804 Empty Chassis
(Shipping Configuration): 126 lb (57.15 kg)
© 2010 Extreme Networks, Inc. All rights reserved.
Power Supply: 7 lb (3.2 kg)
MM-Base: 9.5 lb (4.31 kg)
XM-8XB: 17.5 lb (7.9 kg)
GM-40XB: 11.75 lb (5.33 kg)
GM-40XA: 11.75 lb (5.33 kg)
XFM-1: 4.25 lb (1.93 kg)
XM-2HR: 7.5 lb (3.4 kg)
Power
Power Dissipation:
MM: 110W, 48V, 2.29A
XM-8XB: 462W, 48V, 9.625A
GM-40XB: 238W, 48V, 4.95A
XFM-1: 86W, 48V, 1.79A
XFM-2: 43W, 48V, 0.90A
BlackDiamond 20808 Chassis with Fan Trays:
440W, 48V, 9.17A (Heat Dissipation 1501 BTU)
BlackDiamond 20804 Chassis with Fan Trays:
374W, 48V, 7.79A (Heat Dissipation 1276 BTU)
Operating Specifications
Operational Environment
Temperature Range: 0° to 40° C
(32° F to 104° F)
Relative Humidity: 10 - 90% RH
Altitude: 0 – 3000 meters (10,000 ft)
Shock: 30 m/s2 (3g), 11ms
Random Vibration: 5 – 500 Hz @ 1.5 Grms
Storage and Transportation
Environment
Temperature Range: -40° C to +70° C
(-40° F to 158° F)
Relative Humidity: 10 – 93% RH
Shock: 180 m/s2 (18.g), 6ms
Sinusoidal Vibration: 5 – 62 Hz @ Velocity
5mm/s, 62 – 500 Hz @ .2G
Random Vibration: 5 – 20 Hz @ 1.0 ASD
w/-3dB/oct. from 20-200 Hz
Drop: 39.4”
European EMC Standards
(CE Marking)
•2004/108/EC EMC Directive
•EN 55022 2006 Class A (Emissions)
•EN 55024 A2:2003 (Immunity)
•EN61000-3-2 8:2006 (Harmonics)
•EN61000-3-3 1995+A3:2006 (Flicker)
•ETSI EN 300 386: v1.4.1, 2008-02
(EMC Télécommunications)
International EMC Certifications
•CISPR 22:2006 Ed 5.2, Class A
(International Emissions)
•CISPR 24 A2:2003 (International Immunity)
•IEC/EN 61000-4-2:2001 Electrostatic
Discharge, 8kV Contact, 15kV Air, Criteria A
•IEC/EN 61000-4-3:2006 Radiated Immunity
10V/m, 30 to 2GHz, Criteria A
•IEC/EN 61000-4-4:2005 Transient Burst, 1kV,
Power & I/O ports, Criteria A
•IEC/EN 61000-4-5:2005 Surge, 2kV L-L, 4kV
L-G, Level 4, Criteria A
•IEC/EN 61000-4-6:2007 Conducted Immunity,
0.15-80MHz, 10V/m unmod. RMS, Criteria A
•IEC/EN 61000-4-8 1993+A1:2001 Magnetic
Field, Criteria A
•IEC/EN 61000-4-11 2004 Power Dips &
Interruptions, >30%, 25 periods, Criteria A
Country Specific
•VCCI Class A (Japan)
•ACMA (C-Tick) via CISPR22:2006
(Australia & New Zealand)
•BSMI, CNS 13438:1997, Class A (Taiwan)
•KCC Mark, KN22, KN24 (Korea)
Environmental
Regulatory/Safety
•EN 300 019-2-3 v2.2.2 (2003-04), Stationary
Use, Class 3.1e
•EN 300 019-2-2 v2.1.2 (1999-09), Public
Transportation, Class 2.3
•EN 300 019-2-1 v2.1.2 (2000-09), Storage,
Class 1.2
North American Safety of ITE
Warranty
•UL 60950-1:2007 2nd Ed., Listed Device
(U.S.)
•cUL to CSA 22.2#60950-1-07 2nd Ed.
(Canada)
•Complies with FCC 21CFR Chapter1,
Subchapter J (U.S. Laser Safety)
•CDRH Letter of Approval (U.S. FDA Approval)
•Ltd. 1-year on Hardware
•90-days on Software
•For warranty details, visit
www.extremenetworks.com/go/warranty
European Safety of ITE
•2006/95/EC Low Voltage Directive
•GS Mark, DEMKO, EN 60950–1:2007 2nd Ed
•EN 60825-1+A2:2001 (Lasers Safety)
International Safety of ITE
•CB scheme: IEC 60950-1; 2005 2nd
Ed.+National Differences
EMI/EMC Standards
North America EMC for ITE
•FCC CFR 47 part 15 Class A (USA)
•ICES-003 issue 4, Class A (Canada)
BlackDiamond 20800 Series—Page 7
Extreme Networks Data Sheet
Ordering Information
Part
Number
Name
Description
68020
BlackDiamond 20808 10-slot Chassis
BlackDiamond 20808 10-slot Chassis (Includes Fan Tray and Blank Front Panels)
68040
BlackDiamond 20804 6-slot Chassis
BlackDiamond 20804 6-slot Chassis (Includes Fan Tray and Blank Front Panels)
Chassis
Power Supplies
68051
BlackDiamond 20800 2400W/220VAC
PSU
BlackDiamond 20800 2400W 220 VAC PSU (Note: AC power cords are sold
separately)
68052
BlackDiamond 20800 1900W/-48VDC
PSU
BlackDiamond 20800 1900W -48VDC PSU (Note: DC power cards are sold
separately)
Management and Switching Modules
68023
BlackDiamond 20800 MM Basic
BlackDiamond 20800 Management Module Basic
68021
BlackDiamond 20808 XFM-1
BlackDiamond 20808 Cross Bar Switch Fabric Module1
68031
BlackDiamond 20804 XFM-2
BlackDiamond 20804 Cross Bar Switch Fabric Module2
68024
BlackDiamond 20800 XM-8XB
BlackDiamond 20800 I/O Blade 8-port 10G BASE-X XFP Module with basic
configuration
68025
BlackDiamond 20800 GM-40XB
BlackDiamond 20800 I/O Blade 40-port Gig-E Fiber with basic configuration
I/O
Software and Upgrades
68070
BlackDiamond 20800 MPLS-PBB
Feature Pack
BlackDiamond 20800 ExtremeXOS MPLS-PBB Feature Pack
68071
BlackDiamond 20800 H-QoS
Feature Pack
BlackDiamond 20800 Hierarchical QoS Feature Pack
Accessories and Spares
68041
Spare BlackDiamond 20808 Fan Tray
BlackDiamond 20808 Spare Fan Tray
68042
Spare BlackDiamond 20808 Mid Mount
Kit
BlackDiamond 20808 Spare Mid Mount Kit
68043
Spare BlackDiamond 20800 IOB Blank
Panel
BlackDiamond 20800 Spare IOB Blank Panel
68044
Spare BlackDiamond 20800 MM Blank
Panel
BlackDiamond 20800 Spare MM Blank Panel
68045
Spare BlackDiamond 20808 XFM-1
Blank Panel
BlackDiamond 20808 Spare XFM-1 Blank Panel
68046
Spare BlackDiamond 20800 PSU Blank
Panel
BlackDiamond 20800 Spare PSU Blank Panel
68047
Spare BlackDiamond 20808 Air Filter Kit BlackDiamond 20808 Spare Air Filter Kit
68049
Spare BlackDiamond 20800 Air Baffle
Kit
BlackDiamond 20800 Spare Air Baffle Kit
68064
Spare BlackDiamond 20808 PSU
Retention Kit
BlackDiamond 20808 Spare PSU Retention Kit
10121
SR XFP
10GBASE-SR XFP, LC Connector, up to 300m reach over 50/125 µm MMF
10122
LR XFP
10GBASE-LR XFP, LC Connector, transmission length of up to 10 km on SMF
10124
ER XFP
10GBASE-ER XFP, LC Connector, transmission length of up to 40 km on SMF
10125
ZR XFP
10GBASE-ZR XFP, LC Connector, transmission length of up to 80 km on SMF
10G XFPs
© 2010 Extreme Networks, Inc. All rights reserved.
BlackDiamond 20800 Series—Page 8
Extreme Networks Data Sheet
1G SFP Optics
10051
SX SFP
SFP, 1000BASE SX, LC connector, 550 m transmission with 10/125 µm MMF and
275 m transmission with 62.5/125 µm MMF
10052
LX SFP
SFP, 1000BASE LX, LC connector, 10 km transmission with SMF
10053
ZX SFP
SFP, extra long distance SMF 80 km/21 dB budget, LC connector
10056
1000BASE-BX-U SFP
SFP, 1000BASE-BX-U, LC connector, 10 km transmission with SMF (1490-nm
TX/1310-nm RX wavelength)
10057
1000BASE-BX-D SFP
SFP, 1000BASE-BX-D, LC connector, 10 km transmission with SMF (1310-nm
TX/1490-nm RX wavelength)
10060
100 FX/1000 LX SFP
SFP, dual-speed 100 FX/1000 LX, LC connector
10063
100 FX SFP
SFP 100FX 2km transmission with MMF LC connector
10064
LX100 SFP
SFP, extra long distance SMF 100 km/30 dB budget, LC connector
10065
10/100/1000 BASE-T SFP
10/100/1000 BASE-T copper SFP, 100 m over Category 5 cable, RJ-45 connector
Corporate
and North America
Extreme Networks, Inc.
3585 Monroe Street
Santa Clara, CA 95051 USA
Phone +1 408 579 2800
Europe, Middle East, Africa
and South America
Phone +31 30 800 5100
Asia Pacific
Phone +65 6836 5437
Japan
Phone +81 3 5842 4011
© 2010 Extreme Networks, Inc. All rights reserved. Extreme Networks, the Extreme Networks logo, BlackDiamond, Extreme Standby Router Protocol, ExtremeXOS, ExtremeXOS
Screenplay, and Summit are either registered trademarks or trademarks of Extreme Networks, Inc. in the United States and/or other countries. sFlow is the property of InMon
Corporation. Specifications are subject to change without notice. 1481_06 04/10
