SSC-1000 (gb)
2009.1.8
1:38 PM
Page 24

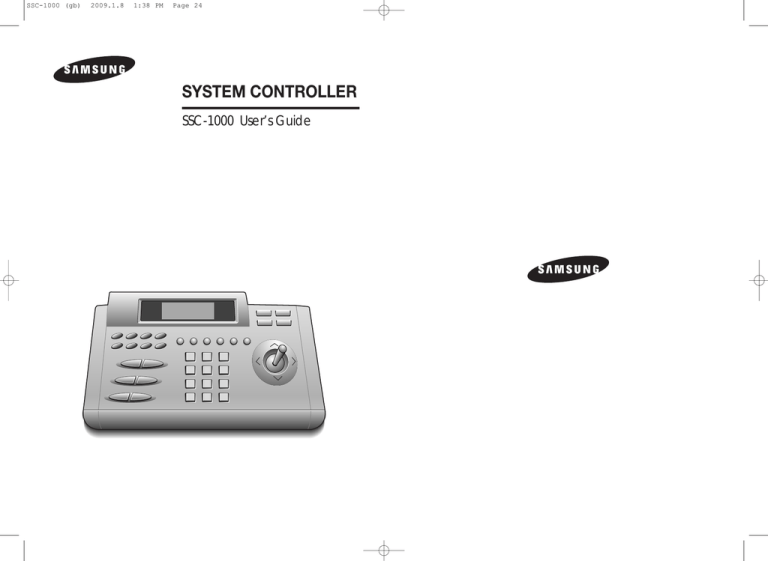

SYSTEM CONTROLLER
SSC-1000 User’s Guide
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Graphic Symbol Explanation
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Warning-To Prevent Fire or Shock Hazard,
Do Not Expose This Equipment To Rain or Moisture.
1
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 2
User’s Guide
IMPORTANT SAFEGUARDS
1. Read instructions: All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain instructions: The safety and operating instructions
should be retained for future reference.
3. Heed warnings: All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow instructions: All operating and use instructions
should be followed.
5. Cleaning: Unplug this video product from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments: Do not use attachments not recommended
by the video product manufacturer as they may cause
hazards.
7. Water and moisture: Do not use this video product near
water - for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming
pool, and the like.
2
8. Accessories : Do not place this
video product on an unstable cart,
stand, tripod, bracket, or table.
The video product may fall, causing
serious injury to a child or adult,
and serious damage to the
appliance. Use only with a cart,
stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the video
product. Any mounting of the appliance should follow the
manufacturer's instructions and should use a mounting
accessory recommended by the manufacturer.
8A. An appliance and cart combination should be moved with
care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
9. Ventilation : Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the video
product and to protect it from overheating, and these
openings must not be blocked or covered. The openings
should never be blocked by placing the video product on a
bed, sofa, rug, or other similar surface. This video product
should never be places near or over a radiator or heat
register. This video product should not be placed in a builtin installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's instructions
have been adhered to.
3
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 4
User’s Guide
10. Power sources : This video product should be operated
only from the type of power source indicated on the
marking label. If you are not sure of the type of power
supply to your home, consult your appliance dealer or local
power company. For video products intended to operate
from battery power, or other sources, refer to the operating
instructions.
11. Power-Cord Protection : Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
12. Lightning : For added protection for this video product
during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall
outlet and disconnect the cable system. This will prevent
damage to the video product due to lightning and powerline surges.
13. Overloading : Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
14. Object and liquid entry : Never push objects of any kind
into this video product through openings as they may touch
dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any
kind on the video product.
15. Servicing : Do not attempt to service this video product
yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
4
16. Damage requiring service : Unplug this video
product from the wall outlet and refer servicing to
qualified service personnel under the following
conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the video product.
c. If the video product has been exposed to rain or
water.
d. If the video product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instruction, as an improper adjustment of other
controls may result in damage and will often require
extensive work by a qualified technician to restore
the video product to its normal operation.
e. If the video product has been dropped or the cabinet
has been damaged.
f. When the video product exhibits a distinct change in
performance this indicates a need for service.
17. Replacement parts : When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or
have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
18. Safety Check : Upon completion of any service or
repairs to this video product, ask the service
technician to perform safety checks to determine that
the video product is in proper operating condition.
5
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 6
User’s Guide
Contents
1. Special Characteristics
1. Special Characteristics ........................................................... 7
2. Names and Functions of Each Parts ..................................... 8
3. Installation and Connection ................................................ 12
4. Setting and Manipulating .................................................... 13
5. Confirmation Matter in TImes of Abnormality Occurrence .... 22
6. Specifications ........................................................................ 23
1) Long-distance remote control possible
Through RS-485 communication, long-distance remote control of up to
a maximum distance of 1.2km is possible.
2) Unified System Control possible
Controls of Samsung Dome Camera(NTSC : SCC-641N, PAL :SCC641P), Receiver Units(MRX-1000), and Matrix Switchers
(MMS-220),Multiplex(SDM-160, SDM-160P, SDM-160M, SDM-160MP,
MTX-160P, MMX-16T) are possible with 1 unit of this system.
3) Connection of many Samsung Dome Cameras, Multiplex and
Receiver Units possible
It is possible to connect and use up to a maximum of 128 units of
Samsung Dome Cameras, a maximum of 128 units of Multiplex or a
maximum of 32 receiver units.
4) Connection and use of multiple System Controllers are possible
The system can be controlled from each different place and a maximum
of 8 units can be simultaneously connected and used.
However, if multiple units are operated simultaneously, mal-functioning
caused by communication error may take place.
5) Convenience of manipulation
An LCD that indicates the action state of the System Controller has
been applied, and through the application of a Joy Stick, manipulation
has become convenient.
6
7
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 8
User’s Guide
2. Names and Functions of Each Parts
4) MON
This is used when selecting the output channel of the Matrix Switcher.
It is used to select an address number in the Multiplex control mode.
5) Joy Stick
This is used when the actions of the Pan/Tilt connected to the
Samsung Dome Camera or the Receiver Unit is moved UP, DOWN,
LEFT, or RIGHT.
It is equivalent to “MOVE ( , →, , )” button in the Multiplex
control mode.
→
→
→
6) CLOSE/OPEN, NEAR/FAR, and TELE/WIDE
This is used when controlling the actions of the IRIS, FOCUS, and
ZOOM of the zoom lens connected to the Samsung Dome Camera or
the Receiver Unit.
SAMSUNG
1) LCD
This indicates the action state of the System Controller.
2) 0~9
The Camera is used when designating the Monitor Number, PRESET,
and the PATTERN Number. 2 to 4 to 6 to 8 is used when moving an
item in the Menu set-up mode or when changing the set-up value.
It is used when you need to input the address number or camera select
in the Multiplex control mode. Then you press the “ENTER” button
after selecting one.
3) CAM
This is used when selecting the address number of the Samsung Dome
Camera or the receiver unit, and the input channel of the address
number.
It is switched to the Camera control mode when you press the button in
the Multiplex control mode.
8
7) MENU
This is used when entering or coming out of the set-up mode for
various types of set-ups. When you enter the set-up mode LED gets
turned on, and when you come out LED gets turned off.
It is equivalent to “MENU” button in the Multiplex control mode.
8) PRESET
This is used when searching for the PRESET position set up in the
Samsung Dome Camera or the Receiver Unit. When the preset is in
the selection mode LED gets turned on, and when you come out of the
selection mode LED gets turned off.
9) PATTERN
This is used when executing the PATTERN mode set up in the
Samsung Dome Camera. When you select the PATTERN mode, LED
gets turned on and when you come out LED gets turned off.
10) SCAN
This is used when consecutively scanning the PRESET set up in the
Samsung Dome Camera. When the scan mode is selected, LED gets
turned on and when you come out LED gets turned off.
9
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 10
User’s Guide
11) AUTO PAN
This is used when repeatedly moving the two spots of the Pan/Tilt
connected to the Samsung Dome Camera or the receiver unit.
When you select the AUTO PAN Mode, LED gets turned on and
when you come out LED gets turned off.
18) HOLD(SEQUENCE)
This is used when stopping the Switching mode of the SEQUENCE,
TOUR, and SALVO of the Matrix Switcher.
It is equivalent to “SEQUENCE” button in the Multiplex control
mode.
12) RESET(RESET/ERASE)
This is used when canceling the ALARM Mode in a condition in
which an ALARM has occurred.
It is equivalent to “RESET/ERASE” button in the Multiplex control
mode.
19) NEXT(FREEZE)
This is used when proceeding the visuals one step at a time in the
Switching HOLD Mode of the Matrix Switcher.
It is equivalent to “FREEZE” button in the Multiplex control mode.
13) AUX1, AUX2, AUX3, AUX4(SET, LIST, REC CHECK,
LIVE/P.B.)
This controls the AUX output of the Receiver Unit
It is equivalent to “SET”, “LIST”, “REC CHECK” and “LIVE/P.B.”
button in the Multiplex control mode.
14) SEQUENCE(MULTI SCREEN)
This is used when executing the Sequence switching actions set up
in the Matrix Switcher. Also, if you press this button in the SALVO
Mode, it becomes SALVO Switching Mode.
It is equivalent to “MULTI SCREEN” button in the Multiplex control
mode.
20) BEFORE(ZOOM)
This is used when returning the visuals one step at a time in the
Switching HOLD Mode of the Matrix Switcher.
It is equivalent to “ZOOM” button in the Multiplex control mode.
21) ENTER
This is used when deciding the selected item or the set-up value.
It is equivalent to “ENTER” button in the Multiplex control mode.
24
MATRIX
23
IN
RX
22
OUT
DC 9V 0.6A
15) TOUR(TRIPLEX)
This is used when executing the TOUR Program set up in the Matrix
Switcher.
It is equivalent to “TRIPLEX” button in the Multiplex control mode.
22) DC9V 0.6A
This is the DC9V power input terminal.
16) SALVO(PIP)
This is used when executing the SALVO Program set up in the
Matrix Switcher.
It is equivalent to “PIP” button in the Multiplex control mode.
23) IN-RX-OUT
As being for RS-485 communication, this is connected to the
Samsung Dome Camera,Receiver Unit, Multiplex or the RS-485
terminal of a different Controller.
17) MUX CONTROL
It is used for the Multiplex control mode.
24) MATRIX
This is connected to the RS-485 terminal of the Matrix Switcher.
10
11
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 12
User’s Guide
3. Installation and Connection
4. Setting and Manipulating
1) Setting
MATRIX
IN
RX
OUT
! In order to enter into the set-up mode in
the initial state, press the MENU button.
DC 9V 0.6A
ADAPTOR
MATRIX SWITCHER
SAMSUNG DOME CAMERA
/RECEIVER UNIT/MULTIPLEX
MATRIX
IN
RX
OUT
DC 9V 0.6A
CONTROLLER
1) Connect the RS-485 Cable.
Connect the Samsung Dome Camera, Multiplex or the RS-485 cable of
the receiver unit to the out terminal, and connect the RS-485 cable of a
different controller to the RX in terminal, the RS-485 cable of the Matrix
Switcher to the matrix terminal. For the RX terminal, number 3
(yellow) is DATA “+” and number 5(red) is DATA “–”. For the matrix
terminal, number 2 is DATA “+” and number 3 is DATA “–”.
@ If you press the MENU button, words that
ask for the password get indicated in
LCD, and if you put in the password, the
main menu gets indicated. When it is in
password disable, it immediately enters
the main menu.
# Select the item you want to set up from
the main menu. Moves of items are done
by the “↑” and “↓” buttons, and for
selection, if you press the ENTER button,
you enter the set-up menu of the item you
desire. If you press on the MENU button
in the main menu state, you can come out
of the set-up mode.
$ CONTROLLER SET
If you select the controller set in the main
menu, you can make set-ups related to the
controller. Moves of items are done by the
“↑” and “↓” buttons, and for selection, you
can press the ENTER button. When you
come out of the controller menu, press
the MENU button.
2) Put in the DC 9V power.
12
13
MON = [ 0 0 ]
CAM=[ 0 0 0 ]
MANUAL SELECT
MANUAL
INPUT PASSWORD
[
]
→ CONTROLLER SET
CAMERA
SET
SYSTEM INFO
→ PASSWORD
BAUDRATE:
PROTOCOL:
ADDRESS NO
SET
9600
SAMSUNG
[0]
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 14
User’s Guide
$-1 PASSWORD SETUP
– For password input, move CURSOR(→)
to PASSWORD SET, press ENTER,
and put in the 4-digit number.
– For the selection regarding whether to
use a password or not, move
CURSOR(→) to disable (or enable),
and press ENTER. Each time you
press a button, enable and disable
change. When you come out of the
set-up mode press the MENU button.
$-2 BAUD RATE SETUP
Move CURSOR(→) to the Baud rate
you want, and press the ENTER button.
∗ 38400, 19200, 9600, 4800, 2400, 1200
$-3 PROTOCOL SETUP
Place the CURSOR (→) over a desired
protocol and press the ENTER button.
∗ SAMSUNG, PELCO-D, PELCO-P, VICON
PANASONIC, KALATEL, DIAMOND, AD,
PHILIPS, ERNA, VCL TP, TECHWIN,
HONEYWELL
$-4 When you set up the controller address,
move CURSOR(→) to ADDRESS NO.,
press and ENTER button, put in the
number, and press the ENTER button.
∗ If only one unit is used, set to “0”.
∗ You can not control the currently operating
device in other place, and a message of
"BUSY" appears if you try to do so.
14
→ PASSWORD SET
ENABLE
→ 38400
19200
9600
4800
→ SAMSUNG
PELCO-D
PELCO-P
VICON
% CAMERA SET
If you want to make a set-up related to
the Samsung Dome Camera, move
CURSOR(→) to CAMERA SET in the
main menu, and press the ENTER button.
After this, you can set up while watching
the OSD menu screen in a monitor in
which camera visuals can be displayed.
^ MATRIX SET
If you want to make a set-up related to the
matrix switcher, move CURSOR(→) to
MATRIX SET in the main menu, and
press the ENTER button. After this, you
can set up while watching the OSD menu
screen in a monitor in which camera
visuals can be displayed.
& PRESET SET
In order to set up the preset of the
receiver unit (or Samsung Dome Camera),
move CURSOR(→) to PRESET SET in the
CAMERA SET MENU, and press the
ENTER button. First, move CURSOR(→)
to preset no., press the ENTER button, put
in the number, and press the ENTER
button. Next, move CURSOR(→) to
position set, control pan/tilt and the lens,
and press the ENTER button. If you want to
cancel the concerned preset no., move
CURSOR(→) to delete, and press the
ENTER button.
If you want to go back to the main menu,
press the MENU button.
15
M ON = [ 0 0 ]
CAM=[ 0 0 0 ]
→ CAMERA
MENU
PRESET
S ET
D AT A BACK UP
MON = [00]
CAM = [000]
∗ CAMERA SETUP ∗
∗ MATRIX SET ∗
MENU KEY: < EXIT >
M ON = [ 0 0 ]
CAM=[ 0 0 0 ]
→ PRESET NO [ 0 0 0 ]
POS I T I ON SET
DE L E TE
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 16
User’s Guide
* DATA BACK-UP
In case changing the camera by
downloading the set-up data of the
Samsung Dome Camera, this is a
function for applying the set-up value set
up in the changed camera just the way it
is. In order to perform this mode, move
CURSOR(→) to the DATA BACK-UP in
the CAMERA SET MENU, and press the
ENTER button. If you want to go back to
the main menu, press the MENU button.
M ON = [ 0 0 ]
CAM=[ 0 0 0 ]
→ CAM RESET
DOWN LOAD
UP
LOAD
*-2 When downloading the set-up data
of the camera, move CURSOR(→)
to DOWNLOAD, and press the
ENTER button.
*-3 When you wan to set the set-up data
downloaded to the camera,
move CURSOR(→) to UPLOAD,
and press the ENTER button.
( SYSTEM INFO
You can check SSC-1000 for the
communication settings and the firmware
version. Press the MENU button to
return to the previous menu.
) MULTIPLEX CONTROL
When you press “MUX CONTROL”
button, you can control Multiplex.
! For manipulating the camera, since only the concerned cam no. indicated in LCD is
possible, first select the camera you want to manipulate. For camera selection, when
you press CAM+NO+ENTER the camera no. gets indicated in LCD.
@ In the third line of LCD, the camera's action state gets indicated. Initially, it appears
as “MANUAL”. And, in this state, by using the JOY STICK and LENS CONTROL
buttons, you can manipulate the light turning mark and the lens. According to the
manipulation angle of the Joy Stick, the rotation speed of the light turning mark gets
varied.
∗ In this mode, the menu will appear only if the protocol is set to
"SAMSUNG", where you can backup data.
*-1 In order to initialize the camera
connected to the controller,
move CURSOR(→) to CAM RESET,
and press the ENTER button.
2) Manipulating the camera
M ON = [ 0 0 ]
CAM=[ 0 0 0 ]
∗ CAM RESET ∗
MON = [00]
CAM = [000]
DOWN LOADING . . .
120 SEC LEFT.
MON = [00]
CAM = [000]
UP LOADING . . .
120 SEC LEFT.
SYSTEM INFO
BAUDRATE : 9600
PROTOCOL : SAMSUNG
F/W V2.00 - 080812
M ON = [ 0 01]
CAM=[ 0 0 0 ]
MULTIPLEX CONTROL
# AUTO PAN action
AUTO PAN enables you to move the camera between two preset points you set in
the menu If you want to perform Auto Pan, press the AUTO PAN button in Manual
mode and enter a desired AUTOPAN number, then press the ENTER button. Then,
the LED indicator on the AUTO PAN button flashes with a message of "AUTO PAN
[ ]". To deactivate AUTO PAN, press the AUTO PAN button again.
$ SCAN action
You can scan for multiple preset positions in sequence as set in Scan mode. In
Manual mode, enter a desired SCAN number and press the ENTER button to start
the scan function. Then, the LED indicator on the SCAN button flashes with a
message of "SCAN [ ]". To release Scan mode, press the SCAN button again.
% PATTERN action
This is a function for watching 30 seconds of the camera's moves set up by the user
according to the camera's pattern mode set-up. Press the PATTERN button in the
manual state, put in the pattern no. you want, and when you press the ENTER
button pattern action gets performed. At this time, the LED of the PATTERN button
gets turned on, and “Pattern [ ]” gets indicated in the LCD. If you want to cancel
the pattern action, press the PATTERN button once again.
^ PRESET action
This is a function for selecting and watching the preset position set up in the camera.
If you want to select the PRESET Position you want, press the PRESET button, put in
the appropriate number in the position you want, and press the ENTER button. At this
time, the LED of the PRESET button gets turned on, “Pattern [ ]” gets indicated in
the LCD. Once the operation is finished, current move is changed to MANUAL MODE.
∗ If communication error occurs, ‘ERR’ message appears on the second
right line of the LCD for a moment, and then disappears.
16
17
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 18
User’s Guide
3) Manipulating the RECEIVER UNIT
! For receiver unit manipulation, as only those applying to the cam no.
indicated in the LCD are possible, first select the camera you wan to
manipulate. For camera selection, when you press CAM + NO. +
ENTER, the concerned camera number gets indicated in the LCD.
(The camera number is the address number of the receiver unit)
@ In the third line of the LCD, the camera's action state gets indicated.
Initially, it appears as “MANUAL”. And, in this state, by using the Joy
Stick and Lens control buttons, you can manipulate the light turning
mark and the lens.
# PRESET action
This is a function for selecting and watching the preset POSITION set
up in the receiver unit. If you want to select the preset position you
want, press the PRESET button, put in the appropriate number in the
position you want, and press the ENTER button. At this time, the LED
of the PRESET button gets turned on, “PRESET [ ]” gets indicated in
the LCD. If you want to cancel the preset, press the PRESET button
once again.
$ AUX power control
This is a function for manipulating the aux power of the receiver unit.
If you want to put out the power of AUX1~AUX4, press the appropriate
AUX button. At this time, in the fourth line of the LCD, the appropriate
aux gets indicated. If you want to cancel the aux power output, press
the appropriate AUX button.
18
4) Manipulating the MATRIX SWITCHER
! MANUAL SELECT action
This is a function for putting out camera visuals of your discretion in
the monitor of your discretion.
Monitor selection is MON+NO.+ENTER, and camera selection is
CAM+NO.+ENTER. At this time, install so that the matrix switcher
input channel number and the address no of either the camera or the
receiver unit are the same.
The selected monitor number and the camera number get indicated in
the first line of the LCD.
And, the matrix switcher's action mode gets indicated in the second line.
@ SEQUENCE SWITCHING action
This is a function for automatically converting the cameras
corresponded to each monitor of the matrix switcher.
When you press the SEQUENCE button in the manual select mode,
cameras corresponded with monitors indicated in the LCD get
consecutively converted.
At this time, sequence run is indicated in the LCD. If you press the
HOLD button in the sequence run mode, automatic conversion actions
are stopped, and sequence hold gets indicated in the LCD.
If you press the NEXT or BEFORE button in this state, it gets
converted to the next visuals or the previous visuals of the visuals being
put out presently.
If you want to automatically convert again, press the SEQUENCE
button. If you want to convert the SEQUENCE RUN Mode to the
manual select mode, press CAM+NO.+ENTER.
19
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 20
User’s Guide
# TOUR action
This is a function for putting out the Tour Switching program set up in
the matrix switcher on the monitor of your discretion.
First, select the monitor you intend to put out, and when you press
TOUR+NO.+ENTER, the visuals corresponded to the pertinent
Tour program get automatically converted, “TOUR [NO] RUN” get
indicated in the LCD.
If you press Hold in the tour run state, the automatic conversion actions
get stopped, and “TOUR [NO] HOLD” gets indicated in the LCD.
If you press the NEXT or BEFORE button in this state, it gets
converted to the next visuals or the previous visuals of the visuals being
put out presently.
If you want to automatically convert again, press the SEQUENCE
button. If you want to convert the tour mode to the manual select mode,
press CAM+NO.+ENTER.
$ SALVO action
This is a function for showing camera visuals corresponded to monitor
groups in the Salvo program of the matrix switcher to corresponding
monitors simultaneously.
If you want to select the monitor group salvo that you desire,
press SALVO+NO.+ENTER.
At this time “SALVO [NO]” gets indicated in the LCD.
In this state, if you press Next or Before, it gets converted to the
next Salvo No. or the previous Salvo No. All Salvo No modes get
consecutively converted and “SALVO [NO] RUN” gets indicated
in the LCD. In this state, if you press Hold, it gets fixed to the previous
Salvo No mode.
For conversion to the manual select mode, press CAM+NO.+ENTER.
20
5) Manipulating the MULTIPLEX
! Into the multiplex control mode
You get into the multiplex control mode by pressing “MUX CONTROL”
button.
@ How to control “MONITOR OUT”
You can control “MONITOR OUT” by pressing “MON” button in the
Multiplex control mode and selecting a RS-485 Address value (an odd
among 1~253) of the multiplex and pressing “Enter” button. One to one
with front panel of the multiplex.
(Refer to the 2.Names and Functions of Each Parts)
# How to control “SPOT OUT”
You can control “SPOT OUT” by pressing “MON” button in the
Multiplex control mode and selecting a RS-485 Address value+1 (even
among 2~254) and pressing “Enter” button.
- “1~16” + “ENTER” : Fixed output of the channel selected.
- When you press “HOLD(SEQUENCE)” button, switching screen
output. (Switching output according to “SPOT OUT” setup in the
Multiplex menu)
$ How to escape from the Multiplex control mode.
- When you press “MUX CONTROL” button, you escape from the
multiplex control mode.
- When you press “CAM”, you escape from the Multiplex control mode
and you can select an address number of the camera.
21
SSC-1000 (gb)
2009.1.8
1:38 PM
Page 22
User’s Guide
5. Confirmation Matter in Times of
Abnormality Occurrence
6. Specifications
ITEM
Symptom
Confirmation and Management Matters
Control of the camera
part is not possible.
1. Check the polarity of the RS-485 indication
line.
2. Check if the address of the camera part has
been set up well.
The input channel number
of the Matrix Switcher
and the number of the
camera part appear differently.
Set up the address number of the camera
part and the input channel number of the
Matrix Switcher to be the same.
Because I cannot remember
the Password of this
machine, I cannot enter
the set-up MENU.
In the state in which the RESET button has
been pressed, if you put in again the power,
the machine gets into the state freshly out of
the plant, and you can go into the set-up menu.
SPECIFICATION
Communication
Interface Type
RS-485
Port
Connector Type
Modular Type x2, D-SUB x1
Baud Rate
1200, 2400, 4800, 9600, 19200, 38400 BPS
PROTOCOL
SAMSUNG, PELCO-D, PELCO-P, VICON
PANASONIC, KALATEL, DIAMOND,
AD, PHILIPS,ERNA, VCL TP, TECHWIN
LCD
20 ✕ 4 line
LED
MENU, PRESET, PATTERN, SCAN,
AUTO PAN, RESET
Switching
Video Switching
SEQUENCE, TOUR, SALVO
&
Pan/Tilt & Lens
Pan left/right
Control
Tilt up/down
Display
Control
Iris open/close
Focus far/near
Zoom tele/wide
❈ The contents and the circuits in this explanation can be changed due to
such reasons as the functional improvement of the production.
Preset, Auto pan, Scan, Pattern
External
AUX1, AUX2, AUX3, AUX4
machinery Control
22
Power Source
DC 9V 600mA
Dimension
315(W) ✕ 205(D) ✕ 65(H)mm
Weight
1.1kg (Excluding packaged goods)
RS-485 Connector
No 3 (Yellow) : DATA “+”,
No 5(Red) : DATA “–”
D-SUB Connector
No 2 : DATA “+”, No 3 : DATA “–”
23
