ULX-D Dual Quad Specification Sheet

Wireless Systems
PGW
PGX
SLX®
ULX®
ULX-D®
UHF-R®
AXIENT®

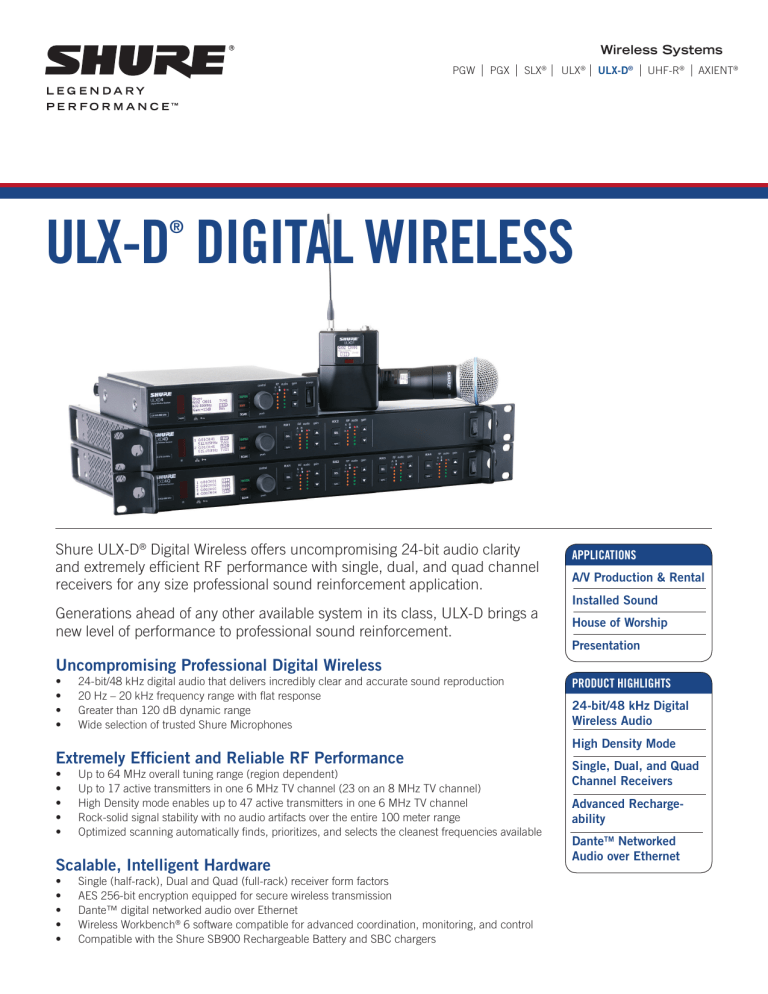

ULX-D DIGITAL WIRELESS
®
Shure ULX-D® Digital Wireless offers uncompromising 24-bit audio clarity
and extremely efficient RF performance with single, dual, and quad channel
receivers for any size professional sound reinforcement application.
Generations ahead of any other available system in its class, ULX-D brings a
new level of performance to professional sound reinforcement.
Applications
A/V Production & Rental
Installed Sound
House of Worship
Presentation
Uncompromising Professional Digital Wireless
•
•
•
•
24-bit/48 kHz digital audio that delivers incredibly clear and accurate sound reproduction
20 Hz – 20 kHz frequency range with flat response
Greater than 120 dB dynamic range
Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
•
•
•
•
•
Up to 64 MHz overall tuning range (region dependent)
Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
High Density mode enables up to 47 active transmitters in one 6 MHz TV channel
Rock-solid signal stability with no audio artifacts over the entire 100 meter range
Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
•
•
•
•
•
Single (half-rack), Dual and Quad (full-rack) receiver form factors
AES 256-bit encryption equipped for secure wireless transmission
Dante™ digital networked audio over Ethernet
Wireless Workbench® 6 software compatible for advanced coordination, monitoring, and control
Compatible with the Shure SB900 Rechargeable Battery and SBC chargers
Product Highlights
24-bit/48 kHz Digital
Wireless Audio
High Density Mode
Single, Dual, and Quad
Channel Receivers
Advanced Rechargeability
DanteTM Networked
Audio over Ethernet
ULX-D® System Specifications
Frequency Range
RF Carrier Range
470–932 MHz, varies by region (See Frequency Range and Ouput Power table)
Working Range
100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
Band
Range (MHz)
RF Tuning Step Size
25 kHz, varies by region
G50
470 to 534
1/10/20
Image Rejection
RF Sensitivity
>70 dB, typical
-98 dBm at 10-5 BER
G51
470 to 534
1/10/20
G52
479 to 534
1/10
Latency
<2.9 ms
H50
525 to 572
1/10/20
Audio Frequency Response
ULXD1: 20 Hz – 20 kHz (±1 dB)
ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type
H51
534 to 598
1/10/20
H52
534 to 565
1/10
J50
572 to 636
1/10/20
XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted
K51
606 to 670
1/10
L50
632 to 696
1/10/20
L51
632 to 696
1/10/20
P51
710 to 782
1/10/20
R51
800 to 810
1/10/20
JB (Tx only)
806 to 810
1/10
Operating Temperature Range -18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
AB (Rx and Tx)
770 to 810
“A” band (770.250-805.750): 1/10/20
“B” band (806.125-809.750): 1/10
Storage Temperature Range
Q51
794 to 806
1/10/20
X50
925 to 932
1/10
Audio Dynamic Range
System Gain @ +10
Total Harmonic Distortion
<0.1%
−12 dBFS input, System Gain
@ +10
System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2
(with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
NOTE:
This Radio equipment is intended for use in musical professional entertainment and similar
applications. This Radio apparatus may be capable of operating on some frequencies not
authorized in your region. Please contact your national authority to obtain information on
authorized frequencies and RF power levels for wireless microphone products.
Rechargeable Power Management (sold separately)
SB900 Rechargeable Battery
ULX-D transmitters are compatible with the SB900 lithium-ion rechargeable
battery, which provides over 12 hours of continuous use and precise tracking
of remaining life and charge cycle details.
SBC200 Dual Docking Recharging Station
This compact and portable unit charges batteries while in transmitters or out.
Up to 4 SBC200‘s can be chained together to run off one power supply.
SBC800 Eight Battery Recharging Station
This compact and portable unit charges up to 8 SB900 batteries to full capacity within 3 hours, with status LEDs to indicate power levels. SB900 batteries fit
securely in the charger for easy, efficient storage and transport.
Battery Runtime
Battery Type
1 mW
10 mW
20 mW
SB900
>11 hours
>11 hours
>7 hours
Alkaline
<11 hours
<11 hours
<5.5 hours
NiMH
<11 hours
<11 hours
<8 hours
Li-primary
12.5-18 hours
12.5-18 hours
9.5-12 hours
www.shure.com
Transmitter Output (mW)
Furnished Accessories
All Systems
PS41US*
Power supply
95T9279*
1/2 Wave Receiver Antenna (2)
95K2035
2‘ BNC Cable (2)
98A8994
BNC Bulkhead Adapter (2)
90AZ8100
Rackmout Hardware kit
95A16941
5‘ ethernet cable
80B8201
2 x AA batteries (bodypack systems)
Handheld Systems
95T9279
Microphone Clip (handheld systems)
95B2313
Handheld Zipper Bag (bodypack systems)
Bodypack Systems
95G9043*
Bodypack Antenna
95A2313
Bodypack Zipper Bag (bodypack systems)
*: region specific part # (US part listed)
Optional Accessories
SB900
SBC800
SBC200
WA610
AXT652
UA845SWB
UA221
UA830USTV
Shure Rechargeable Battery
8-Bay Battery Charger
Dual Docking Battery Charger
Carrying Case
Y-Cable for Bodypack Transmitters
Active Antenna Spitter
Passive Antenna Splitter/Combiner Kit
UHF Line Amplifier
UA844SWB
UHF Antenna Power Distribution Amplifier (U.S.A.)
UA844SE
UHF Antenna Power Distribution Amplifier (Europe)
UABIAST
In-line Power Supply
UA600
Front Mount Antenna Kit (Includes 2 cables and 2 bulkhead
UA505
Remote Antenna Bracket with BNC Bulkhead Adapter
UA820
1/2 Wave Omnidirectional Antenna
UA874WB
UHF Powered Directional Antenna
PA805SWB
Passive Directional Antenna
UA864US
Wall-Mounted Wideband Antenna
UA802
Coaxial Cable, BNC-BNC, RG58C/U type, 50 Ohm, 2 ft length (0.6 m)
UA806
Coaxial Cable, BNC-BNC, RG58C/U type, 50 Ohm, 6 ft length (2 m)
UA825
Coaxial Cable, BNC-BNC, RG8X/U type, 50 Ohm, 25 ft length (7.5 m)
UA850
Coaxial Cable, BNC-BNC, RG8X/U type, 50 Ohm, 50 ft length (15 m)
UA8100
Coaxial Cable, BNC-BNC, RG213/U Type, 50 Ohm, 100 ft length (30 m)
Component Specifications
ULXD4 Digital Wireless Receiver
Overview
The Shure ULXD4 is a half-rack wireless receiver for use with ULX-D® Digital Wireless Systems. With an expansive set of professional features, including 24-bit/48kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX-D offers uncompromising wireless
tailored for professional sound reinforcement.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Up to 64 MHz tuning range
Predictive switching diversity
Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
Interference detection and alerts provided on both the receiver and WWB6
Front panel gain adjustment buttons provide up to 60 dB additional gain
AES 256-bit encryption-enabled for applications where secure transmission is needed
Ethernet networking for streamlined setup across multiple receivers, WWB6 integration (coming soon), and AMX/Crestron control
Support for frequency coordination with Axient Spectrum Manager (coming soon)
Rugged metal chassis
Intuitive front panel LCD menu and controls
Easily readableUpgraded LCD with adjustable contrast and brightness
Audio and RF LED meters with peak indicator
Front panel lockout
XLR and ¼” outputs
Remoteable ½ wave antennas
Furnished rack hardware
Product Specifications
Dimensions
Weight
Housing
RF Input
197 mm x 171 mm x 42 mm (7.75 in. x 6.75 in. x 1.65 in.), H x W x D
913 g (2.0 lbs), without antennas
Galvanized Steel
Spurious Rejection
Connector Type
>80 dB, typical
BNC
Impedance
Bias Voltage
50 Ω
12 - 13 V DC, 170 mA maximum, per antenna
Audio Output
Gain Adjustment Range
Configuration
-18 to +42 dB in 1 dB steps (plus Mute setting)
1/4” (6.35 mm):: Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance
1/4” (6.35 mm):: 100 Ω (50 Ω Unbalanced)
XLR: 100 Ω
Full Scale Output
1/4” (6.35 mm):: +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
Mic/Line Switch
30 dB pad
Phantom Power Protection
1/4” (6.35 mm): Yes
XLR: Yes
Networking
Power Over Ethernet (PoE)
No, protected
Network Interface
Single Port Ethernet 10/100 Mbps
Network Addressing Capability
DHCP or Manual IP address
Maximum Ethernet Cable Length
100 m (328 ft)
control
ULXD4
ENTER
Digital Wireless Receiver
RF audio
AB
OL
gain
power
OL
EXIT
SCAN
sync
push
ULXD4 Front Panel
ULXD4
www.shure.com
12V OUT
150 mA
antenna . B
line
15V 0.6A
power
ULXD4 Back Panel
www.shure.com
mic
mic / line
inst / aux
12V OUT
150 mA
antenna . A
Component Specifications
ULXD4D Dual Channel Digital Wireless Receiver
Overview
The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability, and advanced
setup features in a space-efficient single rack unit. Digital wireless processing delivers premium 24-bit/48 kHz audio and RF spectrum efficiencies that
dramatically increase the number of available compatible channels. With an expansive set of enhanced features including AES 256-bit encryption for
security and Dante™ digital networking for audio over Ethernet, the ULXD4D brings a new level of performance to professional sound reinforcement.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Two receivers in a rugged 1RU metal chassis with internal power supply
Individual gain controls, LED meters, and XLR outputs for each channel
Up to 64 MHz tuning range (region dependent)
Digital predictive switching diversity
High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
RF cascade ports allow distribution of RF signal to another unit
Optimized scanning automatically finds, prioritizes, and deploys the cleanest
frequencies to transmitters over IR sync
Bodypack Frequency Diversity ensures uninterrupted audio for mission-critical applications
AES 256-bit encryption-enabled for secure transmission
Audio summing routes both audio channels to each XLR receiver output
Dante™ digital networked audio over Ethernet
Up to 60 dB independently adjustable gain for each channel
Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
Wireless Workbench® 6 (WWB6) software integration for advanced coordination, monitoring, and control
Interference detection and alerts provided on both the receiver and WWB6
AMX/Crestron control
AXT600 Axient® Spectrum Manager compatible
Intuitive front panel LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
XLR connectors with switchable mic/line output level
Remoteable ½ wave antennas
Product Specifications
Dimensions
Weight
Housing
Power Requirements
RF Input
44 mm x 482 mm x 274 mm (1.73 in. x 18.97 in. x 10.79 in.), H x W x D
3.36 Kg (7.4 lbs), without antennas
Steel; Extruded Aluminum
100 to 240 V AC, 50-60 Hz, 0.26 A max.
Spurious Rejection
Connector Type
>80 dB, typical
BNC
Impedance
Bias Voltage
50 Ω
12 - 13 V DC, 150 mA maximum, per antenna
Audio Output
Gain Adjustment Range
Configuration
-18 to +42 dB in 1 dB steps (plus Mute setting)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance
Full Scale Output
Mic/Line Switch
100 Ω
LINE setting= +18 dBV, MIC setting= -12 dBV
30 dB pad
Phantom Power Protection
Networking
Yes
Network Interface
Dual Port Ethernet 10/100 Mbps, 1 Gbps
Network Addressing Capability
DHCP or Manual IP address
Maximum Ethernet Cable Length
Cascade Output
100 m (328 ft)
Connector Type
BNC: For connection of 1 additional receiver
Configuration
Unbalanced, passive
Impedance
50 Ω
Insertion Loss
0 dB
control
ULXD4D
RX1
RF audio
AB
gain
RX2
OL
ENTER
Digital Wireless Receiver
SEL
SEL
OL
RF audio
AB
gain
power
OL
OL
EXIT
syn c
SCAN
IR
syn c
push
ULXD4D Front Panel
B
output 2
Secondary
ULXD4D Back Panel
www.shure.com
output 1
Primary
line
line
mic
mic
A
Component Specifications
ULXD4Q Quad Channel Digital Wireless Receiver
Overview
The Shure ULXD4Q Quad Channel Digital Wireless Receiver offers four channels of uncompromising audio quality, RF signal stability, and advanced setup
features in a space-efficient single rack unit. Digital wireless processing delivers premium 24-bit/48 kHz audio and RF spectrum efficiencies that dramatically
increase the number of available compatible channels. With an expansive set of enhanced features including AES 256-bit encryption for security and Dante™
digital networking for audio over Ethernet, the ULXD4D delivers the most wireless performance per square inch.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Four receivers in a rugged 1RU metal chassis with internal power supply
Individual gain controls, LED meters, and XLR outputs for each channel
Up to 64 MHz tuning range (region dependent)
Digital predictive switching diversity
High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
RF cascade ports allow distribution of RF signal to another unit
Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
Bodypack Frequency Diversity ensures uninterrupted audio for mission-critical applications
AES 256-bit encryption-enabled for secure transmission
Audio summing routes two or more audio channels to combinations of receiver outputs. Use each channel’s gain adjustment to reach the desired mix.
Dante™ digital networked audio over Ethernet Two receivers in a rugged 1RU metal chassis with internal power supply
Individual gain controls, LED meters, and XLR outputs for each channel
Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
Interference detection and alerts provided on both the receiver and WWB6
Up to 60 dB independently adjustable gain for each channel
Wireless Workbench® 6 software integration for advanced coordination, monitoring, and control AMX/Crestron control
Compatible with the AXT600 Axient™ Spectrum Manager
Intuitive front panel LCD menu and controls with lockout feature
Upgraded LCD with adjustable contrast and brightness
Audio and RF LED meters with peak indicator
Switchable mic/line output level
Remoteable ½ wave antennas
Product Specifications
Dimensions
Weight
Housing
Power Requirements
RF Input
44 mm x 482 mm x 274 mm (1.73 in. x 18.97 in. x 10.79 in.), H x W x D
3.45 Kg (7.6 lbs), without antennas
Steel; Extruded Aluminum
100 to 240 V AC, 50-60 Hz, 0.32 A max.
Spurious Rejection
Connector Type
>80 dB, typical
BNC
Impedance
Bias Voltage
50 Ω
12 - 13 V DC, 150 mA maximum, per antenna
Audio Output
Gain Adjustment Range
Configuration
-18 to +42 dB in 1 dB steps (plus Mute setting)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance
Full Scale Output
Mic/Line Switch
100 Ω
LINE setting= +18 dBV, MIC setting= -12 dBV
30 dB pad
Phantom Power Protection
Networking
Yes
Network Interface
Dual Port Ethernet 10/100 Mbps, 1 Gbps
Network Addressing Capability
DHCP or Manual IP address
Maximum Ethernet Cable Length
Cascade Output
100 m (328 ft)
Connector Type
BNC: For connection of 1 additional receiver
Configuration
Unbalanced, passive
Impedance
50 Ω
Insertion Loss
0 dB
control
ULXD4Q
RX1
RF audio
AB
gain
RX2
OL
ENTER
Digital Wireless Receiver
SEL
SEL
OL
RF audio
AB
gain
RX3
RF audio
AB
gain
RX4
OL
OL
RF audio
AB
gain
OL
OL
OL
OL
EXIT
syn c
SCAN
IR
sync
sync
syn c
push
ULXD4Q Front Panel
B
output 4
output 3
output 2
Secondary
ULXD4Q Back Panel
www.shure.com
output 1
Primary
line
line
line
line
mic
mic
mic
mic
A
power
Component Specifications
ULXD2 Wireless Handheld Transmitter
Overview
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D® Digital Wireless Systems. Offering premium 20 Hz – 20 kHz audio quality,
advanced rechargeability options, and a wide selection of interchangeable Shure microphone heads, the ULXD2 delivers uncompromising wireless performance for professional sound reinforcement applications. The ULXD2 is offered with SM58®, SM86, SM87A, Beta 58A®, Beta 87A, and Beta 87C.
•
•
•
•
•
•
•
•
•
•
•
30 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
Interchangeable Shure microphone cartridges, including the legendary SM58®
>120 dB dynamic range
1, 10, and 20 mW selectable RF output power
5 segment battery fuel gauge
Shure lithium-ion rechargeable battery pack provides up to 12 hours of battery life, precision metering, and zero memory effect
Up to 11 hours continuous use with 2 x AA batteries
Backlit LCD with easy to navigate menu and controls
100 meter (300 ft) operating range
Rugged metal construction
Frequency and power lockout
Product Specifications
ULXD2
on
Gain Offset Range
Battery Type
Battery Runtime
@ 10 mW
0 to 21 dB (in 3 dB steps)
Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Shure SB900: >11 hours
Alkaline: 11 hours
See Battery Runtime Chart
Dimensions
Weight
Housing
Audio Input
256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
340 g (12.0 oz.), without batteries
Machined aluminum
Configuration
Unbalanced
Maximum Input Level
145 dB SPL (SM58), typical
1 kHz at 1% THD
Note: Dependent on microphone type
Preamplifier Equivalent Input Noise (EIN) 120 dBV, A-weighted, typical
System Gain Setting ≥ +20
RF Output
Antenna Type
Integrated Single Band Helical
Occupied Bandwidth
Modulation Type
Power
<200 kHz
Shure Proprietary Digital
1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region
Microphone Options
ULXD2/SM58
ULXD2/SM86
ULXD2/SM87A
ULXD2/BETA 58
ULXD2/BETA 87A
ULXD2/BETA 87C
www.shure.com
ULXD2
ULXD2
ULXD2
ULXD2
ULXD2
ULXD2
Handheld
Handheld
Handheld
Handheld
Handheld
Handheld
Transmitter
Transmitter
Transmitter
Transmitter
Transmitter
Transmitter
with
with
with
with
with
with
SM58 Cardioid Microphone
SM86 Cardioid Microphone
SM87A Supercardioid Microphone
Beta 58A Supercardioid Microphone
Beta 87A Supercardioid Microphone
Beta 87C Cardioid Microphone
ULXD2
Wireless Handheld Transmitter
Component Specifications
ULXD1 Wireless Bodypack Transmitter
Overview
The ULXD1 is a wireless bodypack transmitter compatible with ULX-D® Digital Systems. With a rugged yet lightweight aluminum case, the ULXD1
delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for
professional sound reinforcement applications.
•
•
•
•
•
•
•
•
•
•
•
•
20 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
AES 256-bit encryption-enabled for applications where secure transmission is needed
Interchangeable Shure microphone cartridges, including the legendary SM58®
>120 dB dynamic range
1, 10, and 20 mW selectable RF output power
5 segment battery fuel gauge
Shure lithium-ion rechargeable battery pack provides up to 12 hours of battery life, precision metering, and zero memory effect
Up to 11 hours continuous use with 2 x AA batteries
Backlit LCD with easy to navigate menu and controls
100 meter (300 ft) operating range
Rugged metal construction
Frequency and power lockout
Product Specifications
ULXD1
Gain Offset Range
Battery Type
Battery Runtime
@ 10 mW
0 to 21 dB (in 3 dB steps)
Shure SB900 Rechargeable Li-Ion or AA batteries
Shure SB900: >11 hours
Alkaline: 11 hours
Dimensions
Weight
Housing
Audio Input
86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D
142 g (5.0 oz.), without batteries
Cast aluminum
Connector
Configuration
4-Pin male mini connector (TA4M)
Unbalanced
Impedance
Maximum Input Level
1 kHz at 1% THD
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ≥ +20
1 MΩ
Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)
120 dBV, A-weighted, typical
ULXD1
Wireless Bodypack Transmitter
RF Output
Connector
Antenna Type
SMA
1/4 wave
Impedance
Occupied Bandwidth
Modulation Type
Power
50 Ω
<200 kHz
Shure Proprietary Digital
1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region
Microphone Options (see catalog for more)
WL93
WL183
WL184
WL185
WL50
WL51
WH30
WCM16
WBH53
WBH54
WB98H/C
United States, Canada,
Latin America, Caribbean:
Shure Incorporated
5800 West Touhy Avenue
Niles, IL 60714-4608 USA
Phone: 847-600-2000
Fax: 847-600-1212 (USA)
Fax: 847-600-6446
Email: info@shure.com
www.shure.com
WL93 condenser capsule, omnidirectional lavalier mic
WL183 condenser capsule, omnidirectional lavalier mic
WL184 condenser capsule, supercardioid lavalier mic
WL185 condenser capsule, cardioid lavalier mic
WL50 condenser capsule, omnidirectional lavalier mic
WL51 condenser capsule, cardioid lavalier mic
WH30 condenser capsule, cardioid headworn mic
WCM16 condenser capsule, hypercardioid headworn mic
WBH53 condenser capsule, omnidirectional headworn mic
WBH54 condenser capsule, supercardioid headworn mic
WB98H/C condenser capsule, cardioid instrument clip mic
Europe, Middle East, Africa:
Shure Europe GmbH
Jakob-Dieffenbacher-Str. 12,
75031 Eppingen, Germany
Phone: 49-7262-92490
Fax: 49-7262-9249114
Email: info@shure.de
©2013 Shure Incorporated
Asia, Pacific:
Shure Asia Limited
22/F, 625 King’s Road
North Point, Island East
Hong Kong
Phone: 852-2893-4290
Fax: 852-2893-4055
Email: info@shure.com.hk
Shure Scandinavia A/S:
Vestre Teglgade 12
DK-2450 Copenhagen SV
Denmark
Phone: 45-3385-4040
Fax: 45-3385-4041
www.dis.cc
