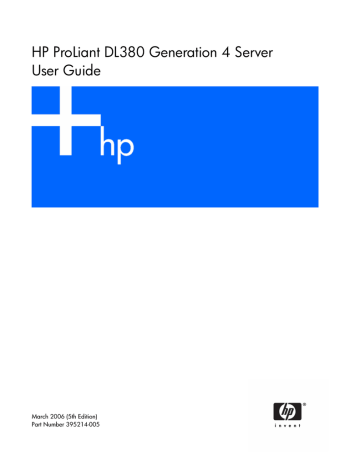

HP ProLiant DL380 Generation 4 Server
User Guide
March 2006 (5th Edition)
Part Number 395214-005
© Copyright 2004 - 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
Linux is a U.S. registered trademark of Linus Torvalds.
March 2006 (5th Edition)
Part Number 395214-005
Audience assumptions
This document is for the person who installs, administers, and troubleshoots servers and storage systems.
HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards
in products with hazardous energy levels.
Contents
Component identification ............................................................................................................... 7
Front panel components ............................................................................................................................. 8
Front panel LEDs and buttons ...................................................................................................................... 9
Rear panel components............................................................................................................................ 10
Rear panel LEDs and buttons..................................................................................................................... 11
System board components........................................................................................................................ 12
System maintenance switch............................................................................................................. 12
NMI switch ................................................................................................................................... 13
Chassis ID switch........................................................................................................................... 13
DIMM slots ................................................................................................................................... 13
SCSI backplane components..................................................................................................................... 14
SAS backplane components ..................................................................................................................... 15
System board LEDs .................................................................................................................................. 15
System LEDs and internal health LED combinations....................................................................................... 16
SCSI backplane LEDs ............................................................................................................................... 18
Hot-plug SCSI hard drive LEDs .................................................................................................................. 18
Hot-plug SCSI hard drive LED combinations ................................................................................................ 19
Hot-plug SAS hard drive LEDs ................................................................................................................... 20
Hot-plug SAS hard drive LED combinations ................................................................................................. 20
PCI Hot Plug LED status combinations......................................................................................................... 21
PCI riser cage LED ................................................................................................................................... 22
Remote management connector................................................................................................................. 22
Internal PCI Hot Plug LEDs and button ........................................................................................................ 23
Identifying hot-plug fans ........................................................................................................................... 23
Hot-plug fan LED ..................................................................................................................................... 24
Power converter module LED..................................................................................................................... 25
Battery-backed write cache LEDs ............................................................................................................... 25
Battery-backed write cache LED statuses ..................................................................................................... 26
Operations................................................................................................................................. 27
Power up the server ................................................................................................................................. 27
Power down the server............................................................................................................................. 27
Extend the server from the rack ................................................................................................................. 28
Removing the access panel....................................................................................................................... 29
Installing the access panel ........................................................................................................................ 29
Access the product rear panel................................................................................................................... 30
Cable management arm with left-hand swing .................................................................................... 30
Cable management arm with right-hand swing.................................................................................. 30
Setup......................................................................................................................................... 31
Optional installation services .................................................................................................................... 31
Rack planning resources........................................................................................................................... 32
Optimum environment.............................................................................................................................. 32
Space and airflow requirements ...................................................................................................... 32
Temperature requirements............................................................................................................... 33
Power requirements ....................................................................................................................... 33
Electrical grounding requirements .................................................................................................... 33
Rack warnings ........................................................................................................................................ 34
Identifying the contents of the server shipping carton.................................................................................... 34
Installing hardware options....................................................................................................................... 34
Contents
3
Installing the server into the rack................................................................................................................ 34
Installing the operating system................................................................................................................... 37
Powering up and configuring the server ..................................................................................................... 37
Registering the server............................................................................................................................... 37
Hardware options installation....................................................................................................... 38
Introduction ............................................................................................................................................ 38
Processor option...................................................................................................................................... 38
Memory options ...................................................................................................................................... 41
DIMM configuration requirements .................................................................................................... 42
Online spare memory configuration ................................................................................................. 42
Installing DIMMs ........................................................................................................................... 43
Hot-plug SCSI hard drive options............................................................................................................... 43
SCSI IDs ....................................................................................................................................... 44
Removing a SCSI hard drive blank .................................................................................................. 44
Installing a hot-plug SCSI hard drive ................................................................................................ 45
Removing a hot-plug SCSI hard drive ............................................................................................... 45
Hot-plug SAS hard drive options ............................................................................................................... 46
SAS drive numbers ........................................................................................................................ 46
Installing a hot-plug SAS hard drive ................................................................................................. 47
Removing a hot-plug SAS hard drive ................................................................................................ 48
Installing a diskette drive .......................................................................................................................... 48
Hot-plug tape drive option ........................................................................................................................ 49
Redundant hot-plug fans ........................................................................................................................... 50
Installation requirements ................................................................................................................. 51
Identifying hot-plug fans ................................................................................................................. 52
Installing redundant hot-plug fans .................................................................................................... 52
Front fan bracket ........................................................................................................................... 53
Battery-backed write cache option ............................................................................................................. 54
Redundant hot-plug AC power supply option .............................................................................................. 55
PCI riser cage options .............................................................................................................................. 56
Installing the PCI riser cage............................................................................................................. 56
Removing the PCI riser cage ........................................................................................................... 57
Expansion board options.......................................................................................................................... 58
Removing expansion slot cover 1..................................................................................................... 58
Removing expansion slot covers 2 and 3 .......................................................................................... 59
Installing a non-hot-plug expansion board......................................................................................... 60
Installing PCI hot plug expansion boards .......................................................................................... 61
Cabling ..................................................................................................................................... 64
Cabling ................................................................................................................................................. 64
SAS model cabling.................................................................................................................................. 64
SAS hard drive cabling .................................................................................................................. 64
USB cabling.................................................................................................................................. 65
DVD/CD-ROM drive cabling........................................................................................................... 65
Diskette drive cabling..................................................................................................................... 66
Power button/LED cabling .............................................................................................................. 66
Optional PCI Hot Plug backplane cabling ......................................................................................... 67
RILOE II cabling............................................................................................................................. 67
Internal power cabling ................................................................................................................... 68
SCSI model cabling ................................................................................................................................. 68
Embedded simplex SCSI cabling ..................................................................................................... 69
Embedded duplex SCSI cabling ...................................................................................................... 69
PCI simplex SCSI cabling ............................................................................................................... 70
Contents
4
PCI duplex SCSI cabling................................................................................................................. 71
Mixed duplex SCSI cabling ............................................................................................................ 71
Installing the SCSI terminator board ................................................................................................. 73
Removing the SCSI terminator board................................................................................................ 73
USB cabling.................................................................................................................................. 74
DVD/CD-ROM drive cabling........................................................................................................... 75
Diskette drive cabling..................................................................................................................... 75
Power button/LED cabling .............................................................................................................. 76
Optional PCI Hot Plug backplane cabling ......................................................................................... 76
RILOE II cabling............................................................................................................................. 77
Internal power cabling ................................................................................................................... 77
External storage cabling ................................................................................................................. 78
Software and configuration utilities ............................................................................................... 79
Configuration tools .................................................................................................................................. 79
SmartStart software........................................................................................................................ 79
HP ROM-Based Setup Utility............................................................................................................ 80
Array Configuration Utility .............................................................................................................. 81
Option ROM Configuration for Arrays ............................................................................................. 82
HP ProLiant Essentials Rapid Deployment Pack................................................................................... 82
Re-entering the server serial number and product ID ........................................................................... 82
Management tools................................................................................................................................... 83
Automatic Server Recovery ............................................................................................................. 83
ROMPaq utility.............................................................................................................................. 83
System Online ROM flash component utility ...................................................................................... 83
RILOE technology .......................................................................................................................... 84
StorageWorks library and tape tools................................................................................................ 84
Management Agents...................................................................................................................... 84
HP Systems Insight Manager ........................................................................................................... 84
Redundant ROM support ................................................................................................................ 84
iLO ROM-Based Setup Utility........................................................................................................... 85
USB support.................................................................................................................................. 86
Diagnostic tools ...................................................................................................................................... 86
Survey Utility................................................................................................................................. 86
Array Diagnostic Utility .................................................................................................................. 87
HP Insight Diagnostics .................................................................................................................... 87
Integrated Management Log ........................................................................................................... 87
Keeping the system current ....................................................................................................................... 87
Drivers ......................................................................................................................................... 87
Resource Paqs............................................................................................................................... 88
ProLiant Support Packs ................................................................................................................... 88
Operating system version support .................................................................................................... 88
Change control and proactive notification ........................................................................................ 88
Natural language search assistant ................................................................................................... 88
Care Pack .................................................................................................................................... 88
Troubleshooting .......................................................................................................................... 89
Troubleshooting resources ........................................................................................................................ 89
Server diagnostic steps ............................................................................................................................ 89
Important safety information...................................................................................................................... 90
Symbols on equipment ................................................................................................................... 90
Warnings and cautions .................................................................................................................. 91
Prepare the server for diagnosis ................................................................................................................ 91
Symptom information ............................................................................................................................... 92
Contents
5
Service notifications................................................................................................................................. 92
Loose connections ................................................................................................................................... 92
Diagnostic steps ...................................................................................................................................... 93
Start diagnosis flowchart ................................................................................................................ 93
General diagnosis flowchart ........................................................................................................... 94
Server power-on problems flowchart ................................................................................................ 96
POST problems flowchart ............................................................................................................... 99
OS boot problems flowchart ......................................................................................................... 100
Server fault indications flowchart ................................................................................................... 102
Battery replacement .................................................................................................................. 105
Regulatory compliance notices ................................................................................................... 106
Regulatory compliance identification numbers ........................................................................................... 106
Federal Communications Commission notice............................................................................................. 106
Declaration of conformity for products marked with the FCC logo, United States only..................................... 106
Modifications........................................................................................................................................ 107
Cables ................................................................................................................................................. 107
Canadian notice ................................................................................................................................... 107
European Union regulatory notice ........................................................................................................... 107
Disposal of waste equipment by users in private households in the European Union ....................................... 108
Japanese notice .................................................................................................................................... 108
BSMI notice .......................................................................................................................................... 108
Korean class A notice ............................................................................................................................ 109
Laser compliance .................................................................................................................................. 109
Taiwan battery recycling notice............................................................................................................... 109
Power cord statement for Japan............................................................................................................... 110
Electrostatic discharge ............................................................................................................... 111
Preventing electrostatic discharge ............................................................................................................ 111
Grounding methods to prevent electrostatic discharge ................................................................................ 111
Specifications ........................................................................................................................... 112
Server specifications .............................................................................................................................. 112
Environmental specifications ................................................................................................................... 112
Technical support...................................................................................................................... 114
Before you contact HP............................................................................................................................ 114
HP contact information ........................................................................................................................... 114
Customer self repair............................................................................................................................... 114
Acronyms and abbreviations...................................................................................................... 116
Index....................................................................................................................................... 119
Contents
6
Component identification
In this section
Front panel components ............................................................................................................................ 8
Front panel LEDs and buttons ..................................................................................................................... 9
Rear panel components........................................................................................................................... 10
Rear panel LEDs and buttons ................................................................................................................... 11
System board components....................................................................................................................... 12
SCSI backplane components ................................................................................................................... 14
SAS backplane components .................................................................................................................... 15
System board LEDs ................................................................................................................................. 15
System LEDs and internal health LED combinations ..................................................................................... 16
SCSI backplane LEDs.............................................................................................................................. 18
Hot-plug SCSI hard drive LEDs ................................................................................................................. 18
Hot-plug SCSI hard drive LED combinations............................................................................................... 19
Hot-plug SAS hard drive LEDs .................................................................................................................. 20
Hot-plug SAS hard drive LED combinations ............................................................................................... 20
PCI Hot Plug LED status combinations ....................................................................................................... 21
PCI riser cage LED.................................................................................................................................. 22
Remote management connector ............................................................................................................... 22
Internal PCI Hot Plug LEDs and button ....................................................................................................... 23
Identifying hot-plug fans .......................................................................................................................... 23
Hot-plug fan LED .................................................................................................................................... 24
Power converter module LED.................................................................................................................... 25
Battery-backed write cache LEDs .............................................................................................................. 25
Battery-backed write cache LED statuses.................................................................................................... 26
Component identification 7
Front panel components
Item
SCSI model (top)
SAS model (bottom)
1
Hard drive bays
Hard drive bays
2
USB port
USB port
3
Bay for tape drive or hard drive with
tape drive blank
—
4
Diskette drive bay
Diskette drive bay
5
DVD/CD-ROM drive
DVD/CD-ROM drive
Component identification 8
Front panel LEDs and buttons
Item
Description
Status
1
Internal health LED
Green = Normal
Amber = System degraded. Refer to system board LEDs to identify
component in degraded state.
Red = System critical. Refer to system board LEDs to identify
component in critical state.
2
External health LED
(power supply)
Green = Normal
Amber = Power redundancy failure
Red = Critical power supply failure
3
NIC 1 link/activity LED
Green = Network link
Flashing = Network link and activity
Off = No link to network. If power is off, view the rear panel
RJ-45 LEDs for status.
4
NIC 2 link/activity LED
Green = Network link
Flashing = Network link and activity
Off = No link to network. If power is off, view the rear panel
RJ-45 LEDs for status.
5
UID LED button
Blue = Activated
Flashing = System being remotely managed
Off = Deactivated
6
Power On/Standby
button/system power LED
Green = System on
Amber = System shut down, but power still applied
Off = Power cord not attached or power supply failure
Component identification 9
Rear panel components
Item
Description
Color
1
•
Hot-plug or non-hot-plug PCI-X expansion slot 3, 64
bit/100 MHz, bus B
N/A
•
PCI Express x4 slot 2, bus B*
•
Hot-plug or non-hot-plug PCI-X expansion slot 2, 64
bit/100 MHz, bus B
•
PCI Express x4 slot 1, bus A*
2
N/A
3
Non-hot-plug PCI-X expansion slot 1, 64 bit/133 MHz, bus A
N/A
4
Serial connector
Teal
5
iLO connector
N/A
6
Mouse connector
Green
7
Power cord connector
N/A
8
Keyboard connector
Purple
9
NIC 1 connector
N/A
10
NIC 2 connector
N/A
11
USB connectors
Black
12
Video connector
Blue
13
VHDCI SCSI connector (port 1)**
N/A
* x8 PCI Express cards are supported on the SCSI models and will run at x4 speeds. SAS models do not support PCI
Express cards.
**This feature applies only to SCSI models.
Component identification 10
Rear panel LEDs and buttons
Item
Description
LED Color Status
1
PCI Hot Plug fault LED (slot 3)* Amber
On = Expansion board failed
Off = Normal
2
PCI Hot Plug power LED
(slot 3)*
Green
On = Power is applied to the slot
Flashing = Power is cycling
Off = Power is not applied to the slot
3
PCI Hot Plug fault LED (slot 2)* Amber
On = Expansion board failed
Off = Normal
4
PCI Hot Plug power LED
(slot 2)*
Green
On = Power is applied to the slot
Flashing = Power is cycling
Off = Power is not applied to the slot
5
RJ-45 activity LED
Green
On or flashing = Network activity
Off = No network activity
6
RJ-45 link LED
Green
On = Linked to network
Off = Not linked to network
7
UID LED button
Blue
On = Activated
Flashing = System remotely managed
Off = Deactivated
8
Power supply LED
Green
On = Power turned on and power supply functioning
properly
Off = One or more of the following conditions exists:
•
AC power unavailable
•
Power supply failed
•
Power supply in standby mode
•
Power supply exceeded current limit
* This LED is only available when using the hot-plug expansion cage option.
Component identification 11
System board components
Item
Description
Item
Description
1
Smart Array 6i Cache
Module Option*
12
Diskette drive system connector
2
Chassis ID switch
13
DIMM slots (1-6)
3
System maintenance switch
14
Power supply signal connector
4
PPM slot 2
15
Fan 6 connector
5
PCI riser cage connector
16
System power connector
6
SCSI connector (port 2)*
17
PPM slot 1
7
Fan 3 connector
18
Processor socket 1
8
DVD/CD-ROM drive
system connector
19
Processor socket 2
9
Fan 4 connector
20
NMI switch
10
SCSI connector (port 1)*
21
Fan 2 connector
11
Fan 5 connector
22
Fan 1 connector
*This feature applies only to SCSI models.
System maintenance switch
Position
Default
Function
S1
Off
Off = iLO security is enabled.
On = iLO security is disabled.
S2
Off
Off = System configuration can be
changed.
On = System configuration is locked.
S3
Off
Reserved
S4
Off
Off = Booting from diskette is
controlled by RBSU.
On = Booting from diskette is enabled
and RBSU is overridden.
Component identification 12
Position
Default
Function
S5
Off
Off = No function
On = Clears power-on password and
administrator password.
S6
Off
Off = No function
On = Clear NVRAM.
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase
all system configuration settings from both CMOS and NVRAM.
CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to properly
configure the server or data loss could occur.
NMI switch
The NMI switch allows administrators to perform a memory dump before performing a hard reset. Crash
dump analysis is an essential part of eliminating reliability problems, such as hangs or crashes in
operating systems, device drivers, and applications. Many crashes freeze a system, requiring you to do a
hard reset. Resetting the system erases any information that would support root cause analysis.
Systems running Microsoft® Windows® operating systems experience a blue screen trap when the
operating system crashes. When this happens, Microsoft® recommends that system administrators
perform an NMI event by pressing a dump switch. The NMI event enables a hung system to become
responsive again.
Chassis ID switch
The chassis ID switch on the system board is reserved for use by authorized technicians only. Do not
modify the switch setting.
DIMM slots
DIMM slots are numbered sequentially (1 through 6) and the paired banks are identified by the letters A,
B, and C.
Component identification 13
Item
Description
1
DIMM slot 1A
2
DIMM slot 2A
3
DIMM slot 3B
4
DIMM slot 4B
5
DIMM slot 5C
6
DIMM slot 6C
SCSI backplane components
Item
Description
1
Power button/LED connector
2
SCSI connector (port 2)
3
DVD/CD-ROM drive connector
4
SCSI connector (port 1)
5
Diskette drive connector
6
Power connector
7
USB connector
8
Diskette drive system connector
9
SCSI connector (used with a jumper cable in simplex
mode or terminator board in duplex mode)
10
DVD/CD-ROM drive system connector
Component identification 14
SAS backplane components
Item
Description
1
Power button/ LED connector
2
DVD/CD-ROM drive connector
3
DVD/CD-ROM drive system connector
4
SAS connector
5
Diskette drive system connector
6
Diskette drive connector
7
SAS connector
8
Power connector
9
USB connector
System board LEDs
Component identification 15
Item
LED description
Status
1
PPM 2 failure
Amber = PPM failed
Off = Normal
2
Overtemperature
Amber = Cautionary or critical temperature
level detected
Off = Temperature OK
3
Riser interlock
Amber = PCI riser cage not seated
Off = PCI riser cage is seated
4
Fan failure LED
Off = Fan is not powered
Green = Normal
Amber = Failure
5
DIMM 6C failure
Amber = Memory failed*
Off = Normal
6
DIMM 5C failure
Amber = Memory failed*
Off = Normal
7
DIMM 4B failure
Amber = Memory failed*
Off = Normal
8
DIMM 3B failure
Amber = Memory failed*
Off = Normal
9
DIMM 2A failure
Amber = Memory failed*
Off = Normal
10
DIMM 1A failure
Amber = Memory failed*
Off = Normal
11
Online spare memory
Amber = Failover, online spare memory in
use
Green = Enabled, but not in use
Off = Disabled
12
PPM 1 failure
Amber = PPM failed
Off = Normal
13
iLO diagnostic LEDs
Refer to the HP Integrated Lights-Out User
Guide on the Documentation CD.
14
Processor 1 failure
Amber = Processor failed
Off = Normal
15
Processor 2 failure
Amber = Processor failed
Off = Normal
*If all DIMM failure LEDs are lit, the memory configuration is invalid. Refer to "DIMM Configuration
Requirements (on page 42)" for proper memory configuration.
System LEDs and internal health LED combinations
When the internal health LED on the front panel illuminates either amber or red, the server is experiencing
a health event. Combinations of illuminated system LEDs and the internal health LED indicate system
status.
Component identification 16
The front panel health LEDs indicate only the current hardware status. In some situations, HP SIM may
report server status differently than the health LEDs because the software tracks more system attributes.
System LED and color
Internal health LED
color
Status
Processor failure,
socket X (Amber)
Red
One or more of the following conditions may exist:
•
Processor in socket X has failed.
•
Processor X is not installed in the socket.
•
Processor X is unsupported.
•
ROM detects a failed processor during POST.
Amber
Processor in socket X is in a pre-failure condition.
PPM failure, slot X
(Amber)
Red
•
PPM in slot X has failed.
•
PPM is not installed in slot X, but the corresponding
processor is installed.
DIMM failure, slot X
(Amber)
Red
•
DIMM in slot X has failed.
Amber
•
DIMM in slot X is in a pre-failure condition.
DIMM failure, all slots
in one bank (Amber)
Red
No valid or usable memory is installed in the system.
Overtemperature
(Amber)
Red
•
The Health Driver has detected a cautionary
temperature level.
•
The server has detected a hardware critical
temperature level.
Riser interlock
(Amber)
Red
PCI riser cage is not seated.
Online spare memory
(Amber)
Amber
Bank X failed over to the online spare memory bank.
Power converter
module (Amber)
Red
Power converter module has failed.
Fan (Amber)
Amber
Redundant fan has failed.
Red
The minimum fan requirements are not being met. One or
more fans have failed or are missing.
Red
SCSI cabling or terminator configuration is incorrect for
SCSI backplane.
SCSI configuration
error (Amber)*
*This feature applies only to SCSI models.
Component identification 17
SCSI backplane LEDs
Item
LED description
1
SCSI configuration
Status
On = Simplex
Off = Duplex
2
SCSI configuration error
On = SCSI cabling or terminator
configuration is incorrect
Off = SCSI cabling or terminator
configuration is correct
Hot-plug SCSI hard drive LEDs
Component identification 18
Item
LED description
Status
1
Activity status
On = Drive activity
Flashing = High activity on the drive or drive
is being configured as part of an array.
Off = No drive activity
2
On = Drive is part of an array and is
currently working.
Online status
Flashing = Drive is actively online.
Off = Drive is offline.
3
Fault status
On = Drive failure
Flashing = Fault-process activity
Off = No fault-process activity
Hot-plug SCSI hard drive LED combinations
Activity
LED (1)
Online LED Fault LED
(2)
(3)
On, off, or On or off
flashing
Flashing
On, off, or On
flashing
Off
On or
flashing
Off
Flashing
Interpretation
A predictive failure alert has been received for this drive.
Replace the drive as soon as possible.
The drive is online and is configured as part of an array.
If the array is configured for fault tolerance and all other drives in the
array are online, and a predictive failure alert is received or a drive
capacity upgrade is in progress, you may replace the drive online.
Do not remove the drive. Removing a drive may
terminate the current operation and cause data loss.
The drive is rebuilding or undergoing capacity expansion.
On
Off
Off
Do not remove the drive.
The drive is being accessed, but (1) it is not configured as part of an
array; (2) it is a replacement drive and rebuild has not yet started; or
(3) it is spinning up during the POST sequence.
Flashing
Flashing
Flashing
Do not remove the drive. Removing a drive may cause
data loss in non-fault-tolerant configurations.
One or more of the following conditions may exist:
Off
Off
On
•
The drive is part of an array being selected by an array
configuration utility
•
Drive Identification has been selected in HP SIM
•
The drive firmware is being updated
The drive has been placed offline due to hard disk drive failure or
subsystem communication failure.
You may need to replace the drive.
Component identification 19
Activity
LED (1)
Online LED Fault LED
(2)
(3)
Interpretation
Off
Off
One or more of the following conditions may exist:
Off
•
The drive is not configured as part of an array
•
The drive is configured as part of an array, but it is a
replacement drive that is not being accessed or being rebuilt yet
•
The drive is configured as an online spare
If the drive is connected to an array controller, you may replace the
drive online.
Hot-plug SAS hard drive LEDs
Item
Description
1
Fault/UID LED (amber/blue)
2
Online LED (green)
Hot-plug SAS hard drive LED combinations
Online/activity LED Fault/UID LED
(green)
(amber/blue)
Interpretation
On, off, or flashing Alternating amber
and blue
The drive has failed, or a predictive failure alert has been
received for this drive; it also has been selected by a
management application.
On, off, or flashing Steadily blue
The drive is operating normally, and it has been selected by a
management application.
On
On
Amber, flashing
regularly (1 Hz)
A predictive failure alert has been received for this drive.
Off
The drive is online, but it is not active currently.
Replace the drive as soon as possible.
Component identification 20
Online/activity LED Fault/UID LED
(green)
(amber/blue)
Interpretation
Flashing regularly
(1 Hz)
Do not remove the drive. Removing a drive may
terminate the current operation and cause data loss.
Amber, flashing
regularly (1 Hz)
The drive is part of an array that is undergoing capacity
expansion or stripe migration, but a predictive failure alert has
been received for this drive. To minimize the risk of data loss, do
not replace the drive until the expansion or migration is
complete.
Flashing regularly
(1 Hz)
Do not remove the drive. Removing a drive may
terminate the current operation and cause data loss.
Off
The drive is rebuilding, or it is part of an array that is undergoing
capacity expansion or stripe migration.
Flashing irregularly Amber, flashing
regularly (1 Hz)
The drive is active, but a predictive failure alert has been
received for this drive. Replace the drive as soon as possible.
Flashing irregularly Off
The drive is active, and it is operating normally.
Off
Steadily amber
A critical fault condition has been identified for this drive, and
the controller has placed it offline. Replace the drive as soon as
possible.
Off
Amber, flashing
regularly (1 Hz)
A predictive failure alert has been received for this drive.
Replace the drive as soon as possible.
Off
Off
The drive is offline, a spare, or not configured as part of an
array.
PCI Hot Plug LED status combinations
Power LED
(green)
Fault LED
(amber)
OK to
open?
Slot status
On
Off
No
The power to the slot is on and the slot is functioning normally.
Do NOT open the slot release lever.
On
On
No
The power to the slot is on, but the slot needs attention for a
possible problem with the slot, board, or driver. DO NOT open
the slot release lever.
Examine the logs and HP SIM. If the expansion board is faulty,
remove or replace the board.
Flashing
On or off
No
The power to the slot is being turned off or on, which may take
several seconds. DO NOT open the slot release lever.
To cancel the operation, press the PCI Hot Plug button.
Off
On
Yes
The power to the slot is off, but the slot needs attention for a
possible problem with the slot, board, or driver.
Off
Off
Yes
The power to the slot is off.
Component identification 21
PCI riser cage LED
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the PCI riser cage.
Status
On = AC power connected
Off = AC power disconnected
Remote management connector
The 30-pin remote management connector, located on the PCI riser cage, is used to cable the Remote
Insight Lights-Out Edition II option. For more information, refer to "RILOE II cabling (on page 67)" or the
Remote Insight Lights-Out Edition II User Guide on the Documentation CD.
Component identification 22
Internal PCI Hot Plug LEDs and button
NOTE: Hot-plug LEDs are available only with the optional hot-plug PCI riser cage.
Item
Description
Status
1
Fault LED (Amber)
On = Expansion board failed.
Off = Normal
2
Power LED (Green) On = Power is applied to the slot.
Flashing = Power is cycling.
Off = Power is not applied to the slot.
3
PCI Hot Plug button N/A
Identifying hot-plug fans
Item
Description
Configuration
1
Fan 1
Redundant
Component identification 23
Item
Description
Configuration
2
Fan 2
Primary
3
Fan 3
Redundant
4
Fan 4
Primary
5
Fan 5
Primary
6
Fan 6
Primary
7
Fan 7
Primary
8
Fan 8
Redundant
Hot-plug fan LED
Status
Green = Operating normally
Amber = Failed
Off = No power
Component identification 24
Power converter module LED
Status
Amber = Failed
Off = Operating normally
Battery-backed write cache LEDs
NOTE: This feature applies only to SCSI models.
Item
LED color
1
Amber
2
Green
For LED status information, refer to "Battery-backed write cache LED statuses (on page 26)."
Component identification 25
Battery-backed write cache LED statuses
NOTE: This feature applies only to SCSI models.
Server status
LED status
Battery module status
Server is on and has normal run
time
Green = On
Fast charging
Green = Flashing
The microcontroller is waiting for
communication from the host controller.
Green = Off
The battery is fully charged.
Amber = On
A short exists in the connection of one or
more of the three button cells within the
battery module.
Amber = Flashing
An open exists in the circuit between the
positive and negative terminals of the battery
module.
Amber = Off
Normal
Server is off and is in data
retention mode
Amber = Flashing every User data held in the write cache is being
15 seconds
backed up.
Component identification 26
Operations
In this section
Power up the server ................................................................................................................................ 27
Power down the server............................................................................................................................ 27
Extend the server from the rack ................................................................................................................ 28
Removing the access panel...................................................................................................................... 29
Installing the access panel ....................................................................................................................... 29
Access the product rear panel.................................................................................................................. 30
Power up the server
To power up the server, press the Power On/Standby button.
Power down the server
WARNING: To reduce the risk of personal injury, electric shock, or damage to the
equipment, remove the power cord to remove power from the server. The front panel
Power On/Standby button does not completely shut off system power. Portions of the
power supply and some internal circuitry remain active until AC power is removed.
IMPORTANT: If installing a hot-plug device, it is not necessary to power down the server.
1.
Back up the server data.
2.
Shut down the operating system as directed by the operating system documentation.
3.
If the server is installed in a rack, press the UID LED button on the front panel (1). Blue LEDs
illuminate on the front and rear panels of the server.
Operations 27
4.
Press the Power On/Standby button to place the server in standby mode (2). When the server
activates standby power mode, the system power LED changes to amber.
5.
If the server is installed in a rack, locate the server by identifying the illuminated rear UID LED button.
6.
Disconnect the power cords.
The system is now without power.
Extend the server from the rack
1.
Pull down the quick release levers on each side of the server to release the server from the rack.
2.
Extend the server on the rack rails until the server rail-release latches engage.
WARNING: To reduce the risk of personal injury or equipment damage, be sure that the
rack is adequately stabilized before extending a component from the rack.
WARNING: To reduce the risk of personal injury, be careful when pressing the server
rail-release latches and sliding the server into the rack. The sliding rails could pinch your
fingers.
Operations 28
3.
After performing the installation or maintenance procedure, slide the server back into the rack:
a. Press the server rail-release latches and slide the server fully into rack.
b. Press the server firmly into the rack to secure it in place.
Removing the access panel
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and
the internal system components to cool before touching them.
CAUTION: Do not operate the server for long periods with the access panel open or removed. Operating
the server in this manner results in improper airflow and improper cooling that can lead to thermal damage.
To remove the component:
1.
Power down the server if performing a non-hot-plug installation or maintenance procedure ("Power
down the server" on page 27).
2.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
3.
Lift up on the hood latch handle and remove the access panel.
To replace the component, reverse the removal procedure.
Installing the access panel
1.
Place the access panel on top of the server with the hood latch open. Allow the panel to extend past
the rear of the server approximately 1.25 cm (0.5 in).
2.
Push down on the hood latch. The access panel slides to a closed position.
Operations 29
Access the product rear panel
Cable management arm with left-hand swing
To access the server rear panel, open the cable management arm.
Cable management arm with right-hand swing
NOTE: To access some components, you may need to remove the cable management arm.
To access the product rear panel components, open the cable management arm:
1.
Power down the server (on page 27).
2.
Swing open the cable management arm.
3.
Remove the cables from the cable trough.
4.
Remove the cable management arm.
Operations 30
Setup
In this section
Optional installation services ................................................................................................................... 31
Rack planning resources ......................................................................................................................... 32
Optimum environment............................................................................................................................. 32
Rack warnings ....................................................................................................................................... 34
Identifying the contents of the server shipping carton .................................................................................. 34
Installing hardware options ..................................................................................................................... 34
Installing the server into the rack .............................................................................................................. 34
Installing the operating system ................................................................................................................. 37
Powering up and configuring the server .................................................................................................... 37
Registering the server.............................................................................................................................. 37
Optional installation services
Delivered by experienced, certified engineers, HP Care Pack services help you keep your servers up and
running with support packages tailored specifically for HP ProLiant systems. HP Care Packs let you
integrate both hardware and software support into a single package. A number of service level options
are available to meet your needs.
HP Care Pack Services offer upgraded service levels to expand your standard product warranty with easyto-buy, easy-to-use support packages that help you make the most of your server investments. Some of the
Care Pack services are:
•
•
•
•
Hardware support
•
6-Hour Call-to-Repair
•
4-Hour 24x7 Same Day
•
4-Hour Same Business Day
Software support
•
Microsoft®
•
Linux
•
HP ProLiant Essentials (HP SIM and RDP)
•
VMWare
Integrated hardware and software support
•
Critical Service
•
Proactive 24
•
Support Plus
•
Support Plus 24
Startup and implementation services for both hardware and software
For more information on Care Packs, refer to the HP website
(http://www.hp.com/hps/carepack/servers/cp_proliant.html).
Setup 31
Rack planning resources
The rack resource kit ships with all HP branded or Compaq branded 9000, 10000, and H9 series racks.
For more information on the content of each resource, refer to the rack resource kit documentation.
If you intend to deploy and configure multiple servers in a single rack, refer to the white paper on highdensity deployment at the HP website (http://www.hp.com/products/servers/platforms).
Optimum environment
When installing the server in a rack, select a location that meets the environmental standards described in
this section.
Space and airflow requirements
To allow for servicing and adequate airflow, observe the following space and airflow requirements when
deciding where to install a rack:
•
Leave a minimum clearance of 63.5 cm (25 in) in front of the rack.
•
Leave a minimum clearance of 76.2 cm (30 in) behind the rack.
•
Leave a minimum clearance of 121.9 cm (48 in) from the back of the rack to the back of another
rack or row of racks.
HP servers draw in cool air through the front door and expel warm air through the rear door. Therefore,
the front and rear rack doors must be adequately ventilated to allow ambient room air to enter the
cabinet, and the rear door must be adequately ventilated to allow the warm air to escape from the
cabinet.
CAUTION: To prevent improper cooling and damage to the equipment, do not block the ventilation
openings.
When vertical space in the rack is not filled by a server or rack component, the gaps between the
components cause changes in airflow through the rack and across the servers. Cover all gaps with
blanking panels to maintain proper airflow.
CAUTION: Always use blanking panels to fill empty vertical spaces in the rack. This arrangement ensures
proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal
damage.
The 9000 and 10000 Series Racks provide proper server cooling from flow-through perforations in the
front and rear doors that provide 64 percent open area for ventilation.
CAUTION: When using a Compaq branded 7000 Series rack, you must install the high airflow rack door
insert [P/N 327281-B21 (42U) or P/N 157847-B21 (22U)] to provide proper front-to-back airflow and
cooling.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate
airflow and to prevent damage to the equipment:
• Front and rear doors—If the 42U rack includes closing front and rear doors, you must allow 5,350 sq
cm (830 sq in) of holes evenly distributed from top to bottom to permit adequate airflow (equivalent to
the required 64 percent open area for ventilation).
• Side—The clearance between the installed rack component and the side panels of the rack must be a
minimum of 7 cm (2.75 in).
Setup 32
Temperature requirements
To ensure continued safe and reliable equipment operation, install or position the system in a wellventilated, climate-controlled environment.
The maximum recommended ambient operating temperature (TMRA) for most server products is 35°C
(95°F). The temperature in the room where the rack is located must not exceed 35°C (95°F).
CAUTION: To reduce the risk of damage to the equipment when installing third-party options:
• Do not permit optional equipment to impede airflow around the server or to increase the internal rack
temperature beyond the maximum allowable limits.
• Do not exceed the manufacturer’s TMRA.
Power requirements
Installation of this equipment must comply with local and regional electrical regulations governing the
installation of information technology equipment by licensed electricians. This equipment is designed to
operate in installations covered by NFPA 70, 1999 Edition (National Electric Code) and NFPA-75, 1992
(code for Protection of Electronic Computer/Data Processing Equipment). For electrical power ratings on
options, refer to the product rating label or the user documentation supplied with that option.
WARNING: To reduce the risk of personal injury, fire, or damage to the equipment, do
not overload the AC supply branch circuit that provides power to the rack. Consult the
electrical authority having jurisdiction over wiring and installation requirements of your
facility.
CAUTION: Protect the server from power fluctuations and temporary interruptions with a regulating
uninterruptible power supply (UPS). This device protects the hardware from damage caused by power
surges and voltage spikes and keeps the system in operation during a power failure.
When installing more than one server, you may need to use additional power distribution devices to
safely provide power to all devices. Observe the following guidelines:
•
Balance the server power load between available AC supply branch circuits.
•
Do not allow the overall system AC current load to exceed 80 percent of the branch circuit AC
current rating.
•
Do not use common power outlet strips for this equipment.
•
Provide a separate electrical circuit for the server.
Electrical grounding requirements
The server must be grounded properly for proper operation and safety. In the United States, you must
install the equipment in accordance with NFPA 70, 1999 Edition (National Electric Code), Article 250,
as well as any local and regional building codes. In Canada, you must install the equipment in
accordance with Canadian Standards Association, CSA C22.1, Canadian Electrical Code. In all other
countries, you must install the equipment in accordance with any regional or national electrical wiring
codes, such as the International Electrotechnical Commission (IEC) Code 364, parts 1 through 7.
Furthermore, you must be sure that all power distribution devices used in the installation, such as branch
wiring and receptacles, are listed or certified grounding-type devices.
Because of the high ground-leakage currents associated with multiple servers connected to the same
power source, HP recommends the use of a PDU that is either permanently wired to the building’s branch
circuit or includes a nondetachable cord that is wired to an industrial-style plug. NEMA locking-style plugs
or those complying with IEC 60309 are considered suitable for this purpose. Using common power outlet
strips for the server is not recommended.
Setup 33
Rack warnings
WARNING: To reduce the risk of personal injury or damage to the equipment, be sure
that:
• The leveling jacks are extended to the floor.
• The full weight of the rack rests on the leveling jacks.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
• Only one component is extended at a time. A rack may become unstable if more than
one component is extended for any reason.
WARNING: To reduce the risk of personal injury or equipment damage when unloading
a rack:
• At least two people are needed to safely unload the rack from the pallet. An empty
42U rack can weigh as much as 115 kg (253 lb), can stand more than 2.1 m (7 ft)
tall, and may become unstable when being moved on its casters.
• Never stand in front of the rack when it is rolling down the ramp from the pallet.
Always handle the rack from both sides.
Identifying the contents of the server shipping carton
Unpack the server shipping carton and locate the materials and documentation necessary for installing the
server. All the rack mounting hardware necessary for installing the server into the rack is included with the
rack or the server.
The contents of the server shipping carton include:
•
Server
•
Power cord
•
Hardware documentation, Documentation CD, and software products
•
Rack-mounting hardware
In addition to the supplied items, you may need:
•
Operating system or application software
•
Hardware options
Installing hardware options
Install any hardware options before initializing the server. For options installation information, refer to the
option documentation. For server-specific information, refer to "Hardware options installation (on page
38)."
Installing the server into the rack
CAUTION: Always plan the rack installation so that the heaviest item is on the bottom of the rack. Install
the heaviest item first, and continue to populate the rack from the bottom to the top.
1.
Install the server and cable management arm into the rack. Refer to the installation instructions that
ship with the 2U Quick Deploy Rail System for more information.
2.
Connect peripheral devices to the server.
Setup 34
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do not
plug telephone or telecommunications connectors into RJ-45 connectors.
IMPORTANT: If the RILOE II board is installed in the server, be sure that you attach the video cable to the
video connector on the rear of the RILOE II board. The standard video connector on the server rear panel is
not used when the RILOE II board is installed. For more information, refer to the HP Remote Insight Lights-Out
Edition II User Guide.
Item
Description
Color
1
•
Hot-plug or non-hot-plug PCI-X expansion slot 3, 64
bit/100 MHz, bus B
N/A
•
PCI Express x4 slot 2, bus B*
•
Hot-plug or non-hot-plug PCI-X expansion slot 2, 64
bit/100 MHz, bus B
•
PCI Express x4 slot 1, bus A*
2
N/A
3
Non-hot-plug PCI-X expansion slot 1, 64 bit/133 MHz, bus A
N/A
4
Serial connector
Teal
5
iLO connector
N/A
6
Mouse connector
Green
7
Power cord connector
N/A
8
Keyboard connector
Purple
9
NIC 1 connector
N/A
10
NIC 2 connector
N/A
11
USB connectors
Black
12
Video connector
Blue
13
VHDCI SCSI connector (port 1)**
N/A
* x8 PCI Express cards are supported on the SCSI models and will run at x4 speeds. SAS models do not support PCI
Express cards.
**This feature applies only to SCSI models.
3.
Connect the power cord to the rear of the server.
Setup 35
4.
If you chose not to install the cable management arm, install the power cord anchor to the server.
NOTE: Peripheral device cables are removed for clarity.
NOTE: If using the power cord anchor, be sure to leave enough slack in the power cord so that the
redundant power supply can be removed without disconnecting the power cord from the primary power
supply.
5.
Secure cables to the cable management arm.
IMPORTANT: When using cable management arm components, be sure to leave enough slack in each of
the cables to prevent damage to the cables when the server is extended from the rack.
6.
Connect the power cord to the AC power source.
WARNING: To reduce the risk of electric shock or damage to the equipment:
Setup 36
•
Do not disable the power cord grounding plug. The grounding plug is an important
safety feature.
Plug the power cord into a grounded (earthed) electrical outlet that is easily
accessible at all times.
Unplug the power cord from the power supply to disconnect power to the equipment.
Do not route the power cord where it can be walked on or pinched by items placed
against it. Pay particular attention to the plug, electrical outlet, and the point where
the cord extends from the server.
•
•
•
Installing the operating system
To operate properly, the server must have a supported operating system. For the latest information on
supported operating systems, refer to the HP website (http://www.hp.com/go/supportos).
Two methods are available to install an operating system on the server:
•
SmartStart assisted installation—Insert the SmartStart CD into the CD-ROM drive and reboot the
server.
•
Manual installation—Insert the operating system CD into the CD-ROM drive and reboot the server.
This process may require you to obtain additional drivers from the HP website
(http://www.hp.com/support).
Follow the on-screen instructions to begin the installation process.
For information on using these installation paths, refer to the SmartStart installation poster in the HP
ProLiant Essentials Foundation Pack, included with the server.
Powering up and configuring the server
To power up the server, press the Power On/Standby button.
While the server boots, RBSU and the ORCA utility are automatically configured to prepare the server for
operating system installation.
To configure these utilities manually:
•
Press the F8 key when prompted during the array controller initialization to configure the array
controller using ORCA.
•
Press the F9 key when prompted during the boot process to change the server settings using RBSU.
The system is set up by default for the English language.
For more information on the automatic configuration, refer to the HP ROM-Based Setup Utility User Guide
located on the Documentation CD.
Registering the server
To register the server, refer to the HP Registration website (http://register.hp.com).
Setup 37
Hardware options installation
In this section
Introduction ........................................................................................................................................... 38
Processor option..................................................................................................................................... 38
Memory options ..................................................................................................................................... 41
Hot-plug SCSI hard drive options ............................................................................................................. 43
Hot-plug SAS hard drive options .............................................................................................................. 46
Installing a diskette drive ......................................................................................................................... 48
Hot-plug tape drive option....................................................................................................................... 49
Redundant hot-plug fans.......................................................................................................................... 50
Battery-backed write cache option............................................................................................................ 54
Redundant hot-plug AC power supply option ............................................................................................. 55
PCI riser cage options............................................................................................................................. 56
Expansion board options ........................................................................................................................ 58
Introduction
If more than one option is being installed, read the installation instructions for all the hardware options
and identify similar steps to streamline the installation process.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and
the internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, properly ground the server before beginning any
installation procedure. Improper grounding can cause electrostatic discharge.
Processor option
The server supports single- and dual-processor operation. With two processors installed, the server
supports boot functions through the processor installed in processor socket 1. However, if processor 1
fails, the system will attempt to boot from processor 2 and provide a processor failure message.
The server uses PPMs to provide power to each processor. The corresponding PPM must be installed for
each processor or the system cannot boot.
CAUTION: To prevent thermal instability and damage to the server, do not separate the processor from the
heatsink. The processor, heatsink, and retaining clip make up a single assembly.
CAUTION: To prevent possible server malfunction and damage to the equipment, do not mix single- and
dual-core processors or processors with different speeds or cache sizes.
IMPORTANT: If upgrading processor speed, update the system ROM before installing the processor.
IMPORTANT: Processor socket 1 and PPM slot 1 must be populated at all times or the server does not
function properly.
Hardware options installation
38
IMPORTANT: Always install a PPM when you install a processor. The system fails to boot if the
corresponding PPM is missing.
To install a processor:
1.
Power down the server (on page 27).
2.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the processor air baffle, if applicable.
5.
If an optional redundant fan is located next to the processor, remove the fan.
6.
Open the processor retaining bracket.
7.
Release the processor locking lever.
CAUTION: Failure to completely open the processor locking lever prevents the processor from seating
during installation, leading to hardware damage.
8.
Install the processor.
Hardware options installation
39
CAUTION: To prevent possible server malfunction or damage to the equipment, be sure to completely close
the processor locking lever.
9.
Close the processor retaining bracket.
10. Open the latches on the corresponding PPM slot.
Hardware options installation
40
11. Install the PPM.
NOTE: The appearance of compatible PPMs may vary.
NOTE: The PPM is keyed and the key must be aligned when installed.
12. Install the fan ("Installing redundant hot-plug fans" on page 52).
13. Install the access panel ("Installing the access panel" on page 29).
Memory options
You can expand server memory by installing PC2-3200 Registered DDR-2 SDRAM DIMMs. The server
supports up to six DIMMs.
PC2-3200 DIMMs can either be single-rank or dual-rank. While it is not normally important for you to
differentiate between these two types of DIMMs, certain DIMM configuration requirements are based on
these classifications. Certain configuration requirements exist with single-rank and dual-rank DIMMs that
allow the architecture to optimize performance. A dual-rank DIMM is similar to having two separate
DIMMs on the same module. Although only a single DIMM module, a dual-rank DIMM acts as if it were
two separate DIMMs. The primary reason for the existence of dual-rank DIMMs is to provide the largest
capacity DIMM given the current DIMM technology. If the maximum DIMM technology allows for creating
2-GB single-rank DIMMs, a dual-rank DIMM using the same technology would be 4-GB. Understanding
the existence of single-rank and dual-rank DIMMs is all that is necessary for understanding the memory
population guidelines of this server.
NOTE: The Advanced Memory Protection option in RBSU provides additional memory protection beyond
Advanced ECC. By default, the server is set to Advanced ECC Support. Refer to "ROM-Based Setup
Utility ("HP ROM-Based Setup Utility" on page 80)," on the Documentation CD, for more information.
The server supports two types of memory configurations with single-rank memory DIMMs:
•
Standard memory configuration for maximum performance with up to 12 GB of active memory (six
2-GB single rank memory modules)
•
Online spare memory configuration for maximum availability with up to 8 GB of active memory and
4 GB of online spare memory
Hardware options installation
41
The server only supports Advanced ECC with dual-rank DIMMs installed. Online Spare is not supported
by dual-rank DIMMs. Early DL380G4 ROMs do not support dual-rank DIMMs. Be sure you upgrade your
ROM before installing dual-rank DIMMs.
•
Standard memory configuration for maximum performance with up to 8 GB of active memory (four
2-GB dual-rank memory DIMMs)
For more information on single-rank and dual-rank DIMM configurations, see "DIMM Configuration
Requirements (on page 42)."
DIMM configuration requirements
The following configuration requirements apply to single-rank and dual-rank DIMMs:
•
Install only PC2-3200 Registered DDR-2 SDRAM DIMMs, 1.8 volts, 72 bits wide, and ECC.
•
DIMMs must be installed in pairs.
•
DIMM pairs in a memory bank must have the same HP part numbers.
•
Always populate the DIMMs in sequential order per bank: Bank A, Bank B, and then Bank C.
•
Dual-rank DIMMs must be populated before single-rank DIMMs (see table below).
•
If dual-rank DIMMs are installed in Bank A and Bank B, no additional DIMMs may be installed in
Bank C (see table below).
•
The following table lists all seven (7) valid combinations of single-rank and dual-rank DIMM
configurations. "Single" indicates a bank of single-rank DIMMs. "Dual" indicates a bank of dual-rank
DIMMs. An invalid configuration will result in all DIMM failure LEDs lit and the system will hang. If
dual-rank DIMMs are installed, online spare memory is not supported. Note that a bank contains 2
DIMMs.
Configuration
Bank A
Bank B
1
Single
Single
2
Single
3
Single
4
Dual
5
Dual
Single
6
Dual
Single
7
Dual
Dual
Single
Bank C
Notes
Single
Online Spare not supported
Online Spare not supported
Single
Online Spare not supported
Online Spare not supported
•
The memory configurations, including Advanced ECC or Online Spare, can be configured in RBSU.
RBSU displays a warning message if the selected AMP mode is not supported by the current
configuration. However, if the DIMM configuration at POST does not meet the requirements for the
AMP mode selected in RBSU, the server defaults to Advanced ECC. The system indicates this by
displaying a message during POST.
•
If your server contains more than 4 GB of memory, consult your operating system documentation
about accessing the full amount of installed memory.
Online spare memory configuration
In the online spare configuration, the ROM automatically configures the last populated bank as the spare
memory. If only banks A and B are populated, bank B is the spare bank. If banks A, B, and C are
populated, bank C is the spare bank. If DIMMs in a non-spare bank exceed the limit for the single-bit
Hardware options installation
42
correctable errors threshold as defined by the Pre-Failure Warranty, the system copies the memory
contents of the failing bank to the spare bank. The system then deactivates the failing bank and
automatically switches over to the spare bank.
For online spare memory support, you must observe the following guidelines:
•
Dual-rank DIMMs can not be installed in any DIMM socket with online spare memory enabled.
•
The ROM must be up to date.
•
DIMMs installed in a spare bank must be of equal or greater capacity than the DIMMs installed in
other banks.
For example, if bank A is populated with two 256-MB DIMMs and bank B is populated with two
512-MB DIMMs, bank C must be populated with two 512-MB or greater DIMMs in order for online
spare memory support to function properly.
After installing DIMMs, use RBSU to configure the system for online spare memory support ("Configuring
online spare memory" on page 81).
Installing DIMMs
1.
Power down the server (on page 27).
2.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Open the DIMM slot latches.
5.
Install the DIMM.
6.
Install the access panel ("Installing the access panel" on page 29).
7.
If you are installing DIMMs in an online spare configuration, use RBSU to configure this feature
("Configuring online spare memory" on page 81).
Hot-plug SCSI hard drive options
When adding SCSI hard drives to the server, observe the following general guidelines:
•
A maximum of 14 SCSI devices per channel can be added.
•
Each SCSI drive must have a unique ID. The system automatically sets all SCSI IDs.
Hardware options installation
43
•
The SCSI ID for each hot-plug hard drive is set automatically to the next sequential ID number in a
series beginning with ID0.
•
If only one SCSI hard drive is used, install it in the bay with the lowest number.
•
Hot-plug hard drives must be either Wide Ultra2, Ultra3, or Ultra320 SCSI types. Mixing these types
with other drive standards degrades the overall performance of the drive subsystem.
•
Drives must be the same capacity to provide the greatest storage space efficiency when drives are
grouped together into the same drive array.
SCSI IDs
The server supports single- or dual-channel hard drive configurations. The single-channel configuration
(simplex) supports up to six hard drives on one channel. The dual-channel configuration (duplex) supports
two hard drives on one channel (SCSI IDs 0 and 1) and up to four hard drives on the other channel (SCSI
IDs 2 through 5).
The SCSI IDs for both simplex and duplex configurations are illustrated. Always populate hard drive bays
starting with the lowest SCSI ID.
Removing a SCSI hard drive blank
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
Hardware options installation
44
NOTE: The server ships standard with five hard drive blanks.
Installing a hot-plug SCSI hard drive
1.
Remove the existing hard drive blank or hard drive from the drive bay ("Removing a hot-plug SCSI
hard drive" on page 45).
2.
Install the hard drive.
3.
Determine the status of the hard drive from the hot-plug hard drive LEDs ("Hot-plug SCSI hard drive
LEDs" on page 18).
4.
Resume normal server operations.
Removing a hot-plug SCSI hard drive
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
1.
Determine the status of the hard drive from the hot-plug hard drive LEDs ("Hot-plug SCSI hard drive
LEDs" on page 18).
Hardware options installation
45
2.
Back up all server data on the hard drive.
3.
Remove the hard drive.
Hot-plug SAS hard drive options
When adding hard drives to the server, observe the following general guidelines:
•
The system automatically sets all device numbers.
•
If only one hard drive is used, install it in the bay with the lowest device number.
•
Hard drives must be SFF types.
•
Drives should be the same capacity to provide the greatest storage space efficiency when drives are
grouped together into the same drive array.
SAS drive numbers
Hardware options installation
46
Installing a hot-plug SAS hard drive
1.
Remove the SAS hard drive blank.
2.
Prepare the SAS hard drive.
Hardware options installation
47
3.
Install the hard drive.
4.
Determine the status of the hard drive from the hot-plug SAS hard drive LED combinations (on page
20).
Removing a hot-plug SAS hard drive
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
1.
Determine the status of the hard drive from the hot-plug SAS hard drive LED combinations (on page
20).
2.
Back up all server data on the hard drive.
3.
Remove the hard drive.
Installing a diskette drive
NOTE: This procedure shows images of the SCSI model server, but it also applies to the SAS model server.
Hardware options installation
48
1.
Power down the server (on page 27).
2.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the protective cover on the server bezel from the front of the diskette drive bay.
5.
Slide the diskette drive into the diskette drive bay.
6.
Tighten the thumbscrew.
7.
Secure the diskette drive cable to the diskette drive cable connector on the SCSI backplane or the
SAS backplane.
Hot-plug tape drive option
NOTE: This feature applies only to SCSI models.
1.
Remove the existing hard drive blank or hard drive from the upper-left drive bay ("Removing a hotplug SCSI hard drive" on page 45).
Hardware options installation
49
2.
Reach underneath and squeeze the middle of the tape drive blank (1).
3.
Pull the blank out of the bay (2).
4.
Install the tape drive.
Redundant hot-plug fans
NOTE: This procedure shows images of the SCSI model server, but it also applies to the SAS model server.
In the standard configuration, five fans cool the server: fans 2, 4, 5, 6, and 7.
For the redundant configuration, fans 1, 3, and 8 are added to cool the server. This allows the server to
continue operation in non-redundant mode if any one fan fails.
The server supports variable fan speeds to allow the speed of all fans to increase if the temperature in any
area increases. The fans will run at minimum speed until a temperature change requires a fan speed
increase to cool the server.
The server shuts down in the following scenarios:
•
At POST:
Hardware options installation
50
•
The BIOS suspends the server for 5 minutes if it detects a cautionary temperature level. If the
cautionary temperature level is still detected after 5 minutes, the BIOS performs an orderly
shutdown and then restarts. This process repeats until the cautionary temperature level is no
longer detected.
•
The BIOS performs an orderly shutdown if the following minimum requirements are not met: a
minimum of five fans in the standard configuration or seven fans in the redundant configuration.
•
The server performs an immediate shutdown if it detects a critical temperature level.
IMPORTANT: An immediate shutdown is a hardware-controlled function and it overrides any firmware or
software actions.
•
In the operating system:
•
With the Health Driver loaded and Thermal Shutdown enabled in RBSU, the Health Driver
performs an orderly shutdown if it detects a cautionary temperature level. If the server detects a
critical temperature level before the orderly shutdown occurs, the server performs an immediate
shutdown. Additionally, the Health Driver performs an orderly shutdown if the following minimum
requirements are not met: a minimum of five fans in the standard configuration or seven fans in
the redundant configuration.
•
With the Health Driver loaded and Thermal Shutdown disabled in RBSU, the server performs an
immediate shutdown if it detects a critical temperature level.
•
Without the Health Driver loaded, the server performs an immediate shutdown if it detects a
critical temperature level.
IMPORTANT: An immediate shutdown is a hardware-controlled function and it overrides any firmware or
software actions.
Installation requirements
WARNING: To reduce the risk of electric shock, personal injury, and damage to the
equipment:
• Do not attempt to service any parts of the equipment other than those specified in the
following procedure. Any other activities may require that you shut down the server
and remove the power cord.
• Installation and maintenance of this product must be performed by individuals who
are knowledgeable about the procedures, precautions and hazards associated with
the product.
You must observe the following requirements when installing redundant hot-plug fans:
•
To ensure optimum cooling, populate the primary fan locations, 2, 4, 5, 6, and 7, before populating
the redundant locations.
•
If a primary fan fails, replace the nonfunctioning fan before installing fans in redundant locations.
Hardware options installation
51
Identifying hot-plug fans
Item
Description
Configuration
1
Fan 1
Redundant
2
Fan 2
Primary
3
Fan 3
Redundant
4
Fan 4
Primary
5
Fan 5
Primary
6
Fan 6
Primary
7
Fan 7
Primary
8
Fan 8
Redundant
Installing redundant hot-plug fans
1.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
2.
Remove the access panel ("Removing the access panel" on page 29).
WARNING: The potential for personal injury exists if a hot surface is contacted. Use
caution while performing hot-plug procedures.
Hardware options installation
52
3.
Install the fan.
4.
Be sure that the fan LED is green ("Hot-plug fan LED" on page 24).
5.
Install the access panel ("Installing the access panel" on page 29).
6.
Be sure that the front panel internal health LED is green ("Front panel LEDs and buttons" on page 9).
Front fan bracket
To remove the component:
1.
Power down the server (on page 27).
2.
Extend or remove the server from the rack ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the front fan bracket.
5.
Remove all hot-plug fans from the front fan bracket.
To replace the front fan bracket, reverse the removal steps and press down on the top of each fan to be
sure it is seated properly.
Hardware options installation
53
Battery-backed write cache option
NOTE: This feature applies only to SCSI models.
Along with the cache module, the battery pack provides transportable data protection, increases overall
controller performance, and maintains any cached data for up to 72 hours. The NiMH batteries in the
battery pack are continuously recharged through a trickle-charging process whenever the system power is
on.
For information on BBWC LEDs, refer to "Battery-backed write cache LEDs (on page 25)" and "Batterybacked write cache LED statuses (on page 26)."
CAUTION: To prevent a server malfunction or damage to the equipment, do not add or remove the battery
pack while an array capacity expansion, RAID level migration, or stripe size migration is in progress.
CAUTION: After the server is powered down, wait 15 seconds and then check the amber LED before
unplugging the cable from the cache module. If the amber LED blinks after 15 seconds, do not remove the
cable from the cache module. The cache module is backing up data, and data is lost if the cable is
detached.
IMPORTANT: The battery pack might have a low charge when installed. In this case, a POST error
message is displayed when the server is powered up, indicating that the battery pack is temporarily
disabled. No action is necessary on your part. The internal circuitry automatically recharges the batteries
and enables the battery pack. This process might take up to four hours. During this time, the cache module
functions properly, but without the performance advantage of the battery pack.
NOTE: The data protection and the time limit also apply if a power outage occurs. When power is restored
to the system, an initialization process writes the preserved data to the hard drives.
To install the BBWC:
1.
Power down the server (on page 27).
2.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the front fan bracket ("Front fan bracket" on page 53).
5.
Remove the PCI riser cage ("Removing the PCI riser cage" on page 57).
6.
Connect the cable to the cache module and install the cache module.
Hardware options installation
54
7.
Route the cable along the system board.
8.
Install the battery pack assembly into the server.
9.
Install the PCI riser cage ("Installing the PCI riser cage" on page 56).
10. Install the front fan bracket ("Front fan bracket" on page 53).
11. Install the access panel ("Installing the access panel" on page 29).
12. Power up the server (on page 27).
Refer to the option documentation for more information.
Redundant hot-plug AC power supply option
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
1.
Access the product rear panel (on page 30).
2.
Remove the power supply blank.
Hardware options installation
55
WARNING: To reduce the risk of personal injury from hot surfaces, allow the power
supply or power supply blank to cool before touching it.
3.
Slide the power supply into the power supply bay.
4.
Connect the power cord to the power supply.
5.
Route the power cord through the cable management arm or power cord anchor.
NOTE: If using the power cord anchor, be sure to leave enough slack in the power cord so that the
redundant power supply can be removed without disconnecting the power cord from the primary power
supply.
6.
Reposition the cable management arm into the operating position.
7.
Connect the power cord to the power source.
8.
Be sure that the power supply LED is green ("Rear panel LEDs and buttons" on page 11).
9.
Be sure that the front panel external health LED is green ("Front panel LEDs and buttons" on page 9).
PCI riser cage options
Installing the PCI riser cage
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the PCI riser cage.
Hardware options installation
56
1.
Align the PCI riser cage with the chassis and slide it into place.
2.
Tighten the thumbscrews to secure the PCI riser cage:
a. Lift the thumbscrew knobs (1).
b. Turn the thumbscrews clockwise while pressing down, until tightened (2).
c. Turn the thumbscrews counterclockwise to lower thumbscrew knobs (3).
Removing the PCI riser cage
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the PCI riser cage.
1.
Power down the server (on page 27).
2.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Disconnect any internal or external cables connected to any existing expansion boards.
5.
Lift the PCI riser cage thumbscrews and turn them counter-clockwise.
Hardware options installation
57
6.
Remove the PCI riser cage.
Expansion board options
NOTE: This procedure shows images of the SCSI model server, but it also applies to the SAS model server.
The server supports PCI, PCI-X, and PCI Express expansion boards. PCI hot-plug capability is available on
some expansion slots.
NOTE: PCI Express applies only to SCSI models.
For instructions on installing a RILOE II board, refer to the HP Remote Insight Lights-Out Edition II User
Guide on the Documentation CD.
IMPORTANT: It is recommended that the optional RILOE II board be installed in slot 1. If you plan to install
a RILOE II board in the future, leave slot 1 unpopulated.
Removing expansion slot cover 1
1.
Power down the server (on page 27).
2.
Extend or remove the server from the rack ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the PCI riser cage ("Removing the PCI riser cage" on page 57).
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the PCI riser cage.
Hardware options installation
58
5.
Remove the expansion slot cover.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all PCI slots
have either an expansion slot cover or an expansion board installed.
To replace the component, reverse the removal procedure.
Removing expansion slot covers 2 and 3
1.
Extend or remove the server from the rack ("Extend the server from the rack" on page 28).
2.
Remove the access panel ("Removing the access panel" on page 29).
3.
Open the PCI riser cage door.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all PCI slots
have either an expansion slot cover or an expansion board installed.
Hardware options installation
59
4.
Remove the expansion slot cover.
To replace the component, reverse the removal procedure.
Installing a non-hot-plug expansion board
1.
Power down the server (on page 27).
2.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the PCI riser cage ("Removing the PCI riser cage" on page 57).
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the PCI riser cage.
5.
Remove the expansion slot cover for expansion slot 1 ("Removing expansion slot cover 1" on page
58).
6.
Unlock the PCI retaining clip.
Hardware options installation
60
7.
Install the expansion board.
8.
Lock the PCI retaining clip.
9.
Install the PCI riser cage ("Installing the PCI riser cage" on page 56).
10. Connect any required internal or external cables to the expansion board. Refer to the documentation
that ships with the expansion board.
11. Close the PCI riser cage door.
12. Install the access panel ("Installing the access panel" on page 29).
Installing PCI hot plug expansion boards
The server supports PCI Hot Plug technology, which works together with the server operating system to
allow replacement, addition, and upgrade of expansion boards without powering down the server.
The server must have all the following to be PCI Hot Plug-capable:
•
PCI Hot Plug system hardware (available in this server)
•
PCI Hot Plug device drivers installed from the SmartStart CD
•
Operating system with PCI Hot Plug support
For more information, refer to the PCI Hot Plug Administration Guide on the Documentation CD.
To install a hot-plug expansion board:
1.
Extend the server from the rack, if applicable ("Extend the server from the rack" on page 28).
2.
Remove the access panel ("Removing the access panel" on page 29).
Hardware options installation
61
3.
Open the PCI riser cage door.
4.
Press the PCI Hot Plug button to remove power from the slot. When the green power LED on the slot
stops flashing, power has been removed from the slot.
5.
Remove the expansion slot cover from the slot, if installed ("Removing expansion slot covers 2 and
3" on page 59).
6.
Unlock the PCI retaining clip.
Hardware options installation
62
7.
Install the expansion board.
8.
Lock the PCI retaining clip.
9.
Connect any required internal or external cables to the expansion board. Refer to the documentation
that ships with the expansion board.
10. Close the slot release lever.
11. Press the PCI Hot Plug button and wait for the power LED to illuminate green without flashing.
12. Close the PCI riser cage door.
13. Install the access panel ("Installing the access panel" on page 29).
Hardware options installation
63
Cabling
In this section
Cabling................................................................................................................................................. 64
SAS model cabling................................................................................................................................. 64
SCSI model cabling ................................................................................................................................ 68
Cabling
This section provides guidelines that help you make informed decisions about cabling the server and
hardware options to optimize performance.
For information on cabling the optional RILOE II board, refer to the HP Remote Insight Lights-Out Edition II
User Guide on the Documentation CD.
For information on cabling peripheral components, refer to the white paper on high-density deployment in
HP or Compaq branded racks on the HP website (http://www.hp.com).
SAS model cabling
SAS hard drive cabling
The HP ProLiant DL380 Generation 4 Server SAS model uses a serial attached SCSI bus to connect SAS
hard drives on a SAS backplane to a PCI SAS controller. In a SAS environment, each hard drive has a
direct connection to the SAS controller. Two cables connect the PCI SAS controller to the SAS backplane.
Each cable controls four SAS drives.
Cabling
64
USB cabling
The USB cable connects the front panel USB connector to the SAS backplane.
DVD/CD-ROM drive cabling
Item
Cable description
1
DVD/CD-ROM drive cable
2
DVD/CD-ROM drive system cable
Cabling
65
Diskette drive cabling
Item
Cable description
1
Diskette drive cable
2
Diskette drive system cable
Power button/LED cabling
The power button/LED cable connects the power button/LED board to the SAS backplane.
Cabling
66
Optional PCI Hot Plug backplane cabling
The server contains a PCI Hot Plug backplane that is part of the PCI Hot Plug option and provides hot-plug
capability for two expansion slots. A ribbon cable connects the PCI Hot Plug backplane to the riser board.
RILOE II cabling
The 30-pin Remote Insight cable ships with the RILOE II cable kit. For more information, refer to the
Remote Insight Lights-Out Edition II User Guide on the Documentation CD.
Cabling
67
Internal power cabling
Item
Description
1
System power cable
2
Power supply signal cable
3
SAS power cable
SCSI model cabling
IMPORTANT: If a simplex or duplex cabling configuration is not cabled correctly, the SCSI configuration
error LED will illuminate. Refer to "SCSI Backplane LEDs (on page 18)" to locate the LED.
NOTE: The server ships with two identical short SCSI cables. Two optional long SCSI cables may be
obtained for PCI Array Controllers. One optional terminator board may be obtained to support duplex SCSI
configurations.
Cabling
68
Embedded simplex SCSI cabling
In the embedded simplex cabling configuration, the embedded Smart Array 6i Controller controls up to
six hard drives through one SCSI bus. The server ships standard with this configuration.
NOTE: The short SCSI cables are identical.
Item
Component description
SCSI IDs managed
1
Short SCSI cable
0, 1, 2, 3, 4, 5
2
Short SCSI cable used to
jumper the two SCSI buses
together
N/A
Embedded duplex SCSI cabling
In the embedded duplex cabling configuration, the embedded Smart Array 6i Controller controls up to six
hard drives through two SCSI buses: one bus with up to two drives and the other bus with up to four
drives.
Cabling
69
NOTE: This specific cabling configuration does not support external VHDCI.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
NOTE: The short SCSI cables are identical.
Item
Component description
SCSI IDs managed
1
Short SCSI cable
0, 1
2
Short SCSI cable
2, 3, 4, 5
3
Optional terminator board
N/A
Refer to "Installing the SCSI terminator board (on page 73)" for SCSI terminator board installation
procedures.
PCI simplex SCSI cabling
In the PCI simplex cabling configuration, an optional PCI array controller controls up to six hard drives
through one SCSI bus.
Cabling
70
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item
Component description
SCSI IDs managed
1
Optional long SCSI cable
0, 1, 2, 3, 4, 5
2
Short SCSI cable used to
jumper the two SCSI buses
together
N/A
PCI duplex SCSI cabling
In the PCI duplex cabling configuration, an optional PCI array controller controls up to six hard drives
through two SCSI buses: one bus with up to two drives and one bus with up to four drives.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item
Component description
SCSI IDs managed
1
Optional long SCSI cable
0, 1
2
Optional long SCSI cable
2, 3, 4, 5
3
Optional terminator board
N/A
Refer to "Installing the SCSI terminator board (on page 73)" for SCSI terminator board installation
procedures.
Mixed duplex SCSI cabling
In the mixed duplex SCSI cabling configuration, an optional PCI array controller controls up to six hard
drives through two SCSI buses: one bus with up to two drives and one bus with up to four drives. Two
configuration options are available for mixed duplex SCSI cabling.
Cabling
71
NOTE: This specific cabling configuration does not support external VHDCI.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item
Component description
SCSI IDs managed
1
Optional long SCSI cable
0, 1
2
Short SCSI cable
2, 3, 4, 5
3
Optional terminator board
N/A
NOTE: This specific cabling configuration supports external VHDCI.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item
Component description
SCSI IDs managed
1
Short SCSI cable
0, 1
2
Optional long SCSI cable
2, 3, 4, 5
Cabling
72
Item
Component description
SCSI IDs managed
3
Optional terminator board
N/A
Refer to "Installing the SCSI Terminator Board (on page 73)" for SCSI terminator board installation
procedures.
Installing the SCSI terminator board
1.
Power down the server (on page 27).
2.
Extend or remove the server from the rack ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the front fan bracket ("Front fan bracket" on page 53).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the front fan bracket.
When reinstalling the front fan bracket, press the top of each fan to be sure it seats securely.
NOTE: For more information on preparing the server for installation or removal procedures, refer to the
Documentation CD.
5.
Install the SCSI terminator board.
Removing the SCSI terminator board
1.
Power down the server (on page 27).
2.
Extend or remove the server from the rack ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the front fan bracket ("Front fan bracket" on page 53).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the front fan bracket.
When reinstalling the front fan bracket, press the top of each fan to be sure it seats securely.
NOTE: For more information on preparing the server for installation or removal procedures, refer to the
Documentation CD.
Cabling
73
5.
Remove the SCSI terminator board.
USB cabling
The USB cable connects the front panel USB connector to the SCSI backplane.
Cabling
74
DVD/CD-ROM drive cabling
Item
Cable description
1
DVD/CD-ROM drive cable
2
DVD/CD-ROM drive system cable
Diskette drive cabling
Item
Cable description
1
Diskette drive cable
2
Diskette drive system cable
Cabling
75
Power button/LED cabling
The power button/LED cable connects the power button/LED board to the SCSI backplane.
Optional PCI Hot Plug backplane cabling
The server contains a PCI Hot Plug backplane that is part of the PCI Hot Plug option and provides hot-plug
capability for two expansion slots. A ribbon cable connects the PCI Hot Plug backplane to the riser board.
Cabling
76
RILOE II cabling
The 30-pin Remote Insight cable ships with the RILOE II cable kit. For more information, refer to the
Remote Insight Lights-Out Edition II User Guide on the Documentation CD.
Internal power cabling
Item
Description
1
System power cable
2
Power supply signal cable
3
SCSI power cable
Cabling
77
External storage cabling
The external VHDCI SCSI connector (port 1) can only be used in the following SCSI configurations:
•
Embedded simplex
•
PCI simplex
•
PCI duplex
•
Mixed duplex (one of two configuration options)
For more information, refer to "Mixed duplex SCSI cabling ("PCI duplex SCSI cabling" on page
71)".
After cabling external storage options, use the following software utilities:
•
RBSU, to configure new hardware in the system
For more information, refer to "HP ROM-Based Setup Utility (on page 80)" or the ROM-Based Setup
Utility User Guide on the Documentation CD.
•
ORCA, to configure and manage drive arrays
For more information, refer to the Smart Array 6i Controller User Guide on the Documentation CD.
For more information on external cabling, refer to the HP website
(http://www.hp.com/products/servers/platforms).
Cabling
78
Software and configuration utilities
In this section
Configuration tools ................................................................................................................................. 79
Management tools.................................................................................................................................. 83
Diagnostic tools ..................................................................................................................................... 86
Keeping the system current ...................................................................................................................... 87
Configuration tools
SmartStart software
SmartStart is a collection of software that optimizes single-server setup, providing a simple and consistent
way to deploy server configuration. SmartStart has been tested on many ProLiant server products,
resulting in proven, reliable configurations.
SmartStart assists the deployment process by performing a wide range of configuration activities,
including:
•
Configuring hardware using embedded configuration utilities, such as RBSU and ORCA
•
Preparing the system for installing "off-the-shelf" versions of leading operating system software
•
Installing optimized server drivers, management agents, and utilities automatically with every
assisted installation
•
Testing server hardware using the Insight Diagnostics Utility ("HP Insight Diagnostics" on page 87)
•
Installing software drivers directly from the CD. With systems that have internet connection, the
SmartStart Autorun Menu provides access to a complete list of ProLiant system software.
•
Enabling access to the Array Configuration Utility (on page 81), Array Diagnostic Utility (on page
87), and Erase Utility
SmartStart is included in the HP ProLiant Essentials Foundation Pack. For more information about
SmartStart software, refer to the HP ProLiant Essentials Foundation Pack or the HP website
(http://www.hp.com/servers/smartstart).
SmartStart Scripting Toolkit
The SmartStart Scripting Toolkit is a server deployment product that delivers an unattended automated
installation for high-volume server deployments. The SmartStart Scripting Toolkit is designed to support
ProLiant BL, ML, and DL servers. The toolkit includes a modular set of utilities and important documentation
that describes how to apply these new tools to build an automated server deployment process.
Using SmartStart technology, the Scripting Toolkit provides a flexible way to create standard server
configuration scripts. These scripts are used to automate many of the manual steps in the server
configuration process. This automated server configuration process cuts time from each server deployed,
making it possible to scale server deployments to high volumes in a rapid manner.
For more information, and to download the SmartStart Scripting Toolkit, refer to the HP website
(http://www.hp.com/servers/sstoolkit).
Software and configuration utilities 79
Configuration Replication Utility
ConRep is shipped in the SmartStart Scripting Toolkit and is a program that works with RBSU to replicate
hardware configuration on ProLiant servers. This utility is run during State 0, Run Hardware Configuration
Utility, when doing a scripted server deployment. ConRep reads the state of the system environment
variables to determine the configuration and then writes the results to an editable script file. This file can
then be deployed across multiple servers with similar hardware and software components. For more
information, refer to the SmartStart Scripting Toolkit User Guide on the HP website
(http://h18004.www1.hp.com/products/servers/management/toolkit/documentation.html).
HP ROM-Based Setup Utility
RBSU, an embedded configuration utility, performs a wide range of configuration activities that may
include:
•
Configuring system devices and installed options
•
Displaying system information
•
Selecting the primary boot controller
•
Configuring memory options
•
Language selection
For more information on RBSU, refer to the HP ROM-Based Setup Utility User Guide on the Documentation
CD or the HP website (http://www.hp.com/servers/smartstart).
Using RBSU
The first time you power up the server, the system prompts you to enter RBSU and select a language.
Default configuration settings are made at this time and can be changed later. Most of the features in
RBSU are not required to set up the server.
To navigate RBSU, use the following keys:
•
To access RBSU, press the F9 key during power up when prompted in the upper right corner of the
screen.
•
To navigate the menu system, use the arrow keys.
•
To make selections, press the Enter key.
IMPORTANT: RBSU automatically saves settings when you press the Enter key. The utility does not prompt
you for confirmation of settings before you exit the utility. To change a selected setting, you must select a
different setting and press the Enter key.
Auto-configuration process
The auto-configuration process automatically runs when you boot the server for the first time. During the
power-up sequence, the system ROM automatically configures the entire system without needing any
intervention. During this process, the ORCA utility, in most cases, automatically configures the array to a
default setting based on the number of drives connected to the server.
NOTE: The server may not support all the following examples.
NOTE: If the boot drive is not empty or has been written to in the past, ORCA does not automatically
configure the array. You must run ORCA to configure the array settings.
Drives installed
Drives used
RAID level
1
1
RAID 0
2
2
RAID 1
Software and configuration utilities 80
Drives installed
Drives used
RAID level
3, 4, 5, or 6
3, 4, 5, or 6
RAID 5
More than 6
0
None
To change any ORCA default settings and override the auto-configuration process, press the F8 key when
prompted.
By default, the auto-configuration process configures the system for the English language. To change any
default settings in the auto-configuration process (such as the settings for language, operating system, and
primary boot controller), execute RBSU by pressing the F9 key when prompted. After the settings are
selected, exit RBSU and allow the server to reboot automatically.
For more information, refer to the HP ROM-Based Setup Utility User Guide on the Documentation CD or
the HP website (http://www.hp.com/servers/smartstart).
Boot options
After the auto-configuration process completes, or after the server reboots upon exit from RBSU, the POST
sequence runs, and then the boot option screen is displayed. This screen is visible for several seconds
before the system attempts to boot from a diskette, CD, or hard drive. During this time, the menu on the
screen allows you to install an operating system or make changes to the server configuration in RBSU.
BIOS Serial Console
BIOS Serial Console allows you to configure the serial port to view POST error messages and run RBSU
remotely through a serial connection to the server COM port. The server that you are remotely configuring
does not require a keyboard and mouse.
For more information about BIOS Serial Console, refer to the BIOS Serial Console User Guide on the
Documentation CD or the HP website (http://www.hp.com/servers/smartstart).
Configuring online spare memory
To configure online spare memory:
1.
Install the required DIMMs.
2.
Access RBSU by pressing the F9 key during power-up when the prompt is displayed in the upper
right corner of the screen.
3.
Select System Options.
4.
Select Advanced Memory Protection.
5.
Select Online Spare with Advanced ECC Support.
6.
Press the Enter key.
7.
Press the Esc key to exit the current menu, or press the F10 key to exit RBSU.
For more information on online spare memory, refer to the white paper on the HP website
(http://h18000.www1.hp.com/products/servers/technology/memoryprotection.html).
Array Configuration Utility
ACU is a browser-based utility with the following features:
•
Runs as a local application or remote service
•
Supports online array capacity expansion, logical drive extension, assignment of online spares, and
RAID or stripe size migration
•
Suggests the optimum configuration for an unconfigured system
Software and configuration utilities 81
•
Provides different operating modes, enabling faster configuration or greater control over the
configuration options
•
Remains available any time that the server is on
•
Displays on-screen tips for individual steps of a configuration procedure
For optimum performance, the minimum display settings are 800 × 600 resolution and 256 colors.
Servers running Microsoft® operating systems require Internet Explorer 5.5 (with Service Pack 1) or later.
For Linux servers, refer to the README.TXT file for additional browser and support information.
For more information, refer to the HP Array Configuration Utility User Guide on the Documentation CD or
the HP website (http://www.hp.com).
Option ROM Configuration for Arrays
Before installing an operating system, you can use the ORCA utility to create the first logical drive, assign
RAID levels, and establish online spare configurations.
The utility also provides support for the following functions:
•
Reconfiguring one or more logical drives
•
Viewing the current logical drive configuration
•
Deleting a logical drive configuration
•
Setting the controller to be the boot controller
If you do not use the utility, ORCA will default to the standard configuration.
For more information regarding array controller configuration, refer to the controller user guide.
For more information regarding the default configurations that ORCA uses, refer to the HP ROM-Based
Setup Utility User Guide on the Documentation CD.
HP ProLiant Essentials Rapid Deployment Pack
The RDP software is the preferred method for rapid, high-volume server deployments. The RDP software
integrates two powerful products: Altiris Deployment Solution and the HP ProLiant Integration Module.
The intuitive graphical user interface of the Altiris Deployment Solution console provides simplified pointand-click and drag-and-drop operations that enable you to deploy target servers, including server blades,
remotely. It enables you to perform imaging or scripting functions and maintain software images.
For more information about the RDP, refer to the HP ProLiant Essentials Rapid Deployment Pack CD or
refer to the HP website (http://www.hp.com/servers/rdp).
Re-entering the server serial number and product ID
After you replace the system board, you must re-enter the server serial number and the product ID.
1.
During the server startup sequence, press the F9 key to access RBSU.
2.
Select the System Options menu.
3.
Select Serial Number. The following warning is displayed:
WARNING! WARNING! WARNING! The serial number is loaded into the system
during the manufacturing process and should NOT be modified. This option
should only be used by qualified service personnel. This value should
always match the serial number sticker located on the chassis.
4.
Press the Enter key to clear the warning.
5.
Enter the serial number and press the Enter key.
Software and configuration utilities 82
6.
Select Product ID.
7.
Enter the product ID and press the Enter key.
8.
Press the Esc key to close the menu.
9.
Press the Esc key to exit RBSU.
10. Press the F10 key to confirm exiting RBSU. The server will automatically reboot.
Management tools
Automatic Server Recovery
ASR is a feature that causes the system to restart when a catastrophic operating system error occurs, such
as a blue screen, ABEND, or panic. A system fail-safe timer, the ASR timer, starts when the System
Management driver, also known as the Health Driver, is loaded. When the operating system is
functioning properly, the system periodically resets the timer. However, when the operating system fails,
the timer expires and restarts the server.
ASR increases server availability by restarting the server within a specified time after a system hang or
shutdown. At the same time, the HP SIM console notifies you by sending a message to a designated
pager number that ASR has restarted the system. You can disable ASR from the HP SIM console or
through RBSU.
ROMPaq utility
Flash ROM enables you to upgrade the firmware (BIOS) with system or option ROMPaq utilities. To
upgrade the BIOS, insert a ROMPaq diskette into the diskette drive and boot the system.
The ROMPaq utility checks the system and provides a choice (if more than one exists) of available ROM
revisions. This procedure is the same for both system and option ROMPaq utilities.
For more information about the ROMPaq utility, refer to the HP website
(http://www.hp.com/servers/manage).
System Online ROM flash component utility
The Online ROM Flash Component Utility enables system administrators to efficiently upgrade system or
controller ROM images across a wide range of servers and array controllers. This tool has the following
features:
•
Works offline and online
•
Supports Microsoft® Windows NT®, Windows® 2000, Windows Server™ 2003, Novell Netware,
and Linux operating systems
IMPORTANT: This utility supports operating systems that may not be supported by the server. For
operating systems supported by the server, refer to the HP website (http://www.hp.com/go/supportos).
•
Integrates with other software maintenance, deployment, and operating system tools
•
Automatically checks for hardware, firmware, and operating system dependencies, and installs only
the correct ROM upgrades required by each target server
To download the tool and for more information, refer to the HP website
(http://h18000.www1.hp.com/support/files/index.html).
Software and configuration utilities 83
RILOE technology
The RILOE subsystem is a standard component of selected ProLiant servers that provides server health and
remote server manageability. The RILOE subsystem includes an intelligent microprocessor, secure memory,
and a dedicated network interface. This design makes RILOE independent of the host server and its
operating system. The RILOE subsystem provides remote access to any authorized network client, sends
alerts, and provides other server management functions.
Using RILOE, you can:
•
Remotely power up, power down, or reboot the host server.
•
Send alerts from RILOE regardless of the state of the host server.
•
Access advanced troubleshooting features through the RILOE interface.
•
Diagnose RILOE using HP SIM through a web browser and SNMP alerting.
For more information about RILOE features, refer to the RILOE documentation on the Documentation CD or
on the HP website (http://www.hp.com/servers/lights-out).
StorageWorks library and tape tools
HP StorageWorks L&TT provides functionality for firmware downloads, verification of device operation,
maintenance procedures, failure analysis, corrective service actions, and some utility functions. It also
provides seamless integration with HP hardware support by generating and emailing support tickets that
deliver a snapshot of the storage system.
For more information, and to download the utility, refer to the StorageWorks L&TT website
(http://h18006.www1.hp.com/products/storageworks/ltt).
Management Agents
Management Agents provide the information to enable fault, performance, and configuration
management. The agents allow easy manageability of the server through HP SIM software, and thirdparty SNMP management platforms. Management Agents are installed with every SmartStart assisted
installation or can be installed through the HP PSP. The Systems Management homepage provides status
and direct access to in-depth subsystem information by accessing data reported through the Management
Agents. For additional information, refer to the Management CD in the HP ProLiant Essentials Foundation
Pack or the HP website (http://www.hp.com/servers/manage).
HP Systems Insight Manager
HP SIM is a web-based application that allows system administrators to accomplish normal administrative
tasks from any remote location, using a web browser. HP SIM provides device management capabilities
that consolidate and integrate management data from HP and third-party devices.
IMPORTANT: You must install and use HP SIM to benefit from the Pre-Failure Warranty for processors,
SCSI hard drives, and memory modules.
For additional information, refer to the Management CD in the HP ProLiant Essentials Foundation Pack or
the HP SIM website (http://www.hp.com/go/hpsim).
Redundant ROM support
The server enables you to upgrade or configure the ROM safely with redundant ROM support. The server
has a 4-MB ROM that acts as two, separate 2-MB ROMs. In the standard implementation, one side of the
ROM contains the current ROM program version, while the other side of the ROM contains a backup
version.
Software and configuration utilities 84
NOTE: The server ships with the same version programmed on each side of the ROM.
Safety and security benefits
When you flash the system ROM, ROMPaq writes over the backup ROM and saves the current ROM as a
backup, enabling you to switch easily to the alternate ROM version if the new ROM becomes corrupted
for any reason. This feature protects the existing ROM version, even if you experience a power failure
while flashing the ROM.
Access to redundant ROM settings
To access the redundant ROM through RBSU:
1.
Access RBSU by pressing the F9 key during powerup when the prompt is displayed in the upper
right corner of the screen.
2.
Select Advanced Options.
3.
Select Redundant ROM Selection.
4.
Select the ROM version.
5.
Press the Enter key.
6.
Press the Esc key to exit the current menu or press the F10 key to exit RBSU. The server restarts
automatically.
To access the redundant ROM manually:
1.
Power down the server (on page 27).
2.
Remove the access panel ("Removing the access panel" on page 29).
3.
Set positions 1, 5, and 6 of the system maintenance switch to On.
4.
Install the access panel ("Installing the access panel" on page 29).
5.
Power up the server (on page 27).
6.
Wait for the server to emit two beeps.
7.
Repeat steps 1 and 2.
8.
Set positions 1, 5, and 6 of the system maintenance switch to Off.
9.
Repeat steps 4 and 5.
When the server boots, the system identifies whether the current ROM bank is corrupt. If a corrupt ROM is
detected, the system boots from the backup ROM and alerts you through POST or IML that the ROM bank
is corrupt.
If both the current and backup versions of the ROM are corrupt, the server automatically enters ROMPaq
disaster recovery mode.
iLO ROM-Based Setup Utility
HP recommends using iLO RBSU to configure and set up iLO. iLO RBSU is designed to assist you with
setting up iLO on a network; it is not intended for continued administration.
To run iLO RBSU:
1.
Restart or power up the server.
2.
Press the F8 key when prompted during POST. The iLO RBSU runs.
3.
Enter a valid iLO user ID and password with the appropriate iLO privileges (Administer User
Accounts, Configure iLO Settings). Default account information is located on the iLO Default
Network Settings tag.
4.
Make and save any necessary changes to the iLO configuration.
Software and configuration utilities 85
5.
Exit iLO RBSU.
HP recommends using DNS/DHCP with iLO to simplify installation. If DNS/DHCP cannot be used, use the
following procedure to disable DNS/DHCP and to configure the IP address and the subnet mask:
1.
Restart or power up the server.
2.
Press the F8 key when prompted during POST. The iLO RBSU runs.
3.
Enter a valid iLO user ID and password with the appropriate iLO privileges (Administer User
Accounts, Configure iLO Settings). Default account information is located on the iLO Default
Network Settings tag.
4.
Select Network, DNS/DHCP, press the Enter key, and then select DHCP Enable. Press the
spacebar to turn off DHCP. Be sure that DHCP Enable is set to Off and save the changes.
5.
Select Network, NIC and TCP/IP, press the Enter key, and type the appropriate information in
the IP Address, Subnet Mask, and Gateway IP Address fields.
6.
Save the changes. The iLO system automatically resets to use the new setup when you exit iLO RBSU.
USB support
HP provides both standard USB support and legacy USB support. Standard support is provided by the
operating system through the appropriate USB device drivers. HP provides support for USB devices prior
to the operating system loading through legacy USB support, which is enabled by default in the system
ROM. HP hardware supports USB version 2.0.
Legacy USB support provides USB functionality in environments where USB support is normally not
available. Specifically, HP provides legacy USB functionality at:
•
POST
•
RBSU
•
Diagnostics
•
DOS
•
Environments which do not support USB natively
For more information on ProLiant USB support, refer to the HP website
(http://www.compaq.com/products/servers/platforms/usb-support.html).
Diagnostic tools
Survey Utility
Survey Utility, a feature within HP Insight Diagnostics (on page 87), gathers critical hardware and
software information on ProLiant servers.
This utility supports operating systems that may not be supported by the server. For operating systems
supported by the server, refer to the HP website (http://www.hp.com/go/supportos).
If a significant change occurs between data-gathering intervals, the Survey Utility marks the previous
information and overwrites the Survey text files to reflect the latest changes in the configuration.
Survey Utility is installed with every SmartStart-assisted installation or can be installed through the HP PSP
("ProLiant Support Packs" on page 88).
Software and configuration utilities 86
Array Diagnostic Utility
ADU is a tool that collects information about array controllers and generates a list of detected problems.
ADU can be accessed from the SmartStart CD ("SmartStart software" on page 79) or downloaded from
the HP website (http://www.hp.com).
HP Insight Diagnostics
HP Insight Diagnostics is a proactive server management tool, available in both offline and online
versions, that provides diagnostics and troubleshooting capabilities to assist IT administrators who verify
server installations, troubleshoot problems, and perform repair validation.
HP Insight Diagnostics Offline Edition performs various in-depth system and component testing while the
OS is not running. To run this utility, launch the SmartStart CD.
HP Insight Diagnostics Online Edition is a web-based application that captures system configuration and
other related data needed for effective server management. Available in Microsoft® Windows® and
Linux versions, the utility helps to ensure proper system operation.
For more information or to download the utility, refer to the HP website
(http://www.hp.com/servers/diags).
Integrated Management Log
The IML records hundreds of events and stores them in an easy-to-view form. The IML timestamps each
event with 1-minute granularity.
You can view recorded events in the IML in several ways, including the following:
•
From within HP SIM ("HP Systems Insight Manager" on page 84)
•
From within Survey Utility (on page 86)
•
From within operating system-specific IML viewers
•
For NetWare: IML Viewer
•
For Windows®: IML Viewer
•
For Linux: IML Viewer Application
•
From within the RILOE user interface
•
From within HP Insight Diagnostics (on page 87)
For more information, refer to the Management CD in the HP ProLiant Essentials Foundation Pack.
Keeping the system current
Drivers
The server includes new hardware that may not have driver support on all operating system installation
media.
If you are installing a SmartStart-supported operating system, use the SmartStart software (on page 79)
and its Assisted Path feature to install the operating system and latest driver support.
NOTE: If you are installing drivers from the SmartStart CD or the Software Maintenance CD, refer to the
SmartStart website (http://www.hp.com/servers/smartstart) to be sure that you are using the latest version
of SmartStart. For more information, refer to the documentation provided with the SmartStart CD.
Software and configuration utilities 87
If you do not use the SmartStart CD to install an operating system, drivers for some of the new hardware
are required. These drivers, as well as other option drivers, ROM images, and value-add software can be
downloaded from the HP website (http://www.hp.com/support).
IMPORTANT: Always perform a backup before installing or updating device drivers.
Resource Paqs
Resource Paqs are operating system-specific packages of tools, utilities, and information for HP servers
running certain Microsoft® or Novell operating systems. The Resource Paqs include utilities to monitor
performance, software drivers, customer support information, and white papers on the latest server
integration information. Refer to the Enterprise Partnerships website
(http://h18000.www1.hp.com/partners), select Microsoft or Novell, depending on the operating
system, and follow the link to the appropriate Resource Paq.
ProLiant Support Packs
PSPs represent operating system-specific bundles of ProLiant optimized drivers, utilities, and management
agents. Refer to the PSP website
(http://h18000.www1.hp.com/products/servers/management/psp.html).
Operating system version support
Refer to the operating system support matrix (http://www.hp.com/go/supportos).
Change control and proactive notification
HP offers Change Control and Proactive Notification to notify customers 30 to 60 days in advance of
upcoming hardware and software changes on HP commercial products.
For more information, refer to the HP website
(http://h18023.www1.hp.com/solutions/pcsolutions/pcn.html).
Natural language search assistant
The natural language search assistant (http://www.hp.com/support/natural_language_search) is a
search engine that finds information on HP products, including ProLiant servers. The search engine
responds to queries entered in question form.
Care Pack
HP Care Pack Services offer upgraded service levels to extend and expand standard product warranty
with easy-to-buy, easy-to-use support packages that help you make the most of your server investments.
Refer to the Care Pack website (http://www.hp.com/hps/carepack/servers/cp_proliant.html).
Software and configuration utilities 88
Troubleshooting
In this section
Troubleshooting resources ....................................................................................................................... 89
Server diagnostic steps ........................................................................................................................... 89
Important safety information .................................................................................................................... 90
Prepare the server for diagnosis ............................................................................................................... 91
Symptom information .............................................................................................................................. 92
Service notifications................................................................................................................................ 92
Loose connections .................................................................................................................................. 92
Diagnostic steps ..................................................................................................................................... 93
Troubleshooting resources
The HP ProLiant Servers Troubleshooting Guide provides simple procedures for resolving common
problems as well as a comprehensive course of action for fault isolation and identification, error message
interpretation, issue resolution, and software maintenance.
To obtain the guide, refer to any of the following sources and then select the HP ProLiant Servers
Troubleshooting Guide:
•
The server-specific Documentation CD
•
The Business Support Center on the HP website (http://www.hp.com/support). Navigate to the
server technical support page. Under self-help resources, select ProLiant Troubleshooting
Guide.
•
The Technical Documentation website (http://www.docs.hp.com). Select Enterprise Servers,
Workstations and Systems Hardware, and then the appropriate server.
Server diagnostic steps
This section covers the steps to take in order to diagnose a problem quickly.
To effectively troubleshoot a problem, HP recommends that you start with the first flowchart in this section,
"Start diagnosis flowchart (on page 93)," and follow the appropriate diagnostic path. If the other
flowcharts do not provide a troubleshooting solution, follow the diagnostic steps in "General diagnosis
flowchart (on page 94)." The General diagnosis flowchart is a generic troubleshooting process to be used
when the problem is not server-specific or is not easily categorized into the other flowcharts.
IMPORTANT: This guide provides information for multiple servers. Some information may not apply to the
server you are troubleshooting. Refer to the server documentation for information on procedures, hardware
options, software tools, and operating systems supported by the server.
WARNING: To avoid potential problems, ALWAYS read the warnings and cautionary
information in the server documentation before removing, replacing, reseating, or
modifying system components.
Troubleshooting 89
Important safety information
Familiarize yourself with the safety information in the following sections before troubleshooting the server.
Important safety information
Before servicing this product, read the Important Safety Information document provided with the server.
Symbols on equipment
The following symbols may be placed on equipment to indicate the presence of potentially hazardous
conditions.
This symbol indicates the presence of hazardous energy circuits or electric shock
hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not open
this enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.
This symbol indicates the presence of electric shock hazards. The area contains no
user or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not open
this enclosure.
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment,
do not plug telephone or telecommunications connectors into this receptacle.
This symbol indicates the presence of a hot surface or hot component. If this surface is
contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the surface to
cool before touching.
This symbol indicates that the component exceeds the recommended weight for one
individual to handle safely.
20.41 - 27.22 kg WARNING: To reduce the risk of personal injury or damage to the equipment,
observe local occupational health and safety requirements and guidelines for manual
47.18 - 60 lb
material handling.
These symbols, on power supplies or systems, indicate that the equipment is supplied
by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock, remove all power
cords to completely disconnect power from the system.
Troubleshooting 90
Warnings and cautions
WARNING: Only authorized technicians trained by HP should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow only
subassembly/module-level repair. Because of the complexity of the individual boards
and subassemblies, no one should attempt to make repairs at the component level or to
make modifications to any printed wiring board. Improper repairs can create a safety
hazard.
WARNING: To reduce the risk of personal injury or damage to the equipment, be sure
that:
• The leveling feet are extended to the floor.
• The full weight of the rack rests on the leveling feet.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
• Only one component is extended at a time. A rack may become unstable if more than
one component is extended for any reason.
WARNING: To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important
safety feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily
accessible at all times.
• Unplug the power cord from the power supply to disconnect power to the equipment.
• Do not route the power cord where it can be walked on or pinched by items placed
against it. Pay particular attention to the plug, electrical outlet, and the point where
the cord extends from the server.
WARNING: To reduce the risk of personal injury or damage to the equipment:
•
Observe local occupation health and safety requirements and guidelines for
manual handling.
•
Obtain adequate assistance to lift and stabilize the chassis during installation or
removal.
•
The server is unstable when not fastened to the rails.
•
When mounting the server in a rack, remove the power supplies and any other
removable module to reduce the overall weight of the product.
20.41 - 27.22 kg
47.18 - 60 lb
CAUTION: To properly ventilate the system, you must provide at least 7.6 cm (3.0 in) of clearance at the
front and back of the server.
CAUTION: The server is designed to be electrically grounded (earthed). To ensure proper operation, plug
the AC power cord into a properly grounded AC outlet only.
Prepare the server for diagnosis
1.
Be sure the server is in the proper operating environment with adequate power, air conditioning,
and humidity control. Refer to the server documentation for required environmental conditions.
2.
Record any error messages displayed by the system.
3.
Remove all diskettes and CDs from the media drives.
Troubleshooting 91
4.
Power down the server and peripheral devices if you will be diagnosing the server offline. Always
perform an orderly shutdown, if possible. This means you must:
a. Exit any applications.
b. Exit the operating system.
c. Power down the server (on page 27).
5.
Disconnect any peripheral devices not required for testing (any devices not necessary to power up
the server). Do not disconnect the printer if you want to use it to print error messages.
6.
Collect all tools and utilities, such as a Torx screwdriver, loopback adapters, ESD wrist strap, and
software utilities, necessary to troubleshoot the problem.
•
You must have the appropriate Health Drivers and Management Agents installed on the server.
NOTE: To verify the server configuration, connect to the System Management homepage and select
Version Control Agent. The VCA gives you a list of names and versions of all installed HP drivers,
Management Agents, and utilities, and whether they are up to date.
•
HP recommends you have access to the SmartStart CD for value-added software and drivers
required during the troubleshooting process.
•
HP recommends you have access to the server documentation for server-specific information.
Symptom information
Before troubleshooting a server problem, collect the following information:
•
What events preceded the failure? After which steps does the problem occur?
•
What has been changed since the time the server was working?
•
Did you recently add or remove hardware or software? If so, did you remember to change the
appropriate settings in the server setup utility, if necessary?
•
How long has the server exhibited problem symptoms?
•
If the problem occurs randomly, what is the duration or frequency?
To answer these questions, the following information may be useful:
•
Run HP Insight Diagnostics (on page 87) and use the survey page to view the current configuration
or to compare it to previous configurations.
•
Refer to your hardware and software records for information.
•
Refer to server LEDs and their statuses.
Service notifications
To view the latest service notifications, refer to the HP website (http://www.hp.com/go/bizsupport).
Select the appropriate server model, and then click the Troubleshoot a Problem link on the product
page.
Loose connections
Action:
•
Be sure all power cords are securely connected.
•
Be sure all cables are properly aligned and securely connected for all external and internal
components.
Troubleshooting 92
•
Remove and check all data and power cables for damage. Be sure no cables have bent pins or
damaged connectors.
•
If a fixed cable tray is available for the server, be sure the cords and cables connected to the server
are correctly routed through the tray.
•
Be sure each device is properly seated.
•
If a device has latches, be sure they are completely closed and locked.
•
Check any interlock or interconnect LEDs that may indicate a component is not connected properly.
•
If problems continue to occur, remove and reinstall each device, checking the connectors and sockets
for bent pins or other damage.
Diagnostic steps
To effectively troubleshoot a problem, HP recommends that you start with the first flowchart in this section,
"Start diagnosis flowchart (on page 93)," and follow the appropriate diagnostic path. If the other
flowcharts do not provide a troubleshooting solution, follow the diagnostic steps in "General diagnosis
flowchart (on page 94)." The General diagnosis flowchart is a generic troubleshooting process to be used
when the problem is not server-specific or is not easily categorized into the other flowcharts.
The available flowcharts include:
•
Start diagnosis flowchart (on page 93)
•
General diagnosis flowchart (on page 94)
•
Power-on problems flowchart ("Server power-on problems flowchart" on page 96)
•
POST problems flowchart (on page 99)
•
OS boot problems flowchart (on page 100)
•
Server fault indications flowchart (on page 102)
The number contained in parentheses in the flowchart boxes corresponds to a table with references to
other detailed documents or troubleshooting instructions.
Start diagnosis flowchart
Use the following flowchart to start the diagnostic process.
Item
Refer to
1
"General diagnosis flowchart (on page 94)"
2
"Power-on problems flowchart ("Server power-on problems flowchart" on
page 96)"
3
"POST problems flowchart (on page 99)"
4
"OS boot problems flowchart (on page 100)"
5
"Server fault indications flowchart (on page 102)"
Troubleshooting 93
General diagnosis flowchart
The General diagnosis flowchart provides a generic approach to troubleshooting. If you are unsure of the
problem, or if the other flowcharts do not fix the problem, use the following flowchart.
Item
Refer to
1
"Symptom information (on page 92)"
2
"Loose connections (on page 92)"
3
"Service notifications (on page 92)"
Troubleshooting 94
Item
Refer to
4
The most recent version of a particular server or option firmware is
available on the following websites:
•
HP Support website (http://www.hp.com/support)
•
HP ROM-BIOS/Firmware Updates website
(http://h18023.www1.hp.com/support/files/server/us/romflash.ht
ml)
5
"General memory problems are occurring" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
6
Server maintenance and service guide, located on the Documentation
CD or the HP website (http://www.hp.com/products/servers/platforms)
7
•
Server maintenance and service guide, located on the
Documentation CD or the HP website
(http://www.hp.com/products/servers/platforms)
•
"Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
•
"Server information you need" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
•
"Operating system information you need" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
8
9
"HP contact information (on page 114)"
Troubleshooting 95
Server power-on problems flowchart
Symptoms:
•
The server does not power on.
•
The system power LED is off or amber.
•
The external health LED is red or amber.
Troubleshooting 96
•
The internal health LED is red or amber.
NOTE: For the location of server LEDs and information on their statuses, refer to the server documentation.
Possible causes:
•
Improperly seated or faulty power supply
•
Loose or faulty power cord
•
Power source problem
•
Power on circuit problem
•
Improperly seated component or interlock problem
•
Faulty internal component
Item
Refer to
1
"Component identification (on page 7)"
2
"HP Insight Diagnostics (on page 87)" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
3
"Loose connections (on page 92)"
4
Server maintenance and service guide, located on the Documentation
CD, or the HP website (http://www.hp.com/products/servers/platforms)
5
"Integrated Management Log" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
6
"Power source problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
7
•
"Power supply problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
•
Server maintenance and service guide, located on the
Documentation CD, or the HP website
(http://www.hp.com/products/servers/platforms)
8
"System open circuits and short circuits" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
Troubleshooting 97
Troubleshooting 98
POST problems flowchart
Symptoms:
•
Server does not complete POST
NOTE: The server has completed POST when the system attempts to access the boot device.
•
Server completes POST with errors
Possible problems:
•
Improperly seated or faulty internal component
•
Faulty KVM device
•
Faulty video device
Item
Refer to
1
"POST error messages and beep codes"
2
"Video problems" in the HP ProLiant Servers Troubleshooting Guide
located on the Documentation CD or on the HP website
(http://www.hp.com/support)
3
KVM or RILOE documentation
4
"Loose connections (on page 92)"
5
"Symptom information (on page 92)"
6
Server maintenance and service guide, located on the Documentation
CD or the HP website (http://www.hp.com/products/servers/platforms)
7
"Port 85 and iLO messages" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
8
"General memory problems are occurring" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
9
•
"Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
•
Server maintenance and service guide, located on the
Documentation CD or the HP website
(http://www.hp.com/products/servers/platforms)
•
"Server information you need" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
•
"Operating system information you need" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
10
Troubleshooting 99
OS boot problems flowchart
Symptoms:
•
Server does not boot a previously installed operating system
•
Server does not boot SmartStart
Possible causes:
•
Corrupted operating system
•
Hard drive subsystem problem
•
Incorrect boot order setting in RBSU
Troubleshooting 100
Item
Refer to
1
HP ROM-Based Setup Utility User Guide
(http://www.hp.com/servers/smartstart)
2
"POST problems flowchart (on page 99)"
3
•
"Hard drive problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
•
Controller documentation
4
"HP Insight Diagnostics (on page 87)" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
5
•
"CD-ROM and DVD drive problems" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
•
Controller documentation
•
"Loose connections (on page 92)"
6
"General memory problems are occurring" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
7
•
"Operating system problems" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
•
"HP contact information (on page 114)"
•
"Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
•
Server maintenance and service guide, located on the
Documentation CD or the HP website
(http://www.hp.com/products/servers/platforms)
8
9
"General diagnosis flowchart (on page 94)"
Troubleshooting 101
Server fault indications flowchart
Symptoms:
•
Server boots, but a fault event is reported by Insight Management Agents (on page 84)
•
Server boots, but the internal health LED, external health LED, or component health LED is red or
amber
NOTE: For the location of server LEDs and information on their statuses, refer to the server documentation.
Troubleshooting 102
Possible causes:
•
Improperly seated or faulty internal or external component
•
Unsupported component installed
•
Redundancy failure
•
System overtemperature condition
Item
Refer to
1
"Management agents (on page 84)" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
2
•
"Integrated Management Log" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
•
"Event list error messages" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
3
"Component identification (on page 7)"
4
System Management Homepage (https://localhost:2381)
5
"Power-on problems flowchart ("Server power-on problems flowchart" on
page 96)"
6
•
"Smart Array SCSI Diagnosis feature" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support)
•
Server maintenance and service guide, located on the
Documentation CD or the HP website
(http://www.hp.com/products/servers/platforms)
•
"HP contact information (on page 114)"
7
"HP Insight Diagnostics (on page 87)" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support)
8
•
"Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support)
•
Server maintenance and service guide, located on the
Documentation CD or the HP website
(http://www.hp.com/products/servers/platforms)
Troubleshooting 103
Troubleshooting 104
Battery replacement
If the server no longer automatically displays the correct date and time, you may need to replace the
battery that provides power to the real-time clock. Under normal use, battery life is 5 to 10 years.
WARNING: The computer contains an internal lithium manganese dioxide, a vanadium
pentoxide, or an alkaline battery pack. A risk of fire and burns exists if the battery pack
is not properly handled. To reduce the risk of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60°C (140°F).
• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or
water.
• Replace only with the spare designated for this product.
To remove the component:
1.
Power down the server (on page 27).
2.
Extend or remove the server from the rack ("Extend the server from the rack" on page 28).
3.
Remove the access panel ("Removing the access panel" on page 29).
4.
Remove the PCI riser cage ("Removing the PCI riser cage" on page 57).
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the PCI riser cage.
5.
Remove the battery.
IMPORTANT: Replacing the system board battery resets the system ROM to its default configuration. After
replacing the battery, reconfigure the system through RBSU.
To replace the component, reverse the removal procedure.
For more information about battery replacement or proper disposal, contact an authorized reseller or an
authorized service provider.
Battery replacement 105
Regulatory compliance notices
In this section
Regulatory compliance identification numbers.......................................................................................... 106
Federal Communications Commission notice ........................................................................................... 106
Declaration of conformity for products marked with the FCC logo, United States only................................... 106
Modifications....................................................................................................................................... 107
Cables ................................................................................................................................................ 107
Canadian notice .................................................................................................................................. 107
European Union regulatory notice .......................................................................................................... 107
Disposal of waste equipment by users in private households in the European Union ..................................... 108
Japanese notice ................................................................................................................................... 108
BSMI notice ......................................................................................................................................... 108
Korean class A notice ........................................................................................................................... 109
Laser compliance ................................................................................................................................. 109
Taiwan battery recycling notice.............................................................................................................. 109
Power cord statement for Japan ............................................................................................................. 110
Regulatory compliance identification numbers
For the purpose of regulatory compliance certifications and identification, this product has been assigned
a unique regulatory model number. The regulatory model number can be found on the product nameplate
label, along with all required approval markings and information. When requesting compliance
information for this product, always refer to this regulatory model number. The regulatory model number is
not the marketing name or model number of the product.
Federal Communications Commission notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct
the interference at personal expense.
Declaration of conformity for products marked with the
FCC logo, United States only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For questions regarding this product, contact us by mail or telephone:
Regulatory compliance notices
106
•
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
•
1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded
or monitored.)
For questions regarding this FCC declaration, contact us by mail or telephone:
•
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
•
1-281-514-3333
To identify this product, refer to the part, series, or model number found on the product.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are
not expressly approved by Hewlett-Packard Company may void the user’s authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in
order to maintain compliance with FCC Rules and Regulations.
Canadian notice
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union regulatory notice
This product complies with the following EU Directives:
•
Low Voltage Directive 73/23/EEC
•
EMC Directive 89/336/EEC
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this
product or product family.
This compliance is indicated by the following conformity marking placed on the product:
This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth).
Regulatory compliance notices
107
This marking is valid for EU non-harmonized Telecom products.
*Notified body number (used only if applicable—refer to the product label)
Disposal of waste equipment by users in private
households in the European Union
This symbol on the product or on its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to dispose of
your waste equipment by handing it over to a designated collection point for the recycling of
waste electrical and electronic equipment. The separate collection and recycling of your
waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more
information about where you can drop off your waste equipment for recycling, please
contact your local city office, your household waste disposal service or the shop where you
purchased the product.
Japanese notice
BSMI notice
Regulatory compliance notices
108
Korean class A notice
Laser compliance
This product may be provided with an optical storage device (that is, CD or DVD drive) and/or fiber optic
transceiver. Each of these devices contains a laser that is classified as a Class 1 Laser Product in
accordance with US FDA regulations and the IEC 60825-1. The product does not emit hazardous laser
radiation.
Each laser product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser
Notice No. 50, dated May 27, 2001; and with IEC 60825-1:1993/A2:2001.
WARNING: Use of controls or adjustments or performance of procedures other than
those specified herein or in the laser product's installation guide may result in hazardous
radiation exposure. To reduce the risk of exposure to hazardous radiation:
• Do not try to open the module enclosure. There are no user-serviceable components
inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device
other than those specified herein.
• Allow only HP Authorized Service technicians to repair the unit.
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser products
manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.
Taiwan battery recycling notice
The Taiwan EPA requires dry battery manufacturing or importing firms in accordance with Article 15 of
the Waste Disposal Act to indicate the recovery marks on the batteries used in sales, giveaway or
promotion. Contact a qualified Taiwanese recycler for proper battery disposal.
Regulatory compliance notices
109
Power cord statement for Japan
Regulatory compliance notices
110
Electrostatic discharge
In this section
Preventing electrostatic discharge........................................................................................................... 111
Grounding methods to prevent electrostatic discharge .............................................................................. 111
Preventing electrostatic discharge
To prevent damaging the system, be aware of the precautions you need to follow when setting up the
system or handling parts. A discharge of static electricity from a finger or other conductor may damage
system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the
device.
To prevent electrostatic damage:
•
Avoid hand contact by transporting and storing products in static-safe containers.
•
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
•
Place parts on a grounded surface before removing them from their containers.
•
Avoid touching pins, leads, or circuitry.
•
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding methods to prevent electrostatic discharge
Several methods are used for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
•
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm ±10 percent resistance in the ground cords.
To provide proper ground, wear the strap snug against the skin.
•
Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
•
Use conductive field service tools.
•
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an authorized reseller
install the part.
For more information on static electricity or assistance with product installation, contact an authorized
reseller.
Electrostatic discharge 111
Specifications
In this section
Server specifications ............................................................................................................................. 112
Environmental specifications .................................................................................................................. 112
Server specifications
Dimensions
Height
8.59 cm (3.38 in)
Depth
66.07 cm (26.01 in)
Width
44.54 cm (17.54 in)
Weight (maximum)
27.22 kg (60 lb)
Weight (no drives installed)
20.41 kg (47.18 lb)
Input requirements
Rated input voltage
100 - 132 VAC, 200 240 VAC
Rated input frequency
50 Hz to 60 Hz
Rated input current
7.5 A (100 VAC), 3.8 A
(200 VAC)
Rated input power
735 W
BTUs per hour
2508
Power supply output
Rated steady-state power
575 W
Maximum peak power
575 W
Environmental specifications
Specification
Value
Temperature range*
Operating
10°C to 35°C (50°F to 95°F)
Shipping
-30°C to 50°C (-22°F to 122°F)
Storage
-40°C to 70°C (-40°F to 158°F)
Maximum wet bulb temperature 28°C (82.4°F)
Relative humidity
(noncondensing)**
Operating
10% to 90%
Non-operating
5% to 95%
Specifications
112
* All temperature ratings shown are for sea level. An altitude derating of 1°C per 300 m (1.8°F per 1,000 ft) to
3048 m (10,000 ft) is applicable. No direct sunlight allowed.
** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for
storage corresponds to a pressure minimum of 70 KPa.
Specifications
113
Technical support
In this section
Before you contact HP........................................................................................................................... 114
HP contact information.......................................................................................................................... 114
Customer self repair ............................................................................................................................. 114
Before you contact HP
Be sure to have the following information available before you call HP:
•
Technical support registration number (if applicable)
•
Product serial number
•
Product model name and number
•
Applicable error messages
•
Add-on boards or hardware
•
Third-party hardware or software
•
Operating system type and revision level
HP contact information
For the name of the nearest HP authorized reseller:
•
In the United States, refer to the HP US service locator webpage
(http://www.hp.com/service_locator).
•
In other locations, refer to the HP website (http://www.hp.com).
For HP technical support:
•
•
In North America:
•
Call 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days a
week. For continuous quality improvement, calls may be recorded or monitored.
•
If you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more
information about Care Packs, refer to the HP website (http://www.hp.com).
Outside North America, call the nearest HP Technical Support Phone Center. For telephone numbers
for worldwide Technical Support Centers, refer to the HP website (http://www.hp.com).
Customer self repair
What is customer self repair?
HP's customer self-repair program offers you the fastest service under either warranty or contract. It
enables HP to ship replacement parts directly to you so that you can replace them. Using this program,
you can replace parts at your own convenience.
Technical support 114
A convenient, easy-to-use program:
•
An HP support specialist will diagnose and assess whether a replacement part is required to address
a system problem. The specialist will also determine whether you can replace the part.
•
For specific information about customer replaceable parts, refer to the maintenance and service
guide on the HP website (http://www.hp.com/support).
Technical support 115
Acronyms and abbreviations
ABEND
abnormal end
ACU
Array Configuration Utility
ASR
Automatic Server Recovery
BBWC
battery-backed write cache
DDR
double data rate
DIMM
dual inline memory module
ECC
error checking and correcting
IEC
International Electrotechnical Commission
iLO
Integrated Lights-Out
IML
Integrated Management Log
IPL
initial program load
IRQ
interrupt request
Acronyms and abbreviations 116
MPS
multi-processor specification
NEMA
National Electrical Manufacturers Association
NFPA
National Fire Protection Association
NIC
network interface controller
NMI
non-maskable interrupt
NVRAM
non-volatile memory
ORCA
Option ROM Configuration for Arrays
PCI-X
peripheral component interconnect extended
PDU
power distribution unit
POST
Power-On Self Test
PPM
processor power module
PSP
ProLiant Support Pack
PXE
Preboot Execution Environment
RBSU
ROM-Based Setup Utility
Acronyms and abbreviations 117
RILOE II
Remote Insight Lights-Out Edition II
SDRAM
synchronous dynamic RAM
SIM
Systems Insight Manager
TMRA
recommended ambient operating temperature
UID
unit identification
USB
universal serial bus
VHDCI
very high density cable interconnect
WOL
Wake-on LAN
Acronyms and abbreviations 118
Index
A
D
AC power supply 11
access panel 29
ACU (Array Configuration Utility) 81
ADU (Array Diagnostic Utility) 87
Altiris Deployment Solution 82
Altiris eXpress Deployment Server 82
array configuration 43, 81
Array Configuration Utility (ACU) 81
Array Diagnostic Utility (ADU) 87
ASR (Automatic Server Recovery) 83, 116
authorized reseller 114
auto-configuration process 80
Automatic Server Recovery (ASR) 83, 116
Autorun menu 79
DC power supply 11
deployment software 82
diagnosing problems 89, 91, 93
diagnostic steps 89, 93
diagnostic tools 79, 82, 83, 86, 87
diagnostics utility 87
DIMM slot LEDs 15, 18
DIMM slots 13
DIMMs 43
diskette drive 75
diskette drive connectors 15
diskette image creation 82
drive LEDs 18, 19
drivers 87
drives, configuring 43
duplex SCSI hard drive configuration 44, 69
DVD-ROM drive connectors 15
B
battery 13, 105
BIOS upgrade 83
blue screen event 13
BSMI notice 108
buttons 7, 9, 11, 23
C
cable management arm 30, 34
cables 92, 107
cabling 64, 66, 68, 69, 70, 71, 73, 74, 75, 76,
77
Care Pack 31, 88
cautions 91
CD-ROM drive 65
Change Control 88
chassis ID switch 13
component identification 7, 13
components 7
configuration of system 37, 79
connection problems 92
connectors 7
contacting HP 114
crash dump analysis 13
creating a disk image 82
E
electrical grounding requirements 33
electrostatic discharge 111
environmental requirements 32
European Union notice 107
expansion boards 61
expansion slot covers, removing 58, 59
expansion slot LEDs 11, 22, 23
extending server from rack 28
external health LED 9
F
fan brackets 53
fan connectors 12
fan LED 15, 18, 24
fan zones 19
fans 23, 24, 52
features 7
Federal Communications Commission (FCC)
notice 106, 107
flash ROM 83
flowcharts 93, 94, 96, 99, 100, 102
Index 119
front panel buttons 9
front panel LEDs 9
LEDs, troubleshooting 89, 93
loose connections 92
G
M
grounding methods 111
grounding requirements 33
Management Agents 84
management tools 83
memory 42, 43, 81
memory dump 13
memory slot LEDs 15
memory slots 13
mouse connector 10, 34
H
hard drive LEDs 18, 19, 20
hard drives 18, 19, 43, 45
hard drives, determining status of 18, 19
hardware options installation 34, 38
health driver 18, 83
health LEDs 9, 13, 18
HP Insight Diagnostics 87
HP ProLiant Essentials Foundation Pack 37, 84
HP ProLiant Essentials Rapid Deployment Pack 82
HP Systems Insight Manager, overview 84
HP Technical Support 114
N
Natural Language Search Assistant 88
network connector LEDs 11
NIC (network interface controller) 117
NIC connectors 10
NIC LEDs 9
NMI switch 13
I
O
identification number, server 106
iLO (Integrated Lights-Out) 84
iLO connector 10, 34
iLO RBSU (Integrated Lights-Out ROM-Based Setup
Utility) 85
IML (Integrated Management Log) 87
Important Safety Information document 90
Insight Diagnostics 87
installation services 31
installation, server options 34, 38
installing hardware 38
Integrated Lights-Out (iLO) 84
Integrated Lights-Out ROM-Based Setup Utility (iLO
RBSU) 85
internal health LED 9, 16
Online ROM Flash Component Utility 83
online spare memory 42, 81
online spare memory LED 15
operating system crash 13
operating systems 37, 88
optimum environment 32
Option ROM Configuration for Arrays (ORCA) 82
options installation 34, 38
ORCA (Option ROM Configuration for Arrays) 82
OS boot problems flowchart 100
overtemperature LED 15, 19
J
Japanese notice 108
K
keyboard connector 10
L
laser devices 109
LEDs 7, 9, 11, 13, 15, 16, 18, 19, 21, 22, 23
LEDs, hard drive 18, 19
P
PCI array controllers, cabling 70, 71
PCI Hot Plug backplane cabling 67
PCI Hot Plug features 61
PCI Hot Plug LEDs 11, 23
PCI riser cage 22, 56
PCI riser cage connector 12
PCI riser cage LED 22
phone numbers 114
POST problems flowchart 99
power button cabling 76
power button/LED system connector 15
power connectors, internal 15
power converter module LED 25
power cord 91, 110
Index 120
power cord connector 10, 34
power distribution unit 33
power LEDs, system 9
Power On/Standby button 9, 27, 76
power requirements 33
power supplies 11
power supply LEDs 11, 25
power supply signal connector 12
powering up 27, 80
PPM failure LEDs 15, 19
PPM slots 12
problem diagnosis 89, 93
