Sharp LC-28HM2U Operation Specifications

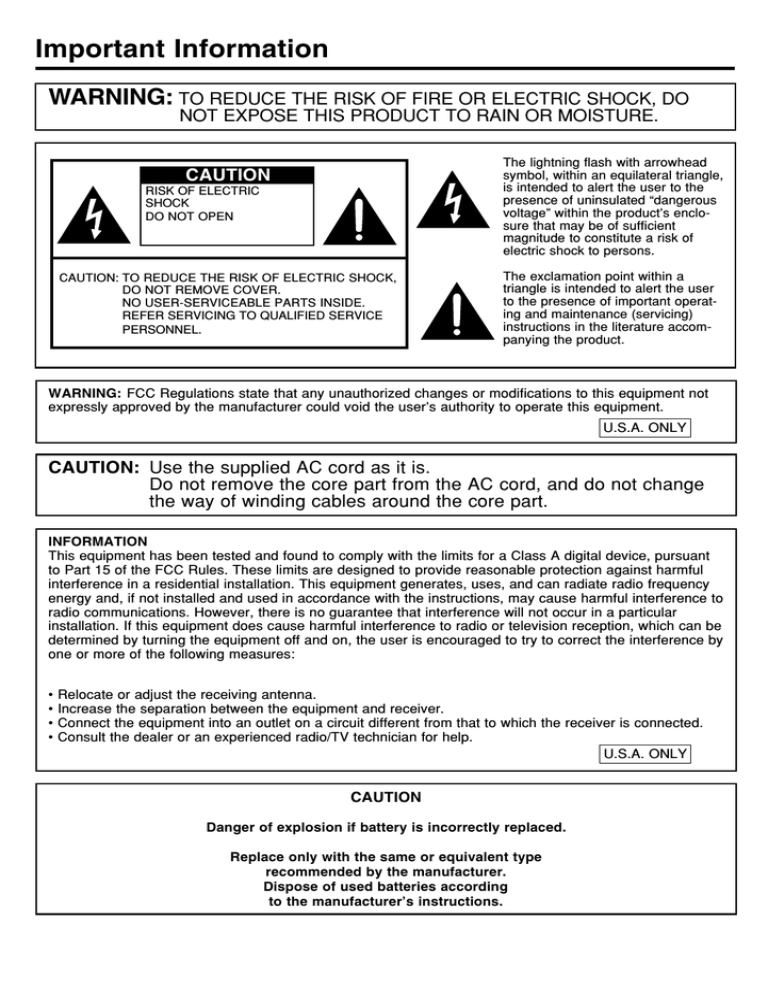

Important Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within a
triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equipment.
U.S.A. ONLY
CAUTION: Use the supplied AC cord as it is.
Do not remove the core part from the AC cord, and do not change
the way of winding cables around the core part.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•
•
•
•
Relocate or adjust the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
U.S.A. ONLY
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according
to the manufacturer’s instructions.
ENGLISH
ENGLISH
OPERATION MANUAL
Contents
Page
Safety Precautions ........................................................ 2
General Information ...................................................... 4
Supplied Accessories ............................................... 4
Optional Accessories ............................................... 4
Names of Parts .......................................................... 5
Example of Application ............................................ 8
Preparation ..................................................................... 9
Connecting the Display and AVC System............... 9
Batteries for Remote Control ................................. 11
System Connection (Example) .............................. 12
Basic Operation ........................................................... 14
Turning on POWER ................................................. 14
Switching INPUT Source ........................................ 14
Adjusting BRIGHTNESS ......................................... 15
Sound VOLUME ...................................................... 15
Adjusting the Display’s Position ........................... 16
Cleaning ................................................................... 16
Adjustments to the On-Screen Display .................... 17
Menu List ................................................................. 17
Adjusting the VIEW Settings .................................. 18
Page
Adjusting the BRIGHT Settings ............................. 22
Adjusting the PICTURE Settings ........................... 23
Adjusting the SOUND Settings .............................. 25
Adjusting the OPTION Settings ............................. 27
Notes for Connection .................................................. 29
Connecting a DVD Video Player ............................ 29
Connecting a VCR/GAME System (AV-1 and AV-2)... 29
Connecting AV Equipment
(AV INPUT 3/ AV OUT) ............................................. 29
Connecting to a Computer ......................................... 30
Connection .............................................................. 30
Computer Control of the Display ........................... 31
Commands .............................................................. 32
Computer Compatibility Chart ............................... 36
Reference ..................................................................... 37
Picture Sizes ............................................................ 37
Troubleshooting ...................................................... 39
Specifications .......................................................... 40
Dimensional Drawings ........................................... 41
Using the Wall Mount Bracket (Option) ................ 43
Dear SHARP Customer
Thank you for your purchase of a SHARP LCD product. To ensure safety and many
years of trouble-free operation of your product, please read the Safety Precautions
carefully before using this product.
Safety Precautions
Electricity is used to perform many useful functions, but it can also cause personal injuries and property
damage if improperly handled. This product has been engineered and manufactured with the highest
priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent
potential danger, please observe the following instructions when installing, operating and cleaning the
product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.
1. Read instructions—All operating instructions must be read and understood before the product is
operated.
2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe
place for future reference.
3. Observe warnings—All warnings on the product and in the instructions must be observed closely.
4. Follow instructions—All operating instructions must be followed.
5. Cleaning—Unplug the power cord from the AC outlet before cleaning the product. Use a damp
cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
6. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate
attachments can result in accidents.
7. Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen
sink and laundry tub, swimming pool and in a wet basement.
8. Stand—Do not place the product on an unstable cart, stand, tripod or table. Placing the product
on an unstable base can cause the product to fall, resulting in serious personal injuries as well as
damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the
manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.
9. When relocating the product placed on a cart, it must be moved with utmost
care. Sudden stops, excessive force and uneven floor surface can cause the
product to fall from the cart.
10. Ventilation—The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since insufficient
ventilation can cause overheating and/or shorten the life of the product. Do not
place the product on a bed, sofa, rug or other similar surface, since they can block
ventilation openings. Do not place the product in an enclosed place such as a
bookcase or rack, unless proper ventilation is provided or the manufacturer’s
instructions are followed.
11. Power cord protection—The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.
12. The LCD panel used in this product is made of glass. Therefore, it can break when the product is
dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the
LCD panel breaks.
13. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or
electric shock.
14. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or
short internal parts. For the same reason, do not spill water or liquid on the product.
15. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to
high voltage and other dangerous conditions. Request a qualified service person to perform
servicing.
US
2
General Information
Preparation
16. Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and
request a qualified service person to perform repairs.
a.When the power cord or plug is damaged.
b.When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d.When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper
adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
e.When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product
indicates that the product needs servicing.
17. Replacement parts—In case the product needs replacement parts, make sure that the service
person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric
shock and/or other danger.
18. Safety checks—Upon completion of service or repair work, request the service technician to
perform safety checks to ensure that the product is in proper operating condition.
19. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the
product according to the method recommended by the manufacturer.
20. Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and
other heat-generating products (including amplifiers).
21. Power source—This product must operate on a power source specified on the specification label.
If you are not sure of the type of power supply used in your home, consult your dealer or local
power company. For units designed to operate on batteries or another power source, refer to the
operating instructions.
Basic Operation
Adjustments to the
On-Screen Display
The LCD panel is a very high technology product with 2,949,120 thin film transistors, giving you
fine picture details.
Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green
or red.
Please note that this does not affect the performance of your product.
Precautions when transporting the display
Notes for
Connection
When transporting the display, never carry it by holding onto the speakers. Be sure to always
carry the display by holding it with two hands-one hand on each side of the display.
Connecting
to a Computer
OPTIONAL
speaker
system
Reference
3
US
General Information
Supplied Accessories
Make sure the following accessories are provided with the product.
Operation Manual (×1)
Remote Control
(×1)
Cable Clamp (×4)
UBATU0243GEZZ
LHLDW1224CEZZ
ENGLISH
Size AA Dry Battery
(×2)
LC-28HM2
POWER
FRANÇAIS
INPUT
1
LCD AV MONITOR
MONITEUR AV À
CRISTAUX LIQUIDES
AV INPUT
2
COMPONENT
1
2
MUTE
OPERATION MANUAL
MODE D’EMPLOI
3
PC
VOL
MENU
ENTER
LCD MONITOR
Printed on post-consumer recycled paper.
Imprimé sur du papier recyclé.
Printed in Japan
Imprimé au Japon
TINS-XXXXCEZZ
TINS-7335CEZZ
RRMCG1619CESA
AVC System Terminal Cover (×1)
AC Power Cord (×2)
Plug form
Cord length
12ft.5-39/64" [3.8m] (for Display)
QACCD5023CEZZ
5ft.10-55/64" [1.8m] (for AVC system)
GCOVA1860CE02
System Cable (×1)
QCNW-5948CEZZ
Optional Accessories
• Bose System Side Speaker (Model: AN-28SP2)
• Wall Mount Bracket (Model: AN-28AG1)
US
4
3 pins
QACCD5024CEZZ
Names of Parts
Display
For details on the use of each control, refer to the page number indicated in the brackets.
Top view
– VOL +
INPUT
BRIGHTNESS MAIN POWER
INPUT button [p.14]
VOL (+)/(–) button [p.15]
MAIN POWER switch [p.14]
BRIGHTNESS button [p.15]
Front view
OPTIONAL
speaker system
Table stand
Remote sensor window [p.7]
POWER/Standby indicator [p.14]
Rear view
AC power input
terminal [p.9]
System cable
cover [p.9]
Display input terminal
[p.9]
Speaker cable
connection terminals
for the optional
speaker system
Back cover [p.9]
5
US
General Information
General Information
General Information
AVC System
Front view
AV INPUT 2
S-VIDEO VIDEO
L- AUDIO -R
1
2
1 S-VIDEO input terminal (AV INPUT 2) [p.12]
2 VIDEO input terminal (AV INPUT 2) [p.12]
3 AUDIO input terminal (AV INPUT 2) [p.12]
4 HEAD PHONE jack [p.8]
HEAD
PHONE
3
4
AV INPUT 2
S-VIDEO VIDEO
L- AUDIO -R
AVC SYSTEM
HEAD
PHONE
POWER
Rear view
2
110-120V /
220-240V~
5
RS-232C
DISPLAY OUTPUT
PC INPUT
8
6
9
VIDEO
COMPONENT 1
(INPUT)
NTSC / PAL / SECAM
AV INPUT 1
R-AUDIO-L
Y
PB(CB) PR(CR)
R-AUDIO-L
Y
PB(CB) PR(CR)
VIDEO
COMPONENT 2
(INPUT)
S-VIDEO
AUDIO
VIDEO
R-AUDIO-L
AV INPUT 3
/ AV OUT
VIDEO
RGB
1
3
4
7
110-120V /
220-240V~
RS-232C
DISPLAY OUTPUT
0
VIDEO
COMPONENT 1
(INPUT)
NTSC / PAL / SECAM
AV INPUT 1
R-AUDIO-L
PC INPUT
AUDIO
RGB
1 AC Power input terminal [p.9]
2 RS-232C input terminal [p.31]
3 PC RGB input terminal [p.30]
4 PC AUDIO input terminal [p.30]
5 DISPLAY output terminal [p.9]
Note
US
6
R-AUDIO-L
Y
PB(CB) PR(CR)
COMPONENT 2
(INPUT)
S-VIDEO
R-AUDIO-L
Y
PB(CB) PR(CR)
VIDEO
VIDEO
R-AUDIO-L
AV INPUT 3
/ AV OUT
VIDEO
R-AUDIO-L
6 AUDIO/VIDEO input terminal (COMPONENT1)
[p.12]
7 AUDIO/VIDEO input terminal (COMPONENT2)
[p.12]
8 S-VIDEO input terminal (AV INPUT 1) [p.12]
9 VIDEO/AUDIO input terminal (AV INPUT 1) [p.12]
0 VIDEO/AUDIO input terminal
(AV INPUT 3/AV OUT) [pp.12, 29]
* 0 can also be used as video/audio output
terminals.
If video input and S-video input are both connected to the AV-1 input and/or AV-2 input, S-video input has
priority.
General Information
Remote Control
1 Infrared transmitter window
1
2 POWER button [p.14]
• To switch on the power, press this button.
The POWER/Standby indicator lights up green.
• To switch off the power, press this button.
The POWER/Standby indicator lights up red.
POWER
2
INPUT
3
AV INPUT
1
2
COMPONENT
1
2
5
MUTE
3
4
PC
6
VOL
7
8
MENU
ENTER
9
0
3 INPUT button [p.14]
Use this button to select an input source.
AV-1 AV-2 COMPONENT1
PC COMPONENT2
• The input source mode is skipped if the corresponding input terminal is not connected with
external equipment (except “PC”).
• If you change the AV INPUT 3/AV OUT select,
you can select “AV-3”. See page 29 for details.
4 AV INPUT buttons
Use these buttons to select an AV input terminal
directly.
• You can not select an input source to which
external equipment is not connected.
5 COMPONENT buttons
Use these buttons to select a COMPONENT terminal directly.
• You can not select an input source to which
external equipment is not connected.
6 PC button
Use this button to select the PC mode.
q
LCD MONITOR
7 MUTE button
Use this button to temporarily turn off the sound.
Press the button again to turn the sound back to the
previous level.
8 VOL (+)/(–) buttons [p.15]
Use these buttons to increase/decrease sound volume.
The sound volume can be adjusted in the range 0~60.
9 MENU button [p.17]
Use this button to turn on/off the MENU screen.
Display
0 ENTER button [p.18]
Use this button to execute a command.
Remote sensor
window
q Cursor buttons [p.18]
Use these buttons to select a desired item on the
setting screen.
LCD
MON
ITOR
Remote Control
7
US
General Information
Example of Application
Using Headphones
You can use any pair of headphones (9/64" [3.5mm] diameter mini-plug) to listen to the sound.
AV INPUT 2
S-VIDEO VIDEO
L- AUDIO -R
HEAD
PHONE
AV INPUT 2
S-VIDEO VIDEO
L- AUDIO -R
AVC SYSTEM
POWER
Commercially available
(9/64" [3.5mm] diameter mini-jack, 16 ohms)
Indicator
Note
• When connecting headphones, the sound from the display speakers is muted.
• “ ” indicator appears when a pair of headphones is connected.
US
8
HEAD
PHONE
Preparation
Connecting the Display and AVC System
Use the supplied system cable.
Remove the back cover of the display.
• Press both of your thumbs upwards against
the two tabs on lower side of the cover (✩)
and pull down the cover.
2
3
Remove the system cable cover.
Preparation
1
1 Insert the system cable connectors into the
display input terminal on the display and the
output terminal on the AVC system until they
click.
2 Connect the AC power cords to the AC
power inputs on the display and the AVC
system.
3-2
2
• After connecting the various cables, fasten
them using the provided cable clamps as
shown in the diagram below before mounting
the cover.
Rear view
Pass over the pins
3-1
Removing the system
cable cover
Hold this tab and slide the
cover downward.
3-1
e.g. Cables from
the optional
speaker system
3-2
6
Supplied
cable clamp
9
US
Preparation
4
Mount the back cover of the display and the
system cable cover.
1 Insert the four tabs on the upper side of the
cover (1) into the grooves on the rear of
the display.
2 Press the two tabs on the lower side of the
cover (2) into the grooves on the rear of
the display until they produce a click sound.
3 Press the two tabs on the lower side of the
cover (3) into the grooves on the rear of
the display until they produce a click sound.
5
Connect desired external equipment (e.g. DVD
player: See page 12).
6
Mount the supplied AVC system terminal cover.
1 Align the protruding part in the center of the
cover (1) with the outside of the AVC
system.
2 Align the two tabs on the lower side of the
cover (2) with the two grooves in the lower
side of the AVC system and push them
gently in.
3 Align the two tabs on the upper side of the
cover (3) with the two grooves in the upper
side of the AVC system and push them
gently in.
1
1
2
1
1
3
2
1
3
2
3
2
1
3
2
3
Removing the AVC system terminal cover
1 Press both of your thumbs against the
arrow marks (2 locations) on the upper side
of the cover and pull out gently to release
the tabs on the upper side.
2 Now pull away the entire cover to release
the tabs on the lower side.
Note
• Before connecting the power cord, be sure to set the MAIN POWER button on the top-of display to “OFF”.
• When not using the unit for extended periods of time, be sure to always unplug the power cord.
• The display and the AVC system do not operate independently. Be sure to always plug-in both AC power cords in
order to operate the display.
• When connecting external equipment to the AVC system, be sure to always make the necessary connections before
plugging in the power cords.
• Do not remove the system cable while operating the unit. Doing so can cause a malfunction.
• Do not place anything over the ventilation openings on the top of the AVC system.
US
10
Preparation
Batteries for Remote Control
If the remote control fails to operate the display, replace the batteries in the remote control.
1
Open the battery
compartment cover.
• Slide the cover in the direction
of the arrow.
2
Load the supplied AA
batteries.
• Place the batteries with their
terminals corresponding to the
(+) and (–) indications in the
battery compartment.
3
Close the battery
compartment cover.
• Slide the cover in the direction
of the arrow.
CAUTION
Battery handling precautions
Improper use of the dry batteries can result in leakage of the battery fluid and/or rupture. Be sure to
follow the guidelines outlined below.
• Place the batteries with their terminals according to the (+) and (–) locations.
• Different types of batteries have different characteristics. Do not mix batteries of different types.
• Do not use old and new batteries together. Mixing old and new batteries can shorten the life of new
batteries and/or cause old batteries to leak battery fluid.
• Remove batteries as soon as they are exhausted. Fluid leaking from the batteries can cause a rash. If
fluid has leaked out, wipe it off with a cloth.
Remote control handling precautions
• Do not expose the remote control to excessive shock. Do not place the remote control where it can
get wet or where the humidity is high.
• Do not place the remote control in a location where it is exposed to direct sunlight.
The heat can deform its plastic exterior.
• When the remote sensor window of the display is exposed to direct sunlight or to strong light source,
remote control may prove to be difficult. Change the direction of the light source or of the display or
operate the remote control from a location closer to the remote sensor window.
Note
• The batteries included with the unit may not last as long as new batteries due to aging. Replace them when they fail
to operate the remote control.
• If the remote control is not used for extended periods of time, remove the batteries.
11
US
Preparation
System Connection (Example)
The following diagram shows an example of system connection, on which this Operation
Manual is based.
Display
Optional speaker system (*1)
Computer
AC Power cord
Cable Clamp
RO
TI N
OM
DC
System cable
L
Remote Control
15-pin D-sub cable (*2)
AC Power cord
12ft.5-39/64" [3.8m]
AVC System
110-120V /
220-240V~
RS-232C
DISPLAY OUTPUT
PC INPUT
AUDIO
RGB
DVD Player
VIDEO
COMPONENT 1
(INPUT)
NTSC / PAL / SECAM
AV INPUT 1
R-AUDIO-L
Y
PB(CB) PR(CR)
R-AUDIO-L
Y
PB(CB) PR(CR)
VIDEO
COMPONENT 2
(INPUT)
S-VIDEO
R-AUDIO-L
AV INPUT 3
/ AV OUT
VIDEO
R-AUDIO-L
Component
Video cable (*3)
AC Power cord
5ft.10-55/64" [1.8m]
AC Power cord
Audio Cable (*3)
To power
outlet
(*1) For the best sound quality, we recommend you purchase the optional speaker system with built-in amplifier. The
optional speakers are connected to the rear cabinet of the display.
(*2) (*3) These cables are sold separately.
To enjoy the beautiful sound with optional Bose System side speakers
1
Make sure that the AV-3 setting of the OPTION mode in “OUTPUT” to “FIX” position.
Note
2
US
If it is set to “VARIABLE” position, the sound does not come out from the speakers. Change the
setting to “FIX” position so that you will be able to hear the sound. The setting procedures are shown
on page 27.
You can control the sound volume with VOLUME (+)/(–) on the remote control or the top of the
display.
12
Preparation
If you connect your audio amplifier or system speakers to the unit, please refer to the system example
below.
Speaker
Display
Speaker
Sold separately
Amplifier
AC Power cord
Cable Clamp
Audio Cable
(Sold separately)
System cable
AVC System
110-120V /
220-240V~
RS-232C
DISPLAY OUTPUT
PC INPUT
AUDIO
DVD Player
VIDEO
COMPONENT 1
(INPUT)
NTSC / PAL / SECAM
AV INPUT 1
R-AUDIO-L
Y
PB(CB) PR(CR)
R-AUDIO-L
Y
PB(CB) PR(CR)
VIDEO
COMPONENT 2
(INPUT)
S-VIDEO
R-AUDIO-L
AV INPUT 3
/ AV OUT
VIDEO
RGB
R-AUDIO-L
Component
Video cable
AC Power
cord
Audio cable
AC Power cord
To power
outlet
Using an external speaker system
POWER
INPUT
1
AV INPUT
2
COMPONENT
1
2
MUTE
Connect an audio cable from the audio input terminal (LINE-IN) of the
amplifier to the AV INPUT 3/AV OUT terminal on the rear of the AVC
system.
2
Set the AV-3 setting of the OPTION mode in “OUTPUT” (VARIABLE).
See page 27 for the setting procedure.
3
Press VOLUME (+) on the top of the display or the remote control to
increase sound volume.
4
5
Set the maximum volume for the connected amplifier.
3
PC
VOL
MENU
1
Check the volume level of the connected DVD player or VCR, then
adjust VOLUME (–) on the remote control to set the appropriate
volume.
ENTER
LCD MONITOR
13
US
Basic Operation
Turning on POWER
Top view
BRIGHTNESS MAIN POWER
When the POWER/Standby indicator is “OFF”:
Press MAIN POWER on the top panel of the display.
If the power cannot be switched on by pressing MAIN POWER, first
press MAIN POWER in the “OFF” position, then while keeping INPUT
pressed, press MAIN POWER again.
When the POWER/Standby indicator lights up “red”:
Press POWER on the remote control.
• When the power is switched on, the POWER/Standby indicator
lights up green and a mode indicator appears on the upper right
corner of the display.
Indicator (Example)
COMPO-1
POWER/Standby indicator
CAUTION
Never pull the plug of the power cord before you switch off the power
by using the MAIN POWER button on the top panel.
Note
Unless external AV equipment is connected, the indicator “AV-1”
appears on the display.
Switching INPUT Source
Press INPUT and select the applicable input source.
INPUT
BRIGHTNESS
AV-1
AV-2
COMPONENT1
COMPONENT2
PC
Indicator (Example)
AV-1
Note
• The input source mode is skipped if the corresponding input terminal is not
connected with external equipment (except “PC”).
• If you change the AV INPUT 3/AV OUT select, you can select “AV-3”. See
page 29 for details.
US
14
Basic Operation
Adjusting BRIGHTNESS
Press BRIGHTNESS and adjust the brightness of the display.
INPUT
BRIGHTNESS
DARK
BRIGHT
NORMAL
Indicator (Example)
DARK
Basic Operation
Sound VOLUME
Press VOL (+) to increase sound volume.
Press VOL (–) to decrease sound volume.
– VOL +
INPUT
Indicator
* No sound is output under the following conditions.
Mark
Meaning
Set to “Line output” with an
external amplifier connected
(page 13)
When headphones are
connected (page 8)
By pressing MUTE on the remote control, you can temporarily turn the
sound off.
Indicator
To turn the sound on again, press MUTE once more, or VOL (+)/(–)
on the remote control or on top of the display.
15
US
Basic Operation
Adjusting the display’s position
The display can be inclined between 10° to the front and 8° to the back. In addition it can be rotated from
left to right and vice versa within a range of 20°.
8°
10°
10°
10°
Cleaning
Make sure to always switch the MAIN POWER button at the top of the display “OFF”, and then remove
the AC power cord.
If the screen becomes dirty, wipe it off with a damp cloth.
Taking care of the screen of your LCD display
• Never spray liquid directly on the display.
• When dust has accumulated on the screen, use a commercially available cleaning brush (anti-static
brush).
• To protect the screen, do not wipe with a dry cloth or a chemically treated cloth.
Taking care of the cabinet
• Wipe dirt off using a soft cloth made of flannel, for example.
• Never use volatile agents such as benzene or thinner as they will deteriorate the exterior and the
coating.
• Never apply other volatile chemicals such as insecticides.
Never let the exterior stay in contact with rubber or vinyl surfaces for long periods of time. This could
cause the cabinet to deteriorate or the coating to peel off.
US
16
Adjustments to the On-Screen Display
Menu List
The list below shows all the items you can set and adjust. See the following pages for details on each
setup procedure.
:Factory setting
AV Mode
VIEW (p.18)
BRIGHT. (p.22)
PC Mode
SIDE BAR
VIEW (p.18)
SIDE BAR
CINEMA
CINEMA
WIDE
FULL
BRIGHT
DOT BY DOT
BRIGHT. (p.22)
NORMAL
NORMAL
DARK
PICTURE (p.23)
DARK
NORMAL
PICTURE (p.23)
MOVIE
GAME
SOUND (p.25)
NORMAL
MOVIE
CONTRAST
+30
BRIGHT
0
RED
0
BLUE
0
RESET
TREBLE
0
NORMAL
BASS
0
WIDE VIEW
FULL
BALANCE
AV-3
OUTPUT
LOUDNESS
C-SYSTEM
AUTO
DISPLAY
SOUND (p.25)
ON
Adjustments to the
On-Screen Display
GAME
OPTION (p.27)
BRIGHT
0
OFF
RESET
OPTION (p.27)
NORMAL
AUTO SYNC
RESET
OUTPUT
AV-3
SIGNAL INFO
DISPLAY
ON
RESET
NORMAL
MOVIE
GAME
CONTRAST
60
50
45
TINT
0
0
0
COLOR
0
0
0
BRIGHT. (Black level)
0
–5
0
SHARP (SHARPness)
0
0
–20
BLACK (Black stretching: sense of depth)
OFF
OFF
OFF
VDE (Vertical Detail Enhancement) *Only for N358
OFF
OFF
OFF
F-TONE (Flesh Tone)
ON
ON
OFF
0
0
0
TREBLE
0
0
0
BASS
0
0
0
PRO.
AV Mode Factory Setting Details
SOUND
C-TEMP (Color TEMPerature)
*Only for PAL/PAL-60/PAL-M
BALANCE
LOUDNESS
0
0
0
OFF
OFF
OFF
17
US
Adjustments to the On-Screen Display
Adjusting the VIEW Settings
This menu allows you to select a picture size manually.
Details of modes and adjustment items are described on the following pages.
1
Press MENU to display the Menu screen.
Press \| to move the cursor to VIEW
and then press ENTER.
NU
BRIGHT
VIEW
SIDE BAR
CINEMA
SIDE BAR
WIDE
POWER
INPUT
1
AV INPUT
2
COMPONENT
1
2
MUTE
3
PC
2
VOL
MENU
Press \| to move the cursor and select
the desired mode.
Then press ENTER.
NU
VIEW
BRIGHT
SIDE BAR
CINEMA
WIDE
V-POSI.
H-POSI.
RESET
ENTER
Adjusting the Position of the Picture
LCD MONITOR
Continue the following procedure if you want to adjust the position
vertically/horizontally.
3
Press \| to move the cursor and select
the desired adjustment.
Then press ENTER.
MENU
VIEW
BRIGHT
SIDE BAR
CINEMA
WID
V-POSI.
H-POSI.
RESET
0
+30
–30
4
Press \| to make the adjustment and
then press ENTER.
V-POSI.
+1
–30
US
18
+30
Adjustments to the On-Screen Display
AV mode
Mode
SIDE BAR
The screen shows
the regular display
(height:width ratio is
4:3).
Regular TV display
9:00
9:00
;;
;;
CINEMA
WIDE
➜
The screen shows a
movie size display
for (software-driven)
movies.
Display with bands at the top and bottom
Compressed to the
4:3 format, a video
image is shown full
size.
Display with subtitles at the bottom
➜
➜
Hello, How are you?
Note
;;
;;
Hello, How are you?
The SIDE BAR mode and the WIDE mode has an AUTO setting that automatically sets pictures with letter
box signals to a suitable size (for NTSC only). Please select “ON” in the AUTO setting using the '"\ |
buttons. See page 37.
PC mode
Mode
FULL
Widened picture to full-screen size
DOT BY DOT
Picking out the display mode of the input signal of the connected computer, this
function displays the picture in the center without enlargement.
• This unit is compatible with the following display modes.
Horizontal dot
Vertical dot
640
480
800
600
1024
768
19
US
Adjustments to the On-Screen Display
AV mode
Mode
SIDE BAR
Selected item
Setting
[AUTO]
Automatically sets to a suitable
picture size
“ON”
[POSITION]
Manually set to a desired position
“V” Shifting the picture vertically (–10~+10)
“OFF”
“H” Shifting the picture horizontally (–30~+30)
“RESET” Returning to the factory setting
CINEMA
WIDE
[V-POSI.]
Shifting the picture vertically (–30~+30)
[H-POSI.]
Shifting the picture horizontally (–30~+30)
[RESET]
Returning to the factory setting
[AUTO]
Automatically sets to a suitable
picture size
“ON”
[POSITION]
Manually set to a desired position
“V” Shifting the picture vertically (–15~+15)
“OFF”
“H” Shifting the picture horizontally (–30~+30)
“RESET” Returning to the factory setting
PC mode
Mode
Selected item
Setting
SIDE BAR
[CLOCK]
Adjust when flicker in the form of vertical
stripes appears. (–90~+90)
[PHASE]
Adjust if contrast can not be obtained or flicker
occurs when letters, etc. are displayed.
(–20~+20)
[V-POSI.]
Adjust when the picture is too high or too low.
(–60~+60)
[H-POSI.]
Adjust when the picture is too far to the right or
too far to the left. (–90~+90)
[RESET]
Returning to the factory setting
CINEMA
FULL
DOT BY DOT
* “Clock” and “PHASE” will only be displayed during the PC mode.
US
20
Adjustments to the On-Screen Display
Note
• The screen size is slightly different when receiving 1080i signals and other type of signals.
• When the AUTO setting is “ON”, the picture may become larger and smaller, but this is only because the AUTO
setting is automatically selecting the most appropriate image for the incoming video signal and does not indicate a
malfunction. If it is disturbing, please set the AUTO setting to “OFF” and select the appropriate picture size.
• Depending on the picture you are watching the time it takes for the selection to take place may differ.
• For wide picture signals (cinema size, etc.), black bands at the top and bottom of the screen may remain.
• When watching special playback functions (video search, slow playback, etc.) on the VCR, the AUTO setting may
stop operating.
• This unit is equipped with functions, which select appropriate picture mode for all types. Note that if a size mode is
selected that differs from the video display ratio of the software, the view will be different from the original picture.
• When watching a 4:3 format (SIDE BAR) picture adjusted to a full size using the VIEW mode, the peripheral picture
may be invisible or partly deformed. In order to watch the original picture as intended by the copyright holder; please
watch using the SIDE BAR mode.
• Depending on the signal received or the movie software, correct operation cannot be obtained with the AUTO setting.
In this case, after setting the AUTO setting of the VIEW mode to “OFF”, select the appropriate picture size.
• When displaying with the CINEMA mode during the PC mode, the picture will be shown with the top and bottom of
the parts cut off.
• When displaying a wide movie from the DVD with the PC mode, use the CINEMA mode.
• Depending on the type of commercial software, parts of subtitles, etc. may disappear. In this case, please select an
appropriate picture mode using the VIEW mode and adjust the vertical position using position adjustment. Noise and
bending of the picture may occur at the top or the edges of the picture but this does not indicate a malfunction.
• Depending on the picture displayed, the display position may not change even though the value of the adjustment
changes.
21
US
Adjustments to the On-Screen Display
Adjusting the BRIGHT Settings
1
Press MENU to display the Menu screen.
Press \| to move the cursor to BRIGHT
and then press ENTER.
VIEW
BRIGHT
PICTUR
BRIGHT
BRIGHT
NORMAL
DARK
POWER
INPUT
1
AV INPUT
2
COMPONENT
1
2
MUTE
3
PC
2
Press \| to make the adjustment.
Then press ENTER.
VIEW
BRIGHT
MENU
ENTER
LCD MONITOR
BRIGHT
Maximum brightness
Mode
NORMAL
Brightness 60% ➞ Suitable for viewing in well-lit areas. Saves energy.
DARK
Brightness 20% ➞ Sufficiently bright when viewing in dim areas.
US
22
BRIGHT
PICTUR
VOL
NORMAL
DARK
Adjustments to the On-Screen Display
Adjusting the PICTURE Settings
This menu allows you to select an appropriate position for contents of the picture or lighting of the place.
Details of modes and adjustment items are described on the following pages.
1
Press MENU to display the Menu screen.
Press \| to move the cursor to
PICTURE and then press ENTER.
BRIGHT
SOUND
NORMAL
NORMAL
GAME
MOVIE
POWER
INPUT
1
AV INPUT
2
COMPONENT
1
2
MUTE
3
PC
2
VOL
Press \| to move the cursor and select
the desired mode.
Then press ENTER.
BRIGHT
NORMAL
NT
MENU
GAME
MOVIE
COLOR
SOUND
BRIGHT.
SHARP
ENTER
For Fine Picture Adjustment
Continue the following procedure if you want to adjust the picture item by item.
LCD MONITOR
3
Press \| to move the cursor and select
the desired adjustment.
Then press ENTER.
SOUND
OPTION
AME
SHARP
VDE
4
Press \| to move the cursor and select
the desired adjustment. Then press
ENTER.
RESET
F-TONE
AL
UR
MOVIE
PRO.
C-TEMP
RESET
SOUND
OPTIO
GAME
BRIGHT.
SHARP
BLACK
VDE
RESET
F-TONE
C-T
ON
5
ON
OFF
ON
OFF
Press \| to make the adjustment and
then press ENTER.
23
US
Adjustments to the On-Screen Display
AV mode
NORMAL
Suitable for viewing a most program material
Mode
MOVIE
Suitable for viewing a movie
GAME
Suitable for playing a TV game
Selected item
Setting
[CONTRAST]
Decrease/Increase contrast (0~+60)
[TINT]
Toward purple/Toward green (–30~+30)
[COLOR]
Lower/Higher color intensity (–30~+30)
[BRIGHT]
Adjusting the black level (–30~+30)
[SHARP]
Adjusting the sharpness (–30~+30)
[RESET]
Returning to the factory setting
[PRO.]
“BLACK” Adjusts the degree of dark portions of the picture and
changes the depth. (OFF/HIGH/LOW)
“VDE” Switches on/off the degree of emphasis on the contours of
the picture in the vertical direction. (ON/OFF)
Please use when picture is soft.
*Only for N358 regular video signal
“F-TONE” Changes the degree of emphasis on the skin color. (ON/
OFF)
“C-TEMP” Decrease/Increase color temperature (–5~+5)
*Only for PAL/PAL-60/PAL-M regular video signal
“RESET” Returning to the factory setting
PC mode
CONTRAST
Adjusting the contrast of the picture
BRIGHT
Adjusting the black level of the picture
Mode
RED
Adjusting the red level of the picture
BLUE
Adjusting the blue level of the picture
RESET
Returning to the factory setting
Selected item
Setting
[CONTRAST]
Decrease/Increase contrast (0~+60)
[BRIGHT]
Less/More bright (–30~+30)
[RED]
Less/More red level (–30~+30)
[BLUE]
Less/More blue level (–30~+30)
[RESET]
Returning to the factory setting
US
24
Adjustments to the On-Screen Display
Adjusting the SOUND Settings
This menu allows you to select an appropriate position for contents of the picture.
Details of modes and adjustment items are described on the following pages.
1
Press MENU to display the Menu screen.
Press \| to move the cursor to SOUND
and then press ENTER.
SOUND
OPTION
NORMAL
NORMAL
MOVIE
GAME
POWER
INPUT
1
AV INPUT
2
COMPONENT
1
2
MUTE
3
PC
2
VOL
Press \| to move the cursor and select
the desired mode.
Then press ENTER.
SOUND
NORMAL
MENU
TREBLE
ENTER
MOVIE
BASS
OPTION
GAME
BALANCE
LOUD
For Fine Sound Adjustment
LCD MONITOR
Continue the following procedure if you want to adjust the sound item by
item.
3
Press \| to move the cursor and select
the desired adjustment.
Then press ENTER.
SOUND
MOVIE
S
OPTION
GAME
BALANCE
LOUDNESS
RESET
OFF
OFF
4
ON
Press \| to make the adjustment and
then press ENTER.
OFF
ON
25
US
Adjustments to the On-Screen Display
AV mode
NORMAL
Suitable for viewing a most program material
Mode
MOVIE
Suitable for viewing a movie
GAME
Suitable for playing a TV game
Selected item
Setting
[TREBLE]
Decrease/Increase treble level (–30~+30)
[BASS]
Decrease/Increase bass level (–30~+30)
[BALANCE]
Adjusts the balance of right and left sound. L30 is from the most left
and R30 is from the most right.
[LOUDNESS]
Modulation of the sound ON/OFF
[RESET]
Returning to the factory setting
PC mode
TREBLE
Decrease/Increase treble level (–30~+30)
BASS
Decrease/Increase bass level (–30~+30)
Mode
BALANCE
Adjusts the balance of right and left sound. L30 is from the most left and R30 is from the
most right.
LOUDNESS
Modulation of the sound ON/OFF
RESET
Returning to the factory setting
US
26
Adjustments to the On-Screen Display
Adjusting the OPTION Settings
This menu is for advanced functions.
Details of adjustment items are described on the following pages.
1
Press MENU to display the Menu screen.
Press \| to move the cursor to OPTION
and then press ENTER.
SOUND
V- 3
OPTION
C-SYSTEM
DISPLAY
RESET
POWER
INPUT
1
AV INPUT
2
COMPONENT
1
2
MUTE
3
PC
2
VOL
Press \| to move the cursor and select
the desired mode.
Then press ENTER.
SOUND
WIDE VIEW
OPT
C-SYSTEM
AV- 3
DI
INPUT
MENU
INPUT
ENTER
3
LCD MONITOR
Press \| to move the cursor and select
the desired adjustment.
Then press ENTER.
OUTPUT
SOUND
WIDE VIEW
C-SYSTEM
AV- 3
INPUT
OPT
DI
OUTPUT
FIXED
FIXED
4
VARIABLE
Press \| to make the adjustment and
then press ENTER.
FIXED
VARIABLE
27
US
Adjustments to the On-Screen Display
AV mode
Mode
Selected item
[NORMAL]
Normal horizontal picture orientation
[MIRROR]
Mirror image ➞ To display mirror picture for special uses.
WIDEVIEW
(See page 38.)
[FULL]
This mode displays the full screen of the video signal
received. (The picture is displayed slightly stretched
vertically.)
[STRETCH]
This mode displays pictures based on the width of the
screen. Bands are present at the top and bottom.
(Aspect ratio is 16:9)
AV-3
[INPUT]
AV INPUT 3 put in input mode
[OUTPUT]
The current image and sound are output from AV INPUT 3/AV OUT terminal, when
switching to “OUTPUT”.
“FIXED”: The sound level is fixed. ➞ Adjust it from the connected AV device (e.g.
an amplifier)
“VARIABLE”: The sound level is not fixed. (The maximum level is as much as in
the FIXED setting)
* No sound from side speakers
C-SYSTEM
[AUTO]/[N358]/[N443]/[PAL]/[PAL-60]/[PAL-M]/[SECAM]
* The settings are stored per connection terminal (AV-1/2/3). Even if the power to
the unit is cut off, the settings will remain in the memory.
DISPLAY
Turns [ON] or [OFF] the channel indicators which are displayed when changing
channels.
RESET
Returning to the factory setting
PC mode
Mode
Selected item
AUTO SYNC
Using this function, a stable computer screen without flicker in the display can be
obtained.
Press ENTER for adjustment.
* Depending on the signal, the AUTO SYNC function may not provide enough
adjustment. In this case, perform fine adjustment manually.
Even if the output setting is the same at the computer side (e.g. XGA), slight
discrepancies may occur in the adjustment of the hardware.
* Canceling the AUTO SYNC function:
Press ENTER to cancel the above function, when “Adjusting the image” is being
displayed.
SIGNAL INFO
This measures and sets the frequency when the display is used as a computer monitor.
US
28
Notes for Connection
Connecting a DVD Video Player
When connecting a DVD player, always connect it directly to this unit.
If the signals is input via a video deck, the picture may not be displayed properly.
Connecting a VCR/GAME System (AV-1 and AV-2)
When connecting game system: “Shooting games” played with a pistol cannot be used.
Connecting AV Equipment (AV INPUT 3/ AV OUT)
• You can output the video and audio signals of AV-1/2 from the AV INPUT 3/AV OUT terminal.
• Set AV-3 setting to “OUTPUT”, and connect the AV INPUT 3/OUT terminal to an input terminal of a
video equipment, and you can record the received video and audio signal on the video equipment.
Note
• Component input signals and PC input signals are disabled for monitor output (recording).
• When using AV-1 or AV-2 with S-video input signal and the AV INPUT 3/AV OUT terminal is set to “OUTPUT”, the
signal is converted to a regular video signal output from AV OUT.
Switching the AV INPUT/OUTPUT
Changing “OUTPUT” to “INPUT”
1
Set the AV-3 setting in the OPTION mode to “INPUT”. For the operation, refer to “Adjusting the OPTION Settings” (page 27).
2
Select “AV-3” for the input source by using either the INPUT button or
the AV INPUT buttons.
POWER
AV-1
AV-2
AV-3
COMPONENT1
COMPONENT2
PC
INPUT
MUTE
Indicator
AV INPUT
2
COMPONENT
1
2
3
AV-3
PC
VOL
MENU
Notes for
Connection
1
Changing “INPUT” to “OUTPUT”
* Select the input source other than “AV-3” before going to the OPTION
mode to perform Step 1.
ENTER
LCD MONITOR
1
Set the AV-3 setting in the OPTION mode to “OUTPUT”.
For the operation, refer to “Adjusting the OPTION Settings” (page 27).
2
Select “FIXED” (for the optional side speakers) or “VARIABLE” (for a
commercially available speaker system).
Note
• FIXED: The sound level of the AV OUT is fixed and you can not adjust the
volume using the VOLUME buttons of the unit. Adjust the volume from the
AV equipment that is connected to the unit.
• VARIABLE: The sound level of the AV OUT is variable so that you can use
the VOLUME buttons of the unit to adjust the volume. Note that the sound
from the optional side speakers connected to the unit is muted.
• The default setting is “VARIABLE”.
29
US
Connecting to a Computer
Connection
This display can be used as the monitor of personal computer. Check the following system requirements
in advance.
Display mode
Computer
(Horizontal dots × Vertical lines)
IBM PC(DOS/V,
PC/V, PC/AT)
and compatible
computers
Vertical frequency
640×480
800×600
60-85 Hz
1024×768
RS-232C
Clock frequency
Note
Approx.30 MHz
VGA
Approx.50 MHz
SVGA
Approx.80 MHz
XGA
DISPLAY OUTPUT
PC INPUT
AUDIO
110-120V /
220-240V~
RS-232C
DISPLAY OUTPUT
VIDEO
COMPONENT 1
(INPUT)
NTSC / PAL / SECAM
AV INPUT 1
R-AUDIO-L
PC INPUT
AUDIO
Computer
AVC system (Rear)
RGB
Y
PB(CB) PR(CR)
COMPONENT 2
(INPUT)
S-VIDEO
R-AUDIO-L
Y
PB(CB) PR(CR)
VIDEO
VIDEO
R-AUDIO-L
AV INPUT 3
/ AV OUT
VIDEO
RGB
R-AUDIO-L
To PC AUDIO
INPUT terminal
To AUDIO
OUTPUT terminal
To RGB INPUT terminal
To RGB OUTPUT terminal
Handling of the RGB Connection Cable
Align the pins of this unit and those of the RGB
connection cable used to connect the computer
and insert, then securely fasten with the screws
located at both ends.
RGB input terminal pin layout
Computer Input/Analog
5
10
15
US
30
1
6
11
1. Video input (red)
2. Video input (green/sync on
green)
3. Video input (blue)
4. Reserve input 1
5. Composite sync
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. GND
12. Bi-directional data
13. Horizontal sync signal
14. Vertical sync signal
15. Data clock
Connecting to a Computer
Computer Control of the Display
• When a program is set, the display can be controlled from the computer using the RS-232C terminal.
The input signal (computer/video) can be selected, the volume can be adjusted and various other
adjustments and settings can be made, enabling automatic programmed playing.
• Attach an RS-232C cable cross-type (commercially available) to the supplied Din-D/sub RS-232C for
the connections.
Note
This operation system should be used by a person who is accustomed to using computers.
Communication conditions
Set the RS-232C communications settings on the computer to match the display’s communications
conditions.
The display’s communications settings are as follows:
Baud rate
9,600 bps
Data length
8 bits
Parity bit
None
Stop bit
1 bit
Flow control
None
Communication procedure
Send the control commands from the computer via the RS-232C connector.
The display operates according to the received command and sends a response message to the computer.
Do not send multiple commands at the same time. Wait until the computer receives the OK response
before sending the next command.
Command format
C1 C2 C3 C4 P1 P2 P3 P4
Command 4-digits
Parameter 4-digits
Return code (0DH)
Response code format
Normal response
O
K
Return code (0DH)
Connecting
to a Computer
Problem response (communication error or incorrect command)
E
R
R
Return code (0DH)
31
US
Connecting to a Computer
Commands
If an asterisk (*) appears, enter a value in the range indicated under CONTROL CONTENTS.
CONTROL ITEM
COMMAND
READ/
WRITE
WRITE
PARAMETER
POWER SETTING
POWR
RW
*
INPUT MODE
IMOD
R
INPUT CHECK
ICHK
/SYSE
W
0
DISPLAY
(CH CALL)
CHCL
RW
*
0: Display (CH call) off
1: Display (CH call) on
INPUT SELECTION
IRGB
RW
1
Inputs RGB (PC)
IVED
RW
*
Inputs VIDEO (*)
(* = 1-3)
ICED
RW
*
COLOR SYSTEM
SELECTION
MESY
RW
*
1:
2:
1:
2:
3:
4:
5:
6:
7:
8:
AV mode (NORMAL)
PICTURE settings
VAPI
RW
***
CONTRAST (0-+60)
VABR
RW
***
BRIGHT (–30-+30)
VACO
RW
***
COLOR (–30-+30)
VATI
RW
***
TINT (–30-+30)
VASH
VARE
RW
W
***
*
SHARP (–30-+30)
0: Displays the setting value on OSD
(except PRO. settings)
1: Resets the setting value (except PRO. Settings)
VABK
RW
*
BLACK 0: OFF 1: LOW 2:HIGH
VAVE
RW
*
VDE
VAPK
RW
*
F-TONE 0: OFF 1: ON
VACT
VBPI
RW
RW
**
***
C-TEMP (–5-+5) (Only for PAL/PAL-60/PAL-M)
CONTRAST (0-+60)
VBBR
RW
***
BRIGHT (–30-+30)
VBCO
RW
***
COLOR (–30-+30)
VBTI
RW
***
TINT (–30-+30)
VBSH
VBRE
RW
W
***
*
SHARP (–30-+30)
0: Displays the setting value on OSD
(except PRO. settings)
1: Resets the setting value (except PRO. Settings)
VBBK
RW
*
BLACK 0: OFF 1: LOW 2:HIGH
VBVE
RW
*
VDE
VBPK
RW
*
F-TONE 0: OFF 1: ON
VBCT
RW
**
C-TEMP (–5-+5) (Only for PAL/PAL-60/PAL-M)
AV mode (MOVIE)
PICTURE settings
CONTROL CONTENTS
0: Sets the unit to the standby status
Responds to current input source (Read only)
1: RGB (PC) input
2: video input
3: component input
Inputs confirmation
Displays the input source as a CH call
Input COMPONENT1
Input COMPONENT2
AUTO
PAL
SECAM
NTSC 443
NTSC 358
PAL-M
(reserve)
PAL-60
0: OFF 1: ON
0: OFF 1: ON
Note: The unit cannot be controlled from a computer, when it is in Standby mode.
US
32
Connecting to a Computer
CONTROL ITEM
VCPI
READ/
WRITE
RW
WRITE
PARAMETER
***
CONTRAST (0-+60)
VCBR
RW
***
BRIGHT (–30-+30)
VCCO
RW
***
COLOR (–30-+30)
VCTI
VCSH
RW
RW
***
***
TINT (–30-+30)
SHARP (–30-+30)
VCRE
W
*
0: Displays the setting value on OSD
(except PRO. settings)
1: Resets the setting value (except PRO. Settings)
VCBK
RW
*
BLACK 0: OFF 1: LOW 2:HIGH
VCVE
RW
*
VDE
VCPK
VCCT
RW
RW
*
**
F-TONE 0: OFF 1: ON
C-TEMP (–5-+5) (Only for PAL/PAL-60/PAL-M)
RAPI
RW
***
CONTRAST (0-+60)
RABR
RW
***
BRIGHT (–30-+30)
RARD
RW
***
RED(–30-+30)
RABE
RARE
RW
W
***
*
BLUE(–30-+30)
0: Displays the setting value on OSD
1: Resets the setting value
VOLA
RW
**
Controls the current volume
VSPV
RW
**
Controls the volume of AV speakers /headphones
RSPV
RW
**
Controls AV line volume
VLNV
RLNV
RW
RW
**
**
Controls the volume of PC speakers/headphones
Controls PC line volume
MUTE
MUTE
RW
*
0: MUTE OFF 1: MUTE ON
SOUND settings
(in the current picture mode)
AABL
RW
***
BALANCE (–30-+30)
AABA
RW
***
BASS (–30-+30)
AATE
RW
***
TREBLE(–30-+30)
AALD
AARE
RW
W
*
*
0: LOUDNESS OFF 1: LOUDNESS ON
0: Displays the setting value on OSD
1: Resets the setting value
VABL
RW
***
BALANCE (–30-+30)
VABA
RW
***
BASS (–30-+30)
VATE
RW
***
TREBLE(–30-+30)
VALD
VAAR
RW
W
*
*
0: LOUDNESS OFF 1: LOUDNESS ON
0: Displays the setting value on OSD
1: Resets the setting value
VBBL
RW
***
BALANCE (–30-+30)
VBBA
RW
***
BASS (–30-+30)
VBTE
RW
***
TREBLE(–30-+30)
VBLD
VBAR
RW
W
*
*
0: LOUDNESS OFF 1: LOUDNESS ON
0: Displays the setting value on OSD
1: Resets the setting value
VCBL
RW
***
BALANCE (–30-+30)
VCBA
RW
***
BASS (–30-+30)
VCTE
RW
***
TREBLE(–30-+30)
VCLD
VCAR
RW
W
*
*
0: LOUDNESS OFF 1: LOUDNESS ON
0: Displays the setting value on OSD
1: Resets the setting value
AV mode (GAME)
PICTURE settings
RGB (PC) mode
PICTURE settings
VOLUME
AV mode (NORMAL)
SOUND settings
AV mode (MOVIE)
SOUND settings
AV mode (GAME)
SOUND settings
COMMAND
CONTROL CONTENTS
0: OFF 1: ON
33
US
Connecting to a Computer
CONTROL ITEM
VRBL
READ/
WRITE
RW
WRITE
PARAMETER
***
BALANCE (–30-+30)
VRBA
RW
***
BASS (–30-+30)
VRTE
RW
***
TREBLE (–30~+30)
VRLD
VRAR
RW
W
*
*
0: LOUDNESS OFF 1: LOUDNESS ON
0: Displays the setting value on OSD
1: Resets the setting value
POSITION settings
(in the current picture
mode)
AV mode/ PC mode
common
INCL
RW
***
*In the AV mode, the CLOCK cannot be adjusted.
INPH
RW
***
*In the AV mode, the PHASE cannot be adjusted.
IAHP
RW
***
H-POSI.
IAVP
IARE
RW
W
***
*
V-POSI.
0: Displays the setting value on OSD
1: Resets the setting value
AV mode (SIDE BAR)
POSITION settings
(VACL)
RW
***
(CLOCK) (reserve)
(VAPH)
RW
***
(PHASE) (reserve)
VAHP
RW
***
H-POSI.
VAVP
VAFR
RW
W
***
*
V-POSI.
0: Displays the setting value on OSD
1: Resets the setting value
(VBCL)
RW
***
(CLOCK) (reserve)
(VBPH)
RW
***
(PHASE) (reserve)
VBHP
RW
***
H-POSI.
VBVP
VBFR
RW
W
***
*
(VCCL)
RW
***
V-POSI.
0: Displays the setting value on OSD
1: Resets the setting value
(CLOCK) (reserve)
(VCPH)
RW
***
(PHASE) (reserve)
VCHP
RW
***
H-POSI.
VCVP
RW
***
V-POSI.
VCFR
W
*
RACL
RW
***
0: Displays the setting value on OSD
1: Resets the setting value
CLOCK
RAPH
RW
***
PHASE
RAHP
RW
***
H-POSI.
RAVP
RW
***
V-POSI.
RAFR
W
*
RBCL
RW
***
0: Displays the setting value on OSD
1: Resets the setting value
CLOCK
RBPH
RW
***
PHASE
RBHP
RW
***
H-POSI.
RBVP
RW
***
V-POSI.
RBFR
W
*
RCCL
RW
***
0: Displays the setting value on OSD
1: Resets the setting value
CLOCK
RCPH
RW
***
PHASE
RCHP
RW
***
H-POSI.
RCVP
RW
***
V-POSI.
RCFR
W
*
0: Displays the setting value on OSD
1: Resets the setting value
RGB (PC) mode
SOUND settings
AV mode (CINEMA)
POSITION settings
AV mode (WIDE)
POSITION settings
PC mode (SIDE BAR)
POSITION settings
PC mode (CINEMA)
POSITION settings
PC mode (FULL)
POSITION settings
US
34
COMMAND
CONTROL CONTENTS
Connecting to a Computer
CONTROL ITEM
COMMAND
READ/
WRITE
WRITE
PARAMETER
RDCL
RW
***
CLOCK
RDPH
RW
***
PHASE
RDHP
RW
***
H-POSI.
RDVP
RDFR
RW
W
***
*
V-POSI.
0: Displays the setting value on OSD
1: Resets the setting value
PC Picture size
RASR
RW
*
1:
2:
3:
4:
5:
SIDE BAR
FULL
DOT BY DOT
(DOT BY DOT-WIDE) (reserve)
CINEMA
AV Picture size
RASV
RW
*
1:
2:
3:
4:
5:
SIDE BAR
WIDE (/STRETCH)
(reserve)
(reserve)
CINEMA
WIDE VIEW setting
(Fit to screen)
RFSV
/IMFS
RW
*
1: (reserve)
2: STRETCH
3: FULL
INPUT DISPLAY
IMDI
RW
*
MIRROR image
IMRE
RW
*
Presence/absence of CH call when selecting
input source using command
0: OFF 1: ON
0: OFF 1: ON
ADJS
RW
*
0: AUTO SYNC STOP
1: AUTO SYNC START
During AUTO SYNC operation, only the ADJS
command is valid.
IMAS
RW
*
0: No AUTO SYNC OSD
1: Displays AUTO SYNC OSD
VLMP
RW
*
Brightness (AV) 1: DARK 2: NORMAL 3: BRIGHT
PC mode (DOT BY
DOT)
AUTO SYNC setting
BRIGHTNESS setting
CONTROL CONTENTS
RLMP
RW
*
Brightness (PC) 1: DARK 2: NORMAL 3: BRIGHT
PICTURE mode
SOUND mode
IMPI
IMAU
RW
RW
*
*
1: NORMAL 2: MOVIE 3: GAME
1: NORMAL 2: MOVIE 3: GAME
AV-3 setting
IMV3
RW
*
1: INPUT 2: OUTPUT (FIXED) 3: OUTPUT (VARIABLE)
AUTO setting
IMAW
RW
*
0: OFF 1: ON
Communication Example: Switching to the AV mode, and muting the sound
Computer
I
M
V
U
The display
E
T
D
E
_
_
_
_
_
_
1
O
K
O
K
Switching to
the AV mode
1
Setting MUTE
35
US
Connecting to a Computer
Computer Compatibility Chart
Horizontal Frequency: 15-68.7 kHz
Vertical Frequency: 60-85 Hz
Pixel Clock: 12-80 MHz
Recommended display signals and personal computer signals are as follows;
Resolution
720 × 400
VGA
640 × 480
SVGA
800 × 600
XGA
1,024 × 768
US
36
Horizontal
Frequency (kHz)
27.0
31.5
37.9
31.5
34.7
37.9
37.5
43.5
37.9
44.5
48.1
46.9
53.7
56.5
58.1
Vertical
Frequency (Hz)
60
70
85
60
70
72
75
85
60
70
72
75
85
70
72
VESA Standard
×
×
×
×
×
×
×
×
×
×
×
Reference
Picture Sizes
In the VIEW mode
The AUTO setting of the SIDE BAR mode and the WIDE mode is a function that allows you to enjoy
automatic switching to the CINEMA picture when NTSC letter box signal is received.
Input signal
SIDE BAR
CINEMA
9:00
9:00
9:00
Subtitles
Subtitles
Subtitles
Regular video (broadcast)
signal
Side Bars appear on the left
and right.
Picture is perfectly round with
projections enlarged at the top
and bottom.
Letter Box
Wide screen with black bands
at the top and bottom of the
display
Screen with black bands at the
top and bottom and left and
right of the display.
Full picture is included. The
picture is perfectly round.
Squeeze (left-right compression)
Picture when playing back
DVD's with squeeze recording
Screen with black bands at the
left and right of the display.
Picture appears stretched
vertically.
Picture is projected at the top
and bottom. The picture is
stretched vertically.
Automatically switches to the wide mode.
For high-grade pictures such as
HDTV (Wide size)
Reference
37
US
Reference
In the OPTION mode
Depending on the WIDE VIEW setting, the display of the wide mode changes. The display also changes
depending on the input video signal.
WIDE VIEW
Input signal
9:00
STRETCH
9:00
9:00
Subtitles
FULL
Subtitles
Subtitles
Regular video (broadcast)
signal
Picture is stretched horizontally
while black bands appear to
make the vertical-horizontal
ratio 16:9.
Picture is stretched over the
entire screen.
Letter Box
Wide screen with black bands
at the top and bottom of the
display
Full picture is visible but black
bands appear at the top and
bottom. (Maximum stretching in
the horizontal direction)
Picture is stretched over the
entire screen.
Squeeze (left-right compression)
Picture when playing back
DVD's with squeeze recording
Full picture is visible. Picture
becomes perfectly round. Black
bands appear at the top and
bottom.
Full picture is visible. Picture is
slightly stretched vertically.
For high-grade pictures such as
HDTV (Wide size)
US
38
Reference
Troubleshooting
Problem
Check item
Page
• Insert the AC power cord plug securely in AC power
outlet.
9
• Make sure the remote control is not in the standby
mode (The POWER/Standby indicator is red.)
7
• Turn on the MAIN POWER button on the top of the
display.
14
• Make sure the display and the AVC system is securely
connected with system cable.
9
• Check the brightness setting of the display.
15, 22
• Lamp may have malfunction. Contact your nearest
Authorized Sharp Industrial LCD products dealer or
service center for lamp replacement.
–
• Make sure a cable with no VIDEO input signal is
connected to the S-VIDEO INPUT terminal.
6
• Check the sound setting.
7, 15
• Make sure the sound is not muted.
7
• Make sure a pair of headphones is not connected.
8
• Make sure the connectors of the optional speaker
system are securely inserted.
9
• Make sure the setting of AV OUTPUT terminal is
“FIXED” (for the optional side speakers)/“VARIABLE”
(for a commercially available speaker system).
28
• Make sure COLOR and TINT settings.
24
• Make sure CONTRAST and BLACK level settings are
not set too high.
24
• Check that RED and BLUE settings are near the center.
24
• Make sure BRIGHTNESS setting is not set too low.
15, 22
• Check to see if BRIGHTNESS mode is not set to DARK.
Change to MEDIUM or BRIGHT.
15, 22
• Lamp may have malfunction. Contact your nearest
Authorized Sharp Industrial LCD products dealer or
service center for lamp replacement.
–
Picture is too dark.
Remote control does not work.
• Change the batteries.
11
• Make sure the infrared transmitter window is not receiving
strong light such as light from fluorescent lamps.
11
• Make sure AV-3 INPUT is not set.
29
• Make sure the input source other than AV-1~3.
29
......
No picture on screen and no
sound from speakers
No picture/No picture from AV1
terminal
Picture is displayed, but no
sound from the speakers.
Picture is too light or improperly
tinted.
No picture from AV OUT
terminal.
39
US
Reference
Specifications
ITEM
LCD
LC-28HM2
28" WIDE XGA LCD
2,949,120 (1280 dots × 3 RGB × 768 lines)
Low reflection coating
400 cd/m2 (at normally white)
Left to right 160°
Up to down 150°
Life of backlight
60,000 hours (at normal mode)
VIDEO
Multi system capability
PAL/PAL-M/PAL-60/NTSC(N358/N443)/SECAM
Digital comb filter for PAL/SECAM
Yes
3D Y/C separator for NTSC
Yes
Wide-band chroma IC
Yes
Gamma correction circuit
Yes
Line scanning for PAL/SECAM
Yes
AUDIO
Separate speaker system
–
Recommendable optional speaker
Bose System side speakers; 25 W (12.5 W+12.5 W)
INTERFACES
Display:
Display input 26 pins System link
(TERMINALS)
Speaker terminals For Bose System side speaker
Power Inlet for AC power cord
AVC system:
Display output 26 pins System link
AV input1 S-video, Video, Audio; R/L
AV input2 S-video, Video, Audio; R/L
AV input3/AV OUTPUT Video, Audio; R/L
COMPONENT1 Audio; R/L, Video; Y, PB (CB), PR(C R)
COMPONENT2 Audio; R/L, Video; Y, PB (CB), PR(C R)
PC RGB input, Audio input, RS-232C control
Headphones jack 9/ 64" [3.5 mm] diameter mini-jack, 16 ohms
Power Inlet for AC power cord
FUNCTIONS
OSD Language
English
Reverse/Invert
Mirror image only
Brightness
NORMAL/BRIGHT/DARK
Component capability
480i/480p/1080i/720p
PC capability
VGA/SVGA/XGA
WIDE view mode
STRETCH/FULL
AUTO wide view (NTSC picture only)
Automatically changing to CINEMA mode.
POWER SUPPLY AC auto power voltage capability
AC 110 V-240 V, 50/60 Hz
Power consumption
AVC system; AC 32 W Display; AC 140 W
RATED
Left terminal out put for speakers
DC 13.65 V max.
INDICATORS
RS-232C input terminal
DC 15 V max.
APPEARANCE
Exterior color
Silver
Outside
AVC system; 14- 11/64" [360 mm] × 2- 9/ 16" [65 mm] × 14- 3/8 " [365 mm]
dimensions
Display with stand; 27-13/64" [690.8 mm] × 20-7 /16" [519 mm] × 10- 29/ 32" [277 mm]
(W) × (H) × (D) Display without stand; 27-13/64" [690.8 mm] × 17-41/ 64" [448 mm] × 2-11/32" [59.7 mm]
Net weight
Display; 29.3 lbs [13.3 kg] AVC system; 7.7 lbs [3.5 kg]
ACCESSORIES
Remote control
Infrared wireless type
Batteries for R/C
Size AA×2
AC power cord
Type A ×2 (12ft.5- 39/ 64" [3.8 m] for Display, 5ft.10- 55/ 64"
[1.8 m] for AVC system)
System cable
26 pins plug (male to male)
Cable clamp
4 pcs
AVC system terminal cover
1 pc
Operation manual
language: English/French/Spanish/Portuguese
US
40
Size (Diagonal)
Number of pixel
Low reflection
Brightness
Viewable angle
Reference
Dimensional Drawings
Display
2-11/32"
[59.7 mm]
20-7/16" [519 mm]
17-41/64" [448 mm]
27-13/64" [690.8 mm]
POWER
7
10-29/32" [277 mm]
/8"
[22.2 mm]
4-7/16"
[112.8 mm]
19-3/32" [485 mm]
10-29/32" [277 mm]
41
US
Reference
14-11/64" [360 mm]
AV INPUT 2
S-VIDEO VIDEO L-AUDIO-R
AVC SYSTEM
HEAD
PHONE
POWER
3-47/64" [95 mm]
US
42
10-5/8" [270 mm]
2-1/4" [57 mm]
2-9/16" [65 mm]
10-5/8" [270 mm]
AVC System
Reference
Using the Wall Mount Bracket (Option)
The wall mount bracket (Model: AN-28AG1) is specially designed for the 28" display.
Note
• Consult with your dealer and leave the installation up to a specified person at Sharp dealer or authorized service
shop.
• Make sure that the wall or place where the display is mounted should be made of plywood or real wood of 5/ 8"
[15 mm] or over in thickness, otherwise the wall would be necessary a reinforcement work for the safety.
• The screws to fix the base bracket on the wall are not included in the product and in the optional bracket. Use the
commercially available screws, however, make sure the dimensions shown as follows. (7 to 11 pieces)
/64" ~ 15/64"
[5 mm ~ 6 mm]
13
/64" ~ 33/64"
[9 mm ~ 13 mm]
23
/ " ~ 13/64"
[4 mm ~ 5 mm]
5 32
Optional
speaker system
/ " or longer
[20 mm ~ ]
25 32
(Wall)
Based bracket
43
US
Calling for Service
For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer
assistance, please call 1-800-BE-SHARP.
LIMITED WARRANTY
END-USER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first end user purchaser that this Sharp brand product (the
“Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it
will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured
equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below
nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or
other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide
proof of purchase to the servicer.
To the extent permitted by applicable state law, the warranties set forth herein are in lieu of, and exclusive of, all other
warranties, express or implied. Specifically, ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE
EXCLUDED. ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. If, under
applicable state law, implied warranties may not validly be disclaimed or excluded, the duration of such implied warranties
is limited to the period(s) from the date of purchase set forth below.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those
described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and
exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described
herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the
Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.
In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused
by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any
way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on
warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply.
Model Specific Section
Your Product Model Number & Description:
LC-28HM2 LCD AV Monitor
(Be sure to have this information available when you need service for
your Product.)
Warranty Period for this Product:
One (1) year parts and labor from the date of purchase.
Additional Item(s) Excluded from
Warranty Coverage (if any):
None
Where to Obtain Service:
From a Sharp Authorized Servicer located in the United States.
To find the location of the nearest Sharp Authorized Servicer, call
Sharp toll free at 1-800-BE-SHARP.
What to do to Obtain Service:
Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product,
be sure it is insured and packaged securely.
TO OBTAIN PRODUCT INFORMATION, CALL 1-888-GO-SHARP.
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
