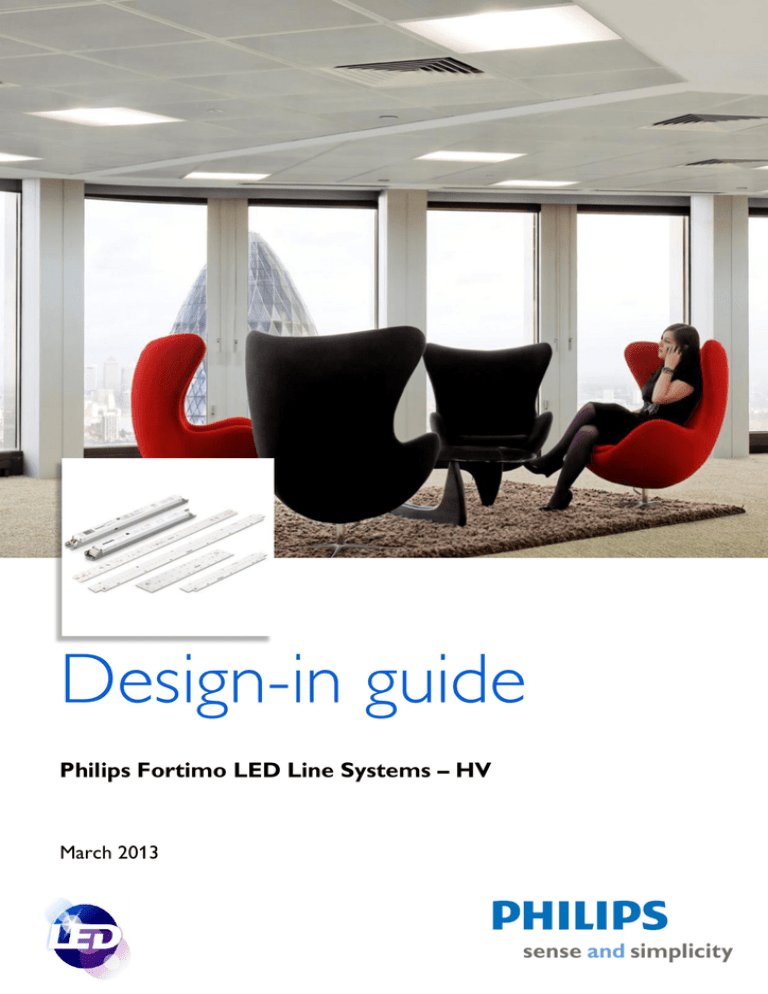

Design-in guide
Philips Fortimo LED Line Systems – HV
March 2013
Contents
Contents
1
Installation instructions
31
Introduction to this guide
2
Information or support
2
Warnings and instructions
3
Introduction to the Fortimo LED Line System
4
Electrostatic discharge (ESD)
Wiring
Inserting and removing the cable connectors
Strain relief
Parasitic Current Protector
31
32
33
33
34
LED Line Cover 2ft soft-diffuse
36
Suitability
Mechanical
Lighting characteristics
Lifetime of LED Lines in combination with the diffuser
36
36
37
37
Applications and luminaire classification
4
Commercial naming of the Fortimo LED Line, module and cable 4
Fortimo LED Line system configurations
6
Fortimo LED Line 2R availability per region
Fortimo LED Line 1R availability per region
Xitanium driver operating windows
Philips LED Line cables
Data for specific cable developed by OEM
System configurations with LED Line 1ft 650 lm 3R HV1
System configurations with LED Line 1ft 1100 lm 3R HV1
System configurations with LED Line 2ft 1250 lm 2R HV1
System configurations with LED Line 2ft 2200 lm 1R HV1
Currents
Specifications
Configuration examples LED Line 3R
Configuration example LED Line 1R
Configuration example LED Line 2R
6
6
7
7
8
9
9
9
10
10
10
11
11
11
Mechanical characteristics
12
About the Philips Fortimo LED Line
Tc point
Mechanical fixation for LED Line 3R, 2R and 1R.
Dimensions of LED Line 1ft 3R (mm)
Dimensions of LED Line 2ft 1R (mm)
Dimensions of LED Line 2ft 2R (mm)
Dimensions of Xitanium indoor linear LED driver
12
13
13
14
14
15
15
Lighting characteristics
16
Beam shape
High-quality light
Color consistency (SDCM)
Binning
Future-proof design
Optics
Reflector design
16
16
16
18
19
20
21
Thermal management
23
Temperature and lifetime of the Fortimo LED Line
Lumen maintenance of the Fortimo LED Line
Operating windows *
Graphical examples
Cooling via the luminaire
Thermal contact
Recommendations
Xitanium driver temperature
23
23
25
26
29
29
29
30
Design-in guide Philips Fortimo LED Line High Voltage System
Installation instructions LED Line Cover 2ft softdiffuse
38
Warnings
Important
Mechanical requirements of luminaire
Cleaning
Installation possibilities
In the box
Step by step instructions
38
38
39
39
39
39
40
Controllability
44
Dimming
Stand-alone Philips systems
44
44
Compliance and approval
45
Chemical compatibility
45
Compliance and approval marks
45
IP rating, humidity and condensation
45
Photobiological safety
45
Electromagnetic compatibility
46
System disposal
46
Safety
46
Electromagnetic compatibility (tested with LED Lines, cables and
Philips Xitanium driver)
46
Environmental reliability tests
47
Mechanical reliability tests
47
Cautions on use during storage, transportation and operation 47
Contact details
48
Philips Fortimo LED Line Systems
Partner for cables
Philips ESD support
ESD-related material and tool suppliers
48
48
48
48
1
Introduction to this guide
Thank you for choosing the Philips Fortimo LED Line System. In this
guide you will find the information you need to design this system into a
luminaire.
Philips Fortimo LED Line System 1ft 3R
(1 foot, three rows of LEDs (3R))
This edition describes the Fortimo LED line 200-240 V mains voltage
versions:
- LED Line 1ft version with three rows of LEDs
- LED Line 2ft version with one row of LEDs.
- LED Line 2ft version with two rows of LEDs.
In this edition you will also find information on the new LED Line Cover
2ft soft-diffuse. Extensions to the range will be included in future updates
of this guide. We advise you to consult our websites for the latest up-todate information.
Information or support
If you require any further information or support please consult your local Philips
office or visit:

Fortimo LED Line
www.philips.com/technology

Xitanium drivers
www.philips.com/xitanium

OEM general info
www.philips.com/technology
Philips Fortimo LED Line System 2ft 1R
(2 foot, one row of LEDs (1R))
-
Notes:
A separate design-in guide will be made available for the 120 V market.
LED technology is continuously improving. For the latest updated information, please check
www.philips.com/technology
Philips Fortimo LED Line System 2ft 2R
(2 foot, two rows of LEDs (2R))
Design-in guide Philips Fortimo LED Line High Voltage System
2
Warnings and instructions
Warnings



Avoid touching live parts!
Do not use damaged LED Lines!
Luminaires must be connected to protective earth.
Safety warnings and instructions to be taken into account when the
Fortimo LED Line System is designed into luminaires and during
manufacture.
Design-in phase

It is mandatory to design the luminaire in such a way that it can only be opened
with special tools (by a qualified electrician) in order to prevent touching of live
parts (e.g. LED Line with a voltage potential of 230 V AC).

Safety and IEC recommendations:
The general IEC recommendations for luminaire design and national safety
regulations (ENEC, CE, ANSI, etc.) are also applicable to selected Philips Fortimo
LED Line Systems. Luminaire manufacturers are advised to conform to the
international standards for luminaire design (Class I, IEC 60598-Luminaires).

The luminaire must provide a protective earth. The installer must also connect
the luminaire to protective earth!

The luminaire must be constructed in such a way that the LED Line (or OEM
integrated reflector) cannot be touched by an end-user.

Do not connect a reflector to the LED Line without a proper earth connection.

Do not apply mains power to the LED Line directly.

Connect all electrical components first before switching on mains.
Design-in and manufacturing phase

Do not use damaged or defective contacts or housings.

Do not drop the LED Line or let any object fall onto the LED Line because this
may damage the PCB or LEDs. If the LED Line has been dropped or an object
has fallen onto the LED Line, do not use it, even if there are no visible defects or
signs of damage.

Do not use damaged products.

There are also LED Lines available for isolated drivers. The voltages of these
types are different and they must not be interchanged with the version described
in this document.

Connect all electrical components first before switching on mains.
Installation and service phase for luminaires incorporating the Fortimo LED Line
System

Do not service the luminaire when the mains voltage is connected; this includes
connecting or disconnecting the LED Line cable.

The installer must connect a luminaire incorporating the Fortimo LED Line
System to protective earth!

Do not use damaged products.
Design-in guide Philips Fortimo LED Line High Voltage System
3
Introduction to the Fortimo LED Line System
Applications and luminaire classification
The Philips Fortimo LED Line System is the replacement for linear fluorescent lamps
in general lighting. The system features a high level of energy efficiency, which
surpasses T5 systems, at the lowest possible cost. It offers high-quality white light
with excellent color rendering and color consistency and, as part of the Fortimo
future-proof promise, it comes with a 5-year Philips guarantee.
Philips Fortimo LED Line 3R
The Fortimo LED Line System consists of a range of linear LED Lines (boards),
Xitanium drivers and a variety of cables. The LED Line with three rows of LEDs,
referred to as 3R, and LED Line with 2 rows of LEDs, referred to as 2R, are ideal for
designing luminaires for diffuse applications. The LED Line with 1 row of LEDs, is
applicable for luminaires requiring tighter beams for vertical lighting as well as
luminaires for diffuse light if optics are applied. Both ranges feature a variety of
different lengths, lumen packages and color temperatures. In this guide you will find
the specific information required to develop a luminaire based on Philips Fortimo LED
Line system.
The Philips Fortimo LED Line System contains high-voltage solutions that comply with
European Class I requirements for indoor lighting applications. Other applications or
luminaires can be explored by OEMs as long as this does not create a design conflict.
European luminaire standards, like IEC/EN 60598, must be complied with.
In this guide you will find the specific information required to develop a luminaire
based on the high voltage versions of Philips Fortimo LED Line 3R systems, Fortimo
LED Line 2R systems and Fortimo LED Line 1R systems. Furthermore a special
chapter on the use of the LED Line Cover 2ft soft-diffuse is written.
Philips Fortimo LED Line 2R
Can the LED Line be used in outdoor luminaires?
Neither the Fortimo LED Line nor the driver have an IP classification > IP20. If you
decide to use these products in a luminaire for outdoor applications the OEM will be
responsible for ensuring proper IP protection and approbation of the luminaire.
Please consult Philips if you wish to deviate from the design rules described in this
guide (see last page for contact details).
Commercial naming of the Fortimo LED Line, module and cable
The names of the Fortimo LED Lines are defined as shown in underneath example:
Fortimo LED Line 1ft 650lm 840 3R HV1
Fortimo : our concept name for efficient, clear and reliable lighting
Philips Fortimo LED Line 1R
LED
Line
:
:
the light source used
linear board
1ft
650 lm
840
:
:
:
length of LED Line
650 lumen output
8 denotes a color rendering index of 80 (CRI divided by 10)
3R
:
40 stands for a CCT of 4000 K (CCT divided by 100)
indicates the number of LED rows on a LED Line, in this case 3
HV
:
1
Design-in guide Philips Fortimo LED Line High Voltage System
High Voltage: indication of compliance with European class I
requirements
Generation 1
4
Philips Xitanium 75 W TD driver
LED Line Cable 600 mm 432 r 1C HV NTC*
Fortimo : our concept name for efficient, clear and reliable lighting
LED
: the light source used
Line
: linear board
Cable
:
600 mm : length of cable
432r
: value of the resistor to set the current of the driver
1C
: for number of electrical chains of LED lines
HV
: High Voltage
NTC
: Negative Temperature Coefficient connector included
(only applicable for LED Line 1R and 2R)
Fortimo LED Line cable 600 mm 1C
Design-in guide Philips Fortimo LED Line High Voltage System
5
Fortimo LED Line system configurations
In this section you will find all of the product information needed to
make a configuration based on the Fortimo LED Line 1R, 2R and 3R
system. These systems consist of the following products:
Fortimo LED Line 3R
availability per region
Asia Pacific
region
Europe
Middle East
Africa
Fortimo LED Line 1ft 650lm 830 3R HV1
●
●
Fortimo LED Line 1ft 650lm 840 3R HV1
●
●
Fortimo LED Line 1ft 650lm 850 3R HV1
●
Fortimo LED Line 1ft 1100lm 830 3R HV1
●
●
Fortimo LED Line 1ft 1100lm 840 3R HV1
●
●
Fortimo LED Line 1ft 1100lm 850 3R HV1
●
Fortimo LED Line 2R
availability per region
Asia Pacific
region
Europe
Middle East
Africa
Fortimo LED Line 2ft 1250lm 830 2R HV1
●
Fortimo LED Line 2ft 1250lm 840 2R HV1
●
Fortimo LED Line 1R
availability per region
Asia Pacific
region
Europe
Middle East
Africa
Fortimo LED Line 2ft 2200lm 830 1R HV1
●
●
Fortimo LED Line 2ft 2200lm 840 1R HV1
●
●
Fortimo LED Line 2ft 2200lm 850 1R HV1
●
A selection of the Philips Xitanium drivers available

Xitanium LED driver 75 W 0.15-0.4A 200V TD 230V (Touch and DALI)

Xitanium LED driver 75 W 0.2-0.4A 200V 1-10V 230V (1-10 V)

Xitanium LED driver 75 W 0.15-0.4A 200V 230V (fixed output)

Xitanium LED driver 36 W 0.12-0.4A 100V TD 230V (Touch and DALI)

Xitanium LED driver 36 W 0.12-0.4A 100V 1-10V 230V (1-10 V)

Xitanium LED driver 36 W 0.12-0.4A 100V 230V (fixed output)

Xitanium LED driver 17 W 0.12-0.4A 54V TD 230V (Touch and DALI)

Xitanium LED driver 17 W 0.12-0.4A 54V 1-10V 230V (1-10 V)
Philips LED Line cables

Cables to connect the driver to the LED Line

Cables to interconnect one LED Line to another

A return-end cable to close the circuit

If necessary you can develop your own LED cable. See details in the following
section entitled 'Information on specific cables developed by OEMs‟.
Design-in guide Philips Fortimo LED Line High Voltage System
6
Xitanium driver operating windows
The Xitanium drivers have a voltage and a current range, known as the 'operating
window'. This means that multiple combinations of LED Lines and drivers are
possible. The graph shows the operating windows of the Xitanium drivers.
The driver supplies a constant current to drive the LED Line. The correct current
setting can be chosen in three ways. If no resistance value is connected, this
automatically results in a 400 mA output current of the Xitanium driver.
1.
2.
3.
The output current of the driver can be set by connecting a specific resistor
value to the driver. Philips supplies driver-to-board cables with integrated
resistors (Rset).
The OEM uses its own design of connector cables.
The Xitanium Touch/DALI TD drivers can be programmed in order to set the
desired current.
Philips LED Line cables
There are several cables available to suit your luminaire design.
Cables to connect the driver to the LED Lines without a resistor
The LED Line cables are designed to connect the Xitanium drivers to the LED Lines
1R, 2R and 3R. The length of this cable is 600 mm. If required, it can also incorporate
a resistor (Rset) that defines the output current of the driver. The cables without
Rset resistor are used if the Late Stage Configuration function of the driver is used.
Driver to LED Line cable 1C (for one chain of LEDs)
Driver to LED Line cable 2C (for two chains of LEDs)
Cables with and without Rset are available in 1-chain (1C) or 2-chain (2C) versions,
depending on the amount of modules you wish to connect to the driver. The cables
consist of a 7-pin connector on the driver side, and one or two 2-pin connectors to
connect the modules.
Chains of LED Lines
Cable
length
A
12 NC
LED Line cable 600 mm 1C HV
1 (1C)
600 mm
9290 006 90503
LED Line cable 600 mm 2C HV
2 (2C)
600 mm
9290 006 90403
Cables to connect the driver to the LED Line with a resistor
Driver to LED Line cable 1C with resistor
(for one chain of LEDs)
Driver to LED Line cable 2C with resistor
(for two chains of LEDs)
Design-in guide Philips Fortimo LED Line High Voltage System

Rset
Ω
Chains of
LED Lines
Cable
length A
12 NC
LED Line cable 600 mm 232r
1C HV
232
1 (1C)
6 0 mm
9290 006 97803
LED Line cable 600 mm 619r
2C HV
619
2 (2C)
600 mm
9290 006 97703
LED Line cable 600 mm 464r
1C HV
464
1 (1C)
600 mm
9290 006 96003
LED Line cable 600mm 432r
1C HV NTC*
432
1 (1C)
600 mm
9290 006 79903
LED Line cable 600mm 590r
1C HV NTC*
590
1 (1C)
600 mm
9290 008 04903
This cable includes an extra connector to be used for the Negative Temperature
Coefficient (NTC) resistor signal.
7
Cables to connect a LED Line to another LED Line
Cables are available in a variety of lengths to connect the LED Lines 3R with each
other (Board to Board (B2B)).
Cable
length
A
12 NC
LED Line cable 46 mm B2B
46 mm
9290 006 81603
LED Line cable 115 mm B2B
115 mm
9290 006 81703
LED Line cable 190 mm B2B
190 mm
9290 006 81803
LED Line interconnecting cable
Return-end cable
A „return-end‟ cable must be attached at the end of every chain of LED Lines to close
the circuit.
LED Line return cable
Return cable
Cable
length
A
12 NC
LED Line return-end cable HV
20 mm
9290 006 81503
Data for specific cable developed by OEM
We advise using the Fortimo LED Line cables. Approval of the LED Line and Xitanium
LED driver is based on a reference luminaire with the standard Philips cable of 60 cm.
Any luminaire design needs its own approval, organized by the responsible OEM,
irrespective of the length of cable used. If you prefer to develop a cable with a
different length, the specification should meet IEC/EN requirements. When selecting
wiring, it must be borne in mind that the cable must not emit hazardous gases or
catch fire when exposed to high temperatures (e.g. PVC-free)
The following cable/connector specifications can be used:
JST connector for cable to Xitanium 75 W LED driver:
housing JST PAP-07V-S
contact JST SPHD-001T-P0.5
diameter of the cable: 24AWG
Molex connector for the module:
crimp housing Molex 503473-0290
crimp terminal Molex 503485-0100
Contact 1 = IDC
Contact 2 = NC
Contact 3 = PGND
Contact 4 = NTC
Contact 5 = ISET1
Contact 6 = ISET2
Contact 7 = SGND
Design-in guide Philips Fortimo LED Line High Voltage System
white wire, connected to the “+” anode.
not connected
yellow wire, connected to the “-“cathode.
optional to connect to the NTC on the LED board, if
available or to use MTP
optional to set current via Iset1, available on specific drivers
optional to set current via Iset2, available on specific drivers
Signal Ground for connections to pin 4, 5 and 6
8
System configurations with LED Line 1ft 650 lm 3R HV1
The following configurations can be assembled for the LED Line 1ft 650lm 3R HV1.
The resistor values are chosen in such a way that the nominal flux of 650 lm per LED
Line is obtained (4000 K).
Number of
Fortimo LED Line
1ft 650lm 3R HV1
Driver
Cable
1
Xitanium 17 W
LED Line cable 600 mm 232r 1C HV
2
Xitanium 17 W
LED Line cable 600 mm 619r 2C HV
3
Xitanium 36 W
LED Line cable 600 mm 232r 1C HV
4
Xitanium 36 W
LED Line cable 600 mm 619r 2C HV
5*
Xitanium 75 W
LED Line cable 600 mm 232r 1C HV
6
Xitanium 36 W
LED Line cable 600 mm 619r 2C HV
6*
Xitanium 75 W
LED Line cable 600 mm 232r 1C HV
8
Xitanium 75 W
LED Line cable 600 mm 619r 2C HV
10
Xitanium 75 W
LED Line cable 600 mm 619r 2C HV
12
Xitanium 75 W
LED Line cable 600 mm 619r 2C HV
* Not possible with 75 W 0.2-0.4 A 200V 1-10V 230V
System configurations with LED Line 1ft 1100 lm 3R HV1
For LED Line 1ft 1100 lm 3R HV1 the resistor values are chosen to obtain a nominal
flux of 1100 lm per LED Line (4000 K).
Number of
Fortimo LED Line
1ft 1100lm 3R HV1
Driver
Cable
1
Xitanium 17 W
LED Line cable 600 mm 464r 1C HV
2
Xitanium 36 W
LED Line cable 600 mm 464r 1C HV
3
Xitanium 36 W
LED Line cable 600 mm 464r 1C HV
4
Xitanium 75 W
LED Line cable 600 mm 464r 1C HV
5
Xitanium 75 W
LED Line cable 600 mm 464r 1C HV
6
Xitanium 75 W
LED Line cable 600 mm 464r 1C HV
System configurations with LED Line 2ft 1250 lm 2R HV1
For LED Line 2ft 1250 lm 2R HV1 the resistor values are chosen to obtain a nominal
flux of 1250 lm per LED Line (4000 K).
Design-in guide Philips Fortimo LED Line High Voltage System
Number of
Fortimo LED Line
2ft 1250lm 2R HV1
Driver
Cable
1
Xitanium 17 W
LED Line cable 600 mm 590r 1C HV NTC
2
Xitanium 36 W
LED Line cable 600 mm 590r 1C HV NTC
3
Xitanium 36 W
LED Line cable 600 mm 590r 1C HV NTC
4
Xitanium 75 W
LED Line cable 600 mm 590r 1C HV NTC
5
Xitanium 75 W
LED Line cable 600 mm 590r 1C HV NTC
6
Xitanium 75 W
LED Line cable 600 mm 590r 1C HV NTC
9
System configurations with LED Line 2ft 2200 lm 1R HV1
For LED Line 2ft 2200 lm 1R HV1 the resistor values are chosen to obtain a nominal
flux of 2200 lm per LED Line (4000 K).
Number of
Fortimo LED Line
2ft 2200lm 1R HV1
Driver
Cable
1
Xitanium 36 W
LED Line cable 600 mm 432r 1C HV NTC
2
Xitanium 75 W
LED Line cable 600 mm 432r 1C HV NTC
3
Xitanium 75 W
LED Line cable 600 mm 432r 1C HV NTC
Warning
In cases where the OEM chooses to set the current (either by
programming or by applying a Rset resistor), the lifetime and reliability
of the LED Line must be taken into account. The following current
regions can be distinguished:
1. Current < nominal current
a. Lifetime > 50,000 hours
b. Efficiency higher than nominal value, lumen output lower
than nominal value
2. Current between nominal current and max. current for lifetime
a. Lifetime > 50,000 hours
b. Efficiency lower than nominal value, lumen output higher
than nominal value
3. Current between max. current for lifetime and absolute max.
current. No warranty applicable in this case.
a. Lifetime < 50,000 hours
b. Efficiency lower than nominal value, lumen output higher
than nominal value
4. Current > absolute maximum current: do not exceed the absolute
maximum current as this can lead to LED line failure. No warranty
applicable in this case.
Currents
Fortimo LED Line
I nominal*
mA
I life**
mA
I max***
mA
LED Line 1ft 650 lm 3R HV1
160
185
225
LED Line 1ft 1100 lm 3R HV1
260
400
400
LED Line 2ft 2200 lm 1R HV1
280
280
400
LED Line 2ft 1250 lm 2R HV1
306
370
400
*
Nominal current at which performance is specified
** Current at which lifetime is specified
*** Maximum current for safety
The rated average life is based on engineering data testing and probability analysis.
The hours are at the L70 B50 point.
Specifications
The latest up-to-date detailed specifications can be found at
www.philips.com/technology
Design-in guide Philips Fortimo LED Line High Voltage System
10
Configuration examples LED Line 3R
The drawings below show both 1-chain (1C) configuration and a 2-chain (2C)
configurations. All the different cables with connector types are included (driver-toboard, board-to-board and return-end).
One-chain configuration
Two-chain configuration
Two-chain configuration with 8x Fortimo LED Lines
Configuration example LED Line 1R
One-chain configuration with Fortimo LED Line
Configuration example LED Line 2R
One-chain configuration with Fortimo LED Line.
Design-in guide Philips Fortimo LED Line High Voltage System
11
Mechanical characteristics
About the Philips Fortimo LED Line
The LED Line consists of a PCB assembly with components:

LEDs

Connectors (to connect another LED Line or Xitanium driver).
Please note that LED Line 1R can be connected to another 1R but not to 3R nor
to 2R. Same is valid for LED line 3R which can be connected only to another 3R
and likewise LED line 2R can only be connected to another 2R.
The LED Line consists of a carrier with current-conducting copper tracks, which also
acts as a heat spreader. The heat spreader facilitates optimum transfer of heat to the
air. The PCBA has 4 screw holes for fixing it to the mounting plate with M4 screws.
No specific heat sinks are needed (see section entitled „Thermal management‟). The
applied LEDs contain a zener diode that protects against electrostatic discharge
(ESD).
Fortimo LED Line 3R layout
Fortimo LED Line 1R layout
Fortimo LED Line 2R layout
Design-in guide Philips Fortimo LED Line High Voltage System
12
Tc point
The Tc test point indicates a reference point for measuring the LED Line
temperature with a thermocouple glued to the PCB surface. This can be used during
the luminaire design to verify that the temperature remains below the maximum
specified temperature for the Tc test point.
Tc point LED Line 3R
The LED Line 1R and 2R comprises an on-module NTC. With the LED line cable 600
with NTC connector you can connect the designated Xitanium driver. The NTC can
then be used for thermal protection of the LED line. When the threshold value is
exceeded the output power will be automatically tuned down. This is done to keep
the lifetime as specified. The threshold is fixed and cannot be changed. When
designing and installing the luminaire according to this design in guide, the threshold
value will not be exceeded.
Mechanical fixation for LED Line 3R, 2R and 1R.
Screws
The Philips Fortimo LED Line 3R has four holes for fixing the LED Line to the
luminaire. Each LED Line has four holes for M4 (or size 8) screws. To ensure
optimum thermal contact with the luminaire (and therefore optimum lifetime) we
recommend all screw holes are used. To ensure the electrical isolation when using
metal screws, the diameter of the screw head (and optional metal washer) must not
exceed 8 mm.
Tc point LED Line 2R
The LED Line 2200lm 1R has six holes for mounting the module to a luminaire.
There are also six holes available for mounting optics. The electrical isolation distance
around these holes is not suitable for metal screws. When using these holes with
metal screws, apply isolating washers.
The LED Line 1250lm 2R has five holes for mounting the module to a luminaire.
There are also two optional holes available for mounting. These holes can also be
used for mounting optics.
Tc point LED Line 1R
Screw type and torque
The maximum torque that should be applied depends on the screw type and
luminaire material. The fasteners used to secure the LED Line to a heat sink must be
tightened with a torque in accordance with the table below.
Screw torque
min
max
Steel or aluminum, threaded/taptite M4
0.6 nm
1.0 nm
Optics
Luminaire manufacturers have the freedom to design their own (secondary) optics.
No primary optics have been added to the LED Line to ensure optimum lm/W
efficiency of the system.
Design-in guide Philips Fortimo LED Line High Voltage System
13
Dimensions of LED Line 1ft 3R (mm)
Min
Type
Max
Unit
Length
279.8
280.0
280.2
mm
Width
54.8
55.0
55.2
mm
Height including connector
4.3
4.65
4.9
mm
Min
Type
Max
Unit
Length
560.4
560.7
561.0
mm
Width
39.8
40.0
40.2
mm
Height including connector
4.3
4.65
5.0
mm
Dimensions of LED Line 2ft 1R (mm)
Design-in guide Philips Fortimo LED Line High Voltage System
14
Dimensions of LED Line 2ft 2R (mm)
Min
Type
Max
Unit
Length
579.7
580.0
580.3
mm
Width
36.5
36.7
36.9
mm
Height including connector
4.3
4.65
5.0
mm
Dimensions of Xitanium indoor linear LED driver
For driver dimensions please check the respective datasheet on
www.philips.com/technology.
Design-in guide Philips Fortimo LED Line High Voltage System
15
Lighting characteristics
Beam shape
The Philips Fortimo LED Line generates a Lambertian beam shape, which is a
pragmatic starting point for OEMs wishing to design secondary optics.
High-quality light
High-quality white light is characterized by a color rendering index (CRI) of 80. It is
also important to apply widely favored CCTs (in general lighting applications: 3000
and 4000 K) and a color consistency comparable with conventional fluorescent
lighting. The Fortimo LED Line 1R and 3R are available in 3000, 3500, 4000
and 5000 K.
Polar diagram of Fortimo LED Line 1ft 650 lm 3R
Color consistency (SDCM)
The specification of our Fortimo LED Line 1R and 3R 3000, 3500, 4000 and 5000 K
for color consistency is 3.5 SDCM at 0 hours. At 6,000 hours the color shift u‟v‟ is
smaller than 0.007.
SDCM stands for Standard Deviation of Color Matching and the value 3.5 refers to
the size of an ellipse around the black body locus. Staying within this ellipse results in
a consistency of light which ensures that no color difference is perceivable between
one LED Line and another with the naked eye in most applications.
Warning: the 3.5 SDCM color consistency specification may not be sufficient for
applications that are sensitive to color differences like wall washers, which typically
require 2 SDCM.
Polar diagram of Fortimo LED Line 1ft 1100 lm 3R
Polar diagram of Fortimo LED Line 2ft 2200 lm 1R
Design-in guide Philips Fortimo LED Line High Voltage System
The central CCT points are (measurement tolerance ±0.004):

3000 K  3070 K  CIEx 0.4322 and CIEy 0.4024

3500 K  3490 K  CIEx 0.4059 and CIEy 0.3908

4000 K  4020 K  CIEx 0.3802 and CIEy 0.3786

5000 K  5090 K  CIEx 0.3427 and CIEy 0.3523
Polar diagram of Fortimo LED Line 2ft 1250 lm 2R
16
Spectral light distribution
Spectral light distribution Philips Fortimo LED Line 3000 K
Spectral light distribution Philips Fortimo LED Line 3500 K
Spectral light distribution Philips Fortimo LED Line 4000 K
Spectral light distribution Philips Fortimo LED Line 5000 K
Design-in guide Philips Fortimo LED Line High Voltage System
17
Binning
Philips has created high-quality LED light by ensuring correct mixing of the LED bins
within each LED Line. There is a limited need for binning of LED Lines in two bins
only.
N.B.
Fortimo LED Lines are labeled and packaged in two voltage bins. For LED Line 1ft
650 lm 3R HV1, LED Line 1ft 1100 lm 3R HV1 and LED Line 2ft 1100lm 1R HV1 are
divided into bins „A‟ and „C‟. In order to ensure optimum flux and color uniformity,
we advise against mixing two different bins in the same luminaire.
The Vf bin is clearly indicated on the label, as shown in the example below. All LED
Lines packaged in one box will be from the same bin.
Example label on LED Line indication bin A for example
Why address the issue of LED binning?
It is important to understand binning because it is very important in LED system
design. As in other semiconductor manufacturing processes, in the production of
LEDs the number of parameters of the epitaxy process is very large and the process
window is small (for example, the temperature must be controlled to within 0.5 °C
across the wafer at temperatures of ~800 °C). The fact that it is difficult to achieve
such a high degree of control means that the properties of the LEDs may vary
significantly within single production runs and even on the same wafer. To obtain
consistency for a given application, binning (= selection in bins) is mandatory. Binning
involves characterizing the LEDs on the basis of measurement and subsequently
categorizing them into several specific bins. To keep the cost per LED down, LED
manufacturers need to sell the full production distribution. At the same time they
cannot guarantee the availability of all bins at all times. There is a trade-off between
logistics and cost price on the one hand, and the application requirements on the
other. The advantage of this is that there will only be a limited need for LED Line
pairing by the OEM.
Design-in guide Philips Fortimo LED Line High Voltage System
18
Future-proof design
New-generation LEDs will become more efficient in the future, which will give us
the opportunity to change the LEDs and/or the LED pitch of the LED Line. In order
to prevent the need for a new luminaire design, and to keep the mechanical
dimensions and the flux consistent (future-proof), we therefore also advise designing
luminaire optics (reflector and diffuser) based on a LED pitch of 25 mm x- and ydirection.
Future proof design with max. 25 mm LED pitch
Examples show LED Line 3R, 2R and 1R
Design-in guide Philips Fortimo LED Line High Voltage System
19
Optics
Luminaire manufacturers have the freedom to design their own optics in order to
maximize the lm/W efficiency of the system. If multiple LED Lines are installed, we
recommend a distance of 6 mm (LED Line 1ft 3R) and 1.3 mm (LED Line 2ft 1R) is
maintained between the LED Lines to ensure a continuous optical pitch.
A continuous optical pitch with 6 mm distance between the LED Lines 1ft 3R
Between LED Lines 2ft 2R a distance of 0.8 mm recommended for a continuous optical pitch
Between LED Lines 2ft 1R a distance of 1.3 mm is recommended
Design-in guide Philips Fortimo LED Line High Voltage System
20
Reflector design
If a reflector is designed around the LED Line, it is essential to allow a clearance
distance between the LED Line and reflector (2 mm) around the LED Line surface,
LEDs and the connectors (see drawing below). This clearance distance is necessary
to ensure safe isolation of the system and is in line with IEC regulations 60598 to
prevent short circuiting, damage and an open circuit to the LED Line.
Clearance distances required for optical design LED Line 1ft 3R
Clearance distances required for optical design LED Line 1ft 1R
Design-in guide Philips Fortimo LED Line High Voltage System
21
Clearance distances required for optical design LED Line 1ft 2R
Warning
The reflector must be connected to protective earth
in order to prevent hazardous conditions!
Design-in guide Philips Fortimo LED Line High Voltage System
22
Thermal management
The critical thermal management points of the LED Line and driver
are set out in this section to facilitate the design-in of Fortimo LED
Line Systems. If these thermal points are taken into account this will
ensure the optimum performance and lifetime of the system.
Temperature and lifetime of the Fortimo LED Line
The Tc rises as the ambient temperature increases. The temperature offset
between Tambient and Tc depends on the thermal design of the luminaire.
The Fortimo LED Line System has been designed for indoor use and ambient
temperatures from 0 °C and higher. The Tc of the LED Line must be complied
with at all times. For LEDs it is the junction temperature that is the critical factor
for operation and lifetime. Since there is a direct relation between the case
temperature and the LED junction temperature, it is sufficient to measure the
case temperature at the Tc point on the upper side of the LED Line. This Tc
point must not exceed the maximum values shown in the table below. This table
also shows the Tc at which the performance specifications of the LED Line are
valid.
Fortimo LED Line
Tc nominal *
°C
Tc life**
°C
Tc max***
°C
LED Line 1ft 650 lm 3R HV1
35
56
70
LED Line 1ft 1100 lm 3R HV1
35
62
70
LED Line 2ft 2200 lm 1R HV1
35
58
70
LED Line 2ft 1250 lm 2R HV1
35
55
65
*
**
***
Nominal Tc at which performance is specified
Maximum Tc at which lifetime is specified
Maximum Tc for safety
Definitions
The definitions used in this chapter are as follows:

Driver temperature: temperature measured at the Tc point of the driver.

Driver ambient temperature: temperature inside the luminaire around the
driver.

Luminaire ambient temperature: temperature outside the luminaire.
Lumen maintenance of the Fortimo LED Line
In case both the current and Tc are kept below the recommended values for
50,000 hours lifetime, the following lumen maintenance curves apply. The graphs
below show the estimated lumen depreciation curves at Tc life and I life. Both
B50 and B10 curves are shown, representing 50% and 90% of the population.
These estimations are based on 9000 hours of LM80 testing and calculated
according to the TM-21 guideline. After 50,000 hours the lines are dotted,
because officially we cannot predict lumen maintenance beyond 50,000 hours.
Lowering the drive current will increase the lumen maintenance time.
The test results of the LEDs of the Fortimo LED Line 1ft 650lm 3R HV1 and
Design-in guide Philips Fortimo LED Line High Voltage System
23
Fortimo LED Line 2ft 1250lm 2R HV1 show no lumen depreciation at all at 6000
hours of LM80 testing. These products are specified to reach B50L70, and we
are confident, on the basis of the encouraging 6000-hour test results, that the
lumen maintenance could be even better.
Lumen maintenance
Fortimo LED Line 2ft 2200lm 1R HV1
100%
0%
B10
Ref: 18W T8
70%
Lumen depreciation (%)
Lumen maintenance (%)
B50
Specification
Min.B50L70
50,000 hours proven by certified
laboratory
The B10 and B50 graphs show expected lumen maintenance at current life and Tc life
0%
0
10,000
20,000
30,000
40,000
50,000
100%
60,000
Operating lifetime (hours)
Lumen depreciation as a function of operating hours for LED Line 2ft 2200lm 1R HV1
Lumen maintenance
Fortimo LED Line 1ft 1100lm 3R HV1
100%
0%
B50
Lumen depreciation (%)
Lumen maintenance (%)
B10
Ref: 18W T8
70%
Specification
Min.B50L70
50,000 hours proven by certified
laboratory
The B10 and B50 graphs show expected lumen maintenance at current life and Tc life
0%
0
10,000
20,000
30,000
40,000
50,000
100%
60,000
Operating lifetime (hours)
Lumen depreciation as a function of operating hours for LED Line 1ft 1100lm 3R HV1
Lumen maintenance is also affected by temperature. Lowering the Tc will
increase the lumen maintenance time. The graph at the next page shows the
lumen depreciation curves (B50) at I life for Tc nom, Tc life and Tc max.
Lumen maintenance (B50)
Fortimo LED Line 2ft 2200lm 1R HV1
100%
0%
Tc nom 35 °C
70%
Lumen depreciation (%)
Lumen maintenance (%)
Tc life 58 °C
Tc max 70 °C
Ref: 18W T8
Specification
Min.B50L70
50,000 hours proven by certified
laboratory
The B50 graphs show expected lumen maintenance at Current life
0%
0
10,000
20,000
30,000
40,000
50,000
100%
60,000
Operating lifetime (hours)
Lumen depreciation as a function of operating hours for LED Line 2ft 2200lm 1R HV1 at
different Tc values
Design-in guide Philips Fortimo LED Line High Voltage System
24
Lumen maintenance (B50)
Fortimo LED Line 1ft 1100lm 3R HV1
100%
0%
Tc nom 35 °C
Lumen depreciation (%)
Lumen maintenance (%)
Tc life 62 °C
Tc max 70 °C
Ref: 18W T8
70%
Specification
Min.B50L70
50,000 hours proven by certified
laboratory
The B50 graphs show expected lumen maintenance at Current life
0%
0
10,000
20,000
30,000
40,000
100%
60,000
50,000
Operating lifetime (hours)
Lumen depreciation as a function of operating hours for LED Line 1ft 1100lm 3R HV1 at
different Tc values
Note that the above graphs are lifetime predictions based on LM80 data; no
guarantee outside specified lifetime specifications.
Operating windows *
Data for LED Line 1 ft 650lm 3R HV1
3000 K
3500 K
4000 K
5000 K
Current
mA
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
75
310
135
330
142
335
145
345
148
125
495
125
520
131
530
134
540
137
175
660
118
695
124
710
127
725
129
225
830
112
870
118
890
121
910
123
Data for LED Line 1 ft 1100lm 3R HV1
3000 K
3500 K
4000 K
5000 K
Current
mA
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
150
650
141
670
144
680
147
690
149
200
845
135
865
138
880
141
895
143
250
1030
130
1055
133
1075
136
1095
138
300
1215
126
1240
129
1265
131
1290
134
350
1395
122
1430
125
1455
128
1480
130
400
1570
119
1605
122
1635
124
1665
126
Data for LED Line 2 ft 2200lm 1R HV1
3000 K
3500 K
4000 K
5000 K
Current
mA
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
150
1230
131
1260
134
1285
136
1310
139
200
1590
124
1630
127
1660
130
1690
132
250
1940
119
1990
122
2025
124
2060
126
300
2280
114
2335
117
2380
119
2425
122
350
2620
110
2680
113
2730
115
2780
117
400
2945
107
3015
109
3070
111
3125
113
Design-in guide Philips Fortimo LED Line High Voltage System
25
Data for LED Line 2 ft 1250lm 2R HV1
3000 K
4000 K
Current
mA
flux
lm
efficiency
lm/W
flux
lm
efficiency
lm/W
150
630
134
675
144
200
815
129
875
138
250
990
124
1065
133
300
1165
120
1250
129
350
1335
117
1435
126
400
1505
114
1615
123
* Results are based on theoretical simulations with Philips LED modeling.
Tolerances on LED Line efficacy are +/- 10% and flux +/- 7.5 %.
Graphical examples
150
800
145
700
140
600
135
500
130
400
125
300
150
200
1400
145
1200
140
efficiency
1000
135
800
130
600
250
150
LED Line current (mA)
150
135
1000
130
800
125
600
120
250
300
350
400
LED Line current (mA)
Design-in guide Philips Fortimo LED Line High Voltage System
450
luminous flux (lm)
luminous flux (lm)
140
1200
efficiency (lm/W )
145
1400
200
200
250
300
350
400
450
Fortimo LED Line 2ft 2200lm 840 1R HV1
1600
150
efficiency
LED Line current (mA)
Fortimo LED Line 2ft 1250lm 840 2R HV1
100
luminous flux
125
100
3500
150
3000
140
2500
130
luminous flux
efficiency
2000
120
1500
110
1000
efficiency (lm/W )
100
150
luminous flux
120
50
1600
efficiency (lm/W)
900
luminous flux (lm)
Fortimo LED Line 1ft 1100lm 840 3R HV1
efficiency (lm/W)
luminous flux (lm)
Fortimo LED Line 1ft 650lm 840 3R HV1
luminous flux
efficiency
100
100
150
200
250
300
350
400
450
LED Line current (mA)
26
How to measure the temperature of the LED Line
The Tc values are specified at the Tc point, which is indicated on the LED
Line. The temperature can be measured via thermocouples that are firmly
glued to the upper surface of the LED Line.
For LED Line 1R and 2R also the onboard NTC can be used for
measurements during development. For all measurements the
temperature must be stable before any reliable data can be obtained
(between 0.5 and 3 hours).
Tc point to measure the LED Line 1ft 3R temperature
Tc point to measure the LED Line 2ft 2R temperature
Tc point to measure the LED Line 2ft 1R temperature
Red circle indicates where to place the NTC on the board
Design-in guide Philips Fortimo LED Line High Voltage System
Red circle indicates where to place the NTC on the board
27
The NTC is a resistor with a temperature dependent resistance value.
The NTC resistance can be measured in two ways:
1. Directly on the NTC component (RNTC)
2. Using the onboard JST connector(RCONN)
In the second method, the resistance of other resistors connected to the
NTC is measured as well. The following table shows the relation between
temperature and measured resistance for both methods.
LED Line 2ft 1250lm
2R HV1
LED Line 2ft 2200lm
1R HV1
RNTC
(Ohm)
RCONN
(Ohm)
RNTC
(Ohm)
RCONN
(Ohm)
0
49221
9656
49221
49611
5
38245
9147
38245
38635
10
29936
8584
29936
30326
15
23613
7981
23613
24003
20
18756
7351
18756
19146
25
15000
6710
15000
15390
30
12074
6073
12074
12464
35
9780
5455
9780
10170
40
7969
4867
7969
8359
45
6531
4320
6531
6921
50
5382
3819
5382
5772
55
4459
3366
4459
4849
60
3713
2962
3713
4103
65
3108
2605
3108
3498
70
2613
2292
2613
3003
75
2208
2019
-
-
80
1873
1782
-
-
Temperature
°C
Relation between flux and Tc
The flux of the LED Line is specified at a nominal Tc, which is a lower
value than the maximum Tc corresponding to the lifetime specification.
Increasing the temperature lowers the flux and lifetime of the LED Line.
The relation between flux and Tc has been plotted in different graphs on
the left and below
LED Line 1ft 650 lm 3R luminous flux as a function of Tc
Design-in guide Philips Fortimo LED Line High Voltage System
LED Line 1ft 1100 lm 3R luminous flux as a function of Tc
28
LED Line 1ft 2200 lm 1R luminous flux as a function of Tc
The unflatness of the area where the LED line is mounted should not
exceed 1 mm along the LED Line
LED Line 1ft 1250 lm 2R luminous flux as a function of Tc
Cooling via the luminaire
Thermal contact
The unflatness of the area where the LED Line is mounted should not
exceed 1 mm along the LED Line length in order to ensure good thermal
contact and to avoid stress and strain on the LED Line. We also
recommend that good-quality screws are used in order to ensure optimal
contact between the bottom surface and the luminaire surface, without
the need for thermal paste.
Cooling surface area and material
The amount of heat that needs to be transferred away from the LED Line
to the ambient air is about 4 W for the LED Line 650 lm 3R, 6 W for the
LED Line 1100 lm 3R and 13W for the LED Line 2200 lm 1R. This heat is
dissipated via the luminaire housing.
If the luminaire housing has sufficient thermal conductivity, the heat will
spread further, thereby increasing the effective cooling area. We
therefore recommend use of a material that has high thermal conductivity
and is of sufficient thickness. This will lower the case temperature and
enable the system to perform better (lifetime and light output).
The required size of the luminaire housing area per LED Line depends on
the design and volume of the luminaire, the thermal properties of the
material used and the expected ambient temperature.
Aluminum is usually preferable to steel because of its higher thermal
conductivity, although for most applications steel is likely to be adequate
for ambient temperatures of up to 35 °C. For higher ambient
temperatures, the use of aluminum should be considered.
Material
k (W/mK)
Copper
400
Aluminum
200
Brass
100
Steel
50
Corrosion-resistant steel
15
Thermal conductivity of different materials
Recommendations
General thermal design guidelines to improve the thermal management
and performance of a luminaire:
•
•
Design-in guide Philips Fortimo LED Line High Voltage System
Simplify the heat path from Tc to cold ambient air.
Use good thermally conductive materials in the primary heat path
(e.g. aluminum).
29
•
•
•
•
Limit the number of thermal interfaces in the primary heat path
towards the ambient air.
Use thermal interface materials (TIM) to ensure proper thermal
contact, i.e. between the LED Line and heat sink.
Ensure proper heat spreading by using materials with good
conductivity and/or materials of sufficient thickness to increase the
effective use of the available cooling surfaces.
Anodized, painted surfaces are preferable to blank surfaces in order
to increase heat transfer via thermal radiation.
Contact Philips at any time if you need advice on your luminaire design
(see section entitled 'Contact details').
If you require further support with regard to thermal interface material
we recommend you contact one of our partners listed in the appendix.
Label on Xitanium driver indicating Tc test point
Test point Xitanium driver
Xitanium driver temperature
The next important component is the driver, which influences the lifetime
and reliability of the system. In the design everything possible is done to
keep the component temperature as low as possible, but the design of the
luminaire and the ability to guide the heat out of the luminaire are of
utmost importance. Inside the driver the critical components for
temperature are:
• electrolytic capacitor
• solder joints
• semi-conductors.
Tc of the Xitanium driver
To enable temperature measurement in a luminaire without measuring
the individual components in the electronic driver, a Tc point has been
defined (see figure „Tc point Xitanium driver‟). This point, or rather
details of where this point is located, can be found on the label of the
electronic driver. The specified temperature of this point is based on the
temperature of the components and the solder joints inside the electronic
driver. How this point relates to the temperature of the components and
solder joints is shown in the figure „Test point of the Xitanium driver‟.
Operation under built-in conditions
The heat produced by the LED Line and the driver in the luminaire (or
other housing) must be dissipated to the surroundings. If a luminaire is
thermally insulated by a ceiling, wall or insulation blanket, the heat
produced cannot be easily dissipated. This will result in additional heat
being applied to the driver and LED Line, which will have an adverse effect
on system performance and lifetime. To ensure optimum performance
and lifetime we recommend that air be allowed to flow freely around the
luminaire. Designing the luminaire in such a way that air can also flow
through it will provide extra cooling, which may be beneficial in certain
cases.
Design-in guide Philips Fortimo LED Line High Voltage System
30
Installation instructions
Warning
Do not service the system when the mains voltage is connected; this
includes connecting or disconnecting the cable.
Electrostatic discharge (ESD)
Introduction to ESD
It is generally recognized that ElectroStatic Discharge (ESD) can damage electronic
components. Professional applicants of electronic components have implemented
extensive and disciplined measures to avoid ESD damage.
Now, with the introduction LED components for lighting a new public of users, like
OEM‟s and installers, are exposed to handling LED electronic components.
ESD in production environment
Depending the protection level of the LED module a minimum set of measures have
to be taken when handling LED boards. Philips LED products have a high degree of
ESD protection by design. ESD measures are required in a production environment
where values can exceed the values shown in the ESD specifications table below.
Furthermore ESD vulnerable products are packed and delivered in ESD save
packaging.
Example of ESD measures
Servicing and installing luminaires
It is highly recommend to inform installers not to touch the LED components and use
earthed arm-straps to avoid ESD damage during installation and maintenance.
ESD consultancy
Independent ESD consultancy companies can advise and supply adequate tools and
protection guidance.
Philips Innovation Services can provide consultancy
www.innovationservices.philips.com
More information can be found in the section entitled „Contact details‟.
ESD specifications
Specifications of the LED Line according to IEC 61000-4-2 (HBM 150pF + 330Ω) are:
Design-in guide Philips Fortimo LED Line High Voltage System
Contact discharge
Air discharge
8 kV
15 kV
31
Insulated paper washers
The surface of the PCB must not be damaged by mounting materials as this may
compromise the electrical isolating layer. The mounting materials must comply with
the relevant creepage clearances as defined in the section entitled „Lighting
characteristics'. We recommend you use insulated paper washers and do not use
metal washers.
Insulated paper washers
Wiring
Connecting the driver to the mains supply
The mains supply has to be connected to the power supply (see the manual of the
power supply for instructions at www.philips.com/xitanium). Because the Xitanium
LED drivers are class I drivers, protective ground also needs to be connected. The
minimum diameter for the mains cables lies between 0.2 and 1.5 mm.
Connecting the LED Line to the driver
The first LED Line is connected to the driver using a 600 mm LED Line cable. On the
LED Line side, the connector is connected to the input connector marked „IN‟. In
some configurations which use the LED Line 1ft 650 lm HV1, a '2-chain' cable harness
is used, which consists of 1 driver connector and 2 LED Line connectors. This cable
has to be connected to 2 LED Lines on the side marked „IN‟.
Interconnecting LED Lines
The LED Lines are connected to each other using module-to-module cable harnesses.
These are available in three different lengths: 46 mm, 115 mm and 190 mm. The cable
is connected to the „OUT‟ connector of a LED Line and the „IN‟ connector of the
neighboring LED Line.
Cable length and EMC
Philips has successfully performed EMC tests for a total length 4m (sum of wire length
and length of LED Lines). For longer lengths it is advised to repeat these tests.
Return-end connector
The electric circuit of the LED Line is designed in such a way that multiple LED Lines
can be connected in series. This requires the „OUT‟ connector of the last LED Line to
be short-circuited using a return-end connector. In cases where a 2-chain cable is
used, 2 return-end connectors will have to be fitted.
Warning
Connecting the luminaire to protective ground
Like the Xitanium LED driver, the luminaire also needs to be connected
to protective ground in order to comply with safety regulations and
EMI.
Design-in guide Philips Fortimo LED Line High Voltage System
32
Inserting and removing the cable connectors
LED Line cable to driver
Inserting the LED Line cable
in the driver connector
Removing the cable
LED Line interconnecting cables
Inserting the LED Line cable
in the driver connector
Removing the interconnecting cable
Strain relief
It is important to add a strain relief to the wiring of the connector from the driver to
the LED Line and from one LED Line to another in cases where the length of the
cable exceeds 15 cm.
Warning



Design-in guide Philips Fortimo LED Line High Voltage System
The contacts and housings are not repairable. DO NOT use
damaged or defective contacts or housings.
Do not apply mains power directly to a LED Line!
Do not touch, attach or detach LED Lines in a live system.
33
Parasitic Current Protector
The LED‟s of the LED Linear HV products (LED Line and LED Strip) connected to a
TD Xitanium HV driver may glow (in the dark) when the driver is in stand-by mode.
Philips offers the Parasitic Current Protector HV (PCP HV) as a temporary solution.
The PCP HV is offered as a separate module (in a same housing as the linear HFMatchbox). Future generation drivers Xitanium HV non isolated linear office LED
drivers will have this solution integrated, so no separate module is needed anymore.
Decision tree for installing a PCP HV
Parasitic Current Protector HV (PCP HV)
Installing the PCP HV
LED drivers which can be used:
PCP HV must only be used in combination with HV non-isolated Xitanium TD Office
LED drivers with the following 10 NC numbers:
9290 006 847
9290 006 737
9290 006 704
9290 006 173
9290 006 618…622.
Connecting the PCP HV module between driver and LED Line

Input cable of the PCP HV is the “Fortimo Solar LLM Driver 4500” (12nc 9290
006 15003, 7-pin JST connectors).

Output cable is the original cable that was used between driver and LED module.

Green wire serves as impedance matching to ground.

Connect the green wire to the luminaire metal housing, using the fork terminal
for convenient fixation.

Make sure that the green wire makes contact with the metal of to the luminaire
housing.

Note that the length of the green wire can also be increased by the user
manually.

Switch on LED driver and switch to standby mode

Glow should be eliminated

If not fully eliminated, switch off the system (disconnect from mains) and
disconnect the green wire. Switch on the system and check if the glow is
eliminated.
Design-in guide Philips Fortimo LED Line High Voltage System
34
Ordering data
Item
12NC code
Order code
(EOC)
Box
Parasitic Current Protector
HV
9290 008 14603
87182912 23061
00
12
Fortimo Solar LLM cable
4500lm 50cm
9290 006 15003
Fortimo Solar LLM cable
4500lm 50cm
Key specifications
Specification item
Typical value
LED module input
DC input voltage
200 V AC
Input power
80 W
Power losses @ 500mA
1W
DC Input current
400 mA
Ycap
1ɲ
LED module output
DC output current
400 mA
DC output voltage
200 V
Output power
79.5 W
Output isolation level
Not isolated
Start-up time
50 ms
Other specifications
Design-in guide Philips Fortimo LED Line High Voltage System
IP classification
IP2 0
Tambient
-20 °C ……+50 °C
Tc max
75 °C
Life time
50,000 hours
Compliance and approval
CE and KEMA
Dimensions (L x W x H)
145 x 22 x 22 mm
35
LED Line Cover 2ft soft-diffuse
The LED Line Cover 2ft soft-diffuse makes it easy for OEMs to redesign
their traditional fluorescent-based open-louver and Class I luminaires
(especially T8 solutions) to LED-based luminaires. This cover was
developed for the Philips LED Line range – specifically all Fortimo LED
Line 1R products and the Core LED Line. By improving the homogeneity
of the light output from the LED Lines the cover eliminates pixelation
and therefore assures high-quality, attractive diffuse white light output.
The LED Line Cover 2ft soft-diffuse consists of five parts – a diffuser, two
end-cap tops and two end-cap bottoms – and ensures dust-free LEDs
and easy cleaning.
Suitability
The LED Line Cover 2ft soft-diffuse can be used with the following products:
Type
12NC
Fortimo LED Line 1ft 1100lm 830 1R LV1
9290 006 91503
Fortimo LED Line 1ft 1100lm 835 1R LV1
9290 006 91603
Fortimo LED Line 1ft 1100lm 840 1R LV1 -
9290 006 91703
Fortimo LED Line 1ft 1100lm 850 1R LV1 -
9290 006 91803
Fortimo LED Line 1ft 1100lm 865 1R LV1
Available Q1 2013
* Availability differs by region: see page 5.
32
49
Mechanical
Dimensions
Design-in guide Philips Fortimo LED Line High Voltage System
3
570
LED Line Cover 2ft Soft-diffuse
Nominal
Tolerance
Length [mm]
570
+2
Width at end-cap [mm]
46
+1
Width at diffuser [mm]
44
+1
Height at end-cap [mm]
32
+1
Height at diffuser [mm]
30
±0.5
Length of light-emitting surface [mm]
550
-2
Cable feed-through size [mm]
4.5 x 2.5
36
LED Line Cover 2ft Soft-diffuse
Nominal
Weight incl. end-caps [g]
103
Screws
M4 Metric/
M4 Taptite
Length ≥ 4 mm
Screw torque
It is advisable to apply a torque of
50% of the maximum torque that
is allowed for the appl ed screw
type in combination with the
applied material and material
thickness.
Designed to fit in plate thickness [mm]
0.6 minimum
1.2 maximum
Color of end-caps
White, RAL 9010
Protection foil
The diffuser is provided with a
protective plastic foil, which has
to be removed before
installation.
Tolerance
Lighting characteristics
75°
60°
45° 30°15° 0° 15°30° 45° 60°
75°
90°
90°
50
105°
105°
100
120°
120°
150
200
135°
150°
C180
165°
If necessary Philips can provide support by estimating the effect of using the diffuser in
your luminaire design.
135°
250
cd / 1000 lm
C270
Light distribution
When the diffuser is in use the light from the LEDs will be redistributed uniformly
over its surface, at the expense of some efficiency loss, resulting in lower luminous
flux (see table). Ultimately, however, the performance is dependent on the total
optical system and the way in which the luminaire shapes and directs the light beams.
165°
C0
With a well-designed new luminaire the light distribution diagram may be almost
identical to the light distribution diagram in the reference luminaire test set-up. An
example of such a diagram of a new real-time luminaire design-in is shown on the left.
150°
C90
Light distribution diagram LED line with diffuser
105°
120°
0°
120°
105°
90°
90°
100
75°
75°
200
60°
60°
300
400
45°
C180
15°
C270
Without diffuser
With diffuser
Uniformity* [%]
Pixelated
Typical < 1% modulation*
Luminous flux [lm]
100%
Fortimo 85%
* Modulation: describes the variation of the luminance along the axis of the LED Line cover softdiffuse. Reference is the average luminance between two adjacent LEDs in the LED Line.
45°
500
30°
Optical
properties 0 hrs*
cd / 1000 lm
0°
C0
15°
30°
C90
Light distribution diagram ‘real-time’ luminaire design
with four LED lines
Design-in guide Philips Fortimo LED Line High Voltage System
Lifetime of LED Lines in combination with the diffuser
Mounting a diffuser over the LED Line modules will probably have an impact on the
Tc. The delta Tc is < 5 °C. Maximum temperature for the diffuser is 75 °C.
The luminaire manufacturer will measure Tc with the diffuser installed. If Tc is still
within specifications, the lifetime claim of the LED Line is still applicable.
37
Installation instructions LED Line Cover 2ft soft-diffuse
Warnings!

Before installation, maintenance or cleaning, always switch off
or disconnect the power and follow the appropriate safety
procedures. Please review all warnings concerning the LED Line
in this design-in guide too.

Always assemble all five components of the Fortimo LED Line
Cover soft-diffuse to ensure a safe and reliable product. Follow
the assembly instructions as described in this design-in guide.
Make sure all components are securely fixed after assembly.

The diffuser prevents the live parts of the LED Line from
touching the back plate of the luminaire. For the stiffness of the
back plate of the luminaire, observe the design rule in this
design-in guide so as to guarantee safe use of the diffuser.

Do not use any damaged components.

Make sure the correct wiring is used (pages 29.). When fitting
the wires, guide them through the hole in the end cap so as to
ensure that they do not get damaged during assembly of the
end-cap components.

Place the end-caps at the right distance from each other, as
indicated by the hole pattern in page 35.

When parts (e.g. small boss end-cap bottom) break off or get
damaged during assembly, further assembly should be stopped.
The damaged parts should be replaced by new parts.

After fitting the diffuser or end-cap top the parts cannot be
removed without damage. Reworking the damaged parts is not
allowed for safety reasons.

The diffuser is provided with plastic foil, which has to be
removed before installation. Taking off this foil will create a
static charge. This means that installing engineers must be
earthed, just as when installing the LED Line. For further
information see the chapters „Warnings‟ and „Installation
instructions LED line‟.
Important


Design-in guide Philips Fortimo LED Line High Voltage System
Once the diffuser and end-caps have been added, it is not
possible to open it again. This is so as to make sure that the
assembly will guard against high voltage in the end application.
Please review all instructions concerning the LED Line in this
design-in guide too.
38
Mechanical requirements of luminaire
If the back plate of the luminaire has insufficient stiffness, the shielding function of the
LED Line live parts of the diffuser is not guaranteed. The diffuser cannot then be safely
applied in a Class I open luminaire. The conditions for the minimum stiffness of the
luminaire back plate depend on profile shape, material and luminaire length. The rule
below takes into account the fact that the luminaire length is approximately the same
as the diffuser length.
The minimum stiffness of the luminaire back plate construction is defined as:
(modulus of elasticity * second moment of area) ≥ 525 * 106 [Nmm2].
A typical value for the modulus of elasticity for steel is 210,000 N/mm2.
A typical value for the modulus of elasticity for aluminum is 70,000 N/mm2.
The second moment of area is dependent on the luminaire shape.
The minimum stiffness is required to make sure that there will be no accessible gap
between diffuser and luminaire back plate when the luminaire back plate is pressed
away from the diffuser with a maximum force of 30N.
Cleaning
Use a damp cloth and only water. Do not wipe the diffuser with a dirty or very wet
dishcloth or towel because they may leave residue that can damage the diffuser.
Installation possibilities
1x LED Line 2ft or
2x LED Line 1ft per diffuser
In the box
Design-in guide Philips Fortimo LED Line High Voltage System
39
Step by step instructions
Step 1
Prepare the mounting plate for the LED Line 2ft
A2
B1
B4
B5
B7
B6
B2
B8
A1
B3
280.5
280.5
282.9
282.9
Mounting hole patttern for LED line 1 and 2ft
Hole
for
Xdim
Xtol
Ydim
description
A1
End-cap
282.9
+ 0.3 / - 0
-12
ø 4.2 Thru all
A2
End-cap
-282.9
- 0.3 / + 0
12
ø 4.2 Thru all
B1
End-cap
-280.5
- 0.3 / + 0
-16
M4
B2
LED Line
-140.5
-15,5
M4
B1
LED Line
140.5
-15,5
M4
B2
LED Line
-250.5
15,5
M4
B3
LED Line
-30.5
15,5
M4
B6
LED Line
30.5
15,5
M4
B7
LED Line
250.5
15,5
M4
B8
End-cap
280.5
16
M4
+ 0.3 / - 0
Step 2
Install the LED Line (detailed installation
instructions in the LED Line chapter of this guide)
Design-in guide Philips Fortimo LED Line High Voltage System
40
Step 3
Take bottom part of end-cap. A small boss is
visible on the bottom side.
Step 4
The small boss should be placed in the hole
indicated (hole number A2).
Push the small boss through this hole.
Step 5
Push the end-cap bottom part in the direction of
the arrow until the hole in the part is aligned with
the hole in the luminaire plate. Then insert a
screw and screw the part to the luminaire. The
screws used to secure the end-cap bottom to the
luminaire must be tightened.
It is advisable to apply a torque of 50% of the
maximum torque that is allowed for the applied
screw type in combination with the applied
material and material thickness.
Repeat
Screws step 5 for the other side of the LED line.
M4 Metric / M4 Taptite
Length ≥ 4 mm
Step 6
Mount the cables in the connector and guide them
through the holes provided.
For detailed information on wiring LED Lines,
consult the design-in guide for the LED Line.
Design-in guide Philips Fortimo LED Line High Voltage System
41
Step 7
Ensure that the loop is closed by a return end
cable.
Step 8
Place the diffuser over the two large snap-fits on
the end cap bottom.
Step 9
Push the diffuser firmly over the end-cap bottom
on both sides until you hear a clicking sound four
times; the diffuser cannot now be torn off.
Step 10
Remove the protective foil.
Design-in guide Philips Fortimo LED Line High Voltage System
42
Step 11
Push both end-cap tops over the diffuser and the
end cap bottom until they snap. Take care to do
this precisely, as once they have snapped closed
they cannot be opened again.
Step 12
Make sure the snap-fit on the top part also snaps
into the hole in the bottom part (arrow).
Design-in guide Philips Fortimo LED Line High Voltage System
43
Controllability
Dimming
The Philips Fortimo LED Line Systems are complemented with a range of Xitanium
drivers:

isolated 17 W, 36 W, 75 W drivers for UL Class 2 / Class II / SELV luminaires

non-isolated 36 W, 75 W drivers for Class I luminaires
These drivers are available in various dimming protocols:

Touch & DALI protocol

1-10 V dim protocol (0-10 V for USA)

Fixed output drivers
OccuSwitch DALI
Please refer to the driver manual for detailed information.
Stand-alone Philips systems
For DALI systems we recommend:

OccuSwitch DALI

ActiLume DALI

ToBeTouched DALI

Dynalite solutions (via Philips VAR network)
ActiLume DALI
For 1-10 V systems or fixed-output switching we recommend:

OccuSwitch (switch on/off using fixed-output drivers)

ActiLume 1-10 V (for movement-detection and daylight-sensing systems)
Visit www.philips.com/technology to find out more about our entire portfolio of
control products.
ToBeTouched DALI
Design-in guide Philips Fortimo LED Line High Voltage System
44
Compliance and approval
Chemical compatibility
In the market medium power LEDs exist containing a silver (Ag)-finished Lead frame.
The lead frame finish is sensitive to corrosion when exposed to substances
containing Sulfur or Chlorine. In that case parts of the lead frame may blacken, which
will impair the Lumen Output or the color of the LED. Materials that are known to
have a higher risk to be a source of Sulfur and Chlorine are for example natural
rubber or corrugated paper.
We recommend to ensure that the direct environment of these LEDs in the
luminaire does not contain materials that can be a source of Sulfur or Chlorine, for
optimal reliability of the LED, LED module and/or LED luminaire. Furthermore, make
sure that the products with these LEDs are not stored or used in vicinity of sources
of Sulfur or Chlorine, and the production environment is also free of these materials.
Also avoid cleaning of the LED products with these type of LEDs with abrasive
substances, brushes or organic solvents like Acetone and TCE.
The Fortimo LED Line uses LEDs with above explained type of lead frame.
Therefore above recommendations apply for the Fortimo LED Line modules.
Philips Fortimo LED Line Systems comply with the standards shown
below.
Compliance and approval marks
The Fortimo LED Line 3R and 1R HV are ENEC approved and comply with CE
regulations. The relevant standards are summarized in the table below. To ensure
luminaire approval, the conditions of acceptance need to be fulfilled. Details can be
requested from your local sales representative. All luminaire manufacturers are
advised to conform to the international standards of luminaire design (IEC 60598Luminaires).
IP rating, humidity and condensation
The Fortimo LED Line 3R and 1R HV systems are build-in systems and therefore
have no IP classification. They are not designed for operation in the open air. The
OEM is responsible for proper IP classification and approbation of the luminaire.
The Fortimo LED Line 1R /3R HV has been developed and released for use in damp
locations and not for locations where condensation is present. If there is a possibility
that condensation could come into contact with the modules, the system/luminaire
builder must take precautions to prevent this.
Photobiological safety
The lamp standard, IEC 62471 „Photobiological safety of lamps and lamp systems‟
gives guidance on evaluating the photobiological safety of lamps and lamp systems
including luminaires. It specifically defines the exposure limits, reference
measurement technique and classification scheme for the evaluation and control of
photobiological hazards from all electrically powered incoherent broadband sources
of optical radiation, including LEDs, in the wavelength range from 200 nm to 3000
nm. Measurement results for LED Line products are given below. Based on these
measurements, the conclusion is that no safety measures are required.
Design-in guide Philips Fortimo LED Line High Voltage System
45
Item
Result: Risk group
Actinic UV
Exempt
Near-UV
Exempt
Retinal Blue Light
1
Retinal Blue SmallScr
Exempt
Retinal thermal
Exempt
Infrared Eye
Exempt
Electromagnetic compatibility
Electromagnetic compatibility, EMC, is the ability of a device or system to operate
satisfactorily in its electromagnetic environment without causing unacceptable
interference in practical situations. In general, LED modules have no effect on the
EMC of a luminaire. The Fortimo LED Line 3R and 1R HV modules are evaluated in
combination with a Xitanium driver in a reference luminaire, according to the
standards mentioned in the table below. No issues were observed.
System disposal
We recommend that the Fortimo LED Line and its components are disposed of in an
appropriate way at the end of their (economic) lifetime. The modules are in effect
normal pieces of electronic equipment containing components that are currently not
considered to be harmful to the environment. We therefore recommend that these
parts are disposed of as normal electronic waste, in accordance with local
regulations.
Safety
IEC/EN 62031
IEC 62471
LED modules for general lighting safety specifications
Photobiological safety of lamps and lamp systems
Philips Xitanium driver
IEC/EN 61347-1
Lamp control gear
Electromagnetic compatibility (tested with LED Lines, cables and
Philips Xitanium driver)
EN 55015, CISPR 55015
Limits and methods of measurement of radio
disturbance characteristics of electrical lighting and
similar equipment
IEC/EN 61000-3-2
Limits for harmonic current emissions (equipment
input current <16 A per phase)
IEC/EN 61547
Equipment for general lighting purposes EMC immunity requirements
Environmental
The product is compliant with European Directive 2002/95/EC of January 2003 on
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment (RoHS).
Design-in guide Philips Fortimo LED Line High Voltage System
46
Environmental reliability tests
Test name
Reference
Test conditions
Low-temperature storage
IEC/EN 60068-2-1
Tamb -40 °C
High-heat storage
IEC/EN 60068-2-2
Tamb +100 °C
Non-operational thermal shock
IEC/EN 60068-2-14
Tamb -40 …+125 °C, Xfer 20s, Dwell 28 min
Operational life continuous operation
IEC/EN 60068-2-2
Tamb +35 °C
Operational life power cycle
IEC/EN 60068-2-2
Tamb +35 °C; on/off 60/60 min
Change temperature storage
IEC/EN 60068-2-14
Tamb -40 …+100 °C, Xfer 30 min, Dwell 30 min
Change temperature operational
IEC/EN 60068-2-14
Tamb -40 …+85 °C, cycle 60 min, Dwell 20 min
Damp heat operation
IEC/EN 60068-2-78
Tamb +60 °C, RH 93%, on/off 30/30 min
Reference
Test conditions
JESD22-B103
Acc 6 G, f 10-200 Hz, time 10 mins
JESD22-B103
Acc 1500 G, pulse 0.5 ms, shocks 6
Mechanical reliability tests
Test name
Random mechanical
operational)
vibration
Mechanical shock (non-operational)
(non-
Cautions on use during storage, transportation and operation
When storing this product for a long time (more than one week)

Store in a dark place. Do not expose to sunlight.

For Fortimo LED Line: maintain temperature between -40 ~ +85 °C, and RH 5
– 85 %.

For LED Line Cover 2ft soft-diffuse: maintain temperature between -40 ~ +75
°C, and RH 5 – 85 %.
During transportation and storage for a short time

Maintain temperature below 100 °C at normal humidity.
Design-in guide Philips Fortimo LED Line High Voltage System
47
Contact details
Philips Fortimo LED Line Systems
www.philips.com/technology
Or contact your local Philips sales representative.
Partner for cables
http://www.molex.com
Phone: +31 - (0) 40 295 8232
Fax: +31 - (0) 40 295 8290
Phone: +31 - (0) 40 295 8239
Fax: +31 - (0) 40 295 8290
Philips ESD support
www.innovationservices.philips.com
Phone: +31- (0) 40 27 46658
Fax: +31 - (0) 40 27 42224
The Philips corporate EMC competence centre is a leading provider of
approbation and consultancy services.
The following are suggestions of products that can be
used with the Philips Fortimo LED Line system. Reference
to these products does not constitute their endorsement
by Philips. Philips makes no warranties regarding these
products and assumes no legal liability or responsibility
for loss or damage resulting from the use of the
information herein.
ESD-related material and tool suppliers
Amcatron Technology Co Ltd
email: amcatron@amcatron.com
Botron Company Inc.
www.botron.com/esd-catalog/catalog.html
Desco
www.desco.com
www.desco.com/Catalog/descocatalog/index.html
Static Solutions Inc.
Design-in guide Philips Fortimo LED Line High Voltage System
www.staticsolutions.com
Distributor list: www.staticsolutions.com/distributors.html
Products: www.staticsolutions.com/products.html
48
For more information please visit:
www.philips.com/technology
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this
document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be
accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent or other industrial or
intellectual property rights
Design-in guide Philips Fortimo LED Line High Voltage System
49
