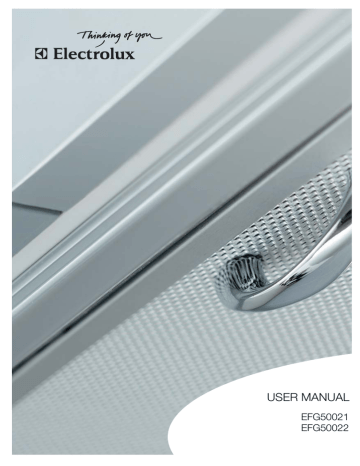

USER MANUAL
EFG50021
EFG50022
We were thinking of you
when we made this product
electrolux 3
EN
IMPORTANT SAFETY INFORMATION 4
YOUR APPLIANCE
5
OPERATING INSTRUCTIONS
5
MAINTENANCE AND CLEANING
7
SOMETHING NOT WORKING
10
GUARANTEE/CUSTOMER SERVICE 11
GUARANTEE CONDITIONS
12
INSTALLATION INSTRUCTIONS
14
ELECTRICAL CONNECTIONS
15
INSTALLING THE COOKER HOOD
16
EN
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which
hopefully will provide you with lots of
pleasure in the future. The Electrolux
ambition is to offer a wide variety of
quality products that make your life
more comfortable. You find some
examples on the cover in this manual.
Please take a few minutes to study this
manual so that you can take advantage
of the benefits of your new machine.
We promise that it will provide a
superior User Experience delivering
Ease-of-Mind.
Good luck!
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions
Step by step instructions
4 electrolux IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
EN
These warnings are provided in the interests of your safety. Ensure that you
understand them all before installing or using this appliance. Your safety is of
paramount importance. If you are unsure about any of the meanings of these
warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken
by a qualified electrician or a competent
person.
• This hood must be installed in accordance
with the installation instructions and all
measurements must be adhered to.
• If the cooker hood is installed for use
above a gas appliance then the provision
for ventilation must be in accordance
with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use) Regulations,
the Building Regulations issued by
the Department of the Environment,
the Building standards (Scotland)
(Consolidated) Regulations issued by the
Scottish Development Department.
• The fan motor of this cooker hood
incorporates a cut-out device which will
operate if the cooker hood is installed
below the minimum height recommended
under section ‘Clearance Height’, or if the
motor becomes overheated. If the cutout device is activated, switch off the fan
motor and allow the cooker hood to cool.
The cut-out device will reset itself when
the fan motor has cooled significantly.
• It is dangerous to alter the specifications
or modify this product in any way.
• When installed between adjoining wall
cabinets the wall cabinets must not
overhang the hob.
• If the room where the hood is to be used
contains a fuel burning appliance such as
a central heating boiler then its flue must
be of the room sealed or balanced flue
type.
• If other types of flue or appliances are
fitted ensure that there is an adequate
supply of air to the room.
• The ducting system for this appliance
must not be connected to any existing
ventilation system which is being used
for any other purpose.
• Do not install above a cooker with a high
level grill.
Child Safety
• This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with
the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during
use as over-heated fats and oils might
catch fire.
• Never do flambé cooking under this
cooker hood.
• Do not leave naked flames under the
hood.
• This cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
Maintenance and Service
• This appliance can be a hazard if the
synthetic paper and charcoal filters are
not replaced as recommended.
• Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or more
serious malfunction. Refer to your local
Electrolux Service Force Centre. Always
insist on genuine spare parts.
YOUR APPLIANCE AND OPERATING INSTRUCTIONS electrolux
5
YOUR APPLIANCE
EN
OPERATING INSTRUCTIONS
The cooker hood is designed to extract
unpleasant odours from the kitchen, it
will not extract steam.
To obtain the best performance it is
advisable to switch on the hood a few
minutes before you start cooking and
leave it running for approximately 15
minutes after finishing.
Cooker Hood Controls
The cooker hood functions are
controlled by slide switches, located
centrally in the front edge of the metal
grille panel.
EFG 50021
L. Light ON/OFF control
0 - Off
1 - On
V. Fan Speed Control
Position 0 - Off
Position 1 - Low
Position 2 - Normal
Position 3 - Boost
EFG 50021
6 electrolux
EFG 50022
L. Light ON/OFF control
0 - Off
1 - On
M.Motor ON/OFF control
EN
0 - Off
1 - On
V. Fan Speed Control
Position 1 - Low
Position 2 - Normal
Position 3 - Boost
To Operate
Select the required functions.
The appliance can be installed to
recirculate or extract contaminated air.
The cooker hood is more effective when
used in the extraction mode.
Extraction
In the extraction mode the contaminated
air enters the cooker hood, passes
through the grease filter and out through
the ducting to the atmosphere.
Recirculation
In the recirculation mode contaminated
air is passed through the charcoal
filters to be purified and recirculated
into the kitchen through a recirculation
grille. Ensure the charcoal filters are in
position.
When the ducting mode is selected
the charcoal filters are not required.
Never do flambé cooking under this
cooker hood.
Never leave frying pans unattended
during use as over-heated fats and
oils can catch fire.
Do not leave naked flames under the
cooker hood.
Ensure heating areas on your hob
are covered with pots and pans
when using the hob and cooker hood
simultaneously.
EFG 50022
MAINTENANCE AND CLEANING electrolux
7
MAINTENANCE AND CLEANING
Before carrying out any maintenance
or cleaning isolate the cooker hood
from the mains supply.
The cooker hood must be kept clean,
as a build up of grease or fat can be
a fire hazard.
The external surfaces of the hood
should be cleaned regularly. Wipe the
cooker hood frequently with warm
soapy water using a mild detergent. Dry
thoroughly after cleaning.
Always wear protective gloves when
cleaning the hood.
Never use scouring pads or abrasive
cleaners.
Never use excessive amounts of water when cleaning particularly around
the control panel.
Charcoal Filter
The charcoal filters absorb the odours
from cooking. They will slowly become
saturated and gradually less effective.
The charcoal filters cannot be cleaned,
we recommend they are replaced every
3-6 months or more often if the hood is
used for more than 3 hours per day.
To Remove/Replace the
Charcoal Filters
1.Remove the lower grille, supporting
the grille with one hand and draw
down on the two grey handles
(located on each side of the grille).
2.The charcoal filters are left and right
handed and should be fitted one at
a time.
3.Insert one end of the filter into the
slots in the fan housing then lower the
other end until the tab engages the
slot in the casing.
EN
8 electrolux
Synthetic Grease Filter - EFG 50021
EN
The synthetic grease filter cannot be
cleaned.
It cannot be washed.
To Replace the Synthetic
Grease Filter
1.Remove the lower grille.
2.Push the wire retaining clips to the
side and remove.
3.Clean the metal grille and clips before
replacing the paper grease filter.
The clips have sharp points, handle
with care and keep away from children.
This appliance is a possible fire hazard if the grease and charcoal filters
are not replaced as recommended.
Metal Grease Filters - EFG 50022
The metal grease filters can be
machine washed in a dishwasher, or
hand washed in hot water and a mild
detergent or liquid soap.
To Remove/Replace the Metal
Filters
1.Press against the metal actuator to
release the spring catch.
2.Drop the front edge of the cassette
down as illustrated opposite and lift
the back edge out of the rear guide.
3.To refit insert the back edge of the
cassette into the rear guide and push
up the front edge until the spring
catch engages.
This appliance is a possible fire
hazard if the grease filters are not
cleaned reguarly and the charcoal
filters replaced as recommended.
electrolux 9
Changing the Light Bulb
If a lamp fails to function at any time
first check that it is fully screwed into
the holder. To tighten the lamps turn
clockwise, but ensure not to over
tighten them and break the lens.
When changing the lamps an identical
replacement must be fitted to ensure
the safe working of the cooker hood.
The replacement lamp is specified 220240 volt 40 watt clear cylindrical shape
lens with a small Edison (E14) screw
thread.
Replacement filters and lamps bulbs
can be obtained from your local Service
Force Centre.
EN
10 electrolux SOMETHING NOT WORKING
SOMETHING NOT WORKING
If, having followed these instructions carefully, your cooker hood fails to work properly
please carry out the following checks.
EN
Symptom
The cooker hood will not start
The cooker hood is not working
effectively
The cooker hood has switched off
during operation
If after all these checks, the fault persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for any in-guarantee
service calls.
Solution
• Check the hood is connected to the
electricity supply.
• Make sure the switch is in the ‘ON’ posi
tion.
• The fan speed is set high enough for the
task
• The grease filter is clean.
• The kitchen is adequately vented to allow
the entry of fresh air.
• If set up for recirculation, check that the
charcoal filter is still effective.
• If set up for extraction, check that the
ducting and outlets are not blocked.
• The safety cut-out device has been trip
ped.
• Tum off the hob and then wait for the
device to reset.
In-guarantee customers should ensure
that the above checks have been made
as the engineer will make a charge if
the fault is not a mechanical or electrical breakdown.
GUARANTEE/CUSTOMER SERVICE electrolux
11
GUARANTEE/CUSTOMER SERVICE
Standard guarantee conditions
We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part
thereof is proved to be defective by
reason only of faulty workmanship or
materials, we will, at our option repair
or replace the same FREE OF CHARGE
for labour, materials or carriage on
condition that:
• The appliance has been correctly
installed and used only on the
electricity supply stated on the rating
plate.
• The appliance has been used for
normal domestic purposes only, and
in accordance with the manufacturer’s
instructions.
• The appliance has not been serviced,
maintained, repaired, taken apart or
tampered with by any person not
authorised by us.
• Electrolux Service Force Centre must
undertake all service work under this
guarantee
• Any appliance or defective part
replaced shall become the Company’s
property.
• This guarantee is in addition to your
statutory and other legal rights.
Exclusions
• Damage or calls resulting from
transportation, improper use or
neglect, the replacement of any light
bulbs or removable parts of glass or
plastic.
• Costs incurred for calls to put right
an appliance which is improperly
installed or calls to appliances outside
the United Kingdom.
• Appliances found to be in use within
a commercial environment, plus
those which are subject to rental
agreements.
• Products of Electrolux manufacturer
that are not marketed by Electrolux
Service and Spare Parts
In the event of your appliance requiring
service, or if you wish to purchase spare
parts, please contact your local Service
Force Centre by telephoning
0870 5 929 929
Your telephone call will be automatically
routed to the Service Force Centre
covering your postcode area.
For the address of your local Service
Force Centre and further information
about Service Force, please visit the
website at
www.serviceforce.co.uk
Before calling out an engineer, please
ensure you have read the details under
the heading “Something not working”
When you contact the Service Force
Centre you will need to give the
following details:
1.Your name, address and postcode.
2.Your telephone number.
3.Clear concise details of the fault.
4.The model and Serial number of the
appliance (found on the rating plate).
5.The purchase date.
Please note a valid purchase receipt or
guarantee documentation is required for
in guarantee service calls.
EN
12 electrolux GUARANTEE CONDITIONS
GUARANTEE CONDITIONS
Customer Care
For general enquiries concerning your
Electrolux appliance, or for further
EN information on Electrolux products
please contact our Customer Care
Department by letter or telephone at
the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: 08705 950 950 (*)
(*) Calls may be recorded for training
purposes
European Guarantee
This appliance is guaranteed by
Electrolux in each of the countries
listed at the back of this user manual,
for the period specified in the appliance
guarantee or otherwise by law. If you
move from one of these countries to
another of the countries listed below the
appliance guarantee will move with you
subject to the following qualifications:• The appliance guarantee starts from
the date you first purchased the
appliance which will be evidenced
by production of a valid purchase
document issued by the seller of the
appliance.
• The appliance guarantee is for the
same period and to the same extent
for labour and parts as exists in
your new country of residence for
this particular model or range of
appliances.
• The appliance guarantee is personal
to the original purchaser of the
appliance and cannot be transferred
to another user.
• The appliance is installed and used
in accordance with instructions
issued by Electrolux and is only used
within the home, i.e. is not used for
commercial purposes.
• The appliance is installed in
accordance
with
all
relevant
regulations in force within your new
country of residence.
The provisions of this European Guarantee
do not affect any of the rights granted to you
by law.
electrolux 13
www.electrolux.com
à
Albania
+35 5 4 261 450
Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien
+32 2 363 04 44
Bergensesteenweg 719, 1502 Lembeek
Česká republika
+420 2 61 12 61 12
Budějovická 3, Praha 4, 140 21
Danmark
+45 70 11 74 00
Sjællandsgade 2, 7000 Fredericia
Deutschland
+49 180 32 26 622
Muggenhofer Str. 135, 90429 Nürnberg
Eesti
+37 2 66 50 030
Mustamäe tee 24, 10621 Tallinn
España
+34 902 11 63 88
Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
France
www.electrolux.fr
Great Britain
+44 8705 929 929
Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas
+30 23 10 56 19 70
4, Limnou Str., 54627 Thessaloniki
Hrvatska
+385 1 63 23 338
Slavonska avenija 3, 10000 Zagreb
Ireland
+353 1 40 90 753
Long Mile Road Dublin 12
Italia
+39 (0) 434 558500
C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija
+37 17 84 59 34
Kr. Barona iela 130/2, LV-1012, Riga
Lietuva
+370 5 2780609
Verkių 29, LT-09108 Vilnius
Luxembourg
+35 2 42 43 13 01
Rue de Bitbourg, 7, L-1273 Hamm
Magyarország
+36 1 252 1773
H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland
+31 17 24 68 300
Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge
+47 81 5 30 222
Risløkkvn. 2 , 0508 Oslo
Österreich
+43 18 66 400
Herziggasse 9, 1230 Wien
Polska
+48 22 43 47 300
Portugal
+35 12 14 40 39 39
Romania
+40 21 451 20 30
ul. Kolejowa 5/7, Warsaw
Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774518 Paço de Arcos
Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera
+41 62 88 99 111
Industriestrasse 10, CH-5506 Mägenwil
Slovenija
+38 61 24 25 731
Tržaška 132, 1000 Ljubljana
Slovensko
+421 2 43 33 43 22
Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK,
Seberíniho 1, 821 03 Bratislava
Suomi
+35 8 26 22 33 00
Konepajanranta 4, 28100 Pori
Sverige
+46 (0)771 76 76 76
Electrolux Service, S:t Göransgatan 143, S-105 45
Stockholm
Türkiye
+90 21 22 93 10 25
Tarlabașı caddesi no : 35 Taksim İstanbul
Россия
+7 095 937 7837
129090 Москва, Олимпийский проспект, 16, БЦ
“Олимпик”
EN
14 electrolux INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
EN Technical Information
DIMENSIONS
WEIGHT
HEIGHT:
WIDTH:
DEPTH:
DUCTING OUTLET:
196mm
522mm
284mm
120mm
GROSS: EFG 50021 4,2 kg - EFG 50022 4.4 kg
NET:
EFG 50021 5,2 kg - EFG 50022 5.4 kg
ELECTRICAL SUPPLY:
POWER CONSUMPTION:
FAN MOTOR:
LAMP:
SUITABLE FOR INSTALLATION
ABOVE:
Voltage (50Hz)
220-240V
EFG 50021 195W - EFG 50022 215W
EFG 50021 115W - EFG 50022 135W
2 x 40 W
80W
ELECTRIC HOB:
GAS HOB:
SLOT-IN GAS COOKER
SLOT-IN ELECTRIC COOKER
7KW (max)
10KW (max)
13.5KW (max)
12.4KW (max)
Note: CE Marking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and subsequent modifications and Low Voltage directive 72/23/E.
The symbol
on the product or on its packaging indicates that this product may not be treated as household waste. Instead it
shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop where you purchased the product.
ELECTRICAL CONNECTIONS electrolux
15
ELECTRICAL CONNECTIONS
DOUBLE INSULATED DO NOT EARTH
Electrical Requirements
Any permanent electrical installation
must comply with the latest I.E.E.
Regulations and local Electricity Board
regulations. For your own safety this
should be undertaken by a qualified
electrician e.g. your local Electricity
Board, or a contractor who is on the
roll of the National Inspection Council
for Electrical Installation Contracting
(NICEIC).
Electrical Connection
Before connecting to the mains
supply ensure that the mains voltage
corresponds to the voltage on the rating
plate inside the cooker hood.
This appliance is fitted with a 2 core
mains cable and must be permanently
connected to the electricity supply
via a double-pole switch having
3mm minimum contact gap on each
pole. A Switched Fuse Connection
Unit to BS1363 Part 4, fitted with
a 3 Amp fuse, is a recommended
mains supply connection accessory
to ensure compliance with the Safety
Requirements applicable to fixed wiring
instructions.
This appliance conforms to BS 800:
1988 and EEC Directive No. 78 308
regarding suppression of radio and
television interference.
EN
16 electrolux INSTALLING THE COOKER HOOD
INSTALLING THE COOKER HOOD
Please ensure that when the
appliance is installed it is easily
accessible to an engineer in the
EN event of a breakdown.
All installations must comply with the
local authorities requirements for the
discharge of exhaust air.
Incorrect installation may affect the
safety of this cooker hood.
Installation Requirements
Before fitting the hood beneath
any type of canopy or wall cabinet,
ensure that the housing is firmly fixed
to the wall in accordance with the
manufacturer’s instructions.
If it is necessary to fix the housing for
the canopy to a hollow construction
plaster or partition board structure then
it should be sufficiently reinforced to
be quite rigid in the area of the cabinet
housing fixings.
Ducting
The ducting must be fire retardant
125mm (5ins) in diameter and the length
should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the
efficiency of the hood and reduce the
airflow.
Clearance Height
The cooker hood is designed to be
fitted over a cooking appliance at the
clearance heights stated, providing
the maximum output of the appliance
beneath does not exceed the maximums
quoted in the Technical Specifications.
If the output of the appliance below the
cooker hood exceeds the maximum
outputs quoted, please refer to the
cooker
manufacturer’s
installation
instructions.
Clearance Height
A clearance height of 650mm (25 1/2 ”)
is required when installed above a builtin electric hob, or 700mm (27 1/2 ”)
when installed above a built-in gas hob.
A clearance height of 685mm (27”)
is required when installed above a
slot-in electric cooker, or 787mm (30
1/2 ”) when installed above a slot-in gas
cooker.
electrolux 17
When installed between adjoining wall
cabinets, the wall cabinets must not
overhang the hob and the distance
between the underside of the cabinet
and the worktop must be 450mm. If
the height of the wall cabinet is less
than 450mm, a gap of 50mm must be
maintained either side of the hob.
This cooker hood must not be installed above a cooking appliance with a
high level grill.
Unpacking
The fittings supplied to install this cooker
hood can be found with the instruction
book inside the packaging:
120 - 125 mm ducting collar
Fitting the Cooker Hood
into the Housing/Canopy
The hood is fixed to the housing using
the screw holes located around the
base of the casing. Access to the screw
holes will require the removal of the
metal grille panel.
Positioning the Cooker Hood
Measure the underside of the canopy or
kitchen cabinet to mark the position for
the cut-out. The cut-out measurement
should be:
- 497mm (19 5/8”) wide
- 259mm (10 1/4”) deep
Check the position of the hole is
correct with the measurements
above before making the cut-out.
EN
Hob
A: Built-in Electric Hob:
B: Built-in Gas hob:
C: Slot-in Electric Cooker:
D: Slot-in Gas Cooker:
650mm clearance
700mm clearance
685mm clearance
787mm clearance
18 electrolux
The hood is fixed using the holes
located in the rim around the base of
the casing visible when the inlet grille is
in the open position.
Support the grille panel with one hand
EN
and draw down on the two grey handles
(A) which are located on each side of
the grille with the other hand.
Raise the hood into the cut out and mark
the positions for the fixing screws. Pilot
drill the fixing holes and fit the hood.
Venting
The hood is more effective when used
in the extraction mode (ducted to the
outside). Venting kits maybe purchased
through your retailer or DIY store, and
must be ducted to an outside vent of
125mm (5”) minimum.
The ducting used must be manufactured from fire retardant material.
When the hood is ducted externally the
charcoal filters must be removed.
Recirculation
If you are using the hood for recirculating,
ensure the charcoal filters are in position
following the instructions below.
Inserting the Charcoal
Filters
1.Remove the grille panel, support the
grille with one hand and draw down
on the two grey handles (located at
each side of the grille).
2.The charcoal filters are handed and
should be fitted one at a time.
3.Insert one end of the filter into the
slots in the fan housing, then lower
the other and until the tab engages
the slot in the casing.
electrolux 19
Extraction
The charcoal filters are not required in
this mode and should be removed. To
do this reverse the procedure described
in Inserting the ‘Charcoal Filters’.
Ducting
The ducting used must be fire retardant
125mm (5”) in diameter. If possible
duct through the wall at the rear of the
canopy or wall cabinet. For the best
performance use the shortest possible
duct run and the minimum number
of bends. Where flexible ducting is
fitted it should not be turned through
very tight bends as this may impair
the performance of the hood. It is
recommended a maximum length of
3m, to be installed, to be reduced
1m for each 90° bend installed in the
ducting run. If the distance is greater
than 3m the efficiency of the hood could
be impaired.
A ducting collar of 120-125 mm (5”) is
supplied for attaching to ducting if you
are using the appliance in the extraction
mode.
If the room where the cooker hood
is to be used contains a fuel burning
appliance such as a central heating
boiler, then its flue must be of the
room sealed or balanced flue type.
If other types of flue or appliances are
fitted ensure that there is an adequate supply of air to the room.
The cooker hood ducting (extraction
version) must never be connected
to central heating flues, radiators or
water heaters etc.
EN
electrolux 20
electrolux 21
electrolux 22
www.electrolux.com
436003735_01 - 070314
