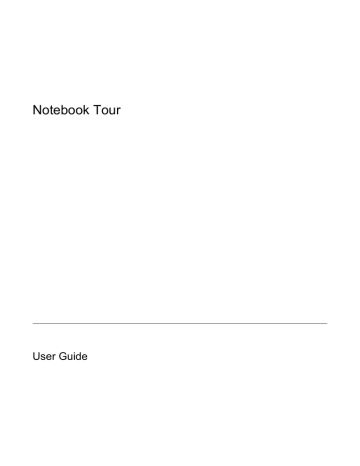

Notebook Tour
User Guide
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard
Company under license. SD logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: January 2007
Document Part Number: 430377-001
Table of contents
ENWW iii
iv ENWW
1 Components
This chapter explains the hardware features of the computer.
To see a list of hardware installed in the computer:
1.
Select Start > Computer > System properties.
2.
In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE
Components included in the computer may vary by region and by model. The illustrations in this chapter identify the standard features included in most computer models.
ENWW 1
Top components
TouchPad
Component Description
(1)
TouchPad light Blue: TouchPad is enabled.
(2)
(3)
(4)
(5)
TouchPad*
Left TouchPad button*
Right TouchPad button*
TouchPad scroll zone*
Amber: TouchPad is disabled.
Moves the pointer and selects or activates items on the screen.
Functions like the left button on an external mouse.
Functions like the right button on an external mouse.
Scrolls up or down.
(6)
TouchPad on/off button Enables/disables the TouchPad.
*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel >
Hardware and Sound > Mouse.
2 Chapter 1 Components ENWW
Lights
NOTE
Refer to the illustration that most closely matches your computer.
Component
(1)
Power lights (2)*
(2)
Battery light
ENWW
(7)
(8)
(9)
(10)
(11)
(3)
(4)
(5)
(6)
Drive light
Caps lock light
Media button light
DVD button light
Previous/rewind light
Play/pause light
Next/fast forward light
Stop light
Volume mute light
(12)
Volume down light
Description
On: The computer is on.
Blinking: The computer is in the Sleep state.
Off: The computer is off or in Hibernation.
On: A battery is charging.
Blinking: A battery that is the only available power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external power source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.
Blinking: The hard drive or optical drive is being accessed.
On: Caps lock is on.
Blinks once when the media button is pressed.
Blinks once when the DVD button is pressed.
Blinks once when the previous/rewind button is pressed.
Blinks once when the play/pause button is pressed.
Blinks once when the next/fast forward button is pressed.
Blinks once when the stop button is pressed.
Blue: Computer sound is turned on.
Amber: Computer sound is turned off.
Blinking: The volume scroll zone is being used to decrease speaker volume.
Top components 3
Component Description
(13)
Volume up light Blinking: The volume scroll zone is being used to increase speaker volume.
On: Num lock is on or the embedded numeric keypad is enabled.
(14)
Num lock light
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.
Component
(1)
Power lights (2)*
(2)
Battery light
(3)
(4)
(5)
(6)
Drive light
Caps lock light
Media button light
Volume mute light
(7)
Volume down light
(8)
Volume up light
4 Chapter 1 Components
Description
On: The computer is on.
Blinking: The computer is in the Sleep state.
Off: The computer is off or in Hibernation.
On: A battery is charging.
Blinking: A battery that is the only available power source has reached a low battery level or a critical battery level.
Off: If the computer is plugged into an external power source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.
Blinking: The hard drive or optical drive is being accessed.
On: Caps lock is on.
Blinks once when the media button is pressed.
Blue: Computer sound is turned on.
Amber: Computer sound is turned off.
Blinking: The volume scroll zone is being used to decrease speaker sound.
Blinking: The volume scroll zone is being used to increase speaker sound.
ENWW
Component Description
(9)
Num lock light Blinking: Num lock is on or the embedded numeric keypad is enabled.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.
ENWW Top components 5
Buttons, switches, and speakers
NOTE
Refer to the illustration that most closely matches your computer.
Component
(1)
Power button*
(2)
(3)
Speakers (2)
Media button
(4)
DVD button
(5)
Previous/rewind button
(6)
Play/pause button
(7)
Next/fast forward button
6 Chapter 1 Components
Description
When the computer is off, press the power button to turn on the computer.
If the computer has stopped responding and Windows® shutdown procedures cannot be used, press and hold the power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
Produce sound.
Launches the QuickPlay program.
NOTE
If the computer has been set up to require a logon password, you may be asked to log on to Windows.
QuickPlay launches after you log on. Refer to the
QuickPlay online Help for more information.
Launches the DVD playback feature of the QuickPlay program.
NOTE
If the computer has been set up to require a logon password, you may be asked to log on to Windows.
QuickPlay launches after you log on. Refer to the
QuickPlay online Help for more information.
When a disc is playing in the optical drive:
● Plays the previous track or chapter, when pressed once.
●
Rewinds when pressed with the fn key.
When a disc is in the optical drive and is
●
Not playing, plays the disc.
● Playing, pauses the disc.
When a disc is playing in the optical drive:
ENWW
Component
(8)
Stop button
Description
●
Play the next track or chapter, when pressed once.
●
Fast forwards when pressed with the fn key.
When a disc is playing in the optical drive, stops the current disc activity.
(9)
(10)
Volume mute button
Volume scroll zone
Mutes and restores speaker sound.
Adjusts speaker volume. Slide your finger to the left to decrease volume and to the right to increase volume. You can also tap the minus sign on the scroll zone to decrease volume, or tap the plus sign on the scroll zone to increase volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help and Support.
Component
(1)
Power button*
ENWW
(2)
(3)
Speakers (2)
Media button
(4)
(5)
Volume mute button
Volume scroll zone
Description
When the computer is off, press the power button to turn on the computer.
If the computer has stopped responding and Windows shutdown procedures cannot be used, press and hold the power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
Produce sound.
Launches the QuickPlay program.
NOTE
If the computer has been set up to require a logon password, you may be asked to log on to Windows.
QuickPlay launches after you log on. Refer to the
QuickPlay online Help for more information.
Mutes and restores speaker sound.
Adjusts speaker volume. Slide your finger to the left to decrease volume and to the right to increase volume. You can also tap the
Top components 7
Keys
Component Description
minus sign on the scroll zone to decrease volume, or tap the plus sign on the scroll zone to increase volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help and Support.
NOTE
Your computer may look slightly different from the illustration in this section.
Component
(1)
esc key
(2)
(3)
(4)
(5)
(6)
fn key
Windows logo key
Windows applications key
Embedded numeric keypad keys
Function keys
Hotkey quick reference
To perform this function
Display information.
Open Help and Support.
Open the Print Options window.
8 Chapter 1 Components
Description
Displays system information when pressed in combination with the fn key.
Executes frequently used system functions when pressed in combination with a function key or the esc key.
Displays the Windows Start menu.
Displays a shortcut menu for items beneath the pointer.
Can be used like the keys on an external numeric keypad.
Execute frequently used system functions when pressed in combination with the fn key.
Press
fn+esc fn+f1 fn+f2
ENWW
To perform this function Press
Open a Web browser.
Alternate between computer display and external display.
Initiate Hibernation.
Initiate QuickLock.
Decrease screen brightness.
Increase screen brightness.
fn+f3 fn+f4 fn+f5 fn+f6 fn+f7 fn+f8
Play, pause, or resume an audio CD or a DVD.
Stop an audio CD or a DVD.
fn+f9 fn+f10
Play the previous track or section on an audio CD or a DVD.
fn+f11
Play the next track or section on an audio CD or a DVD.
fn+12
ENWW Top components 9
Front components
NOTE
Your computer may look slightly different from the illustration in this section.
Component
(1)
(2)
Wireless switch
Wireless light
(3)
(4)
(5)
Consumer infrared lens (select models only)
Audio-in (microphone) jack
Audio-out (headphone) jack
(6)
Audio-out (headphone) S/PDIF jack (select models only)
Description
Turns the wireless feature on or off, but does not create a wireless connection.
NOTE
A wireless network must be set up in order to establish a wireless connection.
Blue: An integrated wireless device, such as a wireless local area network (LAN) device and/or a Bluetooth® device, is turned on.
Amber: All wireless devices are turned off.
Receives a signal from the HP Remote Control.
Connects an optional computer headset microphone, stereo array microphone, or monaural microphone.
Produces sound when connected to optional powered stereo speakers, headphones, ear buds, a headset, or television audio.
Provides enhanced audio performance, including surround sound and other high-end audio output.
10 Chapter 1 Components ENWW
Rear components
Component
Vent
Description
Enables airflow to cool internal components.
CAUTION
To prevent overheating, do not obstruct vents.
Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or thick rugs or clothing, to block airflow.
NOTE
The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
ENWW Rear components 11
Right-side components
Component
(1)
(2)
(3)
(4)
(5)
ExpressCard slot
Optical drive
Optical drive light
USB port (select models only)
Power connector
Description
Supports optional ExpressCard/54 cards.
Reads an optical disc.
Blinking: The optical drive is being accessed.
Connects optional USB devices.
Connects an AC adapter.
12 Chapter 1 Components ENWW
Left-side components
ENWW
Component
(1)
(2)
(3)
(4)
(5)
Security cable slot
S-Video-out jack
External monitor port
Expansion port 3
RJ-45 (network) jack
(6)
(7)
RJ-11 (modem) jack
HDMI port (select models only)
(8)
(9)
USB ports (2)
1394 port (select models only)
(10)
(11)
Digital Media Slot light (select models only)
Digital Media Slot (select models only)
Description
Attaches an optional security cable to the computer.
NOTE
The security cable is designed to act as a deterrent, but may not prevent the computer from being mishandled or stolen.
Connects an optional S-Video device such as a television, VCR, camcorder, overhead projector, or video capture card.
Connects an external VGA monitor or projector.
Connects the computer to an optional expansion product.
NOTE
The computer has only one expansion port. The term expansion port 3 describes the type of expansion port.
Connects a network cable.
NOTE
On select computer models, the network jack provides Gigabit Ethernet functionality.
Connects a modem cable.
Connects an optional video or audio device such as a highdefinition television, or any compatible digital or audio component.
Connect an optional USB device.
Connects an optional IEEE 1394 or 1394a device, such as a camcorder.
On: A digital card is being accessed.
Supports the following optional digital card formats: Secure Digital
(SD) Memory Card, MultiMediaCard (MMC), Secure Digital Input/
Output (SD I/O), Memory Stick (MS), Memory Stick Pro (MSP), xD-
Picture Card (XD), xD-Picture Card (XD) Type M.
Left-side components 13
Bottom components
Component
(1)
(2)
(3)
Battery bay
Battery release latch
Vents (5)
(4)
(5)
Memory module compartment
Hard drive bay
Description
Holds the battery.
Releases the battery from the battery bay.
Enable airflow to cool internal components.
CAUTION
To prevent overheating, do not obstruct vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or thick rugs or clothing, to block airflow.
NOTE
The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
Contains the memory module slots.
Holds the hard drive.
14 Chapter 1 Components ENWW
Display components
Component
(1)
Internal display switch
(2)
Internal microphones (2) (select models only)
(3)
(4)
Integrated camera light (select models only)
Integrated camera (select models only)
Description
Turns off the display and initiates Sleep if the display is closed while the power is on.
Record sound.
NOTE
A microphone icon next to each microphone opening indicates that the computer has internal microphones.
On: The integrated camera is in use.
Records video and captures still photos.
ENWW Display components 15
Wireless antennae (select models only)
On select computer models, at least 2 antennae send and receive signals from one or more wireless devices. These antennae are not visible from the outside of the computer.
To see wireless regulatory notices, refer to your country's section of the Regulatory, Safety and
Environmental Notices located in Help and Support.
NOTE
For optimal transmission, keep the areas immediately around the antennae free from obstructions.
16 Chapter 1 Components ENWW
Additional hardware components
Component Description
(1)
(2)
Power cord*
AC adapter
Connects an AC adapter to an AC outlet.
Converts AC power to DC power.
(3)
Battery* Powers the computer when the computer is not plugged into external power.
*Batteries and power cords vary in appearance by region and country.
ENWW Additional hardware components 17
Labels
The labels affixed to the computer provide information you may need when you troubleshoot system problems or travel internationally with the computer.
●
Service tag—Provides the product brand and series name, serial number (s/n), and product number (p/n) of your computer. Have this information available when you contact Customer Care.
The service tag label is affixed to the bottom of the computer.
●
Microsoft Certificate of Authenticity—Contains the Microsoft® Windows® Product Key. You may need the Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom of the computer.
●
Regulatory label—Provides regulatory information about the computer. The regulatory label is affixed to the bottom of the computer.
● Modem approval label—Provides regulatory information about the modem and lists the agency approval markings required by some of the countries in which the modem has been approved for use. You may need this information when traveling internationally. The modem approval label is affixed inside the hard drive bay.
●
Wireless certification label(s) (select models only)—Provide information about optional wireless devices and the approval markings of some of the countries in which the devices have been approved for use. An optional device may be a wireless local area network (WLAN) device or an optional Bluetooth® device. If your computer model includes one or more wireless devices, one or more certification labels are included with your computer. You may need this information when traveling internationally. Wireless certification labels are affixed inside the memory module compartment.
18 Chapter 1 Components ENWW
2 Specifications
Operating environment
The operating environment information in the following table may be helpful if you plan to use or transport the computer in extreme environments.
U.S.
Factor Metric
Temperature
Operating
Nonoperating
Relative humidity (noncondensing)
Operating
Nonoperating
5°C to 35°C
-20°C to 60°C
10% to 90%
5% to 95%
Maximum altitude (unpressurized)
Operating (14.7 to 10.1 psia*) -15 m to 3,048 m
Nonoperating (14.7 to 4.4 psia*) -15 m to 12,192 m
*Pounds per square inch absolute (psia) is another unit of measurement for altitude.
41°F to 95°F
-4°F to 140°F
10% to 90%
5% to 95%
-50 ft to 10,000 ft
-50 ft to 40,000 ft
ENWW Operating environment 19
Rated input power
The power information in this section may be helpful if you plan to travel internationally with your computer.
The computer operates on DC power, which can be supplied by an AC or a DC power source. Although the computer can be powered from a stand-alone DC power source, it should be powered only with an
AC adapter or a DC power source supplied and approved by HP for the computer.
The computer is capable of accepting DC power within the following specifications.
Input power
Operating voltage
Operating current
Rating
18.5 V dc — 19.0 V dc
3.5 A or 4.74 A
This product is designed for IT power systems in Norway with phase-to-phase voltage not exceeding
240 V rms.
20 Chapter 2 Specifications ENWW
Expansion port input/output signals
The signal information in this section may be helpful if you plan to use an optional expansion product that connects to the expansion port 3 on the computer. (The computer has only one expansion port.
The term expansion port 3 describes the type of expansion port.)
The following table identifies the input and output signals supported by the expansion port 3 on the computer.
Feature
USB 2.0
Gigabit Ethernet
IEEE 1394 (4–pin port)
Consumer infrared (for optional remote control only)
Power inputs
Composite TV
S-Video TV
Component TV
S/PDIF audio
DVI
Headphone/speaker audio-out
Microphone audio-in
VGA
Power button
Volume control (up/down)
Mute/unmute status
Suport
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
No
Yes
65-W to 90-W maximum
Yes
ENWW Expansion port input/output signals 21
Index
Symbols/Numerics
A
audio-in (microphone) jack,
audio-out (headphone) jack,
audio-out (headphone) S/PDIF
B
battery
battery light, identifying 3, 4
battery release latch,
bays
buttons
DVD 6 media 6, 7 next/fast forward 6 play/pause 6 power 6, 7 previous/rewind 6
C
22 Index
caps lock light, identifying 3, 4
Certificate of Authenticity label 18
compartments
components
D
Digital Media Slot light,
Digital Media Slot, identifying 13
display switch, identifying 15
drives
DVD button light, identifying 3
E
environmental specifications 19
expansion port, identifying 13
expansion port, input/output
ExpressCard slot, identifying 12
external monitor port,
F
fn key, identifying 8 function keys, identifying 8
H
hard drive bay, identifying 14
headphone (audio-out) S/PDIF
I
IEEE 1394 port, identifying 13
integrated camera light,
identifying 15 integrated camera, identifying 15
internal display switch,
internal microphones,
J
jacks
audio-in (microphone) 10 audio-out (headphone) 10
audio-out (headphone) S/
K
keys
esc 8 fn 8 function 8 keypad 8
ENWW
L
labels
Microsoft Certificate of
Authenticity 18 modem approval 18 regulatory 18 service tag 18 wireless certification 18
lights
volume down 3, 4 volume mute 3, 4 volume up 4
M
media activity buttons,
media activity lights, identifying 3 media button light, identifying 3,
media button, identifying 6, 7
memory module compartment,
Microsoft Certificate of Authenticity
label 18 modem approval label 18
N
next/fast forward button,
next/fast forward light,
num lock light, identifying 4, 5
O
operating environment
operating system
Microsoft Certificate of
optical drive light, identifying 12 optical drive, identifying 12
P
play/pause button, identifying 6
play/pause light, identifying 3
ports
1394 13 expansion 13 external monitor 13
power button, identifying 6, 7
power connector, identifying 12
power lights, identifying 3, 4
Previous/rewind button,
previous/rewind light,
product name and number,
R
rated input power
regulatory information
modem approval label 18 regulatory label 18 wireless certification labels 18
RJ-11 (modem) jack,
RJ-45 (network) jack,
S
S-Video-out jack, identifying 13
security cable slot, identifying 13
serial number, computer 18 service tag 18
slots
specifications
T
TouchPad
buttons 2 identifying 2 scrolling regions 2
traveling with the computer environmental
modem approval label 18 wireless certification labels 18
U
V
volume down light, identifying 3,
volume mute button,
volume mute light, identifying 3,
volume scroll zone,
volume up light, identifying 4
ENWW Index 23
W
Windows applications key,
Windows logo key, identifying 8
wireless certification label 18
wireless light, identifying 10 wireless switch, identifying 10
24 Index ENWW
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 5 Components
- 6 Top components
- 6 TouchPad
- 7 Lights
- 10 Buttons, switches, and speakers
- 12 Keys
- 12 Hotkey quick reference
- 14 Front components
- 15 Rear components
- 16 Right-side components
- 17 Left-side components
- 18 Bottom components
- 19 Display components
- 20 Wireless antennae (select models only)
- 21 Additional hardware components
- 22 Labels
- 23 Specifications
- 23 Operating environment
- 24 Rated input power
- 25 Expansion port input/output signals
- 26 Index
