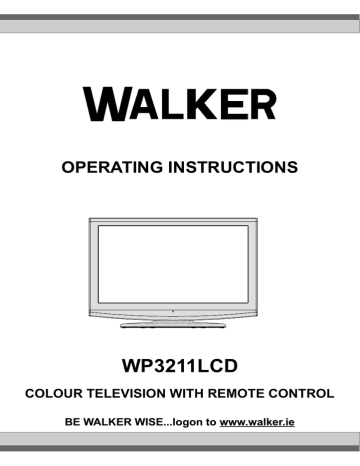

Walker WP3211LCD Operating instructions

OPERATING INSTRUCTIONS
WP3211LCD
COLOUR TELEVISION WITH REMOTE CONTROL
BE WALKER WISE...logon to www.walker.ie
Contents
Features ................................................................. 2
Introduction ............................................................. 2
Accessories ............................................................ 2
Preparation ............................................................. 2
Safety Precautions ................................................. 2
Power Source ..................................................... 2
Power Cord ......................................................... 2
Moisture and Water ............................................ 3
Cleaning.............................................................. 3
Heat and Flames ................................................ 3
Lightning ............................................................. 3
Replacement Parts ............................................. 3
Servicing ............................................................. 3
Waste Disposal ................................................... 3
Information for Users in European Union
Countries ............................................................ 3
Disconnecting the Device ................................... 3
Headphone Volume ............................................ 3
Installation........................................................... 3
LCD Screen ........................................................ 3
Warning .............................................................. 4
Connection to a Television Distribution System
(Cable TV etc.) from Tuner ................................. 4
Inserting Batteries in the Remote Control Handset.... 4
Switching the TV On/Off ......................................... 4
Environmental Information ..................................... 5
Repair Information .............................................. 5
Overview of the Remote Control ............................ 6
LCD TV and Operating Buttons .............................. 7
Viewing the Connections- Back Connectors .......... 7
Viewing the Connections - Side Connectors .......... 9
Power Connection .................................................. 9
Aerial Connection ................................................... 9
Using Digital Multimedia Connectors.................... 10
USB Memory Connection ................................. 10
Connecting the LCD TV to a PC........................... 10
Connecting to a DVD Player..................................11
Using Side AV Connectors ....................................11
Connecting Other Equipment via Scart .................11
Input Selection ...................................................... 12
Basic Operations .................................................. 12
Operation with the Buttons on the TV ............... 12
Operation with the Remote Control .................. 12
Initial Settings ....................................................... 12
General Operation ................................................ 13
Electronic Programme Guide (EPG)................. 13
Programme Options.......................................... 14
Analogue Teletext ............................................. 14
Widescreen ....................................................... 14
IDTV Menu System .............................................. 15
Channel List ...................................................... 15
Navigating the Entire Channel List ................... 15
Moving the channels in the channel list ............ 15
Deleting the Channels in the Channel List ....... 15
Renaming channels .......................................... 15
Adding Locks to Channels ................................ 16
Setting Favourites ............................................. 16
Program Guide ................................................. 16
Timers ............................................................... 16
Common Interface ........................................... 16
TV Setup ........................................................... 17
Setup ................................................................ 17
Configuration .................................................... 17
Time Settings(**) ............................................... 18
Language Settings ............................................ 19
Language Settings ............................................ 19
Installation......................................................... 20
Media Browser (in DTV mode) ......................... 21
Video Playback (optional) ................................. 22
Analogue TV Menu System .................................. 22
Picture Menu..................................................... 22
Sound Menu ..................................................... 23
Feature Menu ................................................... 24
Install Menu ...................................................... 26
Source Menu .................................................... 28
PC Mode Menu System........................................ 28
Displaying TV Information .................................... 29
Mute Function ....................................................... 29
PIP (Picture-in-Picture) and PAP (Picture-andPicture) Modes ..................................................... 29
Picture Mode Selection......................................... 29
Freezing Picture ................................................... 29
Zoom Modes......................................................... 29
Auto .................................................................. 29
16:9 ................................................................... 29
4:3 ..................................................................... 29
Panoramic......................................................... 29
14:9 ................................................................... 29
Cinema ............................................................. 30
Subtitle .............................................................. 30
Zoom................................................................. 30
Teletext ................................................................. 30
Tips ....................................................................... 31
Screen Care...................................................... 31
Image Persistence ............................................ 31
No Power .......................................................... 31
Poor Picture ...................................................... 31
No Picture ......................................................... 31
Sound ............................................................... 31
Remote Control................................................. 31
Input Sources.................................................... 31
Appendix A: PC Input Typical Display Modes....... 32
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types).............................................. 33
Appendix C: PIP/PAP Mode Combinations .......... 34
Appendix D: Supported File Formats for USB Mode .. 35
Appendix E: Supported DVI Resolutions .............. 35
Specifications ....................................................... 36
Digital Reception .................................................. 36
Important Instruction ............................................. 37
English - 1 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 1
06.09.2010 09:12:01
Accessories
M
P<P
OK
Instruction Book
DTV
TV
INFO
i
I-II
+
+
V
P
-
-
2
3
DEF
GHI
1
ABC
4
5
JKL
6
MNO
PQR
7
8
9
STU
VWX
YZ
PP
0
-/-EXIT
/ WIDE
PC
GUIDE
Remote
Controller
Batteries: 2 X AAA
Preparation
For ventilation, leave a free space of at least 10 cm all
around the set. To prevent any fault and unsafe situations,
please do not place any objects on top of the set.
Use this device in moderate climates.
10 cm
10 cm
10 cm
Features
• Remote controlled colour LCD TV.
• Fully integrated digital TV (DVB-T - MPEG2) (DVB-TMPEG4).
• DTV input supports 1920x1080i.
• HDMI connectors for digital video and audio. This
connection is also designed to accept high definition
signals.
• USB input.
• 200 programmes from VHF, UHF(analogue).
• 1000 programmes for digital mode (IDTV).
• Integrated tuner DVB-T HD, MPEG 2 / MPEG 4
compatible.
• OSD menu system.
• Two scart sockets for external devices (such as
video, video games, audio set, etc.).
• Stereo sound system. (German + Nicam)
• Teletext, fastext, TOP text.
• Headphone connection.
• Automatic programming system.
• Forward or backward manual tuning.
• Automatic sound mute when no transmission.
• NTSC playback.
• PIP / PAP / PAT functions.
• AVL (Automatic Volume Limiting).
• When no valid signal is detected, after 5 minutes the
TV switches itself automatically to standby mode.
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista,
Windows 7.
• Audio line out.
• Game Mode (optional).
• Active antenna power (optional).
• Movie Sense. (optional).
Introduction
Thank you for choosing this product. This manual will
guide you for the proper operation of your
TV. Before operating the TV, please read
this manual thoroughly.
Please do keep this manual in a safe place
for future references.
Safety Precautions
Please read the following recommended safety
precautions carefully for your safety.
Power Source
The TV set should be operated only from a 220-240
V AC, 50 Hz outlet. Ensure that you select the correct
voltage setting for your convenience.
Power Cord
Do not place the set, a piece of furniture, etc. on the
power cord (mains lead) or pinch the cord. Handle the
English - 2 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 2
06.09.2010 09:12:02
power cord by the plug. Do not unplug the appliance
by pulling from the power cord and never touch the
power cord with wet hands as this could cause a short
circuit or electric shock. Never make a knot in the cord
or tie it with other cords. The power cords should be
placed in such a way that they are not likely to be
stepped on. A damaged power cord can cause fire or
give you an electric shock. When it is damaged and
needs to be replaced, it should be done by qualified
personnel.
Moisture and Water
Do not use this device in a humid and
damp place (avoid the bathroom, the
sink in the kitchen, and near the washing
machine). Do not expose this device to
rain or water, as this may be dangerous
and do not place objects filled with liquids,
such as flower vases, on top. Avoid from
dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualified personnel
before operating it any further.
Cleaning
Before cleaning, unplug the TV set
from the wall outlet. Do not use liquid or
aerosol cleaners. Use soft and dry cloth.
Ventilation
The slots and openings on the TV set are intended for
ventilation and to ensure reliable operation. To prevent
overheating, these openings must not be blocked or
covered in anyway.
Heat and Flames
Servicing
Please refer all servicing to qualified
personnel. Do not remove the cover
yourself as this may result in an electric
shock.
Waste Disposal
Instructions for waste disposal:
• Packaging and packaging aids are recyclable and
should principally be recycled. Packaging materials,
such as foil bag, must be kept away from children.
• Batteries, including those which are heavy metalfree, should not be disposed of with household
waste. Please dispose of used battery in an
environment friendly manner. Find out about the
legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL
contains a small amount of mercury; please follow
the local laws or regulations for disposal.
Information for Users in European
Union Countries
This symbol on the product or on its
packaging means that your electrical
and electronic device should be
disposed at the end of its service life
separately from your household wastes.
There are separate collection systems
for recycling in EU.
For more information, please contact
the local authority or the dealer where you purchased
the product.
Disconnecting the Device
The mains plug is used to disconnect TV set from
the mains and therefore it must remain readily
operable.
The set should not be placed near to open
flames and sources of intense heat such
as an electric heater. Ensure that no open
flame sources, such as lighted candles,
are placed on top of the TV. Batteries
should not be exposed to excessive heat
such as sunshine, fire or the like.
Headphone Volume
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Installation
Lightning
In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.
To prevent injury, this device must be securely
attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).
Replacement Parts
LCD Screen
When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specified by the manufacturer or have the
same specifications as the original one. Unauthorized
substitutions may result in fire, electrical shock or
other hazards.
The LCD panel is a very high technology product with
about a million thin film transistors, giving you fine
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fixed blue, green or
red point. Please note that this does not affect the
performance of your product.
English - 3 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 3
06.09.2010 09:12:02
Warning
Do not leave your TV in standby or operating mode
when you leave your house.
Connection to a Television
Distribution System (Cable TV etc.)
from Tuner
Device connected to the protective earthing of the
building installation through the mains connection or
through other apparatus with a connection to protective
earthing-and to a television distribution system using
coaxial cable, may in some circumstances create a
fire hazard.
Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).
Switching the TV On/Off
To Switch the TV On
• Connect the power cord to the 220-240V AC, 50
Hz.
• Press “ ” switch. Then the standby LED lights
up.
• To switch on the TV from standby mode either:
• Press the “ ” button, P+ / P- or a numeric button
on the remote control.
• Press the -P/CH or P/CH+ button on the TV. The TV
will then switch on.
Note: If you switch on your TV via standby button on the
remote control, the programme/source that you were
watching last will be reselected.
By either method the TV will switch on.
To Switch the TV Off
• Press the “ ” button on the remote control or press
the “ ” switch, so the TV will switch to standby
mode.
• To power down the TV completely, unplug the
power cord from the mains socket.
Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active.
Inserting Batteries in the
Remote Control Handset
• Remove the battery cover located on the back of
the handset by gently pulling backwards from the
indicated part.
• Insert two AAA/R3 or equivalent type batteries
inside.Observe the correct polarity (+/-) when
inserting batteries and replace the battery cover.
Note: Remove the battery from remote control handset when
it is not to be used for a long period. Otherwise it can be
damaged due to any leakage of batteries.
Remote range is approximately 7m/23ft.
English - 4 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 4
06.09.2010 09:12:03
Environmental Information
• This television is designed to consume less energy to save environment.
You not only help to save the environment but also you can save money by reducing electricity bills thanks to the
energy efficiency feauture of this TV. To reduce energy consumption, you should take the following steps:
• You can use Power Save Mode setting, located in the Feature menu. If you set Power Save Mode as On,
the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level.
Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.
• When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce
energy consumption.
• Disconnect power when going away for longer time.
• Note that annually, using the TV set in Power Save Mode has more power efficiency than disconnecting the
TV from the mains plug instead of keeping stand-by mode. Therefore it is highly recommended to activate
Power Save Mode setting to reduce your annual power consumption.And also it is recommended to disconnect
the TV from the mains plug to save energy more when you do not use.
• Please helps us to save environment by following these steps.
Repair Information
Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact
your local dealer, where you have purchased this TV for further information.
English - 5 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 5
06.09.2010 09:12:03
Overview of the Remote Control
1. Standby
1
2. Yellow (Audio language (in DTV mode) (*) /
Feature menu)
3. Blue (Install menu)
2
17
4. Previous programme / Swap
5. Cursor up
3
18
6. Cursor right
4
7. Cursor down
19
8. TV / Digital TV
M
P<P
20
9. Mono/Stereo - Dual I-II
10. Programme up/down
11. Numeric buttons
6
OK
21
7
22
12. Exit (in DTV mode)
DTV
TV
13. Hold (in TXT mode) / PIP position
INFO
i
23
14. Update (in TXT mode) / PAP mode
15. Index page (in TXT mode) / Electronic
Programme Guide (EPG) (in DTV mode)
24
16. Reveal (in TXT mode) / Switch from TV to PC
17. Green (Picture menu / Page down / Subtitle
onoff (in DTV mode) (*))
25
-
-
P
1
ABC
4
26
18. Red (Sound menu / Page up / Channel list (*)
(in DTV mode))
27
19. Menu on/off
28
20. Ok - Confirm
+
V
22. AV / Source
3
GHI
5
6
10
11
PQR
9
7
8
STU
VWX
YZ
PP
0
-/-EXIT
/ WIDE
21. Cursor Left
2
DEF
MNO
8
9
I-II
+
JKL
5
PC
12
13
14
GUIDE
29
15
30
16
23. Info
24. Volume up/down
25. Mute
26. Picture mode selection
27. Time / Subpage (in TXT mode) / Subtitle on-off
(**)
28. Teletext on-off / PAT
29. Mix (in TXT mode) / PIP mode
30. Expand (in TXT mode) / Image size
(*) available for EU countries.
(**) available for UK country option.
English - 6 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 6
06.09.2010 09:12:03
LCD TV and Operating Buttons
FRONT and REAR VIEW
SIDE VIEW
Control Buttons
1. Standby button
2. TV/AV button
3. Programme Up/Down
buttons
4. Volume Up/Down buttons
” and
Note: Press “
buttons at the same time to view
main menu.
Viewing the Connections- Back Connectors
12
1. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass
effect.
Use an appropriate RCA cable to connect the set to a subwoofer unit.
2. Audio Line Outs output audio signals to an external device such as an optional sound system.
To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.
3. SCART 2 inputs or outputs for external devices.
4. SCART 1 inputs or outputs for external devices.
Connect the SCART cable between SCART sockets on TV and SCART socket on your external
device (such as a decoder, a VCR or a DVD player).
English - 7 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 7
06.09.2010 09:12:04
Note: If an external device is connected via the SCART sockets, the TV will automatically switch to
AV mode. If both sockets are employed at the same time, SCART 1 will override SCART 2 unless
manually selected.
Note: You should connect the decoder to EXT-1, if you are planning to watch a scrambled channel.
The decoder might not function properly if you do not connect the decoder to the Scart 1 (Ext-1) socket.
5. Component Video Inputs (YPbPr) are used for connecting component video.
You can connect the component video and audio sockets with a device that has component output.
Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and
the component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”,
“Pb”, “Pr” correspond with your device’s connectors.
6. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the
TV via YPbPr.
Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to
enable PC audio.
Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to
enable component audio.
7. S/PDIF Coaxial Out outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to transfer audio signals to a device that has S/PDIF input.
8. S/PDIF Digital Out outputs digital audio signals of the currently watched source.
Use a digital optic cable to transfer audio signals to a device that has S/PDIF input.
9. RF Input connects to an antenna or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the
device to the television with an appropriate antenna cable, as shown in the illustration in the following
pages.
10. PC Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
11. HDMI 2: HDMI Input
12. HDMI 1: HDMI Input
HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD Television is capable of
displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD
Player. These devices must be connected via the HDMI sockets or Component Socket. No sound
connection is needed for an HDMI to HDMI connection.
When you use the wall mount kit (optional) with the LCD TV, we would definitely recommend to plug all your
cables into the back of the LCD before mounting to the wall.
English - 8 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 8
06.09.2010 09:12:04
Viewing the Connections - Side Connectors
1. CI Slot is used for inserting a CI card. A CI card allows you to view all the
channels that you subscribe to. For more information, see “Common Interface”
section.
2. Side USB input.
Note: Codec update cannot be performed.
3. Headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones
(optional).
4. Video Input is used for connecting video signals of external devices. Connect
the video cable between the VIDEO IN socket on the TV and the VIDEO OUT
jack on your device.
5. Audio Inputs are used for connecting audio signals of external devices. Connect
the audio cable between the AUDIO INPUTS on the TV and the AUDIO
OUTPUT jacks on your device. Note: If you connect a device to the TV via the
VIDEO INPUT, you should also connect your device with an audio cable to the
AUDIO INPUTS of the TV to enable audio.
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the
mains.
• Plug the power cable to the mains socket outlet.
Aerial Connection
• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
English - 9 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 9
06.09.2010 09:12:04
Using Digital Multimedia
Connectors
Connecting the LCD TV to a PC
•You can connect USB devices to your TV by using
the USB input of the TV. This feature allows you to
display/play JPG, video (optional) and MP3 files
stored in a USB stick.
• It is possible that certain types of USB devices (e.g.
MP3 Players) may not be compatible with this TV.
• You may back up your files before making any
connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not
be responsible for any file damage or data loss.
• Do not pull out USB module while playing a file.
• The TV supports only FAT32 disk formatting. NTFS
format is not supported. If you connect a USB disk
with NTFS format, “usb is unformatted” osd will
be displayed.
For displaying your computer’s screen image on
your LCD TV, you can connect your computer to the
TV set.
• Power off both computer and display before making
any connections.
• Use 15-pin D-sub display cable to connect a PC to
the LCD TV.
• When the connection is made, switch to PC source.
See “Input selection” section.
• Set the resolution that suits your viewing requirements.
Resolution information can be found in the appendix
parts.
CAUTION: Quickly plugging and unplugging
USB devices, is a very hazardous operation.
Especially, do not repeatedly quickly plug
and unplug the drive. This may cause
physical damage to the USB player and
especially the USB device itself.
SIDE VIEW
Audio
Inputs
USB MEMORY
PC audio cable
(not supplied)
to AUDIO INPUTS
on the TV
PC Input
PC RGB cable
(not supplied)
to PC input
USB Memory Connection
• Plug your USB device to the USB input of the TV.
IMPORTANT: The TV supports only FAT32 disk formatting.
NTFS format is not supported.
• If the plugged USB disk is not recognised, please
reinsert the disk.
• It is recommended that you connect your USB
device directly to the USB input of the TV. Some
compatibility problems may occur if you use a
separate cable connection.
English - 10 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 10
06.09.2010 09:12:07
Connecting to a DVD Player
If you want to connect a DVD player to your LCD
TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer
to your DVD player’s instruction book for additional
information. Power off both the TV and the device
before making any connections.
Note: Cables shown in the illustration are not supplied.
• If your DVD player has an HDMI socket, you can
connect via HDMI. When you connect to DVD player
as illustrated below, switch to HDMI source. See,
“Input Selection” section.
• Most DVD players are connected through
COMPONENT SOCKETS. Use a component video
cable to connect video input. For enabling audio, use
a component audio cable as illustrated below. When
the connection is made, switch to YPbPr source.
See, “Input selection” section.
• You may also connect through the SCART 1 or
SCART 2. Use a SCART cable as shown below.
Using Side AV Connectors
You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.
• For connecting a camcorder, connect to the VIDEO
IN socket and the AUDIO SOCKETS. Do not connect
the camcoder to VIDEO IN socket at the same time
since it can cause noise in the picture. For selecting
the related source, see the section “Input selection”
in the following parts.
• To listen to the TV sound from headphones, connect
to the HEADPHONE jack of theTV.
Headphone
Camcorder
Note: These three methods of connection perform the same
function but in different levels of quality. It is not necessary
to connect by all three methods.
Connecting Other Equipment
via Scart
Most devices support SCART connection. You can
connect a; DVD recorder, a VCR or a decoder to your
LCD TV by using the SCART sockets. Note that cables
shown in the illustration are not supplied.
Scart sockets
Component
video
inputs
Component
audio
inputs
HDMI
inputs
Power off both the TV and the devices before making
any connections.
For more information, refer to your device’s own
instruction book.
Scart sockets
DVD Player
DVD Recorder
Video Recorder
Decoder
English - 11 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 11
06.09.2010 09:12:08
Input Selection
Once you have connected external systems to your
TV, you can switch to different input sources.
” button on your remote control for directly
• Press “
changing sources.
or,
• Select “Source” option from the main menu
by using “ ” or “ ” button. Use then “ ” or
“ ” button to highlight an input and press “ ” button
to select.
Note: You can mark desired source options by pressing the
” button is pressed, only
OK button. Therefore, when “
the marked source options will be available (except for the
TV source).
functions will be described in accordance with the
menu system of your TV.
• Functions of the menu system are described in the
following sections.
Volume Setting
• Press “V+” button to increase the volume. Press “V -”
button to decrease the volume. A volume level scale
(slider) will be displayed on the screen.
Programme Selection (Previous or Next
Programme)
• Press “ P - ” button to select the previous
programme.
• Press “P +” button to select the next programme.
Programme Selection (Direct Access)
• Press numeric buttons on the remote control to
select programmes between 0 and 9. The TV
will switch to the selected programme. To select
programmes between 10 - 1000 (for IDTV) or
10-199 (for analogue), press the numeric buttons
consecutively.Press directly the programme number
to reselect single digit programmes.
Initial Settings
When the TV is turned on for the first time, the menu
for the language selection appears on the screen. The
message “Welcome please select your language!”
is displayed in all language options sequentially in
the OSD.
Basic Operations
You can operate your TV using both the
remote control and onset buttons.
By pressing the “ ” or “ ” buttons highlight the language
you want to set and press OK button.
Operation with the Buttons on the TV
Volume Setting
You can get information about the menu usage by
pressing “INFO” button. Press “INFO” button again
to exit the help menu.
• Press “
” button to decrease volume or
button to increase volume, so a volume level scale
(slider) will be displayed on the screen.
After then, “First time installation” OSD will appear
on the screen. By pressing “ ” or “ ” buttons, select
the country you want to set and press OK button.
Programme Selection
• Press “P/CH +” button to select the next programme or
“P/CH -” button to select the previous programme.
Viewing Main Menu
• Press “
”/“
” buttons at the same time
to view main menu. In the main menu select submenu using “P/CH -” or “P/CH +” buttons and enter
the sub-menu using “
” or “
” buttons.
To learn the usage of the menus, refer to the menu
system sections.
AV Mode
• Press the “TV/AV” button in the control panel on the
TV to switch between AV modes.
Note: Country selection will not be available for UK. Press
OK to continue.
Operation with the Remote Control
After then, the active antenna selection OSD appears
on the screen:
• The remote control of your TV is designed to control
all the functions of the model you selected. The
By pressing “ ” or “ ” buttons, set active antenna
mode as on or off.
English - 12 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 12
06.09.2010 09:12:09
To search for analogue channels, select “Yes”. TV
switches to the analogue TV mode. A menu will be
displayed to search for analogue channels.
If an active antenna is connected to your TV, you can
select this option as On. Antenna power should be
“Off” when standard antenna is used instead of the
active antenna. See “Configuration Menu” in the
following sections for more information.
Set Language item by pressing “ ” or “ ” button.
Press “ ” or “ ” button to highlight Country item and
then use “ ” or “ ” to set. Press “ ” or “ ” button to
highlight TXT. Language. Set TXT Language by using
“ ” or “ ” button. To cancel, press the BLUE button.
When finished, press OK or RED button to continue
and the following OSD will be displayed:
Press OK button on the remote control to continue
and the following message will be displayed on the
screen:
• To select the “Yes” or “No” option, highlight the item
by using “ ” or “ ” buttons and press OK button.
The IDTV will automatically tune to the transmission
channels, searching for digital terrestrial TV broadcasts
and displaying the names of channels found. This
process will take a few minutes. To cancel searching,
you can press “M” button at any time during the
process. The following OSD will be displayed during
the automatic search:
After automatic tuning is finalized, a programme list
will appear on the screen. In the programme list you
will see the programme numbers and names assigned
to the programmes.
If you do not accept the locations and/or the names
of the programmes, you can change them in Program
table. For details, see the section, “Program table”.
General Operation
Pressing the ‘‘DTV/USB’’ button at any time while
watching television programmes will switch the TV
set to the digital terrestrial television broadcasting.
Information Banner
• Whenever you change the channel using the P + or
P - button or numeric buttons, the TV displays the
broadcast picture along with an information banner
at the bottom of the screen. This will remain on the
screen for approximately a few seconds.
• The information banner can also be displayed
by pressing the “INFO” button at any time while
watching the TV. Pressing “INFO” button again
removes the banner.
After Automatic Search is completed, the following
message will be displayed, asking for sorting option.
If you select “YES”, programme list will be sorted
according to LCN (logical channel number). Select
“NO” for using frequency sort. (This feature is available
for only Germany,Austria and Italy country option).
After this operation, the following menu will appear on
the screen, asking for analog channel search:
If the selected channel is locked, you must enter
the correct four digit key to view the channel. In this
case, a dialog box asking for the lock key will be
displayed:
Electronic Programme Guide (EPG)
Some, but not all, channels send information about
the current and next events. Please note that event
information is updated automatically. If there are no
event information data available for channels,EPG
will be displayed with blanks.
• Press EPG button to view the EPG menu.
English - 13 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 13
06.09.2010 09:12:09
• Press “ ” or “ ” buttons to navigate through
channels.
• Press “ ” or “ ” buttons to navigate through the
programme list.
Over Air Download
To ensure that your IDTV always has the most upto-date information, please ensure that, after use,
it is set to standby mode. At 3 A.M. each day, the
IDTV automatically searches for any updates which
may be broadcast and will download this to your
IDTV automatically. This operation will normally take
approximately 30 minutes.
Displaying Subtitles
With digital terrestrial broadcasting (DVB-T), some
programmes are broadcast with subtitles.
Note: You can enable subtitles by pressing the SUBTITLE
button.
RED button (Shrink): makes the info boxes
smaller.
GREEN button (Expand): makes the info boxes
larger.
YELLOW button (Prev. Day): displays the
programmes of previous day.
BLUE button (Next day): displays the programmes
of the next day.
INFO (Details): displays the programmes in detail.
OK (View / Timer): shows the highlighted channel /
sets the reminder for future programmes.
Numeric buttons (Jump): go to preferred channel
directly via numeric buttons.
0 (SEARCH): activates “Guide Search” window
P<P : Jumps to the current broadcast.
Digital Teletext (For UK only**)
• Press the TELETEXT ( ) button.
• The digital teletext information appears.
• Operate it with the coloured buttons, /// buttons and
OK button.
The operation method may differ depending on the
contents of the digital teletext.
Follow the instructions displayed on digital teletext
screen.
• When “Press OK button or similar message appears
on the screen, press the OK button.
• When the TELETEXT ( ) button is pressed, the
TV returns to television broadcasting.
• With digital terrestrial broadcasting (DVB-T), in
addition to digital teletext broadcasting together with
the normal broadcasting, there are also channels
with just digital teletext broadcasting.
• The aspect ratio (picture shape) when watching
a channel with just digital teletext broadcasting is
the same as the aspect ratio of the picture viewed
previously.
• When you press the TELETEXT ( ) button again,
the digital teletext screen will be displayed.
Analogue Teletext
Press “0” button to view Guide Search menu. Using
this feature, you can search the programme guide
database in accordance with the genre selected or
with name match.
Programme Options
In EPG menu, press the OK button to enter the
“Programme Options” menu.
Use of teletext and its functions are identical to
the analogue text system. Please do refer to the
“TELETEXT” explanations.
Widescreen
Depending on the type of the broadcast being
transmitted, programmes can be viewed in a number
of formats. Press the “
” button repeatedly to
change screen format.
When Auto is selected, the format being displayed is
determined by the picture being broadcast.
PLEASE NOTE: Menu size changes depending on the
chosen image size.
Using this option, you can switch to the selected
channel.
English - 14 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 14
06.09.2010 09:12:10
IDTV Menu System
• Press “M” button and DTV main menu will be
displayed.
Select “YES” to continue. Select “NO” to cancel
(LCN feature is available for only Germany, Austria,
Switzerland and Italy country options).
Deleting the Channels in the Channel
List
Channel List
Using “ ” or “ ” buttons on the remote control in
main menu, make sure that the first item, Channel
List, is highlighted and press the OK button to display
the Channel List.
• Press “ ” or “ ” buttons to select the channel that
will be deleted.
• Press “ ” or “ ” buttons to select the “Delete’’ item
on Channel List OSD.
You can use following buttons for Move, Delete and
Lock functions.
YELLOW: Tags/untags the selected channel.
BLUE: Tags/untags all channels.
• Channel List is the place where the channels are
managed.
Navigating the Entire Channel List
• Press “ ” or “ ” keys for selecting the previous or
next channel.
or buttons to move page up or
• You can press
page down.
• To watch a specific channel, highlight it using “ ”
or “ ” buttons and then press OK button, while the
“Select” item on Channel List menu is highlighted
via “ ” or “ ” buttons.
Moving the channels in the channel
list
• Press “ ” or “ ” buttons to select the channel that
will be moved.
• Press “ ” or “ ” buttons to select the ‘’Move’’ item
on Channel List menu and press OK to confirm.
Press “OK’ button to delete the highlighted channel
in the channel list. Then the message below appears
on the screen.
Renaming channels
To rename a specific channel, the channel must be
highlighted via pressing “ ” or “ ” buttons and then
highlight the “Edit Name” item by pressing “ ” or “
” buttons. Press “OK” button to activate rename
feature.
Note: If you enter the same programme number of the
channel that you want to move, “....services will be replaced.
Do you want to continue?” OSD will be displayed. Press
OK to confirm or select “No” to cancel.
Note: The following screen will be displayed when want to
move or delete channels that are sorted by LCN (logical
channel number) service.
Now pressing “ ” or “ ” buttons moves to the previous/
next character. Pressing “ ” or “ ” buttons toggles the
current character, i.e., ‘b’ character becomes ‘a’ on and
‘c’ on . Pressing the numeric buttons ‘0...9’ replaces the
English - 15 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 15
06.09.2010 09:12:10
highlighted character with the characters printed above
the key one by one as the button is pressed.
Press the “M” button to cancel the editing or OK
button to save the new name.
Adding Locks to Channels
Channel Locking provides a password-protected
access to channels selected by parents.
Program Guide
This section is same with the instructions given in
the General Operations page. Please see Electronic
Programme Guide (EPG) section in the General
Operations part.
Timers
In order to lock a channel you should know the
Parental Lock password (default value is set to
0000 in the factory and can only be changed from the
Configuration menu).
By pressing “ ” or “ ” buttons, highlight the channel
to be locked and select the “Lock” option by pressing
“ ” or “ ” buttons. Then press the OK button and a
password box is displayed:
Setting Favourites
To set a favourite you should highlight the “Favourites”
item at the bottom of the Channel List menu. Then
press OK button and Edit Favourite List menu
appears on the screen.
To display timers window, press either TIME button
on the remote control or activate the item from the
main menu. To add a timer, press the YELLOW
button on the remote control. Then “Add Timer”
window appears.
Channel: “ ” or “ ” keys will navigate the user
through the TV or Radio list.
Date: Starting date is entered via the Left/Right or
the numeric buttons.
Start: Starting time is entered via the Left/Right or
the numeric buttons.
End: Ending time is entered via the Left/Right or the
numeric buttons.
Duration: Displays the duration of the recording.
Duration item will be automatically displayed after the
starting and ending times are entered.
Change / Delete: permits or prohibits any modifications
for other users.
Adding a Channel to a Favourites List
By pressing “ ” or “ ” buttons, highlight the channel
that you want to add to the favourite list. By pressing
OK button, the highlighted channel is added to
Favourite List. F icon indicates that a channel is added
to Favourite List.
Removing a Channel from a Favourite List
• Highlight the channel that you want to remove from the
favourite list and press OK button to remove.You can
press OK button again to re-adding a channel.
• To activate Favourites, go to the Configuration menu
and select Favourite mode. Use “ ” or “ ” to set
Favourite mode as on. To cancel Favourites, set
Favourite Mode to Off.
Hint: Pressing “INFO” button can help you for displaying
information in IDTV.
You can save the adjustments by pressing the GREEN
key or cancel the process by pressing the RED button.
You can edit the list via GREEN key and delete with
the RED button.
Common Interface
Press “M” button to display the main menu and use
the “ ” or “ ” buttons to highlight the “Common
Interface” line and press OK button.
It is required to subscribe to a pay channel company
to view the pay channels of the Digital Terrestrial
broadcasting.
Obtain the Conditional Access Module (CAM) and
the viewing card by subscribing to a pay channel
company, then insert those to the Television using
the following procedure.
• Switch off the TV and unplug from the mains.
English - 16 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 16
06.09.2010 09:12:11
• Insert the CAM, and then the viewing card to the
slot.
• The CAM should be correctly inserted, it is impossible
to insert fully if reversed. The CAM or the TV terminal
may be damaged if the CAM is forcefully inserted.
• Connect the TV to the mains supply, switch on
and then wait for few moments until the card is
activated.
• Some CAMs may require the following set up.
Please set the CAM by entering the DIGITAL TV
menu, Common Interface then pressing OK button.
(CAM set up menu is not displayed when it is not
required.)
•To see the viewing contract information:
• Enter DIGITAL TV; press “M” button, then highlight
Common Interface and press OK button.
• When no module is inserted, “No Common
Interface module detected” message appears on
the screen.
• Refer to the module instruction manual for details
of the settings.
Favourite Mode
Use this function to enable or disable favourite mode.
Press “ ” or “ ” button to set this function as on or
off.
Scan Encrypted
TV Setup
Scan Encrypted Channel feature will always be ON
after performing first time installation. When this
setting is on, search process will locate the encrypted
channels as well. If it is set as OFF manually, encrypted
channels will not be located while in automatic search
or manual search. Use “ ” or “ ” button to select
Scan Encrypted and then press “ ” or “ ” button to
set this setting as On or Off.
You can use this item to display the TV functions.
Parental Control
The digital TV Setup menu screen is accessed from
the main menu. Press the “M” button to display the
main menu and use or buttons to highlight “TV
Setup”. Press OK button to display TV Setup menu
screen.
• Some channels broadcast material which you do not
want younger members of the family to watch. Any
channel can be ‘locked’ so that it cannot be selected
for viewing unless a four-digit PIN code is entered.
In this way any channel not suitable for younger
viewers can be prohibited.
• This function enables or disables the menu protection
system and allows the PIN code to be changed.
• Use “ ” or “ ” buttons to highlight Parental Control.
Press OK button to enter Parental Control menu. A
dialog box asking for the lock key is displayed:
NOTE: Insert or remove the CI module only when the TV is
in STANDBY mode or SWITCHED OFF.
You can find detailed information for all menu items
in “Analogue TV Menu System” section.
Setup
The adjustments in this menu are given as the
following:
Configuration
You can configure the settings of your TV. Select
Configuration from Setup menu and press OK to
view this menu. Press the EXIT button on the remote
control to exit.
There is only one key which is set to “0000” initially.
Enter lock key. If wrong lock key is entered, the
“WRONG PIN” message will be displayed on the
screen and the TV returns to the previous menu. If the
PIN is correct, the Parental Control menu including
following items will be displayed:
Maturity Lock (**)
(**) If you set Country option as UK in the first time
installation, Maturity Lock option will not be vsible.
English - 17 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 17
06.09.2010 09:12:11
When set, this option gets the maturity information
from the broadcast and if this maturity level is disabled,
the TV will not display the related video-audio.
Menu Lock
Use “ ” or “ ” buttons to set Menu Lock. Here, you
can set/reset locking function for the main menu or
the installation menu to restrict access. If the menu
lock is disabled, there will be free access to the menu
system.
Disabled: All menus are unlocked.
All Menus: All menus are accessible only with the
correct lock key. So the user cannot add, delete,
rename or move the channels and cannot set the
timers.
Installation Menu: Installation menu is locked, so the
user cannot add channels. Changes will be updated
after exiting Configuration Menu.
Set PIN
Use “ ” or “ ” buttons to go to “Set PIN” option.
Press OK to display the “Set PIN” window. Use
numeric buttons to enter new pin number you will need
to input your new pin a second time for verification
purposes. The factory default pin number is 0000, if
you change the pin number make sure you write it
down and keep it safe.
Receiver Upgrade
Over Air Download (OAD)
To ensure that your TV always has the most up to date
information, use this setting. Please ensure that the TV
is set to standby mode. The TV automatically
powers up at 3.00 A.M. each day and searches for
any new information which may be broadcast and
will download this to your receiver automatically. This
operation will normally take approximately 30 minutes.
If you have an important recording to be carried out at
3.00 A.M. and you do not want to interrupt it, disable
auto OAD search by performing the following:
• Press “M” button and using the “ ” or “ ” buttons
to choose Setup and press OK button.
• Highlight Configuration menu with “ ” or “ ” keys
and press OK.
• Use “ ” or “ ” buttons to choose “RECEIVER
UPGRADE” and press OK button.
• Using the “ ” or “ ” button change “Automatic
scanning” from Enabled to Disabled.
• Highlight “Scan for upgrade” menu with “ ” or “
”keys and pres OK to commence upgrade.
Time Settings(**)
(**): Time setting will not be available for UK.
In the configuration menu, highlight the Time Settings
item by pressing “ ” or “ ” buttons. Press OK and
Time Settings sub menu will be displayed on the
screen:
Use “ ” or “ ” buttons to highlight the Time Zone
Setting. Time Zone Setting is set using “ ” or “ ”
buttons. It can be set to AUTO or MANUAL. When
AUTO is selected, Current Time and Time Zone
options will not be available to be set.
If MANUAL option is selected as the Time Zone
Setting, Time Zone can be altered:
• By pressing “ ” or “ ” buttons select Time Zone.
Use “ ” or “ ” buttons to change the Time Zone
between GMT-12 or GMT+12. Current Time on the
top of the menu list will then change according to
the selected Time Zone.
• After the search progress is completed, the message
“ Completed searching for upgrade. No new software
was found” appears on the screen if no new software
is found.
Dolby Digital (*) (Optional)
In the Configuration Menu, highlight the Dolby D item
by pressing “ ” or “ ” buttons. Use the “ ” or “
”buttons to set the Dolby Digital as On or Off. If the
channel that you are watching supports Dolby Digital,
you can turn this setting on.
Hard of Hearing (*)
Use “ ” or “ ” button to select Hard of Hearing and
then press “ ” or “ ” button to set this setting as
On or Off.
If the broadcaster enables any special signal
concerning the audio, you can set this setting as On
to receive such signals.
(*) Hard of Hearing function will not be available for UK.
Channel List
Use “ ” or “ ” buttons to go to Channel List option.
Use or buttons to toggle Channel List Mode. If you
English - 18 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 18
06.09.2010 09:12:12
select “TV Only”, with the “ ” or “ ” buttons, you
navigate through only TV channels. If you select
“Radio Only”, with the “ ” or “ ” buttons, you
navigate through only radio channels. If you select
“Text Only”, with the “ ” or “ ” buttons, you navigate
through only text channels. If you choose “Show All”
all channels can be navigated. To save the recent
changes and exit; press the “M” button.
Digital Audio Out
Use this setting to define digital audio out signal type.
Use “ ” or “ ” buttons to set Digital audio out as
AC3 or PCM.
Use “ ” or “ ” button to select Standby Search and
then press “ ” or “ ” button to set this setting as On or
Off. If you change Standby Search to Off, this function
will be unavailable.
To use Standby search please make sure that
you select Standby Search as On.
Language Settings
In this menu the user can adjust the preferred language.
Select “Language” item in the Setup menu and press
OK button. Then language settings menu will be
displayed.
If your selected channel includes AC3 sound stream,
you should connect your TV to external equipment
by using Spdif out of your TV for enabling the sound
output.If you have no external sound equipment,
please select Digital Audio Out as “PCM” by using “
” or “ ” button.
(optional)
A/V Delay
You can use this setting when there is an AV
synchronization problem in the received broadcast.
Press “ ” or “ ” button to change the delay.
Audio Description (Optional)
Audio description refers to an additional narration
track for blind and visually impaired viewers of visual
media. You can use this feature, only if the broadcaster
supports that additional narration track. Use “ ” or
“ ” buttons to select an item. Then use “ ” or “ ”
buttons to set.
(optional)
You can set the desired language options by using “
” /“ ” and “ ”/“ ” buttons.
Note: If the Country option is set to Denmark, Sweden,
Norway or Finland, the Language Settings menu will function
as described below:
Language Settings
Audio Description (Optional)
This function enables or disables the audio description
feature by pressing the “ ” or “ ”buttons.
Preferred Language (Optional)
By pressing the “ ” or “ ” buttons the preferred audio
description language is being changed. This setting
can be used, only if it is available.
Relative Volume (Optional)
Using this option, the Audio Description volume level
can be increased or decrased relatively, according to
the general volume.
Active Antenna (*)
Use “ ” or “ ” buttons to highlight Active Antenna
option. When antenna power option is set as On by
pressing “ ” or “ ” button, +5V will be transmitted to
the antenna output.This feature enables the use of
active antenna.
Note: Antenna power should be “Off” when standard antenna
is used instead of the active antenna.
Standby Search (*)
(*) This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.
(optional)
Use “ ” or “ ” buttons to highlight the menu item
that will be adjusted and then press “ ” or “ ” button
to set.
• Audio Language is used for selecting the soundtrack
of a channels. Primary settings are the first priority
when multiple choices are available on a broadcast.
Secondary settings are the alternatives when the
first options are not available.
• Guide Language: If the received EPG data includes
the selected guide language, EPG data language
will be changed accordingly.
•Teletext language sets the desired teletext
language.
Media Subtitle: In order to display subtitles properly
English - 19 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 19
06.09.2010 09:12:13
while viewing a media file via Media Browser use this
setting to select a movie subtitle language.
By pressing “ ” or “ ” button, select the desired
language option (optional).
Installation
Set Language item by pressing “ ” or “ ” button.
Press “ ” or “ ” button to highlight Country item and
then use “ ” or “ ” to set. Press “ ” or “ ” button to
highlight TXT Language. Select a region by using “ ”
or “ ” button. When finished, press OK or RED button
to continue. To cancel, press the BLUE button.
The Installation menu is mainly intended to help you
for creating a Channel Table in most efficient way.
Select Installation from the main menu by pressing
“ ” or “ ” buttons.
After APS is finalized, the programme table will appear
on the screen. In the programme table you will see
the programme numbers and names assigned to the
programmes.
Manual Search
Automatic Channel Scan
Automatic channel scan is started by pressing
OK button while Automatic channel scan item is
highlighted.
The following message appears on the screen:
In Manual Search, the number of the multiplex is entered
manually and only that multiplex is searched for the
channels. For every valid channel number, signal level
and signal quality are shown on the screen.
In both manual and auto search any existing channel
in the database is not re-stored to avoid redundant
duplicates of that channel.
Frequency Search
Enter the desired frequency. When finished, press OK
button, and the TV will start frequency search.
Highlight Yes or No by using “ ” or “ ” buttons and
press OK button to confirm.
If Yes is selected, automatic search starts.
Selecting No cancels automatic search.
After search is completed for digital channels, a
message asking whether to search for analogue
channels appears on the screen:
Highlight Yes and press OK button to search for
analogue channels. The following menu appears on
the screen for analogue channel search:
Clear Service List (*)
(*) This setting is visible only when the Country option is set
to Denmark, Sweden, Norway or Finland.
Use this setting to clear channels stored. Press “
” or “ ” button to select Clear Service List and then
press OK. The following OSD will be displayed on
the screen:
Press OK to cancel.
Select Yes by pressing “ ” or “ ” button and press
OK to delete all of the channels.
First Time Installation
The user can use this item to load default settings,
which were loaded to the receiver at the factory.
To install factory settings, highlight “First Time
Installation” menu item and press OK button, then
you will be asked whether or not to delete the settings.
Selecting “Yes” by pressing OK button while the “Yes”
is highlighted, will delete the existing channel table.
English - 20 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 20
06.09.2010 09:12:14
Note: If the USB stick is not recognized after Power off/on or
First Time Installation, first plug the USB device out and power
off/on the TV set. Plug the USB device again.
After factory settings are loaded, “First Time
Installation” menu will be displayed.
The menu which is displayed for language selection
appears on the screen at first. By using “ ” or “ ”
buttons, select the desired language option, and press
OK button to activate.
After then, “First time installation” OSD will appear on
the screen. By pressing “ ” or “ ” buttons, select the
Country you want to set and press OK button (* only
for EU countries).
Next, active antenna mode selection OSD will appear
on the screen. Use “ ” or “ ” to set and press OK to
continue. See the section, “Initial Settings” for more
information.
Press OK to browse, “M” to quit.
Playing Audio Files:
After active antenna mode option is selected, a
message asking for automatic search appears on
the screen:
Play This (OK) : Plays the selected file.
Highlight “Yes” item by pressing “ ” or “ ” buttons
and press OK button to start installation. After search
is completed for digital channels, a message asking
whether to search for analogue channels appears
on the screen. This process is same as described in
Automatic Search section.
Media Browser (in DTV mode)
Whenever you plug a USB flash disk to your TV, the
following message will be displayed on the screen:
Play (GREEN) : Play all media files in the folder
starting with the selected one.
Pause/Resume (YELLOW button): Pauses or
resumes playback.
Stop (RED) : Stop the playing file.
Previous/Next ( / ) : Jumps to previous or next
file to play.
Shuffle (INFO) : Plays the files randomly. If shuffle
mode is enabled, previous/next functions will also
jump to the tracks randomly.
Loop (BLUE) : Plays the selected file repeatedly.
Viewing JPEG Files
Select YES or NO by pressing “ ” or “ ” button and
“OK” button to continiue.
You can also select Media Browser item from the main
menu by using “ ” or “ ” buttons. Press OK to view
Media Browser contents.
You can play audio and photo and video (optional)
files from a USB flash disk.
Note: Some USB compliant devices may not be supported.
Note: Movie Sense and Pixellence features cannot be set
while in Media Browser mode.
Note: If you plug USB stick in analogue mode, the TV will
automatically switch to digital TV mode.
Jump (0...9) : jump to selected file using the numeric
buttons.
OK : view the selected picture in full screen.
English - 21 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 21
06.09.2010 09:12:15
Play / Slideshow (GREEN) : start to slideshow with
all pictures in the folder.
Analogue TV Menu System
Slideshow Options
Picture Menu
Pause (YELLOW) : Pause the slideshow.
Mode
Continue (GREEN) : Continue with the slideshow.
For your viewing requirements, you can set the related
mode option.
Previous/Next (
file of slideshow.
Rotate (
buttons.
/
/
) : Jump to previous or next
) : Rotate the picture using up/down
EXIT : Back to file list.
Shuffle (RED) : Shows the files randomly and
icon turns the
continuous in current folder and
highlighted icon. If during a slideshow the shuffle mode
is enabled, the next pictures will be chosen randomly
(If the loop function is not enabled, the slideshow will
stop at the end. If the loop function is enabled, after
the slideshow ends, it will start again and again).
Loop (GREEN) : Slideshow goes on continuously and
icon turns the highlighted icon.
Press “ ” or “ ” button to select Mode.
Press “ ” or “ ” button to choose from one of these
options: Pixellence (optional), Cinema, Dynamic
and Natural.
Pixellence (optional)
By selecting PIXELLENCE mode, you can optimize
the TV’s video settings and acquire a better quality.
PIXELLENCE mode thus includes contrast, sharpness,
colour enhancement and skin tone correction along
with the skin tone detection.
By using “ ” or “ ” button, you can switch to
Pixellence mode. Press OK button to activate
Pixellence.
Select Demo option to start Pixellence demo mode.
Throughout the demo mode, the screen is splitted
into two sections, one displaying the Pixellence active
area; the other displaying the normal broadcast. Press
OK button to quit the demo mode.
Info : Activate the operations bar.
Video Playback (optional)
Play (Red button) : Starts the video playback.
Stop (Blue button) : Stops the video playback.
Pause (OK button) : Pause the video playback.
Rewind (Cursor Left) : Goes backward.
Forward (Cursor Right) : Goes forward.
MENU (M button) : Sets subtitle/Audio.
Note: PIXELLENCE activation is recommended for
HD (High Definition) or SD (Standard Definition)
contents having low amount of noise. The optimization
of PIXELLENCE will be much more evident while
viewing such contents.
Pixellence option will not be available in PIP/PAP
window.
You can set subtitles by using OK button before
starting the playback or by using “M” button during
the playback. Press EXIT button to switch back to
previous menu.
Brightness/Contrast/Colour/Sharpness/
Hue
Note: PIP/PAP mode is not available while in Media
Browser mode.
Press “ ” or “ ” button to select the desired option.
Press “ ” or “ ” button to set the level.
Note: Hue option can only be visible when the TV receives
an NTSC signal.
Colour Temp
Press “ ” or “ ” button to select Colour Temp. Press
“ ” or “ ” to choose from one of these options: Cool,
Normal and Warm.
English - 22 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 22
06.09.2010 09:12:15
Sound Menu
Note:
• Setting Cool option gives white colours a slight blue
stress.
• Setting Warm option gives white colours a slight red
stress.
• For normal colours, select Normal option.
Noise Reduction
If the broadcast signal is weak and the picture is
noisy, use Noise Reduction setting to reduce the
noise amount.
Press “ ” or “ ” button to select Noise Reduction.
Press “ ” or “ ” to choose from one of these options:
Low, Medium, High or Off.
Film Mode
Films are recorded at a different number of frames per
second to normal television programmes.
Press “ ” or “ ” button to select Film Mode.
Press “ ” or “ ” button to set this feature On or Off.
Volume
Press “ ” or “ ” button to select Volume. Press “ ”
or “ ” button to change the level of the Volume.
Equalizer
Press “ ” or “ ” button to select Equalizer. Press “
” button to view equalizer menu.
Turn this feature on when you are watching.
films to see the fast motion scenes clearly.
Game Mode (optional)
Select Game Mode by pressing “ ” or “ ” button.
Use “ ” or “ ” button to set Game Mode as On or
Off. When Game Mode is set to On, specific game
mode settings, which are optimized for better video
quality, will be loaded.
Also; Picture Mode, Contrast, Brightness, Sharpness,
Colour and Colour Temp settings will be invisible and
disabled while Game Mode is on.
Note:
Picture mode selection button on the remote control will have
no function while Game Mode is on.
If the TV is switched to PIP/PAP mode, Game Mode setting
will be disabled and be removed from the Picture menu.
Picture Zoom
Select Picture Zoom by pressing “
button.
” or “
”
Use “ ” or “ ” buttons, to change picture zoom to
Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Subtitle
or Zoom.
Note : Picture mode settings can be set 16:9 or 4:3 only while
in Digital Tv mode.
Reset
Press “ ” or “ ” button to select Reset. Press
“ ” or “ ” or OK button to reset the picture modes to
factory default settings.
Store
Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “Stored...” will be
displayed on the screen.
Press “ ” or “ ” button to change the preset. In
equalizer menu, the preset can be changed to Music,
Movie, Speech, Flat, Classic and User.
Select the desired frequency by pressing “ ” or “ ”
button and increase or decrease the frequency gain
by pressing “ ” or “ ” button.
Press the “M” button to return to the previous
menu.
Note: Equalizer menu settings can be changed only when
the Equalizer Mode is in User.
Balance
This setting is used for emphasizing left or right
speaker balance.
Press “ ” or “ ” button to select Balance. Press “
” or “ ” button to change the level of the balance.
Balance level can be adjusted between -32 and +
32.
Headphone
Press “ ” or “ ” button to select Headphone. Press
“ ” button to view the headphone menu.
Headphone sub-menu options are described below:
English - 23 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 23
06.09.2010 09:12:16
Volume
Press “ ” or “ ” button to select Volume. Press “
” button to increase headphone volume level. Press
“ ” button to decrease headphone volume level.
Headphone volume level can be adjusted between
0 and 63.
Headphone Sound (optional)
Press “ ” or “ ” button to select Headphone Sound.
Using “ ” or “ ” button, you can select Main, PIP/PAP,
Active or Inactive.
Main
If you select to Audio Out as “Speaker” by using
“ ” or “ ” button, you can get audio through the
TV’s speakers.
Dolby Virtual Speaker (optional)
This feature is used to create the impression that
sound is coming from around the room instead of the
set speakers. Pressing the “ ” or “ ” buttons will turn
the feature on or off.
Note: If you set Dolby Virtual Speaker as On, some features
in the Sound menu can be unavailable to be set.
Dolby VS (optional)
: Main window sound.
PIP/PAP : PIP/PAP window sound.
Active
: Sound of the current selection.
Inactive
: Sound of the currently inactive window.
Sound Mode (optional)
Press “ ” or “ ” button to select Sound Mode. Using
“ ” or “ ” button, you can select Mono, Stereo, Dual I
or Dual II mode, only if the selected channel supports
that mode.
AVL
Automatic Volume Limiting (AVL) function adjusts the
sound to obtain fixed output level between programmes
(For instance, volume level of advertisements tend to
be louder than programmes).
Press “ ” or “ ” button to select AVL. Press “ ” or
“ ” button to set the AVL as On or Off.
SRS TruSurr XT (optional)
By pressing “ ” or “ ” select SRS TruSurr XT.
Press “ ” or “ ” button to set SRS TruSurr XT as
on or off.
Note: If you set SRS TruSurr XT as On, some features in the
Sound menu can be unavailable to be set.
Spdif Out (optional)
Press “ ” or “ ”” button to select Spdif Out . Press “
” or “ ” button to set the Spdif Out as On or Off .
Audio Out (optional)
Press “ ” or “ ” button to select Audio Out. Press “
” or “ ” button to set the Audio Out as Speaker or
LineOut/SPDIF.
This feature is used to create the impression that
sound is coming from around the room instead of the
set speakers. Press “ ” / “ ” buttons to set Dolby
Virtual Speaker as Off, Wide or Reference.
Note: If you set Dolby VS as On, some features in the Sound
menu can be unavailable to be set.
Dolby VS Mode (optional)
If you set Dolby VS as Reference or Wide, Dolby VS
Mode options will be available to be set as Movie or
Music. Use “ ” or “ ” button to select.
Effect (optional)
If you are watching a mono broadcast, set Effect on to
obtain a better sound effect which will be more stereolike. If the current sound system is stereo, switching
this effect on will give a more spatial effect.
Press “ ” or “ ” button to select Effect. Press “ ”
or “ ” button to set as On or Off .
Dynamic Bass (optional)
Dynamic Bass is used to increase bass effect of the
TV set. Press “ ” or “ ” button to select Dynamic
Bass. Use “ ” or “ ” button set Dynamic bass as
On or Off. It is not recommended to select High while
listening at high volume levels.
Store
Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “Stored...” will be
displayed on the screen.
Feature Menu
If you select to Audio Out as LineOut/SPDIF, you will
get audio through the active audio connectors. In this
case, audio output will not be available through TV
speakers and mute function cannot be used.
While LineOut/SPDIF is activated, if you press volume
“ ” / “ ” or mute button on your remote control,
the Audio Out indicaticator will be displayed on the
screen.
English - 24 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 24
06.09.2010 09:12:17
Movie Sense (optional)
Press “ ” or “ ” button to select Movie Sense.
Use “ ” or “ ” to set Movie Sense Low, Med, High or
Off. While Movie Sense is active, it will optimize the
TV’s video settings for motional images to acquire a
better quality and readibility.
Select PIP Position item by using “ ” or
“ ” button. Use “ ” or “ ” button to adjust PIP
position.
Positions available are: Bottom Right,Bottom Left, Top
Left and Top Right.
Source
When Movie Sense option is set to Low, Med or High,
Movie Sense demo option will be available. If one of
these options is selected and if you press OK button,
then the demo mode starts. While demo mode is
active, the screen will be divided into two sections,
one displaying the movie sense activity, the other
displaying the normal settings for TV screen.
Select PIP Source item by using “ ” or “ ” button.
Use “ ” or “ ” button to set PIP source.
Notes.
Swap
• Movie Sense works while watching 24-frame
broadcasts.
• Movie Sense feature will not be available while
Game Mode is set as On. If you switch to any other
source and set Movie Sense as on, Game Mode will
automatically set as Off.
Select Swap item by using “ ” or “ ” button. Use
“ ” or “ ” button to set. This function enables to swap
between the main and the PIP picture.
Pip-Pap
In the Feature menu, highlight PIP item by pressing
“ ” or “ ” buttons. Press “ ” button to enter PIP
submenu:
PIP Source setting enables you to select the source
of the sub picture.
Program
This setting will be unavailable to be used.
Note: See Appendix E for all PIP/PAP modes.
Sleep Timer
Press “ ” or “ ” button to select Sleep Timer. Use
“ ” or “ ” button to set the Sleep Timer.
The timer can be programmed between Off and 120
minutes in steps of 10 minutes.
If Sleep Timer is activated, at the end of the selected
time, the TV goes automatically to standby mode.
Child Lock
Press “ ” or “ ” button to select Child Lock.
Using “ ” or “ ” button, you can switch to PIP, PAP
mode or turn off the feature.
If the TV is switched to PIP or PAP mode, Pip-Pap
submenu will change accordingly and the following
settings will appear on the same menu screen.
Note that if you switch to PAP mode by using Pip-Pap setting,
only Source and Swap options will be active among the
menu settings.
Pip-Pap
This line controls Pip/Pap modes. Use “ ” or “ ”
buttons to switch the TV to Pip, Pap or Off.
Pip Size
Using this setting, you can set the size of the Pip
window. Press “ ” or “ ” button to highlight Pip
Size item. Use “ ” or “ ” button to set Pip Size to
Small or Large.
Note: This setting will be inactive if the TV is set to Pap
mode.
PIP Position
Use “ ” or “ ” button to set the Child Lock On or Off.
When On is selected, the TV can only be controlled
by the remote control handset. In this case the control
panel buttons (except for the STANDBY button) will
not work.
Hence, if one of those buttons is pressed, Child Lock
On will be displayed on the screen when the menu
screen is not visible.
Language
Press “ ” or “ ” button to select Language. Use “
” or “ ” button to select the Language.
Default Zoom
While zoom mode is set as AUTO, the TV will set
the zoom mode in accordance with the signal of
the broadcast. If there is no WSS or aspect ratio
information, the TV will then use this setting to adopt.
Press “ ” or “ ” button to select Default Zoom. You
can set Default Zoom to Panoramic, 16:9, 4:3 or
14:9 by pressing “ ” or “ ” button.
Note : Default Zoom feature will not be available while in
Digital Tv mode.
This setting is used for moving the sub picture.
English - 25 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 25
06.09.2010 09:12:18
Blue Background
Ext Out
If the signal is weak or absent, the TV will automatically
change to a blue screen. To enable this, set Blue
Background to On.
Press “ ” or “ ” button to select Ext Out. Use “ ” or
“ ” button to set the Ext Out as On or Off.
By pressing “ ” or “ ” button, select Blue
Background. Press “ ” or “ ” button to set Blue
Background as On or Off.
For copying from a DVD or VCR device, you should choose
desired source from source menu and turn “On” to EXT Out
from feature menu.
Menu Background (optional)
Install Menu
Note:
Press “ ” or “ ” button to select Menu Background.
You can set menu background level by pressing
“ ” or “ ” button.
Power Save Mode
Use “
” or “
” button to select Power Save Mode.
Press “ ” or “ ” button to set Power Save Mode as
On or Off.
See the section, “Environmental Information” in
this manual for further information on Power Save
Mode.
Note : Backlight function will be invisible if Power Save
Mode is set to on.
Backlight
This setting controls the backlight level. Select
Backlight by pressing “ ” or “ ” button.
Press“ ” or “ ” button to set Backlight to Auto,
Medium, Maximum or Minimum.
Menu Timeout
To set a specific display timeout for menu screens,
set a value for this option.
Press “ ” or “ ” button to select Menu Timeout. Use
“ ” or “ ” button to change menu timeout to 15 sec,
30 sec or 60 sec.
TXT Language
Press “ ” or “ ” button to select Teletext Language.
Use “ ” or “ ” button to change Teletext Language to
West, East, Turk/Gre, Cyrillic, Arabic or Persian.
HDMI PC Full Mode (optional)
If you want to view PC screen in HDMI mode by using
external connection, HDMI PC FULL MODE option
should be On to adjust the screen ratio correctly. This
item might be inactive in some resolutions.
Note: If you connect an HDMI device and switch the TV
to HDMI mode, this feature will be visible (except for
1080i/1080P resolution).
Full Mode (optional)
If you connect a device via HDMI or YPbPr connectors
and set 1080i/1080P resolutions, Full Mode item will
be visible.You can set Full Mode as 1:1 or Normal
by using “ ” or “ ”.If you select 1:1, screen ratio will
be adjusted correctly. If you set Normal, screen ratio
may expand.
Program
Press “ ” or “ ” button to select Program. Use “ ”
or “ ” button to select the program number. You can
also enter a number using the numeric buttons on the
remote control. There are 200 programme storage
between 0 and 199.
Band
Band can be selected either C or S. Press “ ” or
“ ” button to set Band.
Channel
Channel can be changed by “ ” or “ ” button or
numeric buttons.
Colour System
Press “ ” or “ ” button to select Colour System. Use
“ ” or “ ” button to change the colour system to PAL,
PAL 60, SECAM or AUTO.
Sound System
Press “ ” or “ ” button to select Sound System.
Press “ ” or “ ” button to change the sound system
to BG,DK, I, L or L’.
Fine Tune
Press “ ” or “ ” button to select Fine Tune. Press “
” or “ ” button to adjust the tuning.
Search
Press “ ” or “ ” button to select Search. Use “ ”
or “ ” button to start programme searching. You can
also enter the desired frequency using the numeric
buttons while Search item is highlighted.
English - 26 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 26
06.09.2010 09:12:19
Store
Move
Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “Stored...” will be
displayed on the screen.
Select the programme which you want to insert by
navigation buttons. Press the GREEN button. By
navigation buttons move the selected programme to
the decided programme space and press the GREEN
button again.
Install Menu in AV Modes
The following screen appears in the install menu when
the TV is in AV modes. Note that limited options will
be available. Switch to TV mode for viewing complete
version of the Install menu.
Delete
To delete a programme, press the YELLOW button.
Pressing the YELLOW button again erases the
selected programme from the programme list, and
the following programmes shift one line up.
APS (Auto Programming System)
Colour System
Press “ ” or “ ” button to select Colour System. Use
“ ” or “ ” button to change the colour system to PAL,
SECAM, PAL60, AUTO, NTSC 4,43 or NTSC 3,58.
When you press the BLUE button for starting
automatic tuning, Auto Programming System menu
will appear on the screen:
Store
Press “ ” or “ ” button to select Store Program.
Press “ ” or OK button to store the settings.
“Stored...” will be displayed on the screen.
Program Table
Select Program Table by pressing “ ” or “ ”
button.
Press “ ” or “ ” button to select your country. If
you want to exit from A.P.S. function, press the
BLUE button. When you press OK or RED button
for starting automatic tuning, all stored programmes
will be erased and the TV will search for available
channels. During the search, the following OSD will
be displayed:
By moving the cursor in four directions you can reach
20 programmes in the same page. You can scroll the
pages up or down by pressing the navigation buttons
to see all the programmes in TV mode (except for the
AV modes). By cursor action, programme selection is
done automatically.
Whenever you press the BLUE button, APS function
stops and Program Table appears on the screen.
If you wait until the end of APS, Program Table will be
displayed with the programmes found and located.
Name
To change the name of a programme, select the
programme and press the RED button.
The first letter of the selected name will be highlighted.
Press “ ” or “ ” button to change that letter and “ ”
or “ ” button to select the other letters. By pressing
the RED button, you can store the name.
English - 27 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 27
06.09.2010 09:12:21
Source Menu
Press “ ” or “ ” button and select the sixth icon.
Then press “ ” or OK button. Source menu appears
on the screen:
Select Autoposition item by using “ ” or “ ” buttons.
Press OK or “ ”, “ ” button.
Warning: Please ensure auto adjustment is performed
with a full screen image to ensure best results.
H (Horizontal) Position
This item shifts the image horizontally to right hand
side or left hand side of the screen.
Select H Position item by using “ ” or “ ” button.
Use “ ” or “ ” button to adjust the value.
V (Vertical) Position
This item shifts the image vertically towards the top
or bottom of the screen.
Select V Position item by using “ ” or “ ” button.
Use “ ” or “ ” button to adjust the value.
In source menu, highlight a source by pressing “ ” or
“ ” button and switch to that mode by pressing
“ ” button. Source options are; TV, DTV/USB, EXT-1,
EXT-2, FAV, HDMI-1, HDMI-2, YPbPr or PC-VGA.
Note: Once you have connected optional equipment systems
to your TV, you should select the required input to view
pictures from that source.
Phase
Depending on the resolution and scan frequency that
you input to the TV set, you may see a hazy or noisy
picture on the screen. In such a case you can use this
item to get a clear picture by trial and error method.
Select Phase item by using “ ” or “ ” buttons. Use
“ ” or “ ” button to adjust the value.
Dot Clock
PC Mode Menu System
See “Connecting the LCD TV to a PC” section for
connecting a PC to the TV set.
For switching to PC source, press “
” button on your
remote control and select PC input. You can also use
“Source” menu to switch to PC mode.
Note that PC mode menu settings are available only while
the TV is in PC source.
PC Position Menu
Select the first icon by pressing “ ” or
“ ” button. PC Position menu appears on the
screen:
Dot Clock adjustments correct the interference
that appear as vertical banding in dot intensive
presentations like spreadsheets or paragraphs or
text in smaller fonts.
Select Dot Clock item by using “ ” or “ ” buttons.
Use “ ” or “ ” button to adjust the value.
PC Picture Menu
For adjusting PC picture items, do the following: Press
“ ” or “ ” button to select the second icon. PC Picture
menu appears on the screen.
Brightness, Contrast, Colour and Colour
Temperature settings in this menu are identical to
settings defined in TV picture menu under “Analogue
TV Menu System”.
Note: If you set Colour Temp as User, you can define R, G,
B settings manually.
Sound,Feature and Source settings are identical to thesettings
explained in Analog Tv menu system.
Autoposition
If you shift the picture horizontally or vertically to an
unwanted position, use this item to put the picture
into correct place automatically. This setting therefore
automatically optimizes the display.
English - 28 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 28
06.09.2010 09:12:21
Displaying TV Information
Zoom Modes
Programme Number, Programme Name, Sound
Indicator and Zoom Mode information is displayed
on the screen when a new programme is entered or
“INFO” button is pressed.
Mute Function
To cancel mute, there are two alternatives; the first
one is pressing the “ ” button and the second one
is increasing the volume level.
PIP (Picture-in-Picture) and
PAP (Picture-and-Picture)
Modes
” button to switch to PIP mode.
At PIP Mode, a small picture (PIP picture) is displayed
on the main picture. There are 1 size and 4 positions
(upper left, upper right, bottom left and bottom right)
available for the PIP window. You can use the “
” button to change the PIP position. Aspect Ratio of
the PIP window is fixed and 4:3.
When PIP Mode is entered, the default active window
is the PIP window and the active window is indicated
by a red frame around it. The active window can be
changed by pressing the “ ” or “ ” buttons. The
status info OSD belongs to active window. The place
of the status OSDs are same for both windows.
Press the “
” button again to exit the PIP mode.
Press the “
” button to switch to PAP mode.
At PAP Mode, two pictures with equal sizes are
displayed on the screen. Aspect Ratios of the windows
are fixed.
When you switch to PAP Mode, main window in PIP
Mode will be displayed on the right side of the screen.
The active window can be changed by pressing the
“ ” or “ ” buttons.
Press the “
Press “
mode.
” button to directly change the zoom
Available zoom modes are listed below.
Press “ ” button to disable sound. Mute indicator will
be displayed in the upper side of the screen.
Press the “
You can change the aspect ratio (image size) of the TV
for viewing the picture in different zoom modes.
Note:
In YPbPr and HDMI modes, while in 720p-1080i resolutions,
only 16:9 mode is available.
In PC mode, only 16:9 mode is available.
Auto
When a WSS (Wide Screen Signalling) signal, which
shows the aspect ratio of the picture, is included in
the broadcast signal or the signal from an external
device, the TV automatically changes the ZOOM
mode according to the WSS signal.
• When the AUTO mode does not function correctly
due to poor WSS signal quality or when you want to
change the ZOOM mode, change to another ZOOM
mode manually.
16:9
This uniformly stretches the left and right sides of a
normal picture (4:3 aspect ratio) to fill the wide TV
screen.
• For 16:9 aspect ratio pictures that have been
squeezed into a normal picture (4:3 aspect ratio),
use the 16:9 mode to restore the picture to its
original shape.
4:3
Use to view a normal picture (4:3 aspect ratio) as this
is its original size.
” button again to exit the PAP mode.
Picture Mode Selection
Panoramic
By pressing PP button, you can change Picture
Mode settings in accordance with your viewing
requirements. Available options are Dynamic, Natural,
Cinema and Pixellence (optional).
This stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fill the screen, without
making the picture appear unnatural.
Note : This function will not be available while in PC mode.
Freezing Picture
You can freeze the picture on the screen by pressing
the “OK” button on the remote control in TV mode.
Press the “OK” button to freeze picture. Press again
to quit freeze mode.
The top and bottom of the picture are slightly cut off.
14:9
This zooms up the wide picture (14:9 aspect ratio) to
the upper and lower limits of the screen.
English - 29 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 29
06.09.2010 09:12:22
Teletext
Cinema
This zooms up the wide picture (16:9 aspect ratio) to
the full screen.
Teletext system transmits information such as news,
sports and weather on your TV. Note that is the signal
degrades, for example in poor/adverse weather
conditions, some text errors may occur or the teletext
mode may be aborted.
Teletext function buttons are listed below:
“
Subtitle
This zooms up the wide picture (16:9 aspect ratio)
with subtitles to the full screen.
” Teletext On-Off / PAT Mode
Activates teletext mode when pressed once. Pressing
this button again will split the screen into two windows,
one displaying the teletext and the other displaying
the current channel. Pressing again will quit the
teletext mode.
“
” Index
Selects the teletext index page.
“
Zoom
” Mix
Places the teletext screen over the programme.
This option zooms to the picture.
“
” Expand
Press once to enlarge top half of the page, press again
to enlarge the bottom half of the page. Press again to
revert back to normal size.
Note: You can shift to screen up or down by pressing “ ”
/ “ ” buttons while picture zoom is selected as panaromic,
14:9, Cinema or Subtitle.
“
” Reveal
Shows hidden information (e.g. solutions of games).
“
” Hold
Holds a text page when convenient. Press again to
resume.
“
” Subcode Pages
Selects subcode pages if available when the teletext
is activated. When the teletext is not activated,
displays time info if the programme has teletext
transmission.
P+ / P- and numbers (0-9)
Press to select a page.
Note: Most TV stations use code 100 for their index pages
(RED/GREEN/YELLOW/BLUE)
Your TV supports both FASTEXT and TOP text
systems. When these systems are available, the
pages are divided into groups or topics.
When FASTEXT system is available, sections in
a teletext page will become colour-coded and can
be selected by pressing the coloured buttons.
Press a coloured button that corresponds to
with your needs.
The coloured writings will appear, showing you which
coloured buttons to use when TOP text transmission
is present. Pressing P- or P+ commands will
request the next or previous page respectively.
English - 30 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 30
06.09.2010 09:12:23
Remote Control
Tips
Screen Care
Clean the screen with a slightly damp, soft cloth. Do
not use abrasive solvents as they may damage the
coating layer of the TV screen.
For your safety, unplug the mains plug when cleaning
the set. When moving the TV, hold it properly from
the bottom part.
Image Persistence
Your TV no longer responds to the remote control.
Perhaps the batteries are exhausted. If so you can still
use the local buttons at the bottom of the TV.
Input Sources
If you cannot select an input source, it is possible that
no device is connected.
Check the AV cables and connections if you have tried
to connect a device.
Please note that ghosting may occur while displaying
a persistent image. LCD TVs’ image persistence may
disappear after a short time. Try turning off the TV
for a while.
To avoid this, do not leave the screen in still picture
for extended periods.
No Power
If your TV system has no power, please check the
main power cable and connection to the mains
socket outlet.
Poor Picture
Have you selected the correct TV system? Is your TV
set or house aerial located too close to a non-earthed
audio equipment or neon lights, etc.?
Mountains or high buildings can cause double pictures
or ghost images. Sometimes you can improve the
picture quality by changing the direction of the
aerial.
Is the picture or teletext unrecognisable? Check if you
have entered the correct frequency. Please retune
the channels.
The picture quality may degrade when two peripherals
are connected to the TV at the same time. In such a
case, disconnect one of the peripherals.
No Picture
Is the aerial connected properly? Are the plugs
connected tightly to the aerial socket? Is the aerial
cable damaged? Are suitable plugs used to connect
the aerial? If you are in doubt, consult your dealer.
No Picture means that your TV is not receiving a
transmission. Have you selected the correct button
on the remote control? Try once more.
Also make sure the correct input source has been
selected.
Sound
You can not hear any sound. Did you perhaps interrupt
the sound, pressing the
button?
Sound is coming from only one of the speakers. Is the
balance set to one extreme? See Sound Menu.
English - 31 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 31
06.09.2010 09:12:23
Appendix A: PC Input Typical Display Modes
The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the
typical video display modes.
Your TV may not support different resolutions. Supported resolution modes are listed below.
If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.
Note: Resolution modes indicated with (*) are not available for PIP/PAP modes.
Resolution
Frequency
Hor
Ver
Ver (Hz)
Hor
(KHz)
Standard
Supported
Zoom Modes
1
640
350
85
37.9
VESA
16:9, 4:3
2
640
400
85
37.9
VESA
16:9, 4:3
3
640
400
70
31.5
IBM VGA
16:9, 4:3
4
640
480
60
31.5
VESA
16:9, 4:3
5
640
480
66
35.0
MAC
16:9, 4:3
6
640
480
72
37.9
VESA
16:9, 4:3
7
640
480
75
37.5
VESA
16:9, 4:3
8
640
480
85
43.3
VESA
16:9, 4:3
9
800
600
56
35.2
VESA
16:9, 4:3
10
800
600
60
37.9
VESA
11
800
600
70
43.8
12
800
600
72
48.1
VESA
16:9, 4:3
13
800
600
75
46.9
VESA
16:9, 4:3
14
800
600
85
53.7
VESA
16:9, 4:3
15
832
624
75
49.7
MAC
16:9, 4:3
16
1024
768
43
35.5
VESA
(interlace)
16:9, 4:3
17
1024
768
60
48.4
VESA
16:9, 4:3
18*
1024
768
70
56.5
VESA
19*
1024
768
72
57.7
16:9, 4:3
20*
1024
768
75
60.0
16:9, 4:3
21*
1024
768
85
68.3
16:9, 4:3
22
1152
864
60
53.8
23*
1152
864
70
64.2
VESA
16:9, 4:3
24*
1152
864
75
67.5
VESA
16:9, 4:3
25*
1152
864
85
77.1
VESA
16:9, 4:3
26*
1152
870
75
68.9
MAC
16:9, 4:3
27
1280
768
60
47.7
VESA
28
1360
768
60
47.7
29*
1280
768
75
60.2
VESA
16:9, 4:3
30
1280
960
60
60.0
VESA
16:9, 4:3
31*
1280
960
75
75.0
VESA
16:9, 4:3
32*
1280
960
85
85.9
VESA
16:9, 4:3
33
1280
1024
60
64.0
VESA
16:9
34*
1280
1024
75
80.0
VESA
16:9
35*
1280
1024
85
91.1
VESA
36
1400
1050
60
65.3
16:9
37*
1400
1050
75
82.3
16:9
38
1440
900
60
55.9
16:9
39*
1440
900
75
70.6
40*
1600
1200
60
75.0
41
1680
1050
60
65.3
16:9
42*
1920
1200
60
74.5
16:9
Index
16:9, 4:3
16:9, 4:3
16:9, 4:3
16:9, 4:3
16:9, 4:3
16:9, 4:3
16:9
16:9
VESA
16:9
English - 32 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 32
06.09.2010 09:12:23
Appendix B: AV and HDMI Signal Compatibility (Input Signal
Types)
Source
EXT-1
(SCART 1)
EXT-2
(SCART-2)
FAV
YPbPr
HDMI1
HDMI2
Supported Signals
Available
PAL 50/60
O
NTSC 60
O
RGB 50
O
RGB 60
O
PAL 50/60
O
NTSC 60
O
RGB 50
X
RGB 60
X
PAL 50/60
O
NTSC 60
O
480I
60Hz
O
480P
60Hz
O
576I
50Hz
O
576P
50Hz
O
720P
50Hz
O
720P
60Hz
O
1080I
50Hz
O
1080I
60Hz
O
1080P
50Hz
X
1080P
60Hz
X
480I
60Hz
O
480P
60Hz
O
576I
50Hz
O
576P
50Hz
O
720P
50Hz
O
720P
60Hz
O
1080I
50Hz
O
1080I
60Hz
O
1080P
50Hz
X
1080P
60Hz
X
1080P
24 HZ
X
(X: Not Available, O: Available)
Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an
inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such
a problem please contact your dealer and also the manufacturer of the source equipment.
English - 33 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 33
06.09.2010 09:12:24
Appendix C: PIP/PAP Mode Combinations
PCVGA
MAIN
TV
DTV/USB
TV
8
8
(RGB)
9
8
8
9
9
9
9
DTV/USB
8
9
8
9
9
9
9
9
(RGB)
(RGB)
9
9
9
9
Scart2
8
9
8
9
9
9
9
(RGB)
9
9
(RGB)
8
8
9
9
9
9
FAV
8
9
(RGB)
9
8
8
9
9
9
9
HDMI1
9
9
9
9
9
8
8
9
9
HDMI2
9
9
9
9
9
8
8
9
9
YPbPr
9
9
9
9
9
9
9
8
9
PC-VGA
9
9
9
9
9
9
9
9
8
Scart1
Scart1 Scart2
FAV
HDMI1 HDMI2 YPbPr
(RGB): This indicates that, selection is possible only if Scart-1 has a RGB signal.
Restrictions: Scart-1 source must have RGB signal to perform PIP\PAP with sources TV, Scart-2, FAV.
If these sources are set to main window, and Scart-1 does not have a RGB signal, Pip\Pap source can not
be switched to the Scart-1 source.
If scart-1 source is set to main window, and scart-1 does not have a RGB signal, Pip\Pap source can not be
switched to TV, Scart-2 and FAV sources.
English - 34 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 34
06.09.2010 09:12:24
Appendix D: Supported File Formats for USB Mode
Remarks
Format
File
Extension
Video
Audio
(Maximum resolution/Bit rate etc.)
.avi
XviD
PCM/MP3
Standart definition videos (up to 720x576
resolution) are supported.
Music
.mp3
--
.jpg
Media
Movie
(optional)
External
Subtitles
(optional)
MPEG 1/2
Up to 5760x4608 resolution.
High resolution progressive JPEGs are not
supported.
Baseline JPEG
.srt
.sub
(CBR and VBR up to 320 Kbps)
Layer 1/ 2/ 3 (MP3)
Only time-based subtitle formats are supported.
Frame-based subtitle formats (e.g.
MicroDVD) are not supported
(except MicroDVD format)
Appendix E: Supported DVI Resolutions
When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer
to the following resolution information.
24Hz
25Hz
30Hz
50Hz
60Hz
480i
;
480p
;
576i
;
576p
;
720p
;
;
1080i
;
;
;
;
1080p
;
;
;
.
English - 35 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 35
06.09.2010 09:12:24
Specifications
Digital Reception
TV BROADCASTING
Transmission Standards:
PAL/SECAM B/G D/K K’ I/I’ L/L’
DVB-T, MPEG2,DVB-T, MPEG4 HD
RECEIVING CHANNELS
i. DEMODULATION
VHF (BAND I/III)
-Symbol rate: COFDM with 2K/8K FFT mode.
-Modulation: 16-QAM - 64-QAM FEC for all DVB
modes (automatically found)
UHF (BAND U)
HYPERBAND
NUMBER OF PRESET CHANNELS
ii. VIDEO
RF AERIAL INPUT
-H.264 (MPEG-4 part 10) main and high profile level
4.1/MPEG-2 MP@HL video decoder.
-HD display multi format capable (1080i, 720p,
576p)
-CVBS analogue output.
75 Ohm (unbalanced)
iii. AUDIO
OPERATING VOLTAGE
-MPEG-1 layer I/II, MPEG-2 layer II, AAC, HEAAC,
AC3
-Sampling frequencies supported are 32, 44.1 & 48
kHz
200
CHANNEL INDICATOR
On Screen Display
220-240V AC, 50 Hz.
AUDIO
German + Nicam Stereo
AUDIO OUTPUT POWER
(WRMS.) (10% THD)
2x6
POWER CONSUMPTION (W)
150 W (max)
< 1 W (Standby)
PANEL
32” wide display
DIMENSIONS (mm)
DxLxH (With foot): 212 x 794 x 556
Weight (Kg): 12,30
DxLxH (Without foot): 97 x 794 x 520
Weight (Kg): 11,60
English - 36 -
[GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 36
06.09.2010 09:12:24
Important Instruction
For your own safety read following instruction carefully before attempting to connect this unit to the mains
supply.
MAINS (AC) OPERATION
The wires in the mains lead are coloured in accordance with the following code :
GREEN
&
YELLOW
(Earth)
(if there is earth cable)
FUSE
BROWN
(Live)
BLUE
(Neutral)
IMPORTANT
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured green or green and yellow.
The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.
The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.
For continued protection against risk of fire, replace only with same type and rating of fuse (ASTA
approved 5A 250VAC fuse).
CAUTION
TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
SAFETY PRECAUTION
THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT
ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.
English - 37 [GB]_MB36_MASQUE_HDIDTV-MPEG4_BRONZE8_32843W_1205UK_10069999_50176032.indd 37
06.09.2010 09:12:24
50176032
