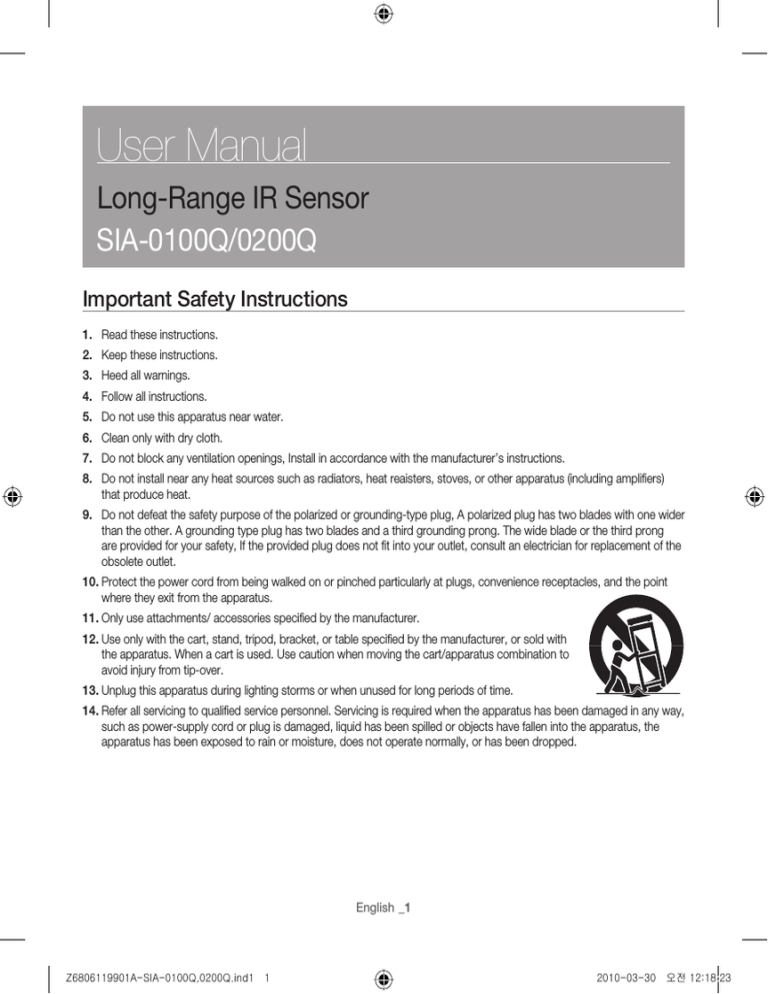

User Manual
Long-Range IR Sensor
SIA-0100Q/0200Q
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat reaisters, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug, A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong
are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used. Use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
English _1
Z6806119901A-SIA-0100Q,0200Q.ind1 1
2010-03-30 오전 12:18:23
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN
OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR
OTHER OPENNINGS ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
Class construction
An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective
earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire
or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your
location.
English _2
Z6806119901A-SIA-0100Q,0200Q.ind2 2
2010-03-30 오전 12:18:30
When used outside of the U.S., it may be used HAR code with fittings of an approved agency is
employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.
Please read the following recommend safety precautions carefully.
y Do not Place this apparatus on an uneven surface.
y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy
cold area.
y Do not place this apparatus near.
y Do not attempt to service this apparatus yourself.
y Do not place a glass of water on the product.
y Do not install near any magnetic sources.
y Do not block any ventilation openings.
y Do not place heavy items on the product.
User’s Manual is a guidance book how to use the products
The meaning of the using sign in the book is following
y Reference: in case of providing information for helping of product’s usages
y Notice: If there’s any possibility to occur any damages for the goods and human caused by not
following the instruction
Ú Please read this manual for the safety before using of goods and keep it in the safe place.
English _3
Z6806119901A-SIA-0100Q,0200Q.ind3 3
2010-03-30 오전 12:18:30
Product Features
This product is a long range IR sensor, designed for the advanced 4-beam system, which can separate intrusion by an
unauthorized access from just a change to the ambient circumstances
•
•
•
•
•
•
Equipped with a high-power IR diode that is suitable for long-range detection.
A 4-channel frequency system prevents confusion or conflicts between sensors when used in a multi-sensor environment.
You can choose one or two transmission beams for the transmitter according to the range or to your preference.
In a poor detection area, the sensor can emit an additional signal to correct the detection inadequacy.
When the reception sensitivity fluctuates due to rain, fog or dew, the sensor can control the gain by making corrections.
The quick installation or repair guide is provided along with a proper setting of the signal sound to enable you to set your
preference.
• If you want to display the alarm for an extended time for operational purposes, adjust the memory settings accordingly.
• If you want to link other sensors, or use two zones as one, use the re-transmitting function.
• The sensor is also featured by “Monitor Output (AGC Output)”- a display of the setting value in voltage, level indicator that
displays the settings in 5 levels, adjustment of the response time, and tamper output.
IR Sensor at a Glance
Main Body
Hood Cover
Bracket
Mirror Lens (Upper)
View Finder
Upper Lens Adjustment
(Up/Down)
Terminal
View Finder
Lens Level Fine-tuning
(Upper)
Blocking Film for Setting
Control Panel
Lower Lens Adjustment
(Up/Down)
Mirror Lens (Lower)
Lens Level Fine-tuning
(Lower)
English _4
Z6806119901A-SIA-0100Q,0200Q.ind4 4
2010-03-30 오전 12:18:31
What’s Included
U-shaped Bracket (x4)
-shaped Bracket (x4)
4 x 25 screw (x8)
4 x 6 screw (x8)
Stainless Steel Bracket (x2)
Control Volume (x2)
+
Screw (x4)
User Manual/Warranty Card
Name and Function of Each Item in Control Panel
Transmitter
Operation LED
Re-transmit LED
Power 10V ~ 30V DC
(nonpolar)
Channel Setting (1,2)
Re-transmitting
(link to other sensor)
Beam Power Adjustment (3)
Tamper
Re-transmitting Setting (4)
Tamper Switch
• Re-transmitting: Connect to the output point of other sensor.
- If the other sensor is set to N.C mode, connect to terminals #3 and #4 (N.C).
If the contact point of the linked sensor switches from N.C to N.O, the long-range IR sensor will stop emitting the infrared
radiation, which plays an indirect notification role to the receiver and lights up the “Re-transmit LED”.
English _5
Z6806119901A-SIA-0100Q,0200Q.ind5 5
2010-03-30 오전 12:18:32
Receiver
Status Indicators (Memory/Alarm/Environment)
Strength in 5 Levels
Power 10V ~ 30V DC
(Nonpolar)
Response Time Adjustable Button
Channel Setting (1,2)
Alarm Out
Signal Sound Setting (3)
Environment Out
Alarm Memory Setting (4)
Tamper
Level LED On/Off
Tamper Switch
• Alarm Out: The sensor will operate in both N.C and N.O mode
• Environment Out: This output triggers if normal operation is disabled due to an environmental phenomenon such as fog.
• LED Out: Turns on the indicator in 5 levels according to the setting. The signal sound will be set in 3 levels by turning on the
DIP switch #3. Once adjusted, you should turn off the DIP switch.
Installation
To attach to the pole
1. Insert the pole support bracket to the sensor bracket.
Use the screw (4x6) to tighten up the pole support bracket.
 You can use the pole support bracket in all sizes between Φ38 and Φ43.
Pole Diameter
38mm ~ 43mm
2. Insert the U-shaped bracket and insert the sensor bracket.
Insert the U-shaped bracket to the pole and use the screws (4x25) to fix the
inserted sensor bracket.
English _6
Z6806119901A-SIA-0100Q,0200Q.ind6 6
2010-03-30 오전 12:18:33
3. This is the completion of the bracket connection.
Rear View
Side View
To mount on the wall
1. Use the wall-mount screws (4x16) for this purpose.
Arrange the cables through the wiring hole, and mount the sensor onto
the wall using the sensor screws as shown.
Wiring Hole
Sensor Fixing Bolt
Adjusting the beam
To make adjustment using the view finder
This is the first mandatory step for the beam adjustment
that adjusts the sensor position roughly.
1. Ensure that you can see the other sensor with the
naked eye.
2. Adjust the position so that the sensor is located at
the center.
Up/Down Adjustable Bolt
Left/Right Adjustable Dial
Left/right Fine-Tuning Bolt
English _7
Z6806119901A-SIA-0100Q,0200Q.ind7 7
2010-03-30 오전 12:18:34
To make adjustment using the signal sound
1. Turn on the DIP Switch #3 of the receiver.
Select one of 3-sound level outputs.
- Slow Separate: Beep-beep-beep
- Fast Separate: Beep-beep-beep-beep-beep
- Continuous: Beep~~~~~~~~~~~~
2. After the adjustment, make sure to turn off the switch.
To make adjustment using the voltmeter
1. Make adjustment as necessary using the voltmeter.
Measure the output volt at DC 10V DC.
2. Insert the test probe.
It is labeled in either “AGC” or “Monitor”.
Voltmeter
(10V DC)
3. Check the voltage status with the 5-level indicator panel.
Measured Voltage
Alignment
2.5V or higher
Excellent
0.5V ~ 2.4V
Good
0.5V or lower
Poor, to be adjusted
English _8
Z6806119901A-SIA-0100Q,0200Q.ind8 8
2010-03-30 오전 12:18:36
To make adjustment using the level indicator
If you don’t have the voltmeter, you can use the 5-level indicator
panel for fine-tuning. Note that as one indicator can displays
3 status levels (slow/fast/solid), actually the status can be
separated in 15 levels.
Blink Slow
Blink Fast
Solid
IR Beam Width
The beam will be eradiated at about 1.4° angle in width. See the table below for details.
Distance (A)
Width (B)
Width (C)
100m
2.5m
2.7m
150m
3.7m
4.0m
200m
5.0m
5.2m
English _9
Z6806119901A-SIA-0100Q,0200Q.ind9 9
2010-03-30 오전 12:18:37
Wiring
1) Normal
2) If two pairs are connected directly
3) If using both Alarm Out and Environment Out
4) If using the Re-transmitting function
5) Available range according to the wiring
Max Distance (meter)
Wire Gauge
SIA-0100Q
SIA-0200Q
12V DC
24V DC
12V DC
AWG 22
100
900
90
24V DC
800
AWG 20
190
1,700
160
1,500
AWG 18
280
2,600
250
2,200
AWG 14
600
5,370
500
4,570
English _10
Z6806119901A-SIA-0100Q,0200Q.ind10 10
2010-03-30 오전 12:18:37
Adjusting the response time (beam blocking volume)
You can use the response time adjustable volume to adjust the time between 50ms and 700ms.
Where an intruder can move across an area quickly, adjust the settings to 50ms; in a fence where unauthorized access is slow,
adjust the settings to 700ms.
•
•
•
•
•
Full-speed run – 50 msec
Fast walk – 150 msec
Normal walk – 250 msec
Slow walk – 550 msec
Jump over a fence or obstacle – 700 msec
Alarm Memory
Turn on the DIP switch #4 of the receiver to activate the alarm memory function.
If an alarm occurs, the detector will blink for 55 minutes after 5 minutes of standby. This can inform the patrol-guard that the
sensor has been activated when they arrive on site.
Alarm occurrence
60 min (restart operation)
Memory LED
5 min
5 min
55 min (blinking)
M
 If another alarm occurs while the alarm memory is functioning by the first alarm, the alarm memory will consider the second one
like it's the first and extend the operation time duration accordingly.
English _11
Z6806119901A-SIA-0100Q,0200Q.ind11 11
2010-03-30 오전 12:18:38
Troubleshooting
Problem
Reason
Action
The power indicator of the
transmitter does not turn
on.
1. Power is not supplied.
2. Loose connection or short-circuited
1. Apply the power.
2. Check if the cables are properly connected.
Even if I block the infrared
light, the alarm indicator of
the receiver does not turn
on.
1. Power is not supplied.
2. Loose connection or short-circuited
3. The infrared light is incoming to the receiver
after reflected by an object.
4. Two light sources are not properly blocked
simultaneously.
1. Turn on the sensor.
2. Check if the cables are properly connected.
3. Remove the interruption object, or change
the installation site or the orientation of the
optical axis.
4. Block two light sources simultaneously.
The alarm indicator of the
receiver will not turn off.
1. The optical axis is dislocated.
2. There exists an obstacle between
transmitter and receiver.
3. The cover of the transmitter or receiver has
impurities on it.
1. Adjust the optical axis as necessary.
2. Remove the obstacle.
3. Wipe out the impurities with a soft cloth.
The alarm sounds
intermittently.
1. Disconnected cables
2. Fluctuation of the power voltage
3. There exists an obstacle between
transmitter and receiver.
4. There exists a different strong power source
around the transmitter or receiver.
5. The transmitter or receiver gets loose and
unstable at its position.
6. The optical axis is dislocated.
7. The cover of the transmitter or receiver has
impurities on it.
8. Sometimes a big bird or cat can block the
light temporarily.
1.
2.
3.
4.
5.
6.
7.
8.
Check the connection status again.
Regulate the power voltage.
Remove the obstacle.
Change the wiring path.
Secure the pole or support.
Adjust the optical axis as necessary again.
Wipe out the impurities with a soft cloth.
Set the response time longer.
Scanning Type
4-channel adjustment
If you want to install multiple sensors in different ways, use the channel setting function to avoid confusion between sensors.
1) 1-Level Multi-Connection
<1 CH>
<2 CH>
<3 CH>
<4 CH>
English _12
Z6806119901A-SIA-0100Q,0200Q.ind12 12
2010-03-30 오전 12:18:39
2) 2-Level Connection
3) 2-Level Multi-Connection
4) 1-level Cubic-Connection
5) 2-level Cubic-Connection
Adjusting the power of the beam (DIP switch #3 of the transmitter)
If you install the sensor below the minimum effective scanning range, reflection may occur. To avoid this reflection, set the range
to “LOW” in less than the minimum range and set it to “HIGH” in the effective range.
Model
LOW
HIGH
SIA-0100Q
60 m
60~100 m
SIA-0200Q
120 m
120~200 m
English _13
Z6806119901A-SIA-0100Q,0200Q.ind13 13
2010-03-30 오전 12:18:39
Specifications
Item
Description
Model
SIA-0100Q
SIA-0200Q
Power Voltage
DC 12V(±15%)
Current Consumption
Receiver: 42mA, Transmitter: 35mA (max)
No. of channels
4 channels
Scanning Range
100 m outside
200 m outside
Response Time
Output
Status
50 msec ~ 700 msec
Alarm Output
Dry contact relay: 1 c (COM, N.C/N.O)
Contact point operation time: Blocking time + 2 seconds
Point of contact capacity: AC/DC 30V 1A or lower
Environment Output
Dry contact relay: 1 b (COM, N.C)
Operation condition: Normal operation is hardly possible due to environmental condition
Point of contact capacity: AC/DC 30V 1A or lower
Tamper Output
Dry contact relay: 1 b (COM, N.C)
Operation condition: When the cover is removed due to external force
Point of contact capacity: AC/DC 30V 0.1A or lower
Alarm LED
Lights up if an alarm occurs
Memory LED
Lights up if an alarm occurs under the proper memory setting
Level LED
5-level indication (Excellent, Good, Fair, Realign, Poor)
Beam Angle Adjustment
Left/Right: ±90°, Up/Down: ±10°
Features
Setting by the sound
Adjust the beam power (low, high)
Programmed AGC
Temperature
-25˚C ~ 65˚C
Work Environment
External
Material
PC resin
Weight
1,517g
Dustproof/Waterproof Rating
IP55
English _14
Z6806119901A-SIA-0100Q,0200Q.ind14 14
2010-03-30 오전 12:18:40
Appearance
Sensor
Unit: mm
Hood
English _15
Z6806119901A-SIA-0100Q,0200Q.ind15 15
2010-03-30 오전 12:18:40
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of
their working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
P/No. : Z6806119901A
VAN 10. 03
Z6806119901A-SIA-0100Q,0200Q.ind16 16
2010-03-30 오전 12:18:41
