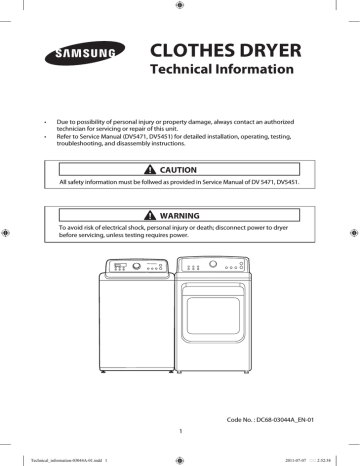

Samsung DV5471A Series Technical information

CLOTHES DRYER
Technical Information
•
•
Due to possibility of personal injury or property damage, always contact an authorized
technician for servicing or repair of this unit.
Refer to Service Manual (DV5471, DV5451) for detailed installation, operating, testing,
troubleshooting, and disassembly instructions.
CAUTION
All safety information must be follwed as provided in Service Manual of DV 5471, DV5451.
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer
before servicing, unless testing requires power.
Code No. : DC68-03044A_EN-01
1
Technical_information-03044A-01.indd 1
2011-07-07 �� 2:52:38
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
ERROR ITEMS AND DIAGNOSTIC CODES
An occurrence of an Error will make a sound of error melody for 5sec and continuously show one
of the Error Displays from the following errors.
Error Display
tE
Trigger
Action Taken
Check for:
The Termistor resistance is very - Clogged lint screen.
low or high.
- Restricted vent system.
- Check Thermistor resistance.
HE
Check for:
Invalid heating Temp in running
- Restricted vent system.
the dryer
- Check Thermistor resistance.
dE
Running the dryer with door
open
Check for:
- Close the door, and run the dryer
- Loose or open wire terminals in Door
Sense circuit.
dF
Invalid door state for more than
256 milliseconds
Check for:
- Loose or open wire terminals in Door
Sense circuit.
bE2
Invalid state of key circuit short
for 30 secs
Check for:
- Display PCB key circuit short or not
FE
Check for:
Invalid power source Frequency - Not using regular power source frequency
- Invalid power frequency sense circuit
2E
Electronic Control Problem
(Over Voltage Error)
Check for:
- Check PCB and Wire harness.
- Check Power supply.
AE
Electronic Control Problem
(Communication Error)
Check for:
- Check PCB and Wire harness.
- Replace PCB.
Et
Invalid state of Eeprom
communication
Check for :
- PCB with Eeprom circuit.
2
Technical_information-03044A-01.indd 2
2011-07-07 �� 2:52:38
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
TEST MODE
Continuous Run Mode:
1. Press Wrinkle Prevent + Dry Level for 7 sec during Power On State (Normal User Mode) .
2. Once in Continuous Run Mode, display “CC” for 1 sec and the number of Cycle for 1 sec and
the remaining time for 1 sec in turns.
3. The previous cycle will restart during Continuous Run Mode until the mode is deactivated.
4. During Continuous Run Mode, press Wrinkle Prevent + Dry Level for 7 seconds to return to
normal user mode.
Service Mode
Definition of Service Mode
- Dryer must be on before Service Mode can be entered.
- Upon entry into Service Mode, the Sensor Bar Touch Data will be shown (Default Service
Mode).
How to Enter:
- To enter Service Mode, press Wrinkle Prevent and Temp Keys for 3 seconds, until it sends out a
beeping sound.
- If pressing Wrinkle Prevent + Temp Keys for 3 seconds in Service mode , it will return Normal
mode.
- Even though entering Service mode, the operating cycle will not be influenced.
Sensor Bar Touch Data Mode
Definition of Sensor Bar Touch Data Mode:
- This action will put the dryer into sensor bar touch data mode
- Dryer will display Sensor Bar data. This mode is default mode of entering service mode
How to Enter:
- With Power On pressing Wrinkle Prevent and Temp Keys for 3 seconds
Cycle Count Mode
Definition of Cycle Count Mode:
- This mode is to bring up the total number of cycles that User have carried out.
How to Enter:
- To enter cycle count mode press the Wrinkle Prevent in Service Mode.
Software Version Mode
Definition of Software Version Mode:
- It is to retrieve its software version
How to Enter:
- At Service Mode, press Temp until it sends out a beeping sound
ex) In case of “U0 05”, U0 means major version “U0” 05 means minor version “05”
- If press Temp key In Software Version Mode, it will return Service Mode.
3
Technical_information-03044A-01.indd 3
2011-07-07 �� 2:52:39
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
Data Display Mode
Definition of Temperature Display Mode:
- Display Mode 0 : Temperature data(Celsius)
- Display Mode 1 : Average Touch Sensor data for 1 minute
- Display Mode 2 : Average Temperature(Celsius) data for 1minute
How to Enter:
- With Power On, press AdjustUp Key + AdjsutDown Key for 7 seconds until it sends out a
beeping sound .
- If not pressed any keys for 5 minutes, it will be set back from Data Display Mode
- If pressing AdjustUp Key in this mode ,Display Mode ID will be increased.
- If pressing AdjustDown Key in this mode ,Display Mode ID will be decreased.
• Converting °C  °F
Celsius(°C)
-30
-10
10
30
50
70
Fahrenheit(°F)
-22
14
50
86
122
158
F =9/5C + 32
System Check Mode
Definition of System Check Mode:
- “ t2 ” will display.
- System Check Mode(t2 mode) Progress Function Performed Start/Pause Motor(CW) Relay On  Heater Relay On  Heater Relay Off, Motor(CW) Relay Off
How to Enter:
- While in Power Off, pressing the Dry Level + Power keys simultaneously will put the dryer into
the System Check mode
4
Technical_information-03044A-01.indd 4
2011-07-07 �� 2:52:39
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
TROUBLE DIAGNOSIS
-
As the micom dry machine is configured of the complicate structure, there might be the
service call.
Below information is prepared for exact trouble diagnosis and suitable repair guide.
Caution for the Repair and Replacement
Please follow below instruction for the trouble diagnosis and parts replacement.
1) As some electronic components are damaged by the charged static electricity from the resin
part of dryer or the human body, prepare the human body earth or remove the potential
differ ence of the human body and dryer by contacting the power supply plug when the work
contacting to PCB is executed.
2) As the P.C.B assembly is designed for no trouble, do not replace the P.C.B assembly by the
wrong diagnosis and follow the procedure of the trouble diagnosis when the micom is not
operated normally.
5
Technical_information-03044A-01.indd 5
2011-07-07 �� 2:52:39
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
No Problem
What To Do
•
•
•
•
1
Will Not Start or Run
2
Motor runs/ tumbler
will not turn
•
•
•
Belt off or broken/damaged.
Idler tension spring too weak or stretched.
Idler pulley jammed or stuck.
3
Runs a few minutes
and then stops
•
•
•
•
Lint buildup around drive motor.
Low voltage present.
Blower impeller blocked in blower housing.
Drive motor - start switch contacts stuck closed.
-
-
Is the belt connected well?
Is the winding of the motor continuous?
(Rotor winding, stator winding, generator)
Is the motor protector normal?
If above points are not found, the PCB assembly is out of order.
Replace it.
4
Blows fuses or trips
circuit breaker
•
•
•
•
•
All wires are hooked up to their corresponding terminals.
Dryer is plugged in.
Blown fuse or circuit breaker.
Door switch functional...door closed. Check for error code 3 (See
Table for codedefinition).
Start/Pause rotary selector dial functional.
Control Board operational.
Belt off or broken and Belt Cut-off Switch operates.
Drive motor functional.
Check motor winding resistance: 2.88ohms between pin #3 and
4, 3.5ohms between pin #4 and 5.
-
•
•
5
Blows fuses or trips
circuit breaker (Gas
Model)
•
•
•
During ignition the dryer will draw X amps. With the burner ON,
the dryer will draw X amps. If the dryer is drawing amperages
above this, then the house wiring, fuse box or circuit breaker is
suspected to be at fault.
Igniter harness loose and shorted to base.
Incorrect wiring or wire shorted to ground.
Drive motor winding shorting to ground.
6
Will not heat (motor
runs)
Open heating element.
• Hi-Limit trips easily or is open.
• Regulating thermostat trips easily or is open.
• Membrane switch open.
• Check Thermistor.
7
Will Not Dry Gas
Model Poor Gas
Ignition
When the dryer is operated on a heat setting, the igniter should be
energized and burner shall fire within 45 seconds at 120 VAC. The
failure of a component in this system will usually be indicated by one
of three symptoms:
6
Technical_information-03044A-01.indd 6
2011-07-07 �� 2:52:39
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
No Problem
What To Do
If the igniter does not heat up, remove power and using an
ohmmeter, check the following:
• Open flame sensor
The igniter does not • Open igniter
8
glow
• Shorted booster coil
• Open wiring
• Bad motor switch ( Neutral supply)
• No power from control ( L1 supply)
If the igniter heats up but the main burner flame is not ignited,
remove power and using an ohmmeter, check the following:
Igniter glows - No gas • Open secondary coil
9
ignition
• Open holding coil
• Open wire harness
• Stuck flame sensor (Stuck closed)
If a normal ignition takes place and after a short while the flame goes
out, check for the following:
• Radiant sensor contacts opening prematurely.
The gas is ignited but
10
• Weak gas valve coil may open when stressed by higher Temps.
the flame goes out
• Weak Hi-Limit
• Poor venting
• Bad drum seals
• Lint filter is not clean.
• Restriction in exhaust.
• Outside exhaust hood damper door stuck closed.
• Exhaust too long, too many elbows, flex ductwork installed.
Improper drying
• Poor intake air available for the dryer.
clothes wrinkled
11
Rough texture long
• Incorrect tumbler speed. Tumbler belt slipping.
dry time
• Blower impeller bound; check for foreign material in blower area.
• Customer overloading dryer.
• Check clothing labels for fabric content and cycle selected.
• Clothes too wet due to insufficient spin out by washer.
• Thumping Check for loose tumbler baffle, rear tumbler roller(s)
worn or misaligned, out-of-round tumbler or high weld seam on
tumbler.
• Ticking Check for loose wire harness or object caught in blower
wheel area.
Noisy and/Or
12
• Scraping Check for front or rear bulkhead felt seal out of
Vibration
position or worn tumbler front bearings.
• Roaring Check for blower wheel rubbing on blower housing or
bad motor bearings.
• Popping or squealing sound. Check for a sticky or frayed belt.
7
Technical_information-03044A-01.indd 7
2011-07-07 �� 2:52:39
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
COMPONENT TESTING PROCEDURES
Component Electrical Testing (with ohmmeter)
 Thermistor resistance 10K Ω @ 25°C 77°F
 Thermostat 1 resistance < 1Ω

Belt Cut-off S/W
- Lever open: Resistance value < 1Ω
- Lever push: Resistance value : ∞ Ω
Thermostat 3 resistance < 1Ω
- If resistance is infinity, replace thermostat 3.
Thermostat 2 resistance < 1Ω
- If resistance is infinity, replace thermostat 2.
Heater resistance 10 Ω
- If resistance is infinity, replace Heater.

Lamp resistance 80~100 Ω (Blue & White)

Motor (Electronic & GAS)
Contacts



Function
Start
Run
 Measure resistance of the following terminal
1) Door switch : open
Terminal : “COM” - “NC” (1-3) : <1Ω
Terminal : “COM” - “NO” (1-2) : ∞ Ω
2) Door switch push: On
Terminal : “COM” - “NC” (1-3) : ∞ Ω
Terminal : “COM” - “NO” (1-2) < 1Ω
1M
2M
3M
5M
6M
 = Contact closed
Centrifugal Switch (Motor)
2.88Ω between
Pin# 3 and 4
3.5Ω between
Pin# 4 and 5
8
Technical_information-03044A-01.indd 8
2011-07-07 �� 2:52:43
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
GAS MODEL
Radiant Sensor(10RS)
Resistance value < 1 Ω
If resistance is infinite, replace Radiant sensor
Gas Valve(25M01A)
Valve 1-2 : Resistance value 1.2K Ω
Valve 1-3 : Resistance value 0.5K Ω
Valve 4-5 : Resistance value 1.2K Ω
If resistance is infinity, replace Valve
Igniter(101D)
Resistance value 40~400 Ω
If resistance is infinite, replace Igniter
Thermostat (60T21 Hi-Limit)230F-50F
Resistance value < 1 Ω
If resistance is infinity, replace Thermostat
9
Technical_information-03044A-01.indd 9
2011-07-07 �� 2:52:44
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
Steam Models Only
CN1
1. AC Power Port
2. Door Detection Sensor
3. Motor Switch Sensor
-
RY5
Motor Relay Switch
-
RY6
Heater Relay Switch
Sensor Bars & temperature sensor check
Sensor Bars - Disconnect harness and test Pink
wire Pin 4 to Orange wire Pin 5.
Approx ∞ Ω without laundry
Approx 190Ω ± 10% with wet clothes
Cycling Thermostat - Disconnect harness and test
Blue wire Pin 3 to Red wire Pin 6.
Approx 10 KΩ at 25 °C/77 °F
10
Technical_information-03044A-01.indd 10
2011-07-07 �� 2:52:46
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
3-WIRE system connections
A. External ground connector
B. Neutral grounding wire (green/yellow)
C. Center silver-colored terminal block screw
D. Neutral wire (white or center wire)
E. ¾” (1.9 cm) UL-listed strain relief
1. Loosen or remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the power cord to the center, silvercolored terminal screw of the terminal block. Tighten screw.
3. Connect the other wires to outer terminal block screws. Tighten screws.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your Dryer’s rear panel slot.
Secure the cover with a hold-down screw.
If converting from a 4-wire electrical system to a 3-wire, the ground strap must be
reconnected to the terminal block support to ground the Dryer frame to the neutral
conductor.
4-WIRE system connections
A. External ground connector
B. Green or bare copper wire of power cord
C. ¾” (1.9 cm) UL-listed strain relief
D. Center silver-colored terminal block screw
E. Neutral Grounding wire (green/yellow)
F. Neutral wire (white or center wire)
1. Remove the External ground connector screw.
2. Connect the ground wire (green or unwrapped) of the power cord to the external
ground connector screw. If you want to connect B(Green or bare copper wire of power
cord) to the Neutral Post without assembling with A(cabinet ground), call the service
technician.
3. Loosen or remove the center terminal block screw.
4. Connect the neutral wire (white or center wire) of the power cord and the appliance
ground wire (green with yellow stripes) under the central screw of the terminal block.
5. Connect the other wires to the outer terminal block screws. Tighten screws.
6. Tighten the strain relief screws.
7. Insert the tab of the terminal block cover into your Dryer’s rear panel slot.
Secure the cover with a hold-down screw.
11
Technical_information-03044A-01.indd 11
2011-07-07 �� 2:52:46
WIRING DIAGRAM
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
WIRING DIAGRAM
12
Technical_information-03044A-01.indd 12
2011-07-07 �� 2:52:47
