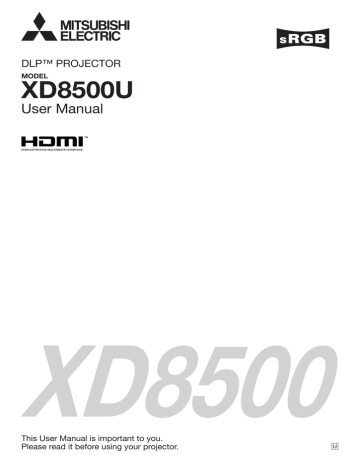

Mitsubishi Electric DLP XD8500U User manual

DLP™ PROJECTOR
MODEL
XD8500U
User Manual
XD8500
This User Manual is important to you.
Please read it before using your projector.
U
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR
THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If
you use another power supply cord, it may cause
interference with radio and television reception.
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN
THE PROJECTOR IS IN THE POWER ON MODE.
EN-2
Contents
Important safeguards.........................................................................................................................4
Preparing your projector.....................................................................................................................6
Using the remote control....................................................................................................................9
Setting up your projector..................................................................................................................11
Viewing computer images................................................................................................................18
Viewing video images.......................................................................................................................24
Menu operation................................................................................................................................30
Adjusting projected images..............................................................................................................43
Initial network settings......................................................................................................................51
Lamp relay........................................................................................................................................55
Advanced features...........................................................................................................................57
Replacing the lamp..........................................................................................................................64
Maintenance.....................................................................................................................................67
Troubleshooting................................................................................................................................69
Indicators..........................................................................................................................................73
Specifications...................................................................................................................................74
Trademark, Registered trademark
• DLP™, Digital Micromirror Device, DMD and BrilliantColor™ are all trademarks of Texas Instruments.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
• Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation
in the United States and/or other countries.
• Mac is a registered trademark of Apple Inc.
• The trademark of PJLink is trademark applied for registration or registered trademark in Japan, the United States,
and other countries and areas.
• Crestron RoomView Connected is a trademark of Crestron Electronics, Inc.
• Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3
Important safeguards
Please read all these instructions regarding your
projector and retain them for future reference. Follow
all warnings and instructions marked on the projector.
10.Power sources
This projector should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power,
please consult your appliance dealer or local
power company.
11.Power-cord protection
Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by items placed upon or against them. Pay
particular attention to cords at plugs, convenience
receptacles, and points where they exit from the
appliance. Do not put the power cord under a
carpet.
12.Overloading
Do not overload wall outlets and extension cords
as this can result in a fire or electric shock.
13.Objects and liquids
Never push objects of any kind through openings
of this projector as they may touch dangerous
voltage points or short-out parts that could result
in a fire or electric shock. Never spill liquid of any
kind on the projector.
14.Servicing
Do not attempt to service this projector by yourself.
Refer all servicing to qualified service personnel.
15.Damage requiring service
Unplug this projector from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
(a) If the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen
into the projector.
(c) If the projector does not operate normally after
you follow the operating instructions. Adjust
only those controls that are covered by the
operating instructions. An improper adjustment
of other controls may result in damage and
may often require extensive work by a qualified
technician to restore the projector to its normal
operation.
(d) If the projector has been exposed to rain or
water.
(e) If the projector has been dropped or the
cabinet has been damaged.
(f) If the projector exhibits a distinct change in
performance - this indicates a need for service.
16.Replacement parts
When replacement parts are required, be sure
that the service technician has used replacement
parts specified by the manufacturer or parts
having the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
17.Safety check
Upon completion of any service or repair to this
projector, ask the service technician to perform
safety checks determining that the projector is in a
safe operating condition.
1. Read instructions
All the safety and operating instructions should be
read before the appliance is operated.
2. Retain instructions
The safety and operating instructions should be
retained for future reference.
3. Warnings
All warnings on the appliance and in the operating
instructions should be adhered to.
4. Instructions
All operating instructions must be followed.
5. Cleaning
Unplug this projector from the wall outlet before
cleaning it. Do not use liquid aerosol cleaners. Use
a damp soft cloth for cleaning.
6. Attachments and equipment
Never add any attachments and/or equipment
without the approval of the manufacturer as such
additions may result in the risk of fire, electric
shock or other personal injury.
7. Water and moisture
Do not use this projector near water or in contact
with water.
8. Accessories
Do not place this projector on an unstable cart,
stand, tripod, bracket or table. Use only with a
cart, stand, tripod bracket, or table recommended
by the manufacturer or sold with the projector.
Any mounting of the appliance should follow
the manufacturer’s instructions and should use
a mounting accessory recommended by the
manufacturer.
An appliance and cart combination should be
moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and cart
combination to overturn.
9. Ventilation
Slots and openings in the cabinet are provided
for ventilation, ensuring reliable operation of the
projector and to protect it from overheating. Do
not block these openings or allow them to be
blocked by placing the projector on a bed, sofa,
rug, or bookcase. Ensure that there is adequate
ventilation and that the manufacturer’s instructions
have been adhered to.
EN-4
Important safeguards (continued)
WARNING:
Do not use the projector with condensation on it.
Unplug immediately if there is something
wrong with your projector.
Place of installation
It can lead to breakdown or other failure.
For safety’s sake, refrain from setting the projector at any
place subjected to high temperature and high humidity.
Please maintain an operating temperature, humidity, and
altitude as specified below.
• Operating temperature:
For use in the STANDARD mode, the allowable operating
temperature is +41°F (+5°C) to +104°F (+40°C).
For use in the HIGH ALTITUDE mode (see page 13),
the allowable operating temperature is +41°F (+5°C) to
+95°F (+35°C), which allows floor installation or ceiling
installation only.
• Operating humidity: between 30% and 90%
• Never put any heat-producing device under the projector
so that the projector does not overheat.
• Do not attach the projector to a place that is unstable or
subjected to vibration.
• Do not install the projector near any equipment that
produces a strong magnetic field. Also refrain from
installing near the projector any cable carrying a large
current.
• Place the projector on a solid, vibration free surface;
otherwise it may fall, causing serious injury to a child or
adult, and serious damage to the product.
• Do not stand the projector; it may fall, causing serious
injury and damage to the projector.
• Slanting the projector more than ±10° (right and left) may
cause trouble or explosion of the lamp.
• Do not place the projector near air-conditioning unit,
heater, or humidifier to avoid hot or moist air to the
exhaust and ventilation hole of the projector.
• Do not place the projector in the following places.
Otherwise, a short circuit, heat generation, or melting of
the power cord coating may occur, causing fire, electric
shock, product failure, or deformation.
• Outdoors or non air-conditioned place
• Place where a gas such as a hydrogen sulfide is
generated (i.e. hot spring)
• Place where there is too much salt such as near the
coast
• We don’t recommend using the projector at an altitude
of 2700 meters or higher (When using the product at an
altitude of 2000 to 2700 meters above the sea level, set
the HIGH ALTITUDE MODE to HIGH ALTITUDE.). Use
at an altitude of 2700 meters or higher may affect the
projector’s life.
Do not operate if smoke, strange noise or odor comes out
of your projector. It might cause fire or electric shock. In this
case, unplug immediately and contact your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An inadvertent
contact may result in an electric shock. Except as
specifically explained in the User Manual do not attempt to
service this product by yourself. Please contact your dealer
when you want to fix, adjust or inspect the projector.
Do not modify this equipment.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is damaged,
unplug the projector and contact your dealer for inspection.
It may lead to fire if you keep using the damaged projector.
Be sure to unplug the power cord from the wall
outlet if the projector is fractured or deformed.
Otherwise, it may result in fire or electric shock. Ask your
dealer for repair.
Do not face the projector lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not connect multiple electrical appliances
to a single wall outlet.
It can lead to fire.
Do not extend the power cord.
It can lead to fire.
Do not place the projector on uneven surface.
Place the projection on a leveled and stable surface only.
Please do not place equipment on unstable surfaces.
Do not look into the lens when it is operating.
It may hurt your eyes. Never let children look into the lens
when it is on.
Do not touch the exhaust vents and bottom
plate, which become hot.
Do not touch them or put other equipment in front of the
exhaust vents. The exhaust vents and bottom plate, when
heated, may cause injury or damage to other equipment.
Also, do not set the projector on the desk which is easily
affected by heat.
Do not place a container containing water or
other liquid on the projector.
If water spills on or enters the projector, it may result in fire or
electric shock.
Do not look into the exhaust vents when
projector is operating.
Do not put any object that is heavy or larger
than the outer frame on the projector.
Heat, dust, etc. may blow out of them and hurt your eyes.
Otherwise, the object may fall losing its balance and cause
injury.
Do not insert your fingers in the space
between the lens and the cabinet.
Do not subject the projector to strong shocks or
vibrations. Do not handle the projector roughly.
The lens may shift causing injury or damage to the projector.
Do not block the intake and exhaust vents.
The projector may be damaged, resulting in fire or electric
shock.
If they are blocked, heat may be generated inside the
projector, causing deterioration in the projector quality and fire.
Upon Continuous Operation
Do not use flammable solvents (benzene, thinner,
etc.) and flammable aerosols near the projector.
Please ensure to power off at least for 1 hour once every 7
days of continuous use.
Flammable substances may ignite causing fire or breakdown
because the temperature inside the projector rises very high
while the lamp is illuminating.
EN-5
Preparing your projector
Checking accessories
The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in
the package.
Cable
Power supply parts
Mini D-SUB
15-pin
Mini D-SUB
15-pin
Computer cable
(246C597-20)
Power cord (two)
(246C684-10, 246C383-20)
Others
Remote control parts
Remote control
(290P188-30)
•
•
•
•
•
•
Lens cap (attached to the projector)
Lamp replacement tray
Power cord holder
CD-ROM
Safety Manual/Quick Start up
Mitsubishi logo plate
R6 (size-AA)
battery (two)
Important:
• The attached power cords are to be used exclusively for this product. Never use them for other products.
Inserting the batteries into the remote control
1
3
2
1. Remove the rear lid of the remote control.
2. Check the polarity (+), (-) of the batteries, and set them
correctly, inserting their (-) side first.
• If the battery is inserted from the (+) side first, inserting
the (-) side is difficult because the coil spring end hits
on the battery side. If the battery is forced to insert in
this way, the outer label of the battery may get ripped
and it may cause a short-circuit and heating.
3. Attach the rear lid.
Important:
• Use two size-AA batteries (R6).
• Replace the 2 batteries with new ones when the remote
control is slow to operate.
Removing the batteries from the remote control
Caution:
•
•
•
•
•
•
•
•
•
•
•
•
•
Remove the back lid of the remote control and take out the
batteries.
Use of a battery of wrong type may cause explosion.
Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.
Dispose of used batteries according to your local regulations.
Before you dispose of the batteries, insulate them by placing insulation tape on the positive (+) and negative (-)
terminals. If you dispose of the batteries together with other conductive objects such as a metal piece, they may short
out, resulting in fire or explosion.
Batteries may explode if misused. Do not recharge, disassemble, or heat the batteries, or put them into fire or water.
Be sure to handle the batteries according to the instructions.
Load the batteries with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.
Keep batteries out of reach of children and pets. If children swallow the battery, see a doctor immediately.
Remove the batteries, if the remote control is not used for a long time.
Do not combine a new battery with an old one.
If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in contact
with your eyes, rinse them with water and then consult your doctor.
Do not carry or store the batteries together with metallic ballpoint pens, necklaces, coins, or hairpins. Otherwise, they
may short out, causing explosion or liquid leakage and resulting in fire or injury.
Do not store the batteries where they are exposed to direct sunlight or subjected to high temperature and high humidity.
High temperature and high humidity may cause corrosion or liquid leakage.
EN-6
Preparing your projector (continued)
Overview
1
3
4
2
56
12
7
8
9
10 11
Caution:
Do not replace the lamp immediately after using the projector
because the lamp would be extremely hot and it may cause
burns.
1
2
3
4
5
6
Indicators
Intake vent/Filter cover
Exhaust vent
Lens
Remote control sensor (front)
Mitsubishi logo plate position
(Put the plate according to the
installation orientation.)
7 Intake vent
8 Control area
9 Terminal panel
10Remote control sensor (rear)
11Exhaust vent
12Lamp cover
Control area
1 POWER button (ON/STANDBY)
The status is changed between ON and
STANDBY.
2 ENTER/GEOMETRY button
3 COMPUTER/DVI-D/ button
4 ZOOM/FOCUS button
5 MENU button
6 AUTO POSITION/ button
7 VIDEO/HDMI/ button
8  button
9 LENS SHIFT button
10BLANK button
1
2
6
3
7
8
4
9
5
10
Terminal panel
1 2
3
4
5
6
7
9
8
10
11
12 13
EN-7
1 VIDEO IN terminal (BNC)
2 S-VIDEO IN terminal
3 COMPUTER/COMPONENT VIDEO IN-1
terminal (mini D-SUB 15-pin)
4 COMPUTER/COMPONENT VIDEO IN-2
terminals (R/PR, G/Y, B/PB, H/HV, V)
(BNC)
5 HDMI IN terminal (HDMI 19-pin)
6 COMPUTER/COMPONENT VIDEO DVI-D
IN (HDCP) terminal (DVI-D 24-pin)
7 LAN terminal
8 REMOTE1 IN terminal (D-SUB 9-pin
female)
9 SERIAL IN and OUT terminals (D-SUB
9-pin male)
10REMOTE 2 IN and OUT terminals
11Kensington Security Lock Standard
connector
12Power jack
13Power cord holder slot
Preparing your projector (continued)
Bottom side
Indicators
1
2
3 4
1
5
2
1 Lock bar (SECURITY ANCHOR)
• Attach a chain, etc. to this lock bar to anchor
the projector.
2 Adjustment feet
1
2
3
4
5
FILTER indicator
STATUS indicator
LAMP 2 indicator
LAMP 1 indicator
POWER indicator
Remote control
1
2
3
4
1 Indicator
2 POWER button (ON/STANDBY)
The status is changed between ON and STANDBY.
3 COMPUTER 1, 2 buttons
4 MENU button
5 BLANK button
6 ZOOM/FOCUS button
7 ID button
8 MAGNIFY button
9 PinP/SPLIT button*1
10CE (Color Enhancer) button
11TEST PATTERN button
12AUTO POSITION button
13SDI button*2
14HDMI button
15VIDEO button
16S-VIDEO button
17DVI-D(HDCP) button
18ENTER button
19p, q, t, u buttons
20ASPECT button
21LENS SHIFT button
22GEOMETRY button
23NUM button
24+ , - buttons
25FREEZE button
26SUPER RESOLUTION button
27ALL button
28Number (0 to 9) buttons*3
29Wired remote control jack
12
13
14
15
16
17
18
5
6
7
8
9
10
11
19
20
21
22
23
24
25
26
27
28
29
*1: The PinP/SPLIT button functions as the PinP button for this projector. (It doesn’t function as the SPLIT button.)
*2: The SDI button doesn’t work with this projector.
*3: To use the number buttons (0 to 9), press them while holding down the ID button or the NUM button.
EN-8
Using the remote control
Operational range of the remote control
Rear of projector
Front of projector
About 30° About 30°
About 30° About 30°
Operate the remote control
within a distance of 30 m
(98.4 feet) from the projector,
pointing the light beam at the
remote control photo-sensor
(front or rear) of the projector.
• Keep the remote control sensor out of direct sunlight or
fluorescent lamp light.
• Keep the remote control sensor at least 2 m (6 feet)
away from fluorescent lamps. Otherwise, the remote
control may malfunction.
• If there is an inverter-operated fluorescent lamp near
the remote control, the remote control operation may
become unstable.
• When you use the remote control too close to the
remote control sensor, the remote control may not work
correctly.
You can control the projector by the remote
control signals reflected on the screen.
However, the remote control distance may be
restricted by the light reflection loss due to
the screen characteristics.
Reception angle
Vertical directions
About 20°
About 20°
About 5°
Vertical directions (ceiling mount)
About 20°
About 20°
Using the wired remote control
Attached remote control for this projector can be used as a wired remote control with remote control cable. Wired
remote control is useful for operating in a distance or outside of the operating area.
REMOTE 2 IN
REMOTE 2 IN
REMOTE 2 OUT
• For connection, use the pin-pin cable of ø3.5 stereo type,
which is commercially available. However, some cable may
not work correctly.
• When REMOTE 2 OUT terminal on this projector is
connected to the REMOTE 2 IN terminal on the other
projector, the two projectors can be controlled together by
using the remote control.
• When the remote control is connected with remote control
cable, it does not work as a wireless remote control.
• When using the remote control as wired for a long time
period, remove the batteries from it. (Dispose of the
removed batteries according to the cautions on page 6.)
EN-9
Using the remote control (continued)
Setting the ID number of the remote
control
XX: Shows the ID number of the projector.
(When the PROJECTOR ID is “ALL,” “ALL”
is displayed.)
YY: Shows the current CONTROLLER ID. (When
the CONTROLLER ID is “ALL,” “ALL” is
displayed.)
ZZ: Shows the CONTROLLER ID to be changed.
(When the CONTROLLER ID is “ALL,” “ALL”
is displayed.)
• Before a CONTROLLER ID is entered, ** is
displayed. When you press a number button (0
to 9), the left digit of the ID number is entered
first.
You can control multiple projectors collectively or
individually using one remote control by setting the ID
number (CONTROLLER ID) of the remote control.
To control multiple projectors using the remote
control, you need to select the projector’s ID number
(PROJECTOR ID) with the remote control in advance.
ID numbers should be two-digit numbers “01” to “63”
or “ALL.” Other numbers cannot be used.
• For setting the ID number of the projector, see page
62.
When the CONTROLLER ID setting has succeeded:
ID button
Number (0 to 9)
buttons
Setting by the remote control alone
1. While holding down the ID button on the remote
control, press the number buttons (0 to 9) to set a
two-digit ID number.
Or, while holding down the ID button on the remote
control, press the ALL button.
• You cannot set the ID number by pressing the
number buttons (0 to 9) or the ALL button unless
pressing them while holding down the ID button
on the remote control.
• You can set the CONTROLLER ID using the
remote control alone. When you set the ID with
the remote control directed to the projector, you
can see the setting status on the screen.
Setting by using the projector
1. Carry out the procedure described in “Setting by
the remote control alone” with the remote control
directed to the projector.
• The ID setting dialog box is displayed on the
upper right area of the screen.
PROJECTOR ID
XX
YY → ZZ
XX
CONTROLLER ID
(01 - 63/ALL)
YY → ZZ
COMPLETE
“COMPLETE” is displayed under the
CONTROLLER ID number you entered.
• The ID setting dialog box automatically
disappears after it is displayed for about 5
seconds.
• By pressing any button other than the ID button,
number buttons (0 to 9), and ALL button while
the ID setting dialog box is being displayed, you
can cancel the dialog box.
When the CONTROLLER ID setting has failed:
ALL button
CONTROLLER ID
(01 - 63/ALL)
PROJECTOR ID
EN-10
PROJECTOR ID
XX
CONTROLLER ID
(01 - 63/ALL)
YY → ZZ
ERROR
“ERROR” is displayed under the CONTROLLER ID
number you entered.
• The ID setting dialog box automatically
disappears after it is displayed for about 5
seconds.
• By pressing any button other than the ID button,
number buttons (0 to 9), and ALL button while
the ID setting dialog box is being displayed, you
can cancel the dialog box.
Important:
• ID numbers should be two-digit numbers “01” to
“63.” The other numbers are invalid.
• When the PROJECTOR ID number is any of
“01” to “63,” you can control the projector
by matching the CONTROLLER ID with the
PROJECTOR ID number or setting it to “ALL.”
• When the PROJECTOR ID number is “ALL,”
you can control the projector using the remote
control regardless of the CONTROLLER ID
number.
• When the PROJECTOR ID number is uncertain,
you can control the projector regardless of the
ID number by setting the CONTROLLER ID to
“ALL.”
Setting up your projector
Before setting up
Before setting up the projector, check the operating environment.
If the environmental requirements are not satisfied, the projector may break down or fail.
Setup environment
The allowable operating temperature varies depending on the HIGH ALTITUDE mode setting.
For use in the STANDARD mode, the allowable operating temperature is +41°F (+5°C) to +104°F (+40°C).
For use in the HIGH ALTITUDE mode (see page 13), the allowable operating temperature is +41°F (+5°C) to +95°F
(+35°C), which allows floor installation or ceiling installation only.
Setting up the screen
Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the
projection angle of the projector. (See page 14.)
• Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of
the screen center.
• Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen
makes the projected images whitish and hard to view.
Screen size and projection distance
Refer to the following table to determine the screen size and projection distance.
• For the projection distance of the option lenses, see the tables on pages 77 to 78.
Front projection
Front projection, ceiling mounting
W
W1
W
W1
W1
H2
W1
H1
Center of the lens
H1
H
H
Center of the lens
L
L
L
H2
L
Maximum projection area
Maximum projection area
Screen size
Diagonal size
Width
(W)
Projection distance (L)
Height
(H)
inch
40
cm
102
inch
32
cm
81
inch
24
60
152
48
122
36
80
203
64
163
48
100
254
80
203
60
150
381
120
305
200
508
160
250
635
300
762
cm
61
Shortest
(Wide)
Lens shift height
Longest
(Tele)
H1
Lens shift
width
(W1)
H2
inch
54
m
1.4
inch
74
m
1.9
inch
12
cm
30
inch
2
cm
6
inch
3
cm
8
91
82
2.1
112
2.8
18
46
122
110
2.8
150
3.8
24
61
3
9
5
12
4
11
6
152
138
3.5
189
4.8
30
16
76
6
14
8
90
229
208
5.3
284
7.2
20
45
114
8
21
12
406
120
305
279
7.1
380
30
9.7
60
152
11
28
16
200
508
150
381
349
8.9
41
-
-
75
191
14
36
20
240
610
180
457
419
10.6
51
-
-
90
229
17
43
24
61
• The above figures are approximate and may be slightly different from the actual measurements.
• The lens shift height and width show distances from the factory default position.
• Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake
vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.
EN-11
Setting up your projector (continued)
Setup adjustment
• When the ENTER button is pressed while the LENS
SHIFT menu is displayed, the shift mode can be
switched between FAST and STEP. When FAST
is selected, the lens shifts in a large amount with
the p, q, t or u button, and it shifts in a small
amount when STEP is selected.
• When the ZOOM/FOCUS menu or the LENS SHIFT
menu is displayed while no video signal is input to
the projector, a crosshatch appears on the entire
screen.
• Be careful not to be caught in the opening in the
lens while the lens is moving.
• While the lens shift is working, the screen may
flicker.
• When the TEST PATTERN button on the remote
control is pressed, the test pattern is displayed.
Each time you press the TEST PATTERN button,
the display switches in the order of “cross hatch
(red)” → “cross hatch (green)” → “cross hatch
(blue)” → “100% white” → “100% black” →
“horizontal color bars” → “vertical color bars” →
“normal screen” → … When you press the ZOOM/
FOCUS button or LENS SHIFT button at this time,
you can adjust the zoom, focus, or lens shift with
the test pattern displayed.
How to turn on the projector
When you have to turn on the projector for setup
adjustment, see the following pages:
• Plugging the power cord (page 19)
• Turning on the power (page 21)
• Turning off the power (page 22)
Adjusting the position of the
projected image
Adjust the focus.
If the projected image is out of the screen after the
adjustment, adjust the projector position or the lens
position using the lens shift function.
1. Press the ZOOM/FOCUS button to display the
ZOOM/FOCUS menu.
ZOOM
FOCUS
FAST
SELECT:ENTER
Changing the AUTO POWER OFF setting
The AUTO POWER OFF function of this projector is
enabled by default.
Change the AUTO POWER OFF setting as necessary.
(See page 35.)
2. Adjust with the  or  button to get a fine picture.
• When the ENTER button is pressed while
the ZOOM/FOCUS menu is displayed, the
adjustment mode is switched between FAST
and STEP. When FAST is selected, the speed of
focus controlled by the  or  button becomes
fast, and it becomes slow when STEP is
selected.
3. Press the LENS SHIFT button.
• The LENS SHIFT menu appears at the center of
the screen.
To change the AUTO POWER OFF setting:
(See page 31 for menu setting.)
1. Display the INSTALLATION 2 menu.
2. Select AUTO POWER OFF by pressing the  or 
button.
AUTO POWER OFF
5min
3. Select your desired item by pressing the  or 
button.
LENS
SHIFT
FAST
SELECT:ENTER
4. Press the p, q, t or u button to move the image
position.
• When the q button is pressed, the image
moves down.
• When the p button is pressed, the image
moves up.
• When the u button is pressed, the image moves
to the right.
• When the t button is pressed, the image moves
to the left.
EN-12
Setting up your projector (continued)
Correcting skewed or distorted image
Setting HIGH ALTITUDE MODE
• Set HIGH ALTITUDE MODE in the INSTALLATION
1 menu according to the altitude at which you use
the projector. The default setting is STANDARD.
• Select STANDARD when using the projector at an
altitude from 0 to 2000 meters.
• Select HIGH ALTITUDE when using the projector at
an altitude from 2000 to 2700 meters.
For the best projection, project images on a flat screen
installed at 90 degrees to the floor. If necessary, tilt the
projector using the two adjustment feet on the bottom
of the projector.
Important:
• If you select STANDARD when using the projector
at an altitude higher than 2000 meters, the
projector may break down or fail.
• When you use the projector in the HIGH ALTITUDE
mode, only floor installation and ceiling installation
are allowed.
Screen
1. Tilt up the projector to the appropriate angle.
2. Rotate the adjustment feet for fine adjustment.
Important:
• Don’t transport the projector with its adjustment
feet extended. Otherwise the adjustment feet may
be damaged.
(See page 31 for menu setting.)
1. Display the INSTALLATION 1 menu.
2. Select HIGH ALTITUDE MODE by pressing the 
or  button.
HIGH ALTITUDE MODE
When fine streaks are seen on
projected images
STANDARD
3. Press the ENTER button.
This is due to interference with the screen surface and
is not a malfunction. Replace the screen or displace
the focus a little. (See page 12 for focus adjustment.)
HIGH ALTITUDE MODE
HIGH ALTITUDE MODE
STANDARD
4. Select STANDARD
or HIGH ALTITUDE
pressing the  or  button.
5. Press the ENTER button.
When the projected image is
distorted:
by
When the projected image is distorted, carry out any
of the KEYSTONE, CORNERSTONE, and CURVEDmode adjustments to correct the distortion.
When the image distorts in a trapezoid shape, use the
KEYSTONE-mode adjustment. For fine adjustment
of the image shape, use the CORNERSTONE-mode
adjustment. To adjust the image projected on a curved
surface, use the CURVED-mode adjustment.
When you press the ENTER/GEOMETRY button on
the projector or the GEOMETRY button on the remote
control, the menu switches in the order of KEYSTONE,
CORNERSTONE, CURVED, regular display, KEYSTONE...
Setting IMAGE REVERSE
• Set IMAGE REVERSE in the INSTALLATION 1 menu
according to the orientation of the projector. The
default setting is OFF.
• Select OFF for the combination of floor installation
and front projection.
• Select MIRROR INVERT for the combination of
ceiling installation and front projection.
• Select MIRROR for the combination of floor
installation and rear projection.
• Select INVERT for the combination of ceiling
installation and rear projection.
(See page 31 for menu setting.)
1. Display the INSTALLATION 1 menu.
2. Select IMAGE REVERSE by pressing the  or 
button.
IMAGE REVERSE
Adjustment feet
OFF
3. Select OFF, MIRROR, INVERT or MIRROR INVERT
by pressing the  or  button.
EN-13
Setting up your projector (continued)
Adjustment using the KEYSTONE mode:
• When the KEYSTONE-mode adjustment is
performed, the displayed image may be distorted.
• Depending on the installation conditions of the
projector and the screen, a perfect rectangular
image and the proper aspect ratio may not be
obtained. Slight distortion can be corrected by the
CORNERSTONE-mode adjustment.
• Noise may appear on the screen during the
KEYSTONE-mode adjustment because of the type
of the video signal being projected and the setting
values of the KEYSTONE-mode adjustment. In
such cases, set the KEYSTONE-mode adjustment
values in the range where the image is displayed
without noise.
• When you carry out the KEYSTONE-mode
adjustment and the CURVED-mode adjustment
in combination, the adjustment range becomes
narrower than that in the case where you carry out
these adjustments individually. When setting the
KEYSTONE-mode adjustment value to 11 or larger,
you cannot use the CURVED-mode adjustment.
• When carrying out the KEYSTONE-mode
adjustment while the option lens is in use, you
may not be able to obtain a perfectly rectangular
image or the correct aspect ratio. Slight distortion
can be corrected by the CORNERSTONE-mode
adjustment.
When the screen and the projector are not placed
perpendicularly to each other, projected images
become trapezoidal. If you cannot place them
perpendicularly to each other, press the ENTER/
GEOMETRY button on the projector or the
GEOMETRY button on the remote control to display
the KEYSTONE mode and then press the p, q, t or
u button to correct the distortion.
KEYSTONE
: 0
: 0
KEYSTONE
SELECT : BLANK
Every time you press the BLANK button, the
adjustment menu changes as follows:
KEYSTONE → RESET → KEYSTONE ...
KEYSTONE menu
You can correct the distortion vertically or horizontally
focusing on the screen center.
In the following cases (for front projection):
Adjustment using the CORNERSTONE mode:
Use this adjustment for fine adjustment of the image
shape. You can use this adjustment for adjusting
the image displayed in the edge blending mode
(see page 36), too. For adjustment, press the
ENTER/GEOMETRY button on the projector or the
GEOMETRY button on the remote control to display
the CORNERSTONE mode and then press the p, q,
t or u button.
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
CORNERSTONE
: 0
: 0
LOWER RIGHT
SELECT : BLANK
When you press the  or  button in the RESET
mode, the distortion correction is reset.
Important:
• For proper KEYSTONE-mode adjustment results,
reset the lens to the factory-adjusted position using
LENS SHIFT RESET in the INSTALLATION 1 menu
before carrying out KEYSTONE-mode adjustment.
(See page 34.)
• When the KEYSTONE-mode adjustment is carried
out, the adjustment value is indicated. Note that
this value doesn’t mean a projection angle.
• When the KEYSTONE-mode adjustment takes
effect, the resolution decreases. In addition, stripes
may appear or straight lines may bend in images
with complicated patterns. They are not due to
product malfunctions.
Every time you press the BLANK button, the
adjustment menu changes as follows:
LOWER RIGHT → LOWER LEFT → UPPER RIGHT →
UPPER LEFT → RESET → LOWER RIGHT ...
EN-14
Setting up your projector (continued)
Adjustment using the CURVED mode
LOWER RIGHT, LOWER LEFT, UPPER RIGHT, or
UPPER LEFT menu
You can adjust the horizontal or vertical position of the
selected corner.
To adjust images projected on a curved surface, press
the ENTER/GEOMETRY button on the projector or the
GEOMETRY button on the remote control to display
the CURVED mode, and then press the p, q, t or u
button to correct the distortion.
Example: Adjustment of the upper left corner position
(UPPER LEFT)
Press the 
button.
Press the 
button.
CURVED
: 0
: 0
Press the 
button.
ARC
SELECT : BLANK
Press the 
button.
Every time you press the BLANK button, the
adjustment menu changes as follows:
ARC → HORIZ. ORIGIN → VERT. ORIGIN →
RESET → ARC...
When you press the  or  button in the RESET
mode, the distortion correction is reset.
ARC menu
You can correct the arc vertically or horizontally
focusing on the screen center.
Important:
• When the CORNERSTONE-mode adjustment takes
effect, the resolution decreases. In addition, stripes
may appear or straight lines may bend in images
with complicated patterns. They are not due to
product malfunctions.
• When the CORNERSTONE-mode adjustment is
performed, the displayed image may be distorted.
• Noise may appear on the screen during the
CORNERSTONE-mode adjustment because
of the type of the video signal being projected
and the setting values of the CORNERSTONEmode adjustment. In such cases, set the
CORNERSTONE-mode adjustment values in the
range where the image is displayed without noise.
• Large distortion of the image shape or aspect ratio
may not be corrected by the CORNERSTONE
-mode adjustment.
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
HORIZ. ORIGIN or VERT. ORIGIN menu
When the CURVED-mode adjustment has excessive
effect on either top or bottom or either right or left side
of the screen, adjust the horizontal or vertical position
of the origin to the horizontal or vertical arc. Without
the arc adjustment, the image shape won’t change.
EN-15
Setting up your projector (continued)
Adjusting the origin to the horizontal arc
• When the horizontal arc adjustment is negative (-)
(or the ARC is adjusted in the  direction)
• When the vertical arc adjustment is positive (+) (or
the ARC is adjusted in the  direction)
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
When you press the  or  button in the RESET
mode, the distortion correction is reset.
• When the horizontal arc adjustment is positive (+)
(or the ARC is adjusted in the  direction)
Important:
• When the CURVED-mode adjustment takes effect,
the resolution decreases. In addition, stripes may
appear or straight lines may bend in images with
complicated patterns. They are not due to product
malfunctions.
• When the CURVED-mode adjustment is performed,
the displayed image may be distorted.
• Depending on the installation conditions of the
projector and the screen or the correction amount
of the CURVED-mode adjustment, you may not
obtain a complete rectangular screen or the correct
aspect ratio. Slight distortion can be corrected by
the CORNERSTONE-mode adjustment.
• Noise may appear on the screen during the
CURVED-mode adjustment because of the type
of the video signal being projected and the setting
values of the CURVED-mode adjustment. In such
cases, set the CURVED-mode adjustment values
in the range where the image is displayed without
noise.
• When you carry out the KEYSTONE-mode
adjustment and the CURVED-mode adjustment
in combination, the adjustment range becomes
narrower than that in the case where you carry out
these adjustments individually. When setting the
arc setting value of the CURVED-mode adjustment
to 31 or larger, you cannot use the KEYSTONEmode adjustment.
• When carrying out the CURVED-mode adjustment
while the option lens is in use, you may not be
able to obtain a perfectly rectangular image or
the correct aspect ratio. Slight distortion can
be corrected by the CORNERSTONE-mode
adjustment.
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
Adjusting the origin to the vertical arc
• When the vertical arc adjustment is negative (-) (or
the ARC is adjusted in the  direction)
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
Press the 
button.
EN-16
Setting up your projector (continued)
Front projection, ceiling mounting
Rear projection
For ceiling mounting, you need the ceiling mount
kit designed for this projector. Ask a specialist for
installation. For details, consult your dealer.
• The warranty on this projector does not cover any
damage caused by use of any non-recommended
ceiling mount kit or installation of the ceiling mount
kit in an improper location.
Ask a specialist for installation. For details, consult
your dealer.
• For rear projection, set IMAGE REVERSE in the
INSTALLATION 1 menu to MIRROR. See page 34.
Caution:
• Placing the projector directly on a carpet impairs
ventilation by the fans, causing damage or failure.
Put a hard board under the projector to facilitate
ventilation.
• Place the projector at least 50 cm (or 20 inches)
away from the wall to prevent the intake vents
and the exhaust vents that emit hot air from being
blocked.
• Do not use the projector in the following locations
and manners, which may cause fire or electric
shock.
• In a dusty or humid place.
• In a sideways position, or with the lens facing
down.
• Near a heater.
• In an oily, smoky, or damp place such as a kitchen.
• In direct sunlight.
• Where the temperature rises high, such as in a
closed car.
• Where the temperature is lower than +41ºF (or
+5ºC) or higher than +104ºF (or +40ºC).
• For use in the HIGH ALTITUDE mode
· Where the temperature is lower than +41ºF
(or +5ºC) or higher than +95ºF (or +35ºC).
· For use in other than floor installation and
ceiling installation.
• Keep foliage plants and pets away from the
projector. The temperature around the exhaust
vents and that of the cabinet on the top of the
exhaust vents become high. Take special care for
small children.
• When using the projector mounted on the ceiling,
set IMAGE REVERSE in the INSTALLATION 1 menu
to MIRROR INVERT. See page 34.
• When the projector is mounted on the ceiling,
images may appear darker than those projected in
the case of tabletop mounting. This isn’t a product
malfunction.
• Ask your installation specialist to provide a breaker.
When you do not use the projector, be sure to shut
down the main power by the breaker.
• Do not install the projector where the exhaust vents
are exposed to air emitted by an air conditioning.
Such installation may cause a breakdown.
• Do not install the projector near a fire alarm
because it emits hot air from its exhaust vents.
Caution:
• Installation must be done by a qualified
professional.
When the projector is installed on the ceiling using
the ceiling mount kit, it is recommended to hold
the mount kit and the projector using metal bars
or wires in addition to the mount kit fixing screws
to prevent the projector from falling due to an
earthquake or other cause. For that purpose, use
metal bars, wires, or screws that bear a load of at
least 200 kgf. When using metal wires, secure one
end to the adjustment foot of the projector and the
other end to the mount kit. In this case, make sure
that no electrical current is flowing in the mount kit
due to current leakage or other cause.
Important:
• We don’t recommend using the projector at an
altitude of 2700 meters or higher (When using
the product at an altitude of 2000 to 2700 meters
above the sea level, set the HIGH ALTITUDE MODE
to HIGH ALTITUDE.). Use at an altitude of 2700
meters or higher may affect the projector’s life.
EN-17
Viewing computer images
A. Connecting the projector to a computer
Preparation:
• Make sure that the power of the projector and that of the computer are turned off.
• When connecting the projector to a desktop computer, disconnect the computer cable that is connected to the
monitor.
Computer
For analog connection:
(For using the COMPUTER/COMPONENT VIDEO IN-1
terminal.)
COMPUTER/
1. Connect one end of the supplied computer cable to the
COMPONENT
1
VIDEO IN-1
COMPUTER/COMPONENT/VIDEO IN-1 terminal of the
projector.
To monitor port
2
2. Connect the other end of the computer cable to the
monitor port of the computer.
• When viewing images supplied from an analog-connected
computer, press the COMPUTER 1 button on the remote
control.
Computer cable
Computer
R/PR G/Y B/PB H/HV V
COMPUTER/
COMPONENT
VIDEO IN-2
1
To monitor
port (5 BNC)
2
V H/HV B/PB G/Y R/PR
BNC cable (option)
Computer
COMPUTER/
COMPONENT
VIDEO DVI-D IN
(HDCP)
1
2
DVI cable (option)
To DVI
For analog connection:
(For using the COMPUTER/COMPONENT VIDEO IN-2
terminal.)
1. Connect one end of a commercially available BNC cable to
the COMPUTER/COMPONENT VIDEO IN-2 terminal of the
projector.
2. Connect the other end of the BNC cable to the 5 BNC
terminals of the monitor port of the computer.
• When viewing images supplied from an analog-connected
computer, press the COMPUTER 2 button on the remote
control.
For digital connection:
1. Connect one end of a commercially available DVI cable to
the COMPUTER/COMPONENT VIDEO DVI-D IN (HDCP)
terminal of the projector.
2. Connect the other end of the DVI cable to the DVI terminal
of the computer.
• When viewing images supplied from a digital-connected
computer, press the DVI-D (HDCP) button on the remote
control.
• Turn on the power of the projector before starting the
computer.
• Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending
on the type of the computer to be connected.
• Use of a long cable may decrease the quality of projected images.
• Images may not be projected correctly, depending on the type of the connected computer.
• When DVI-D signal is input, some signal setting menus are unavailable.
• Also read the instruction manual of the equipment to be connected.
• Contact your dealer for details of connection.
About DDC
The COMPUTER/COMPONENT VIDEO IN-1 terminal of this projector complies with the DDC1/2B standard and the
COMPUTER/COMPONENT VIDEO DVI-D IN (HDCP) terminal complies with the DDC2B standard. When a computer
supporting this standard is connected to this terminal, the computer will automatically load the information from this
projector and prepare for output of appropriate images.
• After connecting a computer supporting this standard to this terminal, plug the power cord of the projector in the
wall outlet first, and then boot up the computer.
EN-18
Viewing computer images (continued)
B. Plugging the power cord
• In order to ensure the safety in case of trouble with the projector, use an electrical outlet having an earth leakage
breaker to supply the power to the projector. If you do not have such outlet, ask your dealer to install it.
1. Plug the attached power cord into the power cord inlet of
this projector. Fix the power cord to the projector with the
power cord holder.
2. Plug the other end of the power cord into a power outlet.
Earthing
terminal
2
1
Power cord (example)
• The power cords for use in the U.S. and Europe are included with this projector. Use the appropriate one for your
country.
• This projector uses the power plug of 3-pin grounding type. Do not take away the grounding pin from the power
plug. If the power plug doesn’t fit your wall outlet, ask an electrician to change the wall outlet.
• The provided power cord for the U.S. is rated at 120 V. Never connect this cord to any outlet or power supply
using other voltages or frequencies than rated. If you use a power supply using other voltage than rated, prepare
an appropriate power cord separately.
• Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.
• Do not place any objects on the power cord or do not place the projector near heat sources to prevent damage to
the power cord. If the power cord should be damaged, contact your dealer for replacement because it may cause
fire or electric shock.
• Do not modify or alter the power cord. If the power cord is modified or altered, it may cause fire or electric shock.
Caution:
• Plug in the power cord firmly. When unplugging, hold and pull the power plug, not the power cord.
• Do not plug in or out the power cord with your hand wet. It may cause electric shock.
• When you move the projector, turn off the power, unplug the power cord from the wall outlet, and then remove the
connected cords. Otherwise, the power cord may be damaged, resulting in fire or electric shock.
• If dust or metallic substance is on or around the pins of the power plug, unplug the power cord and clean it using
a dry cloth. If you continue to use the projector without cleaning, it may result in fire or electric shock. Clean the
power plug periodically at least once a year.
• Be sure to unplug the power cord from the wall outlet if the projector will not be used for a long period of time.
Otherwise, it may cause fire.
EN-19
Viewing computer images (continued)
Attaching the power cord holder:
To reduce the risk of accidental disconnection of the power
cord from the projector, attach the supplied power cord holder
to hold it.
Important:
• Once the power cord holder is attached to the projector, it
cannot be removed.
• If you apply an excessive force, the power cord holder may
be damaged.
1. Insert the tip of the power cord holder into the slot with the
clamper facing toward the power cord.
2. Put the power cord in the clamper, and push the clamper in
the direction of the arrow to lock it.
3. Slide the clamper toward the plug.
EN-20
Viewing computer images (continued)
C. Projecting images
Preparation:
• Remove the lens cap.
LAMP 2 indicator
LAMP 1 indicator
POWER button
POWER indicator (ON/STANDBY)
POWER button (ON/STANDBY)
COMPUTER 1, 2 buttons
p, q, t, u buttons
DVI-D(HDCP)
button
COMPUTER/DVI-D button
p, q, t, u buttons
ENTER button
ENTER button
LENS SHIFT button
ZOOM/FOCUS button
ZOOM/FOCUS button
LENS SHIFT button
1. Confirm the POWER indicator lights up red.
• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating
and the POWER button may not work after the power cord is plugged. (The LAMP indicator blinks green.) After
the fan stops rotating, press the POWER button to turn back on the POWER indicator.
2. Turn on the power of the connected computer.
3. Press the POWER button.
• It may take about 2 minutes for the lamp to light up.
• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
• Do not cover the lens with the lens cap while the lamp is on. • After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a
product malfunction.
• The lamp operation becomes stable in 1 minute after the power is turned on and then the lamp mode selected
in the menu is activated. During the activation, displayed images may be disturbed.
• The projector starts warming up when the POWER button is pressed. During the warm-up process, images
may appear dark and no commands are accepted.
• By blinking red, the LAMP indicator indicates that the lamp should be replaced soon. Replace the lamp when
the LAMP indicator blinks red. (See page 73.)
4. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.
5. Adjust with the  or  button to get a fine picture.
• When the ENTER button is pressed while the ZOOM/FOCUS menu is displayed, the adjustment mode is
switched between FAST and STEP. When FAST is selected, the speed of focus controlled by the  or  button
becomes fast, and it becomes slow when STEP is selected.
6. Select an input source.
• Press the COMPUTER/DVI-D button on the projector or the COMPUTER 1, COMPUTER 2 or DVI-D(HDCP)
button on the remote control that is corresponding to the terminal in use.
• The input source is switched from COMPUTER 1 to COMPUTER 2 to DVI at every press of the COMPUTER/
DVI-D button on the projector.
• The projector automatically selects the appropriate signal format. The selected signal format is displayed on
the screen.
• You cannot change the input source while the menu is being displayed.
• Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
• Images may not be projected in the correct position, depending on the type of the input signal. In such a case,
press the AUTO POSITION button. (See page 23.)
• When COMPUTER 1 or COMPUTER 2 is chosen as the source, images supplied from the computer may
flicker. Press the  or  button on the remote control to reduce flicker, if it occurs. (Fine adjustment)
7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in
their specified sizes.
8. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page 11.)
• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page 14.)
EN-21
Viewing computer images (continued)
9. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.
10.Adjust with the p or q button to get an approximate size.
• When the ENTER button is pressed while the ZOOM/FOCUS menu is displayed, the adjustment mode is
switched between FAST and STEP. When FAST is selected, the speed of zoom controlled by the p or q
button becomes fast, and it becomes slow when STEP is selected.
11.Press the LENS SHIFT button. The LENS SHIFT menu appears at the center of the screen.
12.Press the p or q button to adjust the vertical position and  or  button to adjust the horizontal position of the
displayed image.
• When the image is not displayed within the screen, adjust the projection angle. In addition, perform the
keystone adjustment, if necessary. (See page 14.)
Repeat steps 4, 5 and 9 to 12, if necessary.
Important:
• Focus, zoom and lens shift adjustment is possible in the normal picture mode only.
• When a 16:9 image is kept displayed for a long time before displaying FULL image, the afterimages of the black
bars may appear on the FULL image screen. Consult your dealer in this case.
To stop projecting:
13.Press the POWER button.
• A confirmation message is displayed.
• To cancel the procedure, leave the projector for a while or press any button except the POWER button.
14.Press the POWER button again.
• The lamp goes out and the projector goes into a standby mode. In this standby mode, the LAMP indicator
blinks green.
15.Wait about 2 minutes for the LAMP indicator to be turned off.
• During this period of 2 minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.
• The air outlet fans rotate faster as the temperature around the projector rises.
• Though the fans make loud sounds during cooling, such symptom is not a malfunction.
16.Unplug the power cord from the outlet.
• The POWER indicator will go out.
• If the power cord should be unplugged accidentally while either the air inlet fan or the air outlet fans are
operating or the lamp is on, allow the projector to cool down for 10 minutes with the power off. To light the
lamp again, press the POWER button. If the lamp doesn’t light up immediately, press the POWER button a few
minutes later. If it should still fail to light up, replace the lamp.
• Cover the lens with the lens cap to protect it from dust.
• If necessary, disconnect the cables from the computer after unplugging the power cord.
Direct Power OFF
You can turn off this projector just by unplugging the power cord without pressing the POWER button.
• Don’t shut down the projector while the LAMP indicator is blinking after the lamp lights up because the lamp’s life
may be shortened.
• Don’t turn the projector back on right after shutting it down because the lamp’s life may be shortened. (Wait about
10 minutes before turning the projector back on.)
• Before shutting down the projector, be sure to close the menu screen. If you shut down the projector without
closing the menu, the setting data of the menu may not be saved.
• If you shut down the projector while controlling the projector using the network function, the application software
such as ProjectorView may fail. The data such as the operating time and temperature display may not be
changed. In such a case, close the browser and then start up again.
• Don’t shut down the projector while the filter is rolling (while the FILTER indicator is blinking green).
EN-22
Viewing computer images (continued)
Blanking the screen temporarily (BLANK)
The video signal is temporarily muted when the BLANK button is pressed. The screen turns black. To cancel muting,
press the BLANK button again.
AUTO POSITION button
When the image supplied from the computer is displaced, carry out the following procedure.
1. Project a bright image containing as many texts and characters as possible.
2. When the screen saver has been enabled, disable it.
3. Press the AUTO POSITION button. The projector automatically makes optimum positional settings for the input signal.
• If the projected image is still displaced even after pressing the AUTO POSITION button several times, refer to
the procedure to adjust computer images. (See pages 47 and 48.)
• When you carry out this procedure with a dark image, the image may be displaced.
When connecting to a notebook computer:
When the projector is connected to a notebook computer, images may not be projected in some cases. In such
cases, set the computer so that it can output signals externally. The setting procedure varies depending on the type
of the computer. See the instruction manual of your computer.
Example of the setting procedure for external output
Press the [Fn] key and any of the keys [F1] to [F12] at the same time. (The key to be pressed depends on the type of
the computer you use.)
Setting of the resolution
If the resolution of the computer doesn’t match with that of the projector, projected images may be obscured. Ensure
that their resolutions are the same (see page 75). For the method to change the output resolution of the computer,
contact the manufacturer of the computer.
EN-23
Viewing video images
A. Connecting the projector to video equipment
Preparation:
• Make sure that the power of the projector and that of the video equipment are turned off.
Connecting to a video player, etc.
Video player, or the like
BNC cable (option)
To video output
terminal
1
BNC-RCA
connector (option)
To VIDEO IN
terminal (BNC)
S-video cable (option)
1
To S-VIDEO
IN terminal
To S-video
output
terminal 2
Video player, or the like
1. Connect one end of a commercially available BNC cable to
the VIDEO IN terminal of the projector.
2. Connect the other end of the BNC cable to the video
output terminal of the video equipment.
When the video equipment is equipped with the S-video
output terminal, make the connection as follows:
1. Connect one end of a commercially available S-video cable
to the S-VIDEO IN terminal of the projector.
2. Connect the other end of the S-video cable to the S-video
output terminal of the video equipment.
• Also read the instruction manual of the equipment to be connected.
• Contact your dealer for details of connection.
When a TV tuner or VCR is connected:
When you use this projector with a TV tuner or VCR connected, no image may appear or a message of “NO SIGNAL”
may appear on the screen when you change the channel via any channel that is not being received. In such a case,
set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip
function (that is a function not to display channels that are not being received) enabled.
EN-24
Viewing video images (continued)
Projector + DVD player or HDTV decoder
Some DVD players have an output connector for 3-line fitting (Y, CB, CR). When connecting such DVD player with this
projector, use the COMPUTER/COMPONENT VIDEO IN-2 terminals.
DVD player or HDTV decoder
Y CB(PB) CR(PR)
BNC-RCA connector (option)
G
B
COMPUTER/COMPONENT
VIDEO IN-2
R
BNC cable (option)
•
•
•
•
•
The terminal’s names Y, PB, and PR are given as examples of when a HDTV decoder is connected.
The terminal’s names vary depending on the connected devices.
Use BNC cables for connection.
Image may not be projected correctly with some DVD players.
If colors aren’t displayed correctly when the projector is connected to a high-definition video device having R, G,
and B output terminals, set COMPUTER INPUT to RGB in the SIGNAL menu. (See page 39.)
Connecting to video equipment having a HDMI terminal or DVI-D terminal
You can project high-quality images by connecting the COMPUTER/COMPONENT VIDEO DVI-D IN (HDCP) terminal
of this projector to video equipment having a HDMI output terminal or DVI-D terminal. In addition, this projector
supports HDCP and is able to receive encrypted digital video data that are output from DVD players.
• HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital
video data for the purpose of copy protection.
• HDMI (High-Definition Multimedia Interface) is fully backward compatible with computers, displays and consumer
electronics devices incorporating the DVI standards.
• This projector can be linked with video devices equipped with HDMI output terminal or DVI-D output terminal.
However, with some of them, this projector may not display any image or not operate correctly.
• If this projector doesn’t display any image or not operate correctly, see the operation manual of the video device
for its connection.
• Use of a long cable may decrease the quality of projected images.
Connection (for video equipment having an HDMI terminal)
• Use a commercially available HDMI (with HDMI logo) cable.
• Some cables may not be connected correctly depending on the size and shape of their connectors.
• When HDMI is selected as the input source, settings of FINE SYNC., TRACKING, HOLD, etc. are unavailable.
Equipment having an
HDMI terminal
To HDMI terminal
HDMI IN
HDMI (with HDMI logo) cable (option)
EN-25
Viewing video images (continued)
Connection (for video equipment having a DVI-D terminal)
Equipment having a
DVI-D terminal
To DVI-D terminal
DVI cable (option)
COMPUTER/COMPONENT
VIDEO DVI-D IN (HDCP)
• For connection to the DVI-D terminal, use a commercially available DVI cable.
• Some cables may not be connected correctly depending on the size and shape of their connectors.
• When DVI is selected as the input source, settings of FINE SYNC., TRACKING, HOLD, etc. are unavailable.
When you connect this projector and a digital device (such as a DVD player) via the HDMI IN or COMPUTER/
COMPONENT VIDEO DVI-D IN (HDCP) terminal, black color may appear dark and deep, depending on the type
of the connected device.
• This depends on the black level setting of the connected device. There are 2 kinds of methods to digitally transfer
image data, in which different black level settings are employed respectively. Therefore, the specifications of the
signals output from DVD players differ, depending on the type of the digital data transfer method they use.
• Some DVD players are provided with a function to switch the methods to output digital signals. When your DVD
player is provided with such function, set it as follows.
EXPAND or ENHANCED → NORMAL
• See the users guide of your DVD player for details.
• When your digital device does not have such function, set INPUT LEVEL to ENHANCED in the ADVANCED
MENU of the IMAGE menu of this projector, or adjust the black color by viewing the image.
B. Plugging in the power cord
Plug the power cord in the same way as in the case of “Viewing computer images.” (See page 19.)
EN-26
Viewing video images (continued)
C. Projecting images
Preparation:
• Remove the lens cap.
LAMP 2 indicator
LAMP 1 indicator
POWER button
POWER indicator (ON/STANDBY)
POWER button (ON/STANDBY)
COMPUTER 1, 2 buttons
p, q, t, u buttons
COMPUTER/DVI-D button
VIDEO/HDMI button
ENTER button
LENS SHIFT button
ZOOM/FOCUS button
ZOOM/FOCUS button
HDMI button
VIDEO button
S-VIDEO button
DVI-D(HDCP) button
ENTER button
p, q, t, u
buttons
LENS SHIFT button
1. Confirm the POWER indicator lights up red.
• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating
and the POWER button may not work after the power cord is plugged. (The LAMP indicator blinks green.) After
the fan stops rotating, press the POWER button to turn back on the POWER indicator.
2. Turn on the power of the connected video equipment.
3. Press the POWER button.
• It may take about 2 minutes for the lamp to light up.
• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
• Do not cover the lens with the lens cap while the lamp is on. • After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a
product malfunction.
• The lamp operation becomes stable in 1 minute after the power is turned on and then the lamp mode selected
in the menu is activated. During the activation, displayed images may be disturbed.
• The projector starts warming up when the POWER button is pressed. During the warm-up process, images
may appear dark and no commands are accepted.
• By blinking red, the LAMP indicator indicates that the lamp should be replaced soon. Replace the lamp when
the LAMP indicator blinks red. (See page 73.)
4. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.
5. Adjust with the  or  button to get a fine picture.
• When the ENTER button is pressed while the ZOOM/FOCUS menu is displayed, the adjustment mode is
switched between FAST and STEP. When FAST is selected, the speed of focus controlled by the  or  button
becomes fast, and it becomes slow when STEP is selected.
6. Select an input source.
• Press the VIDEO/HDMI button on the projector or the VIDEO, S-VIDEO or HDMI button on the remote control
that is corresponding to the terminal in use.
• The input source is switched between VIDEO, S-VIDEO and HDMI at every press of the VIDEO/HDMI button on
the projector.
• You cannot change the input source while the menu is being displayed.
• Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
• Some images become easier to view when the setting of aspect ratio is changed. (See page 29.)
• When projecting images from a DVD player that is connected to the COMPUTER/COMPONENT VIDEO DVI-D
IN (HDCP) terminal, press the COMPUTER/DVI-D button on the projector to select DVI or press the DVI-D
(HDCP) button on the remote control.
• When projecting images from a DVD player that is connected to the COMPUTER/COMPONENT VIDEO IN-1 or
COMPUTER/COMPONENT VIDEO IN-2 terminal, press the COMPUTER/DVI-D button on the projector or the
COMPUTER 1 or COMPUTER 2 button on the remote control.
EN-27
Viewing video images (continued)
7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in
their specified sizes.
8. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page
11.)
• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page
14.)
9. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.
10.Adjust with the p or q button to get an approximate size.
• When the ENTER button is pressed while the ZOOM/FOCUS menu is displayed, the adjustment mode is
switched between FAST and STEP. When FAST is selected, the speed of zoom controlled by the p or q
button becomes fast, and it becomes slow when STEP is selected.
11.Press the LENS SHIFT button. The LENS SHIFT menu appears at the center of the screen.
12.Press the p or q button to adjust the vertical position and  or  button to adjust the horizontal position of the
displayed image.
• When the image is not displayed within the screen, adjust the projection angle. In addition, perform the
keystone adjustment, if necessary. (See page 14.)
Repeat steps 4, 5 and 9 to 12, if necessary.
Important:
• Focus, zoom and lens shift adjustment is possible in the normal picture mode only.
To stop projecting:
13.Press the POWER button.
• A confirmation message is displayed.
• To cancel the procedure, leave the projector for a while or press any button except the POWER button.
14.Press the POWER button again.
• The lamp goes out and the projector goes into a standby mode. In this standby mode, the LAMP indicator
blinks green.
15.Wait about 2 minutes for the LAMP indicator to be turned off.
• During this period of 2 minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.
• The air outlet fans rotate faster as the temperature around the projector rises.
• Though the fans make loud sounds during cooling, such symptom is not a malfunction.
16.Unplug the power cord from the outlet.
• The POWER indicator will go out.
• If the power cord should be unplugged accidentally while either the air inlet fan or the air outlet fans are
operating or the lamp is on, allow the projector to cool down for 10 minutes with the power off. To light the
lamp again, press the POWER button. If the lamp doesn’t light up immediately, press the POWER button a few
minutes later. If it should still fail to light up, replace the lamp.
• Cover the lens with the lens cap to protect it from dust.
Direct Power OFF
You can turn off this projector just by unplugging the power cord without pressing the POWER button.
• Don’t shut down the projector while the LAMP indicator is blinking after the lamp lights up because the lamp’s life
may be shortened.
• Don’t turn the projector back on right after shutting it down because the lamp’s life may be shortened. (Wait about
10 minutes before turning the projector back on.)
• Before shutting down the projector, be sure to close the menu screen. If you shut down the projector without
closing the menu, the setting data of the menu may not be saved.
• If you shut down the projector while controlling the projector using the network function, the application software
such as ProjectorView may fail. The data such as the operating time and temperature display may not be
changed. In such a case, close the browser and then start up again.
• Don’t shut down the projector while the filter is rolling (while the FILTER indicator is blinking green).
Setting the aspect ratio
You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the
setting according to the type of the input video signal. (See page 29.)
EN-28
Viewing computer images (continued)
Setting the screen size
Change the setting of the SCREEN according to the type of the screen to be used.
(See page 31 for menu setting.)
1
2
1. Display the INSTALLATION 2 menu.
INSTALLATION 2
2. Select SCREEN by pressing the  or  button.
AUTO POWER ON
3. Select your desired aspect ratio by pressing the  or  button.
AUTO POWER OFF
• You can select the aspect ratio from 16:9, and 4:3.
SCREEN
IMAGE CAPTURE
To cancel the menu:
4. Press the MENU button.
SPLASH SCREEN
opt.
OFF
5min
4:3
SETUP
ON
ON
BACK COLOR
Setting the aspect ratio
BLUE
DVI LONG CABLE
AUTO
REMOTE 1 MODE
ENTER
You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the
FILTER MENU
ENTER
setting according to the type of the input video signal.
How to change the settings:
With the remote control:
1. Press the ASPECT button.
• Every time the ASPECT button is pressed, the aspect mode changes from NORMAL to 16:9, to FULL, to
USER, and back to NORMAL.
- NORMAL:
Select to change the aspect ratio automatically depending on the input signal. (Select this option for
normal use.)
- 16:9:
Select to expand squeezed (or horizontally compressed) images such as DVD images to 16:9.
- FULL:
Select to project images in full size (1024 x 768 pixels) irrespective of type of input signal.
- USER:
Select to adjust the detailed settings.
With the SIGNAL menu:
(See page 31 for menu setting.)
1. Display the SIGNAL menu.
2. Select ASPECT by pressing the  or  button.
3. Select your desired aspect ratio by pressing the  or  button.
When 16:9 is selected with the SIGNAL menu, you can make further setting
using the following procedures.
4. Press the ENTER button.
5. Select the POSITION setting by pressing the  or  button.
• POSITION:
You can select the image display position within the screen from
UPPER, CENTER, and LOWER.
SIGNAL
A
U
MEMORY CALL
AUTO
ASPECT
NORMAL
opt.
1
2
SIGNAL
ASPECT – 16:9
POSITION
CENTER
To cancel the menu:
6. Press the MENU button.
Important:
• When a 16:9 image is kept displayed for a long time before displaying FULL image, the afterimages of the black
bars may appear on the FULL image screen. Consult your dealer in this case.
EN-29
Menu operation
You can make various settings using the displayed menus.
Following 8 menus are displayed.
IMAGE menu (page 32)
INSTALLATION 1 menu (page 34)
opt.
1
2
1
COLOR ENHANCER
AUTO
SUPER RESOLUTION
ON
1
1
2
STANDARD
LAMP SELECT
0
LAMP RELAY
BRIGHTNESS
0
STANDBY MODE
DUAL
LOW
COMPUTER
IMAGE REVERSE
COLOR TEMP.
STANDARD
HIGH ALTITUDE MODE
0
TINT
0
OFF
AUTO POWER OFF
5min
OFF
BACK COLOR
BLUE
AUTO
DVI LONG CABLE
ENTER
REMOTE 1 MODE
ENTER
ENTER
MULTI-SCREEN menu (page 36)
FEATURE menu (page 37)
1
opt.
2
1
PROJECTOR ID
OFF
SETTING
COLOR MATCHING
SETTING
MEASURE
MEASURED DATA
AË
A
MEMORY CALL
U
A
PASSWORD FUNCTION
OFF
MANUAL
ALL
GROUP ID
EDGE ADJUST
2
SIGNAL
FEATURE
MULTI-SCREEN
EDGE BLENDING
SIGNAL menu (page 39)
opt.
opt.
2
DISPLAY INPUT
H
V
MEMORIZE
RESOLUTION
(MEMORIZE )
1024 x 768
1.
HORIZ. POSITION
0
CINEMA MODE
AUTO
VERT. POSITION
0
FINE SYNC.
0
LANGUAGE
English
ENTER
RESET ALL
OK
TRACKING
RRGGBB
INFORMATION menu (page 42)
opt.
opt.
2
1
NETWORK
2
INFORMATION
LAMP 1 TIME (LOW)
NETWORK
CERTIFICATION
NETWORK
PASSWORD
****H
ON
LAMP 2 TIME (LOW)
****H
ENTER
NEXT LAMP RELAY
IP CONFIG
ENTER
SERIAL NUMBER
PROJECTOR NAME
OK
NETWORK RESTART
OK
********...
COMPUTER1
INPUT
STANDARD
NETWORK RESET
*D **H
R G B
H
V
RESOLUTION
1024 x 768
VERTICAL
FREQUENCY
HORIZONTAL
FREQUENCY
48.36 kHz
SYNC. TYPE
5 WIRE
60.00 Hz
EN-30
0
COMPUTER INPUT
AUTO
OVER SCAN
100%
HOLD
NETWORK menu (page 41)
AUTO
SIGNAL MEMORY
MENU POSITION
ADVANCED MENU
CONTROL SYSTEM
ON
SPLASH SCREEN
ON
0
ADVANCED MENU
1
4:3
SETUP
IMAGE CAPTURE
STANDARD
LENS LOCK
AUTO POWER ON
SCREEN
1H/24H
COLOR MATRIX
COLOR
2
INSTALLATION 2
LAMP MODE
CONTRAST
1
opt.
2
INSTALLATION 1
SHARPNESS
INSTALLATION 2 menu (page 35)
opt.
ON
ASPECT
NORMAL
USER
ENTER
Menu operation (continued)
How to set the menus
1. Press the MENU button.
• The menu selection bar is displayed.
Selectable menus are displayed by icons. (The menu
icon being selected is displayed on a blue background.)
opt.
1
2
The name of the menu being
selected is displayed.
2. Press the  or  button to select a menu to use.
3. Press the ENTER button (or  button).
• The selected menu is displayed.
The item being selected is
displayed in red letters.
opt.
1
2
COLOR ENHANCER
AUTO
SUPER RESOLUTION
ON
CONTRAST
0
BRIGHTNESS
0
COLOR MATRIX
COMPUTER
COLOR TEMP.
STANDARD
COLOR
0
TINT
0
SHARPNESS
0
ADVANCED MENU
ENTER
4. Press the  or  button to select an item to adjust.
opt.
1
2
COLOR ENHANCER
AUTO
SUPER RESOLUTION
ON
CONTRAST
0
BRIGHTNESS
0
COLOR MATRIX
COMPUTER
5. Set the selected
item by pressing
the  or  button.
COLOR TEMP.
STANDARD
COLOR
1TINT
2
SHARPNESS
ADVANCED
MENU
COLOR
ENHANCER
SUPER RESOLUTION
CONTRAST
BRIGHTNESS
COLOR MATRIX
opt.
0
0
0
ENTER
AUTO
ON
2
0
COMPUTER
6. To cancel COLOR
the menu,
press theSTANDARD
MENU button
TEMP.
several times.
COLOR
0
0
Important: TINT
SHARPNESS
• When an item marked with “ ” is0 selected,
ADVANCED MENU
ENTER
pressing the
ENTER button makes
its value
effective or displays another screen for further
setting.
• When the MENU button doesn’t function, unplug
the power cord from the wall outlet. Wait about 10
minutes, plug the power cord in, and try again.
• The menus and screens shown in this manual may
be different from those of the actual projector.
EN-31
Menu operation (continued)
IMAGE menu
opt.
1
opt.
2
1
COLOR ENHANCER
AUTO
SUPER RESOLUTION
ON
NOISE REDUCTION
OFF
0
CTI
OFF
BRIGHTNESS
0
INPUT LEVEL
COMPUTER
CLOSED CAPTION
OFF
COLOR TEMP.
STANDARD
DEMO MODE
ALL
COLOR
0
TINT
0
0
ENTER
SETTING
AUTO
PRESENTATION
STANDARD
THEATER
sRGB
CLEAR BASE
BLUE BASE
USER
MULTI-SCREEN
SUPER RESOLUTION
CONTRAST
BRIGHTNESS
COLOR MATRIX
ON / OFF
±30
±30
COMPUTER / VIDEO
FLAT
USER
COLOR TEMP.
STANDARD / LOW /
HIGH
USER
±10
±10
±5
ENTER
ON / OFF
ON / OFF
±5
AUTO /
ENHANCED /
NORMAL
CLOSED CAPTION
DEMO MODE
0
COLOR MATRIX
ADVANCED MENU
COLOR
TINT
SHARPNESS
ADVANCED MENU
NOISE REDUCTION
CTI
INPUT LEVEL
ADVANCED MENU
CONTRAST
SHARPNESS
ITEM
COLOR ENHANCER
2
OFF
CC1 / CC2
ALL
DYNAMIC CONTRAST
SUPER RESOLUTION
COLOR MATRIX
FUNCTION
Select to optimize the settings automatically depending on the input signal.
(Select this option for normal use.)
Select to make the displayed image look bright and crisp.
Select to make the displayed image look natural.
This option, suitable for viewing movies, makes the displayed image look soft
and smooth.
Select to give priority to the color reproducibility.
Select to obtain the color close to that of the X-ray film (clear base).
Select to obtain the color close to that of the X-ray film (blue base).
Select to set the gamma curve, BrilliantColor™ or dynamic contrast. (See
page 44.)
You can set the gamma curve and BrilliantColor™ in the multi-screen
application.
Use to emphasize the fineness of the image. (See page 45.)
Use to adjust the contrast of the projected image. (See page 43.)
Use to adjust the brightness of the projected image. (See page 43.)
Use to adjust the predetermined tone of each color.
Use to disable COLOR MATRIX.
Use to emphasize only certain colors or to correct the tonal deviation of only
certain colors. (See page 45.)
Select from the predetermined color temperatures.
Use to adjust the color temperature to a desired value. (See page 43.)
Use to adjust the color thickness of the projected image. (See page 43.)
Use to adjust the color tint of the projected image. (See page 43.)
Use to adjust the sharpness of the projected image. (See page 43.)
The ADVANCED MENU is displayed for the following settings.
Use to reduce noise and roughness in the image when noisy video signal is input.
Use to correct smeared color boundaries.
For analog signal input:
The input level of video signal differs among devices to be connected. High
input level causes solid white in displayed image and low input level causes
displayed image to get dark. Use this menu to adjust the input level of analog
video signal.
For digital signal input:
AUTO:The proper setting is automatically selected. (Selectable only
when HDMI signal is input.)
ENHANCED:Select when solid black occurs.
NORMAL: Select when grayish black occurs.
(See page 26.)
Does not display captions.
Displays captions.
Use to demonstrate the effect of SUPER RESOLUTION, COLOR MATRIX,
and DYNAMIC CONTRAST.
Use to demonstrate the effect of DYNAMIC CONTRAST.
Use to demonstrate the effect of SUPER RESOLUTION.
Use to demonstrate the effect of COLOR MATRIX.
EN-32
Menu operation (continued)
• When COLOR ENHANCER is sRGB, CLEAR BASE or BLUE BASE, COLOR TEMP., COLOR, TINT and COLOR MATRIX can’t
be adjusted.
• You can set MULTI-SCREEN in the COLOR ENHANCER menu only when EDGE BLENDING is ON or COLOR MATCHING is
MANUAL or MEASURE. In this case, you cannot set any other items than MULTI-SCREEN.
• This product is not in compliance with DICOM Part 14. Do not use this product for actual medical diagnosis.
• When the setting of COLOR ENHANCER is changed, the displayed image may be disturbed.
• The effect obtained when SUPER RESOLUTION is ON varies depending on the type and resolution of the input image. In
addition, the vertical line of the colored characters may be blurred.
• When the COMPUTER1, COMPUTER2, DVI or HDMI is selected as the input source, COLOR and TINT can’t be adjusted.
• TINT is available only when the NTSC signal is input.
• INPUT LEVEL is unavailable when the digital signal is supplied from the YCBCR/YPBPR terminal of the connected device.
• Captions are not displayed while information about the menu or input signal selection is being displayed on the screen.
• The closed caption function displays text information included in the NTSC signal, which is mainly used for TV broadcasting in
North America.
EN-33
Menu operation (continued)
INSTALLATION 1 menu
opt.
1
opt.
2
1
INSTALLATION 1
INSTALLATION 1
LAMP MODE
1
2
STANDARD
LENS LOCK
LAMP RELAY
STANDBY MODE
LOW
IMAGE REVERSE
OFF
MIRROR
INVERT
MIRROR INVERT
HIGH ALTITUDE MODE
STANDARD
HIGH ALTITUDE
LENS LOCK
ZOOM/FOCUS LOCK
LENS SHIFT LOCK
LENS SHIFT RESET
ENTER
ON / OFF
ON / OFF
OK
OFF
OK
OFF
HIGH ALTITUDE MODE
DUAL
SINGLE
LAMP 1
LAMP 2
DUAL: OFF
1H/24H
2H/1W
SINGLE:OFF
24H /
1 WEEK
STANDARD
LENS SHIFT RESET
LOW
IMAGE REVERSE
OFF
LENS SHIFT LOCK
1H/24H
STANDBY MODE
LAMP SELECT
ZOOM/FOCUS LOCK
DUAL
LAMP RELAY
SETTING
STANDARD
LOW
LENS LOCK
STANDARD
LAMP SELECT
ITEM
LAMP MODE
2
ENTER
/
FUNCTION
Select this option when you want to view images in a well-lit room.
Select to moderate the intensity of the lamp. The operating sound is reduced
and the lamp lifetime becomes longer.
LAMP 1 and LAMP 2 illuminate.
The lamp with shorter operation time is automatically selected at power‑on.
LAMP 1 illuminates. (When it is broken or dead, LAMP 2 illuminates automatically.)
LAMP 2 illuminates. (When it is broken or dead, LAMP 1 illuminates automatically.)
The LAMP RELAY doesn’t work.
Use to set the lamp relay interval. (See page 55.)
The LAMP RELAY doesn’t work.
Use to set the lamp relay interval. (See page 56.)
Select this option when you control the projector via the LAN, REMOTE 1 IN,
and SERIAL OUT terminal during power standby.
Select this option when you don’t control the projector via the LAN, REMOTE
1 IN, and SERIAL OUT terminal during power standby. This option disables
the LAN, REMOTE 1 IN, and SERIAL OUT terminal and reduces the power
consumption during the power standby.
Select when viewing images from the front with the projector installed on the
floor.
Select when viewing images projected from the behind of the screen with the
projector installed on the floor.
Select when viewing images projected from the behind of the screen with the
projector installed on the ceiling.
Select when viewing images from the front with the projector installed on the
ceiling.
Select this option for normal use.
Select this option for use at an altitude of 2000 to 2700 meters above the sea
level.
The LENS LOCK menu is displayed for the following settings.
Use to enable or cancel the FOCUS LOCK and ZOOM LOCK.
Use to enable or cancel the LENS SHIFT LOCK.
Use to reset the position of the lens to the factory setting.
• Regardless of the setting of LAMP MODE, the STANDARD lamp mode is activated by default whenever the projector is turned
on. When LAMP MODE has been set to LOW, the lamp mode changes from STANDARD to LOW about 1 minute after turn-on.
• When the ambient operating temperature is high, the brightness of the lamp isn’t changed by switching the lamp mode.
• When the lamp mode is switched, the projected image may flicker.
• Frequent switching of the lamp mode may damage the lamp.
• When using the projector for a long time, set LAMP RELAY.
• While the lamps are being warmed up, an icon
is displayed to the right of the INSTALLATION 1 menu bar. While the icon is
being displayed, you cannot set LAMP SELECT and LAMP RELAY. And an icon
is displayed while the operating ambient
temperature is high. While the icon is being displayed, the lamp may not brighten even when you change the LAMP MODE to
STANDARD.
• After you switch the lamps and the newly selected lamp turns on, you cannot turn off the projector for approx. 1 minute.
EN-34
Menu operation (continued)
INSTALLATION 2 menu
opt.
1
2
INSTALLATION 2
AUTO POWER ON
OFF
AUTO POWER OFF
5min
SCREEN
4:3
IMAGE CAPTURE
ON
SPLASH SCREEN
BACK COLOR
REMOTE 1 MODE
SETTING
ON / OFF
AUTO POWER OFF
OFF / 5min-8hour
SCREEN
16:9
4:3
SETUP
ON / OFF
IMAGE CAPTURE
SPLASH SCREEN
BACK COLOR
BLUE / BLACK /
DVI LONG CABLE
AUTO
MANUAL
REMOTE 1 MODE
ENTER
GND
POWER / NONE
COMPUTER 1
COMPUTER 2
VIDEO
S-VIDEO
DVI
BLANK / NONE
ON/OFF
OK
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
PIN 9
RESET
ON
BLUE
DVI LONG CABLE
ITEM
AUTO POWER ON
SETUP
AUTO
ENTER
FUNCTION
When ON is chosen, the projector is automatically turn on when the power
cord is plugged in the wall outlet. Choose ON when using the projector
mounted on the ceiling.
• The projector is in the stand-by mode when the lamp is off. Use the
remote control to turn on the lamp.
When no video signal is input and no operation is made, the projector
automatically turns off after the selected time period. A dialog is displayed 5
minutes before the projector turns off.
Select this setting when using a 16:9 screen.
Select this setting when using a 4:3 screen.
Use to capture the screen for the splash screen. (See page 57.)
Choose ON to display the splash screen when the power is turned on.
• The splash screen can be changed. (See page 57.)
Use to select the background from among BLUE, BLACK and IMAGE, which
will be displayed when there is no signal input from the source. When IMAGE
is selected, the splash screen will be displayed.
Select this option for normal use.
Use to adjust the amount of transmission signal correction when a long DVI
cable is used.
Select when controlling the projector by a control panel connected to the
REMOTE 1 IN terminal. (See page 63.)
Unchangeable. (Fixed.)
Select POWER or NONE.
You can assign COMPUTER 1, COMPUTER 2, VIDEO, S-VIDEO, DVI, HDMI,
or NONE to each pin. Though the assignment can be duplicated, the pins
so assigned become invalid and their settings are displayed with asterisks at
both ends (like “*COMPUTER 1*”).
Select BLANK or NONE.
Unchangeable. (Fixed.)
Settings are reset to the defaults.
• You can’t set IMAGE CAPTURE and SPLASH SCREEN when PASSWORD FUNCTION in the FEATURE menu has been set to
SPLASH ID SCREEN to enable the password lock.
• When you set BACK COLOR to IMAGE and display the splash screen (startup screen) for a long time of period, the after-image
may remain on the screen. Consult your dealer in this case.
• Don’t adjust the lens frequently with BACK COLOR set to IMAGE.
• When STANDBY MODE in the INSTALLATION 1 menu is LOW, you cannot select REMOTE 1 MODE.
EN-35
Menu operation (continued)
MULTI-SCREEN menu
opt.
1
2
MULTI-SCREEN
EDGE BLENDING
OFF
SETTING
EDGE ADJUST
COLOR MATCHING
MANUAL
MEASURE
ITEM
EDGE BLENDING
SETTING
OFF
ON
SETTING
EDGE ADJUST
BLACK LEVEL
BRIGHT UNIFORMITY
CORRECTION
RESET
COLOR MATCHING
OFF
MANUAL
MEASURE
MANUAL
SETTING
MEASURE
RESET
MEASURED DATA
TARGET DATA
RESET
OFF
SETTING
MEASURED DATA
FUNCTION
Select when using the projector alone.
Select when using the projector to configure the multi-screen consisting
of multiple projectors.
The following settings in the SETTING become enabled to make the
overlapped area of the displayed images unnoticeable.
Use to make the overlapped area of the screens unnoticeable in the
multi-screen application. Use this setting to select the edges to be
overlapped or to set the overlapped areas. (See page 49.)
In the multi-screen application, the black level in the areas where images
are overlapped will become bright. So, use this setting to adjust the
black level in non-overlapped areas. (See page 49.)
Use to correct non-uniformity in the screen brightness of the single
projector to facilitate edge blending. (See page 49.)
Use to reset the values of EDGE ADJUST , BLACK LEVEL and
BRIGHT UNIFORMITY CORRECTION to the defaults.
Select this option when the projector is used alone.
Select this option when adjusting colors while viewing the screen to
correct color variations among the projectors.
Select this option when adjusting colors using a measuring instrument
to correct color variations among the projectors.
The test signal is displayed. Make adjustment so that the color tones of
each image match among the adjoining projectors. (See page 50.)
Use to reset the value of SETTING in the MANUAL to the default.
The test signal is displayed. Measure the brightness and chromaticity of
each image using a measuring instrument (chroma meter) and enter the
measurement values. (See page 50.)
Use to set the target chromaticity value of each color. (See page 50.)
Use to reset the values of MEASURED DATA and TARGET DATA in
the MEASURE to the defaults.
• When EDGE BLENDING is ON or COLOR MATCHING is MANUAL or MEASURE, COLOR ENHANCER in the IMAGE menu is
set to MULTI-SCREEN. In this case, you cannot set any other items than MULT-SCREEN.
• The edge blending function can be used with non-directional screens. If you use a directional screen, the areas where images
are overlapped seem discontinuous depending on the viewing angle.
• The target chromaticity value entered for TARGET DATA in the MEASURE menu is just for guidance. If the obtained result
doesn’t match with the colors displayed on the adjoining projectors, adjust the value while viewing the screens.
EN-36
Menu operation (continued)
FEATURE menu
opt.
opt.
1
2
1
FEATURE
PROJECTOR ID
FEATURE
AË
LAMP WARNING
LANGUAGE
01 to 63
A to Z
OFF
LAMP 1 TIME RESET
OK
OK
LAMP 2 TIME RESET
OK
ENTER
AUTO / NTSC / PAL / SECAM
/ 4.43NTSC / PAL-M / PAL-N /
PAL-60
AUTO
OFF
3.75% / 7.5%
SCART INPUT
ON / OFF
LAMP WARNING
STANDARD
SHORT TERM
HIDE OSD
HIDE OSD
English
FILM
VIDEO
/ English / Español /
Deutsch / Français / Italiano /
/
/
/
PORTUGUÊS / SVENSKA /
POLSKI / Nederlands/ Norsk /
/ Türkçe / ภาษาไทย
/ Bahasa Indonesia / Melayu /
SETUP
OFF
ON
OFF
STANDARD
ENTER
DISPLAY INPUT /
MENU ACCESS /
SPLASH ID SCREEN
1 (upper left) / 2 (lower right) /
3 (center)
AUTO
AUTO
AUTO
GROUP ID
ADVANCED MENU
VIDEO SIGNAL
AUTO
CINEMA MODE
SETTING
ALL
LANGUAGE
VIDEO SIGNAL
SETUP
SCART INPUT
ITEM
PROJECTOR ID
CINEMA MODE
DISPLAY INPUT
1.
RESET ALL
MENU POSITION
A
MENU POSITION
ADVANCED MENU
PASSWORD FUNCTION
ADVANCED MENU
ALL
GROUP ID
PASSWORD FUNCTION
2
FUNCTION
Select this option to control the projector regardless of the ID
number. (See page 62.)
Use to set the ID number (two-digit number). (See page 62.)
Use to set the ID number for controlling multiple projectors by
groups for monitoring and control via the SERIAL terminal. (See
page 62.)
Use to enable or cancel the password lock. See page 58 for details.
Use to change the position of the menu.
The film mode will be automatically activated when a film source
signal is input.
Select AUTO for normal use.
When flicker occurs on the screen, frame dropping or other incorrect
display occurs, or jaggies on slanting lines are remarkable, select
either FILM or VIDEO, which improves the symptom better.
Fixed to the film mode.
The film mode will not be activated.
Use to select the language used in the menus.
The ADVANCED MENU is displayed for the following settings.
When AUTO is selected, the appropriate video format is
automatically selected depending on the input signal. If the image
isn’t displayed correctly, select the desired video format manually.
Select to change the SETUP mode automatically.
Select to make black lighter.
Select to make black thicker.
• When 7.5% is chosen, the brightness is decreased by the setup cancel function for the U.S. Choose OFF when the image is
dark.
Choose ON when connecting the projector with a device equipped
with the SCART terminal that can output RGB signal. SCART
terminal is used mainly in Europe. Choose OFF normally. (Available
only for the input signal from the COMPUTER/COMPONENT VIDEO
IN-1 terminal.)
When the lamp operating time exceeds 3000 hours with LAMP
MODE set to LOW, a warning dialog is displayed.
When the lamp operating time exceeds 3800 hours with LAMP
MODE set to LOW, a warning dialog is displayed.
Select this option for normal use.
The no-signal dialog, input dialog, SCART warning dialog, auto
power-off dialog, lamp warning dialog, and abnormal temperature
dialog aren’t displayed.
EN-37
Menu operation (continued)
FEATURE menu (continued)
ITEM
LAMP 1 TIME RESET
LAMP 2 TIME RESET
RESET ALL
SETTING
OK
OK
OK
FUNCTION
The LAMP 1 operation time is reset to 0.
The LAMP 2 operation time is reset to 0.
The menu settings are reset to the factory defaults (except the
LANGUAGE, PASSWORD FUNCTION, IMAGE CAPTURE, SCREEN,
and NETWORK settings).
• CINEMA MODE can be adjusted only when a TV60, TV50, 480i, 576i or 1080i signal is being displayed.
• When SCART INPUT is set to ON, normal computer signals aren’t projected.
• Use a commercially available SCART-Mini D-SUB 15-pin cable when connecting this projector with an AV device equipped
with the SCART terminal.
• Some AV devices equipped with the SCART terminal aren’t compatible with this projector.
• The RESET ALL process may take some time to complete.
• You cannot carry out RESET ALL for approx. 2 minutes after the lamp switching or the lamp relay operation.
EN-38
Menu operation (continued)
SIGNAL menu
opt.
1
opt.
1
2
MEMORY CALL
U
H
V
RRGGBB
1
SIGNAL MEMORY
MEMORIZE
RESOLUTION
(MEMORIZE )
1024 x 768
USER
RESOLUTION (MEMORIZE)
AUTO
2
SIGNAL
SIGNAL
SIGNAL
A
opt.
2
VERTICAL
FREQUENCY
HORIZONTAL
FREQUENCY
60.00 Hz
48.36 KHz
CLAMP POSITION
1
CLAMP WIDTH
1
HORIZ. POSITION
0
HORIZ. PIXELS
1024
VERT. POSITION
0
VERT. LINES
768
FINE SYNC.
0
EXECUTE
OK
SHUTTER(U)
0
TRACKING
0
CANCEL
OK
SHUTTER(L)
0
?
VERT. SYNC.
LPF
AUTO
OFF
COMPUTER INPUT
AUTO
SHUTTER(LS)
0
OVER SCAN
100%
SHUTTER(RS)
0
HOLD
ON
ASPECT
NORMAL
USER
ENTER
ITEM
MEMORY CALL
SETTING
AUTO
1-xxx
8-xxx
SIGNAL MEMORY
RESOLUTION (MEMORIZE
-
MEMORIZE
)
VERTICAL FREQUENCY
HORIZONTAL FREQUENCY
HORIZ. PIXELS
640-1920
VERT. LINES
350-1200
EXECUTE
OK
CANCEL
OK
HORIZ. POSITION
VERT. POSITION
FINE SYNC.
TRACKING
COMPUTER INPUT
0-999
0-999
0-31
0-9999
AUTO
RGB
YCBCR/YPBPR
OVER SCAN
HOLD
100%-90%
OFF / ON
FUNCTION
Use to select the setting of SIGNAL MEMORY already saved. Impossible to
select if no setting has been saved. (See page 46.)
AUTO is selected by default. It optimizes the signal format automatically
depending on the type of video signal supplied from the computer.
Use to select the SIGNAL MEMORY already saved. The memory number
relevant to the input signal is displayed. Press the ENTER button to clear the
setting already saved.
The settings in the SIGNAL menu can be saved. (See page 46.)
Up to 8 settings can be saved. You can select the memory number. For
example, when you save the signal setting of 720p50 to the memory 1, the
memory name is displayed as 1-720p50.
When the settings are already memorized in the selected number, the settings
will be overwritten.
The current resolution is displayed. To change the current setting, press the
ENTER button to display the RESOLUTION (MEMORIZE) menu. The new
setting can be saved to MEMORY.
The vertical frequency of the currently projected video signal is displayed.
The horizontal frequency of the currently projected video signal is displayed.
The number of horizontal pixels of the currently projected video signal is
displayed. When you change the current setting, select EXECUTE, and then
press the ENTER button, the image is automatically adjusted according to
the resolution you set. The adjustment result can be saved to MEMORY.
The number of vertical lines of the currently projected video signal is
displayed. When you change the current setting, select EXECUTE, and then
press the ENTER button, the image is automatically adjusted according to
the resolution you set. The adjustment result can be saved to MEMORY.
Press the ENTER button to start the automatic adjustment. At the completion
of the automatic adjustment, a message is displayed and you can save the
adjustment result to MEMORY.
The process to change the current resolution is canceled and the SIGNAL
menu is displayed.
Use to adjust the horizontal position of the projected image.
Use to adjust the vertical position of the projected image.
Use to eliminate flickering or blur, if appears, viewing the projected image.
Use to eliminate vertical wide stripes, if appears, viewing the projected image.
The proper setting is automatically selected.
Select this option when connecting the projector to high definition video
equipment having R, G, and B output terminals.
Select this option when connecting the projector to a DVD player or other device
having Y, CB, and CR (or Y, PB, and PR) component video output terminals.
Use to adjust the display area of projected image.
Use to adjust the image when flagging occurs near the top of the screen.
EN-39
Menu operation (continued)
ITEM
ASPECT
SETTING
NORMAL
16:9
FULL
USER
CLAMP POSITION
CLAMP WIDTH
VERT. SYNC.
USER
ENTER
1-255
1-63
AUTO / OFF
ON / OFF
0-126
0-126
0-128
0-128
LPF
SHUTTER(U)
SHUTTER(L)
SHUTTER(LS)
SHUTTER(RS)
FUNCTION
Input video signal is displayed at the max height (768 pixels) or max width
(1024 pixels) of the panel while its aspect ratio is maintained.
• When SCREEN is 16:9, the input video signal is displayed at the max
height (576 pixels) or max width (1024 pixels) of the panel.
Select to expand squeezed (or horizontally compressed) images such as DVD
images to 16:9. Press the ENTER button to make further settings such as
positioning of the displayed image. (See page 29.)
Select to project images in full size (1024 x 768 pixels) irrespective of type of
input signal.
Displays the detailed settings. (See page 45.)
The USER menu is displayed for the following adjustments.
Use to correct solid white or solid black in the projected image.
Use to correct solid black in the projected image.
Use to adjust the image when its motion doesn’t run smoothly. Select AUTO
for normal use.
Use to select whether or not to enable the LPF. (See page 48.)
Use to adjust the image when noise appears on the top part of the image.
Use to adjust the image when noise appears on the bottom part of the image.
Use to adjust the image when noise appears on the left half of the image.
Use to adjust the image when noise appears on the right half of the image.
• Though horizontal strips may appear on the enlarged projected image, such symptom is not a malfunction.
• When you change the horizontal or vertical position to a large extent, noise may appear.
• The adjustable range of the vertical position varies depending on the type of the input signal. Though the image may stay in the same
position even when the setting value is changed, such symptom is not a malfunction.
• When you increase the setting value of OVER SCAN, noise may appear on the screen.
• When 16:9 is selected by SCREEN, you cannot set ASPECT to 16:9.
• ASPECT-USER setting supports the COMPUTER1, COMPUTER2, DVI, and HDMI terminals only. Therefore, you cannot select USER
for other terminals.
• See pages 47 and 48 for the detailed setting procedure.
Important:
• You can set the IMAGE menu and the SIGNAL menu only when the signal is supplied.
EN-40
Menu operation (continued)
NETWORK menu
opt.
1
opt.
2
1
NETWORK
NETWORK
IP CONFIG
PROJECTOR NAME
NETWORK
CERTIFICATION
NETWORK
PASSWORD
CONTROL SYSTEM
IP ADDRESS
0. 0. 0. 0
ENTER
SUBNET MASK
0. 0. 0. 0
DEFAULT GATEWAY
0. 0. 0. 0
STANDARD
NETWORK RESET
OK
MAC ADDRESS
NETWORK RESTART
OK
SAVE SETTINGS
SETTING
*****...
NETWORK CERTIFICATION
ON
NETWORK PASSWORD
ENTER
IP CONFIG
DHCP
ENTER
ON
IP ADDRESS
OFF
***.***.***.***
SUBNET MASK
***.***.***.***
DEFAULT GATEWAY
***.***.***.***
MAC ADDRESS
SAVE SETTINGS
xx-xx-xx-xx-xx-xx
OK
/ OFF
STANDARD
AMX
CRESTRON
OK
OK
ON
ENTER
ITEM
PROJECTOR NAME
NETWORK RESET
NETWORK RESTART
DHCP
ON
IP CONFIG
CONTROL SYSTEM
2
OK
FUNCTION
Set the name to identify the projector. Enter up to 15 characters
(alphabets or numeric characters). (See page 51.)
Select whether to enable the network certification or not. Select ON
for normal use. (See page 51.)
Set the password for Web control or PJLink™ certification. (See page
51.)
Select this setting for IP Configuration. (See page 52.)
Select this setting when you obtain IP CONFIG automatically by
DHCP server.
Select this setting when you set IP CONFIG manually.
Press the ENTER button to set IP ADDRESS. When DHCP is set to
ON, you cannot change this setting.
Press the ENTER button to set SUBNET MASK. When DHCP is set to
ON, you cannot change this setting.
Press the ENTER button to set DEFAULT GATEWAY. When DHCP is
set to ON, you cannot change this setting.
Displays MAC ADDRESS.
Saves the IP CONFIG settings. When the IP CONFIG is not changed,
you cannot select SAVE SETTINGS.
Select this setting when using ProjectorView Global+ or ProjectorView.
(See pages 53 and 60.)
Select when using a controller made by AMX. (See pages 53 and 60.)
Select this setting when using the controller or software of Crestron
Electronics, Inc. (See pages 53 and 60.)
Resets the Network Setting. (See page 54.)
Press the ENTER button to restart the network function.
EN-41
Menu operation (continued)
INFORMATION menu
opt.
1
2
INFORMATION
LAMP 1 TIME (LOW)
****H
LAMP 2 TIME (LOW)
****H
NEXT LAMP RELAY
COMPUTER1
INPUT
R G B
H
ITEM
LAMP 1 TIME (LOW)
LAMP 2 TIME (LOW)
NEXT LAMP RELAY
SERIAL NUMBER
INPUT
RESOLUTION
VERTICAL FREQUENCY
HORIZONTAL FREQUENCY
SYNC. TYPE
V
*D **H
********...
SERIAL NUMBER
RESOLUTION
1024 x 768
VERTICAL
FREQUENCY
HORIZONTAL
FREQUENCY
48.36 kHz
SYNC. TYPE
5 WIRE
60.00 Hz
DESCRIPTION
This item shows the lamp operation time calculated based on that the LAMP MODE of LAMP 1
is LOW.
• When the LAMP MODE is STANDARD, this item shows a longer lamp operating time than
the actual time.
• When the lamp operating time is 0 to 10 hours, “0H” is displayed. The lamp operating time
exceeding 10 hours is indicated by the actual hours.
• When the lamp operating time reaches 3000 hours, the bar turns to yellow. When it
reaches 3800 hours, the bar turns to red.
• The icon displayed to the right of the bar shows the lamp status.
Yellow: On, Red: End of lamp life or error such as illumination failure, Black: Off
This item shows the lamp operation time calculated based on that the LAMP MODE of LAMP 2
is LOW.
• When the LAMP MODE is STANDARD, this item shows a longer lamp operating time than
the actual time.
• When the lamp operating time is 0 to 10 hours, “0H” is displayed. The lamp operating time
exceeding 10 hours is indicated by the actual hours.
• When the lamp operating time reaches 3000 hours, the bar turns to yellow. When it
reaches 3800 hours, the bar turns to red.
• The icon displayed to the right of the bar shows the lamp status.
Yellow: On, Red: End of lamp life or error such as illumination failure, Black: Off
The next lamp relay time is displayed.
The serial number of the projector is displayed.
Indicates the name of the terminal to which the currently projected video signal is being input.
Indicates the resolution of the currently projected video signal.
Indicates the vertical frequency of the currently projected video signal.
Indicates the horizontal frequency of the currently projected video signal.
Indicates the type of the sync signal for the currently projected video signal.
• NEXT LAMP RELAY isn’t displayed when LAMP RELAY is OFF or LAMP SELECT is LAMP 1 or LAMP 2 in the INSTALLATION
1 menu.
EN-42
Adjusting projected images
To adjust the brightness (CONTRAST and BRIGHTNESS):
You can make adjustments for the brightness of the projected image using the menu.
(See page 31 for menu setting.)
1. Display the IMAGE menu.
2. Select CONTRAST or BRIGHTNESS by pressing the  or  button.
3. Adjust the selected item by pressing the  or  button.
To cancel the menu:
4. Press the MENU button.
CONTRAST
Select to adjust the contrast of the image. Every time the  button is pressed, the image becomes brighter and more
defined. Every time the  button is pressed, the image becomes darker and less defined.
BRIGHTNESS
Every time the  button is pressed, the image becomes brighter. Every time the  button is pressed, the image
becomes darker.
To adjust the color (COLOR and TINT):
You can adjust the color of the projected image using the menu.
(See page 31 for menu setting.)
1. Display the IMAGE menu.
2. Select COLOR or TINT by pressing the  or  button. • COLOR or TINT is unavailable when COMPUTER1, COMPUTER2, DVI or HDMI is selected as the input source.
• TINT is available only when the NTSC signal is input.
3. Adjust the selected item by pressing the  or  button.
To cancel the menu:
4. Press the MENU button.
COLOR
Use to adjust the color thickness of the projected image. Every time the  button is pressed, the color becomes
thicker. Every time the  button is pressed, the color becomes lighter.
TINT
Use to adjust the tint of the projected image. Every time the  button is pressed, the image appears more greenish.
Every time the  button is pressed, the image appears more reddish.
To sharpen or soften the projected image (SHARPNESS):
You can adjust the sharpness of the projected image using the menu.
(See page 31 for menu setting.)
1. Display the IMAGE menu.
2. Select SHARPNESS by pressing the  or  button.
3. Adjust the selected item by pressing the  or  button.
To cancel the menu:
4. Press the MENU button.
To adjust the tone of white (COLOR TEMP.):
You can select a preset color temperature (white tone) using the menu.
(See page 31 for menu setting.)
1. Display the IMAGE menu.
2. Select COLOR TEMP. by pressing the  or  button.
3. Select your desired color temperature by pressing the  or  button.
To cancel the menu:
4. Press the MENU button.
To adjust the tone of white (To customize the color temperature):
To customize (and store) the color temperature to your preference, carry out the following procedure.
(See page 31 for menu setting.)
1. Select COLOR TEMP. in the IMAGE menu.
COLOR TEMP.–USER
CONTRAST R
2. Press the  or  button to select USER .
CONTRAST G
3. Press the ENTER button.
4. Press the  or  button to select the desired item.
CONTRAST B
BRIGHTNESS R
5. Press the  or  button to adjust the selected item.
BRIGHTNESS G
6. Repeat steps 4 and 5 for optimum adjustment results.
BRIGHTNESS B
EN-43
0
0
0
0
0
0
Adjusting projected images (continued)
To cancel the menu:
7. Press the MENU button.
To enable the stored color temperature:
1. Set COLOR TEMP. to USER in the IMAGE menu.
About color temperature
Color temperature is a way to show the differences in white. White of which temperature is low appears reddish.
When the color temperature rises, white appears bluish. For example, you can change the color temperature using
the following procedures.
To raise the color temperature: Increase the CONTRAST B (blue) and decrease the CONTRAST R (red).
To reduce the color temperature: Decrease the CONTRAST B (blue) and increase the CONTRAST R (red).
• If you set all of CONTRAST R, G, and B to negative values, the original brightness of the image can’t be
obtained even when you maximize CONTRAST in the IMAGE menu.
Color Enhancer
You can set the user-defined balance between the brightness and hue using the menu.
(See page 31 for menu setting.)
With the IMAGE menu:
1. Display the IMAGE menu.
2. Select COLOR ENHANCER by pressing the  or  button.
3. Select USER or MULTI-SCREEN by pressing the  or  button.
COLOR ENHANCER
AUTO
When USER is selected:
Important:
COLOR ENHANCER–USER
• You can set MULTI-SCREEN only when EDGE BLENDING is ON or COLOR
GAMMA MODE
DYNAMIC
MATCHING is MANUAL or MEASURE in the MULTI-SCREEN menu.
BrilliantColor
10
DYNAMIC
3
4. Press the ENTER button.
CONTRAST
• The detailed menu for the color enhancer is displayed.
When MULTI-SCREEN is selected:
5. Select an item you want to set by pressing the  or  button.
COLOR ENHANCER–MULTI-SCREEN
GAMMA MODE
2.0
GAMMA mode
BrilliantColor
10
Use this item to set the gamma optimally.
When USER is selected:
DYNAMIC�� Select when viewing images supplied from the computer.
NATURAL�� Select when viewing images supplied from the video device.
DETAIL��� Select when viewing images of which brightness should be kept relatively low, such as movies and
music performance.
When MULTI-SCREEN is selected:
• 1.8/2.0/2.2 Select the gamma characteristics from 1.8th, 2.0th, and 2.2nd power.
TM
TM
BrilliantColor™
Use this item to make the colors having medium brightness such as yellow and skin tone look natural. Press the 
button to decrease the value to lessen the effect. Press the  button to increase the value to heighten the effect.
(BrilliantColor™ doesn’t work at value 0.)
DYNAMIC CONTRAST
Use this item to sharpen the images by improving the contrast.
When you set the larger value, this function works more effective, and when you set the smaller value, it works less
effective.
This function does not work when this item is set to OFF.
6. Select a setting value by pressing the  or  button.
• For more enhanced color reproduction, set BrilliantColor™ to 0. The white portion of the color wheel will be
disabled and you can reproduce true-to-life images.
Important:
• You can adjust Color Enhancer also by pressing the CE button on the remote control.
With the remote control:
1. Press the CE button on the remote control.
A window for color enhancer adjustment appears on the upper right of the screen.
2. Press the  or  button to select USER or MULTI-SCREEN .
3. Press the ENTER button.
4. Press the  or  button to select GAMMA MODE, BrilliantColor™ or DYNAMIC CONTRAST.
5. Press the  or  button to adjust the selected item.
EN-44
Adjusting projected images (continued)
Adjusting the fineness of the image (SUPER RESOLUTION):
You can adjust the fineness of the image using the menu.
(See page 31 for menu setting.)
With the IMAGE menu:
1. Display the IMAGE menu.
2. Select SUPER RESOLUTION by pressing the  or  button.
3. Press the  or  button to select ON .
4. Press the ENTER button.
5. Make adjustment using the  or  button.
SUPER RESOLUTION
ON
SUPER RESOLUTION
LEVEL
1
Important:
• When you make SUPER RESOLUTION adjustment, the colors of the menu may be obscured, but this is not a
failure.
• You can adjust SUPER RESOLUTION also by pressing the SUPER RESOLUTION button on the remote control.
With the remote control:
1. Press the SUPER RESOLUTION button on the remote control.
A window for SUPER RESOLUTION adjustment appears on the upper right of the screen.
2. Press the  or  button to select ON .
3. Press the ENTER button.
4. Make adjustment using the  or  button.
Adjusting the tone of each color (COLOR MATRIX):
COLOR MATRIX
You can adjust the tone of each color using the menu.
COLOR MATRIX−USER
(See page 31 for menu setting.)
BASE
1. Display the IMAGE menu.
RED
2. Select COLOR MATRIX by pressing the  or  button.
YELLOW
GREEN
3. Press the  or  button to select USER .
CYAN
4. Press the ENTER button.
BLUE
5. Select an item you want to set using the  or  button.
MAGENTA
• To set COLOR MATRIX that is used as the base, select BASE.
SATURATION
• If you want to adjust the saturation of all colors of the image, select
RGB-TINT
SATURATION.
• If you want to adjust the balance of all colors of the image, select RGB‑TINT.
6. Press the  or  button to adjust the color balance of the selected color.
7. Repeat steps 5 and 6 for optimum adjustment results.
COMPUTER
COMPUTER
0
0
0
0
0
0
0
0
• When the input signal is VIDEO or COMPUTER, the items in the COLOR MATRIX-USER menu are automatically
set to the predetermined values. You can change these values manually.
• To disable the COLOR MATRIX adjustment, select FLAT in step 3.
• When you make COLOR MATRIX adjustment, the colors of the menu will change, but this is not a failure.
Adjusting the detailed setting of ASPECT :
You can adjust the detailed setting of ASPECT using the menu.
(See page 31 for menu setting.)
1. Display the SIGNAL menu.
2. Select ASPECT by pressing the  or  button.
3. Press the  or  button to select USER .
• ASPECT-USER setting supports the COMPUTER1, COMPUTER2, DVI,
and HDMI terminals only. Therefore, you cannot select USER for other
terminals.
4. Press the ENTER button.
5. Select an item you want to set using the  or  button.
ASPECT−USER
ZOOM(H)
100
ZOOM(V)
100
HORIZ. POSITION
0
VET. POSITION
0
RASTER POSITION(H)
0
RASTER POSITION(V)
RESET
0
OK
ZOOM(H)
The horizontal image size is adjusted using the center of the image as the base point. The setting range is 50% to
500%.
EN-45
Adjusting projected images (continued)
ZOOM(V)
The vertical image size is adjusted using the center of the image as the base point. The setting range is 50% to
500%.
HORIZ. POSITION
Use to adjust the horizontal position of the projected image. The setting range is -999 to +999.
VERT. POSITION
Use to adjust the vertical position of the projected image. The setting range is -999 to +999.
RASTER POSITION(H)
When the supplied image is not projected on the entire display area, the horizontal location of the projected image
can be adjusted within the area. The setting range is -512 to +512.
RASTER POSITION(V)
When the supplied image is not projected on the entire display area, the vertical location of the projected image can
be adjusted within the area. The setting range is -384 to +384.
RESET
Press the ENTER button to reset the USER settings.
Important:
• Noise may appear on the screen depending on the combination of the type of the video signal being projected
and the setting values of the ZOOM(H), ZOOM(V), HORIZ. POSITION, VERT. POSITION, RASTER POSITION(H),
and RASTER POSITION(V). In such cases, set these values in the range where the image is displayed without
noise.
Saving the setting in the SIGNAL MEMORY:
You can save the settings of the SIGNAL menu using the SIGNAL MEMORY.
• You can save multiple signal settings for one signal format and switch the method according to use.
Up to 8 settings can be saved. (See page 31 for menu setting.)
[Example]
AUTO
SIGNAL menu
ANY SIGNAL
1-720p50
720p50
Memory number in the SIGNAL MEMORY
2-720p50
3-1080i60
4-xxx
•••
720p50
1080i60
-
8-xxx
-
To save the setting in the SIGNAL MEMORY:
1. Display the SIGNAL menu.
2. Select SIGNAL MEMORY while AUTO is selected in the MEMORY CALL by pressing the  or  button.
3. Select MEMORIZE and press the ENTER button.
4. Select your desired memory number by pressing the  or  button.
5. Press the ENTER button to save the memory.
• To save the new setting, select a new memory number. The memory number of the MEMORY CALL changes to a
new one after saving the setting.
• When the setting in the selected memory number is changed, the changed setting is automatically saved.
To select the saved memory by the MEMORY CALL:
You can call up and switch the setting saved in the SIGNAL MEMORY.
1. Display the SIGNAL menu.
2. Select MEMORY CALL by pressing the  or  button.
3. Select your desired memory number by pressing the  or  button.
• Only the memory number relevant to the input signal can be selected.
• When the same signal is input on the next time, the selected memory number is still memorized.
EN-46
Adjusting projected images (continued)
How to adjust the computer image
This projector automatically selects a proper signal format according to the type of video signal supplied from the
computer. However, video signals from the computer may not be projected correctly depending on the types of the
computer and images to be projected. In such a case, make adjustment according to the flowchart below.
When the size and position of
the computer image are not correct.
Project a bright computer image containing as many texts and characters as possible.
Note) Disable the screen saver if it is active.
Press the AUTO POSITION button.
Settings are automatically and optimally adjusted for the input signal.
NO
Image is projected
correctly.
YES
Display the screen resolution setting menu of your computer.
(Example: In the case of Windows® PC, right-click on the desktop, select Properties, and click the
Settings tab to display the screen resolution setting.)
The screen
resolution setting of your computer
is different from the setting of RESOLUTION
(MEMORIZE ) in the SIGNAL menu
of the projector.
NO
YES
Select RESOLUTION (MEMORIZE
and press the ENTER button.
) in the SIGNAL menu
Set HORIZ. PIXELS and VERT. LINES to the values of the screen resolution of your computer.
(Example: When the screen resolution of the computer is 1280x800, set HORIZ. PIXELS to 1280 and
VERT. LINES to 800.)
Select EXECUTE and press the ENTER button.
Automatic adjustment starts according to the selected resolution.
NO
Image is projected
correctly.
Perform manual
adjustment.
YES
After the memory saving
message is displayed,
select MEMORY and press
the ENTER button.
YES
After the memory saving
message is displayed,
select MEMORY and press
the ENTER button.
NO
When you don’t save
the adjustment result,
press the MENU button.
Adjustment is canceled.
Adjust HORIZ. POSITION, VERT. POSITION, and TRACKING
in the SIGNAL menu. For details, see “Simple method to
adjust the image position.” (See page 48.)
Adjustment is completed.
EN-47
Adjusting projected images (continued)
How to adjust the image supplied from the computer using the menu:
Carry out the following procedures according to the symptoms.
Wide strips appear.��������������� Adjust TRACKING in the SIGNAL menu.
The projected image flickers.
The projected image is blurred.��������������������������������������Adjust FINE SYNC. in the SIGNAL menu.
The projected image is displaced horizontally.��������������Adjust HORIZ. POSITION in the SIGNAL menu. Every time the
 button is pressed, the image moves to the right. Every time
the  button is pressed, the image moves to the left.
The projected image is displaced vertically.������������������Adjust VERT. POSITION in the SIGNAL menu. Every time the
 button is pressed, the image moves down. Every time the
 button is pressed, the image moves up.
The top part of the image flags.������������������������������������� Change the setting of HOLD in the SIGNAL menu. Select ON ,
press the ENTER button, and adjust BEGIN or END to minimize
the flagging.
A solid black or solid white appears in the image. �������� Adjust CLAMP POSITION or CLAMP WIDTH in the SIGNAL
- USER menu.
The motion doesn’t run smoothly.����������������������������������Adjust VERT. SYNC. in the SIGNAL - USER menu. Select
AUTO for normal use.
Noise appears on the right or left half of the image.������Adjust SHUTTER(LS) or SHUTTER(RS) in the SIGNAL - USER
menu.
Noise appears on the top or bottom part of the image.������� Adjust SHUTTER(U) or SHUTTER(L) in the SIGNAL - USER
menu.
1. Display the SIGNAL menu.
2. Press the  or  button to select an item to adjust.
3. Adjust the selected item by pressing the  or  button.
To cancel the menu:
4. Press the MENU button.
• Do not change the settings of the SIGNAL menu in normal use.
Simple method to adjust the image position
To adjust the horizontal position:
1. Align the left edge of the image with the left side of the screen by adjusting HORIZ. POSITION. Then, align the
right edge of the image with the right side of the screen by adjusting TRACKING.
2. Repeat step 1 above to complete the adjustment of the horizontal position.
To adjust the vertical position:
3. Align the upper edge of the image with the upper side of the screen by adjusting VERT. POSITION.
LPF (Progressive filter)
You can select whether or not to enable the LPF.
Vertical or horizontal streak noise may appear on the projected image, depending on the type of the DVD player or
game console you use. In such a case, you can reduce such streak noise by enabling the LPF. However, projected
images become softened slightly.
EN-48
Adjusting projected images (continued)
Adjusting the image displayed on
the multi-screen
11.Press the ENTER button.
SETTING - BLACK LEVEL
You can make the joints of the images projected on
the projectors unnoticeable using the menu settings.
(See page 31 for menu setting.)
1. Display the MULTI-SCREEN menu.
2. Select EDGE BLENDING by pressing the  or  button.
OFF
3. Select ON by pressing the  or  button.
4. Select SETTING by pressing the  or  button.
0
BRIGHT UNIFORMITY
CORRECTION
16.Press the ENTER button.
• The BRIGHT UNIFORMITY CORRECTION
dialog box and the correction position marker
are displayed.
BRIGHT UNIFORMITY CORRECTION dialog box
SETTING - EDGE ADJUST
EDGE SELECT
UP
BLENDING
OFF
POSITION :
0
WIDTH
128
MARKER
OFF
7. Select an item you want to set by pressing the  or
 button.
EDGE SELECT
Select the joint you want to adjust from UP, LOW,
LEFT, and RIGHT.
BLENDING
When you select ON, the joint selected by EDGE
SELECT becomes unnoticeable.
START POSITION
Set the position to start the edge adjustment.
When UP or LOW is selected: 0 to 192
When LEFT or RIGHT is selected: 0 to 256
WIDTH
Set the width of the overlap of the joint selected by
EDGE SELECT.
When UP or LOW is selected: 4 to 368
When LEFT or RIGHT is selected: 4 to 496
• The setting range of START POSITION and
WIDTH vary depending on their setting values.
MARKER
When you select ON, a marker for easily locating
the overlap of the joint is displayed.
8. Select a setting value by pressing the  or  button.
Repeat steps 7 to 8, if necessary.
9. Press the MENU button once.
10.Select BLACK LEVEL by pressing the  or 
button.
SETTING
0
BLUE
SETTING
EDGE ADJUST
5. Select EDGE ADJUST by pressing the  or 
button.
6. Press the ENTER button.
START POSITION
GREEN
12.Select an item you want to set by pressing the  or
 button.
• Adjust the black level in areas other than the
overlapped areas.
• When you set INTERLOCKED to ON, you can
adjust RED, GREEN, and BLUE simultaneously.
When you set it to OFF, you can adjust RED,
GREEN, and BLUE separately.
13.Select a setting value by pressing the  or  button.
Repeat steps 12 to 13, if necessary.
14.Press the MENU button once.
15.Select BRIGHT UNIFORMITY CORRECTION by
pressing the  or  button.
• When EDGE BLENDING is ON, the brightness of
the projected images is made even.
Making the joints unnoticeable
SETTING
0
RED
• Depending on the installation condition, the projected
image may fluctuate due to the effect of the exhausted
wind. In such a case, open up the space between
the projectors so that the image doesn’t fluctuate
(approximately 70 cm or more).
EDGE BLENDING
ON
INTERLOCKED
You can configure a multi-screen display using
multiple projectors.
You can make the joints of the images displayed on
the projectors unnoticeable and adjust the differences
in the brightness and the color tint of them.
Important:
BLACK LEVEL
SELECT : ENTER
Correction position marker
• Every time you press the ENTER button, the
BRIGHT UNIFORMITY CORRECTION dialog box
shows POSITION and LEVEL alternately.
POSITION
Press the , , , or 
POSITION :
button to move the correction
SELECT : ENTER
position marker.
LEVEL
Press the , or  button to
LEVEL :
100
adjust the correction amount.
SELECT : ENTER
17.Cancel the BRIGHT UNIFORMITY CORRECTION
dialog box.
Press any button other than the , , , or ,
and ENTER buttons to clear the dialog box.
Or, the dialog box disappears in 10 seconds after
the last use.
To cancel the menu:
18.Press the MENU button.
EN-49
Adjusting projected images (continued)
Adjusting the color variations
7. Select an item you want to set by pressing the  or
 button.
• Select the color you want to adjust using
COLOR.
8. Select a setting value by pressing the  or 
button.
• You can enter numbers by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
Repeat steps 7 to 8, if necessary.
You can adjust the variations in the colors of the
images displayed on multiple projectors using the
menu settings.
(See page 31 for menu setting.)
Adjustment while viewing the screen
1. Display the MULTI-SCREEN menu.
2. Select COLOR MATCHING by pressing the  or 
button.
COLOR MATCHING
OFF
Important:
• The color tone may not be displayed correctly
depending on the setting value. Set the value within
the proper range.
3. Select MANUAL by pressing the  or  button.
4. Select MANUAL by pressing the  or  button.
MANUAL
SETTING
Set the target values of the brightness and
chromaticity coordinates:
4. Select MEASURE by pressing the  or  button.
5. Select SETTING by pressing the  or  button.
6. Press the ENTER button.
MANUAL – SETTING
COLOR
RED
GAIN
100
SATURATION
0
HUE
0
WHITE R
---
WHITE G
---
WHITE B
---
AUTO PATTERN
ON
MEASURE
5. Select TARGET DATA by pressing the  or 
button.
6. Press the ENTER button.
MEASURE – TARGET DATA
7. Select an item you want to set by pressing the  or
 button.
• Select the color you want to adjust using
COLOR.
• When you set AUTO PATTERN to ON, the test
pattern of each color is displayed.
8. Select a setting value by pressing the  or 
button.
Repeat steps 7 to 8, if necessary.
Y (RELATIVE)
x
y
*.***
ON
7. Select an item you want to set by pressing the  or
 button.
• Select the color you want to adjust using
COLOR.
• When you set AUTO PATTERN to ON, the test
pattern of each color is displayed.
8. Select a setting value by pressing the  or 
button.
• You can enter numbers by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
Repeat steps 7 to 8, if necessary.
OFF
Important:
• The color tone may not be displayed correctly
depending on the setting value. Set the value within
the proper range.
Resetting the settings
MEASURED DATA
• You can reset the SETTING, MANUAL, and
MEASURE settings to the factory defaults.
1. Display the MULTI-SCREEN menu.
2. Select SETTING, MANUAL or MEASURE by
pressing the  or  button.
3. Select RESET by pressing the  or  button.
4. Press the ENTER button.
by pressing the  or 
MEASURE – MEASURED DATA
COLOR
*.***
*.***
AUTO PATTERN
Set the measured brightness and the chromaticity
coordinates:
4. Select MEASURE by pressing the  or  button.
5. Select MEASURED DATA
button.
6. Press the ENTER button.
RED
GAIN
y
3. Select MEASURE by pressing the  or  button.
MEASURE
COLOR
x
Adjustment using a chroma meter
1. Display the MULTI-SCREEN menu.
2. Select COLOR MATCHING by pressing the  or 
button.
COLOR MATCHING
MEASURED DATA
RED
*****
*.***
*.***
EN-50
Initial network settings
• The display returns the NETWORK menu after
selecting OK or CANCEL.
• It may take some time to reflect the settings.
You can set the network of the projector using the
menu.
opt.
1
2
Enabling or disabling the network
certification
NETWORK
PROJECTOR NAME
NETWORK
CERTIFICATION
NETWORK
PASSWORD
ON
You can select whether or not to certify the network
communication using the network password.
• For details, contact your dealer.
(See page 31 for menu setting.)
1. Display the NETWORK menu.
2. Press the  or  button to select NET WORK
CERTIFICATION.
ENTER
IP CONFIG
ENTER
CONTROL SYSTEM
STANDARD
NETWORK RESET
OK
NETWORK RESTART
OK
Setting Projector Name
(See page 31 for menu setting.)
1. Display the NETWORK menu.
2. Press the  or  button to select PROJECTOR
NAME.
NETWORK
CERTIFICATION
3. Press the ENTER button.
• Confirmation dialog appears.
NETWORK CERTIFICATION :
4. Press the or  button to select ON or OFF .
5. Press the ENTER button.
• To cancel the setting, press the MENU button.
• It may take some time to reflect the settings.
3. Press the ENTER button.
• PROJECTOR NAME screen appears.
PROJECTOR NAME
VZ$%
←
→
A
B
C
D
E
F
G
H
I
J
K
L
M
DEL
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
caps
0
1
2
3
4
5
6
7
8
9
–
.
_
NEXT
!
”
#
$
%
’
(
)
*
+
,
/
Network Password Settings
(See page 31 for menu setting.)
1. Display the NETWORK menu.
2. Press the  or button to select NETWORK
PASSWORD.
SPACE
CLEAR
OK
ON
OK : ENTER CANCEL : MENU
PROJECTOR NAME
CODE : XXXXX
ON
CANCEL
4. Press the direction buttons to move the key cursor,
select the characters or marks to enter, and press
the ENTER button.
• Projector Name can be set using up to 15
characters including alphabets (capital/small),
numeric characters, or marks.
← key:������������� Shifting the position of enter
cursor to the left for each
character.
→ key:������������� Shifting the position of enter
cursor to the right for each
character.
DEL key:���������� Deleting the character in the
position of enter cursor for each
character.
caps/CAPS key:Switching an alphabet character
to CAPITAL or small.
NEXT/PREV key:Switching the marks listed on
the fourth line.
SPACE key:����� Inserting a space in the position
of enter cursor.
CLEAR key:����� Deleting all the entered
characters.
• You can enter numbers by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
5. When selecting OK, the setting is completed as the
name stored. However, when selecting CANCEL,
the setting is completed without storing.
NETWORK
PASSWORD
ENTER
3. Press the ENTER button.
• CURRENT NETWORK PASSWORD screen
appears.
CURRENT NETWORK PASSWORD
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
←
→
A
B
C
D
E
F
G
H
I
J
K
L
M
DEL
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
caps
0
1
2
3
4
5
6
7
8
9
OK
CLEAR
CANCEL
4. Press the direction buttons to move the key cursor,
select the characters or marks to enter, and press
the ENTER button.
• Password can be set using up to 32 characters
including alphabets (capital/small) or numeric
characters.
← key:������������� Shifting the position of enter
cursor to the left for each
character.
→ key:������������� Shifting the position of enter
cursor to the right for each
character.
DEL key:���������� Deleting the character in the
position of enter cursor for each
character.
caps/CAPS key:Switching an alphabet character
to CAPITAL or small.
EN-51
Initial network settings (continued)
IP Settings
CLEAR key:����� Deleting all the entered
characters.
• You can enter numbers by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
• The default password is “admin”.
5. Select OK, and NEW NETWORK PASSWORD
screen appears if the entered password is correct.
• If the entered password is not correct,
CURRENT NETWORK PASSWORD screen
appears again.
(See page 31 for menu setting.)
1. Display the NETWORK menu.
2. Press the  or  button to select IP CONFIG.
IP CONFIG
ENTER
3. Press the ENTER button.
opt.
1
2menu appears.
• IP CONFIG
NETWORK
IP CONFIG
DHCP
ON
NEW NETWORK PASSWORD
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
IP ADDRESS
0. 0. 0. 0
CONFIRM NETWORK PASSWORD
SUBNET MASK
0. 0. 0. 0
DEFAULT GATEWAY
0. 0. 0. 0
←
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
0
1
2
3
4
5
6
7
8
9
OK
↔
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
→
DEL
MAC ADDRESS
caps
SAVE SETTINGS
CLEAR
OK
CANCEL
6. Enter the NEW NETWORK PASSWORD and
CONFIRM NETWORK PASSWORD.
• Password can be set using up to 32 characters
including alphabets (capital/small) or numeric
characters.
← key:������������� Shifting the position of enter
cursor to the left for each
character.
→ key:������������� Shifting the position of enter
cursor to the right for each
character.
key:��������������� Shifting the position of
enter cursor between NEW
NETWORK PASSWORD
and CONFIRM NETWORK
PASSWORD.
DEL key:���������� Deleting the character in the
position of enter cursor for each
character.
caps/CAPS key:Switching an alphabet character
to CAPITAL or small.
CLEAR key:����� Deleting all the entered
characters.
• You can enter numbers by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
7. When NEW NETWORK PASSWORD and CONFIRM
NETWORK PASSWORD are matched, the setting
is completed after changing the NETWORK
PASSWORD.
• When you select OK and the passwords you
entered are matched, the setting change dialog
is displayed. After the dialog disappears, the
NETWORK menu is displayed.
• When you select CANCEL, the NETWORK menu
is displayed without changing the password.
• If the entered content is not matched, NEW
NETWORK PASSWORD screen appears again
after an error dialog is displayed.
• The password for the web control software
of CRESTRON cannot be changed with this
setting.
• It may take some time to reflect the settings.
Setting or Clearing DHCP
1. Display the IP CONFIG menu.
2. Press the  or  button to select DHCP.
DHCP
ON
3. Press the  or  button to select ON or OFF.
• When setting DHCP to ON, IP ADDRESS,
SUBNET MASK, and DEFAULT GATEWAY
cannot be set. If you set those settings, set
DHCP to OFF and perform the IP settings as the
following procedures.
• Until the execution of SAVE SETTINGS, the
change is not saved.
IP Address Settings
1. Display the IP CONFIG menu.
2. Press the  or  button to select IP ADDRESS.
0. 0. 0. 0
IP ADDRESS
3. Press the ENTER button.
• IP ADDRESS screen appears.
IP ADDRESS
192 . 168 .
0 . 10
←
→
DEL
0
1
2
3
OK
EN-52
4
5
6
7
8
9
CLEAR
CANCEL
4. Press the direction buttons to move the key cursor,
select the numbers to enter, and press the ENTER
button.
• Set the numeric value within the range from 0 to
255. However, set the numeric value for the final
octet within the range from 1 to 254.
← key:Shifting the position of enter cursor to
the left.
→ key:Shifting the position of enter cursor to
the right.
DEL key:Deleting the character in the position
of enter cursor for each character.
CLEAR key:Deleting all the entered
characters.
Initial network settings (continued)
• You can enter numbers by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
5. When selecting OK, the setting is completed as
the IP ADDRESS stored temporarily. However,
when selecting CANCEL, the setting is completed
without storing.
• When the setting you entered is correct, the
IP CONFIG menu is displayed. If the entered
content is not correct, the IP CONFIG menu is
displayed after an error dialog is displayed.
• Until the execution of SAVE SETTINGS, the
change is not saved.
• When the setting you entered is correct, the
IP CONFIG menu is displayed. If the entered
content is not correct, the IP CONFIG menu is
displayed after an error dialog is displayed.
• Until the execution of SAVE SETTINGS, the
change is not saved.
Saving IP CONFIG Settings
1. Display the IP CONFIG menu.
2. Press the  button to select SAVE SETTINGS.
SAVE SETTINGS
3. Press the ENTER button.
• The setting change dialog is displayed. After
the dialog disappears, the NETWORK menu is
displayed.
• It may take some time to reflect the settings.
Subnet Mask Settings
1. Display the IP CONFIG menu.
2. Press the  or  button to select SUBNET MASK.
0. 0. 0. 0
SUBNET MASK
Setting the control system
3. Press the ENTER button.
• SUBNET MASK screen appears.
Set the control system.
(See page 31 for menu setting.)
1. Display the NETWORK menu.
2. Press the  or  button to select CONTROL
SYSTEM.
SUBNET MASK
255 . 255 . 255 .
0
←
→
DEL
0
1
2
3
4
5
6
7
8
CLEAR
9
CANCEL
OK
4. Enter the Subnet Mask.
• Refer to IP Address Settings for the detail of
entering.
5. When selecting OK, the setting is completed as
the Subnet Mask stored temporarily. However,
when selecting CANCEL, the setting is completed
without storing.
• When the setting you entered is correct, the
IP CONFIG menu is displayed. If the entered
content is not correct, the IP CONFIG menu is
displayed after an error dialog is displayed.
• Until the execution of SAVE SETTINGS, the
change is not saved.
CONTROL SYSTEM
CONTROL SYSTEM :
4. Press the or  button to select STANDARD ,
AMX , or CRESTRON .
STANDARD
Select this setting when using ProjectorView
Global+ or ProjectorView (see page 60), or RS232C commands via LAN terminal.
AMX
Select this setting when using the controller of
AMX. (See page 60.)
CRESTRON
Select this setting when using the controller or
software of Crestron Electronics, Inc. (See page 60.)
Important:
• PJLink™ works regardless of the setting of
CONTROL SYSTEM.
5. Press the ENTER button.
• It may take some time to reflect the settings.
0. 0. 0. 0
3. Press the ENTER button.
• DEFAULT GATEWAY screen appears.
DEFAULT GATEWAY
1.
1
←
→
DEL
0
1
2
3
OK
4
5
6
7
8
9
STANDARD
OK : ENTER CANCEL : MENU
1. Display the IP CONFIG menu.
2. Press the  or  button to select DEFAULT
GATEWAY.
10 . 132 .
STANDARD
3. Press the ENTER button.
Default Gateway Settings
DEFAULT GATEWAY
OK
CLEAR
CANCEL
4. Enter the Default Gateway.
• Refer to IP Address Settings for the detail of
entering.
5. When selecting OK, the setting is completed as
the Default Gateway stored temporarily. However,
when selecting CANCEL, the setting is completed
without storing.
EN-53
Initial network settings (continued)
Initialization of Network Settings
Glossary
For more detail of the glossary below, refer to the
technical book that is commercially available.
(See page 31 for menu setting.)
1. Display the NETWORK menu.
2. Press the  or  button to select NETWORK
RESET.
NETWORK RESET
OK
3. Press the ENTER button.
• Confirmation dialog appears.
4. Press the ENTER button again, and the Network
Settings can be initialized (except for IP CONFIG).
• To cancel the initialization, press the MENU
button.
• Alert E-mail setting is also reset. For details
about Alert E-mail function, see “LAN control
UTILITY operation manual” in the CD-ROM.
• It may take some time to reflect the settings.
Term
Description
DHCP
Abbreviation for Dynamic Host
Configuration Protocol. This
protocol automatically assigns IP
Address to networked devices.
IP Address
Numerical address to identify
networked computers.
Subnet Mask
A numeric value to define the
number of bits used for a network
address of a divided network (or
subnet) in an IP Address.
A server (or router) to communicate
Default Gateway across networks (subnets) that are
divided by Subnet Mask.
How to Use Network Function
• When connecting a computer and projector with
LAN, configure the both IP Addresses in the
same network group.
If connecting in different network group, be sure
to use a router. As for the settings of a router, ask
the network administrator.
• Configure the IP CONFIG correctly. If the settings
are not correct, the communication may be
unavailable. For the detail, consult the network
administrator.
• Depending on the settings of standby mode of
the projector, LAN function may be unavailable.
See page 34 for the detail of standby mode.
MAC Address
EN-54
Abbreviation for Media Access
Control Address. MAC Address is a
unique ID number assigned to each
network adapter. And this is based
on which data are sent and received
between network adapters.
Lamp relay
Using the lamp relay function, you can project images
continuously. The lamp relay function automatically
rests or switches the lamps. The lamp relay is
performed when LAMP SELECT in the INSTALLATION
1 menu is set to DUAL or SINGLE.
1H/24H
NEXT LAMP RELAY
23H
←
0
1
2
Setting the lamp relay interval
LAMP SELECT
0
DUAL
5. Press the ENTER button.
6. Select LAMP RELAY by pressing the  or  button.
7. Select 1H/24H
 button.
1H/24H
1H/24H
or 2H/1W
by pressing the  or
�����Select this setting when the lamp
is operated at a specified time of
the day. During the continuous
projection, LAMP 1 or LAMP 2 is
automatically turned off for 1 hour
in 24 hours. After the interval is set,
the lamps are turned off for 1 hour
alternately at the specified interval.
At the time of power-on or menu setting
2
3
4
5
1
6
7
8 (days)
Off
LAMP 1
Illuminating
LAMP 2
2H/1W
������During the continuous projection,
LAMP 1 or LAMP 2 is automatically
turned off for 2 hours in a week.
After the interval is set, the lamps are
turned off for 2 hours alternately at
the specified interval.
At the time of power-on or menu setting
2
3
4
5
1
6
7
8 (days)
Off
LAMP 1
8
CLEAR
9
CANCEL
←
→
1
2
3
4
5
6
7
8
9
CLEAR
CANCEL
9. Move the key cursor using the direction buttons to
select the number you want to enter and then press
the ENTER button.
• Maximum interval
1H/24H ...... 23H (23 hours)
2H/1W ....... 6D 22H (6 days and 22 hours)
← key:Shifting the position of enter cursor
to the left for each character.
→ key:Shifting the position of enter cursor
to the right for each character.
DEL key:Deleting the character in the
position of enter cursor for each
character.
CLEAR key:Deleting all the entered characters.
• You can enter the value by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
• When the value you entered meets the following
conditions, an error dialog box is displayed at
the screen center.
∙The value has been cleared by DEL or CLEAR
and left blank.
∙The value you entered is out of the setting
range.
1H/24H .... 24H or over
2H/1W . .... 6D 23H or over
∙The value of each item is out of the setting
range.
D................... 7 or over (2H/1W only)
H................... 24 or over
10.When selecting OK, the setting is completed as
the lamp-switching interval stored. However, when
selecting CANCEL, the setting is completed without
storing.
• The display returns the LAMP RELAY menu after
selecting OK or CANCEL.
• The setting you made is applied to NEXT LAMP
RELAY in the INFORMATION menu.
LAMP SELECT
LAMP RELAY
7
DEL
DUAL
LAMP SELECT
6
6D 22H
3. Press the ENTER button.
4. Select DUAL by pressing the  or  button.
2
5
NEXT LAMP RELAY
OK
1
4
2H/1W
Either of the lamps is automatically put to rest.
(See page 31 for menu setting.)
1. Display the INSTALLATION 1 menu.
2. Select LAMP SELECT by pressing the  or  button.
2
3
OK
When LAMP SELECT is set to DUAL:
1
→
DEL
Illuminating
LAMP 2
8. Press the ENTER button.
• When you select 1H/24H or 2H/1W , the
box to set the lamp relay interval is displayed.
• When the projector is turned off, the setting is
cleared and the projector resumes operation
from the time of the power-on or menu setting
shown in the preceding step.
Important:
• When you use the projector continuously, the lamp
relay may not be performed on time due to errors of
the clock function.
EN-55
Lamp relay (continued)
• Immediately after the power-on, during the lamp
selection, or during the lamp relay operation, you
cannot change the setting of LAMP SELECT and
LAMP RELAY.
• In the case of continuous projection, the lamps may
deteriorate earlier unless they are turned off for 1
hour per week.
• When using this projector continuously for a long
time of period, enable LAMP RELAY.
• The brightness and color tint vary at the time of
lamp switching.
1 WEEK
NEXT LAMP RELAY
7D 00H
0
LAMP SELECT
DUAL
LAMP SELECT
LAMP SELECT
2
SINGLE
5. Press the ENTER button.
6. Select LAMP RELAY by pressing the  or  button.
LAMP RELAY
7. Select 24H
button.
24H
24H
or 1 WEEK
by pressing the  or 
.......... The lamps are switched to each other
every day.
At the time of power-on or menu setting
2
3
4
5
1
6
7
8 (days)
Illuminating
Off
LAMP 1
LAMP 2
1 WEEK
... The lamps are switched to each other
every week.
At the time of power-on or menu setting
2
3
4
5
1
LAMP 1
Off
LAMP 2
Illuminating
6
7
8 (days)
8. Press the ENTER button.
• When you select 24H or 1 WEEK , the box
to set the lamp relay interval is displayed.
24H
NEXT LAMP RELAY
24H
←
→
DEL
0
1
2
3
OK
4
5
6
7
8
9
2
3
4
5
6
7
8
9
CLEAR
CANCEL
9. Move the key cursor using the direction buttons to
select the number you want to enter and then press
the ENTER button.
• Maximum interval
24H ............ 24H (24 hours)
1 WEEK ..... 7D 00H (7 days and 00 hours)
← key:Shifting the position of enter cursor
to the left for each character.
→ key:Shifting the position of enter cursor
to the right for each character.
DEL key:Deleting the character in the
position of enter cursor for each
character.
CLEAR key:Deleting all the entered characters.
• You can enter the value by pressing the number
buttons (0 to 9) while holding down the NUM
button on the remote control.
• When the value you entered meets the following
conditions, an error dialog box is displayed at
the screen center.
∙The value has been cleared by DEL or CLEAR
and left blank.
∙The value you entered is out of the setting
range.
24H .......... 25H or over
1 WEEK . .. 7D 01H or over
∙The value of each item is out of the setting
range.
D................... 8 or over (1 WEEK only)
H................... 25 or over
10.When selecting OK, the setting is completed as
the lamp-switching interval stored. However, when
selecting CANCEL, the setting is completed without
storing.
• The display returns the LAMP RELAY menu after
selecting OK or CANCEL.
• The setting you made is applied to NEXT LAMP
RELAY in the INFORMATION menu.
3. Press the ENTER button.
4. Select SINGLE by pressing the  or  button.
1
1
OK
The lamps are automatically switched and used alternately.
(See page 31 for menu setting.)
1. Display the INSTALLATION 1 menu.
2. Select LAMP SELECT by pressing the  or  button.
2
→
DEL
When LAMP SELECT is set to SINGLE:
1
←
CLEAR
CANCEL
EN-56
Important:
• When you use the projector continuously, the lamp
relay may not be performed on time due to errors of
the clock function.
• Immediately after the power-on, during the lamp
selection, or during the lamp relay operation, you
cannot change the setting of LAMP SELECT and
LAMP RELAY.
• In the case of continuous projection, the lamps may
deteriorate earlier unless they are turned off for 1
hour per week.
• When using this projector continuously for a long
time of period, enable LAMP RELAY.
• The brightness and color tint vary at the time of
lamp switching.
Advanced features
Changing the image displayed at the
startup
• The captured image is displayed in the NATIVE
mode automatically.
You can display your desired image as the startup
screen (or splash screen). By setting the menu, you
can use such image instead of the background image
that is displayed when no video signal is supplied.
CAPTURE : ENTER X2
CANCEL : MENU
Important:
• You can’t set IMAGE CAPTURE when PASSWORD
FUNCTION in the FEATURE menu has been set to
SPLASH ID SCREEN to enable the password lock.
• You can’t set IMAGE CAPTURE when the
component video signal is inputted.
CAPTURE : ENTER + ENTER
CANCEL : MENU
12.Adjust the size of the image to be captured so that
such image stays within the red frame.
• Press the , ,  or  button to move the red
frame.
• You can’t move the red frame outside the screen.
• Press the MENU button to cancel the procedure.
Setting procedure
(See page 31 for menu setting.)
1. Press the COMPUTER button to select the image
supplied to the COMPUTER/COMPONENT VIDEO
IN terminal.
2. Display your desired image.
3. Display the INSTALLATION 2 menu.
4. Select IMAGE CAPTURE by pressing the  or 
button.
5. Press the ENTER button.
• The setting menu will be displayed.
CAPTURE : ENTER X2
CANCEL : MENU
13.Press the ENTER button twice.
• Image capture will start.
opt.
1
2
INSTALLATION 2
CUSTOM IMAGE CAPTURE
BACK COLOR
SIZE
CAPTURING IMAGE !
GRAY
CAPTURE : ENTER X2
CANCEL : MENU
x1
CAPTURE
GO
Set the background color
(Set the background color only when you set the
image size to x1 or x2.)
6. Select BACK COLOR by pressing the  or 
button.
7. Select your desired color for the background
(GRAY, RED, GREEN, BLUE, BLACK, WHITE,
RED50%, GREEN50%, or BLUE50%) by pressing
the  or  button.
• When the image capture completes, the
captured image will be displayed for 1 second.
Important:
• You can’t change the new startup screen back to
the original startup screen. (Even when you select
RESET ALL in the FEATURE menu, the factory
default screen isn’t available any longer.) When you
want to change the startup screen again, capture
another image.
• The captured image will be displayed from the next
startup. If the captured image isn’t displayed, make
sure that the setting of SPLASH SCREEN in the
INSTALLATION 2 menu isn’t OFF. (See page 35.)
• When BACK COLOR in the INSTALLATION 2
menu is set to IMAGE, the captured image will be
displayed while no signal is supplied.
• When no video signal is supplied, the projector
takes some time to display the captured image.
• Some images can’t be captured correctly because
of their signal type.
• When SIZE of CUSTOM IMAGE CAPTURE is FULL
and the size of the captured image is different
from that of the projection screen being used, the
displayed image is cropped and the background
color is visible. In such a case, capture images at
the current projection size.
Set the image size
8. Select SIZE by pressing the  or  button.
9. Select x1, x2, or FULL by pressing the  or 
button.
x1
x2
FULL
Capture the image
10.Select CAPTURE by pressing the  or  button.
11.Press the ENTER button.
• A red frame appears. (The size of the red frame
is 640 x 480 pixels.)
• The image within the outer edges of the red
frame is captured.
EN-57
Advanced features (continued)
Password function
This projector is equipped with the password function
that is designed for prevention of wrong operation by
children and restriction on operation by other than
specified users. The password function has 3 modes
as follows.
DISPLAY INPUT........... When the projector is turned
on, the startup screen (or splash screen) will appear
and stay on the screen until the password is
entered. When the password is entered, the startup
screen will switch to the regular operation screen.
MENU ACCESS............ All the buttons except for the
POWER button on the projector are disabled. (The
buttons on the remote control are enabled.) You
can use this mode as a measure of prevention
of wrong operation by children and restriction on
operation by other than specified users.
SPLASH ID SCREEN.... IMAGE CAPTURE and
SPLASH SCREEN in the INSTALLATION 2 menu
become unavailable. SPLASH SCREEN will be set
to ON automatically.
To enable the password function:
1. Display the FEATURE menu.
2. Press the  or  button to select PASSWORD
FUNCTION.
3. Press the  or  button to change the mode
among DISPLAY INPUT , MENU ACCESS and
SPLASH ID SCREEN .
• When the password has already been set, the
mode won’t be changed. In such cases, press
the ENTER button to cancel the password
function and try again.
4. Press the ENTER button.
• The screen for setting the password function will
appear.
ENTER
ENTER
2
O K : ENTER
CANCEL : MENU
5. Enter a 4 - 8 digit password using the , ,  and
 buttons.
(=1, =2, =3, =4)
• You can enter the value by pressing the number
buttons (1 to 4) while holding down the NUM
button on the remote control.
6. Press the ENTER button.
• If you enter a wrong password, an error
message will appear.
• To cancel the procedure, press the MENU
button.
Important:
• Disable the password by pressing the MENU and
ENTER buttons on the projector at the same time
about 3 seconds.
CONFIRM
1
O K : ENTER
ENTER
UNLOCK
3
PASSWORD
2
LOCK
1
5. Press the ENTER button.
• The screen for entering a password will appear.
4
FEATURE
4
DISPLAY INPUT
ENTER
2
PASSWORD
FEATURE
UNLOCK
opt.
1
4. Press the ENTER button.
• The screen for entering the password will
appear.
2
LOCK
To cancel the password function:
1. Display the FEATURE menu.
2. Press the  or  button to select PASSWORD
FUNCTION.
3. Press the ENTER button.
• The screen for canceling the password function
will appear.
DISPLAY INPUT
opt.
1
7. Press the ENTER button.
• To cancel the procedure, press the MENU
button.
8. Enter the password again for confirmation using the
same steps.
9. Press the ENTER button.
• If the entered passwords don’t match, an error
message will appear.
• To cancel the procedure, press the MENU
button.
CANCEL : MENU
3
6. Enter a 4 - 8 digit password using the , ,  and
 buttons.
(=1, =2, =3, =4)
• You can enter the value by pressing the number
buttons (1 to 4) while holding down the NUM
button on the remote control.
EN-58
Advanced features (continued)
Picture in Picture (PinP)
Magnifying the displayed image
One of the special features of this projector is the
picture-in-picture (PinP) mode. The PinP mode allows
you to view the images from different sources at the
same time.
• While viewing the image from the COMPUTER1,
COMPUTER2, DVI, or HDMI input source, you can
display the image from the VIDEO or S-VIDEO input
source as a sub image.
By pressing the MAGNIFY button on the remote
control, you can magnify the image to view the details.
• While viewing the image from the COMPUTER1,
COMPUTER2, DVI, or HDMI input source, you can
magnify the image.
Magnified image
To use the MAGNIFY mode:
1. Press the MAGNIFY button on the remote control.
• You can select the area to be magnified by
pressing the , ,  or  button on the
remote control.
• You can change the magnification of the
selected area by pressing the + or - button.
2. Press the MAGNIFY button again to exit the
MAGNIFY mode.
• The regular operation screen will appear.
Sub image
To use the PinP mode
1. Press the PinP button on the remote control.
2. If necessary, select the desired external input
source of the sub image by using the VIDEO or
S-VIDEO button on the remote control.
3. Press the PinP button again to exit the PinP mode.
Important:
• The MAGNIFY mode doesn’t function with some
input signals. For details, see page 75.
• In the MAGNIFY mode, you can’t display the MULTISCREEN menu and the SIGNAL menu.
To change the position of the sub image:
Press the  or  button on the remote control.
Freeze
Important:
• The PinP mode is available only when the ASPECT
ratio is set to NORMAL.
• The PinP mode isn’t available with some input
signals. For further information, see page 75.
• When the main image signal is lost during the PinP
mode, the PinP mode is disabled.
• When the COMPUTER 1, COMPUTER 2, DVI-D
(HDCP) or HDMI button on the remote control is
pressed, the PinP mode will be canceled.
• When there is no video signal for sub image, you
can’t change the display position.
• The motion may not run smoothly in the PinP
mode.
• You cannot make the MULTI-SCREEN menu
settings and SIGNAL menu settings in the PinP
mode.
• The size of the sub image varies depending on the
input signal and the settings.
To stop the motion in the image temporarily (or to
display a still image):
Press the FREEZE button on the remote control.
• The image will freeze temporarily.
To resume the motion in the image:
Press the FREEZE button on the remote control again.
Important:
• Do not display a still picture for a long time
because the afterimages may persist on the screen.
EN-59
Advanced features (continued)
Supervising and controlling by computer
Important:
• When you set CONTROL SYSTEM to CRESTRON
in the NETWORK menu, the web control for
Crestron is enabled. For such control, Adobe Flash
Player should be installed in advance. You can
download Adobe Flash Player from the website of
Adobe Systems Incorporated.
• When you set CONTROL SYSTEM to CRESTRON
in the NETWORK menu, you cannot use the control
by ProjectorView Global+, which is the software
supplied with the projector.
You can supervise and control the projector’s
operation using a personal computer via a LAN.
Major functions
ProjectorView Global+
Batch projector controlling / supervising application
software
• Batch operation of stand-alone projector / multiple
projectors
• Scheduling function to turn ON/OFF for each day of
the week
• Checking each condition of the projector and
detecting a theft
• Setting of the projector’s IP CONFIG
• Startup of the controlling / supervising tool
(ProjectorView) using the Web browser
• Activating Visual PA2 to display the specified
characters on the projector’s screen
• Projector’s Text Speech function to read aloud
messages displayed on the Visual PA2 window
ProjectorView
The controlling /supervising tool using the Web
browser
• Controlling and supervising a single projector
• Setting of the projector’s network function
• Setting of the Alert E-mail service of the projector
AMX Device Discovery
The projector is monitored and controlled by the
controller system of AMX.
Crestron RoomView Connected™
The projector is monitored and controlled by the controller
system and software of Crestron Electronics, Inc.
PJLink™
This projector supports standard protocol PJLink™
for projector control and you can control and monitor
projector’s operations using the same application
among projectors of different models and different
manufacturers.
About PJLink™
• To use PJLink™ function, the PJLink™
application software is required.
• To use this function, set the network certification
properly according to the setting of the network
application to be used. (See page 51.)
• For the specifications of PJLink™, access to
the Web site of Japan Business Machine and
Information System Industries Association
(JBMIA). (http://pjlink.jbmia.or.jp/english)
• This projector is fully compliant to the
specifications of JBMIA PJLink™ Class 1. It
supports all the commands defined by PJLink™
Class 1, and the compliance has been verified
with the PJLink™ standard specifications
Version 1.0.
Important:
• For the commands for PJLink™, see the table on
the next page.
• The control may not be performed correctly or the
monitoring data may not be obtained correctly in
the following conditions:
· During standby
· During zoom/focus adjustment
· During lens shift adjustment
· During input source switching
· During auto position execution
· During BLANK
· During command processing
· Before the splash screen disappears after the
power is turned on.
• During zoom/focus adjustment, lens shift
adjustment, BLANK, etc., it may take approx. 5
seconds to receive a response to a command.
• Use 1 controller to control/monitor 1 projector.
• For how to control/monitor using PJLink™, see the
operation manual of the PJLink™ application you
use.
• When you monitor the projector’s operating state
using this function by issuing inquiry commands
successively, issue an inquiry command after
receiving the response to the previous inquiry
command from the projector.
About ProjectorView Global+ and ProjectorView
• For details, see “LAN control UTILITY operation
manual” in the CD-ROM.
About AMX Device Discovery
• This is a technology suggested by AMX to
facilitate configuration of the control system
of AMX and its target devices. To use this
technology, it is necessary to set CONTROL
SYSTEM in the NETWORK menu. (See pages 41
and 53.)
For details, see the website of AMX.
URL http://www.amx.com/
About Crestron RoomView Connected™
• This is a technology suggested by Crestron
Electronics, Inc. to facilitate configuration of the
control system of Crestron and its target devices.
To use this technology, it is necessary to set
CONTROL SYSTEM in the NETWORK menu.
(See pages 41 and 53.)
For details, see the website of Crestron
Electronics, Inc.
URL http://www.crestron.com
URL http://www.crestron.com/getroomview/
EN-60
Advanced features (continued)
Connection
For details of the connection, see “LAN control UTILITY operation manual” in the CD-ROM.
When STANDBY MODE of the INSTALLATION 1 menu of the projector is set to LOW, the network function is
disabled. To enable the network function, set STANDBY MODE to STANDARD. (See page 34.)
Configure the initial network settings first.
You can configure the initial settings using the projector menu (see pages 51 to 54) or ProjectorView Global+ or
ProjectorView. For details of ProjectorView Global+ and ProjectorView, see “LAN control UTILITY operation manual” in
the CD-ROM.
Using the User Manual
The User Manual for LAN Control Utility is prepared in the Portable Document Format (PDF) in the CD-ROM.
Opening the User Manual:
1. Load the CD-ROM into the CD-ROM drive.
2. Open CD-ROM “PROJECTOR.”
3. Double-click on “MANUAL_LAN.HTML” within the CD-ROM. A language selection list for the User Manual will be
displayed.
4. Move the mouse pointer to the desired language and click.
PJLink™ supported commands
The table below shows commands to control the projector using the PJLink™ protocol.
Command
POWR
Description
Power control
POWR?
Inquiry about the power state
INPT
INPT?
Input switching
Inquiry about input switching
AVMT
AVMT?
ERST?
Mute control
Inquiry about the mute state
Inquiry about the error state
LAMP?
Inquiry about the lamp state
INST?
Inquiry about the available inputs
NAME?
Inquiry about the projector name
INF1?
INF2?
INF0?
CLSS?
Inquiry about the manufacturer name
Inquiry about the model name
Inquiry about other information
Inquiry about the class information
Remark (Parameter)
0 = Standby
1 = Power on
0 = Standby
1 = Power on
2 = Cooling down
3 = Warming up
11 = COMPUTER1
12 = COMPUTER2
21 = VIDEO
22 = S-VIDEO
31 = HDMI
32 = DVI
30 = Video mute disable
31 = Video mute enable
1st byte: Fan error, 0 or 2
2nd byte: Lamp error, 0 to 2
3rd byte: Temperature error, 0 or 2
4th byte: Cover open error, 0 or 2
5th byte: Filter error, 0 or 2
6th byte: Other error, 0 or 2
0 to 2 mean as follows:
0 = No error detected, 1 = Warning, 2 = Error
1st value (1 to 5 digits): Cumulative LAMP 1 operating time (This item
shows a lamp operating time (hour) calculated
based on that LAMP MODE is LOW.)
2nd value: 0 = Lamp off, 1 = Lamp on
3rd value (1 to 5 digits): Cumulative LAMP 2 operating time (This item
shows a lamp operating time (hour) calculated
based on that LAMP MODE is LOW.)
4th value: 0 = Lamp off, 1 = Lamp on
The following value is returned.
“11 12 21 22 31 32”
The projector name set on the NETWORK menu or the ProjectorView
Setup window is returned.
“MITSUBISHI” is returned.
“XD8500U” is returned.
No other information is available. No parameter is returned.
“1” is returned.
• This projector is fully compliant to the specifications of JBMIA PJLink™ Class 1. It supports all the commands defined by
PJLink™ Class 1, and the compliance has been verified with the PJLink™ standard specifications Version 1.0.
EN-61
Advanced features (continued)
Monitoring and control using SERIAL terminal
Using the SERIAL terminal, you can monitor and control multiple projectors collectively or individually.
• For details, contact your dealer.
RS-232C cable (option)
To RS-232C terminal
RS-232C cable (option)
To SERIAL
IN
To SERIAL
OUT
To SERIAL
IN
• See also the instruction manuals of the devices to
be connected.
RS-232C cable (option)
To SERIAL
OUT
To SERIAL
IN
(See page 31 for menu setting.)
1. Display the FEATURE menu.
2. Select PROJECTOR ID by pressing the  or 
button.
Connection
• Make sure that the power supplies of the projector
and the computer are off.
1. Connect one end of a commercially available
RS-232C cable to the SERIAL IN terminal on the
projector to be connected to the computer.
2. Connect the other end of the RS-232C cable to the
serial port on the computer.
3. Connect one end of an RS-232C cable to the
SERIAL OUT terminal on the projector that is
connected to the computer.
4. Connect the other end of the RS-232C cable to the
SERIAL IN terminal on the second projector.
• For the connection of the second and later
projectors, connect their SERIAL OUT terminals
and the SERIAL IN terminals using RS-232C
cables.
PROJECTOR ID
ALL
3. Set the PROJECTOR ID by pressing the  or 
button.
Important:
• To monitor and control the projectors individually,
assign different PROJECTOR IDs to them.
• By assigning ALL, you can monitor and control the
projectors regardless of the ID numbers.
Setting GROUP IDs
By dividing the projectors into groups, you can monitor
and control them collectively by groups.
GROUP IDs should be A to Z. You can create up to 26
groups.
• The default GROUP ID is A.
Important:
• In a system using a serial divider, don’t connect the
projectors as above.
(See page 31 for menu setting.)
1. Display the FEATURE menu.
2. Select GROUP ID by pressing the  or  button.
GROUP ID
To monitor and control the projectors collectively or
individually, it is necessary to assign PROJECTOR IDs
or GROUP IDs to them.
A
3. Set the GROUP ID by pressing the  or  button.
Important:
• When you want to monitor and control the
projectors by groups, set a different GROUP ID.
• For details, contact your dealer.
Setting PROJECTOR IDs
You can monitor and control multiple projectors
individually.
PROJECTOR IDs should be two-digit numbers “01” to
“63” or “ALL.” The other numbers cannot be used.
• The default PROJECTOR ID is ALL.
• By assigning the same PROJECTOR ID to multiple
projectors, you can monitor and control those
projectors collectively.
EN-62
Advanced features (continued)
Control by a control panel, etc.
When installing the projector in a place where the remote control signals cannot reach the projector, you can control
the projector using a control panel or other device connected to the REMOTE 1 IN terminal.
External contact
control
Remote control
POWER
ON
OFF
BLANK
ON
OFF
COMPUTER1
COMPUTER2
VIDEO
S-VIDEO
DVI
Projector
Controllable functions
• You can change the functions of PIN 2 to PIN 8
using REMOTE 1 MODE in the INSTALLATION 2
menu. See page 35.
• Switching between remote control and external
control
• Switching input signals
• Power-on and power-off
• BLANK-on and BLANK-off
Important:
• To reset the pin functions to the defaults, set
REMOTE 1 MODE in the INSTALLATION 2 to
RESET.
Important:
• To control the projector using a control panel, set
STANDBY MODE in the INSTALLATION 1 menu to
STANDARD. When it is LOW, you cannot control
the projector.
Contact control
By short-circuiting Pin No. 1 and Pin No. 9, you can
control the projector using a control panel or other
device.
• When you short-circuit Pin No. 1 and Pin No. 9, the
following functions cannot be used:
∙ POWER and BLANK of the remote control and
the projector
∙ RS-232C commands and network functions
corresponding to the above-mentioned
functions
∙ REMOTE 1 MODE, AUTO POWER ON and
AUTO POWER OFF in the INSTALLATION 2
menu.
∙ STANDBY MODE in the INSTALLATION 1 menu.
Connection
• Make sure that the power supplies of the projector
and control panel are off.
Input switching control
By short-circuiting any of Pin No. 3 to Pin No. 7, you
can switch the input using a control panel or other
device.
• When short-circuiting any of Pin No. 3 to Pin No. 7,
you cannot use the following functions.
∙ POWER, BLANK, COMPUTER 1, COMPUTER 2,
VIDEO, S-VIDEO, DVI, and HDMI of the remote
control and the projector
∙ RS-232C commands and network functions
corresponding to the above-mentioned
functions
To REMOTE 1 IN
RS-232C cable (option)
Control panel
1. Connect one end of an RS-232C cable to the
REMOTE 1 IN terminal on the projector.
2. Connect the other end of the RS-232C cable to the
control panel.
Pin functions (defaults)
POWER control
By short-circuiting or open-circuiting Pin No. 2, you
can turn on or off the power using a control panel or
other device.
REMOTE 1 IN (D-SUB 9-pin)
Pin No.
Signal
1
2
3
4
5
6
7
8
9
GND
POWER
Input
Input
Input
Input
Input
BLANK
ON/OFF
Open (H)
Control panel
Short (L)
–
GND
OFF
ON
–
COMPUTER1
–
COMPUTER2
–
VIDEO
–
S-VIDEO
–
DVI
OFF
ON
Valid (Remote control) Invalid (External contact control)
BLANK control
By short-circuiting or open-circuiting Pin No. 8, you
can turn on or off the BLANK function using a control
panel or other device.
EN-63
Replacing the lamp
This projector is equipped with 2 lamps to project
images. This lamp is a consumable. It may burn out
or its brightness may decrease during use. In such
cases, replace the lamp with a new one as soon as
possible. Be sure to replace the lamp with a new lamp
separately sold that is exclusive to this projector.
Contact your dealer for purchase of the lamp.
Spare lamp
•
VLT-XD8600LP
Warning:
• Be careful not to drop the lamp fixing screws into
the inside of the projector. Don’t put a metal piece
or flammable object into the projector. Using the
projector with any foreign object present inside
may result in electric shock or fire. When you can’t
remove the foreign object from the inside, contact
your dealer for removal.
• Do not touch the lamp with bare hands or give
a shock to the lamp. Attach the lamp properly.
Improper handling may cause explosion.
• Be sure to install the lamp securely. When the lamp
isn’t installed properly, it won’t illuminate. Improper
installation may also result in fire.
• Don’t shake the removed lamp or don’t lift it above
your face. You may be injured in your eye by flying
or falling glass fragments.
• Don’t replace the lamp immediately after use
because the lamp cover is very hot. You may get
burned. Turn off the power using the POWER
button. After the lamp goes out, wait about 2
minutes until the intake and exhaust fans for
cooling the lamp stop rotating. Then unplug the
power cord, and wait at least 1 hour to allow the
lamp to cool down enough to the touch.
•
•
•
•
because of an impact, scratch, or deterioration
through use. The period of time until explosion or
permanent failure to illuminate varies considerably
from lamp to lamp, depending on operation
conditions. Therefore, the lamp may explode soon
after the start of use.
The possibility of explosion of the lamp increases if
you use it beyond its replacement period. When the
instruction of lamp replacement appears, replace it
with a new one immediately even if the lamp is still
lighting normally.
When the high-pressure mercury lamp explodes,
glass fragments will scatter inside or outside the
lamp box and the gas charged inside the lamp
will diffuse inside or outside the projector. The gas
inside the lamp contains mercury. Be careful not
to breathe it or avoid it from entering your eye or
mouth. If you should breathe it or if it should enter
your eye or mouth, see a doctor immediately.
In the event that the high-pressure mercury
lamp exploded, glass fragments may have been
scattered inside the projector. Ask your dealer to
replace the lamp and to inspect the inside of the
projector. When you clean or replace the lamp by
yourself, be sure to hold the handle of the lamp.
You may get injured by glass fragments.
When removing the lamp from the ceiling-mounted
projector, use the lamp replacement tray packed
with the projector or option lamp to prevent glass
fragments from scattering.
Be sure to use the lamp exclusive to this projector,
VLT-XD8600LP. Use of other lamps may cause a
failure of the projector.
Before replacing the lamp
Interval of lamp replacement
1. Check which indicator (for LAMP 1 or LAMP 2) is
illuminating or blinking.
The recommended interval of lamp replacement is
about 4000 hours*1*2 of consecutive use. Such interval
differs depending on the operating environment
and may be shorter than 4000 hours*1*2. Decrease
in luminescence and/or color brightness indicates
that the lamp needs to be replaced. When the lamp
operation time exceeds 3000 hours*1, the indicator
will blink alternately between green and red (while the
lamp is lit; when the lamp is not lit, the indicator will
be lit red only) and the lamp replacement message
will appear on the screen for 1 minute everytime the
lamp is turned on. When the lamp has been used
for about 3800 hours*1, the replacement message
(LAMP REPLACEMENT) will appear on the screen for
1 minute every 20 hours*1 thereafter. When the lamp
operation time exceeds 4000 hours*1*2, the projector
automatically shuts off.
LAMP 2 indicator
LAMP 1 indicator
• For the statuses of the indicators urging you to
replace the lamps, see page 73.
• Replace the lamp indicated by the illuminating/
blinking indicator using the following procedure.
• When both indicators are illuminating or blinking,
replace both lamps at the same time.
To replace the lamp:
1. Unplug the power cord from the outlet or appliance
inlet.
2. Loosen two screws (a) that are securing the lamp
cover using a Phillips screwdriver and remove the
lamp cover (b) from the projector.
*1: Duration when LAMP MODE of the INSTALLATION 1
menu is set to LOW. When it is set to STANDARD, this
duration will be shorted.
*2: When LAMP MODE is set to STANDARD, this duration
will be shorted to 2000 hours.
(b)
Caution:
• Don’t remove the lamp for any purpose other than
replacement. Unnecessary removal of the lamp
may result in a breakdown.
• This projector uses a high-pressure mercury lamp
as the light source. The high-pressure mercury
lamp may explode or fail to illuminate permanently
(a)
EN-64
Replacing the lamp (continued)
Reset of the lamp operation time
Reset the lamp operating time of the newly
installed lamp.
You can reset the lamp operation time using the menu.
(See page 31 for menu setting.)
10.Plug the power cord into the wall outlet.
11.Press the POWER button.
12.Display the FEATURE menu.
13.Select ADVANCED MENU by pressing the  or 
button.
3. Loosen two screws (c) that are securing the lamp
box to be removed using a Phillips screwdriver.
LAMP 2
LAMP 1
(c)
(c)
4. Pull the handle.
5. Pull out the lamp box by the handle while holding
the projector.
ADVANCED MENU
14.Press the ENTER button.
15.Select LAMP 1 TIME RESET or LAMP 2 TIME RESET by
pressing the  or  button.
OK
LAMP 2 TIME RESET
OK
EXECUTE LAMP 1 TIME RESET ?
OK : ENTER CANCEL : MENU
17.Reset by pressing the ENTER button.
• When the lamp operating time isn’t reset, press
the MENU button.
Important:
• Make sure that the LAMP indicator blinks twice and
the lamp operation time is reset successfully.
• When the operation times of both lamps have
exceeded 4000 hours*, you can operate the
projector only for 3 minutes after turning on the
power. During this time, carry out steps 12 to 17 to
reset the lamp operation times.
• The projector doesn’t turn on if the lamp cover isn’t
attached securely.
• Be sure to reset the lamp operation time whenever
you replace the lamp.
• Do not reset the lamp operation time unless you
replace the lamp.
• The lamp is fragile. If it is broken, be careful not to
cut yourself with glass fragments.
7. Put the handle back to the original position.
• Make sure that the handle is locked.
8. Tighten two screws (c) of the new lamp box tightly
using a Phillips screwdriver.
LAMP 1
*: When LAMP MODE is set to STANDARD, this duration
will be shorted to 2000 hours.
(c)
(c)
LAMP 1 TIME RESET
16.Press the ENTER button.
• The confirmation dialog appears.
• Pull the lamp box out of the projector slowly.
When the lamp is broken, glass fragments may
be scattering by quickly pulling out the lamp box.
• Do not spill liquid on the removed lamp box or
do not place it near any flammable object or
where children can reach to prevent injury or fire.
6. Load a new lamp box securely into the projector in
the right orientation.
LAMP 2
ENTER
Caution:
• This projector uses a lamp that
contains mercury. Disposal of the lamp
or the projector with the lamp may
be regulated due to environmental
considerations. For disposal or
recycling information, please contact
your local authorities or the Electronic
Industries Alliance: www.eiae.org. (For
the U.S. only.)
• Make sure that the screws are tightened firmly.
9. Insert the lamp cover (b) into the projector and
tighten two screws (a) on the lamp cover firmly
using a Phillips screwdriver.
(b)
(a)
• You cannot turn on the projector without
attaching the lamp cover.
EN-65
Replacing the lamp (continued)
When removing the lamp from the ceiling-mounted projector
When removing the lamp from the ceiling-mounted projector, use the lamp replacement tray packed with the
projector or option lamp to prevent glass fragments from scattering.
• Assemble the lamp replacement tray according to the procedure shown on it.
1. Follow steps 1 to 4 on pages 64 and 65.
2. Attach the lamp replacement tray to the projector as shown in the
figure.
3. Secure the lamp replacement tray on the projector using the tape
packed with the tray.
4. Pull out the lamp box to be removed by the handle while holding
the projector.
• Hold the lamp replacement tray to prevent glass fragments
from scattering.
• Don’t put the lamp directly on the lamp replacement tray
because it may fall.
5. Detach the lamp replacement tray together with the removed
lamp.
6. Follow steps 6 to 17 on page 65.
Important:
• When the projector is installed at other setting angles, replace the
lamp referring to “To replace the lamp.”
EN-66
Tape
Maintenance
Cleaning of the filter
6. Attach the filter holder (c).
Clean dust from the filter.
Before cleaning the filter, be sure to turn off the power
of the projector and unplug the power cord from the
outlet.
(c)
Clean the filter frequently (at least once a month).
Dust settling on the filter causes the temperature
inside the projector to increase abnormally, damaging
the internal parts and components and affecting the
panel’s lifetime, resulting in a breakdown.
• When the temperature inside the projector is
abnormally high, the projector may automatically
turn off and go into the standby mode where the
light source lamps are off to protect the internal
parts and components.
1. Loosen the screw (a) that is securing the filter cover
using a Phillips screwdriver and remove the filter
cover (b) from the projector.
7. Insert the filter cover (b) into the projector and
tighten the screw (a) on the filter cover firmly using
a Phillips screwdriver.
(b)
(a)
(a)
(b)
2. Remove the filter holder (c).
(c)
3. Remove the filter (d).
(d)
4. Suck dirt and dust from the filter and projector
using a vacuum cleaner.
5. Attach the filter (d).
(d)
EN-67
Maintenance (continued)
Warning:
• Do not use flammable solvents (benzene, thinner, etc.) and flammable aerosols when cleaning the projector body
and lens. Flammable substances may ignite causing fire or breakdown while the lamp is illuminating.
Caution:
• Be sure to turn off the lamp and unplug the power cord from the wall outlet before you perform any maintenance
on the projector.
• Ask your dealer for annual cleaning of the inside of the projector. If you continue to use the projector with dust
inside, it may result in fire or malfunction.
• Do not put any foreign object into the filter unit. It may cause malfunction.
Cleaning of the projector and the vents
Use a soft cloth to clean the projector and the vents. When the vents become dirty, wipe them with a soft cloth
dampened with diluted mild detergent, and then wipe them with a dry cloth.
To protect the surface of the projector from fading or deteriorating:
• Do not spray insecticide on or inside the projector.
• Do not use benzine or thinner to clean it.
• Do not let rubber or plastic materials contact with projector.
Cleaning of the lens
Use a standard lens-cleaning brush or a piece of lens tissue dampened with lens cleaning fluid. The lens surface is
fragile. Use only recommended, nonabrasive lens-cleaning materials. Do not touch the lens with your fingers.
EN-68
Troubleshooting
Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be
sure to unplug the power plug, and then contact your dealer.
No image appears on the screen.
Problem
Solution
Power can not be
turned on.
• Check whether the indicators are on or off and how they are lightning.
POWER LAMP 1 LAMP 2 STATUS FILTER
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
Blinking
orange
Off
Off
Off
Steady red
Blinking green*
Steady red*
Blinking
red/green
Off
Off
Off
Off
Off
Off
Steady*
or
Solution
• Connect the power cord to the projector.
• Plug the power cord into a wall outlet.
• If any objects are blocking the intake or exhaust
vents, remove them and carry out the following.
1. Unplug the power cord from the wall outlet.
2. Make sure that the projector has cooled off.
3. Plug the power cord into a wall outlet.
4. Press the POWER button.
• If any objects are blocking the intake or exhaust
vents, remove them.
• Don’t expose the exhaust vents to hot air emitted
from a heating appliance.
• Check whether the filter is dirty or not.
→ Clean the filter. (See page 67.)
• Wait until the LAMP indicators stop blinking green
and then press the POWER button.
• If you unplug the power cord while the fan is rotating, the
lamp may not turn on about 2 minutes when you plug the
power cord next time.
• The lamp can’t turn on again for 2 minutes after it goes out.
• Press the POWER button several times.
• Replace the light source lamp indicated by the
illuminating indicator. (The time for replacing the light
source lamp has come.)
• Attach the lamp cover and filter cover.
• Unplug the power cord from the wall outlet and
contact your dealer.
Blinking*
*: Status of either or both of the indicators.
No image appears on
the screen.
•
•
•
•
•
•
•
•
•
Power turns off.
Press the BLANK button to cancel BLANK.
Check that the lens cap is removed.
It may take about 2 minutes for the lamp to light up.
The lamp fails to light up on rare occasions. In such a case, wait for a few minutes
and then try again.
If the projector was turned off before the lamp was cooled down sufficiently last time,
the fan may start rotating and the POWER button may not work after the power cord
is plugged. After the fan stops rotating, press the POWER button to turn back on the
POWER indicator.
Set SCART INPUT in the FEATURE menu to OFF. (See page 37.)
Check that the intake vent is clean.
Check that the cables connected to the external devices are not broken.
When an extension cable is being used, replace it with the supplied cable for check.
When images are displayed correctly, add an RGB signal amplifier to the extension cable.
• This problem may occur when the intake vent and/or exhaust vents are blocked. (In
such a case, the STATUS indicator brinks orange.)
 Remove the objects blocking the intake vent and/or exhaust vents and then carry
out the following procedure.
1. Wait for the intake fan and/or exhaust fan to stop. (Wait until the STATUS indicator
goes out.)
2. Unplug the power cord from the wall outlet.
3. Wait about 10 minutes.
4. Plug the power cord into a wall outlet.
5. Press the POWER button.
• When the LAMP indicator is steady red, it is indicating that the lamp should be
replaced. Replace the lamp that is being indicated by the indicator.
• Check that AUTO POWER OFF has been set to OFF.
• If the lamp has deteriorated, it may go out after a while it illuminates.
EN-69
Troubleshooting (continued)
No image appears on the screen. (continued)
Problem
Solution
The screen for
entering the password
appears.
• PASSWORD FUNCTION in the FEATURE menu has been set to DISPLAY INPUT
enable the password lock.
 Enter the password or contact the person in charge of management of the
projector. (See page 58.)
“NO SIGNAL” is
displayed.
• Turn on the power of the connected device, or check whether there is something
wrong with the connected device.
• Check whether the external device output signals. (Check this especially when the
external device is a notebook computer.)
• Check that the cable connected to the external device isn’t defective.
• Check that the projector is connected to the external device using the correct terminals.
• Check that the connected device is correctly selected as the input source.
• When an extension cord is being used, replace it with the supplied cable and check
whether images are projected correctly. If images are projected correctly, use an RGB
signal amplifier along with the extension cord.
to
Images are not displayed correctly.
Problem
Solution
Projected images are
shaking.
Projected images are
displaced.
The edge of the
projected images is
not displayed.
• Check that the cable connected to the external device isn’t intermittent.
• Connect the cable’s plug with the external device’s connector firmly.
• Project an image containing many characters such as a help menu and press the
AUTO POSITION button. (See page 47.)
• Some computers output out-of-spec signals on rare occasion. Adjust the SIGNAL
menu. (See pages 39 and 40.)
• Check whether there is a wind that blows the exhausted air from the projector to the
direction of the projection lens.
• Adjust the projector and the screen so that they are perpendicular to each other. (See
page 14.)
• Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 43.)
• Replace the lamp. (See page 64.)
• Decrease the temperature when the ambient temperature is high and the warning is
displayed.
• Adjust the focus. (See page 12.)
• Clean the lens.
• Press the  or  button on the remote control to eliminate flicker.
• Adjust TRACKING and FINE SYNC. in the SIGNAL menu. (See page 48.)
• Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 43.)
• Adjust the projector and the screen so that they are perpendicular to each other. (See
page 14.)
• This symptom is normal for a DLP™ projector and is not a malfunction. (A very small
number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of
99.99% or more are effective.)
Projected images are
distorted.
Projected images are
dark.
Projected images are
blurred.
White dots are seen
on projected images.
Black dots are seen
on projected images.
Rainbow effect is seen
on projected images.
Fine streaks are seen
on projected images.
Projected images
become wavy.
• This is due to color breaking noise that occurs in a DLP™ system and is not a
malfunction.
• This is due to interference with the screen surface and is not a malfunction. Replace
the screen or displace the focus a little.
• Vertical or horizontal streak noise may appear on the projected image, depending on
the type of the DVD player or game console you use. In such a case, you can reduce
such streak noise by enabling the LPF.
• Connect the plugs of the cables to external devices securely.
• Keep the projector away from devices that emit interfering radio waves.
• When the keystone adjustment is carried out, the image may not be displayed
correctly depending on the type of input signal. This isn’t a product malfunction. In
this case, readjust the keystone so that the amount of keystone correction is as small
as possible.
EN-70
Troubleshooting (continued)
Images are not displayed correctly. (continued)
Problem
Solution
Hue is not appropriate.
• If RGB/YCbCr output setting on the external device does not match with COMPUTER INPUT setting in the SIGNAL menu on the projector, the entire screen may become
reddish or greenish.
• If the setting of COMPUTER INPUT in the SIGNAL menu is inconsistent with the RGB/
YCbCr output setting of the external device even when the input source is other than
COMPUTER (for example, when the input source is HDMI), the entire image appears
reddish or greenish.
 Check that COMPUTER INPUT in the SIGNAL menu is set correctly.
• Check that the cables connected to the external devices are not broken.
• Check that COMPUTER INPUT in the SIGNAL menu is correctly set. (See page 39.)
• Check that the cable connected to the external device isn’t broken.
• When comparing images projected by two projectors, tints in the displayed images may be
different because of variation between their optical components. This is not a malfunction.
• When comparing the image projected by this projector with those displayed on the
television or PC monitor, tints in the displayed images may be different because of
difference in the range of color reproducibility. This is not a malfunction.
• This is caused by the computer being used. Contact the manufacturer of your
computer.
Tint in projected
images is incorrect.
Different color tint.
Only the motion areas
in the images supplied
from the computer
aren’t displayed.
Projected images are
obscured.
The resolution setting
on the computer
is different from
that displayed in
INFORMATION menu
on the projector.
• Match the output resolution of your computer with the resolution of the projector.
For the method to change the output resolution of the computer, contact the
manufacturer of your computer. (See page 75.)
• Some images and texts appear obscured during the keystone adjustment. In such
cases, use the projector without applying the keystone adjustment. (See page 14.)
• When SUPER RESOLUTION is ON, the displayed image may be obscured. Set it to
OFF. (See page 45.)
• In some images such as DVD, noise may appear around the recorded image. In this
case, decrease the setting value of OVER SCAN in the SIGNAL menu or adjust the
setting value of SHUTTER in the USER menu of the SIGNAL menu. (See page 40.)
• On the computer, display the images containing many characters such as a text
document so that the screen becomes bright as much as possible, and then press the
AUTO POSITION button.
• Perform RESOLUTION (MEMORIZE) in the SIGNAL menu. (See page 39.)
• Depending on the computer, the images may be output in the different resolution from
the setting. In such a case, consult the computer manufacturer.
The projected images
have blown-out highlights
or blocked-up shadows.
• Adjust the input level of ADVANCED MENU in the IMAGE menu.
• Set COLOR ENHANCER in the IMAGE menu to the setting such as STANDARD and
sRGB.
Noise appears around
the image.
Others
Problem
Solution
The exhaust vents
emit warm air.
The menu can’t be
used.
• This air comes out after cooling the inside of the projector. You may feel hot, but this
is not a malfunction.
• The microcomputers inside the projector may be wrongly operating because of noise.
 Press the POWER button to turn off the lamp, wait for about 2 minutes and unplug
the power cord from the wall outlet. Wait about 10 minutes, plug the power cord
in, and try again.
• You cannot select (or set) grayed-out items. Whether items can be selected or not
depends on the presence of an input signal at the time when the menu is displayed,
the type of such input signal, and other conditions.
EN-71
Troubleshooting (continued)
Others (continued)
Problem
Solution
“TEMPERATURE!!” is
displayed.
• This indication appears when the ambient temperature rises high. When the ambient
temperature stays high, the lamp goes out.
 Eliminate any causes of the rise in the ambient temperature.
• This indication appears when the intake or exhaust vents are blocked. When they are
kept blocked, the lamp goes out.
 Remove the objects blocking the intake or exhaust vents.
• This mark appears when ineffective operation is carried out. This isn’t a product malfunction.
• Check that the batteries are loaded in the remote control or the batteries are not
weak. (See page 6.)
• Check that the remote control sensor isn’t exposed to direct sunlight or fluorescent
light. (See page 9.)
• Use the remote control within its operation range. (See page 9.)
• Use the remote control at least 10 cm away from the projector.
• Check that the CONTROLLER ID matches with the PROJECTOR ID. (See pages 10
and 62.)
• Check that the projector isn’t controlled by a control panel or other device that is
connected to the REMOTE 1 IN terminal. (See page 63.)
• PASSWORD FUNCTION in the FEATURE menu has been set to MENU ACCESS to
enable the password lock.
 Cancel the password lock or contact the person in charge of management of the
projector. (See page 58.)
• Check that the projector isn’t controlled by a control panel or other device that is
connected to the REMOTE 1 IN terminal. (See page 63.)
• Because the color wheel spins at a high speed, metallic sounds may be heard in rare
occasions. Such symptom is not a malfunction.
• Check that LENS LOCK in the INSTALLATION 1 menu isn’t ON. (See page 34.)
The mark appears.
The remote control
doesn’t function easily
or at all.
The buttons on the
projector (except for
the POWER button)
don’t function.
Abnormal sound is
heard.
FOCUS/ZOOM
doesn’t work.
Lens shift doesn’t
work.
If the following problem occurs after the lamp is replaced, check the following first.
Problem
Solution
The projector does not
turn on.
• Fit the lamp cover securely. (See pages 64 and 65.) The LAMP indicator
illuminates red.
• Reset the lamp operating time of the newly installed lamp. (See page 65.)
Kensington Lock
This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System.
Refer to the information that came with the Kensington System for instructions on how to use it to secure the
projector. Please contact Kensington Technology Group below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700
Fax: +1- (650)572-9675
EN-72
Indicators
This projector has 5 indicators, each of which shows the operation condition of the projector.
The following offer solutions to possible problems. If these problems persist, turn the projector off and consult your
dealer.
POWER indicator
LAMP 1 indicator
LAMP 2 indicator
FILTER indicator
STATUS indicator
 POWER, STATUS, and FILTER: The current condition is indicated.
POWER STATUS
Normal
condition
FILTER
Steady red
Off
Off
Steady green
Off
Off
Off
Off
Blinking green/
red
Steady*1
or
Abnormal
condition
CONDITION
POSSIBLE SOLUTION
Power standby or cooling
The power is on (Normal condition)
The lamp condition is indicated by
the LAMP indicators.
• Any of the lamp cover and filter cover
is open.
Abnormal
• Close all the covers.
Contact your dealer.
Blinking*1
Steady red
or
Blinking orange
Off
Steady green
Abnormal temperature
• The vents are clogged with dust or
dirt.
• The room temperature is high.
• The filter is dirty.
• Clean the vents.
• Relocate the projector to a cooler
place.
• Clean the filter. (See page 67.)
*1: Status of either or both of the indicators.
LAMP 1, LAMP 2: The condition of each lamp is indicated.
LAMP 1 / LAMP 2 CONDITION
Normal
condition
Blinking green
POSSIBLE SOLUTION
• When the lamp is illuminating, it is in the
warmup mode. (You cannot turn off the
power.)
• When the lamp is off, it is in the cooling
mode. (You cannot turn on the power.)
The lamp is illuminating.
Steady green
Blinking red
or
Replacement
Lamp operation time warning. (Total lamp
operation time reached 3000 hours*2.)
Blinking green/red
Steady red
Lamp operation time warning. (Total lamp
operation time reached 4000 hours*2*3.)
The protection circuit is working or the lamp
is in an abnormal condition.
When only one lamp fails:
• In the case that LAMP SELECT is set to
DUAL, only the normal lamp illuminates
(the intensity of one lamp is obtained).
• In the case that LAMP SELECT is set to
SINGLE, LAMP 1, or LAMP 2, only the
normal lamp illuminates (the lamp isn’t
switched).
Replace the light source lamp indicated by the
illuminating or blinking indicator.
Change with a new lamp if this problem
recurs.
When both indicators blink, wait until the
indicators stop blinking and then press the
POWER button. If the light source lamps don’t
illuminate even after you perform the above
operation several times, unplug the power cord
from the wall outlet and contact your dealer.
Abnormal
To illuminate the failed lamp again when either
Blinking orange
condition
indicator blinks, turn off the power and wait until
the indicator stops blinking and then press the
POWER button. If the light source lamp doesn’t
illuminate even after you perform the above
operation several times, unplug the power cord
from the wall outlet and contact your dealer.
*2: Duration when LAMP MODE of the INSTALLATION 1 menu is set to LOW. When it is set to STANDARD, this duration will be shorted.
*3: When LAMP MODE is set to STANDARD, this duration will be shorted up to 2000 hours.
EN-73
Specifications
The specifications and outside appearance of the projector are subject to change without prior notice.
Type
Model
Display technology
Projection lens
Light-source lamp
Image size (projection distance)
Maximum resolution Computer signal
Video signal
Component signal
Computer/component video input
Video input
HDMI input
Control terminal/others
Operating temperatures
Rated voltage
Power consumption
Dimensions (not including protrusion)
Weight
Others
S-video input
Video input
Component video
input
Analog input
Digital input (DVI)
Digital input (HDMI)
DLP™ projector
XD8500U
0.7-inch Single chip DMD
Pixel 1024 x 768 = 786432 pixels
F 2.0 - 2.4 f= 24.5 - 33.1 mm
350 W x 2
40” min. to 300” max. (projection distance 1.4 to 10.6 m)
Maximum resolution: 1920 x 1200 dots (compressed)
Panel resolution: 1024 x 768 dots
NTSC/PAL/SECAM/4.43NTSC/PAL-M/PAL-N/PAL-60
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Panel resolution: 1024 x 768 dots
[Signal type]
[Terminal type]
[Line]
Analog RGB
Mini D-SUB 15-pin
1
Analog RGB
5 BNC
1
Digital RGB
DVI-D 24-pin
1
[Signal type]
[Terminal type]
[Line]
Video input
BNC
1
S-video input
S
1
[Signal type]
[Terminal type]
[Line]
HDMI
HDMI 19-pin
1
SERIAL IN/OUT (D-SUB 9-pin male) RS-232C standards,
LAN (RJ-45), REMOTE 1 IN (D-SUB 9-pin female), REMOTE2 IN/OUT
(Stereo mini jack (ø3.5))
+41°F (+5°C) to +104°F (+40°C): (Standard altitude mode)
+41°F (+5°C) to +95°F (+35°C): (High altitude mode: Floor installation/
ceiling installation)
AC 100 - 240 V, 50/60 Hz
9.3 A, 910 W
During standby:
AC 100 - 120 V: 2 W (when STANDBY MODE is STANDARD)
0.2 W (when STANDBY MODE is LOW)
AC 220 - 240 V: 2 W (when STANDBY MODE is STANDARD)
0.3 W (when STANDBY MODE is LOW)
490 mm (W) x 201 mm (H) x 421 mm (D) (projector only)
16 kg (projector only)
Luminance signal: Vp-p=1.0 V 75 Ω (negative sync)
Chrominance signals: Vp-p=0.286 V 75 Ω (burst signal)
Vp-p=1.0 V 75 Ω (negative sync)
YCBCR:Vp-p=1.0 V 75 Ω (Y) (negative sync)
Vp-p=0.7 V 75 Ω (CB, CR)
RGB: Vp-p=0.7 V 75 Ω (negative sync)
YCBCR: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (CB, CR)
HD/CS: TTL-level (negative or positive polarity)
VD: TTL-level (negative or positive polarity)
DVI-D interface (TMDS single link) with HDCP
HDMI interface (TMDS single link)
Replacement part (option/not included in the box)
Spare lamp: VLT-XD8600LP
Option lenses: OL-XD8000EZ, OL-XD2000SZ, OL-XD2000LZ, OL-XD2000TZ, OL-XD8000UZ, OL-XD2000FR
Important:
• Ask a trained specialist for mounting or replacing the option lens. For details, contact your dealer.
EN-74
Specifications (continued)
Specification of RGB signals in each computer mode of the projector
Signal mode
TV60, 480i (525i)
TV50, 576i (625i)
1080i60 (1125i60)
1080i50 (1125i50)
480p (525p)
576p (625p)
720p60 (750p60)
720p50 (750p50)
1080p60 (1125p60)
1080p50 (1125p50)
CGA70
CGA84
CGA85
VGA60
VGA72
VGA75
VGA85
SVGA56
SVGA60
SVGA72
SVGA75
SVGA85
SVGA95
XGA60
XGA70
XGA75
XGA85
SXGA70a
SXGA75a
SXGA85a
WXGA60
WXGA60a
WXGA60b
WXGA60c
WXGA+60
WXGA++60
SXGA60b
SXGA75b
SXGA85b
SXGA60
SXGA75
SXGA85
SXGA+60
SXGA+75
WSXGA+60
MAC13
MAC16
MAC19
HP75
HP72
SUN66a
SUN76a
SUN66
SUN76
SGI72
SGI76
UXGA60
WUXGA60
Resolution
(H x V)
Horizontal
frequency
(kHz)
Vertical
frequency
(Hz)
Normal
mode
(H x V)
720 x 480
720 x 576
1920 x 1080
1920 x 1080
720 x 480
720 x 576
1280 x 720
1280 x 720
1920 x 1080
1920 x 1080
640 x 400
640 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1152 x 864
1152 x 864
1280 x 768
1280 x 800
1360 x 768
1366 x 768
1440 x 900
1600 x 900
1280 x 960
1280 x 960
1280 x 960
1280 x 1024
1280 x 1024
1280 x 1024
1400 x 1050
1400 x 1050
1400 x 1050
1680 x 1050
640 x 480
832 x 624
1024 x 768
1024 x 768
1280 x 1024
1152 x 900
1152 x 900
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1600 x 1200
1920 x 1200
15.73
15.63
33.75
28.13
31.47
31.25
45.00
37.50
67.50
56.25
31.47
37.86
37.86
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
59.97
48.36
56.48
60.02
68.68
63.85
67.50
77.49
47.78
49.70
47.71
47.71
55.94
60.00
60.00
75.00
85.94
63.98
79.98
91.15
63.98
65.32
82.28
65.29
35.00
49.72
60.24
62.94
78.13
61.85
71.81
71.68
81.13
76.92
82.01
75.00
74.04
59.94
50.00
60.00
50.00
59.94
50.00
60.00
50.00
60.00
50.00
70.09
84.13
85.08
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
94.89
60.00
70.07
75.03
85.00
70.01
75.00
85.06
59.87
59.81
60.02
59.79
59.89
60.00
60.00
75.00
85.00
60.02
75.02
85.02
60.02
59.98
74.87
59.95
66.67
74.55
75.02
74.92
72.00
66.00
76.64
66.68
76.11
72.30
76.00
60.00
59.95
1024 x 768
1024 x 768
1024 x 576
1024 x 576
1024 x 768
1024 x 768
1024 x 576
1024 x 576
1024 x 576
1024 x 576
1024 x 640
1024 x 640
1024 x 640
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 615
1024 x 640
1024 x 579
1024 x 576
1024 x 640
1024 x 576
1024 x 768
1024 x 768
1024 x 768
960 x 768
960 x 768
960 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 640
1024 x 768
1024 x 768
1024 x 768
1024 x 768
960 x 768
983 x 768
983 x 768
960 x 768
960 x 768
960 x 768
960 x 768
1024 x 768
1024 x 640
Plug and Play *3
COMPUTER /
COMPONENT
VIDEO IN-1
terminal
COMPUTER /
COMPONENT
DVI-D IN (HDCP)
terminal
HDMI IN
terminal























































*1, *2
*1, *2
*1
*1
*1
*1
*1
*1
*1
*1



*1: The PinP mode, the MAGNIFY mode and IMAGE CAPTURE in the INSTALLATION 2 menu don’t function with these signals.
*2: COMPUTER/COMPONENT VIDEO DVI-D IN (HDCP) terminal and HDMI IN terminal aren’t supported.
*3: Signals marked with  in the Plug and Play column are described in EDID (extended display identification data) of the
projector.
Signals described in the Signal mode column can be input regardless of the  mark in the Plug and Play column.
For signals not marked with  in the Plug and Play column, the resolution may not be supported even when it is supported on
the computer.
EN-75
Specifications (continued)
Specification of RGB signals in each computer
mode of the projector (continued)
• TV60 and TV50 are equivalent to 480i and 576i
respectively. When these signals are supplied to
the VIDEO IN or S-VIDEO IN terminal, the signal
mode is indicated as TV60 or TV50. When they are
supplied to the COMPUTER/COMPONENT VIDEO
IN terminals, the signal mode is indicated as 480i or
576i.
• This projector doesn’t support 480p signals from
video devices having 4 lines (R, G, B, CS*) or having 5
lines (R, G, B, H, V).
* : Composite Sync
Important:
• Some computers aren’t compatible with the
projector.
• The projector’s maximum resolution is 1024 x
768 pixels. It may not display images of higher
resolutions than 1024 x 768 correctly.
• Images with SYNC on G (Green) signal may jitter.
• Images with SYNC on G (Green) signal may be
tinged with green.
• If the resolution and frequency of your computer
aren’t shown on the table, find the compatible
resolution and frequency by changing the resolution
of your computer.
Connectors
COMPUTER/COMPONENT VIDEO COMPUTER/COMPONENT VIDEO
IN-1 (Mini D-SUB 15-pin)
DVI-D IN (HDCP) (DVI-D 24-pin)
SERIAL IN/OUT
(D-SUB 9-pin)
5
5
1
9
1
10
6
Pin No.
Name
I/O
1
2
3
4
5
6
7
8
9
–
TXD
RXD
–
GND
–
–
–
–
–
IN
OUT
–
–
–
–
–
–
24
6
15
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
119*
201
421
*: Factory-defaults
EN-76
2 18
1
Spec.
Pin No.
TMDS DATA 213
TMDS DATA 2+ 14
TMDS DATA 2 Shield 15
16
17
DDC Clock
18
DDC Data
19
20
TMDS DATA 121
TMDS DATA 1+ 22
TMDS DATA 1 Shield 23
24
Dimension drawings (unit: mm)
490
9
8
Spec.
DDC 5V
GND
GND
DDC Data
HD/CS
VD
DDC Clock
1 19
17
16
11
Pin No.
Spec.
Pin No.
1
R(RED)/PR/CR
9
2
G(GREEN)/Y
10
3
B(BLUE)/PB/CB 11
4
GND
12
5
GND
13
6
GND
14
7
GND
15
8
GND
HDMI IN
(HDMI 19-pin)
Spec.
+5V Power
Ground (for +5V)
Hot Plug Detect
TMDS DATA 0TMDS DATA 0+
TMDS DATA 0 Shield
TMDS Clock Shield
TMDS Clock+
TMDS Clock-
Pin No.
Spec.
Pin No.
Spec.
1
2
3
4
5
6
7
8
9
10
TMDS Data2+
TMDS Data2 Shield
TMDS Data2TMDS Data1+
TMDS Data1 Shield
TMDS Data1TMDS Data0+
TMDS Data0 Shield
TMDS Data0TMDS Clock+
11
12
13
14
15
16
17
18
19
TMDS Clock Shield
TMDS ClockCEC
–
SCL
SDA
DDC Ground
+5 V Power
Hot Plug Detect
Specifications (continued)
Specification of the attached lens
With ultra short throw zoom lens (OL-XD8000EZ)
F2.4
f = 11.4 - 14.2 mm
Electrical drive
40 inch (81 cm X 61 cm) - 300 inch (610 cm X 457 cm)
Shortest
(Wide)
Lens shift height
Longest
(Tele)
H1
Lens shift
width
(W1)
H2
inch
cm
inch
cm
inch
cm
inch
m
inch
m
inch
cm
inch
cm
inch
cm
40
102
32
81
24
61
25
0.6
31
0.8
12
30
2
6
3
8
60
152
48
122
36
91
38
1.0
47
1.2
18
46
3
9
5
12
80
203
64
163
48
122
51
1.3
64
1.6
24
61
4
11
6
16
100
254
80
203
60
152
64
1.6
80
2.0
30
76
6
14
8
20
150
381
120
305
90
229
96
2.4
120
3.1
45
114
8
21
12
30
200
508
160
406
120
305
128
3.3
161
4.1
60
152
11
28
16
41
250
635
200
508
150
381
161
4.1
201
5.1
75
191
14
36
20
51
300
762
240
610
180
457
193
4.9
242
6.1
90
229
17
43
24
61
H2
Projection distance (L)
Height
(H)
W1
Center of the
lens
H
Width
(W)
W
H1
Screen size (4:3)
Diagonal
size
W1
L
L
F No.
Focal distance
Zoom/focus
Picture size
Maximum
projection area
• The above numbers are approximate, and may be slightly different from the actual measurements.
With short throw zoom lens (OL-XD2000SZ)
F2.0 - 2.4
f = 19.6 - 26.5 mm
Electrical drive
40 inch (81 cm X 61 cm) - 300 inch (610 cm X 457 cm)
Shortest
(Wide)
H1
Lens shift
width
(W1)
Width (W)
Height (H)
inch
cm
inch
cm
inch
cm
inch
m
inch
m
inch
cm
inch
H2
cm
inch
cm
40
102
32
81
24
61
41
1.0
57
1.5
12
30
2
6
3
8
60
152
48
122
36
91
63
1.6
88
2.2
18
46
3
9
5
12
80
203
64
163
48
122
86
2.2
118
3.0
24
61
4
11
6
16
100
254
80
203
60
152
108
2.7
148
3.8
30
76
6
14
8
20
150
381
120
305
90
229
164
4.2
224
5.7
45
114
8
21
12
30
200
508
160
406
120
305
219
5.6
300
7.6
60
152
11
28
16
41
250
635
200
508
150
381
275
7.0
-
-
75
191
14
36
20
51
300
762
240
610
180
457
331
8.4
-
-
90
229
17
43
24
61
H2
Lens shift height
Longest
(Tele)
W1
Center of the
lens
H
Projection distance (L)
W
H1
Screen size (4:3)
Diagonal
size
W1
L
L
F No.
Focal distance
Zoom/focus
Picture size
Maximum
projection area
• The above numbers are approximate, and may be slightly different from the actual measurements.
With long throw zoom lens (OL-XD2000LZ)
F2.1 - 2.4
f = 32.4 - 40.5 mm
Electrical drive
40 inch (81 cm X 61 cm) - 300 inch (610 cm X 457 cm)
Shortest
(Wide)
Width (W)
Height (H)
inch
cm
inch
cm
inch
cm
40
102
32
81
24
61
-
60
152
48
122
36
91
105
inch
m
H2
Lens shift height
Longest
(Tele)
H1
Lens shift
width
(W1)
H2
inch
m
inch
cm
inch
cm
inch
-
88
2.2
12
30
2
6
3
8
2.7
135
3.4
18
46
3
9
5
12
Center of the
lens
cm
80
203
64
163
48
122
142
3.6
182
4.6
24
61
4
11
6
16
100
254
80
203
60
152
180
4.6
228
5.8
30
76
6
14
8
20
150
381
120
305
90
229
273
6.9
345
8.8
45
114
8
21
12
30
200
508
160
406
120
305
366
9.3
462
11.7
60
152
11
28
16
41
250
635
200
508
150
381
459
11.7
579
14.7
75
191
14
36
20
51
300
762
240
610
180
457
553
14.0
696
17.7
90
229
17
43
24
61
• The above numbers are approximate, and may be slightly different from the actual measurements.
EN-77
W1
H
Projection distance (L)
W
H1
Screen size (4:3)
Diagonal
size
W1
L
L
F No.
Focal distance
Zoom/focus
Picture size
Maximum
projection area
Specifications (continued)
With tele throw zoom lens (OL-XD2000TZ)
F2.2 - 2.7
f = 40.7 - 65.1 mm
Electrical drive
40 inch (81 cm X 61 cm) - 300 inch (610 cm X 457 cm)
Width (W)
Height (H)
Shortest
(Wide)
H1
Lens shift
width
(W1)
H2
inch
cm
inch
cm
inch
cm
inch
m
inch
m
inch
cm
inch
cm
inch
cm
40
102
32
81
24
61
-
-
148
3.8
12
30
2
6
3
8
60
152
48
122
36
91
136
3.5
224
5.7
18
46
3
9
5
12
80
203
64
163
48
122
183
4.7
301
7.6
24
61
4
11
6
16
100
254
80
203
60
152
230
5.8
377
9.6
30
76
6
14
8
20
150
381
120
305
90
229
348
8.8
568
14.4
45
114
8
21
12
30
200
508
160
406
120
305
465
11.8
759
19.3
60
152
11
28
16
41
250
635
200
508
150
381
583
14.8
951
24.1
75
191
14
36
20
51
300
762
240
610
180
457
701
17.8
1142
29.0
90
229
17
43
24
61
H2
Lens shift height
Longest
(Tele)
Center of the
lens
H
Projection distance (L)
W1
H1
Screen size (4:3)
Diagonal
size
W
W1
L
L
F No.
Focal distance
Zoom/focus
Picture size
Maximum
projection area
• The above numbers are approximate, and may be slightly different from the actual measurements.
With ultra tele throw zoom lens (OL-XD8000UZ)
Width
(W)
Projection distance (L)
Height
(H)
Shortest
(Wide)
Lens shift height
Longest
(Tele)
H1
Lens shift
width
(W1)
H2
inch
cm
inch
cm
inch
cm
inch
m
inch
m
inch
cm
inch
cm
inch
cm
60
152
48
122
36
91
229
5.8
437
11.1
18
46
3
9
5
12
80
203
64
163
48
122
302
7.7
581
14.8
24
61
4
11
6
16
100
254
80
203
60
152
376
9.5
724
18.4
30
76
6
14
8
20
150
381
120
305
90
229
560
14.2
1082
27.5
45
114
8
21
12
30
200
508
160
406
120
305
744
18.9
1440
36.6
60
152
11
28
16
41
250
635
200
508
150
381
928
23.6
-
-
75
191
14
36
20
51
300
762
240
610
180
457
1113
28.3
-
-
90
229
17
43
24
61
H2
W1
Center of the
lens
H
Screen size (4:3)
Diagonal
size
W
W1
H1
F2.8
f = 64.5 - 125.5 mm
Electrical drive
60 inch (122 cm X 91 cm) - 300 inch (610 cm X 457 cm)
L
L
F No.
Focal distance
Zoom/focus
Picture size
Maximum
projection area
• The above numbers are approximate, and may be slightly different from the actual measurements.
With rear projection short throw lens (OL-XD2000FR)
F2.4
f = 11.5 mm
Electrical drive
40 inch (81 cm X 61 cm) - 150 inch (305 cm X 229 cm)
Width (W)
Height (H)
cm
102
inch
32
cm
81
inch
24
cm
61
inch
25
m
0.6
60
152
48
122
80
203
64
163
36
91
38
1.0
48
122
51
1.3
100
254
80
150
381
120
203
60
152
64
1.6
305
90
229
97
2.5
HB
HA = H B
H
Diagonal size
inch
40
Projection
distance (L)
WB
HA
Screen size (4:3)
W
WA
L
L
F No.
Focal distance
Focus
Picture size
WA = WB
• The above numbers are approximate, and may be slightly different from the actual measurements.
•
•
•
•
The adjustable angle in the keystone adjustment with the lens differs from that with the XD8500U lens.
In the keystone adjustment with the lens, the proper aspect ratio may not be obtained.
Lens shifting is not available for the OL-XD2000FR (horizontal and vertical are set at 1:1).
The lens movable range shows distances from the factory default position.
EN-78
MITSUBISHI ELECTRIC CORPORATION
1 Zusho Baba, Nagaokakyo-City, Kyoto Japan
U-A
