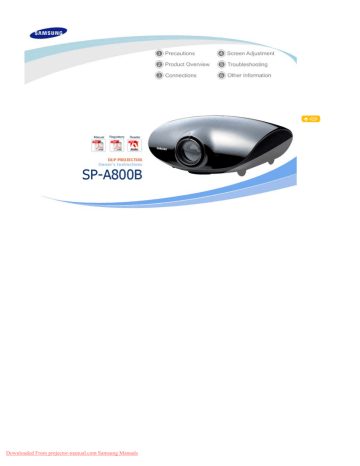

Samsung SP-A8000 Product specifications

Downloaded From projector-manual.com Samsung Manuals
To avoid injuries or damage to property, please read the following precautions carefully and use the product
accordingly.
The images here are for reference only, and are not applicable in all cases (or countries).
Failure to follow the instructions marked with this symbol may cause personal injury or even fatality.
Failure to follow the instructions marked with this symbol may cause personal injury or damage to the
product or property.
| Power Related | Installation Related | Cleaning and Use Related |
Insert the power plug firmly so that it does not come loose.
z
When the connection is not firm, it may cause a fire.
Do not use loose power outlets or damaged power cables.
z
There is a danger of electric shock or fire.
Under no circumstances touch the power plug with wet hands.
z
There is a danger of electric shock.
Do not plug multiple devices into a single wall outlet.
z
There is a danger of fire.
Do not bend the power cord excessively or place heavy objects on it.
z
There is a danger of electric shock or fire.
Before moving the product, make sure the power is off and remove the power cord
from the wall outlet. In addition, make sure all connection cables are disconnected
from other devices before moving it.
z
Moving the product without disconnecting the power cord may damage the
power cord and cause electric shock or fire.
To disconnect the apparatus from the mains, the plug must be pulled out from the
Downloaded From projector-manual.com Samsung Manuals
mains socket, therefore the mains plug shall be readily operable.
z
There is a danger of electric shock or fire.
Always unplug the unit by holding the power plug. Pulling the power cable may
damage the inside of it.
z
There is a danger of fire.
Unplug the power plug before cleaning the product.
z
There is a danger of electric shock or fire.
| Power Related | Installation Related | Cleaning and Use Related |
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES
AWAY FROM THIS PRODUCT AT ALL TIMES.
z
There is a danger of fire.
When installing the product in a cabinet or on a shelf, make sure the front end of
the base does not protrude.
z
Dropping the product may damage it or cause injury.
Keep the power cord away from heaters.
z
The coating of the power cord may melt and cause electric shock or fire.
Do not install the product in locations exposed to oil, smoke, moisture or water
(rainwater), or in a vehicle.
z
There is a danger of electric shock or fire.
Do not install the product in locations with poor ventilation such as a bookshelf,
closet, etc.
z
An increase in the internal temperature may cause a fire.
Downloaded From projector-manual.com Samsung Manuals
Do not install on an unstable location, or on a stand smaller than the product.
z
If the product falls it may harm children. Install on a flat and stable location
as the front part is heavy.
In case of thunder/lightning, disconnect the power cord from the wall outlet.
z
There is a danger of electric shock or fire.
Make sure the product's vents are not blocked by a table cloth or curtain.
z
An increase in the internal temperature may cause a fire.
Place the product on the ground carefully.
z
Doing so may cause damage or injury.
Do not drop the product while carrying it.
z
Doing so may cause damage or injury.
Keep the product out of children’s reach.
z
If the product falls it may cause harm to children. Install on a flat and
stable location as the front part is heavy.
| Power Related | Installation Related | Cleaning and Use Related |
Do not insert any metal such as chopsticks, wires, gimlets, or inflammable objects
such as paper into the vents, the PC/COMPOSITE port, the Power port or the Battery
port.
Downloaded From projector-manual.com Samsung Manuals
z
This may cause electric shock or fire.
If water or an alien substance enters the product, turn the product off,
disconnect the power cord from a wall outlet and contact a Service Center.
Do not disassemble, or attempt to fix or modify the product.
z
When the product requires repairs, contact a Service Center.
Do not use or keep the product near flammable sprays or other such substances.
z
There is a danger of fire or explosion.
Do not place containers with water, vases, drinks, chemicals, small metal parts or
heavy objects on the product.
z
If water enters the product, it may cause electric shock, or fire and when
heavy objects fall, it may cause injury.
Do not let children place objects such as toys or cookies on the product.
z
If a child tries to reach for any of these objects, the product may fall and
cause harm.
Do not look directly at the light of the lamp nor project the picture onto eyes.
z
This is dangerous especially for children.
When you remove batteries from the remote, be careful that they are not swallowed
by children. Keep batteries out of the reach of children.
z
If swallowed, see a doctor immediately.
If the product emits smoke, unusual noise, or there is a burning smell,disconnect
the power plug immediately, and contact a Service Center.
z
There is a danger of electric shock or fire.
If the power plug pin or jack is exposed to dust, water or alien substances, clean it
thoroughly.
z
There is a danger of electric shock or fire.
Downloaded From projector-manual.com Samsung Manuals
Ask a Service Center to clean the product internally at least once a year. (Charged)
z
Dust which has accumulated in the interior over an extended period of time
may cause fire or a malfunction.
When cleaning the product, disconnect the power cord and wipe the product using
a soft dry cloth.
z
Do not use any chemicals such as wax, benzene, alcohol, thinners,
insecticide, air freshener, lubricant or detergent.
When not using the product for an extended period of time, disconnect the power
plug.
z
Otherwise, this may cause heat emission from the accumulated dirt or
degraded insulation, leading to electric shock or fire.
Do not install the product in places with heavy dust, chemical substances, high or
low temperatures, high humidity, or where it will be operated for a long period
continuously etc.
If the product is dropped or the casing is damaged, turn the product off and unplug
the power cord.
z
This may cause electric shock or fire. Contact a Service Center.
Take care not to lose the lens cover of the product.
z
This may damage the lens.
When replacing batteries, place the batteries in the correct +/- polarity position as
indicated on battery holder.
z
Incorrect polarity may cause a battery to break or leak and could lead to
fire, injury, or contamination (damage).
Use only specified standard batteries. Do not use new and used batteries together.
z
Incorrect polarity may cause a battery to break or leak and could lead to
fire, injury, or contamination (damage).
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only
Downloaded From projector-manual.com Samsung Manuals
(Applicable in the European Union and other European countries with separate collection
systems)
This marking shown on the product or its literature, indicates that it should not be
disposed with other household waste at the end of its working life. To prevent possible
harm to the environment or damage to health from uncontrolled waste disposal, please
separate this from other types of waste and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
Downloaded From projector-manual.com Samsung Manuals
| Product Features | Product Views | Remote Control | Product Specifications |
Optical engine adopting advanced DLP technology
- A full 1920x1080 HD panel has been adapted.
- A 6 segment color wheel has been used to implement optimal colors.
- 300W Lamp designed to improve luminance
Vivid colors
- Quality picture tuning focused on improving color - this unit aims at realizing color coordinates that
meet broadcasting standards on video production.
Minimized fan noise and light leakage
- The airflow and fan installation structure are optimized to minimize fan noise and beam leakage.
Various Input Ports
- Abundant input terminals are available, such as the two HDMI (supporting HDCP) terminals and the
two component terminals, etc., to enhance connectivity with peripheral devices.
User adjustments
- This unit allows adjustment of each input port.
- The unit has a reference pattern that can be used for positioning and adjustment.
- For the user's convenience in dark surroundings, a backlight for the remote control is provided.
| Product Features | Product Views | Remote Control | Product Specifications |
Front/Upper Side
Downloaded From projector-manual.com Samsung Manuals
1. Indicators
7. Zoom Knob
- TEMP (Red LED)
Used to enlarge or reduce image size.
- LAMP (Blue LED)
8. POWER(
- STAND BY (Blue LED)
※ Refer to the LED Indications.
) Button
Used to turn the projector on or off.
2. Focus Ring
9. SOURCE Button
Used for Focus Adjustment.
Used to select input signals from the external
sources.
3. Lens
10.MENU Button
4. Lens Position Moving Dial
Use this button to enter or exit a menu or to
You can adjust screen images up and down
move forward in a menu.
within the lens range.
11.Select and Move Button(
※ Refer to Adjusting the Lens Position
Moving Dial.
/
)
Use this button to move to or select an item
within a menu.
5. Remote Control Signal Receiver
6. Adjustable Feet
You can adjust the screen position by moving up
and down the adjustable feet.
The buttons on the top of the projector are touch buttons.
Touch them lightly with your fingers to use them.
Package Contents
Quick Installation Guide
Warranty
(Not available in all locations)
Downloaded From projector-manual.com Samsung Manuals
User Manual CD
Power Cable
Remote Control/ 2 Batteries
Cleaning Cloth
LED Indications
●:Light is On
◐:Light is Blinking
○:Light is Off
TEMP
LAMP
STAND BY
Information
○
○
●
○
●
●
○
◐
●
○
◐
○
◐
○
◐
◐
◐
○
◐
○
○
◐
◐
●
A problem has occurred when operating the DDP IC in the product. Refer to Action 4.
◐
◐
◐
A problem has occurred with the operation of the lamp. Refer to Action 5.
●
◐
●
The lifetime of the lamp has expired. Refer to Action 6.
○
◐
◐
The memory in the product is not operating normally. Contact a service center.
●
◐
◐
The power for the product is not operating normally. Contact a service center.
◐
●
◐
If you press the POWER button on the remote control or projector, the screen
appears within 30 seconds.
The projector is in normal operating condition.
This state appears when the projector is preparing an operation after the POWER button
on the projector or the remote control has been pressed.
The POWER button is pressed to turn off the projector, and the cooling system is in
operation to cool off inside of the projector. (Lasts for about 1 minute and 30 seconds)
Refer to Action 1 below if the cooling fan inside the projector is not in normal operation
condition.
Refer to Action 2 below if the lamp cover protecting the lamp unit is not closed
properly.
Power is turned off automatically when temperature inside of the projector goes beyond
the control limit. Refer to Action 3.
A problem has occurred when operating the color wheel in the product. Refer to Action
4.
Clearing Indicator Problems
Classification
Action 1
State
Measures
When the cooling fan
If the symptom remains even after disconnecting and then
system is not in normal
reconnecting the power cord and turning the projector on again,
operating condition.
contact your product provider or our service center.
When the lamp cover
protecting the lamp unit is
Action 2
not properly closed or the
sensor system is not in
normal operating
Check whether the screws at the bottom side of the projector are
fastened correctly. If they are abnormally fastened, contact your
product distributor or service center.
condition.
Adjust the installation state of your projector by referring to the
Downloaded From projector-manual.com Samsung Manuals
Action 3
Action 4
When temperature inside
installation precautions listed above. Cool down your projector
of the projector becomes
sufficiently and then operate it again. If the same problem occurs
too high.
continually, contact your product distributor or service center.
When the DDP IC or color wheel
fails to operate.
Disconnect and reconnect the power cord and start the projector
again. If the same symptom still occurs, contact your product
distributor or service center.
The lamp is
malfunctioning after
Action 5
Turn the power off, wait for a sufficient amount of cooling time and
abnormal power off or
then turn the power on for operations. If the same problem occurs
restarting right after
continually, contact your product distributor or service center.
turning off the projector.
Action 6
When the screen becomes
darker
Check the lamp usage time on the Information Display screen. If you
need to replace the lamp, contact your product distributor or service
center.
This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may
cause noise, which does not affect the product performance. No exchange or refund for the noise concern.
Rear Side
1. PC IN Input port
5. RS-232C port
(For service input terminals)
2. COMPONENT IN Input port
6. VIDEO IN Input port
3. S-VIDEO IN Input port
7. Remote Control Signal Receiver
4. POWER Input port
8. HDMI IN 2, HDMI 1/DVI IN Input port
Downloaded From projector-manual.com Samsung Manuals
| Product Features | Product Views | Remote Control | Product Specifications |
1.
ON (
2.
COMP1 Button
3.
VIDEO Button
4.
S-VIDEO Button
5.
PC Button
6.
MENU Button
7.
Move (▲ ▼ ◀ ▶)/ENTER Button
8.
INFO Button
9.
P.SIZE Button
) Button
10. STILL Button
11. P.MODE Button
12. OFF (
13.
) Button
LIGHT (
) Button
14. HDMI1 Button
15. HDMI2 Button
16. COMP2 Button
17. RETURN Button
18. EXIT Button
19. D.BLACK Button
20. USER Button
21. INSTALL Button
1. ON ( )
Used to turn on the projector.
2. COMP1
Used to switch to COMPONENT 1 Mode.
3. VIDEO
Used to switch to Video Mode.
4. S-VIDEO
Used to switch to S-VIDEO Mode.
5. PC
Used to switch to PC Mode.
6. MENU
Used to display Menu Screen.
7. Move(▲ ▼ ◀ ▶)/ENTER
Used to move to or select each menu item.
8. INFO
Used to check source signals, picture setup, PC screen adjustment and lamp lifespan.
9. P.SIZE
Used to adjust the size of picture screen.
Downloaded From projector-manual.com Samsung Manuals
10. STILL
Used to see still images.
11. P.MODE
Used to select Picture Mode.
12. OFF (
)
Used to turn off the projector.
13. LIGHT (
)
Used to operate remote control in dark room.
14. HDMI1
Used to switch to HDMI 1 Mode.
15. HDMI2
Used to switch to HDMI 2 Mode.
16. COMP2
Used to switch to COMPONENT 2 Mode.
17. RETURN
Returns to the previous menu.
18. EXIT
Used to make Menu Screen disappear.
19. D.BLACK
Alter the screen brightness and contrast by adjusting the iris in the optical system.
20. USER
Used to select Picture User Adjust Mode.
21. INSTALL
Used to flip or reverse the projected image.
| Product Features | Product Views | Remote Control | Product Specifications |
Design and specifications of the product may be modified without prior notice for better performance.
Specifications
Model
Panel
Lamp
SP-A800B
Size
24.1 mm / 0.9 inch
Resolution
1920 x 1080
Manufacturer
Texas Instrument
Type
300 W UHP
Life Time
2000 Hrs
Manufacturer
Philips
Color
62.2 M (1920 x 1080 x 3 x 10 bit)
Optimum
resolution
1920 x 1080 @ 60 Hz
Resolution
Maximum
resolution
Input video signal
1920 x 1200
Video, S-Video, Component, Analog PC, HDMI
Input synchronization signal
Seperate H/V sync, TTL
Maximum Pixel Clock
162 MHz
Downloaded From projector-manual.com Samsung Manuals
Diagonal screen size
1016 mm ~ 7620 mm (16:9, Diagonal)
Projection Range
1.5 m ~ 14 m
Power
Consumption
Power
Voltage
Less than 410 W
110/220 Vac +/-10 %, 50/60 Hz +/-3 Hz
Noise
Theater : 24dB, Bright : 30dB
431.3 mm(W) x 468.5 mm(D) x 198.8 mm(H)
Dimensions
17.0 inch(W) x 18.4 inch(D) x 7.8 inch(H)
Weight
9.8 Kg / 21.6 lb
Key Features
Brightness
1,000 ANSI
Contrast
10000:1 (Full On / Off)
Keystone
Vertical
Operating
User
Temperature
Environment
and Humidity
Storage
Temperature 50 °F ~ 104 °F (10 °C ~ 40 °C),
Humidity (10 % ~ 80 %)
Temperature -4 °F ~ 113 °F (-20 °C ~ 45 °C) ,
Humidity (5 % ~ 95 %)
This Class B equipment is designed for home and office use. The equipment has been registered regarding
EMI for residential use. It may be used in all areas. Class A is for office use. Class A is for business while
class B emits less electromagnetic waves than class A.
The DMD Panel used in DLP Projectors consists of several hundred thousand micro mirrors. As with other
visual display elements, the DMD Panel may include a few bad pixels. Samsung and the DMD Panel
manufacturer have a rigid, bad pixel identification and limitation procedure in place and products will not
exceed the maximum number of bad pixels set by our standards. Rarely, non-displayable pixels may exist,
however it does not affect the picture quality nor the lifespan of the product.
Supported Display Mode
Input Source
PC, DVI
PC
Resolution
Total
(HxV)
Resolution
640x350
640x400
PC, DVI
640x480
PC
PC, DVI
720x400
Horizontal Sync
Frequency
[kHz]
polarity
Vertical Sync
Frequency
[Hz]
Pixel
polarity
Frequency
Sync Type
[MHz]
800x449
31.5
P
70.1
N
25.2
832x445
37.9
P
85.1
N
31.5
Sep.
Sep.
832x445
37.9
N
85.1
P
31.5
Sep.
800x525
31.5
N
59.9
N
25.2
Sep.
800x525
31.5
N
60.0
N
25.2
Sep.
816x500
35.0
N
70.0
N
28.6
Sep.
832x520
37.9
N
72.8
N
31.5
Sep.
840x500
37.5
N
75.0
N
31.5
Sep.
832x509
43.3
N
85.0
N
36.0
Sep.
Sep.
900x449
31.5
N
70.1
P
28.3
PC
1024x625
35.2
P
56.3
P
36.0
Sep.
PC, DVI
1056x628
37.9
P
60.3
P
40.0
Sep.
1040x625
43.8
N
70.0
N
45.5
Sep.
1040x666
48.1
P
72.2
P
50.0
Sep.
1056x625
46.9
P
75.0
P
49.5
Sep.
1048x631
53.7
P
85.1
P
56.3
Sep.
1088x517
31.0
P
60.0
P
33.8
Sep.
1344x806
48.4
N
60.0
N
65.0
Sep.
1328x806
56.5
N
70.1
N
75.0
Sep.
1360x801
57.7
N
72.0
N
78.4
Sep.
1312x800
60.0
P
75.0
P
78.8
Sep.
1376x808
68.7
P
85.0
P
94.5
Sep.
1520x897
53.8
N
60.0
P
81.8
Sep.
1536x900
63.0
N
70.0
N
96.8
Sep.
1536x901
64.9
N
72.0
N
99.6
Sep.
1600x900
67.5
P
75.0
P
108.0
Sep.
800x600
PC
848x480
PC, DVI
1024x768
1152x864
Downloaded From projector-manual.com Samsung Manuals
1280x720
1280x768
P
74.5
Sep.
70.0
N
89.0
Sep.
1696x751
54.1
N
72.0
N
91.7
Sep.
1696x755
56.5
N
74.0
P
95.8
Sep.
1664x798
47.8
N
59.9
P
79.5
Sep.
1696x805
60.3
N
74.9
P
102.3
Sep.
Sep.
N
84.8
P
117.5
60.0
P
60.0
P
108.0
Sep.
1728x999
69.9
N
70.0
P
120.8
Sep.
1728x1001
72.1
N
72.0
N
124.5
Sep.
1728x1005
75.2
N
74.9
P
130.0
Sep.
1728x1011
85.9
P
85.0
P
148.5
Sep.
1688x1066
64.0
P
60.0
P
108.5
Sep.
1728x1066
74.6
N
70.0
N
128.9
Sep.
1728x1067
76.8
N
72.0
N
132.8
Sep.
1688x1066
80.0
P
75.0
P
135.0
Sep.
1728x1072
91.1
P
85.0
P
157.5
Sep.
1792x795
47.7
P
60.0
P
85.5
Sep.
1864x1089
65.3
N
60.0
P
121.8
Sep.
1896x1099
82.3
N
74.9
P
156.0
Sep.
1904x934
55.9
N
59.9
P
106.5
Sep.
1936x942
70.6
N
75.0
P
136.8
Sep.
1952x948
80.4
N
84.8
P
157.0
Sep.
1600x1200
2160x1250
75.0
P
60.0
P
162.0
Sep.
1920x1080
2080x1111
66.6
P
59.9
N
138.5
Sep.
1920x1200
2080x1235
74.0
P
60.0
N
154.0
Sep.
858x525
31.5
N
59.9
N
27.0
Sep.
858x525
31.5
N
60.0
N
27.0
Sep.
864x625
31.3
N
50.0
N
27.0
Sep.
1980x750
37.5
P
50.0
P
74.3
Sep.
1650x750
45.0
P
59.9
P
74.2
Sep.
1650x750
45.0
P
60.0
P
74.3
Sep.
2640x1125
28.1
P
50.0
P
74.3
Sep.
2200x1125
33.7
P
59.9
P
74.2
Sep.
2200x1125
33.8
P
60.0
P
74.3
Sep.
2640x1125
56.3
P
50.0
P
148.5
Sep.
2200x1125
67.4
P
59.9
P
148.4
Sep.
2200x1125
67.5
P
60.0
P
148.5
Sep.
858x525
15.7
N
59.9
N
13.5
Sep.
1280x1024
1360x768
1400x1050
1440x900
720x480
720x576
1280x720
PC, HDMI(DVI)
1920x1080
1920x1080i
1920x1080
720x480i
720x576i
720x480
720x576
1280x720
1920x1080
Component
59.9
N
68.6
PC, DVI
HDMI
N
52.5
1712x809
1280x960
PC, DVI
44.8
1696x750
1800x1000
PC
PC
1664x748
1920x1080i
1920x1080
720x480i
720x576i
858x525
15.8
N
60.0
N
13.5
Sep.
864x625
15.6
N
50.0
N
13.5
Sep.
858x525
31.5
N
59.9
N
27.0
SOY
858x525
31.5
N
60.0
N
27.0
SOY
864x625
31.3
N
50.0
N
27.0
SOY
1980x750
37.5
P
50.0
P
74.3
SOY
1650x750
45.0
P
59.9
P
74.2
SOY
1650x750
45.0
P
60.0
P
74.3
SOY
2640x1125
28.1
P
50.0
P
74.3
SOY
2200x1125
33.7
P
59.9
P
74.2
SOY
2200x1125
33.8
P
60.0
P
74.3
SOY
2640x1125
56.3
P
50.0
P
148.5
SOY
2200x1125
67.4
P
59.9
P
148.4
SOY
2200x1125
67.5
P
60.0
P
148.5
SOY
858x525
15.7
N
59.9
N
13.5
SOY
858x525
15.8
N
60.0
N
13.5
SOY
864x625
15.6
N
50.0
N
13.5
SOY
Size Support Mode
Downloaded From projector-manual.com Samsung Manuals
O : Size & Overscan can be configured, x : Size & Overscan cannot be configured, △: Size can be configured
Source
Input
Type
HD
HDMI
SD
HD
Component
SD
Video &
S- Video
SD
HD
PC
SD
PC
Picture Size
Mode
16:9
Zoom1
Zoom2
4:3
Wide fit
1080p
O
O
O
O
O
1080i
O
O
O
O
O
720p
O
O
O
O
O
576p
O
O
O
O
x
480p
O
O
O
O
x
576i
O
O
O
O
x
480i
O
O
O
O
x
1080p
O
O
O
O
O
1080i
O
O
O
O
O
720p
O
O
O
O
O
576p
O
O
O
O
x
480p
O
O
O
O
x
576i
O
O
O
O
x
480i
O
O
O
O
x
576i
△
O
O
△
x
480i
△
O
O
△
x
1080p
△
x
x
△
x
1080i
△
x
x
△
x
720p
△
x
x
△
x
576p
△
x
x
△
x
480p
△
x
x
△
x
576i
△
x
x
△
x
480i
△
x
x
△
x
16:9 Mode
△
x
x
△
x
4:3 Mode
△
x
x
△
x
Mode
16:9
4:3
Zoom 1
Zoom 2
Wide fit
1080p
x
x
O
O
O
1080i
x
x
O
O
O
720p
x
x
O
O
O
Position Moving Support Mode
Overscan : Off
Source
Input
Type
HD
SD
HDMI
PC
HD
Component
SD
Video &
S-Video
SD
Picture Position (H/V)
576p
x
x
O
O
x
640 x 480p
x
x
O
O
x
720 x 480p
x
x
O
O
x
576i
x
x
O
O
x
480i
x
x
O
O
x
1280 x 1024/60
x
x
x
x
x
1024 x 768/60
x
x
x
x
x
800 x 600/60
x
x
x
x
x
720 x 400/70
x
x
x
x
x
640 x 350/70
x
x
x
x
x
1080p
O
O
O
O
O
1080i
O
O
O
O
O
720p
O
O
O
O
O
576p
x
x
O
O
x
480p
x
x
O
O
x
576i
x
x
O
O
x
480i
x
x
O
O
x
576i
x
x
O
O
x
480i
x
x
O
O
x
Mode
16:9
4:3
Zoom 2
Wide fit
Overscan : On
Source
Input
Type
Picture Position (H/V)
Downloaded From projector-manual.com Samsung Manuals
Zoom 1
HD
SD
HDMI
DVI
HD
Component
SD
Video &
S- Video
SD
HD
PC
SD
PC
1080p
x
x
O
O
1080i
x
x
O
O
O
O
720p
x
x
O
O
O
576p
x
x
O
O
x
640 x 480p
x
x
O
O
x
720 x 480p
x
x
O
O
x
576i
x
x
O
O
x
480i
x
x
O
O
x
1280 x 1024/60
x
x
x
x
x
1024 x 768/60
x
x
x
x
x
800 x 600/60
x
x
x
x
x
720 x 400/70
x
x
x
x
x
640 x 350/70
x
x
x
x
x
1080p
O
O
O
O
O
1080i
O
O
O
O
O
720p
O
O
O
O
O
576p
O
O
O
O
x
480p
O
O
O
O
x
576i
O
O
O
O
x
480i
O
O
O
O
x
576i
x
x
O
O
x
480i
x
x
O
O
x
1080p
O
O
O
O
O
1080i
O
O
O
O
O
720p
O
O
O
O
O
576p
O
O
O
O
O
480p
O
O
O
O
O
576i
x
x
x
x
x
480i
x
x
x
x
x
16:9 Mode
O
O
x
x
x
4:3 Mode
O
O
x
x
x
Downloaded From projector-manual.com Samsung Manuals
| Basic Settings | Connecting the Power | Connecting to video equipment |
Installing the Projector
Install the projector so that the beam from the projector is perpendicular to the screen.
Place the projector so that the lens is at the center of the screen.
If the screen is not vertically installed, the picture on the screen may not be a rectangle.
Do not install the screen in bright surroundings. If the screen is too bright, the picture on the screen will not be
displayed clearly.
When installing the screen in a bright surrounding, use curtains.
You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling.
(To view the installation position settings)
To view the picture when installing the projector behind the screen,
Install a semi-transparent screen.
Select Menu > Setup > Install > Rear-Floor
To view the picture when installing the projector in the front of the screen,
Install the projector at the side where you are watching
the screen.
Select Menu > Setup > Install > Front-Floor
Zoom and Focus Adjustment
Downloaded From projector-manual.com Samsung Manuals
Zoom Knob
Focus Ring
You can adjust the size of image within zoom range by manipulating the
Zoom Knob.
Focus the picture on the screen using the Focus Ring.
If your product is installed at a location out of the specified projection
distance (refer to Screen Size and Projection Distance), the focus cannot
be adjusted correctly.
Leveling with Adjustable Feet
For level placing of the projector, adjust the Adjustable Feet of the projector.
You may adjust the level of the projector up to 3 degrees.
Depending on the position of the projector, Keystone distortion of
image may appear.
Adjusting the Lens Position Moving Dial
Move the picture projected on the screen up and down within the lens range by
turning the Lens Shift Dial on the top side of the projector with your fingers.
Screen Size and Projection Distance
Install the projector on a flat, even surface and level the projector using the adjustable feet to realize optimal picture quality. If
images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.
Downloaded From projector-manual.com Samsung Manuals
Screen size
Horizental
(M:inch)
(X:mm)
40
Vertical(Y:mm)
Min(Z:mm)
Max(Z:mm)
Offset (Y':mm)
886
498
1983.6
1523.1
50
50
1107
623
2479.5
1903.9
62
60
1328
747
2975.3
2284.6
75
70
1550
872
3471.2
2665.4
87
80
1771
996
3967.1
3046.2
100
90
1992
1121
4463
3427
112
100
2214
1245
4958.9
3807.7
125
110
2435
1370
5454.8
4188.5
137
120
2657
1494
5950.7
4569.3
149
130
2878
1619
6446.6
4950.1
162
140
3099
1743
6942.5
5330.8
174
150
3321
1868
7438.4
5711.6
187
160
3542
1992
7934.3
6092.4
199
170
3763
2117
8430.2
6473.2
212
180
3985
2241
8926
6853.9
224
190
4206
2366
9421.9
7234.7
237
200
4428
2491
9917.8
7615.5
249
210
4649
2615
10413.7
7996.3
262
220
4870
2740
10909.6
8377
274
230
5092
2864
11405.5
8757.8
286
240
5313
2989
11901.4
9138.6
299
250
5535
3113
12397.3
9519.3
311
300
6641
3736
14876.7
11423.2
374
This projector is designed to show images optimally on a 100 ~ 120 inch sized screen.
A. Screen
Z: Throw Distance
Y': Distance from Lens Center to Image Bottom
Setting up the PC Environment - Check the following items before connecting your PC to your projector.
1.
Click the right mouse button on the Windows wallpaper
and click on [Properties].
<Display Properties> tab will appear.
Downloaded From projector-manual.com Samsung Manuals
2.
Click on [Settings] tab and set the <Screen resolution> by
referring to <Resolution> described in the display mode
table supported by this projector.
You do not have to change <Color quality> setup.
3.
Press the [Advanced] button.
Another property window will appear.
4.
Click on [Monitor] tab and set the <Screen refresh rate> by
referring to <Vertical Frequency> described in the display mode
table supported by this projector.
Set up both the vertical and horizontal frequency instead of
<Screen refresh rate>.
5.
Click the [OK] button to close the window, and click the
[OK] button of the <Display Properties> window to close the
window.
The computer might begin restart automatically.
6.
Shut down the PC and connect to the projector.
Process might vary depending on the type of computers or Windows versions.
(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
This appliance supports up to 32 bits per pixel in Color quality when it is used as a PC monitor.
Projected images may differ from the monitor depending on monitor manufacture or Windows versions.
If a belt is shown or an abnormal signal occurs on the projector when your PC is turned off or disconnected, switch
Downloaded From projector-manual.com Samsung Manuals
to “Video” mode using the [VIDEO] buttons or check whether your PC is connected correctly.
When connecting the projector to PC, check that PC setup complies to display settings supported by this projector.
If not, there may be signal problems.
| Basic Settings | Connecting the Power | Connecting to video equipment |
1. Rear of Projector
Plug the power cord into the power terminal on the rear side of the projector.
| Basic Settings | Connecting the Power | Connecting to video equipment |
Connecting to VCR/Camcorder/Cable Box
Downloaded From projector-manual.com Samsung Manuals
Connect [VIDEO IN(yellow)] input port of the projector to the VIDEO (yellow) OUT port of video equipment using the
video cable.
- If the video equipment has S-VIDEO OUT port, connect it to [S-VIDEO IN] input port of the projector.
Using the S-VIDEO connection, provides a higher visual quality.
When finishing connecting the devices, connect the power of the projector and the VCR.
Using the Projector
Turn on the projector and press the [Video] button to select <Video>.
Connect the projector and the video equipment via <S-Video> cable and press the [S-VIDEO] button to select S-Video.
When Composite Mode is not available, check the video cables are in place.
Check that the projector and the video equipment are turned off before connecting cables.
This projector does not support sound. (Separate audio system is needed for sound.)
Connecting to DVD
Downloaded From projector-manual.com Samsung Manuals
Connect the [COMPONENT IN 1 (Y/PB/ PR)] or [COMPONENT IN 2 (Y/P B/ PR)] input port at the back of the projector to
the Component port at the back of the DVD with the component cable.
When the connection is finished, connect the power of your projector and DVD (or the device connected to the digital
output terminal).
Using the Projector
Turn on the projector and press the [COMP1] button to select <Component 1>.
Press the [COMP2] button to select <Component 2> if [COMPONENT IN 2] is connected.
When Component Mode is not available, check that the component cables are in place.
Component Ports are marked as (Y/PB/PR), (Y, B-Y, R-Y) or (Y, Cb, Cr) depending on the manufacturer.
Connecting to the Digital TV Receiver
Downloaded From projector-manual.com Samsung Manuals
Connect antenna cable to antenna signal input terminal of the receiver.
Connect the COMPONENT 1 [COMPONENT IN 1 (Y/PB/ PR)] or [COMPONENT IN 2 (Y/PB/ PR)] input port at the back of
the projector to the Component port at the back of the digital broadcast receiver with the component cable.
- If the digital broadcast receiver provides a PC output port, you can connect a digital broadcast receiver using the [PC
IN] input port of the projector.
When finish connecting the devices, connect the power of the projector and the DTV receiver.
Using the Projector
Turn on the projector and press the [COMP1] button to select <Component 1>.
When connecting the projector and digital broadcasting receiver using a D-SUB cable, select [PC] by pressing <PC> on
the remote control.
Press the [COMP2] button to select <Component 2> if [COMPONENT IN 2] is connected.
When Component Mode is not available, check that the component cables are in place.
- If the receiver is connected to [PC] port, press the [PC] button to select respectively.
Component Ports are marked as (Y/PB/PR), (Y, B-Y, R-Y) or (Y, Cb, Cr) depending on the manufacturer.
Connecting to PC
Downloaded From projector-manual.com Samsung Manuals
Connect [PC IN] port on the rear side of the projector to the monitor output port of PC using PC video cable.
When connections are all completed, connect both power codes of the projector and the PC.
This product supports plug and play and therefore, if you use Window XP you do not need to setup the driver
on your PC.
Using the Projector
Turn on the projector and press the [PC] button to select <PC>.
If PC Mode is not available, check PC video cable is in place.
Turn on the PC and set the PC Environment when necessary.
Adjust the screen.(Auto Adjustment)
Sound comes out from PC speakers.
Connecting to HDMI/DVI
Downloaded From projector-manual.com Samsung Manuals
- Connecting using a HDMI/DVI cable
Connect the [HDMI 1/DVI IN] terminal on the back of the projector and the DVI output terminal of the digital output
device using a HDMI/DVI cable.
- Connecting using a HDMI cable
Connect the [HDMI 1/DVI IN] or [HDMI IN 2] terminal on the back of the projector and the HDMI output terminal of the
digital output device using a HDMI cable.
When the connection is finished, connect the power of your projector and DVD (or the device connected to the digital
output terminal).
Using the Projector
Turn on the projector and press the [HDMI1] button to select <HDMI 1>.
Press the [HDMI2] button to select <HDMI 2> if [HDMI2] is connected.
If “HDMI” mode cannot be selected, check whether the HDMI cable is connected correctly.
Downloaded From projector-manual.com Samsung Manuals
| Input | Picture | Setup | Option |
* Click the Play(
Screen
) button in the table below to view the video file.
Description
Adjustment
Source List
)/Stop(
Play/Stop
You can select a device connected to the projector to display.
1) Component 1
5) PC
2) Component 2
6) HDMI 1
3) S-Video
7) HDMI 2
4) Video
Edit Name
You can edit the names of devices connected to the projector.
1) Component 1
5) PC
2) Component 2
6) HDMI 1
3) S-Video
7) HDMI 2
4) Video
| Input | Picture | Setup | Option |
Downloaded From projector-manual.com Samsung Manuals
* Click the Play(
Screen
) button in the table below to view the video file.
Description
Adjustment
Mode
)/Stop(
Play/Stop
Select a screen state which is customized to your projector or change the screen mode
as required.
1) Mode
- Dynamic
Select this if you want the screen quality to be clearer than standard screen
quality.
- Standard
You can comfortably view the projection screen if the surrounding is somewhat
Mode
bright.
- Movie1, Movie2
Select this if your surroundings are dark. This saves energy and reduces eye
fatigue.
- User1, User2, User3
Select this if you want to view the screen in your customized screen mode.
2) Contrast : Used to adjust the contrast between the object and the background.
3) Brightness : Used to adjust brightness of the entire picture.
4) Sharpness : Used to adjust the outlines of the object sharper or less sharp.
Contrast
Brightness
▶ [PC] mode is not supported.
5) Color : Used to adjust color lighter or deeper.
6) Tint : Used to obtain more natural color of objects using Green or Red enhancement.
Sharpness
Color
Tint
▶ You can only adjust Tint in [S-Video] and [Video] modes.
7) Color Temperature : You can change tint of the entire screen to suit your needs.
- 5500K : Used to deliver optimal image quality for black-and-white films. Color
temperature of the picture mode of Movie2 is set to 5500K.
- 6500K : This temperature is used for the most video productions. It is set as
Movie1 when it is manufactured, and may deliver the most precise tint.
Color
Temperature
- 8000K : The color temperature appropriate to quite bright places and saved in
Dynamic Picture Mode. The sharpness and brightness are emphasized.
- 9300K : The color temperature appropriate to very bright places such as a shop.
R-Gain
G-Gain
B-Gain
R-Offset
1) Color Temperature
5) R-Offset
G-Offset
B-Offset
Downloaded From projector-manual.com Samsung Manuals
2) R-Gain
6) G-Offset
3) G-Gain
7) B-Offset
4) B-Gain
8) Gamma : An image compensation function that controls the settings according to the
video properties.
- Film : Picture Adjustment Film gamma.
Gamma
- Video : The Gamma mode normal that matches a TV screen.
- Graphic : The Gamma mode that matches a PC screen.
9) DynamicBlack™ : Adjusts the brightness and contrast of the screen by adjusting the
tightening thread in the optical system.
- Off : You can view the screen where the brightness is emphasized by opening the
tightening thread fully.
- Light : The tightening thread is opened less than in the Off state and more than in
the Middle and Deep states. The contrast is more emphasized than in the Off
state.
- Middle : The tightening thread is opened less than in the Light state and more than
Dynamic
Black™
in the Deep state. The brightness is more emphasized than in the Deep state.
- Deep : You can view the screen where the contrast is emphasized by closing the
tightening thread fully.
- Auto : You can view a more dynamic screen as the input screens are adjusted
automatically.
10) Save : Used to save custom picture settings.
Save
11) Reset : Restores the mode settings to the factory defaults.
Reset
Size
You can select a screen size according to the type of scene.
▶ Refer to "Size Support Mode".
1) 16 : 9
2) Zoom1
3) Zoom2
4) Wide Fit
5) 4 : 3
Position
Adjust the screen position if are not aligned.
▶ Refer to "Position Moving Support Mode".
Digital NR
When a dotted line is displayed or the screen trembles, you can view picture in better
visual quality by enabling Noise Reduction.
▶ You can only enable the Digital NR in [Video], [S-Video] and [Component 1, 2]
modes.
Black Level
Using the Black Level function, you can set the light level of the darkest portion of the
video signal so that you can clearly see dark areas on the screen.
1) 0 IRE : Sets the light level of the darkest portion of the video signal to low. If the
setting does not match the input signal, the dark screen looks milky-white.
2) 7.5 IRE : Sets the light level of the darkest portion of the video signal to high. If
the setting does not match the input signal, the dark screen is saturated and may
not display properly.
Color Pattern
You can filter the color of the entire screen according to your taste.
1) Off : Shows the picture in the original color.
2) Monochrome : Shows the picture in black and white color by filtering out all color
signals.
3) Red : Shows the picture in red by filtering out the green and blue color signals.
Downloaded From projector-manual.com Samsung Manuals
4) Green : Shows the picture in green by filtering out the red and blue color signals.
5) Blue : Shows the picture in blue by filtering out the red and green color signals.
Overscan
Using this function, you can cut the edge of the picture when unnecessary information,
images or noise on the edge of the picture.
▶ Refer to "Size Support Mode".
1) Off
2) On
1080P/24fps
This function displays the full 1080P@24Hz native HD signals which have 24 frames per
Mode
second with minimal scene distortions, as in a movie. Though the difference is small,
this function implements the highest screen quality.
▶ You can adjust 1080P/24 Frame mode in [HDMI 1] and [HDMI 2] modes only.
1) Off : Displays scenes where 24 frames are lengthened to 60 frames. Because of
this process, irregular scenes may be generated.
2) On : Displays scenes where 24 frames are lengthened to 48 frames. All scenes
are displayed regularly without any irregular scenes.
Film Mode
Using this function, you can set the display mode optimized for playing movies when
watching a movie. Film Mode provides optimal display settings for movies.
▶ Film Mode is only supported for [Video], [S-Video] and [Component 1, 2](480i,576i).
1) Off
2) On
| Input | Picture | Setup | Option |
* Click the Play(
Screen
) button in the table below to view the video file.
Description
Adjustment
Install
)/Stop(
To support possible deficiencies in the installation location, you can invert the projected
images vertically/horizontally.
1) Front-Floor : Normal Image
Downloaded From projector-manual.com Samsung Manuals
Play/Stop
2) Front-Ceiling : Horizontally Reversed Image
3) Rear-Floor : Vertically Reversed Image
4) Rear-Ceiling : Horizontal/Vertical Reversed Image
Light Setting
Used to set the image brightness by adjusting the amount of light generated by the
lamp.
1) Theater : Using this function, you can adjust the light level of the lamp so that you
can comfortably watch pictures on the screen even when watching under dark
Theater
conditions. It also lowers power consumption and extends the life of the lamp.
2) Bright : Used to enhance the brightness in relatively bright ambient light. Since
Bright
this mode increases the light level of the lamp, you may experience more noise
which is produced when the projector is cooled down.
Test Pattern
Generated by the projector itself. Utilized as installation basis for installation of the
projector.
Crosshatch
1) Crosshatch : You can check whether the picture is distorted or not.
2) Screen Size : You can refer to picture format sizes such as 1.33 : 1 or 1.78 : 1.
Screen Size
3) Color Standard : You can view the difference by changing the Color Standard to
SMPTE_D/HD/EBU.
Color
4) Red : Red Screen, only for color adjustment.
Standard
5) Green : Green Screen, only for color adjustment.
6) Blue : Blue Screen, only for color adjustment.
Red
7) White : White Screen, only for color adjustment.
8) 6500K_White : White Screen, shows brightest white color possible.
Green
Blue
▶ The Crosshatch and Screen Size patterns of this projector are provided by JKP (JK
Production).
▶ The Red/Green/Blue colors of the test patterns are only for the color adjustment
White
procedures, and may not comply with the actual colors displayed during video
6500K_White
playback.
PC
Eliminates or reduces noise that causes unstable screen quality, such as screen
trembling. If the noise is not removed using Fine Adjustment, adjust the frequency to the
maximum and then perform Fine Adjustment again.
Auto
Adjustment
1) Auto Adjustment : Used to adjust frequency and phase of PC screen
automatically.
2) Coarse : Used to adjust frequency when vertical lines appear on PC screen.
Coarse
3) Fine : Used to fine tune the PC screen.
Fine
4) Zoom : Used to extend PC screen from the center.
5) Reset : Using this function, you can reset the PC menu settings to the factory
Zoom
default settings.
Reset
Only activated in the PC environment.
Color Standard
You may adjust the color standard to suit the color standard of the input signal.
1) SMPTE_C : Standardized for Video Equipment by the Society of Motion Picture
and Television Engineers
2) HD : High Definition, 1125 scan lines, standard definition TV submitted to the
ITU-R by U.S., Japan and Canada, in 1986.
3) EBU : Regulations and standards for European Broadcasting Production and
Technology, standardized by the European Broadcasting Union.
Factory Default
Using this function, you can reset various settings to the factory default settings.
| Input | Picture | Setup | Option |
Downloaded From projector-manual.com Samsung Manuals
* Click the Play(
Screen
)/Stop(
) button in the table below to view the video file.
Description
Adjustment
language
You can select the language used for the menu screen.
Menu Position
You can move Menu Position to up/down/left/right.
Menu
You can set the translucency of menu.
Translucency
1) Opaque
2) High
3) Medium
4) Low
Menu Display
You can set the display time of the menu.
Time
1) 5 sec
5) 90 sec
2) 10 sec
6) 120 sec
3) 30 sec
7) Stay On
4) 60 sec
LED Indicator
You can enable or disable the operating LED's on the product.
1) Off : This mode disables the operating LED. However, the light will light up
regardless of the LED setting when the power is turned on or off or when the
projector is in an abnormal state.
2) On : This mode enables the operating LED so that it can display the current
operating state of the projector.
Light Effect
You can turn the LED indicators on your projector on or off according to your
Downloaded From projector-manual.com Samsung Manuals
Play/Stop
requirements.
1) Off : LED will not come on.
2) In Standby : Turns the LED on in standby mode.
3) In Watching TV : Turns the LED on while watching TV.
4) Always : LED will come on after you turn the TV off.
Appears as an ellipse at the top at the back of your projector.
Blue screen
The Blue screen function causes the screen to change to the Blue screen if there is no
signal input from the external device connected to your projector.
1) Off
2) On
Information
You can check external source signals, picture setup, PC picture adjustment and lamp
use time.
Downloaded From projector-manual.com Samsung Manuals
| Before Contacting Service Personnel |
Installation and Connection
Symptoms
Troubleshooting
No Power.
z
I want to install my projector to
z
Check the power cable connections.
The ceiling installation support is sold separately. Contact your local product
distributor.
the ceiling.
External Source is not selected.
z
Be sure that the connection cable (video) is properly connected to the proper
port. Unless they are connected properly, the device is not available.
Menu and Remote Control
Symptoms
Remote control does not work.
Troubleshooting
z
Be sure that the proper external source is selected.
z
Check the battery of your remote control. If its size is incorrect, replace it with
the recommended battery size. Check whether the polarity of the installed
battery is correct.
z
Check whether your remote control is at a right angle and at the correct
distance. Remove any obstacles between your remote control and the product.
z
Direct lighting of 3-way light bulbs or other lighting device on the remote
sensor of the projector may affect the sensitivity and cause the remote control
to malfunction.
I cannot select a menu.
z
Check if the remote control battery is empty.
z
Check whether the LED indicator on the top of the projector is turned on.
z
Check if the menu is displayed in gray. A gray-colored menu is unavailable.
Screen and External Source
Symptoms
Troubleshooting
z
Be sure that the power cord of the projector is in place.
z
Be sure that the proper input source is selected.
z
Check that the connectors are properly connected to the ports at the back of
z
Check the Remote Control batteries.
z
Be sure that the <Color>, <Brightness> settings are not at their lower limit.
Poor color.
z
Adjust the <Tint> and <Contrast>.
Images are not clear.
z
Adjust the focus.
z
Check that the projection distance is either too far or too near to the screen.
Strange noise.
z
If a strange sound continues, contact our service center.
The operating LED is lit up.
z
Refer to Corrective Actions According to LED Indications.
Lines appear on screen.
z
Because noise may occur when using your PC, adjust the frequency of the
Cannot see picture images.
the projector.
screen.
No external device screen is displayed.
z
Check the operating status for the external device and check whether the
Downloaded From projector-manual.com Samsung Manuals
adjustment items, such as the Brightness and the Contrast have been changed
correctly in the <Mode> command screen of the Projector menu.
Only blue screen appears.
z
Be sure to properly connect the external devices. Check the connection cables
again.
Screen appears in black and white or
z
bright.
As mentioned above, check the adjustment items such as the Brightness,
Contrast and Color in the menu.
odd color./ screen is too dark or
z
If you want to restore various settings to their factory defaults, run <Factory
Default>from the menu.
Downloaded From projector-manual.com Samsung Manuals
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
To clean the exterior and lens of the projector
Clean the projector using a soft dry cloth.
Do not clean the projector with flammable
substances such as benzene, thinners or a wet
cloth, as these may cause problems.
Do not touch the projector with a nail or any
other sharp objects, as this may scratch the
surface.
To clean the interior of the projector
For cleaning the interior of the projector, ask your
Service Center or a distributor. (Charged)
Contact your distributor or a Service Center if
dust or other substances are inside the
projector.
Lamp Replacement
Cautions on Lamp Replacement
The projector lamp is an expendable supply. For best operating performance, replace the lamp according to
the usage time. You can view the lamp usage time in the Information Display (INFO button).
Use the recommended lamp when replacing. Lamp specifications are defined in the user’s manual. Replace
with the same model provided with the projector.
- Lamp Model Name : LAMP-MERCVRY-Philips
- Lamp Manufacture : Philips Lighting
- Lamp Life Time : 2000Hrs
- Lamp Type : 300W UHP
Check that the power cord is unplugged before replacing lamps.
Even after the power cord has been disconnected, the lamp will be hot. Allow it to cool down for at least 1
hour before changing the lamp.
The lamp is located at the left rear of your projector.
Before you turn the projector over to change the lamp, cover the projector with a soft cloth on a flat surface.
Do not leave the old lamp near inflammables or in reach of children. There is a danger of burn or injury.
Remove dirts or foreign materials around or inside the lamp unit using a proper vacuum device.
Downloaded From projector-manual.com Samsung Manuals
When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp
incorrectly, it may affect the screen quality and shorten its lifetime.
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED
OR DISPOSED OF ACCORDING TO LOCAL STATE OR FEDERAL LAWS.
For details see lamprecycle. org, eiae.org, or call 1-800-Samsung
Lamp Replacement Procedure
The lamp is very hot and operates
The lamp is located at the left
Open the cover by holding down
with a high voltage. Allow it to
rear of your projector. Place your
(A) in the figure and pulling (B).
cool down for at least 1 hour
projector so that its left side is
after disconnecting the power
visible and then remove the
cord before changing the lamp.
screws on the lamp cover.
* Be careful your projector does
not fall.
Remove the screws (A) in the
Remove the screws as shown in
As shown in the figure, lift up the
figure and then hold and open
the figure.
lamp handles holding them and
(B).
pull the lamp.
Assembling a new lamp is in the reverse order of the disassembly.
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
If you have any questions or comments relating to Samsung products,
please contact a SAMSUNG customer care center.
North America
U.S.A
1-800-SAMSUNG (726-7864)
http://www.samsung.com/us
CANADA
1-800-SAMSUNG (726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG (726-7864)
http://www.samsung.com/mx
Latin America
Downloaded From projector-manual.com Samsung Manuals
ARGENTINE
BRAZIL
0800-333-3733
http://www.samsung.com/ar
0800-124-421
http://www.samsung.com/br
4004-0000
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com.co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
JAMAICA
1-800-234-7267
http://www.samsung.com/latin
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
TRINIDAD & TOBAGO
1-800-SAMSUNG(726-7864)
http://www.samsung.com/latin
VENEZUELA
0-800-100-5303
http://www.samsung.com/latin
Europe
AUSTRIA
0800-SAMSUNG(726-7864)
http://www.samsung.com/at
BELGIUM
0032 (0)2 201 24 18
http://www.samsung.com/be
CZECH REPUBLIC
844 000 844
http://www.samsung.com/cz
DENMARK
70 70 19 70
http://www.samsung.com/dk
FINLAND
030-6227 515
http://www.samsung.com/fi
FRANCE
3260 SAMSUNG(726-7864)
08 25 08 65 65(€ 0,15/Min)
http://www.samsung.com/fr
GERMANY
01805-SAMSUNG(726-7864) (€ 0,14/Min)
http://www.samsung.com/de
HUNGARY
06-80-SAMSUNG (726-7864)
http://www.samsung.com/hu
ITALIA
800-SAMSUNG (726-7864)
http://www.samsung.com/it
LUXEMBURG
0035 (0)2 261 03 710
http://www.samsung.com/be
NETHERLANDS
0900 SAMSUNG(726-7864) (€ 0,10/Min)
http://www.samsung.com/nl
NORWAY
815-56 480
http://www.samsung.com/no
POLAND
0 801 801 881
022-607-93-33
http://www.samsung.com/pl
PORTUGAL
80 8 200 128
http://www.samsung.com/pt
REPUBLIC OF IRELAND
0818 717 100
http://www.samsung.com/ie
SLOVAKIA
0800-SAMSUNG (726-7864)
http://www.samsung.com/sk
SPAIN
902 10 11 30
http://www.samsung.com/es
SWEDEN
0771-400 200
http://www.samsung.com/se
SWITZERLAND
0800-SAMSUNG(726-7864)
http://www.samsung.com/ch
U.K
0870-SAMSUNG (726-7864)
http://www.samsung.com/uk
Downloaded From projector-manual.com Samsung Manuals
CIS
ESTONIA
800-7267
http://www.samsung.ee
LATVIA
800-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.lt
KAZAKHSTAN
8-10-800-500-55-500
http://www.samsung.kz
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
http://www.samsung.ru
UKRAINE
8-800-502-0000
http://www.samsung.ua
UZBEKISTAN
8-800-120-0-400
http://www.samsung.uz
Asia Pacific
AUSTRALIA
CHINA
HONG KONG
INDIA
1300 362 603
http://www.samsung.com/au
800-810-5858
010-6475 1880
3698-4698
http://www.samsung.com.cn
http://www.samsung.com/hk
3030 8282
http://www.samsung.com/in
1800 110011
INDONESIA
0800-112-8888
http://www.samsung.com/id
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800SAMSUNG (726-7864)
http://www.samsung.com/nz
PHILIPPINES
1800-10-SAMSUNG (726-7864)
http://www.samsung.com/ph
SINGAPORE
1800-SAMSUNG (726-7864)
http://www.samsung.com/sg
THAILAND
1800-29-3232
http://www.samsung.com/th
02-689-3232
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com/vn
Middle East & Africa
SOUTH AFRICA
0860-SAMSUNG (726-7864)
http://www.samsung.com/za
TURKEY
444 77 11
http://www.samsung.com/tr
U.A.E
800-SAMSUNG (726-7864)
8000-4726
http://www.samsung.com/mea
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
Glossary
Downloaded From projector-manual.com Samsung Manuals
Analog Broadcast
An existing broadcasting signal transmitted by a broadcasting station in accordance with the NTSC standard.
ANTENNA IN Port
This is the port for connecting a TV aerial using a coaxial cable. It is generally used to watch public broadcast
programs.
AV Receiver
An AV Receiver provides a number of input and output interfaces for audio and video so as to enable the user to
connect and use various input and output devices.
Backlight Remote Control
The buttons on the Backlight Remote Control are lit up so that users can easily press buttons on the remote control
even when it is dark.
Black Level
Black Level sets the light level of the darkest portion of the video signal to match that of the display's black level
capability so that users can clearly view dark visuals. If the setting does not match the input signal, the dark screen is
saturated and may not display properly or the dark screen looks milky-white.
Cable Broadcast
Cable Broadcast broadcasts programs via cable instead of radio waves. To view cable broadcasts, you have to
subscribe to your local cable broadcast service provider and install an additional receiver.
Color Standard
A pre-determined default color standard determined by the broadcasting standard of the corresponding country or
area.
Color Temperature
Color temperature is a simplified way to characterize the spectral properties of a light source. A low color temperature
implies a warmer (more yellow/red) light while a high color temperature implies a colder (more blue) light.
COMPOSITE IN Port
A COMPOSITE IN Port is a general video input port (yellow). Both chrominance and luminance are transmitted on the
same 75-ohm cable.
Component Port (Green, Blue, Red)
The Component Port separately transmits the luminance signal and provides the best quality among all video
connection types.
Digital Broadcast
Digital Broadcast is a television broadcasting signal digitized and transmitted according to the United States terrestrial
digital broadcast specifications, or ATSC.
DVD (Digital Versatile Disc)
DVD is a large capacity media disk that can save multimedia content such as video, games, audio applications, etc.
using MPEG-2 video compression technology on a CD size disc.
DLP (Digital Light Processing)
DLP is a digital display technology using a DMD panel developed by TI (Texas Instruments) of the United States.
DLP HD2, DC2, DC3
This is a grade of DMD panel.
DMD (Digital Micromirror Device)
A DMD panel is an implementation of DLP technology. It consists of microscopic mirrors where each mirror represents
a pixel.
External Input
External Input is connecting video devices such as a VCR, camcorder, DTV receiver, DVD, etc. to the projector as a
video source.
Gamma Mode
Gamma Mode compensates the video signal produced for analog display devices such as a CRT (Cathode Ray Tube)
so that the video signal can be clearly displayed on a digital display device.
Overscan
Overscan cuts the edge of the picture when there is unnecessary information, images or noise at the edge of the
picture. For extremely poor video signals, some unnecessary video signals may be displayed on the screen.
RS-232C Port (Service Input Port)
This port is provided for service purposes. This port provides data communication in accordance with the RS-232C
Downloaded From projector-manual.com Samsung Manuals
communication standard.
S-Video IN Port
This is called super video. S-Video is a type of video signal which has the video brightness and color signal separated
in order to provide a better image quality.
Satellite Broadcast
Satellite Broadcast broadcasts programs via satellite so that the program can be viewed in all area in a high visual and
sound quality. Approximately 100 channels including public broadcast channels are provided. To view satellite
broadcasts, you have to install an additional receiver.
5x Speed, 6 Segment Color Wheel
This is an optical part that decomposes white rays
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
Information in this document is subject to change without notice.
ⓒ 2007 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly
forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
Downloaded From projector-manual.com Samsung Manuals
