Samsung CLP-350 Product specifications

CLP-350N
CLP-350N/XAA
Basic Model : CLP-350N

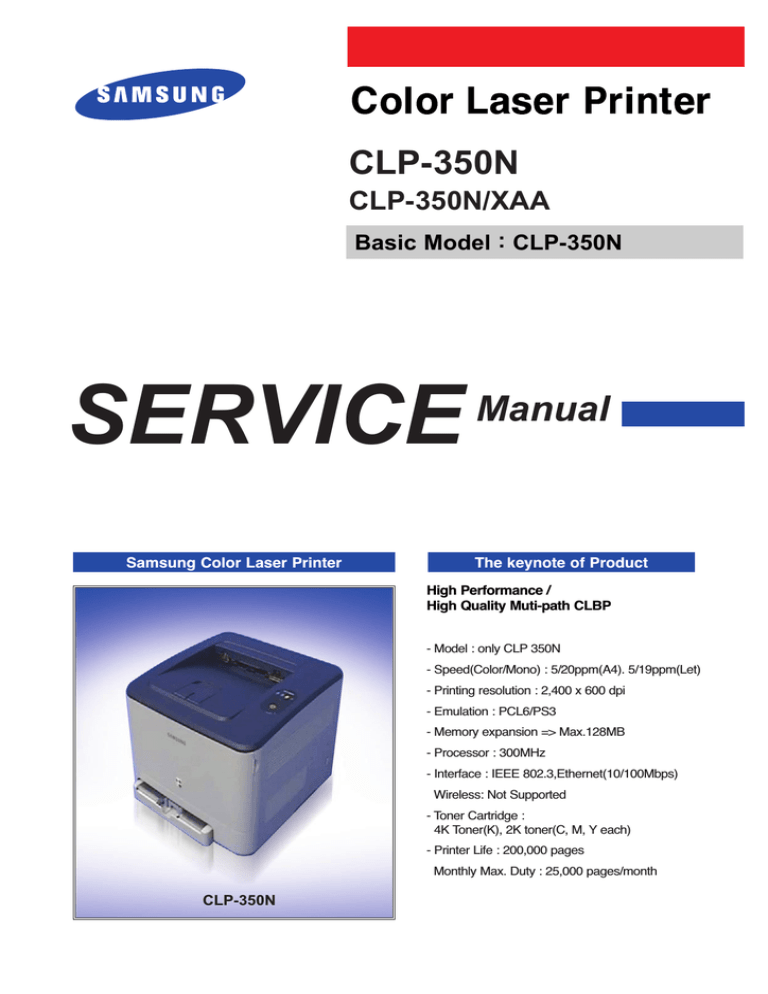

SERVICE
Samsung Color Laser Printer
Manual
The keynote of Product
High Performance /
High Quality Muti-path CLBP
- Model : only CLP 350N
- Speed(Color/Mono) : 5/20ppm(A4). 5/19ppm(Let)
- Printing resolution : 2,400 x 600 dpi
- Emulation : PCL6/PS3
- Memory expansion => Max.128MB
- Processor : 300MHz
- Interface : IEEE 802.3,Ethernet(10/100Mbps)
Wireless: Not Supported
- Toner Cartridge :
4K Toner(K), 2K toner(C, M, Y each)
- Printer Life : 200,000 pages
Monthly Max. Duty : 25,000 pages/month
CLP-350N
Contents
1. Precautions
1.1 Safety Warning
1.2 Caution for safety
1.3 ESD Precautions
1-1
1-2
1-5
2. Product Specification
2.1 Product Specifications
2.1.1 Product Overview
2.1.2 Specifications
2.1.3 Model Comparison Table
2.2 System Overview
2.2.1 System Structure
2.2.2 Main PBA Description
2.2.3 CRUM
2.2.4 General Description
2-1
2-1
2-2
2-7
2-8
2-8
2-14
2-24
2-26
3. Disassembly and Reassembly
3.1 Precautions When Replacing Parts
3.1.1 Precautions when assembling and disassembling
3.1.2 Precautions when handling PBA
3.2 Parts for Maintenance and Repair
3.2.1 Replacement interval for parts with a limited life
3.2.2 Printer Cleaning
3.3 Information Related in Disassembly and Assembly
3.3.1 Special Service Parts
3.3.2 Screws Used in the Printer
3.4 Disassembly Procedure
3.4.1 Cover Unit
3-2
3-2
3-2
3-3
3-3
3-4
3-5
3-5
3-6
3-10
3-10
Continued
3.4.2
3.4.3
3.4.4
3.4.5
3.4.6
3.4.7
3.4.8
Fuser Unit
LSU Unit
HVPS Board
Main Board
Drive Unit
SMPS Board
Transfer Unit
3-12
3-13
3-13
3-14
3-14
3-15
3-15
4. Alignment & Troubleshooting
4.1 Alignment and Adjustments
4.1.1 Control Panel
4.1.2 Function
4.1.3 Jam Removal
4.1.4 Sample Pattern
4.1.5 Periodic Defective Image
4.1.6 How to use EDC (Engine Diagnostic Control) Mode
4.1.7 Error Message
4.1.8 ITB Unit Reset
4.2 Troubleshooting
4.2.1 Procedure of Checking the Symptoms
4.2.2 Troubleshooting Checklist
4.2.3 Solving General Printing Problems
4.2.4 Solving Print Quality Problems
4.2.5 Common Windows Problems
4.2.6 Common Macintosh Problems
4.2.7 Common Linux Problems
4.2.8 Major Problems Trouble shooting
5. Exploded Views & Parts List
4-1
4-1
4-2
4-6
4-9
4-10
4-11
4-17
4-18
4-20
4-20
4-21
4-22
4-32
4-50
4-51
4-52
4-56
Continued
5.1 Main
5.2 Cover Unit
5.3 Top Cover
5.4.1 Rear Cover
5.4.2 Transfer Unit
5.5 Frame
5.6 LSU Cover
5.7 Fuser Ass'y
5.8 Main Drive
5.9 Cartridge-Transfer
5.10 Cartridge-Drum
5.11 Toner BK
5.12 Toner CMY
5.13 Cassette
5.14 SCF-Frame
5.15 SCF Cassette
5-2
5-4
5-6
5-8
5-10
5-12
5-16
5-18
5-20
5-24
5-27
5-29
5-31
5-33
5-35
5-39
6. System Diagram
6.1 Block Diagram
6.2 Connection Diagram
6.2.1 Main Layout
6.2.2 Power
6.2.3 Imaging, ITB Unit
6.2.4 HVPS, LSU
6.2.5 SCF, OPE, BLDC
6.2.6 Sensor, Clutch, Solenoid
6-1
6-2
6-2
6-3
6-4
6-5
6-6
6-7
7. Reference Information
7.1 Tools for Troubleshooting
7-1
Continued
7.2 Acronyms and Abbreviations
7.3 Select a location for the printer
7.4 A4 ISO 19752 Standard Pattern
7-2
7-4
7-5
Precautions
1
1. Precautions
In order to prevent accidents and to prevent damage to the equipment please read the precautions listed
below carefully before servicing the printer and follow them closely.
1.1 Safety Warning
(1) Only to be serviced by appropriately qualified service engineers.
High voltages and lasers inside this product are dangerous. This printer should only be serviced by a suitably
trained and qualified service engineer.
(2) Use only Samsung replacement parts
There are no user serviceable parts inside the printer. Do not make any unauthorized changes or
additions to the printer, these could cause the printer to malfunction and create electric shock or fire hazards.
(3) Laser Safety Statement
The Printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for
Class 1(1) laser products, and elsewhere, it is certified as a Class I laser product
conforming to the requirements of IEC 825. Class I laser products are not considered to be hazardous. The
laser system and printer are designed so there is never any human access to laser radiation above a Class I
level during normal operation, user maintenance, or prescribed service condition.
Warning >> Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The
reflected beam, although invisible, can damage your eyes. When using this product, these basic safety
pre-cautions should always be followed to reduce risk of fire, electric shock, and injury to persons.
CAUTION - INVISIBLE LASER RADIATION
WHEN THIS COVER OPEN.
DO NOT OPEN THIS COVER.
VORSICHT - UNSICHTBARE LASERSTRAHLUNG,
WENN ABDECKUNG GEÖFFNET.
NICHT DEM STRAHL AUSSETZEN.
ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS
D’OUVERTURE. EXPOSITION DANGEREUSE
AU FAISCEAU.
ATTENZIONE - RADIAZIONE LASER INVISIBILE IN CASO DI
APERTURA. EVITARE L’ESPOSIZIONE AL
FASCIO.
PRECAUCION - RADIACION LASER IVISIBLE CUANDO SE ABRE.
EVITAR EXPONERSE AL RAYO.
ADVARSEL. - USYNLIG LASERSTRÅLNING VED ÅBNING, NÅR
SIKKERHEDSBRYDERE ER UDE AF FUNKTION.
UNDGÅ UDSAETTELSE FOR STRÅLNING.
ADVARSEL. - USYNLIG LASERSTRÅLNING NÅR DEKSEL
ÅPNES. STIRR IKKE INN I STRÅLEN.
UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN. STRÅLEN ÄR FARLIG.
VARO! - AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ KATSO SÄTEESEEN.
Service Manual
Samsung Electronics
1-1
Precautions
1.2 Caution for safety
1.2.1 Toxic material
This product contains toxic materials that could cause illness if ingested.
Please keep toner cartridges away from children. The toner powder contained in the toner cartridge may be harmful and
if swallowed you should contact a doctor.
1.2.2 Electric Shock and Fire Safety Precautions
Failure to follow the following instructions could cause electric shock or potentially cause a fire.
(1) Use only the correct voltage, failure to do so could damage the printer and potentially cause a fire or electric
shock.
(2) Use only the power cable supplied with the printer. Use of an incorrectly specified cable could cause the cable
to overheat and potentially cause a fire.
(3) Do not overload the power socket, this could lead to overheating of the cables inside the wall and could lead to
a fire.
(4) Do not allow water or other liquids to spill into the printer, this can cause electric shock. Do not allow paper
clips, pins or other foreign objects to fall into the printer these could cause a short circuit leading to an electric
shock or fire hazard..
(5) Never touch the plugs on either end of the power cable with wet hands, this can cause electric shock. When
servicing the printer remove the power plug from the wall socket.
(6) Use caution when inserting or removing the power connector. The power connector must be inserted completely otherwise a poor contact could cause overheating possibly leading to a fire. When removing the power
connector grip it firmly and pull.
(7) Take care of the power cable. Do not allow it to become twisted, bent sharply round corners or otherwise
damaged. Do not place objects on top of the power cable. If the power cable is damaged it could overheat and
cause a fire or exposed cables could cause an electric shock. Replace a damaged power cable immediately,
do not reuse or repair the damaged cable. Some chemicals can attack the coating on the power cable,
weakening the cover or exposing cables causing fire and shock risks.
(8) Ensure that the power sockets and plugs are not cracked or broken in any way. Any such defects should be
repaired immediately. Take care not to cut or damage the power cable or plugs when moving the machine.
(9) Use caution during thunder or lightening storms. Samsung recommend that this machine be disconnected from
the power source when such weather conditions are expected. Do not touch the machine or the power cord if it
is still connected to the wall socket in these weather conditions.
(10) Avoid damp or dusty areas, install the printer in a clean well ventilated location. Do not position the machine
near a humidifier. Damp and dust build up inside the machine can lead to overheating and cause a fire.
(11) Do not position the printer in direct sunlight. This will cause the temperature inside the printer to rise possibly
leading to the printer failing to work properly and in extreme conditions could lead to a fire.
(12) Do not insert any metal objects into the machine through the ventilator fan or other part of the casing, it could
make contact with a high voltage conductor inside the machine and cause an electric shock.
1-2
Service Manual
Samsung Electronics
Precautions
1.2.3 Handling Precautions
The following instructions are for your own personal safety, to avoid injury and so as not to damage the printer
(1) Ensure the printer is installed on a level surface, capable of supporting its weight. Failure to do so could cause
the printer to tip or fall.
(2) The printer contains many rollers, gears and fans. Take great care to ensure that you do not catch your fingers,
hair or clothing in any of these rotating devices.
(3) Do not place any small metal objects, containers of water, chemicals or other liquids close to the printer which if
spilled could get into the machine and cause damage or a shock or fire hazard.
(4) Do not install the machine in areas with high dust or moisture levels, beside on open window or close to a
humidifier or heater. Damage could be caused to the printer in such areas.
(5) Do not place candles, burning cigarettes, etc. on the printer, these could cause a fire.
1.2.4 Assembly / Disassembly Precautions
Replace parts carefully, always use Samsung parts. Take care to note the exact location of parts and also
cable routing before dismantling any part of the machine. Ensure all parts and cables are replaced correctly.
Please carry out the following procedures before dismantling the printer or replacing any parts.
(1) Check the contents of the machine memory and make a note of any user settings. These will be erased if the
mainboard is replaced.
(2) Ensure that power is disconnected before servicing or replacing any electrical parts.
(3) Disconnect printer interface cables and power cables.
(4) Only use approved spare parts. Ensure that part number, product name, any voltage, current or temperature
rating are correct.
(5) When removing or re-fitting any parts do not use excessive force, especially when fitting screws into plastic.
(6) Take care not to drop any small parts into the machine.
(7) Handling of the OPC Drum
- The OPC Drum can be irreparably damaged if it exposed to light.
Take care not to expose the OPC Drum either to direct sunlight or to fluorescent or incandescent room
lighting. Exposure for as little as 5 mins can damage the surface’s photoconductive properties and will result
in print quality degradation. Take extra care when servicing the printer. Remove the OPC Drum and store it in
a black bag or other lightproof container. Take care when working with the covers(especially the top cover)
open as light is admitted to the OPC area and can damage the OPC Drum.
- Take care not to scratch the green surface of OPC Drum Unit.
If the green surface of the Drum Cartridge is scratched or touched the print quality will be compromised.
Service Manual
Samsung Electronics
1-3
Precautions
1.2.5 Disregarding this warning may cause bodily injury
(1) Be careful with the high temperature part.
The fuser unit works at a high temperature. Use caution when working on the printer. Wait for the fuser to cool
down before disassembly.
(2) Do not put finger or hair into the rotating parts.
When operating a printer, do not put hand or hair into the rotating parts (Paper feeding entrance, motor, fan,
etc.). If do, you can get harm.
(3) When you move the printer.
This printer weighs 14.8kg including Consumables. Use safe lifting and handling techniques. Back injury could
be caused if you do not lift carefully.
(4) Ensure the printer is installed safely.
The printer weighs 14.8Kg, ensure the printer is installed on a level surface, capable of supporting its weight.
Failure to do so could cause the printer to tip or fall possibly causing personal injury or damaging the printer.
(5) Do not install the printer on a sloping or unstable surface. After installation, double check that the printer is stable.
1-4
Service Manual
Samsung Electronics
Precautions
1.3 ESD Precautions
Certain semiconductor devices can be easily damaged by static electricity. Such components are commonly called
“Electrostatically Sensitive (ES) Devices”, or ESDs. Examples of typical ESDs are: integrated circuits, some field
effect transistors, and semiconductor “chip” components.
The techniques outlined below should be followed to help reduce the incidence of component damage caused by
static electricity.
Caution >>Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
1. Immediately before handling a semiconductor component or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known earth ground. Alternatively, employ a commercially available wrist strap device, which should be removed for your personal safety reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ESDs, place the assembly on a conductive surface, such as
aluminum or copper foil, or conductive foam, to prevent electrostatic charge buildup in the vicinity of the assembly.
3. Use only a grounded tip soldering iron to solder or desolder ESDs.
4. Use only an “anti-static” solder removal device. Some solder removal devices not classified as “anti-static” can
generate electrical charges sufficient to damage ESDs.
5. Do not use Freon-propelled chemicals. When sprayed, these can generate electrical charges sufficient to damage ESDs.
6. Do not remove a replacement ESD from its protective packaging until immediately before installing it. Most
replacement ESDs are packaged with all leads shorted together by conductive foam, aluminum foil, or a comparable conductive material.
7. Immediately before removing the protective shorting material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.
8. Maintain continuous electrical contact between the ESD and the assembly into which it will be installed, until completely plugged or soldered into the circuit.
9. Minimize bodily motions when handling unpackaged replacement ESDs. Normal motions, such as the brushing
together of clothing fabric and lifting one’s foot from a carpeted floor, can generate static electricity sufficient to
damage an ESD.
Service Manual
Samsung Electronics
1-5
Product specification and feature
2
2. Product specification and feature
2.1 Product Specifications
2.1.1 Product Overview
Item
Basic Model
Maket of Sales
Descriptions
CLP-350N
Main Target : Reseller
Black only Function(Saving money)
Main Specification
1.Speed
Up to 20 ppm in A4 (19 ppm in Letter)
Up to 5 ppm in A4 (5 ppm in Letter)
2.Printing Resolution
Native 600 x 600 dpi standard
3.Processor
CHORUSm (300Mhz), Proprietary SOC
4.Printer Language Emulations
SPL-Color, PCL6, PS3
5.Memory
The controller has 128 MB SDRAM and 16 MB flash ROM on Board
6.Interfaces
One USB port
One 10/100 BaseT network connector
7.Control Panel
No LCD, 1 keys and 5 LEDs
Item(s)
Pages Printed
Part number
Black toner
cartridge
Approx. Initial : 4,000 pages*
Sales : 4,000 pages*
CLP-K350A
Color toner
cartridges
Approx. 2000 pages*
CLP-C350A : Cyan
CLP-M350A : Magenta
CLP-Y350A : Yellow
Imaging unit
Approx. 20,000 black
pages or approx.
12,500 color pages
CLP-R350A
Waste toner
container
Approx. 5,000 images**
or Approx. 1,250 pages
(fulll color Std. ISO 19752 image)
CLP-W350A
Pick-up roller
Approx. 50,000 pages
Contact a service
Engineer
Fuser unit
Approx. 80,000 black pages
or 40,000 color pages
representative
Replacement
T2 roller
Approx. 100,000 pages
ITB
Approx. 100,000 black pages
or 25,000 color pages
Remark
User
Replacement
* Average A4-/letter-sized page count based on Std. ISO 19752 of individual colors on each page. Usage
conditions and print patterns may cause results to vary.
** Image counts based on one color on each page. If you print documents in full color (Cyan, Magenta,
Yellow, Black), the life of this item will be reduced by 25%.
Service Manual
Samsung Electronics
2-1
Product specification and feature
2.1.2 Specifications
Specifications are correct at the time of printing. Product specifications are subject to change without
notice. See below for product specifications.
2.1.2.1 General Specifications
Item
Engine Speed
CLP-350N
Simplex
Duplex
Warmup time
FPOT (B&W)
FPOT (Color)
Resolution
2-2
From Ready
From Idle
From Coldboot
From Ready
From Idle
From Coldboot
Optical
Support
Up to 20 ppm in A4 (19 ppm in Letter)
Up to 5 ppm in A4 (5 ppm in Letter)
N/A
Less than 38 sec
Less than 14 sec
Less than 48 sec
Less than 50 sec
Less than 24 sec
Less than 58 sec
Less than 60 sec
600 x 600 dpi
MAX: 2400 x 600 dpi effective output, 1200 x 600 dpi (default),
600 x 600 dpi(Color & B&W)
Service Manual
Samsung Electronics
Product specification and feature
2.1.2.2 Controller & S/W
Item
MPU
Memory
Memory Expansion
Printer Languages
Fonts
Driver
CLP-350N
Std.
Max.
Supporting OS
Default Driver
Driver feature
WHQL
Language Localization
Application
Interface
Parallel
USB
Network
Wireless
Network Interface
Protocol
Network OS
RCP
Smart Panel
Network Management
SmarThru4
Samsung CHORUSm 300MHz
128 MB
256 MB
128 MB
SPL-C (Samsung Printer Language Color)
45 Scalable, 1 Bitmap, 136 Postscript3
Windows 2000/XP/2003/Vista/98/Me/NT 4.0
Various Linux OS including Red Hat 8.0~9.0, Mandrake 9.2~10.1,
SuSE 8.2~9.2 and Fedora Core 1~4
Mac OS 10.3 ,10.4
SPL-C (Samsung Printer Language Color), PCL6, PS3
Watermark
Overlay
N-up printing
Poster printing
Traymanual duplex
Quality(1200 dpi, 1200dpi class, 600 dpi)
Color mode (Color, Gray scale)
Color spec.
application color matiching
Device color
Black only status in Status monitor
Windows 2000/XP/2003/Vista
Korean, English, French, German, Italian, Spanish, Russian,
Dutch, E.Portuguese, Finish, Swedish, Norwegian, Danish,
S.Chinese, T.Chinese, Polish, Hungarian, Czech
USB / Network
Yes(USB / Network, Install Default)
Set IP, Web SyncThru 4.5 (SWS)
SmartThru 4 (Windows only)
N/A
USB 2.0
Ethernet 10/100 Base TX
N/A
TCP/IP, DLC/LLC, IPP, SNMP
Microsoft Windows 2000/XP/2003 Microsoft and above Driver
Vista, Mac OS 10.3 or higher (TCP/IP only)Mac OS 9 available
Various Linux OS including Red Hat, Caldera, Debian, Mandrake,
Slackware, SuSE and Turbo Linux Novell not available
Service Manual
Samsung Electronics
2-3
Product specification and feature
2.1.2.3 Paper Handling
Item
CLP-350N
Standard Capa.
150-sheet Semi Cassette Tray
Max. Capa.
Printing
150 sheets @ 75g/
216 x 356mm (8.5" x 14")
76 x 127 mm (3" x 5")
4 mm, 4 mm, 4 mm, 4 mm
Max. Size
Min. Size
Margin(T/B/L/R)
Optional Cassette Tray
Capacity
Media sizes
Media types
250 sheets @ 75g/
148 x 210 mm(A4) ~ 216 x 356 mm(Legal)
Plain paper, Cotton, Colored, Preprinted, Recycled
Media weight
Size sensor
User Interface
Sensing
Output Stacking
Capacity
60 to 90g/
N/A
No Indicator
Photo Sensor
Output Full sensing
Duplex
Supporting
Throughput
Media sizes
Media types
Media weight
2-4
FaceUp
N/A
FaceDown
100 sheets @ 75g/
N/A
Manual
N/A
N/A
N/A
N/A
Service Manual
Samsung Electronics
Product specification and feature
2.1.2.4 Consumables
Item
CLP-350N
CRU
No. of CRUs
Toner
Black
Color
Key
Life detect
Imaging Kit(OPC+Deve)
Yield
Key
Sensor
Replace method
Yield
Key
6 (C/M/Y/K toner, Imaging Unit, Waste toner container)
K toner cartridge: CLP-K350A
C toner cartridge: CLP-C350A
M toner cartridge: CLP-M350A
Y toner cartridge: CLP-Y350A
Imaging unit : CLP-R350A
Waste toner container: CLP-W300A
4,000 A4/Letter pages, at Std. ISO 19752, Semi glossy
2,000 A4/Letter pages, at Std. ISO 19752, Semi glossy
Unique, Electronic key(S-CRUM)
Sensor (Y)Remain % (90% : warning,100%: empty,
120% : hardstop)
Approx. 20K black pages (or 12.5K color pages)
Unique, Electronic key(CRUM)
None, that would be traced via software
6 steps for install/replacing
1,250 sheets (Full Color Std. ISO 19752Image) or 5,000 images, Full Sensor
N/A
Yield
Key
Sensor
Yield
Key
Yield
Key
Yield
Key
4 (ITB, Fuser, T2 roller, Pick-up roller)
Approx. 100,000 black pages (or 25,000 color pages)
None
None
80,000 sheets B&W or 40,000 sheets Color
None
100,000 sheets, Replacable
None
50,000 sheets, Replacable
None
Waste Toner Container
FRU
No. of FRUs
ITB
Fuser
T2 Roller
Pick-up Roller
Service Manual
Samsung Electronics
2-5
Product specification and feature
2.1.2.5 Environment
Item
Acoustic Noise Level
(Sound Power/Pressure)
CLP-350N
Printing
Standby
Sleep
Input Voltages
Power Consumption
Ready
AVG.
Sleep/Power Off
Set
Set Packing
Set (with consumables)
Set Packing
Consumable
Dimension(W x D x H)
Weight
Less than 48.0 dBA (Color printing)
Less than 49.0 dBA (B/W printing)
Less than 35 dBA
Background noise level
110-120 VAC, 50/60Hz
220-240 VAC, 50/60Hz
Power Switch
Less than 80w
Less than 400W
Less than 10W /Less than
390 X 418.8 X 269.5 mm (15.4" x 16.5" x 10.6")
531 X 525 X 443 mm ( 20.9" x 20.7" x 17.4" )
14.8 kg
18.5 kg
3.5 kg(Imaging Unit)
2.1.2.6 Options
Item
Memory
Second Cassette
PostScript
Network
Wireless Network
Hard Disk
Duplex Unit
2-6
CLP-350N
128 MB
250 sheet SCF
Built-in
Built-in
N/A
N/A
N/A
Service Manual
Samsung Electronics
Product specification and feature
2.1.3 Model Comparison Table
Item
Magicolor 2400W
CLP-350N
Print Method:
Electro photographic laser
Electro photographic laser
Print Speed:
5 ppm colour/ 20 ppm monochrome
5 ppm colour/ 19 ppm monochrome
Resolution:
2400 x 600 ; 1200 x 600 ; 600 x 600
2400 x 600 dpi class
First page print:
12 sec monochrome, 21 sec colour
14 sec monochrome, 24 sec colour
Warm-up time:
49 seconds
38 seconds
Processor Type:
Special ASIC 48 MHz
ChorusM 300MHz
Memory:
32 MB RAM
128 MB (expandable up to 256 MB)
Printer Emulations:
GDI
GDI, PCL6, PS3
Standard Interfaces:
USB 2.0 (High Speed) supporting
MS Plug and Play
USB 2.0 (High Speed) supporting
MS Plug and Play
OS Compatibility
Windows XP / 2000 / ME / 98 SE
Windows XP/2K/2003/ME/98/Longhorn
Standard Paper In:
200-sheet Multi-purpose Tray
150-sheet Cassette Tray
Standard Paper Out:
200-sheet Face-down Output Tray
100-sheet Face-down Output Tray
Dimensions (WxDxH):
395 x 430 x 341 (mm)
390 x 418.8 x 269.5 (mm)
Weight:
with consumables 20 kg;
with consumables 14.8 kg
Service Manual
Samsung Electronics
2-7
Product specification and feature
2.2 System Overview
This chapter describes the functions and operating principles of the main components.
2.2.1 System Structure
2.2.1.1 Main Parts of System
2-8
Service Manual
Samsung Electronics
Product specification and feature
Cassette
Feeding Method : Cassette Type
Feeding Standard : Center Loading
Feeding Capacity : Cassette 150 Sheets(75g/ , 20lb Paper Standard)
No Manual Feeder
Paper Detecting Sensor : Photo Sensor (Empty, Registration, Exit)
Paper Size Sensor : None
LSU(Laser Scan Unit)
Consisted of LD(Laser Diode) and Polygon Motor Control.
Error
Phenomenon
Polygon Motor Error
The Rotation of Polygon Motor can not reach stable
Hsync Error
Though the rotation of Polygon Motor reach stable, the signal of Hsync is not occurred
2nd Transfer Ass y
The life span: Print over 100,000 sheets (in 15~30
Specification: Similar to CLP-300 Series
)
Fuser Ass y
Heat Lamp : New Part - Knuckle Type
Heat Roller : Similar to CLP-500 Series
2 Pressure Roller : One is similar to HummingBird, the Other is a new added part comparing with
other Fuser
Thermistor - Temperature-Measuring Device
Thermostat - Critical Temperature-Detecting Device
&
ITB(Intermediate Transfer Belt) & 1st Transfer Roller
The life span: Print over 60,000 Images
The ITB unit includes 1st Transfer Roller
&
OPC(Organic Photo-Conductor) & Developer
The life span: Print over 50,000 Images (Both)
Imagine Unit consists of 4 kinds of Developer , OPC, and Deve. Main Frame
Toner Kits
The life span: Color -> 2000 images (Std. ISO 19752 Print-Out)
Black -> 4000 images (Std. ISO 19752 Print-Out)
Driver Ass y
It is a power delivery unit by gearing
By driving the motor, it supplies the power to the feeding unit, the fusing unit, and the distributing unit.
The Main Motor is similar to CLP-300 Series Main Motor.
Service Manual
Samsung Electronics
2-9
Product specification and feature
2.2.1.2 EP Process
- Structure of EP Process
P1: Image
on OPC
Blade
ITB Unit
P2: Image
on Media
Media Path
OPC
Blade
~
Developer
Laser Scanning Unit
2-10
Eraser
Charger
Service Manual
Samsung Electronics
Product specification and feature
- System Outline
Paper path
Exit
Fuser
Toner
Cartridge
Dev-Y
OPC
Dev-M
Dev-C
ITB
Dev-K
LSU
Cassette
Charging
Conductive Roller charging
Applied voltage : -1.1kV
Charge acceptance : -520V
OPC coating thickness : 21um
OPC diameter : 60mm
Eraser system
1. Organic Photoconductor is charged to uniform voltage by conductive roll charging method
2. No ozone is produced because corona is not used
3. Charger roll is cleaned with cleaning roll
4. Toner remained on OPC after T1 process is cleaned by cleaning blade and retrieved into waste toner
box by auger and belt driving mechanism
Service Manual
Samsung Electronics
2-11
Product specification and feature
Exposing
One polygon motor ( 6 facet )
Single beam LD (1ea)
LD wavelength : 785nm
Polygon motor rpm : 29685
LSU energy : 0.25uJ/cm^2
OPC exposed potential : -50V
1. Exposing is implemented by laser striking on to OPC with uniform potential
2. Laser beam is modulated according to image to be printed that is from PC
3. Latent Image is formed on OPC, which is developed with toner
Developing
Non-magnetic, mono component
Non-contact development
Developing bias : DC + AC
AC peak to peak : 1.5 ~ 2.0kV
Roller diameter : 10mm
Process speed ratio : 1.2 (OPC=1.0)
Color order : Y -> M -> C -> K
1. Only latent image formed by exposing process is developed with toner
2. AC + DC Voltage is being used to develop toner into latent image on OPC because non-contact
developing method is adopted
3. Y, M, C, and K Images are sequentially developed onto OPC and transferred onto Intermediate
Transfer Belt (hereafter ITB) to form a color image on ITB
4. Toner Bottles are used to supply toner into developer compartment
5. Toner level is being sensed to control toner supply from toner bottle to developer
Transfer 1
Multi-pass transfer
Indirect transfer
Transfer voltage : 0.5 ~ 2.0kV (controllable)
Roller diameter : 14mm
Transfer unit life : 100K images
1. Developed Image on OPC is transferred onto ITB by T1 Process
2. T1 Voltage is positive which attract toner to ITB
3. 4 times of T1 process is required to make a color image on ITB, which means multi-pass process
4. ITB has a hole as a fiducial mark for timing. Engine control for color image is synchronous with it,
ITB Home Sensing Signal
2-12
Service Manual
Samsung Electronics
Product specification and feature
Transfer 2
Indirect transfer
Transfer voltage : 1 ~ 4.0kV (controllable)
Roller diameter : 18.6mm
Transfer unit life : 100 K images
1. Color image formed on ITB is transferred onto media by T2 process
2. T2 voltage is also positive to get color image moved onto media
3. Toner remained on ITB after T2 process is cleaning by ITB cleaning blade and collected and
4. Transported and retrieved into waste toner box by auger and belt driving system
5. T2 Roll is engaged when color image is being transferred onto media. Otherwise it is disengaged. Clutch is
used for driving T2 Roll engagement and disengagement
Fusing
3 Roll system
-> short warm-up time (38sec)
Post Pressure Roll
1. Color Image on media is melted down and fixed into media by fusing process
Service Manual
Samsung Electronics
2-13
2-14
CN14
COVER
OPEN
CN13
SMPS
CN11
PANEL
CN9
DEVE_
HOME
CN18
HVPS
CN2 CN3
DEV_
ITB_
SOL CLUTCH
CN19
LSU
CN24
Fan
CN20
SCF
CN16
DEVE&
ITB
USB
RJ45
CN5 CN6
FUSER
T2_
CLUTCH
CN8
FUSER
CLUTCH
CN17
CN21 CN22
REG&
REGI PICKUP
EMPTY CLUTCH
CN1
BLDC
Product specification and feature
2.2.2 Main PBA Description
2.2.2.1 Main Controller PBA
Service Manual
Samsung Electronics
Product specification and feature
2.2.2.2 Main PBA
Service Manual
Samsung Electronics
2-15
Product specification and feature
2.2.2.3 Main PBA Description
1) CHORUSm
CHORUSm involves in itself the functions to control ARM Processor Core and various H/W devices.
CHORUSm, therefore, controls Main PBA and all engine mechanism, processing the print job received from
host and enabling the engine to print image.
Function
Process
0.13um Technology
Package
496 PBGA
CPU Core
ARM 920T - 300MHz
Cache : I-Cache 16KB, D-Cache 16KB
System Bus
32-bit width, 100MHz
SDRAM Controller
32-bit width, 100MHz operation
5 Banks, Up to 128MB Address space per Bank
Programmable Timing to Control SDRAM A.C Characteristics
Support Self Refresh for Data Retention
ROM Controller
32-bit width, 4 Banks, Up to 16MB Address space per Bank
Burst Capability
Programmable Timing per Bank
2-16
Service Manual
Samsung Electronics
Product specification and feature
IO Controller
6 Channels, Up to 16MB Address space per Bank
Programmable Timing per Bank
DMA Controller
6 Channels General Purpose DMA
HPVC Controller
Hyper Printer Video Controller
High Performance DMA-based Interface to Printer Engine
Support Dual/Single Beam LSU, LVDS Video Output
Support A3, 1200dpi
UART Controller
5 Channels Indepenent Full Duplex UART
Interrupt Controller
Support 6 External Interrupts
Support 26 Internal Interrupts
Timer Controller
6 System Timers and Watch Dog Timer for S/W Trap
Scanner Controller
300/400/600/1200dpi CIS/CCD Interface
Color/Mono grey image, Binary image scan support
600dpi Color/Mono Copy support
Image Processing for High-End MFP,Digital Copier
MH/MR/MMR CODEC for Fax
Scan image : A4 1200dpi processing
Copy image : A4 600dpi processing
MAC Controller
10/100Mbps
Full IEEE 802.3 compatibility
PPI Controller
IEEE1284 compliant parallel port interface
DMA-Based or Interrupt-Based operation
GEU Controller
Graphic Engine Unit for Banding support of Printer Language
Scan Line Buffer, Polygon Filling
CODEC Controller
2 Channels JBIG Encoding and Decoding
I2C Controller
1 Channel, Operated at max frequency 400kHz
RTC Controller
Engine Controller
LSU Control and Interface Unit
2 Channels STEP Motor Control Unit
8 Channels PWM Control Unit
8 Channels ADC Control Unit
2 Channels DAC Control Unit
Service Manual
Samsung Electronics
2-17
Product specification and feature
CHORUSm (Internal Block Diagram)
2-18
Service Manual
Samsung Electronics
Product specification and feature
2) System Memory Block
Memory saves program and video data and print jobs received from host. Its volume is 64MB with network
function.
It has separate device for 128MB extension. SDRAM is used, driven at width of 32-bit and 100MHz, and
controlled by memory controller built in CHORUSm.
3) Flash Memory Block
Flash memory is the space used for saving program. Its volume is 16MB with network function. It has no
separate device for extension. NOR type flash memory is used and accessed at 32-bit width burst, being
controlled by the ROM controller built in CHORUSm.
4) USB2.0 Device Block
This block supports USB2.0 high speed (480Mbps). ISP1582 of Philips company is used and connected to the
IO Bus of CHORUSm at 16-bit, controlled by IO controller built in CHORUSm. Through this I/O port it receives
print job from host.
5) Network Block
This block has 10/100Mbps wired network function and is controlled by MAC controller built in CHORUSm. It is
connected to host through physical layer chip outside, and thus receives print job from host. BCM5241 is used
for physical layer chip.
6) EEPROM Block
System EEPROM is controlled by the I2C controller built in CHORUSm, connected to the other non-volatile
memory on I2C bus. It works at the speed of 400KHz. This system EEPROM contains all drive information and
production information necessary for the operation of printer. Its size is 64K-bit.
7) OPE Control
The panel is driven in the form of PIO by GPIO controller built in CHORUSm. OPE consists of one key and four
monochrome LED, and one dual LED.
8) LSU Control
Laser Scanning Unit is controlled by LSU controller built in CHORUSm. It makes use of all functions such as
Polygon Mirror Motor Control necessary for driving LSU and Synchronized Signal Generation Control, and
helps to scan laser beam on the photosensitive drum to form latent image.
9) BLDC Control
It is controlled by BLDC controller built in CHORUSm. It controls the drive of printer mechanism and helps it to
be
driven at an equal speed.
10) Sensors Control
GPIO controller built in CHORUSm collects the status of all sensors. According to this status of sensors, it
controls printer mechanism to help normal printing. There are sensors such as Paper Empty Sensor,
Registration Sensor and Developer Home Sensor, etc.
Service Manual
Samsung Electronics
2-19
Product specification and feature
11) Clutches Control
GPIO Controller built in CHORUSm controls all clutches, which help printer to do print job normally. There are
clutches such as Paper Pick-up Clutch, Registration Clutch, Developer Home Clutch, ITB Clutch, T2 Clutch,
Fuser Clutch, Developer Toner Supply Clutch, etc.
12) PWM Control
PWM Controller built in CHORUSm controls the parts that require PWM for normal printing, such as BLDC
drive speed and HVPS high voltage level, etc.
13) ADC Control
It is controlled by ADC Controller built in CHORUSm, and is used for perception of charged voltage and
current, 1st and 2nd transfer voltage and current, fusing temperature, used-up toner and toner amount, and
interior temperature, etc.
14) DAC Control
It is controlled by DAC Controller built in CHORUSm and used to set standard level of light amount of LSU
Laser Diode.
2-20
Service Manual
Samsung Electronics
Product specification and feature
2.2.2.4 SMPS(Switching Mode Power Supply) PBA
SMPS is consisted of SMPS part which supplies DC power for driving system and AC Heat Control part which
supplies power to Fuser. Standard TYPE is used.
1) DC Output
Main Controller PBA, OP Panel, BLDC, Sensors, Clutches, Other PBAs
2) AC Output
Fuser Unit(Heat Lamp, Thermostat)
3) Output Voltage
CHANNEL
+5.0V
+24V
+24VF
V_out
+5.0V +/-5%
+24.0V +15%/-10%
+24.0V +15%/-10%
Load
MicroController,
CMOS, LOGIC
LSU
MOTOR, CLUTCH,
HVPS
CON3 To Main PBA
CON2 Fuser AC
CON1 AC Input
Service Manual
Samsung Electronics
2-21
Product specification and feature
2.2.2.5 HVPS(High Voltage Power Supply) PBA
HVPS PBA generates high voltage of charger, supply, T1 and T2 which is supplied to Developer, ensuring
optimum condition for image formation. HVPS receives input of 24V and generates high voltage, supplying it to
Toner, OPC, Cartridge, ITB Unit and Transfer Roller.
2-22
Service Manual
Samsung Electronics
Product specification and feature
1) Charger Voltage : Charger
Function: voltage that charges OPC surface up to -500V~ -800V.
Output voltage: -1.0KV ~ -2.0KV DC
3%
Error type: if the voltage fails to be output to Charger Roll, OPC surface will not be charged, and the toner on
the developer roller will be transferred to OPC Drum, printing black paper.
2) 1st Transfer High Voltage : T1(+)
Function: voltage necessary for transferring toner developed on OPC Drum surface onto ITB.
Output voltage: Max +2.0KV
3%(Duty variable, no load)
ERROR type: if T1(+) output fails, the toner on OPC drum will not be transferred to ITB normally and the
image will be blurred.
3) 2nd Transfer High Voltage : T2(+)
Function: voltage used to transfer the toner primarily transferred on ITB again onto paper.
Output voltage: Max +5.0KV
3%(Duty variable, no load)
ERROR type: if T2(+) output fails, the toner on ITB will not be transferred to paper normally and the image
will be blurred.
4) T2 Cleaning Voltage : Clean : T2(-)
Function: prevent reverse side of paper from being dirtied, by recovering the negatively charged toner remaining
at Transfer Roller and sending it onto ITB.
Output voltage: with no feedback control, output fixed voltage(-1300V
15%)
ERROR type: reverse side of paper will be dirtied.
5) Supplying Voltage : Supply AC+DC(-)
Function: voltage that makes toner to develop on the area exposed by LSU by means of potential difference,
output will be the voltage of AC+DC overlapped form.
Output voltage: AC 600V ~ 2000V p-p
DC -50V ~ -600V DC
1.5%
3%
ERROR type: 1. if supply is GND, density will be extremely low.
2. if supply is floating (for insecure terminal contact), density will be down so slightly that it is
impossible to make out with naked eyes.
6) Developing Voltage : Deve AC+DC(-)
Function: voltage that supplies toner to Developing Roller
Output voltage: AC 250V ~ 1650Vp-p
DC -50V ~ -600V DC
1.5% (supply voltage is connected to ZENER Diode 350V)
3%
ERROR type: 1. if Deve is GND, density will be extremely down.
2. if Deve is floating (for insecure terminal contact), density will be extremely down.
Service Manual
Samsung Electronics
2-23
Product specification and feature
2.2.3 CRUM
In the case of Refill Toner Install
1) Perception of Refill Cartridge (when power is on or the cover is closed)
End of Life / life span data initialization -> judge to be Refill Cartridge
End of Life / life exhausted (simple refill) -> stop printing caused by life exhaustion
2) Operating
It is impossible to control appropriate development parameters, for there s no toner specification data.
It runs with the setting of default development parameter. (Image quality will be degraded, for the lack of
appropriate respond to the change of time and environment.)
3) Service Response
It is possible to response appropriately, for the information of cartridge life is saved at Back Up Area.
Process after CRU life expiration
1) Record the information of End of Life.
2) Copy the information of Operating Area into Back up Area.
3) Write-Protect Back up Area.
4) Clear some information of Operation Area.
-> Supplier/Model Name/MFC date/Serial Number (Manufacture Information)
-> Let cartridge refiller initialize manufacture information and life span information.
2-24
Service Manual
Samsung Electronics
Product specification and feature
CRUM Position
Cap
Agitator
Washer
Bottle
Cap- CRUM
Agitator
Seal
CRUM
Coupling
Service Manual
Samsung Electronics
2-25
Product specification and feature
2.2.4 General Description
This chapter is the product specification for the CLP-350N. The CLP-350N is a Color Laser Printer. CLP-350N is
developed for two target users. Those are small office users who sometimes need color printouts, and medium
business users who mainly use B/W printouts. The main product concept is “the world smallest and lightest color
laser printer”. This model has 20ppm B/W print-speed and 5ppm color print-speed, 2400 x 600 dpi class (optical
600 x 600 dpi) color laser printer.
2.2.4.1 Controller
-The video controller board is located on the right side of the printer.
-Basic Memory is 128 Mbytes SDRAM.
-Field F/W upgradeable FLASH ROM firmware for controller, 8K byte EEPROM
-Printing Resolution :
Native 600 x 600 dpi standard
Resolution can be enhanced up to 2400 x 600 dpi class, 1200 x 600 dpi (default), 600 x 600 dpi
2.2.4.2 Processor
CHORUSm (300Mhz), Proprietary SOC
2.2.4.3 Printer Language Emulations
SPL-Color, PCL6, PS3
2.2.4.4 Memory
The controller has 128 MB SDRAM and 16 MB flash ROM on Board.
2-26
Service Manual
Samsung Electronics
Product specification and feature
2.2.4.5 Interfaces
The system supports the following standard interfaces:
One USB port
- USB v.2.0 compliant
- Color-coded to meet WHQL requirements, connector must be Pantone 426C
One 10/100 BaseT network connector
- The printer supports an internal Network Interface that can be installed pre-configured on the video
controller board at the factory. This supports all of the major Network Operating Systems such as the Novell
NetWare, TCP/IP, etc. Details of the network specification will be provided separately.
2.2.4.6 Control Panel
No LCD, 1 keys and 5LEDs
2.2.4.7 Periodic Replacing Parts
Samsung shall specify parts requiring replacement and the frequency of replacement. The parts identified may be
deemed customer replaceable parts. Periodic replacement parts shall be recommended as follows
* Average A4-/letter-sized page count based on Std. ISO 19752 of individual colors on each page. Usage conditions and print
patterns may cause results to vary.
** Image counts based on one color on each page. If you print documents in full color (Cyan, Magenta, Yellow, Black), the life
of this item will be reduced by 25%.
Service Manual
Samsung Electronics
2-27
Product specification and feature
2.2.4.8 Power Switch
The Switch is located at rear-side of printer and must be marked to indicate on and off.
2.2.4.9 Operator Panel
LCD: None
KEY: 1 keys (Stop)
LED: 5 LEDs (C, M, Y, K Toner, Status)
2.2.4.10 Sensor
- Paper empty (Cassette)
- Regi
- Paper Exit
- ITB Home
- Deve-Home
2.2.4.11 CRUMS
The CLP-350N engine will be equipped with electronics that can read and write data into NVRAMs otherwise
known as CRUMs that reside within 1) C, M, Y, K Toner cartridges and 2) Imaging kit(Developer, OPC, ITB). The
CRUM has a company ID, and Samsunga electronics logo.
The toner CRUM also identifies the type of toner cartridge (Standard or High Capacity). The CRUMs contain fixed
data such as the low warning point, specified life point, and hard stop point (on toner, not on IBT unit) and also
store the current life count (pages count, pixels count, images count) and % of usage (gas gauge) data.
2.2.4.12 LOW / OUT Behavior for consumables
The consumable low and out behavior on CLP-350N Series engine is specified by SEC.
2-28
FP
message
Device for life end
detection
Low(90%)
Life(100%)
Hard stop
Reset to 0
Toner
CRUM
Yes
Yes
Yes
No
Color(95%)
Color(100%)
Color(110%)
Black(97.5%)
Black(100%)
Black(105%)
Imaging Kit
CRUM
Yes
Yes
No
No
Fuser
No
Yes
Yes
No
Yes
T2 Roller
No
Yes
Yes
No
Yes
Pick-up
No
No
No
No
Yes
Service Manual
Samsung Electronics
Product specification and feature
2.3 S/W Structure and Descriptions
2.3.1 Architecture
The belt CRUM interface board is a transmission belt CRUM interface board of the photoelectric Dry Color Laser
Printer, mounted on the printer body, making it possible to physically combine the body and the belt CRUM board.
Printer Driver
Language Monitor
Status Monitor
Printer F/W
Network Card F/W
2.3.2 Language Monitor
Language Monitor is a part of the Printer Driver and the Windows Spool System. The main roll of the Language
Monitor is that sends a job start message to the Status Monitor. Therefore the Status Monitor
can start polling to get the printer status.
The second roll is that sends the job information such as User ID and Job ID to the Status Monitor and the Printer
F/W. Hence the Status Monitor can stop polling because the Printer F/W informs the Status Monitor that printing
job is complete.
2.3.3 Status Monitor
Status Monitor has no user interface. It shows only HTML help when any error occurs during printing jobs.
Service Manual
Samsung Electronics
2-29
Product specification and feature
2.3.4 Network Interface
Printer Driver
Language
Monitor
Printer Data
Printer Server
(Kernel / NPC)
Printer Name
Port Name
User ID
Job ID
Printer Server IP Addr
User ID + Job ID
+
Printer Data
SNMP
Printer Server
(Kernel / NPC)
Job ID
Request Printer Status
Printer Status
Status Monitor
Request Job Status
Job Table
Status Monitor Data Flow
After polling is started, Status Monitor has to know when it stops the polling. For this reason, the Network
Printer Server should inform of completing job when the printing job is finished.
When Status Monitor requests a job status, the Printer Server returns the job table that contains user id, job
id, and job status (printing or complete or canceled).
2.3.5 Printer Driver <-> Status Monitor
The Printer Driver and the Status Monitor can set/get some data to the system registry to share the Status Monitor
information such as the polling interval.
When the user wants to set the option of the Status Monitor manually, he or she can set it using the Printer Driver
User Interface. So, if the user set option that the Status Monitor is disabled, the Status Monitor can’s show HTML
Help to the user although the error has occurred while printing.
Set option value
enable/disable
or
polling interval
Set last error status
System
Registry
Status Monitor
Get option value
enable/disable
or
polling interval
2-30
Printer Driver
Get last error status
Service Manual
Samsung Electronics
Product specification and feature
2.3.6 System F/W Flow
Process
Photo Sensor ( intensity
of radiation )
Output
PWM
LED
LED PWM Output
density
Density pattern
printing
PWM
LED PWM decision
Comparator Threshold
voltage PWM decision
Comparator
Color Registration measure
LSU
Auto Color Registration
pattern printing
Video data
Color Registration adjustment
Page Sync. modify
Line Sync. modify
LSU
temperat
ure
sensor
Video Clock Freq.
modify
ADC
P Sync.
L Sync.
Video signal
generator
clock
LSU temperature control
Service Manual
Samsung Electronics
2-31
Product specification and feature
2.3.7 Alarm Shortage
90 ~ 100 %
100 ~ 110 %
110 %~
Toner (C,M,Y,K)
Ready Yellow Toner Low
Replace Yellow Toner
Yellow Toner Empty
Transfer Belt
Replace Transfer Belt Soon
Replace Transfer Belt
Fuser
Replace Fuser Soon
Replace Fuser
Pickup Rollers
Replace MP Pick-Roller
(MP/Tray1/Tray2)
2.3.8 Error status
1. Missing/Invalid Consumables
Install Cyan (Magenta, Yellow, Black) Toner
Install Transfer Belt
Invalid Cyan (Magenta, Yellow, Black) Toner
Invalid Transfer Belt
2. Paper JAM
Jam 0 In MP(Tray1, Tray2)
Jam Inside Printer
Jam In Exit Area
3. Cover
Cover Open : Message toggles between
Cover Open and Install Transfer Belt
SCF Cove Open
4. Service Call : Unrecoverable Error
Engine LSU Error
Main Motor Error
Engine Fuser Over(Low) Heat Error + Open Heat Error
Transfer Belt Error
5. Others
Memory Overflow Error
Ready IP Conflict
2-32
Service Manual
Samsung Electronics
Product specification and feature
2.3.9 CRUM Overview
- Stands for “Customer Replaceable Unit Monitor”
- EEPROM, SAMSUNG CRUM is used for CRUM Memory.
- CRUM stores various information on consumables (including consumables’ life).
- In CLP350N, total five CRUM’s are used
(four on toner cartridges and one on image unit)
CRUM stores the following information
Model Name
Supplier ID
Serial Number
Company ID
MFG Date
Capacity
Page Count
- Toner Cartridge and Transfer Belt
- Indicates how many pages are printed by using the consumable
Dot Count
- Toner Cartridge Only
- Indicates how many dots are printed by using the toner cartridge
Image Count
Model ID
2.3.10 FW Upgrade
Via USB or Network (SWS/SWAS)
You can upgrade F/W via USB or Network whenever the printer is “Ready”
Via Using F/W Download Mode :
Step 1) Power on while pressing the Online Key
Step 2) Press Online Key one more time and the status LED is on as Green.
Step 3) Download F/W via USB
Service Manual
Samsung Electronics
2-33
Product specification and feature
2.3.11 Initailize Flow
2-34
Service Manual
Samsung Electronics
Product specification and feature
Service Manual
Samsung Electronics
2-35
Disassembly and Reassembly
3
3. Disassembly and Reassembly
3.1 Precautions When Replacing Parts
page(3-2)
3.1.1 Precautions when assembling and disassembling
page(3-2)
3.1.2 Precautions when handling PBA
page(3-2)
3.2 Parts for Maintenance and Repair
page(3-3)
3.2.1 Replacement interval for parts with a limited life
page(3-3)
3.2.2 Printer Cleaning
page(3-4)
3.3 Information Related in Disassembly and Assembly
3.3.1 Special Service Parts
page(3-5)
page(3-5)
1) Disassemble of LSU Unit
page(3-5)
2) Disassemble of ITB Unit
page(3-5)
3) Custody of OPC Unit
page(3-5)
4) Custody of Toner Cartridge
page(3-5)
5) Disassemble of DEVE Drive Ass’y and Main Drive Ass’y
page(3-5)
6) Disassemble of Terminal Parts
page(3-5)
7) Disassemble of Fuser Unit
page(3-5)
3.3.2 Screws Used in the Printer
3.4 Disassembly Procedure
page(3-6)
page(3-10)
3.4.1 Cover Unit
page(3-10)
3.4.2 Fuser Unit
page(3-12)
3.4.3 LSU Unit
page(3-13)
3.4.4 HVPS Board
page(3-13)
3.4.5 Main Board
page(3-14)
3.4.6 Drive Unit
page(3-14)
3.4.7 SMPS Board
page(3-15)
3.4.8 Transfer Unit
page(3-15)
Service Manual
Samsung Electronics
3-1
Disassembly and Reassembly
3.1 Precautions when replacing parts
3.1.1 Precautions when assembling and disassembling
* Use only approved Samsung spare parts. Ensure that part number, product name, any voltage, current or
temperature rating are correct. Failure to do so could result in damage to the machine, circuit overload,
fire or electric shock.
* Do not make any unauthorized changes or additions to the printer, these could cause the printer to malfunction and create electric shock or fire hazards.
* Take care when dismantling the unit to note where each screw goes. There are 19 different screws. Use of
the wrong screw could lead to system failure, short circuit or electric shock.
* Do not disassemble the LSU unit. Once it is disassembled dust is admitted to the mirror chamber and will
seriously degrade print quality. There are no serviceable parts inside.
* Regularly check the condition of the power cord, plug and socket. Bad contacts could lead to overheating
and firfe. Damaged cables could lead to electric shock or unit malfunction.
3.1.2 Preautions when handling PBA
Static electricity can damage a PBA, always used approved anti-static precautions when
handling or storing a PBA.
>> Precautions when moving and storing PBA
1. Please keep PBA in a conductive case, anti-static bag, or wrapped in aluminum foil.
2. Do not store a PBA where it is exposed to direct sunlight.
>> Precautions when replacing PBA
1. Disconnect power connectors first, before disconnecting other cables
2. Do not touch any soldered connections, connector terminals or other electronic parts when handling
insulated parts.
>> Precautions when checking PBA
1. Before touching a PBA, please touch other grounded areas of the chassis to discharge any static electrical charge on the body.
2. Take care not to touch the PBA with your bare hands or metal objects as you could create a short circuit or get an electric shock. Take extra care when handling PBAs with moving parts fitted such as sensors, motors or lamps as they may get hot.
3. Take care when fitting, or removing, screws. Look out for hidden screws. Always ensure that the correct
screw is used and always ensure that when toothed washers are removed they are refitted in their original positions.
3.1.3 Releasing Plastic Latches
Many of the parts are held in place with plastic latches. The latches break easily; release them carefully.
To remove such parts, press the hook end of the latch away from the part to
which it is latched.
3-2
Service Manual
Samsung Electronics
Disassembly and Reassembly
3.2 Parts for Maintenance and Repair
3.2.1 Replacement interval for parts with a limited life
Some of the parts in this printer have a limited life, shorter than that of the whole machine. These parts
must be replaced periodically.
The table below shows the interval at which these parts should be replaced.
The table shows the life of each part, and is measured when using A4 paper. When servicing a machine
always check the status of these parts using the control panel and ensure that parts are replaced at the
appropriate times otherwise a general degradation in print quality will occur.
Item(s)
Black toner cartridge
Color toner cartridge
Imaging unit
Waste toner
container
Pick-up roller
Fuser unit
T2 roller
ITB
Pages Printed
Approx. Initial : 1,500 pages*
Sales : 2,000 pages*
Approx. Initial : 700 pages*
Sales : 1,000 pages*
Approx. 20,000 black pages or approx.
12,500 color pages
Approx. 5,000 images** or Approx.
1,250 pages (fulll color 5% image)
Approx. 50,000 pages
Approx. 100,000 black pages
or 50,000 color pages
Approx. 100,000 pages
Approx. 60,000 black pages
or 15,000 color pages
Part number
CLP-K300A
Remark
User
Replacement
CLP-C300A:Cyan
CLP-M300A:Magenta
CLP-Y300A:Yellow
CLP-R300A
CLP-W300A
Contact a service
representative
Engineer
Replacement
* Average A4-/letter-sized page count based on Std. 19752 of individual colors on each page. Usage conditions and print
patterns may cause results to vary.
** Image counts based on one color on each page. If you print documents in full color (Cyan, Magenta, Yellow, Black), the life
of this item will be reduced by 25%.
Service Manual
Samsung Electronics
3-3
Disassembly and Reassembly
3.2.2 Printer Cleaning
A printer should be regularly cleaned, especially if it is used in a dusty environment. This will ensure that
print quality remains high and failure due to contamination of printing services is less likely to occur.
* Clean the printer with a soft, lint free, cloth dipped in a "Recommended cleaner"
"Recommended cleaner" can be purchased from our service center. (where available)
* Do not touch the transfer roller when cleaning the inside of the printer. Grease and oils from the
skin will contaminate the surface and reduce print quality.
* Do not touch transfer roller when cleaning inside of machine. If transfer roller gets dirty, printing
quality could be low.
* Please refer to the User Manual for cleaning instructions.
3-4
Service Manual
Samsung Electronics
Disassembly and Reassembly
3.3 Information Related to Disassembly and Assembly.
3.3.1 Special service parts
Never disassemble or adjust the items mentioned, a stock of these items should be maintained.
1) Disassembly of the LSU unit
There are no serviceable parts inside the
LSU. Alignment of the mirrors is critical.
Opening the LSU will allow dust into the
laser and significantly reduce print quality.
It is very dangerous to operate or service
a machine with the LSU open or system
interlocks disabled. Exposure to laser
radiation can cause blindness.
2) Disassembly of the ITB unit
Do not disassemble the ITB. The alignment of the home sensor is critical and is
set up in the factory on a special jig.
Incorrect re-assembly will cause print
quality degradation.
3) Care of the Toner cartridge
Toner cartridges contain an extremely fine
powder. Please keep toner cartridges
away from children. The toner powder
contained in the toner cartridge may be
harmful and if swallowed you should contact a doctor. Take care not to spill toner spillages should be cleaned with a
vacume cleaner and washed in could
water (hot water sets the toner). Do not
touch the developer roller surface as contamination will reduce print quality. Take
care not to damage the roller's surface
when installing or removing a toner cartridge.
4) Disassembly of DEVE drive ass'y
and the main drive ass'y
The alignment of the drive mechanism is
critical and it has been set up in factory
using a jig and a driving gear. It is adjusted for the best gearing alignment. If the
motor is disassembled alignment would
not be maintained and this could cause
operational noise and image problems:
image alignment and toner distribution
may be affected.
5) Disassembly of terminal parts
Do not adjust the variable resistors on the
PBA. They have been already adjusted in
the factory.
6) Disassembly of the fuser unit
- The fuser melts toner onto the paper at
a high temperature: therefore, you need
to take special care not to get burned by
a hot fuser. When removing the fuser
from a set that has recently been operating you need to take extra care.
- Do not touch an AC line (Copper contact) on a main frame even after removing the fuser.
Service Manual
Samsung Electronics
3-5
Disassembly and Reassembly
3.3.2 Screws used in the printer
The screws listed in the table below are used in this printer. Please ensure that, when
you disassemble the printer, you keep a note of which screw is used for which part and
that, when reassembling the printer, the correct screws are used in the appropriate
places.
NO
SEC CODE
DESCRIPTION & SPECIFICATION
S1
6009-001396
SCREW-SPECIAL;PH,+,-,M3,L10.3,
ZPC(BLK),SWRCH18A,B TITE,-
PTB Draw Connector
2
S2
6003-000269
SCREW-TAPTITE;BH,+,-,
S,M3,L6,ZPC(YEL),SWRCH18A,-
BRACKET-CONT LOWER + Assy Network Card
2
BRACKET-CONT LOWER +
BRACKET-CONT UPPER
4
BRACKET-CONT LOWER + MAIN PBA
4
BRACKET-CONT UPPER + BRACKET-POWER
2
SUB MAIN FRAME + BRACKET-CONT LOWER
2
SUB MAIN FRAME + UNIT SMPS
2
BRACKET-CONT UPPER + IPR-SHIELD SIMM
1
BRKT-SHIELD SMPS + SMPS type5 + Fuser BD
8
FRAME-FRONT + FRAME-REAR + FRAME-BOTTOM
4
SUB MAIN FRAME + PBA DRIVE
3
MEA-FRAME BASE + CHANNEL FRAME BASE
3
MAIN FRAME + COVER-REAR
4
DRAW CONNECTOR
2
SUB MAIN FRAME + BRACKET-MPF
1
SUB MAIN FRAME + SUB PICK-UP
1
UNIT MPF + BRACKET-MPF
1
MEA-ASSY-MPF + GUIDE-PAPER-MP
2
MEA-UNIT FRAME BASE + MEA-ASSY-MPF
3
S3
S4
3-6
6003-000275
6003-001086
SCREW-TAPTITE;BH,+,B,M3,L10,BLK,
SWCH1018AK
SCREW-TAPTITE;BH,+,B,M3,L12,
ZPC(BLK),SWRCH18A
LOCATION
QT'Y
S5
6003-000261
SCREW-TAPTITE;BH,+,B,M3,L6,
ZPC(YEL),SWRCH18A
HOUSING-OPC
8
S6
6003-000282
SCREW-TAPTITE;BH,+,B,M3,L8,
ZPC(BLK),SWCH10
F/M_Upper-Fuser + C/M_Carbon-Brush
2
FRAME ASSY
28
FRAME-PTB ASS'Y
28
COVER-M-OP FRAME LED + Cover DECO
4
COVER-M-OP FRAME LED + LED PBA
7
Service Manual
Samsung Electronics
Disassembly and Reassembly
NO
S7
S8
SEC CODE
6003-001256
6003-000301
DESCRIPTION & SPECIFICATION
SCREW-TAPTITE;BH,+,B,M4,L10,NI
PLT,SWRCH18A
SCREW-TAPTITE;BH,+,S,M4,L6,
ZPC(YEL),SWRCH18A
LOCATION
QT'Y
COVER EXIT + Cover Actuator Sensor
1
Cover Exit + COVER- AIR-DUCT
1
FRAME MAIN + GUIDE RAIL REAR
6
FRAME-MAIN + ELA UNIT-BRKT-DRAW
1
FRAME-MAIN + ELECTRODE-HV D
1
FRAME-MAIN + HOUSING-SENSOR EXIT
1
FRAME-MAIN + MEA UNIT-DUCT-REAR
2
FRAME-MAIN + PLATE-GROUND FUSER
1
FRAME-MAIN + PLATE-GROUND OPC
2
COVER FUSER AC + HOLDER-_M_MIDDLE PART
4
GUIDE-TERMINAL CH + GUIDE-PTB TERMINAL
1
SUB MAIN FRAME + COVER LEFT
2
SUB MAIN FRAME + COVER TOP
2
SUB MAIN FRAME + UNIT LSU
3
FRAME FRONT/REAR + SUB FRAME BASE
4
SUB FRAME + SUB FRAME BASE
4
MEA-FRAME BASE + ELA-Guide-SCT-paper
2
MEA-UNIT FRAME BASE + BRACKET-POWER
1
MEA-UNIT FRAME BASE + MEA-ASSY-PICKUP
5
BRKT main front + BRKT main rear
6
BRKT main rear + Motor
10
BRACKET-P-POWER + Power Inlet GND wire
1
S9
6002-000308
SCREW-TAPTITE;PH,+,B,M2.6,L6,
ZPC(YEL),SWRCH18A,-
COVER-OP-FRAME-LCD + LCD PBA
2
S10
6003-000196
SCREW-TAPTITE;PWH,+,B,M3,
L10,NI PLT,SWRCH18A
SUB MAIN FRAME + COVER DECO
4
SUB MAIN FRAME + COVER-LEFT-HANDLE
2
SUB MAIN FRAME + COVER-TOP
3
SUB MAIN FRAME + DRIVE unit
6
SUB MAIN FRAME + HOUSING MIDDLE PART
2
SUB MAIN FRAME + HVPS PBA
6
SUB MAIN FRAME + LINK FRONT(COVER RIGHT)
1
UNIT DUCT LEFT+ HOUSING MIDDLE PART
1
COVER_FRAME-FUSER + BRACKET_GUIDE-FRAME
2
COVER_M_EXIT-ROLLER + COVER_M_SIDE-L/R
2
Service Manual
Samsung Electronics
3-7
Disassembly and Reassembly
NO
3-8
SEC CODE
DESCRIPTION & SPECIFICATION
LOCATION
QT'Y
FRAME_LOWER-FUSER + FRAME_UPPER-FUSER
2
FRAME_M_LOWER FUSER + HOLDER_M_SPRING PR
2
FRAME_M_LOWER-FUSER + COVER_M_SIDE-L
1
FRAME_M_LOWER-FUSER + COVER_M_SIDE-R
1
FRAME_M_LOWER-FUSER + GUIDE_M_INPUT
2
FRAME_M_UPPER-FUSER + SHEET-DUMMY
1
FRAME_M_UPPER-FUSER + THERMISTOR-NTC
1
FRAME_M_UPPER-FUSER + THERMOSTAT
2
FRAME_UPPER-FUSER + Bracket_Idle-Gear
1
FRAME_UPPER-FUSER + ELECTRODE_TERMINAL L
1
FRAME_UPPER-FUSER + ELECTRODE_TERMINAL R
1
FRAME_UPPER-FUSER + GROUND_P_FUSER-BALL
1
FRAME_UPPER-FUSER + PBA-FUSIBILITY
1
GUIDE_M_OUTPUT + GUIDE_M_DUPLEX
2
Cover right + Holder Link
2
Cover right + Holder Lower F
3
Cover right + Holder Lower R
2
Cover right + Holder Upper F
1
Cover right + Holder Upper R
1
FRAME-CASSETTE + GEAR-PINION
1
FRAME-CASSETTE + GUIDE-FRONT CASSETTE
2
SUB MAIN FRAME + FRAME-FRONT/FRAME-REAR
4
FRAME MAIN + ELA UNIT-Deve-Terminal
4
FRAME MAIN + ELA UNIT-PTB-Terminal
3
FRAME MAIN + GUIDE RAIL FRONT
2
FRAME MAIN + SUB-HOLDER-AC
2
SUB MAIN FRAME + COVER EXIT GUIDE
2
Sub Main Frame + Link Rear 1
1
MEA FRAME BASE + MPF unit(right)
1
MEA-UNIT FRAME BASE + CAM-CATCH
1
MEA-UNIT FRAME BASE + IPR-BRKT BASE BAR
3
BRKT-GEAR-TRAY + BRKT-HOLDER-PICKUP
1
FRAME-BASE-MP + BRACKET-GEAR-TRAY
1
FRAME-BASE-MP + PLATE-GROUND BRACKET
1
Service Manual
Samsung Electronics
Disassembly and Reassembly
NO
S11
SEC CODE
6003-000264
DESCRIPTION & SPECIFICATION
SCREW-TAPTITE;PWH,+,B,M3,
L6,ZPC(YEL),SWRCH18
LOCATION
QT'Y
MPF UNIT ASS'Y + SOLENOID
1
FRAME-P-REGI + COVER-M-REGI-FRAME
2
FRAME-P-REGI + FRAME-PICK-UP
4
FRAME-PICK-UP + GUIDE-GEAR-BRACKET
3
SOLENOID-MAIN + GUIDE-GEAR-BRACKET
1
HOLDER SENSOR + FRAME-P-REGI
1
COVER-INNER-MP + GEAR-PINION
1
Service Manual
Samsung Electronics
3-9
Disassembly and Reassembly
3.4 Disassembly Procedure
The description of disassembly and reassembly in this manual is listed according to the disassembly
procedures. If you find the certain unit or Ass°Øy, please consult the name of unit under the picture.
3.4.1 Cover Unit
1.Take out the Cassette.
3. Remove the Imagine Unit.
2. Open the Front-Cover.
4. Remove the ITB Unit.
When reassembling, reassemble ITB Unit to the
direction of arrow ( from down to up )
3-10
Service Manual
Samsung Electronics
Disassembly and Reassembly
5. Remove the two screws and then Top Cover.
8. Release the Right-Cover from the SET.
6. Remove the one screw from the Right-Cover.
9. In the same way, release the Left-Cover from the
SET.
7. Remove the one screw from the rear of the RightCover.
Service Manual
Samsung Electronics
3-11
Disassembly and Reassembly
3.4.2 Fuser Unit
1. Remove the 4 screws on the Fuser.
3. Take out the Fuser Ass’y.
2. Push the Holder shaft Fuser as shown below .
3-12
Service Manual
Samsung Electronics
Disassembly and Reassembly
3.4.3 LSU Unit
1. Release the LSU Cover.
2. Unplug the Harness (2 EA), remove the 3 screws and
release the LSU from the SET.
3.4.4 HVPS Board
1. Unplug the Harness (2 EA), remove the 6 screws, and
take out the HVPS.
2. Unplug the Harness from the HVPS.
Service Manual
Samsung Electronics
3-13
Disassembly and Reassembly
3.4.5 Main Board
1. Unplug all the Harness from the Main board, remove
the 5 screws and release the Main board from the
SET.
3.4.6 Drive Unit
1. Remove the 10 screws and release the Drive Ass’y
from the SET.
3-14
Service Manual
Samsung Electronics
Disassembly and Reassembly
3.4.7 SMPS Board
1. Unplug the Harness (2 EA), remove the 4 screws and
release the SMPS board from the SET.
3.4.8 Transfer Unit
1. Take out the Transfer Unit.
Service Manual
Samsung Electronics
3-15
Adjustment and Troubleshooting
4
4. Adjustment and Troubleshooting
4.1 Alignment and Adjustments
This chapter describes the main functions for service, such as the product maintenance method, the test
output related to maintenance and repair, Jam removing method, and so on.
It includes the contents of manual.
4.1.1. Control Panel
4.1.1.1 Overview
- The CLP-350N printers do not have LCD panel which is used in other color model printers. On the contrary to other models of color printers, they show the status of the printer only with their LEDs.
- The CLP-350N printers have 1 keys and 5 LEDs. The ‘User Interface’ module handles the processing of
the ‘Key Press’ and ‘LED control’ at different states of the machine.
4.1.1.2 Architecture
KEY (1 key): Stop key
LED (5 LEDs):
4 LED for CMYK toners : toner-low(cyan, magenta, yellow, black) LEDs
1 LED for status : ready (green) or error(red) status LED (two color LED)
4.1.1.3 Data and Control Flow
User interface (panel) is made up of
- KEY input detection & process
- LED control
The initial process to use the panel checks register’s values of key and LED.
If user input key value, the operation to be defined by key value is processed and the LED operation to be
defined by printer status is controlled.
Service Manual
Samsung Electronics
4-1
Adjustment and Troubleshooting
4.1.2 Function
4.1.2.1 KEY Function
There are one keys present. The one is Stop key.
If users input key value, the key input is transferred via GIP (General Input Port) and the operation to be
defined by key value is processed.
4.1.2.1.1 Functions
Stop key function is made up of
- Demo page/Configuration sheet printing function
- Job cancels function
- Start manual feeding function
- Firmware downloads mode function
4.1.2.1.2 Detail Description
KEY input detection & process order
1) User KEY input
2) KEY input detection
: If the key input is detected when the key input check per timer tick 10ms, The 10ms interrupt service
routine sends the key detection event to panel task.
3) KEY input process
Stop key input process
: After the panel task is received the Stop key detection event, it checks the engine error status two times
and process the operation to be defined by key value.
- Demo page/Configuration sheet function
This button will have multiple functions when the printer is in idle state.
Demo page printing
Press and hold this button for about 2 seconds until the control panel lights blink slowly to print a
demo page.
Configuration sheet printing
Press and hold this button for about 5 seconds until the control panel lights blink rapidly to print a configuration sheet.
- Job cancels function
When the printer is printing an active printing job, press and holds this button until the control panel
lights blink to cancel a job the printer is currently except the manual job.
- Start manual feeding function
When you select manual feed for paper source, press this button each time you feed a sheet of paper
manually.
The application of manual feeding function in CLP-300 will be determined
4-2
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
- Firmware downloads mode function
Turn on the printer at the same time that the button is pressed.
If all LEDs scroll, release the button and download the firmware ROM file via USB port
4.1.2.2 LED Function
There are five LEDs present. Status led indicate the error/online status of the printer in idle mode. In error
mode, the status LED glows by red color and in ready mode, it glows by green color. The other four LEDs
indicate the toner status. If the black toner needs to change, the toner-low (black) LED glows and if the
color (yellow, magenta, cyan) toners need to change, the toner-low (yellow, magenta, cyan) LED glows.
4.1.2.2.1 Functions
LED function is made up of
- Ready/Printing status display
- Error status display
- Toner low status display
4.1.2.2.2 Detail Description
LED control order
1) Control LED according to current printer state
: After the panel task is received each event, the LED operation is controlled by current printer status.
2) Write LED value to GOP (General Output Port)
Service Manual
Samsung Electronics
4-3
Adjustment and Troubleshooting
LED behavior
Status LED
(Green/Red)
Toner-low
(CMYK)LEDs
Status
Green LED ON
N/A
Ready to receive the data.
Green LEDS
LOWLY BLINK
N/A
Receiving the data from the host.
Green LED
FAST BLINK
N/A
Printing the page.
Red LED BLINK
N/A
Paper source is set to MANUAL .
Need to push the button to start the printing
Red LED ON
N/A
Out of paper
Red LED ON
N/A
Cover open
Red LED ON
N/A
Paper jam
Green/Red BLINK
CMYK BLINK
Service error ( LSU or Fuser error)
N/A
Toner-low(black) ON
Black toner needs to change
N/A
Toner-low(cyan) ON
Cyan toner needs to change
N/A
Toner-low(magenta) ON
Magenta toner needs to change
N/A
Toner-low(yellow) ON
Yellow toner needs to change
Service Error LED Operation
All LEDs blink the each time interval.
Service Error
Fuser Error
Scanner Error
4-4
LED operation
Open Fuser Error
All LEDs (Toner low LEDs, Status (Red) LED) blink a time interval
of 1 second.
No Heat Error
All LEDs (Toner low LEDs, Status (Red) LED) blink a time interval
of 4 seconds.
Over Heat Error
All LEDs (Toner low LEDs, Status (Green/Red) LED) blink a time
interval of 1 second.
P Motor Error
All LEDs (Toner low LEDs, Status (Green) LED) blink a time interval
of 1 second.
H Sync Error
All LEDs (Toner low LEDs, Status(Green) LED) blink a time interval
of 4 seconds.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
Assert Error LED Operation
The panel LED operation display the line number of assert error occurrence.
Line number
LED operation
start & end
All LEDs(Toner low LEDs, Status(Red) LED) turn ON for approximately 2 seconds and then All
LEDs turn OFF for approximately 3 seconds.
1
After Status (Red) LED blinks one time, Toner low LEDs blink one time.
2
After Status (Red) LED blinks two times, Toner low LEDs blink one time.
3
After Status (Red) LED blinks three times, Toner low LEDs blink one time.
4
After Status (Red) LED blinks four times, Toner low LEDs blink one time.
5
After Status (Red) LED blinks five times, Toner low LEDs blink one time.
6
After Status (Red) LED blinks six times, Toner low LEDs blink one time.
7
After Status (Red) LED blinks seven times, Toner low LEDs blink one time.
8
After Status (Red) LED blinks eight times, Toner low LEDs blink one time.
9
After Status (Red) LED blinks nine times, Toner low LEDs blink one time.
Service Manual
Samsung Electronics
4-5
Adjustment and Troubleshooting
4.1.3 Jam Removal
When a jam occurs while printing a jam message is displayed on the control panel.
* Jam0 In Tray 1:
Paper jam in the main cassette.
* Jam0 In SCF:
Paper jam in the SCF cassette.
* Jam Inside Printer:
Jam 1, Paper is jammed inside the printer.
* Jam In Exit Area:
Jam2, Paper is jammed in the exit area when ejecting paper.
CAUTION: When removing jammed paper, always pull it firmly and evenly without any sudden jerks. If
at all possible, remove the paper as a single sheet. If the paper tears ensures ALL paper
fragments are removed. Any fragments left inside the machine will cause it to jam again.
4.1.3.1 Clearing Paper Jams
NOTE: When removing paper that is jammed in the printer, if possible always pull the paper in the direction
that it normally moves so as not to damage internal components. Always pull firmly and evenly; do
not jerk the paper. If the paper tears, ensure that all fragments of paper are removed; otherwise a
jam will occur again.
If a paper jam occurs, the Status LED on the control panel lights red. Find and remove the jammed paper.
To resume printing after clearing paper jams, you must open and close the front cover or rear cover.
1. To remove the jammed paper, open the rear
cover.
2. Carefully remove the paper by pulling in the
direction as shown below. Most of the jammed
paper can be removed in this step.
If you cannot find the jammed paper, or if there
is any resistance removing the paper, stop
pulling and go to the next step.
4-6
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
3. Close the rear cover and then open the top
cover.
4. Holding the inner cover open, carefully take the
jammed paper out of the printer. The inner
cover will then close automatically.
5. Close the top cover. Make sure that it is
securely latched.
6. Open and then close the rear cover or front
cover to resume printing.
Service Manual
Samsung Electronics
4-7
Adjustment and Troubleshooting
4.1.3.2 Tips for Avoiding Paper Jams
By selecting the correct paper types, most paper jams can be avoided.
• Follow the procedures Jam remove. Ensure that the adjustable guides are positioned correctly.
• Do not overload the paper tray.
• Do not remove the paper from the tray while printing.
• Flex, fan, and straighten the paper before loading.
• Do not use creased, damp, or highly curled paper.
• Do not mix paper types in a tray.
• Use only recommended print materials.
• Ensure that the recommended print side of print materials is facing up in the paper tray.
4-8
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4.1.4 Sample Pattern
This product provides several printable test patterns for maintenance purposes. These patterns can be used to aid
the diagnosis of print quality problems.
4.1.4.1 Printing a Demo Page
Print a demo page to make sure that the printer is operating correctly.
To print a demo page: In ready mode, press and hold the Stop button for 2 seconds.
A demo page showing the printer’s features and capabilities is printed.
4.1.4.2 Printing a Configuration Page
You can print a configuration page from the printer’s control panel. Use the configuration page to view the current
settings, to help troubleshoot problems.
To print a configuration page: In ready mode, press and hold the Stop button on the control panel for 5 seconds.
A configuration page prints out.
Service Manual
Samsung Electronics
4-9
Adjustment and Troubleshooting
4.1.5 Periodic Defective Image
If an image defects appears at regular intervals on the printed-paper, it is due to a faulty or damaged roller.
Refer to the table below and check the condition of the appropriate roller.
4-10
No
Roller
Period
Phenomenon
1
OPC Drum
188.5 mm
White and Black Spots
2
Charge Roller
37.7mm
Black Spot and line and Periodic Band
3
Supply Roller
47.5mm
Periodic Band by little difference of density
4
Developing Roller
26.0mm
White Spot, Horizontal black band
5
1 st Transfer Roller
32.7mm
Ghost, Damaged Image by abnormal tranfer
6
2 nd Transfer Roller
57.5mm
Ghost, Damaged Image by abnormal tranfer
7
Pressure Roller
50.3mm
Background
8
Heat Roller
86.4mm
Black Spots or Vertical Black Band
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4.1.6 How to use EDC (Engine Diagnostic Control) Mode
EDC Mode is feature that allows the engineer to check the condition of the print engine. It can check the operating
condition of the motors, sensors, solenoids and clutches, measure the High Voltage from the HVPS and check the
operation of the fuser and LSU.
4.1.6.1 Enterence
When trying to check the CLP-350N EDC Mode, additional EDC execution program needed.
[ Procedure of EDC Mode operation ]
a) First, turn on the Power of Printer, wait until Ready state
b) In this state, Run the EDC program on the computer
c) After that, click the menu of screen
d) Then <Motor Test> appears on the initial screen
e) Should you get out of this program, press Exit of screen
4.1.6.2 Keys
Key
Discription
Exit
Close program
Update LCD
Update value (ex : sensor value)
Menu
Move to the top menu
Left/Right arrow
Move test item
Enter
Start testing or select Sub-item
Upper level
Stop testing or the upper menu
4.1.6.3 EDC Map
Service Manual
Samsung Electronics
4-11
Adjustment and Troubleshooting
4.1.6.3(a) Motor Test
Item
Discription
Main Motor
If motor lock signal is normal, “Successed” message will be displayed.
When motor lock signal is abnormal, “failed” message will be displayed.
When “Upper Level” is pushed, “off” message will be displayed.
4.1.6.3(b) Solenoid Test
4-12
Item
Discription
Dev Clutch
When select key is pushed, Dev Clutch ON message will be displayed.
Upper Level is pushed, Dev Clutch Off message will be displayed.
Relay 1
When select key is pushed, 1 Relay ON message will be displayed. Upper
Level is pushed, 1 Relay Off message will be displayed on.
Relay 2
When select key is pushed, 2 Relay ON message will be displayed. Upper
Level is pushed, 2 Relay Off message will be displayed.
Relay 3
When select key is pushed, 3 Relay ON message will be displayed. Upper
Level is pushed, 3 Relay Off message will be displayed.
Y Toner
When select key is pushed, Y Toner ON message will be displayed. Upper
Level is pushed, Y Toner Off message will be displayed.
M Toner
When select key is pushed, M Toner ON message will be displayed. Upper
Level is pushed, M Toner Off message will be displayed.
C Toner
When select key is pushed, C Toner ON message will be displayed. Upper
Level is pushed, C Toner Off message will be displayed.
K Toner
When select key is pushed, K Toner ON message will be displayed. Upper
Level is pushed, K Toner Off message will be displayed.
Regi Clutch
When select key is pushed, REGI Clutch ON message will be displayed.
Upper Level is pushed, REGI Clutch Off message will be displayed.
T2 Clutch
When select key is pushed, T2 Clutch ON message will be displayed.
Upper Level is pushed, T2 Clutch Off message will be displayed.
ITB Clutch
When select key is pushed, ITB Clutch ON message will be displayed.
Upper Level is pushed, ITB Clutch Off message will be displayed.
Tray1 Clutch
When select key is pushed, Tray1 Clutch ON message will be displayed.
Upper Level is pushed, Tray1 Clutch Off message will be displayed.
Tray2 Clutch
When select key is pushed, Tray1 Clutch ON message will be displayed.
Upper Level is pushed, Tray1 Clutch Off message will be displayed.
Regi. Sensor
If actuator is checked by sensor, "Without Paper" message will be displayed. if
not, "With Paper" message will be.
Exit Sensor
If actuator is checked by sensor, "Without Paper" message will be displayed. if
not, "With Paper" message will be.
Waste Box
If waste Box exists , Installed message will be displayed.
If not, Not Installed message will be.
Cover
If cover is opened, " Opened message will be displayed.
If not, "Closed" message will be.
Tray1 Empty
If paper exists in the tray, "With Paper" will be displayed.
If not, "Without Paper" message will be.
Tray2 Empty
If paper exists in the tray, "With Paper" will be displayed.
If not, "Without Paper" message will be.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4.1.6.3(c) LSU/ Fuser Test
Item
Discription
LSU Motor
If LSU motor lock signal is normal, "Successed" message will be displayed.
When LSU motor lock signal is abnormal , failed" message will be displayed.
When Upper Level is pushed, off message will be displayed.
LSU Power
When select key is pushed, LSU Power On message will be displayed.
If not, LSU Power Off" message will be.
Laser Diode
When select key is pushed, Laser Diode On message will be displayed.
If not, Laser Diode Off message will be.
Eraser
When select key is pushed, Eraser On message will be displayed .
If not, Eraser Off message will be.
Fuser
When select key is pushed, Fuser On message will be displayed.
If not, Fuser Off message will be.
Service Manual
Samsung Electronics
4-13
Adjustment and Troubleshooting
4.1.6.3(d) HVPS Test
4-14
Item
Discription
Charger
When select key is pushed, DUTY : x%* message will be displayed.
And then Left/Right arrow is selected, x% is increased or decreased.
And DUTY : x% message will be displayed. * is disappeared.
And then select key is pushed, x%* message will be displayed.
When Upper Level is pushed, * is disappeared.
T1
When select key is pushed, DUTY : x%* message will be displayed.
And then Left/Right arrow is selected, x% is increased or decreased.
And DUTY : x% message will be displayed. * is disappeared.
And then select key is pushed, x%* message will be displayed.
When Upper Level is pushed, * is disappeared.
T2
When select key is pushed, DUTY : x%* message will be displayed.
And then Left/Right arrow is selected, x% is increased or decreased.
And DUTY : x% message will be displayed. * is disappeared.
And then select key is pushed, x%* message will be displayed.
When Upper Level is pushed, * is disappeared.
T2 REVERSE
When select key is pushed, T2 REVERSE On message will be displayed.
If not, T2 REVERSE Off will be.
Dev DC
When select key is pushed, DUTY : x%* message will be displayed.
And then Left/Right arrow is selected, x% is increased or decreased.
And DUTY : x% message will be displayed. * is disappeared.
And then select key is pushed, x%* message will be displayed.
When Upper Level is pushed, * is disappeared.
Dev AC Vpp
When select key is pushed, DUTY : x%* message will be displayed.
And then Left/Right arrow is selected, x% is increased or decreased.
And DUTY : x% message will be displayed. * is disappeared.
And then select key is pushed, x%* message will be displayed.
When Upper Level is pushed, * is disappeared.
Dev AC
When select key is pushed, DUTY : x%* message will be displayed.
And then Left/Right arrow is selected, x% is increased or decreased.
And DUTY : x% message will be displayed. * is disappeared.
And then select key is pushed, x%* message will be displayed.
When Upper Level is pushed, * is disappeared.
Charger
Duty : 50% -> -789V , Range : -81V ~ -1689V
T1
Duty : 50% -> 1159V ,
T2
Duty : 50% -> 2552V , Range : 264V ~ 4730V
Supply DC
Duty : 50% -> -269V , Range : -1V ~ -591V
AC, Vpp
Duty : 50%-> 1210V , Range : 800V ~ 2160V
Range : 122V ~ 2188V
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4.1.6.3(e) Maintenance
Item
Discription
Fuser
When select key is pushed, Initialized message will be displayed.
When Upper Level is pushed, Off message is disappeared.
Transfer
When select key is pushed, Initialized message will be displayed.
When Upper Level is pushed, Off message is disappeared.
FCF Pick Up Roll
When select key is pushed, Initialized message will be displayed.
When Upper Level is pushed, Off message is disappeared.
SCF Pick Up Roll
When select key is pushed, Initialized message will be displayed.
When Upper Level is pushed, Off message is disappeared.
ITB
When select key is pushed, Initialized message will be displayed.
When Upper Level is pushed, Off message is disappeared.
4.1.6.3(f) Error list and recovery
Paper Empty / Paper Mismatch
- Load specified paper in the tray 1
Paper does not exist in the tray1
Load Paper, When you still want to continue printing
- Paper mismatch in the tray 1
Paper is mismatched
Press stop key for a while, When you still want to continue printing
Cover Open
- Cover Open
Cover is opened
Close the door, When you still want to continue printing
Waster Tank Full or not installed
- Waste Tank Full
Toner of Waste toner box is full
Empty or Insert the waste toner box
Paper Jam
- Paper Jam at the tray1
Paper is not picked up
Cover Open /Close, When you still want to continue printing
- Paper Jam inside printer
There is a paper inside printer
After cover Open , Paper must be removed, and then close the cover
Service Manual
Samsung Electronics
4-15
Adjustment and Troubleshooting
- Paper Jam at the paper exit area
There is a paper at exit area
After cover Open , Paper must be removed, and then close the cover
- Motor Lock Error
Motor does not run or runs abnormal speed
Motor or Main board must be checked
- LSU Motor Lock Error
LSU motor does not run or runs abnormal speed
Hsync is not detected
LSU or Main board must be checked
- Transfer Belt Error
ITB home sensor is not checked for a normal time
ITB must be checked
- Fuser Over Heat error
Temperature of fuser is high
Fuser or Main board must be checked
- Fuser Low Heat error
Temperature of fuser is low
Fuser or Main board must be checked
- Fuser Open Heat error
Temperature of fuser is less than 50
in warmup state.
Fuser or Main board must be checked
- Dev. Home error
Home of Development is not checked or checked at the abnormal time
Clutch of Development or Main board must be checked
- ADC not Confirm Error
Signal of confirmation for ADC is not detected
Main board must be checked
4-16
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4.1.7 Error Message
When the printer experiences an error, the control panel will indicate an error message with the indicator
lights and the Smart Panel program window will display to show the printer’s status or errors. Find the light
pattern below that matches the printer light pattern and follow the solutions to clear the error.
LED status legend
LED pattern
Possible Problem and Solution
The blinking toner cartridge is low. Order a new toner cartridge. You can temporarily improve print quality by redistributing the toner.
The lighting toner cartridge is empty.
Remove the old toner cartridge and install a new one.
The blinking toner cartridge is totally exhausted. Remove the old toner cartridge
and install a new one.
The blinking toner cartridge is wrong. Only install a Samsung toner
cartridge, designed for your printer.
A paper jam has occurred. To solve the problem.
The front cover is open. Close the front cover.
There is no paper in the tray. Load paper in the tray.
The waste toner container is open or full. Check the container.
Your system has some problems. If this problem occurs, contact your service
representative.
Service Manual
Samsung Electronics
4-17
Adjustment and Troubleshooting
4.1.8 ITB Unit Reset
1. If your printer become special condition, the Reset Count button will display on the Smart panel. At that time, click
the button.
2. And then the pop-up below appears. . If you enter the ITB S/N and click Apply , the count will be clear. ( Max 2
times )
4-18
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
3. After reboot the your computer, you can check the cleared count as shown the picture below.
Service Manual
Samsung Electronics
4-19
Adjustment and Troubleshooting
4.2 Troubleshooting
4.2.1 Procedure of Checking the Symptoms
Before attempting to repair the printer first obtain a detailed description of the problem from the customer.
Power On
LED Panel
ON?
- No Power
- Power Module error
- Main PBA
Status LED
Green OK?
Indicate
"Red Lamp ON"
Refer to
"4.1.2.2 LED Function"
Print(test pattern)
printing
Quality is
Nomal?
Refer to "Solution
of Image Problem"
END
4-20
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4.2.2 Troubleshooting Checklist
If the printer is not working properly, consult the following checklist. If the printer does not pass a step, follow the
corresponding troubleshooting suggestions.
Status
Response
Make sure that the Status LED on
the control panel green and
"Ready" is shown on the Smart
Panel program window.
If the Status LED is off, check the power cord connection. Check the
power switch. Check the power source by plugging the power cord into
another outlet.
If the Status LED blinks or lights red, solve the problems.
Print a demo page to verify that the
printer is feeding paper correctly.
If a demo page does not print, check the paper supply in the paper tray.
If the paper jams in the printer, go to "Clearing Paper Jams"
Check the demo page to see if it is
printed correctly.
If there is a print quality problem, go to "Solving Print Quality Problems"
Print a short document from a
software application to verify that
the computer and printer are
connected and communicating
correctly.
If the page does not print, check the cable connection between the printer
and the computer.
Check the print queue or print spooler to see if the printer has been
paused.
Check the software application to ensure that you are using the proper
printer driver and communication port. If the page is interrupted during
printing, go to "Solving General Printing Problems"
If completing the checklist does not
resolve the printer problem, check
the following troubleshooting
sections.
See "Solving General Printing Problems"
See "Solving Print Quality Problems"
See "Common Windows Problems"
See "Common Macintosh Problems"
See "Common Linux Problems"
Service Manual
Samsung Electronics
4-21
Adjustment and Troubleshooting
4.2.3 Solving General Printing Problems
For problems with the operation of your printer, refer to the table for suggested solutions.
• Description
The printer does not print.
The printer is not
receiving power.
The printer is not
selected as the default printer.
Check the printer
for the following:
・The
The printer cover is not closed.
・Paper
Paper is jammed.
・No
No paper is loaded.
・A
A toner cartridge is not installed.
The printer may be in
manual feed mode and out of paper.
The connection cable
between the computer and the
printer is not connected
properly.
Check the power cord connections.
Check the power switch and the
power source.
Select Samsung CLP-300 Series
as your default printer.
・Close the printer cover.
・Clear the paper jam.
・Load paper.
・Install the toner cartridge.
Check the message on the Smart
Panel program window, add paper
to the tray and press the Stop
button on the control panel.
Disconnect the printer cable and
reconnect it.
Countinue..
4-22
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
Countinue..
The connection cable
between the computer and the
printer is defective.
If possible, attach the cable to
another computer that is working
properly and try to print a
document. You can also try using a
different printer cable.
The port setting is incorrect.
Check the Windows printer setting
to make sure that the print job is
sent to the correct port. If the
computer has more than one port,
make sure that the printer is
attached to the correct one.
The printer may be
configured incorrectly.
Check the printer properties to
ensure that all of the print settings
are correct.
The printer driver
may be incorrectly installed.
Reinstall the printer driver; see the
Software Section. Try printing a
test page.
The printer is malfunctioning.
Check the LEDs on the control
panel to determine if the printer is
indicating a system error.
Service Manual
Samsung Electronics
4-23
Adjustment and Troubleshooting
• Description
Paper does not feed into the printer.
Paper has been loaded incorrectly.
Remove paper from the tray and
reload it correctly.
Check that the paper guides are
set correctly.
There is too much paper in the tray.
Remove excess paper from the
tray.
The paper is too thick.
4-24
Use only paper that meets printer
specifications.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
• Description
A print job is extremely slow.
The job may be very complex.
If using Windows 98/Me, the
Spooling Setting may be set
incorrectly.
Reduce the complexity of the
page(s) or try adjusting the print
quality settings.
Adjust the print quality settings,
such as reducing the resolution. If
you have set the resolution to
2400dpi [Best], change it to 1200dpi
[Normal] or 600dpi [Draft]. See the
Software section.
Change the port setting to the USB
or network port to improve print
speed. Your printer prints A4-sized
paper at 20 ppm in black and white
mode and 5 ppm in color mode.
From the Start menu, choose
Settings and Printers. Right-click
the Samsung CLP-350N Series
printer icon, choose Properties,
click the Details tab, and then
choose the Spool Settings button.
Select the desired spool setting.
Service Manual
Samsung Electronics
4-25
Adjustment and Troubleshooting
• Description
Half the page is blank.
The page orientation
setting may be incorrect.
The paper size and
the paper size settings do not
match.
4-26
Change the page orientation in
your application. For details, see
the Software Section.
Ensure that the paper size in the
printer driver settings matches the
paper in the tray.
Or, ensure that the paper size in the
printer driver settings matches the
paper selection in the software
application settings you use.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
• Description
The paper keeps jamming.
There is too much
paper in the tray.
Remove excess paper from the tray.
Check that the paper guides are set
correctly.
An incorrect type of
paper is being used.
Use only paper that meets printer
specifications.
There may be debris
inside the printer.
After opening the front cover,
remove the imaging unit and then
clear the debris.
Service Manual
Samsung Electronics
4-27
Adjustment and Troubleshooting
• Description
The printer prints, but the text is wrong, garbled, or incomplete.
The printer cable is
loose or defective.
The wrong printer
driver was selected.
The software
application is malfunctioning.
The operating system
is malfunctioning.
4-28
Disconnect and reconnect the
printer cable. Try a print job that you
have already printed successfully. If
possible, attach the cable and
printer to another computer and try
a print job that you know works.
Finally, try a new printer cable.
Check the application's printer
selection menu to ensure that your
printer is selected.
Try printing a job from another
application.
Exit Windows and reboot the
computer. Turn the printer off and
then back on again.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
• Description
Pages print, but are blank.
The toner cartridge is
defective or out of toner.
The file may have blank pages.
Some parts in the
printer may be defective.
Redistribute the toner.
If necessary, replace the toner
cartridge.
Check the file to ensure that it does
not contain blank pages.
Contact a service representative.
Service Manual
Samsung Electronics
4-29
Adjustment and Troubleshooting
• Description
When you are using Windows 98, the illustrations print incorrectly from Adobe Illustrator.
The setting in the
software application is wrong.
• Description
The print quality of photos is not good.
Images are not clear.
The resolution is set
to 1200dpi [Normal] or 600dpi [Draft].
The resolution of the
photo is very low.
4-30
Select Download as Bit Image in
the Advanced Options window of
the graphic properties window. Print
the document again.
Change the resolution to 2400dpi
[Best] and then try printing again.
If you increase the photo size in the
software application, the resolution
will be reduced. Reduce the photo
size.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
• Description
Your printer has an odd smell during initial use.
The oil used to
protect the fuser is evaporating.
After printing about 100 color pages,
there will be no more smell. It is a
temporary issue.
Service Manual
Samsung Electronics
4-31
Adjustment and Troubleshooting
4.2.4 Solving Print Quality Problems
Dirt inside of the printer or improper paper loading may reduce print quality. See the table below to troubleshoot
problems.
1) Light or faded print
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
1. If a vertical white streak
or faded area appears on
the page
2. The paper may not meet
paper specifications
3. A combination of
faded or smeared defects may
indicate that the printer
needs cleaning
4-32
The toner supply is low. You may be
able to temporarily extend the toner
cartridge life. If this does not
improve print quality, install a new
toner cartridge.
Check the paper type and quality.
Check the inside for the printer.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
2) Toner specks
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
The paper may not meet specifications
Check the paper type and quality.
Service Manual
Samsung Electronics
4-33
Adjustment and Troubleshooting
3) Dropouts
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
1. If generally rounded,
faded areas occur randomly
on the page
2. The moisture
content of the paper is uneven
or the paper has moist spots
on its surface.
3. The paper lot is bad.
4. The toner cartridge may be defective.
4-34
A single sheet of paper may be
defective. Try reprinting the job.
Try a different brand of paper.
The manufacturing process can
cause some areas to reject toner.
Try a different kind or brand of paper.
See "Vertical repetitive defects" on
the next page.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4) Vertical lines
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
1. If black vertical
streaks appear on the page
A imaging unit has probably been
scratched.
Remove the imaging unit and install
a new one.
2. If white vertical
lines appear on the page
Clean the inside of the printer. If you
still have the same problems,
replace the imaging unit with a new
one.
Service Manual
Samsung Electronics
4-35
Adjustment and Troubleshooting
5) Color or Black background
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
1. If the amount of
background shading becomes
unacceptable, the procedures below
may fix the problem.
2. heck the printer's environment
4-36
Change to lighter weight paper.
1. very dry (low humidity) or high
humidity (higher than 80% RH)
conditions can increase the
amount of background shading.
2. Remove one of the old toner
cartridges and install a new one.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
6) Toner smear
1. Toner smear
1. Clean the inside of the printer.
2. Check the paper type and quality.
3. Remove the imaging unit and
install a new one.
Service Manual
Samsung Electronics
4-37
Adjustment and Troubleshooting
7) Vertical repetitive defects
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
4-38
1. If marks
repeatedly appear on the
printed side of the page at
even intervals
Clean the inside of the printer.
After cleaning the inside of the
printer, if you still have the same
problems, install a new toner
cartridge of the problem color.
2. Parts of the printer
may have toner on them.
If the defects occur on the back of
the page, the problem will likely
correct itself after a few more pages.
3. The fusing assembly
may be damaged.
Contact a service representative.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
8) Background scatter
A
1. Background
scatter results from bits of
toner distributed on the
printed page.
The paper may be too damp. Try
printing with a different batch of
paper. Do not open packages of
paper until necessary so that the
paper does not absorb too much
moisture.
2. If background scatter
occurs on an envelope.
Change the printing layout to avoid
printing over areas that have
overlapping seams on the reverse
side. Printing on seams can cause
problems.
3. If background
scatter covers the entire surface
area of a printed page
Adjust the print resolution through
your software application or via the
printer properties window.
Service Manual
Samsung Electronics
4-39
Adjustment and Troubleshooting
9) Misformed characters
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
4-40
1. If characters are
improperly formed and producing
hollowed images
The paper stock may be too slick.
Try a different paper.
2. If characters are
improperly formed and producing
a wavy effect.
The printer may need service.
Verify that it also occurs on a demo
page.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
10) Page skew
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
1. Page skew
Ensure that the paper is loaded
properly.
2. The paper may not meed
specifications
Check the paper type and quality.
3. Ensure that the paper
or other material is loaded correctly
The guides are not too tight or too
loose against the paper stack.
Service Manual
Samsung Electronics
4-41
Adjustment and Troubleshooting
11) Curl or wave
1. Curl or wave
2. Check the paper type and quality.
3. Turn the stack of
paper over in the tray.
4-42
Ensure that the paper is loaded
properly.
Both high temperature and high
humidity can cause paper curl.
Also try rotating the paper 180° in
the tray.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
12) Wrinkles or creases
1. Wrinkles or creases
2. The paper may not meed
specifications
3. Turn the stack of paper
over in the paper tray.
Ensure that the paper is loaded
properly.
Check the paper type and quality.
Also try rotating the paper 180° in
the tray.
Service Manual
Samsung Electronics
4-43
Adjustment and Troubleshooting
13) Back of printouts aredirty
Check for leaking toner.
4-44
Clean the inside of the printer.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
14) Solid Color or Black pages
A
1. The toner cartridge may
not be installed properly.
2. The toner cartridge may
be defective and need
replacing.
3. The printer may require repair.
Remove the toner cartridge and
reinsert.
Install a new toner cartridge.
Change HVPS.
Service Manual
Samsung Electronics
4-45
Adjustment and Troubleshooting
15) Loose toner
1. Loose toner
2. The paper may not meed
specifications
3. The Toner Cartridge
may be defective and
need replacing.
4. If the problem persists,
the printer may require repair.
4-46
Clean the inside of the printer.
Check the paper type and quality.
Install a new toner cartridge.
Contact a service representative.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
16) Character Voids
A
1. Character voids are
white areas within characters that should
be solid black
1. You may be printing on the wrong
surface of the paper. Remove the
paper and turn it over.
2. The paper may not meet paper
specifications.
Service Manual
Samsung Electronics
4-47
Adjustment and Troubleshooting
17) Horizontal stripes
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
1. If horizontally
aligned color or black streaks or
smears appear
2. A toner cartridge may be defective.
4-48
A toner cartridge may be installed
improperly.
Remove the toner cartridge and
reinsert.
Install a new toner cartridge.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
18) Curl
1. If the printed paper is
curled or paper does not feed into
the printer
Turn the stack of paper over in the
paper tray. Also try rotating the
paper 180° in the tray.
Service Manual
Samsung Electronics
4-49
Adjustment and Troubleshooting
4.2.5 Common Windows Problems
"File in Use" message appears
during installation.
"Error Writing to LPTx"
message appears.
"General Protection Fault",
"Exception OE", "Spool32", or "Illegal
Operation" messages
appear.
"Fail To Print", "A printer
timeout error occurred."
messages appear.
Exit all software applications. Remove all
software from the StartUp Group, then
restart Windows. Reinstall the printer driver.
・Ensure that all cables are connected
correctly and the printer is on.
・If bi-directional communication is not
turned on in the driver, it will also cause
this message.
Close all other applications, reboot
Windows and try printing again.
These messages may appear during printing.
Just keep waiting until the printer finishes
printing. If the message appears in standby
mode or after printing has been completed,
check the connection and/or whether an
error has occurred.
NOTE: Refer to the Microsoft Windows 98/Me/NT 4.0/2000/2003/XP User's Guide that came with your PC for further
information on Windows error messages.
4-50
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4.2.6 Common Macintosh Problems
The printer does not print a
document from Acrobat Reader.
You should change the Print Method option
to Print as Image when you print from
Acrobat Reader.
The document has
printed, but the print job has not
disappeared from the spooler in
Mac OS 10.3.2.
Update your Mac OS to OS 10.3.3 or higher.
Service Manual
Samsung Electronics
4-51
Adjustment and Troubleshooting
4.2.7 Common Linux Problems
I can't change settings in the
configuration tool.
You need to have administrator privileges to be able
to change global settings.
I am using the KDE
desktop but the configuration tool
and LLPR won't start.
You may not have the GTK libraries installed. These
usually come with most Linux distributions, but you
may have to install them manually. Refer to your
distribution's installation manual for more details
about installing additional packages.
I just installed this
package but can't find entries in
the KDE/ Gnome menus.
I get a "Some options
are not selected" error message while
editing the printer
settings.
Some versions of the KDE or GNOME desktop
environments may require that you restart your
session for the changes to take effect.
Some printers have conflicting settings, meaning
that some settings for two options can't be selected
at the same time. When you change a setting and
the Printer Package detects such a conflict, the
conflicting option is changed to a "No Choice" value.
You have to choose an option that does not conflict
before being able to submit the changes.
Continue..
4-52
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
Continue..
I can't make a printer
the system default.
The N-up setting
does not work correctly for some of my
documents.
I am using BSD lpr
(Slackware, Debian, older
distributions) and some options chosen
in LLPR don't seem to
take effect.
I am trying to print a document in
Landscape mode, but it prints
rotated and cropped.
In some conditions, it may not be possible to change
the default queue. This happens with some variants
of LPRng, especially on recent RedHat systems that
use the "printconf" database of queues.
When using printconf, the /etc./printcap file is
automatically refreshed from the database of printers
managed by the system (usually through the
"printtool" command), and the queues in /etc./
printcap.local are appended to the resulting file. The
default queue in LPRng is defined as the first queue
in /etc./printcap, and therefore it is not possible for
the Linux Printer Package to change the default when
some queues have otherwise been defined using
printtool.
LPD systems identify the default queue as the one
named "lp". Thus, if there is already a queue by this
name, and if it doesn't have an alias, then you won't
be able to change the default. To work around this,
you can either delete the queue or rename it by
manually editing the /etc./printcap file.
The N-up feature is achieved through postprocessing of the PostScript data that is sent to the
printing system. However, such post-processing can
only be adequately achieved if the PostScript data
conforms to the Adobe Document Structing
Conventions. Problems may arise when using N-up
and other features that rely on post-processing if the
document being printed isn't compliant.
Legacy BSD lpr systems have a hard limitation on
the length of the option string that can be passed to
the printing system. As such, if you selected a
number of different options, you may have exceeded
the length of the options and some of your choices
won't be passed to the programs
responsible for implementing them. Try to select
fewer options that deviate from the defaults, to save
on memory usage.
Most Unix applications that offer a Landscape
orientation option in their printing options will
generate correct PostScript code that should be
printed as is. In that case, you need to make sure
that you leave the LLPR option set to its default
Portrait setting, to avoid unwanted rotations of the
page that would result in cropped output.
Continue..
Service Manual
Samsung Electronics
4-53
Adjustment and Troubleshooting
Continue..
Some pages come
out all white (nothing is printed), and
I am using CUPS.
I can't print to an SMB (Windows) printer.
My application seems to
be frozen while LLPR is running.
How do I specify the IP
address of my SMB server?
Some documents come out
as white pages when printing.
If the data being sent is in Encapsulated PostScript
(EPS) format, some earlier versions of CUPS
(1.1.10 and before) have a bug preventing them from
being processed correctly. When going through
LLPR to print, the Printer Package will work around
this issue by converting the data to regular PostScript.
However, if your application bypasses LLPR and
feeds EPS data to CUPS, the document may not
print correctly.
To be able to configure and use SMB-shared printers
(such as printers shared on a Windows printer), you
need to have a correct installation of the SAMBA
package that enables that feature. The "smbclient"
command should be available and usable on your
system.
Most Unix applications will expect a command like
the regular "lpr" command to be non-interactive and
thus return immediately. Since LLPR is waiting for
user input before passing the job on to the print
spooler, very often the application will wait for the
process to return, and thus will appear to be frozen
(its windows won't refresh). This is normal and the
application should resume functioning correctly after
the user exits LLPR.
It can be specified in the "Add Printer" dialogue of
the configuration tool, if you don't use the CUPS
printing system. Unfortunately, CUPS currently
doesn't allow you to specify the IP address of SMB
printers, so you will have to be able to browse the
resource with SAMBA in order to be able to print.
Some versions of CUPS, especially those shipped
with Mandrake Linux before the 8.1 release, have
some known bugs when processing PostScript
output from some applications. Try upgrading to the
latest version of CUPS (at least 1.1.14). Some RPM
packages for the most popular distributions are
provided as a convenience with this Linux Printing
Package.
Continue..
4-54
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
Continue..
I have CUPS and some
options (such as N-up) seem to be always
enabled even though I don't
choose them in LLPR.
I configured a printer to
print to a file, but I get "Permission
denied" errors.
There may be some local options defined in your ~/ .
lpoptions file, which are manipulated by the lpoptions
command. These options are always used if not
overridden by LLPR settings. To get rid of all options
for a printer, run the following command, replacing
"printer" with the name of the queue:
lpoptions -x printer
Most printing systems will not run as the super-user
but as a special user (usually "lp"). Therefore, make
sure that the file you have chosen to print to is
accessible to the user owning the spooler daemon.
On my PCL (or GDI)
printer, I sometimes get error messages
printing instead of my
document.
Unfortunately, some Unix applications may generate
non-compliant PostScript output that may not be
supported by Ghostscript, or even the printer itself in
PostScript mode. You can try to capture the output to
a file and view the results with Ghostscript (gv or
ghostview will allow you to do so interactively) and
see if you get error messages. However, since the
application is probably at fault, contact your software
vendor to inform them of the issue.
Some color images come out all black.
This is a known bug in Ghostscript (until GNU
Ghostscript version 7.05) when the base color space
of the document is indexed color space and it is
converted through CIE color space. Because
Postscript uses CIE color space for Color Matching
System, you should upgrade Ghostscript on your
system to at least GNU Ghostscript version 7.06 or
later. You can find recent Ghostscript versions at
www.ghostscript.com.
Service Manual
Samsung Electronics
4-55
Adjustment and Troubleshooting
4.2.8 Major Problems Trouble shooting
1) Vertical Line and Band
• Description
1. Damaged develop
roller in the Developer.
Deformed Doctor-blade
or cleaningblade.
2. Scratched surface
of the discharge roller in
the developer.
If causes 1 and 2 occur in the developer unit,
replace the developer and try to print out.
Replace the transfer roller if occurred as No. 3.
3. Partly depression
or deformation on the surface of
the transfer roller.
4-56
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
2) Vertical White Line
• Description
1. Foreign matter stuck
onto the window of internal lenses
of LSU mirror.
2. Foreign matter
or toner particles between the
developer roller and blade. (In case the
life of the developer has been expired,
white lines or light image occur
in front of the
image.)
Foreign matter stuck onto the window : Clean
the LSU window with recommended cleaner
(IPA) Clean the window with a clean cotton swab.
Foreign matter in the LSU : Open the cover of
LSU and clean with a cotton swab on the
surface of the reflex mirror.
3. It may occur
when Burr and foreign
substances are on the window of the
developer frame.
No 3. : Remove the foreign matter and burr of
the exposure window.
(Developer cartridge)
4. If the fuser is
defective, voids occur
periodically at the top of
a black image.
1. No. 4. : Open the front cover and check ribs
that corresponds to the position of the voids.
Remove if found.
2. If the problems are not solved, replace the
developer cartridge.
Service Manual
Samsung Electronics
4-57
Adjustment and Troubleshooting
3) Light Image
• Description
1. Develop roller is
stained when the toner of developer
cartridge is almost
consumed.
2. Ambient temperature
is below than 10°C.
4-58
Replace the developer cartridge and try to
print out.
Wait 30 minutes after printer is powered on
before you start printing.
3. Bad contact caused
by the toner stains between the
high voltage terminal in the HVPS
and the one in the set.
Clean up the contaminated area by the toner.
4. Abnormal output from the HVPS.
Replace the HVPS if the problems are not
solved by the above four directions.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
4) Dark Image or black
• Description
1. No charge voltage in
the HVPS board.
2. Charge voltage
is not turned on due to the bad
contacts between power supply in the
side of the Developer and charge
terminal of HVPS.
Clean the high voltage charge terminal.
1. Check the state of the connector which
connects the engine board and HVPS.
2. Replace the HVPS if not solved by the above
direction 1 and 2.
Service Manual
Samsung Electronics
4-59
Adjustment and Troubleshooting
5) Background
• Description
1. Does character
exist less than 2% per a page, and
hasn't it been used long time?
The toner cartridge is basically designed to print
3,000 sheets with 5% image.
If it prints more than 3,000 sheets (around
5,000 sheets) with 2% image, a background
can be occurred.
2. Does recycle paper be used?
The B/S is not guaranteed if using recycle paper.
3. Has the life span of the
developer ended?
4. Is the movement
(Up and Down) of the transfer
roller smooth?
5. Is the HVPS normal?
4-60
Replace the developer when the life span of it
has been ended.
Clean the bushing part of the transfer roller.
If the problem is still not solved, replace the
developer.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
6) JAM 0
• Description
1. Check the Solenoid
by using EDC mode.
Replace the solenoid.
2. Check if the pad is loose
due to bad sealing of the
side-pad.
Replace the side-pad Assembly L or R, if
necessary.
3. Check the surface of the
roller-pickup for foreign matter.
Clean with soft cloth dampened with IPA
(Isopropyl Alcohol) or water.
4. If the paper
feeds into the printer rand
Jam 0 occurs, perform EDC to check
feed-sensor of the engine
board.
Replace the Main B'D and/or Sensor.
Service Manual
Samsung Electronics
4-61
Adjustment and Troubleshooting
7 JAM 1
• Description
1. If the recording paper
is jammed in front of or inside
the fuser.
2. If the recording
paper is stuck in the discharge
roller and the fuser just after passing
through the Actuator-Feed, Feed
Actuator may be
defective.
4-62
Replace the SMPS.
Reassemble the Actuator-Feed and SpringActuator if the returning is bad.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
8) Multi-Feeding
• Description
1. Solenoid malfunction
(the solenoid does not work properly)
Replace the solenoid if necessary.
2. Pad-Friction is
contaminated with foreign matter.(oil...)
Clean the pad friction with soft clothe
dampened with IPA(Isopropyl Alcohol).
3. The face of paper is blended.
Use the smooth paper.
Service Manual
Samsung Electronics
4-63
Adjustment and Troubleshooting
9) Not function of the gear of the fuser due to melting away
• Description
Check the operation of
Fuser Erasing Lamp
1. Replace the Fuser.
2. Replace the Main Control board.
10) Paper Empty
• Description
1. Bending or deformation
of the actuator of the paper sensor.
2. The function of the engine
board is defective Perform
4-64
Replace the defective actuator.
Replace the engine board.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
11) Cover Open
• Description
1. The Hook Lever in the
top cover may be defective.
2. Check the connector
(Main B'D) and circuit of the cover
switch department in the Main
Control board.
Replace the hook lever, if defective.
1. Check the insertion of the Cover Open S/W
Connect.
2. Replace the Main Control board or Cover
Open S/W.
12) Defective motor operation
• Description
1. Motor harness or sub
PCB may be defective.
1. Check the motor harness, replace it, if
defective.
2. Check 24V in the SMPS
3. Check Front Cover or Jam cover are opened.
4. Replace the Main PBA, if necessary.
Service Manual
Samsung Electronics
4-65
Adjustment and Troubleshooting
13) No Power
• Description
1. Check if the power input
and SMPS output are normal.
2. Check the inferiority
of LED-Panel on the front-cover if the
LED of Panel does not appear after
normal warmingup.
Replace the power supply cord or SMPS.
1. Replace the control board.
2. Replace the LED-panel.
14) Vertical Line Getting Curved
• Description
1. If the supply of +24v is
unstable in the Main Control board
linking with LSU
4-66
1. Replace LSU.
2. Replace the Main Control board.
Service Manual
Samsung Electronics
Adjustment and Troubleshooting
15) LSU Error
• Description
1. Foreign matter stuck
onto the window of internal lenses
of LSU mirror
Cleaning foreign matter in LSU mirror
2. Main Controller LSU Part defect
Replace Main Controller
3. Micro Switch Harness
Replace Micro Switch Harness
Service Manual
Samsung Electronics
4-67
Exploded Views & Parts List
5
5. Exploded Views and Parts List
Contents
5.1 Main
5-2
5.8 Main Drive
5-20
5.2 Cover Unit
5-4
5.9 Cartridge-Transfer
5-24
5.3 Top Cover
5-6
5.10 Cartridge-Drum
5-27
5.4.1 Rear Cover
5-8
5.11 Toner BK
5-29
5.4.2 Transfer Unit
5-10
5.12 Toner CMY
5-31
5.5 Frame
5-12
5.13 Cassette
5-33
5.6 LSU Cover
5-16
5.14 SCF-Frame
5-35
5.7 Fuser Ass'y
5-18
5.15 SCF Cassette
5-39
Samsung Color Laser Printer
The keynote of Product
High Performance /
High Quality Muti-path CLBP
- Model : only CLP 350N
- Speed(Color/Mono) : 5/20ppm(A4). 5/19ppm(Let)
- Printing resolution : 2,400 x 600 dpi
- Emulation : PCL6/PS3
- Memory expansion => Max.128MB
- Processor : 300MHz
- Interface : IEEE 802.3,Ethernet(10/100Mbps)
Wireless: Not Supported
- Toner Cartridge :
4K Toner(K), 2K toner(C, M, Y each)
- Printer Life : 200,000 pages
Monthly Max. Duty : 25,000 pages/month
Service Manual
Samsung Electronics
5-1
Exploded Views & Parts List
10
18
18-1
24
23
21
25
20
26
19
29
0
18-2
17-1
17
17-2
15
12
27
8
16
13
1
11
9
4
28
6
2
3
5
7
5.1 Main
5-2
Service Manual
Samsung Electronics
Exploded Views & Parts List
Main Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.1-0
CLP-350N
COLOR LBP 20 B / COLOR 5 PPM
5.1-1
JC97-02994A
MEA UNIT-FRAME
1
SA
5.1-2
JC97-03002A
MEA UNIT-COVER
1
SNA
5.1-3
JC97-02992A
MEA UNIT-COVER TOP
1
SA
5.1-4
JC96-04693A
ELA UNIT-DRIVE MAIN
1
SA
5.1-5
JC39-00486A
CBF HARNESS-BLDC
1
SA
5.1-6
JC63-00863A
SHIELD-P-MAIN LOWER
1
SNA
5.1-7
JC92-01919A
PBA MAIN-CONTROLLER
1
SA
US.
5.1-7
JC92-01919B
PBA MAIN-CONTROLLER
1
SA
ETC.
5.1-8
JC63-01259A
SHIELD-SMPS
1
SNA
5.1-9
JC44-00095A
SMPS-PSP_TYPE2_V1
1
SA
110V
220V
5.1-9
JC44-00096A
SMPS-PSP_TYPE2_V2C
1
SA
5.1-10
JC39-00670A
HARNESS-SMPS
1
SA
5.1-11
JC96-04699A
ELA UNIT-FUSER
1
SA
110V
5.1-11
JC96-04700A
ELA UNIT-FUSER
1
SA
220V
5.1-12
JC59-00018F
UNIT-LSU
1
SA
5.1-13
JC39-00483A
CBF HARNESS-LSU
1
SA
5.1-15
JC39-00583A
CBF HARNESS-GND_FRAME
1
SA
5.1-16
JC97-02656A
MEA UNIT-COVER LSU
1
SA
5.1-17
JC97-02638A
MEA UNIT-TERMINAL GND
2
SA
5.1-17-1
6107-001282
SPRING-CS
1
SA
5.1-17-2
JC70-00050A
IPR-TERMINAL
1
SNA
5.1-18
JC97-01771A
MEA UNIT-TERMINAL S
8
SA
5.1-18-1
JC61-70929A
SPRING ETC-HV LARGE
1
SA
5.1-18-2
JC70-00050A
IPR-TERMINAL
1
SNA
5.1-19
JC44-00155A
HVPS
1
SA
5.1-20
-
CARTRIDGE-TRANSFER
1
SNA
5.1-21
-
ELA UNIT-OPC DEV SET
1
SNA
5.1-23
-
ELA UNIT-TONER TANK C
1
SNA
5.1-24
-
ELA UNIT-TONER TANK M
1
SNA
5.1-25
-
ELA UNIT-TONER TANK Y
1
SNA
5.1-26
-
ELA UNIT-TONER TANK K
1
SNA
5.1-27
JC97-02332D
MEA-CASSETTE
1
SA
5.1-28
JC96-04690A
SECOND CASSETTE
1
SNA
5.1-29
3903-000042
CBF-POWER CORD
1
SA
110V(US.)
5.1-29
3903-000042
CBF-POWER CORD
1
SA
220V(ETC.)
Service Manual
Samsung Electronics
5-3
Exploded Views & Parts List
1-2
0
1-3
1-1
1
4-2
4-1
2
4
3
3-4
5
3-1
3-2
3-3
5.2 Cover Unit
5-4
Service Manual
Samsung Electronics
Exploded Views & Parts List
Cover Unit Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.2-0
JC97-03002A
Description
MEA UNIT-COVER
QT'y
1
Service Remark
SNA
5.2-1
JC97-02996A
MEA-UNIT COVER FRONT
1
SA
5.2-1-1
JC63-01475A
COVER-FRONT
1
SA
5.2-1-2
JC64-00369A
BADGE-COLOR
1
SNA
5.2-1-3
JC68-01997A
LABEL-INSTALLATION
1
SNA
5.2-2
JC63-01478A
COVER-FRONT_DUMMY
1
SA
5.2-3
JC97-02995A
MEA-UNIT COVER RIGHT
1
SA
5.2-3-1
JC63-01477A
COVER-SIDE R
1
SA
5.2-3-2
JC63-01489A
COVER-DUMMY SIDE
1
SA
5.2-3-3
JC67-00160A
CAP-NETWORK
1
SNA
5.2-3-4
JC72-01410A
SPONGE-COVER_SIDE R
1
SNA
5.2-4
JC97-03009A
MEA-UNIT COVER LEFT
1
SA
5.2-4-1
JC63-01476A
COVER-SIDE L
1
SA
5.2-4-2
JC72-01409A
SPONGE-COVER-SIDE L
1
SNA
5.2-5
JC97-02993A
MEA UNIT-COVER REAR
1
SA
Service Manual
Samsung Electronics
5-5
Exploded Views & Parts List
5.3 Top Cover
0
3
4
5
8
6
7
9
1
10
2
11
12
13
14
5-6
Service Manual
Samsung Electronics
Exploded Views & Parts List
Top Cover Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.3-0
JC97-02992A
MEA UNIT-COVER TOP
1
SA
5.3-1
JC63-01484A
COVER-STACKER
1
SA
5.3-2
JC63-01483A
COVER-TOP
1
SA
5.3-3
JC63-01482A
COVER-JAM
1
SA
5.3-4
JC66-01296A
LEVER-BLOCKING
1
SNA
5.3-5
JC66-01297A
LEVER-MID BLOCKING
1
SNA
5.3-6
JC61-01761A
HOLDER-LEVER BLOCKING
1
SNA
5.3-7
6044-000001
RING-CS
1
SNA
5.3-8
JC72-01343A
PMO-SUB_M_STACKER
1
SA
5.3-9
JC61-02166A
BRACKET-AIR CURTAIN
1
SA
5.3-10
JC63-01481A
COVER-OPE
1
SA
5.3-11
JC64-00337A
BUTTON-STOP
1
SA
5.3-12
6107-001169
SPRING-CS
1
SA
5.3-13
JC63-01480A
COVER-LED
1
SA
5.3-14
6002-000440
SCREW-TAPPING
1
SNA
Service Manual
Samsung Electronics
5-7
Exploded Views & Parts List
5-8
( Refer to 5.4.2 )
8
0
5
9
10
3
6
7
8
2
11
1
4
5.4.1 Rear Cover
Service Manual
Samsung Electronics
Exploded Views & Parts List
Rear Cover Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.4.1-0
JC97-02993A
Description
MEA UNIT-COVER REAR
QT'y
1
Service Remark
SA
5.4.1-1
JC63-01479A
COVER-REAR
1
SA
5.4.1-2
JC64-00336A
BUTTON-REAR OPEN
1
SA
5.4.1-3
JC66-01089A
SHAFT-P-LOCKBAR REAR
1
SNA
5.4.1-4
JC61-01461A
HOLDER-M-HOOK REAR R
1
SNA
5.4.1-5
JC61-01456A
HOLDER-M-HOOK REAR L
1
SNA
5.4.1-6
JC61-01462A
HOLDER-M-HOOK REAR C
1
SNA
5.4.1-7
JC66-01587A
LEVER-REAR
1
SA
5.4.1-8
6107-001268
SPRING-TS
2
SA
5.4.1-9
6003-000196
SCREW-TAPTITE
2
SNA
5.4.1-10
JC96-03990A
ELA UNIT-TRANSFER
1
SA
Service Manual
Samsung Electronics
5-9
Exploded Views & Parts List
10
16
5-10 Service Manual
6
11
13
( Transfer Unit / 5.4.1-10 )
14
5
3
17
0
1
21
14
12
15
8
13
2
4
15
9
7
15
6
18
A
20
19
5.4.2 Transfer Unit
Samsung Electronics
Exploded Views & Parts List
Transfer Unit Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.4.2-0
JC96-03990A
ELA UNIT-TRANSFER
1
SA
5.4.2-1
JC61-01466A
FRAME-M-T2 BASE
1
SNA
5.4.2-2
JC66-01121A
LEVER-M-T2 HOLDER R
1
SNA
5.4.2-3
JC66-01122A
LEVER-M-T2 HOLDER L
1
SNA
5.4.2-4
JC66-01074A
LEVER-M-RELEASE R
1
SNA
5.4.2-5
JC66-01075A
LEVER-M-RELEASE L
1
SNA
5.4.2-6
JC61-01469A
HOLDER-M-LOCATE SHAFT
2
SNA
5.4.2-7
JC66-01081A
GEAR-RDCN T2 DRIVE
1
SA
5.4.2-8
JC61-01467A
PLATE-P-T2 GROUND
1
SNA
5.4.2-9
JC61-01468A
GUIDE-P-T2 OUTPUT
1
SNA
5.4.2-10
JC61-01470A
GUIDE-P-T2 INPUT
1
SNA
5.4.2-11
JC61-01543A
BUSH-CHARGE LEFT
1
SNA
5.4.2-12
JC66-01072A
SHAFT-LOCATE
1
SNA
5.4.2-13
6107-001290
SPRING-CS
2
SA
5.4.2-14
6107-001278
SPRING-CS
3
SA
5.4.2-15
6003-000282
SCREW-TAPTITE
3
SNA
5.4.2-16
JC39-00036A
CBF HARNESS-OPE GND
1
SA
5.4.2-17
JC70-10232A
IPR-PLATE SAW
1
SA
5.4.2-18
JC66-01104A
ROLLER-TRANSFER
1
SNA
5.4.2-19
JC61-01471A
HOLDER-M-T2 ROLLER R
1
SNA
5.4.2-20
JC66-01073A
GEAR-T2 ROLLER
1
SA
5.4.2-21
6107-001246
SPRING-CS
1
SNA
5.4.2-A
JC97-02628A
MEA UNIT-T2 ROLLER
1
SA
Service Manual
Samsung Electronics
5-11
5-12 Service Manual
S2
4
5
31
30
1
S1
29
2
27
28
26
S1
3
16
24
3
23
25
19
21
22
2
S1
17
20
32
15
S3
34-2
6
7
33
7
34-4
34-3
34-1
9
8
7
13
16
14
10
0
34
11
12
S1
Exploded Views & Parts List
5.5 Frame 1
Samsung Electronics
0
Samsung Electronics
35
44
43
41
42
53-2
53-5
40
39
38
53-3
36
53-4
45
37
44
43
54-5
53-1
54-1
48
46
64
52
50
47
54-5
54-2
54-3
54-4
51
56
49
53-2
57
61
53
54
60
62
63
67
57-3
58
59
60
57-1
52
50
57-2
65
55
66
Exploded Views & Parts List
Frame 2
Service Manual
5-13
Exploded Views & Parts List
Frame Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.5-0
JC97-02994A
Description
QT'y
Service Remark
MEA UNIT-FRAME
1
SA
5.5-1
JC61-01443A
FRAME-M BASE GOGH
1
SNA
5.5-2
JC61-40001A
FOOT-ML80
2
SA
5.5-3
JC66-00050A
CAM-CATCH
2
SA
5.5-4
JC61-01521A
PLATE-P-DRAW CONNECTOR
1
SNA
5.5-5
JC39-00774A
HARNESS-MAIN DRAWER
1
SA
5.5-S2
6009-001396
SCREW-SPECIAL
2
SNA
5.5-6
6502-001093
CABLE CLAMP
1
SA
5.5-7
JC39-00498A
CBF HARNESS-COVER S/W
3
SA
5.5-8
JC33-00021A
SOLENOID-PICK UP
1
SA
5.5-9
JC61-01487A
PLATE-P-GROUND SCF
1
SA
5.5-10
JC61-01483A
PLATE-P-GROUND LSU
1
SNA
5.5-11
JC61-01485A
PLATE-P-GROUND REGI
1
SNA
5.5-12
JC61-01547A
SPRING ETC-OPC LOCK R
1
SA
5.5-13
JC61-01484A
PLATE-P-GROUND T2
1
SNA
5.5-14
JC61-01476A
PLATE-P-GROUND FUSER
1
SNA
5.5-15
JC61-01489A
PLATE-P-GROUND EXIT
1
SNA
5.5-16
JC61-01537A
PLATE-P-SHAFT LACK
2
SNA
5.5-17
JC92-01925A
PBA SUB-OPE
1
SA
5.5-19
JC96-04002A
ELA HOU-REGI_EMP
1
SA
5.5-20
JB61-00076A
SPRING ETC-TORSION DOC (CC2-F)
1
SA
5.5-21
JC66-01119A
LEVER-M-ACTUATOR EMPTY
1
SA
5.5-22
JC61-01481A
HOLDER-M-ACTUATOR EMPTY
1
SNA
5.5-23
JC66-01133A
LEVER-M-ACTUATOR FEED
1
SNA
5.5-24
JC61-00018A
SPRING ETC-SENSOR
1
SNA
5.5-25
JC61-01480A
HOLDER-M-ACTUATOR FEED
1
SNA
5.5-26
JC92-01718A
PBA SUB-EXIT
1
SA
5.5-27
JC61-01546A
SPRING ETC-OPC LOCK L
1
SA
5.5-28
JC61-01451A
PLATE-P-GROUND OPC L
1
SNA
5.5-29
JC61-01486A
PLATE-P-GROUND PICKUP
1
SNA
5.5-30
JC63-00854A
COVER-M-GROUND OPC
1
SNA
5.5-31
JC92-01723A
PBA SUB-WASTE_T
1
SA
5.5-32
JC39-00606A
HARNESS-SCF
1
SA
5.5-33
JC39-00493A
CBF HARNESS-THER
1
SA
5.5-34
JC97-02639A
MEA UNIT-FU TERMINAL
1
SA
5.5-34-1
JC72-41010A
PMO-HOUSING TERMINAL
1
SA
5.5-34-2
JC70-10961A
IPR-TERMINAL FU
2
SA
5.5-34-3
6021-000222
NUT-HEXAGON
2
SNA
5.5-34-4
JC39-00581A
CBF HARNESS-FUSER_AC
1
SA
5.5-34-S3
6006-000127
SCREW-MACHINE
2
SNA
5.5-37
JC61-01477A
FRAME-M-EXIT
1
SNA
5.5-38
6107-001163
SPRING-CS
3
SA
5.5-39
JC61-01568A
HOLDER-M-EXIT F DOWN
3
SNA
5-14 Service Manual
Samsung Electronics
Exploded Views & Parts List
Frame Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.5-40
JC66-01149A
ROLLER-EXIT MAIN
3
5.5-41
JC92-01718A
PBA SUB-EXIT
1
SA
5.5-42
JC66-01040A
ROLLER-EXIT F DOWN
1
SNA
5.5-43
JC61-00829A
HOLDER-BEARING EXIT F/DOWN
2
SA
5.5-44
6044-000159
RING-C
2
SA
5.5-45
JC61-00424A
BUSH-4
1
SA
5.5-46
JC66-00810A
GEAR-EXIT_DRV17
1
SA
5.5-47
JC61-70911A
SPRING ETC-EXIT ROLL FD
2
SA
5.5-48
JC61-00829A
HOLDER-BEARING EXIT F/DOWN
2
SNA
SA
5.5-49
JC66-01120A
SHAFT-FEED IDLE
1
SNA
5.5-50
JC61-00699A
BUSH-D6/L4
3
SA
5.5-51
JC66-01128A
ROLLER-REGI
1
SNA
5.5-52
JC61-01570A
GUIDE-M-PAPER
2
SNA
5.5-53
JC97-03006A
MEA UNIT-PICKUP ROLL
1
SA
5.5-53-1
JC66-01080A
SHAFT-P-PICKUP
1
SNA
5.5-53-2
JC66-01596A
CAM-PICK UP
2
SNA
5.5-53-3
JC61-01151A
HOUSING-M-PICK_U
1
SA
5.5-53-4
JC61-01173A
HOUSING-M-PICK_UP B
1
SA
5.5-53-5
JC73-00211A
RUBBER-PICK_UP
1
SA
PICP UP ASSEMBLY
1
SNA
5.5-54
not assign
5.5-54-1
JC61-01473A
GUIDE-M-PICK UP
1
SA
5.5-54-2
JC61-70911A
SPRING ETC-EXIT ROLL FD
2
SA
5.5-54-3
JC61-01787A
HOLDER-PAD
1
SA
5.5-54-4
JC69-00961A
PAD-FRICTION
1
SA
5.5-54-5
JC66-00815A
LEVER-M-KICKER P/U
2
SA
5.5-55
JC61-01790A
PLATE-PICK UP
1
SNA
5.5-56
JC61-01478A
GUIDE-M-HARNESS
1
SNA
5.5-57
JC97-02688A
MEA UNIT-PICK UP GEAR
1
SA
5.5-57-1
JC66-01076A
GEAR-PICK UP A
1
SA
5.5-57-2
JC66-01077A
GEAR-PICK UP B
1
SA
5.5-57-3
6107-001167
SPRING-CS
1
SA
5.5-58
JC61-01548A
HOLDER-M-CAM
2
SA
5.5-59
JC66-01056A
GEAR-REGI DRIVE
1
SA
5.5-60
6044-000001
RING-CS
2
SA
5.5-61
JC66-00346A
GEAR-MP/DUP DRV
1
SA
5.5-62
JC47-00009C
CLUTCH-REGI
1
SA
5.5-63
6031-001255
WASHER-PLAIN
9
SNA
5.5-64
JC66-01207A
SHAFT-M-CLUTCH FUSER
1
SA
5.5-65
JC47-00014A
MEP-CLUTCH CAM
1
SA
5.5-66
JC61-01566A
HOLDER-M-CLUTCH FUSER
1
SNA
5.5-67
JC39-00497A
CBF HARNESS-INLET
1
SA
Service Manual
Samsung Electronics
5-15
Exploded Views & Parts List
5.6 LSU Cover
0
5
2
1
4
6
3
5-16 Service Manual
Samsung Electronics
Exploded Views & Parts List
LSU Cover Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.6-0
JC97-02656A
MEA UNIT-COVER LSU
1
SA
5.6-1
JC67-00168A
BRUSH-LSU
1
SNA
5.6-2
JC64-00267A
SHUTTER-LSU
1
SNA
5.6-3
JC63-00839A
COVER-M-LSU
1
SNA
5.6-4
6107-001295
SPRING-CS
2
SNA
5.6-5
JC63-01093A
SHEET-LSU FRONT
1
SNA
5.6-6
JC62-00338A
SEAL-COVER LSU
1
SNA
Service Manual
Samsung Electronics
5-17
24
27
7
5-18 Service Manual
24
39
37
29
38
6
26
35
30
24
31
0
3
28
1
12
40
9
22
11
36
5
15
8
2
4
25
42
14
23
24
13
10
18
32
21
44
33
20
45
16
25
19
46
17
41
43
34
Exploded Views & Parts List
5.7 Fuser Ass'y
Samsung Electronics
Exploded Views & Parts List
Fuser Ass'y Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
5.7-0
JC96-04699A
ELA UNIT-FUSER
5.7-0
JC96-04700A
ELA UNIT-FUSER
5.7-1
JC61-01474A
FRAME-M-UPPER FUSER
5.7-2
JC61-01475A
FRAME-M-LOWER FUSER
1
SNA
5.7-3
JC66-01078A
ROLLER-HEAT
1
SA
1
Service Remark
SA
110V
1
SA
220V
1
SNA
5.7-4
JC66-00669A
GEAR-FUSER
1
SA
5.7-5
JC66-10902A
BEARING-H/R L
1
SA
5.7-6
JC72-00814A
PMO-BEARING H/R-F
1
SA
5.7-7
4712-001027
THERMOSTAT
1
SA
5.7-8
JC66-01079A
ROLLER-PRESSURE
1
SA
5.7-9
JC66-01111A
ROLLER-PRESSURE SHAFT
1
SNA
5.7-10
JC61-01490A
HOLDER-M-BUSH 2PR_R
1
SNA
5.7-11
JC61-01491A
HOLDER-M-BUSH 2PR_L
1
SNA
5.7-12
JC61-01534A
BUSH-M-2PR L
1
SNA
5.7-13
JC61-01535A
BUSH-M-2PR R
1
SNA
5.7-14
JC61-01522A
GUIDE-M-INPUT FUSER
1
SNA
5.7-15
JC66-01110A
LEVER-M-ACTUATOR EXIT
1
SNA
5.7-16
JC61-01476A
PLATE-P-GROUND FUSER
1
SNA
5.7-17
JC70-00518A
ELECTRODE-P-AC R
1
SNA
5.7-18
JC70-00519A
ELECTRODE-P-AC L
1
SNA
5.7-22
6107-001246
SPRING-CS
2
SNA
5.7-23
JC61-01271A
SPRING ETC-ACTUATOR
1
SA
5.7-24
JC39-00500A
CBF HARNESS-FUSE_LINK1
2
SA
5.7-25
JC39-00501A
CBF HARNESS-FUSE_LINK2
1
SA
5.7-28
4713-001209
LAMP-HALOGEN
1
SA
110V
5.7-28
4713-001210
LAMP-HALOGEN
1
SA
220V
5.7-29
1404-001368
THERMISTOR-NTC ASSY
1
SA
5.7-30
JC70-00064A
IPR-PIN ROLLER EXIT
3
SNA
5.7-31
JC72-20902A
PEX-ROLLER F/UP(2)
3
SA
5.7-32
JC72-00382A
PMO-BUSHING TX
2
SNA
5.7-33
JC66-01206A
SHAFT-M-CAM FUSER
1
SNA
5.7-34
JC61-01647A
HOLDER-M-SHAFT FUSER
1
SNA
5.7-35
JC66-01147A
LEVER-M-RELEASE
1
SNA
5.7-36
JC66-01148A
LEVER-M-LINK FUSER
1
SA
5.7-37
JC66-01309A
ROLLER-DUMMY
1
SNA
5.7-39
JC61-01679A
SPRING ETC-GROUND
1
SA
5.7-40
6107-001267
SPRING-CS
2
SA
5.7-41
6107-001290
SPRING-CS
1
SA
5.7-42
JC97-02778A
MEA UNIT-GUIDE PR
1
SNA
Service Manual
Samsung Electronics
5-19
Exploded Views & Parts List
19
23
18
7
14
5-20 Service Manual
12
10
24
1
13
15
9
4
3
23
2
8
17
3
23
11
6
22
16
21
23
27
23
7
27
11
23
20
26
0
31
33
30
29
37
32
28
34
36
35
5.8 Main Drive 1
Samsung Electronics
Exploded Views & Parts List
42
47
44
43
0
44
41
45
49
48
46
40
40
28
38
39
50
23
28
51
Main Drive 2
Service Manual
Samsung Electronics
5-21
Exploded Views & Parts List
Main Drive Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.8-0
JC96-04693A
ELA UNIT-DRIVE MAIN
1
SA
5.8-1
JC61-01450A
BRACKET-P-DRIVE MOTOR
1
SNA
5.8-3
JC66-01042A
GEAR-IDLE DEVE Z19
2
SA
5.8-4
JC66-01052A
GEAR-RDCN DEVE CAM
1
SA
5.8-5
JC66-01041A
GEAR-DEVE COUPLING
4
SA
5.8-7
JC66-01047A
GEAR-IDLE Z39
2
SA
5.8-8
JC66-01065A
GEAR-TONER DRIVE
1
SA
5.8-9
JC66-01046A
GEAR-IDLE Z33
1
SA
5.8-10
JC66-00763A
GEAR-M-PICK UP IDLE
1
SA
5.8-11
JC47-00007E
CLUTCH-CAM
2
SA
5.8-12
JC66-01208A
GEAR-RDCN FUSER CAM
1
SA
5.8-13
JC66-01045A
GEAR-IDLE ITB Z43
1
SA
5.8-14
JC66-01048A
GEAR
1
SA
5.8-15
JC66-01054A
GEAR-RDCN OPC
1
SA
5.8-17
JC66-01051A
GEAR-RDCN DEVE
1
SA
5.8-18
JC66-01055A
GEAR-RDCN P_PATH
1
SA
5.8-19
JC66-01050A
GEAR
1
SA
5.8-20
JC66-01044A
GEAR-FUSER DRIVE 1
1
SA
5.8-21
JC66-01053A
GEAR-RDCN EXIT
1
SA
5.8-22
JC66-01043A
GEAR-DEVE DRIVE
4
SA
5.8-23
6031-001255
WASHER-PLAIN
1
SNA
5.8-24
JC66-00771A
GEAR-_M_IDLE PICKUP
1
SA
5.8-25
JC61-01459A
BRACKET-M-DRIVE FRONT
1
SNA
5.8-26
JC66-01061A
SHAFT-IDLE D8
1
SNA
5.8-27
JC66-01064A
GEAR-IDLE Z37
2
SA
5.8-29
JC66-01060A
SHAFT-WORM GEAR
1
SNA
5.8-30
JC66-01057A
GEAR-WORM DEVE CAM
1
SA
5.8-31
6044-000159
RING-C
1
SA
5.8-32
6001-000130
SCREW-MACHINE
7
SNA
5.8-33
JC66-01070A
LATCH-M-HUB CLUTCH
1
SNA
5.8-34
JC66-01155A
GEAR-FUSER RDCN OUT V
1
SNA
5.8-35
6044-000231
RING-E
1
SNA
5.8-36
JC66-01068A
SHAFT-M-T2 CAM
1
SA
5.8-37
JC66-01067A
SHAFT-M-ITB CLEAN CAM
1
SA
5.8-38
JC31-00041A
MOTOR DC-DEVE DRIVE
1
SA
5.8-40
6003-000301
SCREW-TAPTITE
1
SNA
5.8-41
JC61-02173A
BRACKET-DEVE CAM
1
SNA
5.8-42
6003-000269
SCREW-TAPTITE
5
SA
5.8-43
JC67-00130A
CAP-M-PUSH COUPLING
4
SA
5.8-44
JC47-00018A
CLUTCH-DEVE CAM
1
SNA
5.8-45
JC66-01590A
SHAFT-DEVE CAM
1
SA
5.8-46
JC92-01720A
PBA SUB-DEVE_HOME
1
SA
5.8-47
JC61-01453A
HOLDER-M-LINK BLACK
1
SA
5-22 Service Manual
Samsung Electronics
Exploded Views & Parts List
Main Drive Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.8-48
JC66-01097A
LINK-M-PUSH BLACK CAP
1
SA
5.8-49
JC61-00699A
BUSH-D6/L4
3
SA
5.8-50
6502-001093
CABLE CLAMP
1
SA
5.8-52
JF68-10532B
LABEL(P)-BAR CODE
1
SNA
Service Manual
Samsung Electronics
5-23
5-24 Service Manual
45
5
34
14
18
61
28
47
16
48
26
17
46
30
24
5
54
41
27 43
12
0
5
37
15
62
25
7
38
20
36
9
5
35
55
40
65
13
5
58
9
37
57
4
31
69
6
29
44
60
22
36
39
8
68
25
21
56
7
38
23
19
53
Exploded Views & Parts List
5.9 Cartridge-Transfer
Samsung Electronics
Exploded Views & Parts List
Cartridge-Transfer Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.9-0
-
5.9-3
5.9-4
Description
QT'y
Service Remark
CARTRIDGE-TRANSFER
1
SNA
0604-001257
PHOTO-INTERRUPTER
1
SNA
6001-000485
SCREW-MACHINE
2
SNA
5.9-5
6003-000282
SCREW-TAPTITE
11
SNA
5.9-6
6031-000019
WASHER-PLAIN
3
SA
5.9-7
6107-001287
SPRING-CS
2
SNA
5.9-8
6107-001313
SPRING-CS
1
SNA
5.9-9
6107-001306
SPRING-CS
2
SA
5.9-11
JC39-00773A
HARNESS-ITB
1
SNA
5.9-12
JC61-00699A
BUSH-D6/L4
1
SA
5.9-13
JC61-01494A
FRAME-M-ITB
1
SNA
5.9-14
JC61-01495A
FRAME-M-WASTE ITB
1
SNA
5.9-15
JC61-01497A
HOUSING-M-CLEANING ITB
1
SNA
5.9-16
JC61-01498A
HOLDER-M-BUSH CHARGE
1
SNA
5.9-17
JC61-01499A
GUIDE-M-POLE ITB
1
SNA
5.9-18
JC61-01502A
BRACKET-P-HOUSING LEFT
1
SNA
5.9-19
JC61-01503A
BRACKET-P-HOUSING RIGHT
1
SNA
5.9-20
JC61-01504A
PLATE-P-GND ITB
1
SNA
5.9-21
JC61-01506A
HOLDER-M-HOME SENSOR
1
SNA
5.9-22
JC61-01536A
BUSH-M-CHARGE CLEANING
1
SNA
5.9-23
JC61-01539A
BUSH-M-DRIVE ITB
1
SNA
5.9-24
JC61-01540A
BUSH-M-ITB
1
SNA
5.9-25
JC61-01541A
BUSH-M-TR ITB
2
SNA
5.9-26
JC61-01542A
BUSH-M-IDLER WASTE BELT
1
SNA
5.9-27
JC61-01543A
BUSH-CHARGE LEFT
1
SNA
5.9-28
JC61-01701A
SPRING ETC-SHUTTER
1
SNA
5.9-29
JC61-01777A
HOLDER-BLADE ITB
2
SNA
5.9-30
JC61-01803A
SPRING ETC-GROUND ITB
1
SNA
5.9-31
JC62-00210A
SEAL-AUGER OPC
1
SNA
5.9-32
JC62-00212A
SEAL-BELT ITB
1
SNA
5.9-33
JC62-00213A
SEAL-LOW ITB
1
SNA
5.9-34
JC62-00217A
SEAL-COVER WASTE
1
SNA
5.9-35
JC62-00219A
SEAL-BACK ITB
1
SNA
5.9-36
JC62-00221A
SEAL-BACK ITB RIGHT
2
SNA
5.9-37
JC62-00222A
SEAL-SIDE ITB LEFT
2
SNA
5.9-38
JC62-00223A
SEAL-SIDE ITB RIGHT
2
SNA
5.9-39
JC62-00229A
SEAL-BLADE ITB LEFT
2
SNA
5.9-40
JC62-00232A
SEAL-TOP ITB
1
SNA
5.9-41
JC62-00257A
SEAL-FRAME WASTE ITB
1
SNA
5.9-42
JC62-00258A
SEAL-WASTE OPC
1
SNA
5.9-43
JC62-00281A
SEAL-HOUSING ITB L
1
SNA
5.9-44
JC62-00282A
SEAL-HOUSING ITB R
1
SNA
5.9-45
JC62-00326A
SEAL-WASTE SIDE
1
SNA
Service Manual
Samsung Electronics
5-25
Exploded Views & Parts List
Cartridge-Transfer Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
5.9-46
JC63-00857A
COVER-M-WASTE ITB
5.9-47
JC63-00859A
COVER-M-WASTE EXIT
1
SNA
5.9-48
JC63-00862A
COVER-M-HANDLE ITB
1
SNA
5.9-49
JC63-01049A
SHEET-HOUSING ITB
1
SNA
5.9-50
JC63-01110A
SHEET-BRACKET ITB
1
SNA
5.9-51
JC63-01124A
SHEET-HOUSING ITB F
1
SNA
5.9-52
JC63-01170A
SHEET-BLADE ITB
1
SNA
5.9-53
JC66-01082A
ARM-M-BLADE ITB
1
SNA
5.9-54
JC66-01083A
SHAFT-M-BELT WASTE
1
SNA
5.9-55
JC66-01085A
SHAFT-M-AUGER ITB
1
SNA
5.9-56
JC66-01087A
GEAR-AUGER ITB
1
SNA
1
Service Remark
SNA
5.9-57
JC66-01131A
ROLLER-T1
1
SNA
5.9-58
JC66-01314B
DRUM-ITB BELT
1
SNA
5.9-59
JC68-10914D
LABEL(P)-SERIAL NO
1
SNA
5.9-60
JC72-40332A
PMO-BUSHING_CHARGE
1
SNA
5.9-61
JC73-00222A
RUBBER-BELT WASTE ITB
1
SNA
5.9-62
JC97-02645A
MEA UNIT-BLADE ITB
1
SNA
5.9-63
JC61-01500A
BRACKET-P-CLEANING ITB
1
SNA
5.9-64
JC61-01673A
BLADE-CLEANING ITB
1
SNA
5.9-65
JC97-02646A
MEA UNIT-ROLL DRV ITB
1
SNA
5.9-66
6031-001547
WASHER-PLAIN
1
SNA
5.9-67
6044-000125
RING-E
1
SNA
5.9-68
JC61-01562A
GUIDE-M-DRIVE ITB
1
SNA
5.9-69
JC66-01129A
ROLLER-DRIVE ITB
1
SNA
5.9-70
JC66-01137A
GEAR-DRIVE ITB
1
SNA
5.9-71
JC97-03003A
MEA UNIT-ROLLER IDLE
1
SNA
5.9-73
JC61-01526A
GUIDE-M-BUSH IDL ITB R
1
SNA
5.9-74
JC66-01130A
ROLLER-IDLE ITB
1
SNA
5.9-75
JC97-03004A
MEA-GUIDE IDLE ITB
1
SNA
5.9-76
JC61-02185A
GUIDE-BUSH IDLE L
1
SNA
5.9-77
JC71-10322B
NPR-EARTH OPC
1
SNA
5-26 Service Manual
Samsung Electronics
Exploded Views & Parts List
11
9
12
5
6
7
11
4
8
10
0
1
3
2
5.10 Cartridge-Drum
Service Manual
Samsung Electronics
5-27
Exploded Views & Parts List
Cartridge-Drum Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.10-0
JC96-04760A
ELA UNIT-OPC DEV SET
1
SNA
5.10-1
JC96-04728A
ELA UNIT-DEV_MAIN_SET
1
SNA
5.10-2
JC69-01013A
CUSHION-DEVE
2
SNA
5.10-3
JC67-00199A
CAP-DEVE
4
SA
5.10-4
JC97-03031A
MEA UNIT-W_TONER_TANK
1
SNA
5.10-5
JC97-02615D
MEA UNIT-DEV C
1
SNA
5.10-6
JC97-02614D
MEA UNIT-DEV M
1
SNA
5.10-7
JC97-02613D
MEA UNIT-DEV Y
1
SNA
5.10-8
JC97-02616D
MEA UNIT-DEV K
1
SNA
5.10-9
JC97-03076A
MEA UNIT-OPC SET
1
SNA
5.10-10
6107-001292
SPRING-CS
1
SNA
5.10-11
6003-000282
SCREW-TAPTITE
2
SNA
5.10-12
6006-001078
SCREW-TAPTITE
2
SNA
5-28 Service Manual
Description
QT'y
Service Remark
Samsung Electronics
Exploded Views & Parts List
19 20
13
17
1
12
2
3
15
4
16
14
5
7
6
8
10
18
9
11
0
21
22
(BK)
23
24
25
26
5.11 Toner BK
Service Manual
Samsung Electronics
5-29
Exploded Views & Parts List
Toner BK Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.11-0
-
5.11-1
5.11-2
Description
QT'y
Service Remark
ELA UNIT-TONER TANK K
1
SNA
JC67-00264A
CAP-BOTTLE BK
1
SNA
JC72-01384A
SPONGE-CAP BOTTLE
1
SNA
5.11-3
JC66-01095A
GEAR-AGITATOR BOTTLE
1
SNA
5.11-4
JC67-00140A
CAP-M-CRUM BOTTLE BK
1
SNA
5.11-6
6031-001577
WASHER-PLAIN
1
SNA
5.11-8
JC64-00218A
SHUTTER-M-TONER BOTTLE
1
SNA
5.11-9
-
TONER-CRUM
1
SNA
5.11-10
JC63-01253A
SHEET-BOTTLE AUGER
1
SNA
5.11-11
JC61-01677A
SPRING ETC-RETURN
1
SNA
5.11-12
JC67-00259A
TANK-TONER BOTTLE BK
1
SNA
5.11-13
JC63-01490A
SHEET-AGITATOR BK
1
SNA
5.11-14
JC66-01591A
SHAFT-SPRING
1
SNA
5.11-15
JC61-01676A
SPRING ETC-AUGER K
1
SNA
5.11-17
JC66-01589A
SHAFT-AUGER
1
SNA
5.11-21
JC63-01492A
COVER-INNER BK
1
SNA
5.11-22
JG72-40960A
PMO-CAP TONER
1
SNA
5.11-23
JC66-01139A
GEAR-AUGER A
1
SNA
5.11-24
JC66-01141A
GEAR-AUGER Z15
1
SNA
5.11-25
JC67-00260A
CAP-TONER BOTTLE BK
1
SNA
5.11-26
JC64-00339A
HANDLE-BOTTLE BK
1
SNA
5-30 Service Manual
Samsung Electronics
Exploded Views & Parts List
1
12
2
3
4
15
7
5
16
6
8
14
17
13
10
9
11
19
20
18
0
21
22
24
23
(C, M, Y)
25
26
5.12 Toner CMY
Service Manual
Samsung Electronics
5-31
Exploded Views & Parts List
Toner CMY Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.12-0
-
5.12-1
5.12-2
Description
QT'y
Service Remark
ELA UNIT-TONER TANK C,M,Y
1
SNA
JC67-00187A
CAP-BOTTLE
1
SNA
JC72-01384A
SPONGE-CAP BOTTLE
1
SNA
5.12-3
JC66-01095A
GEAR-AGITATOR BOTTLE
1
SNA
5.12-4
JC67-00141A
CAP-M-CRUM BOTTLE
1
SNA
5.12-6
6031-001577
WASHER-PLAIN
1
SNA
5.12-8
JC64-00218A
SHUTTER-M-TONER BOTTLE
1
SNA
5.12-9
-
TONER-CRUM
1
SNA
5.12-10
JC63-01253A
SHEET-BOTTLE AUGER
1
SNA
5.12-11
JC61-01677A
SPRING ETC-RETURN
1
SNA
5.12-12
JC67-00258A
TANK-TONER BOTTLE
1
SNA
5.12-13
JC63-01491A
SHEET-AGITATOR
1
SNA
5.12-14
JC66-01591A
SHAFT-SPRING
1
SNA
5.12-15
JC61-02391A
SPRING ETC-AUGER RU
1
SNA
5.12-17
JC66-01589A
SHAFT-AUGER
1
SNA
5.12-21
JC63-00894A
COVER-INNER
1
SNA
5.12-22
JG72-40960A
PMO-CAP TONER
1
SNA
5.12-23
JC66-01139A
GEAR-AUGER A
1
SNA
5.12-24
JC66-01141A
GEAR-AUGER Z15
1
SNA
5.12-25
JC67-00263A
CAP-TONER BOTTLE
1
SNA
5.12-26
JC64-00340A
HANDLE-BOTTLE
1
SNA
5-32 Service Manual
Samsung Electronics
Exploded Views & Parts List
1
2
4
3
0
5
9
6
7
8
12
6
7
13
18
14
11
17
15
19
14
10
17
16
5.13 Cassette
Service Manual
Samsung Electronics
5-33
Exploded Views & Parts List
Cassette Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
5.13-0
JC97-02332D
5.13-1
JC63-00869C
5.13-2
JC63-00855A
5.13-3
JC68-00780A
LABEL-WARNING
1
SNA
5.13-4
JC61-01531A
STOPPER-PAPER REAR
1
SNA
5.13-5
JC63-00872A
TRAY-M-EXIT CASSETTE
1
SNA
5.13-8
JC61-01530C
FRAME-SEMI CASSETTE
1
SNA
5.13-9
JC70-00516A
ADJUST-M-CASSETTE R
1
SA
5.13-10
JC70-00517A
ADJUST-M-CASSETTE L
1
SA
5.13-11
JG66-40003A
GEAR-PINION
1
SA
5.13-12
JC68-01680A
LABEL-INSTRUCTION
1
SNA
5.13-13
JF68-10532B
LABEL(P)-BAR CODE
1
SNA
5.13-14
6107-001240
SPRING-CS
2
SNA
5.13-15
JC64-00223A
LOCKER-M-KNOCK UP L
1
SA
5.13-16
JC64-00222A
LOCKER-M-KNOCK UP R
1
SA
5.13-17
JG61-70531A
SPRING ETC-LOCKER,PLATE
2
SA
5.13-18
JC61-01158A
PLATE-M-KNOCK_UP
1
SA
5-34 Service Manual
Description
MEA-UNIT CASSETTE
QT'y
Service Remark
1
SA
TRAY-EXTENSION SMALL
1
SNA
COVER-M-CASSETTE
1
SA
Samsung Electronics
Samsung Electronics
4
5
22
S1
0
6
25
7
4
23
26
37
38
27
28
30
24
29
13
11 15
10
4
39
3
1
18
9
8
16
36
33
S1
11
18
17
4
2
32
21
15
14
31
34
20
35
12
19
Exploded Views & Parts List
5.14 SCF-Frame 1
Service Manual
5-35
Exploded Views & Parts List
46-5
46-1
46-3
50
0
47
46-4
46-2
42
46
49
43
44
45
48
SCF-Frame 2
5-36 Service Manual
Samsung Electronics
Exploded Views & Parts List
SCF-Frame Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.14-0
JC96-04309A
ELA HOU-FRAME SCF
1
SNA
5.14-1
JC63-01032A
COVER-M-GROUND
1
SA
5.14-2
JC61-01661A
PLATE-P-COVER
1
SA
5.14-3
JC97-02812A
MEA UNIT-TERMINAL GND
4
SA
5.14-4
JC72-00983A
PMO-LOCKER CST
4
SA
5.14-5
JC61-01666A
FRAME-M SCF
1
SNA
5.14-6
JC63-00492A
COVER-M-SIMM R2
1
SA
5.14-7
JC61-00937A
GUIDE-M-KNOCK UP
1
SA
5.14-8
JC61-00909A
HOUSING-M-PICK UP_R2
1
SA
5.14-9
JC61-00910A
HOUSING-M-PICK UP2_R2
1
SA
5.14-10
JC72-01231A
SPONGE-ROLLER PICK_UP
1
SA
5.14-11
JC61-00915A
STOPPER-M-PICK UP_R2
2
SA
5.14-12
JC61-00586A
BUSH-M-PICK_UP L
1
SA
5.14-13
JC61-00587A
BUSH-M-PICK_UP R
1
SA
5.14-14
JC66-00399A
SHAFT-P-PICK_UP
1
SA
5.14-15
JC66-00720A
SHAFT-P-CORE
2
SA
5.14-16
JC72-00982A
PMO-IDLE PICK_UP
2
SA
5.14-17
JC66-00598A
ROLLER-FEED
1
SA
5.14-18
JC72-00382B
PMO-BUSHING FEED
2
SA
5.14-19
JC97-02741A
MEA UNIT-GEAR PICKUP
1
SA
5.14-20
JC96-03003A
ELA HOU-MOTOR SCF
1
SA
5.14-21
3301-001635
CORE-FERRITE
1
SNA
5.14-22
JC61-40001A
FOOT-ML80
2
SA
5.14-23
JC92-01832A
PBA SUB-SCF
1
SA
5.14-24
JC92-01799A
PBA SUB-SCF_EMP
1
SA
5.14-25
JC92-01800A
PBA SUB-SCF_OPEN
1
SA
5.14-26
JC39-00102A
CBF HARNESS-SCF_8P
1
SA
5.14-27
JC67-00201A
BRUSH-ANTISTATIC_SCF
1
SNA
5.14-28
JC63-00527A
SHEET-BRUSH
1
SA
5.14-29
JC63-00369A
SHEET-COVER SENSOR
1
SA
5.14-30
JC72-00975A
PMO-ACTUATOR EMPTY
1
SA
5.14-31
6044-000001
RING-CS
1
SNA
5.14-32
6107-001170
SPRING-TS
1
SA
5.14-33
JC66-00377A
CAM-M-PICK_UP
1
SA
5.14-34
JC66-01214A
SHAFT-M-FEED
1
SA
5.14-35
JC66-00394A
GEAR-FEED 2
1
SA
5.14-36
JC33-00010C
SOLENOID-SCF
1
SA
5.14-37
JC63-01039A
GROUND-P-PBA
1
SNA
5.14-38
JC63-01040A
GROUND-P-FEED_ROLL
1
SA
5.14-39
JC63-01041A
GROUND-P-DRIVE
1
SNA
5.14-40
6003-000196
SCREW-TAPTITE
19
SNA
5.14-41
6006-001078
SCREW-TAPTITE
2
SNA
5.14-42
JC63-01031A
COVER-M-JAM
1
SA
Service Manual
Samsung Electronics
5-37
Exploded Views & Parts List
SCF-Frame Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
5.14-43
6107-001047
SPRING-ES
5.14-44
JC66-00529A
ROLLER-M-IDLE FEED
2
SA
5.14-45
JC61-01657A
GUIDE-M-PICK UP
1
SA
5.14-46
JC61-00580A
HOLDER-M-PAD
1
SA
5.14-47
JC63-00290A
SHEET-HOLDER PAD
1
SA
5.14-48
JC73-00140A
RPR-FRICTION PAD
1
SA
5.14-49
JC70-00314A
IPR-PLATE PAD
1
SA
2
Service Remark
SA
5.14-50
JC61-70911A
SPRING ETC-EXIT ROLL FD
1
SA
5.14-51
JC63-01033A
COVER-M-LEFT SCF
1
SA
5.14-52
JC63-01034A
COVER-M-RIGHT SCF
1
SA
5.14-53
JC63-01035A
COVER-M-REAR SCF
1
SA
5-38 Service Manual
Samsung Electronics
Exploded Views & Parts List
7
4
11
10
0
12
9
14
6
5
2
3
15
13
3
1
8
5.15 SCF Cassette
Service Manual
Samsung Electronics
5-39
Exploded Views & Parts List
SCF Cassette Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer#
SEC_Code
Description
QT'y
Service Remark
5.15-0
JC97-02742C
MEA UNIT-CASSETTE
1
SA
5.15-1
JC61-01658C
FRAME-CASSETTE SCF
1
SNA
5.15-2
6003-000269
SCREW-TAPTITE
1
SA
5.15-3
6107-001166
SPRING-CS
2
SA
5.15-4
JC63-01036C
COVER-FRONT SCF
1
SA
5.15-5
JC61-01662A
PLATE-P-KNOCKUP SCF
1
SA
5.15-6
JC66-00719A
CAM-M-KNOCK UP
1
SA
5.15-7
6003-000264
SCREW-TAPTITE
1
SNA
5.15-8
JC70-00523A
ADJUST-M-SCF R
1
SA
5.15-9
JC70-00524A
ADJUST-M-SCF L
1
SA
5.15-10
JC63-00855A
COVER-M-CASSETTE
1
SA
5.15-11
JC61-01664A
GUIDE-M REAR SCF
1
SA
5.15-12
JC72-00972A
PMO-PLATE_LOCKER
1
SA
5.15-13
JC73-00141A
RPR-PAD CASSETTE
1
SA
5.15-14
JG61-70531A
SPRING ETC-LOCKER,PLATE
1
SA
5.15-15
JG66-40003A
GEAR-PINION
1
SA
5-40 Service Manual
Samsung Electronics
Samsung Electronics
AT88SC0204C
HVPS
BIAS DC
BIAS AC
T2
T1
CHARGER
SCL
SDA
SCL
SDA
SCL
SDA
SCL
SDA
AT34C02
EEPROM
DEVE_JOINT
ISP1582
USB2.0 DRIVER
SCF
SOLENOID
/ CLUTCH
SENSOR
OPE
BLDC
LSU
AT24C64
EEPROM
ADDR[9:2]
SCL
SDA
LD POWER
LOCAL BUS
K_SCRUM
AT88SC0204C
C_SCRUM
AT88SC0204C
M_SCRUM
AT88SC0204C
USB2.0
DATA[31:16]
ADDR 23:2]
DATA[31:0]
DATA[31:0]
ADDR 23:2]
VCLK
UART
GPIO
PULSE WIDTH
MODULATOR
MOTOR
CONTROLLER
ADC/DAC
LSU I/F
ENGINE
CONTROLLER
I2C
CONTROLLER
LOCAL
300MHz 32bits Processor / 496PBGA
AHB BUS
I/D cache
(16KB, 16KB)
ARM920T
MPU: CHORUSm
SYSTEM CLK
ROTATOR/
SCALER/
HALFTONER
GRAPHIC
EXECUTION
UNIT
PVC
HPVC
SDRAM
CONTROLLER
ETHERNET
3.3V
1.2V
SA[12:0]
SD[31:0]
MAC CONTROL
DC-DC
CONVERTOR
DC-DC
CONVERTOR
256Mbit ◊ 4
(SODIMM MODULE)
EXTEND SDRAM
256Mbit ◊ 4
BASE SDRAM
BCM5241
N/W TRANS.
PCLK
5V
SMPS
MAC CONTROL
RJ-45 M.JACK
6
Y_SCRUM
USB2.0 PORT
USB_CLK
MX29LV128MT
MX29LV64MT ◊ 2
FLASH
FLASHROM
ROM
nRESET
SYSTEM RESET
System Diagram
6. System Diagram
6.1 Block Diagram
SYSTEM BUS
SFR BUS
Service Manual
6-1
Samsung Electronics
Service Manual
220V/
110V
220V/
110V
FUSER
LAMP
INLET
6-2
Main
S/W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
EXIT
SENSOR
LED
PANEL
REAR
DEVE_HOME
SENSOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
MOTOR
FAN
CN102
WASTE_LAMP
CN21 HVPS
1
VIDEO
Fan
CN23
CN22 LSU
CL
2
DEV_CLUTCH
SOL
+24VF
1
2
3
+24VF
NC
ITB_CLUTCH
ITB
Clutch
CN10
CN104
CN5
DEVE_HOME
ITB_CLUTCH
MOTOR_FAN
+24VF
2
CN13 PANEL
CN4
CN103
+24VA
1
+24VF
FUSER_ON
DGND
+24VA
DGND
+24VA
DGND
+24VA
DGND
+24V
DGND
+5V
DGND
+5V
DGND
+5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CN15 SMPS
COVER_OPEN
DEV_SOL
EXIT_SENSOR
FRONT
VINB
GND
VING
GND
VINR
GND
24V
5V
SW2
CIP4_SH
CIP4_CPCIP4_CP+
CIP4_PI2-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
+5V
EXIT_SENSOR
DGND
1
2
3
CN16
+5V
nDEV_HOME
DGND
+24V
1
+24VF
+24VF
DGND
DGND
nDEV_EN
PWM_DEV_VPP
PWM_DEV_AC
PWM_DEV_DC
PWM_ITHV
PWM_THV
PWM_MHV
nTHV_EN
ITHV_READ
THV_READ
MHV_READ
nP_EXIT
FAN_MAIN
DEV_SOL1
DEV_SOL2
DEV_SOL3
DEV_SOL4
OUT_TEMP
WASTE_LE
DGND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
MOTOR_FAN
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
+5V_LSU
nHSYNC1
DGND
nLD_EN
VDO1_minus
VDO1_plus
LSU_SH1
LD_POWER1
LSU_MOT_CLK
LSU_READY
LSU_MOTOR_EN
DGND
+24V
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
DEVE
SOLENOID
+5V
NC
WASTE_LAMP
1
2
3
nHSYNC1
+5V_LSU
DGND
nLD_EN
VDO1_minus
VDO1_plus
LSU_SH1
LD_POWER1
MOTOR
LSU_MOT_CLK
nLSU_READY
nLSU_MOT_EN
DGND
+24V
1
2
3
4
5
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
+24V
+3.3V
+3.3V
SCF_RXD
nSCF_DETECT
SCF_TXD
DGND
DGND
+5V
DGND
nITB_HOME
Eraser_LAMP
+5V
UNIT
1
2
3
4
5
CN7
1
2
3
4
5
6
7
8
9
10
ITB_HOME
SENSOR
1
2
3
4
5
CN24
1
2
CN25
PICKUP
SOLENOID
FUSER
Thermistor
USB
RJ-45
MODULAR
JACK
CN8
FUSER_THER
CN28
FUSER_CLUTCH
REGI_CLUTCH
T2_CLUTCH
ERASER
1
2
3
4
5
6
7
8
9
10
+24VF
+24VF
DGND
DGND
DGND
+5V
nMOTOR_EN
MOTOR_READY
PWM_MOT
+5V(DIR)
+24VF
FUSER_CLUTCH
CL
1
2
CL
THERM1
THERM2
FUSER
Clutch
+24VF
PICKUP_SOLENOID
T2
Clutch
REGI
P_EMPTY
SENSOR SENSOR
SOL
1
2
3
+24VF
NC
THV_CLUTCH
CN20
REGI&EMPTY
CL
CN19 DEVE&ITB
+3.3V
+5V
DGND
DGND
SCL
nITB_HOME
SDA
PLT_LAMP
DGND
TONER_LED_EN
ADC_SEL0
ADC_SEL1
ADC_SEL2
ADC_MUX_OUT
TONER_MOT/SOL_Y
TONER_MOT/SOL_M
TONER_MOT/SOL_C
TONER_MOT/SOL_K
DGND
+24VF
+5V_LSU_IN
+5V_LSU_OUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
CN2 BLDC
+5V
nP_EMPTY
DGND
+5V
nREGI_SENS
DGND
+5V
MP_SENS
DGND
NC
1
2
3
4
5
6
7
8
9
10
BLDC
+24VF
NC
REGI_CLUTCH
1
2
3
MT
1
2
Main
Motor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CN20 LSU
+24V
+3.3V
+3.3V
SCF_RXD
nSCF_DETECT
SCF_TXD
DGND
DGND
ITB
6.2.1 Main Layout
6.2 Connection Diagram
System Diagram
FRONT
24V
Samsung Electronics
REAR
COVER OPEN
SWITCH
24V, 5V
Thermistor
5V -> MVPG31 -> 3.3V
24V, 5V, 3.3V
AC
CLUTCH, SOLENOID
SCF
24V, 3.3V
5V, 3.3V
5V, 3.3V
24V, 5V
OPE
DEVE_HOME, REGI, EMPTY, EXIT, WASTE
SENSOR
LSU
IMAGING, ITB UNIT
HVPS
24V, 5V, 3.3V
24V, 5V, 3.3V
BLDC
DEVE, T2, REGI, PICK UP, ITB, FUSER, TONER YMCK
24V, 5V, 3.3V
24V
System Diagram
6.2.2 Power
Service Manual
6-3
6-4
2P 2P
WASTE LED
2P
2P
2P
TONER
SOLENOID YMCK
3P
3.3V
5V
24V
POWER
SCL
SDA
ADC_SEL0
ADC_SEL1
ADC_SEL2
ITB_HOME
ERASER_LAMP
TONER_LED_EN
ADC_MUX_OUT
TONER SOL Y
TONER SOL M
TONER SOL C
TONER SOL K
SIGNAL
IMAGING UNIT
2P
ERASER
LAMP
SIGNAL
nITB_HOME
5V
ITB
POWER
System Diagram
6.2.3 Imaging, ITB Unit
Service Manual
Samsung Electronics
Samsung Electronics
SIGNAL
WASTE_LAMP
5V
WASTE LED_R
POWER
5V
5V
POWER
EXIT_SENSOR
SIGNAL
EXIT SENSOR
SIGNAL
nHSYNC1
nLD_EN
VDO1_minus
VDO1_plus
LSU_SH1
LD_POWER1
LSU_VIDEO
POWER
DEVE
DEVE
BIAS
SUPPLY
CHARGER
T1
T2
3.3V
5V
24VF
POWER
24V
5V
nDEV_EN
PWM_DEV_VPP
PWM_DEV_AC
OWM_DEV_DC
PWM_ITHV
PWM_THV
PWM_MHV
nTHV_EN
ITHV_READ
THV_READ
MHV_READ
nP_EXIT
FAN_MAIN
DEV_SOL1
DEV_SOL2
DEV_SOL3
DEV_SOL4
OUT_TEMP
WASTE_LED
SIGNAL
HVPS
SIGNAL
LSU_MOT_CLK
nSLU_READY
nLSU_MOT_EN
LSU_MOTOR
POWER
System Diagram
6.2.4 HVPS, LSU
Service Manual
6-5
6-6
3.3V
SIGNAL
SCF_RXD
nSCF_DETECT
SCF_TXD
OUT1A
OUT1B
OUT2A
OUT2B
24V
24V
SIGNAL
POWER
STEP MOTOR
SIGNAL
OP_K_LED
OP_Y_LED
OP_M_LED
OP_C_LED
OP_STA_LED1
OP_STA_LED2
OP_MOD_LED
nOP_KEY_MODE
nOP_KEY_ONLINE
OPE
POWER
SCF
3.3V
5V
POWER
COVER OPEN
SENSOR
P_EMPTY
SENSOR
PICKUP
SOLENOID
SIGNAL
nMOTOR_EN
MOTOR_READY
PWM_MOTOR
24VF
5V
3.3V
BLDC
POWER
System Diagram
6.2.5 SCF, OPE, BLDC
Service Manual
Samsung Electronics
Samsung Electronics
REGI
SENSOR
DEVE_HOME
SENSOR
DEVE
CLUTCH
ITB
CLUTCH
EMPTY
SENSOR
T2
CLUTCH
REGI
CLUTCH
PICK UP
SOLENOID
FUSER
CLUTCH
System Diagram
6.2.6 Sensor, Clutch, Solenoid
Service Manual
6-7
Reference Information
7
7. Reference Information
This chapter contains the tools list, list of abbreviations used in this manual, and a guide to the
location space required when installing the printer. A definition of tests pages and Wireless
Network information definition is also included.
7.1 Tools for Troubleshooting
The following tools are recommended safe and easy troubleshooting as described in this service manual.
• DVM(Digital Volt Meter)
Standard : Indicates more than 3 digits.
• Driver
Standard : "-" type, "+" type (M3 long, M3 short, M2
long, M2 short).
• Cleaning Equipments
Standard : An IPA(Isopropyl Alcohol)dry wipe tissue or a
gentle neutral detergent and lint-free cloth.
• Vacuum Cleaner
• Brush
• Tweezers
Standard : For general home use, small type.
• Cotton Swab
Standard : For general home use, for medical service.
• Software (Driver) installation CD ROM
Install Driver CD
Network S/W CD
Service Manual
Samsung Electronics
7-1
Reference Information
7.2 Acronyms and Abbreviations
The table below explains the abbreviations and acronyms used in this service manual. Where abbreviations
or acronyms are used in the text please refer to this table.
7-2
ADC
Analog-to-Digital-Conversion
EPP
Enhanced Parallel Port
AP
Access Point
F/W
Firmware
AC
Alternating Current
FCF/FCT
ASIC
Circuit
Application Specific Integrated
First Cassette Feeder/First
Cassette Tray
FISO
Front-In, Side-Out
ASSY
Assembly
FPOT
First Print out Time
BIOS
Basic Input Output System
GDI
Windows Graphic Device Interface
BLDC Motor
Brushless DC Motor
GIF
Graphic Interchange Format
CLBP
Color Laser Beam Printer
GND
Ground
CMOS
Complementary Metal Oxide
Semiconductor
HBP
Host Based Printing
HDD
Hard Disk Drive
CMYK
Cyan, Magenta, Yellow, Black
HTML
Hyper Text Transfer Protocol
CN
Connector
HV
High Voltage
CON
Connector
HVPS
High Voltage Power Supply
CPU
Central Processing Unit
I/F
Interface
CTD Sensor
Color Toner Density Sensor
I/O
Input and Output
dB
Decibel
lb
Pound(s)
dBA
A-Weighted decibel
IC
Integrated Circuit
dBm
Decibel milliwatt
ICC
International Color Consortium
DC
Direct Current
IDE
DCU
Diagnostic Control Unit
Intelligent Drive Electronics or
Integrated Drive Electronics
DIMM
Dual In-line Memory Module
IEEE
DPI
Dot Per Inch
Institute of Electrical and
Electronics Engineers. Inc
DRAM
Dynamic Random Access Memory
IOT
Image Output Terminal (Color printer, Copier)
DVM
Digital Voltmeter
IPA
Isopropy Alcohol
ECP
Enhanced Capability Port
IPC
ECU
Engine Control Unit
Inter Process CommunicationEPP
Enhanced parallel Port
EEPROM
Electronically Erasable
Programmable Read Only Memory
IPM
Images Per Minute
ITB
Image Transfer Belt
EMI
Electro Magnetic Interference
LAN
local area network
EP
Electro photographic
LBP
Laser Beam Printer
Service Manual
Samsung Electronics
Reference Information
LCD
Liquid Crystal Display
PTB
Paper-Transfer Belt
LED
Light Emitting Diode
PWM
Pulse Width Moduration
LSU
Laser Scanning Unit
Q’ty
Quantity
MB
Megabyte
RAM
Random Access Memory
MHz
Megahertz
RCP
Remote Control Panel
MPBF
Mean Prints Between Failure
ROM
Read Only Memory
MPF/MPT
Multi Purpose Feeder/Multi
Purpose Tray
SCF/SCT
Second Cassette Feeder/Second
Cassette Tray
NIC
Network Interface Card
SMPS
Switching Mode Power Supply
NPC
Network Printer Card
SPGP
NVRAM
Nonvolatile Random Access
Memory
Samsung Printer Graphic
Processor
SPL
Samsung Printer Language
OPC
Organic Photo Conductor
SPL-C
Samsung Printer Language-Color
PBA
Printed Board Assembly
Spool
PCL
Printer Command Language ,
Printer Control Language
Simultaneous Peripheral Operation
Online
SRS
Software Requirment Specification
SURF
Surface Rapid Fusing
SW
Switch
sync
Synchronous or Synchronization
T1
ITB
T2
Transfer Roller
PCI
PCL5Ce
Peripheral Component
Interconnect by Intel 1992/6/22, is
a local bus standard developed by
Intel and introduced in April, 1993 :
A60, B60 Pins
Printer Command Language 5CeColor
PCL6
Printer Command Language 6
TRC
Toner Reproduction Curve
PDF
Portable Document Format
PnP
Universal Plug and Play
PDL
Page Description Language
U.I.
User Interface
Ping
Packet internet or Inter-Network
Groper
URL
Uniform Resource Locator
PPD
Postscript Printer Discription
USB
Universal Serial Bus
PPM
Page Per Minute
VCCI
PS
Post Script
Voluntary Control Council for
Interference Information
Technology Equipment
PS3
Post Script Level3
WECA
Alliance
Wireless Ethernet Compatibility
PTL
Pre-Transfer Lamp
Wi-Fi
Wireless Fidelity
Service Manual
Samsung Electronics
7-3
Reference Information
7.3 Select a location for the printer
• Leave enough room to open the printer trays, covers, and allow for proper ventilation. (see diagram
below)
• Provide the proper environment :
- A firm, level surface
- Away from the direct airflow of air conditioners, heaters, or ventilators
- Free of extreme fluctuations of temperature, sunlight, or humidity
- Clean, dry, and free of dust
7-4
Service Manual
Samsung Electronics
Reference Information
7.4 A4 ISO 19752 Standard Pattern
This test page is reproduced at 70% of the normal A4 size
Service Manual
Samsung Electronics
7-5
ELECTRONICS
GSPN (Global Service Partner Network)
North America : service.samsungportal.com
Latin America : latin.samsungportal.com
CIS : cis.samsungportal.com
Europe : europe.samsungportal.com
China : china.samsungportal.com
Asia : asia.samsungportal.com
Mideast & Africa : mea.samsungportal.com
Samsung Electronics Co.,Ltd. Sep. 2007
Printed in Korea.
VERSION NO. : 1.00
CODE : 0350-C0XAA
