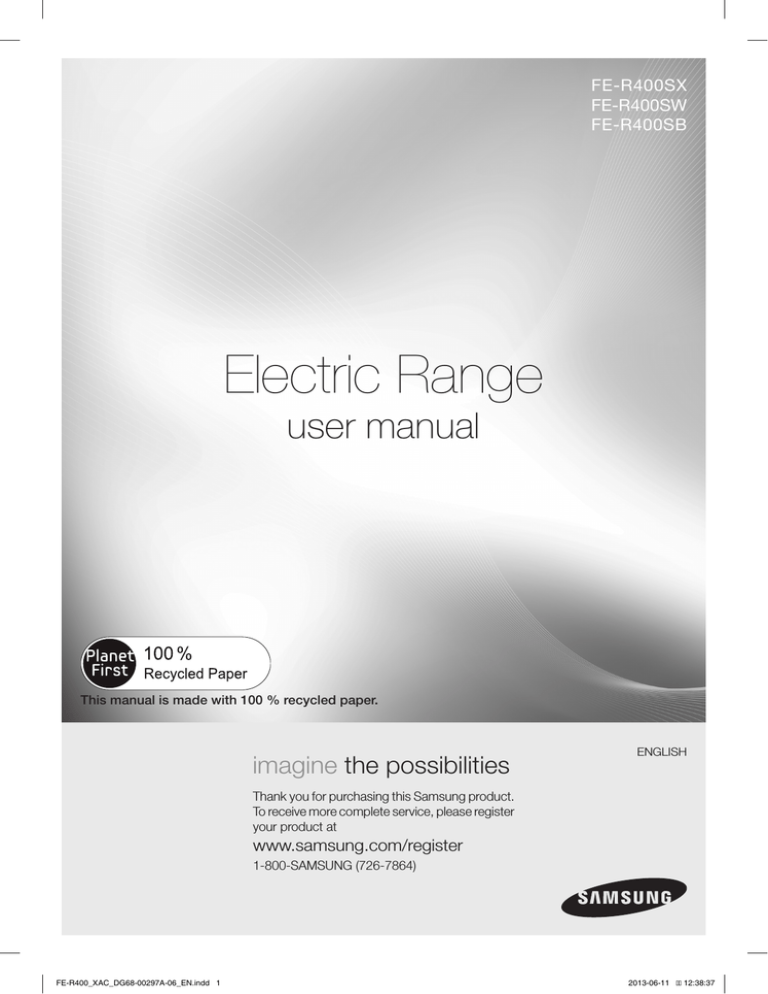

Samsung DG68-00297A User manual

FE-R400SX
FE-R400SW
FE-R400SB
Electric Range
user manual
This manual is made with 100 % recycled paper.
imagine the possibilities
ENGLISH
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
1-800-SAMSUNG (726-7864)
FE-R400_XAC_DG68-00297A-06_EN.indd 1
2013-06-11 �� 12:38:37
features of your new range
Enhanced convenience. Better cooking. Easy maintenance. Your new electric range has been designed to
bring you these benefits and more.
• Steam Quick cleaning
Thanks to Steam Quick™, Samsung’s unique technology for light-duty cleaning jobs, keeping
your oven Spic-and-Span is a snap — no hassle, no odor, no chemicals. Steam Quick™ cleans
the inside of your range with high-temperature steam in just 20 minutes.
• Bigger is better
With a capacity of 5.9 cubic feet, your new range is equipped with more space than any of its
competitors in the U.S. market. This means greater convenience for you when cooking for the
holidays or when entertaining.
• A cooktop with 5 burners
Four main burners with that dial up to different pot size.
A smaller warming burner in the center of the range top.
important safety instructions
Read and follow all instructions before using your oven to prevent the
risk of fire, electric shock, personal injury, or damage when using the
range. This guide does not cover all possible conditions that may occur. Always
contact your service agent or manufacturer about problems that you do not
understand.
WHAT YOU NEED TO KNOW ABOUT SAFETY
INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all
possible conditions and situations that may occur. It is your responsibility to use
common sense, caution, and care when installing, maintaining, and operating
your oven.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
1_ features of your new range
FE-R400_XAC_DG68-00297A-06_EN.indd 1
2013-06-11 �� 12:38:37
CAUTION
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
To reduce the risk of fire, explosion, electric shock, or
personal injury when using your oven, follow these basic
safety precautions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
ANTI-TIP DEVICE
WARNING
WARNING - To reduce the risk of tipping the range, the range must be
secured by a properly installed Anti-Tip device. AFTER THE RANGE
HAS BEEN INSTALLED, CONFIRM THAT THE ANTI-TIP DEVICE
HAS BEEN PROPERLY INSTALLED AND VERIFY THAT THE ANTITIP DEVICE IS PROPERLY ENGAGED. Refer to the installation manual
for instructions.
a)If the anti-tip device is not installed, a child or adult can tip the range
and be killed.
b)Verify the anti-tip device has been properly installed and engaged at
rear right (or rear left) of the range bottom.
c)If you move the range and then move it back into place, ensure the antitip device is re-engaged at the right or left rear of the range bottom.
d)Do not operate the range without the anti-tip device in place and
engaged.
e)Failure to do so can result in death or serious burns to children or adults.
WARNING
WARNING
Do not step, lean, or sit on the doors of the range. You can cause
the range to tip, resulting in burns or serious injuries.
Important safety instructions _2
FE-R400_XAC_DG68-00297A-06_EN.indd 2
2013-06-11 �� 12:38:38
Confirm that the Anti-Tip device is installed properly. Then, to verify that
the Anti-Tip device is engaged, grasp the top rear edge of the range and
carefully attempt to tilt it forward. The Anti-Tip device should prevent the
range from tilting forward more than a few inches.
If you pull the range out from the wall for any reason, make sure the antitip device is properly engaged when you push the range back against
the wall. If it is not, there is a possible risk of the range tipping over and
causing injury if you or a child stand, sit or lean on an open door.
FOR YOUR SAFETY
When using electrical appliances, basic safety precautions should be
followed, including the following:
CAUTION-Use this appliance only for its intended purpose as described
in this Owner’s Manual.
Potentially hot surfaces include the cooktop, areas facing the cooktop,
oven vent opening, surfaces near the opening, crevices around the oven
door.
Be sure your appliance is properly installed and grounded by a qualified
technician.
User Servicing - Do not repair or replace any part of the appliance
unless specifically recommended in the manual. All other servicing should
be referred to a qualified technician.
Always disconnect power to appliance before servicing by removing the
fuse or switching off the circuit breaker.
Do not enter inside the oven.
Do not store items of interest to children in cabinets above a
range or on the back guard of a range. Children climbing on the
range to reach items could be seriously injured.
Do not leave children alone. Children should not be left alone or
unattended in an area where appliance is in use. They should never be
allowed to sit or stand on any part of the appliance.
Never use your appliance for warming or heating the room.
Do not use water on grease fires. Turn off the oven to avoid spreading
the flame. Smother the fire or flame by closing the door or use dry
chemical, baking soda, or foam-type extinguisher.
3_ features of your new range
FE-R400_XAC_DG68-00297A-06_EN.indd 3
2013-06-11 �� 12:38:38
Storage in or on appliance. Flammable materials should not be
stored in an oven or near surface units. Be sure all packing materials are
removed from the appliance before operating it. Keep plastics, clothes,
and paper away from parts of the appliance that may become hot.
Wear proper apparel. Loose-fitting or hanging garments should never
be worn while using the appliance.
Use only dry potholders. Moist or damp potholders on hot surfaces
may result in burns from steam. Do not let the potholder touch hot
heating elements. Do not use a towel or other bulky cloth.
Teach children not to play with the controls or any other part of the range.
Keep children away from the door when opening or closing it as they may
bump themselves on the door or catch their fingers in the door.
SURFACE COOKING UNITS
Never leave surface units unattended at high heat settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Do not lift the cooktop. Lifting the cooktop can lead to damage and
improper operation of the range.
Do not operate the cooktop when there is no cookware. If the
cooktop operates without a cookware, the control knob will become hot.
Never use the glass cooktop surface as a cutting board.
Important safety instructions _4
FE-R400_XAC_DG68-00297A-06_EN.indd 4
2013-06-11 �� 12:38:38
Use care when touching the cooktop. The glass surface of the
cooktop will retain heat after the controls have been turned off.
Be careful when placing spoons or other stirring utensils on glass
cooktop surface when it is in use. They may become hot and could
cause burns.
Use proper pan sizes. This appliance is equipped with surface units of
different size. Select utensils having flat bottoms large enough to cover
the surface unit heating element. The use of undersized utensils will
expose a portion of the heating element to direct contact and may result
in ignition of clothing. Proper relationship of utensil to burner will also
improve efficiency.
Glazed cooking utensils. Only certain types of glass, glass/ceramic,
ceramic,earthenware, or other glazed utensils are suitable for range-top
service without breaking due to the sudden change in temperature.
Utensil handles should be turned inward and not extend over
adjacent surface units. To reduce the risk of burns, ignition of
flammable materials, and spillage due to unintentional contact with the
utensil, the handle of a utensil should be positioned so that it is turned
inward, and does not extend over adjacent surface units.
Read and follow all instructions and warnings on the cleaning cream
labels.
Be sure you know which control knob operates each surface unit. Make
sure you turned on the correct surface unit.
Always turn the surface units off before removing cookware.
When preparing flaming foods under the hood, turn the fan on.
Keep an eye on foods being fried at high or medium high heat settings.
5_ features of your new range
FE-R400_XAC_DG68-00297A-06_EN.indd 5
2013-06-11 �� 12:38:38
OVEN
DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES
OF THE OVEN. Heating elements may be hot even though they are dark
in color. Interior surfaces of an oven become hot enough to cause burns.
During and after use, do not touch or let clothing or other flammable
materials contact heating elements or interior surfaces of oven until
they have had sufficient time to cool. Other surfaces of the appliance
may become hot enough to cause burns. Among these surfaces are
oven vent openings and surfaces near these openings, oven doors, and
windows of oven doors.
Do not heat unopened food containers. Build-up of pressure may
cause container to burst and result in injury.
Do not use the oven to dry newspapers. If overheated, they can
catch on fire.
Do not use the oven for a storage area. Items stored in an oven can
ignite.
Use care when opening door. Let hot air or steam escape before you
remove or replace food in the oven.
Protective liners. Do not use aluminum foil to line the oven bottoms,
except as suggested in the manual. Improper installation of these liners
may result in a risk of electric shock or fire.
Keep oven vent ducts unobstructed. The oven vent is located above
the right rear surface unit. this area could become hot during oven use.
Never block this vent and never place plastic or heat-sensitive items on
vent
Placement of oven racks. Always place oven racks in the desired
location while the oven is cool. If the rack must be moved while oven
is hot, do not let the potholder come in contact with the hot heating
element in the oven.
Do not allow aluminum foil or meat probe to contact heating elements.
VENTILATING HOOD
Clean ventilating hoods frequently. Grease should not be allowed to
accumulate on the hood or filter.
When flaming foods under the hood, turn the fan on.
Important safety instructions _6
FE-R400_XAC_DG68-00297A-06_EN.indd 6
2013-06-11 �� 12:38:38
SELF-CLEANING OVENS
Do not clean the door gasket. The door gasket is essential for a good
seal. Care should be taken not to rub, damage, or move the gasket.
Never keep pet birds in the kitchen. The health of birds is extremely
sensitive to the fumes released during an oven self-clean cycle. Fumes
may be harmful or fatal to birds. Move birds to a well-ventilated room.
Clean in the self-clean cycle only parts listed in this manual. Before
self-cleaning the oven, remove the broil pan , rack, utensils, and food.
No commercial oven cleaner or oven liner protective coating of any kind
should be used in or on the outside of the oven. Use only a ceramic
cooktop cleaner.
Nickel oven shelves should be removed from the oven before beginning
the self-cleaning cycle, or they may discolor.
If the self-clean mode malfunctions, turn the oven off and disconnect the
power supply. Have it serviced by a qualified technician.
GLASS/CERAMIC COOKING SURFACES
DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.
Surface units may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During and after
use, do not touch, or let clothing or other flammable materials contact
surface units or areas near units until they have had sufficient time to
cool. Among these areas are the cook-top and facing the cook-top.
Do not cook on broken cooktop. If cooktop should break, cleaning
solutions and spillovers may penetrate the broken cook-top and create a
risk of electric shock. Contact a qualified technician immediately.
Clean cooktop with caution. If a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burn. Some
cleaners can produce noxious fumes if applied to a hot surface.
BEFORE YOU BEGIN
Clean the oven thoroughly before using for the first time. Remove
accessories and operate the oven at the bake setting at 400°F for 1 hour
before using. There will be a distinctive odor; this is normal, but ensure
your kitchen is well ventilated during this conditioning period.
7_ features of your new range
FE-R400_XAC_DG68-00297A-06_EN.indd 7
2013-06-11 �� 12:38:38
WARNING
SEVERE WARNING SIGNS FOR INSTALLATION
The installation of this appliance must be performed by a qualified technician or
service company.
- Failing to do so may result in electric shock, fire, an explosion, problems with
the product, or injury.
Unpack the oven, remove all packaging material and examine the oven for any
damages such as dents on the interior or exterior of the oven, broken door
latches, cracks in the door, or a door that is not lined up correctly. If there is any
damage, do not operate the oven and notify your dealer immediately.
Plug the power cord into a properly grounded outlet of standard. Your oven
should be the only connected on this circuit.
Keep all packaging materials out of the reach of children. Children may use them
for play.
Install your appliance on a level and hard floor that can support its weight.
- Failing to do so may result in abnormal vibrations, noise, or problems with the
product.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the
product
Do not cut or remove the ground prong from the power cord under any
circumstances.
Connect the oven to a properly grounded circuit.
Do not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops).
- This may result in electric shock or fire.
Do not use a damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not operate any other heating or cooking appliance beneath this appliance.
Do not mount unit over or near any portion of a heating or cooking appliance.
Do not mount over a sink.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the
power cord, insert the power cord between objects.
- This may result in electric shock or fire.
When the power cord is damaged, contact your nearest service center.
Important safety instructions _8
FE-R400_XAC_DG68-00297A-06_EN.indd 8
2013-06-11 �� 12:38:38
CAUTION
SEVERE WARNING SIGNS FOR USING
If the appliance is flooded please contact your nearest service center : Failing to
do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke, unplug the
power plug immediately and contact your nearest service center.
- Failing to do so may result in electric shock or fire
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power cord. Do not touch the appliance.
- A spark may result in an explosion or fire.
Take care that the door, heater or any of the other parts do not come into
contact with the body while cooking or just after cooking.
- Failing to do so may result in burns.
If materials inside oven should ignite, keep the oven door closed, turn the oven
off and disconnect the power cord, or shut off power at the fuse or circuit
breaker panel. If the door is opened, the fire may spread.
Always observe Safety Precautions when using your oven. Never try to repair
the oven on your own - there is dangerous voltage inside. If the oven needs to
be repaired, contact an authorized service center near you.
Use the appliance only after closing the door.
If you use the appliance when it is contaminated by alien substances such as
food waste, it may result in a problem with the appliance.
Take care when removing the wrapping when taking food out of the appliance.
- If the food is hot, hot steam may be emitted abruptly when removing the
wrapping and this may result in burns.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Since a high voltage current enters the product chassis, it may result in
electric shock or fire.
- When repairing the appliance is required, contact your nearest service center.
If any foreign substance such as water has entered the appliance, contact your
nearest service center.
- Failing to do so may result in electric shock or fire.
Do not touch the power cord with wet hands.
- This may result in electric shock.
Do not turn the appliance off while an operation is in progress.
- This may cause a spark and result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging
materials can be dangerous to children.
- If a child places a bag over its head, it may result in suffocation.
9_ features of your new range
FE-R400_XAC_DG68-00297A-06_EN.indd 9
2013-06-11 �� 12:38:38
Do not let children or any person with reduced physical, sensory or mental
capabilities use this appliance unsupervised.
Make sure that the appliance is out of the reach of children.
- Failing to do so may result in electric shock, burns or injury.
Do not touch the inside of the appliance immediately after cooking, because
the inside of the appliance is hot after being heated for a long time or heating a
small amount of food.
- Failing to do so may result in burns.
Do not use or place inflammable sprays or objects near the oven.
- This may result in fire or an explosion.
Do not insert fingers, foreign substances or metal objects such as pins or
needles into the inlet, outlet, and holes. If foreign substances are inserted into
any of these holes, contact your product provider or nearest service center.
Do not tamper with or make any adjustments or repairs to the door. Under no
circumstances should you remove the outer cabinet.
Do not store or use oven outdoors.
Never use this appliance for purposes other than cooking.
- This may result in fire.
Open the cap or stopper of a sealed container (herb tonic tea bottle, baby
bottle, milk bottle and so on) and make a hole in food items such as shells or
nuts (eggs, chestnuts, etc) with a knife, before cooking them.
- Failing to do so may result in burns or injury.
Never heat plastic or paper containers and do not use them.
- Failing to do so may result in fire.
Do not heat food wrapped in paper such as magazines and newspaper.
- This may result in fire.
Do not open the door when the food in the cooking compartment is burning.
- If you open the door, it causes an inflow of oxygen and this may result in fire.
Do not apply excessive pressure or impact to the door or the inside of the
appliance.
- Hanging on to the door may result in the product falling and causing injury.
- If the door is damaged, do not use the appliance and contact a service
center.
Do not hold food or any part there of during or immediately after cooking.
- Use cooking gloves because it may be very hot and you could burn yourself.
Important safety instructions _10
FE-R400_XAC_DG68-00297A-06_EN.indd 10
2013-06-11 �� 12:38:38
CAUTION
CAUTION SIGNS FOR USING
When the surface is cracked, turn the power switch of the appliance off.
- Failing to do so may result in electric shock.
Dishes and containers can become hot. Handle with care.
Hot foods and steam can cause burns. Carefully remove container coverings,
directing steam away from hands and face.
Remove lids from baby food before heating. After heating baby food, stir well
to distribute the heat evenly. Always test temperature by tasting before feeding
the baby. The glass jar or surface of the food may appear to be cooler than the
interior, which can be so hot as to burn the infant’s mouth.
Make sure all cookware used in the oven.
Take care as beverages or food may be very hot after heating.
- Especially when feeding a child, check that it has cooled sufficiently.
Take care when heating liquids such as water or other beverages.
- Make sure to stir during or after cooking.
- Avoid using a slippery container with a narrow neck.
- Remove the container at least 30 seconds after heating.
- Failing to do so may result in an abrupt overflow of the contents and cause
burns.
Do not stand on top of the appliance or place objects (such as laundry, oven
cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.)
on the appliance.
- Items, such as a cloth, may be caught in the door.
- This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
- This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or
problems with the product.
Do not put your face or body close to the appliance while cooking or when
opening the door just after cooking.
- Take care that children do not come too close to the appliance.
- Failing to do so may result in children burning themselves.
Do not place food or heavy objects over the door when opening the door.
- The food or object may fall and this may result in burns or injury.
Do not abruptly cool the door, the inside of the appliance, or the dish by pouring
water over it during or just after cooking.
- This may result in damage to the appliance. The steam or water spray may
result in burns or injury.
Do not operate while empty except for self-cleaning.
11_ features of your new range
FE-R400_XAC_DG68-00297A-06_EN.indd 11
2013-06-11 �� 12:38:38
Do not defrost frozen beverages in narrow-necked bottles. The containers can
break.
Do not scratch the glass of the oven door with a sharp object.
- This may result in the glass being damaged or broken.
Do not store anything directly on top of the appliance when it is in operation.
Do not use sealed containers. Remove seals and lids before use. Sealed
containers can explode due to buildup of pressure even after oven has been
turned off.
Take care that food does not come into contact with the heater when cooking
food with the oven.
- This may result in fire.
Do not over-heat food.
- Failing to do so may result in fire.
CAUTION
SEVERE WARNING SIGNS FOR CLEANING
Do not clean the appliance by spraying water directly on to it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock or fire.
Take care not to hurt yourself when cleaning the appliance (external/internal).
- You may hurt yourself on the sharp edges of the appliance.
Do not clean the appliance with a steam cleaner.
- This may result in corrosion.
Keep the inside of the oven clean. Food particles or spattered oils stuck to the
oven walls or floor can cause paint damage and reduce the efficiency of the
oven.
CAUTION
APPLIANCE OUTLETS
The 120V appliance outlets located on the control
console may be used to run portable appliances
placed on countertops beside the range.
The outlets operate independently and are not
affected by range control settings.
Do not place portable appliances on the cooktop.
Damage to the portable appliance could result if the
cooktop is hot.
Appliance outlet circuit breakers: The circuit
breakers for the appliance outlets on your range are
located on top of the control console.They are rated
for 15 amps, that may trip if the appliance plugged
into it exceeds 15 amps. To reset the circuit breaker,
press the switch of located on the control console.
Circuit
Breakers
Appliance
Outlet
If appliance outlet don’t operate, test out your small
portable appliance by plugging into other outlets.
Important safety instructions _12
FE-R400_XAC_DG68-00297A-06_EN.indd 12
2013-06-11 �� 12:38:38
contents
INTRODUCING YOUR NEW RANGE
14
14 Overview
14 What’s included with your range
SURFACE COOKING
15
18
18
19
19
About surface cooking
How to set the appliance for surface cooking
Using the proper cookware
Choosing the proper cookware
Protecting the smoothtop surface
OPERATING THE OVEN
20
21
21
22
22
23
23
24
25
26
27
27
28
The oven control panel
Setting the clock
Setting the kitchen timer
Minimum and maximum settings
Using the oven racks
Baking
Timed cooking
Delay timed cooking
Broiling
Using the easy cook feature
Using the custom cook feature
Using the warm function
Extra features
MAINTAINING YOUR APPLIANCE
31
33
34
35
37
37
38
Self-cleaning
Steam-cleaning
Care and cleaning of the oven
Care and cleaning of the glass cooktop
Removing and replacing the oven door
Removing and replacing the storage drawer
Changing the oven light
15
20
31
TROUBLESHOOTING
39
WARRANTY
43
39 Troubleshooting
43 Warranty
13_ Contents
FE-R400_XAC_DG68-00297A-06_EN.indd 13
2013-06-11 �� 12:38:38
introducing your new range
OVERVIEW
* Surface control knobs
See page 16 for more
information
INTRODUCING
Oven control panel
See page 20 for more
information
Glass surface
Automatic oven
light switch
* Oven light
Self/steam clean latch
Oven door
Gasket
Shelf position
WHAT’S INCLUDED WITH YOUR RANGE
* Wire racks
If you need an accessory marked with a *, you can buy it from the Samsung
Contact Center (1-800-726-7864).
Introducing your new range _14
FE-R400_XAC_DG68-00297A-06_EN.indd 14
2013-06-11 �� 12:38:39
surface cooking
ABOUT SURFACE COOKING
BEFORE COOKING
CAUTION
• Do not use the glass cooktop surface as a cutting board.
• Do not place or store items that can melt or catch fire on the glass cooktop, even
when it is not being used.
• Turn the surface units on only after placing the cookware.
• Do not store heavy items above the cooktop surface. They could fall and damage it.
DURING COOKING
CAUTION
• Do not place aluminum foil or plastic items such as salt and pepper shakers, spoon
holders, or plastic wrappings on the range when it is in use. The hot air from the vent
could melt plastics or ignite flammable items.
• Make sure the correct surface unit is turned on.
• Never cook directly on the glass. Always use cookware.
• Always place the pan in the center of the surface unit you are cooking on.
• Never leave surface units unattended while using a high heat setting. Boilovers cause
smoking and/or greasy spllovers that may catch on fire.
• Turn the surface units off before removing cookware.
• Do not use plastic wrap to cover food. Plastic may melt onto the surface and be very
difficult to remove.
AFTER COOKING
CAUTION
• Do not touch the surface units until they have cooled down.
• The surface may be still be hot and burns may occur if the glass surface is touched
before it has cooled down sufficiently.
• Immediately clean spills on the cooking area to prevent a tough cleaning chore later.
• If cabinet storage is provided directly above the cooking surface, make sure that the
items are infrequently used and can be safely stored in an area subjected to heat.
Temperatures may be unsafe for items such as volatile liquids, cleaners or aerosol
sprays.
About the radiant surface elements
The temperature rises gradually and evenly. As the temperature rises, the radiant element will glow
red. To maintain the selected setting, the element will cycle on and off. The heating element retains
enough heat to provide a uniform and consistent heat during the off cycle. For efficient cooking,
turn off the element several minutes before cooking is complete. This will allow residual heat to
complete the cooking process.
Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI
setting. This helps to prevent damage to the ceramic cooktop. Cycling at the HI setting is
normal and can occur if the cookware is too small for the radiant element or if the cookware
bottom is not flat.
15_ Surface cooking
FE-R400_XAC_DG68-00297A-06_EN.indd 15
2013-06-11 �� 12:38:39
Location of the radiant surface elements and controls
The radiant control knobs operate the radiant surface elements on the cooktop as shown below.
Single
Left Front
Eltnement
Single
Left Rear
Element
Warming Center
Center Rear
Element
Single
Dual
Right Rear Right Front
Element
Element
SURFACE COOKING
Hot surface indicator
• Comes on when the unit is turned on or hot to the touch.
• Stays on even after the unit is turned off.
• Glows until the unit is cooled to approximately 150°F.
Cooking areas
• The cooking areas on your range are identified by permanent circles on the glass cooking
surface. For the most efficient cooking, fit the pan size to the element size.
• Pans should not extend more than ½” to 1” beyond the cooking area.
• When a control is turned on, a glow can be seen through the glass cooking surface. The
element will cycle on and off to maintain the preset heat setting, even at high settings.
• For more information on selecting proper types of cookware, refer to the section “Using the
proper cookware” on page 18.
Single surface unit control knob
1. Push the knob in.
2. Turn in either direction to the setting you want.
• At both the off and high settings, the knob clicks into position.
Dual surface unit control knob
The dual surface unit has 2 cooking sizes to select from so you can match
the size of the unit to the size of the cookware you are using.
1. Push the knob in.
2. Turn in either direction to the setting you want.
• To use the small surface unit, turn the control knob to the small burner (A)
settings.
• To use the large surface unit, turn the control knob to the large burner (B)
settings.
When changing from a high heat setting to a lower heat setting, the surface unit may stop
glowing. This is normal.
Surface cooking _16
FE-R400_XAC_DG68-00297A-06_EN.indd 16
2013-06-11 �� 12:38:40
Using the warming center
The warming center, located in the back center of the glass surface, will keep hot, cooked food
at serving temperature.
• The surface warmer will not glow red like the cooking elements.
• Do not warm food on the warming center for more than two hours.
CAUTION
• Use only cookware and dishes recommended as safe for oven and cooktop use.
• Always use potholders or oven mitts when removing food from the warming center as
cookware and plates will be hot.
• When warming pastries and breads the cover should have an opening to allow
moisture to escape.
• Do not use plastic wrap to cover foods. Plastic may melt onto the surface and be very
difficult to clean.
• Food should be kept in its container and covered with a lid or aluminum foil to
maintain food quality.
• Always start with hot food. Eating uncooked or cold food placed on the warming
center could result in illness.
1. Turn the warming center on.
Press the WARMING CENTER ON/OFF pad.
2. Select the power setting you want.
Pressing the WARMING CENTER LEVEL pad once will set it to
the level 1 setting. Press the pad twice for the level 2 setting, 3
times for level 3.
3. Turn the warming center off.
Press the WARMING CENTER ON/OFF pad.
• Pressing the CLEAR/OFF pad does not turn the warming center off.
• For best results, all foods on the warming center should be covered with a lid or
aluminum foil. When warming pastries or breads, the cover should be vented to allow
moisture to escape.
Recommended settings
LEVEL
TYPE OF FOOD
1
Breads/pastries, casseroles, gravies, eggs
2
Dinner plate with food, soups (cream), vegetables, sauces, stews, meats
3
Fried foods, soups (liquid), hot beverages
17_ Surface cooking
FE-R400_XAC_DG68-00297A-06_EN.indd 17
2013-06-11 �� 12:38:40
HOW TO SET THE APPLIANCE FOR SURFACE COOKING
CAUTION
• The surface elements may be hot and burns may occur. Do not touch surface
elements until they have cooled down sufficiently.
• At high or medium-high settings, never leave food unattended. Boilovers cause
smoking and greasy spillovers may catch on fire.
• Be sure you turn the control knob to OFF when you finish cooking.
• The area between the high and off settings, are not appropriate for cooking.
Using the right cookware can prevent many problems, such as uneven cooking or extended
cooking times. Using the proper pans will reduce cooking times and cook food more evenly.
CORRECT
Flat bottom and straight sides.
• Tight fitting lids.
Check for flatness by
rotating a ruler across the
bottom of the cookware.
INCORRECT
SURFACE COOKING
USING THE PROPER COOKWARE
Curved and warped pan
bottoms.
• Weight of handle does not tilt
pan.
• Pan is well balanced.
• Pan size matches the amount
of food to be prepared
and the size of the surface
element.
• Made of a material that
conducts heat well.
Pan overhangs element by more
than one-half inch.
Pan is smaller than element.
• Always match pot diameter to
element surface diameter.
Heavy handle tilts pan.
Surface cooking _18
FE-R400_XAC_DG68-00297A-06_EN.indd 18
2013-06-11 �� 12:38:40
CHOOSING THE PROPER COOKWARE
What your cookware is made of determines how evenly and quickly heat is transferred from the surface
element to the pan bottom.
• ALUMINUM - Excellent heat conductor. Some types of food will cause the aluminum to darken.
(Anodized aluminum cookware resists staining & pitting.). If aluminum pans are slid across the
ceramic cooktop, they may leave metal marks that resemble scratches. Remove these marks
immediately.
• COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass.
• STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean
and resists staining.
• CAST IRON - A poor conductor; retains heat very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
• ENAMELWARE - Heating characteristics will vary depending on base material. Porcelain-enamel
coating must be smooth to avoid scratching ceramic cooktops.
• GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may
scratch the glass.
PROTECTING THE SMOOTHTOP SURFACE
Cleaning
• Clean the cooktop before using it for the first time.
• Clean your cooktop daily or after each use. This will keep your cooktop looking good and can prevent
damage.
• If a spillover occurs while cooking, immediately clean the spill from the cooking area while it is hot to
prevent a tough cleaning chore later. Using extreme care, wipe the spill with a clean dry towel.
• Do not allow spills to remain on the cooking area or the cooktop trim for a long period of time.
• Do not use abrasive cleansing powders or scouring pads, which will scratch the cooktop.
• Do not use chlorine bleach, ammonia, or other cleansers not specifically recommended for use on
a glass-ceramic surface.
Preventing marks and scratches
• Do not use glass cookware. They may scratch the cooktop.
• Do not place a trivet or wok ring between the cooktop and the pan. These items can mark or
scratch the cooktop.
• Make sure the cooktop and the pan bottom are clean.
• Do not slide metal pans across the cooktop.
Preventing stains
• Do not use a soiled dish cloth or sponge to clean the cooktop surface. A film will remain, which may
cause stains on the cooking surface after the area is heated.
• Continuously cooking on a soiled surface may/will result in a permanent stain.
Preventing other damage
• Do not allow plastic, sugar, or foods with high sugar content to melt onto the hot cooktop. Should
this happen, clean immediately.
• Do not let a pan boil dry as this will damage the cooktop and the pan.
• Do not cook food directly on the cooktop without the proper cookware.
19_ Surface cooking
FE-R400_XAC_DG68-00297A-06_EN.indd 19
2013-06-11 �� 12:38:41
operating the oven
THE OVEN CONTROL PANEL
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use
of your oven, become familiar with the various features and functions of the oven as described
below. Detailed instructions for each feature and function follow later in this user manual.
14
15
13
1
6
12
2
17
18
19
9
8
5
11
10
7
4
OPERATING THE OVEN
16
3
1. DISPLAY: Shows the time of day, oven temperature, whether the oven is in the bake, broil or
self-cleaning mode, and the times set for the timer or automatic oven operations.
2. NUMBER PADS: Use to set any function requiring numbers such as the time of day on the
clock, the timer, the oven temperature, the start time and length of operation for timed baking.
3. SET/START: Must be pressed to start any cooking or cleaning function.
4. CLEAR/OFF: Press to cancel all oven operations except the clock and timer, warming center.
5. CLOCK: Press to set the time of day.
6. OVEN LIGHT: Press to turn the oven light on or off.
7. KITCHEN TIMER ON/OFF: Press to select the timer feature.
8. SELF CLEAN: Press to select self-cleaning function.
9. STEAM CLEAN: Press to select steam-cleaning function.
10.DELAY START: Use along with Bake, Cooking Time, and Self Clean pads to set the oven to
start and stop automatically at a time you set.
11.COOKING TIME: Press and then use the number pads to set the amount of time you want
your food to cook. The oven will shut off when the cooking time has run out.
12.BROIL: Press to select the broil function.
13.BAKE: Press to select the bake function.
14.SLOW COOK: Press to select the Slow cook function.
15.CHICKEN NUGGETS: Press to select the Chicken Nuggets function.
16.PROOF: Press to select the Proof function.
17.CRSPY PIZZA: Press to select the Crispy Pizza function.
18.WARM: Press to keep cooked foods warm.
19.CUSTOM COOK: Press to record and recall your favorite recipe setting.
Operating the oven _20
FE-R400_XAC_DG68-00297A-06_EN.indd 20
2013-06-11 �� 12:38:41
SETTING THE CLOCK
The clock must be set to the correct time of day for the automatic oven timing functions to work properly.
• The time of day cannot be changed during a timed cooking, a delay-timed cooking or a selfcleaning cycle.
• You can choose between a 12-hour or 24-hour display. The default is 12-hour.
How to set the clock
1. Start the set up. Press the CLOCK pad.
2. Enter the present time.
Enter the current time in hours and minutes on the number pad,
eg. 1, 3, 0, for 1:30.
3. Exit the set up. Press the SET/START or CLOCK pad.
How to change between a 12-hour and 24-hour display
1. Start the set up.
Press CLOCK and 0 on the number pad at the same time for 3
seconds.
The display will show the present mode.
2. Select the display mode you want.
Press 0 on the number pad to select 12 hour or 24 hour.
3. Exit the set up.
Press the SET/START pad.
SETTING THE KITCHEN TIMER
The kitchen timer serves as an extra timer that will beep when the set time has elapsed. It does not
start or stop cooking functions. The feature can be used during any of the other oven functions.
How to set the timer
1. Turn the timer on.
Press the KITCHEN TIMER ON/OFF pad.
2. Enter the amount of time you want.
Enter the amount of time you want using the number pad, eg. 1,
5. The timer can be set for any amount of time from 1 minute to 9
hours and 99 minutes. If you make a mistake, press the KITCHEN
TIMER ON/OFF pad and start again.
3. Start the timer.
Press the KITCHEN TIMER ON/OFF pad.
4. When the set time has elapsed, the oven will beep and the display
will show End until you press the KITCHEN TIMER ON/OFF pad.
You can cancel the timer at any time by pressing the KITCHEN
TIMER ON/OFF pad.
21_ Operating the oven
FE-R400_XAC_DG68-00297A-06_EN.indd 21
2013-06-11 �� 12:38:41
MINIMUM AND MAXIMUM SETTINGS
All of the features listed have minimum and maximum time or temperature settings.
A beep will sound each time a pad on the control panel is pressed and the entry is accepted. An
error tone will sound in the form of a long beep if the entered temperature or time is below the
minimum or above the maximum setting for the feature.
FEATURE
MINIMUM
MAXIMUM
Bake
150°F (65°C)
550°F (285°C)
Broil
LO
HI
2 Hr.
4 Hr.
Self Clean
Steam Clean
-
3 Hr.
20 Min.
20 Min.
USING THE OVEN RACKS
Oven rack positions
The oven has 7 rack positions (1~7).
TYPE OF FOOD
7
6
5
4
3
2
1
RACK POSITION
Turkey, large roast
1
Angel food cake. Small roast, ham
2
Bundt or pound cakes
3
Frozen pies, Biscuits, muffins,
brownies, cookies, cupcakes,
layer cakes, pies, Casseroles
4
OPERATING THE OVEN
Warm
Baking layer cakes
Centering the baking pans in the oven
as much as possible will produce better
results. If baking with more than one pan,
place the pans so each has at least 1” to
1½” of air space around it.
If cooking on multiple racks, place the
oven racks in positions 2 and 5. Place the
cookware as shown in the figures below.
Fig. 1
Fig. 2
Before using the racks
The oven has two racks. Each rack has stops that need to be placed correctly on the supports.
These stops will keep the rack from coming completely out.
REMOVING THE RACKS
REPLACING THE RACKS
1. Pull the rack straight out until it stops.
1. Place the end of the rack on the support.
2. Lift up the front of the rack and pull it out.
2. Tilt the front end up and push the rack in.
CAUTION
• Do not cover a rack with aluminum foil or place on the oven bottom. This will disturb
the heat circulation, resulting in poor baking, and may damage the oven bottom.
• Arrange the oven racks only when the oven is cool.
Operating the oven _22
FE-R400_XAC_DG68-00297A-06_EN.indd 22
2013-06-11 �� 12:38:42
BAKING
The oven can be programmed to bake at any temperature from 150°F to 550°F.
How to set the thermostat
1. Start the set up.
Press the BAKE pad. The default temperature is 350°F.
2. Enter the temperature you want on the number pad, eg. 3, 7, 5.
3. Start the bake function.
Press the SET/START pad. The temperature display will start to
change once the oven temperature reaches 150°F.
4. If you want to cancel baking or if you have finished, press the
CLEAR/OFF pad.
Place food in the oven after preheating if the recipe calls for it. Preheating is very important
for good results when baking cakes, cookies, pastry, and breads. After the oven has
reached the desired temperature, a long beep will sound 6 times.
How to adjust the thermostat while cooking
1. Start the set up.
Press the BAKE pad. The display will show the present
temperature, eg. 375°F.
2. Enter the temperature you want, eg. 425°F, by using the number pad.
3. Complete the entry by pressing the SET/START pad.
TIMED COOKING
In a timed cooking, the oven turns on immediately and cooks for the length of time you select. At
the end of the cooking time, the oven turns off automatically.
• You can use the timed cooking feature only with another cooking operation (bake, slow cook,
crispy pizza).
• You can set the oven for a timed cooking before setting other cooking operations.
• The clock must be set for the correct time of day.
How to set the oven for timed cooking
1. Start the set up.
Press the BAKE pad. The default temperature is 350°F.
2. Enter the temperature you want on the number pad, eg. 3, 7, 5.
3. Press the COOKING TIME pad.
4. Enter the cooking time you want, eg. 45 min, by using the number
pad.
You can set the cooking time for any amount from 1 minute to 9
hours and 99 minutes.
23_ Operating the oven
FE-R400_XAC_DG68-00297A-06_EN.indd 23
2013-06-11 �� 12:38:42
5. Press the SET/START pad to begin cooking operation.
The oven will continue to cook until the set amount of time has elapsed.
If you want to show temperature display, press the bake pad.
6. You can cancel a timed cooking at any time by pressing the
CLEAR/OFF pad.
Place food in the oven after preheating if the recipe calls for it. Preheating is important for
good results when baking cakes, cookies, pastry, and breads. After the oven has reached
the desired temperature, a long beep will sound 6 times.
Use caution with the timed cooking or delay timed cooking features. Use these
features when cooking cured or frozen meats and most fruits and vegetables. Foods
that can easily spoil, such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the oven for more than
1 hour before cooking begins, and should be removed promptly when cooking is
completed. Eating spoiled food can result in sickness from food poisoning.
DELAY TIMED COOKING
In a delay timed cooking, the oven’s timer turns the oven on and off at times you select in
advance.
OPERATING THE OVEN
CAUTION
• You can use the delay timed cooking feature only with another cooking operation (bake, slow
cook, crispy pizza).
• You can set the oven for a delay timed cooking before setting other cooking operations.
• The clock must be set for the correct time of day.
How to set the oven for delay timed cooking
1. Position the oven rack(s) and place the food in the oven.
2. Enter the set up.
Press the pad for the cooking operation you want, eg. BAKE. The
default temperature is 350°F.
3. Use the number pads to enter the temperature you want, eg.
375°F.
4. Press the COOKING TIME pad.
5. Enter the cooking time you want, eg. 45 min, by using the number
pad.
You can set the cooking time for any amount of time from 1 minute
to 9 hours and 99 minutes.
6. Press the DELAY START pad.
7. Enter the time you want the oven to turn on, eg. 4:30, by using the
number pad.
8. Press the SET/START pad.
At the set time, a short beep will sound. The oven will begin to
bake. When the oven has reached the desired temperature, a long
beep will sound 6 times.
Place food in the oven after preheating if the recipe calls for it. Preheating is important for
good results when baking cakes, cookies, pastry, and breads. After the oven has reached
the desired temperature, a long beep will sound 6 times.
Operating the oven _24
FE-R400_XAC_DG68-00297A-06_EN.indd 24
2013-06-11 �� 12:38:43
BROILING
Broil stop position
Broil stop position
Leave the door open to the broil stop position. The door will stay
open by itself, yet the proper temperature is maintained in the oven.
Using the broil pan
The broil pan and the insert allow grease to drain and be kept away
from the high heat of the broiler.
• Do not use the pan without the insert.
• Do not cover the insert with foil; the exposed grease could ignite.
These are not supplied with the range.
CAUTION
Should an oven fire occur, close the oven door and turn the oven off. If the fire continues,
throw baking soda on the fire or use a foam-type fire extinguisher. Do not put water or
flour on the fire. Flour may be explosive and water can cause a grease fire to spread and
cause personal injury.
How to set the oven for broiling
1. Select the broil setting you want.
Press the BROIL pad once for HI or twice for LO.
Use LO to cook foods such as poultry or thick cuts of meat thoroughly
without over-browning them.
2. Start the broiling function. Press the SET/START pad.
Broil on one side until food is browned; turn and cook on the other side.
3. Press the CLEAR/OFF pad once you have finished cooking or if you
want to cancel broiling.
Recommended broiling guide
The size, weight, thickness, starting temperature, and your preference of doneness will affect
broiling times. This guide is based on meats at refrigerator temperature.
Food
Quantity and/
or thickness
Ground Beef 1 lb. (4 patties) ½
to ¾” thick
Well Done
Shelf
First side Second side
position time (min.) time (min.)
7
9-12
5-7
1” thick
1 to 1½ lbs.
1½”thick
2 to 2½ lbs.
1 whole cut up
2 to 2½ lbs.,
split lengthwise
2 Breasts
7
7
6
6
10-12
12-14
15-18
18-22
4-6
5-7
13-16
16-18
4
28-33
13-18
6
13-18
5-10
Fish Fillets
¼ to ½” thick
6
6-10
3-4
Pork Chops
2 (½” thick)
2 (1” thick)
about 1 lb.
2 (1” thick)
4 (1” thick)
about 1 lb.
6
8~10
4-6
5
11-13
5-8
6
7-9
3-4
6
8-10
4-6
Beef Steaks
Medium
Well Done
Medium
Well Done
Chicken
Well Done
Salmon
Steaks
Comments
Space evenly. Up to 8 patties may
be broiled at once.
Steaks less than 1” thick cook
through before browning.
Pan frying is recommended.
Slash fat.
Broil skin-side-down first.
Handle and turn very carefully.
Brush with lemon butter before and
during cooking, if desired.
Slash fat.
Grease pan. Brush steaks with
melted butter.
25_ Operating the oven
FE-R400_XAC_DG68-00297A-06_EN.indd 25
2013-06-11 �� 12:38:43
USING THE EASY COOK FEATURE
Slow Cook
The Slow Cook feature may be used to cook food more slowly at lower oven temperatures. The
extended cooking times allow better distribution of flavors in many recipes. This feature is ideal for
roasting beef, pork & poultry. Slow cooking meats may result on the exterior of meats becoming dark but
nor burnt. This is normal.
1. Enter the Slow cook mode. Press the Slow Cook pad once for Hi or twice for LO.
2. Start the Slow cook function. Press the SET/START pad.
Chicken Nuggets
This function is to cook convenience style frozen chicken nuggets.
1. Enter the Chicken Nuggets mode. Press the Chicken Nuggets pad once for HI or twice for LO.
2. Start the Chicken Nuggets function. Press the SET/START pad.
When using this function, place the oven rack in position 5 of 6 for the best result. Preheating the oven
will not be necessary.
OPERATING THE OVEN
Use only 1 rack and place the rack in position 2 or 3 for the best results.Preheating the oven will not be
necessary.
Proof
The proofing feature maintains a warm environment useful for rising yeast-leavened products.
1. Enter the Proof mode. Press the Proof pad.
2. Start the proofing function. Press the SET/START pad. The proofing feature automatically provides the
optimum temperature for the proof process, and therefore does not have a temperature adjustment.
3. Press the CLEAR/OFF pad at any time to turn off the proofing feature.
• If you press the Proof pad when the oven temperature is above 100˚F, Hot will appear in the display.
Because these functions produce the best results when started while the oven is cool, we recommend
that you wait until the oven has cooled down and Hot disappears from the display.
• To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door
unnecessarily.
• Check bread products early to avoid over-proofing.
• Do not use the proofing mode for warming food or keeping food hot. The proofing oven temperature is
not hot enough to hold foods at safe temperatures. Use the warm feature. (see next page).
• For best results, cover the dough with a cloth or with plastic wrap (the plastic may need to be anchored
underneath the container so the oven fan will not blow it off).
Crispy Pizza
This pizza function is designed for crisp and browned bottom while
keeping the topping moist.
1. Press the Pizza pad.
2. Press the SET/START pad to begin pizza cooking.
Use only 1 rack and place the rack in position 2 or 3 for the best
results when using the pizza feature. The default temperature is
400’F. You may adjust the oven temperature to fit your needs.
Follow the package instructions for preheating and baking times.
The pizza setting is not timed. Be sure to monitor the time to finish
cooking the pizza.
Operating the oven _26
FE-R400_XAC_DG68-00297A-06_EN.indd 26
2013-06-11 �� 12:38:43
USING THE CUSTOM COOK FEATURE
By using the custom cook feature, you can record up to 3 different recipe settings. The feature
may be used for baking. It will not work with any other function, including the delay start feature.
How to record a recipe setting
1. Press the pad for the cooking operation you want to store, eg.
BAKE. The default temperature is 325°F.
2. Use the number pad to enter the temperature you want, eg.
375°F.
3. Press the CUSTOM COOK pad the number of times
corresponding to where you want to store the setting, eg. for
recipe setting 2, press the CUSTOM COOK pad twice.
Recipe settings may be stored at 1, 2, or 3.
4. Press the SET/START pad.
How to recall a setting
1. Press the CUSTOM COOK pad the number of times
corresponding to where the recipe setting is stored, eg. for recipe
setting 2, press the CUSTOM COOK pad twice.
Recipe settings may be stored at 1, 2, or 3.
2. Start the stored cooking operation.
Press the SET/START pad.
USING THE WARM FUNCTION
The warm feature will maintain an oven temperature of 170°F. You should not use this feature to
reheat cold foods. The warm feature will keep cooked food warm for serving up to 3 hours after
cooking has finished.
After 3 hours, the feature will shut the oven off automatically. The feature may be used without any
other cooking operations or may be set to activate after a timed or delay timed cooking operation.
How to use the warm feature
1. Press the WARM pad.
2. Press the SET/START pad.
3. Press the CLEAR/OFF pad at any time to turn the feature off.
27_ Operating the oven
FE-R400_XAC_DG68-00297A-06_EN.indd 27
2013-06-11 �� 12:38:44
EXTRA FEATURES
12 hour energy saving
With this feature, should you forget and leave the oven on, the control will automatically turn off
the oven after 12 hours during baking functions or after 3 hours during a broil function.
How to turn 12 hour energy saving feature on or off
1. Press COOKING TIME and 0 on the number pad at the same
time for 3 seconds. The default is 12 Hr.
The display will flash 12 Hr (12 hour shut-off) or -- Hr (no shut-off).
3. Press the SET/START pad.
Fahrenheit or Celsius temperature selection
The oven control can be programmed to display temperatures in Fahrenheit or Centigrade. The
oven has been preset at the factory to display in Fahrenheit.
How to change the display from Fahrenheit to Centigrade or from Centigrade
to Fahrenheit
OPERATING THE OVEN
2. Press 0 on the number pad to select OFF or ON.
1. Press BROIL and 0 on the number pad at the same time for 3
seconds. The default is F.
The display will flash F (Fahrenheit) or C (Centigrade).
2. Press 0 on the number pad changes the display between F and C.
3. Press the SET/START pad.
Thermostat adjustment
The temperature in the oven has been preset at the factory. When first using the oven, be sure to
follow recipe times and temperatures. If you think the oven is too hot or too cool, the temperature
in the oven can be adjusted. Before adjusting, test a recipe by using a temperature setting that is
higher or lower than the recommended temperature. The baking results should help you to decide
how much of an adjustment is needed.
The oven temperature can be adjusted ±35°F (±19°C ).
How to adjust the oven temperature
1. Press BAKE and 0 on the number pad at the same time for 3
seconds.
The display will show ADJ 0.
2. Enter the adjustment you want, eg. 20°F, by using the number
pad.
You can adjust the temperature to lower than the factory setting by
pressing the BAKE pad.
3. Press the SET/START pad.
This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment
will be retained in memory after a power failure.
Operating the oven _28
FE-R400_XAC_DG68-00297A-06_EN.indd 28
2013-06-11 �� 12:38:44
Sound on/off
By using this feature, you can set the oven controls to operate silently.
How to turn the sound on or off
1. Press Oven Light and 0 on the number pad at the same time for
3 seconds.
The display will show Snd On (sound on) or Snd OFF (sound off).
The default setting is Snd On.
2. Press 0 on the number pad to select OFF or ON.
Pressing 0 on the number pad changes the mode between Snd
On and Snd OFF.
3. Press the SET/START pad.
Control lockout
This feature will allow you to lock the buttons on the touch pad so they cannot be activated
accidentally.
How to activate the control lockout feature
1. Press the CLEAR/OFF pad for 3 seconds.
The display will show Loc and an icon of a lock continuously and
the time of day if not blacked out.
All functions must be cancelled before the control lockout is
activated.
This function is available under 400°F.
How to unlock the controls
1. Press the CLEAR/OFF pad for 3 seconds.
Loc and the lock icon will disappear from the display.
29_ Operating the oven
FE-R400_XAC_DG68-00297A-06_EN.indd 29
2013-06-11 �� 12:38:45
Setting the Sabbath
(For use on the Jewish Sabbath & Holidays)
The Sabbath feature can be used with baking only. The oven temperature may be set higher
or lower after setting the Sabbath feature (the oven temperature adjustment feature should be
used only during Jewish holidays). The display, however, will not change and tones will not sound
when a change occurs. Once the oven is properly set for baking with the Sabbath feature active,
the oven will remain continuously on until cancelled. This will override the factory preset 12 hour
energy saving feature. If the oven light is needed during the Sabbath, press the OVEN LIGHT pad
before activating the Sabbath feature. Once the oven light is turned on and the Sabbath feature is
active, the oven light will remain on until the Sabbath feature is turned off. If the oven light needs to
be off, be sure to turn the oven light off before activating the Sabbath feature.
OPERATING THE OVEN
How to use the Sabbath feature
1. Press the BAKE pad.
The default temperature is 350°F.
2. Enter the temperature you want, eg. 375°F, by using the number
pad.
3. Press the SET/START pad.
The temperature display will start to change once the oven
temperature reaches 150°F.
4. Press the CLOCK and the KITCHEN TIMER ON/OFF pads at
the same time for 3 seconds.
The display will show SAb.
Once SAb appears in the display, the oven control will no longer
beep or display any further changes.
You may change the oven temperature once baking has started.
Remember that the oven control will no longer beep or display any
further changes once the Sabbath feature.
5. You can turn the oven off at any time by pressing the CLEAR/OFF
pad. This will turn only the oven off. If you want to deactivate the
Sabbath feature, hold down the CLOCK and KITCHEN TIMER
ON/OFF pads at the same time for 3 seconds. Sab will disappear
from the display.
It is not advised to attempt to activate any other program feature except BAKE while the
Sabbath feature is active. ONLY the following key pads will function correctly with the
Sabbath feature: NUMBER, BAKE, SET/START and CLEAR/OFF pad. ALL OTHER
KEYPADS should not be used once the Sabbath feature is activated.
Operating the oven _30
FE-R400_XAC_DG68-00297A-06_EN.indd 30
2013-06-11 �� 12:38:45
maintaining your appliance
SELF-CLEANING
A self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off leftover
grease and residue completely or reduce them to a finely powdered ash that you can wipe away
with a damp cloth.
CAUTION
• During the self-cleaning cycle, the outside of the range can become very hot to touch.
Do not leave small children unattended near the appliance.
• The health of some birds is extremely sensitive to the fumes given off during the selfcleaning cycle of any range. Move birds to another well-ventilated room.
• Do not line the oven walls, racks, bottom or any other part of the range with
aluminum foil. Doing so will result in poor heat distribution, produce poor baking
results and cause permanent damage to the oven interior (aluminum foil will melt to
the interior surface of the oven).
• Do not force the oven door open. This can damage the automatic door locking
system. Use care when opening the oven door after the self-cleaning cycle is
complete. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
Before a self-cleaning cycle
• We recommend venting your kitchen with an open window
or using a ventilation fan or hood during the self-cleaning
cycle.
Fig. 1
• Remove the wire rack, broil pan, broil pan insert, all
cookware and any aluminum foil from the oven.
• Wipe up debris from the oven bottom. (Fig. 1)
• The silver-colored oven racks can be self-cleaned, but they
will darken, lose their luster and become hard to slide.
Fig. 2
Don’t hand
clean the
oven door
gasket.
You may
hand clean
the door.
• Residue on the front frame of the range and outside the
gasket on the door will need to be cleaned by hand. Clean
these areas with hot water, soap-filled steel-wool pads or
cleansers such as Soft Scrub. Rinse well with clean water
and dry.
• Do not clean the gasket. The fiberglass material of the oven
door gasket cannot withstand abrasion. It is essential for
the gasket to remain intact. If you notice it becoming worn
or frayed, replace it. (Fig. 2)
• Make sure the oven light bulb cover is in place and the
oven light is off.
31_ Maintaining your appliance
FE-R400_XAC_DG68-00297A-06_EN.indd 31
2013-06-11 �� 12:38:45
How to set the oven for self-cleaning
1. Select the length of time for the self-cleaning operation, eg. 3
hours.
Press the SELF CLEAN pad once for a 3 hour clean time, twice
for a 4 hour clean time, or 3 times for a 2 hour clean time.
The default setting is 3 hours.
2. Start the self-cleaning cycle.
Press the SET/START pad. The motor-driven door lock will
engage automatically.
• The oven door locks automatically. The display will show the clean time remaining. It
is not be possible to open the oven door until the temperature drops to a safe/cool
temperature.
• The self-cleaning feature will not operate when a surface element is on. If a surface
element gets turned on during a self-cleaning cycle, the cycle will turn off automatically.
How to delay the start of self-cleaning
1. Press the SELF CLEAN pad.
Select the desired self-clean time by pressing SELF CLEAN pad.
MAINTAINING YOUR APPLIANCE
• You will not be able to start a self-cleaning cycle if the control lockout feature is activated
or if the oven’s temperature is too hot.
2. Press the DELAY START pad.
3. Using the CLOCK and number pads, enter the time you want the clean cycle to start.
4. Press the SET/START pad.
The display will show Delay start time and Lock icon. And the motor-driven door lock will
engage automatically.
5. Self-Cleaning cycle will turn on automatically at the set time.
How to turn off the self-cleaning feature
You may find it necessary to stop or interrupt a self-cleaning cycle due to excessive smoke or fire
in the oven. (When the self-cleaning cycle is done, End will show in the display and a beep will
sound 6 times.)
1. Press the CLEAR/OFF pad.
2. You will be able to open the oven door once the oven has cooled down for approximately 1
hour.
After a self-cleaning cycle
• You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.
(If white spots remain, remove them with a soap-filled steel wool pad and rinse thoroughly with
a vinegar and water mixture.)
• If the oven is not clean after one cycle, repeat the cycle.
• You cannot set the oven for cooking until the oven is cool enough for the door to unlock.
Maintaining your appliance _32
FE-R400_XAC_DG68-00297A-06_EN.indd 32
2013-06-11 �� 12:38:45
STEAM-CLEANING
How to set the oven for steam-cleaning
Steam-cleaning saves time and energy for light cleaning. For heavier-duty cleaning of debris and
grease, use the self-cleaning function.
1. Remove all accessories from the oven.
2. Pour approximately 10 oz. (300 ml) of water onto the bottom of
the empty oven and close the oven door.
Use normal water only, no distilled water.
3. Press the STEAM CLEAN pad.
4. Press the SET/START pad.
When the operation is complete, the display will blink and a beep
will sound.
5. Press the CLEAR/OFF pad.
6. Clean the oven’s interior.
There will be a significant amount of water remaining on the
bottom of the oven after a steam-cleaning cycle. Remove the
residual water with a sponge or soft dry cloth.
When steam-cleaning, use exactly 10 oz. of water since this produces the best results.
If you press the STEAM CLEAN pad when the oven temperature is above 100˚F, Hot will
appear in the display. Because these functions produce the best results when started while
the oven is cool, we recommend that you wait until the oven has cooled down and Hot
disappears from the display.
After a steam-cleaning cycle
• Take care when opening the door before a steam-cleaning procedure has ended; the water on
the bottom is hot.
• Open the oven door and remove the remaining water with a sponge. Do not leave the residual
water in the oven for any length of time. Wipe the oven clean and dry with a soft cloth (do not
forget to wipe under the oven door seal).
• Use a detergent-soaked sponge, a soft brush, or a nylon scrubber to wipe the oven interior.
Remove stubborn residue with a nylon scourer. You can remove lime deposits with a cloth
soaked in vinegar.
• If the oven remains dirty, you can repeat the procedure once the oven has cooled.
• For heavy residue, such as grease left over from roasting, we recommend that you rub
detergent into the residue before activating the steam-cleaning function.
• After cleaning, leave the oven door ajar at a 15° angle to allow the interior enamel surface to dry
thoroughly.
33_ Maintaining your appliance
FE-R400_XAC_DG68-00297A-06_EN.indd 33
2013-06-11 �� 12:38:46
CARE AND CLEANING OF THE OVEN
• Be sure all controls are OFF and all surfaces are COOL before cleaning any part
of the range.
• If your range is removed for cleaning, servicing or any
reason, be sure the Anti-Tip device is re-engaged properly
when the range is replaced. Failure to take this precaution
could result in tipping of the range and cause injury.
Oven vent
• The oven vent is located above the right rear surface unit.
• This area could become hot during oven use.
• It is normal for steam to come out of the vent.
• The vent is important for proper air circulation. Never
block this vent.
Cleaning painted parts and decorative trim
• For general cleaning, use a cloth with hot and soapy water.
• For more difficult residue and built-up grease, apply a liquid detergent directly onto the area and leave for 30
to 60 minutes. Wipe with a damp cloth and dry. Do not use abrasive cleaners on any of these surfaces; they
can scratch.
MAINTAINING YOUR APPLIANCE
Oven vent
Cleaning stainless steel surfaces
1. Shake the bottle of Stainless Steel Appliance Cleaner or polish well.
2. Place a small amount of stainless steel appliance cleaner or polish on a damp cloth or damp paper towel.
3. Clean a small area, rubbing with the grain of the stainless steel if applicable.
4. Dry and buff with a clean, dry paper towel or soft cloth.
5. Repeat as necessary.
• Do not use a steel-wool pad; it will scratch the surface.
• If a mineral oil-based stainless steel appliance cleaner has been used before to clean
the appliance, wash the surface with dishwashing liquid and water prior to using the
Stainless Steel Appliance Cleaner or polish.
Cleaning the broil pan and insert
• Do not attempt to clean the broil pan or insert by leaving it in the oven during a selfcleaning cycle.
• After broiling, remove the broil pan from the oven. Remove the insert from the pan. Carefully
pour out the grease from the pan into a proper container.
• Wash and rinse the broil pan and grid in hot water with a soap-filled scouring pad.
• Soaking the pan will remove burned-on foods.
• Both the broil pan and insert may be cleaned with a commercial oven cleaner and are
dishwasher-safe.
• Do not store a soiled broil pan and insert anywhere in the range.
These are not supplied with the range.
Maintaining your appliance _34
FE-R400_XAC_DG68-00297A-06_EN.indd 34
2013-06-11 �� 12:38:46
Oven racks
• If the racks are left in the oven during a self-cleaning cycle, their color will turn slightly blue and
the finish will be dull. After the self-cleaning cycle is complete and the oven has cooled, rub the
sides of the racks with wax paper or a clothing containing a small amount of cooking oil. This
will help the racks glide more easily into their tracks.
Oven door
Don’t hand
clean the
oven door
gasket.
You may
hand clean
the oven
door.
• Use soap & water to thoroughly clean the top, sides,
and front of the oven door. Rinse well. You may use a
glass cleaner on the outside glass of the oven door. DO
NOT immerse the door in water. DO NOT spray or
allow water or the glass cleaner to enter the door
vents. DO NOT use oven cleaners, cleaning powders,
or any harsh abrasive cleaning materials on the outside
of the oven door.
• DO NOT clean the oven door gasket. The oven
door gasket is made of a woven material which is
essential for a good seal. Care should be taken not to
rub, damage or remove this gasket.
CARE AND CLEANING OF THE GLASS COOKTOP
Normal daily use cleaning
Use only a ceramic cooktop cleaner on the glass cooktop. Other creams may not be as effective.
By following these steps, you can maintain and protect the surface of your glass cooktop.
1. Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps
protect the top and makes cleanup easier.
2. Daily use of a ceramic cooktop cleaner will help keep the cooktop looking new.
3. Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
4. Use a paper towel or a cleaning pad for ceramic cooktops to clean the entire cooktop surface.
5. Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.
WARNING
DAMAGE to your glass surface may occur if you use scrub pads other than those
recommended.
Removing burned-on residue
1. Allow the cooktop to cool.
2. Spread a few drops of ceramic cooktop cleaner on the entire burned residue area.
3. Using the cleaning pad for ceramic cooktops, rub the residue area, applying pressure as needed.
4. If any residue remains, repeat the steps listed above as needed.
5. For additional protection, after all residue has been removed, polish the entire surface with
ceramic cooktop cleaner and a paper towel.
35_ Maintaining your appliance
FE-R400_XAC_DG68-00297A-06_EN.indd 35
2013-06-11 �� 12:38:46
Removing heavy, burned-on residue
1. Allow the cooktop to cool.
2. Use the single-edge razor-blade scraper at approximately a 45° angle against the glass surface
and scrape the soil. It will be necessary to apply pressure in order to remove the residue.
3. After scraping with the razor scraper, spread a few drops of ceramic cooktop cleaner on the
entire burned residue area. Use the cleaning pad to remove any remaining residue. (Do not
scrape the seal.)
4. For additional protection, after all residue has been removed, polish the entire surface with the
cooktop cleaner and a paper towel.
1. Be careful not to slide pots and pans across your cooktop. It will leave marks on the cooktop
surface. You can remove these marks by applying ceramic cooktop cleaner.
2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave
black discoloration on the cooktop. You should remove this discoloration immediately or it may
become permanent.
WARNING
Carefully check the bottoms of pans for roughness that may scratch the cooktop.
Cleaning the cooktop seal
To clean the seal around the edges of the glass, lay a wet cloth on it for a few minutes, then wipe
clean with a nonabrasive cleaner.
MAINTAINING YOUR APPLIANCE
Removing metal marks and scratches
Potential for permanent damage to the glass surface
• Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting
of the surface of your cooktop. This is not covered under the warranty. You should clean the
spill while it is still hot. Take special care when removing hot substances. Refer to the following
section.
• When using a scraper, be sure it is new and the razor blade is still sharp; do not use a dull or
nicked blade.
Cleaning sugary spills and melted plastic
1. Turn off all surface units. Remove hot pans.
2. Wearing an oven mitt, use a single-edge razor-blade scraper to move the spill to a cool area of
the cooktop. Remove the spill with paper towels.
3. Any remaining spillover should be left until the surface of the cooktop has cooled.
4. Don’t use the surface units again until all of the residue has been completely removed.
If pitting or indentation in the glass surface has already occurred, the cooktop glass will
have to be replaced. In this case, service will be necessary.
Maintaining your appliance _36
FE-R400_XAC_DG68-00297A-06_EN.indd 36
2013-06-11 �� 12:38:46
REMOVING AND REPLACING THE OVEN DOOR
How to remove the door
• The door is very heavy. Be careful when removing and lifting the door. Do not lift the
door by the handle.
CAUTION
• Turn the power OFF before removing the door.
1. Open the door completely.
2. Pull the hinge locks down toward the door frame
to the unlocked position.
3. Firmly grasp both sides of the door at the top.
Hinge lock
Locked position
about 5°
4. Close the door to the door removal position, which is
approximately 5 degrees from vertical (Fig. 1).
5. Lift door up and out until the hinge arm is clear of the
slot (Fig. 2).
Unlocked position
Fig. 1
Fig. 2
How to replace the door
1. Firmly grasp both sides of the door at the top.
Hinge arm
2. With the door at the same angle as the removal position,
slide the indentation of the hinge arm into the bottom edge
of the hinge slot. The notch in the hinge arm must be fully
inserted into the bottom of the slot.
3. Open the door fully. If the door will not open fully, the
indentation is not inserted correctly in the bottom edge of
the slot.
4. Push the hinge locks up against the front frame
of the oven cavity to the locked position.
5. Close the oven door.
Bottom
edge of slot
Indentation
Hinge lock
Locked position
Unlocked position
REMOVING AND REPLACING THE STORAGE DRAWER
How to remove the storage drawer
1. Pull the drawer out until it stops.
Hook
Hook
2. Lean the front of the drawer and pull out it until
it stops.
3 Lift and pull the drawer out.
How to replace the storage drawer
1. Put on the drawer side over both hook.
2. Push the drawer until it stops.
3. Lean and lift the drawer.
4. Naturally push the drawer.
37_ Maintaining your appliance
FE-R400_XAC_DG68-00297A-06_EN.indd 37
2013-06-11 �� 12:38:47
CHANGING THE OVEN LIGHT
The oven light is a standard 40-watt appliance bulb. It will come on when the oven door is open.
When the oven door is closed, press the OVEN LIGHT pad to turn it on or off. It will not work
during a self-cleaning cycle.
1. Make sure the oven and the bulb are cool.
2. Unplug the range or disconnect power.
3. Turn the glass bulb cover in the back of the oven counterclockwise to remove.
4. Turn the bulb counterclockwise to remove it from its socket.
Remove Replace
Bulb
5. Replace the light bulb and glass bulb cover by turning them clockwise.
6. Plug in the range or reconnect power.
CAUTION
Before changing your oven light bulb, disconnect the electrical power to the range at the
main fuse or circuit breaker panel. Make sure the oven and the bulb are cool.
MAINTAINING YOUR APPLIANCE
Glass bulb cover
Maintaining your appliance _38
FE-R400_XAC_DG68-00297A-06_EN.indd 38
2013-06-11 �� 12:38:47
troubleshooting
TROUBLESHOOTING
Samsung works hard to ensure that you don’t have problems with your new electric range. If you run into
unexpected trouble, look first for a solution in the table below. If, after trying the suggested solution, you’re
still having trouble, call Samsung at 1-800-SAMSUNG (1-800-726-7864).
PROBLEM
The range is not
level.
POSSIBLE CAUSE
The appliance has been installed
improperly.
The floor is sagging or sloping.
The appliance
must be accessed
for servicing and
cannot be moved
easily.
The oven control
beeps and displays
an F error code.
The surface units
will not maintain
a rolling boil or
will not cook fast
enough.
The surface units
will not turn on.
The surface unit
stops glowing when
changed to a lower
setting.
SOLUTION
• Place the oven rack in the center of the
oven. Place a level on the oven rack.
Adjust the leveling legs at the base of the
range until the oven rack is level.
• Insure the floor is level and strong and
stable enough to adequately support the
range.
• Contact a carpenter to correct the
situation.
• Insure the cabinets are square and provide
sufficient room for installation.
The kitchen cabinets are not
properly aligned and make the
range appear to be not level.
The kitchen cabinets are not
• Contact a builder or installer to make the
square and built too tightly in to the
appliance accessible.
appliance.
The carpet is interfering with
• Provide sufficient space so the range can
movement of the range.
be lifted over the carpet.
You have a function error code.
• Press the CLEAR/OFF pad and restart
the oven. If the problem persists,
CODE
CAUSE
disconnect all power to the range for at
-SE- Shorted key
least 30 seconds and then reconnect the
power. If this does not solve the problem,
E-27 oven sensor opened
call for service.
E-28 Oven sensor shorted
E-08 Oven heating error
E-0A Oven heating over
E-0E Door locking error
Improper cookware is being used.
• Use pans which are flat and match the
diameter of the surface unit selected.
In some areas, the power (voltage) • Cover the pan with a lid until the desired
may be low.
heat is obtained.
A fuse in your home may be blown • Replace the fuse or reset the circuit
or the circuit breaker tripped.
breaker.
The cooktop controls are set
• Check to see the correct control is set for
improperly.
the surface unit you are using.
This is normal. The unit is still on and hot.
39_ Troubleshooting
FE-R400_XAC_DG68-00297A-06_EN.indd 39
2013-06-11 �� 12:38:47
PROBLEM
POSSIBLE CAUSE
Areas of
Food spillover was not cleaned.
discoloration on the
cooktop
The surface is hot and the model
features a light-colored cooktop.
The appliance will
not turn on.
• Make sure the electrical plug is inserted
into a live, properly grounded outlet.
• Replace the fuse or reset the circuit
breaker.
• See the chapter on operating the oven.
• Allow the oven to cool.
The appliance is not completely
• Make sure the power cord is plugged into
plugged into the electrical outlet or
a live, properly grounded outlet. Check the
a fuse in your home may be blown
fuse and circuit breakers.
or the circuit breaker tripped.
Incomplete service wiring.
• Call for service.
TROUBLESHOOTING
The surface unit
This is normal.
frequently cycles on
and off.
The oven will not
The range is not completely
turn on.
plugged into the electrical outlet.
A fuse in your home may be blown
or the circuit breaker tripped.
The oven controls have been set
improperly.
The oven is too hot.
SOLUTION
• Refer to the section on care and cleaning
of the glass cooktop on page 35.
• This is normal. The surface may appear
discolored when it is hot. This is temporary
and will disappear as the glass cools.
• The element will cycle on and off to
maintain the heat setting.
Power outage.
The oven light will
not turn on.
Oven smokes
excessively during
broiling.
• Check to see if the house lights will turn
on. If required, call your local electric
company for service.
The light bulb is loose or defective. • Tighten or replace the bulb.
The switch operating light is
broken.
The control has not been set
properly.
The meat has been placed too
close to the element.
The meat has not been properly
prepared.
The insert on the broiler pan has
been positioned upside down,
preventing the grease from
draining.
Grease has built up on oven
surfaces.
Food does not bake The oven controls have not been
or roast properly.
set correctly.
The oven rack has been positioned
incorrectly or is not level.
Incorrect cookware or cookware of
improper size being used.
The oven sensor needs to be
adjusted.
• Call for service.
• Refer to the section on setting oven
controls.
• Make sure the oven door is opened to the
broil stop position.
• Reposition the rack to provide proper
clearance between the meat and the
element. Preheat the broil element for
searing.
• Remove the excess fat from the meat. Cut
away fatty edges that may curl, leaving the
lean intact.
• Position the insert on the pan so that
the ribs are up and the slots are down,
allowing the grease to drip into the pan.
• Regular cleaning is necessary when
broiling frequently.
• See the chapter on operating the oven.
• See the section on using the oven racks
on page 22.
• See the section on adjusting the
thermostat on page 28.
Troubleshooting _40
FE-R400_XAC_DG68-00297A-06_EN.indd 40
2013-06-11 �� 12:38:47
PROBLEM
Food does not broil
properly.
The oven
temperature is too
hot or too cold.
Scratches or
abrasions on
cooktop surface
Brown streaks or
specks
Areas of
discoloration with
metallic sheen
The oven will not
self-clean.
“Crackling” or
“popping” sound
Excessive smoking
during a selfcleaning cycle
The oven door will
not open after a
self-cleaning cycle.
POSSIBLE CAUSE
The oven controls have been set
incorrectly.
The rack has not been properly
positioned.
Cookware not suited for broiling.
SOLUTION
• Press the BROIL pad.
• See the broiling guide on page 25.
• Use suitable cookware.
Aluminum foil used on the broiling • See the section on broiling on page 25.
pan and grid has not been fitted
properly and slit as recommended.
In some areas the power (voltage) • Preheat the broil element for 10 minutes.
may be low.
• See the broiling guide on page 25.
The oven sensor needs to be
• See the section on adjusting the
adjusted.
thermostat on page 28.
The cooktop is being cleaned
improperly.
• Scratches are not removable. Tiny
scratches will become less visible in time
as a result of cleaning.
• To avoid scratches, use the recommended
cleaning procedures. Make sure bottoms
of cookware are clean before use, and use
cookware with smooth bottoms.
Cookware with rough bottoms
were used on the cooktop or
there were coarse particles (eg.
salt or sand) present between the
cookware and the surface of the
cooktop.
Cookware has been slid across the
cooktop surface.
Boilovers have been cooked onto • Use the blade scraper to remove soil.
the surface.
• See the section on care and cleaning of
the glass cooktop on page 35.
Mineral deposits from water and
• Remove using a ceramic-glass cooktop
food have been left on the surface
cleaning cream.
of the cooktop.
• Use cookware with clean, dry bottoms.
The oven temperature is too high
• Allow the range to cool and reset the
to set a self-clean operation.
controls.
The oven controls have been set
• See the section on self-cleaning on page
incorrectly.
31.
A self-cleaning cycle cannot be started if the oven lockout feature has been
activated or if a radiant surface element is on.
This is the sound of the metal
• This is normal.
heating and cooling during
both the cooking and cleaning
functions.
There is excessive soiling in the
• Press the CLEAR/OFF pad. Open the
oven.
windows to rid the room of smoke. Wait
until the self-cleaning cycle is cancelled.
Wipe up the excessive soil and reset the
oven for self-cleaning.
The oven is too hot.
• Allow the oven to cool.
41_ Troubleshooting
FE-R400_XAC_DG68-00297A-06_EN.indd 41
2013-06-11 �� 12:38:47
PROBLEM
POSSIBLE CAUSE
Oven not clean after The oven controls were not set
a self-cleaning cycle correctly.
The oven was heavily soiled.
Strong odor
Oven racks are
difficult to slide.
Display goes blank.
Display flashes.
Drawer does not
slide smoothly or
drags.
• To speed the process, set a self-cleaning
cycle for a minimum of 3 hours.
• See the section on self-cleaning on page
31.
An odor from the insulation around • This is temporary.
the inside of the oven is normal
for the first few times the oven is
used.
The shiny, silver-colored racks
• Apply a small amount of vegetable oil to
were cleaned in a self-cleaning
a paper towel and wipe the edges of the
cycle.
oven racks with the paper towel.
A fuse in your home may be blown • Replace the fuse or reset the circuit
or the circuit breaker tripped.
breaker.
There was a power failure.
• Reset the clock.
The drawer is out of alignment.
The drawer is over-loaded or the
load is unbalanced.
TROUBLESHOOTING
Steam from the vent When using the convection
feature, it is normal to see steam
coming out of the oven vent.
As the number of racks or amount
of food being cooked increases,
the amount of visible steam will
increase.
Burning or oily odor This is normal in a new oven and
emitting from the
will disappear in time.
vent
SOLUTION
• See the section on self-cleaning on page
31.
• Wipe up heavy spillovers before starting
the self-cleaning cycle. Heavily soiled
ovens may need to self-clean again or for
a longer period of time.
• This is normal.
• Fully extend the drawer and push it all the
way in. See the page 38.
• Reduce weight. Redistribute drawer
contents.
Troubleshooting _42
FE-R400_XAC_DG68-00297A-06_EN.indd 42
2013-06-11 �� 12:38:47
warranty
PLEASE DO NOT DISCARD THIS REPLACES THE WARRANTY PAGE IN THE USE & CARE GUIDE
SAMSUNG ELECTRIC RANGE
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA INC. (SAMSUNG) and delivered
new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials
and workmanship for a limited warranty period of:
One (1) Year Parts and Labor, Five (5) Years Parts Warranty
For Glass Cooktop and Heater Radiant
During this limited additional four-year warranty, you will responsible for any labor or in-home service.
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive
warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only
be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of
purchase to SAMSUNG or SAMSUNG’s authorized service center. Samsung will provide in-home service during the one (1) year warranty
period at no charge subject to availability within Canada. In home service is not available in all areas. To receive in home service product
must be unobstructed and accessible to the service agent. If service is not available Samsung may elect to provide transportation of the
product to and from an authorized service center.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or
products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property
of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety
(90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this
product and shall not apply to the following: damage which occurs in shipment; delivery and installation; applications and uses for which
this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire,
water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications,
installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result
in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating
instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and
reinstallation; problems caused by pest infestations, and overheating or overcooking by user. This limited warranty shall not cover cases
of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing
installation errors. Furthermore, damage to the glass cooktop caused by the use of cleaners other than the recommended cleaners and
pads, damage to the glass cook top caused by hardened spills of sugary materials or melted plastic that are not cleaned according to the
directions in the use and care guide are not covered. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND
SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY,
