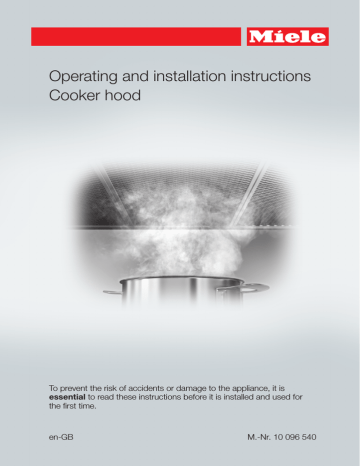

Operating and installation instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB
M.-Nr. 10 096 540
Contents
Warning and Safety instructions .......................................................................... 3
Caring for the environment ................................................................................. 12
Modes of operation.............................................................................................. 13
Guide to the appliance......................................................................................... 14
Operation .............................................................................................................. 16
Switching the fan on .............................................................................................. 16
Selecting the power level....................................................................................... 16
Switching the fan off .............................................................................................. 17
Switching the hob lighting on / off ......................................................................... 17
Safety switch-off .................................................................................................... 17
Energy saving tips................................................................................................ 18
Cleaning and care ................................................................................................ 19
Casing .................................................................................................................... 19
Important for appliances with glass surfaces ................................................... 20
Cleaning the drip tray........................................................................................ 20
Grease filter............................................................................................................ 20
Charcoal filter......................................................................................................... 23
Disposing of the charcoal filter ......................................................................... 23
After Sales / Guarantee ....................................................................................... 24
Position of the data plate ....................................................................................... 24
Installation ............................................................................................................ 25
Before installation .................................................................................................. 25
Protective foil ......................................................................................................... 25
Installation instructions .......................................................................................... 25
Assembly parts ...................................................................................................... 26
Appliance dimensions............................................................................................ 28
Safety distance between hob and cooker hood (S)............................................... 29
Installation recommendations................................................................................ 30
Connection for air extraction .............................................................................. 31
Condensate trap .................................................................................................... 32
Silencer .................................................................................................................. 32
Electrical connection ........................................................................................... 34
Technical data ...................................................................................................... 35
2
Warning and Safety instructions
This appliance complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important notes on the safety, installation, use
and maintenance of the appliance. Miele cannot be held liable for
non-compliance with these instructions.
Keep these instructions in a safe place and ensure that all users
are familiar with the contents. Pass them on to any future owner of
the appliance.
Correct application
 This cooker hood is intended for use in domestic households and
similar working and residential environments.
 The cooker hood is not intended for outdoor use.
 It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
 Where a recirculation cooker hood is fitted above a gas hob,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified
gas fitter (e.g. GasSafe in the UK) if necessary.
3
Warning and Safety instructions
 The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
 Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
 Children 8 years and older may only use the cooker hood
unsupervised if they have been shown how to use it safely and
recognise and understand the consequences of incorrect operation.
 Children must not be allowed to clean or maintain the cooker
hood unsupervised.
 Please supervise children in the vicinity of the cooker hood and
do not let them play with it.
 Danger of suffocation. Packaging, e.g. plastic wrappings, must be
kept out of the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their head and
suffocate.
4
Warning and Safety instructions
Technical safety
 Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
 A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
 The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
 Reliable and safe operation of this cooker hood can only be
assured if it has been connected to the mains electricity supply.
 Before connecting the appliance to the mains supply, ensure that
the connection data on the data plate (voltage and frequency) match
the mains electricity supply. This data must correspond in order to
avoid the risk of damage to the appliance. Consult a qualified
electrician if in any doubt.
 Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
 For appliances with an external motor fitted (...EXT models) the
connection of the two units must be made using the connection
cable and the plug connectors.
These models may only be combined with a Miele external motor.
5
Warning and Safety instructions
 For safety reasons, this appliance may only be used after it has
been built in.
 The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
 Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
 The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
 Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
 If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
 During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
6
Warning and Safety instructions
Using at the same time as other heating appliances that depend on the air
from the room
 Warning - danger of toxic fumes
Great care should be taken when using the cooker hood at the
same time and in the same room or area of the house as another
heating appliance which depends on the air in the room.
Such appliances include gas, oil, wood or coal-fired boilers and
heaters, continuous flow or other water heaters, gas hobs,
cookers or ovens which draw air in from the room and duct
exhaust gases out through a chimney or extraction ducting.
When used in extraction mode, with or without an external motor
fitted, or in recirculation mode with a recirculation box installed
outside the room, the appliance draws air in from the room in
which it is installed and from neighbouring rooms.
If there is insufficient air, an underpressure will occur. The heating
appliance will be starved of oxygen, impairing combustion.
Harmful gases could be drawn out of the chimney or extraction
ducting back into the room, with potentially fatal consequences.
7
Warning and Safety instructions
In order to ensure safe operation, and to prevent gases given off
by the heating appliances from being drawn back into the room
when the cooker hood and the heater are in operation
simultaneously, an underpressure in the room of 0.04 mbar (4 pa)
is the maximum permissible.
Ventilation can be maintained by air inlets which cannot be
blocked, in windows, doors or outside wall vents, or by other
technical measures, such as ensuring that the cooker hood can
only be switched on when the heating appliance is switched off or
vice versa. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder or, for
gas a qualified gas fitter (registered with an official gas safety
body in accordance with national safety regulations, GasSafe in
the UK) must be sought.
If the cooker hood is used in recirculation mode, where the air is
directed back into the room in which it is located, operating a
heating appliance which depends on the room air at the same
time is no cause for concern.
8
Warning and Safety instructions
Correct use
 Never use a naked flame beneath the cooker hood. To avoid the
danger of fire, do not flambé or grill over a naked flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
 The cooker hood can become damaged when exposed to
excessive heat.
– When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
– Select a pan which is suitable for the size of the burner.
– Regulate the flame so that it does not burn up the sides of the
pan.
– Avoid overheating the pan (e.g. when cooking with a wok).
 Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
 When cooking with oil or fat, chip pans and deep fat fryers etc, do
not leave the pans unattended. Never leave an open grill unattended
when grilling. Overheated oil and fat can ignite and could set the
cooker hood on fire.
9
Warning and Safety instructions
 Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
 There is a risk of fire if the cooker hood is not cleaned as
described in these operating instructions.
 The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Correct installation
 Refer to the cooker or hob manufacturer's instructions as to
whether a cooker hood may be operated above the cooker/hob.
 Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
 Insufficient distance between the cooker or hob and the cooker
hood can result in damage to the hood.
The minimum safety distances between the top of the cooker or hob
and the bottom of the cooker hood given in the "Installation" section
must be maintained, unless the hob manufacturer states that a
greater distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
 The distances given in "Installation" must be observed when
fitting the cooker hood.
10
Warning and Safety instructions
 Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
 The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
 If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
 Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories
 Only use genuine original Miele accessories with this appliance.
Using accessories from other manufacturers will invalidate the
guarantee, and Miele cannot accept liability.
11
Caring for the environment
Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposal of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice.
Ensure that it presents no danger to
children while being stored for disposal.
12
Modes of operation
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The air is drawn in and cleaned by the
grease filter and directed outside.
Non-return flap
The non-return flap is designed to
prevent the exchange of room and
outside air taking place.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
If the on-site ventilation system does
not have a non-return flap, the nonreturn flap supplied must be fitted in the
exhaust socket in the motor unit.
Recirculation mode
Recirculation mode cooker hoods
require charcoal filters. These are
available as optional accessories: see
"Technical Data".
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen.
Operation with an external
motor
(...EXT model cooker hoods)
Cooker hoods set up for operation with
an external motor have to be connected
to a Miele external motor located in a
suitable position outside the room in
which the cooker hood is installed. The
external motor is linked to the cooker
hood via a connection cable and then
operated using the controls on the
cooker hood.
13
Guide to the appliance
14
Guide to the appliance
a DADC 6000 tower
Available as an optional accessory for concealing extraction ducting to the
ceiling.
b Charcoal filter
Accessory required for recirculation mode
c Canopy
d Hob lighting
e Controls
f Grease filter
g Exhaust socket
Extraction ducting can be directed through the back of the cooker hood or
upwards to the ceiling.
h Drip tray
i On/Off control for the fan
j Controls to select the fan power level
k On/Off control for the hob lighting
15
Operation
Switching the fan on
 Press the On/Off control .
Automatic switch-off of the
Intensive setting
The fan will switch on at level 2. The 
symbol and 2 will light up in the power
level display.
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level 3.
Selecting the power level
 To set this option, both the fan and
the hob lighting must be switched off.
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
When frying or cooking food with a very
strong aroma, select the Intensive
setting IS.
 For a lower power level, press the
"" control, or "" for a higher level.
 Press the "" and "" controls at
the same time for approx. 10
seconds, until the 1 lights up.
 Then press in turn,
– the lighting control ,
– the "" control and then
– the lighting control  again.
If 1 and IS flash Automatic switch-off is
not activated.
 To activate it press the "" control.
If 1 and IS are lit up Automatic switchoff is activated.
 To deactivate it press the "" control.
 Use the On/Off control  to confirm
your choice of setting.
If you do not confirm within 4
minutes, the cooker hood will revert
to the old setting.
16
Operation
Switching the fan off
 Use the On/Off control  to switch
the fan off.
The  symbol will go out.
Switching the hob lighting on /
off
The hob lighting can be switched on
and off independently of the fan.
 To do this, press .
The  symbol will light up when the
hob lighting is switched on.
Safety switch-off
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
 Pressing the On/Off control will
switch the fan back on again.
17
Energy saving tips
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker
hood cannot operate efficiently and
this causes increased operating
noise levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced
energy consumption.
– Check the power level selected on
the cooker hood. A lower power level
is generally sufficient for the majority
of cooking. Only use the intensive
setting when necessary.
– When a large volume of cooking
vapours are being produced, switch
to a high power level in good time.
This is more efficient than operating
the cooker hood for longer to try to
capture cooking vapours which have
already been distributed throughout
the kitchen.
– Make sure that you switch the cooker
hood off after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
18
Cleaning and care
Casing
General information
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following
cleaning instructions.
 All external surfaces and controls can
be cleaned using hot water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
Do not let moisture get into the
cooker hood.
Only use a damp cloth when
cleaning. This is particularly
important around the controls.
 After cleaning, wipe the surfaces dry
using a soft cloth.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Important for appliances with
stainless steel surfaces
(This information does not apply to the
controls).
 Stainless steel surfaces can be
cleaned with a proprietary nonabrasive cleaning agent designed
specifically for use on stainless steel.
 To help prevent re-soiling, a
proprietary conditioning agent for
stainless steel (available from Miele)
can also be used. Follow the
manufacturer’s instructions on the
packaging.
Important for the controls
Do not leave soiling on the controls
for any length of time.
Otherwise they may suffer
discolouration or damage.
Remove soiling straight away.
 Please observe the general notes on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
19
Cleaning and care
Important for appliances with glass
surfaces
 Glass surfaces can be cleaned using
a proprietary non-abrasive cleaning
agent designed specifically for use
on glass.
Cleaning the drip tray
Condensate collects in the drip tray
underneath the grease filter. This tray
can be removed for cleaning.
 Pull the drip tray forwards a little, and
then pull it downwards to remove it.
Pour any condensate that has
collected in it away and then clean
the tray with a damp cloth.
20
Grease filter
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapours (grease, dust, etc)
preventing soiling of the cooker hood.
 An oversaturated filter is a fire
hazard.
Cleaning interval
Grease which is left to accumulate over
time will harden and become difficult to
remove. The grease filter should
therefore be cleaned at least every 3 - 4
weeks.
Cleaning and care
Removing a grease filter
The grease filter can fall out when
you are handling it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter
securely at all times when handling
it.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
– cleaning agents containing descaling
agents
– powder cleaners, cream cleaners
– aggressive multi-purpose cleaning
agents or spray cleaners for grease
– oven sprays
Cleaning the grease filter in a
dishwasher
 Place the filter as upright as possible
in the lower basket, or at an angle,
ensuring the spray arm is not
obstructed.
 Use a proprietary household
dishwasher detergent.
 Pull the grease filter carefully out of
its mountings along the bottom edge.
Then pull it towards you a little whilst
pressing it in at the top. It can then
be taken downwards to remove it.
Cleaning the grease filter by hand
 Clean the filter with a soft nylon brush
in a mild solution of hot water and a
small amount of washing-up liquid.
Do not use "neat" washing up liquid.
 Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the cleaning agent
used, cleaning a filter in a dishwasher
can cause permanent discolouration
to internal surfaces. However, this will
not affect the functioning of the filter
in any way.
21
Cleaning and care
After cleaning
 After cleaning, leave the filter to dry
on an absorbent surface before
replacing it.
 When removing the filter for cleaning,
also clean off any residues of oil or
fat from the now accessible casing to
prevent the risk of these catching fire.
 First fit the top of the grease filter into
the slots at the top, then swing the
bottom of the grease filter into place
and press it into position.
22
Cleaning and care
Charcoal filter
When to change the charcoal filter
Recirculation cooker hoods must be
fitted with a charcoal filter in addition to
the grease filter. This is designed to
absorb cooking odours.
It is fitted in the top of the cooker hood.
 Always replace the charcoal filter
when it no longer absorbs kitchen
odours effectively.
It should, however be replaced at
least every 6 months.
Replacement charcoal filters can be
obtained from Miele, your Miele dealer
or via the internet at www.mieleshop.com. See "Technical data" for
type and reference number.
Disposing of the charcoal filter
 Used charcoal filters can be disposed
of with the normal household waste.
Fitting/replacing a charcoal filter
 Take the charcoal filter out of its
packaging.
 Fit the charcoal filter into the holder in
the top of the cooker hood.
23
After Sales / Guarantee
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or the Miele Service
Department.
Contact details for Miele are given at
the back of this manual. N.B. A call-out
charge will be applied to service visits
where the problem could have been
resolved as described in these
instructions.
When contacting your dealer or Miele,
please quote the model and serial
number of your appliance.
These are shown on the data plate.
Position of the data plate
The data plate is visible after removing
the grease filter.
Guarantee: U.K.
In the U.K., the appliance is guaranteed
for 2 years from the date of purchase.
However, you must activate your cover
by calling 0330 160 6640 or registering
online at www.miele.co.uk.
Guarantee: Other countries
For information on the appliance
guarantee specific to your country
please contact Miele. See end of this
booklet for contact details.
24
Installation
Before installation
 Before installation, it is important
to read the information given on the
following pages as well as the
"Warning and Safety instructions" at
the beginning of this booklet.
Protective foil
The housing components have
protective foil around them to protect
them from transport damage.
 Please remove this foil before fitting
the housing components. It can be
peeled off easily.
Installation instructions
See enclosed Installation sheet for
instructions on how to install this
appliance.
25
Installation
Assembly parts
26
Installation
a 1 exhaust connection
for exhaust ducting  150 mm
b 1 reducing collar
for exhaust ducting  125 mm
c 1 non-return flap
for installation in the exhaust socket
of the fan motor (not for recirculation
mode). The non-return flap may
already be fitted depending on
model.
d Cover foil
for use when changing extraction
ducting direction
e Wall bracket
for securing the cooker hood to the
wall
5 screws 5 x 60 mm and
5 plugs 8 x 50 mm
3 washers 6.4 mm
for securing to the wall.
The screws and plugs are designed
for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is able to take the
weight of the cooker hood.
e
ntag tallation aje
gio
nt
Ins
Mo Montag ntering agem
s
nt
Mo
Mo Asennu
Mo
Installation instructions
27
Installation
Appliance dimensions
The diagram is not drawn to scale.
28
Installation
a Extraction ducting to the rear, or alternatively upwards.
b Cut-out for cooker hoods with hard-wired connection rather than a plug.
c 200 mm  cut-out ensures sufficient space through the wall for the extraction
ducting to flex.
d Ventilation outlet for recirculation mode. A gap of at least 300 mm must be
maintained between the top of the cooker hood and the ceiling or any furniture
above it.
Connection for air extraction 150 mm, or 125 mm with reducing collar.
Please observe installation positions for the socket and for the ducting outlet
shown on the relevant drawings when using the DADC 6000 tower.
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker
hood is as follows, unless a greater distance is specified by the manufacturer of
your cooking appliance.
See "Warning and Safety" instructions for further information.
Cooking appliance
Minimum distance S
Electric hob
450 mm
Electric grill, deep fat fryer (electric)
650 mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
650 mm
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
760 mm
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Not possible
Single burner gas hob, output ≤ 6 kW.
650 mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW.
760 mm
Single burner gas hob, output > 8.1 kW
Not possible
29
Installation
Installation recommendations
– Account should also be taken of the
height of the person who will be
using the hood most often. They
should have sufficient space to work
comfortably at the hob, and be able
to reach the hood controls with ease.
– Please be aware that if positioned
too high, extraction will be inefficient.
– To achieve optimum vapour
extraction, the cooker hood must
cover the hob. It should be
positioned centrally over the hob, not
to the side of it.
– The hob should be no wider than the
cooker hood, and if possible, it
should be narrower.
– The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.
30
Connection for air extraction
 If this cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the "Warning and
Safety" instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
– Ensure that all connections are
strong and airtight.
Remember that any constriction of
the air flow will reduce extraction
performance and increase operating
noise.
 If the exhaust is ducted through an
outside wall, a telescopic wall vent or
a roof vent (available as an optional
accessory) is recommended.
 Use smooth or flexible ducting made
from approved non-flammable
materials for exhaust ducting.
 When using an external motor, make
sure that the exhaust ducting is
sufficiently rigid. The external motor
can cause an underpressure which
can result in the exhaust ducting
distorting.
 To achieve the most efficient air
extraction with the lowest noise
levels, please note the following:
– To ensure efficient air extraction, the
diameter of the exhaust ducting
should not be less than 150 mm.
– If flat ducting is being used, the cross
section must not be smaller than the
cross sectional area of the exhaust
socket.
– The exhaust ducting should be as
short and straight as possible.
 If the exhaust air is to be ducted into
a flue, the ducting must be directed
in the flow direction of the flue.
 When ducting is horizontal it must be
laid to slope away at at least 1 cm
per metre. This is to ensure that
condensate cannot drain back into
the appliance.
 If the exhaust ducting is to run
through rooms, ceiling space etc.
where there may be great variations
in temperature between the different
areas, the problem of condensation
will need to be addressed. The
exhaust ducting will need to be
suitably insulated.
– Only use wide radius bends.
– The exhaust ducting must not be
kinked or compressed.
31
Connection for air extraction
Condensate trap
In addition to insulating the exhaust
ducting, we recommend that a suitable
condensate trap is also installed to
collect and evaporate any condensate
which may occur.
Condensate traps for 125 mm or 150
mm ducting are available as optional
accessories.
A condensate trap can only be fitted in
extraction ducting which is directed
upwards out of the cooker hood.
 When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible above the
exhaust socket.
The arrow on the housing indicates
the direction of air-flow.
A condensate trap is integrated in
cooker hoods which are designed for
connection to an external motor
(model......EXT).
32
Silencer
To achieve even further reductions in
noise levels, a special silencer (optional
accessory) can be fitted in the ducting
system.
Extraction mode
The silencer not only reduces noise
from the motor outside the house, but
also sounds from outside (e.g. traffic
noise). For this reason the silencer must
be positioned as close as possible to
the ducting exit .
Connection for air extraction
Extraction mode with external motor
To minimise noise from the motor in the
kitchen, the silencer should be
positioned in front of the external motor
 if possible, or, if the ducting is long,
above the exhaust socket on the
cooker hood . In the case of an
external motor located inside the
house, fitting a silencer behind the
external motor  reduces the noise of
the motor outside the house.
33
Electrical connection
All electrical work should be
undertaken by a suitably qualified
and competent person in strict
accordance with current national and
local safety regulations (BS 7671 in
the UK).
Installation, repairs and other work
by unqualified persons could be
dangerous, for which the
manufacturer cannot be held liable.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
The connection data is given on the
data plate. This is visible when the
grease filters have been removed.
Ensure that this data matches the
household mains supply.
Connection of this appliance should be
made via a suitable isolator or a double
pole fused spur connection unit which
complies with national and local safety
regulations and the On-Off switch
should be easily accessible after the
appliance has been built in. When
switched off there must be an all-pole
contact gap of 3 mm in the switch
(including switch, fuses and relays
according to EN 60335).
34
If the switch is not accessible after
installation (depending on country), an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD). Contact a
qualified electrician for advice.
Important
This appliance is supplied for
connection to an a.c. 230 V single
phase 50 Hz supply. The wires in the
mains lead are coloured in accordance
with the following code:
Green/yellow ..................................earth
Blue..............................................neutral
Brown ................................................live
WARNING:
THIS APPLIANCE MUST BE
EARTHED
Technical data
Fan motor*
Hob lighting
Total connected load*
Voltage
200 W
2 x 4.5 W
209 W
AC 230 V
Fuse rating
Mains connection cable length
5A
1.5 m
Weight
DA 6066 W
17 kg
DA 6086 W
19 kg
DA 6096 W
20 kg
DA 6096 W EXT
17 kg
* For EXT models, the connected load will depend on the type of external motor fitted.
Length of connection cable to external motor: 1.9 m
Recirculation mode requires charcoal filter DKF 25 (available to order)
35
Technical data
Data sheet for domestic cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier
DA 6066 W
Annual Energy Consumption (AEChood)
70,4 kWh/year
Energy efficiency class
A+ (most efficient) to F (least efficient)
B
Energy efficiency index (EEIhood)
68,5
Fluid Dynamic Efficiency (FDEhood)
23,2
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient)
B
Lighting Efficiency (LEhood)
36,7 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient)
A
Grease Filtering Efficiency
92,4 %
Grease Filtering Efficiency class
A (most efficient) to G (least efficient)
B
Airflow at best efficiency point
357,7 m3/h
Air flow (min. speed)
200 m3/h
Air flow (max. speed)
400 m3/h
Air flow (intensive or boost setting)
650 m3/h
Max. air flow (Qmax)
650 m3/h
Air pressure at best efficiency point
350 Pa
Airborne acoustical A-weighted sound power emissions (min. speed)
40 dB
Airborne acoustical A-weighted sound power emissions (max. speed)
54 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
66 dB
Electrical power input at best efficiency point
150,0 W
Power consumption in off mode (Po)
W
Power consumption in standby mode (Ps)
0,85 W
Nominal power of lighting system
9,0 W
Average illumination of the lighting system on the cooking surface
330 Ix
Time increase factor
1,2
36
Technical data
Data sheet for domestic cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier
DA 6086 W
Annual Energy Consumption (AEChood)
70,4 kWh/year
Energy efficiency class
A+ (most efficient) to F (least efficient)
B
Energy efficiency index (EEIhood)
68,5
Fluid Dynamic Efficiency (FDEhood)
23,2
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient)
B
Lighting Efficiency (LEhood)
33,3 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient)
A
Grease Filtering Efficiency
92,4 %
Grease Filtering Efficiency class
A (most efficient) to G (least efficient)
B
Airflow at best efficiency point
357,7 m3/h
Air flow (min. speed)
200 m3/h
Air flow (max. speed)
400 m3/h
Air flow (intensive or boost setting)
650 m3/h
Max. air flow (Qmax)
650 m3/h
Air pressure at best efficiency point
350 Pa
Airborne acoustical A-weighted sound power emissions (min. speed)
40 dB
Airborne acoustical A-weighted sound power emissions (max. speed)
54 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
66 dB
Electrical power input at best efficiency point
150,0 W
Power consumption in off mode (Po)
W
Power consumption in standby mode (Ps)
0,85 W
Nominal power of lighting system
9,0 W
Average illumination of the lighting system on the cooking surface
300 Ix
Time increase factor
1,2
37
Technical data
Data sheet for domestic cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier
DA 6096 W
Annual Energy Consumption (AEChood)
70,4 kWh/year
Energy efficiency class
A+ (most efficient) to F (least efficient)
B
Energy efficiency index (EEIhood)
68,5
Fluid Dynamic Efficiency (FDEhood)
23,2
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient)
B
Lighting Efficiency (LEhood)
33,3 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient)
A
Grease Filtering Efficiency
92,4 %
Grease Filtering Efficiency class
A (most efficient) to G (least efficient)
B
Airflow at best efficiency point
357,7 m3/h
Air flow (min. speed)
200 m3/h
Air flow (max. speed)
400 m3/h
Air flow (intensive or boost setting)
650 m3/h
Max. air flow (Qmax)
650 m3/h
Air pressure at best efficiency point
350 Pa
Airborne acoustical A-weighted sound power emissions (min. speed)
40 dB
Airborne acoustical A-weighted sound power emissions (max. speed)
54 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
66 dB
Electrical power input at best efficiency point
150,0 W
Power consumption in off mode (Po)
W
Power consumption in standby mode (Ps)
0,85 W
Nominal power of lighting system
9,0 W
Average illumination of the lighting system on the cooking surface
300 Ix
Time increase factor
1,2
38
Technical data
Data sheet for domestic cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier
DA 6096 W EXT
Annual Energy Consumption (AEChood)
6,6 kWh/year
Energy efficiency class
A+ (most efficient) to F (least efficient)
A+
Energy efficiency index (EEIhood)
32,4
Fluid Dynamic Efficiency (FDEhood)
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient)
-
Lighting Efficiency (LEhood)
33,3 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient)
A
Grease Filtering Efficiency
%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient)
-
Airflow at best efficiency point
m3/h
Air flow (min. speed)
m3/h
Air flow (max. speed)
m3/h
Air flow (intensive or boost setting)
m3/h
Max. air flow (Qmax)
m3/h
Air pressure at best efficiency point
Pa
Airborne acoustical A-weighted sound power emissions (min. speed)
dB
Airborne acoustical A-weighted sound power emissions (max. speed)
0 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
dB
Electrical power input at best efficiency point
W
Power consumption in off mode (Po)
W
Power consumption in standby mode (Ps)
0,85 W
Nominal power of lighting system
9,0 W
Average illumination of the lighting system on the cooking surface
300 Ix
Time increase factor
39
