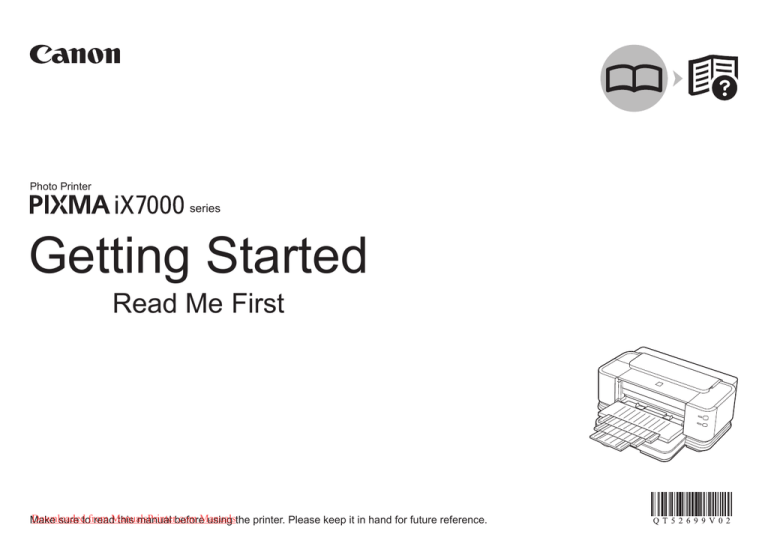

Canon iX7000 Series Instruction manual

Photo Printer
series
Getting Started
Read Me First
Downloaded
Make
sure tofrom
readManualsPrinter.com
this manual beforeManuals
using the printer. Please keep it in hand for future reference.
■ Sym b o l s U s e d i n T h i s D o c u ment
Instructions including important information. Be sure to read these indications.
Instructions as notes for operation or additional explanations.
Descriptions for operations that take some time to complete.
Indicates operations in Windows.
Indicates operations in Macintosh.
• Microsoft is a registered trademark of Microsoft Corporation.
• Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
• Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
• Internet Explorer is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
• Macintosh and Mac are trademarks of Apple Inc., registered in the U.S. and other countries.
• Bonjour is a trademark of Apple Inc., registered in the U.S. and other countries.
• Adobe, Adobe RGB and Adobe RGB (1998) are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and / or other countries.
Model Number: K10338 (iX7000)
Downloaded from ManualsPrinter.com Manuals
Contents
USB Connection
Wired LAN Connection
Set Up the Printer
Turn on the printer, then install the Print Head and
ink tanks.
To Use the Printer by
Connecting to a Computer
Connect to a computer or network and install the software.
USB Connection
Install the software and connect the
printer to a computer.
After Installing the Printer
Downloaded from ManualsPrinter.com Manuals
Wired LAN Connection
Install the software and connect the
printer to a network.
Using on Additional Computers
(Wired LAN Connection Only)
Setup Additional Computers
Install the software on additional computers to
use the printer on them.
This section describes how to load paper and introduces various features.
Set Up the Printer
Preparation
■ De v i c e s R e q u i r e d t o C o n n e ct to Computers
USB Connection
USB cable
The USB cable supplied with the printer is required.
Downloaded
from ManualsPrinter.com Manuals
Set Up the Printer
Wired LAN Connection
Router, etc.
LAN cable
A network device (router, etc.) and LAN cable are required.
■ Ch e c k t h e I n c l u d e d I t e m s
Before turning on the printer, remove all orange tapes and protective sheets from the inside and outside of the printer.
Print Head
5 ink tanks
(PBK, BK, Y, M, C)
clear ink tank
power cord
USB cable
Cassette
• Manuals
• Setup CD-ROM
(containing the drivers, applications and on-screen manuals)
• Warranty
• cleaning sheets
Downloaded from ManualsPrinter.com Manuals
The USB cable is used during the network setup
procedure.
Set Up the Printer
Installing the Cassette
□ Choosing a Location
1
2
B
A
Store the cleaning sheets in the Cleaning Sheet
Holder (A).
Cleaning sheets are used for cleaning the Transport Roller.
• When installing the printer, lift and move it with the
help of another person.
• Do not install the printer where an object may
fall on it. The object may fall inside the printer,
resulting in malfunction.
• Do not place any object on top of the printer. It
may fall into the printer when opening covers,
resulting in malfunction.
Downloaded
from ManualsPrinter.com Manuals
Set Up the Printer
• For details on how to store the cleaning sheets, refer to
"Cleaning the Transport Roller (Sheet Cleaning)" in the onscreen manual: Basic Guide.
Insert the Cassette (B) against the back end of
the printer.
Turn the Power On
1
2
Plug the power cord into the back right of the
printer, then connect the other end to the wall
outlet.
Turn on the printer (A).
A
3
B
Make sure that the POWER lamp (B) lights green.
• Do NOT connect the USB cable or LAN cable at this
stage.
Downloaded from ManualsPrinter.com Manuals
Set Up the Printer
Install the Print Head
1
B
2
C
A
Open the Paper Output Tray (A) and the Top
Cover (B).
• Handle the Print Head carefully. Do not drop or apply
excessive pressure to it.
Make sure that the Print Head Holder (C)
moves to the installation position.
• The Print Head Holder makes a noise as it moves. This is normal operation.
• If the Print Head Holder does not move, make sure that the printer is turned on.
Downloaded
from ManualsPrinter.com Manuals
Set Up the Printer
3
4
D
5
E
F
Firmly raise the Print Head Lock Lever (D) of the Print Head Holder
until it stops.
Remove the Print Head from the
silver package.
G
Remove the orange protective cap.
• Do not touch the inside (F) or metal parts (G) of the Print Head. The printer may not print properly
if you touch them.
• Do not touch the inside of the Print Head Holder (E). The printer may not print
properly if you touch it.
Downloaded from ManualsPrinter.com Manuals
• There may be some transparent or light color ink on the inside of the bag the Print Head comes in,
or the inside of the protective cap - this has no effect on print quality. Be careful not to get ink on
yourself when handling these items.
Set Up the Printer
6
7
Tilt the Print Head forward and set it in place as shown.
Lower the Print Head Lock Lever completely.
• Hold the Print Head Lock Lever firmly and lower it gently.
• Do not knock the Print Head against the sides of the holder.
Downloaded
from ManualsPrinter.com Manuals
Set Up the Printer
• Once you have installed the Print Head, do not remove it
unnecessarily.
Install the Ink Tanks
1
2
B
Remove the ink tank from its package.
A
C
Remove and discard the orange protective cap (A) located on
the bottom of the ink tank.
• Handle the ink tanks carefully. Do not drop or
apply excessive pressure to them.
• If the Top Cover is left open for more than 10
minutes, the Print Head Holder moves to the
right. In this case, close and reopen the Top
Cover.
• Be sure to use the supplied ink tanks.
• Do not touch the electrical contacts (B) or open ink port (C) on the ink
tank. The printer may not print properly if you touch them.
• Do not hold the sides of the ink tank; ink may splash.
Downloaded from ManualsPrinter.com Manuals
Set Up the Printer
3
4
Tilt the ink tank, then insert it under the label and against the back end of
the slot.
Press the PUSH mark on the ink tank firmly until it clicks.
Make sure that the color of the label matches the ink tank.
• Match the labels when installing.
Downloaded
from ManualsPrinter.com Manuals
Set Up the Printer
10
When the installation is completed properly, the Ink lamp lights red.
5
6
D
E
F
Install all the other ink tanks in the same way.
Install all the ink tanks.
Make sure all the Ink lamps light red.
• Once you have installed the ink tanks, do not remove them unnecessarily.
Downloaded from ManualsPrinter.com Manuals
Close the Top Cover (D).
• Wait for about 2 minutes until the POWER lamp (green) (E) stops flashing
and stays lit then operating noise stops, and go to the next step.
Do not open the Top Cover while the lamp is flashing.
The printer vibrates while the lamp is flashing because ink is stirred inside
the printer.
• If an Alarm lamp (F) flashes orange, make sure that the Print Head and the ink tanks are
correctly installed.
Set Up the Printer
11
Install the Clear Ink Tank
1
A
2
3
B
Open the Clear Ink Tank Cover (A).
Open the Clear Ink Tank Locking Cover (B).
Pinch the tab and push back to open.
Downloaded
from ManualsPrinter.com Manuals
Set Up the Printer
12
Remove the orange tape in the direction of the
arrow from the clear ink tank.
4
5
6
C
Insert the clear ink tank straight.
Replace the Clear Ink Tank Locking Cover,
then press the center firmly until it clicks.
Close the Clear Ink Tank Cover.
• Once you have installed the clear ink tank, do not
remove it unnecessarily.
• If an Alarm lamp (C) flashes orange, make sure that the clear ink tank are
correctly installed.
Downloaded from ManualsPrinter.com Manuals
Set Up the Printer
13
To Use the Printer by Connecting to a Computer
Select Connection Method
■ Pre p a r a t i o n f o r S e t u p
□ Notes on Setup
□ Preparation for Wired LAN Connection
• To use the printer by connecting it to a computer, software
including the drivers needs to be copied (installed) to the
computer's hard disk, and setting configured according to the
connection method. Read the following carefully before starting
setup. The installation process takes about 20 minutes. (The
installation time varies depending on the computer environment
or the number of applications to be installed.)
• A router and LAN cable are required
to connect the printer to a wired
LAN. These must be purchased
separately.
• The screens below are based on Windows Vista operating
system Ultimate Edition (hereafter referred to as "Windows
Vista") and Mac OS X v.10.5.x.
• Before connecting the printer
to the network, make sure that
configuration of the computer and
network devices (router, etc.) is
complete, and that the computer
can connect to the network.
Router, etc.
Internet
• Quit all running applications before installation.
• Log on as the administrator (or a member of the Administrators
group).
• Do not switch users during the installation process.
• Internet connection may be required during the installation.
Connection fees apply.
• It may be necessary to restart your computer during the
installation process. Follow the on-screen instructions and
do not remove the Setup CD-ROM during restarting. The
installation resumes once your computer has restarted.
• The configuration, router functions, setup procedures and security settings of the network device
vary depending on your system environment. For details, refer to your device's instruction manual or
contact its manufacturer.
• Mac OS 9, Mac OS X Classic environments, or Mac OS X
v.10.3.8 or earlier are not supported.
• If an error message appears or if you have trouble with the network connection, refer to the printed
manual: Network Setup Troubleshooting.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
14
• If the firewall function of your security software is turned on, a warning message may appear that
Canon software is attempting to access the network.
If such a warning message appears, set the security software to always allow access.
• In an office setup, consult your network administrator.
Select the method to connect the printer to the computer according to your system environment.
USB Connection
This is recommended when you use the printer on only one computer.
P.16
Wired LAN Connection
This is recommended when using the printer on a computer connected to a network.
Setup Additional Computers
Perform only the software installation on the computer you want to use.
Windows
P.23
Internet
Macintosh
P.32
Windows
P.42
Internet
Macintosh
P.47
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
15
USB Connection
□ If the Found New Hardware or
Found New Hardware Wizard
dialog box appears:
□ For Windows Vista/XP
If you are using Internet
Explorer 7 or later, you
can use the Web print
software Easy-WebPrint EX.
An internet connection is
required for installation. (It is
also possible to install this
software later.)
1
TURN OFF THE PRINTER (A).
A
• It takes about 1 minute until the
printer turns off.
If you connect a USB cable to the
printer before installation of the
drivers, this screen appears.
1
Remove the USB cable
connected to your computer.
The dialog box may close. In this
case, proceed from step .
2
3
Connect the printer to the
computer with a USB cable.
Make sure the printer is turned on.
Click Cancel to quit the
dialog box.
Proceed from step .
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
16
1
• The USB Port is located on the right
side at the back of the printer. The
lower port is for USB.
2
Turn on the computer, then insert the
Setup CD-ROM into the CD-ROM
drive.
3
The setup program will start
automatically.
Windows Vista
Windows XP/2000
4
Click Run Msetup4.exe on
the AutoPlay screen, then
click Continue on the User
Account Control dialog box.
If the User Account Control
dialog box reappears in following
steps, click Continue.
• If the program does not start
automatically, double-click the CD-ROM
icon in Computer or My Computer.
When the CD-ROM contents appear,
double-click MSETUP4.EXE.
2
Turn on the computer, then insert the
Setup CD-ROM into the CD-ROM
drive.
3
Double-click the Setup icon of
the CD-ROM folder to proceed
to the following screen. Enter
your administrator name and
password, then click OK.
If you do not know your administrator
name or password, click Help, then
follow the on-screen instructions.
• If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
17
4
Click Easy Install.
5
Click Install.
The drivers, application software,
and on-screen manuals are installed
all together.
For Windows Vista/XP
• If you are using Internet Explorer 7
or later, you can use the Web print
software Easy-WebPrint EX. An
internet connection is required for
installation. (It is also possible to
install this software later.)
• If you want to select particular items
to install, click Custom Install.
4
Click Easy Install.
The drivers, application software,
and on-screen manuals are installed
all together.
• If you want to select particular items
to install, click Custom Install.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
18
5
Click Install.
Follow any on-screen instructions to
proceed with the software installation.
6
Select Use the printer via USB, then click Next.
Follow any on-screen instructions to proceed with the software installation.
6
When the Start Setup screen appears, click Execute.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
19
Important Information for the Installation
□ Print Head Alignment
D
C
B
G
F
E
Load two sheets of A4 or Letter-sized plain paper into the Cassette (B)
by referring to "Loading Paper" on page 54, then click Execute.
Do not open the Top Cover (C) while printing.
When the pattern (D) shown is printed, Print Head Alignment is complete.
In Windows, click Next on the Print Head Alignment screen.
Wait until the pattern printing ends (about 5 minutes after printing starts).
It takes about 5 minutes to start printing because ink replenishment
is in progress.
When clear ink replenishment is in progress, × appears in the
corresponding area of the ink information screen. Please wait.
• If the Alarm lamp (orange) (E) flashes, press the RESUME/CANCEL button (F) on
the printer to clear the error, then click Next. After the installation is complete, perform
Print Head Alignment by referring to "When Printing Becomes Faint or Colors are
Incorrect" in the on-screen manual: Basic Guide.
• Pull out the Front Tray Extension (G) beforehand.
• The pattern is printed in black and blue.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
20
Important Information for the Installation
□ Necessary Information for the User Registration
□ About Extended Survey Program
The product serial number is required when registering the product. The serial
number is located inside the printer (as shown in the illustration).
If you can agree to Extended Survey Program, click Agree.
If you click Do not agree, the Extended Survey Program will not be installed.
(This has no effect on the printer's functionality.)
• When opening the Top Cover, the Print Head Holder moves automatically.
• The screen does not appear on Mac OS X v.10.3.9.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
21
7
Click Exit to complete the
installation.
If Restart is displayed, follow
the instruction to restart the
computer.
After restarting the computer,
remove the Setup CD-ROM and
keep it in a safe place.
7
Click Exit to complete the
installation.
Canon IJ Network Tool starts
automatically.
Next, read "Loading Paper" on page 54!
8
On the Canon IJ Network Tool
screen, select USB connection, then
click OK.
Remove the Setup CD-ROM
and keep it in a safe place.
Next, read "Loading Paper" on page 54!
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
22
Windows
Wired LAN Connection
□ If the Found New Hardware or
Found New Hardware Wizard
dialog box appears:
□ For Windows Vista/XP
If you are using Internet
Explorer 7 or later, you
can use the Web print
software Easy-WebPrint EX.
An internet connection is
required for installation. (It is
also possible to install this
software later.)
1
2
A
TURN OFF THE PRINTER (A).
If you connect a USB cable to the
printer before installation of the
drivers, this screen appears.
1
Macintosh
Turn on the computer, then
insert the Setup CD-ROM into
the CD-ROM drive.
The setup program will start
automatically.
Remove the USB cable
connected to your computer.
The dialog box may close. In this
case, proceed from step .
2
3
Click Cancel to quit the
dialog box.
Proceed from step .
• It takes about 1 minute until the
printer turns off.
Downloaded from ManualsPrinter.com Manuals
• If the program does not start
automatically, double-click the CDROM icon in Computer or My
Computer.
When the CD-ROM contents
appear, double-click MSETUP4.
EXE.
To Use the Printer by Connecting to a Computer
23
Windows
3
Windows Vista
Windows XP/2000
4
Click Run Msetup4.exe on the AutoPlay screen, then
click Continue on the User Account Control dialog box.
If the User Account Control dialog box reappears in following
steps, click Continue.
4
5
Click Easy Install.
Click Install.
Macintosh
The drivers, application software, and on-screen
manuals are installed all together.
For Windows Vista/XP
• If you want to select particular items to install, click
Custom Install.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
24
• If you are using Internet Explorer 7 or later, you can
use the Web print software Easy-WebPrint EX. An
internet connection is required for installation. (It is
also possible to install this software later.)
Windows
Macintosh
6
7
8
Select Use the printer on network, then click
Next.
Read the License Agreement screen carefully and
click Yes.
When the Please Allow All Install Wizard
Processes screen appears, click Next.
Follow any on-screen instructions to proceed with the
software installation.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
25
Windows
9
10
Prepare Cables
USB cable
On the Setup Method screen, select Connect printer to the network for the
first time, then click Next.
• If the above screen is not displayed, click Cancel and start again from step
select Use the printer on network in step .
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
26
. Be sure to
LAN cable
Have a USB and LAN cable ready.
• For a wired LAN connection, prepare a LAN cable separately.
Macintosh
Windows
11
12
When the Printer Connection screen appears, connect the printer to the computer with a USB
cable.
Turn on the printer.
Macintosh
A USB cable is used to send the network settings to the printer.
When the printer is recognized by the computer, a message
appears on the screen.
• The USB Port is located on the right side at the back of the printer. The lower port is for USB.
• If installation does not continue after 10 minutes, click Help on
the screen in step
, then confirm the message.
• It takes about 40 seconds for the POWER lamp to light green.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
27
Windows
13
14
B
When the Setup Preparations dialog box appears, make
sure that preparation is complete, then click Next.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
28
Macintosh
C
When the above screen appears, remove the Cap (B) of the printer, connect a network device
with a LAN cable (C), then click Yes.
Windows
Macintosh
□ If the following dialog box appears
15
When the Set Printer IP Address dialog box appears,
click Connect.
When the Setup Completion dialog box appears, remove the USB cable, then click
Finish.
If the printer is detected automatically, the Set Printer IP
Address dialog box does not appear.
• If no connection is established even after Connect is clicked,
refer to "The Set Printer IP Address Screen is Displayed" in the
printed manual: Network Setup Troubleshooting.
• To change the port name, click Set Port Name. For details, refer to "Changing the Port Name" in the
printed manual: Network Setup Troubleshooting.
• If Unsafe Removal of Device is displayed, click OK.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
29
Windows
Macintosh
Important Information for the Installation
□ Print Head Alignment
F
E
D
□ Necessary Information for the
User Registration
I
H
G
Load two sheets of A4 or Letter-sized plain paper into the
Cassette (D) by referring to "Loading Paper" on page 54,
then click Execute.
Do not open the Top Cover (E) while printing.
It takes about 5 minutes to start printing because ink
replenishment is in progress.
When clear ink replenishment is in progress,
× appears in the corresponding area of the ink
information screen. Please wait.
When the pattern (F) shown is printed, Print Head Alignment
is complete.
On the Print Head Alignment screen, click Next.
Wait until the pattern printing ends (about 5 minutes
after printing starts).
• If the Alarm lamp (orange) (G) flashes, press the RESUME/
CANCEL button (H) on the printer to clear the error, then click
Next. After the installation is complete, perform Print Head
Alignment by referring to "When Printing Becomes Faint or
Colors are Incorrect" in the on-screen manual: Basic Guide.
• Pull out the Front Tray Extension (I) beforehand.
• The pattern is printed in black and blue.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
30
The product serial number is required
when registering the product. The
serial number is located inside the
printer (as shown in the illustration).
• When opening the Top Cover, the Print
Head Holder moves automatically.
Windows
Macintosh
16
Important Information for the Installation
□ About Extended Survey Program
Click Exit to complete the installation.
If you can agree to Extended Survey Program,
click Agree.
If you click Do not agree, the Extended Survey
Program will not be installed.
(This has no effect on the printer's functionality.)
If Restart is displayed, follow the instruction to restart the
computer.
Next, read "Loading Paper" on
page 54!
After restarting the computer, remove the Setup CD-ROM
and keep it in a safe place.
• To use the printer on additional computers, refer to
"Setup Additional Computers" on page 42.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
31
Windows
Wired LAN Connection
1
2
3
Connect the printer to the computer with a USB cable.
Turn on the computer, then
insert the Setup CD-ROM
into the CD-ROM drive.
Double-click the Setup icon of the CD-ROM folder to
proceed to the following screen. Enter your administrator
name and password, then click OK.
Make sure the printer is turned on.
A USB cable is used to send the network settings to the
printer.
• The USB Port is located on the right side at the back of the
printer. The lower port is for USB.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
32
Macintosh
If you do not know your administrator name or password, click
Help, then follow the on-screen instructions.
• If the CD-ROM folder does not open automatically, double-click
the CD-ROM icon on the desktop.
Windows
Macintosh
4
5
6
Click Easy Install.
Click Install.
Read the License Agreement screen carefully and
click Yes.
The drivers, application software, and on-screen
manuals are installed all together.
Follow any on-screen instructions to proceed with the
software installation.
• If you want to select particular items to install, click
Custom Install.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
33
Windows
7
8
When the Start Setup screen appears, click Execute.
Click Restart.
Macintosh
The Print Head Alignment screen appears after the computer has been restarted.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
34
Windows
Macintosh
Important Information for the Installation
□ Print Head Alignment
C
B
A
F
E
D
Load two sheets of A4 or Letter-sized plain paper into the Cassette (A) by referring
to "Loading Paper" on page 54, then click Execute.
Do not open the Top Cover (B) while printing.
When the pattern (C) shown is printed, Print Head Alignment is complete.
Wait until the pattern printing ends (about 5 minutes after printing starts).
It takes about 5 minutes to start printing because ink replenishment is in
progress.
When clear ink replenishment is in progress, × appears in the corresponding
area of the ink information screen. Please wait.
• If the Alarm lamp (orange) (D) flashes, press the RESUME/CANCEL button (E)
on the printer to clear the error, then click Next. After the installation is complete,
perform Print Head Alignment by referring to "When Printing Becomes Faint or
Colors are Incorrect" in the on-screen manual: Basic Guide.
• Pull out the Front Tray Extension (F) beforehand.
• The pattern is printed in black and blue.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
35
Windows
Macintosh
9
Important Information for the Installation
□ Necessary Information for the User
Registration
□ About Extended Survey Program
Click Exit to complete the installation.
The product serial number is required when
registering the product. The serial number
is located inside the printer (as shown in the
illustration).
If you can agree to Extended Survey Program,
click Agree.
If you click Do not agree, the Extended
Survey Program will not be installed.
(This has no effect on the printer's
functionality.)
• When opening the Top Cover, the Print Head
Holder moves automatically.
• The screen does not appear on Mac OS X
v.10.3.9.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
36
Canon IJ Network Tool starts automatically.
Remove the Setup CD-ROM and keep it in a safe place.
Windows
10
On the Canon IJ Network Tool screen,
select LAN connection, then click OK.
□ If the following screen appears
If the Setup Preparations screen
appears, make sure that preparation
is complete, then click OK.
Macintosh
11
Select Setup in the pop-up menu, select iX7000 series in
Printers, then click OK.
• If the above screen is not displayed, start again from step
select LAN connection in step
.
. Be sure to
• If no printer is detected, make sure of the following, then click Update.
− The printer is connected to the computer with a USB cable.
− The printer is turned on.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
37
Windows
12
Macintosh
□ If the following screen appears
G
H
When the above screen appears, remove the Cap (G) of the printer, connect a network
device with a LAN cable (H), then click Yes.
When the Set Printer IP Address screen appears,
click Connect.
If the printer is detected automatically, the Set Printer IP
Address screen does not appear.
• If no connection is established even after Connect is
clicked, refer to "The Set Printer IP Address Screen
is Displayed" in the printed manual: Network Setup
Troubleshooting.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
38
Windows
13
□ Proceed to the section that relates
to your operating system for further
installation instructions.
Mac OS X v.10.5.x
14-A
Mac OS X v.10.4.x
14-B
Mac OS X v.10.3.9
14-C
When the Setup Completion screen appears, remove the
USB cable, then click OK.
14-A
Macintosh
Mac OS X v.10.5.x
Mac OS X v.10.4.x
Mac OS X v.10.3.9
14-B
14-C
1
Wait for a while, then select Canon
iX7000 series and click Add.
The Printer Setup Utility will start up.
• The alphanumeric characters after
Canon iX7000 series is the printer's
Bonjour service name or MAC address.
• If the printer has not been detected,
make sure of the following.
− The printer is turned on.
− The firewall function of any security
software is turned off.
− The printer is connected to the
network device with the LAN cable.
− The printer is not set to use access
control (MAC address filtering).
Downloaded from ManualsPrinter.com Manuals
• To use the printer on additional computers,
refer to "Setup Additional Computers" on
page 47.
Next, read "Loading Paper"
on page 54!
To Use the Printer by Connecting to a Computer
39
Windows
14-B
Macintosh
Mac OS X v.10.4.x
Mac OS X v.10.3.9
14-C
1
2
3
4
When the Printer List window
appears, click Add.
Click More Printers in the Printer
Browser window.
Select Canon IJ Network in
the pop-up menu, select iX7000
series in the list of printers,
then click Add.
Make sure that iX7000 series is added
to the list of printers.
• To use the printer on additional computers,
refer to "Setup Additional Computers" on
page 47.
Next, read "Loading Paper"
on page 54!
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
40
Windows
14-C
Macintosh
Mac OS X v.10.3.9
1
2
3
When the Printer List window appears, click
Add.
Select Canon IJ Network in the pop-up menu, select
iX7000 series in the list of printers, then click Add.
Make sure that iX7000 series is added to
the list of printers.
• To use the printer on additional computers, refer
to "Setup Additional Computers" on page 47.
Next, read "Loading Paper"
on page 54!
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
41
Windows
Setup Additional Computers
1
2
3
Make sure that the printer is turned on and
that it is connected to the network with a
LAN cable.
Turn on the computer, then insert the
Setup CD-ROM into the CD-ROM
drive.
Click Run Msetup4.exe on the AutoPlay screen, then
click Continue on the User Account Control dialog box.
The setup program will start automatically.
• It is not necessary to connect the printer to the
computer with a USB cable.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
42
Macintosh
• If the program does not start automatically,
double-click the CD-ROM icon in
Computer or My Computer.
When the CD-ROM contents appear,
double-click MSETUP4.EXE.
Windows Vista
Windows XP/2000
If the User Account Control dialog box reappears in following
steps, click Continue.
4
Windows
Macintosh
4
5
6
Click Easy Install.
Click Install.
Select Use the printer on network, then click
Next.
The drivers, application software, and on-screen
manuals are installed all together.
For Windows Vista/XP
• If you want to select particular items to install, click
Custom Install.
Downloaded from ManualsPrinter.com Manuals
• If you are using Internet Explorer 7 or later, you can use the
Web print software Easy-WebPrint EX. An internet connection is
required for installation. (It is also possible to install this software
later.)
To Use the Printer by Connecting to a Computer
43
Windows
Macintosh
7
8
9
Read the License Agreement screen carefully
and click Yes.
When the Please Allow All Install Wizard
Processes screen appears, click Next.
On the Setup Method screen, select Printer is
already connected to the network, then click
Next.
Follow any on-screen instructions to proceed with the
software installation.
• If the above screen is not displayed, click Cancel and
start again from step . Be sure to select Use the
printer on network in step .
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
44
Windows
Macintosh
10
11
12
When the Printers dialog box appears, select the
printer, then click Next.
When the Setup Completion dialog box appears,
click Finish.
When the Print Head Alignment screen
appears, click Next.
Go to the next step without performing Print Head
Alignment.
Follow any on-screen instructions to proceed with the
installation.
• If the printer is not detected, make sure of the following, click
Update.
− The printer is turned on.
− The printer is connected to the network device with the
LAN cable.
• Some programs that switch the network environment
depending on your system environment will enable a firewall
by default. Check the settings of any such software.
Downloaded from ManualsPrinter.com Manuals
• To change the port name, click Set Port Name. For
details, refer to "Changing the Port Name" in the printed
manual: Network Setup Troubleshooting.
To Use the Printer by Connecting to a Computer
45
Windows
Macintosh
13
Important Information for the Installation
□ Necessary Information for the User
Registration
□ About Extended Survey Program
A
Click Exit to complete the installation.
The product serial number is required when
registering the product. The serial number
is located inside the printer (as shown in the
illustration).
• When opening the Top Cover (A), the Print
Head Holder moves automatically.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
46
If you can agree to Extended Survey Program,
click Agree.
If you click Do not agree, the Extended Survey
Program will not be installed.
(This has no effect on the printer's functionality.)
If Restart is displayed, follow the instruction to restart the
computer.
After restarting the computer, remove the Setup CD-ROM and
keep it in a safe place.
Now you can use the printer on additional
computers.
Windows
Setup Additional Computers
Macintosh
1
2
3
Make sure that the printer is turned on and
that it is connected to the network with a
LAN cable.
Turn on the computer, then insert
the Setup CD-ROM into the CDROM drive.
Double-click the Setup icon of the CD-ROM folder to proceed
to the following screen. Enter your administrator name and
password, then click OK.
If you do not know your administrator name or password, click Help,
then follow the on-screen instructions.
• It is not necessary to connect the printer to the
computer with a USB cable.
Downloaded from ManualsPrinter.com Manuals
• If the CD-ROM folder does not open automatically, double-click the CDROM icon on the desktop.
To Use the Printer by Connecting to a Computer
47
Windows
Macintosh
4
5
6
Click Easy Install.
Click Install.
Read the License Agreement screen carefully and
click Yes.
The drivers, application software, and on-screen manuals
are installed all together.
• If you want to select particular items to install, click
Custom Install.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
48
Follow any on-screen instructions to proceed with the
software installation.
Windows
Macintosh
7
Important Information for the Installation
□ Necessary Information for the User
Registration
□ About Extended Survey Program
A
When the Start Setup screen appears, click Next.
Go to the next step without performing Print Head
Alignment.
Follow any on-screen instructions to proceed with the
installation.
Downloaded from ManualsPrinter.com Manuals
The product serial number is required when
registering the product. The serial number
is located inside the printer (as shown in the
illustration).
If you can agree to Extended Survey Program,
click Agree.
If you click Do not agree, the Extended Survey
Program will not be installed.
(This has no effect on the printer's functionality.)
• When opening the Top Cover (A), the Print Head
Holder moves automatically.
• The screen does not appear on Mac OS X
v.10.3.9.
To Use the Printer by Connecting to a Computer
49
Windows
8
9
Click Restart.
On the Canon IJ Network Tool
screen, select LAN connection,
then click OK.
After the computer restarts, Canon IJ
Network Tool starts automatically.
Remove the Setup CD-ROM and keep it in
a safe place.
□ If the following screen appears
If the Setup Preparations
screen appears, make sure that
preparation is complete, then
click OK.
Macintosh
10
Select Setup in the pop-up menu,
then click Register Printer.
• If the above screen is not displayed,
start again from step . Be sure to
select LAN connection in step .
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
50
Windows
11
□ Proceed to the section that relates to your operating
system for further installation instructions.
Mac OS X v.10.5.x
12-A
Mac OS X v.10.4.x
12-B
Mac OS X v.10.3.9
12-C
When the Cancel Setup screen
appears, then click Cancel.
12-A
Macintosh
Mac OS X v.10.5.x
Mac OS X v.10.4.x
Mac OS X v.10.3.9
12-B
12-C
1
Wait for a while, then select Canon iX7000
series and click Add.
The Printer Setup Utility will start up.
• The alphanumeric characters after Canon iX7000 series is
the printer's Bonjour service name or MAC address.
• If the printer has not been detected, make sure of the
following.
− The printer is turned on.
− The firewall function of any security software is turned
off.
− The printer is connected to the network device with the
LAN cable.
• When the You have no printers
available. screen appears, click Cancel.
Downloaded from ManualsPrinter.com Manuals
− The printer is not set to use access control (MAC
address filtering).
Now you can use the printer
on additional computers.
To Use the Printer by Connecting to a Computer
51
Windows
12-B
Macintosh
Mac OS X v.10.4.x
Mac OS X v.10.3.9
12-C
1
2
3
4
When the Printer List window
appears, click Add.
Click More Printers in the Printer
Browser window.
Select Canon IJ Network in
the pop-up menu, select iX7000
series in the list of printers,
then click Add.
Make sure that iX7000 series is added
to the list of printers.
Now you can use the printer
on additional computers.
Downloaded
from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
52
Windows
12-C
Macintosh
Mac OS X v.10.3.9
1
2
3
When the Printer List window appears, click
Add.
Select Canon IJ Network in the pop-up menu, select
iX7000 series in the list of printers, then click Add.
Make sure that iX7000 series is added to
the list of printers.
Now you can use the printer
on additional computers.
Downloaded from ManualsPrinter.com Manuals
To Use the Printer by Connecting to a Computer
53
After Installing the Printer
Loading Paper
This section explains how to load
paper in the Cassette (A) and the
Rear Tray (B).
1
3
E
D
B
F
G
A
Pull out the Cassette slowly with
both hands, then remove the
Cassette Cover (E).
C
Pull the Cassette out slowly with both
hands until it stops, then lift its front
slightly and pull it out.
The Cassette supports plain paper (C)
only. To print photo paper / Hagaki (D),
be sure to load it in the Rear Tray.
Downloaded
from ManualsPrinter.com Manuals
After Installing the Printer
54
2
Pinch the Paper Guides (F) and (G),
then move them to both edges.
Load plain paper.
Load paper with the printing side
facing down.
4
5
6
H
Pinch the Paper Guide, then align it with the
paper size.
Pinch the Paper Guide on the right, then slide it to set the
Paper Guides against both edges of the paper.
The Paper Guide will stop when it aligns with the
corresponding mark of paper size.
Make sure that the paper stack does not exceed the line (H).
• There may be a little space between the Paper Guide
and the paper stack.
Downloaded from ManualsPrinter.com Manuals
• To print on specialty paper, be sure to load it in the Rear Tray.
Attach the Cassette Cover, then insert
the Cassette against the back end of the
printer.
• Pull and extend the Cassette to load paper larger
than A4.
For details on how to load paper, refer to
"Loading Paper in the Cassette" in "Loading
Paper" in the on-screen manual: Basic Guide.
After Installing the Printer
55
7
8
I
9
10
2
2
L
1
J
K
Open the Paper Support (I).
Move the Paper Guides
(K) to both edges.
Load paper in the center of the
Rear Tray.
Slide the left and right Paper Guides
against both edges of the paper.
Load paper in portrait orientation with
the printing side facing up.
Make sure that the paper stack does not
exceed the line (L).
• For details on media sizes and types you
can use, refer to "Loading Paper" in the onscreen manual: Basic Guide.
• Pull out the Front Tray Extension (J) beforehand.
Downloaded
from ManualsPrinter.com Manuals
After Installing the Printer
56
Preparation for printing is now complete!
Introduction of Manuals
The fo llowing man u a l s a r e s u p p l i e d w i t h t h e p r i n t e r.
on-screen m a n u a l s
G e t t i ng Started
( t h i s manual)
N e t w ork Setup
Tr o u b l eshooting
Describes how to set up and use
your printer. Introduces the printer
and its functions, the included
manuals and application software.
Basic Guide
Describes basic operations
and media, and gives an
introduction to other functions
available.
Advance d
Guide
Describes various operating
procedures to make full use of
printer.
Tr o u b l e s h o o t i n g
Describes troubleshooting tips
for problems you may encounter
when using the printer.
For details on opening the on-screen manuals, refer to page 58
Downloaded from ManualsPrinter.com Manuals
After Installing the Printer
Solution Menu
Solution Menu i s a g a t e w a y t o f u n c t i o n s a n d i n f o r m a t i o n t h a t a l l o w y o u t o m a k e f u ll use of the printer!
Click this button to open the on-screen manuals.
Example: Windows Vista
Click this button to access the website containing
free printing materials exclusive for the printer.
(Internet connection is required.)
Open various applications and on-screen manuals with a single click.
You can start Solution Menu from the Canon Solution Menu icon on the desktop (Windows) or
on the Dock (Macintosh).
If you have a problem with printer settings, click the Change settings or find solutions to
problems. in Solution Menu to open My Printer (Windows only).
*The buttons displayed vary depending on
the country or region of purchase.
Downloaded
from ManualsPrinter.com Manuals
After Installing the Printer
58
Utilizing the Printer
Use application s s u p p l i e d w i t h t h e p ri n t e r
to easily enhan c e d o c u m e n t s a n d p h o t o s ,
print on both s i d e s o f p a p e r o r p r i n t i n A 3
size.
Also, it is usef u l t o f e e d p a p e r f r o m t h e
Cassette when p r i n t i n g a l a r g e n u m b e r
of copies (of co n f e r e n c e m a t e r i a l s ,
documents, etc . ) .
For details on h o w t o u s e t h e a p p l i c a t i o n
software and t h e p r i n t e r, r e f e r t o t h e
on-screen ma n u a l s : B a s i c G u i d e a n d
Advanced Gu i d e.
Downloaded from ManualsPrinter.com Manuals
After Installing the Printer
59
Getting Help from Canon
Email Tech Support — www.canontechsupport.com
Toll-Free Live Tech Support— (1-800-828-4040) under warranty
This option provides live telephone technical support, free of service charges,
Monday-Friday (excluding holidays), during the warranty period.
Telephone Device for the Deaf (TDD) support is available at (1-866-251-3752).
Ordering Information
The following ink tanks are compatible with this printer.
PGI-9PBK
PGI-7BK
PGI-9Y
PGI-9M
PGI-9C
PGI-9Clear
Order #
1034B002
2444B002
1037B002
1036B002
1035B002
2442B002
Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon eStore at
www.canonestore.com
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042 U.S.A.
www.usa.canon.com
Downloaded from ManualsPrinter.comXXXXXXXX
Manuals
QT5-2699-V02
©CANON INC.2009
PRINTED IN THAILAND
