icountPDR

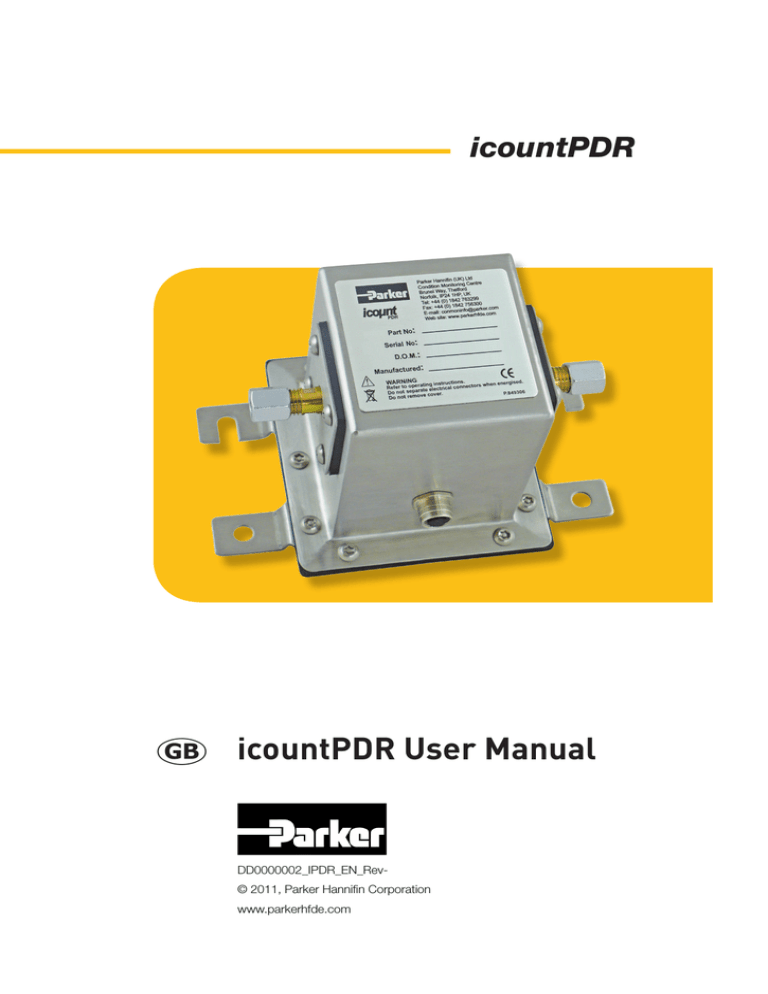

g icountPDR User Manual
DD0000002_IPDR_EN_Rev© 2011, Parker Hannifin Corporation
www.parkerhfde.com
g
Contents
Overview....................................................................................................3
Conditions for safe use..............................................................................3
Laser Information......................................................................................3
EC Declaration of Conformity....................................................................4
Product identification label.......................................................................5
Introduction.............................................................................. 6
Principles of operation..............................................................................6
Benefits......................................................................................................7
Technical specification..............................................................................8
Software default settings..........................................................................9
Product features......................................................................................10
Dimensions for installation.....................................................................10
Connections............................................................................ 11
Hydraulic connection...............................................................................11
Flow control.............................................................................................12
System 20 sensor connection.................................................................14
Electrical connections.............................................................................15
Variable current output settings.............................................................20
Variable voltage output settings..............................................................21
CAN-bus output option............................................................................21
Moisture sensor output settings.............................................................21
Digital Display Unit connection...............................................................22
RS232 connection....................................................................................24
Software................................................................................. 25
icountPD Setup Utility software..............................................................25
Microsoft Windows® HyperTerminal connection....................................28
Communication protocol.........................................................................30
Reference............................................................................... 35
Contamination Standards........................................................................35
Viscosity charts........................................................................................36
Ordering Information...............................................................................37
2
Parker Hannifin icountPDR
g
Overview
Parker Hannifin’s icountPDR is an on-line laser particle detector. This mineral based hydraulic fluid
contamination detector is designed for use in robust areas and is housed in a stainless steel IP69K
approved enclosure.
The unit has two 06L EO 24° cone-end hydraulic connections (for use with Ø6mm pipe) that allow
the fluid to be transferred through the unit for analysis. The electrical supply and communication is
made via an M12 Ultra Lock IP69K approved connector.
Conditions for safe use
To ensure compliance with the certification, users are NOT permitted to open the unit
under any circumstances. Doing so will invalidate the unit’s calibration and it would NOT
be suitable for calibrated use.
Laser Information
This product contains an invisible infrared 5mW laser.
Any dismantling of the product may result in dangerous exposure to laser radiation.
The following laser information is on a label on the top surface of the product:
CAUTION: Users are not required to access the laser radiation source and should never
do so.
The internal laser warning label is mounted on the laser module and contains the following
information:
LASER RADIATION
AVOID EXPOSURE TO BEAM
CLASS 3R LASER PRODUCT
Parker Hannifin icountPDR  
3
g
EC Declaration of Conformity
4
Parker Hannifin icountPDR
g
Product identification label
The identification label attached to the enclosure (an example is given below) is explained in the
table that follows:
7
1
2
3
4
5
6
Item Field
8
Values
1
2
Part Number
icountPDR
Serial Number
The serial number consists of eight digits, for example: GD6NN001
(‘GD’ is the month and year; ‘6NN’ is the product group; the last three digits
are entered sequentially through a month, reverting to ‘001’ at the beginning
of each month)
3
4
5
6
7
D.O.M.
Date of manufacture
Manufactured
Country of manufacture (United Kingdom)
Exclamation mark icon
Refer to product manual ‘Safety Recommendations’
WEEE Disposal icon
At the end of life dispose of responsibly, do NOT dispose of in general waste
Name and address of
manufacturer
Parker Hannifin (UK) Ltd, Filter Division Europe,
Condition Monitoring Centre, Brunel Way,
Thetford, Norfolk, IP24 1HP, UK
8
CE Conformity marking and
number of notified body
responsible for audit production
CE 0518
Parker Hannifin icountPDR  
5
g
Introduction
Introduction
Parker Hannifin’s icountPDR represents the most up-to-date technology in solid particle
contamination analysis. The icountPDR is a compact, permanently-mounted laser-based particle
detector module that provides a cost-effective solution to fluid management and contamination
control.
Principles of operation
The icountPDR measures particle contamination continuously and updates the output options and
limit relay every second.
Unlike the Parker CM20, LCM20 or MCM20, the unit does not perform a ‘one-off’ test. This means
that even if the Measurement Period is set to 60 seconds, the output and limit relay all report the
presence of dirt in the oil in just a few seconds – it does not wait until the end of the Measurement
Period before reporting the result.
The icountPDR has just one setting to control the accuracy, stability and sensitivity of the
measurements and that is the ‘Measurement Period’. This can be set from 5 seconds to 180
seconds. The longer the Measurement Period, the more contaminant is measured, averaging out
any spikes seen on a smaller sample. The shorter the Measurement Period, the more sensitive
the icountPDR is to small slugs of contaminant, but it can also reduce the performance on clean
systems. Thus, the user can select how sensitive the icountPDR is to spikes of contaminant, and
how quickly it responds to contamination levels above the set point (‘limits’).
With a Measurement Period of 100 seconds, the results will be for the last 100ml of oil that has
flowed through the icountPDR, updated on a second-by-second basis, giving an effectively
continuous readout of the level of contamination.
Calibration recommendations
NOTE: Any servicing or repair work must be carried out by a Parker approved service
centre. Contact your local Parker Hannifin Sales Company for recalibration details. The
recommended period between recalibration is 12 months.
Please refer to the Parker Hannifin Quality and Servicing Booklet (FDCB272UK), supplied on CD.
6
Parker Hannifin icountPDR
g
Introduction
Benefits
■■ Independent monitoring of system contamination trends
■■ Calibration by recognised online principles confirmed by relevant International Organization
for Standardization (ISO) procedures
■■ Indicators for Low, Medium and High contamination levels
■■ A low cost solution to prolonging fluid life and reducing machine downtime
■■ Self-diagnostic software
■■ Mineral fluid-compatible construction
■■ Fully PC/PLC integration technology such as: RS232, 0–3V/0–5V, 4–20mA and CAN-bus
(SAE J1939) – see the ‘Product Configurator’, page 45, for communication options
■■ Percentage saturation reporting through an integrated moisture sensor – see the ‘Product
Configurator’ on page 45, for the moisture sensor option.
Parker Hannifin icountPDR  
7
g
Introduction
Technical specification
Feature
Specification
Product start-up time
5 seconds minimum
Measurement period
5–180 seconds
Reporting interval
0–3600 seconds via RS232 communication
Principle of operation
Laser Diode optical detection of actual particulates
International codes
ISO 7 – 22, NAS 0 – 12
Calibration
By recognised online methods confirmed by the relevant ISO procedures:
MTD – via a certified primary ISO 11171 automatic particle detector using ISO 11943
principles, with particle distribution reporting to ISO 4406:1996
Recalibration
Contact Parker Hannifin
Working pressure
2–420 bar (30–6000 PSI)
Flow range through icountPDR
Note: Flow may be bi-directional
40–140 ml/min (optimum flow 60 ml/min)
(0.01 – 0.04 USGPM (optimum flow 0.016 USGPM))
Online flow range via System
20 sensors
Size 0 = 6 to 25 l/min (2–7 USGPM)
Size 1 = 24 to 100 l/min (6–26 USGPM)
Size 2 = 170 to 380 l/min (45–100 USGPM)
Ambient storage temperature
–40°C to +80°C (–40°F to +176°F)
Environment operating
temperature
-30°C to +60°C (–22°F to 140°F)
Fluid operating temperature
+5°C to +80°C (+41°F to 176°F)
Computer compatibility
Parker recommends the use of a 9-way D-type connector. This can be connected to
a USB port using a USB-serial adaptor. Note that these connectors/adaptors are NOT
supplied with icountPDR units: contact Parker Hannifin for advice.
Moisture sensor calibration
±5% RH (over compensated temperature range of +10ºC to +80ºC; +50ºF to +176ºF)
Operating humidity range
5% RH to 100% RH
Moisture sensor stability
±0.2% RH typical at 50% RH in one year
Power requirement
Regulated 9–40Vdc
Current rating
Typically 120mA
Certification
IP69K rating
EC Declaration of Conformity (see page 4).
Analogue output options (specified when ordering)
Variable current
4–20mA
Variable voltage
0–5Vdc, 0–3Vdc (user selectable)
CAN-bus
to SAE J1939 (e.g. Parker IQAN)
Moisture sensor
Linear scale within the range 5% RH to 100% RH
8
Parker Hannifin icountPDR
g
Introduction
Software default settings
Standard defaults
Comms echo
OFF
Verbose errors
OFF
STI Sensors used
OFF
Reporting standards
ISO
Particle limits
19 / 18 / 15
Measurement period
60 seconds
Reporting interval
30 seconds
Power-on mode
AUTO
Auto start delay
5 seconds
Date format
dd/mm/yy
Default if options fitted
Relay hysteresis
ON
Relay operation for particle limits
ON
Relay operation for moisture sensor ON
limits
0–5V/0–3V output voltage range
0–5V
Moisture sensor limit
70%
Parker Hannifin icountPDR  
9
g
Introduction
Product features
Product identification label
Four mounting
locations (two
each side) to suit
M8 (5/16”) fixings
(supplied)
Size 06L EO 24° cone end
hydraulic connections (Pipe
not supplied)
Communication and Supply cable
M12, 12-pin Ultra Lock IP69K
Rated female connector. Supply /
Limit Cable, 5m (16ft 4in)
Best practice mouning orientation (i.e.
cable exits from the bottom of the
unit). Contact Parker Hannifin if you
require further advice installing the
icountPDR in your system.
Dimensions for installation
Dimensions are given in mm (inches)
Four mounting locations (two
each side) to suit M8 (5/16
inch) fixings, supplied. Flange
thickness is 2mm (5/64 inch)
10
Parker Hannifin icountPDR
g
Connections
Connections
Hydraulic connection
Our recommendation is to position the icountPDR as close to the system output as possible whilst
controlling the flow to the optimum 60ml/min. This then provides the highest pressure conditions,
plus the oil in this position is indicative of the reservoir’s oil condition.
The icountPDR is supplied with two 06L EO 24° cone-end hydraulic connections (for use with a
Ø6mm pipe).
For hydraulic connection, ensure that the hydraulic/pipe connection fitting is compatible with the
size 06L EO 24° cone bulkhead fitting (for use with a Ø6mm pipe).
Assembling the EO nut fitting
Step
1
2
Press the tube-end firmly into the assembly
core.
Turn back the nut for easy tube insertion and fit
the nut hand tight, then tighten the fitting until
you feel a sharp increase in resistance.
Ensure the bulkhead fitting is held with a
10mm spanner and tighten (approximately 1 to
1½ turns).
Parker Hannifin icountPDR  
11
g
Connections
3
Now remove the pipe and nut to check
assembly.
The gap between sealing ring and
retaining ring must be closed. A little
relaxation (approximately 0.2mm) is allowed.
If the gap is not closed: Check all
components, including the tube.
4
Assemble the fitting until wrench-tight (without
spanner extension).
Tighten the fitting firmly by a minimum 1/6
(max ¼) turn (i.e. 1 to 1½ flats)
Flow control
Low to medium viscosity flow control option
A pressure compensated, flow control device (ACC6NN023) has
been developed to allow testing where flow ranges are outside
the icountPDR specifications (i.e. 40–140 ml/min), or where pipe
diameters do not allow the icountPDR to be installed directly.
The flow control device fits onto the downstream (outlet) side of
the icountPDR.
A 06L-G1/8A female adapter is provided for use with a Ø6mm pipe, that enables connection
directly to the icountPDR. Alternatively, the flow control device an be fitted further down stream. For
further information please contact Parker Hannifin.
The compact design requires no setting up or further user intervention as long as the system
conditions remain within the recommended pressure and viscosity ranges as below.
Working pressure range
10 to 300bar
Differential pressure range
10 to 300bar
Working viscosity range
10 to 150 cSt
The working pressure and viscosity range for this device is shown in the coloured area of the
following graph:
12
Parker Hannifin icountPDR
g
Connections
Working pressure and viscosity range
High viscosity flow control option
The flow control device (S840074) fits onto the downstream
(outlet) side of the icountPDR, connecting through a manifold
block via a self-sealing quick connection test point.
1/8" BSPP ports are provided on the inlet and outlet sides of the
mounting block.
The differential pressure valve automatically compensates for
pressure and viscosity changes, while maintaining its flow setting
even as the workload changes.
Working pressure range
10 to 300bar
Differential pressure range
10 to 300bar
Working viscosity range
90 to 500 cSt
The table below is used to select the appropriate valve position:
Valve position
cSt range
3.8
90–200
4.2
190–320
5
310–500
Parker Hannifin icountPDR  
13
g
Connections
System 20 sensor connection
6 to 25 l/min (optimum flow = 15 l/min)
Size 1
24 to 100 l/min (optimum flow = 70 l/min)
Size 2
170 to 380 l/min (optimum flow = 250 l/min)
56
Size 0
Size 0 Sensor
Ø30
Online flow range via System 20 inline sensors:
The required differential pressure across inline sensors is
0.4 bar (minimum)
Refer to the ‘Sensor part numbers’ section on page 45
before ordering System 20 sensors.
Size 1 Sensor
Ø41
66.5
See ‘Inline Sensor Monitors’ (Parker Hannifin Brochure
CM013GB1) for more information on System 20 sensors.
95
137
Ø66.7
73.5
Size 2 Sensor
231.3
(All dimensions are in millimetres)
IMPORTANT NOTE: P1 and P2 of the System 20 sensors MUST be connected to the
icountPDR test points. Ensure that the icountPDR command ‘SSU’ is set to ‘Yes’ when
connecting to icountPDR – refer to ‘Communication protocol’ section of this manual for
a list of user commands.
Contact Parker Hannifin if you require further advice in connecting icountPDR to your system.
14
Parker Hannifin icountPDR
g
Connections
Electrical connections
The M12 12-pin Ultra Lock connection system uses innovative push-to-lock technology to make a
quick but secure connection. The unique O-ring radial seal is operator-independent, so there is no
chance of over-tightening or under-tightening.
Communication and Supply cable
M12, 12-pin Ultra Lock IP69K-rated
female connector to unterminated
5m (16ft 4in) Communication cable.
IMPORTANT NOTE: The IP69K Ingress Protection is only valid when using the M12
Ultra Lock mating connector cable (supplied).
CONNECTING/DISCONNECTING
Ensure that the locating pin and slot are correctly aligned (to avoid damaging the pins) and push
home firmly to connect. To disconnect, pull the Ultra Lock’s metal collar back to release the cable
lock and pull the cable boot out squarely.
WIRING DIAGRAMS
Wiring diagrams are provided (on pages 17–18), showing how a digital multimeter may be
connected to the Communication and Supply cable, for both voltage and current options. The
connections for an optional moisture sensor (if fitted) are also shown.
A diagram for connecting the icountPDR to an external CAN-bus network is given on page 19.
Parker Hannifin icountPDR  
15
g
Connections
Communication and Supply cable connector
Pink 6
7 Blue
Grey 5
8 Red
Yellow 4
10 Violet
Grey/Pink 11
12 Red/Blue
Green 3
Brown 2
Pin number
(wire colour
recommended)
Pin configuration diagram
M12, 12-pin Ultra Lock IP96K
female connector, end view
9 Black
1 White
No options fitted
0–5V/0–3V option fitted
4–20mA option fitted
CAN-bus option fitted
1 (White)
NOT USED
Channel C, ISO 14µm(c.)
Channel C, ISO 14µm(c.)
CAN High
2 (Brown)
NOT USED
0–5/0–3V Supply 12–24Vdc
4–20mA Supply 12–20Vdc
NOT USED
3 (Green)
NOT USED
Channel A, ISO 4µm(c.)
Channel A, ISO 4µm(c.)
CAN Low
4 (Yellow)
NOT USED
Channel B, ISO 6µm(c.)
or NAS (if selected)
Channel B, ISO 6µm(c.)
or NAS (if selected)
NOT USED
5 (Grey)
RS232 Receive (* Pin 3)
RS232 Receive (* Pin 3)
RS232 Receive (* Pin 3)
RS232 Receive (* Pin 3)
6 (Pink)
RS232 Transmit (* Pin 2)
RS232 Transmit (* Pin 2)
RS232 Transmit (* Pin 2)
RS232 Transmit (* Pin 2)
7 (Blue)
NOT USED
With or without
Moisture Sensor
With or without
Moisture Sensor
CAN Ground
8 (Red)
Product Supply 9-40Vdc
Product Supply 9-40Vdc
Product Supply 9-40Vdc
Product Supply 9-40Vdc
9 (Black)
Product Supply 0Vdc
Product Supply 0Vdc
Product Supply 0Vdc
Product Supply 0Vdc
10 (Violet)
NOT USED
0–5/0–3V Supply 0Vdc
NOT USED
NOT USED
11 (Grey / Pink)
RS232 Ground (* Pin 5)
RS232 Ground (* Pin 5)
RS232 Ground (* Pin 5)
RS232 Ground (* Pin 5)
12 (Red / Blue)
NOT USED
NOT USED
NOT USED
NOT USED
* Parker Hannifin recommends the use of a 9-way D-type socket with RS232, using the
pin configurations given in the above table.
NOTE: If the moisture sensor is fitted without the 4–20mA or the 0–5V/0–3V option, then
the output is via RS232.
IMPORTANT NOTE: It is the responsibility of the end user to ensure that the cable’s
braided screen is terminated to a suitable earth bonding point.
16
Parker Hannifin icountPDR
Parker Hannifin icountPDR  
PSU
4-20mA Supply 0Vdc (Violet)
PSU
12
11
10
9
8
7
6
5
4
3
2
1
B
A
Optional switch box
C
ms
(This example
shows the
switch position
set to monitor
Channel A)
Moisture Sensor Channel (0–5V/0–3V)
output (if fitted, Blue)
Channel B (0–5V/0–3V) output (Yellow)
Channel A (0–5V/0–3V) output (Green)
Channel C (0–5V/0–3V) output (White)
Digital multimeter or similar
0-5V/0-3V
Supply
0Vdc (Violet)
0Vdc– (Black)
Product supply
Product supply
9–40Vdc+ (Red)
0–5V/0–3V supply 12–24V+ (Brown)
Comms and Supply
icountPDR
g
Connections
M12, 12-pin connector: 0–5V/0–3V voltage measurement
17
18
PSU
Note: 4-20mA
Supply must be
a separate and
dedicated circuit
PSU
12
11
10
9
8
7
6
5
4
3
2
1
B
A
Optional switch box
C
ms
(This example
shows the
switch position
set to monitor
Channel A)
Moisture Sensor Channel (4-20mA)
output (if fitted, Blue)
Channel B (4-20mA) output (Yellow)
Channel A (4-20mA) output (Green)
Channel C (4-20mA) output (White)
Digital multimeter or similar
Product
supply 0Vdc
(Black)
Product supply
9–40Vdc (Red)
4-20mA supply 12–20Vdc+ (Brown)
Comms and Supply
icountPDR
Connections
g
M12, 12-pin connector: 4–20mA current measurement
Parker Hannifin icountPDR
g
Connections
CAN-bus (SAE J1939) connections
icountPDR
Comms and Supply
1
2
3
CAN Hi (White)
CAN Lo (Green)
4
5
6
7
Product supply 9–40Vdc (Red)
Product supply
0Vdc (Black)
8
CAN Ground (Blue)
9
10
11
12
PSU
CAN controller
(e.g. Parker IQAN)
CAN Ground
CAN Low
CAN Hi
Parker Hannifin icountPDR  
19
g
Connections
Variable current output settings
ISO setting
The following table can be used to relate an analogue output (in mA) to an ISO code. For example,
an output of 10mA is equal to an ISO code 12.
mA
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
ISO
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
mA
12.5
13.0
13.5
14.0
14.5
15.0
15.5
16.0
16.5
17.0
17.5
18.0
18.5
19.0
19.5
20
ISO
17
18
19
20
21
22
*
*
*
*
*
*
*
cont.
Over-range
ERROR
ISO v output mA
The actual calculation is as
follows:
ISO code = (output in mA – 4) x 2
output mA
e.g. (11.5mA – 4) x 2 =
7.5 x 2 = ISO 15
* = Saturation (i.e. above ISO
code 22)
ISO code
NAS setting
The following table can be used to relate an analogue output (in mA) to a NAS code. For example,
an output of 15mA is equal to NAS code 10.
mA
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NAS
00
0
1
2
3
4
5
6
7
8
9
10
11
12
*
*
ERROR
Note: * = Saturation (above NAS code 12)
NAS v. output mA
The actual calculation is as
follows:
NAS code = (output in mA – 5)
output mA
e.g. 15mA – 5 = NAS 10
* = Saturation (i.e. above NAS
code 12)
NAS code
20
Parker Hannifin icountPDR
g
Connections
Variable voltage output settings
The variable voltage output option is capable of two different voltage ranges: a 0–5Vdc range as
standard, and a user-selectable 0–3Vdc range. The ‘Full list of commands’ section of this manual
(page 31–33) gives information on how to change the voltage output range.
The following tables can be used to relate the analogue output to an ISO or NAS code.
For example, in a 0–5Vdc range, ISO code 16 is equal to an output of 3.5Vdc. In a 0–3Vdc range,
ISO code 8 is equal to an output of 1.0Vdc.
Table relating ISO codes to Voltage output
ISO
Err
0
1
2
3
4
5
6
7
8
9
10
11
0–5Vdc
<0.2
0.3
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
2.3
2.5
0–3Vdc
<0.15
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
ISO
12
13
14
15
16
17
18
19
20
21
22
Err
0–5Vdc
2.7
2.9
3.1
3.3
3.5
3.7
3.9
4.1
4.3
4.5
4.7
>4.8
0–3Vdc
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
>2.45
cont.
Table relating NAS codes to Voltage output
NAS
Err
00
0
1
2
3
4
5
6
7
8
9
10
11
12
Err
0–5Vdc
<0.4
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3.0
3.3
3.6
3.9
4.2
4.5
>4.6
0–3Vdc
<0.2
N.S.
0.3
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
2.3
2.5
2.7
>2.8
(N.S. = Not Supported)
CAN-bus output option
If you plan to use the icountPDR with a CAN-bus (SAE J1939) network, you can order this output
option when specifying the unit. Refer to the ‘Product configurator’ (page 45) in the Reference
section of this manual. The CAN option provides an interface to external CAN-bus networked
systems – for example, to the Parker IQAN.
Moisture sensor output settings
The Moisture sensor is an option that can be included when specifying the icountPDR. Refer to the
‘Product configurator’ (page 45) in the Reference section of this manual.
The Moisture sensor reports on the saturation levels of the fluid passing through the icountPDR
sensing cell. The output is a linear scale, reporting within the range of 5% saturation to 100%
saturation.
Table relating Saturation levels in the sensing cell to icountPDR outputs
Saturation
4–20mA
0–3Vdc
0–5Vdc
5%
4.8
0.15
0.25
25%
8
0.75
1.25
50%
12
1.50
2.50
75%
16
2.25
3.75
100%
20
3.00
5.00
Parker Hannifin icountPDR  
21
g
Connections
Digital Display Unit connection
icountPDR
Comms and Supply
1
2
3
4
Digital Display Units
(e.g. Parker Hannifin DDU1002)
Output channel C (White)
Output channel A (Green)
Output channel B (Yellow)
5
6
Product supply 9–40Vdc (Red)
7
Moisture sensor (if fitted)
8
9
10
11
12
External
12–20Vdc
power supply
Product supply 0Vdc (Black)
The above diagram shows how a set of Parker Hannifin DDUs can be used to display Channels A,
B and C, plus the Moisture sensor (if fitted).
DIGITAL DISPLAY UNITS AVAILABLE
22
Part number
Description
DDU1001
Process indicator, 22–55Vdc
DDU1002
Process indicator, 90–264Vdc
Parker Hannifin icountPDR
g
Connections
icountPDR
Comms and Supply
1
2
3
4
Output channel C (White)
Output channel A (Green)
Output channel B (Yellow)
5
6
Product supply 9–40Vdc (Red)
7
Moisture sensor (if fitted)
8
9
10
11
12
External
12–20Vdc
power supply
(This example
shows the
switch position
set to monitor
Channel A)
ms
B
Product supply 0Vdc (Black)
Digital Display Units
A
C
Optional switch box
The above diagram shows how a single DDU can be used to display Channels A, B and C, plus the
Moisture sensor (if fitted), by using a switch to display each channel in turn. Please contact Parker
Hannifin Sales for a range of DDUs.
Parker Hannifin icountPDR  
23
g
Connections
RS232 connection
Communication can be established between icountPDR and a PC using an RS232 serial
connection with the Parker Utility Setup Tool, the Parker Terminal utility, or via Microsoft Windows®
HyperTerminal.
Please note that HyperTerminal is not supplied with Windows Vista™, but the Parker Utility Setup
Tool and Parker Terminal can be used with this operating system. Both Parker programs are
supplied on the icountPD CD.
PC connection
The RS232 wires need to be connected to a 9-way D-type connector (not supplied as standard).
For the connector pin termination and wire colour, refer to the ‘Communication and Supply cable
connector’ section of this manual (page 16).
The device can then be either connected direct to PC serial port (Figure 1) or connected via an
RS232-to-USB adaptor cable (Figure 2).
RS232 to USB convertor can be supplied by Parker Hannifin (part number ACC6NN017).
9-way D-type serial port on
PC
Recommended 9-way D-type
socket (icountPDR Comms
cable)
USB connector to PC/
laptop
RS232-to-USB adapter
cable
Figure 1 Figure 2
NOTE: The 9-way D-type connector, RS232-to-USB adaptor cable and installation
software are not supplied as standard with the icountPDR.
24
Parker Hannifin icountPDR
g
Software
Software
The icountPDR may be configured using the icountPD Setup Utility, supplied on CD.
For more direct control of the device using its communications protocol, you may use the Parker
Terminal program: both Parker programs are supplied on the icountPDR CD. You may also use
Microsoft Windows® HyperTerminal program, but note that this program is not currently supplied
with the Windows Vista™ operating system.
icountPD Setup Utility software
PC Installation
The icountPD Setup Utility and Parker Terminal software is available on the CD supplied with the
icountPDR. The software can be run directly from the CD or copied to a PC hard drive.
Using the icountPD Setup Utility
Check that the icountPDR is connected to power and the communication cable is connected to the
PC via the RS232 plug.
Place the CD in your PC drive and wait for the selection screen to appear. On starting the software,
the icountPD Setup Utility screen appears.
Step 1A:
With the icountPDR connected to
power and the RS232 connected
to the PC, select the appropriate
communication port.
Step 1B:
Note the status of the icountPDR.
Parker Hannifin icountPDR  
25
g
Software
Step 2:
Set the values for ‘Detector ID’
and ‘Date Format’.
The remaining detector
information is preset by Parker
Hannifin and cannot be changed.
Step 3:
Set the values in ‘Measurement
Configuration’, ‘Relay Options’
and ‘Alarm Limits’.
Step 4:
Set the Voltage Range (0–5V, 0–3V
or J1939) in ‘Output Options’
according to the options fitted.
26
Parker Hannifin icountPDR
g
Software
Step 5:
Setup values are verified as valid
in ‘Results’.
Click ‘Start’ to start verification
and ‘Stop’ to stop.
Parker Hannifin icountPDR  
27
g
Software
Microsoft Windows® HyperTerminal connection
An alternative way of achieving communication with icountPDR is to use the HyperTerminal program
supplied with Microsoft Windows (but not always installed on the PC or laptop’s hard disk – check
the installation disk, or contact your organisation’s IT department if the program is not present).
Please note that HyperTerminal is not supplied with Windows Vista™, but the Parker
Terminal utility can be used with this operating system.
The standard communication settings (used in STEP 4) are as follows:
Baud Rate
9600
Data bits
8
Parity
None
Stop bits
1
Flowcontrol
None
Step 2:
Select ‘HyperTerminal’.
(from All Programs
4 Accessories
4 Communications
4 HyperTerminal)
Step 1:
Click ‘Start’
Step 3:
Click and type the connection
name you wish to use to identify
this session
28
Parker Hannifin icountPDR
g
Software
Step 4:
Select the appropriate USB port.
Step 5:
Enter the communication
settings (as in the ‘standard
communications settings’ table,
on the previous page).
Step 6:
Once the icountPDR is connected
to power, the product identification
is displayed. (This screen shown is
only for example.)
This confirms that communication
to icountPDR has been
established and the unit is now
ready for operation.
Parker Hannifin icountPDR  
29
g
Software
Communication protocol
The commands used with the icountPDR are either made up of Set, Read or Start/Stop commands.
■■ Set commands allow the value or values of parameters to be changed
■■ Read commands allow the value or values of parameters to be read
■■ Start/Stop commands allow the user to start and stop tests.
Example:
[SDF dd/mm/yy] sets the date format
[RDF] reads the product format date
All commands are sent in ASCII characters, and the protocol accepts both upper and lower case
characters. For example, all of the following codes are equivalent:
SDF = Sdf = SDf = sdF = sdf
NOTE: The use of a ‘=’ after a command, for example [SDF = dd/mm/yy], is optional.
Certain commands are for expert use only and can be accessed via a password system. Should an
unauthorized person attempt to access these commands the icountPDR returns the error code for
‘Invalid Command’.
A list of error codes is given on page 34.
Most-used commands
Common User Read commands
Command
Description
icountPDR response
RDU
Read calibration dust
Calibration dust displayed (i.e. MTD
or ACFTD)
RLT
Read NAS or ISO limits
Limits displayed
RRS
Read reporting standard
ISO or NAS displayed
Common User Set commands
Command
Description
User response
SLT
Set limits
i.e. ‘SLT 19 18 15’
SLT ## ## ## (for ISO)
SLT ## (for NAS)
SRS
Set reporting standard
SRS iso
SRS nas
SRI
Set reporting interval
0 to 3600 seconds
0 = No reporting
SRI ####
NOTE: The reporting interval (SRI) controls how often the icountPDR sends results over
the RS232.
User Start/Stop commands
30
Command
Description
Response
STR or START
Start testing
‘OK’ displayed
STP or STOP
Stop testing
‘OK’ displayed
Parker Hannifin icountPDR
g
Software
Full list of commands
User Read Commands
Command
Description
icountPDR response
RCD
Read the last Calibration Date
Last calibration date displayed
RCE
Read Communication Echo
‘ON’ or ‘OFF’ displayed
Comms Echo ON allows the icountPDR to communicate in two directions
(Hyperterminal)
Comms Echo OFF allows the icountPDR to communicate in one direction (Setup
Utility)
RDD
Read the next calibration Due Date
Next calibration due date displayed
RDF
Read Date Format
Date format displayed (e.g. dd/mm/yy)
RDI
Read Detector ID
Detector ID displayed
RDS
Read Detector Status
IPD status displayed (e.g. RUNNING)
RDU
Read the calibration Dust Unit
Calibration dust displayed (i.e. MTD or
ACFTD)
REN
Read last Error Number
Last error number displayed
RER
Read last Error text Report
Last error text displayed
REV
Read the Error Verbose mode
Error verbose mode displayed
Error Verbose ON displays the full description of the error code (i.e. Error 40 –
expected On or Off)
Error Verbose OFF displays just the error code (i.e. Error 40)
RFN
Read Fault Number
Fault number displayed
RJE
Read J1939 Status
‘ON’ or ‘OFF’ displayed
RLR
Read the Last contamination Result
Last contamination result displayed
RLT
Read contamination Limit Threshold
Contamination limits displayed
RML
Read Moisture sensor Limit
Moisture limit displayed
RMP
Read Measurement Period
RMV
Read the last Moisture sensor Value
ROF
Read Options Fitted
ROF = ABCDEFGHIJ
(see list of options below)
RON
Read Option Name
List of options
A = Alarm relay option
B = LED display option
C = OLED display option
D = Moisture sensor option
E = 4–20mA current loop option
F = 0–3/0–5V option
G = J1939 option
H = reserved
I = reserved
J = reserved
RPD
Read the Power on hold-off Delay
Power hold-off delay displayed
RPI
Read Product Identifier
icountPDR displayed
RPM
Read the Power on Mode
‘AUTO’ or ‘MANUAL’ displayed
RPN
Read the icountPDR Part Number
Parker part number displayed
RPT
Read Product Type
IPDH
RPV
Read Protocol Version
Protocol version displayed
RRI
Read Reporting Interval
Reporting interval displayed
RRS
Read Reporting Standard
‘ISO’ or ‘NAS’ displayed
RSB
Read Software Build number
RSH
Read limit relay Switch Hysteresis
RSL
Read Standards List
Parker Hannifin icountPDR  
1
Measurement period displayed
1
Last moisture result displayed
Software build number displayed
2
‘ON’ or ‘OFF’ displayed
ISO, NAS
31
g
Software
RSN
Read Serial Number
RSS
Read limit relay Switch State
RSU
Read STI Sensor Used
‘YES’ or ‘NO’ displayed
RSV
Read Software Version displayed
Software version displayed
RVM
Read the Voltage Maximum range 3
Voltage range displayed
RWC
Read Warning limit relay for
Contamination 2
‘ON’ or ‘OFF’ displayed
RWM
1
2
3
Serial number displayed
2
‘ON’ or ‘OFF’ displayed
Read Warning limit relay for Moisture 1,2
‘ON’ or ‘OFF’ displayed
Command requires a Moisture Sensor to be fitted to icountPDR
Command requires a Limit Relay to be fitted to icountPDR
Command requires a 0–5V option to be fitted to icountPDR
User Set Commands
Command
Description
icountPDR response
SCE
Set Communication Echo
SCE on
SCE off
Comms Echo ON allows icountPDR to communicate in two directions
(Hyperterminal)
Comms Echo OFF allows icountPDR to communicate in one direction (Setup Utility)
SDF
Set Date Format
SDF dd/mm/yy
SDF mm/dd/yy
SDF yy/mm/dd
SDI
Set Detector ID
SDI ##############
(14 characters maximum, spaces not
allowed)
SEV
Set the Error Verbose mode
SEV on
SEV off
Error Verbose ON displays the full description of the error code (i.e. Error 40 –
Expected On or Off)
Error Verbose OFF displays just the error code (i.e. Error 40)
SJE
Set J1939 Status
SJE On/Off (can only set On)
SLT
Set contamination Limit Threshold
SLT ## ## ## (for ISO)
SLT ## (for NAS)
SML
Set Moisture sensor Limit 1
SML ###
SMP
Set Measurement Period
SMP ###
(### = 5 to 180 seconds)
The Measurement period sets the number of seconds the detector uses to
determine the contamination levels. So if this is 60 seconds, the unit will use the
last 60 seconds of oil to determine the contamination level. (See the ‘Component
cleanliness guideline’ chart in the Reference section of this manual.)
SPD
Set the Power on hold-off Delay
SPD ###
(### = 0 to 900 seconds)
The Power-on hold-off delay command allows the user to delay the start of the
icountPDR operation.
SPM
Set the Power on Mode
SPM auto
SPM manual
With the Power-on Mode set to ‘Auto’ icountPDR starts testing automatically when
the power is connected using the last setup parameters. With the Power-on Mode
set to ‘Manual’ icountPDR becomes idle and requires the user to manually start
testing.
SRI
Set Reporting Interval
SRI mm:ss
(0 to 3600 seconds (i.e. 0–1 hour); note
that 0 = No reporting)
The Reporting Interval controls how often icountPDR sends results over the RS232
SRS
32
Set Reporting Standard
SRS iso
SRS nas
Parker Hannifin icountPDR
g
Software
SSH
Set limit relay Switch Hysteresis 2
SSH on
SSH off
SSS
Set limit relay Switch State 2
SSS on
SSS off
SSU
Set STI Sensor Used
SSU yes
SSU no
SVM
Set the Voltage Maximum range 3
SVM #
(3 = 0–3Vdc output
5 = 0–5Vdc output)
SWC
Set Warning limit relay for Contamination
SWC on
SWC off
2
Set Warning limit relay for Moisture 1, 2
SWM
Parker Hannifin icountPDR  
SWM on
SWM off
1
Command requires a Moisture sensor to be fitted to the icountPDR
2
Command requires a Limit Relay to be fitted to the icountPDR
3
Command requires a 0–5Vdc option to be fitted to the icountPDR
33
g
Software
Error codes
If a command does not follow the protocol, an explanatory error code is returned.
Depending on the setting of SEV (Set the Error Verbose mode), either the error code, or the error
code and message are displayed.
For example, with SEV OFF (Error Verbose off) just the error code (e.g. Error 40) is returned. With
SEV ON (i.e. Error Verbose on) both the error code and message (e.g. Error 40 - Expected On or
Off) are returned.
Messages corresponding to the error codes are given in the following table:
34
Code
Message
Error 0
No error
Error 1
Unknown command
Error 2
Characters after command ignored
Error 3
Command ignored – unit is busy
Error 5
Unexpected character found
Error 6
Symbol too long
Error 7
Bad command format
Error 8
Unknown value
Error 9
Invalid date format
Error 10
Invalid date
Error 13
Option not fitted
Error 14
String too short
Error 15
String too long
Error 17
No test result
Error 18
Number expected
Error 19
Number too long
Error 20
Number out of range
Error 30
Interval shorter than duration
Error 40
Expected On or Off
Error 41
Expected Disabled or Enabled
Error 43
Expected Auto or Manual
Error 45
Expected Yes or No
Parker Hannifin icountPDR
g
Reference
Reference
Contamination Standards
See the Parker ‘Guide to Contamination Standards’ (DD0000015) – available on your CD. This
publication makes available industry-recognized cleanliness specifications for both hydraulic fluid
and fuel samples.
Parker Hannifin icountPDR  
35
g
Reference
Viscosity charts
The following charts indicate the differential pressure required to run a successful test at the
appropriate flow rates.
Example: If the fluid you wish to analyse has a relative viscosity to 60 cSt, to generate the optimum
flow rate 60ml/min a differential pressure of 0.5bar is required.
If the fluid you wish to analyse has a relative viscosity of 400 cSt, a 4 bar differential pressure would
result in 130 ml/min.
Differential pressure (bar)
Flow x Differential pressure x Viscosity
Flow rate (ml/min)
Differential pressure (bar)
Flow x Differential pressure
Flow rate (ml/min)
36
Parker Hannifin icountPDR
g
Reference
Ordering Information
STANDARD PRODUCTS TABLE
Part Number
Fluid type
Calibration
Display
Limit
Relay
Communications
Moisture
sensor
Cable connector kit
IPDR12112140
Mineral
MTD
None
No
IPDR12112240
Mineral
MTD
None
No
RS232 / 4–20mA
No
M12, 12-pin plug connector
RS232 / 4–20mA
Yes
M12, 12-pin plug connector
IPDR12113140
Mineral
MTD
None
No
RS232 / 0-5V
No
M12, 12-pin plug connector
IPDR12113240
Mineral
MTD
None
No
RS232 / 0-5V
Yes
M12, 12-pin plug connector
Display
Limit
Relay
PRODUCT CONFIGURATOR
Key
IPDR
Fluid type
1 Mineral
Calibration
2 MTD
1 None
1
3 Aviation fuel
(4 channels)
No
Comms
Moisture
sensor
Cable connector kit
2 RS232 /
4–20mA
1
No
40
M12, 12-pin plug
connector
3 RS232 / 0–5V
2
Yes
10
Deutsch 12-pin DT
series connector
5 RS232 / CAN-bus
ACCESSORY PART NUMBERS
Description
Part number
Single point sampler
SPS2021
External flow device
S840074
Power supply
ACC6NN013
RS232 to USB converter
ACC6NN017
Flow control device
ACC6NN023
M12 IPDR 5m cable
ACC6NN024
SENSOR PART NUMBERS
Product number
Supersedes
Size
STI0144100
STI.0144.100
STI1144100
STI.1144.100
STI2144100
STI.2144.100
Parker Hannifin icountPDR  
Flow range
(l/min)
Fluid type
Port thread
(inches)
0
6–25
Mineral fluid
³/8
1
20–100
Mineral fluid
¾
2
80–380
Mineral fluid
1¼
37
Parker Worldwide
AE – UAE, Dubai
Tel: +971 4 8875600
parker.me@parker.com
FI – Finland, Vantaa
Tel: +358 (0)20 753 2500
parker.finland@parker.com
PL – Poland, Warsaw
Tel: +48 (0)22 573 24 00
parker.poland@parker.com
AR – Argentina, Buenos Aires
Tel: +54 3327 44 4129
FR – France, Contamine s/Arve
Tel: +33 (0)4 50 25 80 25
parker.france@parker.com
PT – Portugal, Leca da Palmeira
Tel: +351 22 999 7360
parker.portugal@parker.com
GR – Greece, Athens
Tel: +30 210 933 6450
parker.greece@parker.com
RO – Romania, Bucharest
Tel: +40 21 252 1382
parker.romania@parker.com
HK – Hong Kong
Tel: +852 2428 8008
RU – Russia, Moscow
Tel: +7 495 645-2156
parker.russia@parker.com
AT – Austria, Wiener Neustadt
Tel: +43 (0)2622 23501-0
parker.austria@parker.com
AT – Eastern Europe,
Wiener Neustadt
Tel: +43 (0)2622 23501 970
parker.easteurope@parker.com
AU – Australia, Castle Hill
Tel: +61 (0)2-9634 7777
HU – Hungary, Budapest
Tel: +36 1 220 4155
parker.hungary@parker.com
AZ – Azerbaijan, Baku
Tel: +994 50 2233 458
parker.azerbaijan@parker.com
IE – Ireland, Dublin
Tel: +353 (0)1 466 6370
parker.ireland@parker.com
BE/LU – Belgium, Nivelles
Tel: +32 (0)67 280 900
parker.belgium@parker.com
IN – India, Mumbai
Tel: +91 22 6513 7081-85
BR – Brazil, Cachoeirinha RS
Tel: +55 51 3470 9144
BY – Belarus, Minsk
Tel: +375 17 209 9399
parker.belarus@parker.com
CA – Canada, Milton, Ontario
Tel: +1 905 693 3000
CH – Switzerland, Etoy
Tel: +41 (0) 21 821 02 30
parker.switzerland@parker.com
CN – China, Shanghai
Tel: +86 21 5031 2525
CZ – Czech Republic, Klecany
Tel: +420 284 083 111
parker.czechrepublic@parker.com
DE – Germany, Kaarst
Tel: +49 (0)2131 4016 0
parker.germany@parker.com
DK – Denmark, Ballerup
Tel: +45 43 56 04 00
parker.denmark@parker.com
ES – Spain, Madrid
Tel: +34 902 33 00 01
parker.spain@parker.com
IT – Italy, Corsico (MI)
Tel: +39 02 45 19 21
parker.italy@parker.com
JP – Japan, Fujisawa
Tel: +(81) 4 6635 3050
KR – South Korea, Seoul
Tel: +82 2 559 0400
KZ – Kazakhstan, Almaty
Tel: +7 7272 505 800
parker.easteurope@parker.com
LV – Latvia, Riga
Tel: +371 6 745 2601
parker.latvia@parker.com
MX – Mexico, Apodaca
Tel: +52 81 8156 6000
MY – Malaysia, Subang Jaya
Tel: +60 3 5638 1476
NL – The Netherlands,
Oldenzaal
Tel: +31 (0)541 585 000
parker.nl@parker.com
NO – Norway, Ski
Tel: +47 64 91 10 00
parker.norway@parker.com
NZ – New Zealand, Mt Wellington
Tel: +64 9 574 1744
www.parkerhfde.com
European Product Information Centre
(24-hour)
Freephone: +00800 27 27 5374
(from AT, BE, CH, CZ, DE, EE, ES, FI,
FR, IE, IT, PT, SE, SK, UK)
SE – Sweden, Spånga
Tel: +46 (0)8 59 79 50 00
parker.sweden@parker.com
SG – Singapore
Tel: +65 6887 6300
SK – Slovakia, Banská Bystrica
Tel: +421 484 162 252
parker.slovakia@parker.com
SL – Slovenia, Novo Mesto
Tel: +386 7 337 6650
parker.slovenia@parker.com
TH – Thailand, Bangkok
Tel: +662 717 8140
TR – Turkey, Istanbul
Tel: +90 216 4997081
parker.turkey@parker.com
TW – Taiwan, Taipei
Tel: +886 2 2298 8987
UA – Ukraine, Kiev
Tel +380 44 494 2731
parker.ukraine@parker.com
UK – United Kingdom,
Warwick
Tel: +44 (0)1926 317 878
parker.uk@parker.com
US – USA, Cleveland
Tel: +1 216 896 3000
VE – Venezuela, Caracas
Tel: +58 212 238 5422
ZA – South Africa,
Kempton Park
Tel: +27 (0)11 961 0700
parker.southafrica@parker.com
© 2011 Parker Hannifin Corporation.
All rights reserved.
DD0000002_IPDR_EN_Rev(05.2011)
