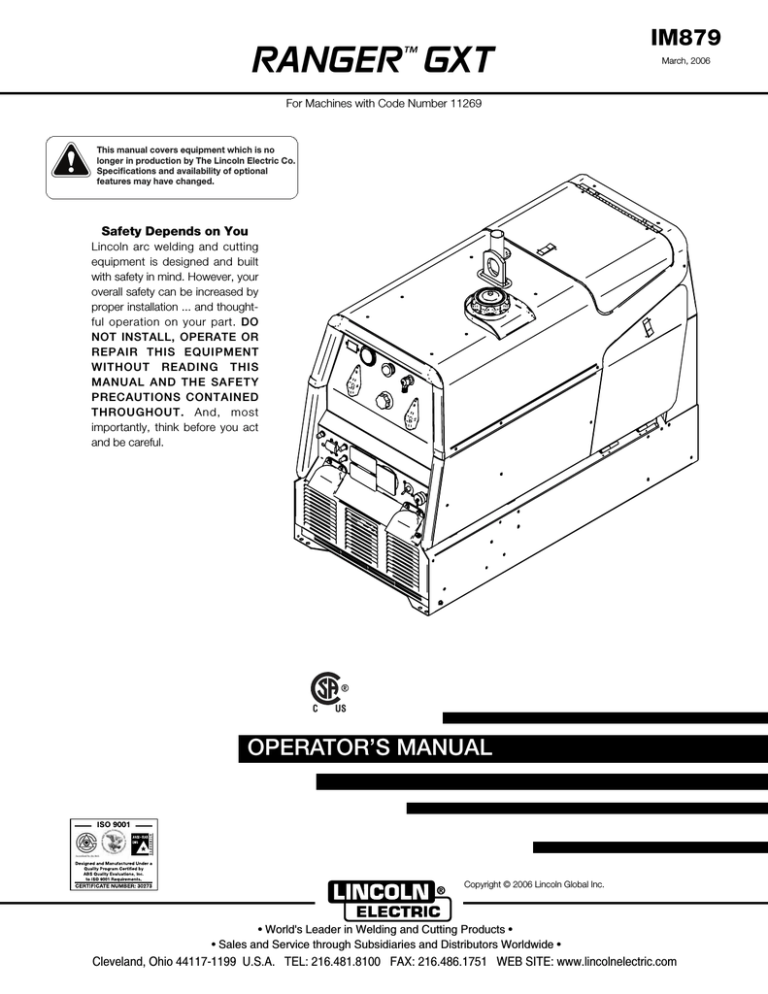

RANGER GXT
™
IM879
March, 2006
For Machines with Code Number 11269
This manual covers equipment which is no
longer in production by The Lincoln Electric Co.
Specifications and availability of optional
features may have changed.
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However, your
overall safety can be increased by
proper installation ... and thoughtful operation on your part. DO
NOT INSTALL, OPERATE OR
REPAIR THIS EQUIPMENT
WITHOUT READING THIS
MANUAL AND THE SAFETY
PRECAUTIONS CONTAINED
THROUGHOUT. And, most
importantly, think before you act
and be careful.
OPERATOR’S MANUAL
Copyright © 2006 Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
i
i
SAFETY
WARNING
CALIFORNIA PROPOSITION 65 WARNINGS
Diesel engine exhaust and some of its constituents
are known to the State of California to cause cancer, birth defects, and other reproductive harm.
The Above For Diesel Engines
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
The Above For Gasoline Engines
ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH.
KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.
Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you
purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box
351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available
from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE
PERFORMED ONLY BY QUALIFIED INDIVIDUALS.
FOR ENGINE
powered equipment.
1.h. To avoid scalding, do not remove the
radiator pressure cap when the engine is
hot.
1.a. Turn the engine off before troubleshooting and maintenance
work unless the maintenance work requires it to be running.
____________________________________________________
1.b. Operate engines in open, well-ventilated
areas or vent the engine exhaust fumes
outdoors.
____________________________________________________
1.c. Do not add the fuel near an open flame
welding arc or when the engine is running.
Stop the engine and allow it to cool before
refueling to prevent spilled fuel from vaporizing on contact with hot engine parts and
igniting. Do not spill fuel when filling tank. If
fuel is spilled, wipe it up and do not start
engine until fumes have been eliminated.
____________________________________________________
1.d. Keep all equipment safety guards, covers and devices in
position and in good repair.Keep hands, hair, clothing and
tools away from V-belts, gears, fans and all other moving
parts when starting, operating or repairing equipment.
____________________________________________________
1.e. In some cases it may be necessary to remove safety
guards to perform required maintenance. Remove
guards only when necessary and replace them when the
maintenance requiring their removal is complete.
Always use the greatest care when working near moving
parts.
___________________________________________________
1.f. Do not put your hands near the engine fan.
Do not attempt to override the governor or
idler by pushing on the throttle control rods
while the engine is running.
ELECTRIC AND
MAGNETIC FIELDS
may be dangerous
2.a. Electric current flowing through any conductor causes
localized Electric and Magnetic Fields (EMF). Welding
current creates EMF fields around welding cables and
welding machines
2.b. EMF fields may interfere with some pacemakers, and
welders having a pacemaker should consult their physician
before welding.
2.c. Exposure to EMF fields in welding may have other health
effects which are now not known.
2.d. All welders should use the following procedures in order to
minimize exposure to EMF fields from the welding circuit:
2.d.1. Route the electrode and work cables together - Secure
them with tape when possible.
2.d.2. Never coil the electrode lead around your body.
2.d.3. Do not place your body between the electrode and
work cables. If the electrode cable is on your right
side, the work cable should also be on your right side.
2.d.4. Connect the work cable to the workpiece as close as
possible to the area being welded.
___________________________________________________
1.g. To prevent accidentally starting gasoline engines while
turning the engine or welding generator during maintenance
work, disconnect the spark plug wires, distributor cap or
magneto wire as appropriate.
2.d.5. Do not work next to welding power source.
Mar ‘95
ii
ii
SAFETY
ARC RAYS can burn.
ELECTRIC SHOCK can
kill.
3.a. The electrode and work (or ground) circuits
are electrically “hot” when the welder is on.
Do not touch these “hot” parts with your bare
skin or wet clothing. Wear dry, hole-free
gloves to insulate hands.
3.b. Insulate yourself from work and ground using dry insulation.
Make certain the insulation is large enough to cover your full
area of physical contact with work and ground.
In addition to the normal safety precautions, if welding
must be performed under electrically hazardous
conditions (in damp locations or while wearing wet
clothing; on metal structures such as floors, gratings or
scaffolds; when in cramped positions such as sitting,
kneeling or lying, if there is a high risk of unavoidable or
accidental contact with the workpiece or ground) use
the following equipment:
• Semiautomatic DC Constant Voltage (Wire) Welder.
• DC Manual (Stick) Welder.
• AC Welder with Reduced Voltage Control.
3.c. In semiautomatic or automatic wire welding, the electrode,
electrode reel, welding head, nozzle or semiautomatic
welding gun are also electrically “hot”.
3.d. Always be sure the work cable makes a good electrical
connection with the metal being welded. The connection
should be as close as possible to the area being welded.
3.e. Ground the work or metal to be welded to a good electrical
(earth) ground.
3.f. Maintain the electrode holder, work clamp, welding cable and
welding machine in good, safe operating condition. Replace
damaged insulation.
3.g. Never dip the electrode in water for cooling.
3.h. Never simultaneously touch electrically “hot” parts of
electrode holders connected to two welders because voltage
between the two can be the total of the open circuit voltage
of both welders.
3.i. When working above floor level, use a safety belt to protect
yourself from a fall should you get a shock.
3.j. Also see Items 6.c. and 8.
4.a. Use a shield with the proper filter and cover
plates to protect your eyes from sparks and
the rays of the arc when welding or observing
open arc welding. Headshield and filter lens
should conform to ANSI Z87. I standards.
4.b. Use suitable clothing made from durable flame-resistant
material to protect your skin and that of your helpers from
the arc rays.
4.c. Protect other nearby personnel with suitable, non-flammable
screening and/or warn them not to watch the arc nor expose
themselves to the arc rays or to hot spatter or metal.
FUMES AND GASES
can be dangerous.
5.a. Welding may produce fumes and gases
hazardous to health. Avoid breathing these
fumes and gases.When welding, keep
your head out of the fume. Use enough
ventilation and/or exhaust at the arc to keep
fumes and gases away from the breathing zone. When
welding with electrodes which require special
ventilation such as stainless or hard facing (see
instructions on container or MSDS) or on lead or
cadmium plated steel and other metals or coatings
which produce highly toxic fumes, keep exposure as
low as possible and below Threshold Limit Values (TLV)
using local exhaust or mechanical ventilation. In
confined spaces or in some circumstances, outdoors, a
respirator may be required. Additional precautions are
also required when welding on galvanized steel.
5.b. Do not weld in locations near chlorinated hydrocarbon vapors
coming from degreasing, cleaning or spraying operations.
The heat and rays of the arc can react with solvent vapors to
form phosgene, a highly toxic gas, and other irritating products.
5.c. Shielding gases used for arc welding can displace air and
cause injury or death. Always use enough ventilation,
especially in confined areas, to insure breathing air is safe.
5.d. Read and understand the manufacturer’s instructions for this
equipment and the consumables to be used, including the
material safety data sheet (MSDS) and follow your
employer’s safety practices. MSDS forms are available from
your welding distributor or from the manufacturer.
5.e. Also see item 1.b.
Mar ‘95
iii
iii
SAFETY
WELDING SPARKS can
cause fire or explosion.
6.a. Remove fire hazards from the welding area.
If this is not possible, cover them to prevent
the welding sparks from starting a fire.
Remember that welding sparks and hot
materials from welding can easily go through small cracks
and openings to adjacent areas. Avoid welding near
hydraulic lines. Have a fire extinguisher readily available.
6.b. Where compressed gases are to be used at the job site,
special precautions should be used to prevent hazardous
situations. Refer to “Safety in Welding and Cutting” (ANSI
Standard Z49.1) and the operating information for the
equipment being used.
6.c. When not welding, make certain no part of the electrode
circuit is touching the work or ground. Accidental contact
can cause overheating and create a fire hazard.
6.d. Do not heat, cut or weld tanks, drums or containers until the
proper steps have been taken to insure that such procedures
will not cause flammable or toxic vapors from substances
inside. They can cause an explosion even though they have
been “cleaned”. For information, purchase “Recommended
Safe Practices for the Preparation for Welding and Cutting of
Containers and Piping That Have Held Hazardous
Substances”, AWS F4.1 from the American Welding Society
(see address above).
6.e. Vent hollow castings or containers before heating, cutting or
welding. They may explode.
6.f. Sparks and spatter are thrown from the welding arc. Wear oil
free protective garments such as leather gloves, heavy shirt,
cuffless trousers, high shoes and a cap over your hair. Wear
ear plugs when welding out of position or in confined places.
Always wear safety glasses with side shields when in a
welding area.
6.g. Connect the work cable to the work as close to the welding
area as practical. Work cables connected to the building
framework or other locations away from the welding area
increase the possibility of the welding current passing
through lifting chains, crane cables or other alternate circuits. This can create fire hazards or overheat lifting chains
or cables until they fail.
6.h. Also see item 1.c.
CYLINDER may explode
if damaged.
7.a. Use only compressed gas cylinders
containing the correct shielding gas for the
process used and properly operating
regulators designed for the gas and
pressure used. All hoses, fittings, etc. should be suitable for
the application and maintained in good condition.
7.b. Always keep cylinders in an upright position securely
chained to an undercarriage or fixed support.
7.c. Cylinders should be located:
• Away from areas where they may be struck or subjected to
physical damage.
• A safe distance from arc welding or cutting operations and
any other source of heat, sparks, or flame.
7.d. Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.
7.e. Keep your head and face away from the cylinder valve outlet
when opening the cylinder valve.
7.f. Valve protection caps should always be in place and hand
tight except when the cylinder is in use or connected for
use.
7.g. Read and follow the instructions on compressed gas
cylinders, associated equipment, and CGA publication P-l,
“Precautions for Safe Handling of Compressed Gases in
Cylinders,” available from the Compressed Gas Association
1235 Jefferson Davis Highway, Arlington, VA 22202.
FOR ELECTRICALLY
powered equipment.
8.a. Turn off input power using the disconnect
switch at the fuse box before working on
the equipment.
8.b. Install equipment in accordance with the U.S. National
Electrical Code, all local codes and the manufacturer’s
recommendations.
8.c. Ground the equipment in accordance with the U.S. National
Electrical Code and the manufacturer’s recommendations.
Mar ‘95
iv
SAFETY
PRÉCAUTIONS DE SÛRETÉ
Pour votre propre protection lire et observer toutes les instructions
et les précautions de sûreté specifiques qui parraissent dans ce
manuel aussi bien que les précautions de sûreté générales suivantes:
Sûreté Pour Soudage A L’Arc
1. Protegez-vous contre la secousse électrique:
a. Les circuits à l’électrode et à la piéce sont sous tension
quand la machine à souder est en marche. Eviter toujours
tout contact entre les parties sous tension et la peau nue
ou les vétements mouillés. Porter des gants secs et sans
trous pour isoler les mains.
b. Faire trés attention de bien s’isoler de la masse quand on
soude dans des endroits humides, ou sur un plancher
metallique ou des grilles metalliques, principalement dans
les positions assis ou couché pour lesquelles une grande
partie du corps peut être en contact avec la masse.
c. Maintenir le porte-électrode, la pince de masse, le câble
de soudage et la machine à souder en bon et sûr état
defonctionnement.
d.Ne jamais plonger le porte-électrode dans l’eau pour le
refroidir.
e. Ne jamais toucher simultanément les parties sous tension
des porte-électrodes connectés à deux machines à souder
parce que la tension entre les deux pinces peut être le
total de la tension à vide des deux machines.
f. Si on utilise la machine à souder comme une source de
courant pour soudage semi-automatique, ces precautions
pour le porte-électrode s’applicuent aussi au pistolet de
soudage.
2. Dans le cas de travail au dessus du niveau du sol, se protéger
contre les chutes dans le cas ou on recoit un choc. Ne jamais
enrouler le câble-électrode autour de n’importe quelle partie
du corps.
3. Un coup d’arc peut être plus sévère qu’un coup de soliel,
donc:
a. Utiliser un bon masque avec un verre filtrant approprié
ainsi qu’un verre blanc afin de se protéger les yeux du rayonnement de l’arc et des projections quand on soude ou
quand on regarde l’arc.
b. Porter des vêtements convenables afin de protéger la
peau de soudeur et des aides contre le rayonnement de
l‘arc.
c. Protéger l’autre personnel travaillant à proximité au
soudage à l’aide d’écrans appropriés et non-inflammables.
4. Des gouttes de laitier en fusion sont émises de l’arc de
soudage. Se protéger avec des vêtements de protection libres
de l’huile, tels que les gants en cuir, chemise épaisse, pantalons sans revers, et chaussures montantes.
iv
6. Eloigner les matériaux inflammables ou les recouvrir afin de
prévenir tout risque d’incendie dû aux étincelles.
7. Quand on ne soude pas, poser la pince à une endroit isolé de
la masse. Un court-circuit accidental peut provoquer un
échauffement et un risque d’incendie.
8. S’assurer que la masse est connectée le plus prés possible
de la zone de travail qu’il est pratique de le faire. Si on place
la masse sur la charpente de la construction ou d’autres
endroits éloignés de la zone de travail, on augmente le risque
de voir passer le courant de soudage par les chaines de levage, câbles de grue, ou autres circuits. Cela peut provoquer
des risques d’incendie ou d’echauffement des chaines et des
câbles jusqu’à ce qu’ils se rompent.
9. Assurer une ventilation suffisante dans la zone de soudage.
Ceci est particuliérement important pour le soudage de tôles
galvanisées plombées, ou cadmiées ou tout autre métal qui
produit des fumeés toxiques.
10. Ne pas souder en présence de vapeurs de chlore provenant
d’opérations de dégraissage, nettoyage ou pistolage. La
chaleur ou les rayons de l’arc peuvent réagir avec les vapeurs
du solvant pour produire du phosgéne (gas fortement toxique)
ou autres produits irritants.
11. Pour obtenir de plus amples renseignements sur la sûreté,
voir le code “Code for safety in welding and cutting” CSA
Standard W 117.2-1974.
PRÉCAUTIONS DE SÛRETÉ POUR
LES MACHINES À SOUDER À
TRANSFORMATEUR ET À
REDRESSEUR
1. Relier à la terre le chassis du poste conformement au code de
l’électricité et aux recommendations du fabricant. Le dispositif
de montage ou la piece à souder doit être branché à une
bonne mise à la terre.
2. Autant que possible, I’installation et l’entretien du poste seront
effectués par un électricien qualifié.
3. Avant de faires des travaux à l’interieur de poste, la debrancher à l’interrupteur à la boite de fusibles.
4. Garder tous les couvercles et dispositifs de sûreté à leur
place.
5. Toujours porter des lunettes de sécurité dans la zone de
soudage. Utiliser des lunettes avec écrans lateraux dans les
zones où l’on pique le laitier.
Mar. ‘93
v
v
Thank You
for selecting a QUALITY product by Lincoln Electric. We want you
to take pride in operating this Lincoln Electric Company product
••• as much pride as we have in bringing this product to you!
Please Examine Carton and Equipment For Damage Immediately
When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims
for material damaged in shipment must be made by the purchaser against the transportation company at the
time the shipment is received.
Please record your equipment identification information below for future reference. This information can be
found on your machine nameplate.
Product _________________________________________________________________________________
Model Number ___________________________________________________________________________
Code Number or Date Code_________________________________________________________________
Serial Number____________________________________________________________________________
Date Purchased___________________________________________________________________________
Where Purchased_________________________________________________________________________
Whenever you request replacement parts or information on this equipment, always supply the information you
have recorded above. The code number is especially important when identifying the correct replacement parts.
On-Line Product Registration
- Register your machine with Lincoln Electric either via fax or over the Internet.
• For faxing: Complete the form on the back of the warranty statement included in the literature packet
accompanying this machine and fax the form per the instructions printed on it.
• For On-Line Registration: Go to our WEB SITE at www.lincolnelectric.com. Choose “Quick Links” and then
“Product Registration”. Please complete the form and submit your registration.
Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it
handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection.
The level of seriousness to be applied to each is explained below:
WARNING
This statement appears where the information must be followed exactly to avoid serious personal injury or
loss of life.
CAUTION
This statement appears where the information must be followed to avoid minor personal injury or damage to
this equipment.
vi
TABLE OF CONTENTS
Page
Installation.......................................................................................................................Section A
Technical Specifications .......................................................................................................A-1
Safety Precautions ........................................................................................................A-2
Machine Grounding .......................................................................................................A-2
Spark Arrester ...............................................................................................................A-2
Towing...........................................................................................................................A-2
Vehicle Mounting...........................................................................................................A-3
Pre-Operation Engine Service..............................................................................................A-3
Fuel, Oil, Battery Connections ......................................................................................A-3
Welding Cable Connections ..........................................................................................A-4
Angle of Operation ........................................................................................................A-4
Lifting, Additional Safety Precautions............................................................................A-4
High Altitude Operation .................................................................................................A-4
Muffler Outlet Pipe ........................................................................................................A-4
Location and Ventilation ................................................................................................A-5
Stacking ........................................................................................................................A-5
Connection of Wire Feeders .........................................................................................A-5
Connection of Tig Module .............................................................................................A-5
Additional Safety Precautions .......................................................................................A-5
Welding Operation Output, Auxiliary Power Receptacles, and Plugs .................................A-6
Motor Starting and Extension Cord Length Table ................................................................A-6
Electrical Device Used with the Ranger 10,000 ...................................................................A-7
Auxiliary Power While Welding, Standby Power Connections ............................................A-8
Premises Wiring ...................................................................................................................A-9
________________________________________________________________________________
Operation.........................................................................................................................Section B
Safety Precautions ...............................................................................................................B-1
General Description..............................................................................................................B-1
Welder Controls Function and Operation .............................................................................B-1
Polarity, Range and Control Switch......................................................................................B-2
Start in/Shutdown Instructions .....................................................................................................B-3
Starting the Engine........................................................................................................B-3
Safety Precautions ........................................................................................................B-3
Stopping the Engine ......................................................................................................B-3
Break-In Period .............................................................................................................B-3
Welding Process ..................................................................................................................B-4
Stick (Constant Current) Welding..................................................................................B-4
TIG (Constant Current) Welding ..................................................................................B-4
Wire Feed Welding Processes (Constant Voltage) ......................................................B-4
Arc Gouging ..................................................................................................................B-4
Summary of Welding Processes ...................................................................................B-5
________________________________________________________________________________
Accessories ........................................................................................................Section C
Optional Equipment ...............................................................................................C-1
Recommended Equipment ....................................................................................C-2
________________________________________________________________________
Maintenance ....................................................................................................Section D
Safety Precautions ................................................................................................D-1
Routine Engine Maintenance ..........................................................................D-1,D2
Engine Adjustments...............................................................................................D-3
Slip Rings ..............................................................................................................D-3
Battery Maintenance .......................................................................................D-3
Engine Maintenance Parts..............................................................................D-3
________________________________________________________________________
Troubleshooting ..............................................................................................Section E
How to Use Troubleshooting Guide.......................................................................E-1
Troubleshooting Guide...................................................................................E-2, E-3
________________________________________________________________________
Wiring Diagrams & Dimension Print..............................................................Section F
Wiring and Connection Diagrams....................................................................F-1,F-2
Dimension Print .............................................................................................................F3
________________________________________________________________________
Parts List ..................................................................................................................P505
________________________________________________________________________
vi
A-1
A-1
INSTALLATION
TECHNICAL SPECIFICATIONS - Ranger GXT
(K2382-2 )
INPUT - GASOLINE ENGINE
Make/Model
Description
Kohler
CH20S
2 cylinder
4 Cycle
Air-Cooled
Gasoline
Engine.
Aluminum Alloy
with Cast Iron
Liners,
Electronic
Ignition
Horsepower
Operating
Displacement
Speed (RPM)
cu. in.
(cu.cm.)
High Idle 3700
20 HP @
3600 RPM
Full Load 3500
Starting
System
Capacities
12VDC
Battery
Fuel:
Electric Start
12 Gal (45.4 L)
Group 58
Lubricating Oil:
Battery
2.0 Qts. (1.9 L)
(435 cold
Cranking
Amps)
38(624)
Low Idle 2200
RATED OUTPUT @ 104°F (40°C)- WELDER
Welding Output
AC Constant Current 250A / 25V / 100%
DC Constant Current 250A / 25V / 100%
DC Constant Voltage 250A / 25V / 100%
RATED OUTPUT @ 104°F (40°C)- GENERATOR
Auxiliary Power 1
10,000 Watts Continuous, 60 Hz AC
11,000 Watts Peak, 60 Hz AC
120/240 Volts
RECEPTACLES AND CIRCUIT BREAKERS
RECEPTACLES
(2) 120VAC Duplex (5-20R)
(1) 120/240VAC Dual Voltage
Full KVA (14-50R)
AUXILIARY POWER CIRCUIT BREAKER BATTERY CHARGING CIRCUIT BREAKER
Two 20AMP for Two Duplex Receptacle
(1) 50AMP for Dual Voltage (2-pole)
20AMP for Battery Charging Circuit
PHYSICAL DIMENSIONS
HEIGHT
30 in.**
762 mm
WIDTH
DEPTH
21.5 in.
546 mm
42.25 in.
1073 mm
WEIGHT
602 lbs. (273kg)
1. Output rating in watts is equivalent to volt - amperes at unity factor.Output voltage is within +/-10% at all loads up to rated capacity.
When welding available auxiliary power will be reduced.
** Top of enclosure, add 6.00”(152mm) for exhaust.
RANGER GXT
A-2
A-2
INSTALLATION
SAFETY PRECAUTIONS
WARNING
Do not attempt to use this equipment until you
have thoroughly read the engine manufacturer’s
manual supplied with your welder. It includes
important safety precautions, detailed engine
starting, operating and maintenance instructions,
and parts lists.
-----------------------------------------------------------------------ELECTRIC SHOCK can kill.
• Do not touch electrically live parts or
electrode with skin or wet clothing.
• Insulate yourself from work and
ground
• Always wear dry insulating gloves.
-----------------------------------------------------------------------ENGINE EXHAUST can kill.
• Use in open, well ventilated areas or
vent exhaust outside.
-----------------------------------------------------------------------MOVING PARTS can injure.
• Do not operate with doors open or
guards off.
• Stop engine before servicing.
• Keep away from moving parts.
------------------------------------------------------------------------
See additional warning information at
front of this operator’s manual.
----------------------------------------------------------MACHINE GROUNDING
Because this portable engine driven welder or generator creates it’s own power, it is not necessary to connect it’s frame to an earth ground, unless the machine
is connected to premises wiring (your home, shop,
etc.).
WARNING
When this welder is mounted on a truck or trailer, it’s
frame must be electrically bonded to the metal frame
of the vehicle. Use a #8 or larger copper wire connected between the machine grounding stud and the
frame of the vehicle.
Where this engine driven welder is connected to
premises wiring such as that in your home or shop, it’s
frame must be connected to the system earth ground.
See further connection instructions in the section entitled “Standby Power Connections”, as well as the article on grounding in the latest National Electrical Code
and the local code.
In general, if the machine is to be grounded, it should
be connected with a #8 or larger copper wire to a solid
earth ground such as a metal water pipe going into
the ground for at least ten feet and having no insulated joints, or to the metal framework of a building
which has been effectively grounded. The National
Electrical Code lists a number of alternate means of
grounding electrical equipment. A machine grounding
stud marked with the symbol
is provided on the
front of the welder.
SPARK ARRESTER
Some federal, state, or local laws may require that
gasoline engines be equipped with exhaust spark
arresters when they are operated in certain locations
where unarrested sparks may present a fire hazard.
The standard muffler included with this welder does
not qualify as a spark arrester. When required by local
regulations, the K1898-1 spark arrester must be
installed and properly maintained.
CAUTION
An incorrect arrester may lead to damage to the
engine or adversely affect performance.
------------------------------------------------------------------------
TOWING
To prevent dangerous electric shock, other equipment to which this engine driven welder supplies
power must:
• be grounded to the frame of the welder using a
grounded type plug, or be double insulated.
Do not ground the machine to a pipe that carries
explosive or combustible material.
------------------------------------------------------------------------
The recommended trailer for use with this equipment
for road, in-plant and yard towing by a vehicle(1) is
Lincoln’s K957-1. If the user adapts a non-Lincoln
trailer, he must assume responsibility that the method
of attachment and usage does not result in a safety
hazard nor damage the welding equipment. Some of
the factors to be considered are as follows:
1. Design capacity of trailer vs. weight of Lincoln
equipment and likely additional attachments.
2. Proper support of, and attachment to, the base of
the welding equipment so there will be no undue
stress to the framework.
RANGER GXT
INSTALLATION
A-3
3. Proper placement of the equipment on the trailer to
insure stability side to side and front to back when
being moved and when standing by itself while
being operated or serviced.
FUEL
Fill the fuel tank with clean, fresh, lead-free gasoline.
Observe fuel gauge while filling to prevent overfilling.
4. Typical conditions of use, i.e., travel speed; roughness of surface on which the trailer will be operated;
environmental conditions.
5. Conformance with federal, state and local laws(1)
(1) Consult applicable federal, state and local laws regarding specific
requirements for use on public highways.
VEHICLE MOUNTING
WARNING
A-3
WARNING
• Damage to the fuel tank may cause
fire or explosion. Do not drill holes
in the RANGER GXT base or weld to
the RANGER GXT base.
----------------------------------------------------------------------OIL
Improperly mounted concentrated loads may
cause unstable vehicle handling and tires or other
components to fail.
• Only transport this Equipment on serviceable
vehicles which are rated and designed for such
loads.
• Distribute, balance and secure loads so vehicle
is stable under conditions of use.
• Do not exceed maximum rated loads for components such as suspension, axles and tires.
• Mount equipment base to metal bed or frame of
vehicle.
• Follow vehicle manufacturer’s instructions.
------------------------------------------------------------------------
LUBRICATION SYSTEM CAPACITY
(INCLUDING FILTER)
Kohler CH20S - 2.0 Quarts (1.9 Liters)
The RANGER GXT is shipped with the engine
crankcase filled with SAE 10W-30 oil. Check the oil
level before starting the engine. If it is not up to the full
mark on the dip stick, add oil as required. Make certain that the oil filler cap is tightened securely. Refer to
the engine Owner’s Manual for specific oil recommendations.
BATTERY CONNECTIONS
PRE-OPERATION SERVICE
CAUTION
CAUTION
READ the engine operating and maintenance
instructions supplied with this machine.
WARNING
• Stop engine while fueling.
• Do not smoke when fueling.
• Keep sparks and flame away
from tank.
• Do not leave unattended while
fueling.
• Wipe up spilled fuel and allow
GASOLINE fumes to clear before starting
can cause fire engine.
or explosion. • Do not overfill tank, fuel expansion may cause overflow.
Use caution as the electrolyte is a strong
acid that can burn skin and damage eyes.
----------------------------------------------------------------------This welder is shipped with the negative battery cable
disconnected. Make sure that the Engine Switch is in
the “STOP” position and attach the disconnected
cable securely to the negative battery terminal before
attempting to operate the machine. If the battery is
discharged and does not have enough power to start
the engine, see the battery charging instructions in the
Battery section.
NOTE: This machine is furnished with a wet charged
battery; if unused for several months, the battery may
require a booster charge. Be careful to charge the battery with the correct polarity.
GASOLINE FUEL ONLY
------------------------------------------------------------------------
RANGER GXT
A-4
A-4
INSTALLATION
WELDING OUTPUT CABLES
ADDITIONAL SAFETY PRECAUTIONS
With the engine off, connect the electrode and work
cables to the studs provided. These connections
should be checked periodically and tightened if necessary. Loose connections will result in overheating of
the output studs.
When welding at a considerable distance from the
welder, be sure you use ample size welding cables.
Listed below are copper cable sizes recommended for
the rated current and duty cycle. Lengths stipulated
are the distance from the welder to work and back to
the welder again. Cable sizes are increased for
greater lengths primarily for the purpose of minimizing
cable voltage drop.
TOTAL COMBINED LENGTH OF
ELECTRODE AND WORK CABLES
250 Amps
100% Duty Cycle
0-100 Ft. (0-31m)
1 AWG
100-150 Ft. (31-46m)
1 AWG
150-200 Ft. (46-61m)
1/0 AWG
WARNING
• Lift only with equipment of
adequate lifting capacity.
• Be sure machine is stable
when lifting.
• Do not lift this machine using
lift bail if it is equipped with a
heavy accessory such as trailer or gas cylinder.
FALLING
• Do not lift machine if lift bail is
EQUIPMENT can damaged.
cause injury.
• Do not operate machine while
suspended from lift bail.
------------------------------------------------------------------------
HIGH ALTITUDE OPERATION
If the RANGER GXT will be consistently operated at
altitudes above 5000 ft(1524m), a carburetor jet
designed for high altitudes should be installed. This
will result in better fuel economy, cleaner exhaust, and
longer spark plug life. It will not give increased power
which is decreased at higher altitudes. Engine horsepower is reduced by 3.5% per 1000 ft.(305m) for altitudes above 377 ft.(115m).
ANGLE OF OPERATION
Internal combustion engines are designed to run in a
level condition which is where the optimum performance is achieved. The maximum angle of operation
for the engine is 15 degrees from horizontal in any
direction. If the engine is to be operated at an angle,
provisions must be made for checking and maintaining the oil at the normal (FULL) oil capacity in the
crankcase in a level condition.
CAUTION
When operating at an angle, the effective fuel capacity
will be slightly less than the specified 12 Gal. (45 L).
Do not operate a RANGER GXT with a high altitude jet installed at altitudes below 5000 ft.
(1524m). This will result in the engine running too
lean and result in higher engine operating temperatures which can shorten engine life.
----------------------------------------------------------------------Contact your local Kohler Authorized Dealer for high
altitude jet kits that are available from the engine manufacturer.
LIFTING
MUFFLER OUTLET PIPE
The RANGER GXT weighs approximately
685lbs.(411kg) with a full tank of gasoline. A lift bail is
mounted to the machine and should always be used
when lifting the machine.
Using the clamp provided secure the outlet pipe to the
outlet tube with the pipe positioned such that it will
direct the exhaust in the desired direction. Tighten
using a 9/16” socket or wrench.
RANGER GXT
A-5
INSTALLATION
A-5
•
LOCATION / VENTILATION
The welder should be located to provide an unrestricted flow of clean, cool air to the cooling air inlets and to
avoid heated air coming out of the welder recirculating
back to the cooling air inlet. Also, locate the welder so
that engine exhaust fumes are properly vented to an
outside area.
STACKING
RANGER GXT machines cannot be stacked.
CONNECTION OF LINCOLN ELECTRIC
WIRE FEEDERS
WARNING
Shut off welder before making any electrical
connections.
-----------------------------------------------------------------------WIRE FEED (CONSTANT VOLTAGE)
CONNECTION OF LN-15 ACROSS-THE-ARC WIRE
FEEDER
The LN-15 has an internal contactor and the electrode
is not energized until the gun trigger is closed. When
the gun trigger is closed the wire will begin to feed and
the welding process is started.
• Shut the welder off.
• Connect the electrode cable from the LN-15 to
the“ELECTRODE” terminal of the welder. Connect
the work cable to the “TO WORK” terminal of the
welder.
• Set the Polarity switch to the desired polarity, either
DC (-) or DC (+).
• Attach the single lead from the front of the LN-15
to work using the spring clip at the end of the lead.
This is a control lead to supply current to the wire
feeder motor; it does not carry welding current.
• Set the “RANGE” switch to the “WIRE FEED-CV”
position
• Place the Engine switch in the “Auto Idle” position
when welding with MIG wire instead of self-shielded
core wire, weld starts can be improved by setting
the idle mode to “HIGH”.
• Adjust the wire feed speed at the LN-15 and adjust
the welding voltage with the output “CONTROL” at
the welder. Output “CONTROL” must be set above 3
when welding with MIG wire instead of self-shielded
core wire, weld starts can be improved by setting
the idle mode to “HIGH”.
Note: LN-15 Control Cable model will not work with
the RANGER GXT.
Position the “RANGE” switch to the “WIRE FEED
CV” position.
• Attach the single lead from the LN-25 control box
to the work using the spring clip on the end of the
lead - it carries no welding current.
• Place the engine switch in the “AUTO IDLE” position.
• When welding with MIG wire instead of selfshielded core wire, weld starts can be improved
by setting the idle mode to “HIGH”.
• Adjust wire feed speed at the LN-25 and adjust
the welding voltage with the output “CONTROL”
at the welder.
NOTE: The welding electrode is energized at all
times, unless an LN-25 with built-in contactor is used.
If the output “CONTROL” is set below “3”, the LN-25
contactor may not pull in.
CONNECTION OF THE LN-25 TO THE RANGER GXT
• Shut the welder off.
• Connect the electrode cable from the LN-25 to
the“ELECTRODE” terminal of the welder.
Connect the work cable to the “TO WORK” terminal of the welder.
• Position the welder “Polarity” switch to the desired
polarity, either DC (-) or DC (+).
CONNECTION OF K930-2 TIG MODULE TO THE
RANGER GXT.
The TIG Module is an accessory that provides high
frequency and shielding gas control for AC and DC
GTAW (TIG) welding. See IM528 supplied with the
TIG Module for installation instructions.
Note: The TIG Module does not require the use of a
high frequency bypass capacitor. However, if the
RANGER GXT is used with any other high frequency
equipment, the bypass capacitor must be installed,
order kit T12246.
INSTRUCTIONS
ADDITIONAL SAFETY PRECAUTIONS
Always operate the welder with the roof and case
sides in place as this provides maximum protection
from moving parts and assures proper cooling air flow.
Read and understand all Safety Precautions before
operating this machine. Always follow these and any
other safety procedures included in this manual and in
the Engine Owner’s Manual.
RANGER GXT
A-6
A-6
INSTALLATION
WELDER OPERATION
120/240 VOLT DUAL VOLTAGE RECEPTACLE
WELDER OUTPUT
• Maximum Open Circuit Voltage at 3700 RPM is
80 Volts RMS.
• Duty Cycle is the percentage of time the load is
being applied in a 10 minute period. For example, a
60% duty cycle represents 6 minutes of load and 4
minutes of no load in a 10 minute period. Duty
Cycle for the RANGER GXT is 100%.
The 120/240 volt receptacle can supply up to 42
amps of 240 volt power to a two wire circuit, up to 42
amps of 120 volts power from each side of a three
wire circuit (up to 84 amps total). Do not connect the
120 volt circuits in parallel. Current sensing for the
automatic idle feature is only in one leg of the three
wire circuit as shown in the following column.
RANGER GXT
Constant Current
250 Amps AC @ 25 Volts
250 Amps DC @ 25 Volts
Constant Voltage
250 Amps DC @ 25 Volts
GND
AUXILIARY POWER
The RANGER GXT can provide up to 10,000 watts of
120/240 volts AC, single phase 60Hz power for continuous use, and up to 11,000 watts of 120/240 volts
AC, single phase 60Hz power peak use. The front of
the machine includes three receptacles for connecting
the AC power plugs; one 50 amp 120/240 volt NEMA
14-50R receptacle and two 20 amp 120 volt NEMA 520R receptacles. Output voltage is within +/-10% at all
loads up to rated capacity.
All auxiliary power is protected by circuit breakers. the
120V has 20 Amp circuit breakers for each duplex
receptacle. The 120/240V Single Phase has a 50 Amp
2-pole Circuit Breaker that disconnects both hot leads
simultaneously.
CAUTION
120 V
240 V
120 V*
*Current Sensing for Automatic Idle.
(Receptacle viewed from front of Machine)
120 V DUPLEX RECEPTACLES
The 120V auxiliary power receptacles should only be
used with three wire grounded type plugs or approved
double insulated tools with two wire plugs.
The current rating of any plug used with the system
must be at least equal to the current load through the
associated receptacle.
MOTOR STARTING
Do not connect any plugs that connect to the
power receptacles in parallel.
-----------------------------------------------------------------------Start the engine and set the “IDLER” control switch to
the desired operating mode. Set the “CONTROL” to
10. Voltage is now correct at the receptacles for auxiliary power.
Most 1.5 hp AC single phase motors can be started if
there is no load on the motor or other load connected
to the machine, since the full load current rating of a
1.5 hp motor is approximately 20 amperes (10
amperes for 240 volt motors). The motor may be run
at full load when plugged into only one side of the
duplex receptacle. Larger motors through 2 hp can be
run provided the receptacle rating as previously stated
is not exceeded. This may necessitate 240V operation
only.
RANGER GXT Extension Cord Length Recommendations
(Use the shortest length extension cord possible sized per the following table.)
Current Voltage Load
Maximum Allowable Cord Length in ft. (m) for Conductor Size
(Amps) Volts (Watts) 14 AWG
12 AWG
8 AWG
6 AWG
10 AWG
4 AWG
15
120
1800
30
(9)
75 (23) 125 (38) 175 (53) 300 (91)
40 (19)
20
120
2400
50 (15) 88 (27) 138 (42) 225 (69)
30 (9)
15
240
3600 60 (18) 75 (23)
150 (46) 225 (69) 350 (107) 600 (183)
20
240
4800
100 (30) 175 (53) 275 (84) 450 (137)
60 (18)
42
240
10,000
50 (15) 90 (27) 150 (46) 225 (69)
Conductor size is based on maximum 2.0% voltage drop.
RANGER GXT
A-7
A-7
INSTALLATION
TABLE lll
ELECTRICAL DEVICE USE WITH THE RANGER GXT.
Type
Common Electrical Devices
Possible Concerns
Resistive
Heaters, toasters, incandescent
light bulbs, electric range, hot
pan, skillet, coffee maker.
NONE
Capacitive
TV sets, radios, microwaves,
appliances with electrical control.
Voltage spikes or high voltage
regulation can cause the capacitative elements to fail. Surge
protection, transient protection,
and additional loading is recommended for 100% fail-safe
operation. DO NOT RUN
THESE DEVICES WITHOUT
ADDITIONAL RESISTIVE TYPE
LOADS.
Inductive
Single-phase induction motors,
drills, well pumps, grinders, small
refrigerators, weed and hedge
trimmers
These devices require large
current inrush for starting.
Some synchronous motors may
be frequency sensitive to attain
maximum output torque, but
they SHOULD BE SAFE from
any frequency induced failures.
Capacitive/Inductive
Computers, high resolution TV sets,
complicated electrical equipment.
An inductive type line conditioner along with transient and
surge protection is required,
and liabilities still exist. DO
NOT USE THESE DEVICES
WITH A RANGER GXT
The Lincoln Electric Company is not responsible for any damage to electrical components improperly connected to the RANGER GXT.
RANGER GXT
A-8
INSTALLATION
AUXILIARY POWER WHILE WELDING
Simultaneous welding and power loads are permitted
by following Table I. The permissible currents shown
assume that current is being drawn from either the
120V or 240V supply (not both at the same time).
Also, the “Output Control” is set at “10” for maximum
auxiliary power.
TABLE I
SIMULTANEOUS WELDING AND POWER
Output Selector
Setting
*
Permissible Power
Watts (Unity Power
Permissible Auxiliary
Current in Amperes
Factor)
@ 120V *-or- @ 240V
Max. Stick or Wire
Feed Setting
None
0
0
180 Stick Setting
5100
42
21
130 Stick Setting
7200
60**
30
80 Stick Setting
8750
72**
36
No Welding
10,000
84**
42
1. Install a double pole, double throw switch between
the power company meter and the premises
disconnect.
Switch rating must be the same or greater than
the customer’s premises disconnect and service
overcurrent protection.
2. Take necessary steps to assure load is limited to
the capacity of the RANGER GXT by installing a
50 amp 240V double pole circuit breaker.
Maximum rated load for the 240V auxiliary is 42
amperes. Loading above 42 amperes will reduce
output voltage below the allowable -10% of rated
voltage which may damage appliances or other
motor-driven equipment.
3. Install a 50 amp 120/240V plug (NEMA type 14-50)
to the Double Pole Circuit Breaker using No. 8,
4 conductor cable of the desired length. (The
50 amp 120/240V plug is available in the
optional plug kit.)
4. Plug this cable into the 50 amp 120/240V
receptacle on the RANGER GXT case front.
Each duplex receptacle is limited to 20 amps.
**Not to exceed 50A per 120VAC
A-8
branch circuit when
splitting the 240 VAC output.
STANDBY POWER CONNECTIONS
The RANGER GXT is suitable for temporary, standby,
or emergency power using the engine manufacturer’s
recommended maintenance schedule.
The RANGER GXT can be permanently installed as a
standby power unit for 240V-3 wire, single phase 42
ampere service.
WARNING
(Connections must be made by a licensed electrician who can determine how the 120/240V power
can be adapted to the particular installation and
comply with all applicable electrical codes.) The
following information can be used as a guide by
the electrician for most applications (refer also to
the connection diagram shown in Figure 1.)
-------------------------------------------------------------------------
RANGER GXT
A-9
A-9
INSTALLATION
Figure 1
CONNECTION OF RANGER GXT TO PREMISES WIRING
240 VOLT
GROUNDED CONDUCTOR
POWER
240 Volt
60 Hz.
3-Wire
Service
120 VOLT
COMPANY
120 VOLT
METER
NEUTRAL
BUS
N
LOAD
DOUBLE POLE DOUBLE THROW
SWITCH RATING TO BE THE SAME
AS OR GREATER THAN PREMISES
SERVICE OVERCURRENT
PROTECTION.
GROUND
50 AMP
240 VOLT
50 AMP, 120/240
VOLT PLUG
NEMA TYPE 14-50
240 VOLT
PREMISES
DISCONNECT AND
SERVICE
OVERCURRENT
PROTECTION
DOUBLE
POLE
CIRCUIT
BREAKER
GND
N
50 AMP, 120/240 VOLT
RECEPTACLE
NOTE: No. 6 COPPER CONDUCTOR CABLE SEE
NATIONAL ELECTRICAL CODE FOR ALTERNATE WIRE
SIZE RECOMMENDATIONS.
WARNING
Connection of RANGER GXT to premises wiring
must be done by a licensed electrician and must
comply with the National Electrical Code and all
other applicable electrical codes.
RANGER GXT
B-1
OPERATION
SAFETY PRECAUTIONS
Do not attempt to use this equipment until you
have thoroughly read the engine manufacturer’s
manual supplied with your welder. It includes
important safety precautions, detailed engine
starting, operating and maintenance instructions,
and parts lists.
-----------------------------------------------------------------------ELECTRIC SHOCK can kill.
• Do not touch electrically live parts or
electrode with skin or wet clothing.
• Insulate yourself from work and
ground
• Always wear dry insulating gloves.
• Always operate the welder with the hinged door
closed and the side panels in place.
• Read carefully the Safety Precautions page
before operating this machine. Always follow
these and any other safety procedures included
in this manual and in the Engine Instruction
Manual.
------------------------------------------------------------------------
B-1
WELDER CONTROLS - FUNCTION AND
OPERATION
ENGINE SWITCH
The engine switch is used to Start the Engine, Select
High Idle or Auto Idle while the engine is running, and
stop the Engine.
When placed in the “OFF”
position, the ignition
circuit is de-energized to shut down the engine.
When held in the “START”
starter motor is energized.
position, the engine
When in “HIGH IDLE” (
) position, the engine will
run continuously at high idle.
When in “AUTO IDLE” (
/
) position, the
engine will run continuously and the idler operates as
follows:
•
Welding
When the electrode touches the work, the welding
arc is initiated and the engine accelerates to full
speed.
GENERAL DESCRIPTION
The Ranger™GXT is a twin-cylinder, gasoline driven,
multiprocess arc welder and AC power generator. It is
built in a heavy gauge steel case for durability on the
job site.
After welding ceases (and no auxiliary power is
being drawn), the engine will return to low idle
after approximately 10 to 14 seconds.
•
Auxiliary Power
With the engine running at low idle and auxiliary
power for lights or tools is drawn (approximately
100-150 watts or greater) from the receptacles,
the engine will accelerate to high speed. If no
power is being drawn from the receptacles (and
not welding) for 10-14 seconds, the idler reduces
the engine speed to low idle.
RANGER GXT
B-2
“
OPERATION
6-PIN CONNECTOR
RANGE” SWITCH
The “Range” switch is used to select one of four
amperage ranges with generous overlap for Stick/TIG
welding, or one Wire Feed welding range.
Process
STICK/TIG
(constant current)
(4 range settings)
WIRE FEED
(constant voltage)
(2 range setting)
Range Setting
B-2
Current Range
80 Max.
130 Max.
180 Max.
250 Max.
50 to 80 Amps
70 to 130 Amps
110 to 180 Amps
160 to 250 Amps
14 to 22V
18 to 28V
Up to 250 Amps
For attaching optional remote control equipment.
LOCAL / REMOTE CONTROL SWITCH
(See Accessory Section For “K” numbers)
The toggle switch on the control panel labeled
"LOCAL" and "REMOTE" provides the option of controlling the welding output at the control panel or
remotely. Remote connections are made at the 6-pin
connector. For control at the control panel set the
switch in the "LOCAL" position.
For remote control set the switch in the "REMOTE"
position.
CAUTION
Never change the “RANGE” Switch setting while
welding. This will damage the switch.
-----------------------------------------------------------------------“
CONTROL” DIAL
Provides a fine welding current adjustment within the
Range Switch settings in the STICK mode and welding voltage control with the Range switch set in the
wire feed mode.
POLARITY SWITCH
Provides three selectable welding polarities:
AC, DC+ & DC-
CAUTION
Never change the Polarity switch setting while
welding. This will damage the switch.
------------------------------------------------------------------------
RANGER GXT APPROXIMATE FUEL CONSUMPTION
KOHLER
20 H.P. COMMAND
.40 Gallons/Hour
(1.50 Liters/Hour)
.77 Gallons/Hour
(2.91 Liters/Hour)
1.27 Gallons/Hour
(4.82 Liters/Hour)
1.50 Gallons/Hour
(5.69 Liters/Hour)
1.41 Gallons/Hour
(5.33 Liters/Hour)
1.48 Gallons/Hour)
(5.62 Liters/Hour)
Low Idle - No Load
2400 RPM
High Idle - No Load
3700 RPM
AC CC Weld Output
250 Amps @ 25 Volts
DC CC Weld Output
250 Amps @ 25 Volts
DC CV Weld Output
250 Amps @ 25 Volts
Auxiliary Power
10,000 Watts
RANGER GXT
B-3
B-3
OPERATION
STARTING/SHUTDOWN INSTRUCTIONS
STARTING THE ENGINE
STOPPING THE ENGINE
Remove all welding and auxiliary power loads and
allow engine to run at low idle speed for a few minutes
to cool the engine.
WARNING
• Do not touch electrically live parts
of electrode with skin or wet
clothing.
Stop the engine by placing the Engine switch in the
“OFF”
position.
A fuel shut off valve is not required on the Ranger
GXT because the fuel tank is mounted below the
engine.
• Keep flammable material away.
• Insulate yourself from work and
ground. Wear eye, ear, and body
protection.
• Keep your head out of the fumes.
• Use ventilation or exhaust to
remove fumes from breathing zone.
Be sure all Pre-Operation Maintenance has been performed. Also, read the Engine Owner’s Manual before
starting for the first time.
Remove all loads connected to the AC power receptacles. Use the choke control as follows:
KOHLER ENGINE - Always pull the choke control out
when starting the engine; cold, warm or hot.
Turn the engine switch to the “start”
position and
crank the engine until it starts. Release the switch as
soon as the engine starts, slowly return the choke
control to the full “in” position (choke open),
and turn the switch to the Auto Idle(
/
)
position. Do not turn the switch to the “start” position
while the engine is running because this will cause
damage to the ring gear and/or starter motor
BREAK-IN PERIOD
It is normal for any engine to use a greater amount of
oil until the break-in is accomplished. Check the oil
level twice a day during the break-in period (approximately 50 running hours).
IMPORTANT: IN ORDER TO ACCOMPLISH THIS
BREAK-IN, THE UNIT SHOULD BE
SUBJECTED TO MODERATE
LOADS, WITHIN THE RATING OF
THE MACHINE. AVOID LONG IDLE
RUNNING PERIODS. REMOVE
LOADS AND ALLOW ENGINE TO
COOL BEFORE SHUTDOWN.
The engine manufacturer’s recommendation for the
running time until the first oil change is as follows:
KOHLER
CH20S
5 HRS
The oil filter is to be changed at the second oil
change. Refer to the Engine Owner’s Manual for more
information.
After running at high engine speed for 10-14 seconds,
the engine will go to low idle.
Allow the engine to warm up by letting it run at low idle
for a few minutes.
RANGER GXT
B-4
B-4
OPERATION
WELDING PROCESS
SETTINGS FOR 1% THORIATED TUNGSTEN
For any electrodes the procedures should be kept
within the rating of the machine. For electrode information see the appropriate Lincoln publication.
STICK (CONSTANT CURRENT) WELDING
Connect welding cables to the "TO WORK” and
"ELECTRODE” studs. Start the engine. Set the
"Polarity” switch to the desired polarity. The “RANGE”
switch markings indicate the maximum current for that
range as well as the typical electrode size for that
range. The “OUTPUT” Control provides fine adjustment of the welding current within the select range.
For maximum output within a selected range set the
“OUTPUT” Control at 10. For minimum output within a
selected range set the “OUTPUT” Control at 5. (“OUTPUT” Control settings below 5 may reduce arc stability) For best overall welding performance set the
“RANGE” Switch to the lowest setting and the OUTPUT” Control near the maximum to achieve the
desired welding current.
RANGE SETTING
TYPICAL
CURRENT RANGE
ELECTRODE SIZE
80 MAX.
3/32
50 TO 80 AMPS
130 MAX.
1/8
70 TO 130 AMPS
180 MAX.
5/32
110 TO 180 AMPS
250 MAX.
3/16
160 TO 250 AMPS
The RANGER GXT can be used with a broad range of
AC and DC stick electrodes. See “Welding Tips 1”
included with the RANGER GXT for electrodes within
the rating of this unit and recommended welding currents of each.
TUNGSTEN
DIAMETER (in.)
1/8
3/32
1/16
The K930 [ ] TIG Module installed on a Ranger GXT provides
high frequency and shielding gas control for AC and DC GTAW
(TIG) welding processes. The TIG Module allows full range output control.
When using the Ranger GXT for AC TIG welding of aluminum
the following settings and electrodes are recommended:
APPROXIMATE
CURRENT RANGE
80, 130, or 180
80 or 130
80
80 - 225 Amps
50 - 180 Amps
45 - 120 Amps
For AC TIG Welding, the maximum TIG Welding output currents on each range setting will be approximately 50% higher than those marked on the nameplate. This is due to the special nature of the AC TIG
welding arc. Do not AC TIG weld on the 250 Amp setting. The output may exceed the rating of the Ranger
GXT.
WIRE FEED WELDING PROCESSES
(CONSTANT VOLTAGE)
The Innershield® electrode recommended for use with
the RANGER GXT is NR ®-211-MP. The electrode
sizes and welding ranges that can be used with the
RANGER GXT are shown in the following table:
Diameter
(in.)
Wire Speed
Range In./Min.
.035
.045
.068
5/64
80 - 110
70 - 130
40 - 90
50 - 75
Approximate
Current Range
75A to 120A
120A to 170A
125A to 210A
180A to 235A
The RANGER GXT is recommended for limited “MIG”
welding (GMAW - gas metal arc welding). The recommended electrodes are .030” and .035” L-50 and L-56.
They must be used with a blended shielding gas such
as C25 (75% Argon - 25% CO2). The welding ranges
that can be used with the RANGER GXT are shown in
the following table:
Diameter
(in.)
TIG (CONSTANT CURRENT) WELDING
The Ranger GXT can be used in a wide variety of AC and DC
Tungsten Inert Gas (TIG) welding applications for AC TIG
Welding up to 200 amps and DC TIG welding up to 250 amps.
RANGE SWITCH
SETTINGS
.030
.035
.045
Wire Speed
Range In./Min.
75 - 300
100 - 250
125 - 200
Approximate
Current Range
50A to 130A
80A to 175A
145A to 200A
ARC GOUGING
The RANGER GXT can be used for limited arc gouging.
Set the Range switch to adjust output current to the
desired level for the gouging electrode being used
according to the ratings in the following table:
ELECTRODE SETTING
CURRENT RANGE (DC, electrode positive)
SETTINGS FOR PURE TUNGSTEN
TUNGSTEN
DIAMETER (in.)
1/8
3/32
1/16
RANGE SWITCH
SETTINGS
80 or 130
80
80
APPROXIMATE
CURRENT RANGE
100 - 300 Amps
45 - 140 Amps
45 - 100 Amps
RANGER GXT
1/8
5/32
3/16
30 - 60 Amps
90 - 150 Amps
150 - 250 Amps
B-5
B-5
OPERATION
SUMMARY OF WELDING PROCESSES
CONTROL
CABLE
USED
IDLE
MODE
ELECTRODE
WHEN NOT
WELDING
STICK
No
AUTO
Hot
Touch electrode to work.
Welding starts immediately
and engine goes to high
idle.
WIRE FEED, LN-25 WITH
INTERNAL CONTACTOR
No
AUTO
Cold
Press gun trigger, LN-25
contactor closes. Welding
starts immediately and
engine goes to high idle.
Note: Output Control
must be set above “3”.*
TIG, TIG MODULE WITH
WITH CONTACTOR KIT
CONTROL CABLE, &
AMPTROL
Yes
HIGH
Cold
Press Amptrol,
contactor closes,
welding starts immediately.
WIRE FEED, LN-15
ACROSS the ARC
(has internal contactor)
No
AUTO
Cold
Press gun trigger.
LN-15 contactor closes,
Welding starts immediately
and engine goes to “HIGH”
Idle.
Note: Output Control must
be set above “3”.*
PROCESS
*When welding with MIG wire instead of self-shielded
core wire, weld starts can be improved by setting the
idle mode to “HIGH”.
RANGER GXT
TO START
WELDING
C-1
OPTIONAL EQUIPMENT
ACCESSORIES
(Field Installed)
K957-1 HEAVY DUTY, TWO WHEEL TRAILER FOR
SMALL WELDERS - For road, off-road and in-plant
and yard towing. (For highway use, consult applicable
federal, state and local laws regarding requirements
for brakes, lights, fenders, etc.)
Order K957-1 Trailer
K958-1 Ball Hitch
K958-2 Lunette Eye Hitch
K959-2 Fender & Light Kit
K965-1 Cable Storage Rack
K1737-1 FOUR WHEEL ALL-TERRAIN UNDERCARRIAGE - For moving by hand at construction
sites. Heavy duty puncture resistant pneumatic tires.
K1770-1 UNDERCARRIAGE (FACTORY) - For moving by hand on a smooth surface. One or two gas
cylinders can be mounted on the rear of the undercarriage with the installation of K1745-1 Cylinder
Holder(s). Heavy duty puncture resistant pneumatic
tires and front caster.
C-1
K875 Accessory Kit - For Stick welding. Includes
20ft.(6.1m)#6 electrode cable with lug. 15ft.(4.6m)#6 work
cable with lugs, headshield, filter plate, work clamp, electrode holder and sample pack of mild steel electrode. 150
amp capacity.
K1898-1 Spark Arrester Kit - Attaches between muffler
and exhuast elbow. Virtually eliminates spark emissions.
K1690-1 GFCI RECEPTACLE KIT - Includes one UL
approved120V ground fault circuit interrupter duplex type
receptacle with cover and installation instructions.
Replaces the factory installed 120V duplex receptacle.
Each receptacle of the GFCI Duplex is rated at 20 Amps,
the maximum total current from the GFCI Duplex is limited to the 20 Amps. Two kits are required.
K1816-1 FULL KVA ADAPTER KIT - Plugs into the
120/240V NEMA 14-50R receptacle on the case front
(which accepts 4-prong plugs) and converts it to a NEMA 650R receptacle, (which accepts 3-prong plugs.)
T12153-9 Full-KVA Power Plug - One dual voltage plug
rated at 120/240V, 50 amps.
K1745-1 GAS CYLINDER HOLDER
Holds Welding Gas Cylinder for use on K1770-1
Undercarriage. One or two may be installed on an
undercarriage.
K1788-1 ROLL CAGE - Gives added damage protection.
Attaches to K1737-1, K1770-1, and K957-1.
K886-2 Canvas Cover -To protect the RANGER GXT
when not in use. Made from attractive red canvas
material which is flame retardant, mildew resistant,
and water repellent.
K802R Power Plug Kit - provides four 120V plugs
rated at 15 amps each and one dual voltage, Full
KVA plug rated at 120/240V, 50 amps.
K802N Power Plug Kit - Provides four 120V plugs
rated at 20 amps each and one dual voltage, full KVA
plug rated at 120/240V, 50 amps.
K857 (25 ft.(7.5m) or K857-1(100 ft.(30.4m)
Remote Control- Portable control provides same dial range
as the output control on the welder. Has a convenient 6-pin
plug for easy connection to the welder.
K704 Accessory Kit - Includes 35 ft (10.7m) 2/0 AWG electrode cable, 30 ft. (9.1m) 2/0 AWG work cable, headshield
with No. 12 filter, GC300 work clamp and Cooltong® 300
electrode holder. Cables are rated at 300 amps, 100% duty
cycle.
RANGER GXT
C-2
ACCESSORIES
C-2
RECOMMENDED EQUIPMENT
STICK
Optional TIG Equipment:
K704 Accessory Kit which includes:
K939-1 Docking Kit - For Mounting the K930-2 TIG Module
on top of the RANGER GXT.
• Electrode Holder & Cable
• Work Clamp & Cable
• Headshield
K937-45 Control Cable Extension - Allows TIG Module to be
operated at distances up to 200ft. from the power source.
Available in 45ft. (13.7m).
K875 Accessory Kit- 200 AMP
K844-1 Water Valve Kit - For use with water cooled TIG
torch, Installs inside of TIG Module.
WIRE FEED
K963-3 Hand Amptrol
K449 LN-25 - Includes internal contactor for across
the arc operation (no control cable). Provides “cold”
electrode until gun trigger is pressed. Includes gas
solenoid.
Magnum Gun and Magnum Gun Connector Kit are
required for gas-shielded welding. Innershield Gun is
required for gasless welding.
K126-2 Magnum 350 Innershield Gun
K1802-1 Magnum 300 MIG Gun (for LN-25)
K470-2 Magnum 300 MIG Gun (for LN-15)
K466-10 Connector Kit (for LN-15, K470-2)
K1500-1 Gun Receiver Bushing (for LN-15 & K126-2)
K1870-1 LN-15 Across the Arc Model
K870
Foot Amptrol
REMOTE OUTPUT CONTROL
(See Operations Section for reference)
The Ranger GXT is equipped with a 6-pin connector. The 6pin connector is for connecting the K857 or K857-1 Remote
Control (optional) or for TIG welding, the K870 Foot
Amptrol or the K963-3 Hand Amptrol. When remote control is used set the LOCAL / REMOTE switch in the
"REMOTE" position.
Plasma
K1580-1 Pro-Cut 55
(Requires Full KVA Adapter K1816-1)
TIG
Magnum™ TIG Torch
K1783-4 - TIG Torch
Magnum Parts Kit and Argon Gas
K930-2 TIG Module - Provides high frequency and shielding gas control.for AC and DC GTAW (TIG) welding applications. Its compact case is designed foe easy carrying, complete with a handle. High frequency bypass is built in
Requires K938-1 Contactor Kit, K936-3 Control Cable, and
K814 Arc Start Switch.
K938-1 Contactor Kit - For use with TIG Module, Provides a
“cold” electrode until the triggering device (Arc Start Switch)
is pressed.
K936-3 Control Cable - Connects TIG Module to RANGER
GXT.
RANGER GXT
D-1
D-1
MAINTENANCE
SAFETY PRECAUTIONS
WARNING
Have qualified personnel do the maintenance
work. Turn the engine off before working inside
the machine. In some cases, it may be necessary
to remove safety guards to perform required
maintenance. Remove guards only when
necessary and replace them when the maintenance requiring their removal is complete.
Always use the greatest care when working near
moving parts.
Do not put your hands near the engine cooling
blower fan. If a problem cannot be corrected by
following the instructions, take the machine to
the nearest Lincoln Field Service Shop.
----------------------------------------------------------------------ELECTRIC SHOCK can kill.
• Do not touch electrically live parts
or electrode with skin or wet
clothing.
• Insulate yourself from work and
ground
• Always wear dry insulating gloves.
-----------------------------------------------------------------------ENGINE EXHAUST can kill.
• Use in open, well ventilated areas
or vent exhaust outside.
-----------------------------------------------------------------------MOVING PARTS can injure.
• Do not operate with doors open or
guards off.
• Stop engine before servicing.
• Keep away from moving parts.
------------------------------------------------------------------------
See additional warning information
throughout this operator’s manual and
the Engine manual as well.
-----------------------------------------------------------Read the Safety Precautions in the front of this manual
and the engine instruction manual before working on
this machine.
Keep all equipment safety guards, covers, and devices
in position and in good repair. Keep hands, hair, clothing, and tools away from gears, fans, and all other
moving parts when starting, operating, or repairing the
equipment.
CAUTION
Make certain that the oil filler cap is securely tightened after checking or adding oil. If the cap is not
tight, oil consumption can increase significantly
which may be evidenced by white smoke coming
from the exhaust.
• OIL - Maintenance schedule for changing the oil and
oil filter after break-in :
Kohler
CH20S
Oil
Oil Filter
100 Hrs.
200 Hrs.
The above schedule is for normal operating conditions. More frequent oil changes are required with
dusty, high temperature and other severe operating
conditions. Refer to the maintenance section of the
Engine Owner's Manual for more information.
NOTE: Engine life will be reduced if the oil and oil
filter are not changed according to the manufacturer’s
recommendation.
ENGINE OIL CHANGE
Drain the oil while the engine is warm to assure rapid
and complete draining.
• Remove the oil filler cap and dipstick. Remove the
yellow cap from the oil drain valve and attach the
flexible drain tube supplied with the machine. Push
in and twist the drain valve counterclockwise. Pull
the valve out and drain the oil into a suitable container.
• Close the drain valve by pushing in and twisting
clockwise. Replace the yellow cap.
• Refill to the upper limit mark on the dipstick with the
recommended oil. Tighten the oil filler cap securely.
ENGINE OIL REFILL CAPACITIES
Without oil filter replacement:
• 1.7 US qt. (1.4 Imp qt., 1.6 liter)-Kohler
With oil filter replacement:
• 2.0 US qt. (1.7 Imp qt., 1.9 liter)-Kohler
Routine Maintenance
• At the end of each day’s use, refill the fuel tank to
minimize moisture condensation in the tank.
Running out of fuel tends to draw dirt into the fuel
system. Also, check the crankcase oil level and
add oil if indicated.
RANGER GXT
D-2
MAINTENANCE
Use 4-stroke motor oil that meets or exceeds the
requirements for API service classification SG or SH.
Always check the API SERVICE label on the oil container to be sure it includes the letters SG or SH.
AIR CLEANER AND OTHER MAINTENANCE
•
Air Cleaner - With normal operating conditions, the
maintenance schedule for cleaning and re-oiling
the foam pre-filter is every 25 hours and replacement of the air cleaner filter every 100 hours.
More frequent servicing is required with dusty
operating conditions. Refer to the maintenance
section of the Engine Owner’s Manual for more
information.
•
Refer to the maintenance section of the Engine
Owner’s Manual for the maintenance schedule,
spark plug servicing, cooling system servicing, and
fuel filter replacement.
•
Blow out the machine with low pressure air periodically. In particularly dirty locations, this may be
required once a week.
SAE 10W-30 is recommended for general, all-temperature use, -5 F to 104 F (-20 C to 40 C).
See Engine Owner’s Manual for more specific information on oil viscosity recommendations.
Wash your hands with soap and water after handling
used oil.
Please dispose of used motor oil in a manner that is
compatible with the environment. We suggest you take
it in a sealed container to your local service station or
recycling center for reclamation.
Do not throw it in the trash, pour it on the ground or
down a drain.
OIL FILTER CHANGE
1. Drain the engine oil.
D-2
• Output Ranger Selector and Polarity Switches:
Switch contacts should not be greased. To keep
contacts clean, rotate the switch through its entire
range frequently. Good practice is to turn the handle from maximum to minimum setting twice each
morning before starting to weld.
2. Remove the oil filter, and drain the oil into a suitable
container. Discard the used oil filter.
3. Clean the filter mounting base, and coat the gasket
of the new oil filter with clean engine oil.
4. Screw on the new oil filter by hand, until the gasket
contacts the filter mounting base, then use an oil filter socket tool to tighten the filter an additional 1/2 to
7/8 turn.
5. Refill the crankcase with the specified amount of the
recommended oil. Reinstall the oil filler cap.
6. Start the engine and check for oil filter leaks.
7. Stop the engine, and check the oil level. If necessary, add oil to the upper limit mark on the dipstick.
RANGER GXT
D-3
D-3
MAINTENANCE
ENGINE ADJUSTMENTS
WARNING
GASES FROM BATTERY can explode.
• Keep sparks, flame and cigarettes away from battery.
OVERSPEED IS HAZARDOUS
To prevent EXPLOSION when:
• INSTALLING A NEW BATTERY - disconnect negative
cable from old battery first and connect to new battery
last.
WARNING
The maximum allowable high idle speed for this
machine is 3750 RPM, no load. Do NOT tamper
with governor components or setting or make any
other adjustments to increase the maximum
speed. Severe personal injury and damage to the
machine can result if operated at speeds above
maximum.
-----------------------------------------------------------------------Adjustments to the engine are to be made only by a
Lincoln Service Center or an authorized Field Service
Shop.
SLIP RINGS
• CONNECTING A BATTERY CHARGER - Remove battery from welder by disconnecting negative cable first,
then positive cable and battery clamp. When reinstalling, connect negative cable last. Keep well ventilated.
• USING A BOOSTER - connect positive lead to battery
first then connect negative lead to engine foot.
BATTERY ACID CAN BURN EYES AND SKIN.
• Wear gloves and eye protection and be careful when
working near battery. Follow instructions printed on
battery.
BATTERY
1.
A slight amount of darkening and wear of the slip rings
and brushes is normal. Brushes should be inspected
when a general overhaul is necessary.If brushes are
to be replaced, clean slip rings with a fine emery
paper.
CAUTION
Do not attempt to polish slip rings while engine is
running.
------------------------------------------------------------------------
2.
When replacing, jumping, or otherwise connecting
the battery to the battery cables, the proper
polarity must be observed. Failure to observe
the proper polarity could result in damage to the
charging circuit. The positive (+) battery cable
has a red terminal cover.
If the battery requires charging from an external
charger, disconnect the negative battery cable
first and then the positive battery cable before
attaching the charger leads. Failure to do so
can result in damage to the internal charger
components. When reconnecting the cables,
connect the positive cable first and the negative
cable last.
HARDWARE
Both English and Metric fasteners are used in this
welder.
ENGINE MAINTENANCE PARTS
KOHLER C20S
Oil Filter
KOHLER 1205001
FRAM PH3614*
Air Filter
Element
KOHLER 4708303
FRAM CA79
Air Filter
Pre-Cleaner
KOHLER 2408302
Fuel Filter
KOHLER 2505002
FRAM G1
Spark Plugs
(Resistor
Type)
CHAMPION RC12YC
(.030” GAP)
* Oil capacity increases from 2.0 Qts. to 2.1 Qts. when using this filter.
RANGER GXT
E-1
TROUBLESHOOTING
E-1
HOW TO USE TROUBLESHOOTING GUIDE
WARNING
Service and Repair should only be performed by Lincoln Electric Factory Trained Personnel.
Unauthorized repairs performed on this equipment may result in danger to the technician and
machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical
Shock, please observe all safety notes and precautions detailed throughout this manual.
__________________________________________________________________________
This Troubleshooting Guide is provided to help you
locate and repair possible machine malfunctions.
Simply follow the three-step procedure listed below.
Step 1. LOCATE PROBLEM (SYMPTOM).
Look under the column labeled “PROBLEM (SYMPTOMS)”. This column describes possible symptoms
that the machine may exhibit. Find the listing that
best describes the symptom that the machine is
exhibiting.
Step 3. RECOMMENDED COURSE OF ACTION
This column provides a course of action for the
Possible Cause, generally it states to contact your
local Lincoln Authorized Field Service Facility.
If you do not understand or are unable to perform the
Recommended Course of Action safely, contact your
local Lincoln Authorized Field Service Facility.
Step 2. POSSIBLE CAUSE.
The second column labeled “POSSIBLE CAUSE” lists
the obvious external possibilities that may contribute
to the machine symptom.
CAUTION
If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your
Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.
RANGER GXT
E-2
E-2
TROUBLESHOOTING
Observe all Safety Guidelines detailed throughout this manual
PROBLEMS
(SYMPTOMS)
No welder output power or Auxiliary
Power.
POSSIBLE
CAUSE
RECOMMENDED
COURSE OF ACTION
1. Open in miscellaneous leads.
2. Open lead in flashing or field
circuit.
3. Faulty rotor.
4. Faulty Potentiometer (R1).
5. Faulty stator Field winding.
6. Faulty Field rectifier (On PCB*).
7. Faulty P.C. Board.
1. Idler switch on High Idle.
Engine will not idle down to low
speed.
If all recommended possible areas of
misadjustment have been checked
and the problem persists, Contact
your local Lincoln Authorized
Field Service Facility.
2. Insufficient voltage present
between terminals #213 and
#5E. (Voltage should be 12V
DC).
3. External load on welder or
auxiliary power.
4. Faulty wiring in solenoid circuit.
5. Faulty idler solenoid.
6. Faulty P.C. Board.
Engine will not go to high idle when
attempting to weld.
1. Poor work lead connection to
work.
2. No voltage signal from the
current sensor.
3. No open circuit voltage on
output studs.
4. Faulty P.C. Board.
* Printed Circuit Board (PCB)
CAUTION
If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your
Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.
RANGER GXT
E-3
E-3
TROUBLESHOOTING
Observe all Safety Guidelines detailed throughout this manual
PROBLEMS
(SYMPTOMS)
Engine will not go to high idle when
using auxiliary power.
Engine will not crank or is hard to
crank.
Engine shuts down.
POSSIBLE
CAUSE
1.
No voltage signal from the
current sensor.
2.
Auxiliary power load less than
100 to 150 watts.
3.
Faulty P.C. Board.
1.
Battery will not hold a charge.
Faulty Battery.
2.
No or insufficient charging
current.
3.
Loose battery cable
connection(s).
1.
Out of fuel.
2.
Low oil level.
Engine does not develop full power. 1.
Engine is hard to start.
RECOMMENDED
COURSE OF ACTION
If all recommended possible areas of
misadjustment have been checked
and the problem persists, Contact
your local Lincoln Authorized
Field Service Facility.
Fuel filter clogged.
2.
Air filter clogged.
1.
Spark plugs do not have
specified gap.
2.
Spark plugs are fouled.
CAUTION
If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your
Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.
RANGER GXT
5L
230
1
RANGER GXT
210
210
4
STARTER
SOLENOID
U
3 4
P5
CR1
R
R
J5
209A
209A
REGULATOR
STARTER
AC
B-
V
1 2
212A 211
CB5
20A
211
U = BLUE
V = VIOLET
1
5
FUEL GAUGE
4
8
FUEL
SHUTOFF
SOLENOID
50A
CB1
50A
6B
1
5
1
3
PCB1/J2
2
4
A
A3
6
6
12
6F
3
E
2
1
7
+
-
D1
B
A4
6E
3D
5
5B
J3
120V
7
S1
5D
5M
W1
W2
254
6
3
+
9
3
1
4
2
J2
77A
OUTPUT
CONTROL CW
77B
76A
R1
76B
J1-1
PCB2
GND-K
77A 76A
J1-4
J1-8
77B 76B
LOCAL
REMOTE
SWITCH
1
J1
7
213A
PCB1
75A
J1-6
75
J1-7
C
75A
M20443
J2
F
A
B
C
REMOTE AMPHENOL CONNECTOR
AND SUPPRESSOR PC BOARD ASSEMBLY
212A (CAVITY #2)
224C (CAVITY #4)
J5 ENGINE CONNECTOR
LOCATING TAB
6
200A
ROTOR
219
7
8
10
12
261
260
SLIP RING
NEAREST
LAMINATION
3
GENERATOR LEAD END
(NOTE CAVITY NUMBERS)
TOP GND SCREW
ON INSIDE LEFT
CASEFRONT
5A
J4
120V
211 (CAVITY #3)
GND-K
LINE
LINE
LINE
LINE
33 9
C1
C2
REACTOR
8
10
C1 C2 R4 R3 R2 R1
GND-G
66
S2
L1
CHOKE
A2
A5
PCB1/J1
CB3
20A
CB4
20A
3A
GND-E
CONNECTOR PIN NUMBERS:
5C
GND-C
N.B.
J1
120V/240V
3E
3
3
GND-D
FRAME
GROUND
STUD ON
CASEFRONT
A6
C
ELECTRODE
WORK
208
206B
SILVER
TERMINALS
(WHITE WIRES)
PCB2/J1
4
8
ENGINE CROSS
SUPPORT
GROUND
ENGINE
BLOCK
GROUND
GND-J
GND-H
-
+
5N
S2
B1
254
6
LEADS 3 AND 6:
2 TURNS THRU TOROID IN
OPPOSITE DIRECTIONS
Enhanced Diagram
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number.
ELECTRICAL SYMBOLS PER E1537
206C
208C
POLARITY SWITCH S2
SHOWN IN DC- (ELECTRODE NEGATIVE) POSITION
VIEWED FROM REAR
GROUND
SCREW
INSIDE
RIGHT
CASEFRONT
ALL CASE FRONT COMPONENTS SHOWN VIEWED FROM REAR.
B = BLACK OR GRAY
R = RED OR PINK
W = WHITE
LEAD COLOR CODE:
RF
BYPASS
CIRCUIT
BOTTOM GROUND
SCREW ON INSIDE
LEFT CASEFRONT
215 213A
12 VOLT
BATTERY
209
IDLER
SOLENOID
1 2 3 4
OFF
AUTO X X X
HIGH X
X
X X
START X
X= CLOSED CIRCUIT
FLYWHEEL ALTERNATOR
AC B+
IGNITION
MODULE
N.A.
W
212
224C
5E 5D
TERMINAL BLOCK
(SEE CONN.)
224 224A
+
HOURMETER
3
1
ENGINE COMPONENTS
OIL
PRESSURE
SWITCH
224A
5M
210A
2
ENGINE CONTROL SWITCH
S3
1 TURN
DIAGRAMS
N.A. GROUNDING THIS TERMINAL STOPS THE ENGINE.
N.B. ON MACHINE CODES BELOW 11269, CB1 WAS TWO
SINGLE POLE BREAKERS IDENTIFIED AS CB1 & CB2.
ELECTRIC
FUEL PUMP
(NOT ON
MACHINE CODES
BELOW 11269)
RED
FUEL SENDER
4
FUEL GAUGE
213
200A
219
75
77
224
215
76
5E
RANGER GXT CODE 11269
F-1
F-1
ELECTRODE
RANGER GXT
IF OPTIONAL REMOTE CONTROL IS USED, PLACE THE “LOCAL/REMOTE” SWITCH
THE “REMOTE” POSITION.
N.C.
IN
USE POLARITY SWITCH TO SET FOR DESIRED ELECTRODE POLARITY. POSITION THE OUTPUT SELECTOR
SWITCH TO THE WIRE FEED (CV) POSITION.
N.B.
DIAGRAMS
M20597
08/20/2004
TO WORK
WORK CLIP LEAD
WELDING CABLE MUST BE SIZED FOR CURRENT AND DUTY CYCLE OF APPLICATION.
ELECTRODE CABLE
TO WORK
REMOTE CONTROL
(OPTIONAL)
LN-25 OR LN-15
WIRE FEEDER
Keep guards in place.
Keep away from moving parts.
Only qualified personnel should install,use
or service this equipment.
MOVING PARTS can injure
N.A.
TO WORK
ENGINE
WELDER
6-PIN CONNECTOR
Do not operate with panels open.
Disconnect NEGATIVE (-) Battery lead
before servicing.
Do not touch electrically live parts.
ELECTRIC SHOCK can kill
WARNING
RANGER GXT / LN-25 OR LN-15 ACROSS THE ARC CONNECTION DIAGRAM
F-2
F-2
RANGER GXT
42.10
20.80
24.86
21.00
41.20
TRUCK/UNDERCARRIAGE MOUNTING HOLES
2.6
17.50 19.50
14.75
CENTER OF GRAVITY WITH OIL
IN ENGINE AND EMPTY FUEL TANK..
10.27
10.78
29.88
33.62
36.24
DIAGRAMS
M20512
B
NOTE: CASEFRONT GRAPHICS MAY NOT MATCH ALL CODES.
CIRCUIT
BREAKERS
7.22
F-3
F-3
NOTES
RANGER GXT
● Do not touch electrically live parts or
WARNING
Spanish
AVISO DE
PRECAUCION
French
ATTENTION
German
WARNUNG
Portuguese
ATENÇÃO
● Keep flammable materials away.
● Wear eye, ear and body protection.
● Mantenga el material combustible
● Protéjase los ojos, los oídos y el
electrode with skin or wet clothing.
● Insulate yourself from work and
ground.
● No toque las partes o los electrodos
bajo carga con la piel o ropa mojada.
● Aislese del trabajo y de la tierra.
● Ne laissez ni la peau ni des vête-
ments mouillés entrer en contact
avec des pièces sous tension.
● Isolez-vous du travail et de la terre.
● Berühren Sie keine stromführenden
Teile oder Elektroden mit Ihrem
Körper oder feuchter Kleidung!
● Isolieren Sie sich von den
Elektroden und dem Erdboden!
● Não toque partes elétricas e elec-
trodos com a pele ou roupa molhada.
● Isole-se da peça e terra.
fuera del área de trabajo.
● Gardez à l’écart de tout matériel
inflammable.
● Entfernen Sie brennbarres Material!
cuerpo.
● Protégez vos yeux, vos oreilles et
votre corps.
● Tragen Sie Augen-, Ohren- und Kör-
perschutz!
● Mantenha inflamáveis bem guarda-
dos.
● Use proteção para a vista, ouvido e
corpo.
Japanese
Chinese
Korean
Arabic
READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE
USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.
SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS
