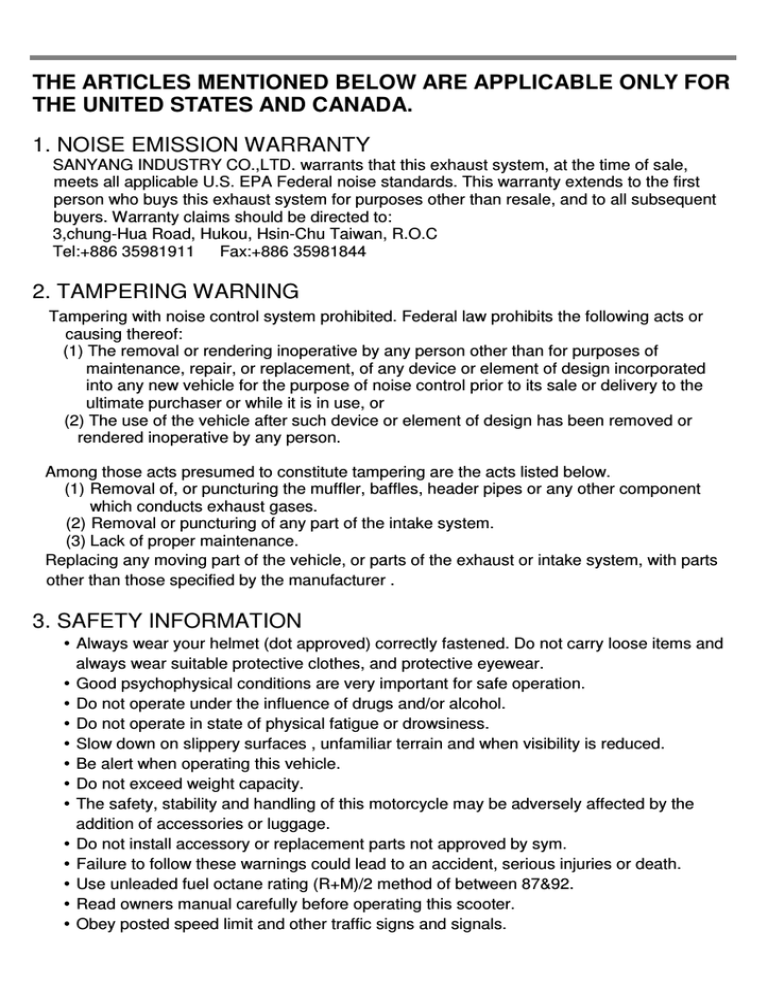

THE ARTICLES MENTIONED BELOW ARE APPLICABLE ONLY FOR
THE UNITED STATES AND CANADA.
1. NOISE EMISSION WARRANTY
SANYANG INDUSTRY CO.,LTD. warrants that this exhaust system, at the time of sale,
meets all applicable U.S. EPA Federal noise standards. This warranty extends to the first
person who buys this exhaust system for purposes other than resale, and to all subsequent
buyers. Warranty claims should be directed to:
3,chung-Hua Road, Hukou, Hsin-Chu Taiwan, R.O.C
Tel:+886 35981911
Fax:+886 35981844
2. TAMPERING WARNING
Tampering with noise control system prohibited. Federal law prohibits the following acts or
causing thereof:
(1) The removal or rendering inoperative by any person other than for purposes of
maintenance, repair, or replacement, of any device or element of design incorporated
into any new vehicle for the purpose of noise control prior to its sale or delivery to the
ultimate purchaser or while it is in use, or
(2) The use of the vehicle after such device or element of design has been removed or
rendered inoperative by any person.
Among those acts presumed to constitute tampering are the acts listed below.
(1) Removal of, or puncturing the muffler, baffles, header pipes or any other component
which conducts exhaust gases.
(2) Removal or puncturing of any part of the intake system.
(3) Lack of proper maintenance.
Replacing any moving part of the vehicle, or parts of the exhaust or intake system, with parts
other than those specified by the manufacturer .t 80
3. SAFETY INFORMATION
Always wear your helmet (dot approved) correctly fastened. Do not carry loose items and
always wear suitable protective clothes, and protective eyewear.
Good psychophysical conditions are very important for safe operation.
Do not operate under the influence of drugs and/or alcohol.
Do not operate in state of physical fatigue or drowsiness.
Slow down on slippery surfaces , unfamiliar terrain and when visibility is reduced.
Be alert when operating this vehicle.
Do not exceed weight capacity.
The safety, stability and handling of this motorcycle may be adversely affected by the
addition of accessories or luggage.
Do not install accessory or replacement parts not approved by sym.
Failure to follow these warnings could lead to an accident, serious injuries or death.
Use unleaded fuel octane rating (R+M)/2 method of between 87&92.
Read owners manual carefully before operating this scooter.
Obey posted speed limit and other traffic signs and signals.
4. SAFETY DEFECT REPORT
SANYANG INDUSTRY CO., Ltd.
NO. 3,chung-Hua Road
Hukou Shiang
Hsin-Chu County, 303
Taiwan, R.O.C
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury
or death, you should immediately inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Sanyang Industry Co., Ltd.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in and individual problems between you, your
dealer, or Sanyang Industry Co., Ltd.
To contact NHTSA you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY:1-800-424-9153);go to http://www.safercar.gov; or write to :
Administrator, NHTSA
400 Seventh Street SW.,
Washington, DC 20590
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
1. Contents ........................................................................................................................ 1
2. Control Location ............................................................................................................ 3
3. Before Riding ................................................................................................................ 4
4. Safe Riding .................................................................................................................... 4
5. Driving ........................................................................................................................... 5
6. Use Genuine Spare Parts ............................................................................................. 5
7. Use of Each Component ............................................................................................... 6
Gauges ........................................................................................................................... 6
Operation of Ignition Switch ............................................................................................... 8
Use of Buttons ................................................................................................................. 9
Engine control switch ...................................................................................................... 11
Goods Hook .................................................................................................................. 12
Saddle Lock ......................................................................................................................12
Storage Box ......................................................................................................................12
Pillion Step ........................................................................................................................12
Fuel Tank Cap ............................................................................................................... 13
Brake ............................................................................................................................ 14
8. Important Points and Cautions for Starting Engine ..................................................... 15
9. The Best Way to Drive off ........................................................................................... 16
The Control of Throttle Valve Handle ................................................................................. 16
Parking Method .............................................................................................................. 16
10. Inspection and Maintenance before Riding ................................................................. 17
Routine Inspection .......................................................................................................... 17
Engine Oil Inspection and Change .................................................................................... 17
Fuel Inspection .............................................................................................................. 18
Transmission Oil Inspection and Change ........................................................................... 18
Inspection and Adjustment of Brake Free Play ................................................................... 19
Disc Brake Inspection ...................................................................................................... 19
Throttle Valve Handle Clearance Adjustment ..................................................................... 20
Inspection and Maintenance of Battery .............................................................................. 21
Tire Inspection ............................................................................................................... 22
Steering Handle Front Shock Absorbers Inspection ............................................................. 22
Rear Cushion Hardness Setting ....................................................................................... 23
Checking and Changing Fuses ......................................................................................... 23
Checking the Turn Signal Lights and Horn ......................................................................... 23
1
Checking the Front and Rear Lights .................................................................................. 24
Checking the Brake Light ................................................................................................. 24
Checking for Fuel Leakage .............................................................................................. 24
Checking the Lubrication of Body’s Various Mechanisms ..................................................... 24
Checking the Spark Plug ................................................................................................. 24
Cooling system inspection ............................................................................................... 25
Replenishment of coolant ................................................................................................ 25
A reference table for anti-freeze concentration percentages under different temperatures ........ 26
Crankcase Blow-By Ventilation ......................................................................................... 26
Checking the Air Cleaner ................................................................................................. 27
Checking The Left Crankcase Cover Air Cleaner ................................................................ 27
11. When there is an Abnormal Condition or a Trouble .................................................... 28
Diagnosis when Engine does not Start .............................................................................. 28
12. C.D.I. Electrical Ignition System .................................................................................. 29
13. Suggestions on Engine Fuel ....................................................................................... 29
14. Transmission Oil ......................................................................................................... 29
15. Cautions for Riding Scooter ........................................................................................ 29
16. Periodical Maintenance Schedule ............................................................................... 30
17. Specification ................................................................................................................ 31
2
1. Contents
ENG. Stop / Light / Starter switch
Turn signal
light
Storage
box
Coolant filler cap
Pass / High & Low beam /
Turn signal / Seat open Horn switch
Frame
number
Ignition
switch Seat lock.
Head light
Fuel tank cap
Foggy light
Tail light/
Turn signal
light
Side stand
Main stand
Front brake lever
Front And Rear
brake lever
Battery
Fuses.
Muffler
Engine number
2. Control location
3
This manual describes the correct usage of this scooter including safety riding, simple inspection methods
and so on.
For a more comfortable and safety riding, please read this manual carefully.
For your benefit, please ask your SANYANG dealer the operating manual and carefully read the
following:
• Correct use of the scooter.
• Pre-delivery inspection and maintenance.
Thank you very much for your patronage
In order to maximize your scooter’s performance, a periodical inspection and maintenance should be
completely carried out.
We recommend that after riding your new scooter for the first 300 kilometers, you should take your
scooter to the original dealer for an initial inspection, and to have your scooter inspected periodically
every 1000 kilometers thereafter.
• In case the scooter’s specifications and construction are modified and different from the photos and
diagrams on the owner’s manual / catalogues, the specifications and construction of the actual scooter
shall prevail.
4. SAFE RIDING
It is very important to be relax and clothe properly when driving, observe traffic regulations, do not rush,
always drive carefully and relaxed.
Usually, most people would ride their newly bought scooter very carefully, but after they became familiar
with their scooters, they tended to become reckless which may result in an accident.
To remind you:
• Please wear a safety helmet, and properly tighten the chin belt when riding a scooter.
• Clothes with open or loose cuffs may be blown by wind and cause the cuffs to get caught on the
steering handle and thus affects riding safety.
• So, put on clothes with tight sleeves.
• Hold the steering handle by both hands when riding. Never ride with only one hand.
• Observe the speed limit.
• Wear suitable low-heel shoes.
• Perform periodical maintenance and inspection in accordance with the schedule.
WARNING!!
• To avoid getting burned by exhaust pipe when taking a passenger. Make sure your passenger has
put his/her feet on the pedals.
• After running, the exhaust pipe is very hot, be careful not to get burned when conducting an
inspection or maintenance.
• After running, the exhaust pipe is very hot, select a suitable location to park your scooter to avoid
others getting burned by the exhaust pipe.
CAUTION:
• Modified scooter will affect its structure or performance, and cause poor engine operation or exhaust
noise, which will result in shortening the scooter’s service life.
Besides, modification is illegal and does not conform to the original design and specifications.
A modified scooter will not be covered by warranty, therefore, do not modify your scooter at will.
• Tire and rim modifications will make it unsafe to ride and may cause severe injury or death.
3. Before riding
4. Safe riding
4
Keep the related parts of your body such as arms, palms, lumbar, and toes relax and ride with the most
comfortable posture in order to be able to react quickly whenever it is necessary.
• Rider’s posture will greatly affect riding safety. Always keep your body’s gravity in the center of the
saddle, if your body’s gravity is on the rear part of saddle, the front wheel load will be reduced, and this
will cause the steering handle shaking. It is dangerous to ride a scooter with an unstable handle.
• It will be much easier to make a turn if rider inclines his body inward when turning. On the other hand,
the rider will feel unstable if his body and the scooter do not incline.
• The scooter is hard to control on a bumpy, unleveled, unpaved road, try to know the road conditions in
advance, slow down and use your shoulder’s force to control the handle.
• Suggestion: Do not load objects on the front pedals unnecessarily, to avoid affecting the riding safety
and the operation of steering handle.
CAUTION:
The rider’s feeling on the handle is slightly different with a load or without a load.
Overload may cause the handle to swing and affects the riding safety.
Therefore, do not overload your scooter.
Overloading the scooter will cause the scooter to become unstable and hard to maneuver, it may cause
serious damage to the tires and rims, as well as it may change the center of gravity, which could result
in an accident that could cause injury or death. Do not exceed the maximum authorized load.
CAUTION:
• Do not place flammable materials such as rags between the body side cover and engine to avoid
components damaging by fire.
• Do not load objects on areas not specified for loading to avoid damage.
SUGGESTION
To maximize the scooter’s performance and prolong its service life:
The first month or first 1000km is the wear- in period for the engine and components.
Avoid rapid acceleration, and keep the speed below 60km/hr.
6. USE GENUINE SPARE PARTS
In order to maintain the scooter’s best performance, each part’s quality, material, and machined precision
must conform with the design requirements. “SYM Genuine Spare Parts” were made from the same high
quality materials used for the original scooter. No parts would be sold to the market until they could meet
the designed specifications through sophisticated engineering and stringent quality control. Therefore, it is
necessary to purchase “SYM Genuine Spare Parts” from “SYM Authorized Dealers or Franchised
Dealers” when replacing spare parts. If you buy cheap, or fake substitute parts from the market, no
guarantee can be provided either for the quality or durability. Also, it may result in unexpected troubles and
lower the scooter’s performance.
• Always use SYM Genuine Spare Parts to keep your scooters pure blood and to ensure its long service
life.
5. Driving
5
(The following is SYM 4 stroke liquid cooling scooter’s basic operation, and they could vary from different
individual models. Please consult the end of this manual.)
GAUGES
ABS Indicator
Engine Oil Charge
(If installed)
tachometer
High Beam Indicator
Clock / Voltage
Odometer
Turn Signal
Indicator
Speedometer
Turn Signal
Indicator
Fuel Indicator
Engine Coolant
Temperature
Foggy Indicator
(If installed)
Storage box Indicator
EFi Indicator
“S” Button
Side Stand Down
Indicator
“M” Button
•
•
•
•
CAUTION :
Before battery installation, please do not use the kick starter to start the engine, in prevention.
Not to have trouble on electrical meter working, or damage the electrical meter.
Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such.
As gasoline…etc. to avoid damaging these components.
Speedometer:
This shows your speed in kilometers per hour (km/h)
and in mileage per hour (mph).
Odometer:
This odometer shows the total kilometers this motor has been driven.
Total kilometer : This shows the total kilometers of this scooter. It shows six digits; 5 in kilometers and 1 in
hundred meter. (The total kilometer will return to zero if it runs over 100,000 kilometers.)
Trip kilometer : The rider can measure the trip kilometers. It shows four digits; 3 in kilometers and 1 in
hundred meter. (The trip kilometer will return to zero if its measurement is over 1,000
kilometers.)
Turn Signal Indicator:
The left or right Indicator will be flashing according to the operated directions of turn signal
light switch when it is turned on.
Fuel Gauge:
The pointer in this gauge shows how much fuel remains in the tank.
The pointer stays in “E” position when key switch is turned to “OFF.”
When key switch is turned to “ON”, and the “pointer” also in “E” position (red area).Refuel immediately.
7. Use of each component
6
• Side Stand warning indicator:
When the side stand pulls down , the warning indicator tights on and the engine cannot be started ,when
the side stand raises up ,the indicator goes out and the engine can be started.
CAUTION:
Make sure the side stand is completely retrieved before riding to preventing causing danger.
ABS indicator light:(ABS Model)
Normally the ABS indicator light goes on when the ignition switch is turned on and goes off shortly after
the scooter starts moving.
The ABS (Anti-lock Brake System) indicator light goes on when the ignition switch is turned on and
goes off shortly after the scooter starts moving. If the ABS is normal, it stays off. If something is wrong
with the ABS, the indicator goes on and stays on. When the indicator light is on, the ABS does not
function but if the ABS fails, the conventional brake system will still work normally.
• Engine Coolant Temperature
To indicate engine coolant temperature.
When the main switch turns to “ON”, the LCD and the water temperature indicator keeps coming on.
Normally, the LCD indicator should be below the (H) position when the scooter is operating. If the LCD
indicator stays above (H) position, the water temperature indicator flashes. Please check the coolant level
of spare coolant tank and check cooling fan for proper operation.
CAUTION:
The indicator will stay above (H) position when engine is run under high temperature for a long period
of time. In this case, the only way to cool the engine is to stop the engine.
EFi Indicator
It displays the condition of the EFi system. If there is any problem in the EFi system, the warning
indicator will blink or light up all the time.
• Engine oil indicator
Engine oil indicator is for showing engine oil inspection / replacement time. When the vehicle is ridden for
approximately 5,000 kilometer, engine oil indicator illuminates which means engine oil inspection /
replacement is needed. Press “S” (Oil Reset) button to reset engine oil mileage. Engine oil indicator goes
off when the “S” button is pressed and the engine oil mileage will be recalculated from the current riding
mileage. Engine oil level should be checked every 1,000 kilometer and replaced every 5,000 kilometer.
7. Use of each component
7
Mileage Setting
1. Showing total distance and trip distance.
2. Key on and press the “M” button shortly to switch from odometer, tripmeter, clock and voltage gauge.
TOTAL
CLOCK
TRIP
CLOCK
TRIP
VOLTAGE
3. Press the “S” button for at least two seconds under tripmeter mode, the trip mileage can be erased.
Clock Setting
1. Showing 12-hour clock system.
2. After the main switch is on, the clock will show hour and minute.
3. Under the clock mode and the vehicle is still, press the “M” button for at least two seconds to enter
clock setting mode. Under the clock setting mode, press the “M” button shortly to switch setting item
(hour → tens digit of minute → units digit of minute). Press the “S” button shortly to increase the digit.
Under the clock setting mode, press the “M” button for at least two seconds to complete clock setting.
Battery Voltage Display
1. Showing the battery voltage.
2. After the main switch is on, the battery voltage will show at least 10 seconds and then clock shows.
CAUTION:
If the battery voltage is below 10.0V when the main switch is on, the light system is off and the engine is
not started, check the battery at SYM dealer.
If the battery voltage is below 10.0V or over 16.0V when the vehicle is moving, check the battery at SYM
dealer.
8
7. Use of each component
OPERATION OF IGNITION SWITCH
IGNITION SWITCH
"Start" position
• Engine can be started in this position.
• Ignition switch key can not be removed.
"Stop" position
• Engine is shut off and can not be started in
this position .
• Ignition switch key can be removed.
IGNITION SWITCH KEY
"Steering handle lock" position
• Turn the steering handle to left and press
ignition switch key down and then lightly turn it
to left to the “LOCK” position.
• The steering handle is locked in this position.
• Ignition switch key can be removed.
• When unlocking, simply turn the key from
“LOCK” to “OFF.”
position
• How to open : Insert your key into the ignition switch, and turn it to the left.
• How to lock : Push the seat and it locks automatically.
CAUTION:
• Never operate the ignition switch key when the scooter is running. To turn the ignition switch to
“OFF” and “LOCK,” will shut off the electrical system and that may result in a dangerous
accident. Therefore, the ignition switch can only be turned off after the scooter has been
completely stopped.
• Always remove the key and be sure to take the key away with you after locking the steering
handle before leaving your scooter.
• If ignition switch remains in the “ON” position for a prolonged period after the engine has been
stopped, the battery’s capacity will be reduced and this may affect the engine’s start ability.
7. Use of each component
8
USE OF BUTTONS
Passing switch
Engine Stop
Switch
High/Low Beam
Switch
Turn Signal Switch
Light Switches
Horn Switch
Electrical
Starter Button
Seat Open switch
• Light Switches
(If installed)
When the switch is turned to this position, headlight, position light, rear light, and panel light will
automatically be on or off according to the environment.
When the switch is turned to this position, headlight, position light, rear light, and panel light will
come on.
When the switch is turned to this position, position light, rear light, and panel light will come on.
Note:
Position Light Function:
This light can indicate the scooter position when the scooter is running in dim, rainy, or foggy weather.
• Engine Stop Switch
Switch to this position to turn off the engine when a state of emergency.
Switch to this position and the engine can be started.
• Seat open Switch
Turn ignition switch “ON” and press this button down. Then, the seat will unlock immediately.
This button will return to original position after releasing.
CAUTION:
Make sure to take the key away with you before you lock your seat.
7. Use of each component
9
• Electrical Starter Button
This is a starting motor button (switch) for engine starting.
With the main switch "ON", press this button while holding the front or rear brake lever will start
the engine.
CAUTION:
• Release this button immediately after engine has been started, and never press the button again
to avoid damaging the engine.
• This mechanism is a safety design. The engine can only be started after the front or rear brake
lever (pedal) has been applied.
• Do not use light system. Turn headlight and turn signal lights to the “OFF” position when the
engine is being started.
• High/Low Beam Switch
This is the high and low beam of headlight switching switch.
and low beams.
Press this switch to switch between high
This is for high beam.
This is for low beam. (Please turn to low beam when riding in city)
• Passing Switch
Turn ignition switch “ON” and press this button down. Then, the high beam of headlight will
come on immediately to warn the driver of the vehicle ahead that you intend to overtake him/her.
(For overtaking, high beam indicator will come on at this time) This button will return to original
position after releasing
• Horn Switch
Press this button down when ignition switch is in the “ON” position, the horn will sound.
CAUTION:
Do not press this button when you are in the area where there’s no honking.
Hazard Switch
The main switch in the〝 ON 〞 position, cuts
according to this switch, four directions
lantern festivals dodge extinguish do move,
also can simultaneously dodge on the
display board direction indicating lamp
extinguishes does moves. If stops the
vehicle has when the transportation frequent
dangerous position or the vehicle the
breakdown, may use the dangerous police to
show the switch.
The main switch in the〝 ON 〞 position,
hazard switch only then may close.
Fog lamp Switch (If installed)
This is for fog lamp.
7. Use of each component
10
Hazard Switch
Fog lamp Switch
• Turn Signal Switch
Turn signal lights are used when turning left/right or changing lane.
Turn ignition switch to “ON”, and slide the turn signal switch to left or right.
Then, the turn signal lights will flash.
To release, simply return the turn signal light button to the original position.
Right-side turn signal light flashing means you intend to make a right turn.
Left-side turn signal light flashing means you intend to make a left turn.
• Power supply comp
The accessory socket is inside the inner box .You can use the accessory socket to power a trouble
light, PDA, spotlight, radio, or cell phone, etc.
CAUTION:
Do not plug in any head-generating accessory such as an automobile cigarette lighter because it
can damage the socket.
Do not use the socket in raining day.
Do not splash water or other liquid on socket when using the socket.
To use accessory socket, turn the ignition switch ON to start the engine.
Then turn the headlights OFF , and open the accessory socket cap.
The accessory socket’s rated capacity is DC 12V, Max 120Watts (10A).
Power supply comp
POWER SUPPLY COMP:
1.Rated voltage: DC 12V
2.Control voltage scope:DC9V~16V
USB:
3.Output voltage:DC5V±5%
4.Maximum output current:500mA(Max)
5.Overloading short circuit protection:>1A
B
USB supply comp
A
PS:
Push the USB charger cover up (A position) and then open it (B position).
7. Use of each component
11
GOODS HOOK
• Hangs up the goods
Goods hook
SADDLE LOCK
• Unlock:
Insert the ignition switch key and turn to left to unlock.
• Lock:
Press the saddle down and it will be locked automatically.
After the saddle has been locked, check to make sure it has been locked properly by lightly lifting the
saddle.
CAUTION:
• Do not put the key inside the storage box after unlocking to avoid the key being locked inside the
storage box when the saddle is pressed down automatically.
• Be sure to remove the key after the saddle has been locked.
STORAGE BOX
• This box is located under the saddle.
• Maximum load capacity: 10kg.
• Do not store valuables in the box.
• Make sure that the saddle has been locked completely after it was pressed down.
• Take out valuables before washing to avoid wetting these objects.
• Do not place thermal sensitive objects in the box because of engine’s heat and high temperature.
ENGINE CONTROL SWITCH
This switch is located in the luggage box,
under the seat.
To set on the ENG. control switch, switch it to
〝 LOCK〞.
Switch to〝 UNLOCK〞,before start the
engine control switch
engine.
Be sure the seat locked preperly after set on
the switch.
PILLION STEP
• Press down the button and the pillion step goes
out.
Pillion
7. Use of each component
12
【Fuel refilling】
】
FUEL TANK CAP【
1. Insert the key into the fuel tank cap, turn it counterclockwise and pull out the fuel tank cap.
2. Put the fuel tank cap into the fuel cap hole, turn the key clockwise and lock the fuel tank cap.
Fuel tank cap
CAUTION:
• Main stand should be put down on the ground, engine should be shut off and flames should be
strictly prohibited to ensure safety when refueling.
• Do not fill above fuel upper limit when refueling. Otherwise, fuel will flow out through a hole on
the cap that may damage the body’s painting, in serious cases, it may cause a fire to burn down
the scooter.
• When refill the fuel, the flow rate should not be too big, in case of preventing the spurting to
cause danger.
• Make sure the cap has been tighten properly.
WARM AIR OUTLET
This is the warm air outlet. Turn the knob down
to " " position to open; turn the knob up to
"
" position to close.
OFF
ON
Warm air outlet
7. Use of each component
13
BRAKE
Pull the right brake lever to operate the front brake.
Pull the left brake lever to operate the front and rear brake simultaneously (CBS model).
Pull the left brake lever to operate the rear brake (ABS model).
• Avoid unnecessary sudden braking.
• Use front and rear wheel brakes simultaneously when braking.
• Avoid brake continuously for a long period of time because that may overheat the brakes and reduce its
braking efficiency.
• Slow down and brake early when riding in rainy days on slippery roads. Never apply the brakes suddenly
to prevent skidding and falling.
• Using only the front brake increases the risk of falling because the scooter is tend to pulled to one side.
• Even in motorcycles equipped with ABS, braking during cornering may cause wheel slip. When turning a
corner, it is better to limit braking to the light application of both brakes or not to brake at all. Reduce your
speed before you get into the corner.
ABS model
For Rear Wheel
For Front Wheel
CBS model
For Front Wheel And
For Front Wheel
Rear Wheel
《Engine Brake》
》
Return the throttle valve handle back to its original position, and apply engine brake.
It is necessary to apply both brake and engine brake intermittently when riding on a long or stiff slope.
7. Use of each component
14
CAUTION:
• Please check the engine oil and fuel volume are adequate or not before starting engine.
• To start engine the main parking stand must be firmly on the ground and the brake is applied on the
rear wheel to prevent the scooter from moving forward suddenly.
Turn ignition switch key to the “ON” position.
1. Apply rear wheel brake.
2. Do not accelerate, press starter button when the brake is applied.
1/8
1/4
[We care for you! Before drive off, keep the hand brake applied on the rear wheel.]
CAUTION:
• If engine can not be started after starter motor running for 3~5 seconds, turn the throttle valve handle
1/8~1/4 turns, and then press starter button again for an ease start.
• In order to avoid damaging the starter motor, please do not press the starter button continuously over
15 seconds.
• If engine still can not be started after pressing starter button over 15 seconds, stop and wait for 10
seconds before start it again.
• It is harder to get the engine started after the scooter has been left idle for a long time or after
refueling only after the fuel has been depleted. Then, it is necessary to press starting lever or starter
button several times, and keep the throttle valve handle at the close position to start the engine.
• It may need several minutes to warm up engine if it is a cold start.
• Exhaust contains harmful gases (CO), therefore please start the engine at a well ventilated place.
8. Important points and cautions for starting engine
15
• Turn on the turn signal light before moving, and make sure no vehicle is coming from behind.
Then, drive off.
THE CONTROL OF THROTTLE VALVE HANDLE
Deceleration
Acceleration
Acceleration : To increase speed. When
riding on an inclined road, turn the
throttle valve handle slowly to
allow the engine to output its
power.
Deceleration : To decrease speed.
PARKING METHOD
• When approaching the parking lot:
1. Turn on the turn signal light early, and pay attention to the vehicles in front, from rear, left and right,
then take the inner lane and approach slowly.
2. Return the throttle valve handle back to its original position, and apply brakes in advance. (Brake light
comes on when braking to warn drivers of vehicles behind.)
• When stop completely:
3. Press the turn signal switch back to its original position, and turn the ignition switch key to “OFF”
position to shut off the engine.
4. Get off the scooter from left side after the engine has been stopped, and select a parking place
where the scooter will not interfere with traffic and the ground is level, then put down scooter’s main
parking stand.
5. Hold the steering handle with your left hand, and hold down the front end of saddle or hold the
parking handle on the lower-left side of saddle with your right hand.
6. Press the main parking stand with your right foot, put down the main parking stand firmly on the
ground.
To remind you: Lock the steering handle and remove the key after parking to prevent the scooter from
being stolen.
CAUTION:
• Park your scooter at a safe place where it will not interfere with traffic.
• Should so as to ensure the flame-out engine the security of parking first while parking .
• Please cut off the engine for safety parking.
16
9. The best way to drive off
(Please refer to the components location diagram for the following components.)
ROUTINE INSPECTION
Check Items
Check Key Points
Engine Oil
Is there enough engine oil?
Fuel
Is it enough? Is it Octane 90 or above
Braking condition?
(Brake lever free play: 10~20mm)
Braking condition?
(Brake lever free play: 10~20mm)
Is tire pressure normal?
(Standard: 1.8kg/cm2)
Is tire pressure normal?
(Standard: 2.3 kg/cm2 for 1 person, 2.5 kg/cm2 for 2 persons)
Does the handle vibrate abnormally or is difficult to turn?
Is it operated properly?
Do lights come on? Can it be seen clearly from behind?
Front
Brake
Rear
Front
tires
Rear
Steering Handle
Speedometer, lights,
and rearview mirror
Tightness of Main
Components
Abnormal Points
Are screws, nuts loosen?
Do the previous troubles still exist?
CAUTION:
• If any problem founded during routine inspection, correct the problem before using the scooter again,
have your scooter checked and repaired by the “SYM dealer or authorized service personnel” if
necessary.
ENGINE OIL INSPECTION AND CHANGE
INSPECTION:
1. Use the main parking stand to support the scooter on a level ground, remove the dipstick after engine
stopped for 3~5 minutes. Wipe oil off the dipstick and then insert it into the guide tube again (Do not
rotate it.)
2. Remove the dipstick and check whether oil level is in between the upper and lower marks.
Add oil to upper limit if oil is under the lower limit. (Check cylinder, crankcase…etc for leakage.)
OIL CHANGE:
• Change engine oil after the first 1,000km, and change the engine
oil every 5,000km thereafter. Clean oil filter after the first 1,000km,
and clean oil filter every 6,000km.
• In order to maintain the engine’s maximum performance, check
whether the engine oil is enough every 1,000km. Add oil to upper
Upper
limit if the engine oil has been found to be inadequate.
• Engine Oil : Use API SJ, SAE 10w-40 grade or better engine oil.
Lower
Otherwise, damage will not be covered by warranty.
※Recommended Oil: SYM Genuine EXTRA 4X OIL.
• Oil Capacity :
GTS 300/250:1.4 Liter (1.2 liters for routine change),
oil filter change: 1.2 liters.
GTS 125:1.0 Liter (0.8 liters for routine change),
oil filter change: 0.8 liters.
10. Inspection and maintenance before riding
17
【Oil Filter Cleaning】
Open the filter nut assembly of the element, and
remove the element. Remove the foreign materials
from the element by using a gasoline or air spraying
gun.
WARNING:
• Oil level will not be correct when checking the oil level with the scooter parked on an unleveled
ground or immediately after the engine stopped.
• Engine and exhaust pipe are hot right after engine stopped. Pay special attention not to get burned
when checking or replacing engine oil.
FUEL INSPECTION
• Turn main switch key to "ON" position, and check fuel gauge's needle range to make sure there is enough
amount of fuel in the fuel tank.
• This scooter’s engine is designed for using the unleaded fuel of Octane 90 or above.
• Firmly secure the main stand on the ground, shut off the engine and keep flames away from the scooter
when refueling.
• Do not fill above fuel upper limit level when refueling.
• Make sure the fuel tank cap had been tighten properly.
• Ethanol in gasoline can not be more than 10%.
TRANSMISSION OIL INSPECTION AND CHANGE
INSPECTION:
• Use the main stand to support the scooter on a level ground, after
the engine stops, wait for 3~5 minutes. Remove the transmission oil
infusion bolt, put a measuring glass under the drain bolt, and
remove the drain bolt. Let the oil flows into measuring glass and
check for decreased or not.
(GTS 300/250:at disassembly: 180 cc. / at change: 160 cc).
(GTS 125:at disassembly: 110 cc. / at change: 100 cc).
OIL REPLACEMENT:
• Stop the engine and use the main stand to support your scooter on
a level ground. Remove the infusion bolt and drain bolt, drain out transmission
oil pours into
the oil.
• Install the drain bolt and tighten it. Fill new transmission oil (160
cc./ 100 cc), and install the infusion bolt and tighten it. (make sure
Gear oil drain plug
that bolts are tightened and check that there’s no leakage.)
※Recommend Oil:
Genuine SYM HYPOID GEAR OIL(SAE 85W-140).
Use SAE85-90 when outside temperature is below 0℃.
10. Inspection and maintenance before riding
18
INSPECTION AND ADJUSTMENT OF BRAKE FREE PLAY
INSPECTION: (Brake lever free play must be checked with the engine shut off.)
• Brake lever free play for front and rear wheels
When checking the hand-braking lever for front and rear wheels, its free play (the stroke of
hand-braking lever from no braking to initial braking) should be 10~20mm. It is abnormal if the feel is
spongy when holding the hand-braking lever forcefully.
10~20 mm
DISK BRAKE INSPECTION (Applicable for model equipped with disc brake.)
(Leak, damaged, looseness of brake line)
• Visual check brake lines for leakage, or damage,
check brake lines connections for looseness using
a wrench or similar tool, and check whether
steering handle vibration in driving, or any parts'
interference may have damage the brake lines. If
so, bring your scooter to your SANYANG dealer for
repairing or service.
Hose connection
CAUTION:
• Please drive your scooter on a dry road surface slowly and operate front and rear brakes in order to find
out if there is any malfunction so as to ensure the scooter is at its optimum condition and safe to ride.
10. Inspection and maintenance before riding
19
﹙Checking front brake lining﹚
﹚
• Check the brake from behind the brake
caliper. The brake pad must be replaced with
new lining when the brake pad wear limit
reaches the brake disk.
﹙Checking oil quantity in brake oil reservoir﹚
﹚
• Park the scooter on a level ground, and check
if fluid level is under the “LOWER” mark.
Recommended Brake Fluid: WELL RUN
BRAKE OIL (DOT 3).
Brake caliper
Brake pad wear
limit grooves
Brake disk
﹙Replenishment of front wheel brake fluid﹚
﹚
1. Loosen the screws and remove the master
cylinder cover.
2. Wipe clean foreign materials , dirt around the
reservoir, being careful not to let foreign materials
fall into the reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper level.
5. Install the diaphragm plate and the diaphragm,
and install the master cylinder cover.
6. Please note the diaphragm direction, and do not
let foreign materials fall into the reservoir. And
tighten the master cylinder cover securely.
Screw
Master
cylinder cover
Diaphragm
Upper
Brake fluid
CAUTION:
• To prevent chemical reaction, please do not use brake fluids other than those recommended.
• Do not fill above the upper limit when adding brake fluid and avoid dropping on painting or plastic
components to prevent damage.
THROTTLE VALVE HANDLE CLEARANCE ADJUSTMENT
• Correct clearance allows throttle vale handle to rotate 2~6mm.
• Loosen the lock nut first, then turn the adjust nut to adjust.
Tighten the lock nut securely when finished.
Check Items:
1. Check throttle valve cable to see if it can be moved smoothly
from a closed position to a wide open position.
2. Rotate steering handle from side to side to check if the throttle
valve cable is interfered.
3. Check to see if the throttle valve cable is obstructed by other
cables preventing it from being operated smoothly.
2~6mm
Lock nut
Adjust nut
10. Inspection and maintenance before riding
20
INSPECTION AND MAINTENANCE OF BATTERY
• This scooter is equipped with a maintenance-free type battery, so it is unnecessary to check and add
electrolyte. Have your scooter checked by SYM Authorized Dealer or Franchised Dealer should any
abnormality is found.
〈Cleaning of battery terminals﹚
﹚
Remove the battery terminals and clean if there are
dirt and corrosion on them.
Negative
Battery removal procedures are as follows:
Turn ignition switch “OFF”, then open the battery
cabinet door, and remove negative cable screw
Positive
firstly and disconnect the negative cable. Then,
remove positive cable screw and positive cable.
CAUTION:
• Clean the battery posts with warm water if the posts are eroded and have some white powders on
them.
• If there is an obvious erosion on the terminals, disconnect the cables, then clean the erosion off with
a steel brush or a piece of sandpaper.
• Install battery cable after cleaning and apply a thin coat of grease on the terminals.
• Install battery in reverse order of removal.
• This scooter is equipped with a maintenance-free type battery, so it is unnecessary to check and add
electrolyte. Have your scooter checked by SYM Authorized Dealer or Franchised Dealer should any
abnormality is found.
CAUTION:
• This is a closed type battery. Never remove the caps.
• In order to prevent electrical leakage and self-discharge when the battery sits idle for periods longer
than 15 days, remove the battery from scooter and store it in a well-ventilated and dimly lighted
area. Store battery out of reach of children. If the battery is to be kept on the scooter, disconnect the
battery’s negative cable.
• If the battery needs to be replaced, replace with a same closed-type battery (Maintenance-Free).
• Do not disconnect the battery cables from the battery when the engine is running to prevent
any electronic parts from being damaged.
10. Inspection and maintenance before riding
21
TIRE INSPECTION
• Tires should be checked and inflated with the engine shut off.
• If a tire’s ground contacting curve is abnormal, check it with an air pressure gauge and inflate it to the
specified pressure.
• Tires pressure must be checked with an air pressure gauge when cold.
PLEASE REFER TO SPECIFICATIONS FOR STANDARD TIRE PRESSURE
Foreign
materials (nails
or small stones)
Crack and
damage
Tread wear
indicator
• Visual check tires for frontal and lateral side
walls for crack or damage.
• Visual check tires for any nails or small stones
wedged in the tread.
• Check the “tread wear indicator” condition to see
if tread groove depth is insufficient.
• A tire with a wear bar showing is worn out and
should be replaced immediately.
CAUTION:
• Abnormal tire pressure, wear, or crack is the most important cause that results in the loss control of
the steering handle and a punctured tire(s).
STEERING HANDLE FRONT SHOCK ABSORBERS INSPECTION
• Perform this check with engine shut off and ignition switch key
removed.
• Visual check front shock absorbers for damage.
• Operate steering handle up and down, and check front shock
absorbers for noises due to bends.
• Check the bolts and nuts of front shock absorbers with wrenches
for tightness.
• Shake steering handle up & down, left & right, and front & rear to
check if it is loosen, has too much resistance and pulls to one side.
• Check steering handle if it is being pulled too tight by the brake
cables.
• Take your scooter to SYM Authorized Dealer or Franchised Dealer
for a check or adjustment if any abnormal conditions are found.
10. Inspection and maintenance before riding
22
REAR CUSHION HARDNESS SETTING
The rear cushion is 4 stage adjustable type. It’s set
at 3th stage when manufactured, and you can adjust
it depending on your need. Turn the adjust collar of
the cushion to adjust it’s hardness.
CAUTION:
• Turn counterclockwise to harden it, and turn
clockwise to soften it.
• Mark sure adjust both cushion at the same time
to be sure the riding stability.
hard
soft
CHECKING AND CHANGING FUSES
Turn off ignition switch, and check fuses if they are intact. Replace the blown fuse with a new one having the
same specified amperage rating . Using a fuse of more than 20 or 15 amperes, a brass or iron wire to
replace a blown fuse is strictly prohibited to avoid damaging the electrical system and the circuit.
• Remove the storage box, and you’ll find the fuse box near light.
• Open the fuse box cover, and pull out the fuse. Check it for damage or broken.
• Fuses must be firmly secured with wire connectors when replacing. Loose connections will result in
overhead and damage.
• Use only parts having the specified specification to replace electrical components such as light bulbs.
Using parts not having the specified specifications for replacement may cause the fuse to blow and
over-discharge the battery.
• Avoid spraying water directly on or around fuse box when washing the scooter.
• Take your scooter to your dealer for an inspection if a fuse is blown by unknown causes.
Fuse box
Burned fuse
CHECKING THE TURN SIGNAL LIGHTS AND HORN
• Turn the ignition switch key to “ON” position.
• Turn on the turn signal light switch, and make sure that the front & rear and left & right signal lights flashes
and also check if the warning buzzer sounds.
• Check turn signal light covers if they are dirty, crack, or loosen.
• Press horn button to check if it works.
CAUTION:
• Specified specification bulbs should be used for turn signal lights. Otherwise, the normal operation
of turn signal lights will be affected.
• Turn on the turn signal light before turning or switching lane to warn driver of vehicles behind.
• Turn off the turn signal light immediately by pressing its button down after using. Otherwise, the
flashing of twin signal lights may confuse the drivers of vehicles behind.
10. Inspection and maintenance before riding
23
CHECKING THE FRONT AND REAR LIGHTS
• Start engine and turn on the head lamp switch. Check if head lamp and rear lamp come on.
• Check the brightness and direction of front light by wall to see if it is correct.
• Check the head lamp cover if it is dirty, crack, or loosen.
CHECKING THE BRAKE LIGHT
• Turn the ignition switch key to “ON” position, hold the hand-braking levers for front and rear wheels.
Check if the brake lights come on.
• Check the brake light cover if it is dirty, crack, or loosen.
CAUTION:
• Use only specified specification bulbs, do not use bulbs with different specifications to avoid
damaging electrical system, burning out bulbs, and discharging the battery.
• Do not modify or add other electrical components to prevent over load or short circuit which may
result in a fire and burn down the scooter in serious cases.
CHECKING FOR FUEL LEAKAGE
• Check fuel tank, fuel cup, fuel hoses, carburetor for leakage.
CHECING THE LUBRICATION OF BODY’S VARIOUS MECHANISMS
• Check the body’s pivot points if they have enough lubrication.
(For example, the pivot points on the main stand, the side stand, and the brake lever…etc.)
CHECKING THE SPARK PLUG
• Remove the cap of spark plug cable (remove the spark plug using the spark plug wrench in the tool kit.
• Check the electrode if it is dirty or fouled by carbon deposits.
• Remove the carbon deposits on the electrode with steel wire, and clean the spark plug with gasoline,
then, wipe dry with a rag.
• Check the electrode, and adjust its gap to 0.8 mm. (Check it with a feeler gauge)
• Hand tight the spark plug as far as it can go and then tighten it another 1/2~3/4 turns with a wrench.
Spark plug cap
0.7~0.8mm
WARNING:
The engine is very hot after running. Pay attention not to get burned.
※Use only spark plugs suitable for the engine specifications of this scooter recommended by the
manufacturer. (Refer to specifications.)
10. Inspection and maintenance before riding
24
COOLING SYSTEM INSPECTION
(Checking coolant lever)
1. Support vehicle with main stand on a level ground.
2. Check reserved tank from viewing window to see if coolant level is between the upper limit and lower
limit mark.
3. Add coolant up to upper mark if coolant is close to the lower mark.
(Check the cooling system for leakage)
• Check radiator and piping for leakage.
• Check the ground where the vehicle is parked for water dripped from the vehicle.
REPLENISHMENT OF COOLANT
Always keep radiator cap tightly closed.
1. Support vehicle on a level ground in a straight
up position.
2. Open the battery cabinet door.
3. Open surge tank cap, refill coolant until reaches
the upper mark.
• If coolant level becomes too low and occurs too
often, it may indicate there is something wrong
with the coolant system.
• To avoid radiator getting rusty, do not use
coolants other than those recommended.
Coolant recommended: SYM Bramax radiator
agent Concentration: 50%
Radiator coolant capacity: 1,400 cc.
10. Inspection and maintenance before riding
25
CAUTION:
• Use soft water when mixing coolant.
• Please pay special attention that using poor quality coolant may shorten the service life of the
radiator.
• Coolant should be changed once a year normally.
CAUTION:
Please refer to a table showing what percentage of anti-freeze should be used under different
temperatures if the vehicle is to be operated in the low temperature areas. (below 0℃)
A reference table for anti-freeze concentration percentages under different temperatures
1. Radiator anti-freeze specification for this scooter is H68. (SYM Bramax radiator agent)
2. Proper anti-freeze percentages for different frozen temperatures are as follows:
Anti-freeze percentage
Frozen temperature
20%
-8
30%
-15
40%
-24
50%
-36
Remark
50% concentration is used
for all scooters before
delivery to ensure the
effectiveness of
anti-freeze.
3. If the specified anti-freeze is unavailable, use an equivalent with the same high quality.
4. Increase radiator maintenance intervals when the weather is extremely cold.
CRANKCASE BLOW-BY VENTILATION
Pull out the plug from draining hose to clean deposits
CAUTION:
• When always riding in rainy area or full throttle position, maintenance travel must be shorted. The
deposits can be seen in the transparent section of draining hose.
Blow-by hose
10. Inspection and maintenance before riding
26
CHECKING THE AIR CLEANER
《DISASSEMBLE PRCEDURE》
1. Remove mounting screws from air cleaner cover.
2. Remove the air cleaner cover, then remove filter element.
3. Take the element out and clean it. (Refer to maintenance schedule.)
《ASSEMBLE PRCEDURE》
• Assemble the air cleaner in reverse order of disassemble.
Screw
Screw
Element
CHECKING THE LEFT CRANKCASE COVER AIR CLEANER
《DISASSEMBLE PRCEDURE》
1. Remove mounting screws from left crankcase cover.
2. Remove the left crankcase cover, then remove filter element.
3. Take the element out and clean it. (Refer to maintenance schedule.)
《ASSEMBLE PRCEDURE》
• Assemble the air cleaner in reverse order of disassemble.
Screw
Left crankcase cover
air cleaner
CAUTION:
• Dust deposit is one of the major causes of reducing output horsepower and increasing fuel
consumption.
• Change the air cleaner element more frequently to prolong the engine’s service life if the scooter is
driven on dusty roads very often.
• If air cleaner is installed improperly, dust will be absorbed into cylinders, which may cause a
premature wear and reducing output power and engine life.
• Be careful not to soak the air cleaner when washing the scooter. Otherwise, it will cause engine
hard to start.
10. Inspection and maintenance before riding
27
DIAGNOSIS WHEN ENGINE DOES NOT START
(1). Has the ignition switch key been turned to
“ON” position?
(2). Anti-thief switch stir to〝
position?
For Rear Wheel
(3). Is there enough fuel in the fuel tank?
UNLOCK〞
For Front Wheel
(4). Is the rear or front wheel brakes applied when
pressing starting button?
1/8
1/4
Turn signal
light switch
Horn button
(5). Do you rotate the throttle valve handle while
pressing starting the button?
(6). Turn the ignition switch key “ON”, and press
horn button down, if the horn does not sound,
the fuse may have been blown.
【Have your scooter checked by SYM authorized dealer or franchised dealer immediately if there are no
problems with the above items and engine still can not be started.】
28
11. When there is an abnormal condition or a trouble
The charge and discharge principle of a condenser is adopted for the C.D.I system to supply electrical
energy created by generator’s coil, to the ignition coil in accordance with specified ignition timing so that the
spark plug may generate sparks as required.
13. SUGGESTIONS ON ENGINE FUEL
• This scooter is designed to use UNLEADED gasoline of Octane No. 90 or higher.
• If the scooter is operated in high attitude (where the atmosphere pressure is lower), it is suggested that the
air/fuel ratio should be readjusted to maximize the engine performance.
14. TRANSMISSION OIL
• Recommended Oil: Genuine SYM HYPOID GEAR OIL (SAE 85W-140)
Use SAE85-90 when outside temperature is below 0℃.
15. CAUTIONS FOR RIDING SCOOTER
1. Raise the scooter with the main stand, and sit on the saddle.
Push the scooter forwarding to raise the main parking stand.
CAUTION:
• Never rotate the throttle valve handle at will to increase the engine RPM before driving off.
2. Get on the scooter from the left side, and sit on the saddle properly, keep your feet firmly on the
ground to prevent the scooter from falling.
CAUTION:
• Apply brake on the rear wheel before driving off.
3. Rotate the throttle valve handle slowly, and then the scooter will begin to move.
CAUTION:
• Rapidly rotate the throttle valve handle may cause the scooter moving forward suddenly and it is
very dangerous.
• Make sure the side parking stand is spring back completely before driving off.
【Do not use the brake suddenly and make a sharp turn】
】
• Rapid braking and sharp turning will cause slip and fall.
• Rapid braking or sharp turning will cause slipping, lateral slipping, or fall especially in rainy days when the
road is wet and slippery.
【Drive with extreme caution during rainy days】
】
• The brake distance in rain day or on wet road will longer than that on a dry road. Therefore, slow down
and prepare to apply the brake earlier.
• The throttle valve handle should be released, and the brakes should be properly applied as it is needed
while reducing the speed when going down a slope.
12. C.D.I. Electrical Ignition System
29
Maintenance kilometer
Every
1,000km
Every
5,000km
Every
10,000km
Every
15,000km
1 Month
3 Months
6 Months
1 Year
I
I
C
1
2
Check
Maintenance Interval
Items
Air cleaner element*
Oil filter (mesh filter)
3
Engine oil
R
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Tire, pressure
Battery
Spark plug
Carbon Deposit cleaning on Throttle valve
Steering bearing and handles
Check Transmission for leakage
Check crankcase for leakage
Transmission Oil
Brake Fluid
Drive Belt/roller/Drive Pulley
Fuel tank tubes and Fuel filter
Throttle valve operation and cable
Bolts and nuts
Cam Chain
Valve clearance
Shock absorbers
Front/rear suspension
Main/side stand
Crankcase Blow-by system (PCV)
Coolant
Cooling fan, tubes
Clutch, Clutch outer, Driven pulley
Brake mechanism/brake lining (pads) **
Light, Switches and Electrical system
I
I
I
I
I
I
I
R
R
Cleaning every 10,000km
second replace at 5,000km. Further
replacement every 5,000km
I
I
I
I
I
I
I
I
I/L
I
I
I
I
I
I
I
I
R
I
I
I
I
Replacement for every 10,000km
Replacement for every 20,000km
C
R
I
I
I
I
I
I
I
I/L
C
I
R
I
C
I
I
Code: I ~ Inspection, cleaning, and adjustment R ~ Replacement
C ~ Cleaning (replaced if necessary)
L ~ Lubrication
* Replace the filter every 5000km under dusty environment. Never use compressed air to clean the filter. Replace if
necessary.
** Clean and replace the internal component of brake caliper, master cylinder every 10000km if necessary.
Replace brake fluid every 2 years / 30000km.
Replace brake hose every 4 years / 60000km.
☆ The above maintenance schedule has to be done if either mileage or duration had reached its designated
maintenance criteria.
If any problem or question raised about your scooter, please contact your SYM authorized dealer
regardless the service schedule.
☆ Have your scooter checked and maintained periodically by your SYM Authorized Dealer or
Franchised Dealer to keep the scooter at the optimum condition.
☆ Check and maintain your scooter more frequently if necessary, such as frequently high speed / long
distance driving, dusty environment, etc.
17. Specification
31
Model
Item
Specification
GTS 300i EVO
GTS 250i EVO
GTS 125i
GTS 125
LN30W1-6
LN25W1-6
LN12W1-6
LN12W2-6
Length/ width / Height
2,160 mm / 760 mm / 1,420 mm
Net Weight
192 kg
187 kg
168 kg
maximum load
342 Kg
337 kg
318 Kg
Type
4- stroke 4V electroplated ceramic cylinders engine
Fuel
UNLEADED(OCTANE 92 OR HIGHER)
Water-cooled
Cooling type
Displacement
Compression ratio
Max. HP
Max. torque
Starting methods
Front shock absorber
Rear shock absorber
Clutch
Transmission
Front tire
Rear tire
Front rim
Rear rim
Wheel
Tire pressure
Front brake
Rear brake
Front light bulb(high, low)
Brake light bulb(tail light)
License light bulb
Turn signal light bulb
Engine oil capacity
Transmission oil capacity
Fuel tank capacity
Fuse
Spark plug
Battery capacity
Air cleaner
Fuel tank cap
Front light
Rear grab frame
278.3
249.4 cc
124.5cc
10.5:1
29 ps /
8,000 rpm
2.79 kgf-m /
6,500 rpm
23.4 ps /
13.1 ps /
12.2 ps /
8,000 rpm
9,000 rpm
8,750 rpm
2.31 kgf-m /
1.13 kgf-m /
1.07 kgf-m /
5,500 rpm
7,000 rpm
8,250 rpm
Electrical
TELESCOPE
UNIT SWING
Centrifugal type
CVT
120 / 70-14
140 / 60-13
140 / 60-13
MT 14×3.0
MT 13×3.5
MT 13×4.0
Aluminum alloy
Front: STD 1.8kg / cm2,
Rear: STD 2.3 kg / cm2 for 1 person,2.5 kg / cm2 for 2 person
Disc type (Ø 260 mm)
Disk type (Ø 240mm)
12V 35W / 35W
LED
LED
LED×2 / 12V 21W×2
1.4 L (1.2 L for change)
1.0 L (0.8 L for change)
180 cc. (160 cc. for change)
110cc (100 cc. for change)
12 L
30A×1, 20A×1, 10A×1, 15A×2
NGK CR 8E
12V 10Ah
12V 8Ah
Paper type
Open lock type
General type (single)
Can not load cargo
17. Specification
31
Anti-lock brake system
ABS is designed to help prevent the wheel from locking up when hard brakes are applied while running
straight. The ABS automatically regulates brake force. Intermittently gaining gripping force and braking
force helps prevent wheel lock-up and allows stable steering control while stopping.
Brake control function is identical to that of a conventional motorcycle. The brake lever is used for the
front brake and the brake pedal for the rear brake.
Although the ABS provides stability while stopping by preventing wheel lock-up, remember the following
characteristics:
• ABS cannot compensate for adverse road conditions, misjudgement or improper application of brakes.
You must take the same care as with motorcycles not equipped with ABS.
• ABS is not designed to shorten the braking distance. On loose, uneven or downhill surfaces, the stopping
distance of a scooter’s with ABS may be longer than that of an equivalent motorcycle without ABS. Use
special caution in such areas.
• ABS will help prevent wheel lock-up during straight-up braking, but it cannot control wheel slip which may
be caused by braking during cornering. When turning a corner, it is better to limit braking to the light
application of both brakes or not to brake at all.. Reduce your speed before you get into the corner.
• The computers integrated in the ABS compare vehicle speed with wheel speed. Since non-recommended
tires can affect wheel speed, they may confuse the computers, which can extend braking distance.
CAUTION:
ABS cannot protect the rider from all possible hazards and is not a substitute for safe riding practices. Be
aware of how the ABS system operates and its limitations. It is the rider’s responsibility to ride at
appropriate speeds and manner for weather, road surface and traffic conditions.
